IEI Integration TUS3400 Terason Ultrasound System User Manual
IEI Integration Corp. Terason Ultrasound System
User Manual.pdf
uSmart3400
Page 1
IEI Technology Corp.
User Manual
Panel PC
MODEL:
uSmart3400
Rev. 1.01 – 22 October, 2013
uSmart3400
Page 2
Revision
Date Version
Changes
17 September, 2013
1.00 Initial release
uSmart3400
Page 3
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order
to improve reliability, design and function and does not represent a commitment on
the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for
identification purposes only and may be trademarks and/or registered trademarks
of their respective owners.
uSmart3400
Page 4
Table of Contents
1. INTRODUCTION
………………………………………………………………...5
1.1 OVERVIEW……………………………………………………………………….6
1.2 DIMENSIONS…………………………………….……………………………….7
1.3 SPECIFICATIONS………………………………….…………………………….9
2 UNPACKING
………………………………………………………………………11
2.1 UNPACKING…………………………………………………………………….12
2.2 PACKING LIST………………………………………………………………….13
3 INSTALLATION
…………………………………………………………………14
3.1 ANTI-STATIC PRECAUTIONS…………….………………………………….15
3.2 INSTALLATION PRECAUTIONS…………………………………………….15
3.3 PREINSTALLED COMPONENTS…………………………………………….16
3.4 REMOVING THE BACK COVER……………………………………………..17
3.5 REMOVING THE CONSOLE………………………………………………….18
4 SYSTEM MAINTENANCE
……………………………………………………19
4.1 SYSTEM MAINTENANCE INTRODUCTION….……………………………20
4.2 MOTHERBOARD REPLACEMENT………………………………………….20
4.3 BACK COVER REMOVAL…………………………………………………….20
4.4 CONSOLE REPLACEMENT…………………………………………………..21
4.5 SO-DIMM REPLACEMENT…………………………………………………...21
5 SAFETY PRECAUTIONS
……………………………………………………...23
A.1 SAFETY PRECAUTIONS……………………………………….......…………24
A.1.1 General Safety Precautions………………………………………..………...24
A.1.2 Anti-static Precautions……………………………………………..………...25
A.1.3 Product Disposal ……………………………………………………………26
A.2 MAINTENANCE AND CLEANING PRECAUTIONS………………………26
A.2.1 Maintenance and Cleaning..…………………………………………………26
A.2.2 Cleaning Tools…………………………………………………………..…….27
A.2.3 Federal Communication Commission Interference Statement……………28
6 HAZARDOUS MATERIALS DISCLOSURE
…………………...........…...29
B.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS
CERTIFIED AS ROHS COMPLIANT UNDER 2002/95/EC WITHOUT
MERCURY…………………………………………………………………………...30
uSmart3400
Page 5
1 Introduction
Chapter
1
uSmart3400
Page 6
1.1 Overview

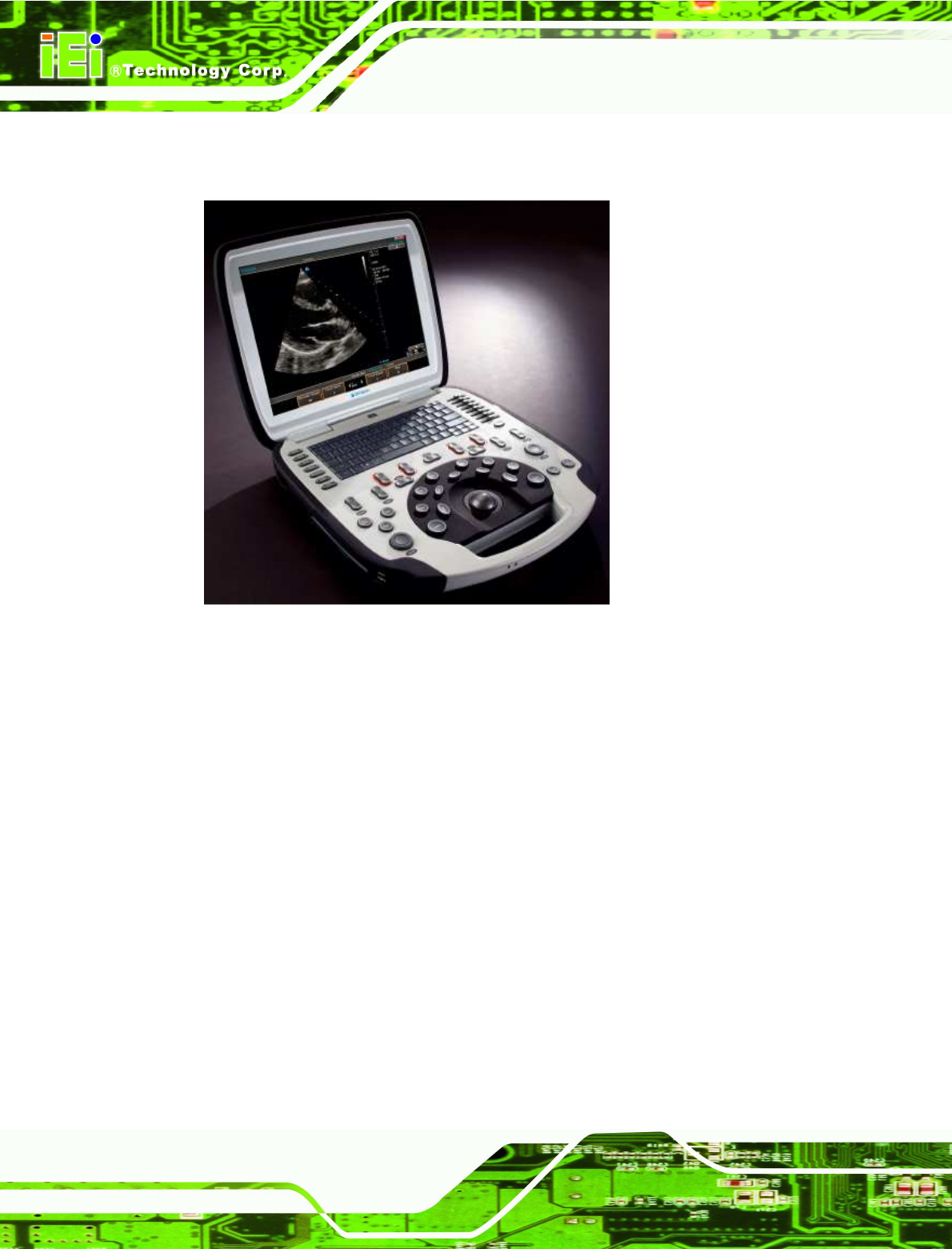

Figure 1-1: uSmart3400 Portable Computer
The uSmart3400 portable computer provides all the features of a PC. The
uSmart3400 provides wireless networking for integration into company/facility
networks. The major external device connections include USB 2.0 and serial port
connectors. Storage options include a 2.5” hard drive, allowing for flexibility in
choosing solid state drives or traditional hard drives. 2 HDMI outputs on the leftside
allows the uSmart3400 to connect to a second/third screen for duplicating the
screen contents or extending the user interface.
uSmart3400
Page 7
1.2 Dimensions
uSmart3400
Page 8

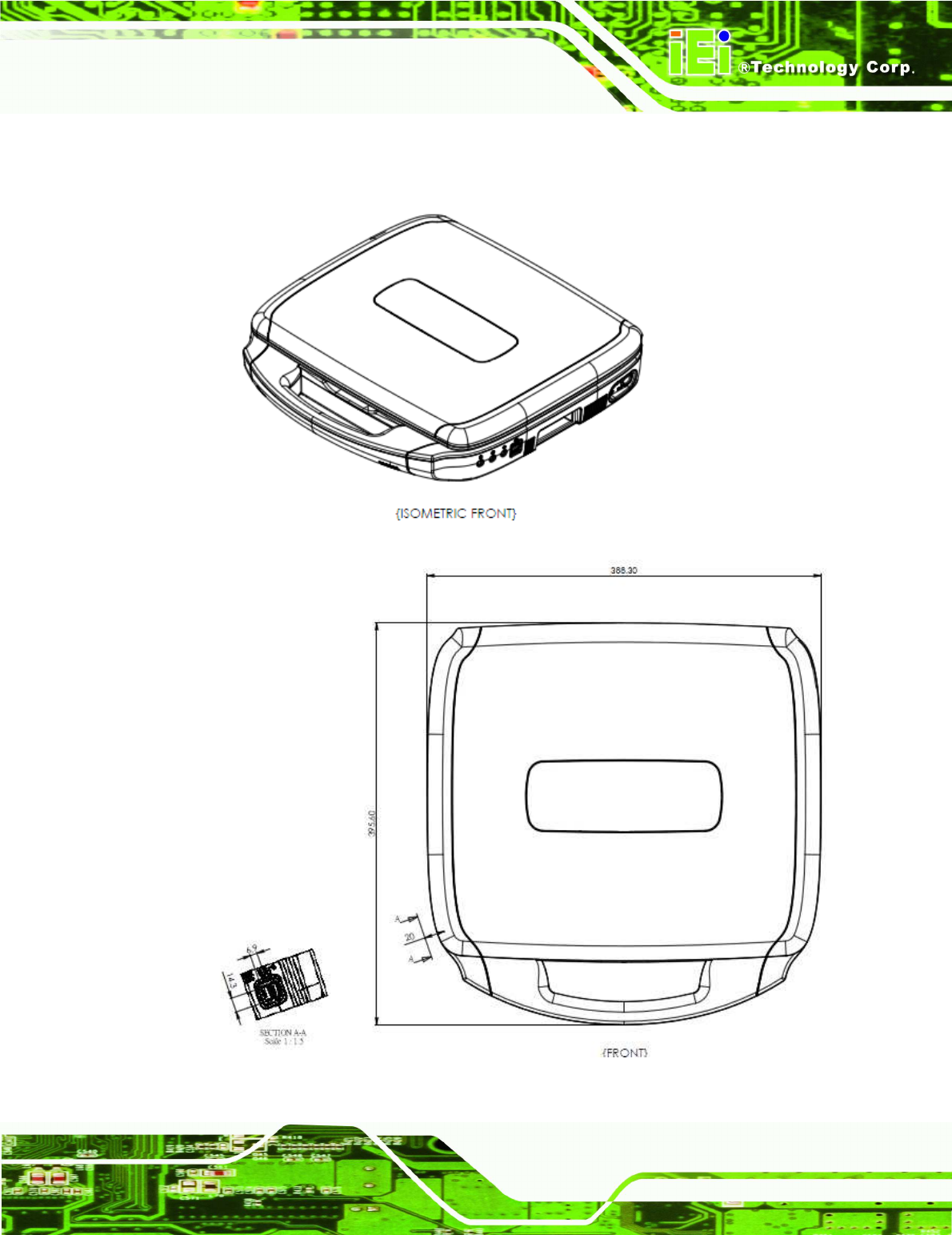

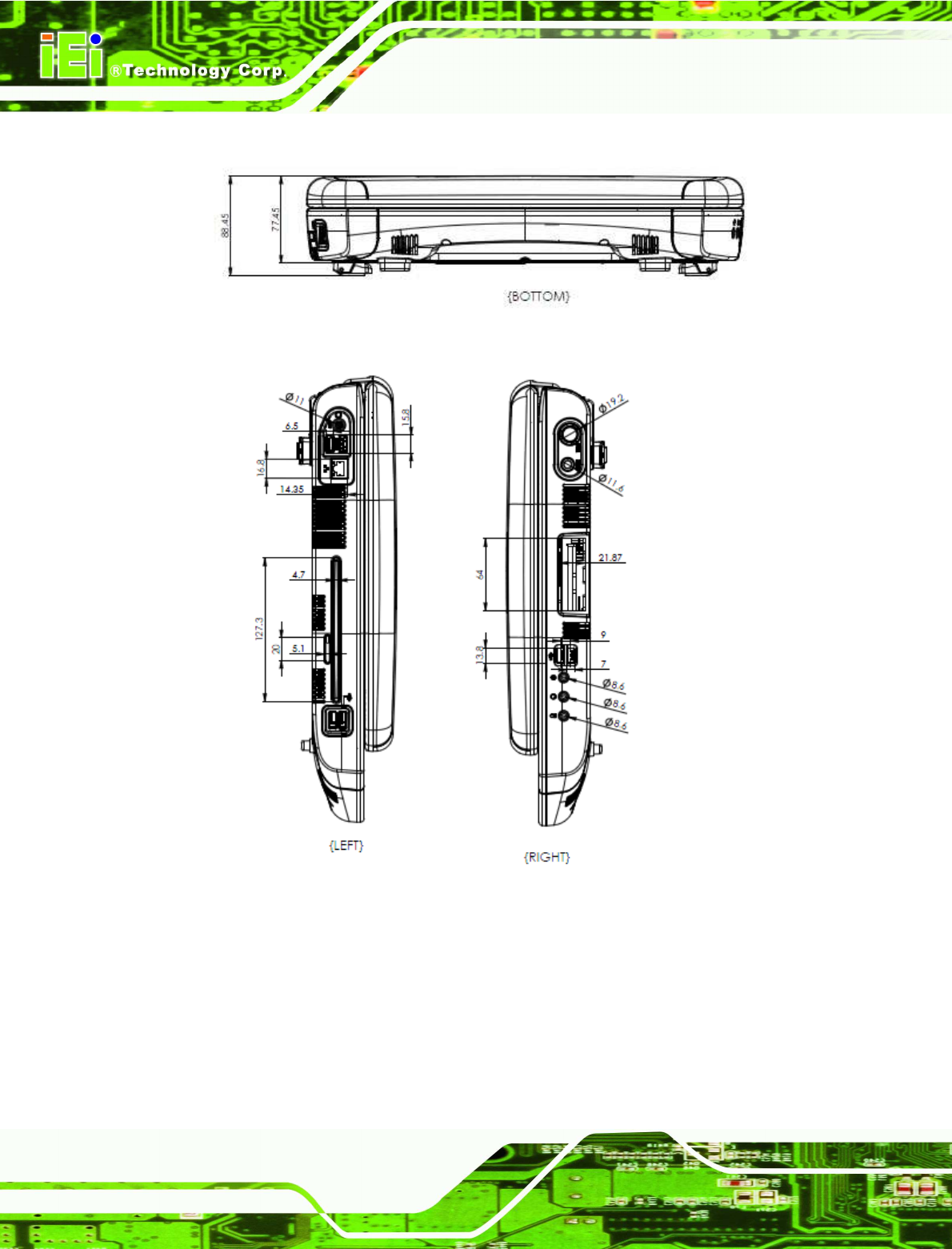

uSmart3400 Dimensions (mm)
uSmart3400
Page 9
1.3 Specifications
The technical specifications for the uSmart3400 system are listed in below table.
Model Name uSmart
martmart
mart3400
MB
SBC Model TRN-HM65-MB
CPU 2nd Generation Intel® Core™i7-3555LE processor
Chipset Intel HM65
RAM 2 x 4G DDR3 1333 SO-DIMM (Support ECC)
Display
LCD Size 15"
Max Resolution 1024x768
Brightness (cd/m2)
minimum of 300 nits
Contrast Ratio 500:1
LCD Color 16.2M
Pixel Pitch (mm) 0.297(H) x 0.297(V)
Viewing Angle (H-V)
170(H)/ 170(V)
I/O Port
1x Power DC-JACK Connector
1x RJ-45 Connector For LAN
4x USB2.0 port
2 x HDMI connector
1xExt Power Switch connector
1xLine in Jack connector
1x Line out Jack connector
LED
Sleep LED Blue
Charging LED
Bi-color, blue or amber. It is amber when
charging, and blue when fully charged and the power adapter is
connected.
Storage 1 x 2.5" 1T HDD
Main Module
DVD 1 x Slot-in DVD, 8x SuperDrive DVD +/‐ R DL/DVD +/‐RW, CD‐ RW
WiFi 1 x Wireless LAN 802.11/b/g/n module by internal Mini PCIe interface
Speaker 2 x stereo speakers + 1 x sub‐woofer (internal speaker)
Console 1 x Keyboard/Trackball Console
Camera module Up to UXGA resolution (1600X1200) to take still image, support VGA
(640x480) resolution up to 30fps at YUY2 mode
uSmart3400
Page 10
Physical
Construction
Material PC+ABS
Dimension (WxHxD)
388.3*395.6*88.45 (mm)
Weight 6.8kg
Magnetic Latch
a. Magnet size：30mm x 8mm x 6mm.
b. Q'ty : 8pcs (B part*4, C part *4)
c. Open/Close Force : 2.0kgf ~ 2.5kgf.
Environment
Operation
Temperature 0~35°C
Storage
Temperature 0~60°C
Power Battery SANYO UR18650FK, 11.1V, 5400mah, 3S2P=59.94WH
Power Supply Power adapter: medical grade AC/DC adapter, Output: 19 VDC
OS Windows 7 32bit
Others Logo Terason, illuminated logo
Flip-down feet
uSmart3400
Page 11
2 Unpacking
Chapter
2
uSmart3400
Page 12
2.1 Unpacking
To unpack the Portable Computer, follow the steps below:
WARNING!
The front side LCD screen has a protective plastic cover stuck to the
screen. Only remove the plastic cover after the panel PC has been
properly installed. This ensures the screen is protected during the
installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side
of the external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side
of the internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the portable computer.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
uSmart3400
Page 13
2.2 Packing List
The u Smart3400 is shipped with the following components:
Quantity
Item Remark
1 U Smart3400
1 EKG Cable
(P/N: TRN-32025-003200-100-C-RS)
1 Power Adapter
(P/N: TRN-63040-010120-020-RS)
Packing List
If any of the above items are missing or damaged, contact the distributor or sales
representative immediately.
uSmart3400
Page 14
3
Installation
Chapter
3
uSmart3400
Page 15
3.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the maintenance may
result in permanent damage to the system and severe injury to the
user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the u Smart3400. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the u Smart3400 is accessed internally, or any other
electrical component is handled, the following anti-static precautions are strictly
adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband
can help to prevent ESD from damaging the board.
Self-grounding: - Before handling the board touch any grounded
conducting material. During the time the board is handled, frequently
touch any conducting materials that are connected to the ground.
Use an anti-static pad: - When configuring the u Smart3400, place it on
an antic-static pad. This reduces the possibility of ESD damaging the
uSmart3400.
Only handle the edges of the PCB: - When handling the PCB, hold the
PCB by the edges.
3.2 Installation Precautions
When installing the portable computer, please follow the precautions listed below:
Power turned off: When installing the portable computer, make sure the
power is off. Failing to turn off the power may cause severe injury to the
body and/or damage to the system.
Certified Engineers: Only certified engineers should install and modify
onboard functionalities.
uSmart3400
Page 16
Anti-static Discharge: If a user open the portable computer to configure
the jumpers or plug in added peripheral devices, ground themselves
first and wear and anti-static wristband.
3.3 Preinstalled Components
The following components are all preinstalled.
Motherboard
DDR3 memory module
TFT LCD
System cooling fans
CPU
HDD
Wi-Fi module
Optical disk drive
uSmart3400
Page 17

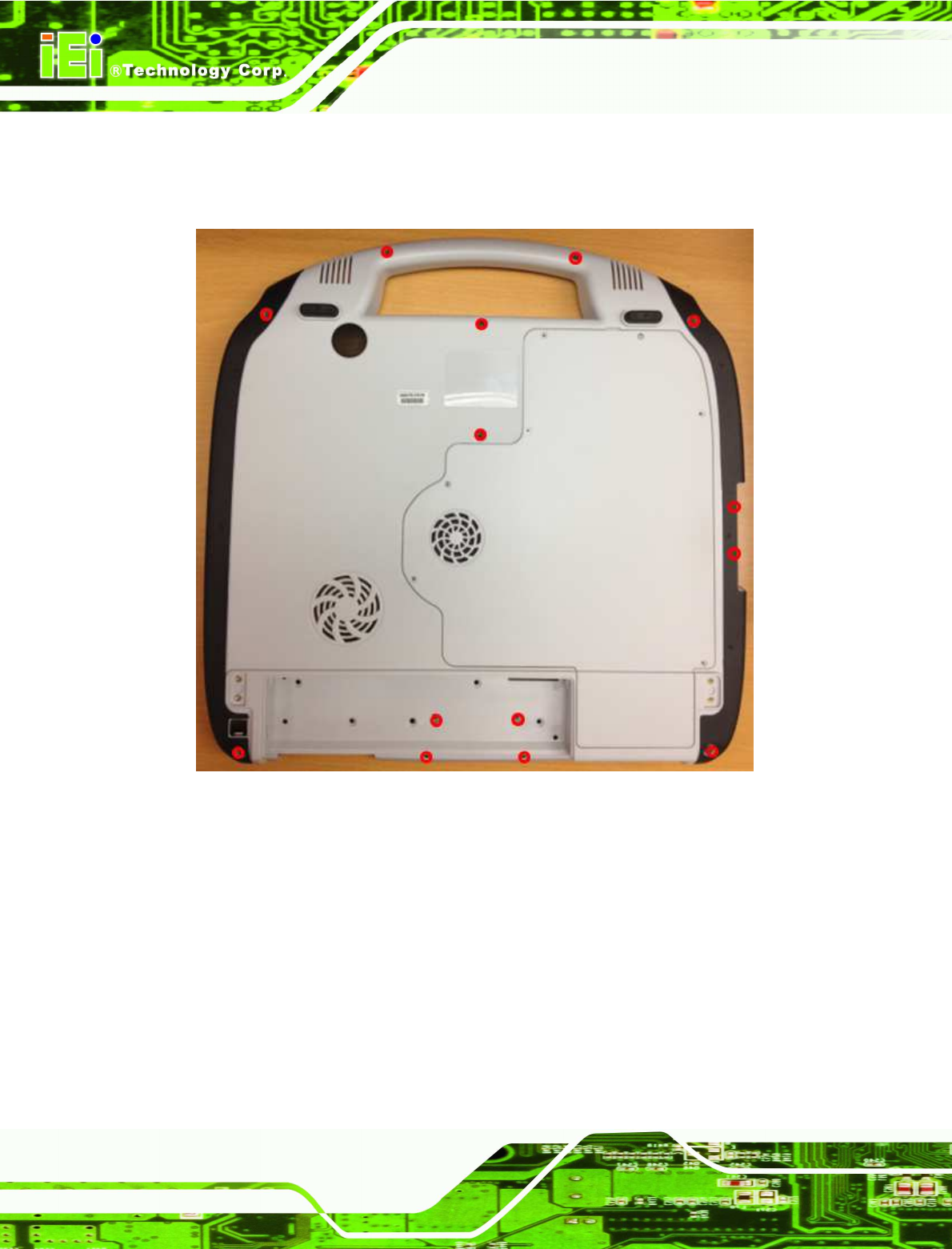

3.4 Removing the Back Cover

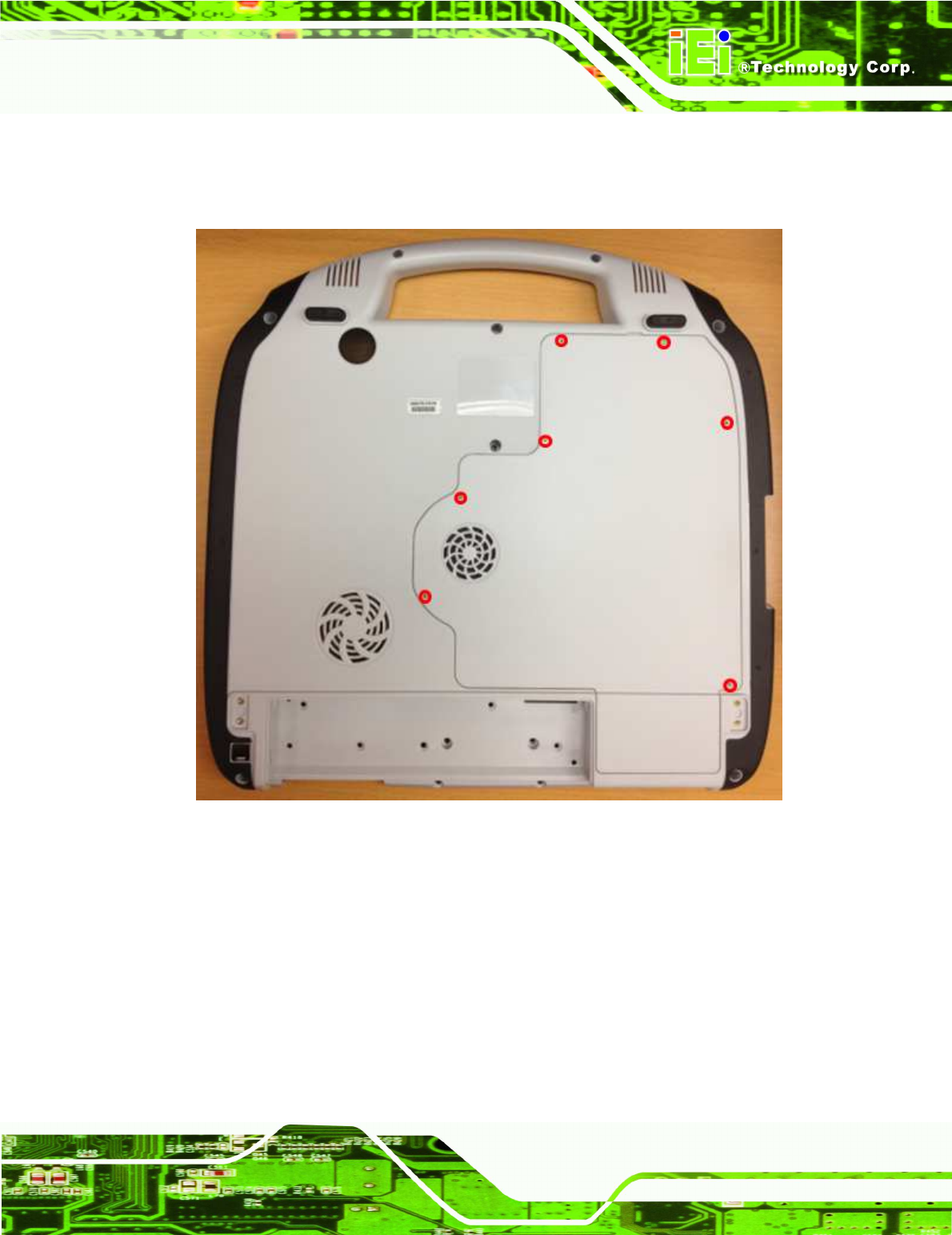

Remove all the retention screws on the back cover. Lift the cover up to remove.
uSmart3400
Page 18
3.5 Removing the Console
Remove all the retention screws on the chassis base. Lift the console up to remove.
uSmart3400
Page 19
Chapter
4
4 System Maintenance
uSmart3400
Page 20
4.1 System Maintenance Introduction
The following system components may require maintenance.
Motherboard
SO-DIMM module
Wifi module
Cooling fans
HDD
If these components fail, they must be replaced. Please contact the system reseller
or vendor to purchase replacement parts. Replacement instructions for the above
listed components are described below.
4.2 Motherboard Replacement
A user cannot replace a motherboard. If the motherboard fails it must be shipped
back to IEI to be replaced. If the system motherboard has failed, please contact the
system vendor, reseller or an IEI sales person directly.
4.3 Back Cover Removal
WARNING!
Before removing the back cover, make sure all power to the
system has been disconnected. Failing to do so may cause severe
damage to the uSMART3400 and injury to the user.
To access the HDD and install ECG, ultrasound module, the back cover must be
removed. To remove the back cover, please refer to Section
599H
599H599H
599H
4 for removal
instructions.
uSmart3400
Page 21
4.4 Console Removal
WARNING!
Before removing the console, make sure all power to the system
has been disconnected. Failing to do so may cause severe
damage to the uSMART3400 and injury to the user.
WARNING!
Please take antistatic precautions when working with the internal
components. The interior of the uSMART3400 contains very
sensitive electronic components. These components are easily
damaged by electrostatic discharge (ESD). Before working with
the internal components, make sure all anti-static precautions
described earlier have been observed.
To access the portable computer internal components, the console must be
removed. To remove the console, please refer to Section
599H
599H599H
599H
錯誤! 找不到參照來源。 for
console removal instructions.
4.5 SO-DIMM Replacement
Please read the warnings at the beginning of the previous section before attempting
to access any uSMART3400 internal components.
To install/replace the SO-DIMM modules, please follow the steps below.
Step 1: Remove the Console (Section
600H
600H600H
600H
錯誤! 找不到參照來源。).
Step 2: Locate the SO-DIMM module on the motherboard.
Step 3: Release the SO-DIMM module by pulling both the spring retainer clips
outward from the socket.
uSmart3400
Page 22
Step 4: Grasp the SO-DIMM module by the edges and carefully pull it out of the
socket.

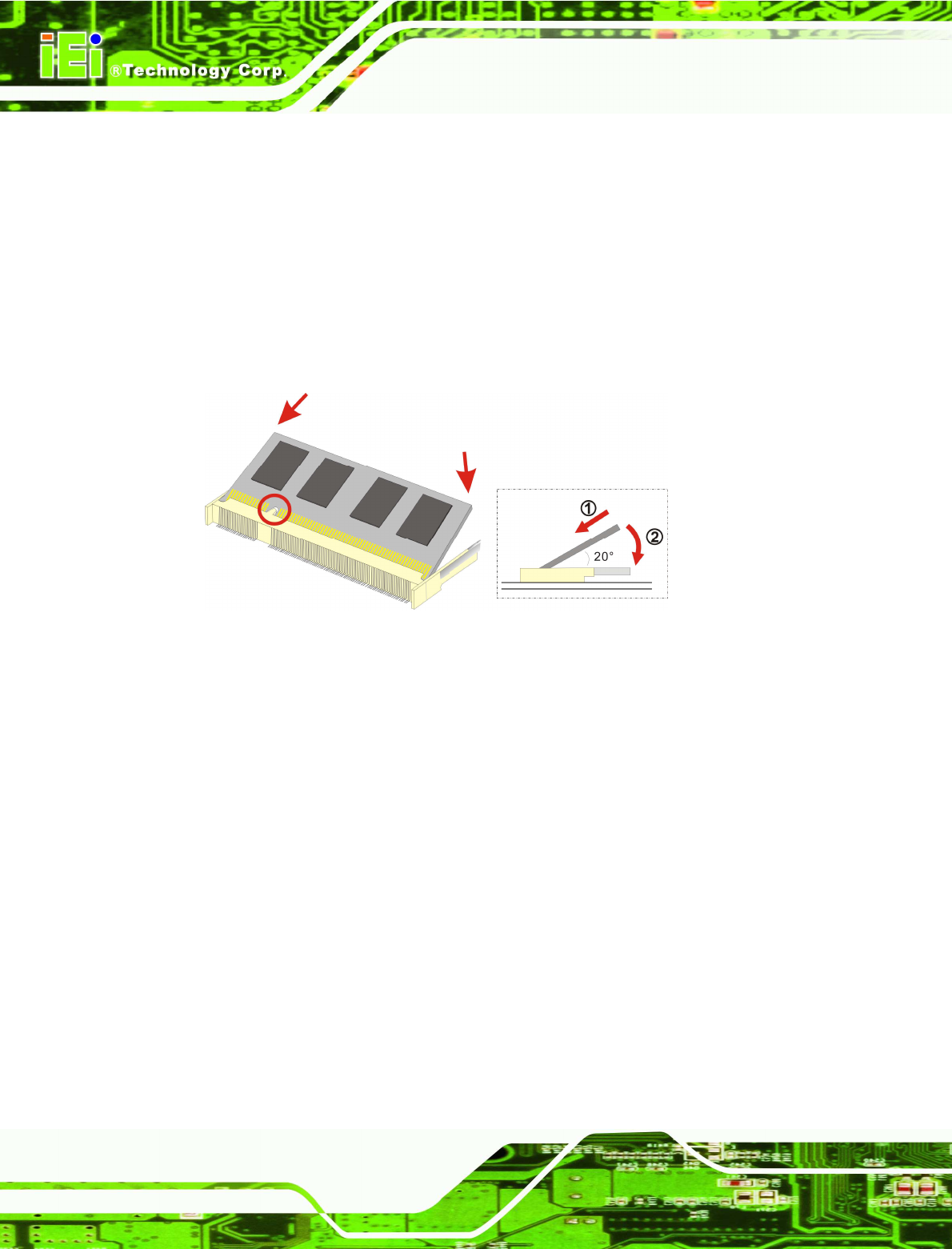

Step 5: Install the new SO-DIMM module by pushing it into the socket at an angle
(Figure 4-1).
Step 6: Gently push the rear of the SO-DIMM module down (Figure 4-1). The spring
retainer clips clip into place and secure the SO-DIMM module in the
socket.
Figure 4-1: SO-DIMM Module Installation
Step 7: Push the new DIMM module until it engages and the white plastic end clips
uSmart3400
Page 23
A Safety Precautions
Chapter
5
uSmart3400
Page 24
WARNING:
The precautions outlined in this chapter should be strictly
followed. Failure to follow these precautions may result in
permanent damage to the system.
A.1 Safety Precautions
Please follow the safety precautions outlined in the sections that follow:
A.1.1 General Safety Precautions
Please ensure the following safety precautions are adhered to at all times.
Follow the electrostatic precautions outlined below whenever the EP
series is opened.
Make sure the power is turned off and the power cord is disconnected
whenever the EP series is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the chassis is opened when the system is
running.
Do not drop or insert any objects into the ventilation openings of the
portable computer
If considerable amounts of dust, water, or fluids enter the portable
computer, turn off the power supply immediately, unplug the power cord,
and contact the system vendor.
DO NOT:
o Drop the portable computer against a hard surface.
o Strike or exert excessive force onto the LCD panel.
o Touch any of the LCD panels with a sharp object
o In a site where the ambient temperature exceeds the rated
temperature
uSmart3400
Page 25
A.1.2 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
system may result in permanent damage to the system and severe
injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the uSMART3400. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the uSMART3400 is opened and any of the electrical
components are handled, the following anti-static precautions are strictly adhered
to.
Wear an anti-static wristband: Wearing a simple anti-static wristband
can help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component
is handled, frequently touch any conducting materials that are
connected to the ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility
of ESD damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.
uSmart3400
Page 26
A.1.3 Product Disposal
CAUTION:
Risk of explosion if battery is replaced by and incorrect type. Only
certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local
regulations.
Outside the European Union - If you wish to dispose of used electrical
and electronic products outside the European Union, please contact
your local authority so as to comply with the correct disposal method.
Within the European Union:
EU-wide legislation, as implemented in each Member State, requires
that waste electrical and electronic products carrying the mark (left)
must be disposed of separately from normal household waste. This
includes monitors and electrical accessories, such as signal cables
or power cords. When you need to dispose of your display products,
please follow the guidance of your local authority, or ask the shop where you
purchased the product. The mark on electrical and electronic products only applies
to the current European Union Member States.
Please follow the national guidelines for electrical and electronic product disposal.
A.2 Maintenance and Cleaning Precautions
When maintaining or cleaning the uSMART3400, please follow the guidelines below.
A.2.1 Maintenance and Cleaning
Prior to cleaning any part or component of the uSMART3400, please read the details
below.
Except for the LCD panel, never spray or squirt liquids directly onto any
uSmart3400
Page 27
other components. To clean the LCD panel, gently wipe it with a piece of
soft dry cloth or a slightly moistened cloth.
The interior of the uSMART3400 does not require cleaning. Keep fluids
away from the EP series interior.
Be cautious of all small removable components when vacuuming the
uSMART3400.
Turn the uSMART3400 off before cleaning it.
Never drop any objects or liquids through the openings of the
uSMART3400.
Be cautious of any possible allergic reactions to solvents or chemicals
used when cleaning the uSMART3400.
Avoid eating, drinking and smoking within vicinity of the uSMART3400.
A.2.2 Cleaning Tools
Some components in the uSMART3400 may only be cleaned using a product
specifically designed for the purpose. In such case, the product will be explicitly
mentioned in the cleaning tips. Below is a list of items to use when cleaning the
uSMART3400.
Cloth – Although paper towels or tissues can be used, a soft, clean
piece of cloth is recommended when cleaning the uSMART3400.
Water or rubbing alcohol – A cloth moistened with water or rubbing
alcohol can be used to clean uSMART3400.
Using solvents – The use of solvents is not recommended when
cleaning the uSMART3400 as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers
is one of the best methods of cleaning the uSMART3400. Dust and dirt
can restrict the airflow in the uSMART3400 and cause its circuitry to
corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water
are excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such
as foam swabs for cleaning.
uSmart3400
Page 28
A.2.3 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all US
model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation
channels only.
uSmart3400
Page 29
B Hazardous Materials
Disclosure
Chapter
6
uSmart3400
Page 30
B.1 Hazardous Material Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without Mercury
The details provided in this appendix are to ensure that the product is compliant
with the Peoples Republic of China (China) RoHS standards. The table below
acknowledges the presences of small quantities of certain materials in the product,
and is applicable to China RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally
Friendly Use Period” (EFUP). This is an estimate of the number of years that these
substances would “not leak out or undergo abrupt change.” This product may
contain replaceable sub-assemblies/components which have a shorter EFUP such
as batteries and lamps. These components will be separately marked.
Please refer to the table on the next page.
uSmart3400
Page 31
Part Name Toxic or Hazardous Substances and Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
X
O O O O
X
Display X
O O O O
X
Printed Circuit
Board
X
O O O O
X
Metal Fasteners
X
O O O O
O
Cable Assembly
X
O O O O
X
Fan Assembly X
O O O O
X
Power Supply
Assemblies
X
O O O O
X
Battery O
O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is
below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for
this part is above the limit requirement in SJ/T11363-2006
