IEI Integration WIFI-RT3593-DB WIRELESS LAN MODULE User Manual Wireless LAN Module
IEI Integration Corp. WIRELESS LAN MODULE Wireless LAN Module
WIFI-RT3593-DB_User Manual_Rev1.pdf
WIFI-RT3593-DB
Page 1
IEI Technology Corp.
User Manual
WIFI-RT3593-DB
MODEL:
Wireles s LAN Module with RT3593 single chip,
3T3R, dual band, RoHS
Rev. 1.00 - 6 July, 2012
WIFI-RT3593-DB CPU Card
WIFI-RT3593-DB
Page 2
Revis ion
Date Version Changes
6 July 2012 1.00 Initial release
WIFI-RT3593-DB
Page 3
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
WIFI-RT3593-DB
Page 4
Table of Contents
1 INTRODUCTION .......................................................................................................... 1
1.1 INTRODUCTION ........................................................................................................... 2
1.2 FEATURES ................................................................................................................... 2
1.3 DIMENSIONS ............................................................................................................... 3
1.4 TECHNICAL SPECIFICATIONS ...................................................................................... 4
1.5 PIN DEFINE ................................................................................................................. 5
2 UNPACKING ................................................................................................................. 6
2.1 ANTI-STATIC PRECAUTIONS ........................................................................................ 7
2.2 UNPACKING PRECAUTIONS ......................................................................................... 7
2.3 PACKING LIST ............................................................................................................. 8
3 SOFTWARE DRIVERS ................................................................................................ 9
3.1 OVERVIEW ................................................................................................................ 10
3.2 DRIVER INSTALLATION ............................................................................................. 10
3.3 WIRELESS CONFIGURATION ...................................................................................... 13
A HAZARDOUS MATERIALS DISCLOSURE ......................................................... 16
A.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 17
B FCC STANDARDS ...................................................................................................... 19
B.1 COMPLIANCE INFORMATION .................................................................................... 20
C END PRODUCT LABELING ................................................................................... 22
C.1 END PRODUCT LABELING ........................................................................................ 23
WIFI-RT3593-DB
Page 5
Lis t of Figures
Figure 1-1: WIFI-RT3593-DB .......................................................................................................... 2
Figure 1-2: WIFI-RT3593-DB Dimensions (mm) ........................................................................... 3
Figure 3-1: License Agreement ...................................................................................................10
Figure 3-2: Setup Type .................................................................................................................11
Figure 3-3: Configuration Tool ....................................................................................................11
Figure 3-4: Ready to Install the Program ...................................................................................12
Figure 3-5: Setup Status ..............................................................................................................12
Figure 3-6: Installation Complete ................................................................................................13
Figure 3-7: Main Menu ..................................................................................................................13
Figure 3-8: Available Networks ...................................................................................................14
Figure 3-9: Authentication and Encryption ................................................................................14
Figure 3-10: WPA Preshared Key ................................................................................................15
WIFI-RT3593-DB
Page 1
1 Introduction
Chapter
1
WIFI-RT3593-DB
Page 2
1.1 Introduction

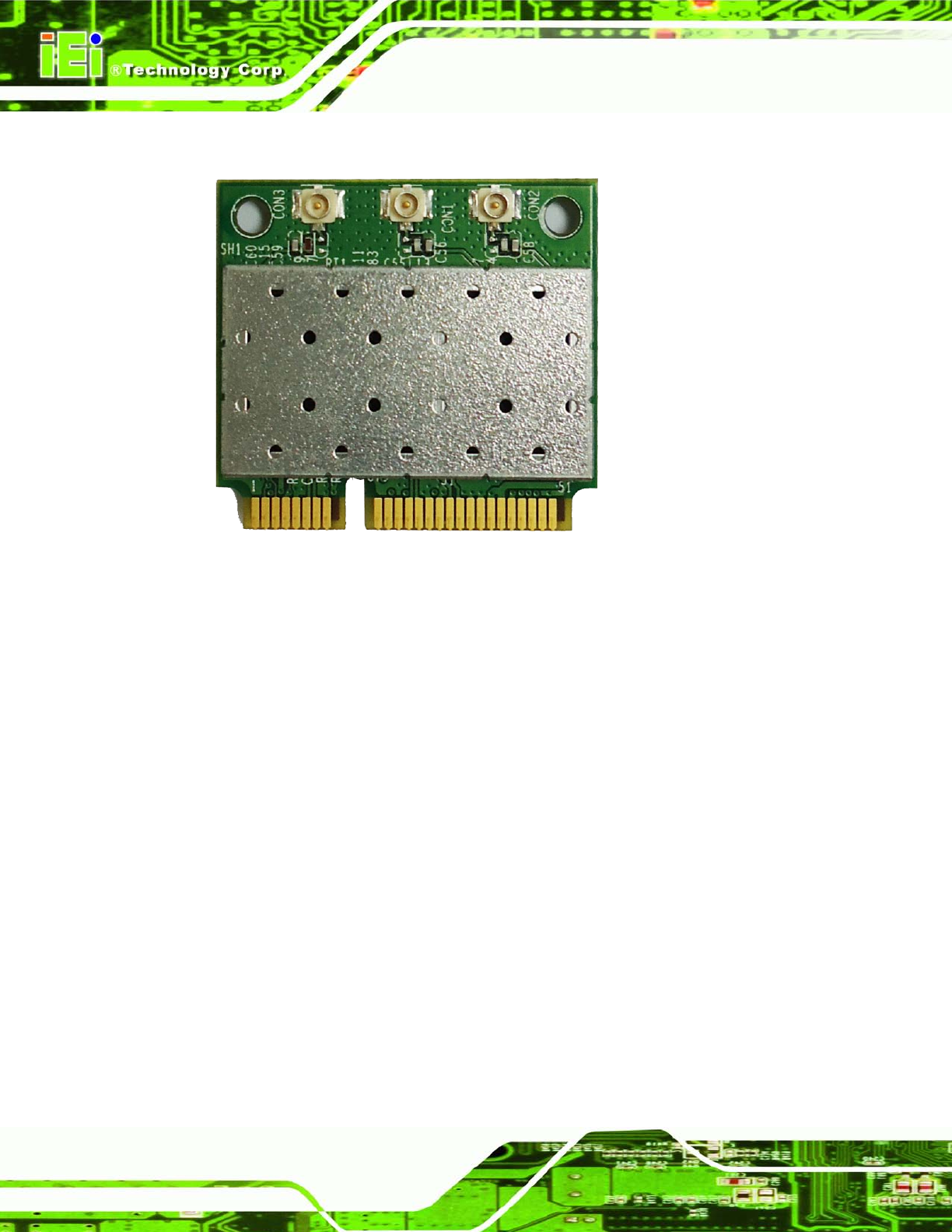

Figure 1-1: WIFI-RT3593-DB
The WIFI-RT3593-DB is a mini PCI-Express half-size wireless LAN module. It complies
with the IEEE 802.11a/b/g/n standard and supports 3Tx/3Rx 3-stream MIMO to enable
data rates up to 450Mbps for a 40MHz channel.
The integrated PCIE Wi-Fi RT3593 single chip supports 802.11x authentication, WEP
64/128, WPA, WPA2, WAPI encryption and guarantees the wireless network security.
This product is compatible with a variety of operating systems, including Windows XP,
CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, Windows 7 32/64, Linux and MAC. It has
features such as strong signal, long distance transmission, low power consumption, and
high performance.
1.2 Features
Some of the WIFI-RT3593-DB wireless LAN module features are listed below:
PCIe Half-Size Mini card
Dual band 802.11a/b/g/n supports 3Tx/3Rx 3-stream MIMO to enable data
rates up to 450Mbps for a 40MHz channel.
20MHz/ 40MHz bandwidth
WIFI-RT3593-DB
Page 3
Solid design with external antenna diversity
Low power consumption with advanced power management
Supports 802.11x authentication, WEP 64/128, WPA, WPA2, WAPI
encryption.
Supports operating systems-Windows XP, CE6.0, XPE, 2000, ME, 98SE,
Vista 32/64, Windows 7 32/64, Linux, MAC
1.3 Dimensions
The dimensions of WIFI-RT3593-DB are listed below:
Width: 28 mm
Depth: 30 mm
Height: 4 mm

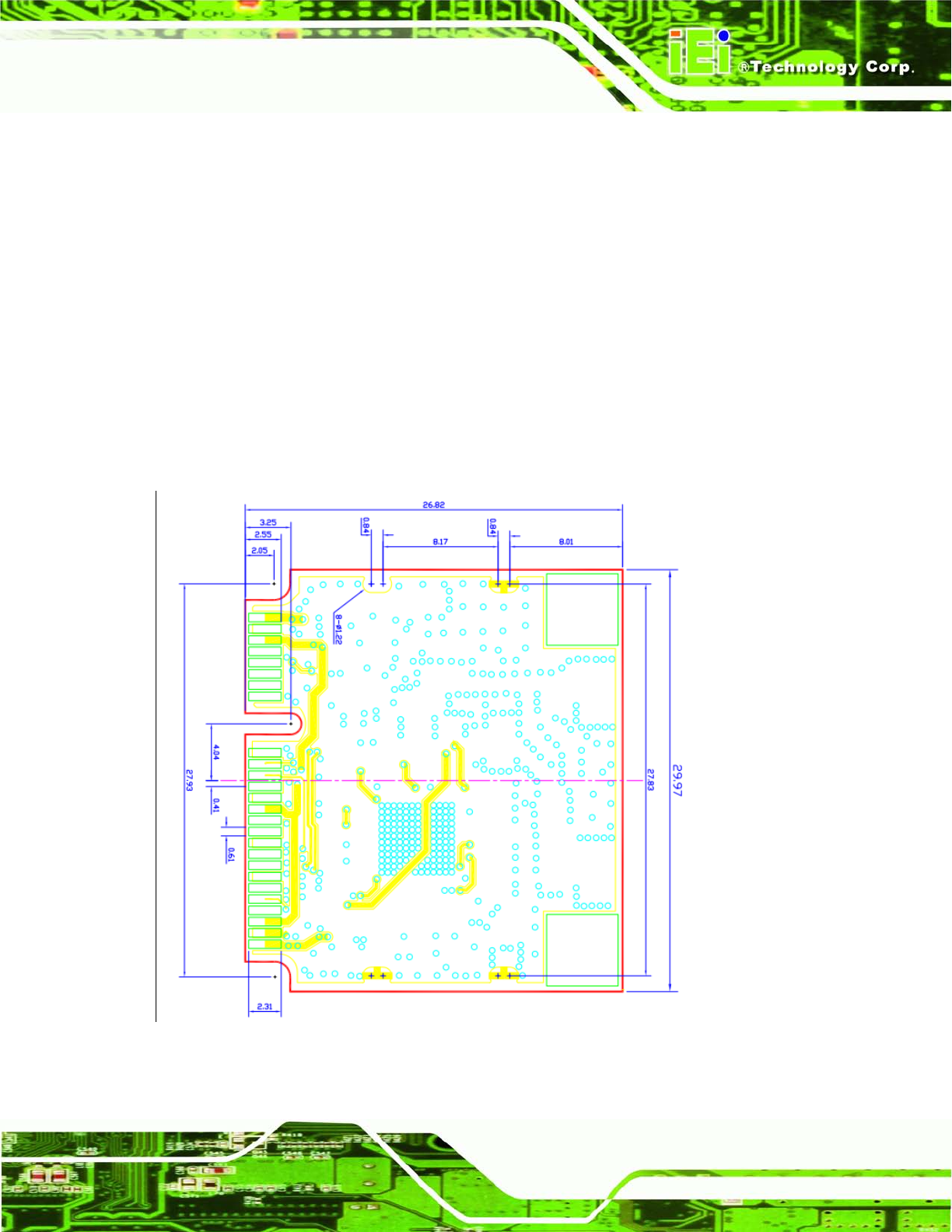

Figure 1-2: WIFI-RT3593-DB Dimensions (mm)
WIFI-RT3593-DB
Page 4
1.4 Technical Specifications
WIFI-RT3593-DB technical specifications are listed in table below.
Model WIFI-RT3593-DB
Standards IEEE 802.11a/b/g/n, Wi-Fi compliant
Rate 450 Mbps PHY rate in 3T3R mode
Interface PCIe Mini card
Controller Chip Ralink RT3593
Connectors 3 x U.FL (I-PEX) antenna connectors
Security WEP 64/128, WPA, WPA2, WAPI
Frequency Range 2.4/5GHz
Modulation Type 802.11a (OFDM)
802.11b (DSSS): CCK, DQPSK, DBPSK
802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM
802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM
Supported OS Windows XP, CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, Windows
7 32/64, Linux, MAC
Receiver Sensitivity 802.11a: -71dBm (Typical) at 54 Mbps
802.11b: -80dBm (Typical) at 11 Mbps
802.11g: -73dBm (Typical) at 54 Mbps
802.11n: -71dBm (Typical) at 450 Mbps
Power Consumption 430mA@3.3V in continuous Tx
460mA@3.3V in continuous Rx
Temperature Operating: -10°C ~ 70°C, Storage: -40°C ~ 150°C
Humidity Operating: 10% ~ 90%, non-condensing
Storage: 5% ~ 95%, non-condensing
Dimensions (W x D x H) 28 mm x 30 mm x 4 mm
Weight NW: 11g
Table 1-1: WIFI-RT3593-DB Technical Specifications
WIFI-RT3593-DB
Page 5
1.5 Pin Define
The pinouts of WIFI-RT3593-DB are listed below:
Pin No. definition Pin No. definition
1 NC 2 3.3V
3 BT_DATA 4 GND
5 BT_CHCLK 6 1.5VIN
7 CLKREQ# 8 NC
9 GND 10 NC
11 REFCK_P 12 NC
13 REFCK_M 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 RFTXDIS#
21 GND 22 PERST#
23 PETX0_M 24 3.3V
25 PETX0_P 26 GND
27 GND 28 1.5VIN
29 GND 30 NC
31 PERX0_P 32 NC
33 PERX0_M 34 GND
35 GND 36 NC
37 GND 38 NC
39 3.3V 40 GND
41 3.3V 42 NC
43 GND 44 LD2_YN
45 NC 46 NC
47 NC 48 1.5VIN
49 NC 50 GND
51 NC 52 3.3V
Table 1-2: WIFI-RT3593-DB Pinouts
WIFI-RT3593-DB
Page 6
2 Unpacking
Chapter
2
WIFI-RT3593-DB
Page 7
2.1 Anti-static Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the
ESD precautions to prevent damage to the product, and injury to the
user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the WIFI-RT3593-DB. Dry climates are especially susceptible to ESD. It is
therefore critical that whenever the WIFI-RT3593-DB or any other electrical component is
handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding: Touch any grounded conducting material before handling
the board. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the WIFI-RT3593-DB, place it on
an antic-static pad. This reduces the possibility of ESD damaging the
WIFI-RT3593-DB.
2.2 Unpacking Precautions
When the WIFI-RT3593-DB is unpacked, please do the following:
Follow the antistatic guidelines above.
Make sure the packing box is facing upwards so the WIFI-RT3593-DB does
not fall out of the box.
Make sure all the packing list items are present.
WIFI-RT3593-DB
Page 8

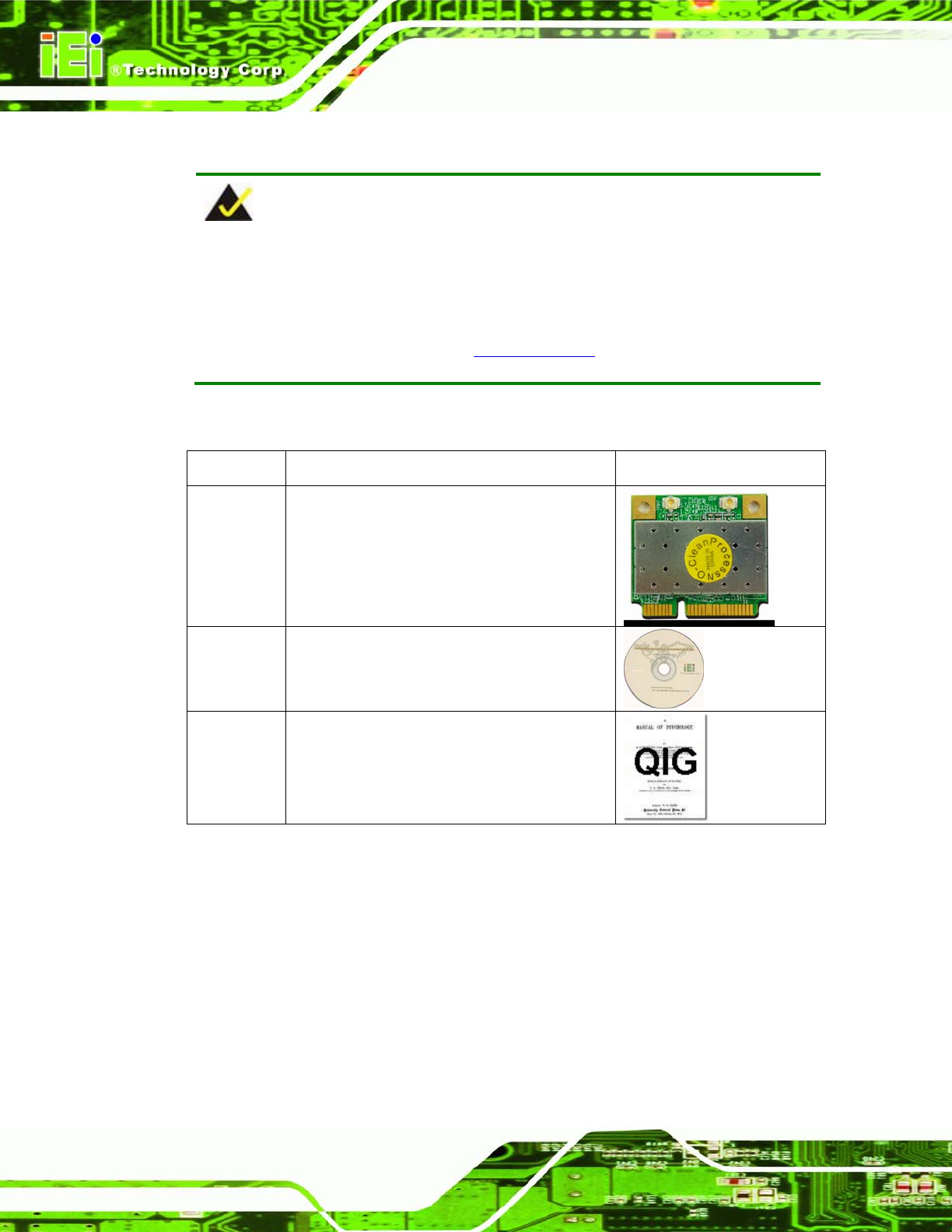

2.3 Packing Lis t
NOTE:
If any of the components listed in the checklist below are missing, do not
proceed with the installation. Contact the IEI reseller or vendor the
WIFI-RT3593-DB was purchased from or contact an IEI sales representative
directly by sending an email to sales@iei.com.tw.
The WIFI-RT3593-DB is shipped with the following components:
Quantity Item and Part Number Im a g e
1 WIFI-RT3593-DB
1 Utility CD（drivers and user manual）
1 Quick Installation Guide
WIFI-RT3593-DB
Page 9
3 Software Drivers
Chapter
3
WIFI-RT3593-DB
Page 10
3.1 Overview
A CD is shipped with the wireless LAN card. The CD contains a user manual and driver for
the wireless LAN card. To be able to use the wireless LAN card, please install the driver.
Failure to install the driver means that that wireless LAN card cannot be detected by the
system.
3.2 Driver Installation
To install the wireless LAN driver, please follow the steps below.
Step 1: Insert the CD into a CD drive connected to the system.
Step 2: Double click the Setup.exe to install the driver.
Step 3: The License Agreement screen in Figure 3-1 appears.

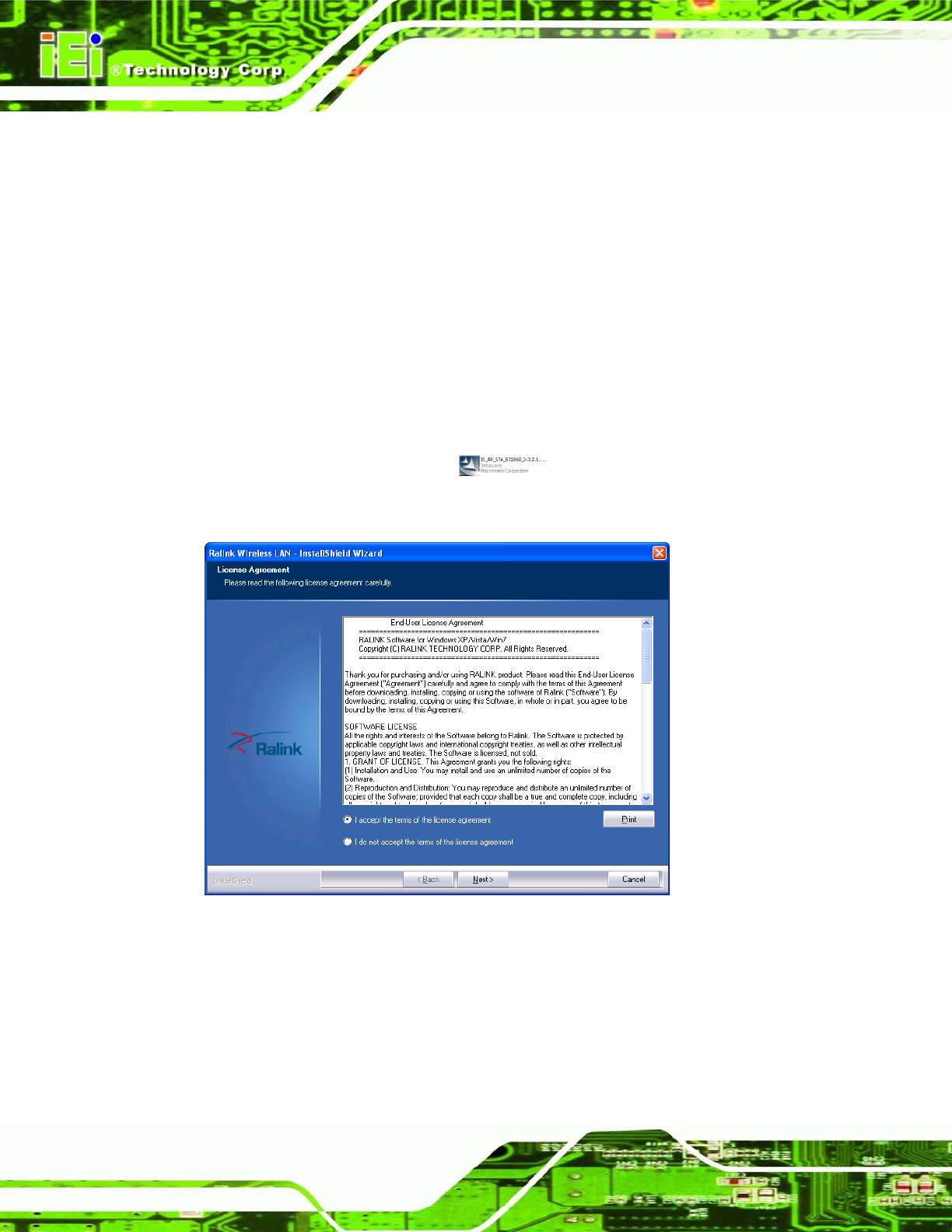

Figure 3-1: License Agreement
Step 4: Accept the conditions of the license agreement and click NEXT to continue.
Step 5: The Setup Type screen in Figure 3-2 appears.
WIFI-RT3593-DB
Page 11

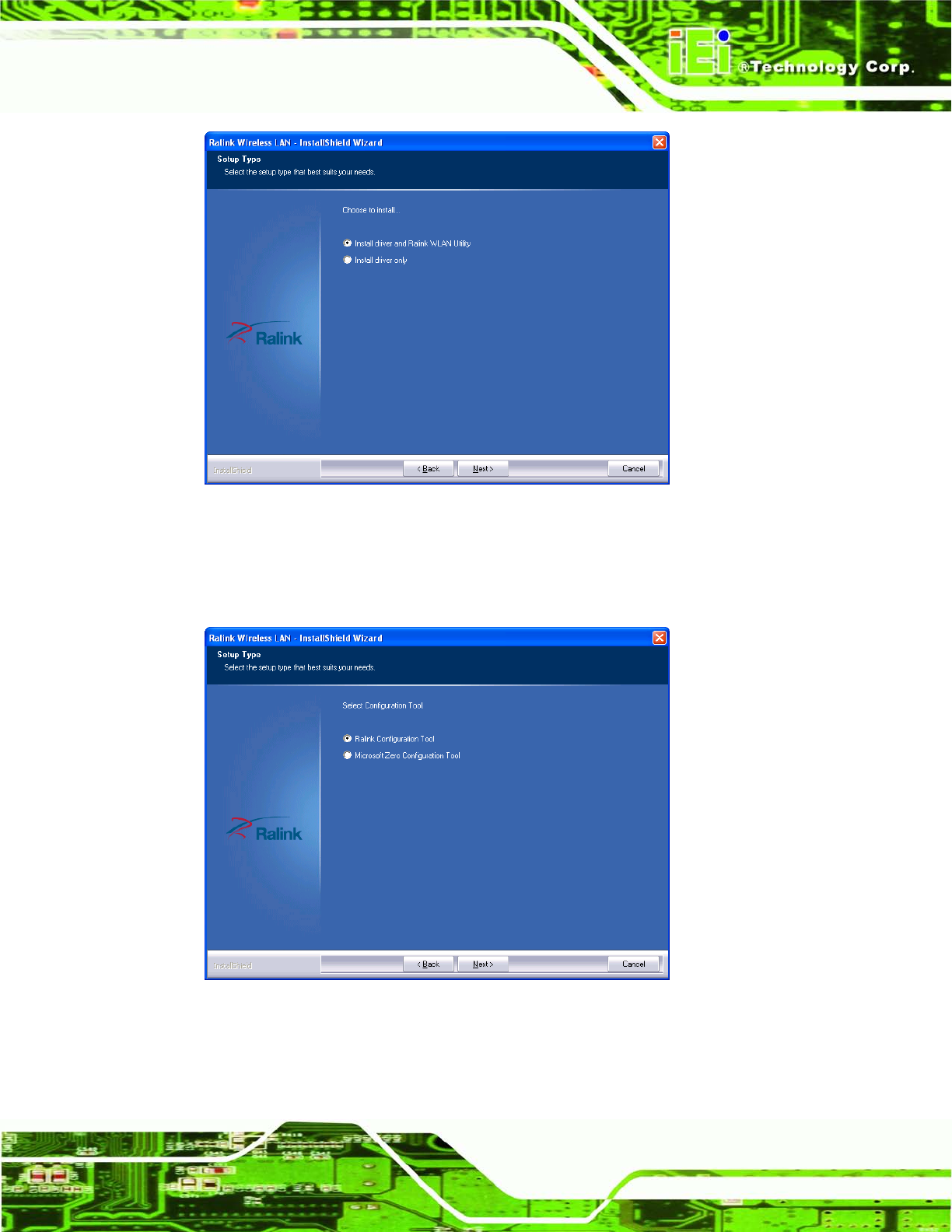

Figure 3-2: Setup Type
Step 6: Select “Install driver and Ralink WLAN Utility” and click NEXT to continue.
Step 7: The Configuration Tool screen in Figure 3-3 appears.
Figure 3-3: Configuration Tool
Step 8: Select “Ralink Configuration Tool”and click NEXT to continue.
Step 9: The Ready to Install the Program screen in Figure 3-4 appears.
WIFI-RT3593-DB
Page 12

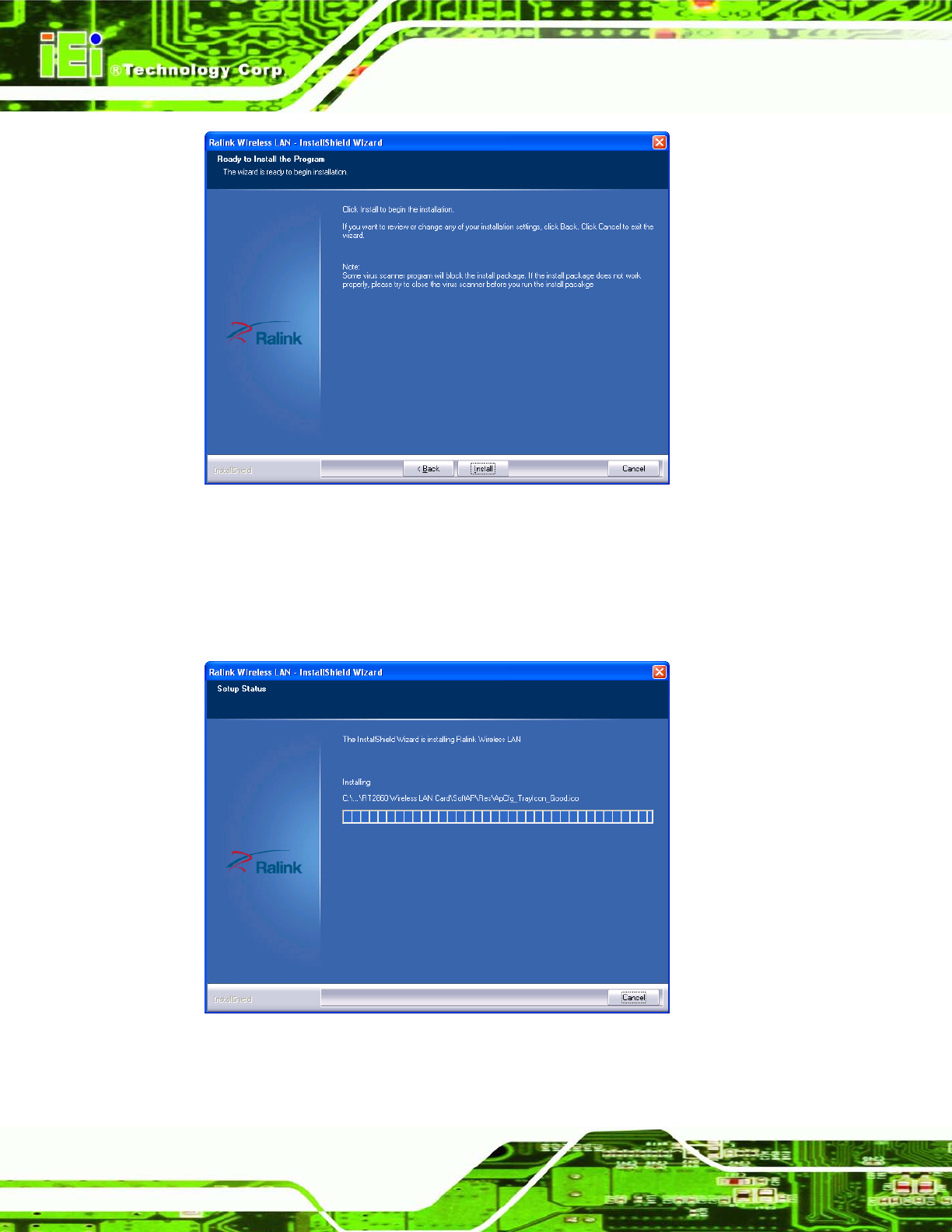

Figure 3-4: Ready to Install the Program
Step 10: Click Install to proceed with the installation.
Step 11: The Setup Status screen in Figure 3-5 appears and displays the progress of
the installation.
Figure 3-5: Setup Status
Step 12: When the driver installation is complete, the screen in Figure 3-6 appears.
WIFI-RT3593-DB
Page 13

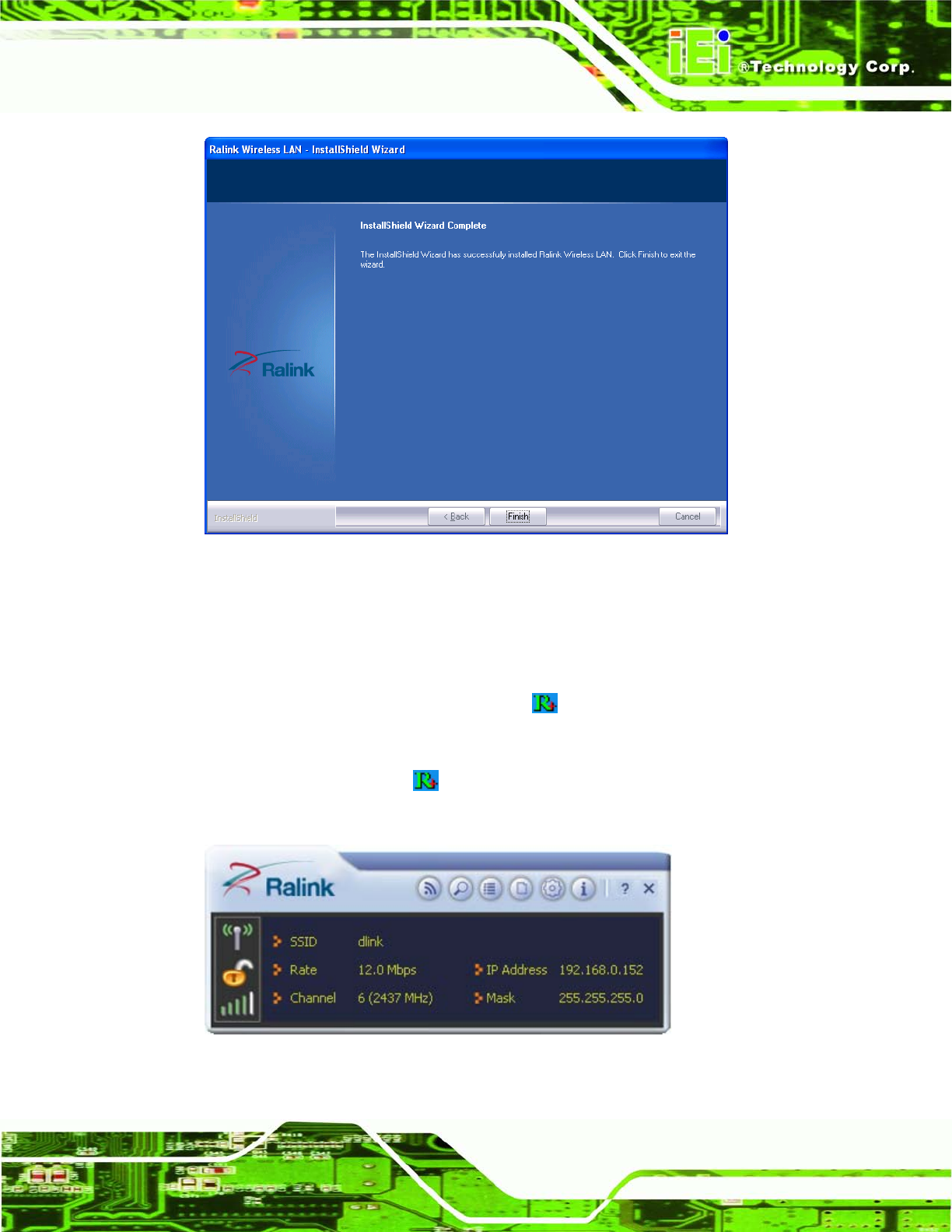

Figure 3-6: Installation Complete
Step 13: Click FINISH to complete installation.
3.3 Wireles s Configuration
After the driver installation is complete, an icon appears at the right down corner of
the screen.
Step 1: Double click the icon at the right down corner of the screen to open the
configuration tool, as shown in Figure 3-7.
Figure 3-7: Main Menu
WIFI-RT3593-DB
Page 14
Step 2: Click the search button to search the available wireless networks, as shown
in Figure 3-8.

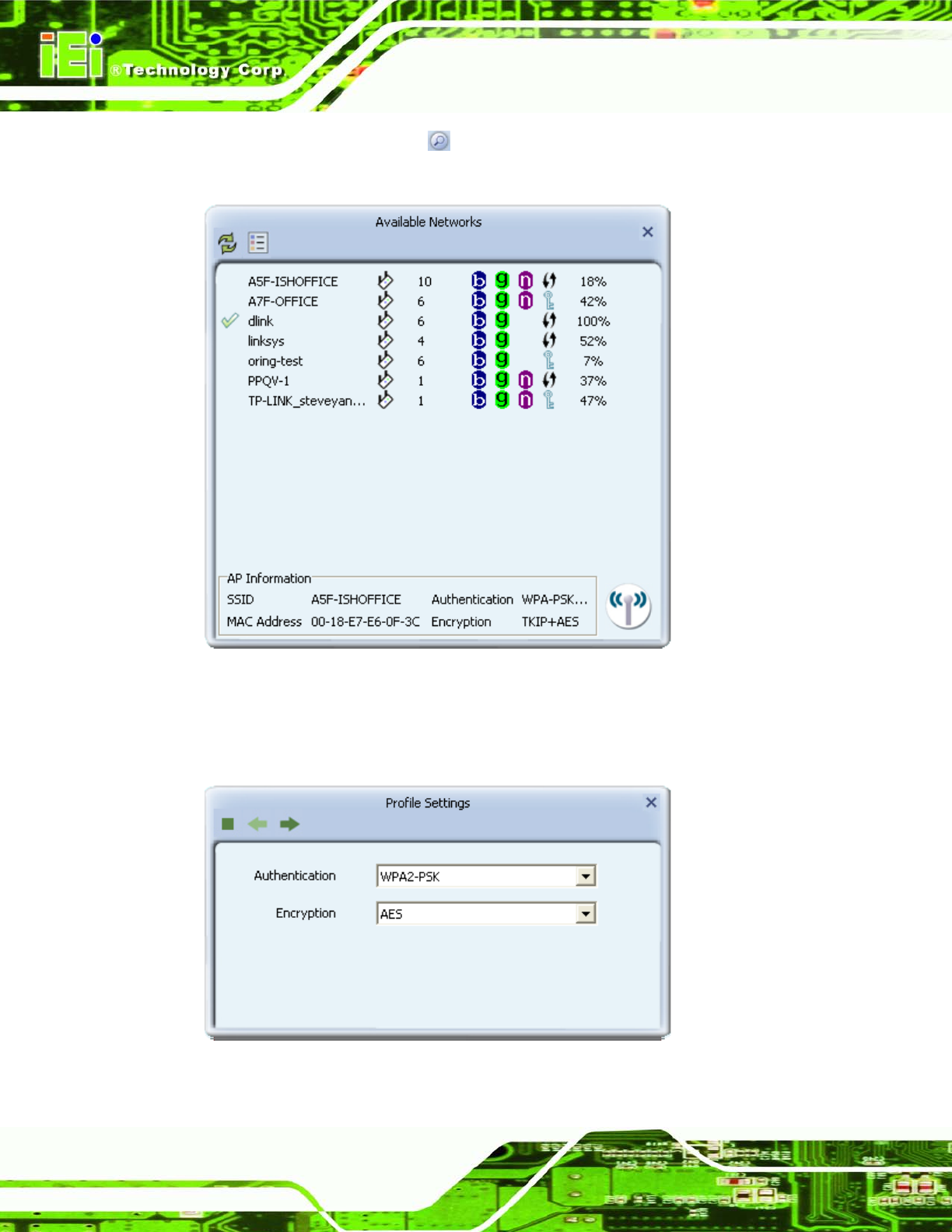

Figure 3-8: Available Networks
Step 3: Double click the wireless network name that with the best signal and the known
password to open the Profile Settings screen, as shown in Figure 3-9.
Figure 3-9: Authentication and Encryption

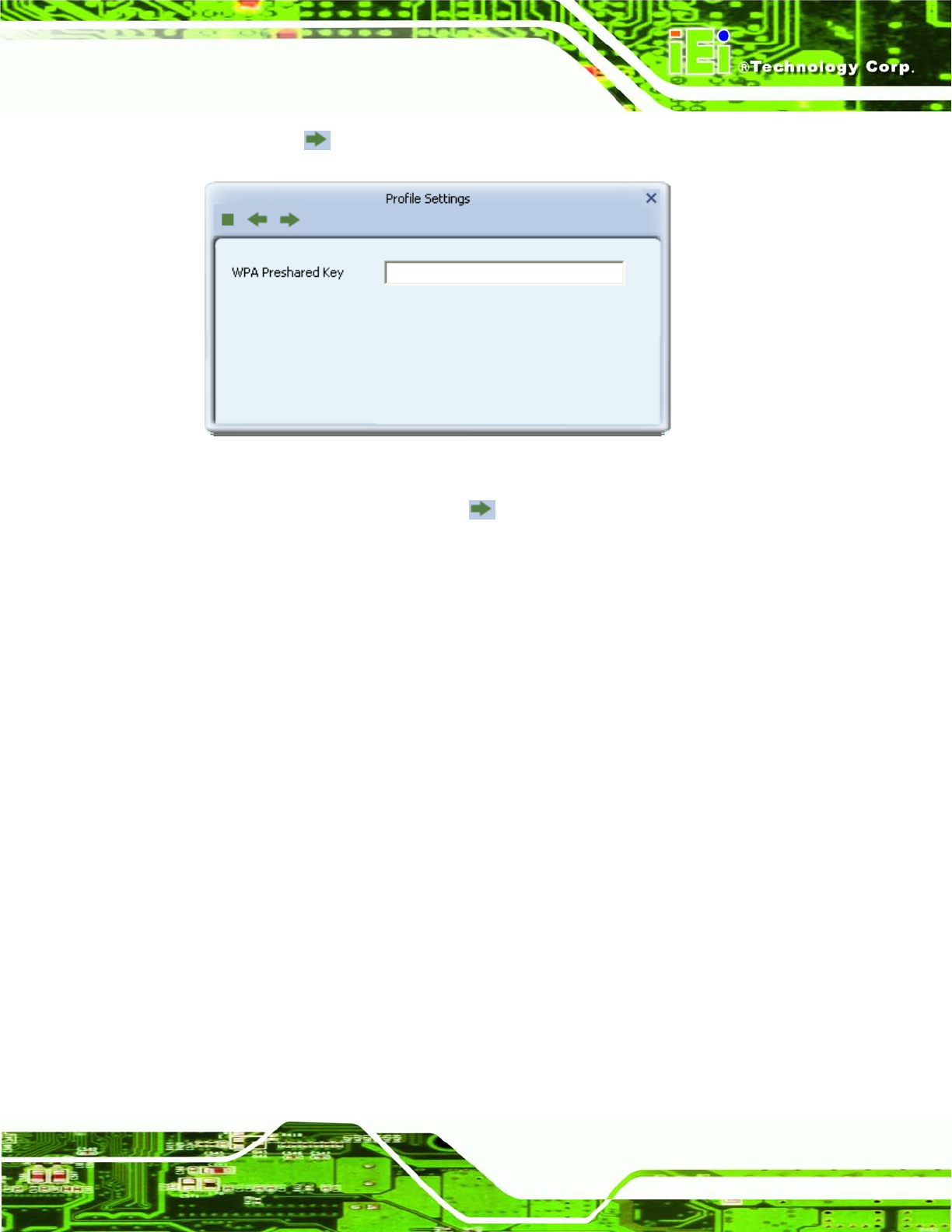

WIFI-RT3593-DB
Page 16
Appendix
A
A Hazardous Materials
Dis clos ure
WIFI-RT3593-DB
Page 17
A.1 Hazardous Material Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without
Mercury
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is applicable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to the table on the next page.
WIFI-RT3593-DB
Page 18
Part Name Toxic or Hazardous Substances and Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers
(PBDE)
Housing X O O O O X
Dis play X O O O O X
Printed Circuit
Board
X O O O O X
Metal
Fasteners
X O O O O O
Cable
As s embly
X O O O O X
Fan Assembly X O O O O X
Power Supply
Assemblies
X O O O O X
Battery O O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is
below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for
this part is above the limit requirement in SJ/T11363-2006
WIFI-RT3593-DB
Page 19
Appendix
B
B FCC Standards
WIFI-RT3593-DB
Page 20
B.1 Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation. This device must accept any interference
received, including interference that may cause undesired operation. Product
that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed
and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be collocated or operating in conjunction
with any other antenna or transmitter.
End-users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
(2) Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
WIFI-RT3593-DB
Page 21
NOTE:
(1) This device is approved for OEM installation with specified antennas as listed
in this Manual. It is the responsibility of the Installer to comply with the
separation distance for satisfying RF exposure compliance.
(2) This device only could work when being installed into “client devices” which
could not transmit automatically, such as Notebook P.C., with the software
driver limit.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can not
be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function.
WIFI-RT3593-DB
Page 22
Appendix
C
C End Product Labeling
WIFI-RT3593-DB
Page 23
C.1 End Product Labeling
The final end product must be labeled in a visible are with the following:
“CONTENTS FCC ID: RFHWIFI-RT3593-DB".
