IKUSI ELECTRONICA S L R70MP10 Radio Remote Control Receiver w/10 PWM output User Manual CERTIFICATE OF COMPLIANCE

IKUSI-Angel Iglesias Radio Remote Control Receiver w/10 PWM output CERTIFICATE OF COMPLIANCE

Manual

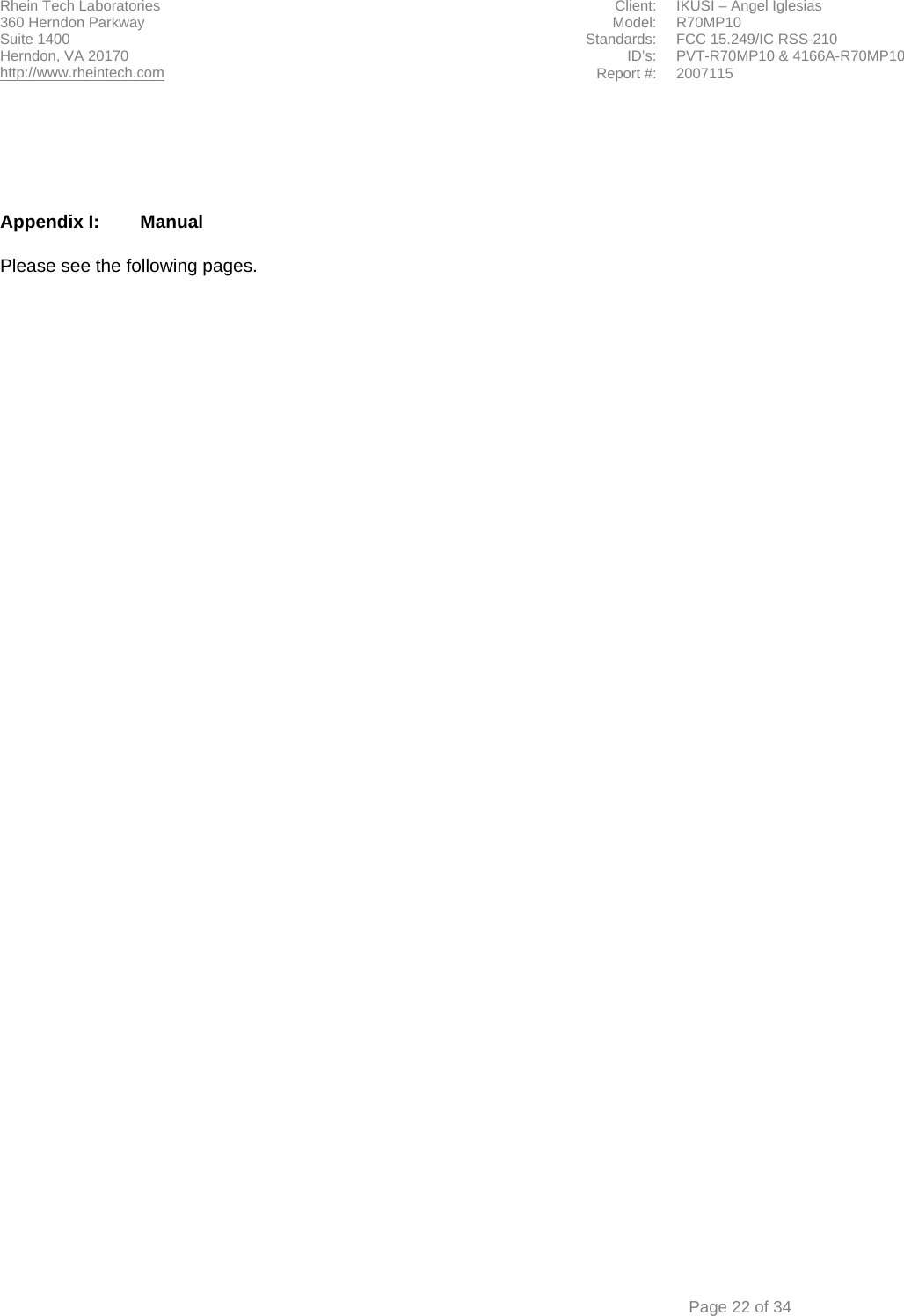

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: R70MP10 Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-R70MP10 & 4166A-R70MP10 Herndon, VA 20170 http://www.rheintech.com Report #: 2007115 Page 22 of 34 Appendix I: Manual Please see the following pages.
70 - MINI 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. ENGLISH

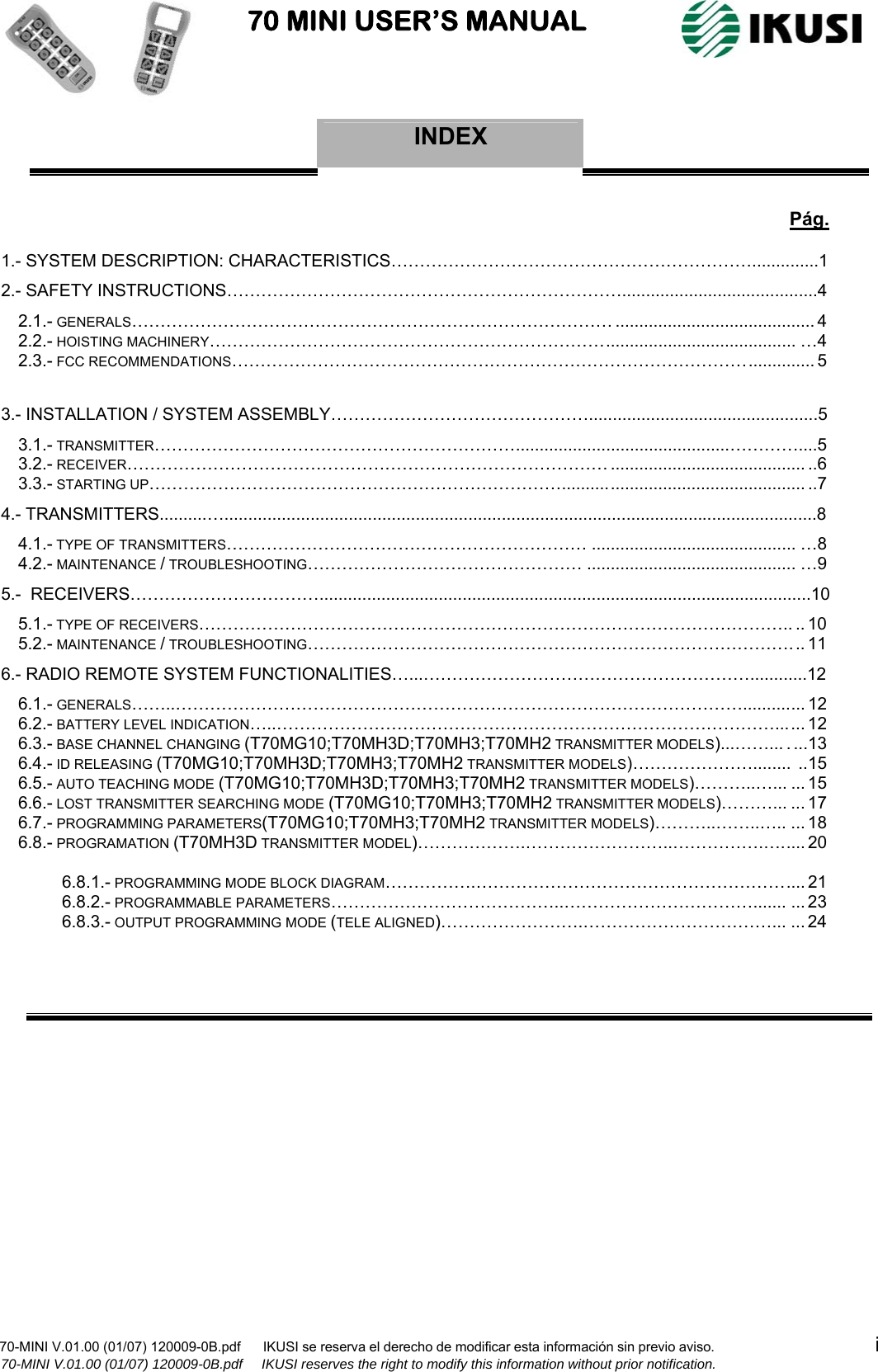

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. i 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. INDEX Pág. 1.- SYSTEM DESCRIPTION: CHARACTERISTICS………………………………………………………..............1 2.- SAFETY INSTRUCTIONS…………………………………………………………….........................................4 2.1.- GENERALS………………………………………………………………………… .......................................... 4 2.2.- HOISTING MACHINERY……………………………………………………………........................................ …4 2.3.- FCC RECOMMENDATIONS……………………………………………………………………………….............. 5 3.- INSTALLATION / SYSTEM ASSEMBLY………………………………………................................................5 3.1.- TRANSMITTER……………………………………………………….............................................…………....5 3.2.- RECEIVER………………………………………………………………………… ......................................... ..6 3.3.- STARTING UP………………………………………………………………................................................... ..7 4.- TRANSMITTERS..........…............................................................................................................................8 4.1.- TYPE OF TRANSMITTERS……………………………………………………… ........................................... …8 4.2.- MAINTENANCE / TROUBLESHOOTING………………………………………… ............................................ …9 5.- RECEIVERS…………………………….......................................................................................................10 5.1.- TYPE OF RECEIVERS………………………………………………………………………………………….. .. 10 5.2.- MAINTENANCE / TROUBLESHOOTING…………………………………………………………………………... 11 6.- RADIO REMOTE SYSTEM FUNCTIONALITIES…...…………………………………………………............12 6.1.- GENERALS……..………………………………………………………………………………………............. 12 6.2.- BATTERY LEVEL INDICATION…..……………………………………………………………………………...... 12 6.3.- BASE CHANNEL CHANGING (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)...……... . ...13 6.4.- ID RELEASING (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)…………………........ ..15 6.5.- AUTO TEACHING MODE (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)………..…... ...15 6.6.- LOST TRANSMITTER SEARCHING MODE (T70MG10;T70MH3;T70MH2 TRANSMITTER MODELS)………... ...17 6.7.- PROGRAMMING PARAMETERS(T70MG10;T70MH3;T70MH2 TRANSMITTER MODELS)………..……..….. ...18 6.8.- PROGRAMATION (T70MH3D TRANSMITTER MODEL)……………….……………………..…………….…..... 20 6.8.1.- PROGRAMMING MODE BLOCK DIAGRAM…………….………………………………………………....21 6.8.2.- PROGRAMMABLE PARAMETERS…………………………………..……………………………....... ...23 6.8.3.- OUTPUT PROGRAMMING MODE (TELE ALIGNED)…………………….……………………………... ...24

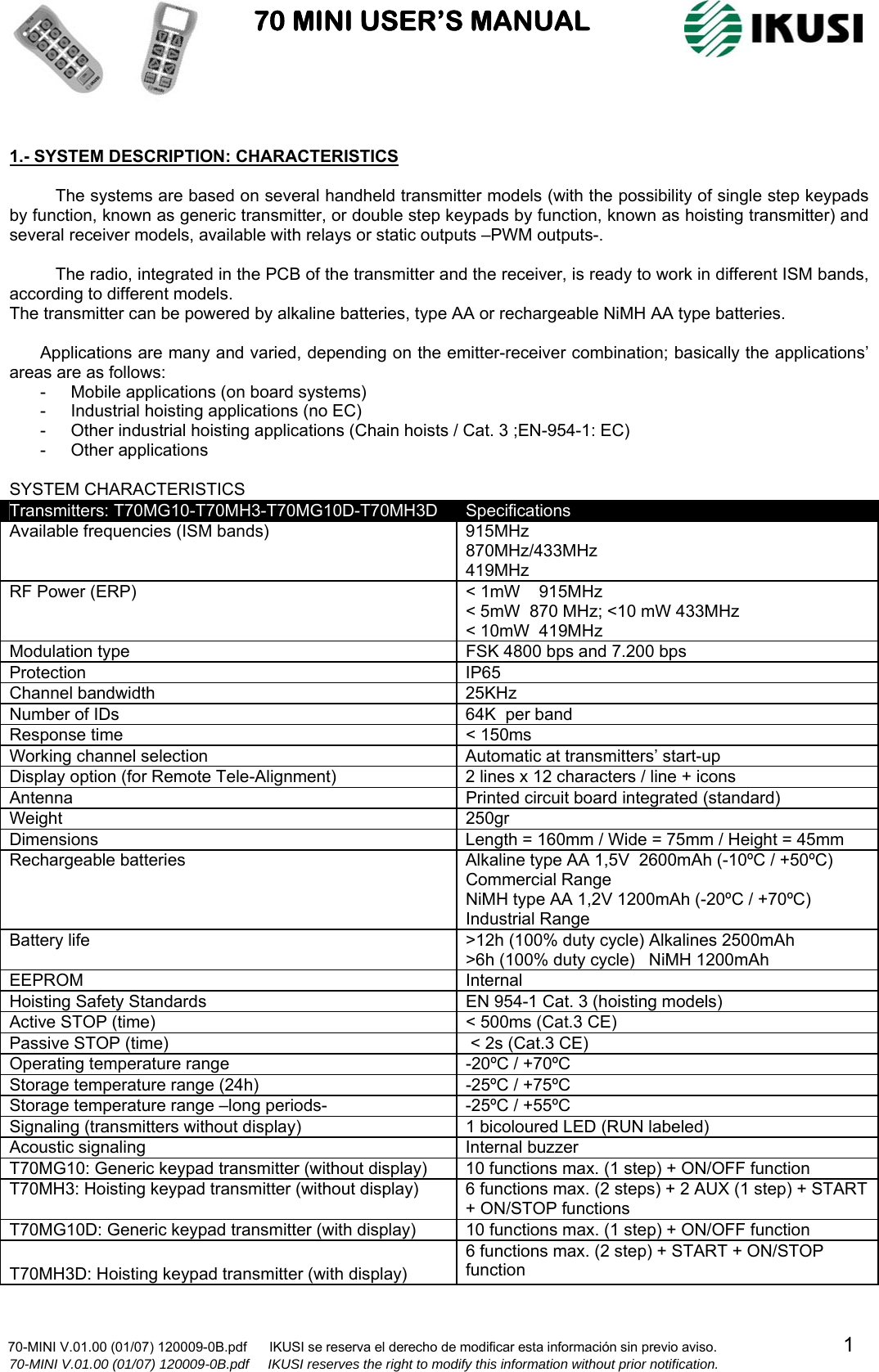

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 1 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 1.- SYSTEM DESCRIPTION: CHARACTERISTICS The systems are based on several handheld transmitter models (with the possibility of single step keypads by function, known as generic transmitter, or double step keypads by function, known as hoisting transmitter) and several receiver models, available with relays or static outputs –PWM outputs-. The radio, integrated in the PCB of the transmitter and the receiver, is ready to work in different ISM bands, according to different models. The transmitter can be powered by alkaline batteries, type AA or rechargeable NiMH AA type batteries. Applications are many and varied, depending on the emitter-receiver combination; basically the applications’ areas are as follows: - Mobile applications (on board systems) - Industrial hoisting applications (no EC) - Other industrial hoisting applications (Chain hoists / Cat. 3 ;EN-954-1: EC) - Other applications SYSTEM CHARACTERISTICS Transmitters: T70MG10-T70MH3-T70MG10D-T70MH3D Specifications Available frequencies (ISM bands) 915MHz 870MHz/433MHz 419MHz RF Power (ERP) < 1mW 915MHz < 5mW 870 MHz; <10 mW 433MHz < 10mW 419MHz Modulation type FSK 4800 bps and 7.200 bps Protection IP65 Channel bandwidth 25KHz Number of IDs 64K per band Response time < 150ms Working channel selection Automatic at transmitters’ start-up Display option (for Remote Tele-Alignment) 2 lines x 12 characters / line + icons Antenna Printed circuit board integrated (standard) Weight 250gr Dimensions Length = 160mm / Wide = 75mm / Height = 45mm Rechargeable batteries Alkaline type AA 1,5V 2600mAh (-10ºC / +50ºC) Commercial Range NiMH type AA 1,2V 1200mAh (-20ºC / +70ºC) Industrial Range Battery life >12h (100% duty cycle) Alkalines 2500mAh >6h (100% duty cycle) NiMH 1200mAh EEPROM Internal Hoisting Safety Standards EN 954-1 Cat. 3 (hoisting models) Active STOP (time) < 500ms (Cat.3 CE) Passive STOP (time) < 2s (Cat.3 CE) Operating temperature range -20ºC / +70ºC Storage temperature range (24h) -25ºC / +75ºC Storage temperature range –long periods- -25ºC / +55ºC Signaling (transmitters without display) 1 bicoloured LED (RUN labeled) Acoustic signaling Internal buzzer T70MG10: Generic keypad transmitter (without display) 10 functions max. (1 step) + ON/OFF function T70MH3: Hoisting keypad transmitter (without display) 6 functions max. (2 steps) + 2 AUX (1 step) + START + ON/STOP functions T70MG10D: Generic keypad transmitter (with display) 10 functions max. (1 step) + ON/OFF function T70MH3D: Hoisting keypad transmitter (with display) 6 functions max. (2 step) + START + ON/STOP function

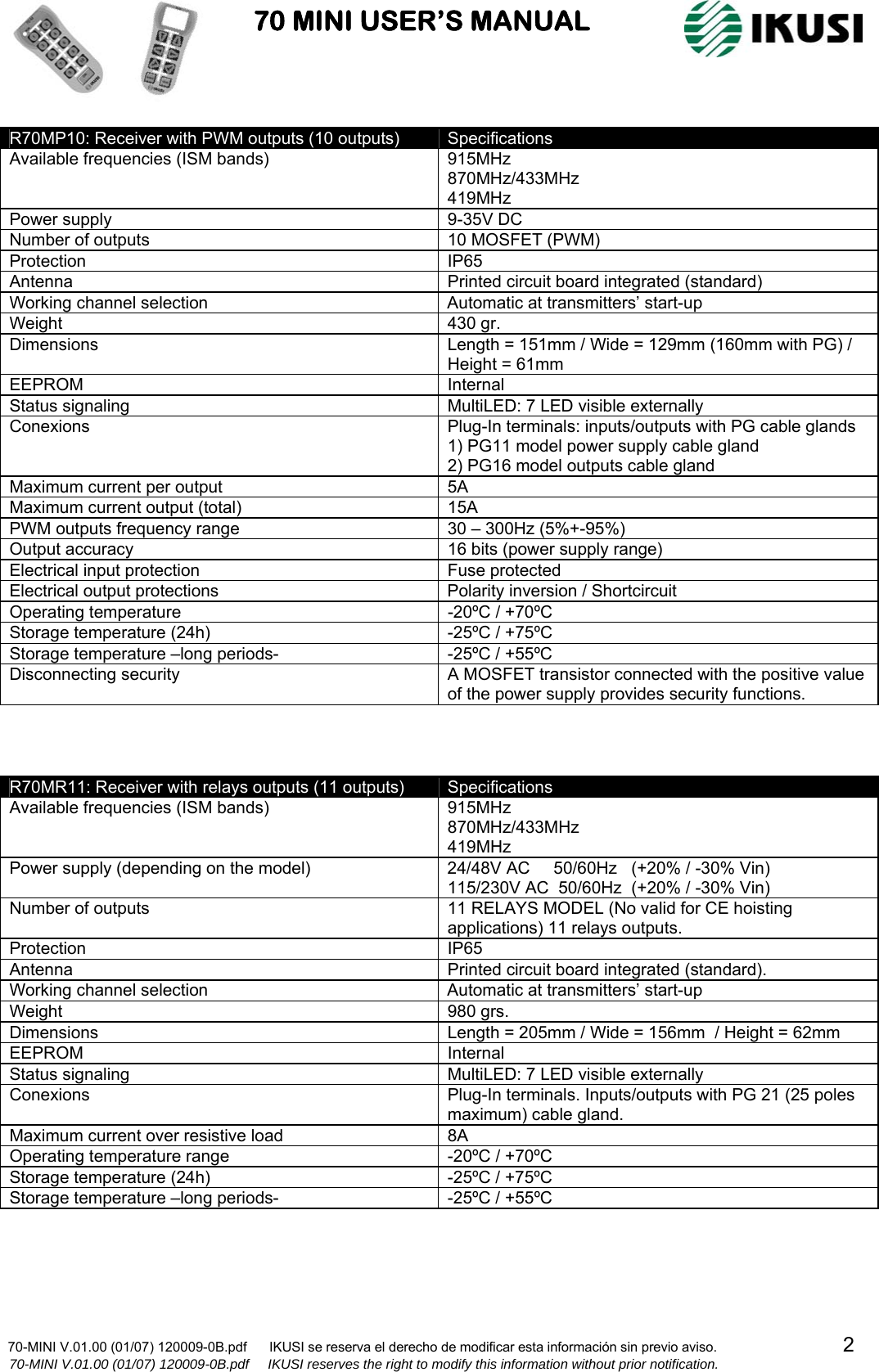

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 2 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. R70MP10: Receiver with PWM outputs (10 outputs) Specifications Available frequencies (ISM bands) 915MHz 870MHz/433MHz 419MHz Power supply 9-35V DC Number of outputs 10 MOSFET (PWM) Protection IP65 Antenna Printed circuit board integrated (standard) Working channel selection Automatic at transmitters’ start-up Weight 430 gr. Dimensions Length = 151mm / Wide = 129mm (160mm with PG) / Height = 61mm EEPROM Internal Status signaling MultiLED: 7 LED visible externally Conexions Plug-In terminals: inputs/outputs with PG cable glands 1) PG11 model power supply cable gland 2) PG16 model outputs cable gland Maximum current per output 5A Maximum current output (total) 15A PWM outputs frequency range 30 – 300Hz (5%+-95%) Output accuracy 16 bits (power supply range) Electrical input protection Fuse protected Electrical output protections Polarity inversion / Shortcircuit Operating temperature -20ºC / +70ºC Storage temperature (24h) -25ºC / +75ºC Storage temperature –long periods- -25ºC / +55ºC Disconnecting security A MOSFET transistor connected with the positive value of the power supply provides security functions. R70MR11: Receiver with relays outputs (11 outputs) Specifications Available frequencies (ISM bands) 915MHz 870MHz/433MHz 419MHz Power supply (depending on the model) 24/48V AC 50/60Hz (+20% / -30% Vin) 115/230V AC 50/60Hz (+20% / -30% Vin) Number of outputs 11 RELAYS MODEL (No valid for CE hoisting applications) 11 relays outputs. Protection IP65 Antenna Printed circuit board integrated (standard). Working channel selection Automatic at transmitters’ start-up Weight 980 grs. Dimensions Length = 205mm / Wide = 156mm / Height = 62mm EEPROM Internal Status signaling MultiLED: 7 LED visible externally Conexions Plug-In terminals. Inputs/outputs with PG 21 (25 poles maximum) cable gland. Maximum current over resistive load 8A Operating temperature range -20ºC / +70ºC Storage temperature (24h) -25ºC / +75ºC Storage temperature –long periods- -25ºC / +55ºC

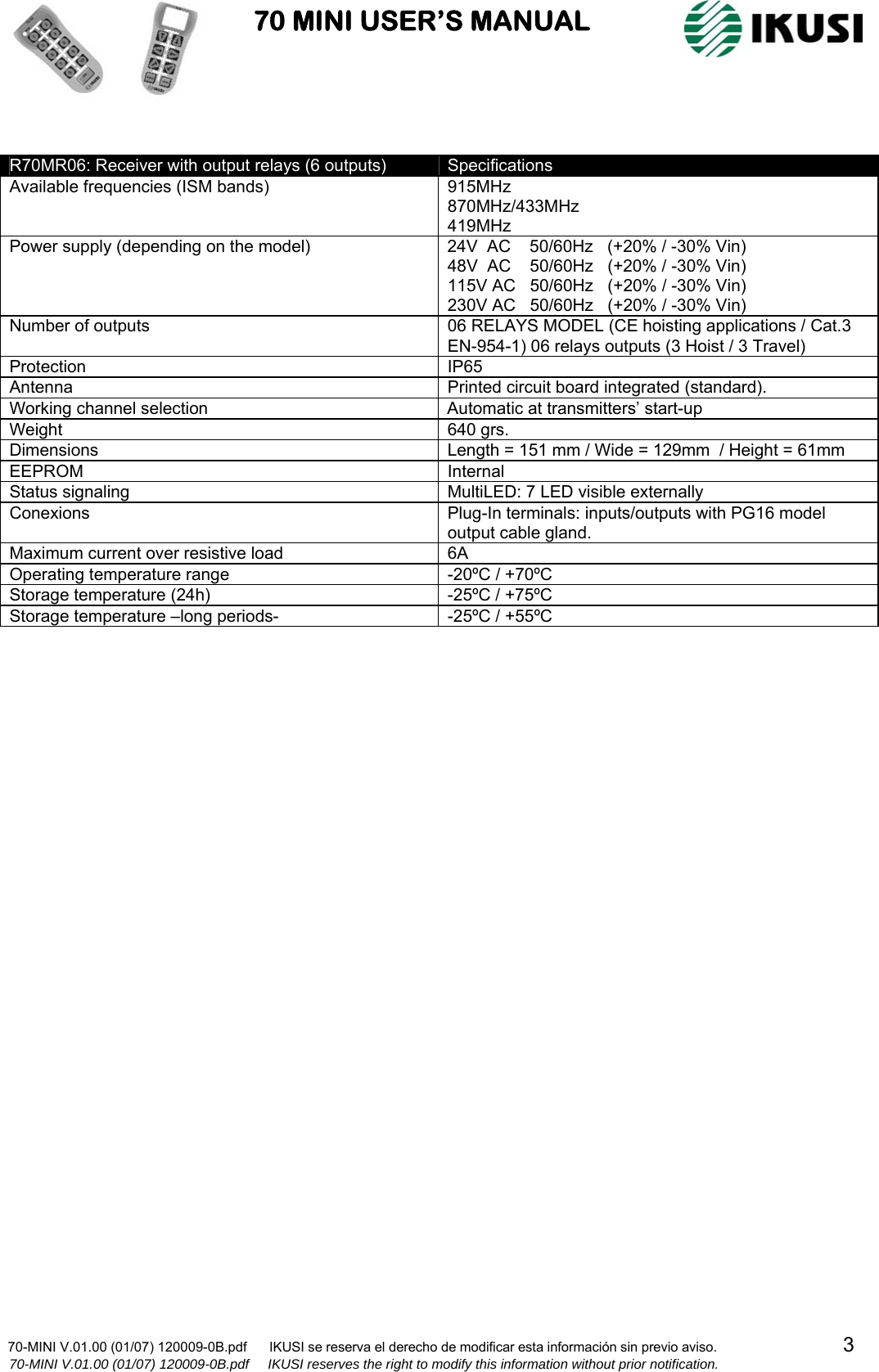

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 3 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. R70MR06: Receiver with output relays (6 outputs) Specifications Available frequencies (ISM bands) 915MHz 870MHz/433MHz 419MHz Power supply (depending on the model) 24V AC 50/60Hz (+20% / -30% Vin) 48V AC 50/60Hz (+20% / -30% Vin) 115V AC 50/60Hz (+20% / -30% Vin) 230V AC 50/60Hz (+20% / -30% Vin) Number of outputs 06 RELAYS MODEL (CE hoisting applications / Cat.3 EN-954-1) 06 relays outputs (3 Hoist / 3 Travel) Protection IP65 Antenna Printed circuit board integrated (standard). Working channel selection Automatic at transmitters’ start-up Weight 640 grs. Dimensions Length = 151 mm / Wide = 129mm / Height = 61mm EEPROM Internal Status signaling MultiLED: 7 LED visible externally Conexions Plug-In terminals: inputs/outputs with PG16 model output cable gland. Maximum current over resistive load 6A Operating temperature range -20ºC / +70ºC Storage temperature (24h) -25ºC / +75ºC Storage temperature –long periods- -25ºC / +55ºC

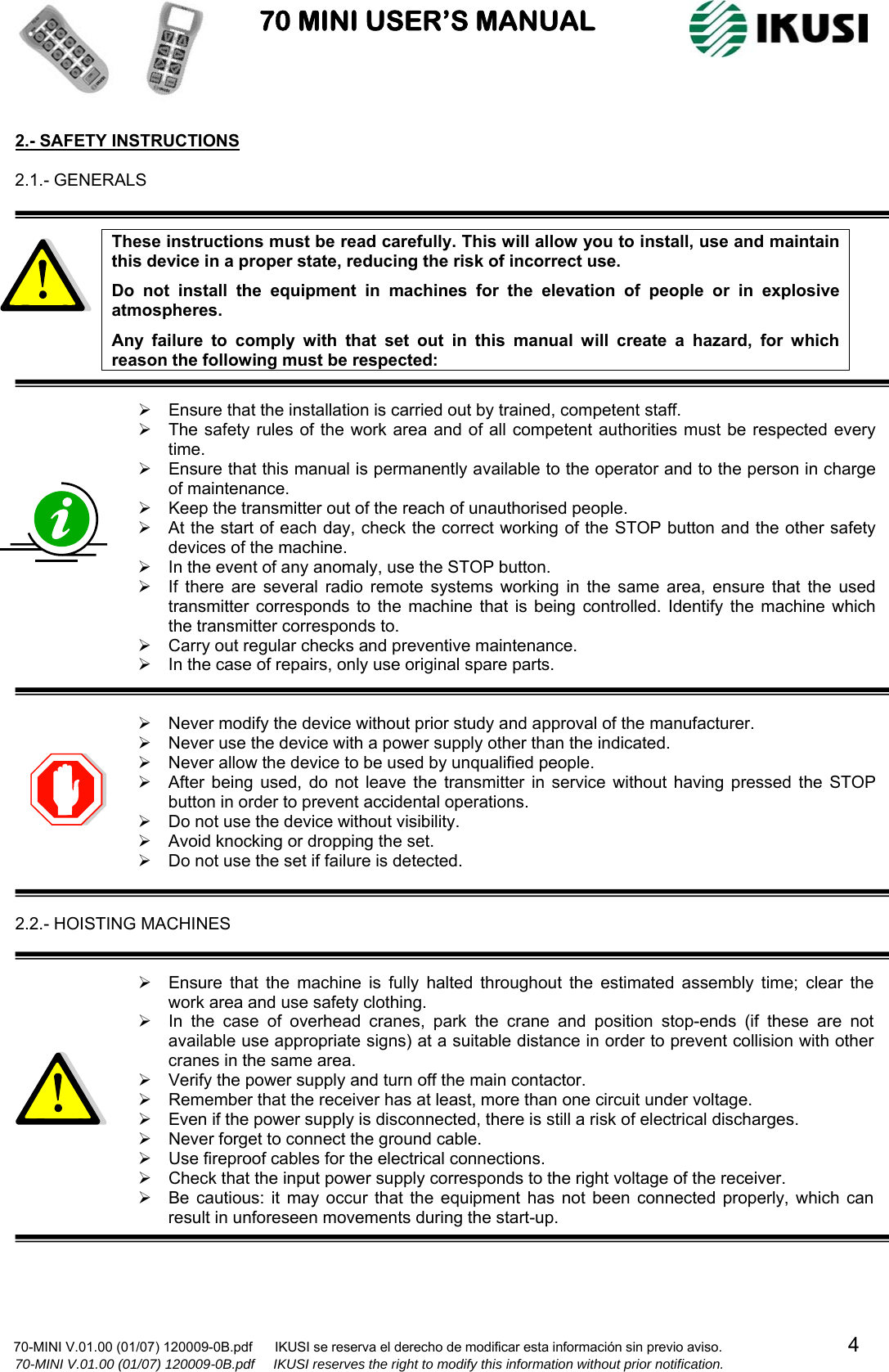

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 4 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 2.- SAFETY INSTRUCTIONS 2.1.- GENERALS These instructions must be read carefully. This will allow you to install, use and maintain this device in a proper state, reducing the risk of incorrect use. Do not install the equipment in machines for the elevation of people or in explosive atmospheres. Any failure to comply with that set out in this manual will create a hazard, for which reason the following must be respected: ¾ Ensure that the installation is carried out by trained, competent staff. ¾ The safety rules of the work area and of all competent authorities must be respected every time. ¾ Ensure that this manual is permanently available to the operator and to the person in charge of maintenance. ¾ Keep the transmitter out of the reach of unauthorised people. ¾ At the start of each day, check the correct working of the STOP button and the other safety devices of the machine. ¾ In the event of any anomaly, use the STOP button. ¾ If there are several radio remote systems working in the same area, ensure that the used transmitter corresponds to the machine that is being controlled. Identify the machine which the transmitter corresponds to. ¾ Carry out regular checks and preventive maintenance. ¾ In the case of repairs, only use original spare parts. ¾ Never modify the device without prior study and approval of the manufacturer. ¾ Never use the device with a power supply other than the indicated. ¾ Never allow the device to be used by unqualified people. ¾ After being used, do not leave the transmitter in service without having pressed the STOP button in order to prevent accidental operations. ¾ Do not use the device without visibility. ¾ Avoid knocking or dropping the set. ¾ Do not use the set if failure is detected. 2.2.- HOISTING MACHINES ¾ Ensure that the machine is fully halted throughout the estimated assembly time; clear the work area and use safety clothing. ¾ In the case of overhead cranes, park the crane and position stop-ends (if these are not available use appropriate signs) at a suitable distance in order to prevent collision with other cranes in the same area. ¾ Verify the power supply and turn off the main contactor. ¾ Remember that the receiver has at least, more than one circuit under voltage. ¾ Even if the power supply is disconnected, there is still a risk of electrical discharges. ¾ Never forget to connect the ground cable. ¾ Use fireproof cables for the electrical connections. ¾ Check that the input power supply corresponds to the right voltage of the receiver. ¾ Be cautious: it may occur that the equipment has not been connected properly, which can result in unforeseen movements during the start-up.

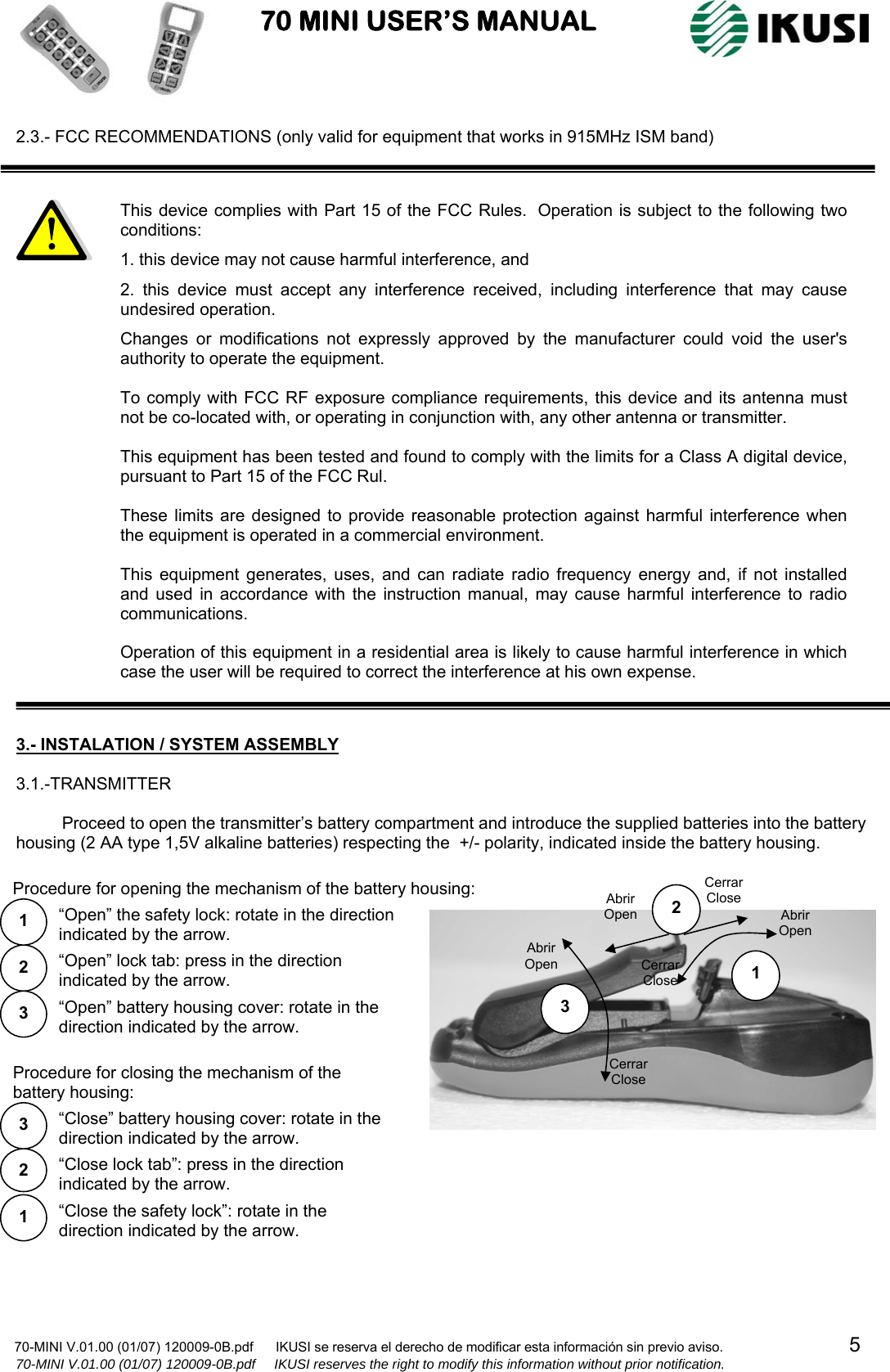

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 5 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 2.3.- FCC RECOMMENDATIONS (only valid for equipment that works in 915MHz ISM band) 3.- INSTALATION / SYSTEM ASSEMBLY 3.1.-TRANSMITTER Proceed to open the transmitter’s battery compartment and introduce the supplied batteries into the battery housing (2 AA type 1,5V alkaline batteries) respecting the +/- polarity, indicated inside the battery housing. 1 2 3 Abrir Open Cerrar Close Abrir Open Cerrar Close Cerrar Close Abrir Open 2 3 1 “Open” the safety lock: rotate in the direction indicated by the arrow. “Open” lock tab: press in the direction indicated by the arrow. “Open” battery housing cover: rotate in the direction indicated by the arrow. Procedure for opening the mechanism of the battery housing:“Close the safety lock”: rotate in the direction indicated by the arrow. 1 “Close lock tab”: press in the direction indicated by the arrow. 2 “Close” battery housing cover: rotate in the direction indicated by the arrow. 3 Procedure for closing the mechanism of the battery housing: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. To comply with FCC RF exposure compliance requirements, this device and its antenna must not be co-located with, or operating in conjunction with, any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rul. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

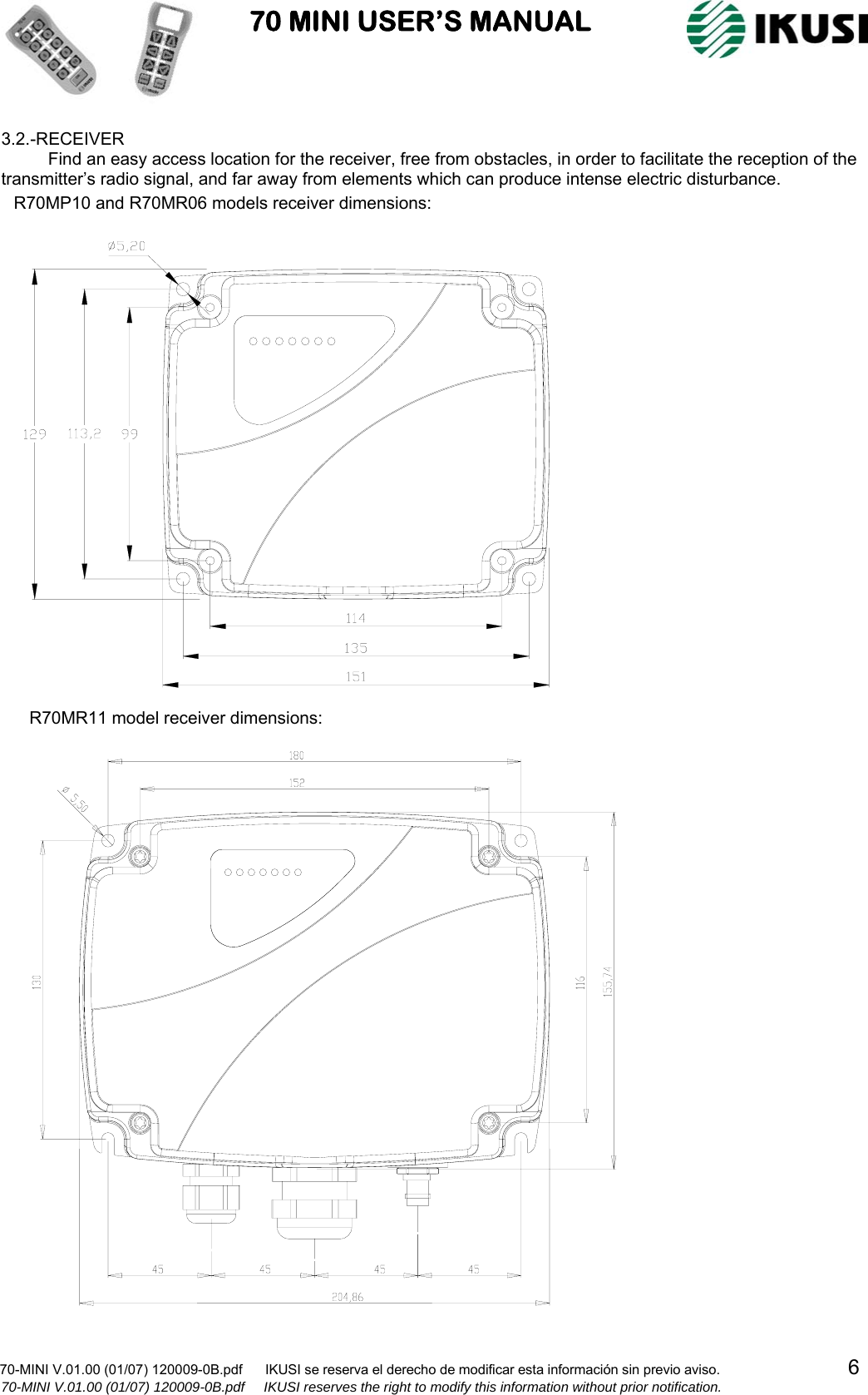

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 6 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 3.2.-RECEIVER Find an easy access location for the receiver, free from obstacles, in order to facilitate the reception of the transmitter’s radio signal, and far away from elements which can produce intense electric disturbance. R70MP10 and R70MR06 models receiver dimensions:R70MR11 model receiver dimensions:

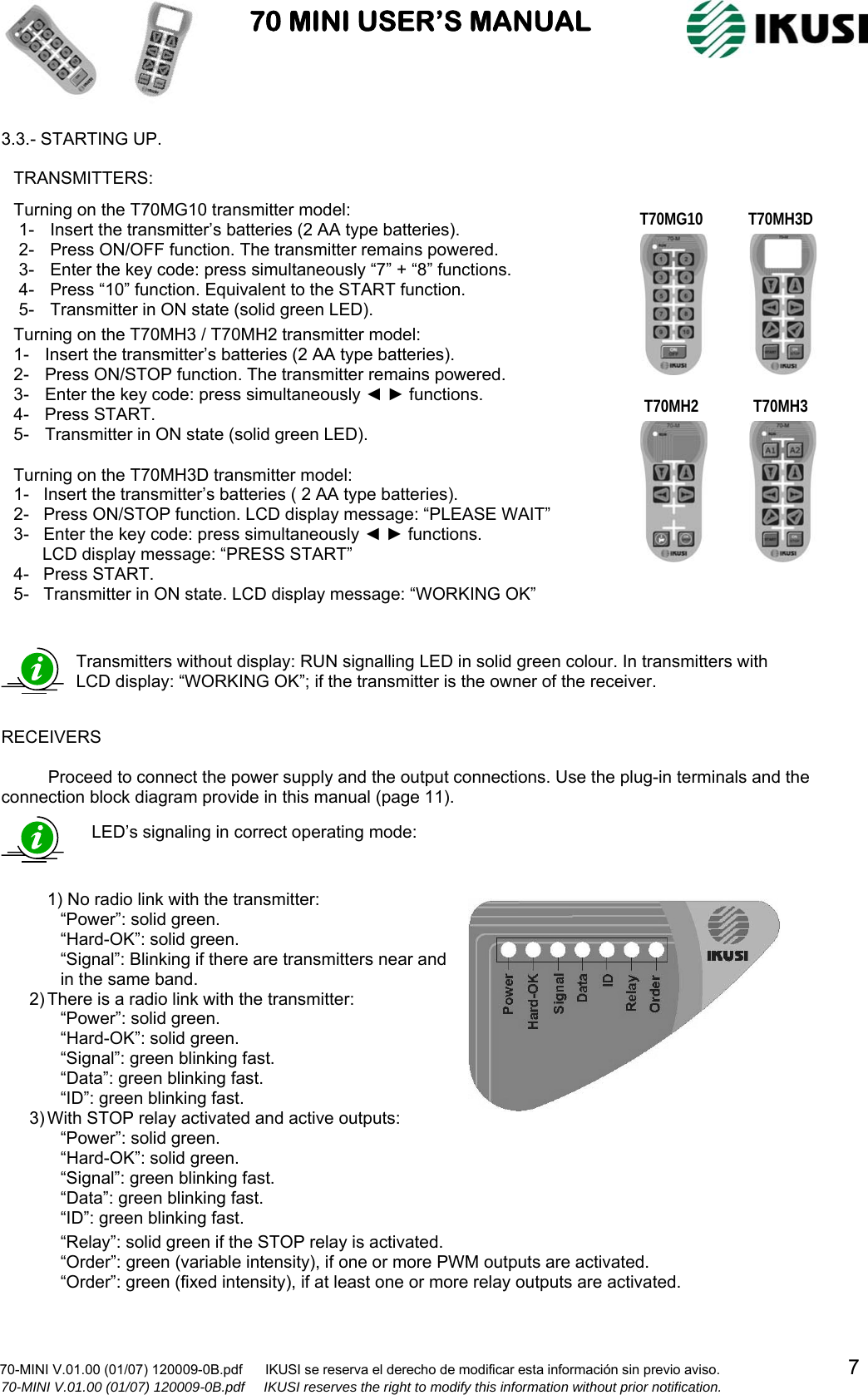

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 7 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 3.3.- STARTING UP. RECEIVERS Proceed to connect the power supply and the output connections. Use the plug-in terminals and the connection block diagram provide in this manual (page 11). Transmitters without display: RUN signalling LED in solid green colour. In transmitters with LCD display: “WORKING OK”; if the transmitter is the owner of the receiver. Turning on the T70MG10 transmitter model: 1- Insert the transmitter’s batteries (2 AA type batteries). 2- Press ON/OFF function. The transmitter remains powered. 3- Enter the key code: press simultaneously “7” + “8” functions. 4- Press “10” function. Equivalent to the START function. 5- Transmitter in ON state (solid green LED). Turning on the T70MH3 / T70MH2 transmitter model: 1- Insert the transmitter’s batteries (2 AA type batteries). 2- Press ON/STOP function. The transmitter remains powered. 3- Enter the key code: press simultaneously ◄ ► functions. 4- Press START. 5- Transmitter in ON state (solid green LED). Turning on the T70MH3D transmitter model: 1- Insert the transmitter’s batteries ( 2 AA type batteries). 2- Press ON/STOP function. LCD display message: “PLEASE WAIT” 3- Enter the key code: press simultaneously ◄ ► functions. LCD display message: “PRESS START” 4- Press START. 5- Transmitter in ON state. LCD display message: “WORKING OK” TRANSMITTERS: LED’s signaling in correct operating mode: 1) No radio link with the transmitter: “Power”: solid green. “Hard-OK”: solid green. “Signal”: Blinking if there are transmitters near and in the same band. 2) There is a radio link with the transmitter: “Power”: solid green. “Hard-OK”: solid green. “Signal”: green blinking fast. “Data”: green blinking fast. “ID”: green blinking fast. 3) With STOP relay activated and active outputs: “Power”: solid green. “Hard-OK”: solid green. “Signal”: green blinking fast. “Data”: green blinking fast. “ID”: green blinking fast. “Relay”: solid green if the STOP relay is activated. “Order”: green (variable intensity), if one or more PWM outputs are activated. “Order”: green (fixed intensity), if at least one or more relay outputs are activated. T70MG10 T70MH3 T70MH3D T70MH2

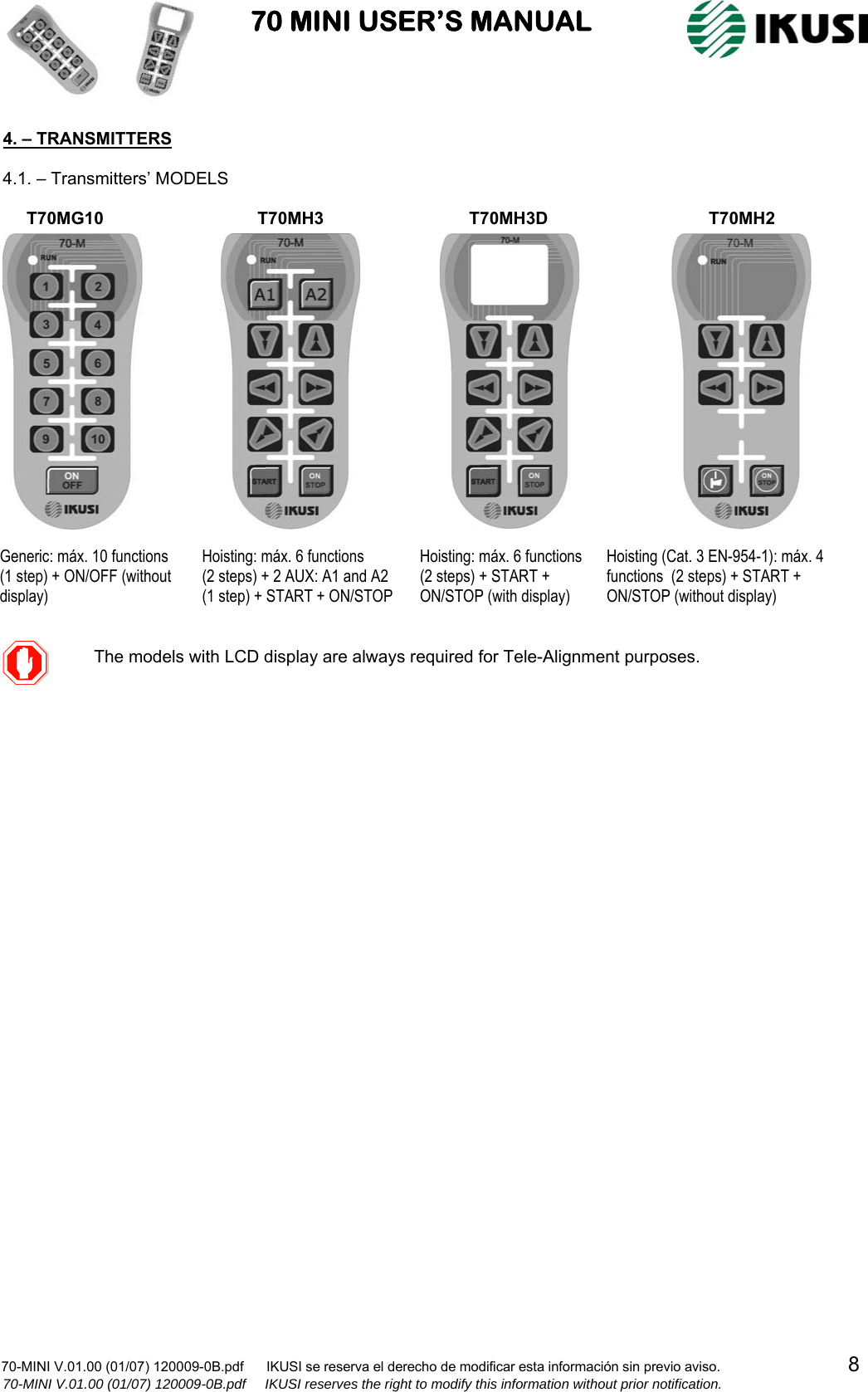

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 8 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 4. – TRANSMITTERS 4.1. – Transmitters’ MODELS The models with LCD display are alwaysrequired for Tele-Alignment purposes. Generic: máx. 10 functions (1 step) + ON/OFF (without display) Hoisting: máx. 6 functions (2 steps) + 2 AUX: A1 and A2 (1 step) + START + ON/STOP Hoisting: máx. 6 functions (2 steps) + START + ON/STOP (with display) Hoisting (Cat. 3 EN-954-1): máx. 4 functions (2 steps) + START + ON/STOP (without display) T70MG10 T70MH3 T70MH3D T70MH2

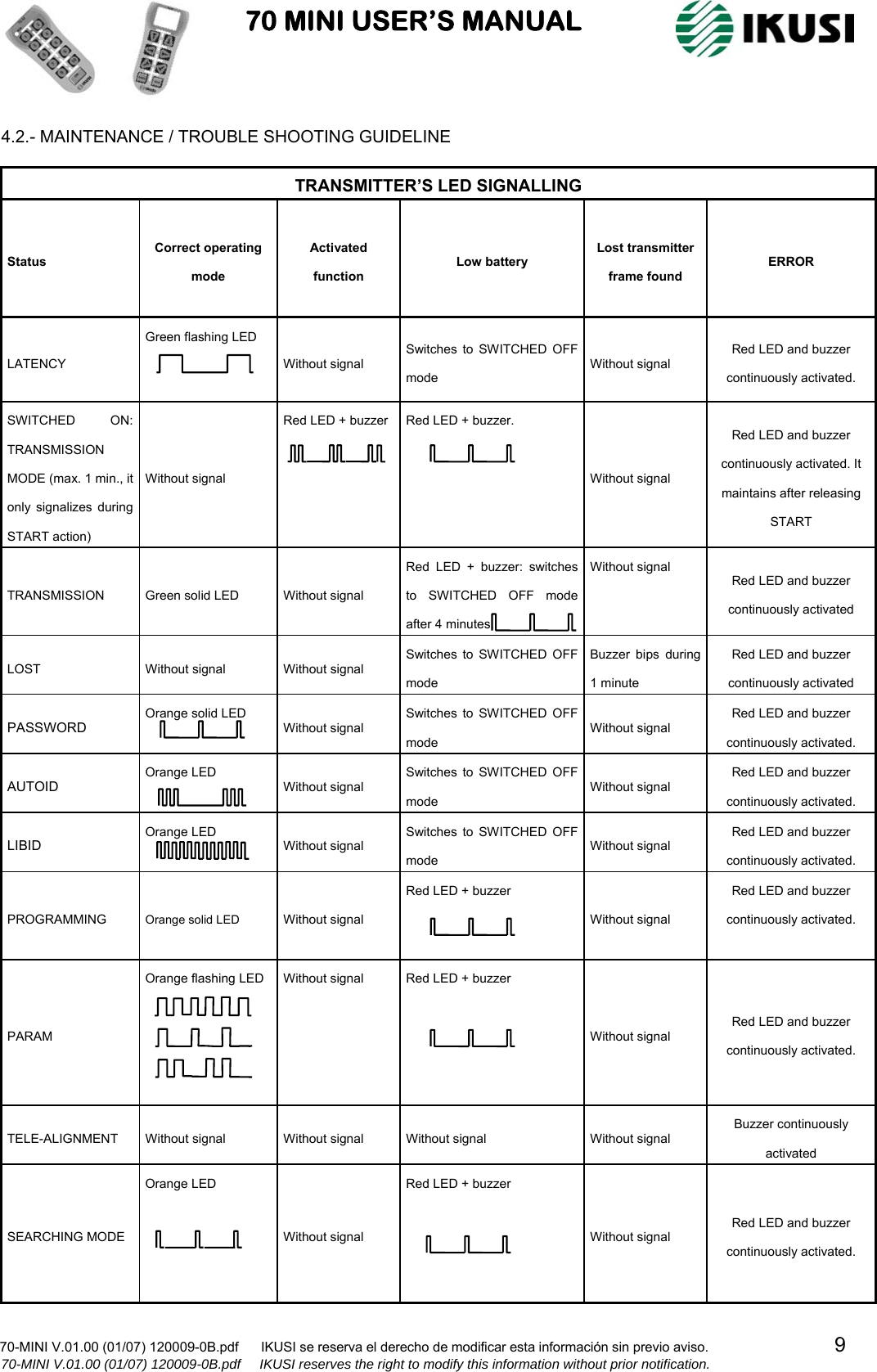

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 9 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 4.2.- MAINTENANCE / TROUBLE SHOOTING GUIDELINE TRANSMITTER’S LED SIGNALLING Status Correct operating mode Activated function Low battery Lost transmitter frame found ERROR LATENCY Green flashing LED Without signal Switches to SWITCHED OFF mode Without signal Red LED and buzzer continuously activated. SWITCHED ON: TRANSMISSION MODE (max. 1 min., it only signalizes during START action) Without signal Red LED + buzzer Red LED + buzzer. Without signal Red LED and buzzer continuously activated. It maintains after releasing START TRANSMISSION Green solid LED Without signal Red LED + buzzer: switches to SWITCHED OFF mode after 4 minutes. Without signal Red LED and buzzer continuously activated LOST Without signal Without signal Switches to SWITCHED OFF mode Buzzer bips during 1 minute Red LED and buzzer continuously activated PASSWORD Orange solid LED Without signal Switches to SWITCHED OFF mode Without signal Red LED and buzzer continuously activated. AUTOID Orange LED Without signal Switches to SWITCHED OFF mode Without signal Red LED and buzzer continuously activated. LIBID Orange LED Without signal Switches to SWITCHED OFF mode Without signal Red LED and buzzer continuously activated. PROGRAMMING Orange solid LED Without signal Red LED + buzzer Without signal Red LED and buzzer continuously activated. PARAM Orange flashing LED Without signal Red LED + buzzer Without signal Red LED and buzzer continuously activated. TELE-ALIGNMENT Without signal Without signal Without signal Without signal Buzzer continuously activated SEARCHING MODE Orange LED Without signal Red LED + buzzer Without signal Red LED and buzzer continuously activated.

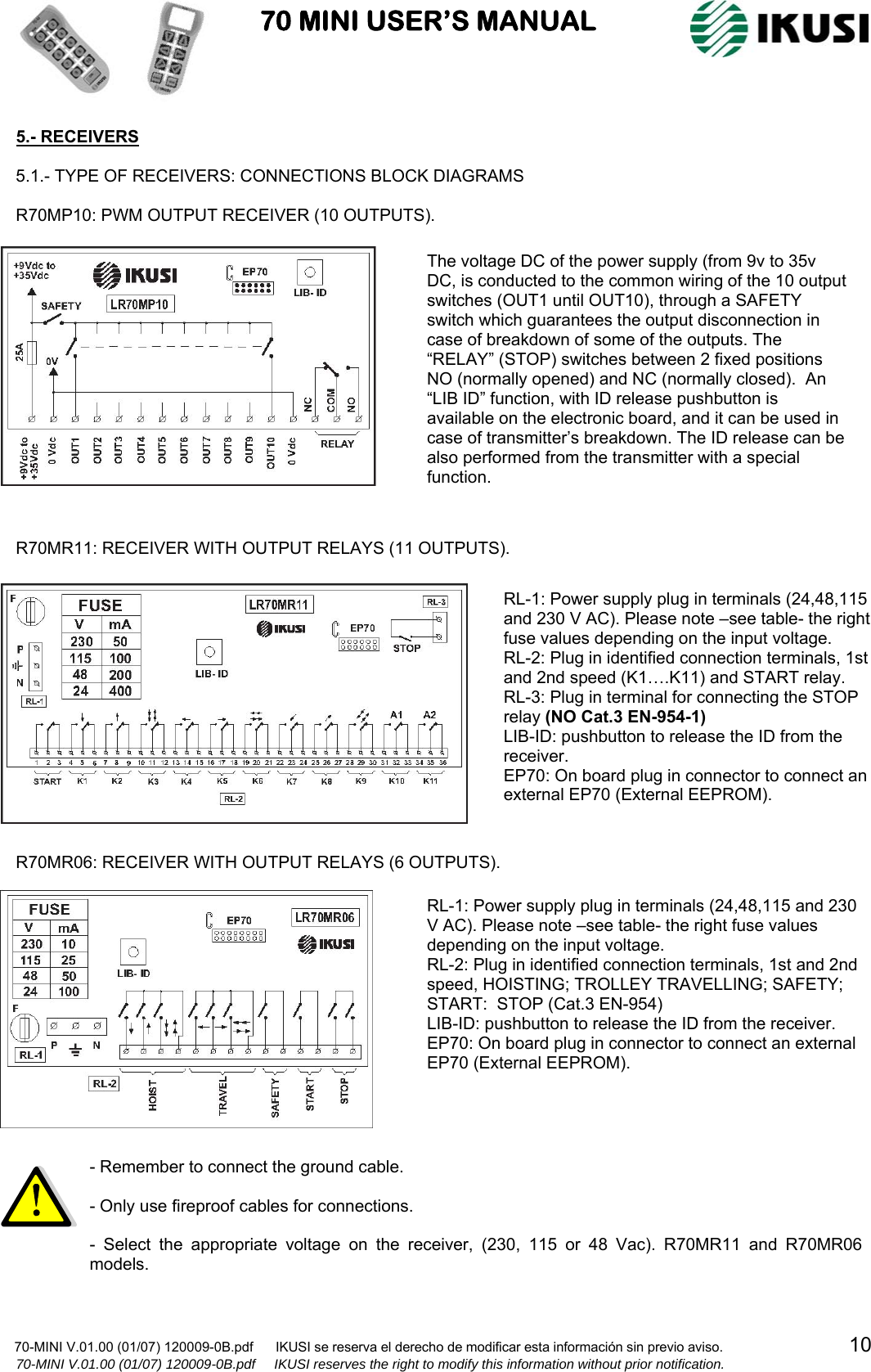

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 10 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 5.- RECEIVERS 5.1.- TYPE OF RECEIVERS: CONNECTIONS BLOCK DIAGRAMS R70MP10: PWM OUTPUT RECEIVER (10 OUTPUTS). R70MR11: RECEIVER WITH OUTPUT RELAYS (11 OUTPUTS). R70MR06: RECEIVER WITH OUTPUT RELAYS (6 OUTPUTS). The voltage DC of the power supply (from 9v to 35v DC, is conducted to the common wiring of the 10 output switches (OUT1 until OUT10), through a SAFETY switch which guarantees the output disconnection in case of breakdown of some of the outputs. The “RELAY” (STOP) switches between 2 fixed positions NO (normally opened) and NC (normally closed). An “LIB ID” function, with ID release pushbutton is available on the electronic board, and it can be used in case of transmitter’s breakdown. The ID release can be also performed from the transmitter with a special function.RL-1: Power supply plug in terminals (24,48,115 and 230 V AC). Please note –see table- the right fuse values depending on the input voltage. RL-2: Plug in identified connection terminals, 1st and 2nd speed (K1….K11) and START relay. RL-3: Plug in terminal for connecting the STOP relay (NO Cat.3 EN-954-1) LIB-ID: pushbutton to release the ID from the receiver. EP70: On board plug in connector to connect an external EP70 (External EEPROM). RL-1: Power supply plug in terminals (24,48,115 and 230 V AC). Please note –see table- the right fuse values depending on the input voltage. RL-2: Plug in identified connection terminals, 1st and 2nd speed, HOISTING; TROLLEY TRAVELLING; SAFETY; START: STOP (Cat.3 EN-954) LIB-ID: pushbutton to release the ID from the receiver. EP70: On board plug in connector to connect an external EP70 (External EEPROM). - Remember to connect the ground cable. - Only use fireproof cables for connections. - Select the appropriate voltage on the receiver, (230, 115 or 48 Vac). R70MR11 and R70MR06 models.

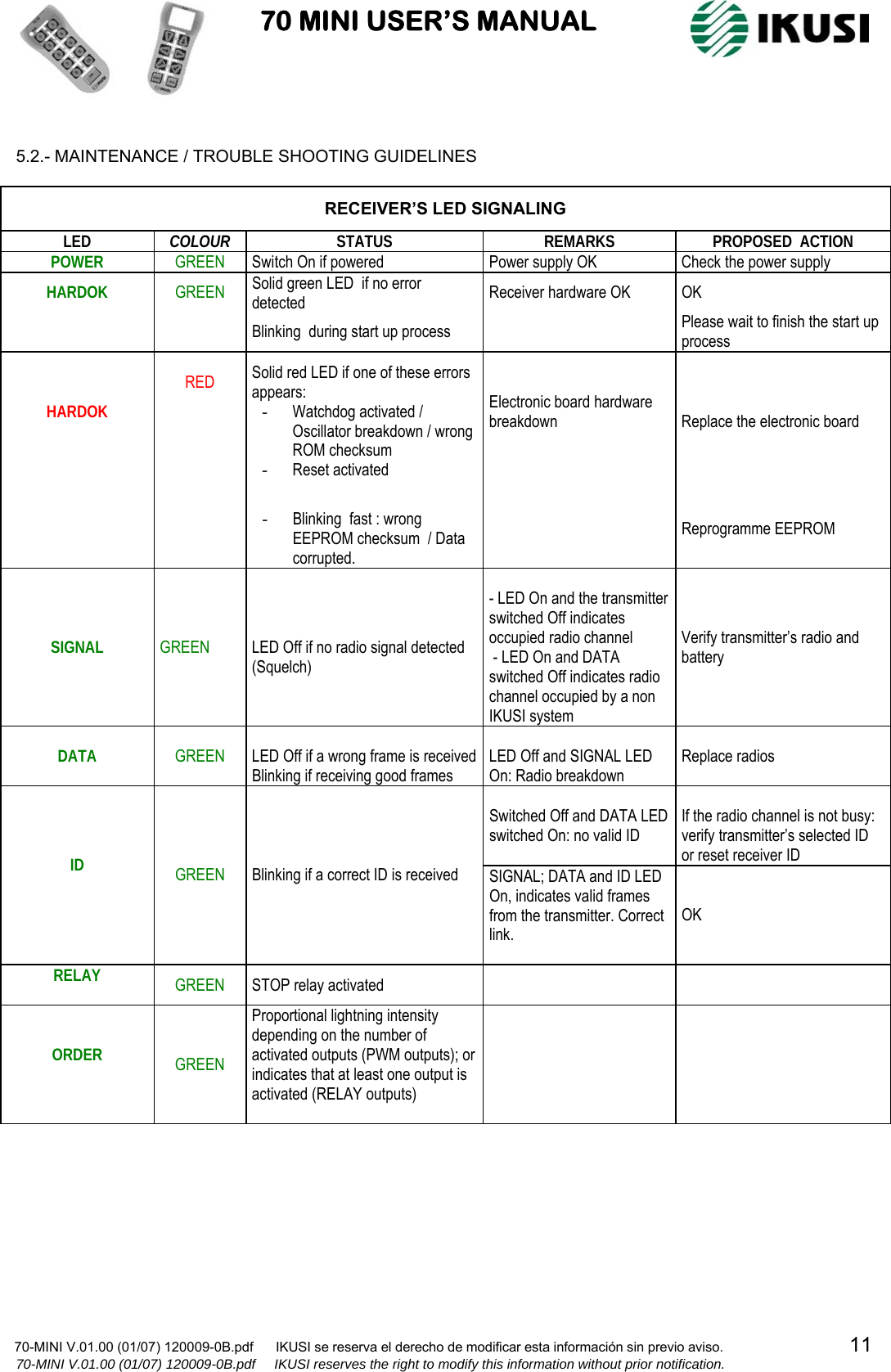

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 11 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 5.2.- MAINTENANCE / TROUBLE SHOOTING GUIDELINES RECEIVER’S LED SIGNALING LED COLOUR STATUS REMARKS PROPOSED ACTION POWER GREEN Switch On if powered Power supply OK Check the power supply HARDOK GREEN Solid green LED if no error detected Receiver hardware OK OK Blinking during start up process Please wait to finish the start up process HARDOK RED Solid red LED if one of these errors appears: - Watchdog activated / Oscillator breakdown / wrong ROM checksum - Reset activated Electronic board hardware breakdown Replace the electronic board - Blinking fast : wrong EEPROM checksum / Data corrupted. Reprogramme EEPROM SIGNAL GREEN LED Off if no radio signal detected (Squelch) - LED On and the transmitter switched Off indicates occupied radio channel - LED On and DATA switched Off indicates radio channel occupied by a non IKUSI system Verify transmitter’s radio and battery DATA GREEN LED Off if a wrong frame is received Blinking if receiving good frames LED Off and SIGNAL LED On: Radio breakdown Replace radios Switched Off and DATA LED switched On: no valid ID If the radio channel is not busy: verify transmitter’s selected ID or reset receiver ID ID GREEN Blinking if a correct ID is received SIGNAL; DATA and ID LED On, indicates valid frames from the transmitter. Correct link. OK RELAY GREEN STOP relay activated ORDER GREEN Proportional lightning intensity depending on the number of activated outputs (PWM outputs); or indicates that at least one output is activated (RELAY outputs)
70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 12 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.- RADIO REMOTE SYSTEM FUNCTIONALITIES 6.1.- GENERALS 6.2.- BATTERY LEVEL INDICATION TRANSMITTER’S MODEL T70MH3D Full battery: 3 black LED’s + frame. [▓ ▓ ▓] Medium battery: 2 black LED’s + frame. [__▓ ▓] Low battery: 1 black LED + frame. [___ ▓] Empty battery: Blinking frame. [_____] TRANSMITTER’S MODEL T70MH3 / T70MG10 Low battery state will be indicated with red LED blinking and intermittent buzzer’s sound (pulses of 0.1 sec. every 0.9 sec.: __/\_____________/\________). The transmitter models without LCD display have restrictions with the access to the programation parameters, due to the impossibility to show the Software Menu in Programation Mode. The remote system receiver remembers the last ID used by the last current working transmitter. This transmitter can be considered as the receiver’s owner. It means that if the receiver is going to be used with another transmitter with a different ID, the receiver must released the current transmitter’s ownership releasing the current ID code (LIB ID).This operation can be performed from the current transmitter (performing LIB ID special function) or by pressing the LIB ID button inside the receiver.

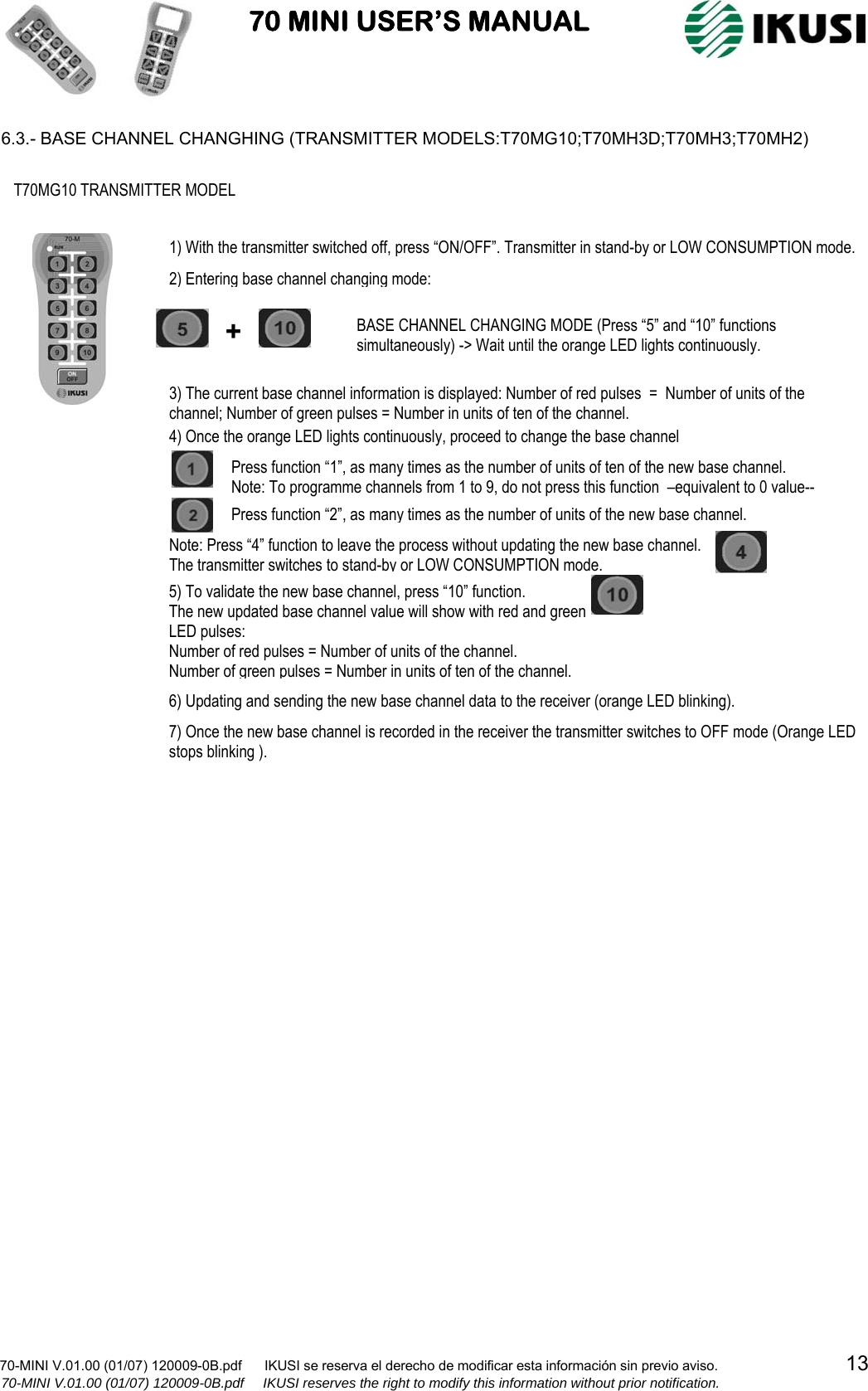

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 13 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.3.- BASE CHANNEL CHANGHING (TRANSMITTER MODELS:T70MG10;T70MH3D;T70MH3;T70MH2) T70MG10 TRANSMITTER MODEL + BASE CHANNEL CHANGING MODE (Press “5” and “10” functions simultaneously) -> Wait until the orange LED lights continuously. 3) The current base channel information is displayed: Number of red pulses = Number of units of the channel; Number of green pulses = Number in units of ten of the channel. 4) Once the orange LED lights continuously, proceed to change the base channel Press function “1”, as many times as the number of units of ten of the new base channel. Note: To programme channels from 1 to 9, do not press this function –equivalent to 0 value-- Press function “2”, as many times as the number of units of the new base channel. 6) Updating and sending the new base channel data to the receiver (orange LED blinking). 7) Once the new base channel is recorded in the receiver the transmitter switches to OFF mode (Orange LED stops blinking ). 5) To validate the new base channel, press “10” function. The new updated base channel value will show with red and green LED pulses: Number of red pulses = Number of units of the channel. Number of green pulses = Number in units of ten of the channel. 2) Entering base channel changing mode: 1) With the transmitter switched off, press “ON/OFF”. Transmitter in stand-by or LOW CONSUMPTION mode. Note: Press “4” function to leave the process without updating the new base channel. The transmitter switches to stand-by or LOW CONSUMPTION mode.

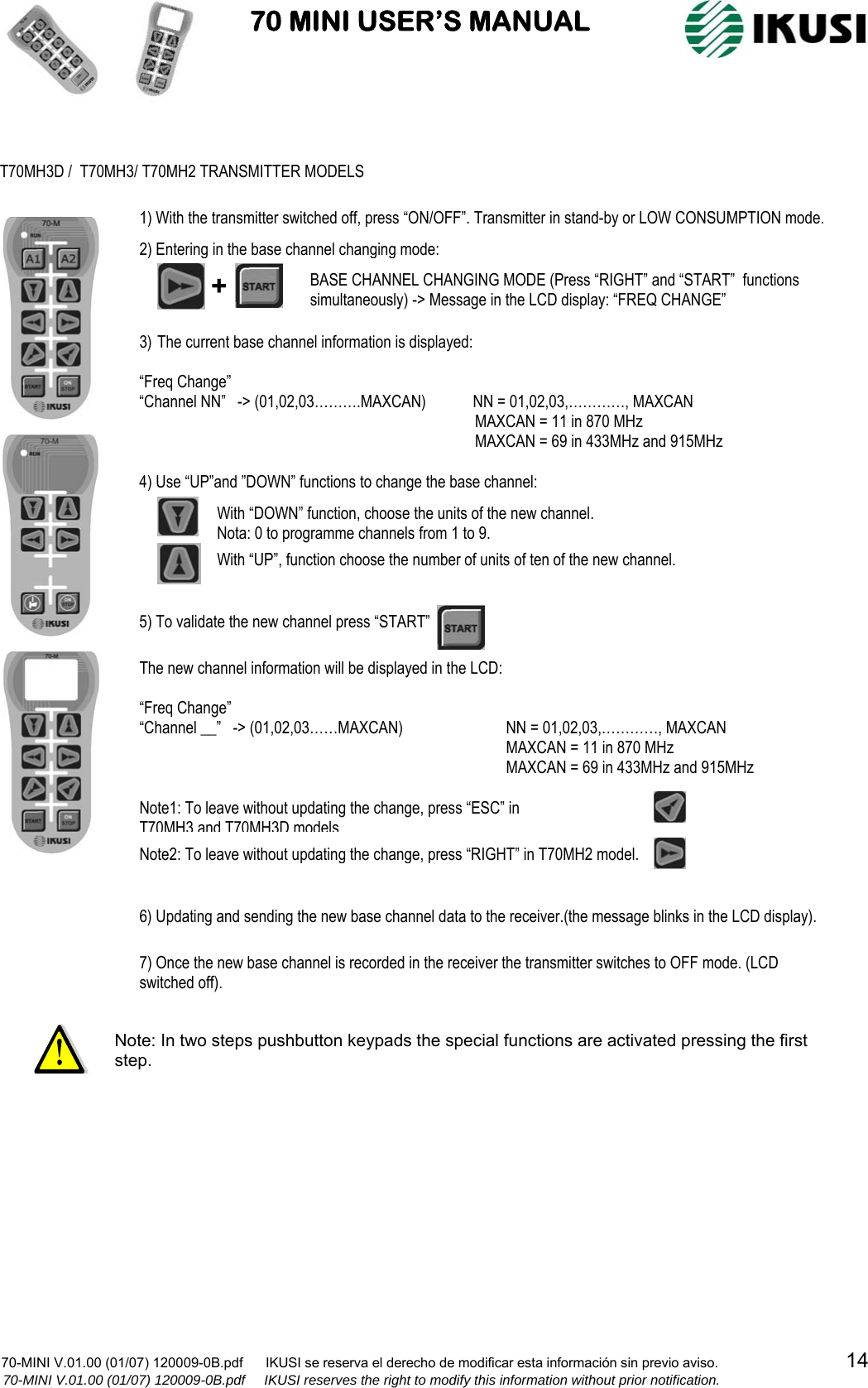

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 14 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. Note: In two steps pushbutton keypads the special functions are activated pressing the first step. T70MH3D / T70MH3/ T70MH2 TRANSMITTER MODELS + BASE CHANNEL CHANGING MODE (Press “RIGHT” and “START” functions simultaneously) -> Message in the LCD display: “FREQ CHANGE” 3) The current base channel information is displayed: “Freq Change” “Channel NN” -> (01,02,03……….MAXCAN) NN = 01,02,03,…………, MAXCAN MAXCAN = 11 in 870 MHz MAXCAN = 69 in 433MHz and 915MHz 4) Use “UP”and ”DOWN” functions to change the base channel: With “DOWN” function, choose the units of the new channel. Nota: 0 to programme channels from 1 to 9. With “UP”, function choose the number of units of ten of the new channel. 5) To validate the new channel press “START” The new channel information will be displayed in the LCD: “Freq Change” “Channel __” -> (01,02,03……MAXCAN) NN = 01,02,03,…………, MAXCAN MAXCAN = 11 in 870 MHz MAXCAN = 69 in 433MHz and 915MHz 1) With the transmitter switched off, press “ON/OFF”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) Entering in the base channel changing mode: 6) Updating and sending the new base channel data to the receiver.(the message blinks in the LCD display). 7) Once the new base channel is recorded in the receiver the transmitter switches to OFF mode. (LCD switched off). Note1: To leave without updating the change, press “ESC” in T70MH3 and T70MH3D models Note2: To leave without updating the change, press “RIGHT” in T70MH2 model.

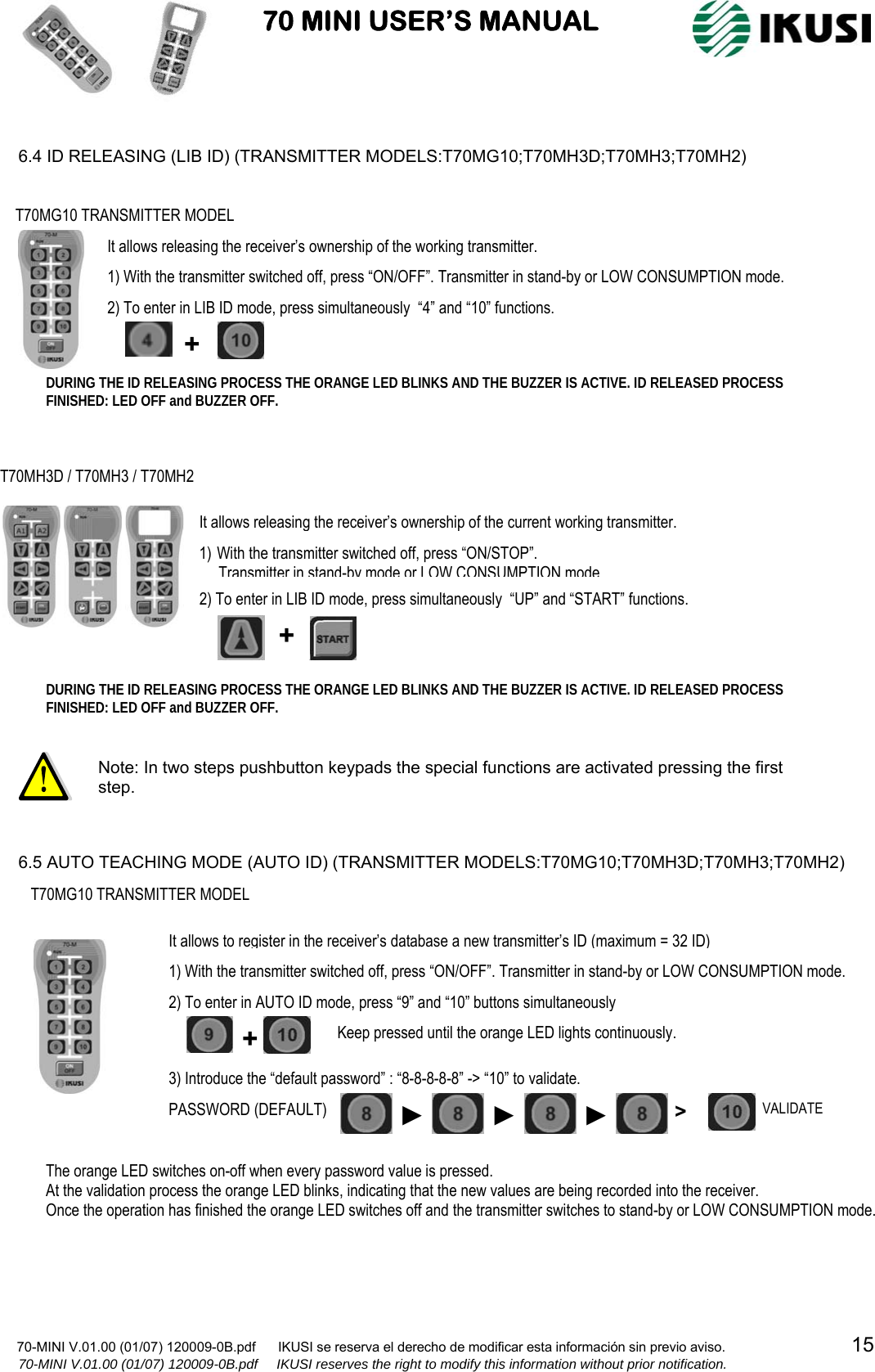

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 15 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.4 ID RELEASING (LIB ID) (TRANSMITTER MODELS:T70MG10;T70MH3D;T70MH3;T70MH2) 6.5 AUTO TEACHING MODE (AUTO ID) (TRANSMITTER MODELS:T70MG10;T70MH3D;T70MH3;T70MH2) Note: In two steps pushbutton keypads the special functions are activated pressing the first step. DURING THE ID RELEASING PROCESS THE ORANGE LED BLINKS AND THE BUZZER IS ACTIVE. ID RELEASED PROCESS FINISHED: LED OFF and BUZZER OFF. T70MH3D / T70MH3 / T70MH2 It allows releasing the receiver’s ownership of the current working transmitter. 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by mode or LOW CONSUMPTION mode 2) To enter in LIB ID mode, press simultaneously “UP” and “START” functions. + T70MG10 TRANSMITTER MODEL It allows releasing the receiver’s ownership of the working transmitter.1) With the transmitter switched off, press “ON/OFF”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in LIB ID mode, press simultaneously “4” and “10” functions. + DURING THE ID RELEASING PROCESS THE ORANGE LED BLINKS AND THE BUZZER IS ACTIVE. ID RELEASED PROCESS FINISHED: LED OFF and BUZZER OFF. T70MG10 TRANSMITTER MODEL The orange LED switches on-off when every password value is pressed. At the validation process the orange LED blinks, indicating that the new values are being recorded into the receiver. Once the operation has finished the orange LED switches off and the transmitter switches to stand-by or LOW CONSUMPTION mode. It allows to register in the receiver’s database a new transmitter’s ID (maximum = 32 ID) + 1) With the transmitter switched off, press “ON/OFF”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in AUTO ID mode, press “9” and “10” buttons simultaneously 3) Introduce the “default password” : “8-8-8-8-8” -> “10” to validate. Keep pressed until the orange LED lights continuously. PASSWORD (DEFAULT) ►►►> VALIDATE

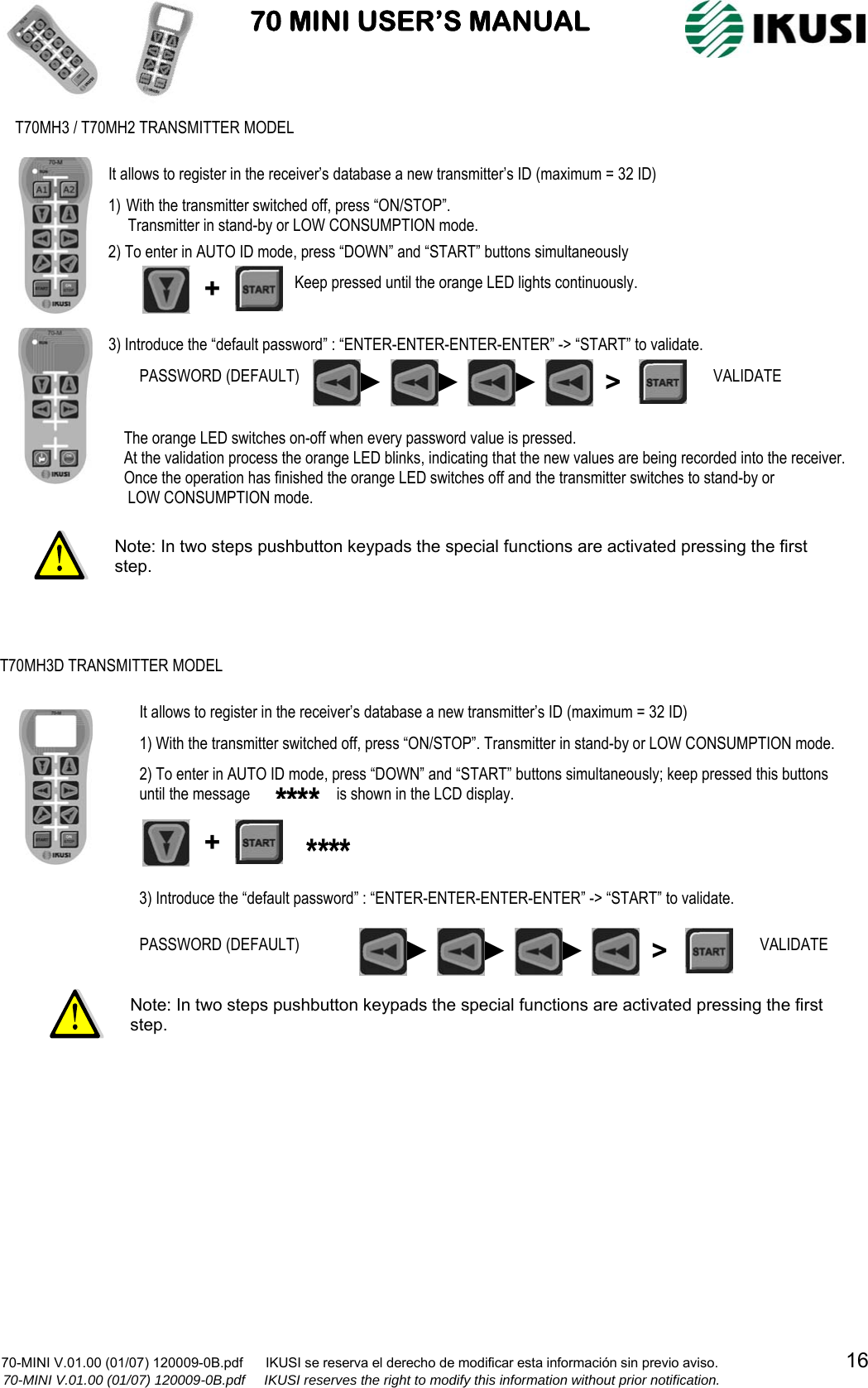

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 16 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. Note: In two steps pushbutton keypads the special functions are activated pressing the first step. It allows to register in the receiver’s database a new transmitter’s ID (maximum = 32 ID) T70MH3 / T70MH2 TRANSMITTER MODEL 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in AUTO ID mode, press “DOWN” and “START” buttons simultaneously 3) Introduce the “default password” : “ENTER-ENTER-ENTER-ENTER” -> “START” to validate. +Keep pressed until the orange LED lights continuously. The orange LED switches on-off when every password value is pressed. At the validation process the orange LED blinks, indicating that the new values are being recorded into the receiver. Once the operation has finished the orange LED switches off and the transmitter switches to stand-by or LOW CONSUMPTION mode. PASSWORD (DEFAULT) ►►► >VALIDATE Note: In two steps pushbutton keypads the special functions are activated pressing the first step. T70MH3D TRANSMITTER MODEL It allows to register in the receiver’s database a new transmitter’s ID (maximum = 32 ID) 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in AUTO ID mode, press “DOWN” and “START” buttons simultaneously; keep pressed this buttons until the message is shown in the LCD display. 3) Introduce the “default password” : “ENTER-ENTER-ENTER-ENTER” -> “START” to validate. **** +**** PASSWORD (DEFAULT) ►►► >VALIDATE

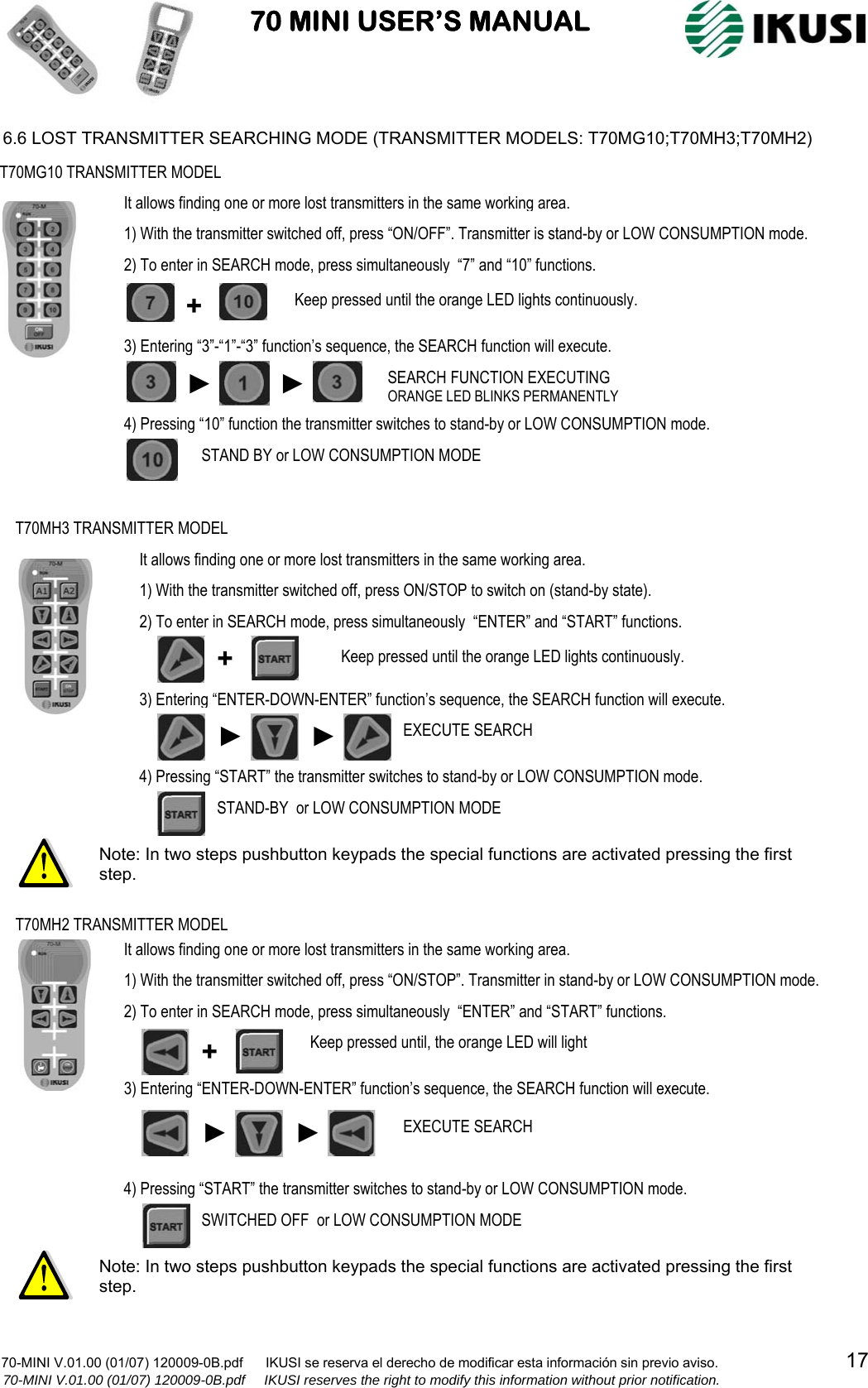

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 17 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.6 LOST TRANSMITTER SEARCHING MODE (TRANSMITTER MODELS: T70MG10;T70MH3;T70MH2) T70MG10 TRANSMITTER MODEL + ► ► SEARCH FUNCTION EXECUTING ORANGE LED BLINKS PERMANENTLY STAND BY or LOW CONSUMPTION MODE 1) With the transmitter switched off, press “ON/OFF”. Transmitter is stand-by or LOW CONSUMPTION mode. 2) To enter in SEARCH mode, press simultaneously “7” and “10” functions. 3) Entering “3”-“1”-“3” function’s sequence, the SEARCH function will execute. 4) Pressing “10” function the transmitter switches to stand-by or LOW CONSUMPTION mode. It allows finding one or more lost transmitters in the same working area.Keep pressed until the orange LED lights continuously. Note: In two steps pushbutton keypads the special functions are activated pressing the first step. T70MH2 TRANSMITTER MODEL SWITCHED OFF or LOW CONSUMPTION MODE 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in SEARCH mode, press simultaneously “ENTER” and “START” functions. 3) Entering “ENTER-DOWN-ENTER” function’s sequence, the SEARCH function will execute. 4) Pressing “START” the transmitter switches to stand-by or LOW CONSUMPTION mode. It allows finding one or more lost transmitters in the same working area.Keep pressed until, the orange LED will light + EXECUTE SEARCH ► ► 2) To enter in SEARCH mode, press simultaneously “ENTER” and “START” functions. 3) Entering “ENTER-DOWN-ENTER” function’s sequence, the SEARCH function will execute. 4) Pressing “START” the transmitter switches to stand-by or LOW CONSUMPTION mode. T70MH3 TRANSMITTER MODEL ► ►EXECUTE SEARCH STAND-BY or LOW CONSUMPTION MODE 1) With the transmitter switched off, press ON/STOP to switch on (stand-by state). It allows finding one or more lost transmitters in the same working area.+ Keep pressed until the orange LED lights continuously. Note: In two steps pushbutton keypads the special functions are activated pressing the first step.

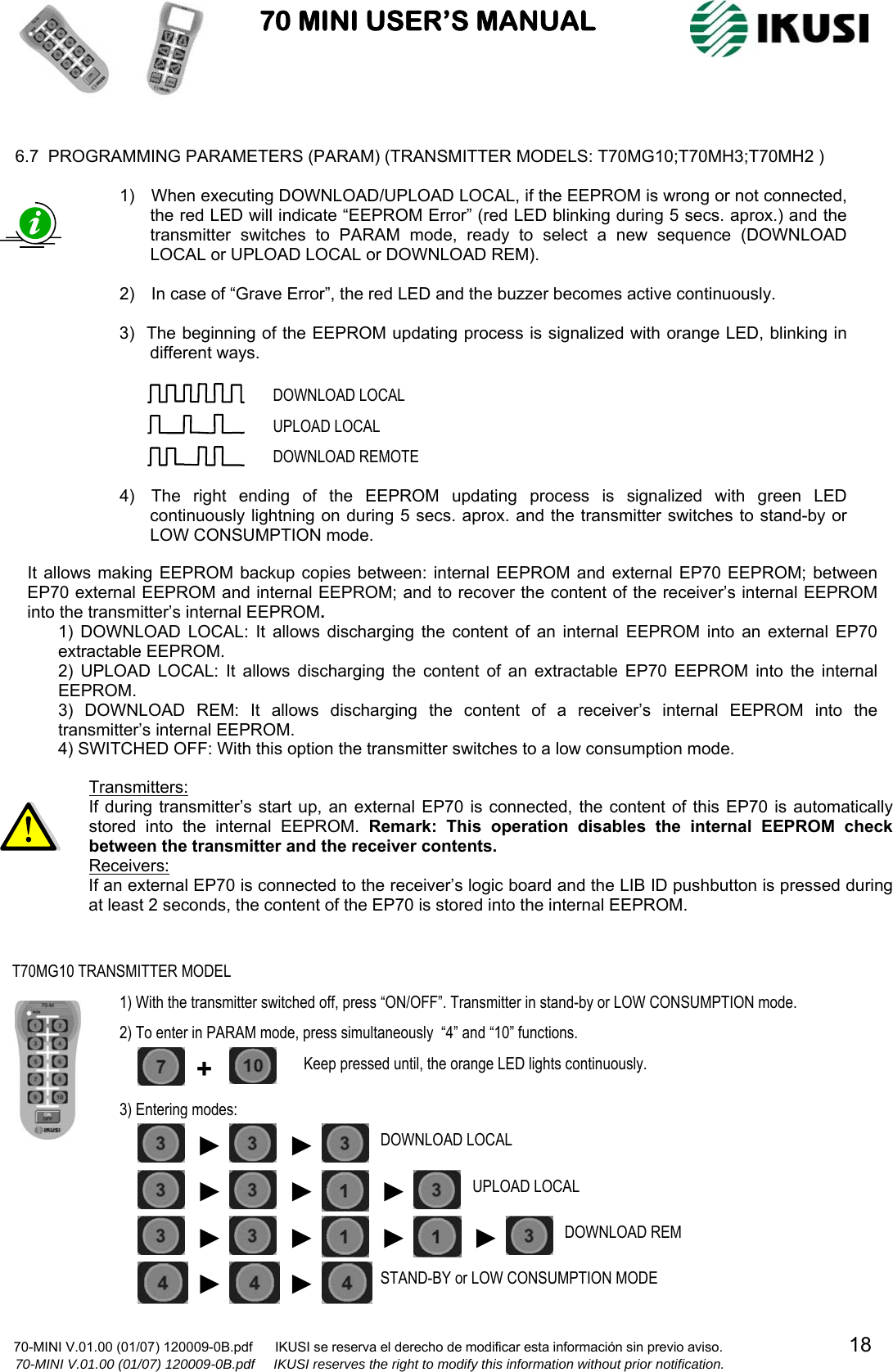

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 18 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.7 PROGRAMMING PARAMETERS (PARAM) (TRANSMITTER MODELS: T70MG10;T70MH3;T70MH2 ) It allows making EEPROM backup copies between: internal EEPROM and external EP70 EEPROM; between EP70 external EEPROM and internal EEPROM; and to recover the content of the receiver’s internal EEPROM into the transmitter’s internal EEPROM. 1) DOWNLOAD LOCAL: It allows discharging the content of an internal EEPROM into an external EP70 extractable EEPROM. 2) UPLOAD LOCAL: It allows discharging the content of an extractable EP70 EEPROM into the internal EEPROM. 3) DOWNLOAD REM: It allows discharging the content of a receiver’s internal EEPROM into the transmitter’s internal EEPROM. 4) SWITCHED OFF: With this option the transmitter switches to a low consumption mode. 1) When executing DOWNLOAD/UPLOAD LOCAL, if the EEPROM is wrong or not connected, the red LED will indicate “EEPROM Error” (red LED blinking during 5 secs. aprox.) and the transmitter switches to PARAM mode, ready to select a new sequence (DOWNLOAD LOCAL or UPLOAD LOCAL or DOWNLOAD REM). 2) In case of “Grave Error”, the red LED and the buzzer becomes active continuously. 3) The beginning of the EEPROM updating process is signalized with orange LED, blinking in different ways. 4) The right ending of the EEPROM updating process is signalized with green LED continuously lightning on during 5 secs. aprox. and the transmitter switches to stand-by or LOW CONSUMPTION mode. DOWNLOAD LOCAL UPLOAD LOCAL DOWNLOAD REMOTE Transmitters: If during transmitter’s start up, an external EP70 is connected, the content of this EP70 is automatically stored into the internal EEPROM. Remark: This operation disables the internal EEPROM check between the transmitter and the receiver contents. Receivers: If an external EP70 is connected to the receiver’s logic board and the LIB ID pushbutton is pressed during at least 2 seconds, the content of the EP70 is stored into the internal EEPROM. T70MG10 TRANSMITTER MODEL 1) With the transmitter switched off, press “ON/OFF”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in PARAM mode, press simultaneously “4” and “10” functions. ► ►DOWNLOAD REM ►DOWNLOAD LOCAL ►► UPLOAD LOCAL ►STAND-BY or LOW CONSUMPTION MODE 3) Entering modes: + Keep pressed until, the orange LED lights continuously. ► ►►► ►

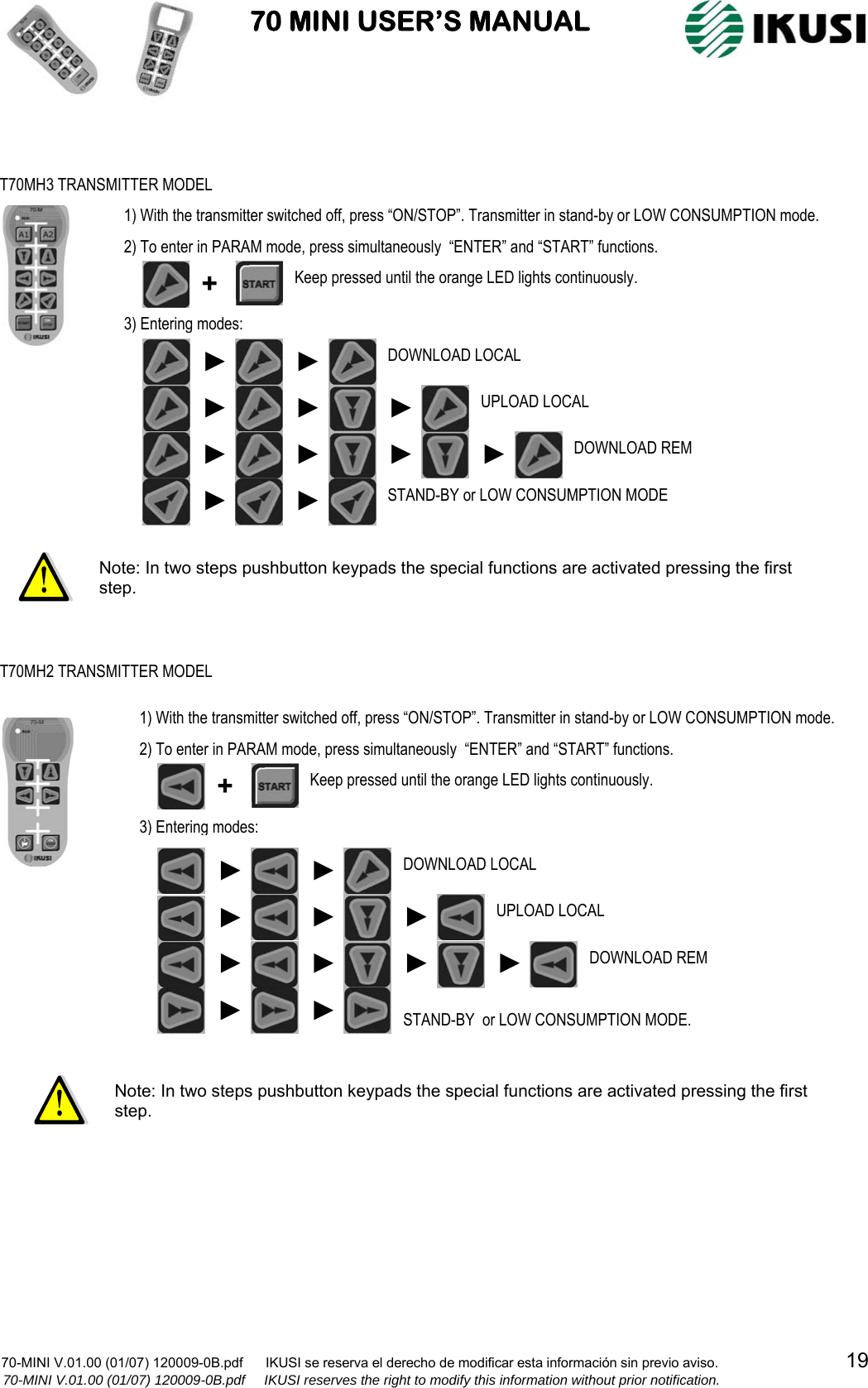

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 19 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. T70MH3 TRANSMITTER MODEL 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in PARAM mode, press simultaneously “ENTER” and “START” functions. 3) Entering modes: ► DOWNLOAD REM ►UPLOAD LOCAL ► ► DOWNLOAD LOCAL ► ► + Keep pressed until the orange LED lights continuously. STAND-BY or LOW CONSUMPTION MODE ►► ► ►► Note: In two steps pushbutton keypads the special functions are activated pressing the first step. Note: In two steps pushbutton keypads the special functions are activated pressing the first step. T70MH2 TRANSMITTER MODEL 1) With the transmitter switched off, press “ON/STOP”. Transmitter in stand-by or LOW CONSUMPTION mode. 2) To enter in PARAM mode, press simultaneously “ENTER” and “START” functions. 3) Entering modes: Keep pressed until the orange LED lights continuously. + DOWNLOAD LOCAL ► STAND-BY or LOW CONSUMPTION MODE. DOWNLOAD REM ► ►► UPLOAD LOCAL ►► ►► ►►►

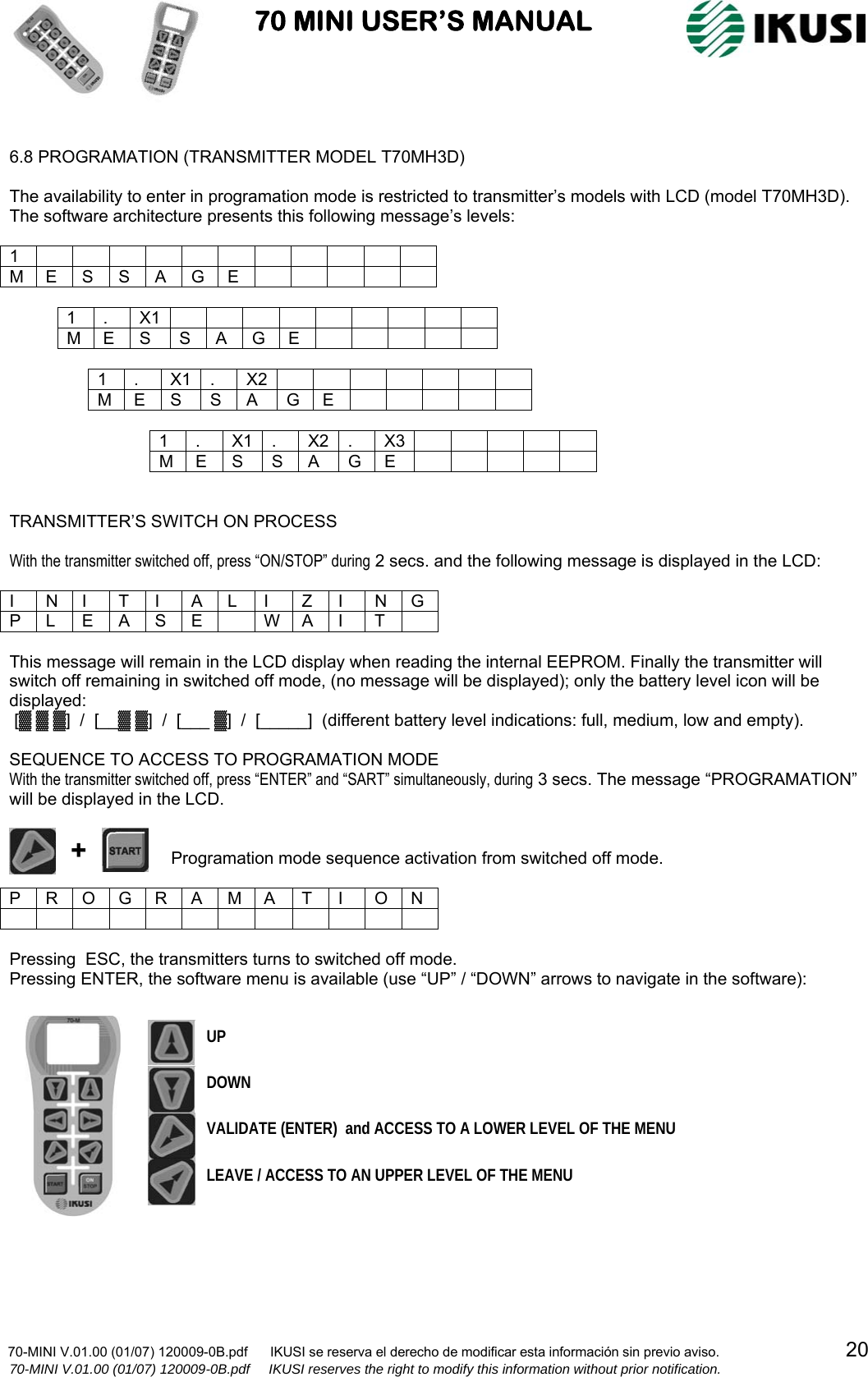

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 20 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.8 PROGRAMATION (TRANSMITTER MODEL T70MH3D) The availability to enter in programation mode is restricted to transmitter’s models with LCD (model T70MH3D). The software architecture presents this following message’s levels: 1 M E S S A G E 1 . X1 M E S S A G E 1 . X1 . X2 M E S S A G E 1 . X1 . X2 . X3 M E S S A G E TRANSMITTER’S SWITCH ON PROCESS With the transmitter switched off, press “ON/STOP” during 2 secs. and the following message is displayed in the LCD: I N I T I A L I Z I N G P L E A S E W A I T This message will remain in the LCD display when reading the internal EEPROM. Finally the transmitter will switch off remaining in switched off mode, (no message will be displayed); only the battery level icon will be displayed: [▓ ▓ ▓] / [__▓ ▓] / [___ ▓] / [_____] (different battery level indications: full, medium, low and empty). SEQUENCE TO ACCESS TO PROGRAMATION MODE With the transmitter switched off, press “ENTER” and “SART” simultaneously, during 3 secs. The message “PROGRAMATION” will be displayed in the LCD. Programation mode sequence activation from switched off mode. P R O G R A M A T I O N Pressing ESC, the transmitters turns to switched off mode. Pressing ENTER, the software menu is available (use “UP” / “DOWN” arrows to navigate in the software): + VALIDATE (ENTER) and ACCESS TO A LOWER LEVEL OF THE MENU LEAVE / ACCESS TO AN UPPER LEVEL OF THE MENU UP DOWN

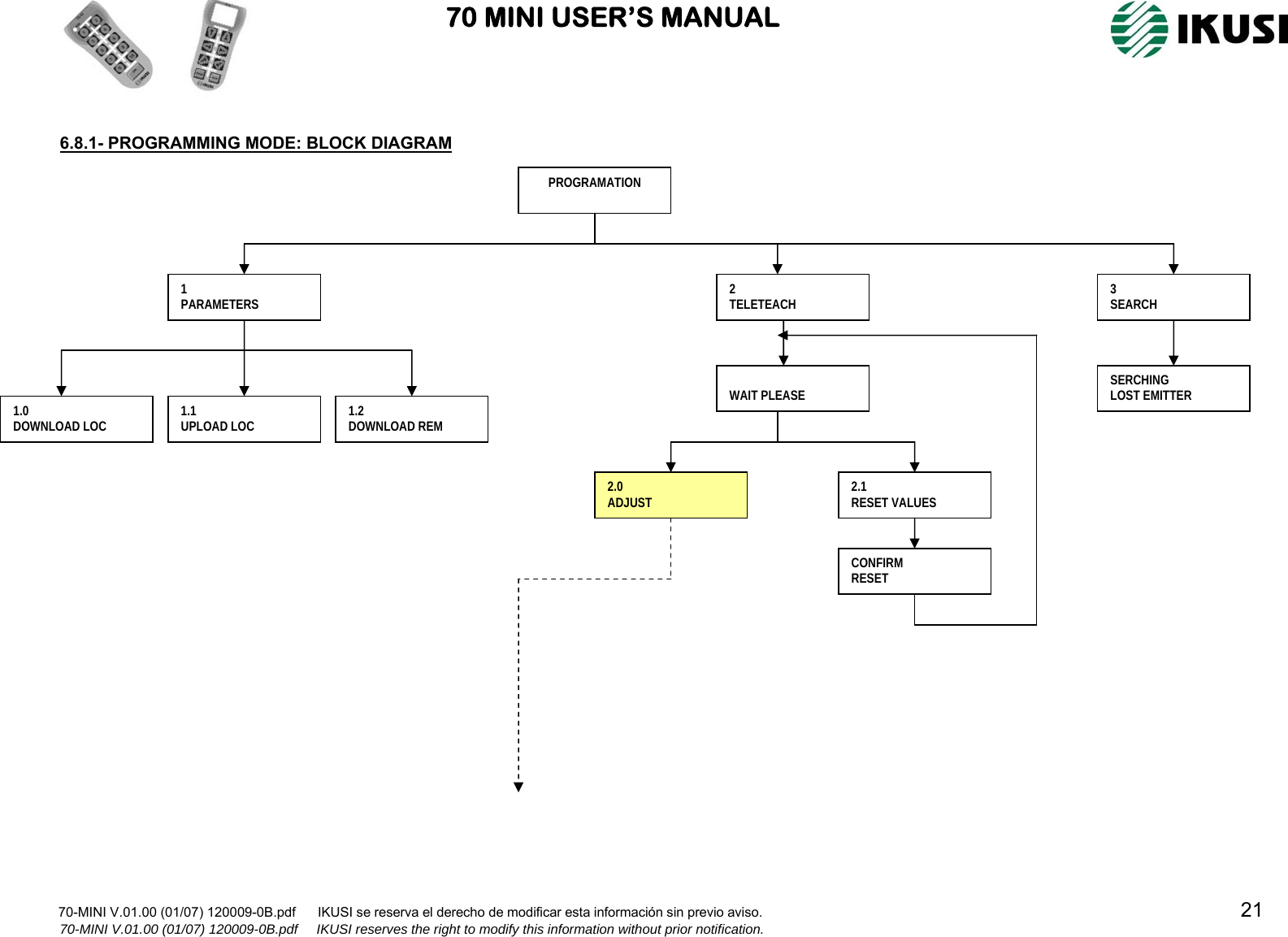

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 21 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.8.1- PROGRAMMING MODE: BLOCK DIAGRAM PROGRAMATION 1 PARAMETERS 2 TELETEACH 3 SEARCH 1.0 DOWNLOAD LOC 1.1 UPLOAD LOC 1.2 DOWNLOAD REM WAIT PLEASE 2.1 RESET VALUES CONFIRM RESET 2.0 ADJUST SERCHING LOST EMITTER

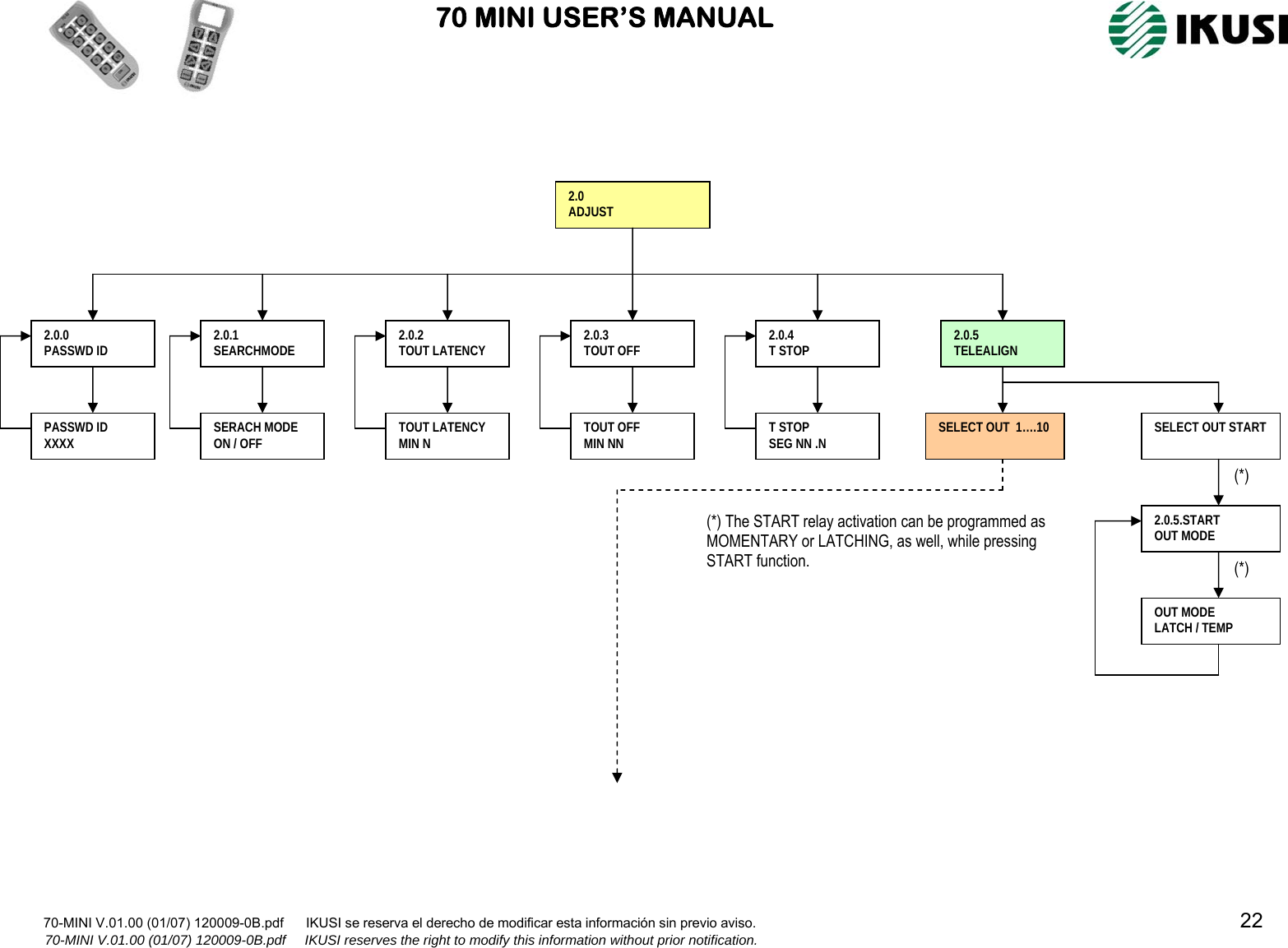

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 22 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 2.0 ADJUST 2.0.0 PASSWD ID 2.0.1 SEARCHMODE 2.0.2 TOUT LATENCY 2.0.3 TOUT OFF 2.0.4 T STOP 2.0.5 TELEALIGN PASSWD ID XXXX SERACH MODE ON / OFF TOUT LATENCY MIN N TOUT OFF MIN NN T STOP SEG NN .N SELECT OUT 1….10 SELECT OUT START 2.0.5.START OUT MODE OUT MODE LATCH / TEMP (*) (*) (*) The START relay activation can be programmed as MOMENTARY or LATCHING, as well, while pressing START function.

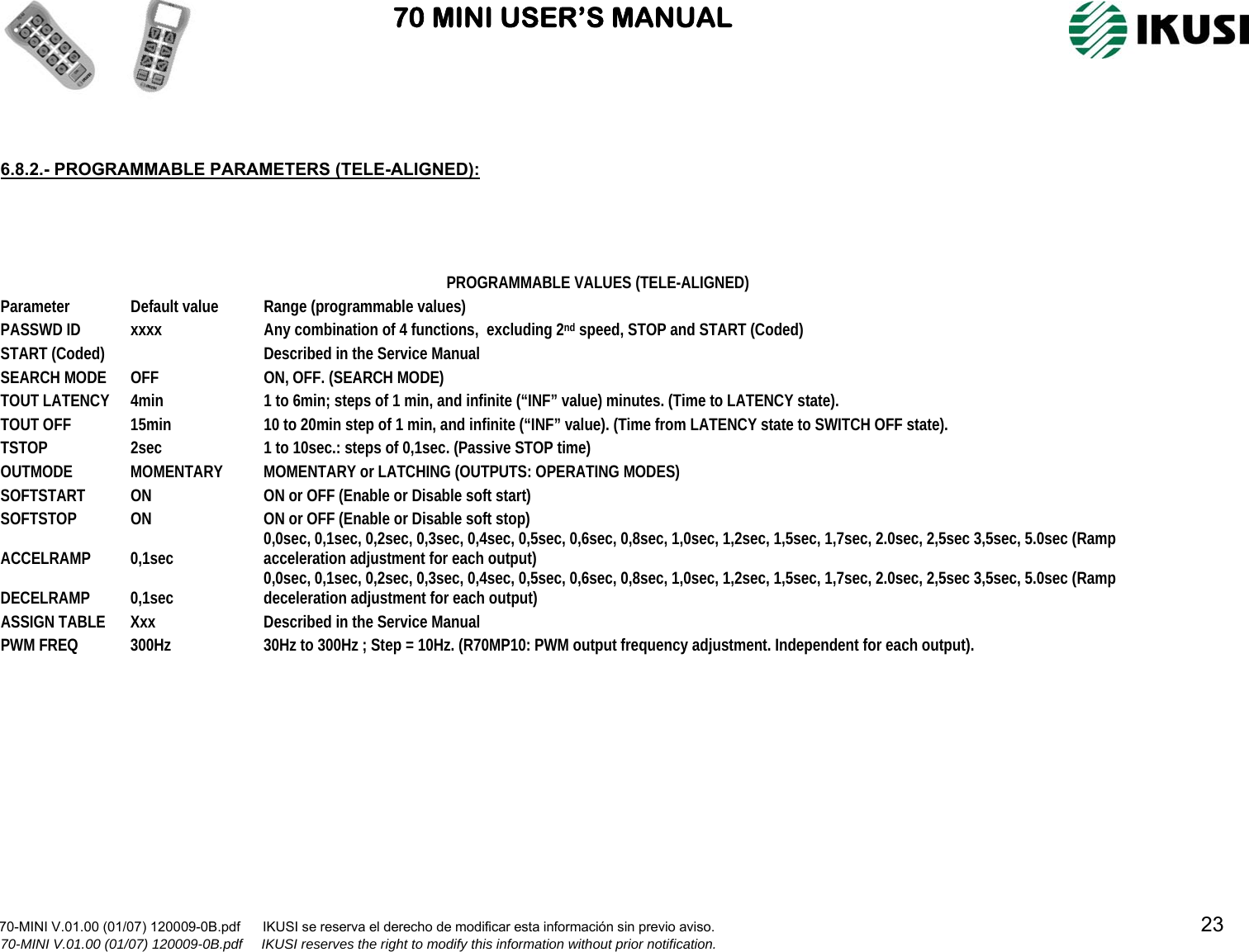

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 23 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.8.2.- PROGRAMMABLE PARAMETERS (TELE-ALIGNED): PROGRAMMABLE VALUES (TELE-ALIGNED) Parameter Default value Range (programmable values) PASSWD ID xxxx Any combination of 4 functions, excluding 2nd speed, STOP and START (Coded) START (Coded) Described in the Service Manual SEARCH MODE OFF ON, OFF. (SEARCH MODE) TOUT LATENCY 4min 1 to 6min; steps of 1 min, and infinite (“INF” value) minutes. (Time to LATENCY state). TOUT OFF 15min 10 to 20min step of 1 min, and infinite (“INF” value). (Time from LATENCY state to SWITCH OFF state). TSTOP 2sec 1 to 10sec.: steps of 0,1sec. (Passive STOP time) OUTMODE MOMENTARY MOMENTARY or LATCHING (OUTPUTS: OPERATING MODES) SOFTSTART ON ON or OFF (Enable or Disable soft start) SOFTSTOP ON ON or OFF (Enable or Disable soft stop) ACCELRAMP 0,1sec 0,0sec, 0,1sec, 0,2sec, 0,3sec, 0,4sec, 0,5sec, 0,6sec, 0,8sec, 1,0sec, 1,2sec, 1,5sec, 1,7sec, 2.0sec, 2,5sec 3,5sec, 5.0sec (Ramp acceleration adjustment for each output) DECELRAMP 0,1sec 0,0sec, 0,1sec, 0,2sec, 0,3sec, 0,4sec, 0,5sec, 0,6sec, 0,8sec, 1,0sec, 1,2sec, 1,5sec, 1,7sec, 2.0sec, 2,5sec 3,5sec, 5.0sec (Ramp deceleration adjustment for each output) ASSIGN TABLE Xxx Described in the Service Manual PWM FREQ 300Hz 30Hz to 300Hz ; Step = 10Hz. (R70MP10: PWM output frequency adjustment. Independent for each output).

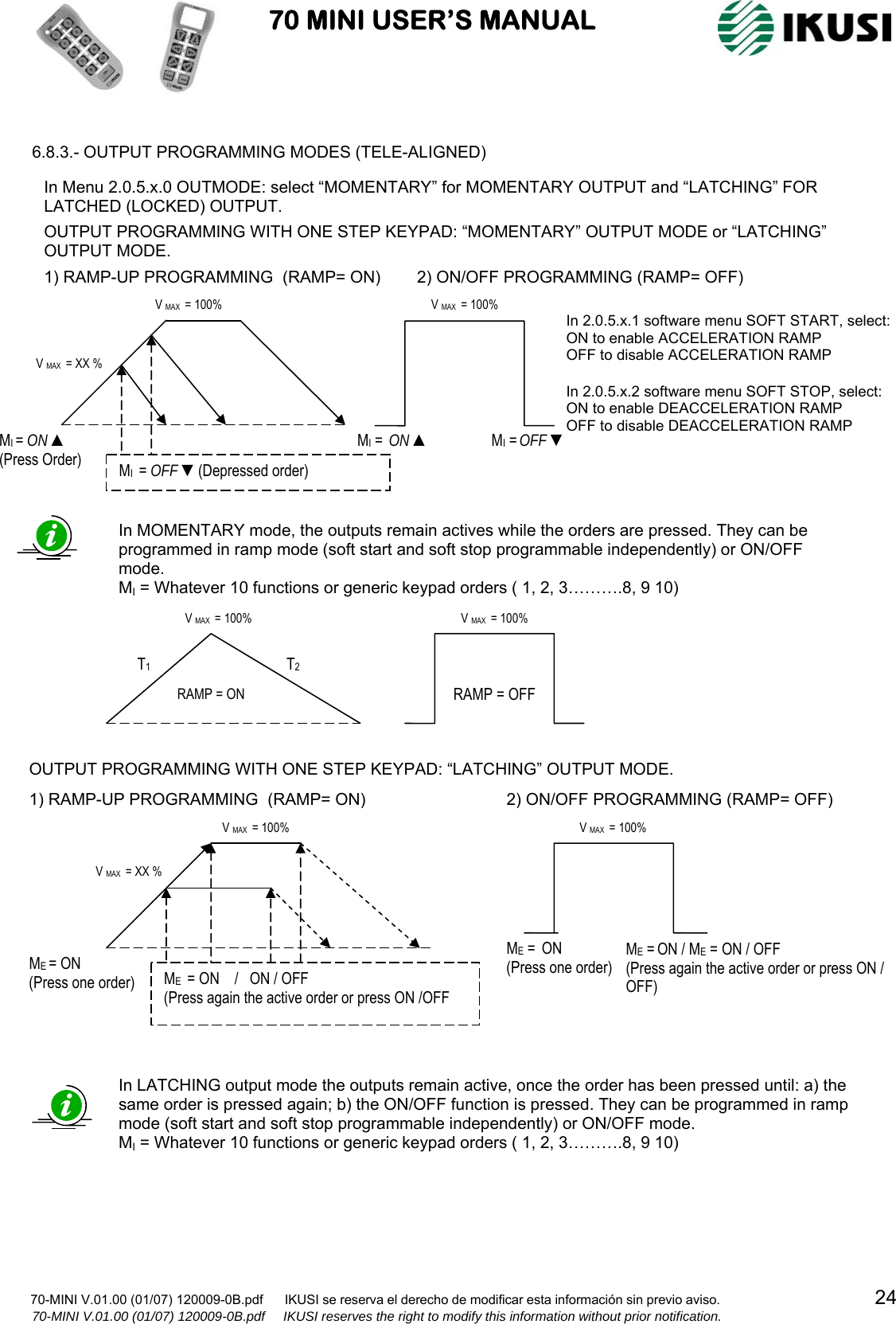

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 24 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 6.8.3.- OUTPUT PROGRAMMING MODES (TELE-ALIGNED) In LATCHING output mode the outputs remain active, once the order has been pressed until: a) the same order is pressed again; b) the ON/OFF function is pressed. They can be programmed in ramp mode (soft start and soft stop programmable independently) or ON/OFF mode. MI = Whatever 10 functions or generic keypad orders ( 1, 2, 3……….8, 9 10) OUTPUT PROGRAMMING WITH ONE STEP KEYPAD: “LATCHING” OUTPUT MODE. ME = ON (Press one order) ME = ON / ON / OFF (Press again the active order or press ON /OFF V MAX = 100% V MAX = XX % 1) RAMP-UP PROGRAMMING (RAMP= ON)ME = ON / ME = ON / OFF (Press again the active order or press ON / OFF) ME = ON (Press one order) V MAX = 100% 2) ON/OFF PROGRAMMING (RAMP= OFF)RAMP = OFF V MAX = 100% RAMP = ON T1 T2 V MAX = 100% In MOMENTARY mode, the outputs remain actives while the orders are pressed. They can be programmed in ramp mode (soft start and soft stop programmable independently) or ON/OFF mode. MI = Whatever 10 functions or generic keypad orders ( 1, 2, 3……….8, 9 10) In Menu 2.0.5.x.0 OUTMODE: select “MOMENTARY” for MOMENTARY OUTPUT and “LATCHING” FOR LATCHED (LOCKED) OUTPUT. OUTPUT PROGRAMMING WITH ONE STEP KEYPAD: “MOMENTARY” OUTPUT MODE or “LATCHING” OUTPUT MODE. MI = ON ▲ MI = OFF ▼ V MAX = 100% MI = ON ▲ (Press Order) MI = OFF ▼(Depressed order) V MAX = 100% V MAX = XX % 1) RAMP-UP PROGRAMMING (RAMP= ON)2) ON/OFF PROGRAMMING(RAMP= OFF) In 2.0.5.x.1 software menu SOFT START, select: ON to enable ACCELERATION RAMP OFF to disable ACCELERATION RAMP In 2.0.5.x.2 software menu SOFT STOP, select: ON to enable DEACCELERATION RAMP OFF to disable DEACCELERATION RAMP

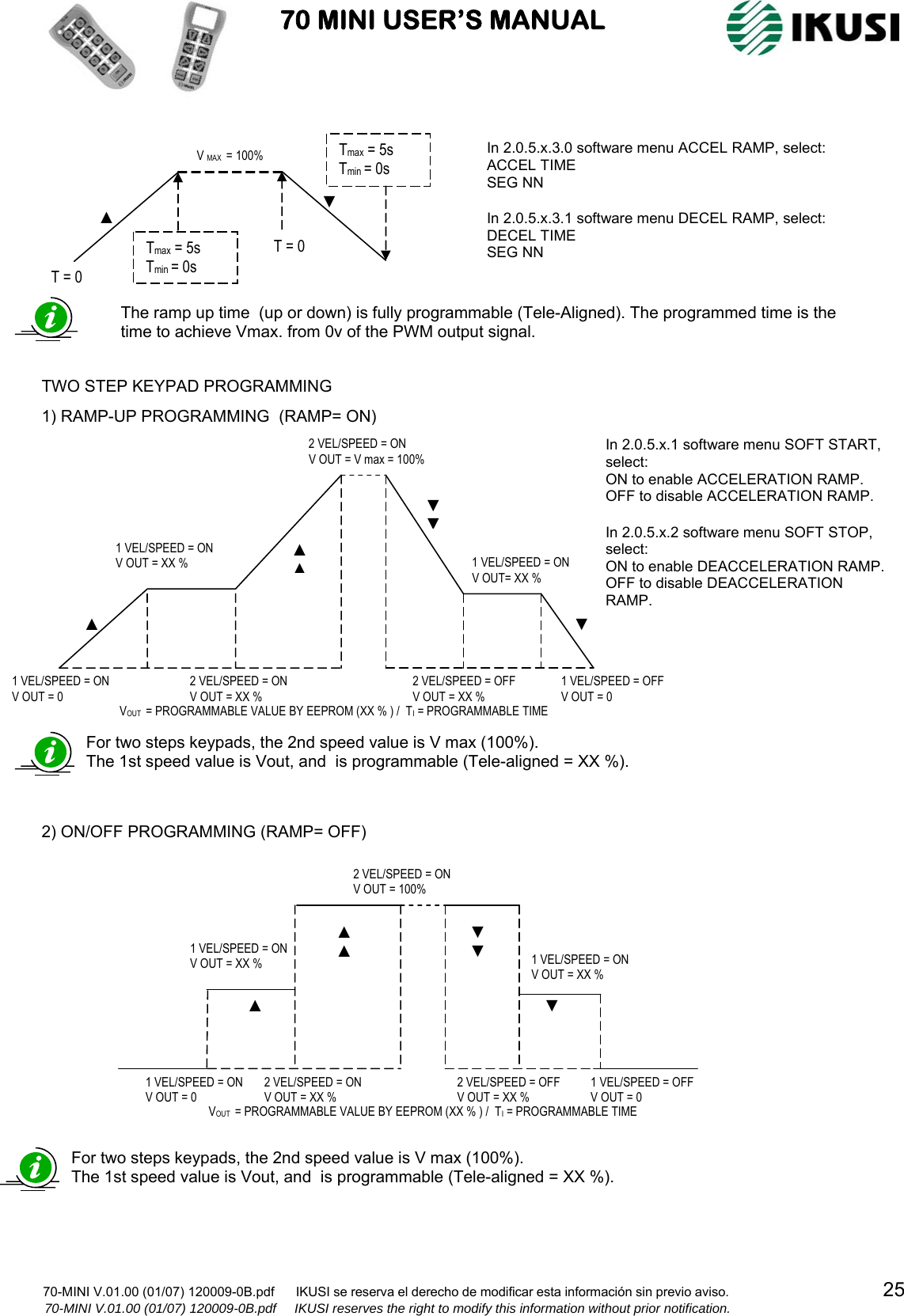

70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 25 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. The ramp up time (up or down) is fully programmable (Tele-Aligned). The programmed time is the time to achieve Vmax. from 0v of the PWM output signal. T = 0 Tmax = 5s Tmin = 0s ▲ T = 0 Tmax = 5s Tmin = 0s ▼ V MAX = 100% In 2.0.5.x.3.0 software menu ACCEL RAMP, select: ACCEL TIME SEG NN In 2.0.5.x.3.1 software menu DECEL RAMP, select: DECEL TIME SEG NN TWO STEP KEYPAD PROGRAMMING 2) ON/OFF PROGRAMMING(RAMP= OFF)1 VEL/SPEED = ON V OUT = XX % ▲ ▲ ▲ 2 VEL/SPEED = ON V OUT = 100% 1 VEL/SPEED = ON V OUT = XX % ▼ ▼ ▼ VOUT = PROGRAMMABLE VALUE BY EEPROM (XX % ) / TI = PROGRAMMABLE TIME 1 VEL/SPEED = ON V OUT = 0 2 VEL/SPEED = ON V OUT = XX % 2 VEL/SPEED = OFF V OUT = XX % 1 VEL/SPEED = OFF V OUT = 0 For two steps keypads, the 2nd speed value is V max (100%). The 1st speed value is Vout, and is programmable (Tele-aligned = XX %).For two steps keypads, the 2nd speed value is V max (100%). The 1st speed value is Vout, and is programmable (Tele-aligned = XX %).1) RAMP-UP PROGRAMMING (RAMP= ON)1 VEL/SPEED = ON V OUT = 0 2 VEL/SPEED = ON V OUT = V max = 100% 1 VEL/SPEED = ON V OUT = XX % 2 VEL/SPEED = ON V OUT = XX % VOUT = PROGRAMMABLE VALUE BY EEPROM (XX % ) / TI = PROGRAMMABLE TIME ▲ ▲ ▲ 2 VEL/SPEED = OFF V OUT = XX % 1 VEL/SPEED = ON V OUT= XX % 1 VEL/SPEED = OFF V OUT = 0 ▼ ▼ ▼ In 2.0.5.x.1 software menu SOFT START, select: ON to enable ACCELERATION RAMP. OFF to disable ACCELERATION RAMP. In 2.0.5.x.2 software menu SOFT STOP, select: ON to enable DEACCELERATION RAMP. OFF to disable DEACCELERATION RAMP.
70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. HEADQUARTER - SPAIN IKUSI - Ángel Iglesias S.A. Pº Miramón, 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax: +34 943 44 88 20 ikusi@ikusi.com www.ikusi.com AUSTRALIA - NEW ZEALAND IKUSI ANZ PTY LTD Tel.: +61 3 9720 7022 Fax: +61 3 9720 7422 ika@ikusi.com CHILE INGENIERÍA IKUSI CHILE, LTDA. Tel.: +56 2 335 9661 Fax: +56 2 233 7511 ikc@ikusi.com FRANCE IKUSI FRANCE SARL Tel.: +33 1 43 03 52 22 Fax: +33 1 43 03 52 42 ikf@ikusi.com MEXICO IKUSI-GS MÉXICO, S.A. DE C.V. Tel.: +52 55 5663 8600 Fax: +52 55 5663 8684 contacto@ikusi-gs.com.mx PERU ÁNGEL IGLESIAS, S.A. SUC. DEL PERÚ Tel.: +51 1 211 6500 Fax: +51 1 442 2073 ikpe@ikusi.com PORTUGAL IKUSI ELECTRÓNICA, LDA. Tel.: +351 22 947 8240 Fax: +351 22 947 8249 ikp@ikusi.com RUSSIA IKUSI RUSSIA, LLC. Tel.: +7 495 583 93 41 Fax: +7 495 586 17 71 ikr@ikusi.com UNITED ARAB EMIRATES IKUSI MIDDLE EAST FZE Tel.: +971 4 204 5606 Fax: +971 4 204 5610 ikme@ikusi.com
