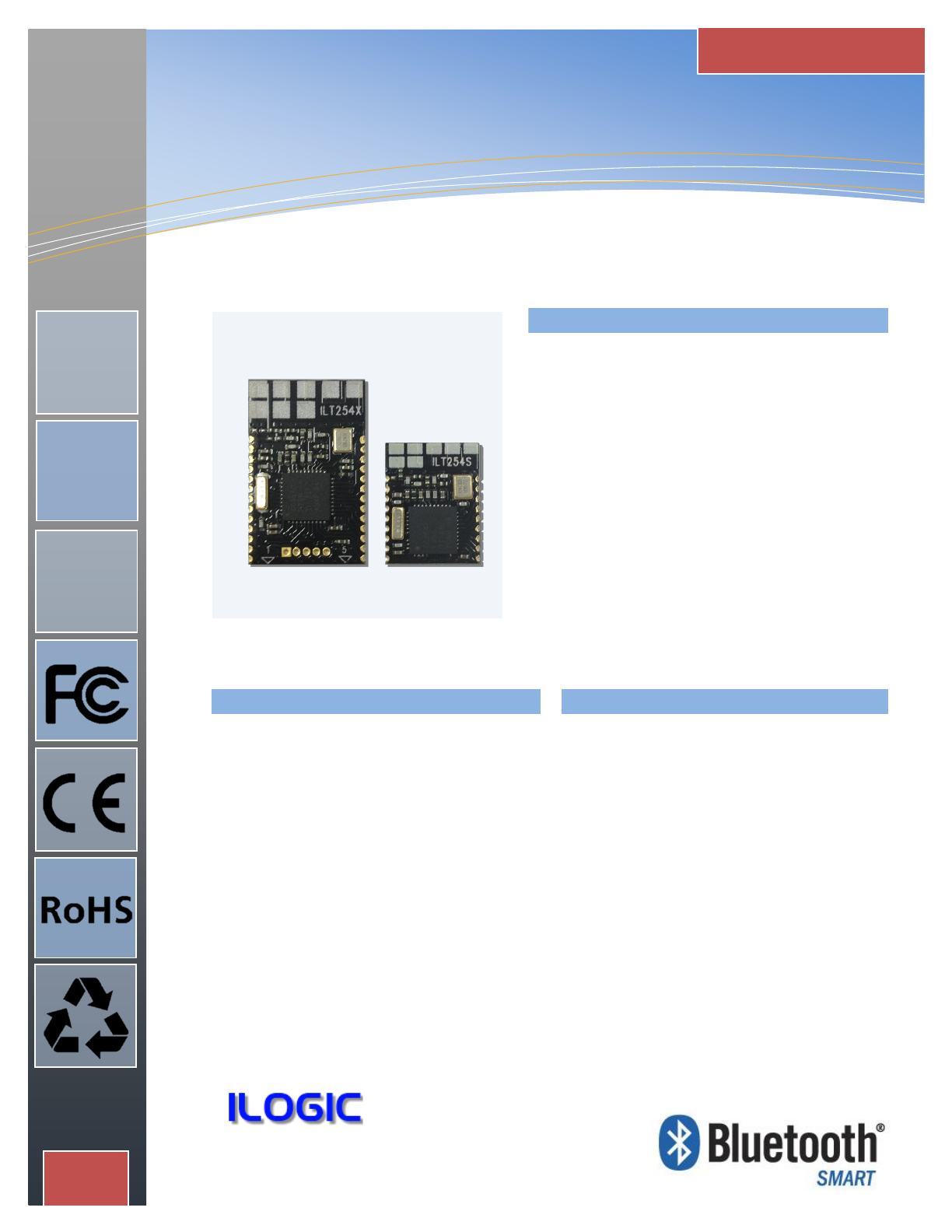

ILOGIC Technology ILT254 Bluetooth 4.0 LE Module User Manual
ILOGIC Technology Limited Bluetooth 4.0 LE Module
User manual
ILT254X/ILT254S Bluetooth4.0 LE Module
General Description
The ILT254x module is a cost-effective, low-power,
true system-on-chip (SoC) for Bluetooth low energy
applications. It enables robust BLE master or slave
nodes to be built with very low total bill-of-material
costs. The ILT254x combines an excellent RF
transceiver with an industry-standard enhanced
8051 MCU, in-system programmable flash memory,
8-KB RAM, and many other powerful supporting
features and peripherals. The ILT254x is suitable for
systems where very low power consumption is
required. Very low-power sleep modes are
available. Short transition times between operating
modes further enable low power consumption
Features and Benefits
Bluetooth low energy technology
Compatible
Excellent Link Budget (up to 97 dB),
Enabling Long-Range Applications
Accurate Digital RSSI
Compliance With FCC & CE standard
Battery Monitor and Temperature Sensor
Sample Applications and Profiles
Full-Speed USB Interface
Ultra low power consumption
AES Security Coprocessor
Supply voltage 2--3.6
Two small module size
ILT254x-A1 - 15x24mm
ILT254x-S1 - 12x16mm
Applications
2.4-GHz Bluetooth low energy Systems
Mobile Phone Accessories
Sports and Leisure Equipment
Consumer Electronics
Human Interface Devices (Keyboard,
Mouse Remote Control)
USB Dongles
Health Care and Medical
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kong
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3
Electrical Characteristic
ITEM
TEST REQUIREMENT
REMARKS
Voltage supply
2.0－3.6V
DC
Center frequency
2402－2480MHz
Programmable
Frequency error
±20KHz
Modulation
O-QPSK
Output power
4.5dBm
Programmable
Receiving sensitivity
-93dBm
High gain Mode
Receiving current
24mA
High gain mode
Receiving current
21mA
Standard mode
Transmitting current
35mA
TX Power 4dBm
Transmitting current
26mA
TX Power -6dBm
Sleep consumption At
power mode3
0.4uA
Connection-less stat
Transmit distance
>50M
BER<0.1%
Antenna
50ohm
Temperature range
-20－85°C
module size
15*25mm / 12*16mm
Ta = 25°C, VCC = 3.3V
ILT254X/ILT254S Bluetooth4.0 LE Module
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kongg
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3

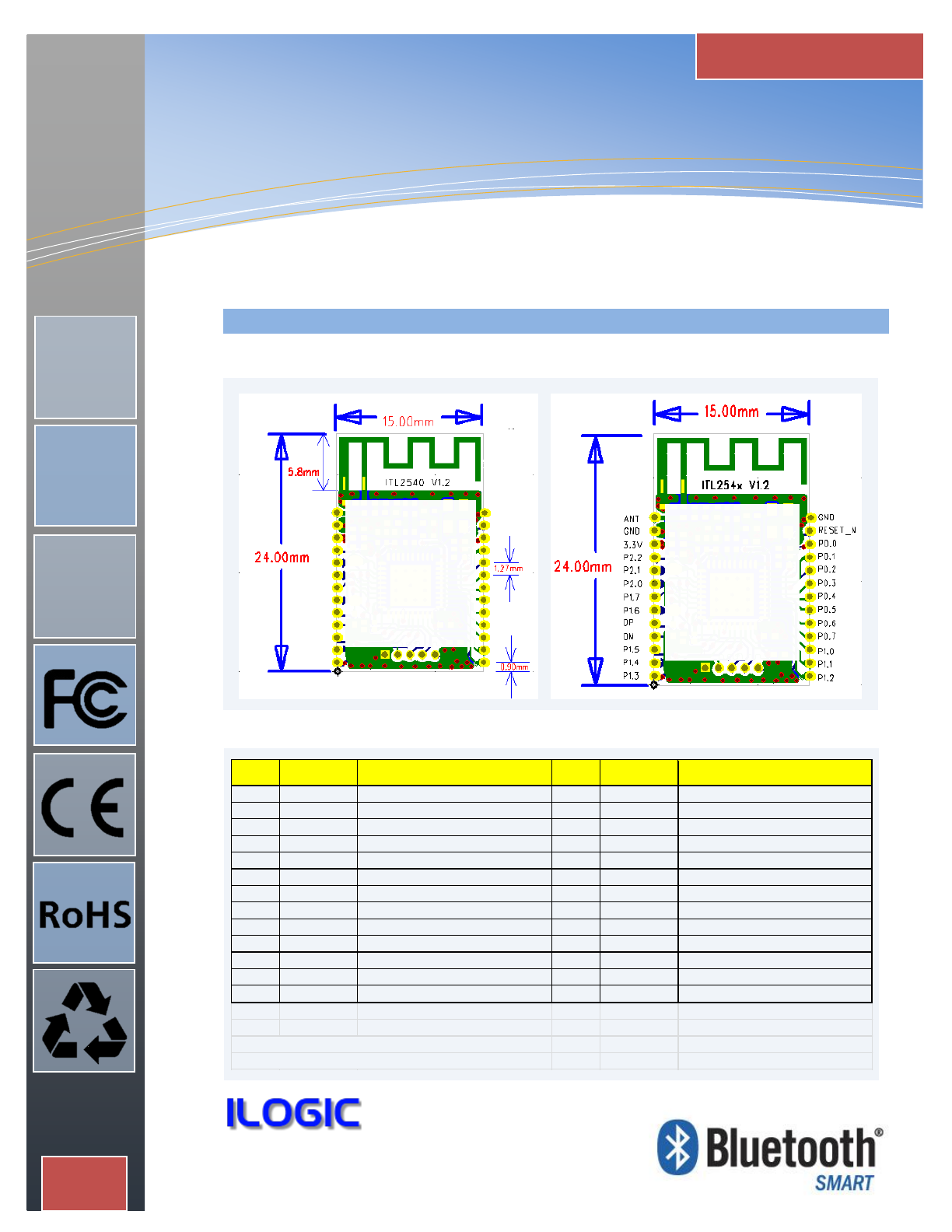

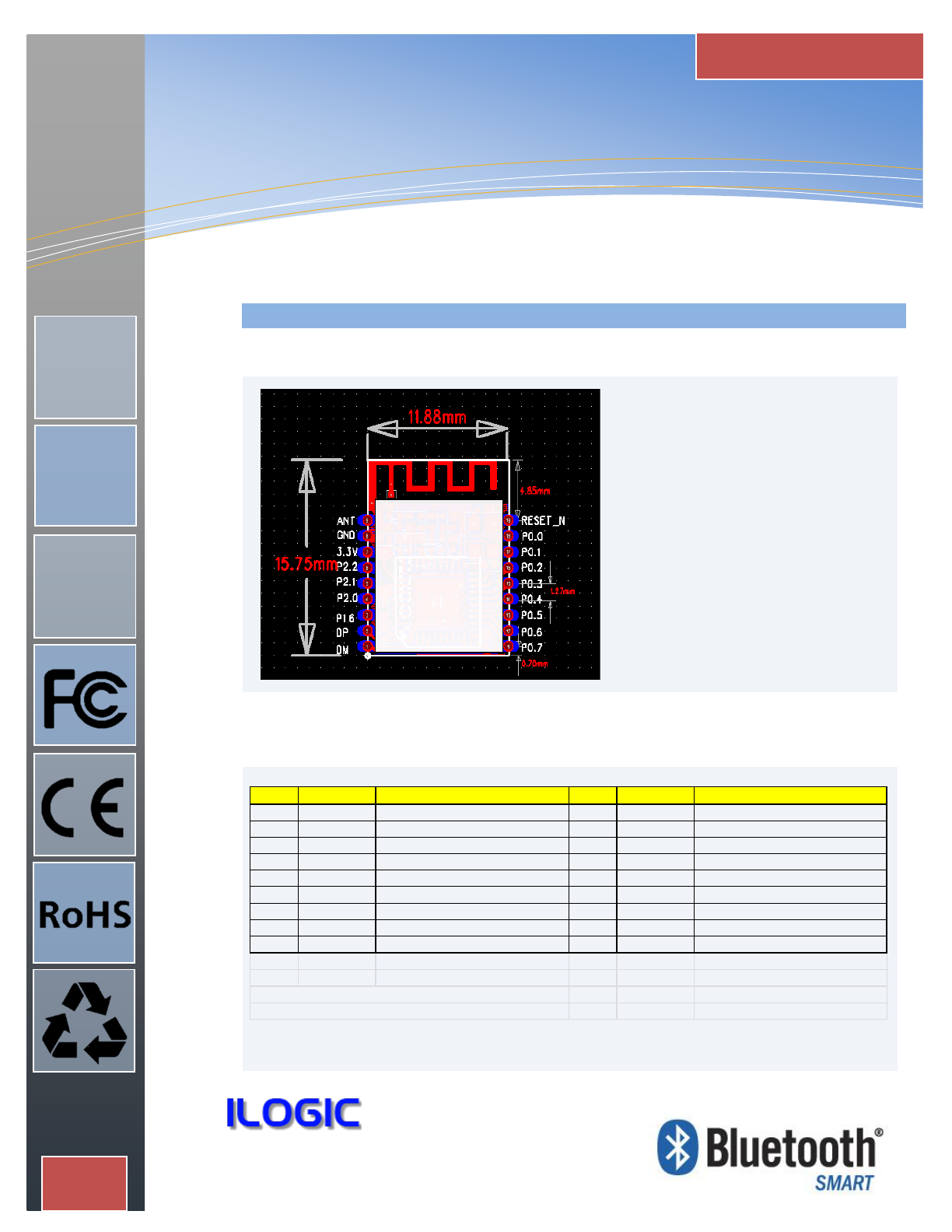

Module Dimension & Pin Assignment
ILT254x-A1
Pin Assignment
Pin Pin Name Description Pin Pin Name
1 ANT External Antenna - ILT254X-A0 Model 26 GND Ground
2 GND Ground 25 RESET_N Reset
3 VCC 2.0V ~ 3.6V 24 P0.0 IO/ADC/OPAMP
4 P2.2 IO/JTAG DEBUG 23 P0.1 IO/ADC/OPAMP
5 P2.1 IO/JTAG DEBUG 22 P0.2 IO/ADC/SPI/UART/TIMER1/OPAMP
6 P2.0 IO/TIMER4 21 P0.3 IO/ADC/SPI/UART/TIMER1
7 P1.7 IO/SPI/UART 20 P0.4 IO/ADC/SPI/UART/AC/TIMER1
8 P1.6 IO/SPI/UART 19 P0.5 IO/ADC/SPI/UART/AC/TIMER1
9DP USB/I2C 18 P0.6 IO/TIMER1
10 DM USB/I2C 17 P0.7 IO/TIMER1
11 P1.5 IO/SPI/UART 16 P1.0 IO/SPI/UART/TIMER1/TIMER4
12 P1.4 IO/SPI/UART/TIMER3 15 P1.1 IO/SPI/UART/TIMER1/TIMER4
13 P1.3 IO/SPI/UART/TIMER3 14 P1.2 IO/SPI/UART/TIMER3
Remark:
USB/OPAMP - Only available for CC2540 model
I2C - Only available CC2541 model
ILT254X/ILT254S Bluetooth4.0 LE Module
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kong
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kong
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3
Module Dimension & Pin Assignment
ILT254x-A1
Pin Assignment
Pin Pin Name Description Pin Pin Name
1 ANT External Antenna - ILT254X-A0 Model 18 RESET_N Reset
2 GND Ground 17 P0.0 IO/ADC/OPAMP
3 VCC 2.0V ~ 3.6V 16 P0.1 IO/ADC/OPAMP
4 P2.2 IO/JTAG DEBUG 15 P0.2 IO/ADC/SPI/UART/TIMER1/OPAMP
5 P2.1 IO/JTAG DEBUG 14 P0.3 IO/ADC/SPI/UART/TIMER1
6 P2.0 IO/TIMER4 13 P0.4 IO/ADC/SPI/UART/AC/TIMER1
7 P1.6 IO/SPI/UART 12 P0.5 IO/ADC/SPI/UART/AC/TIMER1
8DP USB/I2C 11 P0.6 IO/TIMER1
9DM USB/I2C 10 P0.7 IO/TIMER1
Remark:
USB/OPAMP - Only available for CC2540 model
I2C - Only available CC2541 model
ILT254X/ILT254S Bluetooth4.0 LE Module

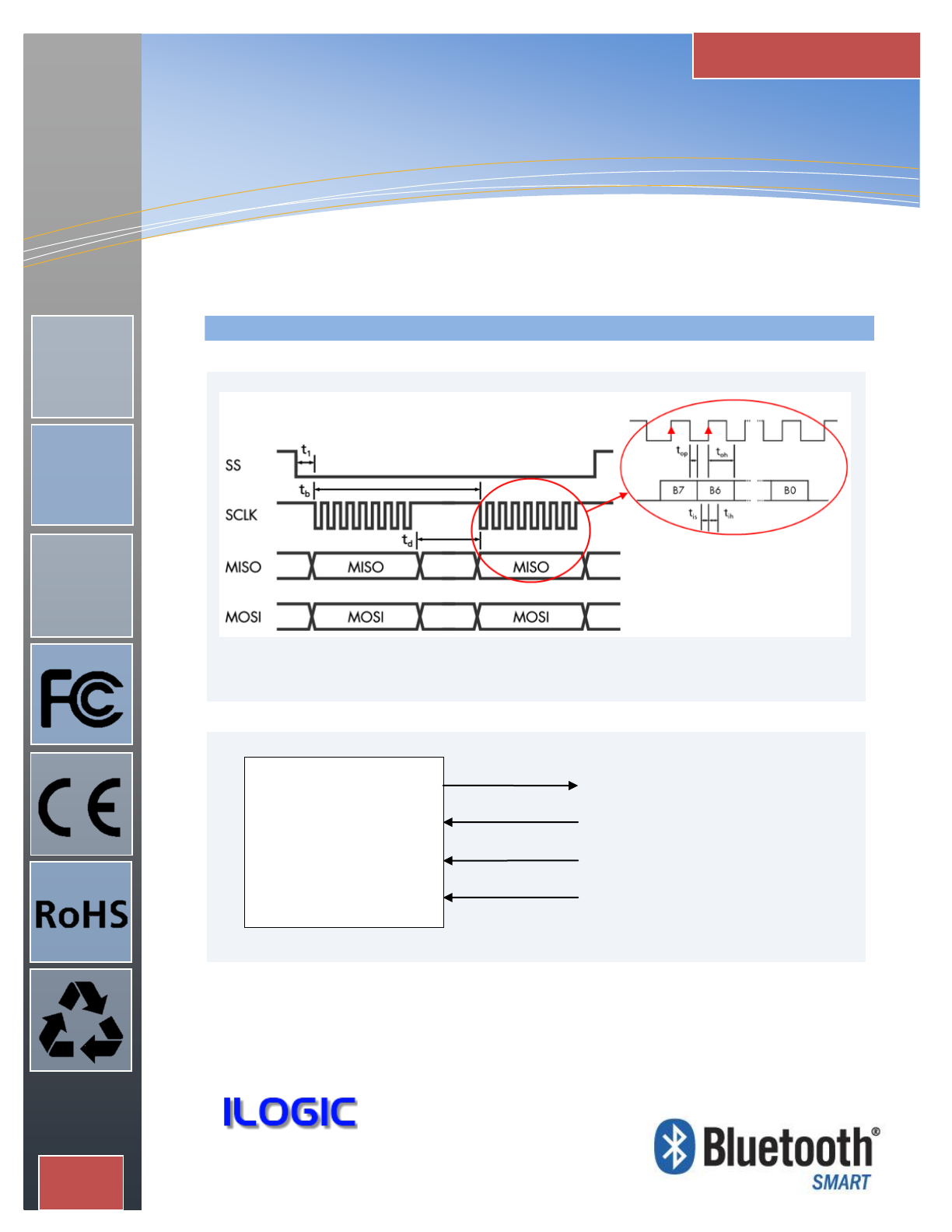

** Require at least 500us from SS low to first MSB bit (t1)
P0.2 MISO (SPI) / RX (UART)
P0.3 MOSI / TX (UART)
P0.4 /SS / CTS (UART)
P0.5 SCLK / RTC (UART)
ILT254X/ILT254S Bluetooth4.0 LE Module
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kong
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3
ILT254x Module
(SPI Slave/ UART)
SPI & UART Connection & Timing Diagram
The device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Note:Changes or modification to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure
compliance. This transmitter mush not be co-located or operating with any other antenna or
transmitter.
ILT254X/ILT254S Bluetooth4.0 LE Module
ILOGIC Technology
ILOGIC Technology Limited (www.ilogictech.com)
Unit 1202, International Trade Center,
No.11 Sha Tsui Road, Tsuen Wan, Hong Kong
Tel: (852) 2152-0520, Fax (852) 3547-6572
ILT254x BLE Module
Oct 2013
Ver1.3
FCC Statement
The ILT254S/ILT254X module is designed to comply with the FCC statement. FCC ID is
2AAXH-ILT254. The host system using ILT254S/ILT254X, should have label indicated
FCC ID: 2AAXH-ILT254
