General Description
The ILT51822 is a cost-effective, low-power and true system-on-chip integrated module for
Bluetooth® Smart / Bluetooth low energy and 2.4GHz ultra low-power wireless
applications. The ILT51822 is a ready BLE module combined with Nordic nRF51822,
Crystal and PCB Antenna. The nRF51822 is a powerful, highly flexible multiprotocol
SOC built in with a 32-bit ARM® Cortex™ M0 CPU and RF transceiver. It enables
robust BLE master or slave nodes.
Features and Benefits
l Bluetooth® Smart / Bluetooth low energy Compatible
l 32-bit ARM Cortex M0 CPU core
l Excellent Link Budget (up to 97dB)
l Good Compatibility with Smart Phone & Host Devices
l Full coverage of BLE Stack supported
l Support of Rich Peripherals Including:
I2C™ (Both Master and Slave)
SPIs: One Master One Master and Slaver
UARTs
Up to 31 GPIOs
l Integrated DC-DC With a Wide-Range single supply
VBAT or Wide Voltage Mode: 1.8 to 3.6V
l Low-Power Consumption
l Small Module Size – 18 x10 mm
Applications
l 2.4-GHz Bluetooth® Smart / Bluetooth low energy Systems
l Mobile Phone Accessories
l Sports, Fitness, Healthcare sensor
l Wearables
l Beacon
l PC peripherals
l Smart Home, Lighting, Appliance Control
l Proximity / Alert Sensors
l Industrial and commercial sensors
l Toys & Electronic games

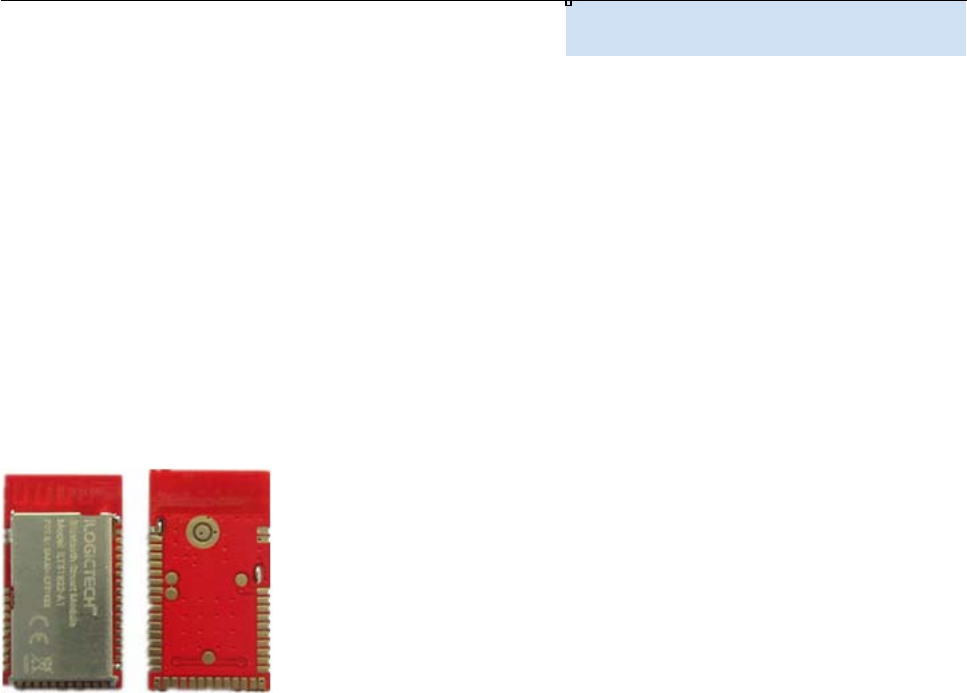

ILT51822 BLE Module
ILOGICtech
ILOGIC Technology Limited / www.ilogictech.com
2
Electrical Characteristics
ITEM
TEST REQUIREMENT
REMARKS
Voltage supply
1.8－3.6V
DC
Frequency
2402 – 2480MHz
Programmable
Frequency error
±20KHz
Modulation
GFSK
RF Output power
-30 dBm - +4 dBm
Programmable
Receiving sensitivity
-93 dBm
At 1Mbps
Receiving current
13 mA
At 1Mbps
Transmitting current
10.5 mA
RF at 0 dBm
Transmitting current
5.5 mA
RF at -20 dBm
Temperature range
-40 – 85 °C
Sleep current at PM3
0.4 uA
Transmit distance
>50M at open area
BER<0.1%
Antenna
50ohm
module size
18 * 10 mm
RECOMMENDED OPERATING CONDITIONS
MIN MAX
UNIT
Operating ambient temperature range, TA
-20 80
°C
Operating supply voltage
1.8 3.6
V
CAUTION:
ESD sensitive device. Precautions should be used when handing the device in order to
prevent permanent damage.
ILT51822 BLE Module
ILOGICtech
ILOGIC Technology Limited / www.ilogictech.com
3

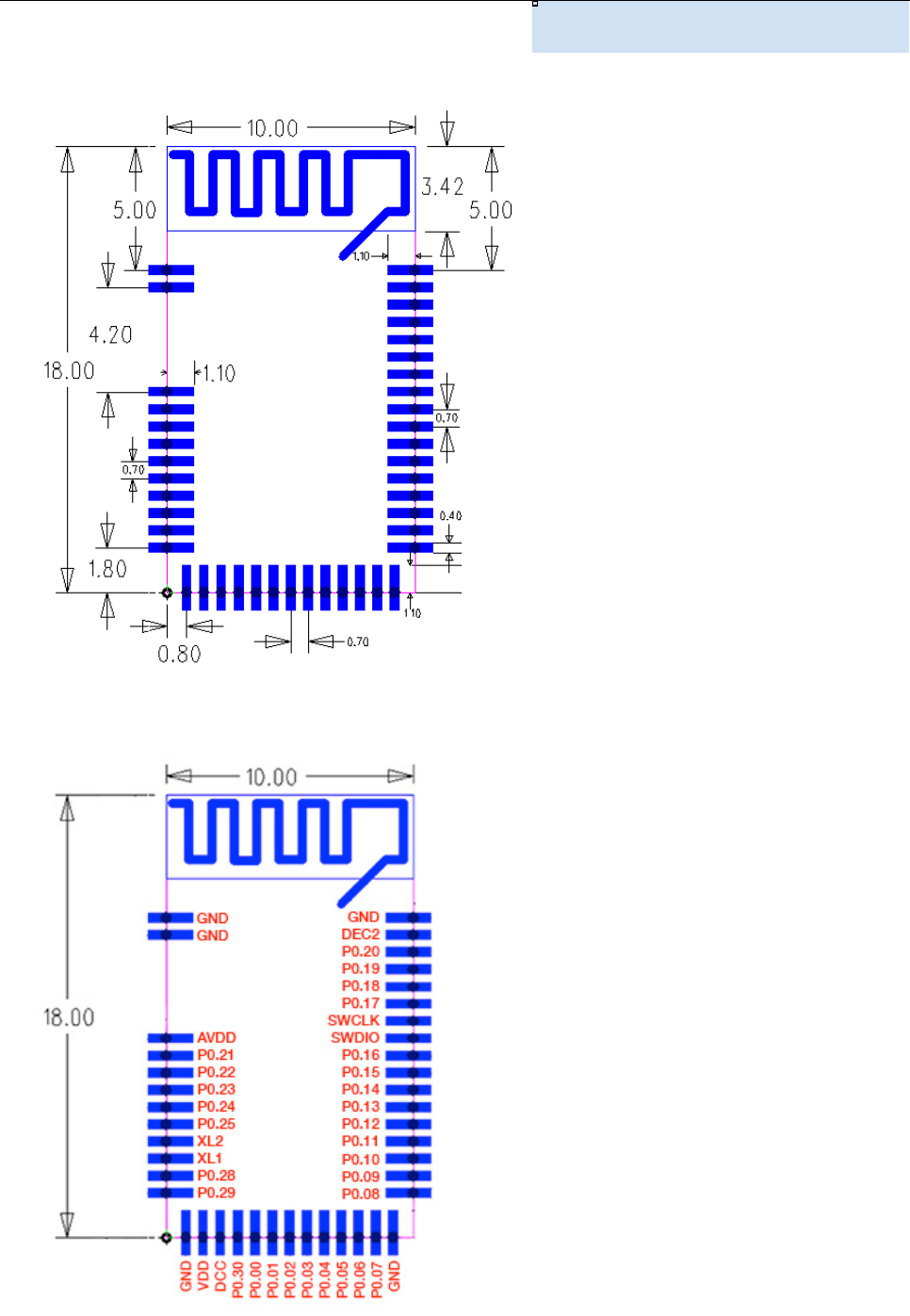

Outline and Pin Size
Pin Assignment
ILT51822 BLE Module
ILOGICtech
ILOGIC Technology Limited / www.ilogictech.com
4
