User manual
![](/img.php?id=3053897&img=bg1.png)
Box
In the box has a mobile phone, charger, USB
line, Headset, instructions for use and etc.

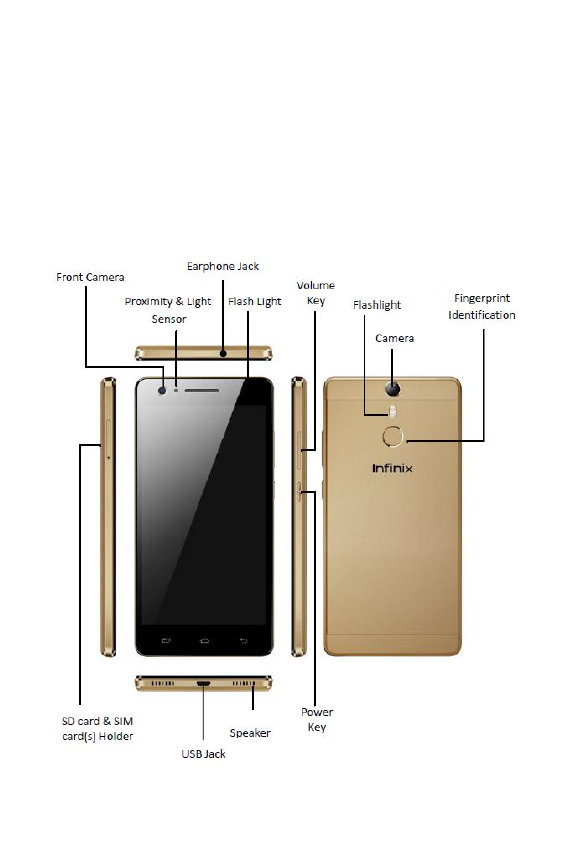

Know your phone
1
![](/img.php?id=3053897&img=bg2.png)

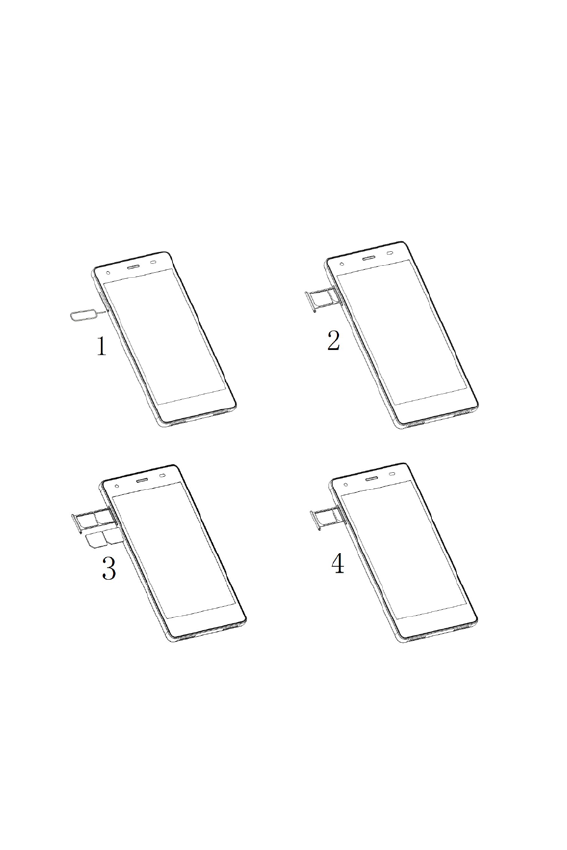

Insert SIM card & SD card
1. Push the holder in the card slots next to the thimble hole it
pops out.
2. Place the SIM cards ( or SD card ) face down and align it with
the opening of the holder.
Notably, slot 2 can only be put in one card, SIM card OR SD
card.
2
![](/img.php?id=3053897&img=bg3.png)
About Android
An Android phone can perform many of the same functions as a
computer. But you can also adjust it to better suit your needs, to
receive the information you want, and have fun at the same
time. You can add and delete applications, or enhance them to
improve functionality. At Android Market you can download a
range of applications and games from a constantly growing
collection. You can also integrate applications on your Android
phone with your personal data and online accounts. For example,
you can back up your track of your appointments, and engage in
as much social networking as you like.
Applications
An application is a phone program that helps you perform a task.
For example, there are applications to make calls, take photos
and download more applications.
Note: The colors and specifications shown/mentioned in the
user manual may differ from the actual product. Images shown
are for representation purpose only.
The content of the manual is correct when it is released, but we
reserve the right to modify the technical specification without
additional notification.
Some content in the manual may be different from the mobile
phone, as the accessory software, SIM card or service varies by
providers.
3
![](/img.php?id=3053897&img=bg4.png)
Getting started
let's get you up and running
Assemble & charge
SIM card in
Please according to the label on the phone. Make sure that the
clipped corner of the SIM card is facing the correct direction and
the metallic contacts are facing the correct direction.
SD card in
Put SD card into the SD card slot and make sure that the
metallic pins facing downwards.
Charge up
To charge the battery, plug in the charger connector at your
phone (USB interface) and then plug the other end into an AC
power socket.
The battery symbol indicates the charging status. While
charging, the charge indicators will scroll. When all the scroll
bars are steady, the battery is fully charged. Disconnect the
charger from the phone. Disconnect the charger from the AC
power socket.
Note: If the battery is powerless, the battery icon will
reappear after a few minutes of charging.
4
![](/img.php?id=3053897&img=bg5.png)
Touch screen & keys
a few essentials
Touch tips
Here are some tips on how to navigate around your phone.
Touch
To choose an icon or option, touch it.
Touch & hold
To open special functions or additional options. Try it: From
Application menu, touch Music icon to enter Music library,
then touch and hold an artist, a song, or an album, some options
will be available to you. For example: play, add to playlist,
delete, etc.
Drag
To scroll through a list or move slowly, drag across the
touchscreen. Try it: on the Home screen, touch Contacts icon
to enter contacts list, you can drag contacts list up or down to
scroll list.
Slide
To slide by moving your finger left or right on the touch screen
quickly. Scroll through a list or move quickly, slide across the
touchscreen (drag quickly and release).
Double-touch
Touch quickly twice to zoom in/out. For example, double-touch
a picture in Gallery to zoom in/out.
Zooming tips
When looking at maps, webpages or photos, place two fingers
on the touch screen at once and pinch them together to zoom
out or spread them apart to zoom in.
Note: Use the zoom function when you view photos,
maps or when you browsing the web.
5
![](/img.php?id=3053897&img=bg6.png)
Rotate the screen
On some screens, the orientation of the screen rotates with the
phone as you turn it from upright to its slide and back again. You
can turn this feature on and off.
Key tips
Power/Lock key
·When powering off status, press and hold to turn on the phone;
·When powering on status, press and hold to enter phone
options (Power off, Reboot);
·To save your battery, prevent accidental touches or when you
want to wipe smudges off your touch screen, put the touch
screen to sleep by pressing Power/Lock key;
·To wake up the touch screen, just press Power/Lock key again,
and then drag up the lock icon on the screen to unlock .
Recent Apps key
·Opens the task manager to view recent apps you used. You can
press ”X” on the top right corner or slide left or right to close the
app. You can also press an app to open it directly.
Home key
·Press Home key to close any menu or app and return to the
Home screen. If you are viewing the left or right Extended Home
screen, open the central Home screen.
Back key
·Press Back key to return to the previous screen you were
working on.
Volume keys
Press Volume keys to change the volume. When playing music
or video files, press Volume keys to adjust media volume.
6
![](/img.php?id=3053897&img=bg7.png)
Home screen
quick access to the things you need most
Quick start: Home screen
The Home screen gives you all your latest information in one
place. It's what you see when you turn on the phone. It is the
equivalent of the desktop on a computer. It’s your gateway to
the main features in your phone. You can customize your Home
screen with shortcuts, widgets, folders, and wallpapers.
You need slide the Home screen left or right to view more
content in other panels on the Home screen. You can add
shortcuts, widgets, folders, etc. to Home screen.
Note: Your Home screen might look a little different.
Phone Contacts
Launcher: Main menu
Messages Browser
Phone status bar and
notifications
Shortcuts
Widgets
7
![](/img.php?id=3053897&img=bg8.png)
Working with Menus
The phone provides you with Options menus and context
menus.
Options menus
·Options menus contain tools that apply to the activities of the
current screen or application, not to any specific item on the
screen. You can open options menu by holding the blank on
home screen.
Shortcut
To add a shortcut to Home screen
1. From Home screen, touch Launcher icon.
2. From APPS tab, you will see application menu.
3. Touch and hold an application icon until it vibrates, then back
to the Home screen, and drag it to the desired location.
To remove a shortcut on Home screen
If you want to remove the shortcut, you can touch and hold the
shortcut icon on Home screen until it vibrates, and then drag it
to remove tab.
Options menu contain
items that apply to
the current screen or
to the application as a
whole.
8
![](/img.php?id=3053897&img=bg9.png)
Widget
A widget is small application on the Home screen that typically
displays information such as Analog clock, Music and you can
use directly on your Home screen. For example, the Music
widget allows you to start playing audio files directly on Home
screen. You can also add a widget such as Analog clock that
shows time.
To add a widget to Home screen
1. Press and hold on a blank space on home screen until it
vibrates. .
2. Touch WIDGETS tab, you will see widget options menu.
3. Touch and hold a widget icon to pick up the widget, then back
to the Home screen, and drag it to the desired location.
To remove a widget on Home screen
If you want to remove the widget, you can touch and hold the
widget icon on Home screen until it vibrates, and then drag it to
remove tab.
Arranging your Home screen
To move an item on Home screen
Touch and hold an item on Home screen until it vibrates, then
drag it where you want.
To organize your apps with folders
To make a new folder on your Home screen, stack one app on
top of another.
To name folder on Home screen
1. Touch the apps folder on Home screen to open
2. Touch the Unnamed Folder to show the name folder field.
3. Edit the folder name.
To move application shortcuts on Home screen to a folder
Touch and hold the item on Home screen until it vibrates, and
then stack the app on top of the folder.
To move application shortcuts in a folder to Home screen
Touch and hold the item in a folder until it vibrates, and then
9
![](/img.php?id=3053897&img=bga.png)
drag the item out of the folder.
Changing the background of your Home screen
Adapt the Home screen to your own style using wallpapers from
Gallery, Live wallpapers, or Wallpapers.
Touch and hold the Home screen to select Wallpapers, and
select wallpaper from Gallery, Live wallpapers, or Wallpapers.
Then set it as wallpaper.
Tip: You can use camera to take a photo, and then set
it as wallpaper.
10
![](/img.php?id=3053897&img=bgb.png)
Application menu
enjoy applications from the Application menu
Application menu
The Application menu, which you open from your Home screen,
contains the applications that come installed with your phone.
The Application menu extends beyond the screen width, so you
need to drag up and down to view all content.
To open the Application menu
1. On Home screen, touch Launcher icon.
2. Open Application menu.
To browse the Application menu
Open the Application menu, then drag the screen up and down.
Phone status bar and notifications
The status bar at the top of the screen contains icons that tell
you about messages and phone status and shows what’s going
on in your phone. At the top you get notifications when there is
something new or ongoing. For example, new message, missed
call, signal strength, battery status and other information
appear here.
Status icons
The following status icons may appear on your screen:
Icon Statement Icon Statement
SIM
Network signal
level Headset is inserted
11
![](/img.php?id=3053897&img=bgc.png)
Indicates battery
capacity Bluetooth
Unread messages WLAN is connected
Missed calls Airplane mode is
activated
Alarm is activated Silent
Vibrate
Checking notifications and ongoing activates
You can drag down the status bar to open
the notification panel and get more
information. For example, view missed
calls from notification panel. You can also
open running applications, such as the
music player.
To open the Notification panel
Drag the status bar downwards.
To close the Notification panel
Drag the tab at the bottom of the
notification panel upwards.
To open a running application from
the notification panel
From the notification panel, touch the icon for the running
application to open it.

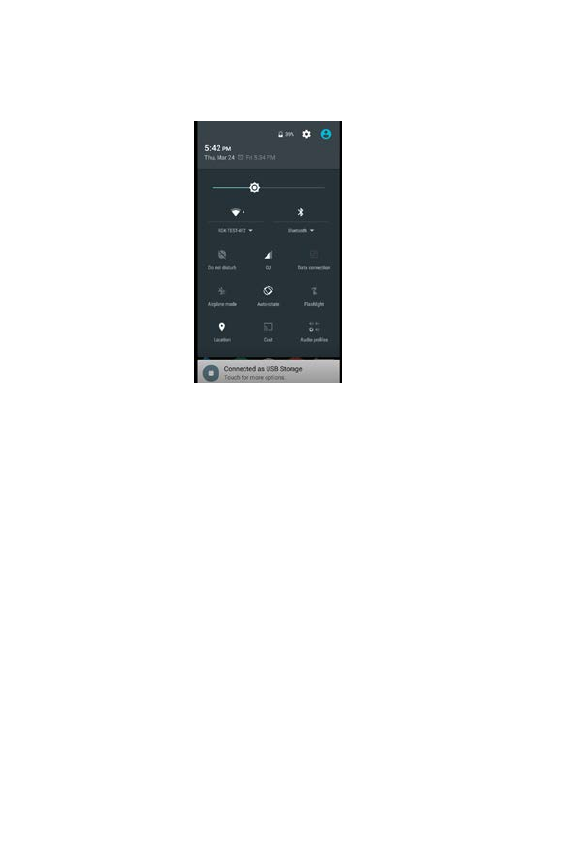

Toolkits
In the toolkits you can quickly start the common applications
12
![](/img.php?id=3053897&img=bgd.png)
such as Bluetooth, WLAN and so on. Open the Notifications
panel by dragging down the top of screen twice with your finger.
13
![](/img.php?id=3053897&img=bge.png)
Dial pad
Make a call
Touch Phone icon on the Home screen.
In dialing screen, input number and touch Dial icon to dial the
inputted number.
Dial pad During a call Incoming call screen
Answer or reject an incoming call
To answer an incoming call
To answer an incoming call, drag towards the right
side according to the indicate on the screen.
To reject an incoming call
If you want to reject, slide towards the left side
according to the indicate on the screen.
Options available during a call
During a call, there are some call options available to you. These
call options can be seen only during a call. When a call is in
progress, you can put it on hold, initiate a phone conference,
14
![](/img.php?id=3053897&img=bgf.png)
mute your microphone etc.
To
Key pad: Go to the key pad. Touch
Speaker: To t
urn on/off the
speaker. Touch
Mute: Mute your voice so that
the other party cannot hear
you.
Touch
Hold: To place a call on hold. Touch
Add call: Open dial pad to dial
the second call. Touch
End: To end a call. Touch
Press Volume keys to adjust the call volume.
Conference Call
If you accept a new call when you are already on a call, you can
switch between the two callers or merge the two calls into a
conference call.
1. Make a call to the first participant
2. When you are connected, touch to dial the second
caller.
3. When you are connected, the first participant is put on hold,
touch Merge Calls icon. The participant is added to the
conference call.
You can add as many callers as your carrier supports.
15
![](/img.php?id=3053897&img=bg10.png)
Recommendation: Contact your service provider to know
whether they support conference calls and how many
participants you can include.
Text entry
On-screen keyboard
Touch the keys of the on-screen QWERTY keyboard to enter text
conveniently. You can open this keyboard by touching a text
field.
Android Keyboard input method
Touch to merge the calls
into a conference call
Touch to swap
16
![](/img.php?id=3053897&img=bg11.png)
Enter text
·Touch the keys on the keyboard to type.
·Use the Delete key to erase characters to the left of the
cursor.
·When you finished typing, Press Back key to close the
keyboard.
Enter Various Characters
·Touch the Symbols key to switch to the numbers and
symbols keyboard.
·Touch on the symbols keyboard to view additional
symbols.
Edit Text
You can edit the text you entered in text fields and use menu
commands to cut, copy, and paste text, within or across
applications. Some applications do not support editing some or
all of text they display. Others may offer their own ways to
Touch this icon to select desired
contact from phonebook.
Text field
Touch to capitalize the next letter
you type.
Send message
17
![](/img.php?id=3053897&img=bg12.png)
select text which you want to work with.
·Touch and hold the text field that contains the text to select the
word.
·Cut or copy the text.
Select Text
You can select text for cutting or copying. The selected text is
highlighted in green.
·Touch and hold the portion that contains text. Some options
open with icons.
·Move the cursor to select the text.
Cut /Copy/Paste Text
1. Touch Cut icon or Copy icon in the menu that opens.
2. Touch and hold the text field where you want to paste the
text.
3. Touch PASTE in the menu that opens. The text is inserted at
the cursor.
You can paste the text that you copied from one application into
18
![](/img.php?id=3053897&img=bg13.png)
a text field in any application.
Communication
it’s good to talk, text or email. . .
Messages
Find it: Application menu > Messages
You can compose, send and receive text messages from your
phone, and also can compose, send and receive multimedia
messages, which contain media files such as pictures, videos
and audios.
When you view your messages, they appear as conversations,
which means that all messages to and from a particular person,
are grouped together.
• Compose new message
1. From your Home screen, touch Messages icon or find it:
Application menu > Messages.
2. Touch .
3. To add recipient(s), touch , then find and mark the contact
name. To add more than one contact, mark the contact name for
the desired recipients. You can also enter the recipient’s phone
number manually.
4. After you finish marking contact(s), touch .
5. Touch Text field to enter your message text.
6. If you want to insert a media file, touch , and select an
attachment.
7. Send the message and select SIM.
When editing message, press menu options on the top right
19
![](/img.php?id=3053897&img=bg14.png)
corner, some additional options will be available to you. For
example, add subject, and insert contact. You can touch the
options to do actions.
• Delete message threads
1. From your Home screen, touch Messages icon or find it:
Application menu > Messages.
2. Touch and hold the message thread.
3. Select the conversations you want to delete.
4. Touch Delete, then touch Delete in the menu that pops up.
• Forward a message
1. From your Home screen, touch Messages icon or find it:
Application menu > Messages.
2. Touch the conversation containing the message you want to
forward.
3. Touch and hold the message you want to forward.
4. Touch Forward in the menu that opens.
20
![](/img.php?id=3053897&img=bg15.png)
5. Add recipient(s), touch , and then find and mark the
contact name. To add more than one contact, mark the contact
name for the desired recipients. You can also enter the
recipient’s phone number manually.
6. Select SIM, to send the message.
• Lock a message
You can lock a message.
1. From your Home screen, touch Messages icon or find it:
Application menu > Messages.
2. Touch the conversation containing the message you want to
lock.
3. Touch and hold the message you want to lock.
4. Touch Lock in the menu that opens. A lock icon appears.
Unlock a message by touching and holding the message and
then touch Unlock.
• Messages settings
1. From your Home screen, touch Messages icon or find it:
Application menu > Messages.
2. Press options menu on the top right corner in the menu that
opens.
3. You can change messages settings, such as delete old
messages as limits are reached, request a delivery report for
each message you send.
Contacts
Find it: Application menu > Contacts
The Contacts application offers you to store and manage all your
contacts.
21
![](/img.php?id=3053897&img=bg16.png)
• Contacts screen overview
• Add a contact
1. From your Home screen, touch Contacts icon or find it:
Application menu > Contacts.
2. Touch .
3. Select storage path to which you want to add this new contact,
or add new account.
4. Enter the information for the contact.
5. After you finish, touch .
• Search a contact
1. From your Home screen, touch Contacts icon or find it:
Application menu > Contacts.
2. Touch .
3. Input the first character of the name you are searching for in
the cursor, and then all records meeting the conditions will be
displayed. Search results will be different due to different input
content.
Options Menu
Touch to search
Touch a contact
thumbnail to
access the quick
contact menu
Touch to add new
contact
22
![](/img.php?id=3053897&img=bg17.png)
• Additional options
From contacts list screen, press (options menu), some
additional options will be available to you. For example,
import/export, and contacts to display and so on.
·Contacts to display: To select which contacts to display in
the contacts list.
·Import/export: Copy contacts to which you want import.
·Accounts: You can synchronize your phone contacts with a
synchronization account.
·Settings: You can select the sort of name and name format.
·Help & Feedback: You can search to help you find answers of
some sample questions by yourself. If you have any suggestion,
you can feedback it to us.
• Favorites
You can set contacts as favorites so that you can get access to
them from the Contacts application. Only the contacts stored in
phone memory can be set as favorites.
To set a contact as favorite
1. From your Home screen, touch Contacts icon or find it:
Application menu > Contacts.
2. From contacts list, touch a contact which you want to set as
favorite.
3. Touch . If you want to cancel the favorite, touch .
Email
Find it: Application menu > Email
The Email application in your phone offers you to compose, send
and receive emails through your regular email account.
You need create account first, and then create email to send.
You can configure Email for most accounts in just a few steps.
23
![](/img.php?id=3053897&img=bg18.png)
• Set up an email account in your phone
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Email.
2. Enter your email address and password, then touch Next.
3. If the settings for the email account cannot be downloaded
automatically, complete the setup manually. If necessary,
contact your email service provider for detailed settings.
4. When you are prompted, enter a name for your email account,
so that it is easily identifiable. The same name shows in the
emails you send from this account.
5. After you finish, touch Next.
• Create and send an email
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Email.
2. Touch .
3. Enter recipients’ addresses, and subject.
4. Compose email. Press , you can attach a file, select the
type of attachment, and select the file which you want to attach
from the list that appears.
5. If you want to add Cc/Bcc, press (located at the right
of addressee), then enter addressee(s).
6. When you finish, touch to send the email.
• Receive emails
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Email.
2. Drag down the top of email to refresh, you can download new
emails.
• Read your emails
1. From your Home screen, touch Launcher icon, then find it:
24
![](/img.php?id=3053897&img=bg19.png)
Application menu > Email.
2. In the email inbox, scroll up or down, and touch the email you
want to read.
• Reply to an email
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Email.
2. In the email inbox, scroll up or down, and touch the email to
which you want to reply.
3. Touch to select Reply all.
4. Enter your reply, touch to send the email.
• Forward an email
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Email.
2. In the email inbox, scroll up or down, and touch the email you
want to forward.
3. Touch to select Forward.
4. Enter recipients’ addresses.
5. Touch to send the email.
Multimedia
listen it, watch it, capture it, enjoy it!
Camera
Find it: Application menu > Camera
Take a photo or record a video with the camera in your phone.
You can hold the camera horizontally or vertically. Share a
photo or a video with your friends, or upload your photos and
videos to a web service.
• Camera control overview
25
![](/img.php?id=3053897&img=bg1a.png)
1 Preview your pictures or videos you captured
2 Take photos
3 Record videos
4 Switch to camera mode
5 Switch between front camera and back camera
6 Settings
• Take a photo
·Adjust your picture size, sharpness, color effect, and other
settings if you wish.
·Frame your subject on screen. You can zoom in or out by
touching the Zoom icon.
·Touch the shutter icon on the screen.
The picture you just took is displayed for a moment, and then is
displayed as a thumbnail.
• Shoot a video
·Switch to the camcorder mode
1
2
3
4
5
6
26
![](/img.php?id=3053897&img=bg1b.png)
·Point the lens to the scene you want to shoot
·Touch the start icon.
·Touch the stop icon to stop shooting.
Music
Find it: Application menu > Music
The phone comes with a Music player that plays songs, listen to
audio book and podcasts you have stored. It gives you a host of
setting options to make your listening experience interesting.
You can easily transfer your favorite music from your PC to the
SD card and experience a whole world of interesting and
melodious music.
When you copy music to your SD card, the Music player
searches the card for music files and builds a catalog of your
music, based on information about each file that is stored in the
file itself.
• Music library
The Music library offers the following multiple categories that
you can select.
Categories
Touch to select Artists,
Albums, Songs, and
Playlists.
27
![](/img.php?id=3053897&img=bg1c.png)
Categories
Artists:
Songs classified by singers
Albums:
Songs classified by albums
Songs:
Display all songs
Playlists:
Display playlists
• Function bar
Share:
Share with Bluetooth or Email and
Messages and so on.
Play: Play the music you select
Add to playlist: Add to playlist
Use as phone
ringtone Set the music as your ringtone
Delete: Delete the music
Search: Search music by some applications
Options
Touch to share,
play ,add to playlist,
etc.
28
![](/img.php?id=3053897&img=bg1d.png)
• Music player
Press (options menu), some additional options such as Share,
Party shuffle, Add to playlist, Use as ringtone, Delete, Sounds
effects, and Library will be available to you.
Music and settings controls
Play/Pause Touch /
Previous/Next Touch /
Rewind/Forward Touch and hold /
Volume adjust Press Volume keys
Now playing Touch
Shuffle Touch
Repeat: Touch (Touch to repea
t all songs;
touch again to repeat current song)
Music controls
Now playing
Total song time
Progress bar
29
![](/img.php?id=3053897&img=bg1e.png)
FM radio
Find it: Application menu > FM radio
The phone comes with an in-built FM Radio. You can listen to FM
radio stations, and add them to channel list. You have to plug in
an earphone, as the antenna of the FM radio. You can listen to
the radio either through an earphone, or through the speaker in
the phone.
1 Radio on/off button
2 Favorite list
3 To fine-tune the FM frequency
4 To search for the next effective frequency
Gallery
Find it: Application menu > Gallery
The Gallery offers you to view photos and play videos which are
downloaded as well as those taken by the phone camera.
From Gallery, you can also share your photos and videos with
your friends, via messages, Bluetooth, or email, etc.
1
2
4
3
30
![](/img.php?id=3053897&img=bg1f.png)
1. Touch an album to open it and view its contents.
2. Touch a picture or a video in an album to view it.
When viewing a picture, press (options menu), some
additional options will be available to you, such as Delete,
Slideshow, Edit, Crop, Set picture as, Details ,and Print.
• Share an Album
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Gallery.
2. Press (options menu), touch Select album in the menu
that opens.
3. Select the albums you want to share.
To
Slide show Touch options menu> Slide show
Share via various
ways Touch
Delete Touch
Touch to open camera
A
lbum of photos and videos
31
![](/img.php?id=3053897&img=bg20.png)
4. Touch .
5. In the menu that opens, touch the application to use to share
the selected albums. You can share via email, Messages,
Bluetooth, Gmail, Google+, etc.
Sound recorder
Find it: Application menu > Sound recorder
Record sound and play sound file.
1 To start recording
2 Recording files list
3 To pause recording
4 To stop recording
5 Review and play recorded file
Press (options menu), you can select recording format.
1
2
3
4
5
32
![](/img.php?id=3053897&img=bg21.png)
Tools
stay on top of things
Calendar
Find it: Application menu > Calendar
You phone has a calendar for managing your time schedule. You
can use the calendar to keep track of important events. After
entering the calendar function menu, you can select year,
month and date.
• To set the calendar view
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Calendar.
2. Touch .
3. Select day, week, month or agenda in the menu that opens.
• To add a calendar event
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Calendar.
2. Touch (options menu), then touch New event in the
menu that opens.
3. Enter name, location, time, and description for the event.
4. Select a reminder for the event.
5. After you finish, touch DONE.
Clock
Find it: Application menu > Clock
The clock allows you to view time and date. You can also add an
alarm, set the alarm and turn it on. Then, the alarm can ring at
a specific time you set.
• Add an alarm
1. From your Home screen, touch Launcher icon, then find it:
Application menu > Clock.
2. Touch (alarm tab).
3. Touch (add alarm).
33
![](/img.php?id=3053897&img=bg22.png)
4. You need set time, ringtone, repeat, vibrate, etc. Then, turn
it on.
5. After you finish setting time, touch OK. Then the alarm can
ring at a specific time you set.
Calculator
Find it: Application menu > Calculator
Keep your calculations on your finger tips with the calculator.
Using this applcation allows you to make calculations. The
calculator provides the basic arithmetic functions; addition,
subtraction, multiplication, and division. You can also use an
advanced panel.
• How to use the calculator
1. From your Home screen, touch Launcher icon or find it:
Application menu > Calculator.
2. Enter the first number using the numeric keys.
3. Enter the operation for your calculation by touching the Plus,
Minus, Multiplication, or Division key.
4. Enter the next number.
5. To view the result, touch (equals) key.
When the screen is portrait, slide the green space from right to
left. Then the advanced panel will appear. When the screen is
landspace, the advanced panel will appear automatically. And
you can open advanced panel to do calculation.
Touch you can only erase one numeric before the cursor.
Touch and hold , you can erase all numeric before the
cursor.
Browser
Find it: Application menu > Browser
34
![](/img.php?id=3053897&img=bg23.png)
Use your web browser to view and navigate web pages, add
pages as bookmarks, and save pages for offline reading. You
can open several windows at the same time and switch among
them easily. You can also request the desktop version of a web
page if you don’t want to view the mobile version.
• Open the web browser
From your Home screen, touch Browser icon or find it:
Application menu > Browser.
• Search and address bar
Cancel the download
of the current web
page
Enter a search word
to search for a web
page, or enter a web
page address to load
a web page
View the download
progress of the
current web page
35
![](/img.php?id=3053897&img=bg24.png)
Connect to Networks and Devices
Your phone can connect to a variety of networks and devices,
including WLAN, Bluetooth, and devices, such as headsets. You
can also transfer files to/from your PC through the data cable.
Determine the Network You Are Using
1. Touch Launcher icon, and from Application menu, touch
Settings.
2. Touch More... > Cellular networks > Access point
names. The name of the wireless service provider you are
currently registered with is selected in the list.
Edit or Create New Access Points
If you and your wireless service provider determine that you
need to change the settings of your current access point name
(APN) or to create a new one, you must obtain the APN and
detailed settings from your provider.
1. Touch Launcher icon, and from Application menu, touch
Settings.
2. Touch More... > Cellular networks > Access point
names.
3. Touch an existing APN to edit it, or press to create a new
one. Enter the APN settings that you obtained from your
wireless service provider.
4. When you finished, press and then Save.
5. If you created a new APN, touch it in the APNs screen to start
using it.
WLAN Networks
WLAN is a wireless networking technology that can provide
internet access at distance of up to 100 meters. To use WLAN on
36
![](/img.php?id=3053897&img=bg25.png)
your phone, you access a wireless access point, or “hotspot”.
Some hotspots are open and you can simply connect to them.
Others are hidden or implement other security features, so you
must configure your phone so it can connect to them.
TIP: Turn off WLAN when you are not using it, to extend your
battery life.
• Connect to Wi-Fi
1. Touch Launcher icon, and from application menu, touch
Settings. Or you can turn on it directly in notification
panel.
2. Touch Wi-Fi.
3. Check Wi-Fi to turn it on. The phone scans for available
Wi-Fi and displays the names of those it finds. Secured
networks are indicated with a Lock icon.
4. Touch a network to connect to it
If the network is secured, you are prompted to enter a password
or other credentials (Ask your network administrator for details)
• Receive Notifications
By default, when Wi-Fi is on, you receive notifications in the
status bar when your phone detects an open Wi-Fi.
1. Turn on Wi-Fi, if it’s not already on.
2. In the Wi-Fi list screen, press to open Advanced options,
check Network notification. You can uncheck this option to stop
receiving notifications.
Bluetooth
Bluetooth is a short-range wireless communications technology
that devices can use to exchange information over a distance of
about 10 meters.
• Turn Bluetooth On/Off
1. Touch Launcher icon, and from application menu, touch
37
![](/img.php?id=3053897&img=bg26.png)
Settings. Or you can turn on it directly in notification panel.
2. Touch Bluetooth.
3. Check or uncheck Bluetooth to turn it on or off.
Important: Go to Bluetooth and check option so that your
phone can be detected by other devices.
• Pair with Bluetooth Devices
You must pair your phone with a device before you can connect
to it. Once you pair your phone with a device, they stay paired
unless you cancel pairing them.
1. Touch Launcher icon, and from application menu, touch
Settings.
2. Touch Bluetooth.
3. If Bluetooth is not turned on, check Bluetooth to turn it on.
Your phone scans for and displays the IDs of all available
Bluetooth devices in range.
4. If the device you want to pair with is not in the list, touch
Refresh.
5. Touch the ID of the desired device in the list to pair it.
Connect to a computer via USB
You can connect your phone to a computer with a USB cable to
transfer music, pictures, and other files between your phone’s
SD card and the computer.
You can’t share your phone’s data connection and SD card via
USB cable at the same time. If you are using USB tethering, you
must turn that off first.
The connection to USB interfaces has to be limited to USB 2.0
version or higher. The connection to so called power USB is
prohibited.
Working with Secure Certificates
If your organization’s VPN or WLAN Network rely on secure
38
![](/img.php?id=3053897&img=bg27.png)
certificates, you must obtain the certificates and store them in
your phone’s secure credential storage, before you can
configure access to those VPN or WLAN networks on your
phone.
If your network administrate instructs you to download the
certificates from a website, you are prompted to set a password
for the credential storage when you download the certificates.
Install Secure Certificate from SD Card
1. Copy the certificate from your computer to the root of the SD
card.
2. Touch Launcher icon, and from Application menu, touch
Settings.
3. Touch Security.
4. Touch Install from SD card.
5. Touch the file name of the certificate to install. Only the
names of certificates that you have not already installed on your
phone are displayed.
6. If prompted, enter the certificate’s password.
7. From WLAN list, search and select the certificate.
Fingerprint
Fingerprint is a new feature that can recognize you by your
fingerprint.
• Turn Passcode On/Off
1. Touch Launcher icon, and from application menu, touch
Fingerprint.
2. Touch Turn Passcode On. Then set a passcode in 4 digits.
• Use Fingerprint manager
39
![](/img.php?id=3053897&img=bg28.png)
1. Touch Fingerprint manager.
2. Touch Add a Fingerprint and do the next steps according to
the indicate on the screen.
Then you can unlock the phone when it in sleeping status by
your finger print, but not press the power key and drag the
screen.
40
![](/img.php?id=3053897&img=bg29.png)
Settings
the settings for various features of the phone
Get to know the settings in your phone so that you can
personalize them to your own requirements. Go to Settings to
configure how your phone looks, sounds, communication,
privacy, and operations in a variety of ways:
Wi-Fi Turn Wi-Fi on or off, scan available
Wi-Fi, or add the WLAN network.
Bluetooth
Turn Bluetooth on or off, search for
available Bluetooth devices, and
make your phone visible or invisible
to other Bluetooth devices.
SIM cards
Set preferences on how you use
SIMs inserted in your phone.
Data usage
Turn the mobile data traffic on or off,
and keep track of your data usage
details over a specified period of
time.
More...
Turn Airplane mode on or off, and
configure settings for VPN and
mobile networks, and enable your
phone to share its mobile data
connection as a portable WLAN
hotspot, or through USB tethering or
Bluetooth tethering.
Display
Let you set the screen brightness,
select to switch orientation when
you rotate your phone, and
configure other screen settings.
Sound & notification
Configure how your phone rings,
vibrates, or alerts you in other ways
when you receive communications,
etc.
41
![](/img.php?id=3053897&img=bg2a.png)
Apps Manage downloaded and running
applications.
Storage & USB
Let you check out available space on
your phone’s internal storage, phone
storage and on your SD card.
Battery
Check battery status and battery
level.
Memory Check memory status.
Location
Set location mode, view location
services, and so on.
Security
Protect your phone by setting up
different locks and passwords.
Emergency rescue
When you are in emergency, it helps
you by sending your contacts
messages with your location.
Accounts
Let you add, and manage supported
accounts
. Enable your phone
synchronize
data with the
synchronization
accounts that you
add.
Google Google services.
Language & input
Let you select the language for the
text on your phone and for
configuring the onscreen keyboard.
Backup & reset
Reset your phone.
Date & time
Let you choose preferences such as
format and time zone.
Schedule power
on/off
Schedule automatic powering on/off
of the phone.
Accessibility
Enable your installed accessibility
services and adjust related settings.
42
![](/img.php?id=3053897&img=bg2b.png)
Printing He
lps you to print the file in your
phone.
Developer options
Set options for application
development. For example, you can
show CPU usage on the phone
display. You can also set the phone
to enter debug mode when USB
connections are active.
About phone
View information about your phone,
such as status, and legal
information.
43
![](/img.php?id=3053897&img=bg2c.png)
Other popular features
Some of the popular features that appear on the phone’s
Application menu are:
Downloads Provides
quick access to tabs
containing a list of your current
downloaded files.
File manager
Lets you view and manage files on
both your phone
storage and SD
card. Organize and store data, music
files, images, and more in your own
personal file folders.
Search
Allows you to search something such
as web, apps, contacts.
SIM toolkit
STK features are provided by your
service provider. If your SIM card
supports STK feature, you will see
the STK menu. Different STK has
different STK main menu. Please
contact your service provider if the
STK does not work.
Note: The submenus o
f this feature
depend on the operator and different
operators may provide different
services.
Accessing Password
The cell phone and SIM card use several accessing passwords.
These passwords help to prevent the cell phone from being
embezzled.
You can use the function options in the security settings of
44
![](/img.php?id=3053897&img=bg2d.png)
settings menu to change accessing password (except for PUK
and PUK2).
PIN Code
PIN code (Personal Identification Number) can prevent the SIM
card from being embezzled. The PIN code is provided along with
the SIM card. If the PIN code checking is activated, it is
necessary to input the PIN code when the cell phone powers on
every time.
If a wrong PIN code has been input for 3 times straight, it is
needed to input the PUK code, then input a new PIN code and
input it again for confirmation.
PIN2 Code
Some SIM cards may provide PIN2 code, while PIN2 code needs
to be used in some functions like Call Cost. These functions can
be used only if the SIM card supports them.
If a wrong PIN2 code has been input for 3 times straight, it is
needed to input the PUK2 code, then input a new PIN2 code and
input it again for confirmation.
PUK Code
PUK code (Personal Unlock Key) is used to change locked PIN
code. PUK code is provided along with the SIM card. If not
provided, please contact your local service provider for PUK
code.
·If wrong PUK code has been input for 10 times straight, the
SIM card can not be used any more. Please contact your service
provider for a new SIM card.
·PUK code can not be changed. If the PUK code is lost, please
contact your service provider.
45
![](/img.php?id=3053897&img=bg2e.png)
PUK2 Code
PUK2 code is provided along with some SIM cards for changing
locked PIN2 code.
·If wrong PUK2 code has been input for 10 times straight, the
SIM card can not be used any more. Please contact your service
provider for a new SIM card.
·The PUK2 code can not be changed. If it is lost, please contact
your service provider.
Precautions
Please carefully read and observe the terms below:
Safe power on
Do not use your mobile phone where it is forbidden
to use or you might cause a disturbance or danger.
Safe transportation first
Please observe all related local laws and regulations.
Do not use your mobile phone while driving.
Safe transportation should be considered first when
driving.
Disturbance
All mobile phone performances might be disturbed.
Turn off when in the hospital
Please follow related limitations.
Please switch your mobile phone off when near a
medical instrument.
46
![](/img.php?id=3053897&img=bg2f.png)
Turn off on an airplane
Please follow related limitations.
Do not use your mobile phone on an airplane.
Turn off when at a gasoline station
Do not use your mobile phone at a filling station or
around fuels or chemicals.
Turn off around exposure Area
Please observe related limitations and do not use
your mobile phone near an area where explosions
can occur.
Proper use
As described in this manual, your mobile phone can
be used only in the correct location.
If possible, please do not touch the antenna area of
your phone.
Use qualified after sales service
Only a qualified technician can install or repair your
mobile phone. Please contact the authorized service
center in case of phone failure.
Accessories and batteries
Only use the authorized accessories and batteries
and do not connect to incompatible manufacturers
or products.
Waterproof
Your mobile phone is not waterproof. Please keep it
away from water.
47
![](/img.php?id=3053897&img=bg30.png)
Backup
Remember to make a backup or keep a written
record of all important information saved in your
mobile phone.
Connect to other devices
Please read the user manual of the device to get
more detailed security instructions before
connecting to other devices and do not connect to
an incompatible product.
SOS emergency calls
Make sure your mobile phone is switched on and in a
service area. In idle mode, input the SOS number,
then press the Dial Key. Advise where you are and
do not hang up without permission.
Frequently Asked Questions and
Troubleshooting
Frequently
Asked
Questions
Cause and Solution
Fail to turn
on
Press the power on key for over 1 second;
Check if the battery is properly connected;
Please remove and install it again, retry to
turn it on;
Check if battery is appropriately charged.
Fail to
connect
network
Weak signal. Please t
ry and move to a
location with strong signal and try
connecting to the network again;
Please ensure that you are not beyond the
network coverage of service providers;
Please ensure you have a valid SIM card;
Please contact your network provider for
48
![](/img.php?id=3053897&img=bg31.png)
further information.
Display
information
while
turning on
Check if the SIM card is installed correctly;
Handset lock password:If the handset lock is
activated, you have to input handset
password.
Input PIN: Inputting PIN while turning on
each time is activated, you have to input the
PIN code.
Input PUK code: When you’ve input wrong
PIN code for 3 times will lock the SIM card.
You need to input the PUK code provided by
your network provider.
Poor quality
of calling
Please check if the sound volume is tuned
improperly ;
In an area with poor receiving condition, for
example: basement, the signal might be
weak. Try searching a location with stronger
signal reception and call again;
While using the mobile phone in the peak
period of communication, like commute
time, you may be unable to call because of
line congestion.
Standby
duration
shortened
The standby duration is relative to the
system setting of network. While the mobile
phone is in an area with poor signal strength
and can
not receive the signal, the handset
will continuously search for a base station.
This will significantly reduce battery charge.
It is recommended that you turn off your
mobile in area with no signal reception to
save battery.
Need replacing the battery. Please change a
new battery.
SIM Card
Dirt on the metal surface of an SIM card:Use
49
![](/img.php?id=3053897&img=bg32.png)
Error clean cloth to wipe the metal touch point on
an SIM card;
The SIM card is not installed: The SIM card
is damaged. Please contact your network
service provider.
Fail to dial
out
Please check if you press the dial key after
dialing;
Please check if calling is forbidden because
of defaulting;
Please check if the SIM is valid;
Please check if the call barring is set;
Please check if the fixed dial function is set.
Callers can
not contact
you
Please check if the mobile phone is on and
connected with the network;
Please check if the Call barring or call divert
is activated;
Please check if the SIM card is valid.
Fail to
charge
Poor contact:
Please check if the plug is
connected well;
Please confirm if the environment
temperature is within the range of 0ºC
~40ºC while charging;
The battery or charger is damaged: You
need to replace it.
Fail to set
some
functions
Wrong operation;
The network provider does not support the
function, or you have not applied for it.
Note: If the instruction above can not help you solve problems,
please record Mobile phone model and serial number, Specific
content of warranty, Clear statement of problems, Then contact
your local dealer or the authorized service center in your area.
50
![](/img.php?id=3053897&img=bg33.png)
Safety Information and Notices
Using the Mobile Phone and Charger
Danger:
Only use authorized battery and charger. Using other brands
may cause battery leakage, overheating, explosion or even fire.
Caution:
Keep the phone away from dust, water and damp areas. Dust,
water or other liquids may cause overheating, electrical leakage,
and/or phone failure.
The phone, battery, charger and AC adapter are not waterproof.
Keep them away from rain and liquid.
Warning:
Do not bump, shake or tamper with the phone or charger. This
may cause battery leakage, overheating, explosion or even fire.
Do not place the battery, phone or charger near a microwave or
high-voltage device. This may cause battery leakage, explosion,
overheating or even fire; also prevent the phone and AC adapter
from overheating, smoking or short circuiting.
Do not use the phone around volatile oil. This may cause fire,
breakdown or damage.
To avoid any damage or breakdown, do not disassemble the
phone, battery, charger or internal components by yourself.
Location:
The socket-outlet shall be installed near the equipment and shall
be easily accessible.
Using the Mobile Phone
Warning:
Please confirm if the environment temperature is within the
range of 0ºC ~40ºC while charging.
51
![](/img.php?id=3053897&img=bg34.png)
Do not use the phone while you are driving. Pull over and stop
your automobile to dial or listen to a phone call.
Usage of mobile phones in aircrafts or hospitals is prohibited.
Switch the phone off to prevent interference with electronic
medical devices. Follow any rules or regulations in such places.
Do not use the phone at a gas station, near fuel or near
chemicals.
Do not use the phone near electronic medical devices such as
hearing aids, pacemakers and auto-control devices such as fire
detectors and automatic doors.
If you have to use your mobile phone near an electronic medical
device such as a pacemaker, please contact your manufacturer
or dealer for information about preventing interference.
Caution:
Electronic systems in automobiles such as anti-lock brakes,
speed control, or fuel spraying systems, are usually not
influenced by wireless devices. Manufacturers of these systems
will tell you whether they are provided with good screening
functions. If you suspect that an automobile failure is caused by
a wireless wave, please contact your automobile dealer.
Avoid using your phone in crowded places.
Do not store your mobile phone near or with a credit card, disk
or other magnetic materials. This may effect information stored
on your phone.
Keep your phone away from pins. Pins can be absorbed by the
phone’s receiver magnet, which may cause harm.
If you intend not to use your mobile phone for a long period of
time, please remove the battery from the phone. Leaving the
battery inside the mobile phone for a long period of time may
cause moisture to the battery, and it can damage the mobile
52
![](/img.php?id=3053897&img=bg35.png)
phone or the battery.
Battery& Chargers Safety:
Do not place the battery in fire; follow local laws and
ordinances in disposing used battery.
Check the model number of the charger before using it to
charge the mobile.
Only use original battery, charger and accessories applicable
to the specific mobile model. Using other types of battery,
charger and accessories may violate the certification or
warranty terms of the equipment and may result in danger.
Return waste and used batteries to the supplier or specified
recovery site.
CAUTION
There are risks of explosion if battery is replaced by
a non-original one.
Dispose of used batteries according to the instructions.
Note: The socket-outlet shall be installed near the equipment
and shall be easily accessible.
Using the Battery
Danger:
·Do not dispose of the battery into a fire. Doing so may cause
battery explosion or even fire.
·If you have difficulties installing the battery, do not force the
installation. This may cause battery leakage, overheating,
explosion or even fire.
·Keep metal objects away so they do not come in contact with
the battery or its connectors as it may cause the battery to short
circuit, overheat or explode.
·Do not weld the polarities of the battery directly together. This
53
![](/img.php?id=3053897&img=bg36.png)
may cause battery leakage, overheating, explosion or even fire.
Battery liquid is severely harmful for your eyes. If battery liquid
gets in your eyes, do not rub them. Instead, wash your eyes
with water first and then go directly to a doctor for help.
·Do not use or store your phone in high temperature areas. This
may cause battery leakage, overheating, explosion or even fire.
Warning:
·Replace the battery when the normal usage time begins to
decrease or if you notice the battery is overheated or has
changed shape or color.
·If battery liquid leaks onto your skin or clothes, immediately
wash the affected parts with water.
·If the battery begins to leak or emits a strange odor, properly
dispose of the battery according to local regulations. Do not
throw it into a fire.
Caution:
Do not leave the product or its battery inside a vehicle. This may
damage the product, overheat the battery, or pose a risk to the
vehicle.
Warnings on Battery:
(a) Please use appointed battery in case of explosion risk.
(b) Please dispose of lifeless battery under guidance.
Using the Charger
Danger:
·Only use the charger that came with the phone. Using a
different charger may cause the phone to breakdown or
explode.
·If the charger short circuits, a fire may occur.
·Do not use a damaged, worn or broken charger. This may cause
a fire.
54
![](/img.php?id=3053897&img=bg37.png)
·Clean dust away from the power socket to avoid the possibility
of a fire.
·Do not store the charger near any liquids. If liquids spill onto
the charger it may cause it to overheat or breakdown.
·If liquid does spill onto the charger, immediately unplug the
power cable to prevent overheating, fire or another type of
breakdown.
·Do not use the charger in places with high humidity like a
bathroom. This may cause a fire or other breakdown.
·Do not touch the charger, power cable or socket with wet hands.
This may cause an electric shock.
Requirements for Mobile Phone
·Avoid using your mobile phone in extremely high or low
temperatures.
·It is recommended that you do not use your mobile phone
near a telephone, TV set, radio or other radio frequency
sensitive devices.
Requirements for the Battery
·When not in use, store the battery in a cool, well-ventilated
place with sunshine.
·If you will not be using the mobile phone for an extended
period of time, charge the battery on a regular basis to avoid
battery breakdown.
·The phone battery wears out fast. If charging the battery does
not improve its performance, it is time to replace the battery.
·Properly dispose of the battery according to local regulations.
Do not throw it into a fire.
Caution: Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
55
![](/img.php?id=3053897&img=bg38.png)
Requirements for the Charger and AC Adapter
Please confirm if the environment temperature is within the
range of -10ºC ~55ºC while charging.
Cleaning and Maintenance
·The mobile phone, the battery and the charger are not
waterproof.
·Do not use them in places with high humidity like a bathroom
and also avoid spilling any liquids on them.
·Use a soft cloth to clean the mobile phone, the battery and the
charger.
·Do not use alcohol, diluted liquid or benzene to clean the
mobile phone.
·If dust gets in the sockets the phone can be damaged,
short-circuit or even the lose the ability to be re-charged. Be
sure to clean the socket regularly.
56
![](/img.php?id=3053897&img=bg39.png)
Warning:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
57
changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
![](/img.php?id=3053897&img=bg3a.png)
or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
NOTE: This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
RF Exposure Information:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gra
m of tissue. DeviceTypes(FCC ID: -X521) has also been
tested against this SAR limit.
The highest SAR value reported under this standard during pro
duct certification foruse when properly worn on the body is
W/kg and for head is W /kg.Simultaneous RF exposure
is W/Kg .
This device was tested for typical body‐worn operations with
the back of thehandset kept 10mm from the body.To maintain
58
2AIZN
0.98
1.28
0.88
![](/img.php?id=3053897&img=bg3b.png)
compliance with FCC RF exposure requirements, use accessori
es thatmaintain a 10mm separation distance between the use
r's body and the back of the handset.
The use of belt clips, holsters and similar accessories should n
ot contain metallic components in its assembly.
The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirem
ents, and should be avoided.
59
