INFOMARK IMW-C610W WiMAX & WiFi Dual CPE User Manual

Infomark Co., Ltd. WiMAX & WiFi Dual CPE

User Manual

Biscuit

IMW-C610W

Table of list

Chapter 1. Attention ................................................................................................................................................ 4

Chapter 2. Introduction & Requirements ........................................................................................................ 4

Introduction of goods ......................................................................................................................................... 4

What is the IMW-C610W? ........................................................................................................................... 4

System Requirements. ................................................................................................................................. 4

Specification ...................................................................................................................................................... 4

Application ......................................................................................................................................................... 4

The points of name & Components list....................................................................................................... 5

Components List in the package. ............................................................................................................. 5

Points of name & Function .......................................................................................................................... 5

Chapter 3. How to use the IMW-C610W ........................................................................................................ 7

Power ON/OFF ..................................................................................................................................................... 7

How to charge battery ....................................................................................................................................... 7

Using Power Adaptor .................................................................................................................................... 7

Using USB Cable from PC .......................................................................................................................... 7

Battery Insert Method ........................................................................................................................................ 7

Setting of the WiFi AP ....................................................................................................................................... 8

Setting with Window XP ............................................................................................................................... 8

Setting with Window 7................................................................................................................................... 9

Setting with Mac OS ...................................................................................................................................... 9

Setting of USB (RNDIS) .................................................................................................................................... 9

Setting with Window XP ............................................................................................................................ 10

Setting with Window 7................................................................................................................................ 11

Chapter 4 Configuring CM ................................................................................................................................. 12

Connect to Web CM (Web Connection Manager) .............................................................................. 12

Start CM ........................................................................................................................................................... 12

Input ID/Password ....................................................................................................................................... 12

Description of Web User Interface ............................................................................................................ 12

Introduction ..................................................................................................................................................... 12

Home Menu .................................................................................................................................................... 13

LAN settings ....................................................................................................................................................... 14

WiMAX Configuration ..................................................................................................................................... 15

Parametric Data description .................................................................................................................... 16

Network Information description ............................................................................................................ 17

Device Information ...................................................................................................................................... 17

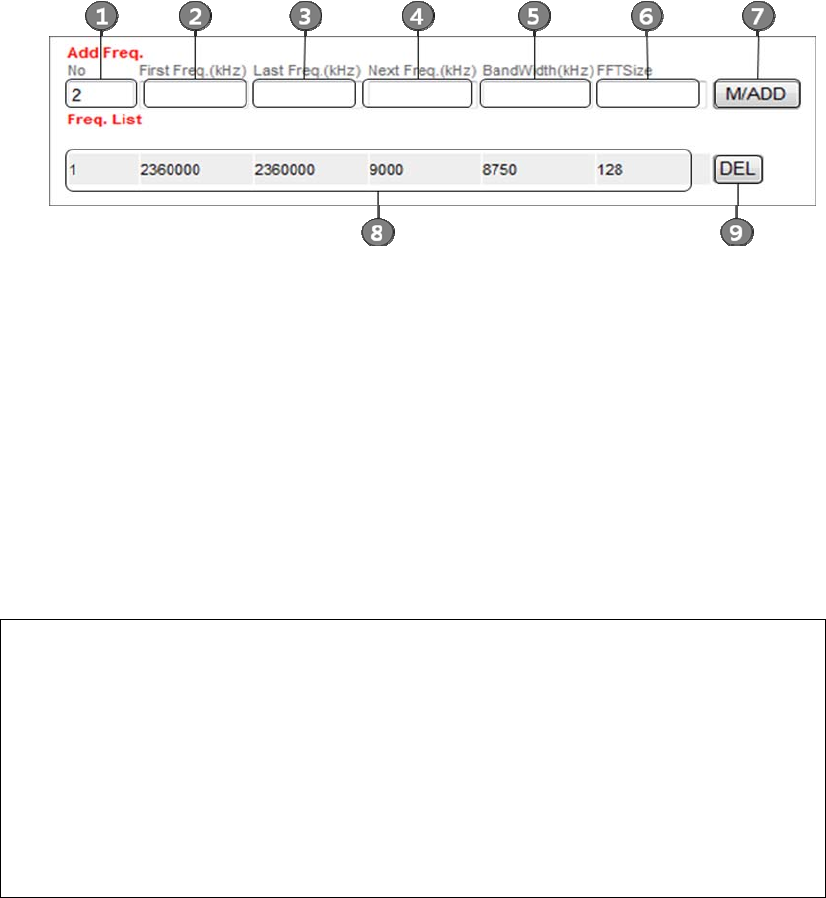

Frequency Setting ....................................................................................................................................... 18

Authentication Setting ................................................................................................................................ 19

Administration setting ................................................................................................................................. 20

Status description ........................................................................................................................................ 20

Firmware information .................................................................................................................................. 20

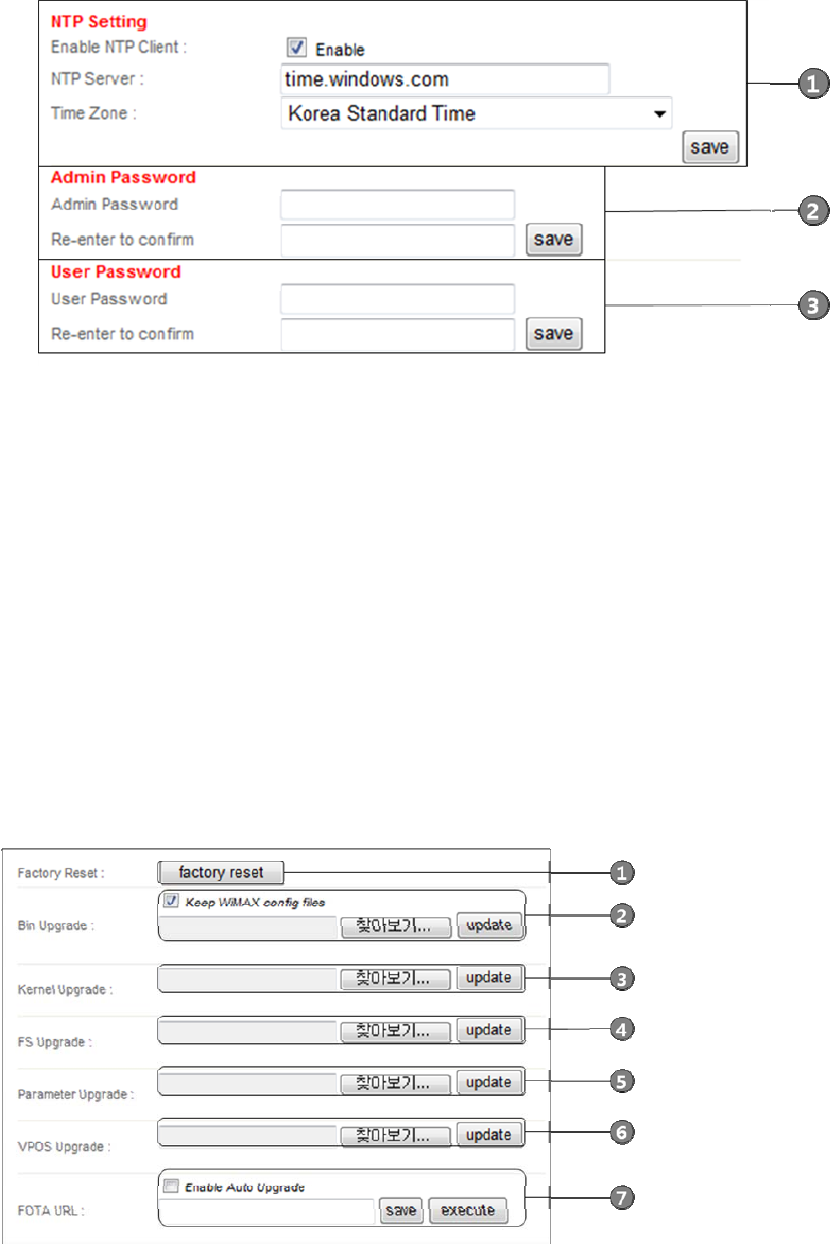

Administration setting ................................................................................................................................. 21

Upgrade description .................................................................................................................................... 21

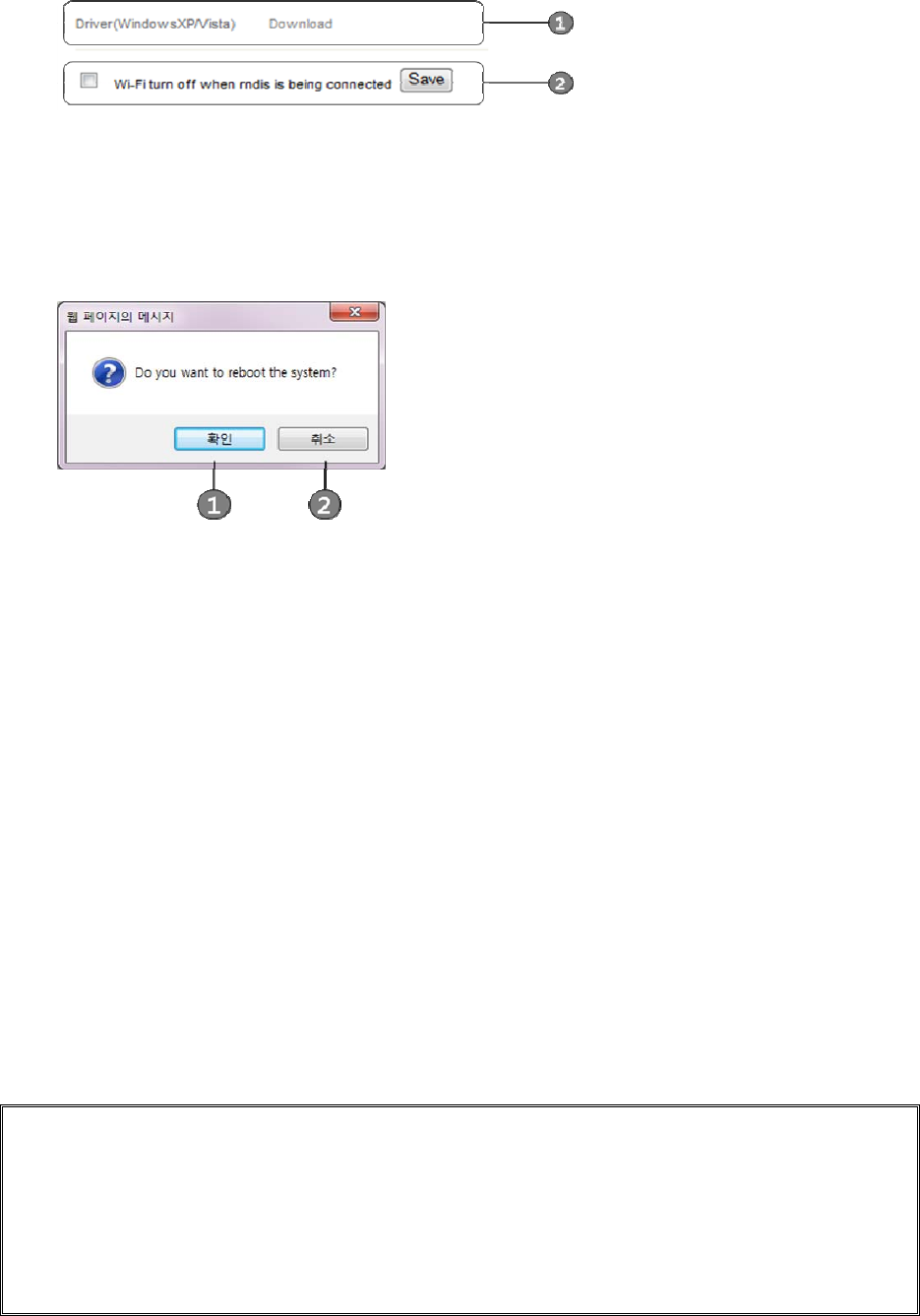

USB Driver description .............................................................................................................................. 22

Reboot button description ........................................................................................................................ 22

Chapter 1. Attention

 Don’t use in high humidity place.

 Use in the clean place.

 Install on the safe place without dropping.

 Don’t use and keep around electromagnetic waves.

 Don’t put the goods on heavy things.

 Don’t install and use in the Sun lights directly.

 Don’t throw or dismantle the goods.

 Don’t heat the goods and battery.

 Protect the goods from pets and children.

 Don’t put the goods and battery in the water.

 Don’t hold power adaptor in the wet hands.

Chapter 2. Introduction & Requirements

Introduction of goods

What is the IMW-C610W?

 IMW-C610W is a very inventive product for WiMAX & WiFi Dual CPE(Customer Premises Equipment)

enabling solution of the problem of lack in user terminals possible to use Mobile WiMAX service.

 IMW-C610W included WiFi AP support Mobile WiMAX Service through WiFi can be supported portable

devices (Laptop, Desktop, PDA and Smart Phone etc.)

System Requirements.

 User’s device will be installed WiFi (IEEE 802.11b/g) LAN Card or module.

 The PC will be Installed USB port.

Specification

Items Description

WiMAX

WiMAX Standard Compliance

IEEE 802.16e-2005

WiFi Network Standard IEEE 802.11 b/g

Power Battery Built-in Li-Polymer(3.7V/2700mA)

Adaptor 5V / 2A

Dimension / Weight 110mm×64mm×18mm / ??

Application

The points of name & Components list

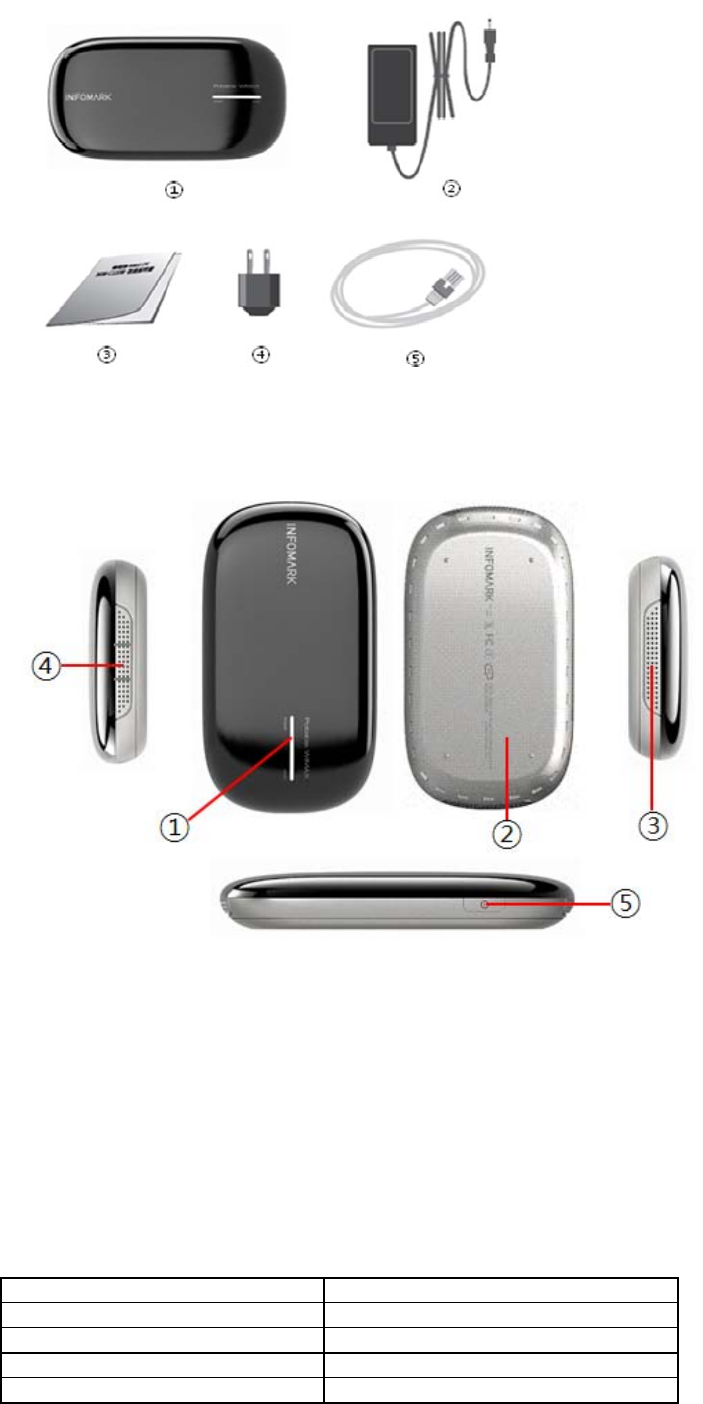

Components List in the package.

① IMW-C610W

② Adaptor [5V / 2A]

③ User’s Manual

④ Plug

⑤ USB Cable

Points of name & Function

① Status LED : WiMAX signal status and WiFi status LED

(Color : Blue / Yellow / Green / Red)

② Battery Cover

③ Ventilation Hole

④ USB Port : Battery charging and Tethered operation

⑤ Power button and Battery Status : Power turn On/Off and battery status

LED Status Scenario

WiMAX Signal LED

Off Power Off

Yellow LED On and Off Frequency scanning or ready

Red LED On and Off Connecting with WiMAX network

Red LED On WiMAX signal level 1

Yellow LED On WiMAX signal level 2 ~ 3

Green LED On WiMAX signal level 4 ~ 5

WiFi LED

WiFi AP turn On Blue color

Connection is failed Green color

Power LED

Remained battery (100% ~ 60%) Green color

Remained battery (60% ~ 30%) Yellow color

Remained battery (30% ~ 0%) Red color

Battery charging Red color

Battery full charging Green color

Chapter 3. How to use the IMW-C610W

Power ON/OFF

Power ON : Push the power button for 4 Seconds.

Power OFF : Push and hold the power button for 20 Secnds.

How to charge battery

Using Power Adaptor

Using USB Cable from PC

Battery Insert Method

Setting of the WiFi AP

Notice : Configuration of WiFi AP has to be set to “Obtain IP address and DNS sever address

automatically”.

Setting with Window XP

<Start><Connect to><Wireless Network Connection> Choose WiFi AP of IMW-C610W in the list

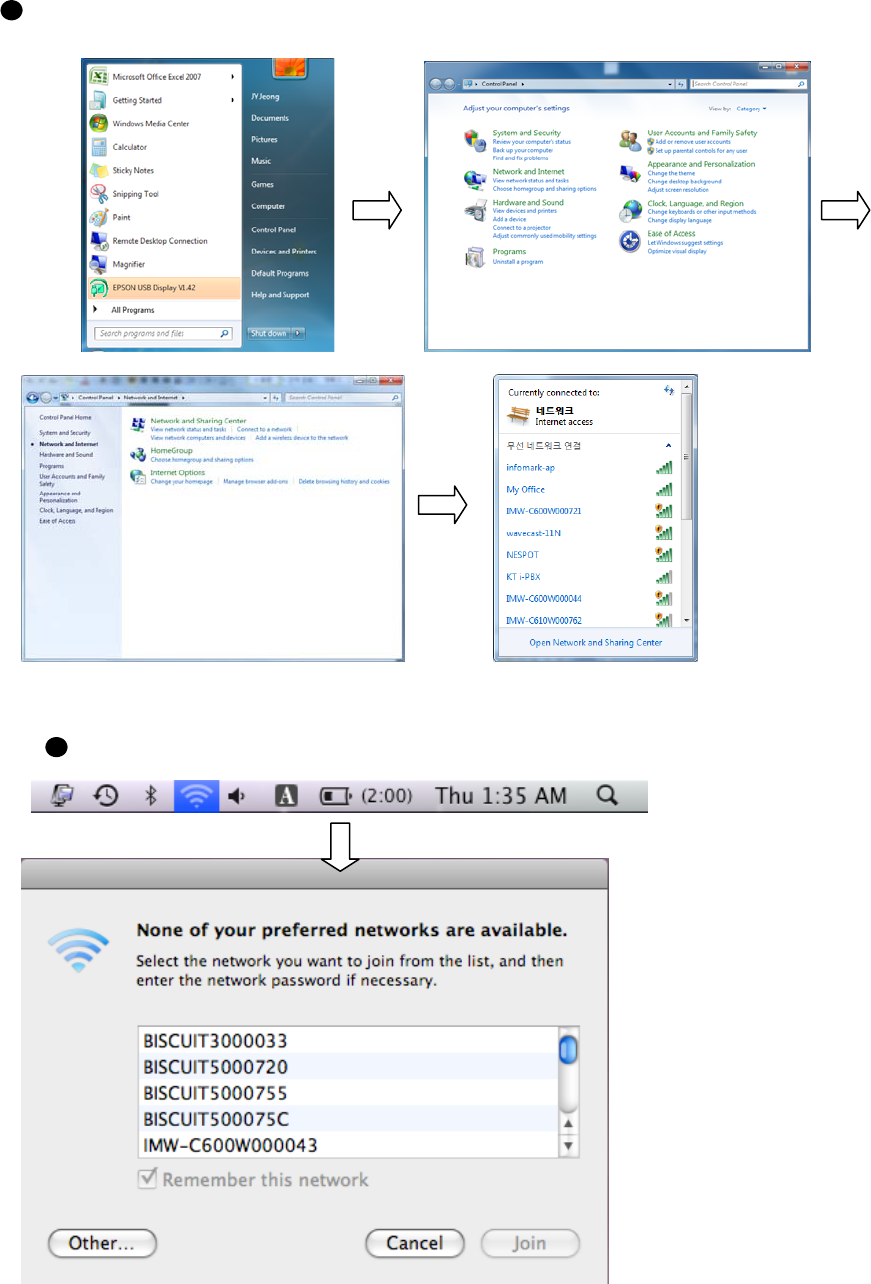

Setting with Window 7

Choose the WiFi AP of IMW-C610W in the list

Setting with Mac OS

Click the wireless Icon on the menu  Choose the WiFi AP of IMW-C610W in the list

Setting of USB (RNDIS)

Notice :

1. Your PC connected to web server of IMW-C610W through WiFi.

2. Driver of RNDIS can down load from web sever of IMW-C610W.

3. Refer to USB Driver Page No. XX for download.

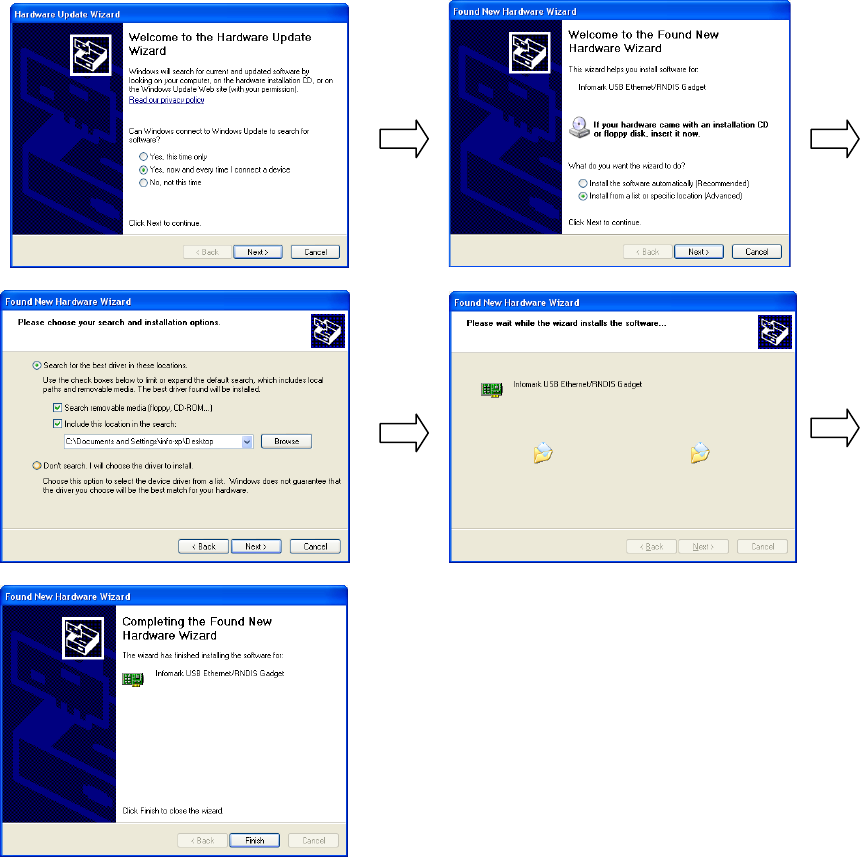

Setting with Window XP

1. IMW-C610W should be connected with PC by USB cable.

2. Below is each step of RNDIS installation.

Setting with Window 7

1. IMW-C610W should be connected with PC by USB cable.

2. Below is each step of RNDIS installation.

Chapter 4 Configuring CM

Connect to Web CM (Web Connection Manager)

Start CM

- Use web browser to connect Web CM

- Type Address 192.168.1.1/admin

※ Microsoft Internet Explorer is recommended

Input ID/Password

- A Pop-up window will requests for specific ID and Password to enter into Web CM

ID : admin / Password : admin

Description of Web User Interface

Introduction

This is to describe user interface of Biscuit

① Main Menu

Main Menu help user to choose settings of LAN/WLAN, WiMAX frequency, Authentications, Device

management.

② Sub Menu

Sub Menu shows detail categories of Main Menu

③ Main Window

Main Window shows status of device or setting parameters

④ Help Display

It shows additional description of Main Window

Home Menu

① Device Information

It shows description of Device such as name of device, manufacturer, software version, hardware

version, API version and MAC address

② LAN information

It shows IP Address, Subnet Mask and setting of DHCP Server

③ WiMAX status information

It shows connection status of WiMAX and Network

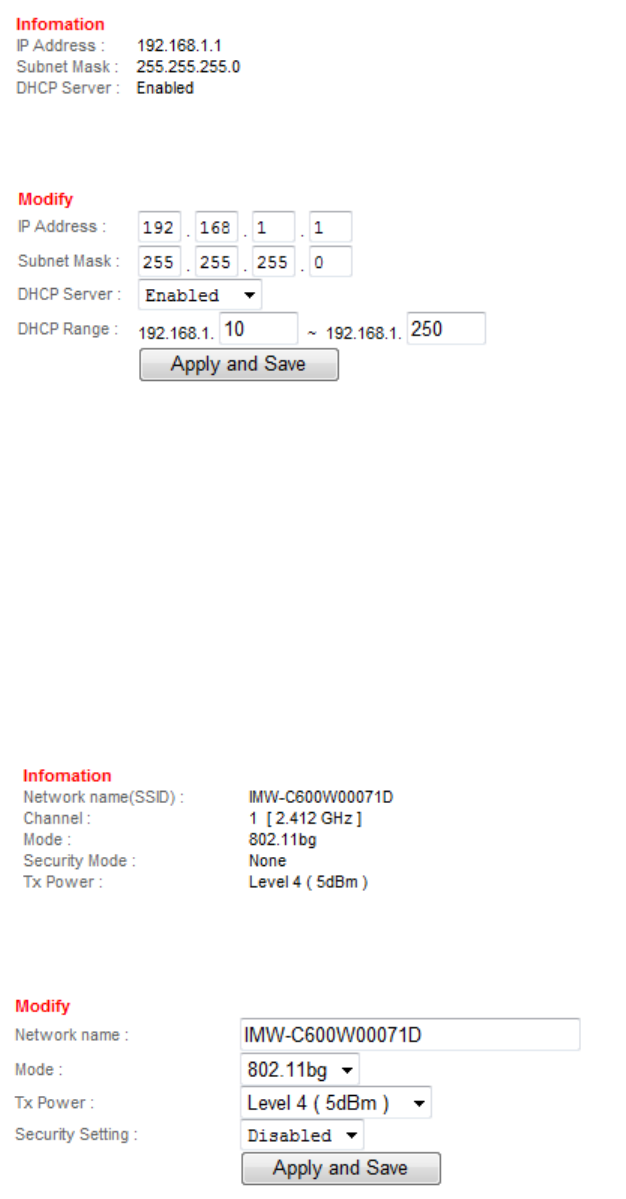

LAN settings

① LAN Status

It shows web address of local area network information.

② LAN Setting

- Local IP Address:

Input desired IP address that user want to use for Local Area Network

- Subnet Mask:

Input subnet mask to allocated IP address

- DHCP Server:

When DHCP is ‘Disabled’, please set IP address of client with static address.

For example, when the IP address is set as 192.168.1.1, set the client address as follow.

IP Address: from 192.168.1.2 to 192.168.1.253

Subnet Mask” 255.255.255.0

Gateway IP: 192.168.1.1

③ WiFi Status

It shows Wi-Fi’s SSID, Channel and Tx Power

④ WiFi Setting

- Network Name:

User can set preferred name of network name

The device comes with SSID of ‘KWI-B2200’. This SSID can be changed as preferred.

- Security Setting:

Default setting of Security is ‘Disabled’. If changed, ‘Apply and Save’ button should be clicked.

- WEP (Wired Equivalent Privacy): is a deprecated algorithm to secure IEEE 802.11 wireless networks.

Wireless networks broadcast messages using radio and are thus more susceptible to eavesdropping

than wired networks.

This Device provides 64/128 bit encryption for network protection.

- Authentication type: In case of selecting WEP, default setting is ‘Auto’.

▶ Auto : This support both open system and shared key.

▶ Open System: Open system allow link to all clients but permit communication to clients that have

same WEP key.

▶ Shared Key: Shared Key allow link and communication to clients that have identical shared key as

AP.

- Key Length: For user convenience, select 64bit or 128 bit encryption.

- Key Pass Phrase: WEP Key is generated automatically. Input random character to generate key.

Please make a separate note the key in order to connect to the device.

- WPA: The WPA protocol implements the majority of the IEEE 802.11i standard, and was intended as an

intermediate measure to take the place of WEP while 802.11i was prepared.

This Device provides WPA, WPA2 and USB both.

- WPA Type : This Device provides WPA, WPA2.

▶ WPA(Wi-Fi Protected Access) : WPA protocol implements the majority of the IEEE 802.11i

standard. WPA is based on TKIP(Temporal Key Integrity Protocol)

and it provide higher security of wireless communication.

▶ WPA2 : AES(Advanced Encryption Standard) use additional encryption algorithm and it comply

with WAP.

▶ Use Both: It provide both WPA and WPA2 and it is default value when selecting WPA.

- Encryption: It is to encrypt Unicast packets and support Auto, TKIP, AES-CCMP. Default is Auto.

- Key Pass Phrase: Input WPA key value to blank and click ‘Apply and Save’

⑤ NAT Setting

● Port Forwarding setting:

Port forwarding is the practice of forwarding a TCP/IP packet in a network address translator gateway to a

predetermined network port on a host within a masqueraded, typically private network based on the port

number on which it was received from the originating host. The technique is used to permit communications

by external hosts with services provided within a private local area network.

● Port Forwarding List :

● DMZ Host :

● Remote Admin :

WiMAX Configuration

The parameter of WiMAX configuration are listed as Parametric Data, Network Info, Device Info, Frequency

and Authentication

Parametric Data description

● Auto Refresh: When check box of enable is marked, real time values of WiMAX will be shown.

● Reset stat: This function initialize WiMAX monitoring value with ‘Reset stat’ button.

● Link Status Info

- Device State: It shows current status of WiMAX connection.

- Freq: It shows current connection frequency.

- BSID: It shows BSID of connected WiMAX BS.

- Tx Power: It shows output power of device.

- RSSI: It stands for Receive Signal Strength Indicator. (Higher value states bad signal)

- CINR: It stands for carrier to interference ratio. (Lower value states more noise)

● MAC Statistics Information

- This indicates Tx/Rx Packet information

● PHY Status

- This indicates antenna level information of device

● PHY Statistics Information

- This indicates statistics of antenna level of device.

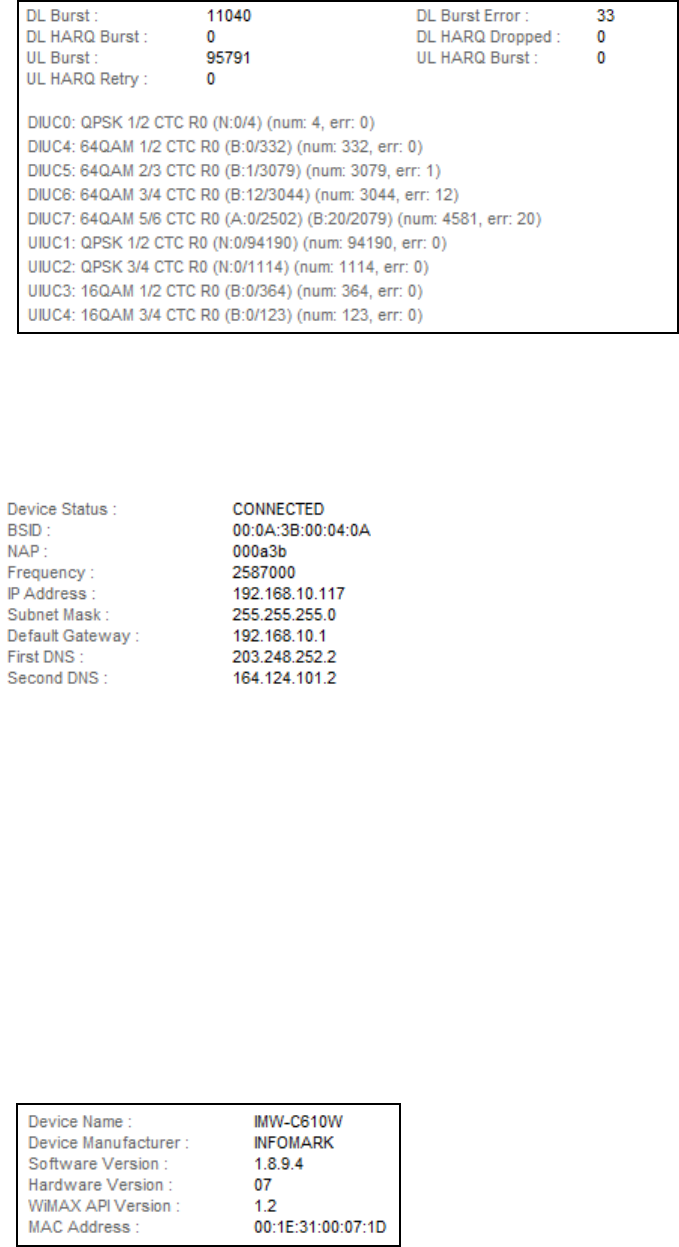

● PHY Burst Statistics Information

- This indicates modulation information of device.

Network Information description

● Auto Refresh : When check box is enabled, Network and MAC status of device in monitored in real

time.

● WiMAX Link Status

- Device Status: This indicates connection status of WiMAX device.

- BSID: This indicates BSID of WiMAX network.

- NAP(Network Access Provider): This indicates operator’s ID.

- Frequency: This indicates connected frequency.

- IP Address: This indicates Static IP Address acquired from BS.

- Subnet Mask: This indicates Static Subnet Mask acquired from BS.

- Default Gateway: This indicates Gateway acquired from BS.

- First DNS: This indicates the first DNS acquired from BS.

- Second DNS: This indicates second DNS acquired from BS.

● Service Flow

- This indicates QoS status information of device in detail.

Device Information

● Device Information

- Device Name: This indicates model name of device.

- Device Manufacturer: This indicates manufacturer of device.

- Software Version: This indicates firmware information of device.

- Hardware Version: This indicates hardware version of device..

- MiMAX API Version: This indicates WiMAX Common API Version.

- MAC Address: This indicates MAC address of device.

Frequency Setting

① No: Please register frequency that desiered to be used in sequenc.

② First Freq.(kHz): Please register the first frequency NAP operator’s range.

③ Last Freq.(kHz): Please register last frequency NAP operator’s range.

④ Next Freq.(kHz): Please register step of frequency range.

⑤ Bandwidth(kHz): Please register bandwidth of NAP operator’s frequency.

⑥ FFTSize: Please register FFTSize of NAP

⑦ After all through from ① to ⑥, click ‘M/ADD’ for modification or add.

⑧ this indicates registered frequency list of device.

⑨ In order to remove selected frequency, click ‘DEL’ button.

※ Example of frequency register

- Center frequency of NAP: 2567000, 2577000, 2587000

- Bandwidth of NAP : 10MHz

- NAP의 FFTSize : 128

1. ① Type 1 to register No1 (To modify pre-exist No, inout same No. to modify)

2. ② Input 2567000 as starting frequency

3. ③ Input 2587000 for last frequency

4. ④ Input step of frequency as 10000, (Increase in 10MHz steps)

5. ⑤ Input Bandwidth as 1000.

6. ⑥ Input FFTSize as 128

7. Select ⑦

8. Select ‘Reboot’ in main window

Authentication Setting

① PKM: Please select if the certificate is desited to be used..

② EAP Method: When PKM is available, select the authenticiation method as EAP-AKA/EAP-TLS/EAP-TTLS.

③ CA Certificate #1: Register certificate in Root CA.

④ CA Certificate #2/#3: Regisger #2 and #3 certificate in Sub CA successively.

⑤ Client Certificate: Register Client Certificate

⑥ Private Key: Register Private Key Certificate

⑦ Private Password: Input Private Password accuired from NAP

⑧ Inner NAI (ID): Input Inner NAI (ID) accuired from NAP.

⑨ Inner NAI Password: Input NAI Password accuired from NAP.

Outer NAI (Anonymous ID): ⓐInput Outer NAI accuried from NAP.

Erase Certificate:ⓑ In order to erase certificate (CA Certificate, Client Certificate, Private Key Certificate),

slelct and click ‘Erase’ to remove.

※ Example: EAP-AKA

1. Select ① as Enable

2. ② Select EAP-AKA

4. Click ‘Reboot’ in main window

(Warning: This EAP-AKA works with UICC include version of device.

※ Example: EAP-TLS

1. Select ① as Enable

2. ② Select EAP-TLS

3. ③ Register Root CA Certificate

4. In case there is Sub CA Certificate, register in ④

5. ⑤ Register Client Certificate file

6. ⑦ Input private password

7. ⓐ input Outer NAI (Anonymous ID)

(ex:random@infomark.co.kr or MAC Address@infomark.co.kr)

9. Click ‘Reboot’ in main window

※ Example: EAP-TTLS

1. Select ① as Enable

2. ② Select EAP-TTLS/MSCHAPV2 (Select TTLS provided from NAP)

3. In case there is Root CA Certificate, register with ③

4. In case there is Sub CA Certificate, register with ④

5. Input inner NAI (ID) with .⑧

6. Input inner NAI password with ⑨

7. ⓐ input Outer NAI (Anonymous ID)

(ex:random@infomark.co.kr or MAC Address@infomark.co.kr)

9. Click ‘Reboot’ in main window

Administration setting

Items of Administrator settings are consist of Status, Firm info., Administration, Upgrade and USB Driver

Status description

①Device information

- This provides model name, manufacturer and version of software and hardware

LAN② setting information

- This provides IP Address, Subnet Mask and DHCP Server setting information

WiMAX③ status information

- This provides WiMAX connection status information.

Firmware information

- kernel version: This indicates version of device OS

- rootfs version: This indicates system file version

- firmware version: This indicates software (firmware) version

- WCM version: This indicates Web CM version

Administration setting

NTP Setting①

- Enable NTP Client: In case of using NTP Client, enable check box of Enable NTP client

- NTP Server: Input URL of NTP Server URL

- Time Zone: Select Time Zone

- Click save to store the configuratio.

Admin Password②

- Item to change Web CM Password of Web CM of Admin

- Used to enter URL of http://192.168.1.1/admin/

- Enter same password twice

- Click ‘save’ to store configuration

User Password③

- Item to change Web CM Password of Web CM of User

- Used to enter URL of http://192.168.1.1

- Enter same password twice

- Click ‘save’ to store configuration

Upgrade description

①This is to return to factory default configuration.

②Device supports firmware update with binary fileWhen check box of Keep WiMAX config files is selected, the

previous configuration will remain after update

- After selecting file and click ‘update’ to start upgrade

③Device supports zImage file update

④ Device supports ramdisk.jffs file update

⑤Device supports Prameter bin file update

⑥Device supports VPOS bin file upadte

FOTA URL ⑦setting

- FOTA URL: Input URL of the site and save click to restore

- When Enable Auto Upgrade is checked, device will compare the firmware version and on server and

update if the firmware is new.

USB Driver description

① This is driver file when USB is used on Windows XP/Vista/7

② When used only with RNDIS, select checkbox of Wi-Fi off and save.

③ Reboot system in main window

※ This will make Wi-Fi off with reboot.

Reboot button description

This is to reboot device when all parameter is set

① Reboot system

② Cancel reboot

User Information

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This

device may not cause harmful interference, and 2. This device must accept any interference received. Including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

▪ Reorient or relocate the receiving antenna.

▪ Increase the separation between the equipment and receiver

▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

WARNING:

During transmitter operation, in order to meet RF Maximum permissible Exposure Safety Guidelines,

a minimum distance of 20cm shall be maintained between this device and personnel.

This equipment may generate or use radio frequency energy. Changes or modifications to this

equipment may cause harmful interference unless the modifications are expressly approved in the

instruction manual. The user could lose the authority to operate this equipment if an unauthorized

change or modification is made.

INFOMARK IMW-C610W WiMAX & WiFi Dual CPE User Manual

Infomark Co., Ltd. WiMAX & WiFi Dual CPE

User Manual

Navigation menu

Namespaces

Views

Navigation
