User manaul

FireFly™
Central Radio Unit (CRU)
User Guide
Input/Output, Inc. 2
CRU User Guide
Table of Contents
Overview: Central Radio Unit (CRU)..............................................................................3
About Central Radio Unit (CRU)................................................................................3
Regulatory and Safety Guidelines................................................................................3
Certification
Licensing.....................................................................................................................5
FCC ID Label..............................................................................................................5
Deploying and Operating the CRU ..................................................................................7
Before you begin .........................................................................................................7
Bringing up the CRU...................................................................................................7
Shutting down the CRU...............................................................................................7
Input/Output, Inc. 3
CRU User Guide
Overview: Central Radio Unit (CRU)
About Central Radio Unit (CRU)
The CRU is a central radio controller with firmware that manages the timing of events
and low-level radio communication. The CRU consists of the main CRU device, a Base
End Assembly (BEA) and a Head End Assembly (HEA). These three discrete devices
make up the CRU. The CRU is intended for use by properly trained seismic field
personnel.
Regulatory and Safety Guidelines
Regulations regarding the use of the radio modems vary greatly from country to country.
In some countries, the unit can be used without obtaining an end-user license. Other
countries, such as United States, require end-user licensing. Consult your local
communications governing agency for licensing information. Before operating a CRU
with a radio modem, determine if authorization or a license to operate the unit is required
in your country. Obtaining an operator’s permit or license for the CRU for the
location or country-of-use is the responsibility of the end user.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Input/Output, Inc. 4
CRU User Guide
NOTE:
In United States, for the 217 – 220 MHz band, the maximum antenna height above
average terrain (HAAT) is 152 meters (500 feet). Improper installation could void the
user’s authority to operate the equipment.
Certification
Certification, covers technical parameters of the equipment related to emissions that can
cause interference. Certification is granted to the manufacturer or importer of the
transmission equipment, independent from the operation or licensing of the units. Some
countries have unique technical requirements for operation in certain radio modem
frequency bands. Unauthorized modification to the units voids the Certification, the
warranty and the operational license of the equipment.
CAUTION:
Changes or modifications to this equipment not expressly approved, in writing, by
Input/Output could void the user’s authority to operate the equipment.
Input/Output, Inc. 5
CRU User Guide
Licensing
Many countries require that the operator of a radio, or radio modem, obtain a license
prior to operating the radio, or radio modem. Some do not. Consult your local
communications governing agency for licensing information. Obtaining an operator’s
permit or license for the Firefly CRU for the location or country-of-use is the
responsibility of the end user.
Before operating this radio modem, you are legally required to obtain frequency licenses
as required by the country-of-use. Please contact your local communications governing
agency for the licensing requirements for each of these radio modems.
Safety
Exposure to radio frequency (RF) energy is an important safety consideration. The FCC
has adopted a safety standard for human exposure to radio frequency electromagnetic
energy emitted by FCC regulated equipment as a result of its actions in General Docket
79- 144 on March 13, 1986. Proper use of this radio modem results in exposure below
government limits. The following precautions are recommended:
• A 20 cm separation should be maintained between the antenna and all persons during
normal operation, per Part 1.1307 of the FCC Rules and Regulations.
• All equipment must be properly grounded according to Input/Output installation
instructions for safe operation.
• All equipment should be serviced only by a qualified technician.
FCC ID Label
Figure 1 is an example of the FCC ID label for the CRU radio. Figure 2 shows where the
label is located on the CRU radio. The size of the label is approximately 1.75 X 3.50
inches.
FCC ID: MCV-CRU101
Figure 1. FCC ID Label: CRU Radio
Input/Output, Inc. 6
CRU User Guide

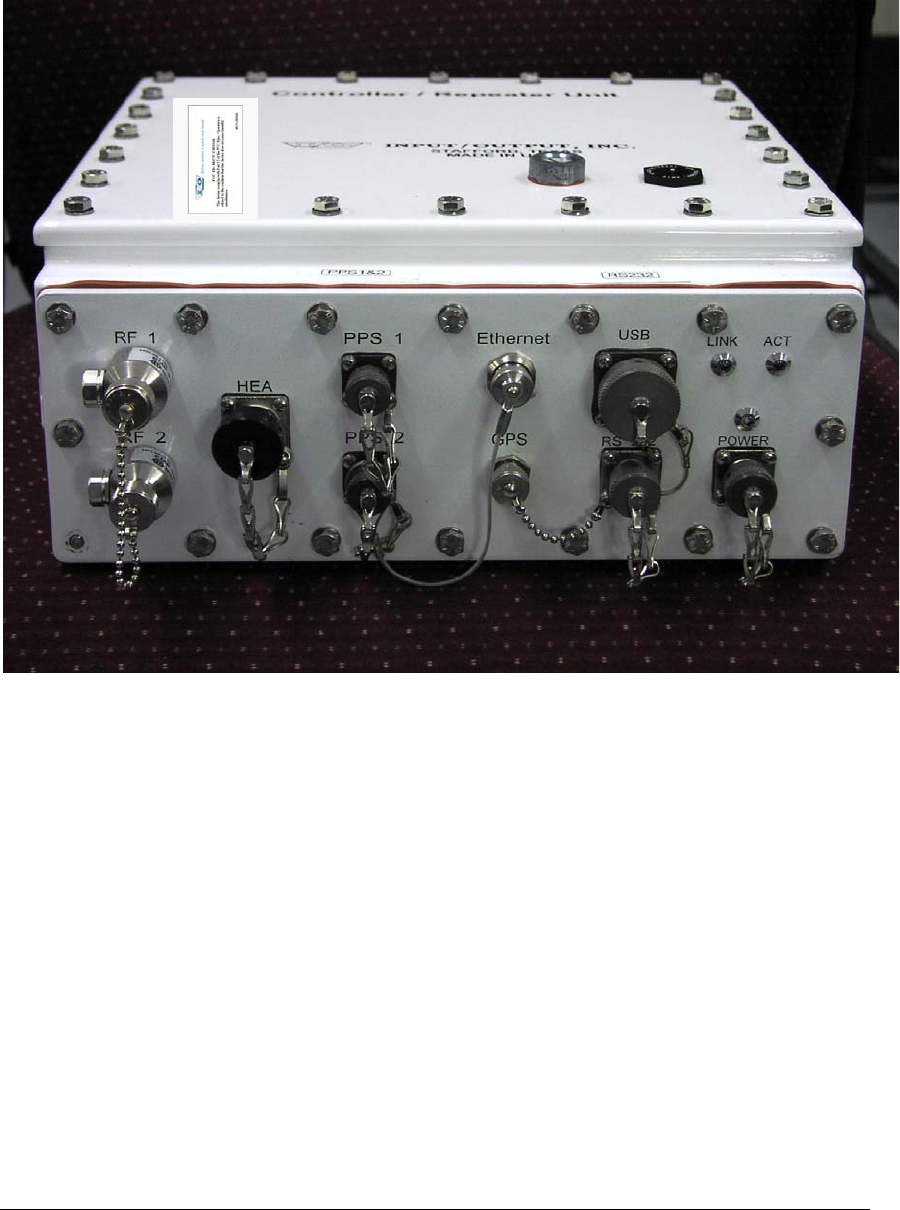

Figure 2. FCC ID Label Location: CRU Radio
Input/Output, Inc. 7
CRU User Guide
Deploying and Operating the CRU
Before you begin
Deploy the CRU by attaching it to the base of the antenna mast. Connect the Base End
Assembly (BEA) portion of the CRU, also attaching to the base of the antenna mast.
Attach the Head End Assembly (HEA) near the top of the antenna mast, connecting the
interconnect cables between the CRU, BEA, and HEA. The CRU will be connected to
the CSC via a weatherized Ethernet cable or bridge.
Bringing up the CRU
1. Turn on the CSC.
2. Energize the CRU hardware by attaching to a suitable DC power source.
3. Execute the Firefly software on CSC.
Shutting down the CRU
1. Shut down CSC operating system.
2. Turn off CSC and CRU hardware.
