INVENTEC BESTA EB934 The Smallest Digital Wireless Parking Camera User Manual

INVENTEC BESTA CO.,LTD The Smallest Digital Wireless Parking Camera

User Manual

The Smallest Digital
Wireless Parking
Camera
1. Wireless Parking Camera System

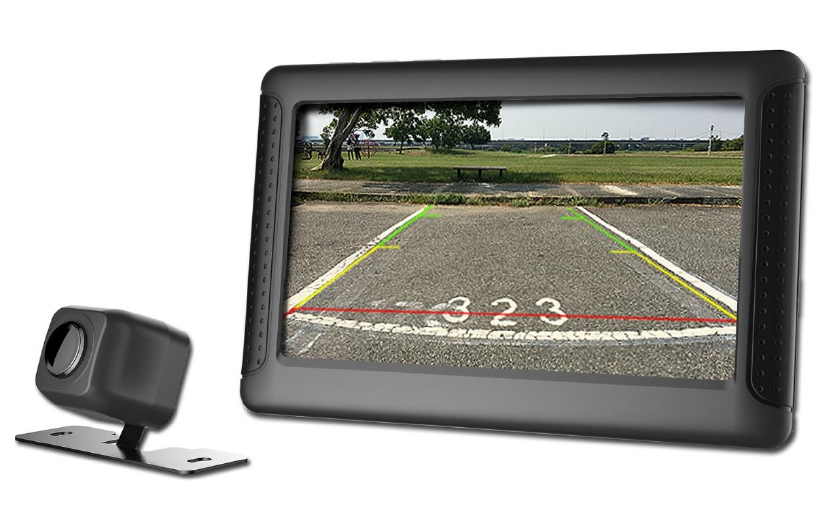

1.1. Parts
Wireless Camera
Wireless Receiver
The system spot movement—From left to right/ up to down
The system spot movement is marked with yellow frame
The system will display a yellow mark or icon when setting is confirmed
1.2. Information
Product compliant with FCC/CE rules.
Wireless technology WiFi 2.4GHz, IEEE802.11b/g.
Plug and play without paring @ auto power on.
Operating voltage DC 9V〜32V.
Operation temperature -10℃～+70℃.
Storage temperature -30℃～+70℃.
Operation distance around 167 feet.
4.3″ 480x272 high resolution LCD monitor.
LCD monitor brightness is adjustable, 8 levels.
Image quality 30fps @ VGA resolution.
Super view angle H=136∘.
Minimum illumination 0.1lux.
Quick boot up system around 1sec.
Image latency around 100ms.
Parking guide-line adjustable.
Image is shiftable via screen button.
Water proof level IP67.
2. Introduction
2.1.
Wireless Camera is installed on the tail of the automobile. When you put into
reverse gear, the system will operate automatically. You can monitor the
environment through the screen when you are reversing.
Wireless Camera
LCD: 4.3 in WQVGA(480 × 272)
Pairing (default)
Parking line auto switch on/off
Switch unit user’s guide
Button
Mode
Function
Enter
Normal
Into setting mode - Settings Menu
Turn the guiding line ON/OFF
Setting
N/A
Choose
▽
Normal
N/A
N/A
Setting
N/A
Down／Right
△
Normal
N/A
N/A
Setting
N/A
Up／Left
2.2. Interface

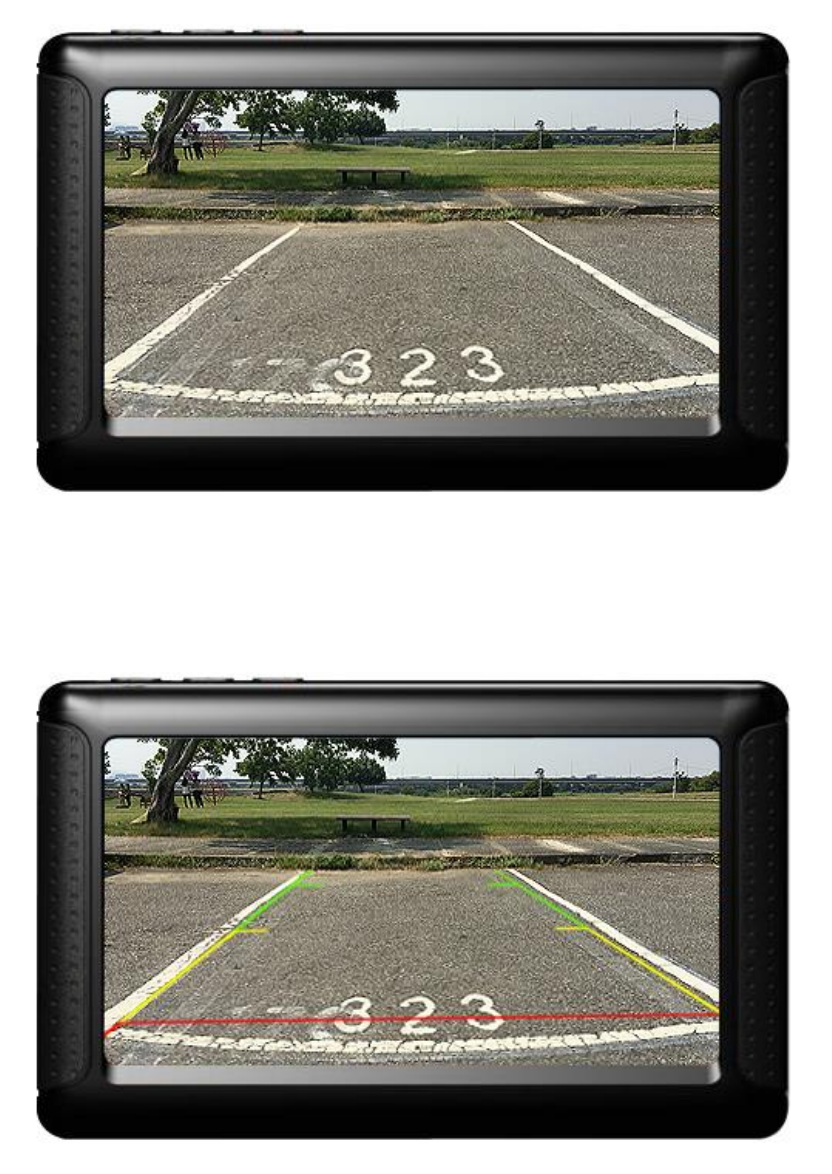

2.2.1. Camera Display
Guiding Line - OFF
Guiding Line - ON
2.2.2. Settings
Note：
This system use high brightness/yellow to mark the content.
See above[Exit]
Contents：
2.2.2.1 Guide Line
2.2.2.2 Guide Line Default
2.2.2.3 Brightness
2.2.2.4 Screen Adjust
No
Name
Function
Switch Unit
1
Settings
Menu
N/A
2
Setting item
Setting title
N/A
3
Setting item
corresponding button
a. Setting item corresponding button
b. High brightness display when setted
YES
4
Exit
a. High brightness display when setted
b. Back to Camera mode
YES，Default
2.2.2.1 Guide Line
Guide line setting/display. Buttons function
(1)Guide Line Setting
A. Adjustment of the guiding line position.
No
Name
Function
Switch Unit
1
Adjust
Press ENTER and adjust the guide line
YES，Default
2
Save
Press△、▽ Key to move the spot into position[Guide Line] [Save]、
Press ENTER and saved, then exit setting.
YES
3
Cancel
Press△、▽ Key to move the spot into position[Guide Line] [Cancel]、
Press ENTER and not Saved, then exit setting
YES
4
Default
Press△、▽ Key to move the spot into position[Guide Line] [Default]、
Press ENTER, then back to default setting.
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES

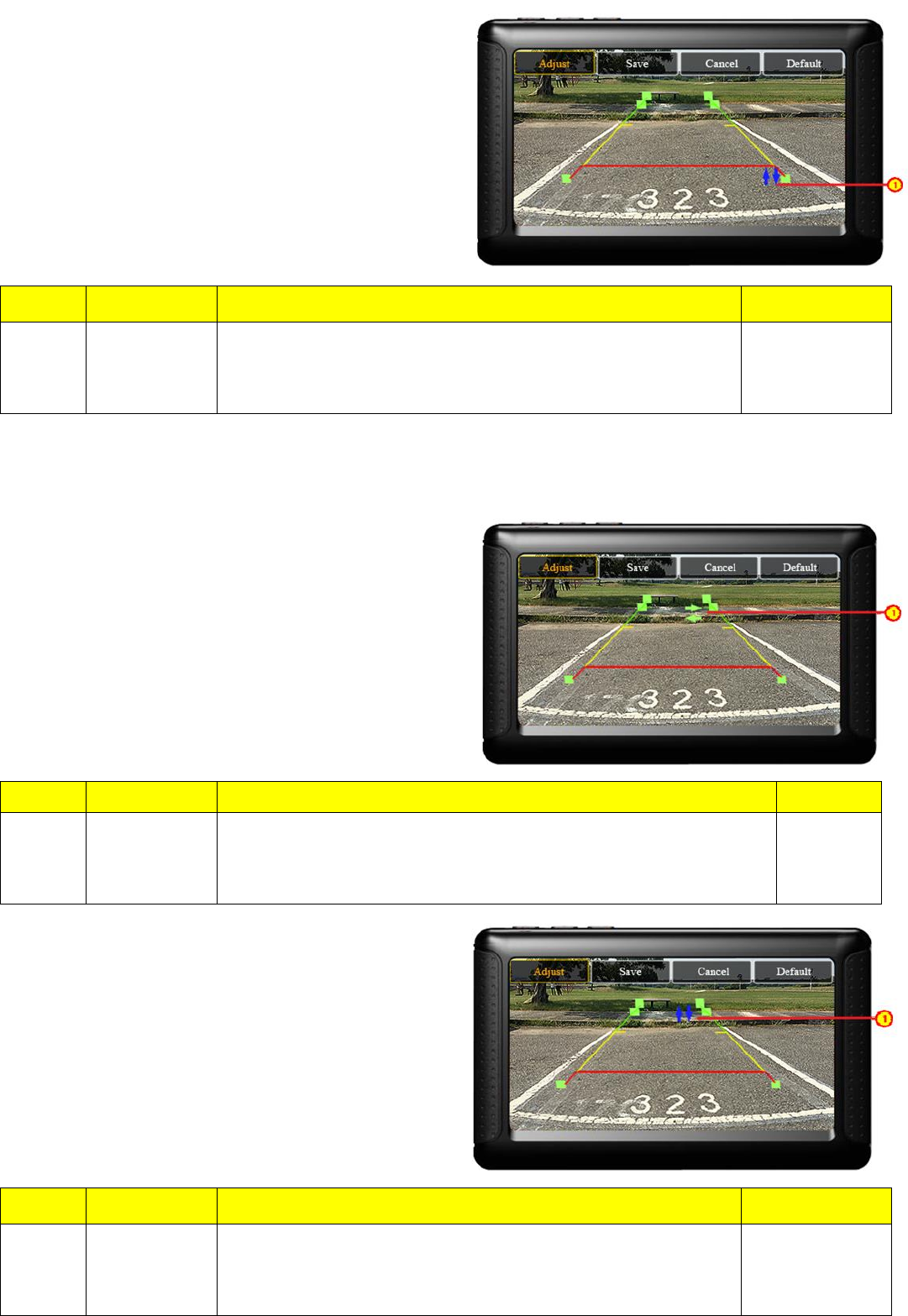

B. Guide line adjustment (horizontal)
C. Left side guide line front point adjustment
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved right for one pixel.
Press ▽ Key moved left for one pixel.
Press Switch Unit ENTER Key to adjust up/down for the guide point.
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES
D. Left side guide line back point adjustment
E. Right side guide line front point adjustment
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved right for one pixel.
Press ▽ Key moved left for one pixel.
Press Switch Unit ENTER Key to adjust up/down for the guide point.
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved right for one pixel.
Press ▽ Key moved left for one pixel.
Press Switch Unit ENTER Key to adjust up/down for the guide point.
YES
F. Right side guide line back point adjustment
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved right for one pixel.
Press ▽ Key moved left for one pixel.
Press Switch Unit ENTER Key to adjust up/down for the guide point.
YES
No
Name
Function
Switch Unit
1
Adjustment
Press △ Key moved up for one pixel.
Press ▽ Key moved down for one pixel.
Press ENTER Key switch to next adjustment point(position)
YES
2.2.2.2 Guide Line Default
2.2.2.3 Brightness
No
Name
Function
Switch Unit
1
ON / OFF
Press Enter Key to change the display
ON: Guide line display on.
OFF: Guide line display off.
YES
No
Name
Function
Switch
Unit
1
Brightness
a. Adjustment the brightness press△、▽ key，press△ to
increase，press▽to decrease the level of brightness
b. Brightness level from 1~8, brighter as level increased
c. Default setting as 7
YES
2.2.2.4 Screen Adjust
Camera Installation Position
Camera that recommended for installation in vertical center line , if can not be
installed in the line, you can use screen adjust function to adjust the display。
Cam1 : Installed in the line，image shows center。
Cam2 : The camera is not setup in the center，a little bit shift to right，can use screen
adjust function to adjust the display。
Screen Adjust
Button Functions
No
Name
Function
Switch Unit
1
Adjust
Press ENTER to adjust the position
YES，Default
2
Save
Control △, ▽ function key will move the position to
[Guide Line] of [Save], press ENTER to exit the screen to save the
settings after the adjustment.
YES
3
Cancel
Control △, ▽ function key will move the position to
[Guide Line] of [Cancel], press ENTER , and will not save the settings
exit screen adjustment
YES
4
Default
Control △, ▽ Key will move the focus position to
[Guide Line] of [Default], press ENTER OK, the screen returns to the
factory settings。
YES

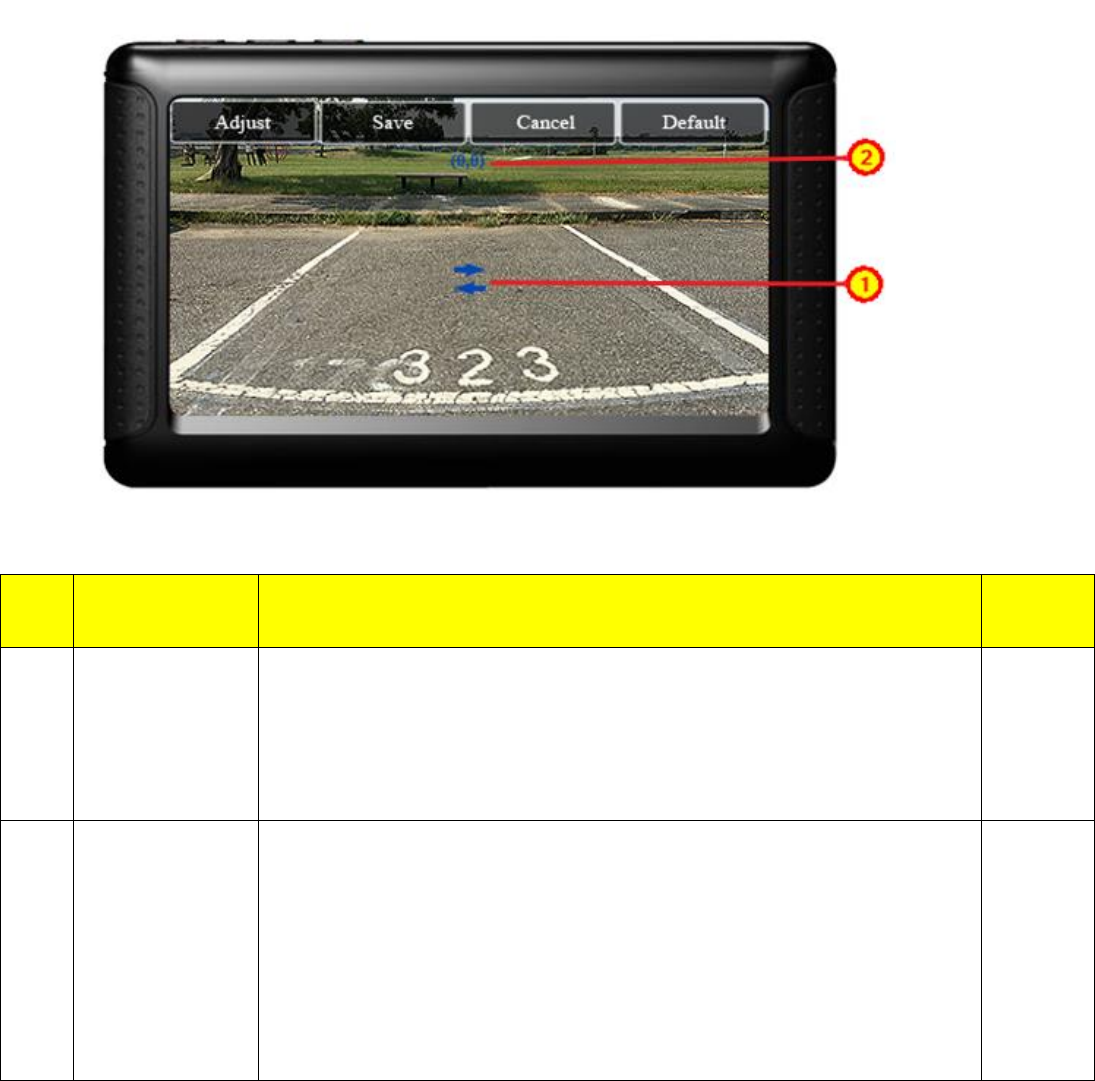

Adjustment of screen position
No
Name
Function
Switch
Unit
1
Left & right shift
When you select △ function key, the screen position to the right one
pixel displacement.
When you select ▽ function key, screen position a left shift by one
pixel . Same as to move up and down to adjust the function key.
None
2
Offset
The current shift number。
(x_offset, y_offset)
x_offset：+x means shifted to right x pixel。
-x means shifted to left x pixel 。
y_offset：+y means shifted to up y pixel 。
-y means shifted to down y pixel 。
None
Leftmost
Rightmost
Lowermost
Uppermost

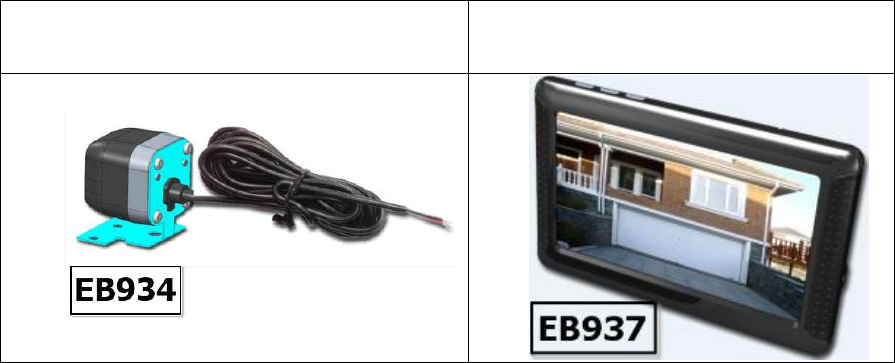

3. Product and accessories.
4. Precautions.
Parking system just for reference only, for your safety, please confirm the actual
surroundings.
Please pay attention to camera installation, red line then positive, black line then
negative.
This product is certified waterproof IP67, but do not rinse directly with water
cannons.
Name
Items
Wireless Camera
Wireless Receiver
Stand
Cable tie
Wire clip
Screws
Twin adhesive
“USER MANUAL” Compliance Statement § 15.21 & 15.105
EB937 FCC ID：2AJNIEB937
EB934 FCC ID：U60EB934
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION:
To assure continued FCC compliance:
1. Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
