Installation Guide

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 1 of 16

INSTALLATION GUIDE

IP SERIES MOBILE RADIO SYSTEM

INSTALLATION GUIDE CONTENTS:

Section Title Page

 IP Series Mobile Radio Illustration....................................... 2

 Installation Overview and Safety Reminder......................... 2

 Installation Requirements .................................................... 3

 Pre-Installation Guidelines ................................................... 5

 Mounting the Mobile Radio .................................................. 5

 Serial Cable Connection and Routing.................................. 5

 EMI Filter Installation ........................................................... 6

 Power Supply Installations................................................... 6

 Switch Installation ................................................................ 7

 Delay Timer Installation ....................................................... 7

 Antenna Installation ............................................................. 8

 VIU (Vehicle Interface Unit) Connections ............................ 9

 Testing and Installation Checklist ...................................... 10

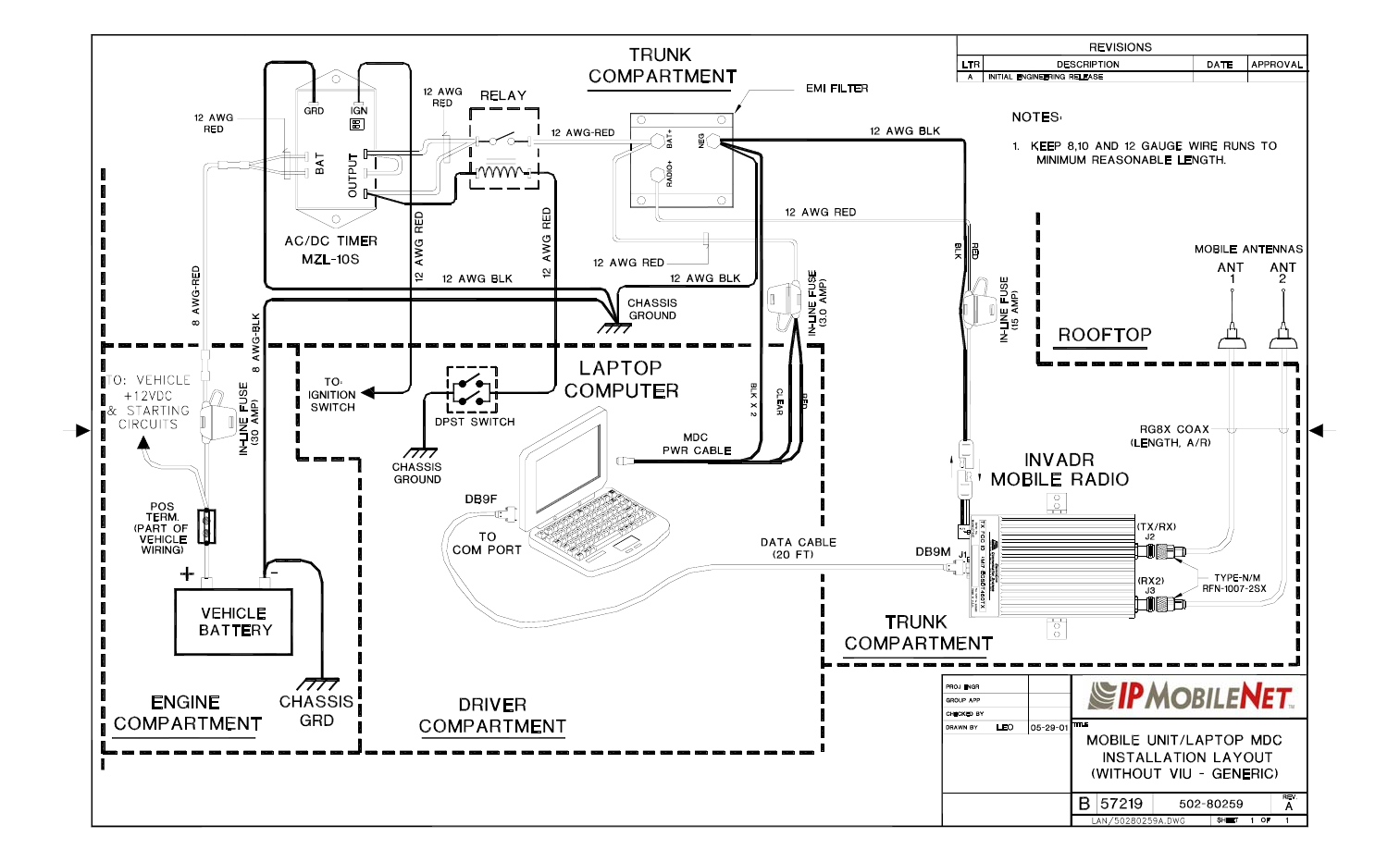

 Vehicle Unit Wiring Interconnection Layout ....................... 11

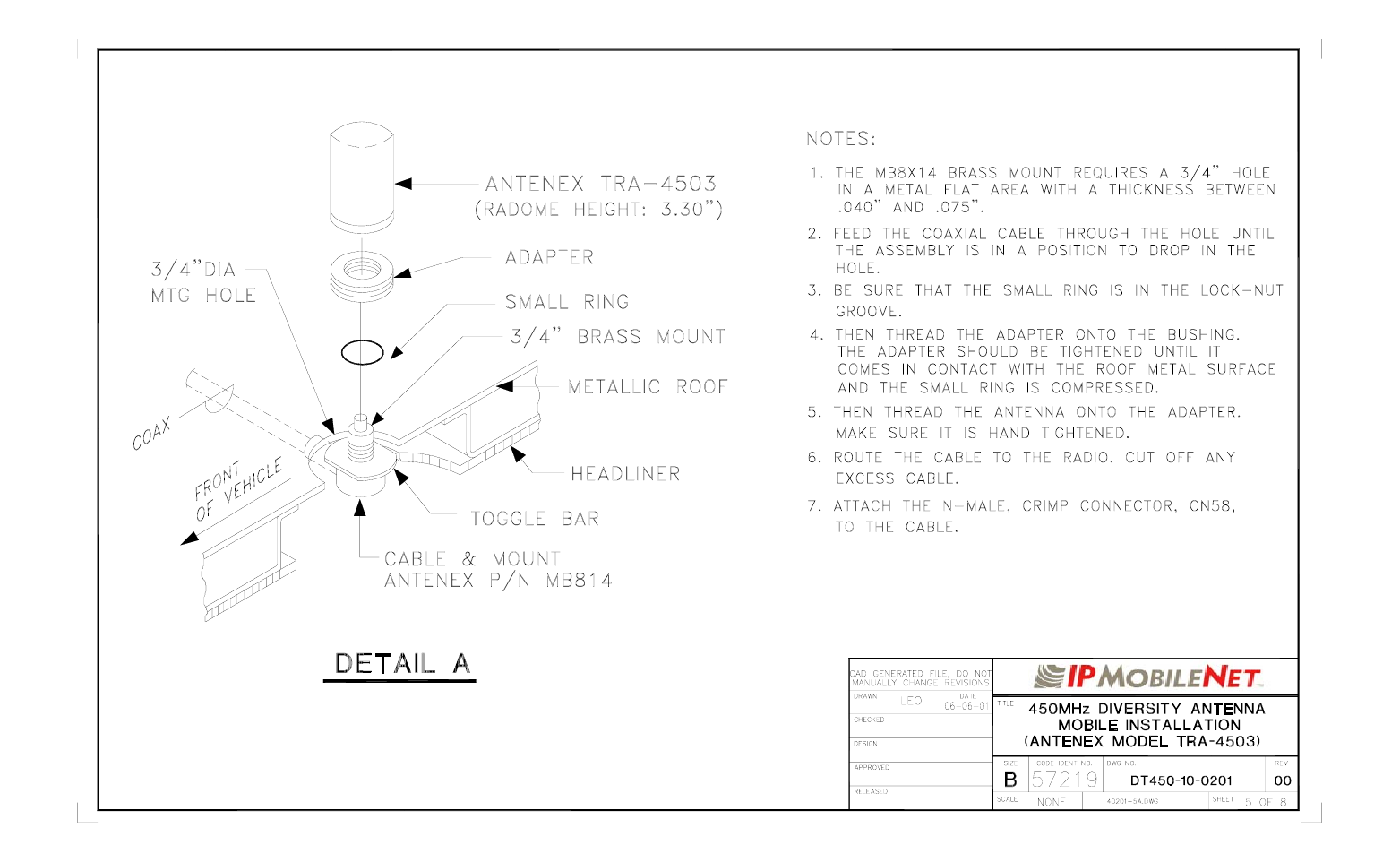

 Diversity Antenna Vehicle Installation Detail Diagram....... 12

 Mobile Antenna Distance Matrix ........................................ 13

 Vehicle Unit Wiring Interconnection Layout with VIU

(Voice Interface Unit).......................................................... 14

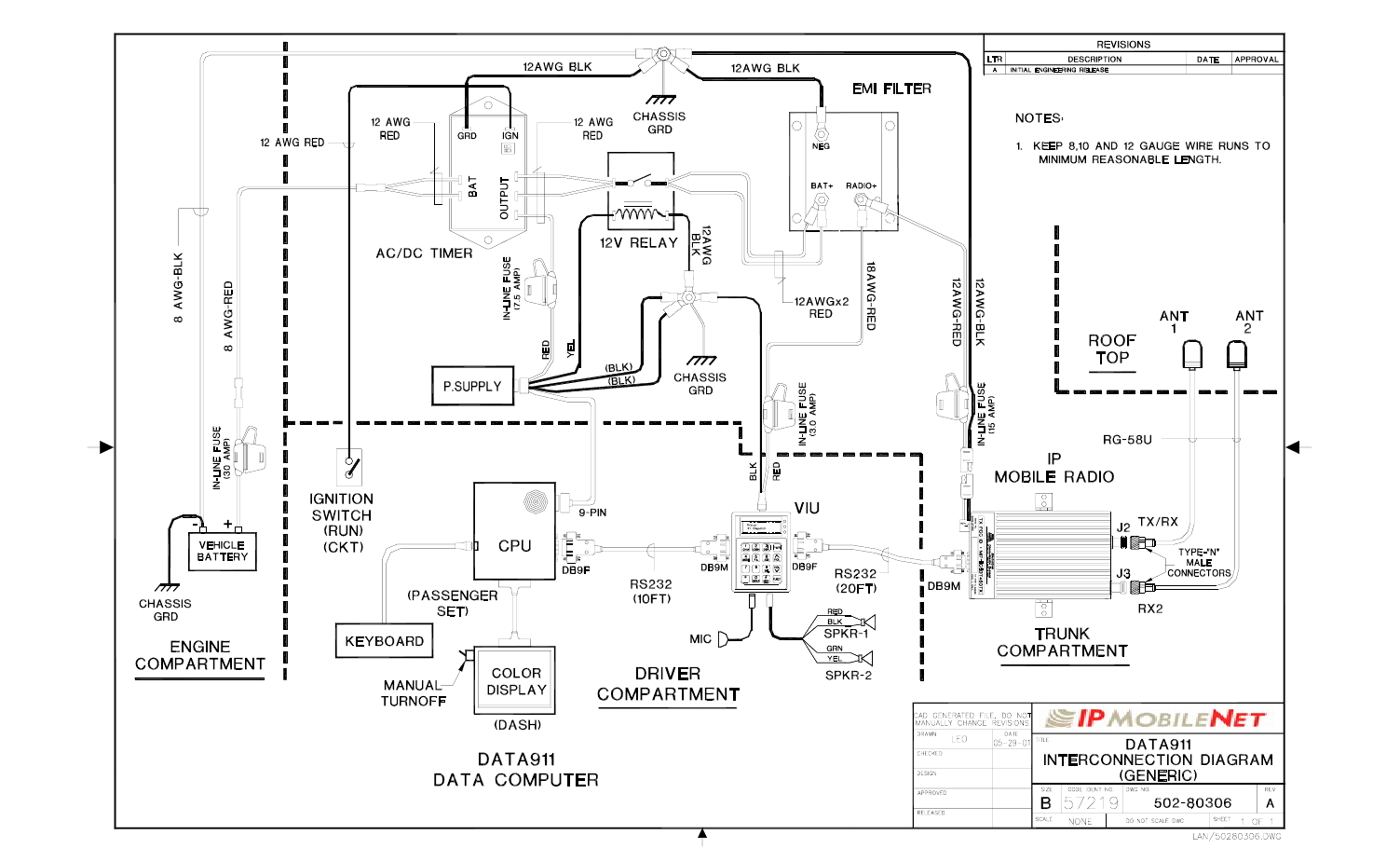

 Vehicle Unit Wiring Interconnection Layout with

Data911 and VIU (Voice Interface Unit)............................. 15

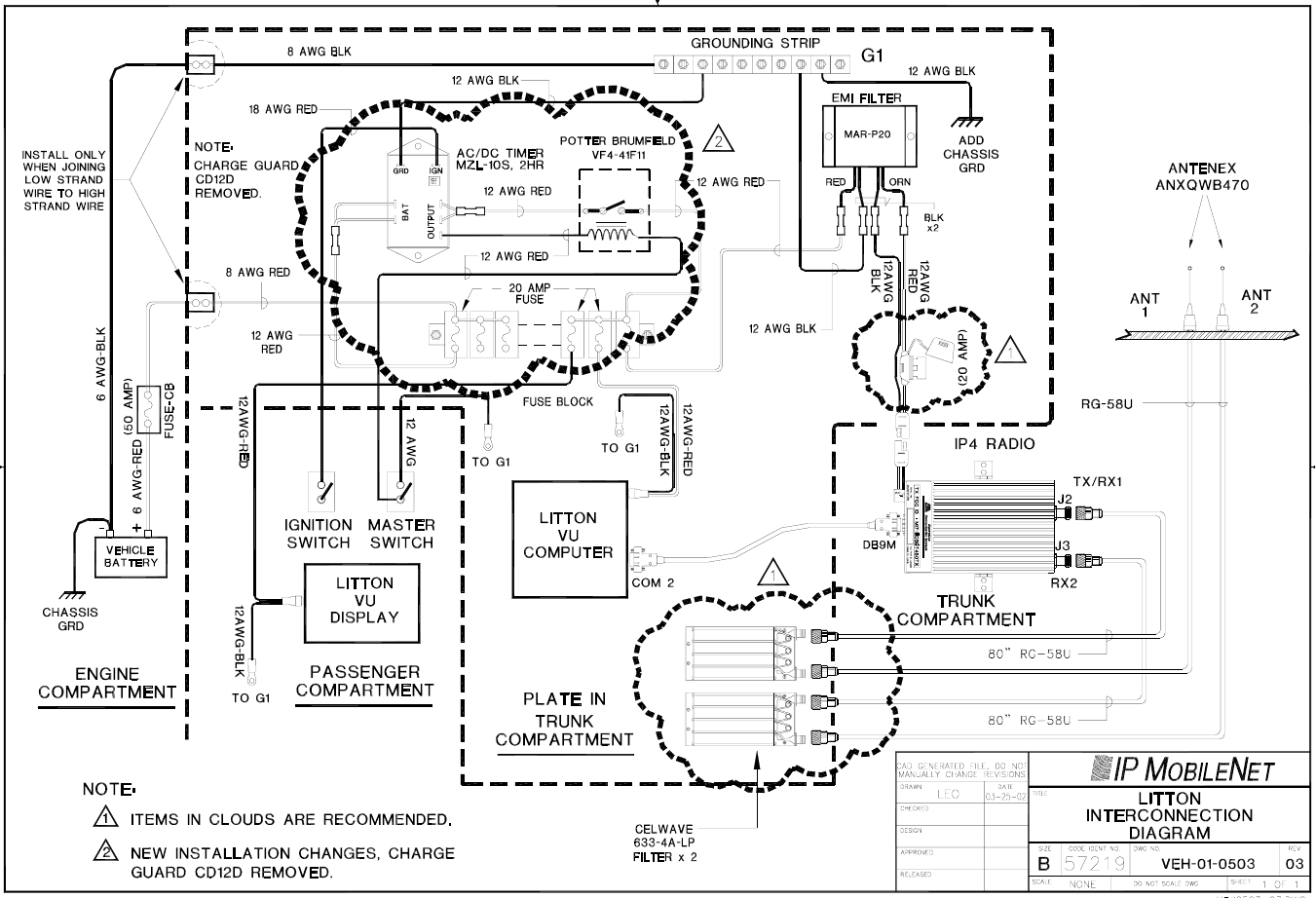

 Vehicle Unit Wiring Interconnection Layout with Litton

Computer and RF Filters.................................................... 16

IPMN p/n: 516-80307

Document Control #: DC-10

Version: C-3

11909 East Telegraph Road, Santa Fe Springs, CA 90670-3785

Voice: (562) 946-9493 Fax: (562) 949-0223

Notice:

While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time

of printing, IPMobileNet, Inc. can assume no responsibility for any inaccuracies. Changes and corrections to the

inforrmation within this document may be incorporated into future releases.

IP Series Mobile Radio

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 2 of 16

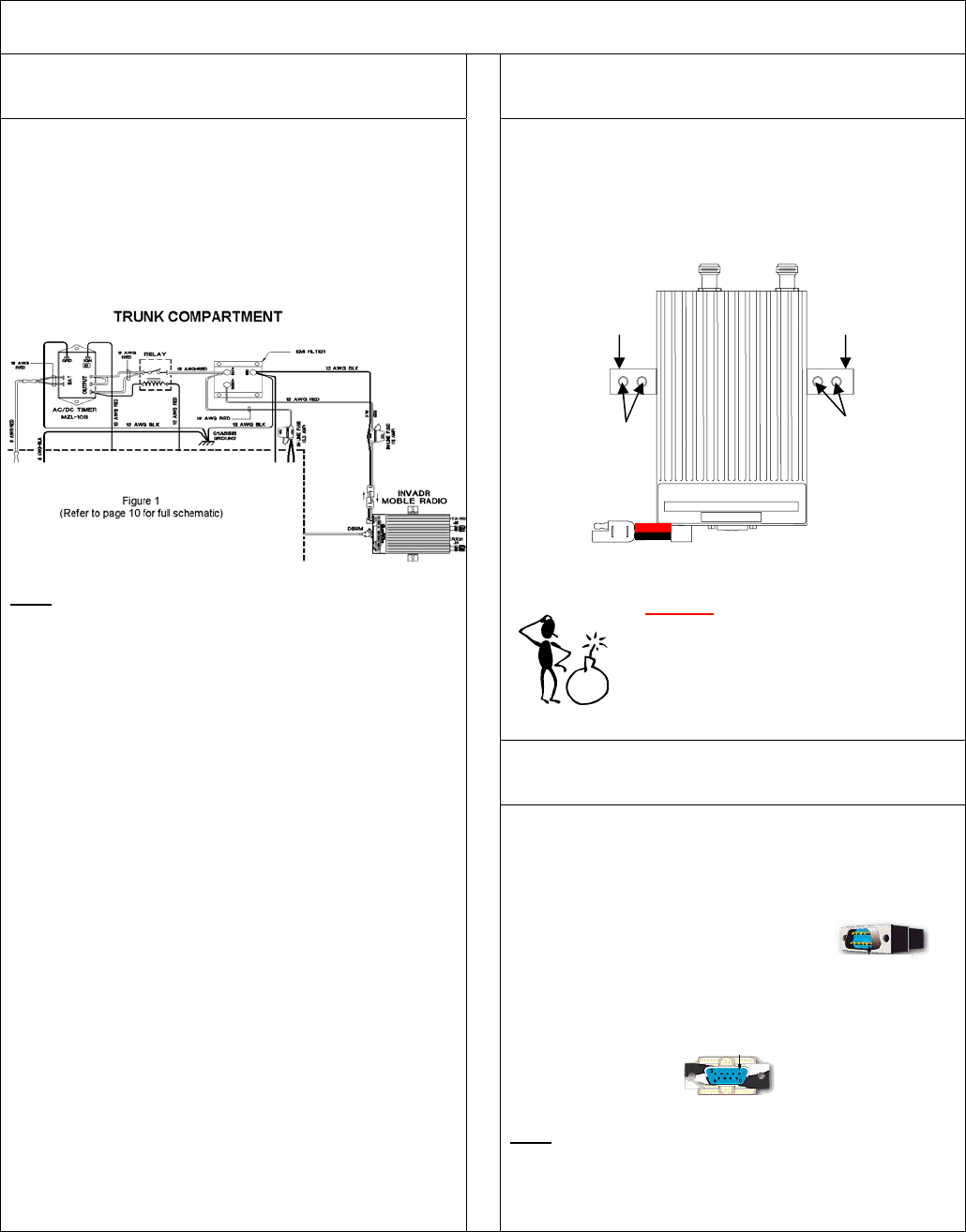

IP Series Mobile Radio Illustration

Installation Overview

This guide will provide standard steps involved in the installation process of an IP Series Mobile Radio. This

guide includes wire routing and connections between the radio, other components, and the vehicle’s power.

Safety Reminder

1. To prevent personal injury and vehicle damage, exercise extreme caution throughout

this installation process.

 Follow safety precautions for handling wiring, tools, and a vehicle’s engine.

 Handle the vehicle’s battery with extreme caution to avoid burns.

 Do not alter the components listed in the Installation Requirements on page 3

unless substitutions are noted within this document.

 Once the antennas are installed, as directed within this guide on page 8 of 15, all

persons must maintain a distance of no less than 39 inches from the antennas.

Black

Red

TX/RX1 RX2

Serial Cable

DB9

Power Cable

Mounting

Bracket

TX FCC ID M17-EC8DT450TX

xxxxxxxx xxx

xxxxwweddd

xxxxxxxx

xxxxwweddd

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 3 of 16

INSTALLATION REQUIREMENTS

PL502-82019-51 - MOBILE ACCESSORY KIT -- A Mobile Radio includes the following components (part

of mobile top assembly):

Qty Description IPMN Part Number

1 Cable, Power Extension 502-82020-53

2 ‘L’ Brackets 50026749

2 Screws Skt Cap Button Head 10-32 X 5/8 37081032-10

6 Washers Split Lock #10 271-0062-010

2 Washers Fender 1” O.D. X .28 I.D. X .05 THK 271-0059-001

4 Washers Rubber 1” O.D. X .65 I.D. X .12 THK 36040001

2 Hoses, Rubber Black .380 O.D. X .191 I.D. X .3 34010295

4 Screws Self-Tapping #10 X 5/8 37040010-10

0 Installation Manual 516-80307

0 Technical Manual 516-82025

PL502-80208-51 - INSTALLATION KIT – The following components are required for a Mobile Radio

Installation and are available for purchase through IPMobileNet, Inc.

Qty Description IPMN Part Number

1 EMI Filter 127-0020-001

1 Timer, 2 hours 150-0127-001

1 Relay 128-0117-001

1 Relay Socket 128-0116-001

2 Butt Connectors #8 AWG 120-0256-001

1 Terminal, Ring #8 AWG, #10 Screw Insulated 120-0127-001

4 Terminal, Ring #18-22 AWG, #10 Screws Insulated 120-0250-004

4 Terminal, Ring #10-12 AWG, #10 Screws Insulated 120-0250-005

4 Terminal, Disconnect #14-16 F 120-0244-002

18 Terminal, Disconnect #10-12 F 120-0244-003

2 Disconnect Tab, Quad Male 200-1377-001

1 Wire, 12 AWG Black, order 5 ft. 156-0242-001

1 Wire, 12 AWG Red, order 44 ft. 156-0242-003

1 Fuse, 30 AMPS ATO 122-0042-001

1 Fuse Holder, 30 AMPS 120-0253-001

1 Switch, Toggle DPST 144-0136-001

1 Diagram, Mobile Installation without VIU 502-80259

1 Diagram, Mobile Installation with VIU 502-80260

1 Diagram, Mobile Installation with Data 911 and VIU 502-80306

1 Diagram, Litton Interconnection with RF Filters VEH-01-0503

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 4 of 16

OPTIONAL INSTALLATION SUPPLIES – Order each item individually:

Qty Description IPMN Part Number

1 Serial Cable (DB9MF), 20 ft. 156-0245-020

1 Wire, 8 (133/29) AWG VW-1 Red, by foot, order 19.5 ft. 156-0243-003

1 Wire, 8 (133/29) AWG VW-1 Black, by foot, order 19.5 ft. 156-0243-001

2 RG58U Cable and Mount, VHF, 17 ft. (incl ¾” Brass Mount and N Male Crimp) 102-0200-001

2 RG8X Cable and Mount, UHF & 800 MHz, 17 ft. (incl ¾“ Brass Mount & N Male Crimp) 102-0200-002

2 Antenna, Radome Type, 142-164 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0205-001

2 Antenna, Radome Type, 150-174 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0205-002

2 Antenna, Radome Type, 410-430 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-001

2 Antenna, Radome Type, 430-450 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-002

2 Antenna, Radome Type, 450-470 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-003

2 Antenna, Radome Type, 470-490 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-004

2 Antenna, Radome type, 806-866 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0207-001

2 Antenna, Radome Type 821-896 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0207-002

2 Antenna, 5/8 Wave, 406-430 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-003

2 Antenna, 5/8 Wave, 430-450 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-004

2 Antenna, 5/8 Wave, 450-470 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-005

2 Antenna, 5/8 Wave, 470-490 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-002

2 Antenna, 5/8 Wave 490-512 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-006

2 Antenna, 5/8 Wave, 806-866 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0199-001

2 Antenna, ¼ Wave, 136-144 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0204-001

2 Antenna, ¼ Wave, 144-152 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0204-002

2 Antenna, ¼ Wave, 152-162 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0204-003

2 Antenna, ¼ Wave, 162-174 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0204-004

2 Antenna, ¼ Wave, 406-430 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-005

2 Antenna, ¼ Wave, 430-450 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-006

2 Antenna, ¼ Wave, 450-470 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-007

2 Antenna ¼ Wave, 470-490 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-008

2 Antenna, ¼ Wave, 490-512 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-009

2 Antenna, ¼ Wave, 806-896 MHz, Unity Gain (requires 1 MB8XN for ea antenna) 102-0204-010

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 5 of 16

2 sheet

metal screws

Mounting

Bracket

TX/RX1 RX2

Mounting

Bracket

TX FCC ID M17-EC8DT450TX

xxxxxx

2 sheet

metal screws

Figure 2

INSTALLATION INSTRUCTIONS

Pre-Installation Guidelines Mounting the Mobile Radio

To mount the radio, perform the following steps:

Step 1 Secure the radio into the trunk compartment. Insert four

(4) sheet metal screws in the radio brackets; two (2)

screws on either side of the radio (see Fig. 2).

CAUTION

If less than four (4) screws are used, the radio

can become loose in the trunk compartment.

This may cause the radio not to function

properly.

When inserting screws, be careful not to

disturb the vehicle gas tank.

Serial Cable Connection and Routing

(IPMN p/n: 156-0245-020)

1. Prior to installing new equipment, remove existing equipment

and all related components to include stock clips on radio

wiring harness and antenna.

2. Mounting of the radio, delay timer, relay, and filter will take

place in the trunk compartment (see Fig. 1) unless installing

in a vehicle without a trunk.

NOTE: Removal of seats, rubber mats, and other obstructions,

from inside the driver compartment, may be necessary

to facilitate routing of wires to the engine and trunk

compartments.

3. To ensure appropriate cable and wire routing, exercise the

following precautions:

 Route cables away from sharp edges that can penetrate

cable insulation and damage wires.

 Protect wires with silicone rubber grommets when

routing through the engine compartment firewall or

through other holes with sharp edges.

 Use high-quality electrical tape when covering exposed

wires in the engine compartment.

 Avoid routing cables through areas exposed to extreme

heat, such as the exhaust system.

 Keep wires routed through the engine compartment

away from hot and/or moving parts.

4. Prior to drilling holes in the engine compartment firewall,

inspect both sides to avoid obstructions.

5. For grounding point, use the engine block or the negative (-)

terminal of the vehicle battery. Ground connection surfaces

must be free of paint, rust, and other corrosion to maximize

performance and avoid damage.

6. To simplify troubleshooting problems, label all connecting

points and wires.

The serial cable connects the radio to the Mobile Data Computer

(MDC) located in the driver compartment.

To connect the serial cable, perform the following steps:

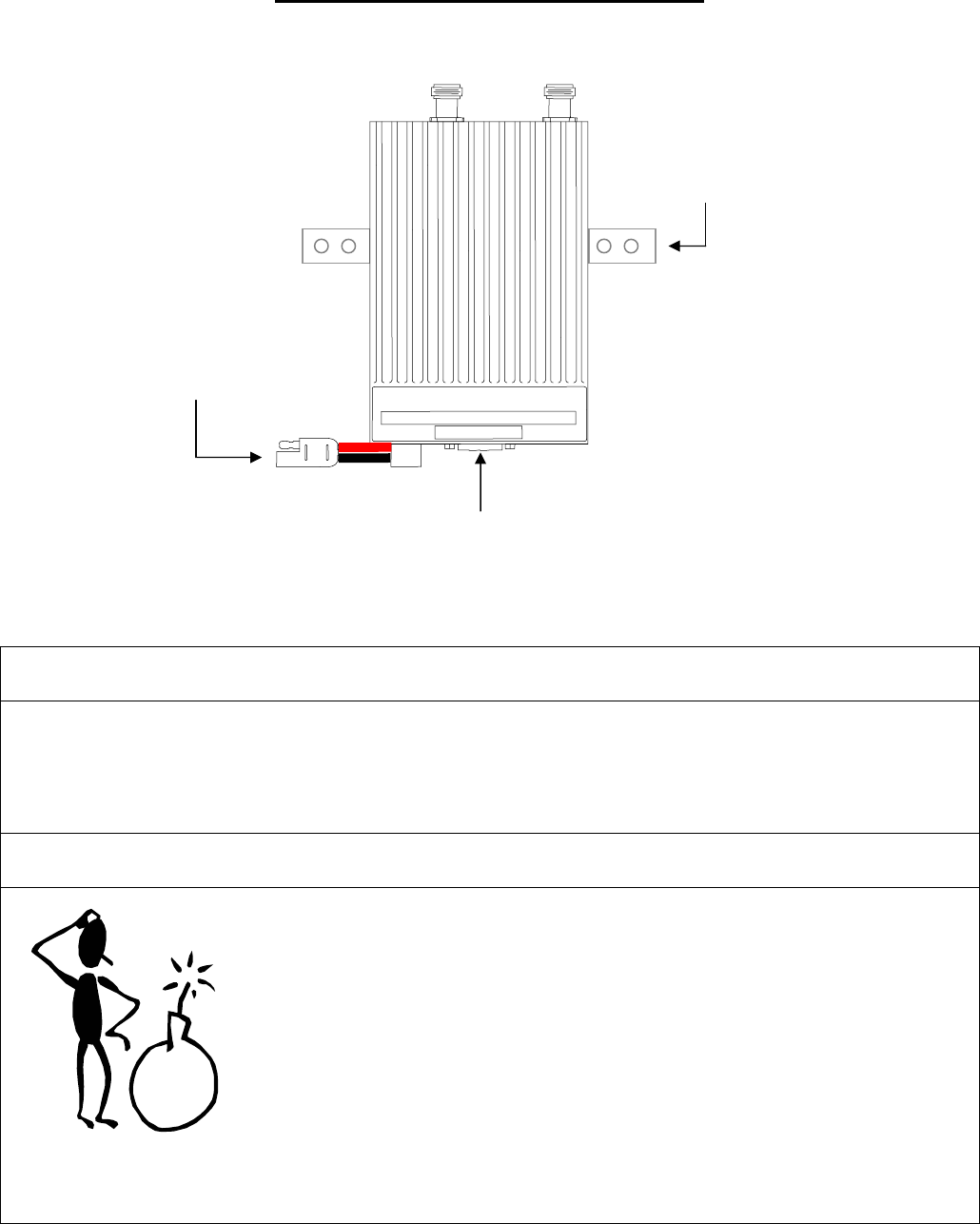

Step 1 Attach the 20-foot serial cable male

connector

(DB9M – see Fig. 3) to the

radio.

Step 2 Route the female connector (DB9F – see Fig. 4) to the

driver compartment and connect to the serial port located

on the rear of the MDC.

NOTE: Route the serial cable to minimize foot pressure and

other potential stresses. Use split loom tubing and nylon

cable ties for cable protection.

(If connecting a Voice Interface Unit, see page 9 for instructions).

Figure 3

Figure 4

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 6 of 16

DRIVER

COMPARTMENT

TRUNK COMPARTMENT

EMI Filter Installation

(IPMN p/n: 127-0020-001)

MDC Power Supply Installation

NOTE: The EMI Filter protects the radio and filters out noise.

To install the filter, perform the following steps:

Step 1 Secure the EMI Filter in the trunk compartment of the

vehicle (see Fig. 5) near radio mounting location.

NOTE: For proper wire connections, perform the steps for the

following components:

 Radio Power Supply Installation, page 6

 MDC Power Supply Installation, page 6

 Carling Switch Installation, page 7

 Delay Time Installation, page 7

Radio Power Supply Installation

To install the radio power connection, perform the following steps:

Step 1 Connect the radio power

cable to the power cable

extension (see Fig. 6).

Step 2 Route and wire the power cable extension red wire (#12

AWG), via the 15 AMP in-line fuse, to the radio (+)

terminal connection on the EMI Filter (see Fig. 7).

Step 3 Route and wire the power cable extension black wire

(#12 AWG) to the EMI Filter’s negative (-) terminal.

Figure 7

To install the MDC power connection, perform the following steps:

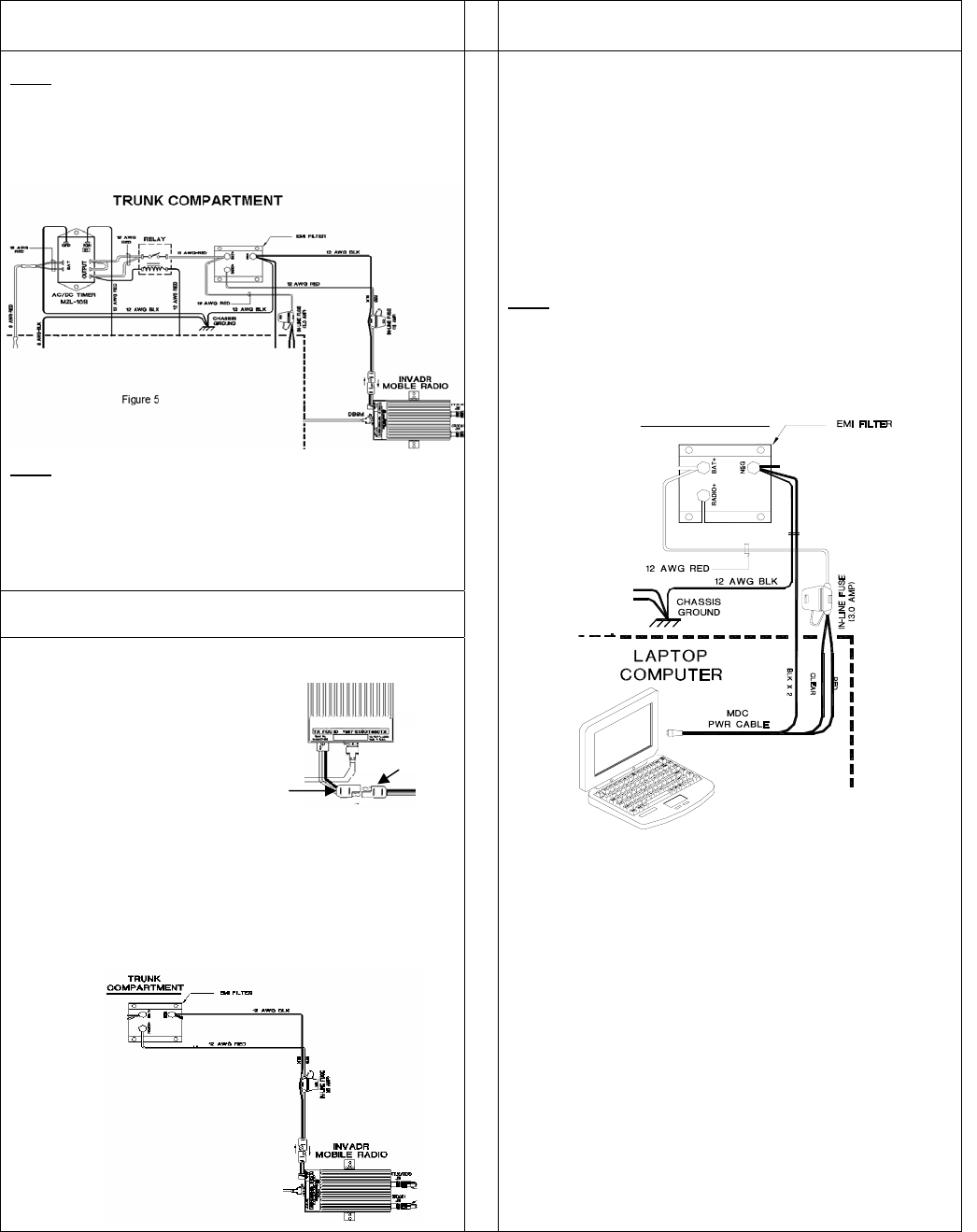

Step 1 Connect the MDC power cable to the MDC.

Step 2 Route and wire the red and clear MDC power wires via a

3 AMP in-line fuse, routing the red wire (#12 AWG) to the

battery (+) terminal connection on the EMI Filter (see

Fig. 8).

Step 3 Route and wire the black MDC power wire to the

negative (-) terminal on the EMI Filter (see Fig. 8).

NOTE: A black wire (#12 AWG) is grounded from the negative (-)

terminal connection on the EMI Filter to the vehicle

chassis.

Figure 8

radio’s power

cable

power

cable

extension

Figure 6

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 7 of 16

TRUNK

COMPARTMENT

TRUNK COMPARTMENT

DRIVER COMPARTMENT

Carling Switch Installation

(DPST Heavy Duty Toggle)

(IPMN p/n: 144-0136-001)

Delay Timer Installation

(IPMN p/n: 150-0127-001)

To install the switch, perform the following steps:

Step 1 Mount the switch in the selected location.

Step 2 Route and wire a red wire (#12 AWG) from of the switch

to the Automotive Power Relay (see Fig. 9).

Step 3 Ground the switch by routing and wiring a black wire

from the switch to the vehicle chassis.

Figure 9

NOTE: Install switch in a location convenient to the driver

ensuring that the switch cannot be inadvertently moved

to the Off position.

To install the Delay Timer, perform the following steps:

Step 1 Secure Delay Timer to the trunk compartment of the

vehicle.

NOTE: When inserting screws be careful not to puncture the

vehicle gas tank.

Step 2 Route the black wire (#12 AWG) from ground connection

on the Delay Timer to the vehicle chassis (see Fig. 10).

Step 3 Route and wire red wire (#8 AWG) from the positive (+)

terminal connection on the vehicle battery connection via

a 30 AMP in-line fuse toward the battery connection on

the Delay Timer.

Connect the red wire (#8 AWG) to the two red wires (#12

AWG). Route and wire the red (#12 AWG) wires to the two

(2) battery connections on the Delay Timer.

Figure 10

Step 4 Route a red wire (#12 AWG) from the ignition connection

on the Delay Timer to the ignition switch in the driver

compartment (see Fig. 10).

Step 5 Route a red wire (#12 AWG) from the first and last output

connections on the Delay Timer to the Automotive

Power Relay.

Step 6 Route and wire a red (#12 AWG) wire from the second

output connection on the Delay Timer to the last output

connection on the Delay Timer.

Step 7 Route and wire a red (#12 AWG) wire from the last output

connection on the Delay Timer to the Automotive Power

Relay coil at the position shown in Figure 10.

Step 8 Route and wire a black (#8 AWG) wire from the vehicle

chassis in the trunk compartment to the negative (-)

terminal on the vehicle battery.

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 8 of 16

Antenna Installation

NOTE: Two (2) antennas are mounted and installed on the roof

of the vehicle using specific measurements for distance.

To mount and install the antennas, perform the following steps:

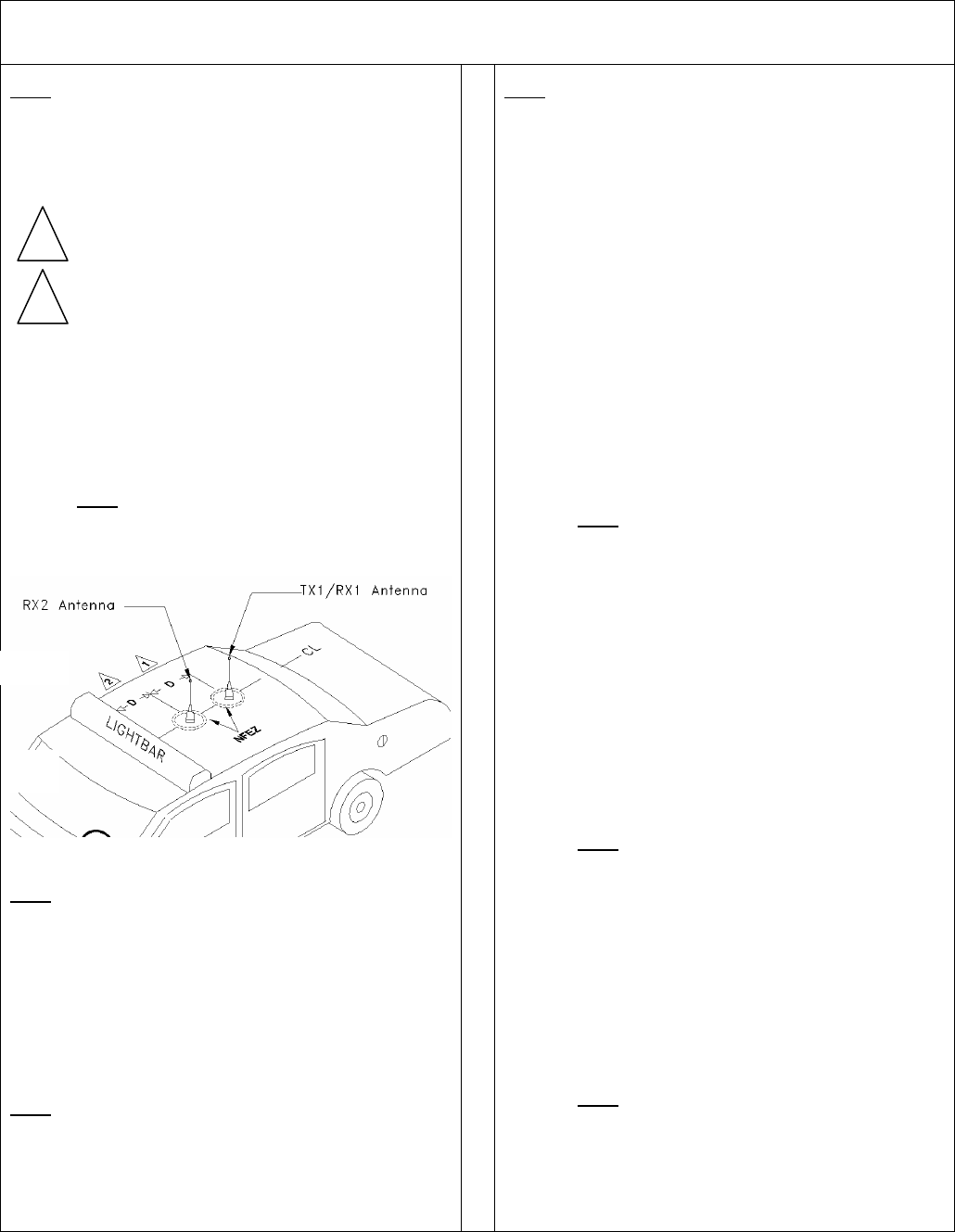

Step 1 Install antennas (see sample drawing DT450-10-0201

and Fig. 11 below).

The separation distance between the two (2) antennas

is 19”. The preferred is 31.25”.

The minimum distance of the RX2 antenna from the light

bar is 3.2”.

Observe correct separation between antennas (refer to

the Mobile Antenna Distance Matrix for midpoint

distance calculations on page 12) and minimum Near

Field Exclusion Zone (NFEZ) for proper diversity

reception operation.

Step 2 Cut a mounting hole in the roof of the vehicle using an

electric drill or hole saw.

NOTE: The antenna-mounting hole provides ground

connection to the antenna. Ensure that a

metal-to-metal connection between the

antenna shields exists.

Figure 11

NOTE: Figure 11 represents the recommended front-to-rear

antenna installation. The receiver antenna (RX2) should

be the antenna nearest to the light bar.

Step 3 All antenna mounts must be environmentally tight.

Install or use O-rings to seal the antenna base to the

rooftop of the vehicle.

Step 4 Route the coaxial cables to the radio through one of the

hollow spaces in the roof supports into the trunk

compartment where the radio is mounted.

NOTE: Both antennas should be checked and tested to ensure

they are functioning properly.

If these installation guidelines are followed, it is safe for

persons to stand at a distance no less than 39 inches

from the antennas.

NOTE: The following test is performed without any power, thus

can be performed immediately after the installation of the

coax and antenna, following the installation of the N-type

connector on the coax.

To measure Return Loss, perform the following steps:

Step 1 Select one of the following Antenna Analysts to perform

the test:

• 450 to 508 MHz installations, use the 140-525

Analyst

• 806 to 960MHz installations, use the CellMate

Analyst

Step 2 Connect the antenna to be tested to the Antenna

Analyst.

Step 3 Turn on the Antenna Analyst and the Return Loss

(RETL) is displayed in dB to the left of the Voltage

Standing Wave Ratio (VSWR) curve.

NOTE: The Return Loss Specification is –14 dBm or

greater (with good antennas the typical range

will be between –14 and –28).

To measure the Voltage Standing Wave Ratio (VSWR) Reflected

Power, perform the following steps:

Step 1 After selecting the appropriate Analyst and connecting

the antenna to be tested, press F1 to access the

Analyst Menu.

Step 2 Press F1 again to access the Display (DSPLY) menu,

which lists the modes.

Step 3 Press F2 to select the VSWR display mode. Plotting

will resume and the VSWR value is highlighted.

NOTE: The VSWR Reflected Power Specification is

1.6 watts or less.

To measure Insertion Loss of an unterminated length of coax,

perform the following steps:

Step 1 Connect the antenna to be tested to the appropriate

Antenna Analyst.

Step 2 Turn on the Antenna Analyst and the Return Loss is

displayed in dB to the left of the VSWR curve.

NOTE: To switch from the RETL mode to VSWR

mode, refer back to the previous set of

instructions.

Step 3 Divide the result by two (2).

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 9 of 16

    

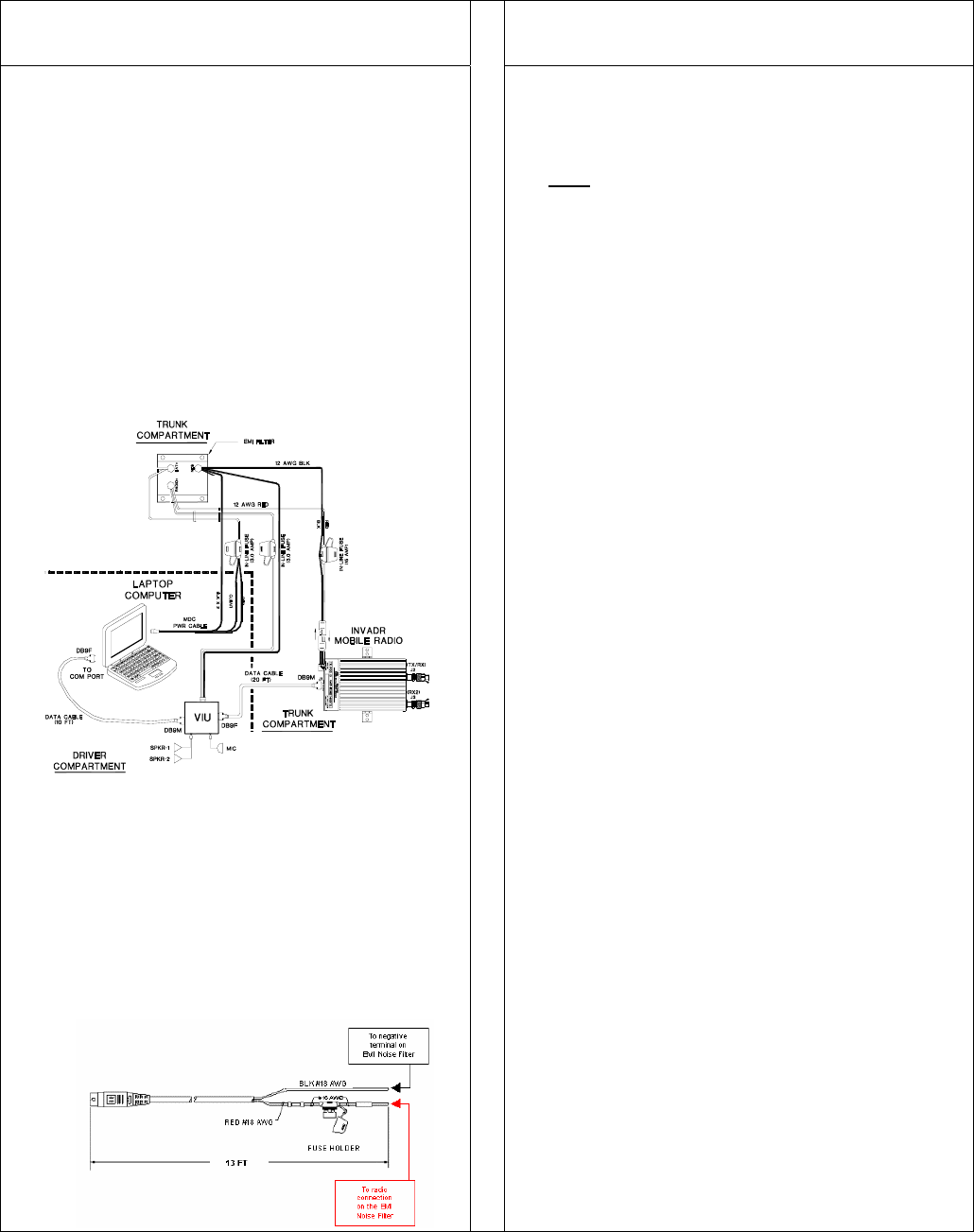

VIU Connections Mobile Radio Testing

If connecting a VIU, an additional serial cable is required.

 10-ft serial cable (IPMN p/n: 156-0245-010) included with VIU

To connect the serial cables, perform the following steps:

Step 1 Attach 20-ft serial cable male connector (DB9M) to the

radio.

Step 2 Route the female connector (DB9F) to the driver

compartment and connect to the serial port located on

the rear of the VIU near the microphone hang up clip.

Step 3 Attach the 10-foot serial cable male connector (DB9M) to

the other serial port located on the rear of the VIU.

Step 4 Route the female connector (DB9F) serial cable to the

serial port located on the rear of the MDC.

Figure 12

To connect the VIU power supply, perform the following steps:

Step 1 Route the VIU’s power supply cable from the driver

compartment to the trunk compartment.

Step 2 Connect the black (#18 AWG) wire from the VIU power

cable to the negative (-) terminal on the EMI Noise Filter.

Step 3 Attach the red (#18 AWG) wire of the VIU power cable via

the 3 AMP in-line fuse to the radio connection on the EMI

Noise Filter.

Figure 13

1. To verify that the Mobile Radio setup works properly, use a

wattmeter and a service monitor.

NOTE: If a wattmeter and a service monitor are not

available, begin test from Step 3 through 6 and 10

through 12.

2. Connect the wattmeter between the radio and the coax

connector.

3. Connect the radio to a computer with the IPMobileNet IP

Message Utility program loaded. See the following

documents for further details:

 Mobile Data Computer for Communication with the IP

Series Mobile Radio – IPMN p/n: 516-80310

4. Double click on the SLIP2IPMN icon to start the dial-up

connection.

5. Double click on the IP Message shortcut.

6. In the To: field, enter the radio’s IP address and click on the

Send button and the radio’s configuration will list in the upper

message screen.

7. Tune the service monitor to the assigned transmitter

frequency.

8. On the computer, in the lower message screen of the IP

Message Utility, type unlock=password (entering the

appropriate password to unlock the radio).

9. In the lower message screen, type x=2000, 19 and click on

the Send button to key the transmitter and measure the

forward power and reflected power.

10. Measure the transmitted frequency and the modulation level.

11. At the computer, using the IP Message Utility program, in the

lower message window, type V and click on the Send button

to enable verbose.

12. Ping the IPNC via MS-Dos using the following command:

Ping (IPNC IP address) –n 20 –l 500

Performance statistics showing TX data, RX data quality (DQ)

and signal levels (RSSI) will display on the IP Message

window.

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 10 of 16

Installation Checklist

Throughout the installation process and once the

installation is complete, make sure to perform the

following tasks:

 Thoroughly scope out the vehicle to find any obvious problem

areas.

 Check wiring for safety concerns.

 Use tie wraps to ensure that all wires routed in parallel are

bundled together.

 Check to see if any wires are exposed.

 If any wires are exposed, use electrical tape to cover.

REMINDER: When covering wires in the engine compartment,

use high-quality electrical tape.

 Perform appropriate testing as described in this guide to

ensure radio works properly.

 Once installation is completed, remove all debris and restore

dismantled parts and rubber mats to appropriate locations.

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 11 of 16

VEHICLE UNIT WIRING INTERCONNECTION LAYOUT

     

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 12 of 16

MOBILE ANTENNA DISTANCE MATRIX

Frequency

Band in MHz

Center

Frequency in

MHz

Antenna

Spacing** @

¼ Wavelength

Antenna

Spacing** @

¾ Wavelength

NFEZ* in

inches for

Radome

Antenna

NFEZ* in

inches for

¼ Wavelength

Whip

NFEZ* in

inches for “⅝”

Wavelength

Whip

Wavelength in

Inches

130-140 135.000 21.87 N/A 0.25 10.94 N/A 87.49

140-150 145.000 20.36 N/A 0.27 10.18 N/A 81.46

150-160 155.000 19.05 N/A 0.29 9.53 N/A 76.20

160-174 162.000 18.23 N/A 0.30 9.11 N/A 72.91

400-430 415.000 N/A 21.35 0.77 3.56 11.88 28.46

430-450 440.000 N/A 20.13 0.81 3.36 10.37 26.84

450-470 460.000 N/A 19.26 0.85 3.21 9.43 25.68

470-490 480.000 N/A 18.45 0.89 3.08 9.31 24.61

490-512 501.000 N/A 17.68 0.92 2.95 9.35 23.57

806-866 836.000 N/A 10.60 1.54 1.77 3.36 14.13

*NFEZ = Minimum Near Field Exclusion Zone **Round antenna spacing to the nearest ⅛”

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 13 of 16

DIVERSITY ANTENNA MOBILE INSTALLATION DETAIL

(Typical installation)

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 14 of 16

VEHICLE UNIT WIRING INTERCONNECTION LAYOUT

(with Voice Interface Unit – VIU)

     

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 15 of 16

VEHICLE UNIT WIRING INTERCONNECTION LAYOUT

(Data 911 with Voice Interface Unit – VIU)

     

~\Technical Documentation\Install_Guides\MR-Guide\29-Oct-03 Page 16 of 16

VEHICLE UNIT WIRING INTERCONNECTION LAYOUT

(with Litton Computer)

    

IP Mobilenet IPM800 Mobile Radio User Manual 369535

IP Mobilenet, LLC Mobile Radio 369535

Contents

Installation Guide

Navigation menu

Namespaces

Views

Navigation
