Contents

Users Manual 3

Crystal LANTM Ethernet
Controller
1
Cirrus Logic, Inc. Copyright © Cirrus Logic, Inc. 2000
P.O. Box 17847, Austin, Texas 78760 (All Rights Reserved)
(512) 445 7222 FAX: (512) 445 7851
http://www.cirrus.com
CS8900A
OVERVIEW
FEATURES
•Single-Chip IEEE 802.3 Ethernet Controller
•Maximum Current Consumption = 55 mA (5V
Supply)
•3 V Operation
•Industrial Temperature Range
•Comprehensive Suite of Software Drivers
Available
•Efficient PacketPage™ Architecture Operates in
I/O and Memory Space and as DMA Slave
•Direct Bus Interface
•Full Duplex Operation
•On-Chip RAM Buffers Transmit and Receive
Frames
•10BASE-T Port with Analog Filters, Provides:
— Automatic Polarity Detection and Correction
•AUI Port for 10BASE2, 10BASE5, and 10BASE-F
•Programmable Transmit Features:
— Automatic Re-transmission on Collision
— Automatic Padding and CRC Generation
The CS8900A is a true single-chip, full-duplex,
Ethernet solution, incorporating all of the analog
and digital circuitry needed for a complete Ethernet
circuit. Major functional blocks include: a direct bus
interface; an 802.3 MAC engine; integrated buffer
memory; a serial EEPROM interface; and a com-
plete analog front end with both 10BASE-T and
AUI.
The CS8900A is a low-cost Ethernet LAN Control-
ler optimized for embedded applications and Per-

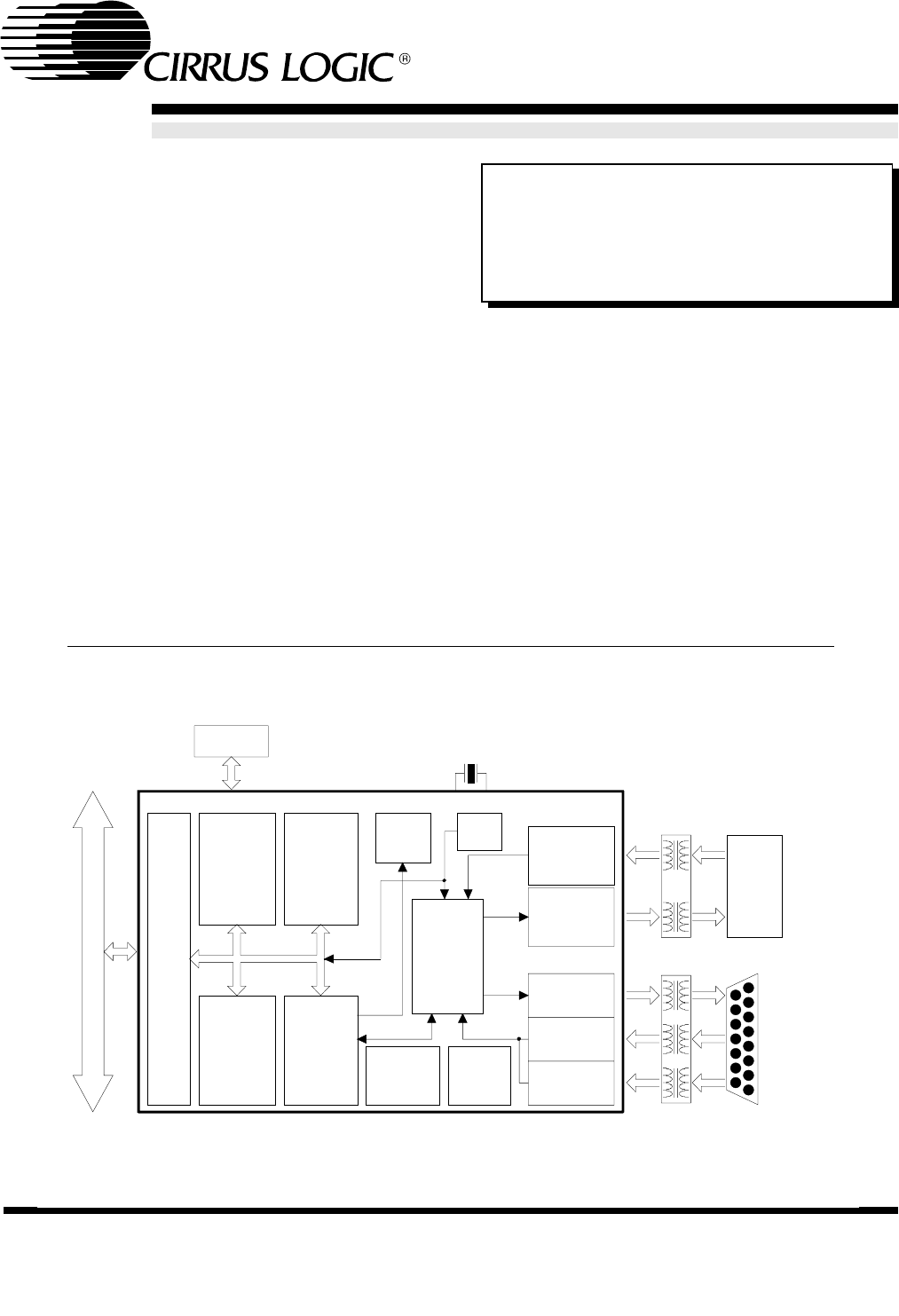

Functional Block Diagram
EEPROM
RJ-45 10BASE-
T
Attachment
Unit
Interface
(AUI)
20 MHz
XTAL
RAM
Bus
Logic
Memory
Manager
802.3
MAC
Engine
EEPROM
Control
Encoder/
Decoder
&
PLL
10BASE-T
RX Filters &
Receiver
10BASE-T
TX Filters &
Transmitter
AUI
Transmitter
AUI
Collision
AUI
Receiver
Clock
Power
Manager
Boundary
Scan
Test Logic
LED
Control
CS8900A Ethernet Controller
Bus
(cont.) (cont.)
NOV ‘01
PI271PP2
Product Bulletin
CS8900A
Crystal LANTM Ethernet Controller
2PI271PP2
OVERVIEW (Continued from Page 1)
sonal Computers. Its highly-integrated design
eliminates the need for costly external components
required by other Ethernet controllers. The
CS8900A includes on-chip RAM, 10BASE-T trans-
mit and receive filters, and a direct Bus interface
with 24 mA Drivers.
In addition to high integration, the CS8900A offers
a broad range of performance features and config-
uration options. Its unique PacketPage architec-
ture automatically adapts to changing network
traffic patterns and available system resources.
The result is increased system efficiency. The
CS8900A is available in a 100-pin TQFP package
ideally suited for small form-factor, cost-sensitive
Ethernet applications. With the CS8900A, system
engineers can design a complete Ethernet circuit
that occupies less than 1.5 square inches (10 sq.
cm)ofboardspace.
Contacting Cirrus Logic Support
For a complete listing of Direct Sales, Distributor, and Sales Representative contacts, visit the Cirrus Logic web site at:
http://www.cirrus.com/corporate/contacts/
Preliminary product information describes products which are in production, but for which full characterization data is not yet available. Advance product infor-
mation describes products which are in development and subject to development changes. Cirrus Logic, Inc. has made best efforts to ensure that the information
contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided “AS IS” without warranty of any
kind (express or implied). No responsibility is assumed by Cirrus Logic, Inc. for the use of this information, nor for infringements of patents or other rights of third
parties. This document is the property of Cirrus Logic, Inc. and implies no license under patents, copyrights, trademarks, or trade secrets. No part of this publi-
cation may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or otherwise)
without the prior written consent of Cirrus Logic, Inc. Items from any Cirrus Logic website or disk may be printed for use by the user. However, no part of the
printout or electronic files may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photo-
graphic, or otherwise) without the prior written consent of Cirrus Logic, Inc.Furthermore, no part of this publication may be used as a basis for manufacture or
sale of any items without the prior written consent of Cirrus Logic, Inc. The names of products of Cirrus Logic, Inc. or other vendors and suppliers appearing in
this document may be trademarks or service marks of their respective owners which may be registered in some jurisdictions. A list of Cirrus Logic, Inc. trade-
marks and service marks can be found at http://www.cirrus.com.
FEATURES (Continued from Page 1)
•Programmable Receive Features:
— Stream Transfer™ for Reduced CPU Overhead
— Auto-Switch Between DMA and On-Chip Memory
— Early Interrupts for Frame Pre-Processing
— Automatic Rejection of Erroneous Packets
•EEPROM Support for Jumperless Configuration
•Boot PROM Support for Diskless Systems
•Boundary Scan and Loopback Test
•LED Drivers for Link Status and LAN Activity
•Standby and Suspend Sleep Modes
•All the most popular drivers are available,
including:
— LINUX
—Microsoft
•NDIS2DOSdriver
• NDIS 2 OS/2 driver
• NDIS 3 drivers for Windows NT, Windows for Work-
groups, Windows 95, and Windows CE
•Novell
•ODI DOS driver
•ODI OS/2 driver
•ODI Server
•Packet Driver (TCP/IP)
•pSOS
•Real-time OS drivers
•RIPL (Remote Initial Program Load) for ODI and
NDIS 2
•RTOS/NCOS (ARM and Oracle) - In development
•SCO
•Setup/installation Utility: EEPROG Utility
(EEPROM programming utility)
•UNIX
•VxWorks
NOTE: To inquire about additional drivers, see “Order-
ing Information” on page 3
CONFIDENTIAL DRAFT
CS8900A
Crystal LANTM Ethernet Controller
3PI271PP2
OVERVIEW (cont.)
CONFIDENTIAL DRAFT
Key Benefits
Very Low Cost
The CS8900A is designed to provide the lowest-
cost Ethernet solution available for embedded
applications, portable motherboards, and adapter
cards. Cost-saving features include:
•Integrated RAM eliminates the need for expensive
external memory chips.
•On-chip 10BASE-T filters allow designers to use
simple isolation transformers instead of more
costly filter/transformer packages.
•The serial EEPROM port, used for configuration
and initialization, eliminates the need for expen-
sive switches and jumpers.
•The CS8900A is designed to be used on a 2-layer
circuit board instead of a more expensive multi-
layer board.
•The 8900A-based solution offers the smallest
footprint available, saving valuable printed circuit
board area.
•A set of certified software drivers is available at no
charge, eliminating the need for costly software
development.
High Performance
The CS8900A is a full 16-bit Ethernet controller
designed to provide optimal system performance
by minimizing time on the bus and CPU overhead
per frame. It offers equal or superior performance
for less money when compared to other Ethernet
controllers. The CS8900A’s PacketPage architec-
ture allows software to select whichever access
method is best suited to each particular CPU/bus
configuration. When compared to older I/O-space
designs, PacketPage is faster, simpler and more
efficient.
To boost performance further, the CS8900A
includes several key features that increase
throughput and lower CPU overhead, including:
•StreamTransfer cuts up to 87% of interrupts to the
host CPU during large block transfers.
•Auto-Switch DMA allows the CS8900A to maxi-
mize throughput while minimizing missed frames.
•Early interrupts allow the host to preprocess
incoming frames.
•On-chip buffering of full frames cuts the amount
of host bandwidth needed to manage Ethernet
traffic.
Low Power and Low Noise
For low power needs, the CS8900A offers three
power-down options: Hardware Standby, Hard-
ware Suspend, and Software Suspend. In Standby
mode, the chip is powered down with the exception
of the 10BASE-T receiver, which is enabled to lis-
ten for link activity. In either Hardware or Software
Suspend mode, the receiver is disabled and power
consumption drops to the micro-ampere range.
In addition, the CS8900A has been designed for
very low noise emission, thus shortening the time
required for EMI testing and qualification.
Complete Support
The CS8900A comes with a suite of software driv-
ers for immediate use with most industry standard
network operating systems. In addition, complete
evaluation kits and manufacturing packages are
available, significantly reducing the cost and time
required to produce new Ethernet products.
Ordering Information
CS8900A-CQ, 0° to 70° C, 100-pin TQFP
CS8900A-IQ, -40° to 85° C, 100-pin TQFP
CS8900A-CQ, 30° to 70° C, 100-pin TQFP
CRD8900A-1 Evaluation Kit
If you have any questions, please contact the
undersigned by phone or by email.
www.cirrus.com/support/ or Field Applications
Engineers.
CS8900A
Crystal LANTM Ethernet Controller
4PI271PP2
CONFIDENTIAL DRAFT
EECS
EEDATAOUT
EESK
SA[0:19]
MEMW
MEMR
IOW
IOR
REFRESH
SBHE
SD[0:15]
INTRQ0
INTRQ1
RXD-
RXD+
TXD-
TXD+
DO-
DO+
CI-
CI+
DI-
DI+
LANLED
LINKLED
CSOUT
EEDATAIN
AEN
RESET
INTRQ2
INTRQ3
DMARQ0
DMACK0
DMARQ1
DMACK1
DMARQ2
DMACK2
MEMCS16
IOCHRDY
1:
68 pF
1
3
6
8
24.3 Ω, 1%
24.3 Ω, 1%
92
91
88
87
100 Ω, 1%
RJ45
16
14
11
9
6
3
2
1
1:1
1
4
5
8
84
82
81
79
16
13
12
9
10
10
9
2
5
83
80
2
7
15 3
12
1:1
1:1
0.1 µF
680 Ω
680 Ω
CE
OE
OE
DIR
20
22
19
1
74LS245
XTAL1 XTAL2 SLEEP TEST RES
CS
DO
DI
CLK
1
3
2
4
3
5
4
6
93C46
28
62
61
29
7
IRQ10
IRQ11
IRQ12
IRQ5
DRQ5
DACK5
DRQ6
DACK6
DRQ7
DACK7
16
20
SA[0:19]
LA[20:23]
BALE
4
97 98 93
4.99 kΩ, 1%
12 V
4, 6
20 MHz
0.1 µF
39.2 Ω, 1%
5 V
4.7 kΩ
CS8900A
CHIPSEL
IOCS16
49
63
75
36
34
64
33
32
30
35
31
15
13
14
16
11
12
99
100
17
39.2 Ω, 1%
39.2 Ω, 1% 39.2 Ω, 1%
EEPROM
Address
Decoder
PAL
27C256
2
ELCS
ISA
BUS
10 BASE T
Isolation
Transformer
1:1
15 pin D
AUI Isolation
Transformer
BSTATUS/HCI
Boot-PROM
PD[0:7]
SA[0:14]
SD[0:7]
15
8
5 V
13
77 76
78
0.1 µF
7

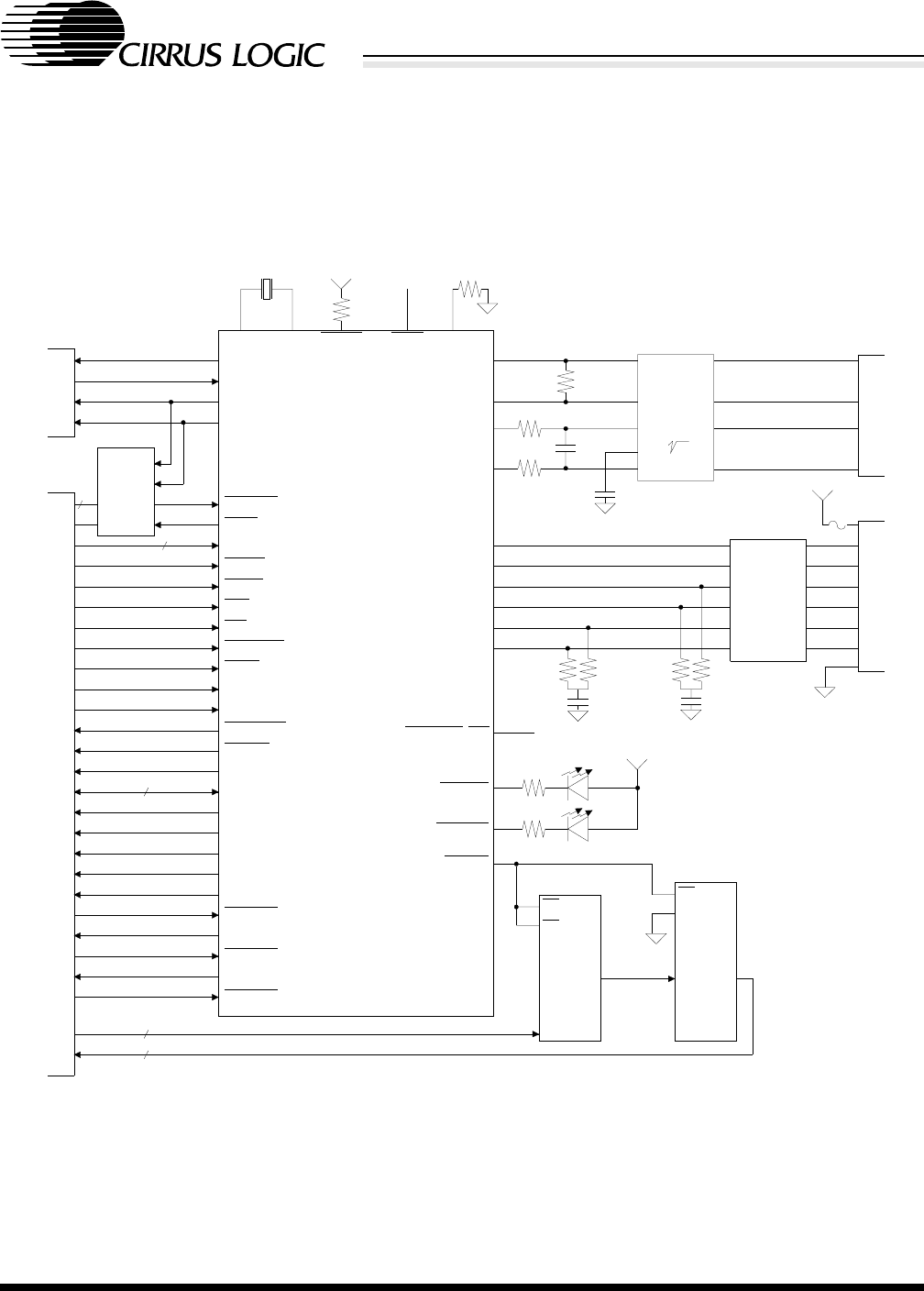

Figure 1 Typical Connection Diagram
