Product name: Digital Photo Frame
Date : Aug , 2008
Model name : CSFU-01IP
Rev. : V1.0
User menu Guide
IPEVO, Corp. 200808ver1.0
- 2
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
CONTENTS
Date : Aug , 2008 ....................................1
I.Product Features .....................................4
II.Dimensions/ Weight ..................................5
III.Buttons& ID Look .................6
IV.Buttons on To
uch Pad & Remote Control
8
V.General Specifications ......................10
VI.LED Indicators .................................10
VII.Package Contents ................................10
VIII.LCD Panel ...........................................11
IX.Memory Card Compatibility ......................11
X.Picture Display Features ....................................11
XI.Certifications / Regulatory Compliance 11
IPEVO, Corp. 200808ver1.0
- 3
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
I.
Product Features

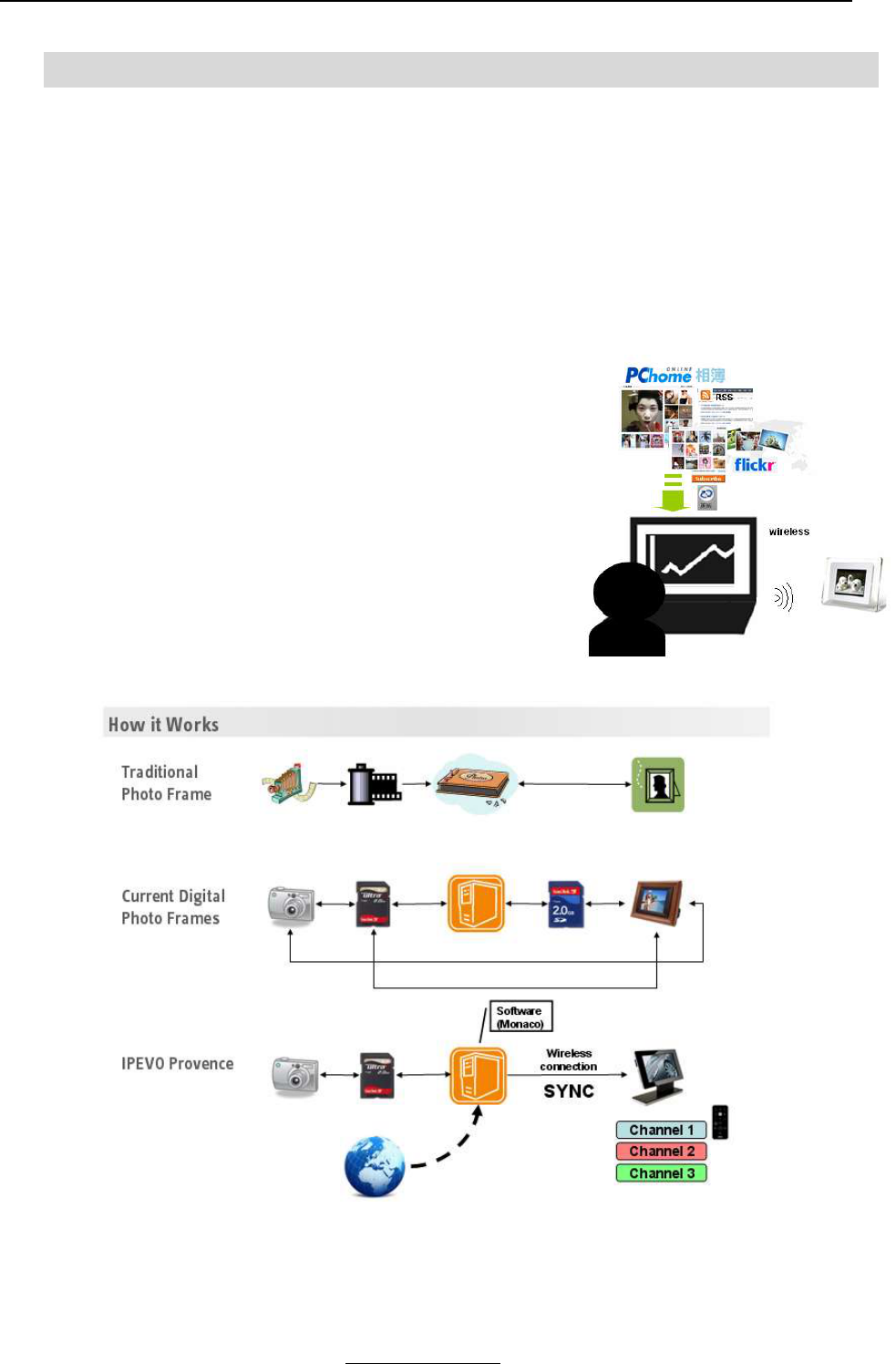

Your 2nd Window--unique Internet photo frame which real-time displays online photos
Keep yourself update with latest photos/news feed/weatherwithout having to turn on
your computer
High Resolution (800*480) 7 TFT color LCD w/backlight
WiFi link to PC
A 90 degree rotating hinge allows both landscape and portrait view
Auto rotate sensor lets your photos always fit well with your screen display
See what you want to see: easy content management with computer based SW Monaco
Wide range subscriptions and play for your wished online contents:
RSS
Photo sites: Flickr, Google Picasa , PChome
album
Useful info: weather, Google calendar
More extensibilities
Touchpad key control to replace tangible buttons
enhances user experience
Remote control included
Anytime to easily switch between online mode
ßàstandalone mode
Simple and easy to use & share
IPEVO, Corp. 200808ver1.0
- 4
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
II. Dimen
sions/ Weight
Size :
Landscape: 200*75*172 (mm) (7.87*2.95*6.77 (inch))
Portrait: 200*75*238 (mm) (7.87*2.95*9.37 (inch))
Weight : around 1080g (2.38lbs)
IPEVO, Corp. 200808ver1.0
- 5
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com

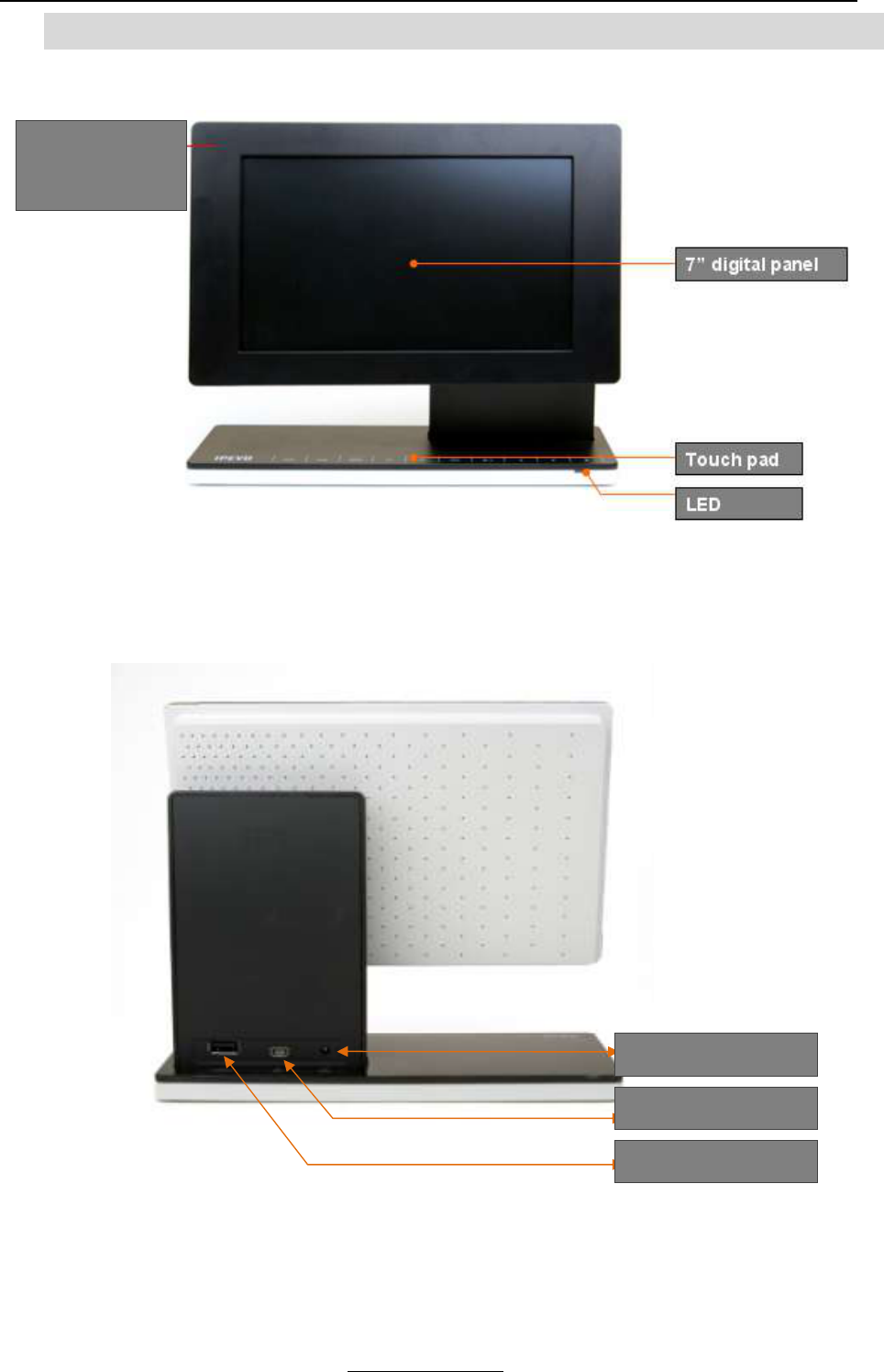

III. Buttons& ID Look
1. Front
2. Back
Remote control
receiver
Power jack
A type USB (Host)
IPEVO, Corp. 200808ver1.0
- 6
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com

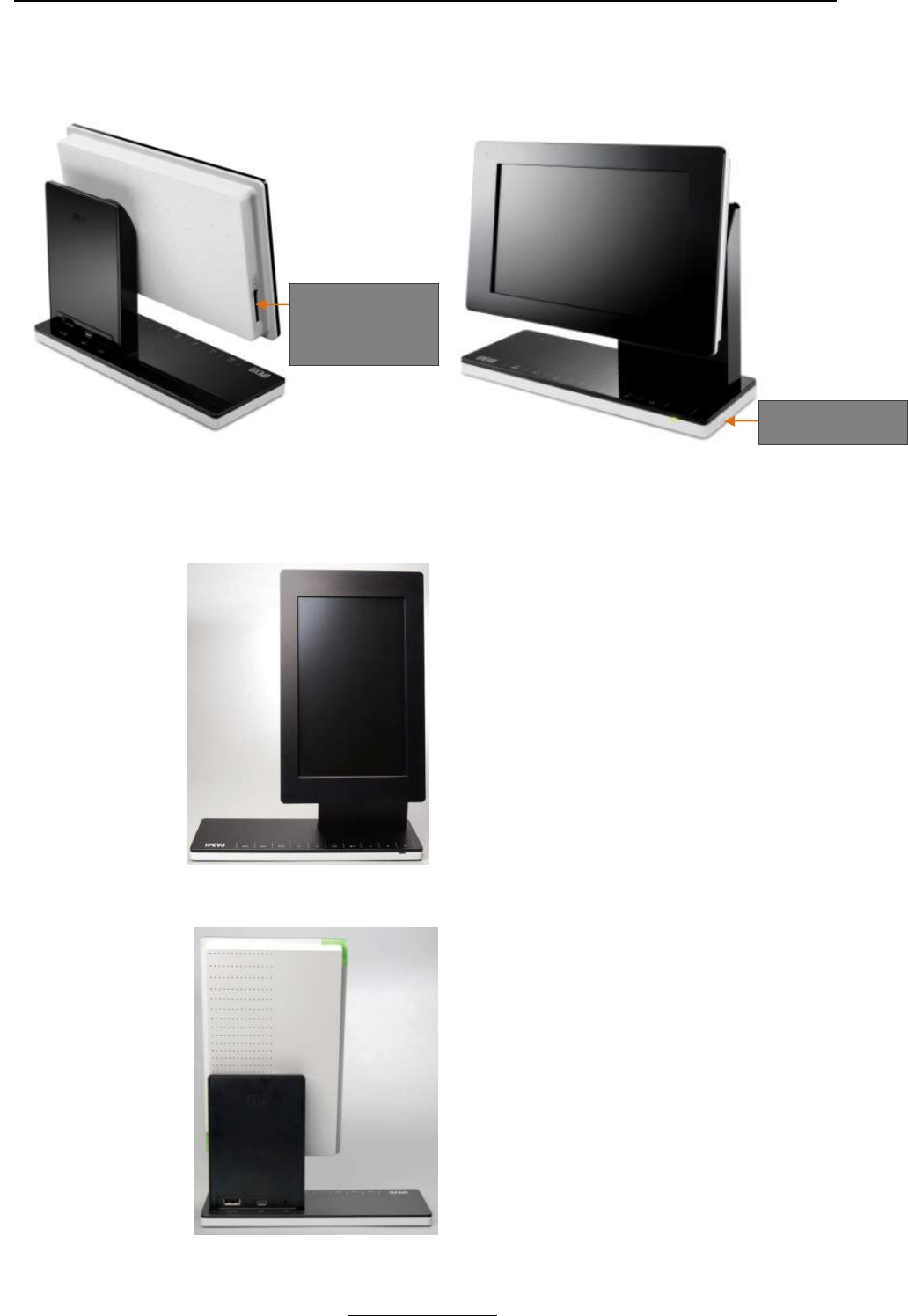

3. Other angles

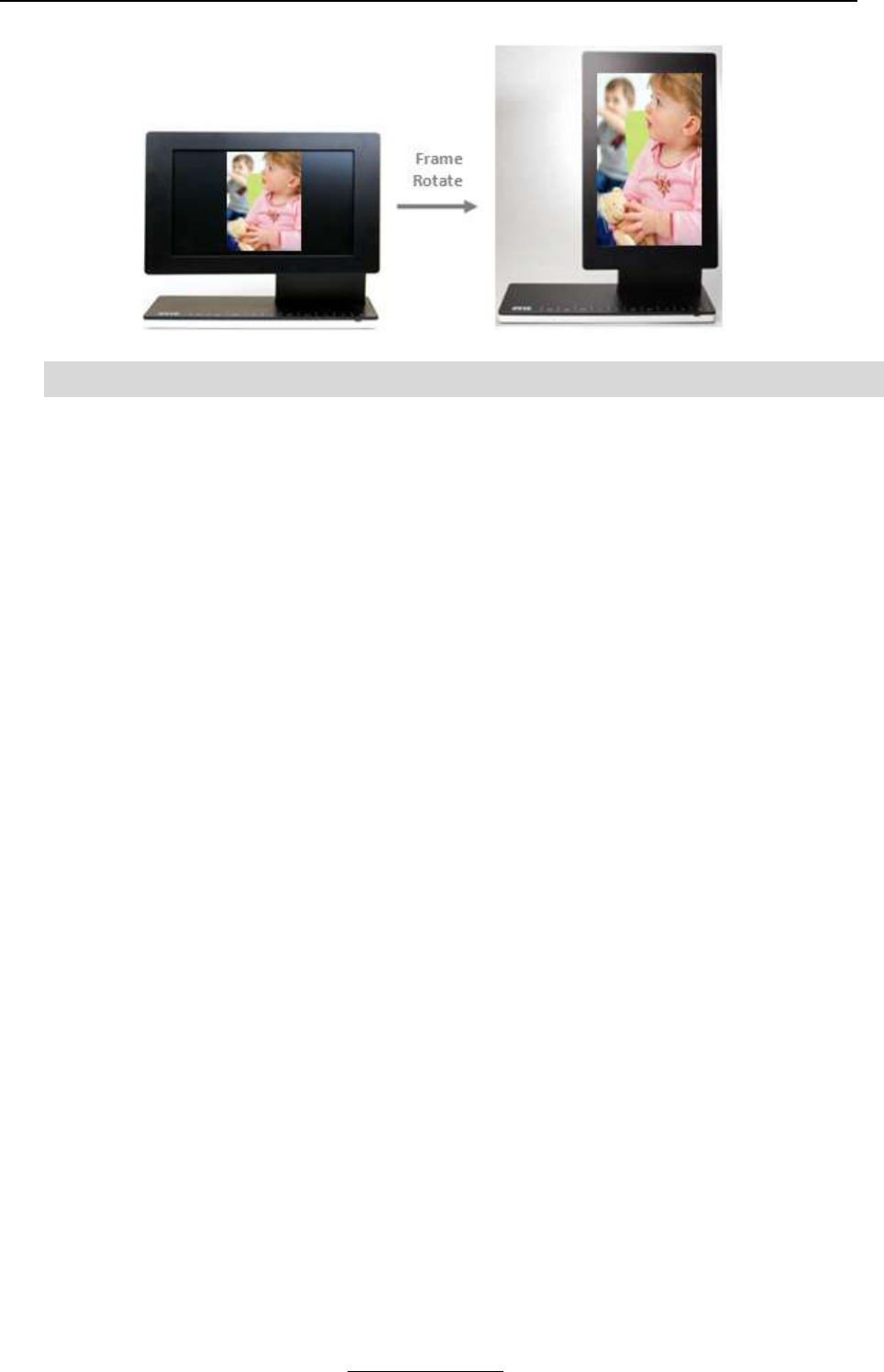

4. Screen Rotate to Portrait (Front)
5. Screen Rotate to Portrait (Back)
SD(HC)/MMC
/MS slot
Power switch
IPEVO, Corp. 200808ver1.0
- 7
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com

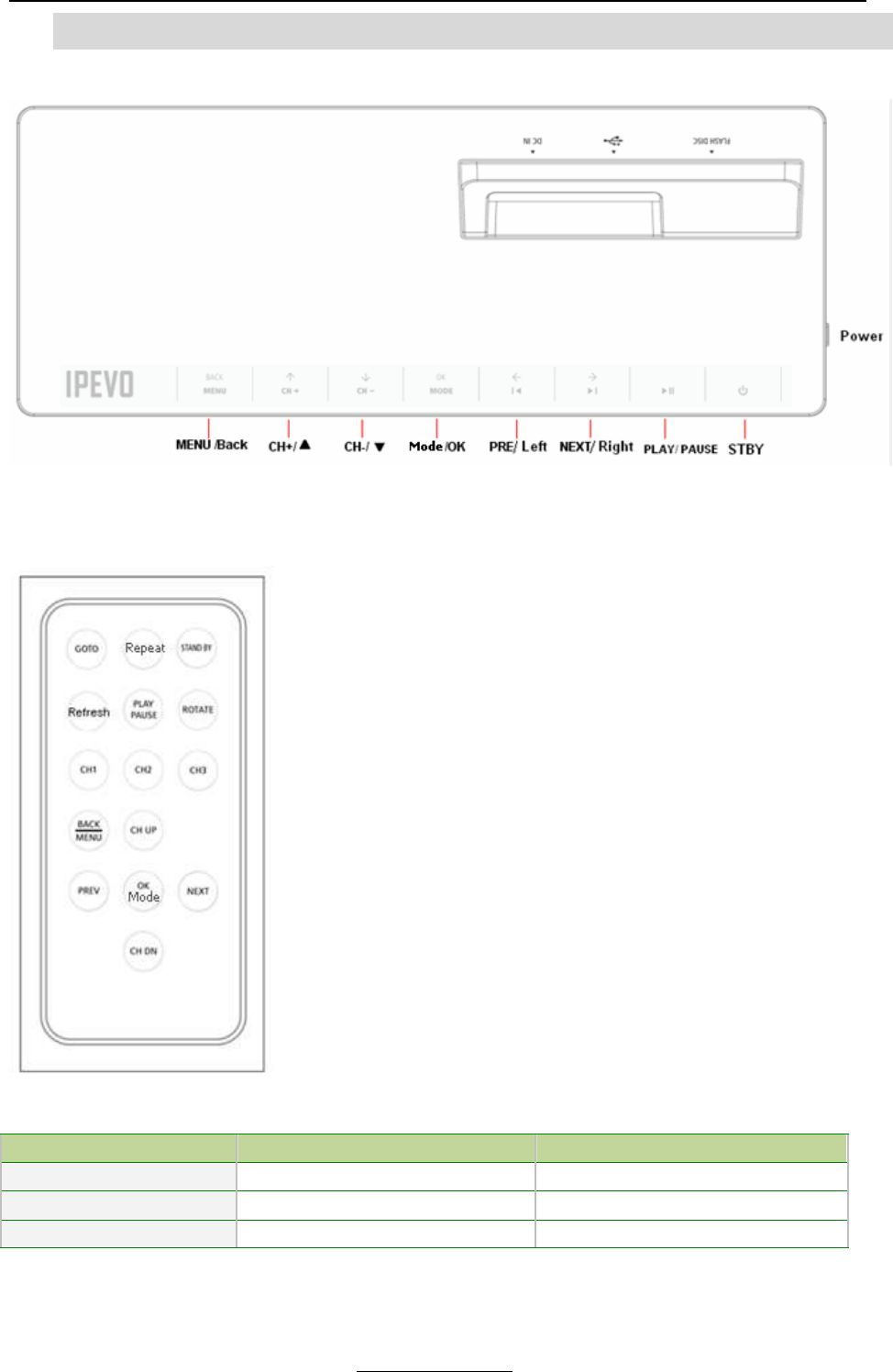

IV. Buttons on Touch Pad & Remote Con
trol
n Touch pad(No Repeat ,GOTO, Rotate, Refresh, Three quick keys )
n Remote controller(full functions)
Button When photo playing When menu selection
Menu/back Show on-screen menu One step back in the menu
CH+/ Go to next channel Selection bar moving down
CH-/ Go to previous channel Selection bar moving up
IPEVO, Corp. 200808ver1.0
- 8
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
Mode/OK Show channel name/album
name
Activates a highlighted menu item
/confirm OK
PLAY Play or pause Play
PREV Previous picture Selection bar moving right
NEXT Next picture Selection bar moving left
GOTO Open browser to go to web
album
---
Repeat Repeat all/repeat one channel ---
STANDBY Turn to standby mode Turn to standby mode
ROTATE Right rotate 90 degree° ---
Refresh Refresh the channel contents ---
CH1 Quick key to preset channel ---
CH2 Quick key to preset channel ---
CH3 Quick key to preset channel ---
IPEVO, Corp. 200808ver1.0
- 9
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
V.
General Specifications
Supported Formats JPEG
Built-in Memory 512MB
Network Wi-Fi 802.11b/g 2.4GHz 54Mbps
USB USB 2.0
· One up stream (host)
· One down stream (slave)
· (External Memory Reader is not supported)
Power External Power Adapter ( 12V/ 1 A/ 12W)
Power Supply AC 100 ~ 240 V. 60/50 Hz
Others
1.Rating:12V .1A.
2.Temperature: 50 ˚C.
3.Wireless frequency: 2.4GHZ.
4.Output power:TX consumption: 290mA (Max) at 5V
RX consumption:
240mA (Max) at 5V
Standby consumption:
77mA(Max) at 5V
5.Antenna type:Chip antenna.
VI.
LED Indicators
Green Power LED
Power on/off
Orange Status LED to indicate:
Standby mode
VII. Package Contents
Provence Internet Photo Frame
AC Power adaptor (100-240V 50-60Hz)
USB Cable
Remote Control
CD-ROM, including:
Monaco software
User Manual
Quick User Guide
VIII.
LCD Panel
Display Type TFT LCD
Display Size 7 inch
Resolution 800 x 480
IPEVO, Corp. 200808ver1.0
- 10
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
Analog and Digital Digital
4:3 or 16:9 16:9
Backlight LED
Brightness (Cd/m2) 350
Contrast Ratio 400:1
IX.
Memory Card Compatibility
SD / SDHC
MMC
MS
X. Picture Display Features
Supported image Format JPEG
Rotate Right rotate 90° / 180° / 270° / 0°
Auto Rotate Detect EXIF info to enhance auto rotate
Multiple Languages English/ Traditional Chinese/Japanese/
(multi-languages-customized)
XI.
Certifications / Regulatory Compliance
Safety (Taiwan/USA)
BSMI
FCC
(CE)
(VCCI)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
IPEVO, Corp. 200808ver1.0
- 11
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IPEVO, Corp. 200808ver1.0
- 12
IPEVO,Corp
3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan
Tel:+886-2-5550-8686 Fax:+886-2-2382-0420
http://www.ipevo.com
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
