IPRODA TECHNOLOGY T7026 TABLET PC User Manual

Shenzhen Iproda Technology Co.,Ltd TABLET PC

User manual

EN Internet Tablet with touchscreen
Quick Start Guide ............................ Page 2
Please read carefully before use
For series
T7026
Page 2 Table Of Contents
English
THANK YOU ................................................... 3
Package Contents ........................................................3
Features..........................................................................4
GETTING TO KNOW THE INTERNET TABLET
5
About the Touchscreen ...............................................8
Protective Film ........................................................8
Touchscreen Actions..............................................8
About the Orientation Sensor .....................................9
Charging the Tablet ...................................................10
Inserting a Memory Card ..........................................10
Resetting the Tablet ....................................................11
GETTING STARTED ..................................... 12
Turning the Tablet On and Off .................................12
Turning the Screen On and Off (Standby) .......13
Unlocking the Screen ..........................................13
Home Screen at a Glance ........................................14
About Applications ....................................................15
Preinstalled Applications .....................................15
Installing Applications .........................................17
About Widgets ............................................................18
About Notications ..................................................... 18
CONNECTING TO THE INTERNET ............. 19
Requirements ..............................................................19
Connect to a Wi-Fi Network ..................................... 20
BROWSING THE WEB ................................. 22
OPTIONAL CONNECTIONS ........................ 26
Connecting to a Computer ......................................26
Connecting Headphones .........................................27
Using the USB Full-Size Adapter .................................28
Connecting a Keyboard .....................................28
Connecting a Storage Device ...........................28
SETTING THE SYSTEM OPTIONS .............. 29
SPECIFICATIONS ......................................... 30
ÂTable of Contents
Page 3 Thank You
English
ÂThank You
Congratulations on your purchase of the Internet Tablet.
This guide is provided to help you get started quickly with
your tablet; please read it carefully and save it for future
reference.
To view PDF documents, download and install
the free Adobe Acrobat reader from the Adobe
website at www.adobe.com.Package Contents
Please make sure that the items shown below are
included in the package. Should an item be missing,
please contact the local retailer from whom purchased
this product.
Internet Tablet
USB cable
USB host/keyboard
adapter
Professional stereo
Earphones
Page 4 Thank You
English
Features
Browse the Web.
Visit your favorite websites
Check your e-mail
Keep in touch with friends and family
Watch YouTube™ videos
Browse the world’s most popular video-sharing com-
munity
Discover thousands of apps for Android™
Games, applications and more with the installed
marketplace
Connect to the Internet wirelessly
High-speed Wi-Fi 802.11 b/g/n networking
Enjoy your media library anywhere
Portable powerhouse plays popular music, video and
photo formats
microSD memory card reader
Increase your storage capacity (up to 32 GB sup-
ported)
Built-in camera
Convenient front-facing camera
Automatic orientation detection
Read any way you want; the display adjusts
automatically!
Page 5 Getting To Know The Internet Tablet
English
ÂGetting to Know the Internet Tablet
Unit at a Glance
Name Description
1Camera Front-facing camera
1
Page 6 Getting To Know The Internet Tablet
English
Name Description
2MIC Record digital voice les.
3Power key Press to turn the unit on, or to
turn the screen on and off. Press
and hold to access the Power
Off menu.
4Headphone
jack
Audio output connection for
headphones.
5 USB 2.0 His-
peed port
Connect to a computer to
transfer data (e.g., music, vid-
eos, photos, les).
Use the included USB full-size
(Type A) adapter to connect
a storage device to the tablet
(e.g., a USB ash memory drive).
6 HDMI jack Connect to a TV or other dis-
play.
2
3
4
5
6
Page 7 Getting To Know The Internet Tablet
English
Name Description
7 microSD card
slot
Load external microSD memo-
ry cards here.
8Speaker Speaker output is automati-
cally muted when using head-
phone jack.
9Camera Back-facing camera.
7
8
9
Page 8 Getting To Know The Internet Tablet
English
About the Touchscreen
Your tablet comes equipped with an easy-to-use touch-
screen which allows access to the tablet’s functions.
Use your nger tip to touch the area of the screen where
a control icon is displayed. If you touch and hold the
screen, it will register as a continuous button press.
To avoid damaging the screen, do not touch it
with excessive force or with any object other
than your nger. For best response, make sure
your hands are clean before using the touch-
screen controls.
Protective Film
A thin lm has been applied to the touchscreen to protect
it during shipping. The protective lm should be removed
before use. To remove it, simply take a corner of the lm
and peel it away from the screen.
Touchscreen Actions
You can control the functions of the tablet by using
the touchscreen in combination with the three touch
keys located on the bezel. To control the tablet with the
touchscreen, use your ngertip to manipulate icons,
buttons, menu items, the on-screen keyboard and other
items displayed on the screen.
You can perform the following actions on the touchscreen
using your ngertip.
Touch: To activate an on-screen item (e.g.,
application icons, buttons, menu
items, and the letter/symbols of the
on-screen keyboard), simply touch
them with your ngertip.
Touch and
Hold:
Some on-screen items have an
alternate action if you touch and hold
it (e.g., opening an alternate menu or
to activate the drag function). To touch
and hold an item, touch the item and
do not lift your ngertip until the action
occurs.
Drag: Drag an on-screen item to change its
position (e.g., an application icon on
the home screen).
To drag an item, touch and hold it for
a moment, then without lifting your
ngertip, move your ngertip on the
screen until the item reaches its target
destination.
Page 9 Getting To Know The Internet Tablet
English
Swipe: Swipe up/down on the screen to scroll
through a list. On some screens,
you may be able to swipe left/right to
change the view.
To swipe, touch the screen and then
quickly move your ngertip across the
screen without lifting your ngertip.
Do not pause on the screen with your
ngertip at the initial point of contact
or you may accidentally drag an item
instead.
Double-tap: Quickly tap the screen twice on a
webpage or other application screen
to zoom (the application must support
the double-tap/zoom function). Within
the browser, double-tapping a web-
page section will cause the browser to
zoom and t that section to the width
of the screen.
About the Orientation Sensor
The tablet contains a sensor that will automatically
change the orientation of most screens as you rotate the
tablet. The sensor works best when the tablet is rotated
perpendicular to the ground (i.e., when the tablet is held
upright and not fat on its back).
The orientation sensor can be turned on and off in the
Display settings menu.
Page 10 Getting To Know The Internet Tablet
English
Charging the Tablet
The current battery status will be always displayed in the
lower right of the screen in the system information bar.
The battery icon will change in accordance with the
battery status.
When connect a USB cable to charge,the status area on
the bottom bar will display the charging icon. Note the
lightning symbol inside the battery icon.
To charge the battery:
1. Connect a USB cable to charge on the tablet.
2. Disconnect the USB cable when the tablet is fully
charged.
The battery used in this device may present a
re or chemical burn if mistreated. Do not
disassemble, incinerate, or heat the device. Do
not leave the device in a place subject to direct
sunlight or in a car with its windows closed. Do
not connect the device to a power source other
than that which is indicated here or on the label
as this may result in the risk of re or electric
shock.
Inserting a Memory Card
The tablet accepts microSD memory cards. Insert a
memory card into the microSD card slot to:
Increase the memory capacity of your tablet
Play media les stored on the memory card (e.g.,
music, video, or photo les).
To insert a memory card:
1. Align the memory card with the card slot. The metal
contacts of the memory card should face down away
from the LCD screen.
2. Slide the card into the spring-loaded slot. Push the
card in until it clicks into place.
Do not attempt to insert objects other than a
microSD memory card into the card slot. A
compatible memory card should t easily into
the card slot; if you encounter resistance, check
the alignment of the card. Do not attempt to
force the card in.
Avoid touching the gold contacts of the memory
card.
Page 11 Getting To Know The Internet Tablet
English
To release and remove a memory card:
1. UNMOUNT the memory card.
a. From the home screen, tap the Launcher Tab,
and then touch Settings to show the settings
menu.
b. Touch Storage to show the storage settings.
c. Touch Unmount SD card to prepare the memory
card for safe removal.
2. Push the card further into the slot until you hear a
click. The card will spring out of the slot.
3. Grasp the card by its edge to remove it.
To avoid damage and data corruption, do not
remove a memory card while data is being
written to or read from the card. For example,
do not remove a card while playing a music le
stored on the card.
Resetting the Tablet
Reset the tablet if it should freeze and not respond or
otherwise malfunction.
1. Disconnect your tablet if it is connected to a
computer.
2. Press and hold the POWER key for about 10
seconds to turn off the tablet, and then press and
hold the POWER key to turn on the tablet.
Page 12 Getting Started
English
ÂGetting Started
Turning the Tablet on and off
To turn the tablet on:
Press and hold the Power key until the LCD screen
turns on. Wait until the Home screen appears; the
tablet is now ready for use.
To turn the tablet off:
1. Press and hold the Power key until the conrmation
message appears.
2. Touch OK to turn off the tablet.
Page 13 Getting Started
English
Turning the Screen On and Off (Standby)
When the tablet is on, you can turn off the screen to
conserve battery power. Simply press the Power key
once to turn the screen off. Press the Power key again to
turn the screen back on.
To conserve battery power, the screen can be
set to turn off automatically when the tablet is not
in use (between 15 seconds and 30 minutes).
This Sleep option can be found in the Display
menu.
Unlocking the Screen
When the screen turns off, you will have to unlock the
screen when you turn it back on.
To unlock the screen, touch and drag the lock icon to the
edge of the circle that appears.
Page 14 Getting Started
English
If a password has been set, enter the password to nish
unlocking the screen. The Screen Unlock password can
be set in the Security settings menu.
WARNING: Please write down your password
lock pattern/PIN/Password. Misplacing or
forgetting this method will lock the user out.
Recovering the unit will reset the device
back to factory defaults. ALL YOUR DATA &
PROGRAMS WILL BE LOST.
Home Screen at a Glance
The home screen is the starting point for all of the
features of your tablet.
Name Description
1Google
Search
Touch to search with Google
browser.
2Home
icon
Touch to back to the central Home
Screen.
3Back icon Touch to back to the previous
screen.
Page 15 Getting Started
English
Name Description
4Recent Apps Touch to display the list of
thumbnail images of apps you
have worked recently. Touch an
App to open it.
5Launcher
Tab
Open the Launcher to view the
list of all Applications and Widgets
installed on the tablet. Touch
the Launcher tab to open the
Launcher.
6Widgets Widgets are small applications
that you can use directly from
the home screen. For more in-
formation, refer to the “Widgets”
section on page 17.
7Icons Touch an icon to open an
application or folder.
8Notication
bar
Shows notication icons such
as time, battery level, and the
network signal strength; touch the
bar to open the full Notications
panel. Touch a Notication icon to
display more detail.
About Applications
To open an application, touch the application icon on the
home screen or in the Launcher.
Launcher screen:
Preinstalled Applications
Some applications have been installed on your tablet for
your convenience. These applications include:
Page 16 Getting Started
English
Browse the web.
Display the calendar or record events
and appointments to manage your
schedule.
Perform simple mathematical
operations.
Take pictures or videos with the front-
facing camera.
View the current time, or set an
alarm.
Check your e-mail.
View and manage les stored on the
tablet.
Play music.
Access the Settings menu to adjust
the tablet’s options.
Launch the mobile YouTube™
browser page to watch internet
videos.
View photos and videos, plus edit
photos.
Page 17 Getting Started
English
Installing Applications
You can also download an install additional applications
from the play store, the web browser or other sources.
The tablet must be set to allow installation of applications
from non-Market sources. The Unknown sources option
can be set in the Application settings menu.
About Widgets
Widgets are self-contained applications that you can
place on the Home screens to access your favorite
features.
Adding Widgets to a Home Screen
1. Navigate to the Home screen which you want to
place the Widget on.
2. Touch the Launcher Tab.
3. Touch WIDGETS to show all widgets and then hold
on a widget icon to add it to the Home screen.
Removing Widgets
Touch and hold the Widget until Remove icon appears
at the top side of the screen, then drag the Widget to the
Remove icon to remove it.
Page 18 Getting Started
English

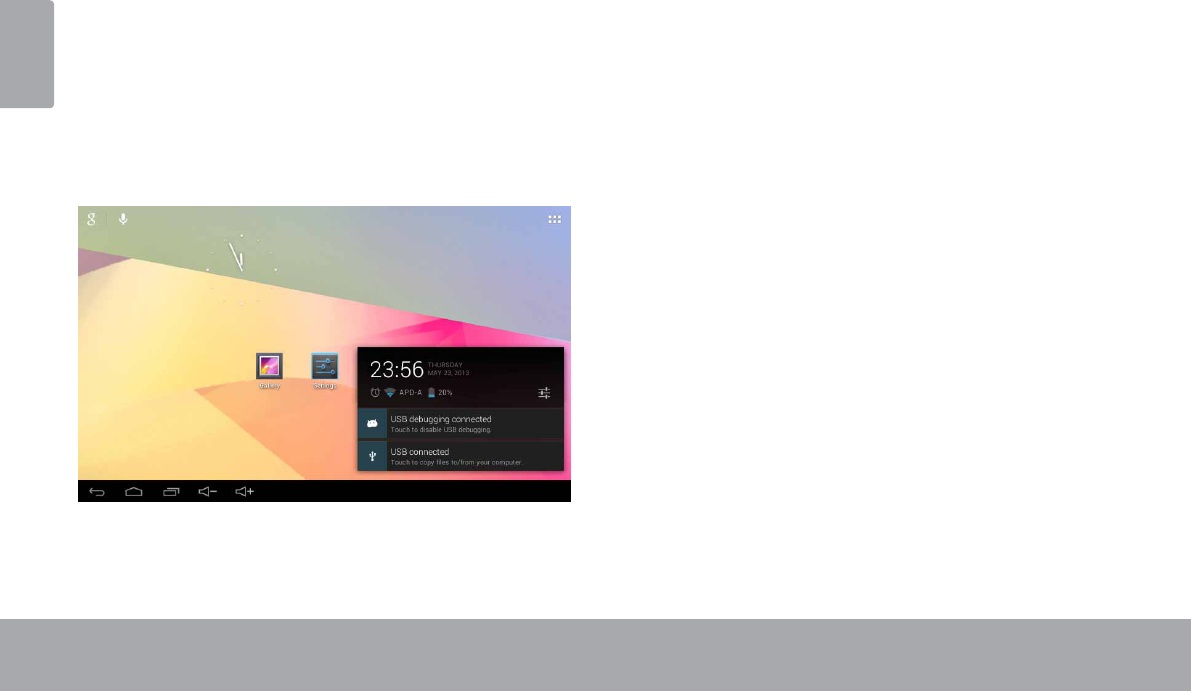

About Notications
The icons that appear in the Notication bar at the
bottom right corner of the screen alerts you when new
messages arrive or alarms or other application events
occur.
View and respond to the notications by opening the full
Notications panel.
Touch the Notication bar to open the Notications
panel.
To respond to a notication:
Touch a notication in the list; the Notications panel will
close and the application associated with the notication
will launch.
To close the Notications panel:
Touch any other area of screen except the
Notications panel , or;
Touch the Back icon.
Page 19 Connecting To The Internet
English
ÂConnecting to the Internet
This tablet can utilize Wi-Fi data networks to connect to the Internet.
Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be
affected by your surrounding environment and Wi-Fi router.
Requirements
In order to connect to the Internet, you will need either of
the following:
A wireless router or access point with a broad-
band Internet connection
The wireless router must support Wi-Fi 802.11b/g/n connec-
tions. If the router supports 802.11n, make sure that it has
been congured to acc qept 802.11b/g/n connections as
well.
A minimum connection speed of 64 Kbps is rec-
ommended. Faster speeds will enable a better
Internet experience.
You will need to know the name of your network (SSID),
as well as the password or other credentials if your
network is secured. These settings can usually be found
on the administration webpage of your wireless router.
Please refer to your wireless router’s documentation for
help, or ask your network administrator for details.
You may encounter open Wi-Fi networks, or “hot
spots.” These networks are usually congured
so that you can simply connect to them without
needing to know its settings; the tablet will obtain
all the information it needs from the router auto-
matically.
Page 20 Connecting To The Internet
English
Connect to a Wi-Fi network
The Notication bar displays icons that indicate your
tablet’s Wi-Fi status.
Connected to a Wi-Fi network (waves
indicate connection strength).
[no icon] There are no Wi-Fi networks in range, or
the Wi-Fi radio is off.
1. Turn on the Wi-Fi radio if it is not already on. To
turn on Wi-Fi:
a. Go to the Home screen:
Touch the Home icon.
b. Open the Launcher screen:
Touch the Launcher Tab, then touch Settings.
c. Open the Wireless & networks menu:
Touch WIRELESS & NETWORKS.
d. Open the Wi-Fi settings menu:
Touch WiFi.
e. Make sure that the Wi-Fi option box is setted to
ON: Touch and slide the block right to enable
the Wi-Fi connection.
When Wi-Fi is on, the tablet will look for and display a list
of available Wi-Fi networks.
If a network that you have connected to previously
is found, the tablet will connect to it.
If you don’t see your network in the list, you can
force the tablet to re-scan. To scan for networks,
tap the SCAN icon that located on the top right
corner of the screen.
2. Select an available Wi-Fi network to connect to:
In the same Wi-Fi settings menu above, touch a network
in the list.
Page 21 Connecting To The Internet
English
If the network is open, the tablet will prompt you to
conrm connection to the network. Touch Connect to
conrm.
If the network is secured (as indicated by a Lock icon),
the tablet will prompt you to enter a password or other
credentials. Touch the Wireless password box to show
the on-screen keyboard and then use it to enter the
password. Touch Connect to conrm.
When you have successfully connected to a Wi-Fi
network, the Notications bar at the bottom of the screen
will show a Wi-Fi signal indicator.
To learn about how to add a Wi-Fi network
when it is not in range or when the router is
set to obscure the network name (SSID); or to
congure advanced Wi-Fi options, please refer
to the manual.
Page 22 Browsing The Web
English
ÂBrowsing the Web
The Browser application lets you visit webpages and nd information on the web. Keep up with the news, your
friends, or enjoy video from YouTube™, the world’s most popular video-sharing community.
To use Browser, the tablet must be connected to the
Internet. Read the section “Connecting to the Internet” to
learn how to connect to the Internet.
To open Browser, touch the Browser icon on the Home
screen or in the Launcher.
Name Description
1Address bar Displays the address (URL) of
the current page. Touch the
bar to enter a new address
or to search the web.
2Goto Book-
marks icon
Touch to view bookmarks, to
view your most visited sites, or
to view your browser history.
3Search icon Touch to search with Google
browser.
4Add Bookmark
icon
Touch to add bookmarks.
5New Window
(+)
Creates new browser window.
Page 23 Browsing The Web
English
Some common Browser actions are described below.
To go to a webpage.
1. Touch the Address
bar at the top of the
Browser screen. The
keyboard will open
automatically. (If the
Address bar is not
visible, drag the page
down to return to the
top of the Browser
screen.)
2. Use the keyboard
to enter the address
(URL) of the webpage
(e.g., www.google.
com).
3. Touch Enter key to
open the webpage.
To bookmark a webpage.
Bookmark your favorite webpages in order to visit
them quickly without entering a URL.
1. Go to the web-
page that you
want to bookmark
2. Touch the Add
Bookmark icon.
3. If desired, you can
modify the name
of the bookmark
or its location
(URL address).
Otherwise, touch
OK to nish
adding the book-
mark.
Page 24 Browsing The Web
English
To go to a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch a bookmark
tile to open it.
To delete a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch and hold a
bookmark tile to
open the option
menu.
3. Touch “Delete
bookmark“.
4. Touch “OK” to conrm.
Browser menu
While viewing a webpage, touch the icon show
as right to open the Browser Menu, the icon is
locate on the top right corner of the screen, the
options are:
Refresh: Refresh the current webpage.
Forward: Go to the next webpage.
New tab: Open the webpage in a new window, under
a new tab.
New incognito tab: Open the webpage in a new win-
dow, under a new tab, and the pages you view in the
new window will not appear in your browser history
or search history. See the on-screen explanation of
going incognito.
Share page: Use Email to send the webpage URL.
Find on page: Search for content on the current
page.
Page 25 Browsing The Web
English
Request desktop site:
Save for ofine reading: Save this page onto the in-
ternal memory, then you can read it when the internet
connection is disable.
Page info: View information about the current page,
including the URL.
Settings: Customize the Browser.
Page 26 Optional Connections
English
ÂOptional Connections
Connecting to a Computer
Connect the tablet to a computer to transfer les.
1. Connect your tablet to the computer.
With the included USB cable:
Plug the small end of the cable into the USB 2.0 Hi-
speed connector of the tablet.
Plug the large end of the cable into an available USB
2.0 Hi-speed port on the computer.
When your tablet is connected, a USB icon will
appear in the Notication bar.
Touch the Notication bar to open the notications
panel.
The Tablet’s “mass storage mode” is compatible
with many operating systems including:
Microsoft® Windows® XP, Vista, 7 or higher and
Mac OS or Linux.
Page 27 Optional Connections
English
2. Mount the storage drive.
Touch USB connected to mount the tablet’s built-in
storage, then touch “Turn on USB storage” and “OK”
when prompted to conrm. When mounted, you can
copy les to/from your computer to it.
Your tablet will be recognized by the computer as a
Removable Storage drive. Drag and drop les between
your tablet and the computer. To learn more about copy-
ing les, please refer to the documentation included with
your computer or operating system.
Connecting Headphones
Connect a pair of headphones (or earphones) to the
tablet to enjoy media in private.
Lower the volume level of the tablet before connecting
headphones, and then slowly raise the volume to a
comfortable listening level.
The headphones must have a 3.5 mm (1/8 in) plug.
When headphones are connected, speaker output
will be disabled automatically.
Hearing experts advise against the constant
use of personal stereos played at high volume.
Constant exposure to high volumes can lead to
hearing loss. If you should experience ringing in
the ears or hearing loss, discontinue use and
seek medical advice.
Page 28 Optional Connections
English
Using the USB Full-Size Adapter
The USB full-size adapter can be used to connect and
use USB devices with the tablet. The adapter converts
the Micro USB port on the tablet into a USB On-the-Go
(OTG) connector.
Connecting a Keyboard
For times when you want to type for an extended period
of time, you may want to connect a full-size keyboard to
the tablet.
Use the included USB full-size (Type A) adapter to
connect a keyboard to the tablet.
You may also use this connection to add a
mouse to the tablet.
The adapter supports one connection at a time.
To use a keyboard and mouse simultaneously,
you will need to add an external USB hub.
Connecting a Storage Device
Use the included USB full-size (Type A) adapter to
connect a storage device to the tablet (e.g., a USB ash
memory drive).
This connection supports a maximum storage
size of 32 GB. For additional storage capacity,
a microSD card can be added to the tablet.
Page 29 Setting The System Options
English
ÂSetting the System Options
Open the system settings menu to adjust how the tablet looks and functions.
Many applications will have their own settings; refer to the documentation provided by the application developer
to learn more.
To open the Settings menu:
1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.
The settings are grouped by category. Touch a category to open and adjust its
settings on the right side.
Please refer to the manual for a description of the items in the
Settings menu.
Page 30 Specications
English
ÂSpecications
Processor INFOTMIC iMAPx15 CortexA5
dual-core, 1GHz
RAM 512MB(1GB Optional)
Storage 4GB ash built-in(8GB/16GB
optional)
microSD card slot (max. 32GB
supported)
Display 7.0” TFT LCD
800 x 480(1024 x 600 optional)
capacitive touchscreen
Networking Wi-Fi IEEE 802.11 b/g/n
Audio Output 3.5 mm headphone
PC Interface USB 2.0 Hi-speed
Additional Fea-
tures
Front/Back-facing camera
Built-in microphone
Mono speaker
Operating Sys-
tem
Android™ 4.0
Playback Time
(hours) *
Up to 17 hours music, 3 hours
video, 3 hours web browsing
* Music was tested with a 128 kbps MP3 le; video was tested with a
1920 x 1080 MPEG-4/AVC le; browsing was tested with the screen
brightness set to default. Actual playback results may vary.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
　 Reorient or relocate the receiving antenna.
　 Increase the separation between the equipment and receiver.
　 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
　 Consult the dealer or an experienced radio/TV technician for help.

Navigation menu
