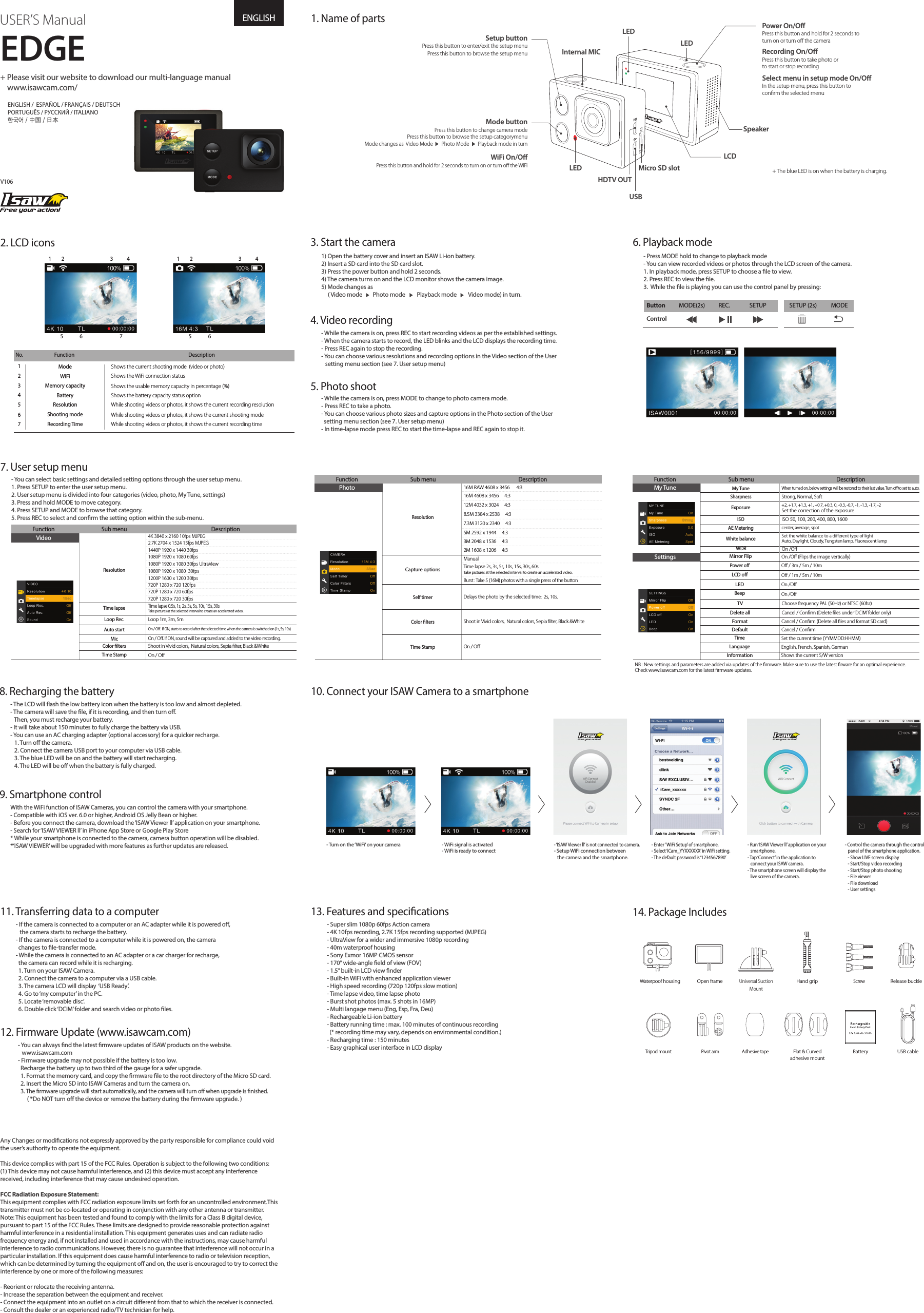

EDGE+ Please visit our website to download our multi-language manual www.isawcam.com/- The LCD will ash the low battery icon when the battery is too low and almost depleted.- The camera will save the le, if it is recording, and then turn o. Then, you must recharge your battery.- It will take about 150 minutes to fully charge the battery via USB.- You can use an AC charging adapter (optional accessory) for a quicker recharge. 1. Turn o the camera. 2. Connect the camera USB port to your computer via USB cable. 3. The blue LED will be on and the battery will start recharging. 4. The LED will be o when the battery is fully charged.- Turn on the ‘WiFi’ on your camera - WiFi signal is activated- WiFi is ready to connect- ‘ISAW Viewer ll’ is not connected to camera.- Setup WiFi connection between the camera and the smartphone.- Enter ‘ WiFi Setup’ of smartphone.- Select ‘iCam_YYXXXXXX’ in WiFi setting.- The default password is ‘1234567890’- Run ‘ISAW Viewer ll’ application on your smartphone.- Tap ‘Connect’ in the application to connect your ISAW camera.- The smartphone screen will display the live screen of the camera.- Control the camera through the control panel of the smartphone application. - Show LIVE screen display - Start/Stop video recording - Start/Stop photo shooting - File viewer - File download - User settingsWith the WiFi function of ISAW Cameras, you can control the camera with your smartphone.- Compatible with iOS ver. 6.0 or higher, Android OS Jelly Bean or higher.- Before you connect the camera, download the ‘ISAW Viewer ll’ application on your smartphone.- Search for ‘ISAW VIEWER ll’ in iPhone App Store or Google Play Store* While your smartphone is connected to the camera, camera button operation will be disabled.*‘ISAW VIEWER’ will be upgraded with more features as further updates are released.- Super slim 1080p 60fps Action camera- 4K 10fps recording, 2.7K 15fps recording supported (MJPEG)- UltraView for a wider and immersive 1080p recording- 40m waterproof housing- Sony Exmor 16MP CMOS sensor- 170° wide-angle eld of view (FOV)- 1.5” built-in LCD view nder - Built-in WiFi with enhanced application viewer- High speed recording (720p 120fps slow motion)- Time lapse video, time lapse photo- Burst shot photos (max. 5 shots in 16MP) - Multi langage menu (Eng, Esp, Fra, Deu)- Rechargeable Li-ion battery- Battery running time : max. 100 minutes of continuous recording (* recording time may vary, depends on environmental condition.)- Recharging time : 150 minutes- Easy graphical user interface in LCD display- If the camera is connected to a computer or an AC adapter while it is powered o, the camera starts to recharge the battery.- If the camera is connected to a computer while it is powered on, the camera changes to le-transfer mode.- While the camera is connected to an AC adapter or a car charger for recharge, the camera can record while it is recharging. 1. Turn on your ISAW Camera. 2. Connect the camera to a computer via a USB cable. 3. The camera LCD will display ‘USB Ready’. 4. Go to ‘my computer’ in the PC. 5. Locate ‘removable disc’. 6. Double click ‘DCIM’ folder and search video or photo les.- You can always nd the latest rmware updates of ISAW products on the website. www.isawcam.com- Firmware upgrade may not possible if the battery is too low. Recharge the battery up to two third of the gauge for a safer upgrade. 1. Format the memory card, and copy the rmware le to the root directory of the Micro SD card. 2. Insert the Micro SD into ISAW Cameras and turn the camera on. 3. The rmware upgrade will start automatically, and the camera will turn o when upgrade is nished. ( *Do NOT turn o the device or remove the battery during the rmware upgrade. )Power On/OLEDLEDLEDUSBHDTV OUTLCDSpeakerMicro SD slotInternal MICSetup buttonMode buttonRecording On/OWiFi On/OSelect menu in setup mode On/OPress this button and hold for 2 seconds to turn on or turn off the camera Press this button to enter/exit the setup menuPress this button to change camera modePress this button to browse the setup categorymenu Mode changes as Video Mode Photo Mode Playback mode in turnPress this button to take photo or to start or stop recordingPress this button to browse the setup menuPress this button and hold for 2 seconds to turn on or turn off the WiFiIn the setup menu, press this button to confirm the selected menu+ The blue LED is on when the battery is charging.1. Name of parts2. LCD icons8. Recharging the battery14. Package Includes10. Connect your ISAW Camera to a smartphone 9. Smartphone control13. Features and specications11. Transferring data to a computer12. Firmware Update (www.isawcam.com)Shows the current shooting mode (video or photo)Shows the WiFi connection statusShows the usable memory capacity in percentage (%)Shows the battery capacity status optionWhile shooting videos or photos, it shows the current recording resolutionWhile shooting videos or photos, it shows the current shooting modeWhile shooting videos or photos, it shows the current recording time11 15 6 7 5 62 23 34 42345 67 ModeWiFiMemory capacityBatteryResolutionShooting mode Recording TimeNo.DescriptionDescriptionDescription DescriptionFunctionFunctionFunction FunctionSub menuSub menu Sub menuResolutionMicColor ltersTime StampAuto startTime lapseLoop Rec.My TuneSharpnessExposureISOAE MeteringVideoPhoto My TuneSettings1080P 1920 x 1080 60fps1440P 1920 x 1440 30fps2.7K 2704 x 1524 15fps MJPEG1200P 1600 x 1200 30fps 4K 3840 x 2160 10fps MJPEG+2, +1.7, +1.3, +1, +0.7, +0.3, 0, -0.3, -0.7, -1, -1.3, -1.7, -2center, average, spotNB : New settings and parameters are added via updates of the firmware. Make sure to use the latest firware for an optimal experience. Check www.isawcam.com for the latest firmware updates.When turned on, below settings will be restored to their last value. Turn off to set to auto.Strong, Normal, Soft1080P 1920 x 1080 30fps UltraView720P 1280 x 720 60fps720P 1280 x 720 120fps1080P 1920 x 1080 30fps 720P 1280 x 720 30fpsResolutionWhite balanceColor ltersTime StampSelf timer16M 4608 x 3456 4:312M 4032 x 3024 4:37.3M 3120 x 2340 4:38.5M 3384 x 2538 4:35M 2592 x 1944 4:32M 1608 x 1206 4:33M 2048 x 1536 4:316M RAW 4608 x 3456 4:3Capture options Burst : Take 5 (16M) photos with a single press of the buttonManualTime lapse 2s, 3s, 5s, 10s, 15s, 30s, 60sShoot in Vivid colors, Natural colors, Sepia filter, Black &WhiteOn / OffDelays the photo by the selected time: 2s, 10s.Auto, Daylight, Cloudy, Tungsten lamp, Fluorescent lampLoop 1m, 3m, 5mTime lapse 0.5s, 1s, 2s, 3s, 5s, 10s, 15s, 30sTake pictures at the selected interval to create an accelerated video.Take pictures at the selected interval to create an accelerated video.On / Off. If ON, sound will be captured and added to the video recording.Set the correction of the exposureISO 50, 100, 200, 400, 800, 1600Set the white balance to a different type of lightShoot in Vivid colors, Natural colors, Sepia filter, Black &WhiteOn / OffOn / Off. If ON, starts to record after the selected time when the camera is switched on (1s, 5s, 10s)LanguageTimePower oBeepLEDLCD oInformationTVMirror FlipFormatDelete allDefaultEnglish, French, Spanish, GermanSet the current time (YYMMDD:HHMM)Off / 3m / 5m / 10mOn /OffOn /OffOff / 1m / 5m / 10mShows the current S/W versionChoose frequency PAL (50Hz) or NTSC (60hz)On /Off (Flips the image vertically)Cancel / Confirm (Delete all files and format SD card)Cancel / Confirm (Delete files under ‘DCIM’ folder only)Cancel / ConfirmOpen frameWaterpoof housing Hand gripUniversal Suction MountScrewRelease buckleBatteryFlat & Curved adhesive mountUSB cableAdhesive tapeTripod mount Pivot armUSER’S ManualENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCHPORTUGUêS / русский / ITALIANO한국어 / 中国 / 日本ENGLISH - You can select basic settings and detailed setting options through the user setup menu.1. Press SETUP to enter the user setup menu.2. User setup menu is divided into four categories (video, photo, My Tune, settings)3. Press and hold MODE to move category.4. Press SETUP and MODE to browse that category.5. Press REC to select and conrm the setting option within the sub-menu.7. User setup menu- While the camera is on, press REC to start recording videos as per the established settings.- When the camera starts to record, the LED blinks and the LCD displays the recording time.- Press REC again to stop the recording.- You can choose various resolutions and recording options in the Video section of the User setting menu section (see 7. User setup menu)- While the camera is on, press MODE to change to photo camera mode.- Press REC to take a photo.- You can choose various photo sizes and capture options in the Photo section of the User setting menu section (see 7. User setup menu)- In time-lapse mode press REC to start the time-lapse and REC again to stop it.3. Start the camera 6. Playback mode4. Video recording5. Photo shoot- Press MODE hold to change to playback mode - You can view recorded videos or photos through the LCD screen of the camera.1. In playback mode, press SETUP to choose a le to view.2. Press REC to view the le.3. While the le is playing you can use the control panel by pressing:ButtonControlMODE(2s) SETUP SETUP (2s) MODEREC.1) Open the battery cover and insert an ISAW Li-ion battery.2) Insert a SD card into the SD card slot.3) Press the power button and hold 2 seconds.4) The camera turns on and the LCD monitor shows the camera image.5) Mode changes as ( Video mode Photo mode Playback mode Video mode) in turn.On /OffWDRAny Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. V106
