ISC Technologies ISC-T8411E 100 to 225 watt, 150 to 174 MHz paging transmitter User Manual 609987
ISC Technologies Inc 100 to 225 watt, 150 to 174 MHz paging transmitter 609987
users manual
ISC-T8311 E
and
ISC-T8411 E Transmitters
USER MANUAL
PN 9110.01156 Rev.D
Specifications subject to change without notice
Copyright © 2005 ISC Technologies
All rights reserved. No part of this work may be reproduced or copied in any form or by
any means -- graphic, electronic, or mechanical, including photocopying, recording,
taping, or information-retrieval system -- without written permission of Glenayre.
Copyright © 2005 ISC Technologies
Rev D – Added label to 1.3 RF Hazards, Indicated 225 W rating w/o Isolator, Indicated complete range of nominal
28 VDC power supply.
Table of Contents
1 GENERAL
1.1 Manual Scope
1.2 Applicable Documents
1.3 Human Exposure to RF Energy
1.4 Product Warranty Information
1.5 Service Warranty Information
2 SPECIFICATIONS
3 DESCRIPTION
3.1 Conceptual Description
3.2 Physical Description
3.2.1 Mounting Provisions
3.2.1.1 PA and Exciter Assemblies
3.2.1.2 Power Supply
3.2.1.3 Video Display Terminal
3.3 Simplified Paging-Site Functional Description
3.3.1 Paging Site
3.3.2 Communications Equipment and Transmitter Controller
3.3.3 Paging Transmitter
3.3.3.1 DSP Exciter
3.3.3.2 Power Amplifier RF Compartment
3.3.3.3 Metering Board
3.3.3.4 Power Supply
3.3.3.4.1 Ac-Powered Sites
Table of Contents
4 INSTALLATION AND SETUP
4.1 Inspection
4.2 Installation
4.2.1 Tools and Equipment Required
4.2.2 Rack Positioning
4.2.3 Rack Grounding
4.2.4 Positioning within the Rack
4.2.5 Primary Power Requirements
4.2.5.1 Special Considerations
4.2.6 Equipment Cabling
4.2.6.1 Ac Connections
4.2.6.2 Dc Connections
4.2.6.3 Dc-Only Sites
4.2.7 Transmitter I/O Connections
4.2.8 Transmitter Controller Requirement for I20 Control
4.3 Setup
4.4 Ultimate Disposition
5 OPERATION
5.1 Controls and Indicators
5.2 Operation
5.2.1 Turn PA On and Off
5.2.2 Fan(s) Control
5.2.3 Key and Unkey PA
6 THEORY OF OPERATION
6.1 Transmitter Chassis Signal Flow
6.2 Transmitter Chassis Power Distribution
6.2.1 I/O Panel and Fuse Board

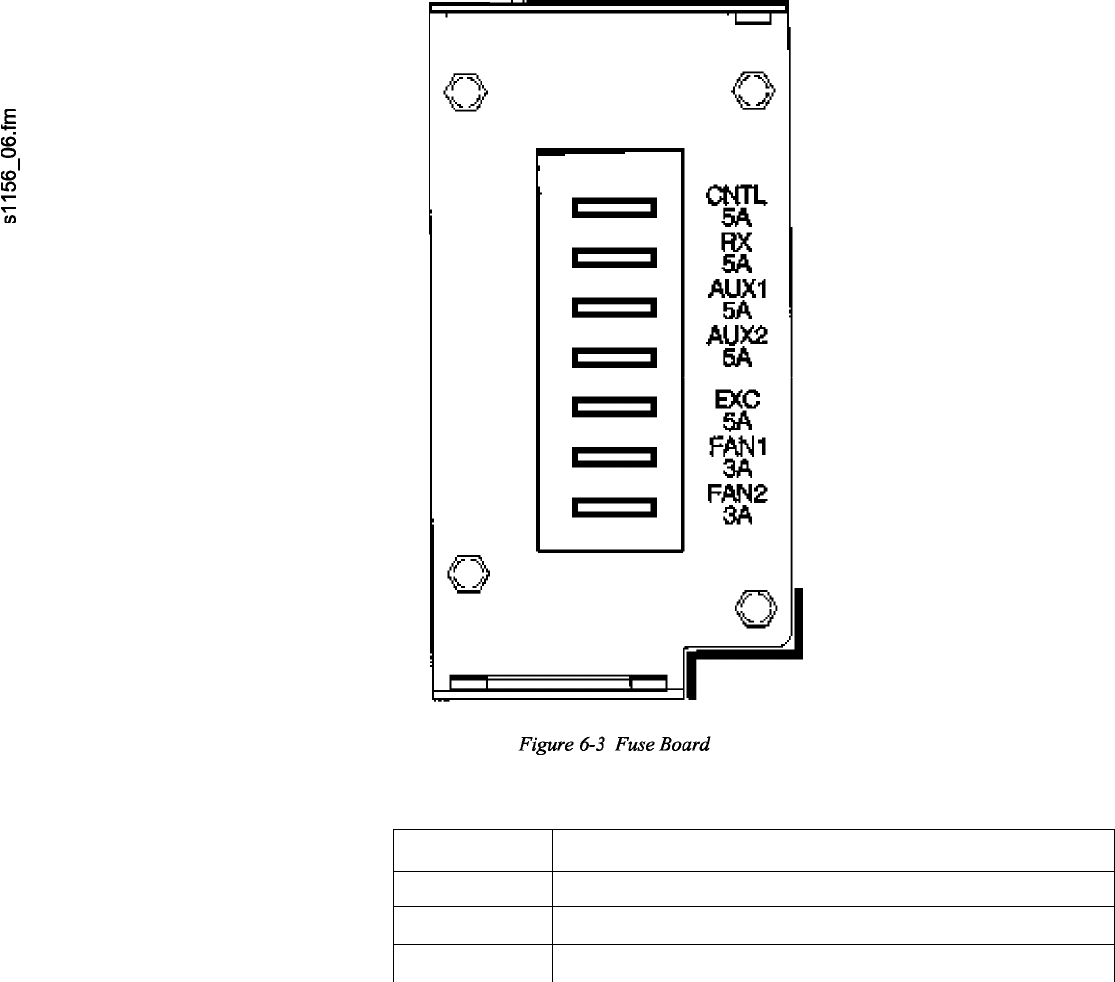

6.2.2 Fuse Board (Dc Distribution Board)
6.2.3 Metering Board
6.2.3.1 Dc-Power Distribution
6.2.3.2
Control
-
Signal Distribution
7 MAINTENANCE
7.1 General
7.2 PA-Current Check
7.3 Dc-Ripple Check
8 CHECKOUT
8.1 General
8.2 Checkout Procedures
8.2.1 Dc-Voltage Verification
8.2.2 VDT Power-up Verification
8.2.3 Cooling-Fans Check
9 REMOVAL AND REINSTALLATION
9.1 Entire Transmitter Chassis
9.2 PA RF Compartment
9.3 Exciter
9.4 Metering Board
List of Tables
Table 1-1 Applicable Documents
Table 2-1 Specifications
Table 4-1 Tools and Equipment
Table 4-2 Transmitter Chassis I/O Connectors
Table 4-3 Metering Board Jumper Table for Transmitter Setup
Table 5-1 Metering Board Fuses, Indicators, and Test Points
Table 5-2 Fuse Board Fuses
Table 6-1 Metering Board Connectors
Table 6-2 Exciter J6-to-Metering Board DB-15 J6 Pin Functions
Table 6-3 Input-Select Metering Lines from Exciter
bl
il f i (
)b
1 GENERAL
1.1 Manual Scope
This manual provides information for the following transmitters:
• 200 (225 w/o Isolator)-watt, 150-MHz transmitter, model ISC-T8411E
• 125-watt, 150-MHz transmitter, model ISC-T8311E.
1.2 Applicable Documents
This manual is incomplete without additional manuals. See Table 1-1, Applicable
Documents, for a listing and function of these manuals. Not all manuals listed are
appropriate for a particular site, as transmitter controllers and power supplies differ. Also,
new software revisions require new manuals which may not appear in the table.
Table 1-1 Applicable Documents
Document Part Number Note
ISC-T8xx1 transmitter system manual 9110.01156* this manual
assembled ISC-T8411E manual 9100.01025 complete set of manuals for a transmitter
assembled ISC-T8311E manual 9100.01026 complete set of manuals for a transmitter
configuration, GL-C20x0 to
ISC-T8x11E I20
9112.01042 describes equipment rackup and interconnections
DSP VDT manual 9110.00259* describes DSP exciter software installed in exciter
DSP exciter user manual 9110.01021 * describes DSP exciter hardware equipment in transmitter
GL-C2010 user manual 9110.00916 describes GL-C2010 controller hardware and software, v.3.0 UM
GL-C2000 user manual 9110.00949 describes GL-C2000 controller hardware and software, v. 3.0
ISC-T8411E/EC PA user manual 9110.00256* describes 200-watt, 150-MHz PA with internal iso/cir
ISC-T8311E/EC PA user manual 9110.01006* describes 125-watt, 150-MHz PA with internal iso/cir
power supply user manual 9130.00001 describes GL2835witching ac-to-dc power supply
dc-dc converter user manual 9110.00778 describes dc-dc converter
*part of assembled ISC-T8311E or ISC-T8411E transmitter manual
1.3 Human Exposure to Radio Frequency Energy
In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and
Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety
standard previously set by both U.S. and international standards bodies. The design of this product complies with
the FCC guidelines and these international standards.
This equipment is intended for use only in a permanent professionally installed licensed site. Licensing of that site
may require that an Environmental Assessment be performed based upon human access, antenna type, antenna
mounting height, ERP, operating frequency, duty factor, and any co-located transmitters that contribute to the overall
Radio Frequency energy exposure level.
Compliance is ultimately the responsibility of the site licensee and a determination of compliance can only be made
by evaluating the complex factors of the specific site.
Product Warranty Information
ISC Technologies warrants to the original purchaser that ISC Technologies products are free
from defects in material or workmanship for a period of twenty-four months from the
original invoice date, subject to the provisions herein. ISC Technologies will repair or
replace at its option, FOB our factory, free of charge within one year from the date of
shipment, any component, assembly or subassembly of our manufacture found to be
defective under conditions of normal use. The unit, if repaired, will be returned to its
original specifications. Failures caused by unauthorized modifications, force majeure,
lightning, physical, environmental, or electrical damage including use with incompatible
equipment are specifically excluded from this warranty. ISC Technologies disclaims any
and all liability for loss or other damage whether direct, consequential or of any nature
whatsoever, resulting from product failure.
This warranty is in lieu of all other warranties expressed or implied and covers only those
items manufactured by ISC Technologies. Equipment supplied by, but not manufactured
by ISC Technologies, is subject only to any warranty offered by the manufacturer of said
equipment.
Service Warranty Information
Return of a defective item must be authorized by ISC Technologies prior to shipment. A
Return Authorization number can be obtained from ISC Technologies Customer Service.
When requesting a Return Authorization number, give the serial number of the unit. A
description of the fault should accompany the unit on its return and the RA number must be
shown on labels attached to the item(s). The cost of shipping to ISC Technologies is to be
paid by the customer. Shipping from ISC Technologies will be prepaid by the customer,
and shipped via surface mail. If express shipping is required, the unit will be shipped
collect.
Any repair service performed by ISC Technologies under this limited warranty is
warranted
to be free from defects in material or workmanship for ninety days from the date
1.4
1.5
Transmitter specifications are subject to change without notice. See Table 2-1, Specifica-
tions, for various transmitter specifications. Listed specifications are applicable as of the
manual printing date.
Also refer to the exciter, power supply, power amplifier, and other related manuals for more
specifications. Test and measurement equipment is, where possible, calibrated in accor-
dance with standards established by the National Institute of Standards and Technology
(NIST).
Table 2-1 Specifications
condition specification
RF Characteristics
RF output power at RF OUT connector (W)
ISC-T8411E
ISC-T8311E
100 to 200(225w w/o Isolator)
20 to 125
frequency range In bands. (MHz)
A major frequency change re-
quires changing assemblies.
138-174
Physical Characteristics
chassis dimensions overall standard EIA cabinet H x W x D inches:
5.25 x 19 x 16.5: (13.3 x 48.3 x 16.5 cm)
weight by transmitter model PA chassis with exciter
ISC-T8411 E
ISC-T8311E
40 lb (18.3 kg)
40 lb (18.3 kg)
Service Conditions
elevation continuous operation at rated
power
to 10,000 ft (3050 m) (see temperature derating factor)
temperature operating -30 to +60 degrees C
storage -40 to +70 degrees C
temperature derating factor above 5000 ft (1525 m) 2 degrees C per 1000 ft (305 m)
humidity operating, noncondensing 0 to 95 percent
Voltage Requirements and Power Consumption
dc input voltage all models 28 Vdc Nominal (24-30VDC Operating range)
ripple on dc input up to 120 Hz
over 120 Hz
1.5Vp-p max
50 mVp-p max
tx power consumption at 28
Vdc
ISC-T8411E
ISC-T8311E
600 W
450 W
Table 2-1 Specifications (continued)
condition specification
Performance Specifications
spurious output by model ISC-T8311E
ISC-T8411E
-90 dBc
-90 dBc
harmonic output by model ISC-T8311E
ISC-T8411E
-90 dBc
-90 dBc
RF output stability all models 0.5 dB over temperature range
Intermodulation of PA w/
circ.
all models -40 dB
adjacent ch noise, 4-level
FSK
all models (25-kHz spacing) -70 dB
Alternate ch noise, 4-level
FSK
25 kHz spacing
ISC-T8311E
ISC-T8411E
-90 dBc
-100 dBc
frequency stability all models 0.005 parts per million
cabinet radiation all models 0.25 uW (maximum)
FM hum and noise all models -40 dB in 15-kHz bandwidth
keyup / keydown time all models 10 ms to +1.5 / -1.0 dB of rated power
3.1 Conceptual Description

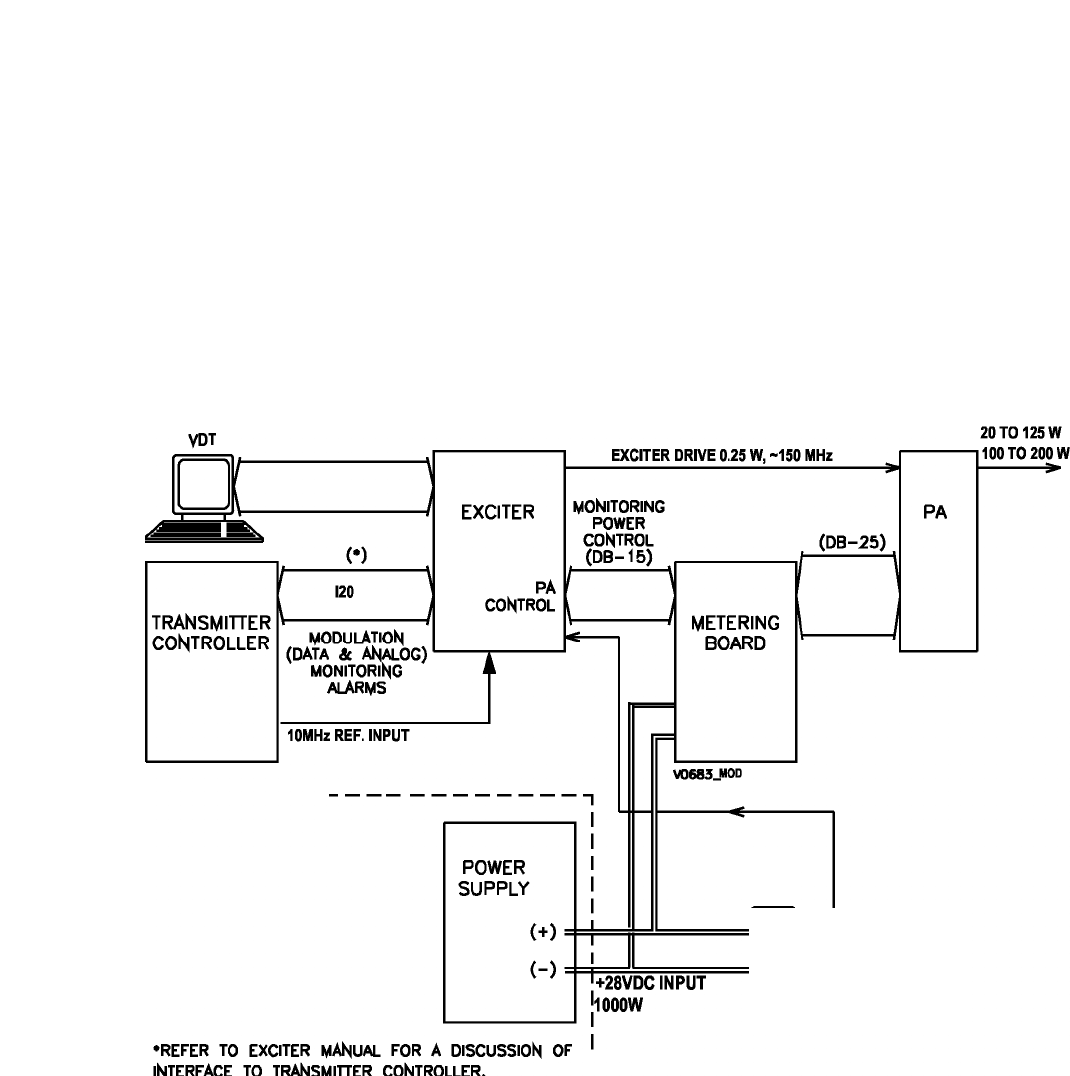

The paging transmitter provides a modulated, high-level RF signal, which activates pagers
within the coverage area of its associated antenna. The paging transmitter receives modu-
lation and control information from the transmitter controller, which receives information
from a control site. In a simulcasting environment, the control site may feed several paging
sites at once. This transmitter is a computer-controlled device. All user-initiated setup an
d
maintenance operations are accomplished using the video display terminal connected
through the exciter.
3.2 Physical Description

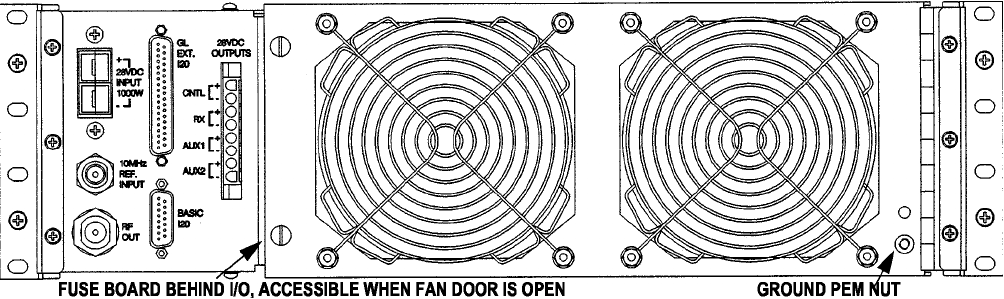

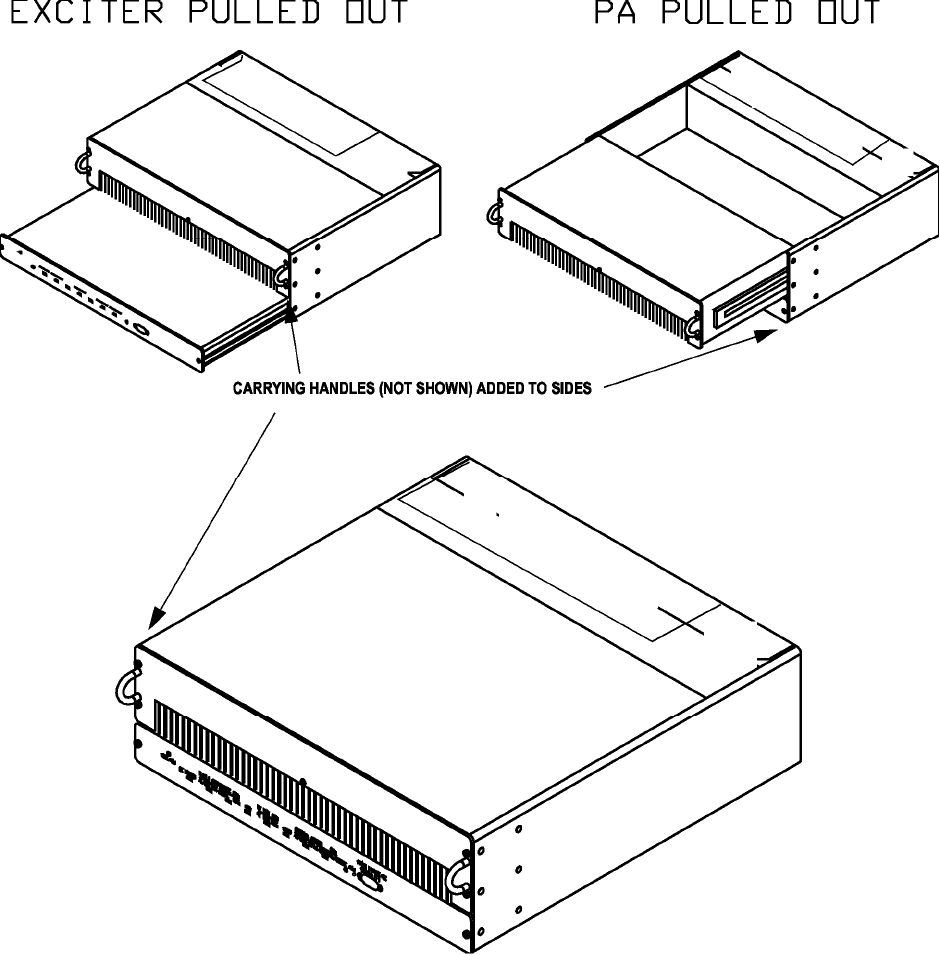

Refer to Figure 3-1, Transmitter Chassis Isometric Front View, which shows a front view o
f
the transmitter chassis which is used in all models in this transmitter series, and to, which
shows a rear view of the transmitter. It is virtually impossible to identify the transmitte
r
from the front view or rear view.

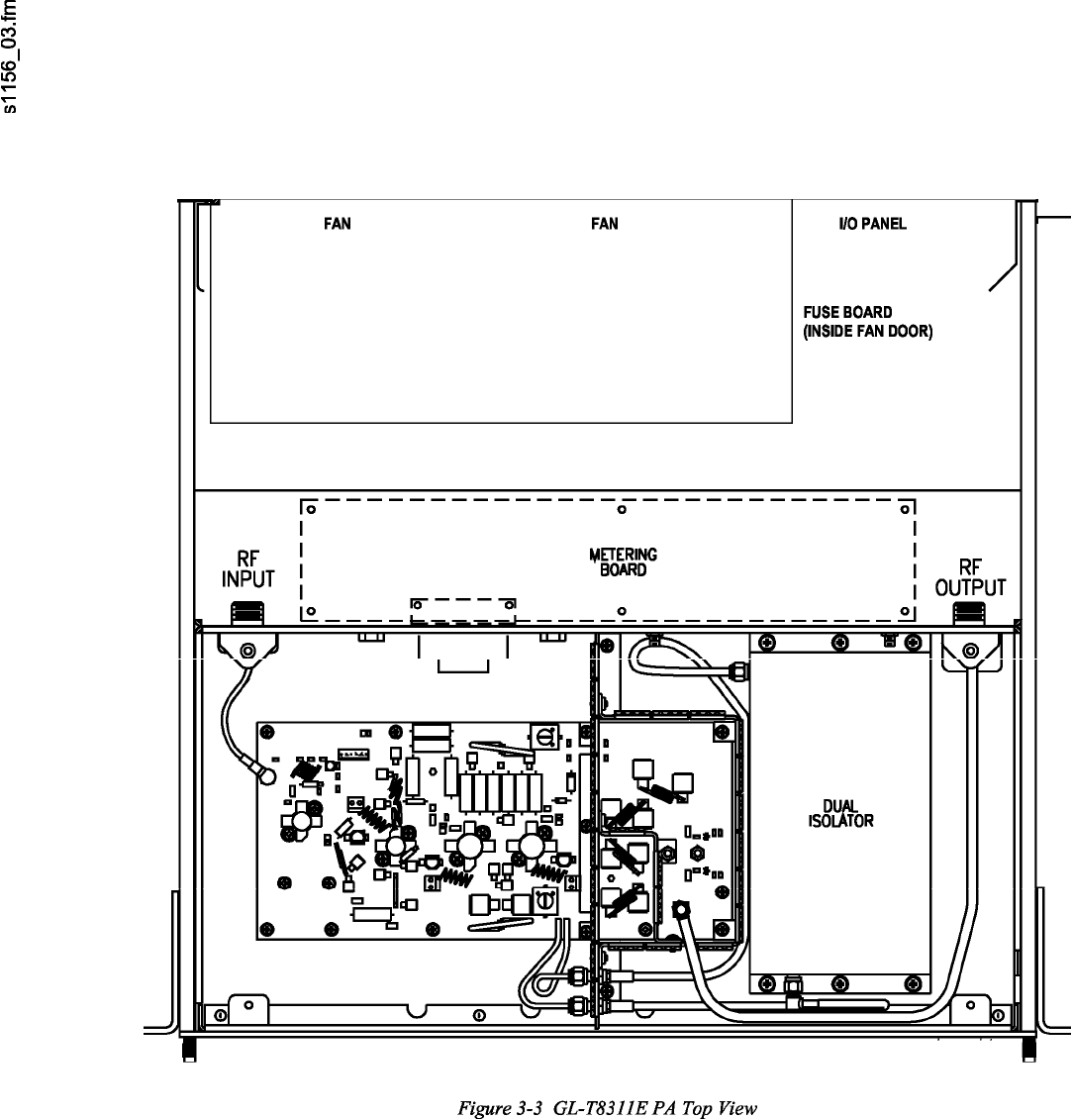

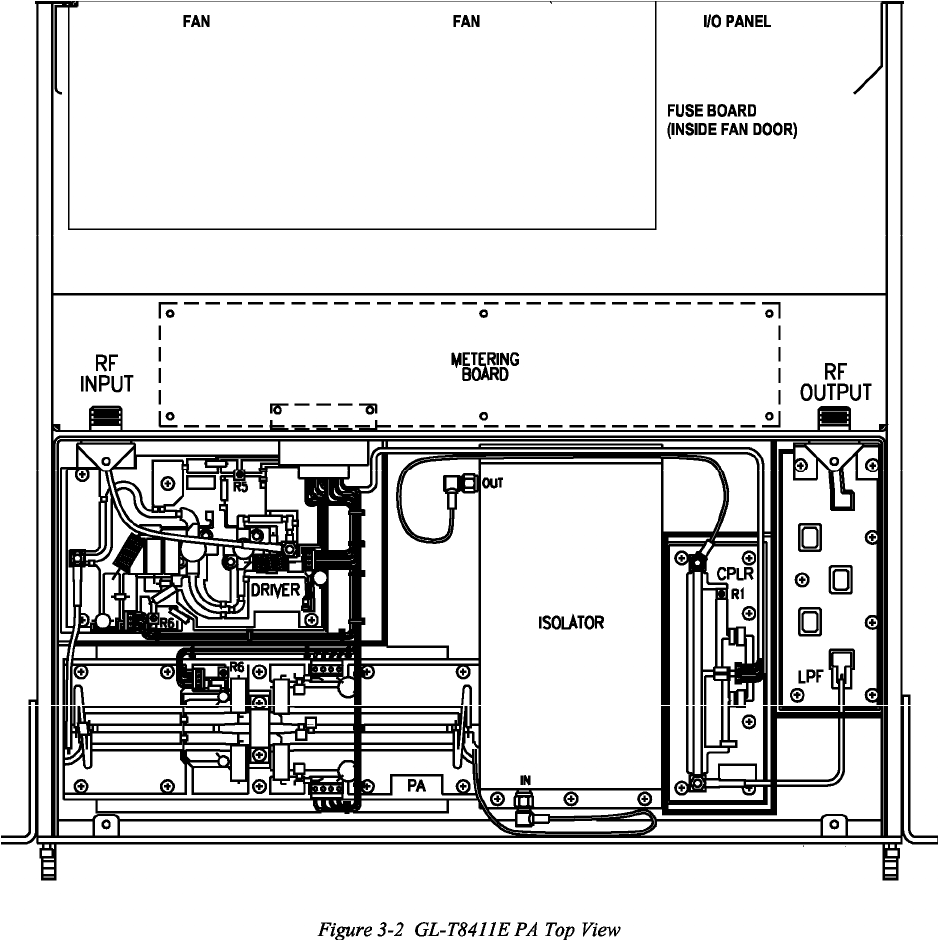

• Refer to Figure 3-2, ISC-T8411 E PA Top View, or Figure 3-3, ISC-T8411 E PA Top
View. Positive identification can be done by removing the PA top cover since eac
h
transmitter has a unique PA compartment.
• A transmitter identification label is affixed to the bottom panel, behind the exciter.
3.2.1 Mounting Provisions
The transmitter chassis is mounted in the rack by screws which are inserted into the angle
brackets on either side of the chassis. Access to the exciter and PA compartment is gained
from the front; access to the metering board, fans, and I/O connections is gained from the
rear.
3.2.1.1 PA and Exciter Assemblies
The transmitter chassis contains slide-out locations for the following:
• PA RF compartment (2 RU)
• exciter (1 RU)
Rear-mounted fans blow air across the PA heat sink and out the back. Fan speed is
regulated by external temperature sensors located by the heat sink.
The PA RF compartment and exciter are mounted on slides which allow them to be
accessed or removed by loosening the screws on either side of the assembly. Most excite
r
maintenance operations can be performed with the exciter mounted in the rack. Most PA
maintenance can be performed with the PA RF compartment mounted in the rack.
3.2.1.2 Power Supply
The power supply is contained in a separate chassis which is mounted separately from the transmitter chassis.
The power supply may be an ac power supply, which converts 50/60-Hz mains power to dc voltage for the
transmitter, or it may be a dc-to-dc converter. Some sites provide 28 Vdc directly to the transmitter. Refer to the
power supply manual for details.
Figure 3-1 Transmitter Chassis Isometric Front View
3.2.1.3 Video Display Terminal
A video display terminal (VDT) is not part of the racked-up equipment; instead, it is a
piece of test equipment which the user brings to the site when setup, maintenance, or trou-
bleshooting is necessary; or it is used as a monitoring device. Refer to the VDT manual for
details, including cable requirements.
3.3 Simplified Paging-Site Functional Description
3.3.1 Paging Site
The following paragraphs provide a block diagram-level functional description of a typical
paging site.
Refer to Figure 3-5, Transmitter Functional Diagram. This figure shows basic signal flows
between the various paging site equipment pieces. The communications device which the
transmitter uses in order to communicate with the control site is not shown and may vary
from application to application.
3.3.2 Communications Equipment and Transmitter Controller
A link receiver, satellite receiver, microwave drop, telephone link, or other similar device is
used for communication between the transmitter controller and the control site. The
particular device depends on the application.
The transmitter controller is typically a model GL-C2010 or GL-C2000. There are various
ways of interfacing the transmitter controller to the I/O portions of the exciter. Refer to the
transmitter controller manual and the exciter manual for details.
3.3.3 Paging Transmitter
The paging transmitter converts the signal from the transmitter controller into modulated
and amplified RF. Depending on the type of transmitter controller-to-exciter interface
which is used, the modulation information from the transmitter may be audio, modem
signals (analog or digital), or a digitized representation of the original signal. In any case, all
analog signals are ultimately converted to digital form at some point between the paging
terminal and the DSP modulator in the exciter.
Operation is in response to commands from the transmitter controller via the DSP exciter.
The transmitter monitors its functions and reports its status to the VDT via the exciter. The
transmitter controller permits the transmitter to be controlled and monitored from a remote
location. Local control and monitoring is performed through a VT-100 video display
terminal (VDT).
3.3.3.1 DSP Exciter
The DSP exciter combines functions of an RF exciter and a PA controller. The exciter
generates modulation using digital signal processing (DSP) to achieve accurate, stable
modulation that does not vary with time or temperature. The PA-control section monitors
transmitter status signals in the form of fault logic and voltage samples. The microprocessor
in the exciter reports PA status to the transmitter controller, VDT, and the exciter front
panel. If a malfunction occurs, the transmitter enters a reduced operating condition,
depending on the seriousness of the fault. PA control and status monitoring are performed by
the microprocessor, which consolidates control logic from the transmitter controller or the
locally operated VDT. Both the exciter and transmitter controller receive continuous status
reports from the microprocessor. The exciter is the control and status-monitoring interface
between the transmitter and the user.
Figure 3-4 ISC-T8311E/T8411E Transmitter Rear View
The exciter provides up to 0.25 watt of RF drive to the PA. A power-reference signal from
the PA is fed back to the exciter, via the metering board, to allow control and monitoring of
output power.
3.3.3.2 Power Amplifier RF Compartment
The PA performs amplification of the RF signal generated by the exciter. The PA
amplifies a nominal 0.25-watt signal to rated power for application to the antenna system.
Monitoring circuitry is on the metering board in the rear compartment of the PA chassis.

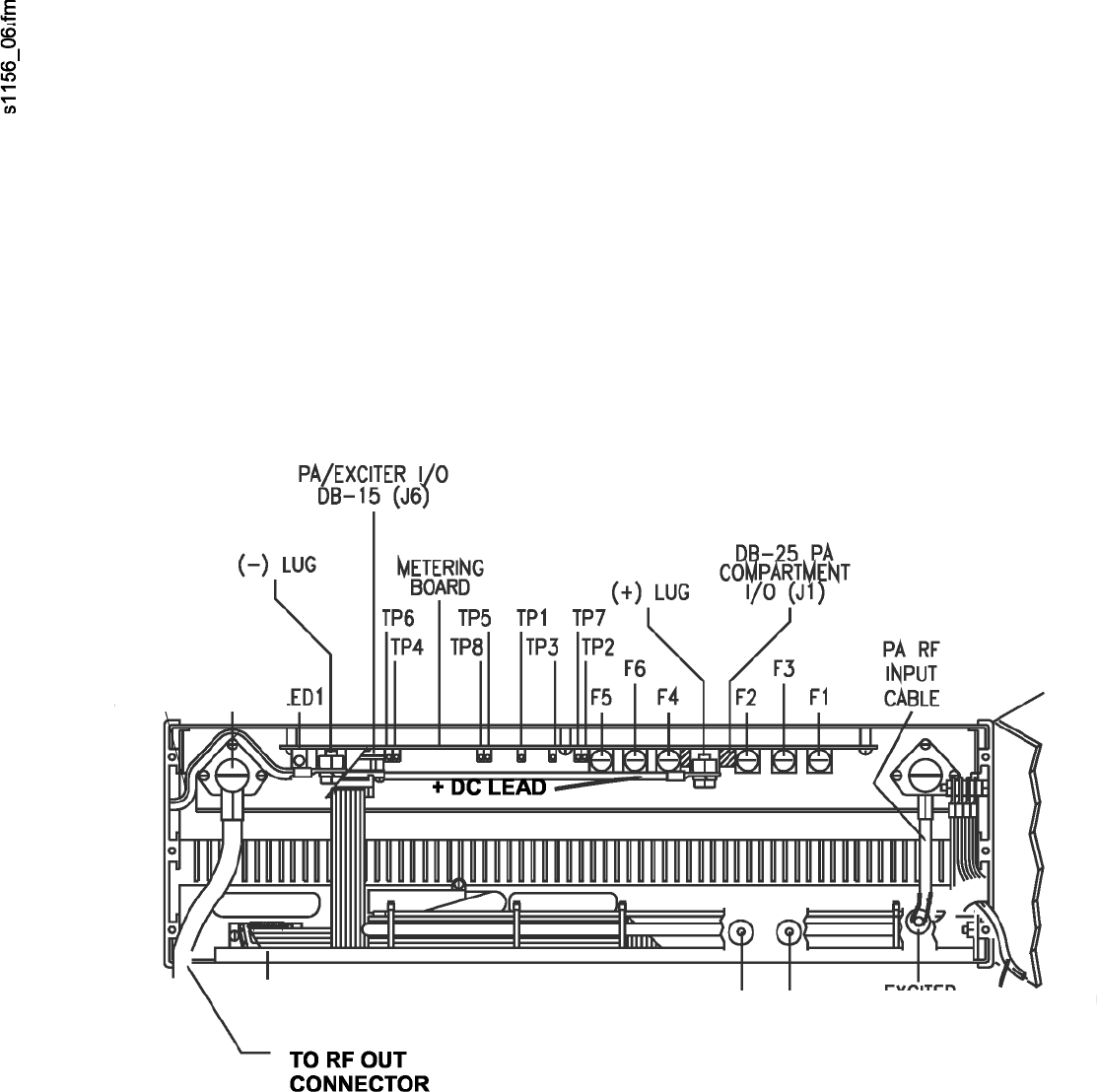

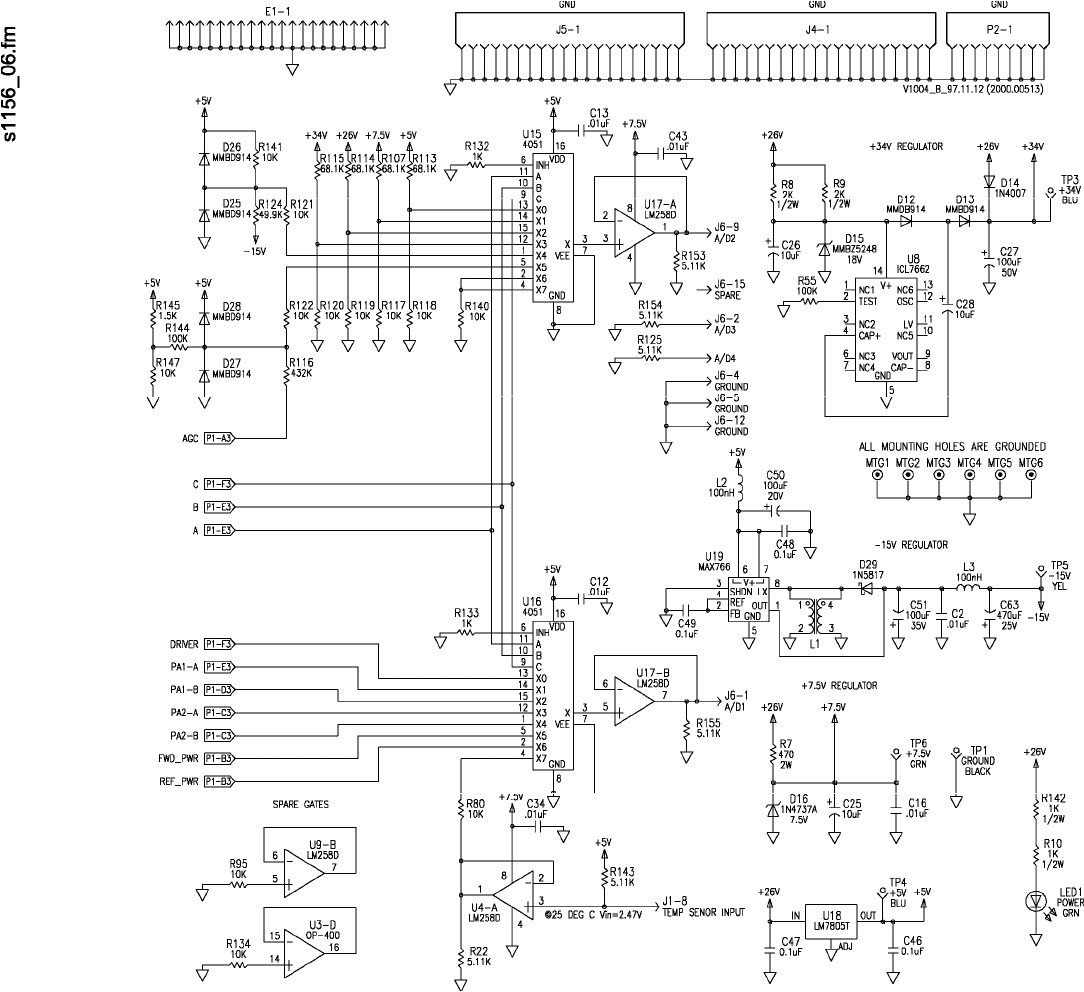

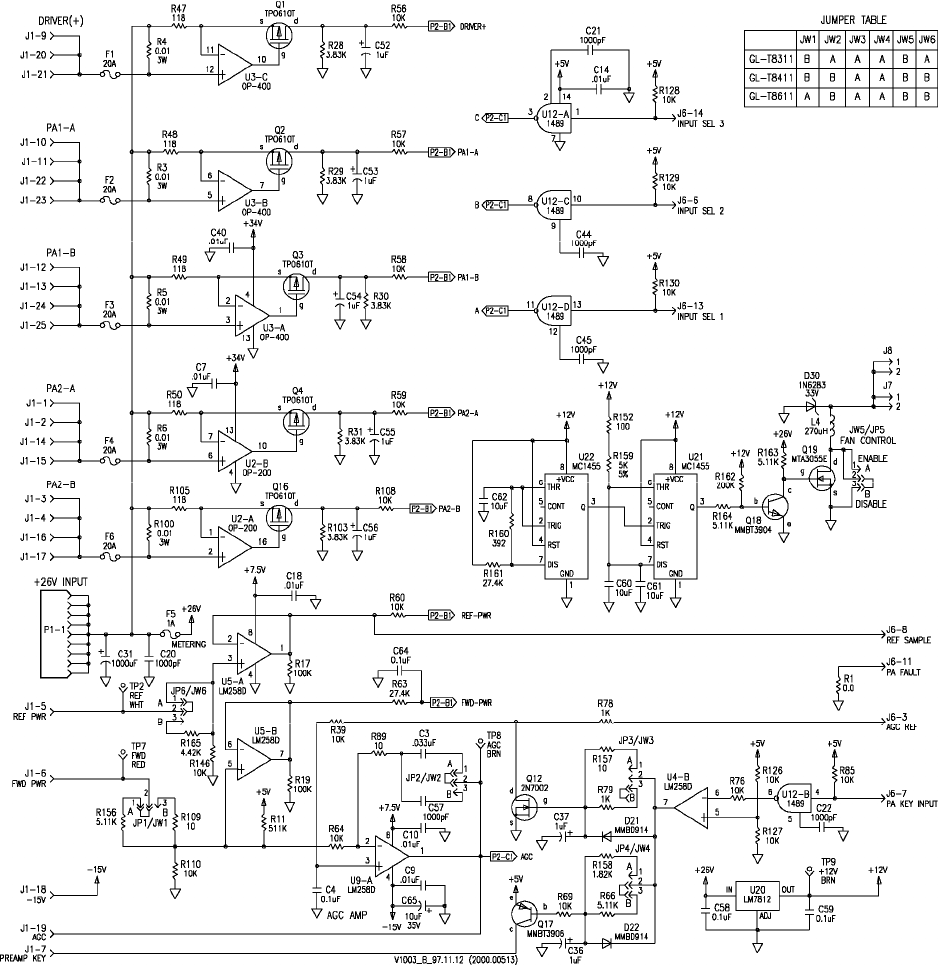

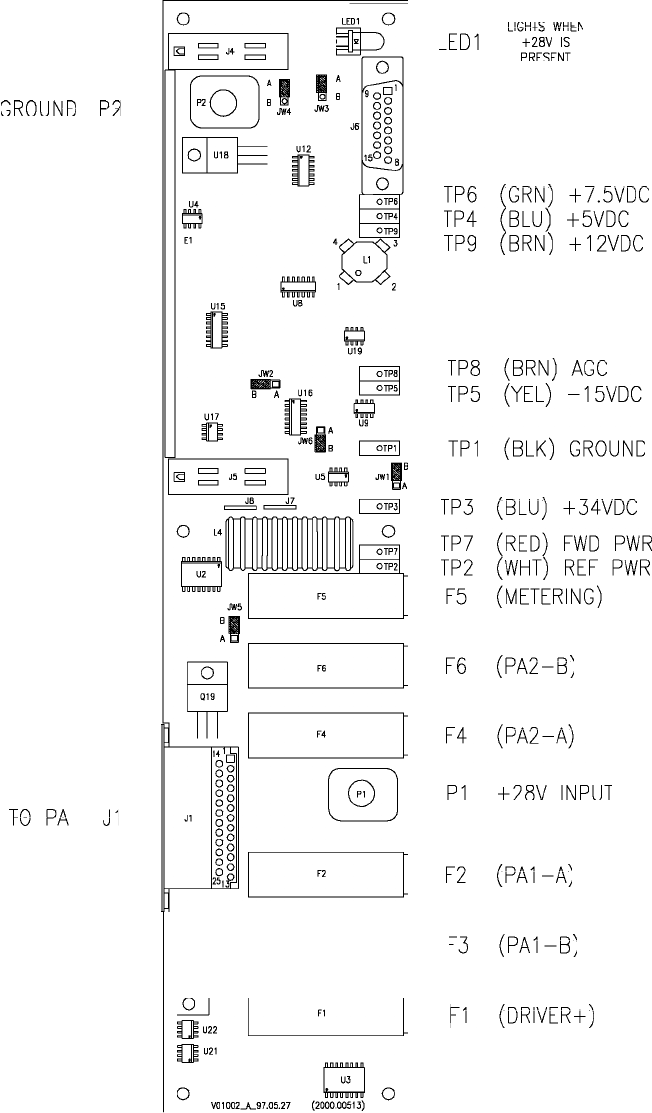

3.3.3.3 Metering Board
The metering board provides a rectified dc sample of the PA output to the exciter; the
exciter, in turn, generates a power-control voltage which maintains PA power at the desired
level.
The metering board also returns operational parameters of the PA, which information can
be read by the transmitter controller and the VDT.
The metering board also serves as a distribution point for dc power for other assemblies
within the transmitter chassis. Refer to Table 6-2, Exciter J6-to-Metering Board DB-1 5 J6
Pin Functions, for a list of functional connections between the metering board and the PA
RF compartment.
3.3.3.4 Power Supply
Because different power supplies can be used, refer to the appropriate power supply manual
for details.
3.3.3.4.1 Ac-Powered Sites
The standard ac power supply takes ac input, converts it, rectifies and filters it, and
supplies dc output to all racked equipment. Each dc circuit is individually fused on the front
of the supply. (The standard transmitter rackup, however, does not use the power supply’s
indi-
vidual fuses. Instead, auxiliary equipment is powered and fused from the I/O board of the
transmitter.) A circuit breaker on the front of the supply doubles as a transmitter power on
/
off switch.
3.3.3.4.2 Dc-Powered Sites
An external dc source should meet all pertinent specifications. A direct 28-volt feed should
be fused at the current source. A racked dc-to-dc converter needs to have adequate cooling
provisions so as not to overheat other racked equipment.
3.3.4 Video Display Terminal
The VDT, though not part of the transmitter, is required for setup, local control, and local
monitoring of the transmitter. The VDT can be any laptop or desktop terminal with a VT-
100 type program. The VDT interfaces the transmitter through the connector on the fron
t
of the exciter. The VDT software is menu-driven.
3.4 Site Signal Flows

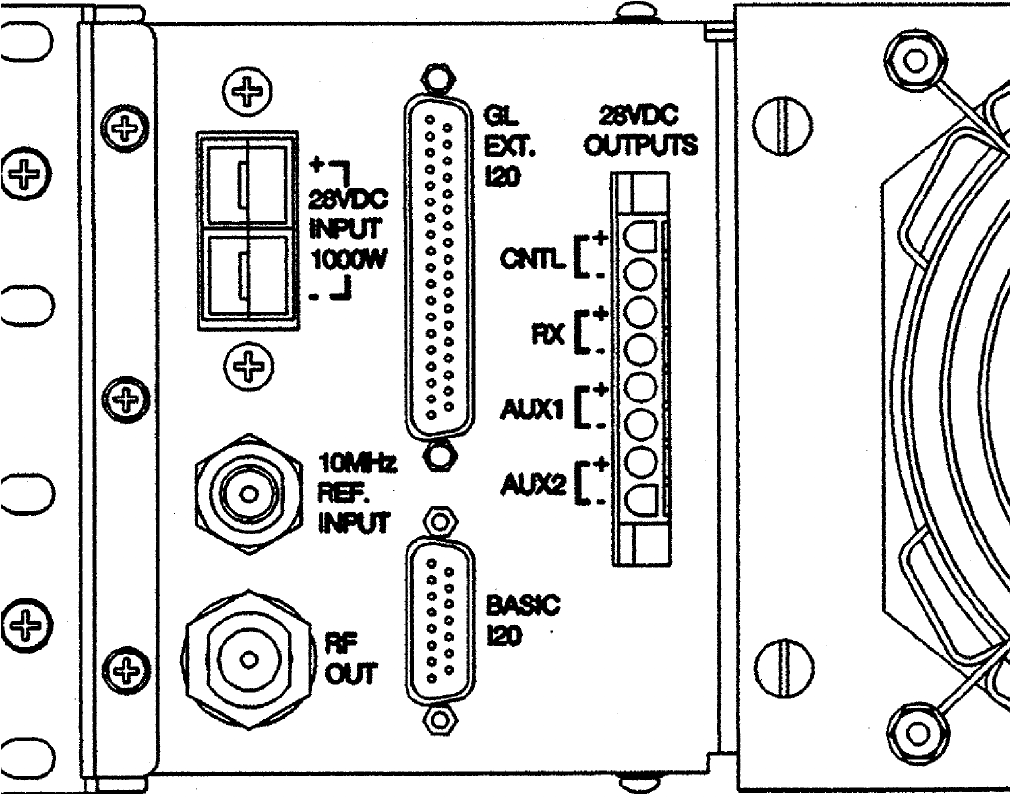

All operational signal I/O connections are made at the rear of the transmitter chassis. VDT
connection for setup, checkout, and maintenance is via a front-
p
anel connector on the
exciter.
3.4.1 Site RF-Signal Flow
Exciter RF signal
The on-frequency carrier is created by the VCO circuitry in the DSP exciter. It is then
modulated with paging information, amplified, and sent to the PA via connector J3 on the
back of the DSP exciter. Through coaxial cable, the carrier goes to the back of the PA RF
compartment, where it is further amplified to a preset level under control of a micropro-
cessor within the exciter. The amplified signal is cabled from the PA output to the RF OUT
connector.
10-MHz reference
Most installations have a ten-MHz reference signal cabled from the transmitter controller
to the 10MHZ REF. INPUT connector on the I/O panel, then to connector J8 on the bac
k
of the DSP exciter.
3.4.2 Site Modulating-Signal Flow
Modulation information arrives at the site either through a satellite receiver, a link receiver,
or by wireline. The signal can be either analog or digital and is first routed through the
transmitter controller, which checks for and responds to appropriate embedded commands.
Paging information is normally supplied to the exciter via the GL EXT. I20 or BASIC I20
connector. The exciter modulates this signal using digital signal processing, then up-
converts this modulated signal to final output frequency. This modulated RF from the
exciter is supplied to the PA, which amplifies the signal to the RF output level. This modu-
lated, amplified RF from the PA is supplied to the RF OUT connector for transmission.
3.4.3 Site Control-Signal Flow
Transmitter paging-site control is done two ways: remotely (normal operation), and
locally. In either case, the paging transmitter is keyed when the transmitter controller
commands it, via the I20 connector and DSP exciter, to key.
Control functions are shared by the transmitter controller and the DSP exciter. The DSP
exciter also controls the power amplifier locally by responding to commands from the
VDT.
Control signals enter and exit the paging site via the transmitter controller, which has
overall control of the paging site. The transmitter controller is part of the larger paging
control system even though it is racked with paging-site equipment. The transmitter
controller has control functions which include these:
• transmitter-alarm gathering
• transmitter-alarm dispatching
• simulcast-parameter implementation
• remote-transmitter operation interface.
Remote control of the paging site is done through commands sent to the transmitter
controller from the external paging control system. For a more extensive discussion of site
control, refer to the configuration information. See Table 1-1, Applicable Documents, for
the part number of the document.
Control commands originating from a remote site are supplied to the exciter through the
controlling device. Control and setup commands may be applied to the exciter locally
through the VDT. A microprocessor within the exciter interprets each command and
responds by performing the appropriate function.
3.4.4 Status-Signal Flow
The exciter monitors transmitter status signal in the form of fault logic and voltage samples.
The microprocessor within the exciter reports transmitter status to the controlling device,
VDT, and the exciter front panel. If a transmitter malfunction occurs, a reduced operating
condition is entered, depending on the seriousness of the fault.
TO RF OUT
FUSE
PANEL
TO FANS
TO RECEIVER
TO TX CONTROLLER
TO AUX 1
28VDC TO AUX 2
OUTPUTS
Figure 3-5 Transmitter Functional Diagram
4 INSTALLATION AND SETUP
4.1 Inspection
Inspect the equipment to be certain that the equipment rack is complete. Compare items
received to the packing list. Report shipping loss or damage to carrier within 15 days of
receipt. Remove any packing material from the rack and check each assembly.Check
assemblies closely and remove any foreign material in the chassis.
4.2 Installation
4.2.1 Tools and Equipment Required
Refer to Table 4-1, Tools and Equipment. Equipment listed by brand name may be substi-
tuted with equivalent. For installation, only common hand tools are necessary if at all, since
installation is usually completed at the factory.
Table 4-1 Tools and Equipment
Device Description Device Description
nut driver 5/16 in (7.9 mm) dummy load Bird model 8327 or equivalent
screwdriver # 2 flat blade barrel connector type-N
screwdriver # 2 Phillips RF cable type-N ends, 1m long max
RF power meter Bird model 4421 or equivalent voltmeter Fluke 77 DVM or equivalent
4.2.2 Rack Positioning
ventilation Cooling and cabling restraints require that equipment pieces be racked so that there is
adequate ventilation for exhaust air. The top and front of the rack should have at least ten
inches (25 cm) of free space. The cabinet should be placed as close as possible to the trans-
mitting antenna, and to the primary power source as a secondary consideration. To gain
reasonable access to the back, 30 inches (76 cm) of free space should be allowed.
Caution
Never place rack where moisture, steam, conden-
sation, or standing water can come in contact with
it. The host room may need to be air conditioned or
additionally ventilated to remove excess heat
generated by this equipment.
4.2.3 Rack Grounding
The rack cabinet must be connected to a reliable earth ground. Connect the earth ground
point to the ground stud provided on the right-rear corner of the transmitter chassis; use
four-gauge (20 mm2) or larger copper conductor.
4.2.4 Positioning within the Rack
When it is used in a normal, one-transmitter-per-cabinet rackup, the transmitter chassis
should be placed directly above the power supply. The transmitter controller is directly
above the transmitter.
The transmitter is often shipped already installed in a cabinet. To remove or reinstall the
transmitter chassis, refer to Section 9.
4.2.5 Primary Power Requirements
The primary power source must be capable of delivering adequate power to the equipment.
Racked power supplies operate with 50/60-Hz ac unless the power supply dc-only. Refer
to Section 2 and to the power supply manual for current and voltage specifications. Elec-
trical connections made to this equipment must be made in accordance with local electrical
codes.
DANGER
Rotating fan blades are a hazard to maintenance
personnel who access equipment from the rear.
Caution
The rear door must be closed and the fans must be
operating before the PA is keyed to ensure that the
PA receives adequate ventilation.
4.2.5.1 Special Considerations
The power supply causes a large inrush of current when first turned on. The ac mains
breaker must be able to handle this brief surge.
4.2.6 Equipment Cabling
Refer to Figure 6-4, Transmitter Rear View with Door Open and I/O Panel Removed, and

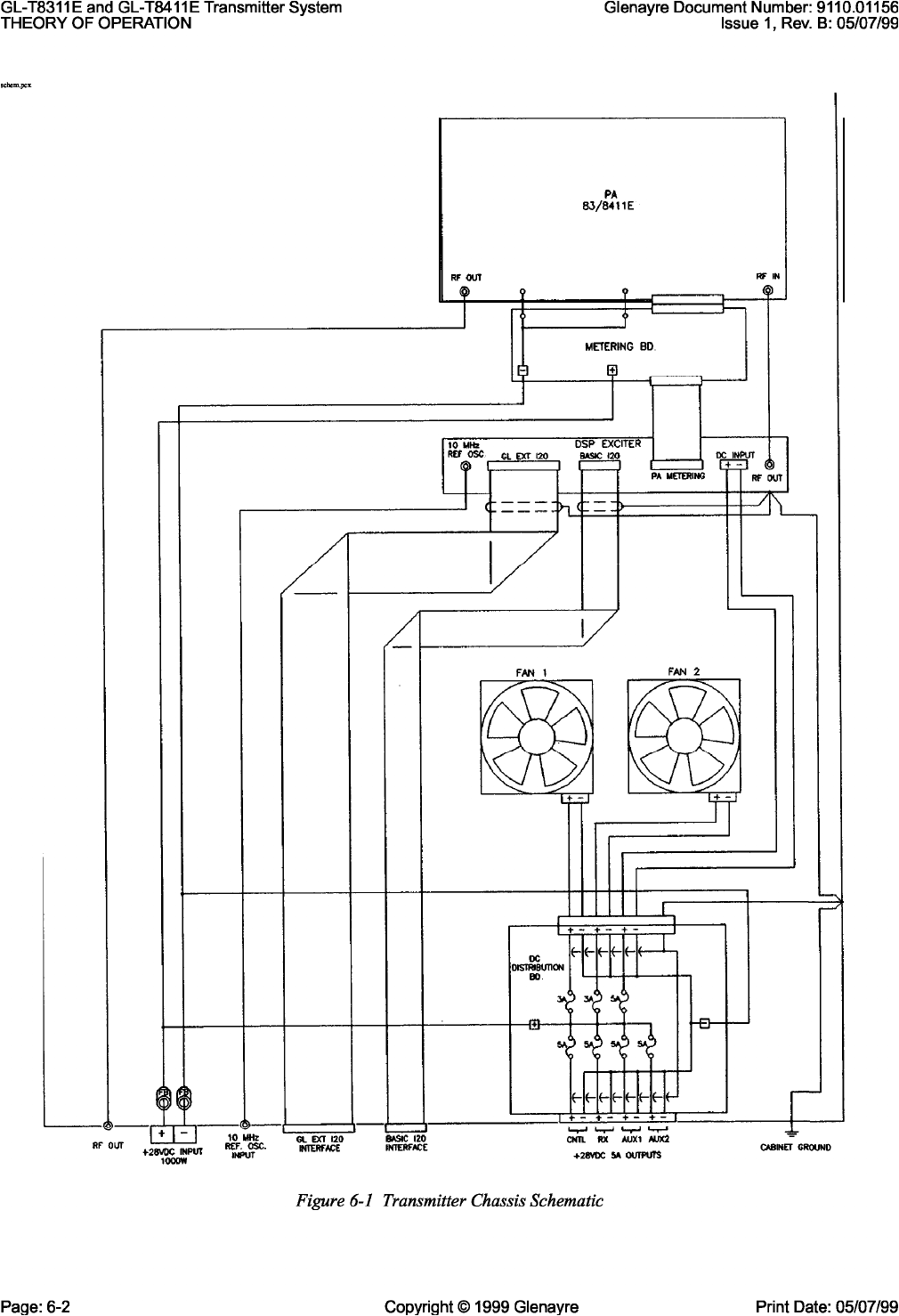

Figure 6-1, Transmitter Chassis Schematic, for details.
4.2.6.1 Ac Connections
Generally, all ac connections internal to the rack are made at the factory and should not need
to be modified. Refer to the power supply manual for additional details.
4.2.6.2 Dc Connections
If cable is being originally installed or replaced, be sure connections are sufficiently tight.
Refer to the power supply and related manuals for details.
4.2.6.3 Dc-Only Sites
Some installation do not use ac input power. If the transmitter is not racked and wired at the
factory, be sure to connect as shown in the documentation supplied with the retrofit option.
Note
For locations operating from a direct 28-Vdc source or from an external
power supply, the dc supply cable must not exceed three meters (3 m) in
length. This restriction is critical to comply with the emission and
immunity requirements
4.2.7 Transmitter I/O Connections
Refer to Table 4-2, Transmitter Chassis I/O Connectors. As viewed from the back, signal
and power connections are on the left; the ground connection is on the right.
Table 4-2 Transmitter Chassis I/O Connectors
Description /Function
10MHz REF.
INPUT
female BNC, expects reference signal from transmitter controller
RF OUT female type-N, connected to antenna network
+28VDC INPUT
1000W
power pole connections, + and ground return
28VDC
OUTPUTS
mates with power distribution cable for external equipment
GL EXT. I20* DB-37 for signals. Refer to exciter manual for pinout.
BASIC I20* DB-15 for signals. Refer to exciter manual for pinout.
ground pemnut stud on right side of transmitter (as viewed from rear), earth ground
*only one I20 connection per transmitter
4.2.8 Transmitter Controller Requirement for I20 Control
GL-C2000 controllers (265-0090-002) manufactured prior to October, 1994, must have
the universal exciter ASM board (265-0090-008) and v2.3 or later software installed.
Units built after the October 1994 date support the I20 interface and have an assembly rev of
A2 or greater (i.e. A2, B1, C1, etc.)
4.3 Setup
Refer to Table 4-3 for jumper setups for various transmitters.
Table 4-3 Metering Board Jumper Table for Transmitter Setup
metering bd P/N JW1 JW2 JW3 JW4 JW5 JW6
ISC-T8311E 2000.00116 B A A A B A
ISC-T8411E 2000.00513 B B A A B B
4.4 Ultimate Disposition
Caution
This equipment may contain hazardous materials.
Check with the local environmental authority before
disposing of this equipment.
5 OPERATION
5.1 Controls and Indicators
These assemblies within the transmitter chassis have controls and indicators:
• PA compartment - see PA manual
• exciter - see exciter manual
• metering boards - (Figure 5-1 and Figure 6-5). See Table 4-3, Metering Board Jumper
Table for Transmitter Setup, to determine the correct part number for the model.
See Table 5-1, Metering Board Fuses, Indicators, and Test Points, and Figure 6-5,
Metering Board 2000. 00513/2000.00116 Functional Diagram, for information about fuses
and test points on the metering board. See Table 5-2, Fuse Board Fuses, for information
about fuses on the I/O panel.
5.2 Operation
The transmitter normally operates within the paging system in an unattended manner. Local
control is not intended for operation, but for setup, checkout, or maintenance. On the
metering board, LED1 lights when 28 Vdc is applied to it. No operating controls are
available.
5.2.1 Turn PA On and Off
The PA does not contain an on/off switch, but turns on and off whenever the primary powe
r
equipment is turned on and off. When the PA is on, it remains in a standby condition until
keyed. Turning off primary power (ac or dc) always turns off the transmitter (PA an
d
exciter).
5.2.2 Fan(s) Control
The fans do not contain an on/off switch, but turn on and off whenever the primary power
equipment is turned on and off. The fan(s) run continuously whenever primary power is on.
DANGER
Rotating fan blades are a hazard to maintenance
personnel who access equipment from the rear.
Caution
The rear door must be closed and the fans must be
operating before the PA is keyed in order to ensure
that the PA receives adequate ventilation.
Table 5-1 Metering Board Fuses, Indicators, and Test Points
Function
Control/
Indicator Function
F 1* driver fuse TP 1
(black)
GROUND, ground
F2* PA1-A, PA1 fuse TP2
(white)
REF, indication of reflected power
F3* PA1-B, PA3 fuse TP3
(blue)
+34 Vdc
F4* PA2-A, PA2 fuse TP4
(blue)
+5 Vdc
F5* metering-board circuitry
fuse
TP5
(yellow)
-15 Vdc
F6* PA2-B fuse
The function of fuses
varies, depending on the
PA used. To match a
fuse with the affected
PA function, refer to
Table 6-4.
TP6
(green)
+7.5 Vdc
TP7
(red)
FWD, indication of forward power
LED 1
(green)
POWER, indicates +26-Vdc
input power applied
TP8
(brown)
A
GC, sample of AGC voltage to PA com-
partment (controlled by forward-power and
AGC ref, subject to shutdown circuit)
*Replace fuses with fuses of the same current rating. F1 through F4 and F6 are 20 A; F5 is 1 A.
Table 5-2 Fuse Board Fuses
Function Fuse Function
CNTL 5A transmitter controller EXC 5A exciter
RX 5A external receiver FAN1 3A fan 1
AUX1 5A auxiliary equipment 1 FAN2 3A fan 2
AUX2 5A auxiliary equipment 2
I/O panel fuses are located inside the fan door on the rear of the
transmitter.
5.2.3 Key and Unkey PA
The PA does not contain a key switch, but is keyed and unkeyed by the exciter. The excite
r
must be keyed and unkeyed remotely through transmitter controller or locally through
a
video display terminal (VDT). Refer to the controller manual for remote key and unkey
instructions or to the VDT manual for local key and unkey instructions.
Figure 5-1 Metering Board Assembly 2000.00513/2000. 00116
6 THEORY OF OPERATION
6.1 Transmitter Chassis Signal Flow
The I20 interface signals to and from the exciter are routed directly to the I/O panel
through a cable. Either the GL EXT. I20 or the BASIC I20 DB connector is used.
Likewise, the 10MHz REF. INPUT is passed directly to the exciter. The signals from both
connectors are routed to or from the transmitter controller, typically a GL-C2010 or GL-
C2000.
6.2 Transmitter Chassis Power Distribution
6.2.1 I/O Panel and Fuse Board
Refer to Figure 6-2, I/O Panel, and Figure 6-3, Fuse Board,. The transmitter receives 28
volts dc from an external source at the +28VDC INPUT 1000W connection on the I/O
panel on the rear of the transmitter.
Fuses on the fuse board protect seven devices, including the exciter and fans. Power fo
r
external devices leaves the fuse board and is routed to a cable which is connected to the
28VDC OUTPUTS. The fuse board is accessible by opening the fan door on the rear of the
transmitter.
The bulk of the current is passed through the metering board, which has its own fuses.
Refer to Paragraph 6.2.3 for a discussion of the metering board.
6.2.2 Fuse Board (Dc Distribution Board)
Refer to Figure 6-1 for detailed circuit information. The fuse board is accessible by opening
the rear fan door. The following connections terminate at the fuse board:
• dc power to rear-mounted fans
• dc power to exciter
• dc power to external equipment which is delivered through 28VDC OUTPUTS
connector.
6.2.3 Metering Board
Refer to Figure 6-5 for detailed circuit information.
6.2.3.1 Dc-Power Distribution
The +lug on the metering board is the main distribution point for dc power to the PA RF
compartment. The following connections terminate at the +lug:
• dc power from main power supply
• dc power to PA compartment (through pc traces on board).
schem.pcx
Figure 6-1 Transmitter Chassis Schematic
There are several current sources for stages within the PA RF compartment. Each separate
circuit contains a fuse, metering resistor, and associated circuitry for measuring an
d
reporting circuit currents. Table 5-1, Metering Board Fuses, Indicators, and Test Points,
shows the circuits which are protected by the various fuses. Note that some transmitters do
not use every fused circuit. Table 6-4, Detail of J1 Connections (DB-25) between Meterin
g
Board and PA RF Compartment, shows the functions of the connections between the
metering board and the PA compartment. Table 6-2, Exciter J6-to-Metering Board DB-15
J6
Pin Functions, shows detail of the connections between the metering board and the exciter.
6.2.3.2 Control-Signal Distribution
6.2.3.2.1 Transmitter Keying
The transmitter may be keyed remotely by the transmitter controller or locally by the VDT.
The exciter receives the key signal and activates internal circuitry which causes its RF
output to become active. The exciter also sends a key signal to the PA RF compartment.
The exciter signal is wired to metering-board J6-7. Metering-
b
oard circuitry relays the
signal to the PA RF compartment and the IPA second amplifier stage via J1-7. The AGC
reference signal from the exciter is passed to metering-board circuitry when the key signal is
active.
6.2.3.2.2 Power-Output Control
A reference signal from the exciter determines the nominal output power. Depending on
the exciter interface, the level may be remotely adjustable. The REF PWR dc reference signal
(J1-5 and J6-8) is also routed to the exciter for use in determining acceptable output powe
r
and for generating alarms.
The metering board compares the AGC REF signal (J6-3) from the exciter and the FWD
PWR dc reference signal (J1-6) from the PA RF compartment. The metering board attempts
to hold power constant by using these signals to generate the AGC voltage (J1-19) which i
t
sends to the PA RF compartment. All stages, except the first IPA stage, are under the
influence of the AGC signal.
6.2.3.2.3 Signal Measurement and Alarm Gathering
Refer to Table 6-4, Detail of J1 Connections (DB-25) between Metering Board and PA R
F
Compartment. Each PA board and IPA board have separate, fused supplies, whose currents
are measured by A/D converters which are multiplexed to the A/D1 line (J6-1) and A/D2
line (J6-9) to the exciter. The exciter has three input-select lines which determine the circui
t
to be measured. Refer to Table 6-3, Input-Select Metering Lines from Exciter.
Several metering points may not be used depending on the metering board assembly an
d
the transmitter it is in. The labels of the measured parameters appear on the VDT screen
when it is used to measure operating parameters. Refer to the VDT manual for details.
6.2.3.2.4 PA Fault
On nearly all versions of the metering board, no hardware circuit for PA-fault detection is
installed, and PA faults are determined by software, as power supply voltage, PA currents,
and RF power output can be read by the software.
On a few versions of the metering board, there is a hardware fault-detection circuit. If any of
the PAs experiences a fuse-blowing fault, the PA FAULT line (J6-11) becomes active
(HI).
6.2.3.3 Metering Board Connections
Refer to Table 6-1, Metering Board Connectors and Figure 6-4, Transmitter Rear View
with Door Open and I/O Panel Removed. As viewed from the back, the + dc lug is on the
right; the - dc lug is on the left; the control/ IO connector is in the middle.
Figure 6-2 I/O Panel
Table 6-1 Metering Board Connectors
Description /Function
+ dc lug 1/4 -20 post, part of metering bd assembly, from I/O panel
- dc lug 1/4 -20 post, part of metering bd assembly, from I/O panel
control/IO J2 DB-15, part of metering bd assembly/ control and IO
Table 6-2, Exciter J6-to -Metering Board DB-1 5 J6 Pin Functions, shows the functional
pinout of the connection between the metering board and the DSP exciter.Table 6-4, Detail o
f
J1 Connections (DB-25) between Metering Board and PA RF Compartment, shows the
functional pinout of the connection between the metering board and the PA compartment.
N
ote that the connection is made whenever the PA compartment is positioned normally
within the transmitter compartment, as the connector on the metering board becomes effec-
tively, part of the chassis.
Table 6-2 Exciter J6-to-Metering Board DB-1 5 J6 Pin Functions
Exciter Function
Metering
Board
J6- Metering Board Function
1 multiplex analog input from PA No. 1 multiplexer 1 A/D1
2 multiplex analog input from PA No. 3 multiplexer 2 A/D3, fixed LO
3 AGC reference voltage output to PA, 1-12 Vdc 3 AGC ref
4 no connection 4 ground
5 no connection 5 ground
6 1 of 4 select outputs to PA multiplexers, LO=21 6 input sel 2
7 one of four select outputs to PA multiplexers, not used 7 PA key input, enables AGC and preamplifier stage
8 ref sample
9 multiplex analog input from PA No. 2 multiplexer 9 A/D2
10 multiplexed analog input from PA No. 4 multiplexer 10 A/D4, fixed LO
11 PA fault input, LO=fault fixed LO (active logic in some versions)
12 no connection ground
13 one of four select outputs to PA multiplexers, LO=20
digit enabled for mux input decoder
13 input sel 1
14 one of four select outputs to PA multiplexers, LO=22
digit enabled for mux input decoder
14 input sel 3
15 latch-enable output to PA multiplexers, LO=mux input
decoder reads the three select inputs
15 spare
Table 6-3 Input-Select Metering Lines from Exciter
J6-x pin
1 13
2 6
3 14
modv0440.hgl/wmf
TO G L EXT. I20
OR BASIC I20
TO GROUND
ISOLATOR EXT 10- EMNUT
DC REF IN MHz
(
not used
)
PA OUTPUT
TO RF OUT
- DC LEAD
Figure 6-4 Transmitter Rear View with Door Open and I/O Panel Removed
Figure 6-5 Metering Board 2000.00513/2000.00116 Functional Diagram
Figure 6-5, Metering Board 2000.00513/2000.00116 Functional Diagram (continued)
Table 6-4 Detail of J1 Connections (DB-25) between
Metering Board and PA RF Compartment
J1-X
metering
board
fuse
8311 E/ 8411 E
PA RF compartment function
PA2-A, PA2, PA 1 F4
PA2-A, PA2, PA 2 F4
PA2-B 3 F6
PA2-B 4 F6
REF PWR, dc sample of reflected power 5 P6-1, reflected power sample from directional
coupler board (red wire)
FWD PWR, dc sample of forward power 6 P6-4, forward power sample from directional
coupler (black wire)
PREAMP KEY 7 P1-1, preamp key bus
TEMP SENSOR 8 P1-4, temp sensor on driver board
DRIVER+ 9 F1 P1-3, +supply to driver
PA1-A, PA1 10 F2 P4-1, +supply to PA board
PA1-A, PA1 11 F2 P4-2, +supply to PA board
PA1-B, PA3 12 F3 P5-8, +supply to PA board
PA1-B, PA3 13 F3 P5-2, +supply to PA board
PA2-A, PA2 14 F4
PA2-A, PA2 15 F4
PA2-B 16 F6
PA2-B 17 F6
-15V 18
P3-1, -15 Vdc to PA board (daisy-chained to
P2-4 on driver board)
AGC 19
P3-4, AGC to PA board
DRIVER+ 20 F1 PRE KEY BUS
DRIVER+ 21 F1 PREAMP
PA1-A, PA1 22 F2 P4-3, +supply to PA board
PA1-A, PA1 23 F2 P4-4, +supply to PA board
PA1-B, PA3 24 F3 P5-3, +supply to PA board
PA1-B, PA3 25 F3 P5-4, +supply to PA board
MAINTENANCE
7 MAINTENANCE
7.1 General
Little or no maintenance is required on a regular schedule. The following, however, are
important to ensure long-term trouble-free operation.
Maintenance procedures in this section are listed below:
• PA-current check
• Dc-ripple check.
7.2 PA-Current Check
Occasionally, the power amplifier device currents should be compared to the levels listed on
the data sheet that accompanied the transmitter. Be sure that the operating RF output is the
same as listed on the data sheet. The labelling of PA currents on the VDT’s screen may be
confusing. To relate the VDT indication to a particular pc assembly in the PA RF
compartment, refer to the ‘metering board function’ column of Table 6-4, Detail of J1
Connections (DB-25) between Metering Board and PA RF Compartment. Also refer to the
PA manual for the model of transmitter you are using.
1. Put transmitter in local mode.
2. Key transmitter.
3. Monitor power amplifier currents on VDT.
4. Make comparison between data sheet and monitor.
Monitored currents should not vary more than ten percent from data sheet levels. An
exception is when original components or modules have been replaced or modified; in this
case, record a new benchmark for future reference after you perform the maintenance.
7.3 Dc-Ripple Check
This procedure assumes that an ac power supply is part of the configuration. Occasionally
the ac supply should be checked for excessive ripple. Maximum permissible ripple is given
in section two of this manual. The supply should be under normal operating load for this
procedure.
1. Put transmitter in local mode.
2. Key transmitter.
3. Connect oscilloscope between ground and supply output.
4. Set oscilloscope to read ripple.
The observed ripple level should be less than the ripple specification given in Table 2-1,
Specifications.
GL-T8311 E and GL-T8411 E Transmitter System Glenayre Document Number: 9110.01156
8 CHECKOUT
8.1 General
Checkout procedures can be performed at any time to verify that the transmitter and related
paging site equipment is functioning properly. After checkout procedures are successfully
completed, the site can be returned to normal service. Refer to the VDT user manual for
details on checkout procedures.
8.2 Checkout Procedures
8.2.1 Dc-Voltage Verification
Once powered, verify that the equipment is powered and refer to list below.
1. On GL exciter front panel, the DC POWER indicator is on.
2. On the transmitter controller, the POWER indicator is on.
3. On receiver, the POWER indicator is on.
8.2.2 VDT Power-up Verification
Once powered, verify that the VDT is powered; continue with the checklist below.
1. The VDT should have a cursor displayed and blinking; or,
2. the VDT should have an instructional prompt displayed; or,
3. the VDT should have an auto-loaded program running.
8.2.3 Cooling-Fans Check
Once the transmitter is powered, verify that the fans are operating; they should operate
whenever the transmitter is powered.
9 REMOVAL AND REINSTALLATION
The following paragraphs discuss removing and reinstalling the various assemblies which
make up the transmitter.
Caution
Remove all input power to the cabinet before
performing a removal or reinstallation procedure.
9.1 Entire Transmitter Chassis
Note
The user may choose to remove the PA RF compartment and exciter
before removing the transmitter chassis in order to lighten the transmitter
chassis for handling.
The transmitter chassis is held in the equipment rack by screws which are accessible from the
front.
Removal
1. Remove red and black power pole dc power connector.
2. Remove other connectors and mark for reconnecting: RF output, I20 (basic or extend-
ed), 10-MHz reference, 28VDC OUTPUTS.
3. Remove screws from front of rack and pull out transmitter chassis.
Reinstallation
The software and hardware in the replacement exciter must be matched with the site
requirement. Before reinstalling the transmitter, heed the discussion on programming the
exciter in Paragraph 9.3.
1. Replace transmitter chassis in rack; secure with same hardware that was removed dur-
ing removal.
2. If required, carefully reinsert exciter (Paragraph 9.3) and PA RF compartment (Para-
graph 9.2) in chassis.
3. Reconnect coax, power connectors, and I/O as before.
4. Return transmitter to service.
9.2 PA RF Compartment
Note
Before removing the PA RF compartment as part of troubleshooting, be
certain that the fault is on an assembly within it. The exciter, metering
board, and interconnecting wiring are essential to proper operation of the
power amplifier.
Removal
1. From front of chassis, turn screws ccw so that front panel is loose, and pull PA RF
compartment forward and out of transmitter chassis.
Reinstallation
The PA RF compartment contains an isolator/circulator, which is a frequency-specific
part. Before installing a new PA, make certain that it is for the correct range. Refer to the PA
RF Compartment manual. See Table 1-1, Applicable Documents, for the part number of
the appropriate manual.
1. Slide replacement PA RF compartment into location in top of transmitter chassis.
Note that connectors slide into receptacles in rear of transmitter chassis.
2. Refasten front-panel screws. Refer to the VDT
manual tocheck out the replacement PA.
9.3 Exciter
The exciter is installed on slides in the lower third of the chassis. Most controls can be
adjusted while the unit is mounted in the rack.
Removal
1. Refer toParagraph 9.2. Remove PA RF compartment.
2. On exciter chassis front, turn thumb fasteners ccw approximately one quarter turn to
loosen; pull exciter chassis forward as far as possible in order to access connections on
exciter rear.
3. From rear of exciter chassis, label and remove signal connectors on rear of exciter.
Note that there is an unused BNC connector (isolator) on the rear of the exciter. Note
that some DB-style connectors require loosening screws which hold mating recepta-
cles in contact with one another.
4. Unfasten BNC RF output plug on right side of chassis.
5. Unfasten BNC 10-MHz reference oscillator plug.
6. Label and remove any other connections to exciter (ground, power).
7. Using needlenose pliers, remove hardware which holds cable arm onto exciter.
8. When all connections are removed, pull exciter out of transmitter chassis.
9. Retain all hardware for reinstallation.
Reinstallation
When replacing the exciter, be certain that all variable subassemblies in the replacemen
t
exciter are correct for system requirements. Subassemblies which must be matched include
those included in the list below.
• VCO/RF amplifier (must be for the correct frequency band)
• firmware chips (must be of the correct revision and type)
• controller interface (must be of the proper type and revision for interfacing with trans-
mitter controller).
Site information is also programmed into the exciter and must be the same for the replace-
ment exciter. In most cases, it is convenient to keep the same exciter in the site. If it is
necessary to replace the exciter, refer to the VDT manual for programming information.
You can enter the information from the exciter’s front-mounted VT-100 receptacle or else
program the exciter from the transmitter controller. Refer to the exciter manual for addi-
tional information.
When a new exciter is installed in the site, it may be necessary to readjust the VCO, VSWR
sensitivity, and reference frequency. Refer to the exciter manual for additional information.
The PA RF compartment must be removed before reinstalling the exciter. Ensure that the
transmitter chassis bottom panel is installed before performing the following procedure.
1. Slide replacement exciter into location in lower third of transmitter chassis.
2. Reattach and resecure connectors removed during removal process.
3. Refasten front-panel thumb fasteners.
4. If necessary, reinstall PA RF compartment
Refer to exciter manual and VDT manual to check out and realign replacement exciter.
9.4 Metering Board
Refer to Figure 6-4. The fuses on the metering board can be replaced without the need to
remove the pc board from the chassis. It is possible to replace fuses by opening the rear doo
r
of the transmitter. In the event that replacing the metering board becomes necessary, use the
following procedures. It is best to remove the transmitter from the cabinet (Paragraph 9.1)
before performing the following procedures.
Caution
Use static-handling precautions on metering board.
Removal
1. Refer to Paragraph 9. 6. Remove transmitter bottom panel.
2. Remove PA RF compartment (Paragraph 9.2).
3. Mark and remove red wire between +lug and I/O panel.
4. Mark and remove black wire between -lug and I/O panel.
5. Disconnect DB-15 ribbon cable from exciter.
6. Mounting hardware must be removed from pc board. Use L-shaped Phillips
screwdriver or stubby screwdriver to gain access to screw heads. Remove all screws
holding metering board to top of transmitter chassis.
7. Once screws are removed, remove metering board from chassis by carefully pulling it
toward rear, carefully removing DB-25 connection from chassis; then pull metering
board out of transmitter chassis.
Reinstallation
Note that there are at least two models of metering board. Be certain that the metering
board is the correct one for the transmitter. Refer to Table 4-3, Metering Board Jumper
Table for Transmitter Setup, to determine that the metering board is the correct one and
that it is jumpered correctly.
The following procedure assumes that the PA RF compartment, exciter, and transmitter
bottom panel are removed.
1. Refer to Figure 6-4. Position replacement metering-board into transmitter chassis.
2. Reinstall screws removed during removal process. Do not tighten yet.
3. Once all screws are installed, tighten screws.
4. As a test, push PA RF compartment shelf in out to verify that PA RF compartment
DB-25 chassis receptacle and RF connections easily dock with metering board and
transmitter chassis.
5. Reconnect DB-15 ribbon cable from exciter.
6. Reconnect power wires to +lug and -lug.
7. Refer to Paragraph 9. 6. Reinstall transmitter bottom panel.
8. Refer to Paragraph 9.3. Reinstall exciter.
9. Refer to Paragraph 9.2. Reinstall PA RF compartment. The
replacement metering board should not require realignment.
9.5 Fuse Board
The I/O panel has a fuse board located behind the main I/O panel. It is best to remove the
transmitter from the cabinet (Paragraph 9.1) before performing the following procedures.
Removal
1. Refer to Paragraph 9. 6. Remove exciter, transmitter bottom panel, and PA RF com-
partment.
2. Remove connections from fuse board.
3. Remove main + wire (red) and - wire (black), which are connected to metering board.
4. Remove 2 screws from top of I/O panel and 2 screws from bottom of I/O panel,
which hold fuse board assembly. Retain hardware.
5. Carefully pull out fuse board.
Reinstallation
The following procedure assumes that the transmitter is out of the cabinet and that the
exciter, transmitter bottom panel, and PA RF compartment are removed.
1. Place fuse board assembly so that top and bottom screw holes are aligned.
2. Reinstall hardware used during removal.
3. Restore connectors removed during removal.
4. Reattach + and - wires.
9.6 Bottom Panel
Removing the bottom panel of the transmitter allows convenient access to connections
inside the transmitter. This procedure assumes that the exciter has been removed (Para-
graph 9.3).
Before beginning a procedure, place the transmitter upside down on a bench.
Removal
1. If necessary, remove PA RF compartment.
2. Remove screws which hold bottom panel in place, in front and on each side.
3. Mark orientation of bottom panel for reinsertion later. Slide bottom panel to front and
out of transmitter chassis.
Reinstallation
1. Slide bottom panel into transmitter chassis.
2. Reattach screws on sides and on front.
3. If necessary, reinstall other assemblies.
9.7 Fans
Heed all cautions at the beginning of this section.
Removal
Before replacing a fan suspected to be defective, determine that it has operating voltage
supplied to it. The fan fuses are located on the fuse board behind the I/O panel. Open the
transmitter rear door and observe the row of fuses on the left, behind the 28VDC
OUTPUTS. Also be certain that the wires from the fans are attached to the fuse board.
Remove power to cabinet before beginning procedure.
1. Mark and remove power wires to fan.
2. Note location of external temperature sensor and remove from heat sink.
3. Remove hardware which holds fan to rear
p
anel.
