This user guide will help you go through the quick launch of The Sate
With the iSketchnote pack, digitize your sketches and notes with
the natural keeping the natural feel of pen and paper
____________________________________________
THE SLATE
USER GUIDE
____________________________________________
Create, Digitize, Enhance
This user guide will help you go through the quick launch of The Sate
INSIDE THE ISKETCHNOTE PACK
Cover
The Slate
Pens
USB cord

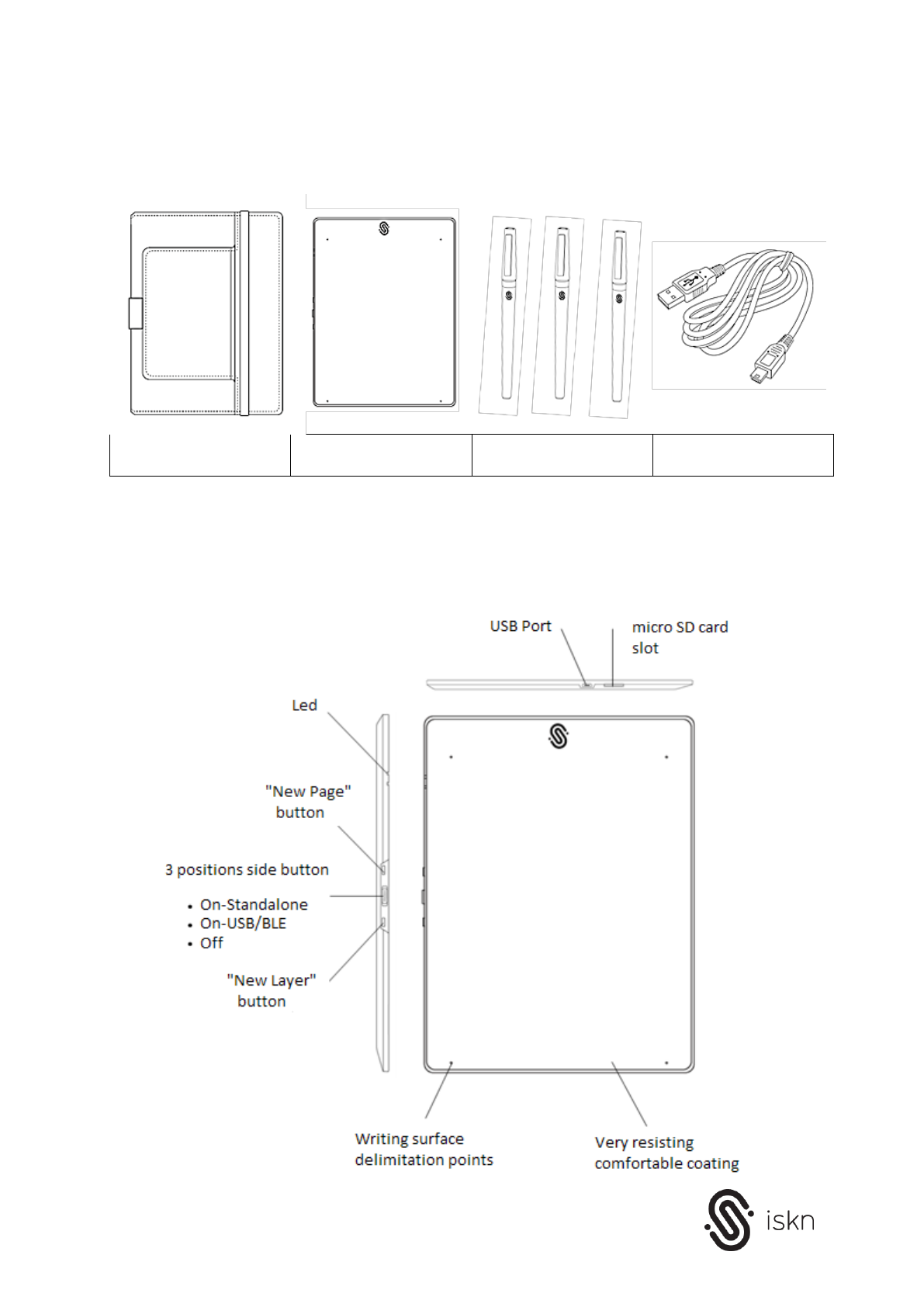

OVERVIEW OF THE SLATE
This user guide will help you go through the quick launch of The Sate
THE SLATE AND iPAD SETUP
« Open Book » mode
“Viewing” mode
Standalone mode
To put the iPad:
> put a first hook
> then put the opposite one
as the second
To put the Slate:
The Slate is fixed in the
cover with the rubber bands
To stand up the iPad cover
part:
> lift the stand located on the
back on the cover by pulling
the fabric.
Get the Slate out
of the cover and
use it without
your iPad
The battery of the Slate
could be flat. Charge your device
before the first use
This user guide will help you go through the quick launch of The Sate
CONNECT THE SLATE WITH A COMPUTER OR AN iPAD
1. iPad: Bluetooth connection
✓ Turn The Slate on by switching the side button to the
on-BLE-USB position (refer to the Overview section).
The leds blink while the Slate is initializing
✓ Turn the Bluetooth of your iPad on
✓ Pair the devices by tapping the Slate on your iPad.
✓ Rename your Slate to make future connections easier
2. PC or MAC: USB connection
✓ Turn The Slate on by switching the side button to the
on-BLE-USB position (refer to the Overview section).
✓ Connect the USB cord to The Slate and then plug it
into your computer
iSKETCHNOTE APPLICATION INSTALLATION
You must have an Internet connection to install the
iSketchnote application
To download the iSketchnote application for PC and Mac go to
www.isketchnote.com/download
To install the application on your iPad go to the App Store.
This user guide will help you go through the quick launch of The Sate
STANDALONE MODE SETUP
(WITHOUT iPAD OR COMPUTER)
The Slate can also work in a standalone mode thanks to its
embedded battery and flash memory (you can extend this
internal memory with a micro SD card)
✓ Switch the side button to the middle position on-
standalone (refer to the Slate overview). The leds blink
while the Slate is initializing.
✓ When you use a new page, press the « New Page »
button of The Slate to create a new document.
✓ To create a new layer just press the “New Layer”
button
The Slate doesn’t record image type files. You must transfer your
data into the iSketchnote application in order to see and
enhance your digitized work.
To transfer your recorded data :
Connect The Slate to the iSketchnote app by Bluetooth or USB
and tap the SD Card icon in the upper right corner. A notification
tells you if new files are available.
Bluetooth Low Energy connection is a limited output communication.
Therefore this operation can take some time. It is recommended to
upload regularly your files.
At the moment you cannot transfer your data directly from your SD Card
to your PC without using the iSketchnote application
This user guide will help you go through the quick launch of The Sate
iSKETCHNOTE APPLICATION
Live
Post production
All Rolls
The Live mode allows
you to see in real time
the digitization of your
sketches and notes. You
can also modify the
color, width and opacity
of your digital rendering
as well as erase an
unfortunate stroke.
Finally you can share
your creation with your
family and friends.
The Post production
mode allows you to
enjoy the full power of
digital by letting you
improve, enhance and
modify your creation
once it’s finished on
paper. You can also
select, erase and move
some parts of your
drawing before sharing
it.
The All Rolls mode is
here to let you organize
your sketches and notes
in different rolls that
serve as folders where
you can preview all of
your past work.. You can
create and erase a roll
and rename them. You
are also able to move a
drawing inside a roll or
transfer it into another
one.
This user guide will help you go through the quick launch of The Sate
____________________________________________
USE A PIECE OF PAPER | NOTEBOOK
The Slate works with any kind of paper or notebook. The
maximum size should be an A5 format paper.
Your piece of paper or your notebook must be put upon the
Slate between the 4 dots situated in the corners of the upper
face which demarcate the writing surface.
Use this marks as points of reference to easily find the initial
position of your piece of paper or notebook.
If your piece of paper or notebook has moved you should create a new
layer in order to help you positioning your support again.
____________________________________________
HOW TO UPDATE THE SOFTWARE OF THE SLATE
In order to have the best experience it will be recommended to
update regularly the software of the product. This update can be
performed from the iSketchnote application.
HOW TO UPDATE THE ISKETCHNOTE APPLICATION
The iSketchnote application can also be updated to fix any bug
or to add some new features. To update the application simply
go to the App Store for the iPad application or to
www.isketchnote.com/download
This user guide will help you go through the quick launch of The Sate
____________________________________________
USE PRECAUTIONS
Despite the care we take to ease of use, several limitations
remain:
✓ Do not use the Slate while in transport (train, plane, car …)
✓ Avoid any proximity between the Slate and magnetic
objects (such as magnets, iron bars, important metallic
surfaces …). Evitez le contact direct avec des objets
magnétiques (aimants, barre ou surface importante en
acier…). These objects should be at a minimum distance of
25 cm.
✓ Do not use several pens simultaneously.
✓ An unused pen should be at a minimum distance of 15 cm
from the Slate.
Be sure that these limitations is something we are working on.
TROUBLESHOOTING
If you ever encounter a problem with the Slate we invite you to
follow the procedure below:
✓ Check if a magnetic source is nearby the Slate
✓ Unplug the USB cord if it is plugged then, turn the Slate
off and on again.
If you are still experiencing some difficulties and need help
please go to the FAQs section on our website
www.isketchnote.com/faq or contact directly iskn by dropping us
a line at: contact@iskn.co
