ISV DOYAK-T WIRELESS PEN MOUSE User Manual Microsoft PowerPoint DOYAK User s Manual

ISV Co., Ltd. WIRELESS PEN MOUSE Microsoft PowerPoint DOYAK User s Manual

USERS MANUAL

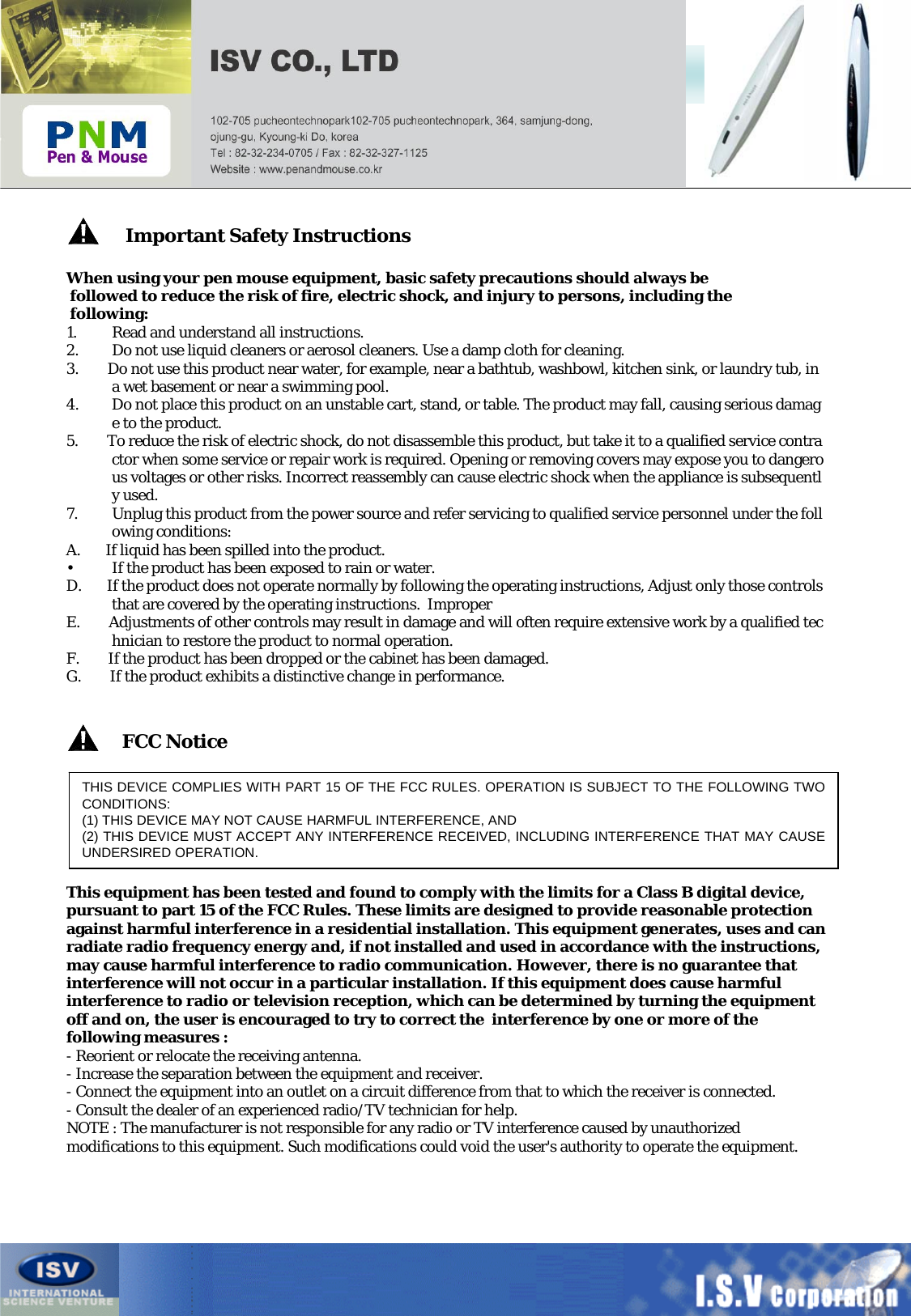

Configuring Windows XP before UsageImportant Safety InstructionsWhen using your pen mouse equipment, basic safety precautions should always befollowed to reduce the risk of fire, electric shock, and injury to persons, including thefollowing:1. Read and understand all instructions.2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.3. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.5. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.7. Unplug this product from the power source and refer servicing to qualified service personnel under the following conditions:A. If liquid has been spilled into the product.• If the product has been exposed to rain or water.D. If the product does not operate normally by following the operating instructions, Adjust only those controls that are covered by the operating instructions. ImproperE. Adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.F. If the product has been dropped or the cabinet has been damaged.G. If the product exhibits a distinctive change in performance.THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.FCC NoticeThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected.- Consult the dealer of an experienced radio/TV technician for help.NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

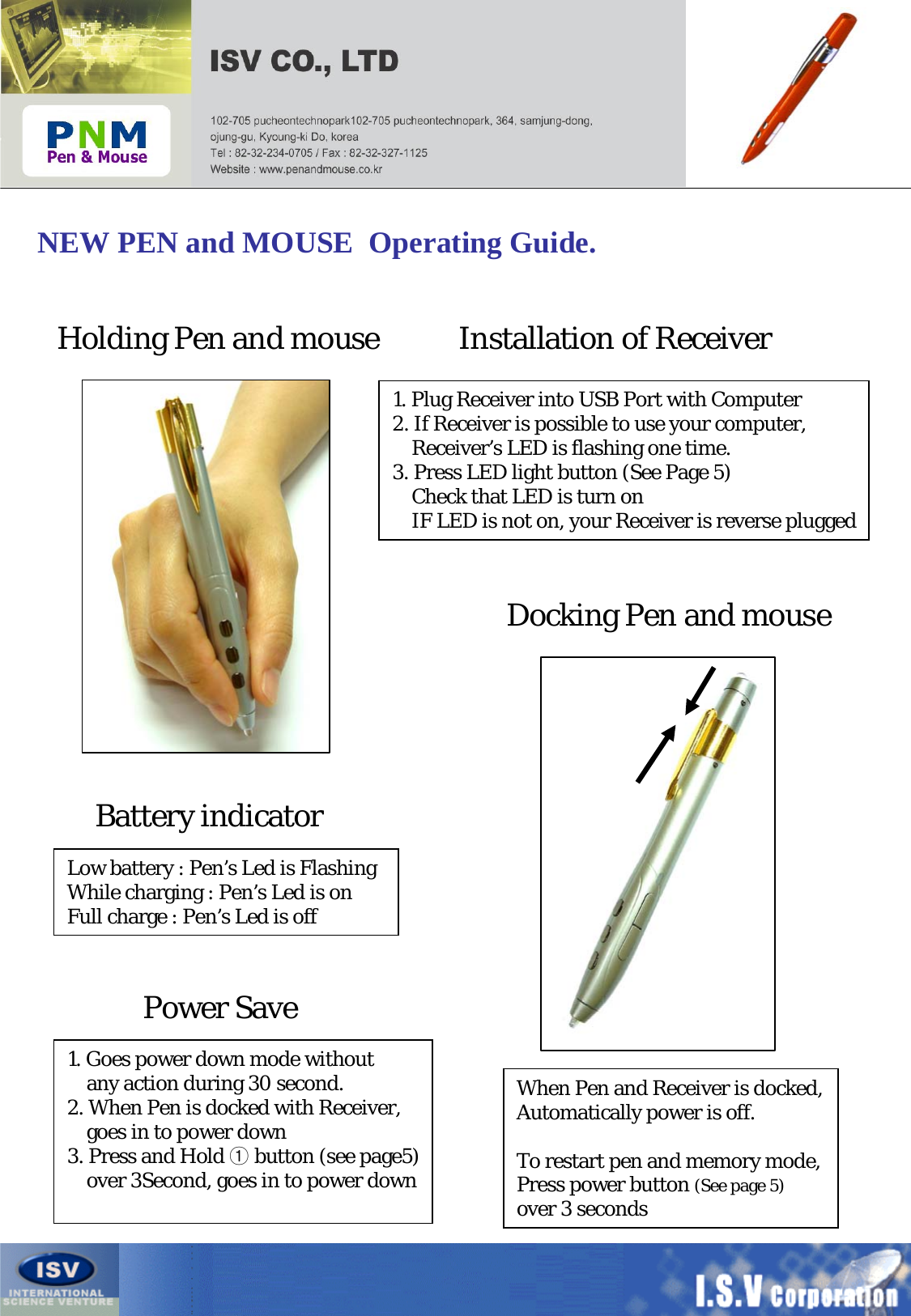

NEW PEN and MOUSE Operating Guide.Holding Pen and mouse Installation of ReceiverDocking Pen and mouse1. Plug Receiver into USB Port with Computer2. If Receiver is possible to use your computer, Receiver’s LED is flashing one time.3. Press LED light button (See Page 5)Check that LED is turn on IF LED is not on, your Receiver is reverse pluggedBattery indicatorLow battery : Pen’s Led is FlashingWhile charging : Pen’s Led is onFull charge : Pen’s Led is offWhen Pen and Receiver is docked,Automatically power is off.To restart pen and memory mode,Press power button (See page 5) over 3 secondsPower Save1. Goes power down mode withoutany action during 30 second.2. When Pen is docked with Receiver,goes in to power down3. Press and Hold ①button (see page5)over 3Second, goes in to power down

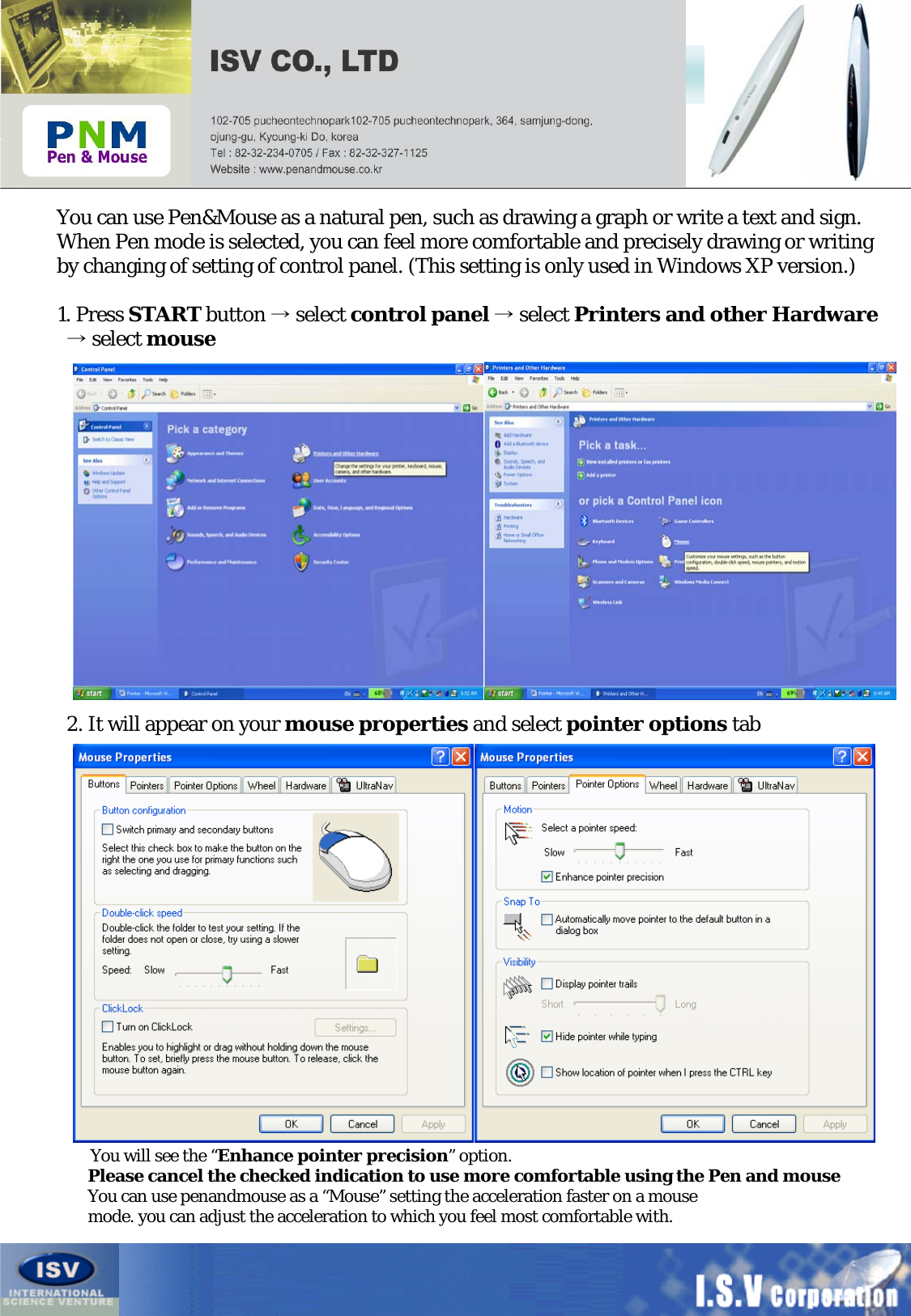

Configuring Windows XP before UsageYou can use Pen&Mouse as a natural pen, such as drawing a graph or write a text and sign.When Pen mode is selected, you can feel more comfortable and precisely drawing or writingby changing of setting of control panel. (This setting is only used in Windows XP version.)1. Press START button →select control panel →select Printers and other Hardware→select mouse2. It will appear on your mouse properties and select pointer options tabYou will see the “Enhance pointer precision”option.Please cancel the checked indication to use more comfortable using the Pen and mouseYou can use penandmouse as a “Mouse” setting the acceleration faster on a mousemode. you can adjust the acceleration to which you feel most comfortable with.

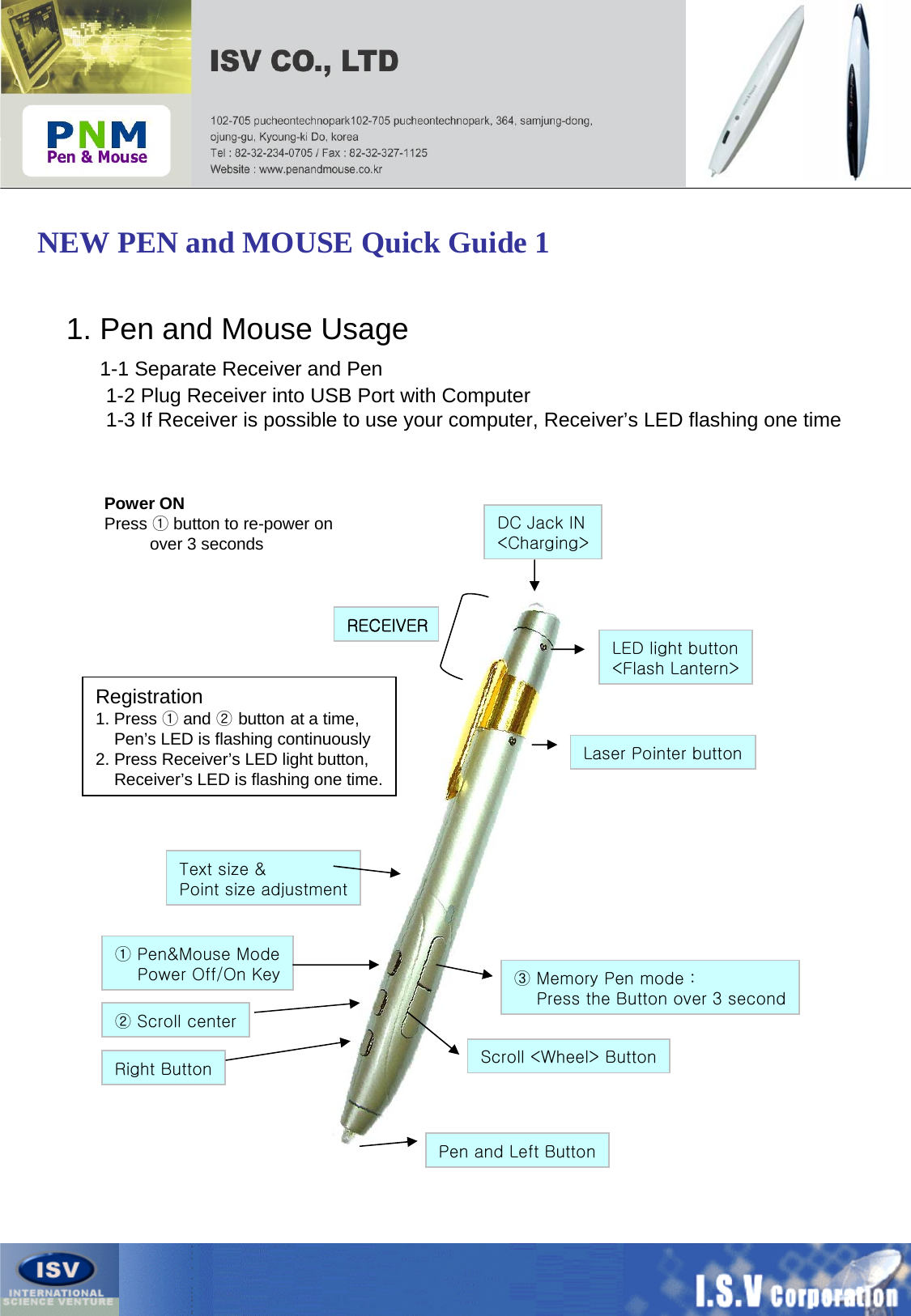

NEW PEN and MOUSE Quick Guide 1Power ONPress ①button to re-power onover 3 seconds① Pen&Mouse ModePower Off/On Key② Scroll centerRight ButtonPen and Left ButtonScroll <Wheel> Button③ Memory Pen mode :Press the Button over 3 secondText size &Point size adjustmentLaser Pointer buttonLED light button<Flash Lantern>DC Jack IN<Charging>RECEIVERRegistration1. Press ①and ②button at a time,Pen’s LED is flashing continuously2. Press Receiver’s LED light button,Receiver’s LED is flashing one time.1. Pen and Mouse Usage1-1 Separate Receiver and Pen 1-2 Plug Receiver into USB Port with Computer1-3 If Receiver is possible to use your computer, Receiver’s LED flashing one time

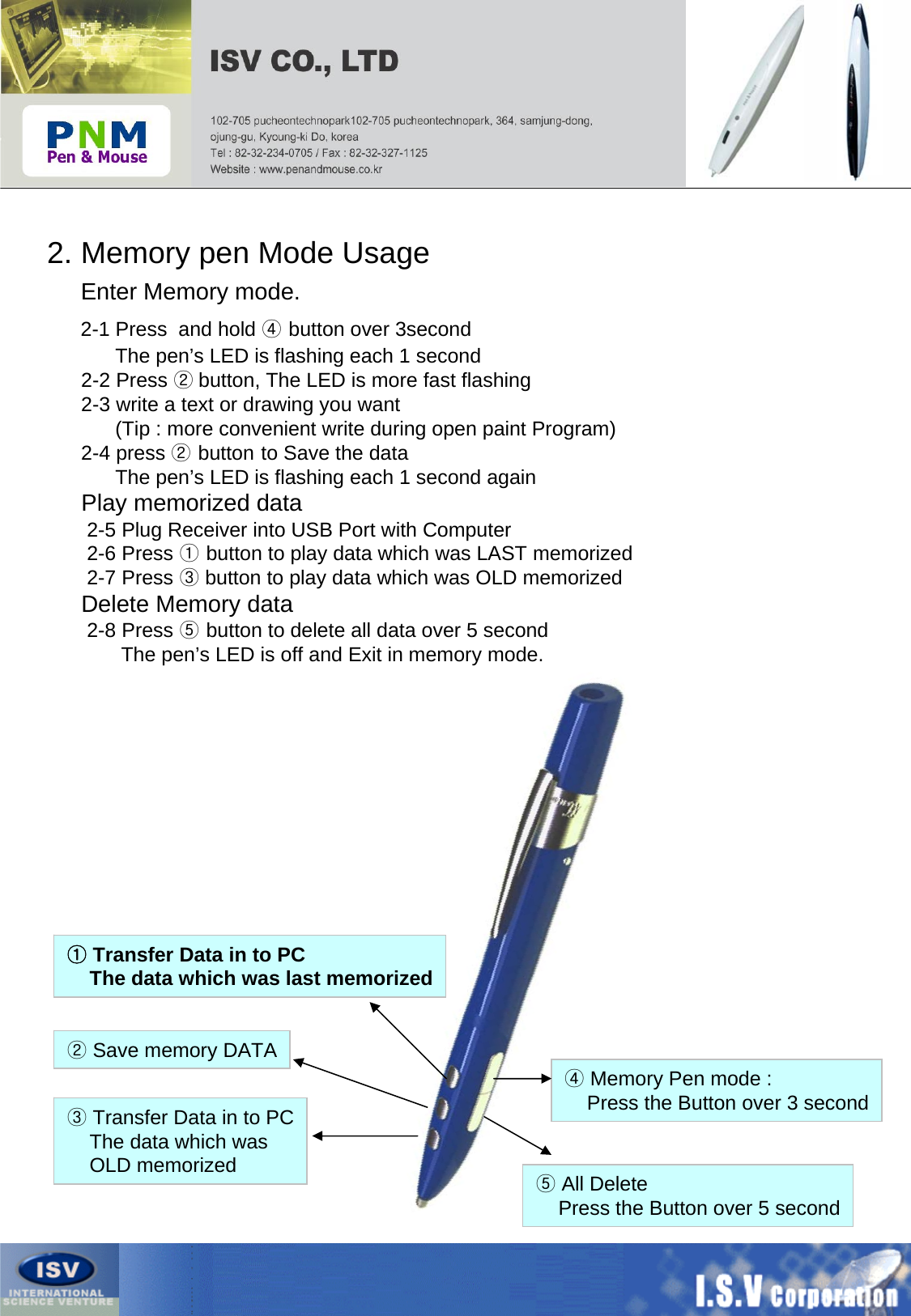

2. Memory pen Mode UsageEnter Memory mode.2-1 Press and hold ④button over 3secondThe pen’s LED is flashing each 1 second2-2 Press ②button, The LED is more fast flashing2-3 write a text or drawing you want (Tip : more convenient write during open paint Program) 2-4 press ②button to Save the dataThe pen’s LED is flashing each 1 second againPlay memorized data 2-5 Plug Receiver into USB Port with Computer2-6 Press ①button to play data which was LAST memorized2-7 Press ③button to play data which was OLD memorizedDelete Memory data2-8 Press ⑤button to delete all data over 5 secondThe pen’s LED is off and Exit in memory mode. ④Memory Pen mode :Press the Button over 3 second⑤All DeletePress the Button over 5 second①Transfer Data in to PCThe data which was last memorized②Save memory DATA③Transfer Data in to PCThe data which was OLD memorized

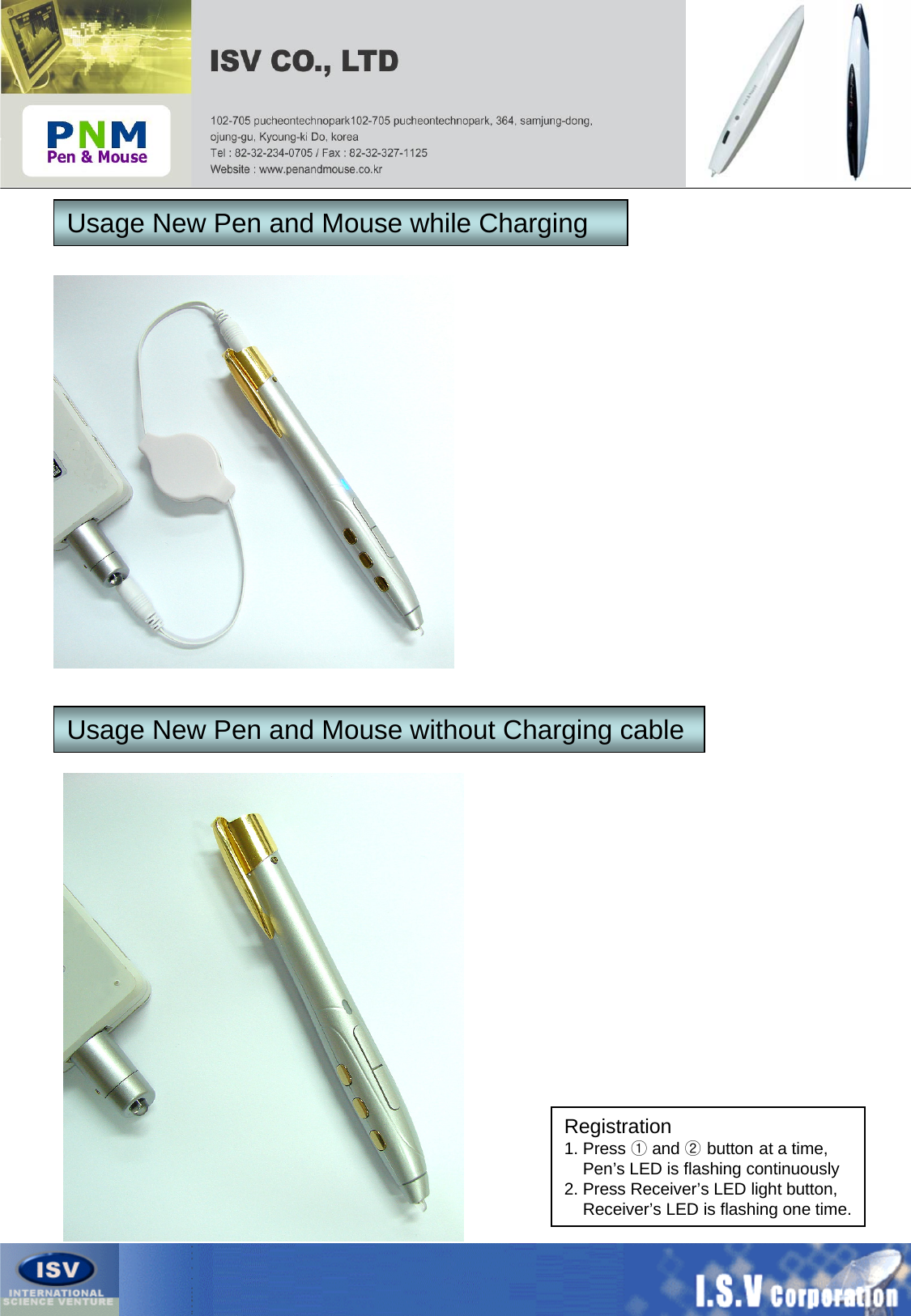

Usage New Pen and Mouse while ChargingUsage New Pen and Mouse without Charging cableRegistration1. Press ①and ②button at a time,Pen’s LED is flashing continuously2. Press Receiver’s LED light button,Receiver’s LED is flashing one time.

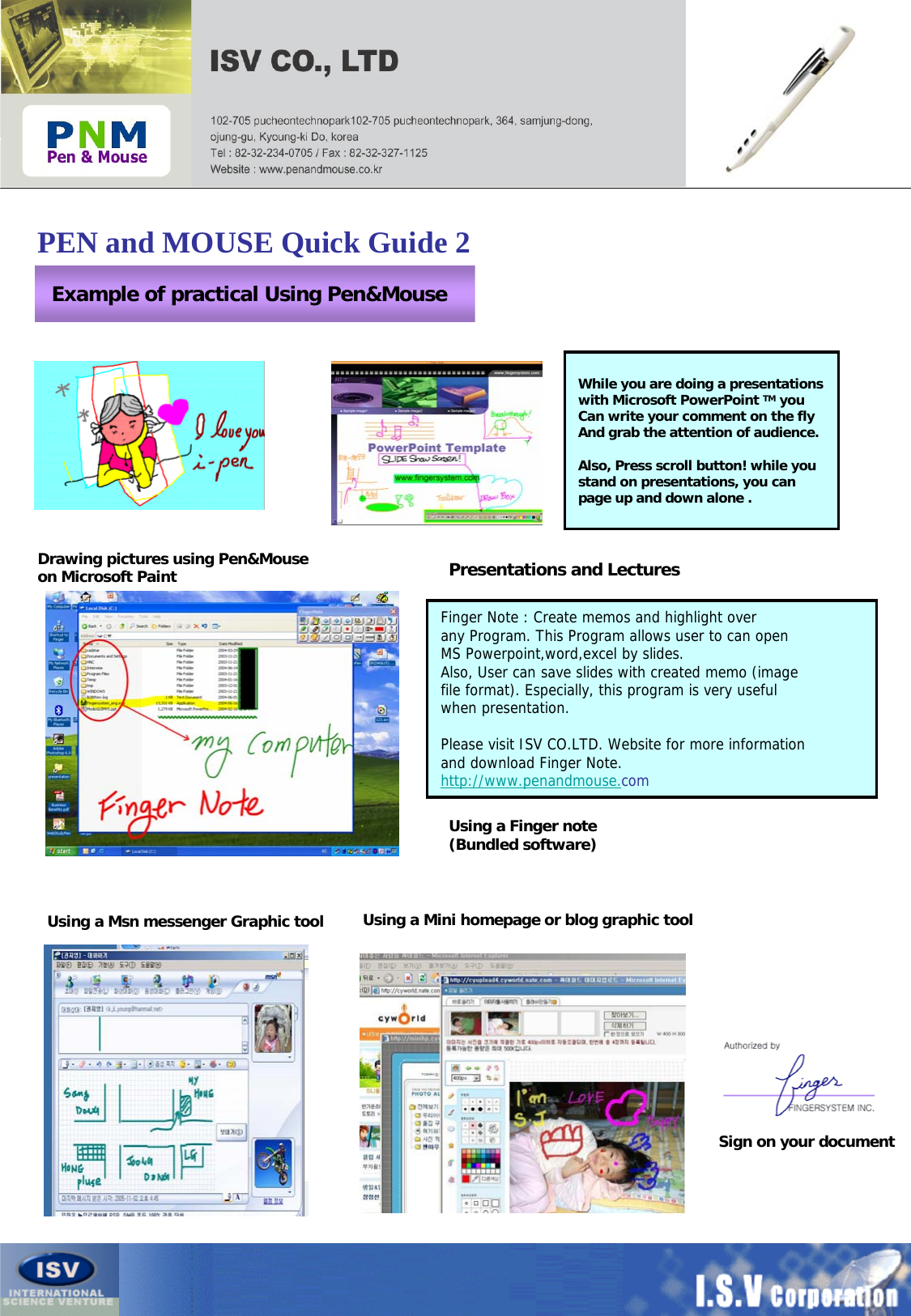

PEN and MOUSE Quick Guide 2Example of practical Using Pen&MouseSign on your document Drawing pictures using Pen&Mouse on Microsoft Paint Presentations and Lectures While you are doing a presentationswith Microsoft PowerPoint TM you Can write your comment on the flyAnd grab the attention of audience.Also, Press scroll button! while you stand on presentations, you canpage up and down alone .Using a Finger note (Bundled software)Finger Note : Create memos and highlight over any Program. This Program allows user to can open MS Powerpoint,word,excel by slides.Also, User can save slides with created memo (imagefile format). Especially, this program is very useful when presentation.Please visit ISV CO.LTD. Website for more informationand download Finger Note.http://www.penandmouse.comUsing a Msn messenger Graphic tool Using a Mini homepage or blog graphic tool
