ITEAD Intelligent Systems S31 Sonoff wifi smart socket User Manual

ITEAD Intelligent Systems Co., Ltd Sonoff wifi smart socket

User Manual

S31 User Guide
S31 Smart Socket is a wifi wireless smart socket that can connect any home
appliances and electric devices via wifi, allowing you to remote control on
iOS/Android APP eWeLink. After adding the smart socket to your APP, you are
able to remote turn on or off your connected devices from anywhere at any time.
Also, you can set timing schedules, share control of the device to others,
manage group and scene with the APP.
Hi, welcome to use S31 Smart Socket ！

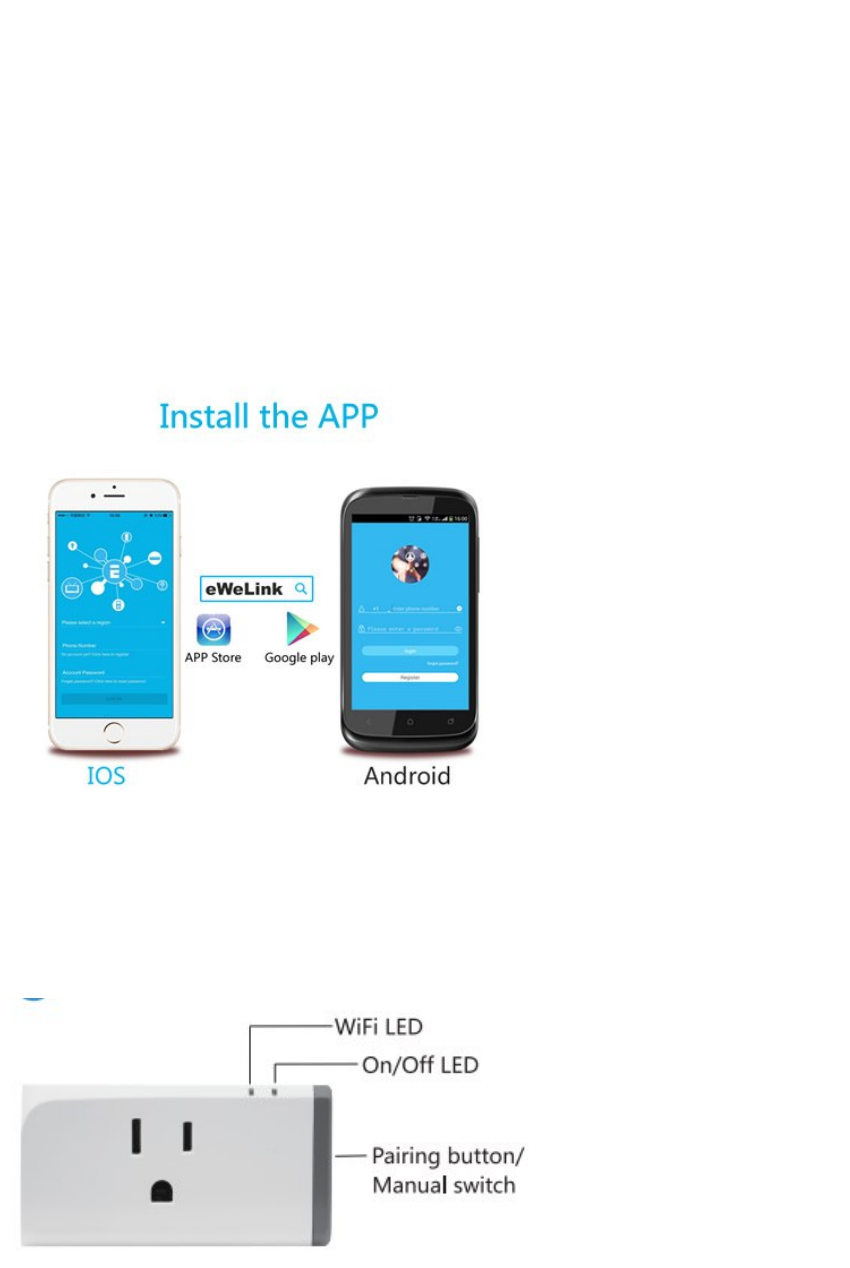

1. Download “eWeLink” app.
Search “eWeLink” in APP Store for iOS version or Google play for
Android version.
2. Add device
1. Plug in and power up your S31 Socket.
2. Press the button for 7 seconds until the green LED
this:
Open eWeLink, click”+”. You’ll see the pairing icons.
For Android users,
please select the 1st icon, click next.
For iOS users, select the pairing icon accordingly. Then go to
Setting>WiFi>connect the WiFi begins with ITEAD
default
password 12345678. Go back to eWeLink, click next.
3. It will auto-search
and connect smart home device around you.
4. Input your home SSID & password:
4.1 If no password, keep it blank.
4.2 Now eWeLink
only support 2.4G WiFi communication
5G-
WiFi is not supported.
5. Name the device to complete.
6. Maybe the
minute to connect to your router and server. When the green LED on,
the device is “Online”, if eWeLink shows still “Offline”, please close
eWeLink and re-open.
2. Press the button for 7 seconds until the green LED
blinks like
Open eWeLink, click”+”. You’ll see the pairing icons.
please select the 1st icon, click next.
For iOS users, select the pairing icon accordingly. Then go to
Setting>WiFi>connect the WiFi begins with ITEAD
-
******, enter
password 12345678. Go back to eWeLink, click next.
and connect smart home device around you.
4. Input your home SSID & password:
4.1 If no password, keep it blank.
only support 2.4G WiFi communication
protocol,
WiFi is not supported.
5. Name the device to complete.
device is “Offline” on eWeLink, for the device needs 1
minute to connect to your router and server. When the green LED on,
the device is “Online”, if eWeLink shows still “Offline”, please close
blinks like
Phone
******, enter
and connect smart home device around you.
protocol,
device is “Offline” on eWeLink, for the device needs 1
minute to connect to your router and server. When the green LED on,
the device is “Online”, if eWeLink shows still “Offline”, please close
3. APP features
1. WiFi remote control and device state
Turn on/off by tapping on device icon. Device state
alwayssimultaneous display on APP.
2. ShareControl
The owner can share the devices to other eWeLink accounts.
While sharing devices, both should stay online on eWeLink. Because if
the account you want to share is not online, he/she will not receive the
invitation message.
How to make it possible? Firstly click Share, input the eWeLink
account (phone number or email address) you want to share, tick the
timer permissions (edit/delete/change/enable) you want to give, then
clickNext. The other account will receive an invitation message.
ClickAccept, the device has shared successfully. The other user will
have access to control the device.
3. Timing
Support max 8 enabled single/repeat/countdown timing schedules
each device. Preset timers can work even network is unavailable, but
the device must keeppoweron.
4. Set default power on status
InDevice Setting, you can set default device
status:ONorOFFwhen the device is power on.
5.Scene/Smart Scene
Scene allows triggering on/off your devices automatically. Scene
Settings is in the upper right corner of Device List. You can set up
scenes or smart scenes to trigger on/off the device.
Users should select “Click to execute” in the condition, add different
existing devices, name the scene and save it.
6. Security mechanism
One device one owner. Other people can not add the devices that
have already been added.If you want to add your device to another
account, don’t forget to delete it first.
7. Update
It will auto-remind you of new firmware or version. Please
updateas soon as you can.
4. Problems and solutions
Read the detailedFAQ on Itead Smart Home Forum.If below answers
can’t solve your problem, please submit a feedback on eWeLink.
1. My device has added successfully but stays “Offline”.
Answers: The newly added device need 1-2 min to connectto your
router and the Internet. If it stays offline for a long time, please judge
the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, whichmeans
device failed to connect to the router. The reason maybe you have
entered wrong WiFi password or your deviceis too far away from the
router, which causes a weak WiFi signal. The device can not be added
to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that
your router is MAC-open.
1.2. Green led slowly blinks one time and repeats, which means the
device has connected to router and server but failed to be added to
the device list. Then power on the device again, if it still not working,
just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device
has connected to the router but failed to connect to the server. Then
please confirm your WiFi router works normally.
2. Why the APPcan’t find the device in pairing status?
Answers: That’s because of your phone’s cache. Please close the
WLAN of your phone then open it after a minute. At the same time,
please power off the device if you can, then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN?
Answers: the S31 supports to be controlled by LAN(Update in
15/10/2017, LAN function has beenstopped).
4. The green led keeps off, even if the device is powered on.Press the
button but the devicedoes not work.
Answers: The circuit may be broken, please send it back fortesting.
Return shipping postage and packaging will be at buyer’s expense, if
the device is damaged by the buyer, and the buyer should bear extra
repair cost.
FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
