IZZO GOLF IZZOHYBRIDA IZZO hybrid User Manual Operation Specification
IZZO Golf IZZO hybrid Operation Specification
User manual
Hybrid
PCBA is developed to be an accessory for the laser range finder. Since the windows
( compartment) for GPS electronic is very limited. We have to custom-make LCD
and battery to fit into the current design.
Specification of Product
Product
Description
# of Course
30,000
PCBA Dimension
36x31.2x12.5mm
Weight
TBA
Battery
3.7Vdc 320 mAh Lithium Ion Polymer
Battery Life
At least 6 hours
Display Size
17.2X17.5mm at 96x80
USB Port
For charging and Firmware Upgrade
GPS Module
Receive at 1575MHz
Charging current
100mA
Working current
50mA
MCU working frequency
48MHz
Crystal center frequency
8MHz and 32.768KHz
GPS LNA
20.5dB

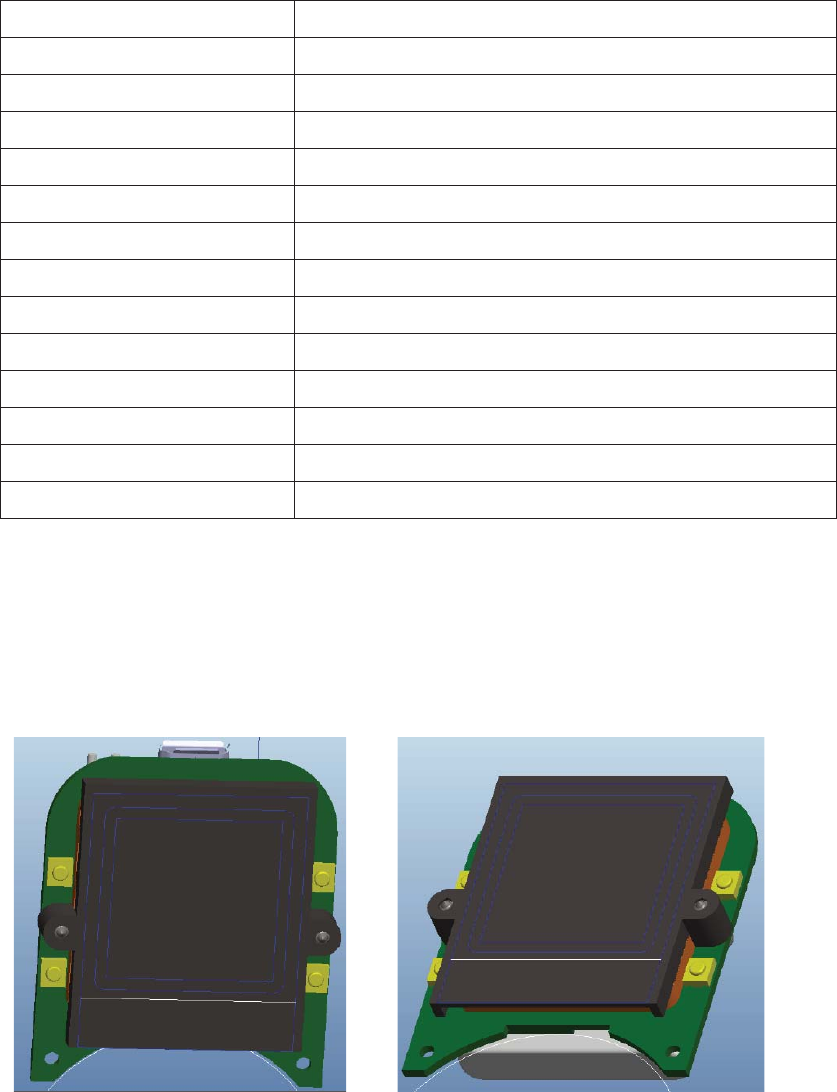

PCB Assembly
We will deliver the PCBA as shown to the Laser Vendor for full system assembly.
data exchange with PC

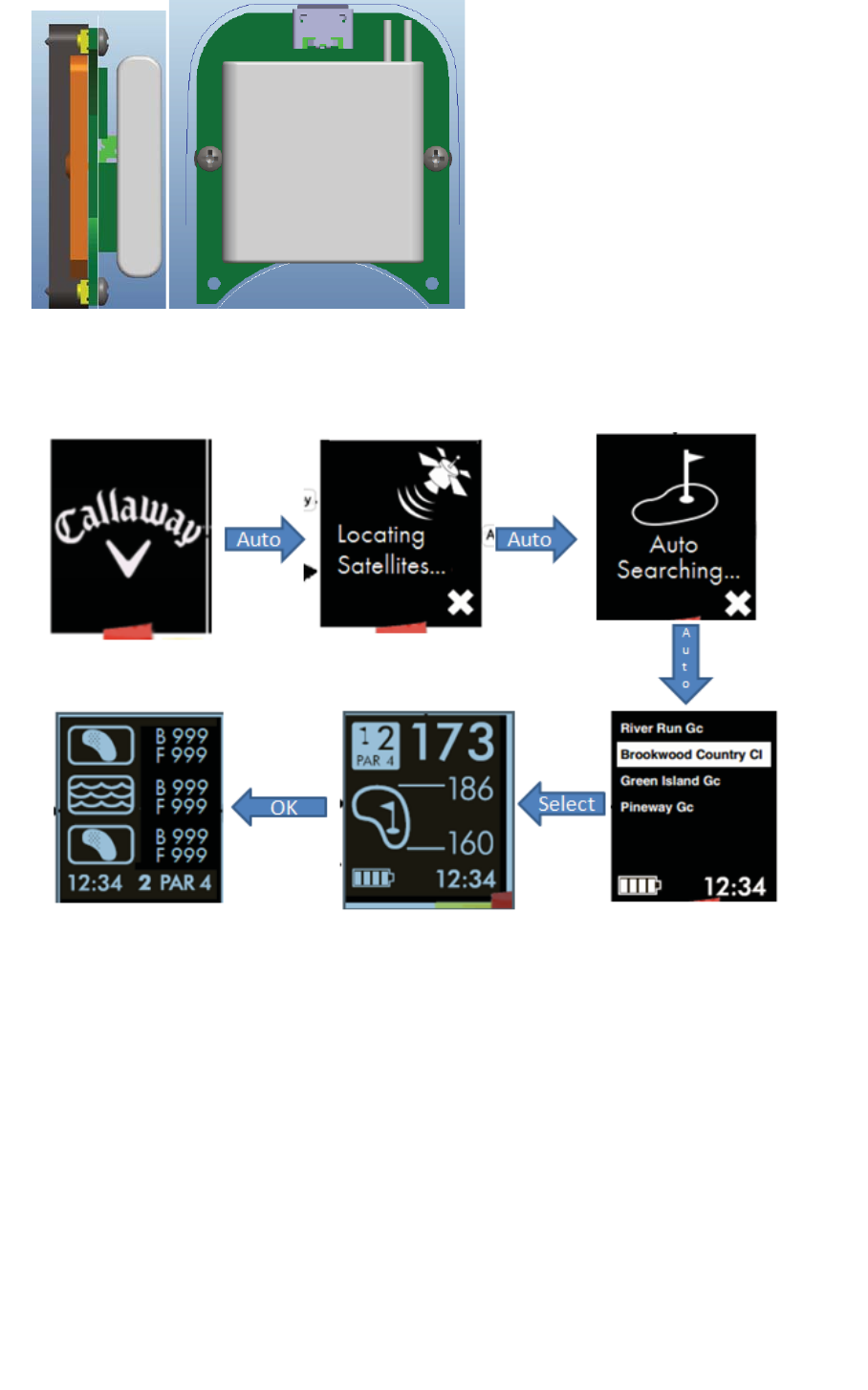

User Interface Screen
Certification
FCC Part B and Part C are required for this product.
