IZZO GOLF IZZOHYBRIDA IZZO hybrid User Manual Operation Specification

IZZO Golf IZZO hybrid Operation Specification

User manual

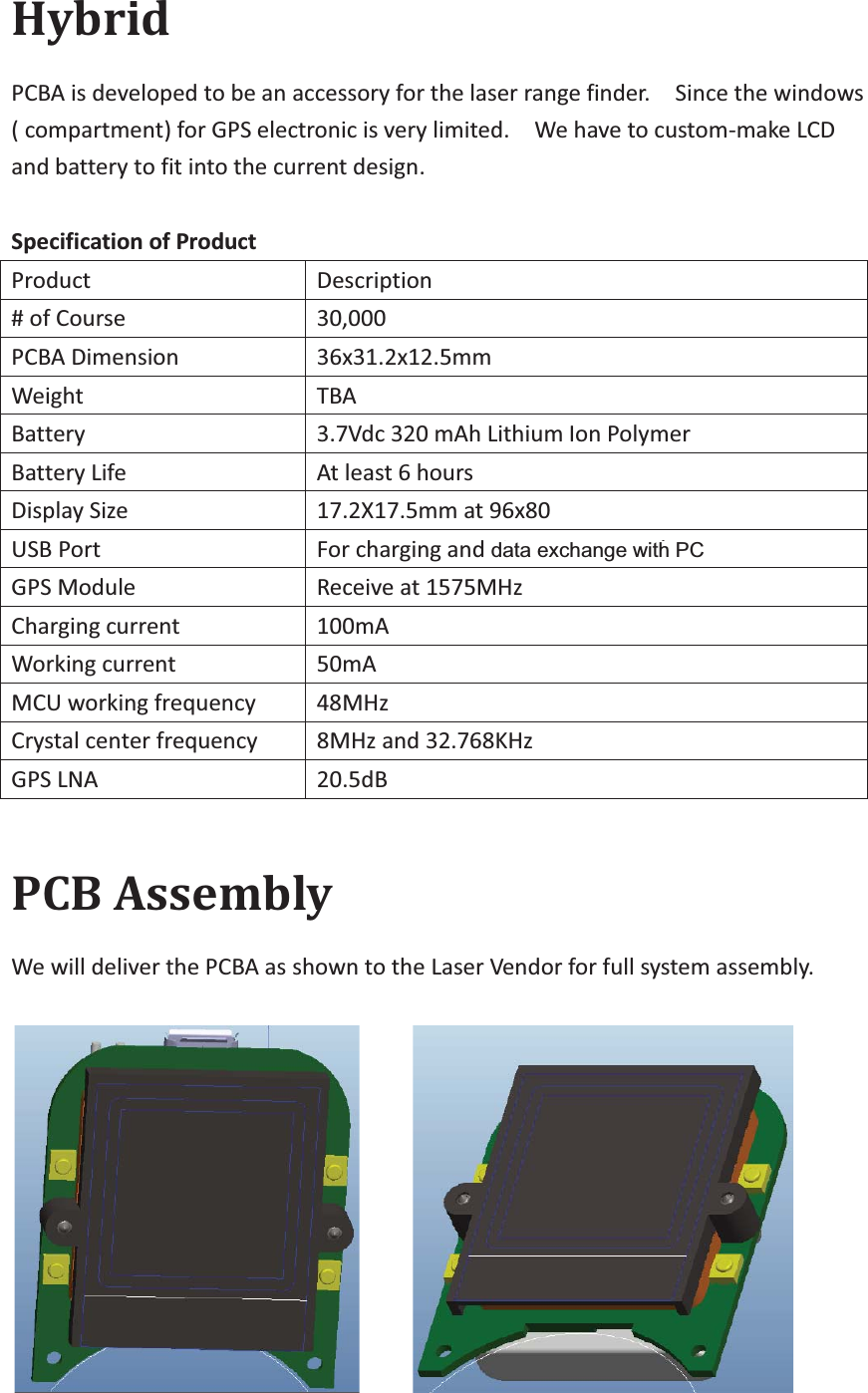

Hybrid PCBA is developed to be an accessory for the laser range finder. Since the windows ( compartment) for GPS electronic is very limited. We have to custom-make LCD and battery to fit into the current design. Specification of Product Product Description # of Course 30,000 PCBA Dimension 36x31.2x12.5mm Weight TBA Battery 3.7Vdc 320 mAh Lithium Ion Polymer Battery Life At least 6 hours Display Size 17.2X17.5mm at 96x80 USB Port For charging and Firmware Upgrade GPS Module Receive at 1575MHz Charging current 100mA Working current 50mA MCU working frequency 48MHz Crystal center frequency 8MHz and 32.768KHz GPS LNA 20.5dB PCB Assembly We will deliver the PCBA as shown to the Laser Vendor for full system assembly. data exchange with PC

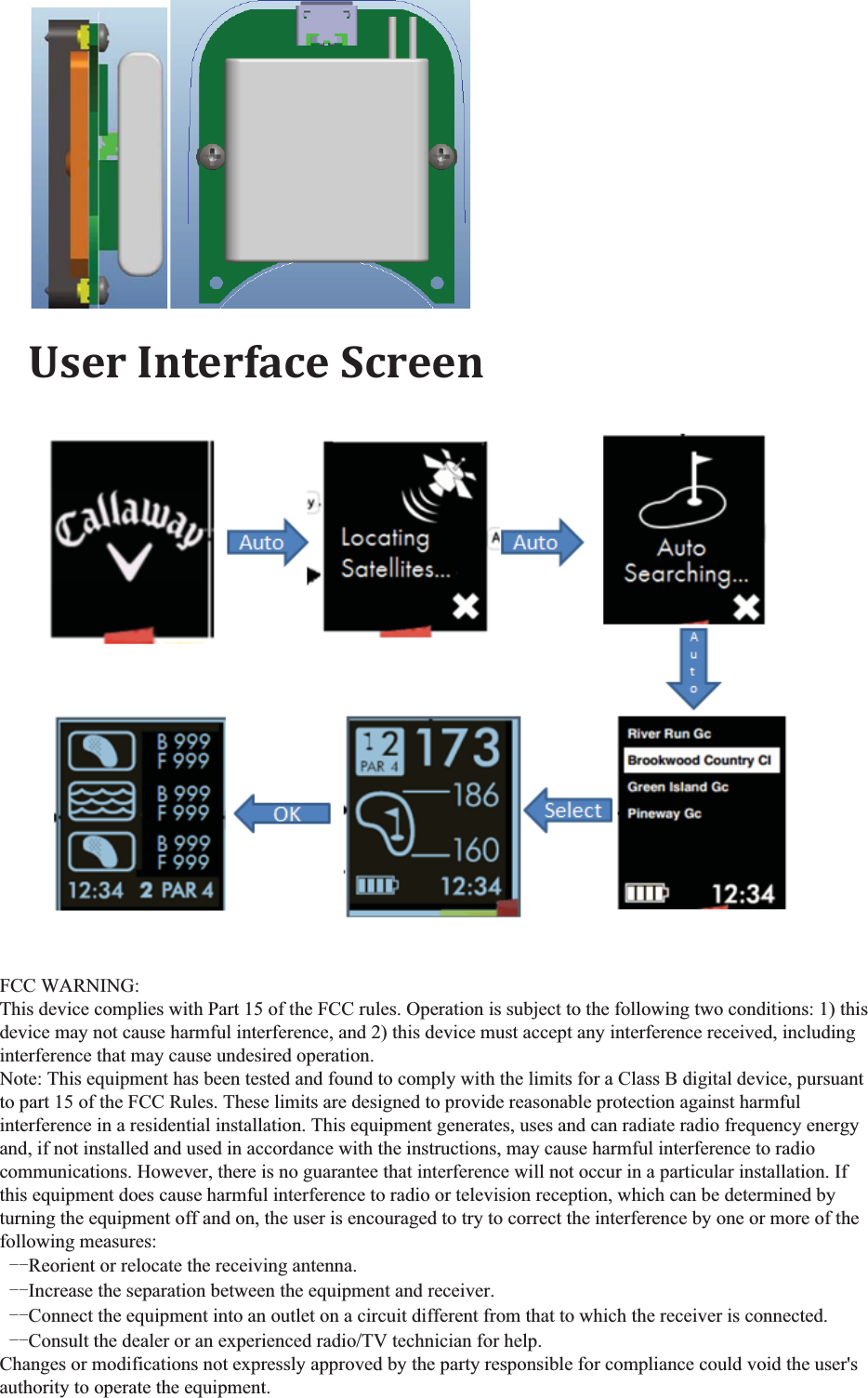

User Interface Screen Certification FCC Part B and Part C are required for this product. FCC WARNING: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
