IBM United States Hardware Announcement

110-009, dated February 9, 2010

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 1

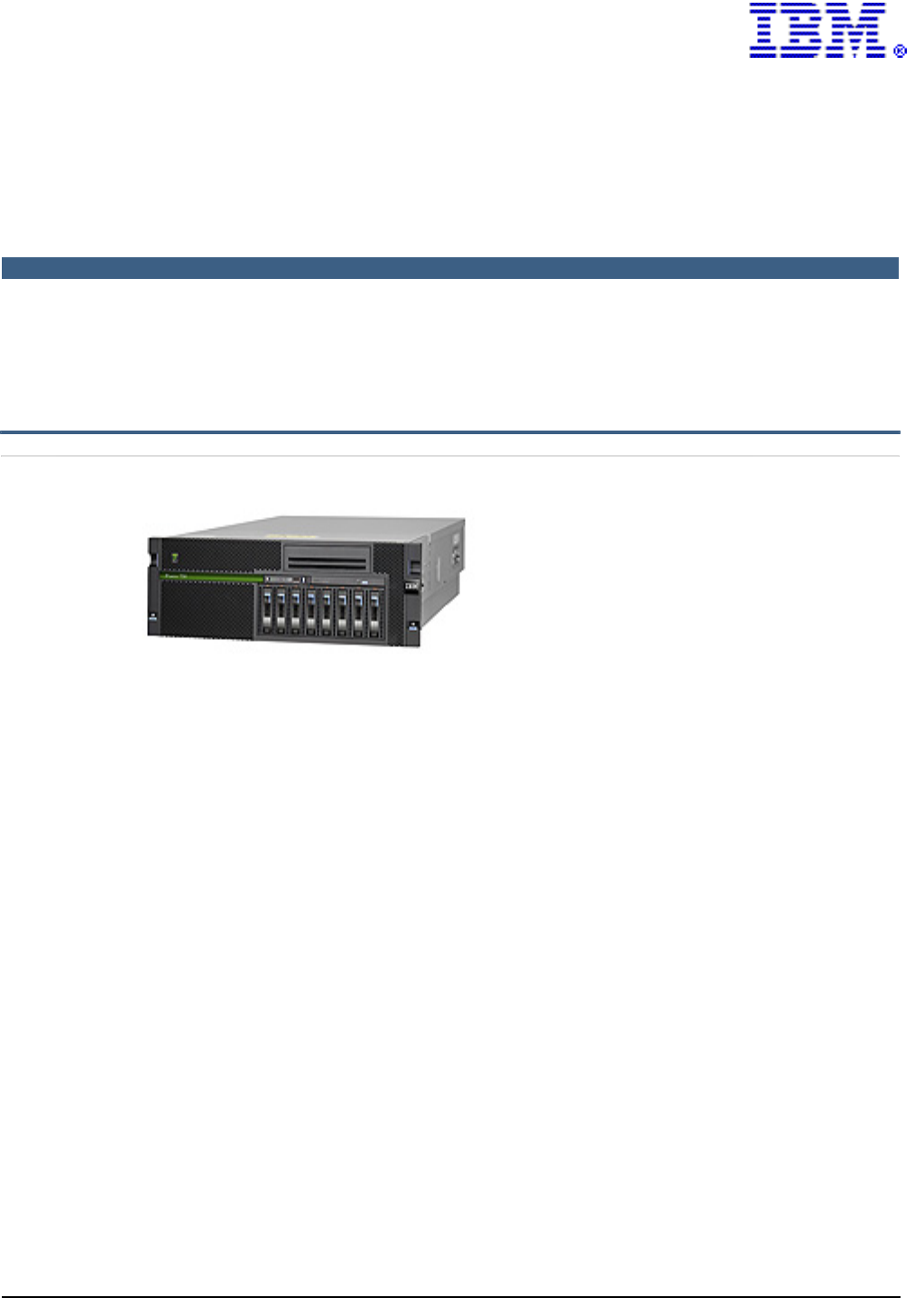

IBM Power 750 Express server offers IBM POWER7

technology and large enterprise compute capability in

small form factor

Table of contents

2Overview 32 Publications

3Key prerequisites 33 Technical information

3Planned availability date 47 Terms and conditions

4Description 51 Prices

23 Statement of general direction 86 Order now

23 Product number

At a glance

The Power® 750 Express server is a powerful 1- to 4-socket server that supports up

to 32 cores with the configuration flexibility to meet today's growth and tomorrow's

processing needs. The server features:

• Powerful POWER7 processors that offer 6-core to 32-core configuration options

– 6-, 12-, 18-, and 24-core 3.3 GHz configurations (6-core processor card)

– 8-, 16-, 24-, and 32-core 3.0 or 3.3 GHz configurations (8-core processor card)

– 32-core 3.55 GHz configuration

• Up to 512 GB of memory with four processor cards installed, optionally

augmented with Active MemoryTM Expansion

• Up to four optional PCIe I/O drawers or up to eight optional PCI-X I/O drawers,

with up to 41 PCIe slots or up to 50 PCI-X slots

• Rich I/O options in the system unit

– Five PCI slots in the system unit

– Eight disk/solid-state disk (SSD) SAS SFF (small form factor) bays -- up to 2.4

TB

– Slimline DVD-RAM

– Half-high bay for tape or removable drive

– Integrated SAS/SATA controller for disk/SSD/DVD

– Optional 175 MB RAID write cache for disk/SSD

– Integrated Virtual Ethernet ports (four 1 Gb or two 10 Gb)

• Rack-mount configuration

•EnergyScaleTM technology

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 2

For ordering, contact your IBM® representative, an IBM Business Partner, or IBM

Americas Call Centers at 800-IBM-CALL (Reference: YE001).

Overview

The Power 750 Express server (8233-E8B) supports up to four 3.3 GHz 6-core or

four 8-core 3.0, 3.3, and 3.55 GHz POWER7 processor cards in a rack-mount drawer

configuration. The POWER7 processors in this server are 64-bit, 6-core and 8-core

modules packaged on dedicated processor cards with 4 MB of L3 cache/core and 256

KB of L2 cache/core.

The Power 750 Express server supports a maximum of 32 DDR3 DIMM slots, eight

per processor card. Memory features (two memory DIMMs per feature) supported

are 8 GB, 16 GB, and 32 GB and run at speeds of 1066 MHz. A system with four

processor cards installed has a maximum memory of 512 GB. Also, the optional

Active Memory Expansion can allow the effective maximum memory capacity to be

much larger than the true physical memory. Innovative compression/decompression

of memory content using processor cycles can allow memory expansion up to 100%.

A server with a maximum of 512 GB can effectively be expanded up to 1 TB. This

can enhance virtualization and server consolidation by allowing a partition to do

significantly more work with the same physical amount of memory or a server to run

more partitions and do more work with the same physical amount of memory.

The Power 750 Express server provides great I/O expandability. For example, with

12X-attached I/O drawers, you can have up to 50 PCI-X slots or up to 41 PCIe

slots. This combination can provide over 100 LAN ports or over 72 WAN ports, or

up to 576 disk drives (over 240 TB disk storage). Extensive quantities of externally

attached storage and tape drives and libraries can also be attached.

The Power 750 Express system unit without I/O drawers can contain a maximum of

either eight SFF SAS disks or eight SFF SAS SSDs, providing up to 2.4 TB. All disks

and SSDs are direct dock and hot pluggable. The eight SAS bays can be split into

two sets of four bays for additional AIX/Linux configuration flexibility. The system

unit also contains a slimline DVD-RAM, plus a half-high media bay for an optional

tape drive or removable disk drive.

Also available in the Power 750 system unit is a choice of quad gigabit or dual 10 Gb

integrated host Ethernet adapters. These native ports can be selected at the time of

initial order. Virtualization of these integrated Ethernet adapters is supported.

Other integrated features include:

• Five expansion slots

– Three PCIe x8 (two short-length, one full-length)

– Two PCI-X DDR (full length)

– Two GX slots for 12X I/O loop or 4X connections

• Service Processor

• Integrated SAS/SATA controller for disk/SSD/DVD in system unit

– Optional 175 MB RAID write cache to augment disk/SSD performance and

function

• EnergyScale technology

• Two system ports and three USB ports

• Two hardware management console (HMC) ports and two SPCN ports

• Redundant and hot-swap power

• Redundant and hot-swap cooling

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 3

Key prerequisites

If installing the AIX® operating system (one of these):

• AIX Version 6.1 with the 6100-04 Technology Level and Service Pack 2, or later

• AIX Version 6.1 with the 6100-03 Technology Level and Service Pack 5, or later

(planned availability: June 25, 2010)

• AIX Version 6.1 with the 6100-02 Technology Level and Service Pack 8, or later

(planned availability: June 25, 2010)

• AIX Version 5.3 with the 5300-11 Technology Level and Service Pack 2, or later

(planned availability: March 16, 2010)

• AIX Version 5.3 with the 5300-10 Technology Level and Service Pack 4, or later

(planned availability: May 28, 2010)

• AIX Version 5.3 with the 5300-09 Technology Level and Service Pack 7, or later

(planned availability: May 28, 2010)

If installing the IBM i operating system:

• IBM i 6.1 with i 6.1.1 machine code, or later (planned availability: March 16,

2010)

If installing the Linux® operating system (one of these):

• SUSE Linux Enterprise Server 11 for the Power 750 Express Server, or later,

with current maintenance updates available from Novell to enable all planned

functionality

• SUSE Linux Enterprise Server 10 Service Pack 3 for the Power 750 Express Server,

with current maintenance updates available from Novell to enable all planned

functionality

Users should also update their systems with the latest Linux for Power service and

productivity tools available at

http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/home.html

If installing VIOS:

• VIOS 2.1.2.11 with Fix Pack 22.1 and Service Pack 1, or later

JavaTM 1.4.2 on POWER7:

There are unique considerations when running Java 1.4.2 on POWER7. For

best exploitation of the outstanding performance capabilities and most recent

improvements of POWER7 technology, IBM recommends upgrading Java-based

applications to Java 6 or Java 5 whenever possible.

For more information, visit

http://www.ibm.com/developerworks/java/jdk/aix/service.html

Planned availability date

February 19, 2010, except for feature 4526, which is planned to be available on

March 16, 2010.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 4

Description

Power 750

Summary of standard features:

• Rack-mount (4U) configuration

• 6-, 12-, 18-, and 24-core design with one, two, three, or four 3.3 GHz processor

cards; 8-, 16-, 24-, and 32-core design with one, two, three or four 3.0 or 3.3

GHz processor cards; or 32-core design with four 3.55 GHz processor cards

• 8 GB of PC3-8500 1066 MHz ECC memory (error checking and correcting)

memory, expandable to 128 GB per processor card (512 GB system maximum)

Note: The 8 GB memory feature (#4526) is planned to be available on March 15,

2010.

• 8 x 2.5-inch DASD/SSD/Media backplane with an external SAS port

– 1 to 8 SFF DASD or SSDs (mixing allowed)

• Choice of two integrated virtual Ethernet daughter cards:

– Quad-port 1 Gb IVE

– Dual-port 10 Gb IVE

• Two media bays:

– One slim bay for a DVD-RAM (required)

– One half-high bay for an optional tape drive or removable disk

• A maximum of five hot-swap slots:

– Two PCIe x8 slots, short card length (slots 1 and 2)

– One PCIe x8 slot, full card length (slot 3)

– Two PCIX DDR slots, full card length (slots 4 and 5)

– One GX+ slot (shares same space as PCIe x8 slot 2)

– One GX++ slot (shares same space as PCIe x8 slot 1)

• Integrated:

– Service Processor

– Quad-port 10/100/1000 Mb Ethernet

– EnergyScale technology

– Hot-swap and redundant cooling

– Three USB ports; two system ports

– Two HMC ports; two SPCN ports

• Two Power Supplies, 1725 Watt AC, Hot-swap

The minimum Power 750 configuration must include a processor, processor

activations, memory, two power supplies and power cords, one or two DASD, a

DASD/SSD/Media backplanes, an operator panel cable, an Ethernet daughter card, a

DVD-RAM, an operating system indicator, and a Language Group Specify.

The minimum defined configuration, if no choice is made, when AIX or Linux is the

primary operating system is:

Feature number Description

8335 0/6 core 3.3 GHz POWER7 Processor

6 x 7717 6 Processor Activations

4526 8 GB (2 x 4096 MB) Memory

1883 73.4 GB 15k SFF DASD

1878 Operator Panel Cable, Rack-mount drawer with

2.5-inch DASD Backplane

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 5

8340 DASD/Media Backplane for 2.5-inch DASD/SATA

DVD/Tape with External SAS Port

5624 Quad-port 1 Gb Integrated Ethernet Daughter Card

2 x 7740 Two Power Supplies, 1725 Watt AC, Base

5762 SATA DVD-RAM

9300/97xx) Language Group Specify

2146 or 2147 Primary Operating System Indicator - IBMAIX (2146)

or Linux (2147)

2 x 6xxx Two Power Cords

Notes:

• The 8 GB memory feature (#4526) is planned to be available on March 16, 2010.

• No internal DASD is required if feature 0837 (Boot from SAN) is selected. A Fibre

Channel adapter must be ordered if feature 0837 is selected.

The minimum defined configuration, if no choice is made, when IBM i is the primary

operating system is:

Feature number Description

8335 0/6 core 3.3 GHz POWER7 Processor

6 x 7717 6 Processor Activations

4526 8 GB (2 x 4096 MB) Memory

2 x 1884 69.7 GB 15K RPM SAS SFF Disk Drive

1878 Operator Panel Cable, Rack-mount drawer with

2.5-inch DASD Backplane

8340 DASD/Media Backplane for 2.5-inch DASD/SATA

DVD/Tape with External SAS Port

5624 Quad-port 1 Gb Integrated Ethernet Daughter Card

2 x 7740 Power Supply, 1725 Watt AC, Base

5762 SATA DVD-RAM

9300/97xx) Language Group Specify

2145 Primary Operating System Indicator - IBM i

0040 Mirrored System Disk Level Specify Code

0566 IBM i 6.1 with 6.1.1 Machine Code Specify Code

2 x 6xxx Two Power Cords

Notes:

• The 8 GB memory feature (#4526) is planned to be available on March 16, 2010.

• No internal DASD is required if feature 0837 (Boot from SAN) is selected. A Fibre

Channel adapter must be ordered if feature 0837 is selected.

IBM Editions

IBM Editions are available only as initial order.

If you order a Power 750 Express server IBM Edition as defined below, you can

qualify for half the initial configuration's processor core activations at no addition

charge.

The total memory (based on the number of cores) and the quantity/size of disk,

SSD, Fibre Channel adapters, or Fibre Channel over Ethernet (FCoE) adapters

shipped with the server are the only features that determine if a customer is entitled

to a processor activation at no additional charge.

Specifically, with an IBM Edition, processor activations for the processor card options

are:

• 3.3 GHz 6-core processor cards

– 3 x #7717 (chargeable) and 3 x #2327 (no-charge) with 6-core (1 x #8335)

configuration

– 6 x #7717 (chargeable) and 6 x #2327 (no-charge) with 12-core (2 x #8335)

configuration

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 6

– 9 x #7717 (chargeable) and 9 x #2327 (no-charge) with 18-core (3 x #8335)

configuration

– 12 x #7717 (chargeable) and 12 x #2327 (no-charge) with 24-core (4 x

#8335) configuration

• 3.0 GHz 8-core processor cards

– 4 x #7714 (chargeable) and 4 x #2324 (no-charge) with 8-core (1 x #8334)

configuration

– 8 x #7714 (chargeable) and 8 x #2324 (no-charge) with 16-core (2 x #8334)

configuration

– 12 x #7714 (chargeable) and 12 x #2324 (no-charge) with 24-core (3 x

#8334) configuration

– 16 x #7714 (chargeable) and 16 x #2324 (no-charge) with 32-core (4 x

#8334) configuration

• 3.3 GHz 8-core processor cards

– 4 x #7715 (chargeable) and 4 x #2325 (no-charge) with 8-core (1 x #8332)

configuration

– 8 x #7715 (chargeable) and 8 x #2325 (no-charge) with 16-core (2 x #8332)

configuration

– 12 x #7715 (chargeable) and 12 x #2325 (no-charge) with 24-core (3 x

#8332) configuration

– 16 x #7715 (chargeable) and 16 x #2325 (no-charge) with 32-core (4 x

#8332) configuration

• 3.55 GHz 8-core processor cards

– 16 x #7716 (chargeable) and 16 x #2326 (no-charge) with 32-core (4 x

#8336) configuration

When you purchase an IBM Edition, you can purchase an AIX, IBM i, or Linux

operating system license, or you may choose to purchase the system with no

operating system. The AIX, IBM i, or Linux operating system is processed via a

feature number on AIX 5.4 or 6.1, IBM i 6.1.1, and SUSE Linux Enterprise Server.

If you choose AIX 5.4 or 6.1 for your primary operating system, you can also order

IBM i 6.1.1 and SUSE Linux Enterprise Server. The converse is true if you choose an

IBM i or Linux subscription as your primary operating system.

These sample configurations can be changed as needed and still qualify for

processor entitlements at no additional charge. However, selection of total memory

or DASD/SSD/Fibre Channel/FCoE adapter quantities smaller than the totals

defined as the minimums disqualifies the order as an IBM Edition and the no-charge

processor activations are then removed.

Processor activations are only available to Solution Delivery Integration (SDIs) as

MES orders.

Processor cards ordered separately after the initial order are not eligible for no-

charge processor activations.

Edition minimum memory definition details:

A minimum of 4 GB memory per core is needed to qualify for the IBM Edition, except

on the 6-core IBM Edition where there is a 32 GB minimum memory requirement.

For example, a 6-core minimum is 32 GB, an 8-core minimum is 32 GB, and a 12-

core minimum is 48 GB. There can be many different valid memory configurations

that meet the minimum 4 GB per core requirement. For example:

• 6-core (32 GB minimum) -- 4 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 2 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 1 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 8-core (32 GB minimum) -- 4 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 2 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 1 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 12-core (48 GB minimum) -- 6 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 7

Also, 3 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 2 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 16-core (64 GB minimum) -- 8 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 4 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 2 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 18-core (72 GB minimum) -- 9 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 5 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 3 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 24-core (96 GB minimum) -- 12 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 6 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 3 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

• 32-core (128 GB minimum) -- 16 x 8 GB (2 x 4 GB DIMMs) Memory (#4526)

Also, 8 x 16 GB (2 x 8 GB DIMMs) Memory (#4527)

Also, 4 x 32 GB (2 x 16 GB DIMMs) Memory (#4528)

Note: The 8 GB memory feature (#4526) is planned to be available on March 16,

2010.

Note: You can also mix different size memory features on the same server and

meet the minimum memory requirements for the IBM Edition benefit as long as

at least 4 GB per core is attained. For example, the 1 x 16 GB memory feature

(#4527) can replace the 2 x 8 GB feature (#4526). However, all memory features

on an individual processor card must be identical.

Edition minimum Disk/SSD/Fibre Channel/FCoE definition details:

• Minimum of: Two DASD, or two SSD, or two Fibre Channel adapters, or two FCoE

adapters. You only need to meet one of this disk/SSD/FC/FCoE criteria. Partial

criteria cannot be combined.

– Two SAS disk drives -- Any capacity drives located in the system unit, feature

5802 I/O drawer, or feature 5886 disk drawer qualify.

– Two SAS SSDs -- Drives located in the system unit, feature 5802 I/O drawer, or

feature 5886 disk drawer qualify.

– Two Fibre Channel adapters -- Either PCI-X or PCI-E adapters located in the

system unit or 12X-attached I/O drawer.

– Two Fibre Channel over Ethernet adapters -- Either PCI-X or PCI-E adapters

located in the system unit or 12X-attached I/O drawer.

Multiple sample POWER7 IBM Edition configurations are provided in the IBM internal

configurator tool, including:

• Four 3.3 GHz 6-core processor card configurations (6-core, 12-core, 18-core, and

24-core)

• Four 3.0 GHz 8-core processor card configurations (8-core, 16-core, 24-core, and

32-core)

• Four 3.3 GHz 8-core processor card configurations (8-core, 16-core, 24-core, and

32-core)

• Four 3.5 GHz 8-core processor card configurations (32-core)

Dynamic logical partitioning

The dynamic logical partitioning (LPAR) function provides enhanced resource

management for the Power 750 Express server. Dynamic LPAR allows available

system resources to be quickly and easily configured across multiple logical

partitions to meet the rapidly changing needs of your business.

Dynamic LPAR also allows you to add new system resources such as new hot-plug

PCI adapters into your system's configuration without requiring a reboot. Without

the optional PowerVMTM Standard Edition (#7794) or PowerVM Enterprise Edition

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 8

(#7795) feature, as many as 32 LPARs are supported in a 32-core Power 750. If

the PowerVM Standard or Enterprise Edition feature is installed in the system, a

maximum of 10 dynamic LPARs for each physical processor can be defined, with a

system maximum of 160 dynamic LPARs.

An HMC or IVM is required to manage POWER7 processor-based servers

implementing partitioning. Multiple POWER7 processor-based servers can be

supported by a single HMC.

If an HMC is used to manage any POWER7 processor-based server, the HMC must be

a CR3, or later, model rack-mount HMC or C05, or later, deskside HMC.

When IBM Systems Director is used to manage an HMC or if the HMC manages more

than 254 partitions, the HMC should have 3 GB of RAM minimum and be CR3 model,

or later, rack-mount or C06, or later, deskside.

PowerVM Editions (optional)

Three optional PowerVM Edition features are now available on the Power 750:

PowerVM Express Edition, PowerVM Standard Edition, and PowerVM Enterprise

Edition. These are managed using built-in Integrated Virtualization Manager (IVM)

software or optionally through use of an HMC.

PowerVM Standard Edition (#7794) and PowerVM Enterprise Edition (#7795) allow

customers to create partitions in units of less than 1 CPU (sub-CPU LPARs) and allow

the same system I/O to be virtually added to these partitions. The optional features,

available for a fee, also include a software component that provides cross-partition

workload management.

PowerVM Standard and Enterprise Editions offer:

•Micro-PartitioningTM (up to 10 partitions per processor, 160 per system)

• Virtualized disk and optical devices (VIOS)

• Automated CPU reconfiguration

• Real-time partition configuration and load statistics

• Support for dedicated and shared processor LPAR groups

• Support for manual provisioning of resources

At initial order entry, selecting feature number 7994 or 7995 will result in Micro-

Partitioning to be enabled during manufacture and the enabling software media and

publications to be shipped to the customer. When ordering feature number 7994

or 7995 as an MES, an activation key will be posted on an IBM Web site, and the

customer must retrieve it and install it on the system.

The IBM Web site is

http://www-912.ibm.com/pod/pod

Other features of PowerVM Editions:

• If any processors in a system have the Virtualization feature, all active processors

must have it.

• Once the Virtualization feature is installed in a system, it cannot be removed.

• Virtual Ethernet and Virtual Storage are part of PowerVM Editions.

PowerVM Enterprise Edition also includes Live Partition Mobility, which allows for the

movement of a logical partition from one POWER6TM or POWER7 server to another

with no application downtime, and Active Memory Sharing, which dynamically

reallocates memory between running logical partitions on a server. Also available is

PowerVM Express (#7793), designed for users looking for an introduction to more

advanced virtualization features at a highly affordable price. With PowerVM Express

and IVM, users can create up to three partitions on the server, leverage (VIOS),

utilize Shared Dedicated Capacity to help optimize use of processor cycles, and even

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 9

try out the Shared Processor Pool. With its intuitive browser-based interface, IVM is

easy to use and helps reduce the time and effort required to manage virtual devices,

processors, and partitions. An HMC is not required.

Notes:

• PowerVM 2.1.2.11 with Fix Pack 22.1 and Service Pack 1, or later, and a supported

AIX or Linux operating system level are minimum requirements for performing

Live Partition Mobility functions on POWER7. Refer to the Software requirements

section for more information on minimum AIX and Linux OS levels.

• Active Memory Sharing is planned to be supported with the availability of SLES 11

SP1.

Customers can upgrade from PowerVM Express to either PowerVM Standard or

PowerVM Enterprise, or they can upgrade from PowerVM Standard to PowerVM

Enterprise.

By upgrading to PowerVM Standard or PowerVM Enterprise, users gain the ability

to create up to 160 logical partitions on the Power System 750. Users also gain

the ability to manage their PowerVM enabled machine with either an HMC or the

Integrated Virtualization Manager.

By upgrading to PowerVM Enterprise, users can leverage Live Partition Mobility and

Active Memory Sharing.

Active Memory Expansion (optional)

Active Memory Expansion is an innovative POWER7 technology that allows the

effective maximum memory capacity to be much larger than the true physical

memory maximum. Sophisticated compression/decompression of memory

content can allow memory expansion up to 100%. This can allow a partition to do

significantly more work or support more users with the same physical amount of

memory. Similarly, it can allow a server to run more partitions and do more work for

the same physical amount of memory.

Active Memory Expansion is available for partitions running AIX 6.1, or later.

Technology Level 4 with SP2 is needed.

Active Memory Expansion uses CPU resource to compress/decompress the memory

contents. The trade-off of memory capacity for processor cycles can be an excellent

choice, but the degree of expansion varies, depending on how compressible the

memory content is, and it also depends on having adequate spare CPU capacity

available for this compression/decompression. Tests in IBM laboratories using

sample workloads showed excellent results for many workloads in terms of memory

expansion per additional CPU utilized. Other test workloads had more modest

results.

Clients have a great deal of control over Active Memory Expansion usage. Each

individual AIX partition can turn on or turn off Active Memory Expansion. Control

parameters set the amount of expansion desired in each partition to help control the

amount of CPU used by the Active Memory Expansion function. An IPL is required

for the specific partition that is turning memory expansion on or off. Once turned on,

there are monitoring capabilities in standard AIX performance tools such as lparstat,

vmstat, topas, and svmon.

A planning tool is included with AIX 6.1 TL4, allowing you to sample actual

workloads and estimate both how expandable the partition's memory is and how

much CPU resource is needed. Any Power Systems model can run the planning tool.

In addition, a one-time, 60-day trial of Active Memory Expansion is available to

provide more exact memory expansion and CPU measurements. The trial can be

requested using the Capacity on Demand Web page

http://www.ibm.com/systems/power/hardware/cod/

Active Memory Expansion is enabled by a chargeable hardware feature (#4792),

which can be ordered with the initial order of the server or as an MES order. A

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 10

software key is provided when the enablement feature is ordered, which is applied

to the server. An IPL is not required to enable the server. The key is specific to an

individual server and is permanent. It cannot be moved to a different server.

The additional CPU resource used to expand memory is part of the CPU resource

assigned to the AIX partition running Active Memory Expansion. Normal licensing

requirements apply.

Power 750 Capacity BackUp (CBU) capability

(Applies to IBM i only)

The Power 750 systems' CBU designation can help meet your requirements for a

second system to use for backup, high availability, and disaster recovery. It enables

you to temporarily transfer IBM i processor license entitlements and 5250 Enterprise

Enablement entitlements purchased for a primary machine to a secondary CBU-

designated system. Temporarily transferring these resources instead of purchasing

them for your secondary system may result in significant savings. Processor

activations cannot be transferred.

The CBU specify feature 0444 is available only as part of a new server purchase.

Certain system prerequisites must be met and system registration and approval are

required before the CBU specify feature can be applied on a new server. Standard

IBM i terms and conditions do not allow either IBM i processor license entitlements

or 5250 OLTP (Enterprise Enablement) entitlements to be transferred permanently

or temporarily. These entitlements remain with the machine they were ordered for.

When you register the association between your primary and on-order CBU system,

you must agree to certain terms and conditions regarding the temporary transfer.

After a CBU system designation is approved and the system is installed, you can

temporarily move your optional IBM i processor license entitlement and 5250

Enterprise Enablement entitlements from the primary system to the CBU system

when the primary system is down or while the primary system processors are

inactive. The CBU system can then better support failover and role swapping for

a full range of test, disaster recovery, and high availability scenarios. Temporary

entitlement transfer means that the entitlement is a property transferred from the

primary system to the CBU system and may remain in use on the CBU system as

long as the registered primary and CBU system are in deployment for the high

availability or disaster recovery operation.

The primary system for a Power 750 (8233-E8B) server can be:

9179-MHB

9117-MMB

8233-E8B

9117-MMA

9406-MMA

9406-570

8234-EMA

8204-E8A

9409-M50

9406-550

These systems have IBM i software licenses with an IBM i P20 or P30 software tier.

The primary machine must be in the same enterprise as the CBU system.

Before you can temporarily transfer IBM i processor license entitlements from the

registered primary system, you must have more than one IBM i processor license

on the primary machine and at least one IBM i processor license on the CBU server.

An activated processor must be available on the CBU server to use the transferred

entitlement. You can then transfer any IBM i processor entitlements above the

minimum one, assuming the total IBM i workload on the primary system does

not require the IBM i entitlement you would like to transfer during the time of the

transfer. During this temporary transfer, the CBU system's internal records of its

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 11

total number of IBM i processor license entitlements are not updated, and you may

see IBM i license noncompliance warning messages from the CBU system. These

warning messages in this situation do not mean you are not in compliance. Before

you can temporarily transfer 5250 entitlements, you must have more than one 5250

Enterprise Enablement entitlement on the primary server and at least one 5250

Enterprise Enablement entitlement on the CBU system. You can then transfer the

entitlements that are not required on the primary server during the time of transfer

and that are above the minimum of one entitlement.

For example, if you have a 6-core Power 750 as your primary system with two IBM

i processor license entitlements (one above the minimum) and two 5250 Enterprise

Enablement entitlements (one above the minimum), you can temporarily transfer

only one IBM i entitlement and one 5250 Enterprise Enablement entitlement.

During the temporary transfer, the CBU system's internal records of its total number

of IBM i processor entitlements is not updated, and you may see IBM i license

noncompliance warning messages from the CBU system.

If your primary or CBU machine is sold or discontinued from use, any temporary

entitlement transfers must be returned to the machine on which they were originally

acquired. For CBU registration and further information, visit

http://www.ibm.com/systems/power/hardware/cbu

I/O drawer availability

Four 12X attached I/O drawers are supported on the Power 750, providing extensive

capability to expand the overall server expandability and connectivity.

• Feature 5802 provides PCIe slots and SSF SAS disk slots.

• Feature 5877 provides PCIe slots.

• Feature 5796 provides PCI-X slots.

• The 7314-G30 provides PCI-X slots (supported but not orderable).

Three disk-only I/O drawers are also supported, providing large storage capacity and

multiple partition support:

• Feature 5886 EXP12S holds 3.5-inch SAS disk or SSD.

• Feature 5786 EXP24 holds 3.5-inch SCSI disk (used for migrating existing SCSI

drives).

• The 7031-D24 holds 3.5-inch SCSI disk (supported but not orderable).

TotalStorage® EXP24 Disk Drawer (#5786)(supported only -- not

orderable)

The TotalStorage EXP24 (#5786) is a 4 EIA unit drawer and mounts in a 19-inch

rack. The front of the IBM TotalStorage EXP24 Ultra320 SCSI Expandable Storage

Disk Enclosure has bays for up to 12 disk drives organized in two SCSI groups of

up to six drives. The rear also has bays for up to 12 disk drives organized in two

additional SCSI groups of up to six drives plus slots for the four SCSI interface

cards. Each SCSI drive group can be connected by either a Single Bus Ultra320 SCSI

Repeater Card (#5741) or a Dual Bus Ultra320 SCSI Repeater Card (#5742). This

allows the EXP24 to be configured as four sets of six bays, two sets of 12 bays, or

two sets of six bays plus one set of 12 bays.

The EXP24 feature 5786 has three cooling fans and two power supplies to provide

redundant power and cooling. The SCSI disk drives contained in the EXP24 are

controlled by PCI-X SCSI adapters connected to the EXP24 SCSI repeater cards via

SCSI cables. The PCI-X adapters are located in the Power 750 system unit or in an

attached I/O drawer with PCI-X slots.

The EXP24S SCSI Disk Drawer is an earlier technology drawer compared to the

later SAS EXP12S drawer. It is used to house the older SCSI disk drives that are

supported but no longer orderable.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 12

The following feature number I/O drawers are available for order on the Power 750.

PCI-X DDR 12X Expansion Drawer (#5796)

The PCI-X DDR 12X Expansion Drawer (#5796) is a 4 EIA unit tall drawer and

mounts in a 19-inch rack. Feature 5796 is 8.8 inches wide and takes up half the

width of the 4 EIA rack space. Feature 5796 requires the use of a feature 7314

drawer-mounting enclosure. The 4 EIA tall enclosure can hold up to two feature

5796 drawers mounted side by side in the enclosure. The PCI-DDR 12X Expansion

Drawer has six 64-bit, 3.3 V, PCI-X DDR slots running at 266 MHz that use blind-

swap cassettes and support hot plugging of adapter cards. The drawer includes

redundant hot-plug power and cooling. The client must select one of the two

available interface adapters for use in the feature 5796 drawer, either the Dual-Port

12X Channel Attach Adapter -- Long Run (#6457) or the Dual-Port 12X Channel

Attach Adapter Short Run (#6446). The adapter selection is based on how close the

host system or the next I/O drawer in the loop is physically located.

A maximum of four feature 5796 drawers can be placed on the same 12X loop.

Mixing features 5802 or 5877 and 5796 on the same loop is not supported. Mixing

feature 5796 and the 7314-G30 on the same loop is supported with a maximum of

four drawers total per loop. A minimum configuration of two 12X cables (either SDR

or DDR) and two ac power cables and two SPCN cables is required to ensure proper

redundancy. The drawer attaches to the host CEC enclosure with a 12X adapter in a

GX slot via 12X SDR or DDR cables.

The Power 750 uses GX Dual-port 12X Channel Attach (#5609) or GX Dual- port

12X Channel Attach (#5616) to attach a feature 5796 12X I/O Drawer using SDR

speed, no matter which GX adapter is used.

PCI-X DDR 12X Expansion Drawer (7314-G30) (supported, not orderable)

The 7314-G30 is equivalent to the feature 5796 described above with one key

difference -- IBM i does not support this I/O drawer. Otherwise, it provides the same

six PCI-X DDR slots per unit and has the same configuration rules/considerations as

feature 5796.

12X I/O Drawer PCIe, SFF disk (#5802)

This feature provides a 4U high 19-inch I/O drawer containing 10 PCIe 8x I/O

adapter slots and 18 SAS hot-swap SFF SAS disk bays, which can be used for either

disk drives or SSDs. Using 146 GB disk drives, the feature 5802 provides up to 2.6

TB of storage.

The 18 disk bays can be organized either into one group of 18 bays (AIX/Linux),

two groups of nine slots (AIX/IBM i/Linux), or four groups of four or five bays AIX/

Linux). Selecting either one, two, or four groups of drive bays is done with a mode

switch on the drawer.

A maximum of two feature 5802 drawers can be placed on the same 12X loop.

Mixing feature 5802 and feature 5796 and the 7314-G30 on the same loop is not

supported. Mixing feature 5802 and feature 5877 on the same loop is supported

with a maximum of two drawers total per loop. The PCIe adapter slots use Gen

3 blind-swap cassettes and support hot plugging of adapter cards. A minimum

configuration of two 12X DDR cables and two ac power cables and two SPCN cables

is required to ensure proper redundancy. 12X SDR cables are not supported. The

drawer attaches to the host CEC enclosure with a 12X adapter in a GX slot via 12X

DDR cables (#1861/#1862/#1864/#1865).

The Power 750 uses GX Dual-port 12X Channel Attach (#5609) or GX Dual-port 12X

Channel Attach (#5616) to attach a feature 5802 12X I/O Drawer. The feature 5609

provides the higher capacity bandwidth (DDR).

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 13

12X I/O Drawer PCIe, No disk (#5877)

This feature provides a 4U high 19-inch I/O drawer containing 10 PCIe 8x I/O

adapter slots.

A maximum of two feature 5877 drawers can be placed on the same 12X loop.

Mixing features 5877 and 5796/7314-G30 on the same loop is not supported. Mixing

features 5802 and 5877 on the same loop is supported with a maximum of two

drawers total per loop. The PCIe adapter slots use Gen 3 blind-swap cassettes and

support hot plugging of adapter cards. A minimum configuration of two 12X DDR

cables and two ac power cables and two SPCN cables is required to ensure proper

redundancy. 12X SDR cables are not supported. The drawer attaches to the host

CEC enclosure with a 12X adapter in a GX slot via 12X DDR cables (#1861/#1862/

#1864/#1865).

The Power 750 uses GX Dual-port 12X Channel Attach (#5609) or GX Dual-port 12X

Channel Attach (#5616) to attach a feature 5877 12X I/O Drawer. Feature 5609

provides the higher capacity bandwidth (DDR).

Note that conversions between a diskless feature 5877 and a feature 5802 with disk

bays are not available.

EXP 12S SAS Drawer (#5886)

The EXP 12S SAS drawer (#5886) is a 2 EIA drawer and mounts in a 19 inch-rack.

The drawer can hold either SAS disk drives or SSD. The EXP 12S SAS drawer has

twelve 3.5-inch SAS disk bays with redundant data paths to each bay. The drawer

supports redundant hot-plug power and cooling and redundant hot-swap SAS

expanders (Enclosure Services Manager-ESM). Each ESM has an independent SCSI

Enclosure Services (SES) diagnostic processor.

The SAS disk drives or SSD contained in the EXP12S are controlled by one or two

PCIe or PCI-X SAS adapters connected to the EXP12S via SAS cables. The SAS cable

will vary, depending upon the adapter being used, the operating system being used,

and the protection desired.

• The large cache PCI-X feature 5904/5908 uses a SAS Y cable when a single port

is running the EXP12S. A SAS X cable is used when a pair of adapters are used for

controller redundancy.

• The medium cache PCI-X feature 5902 and PCIe feature 5903 adapters are always

paired and use a SAS X cable to attach the feature 5886 I/O drawer.

• The zero cache PCI-X feature 5912 and PCIe feature 5901 use a SAS Y cable

when a single port is running the EXP12S. A SAS X cable is used for AIX/Linux

environments when a pair of adapters are used for controller redundancy.

In all of the above configurations, all 12 SAS bays are controlled by a single

controller or a single pair of controllers.

A second EXP12S drawer can be attached to another drawer using two SAS EE

cables, providing 24 SAS bays instead of 12 bays for the same SAS controller port.

This is called cascading. In this configuration, all 24 SAS bays are controlled by a

single controller or a single pair of controllers.

The feature 5886 can also be directly attached to the SAS port on the rear of the

Power 750, providing a very low cost disk storage solution. When used this way,

the imbedded SAS controllers augmented by the 175 MB write cache RAID enabler

feature 5679 in the system unit drive the disk drives in EXP12S. A second unit

cannot be cascaded to a feature 5886 attached in this way.

19-inch racks

The Model 8233-E8B and its I/O drawers are designed to mount in the 25U 7014-

S25 (#0555), 36U 7014-T00 (#0551), or the 42U 7014-T42 (#0553) rack. These

racks are built to the 19-inch EIA standard. When you order a new 8233 system,

you can also order the appropriate 7014 rack model with the system hardware on

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 14

the same initial order. IBM is making the racks available as features of the 8233-

E8B when you order additional I/O drawer hardware for an existing system (MES

order). The rack feature number should be used if you want IBM to integrate the

newly ordered I/O drawer in a 19-inch rack before shipping the MES order.

1.3-Meter Rack (#0555)

The 1.3-Meter Rack (#0555) is a 25 EIA unit rack. The rack that is delivered as

feature 0555 is the same rack delivered when you order the 7014-S25 rack. Order

the feature 0555 only when required to support rack integration of MES orders prior

to shipment from IBM.

1.8-Meter Rack (#0551)

The 1.8-Meter Rack (#0551) is a 36 EIA unit rack. The rack that is delivered as

feature 0551 is the same rack delivered when you order the 7014-T00 rack; the

included features may be different. Some features that are delivered as part of the

7014-T00 must be ordered separately with the feature 0551. Order the feature 0551

only when required to support rack integration of MES orders prior to shipment from

IBM.

2.0-Meter Rack (#0553)

The 2.0-Meter Rack (#0553) is a 42 EIA unit tall rack. The rack that is delivered

as feature 0553 is the same rack delivered when you order the 7014-T42 rack; the

included features may be different. Some features that are delivered as part of the

7014-T42 must be ordered separately with the feature 0553. Order the feature 0553

only when required to support rack integration of MES orders prior to shipment from

IBM.

IBM Power Systems Deployment-ready Services

IBM offers a portfolio of integration, configuration, and customization services for

IBM Power Systems. These Deployment-ready Services are designed to accelerate

customer solution deployment and reduce related resources and cost. Offerings

include:

• Integration

– Component integration

– Rack integration

– Operating system preinstallation

– Unit personalization

– Third-party hardware/software installation

– Customer Specified Placement

• Asset tagging: Standard tagging Radio Frequency Item Device (RFID)

• Special packaging: Box consolidation

• System customization: Remote access Partitioning Customized operating system/

firmware

For more information on Deployment-ready Services, refer to

http://www.ibm.com/power/deploymentreadyservices/

Reliability, Availability, and Serviceability (RAS) features

Reliability, fault tolerance, and data correction

The reliability of systems starts with components, devices, and subsystems that are

designed to be fault-tolerant. POWER7 uses lower voltage technology, improving

reliability with stacked latches to reduce soft error (SER) susceptibility. During the

design and development process, subsystems go through rigorous verification and

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 15

integration testing processes. During system manufacturing, systems go through a

thorough testing process to help ensure the highest level of product quality.

The system cache and memory offer ECC (error checking and correcting) fault-

tolerant features. ECC is designed to correct environmentally induced, single-bit,

intermittent memory failures and single-bit hard failures. With ECC, the likelihood of

memory failures will be substantially reduced. ECC also provides double-bit memory

error detection that helps protect data in the event of a double-bit memory failure.

The AIX and IBM i operating systems provide disk drive mirroring and disk drive

controller duplexing. The Linux operating system supports disk drive mirroring

(RAID 1) through software, while other RAID protection schemes are provided via

hardware RAID adapters.

The Journaled File System, also known as JFS or JFS2, helps maintain file system

consistency and reduces the likelihood of data loss when the system is abnormally

halted due to a power failure. JFS, the recommended file system for 32-bit kernels,

now supports extents on the Linux operating system. This feature is designed

to substantially reduce or eliminate fragmentation. Its successor, JFS2, is the

recommended file system for 64-bit kernels.

With 64-bit addressing, a maximum file system size of 32 TB and maximum file

size of 16 TB, JFS2 is highly recommended for systems running the AIX operating

system.

Memory error correction extensions

The memory has single-bit-error correction and double-bit-error detection ECC

circuitry. The ECC code is also designed such that the failure of any one specific

memory module within an ECC word by itself can be corrected absent any other

fault.

Memory protection features include scrubbing to detect errors, a means to call for

the deallocation of memory pages for a pattern of correctable errors detected, and

signaling deallocation of a logical memory block when an error occurs that cannot be

corrected by the ECC code.

Redundancy for array self-healing

Although the most likely failure event in a processor is a soft single-bit error in

one of its caches, other events can occur, and they need to be distinguished from

one another. For caches and their directories, hardware and firmware keep track

of whether errors are being corrected beyond a threshold. If exceeded, a deferred

repair error log is created.

Caches and directories on the POWER7 chip are manufactured with spare bits

in their arrays that can be accessed via programmable steering logic to replace

faulty bits in the respective arrays. This is analogous to the redundant bit steering

employed in main storage as a mechanism that is designed to help avoid physical

repair, and is also implemented in POWER7 systems. The steering logic is activated

during processor initialization and is initiated by the built-in system-test (BIST) at

power-on time.

When correctable error cache exceeds a set threshold, systems using the POWER7

processor invoke a dynamic cache line delete function, which enables them to stop

using bad cache and eliminates exposure to greater problems.

Fault monitoring functions

• When a POWER7 processor-based system is powered on, BIST and POST (power-

on self-test) check processor, cache, memory, and associated hardware required

for proper booting of the operating system. If a noncritical error is detected or if

the errors occur in resources that can be removed from the system configuration,

the restarting process is designed to proceed to completion. The errors are logged

in the system nonvolatile RAM (NVRAM).

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 16

• Disk drive fault tracking is designed to alert the system administrator of an

impending disk drive failure before it impacts customer operation.

Mutual surveillance

The Service Processor monitors the operation of the firmware during the boot

process, and also monitors the HypervisorTM for termination. The Hypervisor

monitors the Service Processor and will perform a reset/reload if it detects the loss

of the Service Processor. If the reset/reload does not correct the problem with the

Service Processor, the Hypervisor will notify the operating system and the operating

system can take appropriate action, including calling for service.

Environmental monitoring functions

POWER7-based servers include a range of environmental monitoring functions:

• Temperature monitoring warns the system administrator of potential

environmental-related problems by monitoring the air inlet temperature. When

the inlet temperature rises above a warning threshold, the system initiates an

orderly shutdown. When the temperature exceeds the critical level or if the

temperature remains above the warning level for too long, the system will shut

down immediately.

• Fan speed is controlled by monitoring actual temperatures on critical components

and adjusting accordingly. If internal component temperatures reach critical

levels, the system will shut down immediately, regardless of fan speed. When a

redundant fan fails, the system calls out the failing fan and continues running.

When a nonredundant fan fails, the system shuts down immediately.

Availability enhancement functions

The POWER7 family of systems continues to offer and introduce significant

enhancements designed to increase system availability.

POWER7 processor functions

As in POWER6, the POWER7 processor has the ability to do processor instruction

retry and alternate processor recovery for a number of core-related faults. This

significantly reduces exposure to both hard (logic) and soft (transient) errors in

the processor core. Soft failures in the processor core are transient (intermittent)

errors, often due to cosmic rays or other sources of radiation, and generally are not

repeatable. When an error is encountered in the core, the POWER7 processor will

first automatically retry the instruction. If the source of the error was truly transient,

the instruction will succeed and the system will continue as before. On IBM systems

prior to POWER6, this error would have caused a checkstop.

Hard failures are more difficult, being true logical errors that will be replicated

each time the instruction is repeated. Retrying the instruction will not help in this

situation because the instruction will continue to fail. As in POWER6, POWER7

processors have the ability to extract the failing instruction from the faulty core

and retry it elsewhere in the system for a number of faults, after which the failing

core is dynamically deconfigured and called out for replacement. The entire process

is transparent to the partition owning the failing instruction. These systems are

designed to avoid a full system outage.

POWER7 single processor checkstopping

As in POWER6, POWER7 provides single processor checkstopping. This significantly

reduces the probability of any one processor affecting total system availability.

Partition availability priority

Also available is the ability to assign availability priorities to partitions. If an

alternate processor recovery event requires spare processor resources in order

to protect a workload, when no other means of obtaining the spare resources is

available, the system will determine which partition has the lowest priority and

attempt to claim the needed resource. On a properly configured POWER7 processor-

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 17

based server, this allows that capacity to be first obtained from, for example, a test

partition instead of a financial accounting system.

POWER7 cache availability

The POWER® processor-based line of servers continues to be at the forefront of

cache availability enhancements. The L3 cache is now integrated on the POWER7

processor. The POWER7 processor provides both L2 and L3 cache line delete

functions.

Special uncorrectable error handling

Uncorrectable errors are difficult for any system to tolerate, although there are

some situations where they can be shown to be irrelevant. For example, if an

uncorrectable error occurs in cached data that will never again be read or where

a fresh write of the data is imminent, it would be unwise to "protect" the user by

forcing an immediate reboot.

Special Uncorrectable Error (SUE) handling was an IBM innovation introduced for

POWER5TM processors, where an uncorrectable error in memory or cache does not

immediately cause the system to terminate. Rather, the system tags the data and

determines whether it will ever be used again. If the error is irrelevant, it will not

force a checkstop.

PCI extended error handling

PCI extended error handling (EEH) enabled adapters respond to a special data

packet generated from the affected PCI slot hardware by calling system firmware,

which will examine the affected bus, allow the device driver to reset it, and continue

without a system reboot. For Linux, EEH support extends to the majority of

frequently used devices, although some third-party PCI devices may not provide

native EEH support.

Predictive failure and dynamic component deallocation

Servers with POWER processors have long had the capability to perform predictive

failure analysis on certain critical components such as processors and memory.

When these components exhibit symptoms that would indicate a failure is imminent,

the system can dynamically deallocate and call home about the failing part before

the error is propagated system-wide. In many cases, the system will first attempt to

reallocate resources in such a way that will avoid unplanned outages. In the event

that insufficient resources exist to maintain full system availability, these servers will

attempt to maintain partition availability by user-defined priority.

Uncorrectable error recovery

When the auto-restart option is enabled, the system can automatically restart

following an unrecoverable software error, hardware failure, or environmentally

induced (ac power) failure.

Serviceability

The purpose of serviceability is to repair the system while attempting to minimize

or eliminate service cost (within budget objectives), while maintaining high

customer satisfaction. Serviceability includes system installation, MES (system

upgrades/downgrades), and system maintenance/repair. Depending upon the

system and warranty contract, service may be performed by the customer, an IBM

representative, or an authorized warranty service provider.

The serviceability features delivered in this system provide a highly efficient service

environment by incorporating the following attributes

• Design for Customer Set Up (CSU), Customer Installed Features (CIF), and

Customer Replaceable Units (CRU)

• Error detection and Fault Isolation (ED/FI)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 18

• First Failure Data Capture (FFDC)

• Converged service approach across multiple IBM server platforms

Service environments

The HMC is a dedicated server that provides functions for configuring and managing

servers for either partitioned or full-system partition using a GUI or command-line

interface (CLI). An HMC attached to the system allows support personnel (with

client authorization) to remotely log in to review error logs and perform remote

maintenance if required.

The POWER7 processor-based platforms support two main service environments:

• Attachment to one or more HMCs is a supported option by the system. This is the

default configuration for servers supporting logical partitions with dedicated or

virtual I/O. In this case, all servers have at least one logical partition.

• No HMC. There are two service strategies for non-HMC systems

– Full system partition: A single partition owns all the server resources and only

one operating system may be installed.

– Partitioned system: In this configuration, the system can have more than

one partition and can be running more than one operating system. In this

environment, partitions are managed by the Integrated Virtualization Manager

(IVM), which provides some of the functions provided by the HMC.

Service Interface

The Service Interface allows support personnel to communicate with the service

support applications in a server using a console, interface, or terminal. Delivering

a clear, concise view of available service applications, the Service Interface allows

the support team to manage system resources and service information in an

efficient and effective way. Applications available via the Service Interface are

carefully configured and placed to give service providers access to important service

functions.

Different service interfaces are used, depending on the state of the system and its

operating environment. The primary service interfaces are:

• LEDs

• Operator Panel

• Service Processor menu

• Operating system service menu

• Service Focal Point on the HMC

• Service Focal Point Lite on IVM

In the light path LED implementation, when a fault condition is detected on the

POWER7 system, an amber FRU fault LED will be illuminated, which will be rolled up

to the system fault LED. The light path system pinpoints the exact part by turning

on the amber FRU fault LED associated with the part to be replaced.

The system can clearly identify components for replacement by using specific

component-level LEDs, and can also guide the servicer directly to the component

by signaling (turning on solid) the system fault LED, enclosure fault LED, and the

component FRU fault LED. The servicer can also use the identify function to blink the

FRU-level LED. When this function is activated, a roll-up to the blue enclosure locate

and system locate LEDs will occur. These LEDs will turn on solid and can be used to

follow the light path from the system to the enclosure and down to the specific FRU.

First Failure Data Capture and Error Data Analysis

First Failure Data Capture (FFDC) is a technique that helps ensure that when a fault

is detected in a system, the root cause of the fault will be captured without the

need to re-create the problem or run any sort of extending tracing or diagnostics

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 19

program. For the vast majority of faults, a good FFDC design means that the root

cause can also be detected automatically without servicer intervention.

First Failure Data Capture FFDC information, error data analysis, and fault isolation

are necessary to implement the advanced serviceability techniques that enable

efficient service of the systems and to help determine the failing items.

In the rare absence of FFDC and Error Data Analysis, diagnostics are required to re-

create the failure and determine the failing items.

Diagnostics

General diagnostic objectives are to detect and identify problems such that they can

be resolved quickly. Elements of IBM's diagnostics strategy include:

• Provide a common error code format equivalent to a system reference code,

system reference number, checkpoint, or firmware error code.

• Provide fault detection and problem isolation procedures. Support remote

connection ability to be used by the IBM Remote Support Center or IBM

Designated Service.

• Provide interactive intelligence within the diagnostics with detailed online failure

information while connected to IBM's back-end system.

Automatic diagnostics

Because of the FFDC technology designed into IBM Servers, it is not necessary to

perform re-create diagnostics for failures or require user intervention. Solid and

intermittent errors are designed to be correctly detected and isolated at the time the

failure occurs. Runtime and boot-time diagnostics fall into this category.

Stand-alone diagnostics

As the name implies, stand-alone or user-initiated diagnostics require user

intervention. The user must perform manual steps, including:

• Compact disk-based diagnostics

• Keying in commands

• Interactively selecting steps from a list of choices

Concurrent maintenance

The system will continue to support concurrent maintenance of power, cooling, PCI

adapters, DASD, DVD, and firmware updates (when possible). The determination of

whether a firmware release can be updated concurrently is identified in the readme

information file released with the firmware.

Service labels

Service providers use these labels to assist them in performing maintenance actions.

Service labels are found in various formats and positions, and are intended to

transmit readily available information to the servicer during the repair process.

Following are some of these service labels and their purpose:

Location diagrams

Location diagrams are strategically located on the system hardware, relating

information regarding the placement of hardware components. Location diagrams

may include location codes, drawings of physical locations, concurrent maintenance

status, or other data pertinent to a repair. Location diagrams are especially useful

when multiple components are installed such as DIMMs, CPUs, processor books,

fans, adapter cards, LEDs, and power supplies.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 20

Remove/replace procedures

Service labels that contain remove/replace procedures are often found on a cover

of the system or in other spots accessible to the servicer. These labels provide

systematic procedures, including diagrams, detailing how to remove/replace certain

serviceable hardware components.

Arrows

Numbered arrows are used to indicate the order of operation and serviceability

direction of components. Some serviceable parts such as latches, levers, and touch

points need to be pulled or pushed in a certain direction and certain order for the

mechanical mechanisms to engage or disengage. Arrows generally improve the ease

of serviceability.

Packaging for service

The following service enhancements are included in the physical packaging of the

systems to facilitate service:

• Color coding (touch points): Terracotta colored touch points indicate that a

component (FRU/CRU) can be concurrently maintained. Blue colored touch points

delineate components that are not concurrently maintained -- those that require

the system to be turned off for removal or repair.

• Tool-less design: Selected IBM systems support tool-less or simple tool designs.

These designs require no tools or simple tools such as flathead screwdrivers to

service the hardware components.

• Positive retention: Positive retention mechanisms help to assure proper

connections between hardware components such as cables to connectors, and

between two cards that attach to each other. Without positive retention, hardware

components run the risk of becoming loose during shipping or installation,

preventing a good electrical connection. Positive retention mechanisms like

latches, levers, thumb-screws, pop Nylatches (U-clips), and cables are included

to help prevent loose connections and aid in installing (seating) parts correctly.

These positive retention items do not require tools.

Error Handling and Reporting

In the unlikely event of system hardware or environmentally induced failure, the

system runtime error capture capability systematically analyzes the hardware error

signature to determine the cause of failure. The analysis result will be stored in

system NVRAM. When the system can be successfully restarted either manually or

automatically, the error will be reported to the operating system. Error Log Analysis

(ELA) can be used to display the failure cause and the physical location of the failing

hardware.

With the integrated Service Processor, the system has the ability to automatically

send out an alert via phone line to a pager or call for service in the event of a critical

system failure. A hardware fault will also turn on the amber system fault LED located

on the system unit to alert the user of an internal hardware problem. The indicator

may also be set to blink by the operator as a tool to allow system identification.

For identification, the blue locate LED on the enclosure and at the system level will

turn on solid. The amber system fault LED will be on solid when an error condition

occurs.

On POWER7 processor-based servers, hardware and software failures are recorded

in the system log. When an HMC is attached, an ELA routine analyzes the error,

forwards the event to the Service Focal Point (SFP) application running on the

HMC, and notifies the system administrator that it has isolated a likely cause of

the system problem. The Service Processor event log also records unrecoverable

checkstop conditions, forwards them to the SFP application, and notifies the system

administrator. Once the information is logged in the SFP application, if the system is

properly configured, a call home service request will be initiated and the pertinent

failure data with service parts information and part locations will be sent to an IBM

Service organization. Customer contact information and specific system-related

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 21

data such as the machine type, model, and serial number, along with error log data

related to the failure are sent to IBM Service.

Service Processor

The Service Processor provides the capability to diagnose, check the status of, and

sense the operational conditions of a system. It runs on its own power boundary and

does not require resources from a system processor to be operational to perform its

tasks.

The Service Processor supports surveillance of the connection to the HMC and to

the system firmware (Hypervisor). It also provides several remote power control

options, environmental monitoring, reset, restart, remote maintenance, and

diagnostic functions, including console mirroring. The Service Processors menus

(ASMI) can be accessed concurrently with system operation allowing nondisruptive

abilities to change system default parameters.

Call Home

Call Home refers to an automatic or manual call from a customer location to

IBM support structure with error log data, server status, or other service-related

information. Call Home invokes the service organization in order for the appropriate

service action to begin. Call Home can be done through HMC or non-HMC managed

systems. While configuring Call Home is optional, clients are encouraged to

implement this feature in order to obtain service enhancements such as reduced

problem determination and faster and potentially more accurate transmittal of

error information. In general, using the Call Home feature can result in increased

system availability. The Electronic Service AgentTM application can be configured

for automated call home. Refer to the next section for specific details on this

application.

IBM Electronics Services

Electronic Service Agent and the IBM Electronic Services Web portal comprise the

IBM Electronic Services solution -- dedicated to providing fast, exceptional support

to IBM customers. IBM Electronic Service Agent is a no-charge tool that proactively

monitors and reports hardware events such as system errors, performance issues,

and inventory. Electronic Service Agent can help focus on the customer's company

strategic business initiatives, save time, and spend less effort managing day-to-day

IT maintenance issues.

Integrated in the operating system in addition to the HMC, Electronic Service Agent

is designed to automatically and electronically report system failures and customer-

perceived issues to IBM, which can result in faster problem resolution and increased

availability. System configuration and inventory information collected by Electronic

Service Agent also can be viewed on the secure Electronic Services Web portal and

used to improve problem determination and resolution between the customer and

the IBM support team. As part of an increased focus to provide even better service

to IBM customers, Electronic Service Agent tool configuration and activation comes

standard with the system. In support of this effort, a new HMC External Connectivity

security whitepaper has been published, which describes data exchanges between

the HMC and the IBM Service Delivery Center (SDC) and the methods and protocols

for this exchange. To read the whitepaper and prepare for Electronic Service Agent

installation, go to the Reference Guide section at

http://www.ibm.com/support/electronic

Select your country.

Click on "IBM Electronic Service Agent Connectivity Guide."

Benefits

Increased uptime: Electronic Service Agent is designed to enhance the

warranty and maintenance service by providing faster hardware error reporting

and uploading system information to IBM Support. This can optimize the time

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 22

monitoring the symptoms, diagnosing the error, and manually calling IBM Support

to open a problem record. And 24 x 7 monitoring and reporting means no more

dependency on human intervention or off-hours customer personnel when errors are

encountered in the middle of the night.

Security: Electronic Service Agent is secure in monitoring, reporting, and storing

the data at IBM. Electronic Service Agent securely transmits via the Internet (HTTPS

or VPN) and can be configured to communicate securely through gateways to

provide customers a single point of exit from their site. Communication between

the customer and IBM only flows one way; activating Service Agent does not enable

IBM to call into a customer's system. System inventory information is stored in a

secure database, which is protected behind IBM firewalls. The customer's business

applications or business data is never transmitted to IBM.

More accurate reporting: Because system information and error logs are

automatically uploaded to the IBM Support Center in conjunction with the service

request, customers are not required to find and send system information, decreasing

the risk of misreported or misdiagnosed errors. Once inside IBM, problem error data

is run through a data knowledge management system and knowledge articles are

appended to the problem record.

Customized support: Using the IBM ID entered during activation, customers can

view system and support information in the "My Systems" and "Premium Search"

sections of the Electronic Services Web site.

The Electronic Services Web portal is a single Internet entry point that replaces the

multiple entry points traditionally used to access IBM Internet services and support.

This Web portal enables you to gain easier access to IBM resources for assistance in

resolving technical problems. The newly improved My Systems and Premium Search

functions make it even easier for Electronic Service Agent-enabled customers to

track system inventory and find pertinent fixes.

My Systems provides valuable reports of installed hardware and software using

information collected from the systems by IBM Electronic Service Agent. Reports

are available for any system associated with the customer's IBM ID. Premium

Search combines the function of search and the value of Electronic Service Agent

information, providing advanced search of the technical support knowledgebase.

Using Premium Search and the Service Agent information that has been collected

from the system, customers are able to see search results that apply specifically to

their systems.

For more information on how to utilize the power of IBM Electronic Services, visit the

following Web site or contact an IBM Systems Services Representative

http://www.ibm.com/support/electronic

Accessibility by people with disabilities

A U.S. Section 508 Voluntary Product Accessibility Template (VPAT) containing

details on accessibility compliance can be requested at

http://www.ibm.com/able/product_accessibility/index.html

Section 508 of the U.S. Rehabilitation Act

IBM Power 750 Express server is capable as of February 19, 2010, when used

in accordance with associated IBM documentation, of satisfying the applicable

requirements of Section 508 of the Rehabilitation Act, provided that any assistive

technology used with the product properly interoperates with it. A U.S. Section 508

Voluntary Product Accessibility Template (VPAT) can be requested via the IBM web

site

http://www-03.ibm.com/able/product_accessibility/index.html

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 23

Statement of general direction

IBM plans for PowerVM to support up to 320 logical partitions on the Power 750

server and up to 640 logical partitions on the Power 770 and 780 servers. For future

POWER7 systems, IBM plans for PowerVM to support up to 1,000 logical partitions

per server.

IBM is working with Red Hat on POWER7 support. Red Hat plans to support

the Power 750, 755, 770, and 780 models in an upcoming release targeted for

availability during first half 2010. For additional questions on the availability of this

release, contact Red Hat.

IBM plans for PowerVM Lx86 to support POWER7 systems in second quarter 2010.

All statements regarding IBM's future direction and intent are subject to change or

withdrawal without notice, and represent goals and objectives only. Any reliance on

these Statements of Direction is at the relying party's sole risk and will not create

liability or obligation for IBM.

The information on the new product is intended to outline our general product

direction and it should not be relied on in making a purchasing decision. The

information on the new product is for informational purposes only and may not

be incorporated into any contract. The information on the new product is not

a commitment, promise, or legal obligation to deliver any material, code or

functionality. The development, release, and timing of any features or functionality

described for our products remains at our sole discretion.

Product number

The following are newly announced features on the specific models of the IBM Power

Systems 8233 machine type:

Description MT Model Feature

IBM Power 750 8233 E8B

Specify Code for External High Speed Modem 8233 E8B 0032

Mirrored System Disk Level, Specify Code 8233 E8B 0040

Device Parity Protection-All, Specify Code 8233 E8B 0041

Mirrored System Bus Level, Specify Code 8233 E8B 0043

Device Parity RAID-6 All, Specify Code 8233 E8B 0047

RISC-to-RISC Data Migration 8233 E8B 0205

AIX Partition Specify 8233 E8B 0265

Linux Partition Specify 8233 E8B 0266

IBM i Operating System Partition Specify 8233 E8B 0267

CSC Specify 8233 E8B 0275

Specify Custom Data Protection 8233 E8B 0296

Mirrored Level System Specify Code 8233 E8B 0308

RAID Hot Spare Specify 8233 E8B 0347

V.24/EIA232 6.1m (20-Ft) PCI Cable 8233 E8B 0348

V.24/EIA232 15.2m (50-Ft) PCI Cable 8233 E8B 0349

V.35 6.1m (20-Ft) PCI Cable 8233 E8B 0353

V.35 15.2m (50-Ft) PCI Cable 8233 E8B 0354

V.36 6.1m (20-Ft) PCI Cable 8233 E8B 0356

X.21 6.1m (20-Ft) PCI Cable 8233 E8B 0359

X.21 15.2m (50-Ft) PCI Cable 8233 E8B 0360

V.24/EIA232 (80-Ft) PCI Cable 8233 E8B 0365

CBU Specify 8233 E8B 0444

Customer Specified Placement 8233 E8B 0456

SSD Placement Indicator - CEC 8233 E8B 0462

SSD Placement Indicator (5802/5803) 8233 E8B 0463

SSD Placement Indicator - 5886 8233 E8B 0464

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 24

19 inch, 1.8 meter high rack 8233 E8B 0551

19 inch, 2.0 meter high rack 8233 E8B 0553

19 inch, 1.3 meter high rack 8233 E8B 0555

IBM i 6.1 with 6.1.1 Machine Code Specify Code 8233 E8B 0566

Rack Filler Panel Kit 8233 E8B 0599

Load Source Not in CEC 8233 E8B 0719

Specify Load Source in #5786 8233 E8B 0725

Specify Load Source in #5802/5803 8233 E8B 0726

Specify #5886 Load Source placement 8233 E8B 0727

#4327 Load Source Specify 8233 E8B 0835

#4328 Load Source Specify 8233 E8B 0836

SAN Load Source Specify 8233 E8B 0837

#3676 Load Source Specify 8233 E8B 0838

#3677 Load Source Specify 8233 E8B 0839

#3678 Load Source Specify 8233 E8B 0840

#4329 Load Source Specify 8233 E8B 0841

#3658 Load Source Specify 8233 E8B 0844

#1884 Load Source Specify 8233 E8B 0851

#1888 Load Source Specify 8233 E8B 0853

#1909 Load Source Specify 8233 E8B 0854

#3587 Load Source Specify 8233 E8B 0855

US TAA Compliance Indicator 8233 E8B 0983

Modem Cable - US/Canada and General Use 8233 E8B 1025

USB Internal Docking Station for Removable Disk

Drive 8233 E8B 1103

USB External Docking Station for Removable Disk

Drive 8233 E8B 1104

USB 160 GB Removable Disk Drive 8233 E8B 1106

USB 500 GB Removable Disk Drive 8233 E8B 1107

200V 16A 4.3m (14-Ft) TL Line Cord 8233 E8B 1406

125V 4.3m (14-Ft) Line Cord 8233 E8B 1413

200V 1.8m (6-Ft) Locking Line Cord 8233 E8B 1414200V 1.8m (6-Ft) Watertight Line Cord 8233 E8B 1415200V 4.3m (14-Ft) Locking Line Cord 8233 E8B 1416200V 4.3m (14-Ft) Watertight Line Cord 8233 E8B 1417

4.3m 200V/16A Power Cord S. Africa 8233 E8B 1418

4.3m 200V/16A Power Cord Israel 8233 E8B 1419

4.3m 200V/16A Power Cord EU/Asia 8233 E8B 1420

4.3m 200V/16A Power Cord CH/DK 8233 E8B 1421

200V 1.8m (6-Ft) Locking Line Cord 8233 E8B 1424

200V 1.8m (6-Ft) Watertight Line Cord 8233 E8B 1425

200V 4.3m (14-Ft) Locking Line Cord 8233 E8B 1426

200V 4.3m (14-Ft) Watertight Line Cord 8233 E8B 1427

4.3m 200V/10A Power Cord EU/Asia 8233 E8B 1439

4.3m 200V/10A Power Cord Denmark 8233 E8B 1440

4.3m 200V/10A Power Cord S. Africa 8233 E8B 1441

4.3m 200V/10A Power Cord Swiss 8233 E8B 1442

4.3m 200V/10A Power Cord UK 8233 E8B 1443

4.3m 200V/10A Power Cord Israel 8233 E8B 1445

4.3m 200V/32A Power Cord EU 1-PH 8233 E8B 1449

4.3m 200V/16A Power Cord EU 2-PH 8233 E8B 1450

200V (6-Ft) 1.8m Line Cord 8233 E8B 1451

200V (14-Ft) 4.3m Line Cord 8233 E8B 1452

200V (6-Ft) 1.8m Locking Line Cord 8233 E8B 1453

200V 12A (14-Ft) 4.3m TL Line Cord 8233 E8B 1454200V (6-Ft) 1.8m Watertight Line Cord 8233 E8B 1455200V (14-Ft) 4.3m Watertight Line Cord 8233 E8B 1456200V (6-Ft) 1.8m Upper Line Cord 8233 E8B 1457

200V (6-Ft) 1.8m Upper Locking Cord 8233 E8B 1458

200V (6-Ft) 1.8m Upper Locking Cord 8233 E8B 1459

4.3m 200V/12A Pwr Cd UK 8233 E8B 1476

4.3m 200V/16A Pwr Cd 8233 E8B 1477

System port/UPS Conversion Cable 8233 E8B 1827

1.5 Meter 12X to 4X Channel Conversion Cable 8233 E8B 1828

0.6 Meter 12X Cable 8233 E8B 1829

1.5 Meter 12X cable 8233 E8B 1830

8.0 Meter 12X Cable 8233 E8B 1834

3.0 Meter 12X Cable 8233 E8B 1840

3 Meter 12X to 4X Channel Conversion Cable 8233 E8B 1841

10 Meter 12X to 4X Enhanced Channel Conversion

Cable 8233 E8B 1854

0.6 Meter 12X DDR Cable 8233 E8B 1861

1.5 Meter 12X DDR Cable 8233 E8B 1862

8.0 Meter 12X DDR Cable 8233 E8B 1864

3.0 Meter 12X DDR Cable 8233 E8B 1865

Op Panel Cable for Rack-mount Drawer w/2.5" DASD 8233 E8B 1878

146.8GB 10K RPM SAS SFF Disk Drive 8233 E8B 1882

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 25

73.4 GB 15K RPM SAS SFF Disk Drive 8233 E8B 1883

69.7 GB 15K RPM SAS SFF Disk Drive 8233 E8B 1884

300GB 10K RPM SFF SAS Disk Drive 8233 E8B 1885

146GB 15K RPM SFF SAS Disk Drive 8233 E8B 1886

139GB 15K RPM SFF SAS Disk Drive 8233 E8B 1888

69GB SFF SAS Solid State Drive 8233 E8B 1890

4 GB Single-Port Fibre Channel PCI-X 2.0 DDR

Adapter 8233 E8B 1905

69GB SFF SAS Solid State Drive 8233 E8B 1909

4 GB Dual-Port Fibre Channel PCI-X 2.0 DDR

Adapter 8233 E8B 1910

PCI-X DDR Dual Channel Ultra320 SCSI Adapter 8233 E8B 1912

4-Port 10/100/1000 Base-TX PCI-X Adapter 8233 E8B 1954

73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive

Assembly 8233 E8B 1971

146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive

Assembly 8233 E8B 1972

2 Gigabit Fibre Channel PCI-X Adapter 8233 E8B 1977

IBM Gigabit Ethernet-SX PCI-X Adapter 8233 E8B 1978

IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter 8233 E8B 1979

POWER GXT135P Graphics Accelerator with Digital

Support 8233 E8B 1980

IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X

Adapter 8233 E8B 1983

1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter 8233 E8B 1986

1 Gigabit iSCSI TOE PCI-X on Optical Media

Adapter 8233 E8B 1987

Converter Cable, VHDCI to P, Mini-68 pin to 68

pin, 0.3M 8233 E8B 2118

Ultra 320 SCSI Cable 1 Meter 8233 E8B 2124

Ultra 320 SCSI Cable 3 Meter 8233 E8B 2125

Ultra 320 SCSI Cable 5 Meter 8233 E8B 2126

Ultra 320 SCSI Cable 10 Meter 8233 E8B 2127

Ultra 320 SCSI Cable 20 Meter 8233 E8B 2128

0.55 Meter Ultra 320 SCSI Cable 8233 E8B 2138

Primary OS - IBM i 8233 E8B 2145

Primary OS - AIX 8233 E8B 2146

Primary OS - Linux 8233 E8B 2147

Zero-priced Processor Activation for #8334 8233 E8B 2324

Zero-priced Processor Activation for #8332 8233 E8B 2325

Zero-priced Processor Activation for #8336 8233 E8B 2326

Zero-priced Processor Activation for #8335 8233 E8B 2327

2M LC-SC 50 Micron Fiber Converter Cable 8233 E8B 2456

2M LC-SC 62.5 Micron Fiber Converter Cable 8233 E8B 2459

4 port USB PCIe Adapter 8233 E8B 2728

2-Port USB PCI Adapter 8233 E8B 2738

POWER GXT135P Graphics Accelerator with Digital

Support 8233 E8B 2849

ARTIC960Hx 4-Port EIA-232 Cable 8233 E8B 2861

ARTIC960Hx 4-Port X.21 Cable 8233 E8B 2863

ARTIC960Hx 4-Port V.35 (DTE) Cable 8233 E8B 2864

PCIe 2-Line WAN w/Modem 8233 E8B 2893

3M Asynchronous Terminal/Printer Cable EIA-232 8233 E8B 2934

Asynchronous Cable EIA-232/V.24 3M 8233 E8B 2936

8-Port Asynchronous Adapter EIA-232/RS-422, PCI

bus 8233 E8B 2943

IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter 8233 E8B 2947

Cable, V.24 / EIA-232 8233 E8B 2951

Cable, V.35 8233 E8B 2952

Cable, V.36 / EIA-499 8233 E8B 2953

Cable, X.21 8233 E8B 2954

2-Port Multiprotocol PCI Adapter 8233 E8B 2962

Serial-to-Serial Port Cable for Drawer/Drawer-

3.7M 8233 E8B 3124

Serial-to-Serial Port Cable for Rack/Rack- 8M 8233 E8B 3125

73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive

Assembly 8233 E8B 3278

146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive

Assembly 8233 E8B 3279

300 GB 15K RPM SCSI Disk Drive 8233 E8B 3585

69GB 3.5" SAS Solid State Drive 8233 E8B 3586

69GB 3.5" SAS Solid State Drive 8233 E8B 3587

Widescreen LCD Monitor 8233 E8B 3632

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 26

IBM T541H /L150p 15" TFT Color Monitor 8233 E8B 3637

IBM ThinkVision® L170p Flat Panel Monitor 8233 E8B 3639

ThinkVision L171p Flat Panel Monitor 8233 E8B 3640

IBM T115 Flat Panel Monitor 8233 E8B 3641

ThinkVision L191p Flat Panel Monitor 8233 E8B 3642

IBM T120 Flat Panel Monitor 8233 E8B 3643

IBM T119 Flat Panel Monitor 8233 E8B 3644

IBM T117 Flat Panel Monitor 8233 E8B 3645

73GB 15K RPM SAS Disk Drive 8233 E8B 3646

146GB 15K RPM SAS Disk Drive 8233 E8B 3647

300GB 15K RPM SAS Disk Drive 8233 E8B 3648

450GB 15K RPM SAS Disk Drive 8233 E8B 3649

SAS Cable (EE) Drawer to Drawer 1M 8233 E8B 3652

SAS Cable (EE) Drawer to Drawer 3M 8233 E8B 3653

SAS Cable (EE) Drawer to Drawer 6M 8233 E8B 3654

SAS SFF Cable 8233 E8B 3656

Right Angle SAS Tape Drive Cable 8233 E8B 3657

428GB 15K RPM SAS Disk Drive 8233 E8B 3658

SAS Cable (X) Adapter to SAS Enclosure, Dual

Controller/Dual Path 3M: 8233 E8B 3661

SAS Cable (X) Adapter to SAS Enclosure, Dual

Controller/Dual Path 6M: 8233 E8B 3662

SAS Cable (X) Adapter to SAS Enclosure, Dual

Controller/Dual Path 15M: 8233 E8B 3663

SAS Cable, DASD Backplane to Rear Bulkhead 8233 E8B 3668

SAS Cable, DASD Backplane (Split) to Rear

Bulkhead) 8233 E8B 3669

69.7GB 15k rpm SAS Disk Drive 8233 E8B 3676

139.5GB 15k rpm SAS Disk Drive 8233 E8B 3677

283.7GB 15k rpm SAS Disk Drive 8233 E8B 3678

SAS Cable (AI)- Adapter to Internal drive 1M 8233 E8B 3679

3M SAS CABLE, ADPTR TO ADPTR (AA) 8233 E8B 3681

6M SAS CABLE, ADPTR TO ADPTR (AA) 8233 E8B 3682

SAS Cable (AE) Adapter to Enclosure, single

controller/single path 3M 8233 E8B 3684

SAS Cable (AE) Adapter to Enclosure, single

controller/single path 6M 8233 E8B 3685

SAS Cable (YI) System to SAS Enclosure, Single

Controller/Dual Path 1.5M 8233 E8B 3686

SAS Cable (YI) System to SAS Enclosure, Single

Controller/Dual Path 3M 8233 E8B 3687

SAS Cable (AT) 0.6 Meter 8233 E8B 3688

SAS Cable (YO) Adapter to SAS Enclosure, Single

Controller/Dual Path 1.5 M 8233 E8B 3691

SAS Cable (YO) Adapter to SAS Enclosure, Single

Controller/Dual Path 3 M 8233 E8B 3692

SAS Cable (YO) Adapter to SAS Enclosure, Single

Controller/Dual Path 6 M 8233 E8B 3693

SAS Cable (YO) Adapter to SAS Enclosure, Single

Controller/Dual Path 15 M 8233 E8B 3694

0.3M Serial Port Converter Cable, 9-Pin to 25-Pin 8233 E8B 3925

Asynch Printer/Terminal Cable, 9-pin to 25-pin,

4M 8233 E8B 3926

Serial Port Null Modem Cable, 9-pin to 9-pin,

3.7M 8233 E8B 3927

Serial Port Null Modem Cable, 9-pin to 9-pin, 10M 8233 E8B 3928

1.8 M (6-ft) Extender Cable for Displays (15-pin

D-shell to 15-pin D-shell) 8233 E8B 4242

Extender Cable - USB Keyboards, 2M 8233 E8B 4256

VGA to DVI Connection Converter 8233 E8B 4276

70.56GB 15k rpm Disk Unit 8233 E8B 4327

141.12GB 15k rpm Disk Unit 8233 E8B 4328

282.25GB 15k rpm Disk Unit 8233 E8B 4329

8GB (2x4GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM 8233 E8B 4526

16GB (2x8GB) Memory DIMMs, 1066 MHz, 2Gb DDR3

DRAM 8233 E8B 4527

32GB (2x16GB) Memory DIMMs, 1066 MHz, 2Gb DDR3

DRAM 8233 E8B 4528

Rack Indicator- Not Factory Integrated 8233 E8B 4650

Rack Indicator, Rack #1 8233 E8B 4651

Rack Indicator, Rack #2 8233 E8B 4652

Rack Indicator, Rack #3 8233 E8B 4653

Rack Indicator, Rack #4 8233 E8B 4654

Rack Indicator, Rack #5 8233 E8B 4655

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 27

Rack Indicator, Rack #6 8233 E8B 4656

Rack Indicator, Rack #7 8233 E8B 4657

Rack Indicator, Rack #8 8233 E8B 4658

Rack Indicator, Rack #9 8233 E8B 4659

Rack Indicator, Rack #10 8233 E8B 4660

Rack Indicator, Rack #11 8233 E8B 4661

Rack Indicator, Rack #12 8233 E8B 4662

Rack Indicator, Rack #13 8233 E8B 4663

Rack Indicator, Rack #14 8233 E8B 4664

Rack Indicator, Rack #15 8233 E8B 4665

Rack Indicator, Rack #16 8233 E8B 4666

PCI-X Cryptographic Coprocessor (FIPS 4) 8233 E8B 4764

Active Memory Expansion Enablement 8233 E8B 4792

One Processor of 5250 Enterprise Enablement 8233 E8B 4988

Full 5250 Enterprise Enablement 8233 E8B 4989

Software Preload Required 8233 E8B 5000

Custom Service Specify, Off-Site 8233 E8B 5001Customer Solution Center - Rochester Mfg 8233 E8B 5002

Power Dist Unit 1 Phase NEMA 8233 E8B 5160

Power Dist Unit 1 Phase IEC 8233 E8B 5161

Power Dist Unit 2 of 3 Phase 8233 E8B 5162

Power Dist Unit - 3 Phase 8233 E8B 5163

RFID TAGS FOR SERVERS, BLADES, BLADECENTERS,

RACKS, AND HMCS 8233 E8B 5524

Sys Console On HMC 8233 E8B 5550

Sys Console-Ethernet No IOP 8233 E8B 5553

GX Dual-port 12X Channel Attach 8233 E8B 5609

Dual Port (SR) Integrated Virtual Ethernet 10Gb

Daughter Card 8233 E8B 5613

GX Dual-port 12x Channel Attach 8233 E8B 5616

80/160GB DAT160 SAS Tape Drive 8233 E8B 5619

Dual Port 1Gb Integrated Virtual Ethernet

Daughter Card 8233 E8B 5623

4-Port 1Gb Integrated Virtual Ethernet Daughter

Card 8233 E8B 5624

Blind Swap Type III Cassette- PCIe, Short Slot 8233 E8B 5646

Blind Swap Type III Cassette- PCI-X or PCIe,

Standard Slot 8233 E8B 5647

DAT320 160/320 GB Tape Drive 8233 E8B 5661

SAS RAID Enablement 8233 E8B 5679

DAT160 Data Cartridge 8233 E8B 5689

IBM Gigabit Ethernet-SX PCI-X Adapter 8233 E8B 5700

IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter 8233 E8B 5701

IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X

Adapter 8233 E8B 5706

10Gb FCoE PCIe Dual Port Adapter 8233 E8B 5708

1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter 8233 E8B 5713

1 Gigabit iSCSI TOE PCI-X on Optical Media

Adapter 8233 E8B 5714

2 Gigabit Fibre Channel PCI-X Adapter 8233 E8B 5716

4-Port 10/100/1000 Base-TX PCI Express Adapter 8233 E8B 5717

10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter 8233 E8B 5721

10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter 8233 E8B 5722

2-Port Asynchronous EIA-232 PCI Adapter 8233 E8B 5723

10 Gigabit Ethernet-CX4 PCI Express Adapter 8233 E8B 5732

8 Gigabit PCI Express Dual Port Fibre Channel

Adapter 8233 E8B 5735

PCI-X DDR Dual Channel Ultra320 SCSI Adapter 8233 E8B 5736

4-Port 10/100/1000 Base-TX PCI-X Adapter 8233 E8B 5740

IBM Single Bus Ultra 320 SCSI Repeater Card 8233 E8B 5741

IBM Dual Bus Ultra 320 SCSI Repeater Card 8233 E8B 5742

SATA Slimline DVD-ROM Drive 8233 E8B 5743

Half High 800GB/1.6TB LTO4 SAS Tape Drive 8233 E8B 5746

IBM LTO Ultrium 4 800 GB Data Cartridge 8233 E8B 5747

POWER GXT145 PCI Express Graphics Accelerator 8233 E8B 5748

4Gbps Fibre Channel (2-Port) 8233 E8B 5749

4 GB Single-Port Fibre Channel PCI-X 2.0 DDR

Adapter 8233 E8B 5758

4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR

Adapter 8233 E8B 5759

SATA Slimline DVD-RAM Drive 8233 E8B 5762

2-Port 10/100/1000 Base-TX Ethernet PCI Express

Adapter 8233 E8B 5767

2-Port Gigabit Ethernet-SX PCI Express Adapter 8233 E8B 5768

10 Gigabit Ethernet-SR PCI Express Adapter 8233 E8B 5769

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 28

10 Gigabit Ethernet-LR PCI Express Adapter 8233 E8B 5772

4 Gigabit PCI Express Single Port Fibre Channel

Adapter 8233 E8B 5773

4 Gigabit PCI Express Dual Port Fibre Channel

Adapter 8233 E8B 5774

PCI-X EXP24 Ctl-1.5GB No IOP 8233 E8B 5778

PCI-X EXP24 Ctl-1.5GB No IOP 8233 E8B 5782

4 Port Async EIA-232 PCIe Adapter 8233 E8B 5785

TotalStorage EXP24 Disk Dwr 8233 E8B 5786

TotalStorage EXP24 Disk Twr 8233 E8B 5787

PCI-DDR 12X Expansion Drawer 8233 E8B 5796

12X I/O Drawer PCIe, SFF disk 8233 E8B 5802

12X I/O Drawer PCIe, No Disk 8233 E8B 5877

EXP 12S Expansion Drawer 8233 E8B 5886

PCI-X DDR Dual -x4 SAS Adapter 8233 E8B 5900

PCIe Dual-x4 SAS Adapter 8233 E8B 5901

PCI-X DDR Dual - x4 3Gb SAS RAID Adapter 8233 E8B 5902

PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter 8233 E8B 5903

PCI-X DDR 1.5GB Cache SAS RAID Adapter 8233 E8B 5904

PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC) 8233 E8B 5908

PCI-X DDR Dual - x4 SAS Adapter 8233 E8B 5912

Non-paired SAS RAID indicator 8233 E8B 5922

Non-paired PCIe SAS RAID Indicator 8233 E8B 5923

Full Width Keyboard -- USB, US English, #103P 8233 E8B 5951

Full Width Keyboard -- USB, French, #189 8233 E8B 5952

Full Width Keyboard -- USB, Italian, #142 8233 E8B 5953

Full Width Keyboard -- USB, German/Austrian, #129 8233 E8B 5954

Full Width Keyboard -- USB, UK English, #166P 8233 E8B 5955

Full Width Keyboard -- USB, Spanish, #172 8233 E8B 5956

Full Width Keyboard -- USB, Japanese, #194 8233 E8B 5957

Full Width Keyboard -- USB, Brazilian

Portuguese, #275 8233 E8B 5958

Full Width Keyboard -- USB, Hungarian, #208 8233 E8B 5959

Full Width Keyboard -- USB, Korean, #413 8233 E8B 5960

Full Width Keyboard -- USB, Chinese, #467 8233 E8B 5961

Full Width Keyboard -- USB, French Canadian, #445 8233 E8B 5962

Full Width Keyboard -- USB, Belgian/UK, #120 8233 E8B 5964

Full Width Keyboard -- USB, Swedish/Finnish, #153 8233 E8B 5965

Full Width Keyboard -- USB, Danish, #159 8233 E8B 5966

Full Width Keyboard -- USB, Bulgarian, #442 8233 E8B 5967

Full Width Keyboard -- USB, Swiss/French/German,

#150 8233 E8B 5968

Full Width Keyboard -- USB, Norwegian,#155 8233 E8B 5969

Full Width Keyboard -- USB, Dutch, #143 8233 E8B 5970

Full Width Keyboard -- USB, Portuguese, #163 8233 E8B 5971

Full Width Keyboard -- USB, Greek, #319 8233 E8B 5972

Full Width Keyboard -- USB, Hebrew, #212 8233 E8B 5973

Full Width Keyboard -- USB, Polish, #214 8233 E8B 5974

Full Width Keyboard -- USB, Slovakian, #245 8233 E8B 5975

Full Width Keyboard -- USB, Czech, #243 8233 E8B 5976

Full Width Keyboard -- USB, Turkish, #179 8233 E8B 5977

Full Width Keyboard -- USB, LA Spanish, #171 8233 E8B 5978

Full Width Keyboard -- USB, Arabic, #253 8233 E8B 5979

Full Width Keyboard -- USB, Thai, #191 8233 E8B 5980

Full Width Keyboard -- USB, Russian, #443 8233 E8B 5981

Full Width Keyboard -- USB, Slovenian, #234 8233 E8B 5982

Full Width Keyboard -- USB, US English Euro,

#103P 8233 E8B 5983

Power Control Cable (SPCN) - 2 meter 8233 E8B 6001

Power Control Cable (SPCN) - 3 meter 8233 E8B 6006

Power Control Cable (SPCN) - 15 meter 8233 E8B 6007

Power Control Cable (SPCN) - 6 meter 8233 E8B 6008

Power Control Cable (SPCN) - 30 meter 8233 E8B 6029

Opt Front Door for 1.8m Rack 8233 E8B 6068

Opt Front Door for 2.0m Rack 8233 E8B 6069

1.8m Rack Acoustic Doors 8233 E8B 6248

2.0m Rack Acoustic Doors 8233 E8B 6249

1.8m Rack Trim Kit 8233 E8B 6263

2.0m Rack Trim Kit 8233 E8B 6272

Dual-port 12X Channel Attach- Short Run 8233 E8B 6446

Dual-port 12X Channel Attach- Long Run 8233 E8B 6457

Power Cable -- Drawer to IBM PDU, 14-foot, 250V/

10A 8233 E8B 6458

Power Cord 4.3m (14-ft), Drawer To OEM PDU

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 29

(125V, 15A) 8233 E8B 6460

Power Cord 4.3m (14-foot), Drawer to OEM PDU,

(250V, 15A), U. S. 8233 E8B 6469

Power Cord 1.8m(6-foot), To Wall (125V, 15A) 8233 E8B 6470

Power Cord 2.7m (9-foot), To Wall/OEM PDU,

(125V, 15A) 8233 E8B 6471

Power Cord 2.7m (9-foot), To Wall/OEM PDU,

(250V, 16A) 8233 E8B 6472

Power Cord 2.7m (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6473

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 13A) 8233 E8B 6474

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 16A) 8233 E8B 6475

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6476

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 16A) 8233 E8B 6477

Power Cord 2.7 M(9-foot), To Wall/OEM PDU,

(250V, 16A) 8233 E8B 6478

Power Cord (9-foot) , To Wall/OEM PDU, (250V,

10A) 8233 E8B 6479

Power Cord 1.8M (6-foot),To Wall, (250V, 15A),

United States 8233 E8B 6487

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(125V, 15A or 250V, 10A ) 8233 E8B 6488

4.3m (14-Ft) 3PH/24A Power Cord 8233 E8B 6489

4.3m (14-Ft) 1PH/48A Pwr Cord 8233 E8B 6491

4.3m (14-Ft) 1PH/48-60A Pwr Cord 8233 E8B 6492

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6493

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6494

Power Cord (9-foot), To Wall/OEM PDU, (250V, 10A) 8233 E8B 6495

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6496

Power Cord (6-foot), To Wall/OEM PDU, (250V, 10A) 8233 E8B 6497

Power Cord (6-foot), To Wall/OEM PDU, (250V, 15A) 8233 E8B 6498

Power Cable - Drawer to IBM PDU, 200-240V/10A 8233 E8B 6577

Optional Rack Security Kit 8233 E8B 6580

Modem Tray for 19-Inch Rack 8233 E8B 6586

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(125V, 15A) 8233 E8B 6651

4.3m (14-Ft) 1PH/24-30A Pwr Cord 8233 E8B 6654

4.3m (14-Ft) 1PH/24-30A WR Pwr Cord 8233 E8B 6655

4.3m (14-Ft)1PH/24A Power Cord 8233 E8B 6656

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 15A) 8233 E8B 6659

Power Cord (14-foot), Drawer To OEM PDU (125V,

15A) 8233 E8B 6660

Power Cord 3 M (10 ft), Drawer to IBM PDU, 250V/

10A 8233 E8B 6665

Power Cord 4.3M (14-foot), Drawer to OEM PDU,

(250V, 15A) 8233 E8B 6669

Power Cord (6-foot), To Wall (125V, 15A), 8233 E8B 6670

Power Cord 2.7M (9-foot), Drawer to IBM PDU,

250V/10A 8233 E8B 6671

Power Cord 1.5M (5-foot), Drawer to IBM PDU,

250V/10A 8233 E8B 6672

Power Cord 2.7M (9-foot), To Wall/OEM PDU,

(250V, 10A) 8233 E8B 6680

Power Cord (6-foot), To Wall, (250V, 15A) 8233 E8B 6687

PCI 2-Line WAN IOA No IOP 8233 E8B 6805

PCI 4-Modem WAN IOA No IOP 8233 E8B 6808

PCI 2-Line WAN w/Modem NoIOP 8233 E8B 6833

Intelligent PDU+, 1 EIA Unit, Universal UTG0247

Connector 8233 E8B 7109

Environmental Monitoring Probe 8233 E8B 7118

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 30

Power Distribution Unit 8233 E8B 7188

Quantity 150 of #2124 8233 E8B 7204

Quantity 150 of #2125 8233 E8B 7205

Quantity 150 of #2126 8233 E8B 7206

Quantity 150 of #2127 8233 E8B 7207

Quantity 150 of #2128 8233 E8B 7208

Quantity 150 of #2138 8233 E8B 7213

SDI Software Pre-Install Indicator 8233 E8B 7305

Dual I/O Unit Enclosure 8233 E8B 7307

I/O Drawer Mounting Enclosure 8233 E8B 7314

Quantity 150 of #4327 8233 E8B 7509

Quantity 150 of #4328 8233 E8B 7510

Quantity 150 of #4329 8233 E8B 7511

Quantity 150 of #3676 8233 E8B 7517

Quantity 150 of #3677 8233 E8B 7518

Quantity 150 of #3678 8233 E8B 7519

Quantity 150 of #3586 8233 E8B 7535

Quantity 150 of #3587 8233 E8B 7536

Quantity 150 of #3658 8233 E8B 7538

Quantity 150 of #3647 8233 E8B 7549

Quantity 150 of #3648 8233 E8B 7564

Quantity 150 of #3649 8233 E8B 7565

One Processor Activation for Processor Feature

#8334 8233 E8B 7714

One Processor Activation for Processor Feature

#8332 8233 E8B 7715

One Processor Activation for Processor Feature

#8336 8233 E8B 7716

One Processor Activation for Processor Feature

#8335 8233 E8B 7717

Power Supply, 1725 Watt AC, Hot-swap, Base or

Redundant 8233 E8B 7740

2.0m Rack Side Attach Kit 8233 E8B 7780

PowerVM Express 8233 E8B 7793

PowerVM Standard 8233 E8B 7794

PowerVM Enterprise 8233 E8B 7795

Ethernet Cable, 6M, Hardware Management Console

to System Unit 8233 E8B 7801

Ethernet Cable, 15m, Hardware Management Console

to System Unit 8233 E8B 7802

Side-by-Side for 1.8m Racks 8233 E8B 7840

Ruggedize Rack Kit 8233 E8B 7841

PCI Blind Swap Cassette Kit, Double Wide

Adapters, Type II 8233 E8B 7863

Linux Software Preinstall 8233 E8B 8143

Linux Software Preinstall (Business Partners) 8233 E8B 8144

8-core 3.3 GHz POWER7 Processor Card 8233 E8B 8332

8-core 3.0 GHz POWER7 Processor Card 8233 E8B 8334

6-core 3.3 GHz POWER7 Processor Card 8233 E8B 8335

8-core 3.55 GHz POWER7 Processor Card 8233 E8B 8336

Enhanced DASD/Media Backplane for 2.5" DASD/SATA

DVD/Tape with External SAS Port 8233 E8B 8340

Mouse - USB, with Keyboard Attachment Cable 8233 E8B 8841

USB Mouse 8233 E8B 8845

Order Routing Indicator- System Plant 8233 E8B 9169

Language Group Specify - US English 8233 E8B 9300

New AIX License Core Counter 8233 E8B 9440

New IBM i License Core Counter 8233 E8B 9441

New Red Hat License Core Counter 8233 E8B 9442

New SUSE License Core Counter 8233 E8B 9443

Other AIX License Core Counter 8233 E8B 9444

Other Linux License Core Counter 8233 E8B 9445

3rd Party Linux License Core Counter 8233 E8B 9446

VIOS Core Counter 8233 E8B 9447

Month Indicator 8233 E8B 9461

Day Indicator 8233 E8B 9462

Hour Indicator 8233 E8B 9463

Minute Indicator 8233 E8B 9464

Qty Indicator 8233 E8B 9465

Countable Member Indicator 8233 E8B 9466

POWER7 Tivoli® Storage Manager Specify 8233 E8B 9666

Language Group Specify - Dutch 8233 E8B 9700

Language Group Specify - French 8233 E8B 9703

Language Group Specify - German 8233 E8B 9704

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 31

Language Group Specify - Polish 8233 E8B 9705

Language Group Specify - Norwegian 8233 E8B 9706

Language Group Specify - Portuguese 8233 E8B 9707

Language Group Specify - Spanish 8233 E8B 9708

Language Group Specify - Italian 8233 E8B 9711

Language Group Specify - Canadian French 8233 E8B 9712

Language Group Specify - Japanese 8233 E8B 9714

Language Group Specify - Traditional Chinese

(Taiwan) 8233 E8B 9715

Language Group Specify - Korean 8233 E8B 9716

Language Group Specify - Turkish 8233 E8B 9718

Language Group Specify - Hungarian 8233 E8B 9719

Language Group Specify - Slovakian 8233 E8B 9720

Language Group Specify - Russian 8233 E8B 9721

Language Group Specify - Simplified Chinese (PRC) 8233 E8B 9722

Language Group Specify - Czech 8233 E8B 9724

Language Group Specify -- Romanian 8233 E8B 9725

Language Group Specify - Croatian 8233 E8B 9726

Language Group Specify -- Slovenian 8233 E8B 9727

Language Group Specify - Brazilian Portuguese 8233 E8B 9728

Language Group Specify - Thai 8233 E8B 9729

The following are newly announced features on the specific models of the IBM Power

Systems 7014 machine type:

Description MT Model Feature

Rack Content Specify: 8233-E8B - 4U 7014 B42 0297

S25

T00

T42

Feature conversions

The existing components being replaced during a model or feature conversion

become the property of IBM and must be returned.

Feature conversions are always implemented on a "quantity of one for quantity of

one" basis. Multiple existing features may not be converted to a single new feature.

Single existing features may not be converted to multiple new features.

The following conversions are available to customers:

Feature conversions for 8233-E8B virtualization engine features

Return

From FC: To FC: parts

7793 - PowerVM Express 7794 - PowerVM Standard No

7793 - PowerVM Express 7795 - PowerVM Enterprise No

7794 - PowerVM Standard 7795 - PowerVM Enterprise No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 32

Business Partner information

If you are a Direct Reseller - System Reseller acquiring products from IBM,

you may link directly to Business Partner information for this announcement. A

PartnerWorld® ID and password are required (use IBM ID).

https://www.ibm.com/partnerworld/mem/sla.jsp?num=110-009

Publications

IBM Power Systems hardware documentation provides you with the following topical

information:

System overview

Planning for the system

Installing and configuring the system

Working with consoles, terminals, and interfaces

Managing system resources

Working with operating systems and software applications

Troubleshooting, service, and support

You can access the product documentation at

http://publib.boulder.ibm.com/infocenter/systems/scope/hw/index.jsp

Product documentation is also available on DVD, SK5T-7087.

The following information is shipped with the 8233-E8B.

8233-E8B Service DVD SK5T-7087-04

Installation Road Map

Safety Information

Statement of Warranty

Hardware documentation such as installation instructions, user's information, and

service information is available to download or view at

http://www.ibm.com/systems/support

AIX documentation can be found at the IBM AIX Information Center:

http://publib.boulder.ibm.com/infocenter/pseries/index.jsp

Visit the IBM System Support Site, which contains the documentation for the

hardware

http://www.ibm.com/systems/support

The IBM Systems Information Center provides you with a single information center

where you can access product documentation for IBM systems hardware, operating

systems, and server software. Through a consistent framework, you can efficiently

find information and personalize your access. The IBM Systems Information Center

http://publib14.boulder.ibm.com/infocenter/systems

IBM Publications Center Portal

http://www.ibm.com/shop/publications/order

The Publications Center is a worldwide central repository for IBM product

publications and marketing material with a catalog of 70,000 items. Extensive

search facilities are provided, as well as payment options via credit card. A large

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 33

number of publications are available online in various file formats, which can

currently be downloaded free of charge.

Services

Global Technology Services

IBM services include business consulting, outsourcing, hosting services, applications,

and other technology management.

These services help you learn about, plan, install, manage, or optimize your IT

infrastructure to be an On Demand Business. They can help you integrate your high-

speed networks, storage systems, application servers, wireless protocols, and an

array of platforms, middleware, and communications software for IBM and many

non-IBM offerings. IBM is your one-stop shop for IT support needs.

For details on available services, contact your IBM representative or visit

http://www.ibm.com/services/

For details on available IBM Business Continuity and Recovery Services, contact your

IBM representative or visit

http://www.ibm.com/services/continuity

For details on education offerings related to specific products, visit

http://www.ibm.com/services/learning/index.html

Select your country, and then select the product as the category.

Technical information

Specified operating environment

Physical specifications

Rack-Mount:

Width: 440 mm (17.3 in)

Depth: 730 mm (28.7 in)

Height: 173 mm (6.81 in)

Weight: 48.7 kg (107.4 lb)

Operating environment

• Temperature: (nonoperating) 5° - 45°C (41° - 113°F); recommended temperature

(operating) 18° - 27°C (64° - 80°F); allowable operating temperature 5° - 35°C

(41° - 95°F)

• Relative humidity: Nonoperating 8% to 80%; recommended 5.5°C (42°F) dew

point to 60% RH and 15°C (59°F) dew point

• Maximum dew point: 28°C (84°F)(operating)

• Operating voltage: 200 to 240 V ac

• Operating frequency: 47/63 Hz

• Maximum measured power consumption: 1950 watts (maximum)

• Power factor: 0.98

• Thermal output: 6,655 Btu/hour (maximum)

• Power-source loading

– 2.0 kVa (maximum configuration)

– Maximum altitude: 3,050 m (10,000 ft)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 34

Noise level and sound power

– Two 3.3 GHz 6-core processors, sixteen 8 GB DIMMs, two power supplies, eight

SFF disks, one DVD, three PCI adapters: 6.4 bels idle/6.2 bels operating

– Two 3.3 GHz 6-core processors, sixteen 8 GB DIMMs, two power supplies, eight

SFF disks, one DVD, three PCI adapters with acoustical doors: 5.8 bels idle/5.6

bels operating

– Four 3.3 GHz 6-core processors, thirty-two 8 GB DIMMs, two power supplies,

eight SFF disks, one DVD, three PCI adapters: 7.1 bels idle/7.1 bels operating

– Four 3.3 GHz 6-core processors, thirty-two 8 GB DIMMs, two power supplies,

eight SFF disks, one DVD, three PCI adapters with acoustical doors: 6.5 bels

idle/6.5 bels operating

EMC conformance classification: This equipment is subject to FCC rules and shall

comply with the appropriate FCC rules before final delivery to the buyer or centers of

distribution.

• U.S.: FCC Class A

• Europe: CISPR 22 Class A

• Japan: VCCI-A

• Korea: Korean Requirement Class A

• China: People's Republic of China commodity inspection law Class A

Homologation -- Telecom environmental testing (Safety and EMC):

Homologation approval for specific countries has been initiated with the IBM

Homologation and Type Approval (HT&A) organization in LaGaude, France. This

Power Systems model and applicable features meet the environmental testing

requirements of the country telecom and have been designed and tested in

compliance with the Full Quality Assurance Approval (FQAA) process as delivered

by the British Approval Board for Telecom (BABT), the U.K. Telecom regulatory

authority.

Product safety/Country testing/Certification

• UL 60950 Underwriters Laboratory, Safety Information

• CSA C22.2 No. 60950-00, Canadian Standards Association

• EN60950 European Norm

• IEC 60950, Edition 1, International Electrotechnical Commission, Safety

Information

• GS Mark (Safety, TUV, EN60950)- Germany, Europe

• Nordic deviations to IEC 60950-1 1st Edition

General requirements: The product is in compliance with IBM Corporate Bulletin

C-B 0-2594-000 Statement of Conformity of IBM Product to External Standard

(Suppliers Declaration).

Hardware requirements

Power 750 minimum system configuration: The Power 750 has four processor

slots, each of which can contain a 6-core or 8-core processor. The system can

contain up to 512 GB of system memory (128 GB maximum per processor card),

five PCI adapters, and multiple media devices, as desired. This flexibility is made

available through the many optional features for the Power 750.

Each Power 750 order must include a minimum of the following items:

• One system Central Electronics Complex (CEC) enclosure with the following items:

– Two power cords (#6470-#6478, #6487-#6494, #6496, #6497, #6577,

#6580, #6586, #6651, #6653-#6660, #6662, #6665, #6669, #6671, #6672,

#6680)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 35

– One Language Group, Specify (#9300 or #97xx)

• Choose one processor card from:

– 6-core 3.3 GHz POWER7 processor card (#8335)

– 8-core 3.0 GHz POWER7 processor card (#8334)

– 8-core 3.3 GHz POWER7 processor card (#8332)

– 4 x 8-core 3.55 GHz POWER7 processor card (#8336)

• Choose six or eight processor activations from:

– 6 x #7717, or 3 x #7717 and 3 x #2327 with processor card #8335

– 8 x #7714, or 4 x #7714 and 4 x #2324 with processor card #8334

– 32 x #7716, or 16 x #7716 and 16 x #2326 with 4x processor card #8336

– 8 x #7715, or 4 x #7715 and 4 x #2325 with processor card #8332

Notes:

– Features 2324, 2325, 2326, and 2327 are part of IBM Editions.

– Processor activations are only available to SDIs as MES orders.

• Choose 8 GB minimum memory from:

– 8 GB (2 x 4 GB) Memory DIMMs, 1066 MHz, 2 Gb (#4526)

– 16 GB (2 x 8 GB) Memory DIMMs, 1066 MHz, 2 Gb (#4527)

– 32 GB (2 x 16 GB) Memory DIMMs, 1066 MHz, 2 Gb (#4528)

Note: The 8 GB memory feature (#4526) is planned to be available on March 16,

2010.

• DASD/Media Backplane with external SAS port, 8 x 2.5-inch DASD (#8340)

• Choose Ethernet daughter card from:

– 4-port 1 Gb Integrated Virtual Ethernet Daughter Card (#5624)

– Dual-port 10 Gb Integrated Virtual Ethernet Daughter Card (#5613)

• Choose DASD from:

– 73.4 GB SAS 2.5-inch 15,000 RPM (#1883) (AIX/Linux/VIOS)

– 146.8 GB SAS 2.5-inch 10,000 RPM (#1882) (AIX/Linux/VIOS)

– 300 GB SAS 2.5-inch 15,000 RPM (#1885) (AIX/Linux/VIOS)

– 69.7 GB SAS 2.5-inch 15,000 RPM (#1884) (IBM i)

– 139.5 GB SAS 2.5-inch 15,000 RPM (#1888) (IBM i)

– 69 GB SAS 2.5-inch Solid State Drive (#1890) (AIX/Linux/VIOS)

– 69 GB SAS 2.5-inch Solid State Drive (#1909) (IBM i)

Notes:

– When feature 2145, IBM i operating system, is selected, a minimum of two

DASD is required.

– No internal DASD is required if feature 0837 (Boot from SAN) is selected. In

this case, a Fibre Channel or Fibre Channel over Ethernet adapter must also be

ordered.

• Cable for rack-mount drawer with 2.5-inch DASD Backplane (#1878)

• SATA DVD-RAM (#5762)

• 2 x 1725 watt AC power supply, Hot-swap (2 x #7740)

• Choose Primary Operating System Indicator from:

– IBM i (#2145 -- requires #0566 and #0040)

– AIX (#2146)

– Linux (#2147)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 36

RAID

There are multiple protection options for disk/SSD drives in the SAS SFF bays in

Power 750 system unit or drives in 12X attached I/O drawers or drives in disk-

only I/O drawers. Although protecting drives is always recommended, AIX/Linux

users may choose to leave some or all drives unprotected at their own risk and IBM

supports these configurations. IBM i configuration rules differ in this regard, and IBM

supports IBM i partition configurations only when disk/SSD drives are protected.

This disk/SSD drive protection can be provided by AIX/IBM i/Linux software or by

the disk/SSD hardware controllers. Mirroring of drives is provided by AIX/IBM i/

Linux software. In addition, AIX/Linux supports controllers providing RAID 0, 5,

6, or 10. IBM i integrated storage management already provides striping so IBM

i also supports controllers providing RAID 5 or 6. To further augment disk/SSD

protection, hot spare capability can be used for protected drives. Specific hot spare

prerequisites apply.

An integrated SAS Disk/SSD controller is provided in the Power 750 system unit.

It is optionally augmented by a 175 MB write cache and RAID 5 and RAID 6

capability when feature 5679 is added to the configuration. Without feature 5679,

the integrated controller supports system mirroring protection for AIX/IBM i/Linux

and supports RAID 0 or 10 protection for AIX/Linux. Other disk/SSD controllers

are provided as PCI adapters. PCI-X SCSI, PCI-X SAS, and PCIe SAS adapters are

supported. PCI Controllers with and without write cache are supported. RAID 5 and

RAID 6 on controllers with write cache are supported.

AIX/Linux can use disk drives formatted with 512 byte blocks when being mirrored

by the operating system. These disk drives must be reformatted to 528 byte sectors

when used in RAID arrays. Although a small percentage of the drive's capacity is

lost, additional data protection such as ECC and bad block detection is gained in

this reformatting. For example, a 300 GB disk drive when reformatted provides

around 283 GB. IBM i always uses drives formatted to 528 byte. IBM Power SSDs

are formatted to 528 byte.

RAID 0 (minimum two drives) provides striping without parity for performance, but

does not offer any fault tolerance. In data striping, data is broken down into several

smaller, equally sized pieces. Each piece is then written to or read from multiple

drives. This process increases I/O bandwidth by simultaneously accessing multiple

data paths. Because RAID 0 does not offer any redundancy, a single drive failure can

result in the loss of all data in a striped set. This means that all of the data on all the

drives could be lost if even a single drive fails.

Note that RAID 0 drives can be mirrored by software to provide protection.

RAID 5 (minimum three drives) uses block-level data striping with distributed parity.

RAID 5 stripes both data and parity information across three or more drives. Fault

tolerance is maintained by ensuring that the parity information for any given block

of data is placed on a drive separate from those used to store the data itself. RAID

5 requires N+1 drives to accommodate this parity data, thus the available storage

capacity for each array is reduced by one drive to provide protection.

RAID 6 (minimum four drives) uses block-level data striping with dual distributed

parity, the same as RAID 5 except RAID 6 uses a second level of independently

calculated and distributed parity information for additional fault tolerance. This extra

fault tolerance provides data security in the event two drives fail before a drive can

be replaced. RAID 6 requires N+2 drives to accommodate the additional parity data.

RAID 10 is RAID 0 plus redundancy. In this type of implementation, an array with

an even number of drives is created with mirrored pairs of drives within the array.

A RAID 0 stripe set of data is created across the mirrored pairs for performance and

for redundancy.

If a protected drive fails, the failing drive can be removed from its hot-plug bay

and the drive replaced while the server and partition continue to run. The contents

can then be re-created while the system continues to run. Note that until the

drive is both replaced and its contents re-created, the protection provided using

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 37

just mirroring or RAID 10 is absent for that drive's now unmirrored paired drive.

Similarly, the entire RAID 5 array is unprotected until the failed drive is replaced and

re-created. RAID 6 and hot spare were designed to provide additional protection.

Software requirements

If installing the AIX operating system (one of these):

• AIX Version 6.1 with the 6100-04 Technology Level and Service Pack 2, or later

• AIX Version 6.1 with the 6100-03 Technology Level and Service Pack 5, or later

(planned availability: June 25, 2010)

• AIX Version 6.1 with the 6100-02 Technology Level and Service Pack 8, or later

(planned availability: June 25, 2010)

• AIX Version 5.3 with the 5300-11 Technology Level and Service Pack 2, or later

(planned availability: March 16, 2010)

• AIX Version 5.3 with the 5300-10 Technology Level and Service Pack 4, or later

(planned availability: May 28, 2010)

• AIX Version 5.3 with the 5300-09 Technology Level and Service Pack 7, or later

(planned availability: May 28, 2010)

If installing the IBM i operating system:

• IBM i 6.1 with i 6.1.1 machine code, or later (planned availability: March 16,

2010)

If installing the Linux operating system (one of these):

• SUSE Linux Enterprise Server 11 for the POWER 750 Express Server, or later,

with current maintenance updates available from Novell to enable all planned

functionality

• SUSE Linux Enterprise Server 10 Service Pack 3 for the Power 750 Express Server,

with current maintenance updates available from Novell to enable all planned

functionality

Users should also update their systems with the latest Linux for Power service and

productivity tools available at

http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/home.html

If installing VIOS:

• VIOS 2.1.2.11 with Fix Pack 22.1 and Service Pack 1, or later

Java 1.4.2 on POWER7

There are unique considerations when running Java 1.4.2 on POWER7. For

best exploitation of the outstanding performance capabilities and most recent

improvements of POWER7, IBM recommends upgrading Java-based applications to

Java 6 or Java 5 whenever possible.

For more information, visit

http://www.ibm.com/developerworks/java/jdk/aix/service.html

Limitations

System

• When an HMC is connected to the system, the integrated system ports are

rendered nonfunctional. In this case, the customer must install an asynchronous

adapter for serial port usage.

• Integrated system ports are not supported under AIX or Linux when the HMC

ports are connected to an HMC. Either the HMC ports or the integrated system

ports can be used, but not both.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 38

• The integrated system ports are supported for modem and async terminal

connections. Any other application using serial ports requires a serial port adapter

to be installed in a PCI slot. The integrated system ports do not support HACMPTM

configurations.

Hardware management console (HMC) machine code

If attaching an HMC to a new server or adding function to an existing server that

requires a firmware update, the HMC machine code may need to be updated.

To determine the HMC machine code level required for the firmware level on any

server, go to the following Web page to access the Fix Level Recommendation Tool

(FLRT) on or after the planned availability date for this product. FLRT will identify the

correct HMC machine code for the selected system firmware level

http://www14.software.ibm.com/webapp/set2/flrt/home

If a single HMC is attached to multiple servers, the HMC machine code level must be

updated to the server with the most recent firmware level. All prior levels of server

firmware are supported with the latest HMC machine code level.

Boot requirements

• Selection of feature 0837 will indicate boot from SAN.

• If IBM i (#2145) is selected as the primary operating system and SAN boot is

not selected (#0837), one of the following Load/Source specify codes must be

specified:

– #0835 -- #4327 (70.56 GB 15K RPM HDD) Load Source Specify

– #0836 -- #4328 (141.12 GB 15K RPM HDD) Load Source Specify

– #0838 -- #3676 (69.7 GB 15K RPM HDD) Load Source Specify

– #0839 -- #3677 (139.5 GB 15K RPM HDD) Load Source Specify

– #0840 -- #3678 (283.7 GB 15K RPM HDD) Load Source Specify

– #0841 -- #4329 (282.25 GB 15K RPM HDD) Load Source Specify

– #0844 -- #3658 (428 GB 15K RPM HDD) Load Source Specify

– #0851 -- #1884 (69.7 GB 15K RPM SFF HDD) Load Source Specify

– #0853 -- #1888 (138 GB 15K RPM SFF HDD) Load Source Specify

– #0854 -- #1890 (69 GB SFF SSD) Load Source Specify

– #0855 -- #3586 (69 GB SSD) Load Source Specify

• If IBM i (#2145) is selected and the load source disk unit is not in the CEC

(system unit), one of the following specify codes must also be selected:

– #0725 -- Remote Load Source in #5786 or #5787 TotalStorage EXP24

Expansion Drawer/Tower

– #0726 -- Remote Load Source in #5802 12X I/O Drawer PCIe, SFF Disk

– #0727 -- Remote Load Source in #5886 EXP 12S Expansion Drawer

– #0837 -- SAN Load Source Specify (Boot from SAN)

• If IBM i (#2145) is selected, one of the following system console specify codes

must be selected:

– #5550 -- System Console on HMC

– #5553 -- System Console - Internal LAN

Processor cards

• A minimum of one processor card is required on an order with a maximum of 32

processor cores on four processor cards.

• One, two, three, or four 6-core 3.3 GHz (#8335), or 8-core 3.0 GHz (#8332)/3.3

GHz (#8334) processor cards may be installed in a system. Four 8-core 3.55 GHz

(#8336) processor cards may be installed in a system.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 39

• Processor cards (#8332, #8334, #8335, and #8336) may not be mixed in the

system.

• All processors must be activated.

– The 6-core 3.3 GHz processor card (#8335) requires that six processor

activation codes be ordered. A maximum of six processor activation code

features (6 x #7717, or 3 x #7717 and 3 x #2327) are allowed per processor

card.

– The 8-core 3.0 GHz processor card (#8334) requires that eight processor

activation codes be ordered. A maximum of eight processor activation code

features (8 x #7714, or 4 x #7714 and 4 x #2324) are allowed per processor

card.

– The 8-core 3.55 GHz processor card (#8336) requires that eight processor

activation codes be ordered. A maximum of eight processor activation code

features (8 x #7716, or 4 x #7716 and 4 x #2326) are allowed per processor

card. Thirty-two processor activations are required.

– The 8-core 3.3 GHz processor card (#8332) requires that eight processor

activation codes be ordered. A maximum of eight processor activation code

features (8 x #7715, or 4 x #7715 and 4 x #2325) are allowed per processor

card.

Power supply

• The base machine contains two ac (#7740) power supplies.

Redundant fans

• Redundant fans standard

Power cords

Two power cords are required.

The Power 750 requires 200-240 V for all configurations.

System memory

• A minimum 8 GB or two DIMMs of memory is required on the Power 750 system.

• Eight memory DIMM slots are on a processor card. The maximum system memory

with one processor card is 128 GB. The maximum system memory is 512 GB with

four processor cards.

• Different system memory feature numbers may not be mixed on the same

processor card. However, a system with more than one processor card may used

different memory feature numbers on the same system.

• Memory must be installed in groups of one feature (two DIMMs), two features

(four DIMMs), or four features (eight DIMMs) per processor card. Installation of

three features (six DIMMs) is not permitted.

• It is generally recommended that memory be installed evenly across all processor

cards in the system. Balancing memory across the installed processor cards allows

memory access in a consistent manner and typically results in the best possible

performance for your configuration. However, balancing memory fairly evenly

across multiple processor cards, compared to balancing memory exactly evenly

typically has a very small performance difference.

Plans for future memory upgrades should be taken into account when deciding which

memory feature size to use at the time of initial system order.

Figure 1. Memory features

Feature Minimum Maximum

Feature number quantity quantity

8 GB 1066 MHz 4526 0 16

(2 x 4 GB RDIMMs)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 40

16 GB 1066 MHz 4527 0 16

(2 x 8 GB RDIMMs)

32 GB 1066 MHz 4528 0 16

(2 x 16 GB RDIMMs)

Drawer/Tower attachment:

• 7314-G30 (#5796) PCIX Expansion Drawer

– Maximum of four drawers per GX adapter (#5609, #5616, or follow-ons) or per

12X loop

– Maximum of two 12X loops per server (maximum of one loop per server with

one processor card installed in the system)

– Maximum of eight drawers per Power 750 system

• 7031-D24/T24 (#5786/#5787) EXP4 SCSI DASD Drawer/Tower

– EXP24 drawers/towers are attached to a PCI-X SCSI adapter via one or more

SCSI cables.

– The system maximum is 24.

• Feature number 5886 EXP12S SAS DASD Expansion Drawer

– Feature number 8340 supports one feature number 5886 drawer directly off the

system unit's SAS port.

– EXP12S drawers are attached to a PCI-X or PCIe SAS adapter via SAS cables.

– The system maximum is 48.

• Feature number 5802 12X I/O Drawer PCIe SFF Disk and feature number 5877

12X I/O Drawer PCIe No Disks

– A maximum of two per 12X loop is allowed.

– A maximum of four is supported on the Power 750.

– No mixing of features 5802 and 5877 is allowed with other drawers on the same

loop.

Note: A configuration with two or three feature 5802 or 5877 drawers will not be

available until April 30, 2010.

The following list shows I/O drawers that are supported or available on the 8233

machine type and the correct interface to use for each of the drawers.

Order

Feature Description Status Interface

5786 EXP24 SCSI Disk Drawer Supported SCSI

5787 EXP24 SCSI Disk Tower Supported SCSI

5796 PCI-X DDR 12X Exp Drawer Available 12X

5802 PCIe 12X I/O Drawer (W/Disk Bays) Available 12X

5877 PCIe 12X I/O Drawer (No Disk Bays) Available 12X

5886 Exp 12S SAS Disk Drawer Available SAS

7031-D24/T24 EXP24 SCSI Disk Drawer/Tower Supported SCSI

7214-1U2 Tape and DVD Enclosure Available SCSI/SAS

7314-G30 PCI-X DDR 12X I/O Drawer Supported 12X

Maximum number of attached I/O drawers per system:

Power 750

Feature (32-core)

O/S AIXLinuxIBM i

5786 24 24 24

5787 24 24 24

5796 8 8 8

5802 4 4 4

5877 4 4 4

5886 48 48 48

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 41

7031-D24 24 24 24

7031-T24 24 24 24

7214-1U2 1 1 6

7314-G30 8 8 8

I/O drawers are connected to the adapters in the CEC with the following cables:

• Data transfer cables:

– 12X DDR cables for the feature 5802 and 5877 I/O drawers

– 12X SDR or DDR cables for the feature 5796 and 7314-G30 I/O drawers

• Power control cables

12X I/O drawer cable connections are always made in loops to help protect against

a single point-of-failure resulting from an open, missing, or disconnected cable. A

system with nonlooped configurations could experience degraded performance and

serviceability. If a nonloop connection is detected, a problem is reported.

The first 12X I/O drawer attached in any I/O drawer loop requires two data transfer

cables. Each additional drawer in the loop (up to the maximum allowed) requires

one additional data transfer cable.

The first 12X I/O drawer attached to a system unit requires two power control

cables. Each additional I/O drawer added to a system requires one additional power

control cable. Each system has one power control loop. All I/O drawers attached to

a system are included in the same power control loop. Power control cable loops are

different in this regard from data transfer cable loops.

Dual-Port 12X Adapter Options

Dual-Port 12X Channel Attach Adapter (#6446): Use the short run adapter for

feature 5796 or 7314-G30 expansion I/O drawers located in close proximity to the

host system or to other drawers in the I/O expansion loop. This adapter does not

include signal repeaters.

Dual-Port 12X Channel Attach Adapter (#6457): Use the long run adapter for

feature 5796 or 7314-G30 expansion I/O drawers located farther from the host

system or other I/O drawers in the I/O expansion loop. This adapter includes signal

repeaters to accommodate the longer cable lengths.

12X Cable Choice

Each feature 5796 or 7314-G30 12X drawer requires one Dual-Port 12X Channel

Adapter, either Short Run (#6446) or Long Run (#6457). The choice of adapters is

dependent on the distance to the next 12X Channel connection in the loop, either to

another I/O drawer or the system unit. The following table identifies the supported

cable lengths for each 12X Channel adapter. I/O drawers containing the Short Run

adapter can be mixed in a single loop with I/O drawers containing the Long Run

adapter. In this table, a "Yes" indicates that the 12X cable identified in that column

can be used to connect the drawer configuration identified to the left. A "No" means

it cannot be used. The 12X DDR or SDR cables can be used with the feature 5796 or

7314-G30.

12X Cable Options

0.6 M 1.5 M 3.0 M 8.0 M

(#1829)(1)(#1830)(1)(#1840)(2) (#1834)(3)

12X DDR (#1861)(1)(#1862)(1)(#1865)(2) (#1864)(3)

5796 to 5796 w/12X

Short Run adapter

(#6446) in both

drawers Yes Yes No No

5796 w/ 12X Short

Run adapter (#6446)

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 42

to 5796 w/ 12X Long

Run adapter (#6457) Yes Yes Yes No

5796 to 5796 w/12X

Long Run adapter

(#6457) in both

drawers Yes Yes Yes Yes

5796 w/12X Short

Run adapter (#6446)

to system unit No Yes Yes No

5796 w/12X Long

Run adapter (#6457)

to system unit No Yes Yes Yes

1

The 0.6M and 1.5M 12X cables (#1829/#1830 or #1861/#1862) have very limited use due

to their short length. They cannot be used to connect to a system drawer because of the

short length. They are intended for use between two feature 5796 or 7314-G30 drawers

mounted side by side in the same enclosure (#7314). They can also be used to connect

between two modules located one beneath the other in a 19-inch rack.

2

It is possible in some limited configurations to use the 3.0 M, 12X cable (#1840 or #1865)

to locate 5796 modules in adjacent racks. The cable length requires careful management of

each drawer location within the rack. The best choice for connecting a feature 5796 or G30

I/O Drawer in an adjacent rack is the 8.0 M, 12X cable (#1834 or #1864).

3

The 8M 12X cable (#1834 or #1864) is intended for use when connecting between two

modules that are located in adjacent racks. This cable may not be connected to the 12X

Short Run adapter (#6446).

PCI card slots

The Power 750 has a maximum of five hot-plug slots.

• Slot 1 is a PCIe x8 short-length slot. A GX++ slot shares this slot.

• Slot 2 is a PCIe x8 short-length slot. A GX+ slot shares this slot.

• Slot 3 is a PCIe x8 full-length slot.

• Slots 4 and 5 are PCI-X DDR 266 MHz full-length slots.

• All slots are hot pluggable except slots 1 and 2 when used as GX slots.

Note: Optional 12X GX+ and GX++ adapters are used for attaching I/O expansion

drawers with PCI slots and, optionally, disk/SSD bays.

Graphics adapters

• A graphics adapter, keyboard, and mouse are not required in the minimum

configuration.

• The maximum number of graphics adapters supported in the Power 750 is three.

Not supported under IBM i.

I/O adapters

• The Integrated Virtual Ethernet feature (#5613, #5623, #5624) and the SAS

RAID Enablement feature (#5679) are not plugged into a slot, leaving the slots

available for PCI adapters or GX adapters.

• Refer to Figure 2 for additional I/O adapter information.

• The adapter installed in slot 1 or 2 must be short.

• To install a GX++ adapter in the system, two or more processor cards are

required.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 43

Figure 2. I/O adapter features

Orderable Supported CEC

feature feature Max

I/O Adapter number number qty Size

4-port USB PCIe 2728 3 Short

2-port USB PCI 2738 2 Short

8-port Asynchronous EIA-232 2943 2 Short

4-port ARTIC960Hx 2947 2 Long

2-port Multiprotocol 2962 2 Short

GXT135P Graphics Accelerator 2849/1980 2 Short

PCIe 2-Line WAN w/Modem 2893 3 Short

PCIe 2-Line WAN w/Modem CIM 2894 3 Short

PCI-X Cryptographic Coprocessor 4764 2 Long

GX Dual-port 12X Channel Attach 5609 1 GX++ slot

2-port 10 Gb IVE Daughter Card 5613 1 N/A

GX Dual-port 12x Channel Attach 5616 1 GX+ slot

2-port 1 Gb IVE Daughter Card 5623 1 N/A

4-port 1 Gb IVE Daughter Card 5624 1 N/A

SAS RAID Enablement Card 5679 1 N/A

Gigabit Ethernet 5700/1978 2 Short

10/100/1000 Ethernet 5701/1979 2 Short

2-port 10/100/1000 Ethernet 5706 1983 2 Short

10 Gigabit FCoE PCIe Dual Port 5708 3 Short

ISCI TOE Gb Ethernet (Copper) 5713 1986 2 Short

ISCI TOE Gb Ethernet (Fiber) 5714/1987 2 Short

2 Gb Fibre Channel PCI-X 5716/1977 2 Short

4-port 1 Gb Ethernet PCI-e 4x 5717 3 Short

10 Gb Ethernet - Short Reach 5721 2 Short

10 Gb Ethernet - Long Reach 5722 2 Short

2-port Asynchronous EIA-232 5723 2 Short

10 Gigabit Ethernet-CX4 PCI Exp. 5732 3 Short

8 Gb Dual-port Fibre Channel 5735 3 Short

PCI-X Ultra320 SCSI DDR 5736 1912 2 Short

4-port 10/100/1000 Ethernet 5740/1954 2 Short

GXT145 PCIe Graphics Accelerator 5748 3 Short

2-port 4 Gbps Fibre Channel 5749 2 Short

1-port 4 Gb Fibre Channel 5758/1905 2 Short

2-port 4 Gb Fibre Channel 5759 1910 2 Short

2-port 1 Gb Ethernet (UTP) PCIe 5767 3 Short

2-port 1 Gb Ethernet (Fiber) PCIe 5768 3 Short

10 Gb Ethernet-SR 5769 3 Short

10 Gb Ethernet-LR 5772 3 Short

1-port 4 Gb Fibre Channel 5773 3 Short

2-port 4 Gb Fibre Channel 5774 3 Short

PCI-X EXP24 Ctl-1.5 GB No IOP 5778 1 Long

4-port Asynch EIA-232 PCIe 5785 3 Short

SAS Controller PCI-X 2.0 5900 2 Short

PCIe Dual-x4 SAS 5901 3 Short

PCI-X DDR Dual-x4 SAS RAID 5902 2 Long

PCIe 380MB Cache Dual-x4 SAS RAID 5903 3 Short

PCI-X DDR Dual-x4 SAS RAID 5904 1 Long

PCI-X DDR Dual-x4 SAS 5912 2 Short

PCI 2-line WAN IOA, no IOP 6805 2 Short

PCI 4-Modem WAN IOA, no IOP 6808 2 Short

PCI 4-Modem WAN IOA, no IOP, CIM 6809 2 Short

PCI 2-line WAN w/Modem, no IOP 6833 2 Short

PCI 2-line WAN w/Modem, no IOP, CIM 6834 2 Short

Note: Maximums are for CEC only.

Storage devices/bays

• The Power 750 has a slim media bay that contains a mandatory DVD-RAM (#5762

or follow-on) and a half-high bay that can contain a tape drive or removable disk

drive.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 44

• Feature number 8340 must be selected and supports only SFF disks or SSD; 3.5-

inch drives are not supported with feature 8340:

– Feature number 1878 must be selected.

– One of feature numbers 1882, 1883, 1884, 1885, 1886, 1888, 1890, or

1909 must be selected (no disks/SSD are required if feature number 0837 is

selected).

– If connection of a feature 5886 EXP12S drawer is desired using the external

SAS port on feature 8340, feature number 3668 or 3669 is required.

– If tape device feature 5619 is installed in the half-high media bay, feature 3656

must be selected.

– If a tape device feature 5746 or 5661 is installed in the half-high media bay,

feature 3657 must be selected.

• Split DASD backplane support requirements:

– High-function DASD backplane (#8340, or follow-on).

– SAS Cable, DASD Backplane (Split) to Rear Bulkhead (#3669). Feature 3669

replaces feature 3668 in this configuration.

– SAS Adapter (#5900, #5901, #5912, or follow-on).

– External SAS cable.

– SAS Cable feature 3669 is not available with feature 2145 (IBM i).

• Solid State Drive (SSDs)(#1890, #1909, #3586, #3587) support restrictions:

– SFF features 1890 and 1909 are supported in the Power 750 CEC.

– 3.5-inch features 3586 and 3587 are not supported in the Power 750 CEC.

– SSDs and disk drives (HDDs) are not allowed to mirror each other.

– SSDs are not supported by features 5900, 5901, 5902, and 5912.

– A maximum of eight per feature 5886 drawer is allowed. No mixing of SSDs and

HDDs is allowed in a feature 5886. A maximum of one feature 5886 EXP12S

drawer containing SSDs attached to a single controller or pair of controllers is

allowed. A feature 5886 containing SSD drives cannot be connected to other

feature 5886s. A feature 5886 containing SSD drives cannot be attached to the

CEC external SAS port on the Power 750.

– In a Power 750 with a split backplane, SSDs and HDDs may be placed in either

"split" but no mixing of SSDs and HDDs within a split is allowed. IBM i does not

support split DASD mode.

– In a Power 750 without a split backplane, SSDs and HDDs may be mixed in any

combination. However, they cannot be in the same RAID array.

• DASD/Data Protection -- if IBM i (#2145) is selected, one of the following is

required:

– Disk mirroring (default) -- requires feature 0040, 0043, or 0308

– SAN boot (#0837)

– RAID -- requires feature 5679 and either feature 0041 or 0047

– Mixed Data Protection (#0296)

Figure 3. Storage device features

Orderable Supported

Maximum feature feature

Device quantity Bay number number

DVD-ROM (SATA) 1 Slim 5743

DVD-RAM (SATA) 1 Slim 5762

80/160GB DAT160 Tape-SAS 1 Half high 5619

800GB/1.6TB LTO4 Tape-SAS 1 Half high 5746

DAT320 160/320GB Tape-SAS 1 Half high 5661

Internal Docking Station

for Removable Disk Drive 1 Half high 1103

Note: The DAT320 160/320GB Tape-SAS (#5661) is planned to be

supported by the IBM i operating system on March 16, 2010.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 45

Orderable

Maximum feature

Device quantity Bay number

AIXIBM i Linux

146.8 GB 15K, 80 0 80 DASD 1-8, 1882

SAS, SFF 72 in 4 x #5802

73.4 GB 15K, 80 0 80 DASD 1-8, 1883

SAS, SFF 72 in 4 x #5802

69.7 GB 15K, 0 80 0 DASD 1-8, 1884

SAS, SFF 72 in 4 x #5802

300 GB 10K, 80 0 80 DASD 1-8, 1885

SAS, SFF 72 in 4 x #5802

146.8 GB 15K, 80 0 80 DASD 1-8, 1886

SAS, SFF 72 in 4 x #5802

139.5 GB 15K, 0 80 0 DASD 1-8, 1888

SAS, SFF 72 in 4 x #5802

69 GB SAS, SFF, 80 0 80 DASD 1-8, 1890

Solid-state 72 in 4 x #5802

69 GB SAS, SFF, 0 80 0 DASD 1-8, 1909

Solid-state 72 in 4 x #5802

69 GB SAS, SFF, 328 0 328 3586

Solid-state 328 in 41 x #5886

69 GB SAS, SFF, 0 328 0 3587

Solid-state 328 in 41 x #5886

Note: Eight disks or solid-state drives maximum

can be installed internally; 72 disks or solid-state

drives maximum can be installed in 4 x #5802. Features

3586 and 3587 cannot be installed internally. 8 x #3586

or #3587 can be placed in each #5886.

Orderable Supported

Maximum feature feature

Device quantity Bay number number

AIXIBM i Linux

73.4 GB 15K,RPM 576 0 576 48 x #5886 3646

SAS

146.8 GB 15K RPM, 576 0 576 48 x #5886 3647

SAS

300 GB 15K RPM, 576 0 576 48 x #5886 3648

SAS

450 GB 15K RPM, 576 0 576 48 x #5886 3649

SAS

69.8 GB 15K RPM, 0 576 0 48 x #5886 3676

SAS

139.6 GB 15K RPM, 0 576 0 48 x #5886 3677

SAS

283.8 GB 15K RPM, 0 576 0 48 x #5886 3678

SAS

428.4 GB 15K RPM, 0 576 0 48 x #5886 3658

SAS

Note: 3.5-inch DASD are not supported in the 8233-E8B CEC.

Orderable Supported

Maximum feature feature

Device quantity Bay number number

AIXIBM i Linux

73.4 GB 15K RPM, 576 0 576 See note 3278/1971

SCSI

146.8 GB 15K RPM, 576 0 576 See note 3279/1972

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 46

SCSI

300 GB 15K RPM, 576 0 576 See note 3585

SCSI

70.56 GB 15K RPM, 0 576 0 See note 4327

SCSI

141.14 GB 15K RPM, 0 576 0 See note 4328

SCSI

282.25 GB 15K RPM, 0 576 0 See note 4329

SCSI

TotalStorage EXP24 24 24 24 See note 5786

Disk Drawer

TotalStorage EXP24 24 24 24 See note 5787

Disk Tower

Note: SCSI disks are not supported in the 8233-E8B CEC. The 576 system

maximum is achieved with a maximum of 24 disks in a maximum of 24 Total

Storage EXP24 Disk Drawers (#5786) or 24 TotalStorage EXP2 4 Disk Towers

(#5787).

Planning information

Cable orders

No cables required.

Security, auditability, and control

This product uses the security and auditability features of host software and

application software.

The customer is responsible for evaluation, selection, and implementation of security

features, administrative procedures, and appropriate controls in application systems

and communications facilities.

IBM Electronic Services

IBM has transformed its delivery of hardware and software support services to

help you achieve higher system availability. Electronic Services is a Web-enabled

solution that offers an exclusive, no-additional-charge enhancement to the service

and support available for IBM servers. These services are designed to provide

the opportunity for greater system availability with faster problem resolution

and preemptive monitoring. Electronic Services comprises two separate, but

complementary, elements: Electronic Services news page and Electronic Services

Agent.

The Electronic Services news page is a single Internet entry point that replaces the

multiple entry points traditionally used to access IBM Internet services and support.

The news page enables you to gain easier access to IBM resources for assistance in

resolving technical problems.

The Electronic Service Agent is no-additional-charge software that resides on your

server. It monitors events and transmits system inventory information to IBM on

a periodic, client-defined timetable. The Electronic Service Agent automatically

reports hardware problems to IBM. Early knowledge about potential problems

enables IBM to deliver proactive service that may result in higher system availability

and performance. In addition, information collected through the Service Agent is

made available to IBM service support representatives when they help answer your

questions or diagnose problems. Installation and use of IBM Electronic Service Agent

for problem reporting enables IBM to provide better support and service for your

IBM server.

To learn how Electronic Services can work for you, visit

http://www.ibm.com/support/electronic

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 47

Terms and conditions

Volume orders: Contact your IBM representative.

IBM Global Financing

Yes

Warranty period

One year. Alternative warranty options are available on a special bid basis from your

IBM representative or Business Partner.

Warranty service

If required, IBM provides repair or exchange service depending on the types of

warranty service specified for the machine. An IBM technician will attempt to resolve

your problem over the telephone, or electronically via an IBM Web site. You must

follow the problem determination and resolution procedures that IBM specifies.

Scheduling of service will depend upon the time of your call and is subject to parts

availability. If applicable to your product, parts considered Customer Replaceable

Units (CRUs) will be provided as part of the machine's standard warranty service.

Service levels are response time objectives and are not guaranteed. The specified

level of warranty service may not be available in all worldwide locations. Additional

charges may apply outside IBM's normal service area. Contact your local IBM

representative or your reseller for country- and location-specific information. This

product is covered by the following types of service.

Customer Replaceable Unit Service and On-site for other selected parts.

Customer Replaceable Unit Service: IBM provides replacement CRUs to you for

you to install. CRU information and replacement instructions are shipped with your

machine and are available from IBM upon your request. CRUs are designated as

being either a Tier 1 or a Tier 2 CRU.

Tier 1 CRU: Installation of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1

CRU at your request, you will be charged for the installation. For machines with on-

site same-day response service, IBM will replace a Tier 1 CRU at your request, at no

additional charge.

Tier 2 CRU: You may install a Tier 2 CRU yourself or request IBM to install it, at no

additional charge.

Based upon availability, CRUs will be shipped for next-business-day delivery. IBM

specifies, in the materials shipped with a replacement CRU, whether a defective

CRU must be returned to IBM. When return is required, 1) return instructions and a

container are shipped with the replacement CRU and 2) you may be charged for the

replacement CRU if IBM does not receive the defective CRU within 15 days of your

receipt of the replacement.

The following parts have been designated as Tier 1 CRU parts:

• DASD Drive

• DVD Drive

• Dedicated Ethernet

• Fan Air Baffle

• Fan

• All PCI Adapters

• Power Supply

• RAID Base Card

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 48

• RAID Auxiliary Card

• RAID Auxiliary card battery

• Thermal Card (TPMD)

• VPD card

• Adapter - GX +

• Line/power cord

• Keyboard

• Mouse

• External cables

• Display

• Operator Panel

• TOD Battery

• DIMMs

On-site Service: IBM will repair the failing machine at your location and verify its

operation. You must provide a suitable working area to allow disassembly and

reassembly of the IBM machine. The area must be clean, well-lit, and suitable for

the purpose.

• 9 hours per day, Monday through Friday, excluding holidays, next-business-day

response

Calls must be received by 5 p.m. local time in order to qualify for Next-Business-Day

Service.

Non-IBM parts support

Warranty service: IBM is now shipping machines with selected non-IBM parts that

contain an IBM field replaceable unit (FRU) part number label. These parts are to

be serviced during the IBM machine warranty period. IBM is covering the service on

these selected non-IBM parts as an accommodation to their customers, and normal

warranty service procedures for the IBM machine apply.

Warranty service upgrades

During the warranty period, warranty service upgrades provide an enhanced level

of On-site Service for an additional charge. A warranty service upgrade must be

purchased during the warranty period and is for a fixed term (duration). It is not

refundable or transferable and may not be prorated. If required, IBM will provide

the warranty service upgrade enhanced level of On-site Service acquired by the

customer. Service levels are response time objectives and are not guaranteed.

IBM will attempt to resolve your problem over the telephone or electronically

by access to an IBM Web site. You must follow the problem determination and

resolution procedures that IBM specifies. Scheduling of service will depend upon the

time of your call and is subject to parts availability.

On-site Service: IBM will repair the failing machine at your location and verify its

operation. You must provide a suitable working area to allow disassembly and

reassembly of the IBM machine. The area must be clean, well-lit, and suitable for

the purpose. The following service selections are available as warranty upgrades for

your machine.

• 9 hours per day, Monday through Friday, excluding holidays, 4-hour average,

same-business-day response

• 24 hours per day, 7 days a week, 4-hour average response

• 24 hours per day, 7 days a week, 2-hour average response

Customer Replaceable Units (CRUs) may be provided as part of the machine's

standard warranty CRU Service except that you may install a CRU yourself or

request IBM installation, at no additional charge, under one of the On-site Service

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 49

levels specified above. For additional information on the CRU Service, see warranty

information.

Maintenance Services:

If required, IBM provides repair or exchange service depending on the types of

maintenance service specified for the machine. IBM will attempt to resolve your

problem over the telephone or electronically, via an IBM Web site. You must follow

the problem determination and resolution procedures that IBM specifies. Scheduling

of service will depend upon the time of your call and is subject to parts availability.

Service levels are response time objectives and are not guaranteed. The specified

level of maintenance service may not be available in all worldwide locations.

Additional charges may apply outside IBM's normal service area. Contact your local

IBM representative or your reseller for country- and location-specific information.

The following service selections are available as maintenance options for your

machine type.

On-site Service: IBM will repair the failing machine at your location and verify its

operation. You must provide a suitable working area to allow disassembly and

reassembly of the IBM Machine. The area must be clean, well-lit, and suitable for the

purpose.

• 9 hours per day, Monday through Friday, excluding holidays, next-business-day

response

• 9 hours per day, Monday through Friday, excluding holidays, 4-hour average

response

• 24 hours per day, 7 days a week, 4-hour average response

• 24 hours per day, 7 days a week, 2-hour average response

Customer Replaceable Unit Service:

If your problem can be resolved with a CRU (for example, keyboard, mouse,

speaker, memory, or hard disk drive), and depending upon the maintenance service

offerings in your geography, IBM will ship the CRU to you for you to install. CRU

information and replacement instructions are shipped with your machine and are

available from IBM upon your request.

Based upon availability, CRUs will be shipped for next-business-day delivery. IBM

specifies, in the materials shipped with a replacement CRU, whether a defective

CRU must be returned to IBM. When return is required, 1) return instructions and a

container are shipped with the replacement CRU and 2) you may be charged for the

replacement CRU if IBM does not receive the defective CRU within 15 days of your

receipt of the replacement.

CRUs may be provided as part of the machine's standard maintenance service

except that you may install a CRU yourself or request IBM installation, at no

additional charge, under any of the On-site Service levels specified above.

Machine Exchange Service: IBM will initiate shipment of a replacement machine to

your location. You are responsible for its installation and verification of operation.

You must pack the failed machine into the shipping container that contained the

replacement machine and return the failed machine to IBM. Transportation charges,

both ways, are paid by IBM. You may be charged for the replacement machine

if IBM does not receive the failed machine within 15 days of your receipt of the

replacement.

Non-IBM parts support

Under certain conditions, IBM repairs selected non-IBM parts at no additional charge

for machines that are covered under warranty service upgrades or maintenance

services.

IBM Service provides hardware problem determination on non-IBM parts (for

example, adapter cards, PCMCIA cards, disk drives, memory) installed within IBM

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 50

machines covered under warranty service upgrades or maintenance services and

provides the labor to replace the failing parts at no additional charge.

If IBM has a Technical Service Agreement with the manufacturer of the failing part,

or if the failing part is an accommodations part (a part with an IBM FRU label), IBM

may also source and replace the failing part at no additional charge. For all other

non-IBM parts, customers are responsible for sourcing the parts. Installation labor is

provided at no additional charge, if the machine is covered under a warranty service

upgrade or a maintenance service.

Warranty service upgrades

Usage plan machine

No

IBM hourly service rate classification

Two

When a type of service involves the exchange of a machine part, the replacement

may not be new, but will be in good working order.

Field-installable features

Yes

Model conversions

No

Machine installation

Customer setup. Customers are responsible for installation according to the

instructions IBM provides with the machine.

Graduated program license charges apply

Yes. The applicable processor tier is Small.

Licensed machine code

IBM Machine Code is licensed for use by a customer on the IBM machine for

which it was provided by IBM under the terms and conditions of the IBM License

Agreement for Machine Code, to enable the machine to function in accordance with

its specifications, and only for the capacity authorized by IBM and acquired by the

customer. You can obtain the agreement by contacting your IBM representative or

visiting

http://www-1.ibm.com/servers/support/machine_warranties/ machine_code.html

Machine using LMC Type Model -xxx

IBM may release changes to the Machine Code. IBM plans to make the Machine

Code changes available for download from the IBM pSeries® technical support Web

site

http://techsupport.services.ibm.com/server/mdownload

If the machine does not function as warranted and your problem can be resolved

through your application of downloadable machine code, you are responsible for

downloading and installing these designated machine code changes as IBM specifies.

If you would prefer, you may request IBM to install downloadable Machine Code

changes; however, you may be charged for that service.

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 51

Educational allowance

A reduced charge is available to qualified education customers. The educational

allowance may not be added to any other discount or allowance.

The educational allowance is 8% for the products in this announcement.

Prices

For additional information and current prices, contact your local IBM representative.

Model Feature

Description number numbers

Widescreen LCD Monitor

E8B 3632

IBM T541H /L150p 15" TFT Color Monitor

E8B 3637

IBM ThinkVision L170p Flat Panel Monitor

E8B 3639

ThinkVision L171p Flat Panel Monitor

E8B 3640

IBM T115 Flat Panel Monitor

E8B 3641

ThinkVision L191p Flat Panel Monitor

E8B 3642

IBM T120 Flat Panel Monitor

E8B 3643

IBM T119 Flat Panel Monitor

E8B 3644

IBM T117 Flat Panel Monitor

E8B 3645

Note: These features are subject to a $16.00 electronic waste recycling fee (15-inch

to 34-inch video device.)

The following are newly announced features on the specific models of the IBM Power

Systems 8233 machine type:

Minimum Initial/

Monthly MES/

Model Feature Purchase Maint. Both/ RP

Description number Numbers price charge Support CSU MES

IBM Power 750

E8B Yes

Specify Code for External High Speed Modem

E8B 0032 Both Yes No

Mirrored System Disk Level, Specify Code

E8B 0040 Both Yes No

Device Parity Protection-All, Specify Code

E8B 0041 Both Yes No

Mirrored System Bus Level, Specify Code

E8B 0043 Both Yes No

Device Parity RAID-6 All, Specify Code

E8B 0047 Both Yes No

RISC-to-RISC Data Migration

E8B 0205 Initial N/A No

AIX Partition Specify

E8B 0265 Both Yes No

Linux Partition Specify

E8B 0266 Both Yes No

IBM i Operating System Partition Specify

E8B 0267 Both Yes No

CSC Specify

E8B 0275 Both N/A No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 52

Specify Custom Data Protection

E8B 0296 Both Yes No

Mirrored Level System Specify Code

E8B 0308 Both Yes No

RAID Hot Spare Specify

E8B 0347 Both Yes No

V.24/EIA232 6.1m (20-Ft) PCI Cable

E8B 0348 Both Yes No

V.24/EIA232 15.2m (50-Ft) PCI Cable

E8B 0349 Support Yes No

V.35 6.1m (20-Ft) PCI Cable

E8B 0353 Both Yes No

V.35 15.2m (50-Ft) PCI Cable

E8B 0354 Support Yes No

V.36 6.1m (20-Ft) PCI Cable

E8B 0356 Support Yes No

X.21 6.1m (20-Ft) PCI Cable

E8B 0359 Both Yes No

X.21 15.2m (50-Ft) PCI Cable

E8B 0360 Support Yes No

V.24/EIA232 (80-Ft) PCI Cable

E8B 0365 Support Yes No

CBU Specify

E8B 0444 Both Yes No

Customer Specified Placement

E8B 0456 Initial N/A No

SSD Placement Indicator - CEC

E8B 0462 Both N/A No

SSD Placement Indicator (5802/5803)

E8B 0463 Initial N/A No

SSD Placement Indicator - 5886

E8B 0464 Initial N/A No

19 inch, 1.8 meter high rack

E8B 0551 MES Yes No

19 inch, 2.0 meter high rack

E8B 0553 MES Yes No

19 inch, 1.3 meter high rack

E8B 0555 Support Yes No

IBM i 6.1 with 6.1.1 Machine Code Specify Code

E8B 0566 Both Yes No

Rack Filler Panel Kit

E8B 0599 Both Yes No

Load Source Not in CEC

E8B 0719 Both Yes No

Specify Load Source in #5786

E8B 0725 Support Yes No

Specify Load Source in #5802/5803

E8B 0726 Both Yes No

Specify #5886 Load Source placement

E8B 0727 Both Yes No

#4327 Load Source Specify

E8B 0835 Support Yes No

#4328 Load Source Specify

E8B 0836 Support Yes No

SAN Load Source Specify

E8B 0837 Both Yes No

#3676 Load Source Specify

E8B 0838 Support Yes No

#3677 Load Source Specify

E8B 0839 Both Yes No

#3678 Load Source Specify

E8B 0840 Both Yes No

#4329 Load Source Specify

E8B 0841 Support Yes No

#3658 Load Source Specify

E8B 0844 Both Yes No

#1884 Load Source Specify

E8B 0851 Both Yes No

#1888 Load Source Specify

E8B 0853 Both Yes No

#1909 Load Source Specify

E8B 0854 Both Yes No

#3587 Load Source Specify

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 53

E8B 0855 Both Yes No

US TAA Compliance Indicator

E8B 0983 NC Initial N/A No

Modem Cable - US/Canada and General Use

E8B 1025 Both Yes No

USB Internal Docking Station for Removable Disk Drive

E8B 1103 Both Yes No

USB External Docking Station for Removable Disk Drive

E8B 1104 Both Yes No

USB 160 GB Removable Disk Drive

E8B 1106 Both Yes No

USB 500 GB Removable Disk Drive

E8B 1107 Both Yes No

200V 16A 4.3m (14-Ft) TL Line Cord

E8B 1406 Support Yes No

125V 4.3m (14-Ft) Line Cord

E8B 1413 Support Yes No

200V 1.8m (6-Ft) Locking Line Cord

E8B 1414 Support Yes No200V 1.8m (6-Ft) Watertight Line Cord

E8B 1415 Support Yes No200V 4.3m (14-Ft) Locking Line Cord

E8B 1416 Support Yes No200V 4.3m (14-Ft) Watertight Line Cord

E8B 1417 Support Yes No

4.3m 200V/16A Power Cord S. Africa

E8B 1418 Support Yes No

4.3m 200V/16A Power Cord Israel

E8B 1419 Support Yes No

4.3m 200V/16A Power Cord EU/Asia

E8B 1420 Support Yes No

4.3m 200V/16A Power Cord CH/DK

E8B 1421 Support Yes No

200V 1.8m (6-Ft) Locking Line Cord

E8B 1424 Support Yes No

200V 1.8m (6-Ft) Watertight Line Cord

E8B 1425 Support Yes No

200V 4.3m (14-Ft) Locking Line Cord

E8B 1426 Support Yes No

200V 4.3m (14-Ft) Watertight Line Cord

E8B 1427 Support Yes No

4.3m 200V/10A Power Cord EU/Asia

E8B 1439 Support Yes No

4.3m 200V/10A Power Cord Denmark

E8B 1440 Support Yes No

4.3m 200V/10A Power Cord S. Africa

E8B 1441 Support Yes No

4.3m 200V/10A Power Cord Swiss

E8B 1442 Support Yes No

4.3m 200V/10A Power Cord UK

E8B 1443 Support Yes No

4.3m 200V/10A Power Cord Israel

E8B 1445 Support Yes No

4.3m 200V/32A Power Cord EU 1-PH

E8B 1449 Support Yes No

4.3m 200V/16A Power Cord EU 2-PH

E8B 1450 Support Yes No

200V (6-Ft) 1.8m Line Cord

E8B 1451 Support Yes No

200V (14-Ft) 4.3m Line Cord

E8B 1452 Support Yes No

200V (6-Ft) 1.8m Locking Line Cord

E8B 1453 Support Yes No

200V 12A (14-Ft) 4.3m TL Line Cord

E8B 1454 Support Yes No200V (6-Ft) 1.8m Watertight Line Cord

E8B 1455 Support Yes No200V (14-Ft) 4.3m Watertight Line Cord

E8B 1456 Support Yes No200V (6-Ft) 1.8m Upper Line Cord

E8B 1457 Support Yes No

200V (6-Ft) 1.8m Upper Locking Cord

E8B 1458 Support Yes No

200V (6-Ft) 1.8m Upper Locking Cord

E8B 1459 Support Yes No

4.3m 200V/12A Pwr Cd UK

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 54

E8B 1476 Support Yes No

4.3m 200V/16A Pwr Cd

E8B 1477 Support Yes No

System port/UPS Conversion Cable

E8B 1827 Both Yes No

1.5 Meter 12X to 4X Channel Conversion Cable

E8B 1828 Both Yes No

0.6 Meter 12X Cable

E8B 1829 Support Yes No

1.5 Meter 12X cable

E8B 1830 Support Yes No

8.0 Meter 12X Cable

E8B 1834 Support Yes No

3.0 Meter 12X Cable

E8B 1840 Support Yes No

3 Meter 12X to 4X Channel Conversion Cable

E8B 1841 Both Yes No

10 Meter 12X to 4X Enhanced Channel Conversion Cable

E8B 1854 Both Yes No

0.6 Meter 12X DDR Cable

E8B 1861 Both Yes No

1.5 Meter 12X DDR Cable

E8B 1862 Both Yes No

8.0 Meter 12X DDR Cable

E8B 1864 Both Yes No

3.0 Meter 12X DDR Cable

E8B 1865 Both Yes No

Op Panel Cable for Rack-mount Drawer w/2.5" DASD

E8B 1878 Both Yes No

146.8GB 10K RPM SAS SFF Disk Drive

E8B 1882 Both Yes No

73.4 GB 15K RPM SAS SFF Disk Drive

E8B 1883 Both Yes No

69.7 GB 15K RPM SAS SFF Disk Drive

E8B 1884 Both Yes No

300GB 10K RPM SFF SAS Disk Drive

E8B 1885 Both Yes No

146GB 15K RPM SFF SAS Disk Drive

E8B 1886 Both Yes No

139GB 15K RPM SFF SAS Disk Drive

E8B 1888 Both Yes No

69GB SFF SAS Solid State Drive

E8B 1890 Both Yes No

4 GB Single-Port Fibre Channel PCI-X 2.0 DDR Adapter

E8B 1905 Support Yes No

69GB SFF SAS Solid State Drive

E8B 1909 Both Yes No

4 GB Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter

E8B 1910 Support Yes No

PCI-X DDR Dual Channel Ultra320 SCSI Adapter

E8B 1912 Support Yes No

4-Port 10/100/1000 Base-TX PCI-X Adapter

E8B 1954 Support Yes No

73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly

E8B 1971 Support Yes No

146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly

E8B 1972 Support Yes No

2 Gigabit Fibre Channel PCI-X Adapter

E8B 1977 Support Yes No

IBM Gigabit Ethernet-SX PCI-X Adapter

E8B 1978 Support Yes No

IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

E8B 1979 Support Yes No

POWER GXT135P Graphics Accelerator with Digital Support

E8B 1980 Support Yes No

IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter

E8B 1983 Support Yes No

1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter

E8B 1986 Support Yes No

1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter

E8B 1987 Support Yes No

Converter Cable, VHDCI to P, Mini-68 pin to 68 pin, 0.3M

E8B 2118 Support Yes No

Ultra 320 SCSI Cable 1 Meter

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 55

E8B 2124 Support Yes No

Ultra 320 SCSI Cable 3 Meter

E8B 2125 Support Yes No

Ultra 320 SCSI Cable 5 Meter

E8B 2126 Support Yes No

Ultra 320 SCSI Cable 10 Meter

E8B 2127 Support Yes No

Ultra 320 SCSI Cable 20 Meter

E8B 2128 Support Yes No

0.55 Meter Ultra 320 SCSI Cable

E8B 2138 Support Yes No

Primary OS - IBM i

E8B 2145 Both Yes No

Primary OS - AIX

E8B 2146 Both Yes No

Primary OS - Linux

E8B 2147 Both Yes No

Zero-priced Processor Activation for #8334

E8B 2324 Both Yes No

Zero-priced Processor Activation for #8332

E8B 2325 Both Yes No

Zero-priced Processor Activation for #8336

E8B 2326 Both Yes No

Zero-priced Processor Activation for #8335

E8B 2327 Both Yes No

2M LC-SC 50 Micron Fiber Converter Cable

E8B 2456 Both Yes No

2M LC-SC 62.5 Micron Fiber Converter Cable

E8B 2459 Both Yes No

4 port USB PCIe Adapter

E8B 2728 Both Yes No

2-Port USB PCI Adapter

E8B 2738 Support Yes No

POWER GXT135P Graphics Accelerator with Digital Support

E8B 2849 Support Yes No

ARTIC960Hx 4-Port EIA-232 Cable

E8B 2861 Support Yes No

ARTIC960Hx 4-Port X.21 Cable

E8B 2863 Support Yes No

ARTIC960Hx 4-Port V.35 (DTE) Cable

E8B 2864 Support Yes No

PCIe 2-Line WAN w/Modem

E8B 2893 Both Yes No

3M Asynchronous Terminal/Printer Cable EIA-232

E8B 2934 Both Yes No

Asynchronous Cable EIA-232/V.24 3M

E8B 2936 Both Yes No

8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus

E8B 2943 Support Yes No

IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter

E8B 2947 Support Yes No

Cable, V.24 / EIA-232

E8B 2951 Support Yes No

Cable, V.35

E8B 2952 Support Yes No

Cable, V.36 / EIA-499

E8B 2953 Support Yes No

Cable, X.21

E8B 2954 Support Yes No

2-Port Multiprotocol PCI Adapter

E8B 2962 Support Yes No

Serial-to-Serial Port Cable for Drawer/Drawer- 3.7M

E8B 3124 Both Yes No

Serial-to-Serial Port Cable for Rack/Rack- 8M

E8B 3125 Both Yes No

73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly

E8B 3278 Support Yes No

146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly

E8B 3279 Support Yes No

300 GB 15K RPM SCSI Disk Drive

E8B 3585 Support Yes No

69GB 3.5" SAS Solid State Drive

E8B 3586 Both Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 56

69GB 3.5" SAS Solid State Drive

E8B 3587 Both Yes No

Widescreen LCD Monitor

E8B 3632 Both Yes No

IBM T541H /L150p 15" TFT Color Monitor

E8B 3637 Support Yes No

IBM ThinkVision L170p Flat Panel Monitor

E8B 3639 Support Yes No

ThinkVision L171p Flat Panel Monitor

E8B 3640 Support Yes No

IBM T115 Flat Panel Monitor

E8B 3641 Support Yes No

ThinkVision L191p Flat Panel Monitor

E8B 3642 Support Yes No

IBM T120 Flat Panel Monitor

E8B 3643 Support Yes No

IBM T119 Flat Panel Monitor

E8B 3644 Support Yes No

IBM T117 Flat Panel Monitor

E8B 3645 Support Yes No

73GB 15K RPM SAS Disk Drive

E8B 3646 Support Yes No

146GB 15K RPM SAS Disk Drive

E8B 3647 Both Yes No

300GB 15K RPM SAS Disk Drive

E8B 3648 Both Yes No

450GB 15K RPM SAS Disk Drive

E8B 3649 Both Yes No

SAS Cable (EE) Drawer to Drawer 1M

E8B 3652 Both Yes No

SAS Cable (EE) Drawer to Drawer 3M

E8B 3653 Both Yes No

SAS Cable (EE) Drawer to Drawer 6M

E8B 3654 Both Yes No

SAS SFF Cable

E8B 3656 Both Yes No

Right Angle SAS Tape Drive Cable

E8B 3657 Both Yes No

428GB 15K RPM SAS Disk Drive

E8B 3658 Both Yes No

SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/Dual Path 3M:

E8B 3661 Both Yes No

SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/Dual Path 6M:

E8B 3662 Both Yes No

SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/Dual Path

15M:

E8B 3663 Both Yes No

SAS Cable, DASD Backplane to Rear Bulkhead

E8B 3668 Both Yes No

SAS Cable, DASD Backplane (Split) to Rear Bulkhead)

E8B 3669 Both Yes No

69.7GB 15k rpm SAS Disk Drive

E8B 3676 Support Yes No

139.5GB 15k rpm SAS Disk Drive

E8B 3677 Both Yes No

283.7GB 15k rpm SAS Disk Drive

E8B 3678 Both Yes No

SAS Cable (AI)- Adapter to Internal drive 1M

E8B 3679 Both Yes No

3M SAS CABLE, ADPTR TO ADPTR (AA)

E8B 3681 Both Yes No

6M SAS CABLE, ADPTR TO ADPTR (AA)

E8B 3682 Both Yes No

SAS Cable (AE) Adapter to Enclosure, single controller/single path 3M

E8B 3684 Both Yes No

SAS Cable (AE) Adapter to Enclosure, single controller/single path 6M

E8B 3685 Both Yes No

SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path

1.5M

E8B 3686 Both Yes No

SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path

3M

E8B 3687 Both Yes No

SAS Cable (AT) 0.6 Meter

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 57

E8B 3688 Both Yes No

SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path

1.5 M

E8B 3691 Both Yes No

SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path

3 M

E8B 3692 Both Yes No

SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path

6 M

E8B 3693 Both Yes No

SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path

15 M

E8B 3694 Both Yes No

0.3M Serial Port Converter Cable, 9-Pin to 25-Pin

E8B 3925 Both Yes No

Asynch Printer/Terminal Cable, 9-pin to 25-pin, 4M

E8B 3926 Both Yes No

Serial Port Null Modem Cable, 9-pin to 9-pin, 3.7M

E8B 3927 Both Yes No

Serial Port Null Modem Cable, 9-pin to 9-pin, 10M

E8B 3928 Both Yes No

1.8 M (6-ft) Extender Cable for Displays (15-pin D-shell to 15-pin

D-shell)

E8B 4242 Both Yes No

Extender Cable - USB Keyboards, 2M

E8B 4256 Both Yes No

VGA to DVI Connection Converter

E8B 4276 Both Yes No

70.56GB 15k rpm Disk Unit

E8B 4327 Support Yes No

141.12GB 15k rpm Disk Unit

E8B 4328 Support Yes No

282.25GB 15k rpm Disk Unit

E8B 4329 Support Yes No

8GB (2x4GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM

E8B 4526 Both Yes No

16GB (2x8GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM

E8B 4527 Both Yes No

32GB (2x16GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM

E8B 4528 Both Yes No

One and only one rack indicator features is required onall orders (#4650 to #4666).

Rack Indicator- Not Factory Integrated

E8B 4650 Initial N/A No

Rack Indicator, Rack #1

E8B 4651 Initial N/A No

Rack Indicator, Rack #2

E8B 4652 Initial N/A No

Rack Indicator, Rack #3

E8B 4653 Initial N/A No

Rack Indicator, Rack #4

E8B 4654 Initial N/A No

Rack Indicator, Rack #5

E8B 4655 Initial N/A No

Rack Indicator, Rack #6

E8B 4656 Initial N/A No

Rack Indicator, Rack #7

E8B 4657 Initial N/A No

Rack Indicator, Rack #8

E8B 4658 Initial N/A No

Rack Indicator, Rack #9

E8B 4659 Initial N/A No

Rack Indicator, Rack #10

E8B 4660 Initial N/A No

Rack Indicator, Rack #11

E8B 4661 Initial N/A No

Rack Indicator, Rack #12

E8B 4662 Initial N/A No

Rack Indicator, Rack #13

E8B 4663 Initial N/A No

Rack Indicator, Rack #14

E8B 4664 Initial N/A No

Rack Indicator, Rack #15

E8B 4665 Initial N/A No

Rack Indicator, Rack #16

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 58

E8B 4666 Initial N/A No

PCI-X Cryptographic Coprocessor (FIPS 4)

E8B 4764 Both Yes No

Active Memory Expansion Enablement

E8B 4792 Both Yes No

One Processor of 5250 Enterprise Enablement

E8B 4988 Both Yes No

Full 5250 Enterprise Enablement

E8B 4989 Both Yes No

Software Preload Required

E8B 5000 Initial N/A No

Custom Service Specify, Off-Site

E8B 5001 Support N/A NoCustomer Solution Center - Rochester Mfg

E8B 5002 Initial N/A No

Power Dist Unit 1 Phase NEMA

E8B 5160 Support Yes No

Power Dist Unit 1 Phase IEC

E8B 5161 Support Yes No

Power Dist Unit 2 of 3 Phase

E8B 5162 Support Yes No

Power Dist Unit - 3 Phase

E8B 5163 Support Yes No

RFID TAGS FOR SERVERS, BLADES, BLADECENTERS, RACKS, AND HMCS

E8B 5524 Initial N/A No

Sys Console On HMC

E8B 5550 Both Yes No

Sys Console-Ethernet No IOP

E8B 5553 Both Yes No

GX Dual-port 12X Channel Attach

E8B 5609 Both Yes No

Dual Port (SR) Integrated Virtual Ethernet 10Gb Daughter Card

E8B 5613 Both Yes No

GX Dual-port 12x Channel Attach

E8B 5616 Both Yes No

80/160GB DAT160 SAS Tape Drive

E8B 5619 Both Yes No

Dual Port 1Gb Integrated Virtual Ethernet Daughter Card

E8B 5623 Support Yes No

4-Port 1Gb Integrated Virtual Ethernet Daughter Card

E8B 5624 Both Yes No

Blind Swap Type III Cassette- PCIe, Short Slot

E8B 5646 MES Yes No

Blind Swap Type III Cassette- PCI-X or PCIe, Standard Slot

E8B 5647 MES Yes No

DAT320 160/320 GB Tape Drive

E8B 5661 Both Yes No

SAS RAID Enablement

E8B 5679 Both Yes No

DAT160 Data Cartridge

E8B 5689 Support Yes No

IBM Gigabit Ethernet-SX PCI-X Adapter

E8B 5700 Support Yes No

IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

E8B 5701 Support Yes No

IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter

E8B 5706 Both Yes No

10Gb FCoE PCIe Dual Port Adapter

E8B 5708 Both Yes No

1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter

E8B 5713 Both Yes No

1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter

E8B 5714 Support Yes No

2 Gigabit Fibre Channel PCI-X Adapter

E8B 5716 Support Yes No

4-Port 10/100/1000 Base-TX PCI Express Adapter

E8B 5717 Both Yes No

10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter

E8B 5721 Support Yes No

10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter

E8B 5722 Support Yes No

2-Port Asynchronous EIA-232 PCI Adapter

E8B 5723 Support Yes No

10 Gigabit Ethernet-CX4 PCI Express Adapter

E8B 5732 Both Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 59

8 Gigabit PCI Express Dual Port Fibre Channel Adapter

E8B 5735 Both Yes No

PCI-X DDR Dual Channel Ultra320 SCSI Adapter

E8B 5736 Both Yes No

4-Port 10/100/1000 Base-TX PCI-X Adapter

E8B 5740 Support Yes No

IBM Single Bus Ultra 320 SCSI Repeater Card

E8B 5741 Support Yes No

IBM Dual Bus Ultra 320 SCSI Repeater Card

E8B 5742 Support Yes No

SATA Slimline DVD-ROM Drive

E8B 5743 Support Yes No

Half High 800GB/1.6TB LTO4 SAS Tape Drive

E8B 5746 Both Yes No

IBM LTO Ultrium 4 800 GB Data Cartridge

E8B 5747 Both Yes No

POWER GXT145 PCI Express Graphics Accelerator

E8B 5748 Both Yes No

4Gbps Fibre Channel (2-Port)

E8B 5749 Both Yes No

4 GB Single-Port Fibre Channel PCI-X 2.0 DDR Adapter

E8B 5758 Support Yes No

4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter

E8B 5759 Both Yes No

SATA Slimline DVD-RAM Drive

E8B 5762 Both Yes No

2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter

E8B 5767 Both Yes No

2-Port Gigabit Ethernet-SX PCI Express Adapter

E8B 5768 Both Yes No

10 Gigabit Ethernet-SR PCI Express Adapter

E8B 5769 Both Yes No

10 Gigabit Ethernet-LR PCI Express Adapter

E8B 5772 Both Yes No

4 Gigabit PCI Express Single Port Fibre Channel Adapter

E8B 5773 Support Yes No

4 Gigabit PCI Express Dual Port Fibre Channel Adapter

E8B 5774 Both Yes No

PCI-X EXP24 Ctl-1.5GB No IOP

E8B 5778 Support Yes No

PCI-X EXP24 Ctl-1.5GB No IOP

E8B 5782 Support Yes No

4 Port Async EIA-232 PCIe Adapter

E8B 5785 Both Yes No

TotalStorage EXP24 Disk Dwr

E8B 5786 Support Yes No

TotalStorage EXP24 Disk Twr

E8B 5787 Support Yes No

PCI-DDR 12X Expansion Drawer

E8B 5796 Both Yes No

12X I/O Drawer PCIe, SFF disk

E8B 5802 Both Yes No

12X I/O Drawer PCIe, No Disk

E8B 5877 Both Yes No

EXP 12S Expansion Drawer

E8B 5886 Both Yes No

PCI-X DDR Dual -x4 SAS Adapter

E8B 5900 Support Yes No

PCIe Dual-x4 SAS Adapter

E8B 5901 Both Yes No

PCI-X DDR Dual - x4 3Gb SAS RAID Adapter

E8B 5902 Support Yes No

PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter

E8B 5903 Both Yes No

PCI-X DDR 1.5GB Cache SAS RAID Adapter

E8B 5904 Both Yes No

PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC)

E8B 5908 Both Yes No

PCI-X DDR Dual - x4 SAS Adapter

E8B 5912 Support Yes No

Non-paired SAS RAID indicator

E8B 5922 Support Yes No

Non-paired PCIe SAS RAID Indicator

E8B 5923 Both Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 60

Full Width Keyboard -- USB, US English, #103P

E8B 5951 Both Yes No

Full Width Keyboard -- USB, French, #189

E8B 5952 Both Yes No

Full Width Keyboard -- USB, Italian, #142

E8B 5953 Both Yes No

Full Width Keyboard -- USB, German/Austrian, #129

E8B 5954 Both Yes No

Full Width Keyboard -- USB, UK English, #166P

E8B 5955 Both Yes No

Full Width Keyboard -- USB, Spanish, #172

E8B 5956 Both Yes No

Full Width Keyboard -- USB, Japanese, #194

E8B 5957 Both Yes No

Full Width Keyboard -- USB, Brazilian Portuguese, #275

E8B 5958 Both Yes No

Full Width Keyboard -- USB, Hungarian, #208

E8B 5959 Both Yes No

Full Width Keyboard -- USB, Korean, #413

E8B 5960 Both Yes No

Full Width Keyboard -- USB, Chinese, #467

E8B 5961 Both Yes No

Full Width Keyboard -- USB, French Canadian, #445

E8B 5962 Both Yes No

Full Width Keyboard -- USB, Belgian/UK, #120

E8B 5964 Both Yes No

Full Width Keyboard -- USB, Swedish/Finnish, #153

E8B 5965 Both Yes No

Full Width Keyboard -- USB, Danish, #159

E8B 5966 Both Yes No

Full Width Keyboard -- USB, Bulgarian, #442

E8B 5967 Both Yes No

Full Width Keyboard -- USB, Swiss/French/German, #150

E8B 5968 Both Yes No

Full Width Keyboard -- USB, Norwegian,#155

E8B 5969 Both Yes No

Full Width Keyboard -- USB, Dutch, #143

E8B 5970 Both Yes No

Full Width Keyboard -- USB, Portuguese, #163

E8B 5971 Both Yes No

Full Width Keyboard -- USB, Greek, #319

E8B 5972 Both Yes No

Full Width Keyboard -- USB, Hebrew, #212

E8B 5973 Both Yes No

Full Width Keyboard -- USB, Polish, #214

E8B 5974 Both Yes No

Full Width Keyboard -- USB, Slovakian, #245

E8B 5975 Both Yes No

Full Width Keyboard -- USB, Czech, #243

E8B 5976 Both Yes No

Full Width Keyboard -- USB, Turkish, #179

E8B 5977 Both Yes No

Full Width Keyboard -- USB, LA Spanish, #171

E8B 5978 Both Yes No

Full Width Keyboard -- USB, Arabic, #253

E8B 5979 Both Yes No

Full Width Keyboard -- USB, Thai, #191

E8B 5980 Both Yes No

Full Width Keyboard -- USB, Russian, #443

E8B 5981 Both Yes No

Full Width Keyboard -- USB, Slovenian, #234

E8B 5982 Both Yes No

Full Width Keyboard -- USB, US English Euro, #103P

E8B 5983 Both Yes No

Power Control Cable (SPCN) - 2 meter

E8B 6001 Support Yes No

Power Control Cable (SPCN) - 3 meter

E8B 6006 Both Yes No

Power Control Cable (SPCN) - 15 meter

E8B 6007 Both Yes No

Power Control Cable (SPCN) - 6 meter

E8B 6008 Support Yes No

Power Control Cable (SPCN) - 30 meter

E8B 6029 Support Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 61

Opt Front Door for 1.8m Rack

E8B 6068 MES Yes No

Opt Front Door for 2.0m Rack

E8B 6069 MES Yes No

1.8m Rack Acoustic Doors

E8B 6248 MES Yes No

2.0m Rack Acoustic Doors

E8B 6249 MES Yes No

1.8m Rack Trim Kit

E8B 6263 Both Yes No

2.0m Rack Trim Kit

E8B 6272 Both Yes No

Dual-port 12X Channel Attach- Short Run

E8B 6446 Both Yes No

Dual-port 12X Channel Attach- Long Run

E8B 6457 Both Yes No

Power Cable -- Drawer to IBM PDU, 14-foot, 250V/10A

E8B 6458 Both Yes No

Power Cord 4.3m (14-ft), Drawer To OEM PDU (125V, 15A)

E8B 6460 Both Yes No

Power Cord 4.3m (14-foot), Drawer to OEM PDU, (250V, 15A), U. S.

E8B 6469 Both Yes No

Power Cord 1.8m(6-foot), To Wall (125V, 15A)

E8B 6470 Both Yes No

Power Cord 2.7m (9-foot), To Wall/OEM PDU, (125V, 15A)

E8B 6471 Both Yes No

Power Cord 2.7m (9-foot), To Wall/OEM PDU, (250V, 16A)

E8B 6472 Both Yes No

Power Cord 2.7m (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6473 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 13A)

E8B 6474 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 16A)

E8B 6475 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6476 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 16A)

E8B 6477 Both Yes No

Power Cord 2.7 M(9-foot), To Wall/OEM PDU, (250V, 16A)

E8B 6478 Both Yes No

Power Cord (9-foot) , To Wall/OEM PDU, (250V, 10A)

E8B 6479 Support Yes No

Power Cord 1.8M (6-foot),To Wall, (250V, 15A), United States

E8B 6487 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (125V, 15A or 250V, 10A )

E8B 6488 Both Yes No

4.3m (14-Ft) 3PH/24A Power Cord

E8B 6489 MES Yes No

4.3m (14-Ft) 1PH/48A Pwr Cord

E8B 6491 MES Yes No

4.3m (14-Ft) 1PH/48-60A Pwr Cord

E8B 6492 MES Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6493 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6494 Both Yes No

Power Cord (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6495 Support Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6496 Both Yes No

Power Cord (6-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6497 Support Yes No

Power Cord (6-foot), To Wall/OEM PDU, (250V, 15A)

E8B 6498 Support Yes No

Power Cable - Drawer to IBM PDU, 200-240V/10A

E8B 6577 Initial N/A No

Optional Rack Security Kit

E8B 6580 MES Yes No

Modem Tray for 19-Inch Rack

E8B 6586 MES Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (125V, 15A)

E8B 6651 Both Yes No

4.3m (14-Ft) 1PH/24-30A Pwr Cord

E8B 6654 MES Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 62

4.3m (14-Ft) 1PH/24-30A WR Pwr Cord

E8B 6655 MES Yes No

4.3m (14-Ft)1PH/24A Power Cord

E8B 6656 MES Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 15A)

E8B 6659 Both Yes No

Power Cord (14-foot), Drawer To OEM PDU (125V, 15A)

E8B 6660 Both Yes No

Power Cord 3 M (10 ft), Drawer to IBM PDU, 250V/10A

E8B 6665 Both Yes No

Power Cord 4.3M (14-foot), Drawer to OEM PDU, (250V, 15A)

E8B 6669 Both Yes No

Power Cord (6-foot), To Wall (125V, 15A),

E8B 6670 Support Yes No

Power Cord 2.7M (9-foot), Drawer to IBM PDU, 250V/10A

E8B 6671 Both Yes No

Power Cord 1.5M (5-foot), Drawer to IBM PDU, 250V/10A

E8B 6672 Both Yes No

Power Cord 2.7M (9-foot), To Wall/OEM PDU, (250V, 10A)

E8B 6680 Both Yes No

Power Cord (6-foot), To Wall, (250V, 15A)

E8B 6687 Support Yes No

PCI 2-Line WAN IOA No IOP

E8B 6805 Support Yes No

PCI 4-Modem WAN IOA No IOP

E8B 6808 Both Yes No

PCI 2-Line WAN w/Modem NoIOP

E8B 6833 Support Yes No

Intelligent PDU+, 1 EIA Unit, Universal UTG0247 Connector

E8B 7109 MES Yes No

Environmental Monitoring Probe

E8B 7118 Both Yes No

Power Distribution Unit

E8B 7188 MES Yes No

Quantity 150 of #2124

E8B 7204 Support Yes No

Quantity 150 of #2125

E8B 7205 Support Yes No

Quantity 150 of #2126

E8B 7206 Support Yes No

Quantity 150 of #2127

E8B 7207 Support Yes No

Quantity 150 of #2128

E8B 7208 Support Yes No

Quantity 150 of #2138

E8B 7213 Support Yes No

SDI Software Pre-Install Indicator

E8B 7305 NC Initial N/A No

Dual I/O Unit Enclosure

E8B 7307 Both Yes No

I/O Drawer Mounting Enclosure

E8B 7314 Both Yes No

Quantity 150 of #4327

E8B 7509 Support Yes No

Quantity 150 of #4328

E8B 7510 Support Yes No

Quantity 150 of #4329

E8B 7511 Support Yes No

Quantity 150 of #3676

E8B 7517 Support Yes No

Quantity 150 of #3677

E8B 7518 Support Yes No

Quantity 150 of #3678

E8B 7519 Both Yes No

Quantity 150 of #3586

E8B 7535 Both Yes No

Quantity 150 of #3587

E8B 7536 Both Yes No

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 63

Quantity 150 of #3658

E8B 7538 Both Yes No

Quantity 150 of #3647

E8B 7549 Both Yes No

Quantity 150 of #3648

E8B 7564 Both Yes No

Quantity 150 of #3649

E8B 7565 Both Yes No

One Processor Activation for Processor Feature #8334

E8B 7714 Both Yes No

One Processor Activation for Processor Feature #8332

E8B 7715 Both Yes No

One Processor Activation for Processor Feature #8336

E8B 7716 Both Yes No

One Processor Activation for Processor Feature #8335

E8B 7717 Both Yes No

Power Supply, 1725 Watt AC, Hot-swap, Base or Redundant

E8B 7740 Initial N/A No

2.0m Rack Side Attach Kit

E8B 7780 Support Yes No

PowerVM Express

E8B 7793 Both Yes No

PowerVM Standard

E8B 7794 Both Yes No

PowerVM Enterprise

E8B 7795 Both Yes No

Ethernet Cable, 6M, Hardware Management Console to System Unit

E8B 7801 Support Yes No

Ethernet Cable, 15m, Hardware Management Console to System Unit

E8B 7802 Both Yes No

Side-by-Side for 1.8m Racks

E8B 7840 Support Yes No

Ruggedize Rack Kit

E8B 7841 Support Yes No

PCI Blind Swap Cassette Kit, Double Wide Adapters, Type II

E8B 7863 MES Yes No

Linux Software Preinstall

E8B 8143 Initial N/A No

Linux Software Preinstall (Business Partners)

E8B 8144 Initial N/A No

8-core 3.3 GHz POWER7 Processor Card

E8B 8332 Both Yes No

8-core 3.0 GHz POWER7 Processor Card

E8B 8334 Both Yes No

6-core 3.3 GHz POWER7 Processor Card

E8B 8335 Both Yes No

8-core 3.55 GHz POWER7 Processor Card

E8B 8336 Both Yes No

Enhanced DASD/Media Backplane for 2.5" DASD/SATA DVD/Tape with

External SAS Port

E8B 8340 Initial N/A No

Mouse - USB, with Keyboard Attachment Cable

E8B 8841 Support Yes No

USB Mouse

E8B 8845 Both Yes No

Order Routing Indicator- System Plant

E8B 9169 NC Initial N/A No

Language Group Specify - US English

E8B 9300 NC Initial N/A No

New AIX License Core Counter

E8B 9440 NC Initial N/A No

New IBM i License Core Counter

E8B 9441 NC Initial N/A No

New Red Hat License Core Counter

E8B 9442 NC Initial N/A No

New SUSE License Core Counter

E8B 9443 NC Initial N/A No

Other AIX License Core Counter

E8B 9444 NC Initial N/A No

Other Linux License Core Counter

E8B 9445 NC Initial N/A No

3rd Party Linux License Core Counter

E8B 9446 NC Initial N/A No

VIOS Core Counter

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 64

E8B 9447 NC Initial N/A No

Month Indicator

E8B 9461 NC Initial N/A No

Day Indicator

E8B 9462 NC Initial N/A No

Hour Indicator

E8B 9463 NC Initial N/A No

Minute Indicator

E8B 9464 NC Initial N/A No

Qty Indicator

E8B 9465 NC Initial N/A No

Countable Member Indicator

E8B 9466 NC Initial N/A No

POWER7 Tivoli Storage Manager Specify

E8B 9666 NC Initial N/A No

Language Group Specify - Dutch

E8B 9700 NC Initial N/A No

Language Group Specify - French

E8B 9703 NC Initial N/A No

Language Group Specify - German

E8B 9704 NC Initial N/A No

Language Group Specify - Polish

E8B 9705 NC Initial N/A No

Language Group Specify - Norwegian

E8B 9706 NC Initial N/A No

Language Group Specify - Portuguese

E8B 9707 NC Initial N/A No

Language Group Specify - Spanish

E8B 9708 NC Initial N/A No

Language Group Specify - Italian

E8B 9711 NC Initial N/A No

Language Group Specify - Canadian French

E8B 9712 NC Initial N/A No

Language Group Specify - Japanese

E8B 9714 NC Initial N/A No

Language Group Specify - Traditional Chinese (Taiwan)

E8B 9715 NC Initial N/A No

Language Group Specify - Korean

E8B 9716 NC Initial N/A No

Language Group Specify - Turkish

E8B 9718 NC Initial N/A No

Language Group Specify - Hungarian

E8B 9719 NC Initial N/A No

Language Group Specify - Slovakian

E8B 9720 NC Initial N/A No

Language Group Specify - Russian

E8B 9721 NC Initial N/A No

Language Group Specify - Simplified Chinese (PRC)

E8B 9722 NC Initial N/A No

Language Group Specify - Czech

E8B 9724 NC Initial N/A No

Language Group Specify -- Romanian

E8B 9725 NC Initial N/A No

Language Group Specify - Croatian

E8B 9726 NC Initial N/A No

Language Group Specify -- Slovenian

E8B 9727 NC Initial N/A No

Language Group Specify - Brazilian Portuguese

E8B 9728 NC Initial N/A No

Language Group Specify - Thai

E8B 9729 NC Initial N/A No

The following are newly announced features on the specific models of the IBM Power

Systems 7014 machine type:

Minimum Initial/

Monthly MES/

Description Model Feature Purchase Maint. Both/ RP

Machine Type 7014 number number price charge Support CSU MES

Rack Content Specify: 8233-E8B - 4U

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 65

B42 0297 NC Initial N/A No

S25 Initial N/A No

T00 Initial N/A No

T42 Initial N/A No

Machine type Model Description MMMC* IOR

24x7

One-time

charge

8233 E8B IBM 8233-E8B $ 146 $ 7,498

* Minimum monthly maintenance charge

Machine type Model Feature

number

Description One-time

charge

8233 E8B 0032 SPCFY CD EXT

HIGH SPEED

MO

$ 519

8233 E8B 0040 MIRRORED SYS

DISK LEVEL SP

0

8233 E8B 0041 DEVICE PARITY

PROTECTION A

0

8233 E8B 0043 MIRRORED SYS

BUS LEVEL SPC

0

8233 E8B 0047 DEVICE PARITY

RAID 6 ALL S

0

8233 E8B 0205 RISC TO

RISC DATA

MIGRATIO

0

8233 E8B 0265 AIX PARTITION

SPECIFY

0

8233 E8B 0266 LINUX

PARTITION

SPECIFY

0

8233 E8B 0267 IBM I

OPERATING

SYS PARTIT

0

8233 E8B 0275 CSC SPECIFY 0

8233 E8B 0296 SPECIFY

CUSTOM DATA

PROTEC

0

8233 E8B 0308 MIRRORED

LEVEL SYSTEM

SPCF

0

8233 E8B 0347 RAID HOT

SPARE SPECIFY

0

8233 E8B 0348 V.24/EIA232

6.1M 20FT PCI

124

8233 E8B 0349 V.24/EIA232

15.2M 50FT

PCI

173

8233 E8B 0353 V.35 6.1M 20FT

PCI CBL

124

8233 E8B 0354 V.35 15.2M

50FT PCI CBL

173

8233 E8B 0356 V.36 6.1M 20FT

PCI CBL

124

8233 E8B 0359 X.21 6.1M

20FT PCI CBL

371

8233 E8B 0360 X.21 15.2M

50FT PCI CBL

173

8233 E8B 0365 V.24 EIA232

(80 FT) PCI CA

198

8233 E8B 0444 CBU SPECIFY 0

8233 E8B 0456 CUSTOMER

SPECIFIED

PLACEME

400

8233 E8B 0462 SSD

PLACEMENT

INDICATOR CE

0

8233 E8B 0463 0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 66

SSD PLACEM

INDICATOR

5802

8233 E8B 0464 SSD

PLACEMENT

INDICATOR 58

0

8233 E8B 0551 19 INCH, 1.8

METER HIGH

RA

2,644

8233 E8B 0553 19 INCH, 2.0

METER HIGH

RA

3,585

8233 E8B 0555 19 INCH, 1.3

METER HIGH

RA

1,978

8233 E8B 0566 I 6.1 WITH

6.1.1 MACHINE

C

0

8233 E8B 0599 RACK FILLER

PANEL KIT

74

8233 E8B 0719 LOAD SOURCE

NOT IN CEC

0

8233 E8B 0725 SPECIFY LOAD

SOURCE IN

578

0

8233 E8B 0726 SPCFY LOAD

SOURCE IN

5802/

0

8233 E8B 0727 SPCFY 5886

LOAD SOURCE

PLC

0

8233 E8B 0835 4327 LOAD

SOURCE

SPECIFY

0

8233 E8B 0836 4328 LOAD

SOURCE

SPECIFY

0

8233 E8B 0837 SAN LOAD

SOURCE

SPECIFY

0

8233 E8B 0838 3676 LOAD

SOURCE

SPECIFY

0

8233 E8B 0839 3677 LOAD

SOURCE

SPECIFY

0

8233 E8B 0840 3678 LOAD

SOURCE

SPECIFY

0

8233 E8B 0841 4329 LOAD

SOURCE

SPECIFY

0

8233 E8B 0844 3658 LOAD

SOURCE

SPECIFY

0

8233 E8B 0851 1884 LOAD

SOURCE

SPECIFY

0

8233 E8B 0853 #1888 LOAD

SOURCE

SPECIFY

0

8233 E8B 0854 1909 LOAD

SOURCE

SPECIFY

0

8233 E8B 0855 3587 LOAD

SOURCE

SPECIFY

0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 67

8233 E8B 0983 US TAA

COMPLIANCE

INDICATO

0

8233 E8B 1025 MODEM CABLE

US/CANADA

GENE

13

8233 E8B 1103 USB INTERNAL

DOCKING

STATI

225

8233 E8B 1104 USB EXTERNAL

DOCKING

STATI

275

8233 E8B 1106 USB 160 GB

REMOVABLE

DISKD

315

8233 E8B 1107 USB 500 GB

REMOVABLE

DISKD

709

8233 E8B 1406 200V 16A 4.3M

14FT TL LINE

0

8233 E8B 1413 125V 4.3M

14FT LINE

CORD

0

8233 E8B 1414 200V 1.8M 6FT

LOCKING LINE

0

8233 E8B 1415 200V 1.8M 6FT

WATERTIGHT L

0

8233 E8B 1416 200V 4.3M 14

FT LOCKING LI

0

8233 E8B 1417 200V

4.3M 14FT

WATERTIGHT

0

8233 E8B 1418 4.3M 200V/16A

PWR CRD S.AF

13

8233 E8B 1419 4.3M 200V/16A

POWER CRD IS

13

8233 E8B 1420 4.3M 200V/16A

PWR CRD EU/A

13

8233 E8B 1421 4.3M 200V/16A

POWER CRD

CH

13

8233 E8B 1424 200V 1.8M 6FT

LOCKING LINE

0

8233 E8B 1425 200V 1.8M 6FT

WATERTIGHT L

0

8233 E8B 1426 200V 4.3M

14FT LOCKING

LIN

0

8233 E8B 1427 200V

4.3M 14FT

WATERTIGHT

0

8233 E8B 1439 4.3M 200V/10A

PWR CRD EU/A

13

8233 E8B 1440 4.3M 200V/10A

PWR CD

DENMA

13

8233 E8B 1441 4.3M 200V/10A

PWR CD S. AF

13

8233 E8B 1442 4.3M 200V/10A

POWER CRD

SW

13

8233 E8B 1443 4.3M 200V/10A

POWER CRD

UK

13

8233 E8B 1445 4.3M 200V/10A

POWER CRD IS

13

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 68

8233 E8B 1449 4.3M 200V/32A

POWER CRD

EU

238

8233 E8B 1450 4.3M 200V/16A

POWER CRD

EU

13

8233 E8B 1451 200V 6FT 1.8M

LINE CORD

39

8233 E8B 1452 200V 14FT

4.3M LINE

CORD

39

8233 E8B 1453 200V 6FT 1.8M

LOCKING LINE

39

8233 E8B 1454 200V 12A 14FT

4.3M TL LINE

198

8233 E8B 1455 200V 6FT 1.8M

WATERTIGHT L

198

8233 E8B 1456 200V

14FT 4.3M

WATERTIGHT

198

8233 E8B 1457 200V 6FT 1.8M

UPPER LINE C

0

8233 E8B 1458 200V 6FT 1.8M

UPPER LOCKIN

0

8233 E8B 1459 200V 6FT 1.8M

UPPER LOCKIN

198

8233 E8B 1476 4.3M 200V/12A

PWR CD UK

13

8233 E8B 1477 4.3M 200V/16A

PWR CD

198

8233 E8B 1827 SYS PORT/UPS

CONVERSION

CA

95

8233 E8B 1828 1.5 M 12X TO

4X CHANNEL

CO

300

8233 E8B 1829 0.6 METER 12X

CABLE

350

8233 E8B 1830 1.5 METER 12X

CABLE

400

8233 E8B 1834 8.0 METER 12X

CABLE

725

8233 E8B 1840 3.0 METER 12X

CABLE

475

8233 E8B 1841 3 M 12X TO

4X CHANNEL

CONV

375

8233 E8B 1854 10 METER

12X TO 4X

ENHANCE

600

8233 E8B 1861 0.6 METER 12X

DDR CABLE

350

8233 E8B 1862 1.5 METER 12X

DDR CABLE

400

8233 E8B 1864 8.0 METER 12X

DDR CABLE

725

8233 E8B 1865 3.0 METER 12X

DDR CABLE

475

8233 E8B 1878 OP PANEL CBL

RACK MOUNT

SY

6

8233 E8B 1882 146.8 GB 10K

RPM SAS SFF D

650

8233 E8B 1883 73.4 GB 15K

RPM SAS SFF

DI

498

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 69

8233 E8B 1884 69.7 GB 15K

RPM SAS SFF

DI

498

8233 E8B 1885 300GB 10K

RPM SFF SAS

DISK

1050

8233 E8B 1886 146GB 15K

RPM SFF SAS

DISK

798

8233 E8B 1888 139GB 15K

RPM SFF SAS

DISK

798

8233 E8B 1890 69GB SFF SAS

SOLID STATE D

5,200

8233 E8B 1905 4 GB SINGLE

PORT FIBRE

CHA

1,510

8233 E8B 1909 69GB SFF SAS

SOLID STATE D

5,200

8233 E8B 1910 4 GB DUAL

PORT FIBRE

CHANN

2,499

8233 E8B 1912 ULTRA320

SCSI ADAPTER

587

8233 E8B 1954 BASE TX PCI X

ADAPTER

830

8233 E8B 1971 73.4GB

15,000RPM

ULTRA320

379

8233 E8B 1972 146.8GB

15,000RPM

ULTRA320

699

8233 E8B 1977 2 GB FIBRE

CHANNEL PCI

X A

1,399

8233 E8B 1978 ETHERNET SX

PCI X ADAPTER

863

8233 E8B 1979 BASE TX

ETHERNET PCI

X ADA

205

8233 E8B 1980 POWER

GXT135P

GRAPHICS

339

8233 E8B 1983 BASE TX

ETHERNET LR

PCI X

332

8233 E8B 1986 PCI X ON

COPPER MEDIA

ADP

725

8233 E8B 1987 PCI X ON

OPTICAL

MEDIA ADP

1,100

8233 E8B 2118 CONVERTER

CBL, VHDCI TO

P

50

8233 E8B 2124 ULTRA 320

SCSI CABLE 1

MET

125

8233 E8B 2125 ULTRA 320

SCSI CABLE 3

MET

140

8233 E8B 2126 ULTRA 320

SCSI CABLE 5

MET

156

8233 E8B 2127 ULTRA 320

SCSI CABLE 10

ME

210

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 70

8233 E8B 2128 ULTRA 320

SCSI CABLE 20

ME

330

8233 E8B 2138 0.55 METER

ULTRA 320

SCSI

76

8233 E8B 2145 PRIMARY OS

IBM I

0

8233 E8B 2146 PRIMARY OS

AIX

0

8233 E8B 2147 PRIMARY OS

LINUX

0

8233 E8B 2324 Zero-priced

Proc Act for

#8334

0

8233 E8B 2325 Zero-priced

Proc Act for

#8332

0

8233 E8B 2326 Zero-priced

Proc Act for

#8336

0

8233 E8B 2327 Zero-priced

Proc Act for

#8335

0

8233 E8B 2456 MICRON FIBER

CONVERTER

CAB

83

8233 E8B 2459 MICRON FIBER

CONVERTER

CAB

83

8233 E8B 2728 4 PORT USB

PCIE ADAPTER

150

8233 E8B 2738 2 PORT USB

PCI ADAPTER

45

8233 E8B 2849 POWER

GXT135P

GRAPHICS

339

8233 E8B 2861 ARTIC960HX 4

PORT EIA 232

354

8233 E8B 2863 ARTIC960HX 4

PORT X.21 CBL

417

8233 E8B 2864 ARTIC960HX 4

PORT V.35 CBL

700

8233 E8B 2893 PCIE 2 LINE

WAN W/

MODEM

579

8233 E8B 2934 TERMINAL/

PRINTER CBL

EIA 2

37

8233 E8B 2936 ASYNCHRONOUS

CBL. EIA 232/

61

8233 E8B 2943 8 PORT

ASYNCHRONOUS

CBL

1,162

8233 E8B 2947 MULTIPROTOCOL

PCI ADAPTER

3,021

8233 E8B 2951 CABLE, V.24 /

EIA 232

146

8233 E8B 2952 CABLE, V.35 267

8233 E8B 2953 CABLE, V.36 /

EIA 499

212

8233 E8B 2954 CABLE, X. 21 146

8233 E8B 2962 2 PORT

MULTIPROTOCOL

PCI A

1,666

8233 E8B 3124 PORT CBL.

FOR DRAWER/

DRAWE

67

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 71

8233 E8B 3125 PORT CBL. FOR

RACK/RACK

67

8233 E8B 3278 73.4GB

15,000RPM

ULTRA320

498

8233 E8B 3279 146.8GB

15,000RPM

ULTRA320

981

8233 E8B 3585 300GB 15K

RPM SCSI DISK

DR

1,510

8233 E8B 3586 69GB 3.5'' SAS

SOLID STATE

5,200

8233 E8B 3587 69GB 3.5'' SAS

SOLID STATE

5,200

8233 E8B 3632 WIDESCREEN

LCD MONITOR

999

8233 E8B 3637 15'' TFT COLOR

MONITOR

407

8233 E8B 3639 L170P FLAT

PANEL

MONITOR

829

8233 E8B 3640 L171P FLAT

PANEL

MONITOR

580

8233 E8B 3641 T115 FLAT

PANEL

MONITOR

559

8233 E8B 3642 L191P FLAT

PANEL

MONITOR

680

8233 E8B 3643 T120 FLAT

PANEL

MONITOR

1,325

8233 E8B 3644 T119 FLAT

PANEL

MONITOR

845

8233 E8B 3645 T117 FLAT

PANEL

MONITOR

700

8233 E8B 3646 73 GB 15K RPM

SAS DISK DRI

498

8233 E8B 3647 146 GB 15K

RPM SAS DISK

DR

498

8233 E8B 3648 300 GB 15K

RPM SAS DISK

DR

1,150

8233 E8B 3649 450GB 15K

RPM SAS DISK

DRI

1,599

8233 E8B 3652 SAS CBL (EE)

DRAWER TO

DRA

50

8233 E8B 3653 SAS CBL (EE)

DRAWER TO

DRA

70

8233 E8B 3654 SAS CBL (EE)

DRAWER TO

DRA

120

8233 E8B 3656 SAS SFF CABLE 40

8233 E8B 3657 SAS SFF CABLE 21

8233 E8B 3658 428GB 15K

RPM SAS DISK

DRI

1,599

8233 E8B 3661 SAS CBL

(X) ADP

ENCLOSURE

150

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 72

8233 E8B 3662 SAS CBL

(X) ADP

ENCLOSURE

301

8233 E8B 3663 SAS CBL

(X) ADP

ENCLOSURE

611

8233 E8B 3668 SAS CABLE,

DASD

BACKPLANE

80

8233 E8B 3669 SAS CBL DASD

BACKPLANE

(SP

85

8233 E8B 3676 69.7GB 15K

RPM SAS DISK

DR

498

8233 E8B 3677 139.5GB 15K

RPM SAS DISK

D

498

8233 E8B 3678 283.7GB 15K

RPM SAS DISK

D

1,150

8233 E8B 3679 SAS CABLE

(AI) 1 M

53

8233 E8B 3681 3M SAS CABLE,

ADPTR TO ADP

75

8233 E8B 3682 6M SAS CABLE,

ADPTR TO ADP

150

8233 E8B 3684 SAS CBL

(AE) ADP

ENCLOSURE

150

8233 E8B 3685 SAS CBL

(AE) ADP

ENCLOSURE

301

8233 E8B 3686 SAS CABLE

(YI) SYSTEM

TO S

90

8233 E8B 3687 SAS CABLE

(YI) SYSTEM

TO S

110

8233 E8B 3688 SAS CABLE

(AT) 0.6

METER

90

8233 E8B 3691 SAS CBL (YO)

ADP TO SAS

90

8233 E8B 3692 SAS CBL (YO)

ADP TO SAS

110

8233 E8B 3693 SAS CBL (YO)

ADP TO SAS

150

8233 E8B 3694 SAS CBL

(YO) ADP

ENCLOSURE

528

8233 E8B 3925 SERIAL PORT

CONVERTER

CABL

21

8233 E8B 3926 ASYNCH

PRINTER/

TERMINAL CB

146

8233 E8B 3927 SERIAL PORT

NULL MODEM

CAB

67

8233 E8B 3928 SERIAL PORT

NULL MODEM

CAB

67

8233 E8B 4242 6 FOOT

EXTENDER

CABLE

83

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 73

8233 E8B 4256 EXTENDER

CBL. USB

KEYBOARD

42

8233 E8B 4276 VGA TO DVI

CONNECT.

CONVER

8

8233 E8B 4327 70.56GB 15K

RPM DISK

UNIT

754

8233 E8B 4328 141,12GB 15K

RPM DISK

UNIT

981

8233 E8B 4329 282.25GB 15K

RPM DISK

UNIT

2,114

8233 E8B 4526 8GB (2x4GB)

DIMMs

1,065

8233 E8B 4527 16GB (2x8GB)

DIMMs

2,130

8233 E8B 4528 32GB

(2x16GB)

DIMMs

6,390

8233 E8B 4650 RACK

INDICATOR

NOT FACTORY

0

8233 E8B 4651 RACK

INDICATOR,

RACK 1

0

8233 E8B 4652 RACK

INDICATOR,

RACK 2

0

8233 E8B 4653 RACK

INDICATOR,

RACK 3

0

8233 E8B 4654 RACK

INDICATOR,

RACK 4

0

8233 E8B 4655 RACK

INDICATOR,

RACK 5

0

8233 E8B 4656 RACK

INDICATOR,

RACK 6

0

8233 E8B 4657 RACK

INDICATOR,

RACK 7

0

8233 E8B 4658 RACK

INDICATOR,

RACK 8

0

8233 E8B 4659 RACK

INDICATOR,

RACK 9

0

8233 E8B 4660 RACK

INDICATOR,

RACK 10

0

8233 E8B 4661 RACK

INDICATOR,

RACK 11

0

8233 E8B 4662 RACK

INDICATOR,

RACK 12

0

8233 E8B 4663 RACK

INDICATOR,

RACK 13

0

8233 E8B 4664 RACK

INDICATOR,

RACK 14

0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 74

8233 E8B 4665 RACK

INDICATOR,

RACK 15

0

8233 E8B 4666 RACK

INDICATOR,

RACK 16

0

8233 E8B 4764 CRYPTOGRAPHIC

COPROCESSOR

9,000

8233 E8B 4792 Active

Memory Exp

Enablement

2,600

8233 E8B 4988 One Proc

5250 Ent

Enablement

50,000

8233 E8B 4989 Full 5250 Ent

Enablement

150,000

8233 E8B 5000 SOFTWARE

PRELOAD

REQUIRED

0

8233 E8B 5001 CUSTOM SERV

SPECIFY, OFF S

0

8233 E8B 5002 CUSTOMER

SOLUTION

CENTER R

0

8233 E8B 5160 POWER DIST

UNIT 1 PHASE

NE

989

8233 E8B 5161 POWER DIST

UNIT 1 PHASE

IE

989

8233 E8B 5162 POWER DIST

UNIT 2 OF 3

PHA

989

8233 E8B 5163 POWER DIST

UNIT 3 PHASE

989

8233 E8B 5524 RFID TAGS

FOR SERVERS

BLAD

20

8233 E8B 5550 SYS CONSOLE

ON HMC

0

8233 E8B 5553 SYS CONSOLE

ETHERNET NO

IO

0

8233 E8B 5609 GX DUALPORT

12X CHANNEL

AT

2,200

8233 E8B 5613 DUAL PORT

(SR) INTEG

VIRTU

3,500

8233 E8B 5616 GX DUAL PORT

12X CHANN. AT

1,100

8233 E8B 5619 80/160GB

DAT160 SAS

TAPE D

1,661

8233 E8B 5623 VIRTUAL

ETHERNET

DAUGHTER

301

8233 E8B 5624 VIRTUAL

ETHERNET

DAUGHTER

528

8233 E8B 5646 BLIND SWAP

TYPE III

CASSET

38

8233 E8B 5647 BLIND SWAP

TYPE III

CASSET

38

8233 E8B 5661 DAT320 160GB

SAS tape drive

2,100

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 75

8233 E8B 5679 SAS RAID

ENABLEMENT

2,500

8233 E8B 5689 DAT160 MEDIA

CARTRIDGE

452

8233 E8B 5700 GIGABIT

ETHERNET SX

PCI X

863

8233 E8B 5701 BASE TX

ETHERNET PCI

X ADP

528

8233 E8B 5706 BASE TX

ETHERNET PCI

X ADP

755

8233 E8B 5708 10GB FCOE

PCIE DUAL

PORT A

4,154

8233 E8B 5713 TOE PCI X ON

COPPER MEDIA

900

8233 E8B 5714 TOE PCI X

ON OPTICAL

MEDIA

1,400

8233 E8B 5716 2 GIGABIT

FIBRE

CHANNEL PC

1,510

8233 E8B 5717 4 PORT

BASE TX PCI

EXPRESS

830

8233 E8B 5721 10 GB ETHER.

SR PCI X 2.0

4,742

8233 E8B 5722 10 GB ETHER.

LR PCI X 2.0

7,999

8233 E8B 5723 2 PORT

ASYNCH. EIA

232 PCI

129

8233 E8B 5732 10 GB ETH CX4

PCI EXPRESS

3,626

8233 E8B 5735 8GB PCI

EXPRESS DUAL

PRT F

3,499

8233 E8B 5736 DUAL

CHANNEL

ULTRA320

SCSI

587

8233 E8B 5740 4 PORT BASE

TX PCI X ADP

830

8233 E8B 5741 SINGLE BUS

ULTRA 320

SCSI

499

8233 E8B 5742 DUAL BUS

ULTRA320

SCSI REP

998

8233 E8B 5743 SATA SLIMLINE

DVD ROM DRIV

208

8233 E8B 5746 HALF HIGH

800GB/1.6TB

LTO4

3,777

8233 E8B 5747 IBM LTO

ULTRIUM 4 800

GB D

600

8233 E8B 5748 POWER

GXT145 PCI

EXPRESS

378

8233 E8B 5749 4GBPS FIBRE

CHANNEL 2

PORT

2,499

8233 E8B 5758 4 GB SINGLE

PORT FIBRE

CHA

1,510

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 76

8233 E8B 5759 4 GB DUAL

PORT FIBRE

CHANN

2,499

8233 E8B 5762 SATA SLIMLINE

DVD RAM DRIV

299

8233 E8B 5767 BASE TX

ETHER. PCI

EXPRESS

528

8233 E8B 5768 ETHERNET SX

PCI EXPRESS

AD

1,322

8233 E8B 5769 10 GB ETH SR

PCI EXPRESS A

4,003

8233 E8B 5772 10 GB

ETHERNET LR

PCI EXPR

4,742

8233 E8B 5773 SINGLE

PORT FIBRE

CHANNEL

1,510

8233 E8B 5774 DUAL PORT

FIBRE

CHANNEL AD

2,499

8233 E8B 5778 PCI X EXP24

CTL 1.5GB NO

I

8,407

8233 E8B 5782 PCI X EXP24

CTL 1.5GB NO

I

8,457

8233 E8B 5785 4 PORT ASYNC

EIA 232 PCIE

699

8233 E8B 5786 TOTALSTORAGE

EXP24 DISK

DW

5,440

8233 E8B 5787 TOTALSTORAGE

EXP24 DISK

TW

6,750

8233 E8B 5796 PCI DDR 12X

EXPANSION

DRAW

4,945

8233 E8B 5802 12X I/O

DRAWER PCIE,

SFF D

10,900

8233 E8B 5877 12X I O

DRAWER PCIE

NO DIS

9,900

8233 E8B 5886 EXP 12S 4,500

8233 E8B 5900 PCI X DDR

DUAL X4 SAS

ADP

587

8233 E8B 5901 PCIE DUAL X4

SAS ADAPTER

749

8233 E8B 5902 PCI X DDR

DUAL X4 3GB

SAS

1,889

8233 E8B 5903 PCIE DUAL X4

3GB SAS RAID

2,199

8233 E8B 5904 PCI X DDR

1.5GB CACHE

SAS

8,500

8233 E8B 5908 PCI X DDR

1.5GB CACHE

SAS

8,500

8233 E8B 5912 PCI X DDR

DUAL X4 SAS

ADAP

825

8233 E8B 5922 NON PAIRED

SAS RAID

INDICA

0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 77

8233 E8B 5923 NON PAIRED

PCIE SAS RAID

I

0

8233 E8B 5951 KEYBOARD

USB, US

ENGLISH,

83

8233 E8B 5952 KEYBOARD

USB, FRENCH,

189

83

8233 E8B 5953 KEYBOARD

USB, ITALIAN,

142

83

8233 E8B 5954 USB, GERMAN/

AUSTRIAN, 129

83

8233 E8B 5955 KEYBOARD

USB, UK

ENGLISH,

83

8233 E8B 5956 KEYBOARD

USB, SPANISH,

172

83

8233 E8B 5957 KEYBOARD

USB,

JAPANESE, 19

83

8233 E8B 5958 USB,

BRAZILIAN

PORTUGUESE,

83

8233 E8B 5959 KEYBOARD

USB,

HUNGARIAN, 2

83

8233 E8B 5960 KEYBOARD

USB, KOREAN,

413

83

8233 E8B 5961 KEYBOARD

USB, CHINESE,

467

83

8233 E8B 5962 USB, FRENCH

CANADIAN,

445

83

8233 E8B 5964 KEYBOARD

USB, BELGIAN/

UK,

83

8233 E8B 5965 USB,

SWEDISH/

FINNISH, 153

83

8233 E8B 5966 KEYBOARD

USB, DANISH,

159

83

8233 E8B 5967 KEYBOARD

USB,

BULGARIAN, 4

83

8233 E8B 5968 USB, SWISS/

FRENCH/

GERMAN 1

83

8233 E8B 5969 KEYBOARD

USB,

NORWEGIAN, 1

83

8233 E8B 5970 KEYBOARD

USB, DUTCH,

143

83

8233 E8B 5971 KEYBOARD

USB,

PORTUGUESE,

83

8233 E8B 5972 KEYBOARD

USB, GREEK,

319

83

8233 E8B 5973 KEYBOARD

USB, HEBREW,

212

83

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 78

8233 E8B 5974 KEYBOARD

USB, POLISH,

214

83

8233 E8B 5975 KEYBOARD

USB,

SLOVAKIAN, 2

83

8233 E8B 5976 KEYBOARD

USB, CZECH,

243

83

8233 E8B 5977 KEYBOARD

USB, TURKISH,

179

83

8233 E8B 5978 KEYBOARD

USB, LA

SPANISH,

83

8233 E8B 5979 KEYBOARD

USB, ARABIC,

253

83

8233 E8B 5980 KEYBOARD

USB, THAI, 191

83

8233 E8B 5981 KEYBOARD

USB, RUSSIAN,

443

83

8233 E8B 5982 KEYBOARD

USB,

SLOVENIAN, 2

83

8233 E8B 5983 USB, US

ENGLISH

EURO, 103P

83

8233 E8B 6001 POWER

CONTROL

CABLE (SPCN)

25

8233 E8B 6006 POWER

CONTROL

CABLE (SPCN)

40

8233 E8B 6007 POWER

CONTROL CBL.

(SPCN)

80

8233 E8B 6008 POWER

CONTROL

CABLE (SPCN)

50

8233 E8B 6029 POWER

CONTROL CBL.

(SPCN)

90

8233 E8B 6068 OPT FRONT

DOOR FOR

1.8M RA

340

8233 E8B 6069 OPT FRONT

DOOR FOR

2.0M RA

416

8233 E8B 6248 1.8M RACK

ACOUSTIC

DOORS

3,513

8233 E8B 6249 2.0M RACK

ACOUSTIC

DOORS

3,513

8233 E8B 6263 1.8M Rack Trim

Kit

399

8233 E8B 6272 2.0M Rack Trim

Kit

399

8233 E8B 6446 DUAL PRT 12X

CHAN ATTACH

S

576

8233 E8B 6457 DUAL PORT

12X CHAN

ATTACH

2,500

8233 E8B 6458 POWER CBL.

14 FOOT,

250V/1

14

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 79

8233 E8B 6460 DRAWER TO

OEM PDU

(125V, 1

14

8233 E8B 6469 DRAWER TO

OEM PDU,

(250V,

14

8233 E8B 6470 TO WALL

(125V, 15A)

14

8233 E8B 6471 TO WALL/OEM

PDU, (125V, 15

14

8233 E8B 6472 TO WALL/OEM

PDU, (250V, 16

14

8233 E8B 6473 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6474 TO WALL/OEM

PDU, (250V, 13

14

8233 E8B 6475 TO WALL/OEM

PDU, (250V, 16

14

8233 E8B 6476 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6477 TO WALL/OEM

PDU, (250V, 16

14

8233 E8B 6478 TO WALL/OEM

PDU, (250V, 16

14

8233 E8B 6479 PWR CRD 9FT

WALL OEM PDU

2

14

8233 E8B 6487 TO WALL/OEM

PDU, (250V, 15

14

8233 E8B 6488 PDU, (125V,

15A OR 250V,

1

40

8233 E8B 6489 4.3M 14FT

3PH/24A

POWER CO

275

8233 E8B 6491 4.3M 14FT

1PH/48A PWR

CORD

302

8233 E8B 6492 4.3M 14FT

1PH/48 60A

PWR C

302

8233 E8B 6493 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6494 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6495 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6496 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6497 PWR CRD 6FT

WALL OEM PDU

2

25

8233 E8B 6498 PWR CRD 6FT

WALL/OEM

PDU

780

8233 E8B 6577 PWR CABLE -

DRWR to IBM

PDU

0

8233 E8B 6580 OPTIONAL

RACK

SECURITY KIT

136

8233 E8B 6586 MODEM TRAY

FOR 19 INCH

RAC

189

8233 E8B 6651 TO WALL/OEM

PDU, (125V, 15

14

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 80

8233 E8B 6654 4.3M 14FT

1PH/24 30A

PWR C

181

8233 E8B 6655 4.3M 14FT

1PH/24 30A

WR PW

400

8233 E8B 6656 4.3M 14FT

1PH/24A WR

PWR C

181

8233 E8B 6659 TO WALL/OEM

PDU, (250V, 15

14

8233 E8B 6660 DRAWER TO

OEM PDU,

(125V,

14

8233 E8B 6665 PWR CD 3M

10FT DRAWER

PDU

14

8233 E8B 6669 DRAWER TO

OEM PDU,

(250V,

14

8233 E8B 6670 TO WALL

(125V, 15A)

14

8233 E8B 6671 DRAWER

TO PDU,

(250V/10A)

14

8233 E8B 6672 DRAWER

TO PDU,

(250V/10A)

14

8233 E8B 6680 TO WALL/OEM

PDU, (250V, 10

14

8233 E8B 6687 TO WALL,

(250V, 15A)

14

8233 E8B 6805 PCI 2 LINE

WAN IOA NO

IOP

420

8233 E8B 6808 PCI 4 MODEM

WAN IOA NO

IOP

1,583

8233 E8B 6833 PCI 2 LINE

WAN W/

MODEM NOI

579

8233 E8B 7109 INTELLIGENT

PDU+ 1 EIA

UNI

1099

8233 E8B 7118 Environmental

Monitoring

Probe

280

8233 E8B 7188 POWER

DISTRIBUTION

UNIT

756

8233 E8B 7204 QUANTITY 150

OF 2124

18,750

8233 E8B 7205 QUANTITY 150

OF 2125

21,000

8233 E8B 7206 QUANTITY 150

OF 2126

23,400

8233 E8B 7207 QUANTITY 150

OF 2127

31,500

8233 E8B 7208 QUANTITY 150

OF 2128

49,500

8233 E8B 7213 QUANTITY 150

OF 2138

11,400

8233 E8B 7305 SDI SOFTWARE

PRE INSTALL I

0

8233 E8B 7307 DUAL I/O UNIT

ENCLOSURE

525

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 81

8233 E8B 7314 I/O DRAWER

MOUNTING

ENCLOS

525

8233 E8B 7509 QUANTITY 150

OF 4327

113,100

8233 E8B 7510 QUANTITY 150

OF 4328

147,150

8233 E8B 7511 QUANTITY 150

OF 4329

317,100

8233 E8B 7517 QUANTITY 150

OF 3676

74,700

8233 E8B 7518 QUANTITY 150

OF 3677

74,700

8233 E8B 7519 QUANTITY 150

OF 3678

172,500

8233 E8B 7535 QUANTITY 150

OF 3586

780,000

8233 E8B 7536 QUANTITY 150

OF 3587

780,000

8233 E8B 7538 QUANTITY 150

OF 3658

239,850

8233 E8B 7549 QUANTITY 150

OF 3647

74,700

8233 E8B 7564 QUANTITY 150

OF 3648

172,500

8233 E8B 7565 QUANTITY 150

OF 3649

239,850

8233 E8B 7714 One Proc

Activation for

#8334

3,100

8233 E8B 7715 One Proc

Activation for

#8332

6,000

8233 E8B 7716 One Proc

Activation for

#8336

9,000

8233 E8B 7717 One Proc

Activation for

#8335

4,850

8233 E8B 7740 Power Supply,

1725 Watt AC

699

8233 E8B 7780 2.0M RACK

SIDE ATTACH

KIT

148

8233 E8B 7793 PowerVM

Express

0

8233 E8B 7794 PowerVM

Standard

0

8233 E8B 7795 PowerVM

Enterprise

0

8233 E8B 7801 ETHERNET

CABLE, 6M, HW

12

8233 E8B 7802 ETHERNET

CABLE, 15M,

HW

26

8233 E8B 7840 SIDE BY SIDE

FOR 1.8M

RACK

494

8233 E8B 7841 RUGGEDIZE

RACK KIT

1,484

8233 E8B 7863 PCI BLIND

SWAP

CASSETTE KI

50

8233 E8B 8143 LINUX

SOFTWARE

PREINSTALL

60

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 82

8233 E8B 8144 LINUX

SOFTWARE

PREINSTALL

60

8233 E8B 8332 8-core 3.3 GHz

POWER7 Proc

12,400

8233 E8B 8334 8-core 3.0 GHz

POWER7 Proc

5,940

8233 E8B 8335 6-core 3.3 GHz

POWER7 Proc

7,000

8233 E8B 8336 8-core 3.55

GHz POWER7

Proc

17,700

8233 E8B 8340 Enhanced

DASD/Media

Backplane

799

8233 E8B 8841 MOUSE

USB, WITH

KEYBOARD

62

8233 E8B 8845 USB MOUSE 30

8233 E8B 9169 ORDER

ROUTING IND

SYSTEM P

0

8233 E8B 9300 LANGUAGE

GROUP

SPECIFY US

0

8233 E8B 9440 NEW AIX

LICENSE CORE

COUNT

0

8233 E8B 9441 NEW IBM I

LIC CORE

COUNTER

0

8233 E8B 9442 NEW RED HAT

LIC CORE

COUNT

0

8233 E8B 9443 NEW SUSE

LIC CORE

COUNTER

0

8233 E8B 9444 OTHER AIX

LIC CORE

COUNTER

0

8233 E8B 9445 OTHER LINUX

LIC CORE

COUNT

0

8233 E8B 9446 3RD PARTY

LINUX LIC

CORE C

0

8233 E8B 9447 VIOS CORE

COUNTER

0

8233 E8B 9461 MONTH

INDICATOR

0

8233 E8B 9462 DAY

INDICATOR

0

8233 E8B 9463 HOUR

INDICATOR

0

8233 E8B 9464 MINUTE

INDICATOR

0

8233 E8B 9465 QTY

INDICATOR

0

8233 E8B 9466 COUNTABLE

MEMBER

INDICATOR

0

8233 E8B 9666 Tivoli Storage

Mgr Specify

0

8233 E8B 9700 LANGUAGE

GROUP

SPECIFY DUT

0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 83

8233 E8B 9703 LANGUAGE

GROUP

SPECIFY FRE

0

8233 E8B 9704 LANGUAGE

GROUP

SPECIFY GER

0

8233 E8B 9705 LANGUAGE

GROUP

SPECIFY POL

0

8233 E8B 9706 LANG. GROUP

SPECIFY

NORWEG

0

8233 E8B 9707 LANG. GROUP

SPECIFY

PORTUG

0

8233 E8B 9708 LANGUAGE

GROUP

SPECIFY SPA

0

8233 E8B 9711 LANGUAGE

GROUP

SPECIFY ITA

0

8233 E8B 9712 LANG. GROUP

SPECIFY

CANADI

0

8233 E8B 9714 LANG. GROUP

SPECIFY

JAPANE

0

8233 E8B 9715 TRADITIONAL

CHINESE

(TAIWA

0

8233 E8B 9716 LANGUAGE

GROUP

SPECIFY KOR

0

8233 E8B 9718 LANGUAGE

GROUP

SPECIFY TUR

0

8233 E8B 9719 LANG. GROUP

SPECIFY

HUNGAR

0

8233 E8B 9720 LANG. GROUP

SPECIFY

SLOVAK

0

8233 E8B 9721 LANGUAGE

GROUP

SPECIFY RUS

0

8233 E8B 9722 SIMPLIFIED

CHINESE (PRC)

0

8233 E8B 9724 LANGUAGE

GROUP

SPECIFY CZE

0

8233 E8B 9725 LANG. GROUP

SPECIFY

ROMANI

0

8233 E8B 9726 LANG. GROUP

SPECIFY

CROATI

0

8233 E8B 9727 LANG. GROUP

SPECIFY

SLOVEN

0

8233 E8B 9728 SPECIFY

BRAZILIAN

PORTUGUE

0

8233 E8B 9729 LANGUAGE

GROUP

SPECIFY THA

0

7014 B42 0297 RACK

CONTENT

SPECIFY:

8233-E8B

0

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 84

7014 S25 0297 RACK

CONTENT

SPECIFY:

8233-E8B

0

7014 T00 0297 RACK

CONTENT

SPECIFY:

8233-E8B

0

7014 T42 0297 RACK

CONTENT

SPECIFY:

8233-E8B

0

Machine type Model Feature

number

Description MMMC IOR24

8233 E8B 0551 19 INCH, 1.8

METER HIGH

RA

$ 40

8233 E8B 0553 19 INCH, 2.0

METER HIGH

RA

47

8233 E8B 0555 19 INCH, 1.3

METER HIGH

RA

26

8233 E8B 1890 69GB SFF SAS

SOLID STATE D

73

8233 E8B 1909 69GB SFF SAS

SOLID STATE D

73

8233 E8B 3586 69GB 3.5'' SAS

SOLID STATE

73

8233 E8B 3587 69GB 3.5'' SAS

SOLID STATE

73

8233 E8B 5619 80/160GB

DAT160 SAS

TAPE D

61

8233 E8B 5661 DAT320 160GB

SAS tape drive

61

8233 E8B 5746 HALF HIGH

800GB/1.6TB

LTO4

61

8233 E8B 5786 TOTALSTORAGE

EXP24 DISK

DW

62

8233 E8B 5787 TOTALSTORAGE

EXP24 DISK

TW

62

8233 E8B 5796 PCI DDR 12X

EXPANSION

DRAW

86

8233 E8B 5802 12X I/O

DRAWER PCIE,

SFF D

371

8233 E8B 5877 12X I O

DRAWER PCIE

NO DIS

142

8233 E8B 5886 EXP 12S 228

8233 E8B 7535 QUANTITY 150

OF 3586

10920

8233 E8B 7536 QUANTITY 150

OF 3587

10920

8233 E8B 8332 8-core 3.3 GHz

POWER7 Proc

273

8233 E8B 8334 8-core 3.0 GHz

POWER7 Proc

228

8233 E8B 8335 6-core 3.3 GHz

POWER7 Proc

251

8233 E8B 8336 8-core 3.55

GHz POWER7

Proc

319

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 85

Feature conversions

Feature conversions for 8233-E8B virtualization engine features

Parts Purchase

From FC: To FC: returned price

7793 - PowerVM Express 7794 - PowerVM Standard No

7793 - PowerVM Express 7795 - PowerVM Enterprise No

7794 - PowerVM Standard 7795 - PowerVM Enterprise No

Machine type Model Part number Description One-time

charge

8233 E8B 823377937794 Feat Conv 7793

to 7794

$ 0

8233 E8B 823377937795 Feat Conv 7793

to 7795

0

8233 E8B 823377947795 Feat Conv 7794

to 7795

0

ServicePac prices

For ServiceElect (ESA) maintenance service charges, contact IBM Global Services at

888-IBM-4343 (426-4343).

IBM Global Financing

IBM Global Financing offers competitive financing of hardware, software, and

services, from both IBM and other manufacturers or vendors.

Financing Power Systems solutions from IBM Global Financing can help customers

acquire more from existing budgets while helping them conserve cash, and provides

a comprehensive, end-to-end multivendor IT financing solution. This end-to-

end approach helps form the foundation of a cohesive technology management

strategy that can be superior to ownership. We can help reduce costs compared

to purchase, increase ROI, lower Total Cost of Ownership, minimize risk, improve

accountability, and enable customers to focus on their core business strategies while

giving customers the ability to make flexible equipment decisions throughout the

entire technology life cycle.

Through our IBM Project FinancingTM program, credit qualified customers can obtain

funding to design and build their entire IT infrastructure, aligning up-front costs

to expected project benefits. This could include financing for select facility design

and construction, building and structural upgrades, infrastructure equipment, IT

hardware, software, services and consulting. Through our Global Asset Recovery

Services buyback program customers can obtain cash for marketable IT assets and

dispose of non-marketable assets in a way that complies with environmental laws

and regulations.

In addition for certain mid-range and high-end systems, customers leasing their

Power Systems can upgrade to new technology at mid-lease for little or no change

in their existing monthly payment. We offer options for clients for perform either in-

place upgrades or side-by-side, nondisruptive migrations (IBM Power Exchange) to

the latest POWER technology.

IBM Global Financing offerings are provided through IBM Credit LLC in the United

States, and other IBM subsidiaries and divisions worldwide to qualified commercial

and government customers. For all customer segments offerings, rates, financing

terms, offering type, equipment type, and options, may vary by country. Other

restrictions may apply. Rates and offerings are subject to change, extension, or

withdrawal without notice.

For more information contact your local IBM Global Financing organization or visit

http://www.ibm.com/financing

IBM United States Hardware Announcement

110-009

IBM is a registered trademark of International Business Machines Corporation 86

Order now

To order, contact the Americas Call Centers or your local IBM representative, or your

IBM Business Partner.

To identify your local IBM representative or IBM Business Partner, call 800-IBM-4YOU

(426-4968).

Phone: 800-IBM-CALL (426-2255)

Fax: 800-2IBM-FAX (242-6329)

For IBM representative: callserv@ca.ibm.com

For IBM Business Partner: pwswna@us.ibm.com

Mail: IBM Teleweb Customer Support

ibm.com® Sales Execution Center, Americas North

3500 Steeles Ave. East, Tower 3/4

Markham, Ontario

Canada

L3R 2Z1

Reference: YE001

The Americas Call Centers, our national direct marketing organization, can add your

name to the mailing list for catalogs of IBM products.

Note: Shipments will begin after the planned availability date.

Trademarks

Active Memory, EnergyScale, PowerVM, Micro-Partitioning, POWER6, Hypervisor,

POWER5, Electronic Service Agent, HACMP and IBM Project Financing are

trademarks of IBM Corporation in the United States, other countries, or both.

Power, IBM, AIX, TotalStorage, POWER, Tivoli, PartnerWorld, pSeries and ibm.com

are registered trademarks of IBM Corporation in the United States, other countries,

or both.

Linux is a registered trademark of Linus Torvalds in the United States, other

countries, or both.

Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the

United States, other countries, or both.

ThinkVision is a registered trademark of Lenovo Corporation in the United States,

other countries, or both.

Other company, product, and service names may be trademarks or service marks of

others.

Terms of use

IBM products and services which are announced and available in your country

can be ordered under the applicable standard agreements, terms, conditions,

and prices in effect at the time. IBM reserves the right to modify or withdraw this

announcement at any time without notice. This announcement is provided for your

information only. Additional terms of use are located at

http://www.ibm.com/legal/us/en/

For the most current information regarding IBM products, consult your IBM

representative or reseller, or visit the IBM worldwide contacts page

http://www.ibm.com/planetwide/us/

Ibm 750 Users Manual

750 to the manual 919592d7-1e36-486e-bb25-2beef7f7ed4d

Navigation menu

Versions of this User Manual:

Views

Navigation
