ThinkPad R30/R31 Hardware
Maintenance Manual
򔻐򗗠򙳰
Before using this information and the product it supports,
be sure to read the general information under
“Introduction” on page 1, and “Notices” on page 228.
First Edition (September 2002)
The following paragraph does not apply to the United
Kingdom or any country where such provisions are
inconsistent with local law:
INTERNATIONAL BUSINESS MACHINES CORPORATION
PROVIDES THIS PUBLICATION ″AS IS″WITHOUT ANY
WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
LIMITED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some states
do not allow disclaimers or express or implied warranties in
certain transactions; therefore, this statement may not
apply to you.
This publication could include technical inaccuracies or
typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in
new editions of the publication. IBM may make
improvements or changes in the products or the programs
described in this publication at any time.
Requests for technical information about IBM products
should be made to your IBM Authorized Dealer or your
IBM Marketing Representative.
© Copyright International Business Machines
Corporation 2002. All rights reserved. NotetoUS
Government Users — Documentation related to restricted
rights — Use, duplication, or disclosure is subject to
restrictions set forth in GSA ADP Schedule Contract with
IBM Corp.
Preface
About this manual
This manual contains service and reference information for
IBM ThinkPad R30/R31 products. Use this manual along
with the advanced diagnostic tests to troubleshoot
problems effectively.
The manual is divided into sections as follows:
vThe Introduction section provides general information,
guidelines, and safety information required to service
computers.
vThe product-specific section includes service, reference,
and product-specific parts information.
Important
This manual is intended for trained servicers who
are familiar with ThinkPad products. Use this
manual along with the advanced diagnostic tests to
troubleshoot problems effectively. Before servicing
an IBM ThinkPad product, be sure to review the
safety information under “Safety Notices
(Multi-lingual Translations)”on page 3,“Safety
Information”on page 13, and “Laser Compliance
Statement”on page 17.
iii
iv ThinkPad R30/R31 HMM
Contents
Preface ...............iii
ThinkPad R30/R31 Hardware Maintenance Manual 1
Introduction ..............1
ImportantServiceInformation........1
Drive and Diskette Compatibility Matrix .....2
Safety Notices (Multi-lingual Translations) ....3
SafetyInformation...........13
Laser Compliance Statement .......17
General Descriptions ...........20
Read this first .............21
What to do first ...........21
FRU replacement notices .........23
LCD replacement notice .........23
Screwnotices............23
System board/LCD/Inverter replacement notice 24
Relatedserviceinformation.........26
Power button as reset switch .......26
Running a low-level format ........26
ServiceWebsite...........26
Passwords .............26
Power management features .......28
Fn key combinations ..........30
Product recovery program ........30
FlashBIOS.............33
Checkout guide ............34
Testing the computer ..........34
Relatedserviceinformation........35
Power systems checkout.........36
Symptom-to-FRU Index ..........40
Numeric Error Codes and Messages .....40
Beep Symptoms ...........43
LCD-Related Symptoms .........44
Keyboard/TrackPoint-Related Symptoms ....45
Indicator-Related Symptoms........45
Power-Related Symptoms ........45
Memory-Related Symptom ........46
Audio-Related Symptoms ........46
PC Card (PCMCIA)-Related Symptoms ....46
Power Management-Related Symptoms ....47
Peripheral-Device-Related Symptoms .....47
Modem-Related Symptom ........48
Operating System-Related Symptom .....48
IntermittentProblems..........48
Undetermined Problems .........49
ThinkPad R30 .............50
Product overview ...........51
FRU removals and replacements ......56
Locations .............84
Partslist.............87
v
ThinkPad R31 Part I ..........100
Product overview ..........102
FRU removals and replacements ......107
Locations .............136
Partslist.............139
ThinkPad R31 Part II ..........156
Product overview ..........157
FRU removals and replacements ......162
Locations .............191
Partslist.............194
ThinkPad R31 Part III ..........208
Product overview ..........209
Partslist.............214
Notices..............228
Trademarks .............229
vi ThinkPad R30/R31 HMM
ThinkPad R30/R31 Hardware
Maintenance Manual
Introduction
Important Service Information
Important
Diskette fixes are customer-installable. The diskette
fixes are posted on the IBM support site
http://www.pc.ibm.com/support/ .
Advise customers to contact the IBM
®
HelpCenter
®
at 800-772-2227 if they need assistance in obtaining
or installing any diskette fixes.
Customers in Canada should call IBM
®
HelpCenter
®
at 800-565-3344 for assistance or download
information.
FRU Replacement Strategy
Before Replacing Parts
Ensure that all diskette fixes are installed prior to
replacing any FRUs listed in this manual.
Use the following strategy to prevent unnecessary FRU
replacement and service expense:
vIf you are instructed to replace a FRU and that does
not correct the problem, reinstall the original FRU
before you continue.
vSome computers have both a processor board and a
system board. If you are instructed to replace either the
processor board or the system board, and the first board
that you replaced does not correct the problem, reinstall
the original board, then replace the other (processor or
system) board.
vIf an adapter or device consists of more than one FRU,
an error code may be caused by any of the FRUs.
Before replacing the adapter or device, remove the
FRUs, one by one, to see if the symptoms change.
Replace only the FRU that changed the symptoms.
vR31 : When CPU is replaced, the heat sink should be
replaced with new one also.
1
Attention: A customized setup configuration (other than
default settings) may exist on the computer you are
servicing. Running Automatic Configuration may alter those
settings. Note the current configuration settings (using the
View Configuration option) and verify that the settings are
in place when service is complete.
Hard Disk Drive Replacement Strategy
Always try to run a low-level format before replacing a hard
disk drive.
Attention: The drive startup sequence in the computer
you are servicing might have been changed. Be extremely
careful during write operations such as copying, saving, or
formatting. Data or programs can be over-written if you
select an incorrect drive.
How to Use Error Messages
Use the error codes displayed on the screen to diagnose
failures. If more than one error code is displayed, begin the
diagnosis with the first error code. The cause of the first
error code can result in false error codes being displayed.
If no error code is displayed, see if the error symptom is
listed in the Symptom-to-FRU Index for the computer you
are servicing.
How to Read POST Error Messages
POST error messages are displayed on the screen as
three, four, five, or eight digits. The error messages that
can be displayed as shorter POST messages are
highlighted in this index. Some digits will represent
different information for SCSI errors versus non-SCSI
errors.
All SCSI devices are set to a different SCSI ID. Duplicate
SCSI ID settings can generate a false error message. Use
the SCSI ID to determine whether the error message is
coming from an internal or an external device.
Drive and Diskette Compatibility Matrix
The following table provides identification information for
3.5-inch drives.
Diskette Drive Identifying Mark
3.5-Inch - 1.44MB 1.44 on the eject button
3.5-Inch - 2.88MB 2.88 on the eject button
The following table provides compatibility information for
3.5-inch diskettes and 3.5-inch diskette drives.
2ThinkPad R30/R31 HMM
Diskette Capacity 1.44MB Drive 2.88MB Drive
1.0MB Read/Write Read/Write
2.0MB Read/Write Read/Write
4.0MB Not Compatible Read/Write
Safety Notices (Multi-lingual
Translations)
In this manual, safety notices appear in English with a
page number reference to the appropriate multi-lingual,
translated safety notice found in this section.
The following safety notices are provided in English,
French, German, Italian, and Spanish.
MT 2656, 2657, 2676 3
Safety Notice 1
Before the computer is powered-on after FRU
replacement, make sure all screws, springs, or other
small parts are in place and are not left loose inside
the computer. Verify this by shaking the computer
and listening for rattling sounds. Metallic parts or
metal flakes can cause electrical shorts.
Avant de remettre l’ordinateur sous tension après
remplacement d’une unitéen clientèle, vérifiez que
tous les ressorts, vis et autres pièces sont bien en
place et bien fixées. Pour ce faire, secouez l’unitéet
assurez-vous qu’aucun bruit suspect ne se produit.
Des pièces métalliques ou des copeaux de métal
pourraient causer un court-circuit.
Bevor nach einem FRU-Austausch der Computer
wieder angeschlossen wird, muβsichergestellt
werden, daβkeine Schrauben, Federn oder andere
Kleinteile fehlen oder im Gehäuse vergessen
wurden. Der Computer muβgeschüttelt und auf
Klappergeräusche geprüft werden. Metallteile oder
-splitter können Kurzschlüsse erzeugen.
Prima di accendere l’elaboratore dopo che éstata
effettuata la sostituzione di una FRU, accertarsi che
tutte le viti, le molle e tutte le altri parti di piccole
dimensioni siano nella corretta posizione e non
siano sparse all’interno dell’elaboratore. Verificare
ciòscuotendo l’elaboratore e prestando attenzione
ad eventuali rumori; eventuali parti o pezzetti
metallici possono provocare cortocircuiti pericolosi.
Antes de encender el sistema despues de sustituir
una FRU, compruebe que todos los tornillos,
muelles y demás piezas pequeñas se encuentran
en su sitio y no se encuentran sueltas dentro del
sistema. Compruébelo agitando el sistema y
escuchando los posibles ruidos que provocarían.
Las piezas metálicas pueden causar cortocircuitos
eléctricos.
4ThinkPad R30/R31 HMM
Safety Notice 2
Some standby batteries contain a small amount of
nickel and cadmium. Do not disassemble it,
recharge it, throw it into fire or water, or short-circuit
it. Dispose of the battery as required by local
ordinances or regulations. Use only the battery in
the appropriate parts listing. Use of an incorrect
battery can result in ignition or explosion of the
battery.
Certaines batteries de secours contiennent du nickel
et du cadmium. Ne les démontez pas, ne les
rechargez pas, ne les exposez ni au feu ni àl’eau.
Ne les mettez pas en court-circuit. Pour les mettre
au rebut, conformez-vous àla réglementation en
vigueur. Lorsque vous remplacez la pile de
sauvegarde ou celle de l’horloge temps réel, veillez
àn’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. Une batterie ou une
pile inappropriée risque de prendre feu ou
d’exploser.
Die Bereitschaftsbatterie, die sich unter dem
Diskettenlaufwerk befindet, kann geringe Mengen
Nickel und Cadmium enthalten. Sie darf nur durch
die Verkaufsstelle oder den IBM Kundendienst
ausgetauscht werden. Sie darf nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer
oder Wasser ausgesetzt werden. Die Batterie kann
schwere Verbrennungen oder Verätzungen
verursachen. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Bereitschafts- oder Systembatterie nur
Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion
führen.
MT 2656, 2657, 2676 5
(Continued)
Alcune batterie di riserva contengono una piccola
quantitàdi nichel e cadmio. Non smontarle,
ricaricarle, gettarle nel fuoco o nell’acqua né
cortocircuitarle. Smaltirle secondo la normativa in
vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la batteria
dell’RTC (real time clock) o la batteria di supporto,
utilizzare soltanto i tipi inseriti nell’appropriato
Catalogo parti. L’impiego di una batteria non adatta
potrebbe determinare l’incendio o l’esplosione della
batteria stessa.
Algunas baterías de reserva contienen una pequeña
cantidad de níquel y cadmio. No las desmonte, ni
recargue, ni las eche al fuego o al agua ni las
cortocircuite. Deséchelas tal como dispone la
normativa local. Utilice sólo baterías que se
encuentren en la lista de piezas. La utilizaciónde
una batería no apropiada puede provocar la ignición
o explosión de la misma.
6ThinkPad R30/R31 HMM
Safety Notice 3
The battery pack contains small amounts of nickel.
Do not disassemble it, throw it into fire or water, or
short-circuit it. Dispose of the battery pack as
required by local ordinances or regulations. Use
only the battery in the appropriate parts listing when
replacing the battery pack. Use of an incorrect
battery can result in ignition or explosion of the
battery.
La batterie contient du nickel. Ne la démontez pas,
ne l’exposez ni au feu ni àl’eau. Ne la mettez pas
en court-circuit. Pour la mettre au rebut,
conformez-vous àla réglementation en vigueur.
Lorsque vous remplacez la batterie, veillez à
n’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.
Akkus enthalten geringe Mengen von Nickel. Sie
dürfen nicht zerlegt, wiederaufgeladen,
kurzgeschlossen, oder Feuer oder Wasser
ausgesetzt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs
verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung
oder Explosion führen.
La batteria contiene piccole quantitàdi nichel. Non
smontarla, gettarla nel fuoco o nell’acqua né
cortocircuitarla. Smaltirla secondo la normativa in
vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la batteria,
utilizzare soltanto i tipi inseriti nell’appropriato
Catalogo parti. L’impiego di una batteria non adatta
potrebbe determinare l’incendio o l’esplosione della
batteria stessa.
Las baterías contienen pequeñas cantidades de
níquel. No las desmonte, ni recargue, ni las eche al
fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo
baterías que se encuentren en la lista de piezas al
sustituir la batería. La utilización de una bateríano
apropiada puede provocar la ignición o explosiónde
la misma.
MT 2656, 2657, 2676 7
Safety Notice 4
The lithium battery can cause a fire, explosion, or
severe burn. Do not recharge it, remove its
polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell
contents to water. Dispose of the battery as required
by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion of
the battery.
La pile de sauvegarde contient du lithium. Elle
présente des risques d’incendie, d’explosion ou de
brûlures graves. Ne la rechargez pas, ne retirez pas
son connecteur polariséet ne la démontez pas. Ne
l’exposez pas àune temperature supérieure à
100°C, ne la faites pas brûleretn’en exposez pas
le contenu àl’eau. Mettez la pile au rebut
conformément àla réglementation en vigueur. Une
pile inappropriée risque de prendre feu ou
d’exploser.
Die Systembatterie ist eine Lithiumbatterie. Sie kann
sich entzünden, explodieren oder schwere
Verbrennungen hervorrufen. Batterien dieses Typs
dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt
oder verbrannt werden. Auch darf ihr Inhalt nicht mit
Wasser in Verbindung gebracht oder der zur
richtigen Polung angebrachte Verbindungsstecker
entfernt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs
verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung
oder Explosion führen.
La batteria di supporto e una batteria al litio e puo
incendiarsi, esplodere o procurare gravi ustioni.
Evitare di ricaricarla, smontarne il connettore
polarizzato, smontarla, riscaldarla ad una
temperatura superiore ai 100 gradi centigradi,
incendiarla o gettarla in acqua. Smaltirla secondo la
normativa in vigore (DPR 915/82, successive
disposizioni e disposizioni locali). L’impiego di una
batteria non adatta potrebbe determinare l’incendio
ol’esplosione della batteria stessa.
8ThinkPad R30/R31 HMM
(Continued)
La bateria de repuesto es una bateria de litio y
puede provocar incendios, explosiones o
quemaduras graves. No la recargue, ni quite el
conector polarizado, ni la desmonte, ni caliente por
encima de los 100°C (212°F), ni la incinere ni
exponga el contenido de sus celdas al agua.
Deséchela tal como dispone la normativa local.
MT 2656, 2657, 2676 9
Safety Notice 5
If the LCD breaks and the fluid from inside the LCD
gets into your eyes or on your hands, immediately
wash the affected areas with water for at least 15
minutes. Seek medical care if any symptoms from
the fluid are present after washing.
Si le panneau d’affichage àcristaux liquides se
brise et que vous recevez dans les yeux ou sur les
mains une partie du fluide, rincez-les abondamment
pendant au moins quinze minutes. Consultez un
médecin si des symptômes persistent aprèsle
lavage.
Die Leuchtstoffröhre im LCD-Bildschirm enthält
Quecksilber. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Der
LCD-Bildschirm besteht aus Glas und kann
zerbrechen, wenn er unsachgemäβbehandelt wird
oder der Computer auf den Boden fällt. Wenn der
Bildschirm beschädigt ist und die darin befindliche
Flüssigkeit in Kontakt mit Haut und Augen gerät,
sollten die betroffenen Stellen mindestens 15
Minuten mit Wasser abgespült und bei
Beschwerden anschlieβend ein Arzt aufgesucht
werden.
Nel caso che caso l’LCD si dovesse rompere ed il
liquido in esso contenuto entrasse in contatto con gli
occhi o le mani, lavare immediatamente le parti
interessate con acqua corrente per almeno 15
minuti; poi consultare un medico se i sintomi
dovessero permanere.
Si la LCD se rompe y el fluido de su interior entra
en contacto con sus ojos o sus manos, lave
inmediatamente las áreas afectadas con agua
durante 15 minutos como mínimo. Obtenga atención
medica si se presenta algúnsíntoma del fluido
despues de lavarse.
10 ThinkPad R30/R31 HMM
Safety Notice 6
To avoid shock, do not remove the plastic cover that
surrounds the lower portion of the inverter card.
Afin d’éviter tout risque de choc électrique, ne
retirez pas le cache en plastique protégeant la
partie inférieure de la carte d’alimentation.
Aus Sicherheitsgründen die Kunststoffabdeckung,
die den unteren Teil der Spannungswandlerplatine
umgibt, nicht entfernen.
Per evitare scosse elettriche, non rimuovere la
copertura in plastica che avvolge la parte inferiore
della scheda invertitore.
Para evitar descargas, no quite la cubierta de
plástico que rodea la parte baja de la tarjeta
invertida.
Safety Notice 7
Though main batteries have low voltage, a shorted
or grounded battery can produce enough current to
burn combustible materials or personnel.
Bien que le voltage des batteries principales soit
peu élevé, le court-circuit ou la mise àla masse
d’une batterie peut produire suffisamment de
courant pour brûler des matériaux combustibles ou
causer des brûlures corporelles graves.
Obwohl Hauptbatterien eine niedrige Spannung
haben, können sie doch bei Kurzschluβoder Erdung
genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen
hervorzurufen.
Sebbene le batterie di alimentazione siano a basso
voltaggio, una batteria in corto circuito o a massa
puòfornire corrente sufficiente da bruciare materiali
combustibili o provocare ustioni ai tecnici di
manutenzione.
Aunque las baterías principales tienen un voltaje
bajo, una batería cortocircuitada o con contacto a
tierra puede producir la corriente suficiente como
para quemar material combustible o provocar
quemaduras en el personal.
MT 2656, 2657, 2676 11
Safety Notice 8
Before removing any FRU, power-off the computer,
unplug all power cords from electrical outlets,
remove the battery pack, then disconnect any
interconnecting cables.
Avant de retirer une unitéremplaçable en clientèle,
mettez le système hors tension, débranchez tous
les cordons d’alimentation des socles de prise de
courant, retirez la batterie et déconnectez tous les
cordons d’interface.
Die Stromzufuhr muβabgeschaltet, alle Stromkabel
aus der Steckdose gezogen, der Akku entfernt und
alle Verbindungskabel abgenommen sein, bevor
eine FRU entfernt wird.
Prima di rimuovere qualsiasi FRU, spegnere il
sistema, scollegare dalle prese elettriche tutti i cavi
di alimentazione, rimuovere la batteria e poi
scollegare i cavi di interconnessione.
Antes de quitar una FRU, apague el sistema,
desenchufe todos los cables de las tomas de
corriente eléctrica, quite la batería y, a continuación,
desconecte cualquier cable de conexión entre
dispositivos.
12 ThinkPad R30/R31 HMM
Safety Information
The following section contains the safety information that
you need to be familiar with before servicing an IBM
mobile computer.
General Safety
Follow these rules to ensure general safety:
vObserve good housekeeping in the area of the
machines during and after maintenance.
vWhen lifting any heavy object:
1. Ensure you can stand safety without slipping.
2. Distribute the weight of the object equally between
your feet.
3. Use a slow lifting force. Never move suddenly or
twist when you attempt to lift.
4. Lift by standing or by pushing up with your leg
muscles; this action removes the strain from the
muscles in your back. Do not attempt to lift any
objects that weigh more than 16 kg (35 lb) or objects
that you think are too heavy for you.
vDo not perform any action that causes hazards to the
customer, or that makes the equipment unsafe.
vBefore you start the machine, ensure that other service
representatives and the customer’s personnel are not in
a hazardous position.
vPlace removed covers and other parts in a safe place,
away from all personnel, while you are servicing the
machine.
vKeep your tool case away from walk areas so that other
people will not trip over it.
vDo not wear loose clothing that can be trapped in the
moving parts of a machine. Ensure that your sleeves
are fastened or rolled up above your elbows. If your hair
is long, fasten it.
vInsert the ends of your necktie or scarf inside clothing or
fasten it with a nonconductive clip, approximately 8
centimeters (3 inches) from the end.
vDo not wear jewelry, chains, metal-frame eyeglasses, or
metal fasteners for your clothing.
Attention: Metal objects are good electrical
conductors.
vWear safety glasses when you are: hammering, drilling
soldering, cutting wire, attaching springs, using solvents,
or working in any other conditions that might be
hazardous to your eyes.
vAfter service, reinstall all safety shields, guards, labels,
and ground wires. Replace any safety device that is
worn or defective.
MT 2656, 2657, 2676 13
vReinstall all covers correctly before returning the
machine to the customer.
Electrical Safety
Observe the following rules when working on electrical
equipment.
Important
Use only approved tools and test equipment. Some
hand tools have handles covered with a soft
material that does not insulate you when working
with live electrical currents. Many customers have,
near their equipment, rubber floor mats that contain
small conductive fibers to decrease electrostatic
discharges. Do not use this type of mat to protect
yourself from electrical shock.
vFind the room emergency power-off (EPO) switch,
disconnecting switch, or electrical outlet. If an electrical
accident occurs, you can then operate the switch or
unplug the power cord quickly.
vDo not work alone under hazardous conditions or near
equipment that has hazardous voltages.
vDisconnect all power before:
–Performing a mechanical inspection
–Working near power supplies
–Removing or installing main units
vBefore you start to work on the machine, unplug the
power cord. If you cannot unplug it, ask the customer to
power-off the wall box that supplies power to the
machine and to lock the wall box in the off position.
vIf you need to work on a machine that has exposed
electrical circuits, observe the following precautions:
–Ensure that another person, familiar with the
power-off controls, is near you.
Attention: Another person must be there to switch
off the power, if necessary.
–Use only one hand when working with powered-on
electrical equipment; keep the other hand in your
pocket or behind your back.
Attention: There must be a complete circuit to
cause electrical shock. By observing the above rule,
you may prevent a current from passing through your
body.
–When using testers, set the controls correctly and
use the approved probe leads and accessories for
that tester.
14 ThinkPad R30/R31 HMM
–Stand on suitable rubber mats (obtained locally, if
necessary) to insulate you from grounds such as
metal floor strips and machine frames.
Observe the special safety precautions when you work
with very high voltages; these instructions are in the
safety sections of maintenance information. Use
extreme care when measuring high voltages.
vRegularly inspect and maintain your electrical hand tools
for safe operational condition.
vDo not use worn or broken tools and testers.
vNever assume that power has been disconnected from
a circuit. First, check that it has been powered-off.
vAlways look carefully for possible hazards in your work
area. Examples of these hazards are moist floors,
nongrounded power extension cables, power surges,
and missing safety grounds.
vDo not touch live electrical circuits with the reflective
surface of a plastic dental mirror. The surface is
conductive; such touching can cause personal injury and
machine damage.
vDo not service the following parts with the power on
when they are removed from their normal operating
places in a machine:
–Power supply units
–Pumps
–Blowers and fans
–Motor generators
and similar units. (This practice ensures correct
grounding of the units.)
vIf an electrical accident occurs:
–Use caution; do not become a victim yourself.
–Switch off power.
–Send another person to get medical aid.
Safety Inspection Guide
The intent of this inspection guide is to assist you in
identifying potentially unsafe conditions on these products.
Each machine, as it was designed and built, had required
safety items installed to protect users and service
personnel from injury. This guide addresses only those
items. However, good judgment should be used to identify
potential safety hazards due to attachment of non-IBM
features or options not covered by this inspection guide.
If any unsafe conditions are present, you must determine
how serious the apparent hazard could be and whether
MT 2656, 2657, 2676 15
you can continue without first correcting the problem.
Consider these conditions and the safety hazards they
present:
vElectrical hazards, especially primary power (primary
voltage on the frame can cause serious or fatal
electrical shock).
vExplosive hazards, such as a damaged CRT face or
bulging capacitor.
vMechanical hazards, such as loose or missing
hardware.
The guide consists of a series of steps presented in a
checklist. Begin the checks with the power off, and the
power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or
sharp edges).
2. Power-off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition.
Use a meter to measure third-wire ground
continuity for 0.1 ohm or less between the external
ground pin and frame ground.
b. The power cord should be the appropriate type as
specified in the parts listings.
c. Insulation must not be frayed or worn.
4. Remove the cover.
5. Check for any obvious non-IBM alterations. Use good
judgment as to the safety of any non-IBM alterations.
6. Check inside the unit for any obvious unsafe
conditions, such as metal filings, contamination, water
or other liquids, or signs of fire or smoke damage.
7. Check for worn, frayed, or pinched cables.
8. Check that the power-supply cover fasteners (screws
or rivets) have not been removed or tampered with.
Handling Electrostatic Discharge-Sensitive
Devices
Any computer part containing transistors or integrated
circuits ( ICs) should be considered sensitive to
electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects.
Protect against ESD damage by equalizing the charge so
that the machine, the part, the work mat, and the person
handling the part are all at the same charge.
16 ThinkPad R30/R31 HMM
Notes:
1. Use product-specific ESD procedures when they
exceed the requirements noted here.
2. Make sure that the ESD protective devices you use
have been certified (ISO 9000) as fully effective.
When handling ESD-sensitive parts:
vKeep the parts in protective packages until they are
inserted into the product.
vAvoid contact with other people.
vWear a grounded wrist strap against your skin to
eliminate static on your body.
vPrevent the part from touching your clothing. Most
clothing is insulative and retains a charge even when
you are wearing a wrist strap.
vUse the black side of a grounded work mat to provide a
static-free work surface. The mat is especially useful
when handling ESD-sensitive devices.
vSelect a grounding system, such as those listed below,
to provide protection that meets the specific service
requirement.
Note: The use of a grounding system is desirable but
not required to protect against ESD damage.
–Attach the ESD ground clip to any frame ground,
ground braid, or green-wire ground.
–Use an ESD common ground or reference point
when working on a double-insulated or
battery-operated system.
–You can use coax or connector-outside shells on
these systems.
–Use the round ground-prong of the AC plug on
AC-operated computers.
Grounding Requirements
Electrical grounding of the computer is required for
operator safety and correct system function. Proper
grounding of the electrical outlet can be verified by a
certified electrician.
Laser Compliance Statement
Some IBM Personal Computer models are equipped from
the factory with a optical drive, such as CD-ROM,
DVD-ROM, CD-R/W and DVD/CD-RW combo drive.
Optical drives are also sold separately as options. The
optical drive is a laser product. The optical drive is certified
in the U.S. to conform to the requirements of the
Department of Health and Human Services 21 Code of
Federal Regulations (DHHS 21 CFR) Subchapter J for
MT 2656, 2657, 2676 17
Class 1 laser products. Elsewhere, the drive is certified to
conform to the requirements of the International
Electrotechnical Commission (IEC) 825 and CENELEC EN
60 825 for Class 1 laser products.
When an optical drive is installed, note the following.
CAUTION:
Use of controls or adjustments or performance of
procedures other than those specified herein might
result in hazardous radiation exposure.
O uso de controles, ajustes ou desempenho de
procedimentos diferentes daqueles aqui especificados
pode resultar em perigosa exposição à radiação.
Pour éviter tout risque d’exposition au rayon laser,
respectez les consignes de réglage et d’utilisation des
commandes, ainsi que les procédures décrites.
Werden Steuer- und Einstellelemente anders als hier
festgesetzt verwendet, kann gefährliche
Laserstrahlung auftreten.
L’utilizzo di controlli, regolazioni o l’esecuzione di
procedure diverse da quelle specificate possono
provocare l’esposizione a
El uso de controles o ajustes o la ejecución de
procedimientos distintos de los aquí especificados
puede provocar la exposición a radiaciones
peligrosas.
18 ThinkPad R30/R31 HMM
Opening the CD-ROM drive could result in exposure to
hazardous laser radiation. There are no serviceable parts
inside the CD-ROM drive. Do not open.
Some CD-ROM drives contain an embedded Class 3A or
Class 3B laser diode. Note the following.

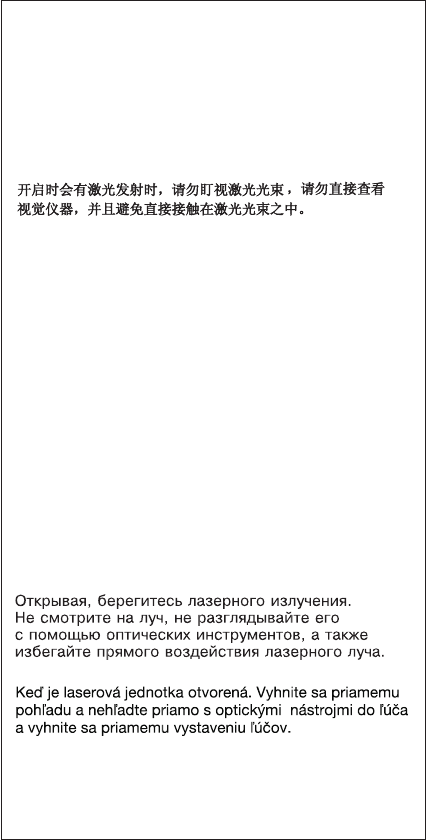

DANGER
Laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments,
and avoid direct exposure to the beam.
Radiação por raio laser ao abrir. Não olhe fixo no
feixe de luz, não olhe diretamente por meio de
instrumentos óticos e evite exposição direta com o
feixe de luz.
Rayonnement laser si carter ouvert. Évitez de fixer
le faisceau, de le regarder directement avec des
instruments optiques, ou de vous exposer au
rayon.
Laserstrahlung bei geöffnetem Gerät. Nicht direkt
oder über optische Instrumente in den Laserstrahl
sehen und den Strahlungsbereich meiden.
Kinyitáskor lézersugár!Nenézzen bele se szabad
szemmel, se optikai eszközökkel. Kerülje a
sugárnyalábbal valóérintkezést !
Aprendo l’unitàvengono emesse radiazioni laser.
Non fissare il fascio, non guardarlo direttamente
con strumenti ottici e evitare l’esposizione diretta al
fascio.
Radiaciónláser al abrir. No mire fijamente ni
examine con instrumental óptico el haz de luz.
Evite la exposición directa al haz.
MT 2656, 2657, 2676 19
General Descriptions
This chapter includes descriptions for any ThinkPad model
that has the PC-Doctor DOS diagnostics program. Some
descriptions might not apply to your particular computer.
20 ThinkPad R30/R31 HMM
Read this first
Before you go to the checkout guide, be sure to read this
section.
Important Notes:
vOnly certified trained personnel should service the
computer.
vRead the entire FRU service procedures before
replacing any FRUs.
vUse new nylon-coated screws when you replace
FRUs.
vBe extremely careful during write operations such
as copying, saving, or formatting. Drives in the
computer that you are servicing might have been
rearranged or the drive startup sequence might have
been altered. If you select an incorrect drive, data or
programs could be overwritten.
vReplace FRUs only for the correct model. When you
replace a FRU, make sure that the model of the
machine and FRU part number are correct by referring
to the FRU parts list.
vA FRU should not be replaced because of a single,
unreproducible failure. Single failure can occur for a
variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic
discharge, or software error. FRU replacement should
be considered only when a recurring problem exists. In
this case, clear the error log and run the test again. Do
not replace FRUs if log errors do not reappear.
vBe careful not to replace a non-defective FRU.
What to do first
The servicer must include the following in the parts
exchange form or parts return form that is attached to the
returned FRU:
1. Name and phone number of servicer
2. Date of service
3. Date when part failed
4. Date of purchase
5. Failure symptoms, error codes appearing on display,
and beep symptoms
6. Procedure index and page number in which failing FRU
was detected
7. Failing FRU name and part number
8. Machine type, model number and serial number
9. Customer’s name and address
MT 2656, 2657, 2676 21
Before checking problems with the computer, determine
whether the damage is covered under the warranty by
referring to the following:
Note for Warranty:
For Warranty:
During the warranty period, the customer may be
responsible for repair costs if the computer damage
was caused by misuse, accident, modification,
unsuitable physical or operating environment, or
improper maintenance by the customer. The
following list provides some common items that are
not covered under warranty and some symptoms
that may indicate the system was subjected to
stresses beyond normal use.
The following is not covered under warranty:
vLCD panel cracked by applying excessive force
or by being dropped.
vScratched (cosmetic) parts.
vCracked or broken plastic parts, broken latches,
broken pins, or broken connectors caused by
excessive force.
vDamage caused by liquid spilled into the system.
vDamage caused by improperly inserting a PC
Card or installation of an incompatible card.
vDamage caused by foreign material in the FDD.
vDiskette drive damage caused by pressing the
diskette drive cover or inserting diskettes with
multiple labels.
vDamaged or bent diskette drive eject button.
vCD-ROM/DVD-ROM drive damage caused by
excessive force, shock, or by being dropped.
vFuses blown by attaching a nonsupported device.
vForgotten computer password (making the
computer unusable).
The following symptoms might indicate damage
caused by non-warranted activities:
vMissing parts may be a symptom of unauthorized
service or modification.
vHDD spindles can become noisy if subjected to
excessive force or by being dropped.
vI9990303 errors can be caused by exposure to
strong magnetic fields.
22 ThinkPad R30/R31 HMM
FRU replacement notices
This section contains notices for removal and replacement.
Read this section carefully before replacing any FRU.
LCD replacement notice
The TFT LCD for the computer contains many thin-film
transistors (TFTs). A small number of missing, discolored,
or lighted dots (on all the time) is characteristic of TFT
LCD technology, but excessive pixel problems can cause
viewing concerns. The LCD should be replaced if the
number of missing, discolored, or lighted dots in any
background is:
vXGA : 8 or more bright dots, 8 or more dark dots, or a
total of 9 or more bright and dark dots.
Screw notices
This computer uses special nylon-coated screws with the
following characteristics:
vThey maintain tight connections.
vThey do not easily come loose, even with shock or
vibration.
vThey need additional force to tighten.
vThey should be used only once.
Do the following when you service this machine:
vKeep the screw kit (P/N 08K6560) in your tool bag.
vAlways use new screws if you are instructed.
vUse a torque screwdriver if you have one.
Loose screws can cause a reliability problem. The IBM
ThinkPad computer addresses this problem with
nylon-coated screws. Tighten screws as follows:
vPlastic to plastic
Turn an additional 90 degrees after the screw head
touches the surface of the plastic part:

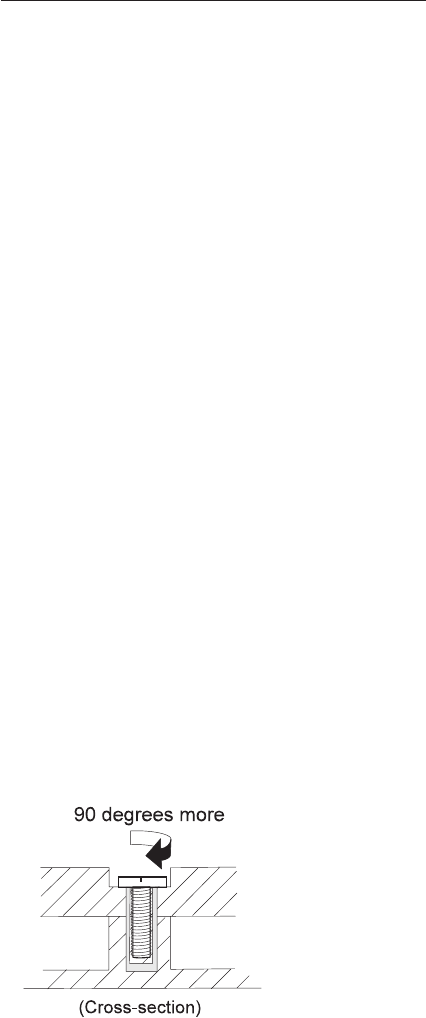

vLogic card to plastic
MT 2656, 2657, 2676 23
Turn an additional 180 degrees after the screw head
touches the surface of the plastic part:
vTorque driver
If you have a torque driver, refer to the ″Torque″column
with each step.
vMake sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table if you
have a torque screwdriver. Never use a screw that you
removed. Use a new one. Make sure the screws are
tightened firmly.
System board/LCD/Inverter replacement
notice
Restoring the LCD panel ID
The EEPROM on the inverter stores its supported LCD
type ID code. If you replace a LCD with one of a different
brand or use a new inverter, the ID information in the
inverter EEPROM should be updated.
Follow the steps blew to set the LCD panel ID:
1. Install the ThinkPad CE Utility Diskette and restart the
computer.
2. Select 1. LCD Panel ID Utility from the main menu.
3. Follow the instruction on screen to read current or to
set new LCD Panel ID code.
4. Restart computer : the new LCD should work normally.
Note: When you set a new LCD Panel ID and the new
LCD is not yet enabled (to function), so connect an
external CRT to see the program execution process.
CAUTION:
Make sure the new ID code you choose corresponds
with the LCD brand and type. If you write a wrong ID
into inverterm, just reboot and re-execute the program
and input the correct ID code.
24 ThinkPad R30/R31 HMM
Note: If LCD cannot display after change ID code, make
sure you write the correct ID code, or try reseating
the LCD coaxtial cable connectors.
Thermal Sensor
The system is equipped with sensors to protect against
system overheating. By setting system and processor
thermal thresholds, the system can turn on the cooling fan
or shut down automatically when temperatures reach the
defined threshold parameters.
System experiencing frequent auto sensor shutdown may
need to reset the thermal sensor threshold and execute
the fan test to ensure the normal operation of the cooling
fan.
Follow the steps below to set thermal threshold:
1. Install the ThinkPad CE Utility Diskette and restart the
computer.
2. Select 2. Thermal Sensor Utility from the main menu.
3. Select 1. Read Thermal Settingto view the original
setting or 2. Set Default Thermal Settingto restore the
default setting.
UUID
The Universal Unique Identifier (UUID) is a 128–bit number
uniquely assigned to your computer at production and
stored in the EEPROM of your 24RF08. The algorithm that
generates the unique number is designed to provide
unique IDs until the year A.D. 3400. Consequently, no tow
computers in the world will have the same number.
When you replace the system board, you must set the
UUID on the new system board as follows:
1. Install the ThinkPad CE Utility Diskette and restart the
computer.
2. Select 3. UUID Data Utility from the main menu then
make a selection to read or create the UUID data.
A new UUID is created and written. If a valid UUID already
exists, it is not overwritten.
MT 2656, 2657, 2676 25
Related service information
This section provides information about the following:
v“Power button as reset switch”
v“Running a low-level format”
v“Service Web site”
v“Passwords”
v“Power management features”on page 28
v“Fn key combinations”on page 30
v“Product recovery program”on page 30
Power button as reset switch
The power button acts as a reset switch when pressed for
more than 4 seconds. This resets the system (regardless
of the microcode status) and forces the power off. Use this
only when power is not completely off or the microcode is
in a hung state.
Running a low-level format
Attention: Make sure the drive address to be formatted
is correct. This procedure erases all information on the
disk.
To format the hard disk, select Utility, and then use the
Full Erase Hard Drive or Quick Erase Hard Drive in
Utility of the PC-Doctor for DOS program. Refer to “Testing
the computer”on page 34.
Service Web site
When the latest maintenance diskette and system program
service diskette are available, they are posted on:
Maintenance diskette:
http://www.pc.ibm.com/partner/infotips
System program service diskette:
http://www.pc.ibm.com/us/files.html or
http://www.pc.ibm.com/qtechinfo/TPAD-MATRIX.html
Passwords
When the power-on password (POP), hard disk password
(HDP), and supervisor password (SVP) are used, the
following situations may occur:
vIf the POP is the same as the HDP, the POP prompt
appears, but the HDP prompt does not appear.
vIf the POP is not the same as the HDP, both prompts
appear.
vWhen SVP is set, POST should invoke BIOS setup
without erasing POP. Before entering BIOS setup SVP
26 ThinkPad R30/R31 HMM
will be prompted. If correct SVP is entered, POST enters
BIOS setup without erasing POP. To boot up the system
user should override POP by SVP at the password
sub-menu.
vWhen SVP is not set, POST erase the POP and then
boots up the system.
Power-on passwords
Power-on password is a security feature that is used to
protect the system from unauthorized access. If power-on
password is forgotten, follow the procedure described in ″
Removing the Power-on password″.
Supervisor password
A supervisor password (SVP) protects the system
information stored in the IBM BIOS Setup Utility . The SVP
must be entered in order to access the IBM BIOS Setup
Utility and make changes to system configuration settings.
Attention: If the SVP has been forgotten and cannot be
made available to the servicer, there is no service
procedure to reset the password. The system board must
be replaced for a scheduled fee.
Removing the power-on password
If the customer forgets the power-on password, follow this
procedure to erase POP if SVP is not set:
1. Turn off the system.
2. Set DIP SW “Switch Locations”on page 193.
3. Turn on the system, and confirm the system starts
without prompting for Power-on password.
4. Turn off the system.
5. Set DIP SW “Switch Locations”on page 193.
If SVP is set, do the followings to erase POP:
1. Power on the computer and press F1 to enter the
BIOS Utility menu.
2. Enter correct SVP (Supervisor password) at the
password prompt.
MT 2656, 2657, 2676 27
3. The main screen displays as below:
4. Using the up or down arrow key, select Password.
5. Press the Enter key.
The following submenu is displayed:
* Power-On password
* Supervisor password
* Lock BIOS setting
* Hard disk x password
6. Select Power-On password and press Enter .
7. Type in correct SVP at ″Enter Current Password″
and press Enter.
8. PressEnter at ″Enter New Password″.
9. Press Enter at ″Confirm New Password″.
10. Press Enter in the Changes have been saved
window.
11. Press F10; then select Yes in the Setup confirmation
window.
Hard disk password
The hard disk password is a security feature that is used
to protect the hard disk data from unauthorized access.
Attention: If the hard disk password is forgotten, IBM
does not provide any services to reset the hard drive
password nor recover data from the hard drive. The hard
drive can be replaced for a scheduled fee.
Power management features
Power management modes are available in the computer
system to reduce power consumption and to prolong
battery life.
28 ThinkPad R30/R31 HMM
Standby mode
When in standby mode, the following occurs:
vThe LCD backlight turns off.
vThe hard disk motor either spins down or stops
(controlled by OS).
vSuspend LED turns on.
Events that cause the computer to enter standby mode:
Note: These events depend on the Power button, Sleep
button and Lid settings (options set to standby
mode) in the ″Advanced″page of the ″Power
Management Properties″screen.
vStandby requested by the Sleep button (Fn+F4)
vStandby requested by the power button
vStandby requested by closing the lid.
Events that cause the computer to exit standby mode:
vRTC alarm
vPower-on switch is operated
vFn key is pressed
vThe LCD is opened (if the system entered standby
mode from closing the lid).
Note: ThisistrueifWhen I close the lid of my
portable computer: is set to Standby in the
″Advanced″page of the ″Power Management
Properties″screen.
vAn embedded modem signals the modem ring indicator
vThe battery power is at a critical level.
Display off mode
When in display off mode, the following occur:
vThe LCD backlight turns off.
Events that cause the computer to enter display off mode:
vHotkey : Fn+F3
Events that cause the computer to exit display off mode:
vAnykey or mouse operation
Hibernation mode
When in hibernation mode, the following occurs:
vThe system status, RAM, VRAM, and setup data are
stored on the hard disk.
vThe system is powered off.
Events that cause the computer to enter hibernation mode:
MT 2656, 2657, 2676 29
Note: These events depend on the Power button, Sleep
button and Lid settings (options set to hibernate
mode) in the ″Advanced″page of the ″Power
Management Properties″screen.
vHibernation requested by the Sleep button (Fn+F4) or
(Fn+F12)
vHibernation requested by the power button
vHibernation requested by closing the lid.
Events that cause the computer to exit hibernation mode:
vRTC alarm
vPower-on switch is operated
vWOL (wake on Lan)
When power is turned on, the hibernation history in the
boot record on the hard disk is recognized and the system
status is restored from the hard disk to resume operation.
Fn key combinations
The following table shows the Fn key and function key
combinations and their corresponding functions. Some of
the keys do not work if proper device drivers and utilities
are not installed.
Fn key Function
Fn+F3 Display off
Fn+F4 Sleep button
Fn+F7 Switch display output location.
Fn+F8 Display expansion
Fn+F12 Hibernation
Fn+PageUp Thinkpad light
Fn+Home Brightness up
Fn+End Brightness down
Product recovery program
Restoring the Pre-installed Software
To restore the pre-installed software, you can use either
the Product Recovery program or a Recovery CD. The
Product Recovery program is in a section of the hard disk
drive (the Service Partition) that is not displayed by
Windows Explorer. Use the Recovery CD if it was provided
with the computer.
Note: The recovery process might take up to 2 hours.
To use the Product Recovery program to restore the
pre-installed software, do the following:
30 ThinkPad R30/R31 HMM
1. Save all files and shut down the desktop.
2. Turn off the computer.
3. Turn on the computer. Quickly press F11 when this
message is displayed on the screen: ...″To start the
Product Recovery program, press F11″.....This
message is displayed for only a few seconds.
Note: If this message does not appear, you can use a
Recovery Repair diskette to get access to the
Product Recovery program.(see“Creating a
Recovery Repair diskette”on page 32 for
instructions for making the Recovery Repair
diskette)
4. From the list displayed on the screen, select the
operating system you want to recover.
5. Select the recovery options you want, and follow the
instructions on the screen.
Creating the Service Partition
To create Service Partition and install the preloaded
system from Recovery CD, do the following;
To create Service Partition [SP]:
1. Erase all partitions on the hard-disk drive using
FDISK or similar application.
2. Boot with Recovery CD (and boot diskette if required).
3. A menu will appear stating ″Your computer
originally included a Product Recovery program ...
Reinstall the Product Recovery Program? (Y/N) [
]″.}.
Note: If the hard-disk drive contains any partitions,
you will not receive this menu - go to step 1.
4. Enter ″Y″and Service Partition will be created and
loaded with D2D files.
Note: If you do not want to create Service Partition,
press ″N″, and the d then go to step 8.
5. Press ″Enter″at next window to continue.
* Service Partition will be created. System will
automatically reboot during this process.
* Recovery process will copy some files to the Service
Partition, PKUNZIP others
* Follow prompts - you may be prompted to change
CDs.
* System will reboot when complete, continue to step
6 to install preloaded system.
Install preloaded system from CD:
6. Boot with Recovery CD (and boot diskette if required)
MT 2656, 2657, 2676 31
7. If the hard-disk drive is blank, a menu will appear
stating ″Your computer originally included a
Product Recovery program ... Reinstall the
Product Recovery Program? (Y/N) [ ]″.}.
* To install Service Partition, go to step 4.
* To preload hard-disk drive without installing Service
Partition, press ″N″.
8. If a menu appears asking which operating system to
install, highlight proper operating system and press
″″ENTER″.
9. A menu will appear stating ″Full Recovery:″. Press
″″ENTER″to select.
10. Enter ″Y″at the three windows which follow.
11. Follow prompts to complete Recovery.
Creating a Recovery Repair diskette
The Recovery Repair diskette is used to recover the
prompt that is needed to access the Product Recovery
program, if the prompt does not appear. Make a Recovery
Repair diskette and save it for future use.
To make a Recovery Repair diskette:
1. Shut down and turn off the computer.
2. Attach the external diskette drive to the computer.
3. At the prompt, pressF11. (The option to pressF11
appears for only a few seconds. You must press F11
quickly.) The Product Recovery program main menu
appears.
4. If you are using Windows 2000 Professional, you will
be prompted to select the appropriate operating system
setting. This menu does not appear for Windows 98
SE.
5. Select System Utilities from the main menu. Press
Enter.
6. Select Create a Recovery Repair diskette. Press Enter.
7. Follow the on-screen instructions.
8. When the process is completed, label the diskette as
the Recovery Repair diskette and save it for future use.
To use the Recovery Repair diskette:
1. Shut down and turn off the computer.
2. Attach the external diskette drive to the computer.
3. Insert the Recovery Repair diskette into the drive; then
turn on the computer.
4. Follow the on-screen instructions.
32 ThinkPad R30/R31 HMM
Flash BIOS
Please do the following to update BIOS.
To update BIOS:
1. Create the diskette image by the following command:
LOADDSKF 1FUDxxUS.DSK A:
Note: XX: Translate to appropriate number.
2. Boot from the diskette. (Please make sure already
attach AC and Battery)
3. When completed, the system is automatically turned
off.
4. Make sure there is no diskette in the diskette drive,
then turn on the computer.
5. PressF1 key into BIOS setup Utility during the boot
time.
Note: ″Press F1 for IBM BIOS Setup Utility″message
is displayed at the lower-left area of the screen.
6. Press the F9 key to load default configuration.
7. Select Yes.
8. Press the F10 key to save default configuration.
9. Select Yes. The system will restart automatically.
MT 2656, 2657, 2676 33
Checkout guide
Use the following procedure as a guide for computer
problems.
Note: The diagnostic tests are intended to test only IBM
products. Non-IBM products, prototype cards, or
modified options can give false errors and invalid
system responses.
1. Obtain the failing symptoms in as much detail as
possible.
2. Verify the symptoms by attempting to recreate the
failure by running the diagnostic test or by repeating
the same operation.
Testing the computer
The ThinkPad computer has a test program called
PC-Doctor DOS (hereafter called PC-Doctor). You can
detect errors by running the diagnostics test of PC-Doctor.
This section is an overview on detecting the problem.
Refer to “Product overview”on page 102 for details that
depend on model-unique functions.
To run the test, do the following:
Note: In the following procedure, you can select an item
not only with the arrow keys, but also with the
TrackPoint. Instead of pressing Enter, you also can
click the left click button.
1. Insert the PC-Doctor DOS Disk into the diskette drive;
then power on the computer.
If the computer cannot be powered on, go to “Power
systems checkout”on page 36 and check the power
sources.
If an error code appears, go to “Symptom-to-FRU
Index”on page 40.
The PC-Doctor main panel appears.
2. Select Diagnostics with the arrow keys, and press
Enter.
A pull-down menu appears:
Note: The pull-down menu differs depending on the
model.
3. Run the applicable function test.
4. Follow the instructions on the screen. If there is a
problem, PC-Doctor shows some messages.
5. Reseat the cable or connector of the detected FRU
and run the test again.
34 ThinkPad R30/R31 HMM
If the error recurs, replace the FRU that caused the
error.
Note: With some FRUs, especially the system board,
the problem may be caused by peripheral
FRUs. Verify that each peripheral FRU, such as
the flexible cable, has no problem by doing the
following:
a. Replace each peripheral FRU one at a time,
and run the test again.
b. If the peripheral FRUs have no problem,
replace the main FRU itself.
To see the FRU structure of each model,
refer to “Product overview”on page 102.
6. To exit the test, select Quit –Exit Diag.
To cancel the test, press Esc.
The following table lists the options on the test menu.
Diagnostics Interactive Tests
vRun Normal Test
vRun Quick Test
vCPU/Coprocessor
vSystemboard
vVideo Adapter
vSerial Port
vParallel Port
vFixed Disks
vDiskette Drives
vOther Devices
vWireless network controller
(802.11b)
vMemory Test –Full
vMemory Test –Quick
vKeyboard
vVideo
vInternal Speaker
vMouse
vJoystick Test
vDiskette Test
vSystem Load
vCD-ROM/DVD
vStereo Speaker
Note: In Keyboard test within Interactive Tests, the Fn key is
scanned only once. Each key should be pressed for at least 2
seconds; otherwise, it cannot be sensed.
Related service information
PC-Doctor can detect the following system information:
Hardware Info:
vSystem Configuration
vMemory Contents
vPhysical Disk Drive
vLogical Disk Drive
MT 2656, 2657, 2676 35
vVGA Information
vIDE Drive Information
vPCI Information
vPNPISA Information
vSMBIOS Information
vFRU Information
vVESA LCD Information
Utility:
vRun External Tests
vSurface Scan Hard Disk
vBenchmark System
vDOS Shell
vTech Support Form
vBattery Rundown
vView Test Log
vPrint Log
vSave Log
vFull Erase Hard Drive
vQuick Erase Hard Drive
Power systems checkout
To verify the symptom of the power problem on the
computer, do the following:
1. Power off the computer.
2. Remove the battery pack.
3. Connect the AC Adapter.
4. Check that power is supplied when you power on the
computer.
5. Power off the computer.
6. Disconnect the AC Adapter and install the charged
battery pack.
7. Check that power is supplied by the battery pack when
you power on the computer.
If you suspect a power problem, refer the appropriate
power supply check listed below:
v“Checking the AC Adapter”
v“Checking operational charging”on page 37
v“Checking the Battery ASM”on page 38
Checking the AC Adapter
You care here because the computer fails only when the
AC Adapter is used:
36 ThinkPad R30/R31 HMM
vIf the power-on indicator does not turn on, check the
power cord of the AC Adapter for correct continuity and
installation.
vIf the operational charge does not work, go to “Checking
operational charging”.
Unplug the AC Adapter cable from the computer and
measure the output voltage at the plug of the AC Adapter
cable. See the following figure:

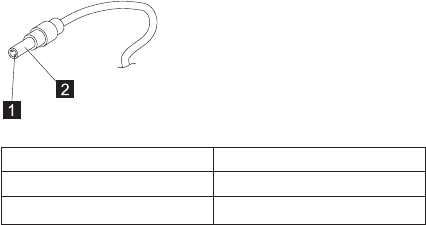

Pin Voltage (V dc)
1 15.5 V. - 17.0 V.
2 Ground
If the voltage is not correct, replace the AC Adapter.
If the voltage is within the range, do the following:
vReplace the system board.
vIf the problems still persist, go to “Undetermined
Problems”on page 49.
Note: An audible noise from the AC Adapter does not
always indicate a defect.
Checking operational charging
To check operational charging, use a discharged battery
pack (Battery ASM) or a Battery ASM that has less than
50% of the total power remaining when installed in the
computer.
Perform operational charging. If the battery status indicator
or icon does not turn on, remove the Battery ASM and let it
return to room temperature. Reinstall the Battery ASM. If
the charge indicator or icon still does not turn on, replace
the Battery ASM.
If the charge indicator still does not turn on, replace the
system board. Then reinstall the Battery ASM. If the
reinstalled Battery ASM is not charged, go to the next
section.
MT 2656, 2657, 2676 37
Checking the Battery ASM
Note: The Battery ASM may not be able to charged when
it is hot. In that case, remove it from the computer
and leave it at room temperature for a while. After it
cools down, reinstall it and recharge it.
Do the following:
1. Power off the computer.
2. Remove the battery pack and measure the voltage
between battery terminals 1 (+) and 6 (-). See the
following figure.
1
2
3
4
5
6
Terminal Pin No. Description
1 1 +0 to +12.6 for LiION
+0 to +13V for NiMH
2 Slit Isolation slit
3 4 Thermistor
4 5 Battery —
Note: Signal lines, not used in these steps, are used
for communications between the system and the
battery.
3. If the voltage is less than +11.0 V dc, the battery pack
has been discharged. Note: Recharging will take at
least 3 hours, even if the indicator does not turn on. If
the voltage is still less than +11.0 V dc after
recharging, replace the battery.
4. If the voltage is more than 8V for NiMH, 9V for LiION,
measure the resistance between battery terminals 5
and 6. The resistance must be 4 to 30K.Ifthe
38 ThinkPad R30/R31 HMM
resistance is not correct, replace the Battery ASM. If
the resistance is correct, replace the system board.
MT 2656, 2657, 2676 39
Symptom-to-FRU Index
The Symptom-to-FRU Index lists the symptoms and errors
and the possible causes. The most likely cause is listed
first.
Note: Perform the FRU replacement or actions in the
sequence shown in the FRU/Action columns. If a
FRU does not solve the problem, put the original
part back in the computer. Do not replace a
non-defective FRU.
This index can also be used to help you decide which
FRUs should be available when servicing a computer.
Numeric error codes show the errors detected in POST or
system operation (runtime). In the following error codes, X
can be any number.
If no codes are available, use narrative symptoms.
If the symptom, is not listed, go to “Undetermined
Problems”on page 49.
Note: For any IBM device not supported by the diagnostic
codes in this ThinkPad computer, see the manual
for that device.
Numeric Error Codes and Messages
Error
Code Message Meanings Comment
0200 Failure Fixed
Disk
Fixed disk is not
working or not
configured
properly. Check
to see if fixed
disk is attached
properly. Run
setup. Find out if
the fixed-disk
type is correctly
identified.
Check whether
fixed disk is
attached
properly (e.g.
cable, jumper,
power,..). Enter
Setup to check if
the fixed disk
type is correctly
identified.
010 Memory Error
at mmmm:
nnnn
Extended
memory not
working or not
configured
properly at offset
nnnn,
Change memory
module.
40 ThinkPad R30/R31 HMM
Error
Code Message Meanings Comment
0250 System battery
is dead Replace
and run SETUP
The CMOS clock
battery indicator
shows the
battery is dead.
Replace the
battery and run
Setup to
reconfigure the
system.
Replace the
CMOS battery
and Run Setup
to reconfigure
the system.
0251 System CMOS
checksum
bad-default
configuration
System CMOS
has been
corrupted or
modified
incorrectly,
perhaps by an
application
program that
changes data
stored in CMOS.
The BIOS
installed Default
Setup Values. If
you do not want
these values,
enter Setup and
enter your own
values. If the
error persists,
check the system
battery or contact
your dealer.
Enter Setup to
configure the
system. If the
error persists,
check the
system battery.
0270 Real time clock
error
Real-Time Clock
fails BIOS
hardware test.
May require
board repair.
The mainboard
may need the
system date and
time.
0271 Check date and
time settings
BIOS found date
or time out of
range and reset
the Real-Time
Clock. May
require setting
legal date
(1991–2099).
Enter Setup to
reconfigure the
system date and
time.
MT 2656, 2657, 2676 41
Error
Code Message Meanings Comment
0280 Previous boot
incomplete-
Default
configuration
used
Previous POST
did not complete
successfully.
POST loads
default values
and offers to run
Setup. If the
failure was
caused by
incorrect values
and they are not
corrected, the
next boot will
likely fail. On
system with
control of wait
states, improper
Setup settings
can also
teminate POST
and cause this
error on the next
boot. Run Setup
and verify that
wait-state
configuration is
correct. This
error is cleared
the next time the
system is
booted.
IBM customized
not to display
this message.
041
043
Floppy drive
Aerror
Floppy drive B
error
Drive A: or B: is
present but fails
the BIOS POST
diskette tests.
CHeck to see
that the drive is
defined with the
proper diskette
type in Setup
and that the
diskette drive is
attached corretly.
Check Floppy
drive is attached
correctly. Enter
Setup to check
the type of
floppy drive is
correct (1.44MB
3.5″, for
example).
0175 Bad CRC1,
stop POST task
EEPROM CRC1
is not correct
(block #6).
Replace planar.
0188 Invalid RFID
Serialization
Information
Area or Bad
CRC2
EEPROM
checksum is not
correct (block
#0,1).EEPROM
CRC2 is not
correct (block
#6).
Replace planar.
Box serial
number needs
to be reinstalled.
0189 Invalid RFID
Configuration
Information
Area
EEPROM
checksum is not
correct (block
#4,5).
Replace planar.
UUID needs to
be reinstalled.
42 ThinkPad R30/R31 HMM
Error
Code Message Meanings Comment
0193 RF antenna had
been removed
RFID antenna
has been
removed, which
was once
installed.
RFID model
only.
0194 The computer is
carried through
the security
gate
The computer is
carried through
the security gate
(portal gate).
RFID model
only.
0197 Invalid remote
change
requested
The remote
chnfiguration for
the security chip
has failed.
Confirm the
operation and try
again.
System go into
BIOS Setup
automatically.
Beep Symptoms
Event Description S1/S3 Beep
POST
Diagnostic
boot
End Diagnostic
boot
N/A 1 short beep
Post error N/A 3 short beeps
Low battery
warning beep
N/A 4 short beeps
Critical
Thermal
System POST N/A 3 long beeps
DRAM type
error
PC133 SDRAM
only
N/A 2 long beeps
Responses of
Boot Block
BIOS Flash
Success N/A 2 long, 1 short, and
then 1 long beep
BIOS file size
mismatch
N/A 1 long, 1 short beep
BIOS file
reading error
N/A 1 long, 2 short beeps
Floppy drive not
installed
N/A 2 short beeps
Run Time /
Sleep state
BaySwap
alarm
Inhibit bay swap Yes Continuous 2 short, 1
long beeps .
AC
attach/detach
NO 1 short beep
Power Control
Beep
System enters /
resume from
S1/S3/S4 state.
N/A 1 short beep
Volume control
beep
Volume key
Up/Down
N/A 1 short beep
MT 2656, 2657, 2676 43
LCD-Related Symptoms
LCD FRU Replacement Notice
The TFT LCD for the computer contains many
thin-film transistors (TFTs). A small number of
missing, discolored, or lighted dots (on all the time)
is characteristic of TFT LCD technology, but
excessive pixel problems can cause viewing
concerns. The LCD should be replaced if the
number of missing, discolored, or lighted dots in any
background is:
vXGA : 8 or more bright dots, 8 or more dark dots,
or a total of 9 or more bright and dark dots.
Symptom/Error FRU/Action in Sequence
LCD backlight does not
work.
LCD is too dark.
LCD brightness cannot
be adjusted.
vKeyboard (if contrast and
brightness function keys do not
work)
vReseat LCD connector
vCheck LCD inverter ID
vLCD Cable ASM
vLCD Inverter/LED board
(13.3″/14.1″)
vLCD
vSystem board
Unreadable LCD screen.
Missing pixels in
characters.
Abnormal screen
Wrong color displayed.
vReseat LCD connector
vCheck LCD inverter ID
vLCD Cable ASM
vLCD Inverter/LED board
(13.3″/14.1″)
vLCD
vSystem board
LCD has extra horizontal
or vertical lines
displayed.
vCheck LCD inverter ID
vLCD Cable ASM
vLCD Inverter/LED board
(13.3″/14.1″)
vLCD
vSystem board
44 ThinkPad R30/R31 HMM
Keyboard/TrackPoint-Related
Symptoms
Symptom/Error FRU/Action in Sequence
Keyboard (one or more
keys) doesn’t work.
vGo to “FRU tests”on page 54.
vReseat keyboard cable.
vKeyboard
vSystem board
TrackPoint does not
work.
vGo to “FRU tests”on page 54.
vReseat keyboard cable.
vKeyboard
vSystem board
Indicator-Related Symptoms
Symptom/Error FRU/Action in Sequence
Indicator incorrectly
remains off or on, but
system runs correctly.
vReseat Inveter/LED board
(13.3″/14.1″)
vInveter/LED board (13.3″/14.1″)
vSystem board
vCoaxial cable
Power-Related Symptoms
Symptom/Error FRU/Action in Sequence
Power shuts down during
operation.
vGo to “Power systems checkout”on
page 36.
vAC Adapter
vBattery assembly
vKeyboard
vSystem board
The system doesn’t
power on.
vGo to “Power systems checkout”on
page 36.
vAC Adapter
vBattery assembly
vKeyboard
vSystem board
The system doesn’t
power off.
vGo to “Power systems checkout”on
page 36.
vHold and press the power switch
for more than 4 seconds.
vKeyboard
vSystem board
MT 2656, 2657, 2676 45
Symptom/Error FRU/Action in Sequence
Battery can’t be charged. vGo to “Power systems checkout”on
page 36.
vBattery assembly
vSystem board
Memory-Related Symptom
Symptom/Error FRU/Action in Sequence
Memory count (size)
appears different from
the actual size. (The
main memory with 8MB
of VGA.)
vGo to “FRU tests”on page 54.
vEnter BIOS Utility and execute
″Load Setup Default Settings″; then
reboot the system.
vDIMM
vSystem board
Audio-Related Symptoms
Symptom/Error FRU/Action in Sequence
Internal speakers make
noise or emit no sound.
vSpeaker volume control
vGo to “FRU tests”on page 54.
vSpeaker(s)
External speakers make
noise or emit no sound.
vSpeaker volume control
vGo to “FRU tests”on page 54.
vSpeaker(s)
In DOS or Windows,
multimedia programs, no
sound comes from the
computer. (Only system
beeps are heard at
power-on.)
vSpeaker volume control
vGo to “FRU tests”on page 54.
vSpeaker(s)
PC Card (PCMCIA)-Related Symptoms
Symptom/Error FRU/Action in Sequence
System cannot detect the
PC Card (PCMCIA)
vPC Card (PCMCIA) holder
assembly
vSystem board
PCMCIA slot pin is
damaged.
PC Card (PCMCIA) holder assembly
46 ThinkPad R30/R31 HMM
Power Management-Related Symptoms
Symptom/Error FRU/Action in Sequence
The system doesn’t enter
hibernation mode.
vGo to “Hibernation mode”on
page 29.
vBoot an operating system and
press Fn+F12 and see if the
computer enters hibernation mode.
vKeyboard
vHard disk drive connector
vHard disk drive
vSystem board
The system doesn’t
resume from hibernation
mode.
vGo to “Hibernation mode”on
page 29.
vHard disk drive connector
vHard disk drive
vSystem board
The system doesn’t enter
into or resume from
sleep mode after closing
the LCD.
vLid switch
vSystem board
vLid close action in the power
operation properties of the OS
System configuration
does not match the
installed devices.
vEnter BIOS Utility and execute
″Load Setup Default Settings″; then
reboot the system.
vReseat Hard disk/diskette/CD-ROM
drive connector.
System hangs
intermittently.
vReseat hard disk/diskette/CD-ROM
drive connector.
vFan ASM (go to “FRU tests”on
page 54).
vSystem board
Peripheral-Device-Related Symptoms
Symptom/Error FRU/Action in Sequence
External display does not
work correctly.
vBoth display mode, press Fn+F7.
vSystem board
Printer problems. vRun printer self-test.
vPrinter driver
vPrinter cable
vEnsure that ″Parallel Port″in the
″Config sub-menu″menu of the
BIOS Utility is correctly set.
vSystem board
MT 2656, 2657, 2676 47
Symptom/Error FRU/Action in Sequence
Parallel port device
problems.
vDevice driver
vDevice cable
vDevice
vEnsure that ″Parallel Port″in the
″Config sub-menu″menu of the
BIOS Utility is correctly set.
vSystem board
Modem-Related Symptom
Symptom/Error FRU/Action in Sequence
Internal modem does not
work correctly
vGo to “FRU tests”on page 54.
vModem connector
vModem board
vSystem board
Operating System-Related Symptom
Symptom/Error FRU/Action in Sequence
Operating system not
found
vCheck that the operating system
has no failure and is installed
correctly.
vCheck the Boot device list in the
startup/Boot sub-menu is enabled
on each bootable device.
vEnter IBM BIOS Setup Utility and
see whether the hard disk drive
and the diskette drive are properly
identified.
vReseat the hard disk drive.
vReinstall the operating system.
vDiskette drive
vHard disk drive
vSystem board
Intermittent Problems
Intermittent system hang problems can be caused by a
variety of reasons that have nothing to do with a hardware
defect, such as cosmic radiation, electronic discharge, or
software errors. FRU replacement should only be
considered when a recurring problem exists.
When analyzing on intermittent problem, do the following:
48 ThinkPad R30/R31 HMM
1. Run the diagnostic test for the system board at least
10 times.
2. If no error is detected, do not replace any FRUs.
3. If any error is detected, replace the FRU. Rerun the
test to verify that there are no more errors.
Undetermined Problems
The diagnostic tests did not identify which adapter or
device failed, which installed devices are incorrect, whether
a short circuit is suspected, or whether the system is
inoperative. Follow the procedures below to isolate the
failing FRU.
Verify that the power supply being used at the time of the
failure is operating correctly.
1. Power off the computer.
2. Check the cables, wires, and connectors for short
circuits and open circuits. Visually check them for
damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
vNon-IBM devices
vPrinter, external mouse & keyboard, and other
external devices
vBattery pack
vHard disk drive
vCD-ROM drive/Diskette drive (optional)
vPC Card (PCMCIA)
4. Power on the computer.
5. Determine if the problem has changed.
6. If the problem does not occur again, reconnect the
removed devices one at a time until you find the failing
FRU.
7. If the problem remains, replace the following FRUs one
at a time. Do not replace a non-defective FRU.
vHard disk drive connection board
vLCD assembly
vSystem board
MT 2656, 2657, 2676 49
ThinkPad R30
This section applies to the following models: 2656, 2657,
2676.
50 ThinkPad R30/R31 HMM
Product overview
The following shows an overview of the system features.
Feature Description
Processor Intel Pentium III Celeron processor
800/100, 900/100 MHz, 1 GHz, L2
cache
Bus architecture Host bus 64bits/100 MHz, PCI 32
bits/33 MHz, ISA 16 bits/8.33 MHz,
PCMCIA 16 bits/33MHz, Cardbus 32
bits/32 MHz
System memory 64 MB or 128 MB base main memory
on system board PC 133
Two 144pins SODIMM slots supports
64 MB, 128MB, 256MB, and 512MB
DIMM card
Maximum frequency: PC 133
Maximum size: 1024 MB
CMOS RAM 242 bytes + 4 Kbytes
Video Trident Cyberblade Aladdin i1 with
2D/3D Graphics accelerator.
8MB Video RAM (share with system
memory)
13.3–inch, 32 bit true colors, 1024x768
pixel TFT XGA color LCD
14.1–inch, 32 bit true colors, 1024x768
pixel TFT XGA color LCD
Audio AC97 audio based on the Ali M1535
AC link DMA engine
16–bit audio
Internal stereo speakers
Diskette drive (optional) External 1.44MB (3–mode), 3.5 inch
floppy drive via USB interface
(Bootable)
Hard disk drive 10GB, 15GB or 30GB, 2.5–inch
9.5mm height, E-IDE interface
CD-ROM drive CD-ROM: 5.25–inch, 24X speed,
E-IDE interface
DVD—ROM : 8X speed
DVD/ CD—RW : 6X DVD/ 4X, 24X
CD-RW
CD-RW
Modem Integrated CDC soft Modem based on
the Ali M1535 AC link DMA engine 56
Kbps Data/Fax Modem
MT 2656, 2657, 2676 51
Feature Description
Ethernet (optional) Intel 82550GY on board . It supports
10/100Mbps
IEEE 1394 (optional) Ti TSB43AB22 1394 controller on
board
IEEE 1394.a 4–pin connector —no
cable power
100Mbps, 200Mbps and 400Mbps
PC Card (PCMCIA) One Type I/II or Type III
I/O ports External monitor
Speaker-out
Microphone-in
DC-in
TV-out (S-Video out)
Parallel
Two USB
IEEE 1394a (optional)
Telephone (RJ11)
LAN (RJ45, optional)
Power 72–Watt AC Adapter
6–cell Li-Ion & 8–cell NiMH Battery
Packs (Dumb Battery)
Status indicators
The system-status indicators on the computer show the
current status of your computer by their on or off states
and colors (green and orange). Each indicator is identified
with a symbol. The following shows the location and the
52 ThinkPad R30/R31 HMM
meaning of each icon:

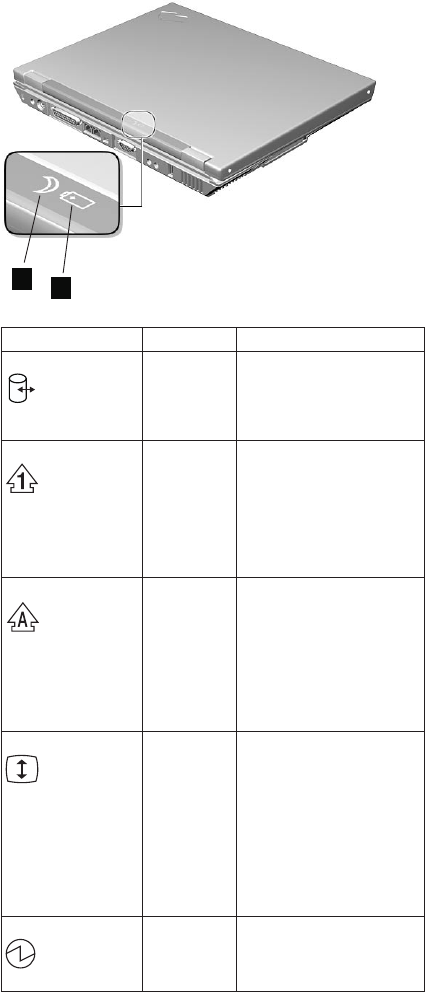

76
Symbol Color Meaning
(1) Drive in use Green Data is being read from or
written to the hard disk. Do
not enter standby mode or
power off the computer
when this indicator is on.
(2) Numeric lock Green The numeric keypad on the
keyboard is enabled. You
enable or disable the
keypad by pressing and
holding the Shift key, and
pressing the NumLk key.
For details, see the User’s
Reference.
MT 2656, 2657, 2676 53
Symbol Color Meaning
(3) Caps lock Green Caps Lock mode is
enabled. All alphabetic
characters (A-Z) are
entered in capital letters
without the Shift key being
pressed. You enable or
disable the Caps Lock
mode by pressing the Caps
Lock key.
(4) Scroll lock Green Scroll Lock mode is
enabled. The Arrow keys
can be used as
screen-scroll function keys.
The cursor cannot be
moved with the Arrow
keys. Not all application
programs support this
function. You enable or
disable Scroll Lock mode by
pressing the ScrLk key.
(5) Power on Green The computer is
operational. This indicator is
on when the computer is
on.
(6) Battery status Green Enough battery power
remains for operation.
Blinking
green
The battery power charges
up to 80% full power
Blinking
orange
The battery pack needs to
be charged
Orange The battery pack is being
charged.
(7) Standby mode Green The computer is in standby
mode
FRU tests
The following table shows the applicable test for each FRU
using PC-Doctor.
FRU Applicable test
System board 1. CPU/Coprocessor (Diagnostics)
2. System board (Diagnostics)
Power Battery (Diagnostics)
LCD unit 1. Video Adapter (Diagnostics)
2. Video (Interactive Tests)
54 ThinkPad R30/R31 HMM
FRU Applicable test
Modem 1. Make sure the modem set up
correctly.
2. Replacing the modem jack and
modem card one at a time, run the
modem tests in Other Devices
(Diagnostics)
Audio Internal Speaker (Interactive Tests)
Stereo Speaker (Interactive Tests)
Speaker System beeper: Internal Speaker
(Interactive Tests)
PC Card slots System board (Diagnostics)
Keyboard 1. Keyboard (Diagnostics)
2. Keyboard (Interactive Tests)
TrackPont or Pointing
device
If the TrackPoint does not work, see if an
external PS/2 mouse is connected to the
mouse/keyboard connector and remove
it. The TrackPoint is automatically
disabled if an external PS/2 mouse is
attached. Check also if the TrackPoint
driver is correctly installed by accessing
Windows Device Manager via the System
icon in the Control Panel.
After you use the TrackPoint, the pointer
drifts on the screen for a short time. This
self-acting pointer movement can occur
when a slight, steady pressure is applied
to the TrackPoint pointer. This symptom
is not a hardware problem. No service
actions are necessary if the pointer
movement stops in a short period of time.
If this does not correct the TrackPoint
problem, continue with the following:
Mouse (Interactive Tests).
Hard disk drive Fixed Disks (Diagnostics)
CD-ROM drive CD-ROM, DVD, CD-RW, DVD/CD-RW
(Interactive Tests)
Memory 1. If a DIMM is installed, remove it and
run Memory Test-Quick (Diagnostics)
2. If the problem does not recur, replace
the DIMM and run the test again.
3. If the test does not detect the error,
run Memory Test-Full (Diagnostics)
Fan 1. Power on system and check the air
turbulence at the louver at the rear of
the computer.
2. Run the fan test in Other Devices
(Diagnostics).
MT 2656, 2657, 2676 55
FRU removals and replacements
This section contains information about removals and
replacements.
vDo not damage any parts. Only certified and trained
personnel should service the computer.
vThe arrows in this section show the direction of
movement to remove a FRU, or to turn a screw to
release the FRU. The arrows are marked in numeric
order, in square callout, to show the correct sequence of
removal.
vAny FRUs that must be removed before removing the
failing FRU are listed at the top of the page.
vTo replace a FRU, reverse the removal procedure and
follow any notes that pertain to replacement. See
“Locations”on page 84 for internal cable connections
and arrangement information.
vWhen replacing a FRU, use the correct screw size, as
shown in the procedure.
Safety Notice 1
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before the computer is
powered-on after FRU replacement, make sure all
screws, springs, or other small parts are in place
and are not left loose inside the computer. Verify
this by shaking the computer and listening for
rattling sounds. Metallic parts or metal flakes can
cause electrical shorts.
Safety Notice 3
Translations in ″Safety Notices (Multi-lingual
Translations)″section: The battery pack contains
small amounts of nickel. Do not disassemble it,
throw it into fire or water, or short-circuit it. Dispose
of the battery pack as required by local ordinances
or regulations. Use only the battery in the
appropriate parts listing when replacing the battery
pack. Use of an incorrect battery can result in
ignition or explosion of the battery.
56 ThinkPad R30/R31 HMM
Safety Notice 8
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before removing any FRU,
power-off the computer, unplug all power cords from
electrical outlets, remove the battery pack, then
disconnect any interconnecting cables.
Attention: The system board is sensitive and can be
damaged by electronic discharge. Establish personal
grounding by touching a ground point with one hand before
touching these units.
An electrostatic discharge (ESD) strap (P/N: 6405959)
must be used to establish personal grounding.
1010 Battery assembly
12
Warning
Battery packs are capable of delivering high
currents for a significant amount of time. Do not
short the battery terminals.
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
1020 Mini-PCI cover and Mini-PCI card
v“1010 Battery assembly”
MT 2656, 2657, 2676 57

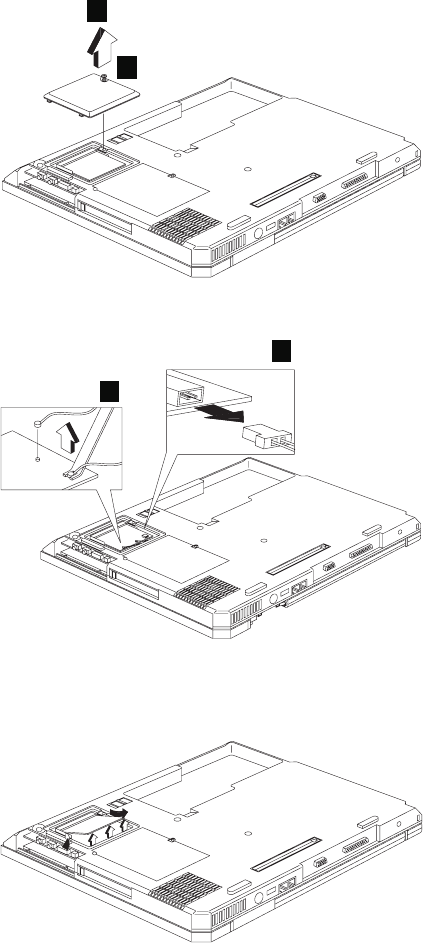

1
2
Note: The screw does not separate from the PCI cover.
3
4
Note: There are 2 cables on step 4 : The gray cable is the
main antenna and the black cable is the auxiliarey
antenna.
Note: When you install the PCI card, remember to press it
down and ensure the connection is well.
58 ThinkPad R30/R31 HMM

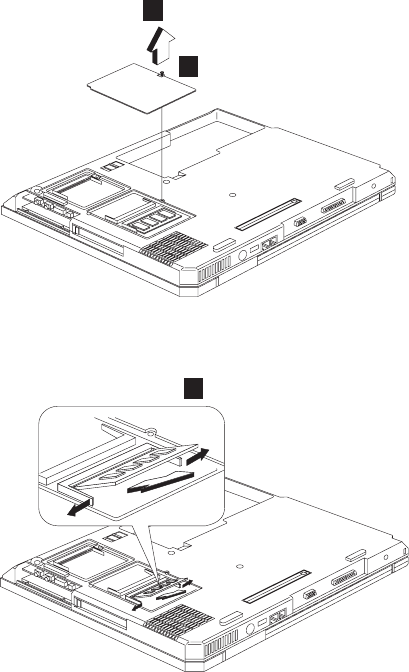

1030 Memory cover and Memory card
v“1010 Battery assembly”on page 57
1
2
Note: The screw does not separate from the memory
cover.
3
To install the memory card:
With the notched end of the memory card toward the right
side of the socket, insert the memory card, at an angle of
approximately 20°, into the socket; then press it firmly.
MT 2656, 2657, 2676 59
Pivot the memory card until it snaps into place.
Side View
1040 Hard disk drive assembly
v“1010 Battery assembly”on page 57
1
2
Step Size (Quantity) Color Torque
1 M3 x L4 (1) Black 3.2 kgf-cm
60 ThinkPad R30/R31 HMM
Warning
Do not drop or apply any shock to the hard disk
drive. The hard disk drive is sensitive to physical
shock. Incorrect handling can cause damage and
permanent loss of data on the drive.
Before removing the drive, have the user make a
backup copy of all the information on the drive if
possible.
Never remove the drive while the system is
operating or is in suspend mode.
1050 CD-ROM assembly
v“1010 Battery assembly”on page 57

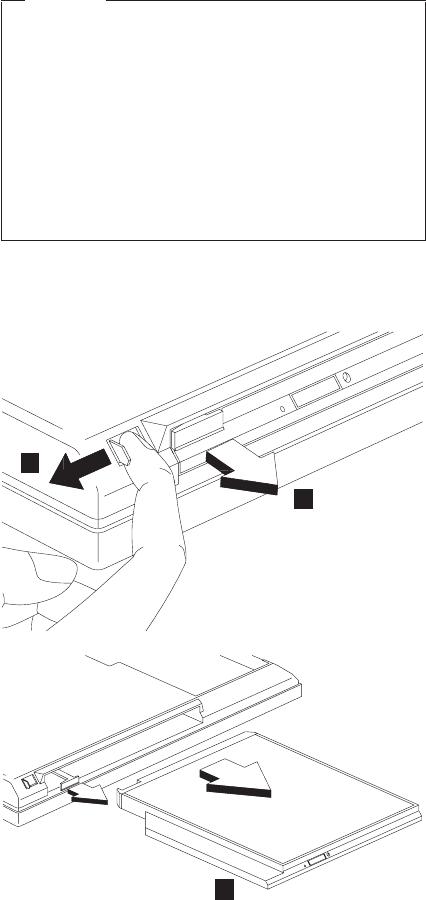

1
2
3

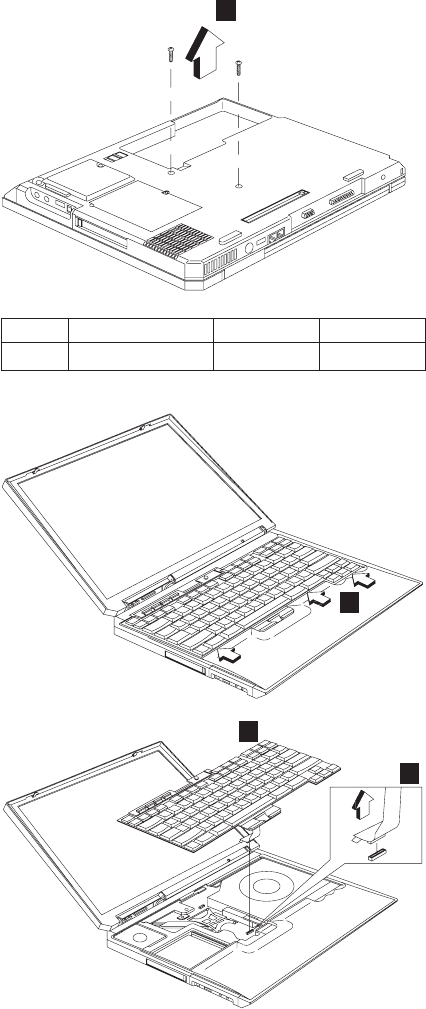

1060 Keyboard
v“1010 Battery assembly”on page 57
MT 2656, 2657, 2676 61

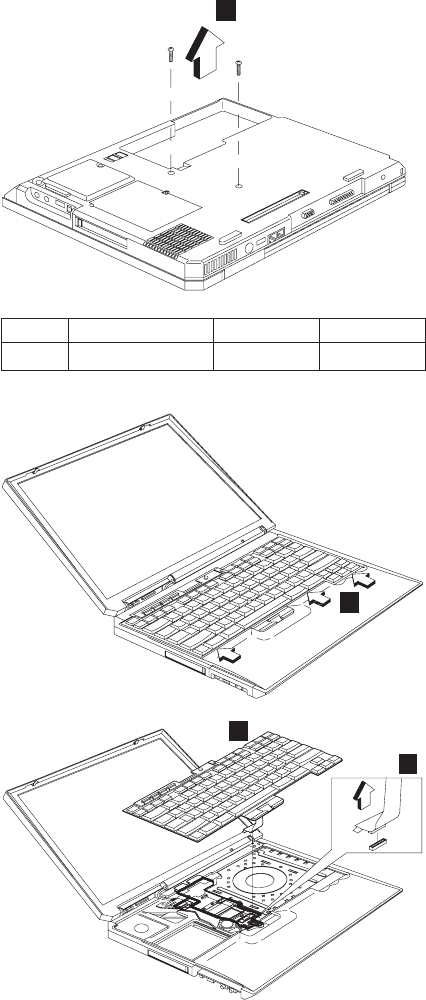

1
Step Size (Quantity) Color Torque
1 M2.5 x L10 (2) Black 3.2 kgf-cm
2
33
3
4
62 ThinkPad R30/R31 HMM
Notes:
1. When replacing the keyboard, make sure that the cable
is clean and insert it directly into the connector, making
sure it makes contact with the bottom of the connector.
2. If the cable do not touch the bottom of the connector,
the keyboard function will be rendered useless.
3. The cable of the keyboard are fragile and could be
damaged. Be careful when pulling out the cable.

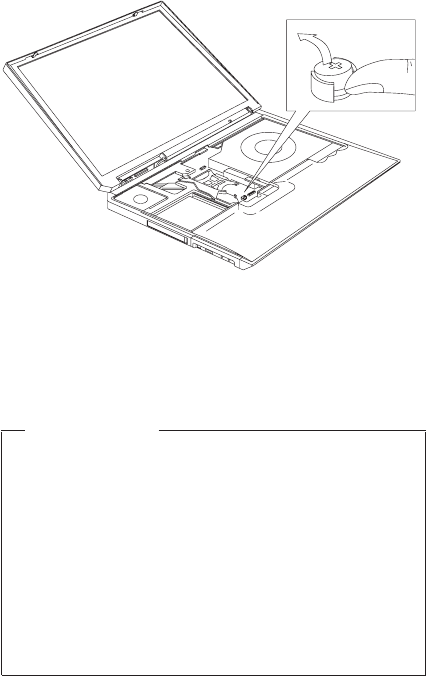

1070 Backup battery
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to manufacturer’s instruction.
Safety Notice 4
Translation in ″Safety Notices: Multi-lingual
Translations″section: The backup battery is a
lithium battery and can cause a fire, an explosion, or
severe burns. Do not recharge it, remove its
polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell
contents to water. Dispose of the battery as required
by local ordinances or regulations. Use of an
incorrect battery can result in ignition or explosion of
the battery. Replacement batteries can be ordered
from IBM or IBM Authorized Dealers.

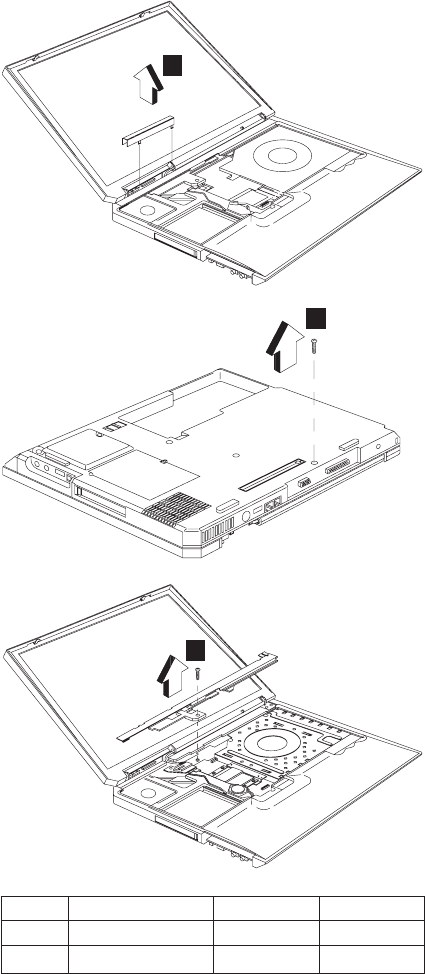

1080 Middle cover
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
MT 2656, 2657, 2676 63
1
2
3
Step Size (Quantity) Color Torque
2 M2.5 x L10 (1) Black 3.2 kgf-cm
3 M2.5 x L10 (1) Black 3.2 kgf-cm
64 ThinkPad R30/R31 HMM
1090 LCD assembly
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
1
2
3
MT 2656, 2657, 2676 65
Note: Release the gray cable, which is the main antenna
from the system.
4
4
5
Step Size (Quantity) Color Torque
4 M2.5 x L10 (4) Black 3.2 kgf-cm
5 M2.5 x L5 (1) Silver 3.2 kgf-cm
6

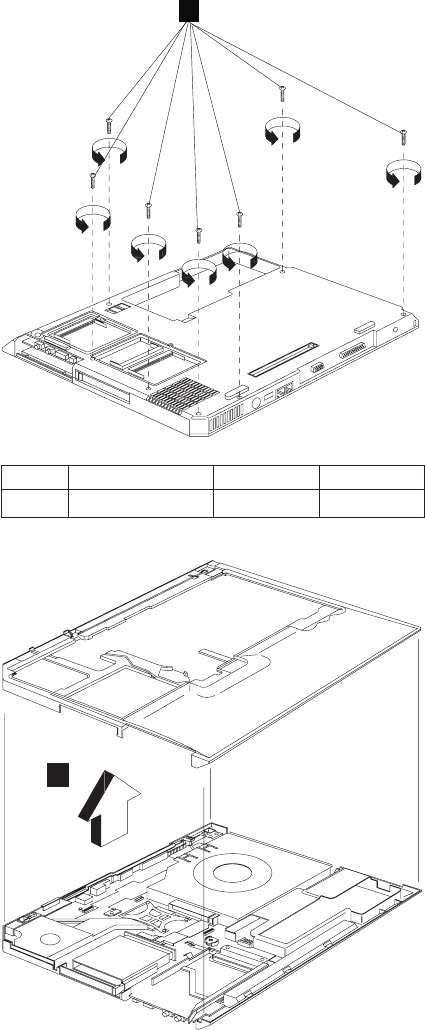

1100 Keyboard bezel
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
66 ThinkPad R30/R31 HMM
1
Step Size (Quantity) Color Torque
1 M2.5 x L10 (7) Black 3.2 kgf-cm
2
MT 2656, 2657, 2676 67
CAUTION:
The keyboard bezel has several latches. When
removing the keyboard bezel from the bottom cover,
gently release these latches, then raise the side of the
keyboard bezel facing the palm rest to remove it. Be
careful not to break the latches.
1110 PCMCIA holder
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
1
2
Step Size (Quantity) Color Torque
2 M2 x L6 (3) Silver 1.6 kgf-cm
68 ThinkPad R30/R31 HMM
3
Note: Before removing and replacing the PCMCIA holder,
make sure that the PCMCIA cards are removed and
the eject levers are sticking out.
1120 Auxiliary Antenna
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66

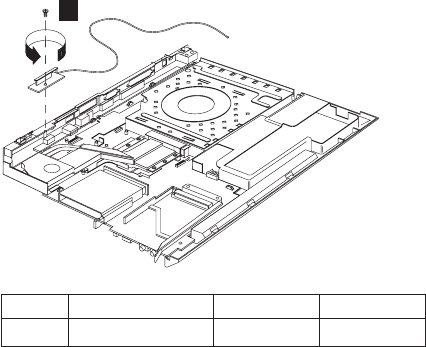

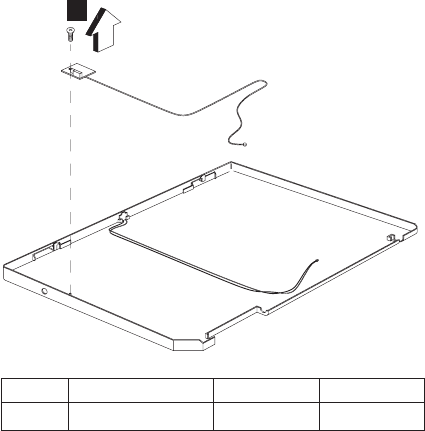

1
Step Size (Quantity) Color Torque
1 M2 x L4(1) Silver 2.5 kgf-cm
MT 2656, 2657, 2676 69
1120 Speaker
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
1
2
Step Size (Quantity) Color Torque
2 M2.5 x L4(1) Black 2.5 kgf-cm
1140 CPU spring
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
70 ThinkPad R30/R31 HMM

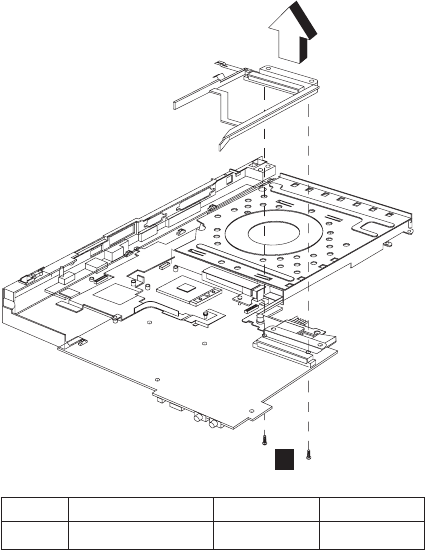

1
Step Size (Quantity) Color Torque
1 M2.5 x L5 (2) Silver 3.2 kgf-cm
1150 Fan assembly
v“1010 Battery assembly”on page 57
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
v“1140 CPU spring”on page 70

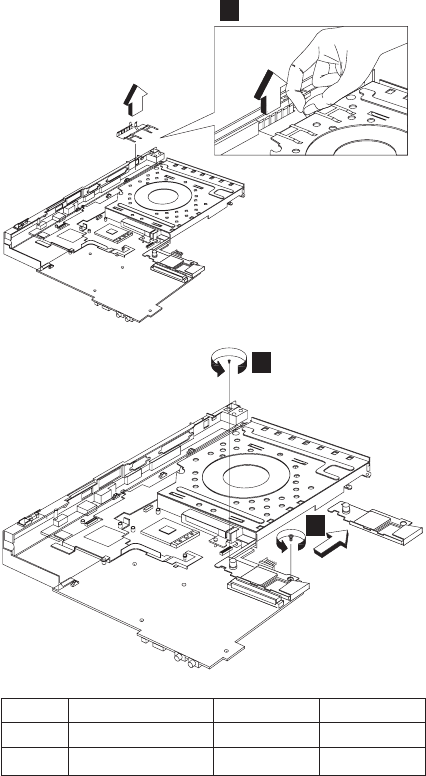

1
2
MT 2656, 2657, 2676 71
3
4
Step Size (Quantity) Color Torque
3 M2.5 x L5 (2) Silver 3.2 kgf-cm
1160 System board
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1040 Hard disk drive assembly”on page 60
v“1050 CD-ROM assembly”on page 61
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
v“1120 Speaker”on page 70
72 ThinkPad R30/R31 HMM

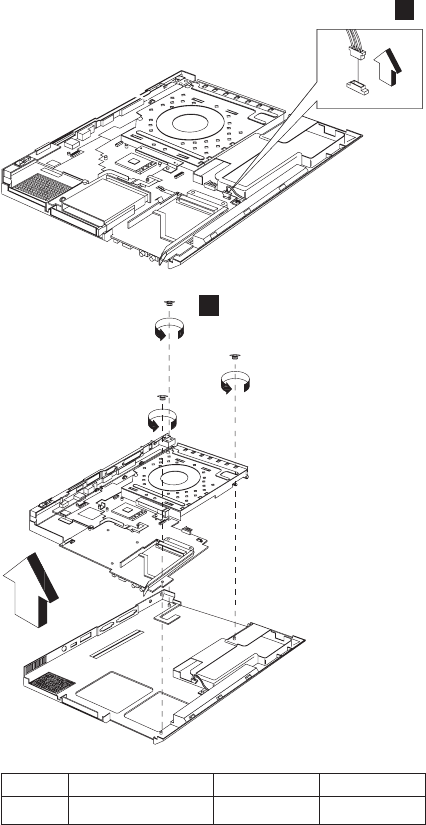

1
Step Size (Quantity) Color Torque
1 M2.5 x L10(3) Silver 3.2 kgf-cm
Notes:
1. When removing the system board from the bottom
cover, gently raise the side of the system board facing
the rear I/O ports; then pull out the system board.

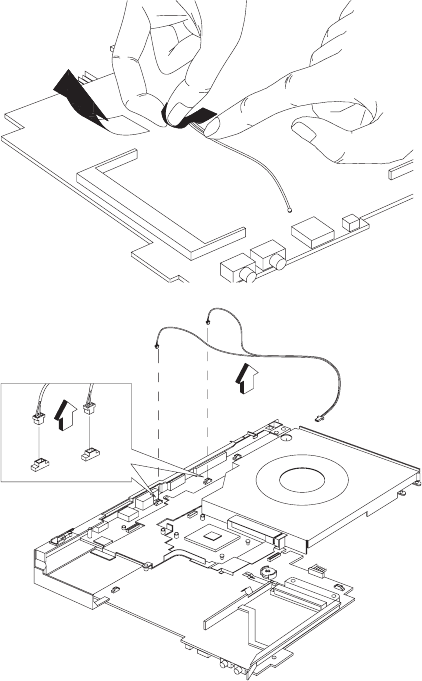

1170 Modem Cable (with Combo card)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1040 Hard disk drive assembly”on page 60
v“1050 CD-ROM assembly”on page 61
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
MT 2656, 2657, 2676 73
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
v“1120 Speaker”on page 70
v“1160 System board”on page 72
1180 Modem Card (without Combo card)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
74 ThinkPad R30/R31 HMM

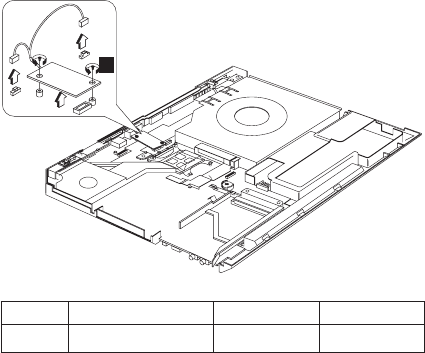

1
Step Size (Quantity) Color Torque
1 M2.5 x L5 (2) Silver 3.2 kgf-cm
1190 Hard disk drive bezel
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1040 Hard disk drive assembly”on page 60
v“1050 CD-ROM assembly”on page 61
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
v“1120 Speaker”on page 70
v“1160 System board”on page 72
MT 2656, 2657, 2676 75
1
Step Size (Quantity) Color Torque
1 M2 x L6 (2) Silver 1.6 kgf-cm

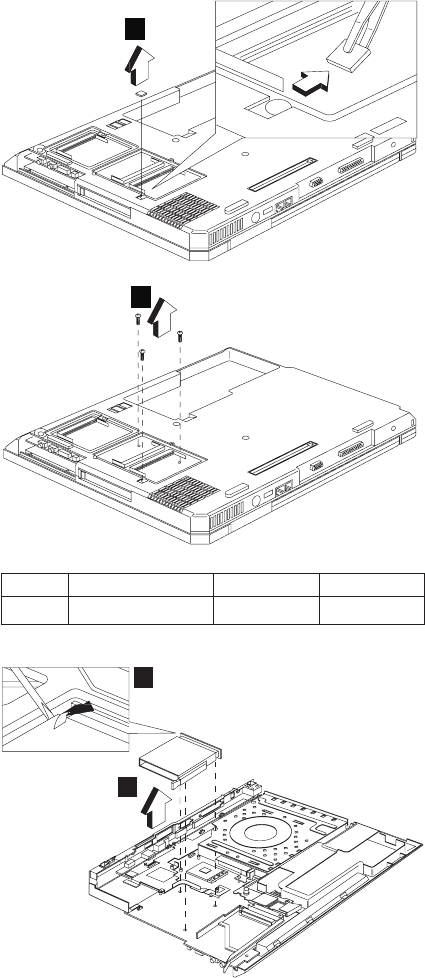

1200 CD-ROM chassis
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1040 Hard disk drive assembly”on page 60
v“1050 CD-ROM assembly”on page 61
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1100 Keyboard bezel”on page 66
v“1120 Speaker”on page 70
v“1150 Fan assembly”on page 71
v“1160 System board”on page 72
v“1190 Hard disk drive bezel”on page 75
v“1170 Modem Cable (with Combo card)”on page 73
76 ThinkPad R30/R31 HMM

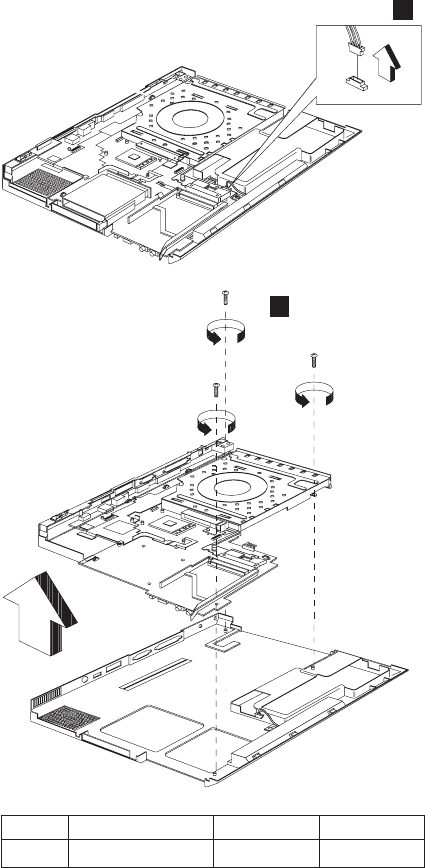

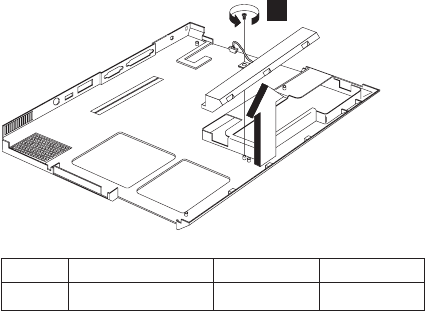

1
2
Step Size (Quantity) Color Torque
2 M2.5 x L5 (3) Silver 3.2 kgf-cm
1210 LCD bezel assembly (13.3″)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
MT 2656, 2657, 2676 77
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65

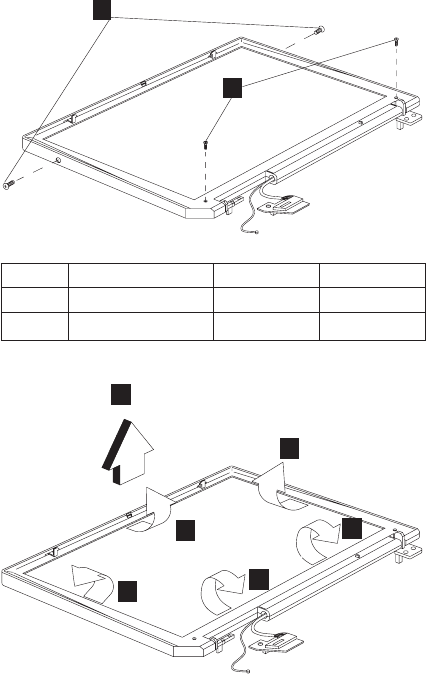

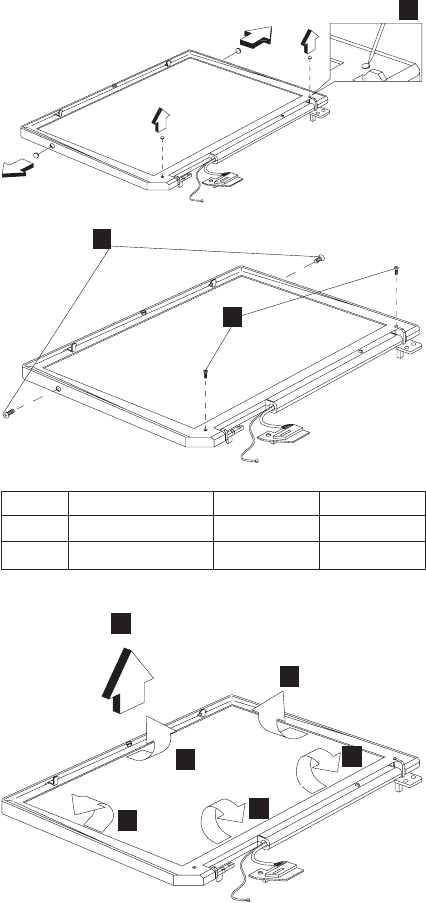

1
2
3
Step Size (Quantity) Color Torque
2 M2 x L4(2) Silver 2.5 kgf-cm
3 M2.5 x L6(2) Black 2.5 kgf-cm
3
4
5
6
7
3
Note: When removing the LCD, take note of the following:
78 ThinkPad R30/R31 HMM
vBe careful not to scratch the LCD bezel when
removing the screw mylars.
vThe LCD bezel has several latches. Release
these latches; then remove the LCD bezel. Be
careful not to break these latches.
vGently push the two LCD latches outward to
remove the LCD bezel.
1220 LCD Inveter (13.3″)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1210 LCD bezel assembly (13.3″)”on page 77
1
Step Size (Quantity) Color Torque
1 M2 x L10(4) Black 2.5 kgf-cm
1230 LED board (13.3″)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1210 LCD bezel assembly (13.3″)”on page 77
MT 2656, 2657, 2676 79
1
2
3
4
1240 LCD bracket hinge assembly (13.3″)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1210 LCD bezel assembly (13.3″)”on page 77
v“1220 LCD Inveter (13.3″)”on page 79
v“1230 LED board (13.3″)”on page 79
80 ThinkPad R30/R31 HMM

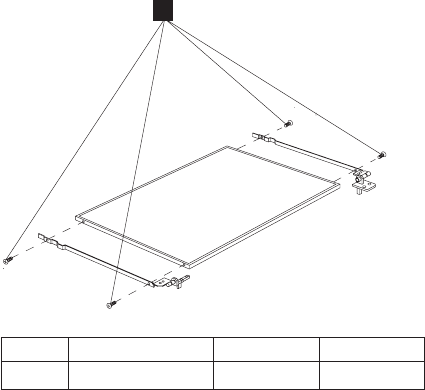

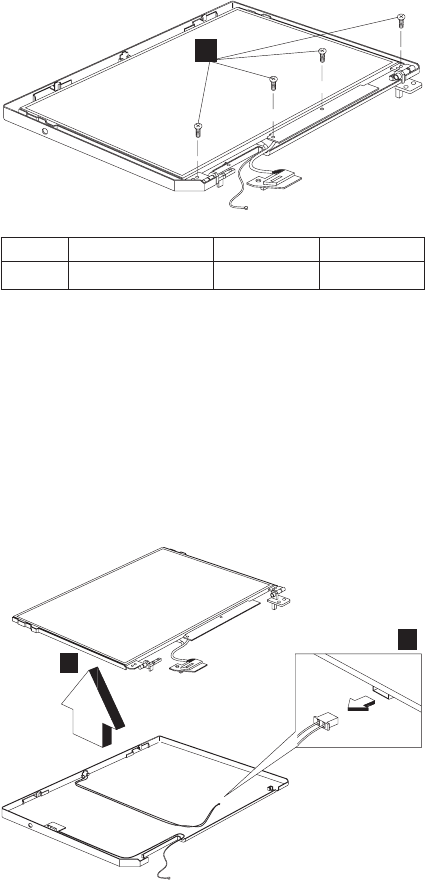

1
Step Size (Quantity) Color Torque
1 M2 x L4 (4) Silver 2.5 kgf-cm
1250 LCD FPC assembly (13.3″)
v“1010 Battery assembly”on page 57
v“1020 Mini-PCI cover and Mini-PCI card”on page 57
v“1030 Memory cover and Memory card”on page 59
v“1060 Keyboard”on page 61
v“1080 Middle cover”on page 63
v“1090 LCD assembly”on page 65
v“1210 LCD bezel assembly (13.3″)”on page 77
v“1220 LCD Inveter (13.3″)”on page 79
v“1230 LED board (13.3″)”on page 79
v“1240 LCD bracket hinge assembly (13.3″)”on page 80
MT 2656, 2657, 2676 81
1
Step Size (Quantity) Color Torque
1 M2 x L4(1) Silver 2.5 kgf-cm
2
1260 Wireless reassembly
v“1240 LCD bracket hinge assembly (13.3″)”on page 80
v“1230 LED board (13.3″)”on page 79
82 ThinkPad R30/R31 HMM
MT 2656, 2657, 2676 83
Locations

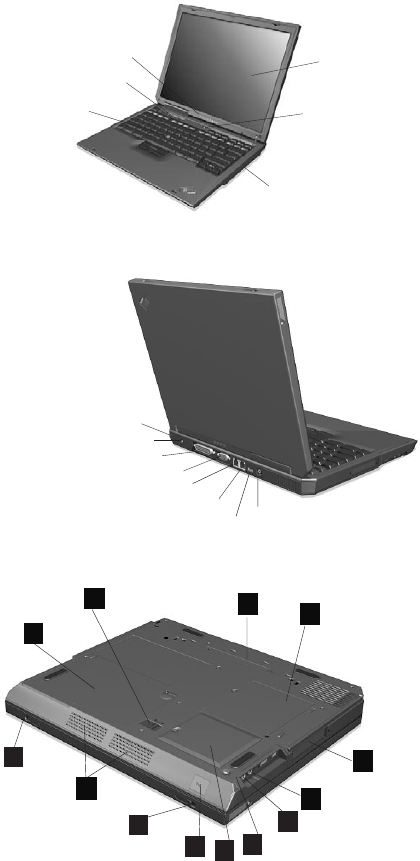

Front View
Computer display
Ultrabay plus
TrackPoint
System-status indicators
Power button
Volume & mute buttons
Rear View
Monitor connector
Modem connector
Power jack
Ethernet connector
USB connector
Parallel port
S-Video out connector
Security keyhole
Bottom View
10
12
3
4
5
6
7
8
9
10
11
12
9
1. Docking connector
2. Memory slot door
84 ThinkPad R30/R31 HMM
3. PC card slot
4. Stereo headphone jack
5. Microphone jack
6. Hard disk drive
7. Mini-PCI Card slot door
8. Infrared port
9. LCD latches
10. Built-in speakers
11. Battery pack
12. Battery pack latch
MT 2656, 2657, 2676 85

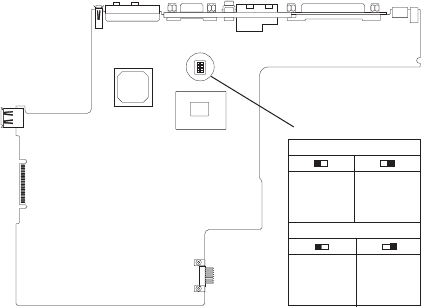

Switch Locations

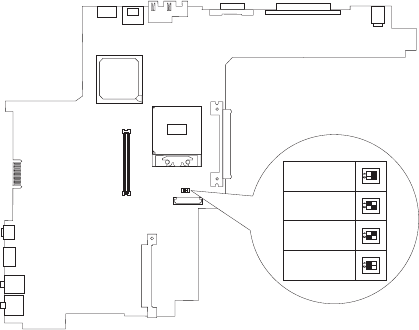

SW3
Check
Password
Disabled
Pin3
11
00
Pin4
1
1
0
Check
Password
Enabled
10
Boot
Block
Enabled
Boot
Block
Disabled
86 ThinkPad R30/R31 HMM

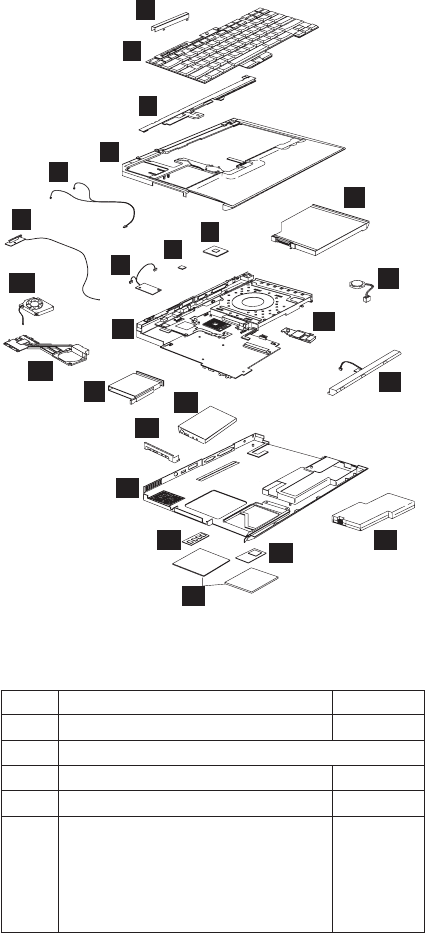

Parts list
1
2
34
6
7
8
9
10
11 12
13
14
15
16
17
18
19
5
20
Note: The parts marked with asterisk are CRUs (customer
replaceable units.)
No. Description FRU No.
1 Hinge Cap 26P9722
2 Keyboard unit (“Keyboard”on page 93)
3 Middle Cover ASM WW 26P9727
4 KBD Bezel Asm. WW 46L5052
MT 2656, 2657, 2676 87
No. Description FRU No.
5 Antenna Kit 13.3″
Antenna Kit 14.1″
Antenna Aux
Antenna LCD
26P9712
26P9711
6 Cable Asm. kit , RJ11 and lid switch
RJ-11 Cable for CDC board model
RJ-11 Cable mini PCI combo board
model
Lid switch Cable
27L0689
7 Planar P-III 1 GHz 12P3832
Planar P-III 1 GHz w/1394 12P3836
Planar Celeron 900MHz 12P3828
Planar Celeron 800MHz w/1394 12P3824
8 FAN Asm. 26P9723
9 PCMCIA Slot 26P9724
10 HDD w/tray & screws module IBM
Assy./10 GB
08K9796*
HDD w/tray & screws module HITACHI
/10 GB
08K9798*
HDD w/tray & screws module IBM /15
GB
08K9663*
HDD w/tray & screws module HITACHI
/15 GB
08K9664*
HDD w/tray & screws module IBM /30
GB
08K9665*
HDD w/tray & screws module HITACHI
/30 GB
05K9666*
11 HDD Cover WW 26P9737
12 Lower Case w/ label WW 26P9729
Lower Case w/ label EMEA 26P9730
Lower Case w/ label IIPC 26P9731
Lower Case w/ label Korea 26P9732
Lower Case w/ label Taiwan 46L6338
Lower Case w/ label W/W-wireless 26P9733
Lower Case w/ label EMEA-wireless 26P9734
Lower Case w/ label IIPC-wireless 26P9735
Lower Case w/ label Korea-wireless 26P9736
Lower Case w/ label Taiwan-wireless 46L6339
13 Card ASM SoDIMM-64MB 19K4651*
Card ASM SoDIMM-128MB 19K4653*
Card ASM SoDIMM-256MB 19K4655*
14 802.11b/Modem combo card 26P8092
88 ThinkPad R30/R31 HMM
No. Description FRU No.
15 Mini-PCI / DIMM door kit 26P9739*
16 Battery Assy. (Ni-Mh)
Sanyo-W/W
Sanyo-Japan
02K6827*
02K6835*
Battery Assy. (Li-Ion)
Sanyo-W/W
Sanyo-Japan
Panasonic-W/W
Panasonic-Japan
02K6822*
02K6830*
02K6824*
02K6832*
17 Speaker Kit 02K5989
18 RTC Battery 11J8591
19 CD-ROM Module
TEAC
HLDS(LG)
27L3436*
08K9545*
DVD-ROM Module
HLDS(Hitachi)
27L4236*
CD–RW Module
SONY ( for WinXP)
TEACCD–RW / DVD Module
Toshiba
27L4231*
08K9644*
27L4249*
20 Modem CDC 26P8070
Rubber Kit
PCMCIA screw cap* 3
rubber foot * 3
LCD bezel screw cap (W/W) *4
IEEE-1394 dummy label
IEEE-1394 icon label
26P9742
MT 2656, 2657, 2676 89
No. Description FRU No.
Screw Kit
HDD COIN SCREW
M/B HEX SCREW
SCREW DIMM COVER STEEL
SCREW MACH PAN NYLOK
M2.0*13 NI
BH MSN+N SCREW M2.0*6
SCREW MACH FLAT M3*2.8
SCREW HDD M3*L4
WCH MSN+CZ SCREW M2.5*5
SCREW M2.5L10B 86.9A353100
SCREW M2.5*6
SCREW M2.4 WAFER NI
26P9741

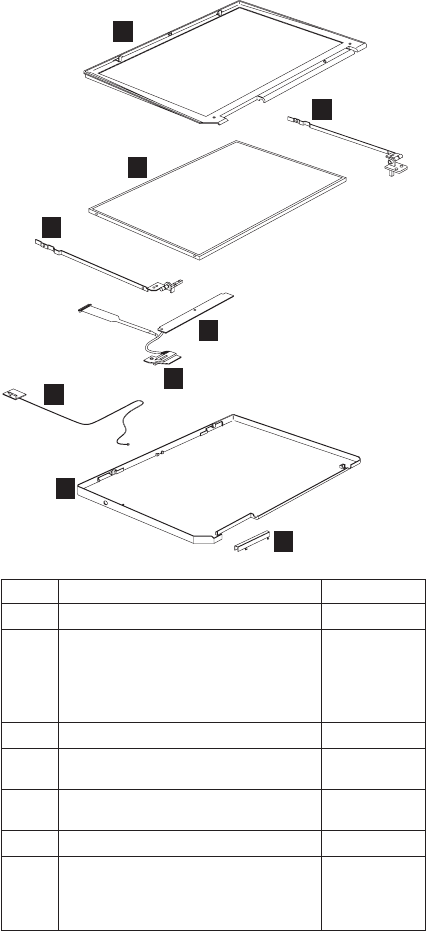

LCD FRU
13.3-inch TFT:
1
2
3
3
4
5
6
7
8
90 ThinkPad R30/R31 HMM
No. Description FRU No.
1 13.3″LCD Bezel 26P9715
2 LCD Panel Asm (13.3″TFT)
Sanyo
LG
11P8212
11P8220
3 13.3″Hinge-Bracket Asm (R,L) 26P9720
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
5 LCD cable Asm. 27L0687
6 Antenna Kit 13.3″LCD
Antenna w/ 13.3″LCD
Antenna aux
26P9712
7 LCD Rear Cover Asm for 13.3″/14.1″(
for Wireless model )
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
MT 2656, 2657, 2676 91

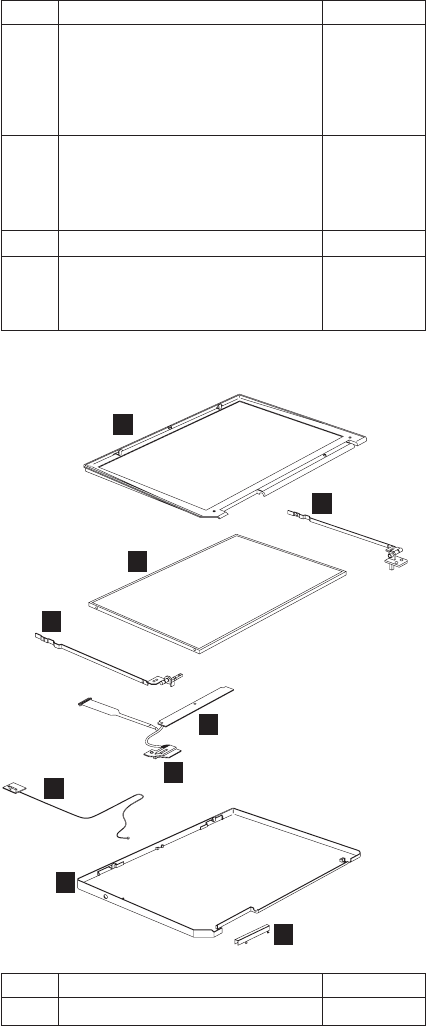

14.1-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 14.1″LCD Bezel (for W/W) 26P9713
2 LCDPanel Asm. (14.1″TFT)
Hyundai
Samsung
11P8214
46L2356
3 14.1″Hinge-Bracket Asm (R,L) 26P9719
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
5 LCD cable Asm. 27L0686
6 Antenna Kit 14.1″LCD
Antenna w/ 14.1″LCD
Antenna aux
26P9711
7 LCD Rear Cover Asm for 13.3″/14.1″
(for W/W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
92 ThinkPad R30/R31 HMM
No. Description FRU No.
LCD Rear Cover Asm for 13.3″/14.1″
(for W/O W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap Asm. 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
Keyboard
Description Vendor FRU No.
KBD ASM US English NMB 12P4260*
KBD ASM Canadian French NMB 12P4262*
KBD ASM German NMB 12P4264*
KBD ASM UK English NMB 12P4266*
KBD ASM French NMB 12P4268*
KBD ASM Dutch NMB 12P4270*
KBD ASM Swedish/Finnish NMB 12P4272*
KBD ASM Norwegian NMB 12P4274*
KBD ASM Danish NMB 12P4276*
KBD ASM Italian NMB 12P4278*
KBD ASM European Spanish NMB 12P4280*
KBD ASM Belgian NMB 12P4282*
KBD ASM Switzerland NMB 12P4284*
KBD ASM Portuguese NMB 12P4286*
KBD ASM Russian NMB 12P4290*
KBD ASM Slovakian NMB 12P4306*
KBD ASM Slovenian NMB 12P4304*
KBD ASM Traditional Chinese NMB 12P4310*
KBD ASM Turkish NMB 12P4296*
KBD ASM Arabic NMB 12P4288*
KBD ASM Hebrew NMB 12P4292*
KBD ASM Polish NMB 12P4294*
KBD ASM Czech NMB 12P4298*
KBD ASM Hungarian NMB 12P4300*
KBD ASM Greek NMB 12P4302*
KBD ASM Japan NMB 12P4308*
KBD ASM Korea NMB 12P4312*
KBD ASM La Spanish NMB 12P4314*
MT 2656, 2657, 2676 93
Common parts list
Tools:
Description FRU No.
Tri-Connector Wrap Plug 72X8546
PC Test Card 35G4703
Audio Wrap Cable 66G5180
USB Parallel Test Cable 05K2580
Screwdriver Kit 95F3598
5mm Socket Wrench 05K4694
Screwdriver 27L8126
Wireless Antenna Connector Removal Tool 08K7159
ThinkPad hardware maintenance diskette
version 1.10
Note: The data may look the same with the sample hmm
but the diskette version is different.
Telephone cable:
Description FRU No.
Telephone cable (US/C, TWN, APS, LA, BRZL) 27L0465
Telephone cable (UK, IR, NZ) 27L0442
Telephone cable (Germany) 27L0441
Telephone cable (Italy) 27L0448
Telephone cable (France) 27L0443
Telephone cable (DK, DE, PO) 27L0447
Telephone cable (SW, SU) 27L0445
Telephone cable (FI, NO, NS) 27L0446
Telephone cable (Australia) 27L0467
Telephone cable (ND, NU) 27L0444
Telephone cable (SF, SI, SG, SE) 27L0462
Telephone cable (BE, BK, BS, BD, BF) 27L0451
Telephone cable (Austria) 27L0449
Telephone cable (Spain) 27L0450
AC adapter:
Description FRU No.
AC Adapter, 72W 3-pin (Astec) 02K6751*
AC Adapter, 72W 3-pin (Delta) 02K6754*
AC Adapter, 72W 2-pin (Delta) 02K6756*
AC Adapter, 72W 2-pin (Astec) 02K6753*
94 ThinkPad R30/R31 HMM
Power cords: IBM power cords for a specific country are
usually available only in that country.
For 2–pin power cords:
IBM power
cord part
number Used in these countries or regions
13H5264* Canada, U.S.A.
13H5273* Japan
36L8870* Argentina
49P2095* Brazil
For 3–pin power cords:
Note: The grounded adapter is required for full MPRII
compliance. If a 3–pin power cord came with your
computer, see “Safety Information”on page 13.
IBM power
cord part
number Used in these countries or regions
76H3514* Australia, New Zealand
76H3516* Taiwan, Thailand
76H3530* Italy
76H3520* Denmark
76H3524* UK, Hong Kong
76H3518* European Countries
76H3522* South Africa, India
76H3532* Israel
76H3535* Korea
02K0539* China (P.R.C.)
76H3528* Switzerland
Recovery CD List:
Description FRU No. Models
Recovery CD
Eng-XP Home
(US/CA)
32P5395 2656–70U, 6AU, 60U,
50U, 3AU, 30U, 20U,
19U, 2AU
Recovery CD
Eng-XP Home
(US/CA)
32P5395 2656–70H, 6AH, 60H,
54H, 3AH, 20H, 30H:
2656–60B
Recovery CD
Eng-XP Home (UD)
32P5580 2656–60M, 20M
MT 2656, 2657, 2676 95
Recovery CD
Eng-XP Home (UD)
32P5580 2656–70A, 6AA, 60A,
54A, 3AA, 30A, 20A
Recovery CD
Eng-XP Home (CF)
32P5396 2656–6AF, 20F, 19F
Recovery CD
LA-SP-W98-XP
Home(LA)
32P5397 2656–60S, 20S, 30S
Recovery CD
LA-SP-W98-XP
Home(LA)
32P5397 2656–60X, 20X, 30X
Recovery CD
LA-BR-W98-XP
Home(BR)
32P5398 2656–60P, 20P, 30P
Recovery CD
Japan-XP Home
46P4469 2656–6AJ, 60J, 42J,
80J
Recovery CD
Traditional
Chinese-XP Home
46P6120 2656–70T, 6AT, 60T,
54T, 3AT, 30T, 20T,
80T
Recovery CD
Simplified
Chinese-XP Home
46P6122 2656–70C, 6AC, 60C,
54C, 3AC, 30C
Recovery CD
English-W98 (UD)
14P9984 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
English-W98 (UD)
14P9984 2656–72A, 7BA, 62A,
55A, 3BA, 32A
Recovery CD
English-W98 (UD)
14P9984 2656–72M, 7BM,
62M, 55M, 3BM, 32M,
22M
Recovery CD
English-Win2000
(UD)
32P5332 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
English-Win2000
(UD)
32P5332 2656–F0A, EAA, E0A,
D1A, BAA, BOA
Recovery CD
English-Win2000
(UD)
32P5332 2656–F0M, EAM,
E0M, D1M, A0M, A1M
Recovery CD
English-W98 (US)
14P9983 2656–7BU, 62U, 3BU,
32U, 22U, 21U, 2BU
Recovery CD
English-W98 (US)
14P9983 2656–7BH, 62H,55H:
2656–62B
Recovery CD
English-Win2000
(US)
32P5331 2656–EAU, E0U,
BAU, BOU, A0U,
A1U, A2U
Recovery CD
Norway-W98 (NO)
14P9996 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Norway-Win2000
(NO)
32P5344 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Netherland-W98
(NL)
14P9995 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
96 ThinkPad R30/R31 HMM
Recovery CD
Netherland-
Win2000 (NL)
32P5343 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Finland-W98 (FI)
14P9994 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Finland-Win2000
(FI)
23P5342 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Italy-W98 (IT)
14P9993 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Italy-Win2000 (IT)
32P5341 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Spanish-W98 (SP)
14P9991 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
LA-Spanish-W98
14P9986 2656–62S, 22S
Recovery CD
LA-Spanish-W98
14P9986 2656–62X, 22X
Recovery CD
Spanish-Win2000
32P5339 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD LA
Spanish-Win2000
32P5334 2656–E0S
Recovery CD LA
Spanish-Win2000
32P5334 2656–E0X
Recovery CD
Denmark-W98 (DK)
14P9998 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Denmark-Win2000
(DK)
32P5336 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Sweden-W98
14P9992 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Sweden-Win2000
32P5340 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
French-W98 (FR)
14P9989 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Canadian
French-W98 (CF)
14P9985 2656–7FB, 22F, 21F
Recovery CD
French-Win2000
(FR)
32P5337 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Canadian
French-Win2000
(CF)
32P5333 2656–EAF, A0F, A2F
MT 2656, 2657, 2676 97
Recovery CD
German-W98 (GR)
14P9990 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
German-Win2000
(GR)
32P5338 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Thailand-W98 (TH)
32P5307 2656–72Y, 7BY, 62Y,
55Y, 3BY, 32Y
Recovery CD
Portuguese-W98
14P9987 2656–62P, 22P
Recovery CD
Portuguese-
Win2000
32P5335 2656–E0P
Recovery CD
Japan-W98 (JP)
46P4465 2656–61J, 40J
Recovery CD
Japan-Win2000
(JP)
46P4467 2656–EBJ, E1J, C0J
Recovery CD T.
Chinese-W98 (TC)
46P6119 2656–7BT, 62T, 55T,
32T, 22T
Recovery CD S.
Chinese-W98 (SC)
46P6121 2656–7BC, 62C, 55C,
32C
Recovery CD
Turkey-W98 (TR)
32P5301 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Turkey-Win2000
(TR)
32P5349 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Greek-W98 (GK)
32P5302 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Greek-Win2000
(GK)
32P5350 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Hungary-W98 (HU)
32P5303 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Hungary-Win2000
(HU)
32P5351 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Russia-W98 (RU)
32P5304 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Russia-Win2000
(RU)
32P5352 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Slovenia-W98 (SI)
32P5305 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Slovakia-W98 (SK)
32P5306 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
98 ThinkPad R30/R31 HMM
Recovery CD
Polish-W98 (PO)
32P5300 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Polish-Win2000
(PO)
32P5348 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Hebrew-W98 (HB)
14P9999 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Hebrew-Win2000
(HB)
32P5347 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Czech-W98 (CZ)
14P9998 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Czech-Win2000
(CZ)
32P5346 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Recovery CD
Arabic
Enalbed-W98 (AR)
14P9997 2656–72G, 7BG, 62G,
52G, 3BG, 32G, 22G,
51G, 64G
Recovery CD
Arabic
Enalbed-Win2000
(AR)
32P5345 2656–F0G, EAG,
E0G, D0G, BAG,
BOG, D3G, E2G
Option Parts List
Battery charges:
Description FRU No.
Charger Main Battery Li-Ion —W/W 02K6821
Charger Main Battery Li-Ion —Japan 02K6829
Ultrabay devices:
Description FRU No.
CD—RW drive (SONY) 08K9617*
Diskette drive (TEAC) 08K9606*
Diskette drive (SONY) 08K9607*
SuperDisk drive (LS120 x 2) 05K9235*
SuperDisk drive (LS240) 08K9615*
ZIP—250 drive 00N8254*
2nd HDD adapter 08K6067*
Ultrabay Plus device carrier 26P9388*
Ultrabay Plus numeric keypad 19K2056*
Ultrabay Plus cradle for WorkPad c500 series 26P9389*
MT 2656, 2657, 2676 99
ThinkPad R31 Part I
This section applies to the following models: 2656-9FU,
2656-9FF, 2656-IFU, 2656-IFF, 2656-7GU, 2656-7GF,
2656-GGU, 2656-GGF, 2656-HFU, 2656-HGU-OFXP,
2656-HEU, 26560-8FT-FDD, 2656-7FS/P/X, 2656-GFM,
2656-GFS/P/X, 2656-7LC-FDD, 2656-7LH-FDD,
2656-7LK-FDD, 2656-7LS/P/X, 2656-E6U, 2656-E6M,
2656-E6A-FDD, 2656-E6C-FDD, 2656-E6S/P/X,
2656-E7U, 2656-E7M, 2656-6FU, 2656-6FF, 2656-8FJ,
2656-EKK-FDD, 2656-6FG, 2656-6GT/C/H/B-FDD,
2656-EIT/C/H-FDD, 2656-6GJ-FDD, 2656-EGJ-FDD,
2656-6HJ-FDD, 2656-75J, 2656-3PM-OFXP,
2656-66K-FDD, 2656-57K-FDD, 2656-56U/G,
2656-5CG-OFXP, 2656-56A/T/C/H/K-FDD, 2656-56F,
2656-D8G, 2656-D9G-OFXP, 2656-E8T/H-FDD,
2656-4PH-FDD-OFXP, 2656-EDG, 2656-ECG-OFXP,
2656-65G, 2656-65M/A-FDD, 2656-P4A-FDD/OFXP,
2656-65C-FDD, 2656-65H-FDD/OFXP, 2656-65S/P/X,
2656-63T/H-FDD, 2656-90K-FDD, 2656-D7K-FDD,
2656-BGM, 2656-BIM-OFXP, 2656-66J-FDD,
2656-E8J-FDD, 2656-67J-FDD, 2656-57G*2,
2656-7DC-FDD, 2656-89G-OFXP*2, 2656-D7G*2,
2656-DDG*2, 2656-5DT/C/H-FDD, 2656-D6M,
2656-5PM-OFXP, 2656-D6A-FDD, 2656-5PA-FDD/OFXP,
2656-D6T/B-FDD, 2656-HHU, 2656-HHJ-FDD, 2656-HHG,
2656-5ZG-OFXP*2, 2656-HHM, 2656-HHA/T/C/H-FDD,
2656-HHK-FDD, 2656-HHF/S/P/X, 2656-FFU,
2656-FFJ-FDD, 2656-FFG, 2656-40G*2, 2656-FFM,
2656-FFA/T/C/H-FDD, 2656-FFK-FDD, 2656-FFF/S/P/X,
2656-CJU, 2656-AGM, 2656-47J, 2656-27G,
2656-35G-OFXP, 2656-36G*2, 2656-27A/T/H/K-FDD,
2656-ABG, 2656-ADG-OFXP, 2656-BBG*2, 2656-ABM,
2656-ADM-OFXP, 2656-ABT-FDD, 2656-AAG,
2656-ACG-OFXP, 2656-BCG*2, 2656-AAM,
2656-26M-FDD, 2656-45J-FDD, 2656-C5J-FDD,
2656-48J-FDD, 2656-3FU, 2656-BFU, 2656-BEU,
2656-58S/P/X, 2656-D5S/P/X, 2656-2FG, 2656-2FS/P/X,
2656-AFU, 2656-AFG, 2656-AFS/P/X, 2656-AEU/G,
2656-25U, 2656-25F/S/P/X, 2656-A5U, 2656-AKU-OFXP,
2656-A5S/P/X, 2656-A4U, 2656-28G, 2656-31G*2,
2656-AHG, 2656-AJG*2, 2656-A9G, 2656-B2G*2,
2656-EFU, 2656-EHU-OFXP, 2656-EFJ-FDD,
2656-EFG/M, 2656-EFA/T/C/H/K-FDD, 2656-EFF/S/P/X,
2656-EEU, 2656-EEJ-FDD, 2656-EEG/M,
2656-EEA/T/C/H/K-FDD, 2656-EEF/S/P/X, 2656-J2U,
2656-J2J-FDD, 2656-J2G/M, 2656-J2A/T/C/H/K-FDD,
2656-J2F/S/P/X, 2656-J1U, 2656-J1J-FDD, 2656-J1G/M,
2656-J1A/T/C/H/K-FDD, 2656-J1F/S/P/X, 2656-E5U,
2656-E5J-FDD, 2656-E5G/M, 2656-E5A/T/C/H/K-FDD,
2656-E5F/S/P/X, 2656-E4U, 2656-E4J-FDD, 2656-E4G/M,
2656-E4A/T/C/H/K-FDD, 2656-E4F/S/P/X, 2656-K6U,
2656-K4U, 2656-K2U, 2656-K7U, 2656-K5U, 2656-K3U,
100 ThinkPad R30/R31 HMM
2656-K9J, 2656-K8J, 2656-H8U, 2656-H9U-OFXP,
2656-H7U, 2656-H4U, 2656-H5U, 2656-H6U-OFXP,
2656-FGU, 2656-FEU, 2656-F5U, 2656-F4U, 2656-M4U,
2656-L4U, 2656-99U, 2656-88U, 2656-C2G,
2656-C3G,2656-BKG, 2656-BHG, 2656-77U, 2656-AGU,
2657-FGU, 2657-FEU, 2657-F5U, 2657-F4U, 2657-J2U,
2657-J2J-FDD, 2657-J2G/M, 2657-J2A/T/C/H/K-FDD,
2657-J2F/S/P/X, 2657-J1U, 2657-J1J-FDD, 2657-J1G/M,
2657-J1A/T/C/H/K-FDD, 2657-J1F/S/P/X, 2657-E5U,
2657-E5J-FDD, 2657-E5G/M, 2657-E5A/T/C/H/K-FDD,
2657-E5F/S/P/X, 2657-E4U, 2657-E4J-FDD, 2657-E4G/M,
2657-E4A/T/C/H/K-FDD, 2657-E4F/S/P/X, 2657-MMU,
2657-MMJ-FDD, 2657-MMG/M, 2657-MMA/T/C/H/K-FDD,
2657-MMF/S/P/X, 2657-LLU, 2657-LLJ-FDD, 2657-LLG/M,
2657-LLA/T/C/H/K-FDD, 2657-LLF/S/P/X, 2657-99U,
2657-88U, 2657-77U, 2676-J2U, 2676-J2J-FDD,
2676-J2G/M, 2676-J2A/T/C/H/K-FDD, 2676-J2F/S/P/X,
2676-J1U, 2676-J1J-FDD, 2676-J1G/M,
2676-J1A/T/C/H/K-FDD, 2676-E5F/S/P/X, 2676-E5U,
2676-E5J-FDD, 2676-E5G/M, 2676-E5A/T/C/H/K-FDD,
2676-E5F/S/P/X, 2676-E4U, 2676-E4J-FDD, 2676-E4G/M,
2676-E4A/T/C/H/K-FDD, 2676-E4F/S/P/X.
MT 2656, 2657, 2676 101
Product overview
The following shows an overview of the system features.
Feature Description
Processor Intel Pentium III processor
1.00/1.13GHz, Intel Celeron processor
1.06GHz
Bus architecture Host bus 64bits/133 MHz, PCI 32
bits/33 MHz, LPC 4bits/33MHz,
PCMCIA 16 bits, Cardbus 32 bits/32
MHz
System memory 128 MB or 256 MB base main memory
on system board PC 133
Two 144pins SODIMM slots supports
64 MB, 128MB, 256MB, and 512MB
DIMM cards
Frequency: PC 133
Maximum size: 1024 MB
CMOS RAM 242 bytes + 4 Kbytes
Video Intel 830 MG with 2D/3D Graphics
accelerator.
Dynamically variable video memory
size
13.3–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
14.1–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
Audio AC97 audio Intel
16–bit audio
Internal stereo speakers
Diskette drive (optional) External 1.44MB (3–mode), 3.5 inch
floppy drive via USB interface
(Bootable)
Hard disk drive 10GB, 20GB, 30GB, or 40GB,
2.5–inch 9.5mm height, E-IDE
interface
CD-ROM drive CD-ROM: 5.25–inch, 24X speed,
E-IDE interface
DVD—ROM : 8X speed
DVD/ CD—RW : 8X DVD/ CD-RW
CD-RW
Modem Integrated CDC soft Modem 56 Kbps
Data/Fax Modem
Ethernet (optional) LAN on motherboard . It supports
10/100Mbps
102 ThinkPad R30/R31 HMM
Feature Description
IEEE 1394 (optional) Ti TSB43AB21 1394 controller on
board
IEEE 1394.a 4–pin connector —no
cable power
100Mbps, 200Mbps and 400Mbps
PC Card (PCMCIA) One Type I/II or Type III
I/O ports External monitor
Speaker-out
Microphone-in
DC-in
TV-out (S-Video out)
Parallel
Two USBs
IEEE 1394a (Selected models only)
Telephone (RJ11)
LAN (RJ45, Selected models only)
Power 72–Watt AC Adapter
6–cell Li-Ion & 8–cell NiMH Battery
Packs (Dumb Battery)
Status indicators
The system-status indicators on the computer show the
current status of your computer by their on or off states
and colors (green and orange). Each indicator is identified
with a symbol. The following shows the location and the
meaning of each icon:
MT 2656, 2657, 2676 103
76
Symbol Color Meaning
(1) Drive in use Green Data is being read from or
written to the hard disk. Do
not enter standby mode or
power off the computer
when this indicator is on.
(2) Numeric lock Green The numeric keypad on the
keyboard is enabled. You
enable or disable the
keypad by pressing and
holding the Shift key, and
pressing the NumLk key.
For details, see the User’s
Reference.
(3) Caps lock Green Caps Lock mode is
enabled. All alphabetic
characters (A-Z) are
entered in capital letters
without the Shift key being
pressed. You enable or
disable the Caps Lock
mode by pressing the Caps
Lock key.
(4) Scroll lock Green Scroll Lock mode is
enabled. The Arrow keys
can be used as
screen-scroll function keys.
The cursor cannot be
moved with the Arrow
keys. Not all application
programs support this
function. You enable or
disable Scroll Lock mode by
pressing the ScrLk key.
(5) Power on Green The computer is
operational. This indicator is
on when the computer is
on.
104 ThinkPad R30/R31 HMM
Symbol Color Meaning
(6) Battery status Green Enough battery power
remains for operation.
Blinking
green
The battery power charges
up to 80% full power
Blinking
orange
The battery pack needs to
be charged
Orange The battery pack is being
charged.
(7) Standby mode Green The computer is in standby
mode
FRU tests
The following table shows the applicable test for each FRU
using PC-Doctor.
FRU Applicable test
System board 1. CPU/Coprocessor (Diagnostics)
2. System board (Diagnostics)
Power Battery (Diagnostics)
LCD unit 1. Video Adapter (Diagnostics)
2. Video (Interactive Tests)
Modem 1. Make sure the modem set up
correctly.
2. Replacing the modem jack and
modem card one at a time, run the
modem tests in Other Devices
(Diagnostics)
Audio Internal Speaker (Interactive Tests)
Stereo Speaker (Interactive Tests)
Speaker System beeper: Internal Speaker
(Interactive Tests)
PC Card slots System board (Diagnostics)
Keyboard 1. Keyboard (Diagnostics)
2. Keyboard (Interactive Tests)
MT 2656, 2657, 2676 105
FRU Applicable test
TrackPont or Pointing
device
If the TrackPoint does not work, see if an
external PS/2 mouse is connected to the
mouse/keyboard connector and remove
it. The TrackPoint is automatically
disabled if an external PS/2 mouse is
attached. Check also if the TrackPoint
driver is correctly installed by accessing
Windows Device Manager via the System
icon in the Control Panel.
After you use the TrackPoint, the pointer
drifts on the screen for a short time. This
self-acting pointer movement can occur
when a slight, steady pressure is applied
to the TrackPoint pointer. This symptom
is not a hardware problem. No service
actions are necessary if the pointer
movement stops in a short period of time.
If this does not correct the TrackPoint
problem, continue with the following:
Mouse (Interactive Tests).
Hard disk drive Fixed Disks (Diagnostics)
CD-ROM drive CD-ROM, DVD, CD-RW, DVD/CD-RW
(Interactive Tests)
Memory 1. If a DIMM is installed, remove it and
run Memory Test-Quick (Diagnostics)
2. If the problem does not recur, replace
the DIMM and run the test again.
3. If the test does not detect the error,
run Memory Test-Full (Diagnostics)
Fan 1. Power on system and check the air
turbulence at the louver at the rear of
the computer.
2. Run the fan test in Other Devices
(Diagnostics).
106 ThinkPad R30/R31 HMM
FRU removals and replacements
This section contains information about removals and
replacements.
vDo not damage any parts. Only certified and trained
personnel should service the computer.
vThe arrows in this section show the direction of
movement to remove a FRU, or to turn a screw to
release the FRU. The arrows are marked in numeric
order, in square callout, to show the correct sequence of
removal.
vAny FRUs that must be removed before removing the
failing FRU are listed at the top of the page.
vTo replace a FRU, reverse the removal procedure and
follow any notes that pertain to replacement. See
“Locations”on page 136 for internal cable connections
and arrangement information.
vWhen replacing a FRU, use the correct screw size, as
shown in the procedure.
Safety Notice 1
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before the computer is
powered-on after FRU replacement, make sure all
screws, springs, or other small parts are in place
and are not left loose inside the computer. Verify
this by shaking the computer and listening for
rattling sounds. Metallic parts or metal flakes can
cause electrical shorts.
Safety Notice 3
Translations in ″Safety Notices (Multi-lingual
Translations)″section: The battery pack contains
small amounts of nickel. Do not disassemble it,
throw it into fire or water, or short-circuit it. Dispose
of the battery pack as required by local ordinances
or regulations. Use only the battery in the
appropriate parts listing when replacing the battery
pack. Use of an incorrect battery can result in
ignition or explosion of the battery.
MT 2656, 2657, 2676 107
Safety Notice 8
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before removing any FRU,
power-off the computer, unplug all power cords from
electrical outlets, remove the battery pack, then
disconnect any interconnecting cables.
Attention: The system board is sensitive and can be
damaged by electronic discharge. Establish personal
grounding by touching a ground point with one hand before
touching these units.
An electrostatic discharge (ESD) strap (P/N: 6405959)
must be used to establish personal grounding.
1010 Battery assembly
12
Warning
Battery packs are capable of delivering high
currents for a significant amount of time. Do not
short the battery terminals.
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
1020 Mini-PCI cover and Mini-PCI card
v“1010 Battery assembly”
108 ThinkPad R30/R31 HMM
1
2
Note: The screw does not separate from the PCI cover.
3
4
Note: There are 2 cables on step 4 : The gray cable is the
main antenna and the black cable is the auxiliarey
antenna.
Note: When you install the PCI card, remember to press it
down and ensure the connection is well.
MT 2656, 2657, 2676 109
1030 Memory cover and Memory card
v“1010 Battery assembly”on page 108
1
2
Note: The screw does not separate from the memory
cover.
3
To install the memory card:
With the notched end of the memory card toward the right
side of the socket, insert the memory card, at an angle of
approximately 20°, into the socket; then press it firmly.
110 ThinkPad R30/R31 HMM
Pivot the memory card until it snaps into place.
Side View
1040 Hard disk drive assembly
v“1010 Battery assembly”on page 108
1
2
Step Size (Quantity) Color Torque
1 M3 x L4 (1) Black 3.2 kgf-cm
MT 2656, 2657, 2676 111
Warning
Do not drop or apply any shock to the hard disk
drive. The hard disk drive is sensitive to physical
shock. Incorrect handling can cause damage and
permanent loss of data on the drive.
Before removing the drive, have the user make a
backup copy of all the information on the drive if
possible.
Never remove the drive while the system is
operating or is in suspend mode.
1050 CD-ROM assembly
v“1010 Battery assembly”on page 108
1
2
3
1060 Keyboard
v“1010 Battery assembly”on page 108
112 ThinkPad R30/R31 HMM
1
Step Size (Quantity) Color Torque
1 M2.5 x L10 (2) Black 3.2 kgf-cm
2
3
4
MT 2656, 2657, 2676 113
Notes:
1. When replacing the keyboard, make sure that the cable
is clean and insert it directly into the connector, making
sure it makes contact with the bottom of the connector.
2. If the cable do not touch the bottom of the connector,
the keyboard function will be rendered useless.
3. The cable of the keyboard are fragile and could be
damaged. Be careful when pulling out the cable.
1070 Backup battery
v“1010 Battery assembly”on page 108
v“1060 Keyboard”on page 112
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to manufacturer’s instruction.
Safety Notice 4
Translation in ″Safety Notices: Multi-lingual
Translations″section: The backup battery is a
lithium battery and can cause a fire, an explosion, or
severe burns. Do not recharge it, remove its
polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell
contents to water. Dispose of the battery as required
by local ordinances or regulations. Use of an
incorrect battery can result in ignition or explosion of
the battery. Replacement batteries can be ordered
from IBM or IBM Authorized Dealers.
1080 Middle cover
v“1010 Battery assembly”on page 108
v“1060 Keyboard”on page 112
114 ThinkPad R30/R31 HMM
1
2
3
Step Size (Quantity) Color Torque
2 M2.5 x L10 (1) Black 3.2 kgf-cm
3 M2.5 x L10 (1) Black 2.5 kgf-cm
MT 2656, 2657, 2676 115
1090 LCD assembly
v“1010 Battery assembly”on page 108
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
1
2
3
116 ThinkPad R30/R31 HMM
Note: Release the gray cable, which is the main antenna
from the system.
4
4
5
Step Size (Quantity) Color Torque
4 M2.5 x L10 (4) Black 3.6 kgf-cm
5 M2.5 x L5 (1) Silver 2.5 kgf-cm
6
1100 Keyboard bezel
v“1010 Battery assembly”on page 108
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
MT 2656, 2657, 2676 117
v“1070 Backup battery”on page 114
1
Step Size (Quantity) Color Torque
1 M2.5 x L10 (7) Black 3.2 kgf-cm
118 ThinkPad R30/R31 HMM
2
CAUTION:
The keyboard bezel has several latches. When
removing the keyboard bezel from the bottom cover,
gently release these latches, then raise the side of the
keyboard bezel facing the palm rest to remove it. Be
careful not to break the latches.
1110 PCMCIA holder
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
MT 2656, 2657, 2676 119
1
2
Step Size (Quantity) Color Torque
2 M2 x L6 (3) Silver 1.6 kgf-cm
3
4
Note: Before removing and replacing the PCMCIA holder,
make sure that the PCMCIA cards are removed and
the eject levers are sticking out.
120 ThinkPad R30/R31 HMM
1120 Auxiliary Antenna
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
1
Step Size (Quantity) Color Torque
1 M2.5 x L5(1) Silver 2.5 kgf-cm
1130 Fan assembly
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
MT 2656, 2657, 2676 121
1
2
3
45
Step Size (Quantity) Color Torque
3 M2.5 x L5 (2) Silver 3.2 kgf-cm
122 ThinkPad R30/R31 HMM
1140 CPU assembly
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
v“1130 Fan assembly”on page 121
1150 System board
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
MT 2656, 2657, 2676 123
1
2
Step Size (Quantity) Color Torque
2 M2.5 x L5(3) Silver 2.5 kgf-cm
Notes:
1. When removing the system board from the bottom
cover, gently raise the side of the system board facing
the rear I/O ports; then pull out the system board.
1160 Speaker
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
124 ThinkPad R30/R31 HMM
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
1
Step Size (Quantity) Color Torque
2 M2.5 x L4(1) Black 2.5 kgf-cm
1170 Modem Cable (with Combo card)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
v“1150 System board”on page 123
MT 2656, 2657, 2676 125
1180 Modem Card (without Combo card)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
v“1150 System board”on page 123
126 ThinkPad R30/R31 HMM
1
Step Size (Quantity) Color Torque
1 M2.5 x L5 (2) Silver 3.2 kgf-cm
1190 Hard disk drive bezel
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
v“1150 System board”on page 123
MT 2656, 2657, 2676 127
1
Step Size (Quantity) Color Torque
1 M2 x L6 (2) Silver 1.6 kgf-cm
1200 CD-ROM chassis
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1040 Hard disk drive assembly”on page 111
v“1050 CD-ROM assembly”on page 112
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 117
v“1150 System board”on page 123
v“1170 Modem Cable (with Combo card)”on page 125
128 ThinkPad R30/R31 HMM
1
2
3
Step Size (Quantity) Color Torque
2 M2.5 x L5 (2) Silver 3.2 kgf-cm
3 M2 x L6 (1) Silver 1.6 kgf-cm
1210 LCD bezel assembly (13.3″)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
MT 2656, 2657, 2676 129
1
2
3
Step Size (Quantity) Color Torque
2 M2 x L4(2) Silver 2.5 kgf-cm
3 M2.5 x L6(2) Black 2.5 kgf-cm
3
4
5
6
7
3
Note: When removing the LCD, take note of the following:
vBe careful not to scratch the LCD bezel when
removing the screw mylars.
130 ThinkPad R30/R31 HMM
vThe LCD bezel has several latches. Release
these latches; then remove the LCD bezel. Be
careful not to break these latches.
vGently push the two LCD latches outward to
remove the LCD bezel.
1220 LCD Inveter (13.3″)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1210 LCD bezel assembly (13.3″)”on page 129
1
Step Size (Quantity) Color Torque
1 M2 x L10(4) Black 2.5 kgf-cm
1230 LED board (13.3″)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1210 LCD bezel assembly (13.3″)”on page 129
MT 2656, 2657, 2676 131
1
2
3
4
1240 LCD bracket hinge assembly (13.3″)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1210 LCD bezel assembly (13.3″)”on page 129
v“1220 LCD Inveter (13.3″)”on page 131
v“1230 LED board (13.3″)”on page 131
132 ThinkPad R30/R31 HMM
1
Step Size (Quantity) Color Torque
1 M2 x L4 (4) Silver 2.5 kgf-cm
1250 LCD FPC assembly (13.3″)
v“1010 Battery assembly”on page 108
v“1020 Mini-PCI cover and Mini-PCI card”on page 108
v“1030 Memory cover and Memory card”on page 110
v“1060 Keyboard”on page 112
v“1080 Middle cover”on page 114
v“1090 LCD assembly”on page 116
v“1210 LCD bezel assembly (13.3″)”on page 129
v“1220 LCD Inveter (13.3″)”on page 131
v“1230 LED board (13.3″)”on page 131
v“1240 LCD bracket hinge assembly (13.3″)”on page 132
MT 2656, 2657, 2676 133
1
Step Size (Quantity) Color Torque
1 M2 x L4(1) Silver 2.5 kgf-cm
2
1260 Wireless reassembly
v“1240 LCD bracket hinge assembly (13.3″)”on page 132
v“1230 LED board (13.3″)”on page 131
134 ThinkPad R30/R31 HMM
MT 2656, 2657, 2676 135
Locations
Front View
Computer display
Ultrabay plus
TrackPoint
System-status indicators
Power button
Volume & mute buttons
Rear View
Monitor connector
Modem connector
Power jack
Ethernet connector
USB connector
Parallel port
S-Video out connector
Security keyhole
Bottom View
10
12
3
4
5
6
7
8
9
10
11
12
9
1. Battery pack
2. Mini-PCI Card slot door
136 ThinkPad R30/R31 HMM
3. Memory slot door
4. Docking connector
MT 2656, 2657, 2676 137
Switch Locations
Boot Block
ENABLE
Boot Block
ENABLE
Boot Block
ENABLE
Boot Block
ENABLE
CHKPW
ENABLE
CHKPW
ENABLE
Boot Block
DISABLE
Boot Block
DISABLE
CHKPW
DISABLE
CHKPW
DISABLE
CHKPW
ENABLE
CHKPW
ENABLE
Boot Block
DISABLE
Boot Block
DISABLE
CHKPW
DISABLE
CHKPW
DISABLE
138 ThinkPad R30/R31 HMM
Parts list
1
2
3
4
5
67
8
9
10
11
12
13
16
17 18
19
20
21
2222
23
23
14
15
Note: The parts marked with asterisk are CRUs (customer
replaceable units.)
No. Description FRU No.
1 Hinge Cap 26P9722
2 Keyboard (“Keyboard”on page 145)
3 Middle Cover ASM WW 26P9727
4 KBD Bezel Asm. WW 46L6378
5 Cable Asm. kit , RJ11 and lid switch
RJ-11 Cable for CDC board model
RJ-11 Cable mini PCI combo board
model
Lid switch Cable
27L0689
MT 2656, 2657, 2676 139
No. Description FRU No.
6 Antenna Kit 13.3″
Antenna Kit 14.1″
Antenna Aux
Antenna LCD
26P9712
26P9711
7 CPU Cel 1066 MHz 26P8155
CPU P-III 1.00 GHz 26P8359
CPU P-III 1.06 GHz 26P8283
CPU P-III 1.20 GHz 26P8285
8 Crypto Card 26P8084
9 CDC Modem Card 26P8256
10 FAN Asm. 26P9723
11 Heatsink 46L6365
12 Planar w/o IEEE1394 26P8305
Planar w/ IEEE1394 26P8307
13 PCMCIA Slot 26P9724
14 HDD w/tray & screws module IBM /10
GB
08K9796*
HDD w/tray & screws module HITACHI
/10 GB
08K9798*
HDD w/tray & screws module IBM /20
GB
08K9729*
HDD w/tray & screws module HITACHI
/20 GB
08K9731*
HDD w/tray & screws module IBM /20
GB
08K9761*
HDD w/tray & screws module HITACHI
/20 GB
08K9763*
HDD w/tray & screws module IBM /30
GB
08K9665*
HDD w/tray & screws module HITACHI
/30 GB
08K9666*
HDD w/tray & screws module IBM /30
GB
08K9733*
HDD w/tray & screws module HITACHI
/30 GB
08K9746*
HDD w/tray & screws module IBM /40
GB
08K9742*
HDD w/tray & screws module HITACHI
/40 GB
08K9744*
15 HDD Cover WW 26P9737
16 Lower Case w/ label WW 12P4323
Lower Case w/ label EMEA 12P4324
Lower Case w/ label IIPC 12P4325
Lower Case w/ label Korea 12P4326
140 ThinkPad R30/R31 HMM
No. Description FRU No.
Lower Case w/ label Taiwan 12P4327
Lower Case w/ label India 46L6371
Lower Case w/ label India 2656 12P4333
Lower Case w/ label W/W 2657 12P4334
Lower Case w/ label EMEA 2657 12P4335
Lower Case w/ label IIPC 2657 12P4336
Lower Case w/ label Korea 2657 12P4337
Lower Case w/ label Taiwan 2657 12P4338
Lower Case w/ label India 2657 12P4339
Lower Case w/ label W/W 2676 12P4340
Lower Case w/ label EMEA 2676 12P4341
Lower Case w/ label IIPC 2676 12P4342
Lower Case w/ label Korea 2676 12P4343
Lower Case w/ label Taiwan 2676 12P4344
Lower Case w/ label India 2676 12P4345
Lower Case w/ label WW-wireless 12P4328
Lower Case w/ label EMEA-wireless 12P4329
Lower Case w/ label IIPC-wireless 12P4330
Lower Case w/ label Korea-wireless 12P4331
Lower Case w/ label Taiwan-wireless 12P4332
17 SoDIMM Asm. –128MB 19K4653*
SoDIMM Asm.—256MB 19K4655*
18 Actiontec IEEE 802.11b/Modem combo
card-WinXP
12P3637
19 Mini-PCI / DIMM door kit 46L6335*
20 Battery Assy. (Ni-Mh)
Sanyo-W/W
Sanyo-Japan
02K6827*
02K6835*
Battery Assy. (Li-Ion)
Sanyo-W/W
Sanyo-Japan
Panasonic-W/W
Panasonic-Japan
02K6822*
02K6830*
02K6824*
02K6832*
21 Speaker Kit 02K5989
22 RTC Battery 02K7062
23 CD-ROM Module
TEAC
HLDS(LG)
27L3436*
27L4301*
MT 2656, 2657, 2676 141
No. Description FRU No.
DVD-ROM Module
MKE
HLDS(Hitachi)
08K9648*
08K9646*
CD-RW Module
SONY
TEAC
27L4231*
08K9644*
CD-RW/DVD-ROM combo Module
KME
08K9694*
Rubber Kit
PCMCIA screw cap* 3
rubber foot * 3
LCD bezel screw cap (W/W) *4
IEEE-1394 dummy label
IEEE-1394 icon label
26P9742
Screw Kit
HDD COIN SCREW
M/B HEX SCREW
SCREW DIMM COVER STEEL
SCREW MACH PAN NYLOK
M2.0*13 NI
BH MSN+N SCREW M2.0*6
SCREW MACH FLAT M3*2.8
SCREW HDD M3*L4
WCH MSN+CZ SCREW M2.5*5
SCREW M2.5L10B 86.9A353100
SCREW M2.5*6
SCREW M2.4 WAFER NI
26P9741
Misc common
Battery Knob
Battery Latch
Battery Spring
CD-ROM Pull bar
CD-ROM Latch
CD-ROM Spring for latch
CD-ROM Spring for CD-ROM pull
bar
PCMCIA door
PCMCIA Spring
26P9740
142 ThinkPad R30/R31 HMM
LCD FRU
13.3-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 13.3″LCD Bezel 46L6330
2 LCD Panel Asm (13.3″TFT)
Tori-Sanyo
LG
11P8212
11P8220
3 13.3″Hinge-Bracket Asm (R,L) 26P9720
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0687
6 Antenna Kit 13.3″LCD
Antenna w/ 13.3″LCD
Antenna aux
26P9712
MT 2656, 2657, 2676 143
No. Description FRU No.
7 LCD Rear Cover Asm for 13.3″/14.1″(
for Wireless model )
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
14.1-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 14.1″LCD Bezel (for W/W) 46L6329
144 ThinkPad R30/R31 HMM
No. Description FRU No.
2 LCDPanel Asm. (14.1″TFT)
Hyundai
Samsung
LG
11P8214
46L2356
11P8210
3 14.1″Hinge-Bracket Asm (R,L) 26P9719
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0686
6 Antenna Kit 14.1″LCD
Antenna w/ 14.1″LCD
Antenna aux
26P9711
7 LCD Rear Cover Asm for 13.3″/14.1″
(for W/W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″
(for W/O W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap Asm. 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
Keyboard
Description Vendor FRU No.
KBD ASM US English NMB 12P4260*
KBD ASM Canadian French NMB 12P4262*
KBD ASM German NMB 12P4264*
KBD ASM UK English NMB 12P4266*
KBD ASM French NMB 12P4268*
KBD ASM Dutch NMB 12P4270*
KBD ASM Swedish/Finnish NMB 12P4272*
KBD ASM Norwegian NMB 12P4274*
KBD ASM Danish NMB 12P4276*
KBD ASM Italian NMB 12P4278*
KBD ASM European Spanish NMB 12P4280*
MT 2656, 2657, 2676 145
Description Vendor FRU No.
KBD ASM Belgian NMB 12P4282*
KBD ASM Switzerland NMB 12P4284*
KBD ASM Portuguese NMB 12P4286*
KBD ASM Russian NMB 12P4290*
KBD ASM Slovakian NMB 12P4306*
KBD ASM Slovenian NMB 12P4304*
KBD ASM Traditional Chinese NMB 12P4310*
KBD ASM Turkish NMB 12P4296*
KBD ASM Arabic NMB 12P4288*
KBD ASM Hebrew NMB 12P4292*
KBD ASM Polish NMB 12P4294*
KBD ASM Czech NMB 12P4298*
KBD ASM Hungarian NMB 12P4300*
KBD ASM Greek NMB 12P4302*
KBD ASM Japan NMB 12P4308*
KBD ASM Korea NMB 12P4312*
KBD ASM La Spanish NMB 12P4314*
KBD ASM US English Chicony 02K6212*
KBD ASM Canadian French Chicony 02K6214*
KBD ASM German Chicony 02K6216*
KBD ASM UK English Chicony 02K6218*
KBD ASM French Chicony 02K6220*
KBD ASM Dutch Chicony 02K6222*
KBD ASM Swedish/Finnish Chicony 02K6224*
KBD ASM Norwegian Chicony 02K6226*
KBD ASM Danish Chicony 02K6228*
KBD ASM Italian Chicony 02K6230*
KBD ASM European Spanish Chicony 02K6232*
KBD ASM Belgian Chicony 02K6234*
KBD ASM Switzerland Chicony 02K6236*
KBD ASM Portuguese Chicony 02K6238*
KBD ASM Arabic Chicony 02K6240*
KBD ASM Russian Chicony 02K6242*
KBD ASM Hebrew Chicony 02K6244*
KBD ASM Polish Chicony 02K6246*
KBD ASM Turkish Chicony 02K6248*
KBD ASM Czech Chicony 02K6250*
KBD ASM Hungarian Chicony 02K6252*
KBD ASM Greek Chicony 02K6254*
KBD ASM Slovenian Chicony 02K6256*
146 ThinkPad R30/R31 HMM
Description Vendor FRU No.
KBD ASM Slovakian Chicony 02K6258*
KBD ASM Japan Chicony 02K6260*
KBD ASM Traditional Chinese Chicony 08K4500*
KBD ASM Korea Chicony 08K4502*
KBD ASM La Spanish Chicony 08K4504*
Common parts list
Tools:
Description FRU No.
Tri-Connector Wrap Plug 72X8546
PC Test Card 35G4703
Audio Wrap Cable 66G5180
USB Parallel Test Cable 05K2580
Screwdriver Kit 95F3598
5mm Socket Wrench 05K4694
Screwdriver 27L8126
Wireless Antenna Connector Removal Tool 08K7159
ThinkPad hardware maintenance diskette
version 1.10
Note: The data may look the same with the sample hmm
but the diskette version is different.
Telephone cable:
Description FRU No.
Telephone cable (US/C, TWN, APS, LA, BRZL) 27L0465
Telephone cable (UK, IR, NZ) 27L0442
Telephone cable (Germany) 27L0441
Telephone cable (Italy) 27L0448
Telephone cable (France) 27L0443
Telephone cable (DK, DE, PO) 27L0447
Telephone cable (SW, SU) 27L0445
Telephone cable (FI, NO, NS) 27L0446
Telephone cable (Australia) 27L0467
Telephone cable (ND, NU) 27L0444
Telephone cable (SF, SI, SG, SE) 27L0462
Telephone cable (BE, BK, BS, BD, BF) 27L0451
Telephone cable (Austria) 27L0449
Telephone cable (Spain) 27L0450
MT 2656, 2657, 2676 147
AC adapter:
Description FRU No.
AC Adapter, 72W 3-pin (Astec) 02K6751*
AC Adapter, 72W 3-pin (Delta) 02K6754*
AC Adapter, 72W 2-pin (Astec) 02K6753*
AC Adapter, 72W 2-pin (Delta) 02K6756*
Power cords: IBM power cords for a specific country are
usually available only in that country.
For 2–pin power cords:
IBM power
cord part
number Used in these countries or regions
13H5264* Canada, U.S.A.
13H5273* Japan
36L8870* Argentina
49P2095* Brazil
For 3–pin power cords:
Note: The grounded adapter is required for full MPRII
compliance. If a 3–pin power cord came with your
computer, see “Safety Information”on page 13.
IBM power
cord part
number Used in these countries or regions
76H3514* Australia, New Zealand
76H3516* Taiwan, Thailand
76H3530* Italy
76H3520* Denmark
76H3524* UK, Hong Kong
76H3518* European Countries
76H3522* South Africa, India
76H3532* Israel
76H3535* Korea
02K0539* China (P.R.C.)
76H3528* Switzerland
Recovery CD List:
Description FRU No. Models
148 ThinkPad R30/R31 HMM
Recovery CD
Eng-XP Home (UD)
32P6416 2656–65G, 6FG, 56G,
27G, 28G, 2FG, 57G,
26G, 31G, 35G, 5CG
Recovery CD
Eng-XP Home (UD)
32P6415 2656–3FU, 25U, 7GU,
9FU, 6FU, 56U
Recovery CD
Eng-XP Home (US)
32P6415 2656–7LH, 63H, 6GH,
5DH, 27H, 56H
Recovery CD
Eng-XP Home (US)
32P6415 2656–65A, 56A, 27A, 4PA
; 65M, 26M
Recovery CD
Norway-XP Home
32P6428 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Netherland-XP
Home
32P6427 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Finland-XP Home
32P6426 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Italy-XP Home
32P6425 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Spanish-XP Home
32P6423 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD LA
Spanish-XP Home
32P6418 2656–7LS, 7FS, 65S,
58S, 25S, 2FS
Recovery CD LA
Spanish-XP Home
32P6418 2656–7LX, 7FX, 65X,
58X, 25X, 2FX
Recovery CD
Denmark-XP Home
32P6420 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Sweden-XP Home
32P6424 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
French-XP Home
32P6421 2656–7LS, 7FS, 65S,
58S, 25S, 2FS
Recovery CD
Canadian
French-XP Home
32P6417 2656–7GF, 9FF, 6FF, 56F,
25F,
Recovery CD
German-XP Home
32P6422 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Portuguese-XP
Home
32P6419 2656–7LP, 7FP, 65P, 58P,
25P, 2FP
Recovery CD
Japan-XP Home
46P6946 2656–6GJ, 66J, 45J, 46J,
44J
Recovery CD
Traditional
Chinese-XP Home
62P8524 2656–8FT, 63T, 6GT, 56T,
27T, 5DT
Recovery CD
Simplified
Chinese-XP Home
62P8527 2656–65C, 6GC, 56C,
5DC, 7LC, 7DC
MT 2656, 2657, 2676 149
Recovery CD
HongKong
Traditional
Chinese-XP Home
62P8530 2656–6GB
Recovery CD
Turkey-XP Home
32P6433 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Greek-XP Home
32P6434 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Hungary-XP Home
32P6435 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Russian-XP Home
32P6436 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Polish-XP Home
32P6432 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Hebrew-XP Home
32P6431 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
CZ-XP Home
32P6430 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
Arabic Enabled-XP
Home
32P6429 2656–56G, 6FG, 56G,
27G, 28G, 2FG, 28G,
26G, 31G, 35G, 5CG
Recovery CD
English- WinXP
PRO (UD)
32P6518 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
English -WinXP
PRO (US)
32P6517 2656–E6U, HFU, E5U,
EFU, BFU, A5U, AFU,
GGU, EHU, HGU, AKU,
J2U, M4U, F5U, H8U,
H4U, H9U, H6U, FGU,
HHU, MMU
Recovery CD
English -WinXP
PRO (US)
32P6517 2656–E5H, EFH, EIH,
D8H, J2H, 4PH, HHH,
MMH
Recovery CD
English -WinXP
PRO (US)
32P6517 2656–E6M, GFM, E5M,
EFM, AGM, ABM, D6M,
ADM, J2M, 3PM, HHM,
5PM, MMM ; E6A, E5A,
EFA, D6A, J2A, HHA,
5PA, MMA
Recovery CD
Norway - WinXP
PRO
32P6530 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
150 ThinkPad R30/R31 HMM
Recovery CD
Netherland-WinXP
PRO
32P6529 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Finland-WinXP
PRO
32P6528 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Italy-WinXP PRO
32P6527 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Spanish-WinXP
PRO
32P6525 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD LA
Spanish-WinXP
PRO
32P6520 2656–E6S, GFS, E5S,
EFS, D5S, A5S, AFS,
J2S, HHS, MMS
Recovery CD LA
Spanish-WinXP
PRO
32P6520 2656–E6X, GFX, E5X,
EFX, D5X, A5X, AFX,
J2X, HHX, MMX
Recovery CD
Denmark-WinXP
PRO
32P6522 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Sweden-WinXP
PRO
32P6526 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
French-WXP PRO
32P6523 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Canadian
French-WinXP
PRO
32P6519 2656–GGF, IFF, E5F, EFF,
J2F, HHF, MMF
Recovery CD
German-WinXP
PRO
32P6524 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Portuguese-WinXP
PRO
32P6521 2656–E6P, GFP, E5P,
EFP, D5P, A5P, AFP, J2P,
HHP, MMP
Recovery CD
Japan-WinXP PRO
46P6943 2656–EGJ, E8J, C5J,
E5J, EFJ, J2J, HHJ, K9J,
MMJ
MT 2656, 2657, 2676 151
Recovery CD
Japan-WinXP PRO
RETAIL
46P6988 2656–75J/8FJ/47J
Recovery CD
Traditional
Chinese-WinXP
PRO
62P8525 2656–E5T, EFT, E8T, EIT,
D6T, ABT, J2T, MMT, HHT
Recovery CD
Simplified
Chinese-WinXP
PRO
62P8528 2656–E5C, EFC, EIC,
E6C, J2C, HHC, MMC
Recovery CD Hong
Kong Traditional
Chinese-XP PRO
62P8531 2656–D6B
Recovery CD
Turkey-WinXP PRO
32P6535 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Greek-WXP PRO
32P6536 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Greek-WXP PRO
32P6536 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Russian-WinXP
PRO
32P6538 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Polish-WinXP PRO
32P6534 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Hebrew-WinXP
PRO
32P6533 2656–E5G ,EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
CZ-WinXP PRO
32P6532 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
Arabic
Enabled-WinXP
PRO
32P6531 2656–E5G, EFG, D8G,
ABG, AHG, AFG, BBG,
D9G, ADG, AJG, D7G,
J2G, 89G, 50G, HHG,
MMG
Recovery CD
English- Win 2000
(UD)
32P6313 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
152 ThinkPad R30/R31 HMM
Recovery CD
English -Win 2000
(US)
32P6312 2656–E7U, HEU, E4U,
J1U, EEU, BEU, A4U,
AEU, FEU, F4U, L4U,
H5U, FFU, LLU, H7U
Recovery CD
English -Win 2000
(US)
32P6312 2656–E4H, J1H, EEH,
FFH, LLH
Recovery CD
English -Win 2000
(US)
32P6312 2656–E4M, J1M, EEM,
BGM, AAM, BIM, E7M,
FFM, LLM ; E4A, J1A,
EEA, FFA, LLA
Recovery CD
Norway - Win2000
32P6325 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Netherland-
Win2000
32P6324 2656–E4G, EEG, EDG,
AAG,A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Finland-Win2000
32P6323 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Italy-Win2000
32P6322 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Spanish-Win2000
32P6320 2656–E4G, EEG, EDG,
AAG, A9G, AEG,
DDG,B2G, ACG, ECG,
BCG, J1G, FFG, 40G,
LLG
Recovery CD LA
Spanish-Win2000
32P6315 2656–E4S, J1S, EES,
LLS, FFS
Recovery CD LA
Spanish-Win2000
32P6315 2656–E4X, J1X, EEX,
FFX, LLX
Recovery CD
Denmark-Win2000
32P6317 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Sweden-Win2000
32P6321 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
French-Win2000
32P6318 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Canadian
French-Win2000
32P6314 2656–E4F, J1F, EEF, FFF,
LLF
Recovery CD
German-Win2000
32P6319 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
MT 2656, 2657, 2676 153
Recovery CD
Portuguese-
Win2000
32P6316 2656–E4P, J1P, EEP, FFP,
LLP
Recovery CD
Japan-Win2000
46P6941 2656–6HJ, 67J, 48J, FFJ,
EEJ, J1J, E4J, K8J, LLJ
Recovery CD
Traditional
Chinese-Win2000
62P8523 2656–E4T, J1T, EET, FFT,
LLT
Recovery CD
Simplified
Chinese-Win2000
62P8526 2656–E4C, J1C, EEC,
FFC, LLC
Recovery CD
Turkey-Win2000
32P6330 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Greek-Win2000
32P6331 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Hungary-Win2000
32P6332 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Russian-Win2000
32P6333 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Polish-Win2000
32P6329 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Hebrew-Win2000
32P6328 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
CZ-Win2000
32P6327 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Recovery CD
Arabic
Enabled-Win2000
32P6326 2656–E4G, EEG, EDG,
AAG, A9G, AEG, DDG,
B2G, ACG, ECG, BCG,
J1G, FFG, 40G, LLG
Option Parts List
Battery charges:
Description FRU No.
Charger Main Battery Li-Ion —W/W 02K6821
Charger Main Battery Li-Ion —Japan 02K6829
154 ThinkPad R30/R31 HMM
Ultrabay devices:
Description FRU No.
CD—RW drive (SONY) 08K9617*
Diskette drive (TEAC) 08K9606*
Diskette drive (SONY) 08K9607*
SuperDisk drive (LS120 x 2) 05K9235*
SuperDisk drive (LS240) 08K9615*
ZIP—250 drive 00N8254*
2nd HDD adapter 08K6067*
Ultrabay Plus device carrier 26P9388*
Ultrabay Plus numeric keypad 19K2056*
Ultrabay Plus cradle for WorkPad c500 series 26P9389*
MT 2656, 2657, 2676 155
ThinkPad R31 Part II
This section applies to the following models: 2656-2Gx,
2656-2Hx, 2656-2Jx, 2656-2Kx, 2656-2Lx, 2656-1Ax,
2656-2Vx, 2656-1Bx, 2656-2Px, 2656-2Mx, 2656-1Cx,
2656-2Cx, 2656-2Nx, 2656-2Ex, 2656-1Dx, 2656-2Gx,
2656-1Fx, 2656-1Gx, 2656-1Ix, 2656-1Jx, 2656-1Kx,
2656-Lx, 2656-Mx, 2656-1Ox, 2656-1Px, 2656-37x,
2656-3Cx, 2656-3Ax, 2656-38x, 2656-KCU, 2656-KDU,
2656-KEU, 2656-KFU, 2656-GAJ, 2657-GBJ, 2656-3CG,
2656-4CG, 2656-2HC, 2656-1EM, 2656-1EA, 2656-1EB,
2656-1EH, 2656-1HK, 2656-1HT, 2656-1SJ, 2656-1RJ,
2656-1BU.
156 ThinkPad R30/R31 HMM
Product overview
The following shows an overview of the system features.
Feature Description
Processor Intel Pentium III processor 1.26GHz,
Intel Celeron processor 1.13/1.20/1.33
GHz
Bus architecture Host bus 64bits/133 MHz, PCI 32
bits/33 MHz, LPC 4bits/33MHz,
PCMCIA 16 bits, Cardbus 32 bits/32
MHz
System memory 128 MB or 256 MB base main memory
on system board PC 133
Two 144pins SODIMM slots supports
64 MB, 128MB, 256MB, and 512MB
DIMM cards
Frequency: PC 133
Maximum size: 1024 MB
CMOS RAM 242 bytes + 4 Kbytes
Video Intel 830 MG with 2D/3D Graphics
accelerator.
Dynamically variable video memory
size
13.3–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
14.1–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
Audio AC97 audio Intel
16–bit audio
Internal stereo speakers
Diskette drive (optional) External 1.44MB (3–mode), 3.5 inch
floppy drive via USB interface
(Bootable)
Hard disk drive 20GB, 30GB, or 40GB, 2.5–inch
9.5mm height, E-IDE interface
CD-ROM drive CD-ROM: 5.25–inch, 24X speed,
E-IDE interface
DVD—ROM : 8X speed
DVD/ CD—RW : 8X DVD/ CD-RW
CD-RW
Modem Integrated CDC soft Modem 56 Kbps
Data/Fax Modem
Ethernet (optional) LAN on motherboard . It supports
10/100Mbps
MT 2656, 2657, 2676 157
Feature Description
IEEE 1394 (optional) Ti TSB43AB21 1394 controller on
board
IEEE 1394.a 4–pin connector —no
cable power
100Mbps, 200Mbps and 400Mbps
PC Card (PCMCIA) One Type I/II or Type III
I/O ports External monitor
Speaker-out
Microphone-in
DC-in
TV-out (S-Video out)
Parallel
Two USBs
IEEE 1394a (Selected models only)
Telephone (RJ11)
LAN (RJ45, Selected models only)
Power 72–Watt AC Adapter
6–cell Li-Ion & 8–cell NiMH Battery
Packs (Dumb Battery)
Status indicators
The system-status indicators on the computer show the
current status of your computer by their on or off states
and colors (green and orange). Each indicator is identified
with a symbol. The following shows the location and the
meaning of each icon:
158 ThinkPad R30/R31 HMM
76
Symbol Color Meaning
(1) Drive in use Green Data is being read from or
written to the hard disk. Do
not enter standby mode or
power off the computer
when this indicator is on.
(2) Numeric lock Green The numeric keypad on the
keyboard is enabled. You
enable or disable the
keypad by pressing and
holding the Shift key, and
pressing the NumLk key.
For details, see the User’s
Reference.
(3) Caps lock Green Caps Lock mode is
enabled. All alphabetic
characters (A-Z) are
entered in capital letters
without the Shift key being
pressed. You enable or
disable the Caps Lock
mode by pressing the Caps
Lock key.
(4) Scroll lock Green Scroll Lock mode is
enabled. The Arrow keys
can be used as
screen-scroll function keys.
The cursor cannot be
moved with the Arrow
keys. Not all application
programs support this
function. You enable or
disable Scroll Lock mode by
pressing the ScrLk key.
(5) Power on Green The computer is
operational. This indicator is
on when the computer is
on.
MT 2656, 2657, 2676 159
Symbol Color Meaning
(6) Battery status Green Enough battery power
remains for operation.
Blinking
green
The battery power charges
up to 80% full power
Blinking
orange
The battery pack needs to
be charged
Orange The battery pack is being
charged.
(7) Standby mode Green The computer is in standby
mode
FRU tests
The following table shows the applicable test for each FRU
using PC-Doctor.
FRU Applicable test
System board 1. CPU/Coprocessor (Diagnostics)
2. System board (Diagnostics)
Power Battery (Diagnostics)
LCD unit 1. Video Adapter (Diagnostics)
2. Video (Interactive Tests)
Modem 1. Make sure the modem set up
correctly.
2. Replacing the modem jack and
modem card one at a time, run the
modem tests in Other Devices
(Diagnostics)
Audio Internal Speaker (Interactive Tests)
Stereo Speaker (Interactive Tests)
Speaker System beeper: Internal Speaker
(Interactive Tests)
PC Card slots System board (Diagnostics)
Keyboard 1. Keyboard (Diagnostics)
2. Keyboard (Interactive Tests)
160 ThinkPad R30/R31 HMM
FRU Applicable test
TrackPont or Pointing
device
If the TrackPoint does not work, see if an
external PS/2 mouse is connected to the
mouse/keyboard connector and remove
it. The TrackPoint is automatically
disabled if an external PS/2 mouse is
attached. Check also if the TrackPoint
driver is correctly installed by accessing
Windows Device Manager via the System
icon in the Control Panel.
After you use the TrackPoint, the pointer
drifts on the screen for a short time. This
self-acting pointer movement can occur
when a slight, steady pressure is applied
to the TrackPoint pointer. This symptom
is not a hardware problem. No service
actions are necessary if the pointer
movement stops in a short period of time.
If this does not correct the TrackPoint
problem, continue with the following:
Mouse (Interactive Tests).
Hard disk drive Fixed Disks (Diagnostics)
CD-ROM drive CD-ROM, DVD, CD-RW, DVD/CD-RW
(Interactive Tests)
Memory 1. If a DIMM is installed, remove it and
run Memory Test-Quick (Diagnostics)
2. If the problem does not recur, replace
the DIMM and run the test again.
3. If the test does not detect the error,
run Memory Test-Full (Diagnostics)
Fan 1. Power on system and check the air
turbulence at the louver at the rear of
the computer.
2. Run the fan test in Other Devices
(Diagnostics).
MT 2656, 2657, 2676 161
FRU removals and replacements
This section contains information about removals and
replacements.
vDo not damage any parts. Only certified and trained
personnel should service the computer.
vThe arrows in this section show the direction of
movement to remove a FRU, or to turn a screw to
release the FRU. The arrows are marked in numeric
order, in square callout, to show the correct sequence of
removal.
vAny FRUs that must be removed before removing the
failing FRU are listed at the top of the page.
vTo replace a FRU, reverse the removal procedure and
follow any notes that pertain to replacement. See
“Locations”on page 191 for internal cable connections
and arrangement information.
vWhen replacing a FRU, use the correct screw size, as
shown in the procedure.
Safety Notice 1
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before the computer is
powered-on after FRU replacement, make sure all
screws, springs, or other small parts are in place
and are not left loose inside the computer. Verify
this by shaking the computer and listening for
rattling sounds. Metallic parts or metal flakes can
cause electrical shorts.
Safety Notice 3
Translations in ″Safety Notices (Multi-lingual
Translations)″section: The battery pack contains
small amounts of nickel. Do not disassemble it,
throw it into fire or water, or short-circuit it. Dispose
of the battery pack as required by local ordinances
or regulations. Use only the battery in the
appropriate parts listing when replacing the battery
pack. Use of an incorrect battery can result in
ignition or explosion of the battery.
162 ThinkPad R30/R31 HMM
Safety Notice 8
Translations in ″Safety Notices (Multi-lingual
Translations)″section: Before removing any FRU,
power-off the computer, unplug all power cords from
electrical outlets, remove the battery pack, then
disconnect any interconnecting cables.
Attention: The system board is sensitive and can be
damaged by electronic discharge. Establish personal
grounding by touching a ground point with one hand before
touching these units.
An electrostatic discharge (ESD) strap (P/N: 6405959)
must be used to establish personal grounding.
1010 Battery assembly
12
Warning
Battery packs are capable of delivering high
currents for a significant amount of time. Do not
short the battery terminals.
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
1020 Mini-PCI cover and Mini-PCI card
v“1010 Battery assembly”
MT 2656, 2657, 2676 163
1
2
Note: The screw does not separate from the PCI cover.
3
4
Note: There are 2 cables on step 4 : The gray cable is the
main antenna and the black cable is the auxiliarey
antenna.
Note: When you install the PCI card, remember to press it
down and ensure the connection is well.
164 ThinkPad R30/R31 HMM
1030 Memory cover and Memory card
v“1010 Battery assembly”on page 163
1
2
Note: The screw does not separate from the memory
cover.
3
To install the memory card:
With the notched end of the memory card toward the right
side of the socket, insert the memory card, at an angle of
approximately 20°, into the socket; then press it firmly.
MT 2656, 2657, 2676 165
Pivot the memory card until it snaps into place.
Side View
1040 Hard disk drive assembly
v“1010 Battery assembly”on page 163
1
2
Step Size (Quantity) Color Torque
1 M3 x L4 (1) Black 3.2 kgf-cm
166 ThinkPad R30/R31 HMM
Warning
Do not drop or apply any shock to the hard disk
drive. The hard disk drive is sensitive to physical
shock. Incorrect handling can cause damage and
permanent loss of data on the drive.
Before removing the drive, have the user make a
backup copy of all the information on the drive if
possible.
Never remove the drive while the system is
operating or is in suspend mode.
1050 CD-ROM assembly
v“1010 Battery assembly”on page 163
1
2
3
1060 Keyboard
v“1010 Battery assembly”on page 163
MT 2656, 2657, 2676 167
1
Step Size (Quantity) Color Torque
1 M2.5 x L10 (2) Black 3.2 kgf-cm
2
3
4
168 ThinkPad R30/R31 HMM
Notes:
1. When replacing the keyboard, make sure that the cable
is clean and insert it directly into the connector, making
sure it makes contact with the bottom of the connector.
2. If the cable do not touch the bottom of the connector,
the keyboard function will be rendered useless.
3. The cable of the keyboard are fragile and could be
damaged. Be careful when pulling out the cable.
1070 Backup battery
v“1010 Battery assembly”on page 163
v“1060 Keyboard”on page 167
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to manufacturer’s instruction.
Safety Notice 4
Translation in ″Safety Notices: Multi-lingual
Translations″section: The backup battery is a
lithium battery and can cause a fire, an explosion, or
severe burns. Do not recharge it, remove its
polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell
contents to water. Dispose of the battery as required
by local ordinances or regulations. Use of an
incorrect battery can result in ignition or explosion of
the battery. Replacement batteries can be ordered
from IBM or IBM Authorized Dealers.
MT 2656, 2657, 2676 169
1080 Middle cover
v“1010 Battery assembly”on page 163
v“1060 Keyboard”on page 167
1
2
3
Step Size (Quantity) Color Torque
2 M2.5 x L10 (1) Black 3.2 kgf-cm
170 ThinkPad R30/R31 HMM
Step Size (Quantity) Color Torque
3 M2.5 x L10 (1) Black 2.5 kgf-cm
1090 LCD assembly
v“1010 Battery assembly”on page 163
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
1
2
3
MT 2656, 2657, 2676 171
Note: Release the gray cable, which is the main antenna
from the system.
4
4
5
Step Size (Quantity) Color Torque
4 M2.5 x L10 (4) Black 3.6 kgf-cm
5 M2.5 x L5 (1) Silver 2.5 kgf-cm
6
172 ThinkPad R30/R31 HMM
7
1100 Keyboard bezel
v“1010 Battery assembly”on page 163
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
1
MT 2656, 2657, 2676 173
Step Size (Quantity) Color Torque
1 M2.5 x L10 (7) Black 3.2 kgf-cm
2
CAUTION:
The keyboard bezel has several latches. When
removing the keyboard bezel from the bottom cover,
gently release these latches, then raise the side of the
keyboard bezel facing the palm rest to remove it. Be
careful not to break the latches.
1110 PCMCIA holder
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
174 ThinkPad R30/R31 HMM
1
2
Step Size (Quantity) Color Torque
2 M2 x L6 (3) Silver 1.6 kgf-cm
3
4
MT 2656, 2657, 2676 175
Note: Before removing and replacing the PCMCIA holder,
make sure that the PCMCIA cards are removed and
the eject levers are sticking out.
1120 Auxiliary Antenna
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
1
Step Size (Quantity) Color Torque
1 M2.5 x L5(1) Silver 2.5 kgf-cm
1130 Fan assembly
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
176 ThinkPad R30/R31 HMM
1
2
3
45
Step Size (Quantity) Color Torque
3 M2.5 x L5 (2) Silver 3.2 kgf-cm
MT 2656, 2657, 2676 177
1140 CPU assembly
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
v“1130 Fan assembly”on page 176
1150 System board
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
178 ThinkPad R30/R31 HMM
1
2
Step Size (Quantity) Color Torque
2 M2.5 x L5(3) Silver 2.5 kgf-cm
Notes:
1. When removing the system board from the bottom
cover, gently raise the side of the system board facing
the rear I/O ports; then pull out the system board.
MT 2656, 2657, 2676 179
1160 Speaker
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
1
Step Size (Quantity) Color Torque
2 M2.5 x L4(1) Black 2.5 kgf-cm
1170 Modem Cable (with Combo card)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
v“1150 System board”on page 178
180 ThinkPad R30/R31 HMM
1180 Modem Card (without Combo card)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1040 Hard disk drive assembly”on page 166
v“1050 CD-ROM assembly”on page 167
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
v“1150 System board”on page 178
MT 2656, 2657, 2676 181
1
Step Size (Quantity) Color Torque
1 M2.5 x L5 (2) Silver 3.2 kgf-cm
1190 Hard disk drive bezel
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1040 Hard disk drive assembly”on page 166
v“1050 CD-ROM assembly”on page 167
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
v“1150 System board”on page 178
182 ThinkPad R30/R31 HMM
1
Step Size (Quantity) Color Torque
1 M2 x L6 (2) Silver 1.6 kgf-cm
1200 CD-ROM chassis
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1040 Hard disk drive assembly”on page 166
v“1050 CD-ROM assembly”on page 167
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1070 Backup battery”on page 114
v“1100 Keyboard bezel”on page 173
v“1150 System board”on page 178
v“1170 Modem Cable (with Combo card)”on page 180
MT 2656, 2657, 2676 183
1
2
3
Step Size (Quantity) Color Torque
2 M2 x L4 (1) Silver 2.5 kgf-cm
3 M2.5 x L5 (1) Silver 3.2 kgf-cm
184 ThinkPad R30/R31 HMM
4
5
Step Size (Quantity) Color Torque
4 M2.5 x L5 (2) Silver 3.2 kgf-cm
5 M2 x L6 (1) Silver 1.6 kgf-cm
1210 LCD bezel assembly (13.3″)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
1
MT 2656, 2657, 2676 185
2
3
Step Size (Quantity) Color Torque
2 M2 x L4(2) Silver 2.5 kgf-cm
3 M2.5 x L6(2) Black 2.5 kgf-cm
3
4
5
6
7
3
Note: When removing the LCD, take note of the following:
vBe careful not to scratch the LCD bezel when
removing the screw mylars.
vThe LCD bezel has several latches. Release
these latches; then remove the LCD bezel. Be
careful not to break these latches.
vGently push the two LCD latches outward to
remove the LCD bezel.
1220 LCD Inveter (13.3″)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
186 ThinkPad R30/R31 HMM
v“1090 LCD assembly”on page 171
v“1210 LCD bezel assembly (13.3″)”on page 185
1
Step Size (Quantity) Color Torque
1 M2 x L10(4) Black 2.5 kgf-cm
1230 LED board (13.3″)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1210 LCD bezel assembly (13.3″)”on page 185
1
2
MT 2656, 2657, 2676 187
3
4
1240 LCD bracket hinge assembly (13.3″)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1210 LCD bezel assembly (13.3″)”on page 185
v“1220 LCD Inveter (13.3″)”on page 186
v“1230 LED board (13.3″)”on page 187
1
Step Size (Quantity) Color Torque
1 M2 x L4 (4) Silver 2.5 kgf-cm
1250 LCD FPC assembly (13.3″)
v“1010 Battery assembly”on page 163
v“1020 Mini-PCI cover and Mini-PCI card”on page 163
188 ThinkPad R30/R31 HMM
v“1030 Memory cover and Memory card”on page 165
v“1060 Keyboard”on page 167
v“1080 Middle cover”on page 170
v“1090 LCD assembly”on page 171
v“1210 LCD bezel assembly (13.3″)”on page 185
v“1220 LCD Inveter (13.3″)”on page 186
v“1230 LED board (13.3″)”on page 187
v“1240 LCD bracket hinge assembly (13.3″)”on page 188
1
Step Size (Quantity) Color Torque
1 M2 x L4(1) Silver 2.5 kgf-cm
MT 2656, 2657, 2676 189
2
1260 Wireless reassembly
v“1240 LCD bracket hinge assembly (13.3″)”on page 188
v“1230 LED board (13.3″)”on page 187
190 ThinkPad R30/R31 HMM
Locations
Front View
Computer display
Ultrabay plus
TrackPoint
System-status indicators
Power button
Volume & mute buttons
Rear View
Monitor connector
Modem connector
Power jack
Ethernet connector
USB connector
Parallel port
S-Video out connector
Security keyhole
Bottom View
10
12
3
4
5
6
7
8
9
10
11
12
9
1. Battery pack
2. Mini-PCI Card slot door
MT 2656, 2657, 2676 191
3. Memory slot door
4. Docking connector
192 ThinkPad R30/R31 HMM
Switch Locations
Boot Block
ENABLE
Boot Block
ENABLE
Boot Block
ENABLE
Boot Block
ENABLE
CHKPW
ENABLE
CHKPW
ENABLE
Boot Block
DISABLE
Boot Block
DISABLE
CHKPW
DISABLE
CHKPW
DISABLE
CHKPW
ENABLE
CHKPW
ENABLE
Boot Block
DISABLE
Boot Block
DISABLE
CHKPW
DISABLE
CHKPW
DISABLE
MT 2656, 2657, 2676 193
Parts list
1
2
3
4
5
67
8
9
10
11
12
13
16
17 18
19
20
21
2222
23
23
24
14
15
Note: The parts marked with asterisk are CRUs (customer
replaceable units.)
No. Description FRU No.
1 Hinge Cap 26P9722
2 Keyboard unit (“Keyboard”on page 201)
3 Middle Cover ASM WW 26P9727
4 KBD Bezel Asm. WW 46L6378
5 Cable Asm. kit , RJ11 and lid switch
RJ-11 Cable for CDC board model
RJ-11 Cable mini PCI combo board
model
Lid switch Cable
27L0689
194 ThinkPad R30/R31 HMM
No. Description FRU No.
6 Antenna Kit 13.3″
Antenna Kit 14.1″
Antenna Aux
Antenna LCD
26P9712
26P9711
7 CPU Cel 1133 MHz 26P8156
CPU Cel 1200 MHz 26P8157
CPU Cel 1.33 GHz 26P8158
CPU P-III 1.2 GHz 26P8285
CPU P-III 1.266 GHz 26P8363
8 Crypto Card 26P8084
9 CDC Modem Card 26P8256
10 FAN Asm. 26P9723
11 Heatsink 46L6365
12 Planar w/o IEEE1394 26P8350
Planar w/ IEEE1394 26P8352
13 PCMCIA Slot 26P9724
14 HDD w/tray & screws module IBM /10
GB
08K9796*
HDD w/tray & screws module HITACHI
/10 GB
08K9798*
HDD w/tray & screws module IBM /20
GB
08K9729*
HDD w/tray & screws module HITACHI
/20 GB
08K9731*
HDD w/tray & screws module IBM /20
GB
08K9761*
HDD w/tray & screws module HITACHI
/20 GB
08K9763*
HDD w/tray & screws module IBM /30
GB
08K9665*
HDD w/tray & screws module HITACHI
/30 GB
08K9666*
HDD w/tray & screws module IBM /30
GB
08K9733*
HDD w/tray & screws module HITACHI
/30 GB
08K9746*
HDD w/tray & screws module IBM /40
GB
08K9742*
HDD w/tray & screws module HITACHI
/40 GB
08K9744*
15 HDD Cover WW 26P9737
16 Lower Case w/ label WW 12P4323
Lower Case w/ label EMEA 12P4324
Lower Case w/ label IIPC 12P4325
MT 2656, 2657, 2676 195
No. Description FRU No.
Lower Case w/ label Korea 12P4326
Lower Case w/ label Taiwan 12P4327
Lower Case w/ label India 46L6371
Lower Case w/ label India 2656 12P4333
Lower Case w/ label W/W 2657 12P4334
Lower Case w/ label EMEA 2657 12P4335
Lower Case w/ label IIPC 2657 12P4336
Lower Case w/ label Korea 2657 12P4337
Lower Case w/ label Taiwan 2657 12P4338
Lower Case w/ label India 2657 12P4339
Lower Case w/ label W/W 2676 12P4340
Lower Case w/ label EMEA 2676 12P4341
Lower Case w/ label IIPC 2676 12P4342
Lower Case w/ label Korea 2676 12P4343
Lower Case w/ label Taiwan 2676 12P4344
Lower Case w/ label India 2676 12P4345
Lower Case w/ label WW-wireless 12P4328
Lower Case w/ label EMEA-wireless 12P4329
Lower Case w/ label IIPC-wireless 12P4330
Lower Case w/ label Korea-wireless 12P4331
Lower Case w/ label Taiwan-wireless 12P4332
17 SoDIMM Asm.—128MB 19K4653*
SoDIMM Asm.—256MB 19K4655*
18 Combo 802.11b/Modem combo card 12P3637*
19 Mini-PCI / DIMM door kit 46L6335*
20 Battery Assy. (Ni-Mh)
Sanyo-W/W
Sanyo-Japan
02K6827*
02K6835*
Battery Assy. (Li-Ion)
Sanyo-W/W
Sanyo-Japan
Panasonic-W/W
Panasonic-Japan
02K6822*
02K6830*
02K6824*
02K6832*
21 Speaker Kit 08K4618
22 RTC Battery 02K7062
196 ThinkPad R30/R31 HMM
No. Description FRU No.
23 CD-ROM Module
TEAC
HLDS(LG)
27L3436*
27L4301*
DVD-ROM Module
MKE
HLDS(Hitachi)
27L4351*
27L4355*
CD-RW Module
SONY
TEAC
27L4231*
27L4297*
CD-RW/DVD-ROM combo Module
KME
27L4359*
24 Heatsink DC-DC 46P2555
Rubber Kit
PCMCIA screw cap* 3
rubber foot * 3
LCD bezel screw cap (W/W) *4
IEEE-1394 dummy label
IEEE-1394 icon label
26P9742
Screw Kit
HDD COIN SCREW
M/B HEX SCREW
SCREW DIMM COVER STEEL
SCREW MACH PAN NYLOK M2.0*13
NI
BH MSN+N SCREW M2.0*6
SCREW MACH FLAT M3*2.8
SCREW HDD M3*L4
WCH MSN+CZ SCREW M2.5*5
SCREW M2.5L10B 86.9A353100
SCREW M2.5*6
SCREW M2.4 WAFER NI
26P9741
MT 2656, 2657, 2676 197
No. Description FRU No.
Misc common
Battery Knob
Battery Latch
Battery Spring
CD-ROM Pull bar
CD-ROM Latch
CD-ROM Spring for latch
CD-ROM Spring for CD-ROM pull bar
PCMCIA door
PCMCIA Spring
26P9740
LCD FRU
13.3-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 13.3″LCD Bezel 46L6330
198 ThinkPad R30/R31 HMM
No. Description FRU No.
2 LCD Panel Asm (13.3″TFT)
Tori-Sanyo
LG
11P8212
11P8220
3 13.3″Hinge-Bracket Asm (R,L) 26P9720
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0687
6 Antenna Kit 13.3″LCD
Antenna w/ 13.3″LCD
Antenna aux
26P9712
7 LCD Rear Cover Asm for 13.3″/14.1″(
for Wireless model )
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
MT 2656, 2657, 2676 199
14.1-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 14.1″LCD Bezel (for W/W) 46L6329
2 LCDPanel Asm. (14.1″TFT)
Hyundai
Samsung
LG
11P8214
46L2356
11P8210
3 14.1″Hinge-Bracket Asm (R,L) 26P9719
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0686
6 Antenna Kit 14.1″LCD
Antenna w/ 14.1″LCD
Antenna aux
26P9711
200 ThinkPad R30/R31 HMM
No. Description FRU No.
7 LCD Rear Cover Asm for 13.3″/14.1″(for
W/W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″(for
W/O W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap Asm. 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
Keyboard
Description Vendor FRU No.
KBD ASM US English NMB 12P4260*
KBD ASM Canadian French NMB 12P4262*
KBD ASM German NMB 12P4264*
KBD ASM UK English NMB 12P4266*
KBD ASM French NMB 12P4268*
KBD ASM Dutch NMB 12P4270*
KBD ASM Swedish/Finnish NMB 12P4272*
KBD ASM Norwegian NMB 12P4274*
KBD ASM Danish NMB 12P4276*
KBD ASM Italian NMB 12P4278*
KBD ASM European Spanish NMB 12P4280*
KBD ASM Belgian NMB 12P4282*
KBD ASM Switzerland NMB 12P4284*
KBD ASM Portuguese NMB 12P4286*
KBD ASM Russian NMB 12P4290*
KBD ASM Slovakian NMB 12P4306*
KBD ASM Slovenian NMB 12P4304*
KBD ASM Traditional Chinese NMB 12P4310*
KBD ASM Turkish NMB 12P4296*
KBD ASM Arabic NMB 12P4288*
KBD ASM Hebrew NMB 12P4292*
KBD ASM Polish NMB 12P4294*
KBD ASM Czech NMB 12P4298*
KBD ASM Hungarian NMB 12P4300*
MT 2656, 2657, 2676 201
Description Vendor FRU No.
KBD ASM Greek NMB 12P4302*
KBD ASM Japan NMB 12P4308*
KBD ASM Korea NMB 12P4312*
KBD ASM La Spanish NMB 12P4314*
KBD ASM US English Chicony 02K6212*
KBD ASM Canadian French Chicony 02K6214*
KBD ASM German Chicony 02K6216*
KBD ASM UK English Chicony 02K6218*
KBD ASM French Chicony 02K6220*
KBD ASM Dutch Chicony 02K6222*
KBD ASM Swedish/Finnish Chicony 02K6224*
KBD ASM Norwegian Chicony 02K6226*
KBD ASM Danish Chicony 02K6228*
KBD ASM Italian Chicony 02K6230*
KBD ASM European Spanish Chicony 02K6232*
KBD ASM Belgian Chicony 02K6234*
KBD ASM Switzerland Chicony 02K6236*
KBD ASM Portuguese Chicony 02K6238*
KBD ASM Arabic Chicony 02K6240*
KBD ASM Russian Chicony 02K6242*
KBD ASM Hebrew Chicony 02K6244*
KBD ASM Polish Chicony 02K6246*
KBD ASM Turkish Chicony 02K6248*
KBD ASM Czech Chicony 02K6250*
KBD ASM Hungarian Chicony 02K6252*
KBD ASM Greek Chicony 02K6254*
KBD ASM Slovenian Chicony 02K6256*
KBD ASM Slovakian Chicony 02K6258*
KBD ASM Japan Chicony 02K6260*
KBD ASM Traditional Chinese Chicony 08K4500*
KBD ASM Korea Chicony 08K4502*
KBD ASM La Spanish Chicony 08K4504*
Common parts list
Tools:
Description FRU No.
Tri-Connector Wrap Plug 72X8546
PC Test Card 35G4703
Audio Wrap Cable 66G5180
202 ThinkPad R30/R31 HMM
Description FRU No.
USB Parallel Test Cable 05K2580
Screwdriver Kit 95F3598
5mm Socket Wrench 05K4694
Screwdriver 27L8126
Wireless Antenna Connector Removal Tool 08K7159
ThinkPad hardware maintenance diskette
version 1.10
Note: The data may look the same with the sample hmm
but the diskette version is different.
Telephone cable:
Description FRU No.
Telephone cable (US/C, TWN, APS, LA,
BRZL)
27L0465
Telephone cable (UK, IR, NZ) 27L0442
Telephone cable (Germany) 27L0441
Telephone cable (Italy) 27L0448
Telephone cable (France) 27L0443
Telephone cable (DK, DE, PO) 27L0447
Telephone cable (SW, SU) 27L0445
Telephone cable (FI, NO, NS) 27L0446
Telephone cable (Australia) 27L0467
Telephone cable (ND, NU) 27L0444
Telephone cable (SF, SI, SG, SE) 27L0462
Telephone cable (BE, BK, BS, BD, BF) 27L0451
Telephone cable (Austria) 27L0449
Telephone cable (Spain) 27L0450
AC adapter:
Description FRU No.
AC Adapter, 72W 3-pin (Astec) 02K6751*
AC Adapter, 72W 3-pin (Delta) 02K6754*
AC Adapter, 72W 2-pin (Astec) 02K6753*
AC Adapter, 72W 2-pin (Delta) 02K6756*
Power cords: IBM power cords for a specific country are
usually available only in that country.
MT 2656, 2657, 2676 203
For 2–pin power cords:
IBM power
cord part
number Used in these countries or regions
13H5264* Canada, U.S.A.
13H5273* Japan
36L8870* Argentina
49P2095* Brazil
For 3–pin power cords:
Note: The grounded adapter is required for full MPRII
compliance. If a 3–pin power cord came with your
computer, see “Safety Information”on page 13.
IBM power
cord part
number Used in these countries or regions
76H3514* Australia, New Zealand
76H3516* US, Canada
76H3530* Italy
76H3520* Denmark
76H3524* UK, Hong Kong
76H3518* European Countries
76H3522* South Africa, India
76H3532* Israel
76H3535* Korea
02K0539* China (P.R.C.)
76H3528* Switzerland
Recovery CD List:
Description FRU No. Models
Recovery CD Eng-XP
Home (UD)
01R5847 2656–MIG, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Eng-XP
Home (US)
01R5348 2656–2HU, 1AU, 3CU,
1GU, 38U, 2HH, 2KH,
1EH, 1EA, 1EM, 1BM,
1DA, L1U, 1BU, NAU,
M9U, K1H, L1H, L8H,
KMH, KAA, M1A, KBA,
KAM, MAM, MLM, KGM
Recovery CD
Norway-XP Home
01R5857 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Netherland-XP Home
01R5856 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
204 ThinkPad R30/R31 HMM
Recovery CD
Finland-XP Home
01R5855 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Italy-XP
Home
01R5854 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Spanish-XP Home
01R5852 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG, 2HS,
1AS, 2HX, 1AX
Recovery CD
Denmark-XP Home
01R5849 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Sweden-XP Home
01R5853 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
French-XP Home
01R5850 2656–LAF, LBF, M9F,
M1G, MLG, T9G, 1DG,
2GG, 4CG, LAF, LBF,
M9F, 2HF, 1AF, 3CF,
1GF, 38F
Recovery CD
German-XP Home
01R5851 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Portuguese-XP Home
01R5848 2656–2PH, 1AP
Recovery CD
Japan-XP Home
62P8849 2656–1JJ
Recovery CD
Traditional Chinese-XP
Home
67P5000 2656–L1T,KAT,KGT,
2HT, 1ET
Recovery CD
Simplified Chinese-XP
Home
67P5003 2656–K1C, KMC, 2HC
Recovery CD
HongKong Traditional
Chinese-XP Home
67P5006 2656–L7B, K1B, KMB,
2JB, 1EB
Recovery CD Turkey
Enabled-XP Home
01R5861 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Greek-XP Home
01R5863 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Hungary-XP Home
01R5864 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Russian-XP Home
01R5865 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Polish-XP Home
01R5861 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Hebrew
Enabled-XP Home
01R5860 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD CZ-XP
Home
01R5859 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Arabic-XP Home
01R5858 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Eng-XP
Pro(UD)
01R5790 2656–M2G, M3G M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
MT 2656, 2657, 2676 205
Recovery CD Eng-XP
Pro(US)
01R5347 2656–2GU, 2LU, 2VU,
37U, 1CU, 1FU, KCU,
KDU, 39U, KEU, KFU,
1LM, 2MM, L2U, L6U,
M2U, NYU, M2M, M5M,
NHM, NEM
Recovery CD
Norway-XP Pro
01R5800 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Netherland-XP Pro
01R5799 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Finland-XP Pro
01R5798 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Italy-XP
Pro
01R5797 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Spanish-XP Pro
01R5795 2656–M2G, M3G, M7G,
MEG, R5X, R7X, TAX,
R5S, R7S, TAS, 2GS,
2LS, 2GX, 2LX R9G,
1CG, 2CG, 2NG, 2EG,
3CG
Recovery CD
Denmark-XP Pro
01R5792 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Sweden-XP Pro
01R5796 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
French-XP Pro
01R5793 2656–M2G, M3G, M7G,
MEG, NXF, MFF, 37F,
39F, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
German-XP Pro
01R5794 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Portuguese-XP Pro
01R5791 2656–M2G, M3G, M7G,
MEG, R5P, R7P, TAP,
R9G, 1CG, 2CG, 2NG,
2EG, 3CG, 2GP, 2LP
Recovery CD
Japan-XP Pro
67P4785 2656–2GP, 2LP, 1WJ,
1MJ, GAJ, 1PJ
Recovery CD
Traditional Chinese-XP
Pro
67P5001 2656–MBT, 1KT
Recovery CD Turkey
Enabled-XP Pro
01R5805 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Greek-XP Pro
01R5806 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Hungary-XP Pro
01R5807 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
206 ThinkPad R30/R31 HMM
Recovery CD
Russian-XP Pro
01R5808 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Polish-XP Pro
01R5804 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Hebrew
Enabled-XP Pro
01R5803 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD CZ-XP
Pro
01R5802 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Arabic-XP Pro
01R5801 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Eng-Win2000 (US)
01R6084 2656–R6U, R8U, TBU
Recovery CD
Portuguess-Win2000
01R6085 2656–R6P, R8P, TBP
Recovery CD
Spanish-Win2000
01R6086 2656–R6S, R8S, TBS,
R6X, R8X, TBX
Recovery CD
Japan-Win2000
67P4782 2656–GBJ, 1HJ
Option Parts List
Battery charges:
Description FRU No.
Charger Main Battery Li-Ion —W/W 02K6821
Charger Main Battery Li-Ion —Japan 02K6829
Ultrabay devices:
Description FRU No.
CD—RW drive (SONY) 08K9617*
Diskette drive (TEAC) 08K9606*
Diskette drive (SONY) 08K9607*
SuperDisk drive (LS120 x 2) 05K9235*
SuperDisk drive (LS240) 08K9615*
ZIP—250 drive 00N8254*
2nd HDD adapter 08K6067*
Ultrabay Plus device carrier 26P9388*
Ultrabay Plus numeric keypad 19K2056*
Ultrabay Plus cradle for WorkPad c500 series 26P9389*
MT 2656, 2657, 2676 207
ThinkPad R31 Part III
This section applies to the following models: 2656-2Gx,
2656-2Hx, 2656-2Jx, 2656-2Kx, 2656-2Lx, 2656-1Ax,
2656-2Vx, 2656-1Bx, 2656-2Px, 2656-2Mx, 2656-1Cx,
2656-2Cx, 2656-2Nx, 2656-2Ex, 2656-1Dx, 2656-2Gx,
2656-1Fx, 2656-1Gx, 2656-1Ix, 2656-1Jx, 2656-1Kx,
2656-Lx, 2656-Mx, 2656-1Ox, 2656-1Px, 2656-37x,
2656-3Cx, 2656-3Ax, 2656-38x, 2656-KCU, 2656-KDU,
2656-KEU, 2656-KFU, 2656-GAJ, 2657-GBJ, 2656-3CG,
2656-4CG, 2656-2HC, 2656-1EM, 2656-1EA, 2656-1EB,
2656-1EH, 2656-1HK, 2656-1HT, 2656-L3x, 2656-L4x,
2656-L5x, 2656-L6x, 2656-M1x, 2656-M2x, 2656-M3x,
2656-M4x, 2656-M5x, 2656-M6x, 2656-PYx, 2656-NHx,
2656-NEx, 2656-N5x, 2656-N2x, 2656-NYx, 2656-NXx,
2656-R5x, 2656-R6x, 2656-R2x, 2656-R3x, 2656-T2J,
2656-T4J, 2656-TAP, 2656-TAS, 2656-TAX, 2656-TBP,
2656-TBS, 2656-TBX, 2656-M3G, 2656-MLG,
2656-K1B/K1H/K1C, 2656-MLM, 2656-KBA/KBK,
2656-KGM/KGK/KGT, 2656-KMB/KMH, 2656-KJJ,
2656-KMC, 2656-KAM/KAK/KAT, 2656-TAU, 2656-TBU,
2656-R9G, 2656-T9G.
208 ThinkPad R30/R31 HMM
Product overview
The following shows an overview of the system features.
Feature Description
Processor Intel Celeron processor 1.33/1.20 GHz
Bus architecture Host bus 64bits/133 MHz, PCI 32
bits/33 MHz, LPC 4bits/33MHz,
PCMCIA 16 bits, Cardbus 32 bits/32
MHz
System memory 128 MB or 256 MB base main memory
on system board PC 133
Two 144pins SODIMM slots supports
64 MB, 128MB, 256MB, and 512MB
DIMM cards
Frequency: PC 133
Maximum size: 1024 MB
CMOS RAM 242 bytes + 4 Kbytes
Video Intel 830 MG with 2D/3D Graphics
accelerator.
Dynamically variable video memory
size
13.3–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
14.1–inch, 24 bit true colors, 1024x768
pixel TFT XGA color LCD
Audio AC97 audio Intel
16–bit audio
Internal stereo speakers
Diskette drive (optional) External 1.44MB (3–mode), 3.5 inch
floppy drive via USB interface
(Bootable)
Hard disk drive 20GB, 30GB, or 40GB, 2.5–inch
9.5mm height, E-IDE interface
CD-ROM drive CD-ROM: 5.25–inch, 24X speed,
E-IDE interface
DVD—ROM : 8X speed
DVD/ CD—RW : 16X DVD/ CD-RW
CD-RW
Modem Integrated CDC soft Modem 56 Kbps
Data/Fax Modem
Ethernet (optional) LAN on motherboard . It supports
10/100Mbps
MT 2656, 2657, 2676 209
Feature Description
IEEE 1394 (optional) Ti TSB43AB21 1394 controller on
board
IEEE 1394.a 4–pin connector —no
cable power
100Mbps, 200Mbps and 400Mbps
PC Card (PCMCIA) One Type I/II or Type III
I/O ports External monitor
Speaker-out
Microphone-in
DC-in
TV-out (S-Video out)
Parallel
Two USBs
IEEE 1394a (Selected models only)
Telephone (RJ11)
LAN (RJ45, Selected models only)
Power 72–Watt AC Adapter
6–cell Li-Ion & 8–cell NiMH Battery
Packs (Dumb Battery)
Status indicators
The system-status indicators on the computer show the
current status of your computer by their on or off states
and colors (green and orange). Each indicator is identified
with a symbol. The following shows the location and the
meaning of each icon:
210 ThinkPad R30/R31 HMM
76
Symbol Color Meaning
(1) Drive in use Green Data is being read from or
written to the hard disk. Do
not enter standby mode or
power off the computer
when this indicator is on.
(2) Numeric lock Green The numeric keypad on the
keyboard is enabled. You
enable or disable the
keypad by pressing and
holding the Shift key, and
pressing the NumLk key.
For details, see the User’s
Reference.
(3) Caps lock Green Caps Lock mode is
enabled. All alphabetic
characters (A-Z) are
entered in capital letters
without the Shift key being
pressed. You enable or
disable the Caps Lock
mode by pressing the Caps
Lock key.
(4) Scroll lock Green Scroll Lock mode is
enabled. The Arrow keys
can be used as
screen-scroll function keys.
The cursor cannot be
moved with the Arrow
keys. Not all application
programs support this
function. You enable or
disable Scroll Lock mode by
pressing the ScrLk key.
(5) Power on Green The computer is
operational. This indicator is
on when the computer is
on.
MT 2656, 2657, 2676 211
Symbol Color Meaning
(6) Battery status Green Enough battery power
remains for operation.
Blinking
green
The battery power charges
up to 80% full power
Blinking
orange
The battery pack needs to
be charged
Orange The battery pack is being
charged.
(7) Standby mode Green The computer is in standby
mode
FRU tests
The following table shows the applicable test for each FRU
using PC-Doctor.
FRU Applicable test
System board 1. CPU/Coprocessor (Diagnostics)
2. System board (Diagnostics)
Power Battery (Diagnostics)
LCD unit 1. Video Adapter (Diagnostics)
2. Video (Interactive Tests)
Modem 1. Make sure the modem set up
correctly.
2. Replacing the modem jack and
modem card one at a time, run the
modem tests in Other Devices
(Diagnostics)
Audio Internal Speaker (Interactive Tests)
Stereo Speaker (Interactive Tests)
Speaker System beeper: Internal Speaker
(Interactive Tests)
PC Card slots System board (Diagnostics)
Keyboard 1. Keyboard (Diagnostics)
2. Keyboard (Interactive Tests)
212 ThinkPad R30/R31 HMM
FRU Applicable test
TrackPont or Pointing
device
If the TrackPoint does not work, see if an
external PS/2 mouse is connected to the
mouse/keyboard connector and remove
it. The TrackPoint is automatically
disabled if an external PS/2 mouse is
attached. Check also if the TrackPoint
driver is correctly installed by accessing
Windows Device Manager via the System
icon in the Control Panel.
After you use the TrackPoint, the pointer
drifts on the screen for a short time. This
self-acting pointer movement can occur
when a slight, steady pressure is applied
to the TrackPoint pointer. This symptom
is not a hardware problem. No service
actions are necessary if the pointer
movement stops in a short period of time.
If this does not correct the TrackPoint
problem, continue with the following:
Mouse (Interactive Tests).
Hard disk drive Fixed Disks (Diagnostics)
CD-ROM drive CD-ROM, DVD, CD-RW, DVD/CD-RW
(Interactive Tests)
Memory 1. If a DIMM is installed, remove it and
run Memory Test-Quick (Diagnostics)
2. If the problem does not recur, replace
the DIMM and run the test again.
3. If the test does not detect the error,
run Memory Test-Full (Diagnostics)
Fan 1. Power on system and check the air
turbulence at the louver at the rear of
the computer.
2. Run the fan test in Other Devices
(Diagnostics).
MT 2656, 2657, 2676 213
Parts list
1
2
3
4
5
67
8
9
10
11
12
13
16
17 18
19
20
21
2222
23
23
24
14
15
Note: The parts marked with asterisk are CRUs (customer
replaceable units.)
No. Description FRU No.
1 Hinge Cap 26P9722
2 Keyboard unit (“Keyboard”on page 220)
3 Middle Cover ASM WW 26P9727
4 KBD Bezel Asm. WW 46L6378
5 Cable Asm. kit , RJ11 and lid switch
RJ-11 Cable for CDC board model
RJ-11 Cable mini PCI combo board
model
Lid switch Cable
27L0689
214 ThinkPad R30/R31 HMM
No. Description FRU No.
6 Antenna Kit 13.3″
Antenna Kit 14.1″
Antenna Aux
Antenna LCD
26P9712
26P9711
7 CPU Cel 1200 MHz 26P8157
CPU Cel 1.13 GHz 26P8284
CPU Cel 1.33 GHz 26P8158
8 Crypto Card 26P8084
9 CDC Modem Card 26P8256
10 FAN Asm. 26P9723
11 Heatsink 46L6365
12 Planar w/o IEEE1394 26P8350
Planar w/ IEEE1394 26P8352
13 PCMCIA Slot 26P9724
14 HDD w/tray & screws module IBM /20
GB
08K9729*
HDD w/tray & screws module HITACHI
/20 GB
08K9731*
HDD w/tray & screws module IBM /20
GB
08K9761*
HDD w/tray & screws module HITACHI
/20 GB
08K9763*
HDD w/tray & screws module IBM /30
GB
08K9665*
HDD w/tray & screws module HITACHI
/30 GB
08K9666*
HDD w/tray & screws module IBM /30
GB
08K9733*
HDD w/tray & screws module HITACHI
/30 GB
08K9746*
HDD w/tray & screws module IBM /40
GB
08K9742*
HDD w/tray & screws module HITACHI
/40 GB
08K9744*
15 HDD Cover WW 26P9737
16 Lower Case w/ label WW 12P4323
Lower Case w/ label EMEA 12P4324
Lower Case w/ label IIPC 12P4325
Lower Case w/ label Korea 12P4326
Lower Case w/ label Taiwan 12P4327
Lower Case w/ label India 46L6371
Lower Case w/ label India 2656 12P4333
Lower Case w/ label W/W 2657 12P4334
MT 2656, 2657, 2676 215
No. Description FRU No.
Lower Case w/ label EMEA 2657 12P4335
Lower Case w/ label IIPC 2657 12P4336
Lower Case w/ label Korea 2657 12P4337
Lower Case w/ label Taiwan 2657 12P4338
Lower Case w/ label India 2657 12P4339
Lower Case w/ label W/W 2676 12P4340
Lower Case w/ label EMEA 2676 12P4341
Lower Case w/ label IIPC 2676 12P4342
Lower Case w/ label Korea 2676 12P4343
Lower Case w/ label Taiwan 2676 12P4344
Lower Case w/ label India 2676 12P4345
Lower Case w/ label WW-wireless 12P4328
Lower Case w/ label EMEA-wireless 12P4329
Lower Case w/ label IIPC-wireless 12P4330
Lower Case w/ label Korea-wireless 12P4331
Lower Case w/ label Taiwan-wireless 12P4332
Lower Case w/ label WW 2657 –wireless 62P4342
17 SoDIMM Asm.—128MB 19K4653*
SoDIMM Asm.—256MB 19K4655*
18 Combo 802.11b/Modem combo card 12P3637*
19 Mini-PCI / DIMM door kit 46L6335*
20 Battery Assy. (Ni-Mh)
Sanyo-W/W
Sanyo-Japan
02K6827*
02K6835*
Battery Assy. (Li-Ion)
Sanyo-W/W
Sanyo-Japan
Panasonic-W/W
Panasonic-Japan
02K6822*
02K6830*
02K6824*
02K6832*
21 Speaker Kit 08K4618
22 RTC Battery 02K7062
23 CD-ROM Module
TEAC
HLDS(LG)
27L3436*
27L4301*
DVD-ROM Module
MKE
HLDS(Hitachi)
27L4351*
27L4355*
216 ThinkPad R30/R31 HMM
No. Description FRU No.
CD-RW Module
TEAC
27L4297*
CD-RW/DVD-ROM combo Module
KME
HLDS
08K9818*
08K9820
24 Heatsink DC-DC 46P2555
Rubber Kit
PCMCIA screw cap* 3
rubber foot * 3
LCD bezel screw cap (W/W) *4
IEEE-1394 dummy label
IEEE-1394 icon label
26P9742
Screw Kit
HDD COIN SCREW
M/B HEX SCREW
SCREW DIMM COVER STEEL
SCREW MACH PAN NYLOK M2.0*13
NI
BH MSN+N SCREW M2.0*6
SCREW MACH FLAT M3*2.8
SCREW HDD M3*L4
WCH MSN+CZ SCREW M2.5*5
SCREW M2.5L10B 86.9A353100
SCREW M2.5*6
SCREW M2.4 WAFER NI
26P9741
Misc common
Battery Knob
Battery Latch
Battery Spring
CD-ROM Pull bar
CD-ROM Latch
CD-ROM Spring for latch
CD-ROM Spring for CD-ROM pull bar
PCMCIA door
PCMCIA Spring
26P9740
MT 2656, 2657, 2676 217
LCD FRU
13.3-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 13.3″LCD Bezel 46L6330
2 LCD Panel Asm (13.3″TFT)
Tori-Sanyo
LG
11P8212
11P8220
3 13.3″Hinge-Bracket Asm (R,L) 26P9720
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0687
6 Antenna Kit 13.3″LCD
Antenna w/ 13.3″LCD
Antenna aux
26P9712
218 ThinkPad R30/R31 HMM
No. Description FRU No.
7 LCD Rear Cover Asm for 13.3″/14.1″(
for Wireless model )
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
14.1-inch TFT:
1
2
3
3
4
5
6
7
8
No. Description FRU No.
1 14.1″LCD Bezel (for W/W) 46L6329
MT 2656, 2657, 2676 219
No. Description FRU No.
2 LCD Panel Asm. (14.1″TFT)
Hyundai
Samsung
LG
11P8214
46L2356
11P8210
3 14.1″Hinge-Bracket Asm (R,L) 26P9719
4 LCD-Invertor / LED card (for 13.3″&
14.1″TFT)
26P8139
LCD-Invertor / LED card —Sumida (for
13.3″& 14.1″TFT)
26P8153
5 LCD cable Asm. 27L0686
6 Antenna Kit 14.1″LCD
Antenna w/ 14.1″LCD
Antenna aux
26P9711
7 LCD Rear Cover Asm for 13.3″/14.1″(for
W/W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/Wireless
IBM Logo
26P9709
LCD Rear Cover Asm for 13.3″/14.1″(for
W/O W)
13.3″/14.1″LCD rear cover
13.3″/14.1″LCDPanel W/O Wireless
IBM Logo
26P9707
8 LCD Hinge Cap Asm. 26P9722
LG/IBM Logo Kit
for LCD Rear Cover
for KBD Bezel
08K5860
Keyboard
Description Vendor FRU No.
KBD ASM US English NMB 12P4260*
KBD ASM Canadian French NMB 12P4262*
KBD ASM German NMB 12P4264*
KBD ASM UK English NMB 12P4266*
KBD ASM French NMB 12P4268*
KBD ASM Dutch NMB 12P4270*
KBD ASM Swedish/Finnish NMB 12P4272*
KBD ASM Norwegian NMB 12P4274*
KBD ASM Danish NMB 12P4276*
KBD ASM Italian NMB 12P4278*
KBD ASM European Spanish NMB 12P4280*
220 ThinkPad R30/R31 HMM
Description Vendor FRU No.
KBD ASM Belgian NMB 12P4282*
KBD ASM Swiss NMB 12P4284*
KBD ASM Portuguese NMB 12P4286*
KBD ASM Russian NMB 12P4290*
KBD ASM Slovakian NMB 12P4306*
KBD ASM Slovenian NMB 12P4304*
KBD ASM Traditional Chinese NMB 12P4310*
KBD ASM Turkish NMB 12P4296*
KBD ASM Arabic NMB 12P4288*
KBD ASM Hebrew NMB 12P4292*
KBD ASM Polish NMB 12P4294*
KBD ASM Czech NMB 12P4298*
KBD ASM Hungarian NMB 12P4300*
KBD ASM Greek NMB 12P4302*
KBD ASM Japan NMB 12P4308*
KBD ASM Korea NMB 12P4312*
KBD ASM La Spanish NMB 12P4314*
KBD ASM US English Chicony 02K6212*
KBD ASM Canadian French Chicony 02K6214*
KBD ASM German Chicony 02K6216*
KBD ASM UK English Chicony 02K6218*
KBD ASM French Chicony 02K6220*
KBD ASM Dutch Chicony 02K6222*
KBD ASM Swedish/Finnish Chicony 02K6224*
KBD ASM Norwegian Chicony 02K6226*
KBD ASM Danish Chicony 02K6228*
KBD ASM Italian Chicony 02K6230*
KBD ASM European Spanish Chicony 02K6232*
KBD ASM Belgian Chicony 02K6234*
KBD ASM Switzerland Chicony 02K6236*
KBD ASM Portuguese Chicony 02K6238*
KBD ASM Arabic Chicony 02K6240*
KBD ASM Russian Chicony 02K6242*
KBD ASM Hebrew Chicony 02K6244*
KBD ASM Polish Chicony 02K6246*
KBD ASM Turkish Chicony 02K6248*
KBD ASM Czech Chicony 02K6250*
KBD ASM Hungarian Chicony 02K6252*
KBD ASM Greek Chicony 02K6254*
KBD ASM Slovenian Chicony 02K6256*
MT 2656, 2657, 2676 221
Description Vendor FRU No.
KBD ASM Slovakian Chicony 02K6258*
KBD ASM Japan Chicony 02K6260*
KBD ASM Traditional Chinese Chicony 08K4500*
KBD ASM Korea Chicony 08K4502*
KBD ASM La Spanish Chicony 08K4504*
Common parts list
Tools:
Description FRU No.
Tri-Connector Wrap Plug 72X8546
PC Test Card 35G4703
Audio Wrap Cable 66G5180
USB Parallel Test Cable 05K2580
Screwdriver Kit 95F3598
5mm Socket Wrench 05K4694
Screwdriver 27L8126
Wireless Antenna Connector Removal Tool 08K7159
ThinkPad hardware maintenance diskette
version 1.10
Note: The data may look the same with the sample hmm
but the diskette version is different.
Telephone cable:
Description FRU No.
Telephone cable (US/C, TWN, APS, LA,
BRZL)
27L0465
Telephone cable (UK, IR, NZ) 27L0442
Telephone cable (Germany) 27L0441
Telephone cable (Italy) 27L0448
Telephone cable (France) 27L0443
Telephone cable (DK, DE, PO) 27L0447
Telephone cable (SW, SU) 27L0445
Telephone cable (FI, NO, NS) 27L0446
Telephone cable (Australia) 27L0467
Telephone cable (ND, NU) 27L0444
Telephone cable (SF, SI, SG, SE) 27L0462
Telephone cable (BE, BK, BS, BD, BF) 27L0451
Telephone cable (Austria) 27L0449
222 ThinkPad R30/R31 HMM
Description FRU No.
Telephone cable (Spain) 27L0450
AC adapter:
Description FRU No.
AC Adapter, 72W 3-pin (Astec) 02K6751*
AC Adapter, 72W 3-pin (Delta) 02K6754*
AC Adapter, 72W 2-pin (Astec) 02K6753*
AC Adapter, 72W 2-pin (Delta) 02K6756*
Power cords: IBM power cords for a specific country are
usually available only in that country.
For 2–pin power cords:
IBM power
cord part
number Used in these countries or regions
13H5264* Canada, U.S.A.
13H5273* Japan
36L8870* Argentina
49P2095* Brazil
For 3–pin power cords:
Note: The grounded adapter is required for full MPRII
compliance. If a 3–pin power cord came with your
computer, see “Safety Information”on page 13.
IBM power
cord part
number Used in these countries or regions
76H3514* Australia, New Zealand
76H3516* US, Canada
76H3530* Italy
76H3520* Denmark
76H3524* UK, Hong Kong
76H3518* European Countries
76H3522* South Africa, India
76H3532* Israel
76H3535* Korea
02K0539* China (P.R.C.)
76H3528* Switzerland
MT 2656, 2657, 2676 223
Recovery CD List:
Description FRU No. Models
Recovery CD Eng-XP
Home (UD)
01R5847 2656–MIG, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Eng-XP
Home (US)
01R5348 2656–2HU, 1AU, 3CU,
1GU, 38U, 2HH, 2KH,
1EH, 1EA, 1EM, 1BM,
1DA, L1U, 1BU, NAU,
M9U, K1H, L1H, L8H,
KMH, KAA, M1A, KBA,
KAM, MAM, MLM, KGM
Recovery CD
Norway-XP Home
01R5857 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Netherland-XP Home
01R5856 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Finland-XP Home
01R5855 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Italy-XP
Home
01R5854 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Spanish-XP Home
01R5852 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG, 2HS,
1AS, 2HX, 1AX
Recovery CD
Denmark-XP Home
01R5849 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Sweden-XP Home
01R5853 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
French-XP Home
01R5850 2656–LAF, LBF, M9F,
M1G, MLG, T9G, 1DG,
2GG, 4CG, LAF, LBF,
M9F, 2HF, 1AF, 3CF,
1GF, 38F
Recovery CD
German-XP Home
01R5851 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Portuguese-XP Home
01R5848 2656–2PH, 1AP
Recovery CD Japan-XP
Home
62P8849 2656–1JJ
Recovery CD
Traditional Chinese-XP
Home
67P5000 2656–L1T, KAT, KGT,
2HT, 1ET
Recovery CD Simplified
Chinese-XP Home
67P5003 2656–K1C, KMC, 2HC
Recovery CD
HongKong Traditional
Chinese-XP Home
67P5006 2656–L7B, K1B, KMB,
2JB, 1EB
Recovery CD Turkey
Enabled-XP Home
01R5861 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Greek-XP
Home
01R5863 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD
Hungary-XP Home
01R5864 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
224 ThinkPad R30/R31 HMM
Recovery CD
Russian-XP Home
01R5865 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Polish-XP
Home
01R5861 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Hebrew
Enabled-XP Home
01R5860 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD CZ-XP
Home
01R5859 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Arabic-XP
Home
01R5858 2656–M1G, MLG, T9G,
1DG, 2GG, 4CG
Recovery CD Eng-XP
Pro(UD)
01R5790 2656–M2G, M3G M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Eng-XP
Pro(US)
01R5347 2656–2GU, 2LU, 2VU,
37U, 1CU, 1FU, KCU,
KDU, 39U, KEU, KFU,
1LM, 2MM, L2U, L6U,
M2U, NYU, M2M, M5M,
NHM, NEM
Recovery CD
Norway-XP Pro
01R5800 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Netherland-XP Pro
01R5799 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Finland-XP Pro
01R5798 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Italy-XP
Pro
01R5797 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Spanish-XP Pro
01R5795 2656–M2G, M3G, M7G,
MEG, R5X, R7X, TAX,
R5S, R7S, TAS, 2GS,
2LS, 2GX, 2LX R9G,
1CG, 2CG, 2NG, 2EG,
3CG
Recovery CD
Denmark-XP Pro
01R5792 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Sweden-XP Pro
01R5796 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
French-XP Pro
01R5793 2656–M2G, M3G, M7G,
MEG, NXF, MFF, 37F,
39F, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
German-XP Pro
01R5794 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Portuguese-XP Pro
01R5791 2656–M2G, M3G, M7G,
MEG, R5P, R7P, TAP,
R9G, 1CG, 2CG, 2NG,
2EG, 3CG, 2GP, 2LP
MT 2656, 2657, 2676 225
Recovery CD Japan-XP
Pro
67P4785 2656–M6J, MCJ, MDJ,
T2J, N5J, N2J, PYJ,
2GP, 2LP, 1WJ, 1MJ,
GAJ, 1PJ
Recovery CD
Traditional Chinese-XP
Pro
67P5001 2656–MBT, 1KT
Recovery CD Turkey
Enabled-XP Pro
01R5805 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Greek-XP
Pro
01R5806 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Hungary-XP Pro
01R5807 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Russian-XP Pro
01R5808 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Polish-XP
Pro
01R5804 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Hebrew
Enabled-XP Pro
01R5803 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD CZ-XP
Pro
01R5802 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD Arabic-XP
Pro
01R5801 2656–M2G, M3G, M7G,
MEG, R9G, 1CG, 2CG,
2NG, 2EG, 3CG
Recovery CD
Eng-Win2000 (US)
01R6084 2656–R6U, R8U, TBU
Recovery CD
Portuguess-Win2000
01R6085 2656–R6P, R8P, TBP
Recovery CD
Spanish-Win2000
01R6086 2656–R6S, R8S, TBS,
R6X, R8X, TBX
Recovery CD
Japan-Win2000
67P4782 2656–L3J, T4J, GBJ,
1HJ
Option Parts List
Battery charges:
Description FRU No.
Charger Main Battery Li-Ion —W/W 02K6821
Charger Main Battery Li-Ion —Japan 02K6829
226 ThinkPad R30/R31 HMM
Ultrabay devices:
Description FRU No.
CD—RW drive (SONY) 08K9617*
Diskette drive (TEAC) 08K9606*
Diskette drive (SONY) 08K9607*
SuperDisk drive (LS120 x 2) 05K9235*
SuperDisk drive (LS240) 08K9615*
ZIP—250 drive 00N8254*
2nd HDD adapter 08K6067*
Ultrabay Plus device carrier 26P9388*
Ultrabay Plus numeric keypad 19K2056*
Ultrabay Plus cradle for WorkPad c500 series 26P9389*
MT 2656, 2657, 2676 227
Notices
References in this publication to IBM products, programs,
or services do not imply that IBM intends to make these
available in all countries in which IBM operates. Any
reference to an IBM product, program, or service is not
intended to state or imply that only IBM product, program,
or service may be used. Subject to IBM’s valid intellectual
property or other legally protectable rights, any functionally
equivalent product program, or service may be used
instead of the IBM product, program, or service. The
evaluation and verification of operation in conjunction with
other products, except those expressly designated by IBM,
are the responsibility of the user.
IBM may have patents or pending patent applications
covering subject matter in this document. The furnishing of
this document does not give you any license to these
patents. You can send license inquiries, in writing, to:
IBM Director of Licensing
IBM Corporation
500 Columbus Avenue
Thornwood, NY 10594
U.S.A.
228 ThinkPad R30/R31 HMM
Trademarks
The following terms are trademarks or service marks of
IBM Corporation in the United States and other countries:
IBM
USB
ThinkPad
TrackPoint
TrackPoint IV
The following terms are trademarks or service marks of
other companies as follows:
AMD-K6-2 Advanced Micro Devices, Inc.
AMD Advanced Micro Devices, Inc.
Intel Intel Corporation
Celeron Intel Corporation
Mylar E.I. Du Pont de Nemours and Company
PC-Doctor Watergate Software, Inc.
PCMCIA Personal Computer Memory Card Interface
Association
Pentium Intel Corporation
MT 2656, 2657, 2676 229

Navigation menu
