IBM
eServer
http://www-1.ibm.com/support/docview.wss?rs=1201&uid=psg1SCOD-
3ZVQ5W&loc=en_US&cs=utf-8&lang=e
August 8, 2006
Configuration and Options Guide
SCOD-3ZVQ5W
1
Twentieth Edition (August 2006)
© Copyright International Business Machines Corporation 2003, 2006. All rights reserved.
US Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM Corp.2
1
2
© Copyright IBM Corp. 2003, 2006 iii
Contents
Summary of Changes . . . . . . . . . . . . . . . . v
Information sources . . . . . . . . . . . . . . . . vii
IntelliStation® video adapter selection guide
ix
Chapter 1. IntelliStation M Pro 6218. . . . . . 3
Chapter 2. IntelliStation Z Pro 6223 . . . . . 15
Chapter 3. IntelliStation Z Pro 9228 . . . . . 29
Chapter 4. IntelliStation A Pro 6217 . . . . . 39
Chapter 5. xSeries 100 . . . . . . . . . . . . . . . 51
Chapter 6. xSeries 206m . . . . . . . . . . . . . . 59
Chapter 7. xSeries 226 . . . . . . . . . . . . . . . 79
Chapter 8. xSeries 236 . . . . . . . . . . . . . . 103
Chapter 9. xSeries 306m . . . . . . . . . . . . . 115
Chapter 10. xSeries 336 . . . . . . . . . . . . . 127
Chapter 11. xSeries 346. . . . . . . . . . . . . . 141
Chapter 12. System x3400 (7973, 7974) . 153
Chapter 13. System x3400 (7975, 7976) . 161
Chapter 14. System x3500 . . . . . . . . . . . 175
Chapter 15. System x3550 . . . . . . . . . . . 191
Chapter 16. System x3650 . . . . . . . . . . . 207
Chapter 17. System x3650 T . . . . . . . . . . 215
Chapter 18. System x3800 and xSeries 260
219
Chapter 19. System x3850 and xSeries 366
233
Chapter 20. System x3950 and xSeries 460
247
Chapter 21. Datacenter solution program .
265
Chapter 22. eServer 326m. . . . . . . . . . . . 287
Chapter 23. BladeCenter® T 8720 . . . . . . 297
Chapter 24. BladeCenter® T 8730 . . . . . . 305
Chapter 25. BladeCenter® chassis 8677 313
Chapter 26. BladeCenter® H 8852. . . . . . 321
Chapter 27. BladeCenter® HS20 - 7981 . 331
Chapter 28. BladeCenter® HS20 - 8843 . 337
Chapter 29. BladeCenter® HS21 - 8853 . 345
Chapter 30. BladeCenter® HS40 . . . . . . . 349
Chapter 31. BladeCenter® JS20 . . . . . . . 353
Chapter 32. BladeCenter® JS21 . . . . . . . 357
Chapter 33. BladeCenter® LS20 . . . . . . . 361
Chapter 34. Blade server storage and I/O
expansion. . . . . . . . . . . . . . . . . . . . . . . . 367
Chapter 35. VMware offerings . . . . . . . . 371
Chapter 36. xSeries network operating
system offerings . . . . . . . . . . . . . . . . . . 381
Chapter 37. IBM and third party software
applications . . . . . . . . . . . . . . . . . . . . . . 393
Chapter 38. EXP400 storage expansion unit
409
Chapter 39. EXP420 storage expansion unit
411
iv COG
Chapter 40. TotalStorage DS300 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Chapter 41. TotalStorage DS400 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Chapter 42. TotalStorage DS4100 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Chapter 43. System Storage DS4200 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Chapter 44. TotalStorage DS4300 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 429
Chapter 45. TotalStorage DS4500 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 435
Chapter 46. TotalStorage DS4700 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 439
Chapter 47. TotalStorage DS4800 disk
system . . . . . . . . . . . . . . . . . . . . . . . . . . 443
Chapter 48. TotalStorage DS4000 EXP100
storage expansion unit . . . . . . . . . . . . . 447
Chapter 49. TotalStorage DS4000 EXP710
fibre channel storage expansion unit . 449
Chapter 50. TotalStorage DS4000 EXP810
storage expansion unit . . . . . . . . . . . . . 451
Chapter 51. Additional fibre channel
components . . . . . . . . . . . . . . . . . . . . . . 453
Chapter 52. External storage configuration
examples . . . . . . . . . . . . . . . . . . . . . . . . 457
Chapter 53. Rack cabinets and options. 461
Chapter 54. Rack console options . . . . . 471
Chapter 55. xSeries rack power
configurator . . . . . . . . . . . . . . . . . . . . . . 477
Part 2. Appendixes . . . . . . . . . . . . . . 493
Appendix A. Internal tape drive attributes .
495
Appendix B. External tape and tape library
attributes . . . . . . . . . . . . . . . . . . . . . . . . 497
Appendix C. UPS runtime estimate
(minutes). . . . . . . . . . . . . . . . . . . . . . . . . 507
Appendix D. System management overview
515
Appendix E. xSeries I/O option attributes. .
523
Appendix F. BladeCenter® power module
upgrade guidelines . . . . . . . . . . . . . . . . 527
Appendix G. xSeries DC power and NEBS-
compliant models . . . . . . . . . . . . . . . . 535
Important notices . . . . . . . . . . . . . . . . . . 537
© Copyright IBM Corp. 2003, 2006 v
Summary of Changes
• Versions of this document released on or after August 8th, 2006, will contain references to feature codes.
Feature code is the nonmenclature used to specify components of configurable System x products used in
US and Canada Web configurators.
For more details about feature codes, contact your IBM representative.
• New EXP420 storage expansion unit
• New System Storage DS4200 disk system
• Various maintenance and support updates
vi COG
© Copyright IBM Corp. 2003, 2006 vii
Information sources
http://www-1.ibm.com/support/docview.wss?rs=1201&uid=psg1SCOD-3ZVQ5W
Table 1. Information Sources
Audience Where to go How to get
IBM xSeries Configuration and Options Guide
Customers www.ibm.com/support/docview.wss?rs=1201&uid=psg1SCOD-3ZVQ5W External PDF version
www.ibm.com.com/servers/eserver/xseries/cog/ External HTML
version
www.ibm.com/servers/eserver/serverproven/compat/us/ Select <xSeries
Compatibility>
Business Partners www.ibm.com/partnerworld/pwhome.nsf/
weblook/index.html
User ID and
password required.
IBM Employees www.ibm.com/support/docview.wss?rs=1201&uid=psg1SCOD-3ZVQ5W External site
Feedback datadoc@us.ibm.com E-mail
IBM xSeries and Netfinity Rack Configurator
Customers www.ibm.com/servers/eserver/xseries/ Select <Configuration
Tools>
Business Partners www.ibm.com/partnerworld/pwhome.nsf/weblook/index.html User ID and
password required.
IBM Employees www.ibm.com/support/docview.wss External site
Feedback datadoc@us.ibm.com E-mail
IBM xSeries Configuration Aid
Customers,
Business
Partners, IBM
Employees
www.ibm.com/pc/support /site.wss/MIGR-41411.html -
www.ibm.com/servers/eserver/xseries/library/configtools. html -
Feedback datadoc@us.ibm.com E-mail
PC Sales Guide/Configurator and WorkPad Pricer (updated twice per week)
Business Partners www.ibm.com/partnerworld/pwhome.nsf/weblook/index.html User ID and
password required.
Feedback IBMSHD08@us.ibm.com E-mail
Latest Product & Technical Information
Customers www.ibm.com/servers/eserver/xseries/
or call 1-800-772-2227
-
Business Partners www.ibm.com/partnerworld/pwhome.nsf/weblook/index.html
or call 1-800-426-7763
Select Products &
Services (user ID and
password required).
IBM Employees www.ibm.com/support/docview.wss External site
viii COG
Additional URLs
Technical spec
sheets (PSREF)
www.ibm.com/servers/eserver/xseries/ Select Technical spec
sheets (PSREF).
IBM Datacenter
Solutions
www.ibm.com/servers/eserver/xseries/windows/datacenter.html -
Clustering
(US, LA, CAN)
www.ibm.com/servers/eserver/xseries/ Select appropriate
category or server.
Benchmark
Results
www.ibm.com/servers/eserver/xseries/benchmarks/ Select appropriate
category or server.
Options/NOS/
Server
Compatibility
www.ibm.com/servers/eserver/xseries/ Select appropriate
Product Type.
Active PCI www.ibm.com/servers/eserver/xseries/ Select <xSeries
Compatibility>,
<Active PCI Info>.
IBM Storage
Products
www.ibm.com/servers/storage/ Select appropriate
category.
Adv Sys Mgmt
Adapter
Firmware
www.ibm.com/servers/eserver/xseries/ Select Servers,
select Intel-based
Servers, select Fixes,
select Get Fixes, select
appropriate category.
Flash BIOS
Updates
www.ibm.com/servers/eserver/xseries/ Select Servers,
select Intel-based
Servers, select Fixes,
select Get Fixes, select
device drivers by
server, select
appropriate category.
ServeRAID™
Updates
www.ibm.com/servers/eserver/xseries/ Select Servers,
select Intel-based
Servers, select Fixes,
select Get Fixes, select
appropriate category.
VMware www.ibm.com/servers/eserver/xseries/vmware.html -
Options
Continuation
Program
www.ibm.com/servers/eserver/xseries/ -
Table 1. Information Sources (continued)
Audience Where to go How to get
© Copyright IBM Corp. 2003, 2006 ix
IntelliStation® video adapter selection guide
Video Adapter1
Imaging
Dual-head Graphics
Memory
Signal Width
Resolution Supported
(each head)
Monitor Connector Type
Number/Type Monitors Supported
System Support2
3Dlabs
Wildcat™
Realizm
800 PCIe3
Extreme 3D Y 512/
128MB
265/
128-bit
2048 x 1536
(analog), 3840 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
Z Pro 6223, M
Pro 6225, A Pro
6217
NVIDIA
Quadro FX
4500 PCle3
Extreme 3D Y 512MB 256-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
A Pro 6217, M
Pro 6218, Z Pro
6223
NVIDIA
Quadro FX
3500 PCIe
High
Advanced 3D
Y 256MB 256-bit 2048 x 1536
(analog), 3840 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
A Pro 6217, Z
Pro 6223
NVIDIA
Quadro FX
3400 PCle
High
Advanced 3D
Y 256MB 256-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
M Pro 6225, Z
Pro 6223, A Pro
6217
NVIDIA
Quadro
NVS 285
PCIe
Performance
2D
Y 64MB 64-bit 2048 x 1536
(analog), 1280 x
1024 (digital)
2 DVI-D or 2
analog (both
require
pigtails
convert the
DMS59)
2 digital,
hybrid or
analog (any
combination)
A Pro 6217, M
Pro 6218, Z Pro
6223
NVIDIA
Quadro
NVS 280
PCIe
Performance
2D
Y 64MB 64-bit 2048 x 1536
(analog), 1280 x
1024 (digital)
2 DVI-D or 2
analog (both
require
pigtails
convert the
DMS59)
2 digital/
hybrid or 2
analog/
hybrid
M Pro 6225 &
6218, Z Pro
6223, A Pro
6217
ATI FireGL
V3100 PCle
Entry 3D Y 128MB 128-bit 2048 x 1536
(analog), 1600 x
1200 (digital)
1 DVI-I and
1 analog
1 digital/
hybrid or 2
analog/
hybrid
M Pro 6225 &
6218
x COG
Notes:
1. Available only as standard equipment in an IntelliStation workstation model or configured to order via
CTO.
2. See IntelliStation system At-A-Glance sections to identify models that include these standard video
adapters.
3. Requires more space than the planar provides between slots, preventing the installation of an optional
PCI adapter in the adjacent PCI slot.
ATI FireGL
V7100 PCle
High
Advanced 3D
Y 256MB 256-bit 2048 x 1536
(analog), 3820 x
2400 (digital)5
2 DVI-I 2 digital/
hybrid or 2
analog/
hybrid
Z Pro 6223, M
Pro 6225 &
6218
NVIDIA
Quadro FX
40003
Extreme 3D Y 256MB 256-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
A Pro 6224
NVIDIA
Quadro FX
30003
Extreme 3D Y 256MB 128-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
A Pro 6224, M
Pro 6230, Z Pro
6221
NVIDIA
Quadro FX
1300 PCle
Advanced 3D Y 128MB 128-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
M Pro 6225, Z
Pro 6223
NVIDIA
Quadro FX
1400 PCle
Advanced 3D Y 128MB 128-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
M Pro 6225 &
6218, Z Pro
6223, A Pro
6217
NVIDIA
Quadro FX
1100
Advanced 3D Y 128MB 128-bit 2048 x 1536
(analog), 3820 x
2400 (digital)
2 DVI-I 2 digital,
hybrid or
analog (any
combination)
A Pro 6224, M
Pro 6230, Z Pro
6221
NVIDIA
Quadro FX
500 AGP
Entry 3D Y 128MB 128-bit 2048 x 1536
(analog), 1600 x
1200 (digital)
1 DVI-I and
1 Analog
1 digital/
hybrid or 2
analog/
hybrid
M Pro 6230
NVIDIA
Quadro4
280NVS
High-
Performance
2D
Y 64MB 128-bit 2048 x 1536
(analog), 1280 x
1024 (digital)
Analog
(both
require
pigtails to
convert the
LFH60)
2 digital/
hybrid or 2
analog/
hybrid
A Pro 6224, M
Pro 6220,
M Pro 6230, Z
Pro 6221
Video Adapter1
Imaging
Dual-head Graphics
Memory
Signal Width
Resolution Supported
(each head)
Monitor Connector Type
Number/Type Monitors Supported
System Support2
© Copyright IBM Corp. 2003, 2006 3
Chapter 1. IntelliStation M Pro 6218
Table 2. IntelliStation M Pro 6218 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Video Adapter (PCle)3
Form Factor
Integrated Ethernet
Storage Controller4
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
6218-10Y 3.0/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro NVS
280
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-12Y 3.0/800/
2M-L2
1
/
1
1GB/
4GB
ATI FireGL
V3100
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-20Y 3.2/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro NVS
280
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-22Y 3.2/800 -
2M L2
1
/
1
1GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-25Y 3.0/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro NVS
285
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-27Y 3.0/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro FX 550
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-32Y 3.4/800/
2M-L2
1
/
1
1GB/
4GB
ATI FireGL
V3100
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-35Y 3.2/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-37Y 3.2/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro FX 550
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-45Y 3.6/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
6218-46Y 3.4/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
4 COG
6218-47Y 3.6/800/
2M-L2
1
/
1
2GB/
4GB
ATI FireGL
V7100
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
6218-48Y 3.4/800/
4M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 3500
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-54Y 3.6/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 4500
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-55Y 3.8/800/
2M-L2
1
/
1
1GB/
4GB
NVIDIA
Quadro NVS
280
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
6218-56Y 3.6/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro NVS
285
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
6218-57Y 3.8/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-58Y 3.6/800/
2M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-59Y 3.8/800/
2M-L2
1
/
1
2GB/
4GB
3DLabs Wildcat
Realizm 800
Tower 1GB SCSI Fixed 73GB/9
00GB
48/32/48/16X
Combo Drive
1
/
3
5
/
4
6218-84Y 3.2/800/
2M-L2
Dual Core
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-85Y 3.4/800/
4M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-87Y 3.4/800/
4M-L2
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1400
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-92Y 3.6/800/
4M-L2
Dual Core
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 1500
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-94Y 3.6/800/
4M-L2
Dual Core
1
/
1
2GB/
4GB
NVIDIA
Quadro FX 3500
Tower 1GB SATA Fixed 80GB/7
50GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
Table 2. IntelliStation M Pro 6218 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Video Adapter (PCle)3
Form Factor
Integrated Ethernet
Storage Controller4
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 1. IntelliStation M Pro 6218 5
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 6218-10Y is 6218-10U. See
the product-specific, Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for the A.P. geography follows the same pattern. Substitute the last character with
a country-specific designator.
2. The IntelliStation M Pro 6218 supports up to 8 GB of PC2-4200 CL3 ECC DDR2 SDRAM DIMM memory.
To achieve maximum memory capacities, standard memory replacement may be required with the
currently supported memory DIMMs.
3. The ATI FireGL V7100 and 3DLabs Wildcat Realizm 800 require the external PCI Express power direct
from the power supply. Slot 1 will not be available when using the 3Dlabs Wildcat Realizm 800 graphics
adapter.
4. SAS Storage Controller is optional on the IntelliStation M Pro 6218. SCSI models require a SCSI controller
and cable, which are included with models that have a SCSI HDD installed. Mixed SATA and SAS, SATA
and SCSI; and SAS and SCSI HDDs configuration are not supported.
6218-1GY 3.0/800/
2M-L2
1
/
1
1GB/
4GB
Open Graphic Tower 1GB SATA Fixed 80GB/
750GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-4GY 3.6/800/
2M-L2
1
/
1
1GB/
4GB
Open Graphic Tower 1GB SATA Fixed 80GB/
750GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-5GY 3.4/800/
4M-L2
1
/
1
2GB/
4GB
Open Graphic Tower 1GB SATA Fixed 160GB/
750GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
6218-9GY 3.6/800/
4M-L2
Dual Core
1
/
1
2GB/
4GB
Open Graphic Tower 1GB SATA Fixed 160GB/
750GB
48/32/48/16X
Combo Drive
1
/
4
5
/
4
Note: IntelliStation M Pro 6218 also provides two 9-pin serial ports, one 25-pin serial port, eight USB (two front, six
rear), one keyboard, one mouse, one Gigabit Ethernet, and two IEEE 1394 ports (one front, one rear).
Table 2. IntelliStation M Pro 6218 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Video Adapter (PCle)3
Form Factor
Integrated Ethernet
Storage Controller4
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
6 COG
IntelliStation M Pro 6218 processor options
IntelliStation M Pro 6218 memory options
Notes:
1. Memory DIMMs must be installed in pairs. Each pair must be identical.
SBB
Number
Feature
Code Standard Processor SMP Support
39M6250 0299 Intel Pentium 4 Processor 630, with EM64T (3.0 GHz 2M L2) 10Y, 12Y, A0Y, A2Y
39M6251 0600 Intel Pentium 4 Processor 640, with EM64T (3.2 GHz 2M L2) 20Y, 28Y, B0Y
39M6252 0601 Intel Pentium 4 Processor 650, with EM64T (3.4 GHz 2M L2) 32Y, 34Y, C2Y, C4Y
39M6253 0602 Intel Pentium 4 Processor 660, with EM64T (3.6 GHz 2M L2) 45Y, 47Y, 48Y, D5Y, D7Y,
D8Y
39M6259 0603 Intel Pentium 4 Dual Core processor 840, with EM64T (3.2 GHz
2M L2)
84Y, J4Y
39Y8620 0692 Intel Pentium 4 HT Processor 631 (3.0GHz/2MB L2) 25Y, B5Y, 27Y, B7Y
39Y8621 0693 Intel Pentium 4 HT Processor 641 (3.2GHz/2MB L2) 35Y, C5Y, 37Y, C7Y
39Y8622 0694 Intel Pentium 4 HT Processor 651 (3.4GHz/2MB L2) 46Y, D6Y, 48Y, D8Y, 5GY
39Y8623 0695 Intel Pentium 4 HT Processor 661 (3.6GHz/2MB L2) 56Y, 58Y, F8Y
39Y8624 0696 Intel Pentium D Processor 950 (3.4GHz/4MB) 85Y, 87Y, H7Y
SBB
Number
Option
Number
Feature
Code Description1
30R5154 30R5148 0530 512MB DDR2 533 DIMM Memory
30R5155 - 0531 1GB DDR2 533 DIMM Memory
- 30R5149 - 2GB (2x1GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
30R5156 - 0532 2GB DDR2 533 DIMM Memory
- 30R5150 - 4GB (2x2GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
25R7502 - 0527 2GB DDR2 533MHz
25R7498 - 0528 512MB DDR2 533 DIMM Memory
25R7499 - 0529 1GB DDR 533 DIMM Memory
Chapter 1. IntelliStation M Pro 6218 7
Figure 1. M Pro 6218 system board
Table 3. Standard Memory Configuration
Model Std. DIMM Configuration
10Y, 12Y, 20Y, 32Y, 34Y, A0Y, A2Y, B0Y, C2Y, C4Y, 25Y, B5Y, 35Y, C5Y, 1GY,
4GY, 27Y, B7Y, 37Y, C7Y
2x512MB DDR2-533MHz
28Y, 45Y, 47Y, 48Y, 59Y, 84Y, D5Y, D7Y, D8Y, F9Y, J4Y, 46Y, D6Y, 56Y, 58Y,
F8Y, 85Y, 87Y, H7Y, 48Y, D8Y, 92Y, J9Y, 94Y, 5GY, 9GY
2x1024MB DDR2-533MHz
8 COG
IntelliStation M Pro 6218 hard disk drive (HDD) and optical storage
options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Max
Qty
Diskette Drives
23K4959 05K9276 5300 IBM USB Portable Diskette Drive - - -
0005309 40K1692 5309 IBM USB Portable Diskette Drive - - -
Simple-Swap SATA HDDs1,2
90P1399 40K6868 5219 160GB 7200-rpm Simple-swap SATA HDD SL 4, 2, 5 3
73P8015 40K6872 5243 250GB 7200-rpm Simple-swap SATA HDD SL 4, 2, 5 3
39M4501 39M4500 5290 80GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 4, 2, 5 3
39M4505 39M4504 5291 160GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 4, 2, 5 3
39M4509 39M4508 5292 250GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 4, 2, 5 3
39M4515 39M4514 5288 500GB 7200 RPM 3.0 GB/sec SATA HDD Simple-
Swap
SL 4, 2, 5 3
Non Hot-Swap SCSI HDDs1
40K1061 40K1029 5157 73G 10K rpm SCSI U320 (Non-Hot-Swap) SL 4, 2, 5 3
40K1062 40K1030 5182 146GB 10K rpm SCSI U320 (Non-Hot-Swap) SL 4, 2, 5 3
40K1063 40K1031 5183 300GB 10K U320 SCSI NHS SL 4, 2, 5 3
40K1064 40K1032 5184 36GB 15K U320 SCSI NHS SL 4, 2, 5 3
40K1066 40K1034 5185 146GB 15K U320 SCSI NHS SL 4, 2, 5 3
32P0752 32P0785 5220 73G 15K rpm SCSI U320 (Non-Hot-Swap) SL 4, 2, 5 3
Simple-Swap SAS HDDs1
26K5727 26K5721 5259 36GB 15K SAS (simple swap) SL 4, 2, 5 3
26K5728 26K5722 5264 73GB 15K SAS (simple swap) SL 4, 2, 5 3
26K5729 26K5723 5265 146GB 15K SAS (simple swap) SL 4, 2, 5 3
26K5739 26K5733 5266 73GB 10K SAS (simple swap) SL 4, 2, 5 3
26K5740 26K5734 5267 146GB 10K SAS (simple swap) SL 4, 2, 5 3
26K5741 26K5735 5268 300GB 10K SAS (simple swap) SL 4, 2, 5 3
SAS HDDs
40K1077 40K1045 5175 73GB 10K SAS HDD SL 4, 2, 5 3
40K1078 40K1046 5176 146GB 10K SAS HDD SL 4, 2, 5 3
40K1079 40K1047 5177 300GB 10K SAS HDD SL 4, 2, 5 3
40K1080 40K1048 5186 36GB 15K SAS SL 4, 2, 5 3
40K1081 40K1049 5178 73GB 15K SAS HDD SL 4, 2, 5 3
40K1082 40K1050 5179 146GB 15K SAS HDD SL 4, 2, 5 3
Chapter 1. IntelliStation M Pro 6218 9
Notes:
1. A maximum of three HDDs for SAS or SCSI models or four SATA HDDs in SATA models are supported.
The third SAS or SCSI and the fourth SATA HDD must have a optional tray. The fourth SATA HDDs
must come with a ServerRAID 7t card, and all four SATA cables must be connected to the ServerRAID 7t
card.
2. HostRAID does not support the ServerRAID 7t card in SATA models.
Optical Drives
39M6344 32R2905 4139 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combo Drive
HH 1,2 2
39M6345 32R2906 4140 IBM Multi-Burner Plus HH 1,2 2
22P1999 22P1999 4149 16X RAM-Read DVD-ROM IDE Drive HH 1,2 2
13N1545 32R2905 4151 IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
HH 1,2 2
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Max
Qty
10 COG
Figure 2. M Pro 6218 front view
Bay Form Factor Height Front Access Usage
15.25HHYesStd. Optical
2 5.25 HH Yes Optical/Tape /SATA HDD/ SCSI HDD/ SAS
HDD
3 3.5 SL Yes FDD / SATA HDD
4 3.5 SL Yes SATA HDD / SCSI HDD/ SAS HDD
5 3.5 SL No SATA HDD / SCSI HDD/ SAS HDD
6 3.5 SL No No Usage. Prohibited by a bar.
Chapter 1. IntelliStation M Pro 6218 11
IntelliStation M Pro 6218 I/O options
IntelliStation M Pro 6218 power and accessories
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Storage Controllers
13N2252 13N2249 1656 Ultra320 SCSI Controller 2 Half 64-bit/
133MHz
4
71P8651 71P8648 1651 ServeRAID 7t SATA Controller Half 64-bit/
64MHz
4
Networking
25P2889 06P3601 1526 10/100 Ethernet Server Adapter Half 32-bit/
33MHz
4
31P9605 39Y6105 1512 PRO/1000 MT Server Adapter by Intel Half 64-bit/
133MHz
4
73P3505 39Y6098 1508 NetXtreme 1000 Express Ethernet Adapter Half PCI E 1X 1
73P4105 39Y6079 1510 NetXtreme 1000 T Ethernet Adapter 2 Half 64-bit/
133MHz
4
SBB Number Option Number Description
Uninterruptible Power Supply (UPS)
- 2130R4X IBM UPS 1000T HV
- 2130R8X IBM UPS 1000T JV
- 2130R3X IBM UPS 1000T LV
- 2130R6X IBM UPS 1500T HV
- 2130R9X IBM UPS 1500T JV
- 2130R5X IBM UPS 1500T LV
- 2130R2X IBM UPS 750T HV
- 2130R7X IBM UPS 750T JV
- 2130R1X IBM UPS 750T LV
Power Distribution Units
-- -
12 COG
IntelliStation M Pro 6218 tape options
SBB
Number
Option
Number
Feature
Code Description
Monitors
25R4183 49387NX 7601 IBM C117 17" (15.9inch VIS) FST CRT
25R4186 494215X 7604 IBM T115 15" TFT LCD
25R4188 494317X 7606 IBM T117 17" TFT LCD
25R4190 494419X 7608 IBM T119 19" TFT LCD
25R4192 494520X 7610 IBM T120 20.1" TFT LCD
Keyboard and Mouse
- 40K5372 - IBM USB UltraNav Keyboard - USB
- 90P0777 - IBM Enhanced Performance Keyboard - USB
- 40K9202 - IBM SpacePilot 3D Controller
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
39M5664 39M5659 5385 IBM DLTV4 Tape Drive - - - -
Tape Autoloaders
---- - - - -
External Tape Libraries
---- - - - -
External Tape Enclosures
---- - - - -
Associated Options
---- - - - -
Chapter 1. IntelliStation M Pro 6218 13
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported1
Storage
Interface Form Factor
Ext Tape
Encl
49P3228 48P7042 5354 20/40GB TR7 Internal IDE Tape
Drive
2 Std. IDE 89mm (3.5in)
SL or 133mm
(5.25in) HH
-
32P8861 00N7991 5353 20/40GB DDS/4 4mm Internal
Tape Drive
2 Ultra2
(16-bit)
89mm (3.5in)
HH or
133mm
(5.25in) HH
0034B0X
71P9176 71P9145 5355 36/72GB DDS/5 Internal SCSI
Tape Drive
2 Ultra2
(16-bit)
89mm (3.5in)
HH or
133mm
(5.25in) HH
-
71P9166 59P6746 5359 80/160GB VXA-2 SCSI Tape
Drive
2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6717 - 100/200GB LTO Tape Drive 2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6719 - 40/80GB DLT VS80 Internal
SCSI Tape Drive
2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6745 - 80/160GB DLT VS160 SCSI
Tape Drive
2 Ultra160
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6736 - 160/320GB SDLT SCSI Tape
Drive Option
- Ultra2
(16-bit)
133mm
(5.25in) FH
0034B0X
- 59P6744 - 200/400GB LTO Full-High Tape
Drive
- Ultra2
(16-bit)
133mm
(5.25in) FH
-
- 25R0005 - Half High LTO Gen 2 Tape
Drive
- Ultra160
SCSI
133mm
(5.25in) HH
-
- 25R0012 - 400/800GB LTO Generation 3
SCSI Tape Drive
- Ultra160 133mm
(5.25in) FH
-
Tape Autoloaders
- 36232LX - 200/400GB 2U LTO Generation
2 Tape Autoloader 3623 Model
2LX
- Ultra160
(16-bit)
2U Rack -
- 36232SX - 1.28TB/2.56TB 36232SX
SDLT320 Tape Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2
(16-bit)
5U Rack -
Associated Options
- 00N7956 - 68-pin External Multimode
LVD/SE SCSI Terminator
-LVD/SE
(16-bit)
External -
--- - ----
Note: The integrated SCSI controller is available on SATA models for tape support only (internal or external).
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
14 COG
© Copyright IBM Corp. 2003, 2006 15
Chapter 2. IntelliStation Z Pro 6223
IntelliStation Z Pro (6223) provides six USB ports (two front/four rear), two IEEE 1394A ports (one front/one
rear), two 9-pin serial ports and one 25-pin parallel port. A keyboard and mouse is also provided. A diskette
drive is not provided.
Table 4. IntelliStation Z Pro 6223 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Number of Processors (Std/Max)
Memory (Std/Max)4
Video Adapter (PCle)
Form Factor5
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8, 9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)10
6223-
12Y
- 3.4/800
1MB L2
1
/
2
1GB/
16GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
14Y
Jul
1
3.4/800
1MB L2
1
/
2
1GB/
16GB
NVIDIA
Quadro FX
3400
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
26Y
- 3.6/800
1MB L2
1
/
2
1GB/
16GB
ATI FireGL
V7100
PCIExpress
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
27Y
Jul
25
3.6/800
1MB L2
2
/
2
2GB/
16GB
3DLabs
Wildcat
Realizm 800
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
31Y
- 3.0/800
2MB L2
1
/
2
1GB/
16GB
NVIDIA
Quadro NVS
280
PCIExpress
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
41Y
- 3.2/800
2MB L2
1
/
2
1GB/
16GB
NVIDIA
Quadro NVS
280
PCIExpress
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
42Y
- 3.2/800
2MB L2
1
/
2
1GB/
16GB
NVIDIA
Quadro
FX 1400
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
43Y
- 3.2/800
2MB L2
2
/
2
2GB/
16GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
51Y
- 3.4/800
2MB L2
1
/
2
2GB/
16GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
16 COG
6223-
52Y
- 3.4/800
2MB L2
2
/
2
1GB/
16GB
3DLabs
Wildcat
Realizm 800
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
53Y11
- 3.4/800
2MB L2
2
/
2
2GB/
16GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
64Y
- 3.6/800
2MB L2
2
/
2
2GB/
16GB
ATI FireGL
V7100
PCIExpress
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
68Y11
- 3.6/800
2MB L2
2
/
2
2GB/
16GB
3DLabs
Wildcat
Realizm 800
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
72Y
- 3.8/800
2MB L2
1
/
2
2GB/
16GB
NVIDIA
Quadro FX
1400
PCIExpress
Mini-
tower
1GB SATA Simple
-Swap
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
73Y
- 3.8/800
2MB L2
1
/
2
2GB/
16GB
ATI FireGL
V7100
PCIExpress
Mini-
tower
1GB SATA Simple
-Swap
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
75Y
- 3.8/800
2MB L2
1
/
2
2GB/
16GB
NVIDIA
Quadro NVS
280
PCIExpress
Mini-
tower
1GB SATA Simple
-Swap
80GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
76Y
- 3.8/800
2MB L2
1
/
2
2GB/
16GB
ATI FireGL
V7100
PCIExpress
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
78Y
-Dual
3.8/800
2MB L2
2
/
2
2GB/
16GB
3DLabs
Wildcat
Realizm 800
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.2GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
3BY
- 3.0/800
2MB L2
1
/
2
1GB/
8GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
3GY
- 3.0/800
2MB L2
1
/
2
1GB/
8GB
-Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
4BY
- 3.2/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro NVS
285
Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
Table 4. IntelliStation Z Pro 6223 At-A-Glance (continued)
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Number of Processors (Std/Max)
Memory (Std/Max)4
Video Adapter (PCle)
Form Factor5
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8, 9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)10
Chapter 2. IntelliStation Z Pro 6223 17
6223-
5BY
- 3.4/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB U320 Fixed
SATA
73GB/
587.3GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
5CY
-Dual
3.4/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro
NVS 285
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.3GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
5GY
- 3.4/800
2MB L2
1
/
2
1GB/
8GB
-Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
6BY
- 3.6/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro NVS
285
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.3GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
6CY
- 3.6/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
6DY
-Dual
3.6/800
2MB L2
2
/
2
2GB/
8GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.3GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
6GY
- 3.0/800
2MB L2
1
/
2
2GB/
16GB
-Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
7BY
- 3.8/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro FX
3500
Mini-
tower
1GB U320 Fixed
SCSI
73GB/
587.3GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
7CY
- 3.8/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro FX
3500
Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
7DY
-Dual
3.8/800
2MB L2
2
/
2
2GB/
8GB
NVIDIA
Quadro FX
4500
Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
7GY
- 3.6/800
2MB L2
1
/
2
1GB/
8GB
-Mini-
tower
1GB SATA Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
6223-
E6Y
- 3.6/800
2MB L2
1
/
2
2GB/
8GB
NVIDIA
Quadro FX
1400
Mini-
tower
1GB U320 Fixed
SATA
160GB/
1000GB
CD-RW/DVD
(48x-32x-48x-
16x)
6
/
4
6
/
5
Table 4. IntelliStation Z Pro 6223 At-A-Glance (continued)
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Number of Processors (Std/Max)
Memory (Std/Max)4
Video Adapter (PCle)
Form Factor5
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8, 9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)10
18 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model number which are not
orderable as listed and need to be modified by country. The U.S. GAV model numbers use the following
nomenclature: xxU. For example, the U.S. orderable part number for 6223-10Y is 6223-10U. See the
product specific Official IBM announcement letter for other country-specific GAV model numbers. GAV
to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last character
with the country-specific designator.
2. Not available from IBM after this date. Business Partner Inventory may be available.
3. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz (quad-
pumped) Front Side Bus (FSB).
4. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs. To achieve 16 GB of system memory, when 4 GB PC2-3200 ECC DDR2 RDIMM
memory becomes available, add a 4 GB PC2-3200 ECCDDR2 SDRAM RDIMM in the first four slots.
5. A 5U tower-to-rack conversion kit is available. See ’Power and Accessories.’
6. Broadcom 5721 copper gigabit Ethernet controller with Wake-on-LAN support. Wake-on-LAN is not
supported if systems are improperly shut down.
7. Integrated dual-channel Ultra320 SCSI storage controller on SCSI models, two SATA controllers on SATA
models supporting one SATA HDD per controller. Both the SCSI and SATA integrated controllers
support Integrated ServeRAID-7e (RAID-0 and RAID-1).
8. Maximum storage capacity for SATA models is based on four 250GB SATA HDDs which requires
installation of the optional ServeRAID-7t RAID controller and replacement of the standard HDD.
Standard configuration will support two SATA HDDs.
9. Maximum storage capacity for SCSI models is based on four 146.8GB HDDs.
10. The standard graphics adapter occupies the PCI Express slot. Slot 2 will not be available when using the
3Dlabs Wildcat Realizm 800 graphics adapter.
11. Ships with Red Hat Enterprise Linux WS 3 License. Other models ship preloaded with Microsoft
Windows XP Professional.
IntelliStation Z Pro 6223 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
39M4300 40K2515 0339 3.0GHz 800MHz 2MB L2 Cache 31Y, 3BY, 3GY, 6GY
39M4054 40K2516 0330 3.2GHz 800MHz 2MB L2 Cache 41Y, 42Y,43Y,4BY
39M4057 40K2517 0333 3.4GHz 800MHz 2MB L2 Cache 12Y, 14Y, 51Y, 52Y, 53Y, 5BY,
5CY, 5GY
39M4069 40K2518 0286 3.6GHz 800MHz 2MB L2 Cache 26Y, 27Y, 64Y, 68Y, 6 BY, 6CY,
6DY, 7GY, E6Y
39Y9910 40K2519 0653 3.8GHz 800MHz 2MB L2 Cache 72Y, 73Y, 75Y, 76Y, 78Y, 7BY,
7CY, 7DY
39Y8713 13N0678 1221 3.8GHz/800MHz-2MB 72Y, 73Y, 75Y, 76Y, 78Y, 7BY,
7CY, 7DY
Note: Z Pro (6223) processor options support Intel’s Extended Memory 64 Technology (EM64T).
Chapter 2. IntelliStation Z Pro 6223 19
IntelliStation Z Pro 6223 memory options
Notes:
1. Quantity two of each SBB PN must be ordered to equal its corresponding option.
2. Supports Chipkill. Mixing Chipkill DIMMs with nonChipkill DIMMs will disable all Chipkill function.
3. 2GB DIMMs can only be installed in slots 1, 2, 3 and 4. If mixing 2GB DIMMs with other size DIMMs,
only two 2GB DIMMs can be installed and they must be installed in slots 1 and 2.
Table 5. Additional Processor
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support
39Y9911 13N0678 0446 Dual 3.8GHz 800MHz 2MB L2 Cache -
39Y8711 40K2517 1219 Dual 3.4GHz/800MHz-2MB -
39Y8712 40K2518 1220 Dual 3.6GHz/800MHz-2MB -
SBB
Number1
Option
Number
Feature
Code Memory Options
90P0870 - 0501 256MB DDR-II SDRAM DIMM (non chip-kill)
- 73P3523 - 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 - 0502 512MB DDR-II SDRAM DIMM (non chip-kill)
39M5816 39M5818 0541 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
39M5821 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit2
73P2874 73P2866 0504 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5809 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit2
73P2875 - 0512 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5812 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM Kit2, 3
73P4794 - 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
39M5815 4GB (2x2GB) PC2-3200 Single Rank ECC DDR2 RDIMM Kit
Note: 8GB of memory is supported via six DIMM slots with currently available options. Z Pro (6223) supports 16GB
of memory using the 4GB Single Rank DIMM. Due to two-way interleaving, installation of memory DIMMs in
matched pairs is required beginning with DIMM slots 1 and 2, then 3 and 4, then 5 and 6. Memory must be
installed in pairs.
20 COG
Figure 3. Z Pro 6223 System Board
Table 6. Standard Memory Configuration
Model Std. DIMM Configuration
10Y 2 x 256MB PC2-3200 ECC DDR2 SDRAM RDIMM
11Y, 12Y, 14Y, 2xY except 27Y,
31Y, 41Y, 42Y, 52Y, 3GY, 6GY
2 x 512MB PC2-3200 ECC DDR2 SDRAM RDIMM
43Y, 51Y, 53Y, 6xY, 7xY, 3EY 2 x 1GB PC2-3200 ECC DDR2 SDRAM RDIMM
Slot 6, PCI-X
Battery Microprocessor 2 Microprocessor 1
Slot 5, PCI-X
Slot 4, PCI-X
Slot 3, PCI
Slot 2, PCI
Slot 1, PCI
Express x16 DIMM 5
DIMM 4
DIMM 3
DIMM 2
DIMM 1
DIMM 6
Chapter 2. IntelliStation Z Pro 6223 21
IntelliStation Z Pro 6223 hard disk drive (HDD) and optical storage
options
Notes:
1. May require removing standard devices.
2. Four SATA HDDs are supported with the installation of the optional ServeRAID-7t controller. Two
HDDs are supported in the standard configuration.
3. Mixing SATA and SCSI HDDs is not supported.
4. Installation of this HDD option will require removing the simple-swap tray that ships with the HDD.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Max
Qty2
Diskette Drives
23K4959 05K9276 5300 1.44MB 1 inch black - - -
0005309 40K1692 5309 IBM External USB Floppy Drive - - -
SATA HHDs2
40K6865 40K6864 5154 80GB 7.2K rpm SATA HDD - - -
40K6869 40K6868 5155 160GB 7.2K rpm SATA HDD - - -
39M4535 39M4504 5294 160GB SATA HDD - - -
39M4537 39M4508 5295 250GB SATA HDD - - -
Fixed (Nonhot-swap) Ultra320 HDDs
40K1061 40K1029 5157 73G 10K rpm SCSI U320 (Non-Hot-Swap) SL 2, 4, 5, 6 4
40K1062 40K1030 5182 146GB 10K rpm SCSI U320 (Non-Hot-Swap) SL 2, 4, 5, 6 4
40K1063 40K1031 5183 300GB 10K U320 SCSI NHS SL 2, 4, 5, 6 4
40K1064 40K1032 5184 36GB 15K U320 SCSI NHS SL 2, 4, 5, 6 4
40K1065 40K1033 5174 73GB 15K U320 SCSI NHS SL 2, 4, 5, 6 4
40K1066 40K1034 5185 146GB 15K U320 SCSI NHS SL 2, 4, 5, 6 4
Optical Devices
22P1999 22P1999 4149 16X RAM-Read DVD-ROM IDE Drive HH 1, 2 2
Associated Options
02R3451 00N8078 5400 250MB IDE Internal Zip Drive - - -
22 COG
Notes:
1. Standard HDD is installed in bay 6.
Figure 4. Z Pro 6223 Front View
IntelliStation Z Pro 6223 Bay Usage
Bay Form Factor Height Front Access Usage
1 133mm (5.25in) HH Yes Optical
2 133mm (5.25in) HH Yes Optical/Tape/Zip
3 89mm (3.25in) SL Yes FDD/HDD
4 ... 6 89mm (3.25in) SL No HDD1
Note: HDDs are installed in the following order: bays 6, 5 and 4.
Chapter 2. IntelliStation Z Pro 6223 23
IntelliStation Z Pro 6223 I/O options
Notes:
1. Currently only one type of RAID is supported at a time; for example, ServeRAID-7e (RAID-0 or RAID-1
with integrated controller), ServeRAID-4Lx or ServeRAID-7t, etc.
2. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Storage Controllers1
39R8797 39R8793 1682 ServeRAID-6i+ Integrated RAID Controller Half 64-bit/
133MHz
5
39R8809 39R8805 1683 ServeRAID-7t SATA Controller Half 64-bit/
66MHz
4 ... 6
71P8614 71P8594 1652 Single Channel Ultra320 SCSI Controller2Half 64-bit/
66MHz
4 ... 6
39R8752 39R8743 1680 Ultra320 SCSI Controller 22Half 64-bit/
133MHz
4 ... 6
Networking
32P9298 31P6401 1503 NetXtreme Gigabit Dual Port Adapter Half 64-bit/
133MHz
4 ... 6
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet Adapter - - 4 ... 6
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port Ethernet
Adapter
- - 4 ... 6
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server Adapter Half 64-bit/
133MHz
-
Other I/O
--- - -- -
24 COG

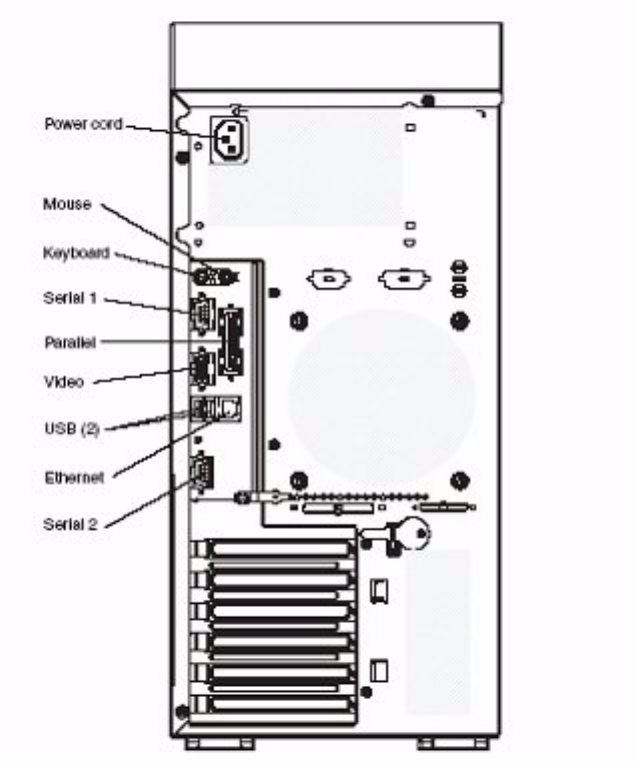

Figure 5. Z Pro 6223 Rear View
Chapter 2. IntelliStation Z Pro 6223 25
IntelliStation Z Pro 6223 power and accessories
Notes:
1. IntelliStation Z Pro 6223 includes a 530w voltage-sensing power supply and a single line cord.
Option
Number Description
Power1
--
Tower Uninterruptible Power Supply (UPS)
2130R1X UPS750TLV
2130R2X UPS750THV
2130R3X UPS1000TLV
2130R4X UPS1000THV
2130R5X UPS1500TLV
2130R6X UPS1500THV
2130R7X UPS750TJV
2130R8X UPS1000TJV
2130R9X UPS1500TJV
Power Distribution Units
39Y8938 30amp/125V Front-end PDU with Nema L5-30P connector
39Y8939 30amp/250V Front-end PDU with Nema L6-30P connector
39Y8999 32A/230V 3P w/IEC309 3P+N+Gnd connector
39Y8934 32amp/250V Front-end PDU with IEC309 32A 2P+Gnd connector
73P5855 60A/208V 1P w/IEC309 2P+Gnd Conn
39Y9000 60A/208V 3P w/IEC309 3P+Gnd Conn
39Y8940 60amp/250V Front-end PDU with IEC309 60A 2P+N+Gnd connector
73P5856 63A/320V 1P w/IEC309 P+N+Gnd Conn
39Y8935 63amp/250V Front-end PDU with IEC309 32A 2P+Gnd connector
39Y8905 DPI Nema Rack PDU
39Y8951 DPI Universal Rack PDU w/NEMA L5-20P & L6-2P (US cord)
Rack-mount Uninterruptible Power Supply (UPS)
32P1020 APC 2U Smart-UPS 1400RMB
32P1022 APC 2U Smart-UPS 1400RMiB
26 COG
Notes:
1. IntelliStation Z Pro 6223 ships standard with an IBM 104-key keyboard and three-button mouse.
SBB
Number
Option
Number
SBB
Number Description
Racks
- 93061RX - NetBay11 Standard Rack Cabinet
- 93084XX - NetBay42 Enterprise Expansion Rack Cabinet (EX)
- 93084RX - NetBay42 Enterprise Rack Cabinet
- 9306250 - NetBay25 Standard Rack Cabinet
- 9306420 - NetBay42 Standard Rack Cabinet
- 9306421 - NetBay42 Standard Expansion Rack Cabinet
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet
Rack/Tower Conversion Kits
- 13N2455 - 5Ux20D Tower-to-Rack Kit
Rack Console Connectivity
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
Monitors
25R4186 494215X 7604 T115 15in TFT LCD
25R4188 494317X 7606 T117 17in TFT LCD
25R4190 494419X 7608 T119 19in TFT LCD
Keyboard and Mouse1
- 31P8950 - USB Keyboard with UltraNav - US English
18R9856 73P2620 8881 USB Keyboard Enhanced Performance Keyboard - US English
0008660 40K5372 8660 USB Travel Keyboard with UltraNav - US English
- 25R6942 - Enhanced Performance Wireless Keyboard & Optical Mouse - USB
40K9491 40K9200 8912 USB Optical Wheel Mouse
- 33L3252 - SpaceBall 3D Input Device
- 40K9202 - SpacePilot 3D Controller
Other Accessories
--- -
Chapter 2. IntelliStation Z Pro 6223 27
IntelliStation Z Pro 6223 tape options
Notes:
1. Installation may require removing a standard device.
SBB
Number
Option
Number Tape Drives
Bays
Supported1
Interface
(bit) Form Factor
Ext Tape
Encl
--- - - - -
External Tape Enclosures
- 4559HHX Half-High Tape Enclosure - Ultra160
(16-bit)
Desktop or
Rack Shelf
(2.52in tall)
-
Associated Options
- 00N7956 68-pin External Multimode LVD/SE
SCSI Terminator
-LVD/SE
(16-bit)
External 4559HHX
-- - - - - -
Note: The integrated SCSI controller is available on SATA models for tape support only (internal or external).
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
28 COG
© Copyright IBM Corp. 2003, 2006 29
Chapter 3. IntelliStation Z Pro 9228
Table 7. IntelliStation Z Pro 9228 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)2
Memory (Std/Max)3
Video Adapter (PCle)4
Form Factor
Integrated Ethernet
Storage Controller5
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
9228-62Y 2.0/1333
- 4MB L2
1/2 1GB/
32GB
NVIDIA
Quadro
FX 550
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
DVD-ROM 7/5 6/5
9228-72Y 2.33/
1333-
4MB L2
1/2 1GB/
32GB
NVIDIA
Quadro
NVS 285
128MB
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
DVD-ROM 7/5 6/5
9228-74Y 2.33/
1333-
4MB L2
1/2 1GB/
32GB
NVIDIA
Quadro
FX 550
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
DVD-ROM 7/5 6/5
9228-76Y 2.33/
1333-
4MB L2
1/2 1GB/
32GB
NVIDIA
Quadro
FX 1500
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
DVD-ROM 7/5 6/5
9228-82Y 2.66/
1333-
4MB L2
1/2 4GB/
32GB
NVIDIA
Quadro
FX 3500
Mini-
Tower
1GB SAS Simple
-Swap
73GB/ DVD-ROM 7/5 6/5
9228-84Y 2.66/
1333-
4MB L2
1/2 4GB/
32GB
NVIDIA
Quadro
FX 1500
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/5
9228-86Y 2.66/
1333-
4MB L2
1/2 4GB/
32GB
NVIDIA
Quadro
NVS 285
128MB
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/5
9228-
8GY
2.66/
1333-
4MB L2
1/2 2GB - Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/6
9228-92Y 3.0/
1333-
4MB L2
1/2 4GB/
32GB
NVIDIA
Quadro
FX 1500
Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/5
30 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 9228-96Y is 9228-96U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. If two CPUs are installed, they must be the same speed.
3. Maximum memory may require replacement of standard memory with optional maximum memory
modules.
4. The NVIDIA Quadro FX 3500 and NVIDIA Quadro FX 4500 require external PCI Express power direct
from the power supply. Slot 2 will not be available when using the NVIDIA Quadro FX 4500 graphics
adapter.
5. Mixing of SAS and SATA HDDs is not supported.
9228-94Y 3.0/
1333-
4MB L2
1/2 4GB/
32GB
NVIDIA
Quadro
FX 3500
Mini-
Tower
1GB SAS Simple
-Swap
73GB/ 48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/5
9228-96Y 2x3.0/
1333-
4MB L2
2/2 4GB/
32GB
NVIDIA
Quadro
FX 3500
Mini-
Tower
1GB SAS Fixed 73GB/ 48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/5
9228-98Y 2x3.0/
1333-
4MB L2
2/2 4GB/
32GB
NVIDIA
Quadro
FX 4500
Mini-
Tower
1GB SAS Simple
-Swap
73GB/ 48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/4
9228-
9GY
3.0/
1333-
4MB L2
1/2 2GB - Mini-
Tower
1GB SATA Simple
-Swap
160GB
/
48X/32X/
48X/16X
CD-
RW/DVD
7/5 6/6
Table 7. IntelliStation Z Pro 9228 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)2
Memory (Std/Max)3
Video Adapter (PCle)4
Form Factor
Integrated Ethernet
Storage Controller5
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 3. IntelliStation Z Pro 9228 31
IntelliStation Z Pro 9228 processor options
Notes:
1. If 1 CPU only, install in CPU1 location
2. When installing CPU2, install CPU2 VRM module also.
IntelliStation Z Pro 9228 memory options
Notes:
1. DIMMs must be populated in pairs and should be populated from largest to smallest i.e.; populate 2GB
then 1GB and then 512 MB (1 pair per branch) in the following order: DIMM1 and DIMM 3, DIMM 5 and
DIMM 7, DIMM 2 and DIMM 4, and DIMM 6 and DIMM 8. Populating DIMM pairs in this order will
maximize performance and also ensure that the DIMM in each channel gets populated first.
2. Each DIMM in the DIMM pair must be identical (same size and speed).
SBB
Number
Option
Number
Feature
Code Processor Options1, 2 SMP Support
42D1378 40K1243 1321 Intel Xeon Processor 5130 62Y
42D1376 40K1244 1320 Intel Xeon Processor 5140 72Y, 74Y, 76Y
42D1374 40K1245 1319 Intel Xeon Processor 5150 82Y, 84Y, 86Y
42D1370 40K1246 1318 Intel Xeon Processor 5160 92Y, 94Y, 96Y, 98Y
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs1, 2
39M5780 39M5782 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 39M5785 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 39M5791 0544 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5795 39M5797 0556 4GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
Table 8. Standard Memory Configuration
Model Std. DIMM Configuration
62Y (2x512MB) Xeon 5130 2.0GHz/1333MHz-4MB DC
72Y, 74Y, 76Y (2x512MB) Xeon 5140 2.33GHz/1333MHz-4MB DC
76Y, 8GY, 84Y,
86Y, 9GY
(4x512MB) Xeon 5150 2.66GHz/1333MHz-4MB DC
92Y, 94Y, 96Y, 98Y (4x512MB) Xeon 5160 3.0GHz/1333MHz-4MB DC
32 COG
Figure 6. Z Pro 9228 memory DIMMs
Chapter 3. IntelliStation Z Pro 9228 33
IntelliStation Z Pro 9228 hard disk drive (HDD) and optical storage
options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty
Diskette Drives
0005309 40K1692 5309 1.44MB black 3
Simple-Swap SATA Hard Drives
39M4501 39M4500 5290 80GB 7200-rpm Simple-swap SATA II HDD - - -
39M4505 39M4504 5291 160GB 7200-rpm Simple-swap SATA II HDD - - -
39M4509 39M4508 5292 250GB 7200-rpm Simple-swap SATA II HDD - - -
SAS Hard Drives
---- -- -
Associated Options
---- -- -
Optical Drives
39M6345 32R2906 4140 IBM DVD Multi-Burner Plus Drive HH - -
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combination Drive
HH - -
34 COG
Figure 7. Z Pro 9228 front view
Bay Form Factor Height Front Access Usage
1 5.25 inch - N/A CD ROM
2 5.25 inch - N/A CD/Tape
3 Diskette Drive - N/A Diskette
43.5 inchSL Y HDD
53.5 inchSL Y HDD
63.5 inchSL Y HDD
73.5 inchSL Y HDD
Chapter 3. IntelliStation Z Pro 9228 35
IntelliStation Z Pro 9228 I/O options
Notes:
1. The SAS daughter card is required for all SAS configurations (non-RAID or RAID) when the SAS HBA
controller is not installed in an expansion slot.
2. The SAS daughter card is required for SATA RAID configurations when the ServeRAID 7t adapter is not
installed in an expansion slot.
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
Storage Controllers
39R8809 39R8805 1683 IBM ServeRAID 7t SATA
Controller2
Half 64-bit/
66MHz
4,5 - 2
Networking
73P5105 73P5101 1579 PRO/1000 GT Dual Port
Server Adapter by Intel
Half 64-bit/
133MHz
4,5 - 2
39Y6108 39Y6105 1488 PRO/1000 GT Server
Adapter by Intel
Half 64-bit/
133MHz
4,5 - 2
Other I/O
---- -- - - -
SLOT/device Type Bus Voltage (V)
Frequency
MHz
Data
Path
Active PCI?
(Hotswap)
Slot
length
PCI Slot 1 PCIe x16/75W PCI
Express
3.3 2.5 Ghz 16
Lanes
NFull
PCI Slot 2 PCIe x8 (4,1) PCI
Express
3.3 2.5 Ghz 4/0
lanes
NFull
PCI Slot 3 PCIe x16 (x4,1)/75W PCI
Express
3.3 2.5 Ghz 4/8
lanes
NFull
PCI Slot 4 PCI-X PCI-X 3.3 133 64 N Full
PCI Slot 5 PCI-X PCI-X 3.3 133 64 N Full
PCI Slot 6 PCI PCI 5 33 32 N Full
36 COG
IntelliStation Z Pro 9228 power and accessories
SBB
Number
Option
Number
Feature
Code Description
Power Supplies and Power Cord Options
Power Distribution Units
- 32P1751 - 30amp/125V Front-end PDU with NEMA L5-30P connector
- 32P1766 - 30amp/250V Front-end PDU with NEMA L6-30P connector
- 73P5844 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
39Y8000 73P5847 6071 60A/208V 3P w/IEC309 3P+Gnd Conn
- 32P1767 - 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
- 32P1754 - 63amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
- 26K4246 - DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
- 26K4241 - DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4245 - DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 26K4242 - DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 26K4243 - DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 32P1761 - DPI NEMA Rack PDU
- 32P1736 - DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
Uninterruptible Power Supply (UPS)
- 21309TX - IBM UPS 1500T JV
Rack/Tower Conversion Kits
39Y7960 39M2895 3756 IBM USB Conversion Option
0004393 39Y9707 4393 5Ux20 T/R Conversion Kit
Rack Console Connectivity
- 09N4290 - 1x4 port Console Switch
- 09N4291 - 2x8 port Console Switch
- 17235RX - IBM Rack Keyboard Tray
- 17352GX - IBM Global 2x16 Console Manager
- 17352LX - IBM 2x16 Local Console Manager
- 17354GX - IBM Global 4x16 Console Manager
- 1735L04 - NetBAY Local Console Manager
- 1735R16 - NetBAY Remote Console Manager
Racks
- 93061RX - NetBay11 Standard Rack Cabinet
- 93084XX - NetBay42 Enterprise Expansion Rack Cabinet (EX)
- 93072RX - IBM 25U Standard Rack
Chapter 3. IntelliStation Z Pro 9228 37
- 93072SX - IBM 25U Standard Rack
- 93074EX - IBM 42U Standard Rack Extension
- 93074RX - IBM 42U Standard Rack
- 93074SX - IBM 42U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 930842E - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
- 930842S - NetBAY42 Enterprise Rack Cabinet
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
Monitors
- 4938-7xx - IBM C117 17" (15.9inch VIS) FST CRT
- 4942-15x - IBM T115 15" TFT LCD
- 4943-17x - IBM T117 17" TFT LCD
- 4944-19x - IBM T119 19" TFT LCD
- 4945-20x - IBM T120 20.1" TFT LCD
Keyboard and Mouse
0008660 40K5372 8660 IBM Keyboard with Integrated Pointing Device - 3m Cable - Black - USB - US
English
40K9491 40K9200 8912 IBM 2 Button Optical Wheel Mouse - Black - USB
40K9492 40K9201 8913 IBM 3 Button Optical Mouse - Black - USB
0008915 40K9202 8915 SpacePilot Advanced 3d Pointing Device USB - Stealth Black
40K9490 40K9584 8750 IBM Preferred Pro Keyboard- Full Width - 2m Cable - Black - USB - US English
SBB
Number
Option
Number
Feature
Code Description
38 COG
© Copyright IBM Corp. 2003, 2006 39
Chapter 4. IntelliStation A Pro 6217
IntelliStation A Pro 6217 also provides an integrated Broadcom 5703ci Gb Ethernet controller (WOL, ASF2.0),
five USB ports (three rear / two front), two 9-pin serial ports, two IEEE 1394A ports (one front/one rear) and
one 25-pin parallel port. It supports a single 530w power supply, and ships with a keyboard and mouse but
without a diskette drive.
Table 9. IntelliStation A Pro 6217 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Video Adapter (PCle)
Form Factor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max 5, 6
Optical Drive
HDD Bays (Std/Max)
Bays(Total/Avail)
PCI-X Slots (Total/Avail)
Slots (Total/Avail)
6217
-62Y
275-
1MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
1400
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-
37Y10
252-
1MB L2
2
/
2
8GB/
16GB
nVIDIA
Quadro NVS
280
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-36Y
252-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro FX
1400
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
Multi-Burner
Plus
1
/
4
6
/
4
5
/
4
6
/
5
6217
-35Y
252-
1MB L2
2
/
2
4GB/
16GB
3DLabs Wildcat
Realizm 800
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
Multi-Burner
Plus
1
/
4
6
/
4
5
/
39
6
/
4
6217
-33Y
252-
1MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
1400
Mini-
Tower
1GB U320 Fixed
SCSI
73GB/
1200GB8
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-30Y
252-
1MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro NVS
280
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-
28Y10
250-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro FX
3400
Mini-
Tower
1GB U320 Fixed
SCSI
73GB/
1200GB8
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
-6
/
4
5
/
4
6
/
5
40 COG
6217
-22Y
250-
1MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
1400
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-21Y
250-
1MB L2
2
/
2
2GB/
16GB
nVIDIA
Quadro NVS
280
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-68Y
275-
1MB L2
2
/
2
4GB/
16GB
3DLabs Wildcat
Realizm 800
Mini-
Tower
1GB U320 Fixed
SCSI
73GB/
1200GB8
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
39
6
/
4
6217
-
38Y10
252-
1MB L2
2
/
2
8GB/
16GB
3DLabs Wildcat
Realizm 800
Mini-
Tower
1GB U320 Fixed
SCSI
73GB/
1200GB8
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
39
6
/
4
6217
-41Y
254-
1MB L2
1
/
2
4GB/
16GB
nVIDIA
Quadro FX
3400
PCIExpress
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-42Y
254-
1MB L2
1
/
2
1GB/
16GB
nVIDIA
Quadro NVS
285
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-43Y
254-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro FX
3400
PCIExpress
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-44Y
254-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro NVS
285
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-45Y
254-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro FX
3400
PCIExpress
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-46Y
254-
1MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro FX
4500
PCIExpress
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
Table 9. IntelliStation A Pro 6217 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Video Adapter (PCle)
Form Factor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max 5, 6
Optical Drive
HDD Bays (Std/Max)
Bays(Total/Avail)
PCI-X Slots (Total/Avail)
Slots (Total/Avail)
Chapter 4. IntelliStation A Pro 6217 41
6217
-47Y
254-
1MB L2
2
/
2
8GB/
16GB
nVIDIA
Quadro FX
4500
PCIExpress
Mini-
Tower
1GB U320 Fixed
SCSI
73GB/
1200GB8
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-61Y
280-
2MB L2
2
/
2
4GB/
16GB
nVIDIA
Quadro NVS
285
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
1
/
4
6
/
4
5
/
4
6
/
5
6217
-2GY
250-
1MB L2
1
/
2
1GB/
16GB
nVIDIA for
Open Graphics
Models
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
4
/
4
6
/
6
5
/
5
6
/
6
6217
-6GY
275-
2MB L2
1
/
2
1GB/
16GB
nVIDIA for
Open Graphics
Models
Mini-
Tower
1GB SATA Fixed
SATA
80GB/
1000GB7
48X/32X/48X/
16X Max CD-
RW/DVD-
ROM
4
/
4
6
/
6
5
/
5
6
/
6
6217
-4BY
254-2.8
1MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro NVS
285
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-4CY
254-2.8
1MB L2
1
/
2
4GB/
16GB
nVIDIA
Quadro FX
3500
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-4DY
254-2.8
1MB L2
1
/
2
4GB/
16GB
nVIDIA
Quadro FX
4500
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-4FY
254-2.6
1MB L2
1
/
2
8GB/
16GB
nVIDIA
Quadro FX
4500
Mini-
Tower
1GB U320 Fixed
SCSI
73GB DVD Combo 4
/
4
-5
/
5
6
/
6
6217
-4GY
254-2.8
1MB L2
1
/
2
2GB/
16GB
-Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-8GY
285-2.6
2MB L2
1
/
2
2GB/
16GB
-Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-82Y
285-2.8
2MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
1400
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
Table 9. IntelliStation A Pro 6217 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Video Adapter (PCle)
Form Factor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max 5, 6
Optical Drive
HDD Bays (Std/Max)
Bays(Total/Avail)
PCI-X Slots (Total/Avail)
Slots (Total/Avail)
42 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 6217-41Y is 6217-41U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. The IntelliStation A Pro 6217 contains AMD Opteron processors.
3. To achieve maximum memory capacity, an additional CPU must be installed to provide support for four
additional DIMMs
4. A rack mount kit is available.
5. Maximum capacity for fixed (nonhot-swap) SCSI models is based on four 300GB fixed (nonhot-swap)
SCSI HDDs.
6. Maximum storage capacity for SATA models is based on four 250GB SATA HDDs which requires
installation of the optional ServeRAID-7t RAID controller and replacement of the standard HDD.
Standard configuration will support two SATA HDDs.
7. SATA model ships standard with a single 80GB, 7200 rpm SATA HDD.
8. SCSI model ships standard with a single 73GB, 10K rpm SCSI HDD.
9. PCI slot four is not available for models using the 3DLabs Wildcat Realizm 800 PCIExpress Video
Adapter.
10. Models 28Y, 37Y, 38Y ships with Red Hat Enterprise Linux WS 3 License. Other models ship preloaded
with Microsoft Windows XP Professional.
6217
-83Y
285-2.8
2MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro NVS
285
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-84Y
285-2.8
2MB L2
1
/
2
4GB/
16GB
nVIDIA
Quadro FX
4500
Mini-
Tower
1GB U320 Fixed
SCSI
73GB Multi-burner 4
/
4
-5
/
5
6
/
6
6217
-85Y
285-2.8
2MB L2
1
/
2
4GB/
16GB
nVIDIA
Quadro FX
3500
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD Combo 2
/
2
-5
/
5
6
/
6
6217
-52Y
3.0/
(256)1
MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
1500
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD/CD-RW 6
/
6
6
/
6
5
/
5
6
/
6
6217
-87Y
2.6/
(256)1
MB L2
1
/
2
2GB/
16GB
nVIDIA
Quadro FX
4500
Mini-
Tower
1GB SATA Fixed
SATA
160GB DVD/CD-RW 4
/
4
6
/
6
4
/
5
6
/
6
Table 9. IntelliStation A Pro 6217 At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Video Adapter (PCle)
Form Factor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max 5, 6
Optical Drive
HDD Bays (Std/Max)
Bays(Total/Avail)
PCI-X Slots (Total/Avail)
Slots (Total/Avail)
Chapter 4. IntelliStation A Pro 6217 43
IntelliStation A Pro 6217 processor options
Notes:
1. Installing a second CPU provides four additional memory DIMM slots for a total of eight. Each CPU card
must have at least one pair of memory installed, memory must be installed in pairs.
2. One additional processor may be installed, providing a maximum of two. Processor models must match
within a system.
SBB
Number
Option
Number
Feature
Code Processor Options1SMP Support2
25R7861 25R8957 - Opteron Processor Model 250 22Y, 28Y, 21Y
39R6789 40K2526 - Opteron Processor Model 254 41Y, 42Y, 43Y, 44Y, 45Y, 46Y,
47Y, 4BY, 4CY, 4DY, 4FY
25R7845 40K2527 0252 Dual Core Opteron Processor Model 275 62Y, 68Y
39R6790 40K2528 - Dual Core Opteron Processor Model 280 61Y
25R7881 25R8962 - Dual Core Opteron Processor Model 285 82Y, 83Y, 84Y, 85Y
90P1996 40K2525 - AMD Opteron Processor Model 252 -
39R6954 40K1219 - Opteron Processor Model 256 52Y, 87Y
44 COG
IntelliStation A Pro 6217 memory options
Notes:
1. The memory must be installed in pairs across channels.
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs1, 2
22P9270 73P2269 0511 2GB DDR PC2700 RDIMM (512Mbit)
73P3240 38L5221 0525 1GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
- 73P3234 - 2GB PC3200 ECC DDR RDIMM Kit
73P3239 - 0524 512MB PC3200 CL2.5 ECC DDR DRAM RDIMM (256Mbit)
- 73P3233 - 1GB PC3200 ECC DDR RDIMM Kit
73P3241 38L5222 0526 2GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
39M5798 - 0594 512MB PC2-3200-333 ECC DDR2 DIMM
39M5801 - 0595 1GB PC2-3200-333 ECC DDR2 DIMM
39M5804 - 0596 2GB PC2-3200-333 ECC DDR DIMM
Table 10. Standard Memory Configuration
Model Std. DIMM Configuration
42Y 2x512MB PC3200 CL2.5 ECC DDR DRAM RDIMM
62Y, 35Y, 33Y, 30Y, 22Y, 21Y, 4BY, 82Y,
83Y
2 x 1GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
36Y, 28Y, 68Y, 41Y, 43Y, 44Y, 45Y, 46Y,
61Y, 52Y,4CY, 4DY, 84Y, 85Y, 87Y
4 x 1GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
37Y, 38Y, 47Y, 4FY 4 x 2GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
Chapter 4. IntelliStation A Pro 6217 45
Figure 8. A Pro 6217 system board
46 COG
IntelliStation A Pro 6217 hard disk drive (HDD) and optical storage
options
Notes:
1. Up to four SATA HDDs are supported with the installation of the optional ServeRAID-7t SATA RAID
controller.
2. Mixing of different HDD technologies is supported. Follow installation order provided with the Bay
Usage table.
3. Installation of this HDD option will require removing the simple-swap tray that ships with the HDD.
4. Standard optical drive is installed in Bay 1.
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported Height
Maximum
Quantity1
Diskette Drives
23K4959 05K9276 5300 1.44MB Flex File (FDD) 3 - 1
0005309 40K1692 5309 USB Portable Diskette Drive - - -
SATA HDDs2
74P5102 09N4253 5229 80GB 7200 RPM Serial ATA - - -
90P0581 09N4254 5230 160GB 7200 RPM Serial ATA - - -
39M4501 39M4500 5290 IBM 80GB 7200-rpm Simple-swap SATA HDD - - -
39M4505 39M4504 5291 IBM 160GB 7200-rpm Simple-swap SATA HDD - - -
39M4537 39M4508 5295 IBM 250GB 7200-rpm Simple-swap SATA HDD - - -
39M4599 39M4514 5180 500GB 7200 RPM Hot-Swap SATA HDD - - -
Fixed (Nonhot-swap) Ultra320 HDDs
40K1061 40K1029 5157 73.4GB 10K rpm Ultra320 SCSI HDD (68-pin) 3 ... 6 SL 4
40K1062 40K1030 5182 146.4GB 10K rpm Ultra320 SCSI HDD (68-pin) 3 ... 6 SL 4
40K1063 40K1031 5183 300GB 10K rpm Ultra320 SCSI HDD (68-pin) 3 ... 6 SL 4
40K1064 40K1032 5184 36GB 15K rpm Ultra320 SCSI HDD (68-pin) - - -
40K1065 40K1033 5174 73GB 15K rpm Ultra320 SCSI HDD (68-pin) - - -
40K1066 40K1034 5185 146GB 15K rpm Ultra320 SCSI HDD (68-pin) 3 ... 6 SL 4
Optical Drives4
26K8792 32R2905 4103 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combo Drive
1, 2 HH 2
26K8793 32R2906 4104 IBM Multi-Burner Plus 1, 2 HH 2
32P8852 10K3782 4105 48X-20X CD-ROM Black Internal IDE Drive - - -
Associated Options
02R3451 00N8078 5400 IBM 250MB IDE Internal Zip Drive 2 - 1
Chapter 4. IntelliStation A Pro 6217 47
Notes:
1. The installation order for adding additional HDDs depends upon the A Pro model. For SCSI models,
install all additional SCSI HDDs, then install any SATA HDDs. For SATA models, install all additional
SATA HDDs, then install any SCSI HDDs.
2. Standard HDD is installed in bay 4.
Figure 9. A Pro 6217 front view
Bay1Form Factor Height Front Access Usage
1 133 mm (5.25in) HH Yes Std. Optical
2 133 mm (5.25in) HH Yes Optical/Tape, Zip
3 89 mm (3.5in) SL Yes HDD, DD
4 ... 6 89 mm (3.5in) SL No Std. HDD2
48 COG
IntelliStation A Pro 6217 I/O options
Notes:
1. IntelliStation A Pro 6217 Models with the 3DLabs Wildcat Realizm 800 PCIExpress Video Adapter
installed will not have access to PCI slot 4.
2. All Models provide an integrated Intel gigabit Ethernet controller that supports WOL and ASF.
Figure 10. A Pro 6217 rear view
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported1
Storage Controllers
13N2194 39R8793 1665 IBM ServeRAID-6i+ Integrated RAID Controller - - 3
39R8809 39R8805 1683 IBM ServeRAID 7t SATA Controller - - -
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 - - -
Networking2
39Y6108 39Y6105 1488 10/100 Ethernet Server Adapter Half 64-bit/
133MHz
1 ... 5
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber Ethernet Adapter 2 Half 64-bit/
133MHz
2
Chapter 4. IntelliStation A Pro 6217 49
IntelliStation A Pro 6217 power and accessories
Notes:
1. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate.
IntelliStation A Pro 6217 tape options
SLOT/device Type Bus Voltage (V) Frequency MHz Slot length
PCI Slot 1 PCI-X O3 3.3 100 Full
PCI Slot 2 PCI-X O2 3.3 133 Full
PCI Slot 3 PCI-X 13 3.3 100 Full
PCI Slot 4 PCI-X 0E 3.3 100 Full
PCI Slot 5 PCI-X 0E 3.3 100 Full
Option
Number Description
Power
Tower Uninterruptible Power Supply (UPS)1
2130R1X UPS 750T LV
2130R2X UPS 750T HV
2130R7X UPS 750T JV
Power Distribution Units
39Y8905 DPI NEMA Rack PDU
39Y8941 DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
49P3228 48P7042 5354 20/40GB TR7 Internal
IDE Tape Drive
2 Std. IDE 89mm (3.5in) SL
or 133mm (5.25in) HH
-
71P9176 39M5656 5355 20/40GB DDS/
5 Internal Tape Drive
2 Ultra2
(16-bit)
89mm (3.5in) SL
or 133mm (5.25in) HH
4559HHX
External Tape
Enclosures
- 4559HHX - 1U Half High
Stand Alone SCSI
Tape Drive Enclosure
-- - -
50 COG
© Copyright IBM Corp. 2003, 2006 51
Chapter 5. xSeries 100
Table 11. xSeries 100 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)3
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet4
Storage Controller
Internal HDD Interface5
Internal HDD Storage (Std/Max)6
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8486-
E3Y
- 2.8/800 - 1MB 1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
8486-
E4Y
- 3.0/800 - 1MB 1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
E5Y
- 3.2/800 - 1MB 1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
E6Y
- 3.4/800 - 1MB 1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
E1Y
- 2.53/533 - 1MB
Celeron
1
/
1
256MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
8486-
E2Y
Jun
27
2.53/533 - 1MB
Celeron
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
8486-
E7Y7
- 2.8/800 - 2MB
Dual Core
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EAY
- Celeron D 331
2.66/533 - 256KB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
8486-
EBY
- Celeron D 331
2.66/533 - 256KB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
8486-
ECY
- Pentium 4 521
2.8/800 - 1MB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM
(48X-20X)
5
/
3
4
/
4
52 COG
8486-
EDY
- Pentium 4 631
3.0/800 - 2MB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EEY
- Pentium 4 631
3.0/800 - 2MB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EFY
- Pentium 4 641
3.2/800 - 2MB
EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EGY7
Jun
30
Pentium D 920
2.8/800 - 4MB
EM64T Dual Core
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EHY7
Jun
30
Pentium D 920
2.8/800 - 4MB
EM64T Dual Core
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EJY7
- Pentium D 930
3.0/800 - 4MB
EM64T Dual Core
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EKY7
- Pentium D 930
3.0/800 - 4MB
EM64T Dual Core
1
/
1
512MB
/8Gb
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
ELY7
- 3.0/800 - 2MB
Intel Pentium 4
Processor 631,
with EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
EMY7
- 3.0/800 - 2MB
Intel Pentium 4
Processor 631,
with EM64T
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
CD-ROM 5
/
3
4
/
4
8486-
ENY7
- 3.4/800 - 2MB
Intel Pentium 4
HT 651
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
8486-
E8Y7
- 3.0/800 - 4MB
Intel Pentium D
Processor 930,
EM64T Dual Core
1
/
1
512MB
/8GB
Tower 1
/
1
- N 1Gb SATA Fixed 80GB/
500GB
Combo 5
/
3
4
/
4
Table 11. xSeries 100 At-A-Glance (continued)
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)3
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet4
Storage Controller
Internal HDD Interface5
Internal HDD Storage (Std/Max)6
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 5. xSeries 100 53
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8486-E3Y is 8486-E3U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. Not available from IBM after this date. Business Partner Inventory may be available.
3. System memory can be expanded to 8GB by installing 2GB DIMM option in each of the four memory
DIMM slots.
4. Wake on LAN is supported.
5. System ships standard with 80GB SATA HDDs.
6. Maximum capacity is based on installation of 250GB SATA HDDs.
7. These models ship with a dual core processor.
xSeries 100 memory options
Notes:
1. Largest value pair should be installed as first pair, next largest value pair should be installed as second
pair, etcetera.
2. If installing DIMMs in pairs, use slots 1 and 3 first, then slots 2 and 4.
SBB
Number
Option
Number
Feature
Code Memory Description
Memory Cards
Memory DIMMs1, 2
30R5154 30R5148 0530 512MB DDR2 533 DIMM Memory
30R5155 - 0531 1GB DDR2 533 DIMM Memory
- 30R5149 - 2GB (2x1GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
30R5156 - 0532 2GB DDR2 533 DIMM Memory
- 30R5150 - 4GB (2x2GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
39M5771 - 0536 256MB DDR2 533 DIMM Memory
Table 12. Standard Memory Configuration
Model Std. DIMM Configuration
E3Y, E6Y, EAY, EBY, ECY, EDY, EEY, EFY,
EJY, EKY
1x512MB 533MHz PC2-4200 CL4 ECC DDR2
E1Y 1x256MB 533MHz PC2-4200 CL4 ECC DDR2
54 COG
xSeries 100 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Max
Qty
Diskette Drives
0005309 40K1692 5309 IBM USB Portable Diskette Drive - - -
Simple-Swap Hard Drives
25R6923 39M4500 5293 80GB 7200 rpm SATA HDD SL 4, 5 2
39M4535 39M4504 5294 160GB 7200 rpm SATA HDD SL 4, 5 2
39M4537 39M4508 5295 250GB 7200 rpm SATA HDD SL 4, 5 2
39M4515 39M4514 5288 500GB 7200 RPM 3.0 GB/sec SATA II HDD Simple-
Swap
---
Optical Drives
39M6344 32R2905 4139 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combo Drive
HH 1, 2 2
39M6345 32R2906 4140 Multiburner Plus HH 1, 2 2
External Storage Units Form
Factor
- 17101xx - TotalStorage DS4000 EXP100 Storage Expansion
Unit (all models)
-
- 17401xx - TotalStorage DS4000 EXP700 Storage Expansion
Unit (all models)
-
- 17407xx - TotalStorage DS4000 EXP710 Storage Expansion
Unit (all models)
-
- 35601xx - TotalStorage FAStT EXP500 Expansion Unit (all
models)
-
- 45591UX - IBM 1U xSeries Tape Enclosure Rack or Tower -
- 45594UX - IBM 4U Rackmount SCSI Tape Drive Enclosure -
- 4559HHX - IBM 1U Half High Stand Alone SCSI Tape Drive
Enclosure
-
Bay Form Factor Height Front Access Usage
1 133mm (5.25in) HH Yes Std. Optical
2 133mm (5.25in) HH Yes Optical/Tape
3 89mm (3.5in) SL Yes Std. FDD/Floppy
4 89mm (3.5in) SL Yes Std. HDD
5 89mm (3.5in) SL Yes HDD
Chapter 5. xSeries 100 55
Figure 11. xSeries 100 front view
xSeries 100 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
Storage Controllers
39R8809 39R8805 1683 ServeRAID 7t SATA
Controller
Half 64-bit/
66MHz
3, 4 - 1
39R8752 39R8743 1680 IBM Ultra 320 SCSI
Controller 2
Half 64-bit/
66MHz
3, 4 - 1
External Disk Systems
and Options
- 17011RL - TotalStorage DS300 -
Single Controller LC
-----
- 17011RS - IBM TotalStorage DS300
- Single Controller
-----
Networking
39Y6082 39Y6079 1478 NetXtreme 1000 T +
Ethernet Adapter
Half 64-bit/
133MHz
3, 4 - 2
39Y6091 39Y6088 1487 NetXtreme 1000 S +
Ethernet Adapter
Half 64-bit/
133MHz
3, 4 - 2
56 COG
Notes:
1. Supports tape backup solutions.
xSeries 100 power and accessories
Notes:
1. Uninterruptible Power Supplies are not supported on Red Hat Enterprise Linux 4.
73P3605 73P3601 1507 IBM iSCSI Server
Adapter
Half 64-bit/
133MHz
3, 4 - 2
39Y6108 39Y6105 1488 PRO/1000 MT Server
Ethernet Adapter by Intel
Half 64-bit/
133MHz
3, 4 - 2
25P2889 06P3601 1526 10/100 Ethernet Server
Adapter
Half 64-bit/
133MHz
3, 4 - 2
39Y6101 39Y6098 1486 NetXtreme 1000 Express
G Ethernet Adapter
Half PCI E 1X 1, 2 - 2
73P3505 73P3501 1508 NetXtreme 1000 Express
Ethernet Adapter
Half PCI E 1X 1, 2 - 2
39Y6082 39Y6079 1478 NetXtreme 1000 T +
Ethernet Adapter
Half 64-bit/
133MHz
3, 4 - 2
39Y6096 39Y6093 1511 NetXtreme 1000 T + Dual
Port Ethernet Adapter
Half 64-bit/
133MHz
3, 4 - 2
Option
Number Description
Power
--
Uninterruptible Power Supply1
2130R4X UPS 1000T HV
2130R8X UPS 1000T JV
2130R3X UPS 1000T LV
2130R6X UPS 1500T HV
2130R9X UPS 1500T HV
2130R5X UPS 1500T LV
2130R2X UPS 750T HV
2130R7X UPS 750T JV
2130R1X UPS 750T LV
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
Chapter 5. xSeries 100 57
xSeries 100 tape options
Option
Number Description
Rack Console Connectivity
17351LX 1x8 Local Console Manager
17351GX 2x8 Local Console Manager
17352LX 2x16 Local Console Manager
17352GX 2x16 Global Console Manager
17354GX 4x16 Global Console Manager
Monitors
90P0721 IBM L170p 17" TFT Monitor (Hybrid)
49387XX C117 17in (15.9 inch VIS) FST CRT
494215X T115 15in TFT LCD
494317X T117 17in TFT LCD
Keyboard and Mouse
40K5372 USB Keyboard with UltraNav
40K9584 Preferred Pro USB Keyboard, business black
40K9200 Optical Wheel Mouse - USB
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
Tape Drives
71P9176 39M5656 5355 36/72GB DDS Generation 5
Tape Drive
2Ultra2
(16-bit)
89mm (3.5in)
HH or 133mm
(5.25in) HH
45591UX
4559HHX
45594UX
49P3228 48P7042 5354 20/40GB TR7 Internal IDE
Tape Drive
2- - -
- 39M5641 - VXA 2 Tape Drive and 5-pack
Media Express Option1
-- - -
- 39M5643 - DDS5 Tape Drive and 5-pack
Media Express Option
-- - -
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - - - -
- 36232SX - SDLT 320 1x8 Tape
Autoloader
-- - -
58 COG
Notes:
1. This tape drive contains the following options: option part number of single drive - 39M5656 and option
part number 5 Pack DDS Gen 5 (36/72 GB) Tape Media - 71P9158.
External Tape Libraries
- 3582-L23
/F32
- Ultrium2 Tape Library - - - -
External Tape Enclosures
- 45591UX - 1U xSeries Tape Enclosure - - - -
- 45594UX - 4U Rackmount SCSI Tape
Drive Enclosure
-- - -
- 4559HHX - 1U Half High SCSI Tape Drive
Enclosure
-- - -
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
© Copyright IBM Corp. 2003, 2006 59
Chapter 6. xSeries 206m
Table 13. xSeries 206m At-A-Glance
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8485-
10Y
- 3.0 /800 -
1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
- N 1GB SATA Fixed 80GB/
2TB
48X-20X
CD-ROM
4
/
2
4
/
4
8485-
12Y
-3.0/800 -1
MB L2
1
/
1
256MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
2
4
/
4
8485-
20Y
- 3.2/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
- N 1GB SATA Fixed 80GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8485-
70Y
- 2.8/800 -
2x1MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8485-
80Y
- 3.0/800 -
2x1MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8485-
1AY
- 3.0/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8485-
2AY
- 3.2/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8485-
3AY
- 3.4/800 -
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
1
HN1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8485-
3BY
- 3.4/800 -
2MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8485-
7AY
- 2.8/800 -
2x1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8485-
8AY
- 3.0/800 -
2x1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
60 COG
8485-
A2Y
- 2.8/800-
1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8485-
B2Y
- 3.0/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8485-
B4Y
- 3.0/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
160GB/
2TB
48/32/48/16X
Combo Drive
4
/
2
4
/
4
8485-
B6Y
- 3.0/800-
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
320GB/
2TB
48/32/48/16X
Combo Drive
4
/
1
4
/
4
8485-
F2Y
- 3.6/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8485-
F4Y
- 3.6/800-
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
2
HN1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8485-
G2Y
Jun
27
2.8/800-
4MB DC L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8485-
H2Y
- 3.0/800-
4MB DC L2
1
/
1
512MB/
8GB
Tower 1
/
1
P
H
N 1GB SAS/
SATA
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8485-
H4Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
500GB/
2TB
48/32/48/16X
Combo Drive
4
/
1
4
/
4
8485-
H6Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8485-
H8Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48/32/48/16X
CD-ROM
4
/
3
6
/
6
Table 13. xSeries 206m At-A-Glance (continued)
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 6. xSeries 206m 61
8485-
J2Y
- 3.2/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 1
/
1
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8485-
J4Y
- 3.2/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8485-
K2Y
- 3.4/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
10Y
- 3.0 /800 -
1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
- N 1GB SATA Fixed 80GB/
2TB
48X-20X
CD-ROM
4
/
2
4
/
4
8490-
12Y
- 3.0/800 -
1MB L2
1
/
1
256MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8490-
20Y
- 3.2/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
- N 1GB SATA Fixed 80GB/
2TB
48X-20X
CD-ROM
4
/
2
4
/
4
8490-
70Y
- 2.8/800 -
2x1MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8490-
80Y
- 3.0/800 -
2x1MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8490-
1AY
- 3.0/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8490-
2AY
- 3.2/800 -
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
4
/
4
8490-
3AY
- 3.4/800 -
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
1
HN1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
8490-
3BY
- 3.4/800 -
2MB L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
4
/
3
6
/
6
Table 13. xSeries 206m At-A-Glance (continued)
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
62 COG
8490-
7AY
- 2.8/800 -
2x1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8490-
8AY
- 3.0/800 -
2x1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
A2Y
- 2.8/800-
1MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8490-
B2Y
- 3.0/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8490-
B4Y
- 3.0/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
160GB/
2TB
48/32/48/16X
Combo-Drive
4
/
2
4
/
4
8490-
B6Y
- 3.0/800-
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
320GB/
2TB
48/32/48/16X
Combo-Drive
4
/
1
4
/
4
8490-
F2Y
- 3.6/800-
2MB L2
1
/
1
512MB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8490-
F4Y
- 3.6/800-
2MB L2
1
/
1
1GB/
8GB
Tower 1
/
2
HN1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
G2Y
Jun
27
2.8/800-
4MB DC L2
1
/
1
512MB/
8GB
Tower 1
/
1
-N1GBSATASimple-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
4
/
4
8490-
H2Y
- 3.0/800-
4MB DC L2
1
/
1
512MB/
8GB
Tower 1
/
1
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
Table 13. xSeries 206m At-A-Glance (continued)
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 6. xSeries 206m 63
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8485-10Y is 8485-10U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. The 8485 machine type carries a one year limited parts and labor warranty. The 8490 machine type
carries a three year limited parts and labor warranty.
8490-
H4Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 1
/
2
-N1GBSATASimple-
Swap
500GB/
2TB
48/32/48/16X
Combo Drive
4
/
1
4
/
4
8490-
H6Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
H8Y
- 3.0/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48/32/4816X
Combo Drive
4
/
3
6
/
6
8490-
J2Y
- 3.2/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 1
/
1
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
J4Y
- 3.2/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
K2Y
- 3.4/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
0GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
3
6
/
6
8490-
EGY
Jun
27
3.0/800-
2MB L2
1
/
1
512GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
640GB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
0
6
/
6
8490-
GBY
- 2.8/800-
4MB DC L2
1
/
1
1GB/
8GB
Tower 2
/
2
P
H
N1GBSATA
/SAS
Hot-
Swap
2TB/
2TB
48X-20X
CD-ROM
Black Internal
IDE Drive
4
/
0
6
/
6
Table 13. xSeries 206m At-A-Glance (continued)
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
64 COG
3. Not available from IBM after this date. Business Partner Inventory may be available.
4. Maximum 8GB of memory is supported via four DIMM slots with currently available options.
5. Power Supply Quantity (Std/Max) column - 1/1 means 25R8778 is the non-redundant power base, it
comes with one 400W power supply; 2/2 means 25R8803 is the redundant power base, it comes with two
430W power supplies.
6. SATA and SAS cannot be intermixed on the same system. Universal keyed SAS backplane supports both
SAS and SATA HDDs.
7. Capacities are based on installation of four 500GB SATA HDDs.
xSeries 206m memory options
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs
30R5154 - 0530 512MB DDR2 533 DIMM Memory
- 30R5148 - 512MB (1x512MB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
30R5155 - 0531 1GB DDR2 533 DIMM Memory
- 30R5149 - 2GB (2x1GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
30R5156 - 0532 2GB DDR2 533 DIMM Memory
- 30R5150 - 4GB (2x2GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
SBB Number Option Number Feature Code Description
Memory DIMMs
30R5154 0530 512MB DDR2 533 DIMM Memory
30R5148 512MB (1x512MB) PC2-4200 CL3 ECC DDR2 RoHS SDRAM
DIMM
30R5155 0531 1GB DDR2 533 DIMM Memory
30R5149 2GB (2x1GB) PC2-4200 CL3 ECC DDR2 RoHS SDRAM DIMM
30R5156 0532 2GB DDR2 533 DIMM Memory
30R5150 4GB (2x2GB) PC2-4200 CL3 ECC DDR2 RoHS SDRAM DIMM
Table 14. Standard Memory Configuration
Model Std. DIMM Configuration1
10Y, 20Y, 1AY, 2AY, 7AY, 8AY,
E1Y, A2Y, B2Y, H2Y
1x512MB DDR2 533 DIMM Memory
3AY, 3BY, 70Y, 80Y, J2Y, J4Y 2x512MB DDR2 533 DIMM Memory
E2Y, E4Y 2x1GB DDR2 533 DIMM Memory
Chapter 6. xSeries 206m 65
Notes:
1. A maximum of 8 GB of memory is supported using the four DIMM slots with currently available options.
Figure 12. x206m DIMMs
66 COG
xSeries 206m hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty
Diskette Drives
23K4959 05K9276 5300 IBM USB Portable Diskette Drive - - -
SAS Hard Drives 1
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD SL 4…7 4
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 4…7 4
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD SL 4…7 4
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD SL 4…7 4
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 4…7 4
SATA Hard Drives1
39M4501 39M4500 5290 80GB 7200 rpm Simple-Swap SATA
HDD
SL 4…7 4
39M4505 39M4504 5291 160GB 7200 rpm Simple-Swap SATA
HDD
SL 4…7 4
39M4509 39M4508 5292 250GB 7200 rpm Simple-Swap SATA
HDD
SL 4…7 4
39M4515 39M4514 5288 500GB 7200 RPM 3.5" Simple-Swap
SATA HDD
SL 4…7 4
39M4519 39M4518 5299 80GB Hot-Swap SATA HDD SL 4 ... 7 4
39M4523 39M4522 5150 160GB Hot-Swap SATA HDD SL 4…7 4
39M4527 39M4526 5151 250GB Hot-Swap SATA HDD SL 4…7 4
39M4531 39M4530 5196 500GB 7200 RPM 3.5" Hot-Swap SATA
HDD
SL 4…7 4
Optical Drives2
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-
RW/DVD-ROM Combination Drive
HH 1, 2 2
39M6345 32R2906 4140 IBM DVD Multi-Burner Plus Drive HH 1, 2 2
External Storage Units Form
Factor
39R6615 17331RU - EXP400 Storage Expansion Unit Rack (3U)
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty
Simple-Swap SATA Hard Drives
39M4501 39M4500 5290 80GB 7200 rpm Simple-Swap
SATA HDD
SL 4…7 4
Chapter 6. xSeries 206m 67
Notes:
1. Mixing of different HDD technologies (SATA and SAS) is not supported.
2. The xSeries 206m IDE controller supports a maximum of two “parallel” IDE devices (IDE optical drives)
39M4505 39M4504 5291 160GB 7200 rpm Simple-Swap
SATA HDD
SL 4…7 4
39M4509 39M4508 5292 250GB 7200 rpm Simple-Swap
SATA HDD
SL 4…7 4
Hot-Swap SAS Hard Drives
26K5715 26K5709 5281 73GB 10K 3.5" SAS Hot-Swap
HDD
SL 4…7 4
26K5716 26K5710 5282 146GB 10K 3.5" SAS Hot-Swap
HDD
SL 4…7 4
26K5717 26K5711 5283 300GB 10K 3.5" SAS Hot-Swap
HDD
SL 4…7 4
26K5703 26K5697 5285 36GB 15K 3.5" SAS Hot-Swap
HDD
SL 4…7 4
26K5704 26K5698 5286 73GB 15K 3.5" SAS Hot-Swap
HDD
SL 4…7 4
Hot-Swap SATA Hard Drives
39M4523 39M4522 5150 160GB Hot-Swap SATA HDD SL 4…7 4
39M4527 39M4526 5151 250GB Hot-Swap SATA HDD SL 4…7 4
Optical Drives
39M6344 32R2905 4139 48/32/48/16X Combo Drive HH 1, 2 2
39M6345 32R2906 4140 Multiburner Plus HH 1, 2 2
External Storage Units Form
Factor
- 17331RU - IBM EXP400 Storage Expansion
Unit
-
- 17101xx - TotalStorage DS4000 EXP100
Stroage Expansion Unit (all
models)
-
- 17407xx - TotalStorage DS4000 EXP710
Storage Expansion Unit (all
models)
-
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty
68 COG
Figure 13. x206m front view
Bay Form Factor Height Front Access Usage
1 133mm (5.25in) HH Yes Std. Optical
2 133mm (5.25in) HH Yes Optical/Tape/Special bid HD
3 89mm (3.5in) SL Yes Floppy
4 89mm (3.5in) SL Yes Std. HDD
5 89mm (3.5in) SL Yes HDD
6 89mm (3.5in) SL Yes HDD
7 89mm (3.5in) SL Yes HDD
Chapter 6. xSeries 206m 69
xSeries 206m I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
Storage Controllers
02R0995 39R8815 1654 ServeRAID-6M Ultra320
SCSI Controller (128MB
Cache)
Full 64-bit/
133MHz
5, 6 - 2
13N2232 39R8729 1664 ServeRAID 8i SAS RAID
Controller
Half 64-bit/
133MHz
6-1
71P8651 39R8805 1651 ServeRAID 7t SATA
Controller
Half 64-bit/
66MHz
3, 4, 5, 6 - 1
39R8752 39R8743 1680 Ultra320 SCSI Controller 2 - - - - -
External Disk Systems
and Options
- 17011RL - TotalStorage DS300 -
Single Controller LC
-- - - -
- 17011RS - TotalStorage DS300 -
Single Controller
-- - - -
Networking
73P3605 73P3601 1507 IBM iSCSI Server Adapter Half - - - -
39M4948 39M4948 1617 Remote Supervisor
Adapter II
-- - - -
73P4105 39Y6079 1510 NetXtreme 1000 T +
Ethernet
Adapter 2
Half 64-bit/
133MHz
5, 6 - 2
73P4205 39Y6093 1511 NetXtreme 1000 T + Dual
Port Ethernet Adapter 2
Half 64-bit/
133MHz
5, 6 - 2
25P2889 06P3601 1526 10/100 Ethernet Server
Adapter
Half - - - -
31P9605 39Y6105 1512 PRO/1000 MT Server
Ethernet Adapter by Intel
Half - - - -
39Y6089 39Y6088 2938 NetXtreme 1000 SX +
Ethernet Adapter
-- - - -
73P5105 73P5101 1579 PRO/1000 GT Dual Port
Server Adapter by Intel
-- - - -
System Management
13N0761 59P2984 1609 Remote Supervisor
Adapter II
Half - - - -
Other I/O
25R7432 39R8115 4213 PCI-X Expansion Card2-- - - -
32P8862 33L4618 1524 V.90 PCI Data/Fax
Modem
-- - - -
70 COG
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
Storage Controllers
02R0995 32P0033 1654 IBM ServeRAID-6M
Ultra320 SCSI
Controller (128MB
Cache)
Full 64-
bit/133
MHz
5, 6 - 2
02R0996 02R0988 1653 IBM ServeRAID-6M
Ultra320 SCSI
Controller (256MB
Cache)
Full 64-
bit/133
MHz
5, 6 - 2
13N2252 13N2249 1656 IBM Ultra320 SCSI
Controller 21
Half 64-
bit/66M
Hz
5, 6 - 2
71P8651 71P8648 1651 IBM ServeRAID 7t
SATA Controller
Half 64-
bit/66M
Hz
3, 4, 5, 6 - 1
External Disk
Systems and
Options
- 24P0960 - DS4000 Host Bus
Adapter
Half 64-
bit/133
MHz
---
- 17011RL - TotalStorage DS300 -
Single Controller LC
-- - - -
- 17011RS - TotalStorage DS300 -
Single Controller
-- - - -
- 17241xx - TotalStorage DS4100
Midrange Disk
System (all models)
-- - - -
- 24P82xx - TotalStorage DS4300
Model 60U with
Turbo
-- - - -
- 17421xx - TotalStorage DS4400
Midrange Disk
System (all models)
-- - - -
- 17429xx - TotalStorage DS4500
Midrange Disk
system (all models)
-- - - -
- 17226xx - TotalStorage DS4300
Midrange Disk
Systems (all models)
-- - - -
- 18158xx - TotalStorge DS4800
Midrange Disk
System (all models)
-- - - -
Networking
- 06P3601 - 10/100 Ethernet
Server Adapter
-- - - -
Chapter 6. xSeries 206m 71
Notes:
1. Support is for SCSI tape drives.bye
2. PCI slots 5 and 6 will only be available if SBB 25R7432 is selected.
- 31P9601 - PRO/1000 MT Server
Ethernet Adapter
-- - - -
73P3505 73P3501 1508 NetXtreme 1000
Express Ethernet
Adapter
Half PCI E 1X 1, 2 - 2
73P4005 73P4001 1509 NetXtreme 1000 SX +
Fiber Ethernet
Adapter 2
Half 64-
bit/133
MHz
5, 6 - 2
73P4105 73P4101 1510 NetXtreme 1000 T +
Ethernet Adapter 2
Half 64-
bit/133
MHz
5, 6 - 2
73P4205 73P4201 1511 NetXtreme 1000 T +
Dual Port Ethernet
Adapter 2
Half 64-
bit/133
MHz
5, 6 - 2
73P3605 73P3601 1507 IBM iSCSI Server
Adapter
Half 64-bit 5, 6 - 2
73P5105 73P5101 - PRO/1000 GT Dual
Port Server Adapter
by Intel
Half 64-
bit/133
MHz
---
Systems
Management
13N0761 59P2984 1609 Remote Supervisor
Adapter II (US)
Half 32-
bit/33M
Hz
3,4 - 1
Other I/O
25R7432 39R8115 4213 PCI-X Expansion
Card2
-- - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Max
Supported
72 COG
Figure 14. x206m rear view
Chapter 6. xSeries 206m 73
Figure 15. x206m system board
SLOT/device Type Bus
Voltage
(V)
Frequency
MHz Data Path
Active PCI?
(Hotswap)
Slot
length
PCI Slot 1 PCI-Express x 8 - - - - - -
PCI Slot 2 PCI-Express x 1 - - - - - -
PCI Slot 3 PCI 32/33 - - 33MHz 32-bit - -
PCI Slot 4 PCI 32/33 - - 33MHz 32-bit - -
PCI Slot 5 PCI-X 64 bit - - 100MHz 64-bit - -
PCI Slot 6 PCI-X 64 bit - - 100MHz 64-bit - -
74 COG
xSeries 206m power and accessories
SBB
Number
Option
Number
Feature
Code Description
Power Distribution Units
- 26K4241 - DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4242 - DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 26K4243 - DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4245 - DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 26K4246 - DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
- 26K4256 - DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 26K4257 - DPI 63A Single Phase C19 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4259 - DPI 32Z Three Phase C19 Enterprise PDU w/IEC309 3P+N+G (250v) line cord
- 39Y8951 - DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
- 32P1751 - 30amp/125V Front-end PDU with NEMA L5-30P connector
- 32P1754 - 63amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
- 32P1761 - DPI NEMA Rack PDU
- 32P1766 - 30amp/250V Front-end PDU with NEMA L6-30P connector
- 32P1767 - 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
- 73P5844 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 73P5847 - 60A/208V 3P w/IEC309 3P+Gnd Conn
- 73P5855 - 60A/208V 1P w/IEC309 2P+Gnd Conn
- 73P5856 - 63A/320V 1P w/IEC309 P+N+Gnd Conn
Uninterruptible Power Supply (UPS)
- 2130R1X - IBM UPS 750T LV
- 2130R2X - IBM UPS 750T HV
- 2130R3X - IBM UPS 1000T LV
- 2130R4X - IBM UPS 1000T HV
- 2130R5X - IBM UPS 1500T LV
- 21303RX - IBM UPS 7500XHV
- 2130R6X - IBM UPS 1500T HV
- 2130R7X - IBM UPS 750T JV
- 21304RX - IBM UPS 10000XHV
- 2130R8X - IBM UPS 1000T JV
- 2130R9X - IBM UPS 1500T JV
- 2130R31 - IBM UPS3000XHV 200-240V (US HV cord)
- 39Y8857 - IBM UPS 3U Online Battery Pack
- 32P1020 - APC 2U Smart-UPS 1400RMB
- 32P1022 - APC 2U Smart-UPS 1400RMiB
- 32P1024 - APC 2U Smart-UPS 1400RMB (JAPAN)
- 32P1692 - IBM UPS Extend Run Battery Pack
Chapter 6. xSeries 206m 75
Notes:
1. Converts KVM signals for CAT5 cabling for servers with PS/2 KVM ports.
Rack/Tower Conversion Kits
- 39Y9707 - 5Ux20D Tower to Rack Conversion Kit
Rack Console Connectivity
- 17351LX - 1x4 port Console Switch
- 17352LX - 2x8 port Console Switch
- 1735L04 - NetBAY Local Console Manager
- 1735R16 - NetBAY Remote Console Manager
- 17351GX - IBM 2x8 Local Console Manager
- 17352GX - IBM Global 2x16 Console Manager
- 17354GX - IBM Global 4x16 Console Manager
Racks
- 14104RX - IBM Linux Cluster Rack
- 93061RX - NetBAY11 Standard Rack Cabinet
- 93072RX - IBM 25U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 93074RX - IBM 42U Standard Rack
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
- 93084RX - NetBAY42 Enterprise Rack Cabinet
Monitors
- 17231UX - 1U 17in Flat Panel Monitor Console Kit with US Keyboard
- 17231RX - 1U 17in Flat Panel Monitor Console Kit without Keyboard
- 17232UX - 2U Flat Panel Monitor Console Kit with US Keyboard
- 17233RX - 2U Flat Panel Monitor Console Kit without Keyboard
- 90P0721 - L170p 17in TFT Monitor
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
25R4186 494215X 7604 T115 15in TFT LCD
25R4188 494317X 7606 T117 17in TFT LCD
Keyboard and Mouse
02R3206 25R6968 8800 Preferred Pro Full Size Keyboard - PS/2
40K9490 40K9584 8750 Preferred Pro USB Keyboard - 104 Keys business black
0008660 40K5372 8660 USB Travel Keyboard with UltraNav
0008699 42C0030 8699 IBM PS/2 Keyboard with UltraNav
02R3421 90P0740 8901 Sleek 2-Button Mechanical Ball Mouse - PS/2
40K9491 40K9200 8912 IBM 2-Button Optical Wheel Mouse - USB
40K9492 40K9201 8913 IBM 3- Button Optical Wheel Mouse - USB
SBB
Number
Option
Number
Feature
Code Description
76 COG
xSeries 206m tape options
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
Tape Drives1
39M5664 39M5659 5385 IBM DLTV4 Tape Drive - - - -
71P9176 39M5656 5355 36/72GB DDS Generation 5 Tape
Drive
2Ultra2
(16-bit)
89mm
(3.5in) HH
or 133mm
(5.25in) HH
4559HHX
45594UX
45591UX
71P9187 59P6745 5356 80/160GB Half High VS 160 Tape
Drive
-- - -
71P9166 59P6746 5359 IBM VXA-2 80/160GB Tape Drive - - - -
- 87691VX - U VXA-320 Tape Autoloader - - - -
42C3932 39M5657 5365 LTO3 Tape Drive - - - 4559HHX
45594UX
- 39M5641 - VXA-2 Tape Drive and 5-Pack
Media Express Option2
-- - -
39M5624 25R0045 5362 IBM 160/320GB VXA3 Tape
Drive
-- - -
- 39M5642 - DLT VS160 Tape Drive and 5-
Pack Media Express Option
-- - -
- 39M5643 - DDS/5 Tape Drive and 5-Pack
Media Express Option
-- - -
0005386 39M5658 5386 IBM Half High LTO Generation 2
Tape Drive
- SCSI 133mm
(5.25in) HH
-
Tape Autoloaders
- 36232LX - IBM LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - IBM SDLT 320 1x8 Tape
Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 3582-
L23/
F23
- Ultrium 2 Tape Library - - - -
External Tape Enclosures
- 45591UX - 1U xSeries Tape Enclosure Rack
or Tower
- Ultra160
(16-bit)
1U Rack -
- 45594UX - IBM 4U Rackmount SCSI Tape
Drive Enclosure
-Ultra2
(16-bit)
4U Rack -
- 4559FHX - 2U Full High Stand Alone SCSI
Tape Drive Enclosure
- - 2U Rack -
- 4559HHX - 1U Half High Stand Alone SCSI
Tape Drive Enclosure
- - 1U Rack -
Chapter 6. xSeries 206m 77
- 87651UX - IBM 1U Rackmount Tape
Enclosure
-- - -
- 8767HHX - IBM Half High Tabletop Tape
Enclosure
-- - -
- 8768FHX - IBM Full High Tabletop Tape
Enclosure
-- - -
Associated Options
42C3912 25R0006 4352 IBM 80GB GoVault - - - -
0005378 39M5617 5378 GoVault Cartridge - - - -
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
Tape Drives1
71P9166 59P6746 5359 IBM VXA-2 80/160GB
Tape Drive
2Ultra2
(16-bit)
133mm
(5.25in) HH
4559HHX
45594UX
45591UX
71P9176 71P9145 5355 36/72GB DDS Generation
5 Tape Drive
2Ultra2
(16-bit)
89mm (3.5in)
HH or
133mm
(5.25in) HH
4559HHX
45594UX
45591UX
71P9187 59P6745 5356 IBM 80/160 GB Half High
VS160 Tape Drive
2Ultra2
(16-bit)
133mm
(5.25in) HH
4559HHX
45594UX
45591UX
- 25R0005 - Half High LTO Gen 2
Tape Drive
- - - 4559HHX
45594UX
45591UX
- 25R0012 - LTO3 Tape Drive - - - 4559HHX
45594UX
Tape Autoloaders
- 36232LX - IBM LTO2 1x8 Tape
Autoloader
- Ultra160(
16-bit)
2U Rack -
- 36232SX - IBM SDLT 320 1x8 Tape
Autoloader
- Ultra320(
16-bit)
2U Rack -
External Tape Libraries
- 3582-
L23/F23
- Ultrium 2 Tape Library - - - -
External Tape Enclosures
- 45591UX - 1U xSeries Tape
Enclosure Rack or Tower
- Ultra160
(16-bit)
--
- 45594UX - IBM 4U Rackmount SCSI
Tape Drive Enclosure
-Ultra2
(16-bit)
--
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
78 COG
Notes:
1. If two optical drives are selected, a tape drive cannot be selected. If a tape drive is selected then always
install in bay 2. If a SCSI tape drive is selected, select SBB 13N2252, IBM Ultra320 SCSI Controller 2.
2. This option contains: option part number of single drive - 39M5656 and option part number 5 Pack DDS
Gen 5 (36/72 GB) Tape Media - 71P9158.
- 4559FHX - 2U Full High Stand Alone
SCSI Tape Drive
Enclosure
-- - -
- 4559HHX - 1U Half High Stand
Alone SCSI Tape Drive
Enclosure
-- - -
Associated Options
- 25R0006 - 80GB EZ-Disk - - - -
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
© Copyright IBM Corp. 2003, 2006 79
Chapter 7. xSeries 226
Table 15. xSeries 226 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor5
Power Supply Quantity (Std/Max)6
Hot-Swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet7
Storage Controller8
Internal HDD Interface
Internal HDD Storage (Std/Max)9, 10
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8648-
1BY11
- 3.0/800
1MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
CD-ROM
(48x-20x)
9
/
7
6
/
6
8648-
40Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
C D - R O M
(48x-20x)
7
/
5
6
/
6
8648-
50Y11
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
C D - R O M
(48x-20x)
7
/
5
6
/
6
8648-
60Y11
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
C D - R O M
(48x-20x)
7
/
5
6
/
6
8648-
4AY11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
5AY11
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
6AY11
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
4BY11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
5BY11
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
6BY11
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8648-
32Y11
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
C D - R O M
(48x-20x)
7
/
4
6
/
6
80 COG
8648-
34Y11
- 2.8/8002
MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-
swap
0GB/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8648-
36Y11
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
H-1GB Dual
U320
Hot-
swap
0GB/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8648-
B2Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
CDROM
(48x-20x)
7
/
4
6
/
6
8648-
B4Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-
swap
0GB/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8648-
B6Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-
swap
0GB/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8648-
E2Y11
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-
swap
0GB/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8488-
40Y
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
CDROM
(48x-20x)
7
/
5
6
/
6
8488-
50Y
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
CDROM
(48x-20x)
7
/
5
6
/
6
8488-
60Y
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
CDROM
(48x-20x)
7
/
5
6
/
6
8488-
4AY
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
CDROM
(48x-20x)
9
/
7
6
/
6
8488-
5AY
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8488-
6AY
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8488-
1BY11
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
Table 15. xSeries 226 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor5
Power Supply Quantity (Std/Max)6
Hot-Swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet7
Storage Controller8
Internal HDD Interface
Internal HDD Storage (Std/Max)9, 10
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 7. xSeries 226 81
8488-
4BY
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8488-
5BY
- 3.2/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8488-
6BY
- 3.4/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-swap 0/
1.8TB
C D - R O M
(48x-20x)
9
/
7
6
/
6
8488-
32Y
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80GB/
1.8TB
CD-ROM
(48x-20x)
7
/
4
6
/
6
8488-
34Y
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-
swap
0/
1.8TB
CD-ROM
(48x-20x)
9
/
7
6
/
6
8488-
36Y
- 2.8/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
H-1GB Dual
U320
Hot-
swap
0/
1.8TB
CD-ROM
(48x-20x)
9
/
7
6
/
6
8488-
B2Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
--1GBSATA Simple-
swap
80G/
1.8TB
CD-ROM
(48x-20x)
7
/
4
6
/
6
8488-
B4Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 1
/
1
H-1GB Dual
U320
Hot-
swap
0/
1.8TB
CD-ROM
(48x-20x)
9
/
7
6
/
6
8488-
B6Y11
- 3.0/800
2MB L2
1
/
2
512MB/
16GB
Tower 2
/
2
P
H
- 1GB Dual
U320
Hot-
swap
0/
1.8TB
CD-ROM
(48x-20x)
9
/
7
6
/
6
xSeries 226 Storage Servers (NAS)
8488-
70Y12
Jun
27
3.0/800
2MB L2
1
/
2
512MB/
16GB13
Tower 1
/
1
- N 1GB SATA14 ServeRAID
7t
1TB14 CD-ROM
(48x-20x)
7
/
1
6
/
5
8488-
80Y12
Jun
27
3.4/800
2MB L2
1
/
2
1GB/
16GB13
Tower 1
/
1
- N 1GB U32015 ServeRAID
6i+
72GB15 CD-ROM
(48x-20x)
9
/
5
5
/
4
Note: A Network Attached Storage (NAS) server is built and deployed to handle file serving only. The servers and
clients that utilize the NAS file server connect through standard Ethernet connections and communicate with
standard TCP/IP protocols.
Note: xSeries 226 also provides four USB ports (two front, two rear), two 9-pin serial ports, one 25-pin parallel port,
keyboard port, mouse port, video port and an integrated ATI Radeon 7000M graphics controller with 16 MB of
video memory. A keyboard and mouse is also provided.
Table 15. xSeries 226 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor5
Power Supply Quantity (Std/Max)6
Hot-Swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet7
Storage Controller8
Internal HDD Interface
Internal HDD Storage (Std/Max)9, 10
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
82 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8648-00Y is 8648-00U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. Not available from IBM after this date. Business Partner Inventory may be available.
3. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz
(quad-pumped) Front Side Bus (FSB).
4. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs. x226 will support 16GB of memory using a supported 4GB DIMM.
5. A 4U tower-to-rack conversion kit is available. See ‘Power and Accessories.’
6. See ‘Power and Accessories’ section for more information on the power supplies.
7. Broadcom 5721 copper gigabit Ethernet controller with Wake-on-LAN support.
8. Integrated dual-channel Ultra320 SCSI storage controller on SCSI models, two SATA controllers on SATA
models supporting one SATA HDD per controller. Both the SCSI and SATA integrated controllers
support Integrated ServeRAID-7e (RAID-0 and RAID-1).
9. Maximum storage capacity for SATA models is based on four 250GB SATA HDDs which requires
installation of the optional ServeRAID-7t controller and replacement of the standard HDD. Standard
configuration will support two SATA HDDs.
10. Maximum storage capacity for hot-swap SCSI models is based on six 146.8GB hot-swap HDDs.
11. The 8648 machine type carries a one year limited parts and labor warranty. 8488 machine type carries a
three year limited parts and labor warranty.
12. xSeries 226 Storage Server NAS is preconfigured with Microsoft Windows Storage Server 2003 included
and preinstalled on the system. IBM Storage Server is limited to file and print server function only.®
13. xSeries 226 Storage Server operating system supports a maximum of 4GB of memory.
14. xSeries 226 Storage Server NAS includes a preconfigured ServeRAID 7t adapter and four SATA drives
setup for RAID-1 and RAID-5.
15. xSeries 226 Storage Server NAS includes a preconfigured ServeRAID 6i+ adapter and two 36.4GB Hot
Swap SCSI 15K disk drives setup for RAID-1. The Windows Storage Server 2003 operating system is
installed on these drives.
xSeries 226 processor options
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
39M6395 40K2500 0638 2.8GHz/800MHz-2MB L2 Cache Xeon Processor A2Y, A4Y, A6Y, E2Y, EBY
13M8281 40K2515 0316 3.0GHz/800MHz 2MB L2 Cache, Xeon Processor 4xY, B2Y, B4Y, B6Y, E3Y, E4Y,
E5Y, ECY, 7OY
13M8282 40K2516 0317 3.2GHz/800MHz 2MB L2 Cache, Xeon Processor 5xY, C2Y, C4Y, C6Y, EFY
13M8283 40K2517 0318 3.4GHz/800MHz 2MB L2 Cache, Xeon Processor 6xY, D2Y, D4Y, D6Y, E4Y, EGY,
EHY, 8OY
Note: x226 processor options support Intel’s Extended Memory 64 Technology (EM64T).
SBB Number
Option
Number
Feature
Code Processor Options
SMP
Support1
13N1622 13N0671 0367 2.8GHz/800MHz-1MB L2 Cache Xeon Processor 0xY
13N1431 13N0672 0368 3.0GHz/800MHz 1MB L2 Cache, Xeon Processor 1xY
Chapter 7. xSeries 226 83
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
25R7356 25R8900 0380 3.0GHz/800MHz 2MB L2 Cache, Xeon Processor 4xY
25R7357 25R8901 0382 3.2GHz/800MHz 2MB L2 Cache, Xeon Processor 5xY
25R7358 13N0676 0383 3.4GHz/800MHz 2MB L2 Cache, Xeon Processor 6xY
Note: x226 processor options support Intel’s Extended Memory 64 Technology (EM64T).
SBB Number
Option
Number
Feature
Code Processor Options
SMP
Support1
84 COG
xSeries 226 memory options
SBB
Number1
Option
Number
Feature
Code Memory Options
90P0870 - 0501 256MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
- 73P3523 - 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
73P2874 - 0504 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5809 - 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit
73P2875 - 0512 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
73P4794 - 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
- 39M5812 - 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 - 0502 512MB DDR-II SDRAM DIMM
- 39M5818 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
- 39M5821 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
- 39M5858 - 512MB (1x512MB) PC2-3200 Single DIMM ECC DDR SDRAM RDIMM Kit
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5813 - 0593 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill) Single rank
39M5816 - 0541 512MB DDR-II SDRAM DIMM (non chip-kill)
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
30R5147 30R5145 0535 4GB PC2-3200R CL3 ECC DDR2 SDRAM RDIMM
Note: 16GB of memory is supported via six DIMM slots with currently available options. x226 supports 16GB of
memory using a 4GB DIMM. Due to two-way interleaving, installation of memory DIMMs in matched pairs is
required beginning with DIMM slots 1 and 2, then 3 and 4, then 5 and 6.
SBB
Number1
Option
Number
Feature
Code Memory Options
90P0870 0501 256MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P3523 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 0502 512MB DDR-II SDRAM DIMM
73P3522 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit2
73P2865 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit3
73P2874 0504 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2866 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit3
73P2875 0512 2GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P4794 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
73P2867 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM Kit3
73P2873 0503 512MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P4206 512MB (1x512MB) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
Chapter 7. xSeries 226 85
Notes:
1. Quantity two of each SBB PN must be ordered to equal its corresponding option.
2. If xSeries 226 comes standard with a single 512MB DIMM, a single 512MB DIMM (P/N 90P1218) must be
added to slot 2 before adding more memory. After adding a single 512MB DIMM (P/N 90P1218),
additional memory can be added in matched pairs.
3. Supports Chipkill. Mixing Chipkill DIMMs with nonChipkill DIMMs will disable Chipkill function.
Note: 16GB of memory is supported via six DIMM slots with currently available options. x226 supports 16GB of
memory using a 4GB DIMM. Due to two-way interleaving, installation of memory DIMMs in matched pairs is
required beginning with DIMM slots 1 and 2, then 3 and 4, then 5 and 6.
SBB
Number1
Option
Number
Feature
Code Memory Options
86 COG
Figure 16. xSeries 226 System Board
xSeries 226 internal cabling
Hot-swap SCSI models
xSeries 226 hot-swap SCSI models are cabled internally with a single, 1-drop LVD
SCSI cable, connecting one channel of the integrated, dual-channel Ultra320 SCSI
controller to the hot-swap backplane.
Simple-swap SATA
All models provide a single ATA-100 IDE connector supporting two IDE devices, one
device being the standard optical cabled via a 2-drop IDE cable.
xSeries 226 simple-swap SATA models provide two point-to-point SATA cables
connecting the two integrated SATA controllers to the SATA simple-swap backplane.
An optional SCSI cable is available to connect the second SCSI channel to the back of
the chassis, enabling an external 0.8mm VHDCI SCSI connector.
Table 16. Standard Memory Configuration
Model Std. DIMM Configuration
00Y, 0AY, 0BY, 10Y, 1AY, 1BY, 20Y, E3Y 2 x 256MB PC2-3200 ECC DDR2 RDIMM (nonChipkill)
0EY, 4EY, E4Y, E5Y, EFY, EGY 2 x 512MB PC2-3200 ECC DDR2 RDIMM (nonChipkill)
40Y, 4AY, 4BY, 50Y, 5AY, 5BY, 60Y, 6AY, 6BY,
A2Y, A4Y, A6Y, B2Y, B4Y, B6Y, C2Y, C4Y,
C6Y, D2Y, D4Y, D6Y, E2Y, EBY, ECY, EHY
1 x 512MB PC2-3200 ECC DDR2 RDIMM (nonChipkill)
E7Y 4 x 512MB PC2-3200 ECC DDR2 RDIMM (nonChipkill)
Slot 6 PCI-X
Battery Microprocessor 2
Microprocessor 2 VRM
Microprocessor 1
Slot 5 PCI-X
Slot 4 PCI-X
Slot 3 PCI
Slot 2 PCI
Slot 1 PCI
Express x 16
DIMM 5
DIMM 4
DIMM 3
DIMM 2
DIMM 1
DIMM 6
Remote Supervisor
Adapter II
Chapter 7. xSeries 226 87
xSeries 226 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Max
Qty2
SATA HDDs3
40K6873 40K6872 5173 250GB 7.2K rpm SATA HDD SL 4 ... 7 4
90P1398 40K6864 5206 80GB 7200 RPM Serial ATA with EZ tray SL 4 ... 7 4
90P1399 40K6868 5219 160GB 7200 RPM Serial ATA with EZ tray SL 4 ... 7 4
Hot-swap Ultra320 HDDs3
32P0746 32P0726 5214 36.4GB 10K rpm Ultra320 80-pin HDD - Gen II - 4 ... 9 6
32P0747 32P0727 5215 73.4GB 10K rpm Ultra320 80-pin HDD - Gen II - 4 ... 9 6
32P0748 32P0728 5216 146.4GB 10K rpm Ultra320 80-pin HDD - Gen II - 4 ... 9 6
32P0744 32P0734 5217 36.4GB 15K rpm Ultra320 SCSI Hot-Swap HDD - 4 ... 9 6
32P0735 32P0735 5218 73.4GB 15K rpm Ultra320 SCSI Hot-Swap HDD - 4 ... 9 6
40K1055 40K1023 5165 73.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
40K1056 40K1024 5166 146.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
40K1057 40K1025 5167 300GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
40K1058 40K1026 5168 36.4GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
40K1059 40K1027 5169 73.4GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
40K1060 40K1028 5170 146.4GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SL 4 ... 9 6
Optical Devices
- 73P3300 - IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
---
- 73P3305 - IBM Multi-Burner Plus - - -
02R3278 22P6950 4102 IBM 16X Max RAM-Read DVD-ROM Drive HH 1, 2 2
26K8792 32R2905 4103 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combo Drive
HH 1, 2 2
71P8149 10K3782 4116 48x-20x CD-ROM Internal IDE Drive (Black) HH 1, 2 2
90P4239 22P7042 4107 48X/32X/48X Max CD-RW Drive HH 1, 2 2
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-RW/DVD-ROM
Combination Drive
HH 1, 2 2
88 COG
External Storage Expansion Units4Form
Factor
39R6615 17331RU - EXP400 Storage Expansion Unit Rack (3U)
- 17401RU - FAStT EXP700 Storage Expansion Unit Rack (3U)
- 1724100 - FAStT100 Storage Server Rack (3U)
- 172260U - FAStT600 Storage Server Rack (3U)
- 17226LU - FAStT600 Entry Storage Server Rack (3U)
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Max
Qty2
Simple-swap SATA HDDs3
90P1398 73P8002 5206 80GB 7200 rpm Simple-swap SATA HDD SL 4 ... 7 4
90P1399 73P8003 5219 160GB 7200 rpm Simple-swap SATA HDD SL 4 ... 7 4
- 73P8006 - 250GB 7200 rpm Simple-swap SATA HDD SL 4 ... 7 4
Hot-swap Ultra320 HDDs3
- 90P1380 - 36GB 15K rpm Ultra320 SCSI Hot-swap HDD SSL - -
- 90P1381 - 73GB 15K rpm Ultra320 SCSI Hot-swap HDD SSL - -
90P1329 90P1305 5202 73.4GB 10K rpm Ultra320 SCSI Hot-swap HDD SSL 4 ... 9 6
- 32P0727 - 73.4GB 10K rpm Ultra320 SCSI Hot-swap HDD - - -
- 32P0728 - 146.4GB 10K rpm Ultra320 SCSI Hot-swap HDD - - -
- 90P1382 - 146GB 15K rpm Ultra320 SCSI Hot-swap HDD SSL - -
90P1330 90P1306 5203 146.8GB 10K rpm Ultra320 SCSI Hot-swap HDD SSL 4 ... 9 6
Optical Devices
26K8792 32R2905 4103 DVD-ROM/CD-RW Combo Drive HH 1, 2 2
26K8793 32R2906 4104 Multiburner Drive HH 1, 2 2
24R9301 - 4115 48X CDROM Drive HH 1, 2 2
02R3278 - - DVD-ROM Drive HH 1, 2 2
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Max
Qty2
Chapter 7. xSeries 226 89
Notes:
1. May require removing standard devices.
2. Four SATA HDDs are supported within the installation of the optional ServeRAID-7t controller. Two
HDDs are supported in the standard configuration.
3. Mixing SATA and SCSI HDDs is not supported.
4. FAStT options require an optional Fibre controller be installed in the system.
Notes:
1. Standard HDD is installed in bay 7 on SATA models; bay 9 on SCSI models.
2. Bays 8 and 9 are available on SCSI models only.
External Storage Expansion Units4Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack
(3U)
- 17401RU - FAStT EXP700 Storage Expansion Unit Rack
(3U)
- 1724100 - FAStT100 Storage Server Rack
(3U)
- 172260U - FAStT600 Storage Server Rack
(3U)
- 17226LU - FAStT600 Entry Storage Server Rack
(3U)
Bay Form Factor Height Front Access Usage
1 133mm (5.25in) HH Yes Std. Optical
2 133mm (5.25in) HH Yes Optical/Tape
3 89mm (3.5in) SL Yes Std. FDD
4 89mm (3.5in) SL Yes HDD
5 89mm (3.5in) SL Yes HDD
6 89mm (3.5in) SL Yes HDD
7 89mm (3.5in) SL Yes Std. HDD1
8289mm (3.5in) SL Yes HDD
9289mm (3.5in) SL Yes Std. HDD1
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Max
Qty2
90 COG
Figure 17. xSeries 226 front view (SCSI)
Figure 18. xSeries 226 front view (SATA)
Bay 1
Bay 2
Bay 3
Bay 5
Bay 6
Bay 7
Bay 8
Bay 9
Bay 4
Chapter 7. xSeries 226 91
xSeries 226 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers2
39R8819 39R8815 1685 ServeRAID-6M Controller (128MB
Cache)
Full 64-bit/
133MHz
4, 5 -
39R8820 39R8816 1686 ServeRAID-6M Controller (256MB
Cache)
Full 64-bit/
133MHz
4, 5 -
39R8797 39R8793 1682 ServeRAID-6i+ Controller Half 64-bit/
133MHz
5-
71P8614 71P8594 1652 IBM Ultra320 SCSI Controller - - 4, 5 -
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 Half 64-bit/
133MHz
4, 5 -
39R8809 39R8805 1683 ServeRAID-7t SATA Controller Half 64-bit/
66MHz
4, 5 -
24P0963 24P0960 1650 FAStT FC2-133 Host Bus Adapter
Half
-- - -
39R8797 39R8793 1682 IBM ServeRAID 6i+ Integrated
RAID Controller
-- - -
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 - - - -
Fibre Storage Controllers and
Options4
- 1724100 - FAStT100 Storage Server - - - -
- 172260U - FAStT600 Storage Server
- 17226LU - FAStT600 Entry Storage Server - - - -
- 17421RU - FAStT700 Storage Server - - - -
- 174290U - FAStT900 Storage Server - - - -
- 202612E - TotalStorage SAN 12M-1 Switch, 12-
port
-- - -
- 2109F16 - SAN Fibre Channel Switch, 16-port - - - -
Networking
30R5005 30R5001 1566 10 Gb Ethernet Sr Server Adapter Half - - -
02R2647 34L5001 1504 IBM 16/4 Token-Ring PCI
Management Adapter
-- - -
33P2970 22P6901 1506 Wireless PCI - - - -
06P2313 34L5201 1505 IBM High Speed 100/16/4 PCI
Token-Ring Adapter
-- - -
73P2705 73P2701 1513 PRO/1000 MT Dual Port Server
Ethernet Adapter
-- - -
32P8862 33L4618 1524 IBM V.90 PCI Data Fax Modem - - - -
32P9298 31P6401 1503 NetXtreme 1000 T Dual Port
Ethernet Adapter (copper)
Half 64-bit/
133MHz
4 ... 6 -
92 COG
25P2889 06P3601 1526 10/100 Ethernet Server Adapter - - - -
31P9605 39Y6105 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
4 ... 6 -
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet
Adapter
Half 64-bit/
133MHz
4 ... 6 -
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
4... 6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
4... 6 -
System Management
13N0761 59P2984 1609 Remote Supervisor Adapter II Half - - -
Other I/O
- 00N6882 - NetfinityFAStT500 Mini Hub - - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length PCI Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers2
02R0996 02R0988 1653 ServeRAID-6M
Controller (256MB
Cache)
Full 64-bit/133MHz 4 ... 6 -
02R0995 32P0033 1654 ServeRAID-6M
Controller (128MB
Cache)
Full 64-bit/133MHz 4 ... 6 -
13N2194 13N2190 1665 ServeRAID-6i+
Controller
Half 64-bit/133MHz 5 -
- 71P8648 - ServeRAID-7t SATA
Controller
Half 64-bit/66MHz 4 ... 6 -
- 13N2249 - Ultra320 SCSI
Controller 23
Half 64-bit/133MHz 4 ... 6 -
Fibre Storage
Controllers and
Options4
24P0963 24P0960 1650 FC2-133 Host Bus
Adapter
Half 64-bit/133MHz 4 ... 6 -
- 1724100 - FAStT100 Storage
Server
-- --
- 172260U - FAStT600 Storage
Server
- 17226LU - FAStT600 Entry
Storage Server
-- --
- 17421RU - FAStT700 Storage
Server
-- --
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Chapter 7. xSeries 226 93
Notes:
1. xSeries 226 does not have any Active-PCI slots.
2. Currently only one type of RAID is supported at a time; for example, ServeRAID-7e (RAID-0 or RAID-1
with integrated controller), ServeRAID-4Lx or ServeRAID-7t, etc.
3. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
4. See Fibre Channel Solutions Overview section for additional configuration information.
- 174290U - FAStT900 Storage
Server
-- --
- 2005H16 - TotalStorage SAN
Fabric Switch Model
H16
-- --
- 202612E - TotalStorage SAN
12M-1 Switch, 12-port
-- --
Networking
25P2889 06P3601 1526 10/100 Ethernet Server
Adapter
Half 32-bit/33MHz 2 ... 6 -
32P9298 31P6401 1503 NetXtreme 1000 T
Dual Port Ethernet
Adapter (copper)
Half 64-bit/133MHz 4 ... 6 -
31P9605 31P9601 1512 PRO/1000 MT Server
Ethernet Adapter by
Intel
Half 64-bit/133MHz 4 ... 6 -
73P3505 73P3501 1508 NetXtreme 1000
Express Ethernet
Adapter
Half PCI E 1X 4 ... 6 -
73P4005 73P4001 1509 NetXtreme 1000 SX +
Fiber Ethernet
Adapter5
Half 64-bit/133MHz 4 ... 6 -
73P4105 73P4101 1510 NetXtreme 1000 T +
Ethernet Adapter
Half 64-bit/133MHz 4 ... 6 -
73P4205 73P4201 1511 NetXtreme 1000 T +
Dual Port Ethernet
Adapter
Half 64-bit/133MHz 4 ... 6 -
System Management
02R1676 59P2984 - Remote Supervisor
Adapter II
Half 32-bit/33MHz 2 -
Other I/O
---- - - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length PCI Support
Slots
Supported
Hot-Plug
Capable1
94 COG
Figure 19. xSeries 226 rear view
Chapter 7. xSeries 226 95
xSeries 226 power and accessories
Notes:
1. Nonredundant power models include a single 530w nonhot-swap power supply and line cord.
Redundant power models include two 514w power supplies and two line cords.
2. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate (minutes).
3. Height is 2U. See Rack Cabinets and Options section for supported IBM racks.
Option Number Description
Power Distribution Units1
39Y8934 DPI 32amp/250V Front End PDU w/ IEC 309 P+N+G connector
39Y8951 DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
39Y8935 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8938 30amp/125V Front-end PDU with NEMA L5-30P connector
39Y8939 30amp/250V Front-end PDU with NEMA L6-30P connector
39Y8940 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
39Y8999 32A/230V 3P w/IEC309 3P+N+Gnd Conn
39Y9000 60A/208V 3P w/IEC309 3P+Gnd Conn
73P5855 60A/208V 1P w/IEC309 2P+Gnd Conn
73P5856 63A/320V 1P w/IEC309 P+N+Gnd Conn
Uninterruptible Power Supply (UPS)2
2130R1X UPS 750TLV
2130R2X UPS 750THV
2130R3X UPS 1000TLV
2130R4X UPS 1000THV
2130R5X UPS 1500TLV
2130R6X UPS 1500THV
2130R7X IBM UPS 750T JV
2130R8X IBM UPS 1000T JV
2130R9X IBM UPS 1500T JV
2130R31 UPS3000XHV3
32P1020 APC 2U Smart-UPS 1400RMB
32P1022 APC 2U Smart-UPS 1400RMiB
32P1692 UPS Extend Run Battery Pack3
37L6861 APC Smart-UPS 5000RMB4
37L6862 APC Smart-UPS 5000RMiB4
94G40v76 APC Smart-UPS 2200I (220-240V)
96 COG
SBB
Number
Option
Number
Feature
Code Description
Racks
- 93061RX - NetBay11 Standard Rack Cabinet
- 9306250 - NetBay25 Standard Rack Cabinet
- 9306420 - NetBay42 Standard Rack Cabinet
- 93084RX - NetBay42 Expansion Rack Cabinet
- 93084XX - NetBay42 Expansion Rack
- 9306421 - NetBay42 Standard Expansion Rack Cabinet
Rack/Tower Conversion Kits
- 37l6888 - Netfinity Rack Flat Panel Adapter Kit II
- 26k6095 - IBM xSeries 4Ux24 Tower to Rack Kit
Rack Console Connectivity1
- 1735LGX - NetBAY Local Console Manager
- 17351LX - 1x4 port Console Switch
- 17352LX - 2x8 port Console Switch
- 17351GX - NetBay Local Console Manager
- 17352GX - NetBay Remote Console Manager
- 39M2896 - 250mm KVM Conversion Option
- 39M2897 - 1.5m KVM Conversion Option
Monitors
- 23K4802 - 1U 17" Flat Panel Display Console Kit with US keyboard
- 23K4803 - 1U 17" Flat Panel Display Console Kit without US keyboard
- 17231UX - 1U Flat Panel Monitor Console Kit (with US Space Travel keyboard)
- 17231RX - 1U Flat Panel Monitor Console Kit (without keyboard)
- 17232UX - U Flat Panel Monitor Console Kit (with PS/2 US keyboard)2
- 17233RX - 2U Flat Panel Monitor Console Kit (without keyboard)2
- 6636HB1 - L150p ThinkVision 15in LCD Flat Panel Monitor (381mm, 15in viewable),
business black
- 6636AB1 - L150 ThinkVision 15in Flat Panel Monitor
- 6734HB0 - L170 ThinkVision 17in LCD Flat Panel Monitor (432mm, 17in viewable),
business black
- 6734AB0 - L170p ThinkVision 17in Flat Panel Monitor
- 673766N - C170 ThinkVision 17in CRT Flat Panel Monitor (406.4mm, 16in viewable),
business black
- 633147N - E54 Color Monitor 15in (350mm, 13.8in viewable image), business black
- 63324HN - E74 Color Monitor 17in (406mm, 16in viewable image), business black
- 32P1703 - NetBay 2U Flat Panel Monitor Console Kit (without keyboard)
- 32P1702 - NetBay 2U Flat Panel Monitor Console Kit (with keyboard)
- 49387NU - IBM C117 17" CRT Monitor
25R4184 494215U 7602 IBM T115 15" TFT Monitor
- 494317U - IBM T117 17" TFT Monitor
Chapter 7. xSeries 226 97
Keyboard and Mouse
02R3206 31P7415 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black
- 31P8950 - USB Keyboard with UltraNav - US English1
42C1473 40K5372 8693 USB Keyboard with UltraNav1
89P5358 10k3849 8876 USB 106-key Preferred UES with 2-port USB Hub (Business Black)1
18R9856 73P2620 8881 USB Keyboard Enhanced Performance Keyboard - US English1
- 06P4069 - USB Optical Wheel Mouse1
- 28L3673 - Sleek 2-Button Mouse, business black
Note: Refer to the Rack Cabinets and Options section for more information concerning IBM racks and rack-supported
devices.
SBB
Number
Option
Number
Feature
Code Description
98 COG
Notes:
1. USB accessories are not compatible with the NetBay console switches. They attach to a single USB-
capable server.
2. Includes a 15in flat panel monitor.
SBB
Number
Option
Number
Feature
Code Description
Rack/Tower Conversion Kits
- 26K6122 - 4U Extended Depth Tower to Rack Conversion Kit 3
Rack Console Connectivity1
- 1735L04 - NetBay Local Console Manager
- 1735R16 - NetBay Remote Console Manager
- 32P1636 - 250mm KVM Conversion Option
- 32P1652 - 1.5m KVM Conversion Option
Monitors
- 90P0717 - L150p 15in LCD Flat Panel Monitor (381mm, 15in viewable image), business black
- 17231UX - 1U Flat Panel Monitor Console Kit (with US Space Travel keyboard)
- 17231NX - 1U Flat Panel Monitor Console Kit (without keyboard)
- 17232UX - 2U Flat Panel Monitor Console Kit (with PS/2 US keyboard)2
- 17232NX - 2U Flat Panel Monitor Console Kit (without keyboard)2
- 90P0726 - C170 17in CRT Flat Panel Monitor (406.4mm, 16in viewable image), business black
Keyboard and Mouse
02R3206 25R6968 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black
- 90P0777 - USB Keyboard Enhanced Performance Keyboard - US English
- 73P3144 - Space Travel PS2 Keyboard - US English
- 39M7228 - USB Travel Keyboard with UltraNav - US English
02R3421 90P0740 8901 Sleek 2-Button Mouse, business black
- 90P0743 - USB Optical Wheel Mouse
Note: Refer to the Rack Cabinets and Options section for more information concerning IBM racks and rack-supported
devices.
Chapter 7. xSeries 226 99
xSeries 226 tape options
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported1
Storage
Interface Form Factor
Ext Tape
Encl
39M5664 39M5659 5385 IBM DLTV4 Tape Drive - - - -
32P8861 00N7991 5353 20/40GB DDS/4 4-m
Internal Tape Drive
-- - -
32P8860 24P2398 5350 40/80GB DLT1 Internal
Half-High Tape Drive
-- - -
49P3228 48P7042 5354 20/40GB TR7 Internal
Tape Drive
-- - -
71P9165 59P6744 5358 200/400GB LTO Tape
Drive
-- - -
71P9166 59P6746 5359 VXA-2 Tape Drive - - - -
71P9187 59P6745 5356 20/40GB DDS/5 Internal
Tape Drive
-- - -
- 59P6719 - 40/80GB DLT VS80
Internal SCSI Tape Drive
2Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
24P7303 59P6736 5361 160/320GB SDLT SCSI
Tape Drive Option
-Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
Tape Autoloaders
- 36232LX - 200/400GB 2U LTO
Generation 2 Tape
Autoloader 3623 Model
2LX
- Ultra160
(16-bit)
2U Rack -
- 36232SX - 1.28TB/2.56TB 36232SX
SDLT320 Tape Autoloader
- Ultra320
(16-bit)
2U Rack -
- 87691VX - 1U VXA-320 Tape
Autoloader
-- - -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
-Ultra2
(16-bit)
5U Rack -
External Tape Enclosures
- 3503B1X - 5.25" FH SCSI Tape
Enclosure
-- - -
Associated Options
42C3912 25R0006 4352 IBM 80GB GoVault - - - -
Note: The integrated SCSI controller is available on SATA models for tape support only (internal or external).
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
100 COG
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported1
Storage
Interface Form Factor
Ext Tape
Encl
49P3228 48P7042 5354 20/40GB TR7 Internal IDE Tape
Drive
2 Std. IDE 89mm (3.5in)
SL or 133mm
(5.25in) HH
-
32P8861 00N7991 5353 20/40GB DDS/4 4mm Internal
Tape Drive
2 Ultra2
(16-bit)
89mm (3.5in)
HH or
133mm
(5.25in) HH
0034B0X
71P9176 71P9145 5355 36/72GB DDS/5 Internal SCSI
Tape Drive
2 Ultra2
(16-bit)
89mm (3.5in)
HH or
133mm
(5.25in) HH
-
71P9166 59P6746 5359 80/160GB VXA-2 SCSI Tape
Drive
2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6717 - 100/200GB LTO Tape Drive 2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6719 - 40/80GB DLT VS80 Internal
SCSI Tape Drive
2 Ultra2
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6745 - 80/160GB DLT VS160 SCSI
Tape Drive
2 Ultra160
(16-bit)
133mm
(5.25in) HH
0034B0X
- 59P6736 - 160/320GB SDLT SCSI Tape
Drive Option
- Ultra2
(16-bit)
133mm
(5.25in) FH
0034B0X
- 59P6744 - 200/400GB LTO Full-High Tape
Drive
- Ultra2
(16-bit)
133mm
(5.25in) FH
-
- 25R0005 - Half High LTO Gen 2 Tape
Drive
- Ultra160
SCSI
133mm
(5.25in) HH
-
- 25R0012 - 400/800GB LTO Generation 3
SCSI Tape Drive
- Ultra160 133mm
(5.25in) FH
-
Tape Autoloaders
- 36232LX - 200/400GB 2U LTO Generation
2 Tape Autoloader 3623 Model
2LX
- Ultra160
(16-bit)
2U Rack -
- 36232SX - 1.28TB/2.56TB 36232SX
SDLT320 Tape Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2
(16-bit)
5U Rack -
Associated Options
- 00N7956 - 68-pin External Multimode
LVD/SE SCSI Terminator
-LVD/SE
(16-bit)
External -
--- - ----
Note: The integrated SCSI controller is available on SATA models for tape support only (internal or external).
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
Chapter 7. xSeries 226 101
Notes:
1. Installation may require removing a standard device.
102 COG
© Copyright IBM Corp. 2003, 2006 103
Chapter 8. xSeries 236
Table 17. xSeries 236 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4, 5
Form Factor6
Power Supply Quantity (Std/Max)7
Hot-swap (Power, Slots, HDD, Fans)8
System Management Processor
Integrated Ethernet9
Storage Controller10
Internal HDD Interface
Internal HDD Storage (Std/Max)11
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8841-15Y - 3.0/800-
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1GB
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-16Y - 3.0/800-
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1G
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-25Y - 3.2/800-
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1GB
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-35Y - 3.4/800-
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1GB
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-45Y - 3.6/800-
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1GB
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-E2Y12 Apr
28
3.2/800-
2MB L2
2
/
2
2GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Serve
RAID-7k
Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
5
6
/
6
8841-05Y
-
2.8/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-0RY
-
2.8/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
104 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8841-01Y is 8841-01U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. Not available from IBM after this date. Business Partner Inventory may be available.
8841-1RY
-
3.0/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-1SY
-
3.0/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-2RY
-
3.2/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-3RY
-
3.4/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-4RY
-
3.6/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-5RY
-
3.8/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
8841-55Y - 3.8/800 -
2MB L2
1
/
2
1GB/
16GB
Tower 1
/
2
P
S
H
F
YDual
1Gb
Dual U320 Hot-
swap
0GB /
1.3TB
CD-ROM
(48x-24x)
10
/
8
6
/
6
Note: xSeries 236 also provides three USB ports (one front, two rear), two 9-pin serial ports, one systems management
RS-485 port, one systems management Ethernet port, keyboard port, mouse port, video port and an integrated
ATI Radeon 7000M graphics controller with 16 MB of video memory. A keyboard and mouse is also provided.
Table 17. xSeries 236 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4, 5
Form Factor6
Power Supply Quantity (Std/Max)7
Hot-swap (Power, Slots, HDD, Fans)8
System Management Processor
Integrated Ethernet9
Storage Controller10
Internal HDD Interface
Internal HDD Storage (Std/Max)11
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 8. xSeries 236 105
3. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz (quad-
pumped) Front Side Bus (FSB).
4. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs with 2GB DIMMs.
5. Memory-mirroring, hot-spare memory and Chipkill functions are supported. Chipkill is available on
DIMMs 512MB and greater.
6. A 5U tower-to-rack conversion kit is available.
7. See ‘Power and Accessories’ section for more information on the power supplies.
8. x236 provides one Active-PCI slot.
9. Dual Broadcom 5721 Gigabit Ethernet controllers.
10. The integrated dual-channel, Ultra320 SCSI controller supports integrated RAID-0, 1 and 10.
11. All models support up to 2.7TB with an optional 3-pack HDD cage upgrade.
12. Model E2Y ships standard with a ServeRAID-7k Controller (256MB) connected to three 73.4GB SCSI
HDDs.
xSeries 236 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
40K1890 40K2503 1354 2.8GHz 800MHz 2MB L2 Cache Xeon Processor 0RY, 05Y
40K1891 40K2504 1355 3.0GHz 800MHz 2MB L2 Cache Xeon Processor 1RY, 1SY
40K1892 40K2505 1356 3.2GHz/800MHz/2MB L2 Cache Xeon Processor 2RY, EEY
40K1893 40K2506 1357 3.4GHz/800MHz/2MB L2 Cache Xeon Processor 3RY, EFY
40K1894 40K2507 1358 3.6GHz/800MHz/2MB L2 Cache Xeon Processor 4RY
40K1895 40K2508 1359 3.8GHz/800MHz/2MB L2 Cache Xeon Processor 5RY
Note: x236 processor options support Intel’s Extended Memory 64 Technology (EM64T)
106 COG
xSeries 236 memory options
Notes:
1. Quantity two of each SBB PN must be ordered to equal its corresponding option.
2. Supports Chipkill. Mixing Chipkill DIMMs with nonChipkill DIMMs will disable all Chipkill function.
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs
90P0870 - 0501 256MB DDR-II SDRAM DIMM (non chip-kill)
- 73P3523 - 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 - 0502 512MB DDR-II SDRAM DIMM (non chip-kill)
- 39M5818 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
- 39M5821 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit2
73P2874 - 0504 1GB PC3200 ECC DDR2 SDRAM RDIMM
- 39M5809 - 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit2
73P4794 - 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
- 39M5815 - 4GB (2x2GB) PC2-3200 Single Rank ECC DDR2 RDIMM Kit
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5813 - 0593 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
39M5816 - 0541 512MB DDR-II SDRAM DIMM (non chip-kill)
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
Note: 16GB of memory is supported via eight DIMM slots. Due to two-way interleaving, installation of memory
DIMMs in matched pairs is required beginning with DIMM slots one and two, then three and four, then five
and six, then DIMM slots seven and eight. Memory-mirroring requires all installed DIMMs to match and
effectively reduces available memory by half. Hot-spare memory requires all installed DIMMs to match except
for the last pair which must be of equal size or greater than other installed pairs.
Chapter 8. xSeries 236 107
Figure 20. xSeries 236 system board
xSeries 236 internal cabling
xSeries 236 models are cabled internally with a single, 1-drop LVD SCSI cable,
connecting one channel of the integrated, dual channel Ultra320 SCSI controller to the
hot-swap backplane.
The second SCSI channel can be used to connect to the optional Ultra320 3-Pack HDD
kit, an optional SCSI tape or can be used for external attachment via the optional
Ultra320 SCSI External Interface Kit enabling an external 0.8mm VHDCI SCSI
connector.
All models provide a single ATA-100 IDE connector supporting two IDE devices, one
device being the standard optical cabled via a 2-drop IDE cable.
Table 18. Standard Memory Configuration
Model Std. DIMM Configuration
0EY, 1xx, 2xx,
3xx, 4xx, 05Y,
55Y
2 x 512MB PC2-3200 ECC DDR2 RDIMM
E1Y, E2Y 2 x 1GB PC2-3200 ECC DDR2 RDIMM
108 COG
xSeries 236 hard disk drive (HDD) and optical storage options
Notes:
1. Bays 1 and 2 can be converted to support three additional HDDs for a total of nine HDDs.
2. Maximum quantity of supported HDDs requires installation of the optical Ultra320 3-Pack HDD kit. Six
HDDs are supported without this kit.
3. These HDDs are offered for machine type 8841-E2Y.
4. The Ultra320 3-Pack HDD Kit converts bays 1 and 2 into three additional HDD bays.
5. An optical drive ships standard in bay 3.
6. An optical SCSI, RAID or Fibre controller is required in order to attach to the system.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1Max Qty2
Hot-swap Ultra320 HDDs3
- 32P0727 - 73.4GB 10K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
- 32P0728 - 146.4GB 10K rpm Ultra320 SCSI Hot-
swap HDD
SSL 5 ... 10 9
Hot-swap Ultra320 HDDs
90P1386 40K1026 5232 36GB 15K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
90P1387 40K1027 5233 73GB 15K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
90P1329 40K1023 5202 73.4GB 10K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
90P1388 40K1028 5234 146GB 15K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
90P1330 40K1024 5203 146.8GB 10K rpm Ultra320 SCSI Hot-
swap HDD
SSL 5 ... 10 9
90P1331 40K1025 5231 300GB 10K rpm Ultra320 SCSI Hot-swap
HDD
SSL 5 ... 10 9
Associated Options
33P3127 33P2751 4221 Ultra320 3-Pack HDD Kit4-1 + 2
31
Optical Devices5
26K8793 32R2906 4104 Multiburner Drive HH 1 .. 3 2
02R3278 22P6950 4102 DVD-ROM Drive HH 1 .. 3 2
26K8792 32R2905 4103 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combo Drive
HH 1.. 3 2
External Storage Expansion Units6Form Factor
- 17331RU - EXP400 Storage Expansion Unit Rack (3U)
- 171010U - FAStT EXP100 Storage Expansion Unit Rack (3U)
- 17401RU - FAStT EXP700 Storage Expansion Unit Rack (3U)
- 1724100 - FAStT100 Storage Server Rack (3U)
- 172260U - FAStT600 Storage Server Rack (3U)
- 17226LU - FAStT600 Entry Storage Server Rack (3U)
Chapter 8. xSeries 236 109
Notes:
1. Bays 1 and 2 can be combined to support one full-high device.
2. The optional Ultra320 3-Pack HDD Kit converts bays 1 and 2 into three additional hot-swap HDD bays.
Figure 21. xSeries 236 Front View
Bay Form Factor Height Front Access Usage
11133mm (5.25in) HH Yes Optical/Tape/HDD2
21133mm (5.25in) HH Yes Optical/Tape/HDD2
3 133mm (5.25in) HH Yes Std. Optical
4 89mm (3.5in) SL Yes Std. FDD
5 89mm (3.5in) SSL Yes HDD
6 89mm (3.5in) SSL Yes HDD
7 89mm (3.5in) SSL Yes HDD
8 89mm (3.5in) SSL Yes HDD
9 89mm (3.5in) SSL Yes HDD
10 89mm (3.5in) SSL Yes HDD
110 COG
xSeries 236 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Storage Controllers
02R0995 39R8815 1654 ServeRAID-6M Controller
(128MB Cache)1
Full 64-bit/
133MHz
4, 5, 6 -
02R0996 39R8816 1653 ServeRAID-6M Controller
(256MB Cache)1
Full 64-bit/
133MHz
4, 5, 6 -
13N2252 39R8743 1656 Ultra320 SCSI Controller 23Half 64-bit/
133MHz
4, 5, 6 X
71P8614 71P8594 1652 IBM Ultra320 SCSI Controller Half 64-bit/
133MHz
4, 5, 6 X
71P8653 39R8800 1663 ServeRAID-7k Controller2-- -X
Associated Options
02R2046 02R2068 9252 Ultra320 Internal Single-drop 24in
LVD SCSI Cable1
-- --
Fibre Storage Controllers and
Options4
- 1724100 - FAStT100 Storage Server - - - -
172260U FAStT600 Storage Server - - - -
- 17226LU - FAStT600 Entry Storage Server - - - -
- 17421RU - FAStT700 Storage Server - - - -
- 174290U - FAStT900 Storage Server - - - -
- 2005H16 - TotalStorage SAN Fabric Switch
Model H16
-- --
- 202612E - TotalStorage SAN 12M-1 Switch,
12-port
-- --
- 13N1873 - IBM 2 Gbps FC Host Bus Adapter - 32-bit/
133MHz
--
Networking
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server
Adapter by Intel
-- --
25P2889 06P3601 1526 10/100 Ethernet Server Adapter Half 64-bit/
133MHz
4, 5, 6 X
39Y6108 39Y6105 1488 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
4, 5, 6 X
33P2970 22P6901 1506 PCI Wireless LAN Adapter Half 64-bit/
133MHz
1-
73P2705 73P2701 1513 PRO/1000 MT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
4, 5, 6 X
73P3505 39Y6098 1508 NetXtreme 1000 Express Ethernet
Adapter
Half PCI E 1X 2, 3 X
Chapter 8. xSeries 236 111
Notes:
1. Ultra320 Internal Single-drop 24” LVD SCSI Cable option is required when connecting internal HDDs to
ServeRAID-6M adapters.
2. Installs into a dedicated slot. Does not consume a PCI slot. Quantity one allowed.
3. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
4. See Fibre Channel Solutions Overview section for additional configuration information.
5. Option number 39Y9566 comes as standard equipment with the 8841-16Y.
Figure 22. xSeries 236 rear view
73P3605 73P3601 1507 IBM iSCSI Server Adapter Half 64-
bit/133M
Hz
4, 5, 6 X
73P4105 39Y6079 1510 NetXtreme 1000 T + Ethernet
Adapter
Half 64-bit/
133MHz
4, 5, 6 X
73P4205 39Y6093 1511 NetXtreme 1000 T + Dual Port
Ethernet Adapter
Half 64-bit/
133MHz
4, 5, 6 X
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
4, 5, 6 X
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
Half 64-bit/
133MHz
4, 5, 6 X
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
4, 5, 6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
4, 5, 6 -
System Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
Half - - -
73P9342 73P9341 1608 RSA-II Daughter Card Half - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
112 COG
xSeries 236 power and accessories
Notes:
1. xSeries 236 ships with a single 670w hot-swap capable power supply and line cord. A second hot-swap
power supply is optional for redundancy.
2. Does not ship with a line cord.
3. For runtimes and UPS attributes see Appendix C: UPS Runtime Estimate.
4. Height is 2U. See Rack Cabinets and Options section for supported IBM racks.
5. Height is 6U. See Rack Cabinets and Options section for supported IBM racks.
6. Height is 3U. Available for UPS 7500XHV and UPS 10000XHV. Maximum of four per UPS.
Option Number Description
Power1
25K9560 670w Hot-Swap Power Supply (North America)
24R9258 670w Hot-Swap Power Supply (Worldwide)2
Tower Uninterruptible Power Supply (UPS)3
2130R1X UPS 750TLV
2130R2X UPS 750THV
2130R3X UPS 1000TLV
2130R4X UPS 1000THV
2130R5X UPS 1500TLV
2130R6X UPS 1500THV
Rack Mount Uninterruptible Power Supply (UPS)3
32P1020 APC 2U Smart-UPS 1400RMB
32P1022 APC 2U Smart-UPS 1400RMiB
2130R31 UPS3000XHV4
32P1692 UPS Extend Run Battery Pack4
21303RX UPS 7500XHV5
21304RX UPS 10000XHV5
39Y8857 UPS Extend Run Battery Pack
Power Distribution Units
39Y8905 DPI NEMA Rack PDU
39M2816 IBM DPI C13 PDU+C13 without line cord
39Y8948 DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
Chapter 8. xSeries 236 113
Notes:
1. Rack kit is 24in deep.
SBB
Number
Option
Number
Feature
Code Description
Racks
- 93061RX - NetBAY11 Standard Rack Cabinet
- 93072RX - IBM 25U Standard Rack
- 93074RX - IBM 42U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet
Rack Tower Conversion Kits
0004806 41Y7750 4806 5U Extended Depth Tower-to-Rack Conversion Kit1
Rack Console Connectivity2
- 17351GX - NetBay Local Console Manager
- 17352GX - NetBay Remote Console Manager
39Y7958 39M2896 3752 250mm KVM Conversion Option
39Y7959 39M2897 3754 1.5m KVM Conversion Option
- 17351LX - NetBay 1x4 Console Switch
- 17352LX - NetBay 2x8 Console Switch
Monitors
- 17231UX - 1U Flat Panel Monitor Console Kit (with US Space Travel keyboard)
- 17231RX - 1U Flat Panel Monitor Console Kit (without keyboard)
- 17232UX - 2U Flat Panel Monitor Console Kit (with PS/2 US keyboard)3
- 17233RX - 2U Flat Panel Monitor Console Kit (without keyboard)3
- 90P0721 - L170p ThinkVision 17in LCD Flat Panel Monitor (432mm, 17in viewable image),
business black
25R4182 39Y9924 7600 IBM C117 17" CRT Monitor
25R4184 494215U 7602 IBM T115 15" TFT Monitor
25R4187 39Y9918 7605 IBM T117 17" TFT Monitor
Keyboard and Mouse
02R3206 25R6968 8800 IBM Netvista Full-size Stealth Black PS2 Keyboard
- 90P0777 - IBM Productivity Full-size Stealth Black USB Keyboard US English
40K9491 40K9200 8912 IBM USB Optical Wheel Mouse
02R3421 90P0740 8901 IBM Sleek 2-Button Mouse (PS/2; Mechanical Wheel)
Other Accessories
Note: Refer to the Rack Cabinets and Options section for information concerning IBM racks and rack-supported
devices.
114 COG
2. USB accessories are not compatible with the NetBay console switches. They attach to a single USB-
capable server.
3. Includes a 15in flat panel monitor.
4. Installation within a rack requires optional keyboard tray (P/N 28L4707). This keyboard cannot share a
keyboard tray with a flat panel display.
xSeries 236 tape options
Notes:
1. This option contains: option part number of single drive - 39M5656 and option part number 5 Pack DDS
Gen 5 (36/72 GB) Tape Media - 71P9158.
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported1
Storage
Interface
Form
Factor
Ext Tape
Encl
71P9165 59P6744 5358 IBM 200/400GB LTO FH Tape
Drive
1, 2 - - -
71P9176 39M5656 5355 36/72GB DDS Generation 5
Tape Drive
1, 2 - - -
42C3932 39M5657 5365 IBM LTO3 Tape Drive 1, 2 SCSI 84.76mm
(3.36in) FH
-
24P7303 59P6736 5361 IBM 160/320 GB SDLT Internal
SCSI Tape Drive
1, 2 SCSI 84.76mm
(3.36in) FH
-
0005386 39M5658 5386 IBM Half High LTO Gen 2 Tape
Drive
1, 2 SCSI 133mm
(5.25in) HH
-
Tape Autoloaders
- 36232SX - 1.28TB/2.56TB 36232SX
SDLT320 Tape Autoloader
- Ultra320
(16-bit)
2U Rack -
- 36232LX - 200/400GB 2U LTO Generation
2 Tape Autoloader 3623 Model
2LX
- Ultra160
(16-bit)
2U Rack -
- 87691VX - 1U VXA-320 Tape Autoloader - - - -
External Tape Enclosures
- 45591UX - NetBay 1U xSeries Tape
Enclosure
- Ultra160
(16-bit)
1U Rack -
- 45594UX - 4U Rackmount SCSI Tape
Enclosure
-Ultra2
(16-bit)
4U Rack -
- 4559HHX - Half-High Tape Enclosure - Ultra160
(16-bit)
Desktop or
Rack Shelf
(2.52in tall)
-
- 4559FHX - Full-High Tape Enclosure - Ultra160
(16-bit)
Desktop or
Rack Shelf
(4.41in tall)
-
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
© Copyright IBM Corp. 2003, 2006 115
Chapter 9. xSeries 306m
Table 19. xSeries 306m At-A-Glance
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6, 7
Internal HDD Interface8
Internal HDD Storage (Std/Max)9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8849-
10Y
-Intel Pentium 4
Processor 531 with
EM64T (3.0 GHz 1M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
1AY
-Intel Pentium 4
Processor 531 with
EM64T (3.0 GHz 1M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
E1Y
Apr
28
3.0/800-1MB L2 1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
20Y10
- Intel Pentium D
Processor 830
(3.0 GHz 2M L2)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
30Y
-Intel Pentium 4
Processor 640, with
EM64T (3.2 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
Swap
0GB/
500GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
3AY
-Intel Pentium 4
Processor 640, with
EM64T (3.2 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
40Y
-Intel Pentium 4
Processor 650, with
EM64T (3.4 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
E5Y
Apr
28
3.4/800-2MB L2 1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
50Y
-Intel Pentium 4
Processor 660, with
EM64T (3.6 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8849-
B2Y
- Intel Pentium 4 HT
Processor 631
(3.0GHz/2MB L2)
Dual Core
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
116 COG
8849-
G2Y
- Intel Pentium D
Processor 920
(2.8GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
G4Y
- Intel Pentium D
Processor 920
(2.8GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
H2Y
- Intel Pentium D
Processor 930
(3.0GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
H4Y
- Intel Pentium D
Processor 930
(3.0GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
J2Y
- Intel Pentium D
Processor 940
(3.2GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
K2Y
- Intel Pentium D
Processor 950
(3.4GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
K4Y
- Intel Pentium D
Processor 950
(3.4GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
94Y
- Intel Pentium D
Processor 960,
with EM64T
(3.6GHz/800MHz-4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
EBY
Apr
28
Intel Pentium 4 HT
Processor 631
(3.0GHz/2MB L2)
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8849-
EHY
Apr
28
Intel Pentium D
Processor 930
(3.0GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
Table 19. xSeries 306m At-A-Glance
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6, 7
Internal HDD Interface8
Internal HDD Storage (Std/Max)9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 9. xSeries 306m 117
8491-
10Y
-Intel Pentium 4
Processor 531 with
EM64T (3.0 GHz 1M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
1AY
-Intel Pentium 4
Processor 531 with
EM64T (3.0 GHz 1M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
20Y10
- Intel Pentium D
Processor 830
(3.0 GHz 2M L2)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
30Y
-Intel Pentium 4
Processor 640, with
EM64T (3.2 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
3AY
-Intel Pentium 4
Processor 640, with
EM64T (3.2 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
40Y
-Intel Pentium 4
Processor 650, with
EM64T (3.4 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
50Y
-Intel Pentium 4
Processor 660, with
EM64T (3.6 GHz 2M L2)
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
HN Dual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
3
/
2
2
/
2
8491-
B2Y
- Intel Pentium 4 HT
Processor 631
(3.0GHz/2MB L2)
Dual Core
1
/
1
512MB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
G2Y
- Intel Pentium D
Processor 920
(2.8GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
G4Y
- Intel Pentium D
Processor 920
(2.8GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
H2Y
- Intel Pentium D
Processor 930
(3.0GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
Table 19. xSeries 306m At-A-Glance
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6, 7
Internal HDD Interface8
Internal HDD Storage (Std/Max)9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
118 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8849-10Y is 8849-10U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with the country-specific designator.
2. The 8849 machine type carries a one year limited parts and labor warranty. The 8491 machine type
carries a three year limited parts and labor warranty.
3. Not available from IBM after this date. Business Partner Inventory may be available.
4. A maximum of 8GB of memory is supported via 4 DIMM slots.
5. See "Power and Accessories" section for more information on the power supplies.
6. Simple Swap SATA models support Hostraid 0, 1 via Adaptec Hostraid ROM code and enabled through
the BIOS setup menu. ServeRaid 7t SATA controller must be installed for additional RAID capabilities.
7. SAS/SATA models provide RAID 0,1 support on the integrated controller for SAS or SATA drives. The
ServeRAID 8i SAS RAID controller may be installed for additional RAID capabilities.
8. All of the SAS/SATA (Hot Swap) models use the same backplane for drives and use either SATA or SAS
drives.Maximum capacity for Hot-Swap SAS/SATA models is based on two 300GB hot-swap SAS HDDs.
Maximum capacity for Simple-swap SATA models is based on two 250GB SATA HDDs.
9. Two slim high DASD bays for simple swap SATA models or two slim high Hot-swap DASD bays for Hot
Swap SAS/SATA models.
10. This machine type includes Pentium D dual-core processors.
8491-
H4Y
- Intel Pentium D
Processor 930
(3.0GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
J2Y
- Intel Pentium D
Processor 940
(3.2GHz/4MB)
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
K2Y
- 3.4/800-4MB L2
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
K4Y
- 3.4/800-4MB L2
Dual Core
1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SAS/
SATA
Hot-
Swap
0GB/
600GB
CDROM
24x-10x
2
/
2
2
/
2
8491-
94Y
- 3.6/800-4MB L2 1
/
1
1GB
/8GB
Rack
(1U)
1
/
1
-NDual
1Gb
SATA Simple
-Swap
0GB/
500GB
CDROM
24x-10x
2
/
2
2
/
2
Table 19. xSeries 306m At-A-Glance
Part Number1, 2
Withdrawal Date3
CPU/FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller6, 7
Internal HDD Interface8
Internal HDD Storage (Std/Max)9
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 9. xSeries 306m 119
xSeries 306m memory options
Notes:
1. The server comes with one 512 MB DIMM installed in DIMM connector 1. If one DIMM is installed when
you install an additional DIMM, it must be installed in DIMM connector 3 and it must be the same size,
speed, type, and technology as the DIMM that is installed in DIMM connector 1. You can mix compatible
DIMMs from various manufacturers.
2. If you install a second pair of DIMMs in DIMM connectors 2 and 4, they do not have to be the same size,
speed, type, and technology as the DIMMs that are installed in DIMM connectors 1 and 3. However, the
size, speed, type, and technology of the DIMMs that you install in DIMM connectors 2 and 4 must match
each other.
Figure 23. x306m DIMMs
SBB
Number
Option
Number
Feature
Code Memory Options
30R5154 30R5148 0530 512MB (1 x 512MB) PC2-4200 ECC DDR2 SDRAM DIMM
30R5155 - 0531 1GB DDR2 533 DIMM Memory
- 30R5149 - 2GB (2x1GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
30R5156 - 0532 2GB DDR2 533 DIMM Memory
- 30R5150 - 4GB (2x2GB) PC2-4200 CL3 ECC DDR2 SDRAM DIMM
Table 20. Standard Memory ConfigurationTable 21.
Model Std. DIMM Configuration1, 2
10Y,1AY, 30Y, 3AY, 40Y, 50Y 1 x 512MB DDR2 533 DIMM Memory
E1Y, 20Y, E5Y 2 x 512MB DDR2 533 DIMM Memory
120 COG
xSeries 306m hard disk drive (HDD) and optical storage options
Notes:
1. Mixing of different HDD technologies is not supported.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
Hot-Swap SAS HDDs1
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD - - -
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 2, 3 2
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD SL 2, 3 2
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD SL 2, 3 2
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 2, 3 2
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD SL 2, 3 2
Simple-swap SATA HDDs1
39M4505 39M4504 5291 160GB Simple-Swap SATA HDD SL 2, 3 2
39M4515 39M4514 5288 500GB 7200 RPM 3.5" Simple-Swap SATA
HDD
SL 2, 3 2
Hot-swap SATA HDDs 1
39M4523 39M4522 5150 160GB 7200 RPM Hot-Swap SATA HDD SL 2, 3 2
39M4527 39M4526 5151 250GB 7200 RPM Hot-Swap SATA HDD SL 2, 3 2
39M4531 39M4530 5196 500GB 7200 RPM 3.5" Hot-Swap SATA
HDD
-- -
Optical Devices
32R2784 39R7508 4144 24x/24x CD-RW/DVD Combo V Ultrabay
Enhanced
SFF 1 1
External Storage Expansion Units
Form
Factor
--- - -
Bay Form Factor Height Front Access Usage
1 133mm (5.25in) Slim yes Std. Optical
289mm (3.5in)SL yes HDD
389mm (3.5in)SL yes HDD
Note: Standard HDD on nonopen-bay module is installed in bay 2.
Chapter 9. xSeries 306m 121
xSeries 306m I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Storage Controllers
39R8809 39R8805 1683 ServeRAID 7t SATA Controller1Half 64-bit/
66MHz
1, 2
39R8752 39R8743 1680 Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1, 2
External Disk Systems and Options
- 17001RS - TotalStorage DS400 - Single Controller - - -
- 17002RD - TotalStorage DS400 - Dual Controller - - -
- 17012RD - TotalStorage DS300 - Dual Controller - - -
- 17011RL - TotalStorage DS300 - Single Controller LC - - -
- 17011RS - TotalStorage DS300 - Single Controller - - -
- 17241xx - TotalStorage DS4100 Midrange Disk System (all
models)
-- -
- 24P82xx - TotalStorage DS4300 Model 60U with Turbo - - -
- 17421xx - TotalStorage DS4400 Midrange Disk System (all
models)
-- -
- 17429xx - TotalStorage DS4500 Midrange Disk System (all
models)
-- -
- 18158xx - TotalStorage DS4800 Midrange Disk System (all
models)
-- -
- 2005H08 - TotalStorage Fibre Channel Switch H08 - - -
- 2005H16 - TotalStorage Fibre Channel Switch H16 - - -
- 2026224 - TotalStorage SAN 24M-1 Fabric Switch (24-port) - - -
- 2031224 - McData Spherion 4500 Fabric Switch (24-port)
model
-- -
- 17226xx - TotalStorage DS4300 Midrange Disk Systems (all
models)
-- -
- 2109F32 - SAN Switch Model F32 (32-port) - - -
Networking
25P2889 06P3601 1526 10/100 Ethernet Server Adapter Half 32-bit/
33MHz
1
73P2705 73P2701 1513 PRO/1000 MT Dual Port Server Adapter by Intel Half 64-bit/
133MHz
-
73P4105 39Y6079 1510 NetXtreme 1000 T + Ethernet Adapter 2 Half 64-bit/
133MHz
1
73P4205 39Y6093 1511 NetXtreme 1000 T + Dual Port Ethernet Adapter
2
Half 64-bit/
133MHz
1
- 73P5101 - PRO/1000 GT Dual Port Server Adapter by Intel Half 64-bit/
133MHz
-
122 COG
Notes:
1. The optional ServeRAID -7t SATA controller can be installed only in PCI-X slot 2. The low-profile bracket
that comes with the controller is required to install the controller.
---- -- -
System Management
13N0761 59P2984 1609 Remote Supervisor Adapter II Half - -
Other I/O
- 39M6362 - PCI-E Riser Card - - -
Slot/Devise Type Bus
Voltage
(V)
Frequency
MHz
Data
Path
Active
PCI
Slot
Length
PCI-X Slots on Riser Card - - - - - - -
1 PCI-X - 3.3 66/100 - - Full
2 PCI-X - 3.3 66/100 - - Half
PCI-X and PCI Express slots
on the riser-card assembly
--- ----
1 PCI-X - 3.3 66/100 - - Full
2PCI
Express x8
-- - - - -
6-------
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Chapter 9. xSeries 306m 123
xSeries 306m power and accessories
Option
Number Power
Power Distribution Units
26K4241 DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
26K4242 DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
26K4243 DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
26K4245 DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
26K4246 DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
26K4256 DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
26K4257 DPI 63A Single Phase C19 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
39Y8923 DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
26K4259 DPI 32A Three Phase C19 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
39Y8951 DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
39Y8938 30amp/125V Front-end PDU with NEMA L5-30P connector
39Y8934 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8935 63amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8905 DPI NEMA Rack PDU
39Y8939 30amp/250V Front-end PDU with NEMA L6-30P connector
39Y8940 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
39Y8999 32A/230V 3P w/IEC309 3P+N+Gnd Conn
39Y9000 60A/208V 3P w/IEC309 3P+Gnd Conn
73P5855 60A/208V 1P w/IEC309 2P+Gnd Conn
73P5856 63A/320V 1P w/IEC309 P+N+Gnd Conn
Uninterruptible Power Supply (UPS)
21303RX IBM UPS 7500XHV
21304RX IBM UPS 10000XHV
2130R31 IBM UPS3000XHV 200-240V (US HV cord)
39Y8857 IBM UPS 3U Online Battery Pack
32P1020 APC 2U Smart-UPS 1400RMB
32P1022 APC 2U Smart-UPS 1400RMiB
32P1692 IBM UPS Extend Run Battery Pack
124 COG
Notes:
1. Converts KVM signals for CAT5 cabling for servers with PS/2 KVM ports.
SBB
Number
Option
Number
Feature
Code Description
Rack Console Connectivity
- 17351LX - 1x4 port Console Switch
- 1735L04 - NetBAY Local Console Manager
- 17352LX - 2x8 port Console Switch
- 1735R16 - NetBAY Remote Console Manager
Monitors
- 90P0721 - L170p 17" TFT Monitor
- 17231UX - 1U 17" Flat Panel Monitor Console Kit w/ US keyboard
- 17233RX - IBM 2U Flat Panel Monitor Console Kit without keyboard
- 17232UX - IBM 2U Flat Panel Monitor Console Kit with US keyboard
- 17231RX - 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
- 494215X - T115 15in TFT LCD
- 494317X - T117 17in TFT LCD
Keyboard and Mouse
42C1473 40K5372 8693 IBM USB UltraNav Keyboard - USB
- 90P0777 - IBM Enhanced Performance Keyboard - USB
40K9491 40K9200 8912 IBM Optical Wheel Mouse - USB
Racks
- 93074XX - IBM 42U Standard Rack Extension
- 14104RX - IBM Linux Cluster Rack
- 93074RX - IBM 42U Standard Rack
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
- 93072RX - IBM 25U Standard Rack
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93061RX - NetBAY11 Standard Rack Cabinet
Chapter 9. xSeries 306m 125
xSeries 306m tape options
Notes:
1. This option contains: option part number of single drive - 39M5656 and option part number 5 Pack DDS
Gen 5 (36/72 GB) Tape Media - 71P9158.
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
71P9176 39M5656 5355 36/72GB DDS Generation 5
Tape Drive
-Ultra2
(16-bit)
89mm
(3.5in) HH
or 133mm (
5.25in) HH
45591UX
45594UX
0005386 39M5658 5386 Half High LTO Gen 2 Tape
Drive
- - - 45591UX
45594UX
- 39M5641 - VXA-2 Tape Drive and 5-
Pack Media Express Option1
--- -
- 39M5642 - DLT VS160 Tape Drive and
5-Pack Media Express
Option
--- -
- 39M5643 - DDS/5 Tape Drive and 5-
Pack Media Express Option
--- -
Tape Autoloaders
- 36232LX - IBM LTO2 1x8 Tape
Autoloader
- Ultra160
(16-bit)
2U Rack -
- 36232SX - IBM SDLT 320 1x8 Tape
Autoloader
- Ultra160
(16-bit)
2U Rack -
External Tape Enclosures
- 45591UX - IBM 1U xSeries Tape
Enclosure Rack or Tower
- Ultra160
(16-bit)
1U Rack -
- 45594UX - IBM 4U Rackmount SCSI
Tape Drive Enclosure
- Ultra160
(16-bit)
1U Rack -
External Tape Libraries
- 3582-L23/
F23
- Ultrium 2 Tape Library - - - -
Associated Options
--- - - - - -
126 COG
© Copyright IBM Corp. 2003, 2006 127
Chapter 10. xSeries 336
The xSeries 336 is housed in a 19in rack-mountable drawer and also provides three USB ports (one front, two
rear), one 9-pin serial port, keyboard port, mouse port, video port and an integrated ATI Radeon 7000M
graphics controller with 16 MB of video memory. A keyboard, mouse and diskette drive is not provided.
Table 22. xSeries 336 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Processor Quantity (Std/Max)
Memory (Std/Max)3, 4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8837-15Y 3.0/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-16Y 3.0/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
SATA Simple
-swap
0GB/
500GB8, 9
DVD-ROM
(8x)
3/
2
2/
2
8837-1VY 3.0/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
-4/
4
2/
2
8837-25Y 3.2/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-35Y 3.4/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-36Y 3.4/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
SATA Simple
-swap
0GB/
500GB8, 9
DVD-ROM
(8x)
3/
2
2/
2
8837-3VY 3.4/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
-4/
4
2/
2
8837-45Y 3.6/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-05Y 2.8 /800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
128 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8837-01Y is 8837-01U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with the country-specific designator.
2. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz (quad-
pumped) Front Side Bus (FSB).
3. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs.
4. Memory-mirroring, hot-spare memory and Chipkill functions are supported. Chipkill is available on
DIMMs 512MB and greater.
5. See ‘Power and Accessories’ section for more information on the power supplies.
6. Dual Broadcom 5721 Gigabit Ethernet controllers.
7. SCSI models provide a single-channel, Ultra320 integrated SCSI controller which supports RAID-1 and
RAID-1E. SATA models provide two SATA controllers supporting one HDD each.
8. Maximum capacity requires installing two 250GB SATA HDDs.
8837-0WY 2.8/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
-4/
4
2/
2
8837-06Y 2.8/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
SATA Simple
-swap
0GB/
500GB8, 9
DVD-ROM
(8x)
3/
2
2/
2
8837-55Y 3.8/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-5VY 3.8/800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
-4/
4
2/
2
8837-56Y 3.8 /800-
2MB L2
1/
2
1GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
SATA Simple
-swap
0GB/
500GB8, 9
DVD-ROM
(8x)
3/
2
2/
2
8837-D1Y 2.8/800 -
4MB L2
DC
1/
2
2GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
DVD-ROM
(8x)
3/
2
2/
2
8837-DAY 2.8/800 -
4MB L2
DC
1/
2
2GB/
16GB
Rack
(1U)
1/
2
P,
H,
F
YDual
1GB
U320 Hot-
swap
0GB/
293.6GB8
-4/
4
2/
2
Table 22. xSeries 336 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Processor Quantity (Std/Max)
Memory (Std/Max)3, 4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 10. xSeries 336 129
9. Capacities are based on installation of two 3.5-in 146 GB Ultra320 or four 2.5-in 73 GB Ultra320 HDDs
(SCSI models) or two 160 GB SATA HDDs (SATA models).
xSeries 336 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
39Y6944 40K2510 0498 3.0GHz/800MHz 2MB L2 Cache, Xeon Processor 1xY, ExY
39Y6945 40K2511 0499 3.2GHz/800MHz 2MB L2 Cache 2xY
39Y6948 40K2512 1350 3.4GHz/800MHz 2MB L2 Cache, Xeon Processor 3xY, E5Y
39Y6950 40K2513 1351 3.6GHz/800MHz 2MB L2 Cache, Xeon Processor 4xY
39Y6942 40K2509 0497 2.8GHz/800MHz 2MB L2 Cache Xeon Processor 05Y, 06Y, 0WY, E4Y
39Y6952 40K2514 1352 3.8GHz/800MHz 2MB L2 Cache, Xeon Processor 5VY, 56Y
39Y7000 40K2501 1353 Dual Core Intel Xeon Process DxY
Note: x336 processor options support Intel’s Extended Memory 64 Technology (EM64T).
130 COG
xSeries 336 memory options
Notes:
1. Quantity two of each SBB PN must be ordered to equal its corresponding option.
2. Supports Chipkill. Mixing Chipkill DIMMs with nonChipkill DIMMs will disable all Chipkill function.
SBB
Number1
Option
Number
Feature
Code Memory Options
90P0870 0501 256MB DDR-II SDRAM DIMM (non chip-kill)
73P3523 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 0502 512MB DDR-II SDRAM DIMM (non chip-kill)
39M5818 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
73P2873 0503 512MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
39M5821 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit2
73P2874 0504 1GB PC3200 ECC DDR2 SDRAM RDIMM
39M5809 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit2
73P4794 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
39M5815 4GB (2x2GB) PC2-3200 Single Rank ECC DDR2
RDIMM Kit
Note: 16GB of memory is supported via eight DIMM slots. Due to two-way interleaving, installation of memory
DIMMs in matched pairs is required beginning with DIMM slots one and two, then three and four, then five
and six, then the DIMM slots seven and eight. Memory-mirroring requires all installed DIMMS to match and
effectively reduces available memory by half. Hot-spare memory requires all installed DIMMs to match except
for the last pair which must be of equal size or greater than other installed pairs.
Table 23. Standard Memory Configuration
Model Std. DIMM Configuration Chipkill
1xx, 2xx, 3xx, 4xx, 5xY, 05Y, 0WY, 06Y 2 x 512MB PC2-3200 ECC DDR2 RDIMM N
0EY, E1Y, E2Y, E3Y, E4Y, E5Y 2 x 1GB PC2-3200 ECC DDR2 RDIMM Y
Chapter 10. xSeries 336 131

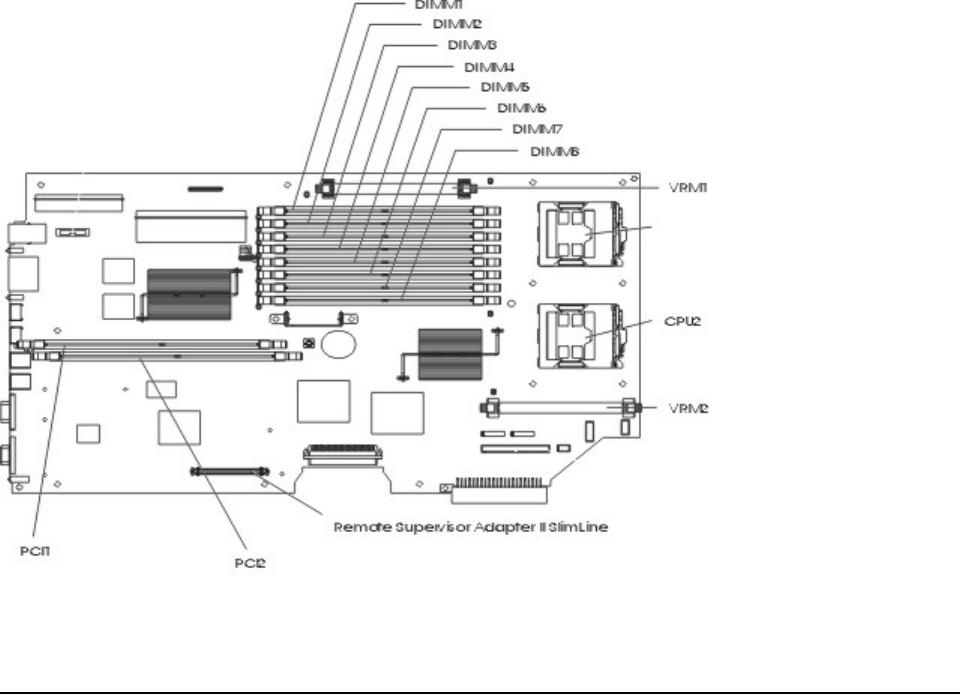

Figure 24. xSeries 336 system board
xSeries 336 internal cabling
Hot-swap SCSI models
xSeries 336 hot-swap SCSI models are cabled internally with a single, 1-drop LVD
SCSI cable, connecting the integrated single-channel Ultra320 SCSI controller to the
hot-swap backplane.
Simple-swap SATA
xSeries 336 simple-swap SATA models provide two point-to-point SATA cables
connecting the two integrated SATA controllers to the SATA simple-swap backplane.
A single IDE device is supported on the 3.5in SCSI HDD models and the simple-swap
SATA models. An IDE device is not supported on the 2.5in SCSI HDD models.
External SCSI attachment requires an optional SCSI controller be installed.
132 COG
xSeries 336 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1Max Qty
Diskette Drives
- 40K1692 - USB Portable Diskette Drive
05K9276 IBM USB Portable Diskette
Drive
SL - -
- 05K9276 - IBM USB Portable Diskette Drive - - -
Simple-swap SATA HDDs2
40K6865 40K6864 5154 80GB 7200 rpm Simple-swap SATA
HDD
SL 1, 2 2
40K6869 40K6868 5155 160GB 7200 rpm Simple-swap SATA
HDD
SL 1, 2 2
73P8015 40K6872 5243 250GB 7200 rpm Simple-swap SATA
HDD
SL 1, 2 2
Hot-swap Ultra320 HDDs2, 4
- 90P1304 - 36.4 GB 10K-rpm Ultra320 SCSI Hot-
Swap HDD
---
90P1335 90P1318 5204 36.4 GB 15K-rpm Ultra320 SCSI Hot-
Swap HDD
---
90P1336 90P1319 5205 73.4 GB 15K-rpm Ultra320 SCSI Hot-
Swap HDD
---
40K1055 40K1023 5165 73.4GB 10K rpm Ultra320 SCSI HDD SSL 1, 2 2
40K1056 40K1024 5166 146.8GB 10K rpm Ultra320 SCSI HDD SSL 1, 2 2
40K1057 40K1025 5167 300GB 10K rpm Ultra320 SCSI HDD SSL 1, 2 -
40K1058 40K1026 5168 36GB 15K rpm Ultra320 SCSI HDD SSL 1, 2 -
40K1059 40K1027 5169 73GB 15K rpm Ultra320 SCSI HDD SSL 1, 2 -
40K1060 40K1028 5170 146GB 15K rpm Ultra320 SCSI HDD SSL 1, 2 -
40K1067 40K1035 5171 36.4GB 10K rpm Ultra320 SCSI SFF
HDD
SFF51, 2, 3, 4 4
40K1068 40K1036 5172 73.4GB 10K rpm Ultra320 SCSI SFF
HDD
SFF51, 2, 3, 4 4
Optical Devices6
- 22P5297 - USB 2.0 Portable CD-RW Drive - - -
- 2 2 P 9 1 6 3 - U S B 2 . 0 P o r t a b l e M u l t i - B u r n e r D r i v e - - -
- 33L5151 - IBM USB Portable CD-ROM Drive - - -
26K8788 73P3288 4101 Ultrabay Slim DVD-ROM/CD-RW
Combo Drive
Ultra-Slim 3 1
- 7 3 P 3 2 7 0 - U l t r a b a y S l i m D V D - R O M D r i v e U l t r a - S l i m 3 1
- 73P3294 - Ultrabay Slim Rambo 2.5 Multi-Burner
Drive
Ultra-Slim 3 1
Chapter 10. xSeries 336 133
Notes:
1. Installation may require removing standard devices.
2. Mixing SATA and SCSI HDDs is not supported.
3. These HDDs are offered for machine type 8837-E3Y.
4. Small Form Factor (SFF) HDDs are 2.5in wide and cannot be mixed with the 3.5in SSL HDDs.
5. See the At-A-Glance section for models that support SFF hard drives.
6. SFF SCSI HDD models do not support an optical drive. 3.5in SCSI HDD and SATA models ship standard
with an 8X Max DVD-ROM drive.
7. An optional SCSI, RAID or Fibre controller is required in order to attach to the system.
Figure 25. xSeries 336 Front View
External Storage Expansion Units Form Factor
- 17331RU - EXP400 Storage Expansion Unit Rack (3U)
- 17332RX - EXP400 Storage Expansion Unit (DC
Power)
Rack (3U)
- 171010U - FAStT EXP100 Storage Expansion Unit Rack (3U)
- 17401RU - FAStT EXP700 Storage Expansion Unit Rack (3U)
- 1724100 - FAStT100 Storage Server Rack (3U)
- 172260U - FAStT600 Storage Server Rack (3U)
- 24P8215 - FAStT600 Turbo Storage Server Rack (3U)
- 17226LU - FAStT600 Entry Storage Server Rack (3U)
SATA and 3.5in SCSI HDD Models
Bay Form Factor Height Front Access Usage
1 89mm (3.5in) SSL Yes HDD
2 89mm (3.5in) SSL Yes HDD
3 133mm (5.25in) Ultra-Slim Yes Std. Optical
2.5in SCSI HDD Models
Bay Form Factor Height Front Access Usage
1 63.5mm (2.5in) SFF Yes HDD
2 63.5mm (2.5in) SFF Yes HDD
3 63.5mm (2.5in) SFF Yes HDD
4 63.5mm (2.5in) SFF Yes HDD
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1Max Qty
134 COG
Figure 26. xSeries 336 Front View
xSeries 336 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-
Plug1
Storage Controllers
39R8797 39R8793 1682 ServeRAID-6i+ Controller Half 64-bit/
133MHz
1-
- 19K1121 - FAStT EXP200 Redundant Raid
Controller
-- --
13N2252 39R8743 1656 Ultra320 SCSI Controller 22Half 64-bit/
133MHz
1, 23-
39R8820 39R8816 1686 ServeRAID-6M Controller (256MB
Cache)
Full 64-bit/
133MHz
2-
39R8819 39R8815 1685 ServeRAID-6M Controller (128MB
Cache)
Full 64-bit/
133MHz
2-
71P8651 39R8805 1651 ServeRAID-7t SATA RAID
Controller
Half 64-bit/
64MHz
1, 23-
71P8614 71P8594 1652 Single Channel Ultra320 SCSI
Controller
Half 64-bit/
133MHz
1, 22-
Fibre Storage Controllers and
Options4
- 1724100 - FAStT100 Storage Server - - - -
- 172260U - FAStT600 Storage Server - - - -
- 24P8215 - FAStT600 Turbo Storage Server - - - -
- 17226LU - FAStT600 Entry Storage Server - - - -
- 17421RU - FAStT700 Storage Server - - - -
- 19K1269 - IBM FAStT700 Mini Hub - - - -
- 174290U - FAStT900 Storage Server - - - -
- 2005H16 - TotalStorage SAN Fabric Switch
Model H16
-- --
- 202612E - TotalStorage SAN 12M-1 Switch,
12-port
-- --
- 2034212 - McData 4300 Fabric Switch (12-
port)
-- --
- 2061020 - Cisco MDS 9120 Multilayer Fabric
Switch
-- --
Chapter 10. xSeries 336 135
Notes:
1. xSeries 336 does not have any Active-PCI slots.
2. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
3. For this option to fit in slot 1, remove the 3U bracket and attach the 2U bracket.
4. See Fibre Channel Solutions Overview section for additional configuration information.
5. Installs into a dedicated slot. Does not consume a PCI slot. Quantity one allowed.
Figure 27. xSeries 336 Rear View
- 2061040 - Cisco MDS 9140 Multilayer Fabric
Switch
-- --
Networking
39Y6071 39Y6066 1484 NetXtreme II 1000 Express Ethernet
Adapter
-- --
- 31P6401 - NetXtreme 1000 T Dual Port
Ethernet Adapter (copper)
Half 64-bit/
133MHz
1, 2 -
73P3505 39Y6098 1508 NetXtreme 1000 Express Ethernet
Adapter
Half PCI E 1X 2 X
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet
Adapter
Half 64-bit/
133MHz
1,2 X
39Y6096 39Y6093 1489 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
Half 64-bit/
133MHz
1,2 X
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
-- --
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
-- --
- 30R5201 - IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
1,2 -
- 30R5501 - IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
1,2 -
System Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half - - -
Other I/O
- 24R9293 - PCI Express Adapter Riser Card - - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-
Plug1
136 COG
xSeries 336 power and accessories
Option Number Description
Power1
90P5280 585w Hot-Swap Power Supply
Power Distribution Units
39Y8923 DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
39Y8941 DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
39Y8948 DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
39Y8951 DPI Universal Rack PDU
39Y8938 30amp/125V Front-end PDU with NEMA L5-30P connector
39Y8935 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8905 63amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8940 30amp/250V Front-end PDU with NEMA L6-30P connector
39Y8939 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
37L6866 Cost Reduced HV Power Distribution Unit
73P5790 IBM NetBAY 60A Front-End PDU
39Y8999 32A/230V 3P w/IEC309 3P+N+Gnd Connector
39Y9000 60A/208V 3P w/IEC309 3P+Gnd Connector
73P5855 60A/208V 1P w/IEC309 2P+Gnd Connector
73P5856 63A/320V 1P w/IEC309 P+N+Gnd Connector
94G6666 Netfinity 100-120V Power Distribution Unit
37L6883 NetBAY Single Phase Front-End PDU with 120V Line Cord
37L6884 NetBAY Single Phase Front-End PDU with 208V Line Cord
37L6886 NetBAY Three Phase Front-End PDU with 208V Line Cord
37L6885 NetBAY Dual Cord Power Distribution Unit
Rack Mount Uninterruptible Power Supply (UPS)3
32P1020 APC 2U Smart-UPS 1400RMB
32P1022 APC 2U Smart-UPS 1400RMiB
2130R31 UPS3000XHV4
37L6861 APC Smart-UPS 5000RMB
37L6862 APC Smart-UPS 5000RMiB
32P1692 UPS Extend Run Battery Pack
21303RX UPS 7500XHV
21304RX UPS 10000XHV
39Y8857 UPS Extend Run Battery Pack
Chapter 10. xSeries 336 137
Notes:
1. xSeries 336 ships with a single 585w hot-swap capable power supply, a rack power cable and line cord. A
second hot-swap power supply is optional for redundancy.
2. The power supply ships with a single 2.8m rack power Y-cable which replaces the system’s standard
power cable. When used in conjunction with multiple x336s, the Y-cable is designed to be split between
x336s. Therefore, the number of PDU outlets used is reduced and a certain level of redundancy is
provided.
3. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate.
SBB
Number
Option
Number
Feature
Code Description
Racks
- 9306420 - NetBAY42 Standard Rack Cabinet
- 9306421 - NetBAY42 Standard Expansion Rack Cabinet
- 9306250 - NetBAY25 Standard Rack Cabinet
- 93061RX - NetBay11 Standard Rack Cabinet
- 93072RX - IBM 25U Standard Rack
- 93073EX - IBM 42U Standard Rack Extension
- 93072RX - IBM 25U Standard Rack
- 93074RX - IBM 42U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
Rack Console Connectivity1
- 17351GX - NetBay Local Console Manager
- 17352GX - NetBay Remote Console Manager
- 39M2896 - 250mm KVM Conversion Option
- 39M2897 - 1.5m KVM Conversion Option
- 17351LX - NetBay 1x4 Console Switch
- 17352LX - NetBay 2x8 Console Switch
Monitors
- 17232UX - 2U Flat Panel Monitor Console Kit (with PS/2 US keyboard)2
- 17233RX - 2U Flat Panel Monitor Console Kit (without keyboard)2
- 90P0721 - L170p ThinkVision 17in LCD Flat Panel Monitor (432mm, 17in viewable
image), business black
- 49387NU - IBM C117 17" CRT Monitor
- 494215U - IBM T115 15" TFT Monitor
- 494317U - IBM T117 17" TFT Monitor
- 6636AB1 - IBM L150 ThinkVision 15" Flat Panel Monitor
- 6636HB1 - IBM L150p ThinkVision 15" Flat Panel Monitor
- 6734AB0 - IBM L170 ThinkVision 17" Flat Panel Monitor
- 6734HB0 - IBM L170p ThinkVision 17" Flat Panel Monitor
138 COG
Notes:
1. USB accessories are not compatible with the NetBay console switches. They attach to a single USB-
capable server.
2. Includes a 15in Flat Panel Monitor.
- 673766N - IBM C170 ThinkVision 17" Monitor
Keyboard and Mouse
02R3206 25R6968 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black
- 90P0777 - USB Keyboard Enhanced Performance Keyboard - US English
0008660 40K5372 8660 USB Travel Keyboard with UltraNav - US English
- 90P0740 - Sleek 2-Button Mouse, business black
40K9491 40K9200 8912 USB Optical Wheel Mouse
33P2979 33L3252 8907 SpaceBall 3D Input Device
32P8917 28L3644 8874 IBM 87-Key Space Saver II PS/2 Keyboard
- 06P4069 - IBM USB Optical Wheel Mouse
- 31P7405 - IBM 3-Button ScrollPoint Mouse
- 31P8700 - IBM ScrollPoint Pro Optical Mouse USB and PS/2
- 31P7415 - IBM Preferred Pro Full-size Keyboard
- 31P8950 - IBM USB Keyboard with UltraNav
- 31P9490 - IBM USB Travel Keyboard with UltraNav
18R9856 73P2620 8881 IBM USB Keyboard Enhanced Performance
Other Accessories
--- -
Note: Refer to the Rack Cabinets and Options section for information concerning IBM racks and rack-supported
devices.
SBB
Number
Option
Number
Feature
Code Description
Chapter 10. xSeries 336 139
xSeries 336 tape options
Notes:
1. This option contains: option part number of single drive - 39M5656 and option part number 5 Pack DDS
Gen 5 (36/72 GB) Tape Media - 71P9158.
SBB
Number
Option
Number
Feature
Code Tape Drives
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
71P9176 39M5656 5355 36/72GB DDS/5
Internal SCSI Tape
Drive
-Ultra2
(16-bit)
89mm
(3.5in) HH
or 133mm
(5.25in) HH
-
- 59P6719 - 40/80GB DLT VS80
Internal SCSI Tape
Drive
-Ultra2
(16-bit)
133mm
(5.25in) FH
-
- 59P6717 - 100/200GB LTO Tape
Drive
-Ultra2
(16-bit)
133mm
(5.25in) FH
-
71P9199 59P6736 5360 160/320GB SDLT SCSI
Tape Drive Option
-Ultra2
(16-bit)
133mm
(5.25in) FH
-
- 59P6744 - 200/400GB LTO Full-
High Tape Drive
-Ultra2
(16-bit)
133mm
(5.25in) FH
4559FHX
Tape Autoloaders
- 36232SX - 1.28TB/2.56TB
36232SX SDLT320 Tape
Autoloader
- Ultra320
(16-bit)
2U Rack -
- 360726X - 3607 Series
1.8GB/3.6TB LTO
Autoloader (Rack
Mount)
----
- 87691VX - 1U VXA-320 Tape
Autoloader
----
External Tape Enclosures
- 45591UX - NetBay 1U xSeries
Tape Enclosure
- Ultra160
(16-bit)
1U Rack -
- 45594UX - 4U Rackmount SCSI
Tape Enclosure
-Ultra2
(16-bit)
4U Rack -
- 4559HHX - Half-High Tape
Enclosure
- Ultra160
(16-bit)
Desktop
or Rack
Shelf
(2.52in tall)
-
- 4559FHX - Full-High Tape
Enclosure
- Ultra160
(16-bit)
Desktop or
Rack Shelf
(4.41in tall)
-
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
140 COG
© Copyright IBM Corp. 2003, 2006 141
Chapter 11. xSeries 346
The xSeries 346 is housed in a 19in rack-mountable drawer and also provides three USB ports (one front, two
rear), one 9-pin serial port, two systems management RS-485 ports, an external SCSI port, keyboard port,
mouse port, video port and an integrated ATI Radeon 7000M graphics controller with 16 MB of video
memory. A keyboard and mouse is not provided.
Table 24. xSeries 346 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4, 5
Form Factor
Power Supply Quantity (Std/Max)6
Hot-swap (Power, Slots, HDD, Fans)
System Management Processors
Integrated Ethernet7
Storage Controller8
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)9
8840-05Y - 2.8/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/1.8TB10 DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-15Y - 3.0/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/
880.8GB10
DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-16Y - 3.0/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
2
/
2
P
H
F
Y11 Dual
1GB
Dual
U320
Hot-
swap
0/
880.8GB10
DVD-ROM
(8x-24X)
8
/
6
4
/
4
8840-25Y - 3.2/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/
880.8GB9
DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-35Y - 3.4/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/
880.8GB10
DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-36Y - 3.4/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
2
/
2
P
H
F
Y12 Dual
1GB
Dual
U320
Hot-
swap
0/
880.8GB10
DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-45Y
-
3.6/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/
880.8GB10
DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-55Y - 3.8/800-
2MB L2
1
/
2
1GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/1.8TB11 DVD-ROM
(8x-24x)
8
/
6
4
/
4
8840-D1Y - 2.8/800-
4MB L2
Dual
Core
1
/
2
2GB/
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Dual
U320
Hot-
swap
0/1.8TB11 DVD-ROM
(8x-24x)
8
/
6
4
/
4
142 COG
8840-0RY - 2.8/ 800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0/1800G
B
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-1RY - 3.0/800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0/1800G
B
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-1SY - 3.0/800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
880.8GB
DVD-ROM
(8x - 24x)
8
/
6
4
/
4
8840-2RY - 3.2/800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0/1800G
B
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-3RY - 3.4/ 800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
1800GB
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-3SY - 3.4/ 800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
880.8GB
DVD-ROM
(8x - 24x)
8
/
6
4
/
4
8840-4RY - 3.6/ 800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
1800GB11
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-5RY - 3.8/ 800
2MB L2
1
/
2
1GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
1800GB11
CD/DVD
R/W (24x)
8
/
6
4
/
4
8840-DRY - 2.80/800
4MB L2
Dual
Core
1
/
2
2GB /
16GB
Rack
(2U)
1
/
2
P
H
F
YDual
1Gb
D u a l
U320
Hot-
swap
0 /
1800GB11
CD/DVD
R/W (24x)
8
/
6
4
/
4
xSeries 346 Storage Servers (NAS)
8840-17Y15 Jun
27
3.0/800-
2MB L2
1
/
2
1GB/
16GB15
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Serve
RAID
-7k
Hot-
swap
72.8GB/
1.2TB17
DVD-ROM
(8x-24x)
8
/
0
4
/
4
8840-37Y15 Jun
27
3.4/800-
2MB L2
1
/
2
1GB/
16GB15
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
Serve
RAID
-7k
Hot-
swap
72.8GB/
1.2TB17
DVD-ROM
(8x-24x)
8
/
4
4
/
4
Note: A Network Attached Storage (NAS) server is built and deployed to handle file serving only. The servers and
clients that utilize the NAS file server connect through standard Ethernet connections and communicate with
standard TCP/IP protocols.
Table 24. xSeries 346 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4, 5
Form Factor
Power Supply Quantity (Std/Max)6
Hot-swap (Power, Slots, HDD, Fans)
System Management Processors
Integrated Ethernet7
Storage Controller8
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)9
Chapter 11. xSeries 346 143
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8840-01Y is 8840-01U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with the country-specific designator.
2. Not available from IBM after this date. Business Partner Inventory may be available.
3. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz (quad-
pumped) Front Side Bus (FSB).
4. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs.
5. Memory-mirroring, hot-spare memory and Chipkill functions are supported. Chipkill is available on
DIMMs 512MB and greater.
6. See ‘Power and Accessories’ section for more information on the power supplies.
7. Dual Broadcom 5721 Gigabit Ethernet controllers.
8. The integrated dual-channel, Ultra320 SCSI controller supports integrated RAID-0, 1 and 10.
9. PCI-E is an optional feature through an option upgrade that will replace two PCI 64-bit/133 MHz slots.
10. Maximum capacity is based on six 146.8GB HDDs.
11. Capacities are based on installation of six 300 GB slim-high, Ultra320 HDDs.
12. Models 0EY, E1Y, E2Y, E3Y, and E4Y ship standard with the ServeRAID-7k controller connected to 3 x
73.4GB SCSI HDDs.
13. This model ships standard with the Remote Supervisor Adapter II SlimLine adapter installed into a
dedicated slot.
14. Models 17Y and 37Y hardware components come preconfigured and the Microsoft Windows Server 2003
operating system is pre-installed.
15. x346 Storage Server operating system supports a maximum of 4GB of memory.
16. x346 Storage Server NAS includes a preconfigured ServeRAID 7k adapter and two 36.4GB hot-swap SCSI
15k disk drives set up for RAID-1. Model 8840-17Y has four additional 300GB hot-swap SCSI disk drives
preinstalled for data, providing a maximum internal data disk capacity of 1.2TB.
17. x346 Storage Server NAS includes a preconfigured ServeRAID 7k adapter and two 36.4GB hot-swap SCSI
15k disk drives set up for RAID-1. The maximum additional internal data disk capacity is 1.2TB.
xSeries 346 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
32R2237 40K2503 0626 2.8GHz/800MHz 2MB L2 Cache Xeon Processor 05Y, E3Y, 0RY
40K1635 40K2502 0450 2.8GHz/800MHz 4MB L2 Cache Dual Core Xeon Processor DxY (2)
13M8285 40K2504 0354 3.0GHz/800MHz 2MB L2 Cache Xeon Processor ExY, 15Y, 16Y, E1Y,
1RY, 1SY, 17Y
13M8286 40K2505 0371 3.2GHz/800MHz 2MB L2 Cache Xeon Processor 25Y, E2Y, 2RY
13M8287 40K2506 0372 3.4GHz/800MHz 2MB L2 Cache Xeon Processor 35Y, 36Y, 3RY, 3SY,
37Y, E4Y
13M8284 40K2507 0319 3.6GHz/800MHz 2MB L2 Cache Xeon Processor 45Y, 4RY
32R2238 40K2508 0627 3.8GHz/800MHz 2MB L2 Cache Xeon Processor 55Y, 5RY
Note: The x346 processor options support Intel’s Extended Memory 64 Technology (EM64T).
144 COG
xSeries 346 memory options
Notes:
1. Quantity two of each SBB PN must be ordered to equal its corresponding option.
2. Supports Chipkill. Mixing Chipkill DIMMs with nonChipkill DIMMs will disable all Chipkill function.
SBB
Number1
Option
Number
Feature
Code Memory Options
73P2873 - 0503 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5821 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
73P2874 - 0504 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5809 - 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit
73P4794 - 0505 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill)
- 39M5815 - 4GB PC2-3200 ECC DDR2 SDRAM RDIMM (2X2GB KIT) Option
90P0870 - 0501 256MB DDR-II SDRAM DIMM (non chip-kill)
- 73P3523 - 512MB (2x256MB) PC2-3200 ECC DDR2 RDIMM Kit
90P1218 - 0502 512MB DDR-II SDRAM DIMM (non chip-kill)
- 39M5818 - 1GB (2x512MB) PC2-3200 ECC DDR2 RDIMM Kit
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5813 - 0593 2GB PC2-3200 ECC DDR2 RDIMM SDRAM (chip-kill) Single rank
39M5816 - 0541 512MB DDR-II SDRAM DIMM (non chip-kill)
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
Note: 16GB of memory is available via eight DIMM slots. Due to two-way interleaving, installation of memory
DIMMs in matched pairs is required beginning with DIMM slots one and two, then three and four, then five
and six, then DIMM slots seven and eight. Memory-mirroring requires all installed DIMMs to match and
effectively reduces available memory by half. Hot-spare memory requires all installed DIMMs to match except
for the last pair which must be of equal size or greater than other installed pairs.
Table 25. Standard Memory Configuration
Model Std. DIMM Configuration
05Y, 15Y 512MB DDR-II SDRAM DIMM (non chip-kill)
25Y, 31Y, 32Y, 35Y, 41Y, 45Y 512MB DDR-II SDRAM DIMM (non chip-kill)
E1Y, E2Y 1GB PC3200 ECC DDR2 SDRAM RDIMM
Chapter 11. xSeries 346 145

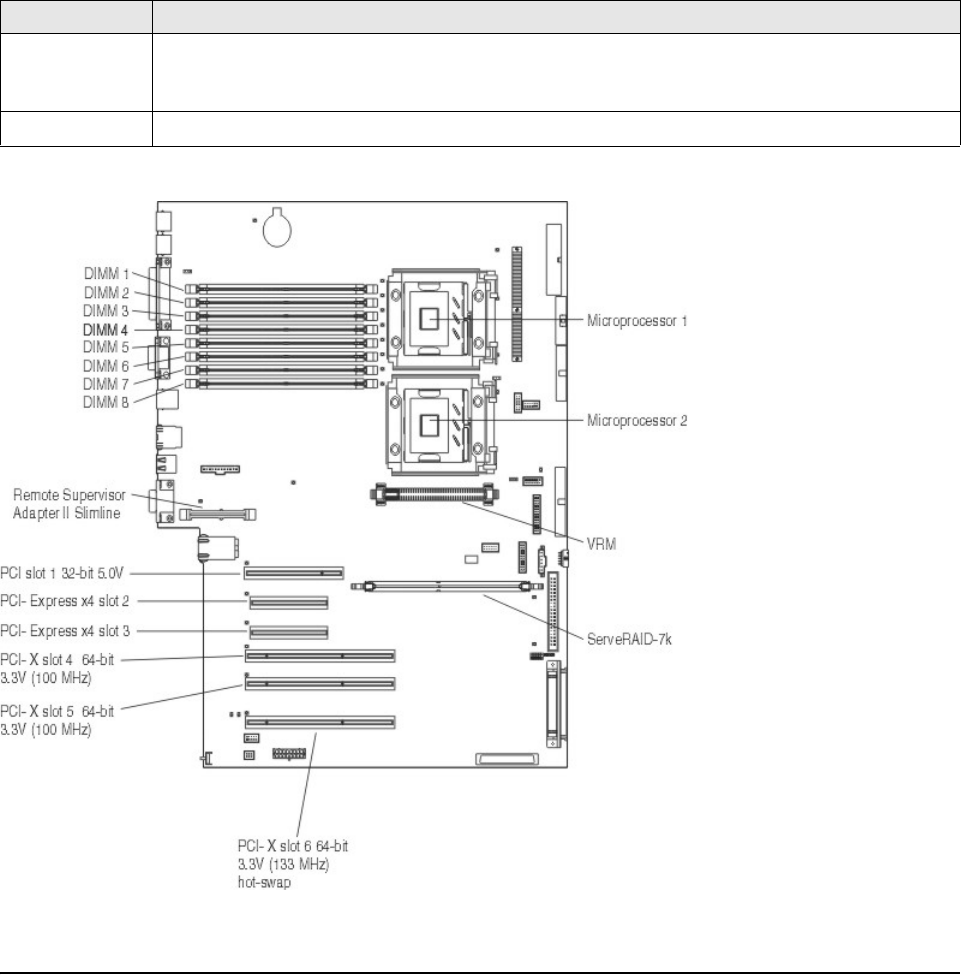

Figure 28. xSeries 346 system board
xSeries 346 internal cabling
xSeries 346 models are cabled internally with a single, 1-drop LVD SCSI cable,
connecting one channel of the integrated, dual-channel Ultra320 SCSI controller to the
hot-swap backplane. The second SCSI channel is wired to an external 0.8mm VHDCI
SCSI connector.
A single IDE device is supported in all models.
DIMM 1 (J1)
DIMM 2 (J2)
DIMM 3 (J3)
DIMM 4 (J4)
DIMM 5 (J5)
DIMM 6 (J6)
DIMM 7 (J7)
DIMM 8 (J8)
Microprocessor 1 (J22)
Microprocessor 2 (J23)
Battery
(BH1)
VRM (J72)
Remote
Supervisor
Adapter II
SlimLine (J21)
PCI riser card (J73)
ServeRAID-7k card (J19)
PCI low-profile card (J18)
146 COG
xSeries 346 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1Max Qty
Floppy Drives
---- - - -
Hot-swap Ultra320 HDDs
90P1329 40K1023 5202 73.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
- 1 ... 6 6
90P1330 40K1024 5203 146.4GB 10K rpm Ultra320 SCSI Hot-Swap
SSL HDD
- 1 ... 6 6
90P1331 40K1025 5231 300GB U320 10K SCSI Hot-Swap HDD - 1 ... 6 6
90P1386 40K1026 5232 36GB 15K U320 SCSI HS - 1 ... 6 6
90P1387 40K1027 5233 73GB 15K U320 SCSI HS - 1 ... 6 6
90P1388 40K1028 5234 146GB U320 15K SCSI Hot-Swap HDD - 1 ... 6 -
40K1055 30R5094 5165 73.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SSL 1 ... 6 -
40K1056 30R5095 5166 146.4GB 10K rpm Ultra320 SCSI Hot-Swap
SSL HDD
SSL 1 ... 6 -
40K1057 40K1025 5167 300GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SSL 1 ... 6 -
40K1058 3290734 5168 36.4GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
SSL 1 ... 6 -
40K1059 32P0735 5169 73.4GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
---
40K1060 40K1024 5170 146.4GB 15K rpm Ultra320 SCSI Hot-Swap
SSL HDD
---
Optical Devices3
---- - - -
Chapter 11. xSeries 346 147
Notes:
1. Installation may require removing standard devices.
2. These HDDs are supported on machine type 8840-E2Y.
3. All models ship standard with an 8X Max DVD-ROM drive.
4. An optional SCSI, RAID or Fibre controller is required in order to attach to the system.
Notes:
1. An optional tape drive enablement kit which supports one tape drive can be installed which occupies
both bays 5 and 6.
Figure 29. xSeries 346 front view
External Storage Expansion Units4Form Factor
- 17331RU - EXP400 Storage Expansion Unit Rack (3U)
- 171010U - FAStT EXP100 Storage Expansion Unit Rack (3U)
- 17401RU - FAStT EXP700 Storage Expansion Unit Rack (3U)
- 1724100 - FAStT100 Storage Server Rack (3U)
- 172260U - FAStT600 Storage Server Rack (3U)
- 24P8215 - FAStT600 Turbo Storage Server Rack (3U)
- 17226LU - FAStT600 Entry Storage Server Rack (3U)
- 17011RS - TotalStorage DS300 - Single Controller Rack (3U)
- 17001RS - TotalStorage DS400 - Single Controller Rack (3U)
Table 26. Bay Usage
Bay Form Factor Height Front Access Usage
1 89mm (3.5in) SSL Yes HDD
2 89mm (3.5in) SSL Yes HDD
3 89mm (3.5in) SSL Yes HDD
4 89mm (3.5in) SSL Yes HDD
5 89mm (3.5in) SSL Yes HDD/Tape Kit1
6 89mm (3.5in) SSL Yes HDD/Tape Kit1
7 89mm (3.5in) SSL Yes Std. FDD
8 133mm (5.25in) Ultra-Slim Yes Std. Optical
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1Max Qty
148 COG
xSeries 346 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug1
Storage Controllers
39R8819 39R8816 1686 ServeRAID-6M Controller (256MB
Cache)2
Full 64-bit/
133MHz
3, 4 -
39R8820 39R8815 1685 ServeRAID-6M Controller (128MB
Cache)2
Full 64-bit/
133MHz
3, 4 -
39R8802 39R8800 1679 ServeRAID-7k Controller 3-- --
39R8752 39R8743 1680 Ultra320 SCSI Controller 24, 5 Half 64-bit/
133MHz
--
19K1311 19K1246 1661 FAStT FC-2 Host Bus Adapter - - - -
24P2334 00N6881 1662 FAStT Host Adapter Half 64-bit/
133Mhz
--
39R8802 39R8800 1679 IBM ServeRAID-7k Ultra320
Integrated SCSI Controller
-- --
External Disk Systems and
Options7
- 1724100 - FAStT100 Storage Server - - - -
- 172260U - FAStT600 Storage Server - - - -
- 24P8215 - FAStT600 Turbo Storage Server - - - -
- 17226LU - FAStT600 Entry Storage Server - - - -
- 17421RU - FAStT700 Storage Server - - - -
- 174290U - FAStT900 Storage Server - - - -
- 2005H16 - TotalStorage SAN Fabric Switch
Model H16
-- --
- 202612E - TotalStorage SAN 12M-1 Switch, 12-
port
-- --
Networking
39Y6071 39Y6066 1484 NetXtreme II 1000 Express Ethernet
Adapter
-- --
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server
Adapter by Intel
-- --
25P2889 06P3601 1526 10/100 Ethernet Server Adapter Half 64-bit/
133MHz
3, 49-
39Y6108 39Y6105 1488 PRO/1000 MT Server Adapter by
Intel
Half 64-Bit/
133MHz
1...410 -
33P2970 22P6901 1506 PCI Wireless LAN Adapter - - - -
73P3505 39Y6098 1508 NetXtreme 1000 Express Ethernet
Adapter
-- -X
73P4105 39Y6079 1510 NetXtreme 1000 T Ethernet Adapter
2
- - 3, 49X
Chapter 11. xSeries 346 149
Notes:
1. xSeries 346 does not have any Active-PCI slots.
2. Supported for external attachment only and not for internal HDDs. A second controller is only supported
if the integrated SCSI controller is disabled or a ServeRAID-7K is installed.
3. Installs into a dedicated slot. Does not consume a PCI slot. Quantity one allowed.
4. A second controller is only supported if the integrated SCSI controller is disabled or a ServeRAID-7K is
installed.
5. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
6. Only one card is allowed in slot 3 or 4 unless 71P8653 is selected, then a maximum of two may be
populated in slots 3 & 4. Can only be pop in slot 3 & 4 when PCI-X Riser SBB 26K5074 also be installed.
7. See Fibre Channel Solutions Overview section for additional configuration information.
8. The option number 39Y6093 contains both a standard (ATX) bracket and a low-profile bracket and
therefore is supported in all slots, when using the appropriate bracket. The SBB number 73P4205 contains
a standard (ATX) bracket only and therefore is supported in slots 3 and 4 only.
9. PCI-X Riser SBB 26K5074 must also be installed.
10. Can be installed in slot 1 & 2 with 2U bracket.
11. The 2U PCI Express Riser Card is not included as standard equipment.
Figure 30. xSeries 346 rear view
73P4205 39Y6093 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
- - 3, 49X
System Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half - - -
Other I/O
- 41Y8901 - 2U PCI Riser Card for PCI Express
Capability11
-- --
- 1519200 - Integrated xSeries Adapter for
iSeries
-- --
- 31P7201 - V.90 Data/Fax Soft Modem - - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug1
150 COG
xSeries 346 power and accessories
Notes:
1. Non-redundant power models ship with a single 625w hot-swap capable power supply, a rack power
cable and a line cord. Redundant power models ship with quantity two of each. A second hot-swap
power supply is optional for non-redundant power models.
2. Does not ship with a line cord.
3. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate.
4. Height is 2U. See Rack Cabinets and Options section for supported IBM racks.
SBB
Number
Option
Number
Feature
Code Description
Power1
40K6506 40K1915 1971 625w Hot-Swap Power Supply (North America)
- 40K1916 - 625w Hot-Swap Power Supply (Worldwide)2
Power Distribution Unit
- 39M2816 - IBM DPI C13 PDU+C13 without line cord
Rack Mount Uninterruptible Power Supply (UPS)3
- 32P1020 - APC 2U Smart-UPS 1400RMB
- 32P1022 - APC 2U Smart-UPS 1400RMiB
- 2130R31 - UPS3000XHV4
- 37L6861 - APC Smart-UPS 5000RMB
- 37L6862 - APC Smart-UPS 5000RMiB
Chapter 11. xSeries 346 151
Notes:
1. USB accessories are not compatible with the NetBAY console switches. They attach to a single USB-
capable server.
2. Includes a 15in Flat Panel Monitor.
Option Number Description
Rack Console Connectivity1
17351GX NetBAY Local Console Manager
17352GX NetBAY Remote Console Manager
39M2896 250mm KVM Conversion Option
39M2897 1.5m KVM Conversion Option
17351LX NetBAY 1x4 Console Switch
17352LX NetBAY 2x8 Console Switch
Monitors
17233RX IBM 1U 15in Flat Panel Monitor Console Kit
17231RX IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
17232UX 2U Flat Panel Monitor Console Kit (with PS/2 US keyboard2
17233RX 2U Flat Panel Monitor Console Kit (without keyboard)
6636HB1 L150p ThinkVision 15in LCD Flat Panel Monitor (381mm, 15in viewable image), business black
63324HN E74 Color Monitor 17in (406mm, 16in viewable image), business black
633147N E54 Color Monitor 15in (350mm, 13.8in viewable image), business black
6636AB1 ThinkVision L150 15in LCD Flat Panel Monitor, (381mm, 15in viewable image), business black
673766N C170 ThinkVision 17in CRT Flat Panel Monitor (406.4mm, 16in viewable image), business black
49387NU IBM C117 17" CRT Monitor
494215U IBM T115 15" TFT Monitor
494317U IBM T117 17" TFT Monitor
Keyboard and Mouse
31P7415 Preferred Pro Full-size Keyboard - 104 Keys, business black
31P8950 USB Keyboard with UltraNav
33L3244 Sleek USB Mouse
28L3673 Sleek 2-Button Mouse, business black
17235RX IBM Rack Keyboard Tray
Note: Refer to the Rack Cabinets and Options section for information concerning IBM racks and rack-supported
devices.
152 COG
xSeries 346 tape options
Option
Number Tape Drive
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
-----
Tape Autoloaders
87691VX 1U VXA-320 Tape Autoloader - - - -
External Tape Enclosures
45591UX NetBay 1U xSeries Tape Enclosure - - - -
4559HHX Half-High Tape Enclosure - - - -
4559FHX Full-High Tape Enclosure - - - -
3503B1X Full-high SCSI Tape Enclosure - - - -
Associated Options
-- - - - -
Note: Additional tape drive and tape library attributes, requirements and options can be found in the Tape Drive
Attributes and Tape Library Attributes appendices, respectively.
© Copyright IBM Corp. 2003, 2006 153
Chapter 12. System x3400 (7973, 7974)
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7973-42Y is 7973-42U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
Table 27. System x3400, entry-level At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
7973-42Y 1.60/1066 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
F Y 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
7973-52Y 1.86/1066 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
FY 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
7973-62Y 2.0/1333 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
FY 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
7974-42Y 1.60/1066 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
FY 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
7974-52Y 1.86/1066 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
FY 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
7974-62Y 2.0G/1333 FSB 2x2MB
L2 Cache Dual Core
Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1
/
1
FY 1GB SATA Simple
Swap
0GB/
1000GB
48X-20X
CD-ROM
7
/
7
6
/
6
154 COG
System x3400 (7973, 7974) processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
System x3400 (7973, 7974) memory options
Notes:
1. Memory mirroring requires an exact match between the DIMM types and sizes on both memory buses.
Memory-mirroring effectively reduces available memory by half.
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
41Y4257 40K1231 1296 Additional Dual-Core Intel Xeon Processor 5110 (1.60GHz 2x2MB
L2 Cache Dual-Core Xeon Processor)
42Y
41Y4258 40K1232 1297 Additional Dual-Core Intel Xeon Processor 5120 (1.86GHz
2x2MB L2 Cache Dual-Core Xeon Processor)
52Y
41Y4259 40K1233 1298 Additional Dual-Core Intel Xeon Processor 5130 (2.0GHz 2x2MB
L2 Cache Dual-Core Xeon Processor)
62Y
SBB
Number
Option
Number
Feature
Code Memory Description
Memory DIMMs 1
39M5780 - 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 - 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 - 0544 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
- 39M5782 - 1 GB (2 x 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
- 39M5785 - 2GB kit (2 x1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
- 39M5791 - 4GB kit (2 x 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
Chapter 12. System x3400 (7973, 7974) 155
System x3400 (7973, 7974) hard disk drive (HDD) and optical storage
options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SATA Simple-Swap HDDs
39M4501 39M4500 5290 80GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 8…11 4
39M4505 39M4504 5291 160GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 8…11 4
39M4509 39M4508 5292 250GB 7200 RPM 3.5" Simple-Swap SATA HDD SL 8…11 4
Optical Devices
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
HH 1..2 2
39M6345 32R2906 4140 IBM DVD Multi-Burner Plus Drive HH 1..2 2
Bay Form Factor Height Front Access Usage
1 133 mm (5.25in) - - CD-R
2 133 mm (5.25in) - - -
3 133 mm (5.25in) - - -
4 89mm (3.5in) - - -
5 89mm (3.5in) - - -
6 89mm (3.5in) - - -
7 89mm (3.5in) - - -
8 89mm (3.5in) - - HDD
156 COG
System x3400 (7973, 7974) I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 - - - -
Networking
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter - 32/64 bit 4….6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter - 32/64 bit 4….6 -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
- 32/64 bit 4….6 -
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet Adapter - - - -
39Y6091 39Y6088 1487 NetXtreme 1000 S + Ethernet Adapter - - - -
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port
Ethernet Adapter
-- - -
39Y6101 39Y6098 1486 NetXtreme 1000 Express G Ethernet
Adapter
-- - -
Systems Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
--RSA SL
Socket
-
Slot Type Frequency MHz
PCI Slot 1 PCI-E x 8 -
PCI Slot 2 PCI-E x 8 -
PCI Slot 3 PCI-E x 8 -
PCI Slot 4 PCI-X 64-bit/133Mhz 133
PCI Slot 5 PCI-X 64-bit/133Mhz 133
PCI Slot 6 PCI-32-bit/33Mhz 33
RSA SL Socket - -
ServeRAID - -
Chapter 12. System x3400 (7973, 7974) 157
System x3400 (7973, 7974) power and accessories
Option
Number Description
Power
--
Power Distribution Units
39Y8905 DPI NEMA Rack PDU
39Y8923 DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
39Y8935 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8938 30amp/125V Front-end PDU with NEMA L5-30P connector
39Y8939 30amp/250V Front-end PDU with NEMA L6-30P connector
39Y8940 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
39Y8942 DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
39Y8945 DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
39Y8948 DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
39Y8951 DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
Uninterruptible Power Supply (UPS)
2130R31 IBM UPS3000XHV 200-240V (US HV cord)
21303RX IBM UPS 7500XHV
21304RX IBM UPS 10000XHV
2130R3X IBM UPS 1000T LV
2130R4X IBM UPS 1000T HV
2130R5X IBM UPS 1500T LV
2130R6X IBM UPS 1500T HV
2130R8X IBM UPS 1000T JV
2130R9X IBM UPS 1500T JV
39Y8857 IBM UPS 3U Online Battery Pack
158 COG
Option
Number Description
Rack and NetBAY
93072RX IBM 25U Standard Rack
93074RX IBM 42U Standard Rack
93074XX IBM 42U Standard Rack Extension
93084RX NetBAY42 Enterprise Rack Cabinet
93084XX NetBAY42 Enterprise Expansion Rack Cabinet (EX)
14104RX IBM Linux Cluster Rack
39M2895 IBM USB Conversion Option
39M2896 IBM Short KVM Conversion Option
39M2897 IBM Long KVM Conversion Option
Rack/Tower Conversion Kits
39Y8382 5Ux26D Tower to Rack Conversion Kit
Console Connectivity
17351GX IBM 2x8 Local Console Manager
17351LX IBM 1x8 Local Console Manager
17352GX IBM Global 2x16 Console Manager
17352LX IBM 2x16 Local Console Manager
17354GX IBM Global 4x16 Console Manager
1735L04 NetBAY Local Console Manager
1735R16 NetBAY Remote Console Manager
Monitors
4938-7xx IBM C117 17" (15.9inch VIS) FST CRT
4942-15x IBM T115 15" TFT LCD
4943-17x IBM T117 17" TFT LCD
Keyboard and Mouse
40K5372 IBM Keyboard with Integrated Pointing Device - 3m Cable - Black - USB - US English
40K9584 IBM Preferred Pro Keyboard- Full Width - 2m Cable - Black - USB - US English
40K9200 IBM 2 Button Optical Wheel Mouse - Black - USB
40K9201 IBM 3 Button Optical Mouse - Black - USB
Chapter 12. System x3400 (7973, 7974) 159
System x3400 (7973, 7974) tape options
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
actor
Ext Tape
Enclosures
39M5621 25R0005 5364 IBM Half High LTO Gen 2 Tape
Drive
2....3 - - -
39M5623 25R0012 5363 LTO 400/800GB Full High Gen 3
Internal Back -Up
2....3 - - -
39M5624 25R0045 5362 VXA 3 Half High Internal Back-up 2....3 - - -
71P9176 71P9145 5355 36/72GB DDS Generation 5 Tape
Drive
2....3 - - -
Tape Autoloaders
---- - ---
External Tape Enclosures
- 45591UX - IBM 1U xSeries Tape Enclosure
Rack or Tower
----
- 45594UX - IBM 4U Rackmount SCSI Tape
Drive Enclosure
----
External Tape Libraries
---- - ---
160 COG
© Copyright IBM Corp. 2003, 2006 161
Chapter 13. System x3400 (7975, 7976)
Table 28. System x3400 (7975, 7976) At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)2
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)2
7975-
42Y
1.60GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7975-
52Y
1.86GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7975-
62Y
2.0GHz 1333MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7975-
4AY
1.60GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7975-
5AY
1.86GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7975-
6AY
2.0GHz 1333MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7976-
42Y
1.60GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7976-
52Y
1.86GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7976-
62Y
2.0GHz 1333MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
162 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7975-42Y is 7975-42U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
2. To achieve maximum capacity, the Hot-swap SAS/SATA 4-Pac HDD option upgrade kit must be
installed.
7976-
4AY
1.60GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7976-
5AY
1.86GHz 1066MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
7976-
6AY
2.0GHz 1333MHz FSB
2x2MB L2 Cache Dual
Core Xeon Processor
1
/
2
1GB/
32GB
5U
Tower
1/2 P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
48X-20X
CD-ROM
11
/
10
8
/
8
Table 28. System x3400 (7975, 7976) At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)2
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)2
Chapter 13. System x3400 (7975, 7976) 163
System x3400 (7975, 7976) processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
System x3400 (7975, 7976) memory options
Notes:
1. Memory mirroring requires an exact match between the DIMM types and sizes on both memory buses.
Memory-mirroring effectively reduces available memory by half.
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
41Y4263 40K1231 1380 Additional Dual-Core Intel Xeon Processor 5110 (1.60GHz 2x2MB
L2 Cache Dual-Core Xeon Processor)
4AY
41Y4264 40K1232 1381 Additional Dual-Core Intel Xeon Processor 5120 (1.86GHz
2x2MB L2 Cache Dual-Core Xeon Processor)
5AY
41Y4265 40K1233 1382 Additional Dual-Core Intel Xeon Processor 5130 (2.0GHz 2x2MB
L2 Cache Dual-Core Xeon Processor)
6AY
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 13N0694 0346 3.16GHz 667MHz 1M L2 Cache 1RY, E5Y
13M7423 13N0695 0347 3.66GHz 667MHz 1M L2 Cache 2RY, E2Y, E1Y,
E5Y, E7Y
31R3775 - 0651 Intel Xeon Processor 7020 3RY
31R3777 - 0652 Intel Xeon Processor 7040 4RY
SBB
Number
Option
Number
Feature
Code Memory Description
Memory Cards
----
Memory DIMMs 1
39M5780 39M5782 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 39M5785 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 39M5791 0545 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
164 COG
SBB
Number
Option
Number Feature code Memory Description1, 2
Memory Cards
13M7285 13M7409 4219 4-DIMM DDR2 MEMORY CARD3
Memory DIMMs
73P2873 0503 512MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2874 0504 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2866 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
73P2875 0512 2GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2867 4GB (2x2GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
30R5147 0535 4GB PC2-3200R DDR2 CL3 ECC SDRAM RDIMM
30R5145 8 GB (2x4 GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM4
Note: To help optimize performance, use 2 memory cards and at least 8 DIMMs.
Table 29. 8-DIMM Configuration in non-mirrored mode
Number of DIMMs DIMM Slots
11
21, 4
4 1, 4, 7, 10
6 1, 4, 7, 10, 2, 5
8 1, 4, 7, 10, 2, 5, 8, 11
Chapter 13. System x3400 (7975, 7976) 165
Figure 31. x3400 (7975, 7976) system board
Table 30. 8-DIMM Configuration in mirrored mode
Number of DIMMs DIMM Slots
4 1, 4, 7, 10
8 1, 4, 7, 10, 2, 5, 8, 11
166 COG
System x3400 (7975, 7976) hard disk drive (HDD) and optical storage
options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SATA Hot-Swap HDDs
39M4519 39M4518 5299 80GB Hot-Swap SATA HDD SL 4….11 8
39M4523 39M4522 5150 160GB Hot-Swap SATA HDD SL 4….11 8
39M4527 39M4526 5151 250GB Hot-Swap SATA HDD SL 4….11 8
SAS Hot-Swap HDDs
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD SL 4….11 8
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 4….11 8
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD SL 4….11 8
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD SL 4….11 8
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 4….11 8
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD SL 4….11 8
Optical Devices
---- -- -
Associated Options
39Y8338 39Y8406 4307 Hot-swap SAS/SATA 4-Pac HDD option
upgrade kit
-- -
Bay Form Factor Height Front Access Usage
1 133 mm (5.25in) - - -
2 133 mm (5.25in) - - -
3 133 mm (5.25in) - - -
4 89mm (3.5in) - - HDD
5 89mm (3.5in) - - HDD
6 89mm (3.5in) - - HDD
7 89mm (3.5in) - - HDD
8 89mm (3.5in) - - HDD
9 89mm (3.5in) - - HDD
10 89mm (3.5in) - - HDD
11 89mm (3.5in) - - HDD
Chapter 13. System x3400 (7975, 7976) 167
System x3400 (7975, 7976) I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
25R8077 25R8064 1670 IBM ServeRAID-8k SAS Controller - - ServeRAID -
25R8080 25R8065 1671 IBM ServeRAID 8k-l SAS Controller - - ServeRAID -
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 - - - -
Networking
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter - 32/64 bit 4….6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter - 32/64 bit 4….6 -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
- 32/64 bit 4….6 -
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet
Adapter
-- - -
39Y6091 39Y6088 1487 NetXtreme 1000 S + Ethernet
Adapter
-- - -
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port
Ethernet Adapter
-- - -
39Y6101 39Y6098 1486 NetXtreme 1000 Express G Ethernet
Adapter
-- - -
Systems Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
-- - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers
02R0996 02R0988 1653 ServeRAID-6M Controller
(256MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
02R0995 32P0033 1653 ServeRAID-6M Controller
(128MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
13N2232 13N2227 1664 ServeRAID 8i-Controller Half 64-bit/
133MHz
Dedicated
Slot
-
13N2252 13N2249 1656 Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1 ... 6 -
External Disk Systems and
Options
24P0963 24P0960 1650 DS400 Host Bus Adapter Half 64-bit/
133MHz
1 ... 6 -
168 COG
- 17001RS - TotalStorage DS400 - Single
Controller
-- - -
- 17002RD - TotalStorage DS400 - Dual
Controller
-- - -
- 17012RD - TotalStorage DS300 - Dual
Controller
-- - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17226XX - TotalStorage DS4300 Midrange
Disk Systems (all models)
-- - -
- 17401xx - TotalStorage DS4000 EXP700
Expansion Unit (all models)
-- - -
- 17101xx - TotalStorage DS4000 EXP100
Storage Expansion Unit (all
models)
-- - -
- 17421xx - TotalStorage DS4400 Midrange
Disk System (all models)
-- - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 17241XX - TotalStorage DS4100 Midrange
Disk System (all models)
-- - -
- 24P82XX - TotalStorage DS4300 Model 60U
with Turbo
-- - -
- 17429XX - TotalStorage DS4500 Midrange
Disk System (all models)
-- - -
- 174290X - DS4500 Midrange Disk System - - - -
- 17011RL - TotalStorage DS300 - Single
Controller LC
-- - -
- 17011RS - TotalStorage DS300 - Single
Controller
-- - -
- 2005H08 - TotalStorage Fibre Channel
Switch H08
-- - -
- 2005H16 - TotalStorage Fibre Channel
Switch H16
-- - -
- 2006L10 - TotalStorage Storage Switch - - - -
- 2034212 - McData 4300 Fabric Switch (12-
port)
-- - -
Networking
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 X
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Chapter 13. System x3400 (7975, 7976) 169
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber
Ethernet Adapter 23
Half 64-bit/
133MHz
1 ... 6 -
73P4105 73P4101 1510 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
73P4205 73P4201 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
- 30R5001 - 10 Gb Ethernet Sr Server
Adapter
Half 64-bit/
266MHz
--
Systems Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
-- - -
Slot Type Frequency MHz
PCI Slot 1 PCI-E x 8 -
PCI Slot 2 PCI-E x 8 -
PCI Slot 3 PCI-E x 8 -
PCI Slot 4 PCI-X 64-bit/133Mhz 133
PCI Slot 5 PCI-X 64-bit/133Mhz 133
PCI Slot 6 PCI-32-bit/33Mhz 33
RSA SL Socket - -
ServeRAID - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
170 COG
System x3400 (7975, 7976) power and accessories
Option Number Description
Power
- -
Power Distribution Units
39Y8905 DPI NEMA Rack PDU
39Y8923 DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
39Y8935 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
39Y8938 30amp/125V Front-end PDU with NEMA L5-30P connector
39Y8939 30amp/250V Front-end PDU with NEMA L6-30P connector
39Y8940 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
39Y8942 DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
39Y8945 DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
39Y8948 DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
39Y8951 DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
Uninterruptible Power Supply (UPS)
2130R31 IBM UPS3000XHV 200-240V (US HV cord)
21303RX IBM UPS 7500XHV
21304RX IBM UPS 10000XHV
2130R3X IBM UPS 1000T LV
2130R4X IBM UPS 1000T HV
2130R5X IBM UPS 1500T LV
2130R6X IBM UPS 1500T HV
2130R8X IBM UPS 1000T JV
2130R9X IBM UPS 1500T JV
39Y8857 IBM UPS 3U Online Battery Pack
Chapter 13. System x3400 (7975, 7976) 171
Option Number Description
Rack and NetBAY
141042X IBM Linux Cluster Rack
93072RX IBM 25U Standard Rack
93074RX IBM 42U Standard Rack
93074XX IBM 42U Standard Rack Extension
93084RX NetBAY42 Enterprise Rack Cabinet
93084XX NetBAY42 Enterprise Expansion Rack Cabinet (EX)
14104RX IBM Linux Cluster Rack
39M2895 IBM USB Conversion Option
39M2896 IBM Short KVM Conversion Option
39M2897 IBM Long KVM Conversion Option
Rack/Tower Conversion Kits
39Y8382 5Ux26D Tower to Rack Conversion Kit
Console Connectivity
17351GX IBM 2x8 Local Console Manager
17351LX IBM 1x8 Local Console Manager
17352GX IBM Global 2x16 Console Manager
17352LX IBM 2x16 Local Console Manager
17354GX IBM Global 4x16 Console Manager
1735L04 NetBAY Local Console Manager
1735R16 NetBAY Remote Console Manager
Monitors
4938-7xx IBM C117 17" (15.9inch VIS) FST CRT
4942-15x IBM T115 15" TFT LCD
4943-17x IBM T117 17" TFT LCD
Keyboard and Mouse
40K5372 IBM Keyboard with Integrated Pointing Device - 3m Cable - Black - USB - US English
40K9584 IBM Preferred Pro Keyboard- Full Width - 2m Cable - Black - USB - US English
40K9200 IBM 2 Button Optical Wheel Mouse - Black - USB
40K9201 IBM 3 Button Optical Mouse - Black - USB
172 COG
System x3400 (7975, 7976) tape options
SBB
Number
Option
Number
Feature
Code Description
Rack and NetBAY
- - - Refer to Rack Cabinets and Options section for information concerning
IBM racks and rack-supported devices.
Console Connectivity1
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
- 17354GX - 4x16 Global Console Manager
Monitors
- 90P0717 - L150p 15in business black flat panel LCD monitor
- 90P0726 - C170 17in (16in viewable image) CRT business black full flat screen
shadow mask monitor
Keyboard and Mouse2
02R3206 25R6968 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black3
- 90P0777 - USB Keyboard Enhanced Performance Keyboard - US English
- 73P3144 - PS/2 Keyboard with UltraNav
13M7124 90P0743 8908 USB Optical Wheel Mouse
- 90P0742 - Optical 3-button ScrollPoint Mouse - 800dpi - PS/2 & USB (Business
Black)
Other Accessories
----
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
39M5621 25R0005 5364 IBM Half High LTO Gen 2 Tape
Drive
2....3 - - -
39M5623 25R0012 5363 LTO 400/800GB Full High Gen 3
Internal Back -Up
2....3 - - -
39M5624 25R0045 5362 VXA 3 Half High Internal Back-
up
2....3 - - -
Chapter 13. System x3400 (7975, 7976) 173
71P9176 71P9145 5355 36/72GB DDS Generation 5 Tape
Drive
2....3 - - -
Tape Autoloaders
---- - ---
External Tape Enclosures
- 45591UX - IBM 1U xSeries Tape Enclosure
Rack or Tower
----
- 45594UX - IBM 4U Rackmount SCSI Tape
Drive Enclosure
----
External Tape Libraries
---- - ---
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
- 59P6736 - 160/320GB SDLT Tape Drive - Ultra2
(16-bit)
133mm
(5.25in)
FH
45594UX
- 59P6744 - 200/400GB LTO Full-High
Tape Drive
- Ultra2
(16-bit)
133mm
(5.25in)
FH
45594UX
- 25R0012 - 400/800GB LTO Generation 3
SCSI Tape Drive
- Ultra160 133mm
(5.25in)
FH
4559FHX
45594UX
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape
Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Enclosures
- 45594UX - 4U Rackmount SCSI Tape
Enclosure
- - 4U Rack -
- 4559FHX - Full-High Tape Enclosure - Ultra160
(16-bit)
Desktop
or Rack
Shelf
(4.41in
tall)
-
- 45594UX - 4U Rackmount Tape Enclosure - Ultra2
(16-bit)
4U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2 (16-
bit)
5U Rack -
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
174 COG
© Copyright IBM Corp. 2003, 2006 175
Chapter 14. System x3500
Table 31. System x3500 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
7977-
12Y
3.0GHz/2M/
1066/130W Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
22Y
3.2GHz/2M/
667/95W Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
42Y
1.60GHz 1066MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
52Y
1.86GHz 1066MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
62Y
2.0GHz 1333MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
72Y
2.33GHz 1333MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
82Y
2.66GHz 1333MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
7977-
92Y
3.0GHz 1333MHz
FSB 2x2MB L2 Cache
Dual Core
Xeon Processor
1
/
2
1GB/
48GB
5U
Tower
1
/
2
P
H
F
Y 1GB SAS/
SATA
Hot
Swap
0GB/
2400GB
DVD-ROM
(16X)
11
/
10
6
/
6
176 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7977-12Y is 7977-12U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
System x3500 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
39M4093 25R8926 1230 Dual-Core Intel Xeon Processor 5050 (3.0GHz 667MHz 2x2MB
L2 Cache)
12Y
39R8146 25R8912 1231 Dual-Core Intel Xeon Processor 5060 (3.2GHz 1067MHz 2x2MB
L2 Cache)
22Y
41Y4257 40K1231 1296 Dual-Core Intel Xeon Processor 5110 (1.60GHz 2x2MB L2
Cache)
42Y
41Y4258 40K1232 1297 Dual-Core Intel Xeon Processor 5120 (1.86GHz 2x2MB L2
Cache)
52Y
41Y4259 40K1233 1298 Dual-Core Intel Xeon Processor 5130 (2.0GHz 2x2MB L2 Cache) 62Y
41Y4260 40K1234 1299 Dual-Core Intel Xeon Processor 5140 (2.33GHz 2x2MB L2
Cache)
72Y
41Y4261 40K1235 1300 Dual-Core Intel Xeon Processor 5150 (2.66GHz 2x2MB L2
Cache)
82Y
41Y4262 40K1236 1301 Dual-Core Intel Xeon Processor 5160 (3.0GHz 2x2MB L2 Cache) 92Y
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 13N0694 0346 3.16GHz 667MHz 1M L2 Cache 1RY, E5Y
13M7423 13N0695 0347 3.66GHz 667MHz 1M L2 Cache 2RY, E2Y, E1Y,
E5Y, E7Y
31R3775 - 0651 Intel Xeon Processor 7020 3RY
31R3777 - 0652 Intel Xeon Processor 7040 4RY
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 13N0694 0346 3.16GHz 667MHz 1M L2 Cache 1RY, E5Y
13M7423 13N0695 0347 3.66GHz 667MHz 1M L2 Cache 2RY, E2Y, E1Y,
E5Y, E7Y
Chapter 14. System x3500 177
31R3775 - 0651 Intel Xeon Processor 7020 3RY
31R3777 - 0652 Intel Xeon Processor 7040 4RY
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
178 COG
System x3500 memory options
Notes:
1. Pairs are not required to match.
SBB
Number
Option
Number
Feature
Code Memory Description
Memory Cards
----
Memory DIMMs 1
39M5780 39M5782 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 39M5785 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 39M5791 0544 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
- 39M5782 - 1GB Kit (2x 512MB DIMM) PC2 5300 DDR2 FBD CL4
- 39M5785 - 2GB Kit (2x1GB DIMM) PC2 5300 DDR2 FBD CL4
- 39M5791 - 4GB Kit (2x 2GB DIMM) PC2 5300 DDR2 FBD CL4
SBB
Number
Option
Number Feature code Memory Description1, 2
Memory Cards
13M7285 13M7409 4219 4-DIMM DDR2 MEMORY CARD3
Memory DIMMs
73P2873 0503 512MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2874 0504 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2866 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
73P2875 0512 2GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2867 4GB (2x2GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
30R5147 0535 4GB PC2-3200R DDR2 CL3 ECC SDRAM RDIMM
30R5145 8 GB (2x4 GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM4
Note: To help optimize performance, use 2 memory cards and at least 8 DIMMs.
Table 32. Standard Memory Configuration
Model Std. DIMM Configuration
12Y,22Y,42Y,
52Y,62Y,72Y,82Y,92Y
2 x 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
Chapter 14. System x3500 179
Table 33. 12-DIMM Configuration in non-mirrored mode
Number of DIMMs DIMM Slots
11
21, 4
4 1, 4, 7, 10
6 1, 4, 7, 10, 2, 5
8 1, 4, 7, 10, 2, 5, 8, 11
10 1, 4, 7, 10, 2, 5, 8, 11, 3, 6
12 1, 4, 7, 10, 2, 5, 8, 11, 3, 6, 9, 12
Table 34. 12-DIMM Configuration in mirrored mode
Number of DIMMs DIMM Slots
4 1, 4, 7, 10
8 1, 4, 7, 10, 2, 5, 8, 11
12 1, 4, 7, 10, 2, 5, 8, 11, 3, 6, 9, 12
180 COG
Figure 32. x3500 system board
Chapter 14. System x3500 181
System x3500 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SATA Hot-Swap HDDs1
39M4519 39M4518 5299 80GB Hot-Swap SATA HDD SL 4...11 8
39M4523 39M4522 5150 160GB Hot-Swap SATA HDD SL 4...11 8
39M4527 39M4526 5151 250GB Hot-Swap SATA HDD SL 4...11 8
SAS Hot-Swap HDDs1
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD SL 4...11 8
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 4...11 8
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD SL 4...11 8
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD SL 4...11 8
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 4...11 8
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD SL 4...11 8
Optical Devices
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
HH 1, 2 2
39M6345 32R2906 4140 IBM DVD Multi-Burner Plus Drive HH 1, 2 2
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
SAS HDDs
26K5658 26K5654 5241 36GB 10K 2.5" SAS HDD SFF 1 ... 6 6
26K5659 26K5655 5242 73GB 10K 2.5" SAS HDD SFF 1 ... 6 6
Optical Devices2
26K9996 39R7508 4114 Ultrabay Enhanced DVD-ROM/CD-RW
Combo Drive
SFF 7 1
26K9995 - 4113 Ultralight DVD-ROM Ultrabay Enhanced SFF 7 1
26K9994 - 4112 Ultrabay Enhanced CD-ROM Drive SFF 7 1
25R7477 - 4111 Ultrabay Enhanced Multiburner Drive SFF 7 1
External Storage Expansion Units Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack
(3U)
- 172260U - DS4300 Midrange Disk (60U) Rack
(3U)
182 COG
Notes:
1. Hot-Swap SAS/SATA HDDs are installed in the order of Bay 11 as standard then Bay 10, 9, 8,7,6,5,4..
System x3500 I/O options
- 17226LU - DS4300 Midrange Disk (6LU) Rack
(3U)
- 17401xx - TotalStorage DS4000 EXP700 Expansion Unit
(all models)
-
- 17101xx - TotalStorage DS4000 EXP100 Storage
Expansion Unit (all models)
-
Bay Form Factor Height Front Access Usage
1 133 mm (5.25in) - Y -
2 133 mm (5.25in) - Y -
3 133 mm (5.25in) - Y -
4 89mm (3.5in) - Y HDD
5 89mm (3.5in) - Y HDD
6 89mm (3.5in) - Y HDD
7 89mm (3.5in) - Y HDD
8 89mm (3.5in) - Y HDD
9 89mm (3.5in) - Y HDD
10 89mm (3.5in) - Y HDD
11 89mm (3.5in) - Y HDD
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers
25R8077 25R8064 1670 ServeRAID 8k SAS Controller - - ServeRAID -
39R8752 39R8743 1680 Ultra320 SCSI Controller 2 - - - -
Networking
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 32/64-bit 4 ... 6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 32/64-bit 4 ... 6 -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 32/64-bit 4 ... 6 -
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet Adapter Half 32/64-bit 4 ... 6 -
39Y6091 39Y6088 1497 NetXtreme 1000 S + Ethernet Adapter Half 32/64-bit 4 ... 6 -
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
Chapter 14. System x3500 183
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port
Ethernet Adapter
Half 32/64-bit 4 ... 6 -
39Y6101 39Y6098 1486 NetXtreme 1000 Express G Ethernet
Adapter
Half 8 1….3 -
Systems Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
--RSA SL
Socket
-
Other I/O
---- -- - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers
02R0996 02R0988 1653 ServeRAID-6M Controller
(256MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
02R0995 32P0033 1653 ServeRAID-6M Controller
(128MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
13N2232 13N2227 1664 ServeRAID 8i-Controller Half 64-bit/
133MHz
Dedicated
Slot
-
13N2252 13N2249 1656 Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1 ... 6 -
External Disk Systems and
Options
24P0963 24P0960 1650 DS400 Host Bus Adapter Half 64-bit/
133MHz
1 ... 6 -
- 17001RS - TotalStorage DS400 - Single
Controller
-- - -
- 17002RD - TotalStorage DS400 - Dual
Controller
-- - -
- 17012RD - TotalStorage DS300 - Dual
Controller
-- - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17226XX - TotalStorage DS4300 Midrange
Disk Systems (all models)
-- - -
- 17401xx - TotalStorage DS4000 EXP700
Expansion Unit (all models)
-- - -
- 17101xx - TotalStorage DS4000 EXP100
Storage Expansion Unit (all
models)
-- - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
184 COG
- 17421xx - TotalStorage DS4400 Midrange
Disk System (all models)
-- - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 17241XX - TotalStorage DS4100 Midrange
Disk System (all models)
-- - -
- 24P82XX - TotalStorage DS4300 Model 60U
with Turbo
-- - -
- 17429XX - TotalStorage DS4500 Midrange
Disk System (all models)
-- - -
- 174290X - DS4500 Midrange Disk System - - - -
- 17011RL - TotalStorage DS300 - Single
Controller LC
-- - -
- 17011RS - TotalStorage DS300 - Single
Controller
-- - -
- 2005H08 - TotalStorage Fibre Channel
Switch H08
-- - -
- 2005H16 - TotalStorage Fibre Channel
Switch H16
-- - -
- 2006L10 - TotalStorage Storage Switch - - - -
- 2034212 - McData 4300 Fabric Switch (12-
port)
-- - -
Networking
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 X
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber
Ethernet Adapter 23
Half 64-bit/
133MHz
1 ... 6 -
73P4105 73P4101 1510 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
73P4205 73P4201 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
- 30R5001 - 10 Gb Ethernet Sr Server
Adapter
Half 64-bit/
266MHz
--
Systems Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
-- - -
Slot Type Bus Voltage (V) Frequency
MHz Data Path Active PCI Slot Length
PCI Slot 1PCI-E x 4------
PCI Slot 2PCI-E x 8------
PCI Slot 3PCI-E x 8------
PCI Slot 4 PCI-X 64-bit - - 133 - - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Chapter 14. System x3500 185
PCI Slot 5 PCI-X 64-bit - - 133 - - -
PCI Slot 6 PCI-32-bit - - 33 - - -
RSA SL Socket - - - - - - -
ServeRAID --- - - - -
Slot Type Bus Voltage (V) Frequency
MHz Data Path Active PCI Slot Length
186 COG
System x3500 power and accessories
SBB
Number
Option
Number
Feature
Code Description
Power
39Y8326 39Y8487 0942 Redundant Power and Cooling Option
Power Distribution Units
- 39Y8905 - DPI NEMA Rack PDU
- 39Y8923 - DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
- 39Y8935 - 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
- 39Y8938 - 30amp/125V Front-end PDU with NEMA L5-30P connector
- 39Y8939 - 30amp/250V Front-end PDU with NEMA L6-30P connector
- 39Y8940 - 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
- 39Y8942 - DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 39Y8945 - DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
- 39Y8948 - DPIx 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 39Y8951 - DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
Uninterruptible Power Supply (UPS)
- 2130R31 - IBM UPS3000XHV 200-240V (US HV cord)
- 21303RX - IBM UPS 7500XHV
- 21304RX - IBM UPS 10000XHV
- 2130R3X - IBM UPS 1000T LV
- 2130R4X - IBM UPS 1000T HV
- 2130R5X - IBM UPS 1500T LV
- 2130R6X - IBM UPS 1500T HV
- 2130R8X - IBM UPS 1000T JV
- 2130R9X - IBM UPS 1500T JV
- 39Y8857 - IBM UPS 3U Online Battery Pack
Chapter 14. System x3500 187
Option Number Description
Rack and NetBAY
93072RX 25U Standard Rack
93074RX 42U Standard Rack
93074XX 42U Standard Rack Extension
93084RX NetBAY42 Enterprise Rack Cabinet
93084XX NetBAY42 Enterprise Expansion Rack Cabinet (EX)
14104RX Linux Cluster Rack
39M2895 USB Conversion Option
39M2896 Short KVM Conversion Option
39M2897 Long KVM Conversion Option
Rack/Tower Conversion Kits
39Y8382 5Ux26D Tower to Rack Conversion Kit
Console Connectivity
17351GX 2x8 Local Console Manager
17351LX 1x8 Local Console Manager
17352GX Global 2x16 Console Manager
17352LX 2x16 Local Console Manager
17354GX Global 4x16 Console Manager
1735L04 NetBAY Local Console Manager
1735R16 NetBAY Remote Console Manager
Monitors
4938-7xx C117 17" (15.9inch VIS) FST CRT
4942-15x T115 15" TFT LCD
4943-17x T117 17" TFT LCD
Keyboard and Mouse
40K5372 Keyboard with Integrated Pointing Device - 3m Cable - Black - USB - US English
40K9584 Preferred Pro Keyboard- Full Width - 2m Cable - Black - USB - US English
40K9200 2 Button Optical Wheel Mouse - Black - USB
40K9201 3 Button Optical Mouse - Black - USB
SBB
Number
Option
Number
Feature
Code Description
Rack and NetBAY
- - - Refer to Rack Cabinets and Options section for information concerning
IBM racks and rack-supported devices.
Console Connectivity1
- 17351LX - 1x8 Local Console Manager
188 COG
System x3500 tape options
- 17352LX - 2x16 Local Console Manager
- 17354GX - 4x16 Global Console Manager
Monitors
- 90P0717 - L150p 15in business black flat panel LCD monitor
- 90P0726 - C170 17in (16in viewable image) CRT business black full flat screen
shadow mask monitor
Keyboard and Mouse2
02R3206 25R6968 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black3
- 90P0777 - USB Keyboard Enhanced Performance Keyboard - US English
- 73P3144 - PS/2 Keyboard with UltraNav
13M7124 90P0743 8908 USB Optical Wheel Mouse
- 90P0742 - Optical 3-button ScrollPoint Mouse - 800dpi - PS/2 & USB (Business
Black)
Other Accessories
----
SBB
Number
Option
Number
SBB
Number Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
39M5624 25R0045 5362 VXA 3 Half High Internal
Back-up
2, 3 - 89mm (3.5in)
SL or 133mm
(5.25in) HH
-
Tape Autoloaders
---- - - - -
External Tape Enclosures
- 45591UX - IBM 1U xSeries Tape
Enclosure Rack or Tower
-- - -
- 45594UX - IBM 4U Rackmount SCSI Tape
Drive Enclosure
-- - -
External Tape Libraries
---- - - - -
SBB
Number
Option
Number
Feature
Code Description
Chapter 14. System x3500 189
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
- 59P6736 - 160/320GB SDLT Tape Drive - Ultra2
(16-bit)
133mm
(5.25in)
FH
45594UX
- 59P6744 - 200/400GB LTO Full-High
Tape Drive
- Ultra2
(16-bit)
133mm
(5.25in)
FH
45594UX
- 25R0012 - 400/800GB LTO Generation 3
SCSI Tape Drive
- Ultra160 133mm
(5.25in)
FH
4559FHX
45594UX
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape
Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Enclosures
- 45594UX - 4U Rackmount SCSI Tape
Enclosure
- - 4U Rack -
- 4559FHX - Full-High Tape Enclosure - Ultra160
(16-bit)
Desktop
or Rack
Shelf
(4.41in
tall)
-
- 45594UX - 4U Rackmount Tape Enclosure - Ultra2
(16-bit)
4U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2 (16-
bit)
5U Rack -
190 COG
© Copyright IBM Corp. 2003, 2006 191
Chapter 15. System x3550
Table 35. System x3550 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
7978-
G5Y
3.00/667 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
G6Y
3.00/667 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
F
-Dual
1Gb
SATA Simple-
swap
0GB/
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
45Y
3.73/ 1066FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
4SY
3.73/ 1066 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
293.6GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
7978-
21Y
1.60/1066 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
22Y
1.60/1066 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
F
-Dual
1Gb
SATA Simple-
swap
0GB /
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
31Y
1.86/1066 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
32Y
1.86/1066
FSB 2x2MB L2
Cache Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
F
-Dual
1Gb
SATA Simple-
swap
0GB /
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
3AY
1.86/1066 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
293.6GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
192 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7978-71Y is 7978-71U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
7978-
41Y
2.00/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB/
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
42Y
2.00/1333
FSB 2x2MB L2
Cache Dual Core
1
/
2
1GB
/
16GB
Rack
(1U)
1
/
2
P
F
-Dual
1Gb
SATA Simple-
swap
0GB /
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
4AY
2.00/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Simple-
swap
0GB/
500GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
7978-
51Y
2.33/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
5AY
2.33/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
293.6GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
7978-
61Y
2.66/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
6AY
2.66/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
293.6GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
7978-
71Y
3.00/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
600GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
3
/
3
2
/
2
7978-
7AY
3.00/1333 FSB
2x2MB L2 Cache
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
2
P
H
F
-Dual
1Gb
SAS Hot-
Swap
0GB /
293.6GB
CD-RW/DVD
Combo V Ultrabay
Enhanced
5
/
5
2
/
2
Table 35. System x3550 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 15. System x3550 193
System x3550 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Initial Processor1
SMP
Support
32R2790 25R8924 0643 Xeon Processor 5080 3.73GHz 1066MHz FSB 2x2MB L2 Cache Dual Core
Processor
-
32R2793 25R8921 0646 Xeon Processor 5050 3.00GHz 667MHz FSB 2x2MB L2 Cache Dual Core
Processor
-
42C4213 40K1242 1305 Dual-Core Intel Xeon Processor 5160 (3.0GHz 2x2MB L2 Cache Dual-Core
Xeon Processor)
-
42C4215 40K1241 1306 Dual-Core Intel Xeon Processor 5150 (2.66GHz 2x2MB L2 Cache Dual-
Core Xeon Processor)
-
42C4217 40K1240 1307 Dual-Core Intel Xeon Processor 5140 (2.33GHz 2x2MB L2 Cache Dual-
Core Xeon Processor)
-
42C4219 40K1239 1308 Dual-Core Intel Xeon Processor 5130 (2.0GHz 2x2MB L2 Cache Dual-Core
Xeon Processor)
-
42C4221 40K1238 1309 Dual-Core Intel Xeon Processor 5120 (1.86GHz 2x2MB L2 Cache Dual-
Core Xeon Processor)
-
42C4223 40K1237 1310 Dual-Core Intel Xeon Processor 5110 (1.60GHz 2x2MB L2 Cache Dual-
Core Xeon Processor)
-
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 13N0694 0346 3.16GHz 667MHz 1M L2 Cache 1RY, E5Y
13M7423 13N0695 0347 3.66GHz 667MHz 1M L2 Cache 2RY, E2Y, E1Y,
E5Y, E7Y
31R3775 - 0651 Intel Xeon Processor 7020 3RY
31R3777 - 0652 Intel Xeon Processor 7040 4RY
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 13N0694 0346 3.16GHz 667MHz 1M L2 Cache 1RY, E5Y
13M7423 13N0695 0347 3.66GHz 667MHz 1M L2 Cache 2RY, E2Y, E1Y,
E5Y, E7Y
31R3775 - 0651 Intel Xeon Processor 7020 3RY
31R3777 - 0652 Intel Xeon Processor 7040 4RY
194 COG
System x3550 memory options
SBB
Number
Option
Number
Feature
Code Memory Description
Memory DIMMs
39M5780 - 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 - 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 - 0544 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5795 - 0556 4GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
- 39M5782 - 1GB (2x512MB DIMM) PC2-5300 ECC DDR2 FBDIMM Kit
- 39M5785 - 2GB (2x1GB DIMM) PC2-5300 ECC DDR2 FBDIMM Kit
- 39M5791 - 4GB (2x2GB DIMM) PC2-5300 ECC DDR2 FBDIMM Kit
- 39M5797 - 8GB (2x4GB DIMM) PC2-5300 ECC DDR2 FBDIMM Kit
SBB
Number
Option
Number Feature code Memory Description1, 2
Memory Cards
13M7285 13M7409 4219 4-DIMM DDR2 MEMORY CARD3
Memory DIMMs
73P2873 0503 512MB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2874 0504 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2866 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
73P2875 0512 2GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
73P2867 4GB (2x2GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
30R5147 0535 4GB PC2-3200R DDR2 CL3 ECC SDRAM RDIMM
30R5145 8 GB (2x4 GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM4
Note: To help optimize performance, use 2 memory cards and at least 8 DIMMs.
Chapter 15. System x3550 195
Figure 33. x3550 system board
196 COG
System x3550 hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SATA Hot-Swap HDDs1
39M4519 39M4518 5299 80GB Hot-Swap SATA HDD SL 1, 2 2
39M4523 39M4522 5150 160GB Hot-Swap SATA HDD SL 1, 2 2
39M4527 39M4526 5151 250GB Hot-Swap SATA HDD SL 1, 2 2
SATA Simple-Swap HDDs
39M4501 39M4500 5290 80GB 7200 RPM 3.5" Simple-Swap SATA HDD SATA 1, 2 2
39M4505 39M4504 5291 160GB 7200 RPM 3.5" Simple-Swap SATA HDD SATA 1, 2 2
39M4509 39M4508 5292 250GB 7200 RPM 3.5" Simple-Swap SATA HDD SATA 1, 2 2
SAS Hot-Swap HDDs1
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD SL 1, 2 2
40K1083 40K1051 5158 36GB 10K 2.5" SAS Hot-Swap HDD SFF 1, 2 4
40K1084 40K1052 5159 73GB 10K 2.5" SAS Hot-Swap HDD SFF 1, 2 4
Optical Devices
32R2784 39R7508 4144 Thinkpad 24x/24x CD-RW/DVD Combo V
Ultrabay Enhanced
-- -
32R2899 32R2899 4141 CDROM Ultrabay Enhanced Drive - - -
32R2901 32R2901 4143 Multi-Burner Ultrabay Enhanced Drive - - -
External Storage Expansion Units4
Form
Factor
- 17241xx - IBM TotalStorage DS4100 Midrange Disk
System (all models)
3U
- 17421xx - IBM TotalStorage DS4400 Midrange Disk
System (all models)
3U
- 17429xx - IBM TotalStorage DS4500 Midrange Disk
System (all models)
4U
- 1750-511 - IBM TotalStorage DS6800 1750 model 511 3U
- 2107-921 - IBM TotalStorage DS8100 2107 model 921 3U
- 2107-922/
9A2
- IBM TotalStorage DS8300 2107 model 922/9A2 3U
- 5198-001 - IBM TotalStorage Enterprise NAS Gateway 500 4U
Chapter 15. System x3550 197
Notes:
1. Hot-Swap SAS/SATA HDDs are installed in the order of Bay 11 as standard then Bay 10, 9, 8,7,6,5,4..
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
SAS HDDs
26K5658 26K5654 5241 36GB 10K 2.5" SAS HDD SFF 1 ... 6 6
26K5659 26K5655 5242 73GB 10K 2.5" SAS HDD SFF 1 ... 6 6
Optical Devices2
26K9996 39R7508 4114 Ultrabay Enhanced DVD-ROM/CD-RW
Combo Drive
SFF 7 1
26K9995 - 4113 Ultralight DVD-ROM Ultrabay Enhanced SFF 7 1
26K9994 - 4112 Ultrabay Enhanced CD-ROM Drive SFF 7 1
25R7477 - 4111 Ultrabay Enhanced Multiburner Drive SFF 7 1
External Storage Expansion Units Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack
(3U)
- 172260U - DS4300 Midrange Disk (60U) Rack
(3U)
- 17226LU - DS4300 Midrange Disk (6LU) Rack
(3U)
- 17401xx - TotalStorage DS4000 EXP700 Expansion Unit
(all models)
-
- 17101xx - TotalStorage DS4000 EXP100 Storage
Expansion Unit (all models)
-
Bay Form Factor Height Front Access Usage
1 [3.5in SAS or SATA HDD Models] or [2.5in SAS HDD Models] SSL/SFF Y HDD
2 [3.5in SAS or SATA HDD Models] or [2.5in SAS HDD Models] SSL/SFF Y HDD
3 2.5in SAS HDD Models SFF Y HDD
4 2.5in SAS HDD Models SFF Y HDD
5 DVD-ROM or CD-ROM SL Y CD
198 COG
System x3550 I/O options
Notes:
1. The ServeRAID 8k SAS Controller comes standard and provides Raid 0, 1 and 10.
2. A PCI-X Riser Card must be selected when a PCI-X adapter is selected.
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
25R8077 25R8064 1670 ServeRAID 8k SAS Controller1-- - 1
Networking
39Y6071 39Y6066 1484 NetXtreme II 1000 Express Ethernet
Adapter
-- - -
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server
Adapter by Intel
-- - -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
2Y
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
Half 64-bit/
133MHz
2Y
39Y6101 39Y6098 1486 NetXtreme 1000 Express G Ethernet
Adapter2
Half PCI E 1X 1, 2 Y
39Y6071 39Y6066 1485 NetXtreme II 1000 Express G
Ethernet Adapter2
Half PCI E 1X 1, 2 Y
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet
Adapter
Half 64-bit/
133MHz
2Y
39Y6091 39Y6088 1487 NetXtreme 1000 S + Ethernet
Adapter
Half 64-bit/
133MHz
2Y
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port
Ethernet Adapter
Half 64-bit/
133MHz
2Y
39Y6108 39Y6105 1488 PRO/1000 GT Server Adapter by
Intel
Half 64-bit/
133MHz
2Y
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
2Y
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
2Y
System Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half - - -
Other I/O
32R2798 32R2816 4288 PCI-X riser card for 1U Systems2-- - -
Chapter 15. System x3550 199
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers
02R0996 02R0988 1653 ServeRAID-6M Controller
(256MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
02R0995 32P0033 1653 ServeRAID-6M Controller
(128MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
13N2232 13N2227 1664 ServeRAID 8i-Controller Half 64-bit/
133MHz
Dedicated
Slot
-
13N2252 13N2249 1656 Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1 ... 6 -
External Disk Systems and
Options
24P0963 24P0960 1650 DS400 Host Bus Adapter Half 64-bit/
133MHz
1 ... 6 -
- 17001RS - TotalStorage DS400 - Single
Controller
-- - -
- 17002RD - TotalStorage DS400 - Dual
Controller
-- - -
- 17012RD - TotalStorage DS300 - Dual
Controller
-- - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17226XX - TotalStorage DS4300 Midrange
Disk Systems (all models)
-- - -
- 17401xx - TotalStorage DS4000 EXP700
Expansion Unit (all models)
-- - -
- 17101xx - TotalStorage DS4000 EXP100
Storage Expansion Unit (all
models)
-- - -
- 17421xx - TotalStorage DS4400 Midrange
Disk System (all models)
-- - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 17241XX - TotalStorage DS4100 Midrange
Disk System (all models)
-- - -
- 24P82XX - TotalStorage DS4300 Model 60U
with Turbo
-- - -
- 17429XX - TotalStorage DS4500 Midrange
Disk System (all models)
-- - -
- 174290X - DS4500 Midrange Disk System - - - -
- 17011RL - TotalStorage DS300 - Single
Controller LC
-- - -
- 17011RS - TotalStorage DS300 - Single
Controller
-- - -
200 COG
System x3550 power and accessories
- 2005H08 - TotalStorage Fibre Channel
Switch H08
-- - -
- 2005H16 - TotalStorage Fibre Channel
Switch H16
-- - -
- 2006L10 - TotalStorage Storage Switch - - - -
- 2034212 - McData 4300 Fabric Switch (12-
port)
-- - -
Networking
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 X
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber
Ethernet Adapter 23
Half 64-bit/
133MHz
1 ... 6 -
73P4105 73P4101 1510 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
73P4205 73P4201 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
- 30R5001 - 10 Gb Ethernet Sr Server
Adapter
Half 64-bit/
266MHz
--
Systems Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
-- - -
Slot Type Bus Voltage (V) Frequency
MHz Data Path Active PCI Slot Length
PCI Slot 1 PCI-E - - x8 - - HL / FH
PCI Slot 2 PCI-X or PCI-E A - 133 64 - HL / FH
SBB
Number
Option
Number
Feature
Code Description
Power1
32R2810 32R2815 1964 670w Power Supply2
Power Distribution Units2
- 39Y8941 - DPI 32A Single Phase C13 Enterprise PDU w/o line cord
- 26K4245 - DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 39Y8950 - DPI 32A Three Phase C19 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 39Y8948 - DPI 60A Single Phase C19 Enterprise PDU w/o line cord
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Chapter 15. System x3550 201
Notes:
1. System x3500 ships with a single 670w hot-swap capable power supply, a rack power cable and line cord.
A second hot-swap power supply is optional for redundancy.
2. The power supply ships with a single 2.8m rack power Y-cable which replaces the system’s standard
power cable. When used in conjunction with multiple 7978s, the Y-cable is designed to be split between
7978s. Therefore, the number of PDU outlets used is reduced and a certain level of redundancy is
provided.
- 39Y8923 - DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) fixed line cord
- 26K4243 - DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4257 - DPI 63A Single Phase C19 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 39Y8905 - DPI NEMA Rack PDU
- 39Y8951 - DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
- 39Y8938 - 30amp/125V Front-end PDU with NEMA L5-30P connector
- 39Y8939 - 30amp/250V Front-end PDU with NEMA L6-30P connector
- 39Y8999 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 39Y8935 - 32amp/250V Front-end PDU with IEC 309 32A 2P+Gnd connector
- 39Y9000 - 60A/208V 3P w/IEC309 3P+Gnd Conn
- 39Y8940 - 60amp/250V Front-end PDU with IEC 309 60A 2P+N+Gnd connector
Uninterruptible Power Supply (UPS)2
- 21304RX - IBM UPS 10000XHV
- 2130R6X - IBM UPS 1500T HV
- 39Y8857 - IBM UPS 3U Online Battery Pack
- 32P1692 - IBM UPS Extend Run Battery Pack
- 2130R31 - IBM UPS3000XHV 200-240V (US HV cord)
Option
Number Description
Rack and NetBAY
93072RX IBM 25U Standard Rack
93074RX IBM 42U Standard Rack
93074XX IBM 42U Standard Rack Extension
141042X IBM Linux Cluster Rack
93061RX NetBAY11 Standard Rack Cabinet
93084XX NetBAY42 Enterprise Expansion Rack Cabinet (EX)
93084RX NetBAY42 Enterprise Rack Cabinet
Rack Console Connectivity
17352LX IBM 2x16 Local Console Manager
17351GX IBM 2x8 Local Console Manager
17351LX IBM 1x8 Local Console Manager
SBB
Number
Option
Number
Feature
Code Description
202 COG
17352GX IBM Global 2x16 Console Manager
17354GX IBM Global 4x16 Console Manager
17231RX IBM 1U 17" Flat Panel Console Kit w/ Optical Drive Bay
39M2897 IBM Long KVM Conversion Option
39M2896 IBM Short KVM Conversion Option
39M2895 IBM USB Conversion Option
39M2894 IBM Virtual Media Conversion Option
Monitors
4938-7xx IBM C117 17" (15.9inch VIS) FST CRT
Keyboard and Mouse
40K9200 IBM 2 Button Optical Wheel Mouse - Black - USB
40K9201 IBM 3 Button Optical Mouse - Black - USB
40K9584 IBM Preferred Pro Keyboard- Full Width - 2m Cable - Black - USB - US English
42C0030 IBM Keyboard with Integrated Pointing Device - 3m Cable - Black - PS/2 - US English
40K5372 IBM Keyboard with Integrated Pointing Device - 3m Cable - Black - USB - US English
SBB
Number
Option
Number
Feature
Code Description
Rack and NetBAY
- - - Refer to Rack Cabinets and Options section for information concerning
IBM racks and rack-supported devices.
Console Connectivity1
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
- 17354GX - 4x16 Global Console Manager
Monitors
- 90P0717 - L150p 15in business black flat panel LCD monitor
- 90P0726 - C170 17in (16in viewable image) CRT business black full flat screen
shadow mask monitor
Keyboard and Mouse2
02R3206 25R6968 8800 Preferred Pro Full-size Keyboard - 104 Keys, business black3
- 90P0777 - USB Keyboard Enhanced Performance Keyboard - US English
- 73P3144 - PS/2 Keyboard with UltraNav
13M7124 90P0743 8908 USB Optical Wheel Mouse
- 90P0742 - Optical 3-button ScrollPoint Mouse - 800dpi - PS/2 & USB (Business
Black)
Other Accessories
----
Option
Number Description
Chapter 15. System x3550 203
System x3550 tape options
Option
Number Description
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Enclosure
Tape Autoloaders
87691VX 1U VXA-320 Tape Autoloader - Ultra160
SCSI LVD
1U -
33622LX IBM LTO3 2U Autoloader - - 2U -
External Tape Libraries
45591UX NetBay 1U xSeries Tape Enclosure - Ultra160
(16-bit)
1U Rack -
45594UX 4U Rackmount SCSI Tape Enclosure - Ultra2 (
16-bit)
4U Rack -
4559HHX Half-High Tape Enclosure - Ultra160
(16-bit)
Desktop or
Rack Shelf
(2.52in tall)
-
87651UX IBM 1U Rackmount Tape Enclosure - - 1U Rack -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Storage Controllers
02R0996 02R0988 1653 ServeRAID-6M Controller
(256MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
02R0995 32P0033 1653 ServeRAID-6M Controller
(128MB Cache)2
Full 64-bit/
133MHz
1 ... 6 -
13N2232 13N2227 1664 ServeRAID 8i-Controller Half 64-bit/
133MHz
Dedicated
Slot
-
13N2252 13N2249 1656 Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1 ... 6 -
External Disk Systems and
Options
24P0963 24P0960 1650 DS400 Host Bus Adapter Half 64-bit/
133MHz
1 ... 6 -
- 17001RS - TotalStorage DS400 - Single
Controller
-- - -
- 17002RD - TotalStorage DS400 - Dual
Controller
-- - -
- 17012RD - TotalStorage DS300 - Dual
Controller
-- - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
204 COG
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17226XX - TotalStorage DS4300 Midrange
Disk Systems (all models)
-- - -
- 17401xx - TotalStorage DS4000 EXP700
Expansion Unit (all models)
-- - -
- 17101xx - TotalStorage DS4000 EXP100
Storage Expansion Unit (all
models)
-- - -
- 17421xx - TotalStorage DS4400 Midrange
Disk System (all models)
-- - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 17241XX - TotalStorage DS4100 Midrange
Disk System (all models)
-- - -
- 24P82XX - TotalStorage DS4300 Model 60U
with Turbo
-- - -
- 17429XX - TotalStorage DS4500 Midrange
Disk System (all models)
-- - -
- 174290X - DS4500 Midrange Disk System - - - -
- 17011RL - TotalStorage DS300 - Single
Controller LC
-- - -
- 17011RS - TotalStorage DS300 - Single
Controller
-- - -
- 2005H08 - TotalStorage Fibre Channel
Switch H08
-- - -
- 2005H16 - TotalStorage Fibre Channel
Switch H16
-- - -
- 2006L10 - TotalStorage Storage Switch - - - -
- 2034212 - McData 4300 Fabric Switch (12-
port)
-- - -
Networking
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 X
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber
Ethernet Adapter 23
Half 64-bit/
133MHz
1 ... 6 -
73P4105 73P4101 1510 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
73P4205 73P4201 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
- 30R5001 - 10 Gb Ethernet Sr Server
Adapter
Half 64-bit/
266MHz
--
Systems Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
-- - -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable1
Chapter 15. System x3550 205
206 COG
© Copyright IBM Corp. 2003, 2006 207
Chapter 16. System x3650
Table 36. System x3650 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
7979-G5Y 3.0/667
95W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB CD-RW/
DVD Combo
6
/
6
4
/
4
7979-GSY 3.0/667
95W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB CD-RW/
DVD Combo
8
/
8
4
/
4
7979-H5Y 3.2/1066
95W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB CD-RW/
DVD Combo
6
/
6
4
/
4
7979-HSY 3.2/1066
95W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB CD-RW/
DVD Combo
8
/
8
4
/
4
7979-21Y 1.60/1066
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
7979-2AY 1.60/1066
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
7979-31Y 1.86/1066
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
7979-3AY 1.86/1066
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
7979-41Y 2.0/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
208 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7979-12Y is 7979-12U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
7979-4AY 2.0/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
7979-51Y 2.33/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
7979-5AY 2.33/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
7979-61Y 2.66/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
7979-6AY 2.66/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
7979-71Y 3.0/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/1800GB
(3.5")
CD-RW/
DVD Combo
6
/
6
4
/
4
7979-7AY 3.0/1333
80W/4ML2
Dual Core
1
/
2
1GB/
48GB
Rack
(2U)
1
/
2
P
H
F
YDual
1GB
SAS Hot-Swap 0/584GB
(2.5")
CD-RW/
DVD Combo
8
/
8
4
/
4
Table 36. System x3650 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz)-Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 16. System x3650 209
System x3650 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
SBB
Number
Option
Number
Feature
Code Processor Upgrades1
SMP
Support
40K0020 25R8927 0684 Dual-Core Intel Xeon Processor 5063 - 3.2GHz 2x2MB L2 Cache H5Y, HSY
40K0022 25R8926 0686 Dual-Core Intel Xeon Processor 5050 - 3.0GHz 2x2MB L2 Cache G5Y, GSY,
41Y8978 40K1237 1322 Dual-Core Intel Xeon Processor 5110 - 1.60GHz 2x2MB L2 Cache 21Y, 2AY
41Y8979 40K1238 1323 Dual-Core Intel Xeon Processor 5120 - 1.86GHz 2x2MB L2 Cache 31Y, 3AY
41Y8980 40K1239 1324 Dual-Core Intel Xeon Processor 5130 - 2.0GHz 2x2MB L2 Cache 41Y, 4AY
41Y8981 40K1240 1325 Dual-Core Intel Xeon Processor 5140 - 2.33GHz 2x2MB L2 Cache 51Y, 5AY
41Y8982 40K1241 1326 Dual-Core Intel Xeon Processor 5150 - 2.66GHz 2x2MB L2 Cache 61Y, 6AY
41Y8983 40K1242 1327 Dual-Core Intel Xeon Processor 5160 - 3.0GHz 2x2MB L2 Cache 71Y, 7AY
40K0021 25R8927 0475 Additional Dual-Core Intel Xeon Processor 5063 - 3.2GHz 2x2M L2
Cache Dual-Core Xeon Processor)
H5Y, HSY
40K0023 25R8926 0473 Additional Dual-Core Intel Xeon Processor 5050 (3.0GHz 2x2M L2
Cache Dual-Core Xeon Processor)
G5Y, GSY,
41Y4263 40K1231 1380 Additional Dual-Core Intel Xeon Processor 5110 - 1.60GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
21Y, 2AY
41Y4264 40K1232 1381 Additional Dual-Core Intel Xeon Processor 5120 - 1.86GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
31Y, 3AY
41Y4265 40K1233 1382 Additional Dual-Core Intel Xeon Processor 5130 - 2.0GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
41Y, 4AY
41Y4266 40K1234 1383 Additional Dual-Core Intel Xeon Processor 5140 - 2.33GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
51Y, 5AY
41Y4267 40K1235 1384 Additional Dual-Core Intel Xeon Processor 5150 - 2.66GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
61Y, 6AY
41Y4268 40K1236 1385 Additional Dual-Core Intel Xeon Processor 5160 - 3.0GHz 2x2MB L2
Cache Dual-Core Xeon Processor)
71Y, 7AY
210 COG
System x3650 memory options
Notes:
1. A minimum of one DIMM is required. However, for performance, a minimum of two identical DIMMs
should be populated. Pairs must always match.
Figure 34. x3650 system board
SBB
Number
Option
Number
Feature
Code Memory Description
Memory DIMMs 1
39M5780 - 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5783 - 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
39M5789 - 0545 2 GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
- 39M5782 - 1 GB (2 x 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
- 39M5785 - 2GB kit (2 x1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
- 39M5791 - 4GB kit (2 x 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz)
Chapter 16. System x3650 211
System x3650 hard disk drive (HDD) and optical storage options
System x3650 I/O options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SAS Hot-Swap HDDs1
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1073 40K1041 5156 300GB 10K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1074 40K1042 5160 36GB 15K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD 3.5" 1..6 6
40K1083 40K1051 5158 36GB 10K 2.5" SAS Hot-Swap HDD 2.5" 1..8 8
40K1084 40K1052 5159 73GB 10K 2.5" SAS Hot-Swap HDD 2.5" 1..8 8
Optical Devices
---- -- -
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
25R8077 25R8064 1670 IBM ServeRAID 8k SAS Controller - - - -
25R8080 25R8065 1671 IBM ServeRAID 8k-l SAS Controller1-- - -
Networking
39Y6071 39Y6066 1484 NetXtreme II 1000 Express Ethernet
Adapter
-- - -
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server
Adapter by Intel
-- - -
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter - - - -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter - - - -
39Y6071 39Y6066 1485 NetXtreme II 1000 Express G Ethernet
Adapter
-- - -
39Y6082 39Y6079 1478 NetXtreme 1000 T + Ethernet
Adapter
-- - -
39Y6091 39Y6088 1487 NetXtreme 1000 S + Ethernet Adapter - - - -
39Y6096 39Y6093 1489 NetXtreme 1000 T + Dual Port
Ethernet Adapter
-- - -
212 COG
Notes:
1. A PCI-X riser is required when installing a PCI-X adapter in either slot 1 or slot 2.
2. A PCI-E riser is required when installing a PCI-Express adapter in either slot 1 or slot 2.
Notes:
1. Slots 1 and 2 required a riser compatible to the adapter being installed.
2. Slots 3 and 4 are low-profile (2U) PCI-E slots that do not require a riser.
System x3650 power and accessories
39Y6101 39Y6098 1486 NetXtreme 1000 Express G Ethernet
Adapter
-- - -
39Y6108 39Y6105 1488 PRO/1000 GT Server Adapter by
Intel
-- - -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
-- - -
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
-- - -
System Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
Half - - -
Other I/O
40K0032 40K1908 4316 PCI/PCI Express Adapter 1-- - -
40K0028 40K1907 4334 PCI Express Card2-- - -
Slot Type Bus Voltage (V) Frequency MHz Data
Path
Active
PCI
Slot
Length
PCI Slot 11PCI / PCI-X / PCI-E Full-size,
Full-length
1A 3V 133MHz 64-bit No Full
PCI Slot 21PCI / PCI-X / PCI-E Full-size,
Half-length
24 3V 133MHz 64-bit No Half
PCI Slot 32PCI-Express (low profile) 6 - - - No Half
PCI Slot 42PCI-Express (low profile) 16 - - - No Half
SBB
Number
Option
Number
Option
Number Description
Power1
40K0029 40K1905 1968 x3650 Redundant Power Supply 835 W
Power Distribution Units
- 39Y8938 - 30amp/125V Front-end PDU with NEMA L5-30P connector
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Chapter 16. System x3650 213
Notes:
1. System x3650 ships with a single power supply. A second hot-swap power supply is optional for
redundancy.
- 39Y8999 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 39Y9000 - 60A/208V 3P w/IEC309 3P+Gnd Conn
- 39Y8941 - DPI 32A Single Phase C13 Enterprise PDU w/o line cord
- 39Y8948 - DPI 60A Single Phase C19 Enterprise PDU w/o line cord
- 39Y8923 - DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) fixed line cord
- 39Y8905 - DPI NEMA Rack PDU
- 39Y8951 - DPI Universal Rack PDU w/ Nema L5-20P & L6-20P (US cord)
Uninterruptible Power Supply (UPS)2
- 21304RX - IBM UPS 10000XHV
- 2130R3X - IBM UPS 1000T LV
- 39Y8857 - IBM UPS 3U Online Battery Pack
- 21303RX - IBM UPS 7500XHV
- 32P1692 - IBM UPS Extend Run Battery Pack
- 2130R31 - IBM UPS3000XHV 200-240V (US HV cord)
Option
Number Description
Rack and NetBAY
93072RX IBM 25U Standard Rack
93074RX IBM 42U Standard Rack
93074XX IBM 42U Standard Rack Extension
14104RX IBM Linux Cluster Rack
93061RX NetBAY11 Standard Rack Cabinet
93084RX NetBAY42 Enterprise Rack Cabinet
93084XX NetBAY42 Enterprise Expansion Rack Cabinet (EX)
Rack/Tower Conversion Kits
17233RX IBM 1U 15" Flat Panel Console Kit
17231RX IBM 1U 17" Flat Panel Console Kit w/ Optical Drive Bay
39M2895 IBM USB Conversion Option
39M2894 IBM Virtual Media Conversion Option
17235RX Rack Keyboard Tray
17232UX IBM 2U Flat Panel Monitor Console Kit with US keyboard
17232NX IBM 2U Flat Panel Monitor Console Kit without keyboard
17231UX 1U 17" Flat Panel Monitor Console Kit w/ US keyboard
Rack Console Connectivity
SBB
Number
Option
Number
Option
Number Description
214 COG
System x3650 tape options
17352LX IBM 2x16 Local Console Manager
17351GX IBM 2x8 Local Console Manager
17351LX IBM 1x8 Local Console Manager
31R3132 IBM 3M Console Switch Cable (USB)
39M2894 IBM Virtual Media Conversion Option
39M2895 IBM USB Conversion Option
17352LX IBM 2x16 Local Console Manager
17354GX IBM Global 4x16 Console Manager
1735L04 NetBAY Local Console Manager
1735R16 NetBAY Remote Console Manager
Monitors
--
Keyboard and Mouse
--
SBB
Number
Part
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Tape Drives
39M5664 39M5659 5385 DLT V4 Tape Drive - - - -
- 45591UX - 1U Rack Mount External Back -Up - - - -
External Tape Enclosures
39R6615 17331RU - IBM EXP400 Storage Expansion Unit - - - -
- 0034B0X - IBM NetBAY Tape Enclosure (Rack
Mount)
-- - -
- 4559FHX - IBM 2U Full High Stand Alone SCSI
Tape Drive Enclosure
-- - -
- 8767HHX - Half High Tape Drive Enclosure - - - -
Associated Options
40K6522 41Y8976 4335 Tape Enablement Kit - - - -
Option
Number Description
© Copyright IBM Corp. 2003, 2006 215
Chapter 17. System x3650 T
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7980-52Y is 7980-52U.
See the product specific Official IBM announcement letter for other country-specific GAV model
numbers. GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the
last character with a country-specific designator.
2. This model includes a 600 W DC Power Supply.
3. This model includes a 600 W AC Power Supply.
Table 37. System x3650 T At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
7980-
52Y2
Dual 3.2/800
2MB L2
2
/
2
2GB/
12GB
2U 2
/
2
P
H
S
YDual
Gbit
U320 Hot-
Swap
2X146GB/
292 GB
CD RW/
DVD 24x
2
/
0
6
/
6
7980-
54Y3
Dual 3.2/800
2MB L2
2
/
2
2GB/
12GB
2U 2
/
2
P
H
S
YDual
Gbit
U320 Hot-
Swap
2X146GB/
292 GB
CD RW/
DVD 24x
2
/
0
6
/
6
7980-
55Y2
Dual 3.2/800
2MB L2
2
/
2
2GB/
12GB
2U 2
/
2
P
H
S
YDual
Gbit
U320 Hot-
Swap
0 GB/
292 GB
CD RW/
DVD 24x
2
/
2
6
/
6
7980-
53Y3
Dual 3.2/800
2MB L2
2
/
2
2GB/
12GB
2U 2
/
2
P
H
S
YDual
Gbit
U320 Hot-
Swap
0 GB/
292 GB
CD RW/
DVD 24x
2
/
2
6
/
6
216 COG
System x3650 T processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
System x3650 T memory options
Notes:
1. A minimum of one DIMM is required. However, for performance, a minimum of two identical DIMMs
should be populated. Pairs must always match.
System x3650 T hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Processor Upgrades1
SMP
Support
31R3208 25R8876 0400 3.2GHz 800MHz 2MB L2 cache Xeon
Processor
-
13M8286 25R8903 0371 Additional 3.2GHz/800MHz/2MB L2
Cache
-
32R0423 25R8905 0307 3.2GHz/800MHz/2M L2 -
SBB
Number
Option
Number
Feature
Code Memory Description
Memory DIMMs 1
0001938 39M5809 1938 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
SAS Hot-Swap HDDs1
40K1055 40K1023 5165 73.4GB 10Krpm Ultra320 SCSI Hot-Swap HDD - - -
Chapter 17. System x3650 T 217
System x3650 T I/O options
SBB
Number
Part
Number Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
--- - - - -
External Disk Systems and Options
- 17226xx TotalStorage DS4300 Midrange Disk Systems (all
models)
-- - -
- 24P82xx TotalStorage DS4300 Model 60U with Turbo - - - -
Networking
--- - - - -
218 COG
© Copyright IBM Corp. 2003, 2006 219
Chapter 18. System x3800 and xSeries 260
Table 38. System x3800 and xSeries 260 At-A-Glance
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller3
Internal HDD Interface
Internal HDD Storage (Std/Max)4
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8865
-13Y
x3800 3.16 GHz
667MHz 1M L2
Cache Xeon
Processor
1
/
4
1GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-22Y
x3800 3.6 GHz 667
MHz L2 Cache
Xeon Processor
MP
1
/
4
2GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-32Y
x3800 Intel Xeon
Processor 7020
2.67/667
2x1MB
L2 Cache
Dual Core
1
/
4
2GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-42Y
x3800 Intel Xeon
Processor 7020
2.67/667
2x1MB
L2 Cache
Dual Core
1
/
4
2GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-2TY
x3800 3.6 GHz 667
MHz L2 Cache
Xeon Processor
MP
1
/
4
2GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-3TY
x3800 Intel Xeon
Processor 7020
2.67/667
2x1MB
L2 Cache
Dual Core
1
/
4
2GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
220 COG
8865
-4TY
x3800 Intel Xeon
Processor 7020
2.67/667
2x1MB
L2 Cache
Dual Core
1
/
4
2GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-1TY
x3800 3.16 GHz
667MHz 1M L2
Cache Xeon
Processor
1
/
4
1GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X
DVD-ROM
6
/
12
16
/
14
8865
-11Y
x260 3.16GHz
667MHz -
1M L2 Cache
1
/
4
2GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-1RY
x260 3.16GHz
667MHz -
1M L2 Cache
1
/
4
2GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-21Y
x260 3.66GHz
667MHz -
1M L2 Cache
1
/
4
2GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-2RY
x260 3.66GHz
667MHz -
1M L2 Cache
1
/
4
2GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-12Y
x260 3.16GHz
667MHz -
1M L2 Cache
1
/
4
1GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-1SY
x260 3.16GHz
667MHz -
1M L2 Cache
1
/
4
1GB/
32GB
Rack
(7U)
2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-E1Y
x260 3.66GHz
667MHz -
1M L2 Cache
2
/
4
4GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
Table 38. System x3800 and xSeries 260 At-A-Glance (continued)
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller3
Internal HDD Interface
Internal HDD Storage (Std/Max)4
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 18. System x3800 and xSeries 260 221
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8885-1RY is 8865-1RU. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. System memory may be expanded to 64 GB by removing the standard DIMMs and adding 3 memory
expansion card options and a 4 GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM in each of the four
DIMM sockets, when 4GB DIMMs become available.
3. If RAID is required on the onboard SAS controller, the ServeRAID 8i SAS RAID Controller is required to
support RAID.
4. Maximum capacity is based on twelve 300GB 3.5" SAS HDDs.
5. This model comes standard with the ServeRAID 8i SAS RAID Controller and Remote Supervisor
Adapter II installed.
8865
-E2Y
x260 3.16/667
1M L2 Cache
1
/
4
1GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
48x-20x
CD-ROM
16
/
14
6
/
6
8865
-E3Y5
x3800 3.6/667
1M L2 Cache
Xeon Processor
MP
2
/
4
4GB/
32GB
Tower 3
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X RAM-
Read DVD-
ROM IDE
Drive
6
/
12
16
/
14
8865
-E4Y5
x3800 3.16/667
1M L2 Cache
Xeon Processor
MP
2
/
4
1GB/
32GB
Tower 2
/
3
P
H
F
S
YDual
1GB
SAS Hot-
swap
0GB/
3600GB
16X RAM-
Read DVD-
ROM IDE
Drive
6
/
12
16
/
14
Table 38. System x3800 and xSeries 260 At-A-Glance (continued)
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller3
Internal HDD Interface
Internal HDD Storage (Std/Max)4
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
222 COG
System x3800 and xSeries 260 processor options
Notes:
1. Three additional processors may be installed, providing a maximum of four. All processors must be
identical in type, speed, and cache size. 1, 2, and 4 way configurations are supported.
SBB
Number
Option
Number
Feature
Code Description SMP Support1
13M7421 40K2521 0346 3.16GHz 667MHz 1M L2 Cache, 0M L3 Cache 11Y, 1RY, E4Y,13Y
13M7423 40K2520 0347 3.66GHz 667MHz 1M L2 Cache, 0M L3 Cache 21Y, 2RY, E1Y,12Y, 1SY, E2Y,
22Y, E3Y
31R3775 40K2522 0651 Intel Xeon Processor 7020 2.67GHz 667MHz
2x1MB L2 Cache Dual Core Processor
32Y, 3TY
31R3777 40K2523 0652 Intel Xeon Processor 7040 3.0GHz 667MHz 2x2 MB
L2 Cache Dual Core Processor
42Y, 4TY
Table 39. Additional Processor (for Servers) Dual Processors (for IntelliStations)
SBB
Number
Option
Number
Feature
Code
Description
13M7422 13N0694 0381 Additional 3.16GHz 667MHz 1M L2 Cache, 0M L3 Cache
13M7424 13N0695 0384 Additional 3.66GHz 667MHz 1M L2 Cache, 0M L3 Cache
31R3776 25R8941 0444 Additional Intel Xeon Processor 7020 2.67GHz 667MHz 2x1MB L2 Cache Dual
Core Processor
31R3778 25R8942 0445 Additional Intel Xeon Processor 7040 3.0GHz 667MHz 2x2 MB L2 Cache Dual
Core Processor
Chapter 18. System x3800 and xSeries 260 223
System x3800 and xSeries 260 memory options
Notes:
1. The customer can choose up to a total of (4) four memory cards. One Memory Card is standard in the
base. Four memory DIMMs can be selected for each memory card installed.
2. This option kit includes the components necessary to upgrade systems that currently have single-core
Intel Xeon MP processors installed to support the dual-core Intel Xeon MP processors. Processors are not
included in the kit and must be purchased separately.
SBB
Number
Option
Number
Feature
Code Description
Memory Cards1
39R9502 41Y5000 4338 4-DIMM DDR2 Memory Card
- 41Y5005 - Dual Core X3 Upgrade Kit2
Memory DIMMs
- 30R5145 - 8GB (2x4GB kit) PC2-3200 CL3 ECC DDR2 Chipkill SDRAM RDIMM
- 39M5809 - 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (51
- 39M5812 - 4GB (2x2GB Kit - 8GB Max Memory) PC2-3200 CL3 Double Rank ECC DDR2
SDRAM RDIMM
- 39M5821 - 1GB (2x512MB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (256Mb)
73P2874 73P2866 0504 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
- 73P2867 - 4GB (2x2GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
30R5147 - 0535 4GB PC2-3200R CL3 ECC DDR2 SDRAM RDIMM
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
Note: Min (1) pair, Max (8)pair DIMMs are required in pairs. Memory Cards require 2 DIMMs minimum. Memory
Cards support 4 DIMMs each. Standard: 2 GB depending on server model, expandable to 16 GB. Type: 333
MHz, registered, ECC, PC3200 double data rate (DDR) II, SDRAM. Connectors: Two-way interleaved, four dual
inline memory module (DIMM) connectors per memory card. Maximum: Four memory cards, each card
containing two pairs of single-ranked PC3200 DDRII DIMMS.
224 COG
Figure 35. x3800 and x260 DIMMs
Table 40. Standard Memory Configuration
Model Std. DIMM Configuration
11Y, 1RY, 21Y, 2RY 2 x 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM (73P2874)
E1Y 4 x 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM (73P2874)
12Y, 1SY, E2Y 2 x 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (73P2873)
13Y 2 x 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (39M5819)
22Y, 32Y, 42Y, 2TY, 3TY, 4TY 2 x 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (39M5807)
E3Y 4 x 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM (39M5807)
E4Y 2 x 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (39M5807)
Chapter 18. System x3800 and xSeries 260 225
System x3800 and xSeries 260 hard disk drive (HDD) and optical storage
options
Notes:
1. The optional 6-drive SAS backplane upgrade kit is available to increase the total hot-swap bays to 12 hot-
swap bays.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty1
SAS Hard Drives
40K1071 40K1039 5163 73GB 10K 3.5" SAS Hot-Swap HDD SL 1- 12 12
40K1072 40K1040 5164 146GB 10K 3.5" SAS Hot-Swap HDD SL 1- 12 12
40K1073 40K1041 5165 300GB 10K 3.5" SAS Hot-Swap HDD SL 1- 12 12
40K1074 40K1042 5166 36GB 15K 3.5" SAS Hot-Swap HDD SL 1- 12 12
40K1075 40K1043 5161 73GB 15K 3.5" SAS Hot-Swap HDD SL 1- 12 12
40K1076 40K1044 5162 146GB 15K 3.5" SAS Hot-Swap HDD SL 1- 12 12
Associated Options
41Y4930 41Y5003 4341 3.5" HDD SAS Backplane SL - -
Optical Drives
71P8149 10K3782 4116 IBM 48x-20x CD-ROM Internal IDE Drive
(Black)
-- -
90P4239 22P7042 4107 48x-32x-48x CD-RW Drive - - -
39M6344 32R2905 4139 IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
-- -
- 73P3300 - IBM 48X/32X/48X/16X Max CD-RW/DVD-
ROM Combination Drive
-- -
39M6345 32R2906 4140 IBM Multi-Burner Plus - - -
- 73P3305 - IBM Multi-Burner Plus - - -
39M6343 22P6950 4138 IBM 16X Max RAM-Read Black DVD-ROM
Drive
-- -
226 COG
Figure 36. x3800 and x260 front view
Bay Form Factor Height Front Access Usage
1HSSLYOPEN
2HSSLYOPEN
3HSSLYOPEN
4HSSLYOPEN
5HSSLYOPEN
6HSSLYOPEN
7HSSLYOPEN
8HSSLYOPEN
9HSSLYOPEN
10 HS SL Y OPEN
11 HS SL Y OPEN
12 HS SL Y OPEN
A 133mm (5.25in) HH Y OPEN
B 133mm (5.25in) HH Y OPEN
C 133mm (5.25in) HH Y OPEN
- 89mm (3.5in) SL Y FDD
Chapter 18. System x3800 and xSeries 260 227
System x3800 and xSeries 260 I/O options
Notes:
1. Internal tape drives are only supported with this adapter in slot 1 or 2.
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Storage Controllers
24P0963 24P0960 1650 FAStT FC2-133 Host Bus Adapter Half 64bit/
133MHZ
1-6
39R8730 39R8729 1673 ServeRAID 8i SAS RAID Controller Half 64bit/
133MHZ
Dedicated
slot
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 21- - -
39R8819 39R8815 1685 ServeRAID-6M Ultra320 SCSI Controller
(128MB)
- - -
39R8820 39R8816 1686 ServeRAID-6M Ultra320 SCSI Controller
(256MB)
- - -
Networking
30R5005 30R5001 1566 10 Gb Ethernet Sr Server Adapter Half 64bit/
266MHz
1-6
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server Adapter by
Intel
Half 64bit/
1333MHz
1-6
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server Adapter by
Intel
Half 64bit/
1333MHz
1-6
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64bit/
1333MHz
1-6
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64bit/
1333MHz
1-6
39Y6082 39Y6079 1478 NetXtreme 1000 T Ethernet Adapter 2 Half 64bit/
1333MHz
1-6
32P9296 22P7801 1501 NetXtreme 1000 SX Fiber Ethernet Adapter - - -
32P9298 31P6401 1503 NetXtreme 1000 T Dual Port Ethernet Adapter - - -
31P6305 31P6301 1502 NetXtreme 1000 T Ethernet Adapter (copper) - - -
System Management
39R9504 39Y9566 1606 Remote Supervisor Adapter II Slimline Refresh
1
Half - -
13M7288 73P9341 1603 Remote Supervisor Adapter II Slimline Half - -
228 COG
SLOT Type Bus
Voltage
(V)
Frequency
MHz
Data
Path
Active PCI?
(Hotswap)
Slot
Length
Scan
Sequence
Device
Number
PCI Slot 1 PCI-X
2.0
2 Universal 266 64 Y Full 1 1
PCI Slot 2 PCI-X
2.0
4 Universal 266 64 Y Full 2 1
PCI Slot 3 PCI-X
2.0
6 Universal 266 64 Y Full 3 1
PCI Slot 4 PCI-X
2.0
8 Universal 266 64 Y Full 4 1
PCI Slot 5 PCI-X
2.0
A Universal 266 64 Y Full 5 1
PCI Slot 6 PCI-X
2.0
C Universal 266 64 Y Full 6 1
Adaptec SAS
Razor = 9005/041E
PCI-X 1 Universal 66 64 - - - 2
Broadcom 5704 Dual
Gbit Ethernet Controller
PCI-X 1 Universal 66 32 - - - 1
16MB ATI 7000-M Video
Controller
PCI-X - Universal 33 32 - - - 1
Chapter 18. System x3800 and xSeries 260 229
System x3800 and xSeries 260 power and accessories
Notes:
1. System x3800 and xSeries 260 ship standard with two 775W hot-swap capable power supplies.
SBB
Number
Option
Number
Feature
Code Description
Power1
39R9506 41Y5002 1973 775W Power Supply
Uninterruptible Power Supply
- 32P1692 - IBM UPS Extend Run Battery Pack
- 2130R2X - IBM UPS 750T HV
- 2130R6X - IBM UPS 1500T HV
- 2130R31 - IBM UPS3000XHV 200-240V (US HV cord)
Power Distribution Units
- 73P5844 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 73P5855 - 60A/208V 1P w/IEC309 2P+Gnd Conn
- 73P5847 - 60A/208V 3P w/IEC309 3P+Gnd Conn
- 73P5856 - 63A/320V 1P w/IEC309 P+N+Gnd Conn
- 39Y8905 - DPI NEMA Rack PDU
- 39Y8999 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 39Y9000 - 60A/208V 3P w/IEC309 3P+Gnd Conn
230 COG
Notes:
1. Converts KVM signals for CAT5 cabling for servers with PS/2 KVM ports.
2. Provides hardware needed to convert the tower unit into a 7U-high rack-mounted server.
SBB
Number
Option
Number
Feature
Code Description
Rack Console Connectivity
- 17351LX - 1x8 Local Console Manager
- 17351GX - 2x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
39Y7952 31R3130 3750 3M Console Switch Cable (PS/2)1
- 17352GX - 2x16 Global Console Manager
- 17354GX - 4x16 Global Console Manager
Rack/Tower Conversion Kits
0004347 32R0719 4347 7Ux26D Tower-to-Rack Conversion Kit2
Racks
- 14104RX - IBM 42U Linux Cluster Rack
- 93061RX - NetBAY11 Standard Rack Cabinet
- 93072RX - IBM 25U Standard Rack
- 93074RX - IBM 42U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet
Monitors
- 90P0725 - C170 ThinkVision 17" (VIS: 16.0) CRT business black full flat screen
shadow mask monitor
- 90P0717 - L150p ThinkVision 15" business black flat panel LCD monitor
Keyboard and Mouse
- 73P3144 - IBM PS/2 Keyboard with UltraNav
- 90P0777 - IBM Enhanced Performance Keyboard - USB
- 39M7228 - IBM USB RISC Travel Keyboard with UltraNAV
- 33L3252 - SpaceBall 3D Input Device (Business Black)
Chapter 18. System x3800 and xSeries 260 231
System x3800 and xSeries 260 tape options
Notes:
1. A minimum of 1 FH and a maximum of 2 HH tape drives may be installed in this system.
2. External attachment need one of the 3 External enclosures (4559HHX, 45591UX, or 45594UX).
3. Ships with 25R0047 cable.
4. Can not be used in CTO, no L1 part.
SBB
Number
Option
Number
Featur
e Code Description
Bays
Supported
Storage
Interface
Form
Factor1
Ext Tape
Encl
Tape Drives
39M5623 25R0012 5363 200/ 400GB Full High LTO
Internal Back -up
B/C SCSI FH 133mm
(5.25 in)
-
39M5621 25R0005 5364 200/ 400 GB Half High LTO
Generation 2 Tape Drive
B - C Ultra 160
(16-bit)
HH 133mm
(5.25 in)
-
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape Autoloader - Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape Library - Ultra2
(16-bit)
5U Rack -
External Tape Enclosures
- 4559FHX - IBM 2U Full High Stand Alone
SCSI Tape Drive Enclosure
----
- 45594UX - IBM 4U Rackmount SCSI Tape
Drive Enclosure
- Ultra2
(16-bit)
4U Rack -
- 0034B0X - IBM NetBAY Tape Enclosure
(Rack Mount)
----
Associated Options
33P3127 33P2751 4221 Ultra320 3-Pack HDD Kit - - - -
232 COG
© Copyright IBM Corp. 2003, 2006 233
Chapter 19. System x3850 and xSeries 366
The System x3850 and xSeries 366 is housed in a 3U high, 19in rack-mountable drawer and also provides
three USB ports (one front, two rear), two 9-pin serial ports, keyboard port, mouse port and an integrated ATI
7000-M video controller with 16MB of video memory. A keyboard and mouse is not provided.
Table 41. System x3850 and xSeries 366 At-A-Glance
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz)-Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3, 4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8863-1SY x3850 3.16/667
1MB L2 Cache
Xeon Processor
MP
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-2SY x3850 3.6/667-
1MB L2 Cache
Xeon Processor
MP
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-3SY12 x3850 2.67/667
2MB L2 Cache
Dual Core
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-4SY x3850 Xeon Processor
7040
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-
E8Y9, 10
x3850 3.6G/667
1MB L2 Cache
Xeon Processor
MP
2
/
4
2GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
-7
/
6
234 COG
8863-E9Y x3850 3.16/ 667
1M L2 Cache
0M L3 Cache
1
/
4
2GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
-7
/
6
8863-
EAY9, 10,11,12
x3850 2.67/667
2x1MB L2 Cache
Intel Xeon
Processor 7020
Dual Core
4
/
4
8GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
-7
/
6
8863-1RY x366 3.16/667
1M L2 Cache
0M L3 Cache
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
440GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-2RY x366 3.66/667
1MB L2 Cache
0M L3 Cache
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
440GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-E1Y9x366 3.66/667
1MB L2 Cache
0M L3 Cache
2
/
4
4GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
108GB/
440GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
3
6
/
6
8863-E2Y x366 3.66/667
1M L2 Cache
0M L3 Cache
2
/
4
2GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/43
8GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
3
6
/
6
8863-E5Y x366 3.66/667
1MB L2 Cache
0M L3 Cache
2
/
4
2GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
440GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
3
6
/
6
Table 41. System x3850 and xSeries 366 At-A-Glance
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz)-Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3, 4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
Chapter 19. System x3850 and xSeries 366 235
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8863-1RY is 8863-1RU. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with
the country-specific designator.
2. Intel Xeon MP, 64-bit, up to 3.66GHz and 1MB L2 Cache on a 667MHz dual front side bus architecture.
3. High-speed, two-way interleaved PC2-3200 SDRAM. Maximum capacity requires replacing the
standard DIMMs, when 4GB DIMMs become available.
4. Memory-mirroring, hot-swap, hot-add and Chipkill functions are supported.
5. See ‘Power and Accessories’ section for more information on the power supplies.
6. Integrated Broadcom 5704 Dual-port 10/100/1000 Gigabit Ethernet.
7. Integrated Serial Attached SCSI (SAS) controller to support SAS HDD drives.
8. Maximum capacity is based on six 73GB HDDs
9. 8863-E1Y, 8863-E7Y, 8863-E8Y, and 8863-EAY ship standard with the ServeRAID-8i SAS Controller.
10. 8863-E8Y and 8863-EAY ship standard with the Remote Supervisor Adapter.
8863-E6Y x366 3.16GHz
667MHz
1M L2 Cache
0M L3 Cache
1
/
4
2GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-E7Y9x366 3.66/667
1MB L2 Cache
0M L3 Cache
4
/
4
8GB/
64GB
Rack
(3U)
2
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-3RY12 x366 2.67/667
2MB L2 Cache
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8863-4RY12 x366 3.0/667
4MB L2 Cache
1
/
4
2GB/
64GB
Rack
(3U)
1
/
2
P
S
H
F
M
YDual
1GB
SAS Hot-
Swap
0GB/
438GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
Table 41. System x3850 and xSeries 366 At-A-Glance
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz)-Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3, 4
Form Factor
Power Supply Quantity (Std/Max)5
Hot-Swap (Power, Slots, HDD, Fans, Memory)
System Management Processor
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
236 COG
11. 8863-EAY ships standard with four memory card adapters.
12. Models 8863-3RY, 8863-4RY, 8863-3SY, and 8863-EAY ship with a dual core processor. Some dual
processor models require the installation of a specific VRM for proper server operations.
System x3850 and xSeries 366 processor options
Notes:
1. One (1) processor is required per system.
2. A maximum of four (4) processors can be installed per system.
3. All processors must be identical in type, speed, and cache size.
Notes:
1. Three (3) of these processors may be selected but are not required.
SBB
Number
Option
Number
Feature
Code Processor Upgrades1SMP Support
13M7421 40K2521 0346 3.16GHz 667MHz 1M L2 Cache Xeon Processor MP 1RY, E6Y, 1SY,
E9Y
13M7422 13N0694 0381 3.16GHz 667MHz 1M L2 Cache Xeon Processor MP 1RY, E6Y, 1SY,
E9Y
13M7424 13N0695 0384 3.66GHz 667MHz 1MB Xeon Processor MP 2RY, E1Y, E2Y,
E8Y
13M7423 40K2520 0347 3.66GHz 667MHz 1MB Xeon Processor MP 2RY, E1Y, E2Y,
E8Y
31R3775 40K2522 0651 Intel Xeon Processor 7020 2.67GHz 667MHz 2x1MB L2 Cache
Dual Core Processor
3RY, 3SY, EAY
31R3777 40K2523 0652 Intel Xeon Processor 7040 3.0GHz 667MHz 2x2 MB L2 Cache
Dual Core Processor
4RY, 4SY
Table 42. Additional Processor (for Servers) Dual Processors (for IntelliStations)
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
13M7422 13N0694 0381 Additional 3.16GHz 667MHz 1M L2 Cache, 0M L3 Cache -
13M7424 13N0695 0347 Additional 3.66GHz 667MHz 1M L2 Cache, 0M L3 Cache -
31R3776 40K2522 0444 Additional Intel Xeon Processor 7020 2.67GHz 667MHz
2x1MB L2 Cache Dual Core Processor
-
31R3778 40K2523 0445 Additional Intel Xeon Processor 7040 3.0GHz 667MHz 2x2
MB L2 Cache Dual Core Processor
-
Chapter 19. System x3850 and xSeries 366 237
System x3850 and xSeries 366 memory options
Notes:
1. x3850 and x366 support Chipkill, memory mirroring, memory ProteXion technologies, hot-swap and
hot-add memory.
2. Supported memory DIMMs can coexist in the same server. However, memory DIMMs of the same
capacity must be installed in matched pairs.
3. One memory card comes standard. At least one memory card is required. A total of four memory cards
with four DIMM slots each, may be installed, allowing a total of 16 DIMMs per chassis.
4. This option kit includes the components necessary to upgrade systems that currently have single-core
Intel Xeon MP processors installed to support the dual-core Intel Xeon MP processors. Processors are not
included in the kit and must be purchased separately.
SBB
Number
Option
Number
Feature
Code Memory Description1, 2
Memory Cards
39R9502 41Y5000 4338 4-DIMM DDR2 MEMORY CARD 3
0001919 41Y5005 1919 Dual Core X3 Upgrade Kit4
Memory DIMMs
- 73P2866 - 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
- 73P2867 - 4GB (2x2GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
30R5147 - 0535 4GB PC2-3200R DDR2 CL3 ECC SDRAM RDIMM
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
Note: Standard: 1 GB depending on server model, expandable to 32 GB. Type: 333 MHz, registered, ECC, PC3200
double data rate (DDR) II, SDRAM. Connectors: Two-way interleaved, four dual inline memory module
(DIMM) connectors per memory card. Maximum: Four memory cards, each card containing two pairs of single-
ranked PC3200 DDRII DIMMS.
Table 43. Standard Memory Configuration
Model Std. DIMM Configuration
1RY, 2RY, E2Y, E5Y, E6Y 2 x 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
E1Y 4 x 1GB PC2-3200 ECC DDR-2 SDRAM RDIMM
E7Y, EAY 8 x 1GB PC2-3200 ECC DDR-2 SDRAM RDIMM
238 COG
Figure 37. x3850 and x366 DIMMs
Figure 38. x3850 and x366 performance sensitive configurations
Figure 39. x3850 and x366 cost sensitive configurations
Figure 40. x3850 and x366 mirrored configurations
Chapter 19. System x3850 and xSeries 366 239
System x3850 and xSeries 366 hard disk drive (HDD) and optical storage
options
Notes:
1. Installation may require removing standard devices.
2. All models ship standard with an Ultralight DVD-ROM Ultrabay Enhanced.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
SAS HDDs
40K1083 40K1051 5158 IBM 36GB 10K 2.5" SAS - - -
40K1084 40K1052 5159 IBM 73GB 10K 2.5" SAS - - -
Optical Devices 2
32R2784 39R7508 4144 CD-RW/DVD Combo V Ultrabay
Enhanced
---
32R2899 32R2899 4141 CD-ROM Ultrabay Enhanced Drive - - -
32R2901 73P3312 4143 Multi-Burner Ultrabay Enhanced Drive - - -
External Storage Expansion Units
Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack (3U)
- 172260U - DS4300 Midrange Disk (60U) Rack (3U)
- 17226LU - DS4300 Midrange Disk (6LU) Rack (3U)
- 17401xx - TotalStorage DS4000 EXP700 Expansion
Unit (all models)
-
- 17101xx - TotalStorage DS4000 EXP100 Storage
Expansion Unit (all models)
-
240 COG
Figure 41. x3850 and x366 front view
Figure 42. x3850 and x366 operator information panel
Bay Form Factor Height Front Access Usage
12.5inSLYesHDD
22.5inSLYesHDD
32.5inSLYesHDD
42.5inSLYesHDD
52.5inSLYesHDD
62.5inSLYesHDD
7 5.25in Ultrabay Yes Optical
Chapter 19. System x3850 and xSeries 366 241
System x3850 and xSeries 366 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support1
Slots
Supported
Hot-Plug
Capable
Storage Controllers
24P0963 24P0960 1650 DS4000 Host Bus Adapter Half 64-bit/
133MHz
1 ... 6 -
39R8730 39R8729 1673 ServeRAID 8i SAS Raid Controller Half 64-bit/
133MHz
Dedicated
Raid Slot
-
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1 ... 6 -
39R8819 39R8815 1685 ServeRAID-6M Ultra320 SCSI
Controller (128MB)
-- - -
39R8820 39R8816 1686 ServeRAID-6M Ultra320 SCSI
Controller (256MB)
-- - -
External Disk Systems and
Options
- 24P82xx - DS4300 Midrange Disk (60U) - - - -
- 17226xx - DS4300 Midrange Disk (6LU) - - - -
- 17401xx - IBM TotalStorage DS4000 EXP700
Expansion Unit (all models)
-- - -
- 17101xx - IBM TotalStorage DS4000 EXP100
Storage Expansion Unit (all
models)
-- - -
- 17001RS - IBM TotalStorage DS400 - Single
Controller
-- - -
- 17002RD - IBM TotalStorage DS400 - Dual
Controller
-- - -
- 17011RL - IBM TotalStorage DS300 - Single
Controller LC
-- - -
- 17011RS - IBM TotalStorage DS300 - Single
Controller
-- - -
- 17226xx - DS4300 Midrange Disk (6LX) - - - -
- 17421xx - DS4400 Midrange Disk System - - - -
- 17429xx2- DS4500 Midrange Disk System - - - -
- 17226xx - TotalStorage DS4300 Midrange
Disk Systems (all models)
-- - -
- 17421xx - TotalStorage DS4400 Midrange
Disk
-- - -
- 17241xx - TotalStorage DS4100 Midrange
Disk
-- - -
- 24P82xx - TotalStorage DS4300 Model 60U
with Turbo
-- - -
242 COG
Notes:
1. Six 64-bit Active PCI-X 2.0 slots per chassis.
2. Option 17429xx may be subject to a rack installation/configuration fee.
3. IXA Adapter is supported on the x3850 and x366 and must be installed in slot 2 only.
Networking
39Y6071 39Y6066 1484 NetXtreme II 1000 Express Ethernet
Adapter
-- - -
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server
Adapter by Intel
-- - -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 X
39Y6082 39Y6079 1478 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1 ... 6 -
30R5005 30R5001 1566 IBM 10 GB Ethernet Adapter Half 64-bit/
133MHz
1 ... 6 -
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
1 ... 6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
1 ... 6 -
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
Half 64-bit/
133MHz
1 ... 6 -
System Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
Half - - -
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half - - -
Other I/O
---- -- - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support1
Slots
Supported
Hot-Plug
Capable
Chapter 19. System x3850 and xSeries 366 243
Figure 43. x3850 and x366 rear view
Slot/Device Type Bus Voltage (V) Frequency
MHz Data Path Active PCI Slot Length
Dedicated Slot PCI-X 1 Universal 66MHz 64-bit N Special
PCI Slot1 PCI-X 2.0 2 Universal 266MHz 64-bit Y Full
PCI Slot 2 PCI-X 2.0 4 Universal 266MHz 64-bit Y Full
PCI Slot 3 PCI-X 2.0 6 Universal 266MHz 64-bit Y Full
PCI Slot 4 PCI-X 2.0 8 Universal 266MHz 64-bit Y Full
PCI Slot 5 PCI-X 2.0 A Universal 266MHz 64-bit Y Full
PCI Slot 6 PCI-X 2.0 C Universal 266MHz 64-bit Y Full
Adaptec SAS Razor -
9005/041E
PCI-X 1 Universal 66MHz 64-bit N/A N/A
Broadcom 5704 Dual
Gbit Ethernet
Controller
PCI-X 1 Universal 66MHz - N/A N/A
ATI 7000-M Video
Ctrl w/16MB
Memory
PCI-X - Universal 33MHz - N/A N/A
244 COG
System x3850 and xSeries 366 power and accessories
Notes:
1. System x3850 and xSeries 366 ship with a single 1300W hot-swap capable power supply and a rack power
cable. When used with a 110V AC source, the power rating for this power supply falls to 650W. System
x3850 and xSeries 366 support two power supplies with a 110V AC source without redundancy. To
maintain full redundancy on a full configuration use two power supplies (Option 13M7413) with a 220V
AC source.
2. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate.
3. Height is 2U. See Rack Cabinets and Options section for supported IBM racks.
SBB
Number
Option
Number
Feature
Code Description
Power1
39R9505 41Y5001 1972 1300W Power Supply
Power Distribution Units
39Y8011 39Y8923 6061 DPI 60A Three Phase C19 Enterprise PDU w/ IEC309 3P+G (208V) line cord
39Y8006 39Y8941 6010 DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line
cord
- 39Y8942 - DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 39Y8945 - DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
- 39Y8948 - DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 39Y8999 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 39Y9000 - 60A/208V 3P w/IEC309 3P+Gnd Conn
Uninterruptible Power Supply (UPS)2
- 21303RX - IBM UPS 7500XHV
- 21304RX - IBM UPS 10000XHV
39Y8037 39Y8857 5743 IBM UPS 3U Online Battery Pack
Chapter 19. System x3850 and xSeries 366 245
Notes:
1. Refer to the Rack Console Options section for information regarding console connectivity using these
options.
2. Installation within a rack requires optional Monitor Compartment (Option 94G7444).
3. System x3850 and xSeries 366 support rack configurations only and ships without a keyboard or mouse.
SBB
Number
Option
Number
Feature
Code Description
Racks and NetBAY
- 93061RX - NetBAY11 Standard Rack Cabinet
- 9307-2SX - IBM 25U Standard Rack
- 9307-4EX - IBM 42U Standard Rack Extension
- 9307-4SX - IBM 42U Standard Rack
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
- 93084RX - NetBAY42 Enterprise Rack Cabinet
Rack Console Connectivity1
- 1735L04 - NetBAY Local Console Manager
- 1735R16 - NetBAY Remote Console Manager
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
- 17351GX - 2x8 Local Console Manager
- 17352GX - 2x16 Global Console Manager
- 17354GX - 4x16 Global Console Manager
Monitors
- 90P0717 - IBM L150p 15" TFT Monitor (Hybrid)
- 90P0721 - IBM L170p 17" TFT Monitor (Hybrid)
- 90P0726 - IBM C170 17" CRT Monitor
Keyboard and Mouse2
02R3206 25R6968 8800 IBM Preferred Pro Full Size Keyboard - PS/2
- 90P0777 - IBM Enhanced Performance Keyboard - USB
13M7124 90P0743 8908 IBM Optical Wheel Mouse - USB
02R3486 90P0742 8904 IBM ScrollPoint 800 DPI Optical Mouse - USB & PS/2
246 COG
System x3850 and xSeries 366 tape options
SBB
Number
Option
Number
Feature
Code Tape Drive
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Enclosures
24P7303
59P6736 5361 IBM 160/320 GB SDLT Internal
SCSI Tape Drive
- Ultra2
(16-bit)
133mm
(5.25in) FH
45594UX
71P9165
59P6744 5358 IBM 200/400GB LTO FH Tape
Drive
- Ultra2
(16-bit)
133mm
(5.25in)
HH
45594UX
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape Autoloader - Ultra320
(16-bit)
2U Rack -
- 87691VX - 1U VXA-320 Tape Autoloader - - - -
External Tape Enclosures
- 4559FHX - 2U Full High Stand Alone SCSI
Tape Drive Enclosure
- Ultra160
(16-bit)
Desktop or
Rack Shelf
(4.41in tall)
-
- 45594UX - 4U Rackmount SCSI Tape Drive
Enclosure
- Ultra2
(16-bit)
4U Rack -
- 0034B0X - NetBAY Tape Enclosure (Rack
Mount)
--- -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2
(16-bit)
5U Rack -
Note: External attachments need one of the three external enclosures (4559HHX, 45591UX, 45594UX).
Ships with 25R0047 cable.
© Copyright IBM Corp. 2003, 2006 247
Chapter 20. System x3950 and xSeries 460
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
Table 44. System x3950 and xSeries 460 At-A-Glance
Part Number1
Machine Type
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)3
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)
8872-
1RY
x3950 2.83/667
512KB L2
4MB L3 Cache
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
2RY
x3950 3.0/667
512KB L2
8MB L3 Cache
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
3RY
x3950 3.33/667
512KB L2
8MB L3 Cache
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
5RY
x460 Intel Xeon
Processor 7020
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
6RY
x460 Intel Xeon
Processor 7040
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
7RY
x3950 Intel Xeon
Processor 7020
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
8872-
8RY
x3950 Intel Xeon
Processor 7040
2
/
4
2GB/
32GB
Rack
(3U)
2
/
2
P,
H,
F,
S
Y1Gb SAS Hot-
swap
0GB/
440.4GB
Ultralight
DVD-ROM
Ultrabay
Enhanced
7
/
6
6
/
6
248 COG
following nomenclature: xxU. For example, the U.S. orderable part number for 8872-1RY is 8872-1RU. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. The x3950 and x460 can be expanded only to an 8-way, 16-way, or 32-way configuration by adding MXE-
460 servers. See the "System x3950 and xSeries 460 Processor Options" section in this chapter for
additional configuration information.
3. Maximum capacity is based on installation of six 73.4GB SAS HDDs.
System x3950 and xSeries 460 processor options
Notes:
1. One processor is required per system, providing a maximum of four. All processors must be identical in
type, speed, and cache size.
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
13M7275 13N0715 0287 2.83GHz 667MHz 1MB L2 4MB L3 Cache Xeon Processor MP 1RY
13M7276 13N0714 0288 3.0GHz 667MHz 1MB L2 8MB L3 Cache Xeon Processor MP 2RY
13M7277 13N0713 0289 3.33GHz 667MHz 1MB L2 8MB L3 Cache Xeon Processor MP 3RY
31R3775 40K2522 0651 Intel Xeon Processor 7020 5RY,7RY2
31R3777 40K2523 0652 Intel Xeon Processor 7040 6RY, 8RY2
x3950 and x460 Processor Scalability3
- 8874-1RY - MXE-4604, 5 -
- 8874-2RY - MXE-4604, 6 -
- 8874-3RY - MXE-4604, 6 -
13M8122 13M7414 4236 2.3m Scalability Cable7, 8, 9 -
13M8123 13M7416 4237 2.9m Scalability Cable8, 9 -
0003916 41Y5004 3916 IBM System X3950 Scalability Enablement/Memory Adapter -
Note: An MXE-460 system is not required for system scalability. Either System x3950, xSeries 460 or MXE-460 servers
can be used interchangeably for system scaling. The only requirement is that a System x3950 or xSeries 460
server is used as the primary boot node.
SBB
Number
Option
Number
Feature
Code Processor Options
SMP
Support1
13M7275 13N0715 0287 2.83GHz/667MHz-1MB L2 4MB L3 1RY
13M7276 13N0714 0288 3.0GHz/667MHz-1MB L2 8MB L3 2RY
13M7277 13N0713 0289 3.33GHz/667MHz-1MB L2 8MB L3 Cache Xeon Processor MP 3RY
x460 Processor Scalability2
- 8874-1RY - MXE-4603-
13M8122 13M7414 4236 2.3m Scalability Cable4, 5, 6 -
13M8123 13M7416 4237 2.9m Scalability Cable5, 6 -
Chapter 20. System x3950 and xSeries 460 249
2. These processor options support up to 32-socket (64-cores) SMP applications in the System x3950 and
xSeries 460.
3. The System x3950 and xSeries 460 can be expanded only to a two chassis 8-way configuration, four
chassis 16-way configuration, or an eight chassis 32-way configuration by connecting xSeries MXE-460
servers. The two chassis 8-way configuration requires a x3950 or x460 and one MXE-460. The four chassis
16-way configuration requires a x3950 or x460 and three MXE-460 servers. The eight chassis 32-way
configuration requires a x3950 or x460 and seven MXE-460 servers.
4. The xSeries MXE-460 server is functionally identical to the System x3950 and xSeries 460 servers and
supports the same hardware configurations, however it is supported only as an expansion module to a
base System x3950 or xSeries 460 and not in a stand-alone configuration. MXE-460 ships with two empty
4-slot memory expansion cards (13M7409) and two power supplies as standard.
5. On the 8874-1RY MXE-460 the following processor options can be installed: 13N0715, 13N0714, and
13N0713.
6. On the 8874-2RY MXE-460 the following processor options can be installed: 25R8941 and 25R8942.
7. The two chassis 8-way configuration requires two 2.3m scalability cables to interconnect the x3950 or
x460 with one MXE-460.
8. The four chassis 16-way configuration requires three 2.3m scalability cables and three 2.9m scalability
cables to interconnect the x3950 or x460 with three MXE-460 servers.
9. The eight chassis 32-way configuration requires six 2.3m scalability cables and six 2.9m scalability cables
to interconnect the x3950 or x460 with seven MXE-460 servers.
System x3950 and xSeries 460 memory options
Table 45. Additional Processor
SBB
Number
Option
Number
Feature
Code Processor Options SMP Support1
13M7418 13N0715 0414 Additional 2.83GHz 667MHz 1MB L2 4MB L3 Cache Xeon
Processor MP
1RY
13M7419 13N0714 0415 Additional 3.0GHz 667MHz 1MB L2 8MB L3 Cache Xeon
Processor MP
2RY
13M7420 13N0713 0416 Additional 3.33GHz 667MHz 1MB L2 8MB L3 Cache Xeon
Processor MP
3RY
31R3776 40K2522 0444 Additional Intel Xeon Processor 7020 2.67GHz 667MHz
2x1MB L2 Cache Dual Core Processor
5RY,7RY
31R3778 40K2523 0445 Additional Intel Xeon Processor 7040 3.0GHz 667MHz 2x2
MB L2 Cache Dual Core Processor
6RY, 8RY
SBB
Number
Option
Number
Feature
Code Memory Description
Memory Cards1
39R9502 41Y5000 4338 4-DIMM DDR2 MEMORY CARD
0003916 41Y5004 3916 IBM System X3950 Scalability Enablement/Memory Adapter
0001919 41Y5005 1919 Dual Core X3 Upgrade Kit2
Memory DIMMs
73P2874 39M5809 0504 2GB (2x1GB) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM Kit (512MB)
30R5147 39M5812 0535 4GB (2x2GB) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM Kit (512MB)
250 COG
Notes:
1. Two memory cards come standard. The first memory card has 2x1GB memory DIMMs installed. The
second memory card is open. A total of four memory cards with four DIMM slots each, may be installed,
allowing a total of 16 DIMMs (a total of 64GB) per chassis.
2. This option kit includes the components necessary to upgrade systems that currently have single-core
Intel Xeon MP processors installed to support the dual-core Intel Xeon MP processors. Processors are not
included in the kit and must be purchased separately.
- 30R5145 - 8GB (2x4GB kit) PC2-3200 CL3 ECC DDR2 Chipkill SDRAM RDIMM
Note: An MXE-460 system is not required for system scalability. Either System x3950, xSeries 460 or MXE-460 servers
can be used interchangeably for system scaling. The only requirement is that a System x3950 or xSeries 460
server is used as the primary boot node.
SBB Number Option Number Feature Code Memory Description
Memory Cards
13M7285 13M7409 4219 4-DIMM DDR2 MEMORY CARD
Memory Dimms
73P2874 - 0504 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
- 73P2866 - 2GB (2x1GB) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM Kit
(512MB)
73P2875 - 0512 2GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
- 73P2867 - 4GB (2x2GB) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM Kit
(512MB)
Table 46. Standard Memory Configuration
Model Std. DIMM Configuration
1RY,2RY,3RY, 5RY, 6RY 2 X 1GB PC2-3200 CL3 ECC DDR-2 SDRAM RDIMM
7RY, 8RY 2 X 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
SBB
Number
Option
Number
Feature
Code Memory Description
Chapter 20. System x3950 and xSeries 460 251
Figure 44. x3950 and x460 DIMMS
System x3950 and xSeries 460 hard disk drive (HDD) and optical storage
options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
Diskette Drives
23K4959 05K9276 5300 IBM USB Portable Diskette Drive - - -
SAS HDDs
40K1083 40K1051 5158 IBM 36GB 10K 2.5" SAS SL 1-6 6
40K1084 40K1052 5159 IBM 73GB 10K 2.5" SAS SL 1-6 6
Optical Drives2
- 73P3275 - Thinkpad 24x/24x CD-RW / DVD Combo
V Ultrabay Enhanced
-- -
External Storage Units
Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack
(3U)
- 17101xx - TotalStorage DS4000 EXP100 Storage
Expansion Unit (all models)
-
- 17401xx - TotalStorage DS4000 EXP700 Expansion
Unit (all models)
-
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
252 COG
Notes:
1. Installation may require removing standard devices.
2. All models ship standard with an Ultralight DVD-ROM Ultrabay Enhanced.
SAS HDDs
26K5658 26K5654 5241 36GB 10K 2.5" SAS SL 1-6 6
26K5659 26K5655 5242 73GB 10K 2.5" SAS SL 1-6 6
Optical Drives2
25R7477 - 4111 Multiburner SFF 7 1
26K9994 - 4112 Ultrabay Enhanced Drive SFF 7 1
26K9995 - 4113 Ultralight DVD-Rom Ultrabay Enhanced SFF 7 1
26K9996 - 4114 24x/24x CD-RW/DVD Combo V Ultrabay
enhanced
SFF 7 1
External Storage Units Form
Factor
- 17331RU - EXP400 Storage Expansion Unit Rack
(3U)
- 172260U - DS4300 Midrange Disk (60U) Rack
(3U)
- 17226LU - DS4300 Midrange Disk (6LU) Rack
(3U)
Bay Form Factor Height Front Access Usage
12.5SLYesHDD
22.5SLYesHDD
32.5SLYesHDD
42.5SLYesHDD
52.5SLYesHDD
62.5SLYesHDD
75.25UltrabayYesOptical
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity
Chapter 20. System x3950 and xSeries 460 253
Figure 45. x3950 and x460 front view
System x3950 and xSeries 460 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
39R8819 39R8815 1685 ServeRAID-6M Ultra 320 SCSI
Controller 128MB Cache with
battery1
Full 64-bit/
133MHz
1-6 -
39R8820 39R8816 1686 ServeRAID-6M Ultra 320 SCSI
Controller 256MB Cache with
battery1
Full 64-bit/
133MHz
1-6 -
13N2252 13N2249 1656 IBM Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1-6 -
24P0963 24P0960 1650 DS4000 Host Bus Adapter1Half 64-bit/
66MHz
1-6 -
39R8730 39R8729 1673 ServeRAID 8i SAS Raid
Controller3
Half 64-bit/
133MHz
Dedicated
Raid Slot
-
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1-6 -
254 COG
External Disk Systems and
Options
- 17226xx - DS4300 Midrange Disk (60U) - - - -
- 17001RS - TotalStorage DS400 - Single
Controller
----
- 17002RD - TotalStorage DS400 - Dual
Controller
----
- 17011RL - TotalStorage DS300 - Single
Controller LC
----
- 17011RS - TotalStorage DS300 - Single
Controller
----
- 17421xx - DS4400 Midrange Disk System - - - -
- 17429xx - DS4500 Midrange Disk System - - - -
- 17241xx - TotalStorage DS4100 Midrange
Disk System (all models)
----
- 2005H08 - TotalStorage Fibre Channel
Switch H08
----
- 2005H16 - TotalStorage Fibre Channel
Switch H16
----
- 2006L10 - TotalStorage Storage Switch - - - -
Networking
33P2970 22P6901 1506 PRO PCI Wireless LAN Adapter - - - X
30R5205 30R5201 1483 IBM iSCSI Server TX Adapter Half 64-bit/
133MHz
1-6 -
30R5505 30R5501 1481 IBM iSCSI Server SX Adapter Half 64-bit/
133MHz
1-6 -
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
Half 64-bit/
133MHz
1-6 -
30R5005 30R5001 1566 10 Gb Ethernet Sr Server Adapter Half 64-bit/
266MHz
1-6 -
73P5105 73P5101 1579 10PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
1-6 -
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet
Adapter by Intel
----
73P2705 73P2701 1513 PRO/1000 MT Dual Port Server
Adapter by Intel
----
39Y6082 39Y6079 1478 NetXtreme 1000 T Ethernet
Adapter 2
Half 64-bit/
133MHz
1-6 -
39Y6091 39Y6088 1487 NetXtreme 1000 S + Ethernet
Adapter
Half 64-bit/
133MHz
1-6 -
39Y6096 39Y6093 2939 NetXtreme 1000 T + Dual Port
Ethernet Adapter
Half 64-bit/
133MHz
1-6 -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Chapter 20. System x3950 and xSeries 460 255
32P9296 22P7801 1501 NetXtreme 1000 SX Fiber
Ethernet
----
System Management
39Y9567 39Y9566 1605 Remote Supervisor Adapter II
Slimline Refresh 1
Half---
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half---
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Storage Controllers
02R0995 32P0033 1654 ServeRAID-6M Ultra 320 SCSI
Controller 128MB Cache with battery
Full 64-bit/
133MHz
1-6 -
02R0996 02R0988 1653 ServeRAID-6M Ultra 320 SCSI
Controller 256MB Cache with battery
Full 64-bit/
133MHz
1-6 -
24P0963 24P0960 1650 FAStT FC2-133 Host Bus Adapter Half 64-bit/
133MHz
1-6 -
13N2232 13N2227 1664 ServeRAID 8i SAS RAID Controller Half 64-bit/
133MHz
Dedicated
Raid Slot
-
13N2252 13N2249 1656 IBM Ultra320 SCSI Controller 2 Half 64-bit/
66MHz
1-6 -
External Disk Systems and Options
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17001RS - TotalStorage DS400 - Single Controller - - - -
- 17002RD - TotalStorage DS400 - Dual Controller - - - -
- 17011RL - TotalStorage DS300 - Single Controller
LC
-- - -
- 17011RS - TotalStorage DS300 - Single Controller - - - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 174290X - DS4500 Midrange Disk System - - - -
- 2005H08 - TotalStorage Fibre Channel Switch H08 - - - -
- 2005H16 - TotalStorage Fibre Channel Switch H16 - - - -
- 2006L10 - TotalStorage Storage Switch - - - -
Networking
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
256 COG
Notes:
1. Option 39R8816 and option 39R8815 are supported for external attachment only and not for internal
HDDs.
2. The x3950 and x460 support six HDDs, which limits the ServeRAID 8i Controller to reach RAID
configurations of 0, 1, 10, 5, 6, 50, 1E, and 5EE, but not RAID 60. Also, for multi-node 4 and 8 chassis
configurations (16-32 CPU's), a maximum of 2 ServeRAID 8i adapters are allowed due to PCI device
resource limitations.
31P9605 31P9601 1512 PRO/1000 MT Server Adapter by Intel Half 64-bit/
133MHz
1-6 X
73P3605 73P3601 1507 IBM iSCSI Server Adapter Half 64-bit 1-6 -
73P4005 73P4001 1509 NetXtreme 1000 SX Fiber Ethernet
Adapter 2
Half 64-bit/
133MHz
1-6 -
73P4105 73P4101 1510 NetXtreme 1000 T Ethernet Adapter 2 Half 64-bit/
133MHz
1-6 -
73P4205 73P4201 1511 NetXtreme 1000 T Dual Port Ethernet
Adapter 2
Half 64-bit/
133MHz
1-6 -
- 73P5101 1575 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
1333MHz
--
- 30R5001 - 10 Gb Ethernet Sr Server Adapter Half 64-bit/
266MHz
--
Systems Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Daughter Card
-- - -
Slot Type Bus Voltage (V)
Frequency
MHz Data Path
Active
PCI Slot length
Dedicated Raid Slot PCI-X 1 Universal 66MHz 64-bit N Special
1 PCI-X 2.0 2 Universal 266MHz 64-bit Y Full
2 PCI-X 2.0 4 Universal 266MHz 64-bit Y Full
3 PCI-X 2.0 6 Universal 266MHz 64-bit Y Full
4 PCI-X 2.0 8 Universal 266MHz 64-bit Y Full
5 PCI-X 2.0 A Universal 266MHz 64-bit Y Full
6 PCI-X 2.0 C Universal 266MHz 64-bit Y Full
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot-Plug
Capable
Chapter 20. System x3950 and xSeries 460 257

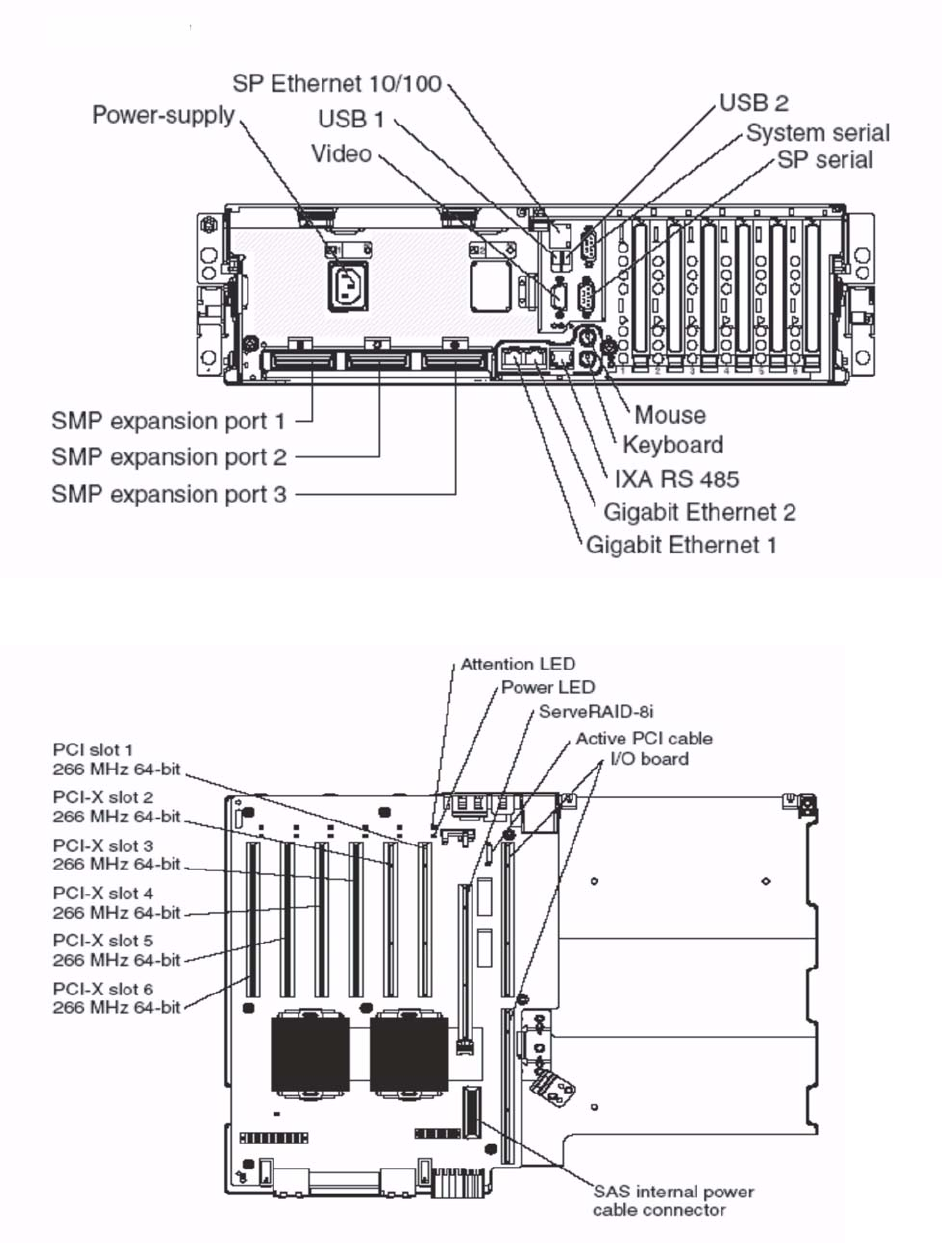

Figure 46. x3950 and x460 rear view
Figure 47. x3950 and x460 system board
258 COG
System x3950 and xSeries 460 power and accessories
Notes:
1. For runtimes and UPS attributes, see Appendix C: UPS Runtime Estimate.
2. Height is 2U. See Rack Cabinets and Options section for supported IBM racks.
SBB
Number
Option
Number
Feature
Code Description
Uninterruptible Power Supply (UPS)1
- 2130R31 - UPS3000XHV2
- 32P1692 - UPS Extend Run Battery Pack2
Power Distribution Units
- 26K4241 - DPI 32A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4242 - DPI 60A Single Phase C13 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 26K4243 - DPI 63A Single Phase C13 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4245 - DPI 32A Three Phase C13 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 26K4246 - DPI 30A Single Phase C13 Enterprise PDU w/ Nema L6-30P (208V) line cord
- 26K4256 - DPI 60A Single Phase C19 Enterprise PDU w/ IEC309 2P+G (208V) line cord
- 26K4257 - DPI 63A Single Phase C19 Enterprise PDU w/ IEC309 2P+N+G (250V) line cord
- 26K4259 - DPI 32A Three Phase C19 Enterprise PDU w/ IEC309 3P+N+G (250V) line cord
- 39Y8923 - IBM Enterprise C19 3 phase PDU (60a)
39Y8006 39Y8941 6010 IBM Enterprise C13 PDU
- 39Y8942 - DPI 32 amp/208V 1-phase C13 Enterprise PDU with IEC309 2P+N+Gnd connector
- 39Y8945 - DPI 30 amp/208V 1-phase C13 Enterprise PDU with Nema L6-30P connector
39Y8008
39Y8948 6060 IBM Enterprise C19 PDU
- 39Y8999 - DPI 32A 3phase HD C19 PDU w/ IEC 309 32A 3P+N+G (250V)
- 39Y9000 - DPI 60amp 3phase HD C19 PDU w/ IEC 309 60A 3P+G (208V)
SBB
Number
Option
Number
Feature
Code Description
Power1
13M7286 13M7413 - 1300W Power Supply
Uninterruptible Power Supply (UPS)2
- 2130R31 - UPS3000XHV3
- 32P1692 - UPS Extend Run Battery Pack3
Chapter 20. System x3950 and xSeries 460 259
SBB
Number
Option
Number
Feature
Code Description
Rack/Tower Conversion Kits
39Y8069 32P1636 3772 250mm KVM Conversion Option
- 32P1652 - 1.5M KVM Conversion Option
- 39M2895 - 1.5M USB Conversion Option
39Y7957 39M2894 3758 IBM Virtual Media Conversion Option (VCO)
- 39M2985 - IBM USB Conversion Option (UCO)
- 39M2896 - IBM Short KVM Conversion Option (Short KCO)
- 39M2897 - IBM Long KVM Conversion Option (Long KCO)
Racks
- 93061RX - NetBAY11 Standard Rack Cabinet
- 9306250 - NetBAY25 Standard Rack Cabinet
- 9306420 - NetBAY42 Standard Rack Cabinet
- 9307-2SX - IBM 25U Standard Rack
- 9307-4EX - IBM 42U Standard Rack Extension
- 9307-4SX - IBM 42U Standard Rack
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet (EX)
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93061RX - NetBAY11 Standard Rack
- 93072RX - IBM 25U S2 Standard Rack
- 93074RX - IBM 42U S2 Expansion Rack
- 93074XX - IBM 42U S2 Standard Rack
- 93084RX - NetBAY42 Enterprise Rack
- 93084XX - NetBAY42 Enterprise Expansion Rack
Rack Console Connectivity1
- 1735L04 - NetBAY Local Console Manager
- 1735R16 - NetBAY Remote Console Manager
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
- 17351GX - 2x8 Local Console Manager
- 31R3130 - IBM 3M Console Switch Cable (PS/2)
- 17235RX - IBM Rack Keyboard Tray
- 17352GX - IBM Global 2x16 Console Manager (GCM2)
- 17354GX - Global 4x16 Console Manager (GCM4)
- 09N4293 - NetBAY 7ft Console Cable Set
- 94G7447 - NetBAY 12ft Console Cable Set
Monitors
- 90P0717 - L150p 15" TFT Monitor (Hybrid)
260 COG
- 90P0721 - IBM L170p 17" TFT Monitor (Hybrid)
- 90P0726 - IBM C170 17" CRT Monitor
- 49387NU - IBM C117 17" CRT Monitor
- 494215U - IBM T115 15" TFT Monitor
- 494317U - IBM T117 17" TFT Monitor
- 17233RX - IBM 1U 15in Flat Panel Monitor Console Kit
- 17231RX - IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
Keyboard and Mouse
33P2979 33L3252 8907 SpaceBall 3D Input Device (Business Black)
13N3224 39M7228 8877 IBM USB UltraNav Keyboard - USB
40K9490 40K9584 8750 IBM Preferred Pro Keyboard - USB - English
42C1473 40K5372 8693 IBM Keyboard with Integrated Pointing Device - USB - US English
40K9491 40K9200 8912 IBM 2 Button Optical Wheel Mouse - Black - USB
40K9492 40K9201 8913 IBM 3 Button Optical Mouse - Black - USB
0008915 40K9202 8915 3D SpacePilot Input Device
- 17235RX - IBM Rack Keyboard Tray
25K9323 90P0740 8906 IBM Sleek 2-Button Mechanical Ball Mouse - PS/2
02R3434 90P0741 8903 IBM Scrollpoint Pro 800 DPI Optical Mouse - USB
02R3486 90P0742 8904 IBM Scrollpoint 800 DPI Optical Mouse - USB & PS/2
40K9491 40K9200 8912 IBM Optical Wheel Mouse - USB
Other Accessories
--- -
SBB
Number
Option
Number
Feature
Code Description
Rack Console Connectivity1
- 1735L04 - NetBAY Local Console Manager
- 1735R16 - NetBAY Remote Console Manager
- 17351LX - 1x8 Local Console Manager
- 17352LX - 2x16 Local Console Manager
- 17351GX - 2x8 Local Console Manager
- 17352GX - 2x16 Global Console Manager
- 17354GX - 4x16 Global Console Manager
Monitors
- 90P0717 - L150p 15" business black flat panel LCD monitor
Keyboard and Mouse
SBB
Number
Option
Number
Feature
Code Description
Chapter 20. System x3950 and xSeries 460 261
Notes:
1. Refer to the Rack Console Options section for information regarding console connectivity using these
options.
- 25R6968 - Preferred Pro Full-size Keyboard - 104 Keys - PS/2 (Business Black)
- 90P0777 - USB Keyboard Enhanced Performance Keyboard
- 90P0743 - USB Optical Wheel Mouse
- 90P0742 - Optical 3-button ScrollPoint Mouse - 800dpi - PS/2 & USB (Business Black)
Other Accessories
----
SBB
Number
Option
Number
Feature
Code Description
262 COG
System x3950 and xSeries 460 tape options
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
Tape Drives
71P9199 59P6736 5360 160/320 GB SDLT Internal
SCSI Tape Drive
-Ultra2
(16-bit)
133mm
(5.25in)
FH
0034B0X
45594UX
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape Autoloader - Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
-Ultra2
(16-bit)
5U Rack -
External Tape Enclosures
- 45591UX - 1U xSeries Tape Enclosure
Rack or Tower
----
- 45594UX - 4U Rackmount SCSI Tape
Drive Enclosure
-Ultra2
(16-bit)
4U Rack -
- 0034B0X - NetBAY Tape Enclosure (Rack
Mount)
----
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
Tape Drives
- 59P6736 - 160/320 GB SDLT Internal
SCSI Tape Drive
- Ultra2
(16-bit)
133mm
(5.25in) FH
0034B1X
- 59P6744 - 200/400GB LTO FH Tape
Drive
- Ultra2
(16-bit)
133mm
(5.25in) FH
0034B0X
Tape Autoloaders
- 36232LX - LTO2 1x8 Tape Autoloader - Ultra160
(16-bit)
2U Rack -
- 36232SX - SDLT 320 1x8 Tape
Autoloader
- Ultra320
(16-bit)
2U Rack -
External Tape Libraries
- 4560SLX - SDLT/LTO Modular Tape
Library
- Ultra2
(16-bit)
5U Rack -
External Tape Enclosures
Chapter 20. System x3950 and xSeries 460 263
- 4559FHX - 2U Full High Stand Alone
SCSI Tape Drive Enclosure
- Ultra160
(16-bit)
Desktop or
Rack Shelf
(4.41in tall)
-
- 45594UX - 4U Rackmount SCSI Tape
Drive Enclosure
- Ultra2
(16-bit)
4U Rack -
- 0034B0X - NetBAY Tape Enclosure
(Rack Mount)
-- - -
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface Form Factor
Ext Tape
Encl
264 COG
© Copyright IBM Corp. 2003, 2006 265
Chapter 21. Datacenter solution program
The IBM Datacenter Solution Program is a comprehensive set of hardware, software and service offerings
intended to deliver true enterprise computing solutions based on the Microsoft® Windows® Server 2003
Datacenter Edition operating systems. xSeries 460 servers and IBM Server x3950 support Datacenter
Solutions. The xSeries 460 and IBM Server x3950 both support up to a 32 processor Datacenter solution.
IBM offers two separate Datacenter solutions. The Datacenter Scalable Offering for "system" certified
solutions and the Datacenter High Availability Program for end to end Datacenter-certified cluster
configurations including storage. The IBM Datacenter Solutions include Microsoft-certified hardware,
Windows Datacenter Server operating systems and optional onsite services and remote support offerings
through IBM Global Services (IGS) or xSeries Lab Services.
In addition to the configuration information on the following pages, the IBM Datacenter Solution Program
includes the following software and optional services. The service offerings must be ordered separately. An
Expert Solutions Assurance Review (SAR) must be conducted by IBM or your IBM business partner to ensure
that the configuration being ordered is complete, prior to placing any orders.
The product content described herein is consistent worldwide; however, there may be some variance in IBM
part numbers outside of the US and Canada. Contact your IBM Business Partner or IBM Marketing
Representative for assistance with your specific configuration requirements.
Datacenter customers purchasing 8 way thru 32 way Datacenter solutions with intentions of later partitioning
their Datacenter servers into smaller servers should order more than one x460 or x3950 server in their original
purchase. The Datacenter OS is shipped with the x460 or the x3950 server only and not the MXE460 or the
x3950 E. The MXE460 or the x3950 E Expansion unit includes only the Datacenter OS license. For example, if
a customer purchasing a 16 way stand-alone server would like to later partition the server into 2 - 8 way
servers, they should purchase 2 x460 or x3950 servers and 2 MXE460 or x3950 E Expansion units.
US government export license
Certain x460 and x3950 Datacenter solutions require a US Government Export License when sold in Tier 3
countries. x3950 and x460 Datacenter "single core processor" solutions containing greater than 16 processors
require a US Government Export License when offered in Tier 3 countries. x460 or x3950 Datacenter "dual
core" processor solutions containing 16 processors and greater require a US Government Export License
when sold in Tier 3 countries. IMPORTANT: Proof of obtaining the appropriate U.S. Government Export
License must exist before ordering any of the above Datacenter solutions. To support 16 way and greater
Datacenter offerings, one Scalability Enablement/Memory Adapter (P/N 40K2450) is required per chassis
266 COG
Scalability/enablement memory card option
x460 or x3950 Datacenter solutions containing 16 processors or greater require one Scalability
Enablement/Memory Adapter (P/N 40K2450) per chassis. Proof of the appropriate U.S. Government Export
License for sales in Tier 3 countries is required before this option can be obtained from IBM.
Software
Microsoft Windows Server 2003 R2, Datacenter Edition or Microsoft Windows Server 2003 R2, Datacenter x64
Edition is included with the designated x460 or x3950 Datacenter servers. x460 or x3950 Datacenter High
Availability offerings include the appropriate IBM certified Datacenter OS preload and drivers installed in
manufacturing (4 way license). x460 or x3950 Datacenter Scalable offerings include the IBM certified "Drop in
the box" MS Datacenter OS to be installed post delivery (4 way license). MS Datacenter solutions/licenses are
offered to support 4 way through 32 way solutions. The MXE-460 or x3950 E Datacenter Expansion Unit has
no physical Datacenter OS installed or shipped separately. Each MXE-460 or x3950 E is shipped with a
Certificate of Authenticity (COA) for a 4-way Datacenter license. (Five Client Access Licenses (CALs) are
included. Additional CALs must be purchased separately from Microsoft)1
Standard services
• Solutions Assurance Review2
• Custom configurations and software preloads installed and tested in manufacturing for the IBM
Datacenter High Availability Program
• Limited Warranty service with 24x7 same day response3
IBM optional support services
• Contracted Onsite installation and Integration by IBM
• IBM Software Update Subscription for Microsoft Windows Datacenter4
• Advanced Support for Mission Critical Systems (US)
• Support Line (base software support outside the US and where Advanced Support is not available)
• High Availability Services5
• Warranty upgrade (24x7x2 hour response)
• Testing Services--proof of concept, assessment, design and planning
• Custom services for unique requirements provided by IGS
Notes:
1. IBM makes no representations or warranties regarding non-IBM products or services. These products are
offered and warranted by third parties.
2. IBM provides this service standard for all Datacenter sales directly through IBM. Business Partners will
also perform this service but may choose to charge a fee.
3. For information on IBM's Statement of Limited Warranty, call 1-800-772-2227 or contact your IBM
representative or reseller. Copies are available upon request. International Warranty Service available in
those countries where the particular product is sold by IBM or IBM Business Partners. With respect to
onsite service, IBM sends a technician after attempting to resolve the problem remotely
4. Optional Software Update Subscription (SUS) services ensure that customers can upgrade to future
Microsoft Datacenter operating system releases. SUSs for the IBM Datacenter High Availability Program
include operating system upgrades and IBM maintenance updates. The IBM Datacenter Scalable Offering
includes SUSs for operating system upgrades only, maintenance is available from the Microsoft Support
Web site. IBM Datacenter SUSs must be renewed annually from the date of purchase to remain eligible
for operating system upgrades and maintenance. IBM will provide Operating System Upgrades and
Maintenance as applicable as long as upgrade and maintenance support is provided by Microsoft.
5. The High Availability Services are optional offerings that can help improve critical IT systems
availability, moving closer to a continuous operations environment by reducing unplanned outages.
Note: A Datacenter node represents a single instance of the operating system, regardless of the number of
chassis in the configuration.
Chapter 21. Datacenter solution program 267
Datacenter solutions
268 COG
x3950 and x460 scalable diagrams
Note: The following sample configurations are for illustration only and may not be suitable for any specific
customer installation. Contact your IBM Business Partner or IBM Marketing Representative for
assistance with your specific configuration requirements.
Figure 48. x3950 and x460 Single Node 8-way Configuration
Figure 49. x3950 and x460 Single Node 16-way Configuration
MXE 460
xSeries 460 (primary server)
Fibre Storage
MXE 460
MXE 460
MXE 460
xSeries 460 (primary server)
Fibre Storage
Chapter 21. Datacenter solution program 269
Figure 50. 2 Node, 32-way Configuration
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
xSeries 460
Fibre Storage
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
MXE 460
xSeries 460
Cluster Heart-beat
270 COG
Single node Datacenter high availability solutions
The Datacenter High Availability (HA) Program Offering delivers a fully configured, Datacenter-certified,
IBM-installed hardware and operating system solution for a tightly-controlled high availability environment.
Table 47. Single Node High Availability Configurations (4, 8, 16 and 32-way)1
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
Select one of the following models2, 3
Single Core Processors
88722AY 4 x 3.0GHz/667MHz Xeon MP, 0MB Mem, open-bay, 32-bit
WS03, HA DC
111 1
88723AY 4 x 3.33GHz/667MHz Xeon MP, 0MB Mem, open-bay, 32-bit
WS03, HA DC
111 1
88722BY 4 x 3.0GHz/667MHz Xeon MP, 0MB Mem, open-bay, 64-bit
WS03, HA DC
111 1
88723BY 4 x 3.33GHz/667MHz Xeon MP, 0MB Mem, open-bay, 64-bit
WS03, HA DC
111 1
Dual Core Processors
88725AY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon MP, 0MB Mem,
open-bay, 32-bit WS03, HA DC
111 1
88726AY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon MP, 0MB Mem,
open-bay, 32-bit WS03, HA DC
111 1
88725BY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon MP, 0MB Mem,
open-bay, 64-bit WS03, HA DC
111 1
88726BY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon MP, 0MB Mem,
open-bay, 64-bit WS03, HA DC
111 1
88727AY 4 x Dual Core 2.67GHz/667MHz-2x1MB L2 Cache Xeon MP,
0MB Mem, open-bay, 32-bit WS03, HA DC
111 1
88728AY 4 x Dual Core 3.0GHz/667MHz-2x2 MB L2 Cache Xeon MP,
0MB Mem, open-bay, 32-bit WS03, HA DC
111 1
88727BY 4 x Dual Core 2.67GHz/667MHz-2x1MB L2 Cache Xeon MP,
0MB Mem, open-bay, 64-bit WS03, HA DC
111 1
88728BY 4 x Dual Core 3.0GHz/667MHz-2x2 MB L2 Cache Xeon MP,
0MB Mem, open-bay, 64-bit WS03, HA DC
111 1
Select appropriate expansion enclosure4
88741AY x3950 E with 4-way 32-bit HA COA 0 1 3 7
88741BY x3950 E with 4-way 64-bit HA COA 0 1 3 7
88742AY x3950 E with Dual Core 4-way 32-bit HA COA 0 1 3 7
88742BY x3950 E with Dual Core 4-way 64-bit HA COA 0 1 3 7
88743AY 3950 E with Dual Core 4-way 32-bit HA COA 0 1 3 7
88743BY 3950 E with Dual Core 4-way 64-bit HA COA 0 1 3 7
Chapter 21. Datacenter solution program 271
Scalability kit5
13M7414 2.3m Scalability Cable 0 2 3 6
13M7416 2.9m Scalability Cable 0 0 3 6
Select appropriate processor6, 7
13N0714 3.0GHz/667MHz-8MB L3 Cache Xeon Processor MP 0 4 12 28
13N0713 3.33GHz/667MHz-8MB L3 Cache Xeon Processor MP 0 4 12 28
25R8941 Dual Core 2.66GHz/667MHz-2MB L2 Cache Xeon
Processor MP
0 4 12 28
25R8942 Dual Core 3.0GHz/667MHz-4MB L2 Cache Xeon Processor
MP
0 4 12 28
40K2522 Dual Core 2.67GHz/667MHz-2MB L2 Cache Xeon
Processor MP8
0 4 12 28
40K2523 Dual Core 3.0GHz/667MHz-4MB L2 Cache Xeon Processor
MP8
0 4 12 28
Select memory9, 10 Min=
4GB
Min=
8GB
Min=
16GB
Min=
32GB
73P2866 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
73P2867 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
30R5145 8GB (2x4GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
39M5809 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM
RDIMM (512Mb)8
--- -
39M5812 4GB (2x2GB Kit - 8GB Max Memory) PC2-3200 CL3 Double
Rank ECC DDR2 SDRAM RDIMM8
--- -
Select the following as required
13M7409 4-DIMM Memory Expansion Card9, 10, 11 --- -
41Y5000 4-DIMM DDR2 Memory Card8, 9, 10, 11 --- -
41Y5004 Scalability Enablement/Memory Adapter12 124 8
41Y5005 Dual Core X3 Upgrade Kit13 124 8
Select the following14 Min=1 Min=1 Min=1
39R8729 ServeRAID-8i SAS Controller 1 - - -
Select HDDs15 Min=2 Min=2 Min=2 Min=2
26K5654 36.4GB 10K rpm 2.5" SAS HS HDD - - - -
26K5655 73.4GB 10K rpm 2.5" SAS HS HDD - - - -
40K1051 36GB 10K 2.5" SAS Hot-Swap HDD8--- -
40K1052 73GB 10K 2.5" SAS Hot-Swap HDD8--- -
Select the following16 Min=2 Min=2 Min=2 Min=2
24P0960 DS4000 Host Bus Adapter - - - -
Table 47. Single Node High Availability Configurations (4, 8, 16 and 32-way)1 (continued)
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
272 COG
Notes:
1. All final customer configurations and solutions require IBM Solution Assurance Approval.
2. The Datacenter OS comes preloaded on each High Availability (HA) DC model.
3. Select one model to serve as the primary server. The OS will reside on this server.
4. Select based on primary server selected. x3950 E COA must match the selected x3950s OS.
5. Order both cables in quantities shown per configuration. Connects chassis in a node together for
scalability.
6. x3950 Datacenter models ship standard with the maximum number of processors. The x3950 Es OS have
zero processors standard.
7. All processors in the solution must match. Select processors for the x3950 E based on processors installed
in the primary x3950. Select in quantities of four per x3950 E.
8. This option is applicable for models 8872-7AY, 8872-7BY, 8872-8AY, 8872-8BY, 8874-3AY and 8874-3BY
only.
9. HA solution x3950 and x3950 E Datacenter models have zero DIMMs standard. Minimum of two DIMMs
(one option kit) equating to 4GB required per chassis. Each chassis must contain the same memory
configuration.
10. All Datacenter models ship standard with two memory cards. Each memory card supports four DIMMs.
Max of four cards are supported per chassis.
11. Memory can be installed using one of two methodologies: Performance installation or cost-effective
installation. Performance installation populates one pair of DIMMs per memory card, until four cards are
installed, before adding a second pair of DIMMs to a card. Cost-effective installation fully populates each
memory card before adding additional cards.
12. Single core Datacenter solutions containing greater than 16 processors require one Scalability
Enablement/Memory Adapter (P/N 41Y5004) per chassis. x3950 E dual core Datacenter solutions
containing 16 processors and greater require one Scalability Enablement/Memory Adapter (P/N
41Y5004) per chassis. Proof of the appropriate U.S. Government Export License must exist before this
option can be ordered or shipped to Tier 3 countries. In addition to providing scalability support, this
adapter supports four memory DIMMs and can be used in place of one of the standard, four-slot
memory adapters.
13. This option kit includes the components necessary to upgrade systems that currently have single-core
Intel Xeon MP processors installed to support the dual-core Intel Xeon MP processors. Processors are not
included in the kit and must be purchased separately. Once the system is upgraded, the new system
model type must be registered with IBM. Directions for registering the new system model type are
included in the option.
14. A maximum of two ServeRAID 8i controllers is allowed per Datacenter node (each instance of the
operating system). One of the two ServeRAID 8i controllers must be installed in the x3950. The other
ServeRAID 8i controller can be installed in an x3950 E to fit your configuration.
15. Minimum two identical HDDs required on primary server (x3950) for OS. HDDs are optional for x3950 E.
Max = 6 HDDs per chassis.
16. Minimum two required per primary server (x3950) for load balancing and redundancy. Optional for
x3950 E.
17. One required per chassis for service processor interconnection. The service processors of all chassis must
be connected together via an ethernet network.
Select the following17
- Ethernet Cable 1 2 4 8
Note: Refer to the Required Service Offerings section at the end of the Datacenter section for any manufacturing
install fees that may apply.
Note: A node represents a single instance of the operating system. For example, a single-node, 16-way configuration
will consist of one x3950 and three x3950 Es.
Table 47. Single Node High Availability Configurations (4, 8, 16 and 32-way)1 (continued)
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
Chapter 21. Datacenter solution program 273
Multi-node Datacenter high availability solutions
The Datacenter High Availability (HA) Program Offering delivers a fully configured, Datacenter-certified,
IBM-installed hardware and operating system solution for a tightly-controlled high availability environment.
Table 48. Multi-Node Configurations (two and four node examples)1, 2
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Total Quantities
Option
Number Description
2 Node
8-way
4 Node
8-way
2 Node
16-way
4 Node
16-way
2 Node
32-way
4 Node
32-way
Select one of the following3, 4
Single Core Processors
88722AY 4 x 3.0GHz/667MHz Xeon MP, 0MB Mem,
open-bay, 32-bit WS03, HA DC
242424
88723AY 4 x 3.33GHz/667MHz Xeon MP, 0MB Mem,
open-bay, 32-bit WS03, HA DC
242424
88722BY 4 x 3.0GHz/667MHz Xeon MP, 0MB Mem,
open-bay, 64-bit WS03, HA DC
242424
88723BY 4 x 3.33GHz/667MHz Xeon MP, 0MB Mem,
open-bay, 64-bit WS03, HA DC
242424
Dual Core Processors
88725AY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon
MP, 0MB Mem, open-bay, 32-bit WS03, HA
DC
242424
88726AY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon
MP, 0MB Mem, open-bay, 32-bit WS03, HA
DC
242424
88725BY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon
MP, 0MB Mem, open-bay, 64-bit WS03, HA
DC
242424
88726BY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon
MP, 0MB Mem, open-bay, 64-bit WS03, HA
DC
242424
88727AY 4 x Dual Core 2.67GHz/667MHz-2x1MB
Cache Xeon MP, 0MB Mem, open-bay, 32-bit
WS03, HA DC
242424
88728AY 4 x Dual Core 3.0GHz/667MHz-2x2 MB L2
Cache Xeon MP, 0MB Mem, open-bay, 32-bit
WS03, HA DC
242424
88727BY 4 x Dual Core 2.67GHz/667MHz-2x1MB L2
Cache Xeon MP, 0MB Mem, open-bay, 64-bit
WS03, HA DC
242424
88728BY 4 x Dual Core 3.0GHz/667MHz-2x2 MB L2
Cache Xeon MP, 0MB Mem, open-bay, 64-bit
WS03, HA DC
242424
274 COG
Select appropriate expansion enclosure5
88741AY x3950 E with 4-way 32-bit HA COA 2 4 6 12 14 28
88741BY x3950 E with 4-way 64-bit HA COA 2 4 6 12 14 28
88742AY x3950 E with Dual Core 4-way 32-bit HA
COA
2 4 6 12 14 28
88742BY x3950 E with Dual Core 4-way 64-bit HA
COA
2 4 6 12 14 28
88743AY 3950 E with Dual Core 4-way 32-bit HA COA 2 4 6 12 14 28
88743BY 3950 E with Dual Core 4-way 64-bit HA COA 2 4 6 12 14 28
Scalability kit6
13M7414 2.3m Scalability Cable 4 8 6 12 12 24
13M7416 2.9m Scalability Cable 0 0 6 12 12 24
Select appropriate processor7, 8
13N0714 3.0GHz/667MHz-8MB L3 Cache Xeon
Processor MP
8 16244856112
13N0713 3.33GHz/667MHz-8MB L3 Cache Xeon
Processor MP
8 16244856112
25R8941 Dual Core 2.66GHz/667MHz-2MB L2 Cache
Xeon Processor MP
8 16244856112
25R8942 Dual Core 3.0GHz/667MHz-4MB L2 Cache
Xeon Processor MP
8 16244856112
40K2522 Dual Core 2.67GHz/667MHz-2MB L2 Cache
Xeon Processor MP9
8 16244856112
40K2523 Dual Core 3.0GHz/667MHz-4MB L2 Cache
Xeon Processor MP9
8 16244856112
Select Memory10, 11 Min=16
GB
Min=32
GB
Min=32
GB
Min=64
GB
Min=32
GB
Min=64
GB
73P2866 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM
Kit
------
73P2867 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM
Kit
------
30R5145 8GB (2x4GB) PC2-3200 ECC DDR2 RDIMM
Kit
------
39M5809 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2
SDRAM RDIMM (512Mb)9
------
39M5812 4GB (2x2GB Kit - 8GB Max Memory) PC2-
3200 CL3 Double Rank ECC DDR2 SDRAM
RDIMM9
------
Table 48. Multi-Node Configurations (two and four node examples)1, 2 (continued)
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Total Quantities
Option
Number Description
2 Node
8-way
4 Node
8-way
2 Node
16-way
4 Node
16-way
2 Node
32-way
4 Node
32-way
Chapter 21. Datacenter solution program 275
Notes:
1. All final customer configurations and solutions require IBM Solution Assurance Approval.
2. Multi-node configurations are essentially single-node configurations clustered together.
Hardware/software that would be necessary for clustering is not covered here.
3. The Datacenter OS comes preloaded on each High Availability (HA) DC model.
4. Select one model to serve as the primary server. The OS will reside on this server.
5. Select based on primary server selected. x3950 E COA must match the selected x3950 OS.
6. Order both cables in quantities shown per configuration. Connects chassis in a node together.
7. x3950 Datacenter models ship standard with the maximum number of processors. The x3950 Es have
zero processors standard.
8. All processors in the solution must match. Select processors for x3950 E are based on the processor
installed in the primary x3950.
9. This option is applicable for models 88727AY, 88727BY, 88728AY, 88728BY, 88743AY and 88743BY only.
10. HA solution x3950 and x3950 E Datacenter models have zero DIMMs standard. Minimum of two DIMMs
(one option kit) equating to 4GB required per chassis. Each chassis must contain the same memory
configuration.
11. All Datacenter models (x3950 and x3950 E) ship standard with two memory cards. Each memory card
supports four DIMMs. Max of four cards are supported per chassis.
Select the following as required
13M7409 4-DIMM Memory Expansion Card10, 11, 12 ------
41Y5000 4-DIMM DDR2 Memory Card9, 10, 11, 12 ------
41Y5004 Scalability Enablement/Memory Adapter13 4 8 8 16 16 32
41Y5005 Dual Core X3 Upgrade Kit14 4 8 8 16 16 32
Select the following15 Min=2 Min=4 Min=2 Min=4 Min=2 Min=4
39R8729ServeRAID-8i SAS Controller ------
Select HDDs16 Min=2 Min=4 Min=2 Min=4 Min=2 Min=4
26K5654 36.4GB 10K rpm 2.5" SAS HS HDD ------
26K5655 73.4GB 10K rpm 2.5" SAS HS HDD ------
40K1051 36GB 10K 2.5" SAS Hot-Swap HDD9------
40K1052 73GB 10K 2.5" SAS Hot-Swap HDD9------
Select the following17 Min=2 Min=4 Min=2 Min=4 Min=2 Min=4
24P0960 DS4000 Host Bus Adapter ------
Select the following18
- Customer-supplied Ethernet cable 4 8 8 16 16 32
Note: Refer to the Required Service Offerings section at the end of the Datacenter section for any manufacturing
install fees that may apply.
Note: A node represents a single instance of the operating system. For example, a single-node 16-way configuration
will consist of one x3950 or three x3950 Es. A two-node 16-way configuration will consist of two x3950s, and six
x3950 Es.
Table 48. Multi-Node Configurations (two and four node examples)1, 2 (continued)
The Datacenter HA Solutions will contain, at a minimum, the components below in the appropriate quantities.
Additional Datacenter certified options are listed in the 'Additional Options' table. Required service offerings are
listed in the 'Required Service Offerings' table.
Total Quantities
Option
Number Description
2 Node
8-way
4 Node
8-way
2 Node
16-way
4 Node
16-way
2 Node
32-way
4 Node
32-way
276 COG
12. Memory can be installed using one of two methodologies: Performance installation or cost-effective
installation. Performance installation populates one pair of DIMMs per memory card, until four cards are
installed, before adding a second pair of DIMMs to a card. Cost-effective installation fully populates each
memory card before adding additional cards.
13. Single core Datacenter solutions containing more than 16 processors require one Scalability
Enablement/Memory Adapter (P/N 41Y5004) per chassis. x3950 E dual core Datacenter solutions
containing 16 processors and greater require one Scalability Enablement/Memory Adapter (P/N
41Y5004) per chassis. Proof of the appropriate U.S. Government Export License must exist before this
option can be ordered or shipped to Tier 3 countries. In addition to providing scalability support, this
adapter supports four memory DIMMs and can be used in place of one of the standard, four-slot
memory adapters.
14. This option kit includes the components necessary to upgrade systems that currently have single-core
Intel Xeon MP processors installed to support the dual-core Intel Xeon MP processors. Processors are not
included in the kit and must be purchased separately. Once the system is upgraded, the new system
model type must be registered with IBM. Directions for registering the new system model type are
included in the option.
15. A maximum of two ServeRAID 8i controllers is allowed per Datacenter node (each instance of the
operating system). One of the two ServeRAID 8i controllers must be installed in the x3950. The other
ServeRAID 8i controller can be installed in an x3950 E to fit your configuration.
16. Minimum two identical HDDs required per node on primary server (x3950) for OS. HDDs are optional
for x3950 E. Max = 6 HDDs per chassis.
17. Minimum two required per node on primary server (x3950) for load balancing and redundancy. Optional
for x3950 E.
18. One required per chassis for service processor interconnection. The service processors of all chassis must
be connected together via an ethernet network.
Datacenter high availability solution additional options
Table 49. Datacenter High Availability Solution Additional Options1
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
Disk Systems Can be attached to both x3950 and x3950 E.
181582H TotalStorage DS4800 Midrange Disk System
181584H TotalStorage DS4800 Midrange Disk System
181588H TotalStorage DS4800 Midrange Disk System
I/O Controllers
31P9601 PRO/1000 MT Server Ethernet Adapter by Intel Can be installed in models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
73P2701 PRO/1000 MT Dual Port Server Ethernet Adapter
by Intel
Can be installed in models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
73P4001 NetXtreme 1000SX+ Fiber Ethernet Adapter Can be installed in models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
73P4101 NetXtreme 1000 T + Ethernet Adapter Can be installed in models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
73P4201 NetXtreme 1000 T + Dual Port Ethernet Adapter Can be installed in models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
39Y6088 NetXtreme 1000 SxG Ethernet Adapter Can be installed in models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
Chapter 21. Datacenter solution program 277
39Y6079 NetXtreme 1000 TxG Ethernet Adapter Can be installed in models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
39Y6093 NetXtreme 1000 TxG Dual Port Ethernet Adapter Can be installed in models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
Racks
93084RX NetBAY42 Enterprise Rack Cabinet Compatible with models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
93084XX NetBAY42 Enterprise Expansion Rack Cabinet Compatible with models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
93084RX NetBAY42 ER Enterprise Rack Cabinet - 42u
standalone/primary
Compatible with models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
93084XX NetBAY42 EX Enterprise Expansion Cabinet - 42u
expansion
Compatible with models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
Software Update Subscriptions2
Note: these are 4 processor subscriptions. 8-way
configurations will need quantity two, 16-way will
need four, etc.
4816GAX Software Update Subscription for Microsoft
Windows Server 2003 Datacenter Edition, 32-bit, 4
processor, High Availability
Compatible with models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
4816HAX Software Update Subscription for Microsoft
Windows Server 2003 Datacenter Edition, 64-bit, 4
processor, High Availability
Compatible with models 88722xx, 88723xx,
88725xx, 88726xx, 88741xx and 88742xx
4816JAX IBM Software Update Subscription for Microsoft
Windows Server 2003 R2, Datacenter Edition, 32
bit, 4 processor, High Availability
Compatible with models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
4816KAX IBM Software Update Subscription for Microsoft
Windows Server 2003 R2, Datacenter x64 Edition,
64 bit, 4 processor, High Availability
Compatible with models 88727AY, 88727BY,
88728AY, 88728BY, 88743AY and 88743BY
Warranty Upgrades3, 4
96P2679 1-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8872 models.
96P2680 1-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8872 models.
96P2681 1-year MA IOR 24 X 7 Warranty upgrade for all Datacenter 8872 models.
96P2682 1-year MA IOR 24 X 7 Warranty upgrade for all Datacenter 8872 models.
96P2683 2-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8872 models.
96P2684 2-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8872 models.
96P2685 2-year MA IOR 24 X 7 Warranty upgrade for all Datacenter 8872 models.
96P2686 2-year MA IOR 24 X 7 Warranty upgrade for all Datacenter 8872 models.
96P2687 3-year IOR 9 x 5 Warranty upgrade for all Datacenter 8872 models.
96P2688 3 Year IOR 24x7x4 Warranty upgrade for all Datacenter 8872 models.
96P2689 3 Year IOR 24x7x2 Warranty upgrade for all Datacenter 8872 models.
96P2692 4 Year IOR 24x7x4 Warranty upgrade for all Datacenter 8872 models.
Table 49. Datacenter High Availability Solution Additional Options1 (continued)
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
278 COG
Notes:
1. All final customer configurations and solutions require IBM Solution Assurance Approval.
2. Software subscriptions for the Datacenter High Availability offering provide upgrades and updates to
the Datacenter Operating System for a period of twelve months and can be renewed annually. This
annual subscription service ensures that customers receive all updates to the Microsoft Datacenter
operating system and roll up of IBM driver updates. Staying current on Datacenter patches is a
requirement for Microsoft support. This service is highly recommended for all Datacenter customers.
3. Recommended warranty upgrades Datacenter solutions.
4. 24x7x2 warranty service is limited to selected locations. For list, see Fax #8146 on 1-800-IBM-4FAX.
96P2693 4 Year IOR 24x7x2 Warranty upgrade for all Datacenter 8872 models.
96P2696 5 Year IOR 24x7x4 Warranty upgrade for all Datacenter 8872 models.
96P2697 5 Year IOR 24x7x2 Warranty upgrade for all Datacenter 8872 models.
10N3058 3 Year IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3059 3 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3060 3 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3061 4 Year IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3062 4 Year IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3063 4 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3064 4 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3065 5 Year IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3066 5 Year IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3067 5 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3068 5 Year IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3069 1-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3070 1-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3071 1-year MA IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3072 1-year MA IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3073 2-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3074 2-year MA IOR 9 x 5 Warranty upgrade for all Datacenter 8874 models.
10N3075 2-year MA IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
10N3076 2-year MA IOR 24 x 7 Warranty upgrade for all Datacenter 8874 models.
Note: Refer to the Required Service Offerings section at the end of the Datacenter section for any manufacturing
install fees that may apply.
Note: Refer to the x3950 sections of the COG for supported external options such as keyboards, mice, UPSs and
switches. Refer to the external storage section of the COG for further external storage configuration. Refer to the
Rack section for rack options.
Table 49. Datacenter High Availability Solution Additional Options1 (continued)
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
Chapter 21. Datacenter solution program 279
Datacenter scalable solutions
The Datacenter Scalable Program Offering delivers a Datacenter Solution that meets Microsoft Datacenter
certification requirements in a non-cluster environment giving the customer greater freedom in choosing I/O
and other system components.
Table 50. Datacenter Scalable Configurations1
The Datacenter Scalable Solutions will contain, at a minimum, the components below in the appropriate
quantities. Additional Datacenter certified options are listed in the 'Additional Options' table. Required service
offerings are listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
Select one of the following2, 3
Single Core Processors
88722DY 4 x 3.0GHz/667MHz Xeon MP, 4GB Mem,
open-bay, 32-bit WS03, Scalable DC
11 1 1
88723DY 4 x 3.33GHz/667MHz Xeon MP, 4GB Mem,
open-bay, 32-bit WS03, Scalable DC
11 1 1
88722EY 4 x 3.0GHz/667MHz Xeon MP, 4GB Mem,
open-bay, 64-bit WS03, Scalable DC
11 1 1
88723EY 4 x 3.33GHz/667MHz Xeon MP, 4GB Mem,
open-bay, 64-bit WS03, Scalable DC
11 1 1
Dual Core Processors
88725DY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon
MP, 4GB Mem, open-bay, 32-bit WS03, Scalable
DC
11 1 1
88726DY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon MP,
4GB Mem, open-bay, 32-bit WS03, Scalable DC
11 1 1
88725EY 4 x Dual Core 2.66GHz/667MHz-2MB Xeon
MP, 4GB Mem, open-bay, 64-bit WS03, Scalable
DC
11 1 1
88726EY 4 x Dual Core 3.0GHz/667MHz-4MB Xeon MP,
4GB Mem, open-bay, 64-bit WS03, Scalable DC
11 1 1
88727DY 4 x Dual Core 2.67GHz/667MHz-2x1MB L2
Cache Xeon MP, 4GB Mem, open-bay, 32-bit
WS03, Scalable DC
11 1 1
88728DY 4 x Dual Core 2.67GHz/667MHz-2x2 MB L2
Cache Xeon MP, 4GB Mem, open-bay, 64-bit
WS03, Scalable DC
11 1 1
88727EY 4 x Dual Core 2.67GHz/667MHz-2x1MB L2
Cache Xeon MP, 4GB Mem, open-bay, 64-bit
WS03, Scalable DC
24 2 4
88728EY 4 x Dual Core 3.0GHz/667MHz-2x2 MB L2
Cache Xeon MP, 4GB Mem, open-bay, 64-bit
WS03, Scalable DC
24 2 4
280 COG
Select appropriate expansion enclosure4
88741DY x3950 E with 4-way 32-bit Scalable COA 0 1 3 7
88741EY x3950 E with 4-way 64-bit Scalable COA 0 1 3 7
88742DY x3950 E with Dual Core 4-way 32-bit Scalable
COA
01 3 7
88742EY x3950 E with Dual Core 4-way 64-bit Scalable
COA
01 3 7
88743DY 3950 E with Dual Core 4-way 32-bit Scalable
COA
01 3 7
88743EY 3950 E with Dual Core 4-way 64-bit Scalable
COA
01 3 7
Scalability kit5
13M7414 2.3m Scalability Cable 0 2 3 6
13M7416 2.9m Scalability Cable 0 0 3 6
Select appropriate processor6, 7
13N0714 3.0GHz/667MHz-8MB L3 Cache Xeon
Processor MP
0 4 12 28
13N0713 3.33GHz/667MHz-8MB L3 Cache Xeon
Processor MP
0 4 12 28
25R8941 Dual Core 2.66GHz/667MHz-2MB L2 Cache
Xeon Processor MP
0 4 12 28
25R8942 Dual Core 3.0GHz/667MHz-4MB L2 Cache
Xeon Processor MP
0 4 12 28
40K2522 Dual Core 2.67GHz/667MHz-2MB L2 Cache
Xeon Processor MP8
0 4 12 28
40K2523 Dual Core 3.0GHz/667MHz-4MB L2 Cache
Xeon Processor MP8
0 4 12 28
Select memory9, 10 Min=4GB Min=8GB Min=16GB Min=32GB
73P2866 2GB (2x1GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
73P2867 4GB (2x2GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
30R5145 8GB (2x4GB) PC2-3200 ECC DDR2 RDIMM Kit - - - -
39M5809 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2
SDRAM RDIMM (512Mb)8
-- - -
39M5812 4GB (2x2GB Kit - 8GB Max Memory) PC2-3200
CL3 Double Rank ECC DDR2 SDRAM
RDIMM8
-- - -
Select the following as required9, 10, 11
13M7409 4-DIMM Memory Expansion Card - - - -
41Y5000 4-DIMM DDR Memory Card - - - -
Table 50. Datacenter Scalable Configurations1 (continued)
The Datacenter Scalable Solutions will contain, at a minimum, the components below in the appropriate
quantities. Additional Datacenter certified options are listed in the 'Additional Options' table. Required service
offerings are listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
Chapter 21. Datacenter solution program 281
Notes:
1. All final customer configurations and solutions require IBM Solution Assurance Approval.
2. The Datacenter OS is not preloaded but is provided "in-box" with each Scalable DC model.
3. Select one model to serve as the primary server. The OS will reside on this server.
4. Select based on primary server selected. x3950 E COA must match the selected x3950 OS.
5. Order both cables in quantities shown per configuration. Connects chassis in a node together for
scalability.
6. x3950 Datacenter models ship standard with the maximum number of processors. The x3950 E has zero
processors standard.
7. All processors in the solution must match. Select processors for x3950 E based on the processor installed
in the primary x3950. Select in quantities of four per x3950 E.
8. This option is applicable for models 88727DY, 88727EY, 88728DY, 88728EY, 88743DY, and 88743EY only.
9. Scalable x3950 Datacenter models have two 2GB DIMMs standard. x3950 E Datacenter models have zero
DIMMs standard. Minimum of two DIMMs (one option kit) equating to 4GB required per chassis. Each
chassis must contain the same memory configuration.
10. All Datacenter models ship standard with two memory cards. Each memory card supports four DIMMs.
Max of four cards are supported per chassis.
11. Memory can be installed using one of two methodologies: Performance installation or cost-effective
installation. Performance installation populates one pair of DIMMs per memory card, until four cards are
installed, before adding a second pair of DIMMs to a card. Cost-effective installation fully populates each
memory card before adding additional cards.
12. Single core Datacenter solutions containing greater than 16 processors require one Scalability
Enablement/Memory Adapter (P/N 41Y5004) per chassis. x3950 E dual core Datacenter solutions
containing 16 processors and greater require one Scalability Enablement/Memory Adapter (P/N
41Y5004) per chassis. Proof of the appropriate U.S. Government Export License must exist before this
option can be ordered or shipped to Tier 3 countries. In addition to providing scalability support, this
adapter supports four memory DIMMs and can be used in place of one of the standard, four-slot memory
adapters.
13. This option kit includes the components necessary to upgrade xSeries x3950 and x3950 E systems that
currently have single-core Intel Xeon MP processors installed to support the dual-core Intel Xeon MP
processors. Processors are not included in the kit and must be purchased separately. Once the system is
41Y5004 Scalability Enablement/Memory Adapter12 12 4 8
41Y5005 Dual Core X3 Upgrade Kit13 12 4 8
Select HDDs14 Min=2 Min=2 Min=2 Min=2
26K5654 36.4GB 10K rpm 2.5" SAS HS HDD - - - -
26K5655 73.4GB 10K rpm 2.5" SAS HS HDD - - - -
40K1051 36GB 10K 2.5" SAS Hot-Swap HDD8-- - -
40K1052 73GB 10K 2.5" SAS Hot-Swap HDD8-- - -
Select the following15
-Ethernet Cable 1 2 4 8
Note: Refer to the Required Service Offerings section at the end of the Datacenter section for any manufacturing
install fees that may apply.
Note: A node represents a single instance of the operating system. For example, a single-node, 16-way configuration
will consist of one x3950 and three x3950 Es.
Table 50. Datacenter Scalable Configurations1 (continued)
The Datacenter Scalable Solutions will contain, at a minimum, the components below in the appropriate
quantities. Additional Datacenter certified options are listed in the 'Additional Options' table. Required service
offerings are listed in the 'Required Service Offerings' table.
Option
Number Description
Total Qty
4-way
Total Qty
8-way
Total Qty
16-way
Total Qty
32-way
282 COG
upgraded, the new system model type must be registered with IBM. Directions for registering the new
system model type are included in the option.
14. Minimum two identical HDDs required on primary server (x3950) for OS. HDDs are optional for x3950 E.
Max = 6 HDDs per chassis.
15. One required per chassis for service processor interconnection. The service processors of all chassis must
be connected together via an ethernet network.
Datacenter scalable solution additional options
Table 51. Datacenter Scalable Solution Additional Options1
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
Disk Systems Can be attached to x460, x3950, MXE-460 or x3950 E.
181582H TotalStorage DS4800 Midrange Disk System
181584H TotalStorage DS4800 Midrange Disk System
181588H TotalStorage DS4800 Midrange Disk System
I/O Controllers
24P0960 DS4000 Host Bus Adapter Can be installed in x460, x3950, MXE-460 or x3950 E.
39R8729 ServeRAID-8i SAS Controller2Can be installed in x460, x3950, MXE-460 or x3950 E.
31P9601 PRO/1000 MT Server Ethernet Adapter by Intel Can be installed in x460 or in MXE-460.
73P2701 PRO/1000 MT Dual Port Server Ethernet Adapter
by Intel
Can be installed in x460 or in MXE-460.
73P4001 NetXtreme 1000SX+ Fiber Ethernet Adapter Can be installed in x460 or in MXE-460.
73P4101 NetXtreme 1000T+ Ethernet Adapter Can be installed in x460 or in MXE-460.
73P4201 NetXtreme 1000T+ Dual Port Ethernet Adapter Can be installed in x460 or in MXE-460.
39Y6088 NetXtreme 1000 SxG Ethernet Adapter Can be installed in x3950 or in x3950 E.
39Y6079 NetXtreme 1000 TxG Ethernet Adapter Can be installed in x3950 or in x3950 E.
39Y6093 NetXtreme 1000 TxG Dual Port Ethernet Adapter Can be installed in x3950 or in x3950 E.
39Y6105 PRO/1000 GT Server Adapter by Intel Can be installed in x3950 or in x3950 E.
39Y8729 ServeRAID-8i SAS Controller Can be installed in x3950 or in x3950 E.
Racks
930842S NetBAY42 Enterprise Rack Cabinet Compatible with x460 and MXE-460.
930842E NetBAY42 Enterprise Expansion Rack Cabinet Compatible with x460 and MXE-460.
93084RX NetBAY42 ER Enterprise Rack Cabinet - 42u
standalone/primary
Compatible with x3950 and x3950 E.
93084XX NetBAY42 Enterprise Expansion Rack Cabinet -
42u expansion
Compatible with x3950 and x3950 E.
Software Update Subscriptions3
Note: these are 4 processor subscriptions.
8-way configurations will need quantity two, 16-
way will need four, etc.
4818GAX Software Update Subscription for Microsoft
Windows Server 2003 Datacenter Edition, 32-bit,
4 processor, Scalable, x460
Compatible with x460 and MXE-460.
Chapter 21. Datacenter solution program 283
4818HAX Software Update Subscription for Microsoft
Windows Server 2003 Datacenter Edition, 64-bit,
4 processor, Scalable, x460
Compatible with x460 and MXE-460.
4818JAX IBM Software Update Subscription for Microsoft
Windows Server 2003 R2, Datacenter Edition, 32
bit, 4 processor, Scalable
Compatible with x3950 and x3950 E.
4818KAX IBM Software Update Subscription for Microsoft
Windows Server 2003 R2, Datacenter x64 Edition,
64 bit, 4 processor, Scalable
Compatible with x3950 and x3950 E.
Warranty Upgrades4, 5
96P2679 1-year MA IOR 9 x 5 Warranty upgrade for x460 and x3950.
96P2680 1-year MA IOR 9 x 5 Warranty upgrade for x460 and x3950.
96P2681 1-year MA IOR 24 X 7 Warranty upgrade for x460 and x3950.
96P2682 1-year MA IOR 24 X 7 Warranty upgrade for x460 and x3950.
96P2683 2-year MA IOR 9 x 5 Warranty upgrade for x460 and x3950.
96P2684 2-year MA IOR 9 x 5 Warranty upgrade for x460 and x3950.
96P2685 2-year MA IOR 24 X 7 Warranty upgrade for x460 and x3950.
96P2686 2-year MA IOR 24 X 7 Warranty upgrade for x460 and x3950.
96P2687 3-year IOR 9 x 5 Warranty upgrade for x460 and x3950.
96P2688 3 Year IOR 24x7x4 Warranty upgrade for x460 and x3950.
96P2689 3 Year IOR 24x7x2 Warranty upgrade for x460 and x3950.
96P2692 4 Year IOR 24x7x4 Warranty upgrade for x460 and x3950.
96P2693 4 Year IOR 24x7x2 Warranty upgrade for x460 and x3950.
96P2696 5 Year IOR 24x7x4 Warranty upgrade for x460 and x3950.
96P2697 5 Year IOR 24x7x2 Warranty upgrade for x460 and x3950.
10N3058 3 Year IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3059 3 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3060 3 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3061 4 Year IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3062 4 Year IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3063 4 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3064 4 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3065 5 Year IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3066 5 Year IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3067 5 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3068 5 Year IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3069 1-year MA IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3070 1-year MA IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
Table 51. Datacenter Scalable Solution Additional Options1 (continued)
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
284 COG
Notes:
1. All final customer configurations and solutions require IBM Solution Assurance Approval.
2. A maximum of two ServeRAID 8i controllers is allowed per Datacenter node (each instance of the
operating system). One of the two ServeRAID 8i controllers must be installed in the x460 or the x3950.
The other ServeRAID 8i controller can be installed in an MXE-460 or x3950 E to fit your configuration.
3. Software subscriptions provide updates for a period of twelve months and can be renewed annually.
This annual subscription service ensures that customers receive all updates to the Microsoft Datacenter
operating system and roll up of IBM driver updates. Staying current on Datacenter patches is a
requirement for Microsoft support. This service is highly recommended to all Datacenter customers.
4. Recommended warranty upgrades for x3950 and x3950 E Datacenter solutions.
5. 24x7x2 warranty service is limited to selected locations. For list, see Fax #8146 on 1-800-IBM-4FAX.
10N3071 1-year MA IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3072 1-year MA IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3073 2-year MA IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3074 2-year MA IOR 9 x 5 Warranty upgrade for MXE-460 and x3950 E.
10N3075 2-year MA IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
10N3076 2-year MA IOR 24 x 7 Warranty upgrade for MXE-460 and x3950 E.
Note: Refer to the Required Service Offerings section at the end of the Datacenter section for any manufacturing
install fees that may apply.
Note: Refer to the x3950 sections of the COG for supported external options such as keyboards, mice, UPSs and
switches. Refer to the external storage section of the COG for further external storage configuration. Refer to the
Rack section for rack options.
Table 51. Datacenter Scalable Solution Additional Options1 (continued)
Additional, certified options for use with IBM Datacenter solutions.
Option
Number Description Comment
Chapter 21. Datacenter solution program 285
Manufacturing configuration services
Required service offerings are manufacturing install fees associated with installing and configuring xSeries
solutions.
Table 52. Required Service Offerings
Service Offerings to be included as required
Option
Number Description Comment
Services Offerings
06P7505 Image Load Fee OS preload service. One per primary server.
58P8663 Option Install Fee (1 to 3 options) Service to install up to three options into selected systems. One
per chassis requiring one to three options be installed.
58P8665 Option Install Fee (4 or more options) Service to install four or more options into selected systems.
One per chassis requiring four or more options be installed.
06P7514 42U Enterprise Rack Prep Fee One per rack required.
31P4310 Install 1U Device in Rack Fee Service to install a 1U device into selected rack. One per 1U
device.
06P7515 Install greater-than-1U Device in Rack
Fee
Service to install a greater-than-1U device into selected rack.
One per device that is greater than 1U.
73P7492 Configured Systems Shipgroup Shipgroup for miscellaneous parts/items that were not
installed into selected systems or into selected racks. One per
order.
286 COG
© Copyright IBM Corp. 2003, 2006 287
Chapter 22. eServer 326m
Table 53. eServer 326m At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)5
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)6
7969-46Y 1.8/1000
1MB L2
Opteron
Processor
Model 265
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
7969-55Y 2.0/1000
1MB L2
Opteron
Processor
Model 270
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
7969-56Y 2.0/1000
1MB L2
Opteron
Processor
Model 270
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
7969-65Y 2.2/1000
1MB L2
Opteron
Processor
Model 275
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
7969-66Y 2.2/1000
1MB L2
Opteron
Processor
Model 275
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
288 COG
7969-67Y 2.2/1000
1MB L2
Opteron
Processor
Model 275
Dual Core
2
/
2
4GB/
16GB
Rack
(1U)
1
/
1
- Y 1GB U320 Hot-
Swap
72.8GB/
600GB
-73
/
2
2
/
2
7969-68Y 2.2/1000
1MB L2
Opteron
Processor
Model 275
Dual Core
2
/
2
4GB/
16GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
-73
/
1
2
/
2
7969-75Y 2MB L2
Opteron
Processor
Model 280
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
7969-76Y 2MB L2
Opteron
Processor
Model 280
Dual Core
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
7969-81Y 2.6/1000
1MB L2
Opteron
Processor
Model 252
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
7969-82Y 2.6/1000
1MB L2
Opteron
Processor
Model 252
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
7969-91Y 2.8/1000
1MB L2
Opteron
Processor
Model 254
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
Table 53. eServer 326m At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)5
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)6
Chapter 22. eServer 326m 289
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7969-46Y is 7969-46U. See
the product specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for L.A. and A.P. Geographies follow the same pattern. Substitute the last
character with a country-specific designator.
2. The eServer 326m contains dual-core AMD Opteron models 265, 270, 275 or 280, and single-core models
252 and 254.
3. System memory can be expanded to 16 GB by installing a 2 GB PC3200 CL3 ECC DDR SDRAM RDIMM
in each of the eight memory DIMM sockets. Only dual processor systems support 16GB of memory.
Single processors only support 8GB.
4. If using the Remote Supervisor Adapter II, one USB port will not be available.
5. Capacities are based on installation of two 300 GB Ultra320 HDDs (SCSI models) or two 160 GB SATA
HDDs (SATA models).
6. Either two PCI-E x8 slots or one PCI-E x8 and one PCI-X 133MHz can be used. One adapter slot is full-
length. The other slot is half-length supporting cards not exceeding 180mm in length.
7. This machine type does not include a CD-ROM as standard.
8. This machine type includes dual-core AMD Opteron Processors.
7969-92Y 2.8/1000
1MB L2
Opteron
Processor
Model 254
1
/
2
1GB/
8GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
7969-85Y82.6/800
2MB L2
Opteron
Model 285
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
1
H Y 1GB U320 Hot-
Swap
0GB/
600GB
CD-ROM
(24x-10x)
3
/
2
2
/
2
7969-86Y82.6/800
1MB L2
Model 285
Dual Core
1
/
2
1GB/
16GB
Rack
(1U)
1
/
1
- Y 1GB SATA Fixed 80GB/
320GB
CD-ROM
(24x-10x)
3
/
1
2
/
2
Table 53. eServer 326m At-A-Glance (continued)
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Number of Processors (Std/Max)
Memory (Std/Max)3
Form Factor
Power Supply Quantity (Std/Max)
Hot-swap (Power, Slots, HDD, Fans)
System Management Processor4
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)5
Optical Drive
Bays (Total/Avail)
Slots (Total/Avail)6
290 COG
eServer 326m processor options
Notes:
1. Microprocessor SMP upgrades must be of the same type and clock speed. Mixing microprocessors of
different speeds or cache size is not supported.
eServer 326m memory options
Notes:
1. The eServer 326m supports mixed memory sizes in pairs and features Chipkill memory.
2. To optimize system performance in a single-microprocessor configuration, install first DIMM pair in slots
1 and 2, and the second DIMM pair in slots 3 and 4. To optimize system performance in a dual-
microprocessor configuration, install first DIMM pair in slots 1 and 2 and the second DIMM pair in slots
7 and 8. Install the third DIMM pair in slots 3 and 4, and fourth pair in slots 5 and 6.
SBB
Number
Option
Number
Feature
Code Description SMP Support1
32R2013 25R8961 0291 Opteron Dual Core Processor Model 265 4xx
32R2015 25R8960 0292 Opteron Dual Core Processor Model 270 5xx
32R2017 25R8959 0293 Opteron Dual Core Processor Model 275 6xx
32R2341 25R8966 0650 Opteron Dual Core Processor Model 280 7xx
13M8216 13N0703 0392 Opteron Processor Model 252 81Y, 82Y
40K1974 25R8963 1257 Opteron Dual Core Processor Model 285 85Y, 86Y
32R2241 13N0704 0421 Opteron Processor Model 254 9xx
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs1, 2
73P3241 - 0526 2GB PC3200 CL2.5 ECC DDR DRAM RDIMM (512Mbit)
39M5798 - 0594 512MB PC2-3200-333 ECC DDR2 DIMM
Chapter 22. eServer 326m 291
Figure 51. eServer 326m DIMMs
eServer 326m internal SCSI cabling
Hot-Swap SCSI models
eServer 326m hot-swap models contain a DASD backplane supporting two hot-swap, SCA-2-compliant drive
bays. The backplane is connected to the internal connector of the integrated Ultra320 SCSI controller through
a 16-bit low-voltage differential SCSI cable.
Fixed SATA models
eServer 326m non-hot-swap models contain an 80 GB SATA HDD cabled directly to an integrated SATA
controller through a two-drop cable.
Table 54. Standard Memory Configuration
Model Standard DIMM Configuration
46Y,55Y,56Y,65Y,66Y,75Y,76Y,
81Y,82Y,91Y,92Y, 85Y, 86Y
2x512MB PC3200 CL2.5 ECC DDR DRAM RDIMM
67Y, 68Y 4x1GB PC3200 CL2.5 ECC DDR DRAM RDIMM
292 COG
eServer 326m hard disk drive (HDD) and optical storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported Max Qty
SATA HDDs
13M7715 25R6902 5252 80GB 7200 RPM Serial ATA - 1,2 2
13M7716 25R6903 5253 160GB 7200 RPM Serial ATA - 1,2 2
Simple-Swap SATA HDDs
39M4501 39M4500 5290 80GB 7200-rpm Simple-swap SATA II HDD - - -
39M4535 39M4504 5294 160GB 7200 RPM Simple-Swap SATA HDD - - -
Hot-Swap SATA HDD
39M4519 39M4518 5299 80GB 7200 RPM Hot Swap SATA II HDD - - -
39M4523 39M4522 5150 160GB 7200 RPM Hot Swap SATA II HDD - - -
39M4599 39M4514 5180 500GB 7200 RPM Hot-Swap SATA HDD - - -
Hot-Swap Ultra320 HDDs
40K1057 40K1025 5167 300GB 10K RPM Ultra320 SCSI Hot-Swap SSL HDD - - -
40K1058 40K1026 5168 36.4GB 15K RPM Ultra320 SCSI Hot-Swap SSL HDD - - -
40K1059 40K1027 5169 73.4GB 15K RPM Ultra320 SCSI Hot-Swap SSL HDD - - -
40K1060 40K1028 5170 146.4GB 15K RPM Ultra320 SCSI Hot-Swap SSL
HDD
-- -
Associated Options
--- - - - -
Optical Drives
---- - - -
External Storage Units
Form
Factor
- 17401xx - TotalStorage DS4000 EXP700 Expansion Unit (all
models)
-
- 35601xx - TotalStorage FAStT EXP500 Expansion Unit (all
models)
-
- 17101xx - TotalStorage DS4000 EXP100 Storage Expansion
Unit (all models)
-
Bay Form Factor Height Front Access Usage
1 133 mm (5.25in) US Y Std Optical
2 89KMM (3.5in) SSL Y HDD
3 89KMM (3.5in) SSL Y HDD
Chapter 22. eServer 326m 293
eServer 326m I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Storage Controllers
02R0995 39R8815 1654 ServeRAID-6M Ultra 320 SCSI
Controller 128MB Cache with battery
Full 64-bit/
133MHz
1-
02R0996 39R8816 1653 ServeRAID-6M Ultra 320 SCSI
Controller 256MB Cache with battery
Full 64-bit/
133MHz
1-
71P8651 39R8805 1651 ServeRAID 7t SATA Controller1Half 64-bit/
133MHz
1-
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 Half 64 bit/
133MHz
1Y
39R8809 39R8805 1683 IBM ServeRAID 7t SATA Controller Half 64-bit/
66MHz
1-
39R8819 39R8815 1685 ServeRAID-6M Ultra320 SCSI
Controller (128MB)
Full 64 bit/
133MHz
1-
39R8820 39R8816 1686 ServeRAID-6M Ultra320 SCSI
Controller (256MB)
Full 64 bit/
133MHz
1-
External Disk Systems and Options
- 17226LU - DS4300 Midrange Disk (6LU) - - - -
- 17001RS - TotalStorage DS400 - Single Controller - - - -
- 17002RD - TotalStorage DS400 - Dual Controller - - - -
- 17011RL - TotalStorage DS300 - Single Controller
LC
-- - -
- 17011RS - TotalStorage DS300 - Single Controller - - - -
- 172260U - DS4300 Midrange Disk (60U) - - - -
- 17226LX - DS4300 Midrange Disk (6LX) - - - -
- 17421RX - DS4400 Midrange Disk System - - - -
- 174290X - DS4500 Midrange Disk System - - - -
- 2005H08 - IBM TotalStorage Fibre Channel Switch
H08
-- - -
- 2005H16 - IBM TotalStorage Fibre Channel Switch
H16
-- - -
- 2006L10 - IBM TotalStorage Storage Switch - - - -
Networking
39Y6129 39Y6126 2944 PRO/1000 PT Dual Port Server Adapter
by Intel
-- - -
73P5105 73P5101 1579 PRO/1000 GT Dual Port Server
Adapter by Intel
Half 64-bit/
133MHz
2-
73P5205 73P5201 1580 PRO/1000 GT Quad Port Server
Adapter by Intel
Half 64-bit/
133MHz
2-
30R5005 30R5001 1566 IBM 10 GB Ethernet Adapter Half - - -
294 COG
Notes:
1. If a Remote Supervisor Adapter is selected, then PCI-X Riser, SBB 32R2287, is required. The PCI-X
Adapter must be plugged into slot 1 on the PCI-X Riser Card.
2. If two PCI adapters are selected, one must be a PCI-E half length adapter and it must be plugged into PCI
Slot 2.
40K9098 40K9112 2918 Myricom Myri-10G 2MB PCI Express
Adapter w/ 10GBASE-CX4 Port
Half PCI-E 8x 1, 2 -
40K9099 40K9113 2919 Myricom Myri-10G 2MB PCI Express
Adapter w/ XAUI-MTP Port
Half PCI-E 8x 1, 2 -
40K9100 40K9114 2920 Myricom Myri-10G PCI Express
Adapter w/ 10GBASE-SR Port
Half PCI-E 8x 1, 2 -
40K8840 40K8900 1677 Myricom Myrinet 333MHz Dual Fiber
PCI-X Adapter w/ 2MB Memory
Half 64-bit/
133Mhz
1-
40K8841 40K8901 2916 Myricom Myrinet 333MHz Single Fiber
PCI-X Adapter w/ 2MB Memory
Half 64-bit/
133Mhz
1-
40K8842 40K8902 1476 Voltaire 10Gbps Host Channel PCI
Express Adapter
Half PCI-E 8x 1, 2 -
Systems Management1
- 39Y9566 - Remote Supervisor Adapter II Slimline
Refresh 1
Half 32-bit/
33MHz
2-
- 59P2984 - 73P9341 Remote Supervisor Adapter II
Slimline
Half 32-bit/
33MHz
2-
Other I/O
32R2287 - 4269 PCI-X Riser Card1-- - -
32R2288 - 4270 PCI-E Riser Card2-- - -
SLOT Type Bus Voltage (V)
Frequency
MHz Data Path
Active
PCI?
(Hotswap) Slot length
Dedicated Raid Slot - - - - - - -
PCI Slot 1 PCI-X or
PCI-E
- - 133 - - Full
PCI Slot 2 PCI-E - - - - - Half
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot Plug
Capable
Chapter 22. eServer 326m 295
eServer 326m power and accessories
SBB
Number
Option
Number
Feature
Code Description
Power
--- -
Power Distribution Units
39Y7980 39Y8905 5900 DPI NEMA Rack PDU
- 39Y8999 - 32A/230V 3P w/IEC309 3P+N+Gnd Conn
- 39Y9000 - 60A/208V 3P w/IEC309 3P+Gnd Conn
Uninterruptible Power Supply (UPS)
- 2130R2X - IBM UPS 750T HV
- 2130R6X - IBM UPS 1500T HV
SBB
Number
Option
Number
Feature
Code Description
Racks
- 93061RX - NetBAY11 Standard Rack Cabinet
- 93072RX - IBM 25U Standard Rack
- 93074RX - IBM 42U Standard Rack
- 93074XX - IBM 42U Standard Rack Extension
- 93084RX - NetBAY42 Enterprise Rack Cabinet
- 93084XX - NetBAY42 Enterprise Expansion Rack Cabinet
Rack/Tower Conversion Kits
-- - -
Rack Console Connectivity
-- - -
Monitors
- 49387NU - C117 17" CRT Monitor
- 494215U - T115 15" TFT Monitor
- 494317U - T117 17" TFT Monitor
- 17233RX - IBM 1U 15in Flat Panel Monitor Console Kit
- 17231RX - IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
Keyboard and Mouse
0008660 40K5372 8660 IBM USB Keyboard with UltraNav - US English
33P2979 33L3252 8907 Space Device Ball 3D Input
- 90P0777 - USB Keyboard Enhanced Performance Keyboard
- 17235RX - IBM Rack Keyboard Tray
296 COG
eServer 326m tape options
Notes:
1. Supported externally only.
SBB
Number
Option
Number
Feature
Code Description
Bays
Supported
Storage
Interface
Form
Factor
Ext Tape
Encl
Tape Drives
42C3932 39M5657 5365 LT03 Tape Drive1- - - 45594UX
71P9176 39M5656 5355 36/72 GB DDS/5 Internal Tape Drive - - - 45594UX
45591UX
External Tape Enclosures
- 45591UX - 1U xSeries Tape Enclosure Rack or Tower - - - -
- 45594UX - 4U Rackmount SCSI Tape Drive Enclosure - - - -
© Copyright IBM Corp. 2003, 2006 297
Chapter 23. BladeCenter® T 8720
Notes:
1. The Management Module incorporates a chassis-level management processor and dual
Keyboard/Video/Mouse (KVM) switches. No external KVM switching is required. Installation of
additional Management Module will require additional power supplies.
2. A maximum of four I/O switches can be installed in the rear of the system. A maximum of four Gbit
Ethernet switches or a maximum of two Gbit Ethernet switches and two-fiber channel switches can be
installed. The minimum system configuration requires one Gbit Ethernet switch to be installed.
3. Supports up to 8 single-wide blade servers. Additional power supplies are required to maintain full
redundancy beyond four blade servers.
Notes:
1. Due to limited power availability some higher power models require installation at lower densities.
Table 55. BladeCenter T 8720 At-A-Glance
Part Number
Form Factor (Width/Depth)
Power Modules
Power Module Quantity (Std/Max)
Hot-Swap (Power, Bays, Blowers)
Redundancy (Optional, Standard)
Management Module (Std/Max)1
I/O Module Bays (Total/Avail)2
Optical Drive
Diskette Drive
Blade Bays (Total/Avail)3
8720-
2RY
Rack 8U
13.75in x 17.4in
1300W-DC
(-48v)
2
/
4
P, B,
B
S-Blowers
S-Power
1
/
2
4
/
4
24x CD/DVD-RW - 8/8
Table 56. BladeCenter T 8720, blade server support
Blade Server 8720
HS20 All1
HS21 L1Y, L2Y, L3Y, L4Y, L5Y, EXY
HS40 51X, 61X, 6TX
JS20 RTX
JS21 All
LS20 All
298 COG
BladeCenter T 8720 optical storage options
Figure 52. BladeCenter T 8720 front view
BladeCenter T 8720 cabling options
SBB
Number
Option
Number
Feature
Code Description Type Height
Bays
Supported
Max
Quantity
32R2854 - 4145 IBM Slim 24x/24x/24x/8x combo drive IDE - Optical 1
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drops
Connects
From
Connects
To
39Y9173 39Y9171 4364 IBM eServer
BladeCenter Optical
Pass-thru Module SC
Cable (1.5M)
Multiport
Optical
SC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9175 39Y9172 4365 IBM eServer
BladeCenter Optical
Pass-thru Module LC
Cable (1.5M)
Multiport
Optical
LC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9331 39Y9170 4366 IBM eServer
BladeCenter Copper
Pass-thru Module
Cable
Multiport
Copper
CAT 5E
Copper
Connections
5CPM
switch
Network
32R1854 26R0816 4255 InfiniBand 12x to (3) 4x
Cable 3 meter for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
Chapter 23. BladeCenter® T 8720 299
Notes:
1. This cable is 1.5m in length and provides four connections between the optical pass-thru-module (OPM)
and an external Ethernet or fibre environment.
2. Provides five copper connections between the copper pass-thru module (CPM) and an external gigabit
Ethernet environment. A maximum of 14 connections per CPM is supported. One CPM cable ships with
the CPM option. Two additional cables can be installed.
3. Option 39Y9170 cannot be installed by manufacturing. It must be shipped separately, as an accessory.

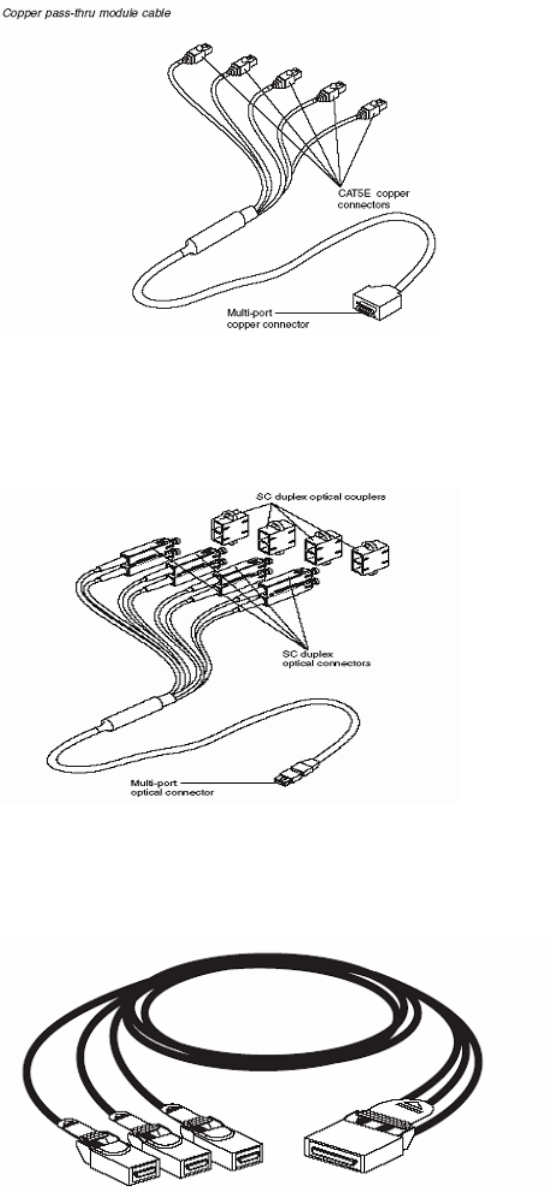

Figure 53. IBM BladeCenter Copper Pass-thru Module Cable
This IBM BladeCenter option provides connection between the copper pass-thru module and an external
environment. This cable allows up to five copper connections to blade servers. One of these cables included
with each copper pass-thru module. Cable is 3.1m (9.4ft) in length.
32R1852 26R0813 4296 InfiniBand 4x Cable 3
meter for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1849 26R0847 4294 InfiniBand 8 meter 4x
Cable for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1850 26R0849 4295 InfiniBand 8 meter 12
to (3) 4x Cable for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1938 32R1937 4362 IBM CX4 1.5 Meter
Cable
CX4
Connector
CX4
Connector
110Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
32R1942 32R1941 4363 IBM CX4 3.0 Meter
Cable
CX4
Connector
CX4
Connector
110Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drops
Connects
From
Connects
To
300 COG
Figure 54. IBM BladeCenter Optical Pass-thru Module SC Cable (1.5M)
This cable provides connection between the Optical Pass-thru Module and an external environment. This
1.5m cable presents four SC connections.
Figure 55. InfiniBand 12x to (3) 4x Cable 3 meter for IBM BladeCenter
Figure 56. InfiniBand 4x Cable 3 meter for IBM BladeCenter
Chapter 23. BladeCenter® T 8720 301
Figure 57. IBM CX4 1.5 or 3.0 meter Cable for IBM BladeCenter (Connector color is Gray)
BladeCenter T 8720 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Networking1
26R0882 26R0881 1560 QLogic® 4Gb 20-port Fibre
Channel Switch Module for
IBM eServer1
-- - Y 2
32R1815 32R1812 1569 Brocade® 4Gb 20-port SAN
Switch Module for IBM
BladeCenter1
-- - Y 2
32R1816 32R1813 1571 Brocade® 4Gb 10-port SAN
Switch Module for IBM
BladeCenter1
-- - Y 2
32R1834 32R1833 1562 McDATA® 4Gb 20-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - Y 2
32R1906 32R1904 1575 QLogic® 4Gb 10-port Fibre
Channel Switch Module for
IBM BladeCenter1
-- - Y 2
32R1907 32R1905 1576 McDATA® 4Gb 10-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - Y 2
39Y9325 39Y9324 1484 Server Connectivity
Module for IBM
BladeCenter
-- - - -
32R1784 32R1783 1493 Nortel 10Gb Uplink
Ethernet Switch Module for
IBM BladeCenter
-- - - -
32R1862 32R1859 1494 Nortel Networks Layer 2-7
Gb Ethernet Switch
Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
302 COG
Notes:
1. Mixing Ethernet (including Copper Pass-thru Module (CPM)) and Fibre/SAN switches in I/O module
bays 3 and 4 is not supported. However, mixing Optical Pass-thru modules (OPM) and Ethernet or
Fibre/SAN switches in bays 3 and 4 is supported.
2. One required per system. Install in Management Module bay 1.
32R1863 32R1860 1495 Nortel Networks L2/L3
Copper Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1864 32R1861 1496 Nortel Networks L2/L3
Fiber Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1889 32R1888 1497 Cisco Systems® Fiber
Intelligent Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1893 32R1892 1498 Cisco Systems Intelligent
Gigabit Ethernet Switch
Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1901 32R1900 1499 Cisco Systems InfiniBand
Switch Module for IBM
BladeCenter
- - 3, 4 Y 2
39Y9317 39Y9316 1556 IBM BladeCenter Optical
Pass-thru Module
- - 1, 2, 3, 4 Y 4
39Y9321 39Y9320 2900 IBM BladeCenter Copper
Pass-thru Module
- - 3, 4 Y 2
System Management
- 90P3741 - CMM Redundant
Management Module for
BladeCenter T 2
-- - - 1
Associated Options
32R1879 32R1877 4360 IBM 10GbE 850nm Fiber
XFP Transceiver
-- - - -
32R1880 32R1878 4361 IBM 10GbE 1310nm Fiber
XFP Transceiver (LR)
-- - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Chapter 23. BladeCenter® T 8720 303
Figure 58. BladeCenter T 8720 modules
BladeCenter T 8720 power and accessories
Table 57. BladeCenter Standard Power Configuration
Model Power Modules Power Cord
8720-2RY 2 x 1300w,
-48v to -60v DC
DC power cables are customer supplied
SBB
Number
Option
Number
Feature
Code Description
Power
32R0799 90P3742 1958 BladeCenter T 1300W-DC Power Supplies
32R0823 32R0833 1959 Redundant BladeCenter T 1300W-DC Power Supplies
Power Distribution Units
39Y8002 39M2816 6030 IBM DPI C13 PDU+C13 without line cord
39Y8003 39M2818 6080 IBM DPI C19 PDU+C19 without line cord
39Y8004 39M2819 6081 IBM DPI C19 3 phase PDU+C19 with attached line cord
Racks
32R8309 32R0836 4292 IBM eServer BladeCenter T 2-Post Rack Mount Kit
39R8311 32R0837 4293 IBM eServer BladeCenter T 4-Post Rack Mount Kit
Monitors
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
- 494215X - T115 15in TFT LCD
- 494317X - T117 17in TFT LCD
- 17233RX - IBM IU 15in Flat Panel Monitor Console Kit
- 17231RX - IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
304 COG
© Copyright IBM Corp. 2003, 2006 305
Chapter 24. BladeCenter® T 8730
Notes:
1. The Management Module incorporates a chassis-level management processor and dual
Keyboard/Video/Mouse (KVM) switches. No external KVM switching is required. Installation of
additional Management Module will require additional power supplies.
2. A maximum of four I/O switches can be installed in the rear of the system. A maximum of four Gbit
Ethernet switches or a maximum of two Gbit Ethernet switches and two-fiber channel switches can be
installed. The minimum system configuration requires one Gbit Ethernet switch to be installed.
3. Supports up to 8 single-wide blade servers. Additional power supplies are required to maintain full
redundancy beyond 4 blade servers.
Notes:
1. Due to limited power availability some higher power models require installation at lower densities.
Table 58. BladeCenter T 8730 Chassis At-A-Glance
Part Number
Form Factor (Width/Depth)
Power Modules
Power Module Quantity (Std/Max)
Hot-Swap (Power, Bays, Blowers)
Redundancy (Optional, Standard)
Management Module (Std/Max)1
I/O Module Bays (Total/Avail)2
Optical Drive
Diskette Drive
Blade Bays (Total/Avail)3
8730-2RY Rack 8U
13.75in x
17.4in
1300W-AC
(-48v)
2/4 P, B,
B
S-Blower
S-Power
1/2 4/4 24x CD/DVD-RW - 8/8
Table 59. BladeCenter Chassis, blade server support
Blade Server 8730
HS20 All1
HS21 L1Y, L2Y, L3Y, L4Y, L5Y, EXY
HS40 51X, 61X, 6TX
JS20 RTX
JS21 All
LS20 All
306 COG
BladeCenter T 8730 optical storage options
Figure 59. BladeCenter T 8730 front view
BladeCenter T 8730 cabling options
SBB
Number
Option
Number
Feature
Code Description Type Height
Bays
Supported Max Qty
32R2854 - 4145 Optical drive 24x combo
CD/DVD R/W
IDE - Optical 1
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drop
s
Connects
From
Connects
To
39Y9173 39Y9171 4364 IBM eServer BladeCenter
Optical Pass-thru
Module SC Cable (1.5M)
Multiport
Optical
SC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9175 39Y9172 4365 IBM eServer BladeCenter
Optical Pass-thru
Module LC Cable (1.5M)
Multiport
Optical
LC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9331 39Y9170 4366 IBM eServer BladeCenter
Copper Pass-thru
Module Cable
Multiport
Copper
CAT 5E
Copper
Connections
5CPM
switch
Network
32R1854 26R0816 4255 InfiniBand 12x to (3) 4x
Cable 3 meter for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1852 26R0813 4296 InfiniBand 4x Cable 3
meter for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
Chapter 24. BladeCenter® T 8730 307
Notes:
1. This cable is 1.5m in length and provides four connections between the optical pass-thru-module (OPM)
and an external Ethernet or fibre environment.
2. Provides five copper connections between the copper pass-thru module (CPM) and an external gigabit
Ethernet environment. A maximum of 14 connections per CPM is supported. One CPM cable ships with
the CPM option. Two additional cables can be installed.
3. Option 39Y9170 can not be installed by manufacturing. It must be shipped separately as an accessory.
Figure 60. IBM BladeCenter Copper Pass-thru Module Cable
This IBM BladeCenter option provides connection between the copper pass-thru module and an external
environment. This cable allows up to five copper connections to blade servers. One of these cables included
with each copper pass-thru module. Cable is 3.1m (9.4ft) in length.
32R1849 26R0847 4294 InfiniBand 8 meter 4x
Cable for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1850 26R0849 4295 InfiniBand 8 meter 12 to
(3) 4x Cable for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1938 32R1937 4362 IBM CX4 1.5 Meter Cable CX4
Connector
CX4
Connector
110Gb
ESM CX4
Port
Another
Nortel
10Gb ESM
or external
10Gb
switch
with CX4
ports.
32R1942 32R1941 4363 IBM CX4 3.0 Meter Cable CX4
Connector
CX4
Connector
110Gb
ESM CX4
Port
Another
Nortel
10Gb ESM
or external
10Gb
switch
with CX4
ports.
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drop
s
Connects
From
Connects
To
308 COG
Figure 61. IBM BladeCenter Optical Pass-thru Module SC Cable (1.5M)
This cable provides connection between the Optical Pass-thru Module and an external environment. This
1.5m cable presents four SC connections.
Figure 62. InfiniBand 12x to (3) 4x Cable 3 meter for IBM BladeCenter
Figure 63. InfiniBand 4x Cable 3 meter for IBM BladeCenter
Chapter 24. BladeCenter® T 8730 309
Figure 64. IBM CX4 1.5 or 3.0 meter Cable for IBM BladeCenter (Connector color is Gray)
BladeCenter T 8730 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Networking
26R0882 26R0881 1560 QLogic® 4Gb 20-port Fibre
Channel Switch Module for
IBM eServer1
-- - - -
32R1815 32R1812 1569 Brocade® 4Gb 20-port SAN
Switch Module for IBM
BladeCenter1
-- - - -
32R1816 32R1813 1571 Brocade® 4Gb 10-port SAN
Switch Module for IBM
BladeCenter1
-- - - -
32R1834 32R1833 1562 McDATA® 4Gb 20-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - - -
32R1906 32R1904 1575 QLogic® 4Gb 10-port Fibre
Channel Switch Module for
IBM BladeCenter1
-- - - -
32R1907 32R1905 1576 McDATA® 4Gb 10-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - - -
39Y9325 39Y9324 1484 Server Connectivity Module
for IBM BladeCenter
-- - - -
32R1784 32R1783 1493 Nortel 10Gb Uplink
Ethernet Switch Module for
IBM BladeCenter
-- - - -
32R1862 32R1859 1494 Nortel Networks Layer 2-7
Gb Ethernet Switch Module
for IBM BladeCenter
- - 1, 2, 3, 4 Y 4
310 COG
Notes:
1. When installed in switch module bay 3, port 1 is enabled on blade-installed Fibre Channel expansion
cards. When installed in switch bay 4, port 2 is enabled on blade-installed Fibre Channel expansion cards.
2. One required per system. Install in Management Module bay 1.
32R1863 32R1860 1495 Nortel Networks L2/L3
Copper Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1864 32R1861 1496 Nortel Networks L2/L3
Fiber Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1889 32R1888 1497 Cisco Systems® Fiber
Intelligent Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1893 32R1892 1498 Cisco Systems Intelligent
Gigabit Ethernet Switch
Module for IBM
BladeCenter
- - 1, 2, 3, 4 Y 4
32R1901 32R1900 1499 Cisco Systems InfiniBand
Switch Module for IBM
BladeCenter
- - 3, 4 Y 2
39Y9317 39Y9316 1556 IBM BladeCenter Optical
Pass-thru Module
- - 1, 2, 3, 4 Y 4
39Y9321 39Y9320 2900 IBM BladeCenter Copper
Pass-thru Module
- - 3, 4 Y 2
System Management2
32R1879 90P3741 - CMM Redundant
Management Module for
BladeCenter T
-- - - 1
Associated Options
32R1879 32R1877 4360 IBM 10GbE 850nm Fiber
XFP Transceiver
-- - - -
32R1880 32R1878 4361 IBM 10GbE 1310nm Fiber
XFP Transceiver (LR)
-- - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Chapter 24. BladeCenter® T 8730 311
Figure 65. BladeCenter Telco 8730 modules
BladeCenter T 8730 power and accessories
SBB
Number
Option
Number
Feature
Code Description
Power
32R0826 32R0834 1961 Redundant BladeCenter T 1300W-AC Power Supplies
Power Distribution Units
39Y8002 39M2816 6030 IBM DPI C13 PDU+C13 without line cord
39Y8003 39M2818 6080 IBM DPI C19 PDU+C19 without line cord
39Y8004 39M2819 6081 IBM DPI C19 3 phase PDU+C19 with attached line cord
Racks
32R8309 32R0836 4292 IBM eServer BladeCenter T 2-Post Rack Mount Kit
39R8311 32R0837 4293 IBM eServer BladeCenter T 4-Post Rack Mount Kit
Monitors
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
- 494215X - T115 15in TFT LCD
- 494317X - T117 17in TFT LCD
312 COG
© Copyright IBM Corp. 2003, 2006 313
Chapter 25. BladeCenter® chassis 8677
Notes:
1. Model number is a worldwide general available variant (GAV) model number which is not orderable as
listed and needs to be modified by country. The U.S. GAV model numbers use the following
nomenclature: xxU. For example, the U.S. orderable part number for 8677-3XY is 8677-3XU. See the
product specific Official IBM® announcement letter for other country-specific GAV model numbers.
2. Housed in a 19in rack-mountable chassis.
3. The management modules for BladeCenter include KVM components.
4. Only the read function is supported on DVD-ROM drives.
5. Supports up to 14 single-wide blade servers. Additional power supplies are required to maintain full
redundancy beyond six blade servers.
Table 60. BladeCenter Chassis 8677 At-A-Glance
Part Number1
Form Factor (Width/Depth)2
Power Modules
Power Module Quantity (Std/Max)
Hot-Swap (Power, Bays, Blowers)
Redundancy (Optional, Standard)
Management Module (Std/Max)3
I/O Module Bays (Total/Avail)
Optical Drive
Diskette Drive
Blade Bays (Total/Avail)
8677-2XX Rack (7U)
19in x 28in
1800w AC
(200v-240v)
2/4 P, B, B S-Blowers,
S-Power
1/2 4/4 CD-ROM
(24x-10x)
USB Floppy 14/145
8677-3XY Rack (7U)
19in x 28in
2000w AC
(200v-240v)
2/4 P, B, B S-Blowers,
S-Power
1/2 4/4 DVD-ROM
(8x-SLIM)4
USB Floppy 14/145
8677-3RY Rack (7U)
19in x 28in
2000w AC
(200v-240v)
2/4 P, B, B S-Blowers
S-Power
1/2 4/4 DVD-ROM
(8x-SLIM) 4
USB Floppy 14/145
8677-
ERY
Rack (7U)
19in x 28in
2000w AC
(200v-240v)
4/4 P, B, B S-Blowers
S-Power
1/2 4/4 DVD-ROM
(8x-SLIM) 4
USB Floppy 14/145
8677-E2Y Rack (7U)
19in x 28in
1800w AC
(200v-240v)
4/4 P, B, B S-Blowers
S-Power
1/2 4/4 DVD-ROM
(8x-SLIM) 4
USB Floppy 14/145
Note: BladeCenter Chassis can provide increased density per rack over standalone 1U servers by housing multiple
blades in less rack space. BladeCenter solutions increase usability and reduce complexity by providing
common sourcing for blade servers, cabling, cabling connections, I/O options, power modules, system
management requirements (optional adapters and external cabling), external Fibre Channel storage switching
and connectivity, and network management and expansion.
314 COG
Figure 66. 8677 front view
BladeCenter chassis 8677 optical storage options
BladeCenter chassis 8677 cabling options
Table 61. BladeCenter Chassis, blade server support
Blade Server 8677
HS20 All
HS21 L1Y, L2Y, L3Y, L4Y, L5Y, EXY
HS40 All
JS20 All
JS21 All
LS20 All
SBB
Number
Option
Number
Feature
Code Description Type Height
Bays
Supported Max Qty
26K4484 22P7047 4130 8X Slim DVD-ROM Internal IDE Drive IDE - Optical Bay 1
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drops
Connects
From
Connects
To
39Y9173 39Y9171 4364 IBM eServer
BladeCenter Optical
Pass-thru Module SC
Cable (1.5M)
Multiport
Optical
SC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9175 39Y9172 4365 IBM eServer
BladeCenter Optical
Pass-thru Module LC
Cable (1.5M)
Multiport
Optical
LC Duplex
Optical
Connections
4OPM
switch
SAN
Chapter 25. BladeCenter® chassis 8677 315
Notes:
1. This cable is 1.5m in length and provides four connections between the optical pass-thru-module (OPM)
and an external Ethernet or fibre environment.
2. Provides five copper connections between the copper pass-thru module (CPM) and an external gigabit
Ethernet environment. A maximum of 14 connections per CPM is supported. One CPM cable ships with
the CPM option. Two additional cables can be installed.
3. Option 39Y9170 cannot be installed by manufacturing. It must be shipped separately, as an accessory.
Figure 67. IBM BladeCenter Copper Pass-thru Module Cable
This IBM BladeCenter option provides connection between the copper pass-thru module and an external
environment. This cable allows up to five copper connections to blade servers. One of these cables included
with each copper pass-thru module. Cable is 3.1m (9.4ft) in length.
39Y9331 39Y9170 4366 IBM eServer
BladeCenter Copper
Pass-thru Module
Cable
Multiport
Copper
CAT 5E
Copper
Connections
5CPM
switch
Network
32R1849 26R0847 4294 InfiniBand 8 meter 4x
Cable for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1850 26R0849 4295 InfiniBand 8 meter 12 to
(3) 4x Cable for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1938 32R1937 4362 IBM CX4 1.5 Meter
Cable
CX4
Connector
CX4
Connector
1 10Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
32R1942 32R1941 4363 IBM CX4 3.0 Meter
Cable
CX4
Connector
CX4
Connector
1 10Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drops
Connects
From
Connects
To
316 COG
Figure 68. IBM BladeCenter Optical Pass-thru Module SC Cable (1.5M)
This cable provides connection between the Optical Pass-thru Module and an external environment. This
1.5m cable presents four SC connections.
Figure 69. InfiniBand 12x to (3) 4x Cable 3 meter for IBM BladeCenter
Figure 70. InfiniBand 4x Cable 3 meter for IBM BladeCenter
Chapter 25. BladeCenter® chassis 8677 317
Figure 71. IBM CX4 1.5 or 3.0 meter Cable for IBM BladeCenter (Connector color is Gray)
BladeCenter chassis 8677 I/O options
SBB
Numbe
r
Option
Number
Feature
Code Description
Adapte
r
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Networking1
26R0882 26R0881 1560 QLogic® 4Gb 20-port Fibre
Channel Switch Module for
IBM eServer 1
- - 3, 4 Y 2
32R1815 32R1812 1569 Brocade® 4Gb 20-port SAN
Switch Module for IBM
BladeCenter 1
- - 3, 4 Y 2
32R1816 32R1813 1571 Brocade® 4Gb 10-port SAN
Switch Module for IBM
BladeCenter 1
- - 3, 4 Y 2
32R1834 32R1833 1562 McDATA® 4Gb 20-port
Fibre Channel Switch
Module for IBM
BladeCenter 1
- - 3, 4 Y 2
32R1906 32R1904 1575 QLogic® 4Gb 10-port Fibre
Channel Switch Module for
IBM BladeCenter 1
- - 3, 4 Y 2
32R1907 32R1905 1576 McDATA® 4Gb 10-port
Fibre Channel Switch
Module for IBM
BladeCenter 1
- - 3, 4 Y 2
32R1784 32R1783 1493 Nortel 10Gb Uplink
Ethernet Switch Module for
IBM BladeCenter
-- - - -
32R1862 32R1859 1494 Nortel Networks Layer 2 - 7
Gigabit Ethernet Switch
Module for IBM
BladeCenter
-- - - -
32R1863 32R1860 1495 Nortel Networks L2/L3
Copper Gigabit Ethernet
Switch Module for IBM
BladeCenter
-- - - -
318 COG
Notes:
1. Mixing Ethernet (including Copper Pass-thru Module (CPM)) and Fibre/SAN switches in I/O module
bays 3 and 4 is not supported. However, mixing Optical Pass-thru modules (OPM) and Ethernet or
Fibre/SAN switches in bays 3 and 4 is supported.
2. The Brocade switch modules for BladeCenter allows the interconnection of up to 239 switches.
32R1864 32R1861 1496 Nortel Networks L2/L3
Fiber Gigabit Ethernet
Switch Module for IBM
BladeCenter
-- - - -
32R1889 32R1888 1497 Cisco Systems® Fiber
Intelligent Gigabit Ethernet
Switch Module for IBM
BladeCenter
-- - - -
32R1893 32R1892 1498 Cisco Systems Intelligent
Gigabit Ethernet Switch
Module for IBM
BladeCenter
-- - - -
32R1901 32R1900 1499 Cisco Systems InfiniBand
Switch Module for IBM
BladeCenter
-- - - -
39Y9317 39Y9316 1556 IBM BladeCenter Optical
Pass-thru Module for IBM
BladeCenter
-- - - -
39Y9321 39Y9320 2900 IBM BladeCenter Copper
Pass-thru Module for IBM
BladeCenter
-- - - -
39Y9325 39Y9324 1484 Server Connectivity
Module for IBM
BladeCenter
-- - - -
System Management
25R5779 25R5778 1604 IBM BladeCenter
Advanced Management
Module
--Redundant
KVM
Y1
48P7081 48P7055 1602 IBM BladeCenter
Redundant
KVM/Management
Module
--Redundant
KVM
Y1
Associated Options
32R1879 32R1877 4360 IBM 10GbE 850nm Fiber
XFP Transceiver
-- - - -
32R1880 32R1878 4361 IBM 10GbE 1310nm Fiber
XFP Transceiver (LR)
-- - - -
0002013 49P2694 2013 IBM BladeCenter Acoustic
Attenuation Module
-- - - -
SBB
Numbe
r
Option
Number
Feature
Code Description
Adapte
r
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Chapter 25. BladeCenter® chassis 8677 319

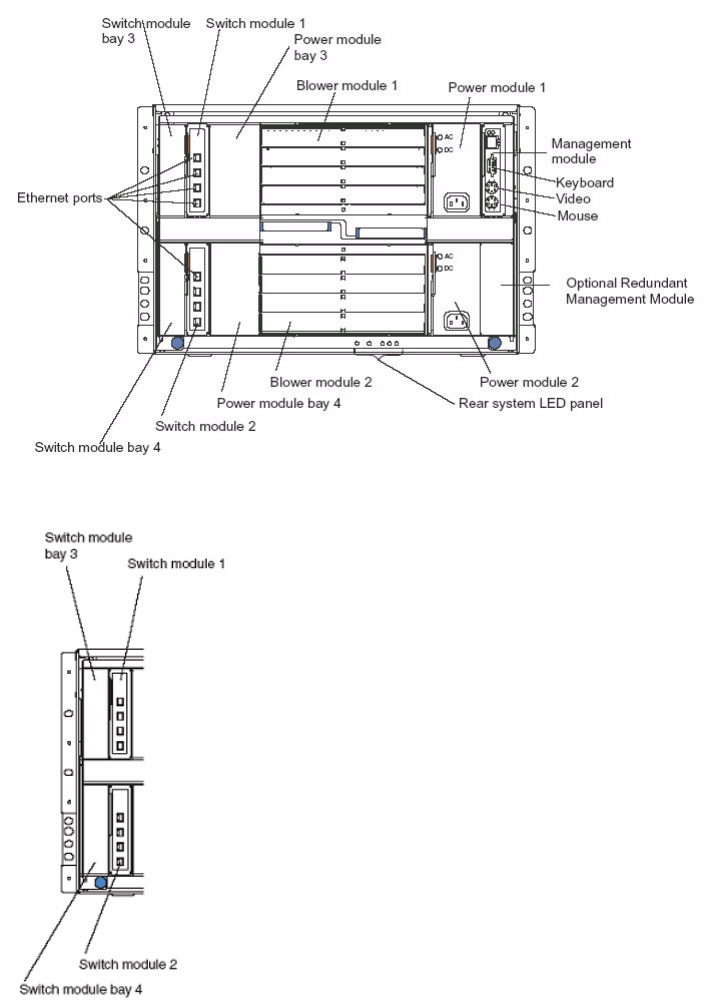

Figure 72. 8677 rear view
Figure 73. 8677 switch module bays
320 COG
Figure 74. 8677 management module bays
BladeCenter chassis 8677 power and accessories
Table 62. BladeCenter Standard Power Configuration
Model
Power
Modules Power Cord
8677-3XY,
8677-3EY,
8677-3RY
2 x 2000w 2 x 2.5m/8.2ft, 100-240V IEC 320-C19 to IEC 320-C20 rack power cables
SBB
Number
Option
Number
Feature
Code Description
Power
39M4622 39M4675 1966 IBM BladeCenter 2000W Power Supplies
Monitors
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
- 494215X - T115 15in TFT LCD
- 494317X - T117 17in TFT LCD
- 17233RX - IBM 1U 15in Flat Panel Monitor Console Kit
- 17231RX - IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
Keyboard and Mouse
- 17235RX - IBM Rack Keyboard Tray
13N3224 39M7228 8877 IBM USB UltraNav Keyboard - USB
- 90P0777 - IBM Enhanced Performance Keyboard - USB
© Copyright IBM Corp. 2003, 2006 321
Chapter 26. BladeCenter® H 8852
Notes:
1. Model number is a worldwide general available variant (GAV) model number which is not orderable as
listed and needs to be modified by country. The U.S. GAV model numbers use the following
nomenclature: xxU. For example, the U.S. orderable part number for 8677-4XY is 8677-4XU. See the
product specific Official IBM announcement letter for other country-specific GAV model numbers.
2. Housed in a 19in rack-mountable chassis.
3. The advanced management modules for BladeCenter H include KVM components.
4. Does not ship with a diskette drive. An external FDD is supported attached to one of the two front
mounted USB ports.
5. Supports up to 14 single-wide blade servers. Additional power supplies are required to maintain full
redundancy beyond seven blade servers.
6. Only the read function is supported on the Combo II drive.
Table 63. BladeCenter H 8852 At-A-Glance
Part Number 1
Form Factor (Width/Depth) 2
Power Modules
Power Module Quantity (Std/Max)
Hot-Swap (Power, Bays, Blowers)
Redundancy (Optional, Standard)
Advanced Management Module (Std/Max) 3
I/O Module Bays (Total/Avail)
Optical Drive
Diskette Drive4
Blade Bays (Total/Avail)5
8852-4XY Rack (9U)
19in x 29in
2900w
(200v-240v)
2/4 P, B,
B
S-Blowers,
S-Power
1/2 10/10 Combo II 6
24x/24x/24x/8x
- 14/14
Note: Two power cords are needed but must be ordered separately.
Note: BladeCenter Chassis can provide increased density per rack over standalone 1U servers by housing multiple
blades in less rack space. BladeCenter solutions increase usability and reduce complexity by providing
common sourcing for blade servers, cabling, cabling connections, I/O options, power modules, system
management requirements (optional adapters and external cabling), external Fibre Channel storage switching
and connectivity, and network management and expansion.
322 COG
Figure 75. BladeCenter H 8852 front view
BladeCenter H 8852 optical storage options
Notes:
1. Only the read function is supported on the Combo II drive.
Table 64. BladeCenter H Chassis, blade server support
Blade Server 8852
HS20 All
HS21 All
JS20 All
JS21 All
LS20 All
SBB
Number
Option
Number
Feature
Code Description Type Height
Bays
Supported Max Qty
32R2203 39R7511 4147 Combo II Ultrabay slim 24x24x24x8x USB 9.5mm Media Tray 1
Chapter 26. BladeCenter® H 8852 323
BladeCenter H 8852 cabling options
Notes:
1. This cable is 1.5m in length and provides four connections between the optical pass-thru-module (OPM)
and an external Ethernet or fibre environment.
2. Provides five copper connections between the copper pass-thru module (CPM) and an external gigabit
Ethernet environment. A maximum of 14 connections per CPM is supported. One CPM cable ships with
the CPM option. Two additional cables can be installed.
3. Option 39Y9170 cannot be installed by manufacturing. It must be shipped separately, as an accessory.
SBB
Number
Option
Number
Feature
Code Description
Connection
Type From
Connection
Type To
# of
Drops
Connects
From
Connects
To
39Y9173 39Y9171 4364 IBM eServer
BladeCenter Optical
Pass-thru Module SC
Cable (1.5M) 1
Multiport
Optical
SC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9175 39Y9172 4365 IBM eServer
BladeCenter Optical
Pass-thru Module LC
Cable (1.5M)
Multiport
Optical
LC Duplex
Optical
Connections
4OPM
switch
SAN
39Y9331 39Y9170 4366 IBM eServer
BladeCenter Copper
Pass-thru Module
Cable 2, 3
Multiport
Copper
CAT 5E
Copper
Connections
5CPM
switch
Network
32R1854 26R0816 4255 InfiniBand 12x to (3) 4x
Cable 3 meter for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1852 26R0813 4296 InfiniBand 4x Cable 3
meter for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1849 26R0847 4294 InfiniBand 8 meter 4x
Cable for IBM eServer
BladeCenter
InfiniBand 4x
InfiniBand
1 IB 4x
connector
IB Fabric
32R1850 26R0849 4295 InfiniBand 8 meter 12
to (3) 4x Cable for IBM
eServer BladeCenter
InfiniBand 4x
InfiniBand
3 IB 12x
connector
IB Fabric
32R1938 32R1937 4362 IBM CX4 1.5 Meter
Cable
CX4
Connector
CX4
Connector
1 10Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
32R1942 32R1941 4363 IBM CX4 3.0 Meter
Cable
CX4
Connector
CX4
Connector
1 10Gb
ESM CX4
Port
Another
Nortel 10Gb
ESM or
external
10Gb switch
with CX4
ports.
324 COG
Figure 76. IBM BladeCenter Copper Pass-thru Module Cable
This IBM BladeCenter option provides connection between the copper pass-thru module and an external
environment. This cable allows up to five copper connections to blade servers. One of these cables included
with each copper pass-thru module. Cable is 3.1m (9.4ft) in length.
Figure 77. IBM BladeCenter Optical Pass-thru Module SC Cable (1.5M)
This cable provides connection between the Optical Pass-thru Module and an external environment. This
1.5m cable presents four SC connections.
Figure 78. InfiniBand 12x to (3) 4x Cable 3 meter for IBM BladeCenter
Chapter 26. BladeCenter® H 8852 325
Figure 79. InfiniBand 4x Cable 3 meter for IBM BladeCenter
Figure 80. IBM CX4 1.5 or 3.0 meter Cable for IBM BladeCenter (Connector color is Gray)
BladeCenter H 8852 I/O options
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Networking1
26R0882 26R0881 1560 QLogic® 4Gb 20-port
Fibre Channel Switch
Module for IBM eServer 1
- - 1, 2, 3, 4 Y 4
32R1815 32R1812 1569 Brocade® 4Gb 20-port
SAN Switch Module for
IBM BladeCenter 1
- - 3, 4 Y 2
32R1816 32R1813 1571 Brocade® 4Gb 10-port
SAN Switch Module for
IBM BladeCenter 1
- - 3, 4 Y 2
32R1834 32R1833 1562 McDATA® 4Gb 20-port
Fibre Channel Switch
Module for IBM
BladeCenter 1
- - 3, 4 Y 2
32R1862 32R1859 1494 Nortel Networks Layer 2
- 7 Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 3, 4 Y 2
326 COG
32R1863 32R1860 1495 Nortel Networks L2/L3
Copper Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 3, 4 Y 2
32R1864 32R1861 1496 Nortel Networks L2/L3
Fiber Gigabit Ethernet
Switch Module for IBM
BladeCenter
- - 3, 4 Y 2
32R1889 32R1888 1497 Cisco Systems Fiber
Intelligent Gigabit
Ethernet Switch Module
for IBM BladeCenter
- - 1, 2, 3, 4 Y 4
32R1893 32R1892 1498 Cisco Systems Intelligent
Gigabit Ethernet Switch
Module for IBM
BladeCenter
-- - - -
32R1901 32R1900 1499 Cisco Systems InfiniBand
Switch Module for IBM
BladeCenter
-- - - -
32R1906 32R1904 1575 QLogic® 4Gb 10-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - - -
32R1907 32R1905 1576 McDATA® 4Gb 10-port
Fibre Channel Switch
Module for IBM
BladeCenter1
-- - - -
39Y9317 39Y9316 1556 IBM BladeCenter Optical
Pass-thru Module for
IBM BladeCenter
-- - - -
39Y9321 39Y9320 2900 IBM BladeCenter Copper
Pass-thru Module for
IBM BladeCenter
-- - - -
39Y9325 39Y9324 1484 Server Connectivity
Module for IBM
BladeCenter
-- - - -
32R1757 32R1756 1574 Cisco Systems 4X
InfiniBand Switch
module for IBM
BladeCenter
- - 3, 4 Y 2
32R1784 32R1783 1493 Nortel 10Gb Uplink
Ethernet Switch Module
for IBM BladeCenter
- - 3, 4 Y 2
Associated Options
32R1879 32R1877 4360 IBM 10GbE 850nm Fiber
XFP Transceiver
-- - - -
32R1880 32R1878 4361 IBM 10GbE 1310nm Fiber
XFP Transceiver (LR)
-- - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
Chapter 26. BladeCenter® H 8852 327
Notes:
1. Mixing Ethernet (including Copper Pass-thru Module (CPM)) and Fibre/SAN switches in I/O module
bays 3 and 4 is not supported. However, mixing Optical Pass-thru modules (OPM) and Ethernet or
Fibre/SAN switches in bays 3 and 4 is supported.
2. Short- or Long-wave SFP Modules (P/N 19K1271 or 19K1272) are required for each fibre channel port
connection.
3. Installs in I/O module bays 3 or 4. When installed in bay 3, port 1 is enabled on blade-installed Fibre
Channel expansion cards. When installed in bay 4, port 2 is enabled on blade-installed Fibre Channel
expansion cards.
4. Maximum of four allowed in BC and BCT. If supported in BCE, then a maximum of two allowed. Can be
installed in any I/O module bay. When installed in I/O module bay 1, integrated Ethernet controller 1 is
enabled on all blades. When installed in bay 2, integrated Ethernet controller 2 is enabled on all blades.
Installation in I/O module bays 3 or 4 (not supported in BCE) requires an Ethernet expansion card to be
installed in blade servers.
5. Installs in I/O module bays 3 and/or 4. Requires the Topspin InfiniBand Host Channel Adapter
expansion card to be installed in at least one blade server.
6. Maximum of four allowed and can be installed in any I/O module bay. Must be installed in I/O module
bay 4 when Myrinet cluster expansion cards are installed in blade servers. If selected and an OPM SC
Cable (39Y9171) or an OPM LC Cable (39Y9172) is not selected, issue the following warning message: “A
minimum of one Optical Pass-thru Module cable must be installed in each Optical Pass-thru Module to
enable connectivity to your network or Storage Area Network (SAN).”
System Management
25R5779 25R5778 1604 BladeCenter Redundant
KVM/Advanced
Management Module
Adv
Mgmt
Module
Bay 2
-Redundant
KVM/
Adv Mgmt
Module
Slot
Y1
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug
Capable
Max
Supported
328 COG
Figure 81. BladeCenter H 8852 rear view
Chapter 26. BladeCenter® H 8852 329
BladeCenter H 8852 power and accessories
Notes:
1. Two power cords are required.
Table 65. BladeCenter H Standard Power Configuration
Model Power Modules
8852-4XY 2 x 2900w
SBB
Number
Option
Number
Feature
Code Description
Power
32R2112 31R3335 1962 BladeCenter H 2900W Power Supplies
Power Cords1
32R2108 25R5785 6226 2.8m, 200-240V, Triple 16A IEC 320-C20 Power Cable
32R2110 25R5784 6271 4.3, 230V, Dual 32A IEC 309 P+N+G / 16A IEC 320-C20 Line Cord
32R2109 25R5783 6270 Double NEMA L6-30P 4.3m
- 40K9605 - IBM Serial Connection Cable
Uninterruptible Power Supply
- 21304RX - IBM UPS 10000XHV
- 25R5582 - IBM UPS 3U Online Battery Pack
Power Distribution Units
39Y8003 39M2818 6080 IBM DPI C19 PDU+C19 without line cord
39Y8004 39M2819 6081 IBM DPI C19 3 phase PDU+C19 with attached line cord
Monitors
- 49387XX - C117 17in (15.9 inch VIS) FST CRT
- 494215X - T115 15in TFT LCD
- 494317X - T117 17in TFT LCD
- 17233RX - IBM 1U 15in Flat Panel Monitor Console Kit
- 17231RX - IBM 1U 17in Flat Panel Monitor Console Kit w/Optical Drive Bay
Keyboard and Mouse
- 17235RX - IBM Rack Keyboard Tray
13N3224 39M7228 8877 IBM USB UltraNav Keyboard - USB
- 90P0777 - IBM Enhanced Performance Keyboard - USB
330 COG
© Copyright IBM Corp. 2003, 2006 331
Chapter 27. BladeCenter® HS20 - 7981
Notes:
1. This model is a 32-bit platform only. 64-bit operating systems are not supported.
2. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 7981-2FY is 7981-2FU. See
the product-specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with a
country-specific designator.
3. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs. Memory-mirroring, hot-spare memory and Chipkill functions are supported.
4. System management functionality, interconnect network connectivity and console connectivity are
managed through the standard management module. The standard integrated service processor
monitors HS20 - MT 7981 system management activity, communicating with the management module in
the BladeCenter.
5. Dual Broadcom 5704S Gb Ethernet controllers.
6. An integrated, SAS controller supports integrated RAID-0 and 1.
7. Maximum internal storage capacity is based on installation of two 73.4GB SAS HDDs.
8. BladeCenter storage expansion units and PCI expansion units are not supported on the 7981.
Table 66. BladeCenter HS20 - 7981 At-A-Glance
Part Number
CPU./FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
HDD Bays (Std/Max)
Expansion Cards (Std/Max)
7981-2FY 1.67GHz/667MHz -
2MB L2 Dual Core
1/2 1GB/16GB Y Dual Gb SAS Fixed 0/146.8GB 0/2 0/1
7981-3FY 2.0GHz/667MHz -
2MB L2 Dual Core
1/2 1GB/16GB Y Dual Gb SAS Fixed 0/146.8GB 0/2 0/1
7981-EFY 1.67GHz/667MHz -
2MB L2 Dual Core
1/2 1GB/16GB Y Dual Gb SAS Fixed 0/146.8GB 0/2 0/1
332 COG
HS20 - 7981 processor options
Notes:
1. If two processors are installed they must have the same core frequency, Front Side Bus frequency
(667MHz) and the same L2 cache size.
2. The CPU with the lowest stepping level must be installed as CPU 1.
3. A 7981 Blade using a single Dual-Core Intel Xeon Processor CPU must have it installed in CPU 1 socket.
4. The system should not be allowed to boot with an empty CPU 1 socket.
5. If CPU 2 socket is empty, it must have a CPU heat sink filler installed.
6. An electrical terminator installed in the CPU 2 socket is not required.
Figure 82. HS20 - 7981 planar
SBB
Number
Option
Number
Feature
Code Processor Options
SMP
Support
39Y6600 25R8887 0655 Dual-Core Intel® Xeon® Processor LV 1.67 GHz 2FY, EFY
39Y6601 25R8888 0656 Dual-Core Intel® Xeon® Processor LV 2.0 GHz 3FY
Chapter 27. BladeCenter® HS20 - 7981 333
HS20 - 7981 memory options
Notes:
1. The memory subsystem is a 2-way interleaved subsystem; memory must be populated in pairs of 2
identical DIMMs. The two members of the pair must be matched, but the sets do not have to be matched.
2. DIMMs should be installed in the following order: DIMMs 1 & 2 (Pair 1), DIMMs 3 & 4 (Pair 2).
3. BladeCenter HS20-7981 will support Hot Spare Memory and Memory mirroring. Hot Spare Memory and
Memory mirroring require 4 identical DIMMS (2 identical pairs).
4. Chipkill function is supported when all four slots have chipkill memory installed.
Figure 83. HS20 - 7981 system board
SBB
Number
Option
Number
Feature
Code Memory Description1, 2
39M5816 - 0541 512MB DDR-II SDRAM DIMM NON-CHIPKILL
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5818 - 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM NON-CHIPKILL (2X512MB
KIT) Option
- 39M5821 - 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X512MB KIT) Option
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5809 - 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X1GB KIT) Option
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5812 - 4GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X2GB KIT) Option
30R5147 - 0535 4GB PC2-3200R CL3 ECC DDR2 SDRAM RDIMM
- 30R5145 - 8GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X4GB KIT) Option
Table 67. Standard Memory Configuration
Model Std DIMM Configuration
2FY, 3FY, EFY 1GB PC2-3200 ECC DDR2 SDRAM RDIMM (2X512MB KIT) Option
334 COG
HS20 - 7981 hard disk drive (HDD) storage options
Notes:
1. Installation of a second SFF SAS HDD will physically prevent installation of certain expansion cards. See
I/O section for more information.
2. BladeCenter HS20-7981 will support the installation of two SFF SAS drives and one SFF daughter card.
Figure 84. HS20 - 7981 system board
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity
IDE HDDs
26K5780 26K5776 5297 36GB 10K SFF SAS NHS 2.5" 1, 2 2
26K5781 26K5777 5298 73GB 10K SFF SAS NHS 2.5" 1, 2 2
Bay Form Factor Height Front Access Usage
1 SFF 2.5 N HDD
2 SFF 2.5 N HDD
Chapter 27. BladeCenter® HS20 - 7981 335
HS20 - 7981 I/O options
Notes:
1. Quantity one expansion card is supported inside the blade itself. Installation of a StFF (standard form
factor) card will physically prevent installation of a second HDD.
2. Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘Blade Server
Storage and I/O Expansion’ for appropriate I/O module options and configuration information.
3. Requires an OPM I/O module to be installed in BladeCenter I/O module bay 3.
Figure 85. HS20 - 7981 system board
SBB
Number
Option
Number
Feature
Code Description1,2
Blade Server Expansion Cards
26K4837 73P6000 1546 Myricom® Myrinet® Expansion Card for BladeCenter3
26K4843 39R8624 1548 IBM BladeCenter® SFF Gigabit Ethernet Expansion Card
26K4844 26K4841 1549 IBM BladeCenter® SFF Fibre Channel Expansion Card
26R0891 26R0890 1577 Qlogic® 4GB Fibre Channel SFF HBA
39Y9185 39Y9186 2925 Emulex® 4Gb SFF Fibre Channel Expansion Card for IBM
BladeCenter®
39Y9116 32R1923 1458 QLogic® iSCSI Expansion Card for BladeCenter
Slot/Device Type Bus Voltage (V)
Frequency
MHz Data Path
Active PCI?
(Hot Swap) Slot Length
Blade Server Slot 1 PCI-X 1 3 133 32 No BladeCenter
Unique
Form Factor
336 COG
© Copyright IBM Corp. 2003, 2006 337
Chapter 28. BladeCenter® HS20 - 8843
The HS20 - 8843 requires that the BladeCenter chassis have 2000w power supplies installed.
The HS20 - 8843 can be installed into and removed from the BladeCenter chassis while the chassis is powered
up. Follow the blade insertion and removal guidelines provided in the system’s documentation.
Table 68. BladeCenter HS20 - 8843 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Processor Quantity (Std/Max)
Memory (Std/Max)3
System Management Processor4
Integrated Ethernet5
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7, 8
HDD/Bays (Std/Max)8
Expansion Cards (Std/Max)8
8843-05Y 2.8GHz/800MHz - 2MB
L2
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-LTY 2.8GHz/800MHz - 1MB
L2 Low Voltage
1/2 512MB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-L1Y 2.8GHz/800MHz - 1MB
L2 Low Voltage
1/2 512MB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-25Y 3.2GHz/800MHz - 2MB
L2
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-35Y 3.4GHz/800MHz - 2MB
L2
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-45Y 3.6GHz/800MHz - 2MB
L2
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-55Y 3.8GHz/800MHz - 2MB
L2
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-E2Y 3.2GHz/800MHz - 2MB
L2
1/2 2GB/16GB Y Dual GB U320 Fixed 36.4/146.8GB 1/2 0/1
8843-E7Y 2.8GHz/800MHz - 2MB
L2
1/2 512MB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-E9Y 3.8GHz/800MHz - 2MB
L2
2/2 4GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-M5Y 3.0GHz/800 MHz 2MB
L2 Low Voltage
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-MTY 3.0GHz 800 MHz 2MB L2
Low Voltage
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-J1Y 2.8GHz 800 MHz 1MB L2
Low Voltage
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
338 COG
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8843-01Y is 8843-01U. See
the product-specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with a
country-specific designator.
2. Intel Xeon processor with Extended Memory 64 Technology (EM64T), L2 cache and an 800MHz (quad-
pumped) Front Side Bus (FSB).
3. High-speed, two-way interleaved PC2-3200 RDIMMs. Maximum capacity requires replacing the
standard DIMMs. Memory-mirroring, hot-spare memory and Chipkill functions are supported. Chipkill
is available on DIMMs 512MB and greater.
4. System management functionality, interconnect network connectivity and console connectivity are
managed through the standard management module. The standard integrated service processor
monitors HS20 - 8843 system management activity, communicating with the management module in the
BladeCenter.
5. Dual Broadcom 5704S Gb Ethernet controllers.
6. An integrated, single-channel, Ultra320 SCSI controller supports integrated RAID-1 and 1E. RAID-1E
requires the optional BladeCenter Storage Expansion unit.
7. Maximum internal storage capacity is based on installation of two 146.8GB SCSI HDDs.
8. An optional BladeCenter expansion unit is available that attaches directly to the blade server adding two
hot-swap SCSI HDD bays for a total of four HDD bays and two expansion card slots for a total of three
expansion card slots.
9. Model 27Y hardware components come preconfigured and the Microsoft Windows Server 2003
operating system is pre-installed. One 2Gb fibre channel small form factor expansion card is standard.
10. HS20 Storage Server operating system supports a maximum of 4GB of memory.
8843-JTY 2.8GHz 800 MHz 1MB L2
Low Voltage
1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-0RY 2.8GHz 800MHz 2MB L2 1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-2RY 3.2GHz 800MHz 2MB L2 1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-3RY 3.4GHz 800MHz 2MB L2 1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-4RY 3.6GHz 800MHz 2MB L2 1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
8843-5RY 3.8GHz 800MHz 2MB L2 1/2 1GB/16GB Y Dual GB U320 Fixed 0/146.8GB 0/2 0/1
Table 68. BladeCenter HS20 - 8843 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Processor Quantity (Std/Max)
Memory (Std/Max)3
System Management Processor4
Integrated Ethernet5
Storage Controller6
Internal HDD Interface
Internal HDD Storage (Std/Max)7, 8
HDD/Bays (Std/Max)8
Expansion Cards (Std/Max)8
Chapter 28. BladeCenter® HS20 - 8843 339
HS20 - 8843 processor options
Notes:
1. One additional processor may be installed, providing a maximum of two. All processors must be
identical in type, speed and cache size.
HS20 - 8843 memory options
SBB
Number
Option
Number
Feature
Code Processor Options
SMP
Support1
25K8383 13N0699 0271 2.8GHz/800 MHz 1MB L2 Cache Low Voltage Xeon
Processor
L1Y, LTY,
JTY, J5Y
31R3203 25R8876 0273 3.2GHz/800MHz-2MB L2 Cache Xeon Processor E2Y, 25Y,
27Y, 2RY
31R3204 13N0660 0274 3.4GHz/800MHz-2MB L2 Cache Xeon Processor 35Y, 3RY
31R3205 13N0696 0275 3.6GHz/800MHz-2MB L2 Cache Xeon Processor 45Y, 4RY
25R4109 25R8878 0640 2.8GHz/800MHz-2MB L2 Cache Xeon Processor E7Y, 05Y,
0RY, ERY
25R4110 25R8877 0641 3.0GHz/800 MHz 2MB L2 Cache Low Voltage Xeon
Processor
MTY, M5Y
25R4111 13N0697 0642 3.8GHz/800MHz-2MB L2 Cache Xeon Processor 55Y, 5RY
Note: HS20 - 8843 processor options support Intel’s Extended Memory 64 Technology (EM64T).
SBB
Number
Option
Number
Feature
Code Memory Description
39M5816 - 0541 512MB DDR-II SDRAM DIMM NON-CHIPKILL
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
- 39M5818 - 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM NON-CHIPKILL (2X512MB
KIT) Option
0001941 39M5821 1941 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X512MB KIT) Option
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
0001938 39M5809 1938 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X1GB KIT) Option
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
0001939 39M5812 1939 4GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X2GB KIT) Option
30R5147 - 0535 4GB PC2-3200R CL3 ECC DDR2 SDRAM RDIMM
- 30R5145 - 8GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2X4GB KIT) Option
Note: Order of Installation 1, 2 & 3, 4. A pair of DIMMs will be utilized during operation of the blade with the second
pair of DIMMs designated as "Hot Spares". Memory mirroring is supported. The second set memory DIMMs
(of the pair) must be identical to the first for mirroring support.
340 COG
Notes:
1. This system is preloaded with Microsoft® Windows® Storage Server 2003, Non-Cluster Version (1-4 Proc
Version) (Standard Block Mode). The maximum usable memory with Microsoft® Windows® Storage
Server 2003, Non-Cluster Version (1-4 Proc Version)
Figure 86. HS20 - 8843 system board
HS20 - 8843 hard disk drive (HDD) storage options
Table 69. Standard Memory Configuration
Model Std DIMM Configuration Chipkill
01Y 2 x 256MB PC2-3200 ECC DDR2 RDIMM N
11Y, 21Y, 31Y, 41Y, 25Y, 35Y, 45Y, E6Y, 05Y, M5Y, MTY, 55Y, E8Y,
LTY, L1Y, E7Y, J1Y, JTY, 0RY, 2RY, 3RY, 4RY, 5RY, ERY
2 x 512MB PC2-3200 ECC DDR2 RDIMM N
2EY, E2Y 2 x 1GB PC2-3200 ECC DDR2 RDIMM Y
E9Y 2 x 2GB PC2-3200 ECC DDR2 RDIMM N
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity2
Fixed Ultra320 HDDs
40K1069 40K1037 5256 36GB Non Hot-Swap 2.5" 10K RPM Ultra320 SCSI
HDD
2.5" 1, 2 2
40K1070 40K1038 5255 73GB Non Hot-Swap 2.5" 10K RPM Ultra320 SCSI
HDD
2.5" 1, 2 2
Hot-swap Ultra320 HDDs2
40K1055 40K1023 5165 73.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
Chapter 28. BladeCenter® HS20 - 8843 341
Notes:
1. Installation of a second HDD will physically prevent installation of certain expansion cards and vice-
versa. See I/O section for more information.
2. Requires BladeCenter Storage Expansion unit.
3. Supports two HDDs and two I/O expansion cards. See Blade Server Storage and I/O Expansion section
for more information.
4. The installation of two SFF SCSI drives and one SFF daughter card is supported.
40K1056 40K1024 5166 146.4GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
40K1057 40K1025 5167 300GB 10K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
40K1058 40K1026 5168 36GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
40K1059 40K1027 5169 73GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
40K1060 40K1028 5170 146GB 15K rpm Ultra320 SCSI Hot-Swap SSL
HDD
3.5" 3, 4 2 BSE
Storage Expansion
13N2361 26K4817 4224 BladeCenter® SCSI Storage Expansion Unit3-- 1
32R8644 39R8625 4336 IBM BladeCenter® SFF SCSI Storage Expansion
Unit3
-- 1
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity2
Fixed Ultra320 HDDs
26K4845 90P1312 5256 36.4GB 10K rpm Ultra320 SCSI HDD SFF 1, 2 2
13N2364 90P1313 5255 73.4GB 10K rpm Ultra320 SCSI HDD SFF 1, 2 2
90P1329 90P1305 5202 73.4GB 10K rpm Ultra320 SCSI Hot-Swap
HDD
SSL BSE 1, 2 2
90P1330 90P1306 5203 146.4GB 10K rpm Ultra320 SCSI Hot-Swap
HDD
SSL BSE 1, 2 2
Hot-swap Ultra320 HDDs2
32P0747 32P0727 5215 73.4GB 10K rpm Ultra320 SCSI Hot-swap
HDD
-- -
Storage Expansion
13N2361 26K4817 4224 BladeCenter SCSI Storage Expansion Unit3-- 1
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported1
Maximum
Quantity2
342 COG
HS20 - 8843 I/O options
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Blade Server Expansion Cards 1, 2
26K4837 73P6000 1546 Myricom® Myrinet® Expansion Card for BladeCenter 3 StFF
26K4843 26K4842 1548 Gigabit Ethernet Expansion Card SFF
26K4844 26K4841 1549 Fibre Channel Expansion Card SFF
26R0891 26R0890 1577 QLogic® 4GB Fibre Channel Expansion Card for BladeCenter SFF
39Y9116 32R1923 1458 Qlogic® iSCSI Daughter card for IBM BladeCenter StFF
39Y9117 32R1896 1492 Cisco Systems InfiniBand HCA Expansion Card for IBM BladeCenter SFF
39Y9185 39Y9186 2925 Emulex® 4Gb Fibre Channel Expansion Card for IBM BladeCenter SFF
External Disk Systems and Options
--- - -
I/O Expansion
13N2361 26K4817 4224 BladeCenter® SCSI Storage Expansion Unit3, 5 -
32R0792 25K8373 4244 IBM eServer BladeCenter PCI Expansion Unit 2 6, 7 -
39R8644 39R8625 4336 IBM BladeCenter® SFF SCSI Storage Expansion Unit -
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Blade Server Expansion Cards1, 2
26R1089 13N2203 1550 BladeCenter Fibre Channel Expansion Card StFF
26K4844 26K4841 1549 Fibre Channel Expansion Card SFF
26K4838 73P9030 1547 BladeCenter Gigabit Ethernet Expansion Card StFF
26K4843 26K4842 1548 Gigabit Ethernet Expansion Card SFF
26K4837 73P6000 1546 Myrinet Cluster Expansion Card3StFF
26K6458 26K6457 1551 Topspin Infiniband Host Channel Adapter Expansion Card for
BladeCenter
StFF
32R1801 26K6487 1559 IBM eServer BladeCenter iSCSI Expansion Card -
External Disk Systems and Options
- 17011RS TotalStorage DS300 - Single Controller Rack 3U
- 17001RS TotalStorage DS400 - Single Controller Rack 3U
- 17241XX TotalStorage DS4100 Midrange Disk System (all models) Rack 3U
- 17226XX TotalStorage DS4300 Midrange Disk Systems (all models) Rack 3U
- 17429XX TotalStorage DS4500 Midrange Disk System (all models) Rack 4U
I/O Expansion
13N2361 26K4817 4224 BladeCenter SCSI Storage Expansion Unit3, 5
Chapter 28. BladeCenter® HS20 - 8843 343
Notes:
1. Quantity one expansion card is supported inside the blade itself. The optional expansion unit will allow
for two more cards. Installation of a StFF (standard form factor) card will physically prevent installation
of a second HDD.
2. Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘Blade Server
Storage and I/O Expansion’ for appropriate I/O module options and configuration information.
3. When expansion unit 26K4817 is attached to 8843 and an expansion card is mounted in the front slot (the
slot closest to the front of the expansion unit), port 1 communicates with bay 1, and port 2 communicates
with bay 2.
4. Requires an OPM I/O module to be installed in BladeCenter I/O module bay 4.
5. Supports two HDDs and two I/O expansion cards. See Blade Server Storage and I/O Expansion section
for more information.
6. Not allowed if SCSI Storage Expansion Unit (Option 26K4817) or SFF SCSI Storage Expansion Unit
(Option 39R8625) is selected. Allows any combination of up to two communication adapters or storage
adapters.
7. IBM BladeCenter PCI Expansion Unit II requires minimum firmware level for support with the 8843
BladeCenter. Minimums are shown in the table below.
Table 70. Minimum Firmware Levels for BladeCenter 8843 with PCI Expansion Unit II (Option 25K8373)
Firmware Level Description
BIOS BWBJ22A -
DIAGS BWYN10A -
BMC BWBT23A -
MM1 BRET84C For BladeCenter Chassis
MM1 BVET42C For BladeCenter T Chassis
344 COG
© Copyright IBM Corp. 2003, 2006 345
Chapter 29. BladeCenter® HS21 - 8853
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8853-L1Y is 8853-L1U. See
the product-specific Official IBM announcement letter for other country-specific GAV model numbers.
GAV to MTM mapping for A.P. Geographies follow the same pattern. Substitute the last character with a
country-specific designator.
2. Maximum capacity requires replacing the standard DIMMs. Memory-mirroring, hot-spare memory and
Chipkill functions are supported.
3. System management functionality, interconnect network connectivity and console connectivity are
managed through the standard management module. The standard integrated service processor
monitors HS21 - MT 8853 system management activity, communicating with the management module in
the BladeCenter.
4. Dual Broadcom 5708S Gb Ethernet controllers.
5. Dual-port Broadcom 5714S Gb Ethernet controller. These models have a total of four Gb ethernet ports.
Table 71. BladeCenter HS21 - 8853 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache
Number of Processors (Std/Max)
Memory (Std/Max)2
System Management Processor3
Integrated Ethernet
Storage Controller4
Internal HDD Interface
Internal HDD Storage (Std/Max)7
HDD Bays (Std/Max)8
Expansion Cards (Std/Max)8
8853-L1Y 1.6GHz 1066MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-L2Y 1.86GHz 1066MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-L3Y 2.0GHz 1333MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-L4Y 2.33GHz 1333MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-L5Y 2.66GHz 1333MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-L6Y10 3.0GHz 1333MHz
2x2MB L2 Dual Core
1/2 1GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-E1Y 1.6GHz 1066MHz
2x2MB L2 Dual Core
1/2 2GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
8853-E5Y 2.66GHz 1333MHz
2x2MB L2 Dual Core
2/2 4GB/32GB9YDual
1GB4
SAS Fixed 0/146GB 0/2 0/1
346 COG
6. An integrated, single-channel, SAS controller supports integrated RAID-0 and 1. RAID-1E and 5 requires
the optional BladeCenter Storage and I/O Expansion Blade.
7. Maximum internal storage capacity is based on installation of two 73GB SAS HDDs.
8. An optional BladeCenter Storage and I/O Expansion Blade unit is available that attaches directly to the
blade server adding three hot-swap SAS HDD bays for a total of five HDD bays and adds expansion card
slot capacity for a total of three expansion card slots.
9. Maximum capacity is achieved by populating all four DIMM slots with four, 4GB DIMMs and selecting
the IBM BladeCenter Memory and I/O Expansion Blade (42C1600) which adds an additional four DIMM
slots and one I/O expansion card slot, providing a total of eight 4GB DIMMs and three I/O expansion
card slots.
10. 8853-L6Y models are supported in the BladeCenter H (8852) chassis only.
HS21 - 8853 processor options
Notes:
1. A blade using a single CPU must have it installed in the CPU 1 socket.
2. The system should not be allowed to boot with an empty CPU 1 socket.
3. If the CPU 2 socket is empty, it must have a CPU heat sink filler installed. The CPU heat sink filler is a
baffle which maintains proper airflow through the blade.
4. The CPU heat sink filler is required to be installed in CPU 2 socket.
5. A terminator is not required.
6. Intel Dual Core Processor Model 5160 and the 8853-L6Y models are supported in the BladeCenter H
(8852) chassis only.
Figure 87. HS21 planar
SBB
Number
Option
Number
Feature
Code Processor Options
SMP
Support
40K6907 40K1225 1311 Intel Dual Core Xeon Processor Model 5110 -
40K6911 40K1227 1313 Intel Dual Core Xeon Processor Model 5130 -
40K6914 40K1230 1316 Intel Dual Core Xeon Processor Model 5150 -
42C1621 40K1226 1329 Intel Dual Core Xeon Processor Model 5120 -
42C1622 - 1330 Intel Dual Core Xeon Processor Model 5140 -
42C1623 40K122961331 Intel Dual Core Xeon Processor Model 5160 -
Chapter 29. BladeCenter® HS21 - 8853 347
HS21 - 8853 memory options
HS21 - 8853 hard disk drive (HDD) storage options
Notes:
1. RAID-1E and 5 requires the optional BladeCenter Storage and I/O Expansion Blade which attaches
directly to the blade server, adding three hot-swap SAS HDD bays and extra expansion slot capacity for a
total of five HDD bays and three expansion card slots.
SBB
Number
Option
Number
Feature
Code Description
39M5780 - 0546 512MB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
0003901 39M5782 3901 1GB (2x512MB) PC2-5300 CL5 ECC DDR2 Chipkill FB-DIMM
667MHz
39M5783 - 0542 1GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
0003904 39M5785 3904 2GB (2x1GB) PC2-5300 CL5 ECC DDR2 Chipkill FB-DIMM
667MHz
39M5789 - 0544 2GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
0003909 39M5791 3909 4GB (2x2GB) PC2-5300 CL5 ECC DDR2 Chipkill FB-DIMM
667MHz
39M5795 - 0556 4GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM 667MHz
0003915 39M5797 3915 8GB (2x4GB) PC2-5300 CL5 ECC DDR2 Chipkill FB-DIMM
667MHz
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Max
Qty
SAS HDDs
26K5780 26K5776 5297 36GB 10K SFF SAS Fixed HDD SFF 1, 2 2
26K5781 26K5777 5298 73GB 10K SFF SAS Fixed HDD SFF 1, 2 2
39R7392 39R7388 5152 36GB 10K SAS Hot-Swap HDD SFF 3, 4, 5 1 3
39R7393 39R7389 5153 73GB 10K SAS Hot-Swap HDD SFF 3, 4, 5 13
348 COG
HS21 - 8853 I/O options
Notes:
1. Comes standard with option 39R7563.
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Storage Controllers
25R8077 25R8064 1670 IBM ServeRAID-8k SAS Controller -
25R8080 25R806511671 IBM ServeRAID 8k-l SAS Controller -
39R8752 39R8743 1680 IBM Ultra320 SCSI Controller 2 -
39R8819 39R8815 1685 ServeRAID-6M Ultra320 SCSI Controller (128MB) -
39R8820 39R8816 1686 ServeRAID-6M Ultra320 SCSI Controller (256MB) -
Communication Adapters
26K4837 73P6000 1546 Myrinet Cluster Expansion Card -
26K4843 39R8624 1548 SFF Gb Ethernet Expansion Card SFF
26K4844 26K4841 1549 SFF Fibre Channel Expansion Card SFF
26K5942 26K5939 1568 cKVM Feature Card for IBM BladeCenter -
32R1761 32R1760 1466 Topspin InfiniBand 4X Host Channel Adapter Expansion Card -
26R0891 26R0890 1577 QLogic 4Gb SFF Fibre Channel Expansion Card for IBM eServer
BladeCenter
SFF
32R1924 32R1923 1459 Qlogic iSCSI Daughter card for IBM BladeCenter StFF
39Y9185 39Y9186 2925 Emulex® 4Gb SFF Fibre Channel Expansion Card for IBM BladeCenter® -
39Y9117 32R1896 1492 Cisco Systems InfiniBand HCA Expansion Card for IBM BladeCenter SFF
I/O Expansion
31R2266 39R7563 4265 IBM BladeCenter Storage Expansion Unit -
© Copyright IBM Corp. 2003, 2006 349
Chapter 30. BladeCenter® HS40
Notes:
1. Blade server models xTx are designed to support the telecommunications industry.
2. Not available from IBM after this date. Business Partner Inventory may be available.
3. Intel Xeon Processor MP with L2 cache (512KB), L3 cache (see table) and a 400MHz (quad-pumped) Front
Side Bus (FSB).
4. Memory is two-way interleaved, PC2100 ECC DDR RDIMMs supporting Chipkill technology.
5. System management functionality, interconnect network connectivity and console connectivity are
managed through the standard management module. The standard integrated service processor
monitors HS40 system management activity, communicating with the management module in the
BladeCenter.
6. Four Ethernet connections via one integrated dual Gb controller and two integrated single Gb controllers
(Broadcom BCM5704S).
7. Integrated mirroring is supported using IDE HDDs. However, when two IDE HDDs are installed, no I/O
expansion cards can be installed.
8. An optional SCSI expansion unit is available that attaches directly to the bladeserver adding two SCSI
HDD bays. See HDD section for more information.
9. Each installed expansion card will physically prevent installation of one IDE HDD and vice versa.
Table 72. BladeCenter HS40 At-A-Glance
Part Number1
Withdrawal Date2
CPU/FSB Speed (GHz/MHz) - Cache3
Processor Quantity (Std/Max)
Memory (Std/Max)4
System Management Processor5
Integrated Ethernet6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8
Expansion Cards (Std/Max)9
8839-51X May
30
2.2/400-
2MB L3
1/4 1GB/16GB Y 4 x 1Gb Dual ATA-
100
Fixed 0/80GB 0/2
8839-61X May
30
2.7/400-
2MB L3
1/4 2GB/16GB Y 4 x 1Gb Dual ATA-
100
Fixed 0/80GB 0/2
8839-6TX1May
30
2.7/400-
2MB L3
1/4 2GB/16GB Y 4 x 1Gb Dual ATA-
100
Fixed 0/80GB 0/2
8839-71X May
30
3.0/400-
2MB L3
1/4 2GB/16GB Y 4 x 1Gb Dual ATA-
100
Fixed 0/80GB 0/2
Note: 4-way, 2U blade servers install into a supported BladeCenter or BladeCenter T chassis. Ship without keyboard
and mouse.
350 COG
HS40 processor options
Notes:
1. Up to three additional processors may be installed, providing a maximum of four. All processors must be
identical in type, speed and cache size.
HS40 memory options
Notes:
1. BladeCenter HS40 supports up to 16GB of Chipkill memory via 8 DIMM slots. Removal of standard
memory is required to achieve the supported maximum amount.
2. Due to two-way interleaving, installation of memory options in pairs is required.
HS40 hard disk drive (HDD) storage options
Notes:
1. Each installed HDD will physically prevent installation of one expansion card.
2. Integrated mirroring is supported using these HDDs.
3. The flash disk drives are IDE HDDs and adhere to the same cabling and configuration rules as the
standard IDE HDDs. Both can be installed in the same blade server.
4. Blade servers support attachment of any one expansion unit.
5. Supports two SCSI HDDs. See Blade Server Storage and I/O Expansion section for more information.
SBB
Number
Option
Number
Feature
Code Processor Upgrades
SMP
Support1
26K4854 13N0656 0312 2.2GHz/400MHz-2MB L3 Cache Xeon Processor MP 5xX
26K4855 13N0655 0313 2.7GHz/400MHz-2MB L3 Cache Xeon Processor MP 6xX
26K4856 13N0654 0314 3.0GHz/400MHz-4MB L3 Cache Xeon Processor MP 7xX
SBB
Number
Option
Number
Feature
Code Memory Description1, 2
37L3538 33L5038 0507 512MB PC2100 ECC DDR RDIMM
32P9223 33L5040 0509 2GB PC2100 ECC DDR RDIMM
Note: DIMMs are installed in matched pairs using the following population order: DIMM1-A &
DIMM1-B, DIMM2-A & DIMM2-B, DIMM3-A & DIMM3-B, DIMM4-A & DIMM4-B.
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity1
IDE HDDs2
48P7099 25R6906 5213 40GB IDE HDD Slim 1, 2 2
32P0747 32P0727 5215 73.4GB 10K rpm Ultra320 SCSI Hot-swap HDD Slim 3, 4 2
32P0748 32P0728 5216 146.4GB 10K rpm Ultra320 SCSI Hot-swap
HDD
Slim 3, 4 2
Storage Expansion 4
26K4852 26K4847 4203 BladeCenter SCSI Storage Expansion Unit5-- -
13N1675 90P3721 4202 BladeCenter PCI Expansion Unit - - -
Chapter 30. BladeCenter® HS40 351
HS40 I/O options
Notes:
1. Two identical expansion cards are allowed. Each installed expansion card will physically prevent
installation of one IDE HDD and vice-versa.
2. Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘BladeCenter I/O
Options’ for I/O option and configuration information.
3. Requires an OPM I/O module to be installed in BladeCenter I/O module bay 4.
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Blade Server Expansion Cards1, 2
13N2204 13N2203 1519 BladeCenter Fibre Channel Expansion Card StFF
73P9029 73P9030 1515 BladeCenter Gigabit Ethernet Expansion Card StFF
90P3849 90P3777 1517 Intel Gigabit Ethernet Expansion Card -
73P5999 73P6000 1516 Myricom® Myrinet® Cluster Expansion Card3StFF
26K6458 26K6457 1520 Topspin InfiniBand Host Channel Adapter Expansion Card for
BladeCenter
StFF
32R1802 26K6487 1559 BladeCenter iSCSI Expansion Card StFF
32R1924 32R1923 1459 Qlogic® iSCSI Daughter card for IBM BladeCenter StFF
352 COG
© Copyright IBM Corp. 2003, 2006 353
Chapter 31. BladeCenter® JS20
Notes:
1. 2-way blade server installs in a BladeCenter chassis. KVM support is not provided; use serial over LAN
communication to perform local, network operating system or software installation as an alternative to
KVM. Up to 14 JS20 blade servers are supported in the BladeCenter chassis and up to 8 JS20 blade servers
are supported in the BladeCenter T chassis. Power modules in BladeCenter models 1XX will need to be
upgraded to 1800w power modules in order to support JS20 blade servers.
2. PowerPC 970 processors with full-speed L2 cache. All models have a 1.1GHz Front-side Bus (FSB).
3. Memory is two-way interleaved, PC2700 ECC DDR RDIMMs.
4. System management functionality, interconnect network connectivity and console connectivity are
managed through the standard management module. The standard integrated service processor
monitors JS20 system management activity, communicating with the management module in the
BladeCenter.
5. Broadcom dual-port integrated copper gigabit Ethernet controller.
6. Maximum HDD storage capacity is based on installation of two 60GB 5400rpm ATA-100 HDDs.
7. Installation of an I/O expansion card prevents installation of a 2nd IDE HDD.
8. NEBS compliant.
9. Maximum memory capacity is based on installation of four 2GB PC2700 ECC DDR DIMMs.
Table 73. BladeCenter JS20 At-A-Glance
Part Number1
CPU/FSB Speed (GHz/MHz) - Cache2
Processor Quantity (Std/Max)
Memory (Std/Max)3
System Management Processor4
Integrated Ethernet5
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)6
Expansion Cards (Std/Max)7
8842-RTY82x 2.2GHz/1.1GHz
512KB L2 Cache
PowerPC 970
Processor
2/2 2GB/8GB9Y Dual 1Gb Dual ATA 100 Fixed 0/120GB 0/1
354 COG
JS20 memory options
Notes:
1. DIMMs are installed in matched pairs using the following population order: DIMM3 & DIMM4, DIMM1
& DIMM2.
JS20 hard disk drive (HDD) storage options
Notes:
1. Up to two IDE HDDs may be installed in each JS20. A second IDE HDD cannot be added if an I/O
expansion card is installed.
SBB
Number
Option
Number
Feature
Code Memory Description1
39M5837 39M5839 1222 1GB DDR1-333MHz PC2700
39M5840 39M5843 1223 2GB DDR1-333MHz PC2700
Table 74. Standard Memory Configuration
Model Std DIMM Configuration
RTY 2 x 1GB PC2700 ECC DDR RDIMM
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity1
IDE HDDs
48P7099 25R6906 5213 IBM BladeCenter® 40GB 5400rpm
ATA-100 HDD
SFF 1, 2 2
25R6905 25R6904 5244 IBM BladeCenter® 60GB 5400rpm
ATA-100 HDD
SFF 1, 2 2
Chapter 31. BladeCenter® JS20 355
JS20 I/O options
Notes:
1. One expansion card is allowed per blade server and installs over IDE HDD bay 2, preventing installation
of second IDE HDD.
2. Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘Blade Server
Storage and I/O Expansion’ for appropriate I/O module options and configuration information.
SBB
Number
Option
Number
Feature
Code Description Form Factor
Blade Server Expansion Cards1, 2
73P6113 73P6112 1543 JS20 Fibre Channel Expansion Card -
73P9029 73P9030 1515 IBM BladeCenter Gigabit Ethernet Expansion Card SFF
73P5999 73P6000 1516 Myricom® Myrinet® Expansion Card for BladeCenter StFF
32R1897 32R1896 1461 Cisco Systems InfiniBand 1X HCA Expansion Card for
IBM BladeCenter
StFF
39Y9123 26R0884 1597 QLogic® 4GB Standard Fibre Channel Expansion Card
for BladeCenter
StFF
356 COG
© Copyright IBM Corp. 2003, 2006 357
Chapter 32. BladeCenter® JS21
JS21 memory options
Table 75. BladeCenter JS21 At-A-Glance
Part Number
CPU/FSB Speed (GHz/MHz) - Cache
Processor Quantity (Std/Max)
Memory (Std/Max)
System Management Processor
Integrated Ethernet
Storage Controller
Internal HDD Interface
Internal HDD Storage (Std/Max)
HDD Bays (Std/Max)
Expansion Cards (Std/Max)
8844-31Y 2.7 GHz PowerPC
970MP Single Core
2/2 1GB/16GB Y Dual 1Gb SAS Fixed 0GB/146GB 1/2 0/1
8844-51Y 2.5 GHz PowerPC
970MP Dual Core
2/2 2GB/16GB Y Dual 1Gb SAS Fixed 0GB/146GB 1/2 0/1
8844-E3Y 2.7 GHz PowerPC
970MP Single Core
2/2 1GB/16GB Y Dual 1Gb SAS Fixed 73GB/146GB 1/2 0/1
8844-E5Y 2.5 GHz PowerPC
970MP Dual Core
2/2 2GB/16GB Y Dual 1Gb SAS Fixed 73GB/146GB 1/2 0/1
Note: The installed DIMMs on a JS21 Blade must all be PC2-3200 (400MHz DDR2) or all PC2-4300
(533MHz DDR2), a mix is not supported. Memory must be installed in pairs. Models 31Y and
51Y come with 400MHz DIMMs. E3Y and E5Y come with 533MHz DIMMs.
SBB
Number
Option
Number
Feature
Code Description
Memory DIMMs1
39M5819 - 0554 512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
0001941 39M5821 1941 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2x512MB KIT) Option
39M5807 - 0552 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
0001938 39M5809 1938 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2x1GB KIT) Option
39M5810 - 0553 2GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
0001939 39M5812 1939 4GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2x2GB KIT) Option
41Y2700 - 0590 4GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
358 COG
Notes:
1. The installed DIMMs on a JS21 Blade must all be PC2-3200 (400MHz DDR2) or all PC2-4300 (533MHz
DDR2), a mix is not supported. Memory must be installed in pairs.
Figure 88. JS21 memory DIMMs
0003913 41Y2703 3913 8GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (2x4GB KIT) Option
0001931 41Y2707 1931 1GB PC2-4200 CL4 ECC DDR2 SDRAM RDIMM (2x512MB KIT) Option
41Y2708 - 0591 1GB PC2-4200 CL4 ECC DDR2 SDRAM RDIMM
41Y2712 - 0592 2GB PC2-4200 CL4 ECC DDR2 SDRAM RDIMM
0001932 41Y2711 1932 2GB PC2-4200 CL4 ECC DDR2 SDRAM RDIMM (2x1GB KIT) Option
0001933 41Y2715 1933 4GB PC2-4200 CL4 ECC DDR2 SDRAM RDIMM (2x2GB KIT) Option
Table 76. Standard Memory Configuration
Model Std. DIMM Configuration
8844-31X 2x512MB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
8844-51X 2x1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
8844-E3X 2x1GB PC2-4200 CL3 ECC DDR2 SDRAM RDIMM
8844-E5X 2x2GB PC2-4200 CL3 ECC DDR2 SDRAM RDIMM
SBB
Number
Option
Number
Feature
Code Description
Chapter 32. BladeCenter® JS21 359
JS21 hard disk drive (HDD) storage options
Notes:
1. Up to two SAS HDDs may be installed in each JS21.
Figure 89. JS21 SAS HDDs
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Maximum
Quantity1
SAS HDDs
26K5780 26K5776 5297 36GB 10K SFF SAS NHS HDD 2.5" 1, 2 2
26K5781 26K5777 5298 73GB 10K SFF SAS NHS HDD 2.5" 1, 2 2
Bay Form Factor Height Front Access Usage
Blade Front SFF 2.5" N HDD
Blade Rear SFF 2.5" N HDD
360 COG
JS21 I/O options
Notes:
1. If this expansion card is selected, a second hard drive cannot be selected.
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Suppor
t
Slots
Supported
Hot Plug
Capable
Max
Supported
Networking
26K4843 39R8624 1548 SFF Gb Ethernet Exp.
Card
Daughter
Card
-1No1
26R0891 26R0890 1577 QLogic® 4Gb SFF Fibre
Channel Expansion Card
for IBM BladeCenter
Daughter
Card
-1No1
26R0885 26R0884 1581 QLogic® 4Gb Fibre
Channel Expansion Card
for IBM eServer
BladeCenter
Daughter
Card
-1, 3No 2
39Y9116 32R1923 1458 Qlogic® iSCSI Daughter
card for IBM BladeCenter
Daughter
Card
-1, 2, 3No 3
73P5999 73P6000 1516 Myricom® Myrinet®
Cluster Expansion Card1
Daughter
Card
-1No1
73P9029 73P9030 1515 BladeCenter Gigabit
Ethernet Expansion Card1
Daughter
Card
-1No1
39Y9117 32R1896 1492 Cisco Systems InfiniBand
1X HCA Expansion Card
for IBM BladeCenter1
Daughter
Card
-1, 3No 2
39Y9185 39Y9186 2925 Emulex® 4Gb SFF Fibre
Channel Expansion Card
for IBM BladeCenter®
Daughter
Card
-1, 3No 2
Slot/Device Type Bus Voltage (V)
Frequency
MHz Data Path
Active PCI?
(Hot Swap) Slot Length
Blade Server Slot 1 PCI-X 7 3.3 100 64 No BladeCenter
Unique Form Factor
© Copyright IBM Corp. 2003, 2006 361
Chapter 33. BladeCenter® LS20
Notes:
1. Model numbers provided are worldwide generally available variant (GAV) model numbers which are
not orderable as listed and need to be modified by country. The U.S. GAV model numbers use the
following nomenclature: xxU. For example, the U.S. orderable part number for 8850-51Y is 8850-51U. See
the product-specific Official IBM announcement letter for other country-specific GAV model numbers.
Table 77. BladeCenter LS20 At-A-Glance
Part Number1,2
CPU/FSB Speed (GHz/MHz) - Cache3
Number of Processors (Std/Max)
Memory (Std/Max)4
System Management Processor5
Integrated Ethernet 6
Storage Controller7
Internal HDD Interface
Internal HDD Storage (Std/Max)8
Optical Drive
HDD Bays (Total/Avail)
Expansion Cards (Std/Max)9
8850-71Y 2.4GHz - 1MB
L2 Single Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-81Y 2.6GHz - 1MB
L2 Single Core
1/2 2GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-55Y10 2.0GHz - 2MB
L2 Per Processor
Dual Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-65Y10 2.2GHz - 2MB
L2 Per Processor
Dual Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-72Y 2.4GHz - 1MB
L2 Single Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-82Y 2.6GHz - 1MB
L2 Single Core
1/2 2GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-92Y 2.8GHz - 1MB
L2 Single Core
1/2 2GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-56Y10 2.0GHz - 2MB
L2 Per Processor
Dual Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-66Y10 2.2MHz - 2MB
L2 Per Processor
Dual Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
8850-76Y10 2.4MHz - 2MB
L2 Per Processor
Dual Core
1/2 1GB/16GB Y Dual 1GB U320 Fixed 0/146.8GB N 2/2 0/1
362 COG
GAV to MTM mapping for AP Geographies follow the same pattern. Substitute the last character with a
country-specific designator.
2. The LS20 blade server installs in a BladeCenter chassis and ships without a keyboard and mouse. Up to
fourteen AMD Opteron LS20 for BladeCenter blade servers can be installed in a new BladeCenter chassis
(8677-3XX) or in an existing BladeCenter chassis (8677-1XX or 8677-2XX) at full density once it has been
upgraded with the new 2000-watt power supply option (26K4816). In addition, these new LS20 blade
servers can be installed in the BladeCenter T (8720-1RX and 8730-1RX).
3. AMD Opteron processor is designed for high-performance workstation and server applications. Provides
three high-performance HyperTransport links to I/O, as well as a 128-bit high-performance DDR
SDRAM memory controller.
4. Memory is two-way interleaved, PC-3200 CL3 ECC DDR2 RDIMM supporting Chipkill technology.
5. The standard integrated service processor monitors LS20 system management activity, communicating
with the management module in the BladeCenter.
6. Dual Broadcom 5704S Gigabit Ethernet connections with teaming and failover support
7. An integrated, single-channel, Ultra320 SCSI controller supports integrated RAID-1.
8. Maximum HDD storage capacity is based on installation of two 73.4GB 10K rpm Ultra320 SFF SCSI
HDD.
9. Installing a legacy form factor I/O expansion card may prevent installation of a second SCSI HDD.
10. This machine type includes dual core AMD Opteron Processors and has 1MB per processing core.
LS20 processor options
Notes:
1. Microprocessors must be of the same type and clock speed on each AMD Opteron LS20 for IBM eServer
BladeCenter. Mixing microprocessors of different speeds or cache size or upgrading the base processors
is not supported.
Figure 90. LS20 planar
SBB
Number
Option
Number
Feature
Code Processor Options
SMP
Support1
25R7702 25R8892 0276 Opteron Processor Model 250 71Y, 72Y
31R3359 25R8893 0277 Opteron Processor Model 252 81Y, 82Y
25R8536 25R8937 1207 Opteron Processor Model 254 92Y
39M4616 25R8894 0279 Dual-Core Opteron Processor Model 270 55Y, 56Y
25R8445 25R8895 0625 Dual-Core Opteron Processor Model 275 65Y, 66Y
25R8535 25R8896 1208 Dual-Core Opteron Processor Model 280 76Y
Chapter 33. BladeCenter® LS20 363
LS20 memory options
SBB
Number
Option
Number
Feature
Code Description
73P5136 - 0520 512MB PC2700 CL3 ECC DDR SDRAM VLP RDIMM
39M5844 - 0516 512MB PC-3200 CL3 ECC DDR2 SDRAM VLP RDIMM
73P5137 - 0521 1GB PC2700 CL3 ECC DDR SDRAM VLP RDIMM
39M5847 - 0517 1GB PC-3200 CL3 ECC DDR2 SDRAM VLP RDIMM
0001942 39M5849 1942 2GB (2x1GB Kit) PC-3200 CL3 ECC DDR2 SDRAM VLP
RDIMM
73P5138 - 0522 2GB PC2700 CL3 ECC DDR SDRAM VLP RDIMM
39M5850 - 0518 2GB PC-3200 CL3 ECC DDR2 SDRAM VLP RDIMM
73P5139 - 0523 4GB PC2700 CL3 ECC DDR SDRAM VLP RDIMM
73P5135 - - 4GB PC-3200 CL3 ECC DDR2 SDRAM VLP RDIMM
0001943 39M5852 1943 4GB (2x2GB Kit) PC-3200 CL3 ECC DDR2 SDRAM VLP
RDIMM
39M5853 41Y2756 0519 4GB PC-3200 CL3 ECC DDR2 SDRAM VLP RDIMM
39M5853 41Y2756 0519 8GB (2x4GB Kit) PC-3200 CL3 ECC DDR2 SDRAM VLP
RDIMM
Note: The LS20 uses a minimum of 2 PC2-3200 DDR2 SDRAM Very Low Profile (VLP) DIMMs. The memory subsystem
is a 2-way interleaved subsystem; memory must be populated in pairs of 2 identical DIMMs per processor installed.
The two members of the set must be matched, but the sets do not have to be matched. The DIMMs should be installed
in the following order: DIMMs 1 & 2 (Set 1) with processor 1, DIMMs 3 & 4 (Set 2) with processor 2. The absence of
processor 2 will limit the potential DIMM slots to the pair pertaining to processor 1. The LS20 supports Chipkill. Mixing
Chipkill DIMMs with non-Chipkill DIMMs will disable all Chipkill function.
Table 78. Standard Memory Configuration
Model Std DIMM Configuration Chipkill
71Y, 55Y, 56Y, 65Y, 66Y, 72Y,
76Y
2 x 512MB PC2-3200 ECC DDR2 RDIMM N
81Y, 82Y, 92Y 2 x 1GB PC2-3200 ECC DDR2 RDIMM Y
364 COG
Figure 91. LS20 system board
LS20 hard disk drive (HDD) storage options
SBB
Number
Option
Number
Feature
Code Description Height
Bays
Supported
Max
Qty
Fixed (Neonate-swap) Ultra320 HDDs
40K1069 40K1037 5256 36GB Non Hot-Swap 2.5" 10K RPM Ultra320
SCSI HDD
SFF 1, 2 2
40K1070 40K1038 5255 73GB Non Hot-Swap 2.5" 10K RPM Ultra320
SCSI HDD
SFF 1, 2 2
Note: LS20 supports the installation of two SFF SCSI drives and one SFF daughter card. One SFF SCSI drive and a SFF
daughter card with a StFF daughter card is not supported.
Chapter 33. BladeCenter® LS20 365
LS20 I/O options
Notes:
1. Quantity one expansion card is supported inside the blade itself. Installation of a StFF (standard form
factor) expansion card will physically prevent installation of a second HDD.
2. Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘Blade Server
Storage and I/O Expansion’ for appropriate I/O module options and configuration information.
3. Requires an OPM I/O module to be installed in BladeCenter I/O module bay 4.
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Blade Server Expansion Cards1, 2
26K4837 73P6000 1546 Myricom® Myrinet® Expansion Card3StFF
26K4843 39R8624 1548 IBM BladeCenter® SFF Gigabit Ethernet Expansion Card SFF
26K4844 26K4841 1549 Fibre Channel Expansion Card SFF
26R0891 26R0890 1577 QLogic® 4GB SFF Fibre Channel Expansion Card for BladeCenter SFF
32R1924 32R1923 1458 QLogic® iSCSI Daughter card for IBM BladeCenter StFF
32R1897 32R1896 1492 Cisco Systems InfiniBand 1X HCA Expansion Card for IBM BladeCenter SFF
39Y9185 39Y9186 2925 Emulex® 4Gb SFF Fibre Channel Expansion Card for IBM BladeCenter SFF
366 COG
© Copyright IBM Corp. 2003, 2006 367
Chapter 34. Blade server storage and I/O expansion
Notes:
1. Embedded support is provided for RAID levels 0 and 1.
2. Option is supported on BladeCenter 8853 only. Supports up to three 2.5" SAS HDDs.
3. Options apply to IBM BladeCenter Storage and I/O Expansion Unit only.
4. Requires appropriate I/O modules to be installed in the BladeCenter Chassis. Refer to BladeCenter
Chassis I/O Options for more information.
Figure 92. BladeCenter Storage and Expansion Unit 3, View 1
Table 79. BladeCenter® Storage and I/ O Expansion Unit
SBB
Number
Option
Number
Feature
Code Description
Form
Factor
Slots
Supported1
Maximum
Quantity
31R2266 39R756324265 IBM BladeCenter Storage and I/O Expansion
Blade
-- -
Hot-Swap SAS HDDs
39R7392 39R738835152 36GB 10K SAS SFF HS HDD SFF 1, 2, 3 2 SIO
39R7393 39R738935153 73GB 10K SAS SFF HS HDD SFF 1, 2, 3 2 SIO
Blade Server RAID Adapter4
25R8077 25R8064 1670 IBM ServeRAID 8k SAS Controller StFF - 1
368 COG
Figure 93. BladeCenter Storage and Expansion Unit 3, View 2
Figure 94. BladeCenter Storage and Expansion Unit 3, View 3
Chapter 34. Blade server storage and I/O expansion 369
Notes:
1. PCI adapter options for the BladeCenter PCI I/O Expansion Unit. PCI adapters in the unit provide
external connections only.
Table 80. IBM eServer BladeCenter PCI Expansion Unit 2
SBB
Number
Option
Number
Feature
Code Description
32R0792 25K8373 4244 IBM eServer BladeCenter PCI Expansion Unit 2
PCI Expansion Unit 2
24P0963 24P0960 1650 DS4000 Host Bus Adapter
39R8820 39R8816 1686 ServeRAID-6M Controller (256MB Cache)
39R8819 39R8815 1685 ServeRAID-6M Controller (128MB Cache)
71P8614 71P8594 1652 Single Channel Ultra320 SCSI Controller
31P9605 31P9601 1512 PRO/1000 MT Server Ethernet Adapter by Intel
32P9296 22P7801 1501 NetXtreme 1000 SX Fiber Ethernet Adapter
31P6305 31P6301 1502 NetXtreme 1000 T Ethernet Adapter (copper)
32P9298 31P6401 1503 NetXtreme 1000 T Dual Port Ethernet Adapter (copper)
Note: The BladeCenter PCI I/O Expansion Unit provides two 64-bit/100MHz PCI-X slots. The expansion unit itself
occupies one BladeCenter slot. The expansion unit attaches to the blade server and both units are installed
together into the BladeCenter chassis as a single unit occupying two BladeCenter slots.
370 COG
© Copyright IBM Corp. 2003, 2006 371
Chapter 35. VMware offerings
Note: VMware support is required when purchasing VMware software.
Virtual machine software for consolidating and partitioning systems in high-performance environments.
Table 81. VMWare ESX Server and Add-Ons
Option
Number Description
VMware ESX Server 1, 2
481722X VMware ESX Server 2.x (1-2 processors)
4817223 VMware ESX Server (1-2 processors) w/ 3 year software subscription
4817225 VMware ESX Server (1-2 processors) w/ 5 year software subscription
481724X VMware ESX Server 2.x (3-4 processors)
4817243 VMware ESX Server (3-4 processors) w/ 3 year software subscription
4817245 VMware ESX Server (3-4 processors) w/ 5 year software subscription
481728X VMware ESX Server 2.x (5-8 processors)
4817283 VMware ESX Server (5-8 processors) w/ 3 year software subscription
4817285 VMware ESX Server (5-8 processors) w/ 5 year software subscription
481726X VMware ESX Server 2.x (8-16 processors)
4817263 VMware ESX Server (9-16 processors) w/ 3 year software subscription
4817265 VMware ESX Server (9-16 processors) w/ 5 year software subscription
481739X VMware ESX Server 2.x Upgrade (2-4 processors)
48173AX VMware ESX Server 2.x Upgrade (4-8 processors)
48173BX VMware ESX Server 2.x Upgrade (8-16 processors)
48173GX ESX Server 2 Upgrade (2 to 4 Processors) w/3 Year Subscription
48173HX ESX Server 2 Upgrade (2 to 4 Processors) w/5 Year Subscription
48173JX ESX Server 2 Upgrade (4 to 8 Processors) w/ 3 Year Subscription
48173KX ESX Server 2 Upgrade (4 to 8 Processors) w/5 Year Subscription
48173LX ESX Server 2 Upgrade (8 to 16 Processors) w/3 Year Subscription
48173MX ESX Server 2 Upgrade (8 to 16 Processors) w/5 Year Subscription
4817U6X VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (2 Processors)
4817UCX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (2 Processors) w/3 Year Subscription
4817UJX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (2 Processors) w/5 Year Subscription
4817U7X VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (4 Processors)
4817UDX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (4 Processors) w/3 Year Subscription
4817UKX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (4 Processors) w/5 Year Subscription
4817U8X VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (8 Processors)
372 COG
Notes:
1. Orderable only when configured with an xSeries server, not separately.
2. When ordering VMware ESX Server 2 products, the latest 2.x version will be shipped.
3. Add-on module to VMware ESX Server 2.x that allows a single virtual machine to span multiple physical
processors.
4817UEX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (8 Processors) w/3 Year Subscription
4817ULX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (8 Processors) w/5 Year Subscription
4817U9X VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (16 Processors)
4817UFX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (16 Processors) w/3 Year Subscription
4817UMX VMware ESX Server 2 to Virtual Infrastructure Node Upgrade (16 Processors) w/5 Year Subscription
VMware Virtual SMP 3
48173CX VMware Virtual SMP (2 processors)
48173DX VMware Virtual SMP (4 processors)
48173EX VMware Virtual SMP (8 processors)
48173FX VMware Virtual SMP (16 processors)
48173NX VMware Virtual SMP - 2 Processor Version w/3 Year Subscription
48173PX VMware Virtual SMP - 2 Processor Version w/5 Year Subscription
48173QX VMware Virtual SMP - 4 Processor Version w/3 Year Subscription
48173RX VMware Virtual SMP - 4 Processor Version w/5 Year Subscription
48173SX VMware Virtual SMP - 8 Processor Version w/3 Year Subscription
48173TX VMware Virtual SMP - 8 Processor Version w/5 Year Subscription
48173UX VMware Virtual SMP - 16 Processor Version w/3 Year Subscription
48173VX VMware Virtual SMP - 16 Processor Version w/5 Year Subscription
4817U1X VMware Virtual SMP Upgrade (2-4 processors)
4817U2X VMware Virtual SMP Upgrade (4-8 processors)
4817U3X VMware Virtual SMP Upgrade (9-16 processors)
4817UTX Virtual SMP Upgrade (2 to 4 Processors) w/3 Year Subscription
4817UNX Virtual SMP Upgrade (2 to 4 Processors) w/5 Year Subscription
4817UPX Virtual SMP Upgrade (4 to 8 Processors) w/3 Year Subscription
4817UQX Virtual SMP Upgrade (4 to 8 Processors) w/5 Year Subscription
4817URX Virtual SMP Upgrade (8 to 16 Processors) w/3 Year Subscription
4817USX Virtual SMP Upgrade (8 to 16 Processors) w/5 Year Subscription
Table 81. VMWare ESX Server and Add-Ons (continued)
Option
Number Description
Chapter 35. VMware offerings 373
Virtual Infrastructure management software for environments using VMware ESX Server.
Table 82. VMware VirtualCenter and Add-Ons for ESX and GSX
Option
Number Description
Management Server and Agent for ESX
4817M1X VMware VirtualCenter Management Server
4817M13 VMware VirtualCenter Management Server w/ 3 year subscription
4817M15 VMware VirtualCenter Management Server w/ 5 year subscription
4817M2X VMware VirtualCenter Agent (2 processors)
4817M3X VMware VirtualCenter Agent (4 processors)
4817M4X VMware VirtualCenter Agent (8 processors)
4817M5X VMware VirtualCenter Agent (16 processors)
4817MHX VMware VirtualCenter Agent for 2 Processors w/3 Year Subscription
4817MJX VMware VirtualCenter Agent for 2 Processors w/5 Year Subscription
Agent for GSX
4817GHX VirtualCenter Agent for GSX (2 Processors)
4817GMX VirtualCenter Agent for GSX (2 Processors) w/ 3 Year Subscription
4817GNX VirtualCenter Agent for GSX (2 Processors) w/ 5 Year Subscription
VMotion for ESX 1
4817M6X VMware VirtualCenter VMotion (2 processors)
4817M7X VMware VirtualCenter VMotion (4 processors)
4817M8X VMware VirtualCenter VMotion (8 processors)
4817M9X VMware VirtualCenter VMotion (16 processors)
4817MFX VMware VMotion for 2 Processors w/3 Year Subscription
4817MGX VMware VMotion for 2 Processors w/5 Year Subscription
Virtual Infrastructure Node for ESX 2
4817MAX VMware Virtual Infrastructure Node (2 processors)
4817MA3 VMware Virtual Infrastructure Node (1-2 processors w/ 3 year software subscription)
4817MA5 VMware Virtual Infrastructure Node (1-2 processors w/ 5 year software subscription)
4817MBX VMware Virtual Infrastructure Node (4 processors)
4817MB3 VMware Virtual Infrastructure Node (3-4 processors w/ 3 year software subscription)
4817MB5 VMware Virtual Infrastructure Node (3-4 processors w/ 5 year software subscription)
4817MCX VMware Virtual Infrastructure Node (8 processors)
4817MC3 VMware Virtual Infrastructure Node (5-8 processors w/ 3 year software subscription)
4817MC5 VMware Virtual Infrastructure Node (5-8 processors w/ 5 year software subscription)
4817MDX VMware Virtual Infrastructure Node (16 processors)
4817MD3 VMware Virtual Infrastructure Node (8-16 processors) w/ 3 year software subscription
4817MD5 VMware Virtual Infrastructure Node (8-16 processors) w/ 5 year software subscription
374 COG
Notes:
1. A VirtualCenter add-on that enables live servers to be moved from one virtual machine host to another.
2. A VirtualCenter bundle which includes licenses for VMware ESX Server, VMware Virtual SMP, the
VMware VirtualCenter Management Agent, and VMware Vmotion.
3. A VirtualCenter bundle which includes licenses for VMware GSX Server and the VMware VirtualCenter
Management Agent.
4817U4X VMware Virtual Infrastructure Node for ESX Upgrade (2 to 4 Processors)
4817UAX VMware Virtual Infrastructure Node for ESX Upgrade (2 to 4 Processors) w/3 Year Subscription
4817UGX VMware Virtual Infrastructure Node for ESX Upgrade (2 to 4 Processors) w/5 Year Subscription
4817U5X VMware Virtual Infrastructure Node for ESX Upgrade (4 to 8 Processors)
4817UBX VMware Virtual Infrastructure Node for ESX Upgrade (4 to 8 Processors) w/3 Year Subscription
4817UHX VMware Virtual Infrastructure Node for ESX Upgrade (4 to 8 Processors) w/5 Year Subscription
Virtual Infrastructure Node for GSX3
4817L1X Virtual Infrastructure Node for GSX Server 3 for Linux (2 Processors) w/1 Year Subscription
4817L2X Virtual Infrastructure Node for GSX Server 3 for Linux (2 Processors) w/3 Year Subscription
4817L3X Virtual Infrastructure Node for GSX Server 3 for Linux (2 Processors) w/5 Year Subscription
4817L4X Virtual Infrastructure Node for GSX Server 3 for Linux (4 Processors) w/1 Year Subscription
4817L5X Virtual Infrastructure Node for GSX Server 3 for Linux (4 Processors) w/3 Year Subscription
4817L6X Virtual Infrastructure Node for GSX Server 3 for Linux (4 Processors) w/5 Year Subscription
4817L7X Virtual Infrastructure Node for GSX Server 3 for Linux (8 Processors) w/1 Year Subscription
4817L8X Virtual Infrastructure Node for GSX Server 3 for Linux (8 Processors) w/3 Year Subscription
4817L9X Virtual Infrastructure Node for GSX Server 3 for Linux (8 Processors) w/5 Year Subscription
4817LAX Virtual Infrastructure Node for GSX Server 3 for Linux (16 Processors) w/1 Year Subscription
4817LBX Virtual Infrastructure Node for GSX Server 3 for Linux (16 Processors) w/3 Year Subscription
4817LCX Virtual Infrastructure Node for GSX Server 3 for Linux (16 Processors) w/5 Year Subscription
4817LDX Virtual Infrastructure Node for GSX Server 3 for Windows (2 Processors) w/1 Year Subscription
4817LEX Virtual Infrastructure Node for GSX Server 3 for Windows (2 Processors) w/3 Year Subscription
4817LFX Virtual Infrastructure Node for GSX Server 3 for Windows (2 Processors) w/5 Year Subscription
4817LGX Virtual Infrastructure Node for GSX Server 3 for Windows (4 Processors) w/1 Year Subscription
4817LHX Virtual Infrastructure Node for GSX Server 3 for Windows (4 Processors) w/3 Year Subscription
4817LJX Virtual Infrastructure Node for GSX Server 3 for Windows (4 Processors) w/5 Year Subscription
4817LKX Virtual Infrastructure Node for GSX Server 3 for Windows (8 Processors) w/1 Year Subscription
4817LLX Virtual Infrastructure Node for GSX Server 3 for Windows (8 Processors) w/3 Year Subscription
4817LMX Virtual Infrastructure Node for GSX Server 3 for Windows (8 Processors) w/5 Year Subscription
4817LNX Virtual Infrastructure Node for GSX Server 3 for Windows (16 Processors) w/1 Year Subscription
4817LPX Virtual Infrastructure Node for GSX Server 3 for Windows (16 Processors) w/3 Year Subscription
4817LQX Virtual Infrastructure Node for GSX Server 3 for Windows (16 Processors) w/5 Year Subscription
Table 82. VMware VirtualCenter and Add-Ons for ESX and GSX (continued)
Option
Number Description
Chapter 35. VMware offerings 375
Offers resource optimization, high availability and data protection that deliver capabilities not possible with
physical machines. VMware Infrastructure 3 expands the processing and memory capacity of virtual
machines so that intensive workloads can benefit from virtualization. VirtualCenter Management Server 2
can manage Virtual Infrastructures of hundreds of VMware servers and thousands of virtual machines.
VMware Infrastructure 3 with VMware VirtualCenter Management Server 2 introduces the concept of
VMware Clusters and new capabilities built on Clusters called VMware DRS and VMware HA.
Table 83. VMware Infrastructure 3 with VMware VirtualCenter Management Server 2
Option
Number Description
VMware Infrastructure 3 with VMware VirtualCenter Management Server 2
4817V01 VMware Infrastructure 3 Starter for 2 sockets
4817S01 VMware Infrastructure 3 Starter for 2 sockets - 1 year Full Subscription
4817T01 VMware Infrastructure 3 Starter for 2 sockets - 3 year Full Subscription
4817U01 VMware Infrastructure 3 Starter for 2 sockets - 5 year Full Subscription
4817L01 VMware Infrastructure 3 Starter for 2 sockets - 1 year Limited Subscription
4817M01 VMware Infrastructure 3 Starter for 2 sockets - 3 year Limited Subscription
4817N01 VMware Infrastructure 3 Starter for 2 sockets - 5 year Limited Subscription
4817V02 VMware Infrastructure 3 Standard for 2 sockets
4817S02 VMware Infrastructure 3 Standard for 2 sockets - 1 year Full Subscription
4817T02 VMware Infrastructure 3 Standard for 2 sockets - 3 year Full Subscription
4817U02 VMware Infrastructure 3 Standard for 2 sockets - 5 year Full Subscription
4817L02 VMware Infrastructure 3 Standard for 2 sockets - 1 year Limited Subscription
4817M02 VMware Infrastructure 3 Standard for 2 sockets - 3 year Limited Subscription
4817N02 VMware Infrastructure 3 Standard for 2 sockets - 5 year Limited Subscription
4817V03 VMware Infrastructure 3 Enterprise for 2 sockets
4817S03 VMware Infrastructure 3 Enterprise for 2 sockets - 1 year Full Subscription
4817T03 VMware Infrastructure 3 Enterprise for 2 sockets - 3 year Full Subscription
4817U03 VMware Infrastructure 3 Enterprise for 2 sockets - 5 year Full Subscription
4817L03 VMware Infrastructure 3 Enterprise for 2 sockets - 1 year Limited Subscription
4817M03 VMware Infrastructure 3 Enterprise for 2 sockets - 3 year Limited Subscription
4817N03 VMware Infrastructure 3 Enterprise for 2 sockets - 5 year Limited Subscription
4817V04 VMware HA 2 for 2 sockets
4817S04 VMware HA 2 for 2 sockets - 1 year Full Subscription
4817T04 VMware HA 2 for 2 sockets - 3 year Full Subscription
4817U04 VMware HA 2 for 2 sockets - 5 year Full Subscription
4817L04 VMware HA 2 for 2 sockets - 1 year Limited Subscription
4817M04 VMware HA 2 for 2 sockets - 3 year Limited Subscription
4817N04 VMware HA 2 for 2 sockets - 5 year Limited Subscription
4817V05 VMware DRS 2 for 2 sockets
4817S05 VMware DRS 2 for 2 sockets - 1 year Full Subscription
376 COG
4817T05 VMware DRS 2 for 2 sockets - 3 year Full Subscription
4817U05 VMware DRS 2 for 2 sockets - 5 year Full Subscription
4817L05 VMware DRS 2 for 2 sockets - 1 year Limited Subscription
4817M05 VMware DRS 2 for 2 sockets - 3 year Limited Subscription
4817N05 VMware DRS 2 for 2 sockets - 5 year Limited Subscription
4817V06 VMware Consolidated Backup 3 for 2 sockets
4817S06 VMware Consolidated Backup 3 for 2 sockets - 1 year Full Subscription
4817T06 VMware Consolidated Backup 3 for 2 sockets - 3 year Full Subscription
4817U06 VMware Consolidated Backup 3 for 2 sockets - 5 year Full Subscription
4817L06 VMware Consolidated Backup 3 for 2 sockets - 1 year Limited Subscription
4817M06 VMware Consolidated Backup 3 for 2 sockets - 3 year Limited Subscription
4817N06 VMware Consolidated Backup 3 for 2 sockets - 5 year Limited Subscription
4817V24 VMware VirtualCenter Management Server 2 for VMware Infrastructure
4817S24 VMware VirtualCenter Management Server 2 - 1 year Full Subscription
4817T24 VMware VirtualCenter Management Server 2 - 3 year Full Subscription
4817U24 VMware VirtualCenter Management Server 2 - 5 year Full Subscription
4817L24 VMware VirtualCenter Management Server 2 - 1 year Limited Subscription
4817M24 VMware VirtualCenter Management Server 2 - 3 year Limited Subscription
4817N24 VMware VirtualCenter Management Server 2 - 5 year Limited Subscription
4817V25 VMware VMotion 2 for 2 Sockets
4817S25 VMware VMotion 2 for 2 Sockets - 1 year Full Subscription
4817T25 VMware Vmotion for 2 Sockets - 3 year Full Subscription
4817U25 VMware Vmotion 2 for 2 Sockets - 5 year Full Subscription
4817L25 VMware VMotion 2 for 2 Sockets - 1 year Limited Subscription
4817M25 Vmware VMotion 2 for 2 Sockets - 3 year Limited Subscription
4817N25 VMware VMotion 2 for 2 Sockets - 5 year Limited Subscription
4817V08 VMware Infrastructure 3 Starter to Standard Upgrade for 2 sockets
4817V09 VMware Infrastructure 3 Starter to Enterprise Upgrade for 2 sockets
4817V10 VMware Infrastructure 3 Standard to Enterprise Upgrade for 2 sockets
4817V28 VMware GSX Server 3 or GSX VIN to VMware Infrastructure 3 Starter Upgrade
4817V11 VMware ESX Server 2 to VMware Infrastructure 3 Standard Upgrade for 2 sockets - Expired Subscription
4817V12 VMware VMotion 1 to VMotion 2 Upgrade for 2 sockets - Expired Subscription
4817V13 VMware Virtual Infrastructure Node to VMware Infrastructure 3 Standard Plus VMotion 2 Upgrade for 2
sockets - Expired Subscription
4817V14 VMware Virtual Infrastructure Node to VMware Infrastructure 3 Enterprise Upgrade for 2 sockets -
Expired Subscription
4817V15 VMware VirtualCenter Management Server 1 to VirtualCenter Management 2 Upgrade - Expired
Subscription
Table 83. VMware Infrastructure 3 with VMware VirtualCenter Management Server 2 (continued)
Option
Number Description
Chapter 35. VMware offerings 377
4817V18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot Bundle including PSO VDI Pilot, 25 VMs,
VirtualCenter Management Server up to 4 Sockets
4817S18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 1 year Full Subscription
4817T18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 3 year Full Subscription
4817U18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 5 year Full Subscription
4817L18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 1 year Limited Subscription
4817M18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 3 year Limited Subscription
4817N18 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot - 5 year Limited Subscription
4817V19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot Bundle including PSO VDI Pilot, 25 VMs,
VirtualCenter Management Server up to 4 sockets
4817S19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 1 year Full Subscription
4817T19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 3 year Full Subscription
4817U19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 5 year Full Subscription
4817L19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 1 year Limited Subscription
4817M19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 3 Year Limited Subscription
4817N19 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot - 5 year Limited Subscription
4817V22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets
4817S22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 1 year Full
Subscription
4817T22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 3 year Full
Subscription
4817U22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 5 year Full
Subscription
4817L22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 1 year Limited
Subscription
4817M22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 3 year Limited
Subscription
4817N22 VMware Virtual Desktop Infrastructure (VDI) 100 Standard VMs for up to 16 Sockets - 5 year Limited
Subscription
4817V23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 sockets
4817S23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 1 year Full
Subscription
4817T23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 3 year Full
Subscription
4817U23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 5 year Full
Subscription
4817L23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 1 year Limited
Subscription
4817M23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 3 year Limited
Subscription
4817N23 VMware Virtual Desktop Infrastructure (VDI) 100 Enterprise VMs for up to 16 Sockets - 5 year Limited
Subscription
Table 83. VMware Infrastructure 3 with VMware VirtualCenter Management Server 2 (continued)
Option
Number Description
378 COG
These BladeCenter license packs and media kits enable you to conveniently purchase VMware software and
product media for a full BladeCenter chassis.
Notes:
1. Contains licenses for Virtual Infrastructure Nodes for 14 two-way blades.
2. Contains licenses for Virtual Infrastructure Nodes for seven four-way blades.
4817V20 VMware Virtual Desktop Infrastructure (VDI) Standard Pilot Bundle including 25 VMs, VirtualCenter
Management Server up to 4 sockets
4817V21 VMware Virtual Desktop Infrastructure (VDI) Enterprise Pilot Bundle including 25 VMs, VirtualCenter
Management Server up to 4 Sockets
4817V27 VMware Virtual Desktop Infrastructure (VDI) VMware PSO VDI Pilot
4817V16 VMware Infrastructure Media Kit
4817V30 VMware Infrastructure 3 Enterprise Blade Server License Pack for 16 Sockets
4817V31 VMware Infrastructure 3 Enterprise Blade Server License Pack for 20 Sockets
4817V32 VMware Infrastructure 3 Enterprise Blade Server License Pack for 28 Sockets
Table 84. VMware Offerings for BladeCenter
Option
Number Description
4817BEV VMware Virtual Infrastructure Node license pack for BladeCenter (2 processors)1
4817B3X VMware Virtual Infrastructure Node license pack for BladeCenter (2 processors) w/ 3 year
subscription
4817B5X VMware Virtual Infrastructure Node license pack for BladeCenter (2 processors) w/ 5 year
subscription
4817BAX VMware Virtual Infrastructure Node license pack for BladeCenter (4 processors) 2
4817BBX VMware Virtual Infrastructure Node License Pack for BladeCenter (4 processors) w/ 3 year
subscription
4817BCX VMware Virtual Infrastructure Node License Pack for BladeCenter (4 processors) w/ 5 year
subscription
Table 83. VMware Infrastructure 3 with VMware VirtualCenter Management Server 2 (continued)
Option
Number Description
Chapter 35. VMware offerings 379
Virtual machine software ideal for x86-based server consolidation, disaster recovery, 2 and streamlining
software development processes.
Media kits contain entitlement to a physical product CD and printed manual as an alternative to convenient
downloads.
Table 85. VMWare GSX Server
Option
Number Description
4817G1X VMware GSX Server 3 for Windows (1-2 processors)
4817G2X VMware GSX Server 3 for Windows (Unlimited processors)
4817G3X VMware GSX Server 3 for Linux (1-2 processors)
4817G4X VMware GSX Server 3 for Linux (Unlimited processors)
4817G9X VMware GSX Server 3 for Linux (2 Processors) w/3 Year Subscription
4817GAX VMware GSX Server 3 for Linux (2 Processors) w/5 Year Subscription
4817GBX VMware GSX Server 3 for Linux (Unlimited Processors) w/3 Year Subscription
4817GCX VMware GSX Server 3 for Linux (Unlimited Processors) w/5Year Subscription
4817GDX VMware GSX Server 3 for Windows (2 Processors) w/3 Year Subscription
4817GEX VMware GSX Server 3 for Windows (2 Processors) w/5 Year Subscription
4817GFX VMware GSX Server 3 for Windows (Unlimited Processors) w/3 Year Subscription
4817GGX VMware GSX Server 3 for Windows (Unlimited Processors) w/5 Year Subscription
4817G7X VMware GSX 3 Server Upgrade (2 to Unlimited Processors for Linux)
4817G8X VMware GSX 3 Server Upgrade (2 to Unlimited Processors for Windows)
Table 86. VMWare Media Kits
Option
Number Description
481721X VMware ESX Server Media Kit
4817MEX VMware VirtualCenter Media Kit
4817G5X VMware GSX Server 3 Media Kit (English)
380 COG
The following servers are compatible with VMware ESX Server 2.x, ESX 2.x upgrades, Virtual SMP and
Virtual SMP Upgrades.
• IBM provides support for Windows, Linux and leading applications in a VMware environment.
• Differences in system configurations are invisible to operating systems and applications.
• Clustering environments can be supported within a single server.
• Provides a cost-effective failover solution for mixed OS environments.
• All options that are compatible with a supported system may not be supported by VMware.
• For the latest available information, refer to IBM’s website for Option/NOS/Server compatibility. See the
information Sources section for URL.
Table 87. Server Compatibility
Server
xSeries 255
xSeries 336
xSeries 346
xSeries 366
xSeries 445
xSeries 460
eServer 326
BladeCenter HS20
BladeCenter HS40
BladeCenter LS20
© Copyright IBM Corp. 2003, 2006 381
Chapter 36. xSeries network operating system offerings
IBM Systems Group offers a range of Network Operating Systems (NOS) on xSeries servers and IntelliStation
workstations. IBM NOS offerings are documented after testing to operate as reliable solutions, providing a
simple, cost-effective start-up process. Some NOS offerings are available preloaded on the server. Other
offerings must be installed by the customer.
The following chart shows which NOS preloads are available for each xSeries server and IntelliStation
workstation.
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
90P0222 Microsoft
Windows Server
2003, Enterprise
Edition
(Preloaded)
XX XXXXX
XXX X X
90P0221 Microsoft
Windows Server
2003, Standard
Edition
(Preloaded)
XX XXXXX
XXX X X
25K8456 Microsoft
Windows Small
Business Server
2003, Standard
Edition
(Preloaded)
XX X X X
32R1022 MS Storage Server
2003 - Non Cluster
- (1 Processor)
Express
w/HardwareRaid
32R1024 MS Storage Server
2003 - Non Cluster
- (1-4 proc)
X
2
382 COG
32R1025 MS Storage Server
2003 - Non Cluster
- (1-4 proc)
X
2
32R1026 MS Storage Server
2003 - Non Cluster
- (1-4 proc)
X
2
59P2923 Windows XP
Professional
X XX X
39Y5076 Windows XP
Professional 64-bit
XX
25K7969 Red Hat
Enterprise Linux
AS 3 Standard
AMD64 with 1 yr
Red Hat Support,
preloaded
XX
25K7970 Red Hat
Enterprise Linux
AS 3 Standard
AMD64 with 1 yr
Red Hat Network,
preloaded
XX
25K7971 Red Hat
Enterprise Linux
AS 3 Premium
AMD64 with 1 yr
Red Hat Support,
preloaded
XX
32P9580 Red Hat
Enterprise Linux
AS 3 Standard
AMD64 with 3 yr
Red Hat Network,
preloaded
XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
Chapter 36. xSeries network operating system offerings 383
32R2744 Red Hat
Enterprise Linux
ES 3
AMD64/EM64T
with 1 yr Red Hat
Network,
preloaded
XX XX
32R2746 Red Hat
Enterprise Linux
ES 3
AMD64/EM64T
with 1 yr Red Hat
Support,
preloaded
XX XX
32R2748 Red Hat
Enterprise Linux
ES 3
AMD64/EM64T
with 3 yr Red Hat
Network,
preloaded
XX XX
25K7976 Red Hat
Enterprise Linux
WS 3 Standard
AMD64 with 1 yr
Red Hat Support,
preloaded
X XXX
25K7977 Red Hat
Enterprise Linux
WS 3 Standard
AMD64 with 1 yr
Red Hat Network,
preloaded
X XXX
32P9579 Red Hat
Enterprise Linux
WS 3 Standard
AMD64 with 3 yr
Red Hat Network,
preloaded
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
384 COG
25K7966 Red Hat
Enterprise Linux
AS 3 Standard x86
with 1 yr Red Hat
support,
preloaded
XX XX
25K7967 Red Hat
Enterprise Linux
AS 3 Standard x86
with 1 yr Red Hat
Network,
preloaded
XX XX
25K7968 Red Hat
Enterprise Linux
AS 3 Premium x86
with 1 yr Red Hat
support,
preloaded
XX XX
32P9578 Red Hat
Enterprise Linux
AS 3 Standard x86
with 3 yr Red Hat
Network,
preloaded
XX XX
25K7972 Red Hat
Enterprise Linux
ES 3 Standard x86
with 1 yr Red Hat
support,
preloaded
XX XX X XX
25K7973 Red Hat
Enterprise Linux
ES 3 Standard x86
with 1 yr Red Hat
Network,
preloaded
XX XX X XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
Chapter 36. xSeries network operating system offerings 385
32P9577 Red Hat
Enterprise Linux
ES 3 Standard x86
with 3 yr Red Hat
Network,
preloaded
XX XX X XX
25K7974 Red Hat
Enterprise Linux
WS 3 Standard x86
with 1 yr Red Hat
support,
preloaded
XXX XXXXX X
25K7975 Red Hat
Enterprise Linux
WS 3 Standard x86
with 1 yr Red Hat
Network,
preloaded
XXX XXXXX X
32P9576 Red Hat
Enterprise Linux
WS 3 Standard x86
with 3 yr Red Hat
Network,
preloaded
XXX XXXXX X
39Y5305 Red Hat
Enterprise Linux
AS 4 with 1 yr
Standard Red Hat
Support CD)3
X X XX XX X XXXXX X XX
39Y5306 Red Hat
Enterprise Linux
AS 4 with 1 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
39Y5307 Red Hat
Enterprise Linux
AS 4 with 3 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
386 COG
39Y5308 Red Hat
Enterprise Linux
AS 4 with 1 yr
Premium Red Hat
Support (CD)3
X X XX XX X XXXXX X XX
39Y5310 Red Hat
Enterprise Linux
ES 4 with 1 yr
Standard Red Hat
Support (CD)3
X X XX XX X XXXXX X XX
39Y5312 Red Hat
Enterprise Linux
ES 4 with 1 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
39Y5314 Red Hat
Enterprise Linux
ES 4 with 3 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
39Y5316 Red Hat
Enterprise Linux
WS 4 with 1 yr
Standard Red Hat
Support (CD)3
X X XX XX X XXXXX X XX
39Y5318 Red Hat
Enterprise Linux
WS 4 with 1 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
39Y5320 Red Hat
Enterprise Linux
WS 4 with 3 yr
Subscription (CD)3
X X XX XX X XXXXX X XX
39R7021 Red Hat
Enterprise Linux
ES 4 with 1 yr
Standard Red Hat
Support (32-bit,
preinstalled)
XX X
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
Chapter 36. xSeries network operating system offerings 387
39R7022 Red Hat
Enterprise Linux
ES 4 with 1 yr
Subscription (32-
bit, preinstalled)
XX X
39R7028 Red Hat
Enterprise Linux
ES 4 with 3 yr
Subscription (32-
bit, preinstalled)
XX X
39R7019 Red Hat
Enterprise Linux
WS 4 with 1 yr
Standard Red Hat
Support (32-bit,
preinstalled)
XX X
39R7020 Red Hat
Enterprise Linux
WS 4 with 1 yr
Subscription (32-
bit, preinstalled)
XX X
39R7027 Red Hat
Enterprise Linux
WS 4 with 3 yr
Subscription (32-
bit, preinstalled)
XX X
31R1434 SUSE Linux
Enterprise Server
9 1-2 CPUs for 1
year (CD)3
X X XX XX X XXXXX X XX
31R1435 SUSE Linux
Enterprise Server
9 1-16 CPUs for 1
year (CD)3
X X XX XX X XXXXX X XX
31R1436 SUSE Linux
Enterprise Server
9 1-2 CPUs for 3
years (CD)3
X X XX XX X XXXXX X XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
388 COG
31R1437 SUSE Linux
Enterprise Server
9 1-16 CPUs for 3
years (CD)3
X X XX XX X XXXXX X XX
40K1392 SUSE Linux
Enterprise Server
9 for BladeCenter
Chassis with 1 yr
Subscription
XXXX
40K1393 SUSE Linux
Enterprise Server
9 for BladeCenter
Chassis with 1 yr
Subscription
XXXX
25R3656 1 yr SUSE Linux
Server 9/POWER
< 1-2
CPU's/Sockets
XX
32R2638 SUSE Linux
Enterprise Server
9 1 yr Support per
Server
XX
32R2639 SUSE Linux
Enterprise Server
9 3 yr Subscription
1-2 CPU/socket
XX
32R2640 SUSE Linux
Enterprise Server
9 1 yr Subscription
per 8 Cluster
Nodes with Head
Node
XX
32R2641 SUSE Linux
Enterprise Server
9 3 yr Subscription
per 8 Cluster
Nodes with Head
Node
XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
Chapter 36. xSeries network operating system offerings 389
32R2642 SUSE Linux
Enterprise Server
9 1 yr Subscription
per additional 8
Cluster Nodes
XX
32R2643 SUSE Linux
Enterprise Server
9 3 yr Subscription
per additional 8
Cluster Nodes
XX
32R2638 SUSE Linux
Enterprise Server
9 1 yr Support per
Server
XX
40K1450 Red Hat
Enterprise Linux 4
1 yr standard
subscription
XX
32R2627 Red Hat
Enterprise Linux 4
1 yr standard
subscription and
support, 1-2
CPU/sockets
XX
32R2629 Red Hat
Enterprise Linux 4
3 yr standard
subscription, 1-2
CPU/sockets
XX
32R2628 Red Hat
Enterprise Linux 4
3 yr standard
subscription and
support, 1-2
CPU/sockets
XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
390 COG
40K1510 Red Hat
Enterprise Linux 4
1 yr standard
subscription, 8
Cluster Nodes
XX
40K1511 Red Hat
Enterprise Linux 4
1 yr standard
subscription, 8
Cluster Nodes
XX
25R3625 Red Hat
Enterprise Linux 3
1 yr maintenance,
1-2 CPU/socket
XX
25R3626 Red Hat
Enterprise Linux 3
1 yr maintenance
standard, 1-8
CPU/socket
XX
25R3627 Red Hat
Enterprise Linux 3
3 yr
maintenance,1-2
CPU/socket
XX
32R2630 Red Hat
Enterprise Linux 3
1 yr Standard
Subscription for 8
Cluster Nodes
XX
32R2631 Red Hat
Enterprise Linux 3
3 yr Standard
Subscription for 8
Cluster Nodes
XX
Option Number
Network Operating System (NOS) Offerings1
A10
e326m
HS20
HS40
LS20
M30
M40
x100
x206m
x226
x236
x260
x306
x306m
x336
x346
x366
x460
Z20
8677
8720
8730
8852
8842
8844
Chapter 36. xSeries network operating system offerings 391
Notes:
1. Orderable only when configured with an xSeries server or IntelliStation workstation, not separately.
Available in select countries. For more information, check with your local IBM representative.
2. Available on selected models.
3. Option is installed by the customer.
392 COG
© Copyright IBM Corp. 2003, 2006 393
Chapter 37. IBM and third party software applications
Check with your IBM representative to verify application software availability for your system. IBM makes
no representations or warranties regarding third-party products or services. Some software may differ from
its retail version (if available) and may not include user manuals or all program functionality. Software
license agreements may apply.
Table 88. IBM Director
IBM Director
Director is provided with all xSeries servers. Director Agent is provided with all xSeries, IntelliStations and NetVista
systems.
Features Include:
• Basic hardware management including inventory, monitoring, alerting, group management, RAID manager and
management processor.
• Help Desk and Support including remote control, remote session, file transfer and real-time diagnostics.
• Upward integration to Tivoli, CA, HP, MS, SMS, MOM, BMC or NetIQ.
Director 5.10
32R1223 Director 5.10 Server License + one year subscription
32R1224 Director 5.10 Agent License + one year subscription
32R1227 Director 5.10 CD Media Pack
Capacity Manager 5.10
32R1225 Capacity Manager 5.10 + one year subscription
32R1230 Capacity Manager 5.10 Media Pack
Software Distribution Premium Edition 5.10
32R1226 Software Distribution Premium Edition 5.10 License + one year subscription
32R1233 Software Distribution Premium Edition 5.10 Media Pack
Subscription Services
25K8630 Director Server - 1 Year Subscription after License
25K8631 Director Server - 1 Year Subscription Renewal
25K8632 Director Server - 2 Year Subscription Renewal
25K8633 Director Agent - 1 Year Subscription after License
25K8634 Director Agent - 1 Year Subscription Renewal
25K8635 Director Agent - 2 Year Subscription Renewal
25K8639 Director SW Distribution Premium Edition - 1 Year Subscription after License
25K8640 Director SW Distribution Premium Edition - 1 Year Subscription Renewal
25K8641 Director SW Distribution Premium Edition - 2 Year Subscription Renewal
394 COG
Table 89. Application Workload Manager
Application Workload Manager for IBM Director
Features Include:
• Tools to manage contending server workloads.
• Policy-based allocation, management, and control of system resources.
• Distribution of resources at the user and application level.
• Capture and store comprehensive application resource usage data for analysis.
73P8603 Application Workload Manager for IBM Director - Media Pack, Single License Proof of Entitlement
73P8604 Application Workload Manager for IBM Director - Single License Proof of Entitlement
73P8605 Application Workload Manager for IBM Director - 20 License Proof of Entitlement
73P8606 Application Workload Manager for IBM Director - 50 License Proof of Entitlement
73P8607 Application Workload Manager for IBM Director - 100 License Proof of Entitlement
Table 90. IBM Usage and Accounting Manager 5.1
IBM Usage and Accounting Manager 5.1
IBM Usage and Accounting Manager is a resource accounting product that enables you to track, manage, allocate and
bill for IT resources.
Features Include:
• Usage-based accounting and charge back.
• IT cost allocation and analysis.
• Application allocation and availability.
• Resource utilization and capacity reporting.
• Easy reporting through Web interface.
• IBM Usage and Accounting Manager V5.1 has collectors for the Windows, RedHat, SuSE Linux, and VMware
platforms.
Usage and Accounting Manager 5.1
42C4657 IBM Usage and Accounting Manager 5.1 - System License + One Year Subscription
42C4658 IBM Usage and Accounting Manager 5.1 - Media Pack
Chapter 37. IBM and third party software applications 395
Table 91. Remote Deployment Manager
Remote Deployment Manager
Features Include:
• Remote replication of system installations
• Remote unattended system deployment
• Updating system and option firmware
• Rapid image backup and restore technology
Remote Deployment Manager v4.20
4836MDX Remote Deployment Manager v4.20 Media Package
4836ISX Remote Deployment Manager v4.20 Single Managed IBM Server License with One One-Year Subscription
4836IWX Remote Deployment Manager v4.20 Single Managed IBM Workstation License with One One-Year
Subscription
4836NSX Remote Deployment Manager v4.20 Single Managed non-IBM Server License with One One-Year
Subscription
4836NWX Remote Deployment Manager v4.20 Single Managed IBM non-IBM Workstation License with One One-
Year Subscription
Subscription Services
24R9416 Remote Deployment Manager Server - 1 Year Subscription after License
24R9417 Remote Deployment Manager Server - 1 Year Subscription Renewal
24R9418 Remote Deployment Manager Server - 2 Year Subscription Renewal
24R9419 Remote Deployment Manager Workstation - 1 Year Subscription after License
24R9420 Remote Deployment Manager Workstation - 1 Year Subscription Renewal
24R9421 Remote Deployment Manager Workstation - 2 Year Subscription Renewal
Table 92. Other IBM Software
UpdateXpress
24R9422 UpdateXpress - 1 Year Subscription
24R9423 UpdateXpress - 2 Year Subscription
ServerGuide
24R9424 ServerGuide - 1 Year Subscription
24R9425 ServerGuide - 2 Year Subscription
396 COG
Table 93. Altiris Deployment Solution
Altiris Deployment Solution for Servers
Features Include:
• Comprehensive server deployment for both Windows and Linux environments, including configuration of BIOS,
RAID, and other components.
• Full system imaging and scripted operating system installations of Windows and Linux.
• Web console that lets you install local or remote deployment servers and manage them from a central location.
• Remote installation of applications, hotfixes, and service packs as part of server build process.
• Support for BladeCenter, which includes the ability to recognize bay in the blade chassis for rip and replace
function.
4819L1X Altiris Deployment Solution for Servers
4819U1X Altiris Deployment Solution for Servers Annual Upgrade Protection
4819S1X Altiris Support Incident Pack - 5 Incidents - Americas
4819S2X Altiris On-site Support - Standard Work Day - Americas
4819S4X Altiris On-Site Support - Weekends & After Hours - Americas
4819S5X Altiris Annual Premium Global Support - Americas
4819S6X Altiris Annual Premium Support - Americas
4819S7X Altiris Annual Premium 20 Support - Americas
4819S8X Altiris Assigned Engineer - 25% for 12 Months - Americas
4819T1X Altiris Support Incident Pack - 5 Incidents - EMEA
4819T2X Altiris On-Site Support - Standard Work Day - EMEA
4819T4X Altiris On-Site Support - Weekends & After Hours - EMEA
4819T5X Altiris Annual Premium Global Support - EMEA
4819T6X Altiris Annual Premium Support - EMEA
4819T7X Altiris Annual Premium 20 Support - EMEA
4819T8X Altiris Assigned Engineer - 25% for 12 Months - EMEA
4819R1X Altiris Support Incident Pack - 5 Incidents - AP
4819R6X Altiris Annual Premium Support - AP
4819R7X Altiris Annual Premium 20 Support - AP
4819B1X Altiris Deployment Solution for BladeCenter Chassis License
4819S9X Altiris Annual Premium Global Support - Americas
4819SBX Altiris Annual Premium 50 Support – Americas
4819SCX Altiris Annual Premium 25 Support – Americas
4819T9X Altiris Annual Premium Global Support – EMEA
4819TBX Altiris Annual Premium 50 Support – EMEA
4819TCX Altiris Annual Premium 25 Support - EMEA
4819RBX Altiris Annual Premium 50 Support - AP
4819RCX Altiris Annual Premium 25 Support - AP
Chapter 37. IBM and third party software applications 397
Table 94. SteelEye LifeKeeper High Availability Clustering Software
SteelEye LifeKeeper HA Clustering Software
Features Include:
• Enterprise-grade integrated clustering and data replication offering.
• Application-centric monitoring and recovery.
• Data replication -- Supports synchronous or asynchronous.
• Data and application protection.
24R9459 LifeKeeper for mySAP/MAX DB Solution on Linux
24R9460 LifeKeeper for mySAP/DB2 Solution on Linux
24R9461 LifeKeeper for Sendmail SAMS Solution on Linux
24R9463 LifeKeeper for Linux
39Y5163 LifeKeeper for LAMP Solution
39Y5164 LifeKeeper for Linux Documentation CD
39Y5165 LifeKeeper for Linux on Power
39Y5166 LifeKeeper for Linux with Data Replication
39Y5167 DRBD Application Recovery Kit for Linux
39Y5168 Rational ClearCase Application Recovery Kit for Linux
39Y5169 SAP DB/MaxDB Application Recovery Kit for Linux
39Y5170 Software RAID (md) Application Recovery Kit for Linux
39Y5171 LifeKeeper Extender for Linux
24R9464 LifeKeeper Data Replication for Linux
24R9466 Apache Web Server Module (includes SSL support)
24R9467 Sendmail Module (Open Source Sendmail)
24R9468 Informix(TM) Module
24R9469 Oracle Module
24R9470 DB2 WE, EE, EEE, ESE Module
24R9471 MySQL Module
24R9472 PostgreSQL Module
24R9473 Sybase Module
24R9474 NFS Server Module
24R9476 Samba Module
24R9477 Network Attached Storage Recovery Kit
24R9478 Logical Volume Manager Module
39Y5172 LifeKeeper for BladeCenter Servers (8 servers)
39Y5173 LifeKeeper for BladeCenter Servers (14 servers)
24R9483 LifeKeeper Data Replication for Windows
39Y5174 LifeKeeper Protection Suite for Windows
39Y5175 LifeKeeper for Windows Documentation CD
39Y5176 LifeKeeper Disk to Disk Backup for Windows
398 COG
39Y5177 LifeKeeper Extender for Windows
24R9484 MS IIS 5.0 Web Server Module
24R9485 SQL Server Module
24R9486 DB2 WE, EE, EEE, ESE Module
24R9487 Oracle 8i & 9i Module
24R9488 SteelEye Support Package 1
24R9489 SteelEye Support Package 2
24R9490 SteelEye Support Package 3
24R9491 SteelEye Support Package 4
24R9492 SteelEye Support Package 5
39Y5178 SteelEye Support Package 6
39Y5179 SteelEye Support Package 7
Table 95. ARMTech Active Resource Management
VERITAS Cluster Server and Storage Foundation Solutions
Features Include:
• Policy-based allocation, management, and control of system resources.
• Distribution of resources at the user and application level.
• Capture and store comprehensive application resource usage data for analysis.
• Resource management information for more efficient server consolidation.
32R2645 ARMTech Active Resource Management v2.x for Windows - 1 CPU License POE
32R2646 ARMTech Active Resource Management v2.x for Windows - 2 CPU License POE
32R2647 ARMTech Active Resource Management v2.x for Windows - 4 CPU License POE
32R2648 ARMTech Active Resource Management v2.x for Windows - 8 CPU License POE
32R2649 ARMTech 2.x Active Resource Management for Citrix MetaFrame - 1 CPU License POE
32R2650 ARMTech 2.x Active Resource Management for Citrix MetaFrame - 2 CPU License POE
32R2651 ARMTech 2.x Active Resource Management for Citrix MetaFrame - 4 CPU License POE
32R2652 ARMTech for Windows, per CPU - Standard Support
32R2653 ARMTech for Windows, per CPU - Premium Support
32R2654 ARMTech for Citrix MetaFrame, per CPU - Standard Support
32R2655 ARMTech for Citrix MetaFrame, per CPU – Premium Support
Table 94. SteelEye LifeKeeper High Availability Clustering Software (continued)
SteelEye LifeKeeper HA Clustering Software
Chapter 37. IBM and third party software applications 399
Table 96. VERITAS Cluster Server and Storage Foundation Solutions
ARMTech 2.x Active Resource Management for Windows
VERITAS Cluster Server and Storage Foundation products are offered on IBM eServer xSeries and BladeCenter servers
running Microsoft Windows and Linux.
VERITAS Cluster Server (VCS) offers the following benefits:
• Protects critical applications and databases against downtime.
• Monitors health and performance of the resource.
• Restarts the resource on another available server.
• Supports a wide range of heterogeneous hardware configurations.
VERITAS Storage Foundation offers the following benefits:
• Provides a complete solution for storage management.
• Groups physical disks into logical volumes to potentially improve disk utilization and help eliminate storage-
related downtime.
• Spreads I/O across multiple paths to improve performance.
• Moves unimportant or obsolete files to inexpensive storage.
• Mirrors data for redundancy and moves data from failing disks to healthy disks.
VERITAS Cluster Server and Storage Foundation Solutions for Windows
4812M4X Application Agent for Microsoft Exchange, Windows, Advanced/Enterprise Edition, v4.3, License, with
no support
4812C4X Application Agent for Microsoft Exchange, Windows, Advanced/Enterprise Edition, v4.3, License, with
basic support
4812F4X Application Agent for Microsoft Exchange, Windows, Advanced/Enterprise Edition, v4.3, License, with
extended support
4812M5X Application Agent for Microsoft Exchange, Windows, Datacenter, v4.3, License, with no support
4812C5X Application Agent for Microsoft Exchange, Windows, Datacenter, v4.3, License, with basic support
4812F5X Application Agent for Microsoft Exchange, Windows, Datacenter, v4.3, License, with extended support
4812M6X Application Agent for Microsoft Exchange, Windows, Server/Standard/Web Edition, v4.3, License, with
no support
4812C6X Application Agent for Microsoft Exchange, Windows, Server/Standard/Web Edition, v4.3, License, with
basic support
4812F6X Application Agent for Microsoft Exchange, Windows, Server/Standard/Web Edition, v4.3, License, with
extended support
4812M7X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Advanced/Enterprise Edition, v4.3,
License, with no support
4812C7X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Advanced/Enterprise Edition, v4.3,
License, with basic support
4812F7X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Advanced/Enterprise Edition, v4.3,
License, with extended support
4812M8X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Datacenter, v4.3, License, with no support
4812C8X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Datacenter, v4.3, License, with basic
support
4812F8X Cluster Option for Microsoft Cluster Server (MSCS), Windows, Datacenter, v4.3, License, with extended
support
400 COG
4812M9X Cluster Server for NetApp SnapMirror, Windows, Advanced/Enterprise Edition, v4.3, License, with no
support
4812C9X Cluster Server for NetApp SnapMirror, Windows, Advanced/Enterprise Edition, v4.3, License, with basic
support
4812F9X Cluster Server for NetApp SnapMirror, Windows, Advanced/Enterprise Edition, v4.3, License, with
extended support
4812MAX Cluster Server for NetApp SnapMirror, Windows, Datacenter, v4.3, License, with no support
4812CAX Cluster Server for NetApp SnapMirror, Windows, Datacenter, v4.3, License, with basic support
4812FAX Cluster Server for NetApp SnapMirror, Windows, Datacenter, v4.3, License, with extended support
4812MBX Cluster Server for NetApp SnapMirror, Windows, Server/Standard/Web Edition, v4.3, License, with no
support
4812CBX Cluster Server for NetApp SnapMirror, Windows, Server/Standard/Web Edition, v4.3, License, with basic
support
4812FBX Cluster Server for NetApp SnapMirror, Windows, Server/Standard/Web Edition, v4.3, License, with
extended support
4812MCX Database Agent for Microsoft SQL, Windows, Advanced/Enterprise Edition, v4.3, License, with no
support
4812CCX Database Agent for Microsoft SQL, Windows, Advanced/Enterprise Edition, v4.3, License, with basic
support
4812FCX Database Agent for Microsoft SQL, Windows, Advanced/Enterprise Edition, v4.3, License, with extended
support
4812MDX Database Agent for Microsoft SQL, Windows, Datacenter, v4.3, License, with no support
4812CDX Database Agent for Microsoft SQL, Windows, Datacenter, v4.3, License, with basic support
4812FDX Database Agent for Microsoft SQL, Windows, Datacenter, v4.3, License, with extended support
4812MEX Database Agent for Microsoft SQL, Windows, Server/Standard/Web Edition, v4.3, License, with no
support
4812CEX Database Agent for Microsoft SQL, Windows, Server/Standard/Web Edition, v4.3, License, with basic
support
4812FEX Database Agent for Microsoft SQL, Windows, Server/Standard/Web Edition, v4.3, License, with extended
support
4812MFX Database Agent for Oracle, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812CFX Database Agent for Oracle, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812FFX Database Agent for Oracle, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812MGX Database Agent for Oracle, Windows, Datacenter, v4.3, License, with no support
4812CGX Database Agent for Oracle, Windows, Datacenter, v4.3, License, with basic support
4812FGX Database Agent for Oracle, Windows, Datacenter, v4.3, License, with extended support
4812MHX Database Agent for Oracle, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812CHX Database Agent for Oracle, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812FHX Database Agent for Oracle, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812MJX Dynamic Multipathing (DMP) Option, Windows, Advanced/Enterprise Edition, v4.3, License, with no
support
4812CJX Dynamic Multipathing (DMP) Option, Windows, Advanced/Enterprise Edition, v4.3, License, with basic
support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
Chapter 37. IBM and third party software applications 401
4812FJX Dynamic Multipathing (DMP) Option, Windows, Advanced/Enterprise Edition, v4.3, License, with
extended support
4812MKX Dynamic Multipathing (DMP) Option, Windows, Datacenter, v4.3, License, with no support
4812CKX Dynamic Multipathing (DMP) Option, Windows, Datacenter, v4.3, License, with basic support
4812FKX Dynamic Multipathing (DMP) Option, Windows, Datacenter, v4.3, License, with extended support
4812MLX Dynamic Multipathing (DMP) Option, Windows, Server/Standard/Web Edition, v4.3, License, with no
support
4812CLX Dynamic Multipathing (DMP) Option, Windows, Server/Standard/Web Edition, v4.3, License, with basic
support
4812FLX Dynamic Multipathing (DMP) Option, Windows, Server/Standard/Web Edition, v4.3, License, with
extended support
4812MMX Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812CMX Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812FMX Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812MNX Enterprise Option, Windows, Datacenter Edition, v4.3, License, with no support
4812CNX Enterprise Option, Windows, Datacenter Edition, v4.3, License, with basic support
4812FNX Enterprise Option, Windows, Datacenter Edition, v4.3, License, with extended support
4812MPX Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812CPX Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812FPX Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812MQX FlashSnap Option, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812CQX FlashSnap Option, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812FQX FlashSnap Option, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812MRX FlashSnap Option, Windows, Datacenter, v4.3, License, with no support
4812CRX FlashSnap Option, Windows, Datacenter, v4.3, License, with basic support
4812FRX FlashSnap Option, Windows, Datacenter, v4.3, License, with extended support
4812MSX FlashSnap Option, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812CSX FlashSnap Option, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812FSX FlashSnap Option, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812MTX Global Cluster Option, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812CTX Global Cluster Option, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812FTX Global Cluster Option, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812MUX Global Cluster Option, Windows, Datacenter, v4.3, License, with no support
4812CUX Global Cluster Option, Windows, Datacenter, v4.3, License, with basic support
4812FUX Global Cluster Option, Windows, Datacenter, v4.3, License, with extended support
4812MVX Global Cluster Option, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812CVX Global Cluster Option, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812FVX Global Cluster Option, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812MWX HA Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812CWX HA Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
402 COG
4812FWX HA Enterprise Option, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812MXX HA Enterprise Option, Windows, Datacenter Edition, v4.3, License, with no support
4812CXX HA Enterprise Option, Windows, Datacenter Edition, v4.3, License, with basic support
4812FXX HA Enterprise Option, Windows, Datacenter Edition, v4.3, License, with extended support
4812MYX HA Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812CYX HA Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812FYX HA Enterprise Option, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812MZX Hardware Replication Agent for EMC SRDF, Windows, Advanced/Enterprise Edition, v4.3, License, with
no support
4812CZX Hardware Replication Agent for EMC SRDF, Windows, Advanced/Enterprise Edition, v4.3, License, with
basic support
4812FZX Hardware Replication Agent for EMC SRDF, Windows, Advanced/Enterprise Edition, v4.3, License, with
extended support
4812N1X Hardware Replication Agent for EMC SRDF, Windows, Datacenter, v4.3, License, with no support
4812D1X Hardware Replication Agent for EMC SRDF, Windows, Datacenter, v4.3, License, with basic support
4812G1X Hardware Replication Agent for EMC SRDF, Windows, Datacenter, v4.3, License, with extended support
4812N2X Hardware Replication Agent for EMC SRDF, Windows, Server/Standard/Web Edition, v4.3, License, with
no support
4812D2X Hardware Replication Agent for EMC SRDF, Windows, Server/Standard/Web Edition, v4.3, License, with
basic support
4812G2X Hardware Replication Agent for EMC SRDF, Windows, Server/Standard/Web Edition, v4.3, License, with
extended support
4812N3X Hardware Replication Agent for Hitachi TrueCopy, Windows, Advanced/Enterprise Edition, v4.3,
License, with no support
4812D3X Hardware Replication Agent for Hitachi TrueCopy, Windows, Advanced/Enterprise Edition, v4.3,
License, with basic support
4812G3X Hardware Replication Agent for Hitachi TrueCopy, Windows, Advanced/Enterprise Edition, v4.3,
License, with extended support
4812N4X Hardware Replication Agent for Hitachi TrueCopy, Windows, Datacenter, v4.3, License, with no support
4812D4X Hardware Replication Agent for Hitachi TrueCopy, Windows, Datacenter, v4.3, License, with basic support
4812G4X Hardware Replication Agent for Hitachi TrueCopy, Windows, Datacenter, v4.3, License, with extended
support
4812N5X Hardware Replication Agent for Hitachi TrueCopy, Windows, Server/Standard/Web Edition, v4.3,
License, with no support
4812D5X Hardware Replication Agent for Hitachi TrueCopy, Windows, Server/Standard/Web Edition, v4.3,
License, with basic support
4812G5X Hardware Replication Agent for Hitachi TrueCopy, Windows, Server/Standard/Web Edition, v4.3,
License, with extended support
4812N6X Hardware Replication Agent for IBM PPRC, Windows, Advanced/Enterprise Edition, v4.3, License, with
no support
4812D6X Hardware Replication Agent for IBM PPRC, Windows, Advanced/Enterprise Edition, v4.3, License, with
basic support
4812G6X Hardware Replication Agent for IBM PPRC, Windows, Advanced/Enterprise Edition, v4.3, License, with
extended support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
Chapter 37. IBM and third party software applications 403
4812N7X Hardware Replication Agent for IBM PPRC, Windows, Datacenter, v4.3, License, with no support
4812D7X Hardware Replication Agent for IBM PPRC, Windows, Datacenter, v4.3, License, with basic support
4812G7X Hardware Replication Agent for IBM PPRC, Windows, Datacenter, v4.3, License, with extended support
4812N8X Hardware Replication Agent for IBM PPRC, Windows, Server/Standard/Web Edition, v4.3, License, with
no support
4812D8X Hardware Replication Agent for IBM PPRC, Windows, Server/Standard/Web Edition, v4.3, License, with
basic support
4812G8X Hardware Replication Agent for IBM PPRC, Windows, Server/Standard/Web Edition, v4.3, License, with
extended support
4812NFX Storage Foundation Enterprise, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812DFX Storage Foundation Enterprise, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812GFX Storage Foundation Enterprise, Windows, Advanced/Enterprise with extended support
4812NGX Storage Foundation Enterprise, Windows, Datacenter Edition, v4.3, License, with no support
4812DGX Storage Foundation Enterprise, Windows, Datacenter Edition, v4.3, License, with basic support
4812GGX Storage Foundation Enterprise, Windows, Datacenter Edition, v4.3, License, with extended support
4812NHX Storage Foundation Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812DHX Storage Foundation Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812GHX Storage Foundation Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with extended
support
4812NJX Storage Foundation HA Enterprise, Windows, Advanced/Enterprise Edition, v4.3, License, with no
support
4812DJX Storage Foundation HA Enterprise, Windows, Advanced/Enterprise Edition, v4.3, License, with basic
support
4812GJX Storage Foundation HA Enterprise, Windows, Advanced/Enterprise Edition, v4.3, License, with extended
support
4812NKX Storage Foundation HA Enterprise, Windows, Datacenter Edition, v4.3, License, with no support
4812DKX Storage Foundation HA Enterprise, Windows, Datacenter Edition, v4.3, License, with basic support
4812GKX Storage Foundation HA Enterprise, Windows, Datacenter Edition, v4.3,License, with extended support
4812NLX Storage Foundation HA Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with no
support
4812DLX Storage Foundation HA Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with basic
support
4812GLX Storage Foundation HA Enterprise, Windows, Server/Standard/Web Edition, v4.3, License, with extended
support
4812NMX Storage Foundation HA, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812DMX Storage Foundation HA, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812GMX Storage Foundation HA, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812NNX Storage Foundation HA, Windows, Datacenter, v4.3, License, with no support
4812DNX Storage Foundation HA, Windows, Datacenter, v4.3, License, with basic support
4812GNX Storage Foundation HA, Windows, Datacenter,v4.3, License, with extended support
4812NPX Storage Foundation HA, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812DPX Storage Foundation HA, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
404 COG
4812GPX Storage Foundation HA, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812NQX Storage Foundation, Windows, Advanced/Enterprise Edition, v4.3, License, with no support
4812DQX Storage Foundation, Windows, Advanced/Enterprise Edition, v4.3, License, with basic support
4812GQX Storage Foundation, Windows, Advanced/Enterprise Edition, v4.3, License, with extended support
4812NRX Storage Foundation, Windows, Datacenter, v4.3, License, with no support
4812DRX Storage Foundation, Windows, Datacenter, v4.3, License, with basic support
4812GRX Storage Foundation, Windows, Datacenter, v4.3, License, with extended support
4812NSX Storage Foundation, Windows, Server/Standard/Web Edition, v4.3, License, with no support
4812DSX Storage Foundation, Windows, Server/Standard/Web Edition, v4.3, License, with basic support
4812GSX Storage Foundation, Windows, Server/Standard/Web Edition, v4.3, License, with extended support
4812NXX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Datacenter, v4.3, License, No Support
4812NYX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Server/Standard/Web Edition, v4.3,
License, No Support
4812NZX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Advanced/Enterprise Edition, v4.3,
License, No Support
4812P1X Storage Foundation DR, Windows, Server/Standard/Web Edition, v4.3, License, No Support
4812P2X Storage Foundation DR, Windows, Advanced/Enterprise Edition, v4.3, License, No Support
4812P3X Storage Foundation DR, Windows, Datacenter Edition, v4.3, License, No Support
4812DXX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Datacenter, v4.3, License, Basic Support
4812DYX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Server/Standard/Web Edition, v4.3,
License, Basic Support
4812DZX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Advanced/Enterprise Edition,
v4.3,License, Basic Support
4812Q1X Storage Foundation DR, Windows, Server/Standard/Web Edition, v4.3, License, Basic Support
4812Q2X Storage Foundation DR, Windows, Advanced/Enterprise Edition, v4.3, License, Basic Support
4812Q3X Storage Foundation DR, Windows, Datacenter Edition, v4.3, License, Basic Support
4812GXX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Datacenter, v4.3, License, Extended
Support
4812GYX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Server/Standard/Web Edition, v4.3,
License, Extended Support
4812GZX Cluster Server Enterprise Agent for EMC MirrorView, Windows, Advanced/Enterprise Edition, v4.3,
License, Extended Support
4812H1X Storage Foundation DR, Windows, Server/Standard/Web Edition, v4.3, License, Extended Support
4812H2X Storage Foundation DR, Windows, Advanced/Enterprise Edition, v4.3, License, Extended Support
4812H3X Storage Foundation DR, Windows, Datacenter Edition, v4.3, License, Extended Support
VERITAS Cluster Server and Storage Foundation Solutions for Linux
4812L1X Cluster Server, Linux, Per CPU, v4.1, License, with no support
4812B1X Cluster Server, Linux, Per CPU, v4.1, License, with basic support
4812E1X Cluster Server, Linux, Per CPU, v4.1, License, with extended support
4812L2X Cluster Server, Global Cluster Option, Linux, Per CPU, v4.1, License, with no support
4812B2X Cluster Server, Global Cluster Option, Linux, Per CPU, v4.1, License, with basic support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
Chapter 37. IBM and third party software applications 405
4812E2X Cluster Server, Global Cluster Option, Linux, Per CPU, v4.1, License, with extended support
4812L3X Cluster Server, Oracle Agent, Linux, Per CPU, v4.1, License, with no support
4812B3X Cluster Server, Oracle Agent, Linux, Per CPU, v4.1, License, with basic support
4812E3X Cluster Server, Oracle Agent, Linux, Per CPU, v4.1, License, with extended support
4812L4X Cluster Server, DB2 Agent, Linux, Per CPU, v4.1, License, with no support
4812B4X Cluster Server, DB2 Agent, Linux, Per CPU, v4.1, License, with basic support
4812E4X Cluster Server, DB2 Agent, Linux, Per CPU, v4.1, License, with extended support
4812L5X Storage Foundation Standard HA, Linux, Per CPU, v4.1, License, with no support
4812B5X Storage Foundation Standard HA, Linux, Per CPU, v4.1, License, with basic support
4812E5X Storage Foundation Standard HA, Linux, Per CPU, v4.1, License, with extended support
4812L6X Storage Foundation Enterprise HA, Linux, Per CPU, v4.1, License, with no support
4812B6X Storage Foundation Enterprise HA, Linux, Per CPU, v4.1, License, with basic support
4812E6X Storage Foundation Enterprise HA, Linux, Per CPU, v4.1, License, with extended support
4812L7X Storage Foundation Enterprise HA for DB2, Linux, Per CPU, v4.1, License, with no support
4812B7X Storage Foundation Enterprise HA for DB2, Linux, Per CPU, v4.1, License, with basic support
4812E7X Storage Foundation Enterprise HA for DB2, Linux, Per CPU, v4.1, License, with extended support
4812L8X Storage Foundation Standard for DB2, Linux, Per CPU, v4.1, License, with no support
4812B8X Storage Foundation Standard for DB2, Linux, Per CPU, v4.1, License, with basic support
4812E8X Storage Foundation Standard for DB2, Linux, Per CPU, v4.1, License, with extended support
4812L9X Storage Foundation Enterprise for DB2, Linux, Per CPU, v4.1, License, with no support
4812B9X Storage Foundation Enterprise for DB2, Linux, Per CPU, v4.1, License, with basic support
4812E9X Storage Foundation Enterprise for DB2, Linux, Per CPU, v4.1, License, with extended support
4812LAX Storage Foundation Enterprise for Oracle RAC, Linux, Per CPU, v4.1, License, with no support
4812BAX Storage Foundation Enterprise for Oracle RAC, Linux, Per CPU, v4.1, License, with basic support
4812EAX Storage Foundation Enterprise for Oracle RAC, Linux, Per CPU, v4.1, License, with extended support
4812LBX Storage Foundation Quickstart, Linux, v4.1, License, with no support
4812BBX Storage Foundation Quickstart, Linux, v4.1, License, with basic support
4812EBX Storage Foundation Quickstart, Linux, v4.1, License, with extended support
4812LCX Storage Foundation Standard, Linux, Per CPU, v4.1, License, with no support
4812BCX Storage Foundation Standard, Linux, Per CPU, v4.1, License, with basic support
4812ECX Storage Foundation Standard, Linux, Per CPU, v4.1, License, with extended support
4812LDX Storage Foundation Enterprise, Linux, Per CPU, v4.1, License, with no support
4812BDX Storage Foundation Enterprise, Linux, Per CPU, v4.1, License, with basic support
4812EDX Storage Foundation Enterprise, Linux, Per CPU, v4.1, License, with extended support
4812LEX Storage Foundation Cluster File System Enterprise, Linux, Per CPU, v4.1, License, with no support
4812BEX Storage Foundation Cluster File System Enterprise, Linux, Per CPU, v4.1, License, with basic support
4812EEX Storage Foundation Cluster File System Enterprise, Linux, Per CPU, v4.1, License, with extended support
4812LFX Storage Foundation Cluster File System Enterprise HA, Linux, Per CPU, v4.1, License, with no support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
406 COG
4812BFX Storage Foundation Cluster File System Enterprise HA, Linux, Per CPU, v4.1, License, with basic support
4812EFX Storage Foundation Cluster File System Enterprise HA, Linux, Per CPU, v4.1, License, with extended
support
4812LGX Cluster Server, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BGX Cluster Server, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic support
4812EGX Cluster Server, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended support
4812LHX Cluster Server Oracle Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BHX Cluster Server Oracle Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic support
4812EHX Cluster Server Oracle Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended support
4812LJX Cluster Server DB2 Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BJX Cluster Server DB2 Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic support
4812EJX Cluster Server DB2 Agent, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended support
4812LKX Cluster Server, Global Cluster Option, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no
support
4812BKX Cluster Server, Global Cluster Option, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic
support
4812EKX Cluster Server, Global Cluster Option, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with
extended support
4812LLX Cluster Server, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, VMware ESX 2.01 and 2.1, Per
CPU, v2.2, License, with no support
4812BLX Cluster Server, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Vmware ESX 2.01 and 2.1, Per
CPU, v2.2, License, with basic support
4812ELX Cluster Server, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, VMware ESX 2.01 and 2.1, Per
CPU, v2.2, License, with extended support
4812LMX Cluster Server, Linux, Oracle 9i Agent, Per CPU, v2.0, License, with no support
4812BMX Cluster Server, Linux, Oracle 9i Agent, Per CPU, v2.0, License, with basic support
4812EMX Cluster Server, Linux, Oracle 9i Agent, Per CPU, v2.0, License, with extended support
4812LNX Cluster Server, Linux, DB2 Agent, Per CPU, v2.0, License, with no support
4812BNX Cluster Server, Linux, DB2 Agent, Per CPU, v2.0, License, with basic support
4812ENX Cluster Server, Linux, DB2 Agent, Per CPU, v2.0, License, with extended support
4812LPX Cluster Server, Linux, WebSphere Application Server, per CPU, v4.0, License, with no support
4812BPX Cluster Server, Linux, WebSphere Application Server, per CPU, v4.0, License, with basic support
4812EPX Cluster Server, Linux, WebSphere Application Server, per CPU, v4.0, License, with extended support
4812LQX Cluster Server, Linux, Tuxedo Agent, Per CPU, v4.0, License, with no support
4812BQX Cluster Server, Linux, Tuxedo Agent, Per CPU, v4.0, License, with basic support
4812EQX Cluster Server, Linux, Tuxedo Agent, Per CPU, v4.0, License, with extended support
4812LRX Cluster Server, Linux, WebLogic Server Agent, Per CPU, v4.0, License, with no support
4812BRX Cluster Server, Linux, WebLogic Server Agent, Per CPU, v4.0, License, with basic support
4812ERX Cluster Server, Linux, WebLogic Server Agent, Per CPU, v4.0, License, with extended support
4812LSX Cluster Server, Linux, Apache HTTP, Per CPU, v4.0, License, with no support
4812BSX Cluster Server, Linux, Apache HTTP, Per CPU, v4.0, License, with basic support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
Chapter 37. IBM and third party software applications 407
4812ESX Cluster Server, Linux, Apache HTTP, Per CPU, v4.0, License, with extended support
4812LTX Storage Foundation Enterprise for Oracle RAC, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with
no support
4812BTX Storage Foundation Enterprise for Oracle RAC, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with
basic support
4812ETX Storage Foundation Enterprise for Oracle RAC, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with
extended support
4812LUX Storage Foundation Quickstart, Linux, Red Hat EL 3.0 (IA-32), v4.0, License, with no support
4812BUX Storage Foundation Quickstart, Linux, Red Hat EL 3.0 (IA-32), v4.0, License, with basic support
4812EUX Storage Foundation Quickstart, Linux, Red Hat EL 3.0 (IA-32), v4.0, License, with extended support
4812LVX Storage Foundation Standard, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BVX Storage Foundation Standard, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic support
4812EVX Storage Foundation Standard, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended
support
4812LWX Storage Foundation Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BWX Storage Foundation Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic support
4812EWX Storage Foundation Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended
support
4812LXX Storage Foundation Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BXX Storage Foundation Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic
support
4812EXX Storage Foundation Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended
support
4812LYX Storage Foundation Standard HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with no support
4812BYX Storage Foundation Standard HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with basic
support
4812EYX Storage Foundation Standard HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License, with extended
support
4812LZX Foundation Suite, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License, with
no support
4812BZX Foundation Suite, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License, with
basic support
4812EZX Foundation Suite, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License, with
extended support
4812M1X Foundation Suite HA, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License,
with no support
4812C1X Foundation Suite HA, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License,
with basic support
4812F1X Foundation Suite HA, Linux, Red Hat AS 2.1, Red Hat EL 3.0 (IA-64), SUSE SLES8, Per CPU, v2.2, License,
with extended support
4812M2X Storage Foundation Cluster File System Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License,
with no support
4812C2X Storage Foundation Cluster File System Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License,
with basic support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
408 COG
4812F2X Storage Foundation Cluster File System Enterprise, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0, License,
with extended support
4812M3X Storage Foundation Cluster File System Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0,
License, with no support
4812C3X Storage Foundation Cluster File System Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0,
License, with basic support
4812F3X Storage Foundation Cluster File System Enterprise HA, Linux, Red Hat EL 3.0 (IA-32), Per CPU, v4.0,
License, with extended support
4812NTX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, per CPU, v4.1, License, No
Support
4812NVX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, per CPU, v4.1, License, No
Support
4812NWX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, Red Hat EL 3.0 (IA-32), per
CPU, v4.0, License, No Support
4812DTX Storage Foundation HA for Oracle Standalone, Linux, per CPU, v4.1, License, Basic Support
4812DVX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, per CPU, v4.1, License,
Basic Support
4812DWX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, Red Hat EL 3.0 (IA-32), per
CPU, v4.0, License, Basic Support
4812GTX Storage Foundation HA for Oracle Standalone, Linux, per CPU, v4.1, License, Extended Support
4812GVX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, per CPU, v4.1, License,
Extended Support
4812GWX Volume Replicator Enterprise (Includes Storage Foundation Enterprise), Linux, Red Hat EL 3.0 (IA-32), per
CPU, v4.0, License, Extended Support
Table 96. VERITAS Cluster Server and Storage Foundation Solutions (continued)
© Copyright IBM Corp. 2003, 2006 409
Chapter 38. EXP400 storage expansion unit
Notes:
1. Includes a single 2m Ultra2 SCSI cable and dual hot-swap 500w redundant power supplies, two line
cords and two rack power cables.
2. DC power model requiring -48v power source. Includes a single 2m Ultra2 SCSI cable and two rack
power cables.
Notes:
1. Ships standard with one ESM which provides one SCSI port.
Table 97. EXP400 Storage Expansion Unit At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
EXP40011733-1RU Ultra320
LVDS
14/14 Y 4,200.0 445mm x 552mm x
128mm (17.5in x
21.7in x 5in)
Rack
Drawer
(3U)
38kg
(85lbs)
2/2 -
500w
EXP400
(DC)2
1733-2RX Ultra320
LVDS
14/14 Y 4,200.0 445mm x 552mm x
128mm (17.5in x
21.7in x 5in)
Rack
Drawer
(3U)
38kg
(85lbs)
2/2 -
500w
Note: To determine cabling requirements, refer to the host systems Standard Cabling section and/or the I/O Option
Attributes section for external connection information.
Table 98. Additional Features
1733-1RU
ESMs (std/max) 1/21
SCSI Ports (std/max) 1/2
410 COG
EXP400 hard disk drive (HDD) storage options
Notes:
1. EXP400 Storage Expansion Unit ships with 14 slim-line hot-swap bays which can be configured as a
single bus, two independent buses or a twintailed single bus.
2. Twintailing reduces the maximum number of HDDs on a single bus to 13.
EXP400 other options
Notes:
1. The optional ESM allows for twintailing, clustering, and is required for redundant connections to
supported dual-controller disk systems.
Option
Number
Description Height Bays
Supported1
Maximum
Quantity2
Ultra320 HDDs
40K1023 73.4GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1024 146.8GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1025 300GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1026 36.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1027 73.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1028 146.8 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
Option Number Description Max Qty
59P5018 SCSI Bus Expander and Enclosure Services Module (ESM)11
09N7296 Rack-To-Tower Conversion Kit 1
© Copyright IBM Corp. 2003, 2006 411
Chapter 39. EXP420 storage expansion unit
Notes:
1. Includes two 4Gbps SW SFPs, dual hot-swap 600w redundant power supplies,and two rack power
cables.
Table 99. EXP420 Storage Expansion Unit At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
System Storage
DS4000 EXP4201
1812-8VH SATA 16/16 Y 8TB 483mm x 559mm x
129mm (19in x 22in x
5.1in)
Rack
Drawer
(3U)
38.56kg
(85lbs)
2/2 -
600w
Note: To determine cabling requirements, refer to the host systems Standard Cabling section and/or the I/O Option
Attributes section for external connection information.
Table 100. Additional Features
1812-8VH
ESMs (std/max) 2/2
Fibre Ports (std/max) 4/4
412 COG
EXP420 hard disk drive (HDD) storage options
EXP420 other options
Option
Number
Description Height Bays
Supported
Maximum
Quantity
SATA HDDs
42D0389 DS4200 Enhanced 500GB SATA Value Disk Drive
Module
SL 1 ... 16 16
Option Number Description Max Qty
26K7941 SW 4 Gbps SFP Transceiver Pair 1
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
© Copyright IBM Corp. 2003, 2006 413
Chapter 40. TotalStorage DS300 disk system
Notes:
1. Not available from IBM after this date. Business Partner Inventory may be available.
2. Ships standard with a single controller. Not upgradeable to dual-controllers.
3. Ships standard with a single controller. Upgradeable to dual-controllers.
4. Also includes four 146GB HDDs.
5. Ships standard with a dual-controllers.
Table 101. TotalStorage DS300 Disk System At-A-Glance
Name
Part Number
Withdrawal Date1
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
TotalStorage
DS300 VL2
1701-
1RL
June
30
Ultra32
0 LVDS
7/14 Y 4.2TB 4.2TB 442mm x
575mm x
128mm
(17.4in x 22.64in
x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
1/2 -
380w
TotalStorage
DS300 - Single
Controller3
1701-
1RS
July
30
Ultra32
0 LVDS
14/14 Y 4.2TB 4.2TB 4421mm x
575mm x
128mm
(17.4in x 22.64in
x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS300 - Single
Controller
Express Model3, 4
1701-
1ES
- Ultra32
0 LVDS
14/14 Y 4.2TB 4.2TB 442mm x
575mm x
128mm
(17.4in x 22.64in
x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS300 - Dual
Controller5
1701-
2RD
- Ultra32
0 LVDS
14/14 Y 4.2TB 4.2TB 442mm x
575mm x
128mm
(17.4in x 22.64in
x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS300 - Dual
Controller
Express Model4, 5
1701-
2ED
- Ultra32
0 LVDS
14/14 Y 4.2TB 4.2TB 442mm x
575mm x
128mm
(17.4in x 22.64in
x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
Note: To determine cabling requirements, refer to the host systems Standard Cabling section and/or the I/O Option
Attributes section for external connection information.
414 COG
Notes:
1. Maximum number of host ports and redundant host connections requires upgrading to dual controllers.
TotalStorage DS300 hard disk drive (HDD) storage
Table 102. Additional Features
1701-1RL 1701-1RS 1701-1ES 1701-2RD 2RD
Host Ports (std/max) 1/1 2/4 12/4 14/4 4/4
Max Redundant Host
Connections
-2
12 122
Expansion Ports (std/max) - - - - -
Redundant Drive Loops
(std/max)
-----
Option
Number Description Height Bays Supported1
Maximum
Quantity1
Ultra320 HDDs
40K1023 73.4GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1024 146.8GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1025 300GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1026 36.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1027 73.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1028 146.8 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
39M4566 73.4GB 10K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
39M4565 146.8GB 10K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
39M4568 73.4GB 15K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
Power supplies
iSCSI RAID controller bay
iSCSI RAID controller A
Management Port
Host Port 1
Host Port 2
Chapter 40. TotalStorage DS300 disk system 415
Notes:
1. DS300 model 1RL in its base configuration supports seven HDDs. Installation of eight or more HDDs
requires the optional Power Supply and HDD Kit.
416 COG
TotalStorage DS300 other options
Notes:
1. Hardware iSCSI initiator which installs into a supported server and connects via ethernet cabling to a
DS300 via required ethernet switch.
2. Provides RJ45 port for connectivity to copper cabling.
3. Provides LC fiber port for connectivity to fiber optic cabling.
4. Alternative to the Hardware iSCSI initiator when used in conjunction with a supported iSCSI software
initiator (free from NOS vendor). Installs into a supported server and connects via ethernet cabling to a
DS300 via required ethernet switch. The host server's integrated ethernet controller can be used as an
alternative to one of the supported ethernet adapters, but with degraded server performance.
5. Available for DS300 model 1RL. Provides a second power supply and a HDD kit to support up to 14
HDDs.
6. Available for DS300 model 1RS and 1ES. Provides a second controller for redundancy with dual iSCSI
ports and a dedicated ethernet port for management.
7. Simplifies backup and restore procedures. Supported on single and dual controller models.
8. Provides cache upgrade for one controller. Dual controller models require quantity two. Required for
support of FlashCopy option or DS300 integration with supported IBM Director versions"
Option Number Description Max Quantity
73P3601 iSCSI Server Adapter1-
30R5201 IBM iSCSI Server TX Adapter2-
30R5501 IBM iSCSI Server SX Adapter3-
73P2701 PRO/1000 MT Dual Port Server Ethernet Adapter by Intel4-
31P9601 PRO/1000 MT Server Ethernet Adapter by Intel4-
13N1776 DS300 Redundant Controller Upgrade61
13N1778 TotalStorage Flashcopy for DS300 and DS4007-
06P4055 1GB Controller System Memory Upgrade82
© Copyright IBM Corp. 2003, 2006 417
Chapter 41. TotalStorage DS400 disk system
Notes:
1. Not available from IBM after this date. Business Partner Inventory may be available.
2. Ships standard with a single controller. Can be upgraded to dual-controllers.
3. 12TB of total storage is supported via 40 300GB SCSI HDDs that includes DS400 internal HDD bays and
two EXP400 expansion units.
4. Also includes four 146GB HDDs, two short-wave SFP modules, two DS4000 Host Bus Adapters and two
5m LC-LC Fibre Channel cables.
5. Ships standard with a dual-controller.
Table 103. TotalStorage DS400 Disk System At-A-Glance
Name
Part Number
Withdrawal Date 1
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (TB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
TotalStorage
DS400 - Single
Controller2
1700-
1RS
- Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS400 - Single
Controller
Express Model2,4
1700-
1ES
July
30
Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS400 - Single
Controller
Express Model7
1700-
1EX
- Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS400 - Dual
Controller5
1700-
2RD
- Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS400 - Dual
Controller
Express Model5,6
1700-
2ED
July
30
Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
TotalStorage
DS400 - Dual
Controller
Express Model8
1700-
2EX
- Ultra320
LVDS
14/14 Y 4.2TB 12TB3442mm x 575mm x
128mm (17.4in x
22.64in x 5.04in)
Rack
Drawer
(3U)
39.46kg
(87lbs)
2/2 -
380w
Note: To determine cabling requirements, refer to the host systems Standard Cabling section and/or the I/O Option
Attributes section for external connection information.
418 COG
6. Also includes four 146GB HDDs, four short-wave SFP modules, four DS4000 Host Bus Adapters and four
5m LC-LC Fibre Channel cables.
7. Also includes two short-wave SFP modules, two DS4000 Host Bus Adapters and two 5m LC-LC Fibre
Channel cables.
8. Also includes four short-wave SFP modules, four DS4000 Host Bus Adapters and four 5m LC-LC Fibre
Channel cables.
Notes:
1. Adding host and expansion ports requires upgrading to dual controllers.
2. A maximum of two expansion units can be connected to the DS400. Additional expansion ports provide
redundancy and workload distribution across SCSI channels.
Table 104. Additional Features
1700-1RS 1700-1ES 1700-2RD 1700-2ED
Host Partitions (std/max) - - - -
Host Ports (std/max) 2/412/414/4 4/4
Max Redundant Host Connections - - 2 2
Expansion Ports (std/max) 2/41, 2 2/41, 2 4/424/42
Redundant Drive Loops (std/max) - - 2/2 2/2
Note: DS400 Supports short-wave connections on host and expansion ports. Long-wave connections are supported
on host ports only.
RAID controller
filler panel
(Side B)
Management
Connector
Host Ports
(1 and 2)
Expansion Ports
(1 and 2)
Chapter 41. TotalStorage DS400 disk system 419
TotalStorage DS400 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the "Other Options" table for
possible required related options.
2. 13 HDDs supported in each EXP400 when attached to DS400. Attachment requires one 0.8mm VHDCI -
to- 0.8mm VHDCI SCSI cable per controller in the DS400. In addition, a second ESM for the EXP400 is
required for redundancy when attached to a dual controller DS400.
Option
Number Description Height Bays Supported
Maximum
Quantity
Ultra320 HDDs
40K1023 73.4GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1024 146.8GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1025 300GB 10K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1026 36.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1027 73.4GB 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
40K1028 146.8 15K rpm Ultra320 SCSI HDD SSL 1 ... 14 14
39M4566 73.4GB 10K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
39M4565 146.8GB 10K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
39M4568 73.4GB 15K rpm Ultra320 SCSI Express 3-pack SSL 1 ... 14 14
External Storage Expansion Units 1
17331RU EXP400 Storage Expansion Unit2-- 2
420 COG
TotalStorage DS400 other options
Notes:
1. Installs into a supported server and connects via fibre channel cabling directly to the DS400 or to a
supported fibre channel switch.
2. Available for DS400 model 1RS and 1ES. Provides a second controller for redundancy with dual 2Gb
fibre channel ports.
3. License to attach two EXP400 expansion units. Supported on Single Controller and Dual Controller
models.
4. Simplifies backup and restore procedures. Supported on Single Controller and Dual Controller models.
5. Does not ship with any SFP modules. Four are supported with two controllers.
6. 0.8mm VHDCI -to- 0.8mm VHDCI SCSI cable.
7. Provides cache upgrade for one controller. Dual controller models require quantity two. Required for
support of FlashCopy option or DS400 integration with supported IBM Director versions.
Option Number Description Max Qty
24P0960 DS4000 Host Bus Adapter1-
13N1873 IBM 2 Gbps FC Host Bus Adapter1-
13N1777 DS400 Redundant Controller Upgrade21
13N1779 DS400 EXP400 Attach License3-
13N1778 TotalStorage Flashcopy for DS300 and DS4004-
13N1796 Single Short-Wave SFP Module 45
03K9310 2m External Ultra2 SCSI Cable64
03K9311 4.2m External Ultra2 SCSI Cable64
06P4055 1GB Controller System Memory Upgrade72
© Copyright IBM Corp. 2003, 2006 421
Chapter 42. TotalStorage DS4100 disk system
Table 105. TotalStorage DS4100 Disk System At-A-Glance
Name
Part Number
Withdrawal Date 1
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Internal HDD Storage (Std/Max)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
DS4100
Dual
Controller2
172410G - SATA 14/
14
Y 0/5.6TB 44.8TB3481.8mm x
597.4mm x
132.3mm
(18.97in x
23.52in x
5.21in)
Rack
Drawer
(3U)
40kg
(88.2lbs)
2/2 -
390w
DS4100
Dual
Controller
Express
Model4
172410J Jan
24
SATA 14/
14
Y 1.25TB/5.6TB544.8TB3481.8mm x
597.4mm x
132.3mm
(18.97in x
23.52in x
5.21in)
Rack
Drawer
(3U)
40kg
(88.2lbs)
2/2 -
390w
DS4100
Single
Controller2
17241SC - SATA 14/
14
Y 750GB/5.6TB45.6TB5481.8mm x
597.4mm x
132.3mm
(18.97in x
23.52in x
5.21in)
Rack
Drawer
(3U)
37.27kg
(82.2lbs)
1/1 -
390w
DS4100
Single
Controller
Express
Model
17241SJ July
30
SATA 14/
14
Y 1.25TB/5.6TB55.6TB5481.8mm x
597.4mm x
132.3mm
(18.97in x
23.52in x
5.21in)
Rack
Drawer
(3U)
37.27kg
(82.2lbs)
1/1 -
390w
Note: To determine cabling requirements, refer to the host systems Standard Cabling section and/or the I/O Option
Attributes section for external connection information.
422 COG
Notes:
1. Not available from IBM after this date. Business Partner Inventory may be available.
2. DS4100 ships with the rail mounting kit and two (model 1SC ships with one) 2.8m/9ft intra-rack power
cords (IEC 320-C13 to IEC 320-C14). If US power cords are required, then order the necessary quantity of
PN 94G6667.
3. 44.8TB of total storage is supported via 112 400GB SATA HDDs installed in a redundant storage loop that
includes DS4100 internal HDD bays and seven DS4000 EXP100 expansion units.
4. Model 1SC ships standard with three 250GB SATA HDDs.
5. Single controller models do not support attachment to external expansion units.
Notes:
1. Ships with a single Host Default Group.
Table 106. Additional Features
1724-100 1724-1SC
Host Partitions (std/max) */161*/161
Host Ports (std/max) 4/4 2/2
Max Redundant Host Connections 2 -
Expansion Ports (std/max) 2/2 0/0
Redundant Drive Loops (std/max) 1/1 0/0
Host port 1
Host port 2 Host port 4
Ethernet 1 Ethernet 2
Expansion port 1
Expansion port 2
Controller A
Serial port Serial port
Host port 3
Controller B
Chapter 42. TotalStorage DS4100 disk system 423
TotalStorage DS4100 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the "Other Options" table for
possible related options
2. Model 1SC currently does not support attachment to external expansion units.
TotalStorage DS4100 other options
Option
Number Description Height
Bays
Supported Max Qty
FastT SATA HDDs
39M4570 DS4000 400GB 7200RPM SATA HDD SL 1 ... 14 14
23R0285 DS4000 400GB 7200RPM SATA HDD - 4 Pack SL 1 ... 14 -
External Storage Expansion Units1Form Factor
171010U FAStT EXP100 Storage Expansion Unit2Rack (3U)
Option
Number Description
DS4100 Model 100/10G
24P8997 DS4100 Flash Copy
39M5720 DS4100 VolumeCopy
39M5719 DS4100 Flash/VolumeCopy
25R0051 DS4100 Intel Pack
25R0060 DS4100 Linux/Intel Host Kit1
25R0061 DS4100 Novell Netware Host Kit1
25R0062 DS4100 VMware Host Kit1
25R0063 DS4100 AIX Host Kit1
25R0066 DS4100 Sun Host Kit1
25R0137 DS4100 Linux for Power Host Kit1
25R0069 DS4100 HP-UX Host Kit
25R0213 DS4100 4th-7th EXP100 Attach
25R0072 DS4100 4 Storage Partition Activation
25R0074 DS4100 8 Storage Partition Activation
25R0077 DS4100 16 Storage Partition Activation
25R0080 DS4100 4 to 8 Storage Partition Upgrade
25R0081 DS4100 8 to 16 Storage Partition Upgrade
39M5602 DS4100 Enhanced Remote Mirroring2
424 COG
Notes:
1. Licensed one per DS4100.
2. Available for DS4100 Dual Controller only.
3. Designed to connect a 1Gb device or cable to a 2Gb device or cable.
DS4100 Model 1SC
39M5950 DS4100 Redundant Controller Upgrade
24P8997 DS4100 Flash Copy
25R0051 DS4100 Intel Pack
25R0060 DS4100 Linux/Intel Host Kit
25R0061 DS4100 Novell Netware Host Kit
25R0062 DS4100 VMware Host Kit
25R0063 DS4100 AIX Host Kit
25R0066 DS4100 Sun Host Kit
25R0137 DS4100 Linux for Power Host Kit
25R0069 DS4100 HP-UX Host Kit
25R0072 DS4100 4 Storage Partition Activation
25R0074 DS4100 8 Storage Partition Activation
25R0077 DS4100 16 Storage Partition Activation
25R0080 DS4100 4 to 8 Storage Partition Upgrade
25R0081 DS4100 8 to 16 Storage Partition Upgrade
Other Options
19K1271 Short-wave SFP Module
19K1272 Long-wave SPF Module
39M5696 1m LC-LC Fibre Channel Cable
39M5697 5m LC-LC Fibre Channel Cable
39M5698 25m LC-LC Fibre Channel Cable
19K1250 1m LC-SC Fibre Channel Adapter Cable3
Option
Number Description
© Copyright IBM Corp. 2003, 2006 425
Chapter 43. System Storage DS4200 disk system
Notes:
1. DS4200 Model 7V provides two RAID controllers with 1GB Cache each. Ships with the rail mounting kit,
four 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
2. Based on a maximum of 112 500GB Fibre Channel HDDs installed in DS4200 and six EXP420 expansion
units.
Table 107. TotalStorage DS4200 Disk System At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Internal HDD Storage (Std/Max)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
DS4200
Express
Model 7V1
18147VH SATA 16/16 Y 0/8TB 56TB2482mm x
572mm x
130mm
(19in x 22.5in x
5.10in)
Rack
Drawer
(3U)
39.92kg
(88.2lbs)
2/2 -
390w
Note: Requires attachment to a Fibre Channel host bus adapter or to a Fibre Channel/SAN switch.
Table 108. Additional Features
1814-7VH
Host Partitions (std/max) 2/64
Host Ports (std/max) 4/4
Max Redundant Host Connections 2
Expansion Ports (std/max) 4/4
Redundant Drive Loops (std/max) 2/2
Note: DS4200 ships standard with four SFP's which can be used in any of the Host Ports or Expansion
Ports. Up to four additional SFP's can be ordered to add full support for all ports.
426 COG
System Storage DS4200 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the ’Other Options’ table for
possible related options
System Storage DS4200 other options
Option
Number Description Height
Bays
Supported Max Qty
FastT SATA HDDs
42D0389 DS4200 500GB SATA EV-DDM SL 1 ... 16 16
External Storage Expansion Units1
18128VH System Storage DS4000 EXP420
Option
Number Description
Max
Qty
Other Options
39M5894 DS4000 1-pt PCI-X 4 Gbps HBA -
39M5895 DS4000 2-pt PCI-X 4 Gbps HBA -
41Y0743 DS4200 FlashCopy -
41Y0746 DS4200 VolumeCopy 1
41Y0738 DS4200 Flash/VolumeCopy 1
41Y0739 DS4200 Enhanced Remote Mirror 1
39M5954 DS4200 EXPs Attach 1-3 1
39M5957 DS4200 EXPs Attach 4-6 1
39M6009 DS4200 Linux/Intel Host Kit 1
39M6041 DS4200 Novell Netware Host 1
39M6048 DS4200 AIX Host Kit 1
41Y5163 DS4200 SUN Host Kit 1
41Y0686 DS4200 HPUX Host Kit 1
42D3252 DS4200 Linux on Power Host 1
39M6046 DS4200 VMware ESX Host Kit 1
42D3254 DS4200 2-4 Storage Partition Upgrade 1
42D3257 DS4200 2-8 Storage Partition Upgrade 1
42D3260 DS4200 4-8 Storage Partition Upgrade 1
42D3263 DS4200 4-16 Storage Partition Upgrade 1
42D3266 DS4200 8-16 Storage Partition Upgrade 1
42D3269 DS4200 8-64 Storage Partition Upgrade 1
Chapter 43. System Storage DS4200 disk system 427
Notes:
1. Option includes two 4Gbps SW SFPs.
42D3272 DS4200 16-64 Storage Partition Upgrade 1
26K7941 SW 4 Gbps SFP Transceiver Pair11
39M5696 1m Fiber Optic Cable LC-LC -
39M5697 5m Fiber Optic Cable LC-LC -
39M5698 25m Fiber Optic Cable LC-LC -
Option
Number Description
Max
Qty
428 COG
© Copyright IBM Corp. 2003, 2006 429
Chapter 44. TotalStorage DS4300 disk system
Table 109. TotalStorage DS4300 Disk System At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
DS4300 -
Single
Controller1
17226LG Fibre
Channel
14/
14
Y 4.2TB 4.2TB 481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
41.04kg
(90.48lbs)
1/2 -
390w
DS4300 - Single
Controller
Express Model2
17226LJ Fibre
Channel
14/
14
Y 4.2TB 4.2TB 481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
41.04kg
(90.48lbs)
1/2 -
390w
DS4300 - Dual
Controller3
172260G Fibre
Channel
14/
14
Y 4.2TB 16.8TB4481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
45.87kg
(101.26lbs)
2/2 -
390w
DS4300 - Dual
Controller
Express Model5
172260J Fibre
Channel
14/
14
Y 4.2TB 16.8TB4481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
45.87kg
(101.26lbs)
2/2 -
390w
DS4300 - Dual
Controller
Express Model
(No Hard
Drives)6
172260K Fibre
Channel
14/
14
Y 4.2TB 16.8TB4481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
45.87kg
(101.26lbs)
2/2 -
390w
DS4300 Turbo724P8215 Fibre
Channel
14/
14
Y 4.2TB 33.6TB9481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
45.87kg
(101.26lbs)
2/2 -
390w
430 COG
Notes:
1. DS4300 - Single Controller provides a single, low-cost RAID controller and can be upgraded to DS4300 -
Dual Controller. Ships with the rail mounting kit, a 2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC
320-C14) and a 2.8m U.S. line cord (100-120V, C13 to NEMA 5-15P).
2. DS4300 - Single Controller Express Model provides a single, low-cost RAID controller and can be
upgraded to DS4300 - Dual Controller. Ships with two shortwave SFPs, two 1 meter fibre optic cables, rail
mounting kit, a 2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC 320-C14.) and a 2.8m U.S. line cord
(100-120V, C13 to NEMA 5-15P).
3. DS4300 - Dual Controller provides two RAID controllers with 256MB Cache each and can be upgraded to
DS4300 Turbo. Ships with the rail mounting kit, two 2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC
320-C14) and two 2.8m U.S. line cords (100-120V, C13 to NEMA 5-15P).
4. Based on a maximum of 56 300GB FC HDDs installed in the redundant storage loop that includes the
DS4300 internal HDD bays and three FAStT EXP710 expansion units.
5. DS4300 - Dual Controller Express Model provides two RAID controllers with 256MB Cache each and can
be upgraded to DS4300 Turbo. Ships with two SFPs, two 1 meter fibre cables, ten 73.4GB 10k RPM hard
disks, rail mounting kit, two 2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC 320-C14) and two 2.8m
U.S. line cords (100-120V, C13 to NEMA 5-15P).
6. DS4300 - Dual Controller Express Model provides two RAID controllers with 256MB Cache each and can
be upgraded to DS4300 Turbo. Ships with two SFPs, two 1 meter fibre cables, rail mounting kit, two
2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC 320-C14) and two 2.8m U.S. line cords (100-120V,
C13 to NEMA 5-15P).
7. DS4300 Turbo provides two RAID controllers with 512MB cache each. Ships with the rail mounting kit,
two 2.8m/9ft intra-rack power cord (IEC 320-C13 to IEC 320-C14) and two 2.8m U.S. line cords (100-
120V, C13 to NEMA 5-15P).
8. DS4300 Turbo Express Model provides two RAID controllers with 512MB cache each. Ships with two
shortwave SFPs, two 1 meter fibre cables, rail mounting kit, two 2.8m/9ft intra-rack power cord (IEC 320-
C13 to IEC 320-C14) and two 2.8m U.S. line cords (100-120V, C13 to NEMA 5-15P).
9. Based on a maximum of 112 300GB FC HDDs installed in the redundant storage loop that includes the
DS4300 internal HDD bays and seven EXP710 expansion units.
DS4300 Turbo
Express Model8
172260L Fibre
Channel
14/
14
Y 4.2TB 33.6TB9481.8mm x
597.4mm x
132.3mm
(18.97in x 23.52in
x 5.21in)
Rack
Drawer
(3U)
45.87kg
(101.26lbs)
2/2 -
390w
Note: Requires attachment to a Fibre Channel host bus adapter or to a Fibre Channel/SAN switch.
Table 109. TotalStorage DS4300 Disk System At-A-Glance (continued)
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
Chapter 44. TotalStorage DS4300 disk system 431
Notes:
1. Ships with a single Default Host Group which does not provide storage partitioning capabilities.
2. Adding host and expansion ports requires upgrading to dual controllers.
Table 110. Additional Features
17226LG 17226LJ 172260G 172260J 172260L 24P8215 172260K
Host Partitions (std/max) */161*/161*/161*/161*/1618/64 8/64
Host Ports (std/max) 2/422/424/4 4/4 4/4 4/4 4/4
Max Redundant Host Connections - - 2 2 2 2 2
Expansion Ports (std/max) 0/220/222/2 2/2 2/2 2/2 2/2
Redundant Drive Loops (std/max) - - 1/1 1/1 1/1 1/1 1/1
Host port 1
Host port 2 Host port 4
Ethernet 1 Ethernet 2
Expansion port 1
Expansion port 2
Controller A
Serial port Serial port
Host port 3
Controller B
432 COG
TotalStorage DS4300 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the “Other Options” table for
possible related options.
Option
Number Description Height Bays Supported
Maximum
Quantity
06P5762 73.4GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
32P0765 146.8GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
73P8005 300GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
06P5772 36.4GB 15K rpm 2Gbps FC Disk Module SL 1 ... 14 14
32P0768 73.4GB 15K rpm 2Gbps Disk Module SL 1 ... 14 14
73P8022 146.8GB 15K rpm 2Gbps FC Disk Module SL 1 ... 14 14
22R5030 DS4000 73GB 10K FC HDD - 4 Pack SL 1 ... 14 -
22R5031 DS4000 73GB 15K FC HDD - 4 Pack SL 1 ... 14 -
22R5032 DS4000 146GB 10K FC HDD - 4 Pack SL 1 ... 14 -
22R5033 DS4000 146GB 15K FC HDD - 4 Pack SL 1 ... 14 -
22R5034 DS4000 300GB 10K FC HDD - 4 Pack SL 1 ... 14 -
External Storage Expansion Units1
171010U FAStT EXP100 Storage Expansion Unit -
1740710 DS4000 EXP710 Storage Expansion Unit -
Chapter 44. TotalStorage DS4300 disk system 433
TotalStorage DS4300 other options
Option
Number Description Max Qty
24P8149 DS4300 1st EXP700 Attach1,16 -
24P8151 DS4300 2nd EXP700 Attach2,16 -
24P8066 DS4300 Two EXP700 Attach3,16 -
24P8183 DS4300 3rd EPX700 Attach4,16 -
24P8180 DS4300 Three EXP700 Attach5,16 -
24P8067 DS4300 Intel Pack6, 7, 8 -
24P8068 DS4300 Linux/Intel Host Kit7, 8 -
24P8069 DS4300 Novell Netware Host Kit7, 8 -
24P8070 DS4300 VMware Host Kit7, 8 -
24P8072 DS4300 AIX Host Kit7, 9 -
24P8073 DS4300 Sun Host Kit7, 8 -
24P8074 DS4300 HP-UX Host Kit7, 8 -
25R0091 DS4300 Linux for Power Host Kit7, 8 -
24P8075 DS4300 4-Storage Partition Activation10 -
24P8157 DS4300 8-Storage Partition Activation -
24P8221 DS4300 16-Storage Partition Activation -
24P8154 DS4300 4 to 8 Storage Partition Upgrade -
24P8223 DS4300 8 to 16 Storage Partition Upgrade8-
24P8963 DS4300 Entry Upgrade Kit11 -
24P8964 DS4300 Entry Turbo Option Upgrade Kit12 -
24P8216 DS4300 Turbo Option Upgrade Kit13 -
24P8222 DS4300 Turbo 8 to 64 Partitions -
24P8224 DS4300 Turbo 16 to 64 Partition Upgrade -
24P8217 DS4300 Turbo FlashCopy Activation -
24P8218 DS4300 Turbo VolumeCopy Activation -
24P8219 DS4300 Turbo combined FlashCopy and VolumeCopy Activation -
25R0168 DS4300 Turbo Enhanced Remote Mirror -
25R0169 DS4300 w/Turbo FC/SATA Enclosure Intermix -
25R0416 DS4300 Database Backup (DB2/AIX) -
39M5711 DS4300 Integrated Backup for Databases (IBD) for Exchange -
22R5037 DS4300 Express Model Intel Pack14 -
22R5038 DS4300 Express Model AIX Host Kit14 -
22R5039 DS4300 Express Model HP Host Kit14 -
22R5040 DS4300 Express Model Sun Host Kit14 -
22R5041 DS4300 Express Model 4-Storage Partition Kit14 -
434 COG
Notes:
1. License to attach 15 to 28 HDDs.
2. License to attach 29 to 42 HDDs.
3. License kit upgrade to support up to 42 HDDs.
4. License to attach 43 to 56 HDDs.
5. License to attach up to 56 HDDs.
6. Upgrade to support four partitions and provides the Novell Netware and Linux Host kits.
7. Licensed one per DS4300.
8. This option is available for all models of DS4300.
9. This option is not available for DS4300 - Single Controller.
10. Upgrade to support four partitions.
11. Upgrades DS4300 - Single Controller to DS4300 - Dual Controller by providing two RAID controllers
with 256MB Cache each and an additional power supply.
12. Upgrades DS4300 - Single Controller to DS4300 Turbo by providing two RAID controllers with 1GB
Cache each, an additional power supply, license to attach 112 HDDs through seven EXP710s and license
for eight partitions.
13. The DS4300 Turbo option includes two RAID Blades with 1GB Cache each (2GB total), FAStT Storage
Manager v8.4, license to attach 112 HDDs through seven EXP710s and license for eight partitions.
14. For DS4300 Express Models only.
15. Designed to connect a 1Gb device or cable to a 2Gb device or cable.
16. Provides support for EXP710 attach as well.
22R5042 DS4300 Express Model FlashCopy Activation14 -
22R5043 DS4300 Express Model 1st EXP Attach14 -
22R5044 DS4300 Express Model Two EXP Attach14 -
19K1271 Short-wave SFP Module 6
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
19K1250 1m LC-SC Fibre Channel Adapter Cable15 -
Option
Number Description Max Qty
© Copyright IBM Corp. 2003, 2006 435
Chapter 45. TotalStorage DS4500 disk system
Notes:
1. DS4500 provides two RAID controllers with 1GB Cache each. Ships with rail mounting kit, two 2.8m/9ft
intra-rack power cords (IEC 320-C13 to IEC 320-C14) and two 2.8m U.S. line cords (100-120V, C13 to
NEMA 5-15P).
2. DS4500 ships standard with two DS4000 mini-hubs installed as expansion ports providing one expansion
port each. Two more mini-hubs can be added for a total of four expansion ports.
Notes:
1. DS4500 ships standard with two DS4000 mini-hubs installed as host ports providing two host ports each.
Two more mini-hubs can be added for a total of eight host ports.
2. DS4500 ships standard with two DS4000 mini-hubs installed as expansion ports providing one expansion
port each. Two more mini-hubs can be added for a total of four expansion ports.
Table 111. TotalStorage DS4500 Disk System At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
DS4500 1 174290G - 0/0 - - 67.2TB2482mm x 635mm x
174.5mm (18.97in x
24.0in x 6.87in)
Rack
Drawer
(4U)
43.9kg
(97lbs)
2/2 -
175w
Note: Requires attachment to a Fibre Channel host bus adapter or to a Fibre Channel/SAN switch.
Table 112. Additional Features
174290G
Host Partitions (std/max) 16/64
Host Ports (std/max) 4/81
Max Redundant Host Connections 4
Expansion Ports (std/max) 2/42
Redundant Drive Loops (std/max) 1/2
436 COG
Figure 95. FAStT900 storage server
TotalStorage DS4500 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the “Other Options” table for
possible related options.
Option Number Description
External Storage Expansion Units1
171010U DS4000 EXP100 Storage Expansion Unit
1740710 DS4000 EXP710 Storage Expansion Unit
Chapter 45. TotalStorage DS4500 disk system 437
TotalStorage DS4500 other options
Notes:
1. Licensed one per DS4500.
2. Requires Storage Manager v8.4.
3. Designed to connect a 1Gb device or cable to a 2Gb device or cable.
Option Number Description Max Qty
24P7981 FAStT900 AIX Host Kit1-
24P7982 FAStT900 Sun Host Kit1-
24P7983 FAStT900 HP-UX Host Kit1-
25R0103 FAStT900 Linux for Power Host Kit1-
24P7984 FAStT900 Upgrade for 16 to 64 Storage Partitions -
24P7985 FAStT900 FlashCopy Activation1-
24P8227 FAStT900 VolumeCopy Activation2-
24P8228 FAStT900 combined FlashCopy and VolumeCopy Activation2-
25R0415 DS4500/DS4400 Database Backup (DB2/AIX) -
39M5713 DS4500/DS4400 Integrated Backup for Databases (IBD) for Exchange -
25R0167 DS4500 Enhanced Remote Mirror -
25R0247 DS4500 FC/SATA Enclosure Intermix -
22R5036 DS4000 xSeries HBAs - 2 Pack -
19K1269 FAStT700/900 Mini Hub 8
19K1271 Short-wave SFP Module 16
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
19K1250 1m LC-SC Fibre Channel Adapter Cable3-
438 COG
© Copyright IBM Corp. 2003, 2006 439
Chapter 46. TotalStorage DS4700 disk system
Notes:
1. DS4700 Model 70 provides two RAID controllers with 1GB Cache each. Ships with the rail mounting kit,
four 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
2. DS4700 Model 72 provides two RAID controllers with 2GB Cache each. Ships with the rail mounting kit,
four 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
3. Based on a maximum of 112 300GB Fibre Channel HDDs installed in DS4700 and six EXP810 expansion
units.
Notes:
1. DS4700 ships standard with four SFP's which can be used in any of the Host Ports or Expansion Ports. Up
to eight additional SFP's can be ordered to add full support for all ports.
Table 113. TotalStorage DS4700 Disk System At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
DS4700 Express
Model 701
181470H Fibre
Channel
16/16 Y 4.8TB 33.6TB3482mm x 572mm x
130mm (19in x 22.5in
x 5.10in)
3U Rack 39.92kg 2/2
DS4700 Express
Model 722
181472H Fibre
Channel
16/16 Y 4.8TB 33.6TB3482mm x 572mm x
130mm (19in x 22.5in
x 5.10in)
3U Rack 39.92kg 2/2
Note: Requires attachment to a Fibre Channel host bus adapter or to a Fibre Channel/SAN switch.
Table 114. Additional Features
181470H 181472H
Host Partitions (std/max) 2/16 8/16
Host Ports (std/max) 4/8 8/8
Max Redundant Host Connections 4 4
Expansion Ports (std/max) 4/4 4/4
Redundant Drive Loops (std/max) 2/2 2/2
440 COG
TotalStorage DS4700 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the “Other Options” table for
possible related options.
Option
Number Description Height Bays Supported
Maximum
Quantity
39M4586 73.4GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
39M4590 146.8GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
39M4594 300GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6800 36.4GB 15K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6804 73.4GB 15K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6808 146.8GB 15K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6812 4 Gbps FC, 36.4 GB/15K E-DDM Disk Module SL 1 ... 16 16
40K6816 4 Gbps FC, 73.4 GB/15K E-DDM Disk Module SL 1 ... 16 16
40K6820 4 Gbps FC, 146.8 GB/15K E-DDM Disk Module SL 1 ... 16 16
39M4554 500 GB/7.2K SATA E-DDM SL 1 ... 16 16
External Storage Expansion Units1
181281H DS4000 EXP810 Storage Expansion Unit -
Chapter 46. TotalStorage DS4700 disk system 441
TotalStorage DS4700 other options
Notes:
1. Licensed one per DS4700.
2. Option includes two 4Gbps SW SFPs.
Option
Number Description Max Qty
39M5894 DS4000 1-pt PCI-X 4 Gbps HBA -
39M5895 DS4000 2-pt PCI-X 4 Gbps HBA -
41Y5203 DS4700 FlashCopy1-
41Y5208 DS4700 VolumeCopy 11
41Y5212 DS4700 Flash/VolumeCopy11
41Y5214 DS4700 Enhanced Remote Mirror11
41Y5217 DS4700 FC/SATA Enclosure Intermix 1
41Y5201 DS4700 IBD for Exchange 1
41Y5222 DS4700 Mod 70 EXPs Att 1-311
41Y5225 DS4700 Mod 70 EXPs Att 4-611
41Y0704 DS4700 Mod 72 EXPs Att 4-611
41Y5178 DS4700 Linux/Intel Host Kit11
41Y5180 DS4700 Novell Netware Host11
41Y5184 DS4700 AIX Host Kit 11
41Y5186 DS4700 SUN Host Kit11
41Y5188 DS4700 HPUX Host Kit11
41Y5190 DS4700 Linux on Power Host11
41Y5182 DS4700 VMware ESX Host Kit 1
41Y5228 DS4700 2-4 Storage Partition Upgrade11
41Y0652 DS4700 2-8 Storage Partition Upgrade11
41Y0656 DS4700 4-8 Storage Partition Upgrade11
41Y0660 DS4700 4-16 Storage Partition Upgrade11
41Y0664 DS4700 8-16 Storage Partition Upgrade11
41Y0668 DS4700 8-64 Storage Partition Upgrade11
41Y0672 DS4700 16-64 Storage Partition Upgrade11
26K7941 SW 4 Gbps SFP transceiver pair21
39M5696 1m Fiber Optic Cable LC-LC 1
39M5697 5m Fiber Optic Cable LC-LC 1
39M5698 25m Fiber Optic Cable LC-LC 1
442 COG
© Copyright IBM Corp. 2003, 2006 443
Chapter 47. TotalStorage DS4800 disk system
Notes:
1. DS4800 Model 80H provides two RAID controllers with 2GB Cache each. Ships with the rail mounting
kit, eight 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
2. DS4800 Model 82H provides two RAID controllers with 2GB Cache each. Ships performance key enabled
with the rail mounting kit, eight 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC
320-C13 to IEC 320-C14.)
3. DS4800 Model 84H provides two RAID controllers with 4GB Cache each. Ships with the rail mounting
kit, eight 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
4. DS4800 Model 88H provides two RAID controllers with 8GB Cache each. Ships with the rail mounting
kit, eight 4GBps SFP transceivers, and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14.)
5. Based on a maximum of 224 300GB Fibre Channel HDDs installed in a maximum of 16 DS4000 EXP710
expansion units.
Table 115. TotalStorage DS4800 Disk System At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Max Supported Storage Capacity
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (std./max) - Size
DS4800 Disk
System Model 801
181580H - 0/0 - - 67.2TB5482mm x 635mm x 174.5mm
(18.97in x 24.0in x 6.87in)
Rack
Drawer
(4U)
36.38kg
(80.2 lbs)
2/2 -
540w
DS4800 Disk
System Model 822
181582H - 0/0 - - 67.2TB5482mm x 635mm x 174.5mm
(18.97in x 24.0in x 6.87in)
Rack
Drawer
(4U)
36.38kg
(80.2 lbs)
2/2 -
540w
DS4800 Disk
System Model 843
181584H - 0/0 - - 67.2TB5482mm x 635mm x 174.5mm
(18.97in x 24.0in x 6.87in)
Rack
Drawer
(4U)
36.38kg
(80.2 lbs)
2/2 -
540w
DS4800 Disk
System Model 884
181588H - 0/0 - - 67.2TB5482mm x 635mm x 174.5mm
(18.97in x 24.0in x 6.87in)
Rack
Drawer
(4U)
36.38kg
(80.2 lbs)
2/2 -
540w
Note: Requires attachment to a Fibre Channel host bus adapter or to a Fibre Channel/SAN switch.
444 COG
Notes:
1. DS4800 ships standard with eight SFP's which can be used in any of the Host Ports or Expansion Ports.
Up to eight additional SFP's can be ordered to add full support for all ports.
Figure 96. DS4800 rear view
TotalStorage DS4800 hard disk drive (HDD) storage
Notes:
1. External options may require software upgrades, licenses, etc. Refer to the 'Other Options' table for
possible related options.
Table 116. Additional Features
181580H 181582H 181584H 181588H
Host Partitions (std/max) 8/64 8/64 8/64 8/64
Host Ports (std/max) 8/818/818/818/81
Max Redundant Host Connections 4 4 4 4
Expansion Ports (std/max) 8/818/818/818/81
Option Number Description
External Storage Expansion Units1
171010U DS4000 EXP100 Storage Expansion Unit
1740710 DS4000 EXP710 Storage Expansion Unit
181281H DS4000 EXP810 Storage Expansion Unit
Host channels
RS-232
serial port
Ethernet ports Dual-ported
drive channels
Host channels
RS-232
serial port
Ethernet ports
Dual-ported
drive channels
Controller A
Controller B
Chapter 47. TotalStorage DS4800 disk system 445
TotalStorage DS4800 other options
Notes:
1. Licensed one per DS4800.
2. Option includes two 4Gbps SW SFPs.
Option Number Description Max Qty
23R1987 DS4800 Mod 80 EXPs Att (8-16) -
22R4252 DS4800 Linux/Intel Host Kit1-
22R4253 DS4800 Novell Netware Host Kit1-
22R4254 DS4800 VMware ESX Host Kit1-
22R4255 DS4800 AIX Host Kit1 -
22R4256 DS4800 SUN Host Kit1-
22R4257 DS4800 HP-UX Host Kit1 -
22R4258 DS4800 Linux on Power Host1-
22R4670 DS4800 Upgrade from 8-16 Storage Partitions -
22R4671 DS4800 Upgrade from 8-64 Storage Partitions -
22R4259 DS4800 Upgrade from 16-64 Storage Partitions -
22R4244 DS4800 FlashCopy Activation -
22R4245 DS4800 VolumeCopy Activation -
22R4246 DS4800 Flash/VolumeCopy Activation -
39M5715 DS4800 Integrated Backup for Databases (IBD) for Exchange -
22R6623 DS4800 Model 80 IBD for Exchange -
22R4247 DS4800 Enhanced Remote Mirror Activation -
22R6621 DS4800 Model 80 Enhanced Remote Mirror Activation -
22R4248 DS4800 FC/SATA Enclosure Intermix Option -
23R0546 DS4800 Model 82 Cache Upgrade to 8 GB 1
23R0547 DS4800 Model 82 Cache Upgrade to 16 GB 1
23R0548 DS4800 Model 84 Cache Upgrade to 16 GB 1
26K7941 SW 4Gbps SFP Pair24
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
446 COG
© Copyright IBM Corp. 2003, 2006 447
Chapter 48. TotalStorage DS4000 EXP100 storage expansion
unit
Notes:
1. Attachment to a supported Storage Server is required. This expansion unit does not attach directly to the
server.
2. DS4000 EXP100 ships with the rail mounting kit, two 2.8m/9ft intra-rack power cords (IEC 320-C13 to
IEC 320-C14), and two U.S. power cords (IEC 320-C13 to NEMA 5-15P).
3. 1724-1XP provides the same expansion capabilities as the 1710-10U, but comes with a one-year warranty
versus a three-year warranty.
4. DS4000 EXP100 Express Model includes four short-wave SFP modules and two 1 meter fiber optic cables.
Table 117. TotalStorage DS4000 EXP100 Storage Expansion Unit At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (TB)
Dimensions (W x D x H)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
DS4000 EXP100 1,2 171010G SATA 14/14 Y 5.6TB 481.8mm x 597.4mm x
132.3mm (18.97in x
23.52in x 5.21in)
Rack
Drawer
(3U)
40.2kg
(57lbs)
2/2 - 390w
DS4000 EXP100 1XP 3 17241XP SATA 14/14 Y 5.6TB 481.8mm x 597.4mm x
132.3mm (18.97in x
23.52in x 5.21in)
Rack
Drawer
(3U)
40.2kg
(57lbs)
2/2 - 390w
DS4000 EXP100
Express Model 1,2,4
172410J SATA 14/14 Y 5.6TB 481.8mm x 597.4mm x
132.3mm (18.97in x
23.52in x 5.21in)
Rack
Drawer
(3U)
40.2kg
(57lbs)
2/2 - 390w
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
Output port 1 Output port 2
Input port 1 Input port 2
ESM A ESM B
448 COG
TotalStorage DS4000 EXP100 hard disk drive (HDD) options
TotalStorage DS4000 EXP100 other options
Notes:
1. Designed to connect a 1Gb device or cable to a 2Gb device or cable.
Option
Number Description Height
Bays
Supported Max Qty
FastT SATA HDDs
39M4570 DS4000 SATA 400 GB/7200 DDM SL 1 ... 14 14
23R0285 DS4000 SATA 400 GB/7200 DDM - 4 Pack SL 1 ... 14 14
Option
Number Description Max Qty
19K1271 Short-wave SFP Module 4
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
19K1250 1m LC-SC Fibre Channel Adapter Cable1-
© Copyright IBM Corp. 2003, 2006 449
Chapter 49. TotalStorage DS4000 EXP710 fibre channel storage
expansion unit
Notes:
1. Attachment to a supported Storage Server is required. This expansion unit does not attach directly to the
server.
2. DS4000 EXP710 accommodates up to four, optional, short-wave SFP modules. The unit ships with two
2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC320-C14).
3. DS4000 EXP710 Express Model includes four short-wave SFP modules and two 1 meter fiber optic cables.
Notes:
1. Ships standard with two ESMs, each providing one input port and one output port.
Table 118. TotalStorage DS4000 EXP710 Fibre Channel Storage Expansion Unit At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (GB)
Dimensions (WxDxH)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
DS4000 EXP710 1,2 174071G Fibre
Channel
14/14 Y 4.2TB 482mm x 597mm x
132mm (18.97in x
23.52in x 5.21 in)
Rack
Drawer
(3U)
44.47kg
(98.2lbs)
2/2 - 390w
DS4000 EXP710
Express Model 1,2,3
174071J Fibre
Channel
14/14 Y 4.2TB 482mm x 597mm x
132mm (18.97in x
23.52in x 5.21 in)
Rack
Drawer
(3U)
44.47kg
(98.2lbs)
2/2 - 390w
Table 119. Additional Features
1740-710
ESMs (std/max) 2/21
Input Ports (std/max) 2/2
Output Ports (std/max) 2/2
450 COG
TotalStorage DS4000 EXP710 hard disk drive (HDD) options
TotalStorage DS4000 EXP710 other options
Option Number Description Height Bays Supported Max Qty
06P5762 73.4GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
32P0765 146.8GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
73P8005 300GB 10K rpm 2Gbps FC Disk Module SL 1 ... 14 14
06P5772 36.4GB 15K rpm 2Gbps FC Disk Module SL 1 ... 14 14
32P0768 73.4GB 15K rpm 2Gbps Disk Module SL 1 ... 14 14
73P8022 146.8GB 15K rpm 2Gbps FC Disk Module SL 1 ... 14 14
22R5030 DS4000 73GB 10K FC HDD - 4 Pack SL 1 ... 14 -
22R5031 DS4000 73GB 15K FC HDD - 4 Pack SL 1 ... 14 -
22R5032 DS4000 146GB 10K FC HDD - 4 Pack SL 1 ... 14 -
22R5033 DS4000 146GB 15K FC HDD - 4 Pack SL 1 ... 14 -
22R5034 DS4000 300GB 10K FC HDD - 4 Pack SL 1 ... 14 -
Option Number Description Max Qty
19K1271 Short-wave SFP Module 4
39M5696 1m LC-LC Fibre Channel Cable -
39M5697 5m LC-LC Fibre Channel Cable -
39M5698 25m LC-LC Fibre Channel Cable -
94G6667 4.3m, 100-120V, C13 to NEMA 5-15P (US) Line Cord -
Note: A minimum of two fiber optic cables are required for attachment to DS4000 Disk Systems or to other DS4000
Expansion Units.
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
Output port 1 Output port 2
Input port 1 Input port 2
ESM A ESM B
© Copyright IBM Corp. 2003, 2006 451
Chapter 50. TotalStorage DS4000 EXP810 storage expansion
unit
Notes:
1. Attachment to a supported Storage Server is required. This expansion unit does not attach directly to the
server.
2. DS4000 EXP810 accommodates up to four, optional, short-wave SFP modules. The unit ships with two
short-wave SFP modules and two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC320-C14). If U.S.
wall-outlet power cords are required, then order quantity two of PN 39Y7931.
3. Supports Enhanced Disk Drive Module (E-DDM) disks only. Insertion of unsupported disks will cause
significant damage.
Notes:
1. Ships standard with two ESMs, each providing one input port and one output port.
Table 120. TotalStorage DS4000 EXP810 Fibre Channel Storage Expansion Unit At-A-Glance
Name
Part Number
Storage Type
HDD Bays (Std/Max)
Hot-Swap HDD Bays (Y/N)
Max Internal Storage Capacity (TB)
Dimensions (WxDxH)
Form Factor
Max Cfg Wt
Power Supply Quantity (Std/Max) - Size
DS4000 EXP810 1, 2 181281H Fibre
Channel3
16/16 Y 4.8TB 482mm x 559mm x
132mm (18.97in x
23.52in x 5.21 in)
Rack
Drawer
(3U)
38.56kg
(85lbs)
2/2 - 450w
Table 121. Additional Features
1812-81H
ESMs (std/max) 2/21
Input Ports (std/max) 2/2
Output Ports (std/max) 2/2
452 COG
TotalStorage DS4000 EXP810 hard disk drive (HDD) options
TotalStorage DS4000 EXP810 other options
Option Number Description Height Bays Supported Max Qty
39M4586 73.4GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
39M4590 146.8GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
39M4594 300GB 10K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6800 36.4GB 15K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6804 73.4GB 15K rpm 2Gbps FC E-DDM Disk Module SL 1 ... 16 16
40K6808 146.8GB 15K rpm 2Gbps FC E-DDM Disk Module SL ... 16 16
40K6812 4 Gbps FC, 36.4 GB/15K E-DDM Disk Module SL 1 ... 16 16
40K6816 4 Gbps FC, 73.4 GB/15K E-DDM Disk Module SL 1 ... 16 16
40K6820 4 Gbps FC, 146.8 GB/15K E-DDM Disk Module SL 1 ... 16 16
39M4554 500 GB/7.2K SATA E-DDM SL 1 ... 16 16
Option Number Description Max Qty
26K7941 SW 4 Gbps SFP transceiver pair 4
39M5696 1m Fibre Optic Cable LC-LC -
39M5697 5m Fibre Optic Cable LC-LC -
39M5698 25m Fibre Optic Cable LC-LC -
39Y7931 4.3m, 100-120V, C13 to NEMA 5-15P (US) Line Cord 2
Note: A minimum of two fiber optic cables are required for attachment to DS4000 Disk Systems or to other DS4000
Expansion Units.
© Copyright IBM Corp. 2003, 2006 453
Chapter 51. Additional fibre channel components
Notes:
1. Provides 10 ports in a 1/2-rack width, 1U high chassis. Ships standard with four short-wave SFP
modules, serial cable and a rack power cord.
2. Supports short-wave connections only.
3. Entry level switch compatible with DS400 only.
4. Supports two L10 switches in a 1U rack space.
Table 122. IBM System Storage 10Q
Option Number Description Ports (Std/Max) SFP Modules (Std)
691810X IBM System Storage SAN10Q1, 2, 3 10/10 4
Related Options
39R6523 IBM System Storage SAN10Q Rack Kit4
39R6475 4-Gbps SW SFP Transceiver
Table 123. IBM TotalStorage SAN16B-2 Express Model
Option Number Description Ports (Std/Max) SFP Modules (Std)
200516B IBM TotalStorage SAN16B-2 Express Model1, 2 8/16 8
Related Options
22R5332 16B Express Model 4-Port Upgrade3
22R4901 16B 4-Port Activation 4
22R4891 16B Advanced Security Activation
22R4904 16B Fabric Watch
23R1705 16B Extended Fabric Activation
22R5460 16B Full Fabric Activation
22R5469 16B Performance Bundle Activation
22R4897 4 Gbps SW SFP Transceiver 4 Pack
22R4902 4 Gbps SW SFP Transceiver
19K1272 Long-wave SFP Module5
22R0484 2 Gbps LW SFP Module 4 Pack
23R1703 4 Gbps 4 km longwave SFP Transceiver
23R1704 4 Gbps 4 km longwave SFP Transceiver 4 Pack
23R1701 4 Gbps 10 km longwave SFP Transceiver
23R1702 4 Gbps 10 km longwave SFP Transceiver 4 Pack
22R0487 9 Micron Fibre Cable 31 m, singlemode, SC/LC
22R0488 9 Micron Fibre Cable 31 m, singlemode, LC/LC
22R0489 9 Micron Fibre Cable 2 m, singlemode, SC/LC
454 COG
Notes:
1. Provides 16 ports in a 1U high chassis. Ships standard with eight short-wave 4 Gbps SFP modules, rack
power cord and a rail kit.
2. Supports short-wave and long-wave connections.
3. Includes four 4GBps SW SFP transceivers and port activation for four ports.
4. Provides port activation only for four ports. One optional SFP transceiver is required per port.
5. Long-wave SFP Module operates at 2Gbps transfer rate.
Notes:
1. Provides 32 ports in a 1U high chassis. Ships standard with sixteen short-wave 4 Gbps SFP modules, rack
power cord and a rail kit.
2. Supports short-wave and long-wave connections.
3. Provides port activation only. Does not include SFP Transceivers.
4. Provides activation for 8 ports and eight 4 Gbps shortwave SFP transceivers.
5. Long-wave SFP Module operates at 2Gbps transfer rate.
Table 124. TotalStorage SAN32B-2 Express Model
Option Number Description Ports (Std/Max) SFP Modules (Std)
200532B IBM TotalStorage SAN32B-2 Express Model 1, 2 16/32 16
Related Options
22R5128 32B Fabric Manager v4 Max Domains
22R5129 32B Remote Switch Activation
22R4894 32B Extended Fabric Activation
22R4895 32B Advanced Security Activation
22R4896 32 Performance Bundle
22R5505 32B 8-Port Activation3
22R5078 32B 8-Port Upgrade Option4
22R4897 4 Gbps SW SFP Transceiver 4 Pack
22R4902 4 Gbps SW SFP Transceiver
19K1272 Long-wave SFP Module5
23R1703 4 Gbps 4 km longwave SFP Transceiver
23R1704 4 Gbps 4 km longwave SFP Transceiver 4 Pack
23R1701 4 Gbps 10 km longwave SFP Transceiver
23R1702 4 Gbps 10 km longwave SFP Transceiver 4 Pack
Table 125. IBM TotalStorage SAN16M-2 Express Model
Option Number Description Ports (Std/Max) SFP Modules (Std)
202616E IBM TotalStorage SAN16M-2 Express Model1,2,3 8/16 8
Related Options
22R5892 SAN16M-2 Express Shelf Kit4
22R5424 SAN16M-2 Express Optional Hot-Swap Redundant Power
Supply
22R5893 SAN16M-2 Express Element Manager
22R5895 SAN16M-2 Express SANtegrity Enhanced
22R5897 SAN16M-2 Express Open Trunking (FCP Support Only)
22R5888 4-Port FlexPort Expansion Kit5
39M5696 1M L-LC Fibre Channel Cable
39M5697 5M LC-LC Fibre Channel Cable
39M5698 25M LC-LC Fibre Channel Cable
19K1250 LC-SC Fibre Channel Adapter Cable
Chapter 51. Additional fibre channel components 455
Notes:
1. Provides up to 16 ports in a half-rack width chassis. Ships standard with eight short-wave 4 Gbps SFP
modules, and US power cord.
2. Currently supports short-wave connections only.
3. Includes eight 4GBps SW SFP transceivers and port activation for eight ports.
4. Rack shelf supports up to two SAN16M-2 Express Models.
5. Includes four 4GBps SW SFPs and port activation for four ports.
Notes:
1. Provides 32 ports in a 1U high chassis. Ships standard with sixteen short-wave 4 Gbps SFP modules, two
rack power cords, two US power cords, and a rail kit.
2. Supports short-wave and long-wave connections.
3. Includes sixteen 4GBps SW SFPs and port activation for 16 ports.
4. Includes eight 4GBps SW SFPs and port activation for eight ports.
5. Long-wave SFP Module operates at 2Gbps transfer rate.
23R1490 LW 4 Gbps 4 km SFP Transceiver
23R1492 LW 4 Gbps 10 km SFP Transceiver
Table 126. IBM TotalStorage SAN32M-2 Express
Option Number Description Ports (Std/Max) SFP Modules (Std)
202632E IBM TotalStorage SAN32M-2 Express1,2,3 16/32 16
Related Options
22R5907 SAN32M-2 Express Element Manager
22R5909 SAN32M-2 Express SANtegrity Enhanced
22R5911 SAN32M-2 Express Open Trunking (FCP Support
Only)
39M5696 1M LC-LC Fibre Channel Cable
39M5697 5M LC-LC Fibre Channel Cable
39M5698 25M LC-LC Fibre Channel Cable
19K1250 LC-SC Fibre Channel Adapter Cable
22R5906 8-Port FlexPort Expansion Kit4
19K1272 Long-wave SFP Module5
23R1490 LW 4 Gbps 4 km SFP Transceiver
23R1492 LW 4 Gbps 10 km SFP Transceiver
Table 125. IBM TotalStorage SAN16M-2 Express Model (continued)
Option Number Description Ports (Std/Max) SFP Modules (Std)
456 COG
© Copyright IBM Corp. 2003, 2006 457
Chapter 52. External storage configuration examples
The following sample configurations are for illustration only and may not be suitable for any specific
customer installation. Contact your IBM Business Partner or IBM Marketing Representative for assistance
with your specific configuration requirements.
Notes:
1. Customer-supplied cables of longer lengths can be used. Short-wave supports up to 500m. Long-wave
supports up to 10km.
The illustration below shows what a typical solution might look like in terms of where short-wave and long-
wave cables would be used. Actual implementation may vary based on individual hardware.
Figure 97. Typical short-wave and long-wave cabling usage
Table 127. Cable Group Legend
Cable Group A (0.8mm to 0.8mm)
03K9310 Netfinity 2m Ultra2 SCSI Cable
03K9311 Netfinity 4.2m Ultra2 SCSI Cable
Cable Group SW (short-wave)
19K1247 1m LC-LC Fibre Channel Cable
19K1248 5m LC-LC Fibre Channel Cable
19K1249 25m LC-LC Fibre Channel Cable
Cable Group LW (long-wave)1
- Customer Supplied
HBA
Host System
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
Disk system
Storage expansion unit
Switch
Switch
SW or LW ISL (Inter-switch link
SW
SW or LW
SW
458 COG
The following sample configurations are for illustration only and may not be suitable for any specific
customer installation. Contact your IBM Business Partner or IBM Marketing Representative for assistance
with your specific configuration requirements.
Figure 98. DS4100 and DS4300 Host Attach Examples
HBA 1 HBA 2
Host System A
DS4300
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System B
DS4300
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System B
DS4100
Switch 1 Switch 2
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System B
DS4100
Switch 1 Switch 2
DS4100
SW SW SW SW
SW or LW
SW or LW
SW or LWSW or LW
SW or LWSW or LW
SW SW SW SW
Chapter 52. External storage configuration examples 459
Figure 99. DS4100 and DS4300 Drive Attach Examples
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System B
DS4100
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
DS4000 EXP100
SW
SW
SW SW
SWSW
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System B
DS4300
Switch 1 Switch 2
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
DS4000 EXP100
DS4000 EXP100
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
DS4000 EXP100
SW SW SW SW
SW or LWSW or LW
SW
SW SW
SWSW
SW
460 COG
Figure 100. DS4500 Host and Drive Attach Examples
DS4500
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
DS4000 EXP710
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
1 Gb/s 2 Gb/s
X10 X1
Tray Number
Conflict
Drive Loop A
Drive Loop B
Drive Loop C Drive Loop D
DS4000 EXP710
HBA 1 HBA 2
Host System A
HBA 1 HBA 2
Host System ‘x’
Switch 1 Switch 2
....
SW SW SW SW
SW or LW
SW or LW
Note: All Drive-Side cabling is SW
© Copyright IBM Corp. 2003, 2006 461
Chapter 53. Rack cabinets and options
Table 128. Rack Cabinets
NetBay11
Standard Rack
S2 25U
Standard Rack S2 42U Standard Rack NetBay42 Enterprise Rack
Machine Type Model 93061RX 93072RX 93074RX 93074XX 93084RX 93084XX
EIA Capacity111U 25U 42U 42U 42U 42U
Sidewall Compartments0 2 6644
Front Stabilizers Std Std Std Std Std Std
Side Stabilizers NR NR Std2NR NR NR
Casters Std Std Std Std Std Std
Leveling Feet NA Std Std Std Std Std
Side Covers Std Std Std NR Std NR
Rack Attachment Kit3NA NA NR Std NR Std
Glass Front Door NA NA NA NA NA NA
Perforated Front Door Std Std Std Std Std Std
Perforated Rear Door NA Std Std Std Std Std
Height (mm/in)4611 /24.1 1344/53 1999/78.7 1999/78.7 2020 /79.5 2020 /79.5
Width (mm/in) 518/20.4 605/23.8 605/23.8 600/23.6 648/25.5 648/25.5
Depth (mm/in) 873/34.4 1000/39.4 1000/39.4 1000/39.4 1105/43.5 1105/43.5
462 COG
Notes:
1. Conforms to EIA 310 - D Standard 19in rack specification for a Type A cabinet with universal hole
spacing.
2. Side stabilizer brackets are included to bolt the cabinet to the floor. They are needed when a single,
standalone cabinet is lightly loaded. See the installation instructions for additional information.
3. Required to attach racks together to make a suite.
4. Minimum clearance to the ceiling is 305mm / 12in.
5. ‘Shippable loaded’ means the cabinet is capable of being transported with equipment installed. Required
packaging is provided. The integrator/assembler is responsible for assuring the stability of the shipped
configuration. Rack Integration Services are available from IBM.
Empty Weight (kg/lb) 36/79 100/220 125/276 94/207 261/575 234/516
Max Load (kg/lb) 182/401 567/1250 907/2000 907/2000 932/2055 932/2055
Total Weight (kg/lb) 218/481 667/1470 1032/2276 1032/2276 1193/2630 1193/2630
Shippable Loaded5Yes Yes No No Yes Yes
Note: NR - Not Required; NA - Not Available; 1U - 1.75in (44.45mm)
Table 128. Rack Cabinets
NetBay11
Standard Rack
S2 25U
Standard Rack S2 42U Standard Rack NetBay42 Enterprise Rack
Machine Type Model 93061RX 93072RX 93074RX 93074XX 93084RX 93084XX
Chapter 53. Rack cabinets and options 463
Server system rack alternatives
Notes:
1. Rack installation requires appropriate conversion kit.
2. If installed in older IBM racks, the server should not be installed behind a glass door that blocks air flow.
Remove the glass door or replace with an optional perforated door. To order a rack extension kit for
withdrawn IBM racks, visit the Options Continuation Program Website. See the 'Information Sources'
section for the URL.
Table 129. System Rack Alternatives
Conversion Kits Standard Racks Enterprise Racks
09N4300
4Ux20D Tower-to-Rack Kit
26K6122
4Ux24D Tower-to-Rack Kit III
39R9361
5Ux20D Tower-to-Rack Kit II
59P4211
5Ux24D Tower-to-Rack Kit III
13N0956
5U Extended Depth Tower-to-Rack Kit
32R0719
7Ux26D Tower-to-Rack Kit II
9306-110 NetBAY11
9307-2SX S2 25U
9307-4SX S2 42U
9307-4EX S2 42U
9308-42S NetBAY42ER
9308-42E NetBAY42EX
Servers
xSeries 2061XXXXXXX
xSeries 206m1XXXXXXX
xSeries 2261X XXXXXX
xSeries 2361XXXXXXX
xSeries 255 X X X X X X X
xSeries 260 X X X X X X X
xSeries 3062XXXX X X
xSeries 3362XXXX X X
xSeries 346 X X X X X X
xSeries 365 X X X X X X
xSeries 366 X X X X X X
xSeries 460 X X X X X X
BladeCenter X X X X X X
eServer 326 X X X X X X
464 COG
IBM Rack-Mounted Units
Standard Power Cords1
Description
Machine
Type / Model
Size (U)2
Depth (in)
Approx Weight3
(lbs)3
Power (Watts)
Typical/Max
Number of P/S &
Line Cords (Basic/Max)4
6ft NEMA 5-15P
P/N 6952301
9ft NEMA 5-15P
P/N 6952300
9ft NEMA 6-15P
P/N 1838574
9ft IEC 320-C13/C14
P/N 36L8886
8ft IEC 320-C19/C20
P/N 00N7701
Y-cable 2xC13/C14
P/N 25R2567
Server System Units:
x20658482 4 19 46 340/485 1/1 1
x226 8648 4 26 57 495/707 1/1 1
x226 w/redundant
power
8648 4 26 57 480/685 2/2 2
x236 8841 5 24 101 625/893 1/2 1
x25558685 7 25 120 530/1000 2/2622
x260 w/ two power
supplies
8865 7 28 129 680/970 2/3 2 2
x260 w/ three power
supplies
8865 7 28 160 1280/1840 3/3 3 3
x30678836 1 20 28 300/430 1/1 1
x336 8837 1 26 32 385/550 1/2 1
x336 w/redundant
power
8837 1 26 34 385/550 2/2 1 1
x346 8840 2 28 62 580/830 1/2 1 1
x366 8863 3 28 86 1200/1700 2/2 2
x44588687 4 28 120 800/950 2/2 2 2
x455 8855 4 28 120 600/700 2/2 2
x460 8872 3 28 85 1200/1700 2/2
e326 8848 1 26 32 400/587 1/1 1 1
BladeCenter w/2 2000W
power supplies
8677 7 28 150 1800/2650 2/2 2
BladeCenter w/4 2000W
power supplies
8677 7 28 246 3700/5300 4/4 4
I/O Units:
-------------
Chapter 53. Rack cabinets and options 465
Notes:
1. Optional rack power cords: P/N 94G6667 - 14ft NEMA 5-15P; P/N 94G7448 - 14ft IEC 320-C14.
2. 1U = 1.75in (44.45mm).
3. Weight equals maximum configuration, except for the 4559 Tape Enclosures where it is the weight
without tape drives.
4. Power inlets are IEC 320-C14, except for the BladeCenter with 2000W power supplies and the x365,
which have IEC 320-C20 inlets.
5. Rack installation requires appropriate tower-to-rack conversion kit.
6. Additional power cords are not required. This power supply option shares use of line cords provided
with the base system. Should be ordered in pairs to maintain redundancy.
7. If installed in older IBM racks, the server should not be installed behind a glass door that blocks air flow.
Remove the glass door or replace with an optional perforated door. To order a rack extension kit for
withdrawn IBM racks, visit the Options Continuation Program Website at www.pc.ibm.com/ww/ocp.
8. Internal power supply logic limits low voltage (100-127 VAC) to 550w per power supply. Thus,
configurations requiring more power are not redundant for low voltage installations, e.g., configurations
with more than two processors.
Storage Units:
EXP400 17331RU 3 22 85 352/440 2/2 2 2
DS300 1701xxx 3 23 90 391/558 1/2 1
DS400 1700xxx 3 23 90 391/558 2/2 2
DS4100 1724100 3 22 99 273/390 2/2 2
DS4300 172260U 3 24 102 275/390 2/2 2 2
DS4400 17421RU 4 24 85 140/200 2/2 2 2
DS4500 174290U 4 24 85 140/200 2/2 2 2
DS4000 EXP100 171010U 3 23.5 89 245/350 2/2 2 2
DS4000 EXP710 1740710 3 23 101 273/390 2/2 2 2
FC Switch 8-port 3534F08 1 10 12 85 1/1
FC Switch 16-port 2005H16 1 12 12 200 2/2
Tape Components:
NetBAY 1U Tape
Enclosure
45591UX 1 20 16 3100 1/1 1
NetBAY 4U Tape
Enclosure
45594UX 4 18 253300 1/1 1 1
SDLT/LTO Modular
Tape Library
4560SLX 5 31 70 300 1/1 1
IBM Rack-Mounted Units
Standard Power Cords1
Description
Machine
Type / Model
Size (U)2
Depth (in)
Approx Weight3
(lbs)3
Power (Watts)
Typical/Max
Number of P/S &
Line Cords (Basic/Max)4
6ft NEMA 5-15P
P/N 6952301
9ft NEMA 5-15P
P/N 6952300
9ft NEMA 6-15P
P/N 1838574
9ft IEC 320-C13/C14
P/N 36L8886
8ft IEC 320-C19/C20
P/N 00N7701
Y-cable 2xC13/C14
P/N 25R2567
466 COG
General rack placement rules and other information:
• Locate heaviest components at the bottom of the rack (i.e., UPS, then servers or storage, etc.).
• Do not extend more than one component on side rails at a time.
• Maximum of three UPSs (including no more than two APC 5000 UPSs) per rack.
• Utilize sidewall compartments for mounting PDUs and console switches prior to using EIA space.
• When mounting components in a rack, consider user and service requirements.
• When selecting length of power, console and storage cables, consider extension of cable management
arms and overall cable routing.
• BTUs = Watts x 3.41.
Notes:
1. Optional rack power cords: P/N 94G6667 - 14ft NEMA 5-15P; P/N 94G7448 - 14ft IEC 320-C14.
2. Additional power cords are not required. This power supply option shares use of line cords provided
with the base system. Should be ordered in pairs to maintain redundancy.
3. Refer to Appendix BladeCenter Power Upgrade Guidelines for important information that will help
determine when a BladeCenter power module upgrade is necessary.
Power Supply Options
Standard Power Cords1
Power Supply Part Number Usable with
IEC 320-C13 IEC 320-C19
6ft NEMA 5-15P
6952301
9ft NEMA 5-15P
6952300
9ft IEC 320-C14
36L8886
Y-cable 2xC13/C14 25R2567
9ft IEC 320-C20
74P4430
14ft IEC 320-C14
12J5995
8.2ft IEC 320-C20
00N7701
8.2ft NEMA 5-15P
12J5112
370w 31P6133 x2552
585w 90P5280 x336 1
625w 26K5097 x346
670w 26K9560 x236
1300w 13M7413 x366 1
2000w 26K4816 BladeCenter32
DS300 Upgrade 13N1775 1701-1RL 1
Chapter 53. Rack cabinets and options 467
Rack Options
Option
Number Description Information
Console Support:
28L4707 Netfinity Rack Keyboard Tray Supports keyboards in racks, also used with Flat Panel Monitor
Rack Mount Kit II
94G7444 Monitor Compartment Size depends on monitor, space for CRT or Flat Panel Monitor
and a console switch
17231UX 1U 17in Flat Panel Monitor Console Kit
with Travel Keyboard (US)
1U, built-in 17in Flat Panel Monitor (17in viewable image),
includes Travel Keyboard - US English [P/N 73P3144]
17231NX 1U 17in Flat Panel Monitor Console Kit
without keyboard
1U, built-in 17in Flat Panel Monitor (17in viewable image), space
for Travel Keyboard
17232UX 2U 15in Flat Panel Monitor Console Kit
with Travel Keyboard (US)
2U, built-in 15in Flat Panel Monitor (15in viewable image),
includes Travel Keyboard - US English [P/N 73P3144]
17232NX 2U 15in Flat Panel Monitor Console Kit
without keyboard
2U, built-in 15in Flat Panel Monitor (15in viewable image), space
for Travel Keyboard
09N4290 NetBAY 1x4 Console Switch 1U, mounts in sidewall compartments, EIA space or Monitor
Compartment; supports one to four servers, one console
09N4291 NetBAY 2x8 Console Switch 1U, mounts in sidewall compartments, EIA space or Monitor
Compartment; supports one to eight servers, two consoles (only
one console when installed in Monitor Compartment)
09N4293 Console Cable Set - 7ft Connects servers to console switch
94G7447 Console Cable Set - 12ft Connects servers to console switch
17351LX IBM 1x8 Console Switch 1U enhanced KVM console switch, mounts in sidewall
compartments, EIA space, or behind 1U Console Kit; supports
one to 64 servers, one local console
17352LX IBM 2x16 Console Switch 1U enhanced KVM console switch, mounts in sidewall
compartments, EIA space, or behind 1U Console Kit; supports
one to 64 servers, two local consoles
31R3130 3m Console Switch Cable (PS2) Connects servers with PS/2 K-V-M ports to the enhanced KVM
console switches
31R3132 3m Console Switch Cable (USB) Connects servers with USB and VGA K-V-M ports to the
enhanced KVM console switches
1735L04 Local Console Manager 1U, mounts in sidewall compartments, EIA space, or behind 1U
Console Kit; supports one to 64 servers, one local console
1735R16 Remote Console Manager 1U, mounts in sidewall compartments or EIA space; supports
one to 256 servers, one local console and two remote consoles
32P1636 Short KVM Conversion Option Converts the console signals of servers with PS/2 and VGA
console ports and without cable management arms (not on
slides) so they can be chained to connect to a Local or Remote
Console Manager using Cat5 cable
32P1652 Long KVM Conversion Option Converts the console signals of servers with PS/2 and VGA
console ports and cable management arms (on slides) so they
can be chained to connect to a Local or Remote Console Manager
using Cat5 cable
468 COG
73P5832 USB Conversion Option Converts the console signals of servers with USB and VGA
console ports and cable management arms (on slides) so they
can be chained to connect to a Local or Remote Console Manager
using Cat5 cable
32P1637 C2T Conversion Option Converts the console signals of a chain of C2T-capable servers so
they can be connected to a Local or Remote Console Manager
using Cat5 cable
Power Distribution Support:
32P1761 DPI 100-127 PDU with Fixed NEMA
L5-15P line cord
1U, 100-127v, 12a, single-phase, mounts in sidewall
compartment or EIA space, six NEMA 5-15R outlets, requires
one L5-15R wall receptacle
32P1736 DPI Universal Rack PDU with NEMA
L5-20P and L6-20P (US line cords)
1U, 100-240v, 15a, single-phase, mounts in sidewall
compartment or EIA space, seven IEC 320-C13 outlets, requires
one NEMA L5-20R or L6-20R wall receptacle
32P1751 DPI 30a/125v Front-end PDU with
NEMA L5-30P
1U, 100-127v, 24a, single-phase, mounts in sidewall
compartment or EIA space, three IEC 320-C19 outlets, requires
one NEMA L5-30R wall receptacle
32P1766 DPI 30a/208v Front-end PDU with
NEMA L6-30P
1U, 200-208v, 24a, single-phase, mounts in sidewall
compartment or EIA space, three IEC 320-C19 outlets, requires
one NEMA L6-30R wall receptacle
32P1767 DPI 60a/208v Front-end PDU with
IEC 309 2P+Gnd
1U, 200-208v, 48a, single-phase, mounts in sidewall
compartment or EIA space, three IEC 320-C19 outlets, requires
one 60a IEC 309 2P+G wall receptacle
26K4246 DPI Single-phase 30a/208v C13
Enterprise PDU (US)
1U, 200-208v, 24a, single-phase, mounts in sidewall
compartment or EIA space, twelve IEC 320-C13 outlets, requires
one NEMA L6-30R wall receptacle
26K4242 DPI Single-phase 60a/208v C13
Enterprise PDU (US)
1U, 200-208v, 48a, single-phase, mounts in sidewall
compartment or EIA space, twelve IEC 320-C13 outlets, requires
one 60a IEC 309 2P+G wall receptacle
26K4244 DPI Three-phase 60a/208v C13
Enterprise PDU (US)
1U, 200-208v, three-phase, mounts in sidewall compartment or
EIA space, twelve IEC 320-C13 outlets in three groups of four,
28a per group, requires one 60a IEC 309 3P+G (delta) wall
receptacle
26K4256 DPI Single-phase 60a/208v C19
Enterprise PDU (US)
1U, 200-208v, 48a, single-phase, mounts in sidewall
compartment or EIA space, six IEC 320-C19 outlets, requires one
60a IEC 309 2P+G wall receptacle
26K4258 DPI Three-phase 60a/208v C19
Enterprise PDU (US)
1U, 200-208v, three-phase, mounts in sidewall compartment or
EIA space, six IEC 320-C19 outlets in three groups of two, 28a
per group, requires one 60a IEC 309 3P+G (delta) wall receptacle
73P5855 DPI Single-phase 60a/208v High
Density PDU
1U, 200-208v, 48a, single-phase, mounts in sidewall
compartment or EIA space, twelve 320-C19 outlets, requires one
60a IEC 309 2P+G wall receptacle
73P5847 DPI Three-phase 60a/208v High
Density PDU
1U, 200-208v, mounts in sidewall compartment or EIA space,
twelve 320-C19 outlets in three groups of four, 28a per group,
requires one 60a IEC 309 3P+G wall receptacle
32P1020 APC 2U Smart-UPS 1400RMB 2U, 120v, 9.5a, six NEMA 5-15R outlets, requires one NEMA L5-
15R wall receptacle
Rack Options
Option
Number Description Information
Chapter 53. Rack cabinets and options 469
2130R30 UPS3000XLV (US) 2U, 120v, 24a, six IEC C13 outlets, 1 NEMA L5-20R outlet,
includes L5-20P to L5-15R adapter, requires one NEMA L5-30R
wall receptacle
2130R31 UPS3000XHV (US) 2U, 200-240v, 14.25a, seven IEC C13 outlets, 1 IEC C19 outlet,
requires one NEMA L6-20R wall receptacle
32P1692 UPS Extend Run Battery Pack (2U) 2U, up to four may be attached to the UPS3000XLV or XHV to
extend run time when using the batteries
21306RX UPS7500XHV (US) 6U, 200-240v, 38a, four IEC C19 outlets, requires electrician to
wire to terminal block to single phase 50A wall receptacle
21308RX UPS10000XHV (US) 6U, 200-240v, 50a, four IEC C19 outlets, requires electrician to
wire to terminal block to single phase 70A wall receptacle
25R5582 UPS Extend Run Battery Pack (3U) 3U, up to four may be attached to the UPS7500XHV or
UPS10000XHV to extend run time when using the batteries
94G6667 Rack Power Cable - C13/NEMA 5-15P IEC 320-C13 to NEMA 5-15P (14ft)
94G7448 Rack Power Cable - C13/C14 IEC 320-C13 to IEC 320-C14 (14ft)
39Y7938 Rack Power Cable - C13/C20 IEC 320-C13 to IEC 320-C20 (2.8m)
90P4849 Rack Power Cable - C19/C20 IEC 320-C19 to IEC 320-C20 (2.5m)
Mechanical Options:
25R5559 1U Quick Install Filler Panel Kit Consists of five 1U blank filler panels
25R5560 3U Quick Install Filler Panel Kit Consists of five 3U blank filler panels
94G7442 Fixed Shelf Supports up to 100lbs
9306-110
(inches)
9307-xxx
(inches)
9308-xxx
(inches) Description
Box Footprint
A 20.4 23.6 25.5 Width of rack
B 34.4 39.4 43.5 Depth of rack (not including front stabilizer)
C 21 24/12.5 26 Front/rear door clearance (when required)
Operational Clearance
D 24.4 27.5 29.5 Width of Operational Clearance area
E 74.4 93.4 110 Depth of Operational Clearance area
F 2 2 2 Left/Right sides of rack to Operational
Clearance area
G 30 36 36 Front of rack to Operational Clearance area
H 10 24 26 Rear of rack to Operational Clearance area
Service Clearance
I 26 95.6 97.5 Width of Service Clearance area
J 78.3 129.4 133.5 Depth of Service Clearance area
Rack Options
Option
Number Description Information
470 COG
K 2.8 36 36 Left/Right sides of rack to Service Clearance
area
L 36 60 60 Front of rack to Service Clearance area
M 30 30 30 Rear of rack to Service Clearance area
9306-110
(inches)
9307-xxx
(inches)
9308-xxx
(inches) Description
© Copyright IBM Corp. 2003, 2006 471
Chapter 54. Rack console options
A console consisting of a keyboard, monitor and pointing device is required by each server for system
maintenance and support. The console may be local or remote and may be dedicated to a single server or
shared across a large array of servers, which requires the use of one or more console switching devices.
Flat panel monitor console kits
Figure 101. 1U 17in Flat Panel Monitor Console Kit
Figure 102. 2U 15in Flat Panel Monitor Console Kit
472 COG
Multi-server console switching
Refer to the cable labeling key in the Cable Options table appearing later in this section.
Chapter 54. Rack console options 473
Refer to the cable labeling key in the Cable Options table appearing later in this section.
474 COG
Notes:
1. All switches are RoHS compliant.
2. ARI port is an RJ45 connector used to connect servers with appropriate console cables (Option P/Ns
31R3130, 31R3132); ACT port is an advanced ARI RJ45 port supporting chaining of servers and virtual
media using Cat5 cables and appropriate conversion cables (Option P/Ns 39M2894, 39M2895, 39M2896,
39M2897).
3. ACI port is an RJ45 connector used for direct connection of this switch up to one of the parent switch's
ARI or ACT ports using Cat5 cable.
Switch Options
Ports Capacity
Standard
Parts
IN OUT Single Switch Two-level
Tiering
Three-level
Tiering
Option Number
Description1
Switch Type
Type 2
Qty
Type
Qty
ACI ports 3
max PS2 KVM servers
max USB KVM servers
max BladeCenters
ACT chains
max switches
max KVM servers
max switches
max KVM servers
local consoles
remote consoles
1U blank filler panel
1.8m Cat5 cable
Cat5 terminator
EIA mounting kit
side-wall mounting kit
17351LX 1x8
Console
Switch
Enh
KVM
ARI 8 PS2 1 1 8 8 8 - 8 128 - - 1 - 1 - - 1 1
17352LX 2x16
Console
Switch
Enh
KVM
ARI 16 PS2 2 1 16 16 16 - 16 256 - - 2 - 1 - - 1 1
17351GX 2x8 Local
Console
Manager
(LCM2)
ACT ACT 8 PS2 or
USB
2 1 128 128 48 8 8 512 64 1024 2 - 1 1 8 1 1
17352GX 2x16
Global
Console
Manager
(GCM2)
ACT ACT 16 PS2 or
USB
1 0 256 256 96 16 16 2048 128 2048 1 2 1 1 16 1 1
LAN 1
17354GX 4x16
Global
Console
Manager
(GCM4)
ACT ACT 16 PS2 or
USB
1 0 256 256 96 16 16 2084 128 2048 1 4 1 1 16 1 1
LAN 1
Chapter 54. Rack console options 475
Notes:
1. Mounts above 2U console (requires 1U of space).
Switch Placement Rules
Mounting Locations LCM2 GCM
Monitor shelf\switch bay yes no
1U 17in Console\switch bay yes no
With 2U console1yes yes
Side-wall compartment yes yes
U compartment (EIA space) yes yes
Cable Options
Label
Part Number
Description
2.1m KVM cable (PS2 male to PS2 male)
3.8m KVM cable (PS2 male to PS2 male)
3m PS2 KVM cable (PS2 male to RJ45)
3m USB KVM cable (USB,DB15 to RJ45)
260mm C2T chaining cable (C2T male to C2T male)1
2m C2T chaining cable (C2T male to C2T male)2
2m C2T breakout cable (C2T male to PS2 female)
250mm KCO cable (PS2 male to RJ45)
1.5m KCO cable (PS2 male to RJ45)
114mm CCO cable (C2T male to RJ45)
1.5m UCO cable (USB,DB15 to RJ45)
1.5m VCO cable (USB,DB15 to RJ45)
150mm Cat5 cable (RJ45 to RJ45)
350mm Cat5 cable (RJ45 to RJ45)
1.8m Cat5 cable (RJ45 to RJ45)
Usage
[a1] 31R3130 3m PS2 Console
Switch Cable
--1------------servers with PS2
KVM ports
[a2] 31R3132 3m USB Console
Switch Cable
---1-----------servers with
USB+VGA KVM
ports
[d] 39M2896 short KVM
Conversion Option
kit (KCO)
- - - - - - - 4 - - - - 4 - - (x305, x306, BC,
Console Switch)5
[e] 39M2897 long KVM
Conversion Option
kit (KCO)
---- - - --4- - - -4-servers with
cable
management
arms5
[g] 39M2895 USB Conversion
Option Kit (UCO)
- - - - - - - - - - 4 - - 4 - e325, e326, x382,
x455
[h] 39M2894 Virtual Media
Conversion Option
(VCO)
---- - - ---- -1- -1servers with
USB+VGA KVM
ports
476 COG
Notes:
1. Short C2T Interconnect chaining cable standard with the C2T-capable servers.
2. C2T Cable Kit (P/N 06P4792) includes a long C2T chaining cable for use when interconnected servers are
farther than three EIA units apart.
3. PS2 KVM connectors: keyboard 6-pin DIN, mouse 6-pin DIN, video HD-15 VGA.
4. C2T Interconnect ports use special connectors.
5. ACT conversion options convert from PS2 KVM, USB plus VGA or C2T interconnect to Cat5 RJ45
connectors.
[i] - Cat5 cable provided with option or by customer
[a] 94G7447 Console Cable Set -
12ft
-1-------------servers with PS2
KVM ports3
[b] with
server
C2T chaining cable - - - - 1 - - - - - - - - - - included with
x3354
[c] 06P4792 C2T Cable Kit - - - - - 1 1 - - - - - - - - x335
[f] 32P1637 C2T Conversion
Option kit
---- - - ---1- - - -1x335
5
Cable Options
Label
Part Number
Description
2.1m KVM cable (PS2 male to PS2 male)
3.8m KVM cable (PS2 male to PS2 male)
3m PS2 KVM cable (PS2 male to RJ45)
3m USB KVM cable (USB,DB15 to RJ45)
260mm C2T chaining cable (C2T male to C2T male)1
2m C2T chaining cable (C2T male to C2T male)2
2m C2T breakout cable (C2T male to PS2 female)
250mm KCO cable (PS2 male to RJ45)
1.5m KCO cable (PS2 male to RJ45)
114mm CCO cable (C2T male to RJ45)
1.5m UCO cable (USB,DB15 to RJ45)
1.5m VCO cable (USB,DB15 to RJ45)
150mm Cat5 cable (RJ45 to RJ45)
350mm Cat5 cable (RJ45 to RJ45)
1.8m Cat5 cable (RJ45 to RJ45)
Usage
© Copyright IBM Corp. 2003, 2006 477
Chapter 55. xSeries rack power configurator
Rack Power Products:
Distributed Power Interface (DPI) Power Distribution Units (PDUs)
• DPI 100-127v NEMA PDU
• DPI Universal Rack PDU
• DPI Single-phase Front-end PDUs
• DPI Single-phase Enterprise PDUs
• DPI Three-phase Enterprise PDUs
• DPI Single-phase High Density PDU
• DPI Three-phase High Density PDU
Possible Power Configurations:
Note: P/S = Power Supply
PDU used as UPS back-end Redundant Power Distribution
with PDU and UPS
P
D
U
(1)
(2) (3)
UPS
Units with
redundant p/s
(5)
Redundant Power Distribution
with PDU and UPS with PDU
UPS
P
D
U
(1)
(2)
Units with
redundant p/s
(3)
P
D
U
(5)
Redundant Power Distribution
P
D
U
P
D
U
P/SP/S
Units with
redundant p/s
(1)
Single Rack PDU or Enterprise C13 PDU Front-end PDU, High Density PDU, or
Enterprise C19 PDU
P
D
U
P/S
(6)
Units with C20 Inlets
eg. x365, BladeCenter 2XX
P/S
(5) or (7)
(4)
(1)
Rack PDU
P/S
Units with
C14 Inlets
P/S
Units with
C14 Inlets
(8)
pn 23K4809 2.8m C13/C20 power cable
HD- PDU
12 outlets - C19
single- or
three-phase
E- PDU
6 outlets - C19
single- or
three-phase
FE- PDU
3 outlets - C19
single-phase
(1)
Device / Unit
Rack PDU
7 outlets - C13
100-240Vac
15a
P/S
C13
(2) or (5)
P
D
U
E- PDU
12 outlets - C13
single- or
three-phase
(2) or (5)
(1) Device / Unit
UPS
C19 C13
C13
P
D
U
(3)
(5)
478 COG
Notes:
1. Each device usually comes with a power cord. The PDU requires the power cord to have an IEC 320-C14
plug. Order 39Y7932 (14ft) if appropriate cord is not provided with the device.
2. Each PDU and UPS comes with a country-specific power cord.
3. Internal rack power cable is provided with APC SmartUPS 5000 UPS.
4. One 2m internal rack power cable provided with DPI Rack PDU.
5. Line cord provided with Front-end PDU.
6. UPS comes with a country-specific power cord or a terminal block.
7. Devices with C20 power inlets included 2.8m C19 to C20 power cords.
8. Enterprise and High Density PDUs include hardwired or pluggable line cord.
9. Option 39Y7938 provides a C13 to C20 power cord to attach normal devices with C14 power inlets
directly to Front-end, Enterprise C19, or High Density PDUs.
Notes:
1. Includes L5-20P to L5-15R adapter cable.
Table 130. Outlets
Outlets C19 C13 5-15R
NEMA PDU 0 0 6
Rack PDU 0 7 0
Front-end PDU 3 0 0
Enterprise C13 PDU 0 12 0
Enterprise C19 PDU 6 0 0
High Density PDU 12 0 0
US models EMEA models
Outlets C19 C13 5-15R L5-20R C19 C13 L5-20R
APC 2U
1400RM
0060040
IBM 3000X
LV
0601
1061
1
IBM 3000X
HV
1700170
APC5000RM 2800280
IBM 7500X
HV
4000400
IBM 10000X
HV
4000400
Chapter 55. xSeries rack power configurator 479
Typical Rack Power Configurations
Notes:
1. Each PDU and UPS comes with a country-specific power cord.
2. One 2m internal rack power cable provided with DPI Rack PDU.
3. Line cord provided with Front-end PDU.
Attention: Customers are responsible for providing a dedicated circuit for each line cord protected with an
appropriate circuit breaker.
Rack Rules and PDU Capacities
• NetBay and DPI PDUs cannot be mixed in the same side-wall compartment.
• DPI Rack PDUs can be cabled to NetBay Front-end PDUs.
PDUs per Rack Standard Enterprise
25U 42U 9308
2-bay 2-bay 2-bay 3-bay 4-bay
Rack PDUs488812
Front-end PDUs24244
Enterprise PDUs24244
High Density
PDUs
24444
Total PDUs 4 12 8 12 16
Redundant: six Rack PDUs
and two Front-end PDUs
(dual circuit, 42 outlets)
Simple: three Rack PDUs
and one Front-end PDU
(single circuit, 21 outlets)
Simple: two Rack PDUs
(two circuits, 14 outlets)
(2)
Rack
Cabinet
(3)
P
D
U
P
D
U
P
D
U
F
E
P
D
U
P
D
U
P
D
U
F
E
Rack
Cabinet
P
D
U
P
D
U
(1)
Rack PDU
7 outlets - C13
1 inlet - C20
(2)
Rack
Cabinet
(3)
P
D
U
P
D
U
P
D
U
F
E
Front-end PDU
3 outlets - C19
1 inlet - hardwired
Simple: one Enterprise PDU
(single circuit, 6 or 12 outlets)
Rack
Cabinet
E
-
P
D
U
(1)
Enterprise PDU
12 outlets - C13
or 6 outlets - C19
1 inlet - hardwired
or pluggable
480 COG
Side-wall Compartment Arrangements
Note: The above is intended to show only typical arrangements, not all possible arrangements.
C
B
A
U
D
9308-42P, X, S, E
Enterprise Racks
A
F
E
D
C
B
U
9306-420, 421
9307-4SX, 4EX
Standard Racks
9306-250
9307-2SX
U
AB
2-bays per compartment
(9306, 9307)
2-bays per compartment
(9308)
3-bays per compartment
(9308)
4-bays per compartment
(9308)
Rack
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
Rack
PDU
Rack
PDU
Front-end
PDU
E- & HD-PDUs
(9306/9307)
Enterprise,
High
Density
PDU
Enterprise,
High
Density
PDU
Rack
PDU
Rack
PDU
E- & HD-PDUs
(9308)
Chapter 55. xSeries rack power configurator 481
Country-specific considerations: USA, Canada, parts of Latin America,
Taiwan
Power Load Capacity
Part
Number
Plug Type Source Circuit
(single phase 50/60Hz)
PDU Output
(single phase 50/60Hz)
32P1761 NEMA L5-15P100-127Vac, 15a six 100-127Vac, NEMA 5-15R
receptacles, shared 12a
NEMA L5-20P 100-127Vac, 20a seven 100-127Vac, shared 15a
NEMA L6-20P 200-240Vac, 20a seven 200-240Vac, shared 15a
32P1736
Part
Number
Plug Type Source Circuit (50/60Hz) PDU Output
(single phase 50/60Hz)
32P1751 NEMA L5-30P 100-127Vac, 30a,
single-phase
three 100-127Vac, 20a each, shared
24a
32P1766 NEMA L6-30P 208Vac, 30a, single-phase
line-to-line with ground
three 208Vac, 20a each, share
d 24a
32P1767 IEC 309-2P+G 208Vac, 60a, single-phase
line-to-line with ground
three 208Vac, 20a each, shared
48a
Part
Number
Plug Type Source Circuit (50/60Hz) PDU Output
(single phase 50/60Hz)
73P5855 IEC 309 2P+G 208Vac, 60a, single-phase
dedicated circuit
twelve 208Vac, 16a each, shared
48a
73P5847 IEC 309 3P+G 208Vac, 60a, three-phase
delta dedicated circuit
twelve 208Vac, 16a each, shared
28a per four outlet phase group
Rack PDUs
Front-end PDUs
High Density PDUs
Enterprise PDUs
Part
Number
Plug Type Source Circuit (50/60Hz) PDU Output
(single phase 50/60Hz)
26K4246 NEMA L6-30P 208Vac, 30a, single-phase
dedicated circuit
twelve 208Vac, 10a each, shared
24a
26K4242 IEC 309 2P+G 208Vac, 60a, single-phase
dedicated circuit
twelve 208Vac, 10a each, shared
48a
26K4244 IEC 309 3P+G 208Vac, 60a, three-phase
delta dedicated circuit
twelve 208Vac, 10a each, shared
28a per four outlet phase group
26K4256 IEC 309 2P+G 208Vac, 60a, single-phase
dedicated circuit
six 208Vac, 16a each, shared 48a
26K4258 IEC 309 3P+G 208Vac, 60a, three-phase
delta dedicated circuit
six 208Vac, 16a each, shared 28a
per two outlet phase group
(2) Line Cords: Rack PDU
(5) Line Cords: Front-end
PDU
Power Cables:
(1) Device to Rack PDU or Enterprise C13 PDU power cable
IEC C13 to C14, 10/15a cable
typical: 36L8886 (2.8m)
requirement: C14 plug, long enough to reach
available option: 94G7448 (14ft)
(2) Rack PDU to wall line cord
IEC C19 to country-specific connector, 16/20a, 14ft (4.3m)
(3) Rack PDU to UPS power cable
IEC C19 to C20, 16/20a
00N7700 (2m)
provided with 37L6861 APC SU-5000RMB
(4) Rack PDU to Front-end PDU power cable
IEC C19 to C20, 16/20a
00N7698 (1m) provided with the NetBAY Front-end PDUs
00N7700 (2m) provided with the DPI Front-end PDUs
(5) Front-end PDU to wall line cord
hardwired to country-specific connector, 30/32a, 60/63a, 8.2ft
(2.5m)
(7) Device to High Density PDU power cable
IEC C19 to C20, 16/20a, 2.5m
(8) Enterprise PDU to wall line cord
hardwired or pluggable to country-specific connector, 30/60a, 14ft
(4.3m)
(9) High Density PDU to wall line cord
hardwired or plugugable to country-specific connector, 60a, 8.2ft
(2.5m)
(10) Device to FE-, E-, or HD-PDU power cable
IEC C13 to C20, 10/15a cable
option: 23K4809 9ft (2.8m)
(9) Line Cords:High Density PDU
(8) Line Cords:Enterprise PDU
482 COG
Legend
N NEMA PDU with a 12a circuit breaker
C Rack PDU with a 15a circuit breaker
W FE PDU with a 20a fuse per outlet
S E PDU with 20a circuit breaker per C19 outlet or C13 outlet pair or HD PDU with 20a circuit
breaker per outlet
Max leakage current > 3.5ma
A customer-supplied dedicated circuit is assumed.
Actual power values (watts) may vary based on actual source voltage.
Chapter 55. xSeries rack power configurator 483
484 COG
Country-specific considerations: Europe, Africa, Asia Pacific, parts of
Latin America
Power Load Capacity
Legend
C Rack PDU with a 15a circuit breaker
W FE PDU with a 20a fuse per outlet
S E PDU with 20a circuit breaker per C19 outlet or C13 outlet pair or HD PDU with 20a circuit
breaker per outlet
Actual power values (watts) may vary based on actual source voltage.
A customer-supplied dedicated circuit is assumed.
Chapter 55. xSeries rack power configurator 485
Power Load Capacity IEC 309-2P+G
CEE7-VII
SII 32
SABS 164
BS 1363 w/fuse
CEI 23-16
etc.
@ country specific:
220-240Vac
16a
1 phase
various @
1400W
C220v 230v 235v 240v
3300w 3450w 3525w 3600w
220-240Vac
1 phase
32a
W
309-P+N+G shared 32a
1400W
C220v 230v 235v 240v
2346w 2453w 2506w 2560w
220v 230v 235v 240v
7040w 7360w 7520w 7680w
1400W
C
1400W
C
1ph
220v 230v 235v 240v
2346w 2453w 2506w 2560w
220v 230v 235v 240v
2346w 2453w 2506w 2560w
220-240Vac
1 phase
63a
W
309-P+N+G shared 63a
1400W
C
220v 230v 235v 240v
3300w 3450w 3525w 3600w
220v 230v 235v 240v
9900w 10350w 10575w 10800w
1400W
C
1400W
C
1ph
220v 230v 235v 240v
3300w 3450w 3525w 3600w
220v 230v 235v 240v
3300w 3450w 3525w 3600w
220v 230v 235v 240v
13860w 14490w 14805w 15120w
63a
220-240Vac
1 phase
309-P+N+G
1ph
S
220v 230v 235v 240v
7040w 7360w 7520w 7680w
220v 230v 235v 240v
7040w 7360w 7520w 7680w
220v 230v 235v 240v
7040w 7360w 7520w 7680w
32a
380-415Vac
3 phase
delta
309-3P+N+G
220v 230v 235v 240v
21120w 22080w 22560w 23040w
3ph
S
486 COG
Country-specific considerations: Japan
Power Load Capacity
Legend
N NEMA PDU with a 12a circuit breaker
C Rack PDU with a 15a circuit breaker
W FE PDU with a 20a fuse per outlet
S E PDU with a 20a circuit breaker per C19 outlet or C13 outlet pair or HD PDU with 20a circuit
breaker per outlet
Max leakage current > 3.5ma
A customer-supplied dedicated circuit is assumed.
Actual power values may vary based on actual source voltage.
Chapter 55. xSeries rack power configurator 487
488 COG
Rack PDU power cables
Legend:
1. Device to wall line cord
2. Device to PDU/UPS power cable
3. Rack PDU to wall line cord
4. Rack PDU to Front-end PDU or UPS power cable
5. Front-end PDU, Enterprise PDU, High-density PDU, or UPS to wall line cord
Device
Wall
3
1
2
5
Rack
PDU
Front-end PDU
or UPS
4
Chapter 55. xSeries rack power configurator 489
PDU power cord plug types
Note: Match letters with Key columns in the following chart to identify power cables with these plug types.
490 COG
PDU power cables
Option Part Number
Cable Part Number
Plug Type
Plug Type
Rating (a/v)
Cable Length (m/ft)
Country/Comments
Rack PDUs
DPI 100-127V
NEMA PDU (US)
39Y8905 - hardwired - NEMA L5-
20P
H 15a/
125v
2.8m/
9ft
US, Canada,
Mexico,...;
includes one
00N7700
DPI Universal Rack
PDU (US)
32P1736 12J5117
14F1553
IEC 320-C19
IEC 320-C19
B
B
NEMA L5-
20P
NEMA L6-
20P
H
J
18a/
125v
18a/
250v
4.3m/
14ft
4.3m/
14ft
US, Canada,
Mexico,...;
includes one
00N7700
DPI Universal Rack
PDU (Argentina)
32P1747 36L8885 IEC 320-C19 B IRAM 2073 M 15a/
250v
4.3m/
14ft
Argentina;
includes one
00N7700
DPI Universal Rack
PDU (Brazil)
32P1745 49P2115 IEC 320-C19 B NBR 6147 N 15a/
125v
4.3m/
14ft
Brazil; includes
one 00N7700
DPI Universal Rack
PDU (Europe)
32P1737 14F1554 IEC 320-C19 B CEE7-VII O 16a/
250v
4.3m/
14ft
Europe (other);
includes one
00N770
DPI Universal Rack
PDU (Denmark)
32P1738 36L8823 IEC 320-C19 B IEC 309
P+N+Gnd
P 16a/
250v
4.3m/
14ft
Denmark;
includes one
00N7700
DPI Universal Rack
PDU (Israel)
32P1739 14F1561 IEC 320-C19 B SI 32 Q 16a/
250v
4.3m/
14ft
Israel; includes
one 00N7700
DPI Universal Rack
PDU (Italy)
32P1740 14F1560 IEC 320-C19 B CEI 23-16 R 16a/
250v
4.3m/
14ft
Italy; includes
one 00N7700
DPI Universal Rack
PDU (South Africa)
32P1741 14F1557 IEC 320-C19 B SABS 164 S 16a/
250v
4.3m/
14ft
South Africa;
includes one
00N7700
DPI Universal Rack
PDU (UK)
32P1742 12J5988 IEC 320-C19 B BS 1363/A
w/fuse
T 13a/
250v
4.3m/
14ft
UK; includes
one 00N7700
DPI Universal Rack
PDU (Aus/NZ)
32P1743 14F1559 IEC 320-C19 B AS/NZ
3112
U 15a/
250v
4.3m/
14ft
Australia/
New Zealand;
includes one
00N7700
DPI Universal Rack
PDU (China)
32P1744 01K9852 IEC 320-C19 B GB 2099.1 V 15a/
250v
4.3m/
14ft
China;
includes one
00N7700
DPI Universal Rack
PDU (India)
32P1746 49P2083 IEC 320-C19 B IS6538 W 16a/
250v
4.3m/
14ft
India; includes
one 00N7700
Chapter 55. xSeries rack power configurator 491
Front-end PDUs
DPI Single-phase
30A Front-end PDU
- LV (US)
32P1751 74P4314 Burndy Y NEMA L5-
30P
H 30a/
125v
2.8m/
9ft
US, Canada,
Mexico,...
DPI Single-phase
30A Front-end PDU
- HV (US)
32P1766 74P4312 Burndy Y NEMA L6-
30P
J 30a/
208v
2.8m/
9ft
US, Canada,
Mexico,...
DPI Single-phase
60A Front-end PDU
- HV (US)
32P1767 74P4313 Burndy Y IEC 309
2P+Gnd
C 60a/
208v
2.8m/
9ft
US, Canada,
Mexico,...
DPI Single-phase
63A Front-end PDU
- HV (I)
32P1754 74P4311 Burndy Y IEC 309
P+N+Gnd
C 63a/
250v
2.8m/
9ft
International
Enterprise PDUs
DPI Single-phase
208V 30A C13
Enterprise PDU (US)
26K4246 25R2555 Burndy Y NEMA L6-
30P
J 30a/
208v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Single-phase
208v 60A C13
Enterprise PDU (US)
26K4242 25R2556 Burndy Y IEC 309
2P+G
C 60a/
208v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Single-phase
208V 60A C19
Enterprise PDU (US)
26K4256 25R2556 Burndy Y IEC 309
2P+G
C 60a/
208v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Three-phase
208v 60A C19
Enterprise PDU (US)
39Y8923 - hardwired - IEC 309
3P+G delta
D 60a/
208v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Single-phase
220-240V 32A C13
Enterprise PDU
(International)
26K4241 25R2553 Burndy Y IEC 309
P+N+G
E 32a/
250v
4.3m/
14ft
International
DPI Single-phase
220-240V 63A C13
Enterprise PDU
(International)
26K4243 25R2554 Burndy Y IEC 309
P+N+G
E 63a/
250v
4.3m/
14ft
International
DPI Three-phase
380-415V 32A C13
Enterprise PDU
(International)
26K4245 25R2552 Burndy Y IEC 309
3P+N+G
wye
F 32a/
415v
4.3m/
14ft
International
DPI Single-phase
220-240V 63A C19
Enterprise PDU
(International)
26K4257 25R2554 Burndy Y IEC 309
P+N+G
E 63a/
250v
4.3m/
14ft
International
Option Part Number
Cable Part Number
Plug Type
Plug Type
Rating (a/v)
Cable Length (m/ft)
Country/Comments
492 COG
DPI Three-phase
380-415V 32A C19
Enterprise PDU
(International)
26K4259 25R2552 Burndy Y IEC 309
3P+N+G
wye
F 32a/
415v
4.3m/
14ft
International
High Density PDUs
DPI Single-phase
208V 60A High
Density PDU (US)
73P5855 - hardwired - IEC 309
2P+G
C 60a/
250v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Three -phase
208V 60A High
Density PDU (US)
39Y9000 - hardwired - IEC 309
3P+G
D 60a/
250v
4.3m/
14ft
US, Canada,
Mexico,...
DPI Single-
phase220-240V 63A
High Density PDU
(International)
73P5856 - hardwired - IEC 309
P+N+G
E 63a/
250v
4.3m/
14ft
International
DPI Three-phase
380-415V 32A High
Density PDU
(International)
39Y8999 - hardwired - IEC 309
3P+N+G
F 32a/
415v
4.3m/
14ft
International
Power Cables
Rack Power Cable
Type C12 option
39Y7932 36L8861 IEC 320-C13 A IEC 320-
C14
A 10a/
250v
4.3m/
14ft
Worldwide
1.5m IEC 320-
C13/C14
39Y7937 36L8860 IEC 320-C13 A IEC 320-
C14
A 10a/
250v
1.5m/
4.9ft
Worldwide
2.8m IEC 320-
C13/C20
39Y7938 74P4430 IEC 320-C13 A IEC 320-
C20
B 10a/
250v
2.8m/
9ft
Worldwide
1m IEC power cable - 00N7698 IEC 320-C19 B IEC 320-
C20
B 16a/
250v
1m/3.
3ft
Worldwide
2m IEC power cable - 00N7700 IEC 320-C19 B IEC 320-
C20
B 16a/
250v
2m/6.
5ft
Worldwide
Power Cord
Extension option
24P7864 11F0114 NEMA L6-
30R
KNEMA L6-
30P
K 30a/
208v
1.8m/
6ft
US, Canada,
Mexico,...
Power Cord
Extension option
24P7887 21H7693 IEC 309 2P+G C IEC 309
2P+G
C 32a/
350v
1.8m/
6ft
International
Power Cord
Extension option
24P7888 88G4764 IEC 309 3P+G F IEC 309
3P+N+G
F 32a/
415v
1.8m/
6ft
International
Note: US = United States, I = International, LV = Low Voltage (100-127Vac), HV = High Voltage (200-250Vac), NEMA
= National Electrical Manufacturers Association, IEC = International Electrotechnical Commission.
Option Part Number
Cable Part Number
Plug Type
Plug Type
Rating (a/v)
Cable Length (m/ft)
Country/Comments
© Copyright IBM Corp. 2003, 2006 493
Part 2. Appendixes
494 COG
Appendix A. Internal tape drive attributes 495
Appendix A. Internal tape drive attributes
Legend
FH Full-high - approximate height 81 mm/3.2 in
HH Half-high - approximate height 41 mm/1.6 in
SL Slim-line - approximate height 25 mm/1 in
Option Number
Description
Storage Interface
Form Factor
MB/sec - Native/Compressed
Data/Cleaning Cartridges Included
Ext Tape Enclosures 1
Tape Drives
48P7042 20/40GB TR7 Internal IDE Tape Drive IDE/ATAPI SL or HH 2/4 -
20/40
1/1 -
39M5656 IBM DDS/5 Tape Option Ultra2
(16-bit)
HH or FH 3.5/7 -
36/72
0/1 45591UX
45594UX
59P6719 IBM 40/80GB DLTVS Half High Tape Drive Ultra160
(16-bit)
HH 3/6 -
40/80
0/1 45591UX
45594UX
4559HHX
59P6745 IBM 80/160 GB Half High VS160 Tape Drive Ultra160
(16-bit)
HH 8/16 -
80/160
0/1 45591UX
59P6736 IBM 160/320 GB SDLT Internal SCSI Tape
Drive
Ultra160
(16-bit)
FH 16/32 -
160/320
0/1 3503B1X
45594UX
4559FHX
59P6746 80/160GB VXA-2 Tape Drive Ultra2
(16-bit)
HH 6/12 -
80/160
0/1 45591UX
45594UX
4559HHX
39M5658 200/400GB IBM LTO2 Tape Option Ultra160
(16-bit)
HH 24/48 -
200/400
- 45591UX
45594UX
4559HHX
25R0006 80GB GoVault SATA HH 34/66 -
80/160
--
39M5657 IBM 400/800GB LTO3 Tape Option Ultra320 FH 80/160 -
400/800
0/1 4559FHX
45594UX
496 COG
Notes:
1. For installation of an internal tape drive into a server, see the appropriate system section.
2. 1U rack-mounted enclosure that supports one or two half-high tape drives. It allows each of these tape
drives to be independently attached to a supported xSeries server or both to be daisy-chained to a single
server. Includes two 3m 68-pin to.8mm VHDCI external cables.
3. Desktop or rack tape enclosure which supports a single 133mm (5.25in) half-high tape drive. Requires a
fixed shelf if installed in a rack (allow an additional 1U for fixed shelf). Includes a power cord and an
external 68-pin to 0.8mm VHDCI SCSI cable.
4. Desktop or rack tape enclosure which supports a single 133mm (5.25in) full-high tape drive. Requires a
fixed shelf if installed in a rack (allow an additional 1U for fixed shelf). Includes a power cord and an
external 68-pin to 0.8mm VHDCI SCSI cable.
5. Requires 68-pin External Multimode LVD/SE SCSI Terminator (P/N 00N7956).
6. Black desktop or 3U rack tape enclosure supports a single 133mm (5.25in) full-high LVD tape device
including DLT tape drives. Requires a fixed shelf if installed in a rack (allow additional 1U for fixed
shelf). Includes a 90w power supply, cooling fan, external terminator, power cord (country-specific), and
2m 68-pin to 0.8mm external cable.
25R0045 IBM 160/320GB VXA3 Tape Drive Ultra160 HH 12/24 -
160/320
- -
External Tape Enclosures
45591UX IBM 1U xSeries Tape Enclosure Rack or
Tower2
Ultra320,
160, 80
(16-bit)
1U Rack - - -
45594UX IBM 4U Rackmount SCSI Tape Drive
Enclosure
Ultra2
(16-bit)
4U Rack - - -
4559HHX IBM 1U Half High Stand Alone SCSI Tape
Drive Enclosure3
Ultra160
(16-bit)
Desktop or
Rack Shelf
(2.52in tall)
---
4559FHX IBM 2U Full High Stand Alone SCSI Tape
Drive Enclosure4
Ultra160
(16-bit)
Desktop or
Rack Shelf
(4.41in tall)
---
3503B1X 5.25" FH SCSI Tape Enclosure5Ultra2
(16-bit)
Desktop
or 3U Rack
---
Associated Options
00N7956 68-pin External Multimode LVD/SE SCSI
Terminator
LVD/SE
(16-bit)
External - - 3510020
Option Number
Description
Storage Interface
Form Factor
MB/sec - Native/Compressed
Data/Cleaning Cartridges Included
Ext Tape Enclosures 1
© Copyright IBM Corp. 2003, 2006 497
Appendix B. External tape and tape library attributes
Installing tape devices on the same bus as other devices may impact performance of those devices.
External tape drives
Notes:
1. Data provided is in the syntax of Native/Compressed.
2. 33622LX ships with an external 3m SCSI cable (0.8mm VHDCI -to- 68pin), a 2.8m 100-120v line cord (IEC
320-C13 to NEMA 5-15P), a 2.8m rack power cable, and one cleaning cartridge.
Notes:
1. Data provided is in the syntax of Native/Compressed.
2. 3623-2LX ships with an external 3m SCSI cable (0.8mm VHDCI -to- 68pin), a 2.8m 100-120v line cord (IEC
320-C13 to NEMA 5-15P), a 4.3m rack power cable, one data cartridge and one cleaning cartridge.
Table 131. 2U Universal Tape Autoloader
Option
Number Description
Storage
Interface
Form
Factor
Max.
Storage1 MB/sec1
Data Cartridges
(std/max)
33622LX 2U Universal Tape Autoloader 2LVD SCSI 2U
Rack
8.8TB/17.6TB 288/576 0/22
Related Options
40K2596 LTO3 Drive Sled option
40K2597 LTO Magazine option
24R1922 LTO3 Data Cartridge
35L2086 LTO Clean Cartridge
Table 132. 200/400GB 2U LTO Generation 2 Tape Autoloader 3623 Model 2LX
Option
Number Description
Storage
Interface
Form
Factor
Max.
Storage1 MB/sec1
Data Cartridges
(std/max)
36232LX 200/400GB 2U LTO Generation 2
Tape Autoloader 3623 Model
2LX2
Ultra160 (16-
bit, LVD)
2U
Rack
1.6TB/3.2TB 35/70 1/8
Related Options
71P9159 LTO Gen 2 Data Cartridge
(200/400GB) Pack of Five
498 COG
Notes:
1. Data provided is in the syntax of Native/Compressed.
2. 3623-2SX ships with an external 3m SCSI cable (0.8mm VHDCI -to- 68pin), a 2.8m 100-120v line cord (IEC
320-C13 to NEMA 5-15P), a 4.3m rack power cable and one cleaning cartridge.
Notes:
1. Data provided is in the syntax of Native/Compressed.
2. 3580 Model L33 is an Ultrium 3 tape drive and ships with an external 2.5m SCSI cable (0.8mm VHDCI -
to- 68pin), one data cartridge and one cleaning cartridge. A power cord does not ship standard with the
unit.
3. A 19in rack mount shelf (option 96P1565) is available for placing in a rack.
Table 133. 1.28TB/2.56TB 36232SX SDLT320 Tape Autoloader
Option
Number Description
Storage
Interface
Form
Factor
Max.
Storage1 MB/sec1
Data Cartridges
(std/max)
36232SX 1.28TB/2.56TB 36232SX
SDLT320 Tape Autoloader2
Ultra320 (16-
bit, LVD)
2U Rack 1.28TB/2.56
TB
16/32 0/8
Related Options
71P9153 SDLT Data Cartridge Pack of
Five
Table 134. TotalStorage Ultrium Tape Drive 3580 Model L33
Option
Number Description Storage Interface
Form
Factor
Max.
Storage1 MB/sec1
Data Cartridges
(std/max)
3580L3H TotalStorage Ultrium Tape
Drive 3580 Model L332
Ultra320 (16-bit,
LVD)
Stand-
alone or
Rack
Mount3
400/800GB 80/160 1/1
Related Options
23R7133 2.5 m VHDCI/HD68 SCSI Cable
23R7134 4.5 m VHDCI/HD68 SCSI Cable
23R7135 10.0 m VHDCI/HD68 SCSI
Cable
Appendix B. External tape and tape library attributes 499
Tape libraries
SCSI Interface and Cable Legend
F Female - External
MMale - External
68 16-bit, 68-pin High Density connector
0.8 16-bit, 68-pin Very High Density Connection Interface (VHDI) 0.8mm connector
SE Single-ended SCSI
HVD High Voltage Differential SCSI
LVD Low Voltage Differential SCSI
Table 135. SDLT/LTO Modular Tape Library (5U Rack)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
4560SLX SDLT / LTO Modular Tape
Library (5U rack)2
LVD 5U
Rack
0/30 (LTO
only); 0/26
(SDLT only)
0/2 0/2 4.16TB/8.32T
B (all SDLT);
3TB/6TB (all
LTO)3
16/32
(all SDLT);
15/30
(all LTO)3
Related Options
59P6657 Modular Fibre Channel Option4,5
59P6659 Modular LTO Cartridge
Magazine Option 3, 5, 6
59P6660 Modular SDLT Drive Upgrade
Option 3, 5, 7
59P6661 Modular SDLT Cartridge
Magazine Option 3, 5, 8
59P6662 Modular Elevator Link Option5, 9
59P6663 Modular Elevator Link Extension
Option 5, 10
24P8936 Modular SDLT600 Drive Upgrade
Option 3, 5, 11
71P9146 LTO Generation 2 Drive Sled 5, 12
71P9159 LTO Data Cartridge - Five Pack 13
71P9153 SDLT Data Cartridge - Five Pack14
500 COG
Notes:
1. Transfer rates are for single SCSI channel configurations. Tape Libraries utilizing split library or dual
host configurations may obtain higher rates. Data compression typically provides a 2X improvement in
capacity and transfer rate, but since data compression is affected by many factors, actual improvements
may be more or less than 2X.
2. SDLT/LTO Tape Library supports either LTO or SDLT (or both if the application software supports
mixed media and the drives and magazines are matched). Up to eight units can be stacked. Two
magazines and two drive sleds can be installed in each unit. An external LVD SCSI cable with 0.8mm
VHDCI connectors at each end ships standard with the library unit. A single 300w power supply with an
IEC 320-C13 to NEMA 5-15P low voltage power cord is standard. Attaches to a single host server using a
SCSI connection or to either a Fibre Channel switch or single server through a Fibre Channel connection
if a Modular Fibre Channel Option is installed. This option ships without a controller.
3. Data transfer speed and capacity are rated separately for LTO and SDLT media. Compressed speed and
data capacity may be less than the maximum indicated.
4. Ships with external LVD SCSI cable with 0.8mm VHDCI connector for connection to the tape drive.
Requires a short- or long-wave SFP Module (P/N 19K1271, 2) for connection to Fibre Channel cable.
Supports three to four drive sleds (or two layers) only. Fibre Channel attachment includes either a single
server using a DS4000 Host Bus Adapter or a Fibre Channel switch.
5. Option contains an LVD storage interface.
6. One or two magazines are supported. Up to 15 tape data cartridges (P/N 08L9120) are supported in each
magazine. This option ships without a data cartridge. Maximum storage capacity equals 3TB/6TB
(native/compressed).
7. Ships with external 0.5m LVD SCSI cable. Supported configurations are none, one or two drives. When a
drive sled is not installed, the library unit must be cabled to another unit that contains at least one drive
upgrade option. The Modular LTO Drive Upgrade Option includes one LTO Cleaning Cartridge (P/N
08L9124) and the Modular SDLT Drive Upgrade Option includes one SDLT Cleaning Cartridge (P/N
19P4357). This option is shipped without a controller. Data transfer rate equals 16/32
(native/compressed) MB/sec.
8. One or two magazines are supported. Up to 13 tape data cartridges (P/N 35L1119) are supported in each
magazine. This option ships without a data cartridge. Maximum storage capacity equals 4.16TB/8.32TB
(native/compressed).
9. Required to connect two library units.
10. Required to connect each additional library unit (from three through eight).
11. The SDLT600 Drive Sled installs directly into an available drive bay of the 4560SLX tape library.
Maximum storage capacity equals 300GB/600GB (native/compressed). Data transfer rate equals 36/72
(native/compressed) MB/sec. Option includes one cleaning cartridge.
12. Provides a means for mounting LTO Generation 2 (LTO2) SCSI tape drives in the 4560SLX library.
13. Maximum storage capacity equals 200GB/400GB (native/compressed).
14. Maximum storage capacity equals 160GB/320GB (native/compressed).
Appendix B. External tape and tape library attributes 501
Notes:
1. Transfer rates are for single SCSI channel configurations. Tape Libraries utilizing split library or dual
host configurations may obtain higher rates. Data compression typically provides a 2X improvement in
capacity and transfer rate, but since data compression is affected by many factors, actual improvements
may be more or less than 2X.
2. Includes rack mounting hardware and two power cords (120V and 250V). Models B22 and C22 include
an additional two power cords. Option includes a 4.5m cable, controller and cleaning cartridge.
3. Required for Dual Host or Split Library configurations with 3570B2x or 3570C2x containing two drives.
Option includes a 4.5m cable and controller.
4. Option contains an HVD storage interface.
5. Required for either dual host or split library operation. Should be installed by a qualified service
personnel. Data transfer rate equals 7/15 (native/compressed) MB/sec. Option ships without a
controller.
6. Magstar MP Media can be ordered by calling 888-IBM-MEDIA or 888-426-6334 in the US, Canada or
Puerto Rico.
7. B-format tape cartridges can be used in either Magstar MP 3570 Model B or C tape drives.
Table 136. Magstar MP 3570 Tape Subsystem (PN 3570C21)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
3570C21 Magstar MP 3570 Tape Subsystem 2 HVD 6U
Rack
1/20 2/2 1/2 100GB/
300GB
7/15
Related Options
08L6517 3570 Adapter Card Kit 3, 4
08L6480 Second “C” Drive for C214, 5
05H2462 Magstar MP Fast Access Linear Tape Cartridge, B-
format 6, 7
05H2463 Magstar MP Cleaning Cartridge 6
08L6187 Magstar MP Fast Access Linear Tape Cartridge, C-
format 6
502 COG
Notes:
1. Includes tape library with tape drive, rack mounting hardware, cleaning cartridge, 125V US power cord,
rack to PDU power cord, and 3m 0.8mm VHDCI to 68 pin SCSI cable.
Notes:
1. Includes tape library with tape drive, rack mounting hardware, cleaning cartridge, two 125V US power
cords, two rack to PDU power cord, and 3m 0.8mm VHDCI to 68 pin SCSI cable.
Table 137. 1U VXA 320 Autoloader (PN 87691VX)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
87691VX 1U VXA-320 Tape Autoloader 1 LVD
SCSI
1U
Rack
0/10 1/1 1/1 1.6TB/3.
2TB
12/2
4
Related Options
24R2137 VXA3 Data Cartridge
24R2138 VXA Cleaning Cartridge
Table 138. 4U Universal Tape Library (PN 33614LX)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
33614LX 4U Universal Tape Library 1 LVD
SCSI
4U
Rack
0/38 0/2 1/2 15.2TB/
30.4TB
576/
1152
Related Options
40K2573 LTO3 Drive Sled Option
40K2577 LTO Magazine Option
40K2579 iSCSI Option
Appendix B. External tape and tape library attributes 503
Notes:
1. Includes tape library with tape drive, rack mounting hardware, one data cartridge, one cleaning
cartridge, 125V US power cord, and rack to PDU power cord.
Table 139. IBM System Storage TS3100 Tape Library Express Model L3S (PN 3573L3S)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
3573L3S IBM System Storage TS3100 Tape Library Express
Model L3S 1
LVD
SCSI
2U
Rack
1/22 2/2 1/1 8.8TB/
17.6TB
20/40
Related Options
23R6999 3573 Right Side Magazine
23R6998 3573 Rack Mount Kit
23R7133 2.5 m VHDCI/HD68 SCSI Cable
23R7134 4.5 m VHDCI/HD68 SCSI Cable
23R7135 10.0 m VHDCI/HD68 SCSI Cable
95P2020 Ultrium 3 Data Cartridge (GEN3) 5-Pack
23R7008 Ultrium Cleaning Cartridge
504 COG
Notes:
1. Includes tape library with tape drive, rack mounting hardware, one data cartridge, one cleaning
cartridge, 125V US power cord, and rack to PDU power cord.
Table 140. IBM System Storage TS3100 Tape Library Express Model F3S (PN 3573F3S)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
3573F3S IBM System Storage TS3100 Tape Library Express
Model F3S 1
4Gbps
Fiber
2U
Rack
1/22 2/2 1/1 8.8TB/
17.6TB
20/40
Related Options
23R6999 3573 Right Side Magazine
23R6998 3573 Rack Mount Kit
23R7136 5.0 m LC/LC Fibre Cable
23R7137 13.0 m LC/LC Fibre Cable
23R7138 25.0 m LC/LC Fibre Cable
23R7140 LC-SC Fibre Cable Interposer
95P2020 Ultrium 3 Data Cartridge (GEN3) 5-Pack
23R7008 Ultrium Cleaning Cartridge
Appendix B. External tape and tape library attributes 505
Notes:
1. Includes tape library with tape drive, rack mounting hardware, one data cartridge, one cleaning
cartridge, 125V US power cord, and rack to PDU power cord.
Table 141. IBM System Storage TS3200 Tape Library Express Model L3H(PN 3573L3H)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
3573L3H IBM System Storage TS3200 Tape Library Express
Model L3H1
LVD
SCSI
4U
Rack
1/44 4/4 1/2 17.6TB/
35.2TB
40/80
Related Options
23R7260 3573 Ultrium 3 LVD SCSI Tape Drive Sled
23R6999 3573 Right Side Magazine
23R6998 3573 Rack Mount Kit
23R7008 Ultrium Cleaning Cartridge
23R7133 2.5 m VHDCI/HD68 SCSI Cable
23R7134 4.5 m VHDCI/HD68 SCSI Cable
23R7135 10.0 m VHDCI/HD68 SCSI Cable
95P2020 Ultrium 3 Data Cartridge (GEN3) 5-Pack
23R7262 3573 Additional Power Supply
506 COG
Notes:
1. Includes tape library with tape drive, rack mounting hardware, one data cartridge, one cleaning
cartridge, 125V US power cord, and rack to PDU power cord.
Table 142. IBM System Storage TS3200 Tape Library Express Model F3H(PN 3573F3H)
Part Number
Description
Storage Interface
Form Factor
Data Cartridges (Std/Max)
Cartridge Mags (Std/Max)
Quantity of Drives (Std/Max)
Max Storage - Native/Compressed
MB/sec - Native/Compressed1
3573F3H IBM System Storage TS3200 Tape Library Express
Model F3H 1
LC
Fiber
4U
Rack
1/44 4/4 1/2 17.6TB/
35.2TB
40/80
Related Options
23R7261 3573 Ultrium 3 Fibre Tape Drive Sled
23R6999 3573 Right Side Magazine
23R6998 3573 Rack Mount Kit
23R7008 Ultrium Cleaning Cartridge
23R7136 5.0 m LC/LC Fibre Cable
23R7137 13.0 m LC/LC Fibre Cable
23R7138 25.0 m LC/LC Fibre Cable
95P2020 Ultrium 3 Data Cartridge (GEN3) 5-Pack
23R7262 3573 Additional Power Supply
© Copyright IBM Corp. 2003, 2006 507
Appendix C. UPS runtime estimate (minutes)
Steps to determine UPS runtimes and suitable UPS for desired configurations:
1. Using the 'Power Load Data' table, sum the load (watts) of all devices in the configuration. Use either
Maximum Load for minimum runtimes, or Typical Load for typical runtimes.
2. Using the 'Runtimes' table, locate the configuration's total load calculated in step 1.
3. Select the most appropriate UPS model to achieve the desired runtime.
Note: If the configuration's total load is greater than the entries in the 'Runtimes' table, split the load across
two or more UPS units.
Table 143. Power Load Data
Server Number of Power Cords (Std/Max)
Watts Load
(Typical/Max)1
xSeries 206m22/2 246/352
xSeries 226 (single power supply)21/1 495/707
xSeries 226 (redundant power supplies)22/2 480/685
xSeries 23621/2 625/893
xSeries 260 (two power supplies)22/3 679/970
xSeries 260 (three power supplies)22/3 1288/1840
xSeries 306m21/1 350/500
xSeries 30621/1 300/430
xSeries 33621/2 385/550
xSeries 34621/2 581/830
System x3850 and xSeries 36621/2 1103/1575
System x3950 and xSeries 46022/2 1103/1575
eServer 326m21/1 280/400
x3400 entry21/1 463/662
x355021/2 490/700
x365021/2 679/970
x3800 (two power supplies)22/3 679/970
x3800 (three power supplies)22/3 1288/1840
x385022/2 1103/1575
x395022/2 1103/1575
BladeCenter (two 2000W power supplies)2, 3 2/4 1855/2650
BladeCenter (four 2000W power supplies)2, 3 4/4 3710/5300
BladeCenter H (two 2900W power supplies)2, 3 2/2 3325/4750
BladeCenter H (four 2900W power supplies)2, 3 4/4 6650/9500
Other Devices
EXP400 Storage Expansion Unit (17331RU)22/2 310/440
508 COG
Notes:
1. This table represents general guidelines for selecting the appropriate UPS based on minimum and typical
runtime estimates. A ‘maximum configuration’ load will result in ‘minimum’ UPS runtime. ‘Typical’
loads are based on a production system running at approximately 70% of maximum capacity (based on
the power delivered to the device from the power source, i.e., 70% of the value provided as a maximum
equals the rating of the power supply). The ‘typical’ loads represent a more likely configuration;
therefore, they provide a more likely estimate of runtime. The values listed as typical generally are equal
to the rating of the power supply. Since power supplies operate at 70% of load, the system power
supplies are actually operating at 70% of the values listed, though the power required from the source is
what is listed. Customer environments are unique and are unlikely to be precisely represented by any of
the specific entries in the table.
2. Power-Factor Corrected (PFC) power supply.
3. Use with IBM UPS7500X or UPS10000X only.
Total Configuration runtime estimator
DS4100 Disk System (1724100)22/2 275/390
DS4300 Disk System (172260U)22/2 390/557
DS4400 Disk System (17421RU)22/2 275/390
DS4500 Disk System (174290U)22/2 275/390
DS4000 EXP100 Storage Expansion Unit (171010U)22/2 245/350
SAN Fibre Channel Switch, 16-Port (2005H16) 2/2 140/200
Table 144. IBM UPS750T, 1000T, 1500T Runtimes1
Tower
UPS750T UPS1000T UPS1500T
Total Load (Watts) Runtime (Minutes) Runtime (Minutes) Runtime (Minutes)
50 105 224 269
10057127157
200286480
300184151
400132937
500102328
600 -- 18 22
700 -- 15 18
800 -- 12 15
900 -- 11 13
1000 -- 9 11
1200 -- -- 9
1400 -- -- 7
Table 143. Power Load Data (continued)
Server Number of Power Cords (Std/Max)
Watts Load
(Typical/Max)1
Appendix C. UPS runtime estimate (minutes) 509
Notes:
1. Data provided by APC.
Notes:
1. How-to-Read example for 200-240(208): Input VAC is 200-240 as is the UPS output when electric service
is active. When electric service is interrupted and the UPS is on battery, the UPS output is 208 VAC.
Table 145. IBM UPS750T, 1000T, 1500T Attributes
Tower
Low Voltage Versions (US) UPS750TLV UPS1000TLV UPS1500TLV
New Order Part Number 2130R1X 2130R3X 2130R5X
(Old Order Number) (21301TX) (21303TX) (21305TX)
High Voltage Versions
(Int’l)
UPS750THV UPS1000THV UPS1500THV
New Order Part Number 2130R2X 2130R4X 2130R6X
(Old Order Number) (21302TX) (21304TX) (21306TX)
Japan Versions UPS750TJV UPS1000TJV UPS1500TJV
New Order Part Number 2130R7X 2130R8X 2130R9X
(Old Order Number) (21307TX) (21308TX) (21309TX)
UPS Attributes
Communications Links to Servers Serial/USB/Enet Serial/USB/Enet Serial/USB/Enet
Color black black black
APC SmartSlot one one one
Int’l Models
50 or 60Hz, single phase, VAC: 220-240(xxx)1,2 220-240(xxx)1,2 220-240(xxx)1,2
10-Amp, IEC 320-C13 (Device) receptacles 6 8 8
16-Amp, IEC 320-C19 (PDU) receptacles - - -
Receptacles (NEMA L5-20R) - - -
Line Cord Length, NEMA Plug - - -
Line Cord Receptacle (IEC 320-) C143C143C143
Low Voltage Versions (US and Japan Models)
50 or 60Hz, single phase, VAC: 100-127(120)1100-127(120)1100-127(120)1
Receptacles (NEMA 5-15R) 6 8 8
Receptacles (NEMA L5-20R) - - -
10-Amp, IEC 320-C13 (Device) receptacles - - -
16-Amp, IEC 320-C19 (PDU) receptacles - - -
Line Cord Length, NEMA Plug 6ft, 5-15P 6ft, 5-15P 6ft, 5-15P
Line Cord Receptacle (IEC 320-) - - -
510 COG
2. Battery output may be set to 220, 225, 230 or 240 VAC.
3. Country-specific line cords available as options.
Notes:
1. Data provided by Eaton.
Table 146. IBM UPS3000LV Runtimes1
Number of Battery Packs
+0 +1 +2 +3 +4
Total Load
(Watts)
Runtime
(Hours / Minutes)
Runtime
(Hours/ Minutes)
Runtime
(Hours / Minutes)
Runtime
(Hours / Minutes)
Runtime
(Hours / Minutes)
200 1/3 5/16 7/57 11/15 14/34
300 55 4/35 7/0 9/55 12/50
400 48 4/1 6/6 8/39 11/12
500 42 3/31 5/19 7/31 9/44
600 36 3/3 4/31 6/24 8/17
700 31 2/35 3/50 5/26 7/2
800 26 2/12 3/20 4/43 6/6
900 23 1/55 2/51 4/2 5/14
1000 19 1/38 2/23 3/23 4/23
1100 16 1/22 2/4 2/56 3/48
1200 14 1/11 1/48 2/33 3/19
1300 12 1/2 1/35 2/14 2/54
1400 10 54 1/20 1/54 2/28
1500 9 46 1/11 1/41 2/10
1600 8 41 1/8 1/37 2/5
1700 8 40 1/8 1/37 2/5
1800 8 40 1/8 1/37 2/5
1900 7 39 1/0 1/25 1/50
2000 7 35 1/0 1/25 1/50
2100 7 33 1/0 1/25 1/50
Appendix C. UPS runtime estimate (minutes) 511
Notes:
1. Data provided by Eaton.
Table 147. IBM UPS3000HV Runtimes1
Number of Battery Packs
+0 +1 +2 +3 +4
Total Load
(Watts)
Runtime
(Hours / Minutes)
Runtime
(Hours/ Minutes)
Runtime
(Hours / Minutes)
Runtime
(Hours / Minutes)
Runtime
(Hours / Minutes)
200 1/3 4/38 9/5 12/48 16/42
300 55 4/5 8/0 11/16 14/42
400 48 3/33 6/59 9/59 12/50
500 42 3/6 6/4 8/33 11/10
600 36 2/38 5/10 7/17 9/30
700 31 2/14 4/23 6/11 8/4
800 26 1/56 3/48 5/22 7/0
900 23 1/40 3/16 4/36 6/0
1000 19 1/23 2/44 3/51 5/2
1100 16 1/12 2/22 3/20 4/22
1200 14 1/3 2/4 2/54 3/48
1300 12 55 1/48 2/33 3/20
1400 10 47 1/32 2/10 2/50
1500 9 45 1/28 2/4 2/42
1600 9 41 1/20 1/53 2/28
1700 8 40 1/18 1/50 2/24
1800 8 40 1/18 1/50 2/24
1900 7 35 1/8 1/36 2/6
2000 7 35 1/8 1/36 2/6
2100 7 33 1/5 1/32 2/0
2200 6 30 58 1/22 1/48
2300 6 30 58 1/22 1/48
2400 6 30 58 1/22 1/48
2500 6 26 51 1/12 1/34
2600 5 25 49 1/9 1/30
2700 5 25 49 1/9 1/30
512 COG
Notes:
1. How-to-Read example for 200-240(208): Input VAC is 200-240 as is the UPS output when electric service
is active. When electric service is interrupted and the UPS is on battery, the UPS output is 208 VAC.
2. Battery output may be set to 220, 225, 230 or 240 VAC.
3. One 2m PDU jumper cable ships with the UPS for attachment from the IEC 320-C19 receptacles to a
Power Distribution Units (PDUs) with C20 inlets.
4. Includes L5-20P to L5-15R adapter cable.
5. Four IEC power cables are provided to attach devices to the UPS outlets, which are 2m long with IEC
320-C13/C14 connectors.
6. Country-specific line cords are available as options.
Table 148. IBM UPS3000LV and HV Attributes
Rack Mount or Tower
Version UPS3000LV UPS3000HV UPS Extend Run
Battery Pack
Order Part Number 21301RX 21302RX 40K9630
UPS Attributes
Communications Links to Servers Serial/USB/Enet Serial/USB/Enet -
Color black black black
EIA Height 2U 2U 2U
Versions Low Voltage High Voltage
50 or 60Hz, single phase, VAC: 120(120)1200-240(xxx)1, 2 -
Maximum power capacity (watts) 2400 2850 -
10-Amp, IEC 320-C13 (Device) receptacles 6575-
16-Amp, IEC 320-C19 (PDU) receptacles - 13-
Receptacles (NEMA L5-20R) 14--
Attached Line Cord Length, NEMA Plug 9ft, L5-30P - -
Line Cord Receptacle (IEC 320-) - C206-
Appendix C. UPS runtime estimate (minutes) 513
Notes:
1. Data provided by APC.
Table 149. IBM UPS7500XHV, 10000XHV Runtimes1
Number of Battery Packs
+0 +1 +2 +4
Total Load (Watts)
Runtime
(Hours/Minutes)
Runtime
(Hours/Minutes)
Runtime
(Hours/Minutes)
Runtime
(Hours/Minutes)
200 4/6 7/36 11/54 20/54
300 3/6 5/48 9/6 16/0
400 2/30 4/36 7/18 12/48
500 2/6 3/54 6/6 10/42
600 1/48 3/18 5/12 9/12
700 1/30 2/54 4/30 8/0
800 1/18 2/30 4/0 7/0
900 1/12 2/18 3/36 6/12
1000 1/6 2/0 3/12 5/42
1200 55 1/42 2/42 4/48
1400 47 1/30 2/18 4/6
1600 41 1/12 2/0 3/36
1800 36 1/6 1/48 3/12
2000 32 1/0 1/36 2/54
3000 19 39 1/0 1/48
4000 13 28 46 1/18
5000 10 21 35 1/0
6000 7 16 28 52
7000 5 13 23 44
8000 4 11 20 37
Note: UPS7500 is rated for up to 6000 total watts; UPS10000 is rated for up to 8000 total watts.
514 COG
Notes:
1. How-to-Read example for 200-240(208): Input VAC is 200-240 as is the UPS output when electric service
is active. When electric service is interrupted and the UPS is on battery, the UPS output is 208 VAC.
2. Battery output may be set to 208, 220, 225, 230 or 240 VAC.
3. Four IEC power cables are provided to attach devices or PDUs to the UPS outlet, which are 2m long with
IEC 320-C19/C20 connectors.
4. Each outlet is protected by a 15amp circuit breaker.
5. Requires electrician to connect directly to the terminal block inlet.
Table 150. IBM UPS7500XHV, 10000XHV Attributes
Tower or Rack Mount
Version UPS7500XHV UPS10000XHV UPS Extend Run
Battery Pack
New Order Number 21303RX 21304RX 39Y8857
(Old Order Number) (21306RX) (21308RX) (25R5582)
UPS Attributes
Communications Links to Servers Serial/USB/Enet Serial/USB/Enet -
Color black black black
EIA Height 6U 6U 3U
Versions
50 or 60Hz, single phase, VAC: 200-240(xxx) 1, 2 200-240(xxx)1, 2 --
Maximum power capacity (watts) 6000 8000 --
10 Amp, IEC 320-C13 receptacles -- -- --
16 Amp, IEC 320-C19 receptacles 43, 4 43, 4 --
Line Cord Receptacle terminal block5terminal block5--
© Copyright IBM Corp. 2003, 2006 515
Appendix D. System management overview
IBM system management solutions allow you to run your business-critical applications using innovative
hardware technology that prevents most outages and recovers rapidly from the few that do occur. This
technology makes xSeries simpler to service and easier to manage.
This section shows the available range of standard and optional system management processors and
describes the features and configuration process for each. This section further demonstrates how these
service processors can be interconnected to form a communication network for alerting and monitoring a
wide range of system functions and hardware conditions.
Notes:
1. An advanced system management interconnect network is for interconnectivity of legacy service
processors and/or RSA IIs with one RSA II serving as the gateway to the customer LAN routing alerts
and management functions. Service processors that can support an ASM network are: Remote
Supervisor Adapter II, Remote Supervisor Adapter, Integrated Systems Management Processor,
Advanced Systems Management PCI Adapter and the Advanced Systems Management Processor.
Legend
ISMP Integrated System Management Processor
BMC Baseboard Management Controller
RSA II Remote Supervisor Adapter II
RSA II SL Remoter Supervisor Adapter II SlimLine
ASMIC Advanced System Management Interconnect1
516 COG
System management support by server
Notes:
1. This service processor is integrated into the systemboard.
2. This service processor is a PCI adapter.
3. This service processor is a pluggable module with a dedicated connector.
4. x343 has its own integrated service processor which is not compatible with other service processors.
5. ASM interconnect requires a breakout cable contained in cable kit option 03K9309.
6. x445 uses the RSAII-EXA and not the RSAII.
7. x455 ships standard with the RSA adapter which is no longer available as an option.
Table 151. Support by Server
ISMP1BMC1 RSAII2RSAII SL3 ASMIC
Server
x206 - - optional - optional
x226 - - optional - optional
x236 - standard - optional -
x306 - - optional - optional
x336 - standard - optional -
x3434-----
x346 - standard - optional -
x3850 and x366 - standard - optional -
e326 - standard - - -
Appendix D. System management overview 517
System management functional comparison
Table 152. Functional Comparison
ISMP BMC RSA II RSAII SL
Feature/Function
Monitoring &
Alerting
In-band alerting yes1yes yes yes
Remote out-of-band
alerting
yes2yes yes yes
Out-of-band
environmental
monitoring
yes2yes yes yes
System voltage
monitoring
yes yes yes yes
Battery voltage
monitoring
no yes yes yes
System temperature
monitoring
yes yes yes yes
Fan speed monitoring yes yes yes yes
Fan speed control yes yes yes yes
Fan tachometer
monitoring
yes yes yes yes
Power good signal
monitor
yes yes yes yes
NMI detection yes yes yes yes
SMI detection and
generation
yes yes3yes yes
Auto server-restart
watchdog alert
yes yes yes yes
Management
System reset control yes yes yes yes
Remote system power
control
yes2yes yes yes
Text console
redirection
no yes yes yes
Remind button
detection
yes yes3yes yes
System LED control
(power, disk, alert)
yes yes yes yes
Lightpath LED
control
yes yes yes yes
Other
RS-485 Interconnect
network
yes no yes no
518 COG
Notes:
1. Requires IBM Director Agent
2. Available via the ASM interconnect or from customer LAN with RSAII installed.
3. Not available on e326.
4. Requires the addition of a RSAII to serve as a gateway to customer LAN.
Advanced system management examples
The following sample configurations are for illustration only and may not be suitable for any specific
customer installation. Contact your IBM Business Partner or IBM Marketing Representative for assistance
with your specific configuration requirements.
1. Sample ASM Network
The ASM interconnect network is logically and distinctly separate from the customer LAN. Thus, the ASM-
nodes are not required to be connected into the LAN. A system with the RSAII or the RSAII-EXA installed
will serve as the gateway to the customer LAN and the Director server.
Remote access via
LAN/serial
yes4yes yes no
Serial-over-LAN no yes yes no
Legend
RSAII-host System which has the RSAII or RSAII-EXA adapter installed that will be serving as the gateway for
the ASM network to the customer LAN for management.
ASM-node ASM-node=all systems in the ASM network excluding the RSAII-host.
RSA Refers to RSAII or RSAII-EXA
Table 152. Functional Comparison (continued)
ISMP BMC RSA II RSAII SL
Feature/Function
Appendix D. System management overview 519
Cabling rules:
1. Connect the ASM breakout cable to the RSA adapter in the RSAII-host.
2. Using a standard ethernet cable(RJ45), connect one ASM port of RSAII-host's ASM breakout cable to an
ASM port of the first ASM-node.
3. Using standard ethernet cables(RJ45), connect remaining ASM port of first ASM-node to an ASM port of
the second ASM-node and continue daisy-chaining all remaining ASM-nodes in the same manner. The
total ASM interconnect network may be no longer than 91.4m (300ft).
4. Using a standard ethernet cable(RJ45), connect the ethernet port of the RSAII-host's RSA adapter to the
customer LAN for ASM management of the ASM network from a remote management console.
5. An Advanced System Management Interconnect Cable Kit may be required. See the Support by Server
Table for more information.
Figure 103. Sample ASM Network
Note: RSAII-SlimLine and BMC management do not support a dedicated ASM network.
Ethernet LAN
Remote management console
RSAII-host ASM-node with RSAII installed
ASM-nodes using integrated
ASM ports (RS-485)
RSAII breakout cable
ASM ports (RS-485)
Ethernet cabling
520 COG
2. RSAII-SlimLine and BMC Management
Note: RSAII-SlimLine and BMC management do not support a dedicated ASM network. Management
access is via the Customer LAN using the appropriate ASM ethernet port.
Note: BMC access is shared with a designated system ethernet port. The RSAII-SlimLine access is through a
separate, dedicated ethernet port.
Figure 104. Sample RSAII-SlimLine and BMC Management
Ethernet LAN
Remote management console
RSAII-SlimLine (uses dedicated port)
BMC (shares system ethernet 1)
Appendix D. System management overview 521
3. Advanced System Management Scenario
Figure 105. Advanced System Management Scenario
Ethernet LAN
Remote management console
RSAII-host ASM-node with RSAII installed
ASM-nodes using integrated
ASM ports (RS-485)
RSAII breakout cable
ASM ports (RS-485)
Ethernet cabling
IBM
BMC (shares system ethernet 1)
RSAII-SlimLine (uses dedicated port)
522 COG
© Copyright IBM Corp. 2003, 2006 523
Appendix E. xSeries I/O option attributes
Option
Number Description
Adapter
Length
PCI
Support1
Low-
profile
Capable
Hot-
Plug2
PCI
Voltage
Key MHz1
Storage Controllers
39R8793 ServeRAID-6i+ Controller3Half 64-bit - - 3.3 1334
39R8816 ServeRAID-6M Controller (256MB Cache)5Full 64-bit - - 3.3 1334
39R8815 ServeRAID-6M Controller (128MB Cache)5Full 64-bit - - 3.3 1334
39R8800 ServeRAID-7k Controller6- 64-bit - - - 100
39R8805 ServeRAID-7t SATA RAID Controller7Half 64-bit X - Universal 66
39R8729 ServeRAID-8i Controller 64-bit - - 3.3 133
71P8594 Single Channel Ultra320 SCSI Controller8Half 64-bit X - Universal 133
13N2249 Ultra320 SCSI Controller 2 - 64-bit X X Universal 133
Fibre Storage Controllers and Options9
24P0960 DS4000 Host Bus Adapter10 Half 64-bit X X Universal 1334
174290U FAStT900 Storage Server (US line cord) - - - - - -
17421RU FAStT700 Fibre Channel Storage Server - - - - - -
172260U FAStT600 Storage Server (US line cord,
English pubs)
-- ----
Networking
22P4501 Intel Pro/100S Desktop Adapter11 Half 32-bit - - Universal 33
22P6501 Pro/1000 T Desktop Adapter by Intel12 Half 32-bit - - Universal 33
31P9601 PRO/1000 MT Server Adapter by Intel12 Half 64-bit X X Universal 1335
73P3601 iSCSI Server Adapter Half 64-bit - X Universal 66
22P7801 NetXtreme 1000 SX Fiber Ethernet Adapter14 Half 64-bit X X Universal 1336
31P6301 NetXtreme 1000 T Ethernet Adapter
(copper)12, 14
Half 64-bit X X Universal 1336
31P6401 NetXtreme 1000 T Dual Port Ethernet
Adapter (copper)12, 14
Half 64-bit X X Universal 1336
73P3501 NetXtreme 1000 Express Ethernet Adapter10 Half PCI E 1X - X 3.3v -
73P4101 NetXtreme 1000 T+ Ethernet Adapter Half 64-bit - X Universal 133
73P4001 NetXtreme 1000 SX+ Fiber Ethernet
Adapter10
Half 64-bit - X Universal 133
524 COG
Notes:
1. Adapters rated at a lower frequency than the slots in which they are installed will reduce the bus to the
frequency of the slowest adapter. 133MHz PCI-X adapters are backward compatible with 33/66MHz,
64-bit PCI-based servers.
2. Hot-plug feature only supported in systems with Active PCI slots. For network operating system
support, point your browser to www.pc.ibm.com/us/compat.
3. ServeRAID-6i+ Controller is a PCI-X adapter supporting both Ultra320 and Ultra160 HDDs in a
dedicated or mixed environment, allowing each HDD to perform at rated capacity. The adapter installs
into limited PCI slots and converts both channels of the integrated SCSI controller to RAID in conjunction
with the LSI 1030 chipset. Both standard and the optional SCSI HDD backplanes as well as internal tape
drives and external SCSI devices cabled directly to the onboard controller connectors. Supports up to
1,064MB/s data transfers across the PCI bus with 128MB ECC SDRAMM write-back cache with battery
backup. Supports RAID levels 0, 1, 10, 5, 50 and 1E. The option includes brackets for installation in both
low-profile and standard PCI slots. Internal and external tape drives are supported by ServeRAID-6i+
only when a second channel on the integrated controller is available and the RAID configuration
designates the second channel as a conventional SCSI bus. See system sections for supported tape drives.
4. This adapter is designed using PCI-X technology.
5. ServeRAID-6M (P/Ns 39R8816, 39R8815) are PCI-X adapters powered by a 600MHz Intel xScale
processor, providing 256MB or 128MB of ECC SDRAM battery-backed cache. The dual-channel Ultra320
controller includes two internal 68-pin connectors and two external 0.8mm VHDCI connectors,
supporting up to 14 HDDs on each channel at data transfer rates of up to 1,064MB/s. Supports RAID
levels 0, 1, 10, 1EO, 5, 50 and 5EE with both Ultra160 and Ultra320 HDDs.
6. ServeRAID-7k is available for select systems, installs into a dedicated slot and does not consume a PCI
slot. It works in conjunction with the integrated SCSI controller providing the following RAID levels: 0,
00, 1, 10, 1E, 1E0, 5 and 50 with 256MB of ECC DDR1 battery-backed cache.
7. ServeRAID-7t is a low-profile capable, four-port SATA controller supporting RAID levels 0, 1, 5 and 10.
All ports are internal. ServeRAID-7t is a universal PCI 2.2 compliant adapter powered by Intel’s 400MHz
80302 I/O processor and has 64MB of cache.
System Management13
03K9309 Advanced System Management Interconnect
Cable Kit14
-- ----
09N7585 Remote Supervisor Adapter15 Half 32-bit - - Universal16 33
59P2984 Remote Supervisor Adapter II17 Half 32-bit - - Universal16 66
39Y9566 Remote Supervisor Adapter II SlimLine18 -- ----
Communications
1519100 IXA Adapter19 Full 64-bit - - 3.3v 66
22P5888 PCI Parallel Port Adapter (low profile) Half 32-bit - - 5 33
Remote I/O Expansion
--------
Related I/O Cables
02R2068 Ultra320 Internal Single-drop 24in LVD SCSI
Cable20
-- ----
32P8164 External SCSI Interface Kit21 -- ----
10K3661 USB to Serial Adapter22, 23 -- ----
Option
Number Description
Adapter
Length
PCI
Support1
Low-
profile
Capable
Hot-
Plug2
PCI
Voltage
Key MHz1
Appendix E. xSeries I/O option attributes 525
8. Single Channel Ultra320 SCSI Controller (P/N 71P8594) provides a single channel with one 68-pin
internal connector, a four-drop multimode terminated LVD SCSI cable and one external 0.8mm VHDCI
connector. Only one of the two connectors may be utilized. Hardware is included in the option to
support either low-profile (2U) or full-size (3U) installations.
9. See Fibre Channel Solutions Overview section for additional configuration information.
10. The option includes brackets for installation in both low-profile and full-size PCI slots.
11. For use of the Alert on LAN 2 features in the Desktop adapter, the system must be enabled with
IBM-compatible Alert on LAN 2 hardware and software components. Use of the Wake on LAN function
requires a PCI 2.2 compatible system that supports Wake on LAN and provides auxiliary 3.3v power
through the PCI bus.
12. Use of the Wake on LAN function requires a PCI 2.2 compatible system that supports Wake on LAN and
provides auxiliary power through the PCI bus.
13. Up to 24 Integrated System Management Processors or Remote Supervisors Adapters may be
interconnected with an aggregate connection length of no more than 91.4m (300ft). This interconnect
network of 24 devices may also include a maximum of 12 Advanced System Management Processors or
advanced System Management PCI Adapters. A customer-supplied Cat5 cable is required for each
interconnection.
14. When a standard Remote Supervisor Adapter or ASM PCI Adapter is installed in a dedicated PCI slot
with an external connector, support for connection to other servers in an ASM interconnect network
requires an optional Advanced System Management Interconnect Cable Kit (P/N 03K9309). Where
applicable, direct connection to the RXE drawer management controller in an RXE-100 Remote
Expansion Enclosure is supported through a standard Interconnect Management Cable Kit with 3.5m
cable (8m optional cable is available). Support is provided through a single LAN or modem connection.
15. Remote Supervisor Adapter (P/N 09N7585) includes an adapter card, 20-pin ribbon cable, AC power
adapter, power cable, power cable for UPS attachment, single pigtail cable, two RS-485 terminators and
1ft Cat5 cable.
16. Although the voltage key of this adapter is universal (compatible with 3.3 or 5v slots), the BIOS of each
system limits installation to a specific PCI slot.
17. Remote Supervisor Adapter II (P/N 59P2984) includes an internal 20-pin ribbon cable for connection to
the system planar, an interconnect cable, a 56w AC power adapter, an intra-rack power cable and a
country-specific wall power cord. External connectors include an RS230 (9-pin) serial port, 10/100 base T
Ethernet port (RJ-45), interconnect port (RJ-11) and power connector. The interconnect cable includes a
single RJ-11 connector and dual RJ-48 ports. Supports an interconnect network of up to 24 RSAs or ISMPs
with aggregate cable connection length of 300ft (91.4m) or less. No more than 12 ASMPs are supported in
an interconnect network. RJ-45 bus is self-terminating, i.e., terminators are not required for the
interconnect bus.
18. Remote Supervisor Adapter II SlimLine is similar to RSA II and is available for select systems. It is not
supported on an ASM interconnect network. The RSA II SlimLine installs into a dedicated slot on the
systemboard and does not consume a PCI slot. An external AC adapter is not required as this card uses
standby power from the system’s power.
19. Some xSeries servers support the IXA Adapter (P/N 1519100) for connection to iSeries models. Refer to
system sections for PCI slot restrictions.
20. Required to connect RAID controllers to the hot-swap backplane in x235 or x345.
21. Required to enable external 0.8mm VHDCI connectors on some systems.
22. When supported, this option can be used for certain external device connections when only USB ports
rather than serial or parallel ports are present on a system chassis.
23. Available only in the US.
526 COG
© Copyright IBM Corp. 2003, 2006 527
Appendix F. BladeCenter® power module upgrade guidelines
This Technical Update contains information that will help you determine whether to upgrade the power
modules in your IBM BladeCenter® Type 8677 unit when installing IBM BladeCenter blade servers or
options.
Note: These guidelines apply to an IBM BladeCenter Type 8677 unit. These guidelines do not apply to an
IBM BladeCenter T Type 8720 or 8730 unit.
The latest version of the BladeCenter management module firmware includes new features to assist you in
managing the power load of the chassis. The new features (Fuel Gauge and Power Management Policy)
provide additional indication on whether the power supply in your system configuration supports full
redundancy and extend the capability of the 2000 watt (W) power supplies. If you have not already done so,
to take advantage of these new features, download and install the latest management module firmware from
http://www.ibm.com/support/.
Attention: Power modules must always be present and operating in power bays 1 and 2. When any blade
server or option is in blade bays 7 through 14, power modules must be present and operating in all four
power-module bays.
If a power module fails or an ac power failure occurs, BladeCenter units configured for redundant power
operation, as described in this document, will operate in a nonredundant mode, and the blower modules will
run at full speed. You must replace the failing power module or restore ac power as soon as possible to regain
redundant power operation and to reset the blower modules to their normal operating speed.
As of the date of this printing, four BladeCenter power-module options are supported:
• IBM BladeCenter 1200 W Power Supply Module (part number 48P7052)
• IBM BladeCenter 1200 W to 1400 W Power Supply Upgrade Kit (part number 90P0197)
• IBM BladeCenter 1800 W Power Supply Module (part number 13N0570)
• IBM BladeCenter 2000 W Power Supply Module (part number 26K4816)
Go to http://www.ibm.com/servers/eserver/serverproven/compat/us/ for information about these
options.
The most recent version of this document and all other BladeCenter documentation is at
http://www.ibm.com/support/.
528 COG
BladeCenter power overview
Your BladeCenter unit is separated into two power domains. Power domain A supports all the BladeCenter
modules and bays 1 through 6; power domain A uses power modules 1 and 2.
Power domain B supports bays 7 through 14 and uses power modules 3 and 4. To support devices in power
domain B, a power-supply option (consisting of two power modules) must be installed.
Important:
1. The power modules must be installed in pairs in a domain and must match each other in capacity
(wattage, amperage, and so on).
2. A power domain operating above the capacity of a single power module results in a nonredundant
power condition.
3. In a pair of power modules, a power module that is not connected to 200-240 volt ac power source results
in a nonredundant power condition.
4. To provide true redundant power, BladeCenter power modules 1 and 3 must be connected to a different
200 - 240 volt ac power source than power modules 2 and 4.
5. An installed power module must be connected to an ac power source and must not be used as a filler
module.
The following tables list the power requirement for each IBM BladeCenter blade server or option that is
available as of the date of this printing. These power requirements assume that each blade server is fully
configured and are based on typical workloads. Use the values in these tables and complete the upgrade
calculation (see “Upgrade calculation” on page 530) to determine which power modules are needed to
deliver full power redundancy for your configuration.
BladeCenter unit front view BladeCenter unit rear view
Power domain A Power domain B
AC
AC
DC
DC
AC
DC
I/O module bay 3
I/O module 1
I/O module bay 4
I/O module 2
Power module 3
Power module 1
Power module 4
Power module 2
Management
module 1
Management
module bay 2
Blower module 1
Blower module 2
AC
DC
Appendix F. BladeCenter® power module upgrade guidelines 529
Important:
The HS40 blade server occupies two adjacent bays. When you complete the “Power worksheets” on page 532,
enter the power unit value from Table 154 twice, once for each bay that the blade server occupies. If you
install an HS40 blade server in bays 6 and 7, the blade server will use power from both power domain A and
power domain B. In the power worksheets, enter the power unit value twice, once for bay 6 of power domain
A and once for bay 7 of power domain B.
Table 153. HS20 blade server power values
BladeCenter HS20 blade server
IBM power units for the corresponding
number of installed microprocessors
1 microprocessor 2 microprocessors
2.0 GHz/400 MHz (8678-21X) 0.9 1.1
2.4 GHz/400 MHz (8678-41X) 0.9 1.2
2.6 GHz/400 MHz (8678-51X) 1.0 1.2
2.8 GHz/400 MHz (8678-61X) 1.0 1.3
2.4 GHz/533 MHz (8832-9TX) 0.9 1.2
2.8 GHz/533 MHz (8832-21X, 8832-L1X, 8832-LTX) 1.0 1.5
3.06 GHz/533 MHz (8832-31X, 8832-M1X) 1.2 1.6
3.06 GHz/533 MHz (8832-N1X) Does not apply 1.9
3.2 GHz/533 MHz (8832-G1X, 8832-J1X, 8832-GTX) 1.2 1.65
2.8 GHz/800 MHz (8843-L1X and 8843-LTU) 1.05 1.55
2.8 to 3.8 GHz/800 MHz (all 8843 except as listed above) 1.4 2.3
Table 154. HS40 blade server power values
BladeCenter HS40 blade server
(occupies 2 bays)
IBM power units and the corresponding number of installed microprocessors
(power unit value for each bay)
1 microprocessor 2 microprocessors 3 microprocessors 4 microprocessors
2.0 GHz/400 MHz (8839-21X) 0.70 0.90 1.10 1.30
2.2 GHz/400 MHz (8839-51X) 0.70 0.95 1.15 1.40
2.7 GHz/400 MHz (8839-61X,
8839-6TX)
0.75 1.0 1.25 1.55
2.8 GHz/400 MHz (8839-41X) 0.75 1.0 1.30 1.55
3.0 GHz/400 MHz (8839-71X) 0.80 1.1 1.35 1.67
530 COG
Notes:
1. The SCSI Storage Expansion Unit is not available for the LS20 blade server.
Upgrade calculation
To determine the power-module capacity that is needed to maintain full redundancy in each power domain,
complete the following steps.
If you have two 2000 W power modules installed in power domain A and two 2000 W power modules
installed in power domain B, you do not need to complete this upgrade calculation. Your system meets the
requirements to maintain full power redundancy in both domains.
Attention: If you are replacing the existing power modules with 2000 W power modules, you must upgrade
the management-module firmware. If two management modules are installed in the BladeCenter unit, both
management modules must be upgraded to the same level of firmware. Go to the IBM Support Web site at
http://www.ibm.com/support/ and obtain the latest firmware.
1. In the power worksheets on page 532, list the blade servers or other devices that are installed in the bays.
2. In the tables on page 529, look up the number of IBM power units associated with each device and enter
it in the applicable power worksheet (see “Example calculation” on page 532).
3. Add all of the IBM power unit values for each domain and enter the totals.
4. To maintain full power redundancy in power domain A, make sure that the power modules in bays 1
and 2 are connected to different 200 - 240 volt ac power sources and meet the requirements in the
following table:
Table 155. JS20 blade server power values
BladeCenter JS20 blade server
IBM power units for two
installed microprocessors
1.6 GHz/800 MHz (8842-21X) 1.5
2.2 GHz/1.1GHz (8842-41X) 1.6
Table 156. LS20 blade server power values
BladeCenter LS20 blade server
IBM power units for the corresponding
number of installed microprocessors
1 microprocessor 2 microprocessors
2.0 to 2.6 GHz Single Core (8850-51X, 8850-71X, 8850-81X) 1.2 1.8
2.0 GHz Dual Core (8850-55x) 1.2 1.8
Table 157. BladeCenter expansion unit power values
BladeCenter Expansion unit1IBM power units
SCSI Storage Expansion Unit, SCSI Storage Expansion Unit 2 0.4
Appendix F. BladeCenter® power module upgrade guidelines 531
Important: If the sum of the power unit values in power domain A is greater than the capacity of the
installed power modules, power domain A has nonredundant power. Complete the following steps:
a. Determine whether rearranging the installed devices between power domain A and power domain B
in the BladeCenter unit will sufficiently reduce the power requirements for the power domain (use
the power worksheets on page 532).
b. If rearranging the installed devices does not sufficiently reduce the power requirements, the power
modules must be upgraded to maintain redundancy. Install the 1200 W to 1400 W Power Supply
Upgrade Kit (part number 90P0197) on the power modules to attain 1400 W, install the 1800 W Power
Supply Module option (part number 13N0570) to attain 1800 W, or install the 2000 W Power Supply
Module option (part number 26K4816) to attain 2000 W. Go to
http://www.ibm.com/servers/eserver/serverproven/compat/us/ for information about ordering
these options.
5. To maintain full power redundancy in power domain B, make sure that the power modules in bays 1 and
2 are connected to different 200 - 240 volt ac power sources and meet the requirements in the following
table:
Important: If the sum of the power unit values in power domain B is greater than the capacity of the
installed power modules, power domain B has nonredundant power. Complete the following steps:
a. Determine whether rearranging the installed devices between power domain A and power domain B
in the BladeCenter unit will sufficiently reduce the power requirements for the power domain (use
the power worksheets on page 532).
b. If rearranging the installed devices does not sufficiently reduce the power requirements, the power
modules must be upgraded to maintain redundancy. Install the 1200 W to 1400 W Power Supply
Upgrade Kit (part number 90P0197) on the power modules to attain 1400 W, install the 1800 W Power
Supply Module option (part number 13N0570) to attain 1800 W, or install the 2000 W Power Supply
Module option (part number 26K4816) to attain 2000 W. Go to
http://www.ibm.com/servers/eserver/serverproven/compat/us/ for information about ordering
these options.
Statement 13:
Table 158. Power domain A minimum power requirements
Sum of IBM power units for blade servers in Power domain A Minimum power module required
Less than 7.4 1200 W (labeled 7.5A)
Greater than or equal to 7.4 and less than 9.0 1400 W (labeled 9A)
Greater than or equal to 9.0 and less than 10.0 1800 W (labeled 12A)
Greater than or equal to 10.0 2000 W (labeled 13.5A)
Table 159. Power domain B minimum power requirements
Sum of IBM power units for blade servers in Power domain B Minimum power module required
Less than 9.9 1200 W (labeled 7.5A)
Greater than or equal to 9.9 and less than 11.5 1400 W (labeled 9A)
Greater than or equal to 11.5 and less than 13.4 1800 W (labeled 12A)
Greater than or equal to 13.4 2000 W (labeled 13.5A)
532 COG
DANGER
Power distribution unit assessment
If your calculations indicate that you need to upgrade your power modules, you will also need to reassess
your power distribution unit (PDU) configuration. Use the IBM BladeCenter Planning and Installation Guide to
determine the number and types of PDUs that you need. To obtain the BladeCenter Planning and Installation
Guide, go to http://www.ibm.com/support/.
Power worksheets
Power domain A worksheet (for power modules 1 and 2)
Power domain B worksheet (for power modules 3 and 4)
Example calculation
Power domain A worksheet (for power modules 1 and 2)
Blade bay Description of installed device IBM power units
1
2
3
4
5
6
Total
Blade bay Description of installed device IBM power units
7
8
9
10
11
12
13
14
Total
Overloading a branch circuit is potentially a fire hazard and a shock hazard under certain
conditions. To avoid these hazards, ensure that your system electrical requirements do not exceed
branch circuit protection requirements. Refer to the information that is provided with your device
Appendix F. BladeCenter® power module upgrade guidelines 533
Result:
• 7.2 IBM power units < 7.4 IBM power units
• Two 1200 W power modules will provide full power redundancy for power domain A
Power domain B worksheet (for power modules 3 and 4)
Result:
• 14.0 IBM power units > 13.4 IBM power units
• Two 2000 W power modules will provide full power redundancy for power domain B
Attention: To maintain proper system cooling, each unoccupied blade bay must contain a filler blade. To
maintain proper module cooling, each unoccupied I/O, management-module, or power-module bay must
contain a filler module. An installed power module must be powered on and must not be used as a filler
module.
Blade bay Description of installed device IBM power units
13.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-31X 1.6
2SCSI Storage Expansion Unit 0.4
33.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-31X 1.6
4SCSI Storage Expansion Unit 0.4
53.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-31X 1.6
63.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-31X 1.6
Total 7.2
Blade bay Description of installed device IBM power units
73.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-N1X 1.9
83.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-N1X 1.9
93.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-N1X 1.9
10 3.06 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-N1X 1.9
11 3.2 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-G1X 1.65
12 2.8 GHz/400 MHz HS40 blade server with 4 microprocessors - first bay (HS40
occupies 2 bays) 8832-41X
1.55
13 2.8 GHz/400 MHz HS40 blade server with 4 microprocessors - second bay (HS40
occupies 2 bays) 8839-41X
1.55
14 3.2 GHz/533 MHz HS20 blade server with 2 microprocessors 8832-G1X 1.65
Total 14.0
534 COG
© Copyright IBM Corp. 2003, 2006 535
Appendix G. xSeries DC power and NEBS-compliant models
The following models, designed for the telecommunications industry and may utilize DC Power and/or are
NEBS compliant.
Refer to individual system sections for complete configuration details.
Model Description
xSeries 343 DC Power model 8847-14X 2.4GHz/533MHz-512KB L2 P4, 1GB memory. Includes a -48v to -60v,
470w DC power supply.
xSeries 343 DC Power model 8847-24X 2.4GHz/533MHz-512KB L2 P4, 2GB memory. Includes two -48v to -60v,
470w DC power supplies.
BladeCenter T DC Power model 8720-1RX BladeCenter T chassis including two -48 to -60v, 1300w DC power
supplies.
BladeCenter T AC Power model 8730-1RX BladeCenter T chassis including two -200 to -240v, 1300w DC power
supplies.
BladeCenter HS20 8832-9TX 2.4GHz/533MHz-512KB L2 Xeon, 1GB memory.
BladeCenter HS20 8832-LTX 2.8GHz/533MHz-512KB L2 Xeon, 1GB memory.
BladeCenter JS20 8842-4TY 2-way 2.2GHz/ - 512 KB L2 PowerPC 970, 1GB memory.
536 COG
© Copyright IBM Corp. 2003, 2006 537
Important notices
A withdrawal date indicates when an item is no longer available from IBM. Business Partner inventory might
be available.
IBM reserves the right to change product specifications and to discontinue marketing products without
notice.
MHz and GHz measure only microprocessor internal clock speed, not application performance. Many factors
affect application performance.
When referring to storage capacity, MB means 1 000 000 bytes, GB means 1 000 000 000 and TB means 1 000
000 000 000 bytes. Accessible capacity is less; up to 3 GB is used in the service partition. Actual storage
capacity will vary based upon many factors and might be less than stated. Some numbers given for storage
capacities give capacity in native mode followed by capacity using data compression technology.
Adapters rated at a lower frequency than the slots in which they are installed might reduce the bus to the
frequency of the slowest adapter.
Tape drives that use data compression technology have storage capacity that will vary depending upon
whether the drive is operating in native mode (without compression) or compressed mode. Actual storage
capacity will vary based upon many factors and might be less than the maximum possible.
Maximum internal hard disk and memory capacities might require the replacement of any standard hard
disk drives and memory and the population of all hard disk drive bays and memory slots with the largest
currently supported available drives and memory modules. When referring to variable speed CDs and
DVDs, actual playback speed will vary and is often less than the maximum possible.
The information contained in this document has not been submitted to any formal IBM test and is distributed
AS IS. The use of this information or the implementation of any of these techniques is a customer
responsibility and depends on the customer’s ability to evaluate and integrate them into the customer’s
operational environment. Although each item might have been reviewed by IBM for accuracy in a specific
situation, there is no guarantee that the same or similar results will be obtained elsewhere. Customers
attempting to adapt these techniques to their own environments do so at their own risk. For information
about IBM’s Statement of Limited Warranty, call 1-800-772-2227 in the United States, 1-800-426-2255 in
Canada, or contact your IBM representative or reseller. Copies are available upon request. For warranties
including on-site service, a technician is sent after IBM attempts to resolve the problem remotely.
Energy Star compliance: The EPA, as a matter of policy, does not endorse any company or its products.
IBM makes no representations or warranties with respect to non-IBM products. Support (if any) for the non-
IBM products is provided by the third party, not IBM. IBM makes no warranties, express or implied,
regarding non-IBM products and services that are ServerProven, including but not limited to the implied
warranties of merchantability and fitness for particular purpose. These products are offered and warranted
solely by third parties.
Unless otherwise noted, phone numbers and fax numbers are valid only in the United States. Outside the
United States, call your local IBM representative for assistance.
Applications included in IBM products might vary from retail versions and might not include all
documentation or functions. Not all products are sold separately. Third-party software licenses might apply.
This publication was produced in the United States. IBM might not offer the products, services or features
discussed in this document in other countries, and the information is subject to change without notice.
Consult your local IBM representative for more information on the products, services and features available
in your area.
538 COG
©IBM Corporation 2006. All rights reserved.
3039 Cornwallis Rd.
Research Triangle Park, NC 27709
All the part numbers referenced in this publication are product part numbers and not service part numbers.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of this publication. IBM might
make improvements or changes in the products and programs described in this publication at any time. IBM
reserves the right to alter specifications and other product information without notice. It is your
responsibility to obtain the latest information.
Other part numbers in addition to those listed in this document might be required to support a specific
device or function.
Data on competitive products is obtained from publicly obtained information and is subject to change
without notice. Please contact the manufacturer for the most recent information.
This IBM equipment is subject to applicable rules and regulations of the United States Federal
Communication Commission (FCC).
The following terms are trademarks of IBM Corporation in the United States, other countries, or both: IBM,
the IBM logo, Active PCI, Alert on LAN, BladeCenter, Chipkill, the e-business logo, ESCON, IntelliStation,
LANStreamer, NetBAY3, NetBAY3E, NetBAY22, Netfinity, OpenPower, OS/2, Predictive Failure Analysis,
ServeRAID, ServerGuide, ServerProven, SurePath, TechConnect, TME 10, Wake on LAN, xSeries, X-
Architecture, 800-CALL-IBM. For a list of additional IBM trademarks, see
http://www.ibm.com/legal/copytrade.shtml.
Lotus, Lotus Notes and Lotus SmartSuite are trademarks of Lotus Development Corporation, IBM
Corporation, or both.
Linux is a trademark of Linus Torvalds in the United States, other countries, or both.
Intel, Celeron, Intel Xeon, Itanium, and Pentium are trademarks or registered trademarks of Intel
Corporation. Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United
States, other countries, or both. UNIX is a registered trademark of The Open Group in the United States and
other countries. Java and all Java-based trademarks and logos are trademarks of Sun Microsystems, Inc. in
the United States, other countries, or both. Other company, product, or service names may be trademarks or
service marks of others.
IBM offers configure-to-order (CTO) capability for selected products through Easy Access. Although similar
to machine type models (MTM), CTO systems utilize different part numbers called Sales Building Blocks
(SBB). The contents of an option might not entirely correspond to an SBB because only a certain component
within an option package might be required to configure a specific system. Additional or different
configuration rules or limitations might apply to the SBB. When a difference occurs, the rules will be
documented in the tables, diagrams or footnotes.
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. SOME STATES DO NOT ALLOW DISCLAIMER OF EXPRESS OR IMPLIED WARRANTIES IN
CERTAIN TRANSACTIONS. THEREFORE, THIS STATEMENT MAY NOT APPLY TO YOU. THERE IS NO
GUARANTEE THAT IBM WILL MARKET ANY PARTICULAR PRODUCT IN YOUR COUNTRY
This publication was produced in the United States. IBM may not offer the products, services or features
discussed in this document in other countries, and the information may be subject to change without notice.
Consult your local IBM business contact for information on the product or services available in your area.
All statements regarding IBM's future direction and intent are subject to change or withdraw without notice,
and represent goals and objectives only. Prices subject to change without notice. Starting price may not
include a hard drive, operating system or other features. Contact your IBM representative or Business Partner
for the most current pricing in your geography.
IBM@
Printed in USA
SCOD-3ZVQ5W
*07SCOD3ZVQ5W *
