ibm.com/redbooks
Front cover
The IBM TotalStorage Storage
DS8000 Series:s:
Concepts and ArchitectureArchitecture
Cathy Warrick
Olivier Alluis
Werner Bauer
Heinz Blaschek
Andre Fourie
Juan Antonio Garay
Torsten Knobloch
Donald C Laing
Christine O’Sullivan
Stu S Preacher
Torsten Rothenwaldt
Tetsuroh Sano
Jing Nan Tang
Anthony Vandewerdt
Alexander Warmuth
Roland Wolf
Advanced features and performance
breakthrough with POWER5 technology
Configuration flexibility with LPAR
and virtualization
Highly scalable solutions for
on demand storage
International Technical Support Organization
The IBM TotalStorage DS8000 Series:
Concepts and Architecture
April 2005
SG24-6452-00
© Copyright International Business Machines Corporation 2005. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by GSA ADP Schedule
Contract with IBM Corp.
First Edition (April 2005)
This edition applies to the DS8000 series per the October 12, 2004 announcement. Please note that
pre-release code was used for the screen captures and command output; some details may vary from the
generally available product.
Note: Before using this information and the product it supports, read the information in “Notices” on
page xiii.
Note: This book is based on a pre-GA version of a product and may not apply when the product becomes
generally available. We recommend that you consult the product documentation or follow-on versions of
this redbook for more current information.
© Copyright IBM Corp. 2005. All rights reserved. iii
Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xv
The team that wrote this redbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xv
Become a published author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix
Comments welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix
Part 1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 1. Introduction to the DS8000 series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 The DS8000, a member of the TotalStorage DS family . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.1 Infrastructure Simplification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2 Business Continuity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.3 Information Lifecycle Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Overview of the DS8000 series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.1 Hardware overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2.2 Storage capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2.3 Storage system logical partitions (LPARs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2.4 Supported environments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.5 Resiliency Family for Business Continuity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.6 Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.2.7 Service and setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.3 Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.1 Common set of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3.2 Common management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.3.3 Scalability and configuration flexibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.4 Future directions of storage system LPARs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.4 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.4.1 Sequential Prefetching in Adaptive Replacement Cache (SARC) . . . . . . . . . . . . 14
1.4.2 IBM TotalStorage Multipath Subsystem Device Driver (SDD) . . . . . . . . . . . . . . . 14
1.4.3 Performance for zSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.5 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Part 2. Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 2. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1 Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.1.1 Base frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.1.2 Expansion frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.1.3 Rack operator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.2.1 Server-based SMP design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.2.2 Cache management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3 Processor complex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.3.1 RIO-G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.3.2 I/O enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.4 Disk subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

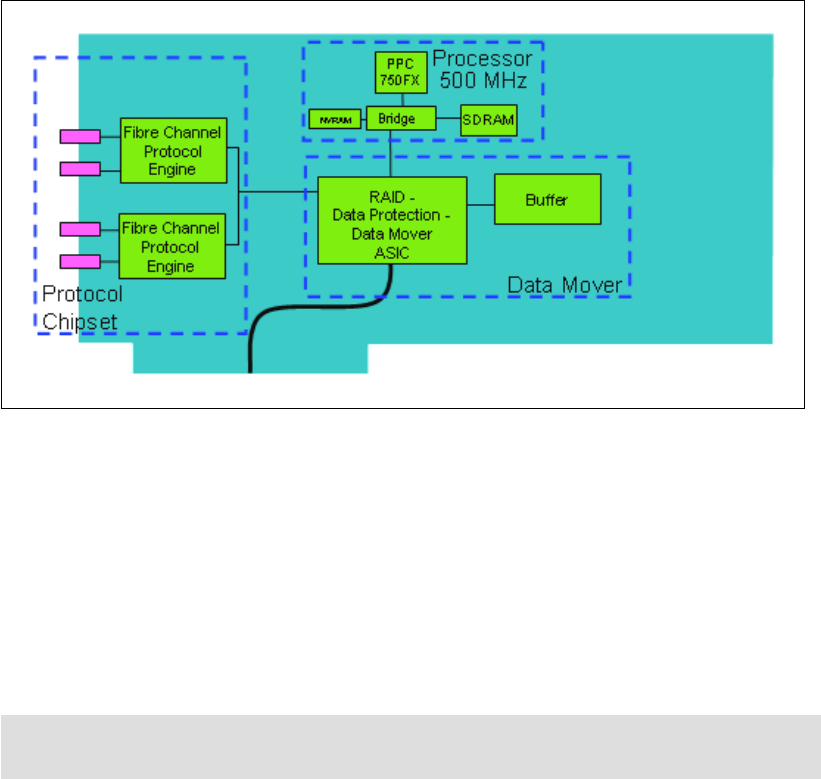

2.4.1 Device adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
iv DS8000 Series: Concepts and Architecture
2.4.2 Disk enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.5 Host adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.5.1 FICON and Fibre Channel protocol host adapters . . . . . . . . . . . . . . . . . . . . . . . . 38
2.6 Power and cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2.7 Management console network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.8 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Chapter 3. Storage system LPARs (Logical partitions). . . . . . . . . . . . . . . . . . . . . . . . . 43
3.1 Introduction to logical partitioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.1.1 Virtualization Engine technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.1.2 Partitioning concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.1.3 Why Logically Partition? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3.2 DS8000 and LPAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.2.1 LPAR and storage facility images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.2.2 DS8300 LPAR implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.2.3 Storage facility image hardware components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.2.4 DS8300 Model 9A2 configuration options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.3 LPAR security through POWER™ Hypervisor (PHYP). . . . . . . . . . . . . . . . . . . . . . . . . 54
3.4 LPAR and Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.5 LPAR benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.6 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Chapter 4. RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
4.1 Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4.2 Processor complex RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4.3 Hypervisor: Storage image independence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.3.1 RIO-G - a self-healing interconnect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.3.2 I/O enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.4 Server RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.4.1 Metadata checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.4.2 Server failover and failback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4.4.3 NVS recovery after complete power loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.5 Host connection availability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.5.1 Open systems host connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.5.2 zSeries host connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.6 Disk subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
4.6.1 Disk path redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
4.6.2 RAID-5 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.6.3 RAID-10 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.6.4 Spare creation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
4.6.5 Predictive Failure Analysis® (PFA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4.6.6 Disk scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4.7 Power and cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4.7.1 Building power loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.7.2 Power fluctuation protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.7.3 Power control of the DS8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.7.4 Emergency power off (EPO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.8 Microcode updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
4.9 Management console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
4.10 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Chapter 5. Virtualization concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
5.1 Virtualization definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.2 Storage system virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Contents v
5.3 The abstraction layers for disk virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.3.1 Array sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5.3.2 Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
5.3.3 Ranks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.3.4 Extent pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
5.3.5 Logical volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
5.3.6 Logical subsystems (LSS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
5.3.7 Volume access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
5.3.8 Summary of the virtualization hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
5.3.9 Placement of data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
5.4 Benefits of virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Chapter 6. IBM TotalStorage DS8000 model overview and scalability. . . . . . . . . . . . 103
6.1 DS8000 highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
6.1.1 Model naming conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
6.1.2 DS8100 Model 921 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6.1.3 DS8300 Models 922 and 9A2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
6.2 Model comparison. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
6.3 Designed for scalability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.3.1 Scalability for capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.3.2 Scalability for performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
6.3.3 Model upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Chapter 7. Copy Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
7.1 Introduction to Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2 Copy Services functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2.1 Point-in-Time Copy (FlashCopy). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2.2 FlashCopy options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
7.2.3 Remote Mirror and Copy (Peer-to-Peer Remote Copy) . . . . . . . . . . . . . . . . . . . 123
7.2.4 Comparison of the Remote Mirror and Copy functions. . . . . . . . . . . . . . . . . . . . 130
7.2.5 What is a Consistency Group? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
7.3 Interfaces for Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
7.3.1 Storage Hardware Management Console (S-HMC) . . . . . . . . . . . . . . . . . . . . . . 136
7.3.2 DS Storage Manager Web-based interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
7.3.3 DS Command-Line Interface (DS CLI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
7.3.4 DS Open application programming Interface (API). . . . . . . . . . . . . . . . . . . . . . . 138
7.4 Interoperability with ESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
7.5 Future Plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Part 3. Planning and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Chapter 8. Installation planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
8.1 General considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
8.2 Delivery requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
8.3 Installation site preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
8.3.1 Floor and space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
8.3.2 Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
8.3.3 Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.4 Host attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
8.4.1 Attaching to open systems hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
8.4.2 ESCON-attached S/390 and zSeries hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
8.4.3 FICON-attached S/390 and zSeries hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
8.4.4 Where to get the updated information for host attachment. . . . . . . . . . . . . . . . . 152
8.5 Network and SAN requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
vi DS8000 Series: Concepts and Architecture
8.5.1 S-HMC network requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
8.5.2 Remote support connection requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
8.5.3 Remote power control requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
8.5.4 SAN requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Chapter 9. Configuration planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
9.1 Configuration planning overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
9.2 Storage Hardware Management Console (S-HMC) . . . . . . . . . . . . . . . . . . . . . . . . . . 158
9.2.1 External S-HMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
9.2.2 S-HMC software components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
9.2.3 S-HMC network topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
9.2.4 FTP Offload option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
9.3 DS8000 licensed functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
9.3.1 Operating environment license (OEL) - required feature . . . . . . . . . . . . . . . . . . 167
9.3.2 Point-in-Time Copy function (2244 Model PTC) . . . . . . . . . . . . . . . . . . . . . . . . . 168
9.3.3 Remote Mirror and Copy functions (2244 Model RMC) . . . . . . . . . . . . . . . . . . . 169
9.3.4 Remote Mirror for z/OS (2244 Model RMZ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
9.3.5 Parallel Access Volumes (2244 Model PAV) . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
9.3.6 Ordering licensed functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
9.3.7 Disk storage feature activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
9.3.8 Scenarios for managing licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
9.4 Capacity planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
9.4.1 Logical configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
9.4.2 Sparing rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
9.4.3 Sparing examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
9.4.4 IBM Standby Capacity on Demand (Standby CoD) . . . . . . . . . . . . . . . . . . . . . . 180
9.4.5 Capacity and well-balanced configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
9.5 Data migration planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
9.5.1 Operating system mirroring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.5.2 Basic commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.5.3 Software packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.5.4 Remote copy technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.5.5 Migration services and appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
9.5.6 z/OS data migration methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
9.6 Planning for performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
9.6.1 Disk Magic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.2 Size of cache storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.3 Number of host ports/channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.4 Remote copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.5 Parallel Access Volumes (z/OS only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.6 I/O priority queuing (z/OS only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.7 Monitoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.6.8 Hot spot avoidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Chapter 10. The DS Storage Manager - logical configuration. . . . . . . . . . . . . . . . . . . 189
10.1 Configuration hierarchy, terminology, and concepts . . . . . . . . . . . . . . . . . . . . . . . . . 190
10.1.1 Storage configuration terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
10.1.2 Summary of the DS Storage Manager logical configuration steps . . . . . . . . . . 199
10.2 Introducing the GUI and logical configuration panels . . . . . . . . . . . . . . . . . . . . . . . . 202
10.2.1 Connecting to the DS8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
10.2.2 The Welcome panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
10.2.3 Navigating the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
10.3 The logical configuration process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Contents vii
10.3.1 Configuring a storage complex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
10.3.2 Configuring the storage unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
10.3.3 Configuring the logical host systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
10.3.4 Creating arrays from array sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
10.3.5 Creating extent pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
10.3.6 Creating FB volumes from extents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
10.3.7 Creating volume groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
10.3.8 Assigning LUNs to the hosts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
10.3.9 Deleting LUNs and recovering space in the extent pool . . . . . . . . . . . . . . . . . . 226
10.3.10 Creating CKD LCUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
10.3.11 Creating CKD volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
10.3.12 Displaying the storage unit WWNN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
10.4 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Chapter 11. DS CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
11.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
11.2 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
11.3 Supported environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11.4 Installation methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11.5 Command flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
11.6 User security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
11.7 Usage concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
11.7.1 Command modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
11.7.2 Syntax conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
11.7.3 User assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
11.7.4 Return codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
11.8 Usage examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
11.9 Mixed device environments and migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
11.9.1 Migration tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
11.10 DS CLI migration example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
11.10.1 Determining the saved tasks to be migrated. . . . . . . . . . . . . . . . . . . . . . . . . . 245
11.10.2 Collecting the task details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
11.10.3 Converting the saved task to a DS CLI command . . . . . . . . . . . . . . . . . . . . . 247
11.10.4 Using DS CLI commands via a single command or script . . . . . . . . . . . . . . . 249
11.11 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Chapter 12. Performance considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
12.1 What is the challenge? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
12.1.1 Speed gap between server and disk storage . . . . . . . . . . . . . . . . . . . . . . . . . . 254
12.1.2 New and enhanced functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
12.2 Where do we start? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
12.2.1 SSA backend interconnection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
12.2.2 Arrays across loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
12.2.3 Switch from ESCON to FICON ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
12.2.4 PPRC over Fibre Channel links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
12.2.5 Fixed LSS to RAID rank affinity and increasing DDM size . . . . . . . . . . . . . . . . 256
12.3 How does the DS8000 address the challenge? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
12.3.1 Fibre Channel switched disk interconnection at the back end . . . . . . . . . . . . . 257
12.3.2 Fibre Channel device adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
12.3.3 New four-port host adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
12.3.4 POWER5 - Heart of the DS8000 dual cluster design . . . . . . . . . . . . . . . . . . . . 261
12.3.5 Vertical growth and scalability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
12.4 Performance and sizing considerations for open systems . . . . . . . . . . . . . . . . . . . . 264
viii DS8000 Series: Concepts and Architecture
12.4.1 Workload characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
12.4.2 Cache size considerations for open systems . . . . . . . . . . . . . . . . . . . . . . . . . . 265
12.4.3 Data placement in the DS8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
12.4.4 LVM striping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
12.4.5 Determining the number of connections between the host and DS8000 . . . . . 267
12.4.6 Determining the number of paths to a LUN. . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
12.4.7 Determining where to attach the host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
12.5 Performance and sizing considerations for z/OS . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
12.5.1 Connect to zSeries hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
12.5.2 Performance potential in z/OS environments . . . . . . . . . . . . . . . . . . . . . . . . . . 270
12.5.3 Appropriate DS8000 size in z/OS environments. . . . . . . . . . . . . . . . . . . . . . . . 271
12.5.4 Configuration recommendations for z/OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
12.6 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Part 4. Implementation and management in the z/OS environment. . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Chapter 13. zSeries software enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
13.1 Software enhancements for the DS8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
13.2 z/OS enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
13.2.1 Scalability support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
13.2.2 Large Volume Support (LVS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
13.2.3 Read availability mask support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
13.2.4 Initial Program Load (IPL) enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
13.2.5 DS8000 definition to host software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
13.2.6 Read control unit and device recognition for DS8000. . . . . . . . . . . . . . . . . . . . 284
13.2.7 New performance statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
13.2.8 Resource Management Facility (RMF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
13.2.9 Migration considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
13.2.10 Coexistence considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
13.3 z/VM enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
13.4 z/VSE enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
13.5 TPF enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Chapter 14. Data migration in zSeries environments . . . . . . . . . . . . . . . . . . . . . . . . . 293
14.1 Define migration objectives in z/OS environments . . . . . . . . . . . . . . . . . . . . . . . . . . 294
14.1.1 Consolidate storage subsystems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
14.1.2 Consolidate logical volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
14.1.3 Keep source and target volume size at the current size . . . . . . . . . . . . . . . . . . 297
14.1.4 Summary of data migration objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
14.2 Data migration based on physical migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
14.2.1 Physical migration with DFSMSdss and other storage software. . . . . . . . . . . . 298
14.2.2 Software- and hardware-based data migration. . . . . . . . . . . . . . . . . . . . . . . . . 299
14.2.3 Hardware- or microcode-based migration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
14.3 Data migration based on logical migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
14.3.1 Data Set Services Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
14.3.2 Hierarchical Storage Manager, DFSMShsm. . . . . . . . . . . . . . . . . . . . . . . . . . . 308
14.3.3 System utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
14.3.4 Data migration within the System-managed storage environment . . . . . . . . . . 308
14.3.5 Summary of logical data migration based on software utilities . . . . . . . . . . . . . 314
14.4 Combine physical and logical data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
14.5 z/VM and VSE/ESA data migration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
14.6 Summary of data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Part 5. Implementation and management in the open systems environment. . . . . . . . . . . . . . . . . . . 317
Contents ix
Chapter 15. Open systems support and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
15.1 Open systems support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
15.1.1 Supported operating systems and servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
15.1.2 Where to look for updated and detailed information . . . . . . . . . . . . . . . . . . . . . 320
15.1.3 Differences to the ESS 2105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
15.1.4 Boot support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
15.1.5 Additional supported configurations (RPQ). . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
15.1.6 Differences in interoperability between the DS8000 and DS6000 . . . . . . . . . . 323
15.2 Subsystem Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
15.3 Other multipathing solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
15.4 DS CLI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
15.5 IBM TotalStorage Productivity Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
15.5.1 Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
15.5.2 TPC for Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
15.5.3 TPC for Replication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
15.6 Global Mirror Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
15.7 Enterprise Remote Copy Management Facility (eRCMF). . . . . . . . . . . . . . . . . . . . . 331
15.8 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Chapter 16. Data migration in the open systems environment. . . . . . . . . . . . . . . . . . 333
16.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
16.2 Comparison of migration methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
16.2.1 Host operating system-based migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
16.2.2 Subsystem-based data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
16.2.3 IBM Piper migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
16.2.4 Other migration applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
16.3 IBM migration services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
16.4 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Appendix A. Open systems operating systems specifics. . . . . . . . . . . . . . . . . . . . . . 343
General considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
The DS8000 Host Systems Attachment Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
UNIX performance monitoring tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
IOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
System Activity Report (SAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
VMSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
IBM AIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
The AIX host attachment scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Finding the World Wide Port Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Managing multiple paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
LVM configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
AIX access methods for I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Boot device support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
AIX on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Monitoring I/O performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Support issues that distinguish Linux from other operating systems . . . . . . . . . . . . . . 356
Existing reference material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Important Linux issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Linux on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Troubleshooting and monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
Microsoft Windows 2000/2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
x DS8000 Series: Concepts and Architecture
HBA and operating system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
SDD for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Windows Server 2003 VDS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
HP OpenVMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
FC port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Volume configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Command Console LUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
OpenVMS volume shadowing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Appendix B. Using DS8000 with iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Supported environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Logical volume sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Protected versus unprotected volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Changing LUN protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Adding volumes to iSeries configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Using 5250 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Adding volumes to an Independent Auxiliary Storage Pool . . . . . . . . . . . . . . . . . . . . . 378
Multipath. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Avoiding single points of failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Configuring multipath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Adding multipath volumes to iSeries using 5250 interface . . . . . . . . . . . . . . . . . . . . . . 388
Adding volumes to iSeries using iSeries Navigator. . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Managing multipath volumes using iSeries Navigator . . . . . . . . . . . . . . . . . . . . . . . . . 392
Multipath rules for multiple iSeries systems or partitions . . . . . . . . . . . . . . . . . . . . . . . 395
Changing from single path to multipath. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Sizing guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Planning for arrays and DDMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Number of iSeries Fibre Channel adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Size and number of LUNs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Recommended number of ranks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Sharing ranks between iSeries and other servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Connecting via SAN switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
OS/400 mirroring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Metro Mirror and Global Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
OS/400 data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Copy Services for iSeries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
FlashCopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Remote Mirror and Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
iSeries toolkit for Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
AIX on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
Linux on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Appendix C. Service and support offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
IBM Web sites for service offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
IBM service offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
IBM Operational Support Services - Support Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Contents xi
Online resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
How to get IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Help from IBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
xii DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. xiii
Notices
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult
your local IBM representative for information on the products and services currently available in your area.
Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product, program, or service that does
not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to
evaluate and verify the operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document. The
furnishing of this document does not give you any license to these patents. You can send license inquiries, in
writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive Armonk, NY 10504-1785 U.S.A.
The following paragraph does not apply to the United Kingdom or any other country where such provisions
are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of the publication. IBM may make
improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time
without notice.
Any references in this information to non-IBM Web sites are provided for convenience only and do not in any
manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the
materials for this IBM product and use of those Web sites is at your own risk.
IBM may use or distribute any of the information you supply in any way it believes appropriate without
incurring any obligation to you.
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products and cannot confirm the
accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the
capabilities of non-IBM products should be addressed to the suppliers of those products.
This information contains examples of data and reports used in daily business operations. To illustrate them
as completely as possible, the examples include the names of individuals, companies, brands, and products.
All of these names are fictitious and any similarity to the names and addresses used by an actual business
enterprise is entirely coincidental.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrates programming
techniques on various operating platforms. You may copy, modify, and distribute these sample programs in
any form without payment to IBM, for the purposes of developing, using, marketing or distributing application
programs conforming to the application programming interface for the operating platform for which the sample
programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore,
cannot guarantee or imply reliability, serviceability, or function of these programs. You may copy, modify, and
distribute these sample programs in any form without payment to IBM for the purposes of developing, using,
marketing, or distributing application programs conforming to IBM's application programming interfaces.
xiv DS8000 Series: Concepts and Architecture
Trademarks
The following terms are trademarks of the International Business Machines Corporation in the United States,
other countries, or both:
Eserver®
Redbooks (logo) ™
ibm.com®
iSeries™
i5/OS™
pSeries®
xSeries®
z/OS®
z/VM®
zSeries®
AIX 5L™
AIX®
AS/400®
BladeCenter™
Chipkill™
CICS®
DB2®
DFSMS/MVS®
DFSMS/VM®
DFSMSdss™
DFSMShsm™
DFSORT™
Enterprise Storage Server®
Enterprise Systems Connection
Architecture®
ESCON®
FlashCopy®
Footprint®
FICON®
Geographically Dispersed Parallel
Sysplex™
GDPS®
Hypervisor™
HACMP™
IBM®
IMS™
Lotus Notes®
Lotus®
Micro-Partitioning™
Multiprise®
MVS™
Notes®
OS/390®
OS/400®
Parallel Sysplex®
PowerPC®
Predictive Failure Analysis®
POWER™
POWER5™
Redbooks™
RMF™
RS/6000®
S/390®
Seascape®
System/38™
Tivoli®
TotalStorage Proven™
TotalStorage®
Virtualization Engine™
VSE/ESA™
The following terms are trademarks of other companies:
Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States, other countries, or both.
Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the
United States, other countries, or both.
Intel, Intel Inside (logos), and Pentium are trademarks of Intel Corporation in the United States, other
countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a trademark of Linus Torvalds in the United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
© Copyright IBM Corp. 2005. All rights reserved. xv
Preface
This IBM® Redbook describes the IBM TotalStorage® DS8000 series of storage servers, its
architecture, logical design, hardware design and components, advanced functions,
performance features, and specific characteristics. The information contained in this redbook
is useful for those who need a general understanding of this powerful new series of disk
enterprise storage servers, as well as for those looking for a more detailed understanding of
how the DS8000 series is designed and operates.
The DS8000 series is a follow-on product to the IBM TotalStorage Enterprise Storage
Server® with new functions related to storage virtualization and flexibility. This book
describes the virtualization hierarchy that now includes virtualization of a whole storage
subsystem. This is possible by utilizing IBM’s pSeries® POWER5™-based server technology
and its Virtualization Engine™ LPAR technology. This LPAR technology offers totally new
options to configure and manage storage.
In addition to the logical and physical description of the DS8000 series, the fundamentals of
the configuration process are also described in this redbook. This is useful information for
proper planning and configuration for installing the DS8000 series, as well as for the efficient
management of this powerful storage subsystem.
Characteristics of the DS8000 series described in this redbook also include the DS8000 copy
functions: FlashCopy®, Metro Mirror, Global Copy, Global Mirror and z/OS® Global Mirror.
The performance features, particularly the new switched FC-AL implementation of the
DS8000 series, are also explained, so that the user can better optimize the storage resources
of the computing center.
The team that wrote this redbook
This redbook was produced by a team of specialists from around the world working at the
Washington Systems Center in Gaithersburg, MD.
Cathy Warrick is a project leader and Certified IT Specialist in the IBM International
Technical Support Organization. She has over 25 years of experience in IBM with large
systems, open systems, and storage, including education on products internally and for the
field. Prior to joining the ITSO two years ago, she developed the Technical Leadership
education program for the IBM and IBM Business Partner’s technical field force and was the
program manager for the Storage Top Gun classes.
Olivier Alluis has worked in the IT field for nearly seven years. After starting his career in the
French Atomic Research Industry (CEA - Commissariat à l'Energie Atomique), he joined IBM
in 1998. He has been a Product Engineer for the IBM High End Systems, specializing in the
development of the IBM DWDM solution. Four years ago, he joined the SAN pre-sales
support team in the Product and Solution Support Center in Montpellier working in the
Advanced Technical Support organization for EMEA. He is now responsible for the Early
Shipment Programs for the Storage Disk systems in EMEA. Olivier’s areas of expertise
include: high-end storage solutions (IBM ESS), virtualization (SAN Volume Controller), SAN
and interconnected product solutions (CISCO, McDATA, CNT, Brocade, ADVA, NORTEL,
DWDM technology, CWDM technology). His areas of interest include storage remote copy on
long-distance connectivity for business continuance and disaster recovery solutions.
xvi DS8000 Series: Concepts and Architecture
Werner Bauer is a certified IT specialist in Germany. He has 25 years of experience in
storage software and hardware, as well as S/390®. He holds a degree in Economics from the
University of Heidelberg. His areas of expertise include disaster recovery solutions in
enterprises utilizing the unique capabilities and features of the IBM Enterprise Storage
Server, ESS. He has written extensively in various redbooks, including Technical Updates on
DFSMS/MVS® 1.3, 1.4, 1.5. and Transactional VSAM.
Heinz Blaschek is an IT DASD Support Specialist in Germany. He has 11 years of
experience in S/390 customer environments as a HW-CE. Starting in 1997 he was a member
of the DASD EMEA Support Group in Mainz Germany. In 1999, he became a member of the
DASD Backoffice Mainz Germany (support center EMEA for ESS) with the current focus of
supporting the remote copy functions for the ESS. Since 2004 he has been a member of the
VET (Virtual EMEA Team), which is responsible for the EMEA support of DASD systems. His
areas of expertise include all large and medium-system DASD products, particularly the IBM
TotalStorage Enterprise Storage Server.
Andre Fourie is a Senior IT Specialist at IBM Global Services, South Africa. He holds a BSc
(Computer Science) degree from the University of South Africa (UNISA) and has more than
14 years of experience in the IT industry. Before joining IBM he worked as an Application
Programmer and later as a Systems Programmer, where his responsibilities included MVS,
OS/390®, z/OS, and storage implementation and support services. His areas of expertise
include IBM S/390 Advanced Copy Services, as well as high-end disk and tape solutions. He
has co-authored one previous zSeries® Copy Services redbook.
Juan Antonio Garay is a Storage Systems Field Technical Sales Specialist in Germany. He
has five years of experience in supporting and implementing z/OS and Open Systems
storage solutions and providing technical support in IBM. His areas of expertise include the
IBM TotalStorage Enterprise Storage Server, when attached to various server platforms, and
the design and support of Storage Area Networks. He is currently engaged in providing
support for open systems storage across multiple platforms and a wide customer base.
Torsten Knobloch has worked for IBM for six years. Currently he is an IT Specialist on the
Customer Solutions Team at the Mainz TotalStorage Interoperability Center (TIC) in
Germany. There he performs Proof of Concept and System Integration Tests in the Disk
Storage area. Before joining the TIC he worked in Disk Manufacturing in Mainz as a Process
Engineer.
Donald (Chuck) Laing is a Senior Systems Management Integration Professional,
specializing in open systems UNIX® disk administration in the IBM South Delivery Center
(SDC). He has co-authored four previous IBM Redbooks™ on the IBM TotalStorage
Enterprise Storage Server. He holds a degree in Computer Science. Chuck’s responsibilities
include planning and implementation of midrange storage products. His responsibilities also
include department-wide education and cross training on various storage products such as
the ESS and FAStT. He has worked at IBM for six and a half years. Before joining IBM,
Chuck was a hardware CE on UNIX systems for ten years and taught basic UNIX at Midland
College for six and a half years in Midland, Texas.
Christine O’Sullivan is an IT Storage Specialist in the ATS PSSC storage benchmark center
at Montpellier, France. She joined IBM in 1988 and was a System Engineer during her first six
years. She has seven years of experience in the pSeries systems and storage. Her areas of
expertise and main responsibilities are ESS, storage performance, disaster recovery
solutions, AIX® and Oracle databases. She is involved in proof of concept and benchmarks
for tuning and optimizing storage environments. She has written several papers about ESS
Copy Services and disaster recovery solutions in an Oracle/pSeries environment.
Stu Preacher has worked for IBM for over 30 years, starting as a Computer Operator before
becoming a Systems Engineer. Much of his time has been spent in the midrange area,
Preface xvii
working on System/34, System/38™, AS/400®, and iSeries™. Most recently, he has focused
on iSeries Storage, and at the beginning of 2004, he transferred into the IBM TotalStorage
division. Over the years, Stu has been a co-author for many Redbooks, including “iSeries in
Storage Area Networks” and “Moving Applications to Independent ASPs.” His work in these
areas has formed a natural base for working with the new TotalStorage DS6000 and DS8000.
Torsten Rothenwaldt is a Storage Architect in Germany. He holds a degree in mathematics
from Friedrich Schiller University at Jena, Germany. His areas of interest are high availability
solutions and databases, primarily for the Windows® operating systems. Before joining IBM
in 1996, he worked in industrial research in electron optics, and as a Software Developer and
System Manager in OpenVMS environments.
Tetsuroh Sano has worked in AP Advanced Technical Support in Japan for the last five
years. His focus areas are open system storage subsystems (especially the IBM
TotalStorage Enterprise Storage Server) and SAN hardware. His responsibilities include
product introduction, skill transfer, technical support for sales opportunities, solution
assurance, and critical situation support.
Jing Nan Tang is an Advisory IT Specialist working in ATS for the TotalStorage team of IBM
China. He has nine years of experience in the IT field. His main job responsibility is providing
technical support and IBM storage solutions to IBM professionals, Business Partners, and
Customers. His areas of expertise include solution design and implementation for IBM
TotalStorage Disk products (Enterprise Storage Server, FAStT, Copy Services, Performance
Tuning), SAN Volume Controller, and Storage Area Networks across open systems.
Anthony Vandewerdt is an Accredited IT Specialist who has worked for IBM Australia for 15
years. He has worked on a wide variety of IBM products and for the last four years has
specialized in storage systems problem determination. He has extensive experience on the
IBM ESS, SAN, 3494 VTS and wave division multiplexors. He is a founding member of the
Australian Storage Central team, responsible for screening and managing all storage-related
service calls for Australia/New Zealand.
Alexander Warmuth is an IT Specialist who joined IBM in 1993. Since 2001 he has worked
in Technical Sales Support for IBM TotalStorage. He holds a degree in Electrical Engineering
from the University of Erlangen, Germany. His areas of expertise include Linux® and IBM
storage as well as business continuity solutions for Linux and other open system
environments.
Roland Wolf has been with IBM for 18 years. He started his work in IBM Germany in second
level support for VM. After five years he shifted to S/390 hardware support for three years.
For the past ten years he has worked as a Systems Engineer in Field Technical Support for
Storage, focusing on the disk products. His areas of expertise include mainly high-end disk
storage systems with PPRC, FlashCopy, and XRC, but he is also experienced in SAN and
midrange storage systems in the Open Storage environment. He holds a Ph.D. in Theoretical
Physics and is an IBM Certified IT Specialist.
xviii DS8000 Series: Concepts and Architecture
Front row - Cathy, Torsten R, Torsten K, Andre, Toni, Werner, Tetsuroh. Back row - Roland, Olivier,
Anthony, Tang, Christine, Alex, Stu, Heinz, Chuck.
We want to thank all the members of John Amann’s team at the Washington Systems Center
in Gaithersburg, MD for hosting us. Craig Gordon and Rosemary McCutchen were especially
helpful in getting us access to beta code and hardware.
Thanks to the following people for their contributions to this project:
Susan Barrett
IBM Austin
James Cammarata
IBM Chicago
Dave Heggen
IBM Dallas
John Amann, Craig Gordon, Rosemary McCutchen
IBM Gaithersburg
Hartmut Bohnacker, Michael Eggloff, Matthias Gubitz, Ulrich Rendels, Jens Wissenbach,
Dietmar Zeller
IBM Germany
Brian Sherman
IBM Markham
Ray Koehler
IBM Minneapolis
John Staubi
IBM Poughkeepsie
Steve Grillo, Duikaruna Soepangkat, David Vaughn
IBM Raleigh
Amit Dave, Selwyn Dickey, Chuck Grimm, Nick Harris, Andy Kulich, Joe Prisco, Jim Tuckwell,
Joe Writz
IBM Rochester
Charlie Burger, Gene Cullum, Michael Factor, Brian Kraemer, Ling Pong, Jeff Steffan, Pete
Urbisci, Steve Van Gundy, Diane Williams
IBM San Jose
Jana Jamsek
IBM Slovenia
Preface xix
Gerry Cote
IBM Southfield
Dari Durnas
IBM Tampa
Linda Benhase, Jerry Boyle, Helen Burton, John Elliott, Kenneth Hallam, Lloyd Johnson, Carl
Jones, Arik Kol, Rob Kubo, Lee La Frese, Charles Lynn, Dave Mora, Bonnie Pulver, Nicki
Rich, Rick Ripberger, Gail Spear, Jim Springer, Teresa Swingler, Tony Vecchiarelli, John
Walkovich, Steve West, Glenn Wightwick, Allen Wright, Bryan Wright
IBM Tucson
Nick Clayton
IBM United Kingdom
Steve Chase
IBM Waltham
Rob Jackard
IBM Wayne
Many thanks to the graphics editor, Emma Jacobs, and the editor, Alison Chandler.
Become a published author
Join us for a two- to six-week residency program! Help write an IBM Redbook dealing with
specific products or solutions, while getting hands-on experience with leading-edge
technologies. You'll team with IBM technical professionals, Business Partners and/or
customers.
Your efforts will help increase product acceptance and customer satisfaction. As a bonus,
you'll develop a network of contacts in IBM development labs, and increase your productivity
and marketability.
Find out more about the residency program, browse the residency index, and apply online at:
ibm.com/redbooks/residencies.html
Comments welcome
Your comments are important to us!
We want our Redbooks to be as helpful as possible. Send us your comments about this or
other Redbooks in one of the following ways:
򐂰Use the online Contact us review redbook form found at:
ibm.com/redbooks
򐂰Send your comments in an email to:
redbook@us.ibm.com
򐂰Mail your comments to:
IBM Corporation, International Technical Support Organization
Dept. QXXE Building 80-E2
650 Harry Road
San Jose, California 95120-6099
xx DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 1
Part 1 Introduction
In this part we introduce the IBM TotalStorage DS8000 series and its key features. These
include:
򐂰Product overview
򐂰Positioning
򐂰Performance
Part 1
2 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 3
Chapter 1. Introduction to the DS8000 series
This chapter provides an overview of the features, functions, and benefits of the IBM
TotalStorage DS8000 series of storage servers. The topics covered include:
򐂰The IBM on demand marketing strategy regarding the DS8000
򐂰Overview of the DS8000 components and features
򐂰Positioning and benefits of the DS8000
򐂰The performance features of the DS8000
1
4 DS8000 Series: Concepts and Architecture
1.1 The DS8000, a member of the TotalStorage DS family
IBM has a wide range of product offerings that are based on open standards and that share a
common set of tools, interfaces, and innovative features. The IBM TotalStorage DS family
and its new member, the DS8000, gives you the freedom to choose the right combination of
solutions for your current needs and the flexibility to help your infrastructure evolve as your
needs change. The TotalStorage DS family is designed to offer high availability, multiplatform
support, and simplified management tools, all to help you cost effectively adjust to an on
demand world.
1.1.1 Infrastructure Simplification
The DS8000 series is designed to break through to a new dimension of on demand storage,
offering an extraordinary opportunity to consolidate existing heterogeneous storage
environments, helping lower costs, improve management efficiency, and free valuable floor
space. Incorporating IBM’s first implementation of storage system Logical Partitions (LPARs)
means that two independent workloads can be run on completely independent and separate
virtual DS8000 storage systems, with independent operating environments, all within a single
physical DS8000. This unique feature of the DS8000 series, which will be available in the
DS8300 Model 9A2, helps deliver opportunities for new levels of efficiency and cost
effectiveness.
1.1.2 Business Continuity
The DS8000 series is designed for the most demanding, mission-critical environments
requiring extremely high availability, performance, and scalability. The DS8000 series is
designed to avoid single points of failure and provide outstanding availability. With the
additional advantages of IBM FlashCopy, data availability can be enhanced even further; for
instance, production workloads can continue execution concurrent with data backups. Metro
Mirror and Global Mirror business continuity solutions are designed to provide the advanced
functionality and flexibility needed to tailor a business continuity environment for almost any
recovery point or recovery time objective. The addition of IBM solution integration packages
spanning a variety of heterogeneous operating environments offers even more cost-effective
ways to implement business continuity solutions.
1.1.3 Information Lifecycle Management
The DS8000 is designed as the solution for data when it is at its most on demand, highest
priority phase of the data life cycle. One of the advantages IBM offers is the complete set of
disk, tape, and software solutions designed to allow customers to create storage
environments that support optimal life cycle management and cost requirements.
1.2 Overview of the DS8000 series
The IBM TotalStorage DS8000 is a new high-performance, high-capacity series of disk
storage systems. An example is shown in Figure 1-1 on page 5. It offers balanced
performance that is up to 6 times higher than the previous IBM TotalStorage Enterprise
Storage Server (ESS) Model 800. The capacity scales linearly from 1.1 TB up to 192 TB.
With the implementation of the POWER5 Server Technology in the DS8000 it is possible to
create storage system logical partitions (LPARs) that can be used for completely separate
production, test, or other unique storage environments.
Chapter 1. Introduction to the DS8000 series 5
The DS8000 is a flexible and extendable disk storage subsystem because it is designed to
add and adapt to new technologies as they become available.
In the entirely new packaging there are also new management tools, like the DS Storage
Manager and the DS Command-Line Interface (CLI), which allow for the management and
configuration of the DS8000 series as well as the DS6000 series.
The DS8000 series is designed for 24x7 environments in terms of availability while still
providing the industry leading remote mirror and copy functions to ensure business continuity.
Figure 1-1 DS8000 - Base frame
The IBM TotalStorage DS8000 highlights include that it:
򐂰Delivers robust, flexible, and cost-effective disk storage for mission-critical workloads
򐂰Helps to ensure exceptionally high system availability for continuous operations
򐂰Scales to 192 TB and facilitates unprecedented asset protection with model-to-model field
upgrades
򐂰Supports storage sharing and consolidation for a wide variety of operating systems and
mixed server environments
򐂰Helps increase storage administration productivity with centralized and simplified
management
򐂰Provides the creation of multiple storage system LPARs, that can be used for completely
separate production, test, or other unique storage environments
򐂰Occupies 20 percent less floor space than the ESS Model 800's base frame, and holds
even more capacity
򐂰Provides the industry’s first four year warranty
6 DS8000 Series: Concepts and Architecture
1.2.1 Hardware overview
The hardware has been optimized to provide enhancements in terms of performance,
connectivity, and reliability. From an architectural point of view the DS8000 series has not
changed much with respect to the fundamental architecture of the previous ESS models and
75% of the operating environment remains the same as for the ESS Model 800. This ensures
that the DS8000 can leverage a very stable and well-proven operating environment, offering
the optimum in availability.
The DS8000 series features several models in a new, higher-density footprint than the ESS
Model 800, providing configuration flexibility. For more information on the different models
see Chapter 6, “IBM TotalStorage DS8000 model overview and scalability” on page 103.
In this section we give a short description of the main hardware components.
POWER5 processor technology
The DS8000 series exploits the IBM POWER5 technology, which is the foundation of the
storage system LPARs. The DS8100 Model 921 utilizes the 64-bit microprocessors’ dual
2-way processor complexes and the DS8300 Model 922/9A2 uses the 64-bit dual 4-way
processor complexes. Within the POWER5 servers the DS8000 series offers up to 256 GB of
cache, which is up to 4 times as much as the previous ESS models.
Internal fabric
DS8000 comes with a high bandwidth, fault tolerant internal interconnection, which is also
used in the IBM pSeries Server. It is called RIO-2 (Remote I/O) and can operate at speeds up
to 1 GHz and offers a 2 GB per second sustained bandwidth per link.
Switched Fibre Channel Arbitrated Loop (FC-AL)
The disk interconnection has changed in comparison to the previous ESS. Instead of the SSA
loops there is now a switched FC-AL implementation. This offers a point-to-point connection
to each drive and adapter, so that there are 4 paths available from the controllers to each disk
drive.
Fibre Channel disk drives
The DS8000 offers a selection of industry standard Fibre Channel disk drives. There are
73 GB with 15k revolutions per minute (RPM), 146 GB (10k RPM) and 300 GB (10k RPM)
disk drive modules (DDMs) available. The 300 GB DDMs allow a single system to scale up to
192 TB of capacity.
Host adapters
The DS8000 offers enhanced connectivity with the availability of four-port Fibre
Channel/FICON® host adapters. The 2 Gb/sec Fibre Channel/FICON host adapters, which
are offered in longwave and shortwave, can also auto-negotiate to 1 Gb/sec link speeds. This
flexibility enables immediate exploitation of the benefits offered by the higher performance,
2 Gb/sec SAN-based solutions, while also maintaining compatibility with existing 1 Gb/sec
infrastructures. In addition, the four-ports on the adapter can be configured with an intermix of
Fibre Channel Protocol (FCP) and FICON. This can help protect your investment in fibre
adapters, and increase your ability to migrate to new servers. The DS8000 also offers
two-port ESCON® adapters. A DS8000 can support up to a maximum of 32 host adapters,
which provide up to 128 Fibre Channel/FICON ports.
Chapter 1. Introduction to the DS8000 series 7
Storage Hardware Management Console (S-HMC) for the DS8000
The DS8000 offers a new integrated management console. This console is the service and
configuration portal for up to eight DS8000s in the future. Initially there will be one
management console for one DS8000 storage subsystem. The S-HMC is the focal point for
configuration and Copy Services management, which can be done by the integrated
keyboard display or remotely via a Web browser.
For more information on all of the internal components see Chapter 2, “Components” on
page 19.
1.2.2 Storage capacity
The physical capacity for the DS8000 is purchased via disk drive sets. A disk drive set
contains sixteen identical disk drives, which have the same capacity and the same revolution
per minute (RPM). Disk drive sets are available in:
򐂰73 GB (15,000 RPM)
򐂰146 GB (10,000 RPM)
򐂰300 GB (10,000 RPM)
For additional flexibility, feature conversions are available to exchange existing disk drive sets
when purchasing new disk drive sets with higher capacity, or higher speed disk drives.
In the first frame, there is space for a maximum of 128 disk drive modules (DDMs) and every
expansion frame can contain 256 DDMs. Thus there is, at the moment, a maximum limit of
640 DDMs, which in combination with the 300 GB drives gives a maximum capacity of
192 TB.
The DS8000 can be configured as RAID-5, RAID-10, or a combination of both. As a
price/performance leader, RAID-5 offers excellent performance for many customer
applications, while RAID-10 can offer better performance for selected applications.
Price, performance, and capacity can further be optimized to help meet specific application
and business requirements through the intermix of 73 GB (15K RPM), 146 GB (10K RPM) or
300 GB (10K RPM) drives.
IBM Standby Capacity on Demand offering for the DS8000
Standby Capacity on Demand (Standby CoD) provides standby on-demand storage for the
DS8000 and allows you to access the extra storage capacity whenever the need arises. With
Standby CoD, IBM installs up to 64 drives (in increments of 16) in your DS8000. At any time,
you can logically configure your Standby CoD capacity for use. It is a non-disruptive activity
that does not require intervention from IBM. Upon logical configuration, you will be charged
for the capacity.
For more information about capacity planning see 9.4, “Capacity planning” on page 174.
1.2.3 Storage system logical partitions (LPARs)
The DS8000 series provides storage system LPARs as a first in the industry. This means that
you can run two completely segregated, independent, virtual storage images with differing
Note: Initially the intermixing of DDMs in one frame is not supported. At the present time it
is only possible to have an intermix of DDMs between two frames, but this limitation will be
removed in the future.
8 DS8000 Series: Concepts and Architecture
workloads, and with different operating environments, within a single physical DS8000
storage subsystem. The LPAR functionality is available in the DS8300 Model 9A2.
The first application of the pSeries Virtualization Engine technology in the DS8000 will
partition the subsystem into two virtual storage system images. The processors, memory,
adapters, and disk drives are split between the images. There is a robust isolation between
the two images via hardware and the POWER5 Hypervisor™ firmware.
Initially each storage system LPAR has access to:
򐂰50 percent of the processors
򐂰50 percent of the processor memory
򐂰Up to 16 host adapters
򐂰Up to 320 disk drives (up to 96 TB of capacity)
With these separate resources, each storage system LPAR can run the same or different
versions of microcode, and can be used for completely separate production, test, or other
unique storage environments within this single physical system. This may enable storage
consolidations, where separate storage subsystems were previously required, helping to
increase management efficiency and cost effectiveness.
A detailed description of the LPAR implementation in the DS8000 series is in Chapter 3,
“Storage system LPARs (Logical partitions)” on page 43.
1.2.4 Supported environments
The DS8000 series offers connectivity support across a broad range of server environments,
including IBM eServer zSeries, pSeries, eServer p5, iSeries, eServer i5, and xSeries®
servers, servers from Sun and Hewlett-Packard, and non-IBM Intel®-based servers. The
operating system support for the DS8000 series is almost the same as for the previous ESS
Model 800; there are over 90 supported platforms. This rich support of heterogeneous
environments and attachments, along with the flexibility to easily partition the DS8000 series
storage capacity among the attached environments, can help support storage consolidation
requirements and dynamic, changing environments.
1.2.5 Resiliency Family for Business Continuity
Business Continuity means that business processes and business-critical applications need
to be available at all times and so it is very important to have a storage environment that
offers resiliency across both planned and unplanned outages.
The DS8000 supports a rich set of Copy Service functions and management tools that can be
used to build solutions to help meet business continuance requirements. These include IBM
TotalStorage Resiliency Family Point-in-Time Copy and Remote Mirror and Copy solutions
that are currently supported by the Enterprise Storage Server.
You can manage Copy Services functions through the DS Command-Line Interface (CLI)
called the IBM TotalStorage DS CLI and the Web-based interface called the IBM
TotalStorage DS Storage Manager. The DS Storage Manager allows you to set up and
manage data copy features from anywhere that network access is available.
Note: Remote Mirror and Copy was referred to as Peer-to-Peer Remote Copy (PPRC) in
earlier documentation for the IBM TotalStorage Enterprise Storage Server.
Chapter 1. Introduction to the DS8000 series 9
IBM TotalStorage FlashCopy
FlashCopy can help reduce or eliminate planned outages for critical applications. FlashCopy
is designed to provide the same point-in-time copy capability for logical volumes on the
DS6000 series and the DS8000 series as FlashCopy V2 does for ESS, and allows access to
the source data and the copy almost immediately.
FlashCopy supports many advanced capabilities, including:
򐂰Data Set FlashCopy
Data Set FlashCopy allows a FlashCopy of a data set in a zSeries environment.
򐂰Multiple Relationship FlashCopy
Multiple Relationship FlashCopy allows a source volume to have multiple targets
simultaneously.
򐂰Incremental FlashCopy
Incremental FlashCopy provides the capability to update a FlashCopy target without
having to recopy the entire volume.
򐂰FlashCopy to a Remote Mirror primary
FlashCopy to a Remote Mirror primary gives you the possibility to use a FlashCopy target
volume also as a remote mirror primary volume. This process allows you to create a
point-in-time copy and then make a copy of that data at a remote site.
򐂰Consistency Group commands
Consistency Group commands allow DS8000 series systems to hold off I/O activity to a
LUN or volume until the FlashCopy Consistency Group command is issued. Consistency
groups can be used to help create a consistent point-in-time copy across multiple LUNs or
volumes, and even across multiple DS8000s.
򐂰Inband Commands over Remote Mirror link
In a remote mirror environment, commands to manage FlashCopy at the remote site can
be issued from the local or intermediate site and transmitted over the remote mirror Fibre
Channel links. This eliminates the need for a network connection to the remote site solely
for the management of FlashCopy.
IBM TotalStorage Metro Mirror (Synchronous PPRC)
Metro Mirror is a remote data mirroring technique for all supported servers, including z/OS
and open systems. It is designed to constantly maintain an up-to-date copy of the local
application data at a remote site which is within the metropolitan area (typically up to 300 km
away using DWDM). With synchronous mirroring techniques, data currency is maintained
between sites, though the distance can have some impact on performance. Metro Mirror is
used primarily as part of a business continuance solution for protecting data against disk
storage system loss or complete site failure.
IBM TotalStorage Global Copy (PPRC Extended Distance, PPRC-XD)
Global Copy is an asynchronous remote copy function for z/OS and open systems for longer
distances than are possible with Metro Mirror. With Global Copy, write operations complete on
the primary storage system before they are received by the secondary storage system. This
capability is designed to prevent the primary system’s performance from being affected by
wait time from writes on the secondary system. Therefore, the primary and secondary copies
can be separated by any distance. This function is appropriate for remote data migration,
off-site backups and transmission of inactive database logs at virtually unlimited distances.
10 DS8000 Series: Concepts and Architecture
IBM TotalStorage Global Mirror (Asynchronous PPRC)
Global Mirror copying provides a two-site extended distance remote mirroring function for
z/OS and open systems servers. With Global Mirror, the data that the host writes to the
storage unit at the local site is asynchronously shadowed to the storage unit at the remote
site. A consistent copy of the data is then automatically maintained on the storage unit at the
remote site.This two-site data mirroring function is designed to provide a high performance,
cost effective, global distance data replication and disaster recovery solution.
IBM TotalStorage z/OS Global Mirror (Extended Remote Copy XRC)
z/OS Global Mirror is a remote data mirroring function available for the z/OS and OS/390
operating systems. It maintains a copy of the data asynchronously at a remote location over
unlimited distances. z/OS Global Mirror is well suited for large zSeries server workloads and
can be used for business continuance solutions, workload movement, and data migration.
IBM TotalStorage z/OS Metro/Global Mirror
This mirroring capability uses z/OS Global Mirror to mirror primary site data to a location that
is a long distance away and also uses Metro Mirror to mirror primary site data to a location
within the metropolitan area. This enables a z/OS three-site high availability and disaster
recovery solution for even greater protection from unplanned outages.
Three-site solution
A combination of Global Mirror and Global Copy, called Metro/Global Copy is available on the
ESS 750 and ESS 800. It is a three site approach that was previously called Asynchronous
Cascading PPRC. You first copy your data synchronously to an intermediate site and from
there you go asynchronously to a more distant site.
For more information about Copy Services see Chapter 7, “Copy Services” on page 115.
1.2.6 Interoperability
As we mentioned before, the DS8000 supports a broad range of server environments. But
there is another big advantage regarding interoperability. The DS8000 Remote Mirror and
Copy functions can interoperate between the DS8000, the DS6000, and ESS Models
750/800/800Turbo. This offers a dramatically increased flexibility in developing mirroring and
remote copy solutions, and also the opportunity to deploy business continuity solutions at
lower costs than have been previously available.
1.2.7 Service and setup
The installation of the DS8000 will be performed by IBM in accordance to the installation
procedure for this machine. The customer’s responsibility is the installation planning, the
retrieval and installation of feature activation codes, and the logical configuration planning
and application. This hasn’t changed in regard to the previous ESS model.
For maintenance and service operations, the Storage Hardware Management Console
(S-HMC) is the focal point. The management console is a dedicated workstation that is
Note: Metro/Global Copy is not available on the DS8000. According to the announcement
letter IBM has issued a Statement of General Direction:
IBM intends to offer a long-distance business continuance solution across three sites
allowing for recovery from the secondary or tertiary site with full data consistency.
Chapter 1. Introduction to the DS8000 series 11
physically located (installed) inside the DS8000 subsystem and can automatically monitor the
state of your system, notifying you and IBM when service is required.
The S-HMC is also the interface for remote services (call home and call back). Remote
connections can be configured to meet customer requirements. It is possible to allow one or
more of the following: call on error (machine detected), connection for a few days (customer
initiated), and remote error investigation (service initiated). The remote connection between
the management console and the IBM service organization will be done via a virtual private
network (VPN) point-to-point connection over the internet or modem.
The DS8000 comes with a four year warranty on both hardware and software. This is
outstanding in the industry and shows IBM’s confidence in this product. Once again, this
makes the DS8000 a product with a low total cost of ownership (TCO).
1.3 Positioning
The IBM TotalStorage DS8000 is designed to provide exceptional performance, scalability,
and flexibility while supporting 24 x 7 operations to help provide the access and protection
demanded by today's business environments. It also delivers the flexibility and centralized
management needed to lower long-term costs. It is part of a complete set of disk storage
products that are all part of the IBM TotalStorage DS Family and is the IBM disk product of
choice for environments that require the utmost in reliability, scalability, and performance for
mission-critical workloads.
1.3.1 Common set of functions
The DS8000 series supports many useful features and functions which are not limited to the
DS8000 series. There is a set of common functions that can be used on the DS6000 series
as well as the DS8000 series. Thus there is only one set of skills necessary to manage both
families. This helps to reduce the management costs and the total cost of ownership.
The common functions for storage management include the IBM TotalStorage DS Storage
Manager, which is the Web-based graphical user interface, the IBM TotalStorage DS
Command-Line Interface (CLI), and the IBM TotalStorage DS open application programming
interface (API).
FlashCopy, Metro Mirror, Global Copy, and Global Mirror are the common functions regarding
the Advanced Copy Services. In addition to this, the DS6000/DS8000 series mirroring
solutions are also compatible between IBM TotalStorage ESS 800 and ESS 750, which offers
a new era in flexibility and cost effectiveness in designing business continuity solutions.
DS8000 compared to ESS
The DS8000 is the next generation of the Enterprise Storage Server, so all functions which
are available in the ESS are also available in the DS8000 (with the exception of Metro/Global
Copy). From a consolidation point of view, it is now possible to replace four ESS Model 800s
with one DS8300. And with the LPAR implementation you get an additional consolidation
opportunity because you get two storage system logical partitions in one physical machine.
Since the mirror solutions are compatible between the ESS and the DS8000 series, it is
possible to think about a setup for a disaster recovery solution with the high performance
DS8000 at the primary site and the ESS at the secondary site, where the same performance
is not required.
12 DS8000 Series: Concepts and Architecture
DS8000 compared to DS6000
DS6000 and DS8000 now offer an enterprise continuum of storage solutions. All copy
functions (with the exception of Global Mirror for z/OS Global Mirror, which is only available
on the DS8000) are available on both systems. You can do Metro Mirror, Global Mirror, and
Global Copy between the two series. The CLI commands and the GUI look the same for both
systems.
Obviously the DS8000 can deliver a higher throughput and scales higher than the DS6000,
but not all customers need this high throughput and capacity. You can choose the system that
fits your needs. Both systems support the same SAN infrastructure and the same host
systems.
So it is very easy to have a mixed environment with DS8000 and DS6000 systems to optimize
the cost effectiveness of your storage solution, while providing the cost efficiencies of
common skills and management functions.
Logical partitioning with some DS8000 models is not available on the DS6000. For more
information about the DS6000 refer to The IBM TotalStorage DS6000 Series: Concepts and
Architecture, SG24-6471.
1.3.2 Common management functions
The DS8000 series offers new management tools and interfaces which are also applicable to
the DS6000 series.
IBM TotalStorage DS Storage Manager
The DS Storage Manager is a Web-based graphical user interface (GUI) that is used to
perform logical configurations and Copy Services management functions. It can be accessed
from any location that has network access using a Web browser. You have the following
options to use the DS Storage Manager:
򐂰Simulated (Offline) configuration
This application allows the user to create or modify logical configurations when
disconnected from the network. After creating the configuration, you can save it and then
apply it to a network-attached storage unit at a later time.
򐂰Real-time (Online) configuration
This provides real-time management support for logical configuration and Copy Services
features for a network-attached storage unit.
IBM TotalStorage DS Command-Line Interface (DS CLI)
The DS CLI is a single CLI that has the ability to perform a full set of commands for logical
configuration and Copy Services activities. It is now possible to combine the DS CLI
commands into a script. This can enhance your productivity since it eliminates the previous
requirement for you to create and save a task using the GUI. The DS CLI can also issue Copy
Services commands to an ESS Model 750, ESS Model 800, or DS6000 series system.
The following list highlights a few of the specific types of functions that you can perform with
the DS Command-Line Interface:
򐂰Check and verify your storage unit configuration
򐂰Check the current Copy Services configuration that is used by the storage unit
򐂰Create new logical storage and Copy Services configuration settings
򐂰Modify or delete logical storage and Copy Services configuration settings
Chapter 1. Introduction to the DS8000 series 13
The DS CLI is described in detail in Chapter 11, “DS CLI” on page 231.
DS Open application programming interface
The DS Open application programming interface (API) is a non-proprietary storage
management client application that supports routine LUN management activities, such as
LUN creation, mapping and masking, and the creation or deletion of RAID-5 and RAID-10
volume spaces. The DS Open API also enables Copy Services functions such as FlashCopy
and Remote Mirror and Copy.
1.3.3 Scalability and configuration flexibility
With the IBM TotalStorage DS8000 you are getting the opportunity to have a linearly scalable
capacity growth up to 192 TB. The architecture is designed to scale with today’s 300 GB disk
technology to over 1 PB. However, the theoretical architectural limit, based on addressing
capabilities, is an incredible 96 PB.
With the DS8000 series there are various choices of base and expansion models, so it is
possible to configure the storage units to meet your particular performance and configuration
needs. The DS8100 (Model 921) features a dual two-way processor complex and support for
one expansion frame. The DS8300 (Models 922 and 9A2) features a dual four-way processor
complex and support for one or two expansion frames. The Model 9A2 supports two IBM
TotalStorage System LPARs (Logical Partitions) in one physical DS8000.
The DS8100 offers up to 128 GB of processor memory and the DS8300 offers up to 256 GB
of processor memory. In addition, the Non-Volatile Storage (NVS) scales to the processor
memory size selected, which can also help optimize performance.
Another important feature regarding flexibility is the LUN/Volume Virtualization. It is now
possible to create and delete a LUN or volume without affecting other LUNs on the RAID
rank. When you delete a LUN or a volume, the capacity can be reused, for example, to form a
LUN of a different size. The possibility to allocate LUNs or volumes by spanning RAID ranks
allows you to create LUNs or volumes to a maximum size of 2 TB.
The access to LUNs by the host systems is controlled via volume groups. Hosts or disks in
the same volume group share access to data. This is the new form of LUN masking.
The DS8000 series allows:
򐂰Up to 255 logical subsystems (LSS); with two storage system LPARs, up to 510 LSSs
򐂰Up to 65280 logical devices; with two storage system LPARs, up to 130560 logical devices
1.3.4 Future directions of storage system LPARs
IBM's plans for the future include offering even more flexibility in the use of storage system
LPARs. Current plans call for offering a more granular I/O allocation. Also, the processor
resource allocation between LPARs is expected to move from 50/50 to possibilities like 25/75,
0/100, 10/90 or 20/80. Not only will the processor resources be more flexible, but in the
future, plans call for the movement of memory more dynamically between the storage system
LPARs.
These are all features that can react to changing workload and performance requirements,
showing the enormous flexibility of the DS8000 series.
Another idea designed to maximize the value of using the storage system LPARs is to have
application LPARs. IBM is currently evaluating which kind of potential storage applications
14 DS8000 Series: Concepts and Architecture
offer the most value to the customers. On the list of possible applications are, for example,
Backup/Recovery applications (TSM, Legato, Veritas, and so on).
1.4 Performance
The IBM TotalStorage DS8000 offers optimally balanced performance, which is up to six
times the throughput of the Enterprise Storage Server Model 800. This is possible because
the DS8000 incorporates many performance enhancements, like the dual-clustered
POWER5 servers, new four-port 2 GB Fibre Channel/FICON host adapters, new Fibre
Channel disk drives, and the high-bandwidth, fault-tolerant internal interconnections.
With all these new components, the DS8000 is positioned at the top of the high performance
category.
1.4.1 Sequential Prefetching in Adaptive Replacement Cache (SARC)
Another performance enhancer is the new self-learning cache algorithm. The DS8000 series
caching technology improves cache efficiency and enhances cache hit ratios. The
patent-pending algorithm used in the DS8000 series and the DS6000 series is called
Sequential Prefetching in Adaptive Replacement Cache (SARC).
SARC provides the following:
򐂰Sophisticated, patented algorithms to determine what data should be stored in cache
based upon the recent access and frequency needs of the hosts
򐂰Pre-fetching, which anticipates data prior to a host request and loads it into cache
򐂰Self-Learning algorithms to adaptively and dynamically learn what data should be stored
in cache based upon the frequency needs of the hosts
1.4.2 IBM TotalStorage Multipath Subsystem Device Driver (SDD)
SDD is a pseudo device driver on the host system designed to support the multipath
configuration environments in IBM products. It provides load balancing and enhanced data
availability capability. By distributing the I/O workload over multiple active paths, SDD
provides dynamic load balancing and eliminates data-flow bottlenecks. SDD also helps
eliminate a potential single point of failure by automatically re-routing I/O operations when a
path failure occurs.
SDD is provided with the DS8000 series at no additional charge. Fibre Channel (SCSI-FCP)
attachment configurations are supported in the AIX, HP-UX, Linux, Microsoft® Windows,
Novell NetWare, and Sun Solaris environments.
1.4.3 Performance for zSeries
The DS8000 series supports the following IBM performance innovations for zSeries
environments:
򐂰FICON extends the ability of the DS8000 series system to deliver high bandwidth potential
to the logical volumes needing it, when they need it. Older technologies are limited by the
bandwidth of a single disk drive or a single ESCON channel, but FICON, working together
with other DS8000 series functions, provides a high-speed pipe supporting a multiplexed
operation.
򐂰Parallel Access Volumes (PAV) enable a single zSeries server to simultaneously
process multiple I/O operations to the same logical volume, which can help to significantly
Chapter 1. Introduction to the DS8000 series 15
reduce device queue delays. This is achieved by defining multiple addresses per volume.
With Dynamic PAV, the assignment of addresses to volumes can be automatically
managed to help the workload meet its performance objectives and reduce overall
queuing. PAV is an optional feature on the DS8000 series.
򐂰Multiple Allegiance expands the simultaneous logical volume access capability across
multiple zSeries servers. This function, along with PAV, enables the DS8000 series to
process more I/Os in parallel, helping to improve performance and enabling greater use of
large volumes.
򐂰I/O priority queuing allows the DS8000 series to use I/O priority information provided by
the z/OS Workload Manager to manage the processing sequence of I/O operations.
Chapter 12, “Performance considerations” on page 253, gives you more information about
the performance aspects of the DS8000 family.
1.5 Summary
In this chapter we gave you a short overview of the benefits and features of the new DS8000
series and showed you why the DS8000 series offers:
򐂰Balanced performance, which is up to six times that of the ESS Model 800
򐂰Linear scalability up to 192 TB (designed for 1 PB)
򐂰Integrated solution capability with storage system LPARs
򐂰Flexibility due to dramatic addressing enhancements
򐂰Extensibility, because the DS8000 is designed to add/adapt new technologies
򐂰All new management tools
򐂰Availability, since the DS8000 is designed for 24x7 environments
򐂰Resiliency through industry-leading Remote Mirror and Copy capability
򐂰Low long term cost, achieved by providing the industry’s first 4 year warranty, and
model-to-model upgradeability
More details about these enhancements, and the concepts and architecture of the DS8000
series, are included in the remaining chapters of this redbook.
16 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 17
Part 2 Architecture
In this part we describe various aspects of the DS8000 series architecture. These include:
򐂰Hardware components
򐂰The LPAR feature
򐂰RAS - Reliability, Availability, and Serviceability
򐂰Virtualization concepts
򐂰Overview of the models
򐂰Copy Services
Part 2
18 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 19
Chapter 2. Components
This chapter describes the components used to create the DS8000. This chapter is intended
for people who wish to get a clear picture of what the individual components look like and the
architecture that holds them together.
In this chapter we introduce:
򐂰Frames
򐂰Architecture
򐂰Processor complexes
򐂰Disk subsystem
򐂰Host adapters
򐂰Power and cooling
򐂰Management console network
2
20 DS8000 Series: Concepts and Architecture
2.1 Frames
The DS8000 is designed for modular expansion. From a high-level view there appear to be
three types of frames available for the DS8000. However, on closer inspection, the frames
themselves are almost identical. The only variations are what combinations of processors, I/O
enclosures, batteries, and disks the frames contain.
Figure 2-1 is an attempt to show some of the frame variations that are possible with the
DS8000. The left-hand frame is a base frame that contains the processors (eServer p5 570s).
The center frame is an expansion frame that contains additional I/O enclosures but no
additional processors. The right-hand frame is an expansion frame that contains just disk
(and no processors, I/O enclosures, or batteries). Each frame contains a frame power area
with power supplies and other power-related hardware.
Figure 2-1 DS8000 frame possibilities
2.1.1 Base frame
The left-hand side of the base frame (viewed from the front of the machine) is the frame
power area. Only the base frame contains rack power control cards (RPC) to control power
sequencing for the storage unit. It also contains a fan sense card to monitor the fans in that
frame. The base frame contains two primary power supplies (PPSs) to convert input AC into
DC power. The power area also contains two or three battery backup units (BBUs) depending
on the model and configuration.
The base frame can contain up to eight disk enclosures, each can contain up to 16 disk
drives. In a maximum configuration, the base frame can hold 128 disk drives. Above the disk
enclosures are cooling fans located in a cooling plenum.
disk enclosure pair
disk enclosure pair
Battery
Backup unit
Primary
power
supply
Battery
Backup unit
I/O
enclosure 0
I/O
Enclosure 1
I/O
enclosure 2
I/O
Enclosure 3
disk enclosure pair
disk enclosure pair
Primary
power
supply
Rack
power
control
eServer p5 570
eServer p5 570
Cooling plenum
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
Battery
Backup unit
Battery
backup unit
Battery
Backup unit
Primary
power
supply
Primary
power
supply
Cooling plenum
Fan
sense
card
I/O
enclosure 4
I/O
Enclosure 5
I/O
enclosure 6
I/O
Enclosure 7
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
disk enclosure pair
Primary
power
supply
Primary
power
supply
Cooling plenum
Fan
sense
card
Battery
Backup unit
Chapter 2. Components 21
Between the disk enclosures and the processor complexes are two Ethernet switches, a
Storage Hardware Management Console (an S-HMC) and a keyboard/display module.
The base frame contains two processor complexes. These eServer p5 570 servers contain
the processor and memory that drive all functions within the DS8000. In the ESS we referred
to them as clusters, but this term is no longer relevant. We now have the ability to logically
partition each processor complex into two LPARs, each of which is the equivalent of a Shark
cluster.
Finally, the base frame contains four I/O enclosures. These I/O enclosures provide
connectivity between the adapters and the processors. The adapters contained in the I/O
enclosures can be either device or host adapters (DAs or HAs). The communication path
used for adapter to processor complex communication is the RIO-G loop. This loop not only
joins the I/O enclosures to the processor complexes, it also allows the processor complexes
to communicate with each other.
2.1.2 Expansion frame
The left-hand side of each expansion frame (viewed from the front of the machine) is the
frame power area. The expansion frames do not contain rack power control cards; these
cards are only present in the base frame. They do contain a fan sense card to monitor the
fans in that frame. Each expansion frame contains two primary power supplies (PPS) to
convert the AC input into DC power. Finally, the power area may contain three battery backup
units (BBUs) depending on the model and configuration.
Each expansion frame can hold up to 16 disk enclosures which contain the disk drives. They
are described as 16-packs because each enclosure can hold 16 disks. In a maximum
configuration, an expansion frame can hold 256 disk drives. Above the disk enclosures are
cooling fans located in a cooling plenum.
An expansion frame can contain I/O enclosures and adapters if it is the first expansion frame
that is attached to either a model 922 or a model 9A2. The second expansion frame in a
model 922 or 9A2 configuration cannot have I/O enclosures and adapters, nor can any
expansion frame that is attached to a model 921. If the expansion frame contains I/O
enclosures, the enclosures provide connectivity between the adapters and the processors.
The adapters contained in the I/O enclosures can be either device or host adapters.
2.1.3 Rack operator panel
Each DS8000 frame features an operator panel. This panel has three indicators and an
emergency power off switch (an EPO switch). Figure 2-2 on page 22 depicts the operator
panel. Each panel has two line cord indicators (one for each line cord). For normal operation
both of these indicators should be on, to indicate that each line cord is supplying correct
power to the frame. There is also a fault indicator. If this indicator is illuminated you should
use the DS Storage Manager GUI or the Storage Hardware Management Console (S-HMC)
to determine why this indicator is on.
There is also an EPO switch on each operator panel. This switch is only for emergencies.
Tripping the EPO switch will bypass all power sequencing control and result in immediate
removal of system power. A small cover must be lifted to operate it. Do not trip this switch
unless the DS8000 is creating a safety hazard or is placing human life at risk.
22 DS8000 Series: Concepts and Architecture
Figure 2-2 Rack operator panel
You will note that there is not a power on/off switch on the operator panel. This is because
power sequencing is managed via the S-HMC. This is to ensure that all data in non-volatile
storage (known as modified data) is de-staged properly to disk prior to power down. It is thus
not possible to shut down or power off the DS8000 from the operator panel (except in an
emergency, with the EPO switch mentioned previously).
2.2 Architecture
Now that we have described the frames themselves, we use the rest of this chapter to explore
the technical details of each of the components. The architecture that connects these
components is pictured in Figure 2-3 on page 23.
In effect, the DS8000 consists of two processor complexes. Each processor complex has
access to multiple host adapters to connect to channel, FICON, and ESCON hosts. Each
DS8000 can potentially have up to 32 host adapters. To access the disk subsystem, each
complex uses several four-port Fibre Channel arbitrated loop (FC-AL) device adapters. A
DS8000 can potentially have up to sixteen of these adapters arranged into eight pairs. Each
adapter connects the complex to two separate switched Fibre Channel networks. Each
switched network attaches disk enclosures that each contain up to 16 disks. Each enclosure
contains two 20-port Fibre Channel switches. Of these 20 ports, 16 are used to attach to the
16 disks in the enclosure and the remaining four are used to either interconnect with other
enclosures or to the device adapters. Each disk is attached to both switches. Whenever the
device adapter connects to a disk, it uses a switched connection to transfer data. This means
that all data travels via the shortest possible path.
The attached hosts interact with software which is running on the complexes to access data
on logical volumes. Each complex will host at least one instance of this software (which is
called a server), which runs in a logical partition (an LPAR). The servers manage all read and
write requests to the logical volumes on the disk arrays. During write requests, the servers
Line cord
indicators Fault indicator
EPO switch cover
Chapter 2. Components 23
use fast-write, in which the data is written to volatile memory on one complex and persistent
memory on the other complex. The server then reports the write as complete before it has
been written to disk. This provides much faster write performance. Persistent memory is also
called NVS or non-volatile storage.
Figure 2-3 DS8000 architecture
When a host performs a read operation, the servers fetch the data from the disk arrays via the
high performance switched disk architecture. The data is then cached in volatile memory in
case it is required again. The servers attempt to anticipate future reads by an algorithm
known as SARC (Sequential prefetching in Adaptive Replacement Cache). Data is held in
cache as long as possible using this smart algorithm. If a cache hit occurs where requested
data is already in cache, then the host does not have to wait for it to be fetched from the
disks.
Both the device and host adapters operate on a high bandwidth fault-tolerant interconnect
known as the RIO-G. The RIO-G design allows the sharing of host adapters between servers
and offers exceptional performance and reliability.
SAN fabric
Processor
Complex 0
Processor
Complex 1
Fibre channel switch
Front storage
enclosure with
16 DDMs
Rear storage
enclosure with
16 DDMs
Fibre channel switch
Fibre channel switch
Fibre channel switch
Persistent memory
Volatile
memory
N-way
SMP
Persistent memory
Volatile
memory
N-way
SMP
RIO-G
RIO-G
First RIO-G loop
Device adapter
Device adapter
Host adapter
in I/O enclosure
in I/O enclosure in I/O enclosure
Host adapter
in I/O enclosure
Host ports
24 DS8000 Series: Concepts and Architecture
If you can view Figure 2-3 on page 23 in color, you can use the colors as indicators of how the
DS8000 hardware is shared between the servers (the cross hatched color is green and the
lighter color is yellow). On the left side, the green server is running on the left-hand processor
complex. The green server uses the N-way SMP of the complex to perform its operations. It
records its write data and caches its read data in the volatile memory of the left-hand
complex. For fast-write data it has a persistent memory area on the right-hand processor
complex. To access the disk arrays under its management (the disks also being pictured in
green), it has its own device adapter (again in green). The yellow server on the right operates
in an identical fashion. The host adapters (in dark red) are deliberately not colored green or
yellow because they are shared between both servers.
2.2.1 Server-based SMP design
The DS8000 benefits from a fully assembled, leading edge processor and memory system.
Using SMPs as the primary processing engine sets the DS8000 apart from other disk storage
systems on the market. Additionally, the POWER5 processors used in the DS8000 support
the execution of two independent threads concurrently. This capability is referred to as
simultaneous multi-threading (SMT). The two threads running on the single processor share
a common L1 cache. The SMP/SMT design minimizes the likelihood of idle or overworked
processors, while a distributed processor design is more susceptible to an unbalanced
relationship of tasks to processors.
The design decision to use SMP memory as I/O cache is a key element of IBM’s storage
architecture. Although a separate I/O cache could provide fast access, it cannot match the
access speed of the SMP main memory. The decision to use the SMP main memory as the
cache proved itself in three generations of IBM’s Enterprise Storage Server (ESS 2105). The
performance roughly doubled with each generation. This performance improvement can be
traced to the capabilities of the completely integrated SMP, the processor speeds, the L1/L2
cache sizes and speeds, the memory bandwidth and response time, and the PCI bus
performance.
With the DS8000, the cache access has been accelerated further by making the Non-Volatile
Storage a part of the SMP memory.
All memory installed on any processor complex is accessible to all processors in that
complex. The addresses assigned to the memory are common across all processors in the
same complex. On the other hand, using the main memory of the SMP as the cache, leads to
a partitioned cache. Each processor has access to the processor complex’s main memory but
not to that of the other complex. You should keep this in mind with respect to load balancing
between processor complexes.
2.2.2 Cache management
Most if not all high-end disk systems have internal cache integrated into the system design,
and some amount of system cache is required for operation. Over time, cache sizes have
dramatically increased, but the ratio of cache size to system disk capacity has remained
nearly the same.
The DS6000 and DS8000 use the patent-pending Sequential Prefetching in Adaptive
Replacement Cache (SARC) algorithm, developed by IBM Storage Development in
partnership with IBM Research. It is a self-tuning, self-optimizing solution for a wide range of
workloads with a varying mix of sequential and random I/O streams. SARC is inspired by the
Adaptive Replacement Cache (ARC) algorithm and inherits many features from it. For a
detailed description of ARC see N. Megiddo and D. S. Modha, “Outperforming LRU with an
adaptive replacement cache algorithm,” IEEE Computer, vol. 37, no. 4, pp. 58–65, 2004.
Chapter 2. Components 25
SARC basically attempts to determine four things:
򐂰When data is copied into the cache.
򐂰Which data is copied into the cache.
򐂰Which data is evicted when the cache becomes full.
򐂰How does the algorithm dynamically adapt to different workloads.
The DS8000 cache is organized in 4K byte pages called cache pages or slots. This unit of
allocation (which is smaller than the values used in other storage systems) ensures that small
I/Os do not waste cache memory.
The decision to copy some amount of data into the DS8000 cache can be triggered from two
policies: demand paging and prefetching. Demand paging means that eight disk blocks (a 4K
cache page) are brought in only on a cache miss. Demand paging is always active for all
volumes and ensures that I/O patterns with some locality find at least some recently used
data in the cache.
Prefetching means that data is copied into the cache speculatively even before it is
requested. To prefetch, a prediction of likely future data accesses is needed. Because
effective, sophisticated prediction schemes need extensive history of page accesses (which
is not feasible in real-life systems), SARC uses prefetching for sequential workloads.
Sequential access patterns naturally arise in video-on-demand, database scans, copy,
backup, and recovery. The goal of sequential prefetching is to detect sequential access and
effectively pre-load the cache with data so as to minimize cache misses.
For prefetching, the cache management uses tracks. A track is a set of 128 disk blocks
(16 cache pages). To detect a sequential access pattern, counters are maintained with every
track to record if a track has been accessed together with its predecessor. Sequential
prefetching becomes active only when these counters suggest a sequential access pattern. In
this manner, the DS6000/DS8000 monitors application read-I/O patterns and dynamically
determines whether it is optimal to stage into cache:
򐂰Just the page requested
򐂰That page requested plus remaining data on the disk track
򐂰An entire disk track (or a set of disk tracks) which has (have) not yet been requested
The decision of when and what to prefetch is essentially made on a per-application basis
(rather than a system-wide basis) to be sensitive to the different data reference patterns of
different applications that can be running concurrently.
To decide which pages are evicted when the cache is full, sequential and random
(non-sequential) data is separated into different lists (see Figure 2-4 on page 26). A page
which has been brought into the cache by simple demand paging is added to the MRU (Most
Recently Used) head of the RANDOM list. Without further I/O access, it goes down to the
LRU (Least Recently Used) bottom. A page which has been brought into the cache by a
sequential access or by sequential prefetching is added to the MRU head of the SEQ list and
then goes in that list. Additional rules control the migration of pages between the lists so as to
not keep the same pages in memory twice.
26 DS8000 Series: Concepts and Architecture
Figure 2-4 Cache lists of the SARC algorithm for random and sequential data
To follow workload changes, the algorithm trades cache space between the RANDOM and
SEQ lists dynamically and adaptively. This makes SARC scan-resistant, so that one-time
sequential requests do not pollute the whole cache. SARC maintains a desired size
parameter for the sequential list. The desired size is continually adapted in response to the
workload. Specifically, if the bottom portion of the SEQ list is found to be more valuable than
the bottom portion of the RANDOM list, then the desired size is increased; otherwise, the
desired size is decreased. The constant adaptation strives to make optimal use of limited
cache space and delivers greater throughput and faster response times for a given cache
size.
Additionally, the algorithm modifies dynamically not only the sizes of the two lists, but also the
rate at which the sizes are adapted. In a steady state, pages are evicted from the cache at the
rate of cache misses. A larger (respectively, a smaller) rate of misses effects a faster
(respectively, a slower) rate of adaptation.
Other implementation details take into account the relation of read and write (NVS) cache,
efficient de-staging, and the cooperation with Copy Services. In this manner, the DS6000 and
DS8000 cache management goes far beyond the usual variants of the LRU/LFU (Least
Recently Used / Least Frequently Used) approaches.
2.3 Processor complex
The DS8000 base frame contains two processor complexes. The Model 921 has 2-way
processors while the Model 922 and Model 9A2 have 4-way processors. (2-way means that
each processor complex has 2 CPUs, while 4-way means that each processor complex has 4
CPUs.)
The DS8000 features IBM POWER5 server technology. Depending on workload, the
maximum host I/O operations per second of the DS8100 Model 921 is up to three times the
maximum operations per second of the ESS Model 800. The maximum host I/O operations
per second of the DS8300 Model 922 or 9A2 is up to six times the maximum of the ESS
Model 800.
RANDOM
LRU
MRU
RANDOM bottom
SEQ
LRU
MRU
SEQ bottom
Desired size
Chapter 2. Components 27
For details on the server hardware used in the DS8000, refer to IBM p5 570 Technical
Overview and Introduction, REDP-9117, available at:
http://www.redbooks.ibm.com
The symmetric multiprocessor (SMP) p5 570 system features 2-way or 4-way, copper-based,
SOI-based POWER5 microprocessors running at 1.5 GHz or 1.9 GHz with 36 MB off-chip
Level 3 cache configurations. The system is based on a concept of system building blocks.
The p5 570 processor complexes are facilitated with the use of processor interconnect and
system flex cables that enable as many as four 4-way p5 570 processor complexes to be
connected to achieve a true 16-way SMP combined system. How these features are
implemented in the DS8000 might vary.
One p5 570 processor complex includes:
򐂰Five hot-plug PCI-X slots with Enhanced Error Handling (EEH)
򐂰An enhanced blind-swap mechanism that allows hot-swap replacement or installation of
PCI-X adapters without sliding the enclosure into the service position
򐂰Two Ultra320 SCSI controllers
򐂰One10/100/1000 Mbps integrated dual-port Ethernet controller
򐂰Two serial ports
򐂰Two USB 2.0 ports
򐂰Two HMC Ethernet ports
򐂰Four remote RIO-G ports
򐂰Two System Power Control Network (SPCN) ports
The p5 570 includes two 3-pack front-accessible, hot-swap-capable disk bays. The six disk
bays of one IBM Server p5 570 processor complex can accommodate up to 880.8 GB of disk
storage using the 146.8 GB Ultra320 SCSI disk drives. Two additional media bays are used to
accept optional slim-line media devices, such as DVD-ROM or DVD-RAM drives. The p5 570
also has I/O expansion capability using the RIO-G interconnect. How these features are
implemented in the DS8000 might vary.
28 DS8000 Series: Concepts and Architecture
Figure 2-5 Processor complex
Processor memory
The DS8100 Model 921 offers up to 128 GB of processor memory and the DS8300 Models
922 and 9A2 offer up to 256 GB of processor memory. Half of this will be located in each
processor complex. In addition, the Non-Volatile Storage (NVS) scales to the processor
memory size selected, which can also help optimize performance.
Service processor and SPCN
The service processor (SP) is an embedded controller that is based on a PowerPC® 405GP
processor (PPC405). The SPCN is the system power control network that is used to control
the power of the attached I/O subsystem. The SPCN control software and the service
processor software are run on the same PPC405 processor.
The SP performs predictive failure analysis based on any recoverable processor errors. The
SP can monitor the operation of the firmware during the boot process, and it can monitor the
operating system for loss of control. This enables the service processor to take appropriate
action.
The SPCN monitors environmentals such as power, fans, and temperature. Environmental
critical and non-critical conditions can generate Early Power-Off Warning (EPOW) events.
Critical events trigger appropriate signals from the hardware to the affected components to
Front view
Rear view
Power supply 2
Power supply 1
Power supply 1
Power supply 2
RIO-G ports
PCI-X slots
RIO-G ports
Processor cards
Operator panel
SCSI disk drives
DVD-rom drives
PCI-X adapters in
blind-swap carriers
Chapter 2. Components 29
prevent any data loss without operating system or firmware involvement. Non-critical
environmental events are also logged and reported.
2.3.1 RIO-G
The RIO-G ports are used for I/O expansion to external I/O drawers. RIO stands for remote
I/O. The RIO-G is evolved from earlier versions of the RIO interconnect.
Each RIO-G port can operate at 1 GHz in bidirectional mode and is capable of passing data in
each direction on each cycle of the port. It is designed as a high performance self-healing
interconnect. The p5 570 provides two external RIO-G ports, and an adapter card adds two
more. Two ports on each processor complex form a loop.
Figure 2-6 DS8000 RIO-G port layout
Figure 2-6 illustrates how the RIO-G cabling is laid out in a DS8000 that has eight I/O
drawers. This would only occur if an expansion frame were installed. The DS8000 RIO-G
cabling will vary based on the model. A two-way DS8000 model will have one RIO-G loop. A
four-way DS8000 model will have two RIO-G loops. Each loop will support four disk
enclosures.
2.3.2 I/O enclosures
All base models contain I/O enclosures and adapters. The I/O enclosures hold the adapters
and provide connectivity between the adapters and the processors. Device adapters and host
adapters are installed in the I/O enclosure. Each I/O enclosure has 6 slots. Each slot supports
PCI-X adapters running at 64 bit, 133 Mhz. Slots 3 and 6 are used for the device adapters.
The remaining slots are available to install up to four host adapters per I/O enclosure.
Processor
Complex 0
RIO-G ports
Processor
Complex 1
RIO-G ports
I/O enclosure I/O enclosure
I/O enclosure I/O enclosure
I/O enclosure I/O enclosure
I/O enclosure I/O enclosure
Loop 0
Loop 1
30 DS8000 Series: Concepts and Architecture
Figure 2-7 I/O enclosures
Each I/O enclosure has the following attributes:
򐂰 4U rack-mountable enclosure
򐂰 Six PCI-X slots: 3.3 V, keyed, 133 MHz blind-swap hot-plug
򐂰 Default redundant hot-plug power and cooling devices
򐂰 Two RIO-G and two SPCN ports
2.4 Disk subsystem
The DS8000 series offers a selection of Fibre Channel disk drives, including 300 GB drives,
allowing a DS8100 to scale up to 115.2 TB of capacity and a DS8300 to scale up to 192 TB of
capacity. The disk subsystem consists of three components:
򐂰First, located in the I/O enclosures are the device adapters. These are RAID controllers
that are used by the storage images to access the RAID arrays.
򐂰Second, the device adapters connect to switched controller cards in the disk enclosures.
This creates a switched Fibre Channel disk network.
򐂰Finally, we have the disks themselves. The disks are commonly referred to as disk drive
modules (DDMs).
2.4.1 Device adapters
Each DS8000 device adapter (DA) card offers four 2Gbps FC-AL ports. These ports are used
to connect the processor complexes to the disk enclosures. The adapter is responsible for
managing, monitoring, and rebuilding the RAID arrays. The adapter provides remarkable
performance thanks to a new high function/high performance ASIC. To ensure maximum data
Single I/O enclosure
Two I/O enclosures
side by side
Front view Rear view
Redundant
power supplies
RIO-G
ports
SPCN
ports
Slots: 1 23 456
Chapter 2. Components 31
integrity it supports metadata creation and checking. The device adapter design is shown in
Figure 2-8.
Figure 2-8 DS8000 device adapter
The DAs are installed in pairs because each storage partition requires its own adapter to
connect to each disk enclosure for redundancy. This is why we refer to them as DA pairs.
2.4.2 Disk enclosures
Each DS8000 frame contains either 8 or 16 disk enclosures depending on whether it is a
base or expansion frame. Half of the disk enclosures are accessed from the front of the
frame, and half from the rear. Each DS8000 disk enclosure contains a total of 16 DDMs or
dummy carriers. A dummy carrier looks very similar to a DDM in appearance but contains no
electronics. The enclosure is pictured in Figure 2-9 on page 32.
Each DDM is an industry standard FC-AL disk. Each disk plugs into the disk enclosure
backplane. The backplane is the electronic and physical backbone of the disk enclosure.
Note: If a DDM is not present, its slot must be occupied by a dummy carrier. This is
because without a drive or a dummy, cooling air does not circulate correctly.
32 DS8000 Series: Concepts and Architecture
Figure 2-9 DS8000 disk enclosure
Non-switched FC-AL drawbacks
In a standard FC-AL disk enclosure all of the disks are arranged in a loop, as depicted in
Figure 2-10. This loop-based architecture means that data flows through all disks before
arriving at either end of the device adapter (shown here as the Storage Server).
Figure 2-10 Industry standard FC-AL disk enclosure
The main problems with standard FC-AL access to DDMs are:
򐂰The full loop is required to participate in data transfer. Full discovery of the loop via LIP
(loop initialization protocol) is required before any data transfer. Loop stability can be
affected by DDM failures.
򐂰In the event of a disk failure, it can be difficult to identify the cause of a loop breakage,
leading to complex problem determination.
򐂰There is a performance dropoff when the number of devices in the loop increases.
򐂰To expand the loop it is normally necessary to partially open it. If mistakes are made, a
complete loop outage can result.
Chapter 2. Components 33
These problems are solved with the switched FC-AL implementation on the DS8000.
Switched FC-AL advantages
The DS8000 uses switched FC-AL technology to link the device adapter (DA) pairs and the
DDMs. Switched FC-AL uses the standard FC-AL protocol, but the physical implementation is
different. The key features of switched FC-AL technology are:
򐂰Standard FC-AL communication protocol from DA to DDMs.
򐂰Direct point-to-point links are established between DA and DDM.
򐂰Isolation capabilities in case of DDM failures, providing easy problem determination.
򐂰Predictive failure statistics.
򐂰Simplified expansion; for example, no cable re-routing is required when adding another
disk enclosure.
The DS8000 architecture employs dual redundant switched FC-AL access to each of the disk
enclosures. The key benefits of doing this are:
򐂰Two independent networks to access the disk enclosures.
򐂰Four access paths to each DDM.
򐂰Each device adapter port operates independently.
򐂰Double the bandwidth over traditional FC-AL loop implementations.
In Figure 2-11 each DDM is depicted as being attached to two separate Fibre Channel
switches. This means that with two device adapters, we have four effective data paths to each
disk, each path operating at 2Gb/sec. Note that this diagram shows one switched disk
network attached to each DA. Each DA can actually support two switched networks.
Figure 2-11 DS8000 disk enclosure
When a connection is made between the device adapter and a disk, the connection is a
switched connection that uses arbitrated loop protocol. This means that a mini-loop is created
between the device adapter and the disk. Figure 2-12 on page 34 depicts four simultaneous
and independent connections, one from each device adapter port.
server 0
device
adapter
server 1
device
adapter
Fibre channel switch
Fibre channel switch
34 DS8000 Series: Concepts and Architecture

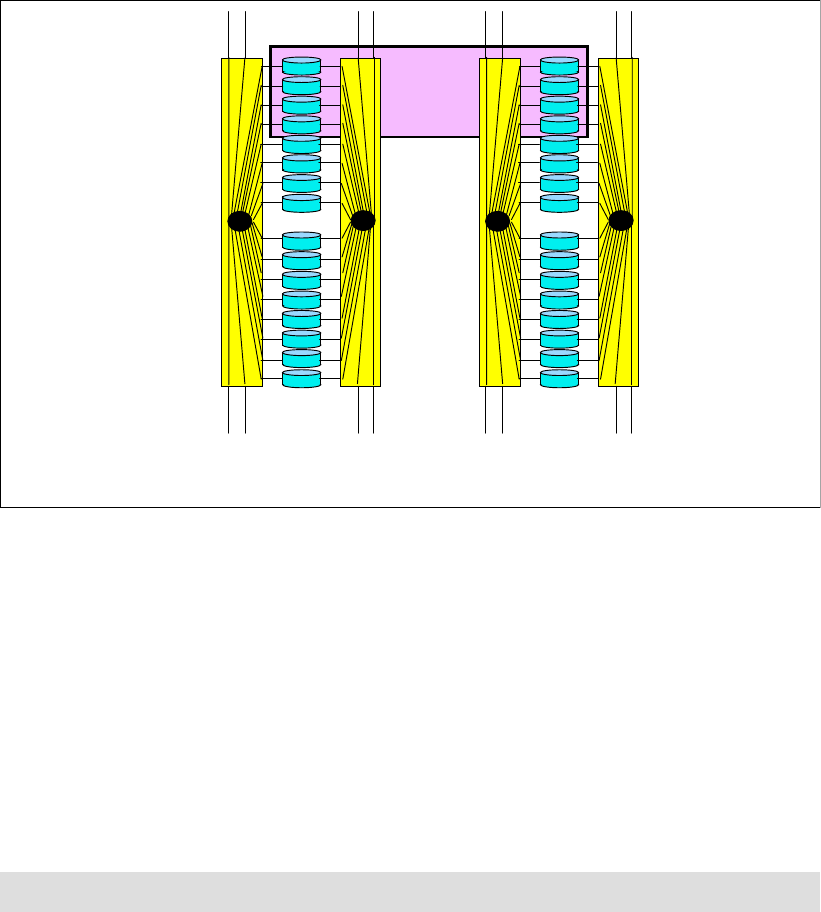

Figure 2-12 Disk enclosure switched connections
DS8000 switched FC-AL implementation
For a more detailed look at how the switched disk architecture expands in the DS8000 you
should refer to Figure 2-13 on page 35. It depicts how each DS8000 device adapter connects
to two disk networks called loops. Expansion is achieved by adding enclosures to the
expansion ports of each switch. Each loop can potentially have up to six enclosures, but this
will vary depending on machine model and DA pair number. The front enclosures are those
that are physically located at the front of the machine. The rear enclosures are located at the
rear of the machine.
server 0
device
adapter
Fibre channel switch server 1
device
adapter
Switched connections
Fibre channel switch
Chapter 2. Components 35
Figure 2-13 DS8000 switched disk expansion
Expansion
Expansion enclosures are added in pairs and disks are added in groups of 16. On the ESS
Model 800, the term 8-pack was used to describe an enclosure with eight disks in it. For the
DS8000, we use the term 16-pack, though this term really describes the 16 DDMs found in
one disk enclosure. It takes two orders of 16 DDMs to fully populate a disk enclosure pair
(front and rear).
To provide an example, if a machine had six disk enclosures total, it would have three at the
front and three at the rear. If all the enclosures were fully populated with disks, and an
additional order of 16 DDMs was purchased, then two new disk enclosures would be added,
one at the front and one at the rear. The switched networks do not need to be broken to add
these enclosures. They are simply added to the end of the loop. Half of the 16 DDMs would
go in the front enclosure and half would go in the rear enclosure. If an additional 16 DDMs
were ordered later, they would be used to completely fill that pair of disk enclosures.
Arrays and spares
Array sites containing eight DDMs are created as DDMs are installed. During configuration,
discussed in Chapter 10, “The DS Storage Manager - logical configuration” on page 189, the
user will have the choice of creating a RAID-5 or RAID-10 array by choosing one array site.
The first four array sites created on a DA pair each contribute one DDM to be a spare. So at
least four spares are created per DA pair, depending on the disk intermix.
0
15
0
15
0
15
Server 0 device
adapter
0
15
0
15
0
15
Rear storage
enclosure N max=6
Rear storage
enclosure 2
Server 1 device
adapter
FC switch
8 or 16 DDMs per
enclosure
2Gbs FC-AL link
4 FC-AL Ports
Rear
enclosures
Front
enclosures
Rear storage
enclosure 1
Front storage
enclosure 1
Front storage
enclosure 2
Front storage
enclosure N max=6
36 DS8000 Series: Concepts and Architecture
The intention is to only have four spares per DA pair, but this number may increase depending
on DDM intermix. We need to have four DDMs of the largest capacity and at least two DDMs
of the fastest RPM. If all DDMs are the same size and RPM, then four spares will be sufficient.
Arrays across loops
Each array site consists of eight DDMs. Four DDMs are taken from the front enclosure in an
enclosure pair, and four are taken from the rear enclosure in the pair. This means that when a
RAID array is created on the array site, half of the array is on each enclosure. Because the
front enclosures are on one switched loop, and the rear enclosures are on a second switched
loop, this splits the array across two loops. This is called array across loops (AAL).
To better understand AAL refer to Figure 2-14 and Figure 2-15. To make the diagrams clearer,
only 16 DDMs are shown, eight in each disk enclosure. When fully populated, there would be
16 DDMs in each enclosure. Regardless, the diagram represents a valid configuration.
Figure 2-14 is used to depict the device adapter pair layout. One DA pair creates two switched
loops. The front enclosures populate one loop while the rear enclosures populate the other
loop. Each enclosure places two switches onto each loop. Each enclosure can hold up to 16
DDMs. DDMs are purchased in groups of 16. Half of the new DDMs go into the front
enclosure and half go into the rear enclosure.
Figure 2-14 DS8000 switched loop layout
Having established the physical layout, the diagram is now changed to reflect the layout of the
array sites, as shown in Figure 2-15 on page 37. Array site 0 in green (the darker disks) uses
the four left-hand DDMs in each enclosure. Array site 1 in yellow (the lighter disks), uses the
four right-hand DDMs in each enclosure. When an array is created on each array site, half of
Front enclosure
Rear enclosure
Device adapter pair
Server
0
device
adapter
loop 0
loop 1
Server
1
device
adapter
loop 0
loop 1
3
Fibre channel switch 1
4
There are two separate
switches in each enclosure.
2
Chapter 2. Components 37
the array is placed on each loop. If the disk enclosures were fully populated with DDMs, there
would be four array sites.
Figure 2-15 Array across loop
AAL benefits
AAL is used to increase performance. When the device adapter writes a stripe of data to a
RAID-5 array, it sends half of the write to each switched loop. By splitting the workload in this
manner, each loop is worked evenly, which improves performance. If RAID-10 is used, two
RAID-0 arrays are created. Each loop hosts one RAID-0 array. When servicing read I/O, half
of the reads can be sent to each loop, again improving performance by balancing workload
across loops.
DDMs
Each DDM is hot plugable and has two indicators. The green indicator shows disk activity
while the amber indicator is used with light path diagnostics to allow for easy identification and
replacement of a failed DDM.
At present the DS8000 allows the choice of three different DDM types:
򐂰73 GB, 15K RPM drive
򐂰146 GB, 10K RPM drive
򐂰300 GB, 10K RPM drive
2.5 Host adapters
The DS8000 supports two types of host adapters: ESCON and Fibre Channel/FICON. It does
not support SCSI adapters.
Server
0
device
adapter
loop 0
loop 1
Server
1
device
adapter
loop 0
loop 1
3
Fibre channel switch 1
4
There are two separate
switches in each enclosure.
2
Array site 0 Array site 1
38 DS8000 Series: Concepts and Architecture
The ESCON adapter in the DS8000 is a dual ported host adapter for connection to older
zSeries hosts that do not support FICON. The ports on the ESCON card use the MT-RJ type
connector.
Control units and logical paths
ESCON architecture recognizes only 16 3990 logical control units (LCUs) even though the
DS8000 is capable of emulating far more (these extra control units can be used by FICON).
Half of the LCUs (even numbered) are in server 0, and the other half (odd-numbered) are in
server 1. Because the ESCON host adapters can connect to both servers, each adapter can
address all 16 LCUs.
An ESCON link consists of two fibers, one for each direction, connected at each end by an
ESCON connector to an ESCON port. Each ESCON adapter card supports two ESCON
ports or links, and each link supports 64 logical paths.
ESCON distances
For connections without repeaters, the ESCON distances are 2 km with 50 micron multimode
fiber, and 3 km with 62.5 micron multimode fiber. The DS8000 supports all models of the IBM
9032 ESCON directors that can be used to extend the cabling distances.
Remote Mirror and Copy with ESCON
The initial implementation of the ESS 2105 Remote Mirror and Copy function (better known
as PPRC or Peer-to-Peer Remote Copy) used ESCON adapters. This was known as PPRC
Version 1. The ESCON adapters in the DS8000 do not support any form of Remote Mirror
and Copy. If you wish to create a remote mirror between a DS8000 and an ESS 800 or
another DS8000 or DS6000, you must use Fibre Channel adapters. You cannot have a
remote mirror relationship between a DS8000 and an ESS E20 or F20 because the E20/F20
only support Remote Mirror and Copy over ESCON.
ESCON supported servers
ESCON is used for attaching the DS8000 to the IBM S/390 and zSeries servers. The most
current list of supported servers is at this Web site:
http://www.storage.ibm.com/hardsoft/products/DS8000/supserver.htm
This site should be consulted regularly because it has the most up-to-date information on
server attachment support.
2.5.1 FICON and Fibre Channel protocol host adapters
Fibre Channel is a technology standard that allows data to be transferred from one node to
another at high speeds and great distances (up to 10 km and beyond). The DS8000 uses
Fibre Channel protocol to transmit SCSI traffic inside Fibre Channel frames. It also uses Fibre
Channel to transmit FICON traffic, which uses Fibre Channel frames to carry zSeries I/O.
Each DS8000 Fibre Channel card offers four 2 Gbps Fibre Channel ports. The cable
connector required to attach to this card is an LC type. Each port independently
auto-negotiates to either 2 Gbps or 1 Gbps link speed. Each of the 4 ports on one DS8000
adapter can also independently be either Fibre Channel protocol (FCP) or FICON, though the
ports are initially defined as switched point to point FCP. Selected ports will be configured to
FICON automatically based on the definition of a FICON host. Each port can be either FICON
or Fibre Channel protocol (FCP). The personality of the port is changeable via the DS
Storage Manager GUI. A port cannot be both FICON and FCP simultaneously, but it can be
changed as required.
Chapter 2. Components 39
The card itself is PCI-X 64 Bit 133 MHz. The card is driven by a new high function, high
performance ASIC. To ensure maximum data integrity, it supports metadata creation and
checking. Each Fibre Channel port supports a maximum of 509 host login IDs. This allows for
the creation of very large storage area networks (SANs). The design of the card is depicted in
Figure 2-16.
Figure 2-16 DS8000 FICON/FCP host adapter
Fibre Channel supported servers
The current list of servers supported by the Fibre Channel attachment is at this Web site:
http://www.storage.ibm.com/hardsoft/products/DS8000/supserver.htm
This document should be consulted regularly because it has the most up-to-date information
on server attachment support.
Fibre Channel distances
There are two types of host adapter cards you can select: long wave and short wave. With
long-wave laser, you can connect nodes at distances of up to 10 km (non-repeated). With
short wave you are limited to a distance of 300 to 500 metres (non-repeated). All ports on
each card must be either long wave or short wave (there can be no mixing of types within a
card).
2.6 Power and cooling
The DS8000 power and cooling system is highly redundant.
Rack Power Control cards (RPC)
The DS8000 has a pair of redundant RPC cards that are used to control certain aspects of
power sequencing throughout the DS8000. These cards are attached to the Service
Processor (SP) card in each processor, which allows them to communicate both with the
Storage Hardware Management Console (S-HMC) and the storage facility image LPARs. The
RPCs also communicate with each primary power supply and indirectly with each rack’s fan
sense cards and the disk enclosures in each frame.
QDR
QDR PPC
750GX
Flash
Buffer
Data Protection
Data Mover
ASIC
Protocol
Chipset
Processor
Data Mover
1 GHz
Fibre Channel
Protocol
Engine
Fibre Channel
Protocol
Engine
40 DS8000 Series: Concepts and Architecture
Primary power supplies
The DS8000 primary power supply (PPS) converts input AC voltage into DC voltage. There
are high and low voltage versions of the PPS because of the varying voltages used
throughout the world. Also, because the line cord connector requirements vary widely
throughout the world, the line cord may not come with a suitable connector for your nation’s
preferred outlet. This may need to be replaced by an electrician once the machine is
delivered.
There are two redundant PPSs in each frame of the DS8000. Each PPS is capable of
powering the frame by itself. The PPS creates 208V output power for the processor complex
and I/O enclosure power supplies. It also creates 5V and 12V DC power for the disk
enclosures. There may also be an optional booster module that will allow the PPSs to
temporarily run the disk enclosures off battery, if the extended power line disturbance feature
has been purchased (see Chapter 4, “RAS” on page 61, for a complete explanation as to why
this feature may or may not be necessary for your installation).
Each PPS has internal fans to supply cooling for that power supply.
Processor and I/O enclosure power supplies
Each processor and I/O enclosure has dual redundant power supplies to convert 208V DC
into the required voltages for that enclosure or complex. Each enclosure also has its own
cooling fans.
Disk enclosure power and cooling
The disk enclosures do not have separate power supplies since they draw power directly from
the PPSs. They do, however, have cooling fans located in a plenum above the enclosures.
They draw cooling air through the front of each enclosure and exhaust air out of the top of the
frame.
Battery backup assemblies
The backup battery assemblies help protect data in the event of a loss of external power. The
model 921 contains two battery backup assemblies while the model 922 and 9A2 contain
three of them (to support the 4-way processors). In the event of a complete loss of input AC
power, the battery assemblies are used to allow the contents of NVS memory to be written to
a number of DDMs internal to the processor complex, prior to power off.
The FC-AL DDMs are not protected from power loss unless the extended power line
disturbance feature has been purchased.
2.7 Management console network
All base models ship with one Storage Hardware Management Console (S-HMC), a keyboard
and display, plus two Ethernet switches.
S-HMC
The S-HMC is the focal point for configuration, Copy Services management, and
maintenance activities. It is possible to order two management consoles to act as a redundant
pair. A typical configuration would be to have one internal and one external management
console. The internal S-HMC will contain a PCI modem for remote service.
Chapter 2. Components 41
Ethernet switches
In addition to the Fibre Channel switches installed in each disk enclosure, the DS8000 base
frame contains two 16-port Ethernet switches. Two switches are supplied to allow the
creation of a fully redundant management network. Each processor complex has multiple
connections to each switch. This is to allow each server to access each switch. This switch
cannot be used for any equipment not associated with the DS8000. The switches get power
from the internal power bus and thus do not require separate power outlets.
2.8 Summary
This chapter has described the various components that make up a DS8000. For additional
information, there is documentation available at:
http://www-1.ibm.com/servers/storage/support/disk/index.html
42 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 43
Chapter 3. Storage system LPARs (Logical
partitions)
This chapter provides information about storage system Logical Partitions (LPARs) in the
DS8000.
The following topics are discussed in detail:
򐂰Introduction to LPARs
򐂰 DS8000 and LPARs
– LPAR and storage facility images (SFIs)
– DS8300 LPAR implementation
– Hardware components of a storage facility image
– DS8300 Model 9A2 configuration options
򐂰LPAR security and protection
򐂰LPAR and Copy Services
򐂰LPAR benefits
3
44 DS8000 Series: Concepts and Architecture
3.1 Introduction to logical partitioning
Logical partitioning allows the division of a single server into several completely independent
virtual servers or partitions.
IBM began work on logical partitioning in the late 1960s, using S/360 mainframe systems with
the precursors of VM, specifically CP40. Since then, logical partitioning on IBM mainframes
(now called IBM zSeries) has evolved from a predominantly physical partitioning scheme
based on hardware boundaries to one that allows for virtual and shared resources with
dynamic load balancing. In 1999 IBM implemented LPAR support on the AS/400 (now called
IBM iSeries) platform and on pSeries in 2001. In 2000 IBM announced the ability to run the
Linux operating system in an LPAR or on top of VM on a zSeries server, to create thousands
of Linux instances on a single system.
3.1.1 Virtualization Engine technology
IBM Virtualization Engine is comprised of a suite of system services and technologies that
form key elements of IBM’s on demand computing model. It treats resources of individual
servers, storage, and networking products as if in a single pool, allowing access and
management of resources across an organization more efficiently. Virtualization is a critical
component in the on demand operating environment. The system technologies implemented
in the POWER5 processor provide a significant advancement in the enablement of functions
required for operating in this environment.
LPAR is one component of the POWER5 system technology that is part of the IBM
Virtualization Engine.
Using IBM Virtualization Engine technology, selected models of the DS8000 series can be
used as a single, large storage system, or can be used as multiple storage systems with
logical partitioning (LPAR) capabilities. IBM LPAR technology, which is unique in the storage
industry, allows the resources of the storage system to be allocated into separate logical
storage system partitions, each of which is totally independent and isolated. Virtualization
Engine (VE) delivers the capabilities to simplify the infrastructure by allowing the
management of heterogeneous partitions/servers on a single system.
3.1.2 Partitioning concepts
It is appropriate to clarify the terms and definitions by which we classify these mechanisms.
Partitions
When a multi-processor computer is subdivided into multiple, independent operating system
images, those independent operating environments are called partitions. The resources on
the system are allocated to specific partitions.
Resources
Resources are defined as a system’s processors, memory, and I/O slots. I/O slots can be
populated by different adapters, such as Ethernet, SCSI, Fibre Channel or other device
controllers. A disk is allocated to a partition by assigning it the I/O slot that contains the disk’s
controller.
Note: The following sections discuss partitioning concepts in general and not all are
applicable to the DS8000.
Chapter 3. Storage system LPARs (Logical partitions) 45
Building block
A building block is a collection of system resources, such as processors, memory, and I/O
connections.
Physical partitioning (PPAR)
In physical partitioning, the partitions are divided along hardware boundaries. Each partition
might run a different version of the same operating system. The number of partitions relies on
the hardware. Physical partitions have the advantage of allowing complete isolation of
operations from operations running on other processors, thus ensuring their availability and
uptime. Processors, I/O boards, memory, and interconnects are not shared, allowing
applications that are business-critical or for which there are security concerns to be
completely isolated. The disadvantage of physical partitioning is that machines cannot be
divided into as many partitions as those that use logical partitioning, and users can't
consolidate many lightweight applications on one machine.
Logical partitioning (LPAR)
A logical partition uses hardware and firmware to logically partition the resources on a
system. LPARs logically separate the operating system images, so there is not a dependency
on the hardware building blocks.
A logical partition consists of processors, memory, and I/O slots that are a subset of the pool
of available resources within a system, as shown in Figure 3-1 on page 46. While there are
configuration rules, the granularity of the units of resources that can be allocated to partitions
is very flexible. It is possible to add just a small amount of memory, if that is all that is needed,
without a dependency on the size of the memory controller or without having to add more
processors or I/O slots that are not needed.
LPAR differs from physical partitioning in the way resources are grouped to form a partition.
Logical partitions do not need to conform to the physical boundaries of the building blocks
used to build the server. Instead of grouping by physical building blocks, LPAR adds more
flexibility to select components from the entire pool of available system resources.
46 DS8000 Series: Concepts and Architecture
Figure 3-1 Logical partition
Software and hardware fault isolation
Because a partition hosts an independent operating system image, there is strong software
isolation. This means that a job or software crash in one partition will not effect the resources
in another partition.
Dynamic logical partitioning
Starting from AIX 5L™ Version 5.2, IBM supports dynamic logical partitioning (also known as
DLPAR) in partitions on several logical partitioning capable IBM pSeries server models.
The dynamic logical partitioning function allows resources, such as CPUs, memory, and I/O
slots, to be added to or removed from a partition, as well as allowing the resources to be
moved between two partitions, without an operating system reboot (on the fly).
Micro-Partitioning™
With AIX 5.3, partitioning capabilities are enhanced to include sub-processor partitioning, or
Micro-Partitioning. With Micro-Partitioning it is possible to allocate less than a full physical
processor to a logical partition.
The benefit of Micro-Partitioning is that it allows increased overall utilization of system
resources by automatically applying only the required amount of processor resource needed
by each partition.
Virtual I/O
On POWER5 servers, I/O resources (disks and adapters) can be shared through Virtual I/O.
Virtual I/O provides the ability to dedicate I/O adapters and devices to a virtual server,
hardware management console
Logical
Partition 0
Logical Partition 1 Logical Partition 2
Processor
Cache
Processor
Cache
Processor
Cache
Processor
Cache
Processor
Cache
Processor
Cache
I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O
Memory
Logical Partition
Chapter 3. Storage system LPARs (Logical partitions) 47
allowing the on-demand allocation of those resources to different partitions and the
management of I/O devices. The physical resources are owned by the Virtual I/O server.
3.1.3 Why Logically Partition?
There is a demand to provide greater flexibility for high-end systems, particularly the ability to
subdivide them into smaller partitions that are capable of running a version of an operating
system or a specific set of application workloads.
The main reasons for partitioning a large system are as follows:
Server consolidation
A highly reliable server with sufficient processing capacity and capable of being partitioned
can address the need for server consolidation by logically subdividing the server into a
number of separate, smaller systems. This way, the application isolation needs can be met in
a consolidated environment, with the additional benefits of reduced floor space, a single point
of management, and easier redistribution of resources as workloads change. Increasing or
decreasing the resources allocated to partitions can facilitate better utilization of a server that
is exposed to large variations in workload.
Production and test environments
Generally, production and test environments should be isolated from each other. Without
partitioning, the only practical way of performing application development and testing is to
purchase additional hardware and software.
Partitioning is a way to set aside a portion of the system resources to use for testing new
versions of applications and operating systems, while the production environment continues
to run. This eliminates the need for additional servers dedicated to testing, and provides more
confidence that the test versions will migrate smoothly into production because they are
tested on the production hardware system.
Consolidation of multiple versions of the same OS or applications
The flexibility inherent in LPAR greatly aids the scheduling and implementation of normal
upgrade and system maintenance activities. All the preparatory activities involved in
upgrading an application or even an operating system could be completed in a separate
partition. An LPAR can be created to test applications under new versions of the operating
system prior to upgrading the production environments. Instead of having a separate server
for this function, a minimum set of resources can be temporarily used to create a new LPAR
where the tests are performed. When the partition is no longer needed, its resources can be
incorporated back into the other LPARs.
Application isolation
Partitioning isolates an application from another in a different partition. For example, two
applications on one symmetric multi-processing (SMP) system could interfere with each other
or compete for the same resources. By separating the applications into their own partitions,
they cannot interfere with each other. Also, if one application were to hang or crash the
operating system, this would not have an effect on the other partitions. Also, applications are
prevented from consuming excess resources, which could starve other applications of
resources they require.
Increased hardware utilization
Partitioning is a way to achieve better hardware utilization when software does not scale well
across large numbers of processors. Where possible, running multiple instances of an
48 DS8000 Series: Concepts and Architecture
application on separate smaller partitions can provide better throughput than running a single
large instance of the application.
Increased flexibility of resource allocation
A workload with resource requirements that change over time can be managed more easily
within a partition that can be altered to meet the varying demands of the workload.
3.2 DS8000 and LPAR
In the first part of this chapter we discussed the LPAR features in general. In this section we
provide information on how the LPAR functionality is implemented in the DS8000 series.
The DS8000 series is a server-based disk storage system. With the integration of the
POWER5 eServer p5 570 into the DS8000 series, IBM offers the first implementation of the
server LPAR functionality in a disk storage system.
The storage system LPAR functionality is currently supported in the DS8300 Model 9A2. It
provides two virtual storage systems in one physical machine. Each storage system LPAR
can run its own level of licensed internal code (LIC).
The resource allocation for processors, memory, and I/O slots in the two storage system
LPARs on the DS8300 is currently divided into a fixed ratio of 50/50.
Between the two storage facility images there exists a robust isolation via hardware; for
example, separated RIO-G loops, and the POWER5 Hypervisor, which is described in more
detail in section 3.3, “LPAR security through POWER™ Hypervisor (PHYP)” on page 54.
3.2.1 LPAR and storage facility images
Before we start to explain how the LPAR functionality is implemented in the DS8300, we want
to clarify some terms and naming conventions. Figure 3-2 on page 49 illustrates these terms.
Note: The allocation for resources will be more flexible. According to the announcement
letter IBM has issued a Statement of General Direction:
IBM intends to enhance the Virtualization Engine partitioning capabilities of selected
models of the DS8000 series to provide greater flexibility in the allocation and
management of resources between images.
Chapter 3. Storage system LPARs (Logical partitions) 49
Figure 3-2 DS8300 Model 9A2 - LPAR and storage facility image
The DS8300 series incorporates two eServer p5 570s. We call each of these a processor
complex. Each processor complex supports one or more LPARs. Currently each processor
complex on the DS8300 is divided into two LPARs. An LPAR is a set of resources on a
processor complex that support the execution of an operating system. The storage facility
image is built from a pair of LPARs, one on each processor complex.
Figure 3-2 shows that LPAR01 from processor complex 0 and LPAR11 from processor
complex 1 instantiate storage facility image 1. LPAR02 from processor complex 0 and
LPAR12 from processor complex 1 instantiate the second storage facility image.
3.2.2 DS8300 LPAR implementation
Each storage facility image will use the machine type/model number/serial number of the
DS8300 Model 9A2 base frame. The frame serial number will end with 0. The last character
of the serial number will be replaced by a number in the range one to eight that uniquely
identifies the DS8000 image. Initially, this character will be a 1or a 2, because there are only
two storage facility images available. The serial number is needed to distinguish between the
storage facility images in the GUI, CLI, and for licensing and allocating the licenses between
the storage facility images.
The first release of the LPAR functionality in the DS8300 Model 9A2 provides a split between
the resources in a 50/50 ratio as depicted in Figure 3-3 on page 50.
Important: It is important to understand that an LPAR in a processor complex is not the
same as a storage facility image in the DS8300.
LPAR02
Processor
complex 0
Processor
complex 1
Storage
Facility
Image 1
Storage
Facility
Image 2
LPAR01 LPAR11
LPAR12
LPARxy
x=Processor complex number
y=Storage facility number
50 DS8000 Series: Concepts and Architecture
Figure 3-3 DS8300 LPAR resource allocation
Each storage facility image has access to:
򐂰50 percent of the processors
򐂰50 percent of the processor memory
򐂰1 loop of the RIO-G interconnection
򐂰Up to 16 host adapters (4 I/O drawers with up to 4 host adapters)
򐂰Up to 320 disk drives (up to 96 TB of capacity)
3.2.3 Storage facility image hardware components
In this section we explain which hardware resources are required to build a storage facility
image.
The management of the resource allocation between LPARs on a pSeries is done via the
Storage Hardware Management Console (S-HMC). Because the DS8300 Model 9A2
provides a fixed split between the two storage facility images, there is no management or
configuration necessary via the S-HMC. The DS8300 comes pre-configured with all required
LPAR resources assigned to either storage facility image.
Figure 3-4 on page 51 shows the split of all available resources between the two storage
facility images. Each storage facility image has 50% of all available resources.
I/O drawers
Storage
enclosures
Processor complex 0
Storage
Facility
Image 2
Storage
Facility
Image 1 I/O drawers
Storage
enclosures
Processor complex 1
Storage
Facility
Image 2
Storage
Facility
Image 1
RIO-G RIO-G
RIO-G RIO-G
(LPAR01) (LPAR11)
(LPAR02) (LPAR12)
Chapter 3. Storage system LPARs (Logical partitions) 51
Figure 3-4 Storage facility image resource allocation in the processor complexes of the DS8300
I/O resources
For one storage facility image, the following hardware resources are required:
򐂰2 SCSI controllers with 2 disk drives each
򐂰2 Ethernet ports (to communicate with the S-HMC)
򐂰1 Thin Device Media Bay (for example, CD or DVD; can be shared between the LPARs)
Each storage facility image will have two physical disk drives in each processor complex.
Each disk drive will contain three logical volumes, the boot volume and two logical volumes
for the memory save dump function. These three logical volumes are then mirrored across the
two physical disk drives for each LPAR. In Figure 3-4, for example, the disks A/A' are mirrors.
For the DS8300 Model 9A2, there will be four drives total in one physical processor complex.
Processor and memory allocations
In the DS8300 Model 9A2 each processor complex has four processors and up to 128 GB
memory. Initially there is also a 50/50 split for processor and memory allocation.
Therefore, every LPAR has two processors and so every storage facility image has four
processors.
The memory limit depends on the total amount of available memory in the whole system.
Currently there are the following memory allocations per storage facility available:
򐂰32 GB (16 GB per processor complex, 16 GB per storage facility image)
򐂰64 GB (32 GB per processor complex, 32 GB per storage facility image)
򐂰128 GB (64 GB per processor complex, 64 GB per storage facility image)
򐂰256 GB (128 GB per processor complex, 128 GB per storage facility image)
Storage Facility Image 1
S-HMC
Processor complex 1Processor complex 0Processor complex 0
Processors2 Processors
Memory
2 Processors
Memory
I/O drawer
0
HA DAHA HA HADA
Processors2 Processors
Memory
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
I/O drawer
1
HA DAHA HA HADA
2 Processors
Memory
Ethernet-Port
RIO-G interface
Ethernet-Port
SCSI controller
RIO-G interface
RIO-G interface
Ethernet-Port
SCSI controller
RIO-G interface
RIO-G interface
Ethernet-Port
SCSI controller
RIO-G interface
RIO-G interface
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
I/O drawer
3
HA DAHA HA HADA
I/O drawer
2
HA DAHA HA HADA
CD/DVD
CD/DVD
Storage Facility Image 2
boot data data boot data data
AA'
boot data data boot data data
BB'
boot data data boot data data
CC'
boot data data boot data data
DD'
52 DS8000 Series: Concepts and Architecture
RIO-G interconnect separation
Figure 3-4 on page 51 depicts that the RIO-G interconnection is also split between the two
storage facility images. The RIO-G interconnection is divided into 2 loops. Each RIO-G loop is
dedicated to a given storage facility image. All I/O enclosures on the RIO-G loop with the
associated host adapters and drive adapters are dedicated to the storage facility image that
owns the RIO-G loop.
As a result of the strict separation of the two images, the following configuration options exist:
򐂰Each storage facility image is assigned to one dedicated RIO-G loop; if an image is offline,
its RIO-G loop is not available.
򐂰All I/O enclosures on a given RIO-G loop are dedicated to the image that owns the RIO-G
loop.
򐂰Host adapter and device adapters on a given loop are dedicated to the associated image
that owns this RIO-G loop.
򐂰Disk enclosures and storage devices behind a given device adapter pair are dedicated to
the image that owns the RIO-G loop.
򐂰Configuring of capacity to an image is managed through the placement of disk enclosures
on a specific DA pair dedicated to this image.
3.2.4 DS8300 Model 9A2 configuration options
In this section we explain which configuration options are available for the DS8300 Model
9A2.
The Model 9A2 (base frame) has:
򐂰32 to 128 DDMs
– Up to 64 DDMs per storage facility image, in increments of 16 DDMs
򐂰System memory
– 32, 64, 128, 256 GB (half of the amount of memory is assigned to each storage facility
image)
򐂰Four I/O bays
– Two bays assigned to storage facility image 1 and two bays assigned to storage facility
image 2
– Each bay contains:
• Up to 4 host adapters
• Up to 2 device adapters
򐂰S-HMC, keyboard/display, and 2 Ethernet switches
The first Model 9AE (expansion frame) has:
򐂰An additional four I/O bays
Two bays are assigned to storage facility image 1 and two bays are assigned to storage
facility image 2.
򐂰Each bay contains:
– Up to 4 host adapters
– Up to 2 device adapters
Chapter 3. Storage system LPARs (Logical partitions) 53
򐂰An additional 256 DDMs
– Up to 128 DDMs per storage facility image
The second Model 9AE (expansion frame) has:
򐂰An additional 256 DDMs
– Up to 128 drives per storage facility image
A fully configured DS8300 with storage facility images has one base frame and two expansion
frames. The first expansion frame (9AE) has additional I/O drawers and disk drive modules
(DDMs), while the second expansion frame contains additional DDMs.
Figure 3-5 provides an example of how a fully populated DS8300 might be configured. The
disk enclosures are assigned to storage facility image 1 (yellow, or lighter if not viewed in
color) or storage facility image 2 (green, or darker). When ordering additional disk capacity, it
can be allocated to either storage facility image 1 or storage facility image 2. The cabling is
pre-determined and in this example there is an empty pair of disk enclosures assigned for the
next increment of disk to be added to storage facility image 2.
Figure 3-5 DS8300 example configuration
Model conversion
The Model 9A2 has a fixed 50/50 split into two storage facility images. However, there are
various model conversions available. For example, it is possible to switch from Model 9A2 to a
full system machine, which is the Model 922. Table 3-1 shows all possible model conversions
regarding the LPAR functionality.
Processor
complex 1
Processor
complex 0
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Storage
enclosure
Empty storage
enclosure
Empty storage
enclosure
Storage
enclosure
Storage
enclosure
I/O drawer
4
I/O drawer
5
I/O drawer
6
I/O drawer
7
I/O drawer
0
I/O drawer
1
I/O drawer
2
I/O drawer
3
Storage
Facility
Image 1
Storage
Facility
Image 1
Storage
Facility
Image 2
Storage
Facility
Image 2
54 DS8000 Series: Concepts and Architecture
Table 3-1 Model conversions regarding LPAR functionality
3.3 LPAR security through POWER™ Hypervisor (PHYP)
The DS8300 Model 9A2 provides two storage facility images. This offers a number of
desirable business advantages. But it also can raise some concerns about security and
protection of the storage facility images in the DS8000 series. In this section we explain how
the DS8300 delivers robust isolation between the two storage facility images.
One aspect of LPAR protection and security is that the DS8300 has a dedicated allocation of
the hardware resources for the two facility images. There is a clear split of processors,
memory, I/O slots, and disk enclosures between the two images.
Another important security feature which is implemented in the pSeries server is called the
POWER Hypervisor (PHYP). It enforces partition integrity by providing a security layer
between logical partitions. The POWER Hypervisor is a component of system firmware that
will always be installed and activated, regardless of the system configuration. It operates as a
hidden partition, with no processor resources assigned to it.
Figure 3-6 on page 55 illustrates a set of address mapping mechanisms which are described
in the following paragraphs.
In a partitioned environment, the POWER Hypervisor is loaded into the first Physical Memory
Block (PMB) at the physical address zero and reserves the PMB. From then on, it is not
possible for an LPAR to access directly the physical memory. Every memory access is
controlled by the POWER Hypervisor.
Each partition has its own exclusive page table, which is also controlled by the POWER
Hypervisor. Processors use these tables to transparently convert a program's virtual address
into the physical address where that page has been mapped into physical memory.
In a partitioned environment, the operating system uses hypervisor services to manage the
translation control entry (TCE) tables. The operating system communicates the desired I/O
bus address to logical mapping, and the hypervisor translates that into the I/O bus address to
physical mapping within the specific TCE table. The hypervisor needs a dedicated memory
region for the TCE tables to translate the I/O address to the partition memory address, then
the hypervisor can perform direct memory access (DMA) transfers to the PCI adapters.
From Model To Model
921 (2-way processors without LPAR) 9A2 (4-way processors with LPAR)
922 (4-way processors without LPAR) 9A2 (4-way processors with LPAR)
9A2 (4-way processors with LPAR) 922 (4-way processors without LPAR)
92E (expansion frame without LPAR) 9AE (expansion frame with LPAR)
9AE (expansion frame with LPAR) 92E (expansion frame without LPAR)
Note: Every model conversion is a disruptive operation.
Chapter 3. Storage system LPARs (Logical partitions) 55
Figure 3-6 LPAR protection - POWER Hypervisor
3.4 LPAR and Copy Services
In this section we provide some specific information about the Copy Services functions
related to the LPAR functionality on the DS8300. An example for this can be seen in
Figure 3-7 on page 56.
Virtual Addresses
Virtual Addresses
Hypervisor-
Controlled
TCE Tables
For DMA
Bus Addresses
Bus Addresses
Bus Addresses
Bus Addresses
Physical
Memory Partition 1
I/O Slot
I/O Slot
I/O Slot
I/O Slot
Partition 2
I/O Slot
I/O Slot
LPAR Protection in IBM POWER5™ Hardware
Proc
Proc
Proc
Proc
Proc
Partition 1
Partition 2
Virtual Addresses
Virtual Addresses
Hypervisor-
Controlled
Page Tables
N
N
N
0
0
Real Addresses
Real Addresses {
{
Addr N
Addr N
Addr 0
Addr 0
I/O Load/Store
I/O Load/Store
Proc
The Hardware and Hypervisor manage the real to virtual memory
mapping to provide robust isolation between partitions
0
56 DS8000 Series: Concepts and Architecture

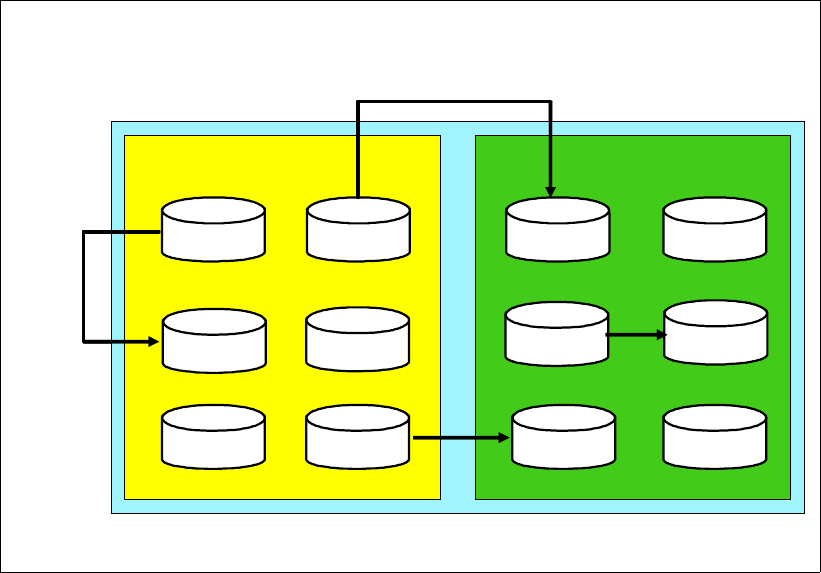

Figure 3-7 DS8300 storage facility images and Copy Services
FlashCopy
The DS8000 series fully supports the FlashCopy V2 capabilities that the ESS Model 800
currently provides. One function of FlashCopy V2 was the ability to have the source and
target of a FlashCopy relationship reside anywhere within the ESS (commonly referred to as
cross LSS support). On a DS8300 Model 9A2, the source and target must reside within the
same storage facility image.
A source volume of a FlashCopy located in one storage facility image cannot have a target
volume in the second storage facility image, as illustrated in Figure 3-7.
Remote mirroring
A Remote Mirror and Copy relationship is supported across storage facility images. The
primary server could be located in one storage facility image and the secondary in another
storage facility image within the same DS8300.
For more information about Copy Services refer to Chapter 7, “Copy Services” on page 115.
3.5 LPAR benefits
The exploitation of the LPAR technology in the DS8300 Model 9A2 offers many potential
benefits. You get a reduction in floor space, power requirements, and cooling requirements
through consolidation of multiple stand-alone storage functions.
It helps you to simplify your IT infrastructure through a reduced system management effort.
You also can reduce your storage infrastructure complexity and your physical asset
management.
DS8300 Storage Facility Images and Copy Services
Storage Facility Image 1
PPRC
Primary
PPRC
Primary
PPRC
Secondary
PPRC
Secondary
FlashCopy
Source
FlashCopy
Source
FlashCopy
Target
FlashCopy
Target
üRemote Mirroring and Copy (PPRC) within a Storage Facility Image or across Storage Facility Images
üFlashCopy within a Storage Facility Image
Storage Facility Image 2
ü
ü
û
Storage Facility Image 1
PPRC
Primary
PPRC
Primary
PPRC
Secondary
PPRC
Secondary
FlashCopy
Source
FlashCopy
Source
FlashCopy
Target
FlashCopy
Target
üRemote Mirroring and Copy (PPRC) within a Storage Facility Image or across Storage Facility Images
üFlashCopy within a Storage Facility Image
Storage Facility Image 2
ü
ü
û
Chapter 3. Storage system LPARs (Logical partitions) 57
The hardware-based LPAR implementation ensures data integrity. The fact that you can
create dual, independent, completely segregated virtual storage systems helps you to
optimize the utilization of your investment, and helps to segregate workloads and protect
them from one another.
The following are examples of possible scenarios where storage facility images would be
useful:
򐂰Two production workloads
The production environments can be split, for example, by operating system, application,
or organizational boundaries. For example, some customers maintain separate physical
ESS 800s with z/OS hosts on one and open hosts on the other. A DS8300 could maintain
this isolation within a single physical storage system.
򐂰Production and development partitions
It is possible to separate the production environment from a development partition. On one
partition you can develop and test new applications, completely segregated from a
mission-critical production workload running in another storage facility image.
򐂰Dedicated partition resources
As a service provider you could provide dedicated resources to each customer, thereby
satisfying security and service level agreements, while having the environment all
contained on one physical DS8300.
򐂰Production and data mining
For database purposes you can imagine a scenario where your production database is
running in the first storage facility image and a copy of the production database is running
in the second storage facility image. You can perform analysis and data mining on it
without interfering with the production database.
򐂰Business continuance (secondary) within the same physical array
You can use the two partitions to test Copy Services solutions or you can use them for
multiple copy scenarios in a production environment.
򐂰Information Lifecycle Management (ILM) partition with fewer resources, slower DDMs
One storage facility image can utilize, for example, only fast disk drive modules to ensure
high performance for the production environment, and the other storage facility image can
use fewer and slower DDMs to ensure Information Lifecycle Management at a lower cost.
Figure 3-8 on page 58 depicts one example for storage facility images in the DS8300.
58 DS8000 Series: Concepts and Architecture
Figure 3-8 Example of storage facility images in the DS8300
This example shows a DS8300 with a total physical capacity of 30 TB. In this case, a
minimum Operating Environment License (OEL) is required to cover the 30 TB capacity. The
DS8300 is split into two storage facility images. Storage facility image 1 is used for an Open
System environment and utilizes 20 TB of fixed block data. Storage facility image 2 is used for
a zSeries environment and uses 10 TB of count key data.
To utilize FlashCopy on the entire capacity would require a 30 TB FlashCopy license.
However, as in this example, it is possible to have a FlashCopy license for storage facility
image 1 for 20 TB only. In this example for the zSeries environment, no copy function is
needed, so there is no need to purchase a Copy Services license for storage facility image 2.
You can find more information about the licensed functions in 9.3, “DS8000 licensed
functions” on page 167.
This example also shows the possibility of running two different licensed internal code (LIC)
levels in the storage facility images.
Addressing capabilities with storage facility images
Figure 3-9 on page 59 highlights the enormous enhancements of the addressing capabilities
that you get with the DS8300 in LPAR mode in comparison to the previous ESS Model 800.
LUN0
LUN1
LUN2
3390-3
3390-3
System 1
Open System
System 2
zSeries
DS8300 Model 9A2
(Physical Capacity: 30TB)
Storage Facility Image 1
Capacity: 20 TB Fixed Block (FB)
LIC level: A
License function: Point-in-time Copy
License feature: FlashCopy
Storage Facility Image 2
Capacity: 10 TB Count Key Data (CKD)
LIC level: B
License function: no Copy function
License feature: no Copy feature
Chapter 3. Storage system LPARs (Logical partitions) 59
Figure 3-9 Comparison with ESS Model 800 and DS8300 with and without LPAR
3.6 Summary
The DS8000 series delivers the first use of the POWER5 processor IBM Virtualization Engine
logical partitioning capability. This storage system LPAR technology is designed to enable the
creation of two completely separate storage systems, which can run the same or different
versions of the licensed internal code. The storage facility images can be used for production,
test, or other unique storage environments, and they operate within a single physical
enclosure. Each storage facility image can be established to support the specific performance
requirements of a different, heterogeneous workload. The DS8000 series robust partitioning
implementation helps to isolate and protect the storage facility images. These storage system
LPAR capabilities are designed to help simplify systems by maximizing management
efficiency, cost effectiveness, and flexibility.
256
512
2K
8K
509
63.75K
63.75K
63.75K
255
DS8300
256128Max Path Groups/CU Image
512256Max Logical Paths/CU Image
2K256Max Logical Paths/FC Port
16K512Max N-Port Logins
509128Max N-Port Logins/Port
127.5K4KMax Logical FB Devices
127.5K4KMax Logical CKD Devices
127.5K8KMax Logical Devices
51032Max Logical Subsystems
DS8300 with LPAR
ESS 800
256
512
2K
8K
509
63.75K
63.75K
63.75K
255
DS8300
256128Max Path Groups/CU Image
512256Max Logical Paths/CU Image
2K256Max Logical Paths/FC Port
16K512Max N-Port Logins
509128Max N-Port Logins/Port
127.5K4KMax Logical FB Devices
127.5K4KMax Logical CKD Devices
127.5K8KMax Logical Devices
51032Max Logical Subsystems
DS8300 with LPAR
ESS 800
DS8300 addressing capabilities
60 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 61
Chapter 4. RAS
This chapter describes the RAS (reliability, availability, serviceability) characteristics of the
DS8000. It will discuss:
򐂰Naming
򐂰Processor complex RAS
򐂰Hypervisor: Storage image independence
򐂰Server RAS
򐂰Host connection availability
򐂰Disk subsystem
򐂰Power and cooling
򐂰Microcode updates
򐂰Management console
4
62 DS8000 Series: Concepts and Architecture
4.1 Naming
It is important to understand the naming conventions used to describe DS8000 components
and constructs in order to fully appreciate the discussion of RAS concepts.
Storage complex
This term describes a group of DS8000s managed by a single Management Console. A
storage complex may consist of just a single DS8000 storage unit.
Storage unit
A storage unit consists of a single DS8000 (including expansion frames). If your organization
has one DS8000, then you have a single storage complex that contains a single storage unit.
Storage facility image
In ESS 800 terms, a storage facility image (SFI) is the entire ESS 800. In a DS8000, an SFI is
a union of two logical partitions (LPARs), one from each processor complex. Each LPAR
hosts one server. The SFI would have control of one or more device adapter pairs and two or
more disk enclosures. Sometimes an SFI might also be referred to as just a storage image.
Figure 4-1 Single image mode
In Figure 4-1 server 0 and server 1 create storage facility image 1.
Logical partitions and servers
In a DS8000, a server is effectively the software that uses a logical partition (an LPAR), and
that has access to a percentage of the memory and processor resources available on a
processor complex. At GA, this percentage will be either 50% (model 9A2) or 100% (model
921 or 922). In ESS 800 terms, a server is a cluster. So in an ESS 800 we had two servers
and one storage facility image per storage unit. However, with a DS8000 we can create
logical partitions (LPARs). This allows the creation of four servers, two on each processor
complex. One server on each processor complex is used to form a storage image. If there are
four servers, there are effectively two separate storage subsystems existing inside one
DS8000 storage unit.
server 0
Processor
complex 0
server 1
Processor
complex 1
Storage
facility
image 1
LPARs
Chapter 4. RAS 63
Figure 4-2 Dual image mode
In Figure 4-2 we have two storage facility images (SFIs). The upper server 0 and upper server
1 form SFI 1. The lower server 0 and lower server 1 form SFI 2. In each SFI, server 0 is the
darker color (green) and server 1 is the lighter color (yellow). SFI 1 and SFI 2 may share
common hardware (the processor complexes) but they are completely separate from an
operational point of view.
Processor complex
A processor complex is one p5 570 pSeries system unit. Two processor complexes form a
redundant pair such that if either processor complex fails, the servers on the remaining
processor complex can continue to run the storage image. In an ESS 800, we would have
referred to a processor complex as a cluster.
4.2 Processor complex RAS
The p5 570 is an integral part of the DS8000 architecture. It is designed to provide an
extensive set of reliability, availability, and serviceability (RAS) features that include improved
fault isolation, recovery from errors without stopping the processor complex, avoidance of
recurring failures, and predictive failure analysis.
Note: You may think that the lower server 0 and lower server 1 should be called server 2
and server 3. While this may make sense from a numerical point of view (for example,
there are four servers so why not number them from 0 to 3), but each SFI is not aware of
the other’s existence. Each SFI must have a server 0 and a server 1, regardless of how
many SFIs or servers there are in a DS8000 storage unit.
Processor
complex 0
Processor
complex 1
Storage
facility
image 1
Server 0 Storage
facility
image 2
Server 0 Server 1
Server 1
LPARs
LPARs
64 DS8000 Series: Concepts and Architecture
Reliability, availability, and serviceability
Excellent quality and reliability are inherent in all aspects of the IBM Server p5 design and
manufacturing. The fundamental objective of the design approach is to minimize outages.
The RAS features help to ensure that the system performs reliably, and efficiently handles
any failures that may occur. This is achieved by using capabilities that are provided by both
the hardware, AIX 5L, and RAS code written specifically for the DS8000. The following
sections describe the RAS leadership features of IBM Server p5 systems in more detail.
Fault avoidance
POWER5 systems are built to keep errors from ever happening. This quality-based design
includes such features as reduced power consumption and cooler operating temperatures for
increased reliability, enabled by the use of copper chip circuitry, SOI (silicon on insulator), and
dynamic clock-gating. It also uses mainframe-inspired components and technologies.
First Failure Data Capture
If a problem should occur, the ability to diagnose it correctly is a fundamental requirement
upon which improved availability is based. The p5 570 incorporates advanced capability in
start-up diagnostics and in run-time First Failure Data Capture (FFDC) based on strategic
error checkers built into the chips.
Any errors that are detected by the pervasive error checkers are captured into Fault Isolation
Registers (FIRs), which can be interrogated by the service processor (SP). The SP in the p5
570 has the capability to access system components using special-purpose service
processor ports or by access to the error registers.
The FIRs are important because they enable an error to be uniquely identified, thus enabling
the appropriate action to be taken. Appropriate actions might include such things as a bus
retry, ECC (error checking and correction), or system firmware recovery routines. Recovery
routines could include dynamic deallocation of potentially failing components.
Errors are logged into the system non-volatile random access memory (NVRAM) and the SP
event history log, along with a notification of the event to AIX for capture in the operating
system error log. Diagnostic Error Log Analysis (diagela) routines analyze the error log
entries and invoke a suitable action, such as issuing a warning message. If the error can be
recovered, or after suitable maintenance, the service processor resets the FIRs so that they
can accurately record any future errors.
The ability to correctly diagnose any pending or firm errors is a key requirement before any
dynamic or persistent component deallocation or any other reconfiguration can take place.
Permanent monitoring
The SP that is included in the p5 570 provides a way to monitor the system even when the
main processor is inoperable. The next subsection offers a more detailed description of the
monitoring functions in the p5 570.
Mutual surveillance
The SP can monitor the operation of the firmware during the boot process, and it can monitor
the operating system for loss of control. This enables the service processor to take
appropriate action when it detects that the firmware or the operating system has lost control.
Mutual surveillance also enables the operating system to monitor for service processor
activity and can request a service processor repair action if necessary.
Environmental monitoring
Environmental monitoring related to power, fans, and temperature is performed by the
System Power Control Network (SPCN). Environmental critical and non-critical conditions
Chapter 4. RAS 65
generate Early Power-Off Warning (EPOW) events. Critical events (for example, a Class 5 AC
power loss) trigger appropriate signals from hardware to the affected components to prevent
any data loss without operating system or firmware involvement. Non-critical environmental
events are logged and reported using Event Scan. The operating system cannot program or
access the temperature threshold using the SP.
Temperature monitoring is also performed. If the ambient temperature goes above a preset
operating range, then the rotation speed of the cooling fans can be increased. Temperature
monitoring also warns the internal microcode of potential environment-related problems. An
orderly system shutdown will occur when the operating temperature exceeds a critical level.
Voltage monitoring provides warning and an orderly system shutdown when the voltage is out
of operational specification.
Self-healing
For a system to be self-healing, it must be able to recover from a failing component by first
detecting and isolating the failed component. It should then be able to take it offline, fix or
isolate it, and then reintroduce the fixed or replaced component into service without any
application disruption. Examples include:
򐂰Bit steering to redundant memory in the event of a failed memory module to keep the
server operational
򐂰Bit scattering, thus allowing for error correction and continued operation in the presence of
a complete chip failure (Chipkill™ recovery)
򐂰Single-bit error correction using ECC without reaching error thresholds for main, L2, and
L3 cache memory
򐂰L3 cache line deletes extended from 2 to 10 for additional self-healing
򐂰ECC extended to inter-chip connections on fabric and processor bus
򐂰Memory scrubbing to help prevent soft-error memory faults
򐂰Dynamic processor deallocation
Memory reliability, fault tolerance, and integrity
The p5 570 uses Error Checking and Correcting (ECC) circuitry for system memory to correct
single-bit memory failures and to detect double-bit. Detection of double-bit memory failures
helps maintain data integrity. Furthermore, the memory chips are organized such that the
failure of any specific memory module only affects a single bit within a four-bit ECC word
(bit-scattering), thus allowing for error correction and continued operation in the presence of a
complete chip failure (Chipkill recovery).
The memory DIMMs also utilize memory scrubbing and thresholding to determine when
memory modules within each bank of memory should be used to replace ones that have
exceeded their threshold of error count (dynamic bit-steering). Memory scrubbing is the
process of reading the contents of the memory during idle time and checking and correcting
any single-bit errors that have accumulated by passing the data through the ECC logic. This
function is a hardware function on the memory controller chip and does not influence normal
system memory performance.
N+1 redundancy
The use of redundant parts, specifically the following ones, allows the p5 570 to remain
operational with full resources:
򐂰Redundant spare memory bits in L1, L2, L3, and main memory
򐂰Redundant fans
򐂰Redundant power supplies
66 DS8000 Series: Concepts and Architecture
Fault masking
If corrections and retries succeed and do not exceed threshold limits, the system remains
operational with full resources and no client or IBM Service Representative intervention is
required.
Resource deallocation
If recoverable errors exceed threshold limits, resources can be deallocated with the system
remaining operational, allowing deferred maintenance at a convenient time.
Dynamic deallocation of potentially failing components is non-disruptive, allowing the system
to continue to run. Persistent deallocation occurs when a failed component is detected; it is
then deactivated at a subsequent reboot.
Dynamic deallocation functions include:
򐂰 Processor
򐂰 L3 cache lines
򐂰 Partial L2 cache deallocation
򐂰 PCI-X bus and slots
Persistent deallocation functions include:
򐂰 Processor
򐂰 Memory
򐂰 Deconfigure or bypass failing I/O adapters
򐂰 L3 cache
Following a hardware error that has been flagged by the service processor, the subsequent
reboot of the server invokes extended diagnostics. If a processor or L3 cache has been
marked for deconfiguration by persistent processor deallocation, the boot process will attempt
to proceed to completion with the faulty device automatically deconfigured. Failing I/O
adapters will be deconfigured or bypassed during the boot process.
Concurrent Maintenance
Concurrent Maintenance provides replacement of the following parts while the processor
complex remains running:
򐂰Disk drives
򐂰Cooling fans
򐂰Power Subsystems
򐂰PCI-X adapter cards
4.3 Hypervisor: Storage image independence
A logical partition (LPAR) is a set of resources on a processor complex that supply enough
hardware to support the ability to boot and run an operating system (which we call a server).
The LPARs created on a DS8000 processor complex are used to form storage images. These
LPARs share not only the common hardware on the processor complex, including CPUs,
memory, internal SCSI disks and other media bays (such as DVD-RAM), but also hardware
common between the two processor complexes. This hardware includes such things as the
I/O enclosures and the adapters installed within them.
Chapter 4. RAS 67
A mechanism must exist to allow this sharing of resources in a seamless way. This
mechanism is called the hypervisor.
The hypervisor provides the following capabilities:
򐂰Reserved memory partitions allow the setting aside of a certain portion of memory to use
as cache and a certain portion to use as NVS.
򐂰Preserved memory support allows the contents of the NVS and cache memory areas to
be protected in the event of a server reboot.
򐂰The sharing of I/O enclosures and I/O slots between LPARs within one storage image.
򐂰I/O enclosure initialization control so that when one server is being initialized it doesn’t
initialize an I/O adapter that is in use by another server.
򐂰Memory block transfer between LPARs to allow messaging.
򐂰Shared memory space between I/O adapters and LPARs to allow messaging.
򐂰The ability of an LPAR to power off an I/O adapter slot or enclosure or force the reboot of
another LPAR.
򐂰Automatic reboot of a frozen LPAR or hypervisor.
4.3.1 RIO-G - a self-healing interconnect
The RIO-G interconnect is also commonly called RIO-2. Each RIO-G port can operate at 1
GHz in bidirectional mode and is capable of passing data in each direction on each cycle of
the port. This creates a redundant high-speed interconnect that allows servers on either
storage complex to access resources on any RIO-G loop. If the resource is not accessible
from one server, requests can be routed to the other server to be sent out on an alternate
RIO-G port.
4.3.2 I/O enclosure
The DS8000 I/O enclosures use hot-swap PCI-X adapters These adapters are in blind-swap
hot-plug cassettes, which allow them to be replaced concurrently. Each slot can be
independently powered off for concurrent replacement of a failed adapter, installation of a
new adapter, or removal of an old one.
In addition, each I/O enclosure has N+1 power and cooling in the form of two power supplies
with integrated fans. The power supplies can be concurrently replaced and a single power
supply is capable of supplying DC power to an I/O drawer.
4.4 Server RAS
The DS8000 design is built upon IBM’s highly redundant storage architecture. It also has the
benefit of more than five years of ESS 2105 development. The DS8000 thus employs similar
methodology to the ESS to provide data integrity when performing write operations and
server failover.
4.4.1 Metadata checks
When application data enters the DS8000, special codes or metadata, also known as
redundancy checks, are appended to that data. This metadata remains associated with the
application data as it is transferred throughout the DS8000. The metadata is checked by
various internal components to validate the integrity of the data as it moves throughout the
68 DS8000 Series: Concepts and Architecture
disk system. It is also checked by the DS8000 before the data is sent to the host in response
to a read I/O request. Further, the metadata also contains information used as an additional
level of verification to confirm that the data being returned to the host is coming from the
desired location on the disk.
4.4.2 Server failover and failback
To understand the process of server failover and failback, we have to understand the logical
construction of the DS8000. To better understand the contents of this section, you may want
to refer to Chapter 10, “The DS Storage Manager - logical configuration” on page 189.
In short, to create logical volumes on the DS8000, we work through the following constructs:
򐂰We start with DDMs that are installed into pre-defined array sites.
򐂰These array sites are used to form RAID-5 or RAID-10 arrays.
򐂰These RAID arrays then become members of a rank.
򐂰Each rank then becomes a member of an extent pool. Each extent pool has an affinity to
either server 0 or server 1. Each extent pool is either open systems FB (fixed block) or
zSeries CKD (count key data).
򐂰Within each extent pool we create logical volumes, which for open systems are called
LUNs and for zSeries, 3390 volumes. LUN stands for logical unit number, which is used
for SCSI addressing. Each logical volume belongs to a logical subsystem (LSS).
For open systems the LSS membership is not that important (unless you are using Copy
Services), but for zSeries, the LSS is the logical control unit (LCU) which equates to a 3990 (a
z/Series disk controller which the DS8000 emulates). What is important, is that LSSs that
have an even identifying number have an affinity with server 0, while LSSs that have an odd
identifying number have an affinity with server 1. When a host operating system issues a
write to a logical volume, the DS8000 host adapter directs that write to the server that owns
the LSS of which that logical volume is a member.
If the DS8000 is being used to operate a single storage image then the following examples
refer to two servers, one running on each processor complex. If a processor complex were to
fail then one server would fail. Likewise, if a server itself were to fail, then it would have the
same effect as the loss of the processor complex it runs on.
If, however, the DS8000 is divided into two storage images, then each processor complex will
be hosting two servers. In this case, a processor complex failure would result in the loss of
two servers. The effect on each server would be identical. The failover processes performed
by each storage image would proceed independently.
Data flow
When a write is issued to a volume, this write normally gets directed to the server that owns
this volume. The data flow is that the write is placed into the cache memory of the owning
server. The write data is also placed into the NVS memory of the alternate server.
Chapter 4. RAS 69
Figure 4-3 Normal data flow
Figure 4-3 illustrates how the cache memory of server 0 is used for all logical volumes that
are members of the even LSSs. Likewise, the cache memory of server 1 supports all logical
volumes that are members of odd LSSs. But for every write that gets placed into cache,
another copy gets placed into the NVS memory located in the alternate server. Thus the
normal flow of data for a write is:
1. Data is written to cache memory in the owning server.
2. Data is written to NVS memory of the alternate server.
3. The write is reported to the attached host as having been completed.
4. The write is destaged from the cache memory to disk.
5. The write is discarded from the NVS memory of the alternate server.
Under normal operation, both DS8000 servers are actively processing I/O requests. This
section describes the failover and failback procedures that occur between the DS8000
servers when an abnormal condition has affected one of them.
Failover
In the example depicted in Figure 4-4 on page 70, server 0 has failed. The remaining server
has to take over all of its functions. The RAID arrays, because they are connected to both
servers, can be accessed from the device adapters used by server 1.
From a data integrity point of view, the real issue is the un-destaged or modified data that
belonged to server 1 (that was in the NVS of server 0). Since the DS8000 now has only one
copy of that data (which is currently residing in the cache memory of server 1), it will now take
the following steps:
1. It destages the contents of its NVS to the disk subsystem.
2. The NVS and cache of server 1 are divided in two, half for the odd LSSs and half for the
even LSSs.
3. Server 1 now begins processing the writes (and reads) for all the LSSs.
Server 0 Server 1
Cache
memory
for even
LSSs
NVS
for odd
LSSs
NVS
for even
LSSs
Cache
memory
for odd
LSSs
70 DS8000 Series: Concepts and Architecture

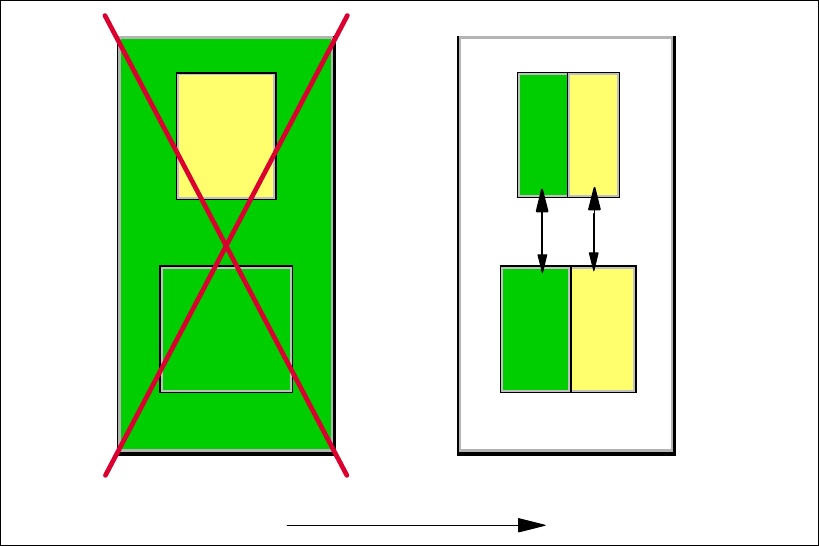

Figure 4-4 Server 0 failing over its function to server 1
This entire process is known as a failover. After failover the DS8000 now operates as
depicted in Figure 4-4. Server 1 now owns all the LSSs, which means all reads and writes will
be serviced by server 1. The NVS inside server 1 is now used for both odd and even LSSs.
The entire failover process should be invisible to the attached hosts, apart from the possibility
of some temporary disk errors.
Failback
When the failed server has been repaired and restarted, the failback process is activated.
Server 1 starts using the NVS in server 0 again, and the ownership of the even LSSs is
transferred back to server 0. Normal operations with both controllers active then resumes.
Just like the failover process, the failback process is invisible to the attached hosts.
In general, recovery actions on the DS8000 do not impact I/O operation latency by more than
15 seconds. With certain limitations on configurations and advanced functions, this impact to
latency can be limited to 8 seconds. On logical volumes that are not configured with RAID-10
storage, certain RAID-related recoveries may cause latency impacts in excess of 15 seconds.
If you have real time response requirements in this area, contact IBM to determine the latest
information on how to manage your storage to meet your requirements,
4.4.3 NVS recovery after complete power loss
During normal operation, the DS8000 preserves fast writes using the NVS copy in the
alternate server. To ensure these fast writes are not lost, the DS8000 contains battery backup
units (BBUs). If all the batteries were to fail (which is extremely unlikely since the batteries are
in an N+1 redundant configuration), the DS8000 would lose this protection and consequently
that DS8000 would take all servers offline. If power is lost to a single primary power supply
this does not affect the ability of the other power supply to keep all batteries charged, so all
servers would remain online.
Server 0 Server 1
Cache
memory
for even
LSSs
NVS
for odd
LSSs
Failover
NVS
for
even
LSSs
Cache
for
odd
LSSs
Cache
for
even
LSSs
NVS
for
odd
LSSs
Chapter 4. RAS 71
The single purpose of the batteries is to preserve the NVS area of server memory in the event
of a complete loss of input power to the DS8000. If both power supplies in the base frame
were to stop receiving input power, the servers would be informed that they were now running
on batteries and immediately begin a shutdown procedure. Unless the power line disturbance
feature has been purchased, the BBUs are not used to keep the disks spinning. Even if they
do keep spinning, the design is to not move the data from NVS to the FC-AL disk arrays.
Instead, each processor complex has a number of internal SCSI disks which are available to
store the contents of NVS. When an on-battery condition related shutdown begins, the
following events occur:
1. All host adapter I/O is blocked.
2. Each server begins copying its NVS data to internal disk. For each server, two copies are
made of the NVS data in that server.
3. When the copy process is complete, each server shuts down AIX.
4. When AIX shutdown in each server is complete (or a timer expires), the DS8000 is
powered down.
When power is restored to the DS8000, the following process occurs:
1. The processor complexes power on and perform power on self tests.
2. Each server then begins boot up.
3. At a certain stage in the boot process, the server detects NVS data on its internal SCSI
disks and begins to destage it to the FC-AL disks.
4. When the battery units reach a certain level of charge, the servers come online.
An important point is that the servers will not come online until the batteries are fully charged.
In many cases, sufficient charging will occur during the power on self test and storage image
initialization. However, if a complete discharge of the batteries has occurred, which may
happen if multiple power outages occur in a short period of time, then recharging may take up
to two hours.
Because the contents of NVS are written to the internal SCSI disks of the DS8000 processor
complex and not held in battery protected NVS-RAM, the contents of NVS can be preserved
indefinitely. This means that unlike the DS6000 or ESS800, you are not held to a fixed limit of
time before power must be restored.
4.5 Host connection availability
Each DS8000 Fibre Channel host adapter card provides four ports for connection either
directly to a host, or to a Fibre Channel SAN switch.
Single or multiple path
Unlike the DS6000, the DS8000 does not use the concept of preferred path, since the host
adapters are shared between the servers. To show this concept, Figure 4-5 on page 72
depicts a potential machine configuration. In this example, a DS8100 Model 921 has two I/O
enclosures (which are enclosures 2 and 3). Each enclosure has four host adapters: two Fibre
Channel and two ESCON. I/O enclosure slots 3 and 6 are not depicted because they are
reserved for device adapter (DA) cards. If a host were to only have a single path to a DS8000
as shown in Figure 4-5, then it would still be able to access volumes belonging to all LSSs
because the host adapter will direct the I/O to the correct server. However, if an error were to
occur either on the host adapter (HA), host port (HP), or I/O enclosure, then all connectivity
would be lost. Clearly the host bus adapter (HBA) in the attached host is also a single point of
failure.
72 DS8000 Series: Concepts and Architecture

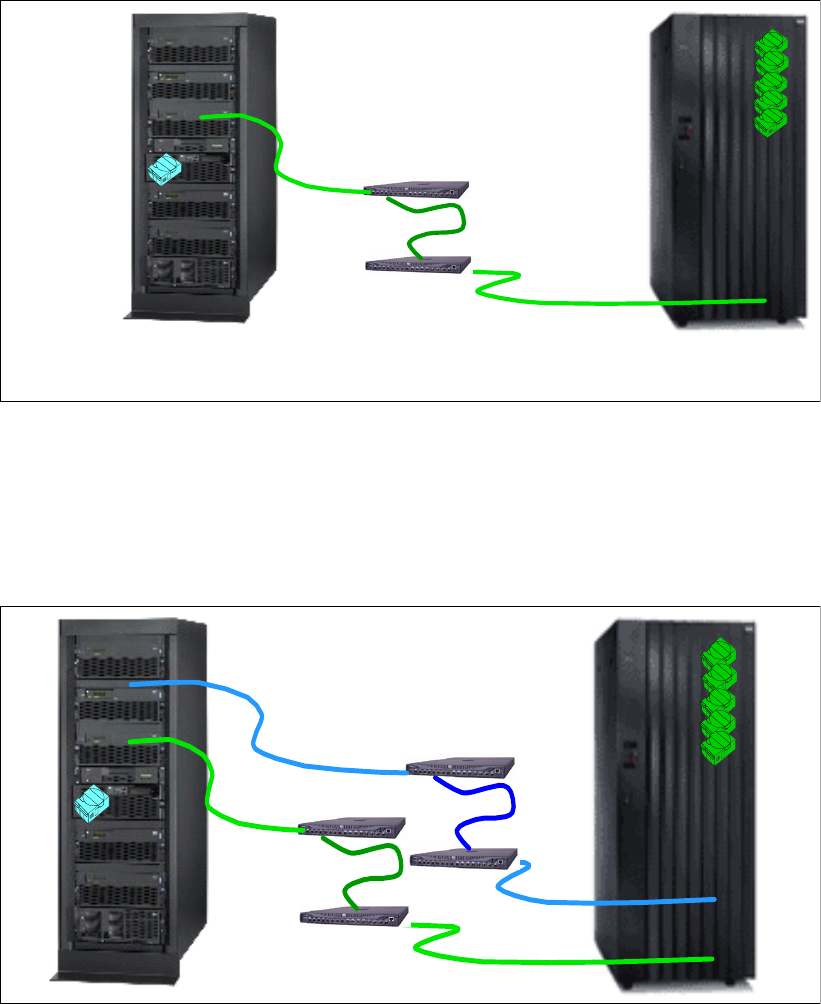

Figure 4-5 Single pathed host
It is always preferable that hosts that access the DS8000 have at least two connections to
separate host ports in separate host adapters on separate I/O enclosures, as depicted in
Figure 4-6 on page 73. In this example, the host is attached to different Fibre Channel host
adapters in different I/O enclosures. This is also important because during a microcode
update, an I/O enclosure may need to be taken offline. This configuration allows the host to
survive a hardware failure on any component on either path.
HBA
Single pathed host
Server
owning all
even LSS
logical
volumes
Server
owning all
odd LSS
logical
volumes
RIO-G I/O enclosure 2
HPHP
HPHP HPHP
HPHP HPHP HPHP
Slot 1 Slot 2 Slot 4 Slot 5
Fibre
channel
Fibre
channel
ESCON ESCON
I/O enclosure 3
HP HP HP HP
HP HP HP HP HP HPHP HP
Slot 2
Slot 1 Slot 5
Slot 4
Fibre
channel
Fibre
channel ESCON
ESCON
RIO-G
RIO-G RIO-G RIO-G
RIO-G
RIO-G RIO-G
Chapter 4. RAS 73
Figure 4-6 Dual pathed host
SAN/FICON/ESCON switches
Because a large number of hosts may be connected to the DS8000, each using multiple
paths, the number of host adapter ports that are available in the DS8000 may not be sufficient
to accommodate all the connections. The solution to this problem is the use of SAN switches
or directors to switch logical connections from multiple hosts. In a zSeries environment you
will need to select a SAN switch or director that also supports FICON. ESCON-attached hosts
may need an ESCON director.
A logic or power failure in a switch or director can interrupt communication between hosts and
the DS8000. We recommend that more than one switch or director be provided to ensure
continued availability. Ports from two different host adapters in two different I/O enclosures
should be configured to go through each of two directors. The complete failure of either
director leaves half the paths still operating.
Multi-pathing software
Each attached host operating system now requires a mechanism to allow it to manage
multiple paths to the same device, and to preferably load balance these requests. Also, when
a failure occurs on one redundant path, then the attached host must have a mechanism to
allow it to detect that one path is gone and route all I/O requests for those logical devices to
an alternative path. Finally, it should be able to detect when the path has been restored so
that the I/O can again be load balanced. The mechanism that will be used varies by attached
host operating system and environment as detailed in the next two sections.
Server
owning all
even LSS
logical
volumes
Server
owning all
odd LSS
logical
volumes
I/O enclosure 2
HPHP
HPHP HPHP
HPHP HPHP HPHP
Slot 1 Slot 2 Slot 4 Slot 5
Fibre
channel
Fibre
channel
ESCON ESCON
I/O enclosure 3
HP HP HP HP
HP HP HP HP HP HPHP HP
Slot 2
Slot 1Slot 5
Slot 4
Fibre
channel
Fibre
channel ESCON
ESCON
RIO-G
RIO-G RIO-G RIO-G RIO-G
RIO-G
RIO-G RIO-G
Dual pathed host
HBA
HBA
74 DS8000 Series: Concepts and Architecture
4.5.1 Open systems host connection
In the majority of open systems environments, IBM strongly recommends the use of the
Subsystem Device Driver (SDD) to manage both path failover and preferred path
determination. SDD is a software product that IBM supplies free of charge to all customers
who use ESS 2105, SAN Volume Controller (SVC), DS6000, or DS8000. There will be a new
version of SDD that will also allow SDD to manage pathing to the DS6000 and DS8000
(Version 1.6).
SDD provides availability through automatic I/O path failover. If a failure occurs in the data
path between the host and the DS8000, SDD automatically switches the I/O to another path.
SDD will also automatically set the failed path back online after a repair is made. SDD also
improves performance by sharing I/O operations to a common disk over multiple active paths
to distribute and balance the I/O workload. SDD also supports the concept of preferred path
for the DS6000 and SVC.
SDD is not available for every supported operating system. Refer to the IBM TotalStorage
DS8000 Host Systems Attachment Guide, SC26-7628, and the interoperability Web site for
direction as to which multi-pathing software may be required. Some devices, such as the IBM
SAN Volume Controller (SVC), do not require any multi-pathing software because the internal
software in the device already supports multi-pathing. The interoperability Web site is:
http://www.ibm.com/servers/storage/disk/ds8000/interop.html
4.5.2 zSeries host connection
In the zSeries environment, the normal practice is to provide multiple paths from each host to
a disk subsystem. Typically, four paths are installed. The channels in each host that can
access each Logical Control Unit (LCU) in the DS8000 are defined in the HCD (hardware
configuration definition) or IOCDS (I/O configuration data set) for that host. Dynamic Path
Selection (DPS) allows the channel subsystem to select any available (non-busy) path to
initiate an operation to the disk subsystem. Dynamic Path Reconnect (DPR) allows the
DS8000 to select any available path to a host to reconnect and resume a disconnected
operation; for example, to transfer data after disconnection due to a cache miss.
These functions are part of the zSeries architecture and are managed by the channel
subsystem in the host and the DS8000.
A physical FICON/ESCON path is established when the DS8000 port sees light on the fiber
(for example, a cable is plugged in to a DS8000 host adapter, a processor or the DS8000 is
powered on, or a path is configured online by OS/390). At this time, logical paths are
established through the port between the host and some or all of the LCUs in the DS8000,
controlled by the HCD definition for that host. This happens for each physical path between a
zSeries CPU and the DS8000. There may be multiple system images in a CPU. Logical paths
are established for each system image. The DS8000 then knows which paths can be used to
communicate between each LCU and each host.
CUIR
Control Unit Initiated Reconfiguration (CUIR) prevents loss of access to volumes in zSeries
environments due to wrong path handling. This function automates channel path
management in zSeries environments, in support of selected DS8000 service actions.
Control Unit Initiated Reconfiguration is available for the DS8000 when operated in the z/OS
and z/VM® environments. The CUIR function automates channel path vary on and vary off
actions to minimize manual operator intervention during selected DS8000 service actions.
Chapter 4. RAS 75
CUIR allows the DS8000 to request that all attached system images set all paths required for
a particular service action to the offline state. System images with the appropriate level of
software support will respond to such requests by varying off the affected paths, and either
notifying the DS8000 subsystem that the paths are offline, or that it cannot take the paths
offline. CUIR reduces manual operator intervention and the possibility of human error during
maintenance actions, at the same time reducing the time required for the maintenance. This
is particularly useful in environments where there are many systems attached to a DS8000.
4.6 Disk subsystem
The DS8000 currently supports only RAID-5 and RAID-10. It does not support the non-RAID
configuration of disks better known as JBOD (just a bunch of disks).
4.6.1 Disk path redundancy
Each DDM in the DS8000 is attached to two 20-port SAN switches. These switches are built
into the disk enclosure controller cards. Figure 4-7 illustrates the redundancy features of the
DS8000 switched disk architecture. Each disk has two separate connections to the
backplane. This allows it to be simultaneously attached to both switches. If either disk
enclosure controller card is removed from the enclosure, the switch that is included in that
card is also removed. However, the switch in the remaining controller card retains the ability
to communicate with all the disks and both device adapters (DAs) in a pair. Equally, each DA
has a path to each switch, so it also can tolerate the loss of a single path. If both paths from
one DA fail, then it cannot access the switches; however, the other DA retains connection.
Figure 4-7 Switched disk connections
Midplane
to next
expansion
enclosure
Server 1
device adapter
Server 0
device adapter
Fibre channel switch
Storage enclosure backplane
Fibre channel switch
to next
expansion
enclosure
76 DS8000 Series: Concepts and Architecture
Figure 4-7 also shows the connection paths for expansion on the far left and far right. The
paths from the switches travel to the switches in the next disk enclosure. Because expansion
is done in this linear fashion, the addition of more enclosures is completely non-disruptive.
4.6.2 RAID-5 overview
RAID-5 is one of the most commonly used forms of RAID protection.
RAID-5 theory
The DS8000 series supports RAID-5 arrays. RAID-5 is a method of spreading volume data
plus parity data across multiple disk drives. RAID-5 provides faster performance by striping
data across a defined set of DDMs. Data protection is provided by the generation of parity
information for every stripe of data. If an array member fails, then its contents can be
regenerated by using the parity data.
RAID-5 implementation in the DS8000
In a DS8000, a RAID-5 array built on one array site will contain either seven or eight disks
depending on whether the array site is supplying a spare. A seven-disk array effectively uses
one disk for parity, so it is referred to as a 6+P array (where the P stands for parity). The
reason only 7 disks are available to a 6+P array is that the eighth disk in the array site used to
build the array was used as a spare. This we then refer to as a 6+P+S array site (where the S
stands for spare). An 8-disk array also effectively uses 1 disk for parity, so it is referred to as
a 7+P array.
Drive failure
When a disk drive module fails in a RAID-5 array, the device adapter starts an operation to
reconstruct the data that was on the failed drive onto one of the spare drives. The spare that
is used will be chosen based on a smart algorithm that looks at the location of the spares and
the size and location of the failed DDM. The rebuild is performed by reading the
corresponding data and parity in each stripe from the remaining drives in the array,
performing an exclusive-OR operation to recreate the data, then writing this data to the spare
drive.
While this data reconstruction is going on, the device adapter can still service read and write
requests to the array from the hosts. There may be some degradation in performance while
the sparing operation is in progress because some DA and switched network resources are
being used to do the reconstruction. Due to the switch-based architecture, this effect will be
minimal. Additionally, any read requests for data on the failed drive requires data to be read
from the other drives in the array and then the DA performs an operation to reconstruct the
data.
Performance of the RAID-5 array returns to normal when the data reconstruction onto the
spare device completes. The time taken for sparing can vary, depending on the size of the
failed DDM and the workload on the array, the switched network, and the DA. The use of
arrays across loops (AAL) both speeds up rebuild time and decreases the impact of a rebuild.
4.6.3 RAID-10 overview
RAID-10 is not as commonly used as RAID-5, mainly because more raw disk capacity is
needed for every GB of effective capacity.
Chapter 4. RAS 77
RAID-10 theory
RAID-10 provides high availability by combining features of RAID-0 and RAID-1. RAID-0
optimizes performance by striping volume data across multiple disk drives at a time. RAID-1
provides disk mirroring, which duplicates data between two disk drives. By combining the
features of RAID-0 and RAID-1, RAID-10 provides a second optimization for fault tolerance.
Data is striped across half of the disk drives in the RAID-1 array. The same data is also
striped across the other half of the array, creating a mirror. Access to data is preserved if one
disk in each mirrored pair remains available. RAID-10 offers faster data reads and writes than
RAID-5 because it does not need to manage parity. However, with half of the DDMs in the
group used for data and the other half to mirror that data, RAID-10 disk groups have less
capacity than RAID-5 disk groups.
RAID-10 implementation in the DS8000
In the DS8000 the RAID-10 implementation is achieved using either six or eight DDMs. If
spares exist on the array site, then six DDMs are used to make a three-disk RAID-0 array
which is then mirrored. If spares do not exist on the array site then eight DDMs are used to
make a four-disk RAID-0 array which is then mirrored.
Drive failure
When a disk drive module (DDM) fails in a RAID-10 array, the controller starts an operation to
reconstruct the data from the failed drive onto one of the hot spare drives. The spare that is
used will be chosen based on a smart algorithm that looks at the location of the spares and
the size and location of the failed DDM. Remember a RAID-10 array is effectively a RAID-0
array that is mirrored. Thus when a drive fails in one of the RAID-0 arrays, we can rebuild the
failed drive by reading the data from the equivalent drive in the other RAID-0 array.
While this data reconstruction is going on, the DA can still service read and write requests to
the array from the hosts. There may be some degradation in performance while the sparing
operation is in progress because some DA and switched network resources are being used to
do the reconstruction. Due to the switch-based architecture of the DS8000, this effect will be
minimal. Read requests for data on the failed drive should not be affected because they can
all be directed to the good RAID-1 array.
Write operations will not be affected. Performance of the RAID-10 array returns to normal
when the data reconstruction onto the spare device completes. The time taken for sparing
can vary, depending on the size of the failed DDM and the workload on the array and the DA.
Arrays across loops
The DS8000 implements the concept of arrays across loops (AAL). With AAL, an array site is
actually split into two halves. Half of the site is located on the first disk loop of a DA pair and
the other half is located on the second disk loop of that DA pair. It is implemented primarily to
maximize performance. However, in RAID-10 we are able to take advantage of AAL to
provide a higher level of redundancy. The DS8000 RAS code will deliberately ensure that one
RAID-0 array is maintained on each of the two loops created by a DA pair. This means that in
the extremely unlikely event of a complete loop outage, the DS8000 would not lose access to
the RAID-10 array. This is because while one RAID-0 array is offline, the other remains
available to service disk I/O.
4.6.4 Spare creation
When the array sites are created on a DS8000, the DS8000 microcode determines which
sites will contain spares. The first four array sites will normally each contribute one spare to
the DA pair, with two spares being placed on each loop. In general, each device adapter pair
will thus have access to four spares.
78 DS8000 Series: Concepts and Architecture
On the ESS 800 the spare creation policy was to have four DDMs on each SSA loop for each
DDM type. This meant that on a specific SSA loop it was possible to have 12 spare DDMs if
you chose to populate a loop with three different DDM sizes. With the DS8000 the intention is
to not do this. A minimum of one spare is created for each array site defined until the following
conditions are met:
򐂰A minimum of 4 spares per DA pair
򐂰A minimum of 4 spares of the largest capacity array site on the DA pair
򐂰A minimum of 2 spares of capacity and RPM greater than or equal to the fastest array site
of any given capacity on the DA pair
Floating spares
The DS8000 implements a smart floating technique for spare DDMs. On an ESS 800, the
spare floats. This means that when a DDM fails and the data it contained is rebuilt onto a
spare, then when the disk is replaced, the replacement disk becomes the spare. The data is
not migrated to another DDM, such as the DDM in the original position the failed DDM
occupied. So in other words, on an ESS 800 there is no post repair processing.
The DS8000 microcode may choose to allow the hot spare to remain where it has been
moved, but it may instead choose to migrate the spare to a more optimum position. This will
be done to better balance the spares across the DA pairs, the loops, and the enclosures. It
may be preferable that a DDM that is currently in use as an array member be converted to a
spare. In this case the data on that DDM will be migrated in the background onto an existing
spare. This process does not fail the disk that is being migrated, though it does reduce the
number of available spares in the DS8000 until the migration process is complete.
A smart process will be used to ensure that the larger or higher RPM DDMs always act as
spares. This is preferable because if we were to rebuild the contents of a 146 GB DDM onto a
300 GB DDM, then approximately half of the 300 GB DDM will be wasted since that space is
not needed. The problem here is that the failed 146 GB DDM will be replaced with a new
146 GB DDM. So the DS8000 microcode will most likely migrate the data back onto the
recently replaced 146 GB DDM. When this process completes, the 146 GB DDM will rejoin
the array and the 300 GB DDM will become the spare again. Another example would be if we
fail a 73 GB 15k RPM DDM onto a 146 GB 10k RPM DDM. This means that the data has now
moved to a slower DDM, but the replacement DDM will be the same as the failed DDM. This
means the array will have a mix of RPMs. This is not desirable. Again, a smart migrate of the
data will be performed once suitable spares have become available.
Hot plugable DDMs
Replacement of a failed drive does not affect the operation of the DS8000 because the drives
are fully hot plugable. Due to the fact that each disk plugs into a switch, there is no loop break
associated with the removal or replacement of a disk. In addition there is no potentially
disruptive loop initialization process.
4.6.5 Predictive Failure Analysis® (PFA)
The drives used in the DS8000 incorporate Predictive Failure Analysis (PFA) and can
anticipate certain forms of failures by keeping internal statistics of read and write errors. If the
error rates exceed predetermined threshold values, the drive will be nominated for
replacement. Because the drive has not yet failed, data can be copied directly to a spare
drive. This avoids using RAID recovery to reconstruct all of the data onto the spare drive.
Chapter 4. RAS 79
4.6.6 Disk scrubbing
The DS8000 will periodically read all sectors on a disk. This is designed to occur without any
interference with application performance. If ECC-correctable bad bits are identified, the bits
are corrected immediately by the DS8000. This reduces the possibility of multiple bad bits
accumulating in a sector beyond the ability of ECC to correct them. If a sector contains data
that is beyond ECC's ability to correct, then RAID is used to regenerate the data and write a
new copy onto a spare sector of the disk. This scrubbing process applies to both array
members and spare DDMs.
4.7 Power and cooling
The DS8000 has completely redundant power and cooling. Every power supply and cooling
fan in the DS8000 operates in what is known as N+1 mode. This means that there is always
at least one more power supply, cooling fan, or battery than is required for normal operation.
In most cases this simply means duplication.
Primary power supplies
Each frame has two primary power supplies (PPS). Each PPS produces voltages for two
different areas of the machine:
򐂰208V is produced to be supplied to each I/O enclosure and each processor complex. This
voltage is placed by each supply onto two redundant power buses.
򐂰12V and 5V is produced to be supplied to the disk enclosures.
If either PPS fails, the other can continue to supply all required voltage to all power buses in
that frame. The PPS can be replaced concurrently.
Battery backup units
Each frame with I/O enclosures, or every frame if the power line disturbance feature is
installed, will have battery backup units (BBU). Each BBU can be replaced concurrently,
provided no more than one BBU is unavailable at any one time. The DS8000 BBUs have a
planned working life of at least four years.
Rack cooling fans
Each frame has a cooling fan plenum located above the disk enclosures. The fans in this
plenum draw air from the front of the DDMs and then move it out through the top of the frame.
There are multiple redundant fans in each enclosure. Each fan can be replaced concurrently.
Rack power control card (RPC)
The rack power control cards are part of the power management infrastructure of the
DS8000. There are two RPC cards for redundancy. Each card can independently control
power for the entire DS8000.
Important: It should be noted that if you install the DS8000 such that both primary power
supplies are attached to the same circuit breaker or the same switch board, then the
DS8000 will not be well protected from external power failures. This is a very common
cause of unplanned outages.
80 DS8000 Series: Concepts and Architecture
4.7.1 Building power loss
The DS8000 uses an area of server memory as non-volatile storage (NVS). This area of
memory is used to hold data that has not been written to the disk subsystem. If building power
were to fail, where both primary power supplies (PPSs) in the base frame were to report a
loss of AC input power, then the DS8000 must take action to protect that data.
4.7.2 Power fluctuation protection
The DS8000 base frame contains battery backup units that are intended to protect modified
data in the event of a complete power loss. If a power fluctuation occurs that causes a
momentary interruption to power (often called a brownout) then the DS8000 will tolerate this
for approximately 30ms. If the power line disturbance feature is not present on the DS8000,
then after that time, the DDMs will stop spinning and the servers will begin copying the
contents of NVS to the internal SCSI disks in the processor complexes. For many customers
who use UPS (uninterruptible power supply) technology, this is not an issue. UPS-regulated
power is in general very reliable, so additional redundancy in the attached devices is often
completely unnecessary.
If building power is not considered reliable then the addition of the extended power line
disturbance feature should be considered. This feature adds two separate pieces of hardware
to the DS8000:
1. For each primary power supply in each frame of the DS8000, a booster module is added
that converts 208V battery power into 12V and 5V. This is to supply the DDMs with power
directly from the batteries. The PPSs do not normally receive power from the BBUs.
2. Batteries will be added to expansion racks that did not already have them. Base racks and
expansion racks with I/O enclosures get batteries by default. Expansion racks that do not
have I/O enclosures normally do not get batteries.
With the addition of this hardware, the DS8000 will be able to run for up to 50 seconds on
battery power, before the servers begin to copy NVS to SCSI disk and then shutdown. This
would allow for a 50 second interruption to building power with no outage to the DS8000.
4.7.3 Power control of the DS8000
Unlike the ESS 800, the DS8000 does not possess a white power switch to turn the DS8000
storage unit off and on. All power sequencing is done via the Service Processor Control
Network (SPCN) and RPCs. If the user wishes to power the DS8000 off, they must do so
using the management tools provided by the Storage Hardware Management Console
(S-HMC). If the S-HMC is not functional, then it will not be possible to control the power
sequencing of the DS8000 until the S-HMC function is restored. This is one of the benefits
that is gained by purchasing a redundant S-HMC.
4.7.4 Emergency power off (EPO)
Each DS8000 frame has an emergency power off switch. This button is intended purely to
remove power from the DS8000 in the following extreme cases:
򐂰The DS8000 has developed a fault which is placing the environment at risk, such as a fire.
򐂰The DS8000 is placing human life at risk, such as the electrocution of a service
representative.
Apart from these two contingencies (which are highly unlikely), the EPO switch should never
be used. The reason for this is that the DS8000 NVS storage area is not directly protected by
batteries. If building power is lost, the DS8000 can use its internal batteries to destage the
Chapter 4. RAS 81
data from NVS memory to a variably sized disk area to preserve that data until power is
restored. However, the EPO switch does not allow this destage process to happen and all
NVS data is lost. This will most likely result in data loss.
If you need to power the DS8000 off for building maintenance, or to relocate it, you should
always use the S-HMC to achieve this.
4.8 Microcode updates
The DS8000 contains many discrete redundant components. Most of these components have
firmware that can be updated. This includes the processor complexes, device adapters, and
host adapters. Each DS8000 server also has an operating system (AIX) and Licensed
Internal Code (LIC) that can be updated. As IBM continues to develop and improve the
DS8000, new releases of firmware and LIC will become available to offer improvements in
both function and reliability.
The architecture of the DS8000 allows for concurrent code updates. This is achieved by using
the redundant design of the DS8000. In general, redundancy is lost for a short period as each
component in a redundant pair is updated.
The S-HMC can hold up to six different versions of code. Each server can hold three different
versions of code (the previous version, the active version, and the next version).
Installation process
The installation process involves several stages.
1. The S-HMC code will be updated. The new code version will be supplied on CD or
downloaded via FTP. This may potentially involve updates to the internal Linux version of
the S-HMC, updates to the S-HMC LIC, and updates to the firmware of the S-HMC
hardware.
2. New DS8000 LIC will be loaded onto the S-HMC and from there to the internal storage of
each server.
3. Occasionally, new PPS and RPC firmware may be released. New firmware can be loaded
into each Rack Power Control (RPC) card and Primary Power Supply (PPS) directly from
the S-HMC. Each RPC and PPS would be quiesced, updated, and resumed one at a time
until all have been updated.
4. Occasionally, new firmware for the hypervisor, service processor, system planar, and I/O
enclosure planars may be released. This firmware can be loaded into each device directly
from the S-HMC. Activation of this firmware may require each processor complex to be
shut down and rebooted, one at a time. This would cause each server on each processor
complex to fail over its logical subsystems to the server on the other processor complex.
Certain updates may not require this step, or it may occur without processor reboots.
5. Updates to the server operating system (currently AIX 5.2) plus updates to the internal LIC
will be performed. Every server in a storage image would be updated one at a time. Each
update would cause each server to fail over its logical subsystems to its partner server on
the other processor complex. This process would also update the firmware running in
each device adapter owned by that server.
6. Updates to the host adapters will be performed. For FICON/FCP adapters, these updates
will impact each adapter for less than 2.5 seconds, and should not affect connectivity. If an
update were to take longer than this, multi-pathing software on the host, or CUIR (for
ESCON and FICON), will be used to direct I/O to a different host adapter.
82 DS8000 Series: Concepts and Architecture
While the installation process described above may seem complex, it will not require a great
deal of user intervention. The code installer will normally just start the process and then
monitor its progress using the S-HMC.
S-HMC considerations
Before updating the DS8000 code, the Storage Hardware Management Consoles should be
updated to the latest code version. This could usually be done at any time prior to the change
window, since the DS8000 can continue to operate without an S-HMC, provided no Copy
Services or configuration changes are planned while it is unavailable. If you have two
S-HMCs you could perform Copy Services operations or configuration changes using the
second S-HMC.
Different code versions across storage images
If the DS8000 is partitioned into multiple storage images, it is possible to run each storage
image on a different LIC version. This could be beneficial if one image was being used as a
production image, while the other was being used for testing.
If this was desired, steps one to four would still affect both storage images since they affect
common hardware. However, it is possible to then perform steps 5 and 6 on only one storage
image and leave the other storage image downlevel. This situation could then be left until a
testing regimen has been performed. At some point the downlevel image could then be
updated by performing just steps 5 and 6 on that image.
4.9 Management console
The DS8000 management network consists of redundant Ethernet switches and redundant
Storage Hardware Management (S-HMC) consoles.
S-HMC
The S-HMC is used to perform configuration, management, and maintenance activities on the
DS8000. It can be ordered to be located either physically inside the base frame or external for
mounting in a customer-supplied rack.
If the S-HMC is not operational then it is not possible to perform maintenance, power the
DS8000 up or down, or perform Copy Services tasks such as the establishment of
FlashCopies. It is thus recommended to order two management consoles to act as a
redundant pair.
Ethernet switches
Each DS8000 base frame contains two 16-port Ethernet switches. Two switches are supplied
to allow the creation of a fully redundant management network. Each server in the DS8000
has a connection to each switch. Each S-HMC also has a connection to each switch. This
means that should a single Ethernet switch fail, all traffic can successfully travel from either
S-HMC to any server in the storage unit using the alternate switch.
4.10 Summary
This chapter has described the RAS characteristics of the DS8000. These characteristics
combine to make the DS8000 a world leader in reliability, availability, and serviceability.
© Copyright IBM Corp. 2005. All rights reserved. 83
Chapter 5. Virtualization concepts
This chapter describes virtualization concepts as they apply to the DS8000. In particular, it
covers the following topics:
򐂰Storage system virtualization
򐂰Abstraction layers for disk virtualization
–Array sites
–Arrays
–Ranks
– Extent pools
– Logical volumes
– Logical storage subsystems
– Address groups
– Volume groups
– Host attachments
5
84 DS8000 Series: Concepts and Architecture
5.1 Virtualization definition
In our fast-paced world, where you have to react quickly to changing business conditions,
your infrastructure must allow for on demand changes. Virtualization is key to an on demand
infrastructure. However, when talking about virtualization many vendors are talking about
different things.
One important feature of the DS8000 is the virtualization of a whole storage subsystem. If you
have to run different workloads, for example a service provider might run workloads for
different banks, then it might be desirable to completely separate the workloads. This could
be done on the processor side with IBM’s LPAR technology; the same technology is now also
available for a storage subsystem, the IBM TotalStorage DS8000 system.
Another definition of virtualization is the abstraction process going from the physical disk
drives to a logical volume that the hosts and servers see as if it were a physical disk.
5.2 Storage system virtualization
IBM has a long history and experience in virtualization. This goes back several decades,
when virtual memory was introduced in the mid 1960s in the operating system. At that time
IBM also developed a system that could virtualize a whole processor complex – including the
processor, memory, and devices. This operating system was called Virtual Machine (VM).
Later on this functionality also became available as a hardware function on S/390 processors.
When the processor complex was run in Logical Partition Mode (LPAR), several operating
systems could run isolated and independently on the same hardware base.
This LPAR capability heritage from S/390 and zSeries has now become available on the
POWER5 pSeries. The DS8000 is based on POWER5 technology, so we can take
advantage of its functions, including the LPAR functionality.
The DS8300 Model 9A2 supports LPAR mode. In the current implementation, you can run up
to two logical partitions on a physical storage system unit. In each partition you can run a
storage facility image. A storage facility image is a virtual storage subsystem with its own
copy of Licensed Internal Code (LIC), which consists of the AIX kernel and the functional
code. Both storage facility images share the physical hardware and the LPAR hypervisor
manages this sharing of the hardware. Currently, however, there are some limitations on the
granularity of how the physical resources like processors, memory, cache, and I/O can be
split between the LPARs. See Chapter 3, “Storage system LPARs (Logical partitions)” on
page 43 for details.
Like in non-LPAR mode, where there are two SMPs running an AIX kernel and forming a
storage complex with two servers, server0 and server1, a storage facility image is a storage
complex of its own, but since it does not own the physical hardware (the storage unit), you
can think of it as a virtual storage system. Each storage facility image has a server 0 and a
server 1. Each storage facility image can run its own version of Licensed Internal Code. The
storage facility images are totally separated by the LPAR hypervisor. Disk drives and arrays
are owned by one or the other storage facility, they cannot be shared.
Figure 5-1 on page 85 illustrates the LPAR concept.
In the following section, when we talk about server 0 or server 1 we could also mean server 0
or server 1 of a storage facility image running in an LPAR.
Chapter 5. Virtualization concepts 85
Figure 5-1 Storage Facility virtualization
5.3 The abstraction layers for disk virtualization
In this chapter, when talking about virtualization, we are talking about the process of
preparing a bunch of physical disk drives (DDMs) to be something that can be used from an
operating system, which means we are talking about the creation of LUNs.
The DS8000 is populated with switched FC-AL disk drives that are mounted in disk
enclosures. You order disk drives in groups of 16 drives of the same capacity and RPM. The
disk drives can be accessed by a pair of device adapters. Each device adapter has four paths
to the disk drives. The four paths provide two FC-AL device interfaces, each with two paths,
such that either path can be used to communicate with any disk drive on that device interface
(in other words, the paths are redundant). One device interface from each device adapter is
connected to a set of FC-AL devices such that either device adapter has access to any disk
drive through two independent switched fabrics (in other words, the device adapters and
switches are redundant).
Each device adapter has four ports and since device adapters operate in pairs, there are
eight ports or paths to the disk drives. All eight paths can operate concurrently and could
access all disk drives on the attached fabric. In normal operation, however, disk drives are
typically accessed by one device adapter. Which device adapter owns the disk is defined
during the logical configuration process. This avoids any contention between the two device
adapters for access to the disks.
RIO-G
Processor Processor
Memory Memory
I/O I/O
RIO-G
Processor Processor
Memory Memory
I/O I/O
RIO-G
Processor Processor
Memory Memory
I/O I/O
LIC LIC LIC LIC
LPAR Hypervisor
Storage Facility image 1 Storage Facility image 2
Physical
view:
physical
storage
unit
Logical
view:
virtual
Storage
Facility
images
takes part of takes part of
takes part of
86 DS8000 Series: Concepts and Architecture
Figure 5-2 Physical layer as the base for virtualization
Figure 5-2 shows the physical layer on which virtualization is based.
Compare this with the ESS design, where there was a real loop and having an 8-pack close
to a device adapter was an advantage. This is no longer relevant for the DS8000. Because of
the switching design, each drive is in close reach of the device adapter, apart from a few
more hops through the Fibre Channel switches for some drives. So, it is not really a loop, but
a switched FC-AL loop with the FC-AL addressing schema: Arbitrated Loop Physical
Addressing (AL-PA).
5.3.1 Array sites
An array site is a group of eight DDMs. What DDMs make up an array site is pre-determined
by the DS8000, but note, that there is no pre-determined server affinity for array sites. The
DDMs selected for an array site are chosen from two disk enclosures on different loops (see
Figure 5-3 on page 87).
The DDMs in the array site are of the same DDM type, which means the same capacity and
the same speed (RPM).
Server0
Server1
RIO-G
I/O Enclosure
DAHAHA HA HA DA
Storage enclosure pair
Switched loop 1
Switches
Switched loop 2
I/O Enclosure
DAHAHA HA HA DA
Chapter 5. Virtualization concepts 87
Figure 5-3 Array site
As you can see from Figure 5-3, array sites span loops. Four DDMs are taken from loop 1 and
another four DDMs are taken from loop 2.
Array sites are the building blocks used to define arrays.
5.3.2 Arrays
An array is created from one array site. Forming an array means defining it for a specific
RAID type. The supported RAID types are RAID-5 and RAID-10 (see 4.6.2, “RAID-5
overview” on page 76 and 4.6.3, “RAID-10 overview” on page 76). For each array site you can
select a RAID type. The process of selecting the RAID type for an array is also called defining
an array.
According to the DS8000 sparing algorithm, from zero to two spares may be taken from the
array site. This is discussed further in Chapter 6, “IBM TotalStorage DS8000 model overview
and scalability” on page 103.
Figure 5-4 on page 88 shows the creation of a RAID-5 array with one spare, also called a
6+P+S array (capacity of 6 DDMs for data, capacity of one DDM for parity, and a spare drive).
According to the RAID-5 rules, parity is distributed across all seven drives in this example.
On the right-hand side in Figure 5-4 the terms D1, D2, D3, and so on, stand for the set of data
contained on one disk within a stripe on the array. If, for example, 1 GB of data is written, it is
distributed across all the disks of the array.
Array
Site
Switch
Loop 1 Loop 2
Note: In the DS8000 current implementation, one array is defined using one array site.
88 DS8000 Series: Concepts and Architecture
Figure 5-4 Creation of an array
So, an array is formed using one array site, and while the array could be accessed by each
adapter of the device adapter pair, it is managed by one device adapter. Which adapter and
which server manages this array is be defined later in the configuration path.
5.3.3 Ranks
In the DS8000 virtualization hierarchy there is another logical construct, a rank.
When you define a new rank, its name is chosen by the DS Storage Manager, for example,
R1, R2, or R3, and so on. You have to add an array to a rank.
The available space on each rank will be divided into extents. The extents are the building
blocks of the logical volumes. An extent is striped across all disks of an array as shown in
Figure 5-5 on page 89 and indicated by the small squares in Figure 5-6 on page 90.
The process of forming a rank does two things:
򐂰The array is formatted for either FB (open systems) or CKD (zSeries) data. This
determines the size of the set of data contained on one disk within a stripe on the array.
򐂰The capacity of the array is subdivided into equal sized partitions, called extents. The
extent size depends on the extent type, FB or CKD.
An FB rank has an extent size of 1 GB (where 1 GB equals 230 bytes).
People who work in the zSeries environment do not deal with gigabytes, instead they think of
storage in metrics of the original 3390 volume sizes. A 3390 Model 3 is three times the size of
Array
Site
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
Creation of
an array
D1 D7 D13 ...
D2 D8 D14 ...
D3 D9 D15 ...
D4 D10 D16 ...
D5 D11 P...
D6 PD17 ...
PD12 D18 ...
Spare
Note: In the current DS8000 implementation, a rank is built using just one array.
Chapter 5. Virtualization concepts 89
a Model 1, and a Model 1 has 1113 cylinders which is about 0.94 GB. The extent size of a
CKD rank therefore was chosen to be one 3390 Model 1 or 1113 cylinders.
One extent is the minimum physical allocation unit when a LUN or CKD volume is created, as
we discuss later. It is still possible to define a CKD volume with a capacity that is an integral
multiple of one cylinder or a fixed block LUN with a capacity that is an integral multiple of 128
logical blocks (64K bytes). However, if the defined capacity is not an integral multiple of the
capacity of one extent, the unused capacity in the last extent is wasted. For instance, you
could define a 1 cylinder CKD volume, but 1113 cylinders (1 extent) is allocated and 1112
cylinders would be wasted.
Figure 5-5 shows an example of an array that is formatted for FB data with 1 GB extents (the
squares in the rank just indicate that the extent is composed of several blocks from different
DDMs).
Figure 5-5 Forming an FB rank with 1 GB extents
5.3.4 Extent pools
An extent pool is a logical construct to aggregate the extents from a set of ranks to form a
domain for extent allocation to a logical volume. Typically the set of ranks in the extent pool
would have the same RAID type and the same disk RPM characteristics so that the extents in
the extent pool have homogeneous characteristics. There is no predefined affinity of ranks or
arrays to a storage server. The affinity of the rank (and it's associated array) to a given server
is determined at the point it is assigned to an extent pool.
One or more ranks with the same extent type can be assigned to an extent pool. One rank can
be assigned to only one extent pool. There can be as many extent pools as there are ranks.
FB Rank
of 1GB
extents
Creation of
a Rank
D1 D7 D13 ...
D2 D8 D14 ...
D3 D9 D15 ...
D4 D10 D16 ...
D5 D11 P...
D6 PD17 ...
PD12 D18 ...
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
1GB 1GB 1GB 1GB
90 DS8000 Series: Concepts and Architecture
The DS Storage Manager GUI guides the user to use the same RAID types in an extent pool.
As such, when an extent pool is defined, it must be assigned with the following attributes:
– Server affinity
– Extent type
–RAID type
The minimum number of extent pools is one; however, you would normally want at least two,
one assigned to server 0 and the other assigned to server 1 so that both servers are active. In
an environment where FB and CKD are to go onto the DS8000 storage server, you might
want to define four extent pools, one FB pool for each server, and one CKD pool for each
server, to balance the capacity between the two servers. Of course you could also define just
one FB extent pool and assign it to one server, and define a CKD extent pool and assign it to
the other server. Additional extent pools may be desirable to segregate ranks with different
DDM types.
Ranks are organized in two rank groups:
– Rank group 0 is controlled by server 0.
– Rank group 1 is controlled by server 1.
Figure 5-6 is an example of a mixed environment with CKD and FB extent pools.
Figure 5-6 Extent pools
You can expand extent pools by adding more ranks to an extent pool.
Important: You should balance your capacity between the two servers for optimal
performance.
1GB
FB
1GB
FB
1GB
FB
1GB
FB
Server0
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
Server1
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
Extent Pool CKD0 Extent Pool CKD1
Extent Pool FBtest
Extent Pool FBprod
Chapter 5. Virtualization concepts 91
5.3.5 Logical volumes
A logical volume is composed of a set of extents from one extent pool.
On a DS8000 up to 65280 (we use the abbreviation 64K in this discussion, even though it is
actually 65536 - 256, which is not quite 64K in binary) volumes can be created (64K CKD, or
64K FB volumes, or a mix of both types, but the sum cannot exceed 64K).
Fixed Block LUNs
A logical volume composed of fixed block extents is called a LUN. A fixed block LUN is
composed of one or more 1 GB (230) extents from one FB extent pool. A LUN cannot span
multiple extent pools, but a LUN can have extents from different ranks within the same extent
pool. You can construct LUNs up to a size of 2 TB (240).
LUNs can be allocated in binary GB (230 bytes), decimal GB (109 byes), or 512 or 520 byte
blocks. However, the physical capacity that is allocated for a LUN is always a multiple of 1 GB,
so it is a good idea to have LUN sizes that are a multiple of a gigabyte. If you define a LUN
with a LUN size that is not a multiple of 1 GB, for example, 25.5 GB, the LUN size is 25.5 GB,
but 26 GB are physically allocated and 0.5 GB of the physical storage is unusable.
CKD volumes
A zSeries CKD volume is composed of one or more extents from one CKD extent pool. CKD
extents are of the size of 3390 Model 1, which has 1113 cylinders. However, when you define
a zSeries CKD volume, you do not specify the number of 3390 Model 1 extents but the
number of cylinders you want for the volume.
You can define CKD volumes with up to 65520 cylinders, which is about 55.6 GB.
If the number of cylinders specified is not an integral multiple of 1113 cylinders, then some
space in the last allocated extent is wasted. For example, if you define 1114 or 3340
cylinders, 1112 cylinders are wasted. For maximum storage efficiency, you should consider
allocating volumes that are exact multiples of 1113 cylinders. In fact, integral multiples of 3339
cylinders should be consider for future compatibility.
If you want to use the maximum number of cylinders (65520), you should consider that this is
not a multiple of 1113. You could go with 65520 cylinders and waste 147 cylinders for each
volume (the difference to the next multiple of 1113) or you might be better off with a volume
size of 64554 cylinders which is a multiple of 1113 (factor of 58), or even better, with 63441
cylinders which is a multiple of 3339, a model 3 size.
A CKD volume cannot span multiple extent pools, but a volume can have extents from
different ranks in the same extent pool.
92 DS8000 Series: Concepts and Architecture
Figure 5-7 Allocation of a CKD logical volume
Figure 5-7 shows how a logical volume is allocated with a CKD volume as an example. The
allocation process for FB volumes is very similar and is shown in Figure 5-8 on page 93.
1113 1113 1113 1113
free
Extent Pool CKD0
Rank-x
Rank-y
3390 Mod. 3
1113
free
1113
free
used used Allocate 3226 cylinder
volume
1113 1113 1113 1113
used
Extent Pool CKD0
Rank-x
Rank-y
3390 Mod. 3
1000
used
1113
used
used used
Logical
3390 Mod. 3
113 cylinders unused
Volume with
3226 cylinders
Chapter 5. Virtualization concepts 93
Figure 5-8 Creation of an FB LUN
iSeries LUNs
iSeries LUNs are also composed of fixed block 1 GB extents. There are, however, some
special aspects with iSeries LUNs. LUNs created on a DS8000 are always RAID protected.
LUNs are based on RAID-5 or RAID-10 arrays. However, you might want to deceive
OS/400® and tell it that the LUN is not RAID protected. This causes OS/400 to do its own
mirroring. iSeries LUNs can have the attribute unprotected, in which case the DS8000 will lie
to an iSeries host and tell it that the LUN is not RAID protected.
OS/400 only supports certain fixed volume sizes, for example model sizes of 8.5 GB,
17.5 GB, and 35.1 GB. These sizes are not multiples of 1 GB and hence, depending on the
model chosen, some space is wasted. iSeries LUNs expose a 520 byte block to the host. The
operating system uses 8 of these bytes so the usable space is still 512 bytes like other SCSI
LUNs. The capacities quoted for the iSeries LUNs are in terms of the 512 byte block capacity
and are expressed in GB (109). These capacities should be converted to GB (230) when
considering effective utilization of extents that are 1 GB (230). For more information on this
topic see Appendix B, “Using DS8000 with iSeries” on page 373.
Allocation and deletion of LUNs/CKD volumes
All extents of the ranks assigned to an extent pool are independently available for allocation to
logical volumes. The extents for a LUN/volume are logically ordered, but they do not have to
come from one rank and the extents do not have to be contiguous on a rank. The current
extent allocation algorithm of the DS8000 will not distribute the extents across ranks. The
algorithm will use available extents within one rank, unless there are not enough free extents
available in that rank, but free extents in another rank of the same extent pool. While this
algorithm exists, the user may want to consider putting one rank per extent pool to control the
1 GB 1 GB 1 GB 1 GB
free
Extent Pool FBprod
Rank-a
Rank-b
3 GB LUN
1 GB
free
1 GB
free
used used Allocate a 3 GB LUN
1 GB 1 GB 1 GB 1 GB
used
Extent Pool FBprod
Rank-a
Rank-b
3 GB LUN
1 GB
used
1 GB
used
used used
Logical
3 GB LUN
2.9 GB LUN
created
100 MB unused
94 DS8000 Series: Concepts and Architecture
allocation of logical volumes across ranks to improve performance, except for the case in
which the logical volume needed is larger than the total capacity of the single rank.
This construction method of using fixed extents to form a logical volume in the DS8000 allows
flexibility in the management of the logical volumes. We can now delete LUNs and reuse the
extents of those LUNs to create other LUNs, maybe of different sizes. One logical volume can
be removed without affecting the other logical volumes defined on the same extent pool.
Compared to the ESS, where it was not possible to delete a LUN unless the whole array was
reformatted, this DS8000 implementation gives you much more flexibility and allows for on
demand changes according to your needs.
Since the extents are cleaned after you have deleted a LUN or CKD volume, it may take some
time until these extents are available for reallocation. The reformatting of the extents is a
background process.
IBM plans to further increase the flexibility of LUN/volume management. We cite from the
DS8000 announcement letter the following Statement of General Direction:
Extension of IBM's dynamic provisioning technology within the DS8000 series is planned to
provide LUN/volume: dynamic expansion, online data relocation, virtual capacity over
provisioning, and space efficient FlashCopy requiring minimal reserved target capacity.
5.3.6 Logical subsystems (LSS)
A logical subsystem (LSS) is another logical construct. It groups logical volumes, LUNs, in
groups of up to 256 logical volumes.
On an ESS there was a fixed association between logical subsystems (and their associated
logical volumes) and device adapters (and their associated ranks). The association of an
8-pack to a device adapter determined what LSS numbers could be chosen for a volume. On
an ESS up to 16 LSSs could be defined depending on the physical configuration of device
adapters and arrays.
On the DS8000, there is no fixed binding between any rank and any logical subsystem. The
capacity of one or more ranks can be aggregated into an extent pool and logical volumes
configured in that extent pool are not bound to any specific rank. Different logical volumes on
the same logical subsystem can be configured in different extent pools. As such, the available
capacity of the storage facility can be flexibly allocated across the set of defined logical
subsystems and logical volumes.
This predetermined association between array and LSS is gone on the DS8000. Also the
number of LSSs has changed. You can now define up to 255 LSSs for the DS8000 (it might
be limited at GA to 128 LSSs). You can even have more LSSs than arrays.
For each LUN or CKD volume you can now choose an LSS. You can put up to 256 volumes
into one LSS. There is, however, one restriction. We already have seen that volumes are
formed from a bunch of extents from an extent pool. Extent pools, however, belong to one
server, server 0 or server 1, respectively. LSSs also have an affinity to the servers. All even
numbered LSSs (X’00’, X’02’, X’04’, up to X’FE’) belong to server 0 and all odd numbered
LSSs (X’01’, X’03’, X’05’, up to X’FD’) belong to server 1. LSS X’FF’ is reserved.
zSeries users are familiar with a logical control unit (LCU). zSeries operating systems
configure LCUs to create device addresses. There is a one to one relationship between an
LCU and a CKD LSS (LSS X'ab' maps to LCU X'ab'). Logical volumes have a logical volume
number X'abcd' where X'ab' identifies the LSS and X'cd' is one of the 256 logical volumes on
the LSS. This logical volume number is assigned to a logical volume when a logical volume is
Chapter 5. Virtualization concepts 95
created and determines the LSS that it is associated with. The 256 possible logical volumes
associated with an LSS are mapped to the 256 possible device addresses on an LCU (logical
volume X'abcd' maps to device address X'cd' on LCU X'ab'). When creating CKD logical
volumes and assigning their logical volume numbers, users should consider whether Parallel
Access Volumes (PAV) are required on the LCU and reserve some of the addresses on the
LCU for alias addresses. For more information on PAV see Chapter 10, “The DS Storage
Manager - logical configuration” on page 189.
For open systems, LSSs do not play an important role except in determining which server the
LUN is managed by (and which extent pools it must be allocated in) and in certain aspects
related to Metro Mirror, Global Mirror, or any of the other remote copy implementations.
Some management actions in Metro Mirror, Global Mirror, or Global Copy operate at the LSS
level. For example the freezing of pairs to preserve data consistency across all pairs, in case
you have a problem with one of the pairs, is done at the LSS level. With the option now to put
all or most of the volumes of a certain application in just one LSS, this makes the
management of remote copy operations easier (see Figure 5-9). Of course you could have
put all volumes for one application in one LSS on an ESS, too, but then all volumes of that
application would also be in one or a few arrays, and from a performance standpoint this was
not desirable. Now on the DS8000 you can group your volumes in one or a few LSSs but still
have the volumes in many arrays or ranks.
Figure 5-9 Grouping of volumes in LSSs
Fixed block LSSs are created automatically when the first fixed block logical volume on the
LSS is created and deleted automatically when the last fixed block logical volume on the LSS
is deleted. CKD LSSs require user parameters to be specified and must be created before the
first CKD logical volume can be created on the LSS; they must be deleted manually after the
last CKD logical volume on the LSS is deleted.
LSS X'17'
DB2
LSS X'18'
DB2-test
Physical Drives Logical Volumes
96 DS8000 Series: Concepts and Architecture
Address groups
Address groups are created automatically when the first LSS associated with the address
group is created, and deleted automatically when the last LSS in the address group is
deleted.
LSSs are either CKD LSSs or FB LSSs. All devices in an LSS must be either CKD or FB. This
restriction goes even further. LSSs are grouped into address groups of 16 LSSs. LSSs are
numbered X'ab', where a is the address group and b denotes an LSS within the address
group. So, for example X'10' to X'1F' are LSSs in address group 1.
All LSSs within one address group have to be of the same type, CKD or FB. The first LSS
defined in an address group fixes the type of that address group.
zSeries clients that still want to use ESCON to attach hosts to the DS8000 should be aware of
the fact that ESCON supports only the 16 LSSs of address group 0 (LSS X'00' to X'0F').
Therefore this address group should be reserved for ESCON-attached CKD devices, in this
case, and not used as FB LSSs.
Figure 5-10 shows the concept of LSSs and address groups.
Figure 5-10 Logical storage subsystems
The LUN identifications X'gabb' are composed of the address group X'g', and the LSS
number within the address group X'a’, and the position of the LUN within the LSS X'bb'. For
example, LUN X'2101' denotes the second (X'01') LUN in LSS X'21' of address group 2.
5.3.7 Volume access
A DS8000 provides mechanisms to control host access to LUNs. In most cases a server has
two or more HBAs and the server needs access to a group of LUNs. For easy management of
Address group X'2x': FB
Address group X'1x' CKD
Extent Pool FB-2
LSS X'10'
LSS X'12'
LSS X'14'
LSS X'16'
LSS X'18'
LSS X'1A'
LSS X'1C'
LSS X'1E'
LSS X'20'
LSS X'22'
LSS X'24'
LSS X'26'
LSS X'28'
LSS X'2A'
LSS X'2C'
LSS X'2E'
LSS X'11'
LSS X'13'
LSS X'15'
LSS X'17'
LSS X'19'
LSS X'1B'
LSS X'1D'
LSS X'21'
LSS X'1F'
LSS X'23'
LSS X'25'
LSS X'27'
LSS X'29'
LSS X'2B'
Server0
Extent Pool CKD-1
Rank-a
Rank-b
Extent Pool FB-1
Rank-c
Rank-d
LSS X'2D'
Server1
Extent Pool CKD-2
Rank-w
Rank-x
Extent Pool FB-2
Rank-y
Rank-z
X'1E00'
X'1E01'
X'2800'
X'1500'
X'1D00'
X'2100'
Volume ID
X'2101'
LSS X'2F'
Chapter 5. Virtualization concepts 97
server access to logical volumes, the DS8000 introduced the concept of host attachments
and volume groups.
Host attachment
HBAs are identified to the DS8000 in a host attachment construct that specifies the HBAs’
World Wide Port Names (WWPNs). A set of host ports can be associated through a port
group attribute that allows a set of HBAs to be managed collectively. This port group is
referred to as host attachment within the GUI.
A given host attachment can be associated with only one volume group. Each host
attachment can be associated with a volume group to define which LUNs that HBA is allowed
to access. Multiple host attachments can share the same volume group. The host attachment
may also specify a port mask that controls which DS8000 I/O ports the HBA is allowed to log
in to. Whichever ports the HBA logs in on, it sees the same volume group that is defined in
the host attachment associated with this HBA.
The maximum number of host attachments on a DS8000 is 8192.
Volume group
A volume group is a named construct that defines a set of logical volumes. When used in
conjunction with CKD hosts, there is a default volume group that contains all CKD volumes
and any CKD host that logs into a FICON I/O port has access to the volumes in this volume
group. CKD logical volumes are automatically added to this volume group when they are
created and automatically removed from this volume group when they are deleted.
When used in conjunction with Open Systems hosts, a host attachment object that identifies
the HBA is linked to a specific volume group. The user must define the volume group by
indicating which fixed block logical volumes are to be placed in the volume group. Logical
volumes may be added to or removed from any volume group dynamically.
There are two types of volume groups used with Open Systems hosts and the type
determines how the logical volume number is converted to a host addressable LUN_ID on the
Fibre Channel SCSI interface. A map volume group type is used in conjunction with FC SCSI
host types that poll for LUNs by walking the address range on the SCSI interface. This type of
volume group can map any FB logical volume numbers to 256 LUN_IDs that have zeroes in
the last six bytes and the first two bytes in the range of X'0000' to X'00FF'.
A mask volume group type is used in conjunction with FC SCSI host types that use the Report
LUNs command to determine the LUN_IDs that are accessible. This type of volume group
can allow any and all FB logical volume numbers to be accessed by the host where the mask
is a bitmap that specifies which LUNs are accessible. For this volume group type, the logical
volume number X'abcd' is mapped to LUN_ID X'40ab40cd00000000'. The volume group type
also controls whether 512 byte block LUNs or 520 byte block LUNs can be configured in the
volume group.
When associating a host attachment with a volume group, the host attachment contains
attributes that define the logical block size and the Address Discovery Method (LUN Polling or
Report LUNs) that are used by the host HBA. These attributes must be consistent with the
volume group type of the volume group that is assigned to the host attachment so that HBAs
that share a volume group have a consistent interpretation of the volume group definition and
have access to a consistent set of logical volume types. The GUI typically sets these values
appropriately for the HBA based on the user specification of a host type. The user must
consider what volume group type to create when setting up a volume group for a particular
HBA.
98 DS8000 Series: Concepts and Architecture
FB logical volumes may be defined in one or more volume groups. This allows a LUN to be
shared by host HBAs configured to different volume groups. An FB logical volume is
automatically removed from all volume groups when it is deleted.
The maximum number of volume groups is 8320 for the DS8000.
Figure 5-11 Host attachments and volume groups
Figure 5-11 shows the relationships between host attachments and volume groups. Host
AIXprod1 has two HBAs, which are grouped together in one host attachment, and both are
granted access to volume group DB2®-1. Most of the volumes in volume group DB2-1 are
also in volume group DB2-2, accessed by server AIXprod2. In our example, there is,
however, one volume in each group that is not shared. The server in the lower left part has
four HBAs and they are divided into two distinct host attachments. One can access some
volumes shared with AIXprod1 and AIXprod2. The other HBAs have access to a volume
group called “docs.”
5.3.8 Summary of the virtualization hierarchy
Going through the virtualization hierarchy, we started with just a bunch of disks that were
grouped in array sites. An array site was transformed into an array, eventually with spare
disks. The array was further transformed into a rank with extents formatted for FB or CKD
data. Next, the extents were added to an extent pool that determined which storage server
would serve the ranks and aggregated the extents of all ranks in the extent pool for
subsequent allocation to one or more logical volumes.
Next we created logical volumes within the extent pools, assigning them a logical volume
number that determined which logical subsystem they would be associated with and which
server would manage them. Then the LUNs could be assigned to one or more volume
groups. Finally the host HBAs were configured into a host attachment that is associated with
a given volume group.
WWPN-1 WWPN-2
Host attachment: AIXprod1
Volume group: DB2-1
WWPN-3 WWPN-4
Host attachment: AIXprod2
Volume group: docs
WWPN-5 WWPN-6
WWPN-7
WWPN-8
Host att: Test
Host att: Prog
Volume group: DB2-2
Volume group: DB2-test
Chapter 5. Virtualization concepts 99
This new virtualization concept provides for much more flexibility. Logical volumes can
dynamically be created and deleted. They can be grouped logically to simplify storage
management. Large LUNs and CKD volumes reduce the total number of volumes and this
also contributes to a reduction of the management effort.
Figure 5-12 summarizes the virtualization hierarchy.
Figure 5-12 Virtualization hierarchy
5.3.9 Placement of data
As explained in the previous chapters, there are several options on how to create logical
volumes. You can select an extent pool that is owned by one server. There could be just one
extent pool per server or you could have several. The ranks of extent pools could come from
arrays on different device adapter pairs and different loops or from the same loop. Figure 5-13
on page 100 shows an optimal distribution of eight logical volumes within a DS8000. Of
course you could have more extent pools and ranks, but when you want to distribute your data
for optimal performance, you should make sure that you spread it across the two servers,
across different device adapter pairs, across the loops, and across several ranks.
If you use some kind of a logical volume manager (like LVM on AIX) on your host, you can
create a host logical volume from several DS8000 logical volumes (LUNs). You can select
LUNs from different DS8000 servers, device adapter pairs, and loops as shown in
Figure 5-13. By striping your host logical volume across the LUNs, you will get the best
performance for this LVM volume.
Server0
Array
Site
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
Rank
Type FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
Extent
Pool
Logical
Volume
LSS
FB
Address
Group
X'2x' FB
4096
addresses
LSS X'27'
X'3x' CKD
4096
addresses
Volume
Group
Host
Attachment
100 DS8000 Series: Concepts and Architecture
Figure 5-13 Optimal placement of data
5.4 Benefits of virtualization
The DS8000 physical and logical architecture defines new standards for enterprise storage
virtualization. The main benefits of the virtualization layers are:
򐂰Flexible LSS definition allows maximization/optimization of the number of devices per
LSS.
򐂰No strict relationship between RAID ranks and LSSs.
򐂰No connection of LSS performance to underlying storage.
򐂰Number of LSSs can be defined based upon device number requirements:
– With larger devices significantly fewer LSSs might be used.
– Volumes for a particular application can be kept in a single LSS.
– Smaller LSSs can be defined if required (for systems/applications requiring less
storage).
– Test systems can have their own LSSs with fewer volumes than production systems.
򐂰Increased number of logical volumes:
– Up to 65280 (CKD)
– Up to 65280 (FB)
– 65280 total for CKD + FB
Server0
Server1
Extent Pool FB-0c
Extent Pool FB-1a
Extent Pool FB-0a
Extent Pool FB-1c
DA pair 1
DA pair 1
DA pair 2
DA pair 2
Host LVM volume
Extent Pool FB-1bExtent Pool FB-0b
Extent Pool FB-0d Extent Pool FB-1d
Loop 1
Loop 2
Loop 2
Loop 1
LSS 00 LSS 01
Chapter 5. Virtualization concepts 101
򐂰Any mix of CKD or FB addresses in 4096 address groups.
򐂰Increased logical volume size:
– CKD: 55.6 GB (65520 cylinders), architected for 219 TB
– FB: 2 TB, architected for 1 PB
򐂰Flexible logical volume configuration:
– Multiple RAID types (RAID-5, RAID-10)
– Storage types (CKD and FB) aggregated into extent pools
– Volumes allocated from extents of extent pool
– Dynamically add/remove volumes
򐂰Virtualization reduces storage management requirements.
102 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 103
Chapter 6. IBM TotalStorage DS8000 model
overview and scalability
This chapter provides an overview of the IBM TotalStorage DS8000 storage server which is
from here on referred to as a DS8000.
We include information on the two models and how well they scale regarding capacity and
performance.
6
104 DS8000 Series: Concepts and Architecture
6.1 DS8000 highlights
The DS8000 is a member of the DS product family. It offers disk storage servers with high
performance and has the capability to scale very well to the highest disk storage capacities.
The scalability is designed to support continuous operations.
The DS8000 series models follow the 2105 (ESS 800) as device type 2107 and are based on
IBM POWER5 server technology.
The DS8000 series models consist of a storage unit and one or two management consoles. A
graphical user interface (GUI) or the command-line interface (CLI) allows a storage
administrator to configure and logically partition storage.
The DS8000 series currently offers two models with base and expansion units to configure
storage servers that meet the client’s performance and capacity requirements.
6.1.1 Model naming conventions
Before we get into the details about each model, we start with an explanation of the model
naming conventions in the DS8000.
The DS8000 has three models at general availability (GA), model 921, 922, and 9A2. The
difference in models is the number of processors and the capability of storage system LPARs.
You can also order expansion frames with the base frame. The expansion frame is described
as a model 92E or 9AE.
The last position of the three characters means the number of 2-way processors on each
processor complex (xx1 means 2-way and xx2 means 4-way, xxE means expansion frame (no
processors). The middle position of the three characters means LPAR or Non-LPAR model
(x2x means non-LPAR model and xAx means LPAR model).
We summarize these rules in Figure 6-1.
Figure 6-1 Model naming conventions
Model Naming Conventions
LPAR ExpansionLPAR 4-wayN/AX=a
Non LPAR ExpansionNon LPAR/4-wayNon LPAR/2-wayX=2
Y=EY=2Y=19xy
For example,
921 : Non-LPAR / 2-way base frame
9AE : LPAR / Expansion frame
Chapter 6. IBM TotalStorage DS8000 model overview and scalability 105
In the following sections, we describe these models further:
1. DS8100 Model 921
This model features a dual two-way processor complex and it includes a base frame and
an optional expansion frame.
2. DS8300 Models 922 and 9A2
The DS8300 is a dual four-way processor complex with a Model 922 base frame and up to
two optional Model 92E expansion frames. Model 9A2 is also a dual four-way processor
complex, but it offers two IBM TotalStorage storage system Logical Partitions (LPARs) in
one machine. The Model 9A2 can also be expanded with up to two Model 9AE expansion
units.
6.1.2 DS8100 Model 921
The DS8100 Model 921 has the following features:
򐂰Two processor complexes with pSeries POWER5 1.5 GHz two-way CEC each.
򐂰Up to 128 DDMs for a maximum disk storage capacity of 38.4 TB with 300 GB DDMs.
򐂰Up to 128 GB of processor memory, which was referred as cache in the ESS 800.
򐂰Up to 16 host adapters (HAs) with four ports per HA and 2 Gbps per port. Each port can
be independently configured as either a Fibre Channel protocol (FCP) port for open
systems host connection or PPRC FCP links, but also as a FICON port to connect to
zSeries hosts. This totals up to 64 ports with any mix of FCP and FICON ports. ESCON
host connection is also supported. But with ESCON, an HA contains only two ESCON
ports. A mix of ESCON ports and FCP ports on the same HA is not possible. A DS8000
can have both ESCON adapters and FCP/FICON adapters at the same time.
The DS8100 Model 921 connects to a wide variety of host server platforms. For an up-to-date
connectivity list, see:
http://www-1.ibm.com/servers/storage/disk/ds8000/interop.html

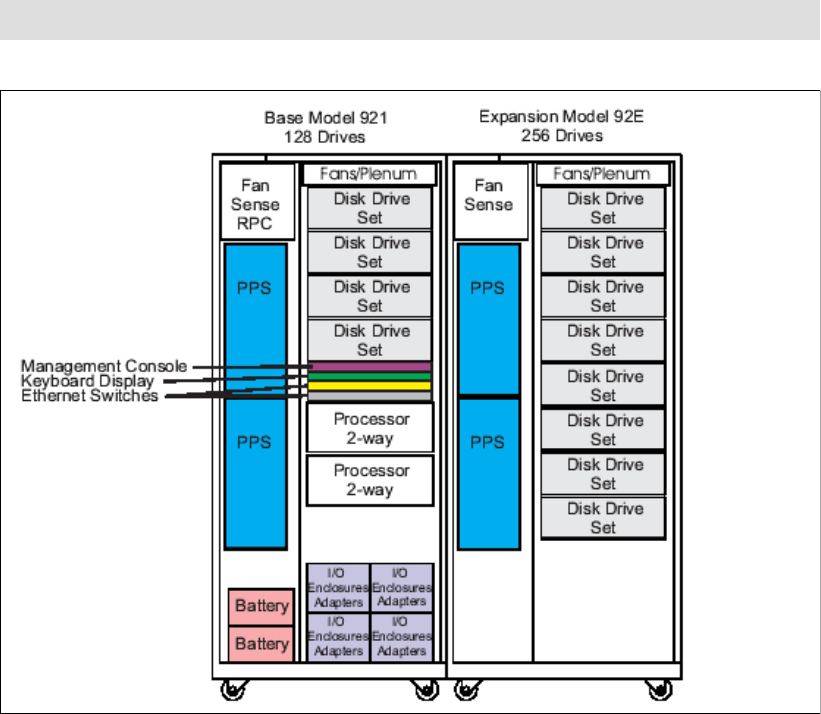

Figure 6-2 DS8100 Model 921 base frame open (left) and with Model 92E for max config
106 DS8000 Series: Concepts and Architecture
The DS8100 Model 921 can connect to one expansion frame. This expansion frame is called
a Model 92E. Figure 6-2 on page 105 displays the front view of a DS8100 Model 921with the
cover off, and the Model 921 with an expansion Model 92E with covers. The base and
expansion frame together allow for a maximum capacity for a DS8100 with 384 DDMs. There
are 128 DDMs in the base frame and 256 DDMs in the expansion frame. With all DDMs being
300 GB, this results in a maximum disk storage capacity of 115.2 TB.
Figure 6-3 shows the maximum configuration of a Model 921 with the 921 base frame plus a
92E expansion frame and provides the front view of the basic structure and placement of the
hardware components within both frames.
Figure 6-3 Maximum configuration for the Model 921
6.1.3 DS8300 Models 922 and 9A2
The DS8300 Model 922 and 9A2 offer higher capacity and performance than the DS8100.
Model 9A2 provides two storage images through two storage system LPARs within the same
physical storage unit. Both storage images split the processor, cache, and adapter resources.
The split ratio in the beginning is a 50:50 split with the potential to subdivide these resources
later at a different split ratio between the storage images. This future flexibility is going to also
allow a finer granularity to split the processor resources than on an entire processor level,
which is the case for the first editions of the Model 9A2.
Note: A Model 921 can be upgraded to a Model 922 or to a Model 9A2.
Chapter 6. IBM TotalStorage DS8000 model overview and scalability 107
Both models provide the following features:
򐂰Two processor complexes with pSeries POWER5 1.9 GHz four-way CEC each.
򐂰Up to 128 DDMs for a maximum of 38.4 TB with 300 GB DDMs. This is the same as for the
DS8100 Model 921.
򐂰Up to 256 GB of processor memory, which was referred to as cache in the ESS 800.
򐂰Up to 16 host adapters (HAs). Each HA provides four 2 Gbps Fibre Channel ports which
can freely be configured as:
– FCP ports to open system hosts
– PPRC FCP links
– FICON ports to connect to zSeries hosts
򐂰A HA can also contain two ESCON ports instead of four Fibre Channel ports. You cannot
mix ESCON ports with Fibre Channel ports on the same HA.
DS8300 models connect to a wide variety of host server platforms. Refer to the following Web
site for an up-to-date interoperability list for the DS8300 models:
http://www-1.ibm.com/servers/storage/disk/ds8000/interop.html

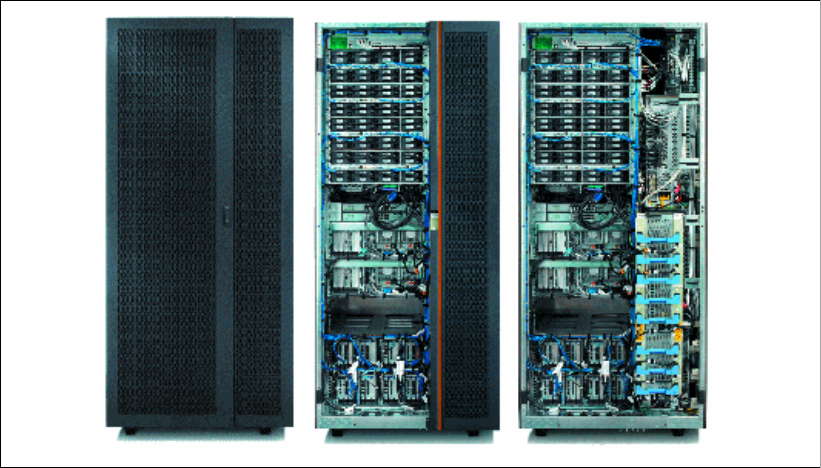

Figure 6-4 DS8300 Model 922/9A2 base frame rear view with and without covers
Figure 6-4 displays a DS8300 Model 922 from the rear. On the left is the rear view with closed
covers. The right shows the rear view of the Model 922 with no covers. The middle view is
another rear view but only with one cover off. This view shows the standard 19 inch rack
mounted hardware including disk drives, processor complexes, and I/O enclosures.
DS8300 models can connect to one or two expansion frames. This provides the following
configuration alternatives:
򐂰With an expansion frame 92E or 9AE the disk storage capacity and number of adapters
can expand to:
– Up to 384 DDMs in total - as for the DS8100. This is a maximum disk capacity of
115.2 TB with 300 GB DDMs.
108 DS8000 Series: Concepts and Architecture
– Up to 32 host adapters (HAs) with four 2 Gbps Fibre Channel ports on each HA. Each
HA can be freely configured to hold:
• FCP ports to connect to FCP-based host servers
• FCP ports for PPRC links, which in turn can be shared between PPRC and
FCP-based hosts through a SAN fabric
• FICON ports to connect to one or more zSeries servers
• Any combination within a HA
– A HA can also have two ESCON ports, but you cannot mix ESCON ports with Fibre
Channel ports on the very same HA.
򐂰With two 92E expansion frames or two 9AE expansion frames for the storage system
LPAR model the capacity expands to:
– Up to 640 DDMs in total for a maximum of 192 TB disk storage when utilizing 300 GB
DDMs. Figure 6-5 shows such a maximum configuration for Model 922 with two
expansion frames, Model 92E, or a Model 9A2 with two expansion frames Model 9AE.
This figure also shows the basic hardware components and how they are distributed
across all three frames.

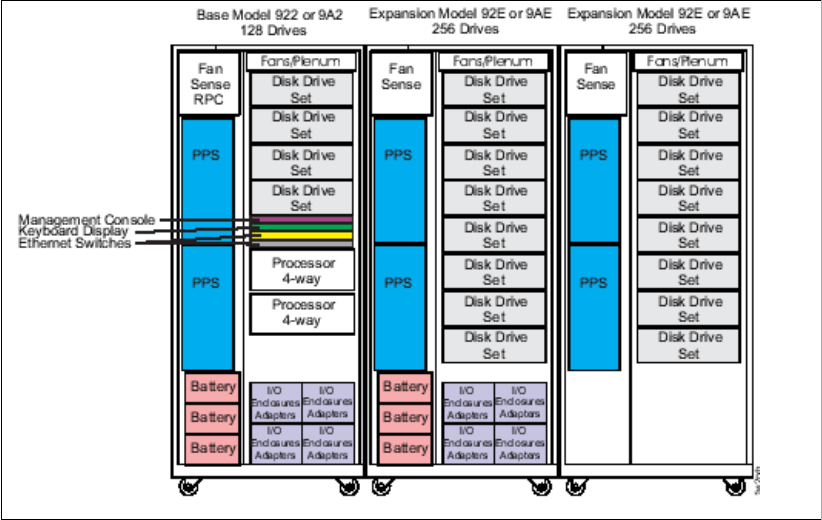

Figure 6-5 DS8300 max config for Model 922/9A2 with 2 expansion frames (either 92E or 9AE)
Note the additional I/O enclosures in the first expansion frame, which is the middle frame in
Figure 6-5. Each expansion frame has twice as many DDMs as the base frame, so with 128
DDMs in the base frame and 2 x 256 DDMs in the expansion frames, a total of 640 DDMs is
possible.
6.2 Model comparison
DS8000 models vary in processor type, disk capacity, processor memory, and host adapters.
Table 6-1 on page 109 provides an overview of the different features and numbers for the
currently available DS8000 models.
Chapter 6. IBM TotalStorage DS8000 model overview and scalability 109
Table 6-1 DS8000 model comparison
Depending on the DDM sizes, which can be different within a 921, 922, or 9A2, and the
number of DDMs, the total capacity is calculated accordingly.
Each FCP/FICON adapter has four Fibre Channel ports, which provide up to 128 Fibre
Channel ports. Each ESCON adapter has two ports, therefore, the maximum number of ports
is 64.
6.3 Designed for scalability
One of the advantages of the DS8000 series is its linear scalability for capacity and
performance. If your business (or your customer’s business) grows rapidly, you may need
much more storage capacity, faster storage performance, or both. The DS8000 series can
meet these demands within a single storage unit. We explain the scalability in this section.
6.3.1 Scalability for capacity
The DS8000 series has a linear capacity growth up to 192 TB and can add additional DDMs
without a system disruption. IBM plans to offer larger models in the future.
Large and scalable capacity
You can have from 16 DDMs up to 384 DDMs (Model 921) or 640 DDMs (Model 922 or 9A2)
in a DS8000.
򐂰Each base frame can have up to 128 DDMs and an expansion frame can have up to
256 DDMs.
򐂰The DS8100 can have one expansion frame and the DS8300 can have two expansion
frames
򐂰The DS8000 can contain three types of DDMs, 73 GB (15,000 RPM), 146 GB (10,000
RPM), and 300 GB (10,000 RPM).
Therefore, you can select a physical capacity from 1.1 TB (73 GB x 16 DDMs) up to 192 TB
(300 GB x 640 DDMs).
We summarize these characteristics in Table 6-2 on page 110.
Base Mod Images Exp Mod Proc type DDMs Proc Mem HAs
921 1 None 2-way
1.5 GHz
<= 128 <= 128 GB <= 16
1 x 92E <= 384
922 1 None 4-way
1.9 GHz
<= 128 <= 256 GB <= 16
1 x 92E <= 384 <= 32
2 x 92E <= 640
9A2 2 None <= 128 <= 16
1 x 9AE <= 384 <= 32
2 x 9AE <= 640
110 DS8000 Series: Concepts and Architecture
Table 6-2 Comparison of models for capacity
Adding DDMs
A significant benefit of the DS8000 series is the ability to add DDMs without disruption for
maintenance. Even if it is difficult to take time for system maintenance for your system (for
example, if you are operating a 24x7 online system), you don’t need to order larger capacity
in advance to prepare for future growth. You can begin with a small configuration at first, and
grow the capacity on demand without disruption.
Future plan
In addition, the architecture is designed to scale with 300 GB disk technology up to 1 PB.
According to the announcement letter, IBM has issued the following Statement of General
Direction:
Future models in the series are planned to provide customers additional flexibility and
scalability. IBM next plans to provide 8-way processors with corresponding scalability from
the 2-way and 4-way models currently offered. In addition, physical capacity will be scalable
through increased disk drives within a configuration.
6.3.2 Scalability for performance
The DS8000 series also has linear scalability for performance. This capability is due to the
architecture of the DS8000 series.
2-way (Base
frame only)
2-way +
Expansion
frame
4-way or LPAR
(Base frame
only)
4-way or LPAR
+ Expansion
frame
4-way or LPAR
+ 2 Expansion
frames
Device adapters 2 to 8
(1 - 4 Fibre Loops)
2 to 8 2 to 8 2 to 16 2 to 16
Drives
73 GB (15k RPM)
146 GB (10k RPM)
300 GB (10k RPM)
16 to 128
(increments of 16)
16 to 384
(increments
of 16)
16 to 128
(increments
of 16)
16 to 384
(increments
of 16)
16 to 640
(increments
of 16)
Physical capacity 1.1 to 37.2 TB 1.1 to 111.6 TB 1.1 to 37.2 TB 1.1 to 111.6 TB 1.1 to 186.3 TB
Note: According to the announcement letter, the following activities are disruptive in the
current status:
򐂰Field attachment of a Model 92E with the 922
򐂰Field attachment of a Model 9AE with the 9A2
In both cases, only when the first expansion frame is attached to the base frame, you do
need a disruptive maintenance. The first expansion enclosure for the Model 922 and 9A2
has I/O enclosures and these I/O enclosures must be connected into the current RIO-G
loops. Currently, this operation is not supported non-disruptively.
If you install the base frame and the first expansion frame for the Model 922 or 9A2 at the
beginning, you don’t need a disruptive upgrade to add DDMs. The expansion enclosure for
the DS8100 and the second expansion enclosure for the DS8300 has no I/O enclosure,
therefore you can attach them to the existing frame without disruption.
Chapter 6. IBM TotalStorage DS8000 model overview and scalability 111
Linear-scalable architecture
The following two figures illustrate how you can realize the linear scalability in the DS8000
series.
Figure 6-6 2-way model components
I/O
Enclosure
RIO-G
Device
Adapter
Host
Adapter
Data Cache
and
Persistent
Memory
2-way
processor
Processor Complex
Hosts
2-way I/O controllers
Disks
112 DS8000 Series: Concepts and Architecture
Figure 6-7 4-way model components
These two figures describe the main components of the I/O controller for the DS8000 series.
The main components include the I/O processors, data cache, internal I/O bus (RIO-G loop),
host adapters, and device adapters. Figure 6-6 on page 111 is a 2-way model and Figure 6-7
is a 4-way model. You can easily see that, if you upgrade from the 2-way model to the 4-way
model, the number of main components doubles within a storage unit.
For further information about performance for the DS8000 series, see Chapter 12,
“Performance considerations” on page 253.
Future Plan
According to the announcement letter, IBM has issued the following Statement of General
Direction:
Future models in the series are planned to provide customers additional flexibility and
scalability. IBM next plans to provide 8-way processors with corresponding scalability from the
2-way and 4-way models currently offered. In addition, physical capacity will be scalable
through increased disk drives within a configuration.
In the 8-way model, the number of main components is four times that of a 2-way model.
The benefit of the DS8000 for scalability
Because the DS8000 series adopts this architecture for the scaling of models, the DS8000
series has the following benefits for scalability:
򐂰The DS8000 series is easily scalable for performance and capacity.
򐂰The DS8000 series architecture can be easily upgraded.
RIO-G
I/O
Enclosure
Device
Adapter
Host
Adapter
Data Cache
and
Persistent
Memory
2-way
processor
Processor Complex
4-way I/O controllers Hosts
Disks
Chapter 6. IBM TotalStorage DS8000 model overview and scalability 113
򐂰The DS8000 series has a longer life cycle than other storage devices.
6.3.3 Model upgrades
The DS8000 series models are modular systems that are designed to be built upon and
upgraded from one model to another in the field, helping clients respond swiftly to changing
business requirements.
IBM service representatives can upgrade a Model 921 in the field when you order a model
conversion to a Model 922 or Model 9A2. You can also change the storage system LPAR
configuration, both from non-LPAR to LPAR, from LPAR to non-LPAR (According to the
announcement letter, model upgrades will be offered after GA).
Figure 6-8 summarizes the model conversions planned for the DS8000 series.
Figure 6-8 Model conversions
Note: According to the announcement letter, model conversions are disruptive activities in
the current status.
Model Conversions
• Model Conversions Planned
– 921 => 922 (2-way to 4-way processor upgrade)
– 921 => 9A2 (2-way to LPAR 4-way processor upgrade)
– 922 => 9A2 (4-way to LPAR 4-way upgrade)
– 92E => 9AE (Expansion frame to LPAR expansion frame)
– 9A2 => 922 (LPAR to non-LPAR 4-way)
– 9AE => 92E (LPAR expansion frame to expansion frame)
114 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 115
Chapter 7. Copy Services
In this chapter, we describe the architecture and functions of Copy Services for the DS8000
series. Copy Services is a collection of functions that provide disaster recovery, data
migration, and data duplication functions. Copy Services run on the DS8000 storage unit and
they support open systems and zSeries environments.
Copy Services has four interfaces: a Web-based interface (DS Storage Manager), a
command-line interface (DS CLI), an application programming interface (DS API), and host
I/O commands from zSeries servers.
This chapter discusses the following topics:
򐂰Introduction to Copy Services
򐂰Copy Services functions
򐂰Interfaces for Copy Services
򐂰Interoperability with IBM TotalStorage Enterprise Storage Server (ESS)
7
116 DS8000 Series: Concepts and Architecture
7.1 Introduction to Copy Services
Copy Services is a collection of functions that provide disaster recovery, data migration, and
data duplication functions. With the Copy Services functions, for example, you can create
backup data with little or no disruption to your application, and you can back up your
application data to the remote site for the disaster recovery.
Copy Services run on the DS8000 storage unit and support open systems and zSeries
environments. These functions are supported also on the previous generation of storage
systems called the IBM TotalStorage Enterprise Storage Server (ESS).
Many design characteristics of the DS8000 and data copying and mirroring capabilities of
Copy Services features contribute to the protection of your data, 24 hours a day and seven
days a week. The licensed features included in Copy Services are the following:
򐂰FlashCopy, which is a Point-in-Time Copy function
򐂰Remote Mirror and Copy functions, previously known as Peer-to-Peer Remote Copy or
PPRC, which include:
– IBM TotalStorage Metro Mirror, previously known as Synchronous PPRC
– IBM TotalStorage Global Copy, previously known as PPRC Extended Distance
– IBM TotalStorage Global Mirror, previously known as Asynchronous PPRC
򐂰z/OS Global Mirror, previously known as Extended Remote Copy (XRC)
򐂰z/OS Metro/Global Mirror
We explain these functions in detail in the next section.
You can manage the Copy Services functions through a command-line interface (DS CLI)
and a new Web-based interface (DS Storage Manager). You also can manage the Copy
Services functions through the open application programming interface (DS Open API).
When you manage the Copy Services through these interfaces, these interfaces invoke Copy
Services functions via the Ethernet network. In zSeries environments, you can invoke the
Copy Service functions by TSO commands, ICKDSF, the DFSMSdss™ utility, and so on.
We explain these interfaces in 7.3, “Interfaces for Copy Services” on page 136.
7.2 Copy Services functions
We describe each function and the architecture of the Copy Services in this section. There
are two primary types of Copy Services functions: Point-in-Time Copy and Remote Mirror
and Copy. Generally, the Point-in-Time Copy function is used for data duplication and the
Remote Mirror and Copy function is used for data migration and disaster recovery.
7.2.1 Point-in-Time Copy (FlashCopy)
The Point-in-Time Copy feature, which includes FlashCopy, enables you to create full volume
copies of data in a storage unit. When you set up a FlashCopy operation, a relationship is
established between the source and target volumes, and a bitmap of the source volume is
created. Once this relationship and bitmap are created, the target volume can be accessed as
though all the data had been physically copied. While a relationship between the source and
target volume exists, optionally, a background process copies the tracks from the source to
the target volume.
Chapter 7. Copy Services 117
See Figure 7-1 for an illustration of FlashCopy concepts.
Figure 7-1 FlashCopy concepts
When a FlashCopy operation is invoked, it takes only a few seconds to complete the process
of establishing the FlashCopy pair and creating the necessary control bitmaps. Thereafter,
you have access to a point-in-time copy of the source volume. As soon as the pair has been
established, you can read and write to both the source and target volumes.
After creating the bitmap, a background process begins to copy the real-data from the source
to the target volumes. If you access the source or the target volumes during the background
copy, FlashCopy manages these I/O requests as follows:
򐂰Read from the source volume
When you read some data from the source volume, it is simply read from the source
volume.
򐂰Read from the target volume
When you read some data from the target volume, FlashCopy checks the bitmap and:
– If the backup data is already copied to the target volume, it is read from the target
volume.
– If the backup data is not copied yet, it is read from the source volume.
򐂰Write to the source volume
When you write some data to the source volume, at first the updated data is written to the
data cache and persistent memory (write cache). And when the updated data is destaged
to the source volume, FlashCopy checks the bitmap and:
– If the backup data is already copied, it is simply updated on the source volume.
Note: In this chapter, track means a piece of data in the DS8000; the DS8000 uses the
logical tracks to manage the Copy Services functions.
FlashCopy provides a point-in-time copy
FlashCopy command issued
Time
Copy immediately available
Read and write to both source
and copy possible
Write Read
When copy is complete,
relationship between
source and tar
g
et ends
Source Target
Read
Write
T0
118 DS8000 Series: Concepts and Architecture
– If the backup data is not copied yet, first the backup data is copied to the target volume,
and after that it is updated on the source volume.
򐂰Write to the target volume
When you write some data to the target volume, it is written to the data cache and
persistent memory, and FlashCopy manages the bitmaps to not overwrite the latest data.
FlashCopy does not overwrite the latest data by the physical copy.
The background copy may have a slight impact to your application because the physical copy
needs some storage resources, but the impact is minimal because the host I/O is prior to the
background copy. And if you want, you can issue FlashCopy with the no background copy
option.
No background copy option
If you invoke FlashCopy with the no background copy option, the FlashCopy relationship is
established without initiating a background copy. Therefore, you can minimize the impact of
the background copy. When the DS8000 receives an update to a source track in a FlashCopy
relationship, a copy of the point-in-time data is copied to the target volume so that it is
available when the data from the target volume is accessed. This option is useful for
customers who don’t need to issue FlashCopy in the opposite direction.
Benefits of FlashCopy
The point-in-time copy created by FlashCopy is typically used where you need a copy of the
production data to be produced with little or no application downtime (depending on the
application). It can be used for online backup, testing of new applications, or for creating a
database for data-mining purposes. The copy looks exactly like the original source volume
and is an instantly available, binary copy.
Point-in-Time Copy function authorization
FlashCopy is an optional function. To use it, you must purchase the Point-in-Time Copy 2244
function authorization model, which is 2244 Model PTC.
7.2.2 FlashCopy options
FlashCopy has many options and expanded functions to help provide data duplication. We
explain these options and functions in this section.
Refresh target volume (also known as Incremental FlashCopy)
Refresh target volume provides the ability to refresh a LUN or volume involved in a FlashCopy
relationship. When a subsequent FlashCopy operation is initiated, only the tracks changed on
both the source and target need to be copied from the source to the target. The direction of
the refresh can also be reversed.
In many cases, at most 10 to 20 percent of your entire data is changed in a day. In such a
situation, if you use this function for daily backup, you can save the time for the physical copy
of FlashCopy.
Figure 7-2 on page 119 explains the architecture for Incremental FlashCopy.
Chapter 7. Copy Services 119
Figure 7-2 Incremental FlashCopy
In the Incremental FlashCopy operations:
1. At first, you issue full FlashCopy with the change recording option. This option is for
creating change recording bitmaps in the storage unit. The change recording bitmaps are
used for recording the tracks which are changed on the source and target volumes after
the last FlashCopy.
2. After creating the change recording bitmaps, Copy Services records the information for
the updated tracks to the bitmaps. The FlashCopy relationship persists even if all of the
tracks have been copied from the source to the target.
3. The next time you issue Incremental FlashCopy, Copy Services checks the change
recording bitmaps and copies only the changed tracks to the target volumes. If some
tracks on the target volumes are updated, these tracks are overwritten by the
corresponding tracks from the source volume.
You can also issue incremental FlashCopy from the target volume to the source volumes with
the reverse restore option. The reverse restore operation cannot be done unless the
background copy in the original direction has finished.
Data Set FlashCopy
Data Set FlashCopy allows a FlashCopy of a data set in a zSeries environment.
Source Target Write
Read
Write
Read
Incremental FlashCopy
Initial FlashCopy
relationship established
with change recording and
persistent copy options
Control bitmap for each
volume created
Tracks changed on the
target are overwritten by
the corresponding tracks
from the source
Possible reverse operation,
the target updates the
source
Incremental FlashCopy
started
Tracks changed on the
source are copied to the
target
120 DS8000 Series: Concepts and Architecture
Figure 7-3 Data Set FlashCopy
Multiple Relationship FlashCopy
Multiple Relationship FlashCopy allows a source to have FlashCopy relationships with
multiple targets simultaneously. A source volume or extent can be FlashCopied to up to 12
target volumes or target extents, as illustrated in Figure 7-4.
Figure 7-4 Multiple Relationship FlashCopy
Note: If a FlashCopy source volume has more than one target, that source volume can be
involved only in a single incremental FlashCopy relationship.
Dataset
Dataset
Volume level FlashCopy Dataset level FlashCopy
Source
Volume
Target
Volume
1
1’
2’
12’
Maximum 12 Target volumes
from 1 Source volume
Chapter 7. Copy Services 121
Consistency Group FlashCopy
Consistency Group FlashCopy allows you to freeze (temporarily queue) I/O activity to a LUN
or volume. Consistency Group FlashCopy helps you to create a consistent point-in-time copy
across multiple LUNs or volumes, and even across multiple storage units.
What is Consistency Group FlashCopy?
If a consistent point-in-time copy across many logical volumes is required, and the user does
not wish to quiesce host I/O or database operations, then the user may use Consistency
Group FlashCopy to create a consistent copy across multiple logical volumes in multiple
storage units.
In order to create this consistent copy, the user would issue a set of Establish FlashCopy
commands with a freeze option, which will hold off host I/O to the source volumes. In other
words, Consistency Group FlashCopy provides the capability to temporarily queue (at the
host I/O level, not the application level) subsequent write operations to the source volumes
that are part of the Consistency Group. During the temporary queueing, Establish FlashCopy
is completed. The temporary queueing continues until this condition is reset by the
Consistency Group Created command or the time-out value expires (the default is two
minutes).
Once all of the Establish FlashCopy requests have completed, a set of Consistency Group
Created commands must be issued via the same set of DS network interface servers. The
Consistency Group Created commands are directed to each logical subsystem (LSS)
involved in the consistency group. The Consistency Group Created command allows the
write operations to resume to the source volumes.
This operation is illustrated in Figure 7-5.
Figure 7-5 Consistency Group FlashCopy
Server1
Server2 write requests
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
Consistency Group
Waiting write operation
until Consistency Group Created
command is invoked.
DS8000 #1, #2, #3, …
122 DS8000 Series: Concepts and Architecture
A more detailed discussion of the concept of data consistency and how to manage the
Consistency Group operation is in 7.2.5, “What is a Consistency Group?” on page 132.
Establish FlashCopy on existing Remote Mirror and Copy primary
This option allows you to establish a FlashCopy relationship where the target is also a remote
mirror primary volume. This enables you to create full or incremental point-in-time copies at a
local site and then use remote mirroring commands to copy the data to the remote site. We
explain the functions of Remote Mirror and Copy in the 7.2.3, “Remote Mirror and Copy
(Peer-to-Peer Remote Copy)” on page 123.
Figure 7-6 Establish FlashCopy on existing Remote Mirror and Copy Primary
Important: Consistency Group FlashCopy can create host-based consistent copies, they
are not application-based consistent copies. The copies have power-fail or crash level
consistency. This means that if you suddenly power off your server without stopping your
applications and without destaging the data in the file cache, the data in the file cache may
be lost and you may need recovery procedures to restart your applications. To start your
system with Consistency Group FlashCopy target volumes, you may need the same
operations as the crash recovery.
For example, If the Consistency Group source volumes are used with a journaled file
system (like AIX JFS) and the source LUNs are not unmounted before running FlashCopy,
it is likely that fsck will have to be run on the target volumes.
Note: Consistency Group FlashCopy is not available through the use of the DS Storage
Manager GUI at the current time.
Note: You cannot FlashCopy from a source to a target, where the target is also a Global
Mirror primary volume.
PPRC
Primary Volume
PPRC
Secondary Volume
PPRC relation
FlashCopy to
PPRC Primary
Volume
FlashCopy
Source Volume
FlashCopy
Target Volume
Chapter 7. Copy Services 123
Persistent FlashCopy
Persistent FlashCopy allows the FlashCopy relationship to remain even after the copy
operation completes. You must explicitly delete the relationship.
Inband Commands over Remote Mirror link
In a remote mirror environment, commands to manage FlashCopy at the remote site can be
issued from the local or intermediate site and transmitted over the remote mirror Fibre
Channel links. This eliminates the need for a network connection to the remote site solely for
the management of FlashCopy.
7.2.3 Remote Mirror and Copy (Peer-to-Peer Remote Copy)
The Remote Mirror and Copy feature (formally called Peer-to-Peer Remote Copy, or PPRC) is
a flexible data mirroring technology that allows replication between volumes on two or more
disk storage systems. You can also use this feature for data backup and disaster recovery.
Remote Mirror and Copy is an optional function. To use it, you must purchase the Remote
Mirror and Copy 2244 function authorization model, which is 2244 Model RMC.
DS8000 storage units can participate in Remote Mirror and Copy solutions with the ESS
Model 750, ESS Model 800, and DS6000 storage units. To establish a PPRC relationship
between the DS8000 and the ESS, the ESS needs to have licensed internal code (LIC)
version 2.4.2 or later.
The Remote Mirror and Copy feature can operate in the following modes:
Metro Mirror (Synchronous PPRC)
Metro Mirror provides real-time mirroring of logical volumes between two DS8000s that can
be located up to 300 km from each other. It is a synchronous copy solution where write
operations are completed on both copies (local and remote site) before they are considered
to be complete.
Note: This function is not available through the use of the DS Storage Manager GUI at the
current time.
124 DS8000 Series: Concepts and Architecture
Figure 7-7 Metro Mirror
Global Copy (PPRC-XD)
Global Copy copies data non-synchronously and over longer distances than is possible with
Metro Mirror. When operating in Global Copy mode, the source volume sends a periodic,
incremental copy of updated tracks to the target volume, instead of sending a constant
stream of updates. This causes less impact to application writes for source volumes and less
demand for bandwidth resources, while allowing a more flexible use of the available
bandwidth.
Global Copy does not keep the sequence of write operations. Therefore, the copy is normally
fuzzy, but you can make a consistent copy through synchronization (called a go-to-sync
operation). After the synchronization, you can issue FlashCopy at the secondary site to make
the backup copy with data consistency. After the establish of the FlashCopy, you can change
the PPRC mode back to the non-synchronous mode.
If you want make a consistent copy with FlashCopy, you must purchase a Point-in-Time Copy
function authorization (2244 Model PTC) for the secondary storage unit.
Note: When you change PPRC mode from synchronous to non-synchronous mode, you
change the PPRC mode from synchronous to suspend mode at first, and then you change
PPRC mode from suspend to non-synchronous mode.
2
3
1
4
Server write Write to secondary
Write acknowledge
Write hit
to secondary
Chapter 7. Copy Services 125
Figure 7-8 Global Copy
Global Mirror (Asynchronous PPRC)
Global Mirror provides a long-distance remote copy feature across two sites using
asynchronous technology. This solution is based on the existing Global Copy and FlashCopy.
With Global Mirror, the data that the host writes to the storage unit at the local site is
asynchronously shadowed to the storage unit at the remote site. A consistent copy of the data
is automatically maintained on the storage unit at the remote site.
Global Mirror operations provide the following benefits:
򐂰Support for virtually unlimited distances between the local and remote sites, with the
distance typically limited only by the capabilities of the network and the channel extension
technology. This unlimited distance enables you to choose your remote site location
based on business needs and enables site separation to add protection from localized
disasters.
򐂰A consistent and restartable copy of the data at the remote site, created with minimal
impact to applications at the local site.
򐂰Data currency where, for many environments, the remote site lags behind the local site
typically 3 to 5 seconds, minimizing the amount of data exposure in the event of an
unplanned outage. The actual lag in data currency that you experience can depend upon
a number of factors, including specific workload characteristics and bandwidth between
the local and remote sites.
򐂰Dynamic selection of the desired recovery point objective, based upon business
requirements and optimization of available bandwidth.
򐂰Session support whereby data consistency at the remote site is internally managed across
up to eight storage units that are located across the local and remote sites.
2
1
Server write
Write to secondary
(non-synchronously)
Write acknowledge
126 DS8000 Series: Concepts and Architecture
򐂰Efficient synchronization of the local and remote sites with support for failover and failback
modes, helping to reduce the time that is required to switch back to the local site after a
planned or unplanned outage.
Figure 7-9 Global Mirror
How Global Mirror works
We explain how Global Mirror works in Figure 7-10 on page 127.
2
1
Server write
Write to secondary
(non-synchronously)
Write acknowledge
AB
C
FlashCopy
(automatically)
Automatic cycle in active session
Chapter 7. Copy Services 127
Figure 7-10 How Global Mirror works
The A volumes at the local site are the production volumes and are used as Global Copy
primary volumes. The data from the A volumes is replicated to the B volumes, which are
Global Copy secondary volumes. At a certain point in time, a Consistency Group is created
using all of the A volumes, even if they are located in different ESS boxes. This has no
application impact because the creation of the Consistency Group is very quick (on the order
of milliseconds).
Once the Consistency Group is created, the application writes can continue updating the A
volumes. The increment of the consistent data is sent to the B volumes using the existing
Global Copy relationship. Once the data reaches the B volumes, it is FlashCopied to the C
volumes.
The C volumes now contain the consistent copy of data. Because the B volumes usually
contain a fuzzy copy of the data from the local site (not when doing the FlashCopy), the C
volumes are used to hold the last point-in-time consistent data while the B volumes are being
updated by the Global Copy relationship.
Note: The copy created with Consistency Group is a power-fail consistent copy, not an
application-based consistent copy. When you recover with this copy, you may need
recovery operations, such as the fsck command in an AIX filesystem.
1. Create Consistency Group of volumes at local site
2. Send increment of consistent data to remote site
3. FlashCopy at the remote site
4. Resume Global Copy (copy out-of-sync data only)
5. Repeat all the steps according to the defined time period
Global Mirror - How it works
Global Copy
Local Site Remote Site
PPRC Primary PPRC Secondary
FlashCopy Source
C
B
A
FlashCopy Target
FlashCopy
Automatic Cycle in an active Global Mirror Session
128 DS8000 Series: Concepts and Architecture
The data at the remote site is current within 3 to 5 seconds, but this recovery point (RPO)
depends on the workload and bandwidth available to the remote site.
In contrast to the previously mentioned Global Copy solution, Global Mirror overcomes its
disadvantages and automates all of the steps that have to be done manually when using
Global Copy.
If you use Global Mirror, you must adhere to the following additional rules:
򐂰You must purchase a Point-in-Time Copy function authorization (2244 Model PTC) for the
secondary storage unit.
򐂰If Global Mirror will be used during failback on the secondary storage unit, you must also
purchase a Point-in-Time Copy function authorization for the primary system.
z/OS Global Mirror (XRC)
DS8000 storage complexes support z/OS Global Mirror only on zSeries hosts. The z/OS
Global Mirror function mirrors data on the storage unit to a remote location for disaster
recovery. It protects data consistency across all volumes that you have defined for mirroring.
The volumes can reside on several different storage units. The z/OS Global Mirror function
can mirror the volumes over several thousand kilometers from the source site to the target
recovery site. With z/OS Global Mirror, you can suspend or resume service during an outage.
You do not have to terminate your current data-copy session. You can suspend the session,
then restart it. Only data that changed during the outage needs to be re-synchronized
between the copies. The z/OS Global Mirror function is an optional function. To use it, you
must purchase the remote mirror for z/OS 2244 function authorization model, which is 2244
Model RMZ.
Note: When you implement Global Mirror, you set up the FlashCopy between the B and C
volumes with No Background copy and Start Change Recording options. It means that
before the latest data is updated to the B volumes, the last consistent data in the B volume
is moved to the C volumes. Therefore, at some time, a part of consistent data is in the B
volume, and the other part of consistent data is in the C volume.
If a disaster occurs during the FlashCopy of the data, special procedures are needed to
finalize the FlashCopy.
In the recovery phase, the consistent copy is created in the B volumes. You need some
operations to check and create the consistent copy.
You need to check the status of the B volumes for the recovery operations. Generally, these
check and recovery operations are complicated and difficult with the GUI or CLI in a
disaster situation. Therefore, you may want to use some management tools, (for example,
Global Mirror Utilities), or management software, (for example, Multiple Device Manager
Replication Manager), for Global Mirror to automate this recovery procedure.
Note: PPRC can do failover and failback operations. A failover operation is the process of
temporarily switching production to a backup facility (normally your recovery site) following
a planned outage, such as a scheduled maintenance period or an unplanned outage, such
as a disaster. A failback operation is the process of returning production to its original
location. These operations use Remote Mirror and Copy functions to help reduce the time
that is required to synchronize volumes after the sites are switched during a planned or
unplanned outage.
Chapter 7. Copy Services 129
Figure 7-11 z/OS Global Mirror
z/OS Metro/Global Mirror (3-site z/OS Global Mirror and Metro Mirror)
This mirroring capability uses z/OS Global Mirror to mirror primary site data to a location that
is a long distance away and also uses Metro Mirror to mirror primary site data to a location
within the metropolitan area. This enables a z/OS 3-site high availability and disaster recovery
solution for even greater protection from unplanned outages. The z/OS Metro/Global Mirror
function is an optional function. To use it, you must purchase both of the following functions:
򐂰Remote Mirror for z/OS (2244 Model RMZ)
򐂰Remote Mirror and Copy function (2244 Model RMC) for both the primary and secondary
storage units
2
1
Server write
Write acknowledge Write
ashynchronously
Primary server
System
Data
Mover
Secondary server
System Data Mover is
managing data consistency
130 DS8000 Series: Concepts and Architecture
Figure 7-12 z/OS Metro/Global Mirror
7.2.4 Comparison of the Remote Mirror and Copy functions
In this section we summarize the use of and considerations for Remote Mirror and Copy
functions.
Metro Mirror (Synchronous PPRC)
򐂰Description
Metro Mirror is a function for synchronous data copy at a distance.
򐂰Advantages
There is no data loss and it allows for rapid recovery for distances up to 300 km.
򐂰Considerations
There may be slight performance impact for write operations.
Write
asynchronously
System
Data
Mover
Secondary server
System Data Mover is
managing data consistency
2
3
1
4
Server write Write to secondary
Write acknowledge
Write hit
to secondary
Primary server
Chapter 7. Copy Services 131
Global Copy (PPRC-XD)
򐂰Description
Global Copy is a function for continuous copy without data consistency.
򐂰Advantages
It can copy your data at nearly an unlimited distance, even if you are limited by the
network and channel extender capabilities. It is suitable for data migration and daily
backup to the remote site.
򐂰Considerations
The copy is normally fuzzy but can be made consistent through synchronization.
Global Mirror (Asynchronous PPRC)
򐂰Description:
Global Mirror is an asynchronous copy; you can create a consistent copy in the secondary
site with an adaptable Recovery Point Objective (RPO).
򐂰Advantages:
Global Mirror can copy with nearly an unlimited distance. It is scalable across the storage
units. It can realize a low RPO with enough link bandwidth. Global Mirror causes only a
slight impact to your application system.
Note: If you want to use a PPRC copy from the application server which has the PPRC
primary volume, you need to compare its function with OS mirroring.
You will have some disruption to recover your system with PPRC secondary volumes in an
open system environment because PPRC secondary volumes are not online to the
application servers during the PPRC relationship.
You may also need some operations before assigning PPRC secondary volumes. For
example, in an AIX environment, AIX assigns specific IDs to each volume (PVID). PPRC
secondary volumes have the same PVID as PPRC primary volumes. AIX cannot manage
the volumes with the same PVID as different volumes. Therefore, before using the PPRC
secondary volumes, you need to clear the definition of the PPRC primary volumes or
reassign PVIDs to the PPRC secondary volumes.
Some operating systems (OS) or file systems (for example, AIX LVM) have a function for
disk mirroring. OS mirroring needs some server resources, but usually can keep operating
with the failure of one volume of the pair and recover from the failure non-disruptively. If
you use a PPRC copy from the application server for recovery, you need to consider which
solution (PPRC or OS mirroring) is better for your system.
Note: When you create a consistent copy for Global Copy, you need the go-to-sync
(synchronize the secondary volumes to the primary volumes) operation. During the
go-to-sync operation, PPRC changes from a non-synchronous copy to a synchronous
copy. Therefore, the go-to-sync operation may cause performance impact to your
application system. If the data is heavily updated and the network bandwidth for PPRC is
limited, the time for the go-to-sync operation becomes longer.
Note: Recovery Point Objective (RPO) specifies how much data you can afford to
re-create should the system need to be recovered.
132 DS8000 Series: Concepts and Architecture
򐂰Considerations:
When the link bandwidth capability is exceeded with a heavy workload, the RPO might
grow.
z/OS Global Mirror (XRC)
򐂰Description
z/OS Global Mirror is an asynchronous copy controlled by z/OS host software, called
System Data Mover.
򐂰Advantages
It can copy with nearly unlimited distance. It is highly scalable, and it has very low RPO.
򐂰Considerations
Additional host server hardware and software is required. The RPO might grow if
bandwidth capability is exceeded, or host performance might be impacted.
7.2.5 What is a Consistency Group?
With Copy Services, you can create Consistency Groups for FlashCopy and PPRC.
Consistency Group is a function to keep data consistency in the backup copy. Data
consistency means that the order of dependent writes is kept in the copy.
In this section we define data consistency and dependent writes, and then we explain how
Consistency Group operations keep data consistency.
What is data consistency?
Many applications, such as databases, process a repository of data that has been generated
over a period of time. Many of these applications require that the repository is in a consistent
state in order to begin or continue processing. In general, consistency implies that the order
of dependent writes is preserved in the data copy. For example, the following sequence might
occur for a database operation involving a log volume and a data volume:
1. Write to log volume: Data Record #2 is being updated.
2. Update Data Record #2 on data volume.
3. Write to log volume: Data Record #2 update complete.
If the copy of the data contains any of these combinations then the data is consistent:
򐂰Operation 1, 2, and 3
򐂰Operation 1 and 2
򐂰Operation 1
If the copy of data contains any of those combinations then the data is inconsistent (the order
of dependent writes was not preserved):
򐂰Operation 2 and 3
򐂰Operation 1 and 3
򐂰Operation 2
Note: To manage Global Mirror, you need many complicated operations. Therefore, we
recommend management utilities (for example, Global Mirror Utilities) or management
software (for example, IBM Multiple Device Manager) for Global Mirror.
Chapter 7. Copy Services 133
򐂰Operation 3
In the Consistency Group operation, data consistency means this sequence is always kept in
the backup data.
And, the order of non-dependent writes does not necessarily need to be preserved. For
example, consider the following two sequences:
1. Deposit paycheck in checking account A
2. Withdraw cash from checking account A
3. Deposit paycheck in checking account B
4. Withdraw cash from checking account B
In order for the data to be consistent, the deposit of the paycheck must be applied before the
withdraw of cash for each of the checking accounts. However, it does not matter whether the
deposit to checking account A or checking account B occurred first, as long as the associated
withdrawals are in the correct order. So for example, the data copy would be consistent if the
following sequence occurred at the copy. In other words, the order of updates is not the same
as it was for the source data, but the order of dependent writes is still preserved.
1. Deposit paycheck in checking account B
2. Deposit paycheck in checking account A
3. Withdraw cash from checking account B
4. WIthdraw cash from checking account A
How does Consistency Group keep data consistency?
Consistency Group operations cause the storage units to hold I/O activity to a volume for a
time period by putting the source volume into an extended long busy state. This operation can
be done across multiple LUNs or volumes, and even across multiple storage units.
In the storage subsystem itself, each command is managed with each logical subsystem
(LSS). This means that there are slight time lags until each volume in the different LSS is
changed to the extended long busy state. Some people are concerned that the time lag
causes you to lose data consistency, but, it is not true. We explain how to keep data
consistency in the Consistency Group environments in the following section.
See Figure 7-13 on page 134. In this case, three write operations (1st, 2nd, and 3rd) are
dependent writes. It means that these operations must be completed sequentially.
134 DS8000 Series: Concepts and Architecture
.
Figure 7-13 Consistency Group: Example1
Because of the time lag for Consistency Group operations, some volumes in some LSSs are
in an extended long busy state and other volumes in the other LSSs are not.
In Figure 7-13, the volumes in LSS11 are in an extended long busy state, and the volumes in
LSS12 and 13 are not. The 1st operation is not completed because of this extended long
busy state, and the 2nd and 3rd operations are not completed, because the 1st operation has
not been completed. In this case, 1st, 2nd, and 3rd updates are not included in the backup
copy. Therefore, this case is consistent.
See Figure 7-14 on page 135. In this case, the volumes in LSS12 are in an extended long
busy state and the other volumes in LSS11 and 13 are not. The 1st write operation is
completed because the volumes in LSS11 are not in an extended long busy state. The 2nd
write operation is not completed because of the extended long busy state. The 3rd write
operation is also not completed because the 2nd operation is not completed. In this case, the
1st update is included in the backup copy, and the 2nd and 3rd updates are not included.
Therefore, this case is consistent.
1st
2nd
3rd
dependency
for each write
operation
Servers
Wait
Wait
Wait
LSS11
LSS12
LSS13
These write operations
are not completed
because 1st write
operation is not
completed.
This write operation is
not completed because
of extended long busy
condition.
Chapter 7. Copy Services 135
Figure 7-14 Consistency Group: Example 2
In all cases, if each write operation is dependent, Consistency Group can keep the data
consistent in the backup copy.
If each write operation is not dependent, the I/O sequence is not kept in the copy that is
created by the Consistency Group operation. See Figure 7-15 on page 136. In this case, the
three write operations are independent. If the volumes in LSS12 are in an extended long busy
state and the other volumes in LSS11 and 13 are not, the 1st and 3rd operations are
completed and the 2nd operation is not completed.
1st
2nd
3rd
dependency
for each write
operation
Servers
Completed
Wait
Wait
LSS11
LSS12
LSS13
This write operation is
not completed
because 2nd write
operation is not
completed.
This write operation is
completed because
LSS11 is not in an
extended long busy
condition.
This write operation is
not completed
because LSS12 is in
an extended long
busy condition.
136 DS8000 Series: Concepts and Architecture
Figure 7-15 Consistency Group: Example.3
In this case, the copy created by the Consistency Group operation reflects only the 1st and
3rd write operation, not including the 2nd operation.
If you accept this result, you can use the Consistency Group operation with your applications.
But, if you cannot accept it, you should consider other procedures without Consistency Group
operation. For example, you could stop your applications for a slight interval for the backup
operations.
7.3 Interfaces for Copy Services
There are multiple interfaces for invoking Copy Services. We describe them in this section.
7.3.1 Storage Hardware Management Console (S-HMC)
Copy Services functions can be initiated over the following interfaces:
򐂰zSeries Host I/O Interface
򐂰DS Storage Manager web-based Interface
򐂰DS Command-Line Interface (DS CLI)
򐂰DS open application programming interface (DS Open API)
DS Storage Manager, DS CLI, and DS Open API commands are issued via the Ethernet
network, and these commands are invoked by the Storage Hardware Management Console
(S-HMC). When the S-HMC has the command requests, including those for Copy Services,
1st
2nd
3rd
independent
for each write
operation
Servers
Completed
Wait
LSS11
LSS12
LSS13
This write operation is
completed because
LSS11 is not in an
extended long busy
condition.
This write operation is
not completed
because LSS12 is in
an extended long
busy condition.
Completed
This write operation is
completed because LSS13
is not in an extended long
busy condition.
(I/O sequence is not kept.)
Chapter 7. Copy Services 137
from these interfaces, S-HMC communicates with each server in the storage units via the
Ethernet network. Therefore, the S-HMC is a key component to configure and manage the
DS8000.
The network components for Copy Services are illustrated in Figure 7-16.
Figure 7-16 DS8000 Copy Services network components
Each DS8000 will have an internal S-HMC in the base frame, and you can have an external
S-HMC for redundancy.
For further information about the S-HMC, see Chapter 9, “Configuration planning” on
page 157.
7.3.2 DS Storage Manager Web-based interface
DS Storage Manager is a Web-based management interface. It is used for managing the
logical configurations and invoking the Copy Services functions. The DS Storage Manager
has an online mode and an offline mode; only the online mode is supported for Copy
Services.
DS Storage Manager is already installed in the S-HMC. You can also install it in other
computers that you prepare. When you manage the Copy Services functions with DS Storage
Manager in your computers, DS Storage Manager issues its command to the S-HMC via the
Ethernet network.
The DS Storage Manager can be used for almost all functions for Copy Services. The
following functions cannot be issued from the DS Storage Manager in the current
implementation:
򐂰Consistency Group operation (FlashCopy and PPRC)
򐂰Inband commands over Remote Mirror link
Copy Services Network Components
Customer
Network DS8000
Processor
Complex 0
DS Storage
Manager
DS CLI
DS API
S-HMC 1
(internal)
(S-HMC 2)
(external)
Ethernet
Switch 2
Ethernet
Switch 1
Processor
Complex 1
138 DS8000 Series: Concepts and Architecture
7.3.3 DS Command-Line Interface (DS CLI)
The IBM TotalStorage DS Command-Line Interface (CLI) helps enable open systems hosts to
invoke and manage the Point-in-Time Copy and Remote Mirror and Copy functions through
batch processes and scripts. The CLI provides a full-function command set that allows you to
check your storage unit configuration and perform specific application functions when
necessary. The following list highlights a few of the specific types of functions that you can
perform with the DS CLI:
򐂰Check and verify your storage unit configuration.
򐂰Check the current Copy Services configuration that is used by the storage unit.
򐂰Create new logical storage and Copy Services configuration settings.
򐂰Modify or delete logical storage and Copy Services configuration settings.
7.3.4 DS Open application programming Interface (API)
The DS Open application programming interface (API) is a non-proprietary storage
management client application that supports routine LUN management activities, such as
LUN creation, mapping and masking, and the creation or deletion of RAID-5 and RAID-10
volume spaces. The DS Open API also enables Copy Services functions such as FlashCopy
and Remote Mirror and Copy. It supports these activities through the use of the Storage
Management Initiative Specification (SMIS), as defined by the Storage Networking Industry
Association (SNIA)
The DS Open API helps integrate DS configuration management support into storage
resource management (SRM) applications, which allow customers to benefit from existing
SRM applications and infrastructures. The DS Open API also enables the automation of
configuration management through customer-written applications. Either way, the DS Open
API presents another option for managing storage units by complementing the use of the IBM
TotalStorage DS Storage Manager web-based interface and the DS Command-Line
Interface.
You must implement the DS Open API through the IBM TotalStorage Common Information
Model (CIM) agent, a middleware application that provides a CIM-compliant interface. The
DS Open API uses the CIM technology to manage proprietary devices such as open system
devices through storage management applications. The DS Open API allows these storage
management applications to communicate with a storage unit.
Tip: What is changed from the ESS CLI?
ESS CLI is a prior version of the command-line interface. It is used for managing the ESS.
There are differences between the ESS CLI and DS CLI.
The ESS CLI needs two steps to issue Copy Service functions:
1. Register a Copy Services task from the Web user interface.
2. Issue the registered task from CLI.
The DS CLI has no need to register a Copy Services task before you issue the CLI. You
can easily implement and dynamically change your Copy Services operation without the
GUI.
For further information about the DS CLI, see Chapter 11, “DS CLI” on page 231.
Chapter 7. Copy Services 139
IBM will support IBM TotalStorage Multiple Device Manager (MDM) for the DS8000 under the
IBM TotalStorage Productivity Center in the future. MDM consists of software components
which enable storage administrators to monitor, configure, and manage storage devices and
subsystems within a SAN environment. MDM also has a function to manage the Copy
Services functions, called the MDM Replication Manager.
For further information about MDM, see 15.5, “IBM TotalStorage Productivity Center” on
page 326.
7.4 Interoperability with ESS
Copy Services for DS8000 also supports the IBM Enterprise Storage Server Model 800 (ESS
800) and Model 750. To manage the ESS 800 from the Copy Services for DS8000, you need
to install licensed internal code version 2.4.2 or later on the ESS 800.
The DS CLI supports the DS8000, DS6000, and ESS 800 at the same time. DS Storage
Manager does not support ESS 800.
7.5 Future Plans
According to the announcement letter, IBM has issued the following Statement of General
Direction:
IBM intends to offer a long-distance business continuance solution across three sites allowing
for recovery from the secondary or tertiary site with full data consistency.
Note: DS8000 does not support PPRC with an ESCON link. If you want to configure a
PPRC relationship between a DS8000 and ESS 800, you have to use a FCP link.
140 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 141
Part 3 Planning and
configuration
In this part we present an overview of the planning and configuration necessary before
installing your DS8000. The topics include:
򐂰Installation planning
򐂰Configuration planning
򐂰Logical configuration
򐂰CLI - Command-Line Interface
򐂰Performance
Part 3
142 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 143
Chapter 8. Installation planning
This chapter discusses various physical considerations and preparation involved in planning
the physical installation of a new DS8000 in your environment. The following topics are
covered:
򐂰Installation site preparation
򐂰Host attachments
򐂰Network and SAN requirements
8
144 DS8000 Series: Concepts and Architecture
8.1 General considerations
Successful installation of a DS8000 requires careful planning. The main considerations when
planning for the physical installation of a new DS8000 include the following:
򐂰Delivery
򐂰Floor loading
򐂰Space occupation
򐂰Electrical power
򐂰Operating environment
򐂰FAN and cooling
򐂰Host attachment
򐂰Network and SAN requirements
Always refer to the most recent information for physical planning in the IBM TotalStorage
DS8000 Introduction and Planning Guide, GC35-0495. You can download this at:
http://www.ibm.com/servers/storage/disk/ds8000
8.2 Delivery requirements
Before you receive your DS8000 shipment, ensure that you meet all delivery requirements.
You need to consider the size and weight of the DS8000 rack in its shipping container, as well
as how it will be moved from the loading dock to the final installation location.
Use the following steps to ensure that your receiving area and loading ramp can safely
accommodate the delivery of your storage unit:
1. Using Table 8-1, review the packaged weight and dimensions of the DS8000 container
and other containers that you will receive.
To calculate the weight of your total shipment, add the weight of each model container that
you will receive and the weight of one ship group container for each model. If you ordered
any external Storage Hardware Management Console (S-HMC), add the weight of those
containers, as well.
Table 8-1 shows the final packaged dimensions and maximum packaged weight of the
storage unit shipments.
Table 8-1 Packaged dimensions and weight for DS8000 models
Shipping container Packaged Dimensions
(in centimeters and inches)
Maximum Packaged Weight
(in kilograms and pounds)
Model 921 pallet or crate Height 207.5 cm (81.7 in.)
Width 101.5 cm (40 in.)
Depth 137.5 cm (54.2 in.)
1309 kg (2886 lb)
Model 922 pallet or crate Height 207.5 cm (81.7 in.)
Width 101.5 cm (40 in.)
Depth 137.5 cm (54.2 in.)
1368 kg (3016 lb)
Model 9A2 pallet or crate Height 207.5 cm (81.7 in.)
Width 101.5 cm (40 in.)
Depth 137.5 cm (54.2 in.)
1368 kg (3016 lb)
Model 92E (expansion unit)
pallet or crate
Height 207.5 cm (81.7 in.)
Width 101.5 cm (40 in.)
Depth 137.5 cm (54.2 in.)
1209 kg (2665 lb)
Chapter 8. Installation planning 145
2. Ensure that your loading dock, receiving area, and elevators can safely support the
packaged weight and dimensions of the shipping containers.
3. To compensate for the weight of the DS8000 shipment, ensure that the loading ramp at
your site does not exceed an angle of 10°.
8.3 Installation site preparation
Before you begin to install a new DS8000, you must ensure that the location where you plan
to install your DS8000 storage units meets all requirements.
The topics in this section discuss how to prepare the installation site to meet all of these
requirements.
8.3.1 Floor and space requirements
When you are planning the location of your storage units, you need to use the following steps
to ensure that your planned installation location meets the space and floor load requirements:
1. Identify the base models and expansion models that are included in your storage units. If
your storage units use an external Storage Hardware Management Console (S-HMC),
include the racks containing the external S-HMCs.
2. Decide whether the storage units will be installed on a raised or nonraised floor.
a. If the location has a raised floor, plan where the floor tiles must be cut to accommodate
the cables.
b. If the location has a nonraised floor, resolve any safety problems caused by the
location of cable exits and routing.
3. Determine whether the floor of the location meets the floor load requirements for the
storage units. This floor load rating is the concrete sub-floor rating, not the raised floor
rating.
4. Calculate the amount of space that the storage units will use.
a. Identify the total amount of space that is needed for the storage units using the
dimensions of the models and the weight distribution areas calculated in step 3.
Service clearances between the DS8000 and an adjacent piece of equipment can
overlap, but weight distribution areas cannot overlap.
b. Ensure that the area around each stand-alone model and each storage unit meets the
service clearance requirements.
Model 9AE (expansion unit)
pallet or crate
Height 207.5 cm (81.7 in.)
Width 101.5 cm (40 in.)
Depth 137.5 cm (54.2 in.)
1209 kg (2665 lb)
(If ordered) External S-HMC
container
Height 69.0 cm (27.2 in.)
Width 80.0 cm (31.5 in.)
Depth 120.0 cm (47.3 in.)
75 kg (165 lb)
Attention: A fully configured model in the packaging can weigh over 1406 kg
(3100 lbs). Use of fewer than three persons to move it can result in injury.
Shipping container Packaged Dimensions
(in centimeters and inches)
Maximum Packaged Weight
(in kilograms and pounds)
146 DS8000 Series: Concepts and Architecture
Installing on raised or nonraised floors
You can install your DS8000 storage units on a raised or nonraised floor.
However, installing the models on a raised floor provides the following benefits:
򐂰Improves operational efficiency and allows greater flexibility in the arrangement of
equipment.
򐂰Increases air circulation for better cooling.
򐂰Protects the interconnecting cables and power receptacles.
򐂰Prevents tripping hazards because cables can be routed underneath the raised floor.
򐂰Aesthetically more appealing.
Meeting floor load requirements
Use the following steps to ensure that your location meets the floor load requirements and to
determine the weight distribution area required for the floor load:
1. Find the concrete sub-floor load rating in the location where you plan to install the storage
units. Refer to Chapter 4, “Meeting DS8000 delivery and installation requirements” in the
IBM TotalStorage DS8000 Introduction and Planning Guide, GC35-0495.
2. Determine whether the floor load rating of the location meets the following requirements:
– The design target used by IBM is 342 kg per m2 (70 lb per ft2).
– When you install a storage unit, which includes both base models and expansion
models, the minimum floor load rating is 361 kg per m2 (74 lb per ft2). At 342 kg per m2
(70 lb per ft2), the side dimension for the weight distribution area exceeds the 76.2 cm
(30 in.) allowed maximum, as defined in IBM Corporate Standards.
– The per caster transferred weight to a raised floor panel is 450 kg (1000 lb).
Calculating space requirements
When you are planning the installation location, you must first calculate the total amount of
space that is needed for the storage units.
Use the following steps to calculate enough space for your storage units:
1. Determine the dimensions of each model configuration in your storage units. Table 8-2 on
page 147 provides the dimensions of the DS8000 models.
Important: Any expansion units within the storage unit must be attached to the base
model on the right side (as you face the front of the units).
Important: If you do not know or are not certain about the floor load rating of the
installation site, be sure to check with the building engineer or another appropriate
person. A structural engineer may be needed to assist in this evaluation.
Chapter 8. Installation planning 147
Table 8-2 The DS8000 dimensions
2. Calculate the total area that is needed for the model configuration by adding the weight
distribution area to the dimensions.
3. Determine the total space that is needed for the storage units by planning where you will
place each model configuration in the storage units and how much area each
configuration will need based on step 2.
4. Verify that the planned space and layout also meets the service clearance requirements
for each unit and system.
8.3.2 Power requirements
When you consider the DS8000 storage complex location, consider the following issues:
򐂰Power control selections
򐂰Power outlet requirements
򐂰Input voltage requirements
򐂰Power connector requirements
򐂰Power consumption and environment
Power control
The DS8000 provides power controls on the model racks and through the Management
Console.
The DS8000 models have the following manual power controls in the form of physical
switches on the racks:
򐂰Remote force power off (Remote FPO) switch (available on base models)
Planning requirements: To use this feature, you must supply a remote force power off
circuit. See the DS8000 Introduction and Planning Guide, GC35-0495, for more detailed
information.
򐂰Local/remote switch (available on base models)
򐂰Local power on/local force power off switch (available on base models)
򐂰Unit emergency power off (UEPO) switch (available on all models)
Configuration/ Attribute 2107-921/922/9A2
(Base frame only)
2107-921/922/9A2
2107-92E/9AE
(Expansion frame)
2107-922/9A2
2107-92E/9AE
(2 Expansion frames)
Dimensions with covers
Height x Width x Depth
(Std/Metric)
76 x 33.3 x 46.7 inch
193 x 84.7 x 118.3 cm
76 x 69.7 x 46.7 inch
193 x 172.7 x 118.3 cm
76 x 102.6 x 46.7 inch
193 x 260.9 x 118.3 cm
Footprint®
(Std/Metric)
10.77ft2
1.002 m222.0 ft2
2.05 m233.23 ft2
3.095 m2
Note: The DS8000 requires service clearances of 121.9 cm (48 inches) at the front and
76.2 cm (30 inches) at the rear. Racks can be placed side by side if floor loading
restrictions allow this.
148 DS8000 Series: Concepts and Architecture
You can use the following power controls through the DS Storage Manager (running on the
Management Console):
򐂰Local power control mode (visible in the DS Storage Manager)
򐂰Remote power control mode (visible in the DS Storage Manager)
If you select the Remote power control mode, you choose one of the following remote
mode options:
–Remote Management Console, Manual: Your use of the DS Storage Manager power
on/off page controls when the unit powers on and off.
–Remote Management Console, Scheduled: A schedule, which you set up, controls
when the unit powers on and off.
–Remote Management Console, Auto: This setting applies only in situations in which
input power is lost. In those situations, the unit powers on as soon as external power
becomes available again.
–Remote Auto/Scheduled: A schedule, which you set up, controls when the unit
powers on and off. A power on sequence is also initiated if the unit was powered off
due to an external power loss during the time that the units are scheduled to be on and
external power becomes available again.
–Remote zSeries Power Control: One or more attached zSeries units control the
power on and power off sequences.
Planning requirements: If you choose the Remote zSeries Power Control options, you
must have the remote zSeries power control feature. DS8000 feature code 1000 is
needed in order to provide the necessary power sequence cables to connect to the
zSeries processor.
Power outlet requirements
You must supply the following power outlets for the installation of your storage units:
򐂰Two independent power outlets for the two DS8000 power line cords are needed by each
base model and expansion model.
򐂰Two outlets that are within 3.1 m (10 ft) of the external Storage Hardware Management
Console (S-HMC). These outlets may be provided from Power Distribution Units in the
rack or from an external power source.
Input voltage requirements
All power inputs are balanced three phase.
Due to different power requirements across the world, you must specify the nominal AC
voltage (phase to phase) that is supported by the power supply that is installed on the model.
Note: Use this switch only in extreme emergencies. Using this switch may result in data
loss.
Note: To eliminate a single point of failure, the outlets must be independent. This
means that each outlet must use a separate power source and each power source
must have its own wall circuit breaker.
Chapter 8. Installation planning 149
Use the following feature codes when you specify the input voltage for your base or
expansion model:
򐂰9090 AC input voltage: 200 V to 240 V
򐂰9091 AC input voltage: 380 V to 480 V
Power connector requirements
The cable connectors supplied with various line cords, and the required receptacles are
covered in Chapter 4, “Meeting DS8000 delivery and installation requirements” in the IBM
TotalStorage DS8000 Introduction and Planning Guide, GC35-0495.
Power consumption and environmental information
When you are planning the power requirements for the DS8000, consider the power
consumption and other environmental points of the storage unit. Table 8-3 provides the power
consumption for various DS8000 models.
Table 8-3 Power consumption for the DS8000 Models
For more information, refer to the Chapter 4,”Meeting DS8000 delivery and installation
requirements” in the IBM TotalStorage DS8000 Introduction and Planning Guide,
GC35-0495.
8.3.3 Environmental requirements
To properly maintain your DS8000 storage unit, you must install your storage unit in a
location that meets the operating environment requirements.
Take the following steps to ensure that you meet these requirements:
1. Note where the air intake locations are on the models that compose your storage unit.
2. Verify that you can meet the environmental operating requirements at the air intake
locations.
3. Consider optimizing the air circulation and cooling for the storage unit by using a raised
floor, adjusting the floor layout, and adding perforated tiles around the air intake areas.
Fans and air intake areas
The DS8000 models provide air circulation through various fans throughout the frame. You
must maintain the correct operating environment requirements for your models at each air
intake location.
Operating environment requirements
The DS8000 should be maintained within an operating temperature range of 20 to 25
degrees Celsius (68 to 77 degrees Fahrenheit). The recommended operating temperature
with the power on is 22 degrees Celsius (72 degrees Fahrenheit). We strongly recommend
that you avoid running the DS8000, or any disk storage equipment, at temperatures outside
this temperature range.
The humidity range should be maintained between 40% and 50%. The recommended
operating point with the power on is 45%.
Measurement Units Model 921 Model 922 Model 9A2 Expansion
Model 92E
Expansion
Model 9AE
Peak electric power kilovolt amperes
(kVA)
5.5 7.0 7.0 6.0 6.0
150 DS8000 Series: Concepts and Architecture
Cooling the storage complex
Adequate airflow needs to be maintained to ensure effective cooling. You can take steps to
optimize the air circulation and cooling for your storage units.
To optimize the cooling around your storage units, prepare the location of your storage units
as recommended in the following steps:
1. Install the storage unit on a raised floor. Although you can install the storage unit on a
non-raised floor, installing the storage unit on a raised floor provides increased air
circulation for better cooling.
2. Install perforated tiles in the front and back of each base model and expansion model as
follows:
a. For a stand-alone base model, install two fully perforated tiles in front of each base
model and one partially perforated tile at the back of each base model.
b. For a row of machines, install a row of perforated tiles in front of the machines and one
or two fully perforated tiles at the back of each two machines.
c. For groupings of machines, where a hot aisle/cold aisle layout is used, use a cold aisle
row of perforated tiles in front of all machines. For hot aisles, install a perforated tile per
pair of machines.
8.4 Host attachment
The DS8000 storage unit provides a variety of host attachments so that you can consolidate
storage capacity and workloads for open systems hosts, S/390 hosts, and eServer zSeries
hosts.
The DS8100 Model 921 supports a maximum of 16 host adapters and 4 device adapter pairs
and the DS8300 Models 922 and 9A2 support a maximum of 32 host adapters and 8 device
adapter pairs.
You can configure the storage unit for any of the following system adapter types and
protocols:
򐂰Fibre channel adapters, for support of Fibre Channel protocol (FCP) and fibre connection
(FICON) protocol
򐂰Enterprise Systems Connection Architecture® (ESCON) adapters
8.4.1 Attaching to open systems hosts
You can attach a DS8000 storage unit to an open systems host with Fibre Channel adapters.
Fibre Channel is a 1 Gbps or 2 Gbps, full-duplex, serial communications technology to
interconnect I/O devices and host systems that are separated by tens of kilometers.
The IBM TotalStorage DS8000 series supports 1 Gbps and 2 Gbps connections. The
DS8000 series negotiates automatically and determines whether it is best to run at 1 Gbps
link or 2 Gbps link.
Fibre channel connections are established between Fibre Channel ports that reside in I/O
devices, host systems, and the network that interconnects them. Each storage unit Fibre
Note: There is no SCSI attachment support for the DS8000 storage unit.
Chapter 8. Installation planning 151
Channel adapter has four ports. Each port has a unique worldwide port name (WWPN). You
can configure the port to operate with the SCSI-FCP upper-layer protocol. Shortwave
adapters and longwave adapters are available on the storage unit. Fibre channel adapters for
SCSI-FCP support provide the following configurations:
򐂰A maximum of 64 host ports for DS8100 Model 921 and a maximum of 128 host ports for
DS8300 Models 922 and 9A2
򐂰A maximum of 8K host logins per Fibre Channel port
򐂰A maximum of 2000 N-port logins per storage image
򐂰Access to all 65,280 LUNs per target (one target per host adapter), depending on host
type
򐂰Either arbitrated loop, switched fabric, or point-to-point topologies
For more support information about the open system platforms, refer to 15.1.1, “Supported
operating systems and servers” on page 320.
8.4.2 ESCON-attached S/390 and zSeries hosts
You can attach the DS8000 storage unit to the ESCON-attached S/390 and zSeries hosts.
With ESCON adapters, the storage unit provides the following configurations:
򐂰A maximum of 32 host ports for DS8100 Model 921 and a maximum of 64 host ports for
DS8300 Models 922 and 9A2.
򐂰A maximum of 64 logical paths per port.
򐂰Access to 16 control-unit images (4096 CKD devices) over a single ESCON port on the
storage unit.
򐂰Zero to 64 ESCON channels; two per ESCON host adapter.
򐂰Two ESCON links with each link supporting up to 64 logical paths.
򐂰DS8100 storage unit supports up to 16 host adapters that provide a maximum of 32
ESCON links per machine. A DS8300 storage unit supports up to 32 host adapters that
provide a maximum of 64 ESCON links per machine.
The FICON bridge card in ESCON director 9032 Model 5 enables a FICON bridge channel to
connect to ESCON host adapters in the storage unit. The FICON bridge architecture supports
up to 16384 devices per channel. The storage unit supports the following operating systems
for S/390 and zSeries hosts:
򐂰Transaction Processing Facility (TPF)
򐂰Virtual Storage Extended/Enterprise Storage Architecture (VSE/ESA™)
򐂰z/OS
򐂰z/VM
򐂰Linux
8.4.3 FICON-attached S/390 and zSeries hosts
You can attach the DS8000 storage unit to FICON-attached S/390 and zSeries hosts.
Each storage unit Fibre Channel adapter has four ports. Each port has a unique world wide
port name (WWPN). You can configure the port to operate with the FICON upper-layer
protocol. When configured for FICON, the Fibre Channel port supports connections to a
maximum of 128 FICON hosts. On FICON, the Fibre Channel adapter can operate with fabric
152 DS8000 Series: Concepts and Architecture
or point-to-point topologies. With Fibre Channel adapters that are configured for FICON, the
storage unit provides the following configurations:
򐂰Either fabric or point-to-point topologies
򐂰A maximum of 64 host ports for DS8100 Model 921 and a maximum of 128 host ports for
DS8300 Models 922 and 9A2
򐂰A maximum of 2048 logical paths on each Fibre Channel port
򐂰Access to all 64 control-unit images (16,384 CKD devices) over each FICON port
8.4.4 Where to get the updated information for host attachment
Due to frequent updates and changes of support information, always refer to the latest IBM
DS8000 Interoperability Matrix at the following Web site for the details about types,
models, adapters, and the operating systems that the storage unit supports:
http://www.ibm.com/servers/storage/disk/ds8000/interop.htm
Host systems attachment
Refer to the IBM TotalStorage DS8000 Host Systems Attachment Guide, SC26-7628, for
detailed information on attaching servers to the DS8000 series.
Host adapters
For information about supported Fibre Channel HBAs and the recommended or required
firmware and device driver levels for all IBM storage systems, you can visit the IBM HBA
Search Tool site, sometimes also referred to as the Fibre Channel host bus adapter firmware
and driver level matrix:
http://knowledge.storage.ibm.com/HBA/HBASearchTool
Additionally, review host adapter vendor documentation and Web pages to obtain information
regarding host adapter configuration planning, hardware and software requirements, driver
levels, and release notes.
AT TO :
http://www.attotech.com/
Emulex:
http://www.emulex.com/ts/dds.html
JNI:
http://www.jni.com/OEM/oem.cfm?ID=4
QLogic:
http://www.qlogic.com/support/oem_detail_all.asp?oemid=22
SAN Fabric products
Fabric product vendor documentation and Web pages should be reviewed to obtain
information regarding configuration planning, hardware and software requirements, firmware
and driver levels, and release notes.
IBM:
http://www.ibm.com/storage/ibmsan/products/sanfabric.html
Chapter 8. Installation planning 153
CNT (INRANGE):
http://www.cnt.com/ibm/
McDATA:
http://www.mcdata.com/ibm/
Cisco:
http://www.cisco.com/go/ibm/storage
Channel extension technology products
Channel extension technology product vendor documentation and Web pages should be
reviewed to obtain information regarding configuration planning, hardware and software
requirements, firmware and driver levels, and release notes.
Cisco:
http://www.cisco.com/go/ibm/storage
CIENA:
http://www.ciena.com/products/transport/shorthaul/cn2000/index.asp
CNT:
http://www.cnt.com/ibm/
Nortel:
http://www.nortelnetworks.com/
ADVA:
http://www.advaoptical.com/
8.5 Network and SAN requirements
Your DS8000 storage units must be placed in a location that meets the network and
communications requirements.
You should keep in mind the following network and communications issues when you plan the
location and interoperability of your storage units:
򐂰Storage Hardware Management Console network requirements
򐂰Remote support connection requirements
򐂰Remote power control requirements
򐂰SAN considerations
8.5.1 S-HMC network requirements
Generally, each S-HMC requires a dedicated connection to the network. See 9.2, “Storage
Hardware Management Console (S-HMC)” on page 158.
154 DS8000 Series: Concepts and Architecture
8.5.2 Remote support connection requirements
You must meet the requirements for the modem and for an outside connection if you will use
remote support.
The DS8000 S-HMC contains a modem to take advantage of remote support, which can
include outbound support (call home) or inbound support (remote service performed by an
IBM next level support representative). For each S-HMC, you must provide the following
equipment close enough to the S-HMC to support the modem connection:
򐂰One analog telephone line for initial setup
򐂰A telephone cable to connect the modem to a telephone jack
To enable remote support you must allow an external connection, such as one of the
following:
򐂰A telephone line
򐂰An internet connection through your firewall that allows IBM to use a VPN connection to
your S-HMC.
8.5.3 Remote power control requirements
Remote power control allows you to control the power of your storage complex through the
DS Storage Manager (running on the S-HMC).
There are several settings for remote power control. Only the remote zSeries power control
setting requires planning on your part.
The remote zSeries power control setting allows you to power on and off a room from one
zSeries interface. If you use the remote zSeries power control setting, you must meet the
following requirements:
򐂰You must order the remote zSeries power control feature.
򐂰You can allow up to four zSeries remote power-control interfaces.
8.5.4 SAN requirements
A Fibre Channel storage area network (SAN) is a specialized, high-speed network that
attaches servers and storage devices. With a SAN, you can perform an any-to-any
connection across the network using interconnecting elements such as routers, gateways,
hubs, and switches.
For a DS8000 configuration, you can use SANs to attach storage units and to attach hosts to
the storage unit.
When you connect your DS8000 storage units to a SAN, you must meet the following
requirements:
򐂰When a SAN is used to attach both disks and hosts to the storage unit, any storage device
that is managed by the storage unit must be visible to the host systems.
򐂰When concurrent device adapters and host adapter operations are supported through the
same I/O port, the SAN attached to the port must provide both host and device access.
򐂰Fibre channel host adapters must be configured to operate in a point-to-point mode fabric
topology. See the IBM TotalStorage DS8000 Host Systems Attachment Guide,
SC26-7628, for more information.
Chapter 8. Installation planning 155
You should also keep the following considerations in mind:
򐂰Fibre channel SANs can provide the capability to interconnect open systems and storage
in the same network as S/390 and zSeries host systems and storage.
򐂰A single Fibre Channel host adapter can have physical access to multiple Fibre Channel
ports on the storage unit.
For some Fibre Channel attachments, you can establish zones to limit the access of host
adapters to storage system adapters. By establishing zones, you reduce the possibility of
interactions between system adapters in switched configurations.
You can configure switch ports that are attached to the storage unit in more than one zone.
This enables multiple system adapters to share access to the storage unit Fibre Channel
ports. Shared access to a storage unit Fibre Channel port might come from host platforms
that support a combination of bus adapter types and operating systems.
156 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 157
Chapter 9. Configuration planning
This chapter discusses planning considerations related to implementing the DS8000 series in
your environment. The topics covered are:
򐂰Configuration planning overview
򐂰Storage Hardware Management Console (S-HMC)
򐂰DS8000 licensed functions
򐂰Capacity planning
򐂰Data migration planning
򐂰Planning for performance
For a complete discussion of these topics, see the IBM TotalStorage DS8000 Introduction
and Planning Guide, GC35-0495.
9
158 DS8000 Series: Concepts and Architecture
9.1 Configuration planning overview
When installing a DS8000 disk system, various physical requirements need to be addressed
to successfully integrate the DS8000 into your existing environment. These requirements
include:
򐂰The DS Management Console (S-HMC), which is the focal point for configuration, Copy
Services management, and maintenance for a DS8000 storage unit.
򐂰Storage features, which include disk enclosures, disk drives sets, standby capacity on
demand, disk enclosure fillers, and disk drives cables.
򐂰I/O adapter features, which are separated into I/O enclosures, device adapters and
cables, and host adapters and cables.
򐂰Processor memory, referring to the amount of memory you want for the processors on
your model, which can vary from 16 GB to 256 GB.
򐂰Other configuration features such as power, power line cords, input voltage requirements,
battery assemblies, extended power line disturbance, remote zSeries power control, and
shipping weight reduction.
򐂰Licensed functions include both required and optional features such as the operating
environment, Point-in-Time Copy, Remote Mirror and Copy, Remote Mirror for z/OS and
Parallel Access Volumes. See 9.3, “DS8000 licensed functions” on page 167 for an
in-depth discussion of the licensed functions.
򐂰Delivery requirements to receive delivery of the DS8000 at your location.
򐂰Installation site requirements for adequate floor space, power, environmentals, external
S-HMC installation, network, and communication.
For a complete discussion of these issues, see IBM TotalStorage DS8000 Introduction and
Planning Guide, GC35-0495.
9.2 Storage Hardware Management Console (S-HMC)
The S-HMC feature looks similar to a laptop. It consists of a workstation processor, keyboard,
monitor, modem, and Ethernet cables. The S-HMC is a closed system appliance. Each
DS8000 will have an internal S-HMC (feature code 1100) in the base frame, together with a
pair of Ethernet switches installed and cabled to the processor complex or external S-HMC,
or both. It is a focal point with multiple functions such as:
򐂰Storage configuration
򐂰LPAR management
򐂰Advanced Copy Services invocations
򐂰Interface for local service personnel
򐂰Remote service and support
The S-HMC is connected to the storage facility by way of redundant private Ethernet
networks. Figure 9-1 on page 159 shows the back of a single S-HMC and a pair of Ethernet
switches. The S-HMC has 2 built-in Ethernet ports, one dual-port Ethernet PCI adapter and
one PCI modem for asynchronous call home support. The S-HMC’s private Ethernet ports
shown are configured into port 1 of each Ethernet switch to form the private DS8000 network.
The customer Ethernet port indicated is the primary port to be used to connect to the
customer network. The empty Ethernet port is normally not used. Corresponding private
Ethernet ports of the external S-HMC (FC1110) would be plugged into port 2 of the switches
Chapter 9. Configuration planning 159
as shown. To interconnect two DS8000 base frames, FC1190 would provide a pair of 31m
Ethernet cables to connect from port 16 of each switch in the second base frame into port 15
of the first frame. If the second S-HMC is installed in the second DS8000, it would remain
plugged into port 1 of its Ethernet switches.

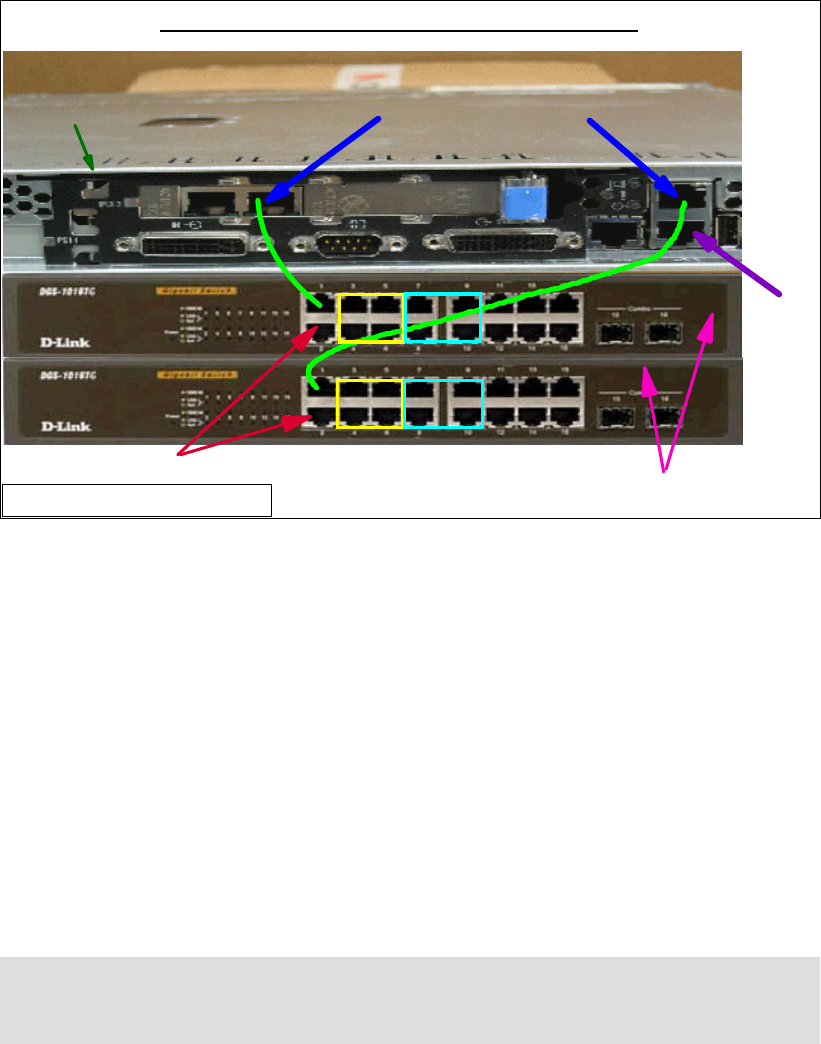

Figure 9-1 S-HMC and Ethernet switches
9.2.1 External S-HMC
Additionally, the DS8000 can have an external S-HMC (feature code 1110), which may be
ordered today in preparation for its availability later in 2005 when this will be a supported
configuration. The external S-HMC is equivalent hardware to the internal S-HMC and needs
to be installed in a customer-supplied 19-inch IBM or a non-IBM rack (1U server/1U display).
Configuration management is achieved either in real-time or offline configuration mode.
In environments with high availability requirements and Advanced Copy Services, it is
recommended that an external S-HMC is installed to eliminate single points of failure. Since
the S-HMC is the only service personnel interface available, an external S-HMC will greatly
enhance maintenance operational capabilities as a result of internal S-HMC failures. The
external S-HMC is an optional priced feature. To help preserve console functionality, the
external and the internal S-HMCs are not available to be used as a general purpose
computing resource.
SFI-1
Port for
Customer
Network
Pair of Ethernet switches
Ports for S-HMC #2
Ethernet ports for private
S-HMC network
SFI-1
SFI-1
SFI-2
SFI-2
S-HMC
S-HMC and a pair of Ethernet switches
- Storage Facility Image (SFI)
Tip: To ensure that IBM service representatives can quickly and easily access an external
S-HMC, place the external S-HMC rack within 15.2 m (50 ft.) of the storage units
connected to it.
160 DS8000 Series: Concepts and Architecture
9.2.2 S-HMC software components
The S-HMC consists of the following software functions:
򐂰Remote services
򐂰DS Storage Manager
򐂰System and partition management
򐂰Service
򐂰Storage facility RAS
򐂰Storage Management Initiative Specification Common Information Mode (SMI-S CIM)
server
Figure 9-2 shows the different software components that were available in the ESS 2105
master console, the ESS operating system functions and the pSeries hardware management
console, which are now integrated into the S-HMC.
Figure 9-2 Software functions of Management Console
Remote services
IBM Service personnel located outside of the customer facility log in to the S-HMC to provide
service and support. The methods available for IBM to connect to the S-HMC are configured
by the IBM SSR at the direction of the customer, and may include dial-up only access or
access through the high-speed internet connection.
DS Storage Manager
The DS Storage Manager is a single integrated Web-based (HTML) graphical user interface
that offers:
򐂰Offline configuration to allow a user to create and save logical configurations and apply
them to an online DS8000 series system. This offline configuration tool is installed on a
Remote
Services
DS Storage Mgr
System &
Partition
Management
Service
Storage Facitlity
RAS
SMI-S CIM
Server
Customer UI
Remote
Services
System &
Partition
Management
Services
UI on customer's
PC
ESS
Master Console S-HMC
IBM TotalStorage
DS Storage Manager
ESS (AIX)
pSeries HMC
ESS RAS
ESS
Configuration
Copy Services
S-HMC - Software components
S-HMC - Software components
Yesterday - not all in one place Today - all in one place
Chapter 9. Configuration planning 161
customer server and can be used for the configuration of a DS8000 series system at initial
installation or for reconfiguration activities.
򐂰Online configuration, which provides real-time configuration management support.
򐂰Copy Services to allow a user to execute Copy Services functions.
The DS Storage Manager on the internal S-HMC provides only real-time configuration, as
opposed to offline configuration. The user may also opt to install an additional DS Storage
Manager on the user’s own workstation. With this DS Management Console, the user will be
able to perform both online and offline configurations. In order to perform online configuration
the user’s workstation must be connected to the S-HMC that is connected to the DS8000.
The workstation must meet the following minimum requirements:
򐂰1.4 GHz Pentium® 4
򐂰256 KB cache
򐂰256 MB memory
򐂰1 GB disk space for the system management software
򐂰1 GB work space per server
򐂰IP Network connectivity to each port on S-HMC
򐂰Serial connectivity to your storage unit
You may also have additional IP Network connectivity to an external network to enable call
home and remote support.
Operating systems supported on the customer-supplied PC are:
򐂰Microsoft Windows 2000
򐂰Microsoft Windows 2000 Server
򐂰Microsoft Windows XP Professional
򐂰Microsoft Windows 2003 Server
򐂰Linux (RedHat AS 2.1)
Table 9-1 shows all the ports needed to connect to and fully operate the DS Storage
Manager.
Table 9-1 Required ports
The online configuration and Copy Services are available via a Web browser interface
installed on the S-HMC. The DS Storage Manager is provided with the DS8000 series at no
additional charge. The S-HMC is required for all customer storage configuration operations.
All storage configuration operations are accomplished through invoking SMI-S operations,
either through the DS8000 Storage Manager, through the DS8000 Command-Line Interface
(CLI), or through any SMI-S compliant storage management agent, such as the IBM
TotalStorage Productivity Center (TPC).
Port number
from/to
Protocol
1720/1720 tcp
1722/1722 tcp
1750/1750 tcp
8451/8455 tcp
162 DS8000 Series: Concepts and Architecture
System and partition management
Customer access to the S-HMC is provided to allow the management of optional LPAR
environments. This access allows for configuration, activation, and deactivation of logical
partitions.
Service
The service function of the S-HMC is typically used to perform service actions such as a
repair action, the installation of a storage facility or an MES, or the installation or upgrade of
licensed internal code releases. These service actions can be accessed using the supplied
S-HMC or a laptop or equivalent. The laptop will connect to the service port on the Ethernet
switch (ESSNet) on the storage facility that is being serviced. This laptop needs to be
configured for dynamic host configuration protocol (DHCP) before connecting to the ESSNet.
The laptop will use the WebSM client to access the service functions on the S-HMC. The
WebSM client is available for downloading to the laptop from the S-HMC.
Storage facility RAS
This component, together with the hardware, provides the reliability, availability, and
serviceability functions of the DS8000. See Chapter 4, “RAS” on page 61 for a more complete
description.
SMI-S CIM server
The SMI-S server is an implementation of the industry standard of the Storage Networking
Industry Association (SNIA). The ESS API is implemented through the IBM TotalStorage
Common Information Model Agent (CIM Agent) for the DS8000, a middleware application
designed to provide a CIM-compliant interface. The CIM-compliant interface allows Tivoli®
and third-party software management tools to discover, monitor, and control the DS8000. The
DS8000 API and CIM Agent are provided with the DS8000 at no additional charge. The CIM
Agent is available for the AIX, Linux, and Windows 2000 operating system environments.
Advanced Copy Services invocations
The same CIM server that is required to support storage configuration is also used to initiate
Advanced Copy Services operations in a storage complex. The S-HMC is required only to
initiate changes to the Copy Services environment. Existing Copy Services relationships
(such as FlashCopy pairs or PPRC pairs) continue to operate as designed even in the
absence of the S-HMC. Copy Services operations against Count Key Data (CKD) volumes
can also be initiated through inband channel commands issued across ESCON/FICON
channels from z/Series hosts. These commands are issued directly to the storage facility and
can be executed without support from the S-HMC.
9.2.3 S-HMC network topology
In order to connect the S-HMC to your network, you will need the following network
information:
򐂰One IP address per S-HMC. With an external S-HMC, you will need two IP addresses.
򐂰Host names for the S-HMCs (for example, MC1 and MC2).
򐂰Domain name for the S-HMC (for example, us.ibm.com®).
򐂰Whether you will use local time or a different time zone.
Note: All service interfaces require an authenticated login procedure to access service
functions.
Chapter 9. Configuration planning 163
򐂰TCP/IP interface network mask (for example, 255.255.254.0).
򐂰If you plan to use a Domain Name Server (DNS) to resolve network names, you will need
the IP address of your DNS server and the name of your DNS. You may have more than
one DNS.
򐂰You can specify a default gateway in dotted decimal form or just the name in case you are
using a DNS.
The S-HMC can also be connected to the IBM organization’s support services using:
򐂰A dial-up connection
򐂰A secure high-speed connection
Dial-up connection
This is a low-speed asynchronous modem connection to a telephone line. This connection
typically favors small amounts of data transfers. When configuring for a dial-up connection,
have the following information available:
򐂰Which dialing mode will be used, either tone or pulse.
򐂰Whether a dialing prefix is required when dialing an outside line.
Secure high-speed connection
This connection is through a high-speed Ethernet connection that can be configured through
a secure virtual private network (VPN) internet connection to ensure authentication and data
encryption. IBM has chosen to use a graphical interface (WebSM) for servicing the storage
facility, and for the problem determination activity logs, error logs, and diagnostic dumps that
may be required for effective problem resolution. These logs can be significant in size. For
this reason, a high-speed connection would be the ideal infrastructure for effective support
services.
A remote connection can be configured to meet the following customer requirements:
򐂰Allow call on error (machine-detected)
򐂰Allow connection for a few days (customer-initiated)
򐂰Allow remote error investigation (Service-initiated)
Figure 9-3 on page 164 shows a typical redundant S-HMC configuration. In this configuration,
we have MC1 (internal S-HMC) and MC2 (external S-HMC) connected to the 172.16-BLACK
network and the 172.16-GRAY network. These two networks are the private Ethernet
networks of the DS8000. MC1 and MC2 are also connected to the customer’s network by way
of the customer Ethernet ports on the pair of Ethernet switches that are installed at installation
time.
164 DS8000 Series: Concepts and Architecture
Figure 9-3 S-HMC network topology
In this configuration, capabilities exist to execute remote services such as:
򐂰Call home
򐂰Remote access
Call home
Call home is the capability of the S-HMC to contact IBM support services to report a problem.
This is referred to as call home for service. The S-HMC will also provide machine-reported
product data (MRPD) information to IBM by way of the call home facility. The MRPD
information includes installed hardware, configurations, and features. The storage plex will
use the call home method to send heartbeat information to IBM and by doing this, will ensure
that the S-HMC will be able to initiate a call home to IBM in the case of an error. Should the
heartbeat information not reach IBM, a service call to the customer will be initiated by IBM to
investigate the status of the DS8000. The call home can either be configured for modem or
internet setup. The call home service can only be initiated by the S-HMC. This facility cannot
be initiated from the outside. In our example, MC1 will initiate a call home for service when
detecting an error with the DS8000. This action will pass through the customer’s network
across the internet to the IBM service center. Depending on the complexity of the error, IBM
will request remote access.
Remote access
Remote access is required when the local service personnel cannot correct problems with the
storage plex and IBM product engineer assistance is required to resolve the problems. In this
case the S-HMC will initiate a call home for service and IBM support service will initiate a
remote access session, using the basic ASCII terminal to either dial the S-HMC modem to
Storage Facility Customer
network
S-HMC - Network Topology
Storage
Facility
(SFI)
Processor Complex 0
Processor Complex 1
Storage
Facility
(SFI)
Processor Complex 1
Processor Complex 0
Internet
172.16-BLACK
Network
Customer
Network
FSP
Functional Service
Processor (FSP)
SFI Complex 0
FSP
SFI Complex 1
FSP
SFI Complex 0
SFI Complex 1
MC 1
172.17-GRAY
Network
IBM eCare
Call Home
Remote Support
IBM
network
MC 2
Firewall
Firewall
Firewall
Chapter 9. Configuration planning 165
request an IP connection, or if the modem is unavailable, will use voice phone or e-mail to
request an IP connection.
The communication will be by way of VPN and will use data encryption. This network
configuration will position IBM to provide faster support assistance and problem resolution
since IBM will be able to connect to the S-HMC relatively quickly and error logs can be
transmitted to IBM over a high-speed network. This will eliminate any delays associated with
transmitting huge error logs over a dial-up connection.
There can also be a direct connection to the IBM network by way of VPN. This is depicted in
the diagram with the arrow from MC1 to the IBM network.
S-HMC security considerations
Allowing access between the Internet and computers in a customer network brings valid
security concerns which need to be addressed. IBM has taken the steps necessary to provide
secure network access for the S-HMC. Even after securing access to the S-HMC, there are
additional levels of security built into the Service applications available on the S-HMC. In the
following sections we discuss the security protection securing access to the S-HMC from the
Internet, and then we describe the internal security of the S-HMC itself.
Security mechanism 1 - Console must initiate session
The first security measure that is employed to protect the console is to only allow network
sessions or conversations to be initiated from the console itself. This means that there are no
applications running on the console that are listening on TCPIP ports to establish a session. If
a session is needed from the console to enable a service action, an IBM Service
representative may initiate this session by dialing into the console using the modem, and
requesting that the console establish the session. This session will only be initiated to one of
the defined TCPIP addresses which represent the IBM Service centers.
At installation time, the customer may decide to only allow a service session when manually
requested, by the customer, through the console interface. These installation options are
briefly described here, and explained in detail in IBM TotalStorage DS8000 Introduction and
Planning Guide, GC35-0495.
Security mechanism 2 - Public key encryption
The S-HMC uses a public key encryption mechanism to maintain the security of data
exchanged between the console and the IBM Service organization. Each S-HMC, during
manufacturing or during the installation process, generates a public encryption key based on
the private key that the console will use for encryption and decryption.
During the installation process at the customer site, the IBM SSR will connect to the IBM
Service organization, by way of modem, internet connection, or the SSRs MOST portable
console, and will transmit the public key for the installed console to a database maintained
within the IBM secure network. Whenever IBM Service requires access to the console located
at the customer site, the IBM personnel will have to retrieve the console-specific public key
from the database and use this key to establish the communication session needed for
service.
Note: The IP connection initiated by the S-HMC will always be to a specific telephone
number for modem access or to a specific IP address for internet access.
Note: IBM recommends that the S-HMC be connected to the customer’s public network
over a secure VPN connection, instead of a dial-up connection.
166 DS8000 Series: Concepts and Architecture
Security mechanism 3 - Login security
When the network connection and session are established, the IBM Service personnel will be
able to log into the S-HMC, without a secure password, for the purpose of collecting problem
determination and sending the problem determination to the IBM data collection site.
If problem analysis shows that additional actions are needed to further refine the problem
definition, the next level of IBM Service may have a requirement for a higher level of access
to the storage facility. If this is the case, all of the previous security measures will also apply,
but to obtain a higher level of authorization, the service organization will be required to log in
to secure userids on the S-HMC. These userids are protected by S-HMC user management.
S-HMC user management
The S-HMC’s user management is governed by the following rules:
򐂰The allowed number of users is pre-defined.
򐂰No additional users can be defined to the S-HMC.
򐂰The password to these predefined users can be changed by IBM support personnel.
򐂰Users with higher privileges are protected by a challenge/authentication scheme.
򐂰The root user ID is locked.
򐂰User login is only allowed from the private network, or from an IBM remote support service
connection.
򐂰User activity is logged.
򐂰The S-HMC has auditing capabilities.
The functionality of standard software components is restricted to provide added security
advantages when integrating the S-HMC into your private network. These restrictions are as
follows:
򐂰The S-HMC acts as a firewall or proxy for incoming traffic.
򐂰The S-HMC does not have any IP forwarding or gateway capabilities.
򐂰Many standard services such FTP and TELNET do not exist on the S-HMC.
򐂰Only Secure Shell (SSH) is permitted over the remote connection.
򐂰No TCP/IP connection from the outside is allowed into the S-HMC, except the VPN
connection.
򐂰In an Internet configuration, the following firewall ports need to be open: 500 udp, 500 esp
(VPN), and 4500 udp.
򐂰The allowed destination IP addresses will only be the IBM services support centers:
207.25.252.196, 129.42.160.16, and 207.25.252.198.
9.2.4 FTP Offload option
As an alternative to a VPN connection via the Internet, the S-HMC can be set up to use the
file transfer protocol (ftp) for sending error data to IBM. It is the customer's responsibility to
provide a secure path from the S-HMC to the destination server (testcase.software.ibm.com)
on the Internet. Usually this involves some kind of ftp proxy or relay firewall. The S-HMC
supports seven different types of ftp firewalls.
Connectivity via ftp is also required for downloading DS8000 code packages from an IBM
remote code repository on the Internet.
Chapter 9. Configuration planning 167
Regardless of the type of connectivity (VPN or ftp), no customer data is transmitted to IBM.
9.3 DS8000 licensed functions
Licensed functions are the storage unit’s operating system and functions. Each licensed
function indicator feature selected on a DS8000 base unit enables that function at the system
level. These features enable a licensed function subject to you applying a feature activation
code made available by IBM. They are also used for maintenance billing purposes. These
include both required features and optional features.
Table 9-2 provides the appropriate licensed function indicators for each licensed function.
Table 9-2 Licensed function indicators
9.3.1 Operating environment license (OEL) - required feature
You must order an operating environment license (OEL) feature, the IBM TotalStorage DS
Operating Environment, for every storage unit. The operating environment model and
features establish the extent of IBM authorization for the use of the IBM TotalStorage DS
Operating Environment. This operating environment license support function is called the
2244 Model OEL. The OEL licenses the operating environment and is based on the total
physical capacity of the storage unit (base model plus any expansion models). It authorizes
you to use the model configuration at a given capacity level.
Once the OEL has been technically activated for the storage unit, you can configure the
storage unit. Activating the OEL means that you have obtained the feature activation key from
the IBM disk storage feature activation (DSFA) Web site and entered it into the DS8000
Storage Manager. The feature activation process is discussed in more detail in 9.3.7, “Disk
storage feature activation” on page 173.
Table 9-3 on page 168 provides the feature codes for the operating environment license. (The
codes apply to models 921,922, and 9A2.)
Note: Data sent using the ftp protocol is neither encrypted nor authenticated.
Licensed function IBM 2107 indicator feature
number
IBM 2244 function
authorization models and
features
Operating environment 0700 Model OEL 70xx
Point-in-Time Copy 0720 Model PTC 72xx
Remote Mirror and Copy 0740 Model RMC 74xx
Remote Mirror for z/OS 0760 Model RMZ 76xx
Parallel Access Volumes 0780 Model PAV 78xx
Note: Standby CoD disk drive features do not count toward the physical capacity.
168 DS8000 Series: Concepts and Architecture
Table 9-3 Operating environment license feature codes
Licensed functions are activated and enforced within a defined license scope. License scope
refers to the following types of storage and servers with which the function can be used:
򐂰Fixed block (FB) - The function can be used only with data from Fibre Channel-attached
servers.
򐂰Count key data (CKD) - The function can be used only with data from FICON- or
ESCON-attached servers.
򐂰Both FB and CKD (ALL) - The function can be used with data from all attached servers.
Some licensed functions have multiple license scope options, while other functions have only
the scope of a single license.
Table 9-4 provides the license scope options for each licensed function.
Table 9-4 License scope for each DS8000 licensed function
Optional features
The following optional features are available for the DS8000:
򐂰Point-in-Time Copy, which includes IBM TotalStorage FlashCopy.
򐂰Remote Mirror and Copy, which includes IBM TotalStorage Metro Mirror, IBM
TotalStorage Global Mirror and IBM TotalStorage Global Copy.
򐂰Remote Mirror for z/OS, which is the IBM TotalStorage z/OS Global Mirror.
򐂰Parallel Access Volumes (PAV).
9.3.2 Point-in-Time Copy function (2244 Model PTC)
The Point-in-Time Copy licensed function model and features establish the extent of IBM
authorization for the use of the IBM TotalStorage FlashCopy. When you order Point-in-Time
Feature code Description
7000 OEL-inactive
7001 OEL-1TB
7002 OEL-5TB
7003 OEL-10TB
7004 OEL-25TB
7005 OEL-50TB
7010 OEL-100TB
Licensed function License scope options
Operating environment ALL
Point-in-Time Copy FB, CKD, or ALL
Remote Mirror and Copy FB, CKD, or ALL
Remote Mirror for z/OS CKD
PAV CKD
Chapter 9. Configuration planning 169
Copy functions, you specify the feature code that represents the physical capacity to
authorize for the function.
Table 9-5 provides the feature codes for the Point-in-Time Copy function. (The codes apply to
models 921,922, and 9A2.)
Table 9-5 Point-in-Time Copy (PTC) feature codes
You can combine feature codes to order the exact capacity you need. For example, if you
determine that you need 23 TB of Point-in-Time capacity, you can order two 7203 features
(this will give you 20 TB) and three 7201 features (this will give you 3 TB), giving you a total of
23 TB.
9.3.3 Remote Mirror and Copy functions (2244 Model RMC)
The Remote Mirror and Copy licensed function model and features establish the extent of
IBM authorization for the use of the Metro Mirror (Synchronous PPRC), Global Mirror
(Asynchronous PPRC) and Global Copy (PPRC Extended Distance).
Table 9-6 provides the feature codes for the Remote Mirror and Copy functions. (The codes
apply to models 921,922, and 9A2.)
Table 9-6 Remote Mirror and Copy (RMC) feature codes
9.3.4 Remote Mirror for z/OS (2244 Model RMZ)
The Remote Mirror for z/OS licensed function model and features establish the extent of IBM
authorization for the use of IBM TotalStorage z/OS Global Mirror.
Table 9-7 on page 170 provides the feature codes for Remote Mirror for zSeries functions.
(The codes apply to models 921,922, and 9A2.)
Feature code Description
7200 PTC-inactive
7201 PTC-1TB unit
7202 PTC-5TB unit
7203 PTC-10TB unit
7204 PTC-25TB unit
7205 PTC-50TB unit
7210 PTC-100TB unit
Feature code Description
7400 RMC-inactive
7401 RMC-1TB unit
7402 RMC-5TB unit
7403 RMC-10TB unit
7404 RMC-25TB unit
7405 RMC-50TB unit
7410 RMC-100TB unit
170 DS8000 Series: Concepts and Architecture
Table 9-7 Remote Mirror for zSeries (RMZ) feature codes
9.3.5 Parallel Access Volumes (2244 Model PAV)
The Parallel Access Volumes model and features establish the extent of IBM authorization for
the use of the Parallel Access Volumes licensed function.
Table 9-8 provides the feature codes for the PAV function. (The codes apply to models
921,922, and 9A2.)
Table 9-8 Parallel Access Volumes (PAV) feature codes
9.3.6 Ordering licensed functions
An OEL is required for every DS8000 base unit. This license is for the total physical capacity
of the entire storage unit, including the base and any expansion models, and for both FB and
CKD data, but excludes Standby CoD disk drives. For example, if the total capacity of the
storage unit is 30 TB (15 TB in the base frame and 15 TB in the expansion frame), then you
will purchase an OEL feature for 30 TB.
Should you increase your capacity in the future, for example, from the 30 TB to 40 TB,
whether you are using Standby CoD disk drives or additional disk drives, you then must
purchase an additional 10 TB of 2244 Model OEL features.
The other optional features such as PTC, RMC, RMZ, and PAV can use any combination of
the features to cover the required capacity of the storage unit. For example, if the storage unit
has a capacity of 20 TB of data and only 5 TB of the data will be PTC, then you only need to
purchase a PTC license for 5 TB of data – not the full 20 TB.
Figure 9-4 shows an example of a FlashCopy feature code authorization. In this case, the
user is authorized up to 25 TB of CKD data. The user cannot FlashCopy any FB data.
Feature code Description
7600 RMZ-inactive
7601 RMZ-1TB unit
7602 RMZ-5TB unit
7603 RMZ-10TB unit
7604 RMZ-25TB unit
7605 RMZ-50TB unit
7610 RMZ-100TB unit
Feature code Description
7800 PAV-Disable
7801 PAV-1TB unit
7802 PAV-5TB unit
7803 PAV-10TB unit
7804 PAV-25TB unit
7805 PAV-50TB unit
7810 PAV-100TB unit
Chapter 9. Configuration planning 171
Figure 9-4 User authorize to FlashCopy 25 TB of CKD data
AS illustrated in Figure 9-5 on page 172, the user decides to change the license scope from
CKD to ALL and FlashCopy the FB data as well. This increase of licensed scope from CKD to
ALL is non-disruptive. Changing the license scope from FB to CKD, or CKD to FB (lateral
change), or reduction in license scope from ALL to FB or CKD, will be disruptive and will
require an IML. In this example, the user decides to FlashCopy 10 TB of FB and 12 TB of
CKD data. The user has disk capacity of 20 TB of FB and 25 TB of CKD. In order to
implement the changes, the user now has to purchase a Point-in-Time Copy function
authorization of 45 TB, the total FB and CKD capacity.
20 TB
FB
DS8000 with 45 TB disk capacity in total,
25 TB of CKD FlashCopy authorization with
license scope of CKD,
45 TB of OEL Licensed function
25 TB
CKD
User cannot FlashCopy
any FB
User authorize to
FlashCopy
up to 25 TB
20 TB (FB) +
25 TB (CKD) +
--------
45 TB total capacity
--------
172 DS8000 Series: Concepts and Architecture
Figure 9-5 User authorize to FlashCopy 45 TB of data with a license scope of ALL
For PTC and RMC, you may have FB data for open systems only, or you may have CKD for
zSeries only, or you may have both FB and CKD data. For RMC, you will need the license
feature for both the primary storage unit and the secondary storage unit.
Figure 9-6 on page 173 shows an example of a Metro Mirror configuration. In this case, the
user has to purchase Remote Mirror and Copy function authorization for 45 TB with Metro
Mirror feature for both the primary DS8000 and secondary DS8000.
user data
plus FC
data upto
20 TB FB
DS8000 with 45 TB disk capacity in total, 45 TB FlashCopy
authorization, 45 TB of OEL Licensed function and license scope
of ALL
user data
plus FC
data upto
25 TB CKD
User FlashCopies
up to 25 TB of CKD
20 TB (FB) +
25 TB (CKD) +
--------
45 TB total capacity
--------
I want to
FlashCopy 10 TB
of FB and 12 TB
of CKD.
Important - If user changes license scope
from ALL to FB or CKD an IML is required
User FlashCopies
up to 20 TB of FB
User has 20 TB of FB data and has 25 TB of CKD data
allocated. The user has to purchse a Point-in-Time
function equal to the total of both the FB and CKD
capacity, that is 20 TB (FB) + 25 TB (CKD) equals
45 TB.
solution
FC - FlashCopy
Chapter 9. Configuration planning 173
Figure 9-6 Remote Mirror and Copy
Global Mirror requires both RMC and PTC functions. Both primary and secondary storage
units require RMC functions and the secondary requires PTC functions as well. If Global
Mirror will be used during failback on the secondary storage unit, a Point-in-Time Copy
function authorization must also be purchased for the primary system.
RMZ and PAV are only applicable to zSeries, so you will only have CKD data. In RMZ
configurations that exploit the failback technique, you will have to purchase a license feature
for the secondary storage unit too.
The initial enablement of any optional DS8000 licensed function is a concurrent activity
(assuming the appropriate level of microcode is installed on the machine for the given
function). The removal of a DS8000 licensed function to deactivate the function is a disruptive
activity and requires a machine IML.
9.3.7 Disk storage feature activation
Managing and activating licensed functions is your responsibility. You manage and activate
functions through the IBM Disk Storage Feature Activation (DSFA) Web site at:
http://www.ibm.com/storage/dsfa
Management refers to the use of the IBM Disk Storage Feature Activation (DSFA) Web site to
select a license scope and to assign a license value. You perform these activities and then
activate the function.
Primary DS8000 with 45 TB disk capacity in total, Secondary
DS8000 with 45 TB disk capacity, 45 TB Remote Mirror Copy
authorization for primary DS8000 and 45 TB Remote Mirror Copy
for secondary DS8000, 45 TB of OEL Licensed function for
primary DS8000 and 45 TB of OEL Licensed function for
secondary DS8000. The license scope may be FB and CKD or
ALL
20 TB FB
user data
25 TB CKD
user data
20 TB FB
user data
25 TB CKD
user data
Metro Mirror
Primary DS8000 Secondary DS8000
174 DS8000 Series: Concepts and Architecture
Activation refers to the retrieval and installation of the feature activation code into the
DS8000 system. The feature activation code is obtained using the DSFA Web site and is
based on the license scope and license value.
The high-level steps for storage feature activation are:
򐂰Have machine-related information available (model, serial number, and machine
signature). This information is obtained from the DS8000 Storage Manager.
򐂰Log onto the DSFA Web site.
򐂰Obtain feature activation keys by completing the machine-related information. The feature
activation keys can either be directly retrieved, saved onto a diskette, or they can be
written down.
򐂰Complete feature key activation by logging onto your DS8000 Storage Manager
application and apply the keys to the storage unit.
9.3.8 Scenarios for managing licensing
There are many ways to manage the license of a DS8000. Some scenarios may include
adding storage capacity to an existing licensed function or reallocating a license between
storage images.
Adding storage capacity to an existing licensed function
Assume you initially purchased a 2244 Point-in-Time Copy feature (2244–PTC) for 25
terabytes. After several months, you need an additional 20 TB for your Point-in-Time Copy
operations. To increase storage for the feature requires that you obtain a new license key,
and not install a larger license. However, this is a non-disruptive activity and does not require
that you reboot your machine. You have to complete the following steps to activate the keys:
򐂰Order two of feature 7203 (10 TB each of 2244–PTC) for example. You can order a
different combination of the features to get to your required amount.
򐂰You will receive a 2244 function authorization serial number from an IBM representative.
򐂰Retrieve the license key from the DSFA Web site.
򐂰This new license key represents the total capacity that you now have licensed (or 45 TB).
It licenses the original 25 TB plus the additional 20 TB, just ordered.
򐂰Enter the license key into the DS Storage Manager. This will replace the existing license
key with the new license key.
򐂰After successful installation of the license key, you now have 45 TB of 2244–PTC
capacity.
9.4 Capacity planning
The DS8000 offers high scalability while maintaining excellent performance. We have already
explained the scalability in 6.3, “Designed for scalability” on page 109. You know that the
physical storage capacity is not equal to the logical storage capacity that you can use for your
system. We explain how to estimate the logical capacity for the DS8000 in this section.
9.4.1 Logical configurations
The total capacity of physical disk drives in the DS8000 is not equal to the logical capacity
you can use because you configure RAID protection to protect your important data. The
Chapter 9. Configuration planning 175
DS8000 adopts a virtualization concept, which was introduced in Chapter 5, “Virtualization
concepts” on page 83.
The logical capacity depends on the RAID type and the number of spare disks in a rank. We
explain the capacity with the following figures.
Figure 9-7 CKD RAID rank capacity
Attention:
򐂰The figures used in this section are still subject to change. Specifically, the exact
number of extents per array may be slightly different.
򐂰Generally speaking, you might ensure there is at least 5% of additional capacity if you
are providing an exact number of devices.
– There will also potentially be unusable space for devices which are not an integer
number of extents in size and for the last extent in an extent pool.
– To prepare for the unexpected situation, a certain amount of margin is required for
important systems.
Note: IBM will offer Capacity Magic for the DS8000 in the future. Capacity Magic
calculates the physical and effective storage capacity of a DS8000. IBM engineers and
IBM Business Partners can download this tool from an IBM Web site. The following figures
are intended to be used only until Capacity Magic is available.
CKD RAID rank capacity
Notes
There may be space left over when defining the devices shown in the table.
Devices that are not a multiple of 1113 cylinders will use additional space on the disk
subsystem as the allocation unit is an extent of this size.
Rank
Spare /
No spare Extents
Binary
GB
Decimal
GB
3390-3
devices
3390-9
devices
32760 cyl
devices
65520 cyl
devices
RAID10 73GB Spare 216190.30204.34 72 24 7 3
RAID10 73GB No spare 288253.74272.45 96 32 9 4
RAID10 146GB Spare 435 383.25 411.51 145 48 15 7
RAID10 146GB No spare 581 511.88 549.63 193 64 20 10
RAID10 300GB Spare 883 777.96 835.32 294 98 30 15
RAID10 300GB No spare 1,178 1,037.86 1,114.39 392 130 40 20
RAID5 73GB Spare 434 382.37 410.57 144 48 14 7
RAID5 73GB No spare 507 446.69 479.62 169 56 17 8
RAID5 146GB Spare 873 769.14 825.86 291 97 30 15
RAID5 146GB No spare 1,018 896.89 963.03 339 113 35 17
RAID5 300GB Spare 1,771 1,560.32 1,675.38 590 196 61 30
RAID5 300GB No spare 2,066 1,820.22 1,954.45 688 229 71 35
176 DS8000 Series: Concepts and Architecture
Figure 9-8 FB RAID rank capacity
For example, if you configure a RAID-5 rank with 146 GB DDMs with a spare disk in open
system environments, the capacity of the rank totals 779 extents (779 GB).
9.4.2 Sparing rules
To estimate your usable storage capacity, it is helpful to understand the rules of sparing since
the capacity of the rank is different with or without spare disks in the rank. The sparing rules
for the DS8000 are as follows:
򐂰A minimum of one spare is required for each array site defined until the following
considerations are met:
– Minimum of 4 spares per DA pair.
The spares are balanced between the two device interfaces.
– Minimum of 4 spares per the largest capacity array site on the DA pair.
The spares are balanced between the two device interfaces.
– Minimum 2 spares of capacity and RPM greater than or equal to the fastest array site
of any given capacity on the DA pair.
The spares are balanced between the two device interfaces.
򐂰Spares are not necessarily allocated on the first arrays to be formatted.
򐂰Intermix configuration complicates the sparing rules. You should use Capacity Magic for
these calculations.
Note: In the DS8000, extent size is specified with binary size, not decimal size. For
example, 1 GB in binary is described as 1024 x 1024 x 1024, and 1GB in decimal is
described as 1000 x 1000 x 1000. Operating systems adopt the binary format for
calculating their storage.
FB RAID rank capacity
Notes
Device sizes that are not a multiple of 1 binary GB will use additional space on the
disk subsystem as the allocation unit is an extent of this size
Rank
Spare /
No spare Extents
Binary
GB
Decimal
GB
RAID10 73GB Spare 192 192 206.16
RAID10 73GB No spare 256 256 274.88
RAID10 146GB Spare 386 386 414.46
RAID10 146GB No spare 519 519 557.27
RAID10 300GB Spare 785 785 842.89
RAID10 300GB No spare 1,048 1,048 1,125.28
RAID5 73GB Spare 386 386 414.46
RAID5 73GB No spare 450 450 483.18
RAID5 146GB Spare 779 779 836.44
RAID5 146GB No spare 909 909 976.03
RAID5 300GB Spare 1,582 1,582 1,698.66
RAID5 300GB No spare 1,844 1,844 1,979.98
Chapter 9. Configuration planning 177
9.4.3 Sparing examples
This section provides some examples for configuring each rank according to the rule of
sparing disks.
Figure 9-9 Sparing example 1: RAID-5 - All same capacity, same RPM
In Figure 9-9, four RAID-5 arrays are installed in a DA pair. Each array needs a spare disk
drive (6+P+S). Two spare disks are in one loop and the other two spare disks are in the other
loop in the DA pairs.
If you add other arrays configured with the same capacity and RPM as in this DA pair,
additional arrays will not need spare disks (the arrays will be configured as RAID-5:7+P,
RAID-10:4x2).
Sparing Example 1 – RAID-5:
All same capacity, same RPM
•Assumes all devices same capacity & same RPM
•Minimum of 4 spares per DA pair
– 2 spares per loop & 2 spares in each array group
– Additional RAID-5 arrays will be 7 + P
– Any additional RAID-10 arrays will 4x2
•All spares available to all arrays on DA pair
1
23
4
DA DA
…
…
6 + P
Array
6 + P
Array 6 + P
Array
6 + P
Array
178 DS8000 Series: Concepts and Architecture
Figure 9-10 Sparing example 2: RAID-10 - All same capacity, same RPM
In Figure 9-10, four RAID-10 arrays are installed in a DA pair. Two arrays need two spare disk
drives (3x2+2S). One spare disk is in one loop and other spare disk is in the other loop in an
array. The other two arrays don’t need spare disks (4x2).
If you add other arrays configured with the same capacity and RPM as in this DA pair,
additional arrays don’t need spare disks (the arrays will be configured as RAID-5:7+P,
RAID-10:4x2).
Sparing Example 2 – RAID-10:
All same capacity, same RPM
•Assumes all devices same capacity & same RPM
•Minimum of 4 spares per DA pair
– 2 spares per loop & 2 spares in each array group
– Additional RAID-10 arrays will be 4x2
– Any additional RAID-5 arrays will 7 + P
•All spares available to all arrays on DA pair
1
2
3
4
DA DA
…
…
3x2 + 2S
Array
4x2
Array 4x2
Array
3x2 + 2S
Array
Chapter 9. Configuration planning 179
Figure 9-11 Sparing example 3: RAID-5 - Different capacity, same RPM
Figure 9-11 illustrates an intermix configuration in a DA pair.
1. At first, four RAID-5 arrays with 146 GB DDMs are installed in a DA pair. Each array needs
a spare disk drive (6+P+S). Two spare disks are in one loop and other two spare disks are
in the other loop in the DA pairs.
2. Next, two RAID-5 arrays with 300 GB DDMs are added in the DA pair. According to the
rule of Minimum 4 spare disks of the largest capacity array site on the DA pair, an
additional 2 arrays need a spare disk (6+P+S).
3. If you add other arrays with 300 GB DDMs, you need spare disks in additional arrays. You
need a total of four 300 GB spare disks in the DA pair; then, two 6+P+S arrays are needed
for RAID-5, and one 3x2+2S array is needed for RAID-10.
Note: Intermix of DDM size and RPM configuration is planned for the future.
Sparing Example 3 – RAID-5:
1st 4 arrays 146GB & next 2 arrays 300GB (same RPM)
•Assumes all devices same RPM
•Minimum of 4 spares per DA pair
– 2 spares per loop & 2 spares in each array group
– Additional 146GB RAID arrays will be 7 + P (RAID-5) or 4x2 (RAID-10)
•Minimum 4 spares of the largest capacity array site on the DA pair
– Next 2 300GB arrays will also be 6 + P (if RAID-5)
• If next 300GB array configured is RAID-10, then that array will be 3x2 and
any additional 300GB arrays on this DA pair will not have spares
•All spares available to all arrays on the DA pair
1
2
3
4
DA DA
…
…
6 + P
Array
6 + P
Array
6 + P
Array
6 + P
Array
6
5
6 + P
Array
6 + P
Array
300GB 300GB146GB 146GB 146GB 146GB
180 DS8000 Series: Concepts and Architecture
Figure 9-12 Sparing example 4: RAID-5 - Different capacity, different RPM
Figure 9-12 illustrates another intermix configuration in a DA pair.
1. At first, four RAID-5 arrays with 146 GB/10k RPM DDMs are installed in a DA pair. Each
array needs a spare disk drive (6+P+S). Two spare disks are in one loop and the other two
spare disks are in the other loop in the DA pairs.
2. Two RAID-5 arrays with 73 GB / 15k RPM DDMs are added in the DA pair. According to
the rule of Minimum 2 spares of capacity and RPM greater than or equal to the fastest
array site of any given capacity on the DA pair, the additional two arrays need a spare
disk (6+P+S).
3. If you add other arrays with 73 GB//15k RPM DDMs, you do not need spare disks in
additional arrays. You already have four spare disks of the largest capacity (146 GB) and
two spare disks of the fastest (15k RPM) in the DA pair.
9.4.4 IBM Standby Capacity on Demand (Standby CoD)
To help further meet the changing storage needs of growing businesses, the DS8000 series
can use the IBM Standby Capacity on Demand option, which is designed to allow clients to
access extra capacity quickly whenever the need arises. With all these capabilities, the
DS8000 series can quickly respond to changing business needs.
The IBM Standby Capacity on Demand (Standby CoD) offering allows the installation of
inactive disk drives that can be easily activated as business needs dictate.
Note: Intermix of DDM size and RPM configuration is planned for the future.
Sparing Example 4 – RAID-5:
1st 4 arrays 146GB 10k RPM & next 4 arrays 73GB 15k RPM
•Assumes mixture of different RPM devices
•Minimum of 4 spares per DA pair
– 2 spares per loop & 2 spares in each array group
– Additional 146GB / 10k RPM RAID arrays will be 7 + P (RAID-5) or 4x2 (RAID-10)
•Minimum 2 spares of capacity and RPM greater than or equal to the fastest
array site of any given capacity on the DA pair
– Next 2 73GB / 15k RPM arrays will also be 6 + P (if RAID-5)
• Any additional 73GB / 15k RPM arrays on this DA pair will not have spares
•All spares available to all arrays on the DA pair
1
2
3
4
DA DA
…
…
6 + P
Array
6 + P
Array
6 + P
Array
6 + P
Array
6
5
6 + P
Array
6 + P
Array
146GB
10k rpm 146GB
10k rpm 146GB
10k rpm 146GB
10k rpm
73GB
15k rpm
73GB
15k rpm
Chapter 9. Configuration planning 181
A Standby CoD disk set contains 16 disk drives of the same capacity and RPM (10000 or
15000 RPM). With this offering, up to four Standby CoD disk drive sets (64 disk drives) can
be factory or field installed into your system.
To activate, you logically configure the disk drives for use. This is a non-disruptive activity that
does not require intervention from IBM. Upon activation of any portion of the Standby CoD
disk drive set, you must place an order with IBM to initiate billing for the activated set. At that
time, you can also order replacement Standby CoD disk drive sets.
For more details, refer to the IBM TotalStorage DS8000 Introduction and Planning Guide,
GC35-0495.
9.4.5 Capacity and well-balanced configuration
The DDMs are installed in the DS8000 according to a rule of installation sequence of disk
enclosures. Sometimes, the installation rule is related to the arrangement of your data. The
installation rule is defined as follows:
򐂰Each disk enclosure can contain 16 DDMs or dummy carriers, and a pair of disk
enclosures (32 DDMs) is installed in the DS8000 at the same time.
򐂰Each disk enclosure is connected to a specific DA pair, and two disk enclosure pairs (64
DDMs) are connected to a DA pair sequentially.
For example, if you install 96 DDMs in a DS8000, the first two disk enclosure pairs (64 DDMs)
are connected to the DA pair 0, and next one disk enclosure pair (32 DDM) is connected to
the DA pair 1.
The following figures illustrate the installation rule of the disk enclosures.
Figure 9-13 on page 182 shows a DS8100 Model 921 (2-way model).
182 DS8000 Series: Concepts and Architecture
Figure 9-13 DDM to DA mapping (2-way model)
Model 921 can have four DA pairs and 12 disk enclosure pairs (1 disk enclosure pair can
have 16 x 2 =32 DDMs). And each two disk enclosure pairs (64 DDMs) is connected to a DA
pair in order.
For example, the first 64 DDMs are connected to the DA pair 2, the next 64 DDMs are
connected to the DA pair 0, and so on. Therefore, a 256 DDMs configuration is a
well-balanced configuration (all four DA pairs have 64 DDMs).
If you install more than 256 DDMs in the DS8100, the next disk enclosures are connected to
the DA pair 2 again. When you have the maximum DDMs (384 DDMs), DA pair 0 and 1 have
128 DDMs and DA pair 2 and 3 have 64 DDMs.
Figure 9-14 on page 183 shows the DS8300 Model 922 (4-way model).
DDM to DA Mapping -- 2-way
0/1 1/0
3/2
2/3
2
2
0
0
3
3
1
1
2
2
0
0
S0
S1
disk enclosure pair
installation sequence
0/1
2
disk enclosure pair
(32 DDMs can be installed
2 means to attach to DA pair 2)
I/O drawer
(0/1 means device adapters for DA pair 0 and 1)
S0
Server
(0 means server 0)
Base Frame Expansion Frame
Chapter 9. Configuration planning 183
Figure 9-14 DDM to DA Mapping (4-way model)
Model 922 can have eight DA pairs and 20 disk enclosure pairs.
Therefore, a 512 DDMs configuration is a well-balanced configuration (all eight DA pairs have
64 DDMs).
When you have the maximum number of DDMs (640 DDMs), DA pair 0 and 1 have 128
DDMs, and DA pairs 2 through 7 have 64 DDMs.
9.5 Data migration planning
When migrating data, the migration objectives should be clearly defined. Use the following
key questions to define your generic migration environment:
򐂰Why is the data migrating?
򐂰How much data is migrating?
򐂰How quickly must the migration be performed?
򐂰What duration of service outage can be tolerated?
򐂰Is the data migration to or from the same type storage, for example from an ESS Model
800 to a DS8000?
򐂰What resources are available for the migration?
After answering these questions, you will be in a position to choose the appropriate tools and
utilities, such as standard operating system mirroring, basic commands, software packages,
remote copy technologies, and migration appliances to achieve your data migration
objectives.
DDM to DA Mapping -- 4-way
0/1 1/0
3/2
2/3
2
2
0
0
6
6
4
4
7
7
5
5
3
3
1
1
2
2
0
0
4/5 5/4
7/6
6/7
S0
S1
disk enclosure pair
installation sequence
0/1
2
disk enclosure pair
(32 DDMs can be installed
2 means to attach to DA pair 2)
I/O drawer
(0/1 means device adapters
for DA pair 0 and 1)
S0
Server
(0 means server 0)
Base Frame Expansion
Frame 1
Expansion
Frame 2
184 DS8000 Series: Concepts and Architecture
9.5.1 Operating system mirroring
Logical volume mirroring (LVM) and Veritas Volume Manager have little or no application
service disruption and the original copy will stay intact while the second copy is being made.
The disadvantages of this approach include:
򐂰Host cycles are utilized.
򐂰It is labor intensive to set up and test.
򐂰There is a potential for application delays due to dual writes occurring.
򐂰It does not allow for point-in-time copy or easy backout once the first copy is removed.
9.5.2 Basic commands
Basic commands such as cpio (in a UNIX environment) or copy (in a Windows environment)
are easy and common to use. The disadvantages of basic commands are:
򐂰Length of service disruption varies by commands used.
򐂰It is tedious to handle large numbers of LUNs.
򐂰Command scripting is prone to human error.
򐂰Security file level access issues can arise, depending on which commands used.
9.5.3 Software packages
You can employ data migration, backup, and restore packages, as well as database tools, to
migrate data. An example of a data migration package is BRMS. Tivoli Storage Manager
(TSM) may also be used in a backup and restore fashion to achieve data migrations. DB2
utilities and tools such as unload, load, and copy can also be used to migrate data. Other
third-party data migration, backup and restore, and database packages are available. Contact
the respective vendor for further assistance.
The advantages of using software packages are:
򐂰Small application impact when using data migration package.
򐂰Little disruption for non-database files.
򐂰Backup or restore cycles are offloaded to another server.
򐂰They are often standard database utilities.
The disadvantages of using a software package are:
򐂰Cost of data migration package.
򐂰Bigger impact or disruption with large databases due to lack of checkpoint-restart
capabilities.
򐂰Possibly lengthy application outage to back up or restore environment.
򐂰Application service interruptions are possible.
9.5.4 Remote copy technologies
Remote copy technologies include synchronous and asynchronous mirroring. They include
Metro Mirror, Metro/Global Copy and Global Copy.
The advantages of remote technologies are:
򐂰Other than Global Copy for zSeries, they are operating system independent.
Chapter 9. Configuration planning 185
򐂰Minimal host application outages.
The disadvantages of remote copy technologies are:
򐂰The same storage device types are required. For example, in a Metro Mirror configuration
you need ESS 800 mirroring to a DS8000 (or an IBM approved configuration), but cannot
have a non-IBM disk system mirroring to a DS8000.
򐂰Physical volume ID (PVID) and device name are not maintained if not under LVM.
9.5.5 Migration services and appliances
The following IBM migration services and appliances are available:
򐂰IBM Piper Services Offering
򐂰IBM SAN Volume Controller
These data migration services and appliances provide smooth, risk-averse data migration to
your DS8000. The advantages of these migration methods are:
򐂰Facilitated by custom migration tools.
򐂰Minimal customer involvement by IT staff, except planning.
򐂰Minimal disruption or outages to IT operations.
򐂰Online migrations can occur while continuing IT operations.
򐂰Tunable migration rate to eliminate impact to applications.
򐂰Transparent to application servers.
򐂰High throughput tool minimizes migration duration.
򐂰Delivered by team experienced with many migrations.
򐂰Maintains data integrity during migration.
򐂰Can fall back to the original data and storage device.
򐂰Large number of operating systems and storage systems supported.
The disadvantages of migration appliances are:
򐂰Cost of migration appliance or service.
򐂰Application disruption to install and remove appliance.
See Appendix C, “Service and support offerings” on page 407 for storage services offerings.
9.5.6 z/OS data migration methods
Figure 9-15 on page 186 lists a number of data migration methods available to migrate data
from existing disk systems to the DS8000 in a zSeries environment.
186 DS8000 Series: Concepts and Architecture
Figure 9-15 Different data migration methods
See Chapter 14, “Data migration in zSeries environments” on page 293 for a complete
discussion of the different methods available for data migration from any other disk system to
the DS8000 family.
9.6 Planning for performance
IBM TotalStorage DS8000 is a high-performance, high-capacity series of disk storage that is
designed to support continuous operations and allows your workload to be easily
consolidated into a single storage subsystem. To have a well-balanced disk system the
following components that affect performance need to be considered:
򐂰Disk Magic
򐂰Size of cache storage
򐂰Number of channels
򐂰Remote Copy
򐂰Parallel Access Volume
򐂰I/O priority queuing
򐂰Monitoring performance
򐂰Hotspot avoidance
򐂰Balance I/O activity
Data migration methods
Environment Data migration method
S/390 IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
zSeries IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
Linux environment IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
z/OS operating system DFSMSdss (simplest method)
DFSMShsm
IDCAMS Export/Import (VSAM)
IDCAMS Repro (VSAM, SAM, BDAM)
IEBCOPY
ICEGENER, IEBGENER (SAM)
Specialized database utilities for CICS, DB2 or IMS
Softek Replicator (previously known as TDMF)
INNOVATION FDR Plug and Swap (FDRPAS)
VM operating system DASD Dump Restore
CMDISK
COPYFILE
PTAPE
VSE operating system VSE fastcopy
VSE ditto
VSE power
VSE REPRO or EXPORT/IMPORT
Chapter 9. Configuration planning 187
9.6.1 Disk Magic
An IBM representative or an IBM Business Partner can model your workload using Disk
Magic before migrating to the DS8000. Modelling should be based on performance data
covering several time intervals, and should include peak I/O rate, peak R/T and peak (read
and write) MB/second throughput. Disk Magic will provide insight when you are considering
deploying remote technologies such as Metro Mirror. Consult your sales representative for
assistance with Disk Magic.
9.6.2 Size of cache storage
Having adequate cache storage to sustain your peak workload is imperative for consistent
disk system performance. The cache storage is divided into write cache and persistent cache.
The DS8100 Model 921 offers up to 128 GB of processor memory and the DS8300 Models
922 and 9A2 offer up to 256 GB of processor memory. In addition, the Non-Volatile Storage
(NVS) scales to the processor memory size selected, which can also help optimize
performance.
9.6.3 Number of host ports/channels
You should plan to have an adequate number of host ports or channels to provide the
required bandwidth to support your workload. The ports must also be balanced across the
entire DS8000. FICON ports are faster and more efficient than ESCON ports.
9.6.4 Remote copy
If the DS8000 is a primary disk system in a remote copy configuration, it will consume more
resources, such as cache and channels, compared to a standalone disk system, and
planning should be done accordingly.
9.6.5 Parallel Access Volumes (z/OS only)
Configuring the DS8000 with PAV will minimize or eliminate IOSQ delays and improve disk
performance. PAV can either be static or dynamic. Dynamic PAV should be implemented
when possible, as this provides more flexibility. z/OS Workload Manager (WLM) will manage
the PAV devices as a group, instead of having a static relationship with the base device. In a
static relationship the base device cannot borrow a PAV device from another base device that
is not in use. In a dynamic environment, idle PAV devices are assigned to base devices that
need more PAV devices to manage the workload. WLM manages the PAV devices on an
LSS group level.
9.6.6 I/O priority queuing (z/OS only)
I/O priority queuing allows the DS8000 series to use I/O priority information provided by the
z/OS Workload Manager to manage the processing sequence of I/O operations.
9.6.7 Monitoring performance
A number of monitoring tools are available to measure the performance of your DS8000 once
it is installed into your configuration.
Note: Disk Magic is available to IBM sales representatives and IBM Business Partners
only.
188 DS8000 Series: Concepts and Architecture
For example, in the zSeries environment, the RMF™ RAID rank report can be used to
investigate RAID rank saturation when the DS8000 is already installed in your environment.
New counters will be reported by RMF that will provide statistics on a volume level for
channel and disk analysis.
In an open system environment the iostat command is useful to determine whether a
system’s I/O load is balanced or whether a single volume is becoming a performance
bottleneck. The tool reports I/O statistics for TTY devices, disks, and CD-ROMs. It monitors
I/O device throughput and utilization by observing the time the disks are active in relation to
their average transfer rates. The vmstat utility may also be used to take a quick snapshot or
overview of the system performance.
9.6.8 Hot spot avoidance
Workload activity concentrated on a limited number of RAID ranks will saturate the RAID
ranks. This may result in poor response times, so balancing I/O activity across any disk
system is important. Spreading your I/O activity evenly across the available DS8000s will
enable you to optimally exploit the DS8000 resources, thus providing better performance. I/O
activity attributes to consider include spreading I/O activity across:
򐂰The two servers of the DS8000
򐂰The loops of the DS8000
򐂰All available RAID ranks
򐂰Across multiple DS8000s
© Copyright IBM Corp. 2005. All rights reserved. 189
Chapter 10. The DS Storage Manager - logical
configuration
In this chapter, the following topics are discussed:
򐂰Configuration hierarchy, terminology, and concepts
򐂰Summary of the DS Storage Manager logical configuration steps
򐂰Introducing the GUI and logical configuration panels
򐂰The logical configuration process
10
190 DS8000 Series: Concepts and Architecture
10.1 Configuration hierarchy, terminology, and concepts
The DS Storage Manager provides a powerful, flexible, and easy to use application for the
logical configuration of the DS8000. It is the client’s responsibility to configure the storage
server to fit their specific needs. It is not in the scope of this redbook to show detailed steps
and scenarios for every possible setup. Help and guidance can be obtained from an IBM
FTSS or an IBM Business Partner if the client requires further assistance.
10.1.1 Storage configuration terminology
An understanding of the following concepts and terminology may help you use and configure
the DS Storage Manager configurator:
Storage unit
A storage unit, also known as a storage facility, is a single physical storage subsystem
(DS8000).
Storage complex
A storage complex consists of one or more physical storage units that can be managed from
a central management point. DS8000 units can be placed together to form a complex.
Currently one DS8000 is managed by one S-HMC. In 1Q05 you will be able to have one
S-HMC (or also a redundant S-HMC) manage two DS8000s.
Storage image
A storage image, also known as a storage facility image(SFI), is a logical storage subsystem
and only applies to the DS8000. It consists of two LPARs, one on each processor complex.
Host attachment
A host attachment is a group of host ports that you want to manage the same way. The GUI
allows grouping of one or more host ports, installed on a given host, into what is called a host
attachment. The host ports we are referring to here are the HBA ports on the host, not the
DS8000. The GUI allows the user to specify the WWPNs of each HBA on the host that you
want to group together to form a host attachment. You specify how many HBAs you want to
connect to on the host, then click a checkbox to indicate that you want to group these (host
HBAs) together.
This makes it easy to set up volume access, via storage image I/O ports and volume groups,
in the same way for all the host ports, since the same settings are applied to all the host ports
grouped into the same host attachment. Volumes can be assigned to volume groups, and
volume groups can then be assigned to host attachments, for presentation to the host
operating systems.
Traditionally we think of hosts with one or more Fibre Channel adapters (HBAs), with each
adapter having one or more Fibre Channel ports. Each port has a unique Fibre Channel
address called the World Wide Port Name (WWPN). The WWPN is the address to which we
assign volumes. A host attachment is a grouping of ports and their World Wide Port Names.
Definitions are made about hosts and attachments in the GUI. The concepts and limitations
are explained in the following list:
򐂰Multiple Fibre Channel ports’ WWPNs on the same host system can be specified in one or
more host attachments, in one host definition called host system in the GUI. A host
attachment does not always mean a single port. For example, refer to Figure 10-1 on
page 191.
Chapter 10. The DS Storage Manager - logical configuration 191
Figure 10-1 Diagram of hosts and host attachment groups
򐂰In Figure 10-1 we show three pSeries hosts with four host ports each. The first host,
pSeries1, has no specific attachment groupings, so each port could be defined as an
attachment. Server ports can be grouped in attachments for convenience. For example,
pSeries2 shows two host attachments, with two ports in each attachment. Server pSeries3
shows one host attachment with four ports grouped in the one attachment.
򐂰A host attachment can be configured to access specific disk subsystem I/O ports or all
valid disk subsystem I/O ports.
򐂰Host attachments can be configured to access specific volume groups.
򐂰A specific host attachment (one port or set of grouped ports) can access only one volume
group.
򐂰Multiple host attachments, even different open system host types, with the same block
size and addressing mode, can access the same volume group. The safest approach to
this concept is to configure one host per volume group. If shared access to the LUN is
required, for example, for dual pathing or clustering, then the shared LUNs may be placed
in multiple volume groups as shown in Figure 10-3 on page 195.
򐂰FICON/ESCON attachment access is controlled by zSeries HCD/IOGEN definitions.
Some ESCON/FICON attachment considerations follow.
– One storage subsystem FICON host definition will be needed in order to configure I/O
adapters to use FICON protocol instead of FCP protocol.
– No storage subsystem host definition will be required for ESCON hosts since ESCON
adapters are single purpose and do not require configuration.
– Default volume groups are automatically created, allowing anonymous access for
ESCON/FICON.
pSeries1
pSeries2
pSeries3
NO Host Attachment Group defined
for host pSeries1. By default,
the 4 ports are placed in 4 Host
Attachments
Two Host Attachment Groups defined
for host pSeries2
One Host Attachment Group defined
for host pSeries3
Fiber Channel
Port
WWPN1
WWPN2
WWPN3
WWPN4
WWPN5
WWPN6
WWPN7
WWPN8
WWPN9
WWPN10
WWPN11
WWPN12
192 DS8000 Series: Concepts and Architecture
One set of host definitions may be used for multiple storage images, storage units, and
storage complexes.
DDM
A Disk Drive Module (DDM) is a field replaceable unit that consists of a single disk drive and
its associated packaging. DDMs are ordered in a group of 16 called a drive set. A drive set is
installed across two disk enclosures, 8 DDMs in the front disk enclosure and 8 DDMs in the
rear disk enclosure. When ordering disk enclosures they come in pairs, each able to hold 16
drives. If any disk enclosure is not full of DDMs, then the empty slots must be filled with
dummy carriers called disk enclosure fillers. Disk enclosure fillers can be ordered in groups of
16 per order.
Array sites
An array site is a predetermined grouping of eight individual DDMs of the same speed and
capacity. Four disks from a rear disk enclosure and four disks from a front disk enclosure
make up the array site.
Arrays
Arrays consist of DDMs from an array site, used to construct one RAID array. An array is
given either a RAID-5 or RAID-10 format.
Ranks
One array forms one CKD or Fixed Block (FB) rank. When the rank is configured, either CKD
or FB characteristics are taken on at this point. Presently only one array can reside in a rank,
but in the future one or more arrays will be able to reside in one rank.
Extent pools
An extent pool consists of one or several ranks. Ranks in the same extent pool must be of the
same data format (CKD or FB). Each extent pool is associated with server 0 or server 1.
Although it is possible to create extent pools with ranks of different drive capacities, speeds,
and RAID types, we recommend you create them to consist of the same RAID type, speed,
and capacity. Also, we recommend that you configure only half of the total number of ranks to
reside in one pool (server 0) and the other half in the other pool (server 1). Extent pools
contain one or more ranks divided into fixed-size extents as follows:
򐂰CKD extents are equal to a 3390 Mod1
򐂰FB extents are 1GB
The storage in an extent pool (the extents from each rank in the extent pool) is used to create
logical volumes. We recommend that you create one extent pool out of only one rank to start
with, unless the size required for a Fixed Block logical volume (LUN) is larger than the
combined free extents residing in one single rank.
Note: The ranks have no pre-determined relation to an LSS.
Chapter 10. The DS Storage Manager - logical configuration 193
Figure 10-2 An extent pool containing 2 volumes
Figure 10-2 is an example of one extent pool composed of ranks formatted for FB data. Two
logical volumes are defined (volumes 2310 and 7501). Each volume is made up of 6 extents
at 1 GB each. This makes each volume 6 GBs. The numbering sequence of LUN id 2310,
shown in the diagram as the top volume, translates into an address. The volume identification
number is built using the following rules: xyzz, x = the LSS address group, xy = LSS number
itself, and zz = the volume id(volid). For example, LUN 2310 has an address group number of
2, is located in LSS 23, and has a volid of 10.
Different volumes on a single extent pool can be assigned to the same or different LSSs.
Extent pools are assigned to server 0 and server 1 during configuration and receive their
server affinity at this time. If you are using the custom configuration, we recommend, for user
manageability reasons, that you associate the rank even numbers to server 0 and the rank
odd numbers to server 1 when defining the extent pools during the configuration process.
The following rules apply when creating extent pools:
򐂰You must configure a minimum of two extent pools to utilize server 0 and server 1.
򐂰More than one rank can reside in an extent pool, but you cannot make two extent pools out
of only one rank. We recommend that you create one extent pool out of one rank, unless
the LUN capacity is greater than the capacity of one rank in the extent pool.
Some general considerations are:
򐂰One rank per pool will not constrain addresses.
򐂰Ranks can be added to an extent pool at any time.
򐂰The logical volumes defined in one extent pool can be in different LSSs.
򐂰The logical volumes in different extent pools can be in the same LSS; they are limited only
by the odd and even server affinity.
򐂰Ranks can be removed from an extent pool if no extents on the rank are currently
assigned to the logical volumes.
򐂰Any extent can be used to make a logical volume.
2
3
1
0
7
5
0
1
Extent Pool
1GB Extents
Ranks formated for FB data
194 DS8000 Series: Concepts and Architecture
򐂰There are thresholds that warn you when you are nearing the end of space utilization on
the extent pool.
򐂰There is a Reserve space option that will prevent the logical volume from being created in
reserved space until the space is explicitly released.
Logical volumes
Logical volumes, also know as LUNs when configured for open systems or CKD volumes
when configured for zSeries, can only be made from one or more extents residing in the same
extent pool. This means that a logical volume cannot span multiple extent pools. Ranks must
be added to extent pools to make larger LUNs. We use the terms volume and LUN
interchangeably throughout the rest of this chapter when referring to logical volumes.
Some limitations are:
򐂰A specific volume is in one LSS.
򐂰Multiple volumes in one extent pool or one rank can be in the same or different LSSs, as
shown in Figure 10-6 on page 198.
򐂰Multiple volumes in different extent pools and on different ranks can be in the same LSS,
also as shown in Figure 10-6.
򐂰The minimum volume/LUN size is one extent.
– For CKD the minimum size is a 3390 Mod1.
– For FB the minimum size is 1GB.
򐂰The maximum volume/LUN size is equal to the size of the extent pool, with the following
limitations: 56 GB for CKD, with appropriate zSeries software support, and 2 TB for FB.
For example, if only one rank was residing in the extent pool, then the maximum LUN size
would be equal to the capacity of that one rank.
򐂰The maximum number of logical volumes at GA for the DS8000 is 64K; of the 64K LUNs,
a maximum of 32K can be for FB and 32K can be for CKD.
򐂰Volumes can be deleted and the extents reused without having to format the ranks or
arrays they reside in.
Volume groups
A volume group is a collection of logical volumes. Volume groups are created to provide FB
LUN masking by assigning logical volumes and host attachments to the same volume group.
For CKD volumes, one volume group for ESCON and FICON attachment with an anonymous
host attachment is automatically created.
Volume groups can be thought of as LUN groups. Do not confuse the term volume group here
with that of volume groups on pSeries. The DS Storage Manager volume groups have the
following properties:
򐂰Volume groups enable FB LUN masking.
Note: A user can't control or specify which ranks in an extent pool are used when
allocating extents to a volume.
Note: The user can specify volume sizes in binary, decimal, or block sizes. When you
specify binary form, 1 GB is equal to 1073741924 bytes, instead of the decimal size, as
in the ESS, where 1GB is 1000000000 bytes.
Chapter 10. The DS Storage Manager - logical configuration 195
򐂰They contain one or more host attachments from different hosts and one or more LUNs.
This allows sharing of the volumes/LUNs in the group with other host port attachments or
other hosts that might be, for example, configured in clustering.
򐂰A specific host attachment can be in only one volume group. Several host attachments
can be associated with one volume group. For example, a port with a WWPN number of
10000000C92EF123 can only reside in one volume group, not two or more.
򐂰Assigning host attachments from multiple host systems, even running different operating
system types, are allowed in the same volume group.
Figure 10-3 Diagram of the relationship of a host attachment to a volume group
In Figure 10-3, we show two volume groups, volume group 1 and volume group 2. A
pSeries server with 1 host attachment (four ports grouped in that attachment) resides in
volume group 1. The xSeries2 server has 1 host attachment (2 ports grouped into the
attachment). The ports are grouped together in one attachment definition. For example,
the server, xSeries2 is dual pathed to the LUNs through one attachment group definition.
򐂰In order to share LUNs across multiple host attachments, LUNs can be in more than one
volume group as shown in the example in Figure 10-4 on page 196.
Note: We recommend that you configure one volume group per host. Presently the GUI
does not allow you to make more than one volume group per host attachment. If you
want multiple volume groups on a single host, the GUI does allow you to make more
than one host attachment to a host. This is the way you achieve multiple volume groups
on a host.
xSeries2
pSeries1
Volume Group 2
Volume Group 1 Host
Host Attachment
196 DS8000 Series: Concepts and Architecture
Figure 10-4 Example of volume groups, LUNs and host attachment definitions
In Figure 10-4 we show three hosts (host A, host B, and host C) defined in the logical
configuration as three different host systems. The user will group the WWPN of each host
system in groups called host attachments. As shown in the diagram, each host attachment
is assigned to one volume group. Volumes can belong to several volume groups. For
example, volumes 5 and 6 are in volume group 2 and volume group 3, so they will be
shared by host A, host B, and host C. Several host attachments can be associated to the
same volume group. For example, hosts B and C will share volumes 5, 6, 7, and 8
because their host attachments are assigned to the volume group 3. However, for
management simplification, we recommend that only one host attachment is assigned to
each volume group.
򐂰The maximum number of volume groups for the DS8000 is 8320.
Address groups
An address group is a group of FB or CKD LSSs. An address group has up to 16 LSSs.
The DS8000 supports up to 16 address groups. Each address group is identified by one
hexadecimal digit: address group 0 to address group F.
LSS/LCU
A logical subsystem (LSS) is a topological construct that consists of a group of up to 256
logical volumes. The DS8000 architecture allows up to 255 LSSs (hex 00 to FE). However,
at GA, a DS8000 will allow you to have up to 64 CKD logical subsystems (16384 CKD logical
volumes) and up to 64 fixed-block logical subsystems (16384 fixed-block logical devices).
There is a one-to-one mapping between a CKD logical subsystem and a zSeries control-unit
image. ESCON-attached hosts can only access LSSs 00 to 0F, so these should be reserved
for CKD LSSs if you plan to use ESCON host adapters.
Host System A
2
Host Attachment
WWPN WWPN
Host Attachment
WWPN WWPN
Host System B
1
3
5
4
68
7
Volume Group 1 Volume Group 2 Volume Group 3
Host Attachment
WWPN WWPN
Host System C
Host Attachment
WWPN WWPN
It is possible to have
several host attachments
associated to one volume
group.
We do recommend, for
ease of management, to
associate only one host
attachment to each
volume group.
Chapter 10. The DS Storage Manager - logical configuration 197
Figure 10-5 shows an example of the relationship between LSSs, extent pools, and volume
groups: Extent pool 4, consisting of two LUNs, LUN 2210 and LUN 7401; and extent pool 5,
consisting of three LUNs, LUN 2313, 7512, and 7515.
Here are some considerations regarding the relationship between LSS, extent pools, and
volume groups:
򐂰Volumes from different LSSs and different extent pools can be in one volume group as
shown in Figure 10-5. Volume group 1 consists of extent pool 4, LUN 2210, and extent
pool 5, LUN 7512.
򐂰Volumes from the same LSS or the same extent pool, or both, can be in different volume
groups. For example in Figure 10-5, LUN 7512 in extent pool 5 and LUN 7515 in extent
pool 5, both of which reside in LSS75, also reside in different volume groups.
Figure 10-5 Example of relationship between LSSs, extent pools, and volume group
The LSS and LCU provide the logical grouping of volumes/LUNs for Copy Services and
various other purposes. Some of these purposes are explained along with general
considerations about LSSs in the DS8000, as follows:
򐂰The LSS or LCU determines the addressing, address groups, and PAVs.
– Each logical volume has a 4 digit Hexadecimal xyzz identification number built using
the following rules: x = the address group, xy = LSS number itself, and zz = the volume
id (volid). For example, LUN 2310 has an address group number of 2, is located in LSS
23, and has a volid of 10.
– There are up to 16 LSSs in an address group. For example, 00 to 0F for address group
0, 10-1F for address group 1, 20-2F for address group 2, and so forth.
– Any given PAV can only be used within one LCU.
򐂰LSSs are used for Copy Services, PPRC paths, and consistency group properties or
time-outs.
򐂰There are a maximum number of LSSs. For the DS8000 there are a maximum of 255
LSSs. When speaking of ESCON, the maximum is 16 ESCON CKD LSSs.
򐂰The LSSs have a pre-determined association with Server0 or Server1.
– The even LSSs are associated with Server0.
– The odd LSSs are associated with Server1.
򐂰The LSSs are configured to be either CKD or FB.
– CKD LSSs’ definitions are configured during the LCU creation.
2
2
1
0
7
4
0
1
Extent Pool 4 Extent Pool 5
Volume Group 1
Volume Group 2
2
3
1
3
7
5
1
2
7
5
1
5
198 DS8000 Series: Concepts and Architecture
– FB LSSs’ definitions are configured during the volume creation.
򐂰LSSs have no predetermined relation to physical ranks or extent pools other than their
server affinity to either Server0 or Server1.
– One LSS can contain volumes/LUNs from different extent pools.
– One extent pool can contain volumes/LUNs that are in different LSSs, as shown in
Figure 10-6.
– One LCU can contain CKD volumes/LUNs of different types, for example, type 3390
Model 3 and Model 9.
– LSSs can have a many-to-many Copy Services relationship as shown by the arrows in
Figure 10-6.
Figure 10-6 Example of Copy Services relationship between LSSs in the same storage image
򐂰An entire address group will be either FB or CKD; for example, all 16 LSSs in that group
would be either FB or CKD type LSSs.
򐂰Initially there will only be 8 address groups for the DS8000 at GA, however more will be
available at a later time.
򐂰One address group has 4096 addresses (16 LSS x 256 logical volume = 4096 logical
volumes or addresses). This means that if you had eight address groups, you would have
32768 (8 X 4096 = 32768) addresses, which translates to 32768 logical volumes or
addresses.
As an example: When creating a logical volume from an extent pool built with FB ranks, the
GUI will prompt for which LSS this FB volume will be placed in, and will propose a list of
LSSs. If the user chooses LSS 14 and if it is the first LUN to be placed in this LSS, then the
attributes of address group 1 will be Fixed Block, reserving LSS 10 to 1F for Fixed Block
volumes. The user will not be able to create any LCU using address group 1.
Attention: The address groups and LSSs are predefined in the DS8000. Initially, they do
not have any data format attributes (FB or CKD). Their data format attributes are set when
the first LUN is added to one LSS in an unused address group or when you create an LCU
using an unused address group.
When creating a logical volume, the user is prompted to add the volume to an LSS. Adding
the volume to an unused LSS will set its data format characteristics (FB or CKD) and also
will set the address group data format characteristics. It also sets the data format of the
remaining 15 LSSs in that address group.
2
3
1
0
7
5
0
1
Extent Pool 3
Rank1
2
3
1
3
7
5
1
2
Extent Pool 5
Rank3
5
1
1
1
7
5
0
2
Copy services Relationships
Chapter 10. The DS Storage Manager - logical configuration 199
10.1.2 Summary of the DS Storage Manager logical configuration steps
It is our recommendation that you review the following concepts before performing the logical
configuration. These recommendations are discussed in this chapter.
Planning
When configuring available space to be presented to the host, we suggest that you approach
the configuration from the host and work up to the DDM (raw physical disk) level. This is just
the opposite way that you would configure the raw DDMs into host volumes. Refer to
Figure 10-7 on page 200 to understand the hierarchy in the virtualization layers in the
DS8000.
1. Determine the number of hosts and type of hosts (zSeries or Open System) in the
environment that will use external capacity.
2. Determine the amount of capacity needed for each host and for each data format type.
3. Determine the number and the size of logical volumes needed to fulfill the capacity
requirements for zSeries and open system hosts.
4. Determine the number of rank types (FB or CKD) and the number of ranks per extent pool
to be able to build the specific logical volumes. The recommendation is to have one rank
per extent pool unless the LUN size requires you to spread the LUN on several ranks in an
extent pool.
5. Determine the number of address groups that will be assigned for CKD LSSs and the
number of address groups that will be assigned for FB LSSs, and reserve the
corresponding address group. Note that address group 0 needs to be reserved for
ESCON attachment.
Tip: We recommend that you reserve all LSSs in address group 0 (LSSs 00-0F) for CKD
ESCON attachments because ESCON attachments must use address group 0.
200 DS8000 Series: Concepts and Architecture
Figure 10-7 View of the raw DDM to LUN relationship
Raw or physical DDM layer
At the very top of Figure 10-7 you can see the raw DDMs. There are 16 DDMs in a disk drive
set. DDM X represents one 16-pack and DDM Y represents another 16-pack. Upon placing
the 16-packs into the DS8000, each 16-pack is grouped into array sites, shown as the second
layer.
Array site layer
At the array site level, predetermined groups of eight DDMs of the same speed and capacity
are arranged. An arrays across loop strategy is used in the predetermined groupings so that
an array does not consist of the same, eight physical raw disks in the disk drive set.
Array layer
This level is where the format is placed on the array. Sparing rules are enforced depending on
which RAID format is chosen. If you choose RAID-5, then one spare is created and a RAID-5
format is striped across the remaining 7 drives. You must calculate the equivalent of one disk
that is used for parity out of the array. Although parity is not placed on one physical disk, but
striped across all the remaining disks, that parity equals one disk’s worth of capacity. See
Figure 10-8 on page 201. In this figure the RAID format is a 6 + P + S. If you add up the parity
chunks it equals one disk’s worth of capacity. If you chose RAID-10 then you would have two
spares with no parity and a 3 X 3 + 2(spares) configuration. This would continue for each
RAID array until the sparing rules are met.
6
Array Site X
DDM 16-pack X
Rank1
Array Site Y
Volumes/LUNs
Host
Array X
(Extent Pool A)
Each extent = 1
GB
CKD or FB
Array Y
RAID5 or RAID10
DDM 16-pack Y
RAID5 or RAID10
Rank2
Virtualization Layers Hierarchy
Raw DDM layer
array site layer
array layer
rank layer
extent pool layer
Volume layer
Chapter 10. The DS Storage Manager - logical configuration 201

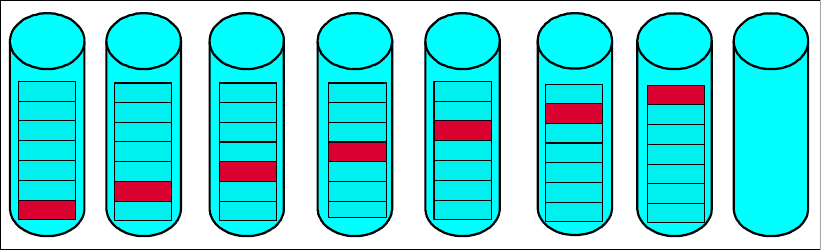

Figure 10-8 Diagram of how parity is striped across physical disks
Rank layer
At this level the ranks are formed. Presently only one array can make up a rank.
Extent pool layer
At this level the extent pools are formed. In Figure 10-7 we show that extent pool A is made
up of 2 ranks: rank 1 and rank 2. The extents in the pool are 1GB.
Logical volume layer
Layer 6 is the final level of the LUN formation. As illustrated in Figure 10-7, two LUNs were
created out of extent pool A. The top LUN is made up of 12 extents, making it a 12 GB LUN.
The bottom LUN is made up of 24 extents, making it a 24 GB LUN.
Logical Configuration flow
Figure 10-9 on page 202 shows the recommended flow for performing the Logical
Configuration using the GUI.
Spare
Chunk1
Chunk2
Chunk3
Chunk4
Chunk5
Chunk6
Parity
Chunk1
Chunk2
Chunk3
Chunk4
Chunk5
Parity
Chunk7
Chunk1
Chunk2
Chunk3
Chunk4
Parity
Chunk6
Chunk7
Chunk1
Chunk2
Chunk3
Parity
Chunk5
Chunk6
Chunk7
Chunk1
Chunk2
Parity
Chunk4
Chunk5
Chunk6
Chunk7
Chunk1
Paity
Chunk3
Chunk4
Chunk5
Chunk6
Chunk7
Parity
Chunk2
Chunk3
Chunk4
Chunk5
Chunk6
Chunk7
202 DS8000 Series: Concepts and Architecture
Figure 10-9 Recommended logical configuration steps
10.2 Introducing the GUI and logical configuration panels
The IBM TotalStorage DS Storage Manager is a program interface that is used to perform
logical configurations and Copy Services management functions. The DS Storage Manager
program is installed via a GUI (graphical mode) or as an unattended (silent mode) installation
for the supported operating systems. It can be accessed from any location that has network
access using a Web browser. This section describes the DS Storage Manager GUI and
logical configuration concepts and steps that allow the user a simple and flexible way to
successfully configure FB and CKD storage.
10.2.1 Connecting to the DS8000
To connect to the DS8000 through the browser, enter the URL of either the default Storage
Hardware Management Console (S-HMC) or the optional S-HMC you may have purchased.
You can connect through either S-HMC, but we recommend that once you start updating and
modifying from one S-HMC, you continue to make your changes through that S-HMC for the
duration of the change. The URL consists of the TCP/IP address as shown in Figure 10-10, or
a fully qualified name that the DNS server can resolve as shown in Figure 10-11 on page 203.
Create Storage Complex.
Create Storage Units (Storage Facility) and define associated
Storage Images (Storage Facility Images).
Define Host Systems and associated Host Attachments.
Create Arrays by selecting Array Sites. Array Sites are already
automatically pre-defined.
Create Extent Pools, add ranks in Extent Pools and define the
server 0 or server 1 affinity.
Create Logical Volumes and add the Logical Volumes in LSSs.
(LSSs and Address Groups Data Types (FB or CKD) are set when a
LUN is added to one LSS in an unused Address Group or when one
LCU is created in an unused Address Group.)
Create Volume Groups. Then, assign Host Attachments and
Logical volumes to the Volume Group you create.
Create Ranks and add Arrays in the ranks.
Chapter 10. The DS Storage Manager - logical configuration 203

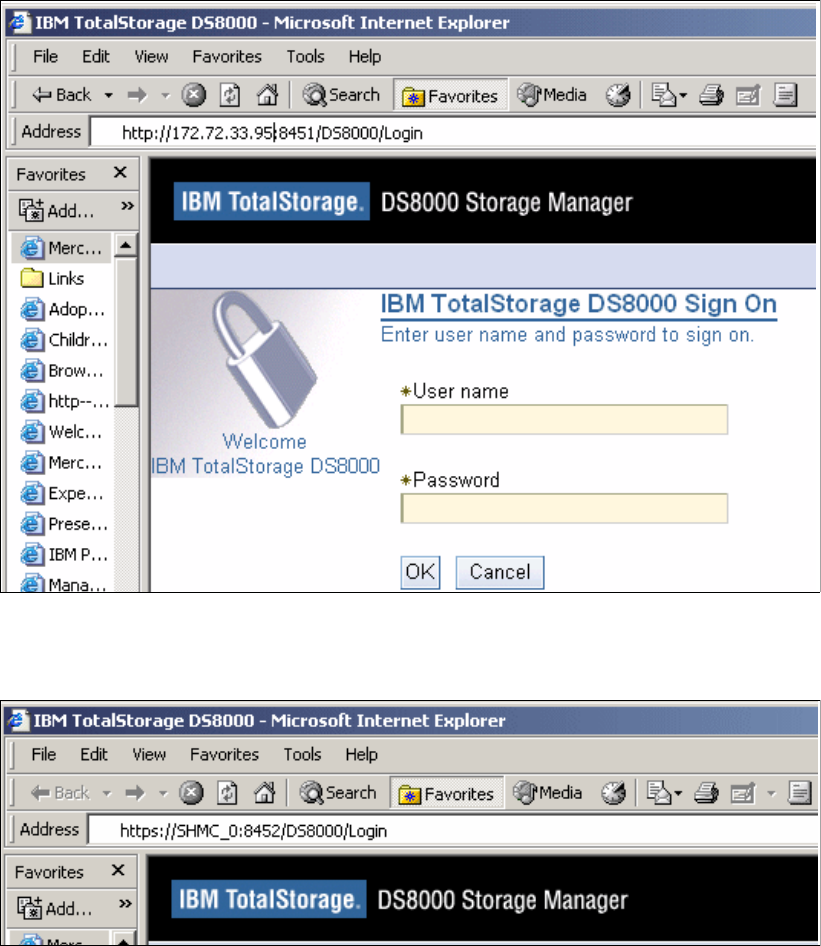

Figure 10-10 Entering the URL using the TCP/IP address for the S-HMC
In Figure 10-10, we show the TCP/IP address and the port number 8451 afterwards.
Figure 10-11 Entering the URL using the fully qualified name of your S-HMC
In Figure 10-11, we show the fully qualified name and the port number 8452 separated by a
colon.
For ease of identification, you could add a suffix such as 0 or 1 to the selected fully qualified
name, for example, SHMC_0 for the default S-HMC as shown in Figure 10-11. Then
bookmark it for ease of use. When assigning the number, we recommend that you make the
last field of the optional S-HMC only one digit higher than the default S-HMC.
10.2.2 The Welcome panel
The IBM TotalStorage DS8000 Storage Manager (DS Storage Manager) is a software
application that runs on the S-HMC. It is the interface provided for the user to define and
maintain the configuration of the DS8000. The DS Storage Manager can be accessed using a
204 DS8000 Series: Concepts and Architecture
Web browser running directly to the on-board S-HMC, or in a remote machine connected into
the user’s network.
Once the GUI is started and the user has successfully logged on, the Welcome panel shown
in Figure 10-12 is displayed.

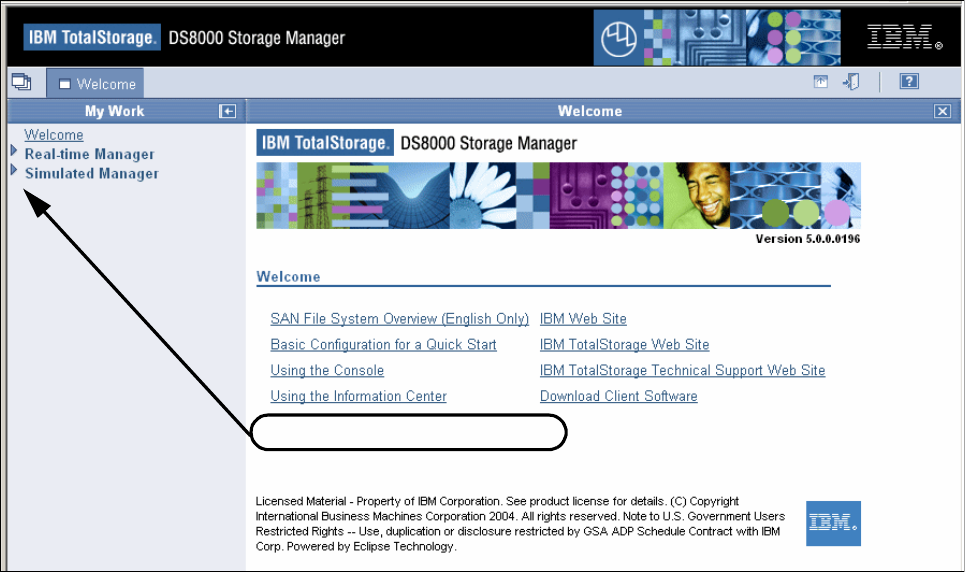

Figure 10-12 The Welcome panel
Figure 10-12 shows the Welcome panel’s two menu choices. Click the triangle beside either
menu item to expand the menu; this displays the options needed to configure the storage.
The DS8000 Storage Manager configurator can be used either in Real-time (online) or
Simulated (offline) mode as shown in Figure 10-12. Either mode can be used to manipulate
the storage configuration process for a DS8000, defining CKD and fixed block (FB) storage.
Either mode can also be used to modify an existing configuration.
It is important to know that the Simulated Manager is limited in its function, and is used to
pre-configure new configurations or modify existing configurations; the modifications are
executed at a later time. For example, the Simulated Manager could be used to execute or
modify changes at an off-peak hour.
򐂰Real-time Manager configuration
You can use the Real-time mode selections of the DS Storage Manager if you chose
Real-time during the installation of the DS Storage Manager. Part of the Real-time
configuration process requires you to input the OEL license activation key. You can obtain
this key and all of the license activation keys from the Disk Storage Feature Activation
(DSFA) Web site at:
http://www.ibm.com/storage/dsfa
This application provides logical configuration and Copy Services functions for a storage
unit attached to the network. This feature provides you with real-time (online) configuration
The triangle expands the menu
Chapter 10. The DS Storage Manager - logical configuration 205
support. A view of the fully expanded Real-time manager menu choices is shown in
Figure 10-13.

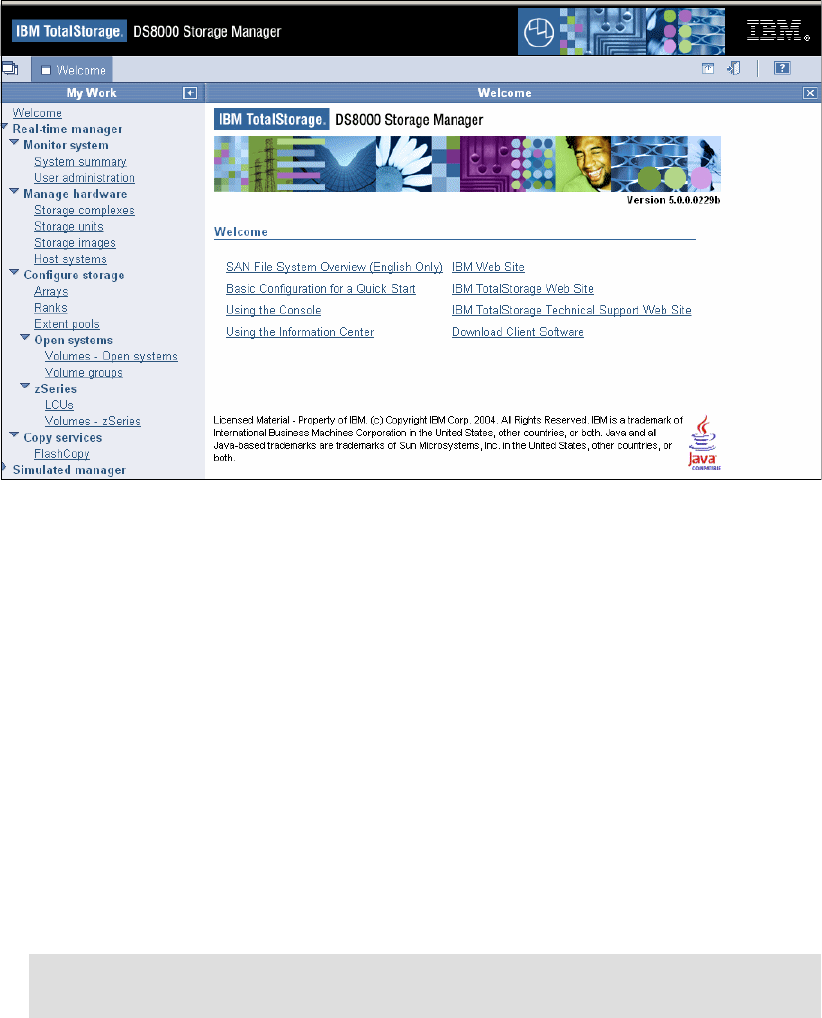

Figure 10-13 The fully expanded Real-time manager menu choices
–Copy Services
You can use the Copy Services selections of the DS Storage Manager if you chose
Real-time during the installation of the DS Storage Manager and you purchased these
optional features. A further requirement to using the Copy Services features is to apply
the license activation keys. You need to obtain the Copy Services license activation
keys (including the one for the use of PAVs) from the Disk Storage Feature Activation
(DSFA) Web site.
򐂰Simulated Manager configuration
You can begin using the simulated mode immediately after logging on to the DS Storage
Manager. However, if you want to make your configurations usable you need to obtain the
license activation keys from the Disk Storage Feature Activation (DSFA) Web site.
You need to input these activation keys and save them as part of your configuration input.
This application provides the ability to create or modify logical configurations when
disconnected from the network. After creating the configuration, you can save it and then
apply it to a storage unit attached to the network at a later time.
A view of the fully expanded Simulated Manager menu choices is shown in Figure 10-14
on page 206.
Note: The actual keys are not entered via the Simulated manager, only the capacities.
The keys must be entered and applied via the Real-time manager.
206 DS8000 Series: Concepts and Architecture

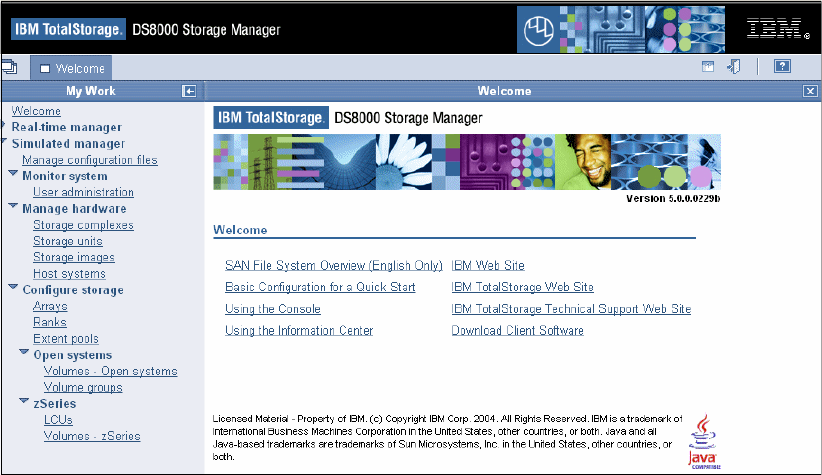

Figure 10-14 The fully expanded Simulated manager menu choices
The following items should be considered as first steps in the use of either of these modes.
򐂰Log in
Logging in to the DS Storage Manager requires that you provide your user name and
password. This function is generally administered through your system administrator and
by your company policies.
The preconfigured userid and password is as follows:
userid = admin
password = admin
򐂰Creating and defining the users and passwords
Click User administration, as shown in Figure 10-15 on page 207, to add users and set
passwords. The names and passwords must conform to the following standards:
– The user name can be up to 16 characters.
– Passwords must contain at least 5 alphabetic characters, and at least one special
character, with an alphabetic character in the first and last positions. Passwords are
limited to a total of 16 characters. The user name cannot be part of the password. This
entry will appear as asterisks.
Chapter 10. The DS Storage Manager - logical configuration 207
Figure 10-15 User administration panel
Click Go to advance to the panel shown in Figure 10-16.
Figure 10-16 Add User panel
You can grant user access privileges from the panel shown in Figure 10-16.
򐂰Using the help panels (information center)
The information center displays product and application information. The system provides
a graphical user interface for browsing and searching online documentation.
The broad range of topics covered includes accessibility, Copy Services, device storage,
host system attachments, concurrent code loads, input/output configuration programs,
and volume storage.
To use the information center click the question mark (?) icon that appears in the top right
corner of the screen.
208 DS8000 Series: Concepts and Architecture
Figure 10-17 View of the information center
10.2.3 Navigating the GUI
Knowing what icons, radio buttons, and check boxes to click in the GUI will help you properly
navigate your way through the configurator and successfully configure your storage.
Figure 10-18 The DS Storage Manager Welcome panel
The picture icons that appear near the top of the Welcome screen and that are identified by
number in Figure 10-18 have the following meanings:
1. Icon 1 as identified in the figure allows you to hide the My Work menu area to increase the
space for displaying the main panel.
1234
Chapter 10. The DS Storage Manager - logical configuration 209
2. Icon 2 will hide the black banner across the top of the screen, again to increase the space
to display the panel you are working on.
3. Icon 3 allows you to properly log out and exit the DS Storage Manager GUI.
4. Icon 4 accesses the Information Center. You get a help menu screen that prompts you for
input on help topics.
Figure 10-19 shows how the screen looks if you expand the work area using icons 1 and 2
from the previous illustration. The icons highlighted in this figure can be used to reduce the
work area and restore display of the My Work menu and product banner areas.

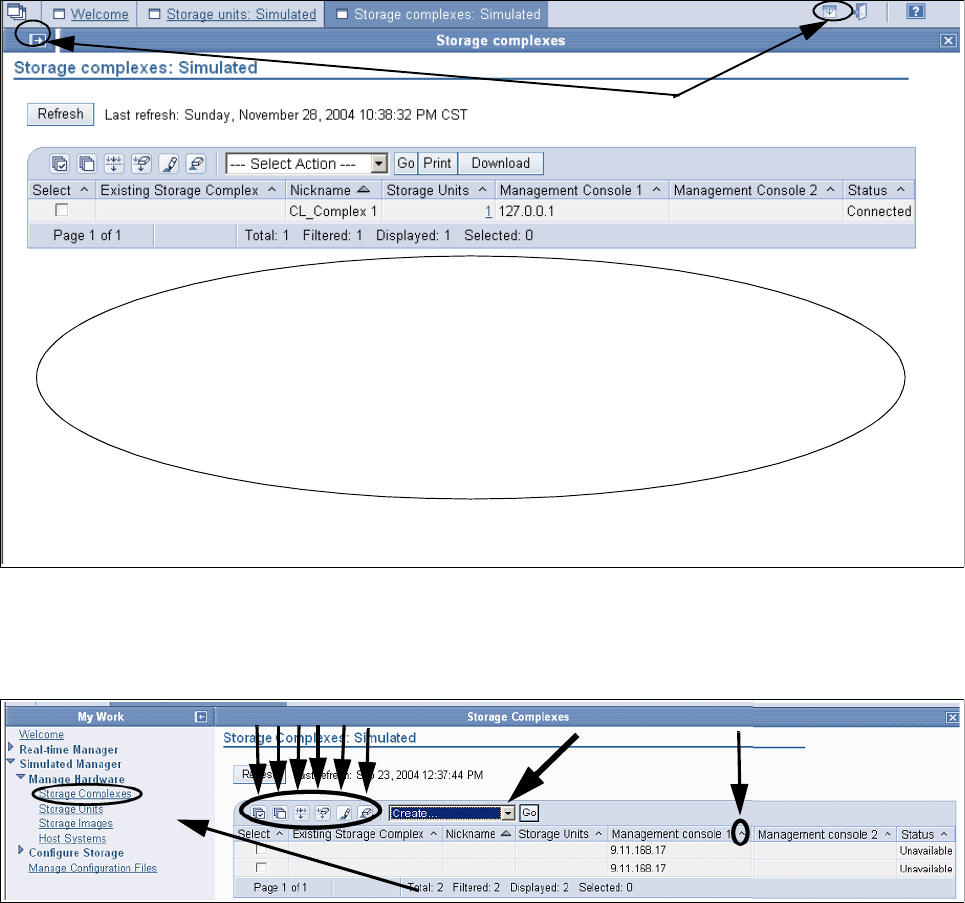

Figure 10-19 View of the storage complexes in the work area
To reduce the work area and work from the Real-time or Simulated Manager menu selection
again, simply click the button shown on the left of Figure 10-19.
Figure 10-20 View of the Storage Complexes section
The buttons highlighted in Figure 10-20 have the following meanings:
򐂰Boxes 1 through 6 are for selecting and filtering. Their specific meaning are:
1 Select All
This is the work area
Expand or reduce the work area by clicking
Storage Complexes
7
812 34 5 6
210 DS8000 Series: Concepts and Architecture
2 Deselect All
3 Show Filter Row
4 Clear All Filters
5 Edit Sort
6 Clear All Sorts
򐂰The caret button (number 7) is for a simple ascending/descending sort on a single column.
򐂰Clicking the pull-down (number 8) results in the expanded action list shown in
Figure 10-21. Near the center of the list you can access the same selection and filtering
options mentioned previously.
Figure 10-21 Storage unit view of the pull-down
Radio buttons and check boxes
Figure 10-22 illustrates the difference between radio buttons and check boxes.
Figure 10-22 View of radio buttons and check boxes in the host attachment panel
8
Radio buttons
Check boxes
Chapter 10. The DS Storage Manager - logical configuration 211
In the example shown in Figure 10-22, the radio button is checked to allow specific host
attachments for selected storage image I/O ports only. The check box has also been selected
to show the recommended location view for the attachment.
10.3 The logical configuration process
We recommend that you configure your storage environment in the following order. This does
not mean that you have to follow this guide exactly. You can get the same results by following
a different order, as long as you define your storage complex, unit, and images first. This is
only a suggestion.
10.3.1 Configuring a storage complex
To create the storage complex, expand the Manage Hardware (1) section, click Storage
Complexes (2), click Create from the Select Action (3) pull-down and click Go (4), as shown
in Figure 10-23. Follow the panel directions with each advancing panel.
Figure 10-23 View of the Select Action pull-down menu with Create, selected
Under the Define Properties panel, type the storage complex Nickname and Description.
4
321
212 DS8000 Series: Concepts and Architecture
Figure 10-24 The Create Storage Complex panel, with the Nickname and Description defined
Do not click Create new storage unit at the bottom of the screen as shown in Figure 10-24.
Click Next, then Finish in the verification step.
10.3.2 Configuring the storage unit
To create the storage unit, expand the Manage Hardware section, click Storage Units (2),
click Create from the Select Action pull-down, and click Go. Follow the panel directions with
each advancing panel.
After clicking Go, you will see the General storage unit information panel shown in
Figure 10-25 on page 213.
Chapter 10. The DS Storage Manager - logical configuration 213

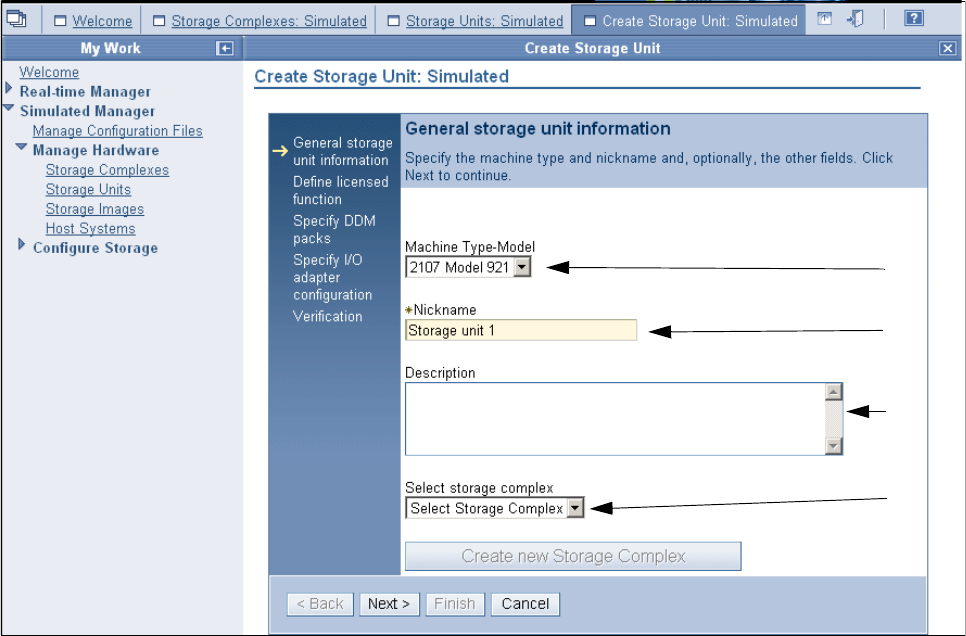

Figure 10-25 The General storage unit information panel
Fill in the required fields as shown in Figure 10-25, and choose the following:
1. Click the Machine Type-Model from the pull-down.
2. Fill in the Nickname.
3. Type in the Description.
4. Click the Select Storage complex from the pull-down, and choose the storage complex
on which you wish to create the storage image.
Click Next to advance you to the Define licensed function panel, under the Create Storage
Unit path, as shown in Figure 10-26 on page 214.
1
2
3
4
214 DS8000 Series: Concepts and Architecture

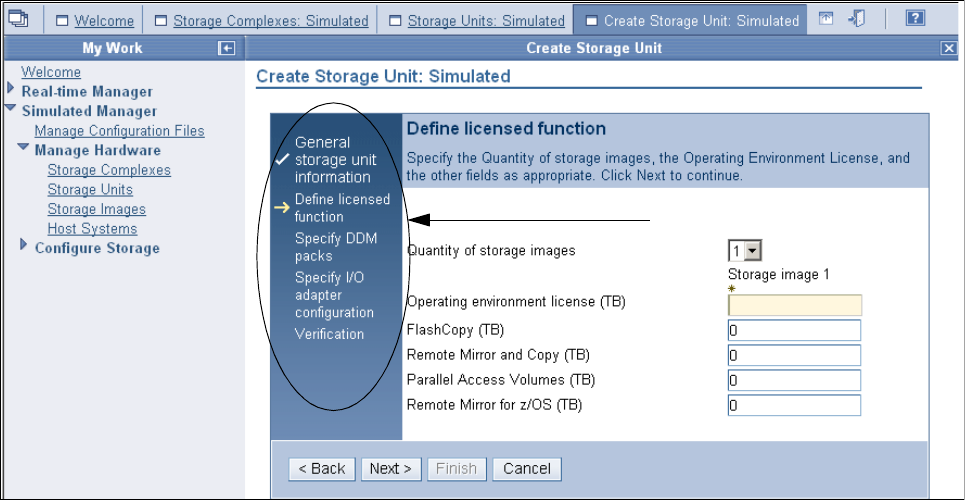

Figure 10-26 View of the Defined licensed function panel
Fill in the fields shown in Figure 10-26 with the following information:
򐂰The quantity of images
򐂰The number of licensed TBs for the Operating environment
򐂰The quantity of storage covered by the FlashCopy License, in TB.
򐂰The amount of disk for Remote Mirror and Copy in TB
򐂰The amount of TB for Parallel Access Volumes (PAV)
򐂰The amount in TB for Remote Mirror for z/OS
Click Next to advance to the Specify DDM packs panel shown in Figure 10-27 on page 215.
Fill in the proper information for your specific environment.
Configuration advancement steps
Chapter 10. The DS Storage Manager - logical configuration 215

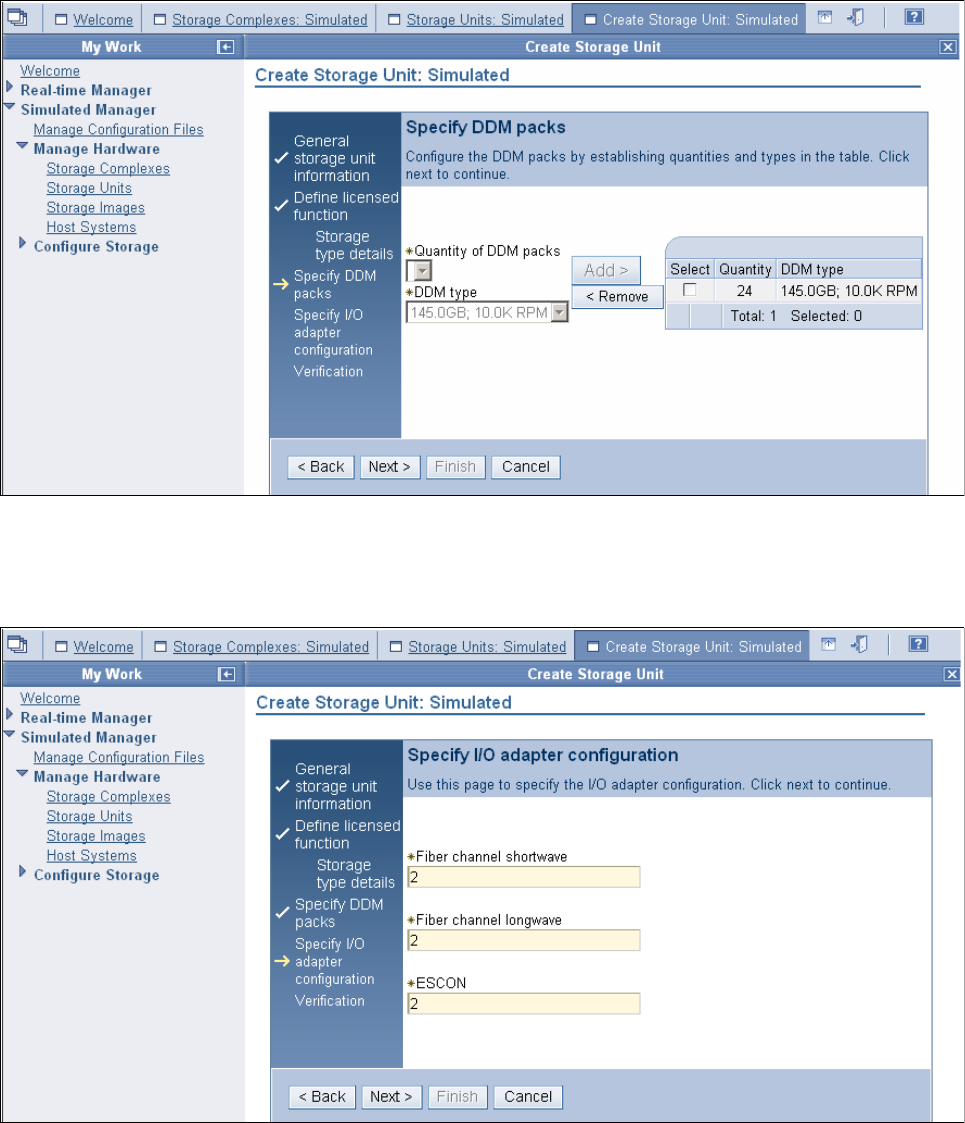

Figure 10-27 View of Specify DDM packs panel, with the Quantity and DDM type added
5. Click Add and Next to advance to the Specify I/O adapter configuration panel shown in
Figure 10-28.
Figure 10-28 Specify I/O adapter configuration panel
Enter the appropriate information and click Next.
The storage facility image will be created automatically, by default, as you create the storage
unit.
216 DS8000 Series: Concepts and Architecture
10.3.3 Configuring the logical host systems
To create a logical host for the storage unit that you just created, click Host Systems as
shown in Figure 10-29. You may want to expand the work area.
Figure 10-29 Create host systems, screen 1
You can expand the view by clicking the left arrow in the My Work area as shown in
Figure 10-29; the expanded view is shown in Figure 10-30.
Figure 10-30 View of Host Systems panel, with the Go button selected
Click the Select Storage Complex action pull-down, highlight the storage complex you wish to
configure, then click Create and Go. The screen will advance to the General host information
panel shown in Figure 10-31 on page 217.
Expand the Work area
Host Systems
Chapter 10. The DS Storage Manager - logical configuration 217
Figure 10-31 View of the General host information panel
Click Next to advance to the Define host ports panel shown in Figure 10-32.

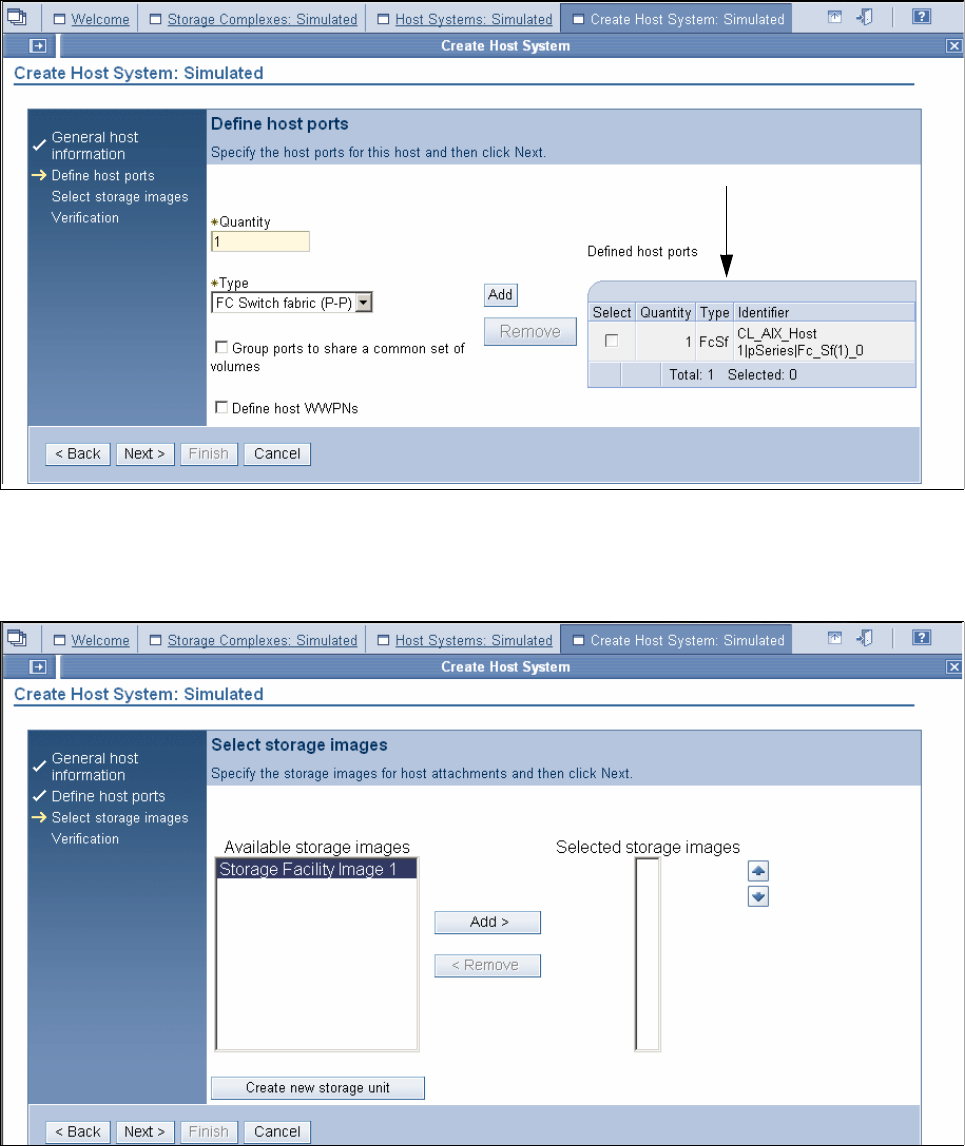

Figure 10-32 View of Define host port panel
Enter the appropriate information on the Define host ports panel shown in Figure 10-32.
Note: Selecting “Group ports to share a common set of volumes” will group the host
ports together into one attachment. Each host port will require a WWPN to be entered;
now, if you are using the Real-time Manager; or later, if you are using the Simulated
Manager.
218 DS8000 Series: Concepts and Architecture
Click Add, and the Define host ports panel will be updated with the new information as shown
in Figure 10-33.
Figure 10-33 Define host ports panel, with updated host information
Click Next, and the screen will advance to the Select storage images panel shown in
Figure 10-34.
Figure 10-34 Select storage images panel
Highlight the Available storage images that you wish, click Add and Next.
Chapter 10. The DS Storage Manager - logical configuration 219
The screen will advance to the Specify storage image parameters section shown in
Figure 10-35.
Figure 10-35 Specify storage image parameters panel
Make the following entries and selections on the Specify storage image parameters panel:
1. Click the Select volume group for host attachment pull-down and highlight Select volume
group later.
2. Click any valid storage image I/O port under the “This host attachment can login to”
field.
3. Click Apply assignment and OK.
4. Verify and click Finish.
10.3.4 Creating arrays from array sites
Under Configure Storage, click Arrays. The screen will advance to the Create Array:
Simulated panel. Click the Storage complex pull-down, highlight the storage complex you
wish to configure, click Create and Go (the panel is not pictured here). The screen will
advance to the Definition method panel shown in Figure 10-36 on page 220.
220 DS8000 Series: Concepts and Architecture
Figure 10-36 The Definition method panel
From the Definition method panel, if you choose Create arrays automatically, the system
will automatically take all the space from the array site and place it into an array. Physical
disks from any array site could be placed, through a predetermined algorithm, into the array.
It is at this point that you create the RAID-5 or RAID-10 format and striping in the array being
created.
If you choose to create arrays automatically, the screen will advance to the Array
configuration (Auto) panel shown in Figure 10-37.
Figure 10-37 The Array configuration (Auto) panel
Enter the appropriate information for the quantity of the arrays and the RAID type.
Chapter 10. The DS Storage Manager - logical configuration 221
Click Next to advance to the Add arrays to ranks panel shown in Figure 10-38.
If you click the check box next to Add these arrays to ranks you will not have to configure
the ranks separately at a later time. The ranks can be either FB or CKD; this is specified in
the Storage type pull-down shown in Figure 10-38.

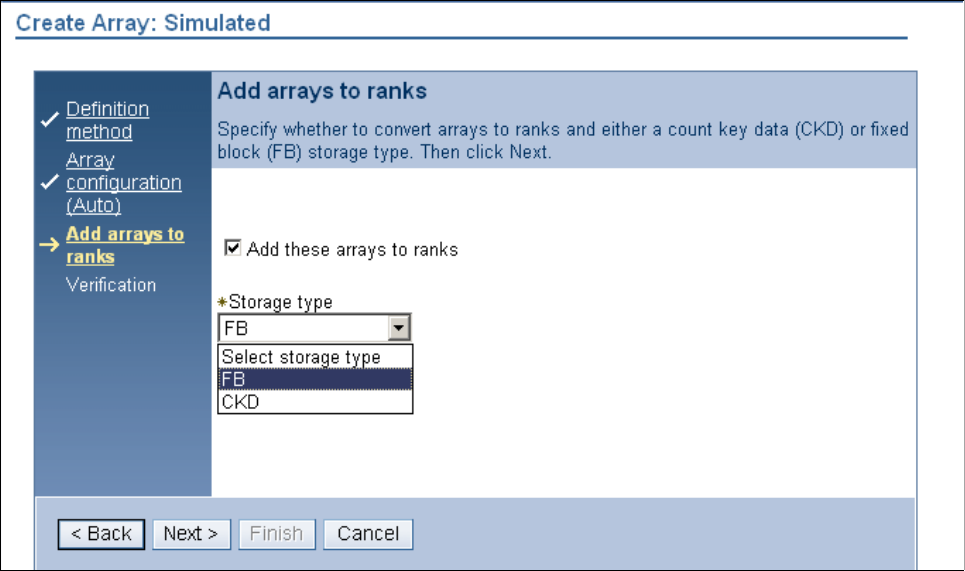

Figure 10-38 The Add arrays to ranks panel with FB selected
Click Next and Finish to configure the arrays and ranks in one step.
10.3.5 Creating extent pools
To create extent pools, expand the Configure Storage section, click Extent pools, click
Create from the Select Action pull-down and click Go. Follow the panel directions with each
advancing window.
You can select either the Custom extent pool or the Create extent pool automatically
based on storage requirements radio button as shown in Figure 10-39 on page 222.
222 DS8000 Series: Concepts and Architecture
Figure 10-39 The Definition method panel
The extent pools are given either a server 0 or server 1 affinity at this point, as shown in
Figure 10-40.
Figure 10-40 The Define properties panel
Click Next and Finish.
10.3.6 Creating FB volumes from extents
Under the Simulated Manager, expand the Open Systems section and click Volumes.
Click Create from the Select Action pull-down and click Go. Follow the panel directions with
each advancing window.
Chapter 10. The DS Storage Manager - logical configuration 223
Choose the extent pool from which you wish to configure the volumes, as shown in
Figure 10-41.
Figure 10-41 The Select extent pool panel
Determine the quantity and size of the volumes. Use the calculators to determine the max
size versus quantity, as shown in Figure 10-42.
Figure 10-42 The Define volume properties panel
radio button
Even LSS numbers
224 DS8000 Series: Concepts and Architecture
It is here that the volume will take on the LSS numbering affinity.
You can give the volume a unique name and number as shown in Figure 10-43. This can be
helpful for managing the volumes.

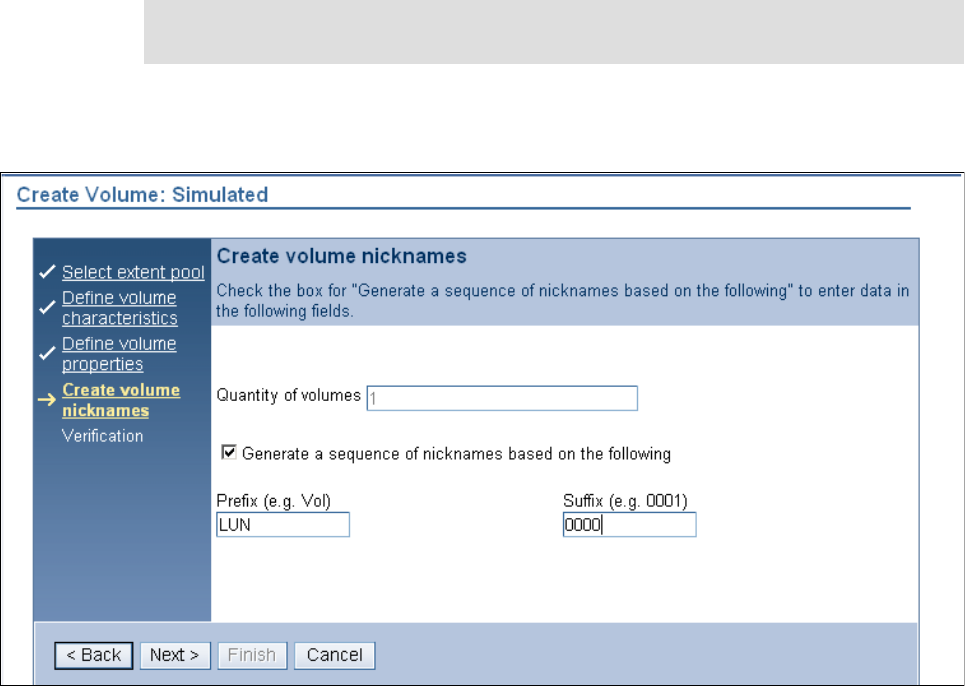

Figure 10-43 The Create volume nicknames panel
Click Next and Finish to end the process of creating the volumes.
10.3.7 Creating volume groups
Under Simulated Manager, Open Systems, perform the following steps to configure the
volume groups:
1. Click Volume Groups.
2. Click Create.
3. Click Go.
Fill in the appropriate information as directed in the panel menu. You will have to specify
the host type as shown in Figure 10-44 on page 225.
Note: Since server 0 was selected for the extent pool, only even LSS numbers are
selectable, as shown in Figure 10-42.
Chapter 10. The DS Storage Manager - logical configuration 225

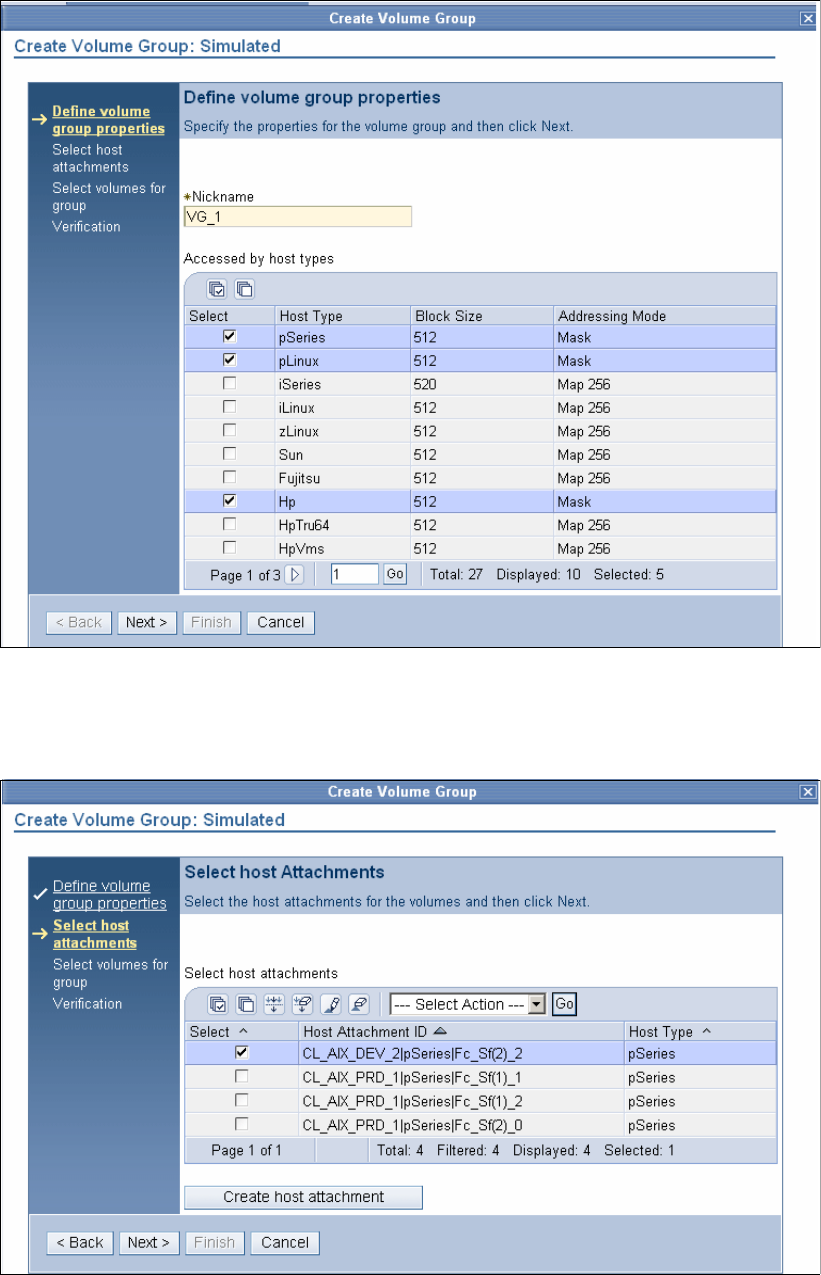

Figure 10-44 The Define volume group properties filled out
4. Select the host attachment you wish to associate the volume group with. See
Figure 10-45.
Figure 10-45 The Select host Attachments panel with an attachment selected
226 DS8000 Series: Concepts and Architecture
5. Select volumes on the Select volumes for group panel shown in Figure 10-46.

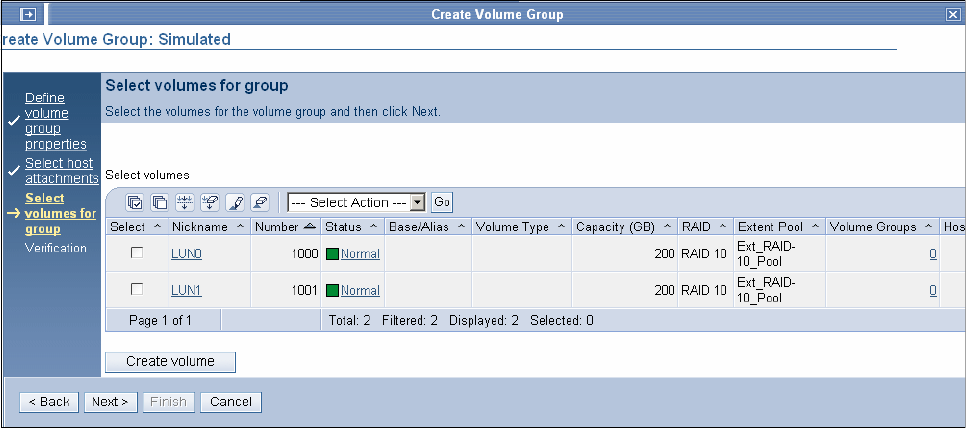

Figure 10-46 The Select volumes for group panel
Click Next and Finish.
10.3.8 Assigning LUNs to the hosts
Under Simulated Manager, perform the following steps to configure the volumes:
1. Click Volumes.
2. Select the check box next to the volume that you want to assign.
3. Click the Select Action pull-down, and highlight Add To Volume Group.
4. Click Go.
5. Click the check box next to the desired volume group and click Apply.
6. Click OK.
You can verify that the volume is now assigned to the desired host volume group by
performing the following steps:
1. Click Host Systems.
2. Click the check box next to the host nickname.
3. Click the Select Action pull-down, and highlight Properties.
4. Click Go.
The properties box will be displayed.
10.3.9 Deleting LUNs and recovering space in the extent pool
Under Simulated Manager, perform the following steps to delete the volumes:
1. Click Volumes.
2. Click the check box next to the targeted volume you want to delete.
3. Click on the Select Action pull-down, and highlight Delete.
Chapter 10. The DS Storage Manager - logical configuration 227
4. Click Go.
5. Click OK.
10.3.10 Creating CKD LCUs
Under Simulated Manager, zSeries, perform the following steps:
1. Click LCUs.
2. Click the Select Action pull-down and highlight Create.
3. Click Go.
4. Click the check box next to the LCU ID you wish to create.
5. Click Next.
6. In the panel returned, make the following entries:
a. Enter the desired SSID
b. Select the LCU type
c. Accept the defaults on the other input boxes, unless you are using Copy Services.
7. Click Next.
8. Click Finish.
10.3.11 Creating CKD volumes
Under Simulated Manager, zSeries, perform the following steps:
1. Click Volumes → zSeries.
2. Click the Select Action pull-down, and highlight Create.
3. Click Go.
4. In the Select Extent pool panel, click the radio button next to the targeted extent pool you
want to configure the volume from.
5. Click Next.
6. Click the Volume type pull-down and select the Volume type desired.
7. Highlight the LCU number or work with all available LCUs.
8. Click Next.
9. In the Define base properties panel do the following:
a. Select the radio button next to the addressing policy.
b. Enter the quantity of base volumes.
c. Enter the base start address.
d. Click Next.
10.In the next panel returned, do the following:
a. Enter the volume Nickname.
b. Enter the volume prefix.
c. Enter the volume suffix.
11.Click Next.
228 DS8000 Series: Concepts and Architecture
12.Under the Define alias assignments panel, do the following:
a. Click the check box next to the LCU number.
b. Enter the starting address.
c. Specify the order as Ascending or Descending.
d. Select the number of aliases per volume, for example, 1 alias to every 4 base volumes,
or 2 aliases to every 1 base volume.
e. Click Next.
13.On the Verification panel, click Finish.
10.3.12 Displaying the storage unit WWNN
To display the WWNN of the storage unit:
1. Click Real-time Manager as shown in Figure 10-47.
Figure 10-47 The Real-time Manager panel
2. Click Storage Units.
3. Select the radio button beside the storage unit name as shown in Figure 10-48.

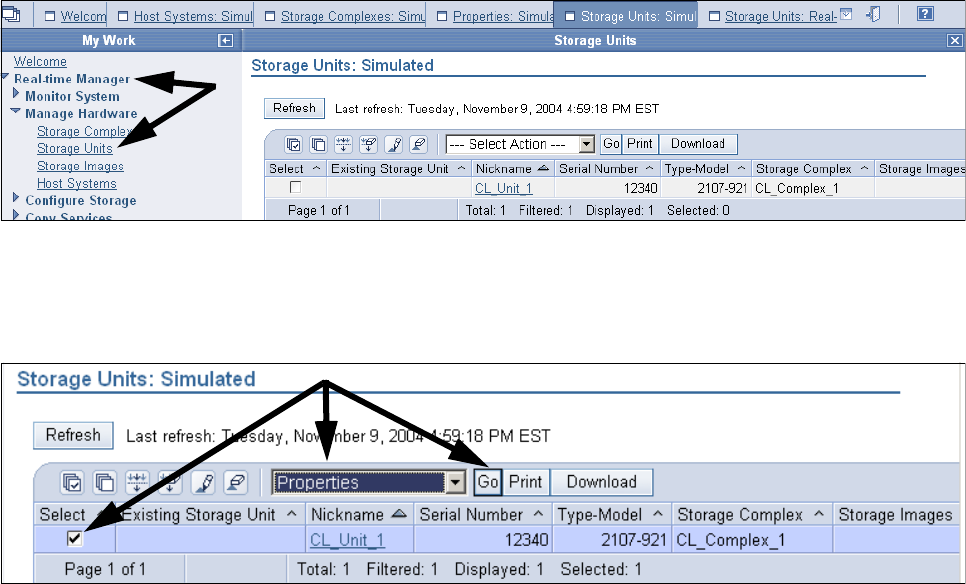

Figure 10-48 View of the storage unit with the Radio button selected and the Properties selected
4. Select Properties from the pull-down list.
5. Click Go. The General panel shown in Figure 10-49 on page 229 will be returned.
Chapter 10. The DS Storage Manager - logical configuration 229

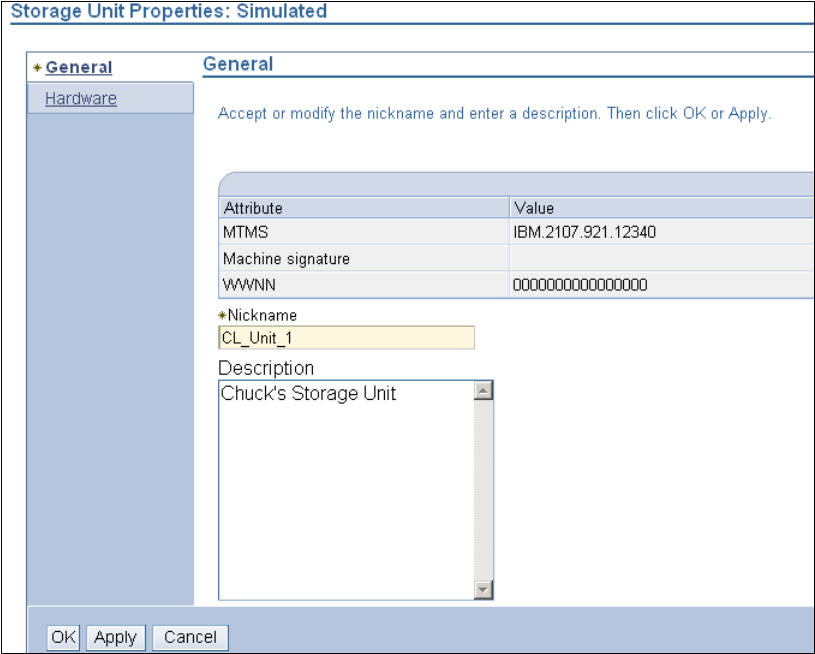

Figure 10-49 View of the WWNN in the General panel
10.4 Summary
In this chapter we have discussed the configuration hierarchy, terminology, and concepts. We
have recommended an order and methodology for configuring the DS8000 storage server.
We have included some logical configuration steps and examples and explained how to
navigate the GUI.
230 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 231
Chapter 11. DS CLI
This chapter provides an introduction to the DS Command-Line Interface (DS CLI), which can
be used to configure and maintain the DS6000 and DS8000 series. It also describes how the
DS CLI can be used to manage Copy Services relationships.
In this chapter we describe:
򐂰Functionality
򐂰Supported environments
򐂰Installation methods
򐂰Command flow
򐂰User security
򐂰Usage concepts
򐂰Usage examples
򐂰Mixed device environments and migration
򐂰DS CLI migration example
11
232 DS8000 Series: Concepts and Architecture
11.1 Introduction
The IBM TotalStorage DS Command-Line Interface (the DS CLI) is a software package that
allows open systems hosts to invoke and manage Copy Services functions as well as to
configure and manage all storage units in a storage complex. The DS CLI is a full-function
command set. In addition to the DS6000 and DS8000, the DS CLI can also be used to
manage Copy Services on the ESS 750s and 800s, provided they are on ESS code versions
2.4.2.x and above. All references in this chapter to the ESS 800 also apply to the ESS 750.
Equally, references to the ESS F20 also apply to the ESS E20.
Examples of what you can perform include:
򐂰Display and change your storage configuration, for example, create and assign volumes.
򐂰Display existing Copy Services relationships and settings, for example, confirm that
remote copy relationships are active and in sync.
򐂰Create new Copy Services relationships and settings, for example, create a new
FlashCopy relationship.
For users of the ESS 800, the DS CLI provides the following new capabilities:
򐂰The ability to create a remote copy relationship between the ESS 800 and the DS8000 or
DS6000.
򐂰The ability to establish dynamic FlashCopy and remote copy relationships on ESS 800
storage servers without using saved tasks.
Prior to the DS CLI, the ESS Copy Services CLI generally did not allow a script to directly
invoke a FlashCopy or Remote Mirror and Copy relationship. Instead, a task had to be
created and saved first, using the Web Copy Services GUI. A script could then invoke this
saved task. Now with the DS CLI, commands can be saved as scripts, which significantly
reduces the time to create, edit and verify their content.
The DS CLI uses a syntax that is consistent with other IBM TotalStorage products. All new
products will also use this same syntax.
Important reference manuals for users of the DS CLI are the IBM TotalStorage DS8000
Command-Line Interface User’s Guide, SC26-7625, and IBM TotalStorage DS6000
Command-Line Interface User’s Guide, SC26-7681. These can be downloaded by going to
the relevant section of the following Web site:
http://www-1.ibm.com/servers/storage/support/disk/index.html
11.2 Functionality
The DS CLI can be used to invoke the following storage configuration tasks:
򐂰Create userids that can be used with both the DS CLI and the GUI
򐂰Manage userid passwords
򐂰Install activation keys for licensed features
򐂰Manage storage complexes and units
򐂰Configure and manage storage facility images
򐂰Create and delete RAID arrays, ranks, and extent pools
򐂰Create and delete logical volumes
Chapter 11. DS CLI 233
򐂰Manage host access to volumes
򐂰Configure host adapter ports
The DS CLI can be used to invoke the following Copy Services functions:
򐂰FlashCopy - Point-in-time Copy
򐂰IBM TotalStorage Metro Mirror - Synchronous Peer-to-Peer Remote Copy (PPRC)
򐂰IBM TotalStorage Global Copy - PPRC-XD
򐂰IBM TotalStorage Global Mirror - Asynchronous PPRC
11.3 Supported environments
The DS CLI will be supported on a very wide variety of open systems operating systems. At
present the supported systems are:
򐂰AIX 5.1, 5.2, 5.3
򐂰HP-UX 11i v1, v2
򐂰HP Tru64 version 5.1, 5.1A
򐂰Linux RedHat 3.0 Advanced Server (AS) and Enterprise Server (ES)
򐂰SUSE Linux SLES 8, SLES 9
򐂰Novell Netware 6.5
򐂰Open VMS 7.3-1, 7.3-2
򐂰Sun Solaris 7, 8, and 9
򐂰Windows 2000, Windows Datacenter, and Windows 2003
This list should not be considered final. For the latest list, consult the interoperability Web site
located at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.htm
or:
http://www.ibm.com/servers/storage/disk/ds8000/interop.htm
11.4 Installation methods
The DS CLI is supplied and installed via a CD that ships with the machine. The installation
does not require a reboot of the open systems host. The DS CLI requires Java™ 1.4.1 or
higher. Java 1.4.2 for Windows, AIX, and Linux is supplied on the CD. Many hosts may
already have a suitable level of Java installed.
The installation process can be performed via a shell, such as the bash or korn shell, or the
Windows command prompt, or via a GUI interface. If performed via a shell, it can be
performed silently using a profile file. The installation process also installs software that
allows the DS CLI to be completely de-installed should it no longer be required.
Restriction: The Copy Services functions in the December 2004 release of the DS CLI will
only support the creation of point-in-time copies (FlashCopy). Remote Mirror and Copy
functions will be supported in a 2005 release.
234 DS8000 Series: Concepts and Architecture
The exact install process doesn’t really vary by operating system. It consists of:
1. The DS CLI CD is placed in the CD-ROM drive (and mounted if necessary).
2. If using a command line, the user changes to the root directory of the CD. There is a setup
command for each supported operating system. The user issues the relevant command
and then follows the prompts. If using a GUI, the user navigates to the CD root directory
and clicks on the relevant setup executable.
3. The DS CLI is then installed. The default install directory will be:
򐂰/opt/ibm/dscli - for all forms of UNIX
򐂰C:\Program Files\IBM\dscli - for all forms of Windows
򐂰SYS:\dscli - for Novell Netware
11.5 Command flow
To understand migration or co-existence considerations, it is important to understand the flow
of commands in both the ESS CLI and the DS CLI.
ESS Copy Services command flow using ESS Copy Services CLI
When using the ESS Copy Services CLI with an ESS 800, all commands are issued to a
Copy Services Server, present on one cluster of the ESS. Interaction with this server is via
either a Web Copy Services GUI interface, or via a CLI interface. To use the CLI, the open
systems host needs to have ESS Copy Services CLI software installed. An ESS CLI script will
issue commands to the CLI software, which then sends them to the primary Copy Services
Server (known as Server A). For backup, a second server can also be defined (known as
Server B).
Figure 11-1 on page 235 shows the flow of commands from host to server. When the Copy
Services (CS) server receives a command, it determines whether the volumes involved are
owned by cluster 1 or cluster 2. This is based on LSS membership (even numbered LSSs
belong to cluster 1, odd numbered LSSs belong to cluster 2). The CS server issues the
command to the client software on the correct cluster and then reports success or failure back
to the CLI software on the open systems host.
Chapter 11. DS CLI 235
Figure 11-1 Command flow for ESS 800 Copy Services commands
A CS server is now able to manage up to eight F20s and ESS 800s. This means that up to
sixteen clusters can be clients of the CS server. All FlashCopy and remote copy commands
are sent to the CS server, which then sends them to the relevant client on the relevant ESS.
DS CLI command flow
Scripts that invoke DS CLI commands issue those commands to the installed DS CLI
software on the open systems host. If the command is intended for an ESS 800 volume, then
the DS CLI software sends it to the CS server on the ESS 800. If, however, the command is
intended for a DS8000, the command is issued to the CLI interpreter of the Storage Hardware
Management Console (S-HMC). The S-HMC then interprets the command and issues it to
the relevant server in the relevant DS8000 using the redundant internal network that connects
the S-HMCs to the DS8000.
Secure sockets
All DS CLI traffic is encrypted using SSL (secure sockets layer). This means that all traffic
between the host server that is running the DS CLI client and the DS CLI server (for example,
the S-HMC or the ESS 800 cluster) is secure, including passwords and userids.
TCP/IP ports
DS CLI servers (such as an S-HMC) use a fixed number of TCP/IP ports to listen on. These
ports are listed in Chapter 9, “Configuration planning” on page 157. This is important for
planning considerations, where a firewall may exist between the client and the server.
Open systems
host
Cluster 1
CS Client
Cluster 2
ESS 800
CS Client
CS Server B
CS Server A
Network interface
ESS CLI software
ESS CS CLI software
CLI script
236 DS8000 Series: Concepts and Architecture
Figure 11-2 DS CLI Copy Services command flow
DS8000 split network
One thing that you may notice about Figure 11-2 is that the S-HMC has different network
interfaces. The external network interface is an Ethernet port that must be accessible from the
open systems host network interface. The dual, internal network interfaces use the two
internal Ethernet switches within the DS8000 base frame to deliver the commands to the
relevant storage server. This means that the DS8000 itself is not on the same network as the
open systems host. The S-HMC therefore acts as a bridge between the external server
network and the internal DS8000 network.
Clearly a major benefit of this setup is that the internal network within the DS8000 has no
single points of failure. By using a second S-HMC it is possible to create a completely
redundant communications network for the DS CLI traffic between a host server and the
DS8000 servers.
DS6000 command flow
If a DS6000 is used, commands are instead issued to the DS Storage Manager PC that has
to be supplied and set up when a DS6000 is installed. The DS Storage Manager PC then
issues the commands to the relevant DS6000 controller. This command flow is depicted in
Figure 11-3 on page 237.
Open systems
host
Cluster 1
CS Client
Cluster 2
ESS 800
CS Client
CS Server B
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
CS Server A
Network interface
ESS CLI software
DS CLI software
CLI script
Dual
internal
network
interfaces
CLI
interpreter
External
network
interface
Chapter 11. DS CLI 237
Figure 11-3 Command flow for the DS6000
For the DS6000, it is possible to install a second network interface card within the DS Storage
Manager PC. This would allow you to connect it to two separate switches for improved
redundancy.
ESS CLI co-existence
If co-existence with the ESS CS CLI is required, then both the DS CLI and the ESS CLI will
have to be installed on the same open systems host, as shown in Figure 11-4 on page 238.
Each CLI installs into a separate directory. Depending on how the scripts are written, ESS CLI
and DS CLI commands could be issued in the same script.
Open systems
host
Controller 1 Controller 2
DS6000
CLI interface
CLI interface
DS Storage
Management PC
CLI
interpreter
Network interface
Network interface
ESS CLI software
DS CLI software
CLI script
238 DS8000 Series: Concepts and Architecture
Figure 11-4 CLI co-existence
Storage management
ESS CLI commands that are used to perform storage management on the ESS 800, are
issued to a process known as the infoserver. An infoserver runs on each cluster, and either
infoserver can be used to perform ESS 800 storage management. Storage management on
the ESS 800 will continue to use ESS CLI commands. Storage management on the
DS6000/8000 will use DS CLI commands. This difference in command flow is shown in
Figure 11-5.
Figure 11-5 Storage management command flow
Open systems
host
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
Network interface
ESS CLI software
ESS CLI software DS CLI software
DS8000 tasks
ESS 800 tasks CLI
interpreter
Dual
internal
network
interfaces
External
network
interface
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
CLI
interpreter
Open systems
host
Open systems
host
External
network
interface
Dual
internal
network
interfaces
Network interfaceNetwork interface
ESS CLI software DS CLI software
DS8000 tasks
ESS 800 tasks
Chapter 11. DS CLI 239
11.6 User security
The DS CLI software must authenticate with the S-HMC or CS Server before commands can
be issued. An initial setup task will be to define at least one userid and password whose
authentication details are saved in an encrypted file. A profile file can then be used to identify
the name of the encrypted password file. Scripts that execute DS CLI commands can use the
profile file to get the password needed to authenticate the commands.
User security employs the concept of groups to control which functions a particular userid is
allowed to perform. A userid can be a member of more than one group. The groups are:
򐂰admin - can perform all tasks - this is the only group that can create and change userids
򐂰op_storage - can perform any configuration task
򐂰op_volume - can configure logical volumes and volume groups
򐂰op_copy_services - can perform Copy Services commands
򐂰service - can perform service commands
򐂰monitor - has read-only access to commands
򐂰no_access - cannot perform any tasks
The functions of these groups are fairly self describing and are fully detailed both in the IBM
TotalStorage DS8000 Command-Line Interface User’s Guide, SC26-7625 and IBM
TotalStorage DS6000 Command-Line Interface User’s Guide, SC26-7681, and the help
screens. If a userid is not a member of any group, then it is automatically placed into the
no_access group to prevent it from performing any functions.
The default userid supplied with an S-HMC or DS Storage Manager is admin (whose
password is also admin). During setup it is advisable that a new userid be created in the
admin group. The default userid should then be removed (with the rmuser command). Note
that userid management can be performed by using either the DS CLI or by using the DS
Storage Manager GUI. Userids created by either interface will be usable via either interface.
For an example of how a userid and profile are created, refer to “Procedure to create an
encrypted password file” on page 249.
11.7 Usage concepts
It is important to understand the various concepts that frame DS CLI usage.
11.7.1 Command modes
The DS CLI can be operated in three modes. In the examples that follow, the lsuser
command is used. The lsuser command is used to display which users have been created
and to which groups they are a member. For more details on user authentication see “User
security” on page 239.
Single command mode
At a shell prompt, the user specifies a single DS CLI command which is immediately
executed, and a return code is presented. To avoid having to enter authentication details, a
profile and password file would have to be created first. This is shown in Example 11-1.
Example 11-1 Using DS CLI via a single command
C:\Program Files\IBM\dscli>dscli lsuser
Name Group
=========================
admin admin
240 DS8000 Series: Concepts and Architecture
csadmin op_copy_services
exit status of dscli = 0
C:\Program Files\IBM\dscli>
It is also possible to include single commands in a script, though this is different from the
script mode described later. This is because every command that uses the DS CLI would
invoke the DS CLI and then exit it. A simple Windows script is shown in Example 11-2.
Example 11-2 A script to list all users and place their names in a file
@ECHO OFF
rem This script is used to list all DS CLI users
rem The lsuser command is executed and the output is sent to file called userlist.txt
dscli lsuser > userlist.txt
echo The user list has been created and placed in userlist.txt
For those readers familiar with UNIX, a simple example of creating a script is shown in
Example 11-3.
Example 11-3 Creating a DS CLI script
/opt/ibm/dscli >echo “dscli lsuser > userlist.txt” > listusers.sh
/opt/ibm/dscli >chmod +x listusers.sh
/opt/ibm/dscli >./listusers.sh
/opt/ibm/dscli >cat userlist.txt
Name Group
=========================
admin admin
/opt/ibm/dscli>
Interactive mode
In the interactive mode, the user starts the DS CLI program within a shell, and then issues DS
CLI commands until the DS CLI is no longer needed. At this point the user exits the DS CLI
program. To avoid having to enter authentication details, a profile and password file would
have to be created first. The use of the interactive mode is shown in Example 11-4.
Example 11-4 Using DS CLI in interactive mode
C:\Program Files\IBM\dscli>dscli
dscli> lsuser
Name Group
=========================
admin admin
csadmin op_copy_services
dscli> exit
exit status of dscli = 0
C:\Program Files\IBM\dscli>
Script mode
The script mode allows a user to create a DS CLI script that contains multiple DS CLI
commands. These commands are performed one after the other. When the DS CLI executes
the last command, it ends and presents a return code. DS CLI scripts in this mode must
Chapter 11. DS CLI 241
contain only DS CLI commands. This is because all commands in the script are executed by
a single instance of the DS CLI interpreter. Comments can be placed in the script if they are
prefixed by a hash (#). A simple example of a script mode script is shown in Example 11-5.
Example 11-5 DS CLI script mode example
# This script issues the 'lsuser' command
lsuser
# end of script
In this example, the script was placed in a file called listAllUsers.cli, located in the scripts
folder within the DS CLI folder. It is then executed by using the dscli -script command, as
shown in Example 11-6.
Example 11-6 Executing DS CLI in script mode
C:\Program Files\IBM\dscli> dscli -script scripts\listAllUsers.cli
Name Group
===============
admin admin
C:\Program Files\IBM\dscli>
It is possible to create shell or Visual Basic scripts that combine both script mode and single
commands.
11.7.2 Syntax conventions
The DS CLI uses symbols and conventions that are standard in command-line interfaces.
These include the ability to input variables from a file and send output to a file. The DS CLI
commands are also designed to be case insensitive. This means commands can be entered
in either upper, lower, or mixed case, and still work.
11.7.3 User assistance
The DS CLI is designed to include several forms of user assistance. The main form of user
assistance is via the help command. Examples of usage include:
help Lists all available DS CLI commands
help -s Lists all available DS CLI commands with brief descriptions of each
help -l Lists all DS CLI commands with syntax information
If the user is interested in more details about a specific DS CLI command, they can use -l
(long) or -s (short) against a specific command. In Example 11-7, the -s parameter is used to
get a short description of the mkflash command’s purpose.
Example 11-7 Use of the help -s command
dscli> help -s mkflash
mkflash The mkflash command initiates a point-in-time copy from source volumes to
target volumes.
In Example 11-8, the -l parameter is used to get a list of all the parameters that can be used
with the mkflash command.
242 DS8000 Series: Concepts and Architecture
Example 11-8 Use of the help -l command
dscli> help -l mkflash
mkflash [ { -help|-h|-? } ] [-fullid] [-dev storage_image_ID] [-tgtpprc] [-tgtoffline]
[-tgtinhibit] [-freeze] [-record] [-persist] [-nocp] [-wait] [-seqnum Flash_Sequence_Num]
SourceVolumeID:TargetVolumeID
Man pages
A “man page” is available for every DS CLI command. Man pages are most commonly seen
in UNIX-based operating systems to give information about command capabilities. This
information can be displayed by issuing the relevant command followed by -h or -help or -?,
for example:
dscli> mkflash -help
or
dscli> help mkflash
11.7.4 Return codes
When the DS CLI is exited, an exit status code is provided. This is effectively a return code. If
DS CLI commands are issued as separate commands (rather than using script mode), then a
return code will be presented for every command. If a DS CLI command fails (for instance,
due to a syntax error or the use of an incorrect password), then a failure reason and a return
code will be presented. Standard techniques to collect and analyze return codes can be used.
The return codes used by the DS CLI are shown in Table 11-1.
Table 11-1 DS CLI return codes
In Example 11-9 a simple Windows batch file is used to query whether a FlashCopy
relationship exists between volumes 1004 and 1005. The batch file then queries the operating
system for the return code and provides a verbose response.
Example 11-9 Sample Windows bat file to test return codes
@ECHO OFF
dscli lsflash -dev IBM.2105-23953 1004:1005
if errorlevel 6 goto level6
if errorlevel 5 goto level5
if errorlevel 4 goto level4
if errorlevel 3 goto level3
if errorlevel 2 goto level2
if errorlevel 0 goto level0
:level6
Return code Category Description
0 Success The command was successful.
2 Syntax error There is a syntax error in the command.
3 Connection error There was a connection problem to the server.
4 Server error The DS CLI server had an error.
5 Authentication error Password or userid details are incorrect.
6 Application error The DS CLI application had an error.
Chapter 11. DS CLI 243
echo A DS CLI application error occurred.
goto end
:level5
echo An authentication error occurred. Check the userid and password.
goto end
:level4
echo A DS CLI Server error occurred.
goto end
:level3
echo A connection error occurred. Try pinging 10.0.0.1
echo If this fails call network support on 555-1001
goto end
:level2
echo A syntax error. Check the syntax of the command using online help.
goto end
:level0
echo No errors were encountered.
:end
Using this sample script, Example 11-10 shows what happens if there is a network problem
between the DS CLI client and server (in this example a 2105-800). The DS CLI provides the
error code (in this case CMUN00018E) which can be looked up in the DS CLI Users Guide
(referred to in “Introduction” on page 232). The DS CLI also provides the exit status (in this
example, exit status = 3). Finally, the batch file interprets the return code and provides the
user with some additional tips to resolve the problem.
Example 11-10 Return code examples
C:\Program Files\IBM\dscli> checkflash.bat
CMUN00018E lsflash: Unable to connect to the management console server
exit status of dscli = 3
A connection error occurred. Try pinging 10.0.0.1
If this fails call network support on 555-1001
C:\Program Files\IBM\dscli>
11.8 Usage examples
It is not the intent of this section to list every DS CLI command and its syntax. If you need to
see a list of all the available commands, or require assistance using DS CLI commands, you
are better served by reading the IBM TotalStorage DS8000 Command-Line Interface User’s
Guide, SC26-7625, and IBM TotalStorage DS6000 Command-Line Interface User’s Guide,
SC26-7681. Or you can use the online help. Example 11-11 gives a sample configuration
script showing most of the storage management commands that are used on a DS6000 or
DS8000.
Example 11-11 Example of a configuration script
# The following command creates a CKD extent pool (CKD extent pool P0 will be created)
mkextpool -dev IBM.2107-9999999 -rankgrp 0 -stgtype ckd ckd_ext_pool0
# The following command creates an array (array A0 will be created)
mkarray -dev IBM.2107-9999999 -raidtype 5 S1
# The following command creates a rank (CKD rank R0 will be created)
mkrank -dev IBM.2107-9999999 -array A0 -stgtype ckd
244 DS8000 Series: Concepts and Architecture
# The following command checks the status of the ranks
lsrank -dev IBM.2107-9999999
# The following command assigns rank0 (R0) to extent pool 0 (P0)
chrank -extpool P0 -dev IBM.2107-9999999 R0
# The following command creates an LCU (LCU 02 will be created)
mklcu -dev IBM.2107-9999999 -ss FF02 -qty 1 -id 02
# The following command creates another LCU (LCU 04 will be created)
mklcu -dev IBM.2107-9999999 -ss FF04 -qty 1 -id 04
# The following command creates 32 CKD volumes (0200-021F will be created)
# These ckd volumes are on LCU 02
mkckdvol -dev IBM.2107-9999999 -extpool P0 -cap 3339 -name ckd_vol_#h -qty 32 0200
# The following command creates 32 CKD volumes (0400-041F will be created)
# These ckd volumes are on LCU 04
mkckdvol -dev IBM.2107-9999999 -extpool P0 -cap 3339 -name ckd_vol_#h -qty 32 0400
#The following command lists I/O ports to configure.
lsioport -dev IBM.2107-9999999
# The following commands set two I/O ports to FICON
setioport -topology ficon IBM.2107-9999999/I0010
setioport -topology ficon IBM.2107-9999999/I0011
11.9 Mixed device environments and migration
The Copy Services commands within the DS CLI are designed to interface with both the
DS6000 and DS8000 series and the ESS 800. They will not work with the ESS F20. The
storage management commands within the DS CLI also will not work with ESS 800. This
means that customers who currently have a mix of 800s and F20s will have to continue to use
the current ESS CLI, but could consider deploying the DS CLI for certain Copy Services
functions.
To explain in more detail, for the ESS 800 there are two families of CLI commands. ESS
storage management CLI commands are used for storage management and configuration.
The ESS Copy Services CLI commands are used to manage and monitor Copy Services
relationships (FlashCopy and Remote Mirror and Copy). Currently both kinds of CLI are
installed by the same setup file. The DS CLI combines both these functions into one library of
commands. Table 11-2 shows which CLI should be used based on which hardware is
installed in a particular environment.
Table 11-2 Which CLI to use based on what hardware you have installed
ESS F20 ESS 800 DS6000 and 8000 CLI to use
Installed Not installed Not installed Use ESS CLI only.
Installed Installed Not installed Use ESS CLI for most functions. Consider use
of DS CLI for copy functions on the ESS 800.
Not installed Installed Installed Use DS CLI for all Copy Services. Use a
combination of ESS CLI and DS CLI for
storage management.
Not installed Not installed Installed Use DS CLI only.
Installed Installed Installed Use a combination of ESS CLI and DS CLI.
Chapter 11. DS CLI 245
Migration considerations
If your environment is currently using the ESS CS CLI to manage Copy Services on your
model 800s, you could consider migrating your environment to the DS CLI. Your model 800s
will need to be upgraded to a microcode level of 2.4.2 or above.
If your environment is a mix of ESS F20s and ESS 800s, it may be more convenient to keep
using only the ESS CLI. This is because the DS CLI cannot manage the ESS F20 at all, and
cannot manage storage on an ESS 800. If, however, a DS6000/8000 were to be added to
your environment, then you would use the DS CLI to manage remote copy relationships
between the DS6000/8000s and the ESS 800s. You could still use the ESS CLI to manage
the storage on the F20 and 800, FlashCopy on the F20, and any remote copy relationships
between the F20 and the 800.
11.9.1 Migration tasks
There are two phases to migrate existing FlashCopy or Remote Mirror and Copy scripts and
tasks from the ESS CLI to the DS CLI.
Phase one: Review
1. Review saved tasks in the ESS 800 Web Copy Services GUI and note the details of every
saved task that you wish to migrate. You can also use the ESS CLI to display the contents
of each saved task and write them to a file.
2. Review server scripts that perform task set up and execute saved ESS tasks.
Phase two: Perform
Having performed the review, the scripts need to be changed and created:
1. Translate the contents of the saved ESS 800 tasks into DS CLI commands. A mini DS CLI
script could be created for every saved task.
2. Translate server scripts that perform task set up and execute saved ESS 800 tasks. This
may involve the use of DS CLI commands to perform task setup and the execution of the
newly created mini scripts to achieve the same results as the saved tasks.
11.10 DS CLI migration example
As detailed previously, existing users of the ESS CS CLI with an ESS 800 can consider
migrating saved tasks to the DS CLI.
11.10.1 Determining the saved tasks to be migrated
Step one is to gather information regarding all saved tasks. This can be done via the GUI or
the command line. In this example there are many saved tasks (but only five are shown).
Figure 11-6 and Example 11-12 show two ways to get a list of saved tasks on the ESS CS
Server. In Figure 11-6 the Tasks button has been selected in the ESS 800 Web Copy
Services GUI.
Note: You might consider requesting assistance from IBM in the migration phase.
Depending on your geography, IBM can offer CLI migration services to help you ensure the
success of your project.
246 DS8000 Series: Concepts and Architecture

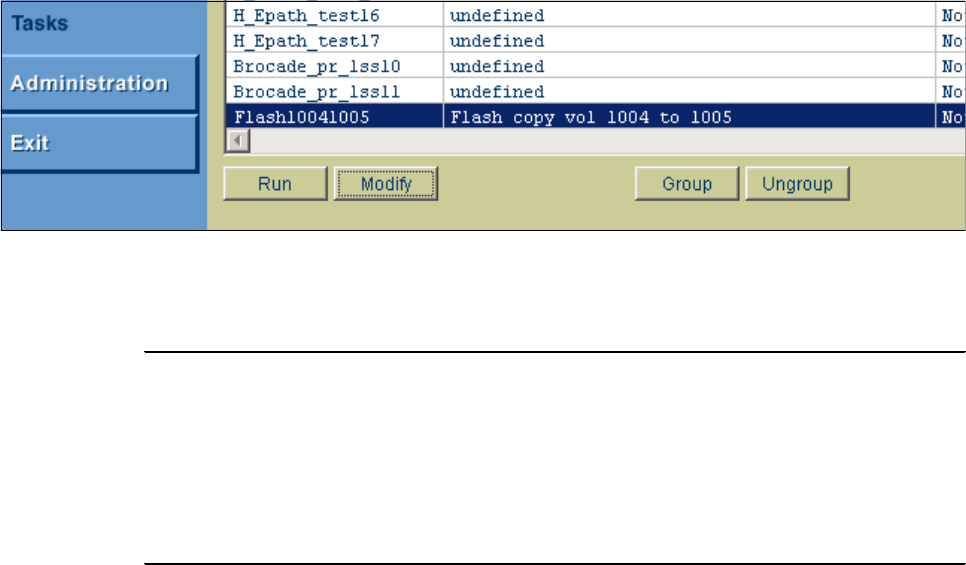

Figure 11-6 A portion of the tasks listed by using the GUI
In Example 11-12, the list task command is used. This is an ESS CLI command.
Example 11-12 Using the list task command to list all saved tasks (only the last five are shown)
arielle@aixserv:/opt/ibm/ESScli > esscli list task -s 10.0.0.1 -u csadmin -p passw0rd
Wed Nov 24 10:29:31 EST 2004 IBM ESSCLI 2.4.0
Task Name Type Status
------------------------------------------------------------------------
H_Epath_test16 PPRCEstablishPaths NotRunning
H_Epath_test17 PPRCEstablishPaths NotRunning
Brocade_pr_lss10 PPRCEstablishPair NotRunning
Brocade_pr_lss11 PPRCEstablishPair NotRunning
Flash10041005 FCEstablish NotRunning
11.10.2 Collecting the task details
Having collected the names of the saved tasks, the user needs to collect the contents of each
task. If viewing tasks via the GUI, you can highlight each task and click the Information
button to bring up the information panel for each task. An example is shown in Figure 11-7 on
page 247.
Chapter 11. DS CLI 247

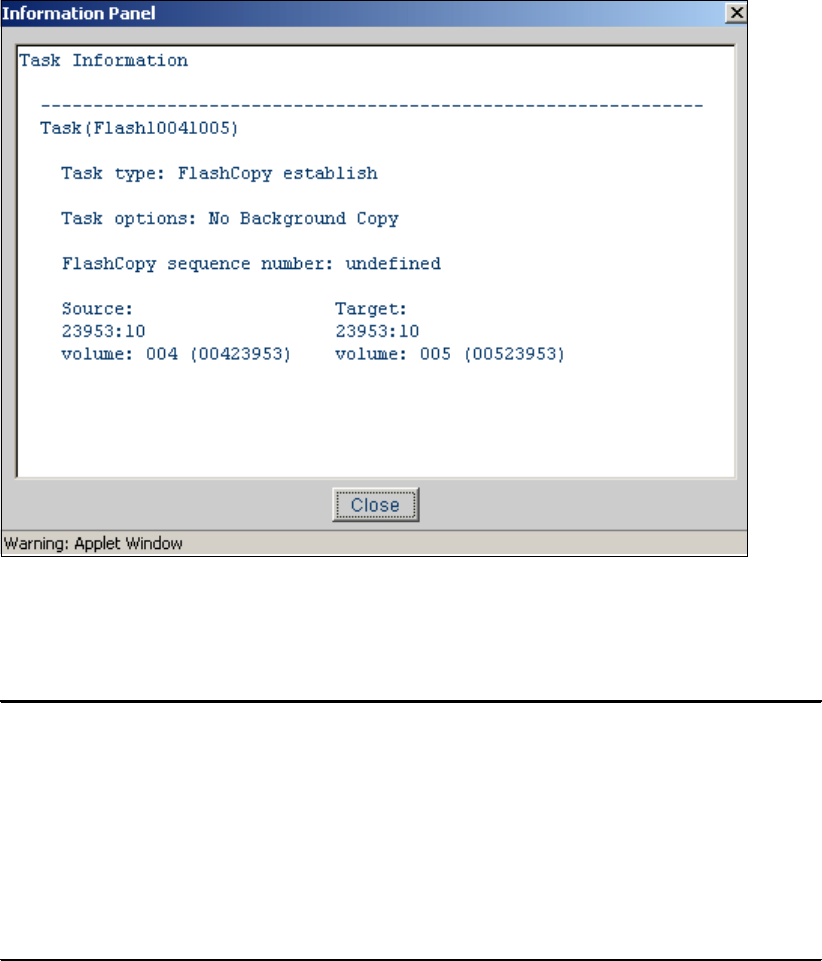

Figure 11-7 Using the GUI to get the contents of a FlashCopy task
It makes more sense, however, to use the ESS CLI show task command to list the contents
of the tasks, as depicted in Example 11-13.
Example 11-13 Using the command line to get the contents of a FlashCopy task
mitchell@aixserv:/opt/ibm/ESScli > esscli show task -s 10.0.0.1 -u csadmin -p passw0rd -d
"name=Flash10041005"
Wed Nov 24 10:37:17 EST 2004 IBM ESSCLI 2.4.0
Taskname=Flash10041005
Tasktype=FCEstablish
Options=NoBackgroundCopy
SourceServer=2105.23953
TargetServer=2105.23953
SourceVol TargetVol
------------------------------------------------------------------------
1004 1005
11.10.3 Converting the saved task to a DS CLI command
Having collected the contents of a saved task, it can now be converted into a DS CLI task.
Using the data from Example 11-13, each parameter is translated to the correct value for a
DS CLI command in Table 11-3.
248 DS8000 Series: Concepts and Architecture
Table 11-3 Converting a FlashCopy task to DS CLI
So to create the DS CLI command, simply read down the third column:
mkflash -nocp -dev IBM.2105-23953 1004:1005
In Example 11-14 the user uses the DS CLI interactive mode. They issue the mkflash
command and then use lsflash to check the success of the command.
Example 11-14 Using interactive dscli mode without profiles
sharon@aixsrv:/opt/ibm/dscli > dscli
dscli> mkflash -nocp -dev IBM.2105-23953 1004:1005
CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
dscli> lsflash -dev IBM.2105-23953 1004:1005
ID SrcLSS SequenceNum Timeout ActiveCopy Recoding Persistent Revertible
===============================================================================
1004:1005 10 0 120 Disabled Disabled Disabled Disabled
dscli>
You can also confirm the status of the FlashCopy by using the Web Copy Services GUI, as
shown in Figure 11-8.

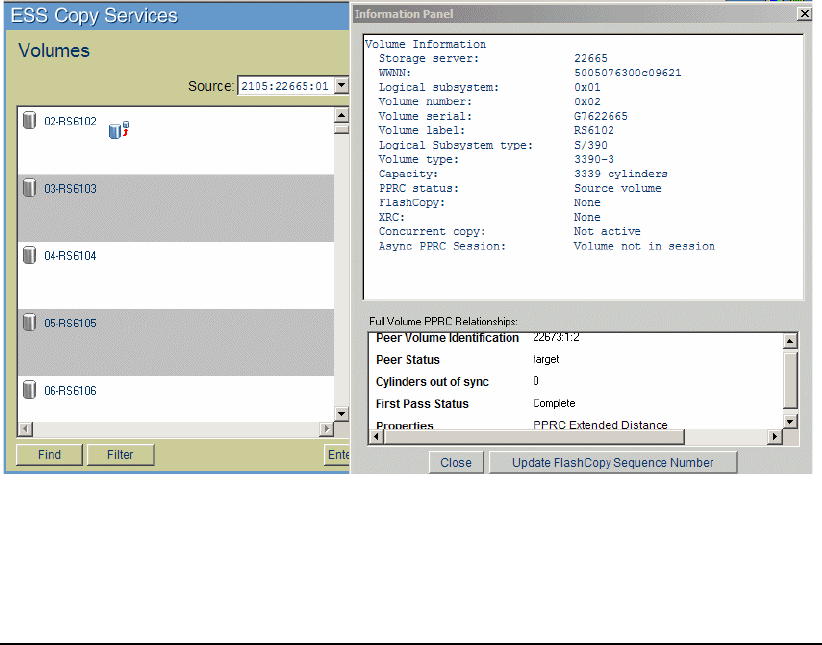

Figure 11-8 FlashCopy status via the ESS 800 Web Copy Services GUI
ESS CS CLI
parameter
Saved task
parameter
DS CLI conversion Explanation
Tasktype FCEstablish mkflash An FCEstablish becomes a
mkflash.
Options NoBackgroundCopy -nocp To do a FlashCopy no-copy
we use the -nocp parameter.
SourceServer 2105.23953 -dev IBM.2105-23953 The format of the serial
number changes. you must
use the exact syntax.
TargetServer 2105.23953 N/A We only need to use the -dev
once, so this is redundant.
Source and Target
vols
1004 1005 1004:1005 The volume numbers don’t
change. We simply separate
them with a full colon.
Chapter 11. DS CLI 249
11.10.4 Using DS CLI commands via a single command or script
Having translated a saved task into a DS CLI command, you may now want to use a script to
execute this task upon request. Since all tasks must be authenticated you will need to create
a userid.
Creating a user ID for use only with ESS 800
When using the DS CLI with an ESS 800, authentication is performed by using a userid and
password created with the ESS Specialist. If you have an ESS 800, but not a DS8000 or
DS6000 offline configurator, or an S-HMC, then you will not be able to create an encrypted
password file. Instead you will need to specify the password and userid in the script file itself.
This is no different than with the current ESS CLI, except that userids created using the ESS
800 Web Copy Service Server are not used (the userid used is an ESS Specialist userid).
If you have DS CLI access to a DS offline configuration tool, S-HMC or DS Storage
Management console, then you can create an encrypted password file. This will allow you to
avoid specifying the password or userid in plain text, in any script or profile.
Procedure to create an encrypted password file
User management with the DS CLI is via the mkuser command to create userids, and the
chuser command to change passwords. These commands must be issued by a userid in the
admin group. There is also rmuser to remove a userid. An example is:
mkuser -group op_copy_services -pw passw0rd -pwfile cs_admin csadmin
In this example, a userid called csadmin has been created which can be used either for CLI
authentication or to log on to the DS Storage Manager GUI. The password is passw0rd and
the user is a member of the op_copy_services group. This means the user cannot configure
storage or create other users, but can manage Copy Services relationships. A password file
called passwd was created on the local host (the host on which the mkuser command was
issued).
Having created the userid called csadmin, the password has been saved in an encrypted file
called passwd. The file is placed in a subfolder of the security folder. If the IP address of the
S-HMC is 10.0.0.1 then you will find the password file in /opt/ibm/dscli/security/10.0.0.1, or
c:\program files\ibm\dscli\security\10.0.0.1. If you are moving this file to a different server, you
may have to create this folder.
Setting up a profile
Having created a userid, you will need to edit the profile used by the DS CLI to store the
S-HMC IP address (or fully qualified name) and other common parameters. The default
profile is located at C:\Program Files\IBM\dscli\profile\dscli.profile or
/opt/ibm/dscli/dscli.profile. An example of a secure profile is shown in Example 11-15.
Example 11-15 Example of a dscli.profile file
#DS CLI Profile
#
# Management Console/Node IP Address(es) are specified using the hmc parameter
# hmc1 and hmc2 are equivalent to -hmc1 and -hmc2 command line options.
# hmc1 is cluster 1 of 2105 800 23953
hmc1:10.0.0.1
#hmc2:127.0.0.1
# Password filename is the name of an encrypted password file
# This file is located at /opt/ibm/dscli/security/10.0.0.1
250 DS8000 Series: Concepts and Architecture
pwfile: passwd
# Default target Storage Image ID
# If the -dev parameter is needed in a command then it will default to the value here
# "devid" is equivalent to "-dev storage_image_ID"
# the default server that DS CLI commands will be run on is 2105 800 23953
devid: IBM.2105-23953
If you don’t want to create an encrypted password file, or do not have access to a simulator or
the real S-HMC, then you can specify the userid and password in plain text. This is done
either at the command line or in a script or in the profile. This is not recommended since the
password itself is now not as secure. An example of a profile that contains plain text
authentication details is shown in Example 11-16.
Example 11-16 Example of a DS CLI profile that specifies the username and password
#DS CLI Profile
# hmc1 is cluster 1 of 2105 800 23953
hmc1:10.0.0.1
#The username to log onto the ESS
username: csadmin
# The password for csadmin:
password: passw0rd
# Default target Storage Image ID
devid: IBM.2105-23953
An example of a command where the password is entered in plain text is shown in
Example 11-17. In this example the lsuser command is issued directly to an S-HMC. Note
that the password will still be sent using SSL so a network sniffer would not be able to view it
easily. Note also that the syntax between the command and the profile is slightly different.
Example 11-17 Example of a DS CLI command that specifies the username and password
C:\Program Files\IBM\dscli>dscli -hmc1 10.0.0.1 -user admin -passwd passw0rd lsuser
Name Group
=============
admin admin
csadmin op_copy_services
exit status of dscli = 0
C:\Program Files\IBM\dscli>
Issuing a DS CLI command and scripting it
Having created a userid and preferably a password file, and then having edited the default
profile, it is now possible to issue DS CLI commands without logging onto the DS CLI
interpreter. An example is shown in Example 11-18.
Example 11-18 Establishing a FlashCopy with a single command
anthony@aixsrv:/opt/ibm/dscli > dscli mkflash -nocp 1004:1005
CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
exit status of dscli = 0
Chapter 11. DS CLI 251
anthony@aixsrv:/opt/ibm/dscli >
The command can also be placed into a file and that file made executable. An example is
shown in Example 11-19.
Example 11-19 Creating an executable file
anthony@aixsrv:/home >echo “/opt/ibm/dscli/dscli mkflash -nocp 1004:1005” > flash1005
anthony@aixsrv:/home >chmod +x flash1005
anthony@aixsrv:/home >./flash1005
anthony@aixsrv:/home >CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
anthony@aixsrv:/home >
Finally, the command could be issued using script mode. An example of creating and using
script mode is shown in Example 11-20.
Example 11-20 Using script mode
arielle@aixsrv:/opt/ibm/dscli >echo “mkflash -nocp 1004:1005” > scripts/flash1005
arielle@aixsrv:/opt/ibm/dscli >dscli -script scripts/flash1005
arielle@aixsrv:/opt/ibm/dscli >CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully
created.
arielle@aixsrv:/opt/ibm/dscli >
11.11 Summary
This chapter has provided some important information about the DS CLI. This new CLI allows
considerable flexibility in how DS6000 and DS8000 series storage servers are configured and
managed. It also detailed how an existing ESS 800 customer can benefit from the new
flexibility provided by the DS CLI.
252 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 253
Chapter 12. Performance considerations
This chapter discusses early performance considerations regarding the DS8000 series.
Disk Magic modelling for DS8000 is available as of December 03, 2004. Contact your IBM
sales representative for more information about this tool and the benchmark testing that was
done by the Tucson performance measurement lab.
Note that Disk Magic is an IBM internal modelling tool.
We discuss the following topics in this chapter:
򐂰The challenge with today’s disk storage servers
򐂰How the DS8000 addresses this challenge
򐂰Specific considerations for open systems and z/OS
12
254 DS8000 Series: Concepts and Architecture
12.1 What is the challenge?
In recent years we have seen an increasing speed in developing new storage servers which
can compete with the speed at which processor development introduces new processors. On
the other side, investment protection as a goal to contain Total Cost of Ownership (TCO),
dictates inventing smarter architectures that allow for growth at a component level. IBM
understood this early on and introduced its Seascape® architecture, and brought the ESS
into the marketplace in 1999 based on this architecture.
12.1.1 Speed gap between server and disk storage
Disk storage evolved over time from simple structures to a string of disk drives attached to a
disk string controller without caching capabilities. The actual disk drive—with its mechanical
movement to seek the data, rotational delays and actual transfer rates from the read/write
heads to disk buffers—created a speed gap compared to the internal speed of a server with
no mechanical speed brakes at all. Development went on to narrow this increasing speed gap
between processor memory and disk storage server with more complex structures and data
caching capabilities in the disk storage controllers. With cache hits in disk storage controller
memory, data could be read and written at channel or interface speeds between processor
memory and storage controller memory. These enhanced storage controllers, furthermore,
allowed some sharing capabilities between homogenous server platforms like S/390-based
servers. Eventually disk storage servers advanced to utilize a fully integrated architecture
based on standard building blocks as introduced by IBM with the Seascape architecture.
Over time, all components became not only bigger in capacity and faster in speed, but also
more sophisticated; for instance, using an improved caching algorithm or enhanced host
adapters to handle many processes in parallel.
12.1.2 New and enhanced functions
Parallel to this development, new functions were developed and added to the next generation
of disk storage subsystems. Some examples of new functions added over time are dual copy,
concurrent copy, and eventually various flavors of remote copy and FlashCopy. These
functions are all related to managing the data in the disk subsystems, storing the data as
quickly as possible, and retrieving the data as fast as possible. Other aspects became
increasingly important, like disaster recovery capabilities. Applications demand increasing I/O
rates and higher data rates on one hand, but shorter response times on the other hand.
These conflicting goals must be resolved, and are the driving force to develop storage
servers such as the new DS8000 series.
With the advent of the DS8000 and its server-based structure and virtualization possibilities,
another dimension of potential functions within the storage servers is created.
These storage servers grew with respect to functionality, speed, and capacity. Parallel to their
increasing capabilities, the complexity grew as well. The art is to create systems which are
well balanced from top to bottom, and these storage servers scale very well. Figure 12-1 on
page 255 shows an abstract and simplified comparison of the basic components of a host
server and a storage server. All components at each level need to be well balanced between
each other to provide optimum performance at a minimum cost.
Chapter 12. Performance considerations 255
Figure 12-1 Host server and storage server comparison: Balanced throughput challenge
The challenge is obvious: Develop a storage server—from the top with its host adapters down
to its disk drives—that creates a balanced system with respect to each component within this
storage server and with respect to their interconnectivity with each other. All this must be
done while taking into consideration other requirements as well, like investment protection
and being competitive not only in performance but also with price and reliability. A further
requirement is to keep the life cycle of the product as long as possible due to the substantial
development costs for an all new product. Furthermore, provide a storage family approach
with a single management interface and the potential to adopt new technology as it develops
on a component level. The simple picture suggests that this a more difficult task for a storage
server than for a host server. Perhaps it became this way with the evolving complexity of
storage servers.
12.2 Where do we start?
The IBM Enterprise Storage Server 2105 (ESS) already combined everything mentioned in
the previous paragraph when it appeared in the marketplace in 1999. Over time the ESS
evolved in many respects to enhance performance and to improve throughput. Despite the
powerful design, the technology and implementation used eventually reached its life cycle
end.
Looking more closely at the components in the ESS and their enhancements from the E20 to
the F20 to the 800 and 800 Turbo II models, some components reached their architectural
limits at various levels. This section briefly reviews the most obvious limitations that were
encountered over time as the other components were enhanced. It has to be noted that the
ESS 800 is still a very competitive disk storage server, which outperforms other storage
servers in many respects.
Processor
Adapter
Adapter
Memory
Memory Processor
Processor
Adapter
Adapter
Memory
Memory Processor
Adapter
Adapter
To host servers
To storage servers
Host server
Storage server
256 DS8000 Series: Concepts and Architecture
12.2.1 SSA backend interconnection
The Storage Serial Architecture (SSA) connectivity with the SSA loops in the lower level of
the storage server or backend imposed RAID rank saturation and reached their limit of 40
MB/second for a single stream file I/O. IBM decided not to pursue SSA connectivity, despite
its ability to communicate and transfer data within an SSA loop without arbitration.
12.2.2 Arrays across loops
Advancing from the F20 to the 800 model, the internal structures and buses increased two
fold and so did the back end with striping logical volumes across loops (AAL). This increased
the sequential throughput on an SSA loop from 40 MB/sec to 80 MB/sec for a single file
operation, distributing the back-end I/O across two loops. Because of the increasing
requirements to serve more data and at the same time reduce the application I/O response
time, the SSA loop throughput was not sufficient and surfaced more often with RAID rank
saturation.
12.2.3 Switch from ESCON to FICON ports
The front end got faster when it moved from ESCON at 200 Mbps to FICON at 2 Gbps with an
aggregated bandwidth from 32 ESCON ports x 200 Mbps at 6.4 Gbps to 16 FICON ports with
2 Gbps each, yielding 32 Gbps. Note that the pure technology, like 2 Gbps, is not enough to
provide good performance. The 2 Gbps FICON implementation in the ESS HA proved to
provide industry leading throughput in MB/sec as well as I/Os per second. An ESS FICON
port, even today, has the potential to exceed the throughput capabilities of other vendor’s
FICON ports.
When not properly configured (for example, with four FICON ports in the same HA), these
powerful FICON ports have the potential to saturate the respective host bay. Spreading
FICON ports evenly across all host bays puts increased pressure on the internals of the ESS
below the HA ports.
12.2.4 PPRC over Fibre Channel links
With PPRC over ESCON links there was some potential bottleneck when the HA changed
from ESCON to FICON. Despite a smart overlap and utilizing multiple PPRC ESCON links for
PPRC, the speed difference between FICON/FCP and ESCON channels introduced some
imbalance in the ESS. The ESS 800 finally introduced PPRC over FCP links with 2 Gbps.
Again this enhancement proves that the move to 2 Gbps technology is only half of the story.
With a smart implementation in the FCP port connection for PPRC, the performance of an
ESS FCP PPRC port is still not matched today by other implementation efforts.
These performance enhancements into and out of the ESS shifted potential bottlenecks back
into the internals of the ESS for very high write I/O rates with 15,000 write I/Os and more per
second.
12.2.5 Fixed LSS to RAID rank affinity and increasing DDM size
Another growing concern was the fixed affinity of logical subsystems (LSS) to RAID ranks and
the respective volume placement. Volumes had to reside within a single SSA loop and even
within the same RAID array; later in the A-loop and B-loop, but still bound to a single device
adapter (DA) pair.
Even more serious was the addressing issue with the 256 device limit within an LSS and the
fixed association to a RAID rank. With the growing disk drive module (DDM) size and
Chapter 12. Performance considerations 257
relatively small logical volumes, we ran out of device numbers to address an entire LSS. This
happens even earlier when configuring not only real devices (3390B) within an LSS, but also
alias devices (3390A) within an LSS in z/OS environments. By the way, an LSS is congruent
to an logical control unit (LCU) in this context. An LCU is only relevant in z/OS and the term is
not used for open systems operating systems.
12.3 How does the DS8000 address the challenge?
The DS8000 overcomes the architectural limits and bottlenecks which developed over time in
the ESS due to the increasing number of I/Os and MB/sec.
In this section we go through the different layers and discuss how they have changed to
address performance in terms of throughput and I/O rates.
12.3.1 Fibre Channel switched disk interconnection at the back end
Because SSA connectivity has not been further enhanced to increase the connectivity speed
beyond 40MB/sec, Fibre Channel connected disks were chosen for the DS8000 back end.
This technology is commonly used to connect a group of disks in a daisy-chained fashion in a
Fibre Channel Arbitrated Loop (FC-AL).
FC-AL shortcomings
There are some shortcomings with plain FC-AL. The most obvious ones are:
򐂰As the term arbitration implies, each individual disk within an FC-AL loop competes with
the other disks to get on the loop because the loop supports only one operation at a time.
򐂰Another challenge which is not adequately solved is the handling of failures within the
FC-AL loop, particularly with intermittently failing components on the loops and disks.
򐂰A third issue with conventional FC-AL is the increasing time it takes to complete a loop
operation as the number of devices increases in the loop.
For highly parallel operations, concurrent reads and writes with various transfer sizes, this
impacts the total effective bandwidth of an FC-AL structure.
How the DS8000 series overcomes FC-AL shortcomings
The DS8000 uses the same Fibre Channel drives as used in conventional FC-AL based
storage systems. To overcome the arbitration issue within FC-AL, the architecture is
enhanced by adding a switch-based approach and creating FC-AL switched loops, as shown
in Figure 12-2 on page 258. Actually it is called a Fibre Channel switched disk subsystem.
These switches use FC-AL protocol and attach FC-AL drives through a point-to-point
connection. The arbitration message of a drive is captured in the switch, processed and
propagated back to the drive, without routing it through all the other drives in the loop.
258 DS8000 Series: Concepts and Architecture
Figure 12-2 Switched FC-AL disk subsystem
Performance is enhanced since both DAs connect to the switched Fibre Channel disk
subsystem back end as displayed in Figure 12-3 on page 259. Note that each DA port can
concurrently send and receive data.
Processor
Adapter
Adapter
Memory
Memory Processor
Adapter
Adapter
To host servers
Storage server
ooo
20 port switch
20 port switch
16 DDM
Processor
Adapter
Adapter
Memory
Memory Processor
To storage servers
Host server
Chapter 12. Performance considerations 259
Figure 12-3 High availability and increased bandwidth connecting both DA to two logical loops
These two switched point-to-point loops to each drive, plus connecting both DAs to each
switch, accounts for the following:
򐂰There is no arbitration competition and interference between one drive and all the other
drives because there is no hardware in common for all the drives in the FC-AL loop. This
leads to an increased bandwidth utilizing the full speed of a Fibre Channel for each
individual drive. Note that the external transfer rate of a Fibre Channel DDM is 200
MB/sec.
򐂰Doubles the bandwidth over conventional FC-AL implementations due to two
simultaneous operations from each DA to allow for two concurrent read operations and
two concurrent write operations at the same time.
򐂰Despite the superior performance, don’t forget the improved RAS over conventional
FC-AL. The failure of a drive is detected and reported by the switch. The switch ports
distinguish between intermittent failures and permanent failures. The ports understand
intermittent failures which are recoverable and collect data for predictive failure statistics. If
one of the switches itself fails, a disk enclosure service processor detects the failing switch
and reports the failure using the other loop. All drives can still connect through the
remaining switch.
This just outlines the physical structure. A virtualization approach built on top of the high
performance architecture contributes even further to enhanced performance. For details see
Chapter 5, “Virtualization concepts” on page 83.
Processor
Adapter
Adapter
Memory
Memory Processor
Adapter
Adapter
To host servers
Storage server
ooo
20 port switch
20 port switch
16 DDM
To next
switch
260 DS8000 Series: Concepts and Architecture
12.3.2 Fibre Channel device adapter
The DS8000 still relies on eight DDMs to form a RAID-5 or a RAID-10 array. These DDMs are
actually spread over two Fibre Channel loops and follow the successful approach to use AAL.
With the virtualization approach and the concept of extents, the DAs are mapping the
virtualization level over the disk subsystem back end. For more details on the disk subsystem
virtualization refer to Chapter 5, “Virtualization concepts” on page 83.
Figure 12-4 Fibre Channel device adapter with 2 Gbps ports
The new RAID device adapter is built on PowerPC technology with four 2 Gbps Fibre Channel
ports and high function, high performance ASICs. Each port provides up to five times the
throughput of a previous SSA-based DA port. Each single Fibre Channel protocol processor
satisfies both Fibre Channel 2 Gbps ports at full speed.
Note that each DA performs the RAID logic and frees up the processors from this task. The
actual throughput and performance of a DA is not only determined by the 2 Gbps ports and
hardware used, but also by the firmware efficiency.
12.3.3 New four-port host adapters
Before looking into the heart of the DS8000 series, we briefly review the new host adapters
and their enhancements to address performance. Figure 12-5 on page 261 depicts the new
host adapters. These adapters are designed to hold four Fibre Channel ports, which can be
configured to support either FCP or FICON. They are also enhanced in their configuration
flexibility and provide more logical paths, from 256 with an ESS FICON port to 2,048 per
FICON port on the DS8000 series.
Each port continues the tradition of providing industry-leading throughput and I/O rates for
FICON and FCP.
Note that a FICON channel can address up to 16,384 devices through a FICON port. The
DS8000 series can hold up to 65,280 devices and you need at least four additional FICON
channel ports to reach all potential volumes within a DS8000 disk storage server. With four
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
Storage server
Memory PowerPC
2 Gbps Fibre Channel ports
Fibre Channel
Protocol Proc
Fibre Channel
Protocol Proc
DA
Processor
Chapter 12. Performance considerations 261
ports per HA and up to 16 HAs in the smallest family member of the DS8000 series, the
DS8100, you can configure up to 64 FICON channel ports. This still provides 16 FICON
channel paths to each single device, which is beyond what the zSeries Channel Subsystem
provides with its limit of up to eight channel paths per device as a maximum.
Figure 12-5 Host adapter with 4 Fibre Channel ports
The front end with the 2 Gbps ports scales up to 128 ports for a DS8300. This results in a
theoretical aggregated host I/O bandwidth of 128 times 2 Gbps and outperforms an ESS by a
factor of eight. The DS8100 still provides four times more bandwidth at the front end than an
ESS.
12.3.4 POWER5 - Heart of the DS8000 dual cluster design
The DS8000 series incorporates the latest pSeries POWER5 processor technology. The
actual processor used is an eServer p5 570 server, which scales from a 1-way to a 16-way
SMP using standard 4U building blocks. The first two family members of the DS8000 series
utilize two-way and four-way processor complexes. The following sections discuss
configuration and performance aspects based on the two-way processor complexes used in
the DS8100.
Among the most exciting capabilities the pSeries inherited from zSeries are the dynamic
LPAR mode and the micro partitioning capability. This pSeries-based functionality has the
potential to be exploited also in future disk storage server enhancements. For details on what
the first steps with LPAR technology in the DS8000 look like see Chapter 3, “Storage system
LPARs (Logical partitions)” on page 43.
Besides the self-healing features and advanced RAS attributes, the RIO-G structures provide
a very high I/O bandwidth interconnect with DAs and HAs to provide system-wide balanced
aggregated throughput from top to bottom. A simplified view is in Figure 12-6 on page 262.
The smallest processor complex within a DS8100 is the POWER5 p570 two-way SMP
processor complex. The dual-processor complex approach allows for concurrent microcode
loads, transparent I/O failover and failback support, and redundant, hot-swapable
components.
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
Storage server
Memory PowerPC
2 Gbps Fibre Channel ports
Fibre Channel
Protocol Proc
HA
Fibre Channel
Protocol Proc
Processor
262 DS8000 Series: Concepts and Architecture
Figure 12-6 Standard pSeries POWER5 p570 2-way SMP processor complexes for DS8100-921
Figure 12-7 provides a less abstract view and outlines some details on the dual 2-way
processor complex of a DS8100-921, its gates to host servers through HAs, and its
connections to the disk storage back end through the DAs.
Figure 12-7 DS8100-921 with four I/O enclosures
Each of the two processor complexes is interconnected through the pSeries-based RIO-G
interconnect technology and includes up to four I/O enclosures which equally communicate to
either processor complex. Note that there is some affinity between the disk subsystem and its
individual ranks to either the left processor complex, server 0, or to the right processor
Adapter
Adapter
Adapter
Adapter
To host
servers
Storage server
RIO-G Module
POWER5 2-way SMP
Processor
Processor
L1,2
Memory
L1,2
Memory
Memory
L3
Memory
Processor Processor
HA
DA
RIO-G Module
RIO-G Module
PowerPC
Fibre Channel
Protocol Proc
Fibre Channel
Protocol Proc
RIO-G Interconnect
I/O enclosure
4 HAs
DA
PowerPC
Fibre Channel
Protocol Proc
Fibre Channel
Protocol Proc
2 Gbps Fibre Channel ports
2 Gbps Fibre Channel ports
POWER5 2-way SMP
Memory
L3
Memory
RIO-G Module
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 1
RIO-G Module
POWER5 2-way SMP
Processor
Memory
Processor
L1,2
Memory
L3
Memory
L1,2
Memory
Server 0
Chapter 12. Performance considerations 263
complex, server 1. This affinity is established at creation of an extent pool. For details see
Chapter 10, “The DS Storage Manager - logical configuration” on page 189.
Each single I/O enclosure itself contains six Fibre Channel adapters:
򐂰Two DAs which install in pairs
򐂰Four HAs which install as required
Each adapter itself contains four Fibre Channel ports.
Although each HA can communicate with each server, there is some potential to optimize
traffic on the RIO-G interconnect structure. RIO-G provides a full duplex communication with
1 GB/sec in either direction. There is no such thing as arbitration. Figure 12-7 on page 262
shows that the two left-most I/O enclosures might communicate with server 0, each in full
duplex. The two right-most I/O enclosures communicate with server 1, also in full duplex
mode. This results in a potential of 8 GB/sec in total just for this single structure. Basically
there is no affinity between HA and server. As we see later, the server which owns certain
volumes through its DA, communicates with its respective HA when connecting to the host.
High performance, high availability interconnect to the disk subsystem
Figure 12-8 depicts in some detail how the Fibre Channel switched back-end storage
connects to the processor complex.
Figure 12-8 Fibre Channel switched backend connect to processor complexes - partial view
All I/O enclosures within the RIO interconnect fabric are equally served from either processor
complex.
Each I/O enclosure contains two DAs. Each DA with its four ports connects to four switches to
reach out to two sets of 16 drives or disk drive modules (DDMs) each. Note that each 20-port
ooo
20 port switch
20 port switch
16 DDM
RIO-G Module RIO-G Module
ooo
20 port switch
20 port switch
16 DDM
DA
RIO-G Interconnect
DA
RIO-G Module
POWER5 2-way SMP
Processor
Memory
Processor
L1,2
Memory
L3
Memory
L1,2
Memory
POWER5 2-way SMP
Memory
L3
Memory
RIO-G Module
Processor
Processor
L1,2
Memory
L1,2
Memory
Note that DA and HA
positions in I/O enclosures
are shown to suit
the intention of the figure
Server 1
Server 0
264 DS8000 Series: Concepts and Architecture
switch has two ports to connect to the next switch pair with 16 DDMs when vertically growing
within a DS8000. As outlined before, this dual two logical loop approach allows for multiple
concurrent I/O operations to individual DDMs or sets of DDMs and minimizes arbitration
through the DDM/switch port mini loop communication.
12.3.5 Vertical growth and scalability
Figure 12-9 shows a simplified view of the basic DS8000 structure and how it accounts for
scalability.
Figure 12-9 DS8100 to DS8300 - scale performance linearly - view without disk subsystems
Although Figure 12-9 does not display the back-end part, it can be derived from the number
of I/O enclosures, which suggests that the disk subsystem also doubles, as does everything
else, when switching from a DS8100 to an DS8300. Doubling the number of processors and
I/O enclosures accounts also for doubling the performance or even more.
Again note here that a virtualization layer on top of this physical layout contributes to
additional performance potential.
12.4 Performance and sizing considerations for open systems
To determine the most optimal DS8000 layout, the I/O performance requirements of the
different servers and applications should be defined up front since they will play a large part in
dictating both the physical and logical configuration of the disk subsystem. Prior to designing
the disk subsystem, the disk space requirements of the application should be well
understood.
RIO-2 Interconnect
RIO-2 Interconnect
RIO-2 Interconnect
I/O enclosure
I/O enclosure
I/O enclosure
I/O enclosure
Dual two-way processor complex
Dual four-way processor complex
Fibre Channel switched disk subsystems are not shown
RIO-G Module
POWER5 4-way SMP
RIO-G Module
Memory
L3
L3
Memory
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Memory
L3
L3
Memory
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 1
RIO-G Module
POWER5 4-way SMP
RIO-G Module
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 0
RIO-G Module
POWER5 2-way SMP
Memory
L3
L3
Memory
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 1
RIO-G Module
POWER5 2-way SMP
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 0
Chapter 12. Performance considerations 265
12.4.1 Workload characteristics
The answers to questions like how many host connections do I need?, how much cache do I
need? and the like always depend on the workload requirements (such as, how many I/Os per
second per server, I/Os per second per gigabyte of storage, and so forth).
The information you need, ideally, to conduct detailed modeling includes:
򐂰Number of I/Os per second
򐂰I/O density
򐂰Megabytes per second
򐂰Relative percentage of reads and writes
򐂰Random or sequential access characteristics
򐂰Cache hit ratio
12.4.2 Cache size considerations for open systems
Cache sizes in the DS8000 can be either 16, 32, 64, 128, or 256 GB. The 16 GB of system
memory is only available on the DS8100 and the 256 GB of system memory is only available
on the DS8300.
The factors that have to be considered to determine the proper cache size are:
򐂰The total amount of disk capacity that the DS8000 will hold
򐂰The characteristic access density (I/Os per GB) for the stored data
򐂰The characteristics of the I/O workload (cache friendly, unfriendly, standard; block size;
random or sequential; read/write ratio; I/O rate)
If you do not have detailed information regarding the access density and the I/O operations
characteristics, but you only know the usable capacity, you can estimate between 2 GB and
4 GB for the size of the cache per 1 TB of storage, as a general rule of thumb.
12.4.3 Data placement in the DS8000
Once you have determined the disk subsystem throughput, the disk space and number of
disks required by your different hosts and applications, you have to make a decision regarding
the data placement.
As is common for data placement and to optimize the DS8000 resources utilization, you
should:
򐂰Equally spread the LUNs across the DS8000 servers.
Spreading the LUNs equally on rank group 0 and 1 will balance the load across the
DS8000 servers.
򐂰Use as many disks as possible.
򐂰Distribute across DA pairs and RIO-G loops.
򐂰Stripe your logical volume across several ranks.
򐂰Consider placing specific database objects (such as logs) on different ranks.
266 DS8000 Series: Concepts and Architecture
All disks in the storage subsystem should have roughly the equivalent utilization. Any disk that
is used more than the other disks will become a bottleneck to performance. A practical
method is to make extensive use of volume level striping across disk drives.
12.4.4 LVM striping
Striping is a technique for spreading the data in a logical volume across several disk drives in
such a way that the I/O capacity of the disk drives can be used in parallel to access data on
the logical volume. The primary objective of striping is very high performance reading and
writing of large sequential files, but there are also benefits for random access.
DS8000 logical volumes are composed of extents. An extent pool is a logical construct to
manage a set of extents. One or more ranks with the same attributes can be assigned to an
extent pool. One rank can be assigned to only one extent pool. To create the logical volume,
extents from one extent pool are concatenated. If an extent pool is made up of several ranks,
a LUN can potentially have extents on different ranks and so be spread over those ranks.
However, to be able to create very large logical volumes, you must consider having extent
pools that span more than one rank. In this case, you will not control the position of the LUNs
and this may lead to an unbalanced implementation, as shown in Figure 12-10 on page 267.
Combining extent pools made up of one rank and then LVM striping over LUNs created on
each extent pool, will offer a balanced method to evenly spread data across the DS8000 as
shown in Figure 12-10.
Note: Database logging usually consists of sequences of synchronous sequential writes.
Log archiving functions (copying an active log to an archived space) also tend to consist of
simple sequential read and write sequences. You should consider isolating log files on
separate arrays.
Note: We recommend assigning one rank per extent pool to control the placement of the
data. When creating a logical volume in an extent pool made up of several ranks, the
extents for this logical volume are taken from the same rank if possible.
Chapter 12. Performance considerations 267
Figure 12-10 Spreading data across ranks
The stripe size
Each striped logical volume that is created by the host’s logical volume manager has a stripe
size that specifies the fixed amount of data stored on each DS8000 logical volume (LUN) at
one time.
12.4.5 Determining the number of connections between the host and DS8000
When you have determined your workload requirements in terms of throughput, you have to
choose the appropriate number of connections to put between your open systems and the
DS8000 to sustain this throughput.
A Fibre Channel host port can sustain a maximum of 206 MB/s data transfer. As a general
recommendation, you should at least have two FC connections between your hosts and your
DS8000.
Note: The recommendation is to use host striping wherever possible to distribute the
access patterns across the physical resources of the DS8000.
Note: The stripe size has to be large enough to keep sequential data relatively close
together, but not too large so as to keep the data located on a single array.
The recommended stripe sizes that should be defined using your host’s logical volume
manager are in the range of 4 MB to 64 MB.
You should choose a stripe size close to 4 MB if you have a large number of applications
sharing the arrays and a larger size when you have very few servers or applications
sharing the arrays.
Extent Pool
Rank 5
Rank 6
Rank 7
Rank 8
8GB LUN
Extent
1GB
Rank 1 Extent pool 1
Rank 3
Rank 4
2 GB LUN 1
Extent
1GB
Extent Pool 5
Rank 2
Non-balanced implementation: LUNs across ranks
More than 1 rank per extent pool
2GB LUN 2
2GB LUN 3
2GB LUN 4
Extent pool 2Extent pool 2
Extent pool 3
Extent pool 4
Balanced implementation: LVM striping
1 rank per extent pool
LV stripped across 4 LUNs
268 DS8000 Series: Concepts and Architecture
12.4.6 Determining the number of paths to a LUN
When configuring the IBM DS8000 for an open systems host, a decision must be made
regarding the number of paths to a particular LUN, because the multipathing software allows
(and manages) multiple paths to a LUN. There are two opposing factors to consider when
deciding on the number of paths to a LUN:
򐂰Increasing the number of paths increases availability of the data, protecting against
outages.
򐂰Increasing the number of paths increases the amount of CPU used because the
multipathing software must choose among all available paths each time an I/O is issued.
A good compromise is between 2 and 4 paths per LUN.
Subsystem Device Driver (SDD): Dynamic I/O load-balancing
The Subsystem Device Driver is a pseudo device driver designed to support the multipath
configuration environments in the IBM TotalStorage DS8000. It resides in a host system with
the native disk device driver as described in Chapter 15, “Open systems support and
software” on page 319.
The dynamic I/O load-balancing option (default) of SDD is recommended to ensure better
performance because:
򐂰SDD automatically adjusts data routing for optimum performance. Multipath load
balancing of data flow prevents a single path from becoming overloaded, causing
input/output congestion that occurs when many I/O operations are directed to common
devices along the same input/output path.
򐂰The path to use for an I/O operation is chosen by estimating the load on each adapter to
which each path is attached. The load is a function of the number of I/O operations
currently in process. If multiple paths have the same load, a path is chosen at random
from those paths.
12.4.7 Determining where to attach the host
When determining where to attach multiple paths from a single host system to I/O ports on a
host adapter to the storage facility image, the following considerations apply:
򐂰Choose the attached I/O ports on different host adapters.
򐂰Spread the attached I/O ports evenly between the four I/O enclosure groups.
򐂰Spread the I/O ports evenly between the different RIO-G loops.
The DS8000 host adapters have no server affinity, but the device adapters and the rank have
server affinity, as illustrated in Figure 12-11 on page 269.
A host is connected through two FC adapters to two DS8000 host adapters located in
different I/O enclosures. The host has access to LUN1, which is created in the extent pool 1
controlled by the DS8000 server 0. The host system sends read commands to the storage
server. When a read command is executed, one or more logical blocks are transferred from
the selected logical drive through a host adapter over an I/O interface to a host.
In the following case the logical device is managed by server 0 and the data is handled by
server 0 as shown in Figure 12-11. The read data to be transferred to the host must first be
present in server 0's cache. When the data is in the cache it is then transferred through the
host adapters to the host.
Chapter 12. Performance considerations 269
Figure 12-11 Dual port host attachment
12.5 Performance and sizing considerations for z/OS
Here we discuss some z/OS-specific topics regarding the performance potential of the
DS8000. We also address what to consider when you configure and size a DS8000 to replace
older storage hardware in z/OS environments.
12.5.1 Connect to zSeries hosts
Figure 12-12 on page 270 displays a configuration fragment on how to connect a DS8000 to
FICON hosts.
Processor
Memory
Processor
L1,2
Memory
L3
Memory
L1,2
Mem ory
RIO-G Module
SERVER 0
Processor Memory
Processor
L1,2
Mem ory
L3
Memory
L1,2
Memory
RIO-G Module
SERVER 1
DA
RIO-2 Interconnect
ooo
20 port switch
20 port switch
16 DDM
ooo
20 port switch
20 port switch
16 DDM
DA
IBM
DAs with an affinity to server 0
FC1
HA
HAs don't have DS8000 server affinity
Extent pool 1
LUN1
LUN1
LUN1
Extent pool 1
controlled by server 0
ooooExtent pool 4
controlled by server 1
FC0 I/Os
I/Os
Reads
Reads
DAs with an affinity to server 1
Extent pool 4
270 DS8000 Series: Concepts and Architecture
Figure 12-12 DS8100 frontend connectivity example - partial view
Note that this figure only indicates the connectivity to the Fibre Channel switched disk
subsystem through its I/O enclosure, symbolized by the rectangles.
Each I/O enclosure can hold up to four HAs. The example in Figure 12-12 shows only eight
FICON channels connected to the first two I/O enclosures. Not shown is a second FICON
director, which connects in the same fashion to the remaining two I/O enclosures to provide a
total of 16 FICON channels in this particular example. The DS8100 disk storage server
provides up to 64 FICON channel ports. Again note the very efficient FICON implementation
in DS8000 FICON ports.
12.5.2 Performance potential in z/OS environments
FICON channels started in the IBM 9672 G5 and G6 servers with 1 Gbps. Eventually these
channels were enhanced to FICON Express channels in IBM 2064 and 2066 servers, with
double the speed, so they now operate at 2 Gbps.
The example in Figure 12-12 with 16 FICON Express channels has roughly the potential to
provide a bandwidth of 16 x 175 MB/sec, equal to about 2.8 GB/sec. This is a very
conservative number. Some measurements show up to 206 MB/sec per 2 Gbps FICON
Express channel and 3.3 GB/sec aggregated for this particular example with 16 FICON
Express channels.
I/O rates with 4 KB blocks are in the range of 6,800 I/Os per second or more per FICON
Express channel, again a conservative number. A single FICON Express channel can
actually perform up to about 9,000 read hit I/Os per second on the DS8000. This particular
example in Figure 12-12, with 16 FICON Express channels, has the potential of over 100,000
I/Os per second. These numbers are rough considerations and rely on 100% read hit rates for
RIO-G ModuleRIO-G Module
z/OS 1.4+
HA
RIO-G Interconnect
FICON
Director
Parellel
Sysplex
RIO-G Module
POWER5 2-way SMP
Processor
Memory
Processor
L1,2
Memory
L3
Memory
L1,2
Memory
POWER5 2-way SMP
Memory
L3
Memory
RIO-G Module
Processor
Processor
L1,2
Memory
L1,2
Memory
Server 1
Server 0
Chapter 12. Performance considerations 271
the I/O rate and highly sequential read operations for the MB/sec numbers. They also vary
depending on the server type used.
The 2.8 GB/sec sequential read figure—and even significantly more—is achievable with a
properly configured DS8300.
A properly configured DS8100 can reach read hit I/O rates with numbers in the 6 digits. The
DS8300 does more than double that of the DS8100. These are rough estimates based on the
technology and architectural possibilities, and are presented just to help you start imagining
what might be possible. More precise figures cannot be stated without access to benchmark
results or your own benchmark experience.
What we can expect to see is a significant improvement in response time and throughput with
cache-hostile workloads due to the very fast Fibre Channel switched disk subsystems. A new
caching algorithm, SARC, is used to guarantee a more efficient cache management than with
the old LRU approach. This, in turn, will also positively contribute to better response times for
all workloads which show pure locality of reference with the LRU approach.
12.5.3 Appropriate DS8000 size in z/OS environments
The potential of the architecture, its implementation and utilized technology allow for some
projections at this point (though without having the hard figures at hand). Rules of thumb have
the potential to be proven wrong. Therefore, you see here some recommendations on sizing
which are rather conservative.
A fully configured ESS 800 Turbo with CKD volumes only and 16 FICON channels is good for
the following:
򐂰Over 30,000 I/Os per second
򐂰More than 500 MB/sec aggregated sequential read throughput
򐂰About 350 MB/sec sequential write throughput mirrored in cache
Without discrete DS8000 benchmark figures, a sizing approach to follow could be to propose
how many ESS 800s might be consolidated into a DS8000 model. From that you can derive
the number of ESS 750s, ESS F20s, and ESS E20s which can collapse into a DS8000. The
older ESS models have a known relationship to the ESS 800.
Further considerations are, for example, the connection technology used, like ESCON,
FICON, or FICON Express channels, and the number of channels.
Generally speaking, a properly configured DS8100 has the potential to provide the same or
better numbers than two ESS 800s. Since the ESS 800 has the performance capabilities of
two ESS F20s, a properly configured DS8100 can replace four ESS F20s. As the DS8000
series scales linearly, a well configured DS8300 has the potential to have the same or better
numbers concerning I/O rates, sequential bandwidth, and response time than two DS8100 or
four ESS 800s. Since the ESS 800 has roughly the performance potential of two ESS F20s, a
corresponding number of ESS F20s can be consolidated. This applies also to the ESS 750,
which has a similar performance behavior to that of an ESS F20.
Based on customer workload data, an IBM internal modelling tool can project how many ESS
800s to configure and then consolidate the ESS 800s to respective DS8000 models.
Processor memory size considerations for z/OS environments
Processor memory or cache in the DS8000 contributes to very high I/O rates and helps to
minimize I/O response time.
272 DS8000 Series: Concepts and Architecture
It is not just the pure cache size which accounts for good performance figures. Economical
use of cache, like 4 KB cache segments and smart, adaptive caching algorithms, are just as
important to guarantee outstanding performance. This is implemented in the DS8000 series.
Processor memory or cache can grow to up to 256 GB in the DS8300 and to 128 GB for the
DS8100. This processor memory is subdivided into a data in cache portion, which holds data
in volatile memory, and a persistent part of the memory, which functions as NVS to hold
DASD fast write (DFW) data until de-staged to disk.
Cache, or processor memory as a DS8000 term, is important to z/OS-based I/Os. Besides
the potential for sharing data on a DS8000 processor memory level, it is the main contributor
to good I/O performance. When coming from an existing disk storage server environment and
you intend to consolidate this environment into DS8000s, follow these recommendations:
򐂰Choose a cache size for the DS8000 series which has a similar ratio between cache size
and disk storage to that of the currently used configuration.
򐂰When you consolidate multiple disk storage servers, configure the sum of all cache from
the source disk storage servers for the target DS8000 processor memory or cache size.
For example, consider replacing four ESS F20s with 3.2 TB and 16 GB cache each with a
DS8100. The ratio between cache size and disk storage for the ESS F20 is 0.5% with 16
GB/3.2 TB. The new DS8100 is configured with 18 TB to consolidate 4 x 3.2 TB plus some
extra capacity for growth. This would require 90 GB of cache to keep the original
cache-to-disk storage ratio. Round up to the next available memory size, which is 128 GB for
this DS8100 configuration.
This ratio of 0.5% cache to backstore is considered high performance for z/OS environments.
Standard performance suggests a ratio of 0.2% cache to backstore ratio.
S/390 or zSeries channel consolidation
The number of channels plays a role as well when sizing DS8000 configurations and when
we know from where we are coming. The total number of channels used where you are
coming from has to be considered in the following way:
򐂰Use the same number of ESCON channels when the DS8000 has to be
ESCON-connected as well. Since the maximum number of ESCON channel ports in a
DS8100 is 32, and 64 for a DS8300, this also determines the consolidation factor. Note
that with ESCON channels only, the potential of the DS8000 series cannot be fully
exploited. You might consider taking this opportunity to change from ESCON to FICON to
improve performance and throughput by multiple magnitudes compared to an ESCON
world.
򐂰When the connected host uses FICON channels with 1 Gbps technology and it will stay at
this speed as determined by the host or switch ports, then keep the same number of
FICON ports. So four ESS 800s with eight FICON channels each connected to IBM 9672
G5 or G6 servers might end up in a single DS8300 with 32 FICON channels.
򐂰When migrating not only to DS8000 models, but also from 1 Gbps FICON to FICON
Express channels at 2 Gbps, you can consider consolidating the number of channels to
about 2/3 of the original number of channels. Use at least four FICON channels per
DS8000. (By the way, when we write about FICON channels, we mean FICON ports in the
disk storage servers.)
򐂰Coming from FICON Express channels, you should keep a minimum of four FICON ports.
You might consider using 25% fewer FICON ports in the DS8000 than the aggregated
number of FICON 2 Gbps ports from the source environment. For example, when you
consolidate two ESS 800s with eight FICON 2 Gbps ports each to a DS8100, plan for a
minimum of 12 FICON ports on the DS8100.
Chapter 12. Performance considerations 273
Another example, with four ESS F20s each with eight FICON channels, might collapse into
about 20 FICON ports when changing to a connectivity speed of 2 Gbps for the target
DS8100 or DS8300.
Disk array sizing considerations for z/OS environments
You can determine the number of ranks required not only based on the needed capacity, but
also depending on the workload characteristics in terms of access density, read to write ratio,
and hit rates.
You can approach this from the disk side and look at some basic disk figures. Fibre Channel
disks, for example, at 10k RPM provide an average seek time of approximately 5 ms and an
average latency of 3 ms. For transferring only a small block, the transfer time can be
neglected. This is an average 8 ms per random disk I/O operation or 125 I/Os per second. A
15k RPM disk provides about 200 random I/Os per second for small block I/Os. A combined
number of 8 disks is then good for 1,600 I/Os per second when they spin at 15k per minute.
Reduce the number by 12.5% when you assume a spare drive in the 8 pack. Assume further
a RAID-5 logic over the 8 packs.
Back at the host side, consider an example with 4,000 I/Os per second, a read to write ratio of
3 to 1, and 50% read cache hits. This leads to the following I/O numbers:
򐂰3,000 read I/Os per second.
򐂰1,500 read I/Os must read from disk.
򐂰1,000 writes with RAID-5 and assuming the worst case results in 4,000 disk I/Os.
򐂰This totals to 4,500 disk I/Os.
With 15K RPM DDMs you need the equivalent of three 8 packs to satisfy the I/O load from the
host for this example. Depending on the required capacity, you then decide the disk capacity,
provided each desired disk capacity has 15k RPM. When the access density is less and you
need more capacity, follow the example with higher capacity disks, which usually spin at a
slower speed like 10k RPM.
In “Fibre Channel device adapter” on page 260 we stated that the disk storage subsystem DA
port in a DS8000 has about five times the sequential throughput capability of what an ESS
800 DA port provides. Based on the 2 Gbps Fibre Channel connectivity to a DS8000 disk
array this is approximately 200 MB/sec compared to the SSA port of an ESS disk array with
40 MB/sec. A Fibre Channel RAID array provides an external transfer rate of over 200
MB/sec. The sustained transfer rate varies. For a single disk drive, various disk vendors
provide on their internet product sites the following numbers:
򐂰146 GB DDM with 10K RPM deliver a sustained transfer rate between 38 and 68 MB/sec
or 53 MB/sec on average.
򐂰73 GB DDM with 15K RPM transfers between 50 and 75 MB/sec or 62.5 MB/sec on
average.
The 73 GB DDMs have about 18% more sequential capability than the 146 GB DDM, but
60% more random I/O potential. The I/O characteristic is another aspect to consider when
deciding the disk and disk array size. While this discussion is theoretical in approach, it is
sufficient to get a first impression.
The IBM internal modelling tool, Disk Magic provides numbers which prove to be more firm.
Disk Magic helps to model configurations based on customer workload data. An IBM
representative can contact support personnel who will use Disk Magic to configure a DS8000
accordingly.
274 DS8000 Series: Concepts and Architecture
Use Capacity Magic to find out about usable disk capacity. For information on this internal
IBM tool, contact your IBM representative.
12.5.4 Configuration recommendations for z/OS
We discuss briefly how to group ranks into extent pools and what the implications are with
different grouping approaches. Note the independence of LSSs from ranks. Because an LSS
is congruent with a z/OS LCU, we need to understand the implications. It is now possible to
have volumes within the very same LCU, which is the very same LSS, but these volumes
might reside in different ranks. A horizontal pooling approach assumes that volumes within a
logical pool of volumes, like all DB2 volumes, are evenly spread across all ranks. This is
independent of how these volumes are represented in LCUs. The following sections assume
horizontal volume pooling across ranks, which might be congruent with LCUs when mapping
ranks accordingly to LSSs.
Configure one extent pool for each single rank
Figure 12-12 on page 270 displays some aspects regarding the disk subsystem within a
DS8100:
򐂰Chapter 5, “Virtualization concepts” on page 83 introduced the construct of an extent pool.
When defining an extent pool, an affinity is created between this specific extent pool and a
server. Due to the virtualization of the Fibre Channel switched disk subsystem you might
consider creating as many extent pools as there are RAID ranks in the DS8000. This
would then work similar to what is currently in the ESS. With this approach you can control
the placement of each single volume and where it ends up in the disk subsystem.
򐂰In the example in Figure 12-12 on page 270, each rank is in its own extent pool. The
evenly numbered extent pools have an affinity to the left server, server 0. The odd number
extent pools have an affinity to the right server, server 1. When a rank is subdivided into
extents it gets assigned to its own extent pool.
򐂰Now all volumes which are comprised of extents out of an extent pool have also a
respective server affinity when scheduling I/Os to these volumes.
򐂰This allows you to place certain volumes in specific ranks to avoid potential clustering of
many high activity volumes within the same rank. You can create SMS storage groups
which are congruent to these extent pools to ease the management effort of such a
configuration. But you can still assign multiple storage groups when you are not
concerned about the placement of less active volumes.
Chapter 12. Performance considerations 275
Figure 12-13 Extent pool affinity to processor complex with one extent pool for each rank
Figure 12-12 also indicates that there is no affinity nor a certain preference between HA and
processor complexes or servers in the DS8000. In this example either one of the two HAs can
address any volume in any of the ranks, which range here from rank number 1 to 12. Note
there is an affinity of DAs to the processor complex. As Figure 12-3 on page 259 depicts, a
DA pair connects to two switches respectively to two pairs of switches. The first DA of this DA
pair connects to the left processor complex or server 0. The second DA of this DA pair
connects to the other processor complex or server 1.
Minimize the number of extent pools
The other extreme is to create just two extent pools when the DS8000 is configured as CKD
storage only. You would then subdivide the disk subsystem evenly between both processor
complexes or servers as Figure 12-13 shows.
RIO-G ModuleRIO-G Module
HA
Extent pool11
Rank
DAs
Extent pool9Extent pool7
Extent pool5Extent pool3
Extent pool1
11
9
7
53
1
81210
264
Extent pool10Extent pool8Extent pool6
Extent pool4
Extent pool2Extent pool0
RIO-G Module
POWER5 2-way SMP
Server0
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
RIO-G Module POWER5 2-way SMP
Server1
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
276 DS8000 Series: Concepts and Architecture
Figure 12-14 Extent pool affinity to processor complex with pooled ranks in two extent pools
Again what is obvious here is the affinity between all volumes residing in extent pool 0 to the
left processor complex, server 0, and vice versa for the volumes residing in extent pool 1 and
their affinity to the right processor complex or server 1.
When creating volumes there is no straightforward approach to place certain volumes into
certain ranks. For example, when you create the first 20 DB2 logging volumes, they would be
allocated in a consecutive fashion in the first rank. The concerned RAID site would then host
all these 20 logging volumes. Now with AAL and the high performance and large bandwidth
capabilities of the Fibre Channel switched disk storage subsystem, this might not be an issue.
You may choose to control the placement of your most performance-critical volumes. This
might lead to a compromise between both approaches, as Figure 12-14 suggests.
Plan for a reasonable number of extent pools
Figure 12-15 presents a grouping of ranks into extent pools which follows a similar pattern
and discussion as for grouping volumes or volume pools into SMS storage groups.
RIO-G ModuleRIO-G Module
HA
8
6
12
10
4
2
Extent pool1
7
5
11
9
31
Extent pool0
Rank
DAs
RIO-G Module
POWER5 2-way SMP
Server0
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
RIO-G Module
POWER5 2-way SMP
Server1
Memory
L3
Memory
Processor
Processor
L1,2
Memory
L1,2
Memory
Chapter 12. Performance considerations 277
Figure 12-15 Mix of extent pools
Create two general extent pools for all the average workload and the majority of the volumes
and subdivide these pools evenly between both processor complexes or servers. These pools
contain the majority of the installed ranks in the DS8000. Then you might consider two or four
smaller extent pools with dedicated ranks for high performance workloads and their
respective volumes. You may consider defining storage groups accordingly which are
congruent to the smaller extent pools.
Consider grouping the two larger extent pools into a single SMS storage group. SMS will
eventually spread the workload evenly across both extent pools. This allows a
system-managed approach to place data sets automatically in the right extent pools. With
more than one DS8000 you might consider configuring each DS8000 in a uniform fashion.
We recommend grouping all volumes from all the large extent pools into one large SMS
storage group, SGPRIM. Cover the smaller, high performance extent pools through discrete
SMS storage groups for each DS8000. With two of the configurations displayed in
Figure 12-15, this ends up with one storage group, SGPRIM, and six smaller storage groups.
SGLOG1 contains Extent pool0 in the first DS8100 and the same extent pool in the second
DS8100. Similar considerations are true for SGLOG2. For example, in a dual logging
database environment this allows you to assign SGLOG1 to the first logging volume and
SGLOG2 for the second logging volume. For very demanding I/O rates and to satisfy a small
set of volumes, you might consider keeping Extent pool 4 and Extent pool 5 in both DS8100s
separate, through four distinct storage groups, SGHPC1-4.
Figure 12-14 shows, again, that there is no affinity between HA and processor complex or
server. Each I/O enclosure connects to either processor complex. But there is an affinity
between extent pool and processor complex and, therefore, an affinity between volumes and
processor complex. This requires some attention, as outlined previously, when you define
your volumes.
Rank
DAs
Extent pool5
Extent pool1
Extent pool3
Extent pool4
Extent pool2
Extent pool0
1
3
5
7
9
11
135
79
11
POWER5 2-way
SMP
Server0
POWER5 2-way
SMP
Server1
red I/O
blue pool red pool
blue I/O
red I/Oblue I/O
blue server red server
SGLOG2
SGPRIM
SGHPC2
SGLOG1
SGHPC1
278 DS8000 Series: Concepts and Architecture
12.6 Summary
This high performance processor complex configuration is the base for a maximum of host I/O
operations per second. The DS8000 Model 921 dual 2-way complex can handle an I/O rate of
what about three to four ESS 800s can deliver at maximum speed. This allows you to
consolidate three to four ESS 800s into a DS8100. As we saw before, the DS8000 series
scales very well and in a linear fashion. Moving on from a 921 dual 2-way processor complex
to a 922 dual 4-way processor complex not only doubles the number of POWER5
processors, but also doubles the performance. A properly configured DS8300 allows the
same maximum number of host I/O operations per second as what up to six to eight ESS
800s provide.
With the introduction of the smart, switch-based Fibre Channel disk back end to overcome
the FC-AL arbitration overhead, the DS8000 provides a comprehensive technology and an
unmatched architecture to fulfill very demanding performance requirements, and it provides
the highest RAS standards in the industry. This goes along with the 2 Gbps Fibre Channel
device adapters (DA). The stage is set for a new record of aggregated bandwidth and I/O
rates to the DS8000 high performance disk storage server family. A very promising road map
guarantees a bright future for the DS8000 series.
© Copyright IBM Corp. 2005. All rights reserved. 279
Part 4 Implementation
and management
in the z/OS
environmentvironment
In this part we discuss considerations for the DS8000 series when used in the z/OS
environment. The topics include:
򐂰z/OS Software
򐂰Data migration in the z/OS environment
Part 4
280 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 281
Chapter 13. zSeries software enhancements
This chapter discusses z/OS, z/VM, z/VSE and Transaction Processing Facility (TPF)
software enhancements that support the DS8000 series. The enhancements include:
򐂰Scalability support
򐂰Large volume support
򐂰Hardware configuration definition (HCD) to recognize the DS8000 series
򐂰Performance statistics
򐂰Resource Management Facility (RMF)
13
282 DS8000 Series: Concepts and Architecture
13.1 Software enhancements for the DS8000
A number of enhancements have been introduced into the z/OS, z/VM, z/VSE,VSE/ESA and
TPF operating systems to support the DS8000. The enhancements are not just to support the
DS8000, but also to provide additional benefits that are not specific to the DS8000.
13.2 z/OS enhancements
The DS8000 series simplifies system deployment by supporting major server platforms. The
DS8000 will be supported on the following releases of the z/OS operating system and
functional products:
򐂰z/OS 1.4 and higher
򐂰Device support facility (ICKDSF) Release 17
򐂰Environmental Record Editing and Printing (EREP) 3.5
򐂰DFSORT™
To exploit the DS8000 in exploitation mode, the Data Facilities Storage Management
Subsystem (DFSMS) product of z/Series software is enhanced by way of a Small
Programming Enhancement (SPE).
Hosts with operating system software levels prior to z/OS 1.4 are not supported. zLinux will
only recognize the DS8000 as a 2105 device.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
The software enhancements have been introduced in the following areas:
򐂰Scalability support
򐂰Large Volume Support (LVS)
򐂰Read availability mask support
򐂰Initial Program Load (IPL) enhancements
򐂰DS8000 definition to host software
򐂰Read control unit and device recognition for DS8000
򐂰New performance statistics
򐂰Resource Management Facility (RMF)
򐂰Migration considerations
򐂰Coexistence considerations
13.2.1 Scalability support
The IOS recovery is designed to support a small number of devices per control unit. Today, a
unit check is presented on all devices at failover. This does not scale well with a DS8000 that
Important: Always review the latest Preventative Service Planning (PSP) 2107DEVICE
bucket for software updates.
Chapter 13. zSeries software enhancements 283
has the capability to scale up to 63.75K devices. With the current support, we may have CPU
or spin lock contention, or exhaust storage below the 16M line at device failover, or both.
Now with z/OS 1.4 and higher with the DS8000 software support, the IOS recovery has been
improved by consolidating unit checks at an LSS level instead of each disconnected device.
This consolidation will shorten the recovery time as a result of I/O errors. This enhancement
is particularly important since the DS8000 has a much higher number of devices compared to
the IBM 2105. In the IBM 2105, we have 4K devices and in the DS8000 we have up to 63.75K
devices in a storage facility. With the enhanced scalability support, the following is achieved:
򐂰Common storage (CSA) usage (above and below the 16M line) is reduced.
򐂰IOS large block pool for error recovery processing and attention, and state change
interrupt processing, is located above the 16M line, thus reducing storage demand below
the 16M line.
򐂰Unit control blocks (UCB) are pinned and event notification facility (ENF) signalling during
channel path recovery.
Benefits of the scalability enhancements
These scalability enhancements provide additional performance improvements by:
򐂰Bypassing dynamic pathing validation in channel recovery for reduced recovery I/Os.
򐂰Reducing elapsed time, by reducing the wait time in channel path recovery.
13.2.2 Large Volume Support (LVS)
As we approach the limit of 64K UCBs, we need to find a way to stay within this limit. Today,
with the IBM 2105 volumes, 32,760 cylinders are supported. This gives us the capability to
remain within the 64K limit. But as today’s storage facilities tend to expand to even larger
capacities, we are approaching the 64K limit at a very fast rate. This leaves us no choice but
to plan for even larger volumes sizes. Support has been enhanced to expand volumes to
65,520 cylinders, using existing 16 bit cylinder addressing. This is often referred to as 64K
cylinder volumes. Components and products such as DADSM/CVAF, DFSMSdss, ICKDSF,
and DFSORT, previously shipped with 32,760 cylinders, now also support 65,520 cylinders.
Check point restart processing now supports a checkpoint data set that resides partially or
wholly above the 32,760 cylinder boundary.
With the new LVS volumes, the VTOC has the potential to grow very large. Callers such as
DFSMSdss will have to read the entire VTOC to find the last allocated DSCB. In cases where
the VTOC is very large, performance degradation will be experienced. A new interface is
implemented to return the high allocated DSCB on volumes initialized with an INDEX VTOC.
DFSMSdss uses this interface to limit VTOC searches and improve performance. The VTOC
has to be within the first 64K-1 tracks, while the INDEX can be anywhere on the volume.
13.2.3 Read availability mask support
Dynamic CHPID Management (DCM) allows the customer to define a pool of channels that
are managed by the system. The channels are added and deleted from control units based
on workload importance and availability needs. DCM attempts to avoid single points of failure
when adding or deleting a managed channel by not selecting an interface on the control unit
on the same I/O card.
Important: Global Mirror for z/OS will be limited to 32,760 cylinder volumes only at
General Availability.
284 DS8000 Series: Concepts and Architecture
Today control unit single point of failure information is specified in a table and must be
updated for each new control unit. Instead, we can use the Read Availability Mask (PSF/RSD)
command to retrieve the information from the control unit. By doing this, there is no need to
maintain a table for this information.
13.2.4 Initial Program Load (IPL) enhancements
During the IPL sequence the channel subsystem selects a channel path to read from the
SYSRES device. Certain types of I/O errors on a channel path will cause the IPL to fail even
though there are alternate channel paths which may work. For example, consider a situation
where there is a bad switch link on the first path but good links on the other paths. In this
case, you cannot IPL since the same faulty path is always chosen.
The channel subsystem and z/OS is enhanced to retry I/O over an alternate channel path.
This will circumvent IPL failures, due to the selection of the same faulty path to read from the
SYSRES device.
13.2.5 DS8000 definition to host software
The DASD Unit Information Module (UIM) is changed to define the new control unit type of
2107. The attachable device list will include 3380 and 3390 device types that include base
and alias Parallel Access Volumes (PAV). HCD users have the option to select 2107 as a
control unit type with 3380, 3380A, 3380B, 3390, 3390A, 3390B device types that can be
defined to this control unit.
The definition of the 2107 control unit type will allow this storage facility to be uniquely
reflected in the Hardware Configuration Manager (HCM). The definition of the 2107 control
unit type in the HCD is not required to define an IBM 2107 storage facility to z/Series hosts.
Existing IBM 2105 definitions could be used, but the number of LSSs will be limited to the
same number as today in the IBM 2105.
The number of LSSs is increased from 16 to 255 per storage facility for the DS8000. The
number of devices per LSS is still limited to 256. The number of CKD logical volumes is
increased from 4K to 64K devices per storage facility.
13.2.6 Read control unit and device recognition for DS8000
The host system will inform the attached DS8000 of its capabilities, such that it supports
native DS8000 control unit and devices. The DS8000 will then only return information that is
supported by the attached host system using the self-description data, such as read data
characteristics (RDC), sense ID, and read configuration data (RCD).
The following commands now display device type 2107 in their output:
򐂰DEVSERV QDASD and PATHS command responses
򐂰IDCAMS LISTDATA COUNTS, DSTATUS, STATUS and IDCAMS SETCACHE
Figure 13-1 on page 285, displays output from the DEVSERV QDASD command, which
shows the device type as a 2107.
Chapter 13. zSeries software enhancements 285
Figure 13-1 Display output from DEVSERV QDASD command
Figure 13-2 displays output from the DEVSERV PATHS command, which shows the device
type as a 2107.
Figure 13-2 Display output from DEVSERV PATHS command
The following DFSMS components and products are updated to recognize real control unit
and real device identifiers:
򐂰Device support - system initialization
򐂰DFSMSdss
򐂰System Data Mover (SDM)
򐂰Interactive Storage Management Facility (ISMF)
򐂰Device Support Facility (ICKDSF)
򐂰DFSORT
򐂰EREP
13.2.7 New performance statistics
There are two new sets of performance statistics that will be reported by the DS8000. Since a
logical volume is no longer allocated on a single RAID rank with a single RAID type or single
device adapter pair, the performance data will be provided with a new set of rank
performance statistics and extent pool statistics. The RAID RANK reports will no longer be
reported by RMF and IDCAMS LISTDATA batch reports. RMF and IDCAMS LISTDATA is
enhanced to report the new logical volume statistics that will be provided on the DS8000.
These reports will consist of back-end counters that capture the activity between the cache
and the ranks in the DS8000 for each individual logical volume. The new rank and extent pool
statistics will be disk-system-wide instead of volume-wide only.
DS QD,9882,RDC,DCE
IEE459I 11.36.47 DEVSERV QDASD 053
UNIT VOLSER SCUTYPE DEVTYPE CYL SSID SCU-SERIAL DEV-SERIAL EF-CHK
9882 IN9882 2107921 2107000 65520 1011 0113-00511 0113-00511 **OK**
READ DEVICE CHARACTERISTIC
2107E833900A5E80 FFF72024FFF0000F E000E5A205940222 1309067400000000
0000000000000000 24241F02DFEE0001 0677080F007F4A00 003C000000000000
DCE AT V020D8A30
3878807100C457C0 00000000024B60D0 D800FFF0FFEF2424 1FF70800004A0000
00FC24DC9400F0FE 021F3C1E00038000 0000000000000000
**** 1 DEVICE(S) MET THE SELECTION CRITERIA
**** 0 DEVICE(S) FAILED EXTENDED FUNCTION CHECKING
DS P,9882
IEE459I 11.38.36 DEVSERV PATHS 055
UNIT DTYPE M CNT VOLSER CHPID=PATH STATUS
RTYPE SSID CFW TC DFW PIN DC-STATE CCA DDC ALT CU-TYPE
9882,33903 ,O,000,IN9882,29=+ 2B=+
2107 1011 Y YS. YY. N SIMPLEX 02 02 2107
************************ SYMBOL DEFINITIONS ************************
O = ONLINE + = PATH AVAILABLE
286 DS8000 Series: Concepts and Architecture
LISTDATA COUNT
The RAID RANK counters report will not be available on the DS8000. These counters are
being replaced with the new RANK and Extent Pool statistics that will be in the RMF reports.
Figure 13-3 shows the RAID RANK Counters output that is available on the ESS Model 800.
Figure 13-3 RAID RANK counters report that will not be available on DS8000
2105 STORAGE CONTROL
SUBSYSTEM COUNTERS REPORT
RAID RANK COUNTERS
SUBSYSTEM ID X'3210'
RAID RANK ID X'0F00'
DEVICE ADAPTER ID X'14'
NUMBER OF HDDS IN RAID RANK 7
HDD SECTOR SIZE 524
RAID RANK OPERATIONS
REQUESTS I/O REQUESTS RESP/TIME SECTOR REQUESTS
READ 4008062 0.015 422528304
WRITE 1742359 0.019 209103590
IDCAMS SYSTEM SERVICES TIME: 11:36:18
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
LEGEND
RAID RANK COUNTERS LEGEND
SUBSYSTEM ID - SUBSYSTEM TO WHICH THE RAID RANK IS ATTACHED
NUMBER OF HDDS - NUMBER OF HARD DISK DRIVES IN THE RAID RANK
HDD SECTOR SIZE - SIZE IN BYTES OF A PHYSICAL HDD IO REQUEST
RANK OPERATIONS - OPERATIONS ASSOCIATED WITH A RAID RANK
I/O REQUESTS - NUMBER OF I/O REQUESTS
RESP/TIME - AVERAGE RESPONSE IN (MS)
SECTOR REQUESTS - NUMBER OF PHYSICAL HDD IO REQUESTS
READ - OPERATIONS CONTAINING AT LEAST ONE SEARCH OR READ COMMAND B
WRITE - OPERATIONS CONTAINING AT LEAST ONE WRITE COMMAND
IDCAMS SYSTEM SERVICES TIME: 11:40:04
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
Chapter 13. zSeries software enhancements 287
Figure 13-4 shows the LISTDATA COUNTS report output for the DS8000. This report shows
the Segment Pool number and the back-end information.
Figure 13-4 LISTDATA COUNTS report of DS8000
LISTDATA COUNTS VOLUME(IN9882) UNIT(3390) DEVICE
IDCAMS SYSTEM SERVICES TIME: 11:18:19
2107 STORAGE CONTROL
SUBSYSTEM COUNTERS REPORT
VOLUME IN9882 DEVICE ID X'02'
SUBSYSTEM ID X'1011'
CHANNEL OPERATIONS
......SEARCH/READ..... ..............WRITE...............
TOTAL CACHE READ TOTAL DASDFW CACHE WRITE
REQUESTS
NORMAL 2374 2368 146 141 141
SEQUENTIAL 38 38 525 513 513
CACHE FAST WRITE 0 0 0 N/A 0
TOTALS 2412 2406 671 654 654
REQUESTS CHANNEL OPERATIONS
INHIBIT CACHE LOADING 0
BYPASS CACHE 0
TRANSFER OPERATIONS DASD/CACHE CACHE/DASD
NORMAL 17 2650
SEQUENTIAL 35 N/A
DASD FAST WRITE RETRIES 0
DEVICE STATUS CACHING: ACTIVE
DASD FAST WRITE: ACTIVE
DUPLEX PAIR: NOT ESTABLISHED
DATA TRANSFERS BYTES RESP/TIME
UNITS 128KB 16MS
READ 405 330
WRITE 144 223
SEGMENT POOL NUMBER X'0001'
BACK END DATA TRANSFERS BYTES RESP/TIME REQUESTS
UNITS 128KB 16MS
READ 4493824 365 188
WRITE 45194476 38384 2778
IDCAMS SYSTEM SERVICES TIME: 11:18:19
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
288 DS8000 Series: Concepts and Architecture
LISTDATA STATUS
Figure 13-5 displays the output from the LISTDATA STATUS report. The output is the same,
except that 2107 is now displayed for the storage control.
Figure 13-5 LISTDATA STATUS report
LISTDATA PINNED
Figure 13-6 shows the output from a LISTDATA PINNED report. The output is the same,
except that 2107 is now displayed for the storage control.
Figure 13-6 LISTDATA PINNED report
Note: Rank and extent pool statistics will not be reported by IDCAMS LISTDATA batch
reports.
LISTDATA STATUS VOLUME(SHE200) UNIT(3390)
IDCAMS SYSTEM SERVICES TIME: 12:57:00
2107 STORAGE CONTROL
SUBSYSTEM STATUS REPORT
VOLUME SHE200 DEVICE ID X'00'
SUBSYSTEM ID X'3205'
................CAPACITY IN BYTES...............
SUBSYSTEM STORAGE NONVOLATILE STORAGE
CONFIGURED 8388608K 196608K
AVAILABLE 7541792K N/A
PINNED 0 0
OFFLINE 8192K N/A
RETURNED STATUS: 0-19 01000B01 000000C0 00000080 00000073 14200000
20-39 00000000 20000003 00030000 00000000 00003205
SUBSYSTEM CACHING STATUS: ACTIVE
SD CACHING CONDITIONS: CACHE FAST WRITE ACTIVE
NVS STATUS: ACTIVE
DEVICES WITH STATISTICS 12
STATISTIC SETS/DEVICE 1
DEVICE STATUS
FOR DEVICE ID X'00' CACHING: ACTIVE
DASD FAST WRITE: ACTIVE
DUPLEX PAIR: NOT ESTABLISHED
IDCAMS SYSTEM SERVICES TIME: 12:57:00
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
LISTDATA PINNED VOLUME(SHE200) UNIT(3390) DEVICE
IDCAMS SYSTEM SERVICES
2107 STORAGE CONTROL
PINNED TRACK REPORT
VOLUME SHE200 DEVICE ID X'00'
SUBSYSTEM ID X'3205'
CCHH TYPE DATA SET NAME
00090009 RETRIABLE IBMUSER.DATASET.NUMBER1
0011000A NON-RETRIABLE IBMUSER.DATASET.NUMBER2
0013000B NVS, CACHE AVAILABLE IBMUSER.DATASET.NUMBER3
0014000C CACHE COPY DEFECTIVE IBMUSER.DATASET.NUMBER4
LISTDATA PINNED VOLUME(EV9LIA) UNIT(3390) ALL
IDC11560I NO PINNED TRACKS EXIST FOR VOLUME EV9LIA
Chapter 13. zSeries software enhancements 289
SETCACHE
The DASD fast write attributes cannot be changed to OFF status on the DS8000. Figure 13-7
on page 289, displays the messages you will receive when the IDCAMS SETCACHE
parameters of DEVICE, DFW, SUBSYSTEM, or NVS with OFF are specified.
Figure 13-7 SETCACHE options
All other parameters should be accepted as they are today on the IBM 2105. For example,
setting device caching ON is accepted, but has no affect on the subsystem.
13.2.8 Resource Management Facility (RMF)
RMF support for the DS8000 is added via an SPE (APAR number OA06476, PTFs UA90079
and UA90080). RMF is enhanced to provide Monitor I and III support for the IBM TotalStorage
DS family. The ESS Disk Systems Postprocessor report now contains two new sections:
Extent Pool Statistics and Rank Statistics. These statistics are generated from SMF record 74
subtype 8:
򐂰The ESS Extent Pool Statistics section provides capacity and performance information
about allocated disk space. For each extent pool, it shows the real capacity and the
number of real extents.
򐂰The ESS Rank Statistics section provides measurements about read and write operations
in each rank of an extent pool. It also shows the number of arrays and the array width of all
ranks. These values show the current configuration. The wider the rank, the more
performance capability it has. By changing these values in your configuration, you can
influence the throughput of your work.
Also, new response and transfer statistics are available with the Postprocessor Cache
Activity report generated from SMF record 74 subtype 5. These statistics are provided at the
subsystem level in the Cache Subsystem Activity report and at the volume level in the Cache
Device Activity report. In detail, RMF provides the average response time and byte transfer
rate per read and write requests. These statistics are shown for the I/O activity (called host
adapter activity) and transfer activity from hard disk to cache and vice-versa (called disk
activity).
SETCACHE DEVICE OFF FILE(FILEX)
IDC31562I THE DEVICE PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE DFW OFF FILE(FILEX)
IDC31562I THE DASDFASTWRITE PARAMETER IS NOT AVAILABLE FOR THE
IDC31562I SPECIFIED SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE SUBSYSTEM OFF FILE(FILEX)
IDC31562I THE SUBSYSTEM PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE NVS OFF FILE(FILEX)
IDC31562I THE NVS PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
290 DS8000 Series: Concepts and Architecture
13.2.9 Migration considerations
A DS8000 will be supported as an IBM 2105 for z/OS systems without the DFSMS and z/OS
SPE installed. This will allow customers to roll the SPE to each system in a sysplex without
having to take a sysplex-wide outage. An IPL will have to be taken to activate the DFSMS and
z/OS portions of this support.
13.2.10 Coexistence considerations
Support for the DS8000 running in 2105 mode on systems without this SPE installed will be
provided. It will consist of the recognition of the DS8000 real control unit type and device
codes when it runs in 2105 emulation on these down-level systems.
Input/Output definition files (IODF) created by HCD may be shared on systems that do not
have this SPE installed. Additionally, existing IODF files that define IBM 2105 control unit
records for a 2107 subsystem should be able to be used as long as 16 or fewer logical
subsystems are configured in the DS8000.
13.3 z/VM enhancements
z/VM is an IBM operating system that supplies a virtual machine to each logged-on user. The
DS8000 will be supported on z/VM 4.4 and higher.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
13.4 z/VSE enhancements
z/VSE is a system that consists of a basic operating system (VSE/Advanced Functions) and
any IBM-supplied and user-written programs required to meet the data processing needs of a
user. VSE and the hardware that it controls form a complete computing system. The DS8000
will be supported on:
򐂰z/VSE 3.1 and higher
򐂰VSE/ESA 2.7 and higher
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
VSE/ESA does not support 64K LVS for the DS8000.
Important: Always review the latest Preventative Service Planning (PSP) 2107DEVICE
bucket for software updates.
Important: Always review the latest Preventative Service Planning (PSP) 2107DEVICE
bucket for software updates.
Chapter 13. zSeries software enhancements 291
13.5 TPF enhancements
TPF is an IBM platform for high volume, online transaction processing. It is used by industries
demanding large transaction volumes, such as airlines and banks. The DS8000 will be
supported on TPF 4.1 and higher.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
Important: Always review the latest Preventative Service Planning (PSP) 2107DEVICE
bucket for software updates.
292 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 293
Chapter 14. Data migration in zSeries
environments
This chapter describes several methods for migrating data from existing disk storage servers
onto the DS8000 disk storage server images. This includes migrating data from the ESS
2105 as well as from other disk storage servers to the new DS8000 disk storage server
images. The focus is on z/OS environments. The following topics are covered from a planning
standpoint:
򐂰Data migration objectives in z/OS environments
򐂰Data migration based on physical migration
򐂰Data migration based on logical migration
򐂰Combination of physical and logical data migration
򐂰z/VM and VSE/ESA data migration
This chapter does not provide a detailed step-by-step migration process description, which
would fill another book. There is a more detailed outline for a system-managed storage
environment.
14
294 DS8000 Series: Concepts and Architecture
14.1 Define migration objectives in z/OS environments
Data migration is an important activity that needs to be planned well to ensure the success of
the DS8000 implementation. Because today’s business environment does not allow you to
interrupt data processing services, it is crucial to make the data migration onto the new
storage servers as smooth as possible. The configuration changes and the actual data
migration ought to be transparent to the users and applications, with no or only minimal
impact on data availability. This requires you to plan for non-disruptive migration methods and
also to guarantee data integrity at any time during the migration process.
14.1.1 Consolidate storage subsystems
In the course of a data migration you might consider consolidating volumes and reducing the
number of storage servers.
Figure 14-1 Consolidation opportunities when migrating to DS8000
A DS8100 or DS8300 can initially contain up to 64 logical control units (LCUs), and this will
later increase to 255 LCUs within a DS8000 storage server image. This allows the DS8100 or
DS8300 to simulate up to 255 times an IBM 3390-6 control unit image with 256 devices within
each single control unit image. 255 times 256 equals the maximum number of devices a
storage server image can manage, which is 65,280 volumes. This suggests consolidation of
multiple control units into a single DS8100 or DS8300 disk storage server.
On the other hand, you might consider having multiple physical footprints to disperse volumes
for availability. Possible target configurations may conflict with recommendations from
software platforms, where physical placement of specific data sets into separate physical
hardware is recommended for availability. For example, the manual z/OS V1 R6.0 MVS
Setting up a Sysplex, SA22-7625-09, states:
Storage server
Storage server
Not drawn to scale
FICON
Storage subsystem
FICON
Storage subsystem
FICON
Source disk servers
Consolidate
FICON
Chapter 14. Data migration in zSeries environments 295
“To avoid a single point of failure in a sysplex, IBM recommends that, for all couple data
sets, you create an alternate couple datasets on a different device, control unit, and
channel from the primary.”
You may interpret this to mean not just having separate LCUs, but rather separate physical
control units, if possible.
Besides careful planning and depending on the configuration complexity, it might take weeks
or months to complete the planning and to perform the actual migration.
14.1.2 Consolidate logical volumes
Another aspect of consolidation within a data migration effort might be to plan for larger
volume sizes and consolidate or fold more than one source volume to a new and bigger
target volume. Up until now, most customers relied on a standard size volume, which is a
3390-3 with 3,339 cylinders per 3390-3. With the affinity of volumes to RAID arrays and the
underlying 8-packs, the increasing DDM size in the ESS 2105 made it impossible to utilize the
full RAID array capacity of a RAID rank with 146 GB and even larger DDMs, when choosing
3390-3 volumes. The full RAID array capacity could only be utilized when changing to bigger
volume sizes to reduce the number of volumes per RAID array or LSS.
This is not necessary any more with the DS8000 models due to their flexibility to configure
back-end storage independently from the DDM sizes. There is no affinity any longer between
an LSS and physical disk sets. The allocation of a volume happens in extents or increments
of the size of a 3390-1 volume or 1113 cylinders, and a 3390-3 consists of exactly three
extents from an extent pool. A 3390-9 with 10017 cylinders is comprised of exactly 9 extents
out of an extent pool. There is no affinity any longer to a disk set for a logical volume like a
3390-3 or any other sized 3390 volume. Despite the fact that it is not required any longer to
move from a 3390-3 volume type to some bigger volume type with the DS8000, you might still
want to plan in the course of a data migration to reduce the number of volumes.
Considerations for new logical volume size
Although the newly announced DS8000 storage servers now support logical 3390 volumes of
up to 65520 cylinders or 982800 tracks, you might still want to plan for a standard sized
logical volume which is smaller than 65520 cylinders. Consider that full volume operations will
take longer to copy or dump when the volume size is increased. This also applies to the first
full initial volume replication for Metro Mirror, when creating the pairs, as well as for XRC. A
compromise has to be planned for, which might be different from configuration to
configuration.
In a pure system-managed storage environment with no full volume operations any more,
except for migration perhaps, a volume size of 30051 cylinders might be fine for most of the
data. This is the space of nine 3390-3 volumes or exactly 27 extents out of an extent pool.
This would guarantee that all space is fully utilized when staying with increments of the
standard extent size, which is 1113 cylinders or the equivalent of a 3390-1 model. When you
plan for a larger volume size consider a multiple of a 3390-3 model, if possible.
With installations still performing full volume operations to a significant extent, you might want
to plan for smaller volumes. For example, to full dump nine volumes of 3390-3 in parallel will
most likely have a shorter elapsed time than dumping a single volume with the capacity of
nine 3390-3 volumes. In such an environment a standard 3390-9 volume might still be
appropriate. Although a 3390-9 volume has three times the capacity of a 3390-3, when
changing from ESCON to FICON the throughput increases roughly by a factor of 10 and
shortens the elapsed time, especially for highly sequential I/O.
296 DS8000 Series: Concepts and Architecture
Note that some data set types cannot grow beyond 64K tracks. When coming from 3390-3
and staying with 50,085 tracks of a model 3 this limit of 64K tracks extent allocation is not an
issue. When you already work with larger volumes you are familiar with these considerations.
But it may be a surprise to you without this experience.
Data set types that can exploit more than 64K tracks are:
򐂰Physical sequential extended format, DSORG=PSE
򐂰VSAM
򐂰PDSE
򐂰HFS
򐂰Page data sets
Note that extended format data sets are required to reside on system-managed volumes. The
extended format attribute is usually assigned through a data class construct. Example 14-1
displays a list of data classes which have the extended attribute.
Example 14-1 Data Classes with EF attribute
DATA CLASS LIST
Command ===>
CDS Name : SYS1.DFSMS.SCDS
Enter Line Operators below:
LINE DATACLAS LAST TIME EXTENDED
OPERATOR NAME MODIFIED DATA SET NAME TYPE ADDRESSABILITY COMPACTION
---(1)---- --(2)--- --(25)--- -------(26)------- -----(27)----- ---(28)---
EXT 10:45 EXTENDED REQUIRED YES NO
EXTCOMP 07:30 EXTENDED REQUIRED YES YES
STRIPE 06:59 EXTENDED REQUIRED NO ----
XRCJ 07:09 EXTENDED REQUIRED NO ----
---------- -------- -------- ---------- ---------- BOTTOM OF DATA --------
Data set types that cannot grow beyond 64K tracks are:
򐂰Physical sequential, DSORG=PS
򐂰Partitioned, DSORG=PO
򐂰Direct, DSORG=DA
򐂰JES spool
Data set types that must be allocated in the first 64K tracks on the volume are:
򐂰VTOC
򐂰VTOC Index
򐂰JES spool without APAR OW49317
Furthermore, consider adjusting the VTOC size when moving to large volumes. It all depends
on the number of data sets allocated on the volume. You might consider defining the same
size for VTOC, VTOC Index, and VVDS for all volumes with the same capacity, although the
sizing requirements for database volumes are usually different than for TSO volumes. There
are some further recommendations in Device Support Facilities User’s Guide and Reference,
Release 17, GC35-0033-27, Appendix C. VTOC Index, and in the following sections.
Dynamic Parallel Access Volumes required for large volumes
Utilizing big volumes will require you to use dynamic Parallel Access Volumes (PAV) to allow
many concurrent accesses to the very same volume concurrently. On a big volume, with
9 times the capacity of a 3390-3, we see about 9 times as many concurrent I/Os as what we
Chapter 14. Data migration in zSeries environments 297
see on a single 3390-3. Or, to put it differently, we may see on a single volume as many
concurrent I/Os as we see on nine 3390-3 volumes. Despite the PAV support, it still might be
necessary to balance disk storage activities across disk storage server images.
With the DS8000 you will have the flexibility to define LSSs of exactly the size you desire
rather then being constrained by RAID rank topology. This means that you define the number
of PAVs or alias devices that you need, rather than a number dictated by the RAID rank size.
Assuming you decide to create an LSS with 256 devices each, then the volume size you
decide upon determines how many alias devices to configure for WLM management.
Table 14-1 provides a proposal for a configuration with batch and transaction workload using
about 50 percent of the total disk space. It further assumes that all volumes are evenly and
horizontally spread across all LSSs and that all these volumes are system-managed.
Table 14-1 Suggested numbers of base and alias devices in an LSS with 256 devices
In a FICON environment this is supposed to be a conservative ratio between base and alias
volumes, which has the potential to provide a perfect compromise between utilized device
numbers and minimizing IOS queueing time. IOS queueing time is usually an indication of
volume contention due to more than one I/O request at a time to the very same volume.
Note that the configured LSS capacity is determined by the number of base devices chosen
and has no link any more to the actual rank size. The numbers in Table 14-1 are rounded.
Note also that the number of devices per LSS is still limited to a maximum of 256.
14.1.3 Keep source and target volume size at the current size
When the number of volumes does not reach the current zSeries limit of 64K volumes or is
significantly below this limit, you might stay with 3390-3 as a standard and avoid the additional
migration effort at this time. Introducing solutions based on Remote Mirror and Copy, the
number of devices to plan for can quickly reach the limits of number of devices supported in
current zSeries servers.
Volume consolidation is still a bit painful because it requires logical data set movement to
properly maintain catalog entries for most of the data. Only the first volume can be copied
through a full volume operation to a larger target volume. After that full copy operation, the
VTOC on the target volume needs to be adjusted to hold many more entries than the first
source volume. Another consideration for the first full volume copy operation is that the
volume names must be maintained on the new volume because full physical volume
operations do not maintain catalog entries. Otherwise you would not be able to locate the
data sets any more in a system-managed environment, which always goes through the
catalog to locate data sets and orients data set location solely on volume serial numbers.
Referring to certain volumes or volume lists in JCL may need changes to the JCL to modify or
remove these volumes or lists of volumes. Independent of whether these volumes are
system-managed with the guaranteed space attribute or non-managed volumes, JCL most
likely needs to be adjusted to reflect the new volume names.
Volume size in cyl Number base dev Number alias dev Capacity/LSS
3,339 (3390-3) 170 - 192 86 - 64 550 - 480 GB
10,017 (3390-9) 128 - 170 128 - 86 1 - 1.5 TB
30,051 (3390-9+) 86 - 128 170 - 128 2.3 - 3.4 TB
30.051 (3390-9+) 86 - 128 170 - 128 2.3 - 3.4 TB
298 DS8000 Series: Concepts and Architecture
14.1.4 Summary of data migration objectives
To summarize the objective of data migration, it might be feasible to not just migrate the data
from existing storage subsystems to the new storage server images, but also to consolidate
source storage subsystems to one or fewer target storage servers. A second migration layer
might be to consolidate multiple source volumes to larger target volumes, which is also called
volume folding. The latter is in general more difficult to do and requires data migration on a
data set level. Some down time is needed to move the remaining data sets, which are usually
open and active 24 hours every day. If you, for example, consolidate a storage group with
1,000 volumes to 200 volumes, the service interruptions could be few and long or frequent
and brief.
14.2 Data migration based on physical migration
Physical migration here refers to physical full volume operations, which in turn require the
same device geometry on the source and target volume. The target volume capacity is equal
to the source volume capacity or larger. The device geometry is defined by the track capacity
and the number of tracks per cylinder. The same device geometry means that source and
target devices have the same track capacity and the same number of tracks per cylinder.
Usually this is not an issue because over time the device geometry of the IBM 3390 volume
has become a quasi standard and most installations have used this standard. For
organizations still using other device geometry (for example, 3380), it might be worthwhile to
consider a device geometry conversion, if possible. This requires moving the data on a logical
level, which is on a data set level, and allows for reblocking during the migration from 3380 to
3390.
Utilizing physical full volume operations is possible through the following software-,
microcode-, and hardware-based functions:
򐂰Software-based
–DFSMSdss
–TDMF
– FDRPAS
򐂰Software- and hardware-based:
– zSeries Piper - uses currently a zSeries Multiprise® server with ESCON attachment
only
– z/OS Global Mirror (XRC)
򐂰Hardware- and microcode-based:
–Global Mirror
–Global Copy
– FlashCopy in combination with either Global Mirror or Global Copy, or both
–Metro/Global Copy
The following section discusses DFSMSdss and the Remote Copy-based approaches in
more detail.
14.2.1 Physical migration with DFSMSdss and other storage software
Full volume copy through the COPY command copies all data between like devices from a
source volume to a target volume. The target volume might be bigger than the source but
cannot be smaller than the source volume. You have to keep the same volume name and the
same volume serial number (VOLSER) on the target volume; otherwise, the data set cannot
be located any more via catalog locates. This is achieved through the COPYVOLID
Chapter 14. Data migration in zSeries environments 299
parameter. When the target volume is larger than the source volume it is usually necessary to
adjust the VTOC size on the target volume with the ICKDSF REFORMAT REFVTOC
command to make the entire volume size accessible to the system.
DFSMSdss also provides full DUMP and full RESTORE commands. With the DUMP
command an entire volume is copied to tape cartridges and can then be restored from tape
via the RESTORE command to the new source volume. During that time all data sets on that
volume are not available to the application in order to keep data consistency between when
the DUMP is run and when the RESTORE command completes. The advantage of this
method is that it creates a copy which offers fail-back capabilities. When source and target
disk servers are not available at the same time for migration, this might be a feasible
approach to migrate the data over to the new hardware.
DFSMSdss is optimized to read and write data sequentially as fast as possible. Besides
optimized channel programs, which always use the latest enhancements the hardware and
microcode provides, DFSMSdss also allows a highly parallel I/O pattern, which is achieved
either through the PARALLEL keyword within a single job/step or you can submit more than
one DFSMSdss job and run several DFSMSdss jobs in parallel.
TDMF and FDRPAS provide concurrent full volume migration capabilities, which are best
described as remote copy functions for migration based on software that allows a controlled
switch-over to the new target volume. As a general rule, these might be considered when the
number of volumes to be migrated is in the hundreds rather than in the range of thousands of
volumes to be migrated. With large migration tasks, the number of volumes has to be broken
down to smaller volume sets so that the migration can happen in a controlled fashion. This
lengthens the migration period, so if possible, other approaches might be considered.
Both software products are usually associated with fees or service-based fees. When the
number of volumes is in the range of up to a few hundred, then standard software like
DFSMSdss is an option. But DFSMSdss-based migration does not automatically switch over
to the target volumes and usually requires some weekend efforts to complete. DFSMSdss is
standard software and part of z/OS, so there are no extra costs for software.
The choice of which software approach to take depends on the business requirements and
service levels which the data center has to follow. The least disruptive approach is to provide
software packages that switch in a controlled and transparent manner over to the target
device, like TDMF and FDRPAS do. When brief service interruptions can be tolerated, then
the standard software is still a popular solution.
14.2.2 Software- and hardware-based data migration
Piper z/OS (an IBM IGS service) and z/OS Global Mirror are tools for data migration that are
based on software, which in turn relies on specific hardware or microcode support. This
section outlines these two popular approaches to migrate data.
Data migration with Piper for z/OS
IBM offers a migration service using the Piper tool, which is a combination of FDRPAS as the
software used in a migration server (which is part of the service offering) that is connected to
the customer configuration during the migration.
300 DS8000 Series: Concepts and Architecture
Figure 14-2 Piper for z/OS environment configuration
Currently this server is a Multiprise 3000, which can connect through ESCON channels only.
This will exclude this approach to migrate data to the DS6000, which only provides a pure
FICON or Fibre Channel connectivity. It can be used, though, for the DS8000, which still
allows you to connect to the ESCON infrastructure through supported ESCON host adapters.
IBM plans to enhance the Piper server with FICON channel capable hardware to allow
migration to FICON-only environments. Currently the IBM Piper migration service offering
includes the following, which IBM provides:
򐂰S/390 Multiprise 3000
򐂰An ESCON director with 16 ports to connect to the customer z/Series-based fabric
򐂰Preloaded FDRPAS migration software
򐂰19 inch rack enclosure
򐂰Agent tasks which need to be installed in the customer systems
An FDRPAS master task runs on the Piper CPU, which coordinates all activities. Monitor
tasks are required on the customer’s systems to monitor and coordinate with the swap task in
the Piper CPU.
The advantages of this Piper-based migration offering are:
򐂰Simple installation without the need for IPLs on the customer side.
򐂰Transparent data migration without interruption to connected application hosts and no
application down time.
򐂰Parameter-controlled activity which can be dynamically modified at any time to pace the
migration.
򐂰Suspend/resume of migration at any time without exposing data integrity.
򐂰Migration during usual business hours for convenient management of the migration
process.
򐂰Independent of hardware vendor and suited for all S/390 or zSeries attached disk storage.
򐂰Supports Parallel Access Volume handling.
Customer
Systems
Piper hardware
Swap
Task
Monitor
Ta s k
Monitor
Ta s k
Online
Source
Volume
Offline
Targ et
Volume
Agent
Integrated tool
Agent
ESCON
ESCON / FICON
Chapter 14. Data migration in zSeries environments 301
Most of these benefits also apply to migration efforts controlled by the customer when utilizing
TDMF or FDRPAS in customer-managed systems.
Piper for z/OS is an IGS service offering which relieves the customer of the actual migration
process and requires customer involvement only in the planning and preparation phase. The
actual migration is transparent to the customer’s application hosts and Piper even manages a
concurrent switch-over to the target volumes. Piper is neutral to the disk storage vendors and
works for all devices supported under z/OS or OS/390.
Data migration with z/OS Global Mirror
Another alternative is z/OS Global Mirror (XRC). XRC is an asynchronous solution that has a
mode for disaster recovery (DR) solutions as well as a particular migration mode of
SESSIONTYPE(MIGRATE). This mode does not require the customer to plan for a
JOURNALs configuration at the secondary site, which is mandatory for DR solutions based
on XRC.
Figure 14-3 Data Migration with z/OS Global Mirror (XRC)
XRC allows for an online data migration approach, which is almost non-disruptive. The
application only needs to shut down for the actual switch to the target volumes in the new disk
storage server. It can restart immediately to connect to the new disk storage server after the
XRC secondary volumes have been relabeled by a single XRC command per XRC session,
XRECOVER.
In addition to transparent data replication, the advantage of XRC is extreme scalability.
Figure 14-3 shows that XRC can run either in existing system images or in a dedicated LPAR.
Each image can host up to five System Data Movers (SDM). An SDM is an address space
(ANTAS00x) that is started by a respective XSTART command. A reasonable number of XRC
volume pairs that a single SDM can manage is in the range of 1,500 to 2,000 volume pairs.
With up to five SDMs within a system image, this totals approximately 10,000 volume pairs.
Production systems
OS/390
zOS
zLINUX
zVM
VSE/ESA
no minidisks
Director
ESCON / FICON
ANTAS002
SDM LPAR
XRECOVER
SDM1 SDM2
SDM3
SDM5
SDM4 XRECOVER
XRECOVER
XRECOVERXRECOVER
Primary
Volume
Secondary
Volume
Source
Disk
subsystems
Tar ge t
Disk
Servers
ANTAS001
ANTAS003
ANTAS004
ANTAS004
302 DS8000 Series: Concepts and Architecture
This requires an adequate bandwidth for the connectivity between the disk storage servers to
the system image which hosts the SDMs. Because XRC in migration mode stores the data
through, it mainly requires channel bandwidth and SDM tends to monopolize its channels.
Therefore, the approach with dedicated channel resources is an advantage over a shared
channel configuration and would almost not impact the application I/Os.
XRC requires disk storage subsystems which support XRC primary volumes through the
microcode. Currently only IBM- or HDS-based controllers support XRC as a primary or
source disk subsystem. As an exception, this does not apply to the IBM RVA storage
controller, which does not support XRC as a primary XRC device. Also, EMC does not
provide XRC support at the XRC primary site.
14.2.3 Hardware- or microcode-based migration
Hardware- and microcode-based migration through remote copy is usually only possible
between like hardware, so using remote copy through microcode is not possible with different
disks from vendor A at the source site and disks from vendor B at the target site. Therefore,
we discuss only what is possible for IBM disk storage servers using remote copy or
Peer-to-Peer Remote Copy (PPRC) and its variations.
Remote copy approaches with Global Mirror, Metro Mirror, Metro/Global Copy, and Global
Copy allow the primary and secondary site to be any combination of ESS 750s, ESS 800s
and DS6000s or DS8000s.
Although IBM did not announce support of Metro/Global Copy for the DS8000, it will work for
certain migration scenarios, as outlined in the next section, when the DS8000 disk server
receives the data as the Global Copy secondary disk server. In this case the DS8000 holds
the Global Copy secondary volumes within a plain Global Copy relationship with the
respective ESS as the Global Copy primary disk server.
Bridge from ESCON to FICON with Metro/Global Copy
The ESS Model E20 and Model F20 do not support PPRC over Fibre Channel links, but only
PPRC based on PPRC ESCON links. In contrast, the newly announced disk storage servers
support only PPRC over Fibre Channel links and do not support PPRC ESCON links. The
ESS Model 800 supports both PPRC link technologies.
Figure 14-4 Intermediate ESS 800 used to migrate data with PPRC over ESCON from older models
Intermediate ESS 800
FICON
PPRC
Links
FCP
PPRC
Links
ESCON
ESS F20 ESCON
Global Copy
Metro Mirror
Cascading
Metro/Global Copy
DS8000
ESS F20
Chapter 14. Data migration in zSeries environments 303
To utilize the advantage of PPRC with concurrent data migration on a physical volume level
from older ESS models like the ESS F20, an ESS 800 (or in less active configurations an
ESS 750) might be used during the migration period to bridge from a PPRC ESCON link
storage server to the new disk storage server which supports only PPRC over FCP links. The
approach is Metro/Global Copy with the ESS 800 in between hosting the cascaded volumes,
which are PPRC secondary volumes for Metro Mirror and at the same time also PPRC
primary volumes for the Global Copy configuration. It is recommended that you connect the
intermediate ESS to a host whether it is over ESCON channels or FICON channels. This
allows the ESS 800 to off-load messages to the host as well as to manage the PPRC volumes
within the intermediate ESS during the migration period.
The actual setup and management might be performed through the ESS GUI with its Copy
Services application. Another possibility is to manage such a cascaded configuration with
host-based software like ICKDSF or TSO commands, when the TSO command support for
cascaded volumes is available. Otherwise use a combination of TSO commands and ICKDSF
for just defining the cascaded bit when setting up Global Copy between the intermediate ESS
800 and the target DS8000 disk server.
Dynamic Address Switching (P/DAS) for a non-disruptive application I/O switch from the old
hardware to the volumes in the new hardware is not possible in this configuration because
P/DAS requires the PPRC secondary volumes to be in a DUPLEX state. PPRC-XD stays, by
definition, always in PENDING state. Theoretically it is possible to switch from PPRC-XD to
Synchronous PPRC and replicate the data twice over Synchronous PPRC, which may
impose significant impact to write I/O to the old hardware. It is usually quicker and less
difficult, when a brief application down time is acceptable, to switch from the old hardware to
the volumes in the new hardware.
Again this approach is only possible from IBM ESS to IBM DS6000 or IBM DS8000 disk
storage servers and it requires the same size or larger PPRC secondary volumes with the
same device geometry.
Data migration with Metro Mirror or Global Copy
A variation to the approach discussed above is to use straightforward Metro Mirror or Global
Copy from the ESS 750 or ESS 800 to the DS8000.
Figure 14-5 Metro Mirror or Global Copy from ESS 750 or ESS 800 to DS8000
Metro Mirror (Synchronous PPRC) provides data consistency at any time once the volumes
are in full DUPLEX state, although through its synchronous approach it imposes a slight
FICON
PPRC
Links
FCP
Metro Mirror
ESS 750
Global Copy
ESS 800
OR
DS8000
304 DS8000 Series: Concepts and Architecture
impact to the application write I/Os at the source storage subsystems from where we migrate
the data. This assumes a local data migration and that the distance is within the supported
Metro Mirror distance for PPRC over FCP links. You can switch the application I/Os any time
from the old to the new disk configuration. This requires you to quiesce or shut down the
application server and restart the application servers after terminating the PPRC
configuration. The restart uses a modified I/O definition file but the volume serial number will
stay the same and all data will be located correctly through catalog locate processing.
Global Copy (PPRC-XD) on the other side does not impact the application write I/Os due to
its asynchronous data replication, but the drawback here is that it does not guarantee data
consistency at the receiving site. Before switching from the source equipment to the new
target equipment, make sure all data is replicated to the receiving site. This can be forced by
dynamically switching from Global Copy to Metro Mirror. When all primary volumes are in full
DUPLEX state the source and target disk servers contain the same data at any time. At this
point prepare and execute the switchover to the new disk storage server.
Instead of switching from Global Copy to Metro Mirror, you might stop the applications and
shut down the application servers. Then check that all data is replicated to the target disk
server. This might be a bit labor-intensive in a large environment without the help of
automation scripts. Basically you would check each individual primary volume (= source
volume) that all data is copied over. Through the current Copy Servers application on an ESS
800 this would look like Figure 14-6.
Figure 14-6 Check with Global Copy whether all data replicated to the new volume
This approach is not really practical. ICKDSF allows you to query the status of a Global Copy
primary volume and displays the amount of data which is not yet replicated, as shown in
Example 14-2.
Example 14-2 Check through ICKDSF query commands that all data is replicated
PPRCOPY DDNAME(DD02) QUERY
ICK00700I DEVICE INFORMATION FOR 6102 IS CURRENTLY AS FOLLOWS:
PHYSICAL DEVICE = 3390
STORAGE CONTROLLER = 2105
STORAGE CONTROL DESCRIPTOR = E8
Chapter 14. Data migration in zSeries environments 305
DEVICE DESCRIPTOR = 0A
ADDITIONAL DEVICE INFORMATION = 4A000035
ICK04030I DEVICE IS A PEER TO PEER REMOTE COPY VOLUME
QUERY REMOTE COPY - VOLUME
(PRIMARY) (SECONDARY)
SSID CCA SSID CCA
DEVICE LEVEL STATE PATH STATUS SER # LSS SER # LSS
------ --------- -------------- ----------- ----------- -----------
6102 PRIMARY PENDING XD ACTIVE 6100 02 8100 02
22665 01 22673 01
PATHS SAID/DEST STATUS DESCRIPTION
----- --------- ------ ----------------
1 00A4 0020 13 ESTABLISHED Fibre Channel PATH
IF PENDING/SUSPEND: COUNT OF TRACKS REMAINING TO BE COPIED = 2147
ICK02206I PPRCOPY QUERY FUNCTION COMPLETED SUCCESSFULLY
ICK00001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
00:33:54 11/19/04
After all applications are stopped or shut down, Global Copy eventually replicates all data
across and the respective count is zero, as shown in Example 14-3.
Example 14-3 All data is replicated
PPRCOPY DDNAME(DD02) QUERY
ICK00700I DEVICE INFORMATION FOR 6102 IS CURRENTLY AS FOLLOWS:
PHYSICAL DEVICE = 3390
STORAGE CONTROLLER = 2105
STORAGE CONTROL DESCRIPTOR = E8
DEVICE DESCRIPTOR = 0A
ADDITIONAL DEVICE INFORMATION = 4A000035
ICK04030I DEVICE IS A PEER TO PEER REMOTE COPY VOLUME
QUERY REMOTE COPY - VOLUME
(PRIMARY) (SECONDARY)
SSID CCA SSID CCA
DEVICE LEVEL STATE PATH STATUS SER # LSS SER # LSS
------ --------- -------------- ----------- ----------- -----------
6102 PRIMARY PENDING XD ACTIVE 6100 02 8100 02
22665 01 22673 01
PATHS SAID/DEST STATUS DESCRIPTION
----- --------- ------ ----------------
1 00A4 0020 13 ESTABLISHED Fibre Channel PATH
IF PENDING/SUSPEND: COUNT OF TRACKS REMAINING TO BE COPIED = 0
ICK02206I PPRCOPY QUERY FUNCTION COMPLETED SUCCESSFULLY
ICK00001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
00:34:10 11/19/04
As these examples demonstrate, it is a bit hard to read and to find in the ICKDSF line output.
Probably some REXX-based procedure might have to scan through the ICKDSF SYSPRINT
output, which is directed to a data set. ICKDSF asks for a JCL DD statement for each single
volume to query when the volume is ONLINE to the system. This is not very handy. So, we
306 DS8000 Series: Concepts and Architecture
are back to the TSO CQUERY command which does not need any additional JCL statements
and does not care whether the volume is ONLINE or OFFLINE to the system. TSO provides a
nicely formatted output, as the following examples display, which still might be directed to an
output data set, so some REXX procedure could find the specific numbers.
Example 14-4 TSO CQUERY to identify data replication status on primary volume
************** PPRC REMOTE COPY CQUERY - VOLUME ********************
* (PRIMARY) (SECONDARY) *
* SSID CCA LSS SSID CCA LSS*
*DEVICE LEVEL STATE PATH STATUS SERIAL# SERIAL# *
*------ --------- ---------- ----------- --------- --------- *
* 6102 PRIMARY.. PENDING.XD ACTIVE.. 6100 02 01 8100 02 01 *
* CRIT(NO)....... CGRPLB(NO). 000000022665 000000022673*
* PATHS PFCA SFCA STATUS: DESCRIPTION *
* ----- --------- ------ ------------------- *
* 1 00A4 0020 13 PATH ESTABLISHED... *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* IF STATE = PENDING/SUSPEND: TRACKS OUT OF SYNC = 491 *
* TRACKS ON VOLUME = 50085 *
* PERCENT OF COPY COMPLETE = 99% *
* SUBSYSTEM WWNN LIC LEVEL *
* ----------- ---------------- ----------- *
* PRIMARY.... 5005076300C09621 2.4.01.0062 *
* SECONDARY.1 5005076300C09629 *
********************************************************************
ANTP0001I CQUERY COMMAND COMPLETED FOR DEVICE 6102. COMPLETION CODE: 00
A quick way is to open the data set which received the SYSTSPRT output from TSO in batch
and exclude all data. Then an F COMPLETE ALL would only display a single line per volume
and you could quickly spot when a volume is not 100% complete. This manual approach
might be acceptable for a one-time effort when migrating data in small or medium sized
configurations.
Example 14-5 All data is replicated
************** PPRC REMOTE COPY CQUERY - VOLUME ********************
* (PRIMARY) (SECONDARY) *
* SSID CCA LSS SSID CCA LSS*
*DEVICE LEVEL STATE PATH STATUS SERIAL# SERIAL# *
*------ --------- ---------- ----------- --------- --------- *
* 6102 PRIMARY.. PENDING.XD ACTIVE.. 6100 02 01 8100 02 01 *
* CRIT(NO)....... CGRPLB(NO). 000000022665 000000022673*
* PATHS PFCA SFCA STATUS: DESCRIPTION *
* ----- --------- ------ ------------------- *
* 1 00A4 0020 13 PATH ESTABLISHED... *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* PERCENT OF COPY COMPLETE = 100% *
* SUBSYSTEM WWNN LIC LEVEL *
* ----------- ---------------- ----------- *
* PRIMARY.... 5005076300C09621 2.4.01.0062 *
* SECONDARY.1 5005076300C09629 *
********************************************************************
ANTP0001I CQUERY COMMAND COMPLETED FOR DEVICE 6102. COMPLETION CODE: 00
Chapter 14. Data migration in zSeries environments 307
Again all these approaches to utilize microcode-based mirroring capabilities require the right
hardware as source and target disk servers.
For completeness it is pointed out that Global Mirror is also an option to migrate data from an
ESS 750 or ESS 800 to a DS8000. This might apply to certain cases at the receiving site
which require consistent data at any time, although Global Copy is used for the actual data
movement. Please note that the consistent copy in the new disk server is not concurrent with
the primary copy except if the application is stopped and all data is replicated.
Another approach to migrate data beyond the scope of volumes is to use software which
migrates data on a logical or data set level and locates the data sets through their respective
catalog entries. This approach is outlined in the following section.
14.3 Data migration based on logical migration
Data migration based on logical migration is a data set by data set migration which maintains
catalog entries according to the data movement between volumes and, therefore, is not a
volume-based migration. This is the cleanest way to migrate data and also allows device
conversion from, for example, 3380 to 3390. It also supports transparently multivolume data
sets. Logical data migration is a software-only approach and does not rely on certain volume
characteristics nor on device geometries.
The following software products and components support logical data migration:
򐂰DFSMS allocation management
򐂰Allocation management by CA-ALLOC
򐂰DFSMSdss
򐂰DFSMShsm™
򐂰FDR
򐂰System utilities like:
– IDCAMS with REPRO, EXPORT/IMPORT commands
– IEBCOPY to migrate Partitioned Data Sets (PDS) or Partitioned Data Sets Extended
(PDSE)
– ICEGENER as part of DFSORT which can handle sequential data but not VSAM data
sets, which also applies to IEBGENER
򐂰CA-Favor
򐂰CA-DISK or ASM2
򐂰Database utilities for data which is managed by certain database managers like DB2 or
IMS™. CICS® as a transaction manager usually uses VSAM data sets.
14.3.1 Data Set Services Utility
DFSMSdss is a common utility which can be used, at this time, not for physical full volume
operations, but for data set level operations. Pointing to certain input volumes, DFSMSdss
can also move data sets in a logical fashion off of certain source volumes.
Example 14-6 DFSMSdss for logical data migration from certain input volumes
//MIGRATE EXEC PGM=ADRDSSU
//SYSPRINT DD SYSOUT=*
//* -------- FROM VOLUMES --------------------------------------- ***
//IN001 DD UNIT=3390,VOL=SER=AAAAAA,DISP=SHR
//IN002 DD UNIT=3390,VOL=SER=BBBBBB,DISP=SHR
//IN003 DD UNIT=3390,VOL=SER=CCCCCC,DISP=SHR
//SYSIN DD *
COPY DS(INC(**) EXCLUDE(SYS1.VTOCIX.*,SYS1.VVDS.*)) -
308 DS8000 Series: Concepts and Architecture
LIDD(IN001,IN002,IN003) -
DELETE PURGE CATALOG SELECTMULTI(ANY) SPHERE-
WAIT(0,0) ADMIN OPT(3) CANCELERROR
/*
//
Example 14-6 depicts how to migrate all data sets from certain volumes. The keyword is
LOGINDDNAME, or LIDD, which identifies the volumes from where the data is to be picked.
There is no output volume specified, although it is also possible to distribute all data sets from
the input or source volumes to a larger output volume or to more than one output volume.
Example 14-6 assumes a system-managed environment. Here the system would
automatically place the output data sets according to what the Automatic Class Selection
Routine (ACS) assigns. The next section is more specific on how this approach works.
14.3.2 Hierarchical Storage Manager, DFSMShsm
If the number of volumes is rather small and the source volume’s data sets are all managed
by DFSMS/MVS, which implies that the data set is managed through Management Classes,
you might consider utilizing DFSMShsm to migrate all data sets off the source volumes.
During recall the data set would then be allocated onto the new volumes, provided that the
source volumes are disabled for new allocations in a system-managed environment. This
approach is not practical for large data migration scenarios.
Another variation of DFSMShsm to migrate data on a logical data set level is to utilize
Aggregate Backup and Recovery (ABARS). ABARS allows you, through powerful data
selection filters, to copy all data sets onto cartridges (ABACKUP). Subsequent ARECOVER
then restores the aggregate. This is nothing but the group of data sets which have been
selected before through filtering, put back onto the new DS8000 storage servers. For more
information, see the redbook DFSMShsm ABARS and Mainstar Solutions, SG24-5089.
14.3.3 System utilities
System utilities don’t play an import role any longer in large scale migrations since
DFSMSdss incorporated the capability to manage all data set types for copy and move
operations in a very efficient way. In some instances DFSMSdss still calls some system utility
functions, though. IDCAMS REPRO and EXPORT/IMPORT still have some popularity.
During both operations, REPRO or EXPORT/IMPORT which includes a REPRO step,
perform data set reorganization. System utilities are an integral part of z/OS and free of
charge.
In a VSE/ESA environment, VSE/VSAM functions are still used, such as REPRO or
EXPORT/IMPORT, to copy and move data sets. There are also other software vendor utilities
to manage data migration. An elegant migration approach that can be used when disks are
system-managed is outlined in the following section. This approach assumes that the old and
new disk servers can be configured concurrently to the concerned host servers.
14.3.4 Data migration within the System-managed storage environment
System-managed storage (SMS) manages volumes and storage groups (SG) and allocates
data sets based on a policy or rules for certain storage groups (SG). Certain volumes within
an SG or within more than one SG are eligible for new data set allocations. These SMS
volumes and SMS SGs also maintain a status that decides whether this volume or that SG is
eligible to receive new data set allocations.
Chapter 14. Data migration in zSeries environments 309
Figure 14-7 SMS Storage Groups - migration source environment
To explain this approach, Figure 14-7 contains two SGs, SG1 and SG2, which are distributed
over three storage controllers. Assume these three storage controllers are going to be
consolidated into a new DS8000 storage server, and that the number of volumes will be
consolidated from 12 down to four, with their respective capacity as displayed in Figure 14-7.
Figure 14-8 Utilize SMS Storage Group and Volume status to direct all new allocation to new volumes
When both the old hardware and the new hardware can be installed and connected to the
host servers, the new volumes are integrated into the existing SGs, SG1 and SG2. Then
change the SMS volume’s status to disable volumes A to G for new allocations. This is
possible through an SMS system command and is propagated to all systems within this
SMS-plex. DISABLE,NEW or D,N implies that all new allocations which are directed to SG1 can
no longer happen on volumes A to G but must go to volumes DS1 or DS2. This allows you to
gradually migrate the data from the old devices A through G onto the new and larger devices
DS1 and DS2. Example 14-7 shows a pre-defined batch job to modify the volume status of all
of the old volumes in SG2 which are displayed in Figure 14-8.
Storage subsystem 2
FICON
Storage subsystem 1
Storage server 3
FICON
FICON
ACBH
J
G
LMKE
F
D
SG1 SG2
FICON
Storage subsystem 1
Storage server 3
FICON
FICON
ACBH
J
G
LMKE
F
D
SG1 SG2
New Storage server
FICON
DS4DS2
DS3DS1
Not drawn to scale
Storage subsystem 2
RO *ALL,V SMS,VOL(JJJJJJ),D,N
RO *ALL,V SMS,VOL(KKKKKK),D,N
RO *ALL,V SMS,VOL(HHHHHH),D,N
o o o
RO *ALL,V SMS,VOL(BBBBBB),D,N
RO *ALL,V SMS,VOL(CCCCCC),D,N
RO *ALL,V SMS,VOL(AAAAAA),D,N
o o o
310 DS8000 Series: Concepts and Architecture
Example 14-7 Execute SMS modify commands through pre-defined job
//DISNEW JOB ,' DISABLE NEW ',MSGCLASS=T,CLASS=B,
// MSGLEVEL=(1,1),REGION=0M,USER=&SYSUID
/*JOBPARM S=VSL1
// COMMAND 'V SMS,VOL(HHHHHH,*),D,N'
// COMMAND 'V SMS,VOL(JJJJJJ,*),D,N'
// COMMAND 'V SMS,VOL(KKKKKK,*),D,N'
// COMMAND 'V SMS,VOL(LLLLLL,*),D,N'
// COMMAND 'V SMS,VOL(MMMMMM,*),D,N'
// COMMAND 'D SMS,SG(SG2),LISTVOL'
//* -------------------------------------------------------------- ***
//STEP1 EXEC PGM=IEFBR14
//
This SMS modify command approach has a drawback: It holds only until the next IPL. Then
SMS will read again what the volume and SG status is from the respective Source Control
Data Set (SCDS) and will reload the Active Control Data Set (ACDS) accordingly. To make
this change permanent you have to change the SCDS through ISMF panels or execute jobs
through NaviQuest to change the SCDS.
We go briefly through the ISMF panel sequence to make the SMS volume status complete
and permanent.
Example 14-8 is the first ISMF Storage Group Application panel where you choose the actual
SCDS, the storage group, here XC, and select option 4 to alter the SMS volume status.
Example 14-8 Select SMS storage group in SCDS
STORAGE GROUP APPLICATION SELECTION
Command ===>
To perform Storage Group Operations, Specify:
CDS Name . . . . . . 'SYS1.DFSMS.SCDS'
(1 to 44 character data set name or 'Active' )
Storage Group Name XC (For Storage Group List, fully or
partially specified or * for all)
Storage Group Type (VIO, POOL, DUMMY, COPY POOL BACKUP,
OBJECT, OBJECT BACKUP, or TAPE)
Select one of the following options :
4 1. List - Generate a list of Storage Groups
2. Define - Define a Storage Group
3. Alter - Alter a Storage Group
4. Volume - Display, Define, Alter or Delete Volume Information
If List Option is chosen,
Enter "/" to select option Respecify View Criteria
Respecify Sort Criteria
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
The next panel which appears is in Example 14-9. Option 3 allows you to alter the SMS
volume status. Here you select the volumes which ought to receive the change.
Example 14-9 Select respective volume range(s) from Storage Group
STORAGE GROUP VOLUME SELECTION
Command ===>
Chapter 14. Data migration in zSeries environments 311
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> XC 6510 6514 X
===>
===>
===>
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
The panel in Example 14-9 on page 310 provides a list in the lower third of the screen where
you can specify ranges of VOLSERs, which will then be changed all at once. This is,
therefore, more powerful than the SMS system commands, which are on a single volume
level only.
The following panel in this sequence, shown in Example 14-10, is a confirmation panel that
displays the current SMS volume status which we plan to alter. It also shows the system
names which belong to the SMS-plex. A SMS-plex is usually congruent with the underlying
Parallel Sysplex®.
Example 14-10 Display current SMS volume status before altering
SMS VOLUME STATUS ALTER Page 1 of 2
Command ===>
SCDS Name . . . . . . : SYS1.DFSMS.SCDS
Storage Group Name . : XC
Volume Serial Numbers : XC6510 - XC6514
To ALTER SMS Volume Status, Specify:
System/Sys SMS Vol System/Sys SMS Vol ( Possible SMS Vol
Group Name Status Group Name Status Status for each:
---------- ------- ---------- ------- NOTCON, ENABLE,
MCECEBC ===> ENABLE MZBCVS2 ===> ENABLE DISALL, DISNEW,
===> ===> QUIALL, QUINEW )
===> ===>
===> ===> * SYS GROUP = sysplex
===> ===> minus systems in the
===> ===> sysplex explicitly
===> ===> defined in the SCDS
===> ===>
In this panel we overtype the SMS volume status with the desired status change. This shows
in the following panel, shown in Example 14-11 on page 312.
312 DS8000 Series: Concepts and Architecture
Example 14-11 Indicate SMS volume status change for all connected system images
SMS VOLUME STATUS ALTER Page 1 of 2
Command ===>
SCDS Name . . . . . . : SYS1.DFSMS.SCDS
Storage Group Name . : XC
Volume Serial Numbers : XC6510 - XC6514
To ALTER SMS Volume Status, Specify:
System/Sys SMS Vol System/Sys SMS Vol ( Possible SMS Vol
Group Name Status Group Name Status Status for each:
---------- ------- ---------- ------- NOTCON, ENABLE,
MCECEBC ===> disnew MZBCVS2 ===> disnew DISALL, DISNEW,
===> ===> QUIALL, QUINEW )
===> ===>
===> ===> * SYS GROUP = sysplex
===> ===> minus systems in the
===> ===> sysplex explicitly
===> ===> defined in the SCDS
===> ===>
After pressing Enter and PF3 to validate and perform the SMS volume status change, a
validation panel confirms that the requested change did happen. This is shown in
Example 14-12.
Example 14-12 Confirmation about SMS volume status change
STORAGE GROUP VOLUME SELECTION ALL VOLUMES ALTERED
Command ===>
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> XC 6510 6514 X
===>
===>
===>
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
In this example all volumes that were selected through the filtering in the previous panel no
longer allow any new allocation on these volumes. But this happens only after the updated
SCDS is activated and copied into the Active Control Data Set (ACDS). A way to activate a
new SMS configuration is through the ISMF Primary Menu panel with option 8. Under the
CDS APPLICATION SELECTION, choose option 4 and then 5 to finally perform the change.
Chapter 14. Data migration in zSeries environments 313
To show how powerful, meaningful naming conventions for VOLSERs might be combined
with the selection capabilities in ISMF, Example 14-13 shows an example of how to change
the status of 920 volumes at once. This example assumes a contiguous number range for the
volume serial numbers.
Example 14-13 Indicate SMS volume status change for 920 volumes
STORAGE GROUP VOLUME SELECTION
Command ===>
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> DB2 001 300 X
===> IMS 001 350 x
===> LRG 001 150 X
===> TMP 001 120 x
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
Through this approach in utilizing the SMS volume status, the data gradually moves to the
new environment. This is not the fastest approach, but it is the approach with the least effort
required. To speed up the process you run DFSMSdss full volume logical copy operations on
all source volumes as suggested by the storage administrator, but do not specify target
volumes. An example is given in Example 14-6 on page 307. Then allocation runs through the
standard SMS allocation and automatically selects the correct target volume, and moves the
data sets, which are not allocated at the time the job executes. Another option is to run
DFSMSdss migration not on a volume level, which allows more control, but plan for
DFSMSdss migration jobs on the entire SG level, perhaps over the weekend. Figure 14-14
illustrates this. You might specify for STORGRP a list of storage group names to address
multiple storage groups at the same time.
Example 14-14 DFSMSdss moves all data sets out of a storage group
//* COMMAND 'V SMS,VOL(AAAAAA,*),D,N'
// COMMAND 'D SMS,SG(SG1),LISTVOL'
//* -------------------------------------------------------------- ***
//MOVEDATA EXEC PGM=ADRDSSU
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
COPY STORGRP(SG1) -
DS(INC(**) -
EXCLUDE(SYS1.VTOCIX.*,SYS1.VVDS.*)) -
DELETE PURGE SELECTMULTI(ANY) SPHERE -
WAIT(00,00) ADMIN OPT(3) CANCELERROR
/*
//* ------------------------------------------------------------- ***
//AGAIN EXEC PGM=IEBGENER
314 DS8000 Series: Concepts and Architecture
//SYSPRINT DD DUMMY
//SYSUT1 DD DSN=WB.MIGRATE.CNTL(DSS#SG1),DISP=SHR
//SYSUT2 DD SYSOUT=(A,INTRDR)
//SYSIN DD DUMMY
//* ------------------------- JOB END ---------------------------- ***
//
You might keep the job repeatedly executing through the second step AGAIN, where the
same job is read into the system again through the internal MVS reader.
Eventually there remain a few data sets on the source volumes which are always open. These
data sets require you to stop the concerned application, close and unallocate these data sets,
and then run the job in Figure 14-14 once more.
Verify at the end of this logical data set migration that all data has been removed from the
source disk server with the IEHLIST utility’s LISTVTOC command.
Again this approach requires you to have the old and new equipment connected at the same
time and most likely over an extended period, except if you push the migration jobs through
like in Example 14-14 on page 313, in which you can run more than one instance
concurrently.
14.3.5 Summary of logical data migration based on software utilities
Problems encountered when not using an allocation manager like system-managed storage
are less flexibility when using esoteric unit names, or complex and time-consuming tasks in
maintaining hard-coded JCL volume names, which need to be changed when creating new
volumes on new disk storage servers. It is recommended that you use system-managed
volumes to overcome the limitations with esoteric unit names and hard-coded volume names
in JCL.
Logical data migration is difficult and can be time-consuming, and it usually requires system
down time. System-managed storage allows for a less difficult data migration, when it is on a
logical level, in order to consolidate not just disk storage servers, but also volumes moving to
larger target volumes.
14.4 Combine physical and logical data migration
The following approach combines physical and logical data migration:
򐂰Physical full volume copy to larger capacity volume when both volumes have the same
device geometry (same track size and same number of tracks per cylinder).
򐂰Use COPYVOLID to keep the original volume label and to not confuse catalog
management. You can still locate the data on the target volume through standard catalog
search.
򐂰Adjust the VTOC of the target volume to make the larger volume size visible to the system
with the ICKDSF REFORMAT command, to refresh REFVTOC, or expand the VTOC
EXTVTOC, which requires you to delete and rebuild the VTOC index using EXTINDEX in
the REFORMAT command.
򐂰Then perform the logical data set copy operation to the larger volumes. This allows you to
use either DFSMSdss logical copy operations, as outlined before, or the system-managed
data approach.
Chapter 14. Data migration in zSeries environments 315
When a level is reached where no data moves any more because the remaining data sets are
in use all the time, some down time has to be scheduled to perform the movement of the
remaining data. This might require you to run DFSMSdss jobs from a system which has no
active allocations on the volumes which need to be emptied.
14.5 z/VM and VSE/ESA data migration
DFSMS/VM® provides a set of software utility and command functions which are suitable for
data migration.
򐂰DASD Dump Restore (DDR) provides a physical copy and is suited to copy data between
devices with the same device geometry. DDR cannot be utilized for a device migration, like
from 3380 to 3390.
򐂰DIRMAINT CMDISK command moves data between minidisks in VM from any device type
to any device type which is supported by VM.
򐂰CMS COPYFILE command offers a logical copy on a file level from any minidisk device to
any minidisk device which VM supports and is suited to migrate to a different device type.
򐂰Another logical migration approach is possible through the CP PTAPE command. PTAPE
dumps spool files to tape and then re-loads these files back onto the new disk storage.
Last, but not least, PPRC might be considered when moving the data from any ESS model to
the new storage server DS8000. Because PPRC is a host server independent approach,
similar considerations apply as outlined under “Hardware- or microcode-based migration” on
page 302.
z/OS Global Mirror under a z/OS image also allows you to move z/VM full mini disks between
different storage servers and would allow you to connect to the source disk server through
ESCON and to the target disk storage server with FICON.
In VSE/ESA data migration you might consider the following approaches:
򐂰Physical volume copy from all ESS models to the new DS8000 disk storage server
through PPRC as outlined under “Hardware- or microcode-based migration” on page 302.
򐂰Logical copy operations under VSE/ESA which allow data movement from source storage
servers to new DS8000 disk storage servers are the following:
– VSE FASTCOPY to move data between volumes with the same device geometry.
– VSE DITTO to copy individual files which allow a device migration.
– VSE IDCAMS commands REPRO or EXPORT/IMPORT to move VSAM files between
any device types.
There are other software vendor products as well which provide the capability to migrate data
onto new storage servers, for example, CA Favor.
14.6 Summary of data migration
The route which an installation takes to migrate data to one or more DS8000 series storage
servers depends on requirements for service levels, whether application down time is
acceptable, available tools and cost estimates with certain budget limits.
When coming from an ESS 750 or ESS 800, Metro Mirror seems to be the natural choice, and
allows for concurrent data migration with almost no application impact. There would be no
316 DS8000 Series: Concepts and Architecture
impact when the actual switch uses P/DAS, although it is quicker and easier to allow for a
brief service interruption and quickly switch to the new disk storage server. Because Metro
Mirror provides data consistency at any time, the switch-over to the new disk server is simple
and does not require further efforts to ensure data consistency at the receiving site. It is
feasible to use the GUI-based approach because migration is usually a one time effort.
Command-line interfaces such as TSO commands are an alternative and can be automated
to some extent with REXX procedures.
When the source disk servers are not compatible with the DS8000 and the migration is based
on a full volume, physical level, then there are options which depend on various
circumstances which are different for each installation. When TDMF or FDRPAS is available
and the customer is used to managing volume migration using these software tools, then it is
a likely approach to use these tools for a larger scale migration as well. In other
circumstances it might be feasible to include the migration as part of a total package when
installing and implementing DS8000 disk storage servers. This is possible through IGS
services which rely on FDRPAS, TDMF or Piper for z/OS. There is always DFSMSdss, which
is still popular, but this approach usually requires an outage of the specific application
systems.
Finally, the migration might be used as an opportunity to consolidate volumes at the same
time. After a decision has been made about the new volume size, which is preferably a
multiple of a 3390-1 or 1113 cylinders, it is required to logically move the data sets. One
option is to rely on SMS-based allocation in a system-managed environment, combined with
DFSMSdss and logical data set copies targeted from individual source volume sets or entire
SMS storage groups. A variation here might be a combination of full volume physical copy for
the very first volume copied to a larger target volume, followed by further logical-based copy
operations with DFSMSdss after adjusting the VTOC and VTOC index information.
After the migration and storage consolidation you will be using a disk storage server
technology that will serve you with promising performance and excellent scalability combined
with rich functionality and high availability.
© Copyright IBM Corp. 2005. All rights reserved. 317
Part 5 Implementation
and management
in the open
systems
environment
In this part we discuss considerations for the DS8000 series when used in an open systems
environment. The topics include:
򐂰Open systems support and software
򐂰Data migration in open systems
Part 5
318 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 319
Chapter 15. Open systems support and
software
In this chapter we describe how the DS8000 fits into your open systems environment. In
particular, we discuss:
򐂰The extent of the open systems support
򐂰Where to find detailed and accurate information
򐂰Major changes from the ESS 2105
򐂰Software provided by IBM with the DS8000
򐂰IBM solutions and services that integrate DS8000 functionality
15
320 DS8000 Series: Concepts and Architecture
15.1 Open systems support
The scope of open systems support of the new DS8000 model is based on that of the ESS
2105, with some exceptions:
򐂰No parallel SCSI attachment support
򐂰Some new operating systems were added
򐂰Some legacy operating systems and the corresponding servers were removed
򐂰Some legacy HBAs were removed
New versions of operating systems, servers, file systems, host bus adapters, clustering
products, SAN components, and application software are constantly announced in the
market. Every modification to any of these components that can affect the interoperability with
the storage system must be tested. The integrity of the customer data always has the highest
priority. A new version or product can be added to the list of supported environments only
after it is proven that all components work with each other flawlessly.
Information about the supported environments changes frequently. Therefore, you are
strongly advised always to refer to the online resources listed in 15.1.2, “Where to look for
updated and detailed information” on page 320.
15.1.1 Supported operating systems and servers
Table 15-1 provides an overview of the open system platforms, operating systems, and high
availability clustering applications that are generally supported for attachment to the DS8000.
However, support is given for specific models and operating system versions only. Details
about the allowed combinations can be found in the resources listed in 15.1.2, “Where to look
for updated and detailed information” on page 320.
Table 15-1 Platforms, operating systems and applications supported with DS8000
15.1.2 Where to look for updated and detailed information
This section provides a list of online resources where detailed and up-to-date information
about supported configurations, recommended settings, device driver versions, and so on,
can be found. Due to the high innovation rate in the IT industry, the support information is
Server platforms Operating systems Clustering applications
IBM pSeries, RS/6000®,
IBM BladeCenter™ JS20 AIX, Linux IBM HACMP™ (AIX only)
IBM iSeries OS/400, i5/OS™, Linux, AIX IBM HACMP (AIX only)
HP PARisc, Itanium II HP UX HP MC/Serviceguard
HP Alpha OpenVMS, Tru64 UNIX HP TruCluster
Intel IA-32, IA-64, IBM
BladeCenter HS20 and
HS40
Microsoft Windows, VMWare,
Novell Netware, Linux
Microsoft Cluster Service,
Novell Netware Cluster
Services
SUN Solaris Sun Cluster
Apple Macintosh OS X
Fujitsu PrimePower Solaris
SGI IRIX
Chapter 15. Open systems support and software 321
updated frequently. Therefore it is advisable to visit these resources regularly and check for
updates.
The DS8000 Interoperability Matrix
The DS8000 Interoperability Matrix always provides the latest information about supported
platforms, operating systems, HBAs and SAN infrastructure solutions. It contains detailed
specifications about models and versions. It also lists special support items, such as boot
support, and exceptions. It can be found at:
http://www.ibm.com/servers/storage/disk/ds8000/pdf/ds8000-matrix.pdf
The IBM HBA Search Tool
For information about supported Fibre Channel HBAs and the recommended or required
firmware and device driver levels for all IBM storage systems, you can visit the IBM HBA
Search Tool site, sometimes also referred to as the Fibre Channel host bus adapter firmware
and driver level matrix:
http://knowledge.storage.ibm.com/HBA/HBASearchTool
For each query, select one storage system and one operating system only, otherwise the
output of the tool will be ambiguous. You will be shown a list of all supported HBAs together
with the required firmware and device driver levels for your combination. Furthermore, you
can select a detailed view for each combination with more information, quick links to the HBA
vendors’ Web pages and their IBM supported drivers, and a guide to the recommended HBA
settings.
The DS8000 Host Systems Attachment Guide
The DS8000 Host Systems Attachment Guide, SC26-7628, guides you in detail through all
the steps that are required to attach an open system host to your DS8000 storage system. It
is available at:
http://www.ibm.com/servers/storage/disk/ds8000
The TotalStorage Proven™ program
IBM has introduced the TotalStorage Proven program to help clients identify storage
solutions and configurations that have been pre-tested for interoperability. It builds on IBM's
already extensive interoperability efforts to develop and deliver products and solutions that
work together with third party products.
The TotalStorage Proven Web site provides more detail on the program, as well as the list of
pre-tested configurations:
http://www.ibm.com/servers/storage/proven/index.html
HBA vendor resources
All of the Fibre Channel HBA vendors have Web sites that provide information about their
products, facts and features, as well as support information. These sites will be useful when
the IBM resources are not sufficient, for example, when troubleshooting an HBA driver.
Please be aware that IBM cannot be held responsible for the content of these sites.
QLogic Corporation
The Qlogic Web site can be found at:
http://www.qlogic.com
322 DS8000 Series: Concepts and Architecture
QLogic maintains a page that lists all the HBAs, drivers, and firmware versions that are
supported for attachment to IBM storage systems:
http://www.qlogic.com/support/oem_detail_all.asp?oemid=22
Emulex Corporation
The Emulex home page is:
http://www.emulex.com
They also have a page with content specific to IBM storage systems:
http://www.emulex.com/ts/docoem/framibm.htm
JNI / AMCC
AMCC took over the former JNI, but still markets FC HBAs under the JNI brand name. JNI
HBAs are supported for DS8000 attachment to Sun systems. The home page is:
http://www.amcc.com
Their IBM storage specific support page is:
http://www.jni.com/OEM/oem.cfm?ID=4
Atto
Atto supplies HBAs which IBM supports for Apple Macintosh attachment to the DS8000. Their
home page is:
http://www.attotech.com
They have no IBM storage specific page. Their support page is:
http://www.attotech.com/support.html
Downloading drivers and utilities for their HBAs requires registration.
Platform and operating system vendors’ pages
The platform and operating system vendors also provide lots of support information to their
customers. Go there for general guidance about connecting their systems to SAN-attached
storage. However, be aware that in some cases you will not find information that is intended
to help you with third party (from their point of view) storage systems, especially when they
also have storage systems in their product portfolio. You may even get misleading information
about interoperability and support from IBM. It is beyond the scope of this book to list all the
vendors’ Web sites.
15.1.3 Differences to the ESS 2105
For the DS8000 the support matrix went through a cleanup process. The changes are
described in this section. For details see the resources listed in the previous section.
򐂰There are no parallel SCSI adapters for the DS8000. Therefore all parallel SCSI support
had to be dropped. No host system can be connected to the DS8000 via parallel SCSI.
򐂰Older HBA models, especially all 1 Gbit/s models were also removed from the support
matrix. Some new models were added.
򐂰Legacy SAN infrastructure solutions, like hubs and gateways, are not supported.
򐂰There is no support for IBM TotalStorage SAN Volume Controller storage software for
Cisco MDS 9000 (SVC4MDS) at initial GA.
Chapter 15. Open systems support and software 323
򐂰Some legacy operating systems and operating system versions were dropped from the
support matrix. These are either versions which were withdrawn from marketing or
support that are not marketed or supported by their vendors or are not seen as significant
enough anymore to justify the testing effort necessary to support them. Major examples
include:
– IBM AIX 4.x, OS/400 V5R1, Dynix/ptx
– Microsoft Windows NT®
– Sun Solaris 2.6, 7
– HP UX 10, 11, Tru64 4.x, OpenVMS 5.x
– Novell Netware 4.x
– All professional Linux distributions, SUSE SLES7
򐂰Some new operating systems and versions were added, including:
– Apple Macintosh OS X
– IBM AIX 5.3
–IBM i5 OS V5R3
– VMWare 2.5.0 (first quarter of 2005)
– Redhat Enterprise Linux 3 IA-64
– SUSE Linux Enterprise Server 9 (first quarter of 2005)
15.1.4 Boot support
For most of the supported platforms and operating systems you can use the DS8000 as a
boot device. The DS8000 Interoperability Matrix provides detailed information about boot
support. Refer to “The DS8000 Interoperability Matrix” on page 321.
The DS8000 Host Systems Attachment Guide, SC26-7628, helps you with the procedures
necessary to set up your host in order to boot from the DS8000. See “The DS8000 Host
Systems Attachment Guide” on page 321.
The SDD User’s Guide, SC26-7637, also helps with identifying the optimal configuration and
lists the steps required to boot from multipathing devices. For more information refer to 15.2,
“Subsystem Device Driver” on page 324.
15.1.5 Additional supported configurations (RPQ)
There is a process for cases where a desired configuration is not represented in the support
matrix. This process is called Request for Price Quotation (RPQ). Clients should contact their
IBM storage sales specialist or IBM Business Partner for submission of an RPQ. Initiating the
process does not guarantee the desired configuration will be supported. This depends on the
technical feasibility and the required test effort. A configuration that equals or is similar to one
of the already approved ones is more likely to get approved than a completely different one.
15.1.6 Differences in interoperability between the DS8000 and DS6000
The DS8000 and DS6000 have the same open systems support matrix. There are only a few
exceptions, with respect to the timing. DS6000 will support some operating systems not at
initial GA, but in the first quarter of 2005:
򐂰OpenVMS
򐂰Tru64
324 DS8000 Series: Concepts and Architecture
򐂰Novell Netware
򐂰VMware 2.5.0
򐂰SuSE SLES9
15.2 Subsystem Device Driver
To ensure maximum availability most customers choose to connect their open systems hosts
through more than one Fibre Channel path to their storage systems. With an intelligent SAN
layout this protects you from failures of FC HBAs, SAN components, and host ports in the
storage subsystem.
Some operating systems, however, can’t deal natively with multiple paths to a single disk;
they see the same disk multiple times. This puts the data integrity at risk, because multiple
write requests can be issued to the same data and nothing takes care of the correct order of
writes.
To utilize the redundancy and increased I/O bandwidth you get with multiple paths, you need
an additional layer in the operating system’s disk subsystem to recombine the multiple disks
seen by the HBAs into one logical disk. This layer manages path failover, should a path
become unusable, and balancing of I/O requests across the available paths.
For most operating systems that are supported for DS8000 attachment, IBM makes the IBM
Subsystem Device Driver (SDD) available at no additional charge, to provide the following
functionality:
򐂰Enhanced data availability through automatic path failover and failback
򐂰Increased performance through dynamic I/O load-balancing across multiple paths
򐂰Ability for concurrent download of licensed internal code
򐂰User configurable path-selection policies for the host system
SDD can be downloaded from:
http://www.ibm.com/servers/storage/support/software/sdd/downloading.html
When you click the Subsystem Device Driver downloads link, you will be presented a list of
all operating systems for which SDD is available. Selecting one leads you to the download
packages, the SDD User’s Guide, SC30-4096, and additional support information. The user’s
guide contains all the information that is needed to install, configure, and use SDD for all
supported operating systems.
For some operating systems, additional information about SDD can be found in Appendix A,
“Open systems operating systems specifics” on page 343.
IBM AIX alternatively offers MPIO, a native multipathing solution. It allows the use of Path
Control Modules (PCMs) for optimal storage system integration. IBM provides SDDPCM, a
PCM with the SDD full functionality. See “IBM AIX” on page 347, for more detail.
IBM OS/400 V5R3 doesn't use SDD. It provides native multipath support since V5R3. For
details refer to Appendix B, “Using DS8000 with iSeries” on page 373.
Note: SDD and RDAC, the multipathing solution for the IBM TotalStorage DS4000 series,
can coexist on most operating systems, as long as they manage separate HBA pairs. Refer
to the documentation of your DS4000 series storage system for detailed information.
Chapter 15. Open systems support and software 325
15.3 Other multipathing solutions
Some operating systems come with native multipathing software, for example:
򐂰SUN StorEdge Traffic Manager for Sun Solaris
򐂰HP PVLinks for HP UX
򐂰IBM AIX native multipathing (MPIO) (see “IBM AIX” on page 347)
򐂰IBM OS/400 V5R3 multipath support (see Appendix B, “Using DS8000 with iSeries” on
page 373)
In addition there are third party multipathing solutions, such as Veritas DMP, which is part of
Veritas Volume Manager.
Most of these solutions are also supported for DS8000 attachment, although the scope may
vary. There may be limitations for certain host bus adapters or operating system versions.
Always consult the DS8000 Interoperability Matrix for the latest information.
15.4 DS CLI
The DS Command-Line Interface (DS CLI) provides a command set to perform almost all
monitoring and configuration tasks on the DS8000. This includes the ability to:
򐂰Verify and change the storage unit configuration, with some limitations
򐂰Check the current logical storage and Copy Services configuration
򐂰Create new logical storage and Copy Services configuration settings
򐂰Modify or delete logical storage and Copy Services configuration settings
The DS CLI allows you to invoke and manage logical storage configuration tasks and Copy
Services functions from an open systems host through batch processes and scripts.
It is part of the DS8000 Licensed Internal Code and is delivered with the Customer Software
Packet. It is closely tied to the installed version of code and therefore not available for
download. The CLI code must be obtained from the same software bundle as the current
microcode update. When DS8000 code updates occur, the DS CLI must also be updated.
The DS CLI is available for most of the supported operating systems. The DS8000
Interoperability Matrix contains a complete list.
There are some pre-requisites for the host system that the DS CLI is running on:
򐂰Java 1.4.1 or later must be installed.
򐂰ksh (Korn shell) or bash (Bourne again shell) must be available. Install shield does not
support the sh shell.
The DS8000 Command-Line Interface User’s Guide, SC26-7625 contains detailed
installation instructions for all supported host operating systems.
The DS CLI can be used in two modes:
򐂰Single command mode: You invoke the DS CLI program in an operating system shell or
command prompt and pass the command it is to execute directly as a parameter. The
Limitation: Some basic configuration tasks cannot be performed using the DS CLI, such
as creating a storage complex or adding a storage unit to a storage complex.
326 DS8000 Series: Concepts and Architecture
command will be passed directly to the S-HMC for immediate execution. The return code
of the DS CLI program corresponds to the return code of the command it executed. This
mode can be used for scripting.
򐂰Interactive mode: You start the DS CLI program on your host. It provides you with a shell
environment that allows you to enter commands and send them to the S-HMC for
immediate execution.
There also is a section in this book describing the usage of the DS CLI, including some
examples (see Chapter 11, “DS CLI” on page 231).
The DS8000 Command-Line Interface User’s Guide, SC26-7625, contains a complete
command reference.
15.5 IBM TotalStorage Productivity Center
The IBM TotalStorage Productivity Center (TPC) is an open storage management solution
that helps to reduce the effort of managing complex storage infrastructures, to increase
storage capacity utilization, and to improve administrative efficiency. It is designed to enable
an agile storage infrastructure that can respond to on-demand storage needs.

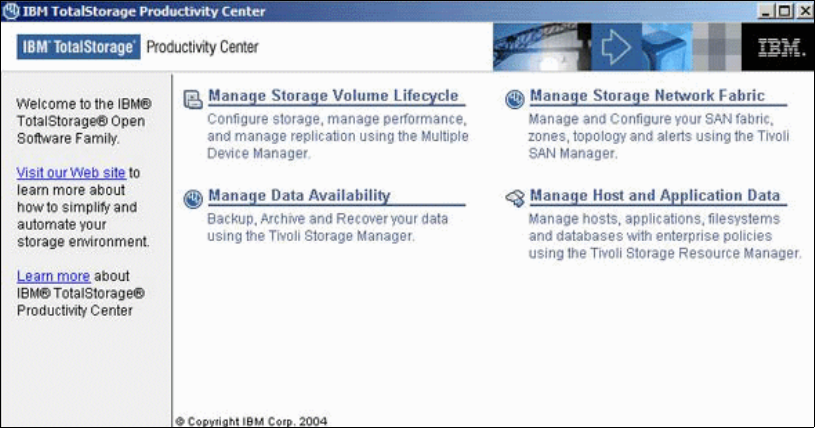

Figure 15-1 IBM TotalStorage Productivity Center
TPC is the integration point for storage and fabric management, and replication, as depicted
in Figure 15-1. It provides a launchpad for the following IBM TotalStorage Open Software
Family and Tivoli products:
򐂰IBM Tivoli Storage Resource Manager
򐂰IBM Tivoli SAN Manager
򐂰IBM Tivoli Storage Manager
򐂰IBM TotalStorage Multiple Device Manager
These products allow for the management of data through its life cycle, device configuration,
performance, replication, storage network fabric, data backup, data availability, and data
recovery, as well as enterprise policies for managing host, application, database, and file
system data.
Chapter 15. Open systems support and software 327
As a component of the IBM TotalStorage Productivity Center, Multiple Device Manager is
designed to reduce the complexity of managing SAN storage devices by allowing
administrators to configure, manage, and monitor storage from a single console.
The devices managed are not restricted to IBM brand products. In fact, any device compliant
with the Storage Network Industry Association (SNIA) Storage Management Initiative
Specification (SMI-S) can be managed with the IBM TotalStorage Multiple Device Manager.
The protocol utilized to enable the central management is called the Common Information
Model (CIM). This open standards based protocol uses XML to define CIM objects and to
manage storage devices over HTTP transactions. Figure 15-2 shows the MDM main panel.

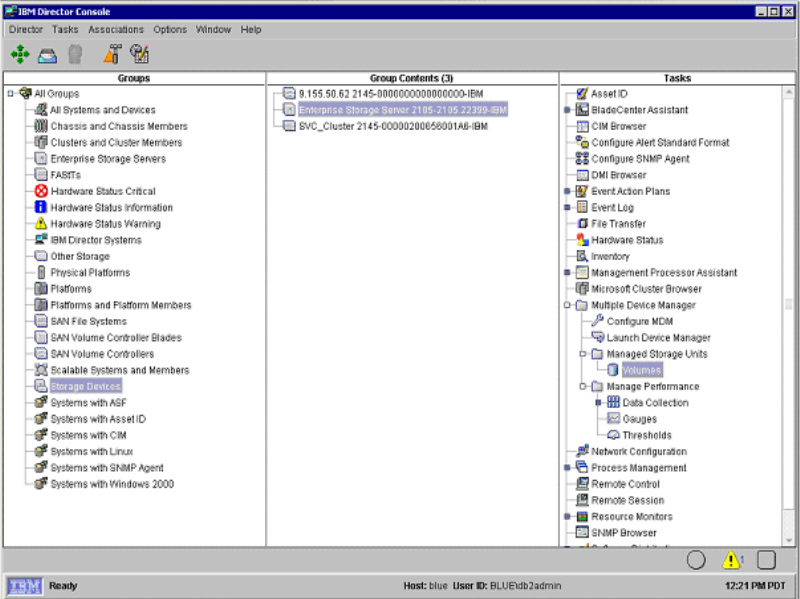

Figure 15-2 MDM main panel
For more information about the IBM TotalStorage Multiple Device Manager refer to the
redbook IBM TotalStorage Multiple Device Manager Usage Guide, SG24-7097.
Updated support summaries, including specific software, hardware, and firmware levels
supported, are maintained at:
http://www.ibm.com/storage/support/mdm
The IBM TotalStorage Multiple Device Manager is composed of three subcomponents:
򐂰Device Manager
򐂰TPC for Disk
򐂰TPC for Replication
They are described in the folowing sections.
328 DS8000 Series: Concepts and Architecture
15.5.1 Device Manager
The Device Manager (DM) builds on the IBM Director technology. It uses the Service Level
Protocol (SLP) to discover supported storage systems on the SAN. The SLP enables the
discovery and selection of generic services accessible through an IP network. The DM then
uses managed objects to manage these devices.
DM also provides a subset of configuration functions for the managed devices, primarily LUN
allocation and assignment. Its functionality includes aggregation and grouping of devices and
provides policy based actions across multiple storage devices. These services communicate
with the CIM Agents that are associated with the particular devices to perform the required
configuration. Devices that are not SMI-S compliant are not supported. The DM also interacts
and provides SAN management functionality when the IBM Tivoli SAN Manager is installed.
The DM health monitoring keeps you aware of hardware status changes in the discovered
storage devices. You can drill down to the status of the hardware device, if applicable. This
enables you to understand which components of a device are malfunctioning and causing an
error status for the device. Figure 15-3 shows an example of a DM view.

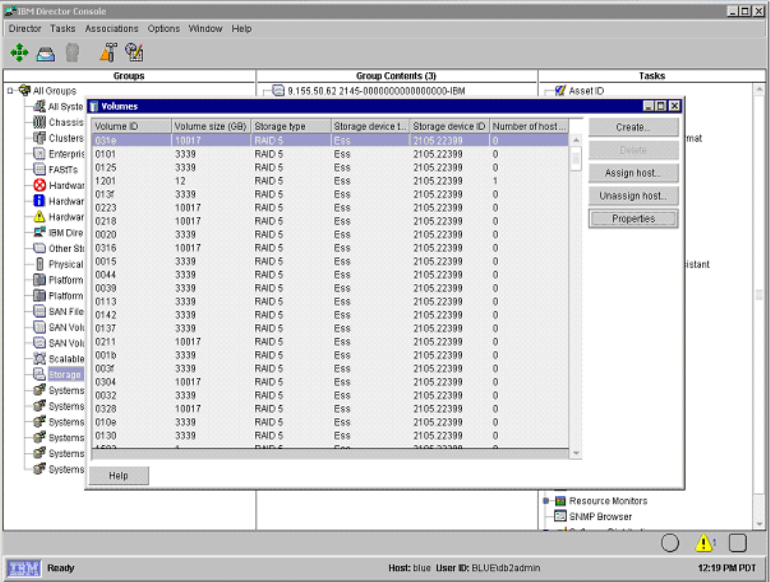

Figure 15-3 Sample Device Manager view
In summary, the Device Manager is responsible for:
򐂰Discovery of supported devices (SMI-S compliant)
򐂰Data collection (asset, availability, configuration)
򐂰Providing a topographical view of storage
Chapter 15. Open systems support and software 329
15.5.2 TPC for Disk
TPC for Disk, formerly known as MDM Performance Manager, provides the following
functions:
򐂰Collect performance data from devices.
򐂰Configure performance thresholds.
򐂰Monitor performance metrics across storage subsystems from a single console.
򐂰Receive timely alerts to enable event action based on customer policies.
򐂰View performance data from the performance manager database.
򐂰Enable storage optimization through identification of the best performing volumes.
TPC for Disk collects data from IBM or non-IBM networked storage devices that implement
SMI-S. A performance collection task collects performance data from one or more storage
groups of one device type. It has individual start and stop times, and a sampling frequency.
The sampled data is stored in DB2 database tables.
You can use TPC for Disk to set performance thresholds for each device type. Setting
thresholds for certain criteria enables TPC for Disk to notify you when a certain threshold has
been exceeded, so that you can take action before a critical event occurs. You can also
specify actions to be taken automatically. These may be just to log the occurrence or to trigger
an event. The settings can vary by individual device.
You can view performance data from the performance manager database in both graphical
and tabular forms. This is shown in Figure 15-4.
Figure 15-4 Sample screenshot of TPC for Disk
330 DS8000 Series: Concepts and Architecture
The Volume Performance Advisor is an automated tool to help the storage administrator pick
the best possible placement of a new LUN to be allocated from a performance perspective. It
uses the historical performance statistics collected from the managed devices and locates
unused storage capacity on the SAN that exhibits the best estimated performance
characteristics. Allocation optimization involves several variables that are user controlled,
such as the required performance level and the time of day/week/month of prevalent access.
This function is fully integrated with the DM function.
For detailed information about the installation and the use of TPC for Disk, refer to the
redbook IBM TotalStorage Multiple Device Manager Usage Guide, SG24-7097.
15.5.3 TPC for Replication
TPC for Replication, formerly known as MDM Replication Manager, provides a single point
of control for all replication activities. Given a set of source volumes to be replicated, it will find
the appropriate targets, perform all the configuration actions required, and ensure the source
and target volumes relationships are set up.
TPC for Replication administers and configures the copy services functions of the managed
storage systems and monitors the replication actions. It can manage two types of copy
services: the Continuous Copy, also known as Peer-to-Peer Remote Copy (PPRC) and the
Point-in-time Copy, also known as FlashCopy.
It supports replication sessions, which ensure that data on multiple related heterogeneous
volumes is kept consistent, provided that the underlying hardware supports the necessary
primitive operations. Multiple pairs are handled as a consistent unit, Freeze-and-Go functions
can be performed when mirroring errors occur. It is designed to control and monitor the data
replication operations in large-scale customer environments.
TPC for Replication provides a user interface for creating, maintaining, and using volume
groups and for scheduling copy tasks. It populates the lists of volumes using the DM interface.
An administrator can also perform all tasks with the TPC for Replication command-line
interface.
15.6 Global Mirror Utility
The DS8000 Global Mirror Utility (GMU) is a standalone tool to provide a management layer
for IBM TotalStorage Global Mirror failover and failback (FO/FB). It provides clients with a set
of twelve basic commands that utilize the DS Open-API to accomplish either a planned or
unplanned FO/FB sequence.
The purpose of the GMU is to automate the complex sequence of steps necessary to set up
and manage Global Mirror relationships for a large number of LUNs. There is no limitation to
the number of volumes managed by GMU.
In the event of a planned or unplanned FO/FB, the system administrator issues a few GMU
commands to recover consistent data on the remote site before he starts host I/O activities.
The GMU commands can be incorporated in user scripts or utilities to further automate
datacenter operations. However, IBM does not support such scripts or utilities without a
specific service arrangement.
The GMU is distributed on a separate CD with the DS8000 Licensed Internal Code (LIC). It
includes installation instructions and a user guide. It consists of two components, a server
and a client. The server receives requests from the client and communicates over TCP/IP to
Chapter 15. Open systems support and software 331
the DS8000 Storage Hardware Management Console for the execution of the commands.
The commands allow you to:
򐂰Create, modify, start, stop, and resume a Global Mirror session
򐂰Manage failover and failback operations including managing consistency
򐂰Perform planned outages
To monitor the DS8000 volume status and the Global Mirror session status, you can either
use the DS Storage Manager or DS CLI.
15.7 Enterprise Remote Copy Management Facility (eRCMF)
eRCMF is a multi-site disaster recovery solution, managing IBM Total Storage Remote Mirror
and Copy as well as FlashCopy functions, while ensuring data consistency across multiple
machines. It is a scalable, flexible solution for the DS8000 with the following functions:
򐂰When a site failure occurs or may be occurring, eRCMF splits the two sites in a manner
that allows the backup site to be used to restart the applications. This needs to be fast
enough that when the split occurs, operations on the production site are not impacted.
򐂰It manages the states of the Metro Mirror and FlashCopy relationships, so that the
customer knows when the data is consistent and can control on which site the applications
run.
򐂰It offers easy commands to place the data in the state it needs to be in. For example, if the
data is out of sync, the command resync will cause eRCMF to scan the specified volumes
and issue commands to bring the volumes back into sync.
򐂰It offers a tool to execute eRCMF configuration checks. This check is intended to verify
that the eRCMF configuration matches the physical DS8000 setup in the customer
environment. This is required to discover configuration changes that affect the eRCMF
configuration as well. Regular checks support customers in keeping the eRCMF
configuration up-to-date with their actual environment; otherwise, full eRCMF
management functionality is not given.
eRCMF is a IBM Global Services offering. More information about eRCMF can be found at:
http://www-1.ibm.com/services/us/index.wss/so/its/a1000110
15.8 Summary
The new DS8000 enterprise disk subsystem offers broad support and superior functionality
for all major open system host platforms. In addition, IBM provides software packages for
many platforms that are needed to exploit all of the functionality. IBM also integrated DS8000
functionality into its family of storage management software products that help to reduce the
effort of managing complex storage infrastructures, to increase storage capacity utilization
and to improve administrative efficiency.
332 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 333
Chapter 16. Data migration in the open
systems environment
In this chapter we discuss important concepts for the migration of data to the new DS8000:
򐂰Data migration considerations
򐂰Data migration and consolidation
򐂰Comparison of the different methods
16
334 DS8000 Series: Concepts and Architecture
16.1 Introduction
The term data migration has a very diverse scope. We use it here solely to describe the
process of moving data from one type of storage to another, or to be exact, from one type of
storage to a DS8000. In many cases, this process is not only comprised of the mere copying
of the data, but also includes some kind of consolidation.
With our focus on storage, we distinguish three kinds of consolidation, also illustrated in
Figure 16-1:
򐂰The consolidation of distributed, direct-attached storage to shared, SAN-attached disk
storage
򐂰The consolidation of many small volumes into a few larger ones
򐂰The consolidation of several small storage systems into a few larger ones
Figure 16-1 Different ways of consolidation
Very often, the set goal of a consolidation effort is a combination of more than one of these
types. The DS8000, with its exceptional scalability and performance, makes an ideal target
system for storage consolidation.
There are many different methods for data migration. To decide what is best in your case,
gather information about the following items:
򐂰The source and target storage make and type
򐂰The amount of data to be migrated
򐂰The amount of time available for the migration
򐂰The ability to connect both source and target storage at the same time
򐂰The availability of spare disk or tape capacity for temporary storage
򐂰The format of the data itself
򐂰The consolidation goals
򐂰Can the migration be disruptive, and for how long
򐂰The distance between source and target
Few storage subsystems
Few larger volumes
Collection of small volumes
Several storage subsystems
Host
Direct attached storage
Shared Storage
Chapter 16. Data migration in the open systems environment 335
We describe the most common methods in the next section. Be aware that, in a
heterogeneous IT environment, you will most likely have to choose more than one method.
Once it is decided which method (or methods) to use, the migration process starts with a very
careful planning phase. Items to be taken into account during migration planning include:
򐂰Availability of all the required hardware and software
򐂰Installation of the new and removal of the old storage
򐂰Installation of drivers required for the new storage
򐂰A test of the new environment
򐂰The storage configuration before, during, and after the migration
򐂰The time schedule of the whole process, including the scheduling of outages
򐂰Does everyone involved have the necessary skills to perform their tasks?
Additional information about data migration to the DS8000 can be found in the DS8000
Introduction and Planning Guide, GC35-0495, available for download at:
http://www-1.ibm.com/servers/storage/disk/ds8000/pdf/DS8000_planning_guide.pdf
Exceptional care must be exercised in data sharing (clustered) environments. If data is
shared between more than one host, all of them have to be made aware of the changes in the
configuration, even if the migration is only performed by one of them. Refer to the
documentation of your clustering solution for ways to propagate configuration changes
throughout the cluster.
16.2 Comparison of migration methods
There are numerous methods that can be used to migrate data from one storage system to
another. We briefly describe the most common ones and list their advantages and
disadvantages in the following sections.
16.2.1 Host operating system-based migration
Data migration using tools that come with the host operating system has these advantages:
򐂰No additional cost for software or hardware
򐂰System administrators are used to using the tools
Note: When discussing disruptiveness, we don't consider any interruptions that may be
caused by adding the new DS8000 LUNs to the host and later by removing the old storage.
They vary too much from operating system to operating system, even from version to
version. However, they have to be taken into account, too.
Note: IBM Global Services can assist you in all phases of the migration process with
professional skill and methods.
Note: The IBM iSeries platform with the OS/400 and i5/OS operating systems has a
different approach to data management than the other open systems. Therefore different
strategies for data migration apply. Refer to Appendix B, “Using DS8000 with iSeries” on
page 373, for more information.
336 DS8000 Series: Concepts and Architecture
Reasons against using these methods could include:
򐂰Different methods are necessary for different data types and operating systems
򐂰Strong involvement of the system administrator is necessary
Today the majority of data migration tasks are performed with one of the methods discussed
in the following sections.
Basic copy commands
Using copy commands is the simplest way to move data from one storage system to another,
for example:
򐂰copy, xcopy, drag and drop for Windows
򐂰cp, cpio for UNIX
These commands are available on every system supported for DS8000 attachment, but work
only with data organized in file systems. Data can be copied between file systems of different
sizes. Therefore this method can be used for the consolidation of small volumes into larger
ones. Figure 16-2 outlines the process.
Figure 16-2 Migration with copy commands
The most significant disadvantage of this method is the disruptiveness. To preserve data
consistency, the applications writing to the data which is migrated have to be interrupted for
the duration of the copy process. Furthermore, some copy commands cannot preserve
advanced metadata, such as access control lists or permissions.
Copy raw devices
For raw data there are tools that allow you to read and write disk devices directly, such as dd
for UNIX. They copy the data and its organizational structure (metadata) without having any
intelligence about it. Therefore they cannot be used for consolidation of small volumes into
larger ones. Special care has to be taken when data and its metadata are kept in separate
places. They both have to be copied and realigned on the target system. By themselves, they
are useless.
Attention: If your storage systems are attached through multiple paths, make sure that the
multipath drivers for the old and the new storage system can coexist on one host. If not,
you have to revert the host to a single path configuration before you attach the new storage
system. You can change back to a multipath configuration after the migration is complete.
This is valid for all migration methods where source and target are attached to the host at
the same time.
Host
Copy all data
Stop applications
Host Restart
using new copy
Chapter 16. Data migration in the open systems environment 337
This method also requires the disruption of applications writing to the data for the complete
process.
Online copy and synchronization with rsync
rsync is an open source tool that is available for all major open system platforms, including
Windows and Novell Netware.
Its original purpose is the remote mirroring of file systems with as few network requirements
as possible. Once the initial copy is done, it keeps the mirror up to date by only copying
changes. Additionally, the incremental copies are compressed.
rsync can also be used for local mirroring and therefore for data migration. It allows you to
copy the data while applications are writing to it and thus minimizes the disruption. As for the
normal copy commands, rsync works on file systems only. It also allows consolidation.
Figure 16-3 shows the steps required.
Figure 16-3 Data migration with rsync
You set up the initial copy during normal operation, allowing enough time for the copy to
complete before the planned switch to the new storage (cut over time). Once the initial copy is
complete, you keep it up to date with incremental rsync runs, for instance once a day, during
off-peak hours. At the cut over time, you stop the applications using the data, let rsnyc do a
final synchronization, and restart the applications using the migrated data. The duration of the
disruption depends only on the amount of data that has changed since the last
re-synchronization.
More information about rsync can be found on the rsync project home page:
http://samba.org/rsync/
Migration using volume management software
Logical Volume Managers (LVMs) are available for all open systems (for Windows it is called
Disk Manager). The LVM creates a layer of storage virtualization within the operating system.
The most basic functionality every LVM provides is to:
򐂰Extend logical volumes across several physical disks
򐂰Stripe data across several physical disks to enhance performance
Initial Copy
Host
Host
Host
Final synchronization
Incremental updates
Stop applications
Restart
using new copy
338 DS8000 Series: Concepts and Architecture
򐂰Mirror data for higher availability and migration
The LUNs provided by the DS8000 appear to the LVM as physical SCSI disks.
Usually the process is to set up a mirror of the data on the old disks to the new LUNs, wait
until it is synchronized and split it at the cut over time. Some LVMs provide commands that
automate this process.
The biggest advantage of using the LVM for data migration is that the process can be totally
non-disruptive, as long as the operating system allows you to add and remove LUNs
dynamically. Due to the virtualization nature of LVM, it also allows for all kinds of
consolidation. Figure 16-4 shows the process.
Figure 16-4 Migration using LVM mirroring
The major disadvantage is that the LVM mirroring method requires a lot of system
administrator intervention and attention. Production data is manipulated while production is
running. Carelessness can lead to the outage that one wanted to avoid by selecting this
method.
Backup and restore
Every serious IT operation will have ways to back up and restore data. They can be used for
data migration. We list this method here because it shares the common advantages and
disadvantages with the methods discussed previously, although the tools will not always be
provided natively by the operating system.
All open system platforms and many applications provide native backup and restore
capabilities. They may not be very sophisticated sometimes, but they are often suitable in
smaller environments. In larger data centers it is customary to have a common backup
solution across all systems. Either can be used for data migration.
The backup and restore option allows for consolidation because the tools are usually aware
of the data structures they handle.
One significant difference to most of the other methods discussed here, is that it does not
require the source and target storage systems to be connected to the hosts at the same time.
Figure 16-5 on page 339 illustrates this method.
Initial Copy
Host Update continuously
Host Split mirror
Continue with new copy
Chapter 16. Data migration in the open systems environment 339
Figure 16-5 Migration using backup and restore
The major disadvantage is again the disruptiveness. The applications that write to the data to
be migrated must be stopped for the whole migration process. Backup and restore to and
from tape usually takes longer than direct copy from disk to disk. The duration of the
disruption can be reduced somewhat by using incremental backups.
16.2.2 Subsystem-based data migration
The DS8000 provides remote copy functionality, which also can be used to migrate data:
򐂰IBM TotalStorage Metro Mirror, formerly known as PPRC, for distances up to 300km
򐂰IBM TotalStorage Global Copy, formerly known as PPRC Extended Distance, for longer
distances
򐂰A combination of Metro Mirror and Global Copy with an intermediate device in certain
cases
These methods are host system agnostic and can therefore be used with only minimum
system administrator attention. They also do not add any additional CPU load to the host
systems, and they don't require the host system to be connected to both storage systems at
the same time.
The necessary disruption is minimal. The initial copy is started during normal operation. Once
it is complete, the target is kept up-to-date by only copying changes made to the source. At
the cut over time, the applications are stopped and the mirror is allowed to reach
synchronization. Then the target system is connected to the host instead of the source
system and the applications can be restarted with the new copy.
However, the copy functions do not allow for the consolidation of smaller volumes into larger
ones, since they are not aware of the structure of the data.
Host
Backup all data
Stop applications
Backup
System
Host
Restore data
Backup
System
Host Restart
using new copy
Intermediate device
Restriction: The combination of Metro Mirror and Global Copy is not available at GA.
Important: The source storage system must be removed from the host completely, not
only physically, but also logically, including all configuration data.
340 DS8000 Series: Concepts and Architecture
Metro Mirror and Global Copy
From a local data migration point of view both methods are on par with each other, with
Global Copy having a smaller impact on the subsystem performance and Metro Mirror
requiring almost no time for the final synchronization phase. It is advisable to use Global Copy
instead of Metro Mirror, if the source system is already at its performance limit even without
remote mirroring. Figure 16-6 outlines the migration steps.
Figure 16-6 Migration with Metro Mirror or Global Copy
The remote copy functionality can be used to migrate data in either direction between the
Enterprise Storage Server (ESS) 750 or 800 and the new DS8000 and DS6000 storage
systems. The ESS E20 and F20 lack the support for remote copy over Fibre Channel and can
therefore not be mirrored directly to a DS8000.
Combination of Metro Mirror and Global Copy
A cascading Metro Mirror and Global Copy solution is useful in two cases:
򐂰The source system is already mirrored for disaster tolerance and mirroring is mandatory
for production. Then a Global Copy relationship can be used to migrate the data from the
secondary volumes of the Metro Mirror pair to the new machine.
򐂰Data must be migrated from an older ESS E20 or F20. Here a Metro Mirror using ESCON
connectivity is used to mirror the data to an intermediate ESS 800, which in turn will copy
the data to the DS8000 with Global Copy.
Figure 16-7 shows the setup and steps to take for this method.
Figure 16-7 Migration with Metro Mirror, Global Copy and an intermediate device
Initial Copy
Host
Continuous updates
Host
Final synchronization
Stop applications
Host Restart
Using new copy
Host
Restart
Using new copy
Host Final synchronization
Stop applications
Initial Copy
Host
Continuous updates
Intermediate Device
Metro Mirror Global Copy
Chapter 16. Data migration in the open systems environment 341
16.2.3 IBM Piper migration
Piper is a hardware and software solution to move data between disk systems while
production is ongoing. It is used in conjunction with IBM migration services. Piper is available
for mainframe and open systems environments. Here we discuss the open systems version
only. For mainframe environments see Chapter 14, “Data migration in zSeries environments”
on page 293.
The Piper hardware consists of a portable rack enclosure containing Fibre Channel routers, a
SAN Switch, and non-disruptive power supplies.
Piper migration can be performed independently of the host operating system and the source
disk system. It doesn’t generate extra host workload. However, it does not support the
consolidation of small volumes into larger ones, because it is not aware of the data structure.
Since Piper has to be in the data path, between the host and the source storage system, it
can only be used to migrate Fibre Channel attached storage. It also requires two short
interruptions of data access, one to bring it into the data path, another one to take it out, after
the data has been moved. Figure 16-8 illustrates how Piper works.
Figure 16-8 Piper migration
For open systems migration, no additional software has to be installed on the host. IBM
migration services use some scripts to determine the exact storage configuration that has to
duplicated on the target system.
For more information about the Piper offerings refer to:
http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
Host Restart
Remove old copy
Host Continue with Piper
Piper
Remove Piper
Host
Host
Stop applications
Add Piper
Initial Copy
Host
Continuous updates
Piper
Restart applications
342 DS8000 Series: Concepts and Architecture
16.2.4 Other migration applications
There are a number of applications available from other vendors that can assist in data
migration. We don’t discuss them here in detail. Some examples include:
򐂰Softek Data Replicator for Open
򐂰NSI Double-Take
򐂰XoSoft WANSync
There also are storage virtualization products which can be used for data migration in a
similar manner to the Piper tool. They are installed on a server which forms a virtualization
engine that resides in the data path. Examples are:
򐂰IBM SAN Volume Controller
򐂰Falconstore IPStore
򐂰Datacore SANSymphony
An important question to ask, before deciding among these methods, is whether the
virtualization engine can be removed from the data path after the migration has completed.
16.3 IBM migration services
This is the easiest way to migrate data, because IBM will assist you throughout the complete
migration process. In several countries IBM offers a migration service. Check with your IBM
sales representative about migration services for your specific environment and needs.
Businesses today require efficient and accurate data migration. IBM provides technical
specialists at your location to plan and migrate your data to your DS8000 disk system.
This migration is accomplished using either native operating system mirroring, remote
mirroring, or the Piper migration tool to replicate your data to the DS8000 disk system with
minimum interruption to service. In addition, IBM will provide a Migration Control Book which
specifies the activities performed during these services.
The benefits of IBM migration services include:
򐂰Minimized downtime and no data loss.
򐂰Superior data protection that preserves data updates throughout the migration, allowing
the process to be interrupted if needed.
򐂰A Migration Control Book that details the work performed, so your staff can use it for post
migration management.
16.4 Summary
This chapter shows that there are many ways to accomplish data migration. Thorough
analysis of the current environment, evaluation of the requirements and planning are
necessary. Once you decide on one or more migration methods, refer to the documentation
of the tools you want to use to define the exact sequence of steps to take.
Special care must be exercised when data is shared between more than one host.
IBM Global Services can assist you in all stages to ensure a successful and smooth
migration.
© Copyright IBM Corp. 2005. All rights reserved. 343
Appendix A. Open systems operating
systems specifics
In this appendix, we describe the particular issues of some operating systems with respect to
the attachment to a DS8000. The following subjects are covered:
򐂰Planning considerations
򐂰Common tools
򐂰IBM AIX
򐂰Linux on various platforms
򐂰Microsoft Windows
򐂰HP OpenVMS
A
344 DS8000 Series: Concepts and Architecture
General considerations
In this section we cover some topics that are not specific to a single operating system. This
includes available documentation, some planning considerations, and common tools.
The DS8000 Host Systems Attachment Guide
The DS8000 Host Systems Attachment Guide, SC26-7628 provides instructions to prepare a
host system for DS8000 attachment. For all supported platforms and operating systems it
covers:
򐂰Installation and configuration of the FC HBA
򐂰Peculiarities of the operating system with regard to storage attachment
򐂰How to prepare a system that boots from the DS8000 (when supported)
It varies in detail for the different platforms.
Many more publications are available from IBM and other vendors. Refer to Chapter 15,
“Open systems support and software” on page 319 and to the operating system-specific
sections in this chapter.
Planning
Thorough planning is necessary to ensure that your new DS8000 will perform efficiently in
your data center. In this section we raise the questions you will have to ask and the things you
have to consider before you start. We don’t cover all the items in detail because this is not an
implementation book.
For a more detailed discussion of these considerations related to performance, refer to
Chapter 12, “Performance considerations” on page 253.
Capacity planning considerations
For proper sizing of your DS8000 storage subsystem more than the total required capacity
has to be known. Consider the following questions:
򐂰What is the capacity for each host system or even each application? What are this
system’s performance requirements (I/Os, throughput)?
򐂰How much capacity is needed for fixed block (open systems) and how much for CKD
(mainframe) data?
򐂰Do you need advanced copy functions?
򐂰Which DS8000 model is adequate to achieve capacity and performance requirements?
򐂰What is the number of disk drives needed, their size and speed?
򐂰With the usable capacity known, what is the raw capacity to order?
򐂰What is the number of Fibre Channel attachment needed?
򐂰Do you have to plan for future expansion? Is Capacity on Demand an option?
Data placement considerations
A DS8000 logical volume is composed of extents. These extents are striped across all disks
in an array (or rank, which is equivalent). To create the logical volume, extents from one extent
pool are concatenated. Within a given extent pool there is no control over the placement of
Appendix A. Open systems operating systems specifics 345
the data, even if this pool spans several ranks. If possible, the extents for one logical volume
are taken from the same rank.
To get higher throughput values than a single array can deliver, it is necessary to stripe the
data across several arrays. This can only be achieved through striping on the host level.
To achieve maximum granularity and control for data placement, you will have to create an
extent pool for every single rank.
However, some operating systems support only a limited number of attached disks, or make it
difficult for the administrator to combine several physical disks into one big volume. In the
DS8000 logical volumes cannot span several extent pools. To be able to create very large
logical volumes, you must consider having extent pools that include more than one rank.
UNIX performance monitoring tools
Some tools are worth discussing because they are available for almost all UNIX variants and
system administrators are accustomed to using them. You may have to administer a server,
and these are the only tools you have available to use. These tools offer a quick way to tell
whether a system is I/O-bound:
򐂰iostat
򐂰sar (System Activity Report)
򐂰vmstat (Virtual Memory Statistics)
IOSTAT
The base tool for evaluating I/O performance of disk devices for UNIX operating systems is
iostat. Although available on most UNIX platforms, iostat varies in its implementation from
system to system.
The iostat command is useful to determine whether a system’s I/O load is balanced or
whether a single volume is becoming a performance bottleneck. The tool reports I/O statistics
for TTY devices, disks, and CD-ROMs. It monitors I/O device throughput and utilization by
observing the time the disks are active in relation to their average transfer rates.
Example A-1 shows a sample iostat output, taken on an AIX host. It shows disk device
statistics since the last reboot.
Example: A-1 AIX iostat output.
#iostat
Disks: % tm_act Kbps tps Kb_read Kb_wrtn
hdisk0 0.0 0.3 0.0 29753 48076
hdisk1 0.1 0.1 0.0 11971 26460
hdisk2 0.2 0.8 0.1 91200 108355
cd0 0.0 0.0 0.0 0 0
Tip: I/O activity monitors, such as iostat, have no way of knowing whether the disk they
are seeing is a single physical disk or a logical disk striped upon multiple physical disks in
a RAID array. Therefore, some performance figures reported for a device, for example,
%busy, could appear high.
346 DS8000 Series: Concepts and Architecture
The output reports the following:
򐂰The %tm_act column indicates the percentage of the measured interval time that the
device was busy.
򐂰The Kbps column shows the average data rate, read and write data combined, of this
device.
򐂰The tps column shows the transactions per second. Note that an I/O transaction can have
a variable transfer size. This field may also appear higher than would normally be
expected for a single physical disk device.
򐂰The Kb_read and Kb_wrtn columns show the total amount of data read and written.
iostat can also be issued for continuous monitoring with a given number of iterations and a
monitoring period. It will then print a report like that in Example A-1 on page 345 for every
period, with the values calculated for exactly this period. In most cases this mode is more
useful, because bottlenecks mostly appear only during peak times and are not reflected in an
overall average. Be aware that the first in the series of reports represents the average since
boot and should be discarded.
Example A-2 shows an iostat report from SUN Solaris. You see an example of a device that
appears to be very busy (sd1). The r/s column shows 124.3 reads per second; the %b column
shows 90 percent busy. The svc_t column, however, shows a service time of 15.7 ms, still
quite reasonable for 124 I/Os per second. Depending on the application layout, this report
could lead to the conclusion that the I/O load of this system is unbalanced. Some disks get a
lot more I/O requests than others. A consequence of this could be to move certain parts of a
database from the busiest disks to less used ones.
Example: A-2 SUN Solaris iostat output
#iostat -x
extended disk statistics
disk r/s w/s Kr/s Kw/s wait actv svc_t %w %b
fd0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0 0
sd1 124.3 14.5 3390.9 399.7 0.0 2.0 15.7 0 90
sd2 0.7 0.4 13.9 4.0 0.0 0.0 7.8 0 1
sd3 0.4 0.5 2.5 3.8 0.0 0.1 8.1 0 1
sd6 0.0 0.0 0.0 0.0 0.0 0.0 5.8 0 0
sd8 0.3 0.2 9.4 9.6 0.0 0.0 8.6 0 1
sd9 0.7 1.3 12.4 21.3 0.0 0.0 5.2 0 3
The implementation of the iostat command is different for every UNIX variant. It also offers
many different options and parameters. Refer to your system documentation and the iostat
manpage for more information.
System Activity Report (SAR)
The System Activity Report (SAR) provides a quick way to tell if a system is I/O bound. SAR
has numerous options, providing paging, TTY, CPU busy, and many other statistics.
One way you can run sar is by specifying a sampling interval and the number of times you
want it to run.
This is shown in Example A-3 on page 347. It displays CPU usage information, sampled five
times with a two second interval. To check whether a system is I/O bound, the important
column to look at is %wio. The %wio indicates the time spent waiting on I/O from all disks,
both internal and external. Here, too, the first line represents the average since boot time and
should be discarded.
Appendix A. Open systems operating systems specifics 347
Example: A-3 SAR Sample Output
# sar -u 2 5
AIX aixtest 3 4 001750154C00 2/5/03
17:58:15 %usr %sys %wio %idle
17:58:17 43 9 1 46
17:58:19 35 17 3 45
17:58:21 36 22 20 23
17:58:23 21 17 0 63
17:58:25 85 12 3 0
Average 44 15 5 35
As a general rule of thumb, a server with over 40 percent waiting on I/O is spending too much
time waiting for I/O. However, you also have to take the type of workload into account. If you
are running a video file server, serving I/O will be the primary activity of the machine and you
will expect high %wio values.
A system with very busy CPUs can mask I/O wait. The definition of %wio is: Idle with some
processes waiting for I/O (only block I/O, raw I/O, or VM pageins/swapins indicated). If the
system is CPU busy and also is waiting for I/O, the accounting will increment the CPU busy
values, but not the %wio column.
The other column headings in the example indicate:
򐂰%usr: Time system spent executing application code
򐂰%sys: Time system spent executing operating system calls
򐂰%idle: Time the system was idle with no outstanding I/O requests
The implementation of the sar command is different for the various UNIX variants. However,
the output of sar -u is the same for all.
There are other modes to use sar, which we will not discuss further:
򐂰Ongoing system activity accounting via cron
򐂰Display previously captured data
sar offers many different options and parameters. Refer to your system documentation and
the sar manpage for more information.
VMSTAT
The vmstat utility is a useful tool for taking a quick snapshot or overview of the system
performance. It is easy to see what is happening with regard to the CPUs, paging, swapping,
interrupts, I/O wait, and much more. There are several reports that vmstat can provide. They
vary slightly between the different versions of UNIX. Refer to your system documentation and
the vmstat manpage for more information.
IBM AIX
This section covers items specific to the IBM AIX operating system. It is not intended to
repeat the information that is contained in other publications. We focus on topics that are not
covered in the well known literature or are important enough to be repeated here.
348 DS8000 Series: Concepts and Architecture
Other publications
Apart from the DS8000 Host Systems Attachment Guide, SC26-7628, there are two redbooks
that cover pSeries storage attachment:
򐂰Practical Guide for SAN with pSeries, SG24-6050, covers all aspects of connecting an AIX
host to SAN-attached storage. However, it is not quite up-to-date; the last release was in
2002.
򐂰Fault Tolerant Storage - Multipathing and Clustering Solutions for Open Systems for the
IBM ESS, SG24-6295, focuses mainly on high availability and covers SDD and HACMP
topics. It also is from 2002.
Much of the technical information for pSeries or AIX also covers external storage, since SAN
attachment became standard procedure in almost all data centers of size with a claim to
availability.
The AIX host attachment scripts
AIX needs some file sets installed to support DS8000 disks. They prepare the Object Data
Manager (ODM) with information about the subsystem. That way the DS8000 volumes are
identified properly and all performance parameters optimized.
For the ESS under AIX there was a set of Host Attachment scripts which could be
downloaded from the Web. For the DS8000 using AIX SDD 1.6.0.0, these scripts have been
consolidated into one called FCP Host Attachment Script. The most up-to-date version for the
DS8000 can be downloaded from:
http://www-1.ibm.com/support/dlsearch.wss?rs=540&q=host+scripts&tc=ST52G7&dc=D417
Finding the World Wide Port Names
In order to allocate DS8000 disks to a pSeries server, the World Wide Port Name (WWPN) of
each of the pSeries Fibre Channel adapters have to be registered in the DS8000. You can
use the lscfg command to find out these names, as shown in Example A-4.
Example: A-4 Finding Fibre Channel adapter WWN
lscfg -vl fcs0
fcs0 U1.13-P1-I1/Q1 FC Adapter
Part Number.................00P4494
EC Level....................A
Serial Number...............1A31005059
Manufacturer................001A
Feature Code/Marketing ID...2765
FRU Number.................. 00P4495
Network Address.............10000000C93318D6
ROS Level and ID............02C03951
Device Specific.(Z0)........2002606D
Device Specific.(Z1)........00000000
Device Specific.(Z2)........00000000
Device Specific.(Z3)........03000909
Device Specific.(Z4)........FF401210
Device Specific.(Z5)........02C03951
Device Specific.(Z6)........06433951
Device Specific.(Z7)........07433951
Device Specific.(Z8)........20000000C93318D6
Device Specific.(Z9)........CS3.91A1
Device Specific.(ZA)........C1D3.91A1
Appendix A. Open systems operating systems specifics 349
Device Specific.(ZB)........C2D3.91A1
Device Specific.(YL)........U1.13-P1-I1/Q1
You can also print the WWPN of an HBA directly by running
lscfg -vl <fcs#> | grep Network
The # stands for the instance of each FC HBA you want to query.
Managing multiple paths
It is a common and recommended practice to assign a DS8000 volume to the host system
through more than one path, to ensure availability in case of a SAN component failure and to
achieve higher I/O bandwidth. AIX will discover a separate hdisk for each path to a DS8000
logical volume.
To utilize the path redundancy and increased I/O bandwidth, you need an additional software
layer in the AIX disk subsystem to recombine the multiple hdisks into one device.
Subsystem device driver (SDD)
The IBM Subsystem Device Driver (SDD) software is a host-resident pseudo device driver
designed to support the multipath configuration environments in IBM products. SDD resides
in the host system with the native disk device driver and manages redundant connections
between the host server and the DS8000. SDD is available for AIX 5.1, 5.2, and 5.3.
Refer to 15.2, “Subsystem Device Driver” on page 324 for download information and
installation and usage documentation.
Determine the installed SDD level
To determine whether SDD is installed, and at which level, you can use the lslpp -l
command, as shown in Example A-5.
Example: A-5 lslpp -l “*sdd*”
Fileset Level State Description
----------------------------------------------------------------------------
Path: /usr/lib/objrepos
devices.sdd.52.rte 1.5.1.2 COMMITTED IBM Subsystem Device Driver
for AIX V52
Path: /etc/objrepos
devices.sdd.52.rte 1.5.1.2 COMMITTED IBM Subsystem Device Driver
for AIX V52
Useful SDD commands
The datapath query device command displays information about all vpath devices. It is
useful to determine the number of paths to each SDD vpath device and their status. See
Example A-6.
Example: A-6 datapath query device command
{yli4642:root}/home/redbook -> datapath query device
Total Devices : 2
DEV#: 0 DEVICE NAME: vpath3 TYPE: 2107 POLICY: Optimized
SERIAL: 10522873
==========================================================================
350 DS8000 Series: Concepts and Architecture
Path# Adapter/Hard Disk State Mode Select Errors
0 fscsi2/hdisk17 OPEN NORMAL 0 0
1 fscsi2/hdisk19 OPEN NORMAL 27134 0
2 fscsi3/hdisk21 OPEN NORMAL 0 0
3 fscsi3/hdisk23 OPEN NORMAL 27352 0
DEV#: 1 DEVICE NAME: vpath4 TYPE: 2107 POLICY: Optimized
SERIAL: 20522873
==========================================================================
Path# Adapter/Hard Disk State Mode Select Errors
0 fscsi2/hdisk18 CLOSE NORMAL 25734 0
1 fscsi2/hdisk20 CLOSE NORMAL 0 0
2 fscsi3/hdisk22 CLOSE NORMAL 25500 0
3 fscsi3/hdisk24 CLOSE NORMAL 0 0
This lsvpcfg command helps verify the vpath configuration state. See Example A-7.
Example: A-7 lsvpcfg command
vpath0 (Available pv) 018FA067 = hdisk1 (Available) hdisk3 (Available) hdisk5 (Available)
vpath1 (Available ) 019FA067 = hdisk2 (Available) hdisk4 (Available) hdisk6 (Available)
The hd2vp command converts a volume group made of hdisk devices to an SDD vpath device
volume group. Run hd2vp <volumegroup name> for each volume group to convert.
Multipath I/O (MPIO)
AIX MPIO is an enhancement to the base OS environment that provides native support for
multi-path Fibre Channel storage attachment. MPIO automatically discovers, configures, and
makes available every storage device path. The storage device paths are managed to
provide high availability and load balancing of storage I/O. MPIO is part of the base kernel
and is available for AIX 5.2 and AIX 5.3.
The base functionality of MPIO is limited. It provides an interface for vendor-specific Path
Control Modules (PCMs) which allow for implementation of advanced algorithms.
IBM provides a PCM for DS8000 that enhances MPIO with all the features of the original
SDD. It is called SDDPCM and is available from the SDD download site (refer to 15.2,
“Subsystem Device Driver” on page 324)
There are some reasons to prefer MPIO (with SDDPCM) to traditional SDD:
򐂰Performance improvements due to direct integration with AIX
򐂰Better integration if different storage systems are attached
򐂰Easier administration through native AIX commands
For basic information about MPIO see the “Multiple Path I/O” section in the AIX 5L System
Management Concepts: Operating System and Devices guide:
Important: If you choose to use MPIO with SDDPCM instead of SDD, you have to remove
the regular DS8000 Host Attachment Script and install the MPIO version of it. This script
identifies the DS8000 volumes to the operating system as MPIO manageable. Of course,
you can’t have SDD and MPIO with SDDPCM on a given server at the same time.
Note: At initial GA, there will be no AIX MPIO support for the DS8000.
Appendix A. Open systems operating systems specifics 351
http://publib16.boulder.ibm.com/pseries/en_US/aixbman/admnconc/hotplug_mgmt.htm#mpioconcepts
The management of MPIO devices is described in the “Managing MPIO-Capable Devices”
section of System Management Guide: Operating System and Devices for AIX 5L:
http://publib16.boulder.ibm.com/pseries/en_US/aixbman/baseadmn/manage_mpio.htm
Determine the installed SDDPCM level
You use the same command as for SDD, lslpp -l "*sdd*", to determine the installed level
of SDDPCM. It will also tell you whether you have SDD or SDDPCM installed.
SDDPCM software provides useful commands such as:
򐂰pcmpath query device to check the configuration status of the devices
򐂰pcmpath query adapter to display information about adapters
򐂰pcmpath query essmap to display each device, path, location, and attributes
Useful MPIO commands
The lspath command displays the operational status for the paths to the devices, as shown in
Example A-8. It can also be used to read the attributes of a given path to an MPIO-capable
device.
Example: A-8 lspath command result
{part1:root}/ -> lspath |pg
Enabled hdisk0 scsi0
Enabled hdisk1 scsi0
Enabled hdisk2 scsi0
Enabled hdisk3 scsi7
Enabled hdisk4 scsi7
...
Missing hdisk9 fscsi0
Missing hdisk10 fscsi0
Missing hdisk11 fscsi0
Missing hdisk12 fscsi0
Missing hdisk13 fscsi0
...
Enabled hdisk96 fscsi2
Enabled hdisk97 fscsi6
Enabled hdisk98 fscsi6
Enabled hdisk99 fscsi6
Enabled hdisk100 fscsi6
The chpath command is used to perform change operations on a specific path. It can either
change the operational status or tunable attributes associated with a path. It cannot perform
both types of operations in a single invocation.
The rmpath command unconfigures or undefines, or both, one or more paths to a target
device. It is not possible to unconfigure (undefine) the last path to a target device using the
rmpath command. The only way to do this is to unconfigure the device itself (for example, use
the rmdev command).
Restriction: A point worth considering when deciding between SDD and MPIO is, that the
IBM TotalStorage SAN Volume Controller does not support MPIO at this time. For updated
information refer to:
http://www.ibm.com/servers/storage/software/virtualization/svc/index.html
352 DS8000 Series: Concepts and Architecture
Refer to the manpages of the MPIO commands for more information.
LVM configuration
In AIX, all storage is managed by the AIX Logical Volume Manager (LVM). It virtualizes
physical disks to be able to dynamically create, delete, resize, and move logical volumes for
application use. To AIX our DS8000 logical volumes appear as physical SCSI disks. There
are some considerations to take into account when configuring LVM.
LVM striping
Striping is a technique for spreading the data in a logical volume across several physical disks
in such a way that all disks are used in parallel to access data on one logical volume. The
primary objective of striping is to increase the performance of a logical volume beyond that of
a single physical disk.
In the case of a DS8000, LVM striping can be used to distribute data across more than one
array (rank).
Refer to Chapter 12, “Performance considerations” on page 253 for a more detailed
discussion of methods to optimize performance.
LVM mirroring
LVM has the capability to mirror logical volumes across several physical disks. This improves
availability, because in case a disk fails, there will be another disk with the same data. When
creating mirrored copies of logical volumes, make sure that the copies are indeed distributed
across separate disks.
With the introduction of SAN technology, LVM mirroring can even provide protection against a
site failure. Using long wave Fibre Channel connections, a mirror can be stretched up to a 10
km distance.
Another application for LVM mirroring is online (non-disruptive) data migration. See
Chapter 16, “Data migration in the open systems environment” on page 333.
AIX access methods for I/O
AIX provides several modes to access data in a file system. It may be important for
performance to choose the right access method.
Synchronous I/O
Synchronous I/O occurs while you wait. An application’s processing cannot continue until the
I/O operation is complete. This is a very secure and traditional way to handle data. It ensures
consistency at all times, but can be a major performance inhibitor. It also doesn’t allow the
operating system to take full advantage of functions of modern storage devices, such as
queueing, command reordering, and so on.
Asynchronous I/O
Asynchronous I/O operations run in the background and do not block user applications. This
improves performance, because I/O and application processing run simultaneously. Many
applications, such as databases and file servers, take advantage of the ability to overlap
processing and I/O. They have to take measures to ensure data consistency, though. You can
configure, remove, and change asynchronous I/O for each device using the chdev command
or SMIT.
Appendix A. Open systems operating systems specifics 353
Direct I/O
An alternative I/O technique called Direct I/O bypasses the Virtual Memory Manager (VMM)
altogether and transfers data directly from the user’s buffer to the disk and vice versa. The
concept behind this is similar to raw I/O in the sense that they both bypass caching at the file
system level. This reduces CPU overhead and makes more memory available to the
database instance, which can make more efficient use of it for its own purposes.
Direct I/O is provided as a file system option in JFS2. It can be used either by mounting the
corresponding file system with the mount –o dio option, or by opening a file with the
O_DIRECT flag specified in the open() system call. When a file system is mounted with the
–o dio option, all files in the file system use Direct I/O by default.
Direct I/O benefits applications that have their own caching algorithms by eliminating the
overhead of copying data twice, first between the disk and the OS buffer cache, and then from
the buffer cache to the application’s memory.
For applications that benefit from the operating system cache, Direct I/O should not be used,
because all I/O operations would be synchronous. Direct I/O also bypasses the JFS2
read-ahead. Read-ahead can provide a significant performance boost for sequentially
accessed files.
Concurrent I/O
In 2003, IBM introduced a new file system feature called Concurrent I/O (CIO) for JFS2. It
includes all the advantages of Direct I/O and also relieves the serialization of write accesses.
It improves performance for many environments, particularly commercial relational
databases. In many cases, the database performance achieved using Concurrent I/O with
JFS2 is comparable to that obtained by using raw logical volumes.
A method for enabling the concurrent I/O mode is to use the mount -o cio option when
mounting a file system.
Boot device support
The DS8100 and DS8300 are supported as boot devices on RS/6000 and pSeries that
support Fibre Channel boot capability. This support is not currently available for the IBM
eServer BladeCenter. Refer to DS8000 Host Systems Attachment Guide, SC26-7628, for
additional information.
AIX on IBM iSeries
With the announcement of the IBM iSeries i5, it is now possible to run AIX in a partition on the
i5. This can be either AIX 5L V5.2 or V5.3. All supported functions of these operating system
levels are supported on i5, including HACMP for high availability and external boot from Fibre
Channel devices.
Tip: If the number of async I/O (AIO) requests is high, then the recommendation is to
increase maxservers to approximately the number of simultaneous I/Os there might be. In
most cases, it is better to leave the minservers parameter to the default value since the AIO
kernel extension will generate additional servers if needed. By looking at the CPU
utilization of the AIO servers, if the utilization is even across all of them, that means that
they’re all being used; you may want to try increasing their number in this case. Running
pstat -a will allow you to see the AIO servers by name, and running ps -k will show them
to you as the name kproc.
354 DS8000 Series: Concepts and Architecture
The DS8000 requires the following i5 I/O adapters to attach directly to an i5 AIX partition:
򐂰0611 Direct Attach 2 Gigabit Fibre Channel PCI
򐂰0625 Direct Attach 2 Gigabit Fibre Channel PCI-X
It is also possible for the AIX partition to have its storage virtualized, whereby a partition
running OS/400 hosts the AIX partition's storage requirements. In this case, if using DS8000,
it would be attached to the OS/400 partition using either of the following I/O adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
For more information on OS/400 support for DS8000, please see Appendix B, “Using DS8000
with iSeries” on page 373.
For more information on running AIX in an i5 partition, please refer to the i5 Information
Center at:
http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/index.htm?info/iphat/iphatlpar
kickoff.htm
Monitoring I/O performance
iostat
The iostat command is used to monitor system input/output device loading by observing the
time the physical disks are active in relation to their average transfer rates. It also reports on
CPU use. It provides data on the activity of physical volumes, not for file systems or logical
volumes. Refer to “UNIX performance monitoring tools” on page 345 for more information.
filemon
The filemon command monitors the performance of the file system, and reports the I/O
activity with regard to files, virtual memory segments, logical volumes, and physical volumes.
Normally, filemon runs in the background while one or more applications are being executed
and monitored. It automatically starts and monitors a trace of the program's file system and
I/O events in real time. By default, the trace is started immediately, but it can be deferred until
the user issues a trcon command. Tracing can be turned on and off with tron and troff as
desired, while filemon is running. After stopping with trcstop, filemon generates an I/O
activity report and exits. It writes its report to standard output or to a specified file. The report
begins with a summary of the I/O activity for each of the levels being monitored and ends with
detailed I/O activity statistics for each of the levels being monitored.
Example A-9 shows the output file of the following command:
filemon -v -o fmon.out -O al; sleep 30; trcstop
This monitors the activity at all file system levels for 30 seconds and writes a verbose report
to the file fmon.out.
Example: A-9 Filemon output file
Wed Nov 17 16:59:43 2004
System: AIX part1 Node: 5 Machine: 00CFC02D4C00
Cpu utilization: 50.5%
Most Active Files
Note: AIX will not run in a partition on earlier 8xx and prior iSeries systems.
Appendix A. Open systems operating systems specifics 355
------------------------------------------------------------------------
#MBs #opns #rds #wrs file volume:inode
------------------------------------------------------------------------
0.3 1 70 0 unix <major=0,minor=5>:34096
0.0 1 2 0 ksh.cat <major=0,minor=5>:46237
0.0 1 2 0 cmdtrace.cat <major=0,minor=5>:45847
0.0 1 2 0 hosts <major=0,minor=4>:516
0.0 7 2 0 SWservAt <major=0,minor=4>:594
0.0 7 2 0 SWservAt.vc <major=0,minor=4>:595
Most Active Segments
------------------------------------------------------------------------
#MBs #rpgs #wpgs segid segtype volume:inode
------------------------------------------------------------------------
0.0 1 0 26fecd ???
0.0 1 0 23fec7 ???
Most Active Logical Volumes
------------------------------------------------------------------------
util #rblk #wblk KB/s volume description
------------------------------------------------------------------------
0.39 7776 11808 1164.0 /dev/u02lv /u02
0.01 0 16896 1004.3 /dev/u04lv /u04
0.00 0 3968 235.9 /dev/u03lv /u03
0.00 16 0 1.0 /dev/hd2 /usr
Most Active Physical Volumes
------------------------------------------------------------------------
util #rblk #wblk KB/s volume description
------------------------------------------------------------------------
0.87 568 808 81.8 /dev/hdisk65 IBM MPIO FC 2107
0.87 496 800 77.0 /dev/hdisk79 IBM MPIO FC 2107
0.87 672 776 86.1 /dev/hdisk81 IBM MPIO FC 2107
0.86 392 960 80.4 /dev/hdisk63 IBM MPIO FC 2107
0.86 328 776 65.6 /dev/hdisk83 IBM MPIO FC 2107
0.86 528 624 68.5 /dev/hdisk69 IBM MPIO FC 2107
0.86 480 656 67.5 /dev/hdisk55 IBM MPIO FC 2107
0.86 408 536 56.1 /dev/hdisk73 IBM MPIO FC 2107
0.86 456 720 69.9 /dev/hdisk77 IBM MPIO FC 2107
0.86 440 720 68.9 /dev/hdisk59 IBM MPIO FC 2107
...
------------------------------------------------------------------------
Detailed Physical Volume Stats (512 byte blocks)
------------------------------------------------------------------------
VOLUME: /dev/hdisk65 description: IBM MPIO FC 2107
reads: 37 (0 errs)
read sizes (blks): avg 15.4 min 8 max 16 sdev 2.2
read times (msec): avg 6.440 min 0.342 max 10.826 sdev 3.301
read sequences: 37
read seq. lengths: avg 15.4 min 8 max 16 sdev 2.2
writes: 52 (0 errs)
write sizes (blks): avg 15.5 min 8 max 16 sdev 1.9
write times (msec): avg 0.809 min 0.004 max 2.963 sdev 0.906
write sequences: 52
write seq. lengths: avg 15.5 min 8 max 16 sdev 1.9
seeks: 89 (100.0%)
seek dist (blks): init 10875128,
avg 5457737.4 min 16 max 22478224 sdev 4601825.0
seek dist (%tot blks):init 27.84031,
356 DS8000 Series: Concepts and Architecture
avg 13.97180 min 0.00004 max 57.54421 sdev 11.78066
time to next req(msec): avg 89.470 min 0.003 max 949.025 sdev 174.947
throughput: 81.8 KB/sec
utilization: 0.87
...
Linux
Linux is an open source UNIX-like kernel, originally created by Linus Torvalds. The term
“Linux” is often used to mean the whole operating system, GNU/Linux. The Linux kernel,
along with the tools and software needed to run an operating system, are maintained by a
loosely organized community of thousands of, mostly, volunteer programmers.
There are several organizations (distributors) that bundle the Linux kernel, tools, and
applications to form a “distribution,” a package that can be downloaded or purchased and
installed on a computer. Some of these distributions are commercial, others are not.
Support issues that distinguish Linux from other operating systems
Linux is different from the other, proprietary, operating systems in many ways:
򐂰There is no one person or organization that can be held responsible or called for support.
򐂰Depending on the target group, the distributions differ largely in the kind of support that is
available.
򐂰Linux is available for almost all computer architectures.
򐂰Linux is rapidly changing.
All these factors make it difficult to promise and provide generic support for Linux. As a
consequence, IBM has decided on a support strategy that limits the uncertainty and the
amount of testing.
IBM only supports the major Linux distributions that are targeted at enterprise customers:
򐂰RedHat Enterprise Linux
򐂰SUSE Linux Enterprise Server
򐂰RedFlag Linux
These distributions have release cycles of about one year, are maintained for five years and
require the user to sign a support contract with the distributor. They also have a schedule for
regular updates. These factors mitigate the issues listed previously. The limited number of
supported distributions also allows IBM to work closely with the vendors to ensure
interoperability and support. Details about the supported Linux distributions can be found in
the DS8000 Interoperability Matrix:
http://www.ibm.com/servers/storage/disk/ds8000/pdf/ds8000-matrix.pdf
See also “The DS8000 Interoperability Matrix” on page 321.
There are exceptions to this strategy when the market demand justifies the test and support
effort.
Appendix A. Open systems operating systems specifics 357
Existing reference material
There is a lot of information available that helps you set up your Linux server to attach it to a
DS8000 storage subsystem.
The DS8000 Host Systems Attachment Guide
The DS8000 Host Systems Attachment Guide, SC26-7628, provides instructions to prepare
an Intel IA-32 based machine for DS8000 attachment, including:
򐂰How to install and configure the FC HBA
򐂰Peculiarities of the Linux SCSI subsystem
򐂰How to prepare a system that boots from the DS8000
It is not very detailed with respect to the configuration and installation of the FC HBA drivers.
Implementing Linux with IBM Disk Storage
The redbook Implementing Linux with IBM Disk Storage, SG24-6261, covers several
hardware platforms and storage systems. It is not yet updated with information about the
DS8000. The details provided for the attachment to the IBM Enterprise Storage Server (ESS
2105) are mostly valid for DS8000, too. Read it for information regarding storage attachment:
򐂰Via FCP to an IBM eServer zSeries running Linux
򐂰To an IBM eServer pSeries running Linux
򐂰To an IBM eServer BladeCenter running Linux
It can be downloaded from:
http://publib-b.boulder.ibm.com/abstracts/sg246261.html
Linux with zSeries and ESS: Essentials
The redbook, Linux with zSeries and ESS: Essentials, SG24-7025, provides a lot of
information about Linux on IBM eServer zSeries and the ESS. It also describes in detail how
the Fibre Channel (FCP) attachment of a storage system to zLinux works. It does not,
however, describe the actual implementation. This information is at:
http://www.redbooks.ibm.com/redbooks/pdfs/sg247025.pdf
Getting Started with zSeries Fibre Channel Protocol
The redpaper Getting Started with zSeries Fibre Channel Protocol is an older publication (last
updated in 2003) which provides an overview of Fibre Channel (FC) topologies and
terminology, and instructions to attach open systems (fixed block) storage devices via FCP to
an IBM eServer zSeries running Linux. It can be found at:
http://www.redbooks.ibm.com/redpapers/pdfs/redp0205.pdf
Other sources of information
Numerous hints and tips, especially for Linux on zSeries, are available on the IBM Redbooks
technotes page:
http://www.redbooks.ibm.com/redbooks.nsf/tips/
IBM eServer zSeries dedicates its own Web page to storage attachment via FCP:
http://www.ibm.com/servers/eserver/zseries/connectivity/ficon_resources.html
358 DS8000 Series: Concepts and Architecture
The zSeries connectivity support page lists all supported storage devices and SAN
components that can be attached to a zSeries server. There is an extra section for FCP
attachment:
http://www.ibm.com/servers/eserver/zseries/connectivity/#fcp
The whitepaper ESS Attachment to United Linux 1 (IA-32) is available at:
http://www.ibm.com/support/docview.wss?uid=tss1td101235
It is intended to help users to attach a server running an enterprise-level Linux distribution
based on United Linux 1 (IA-32) to the IBM 2105 Enterprise Storage Server. It provides very
detailed step by step instructions and a lot of background information about Linux and SAN
storage attachment.
Another whitepaper, Linux on IBM eServer pSeries SAN - Overview for Customers describes
in detail how to attach SAN storage (ESS 2105 and FAStT) to a pSeries server running Linux:
http://www.ibm.com/servers/eserver/pseries/linux/whitepapers/linux_san.pdf
Most of the information provided in these publications is valid for DS8000 attachment,
although much of it was originally written for the ESS 2105.
Important Linux issues
Linux treats SAN-attached storage devices like conventional SCSI disks. The Linux SCSI I/O
subsystem has some peculiarities that are important enough to be described here, even if
they show up in some of the publications listed in the previous section.
Some Linux SCSI basics
Within the Linux kernel, device types are defined by major numbers. The instances of a given
device type are distinguished by their minor number. They are accessed through special
device files. For SCSI disks, the device files /dev/sdx are used, with x being a letter from a
through z for the first 26 SCSI disks discovered by the system and continuing with aa, ab, ac,
and so on, for subsequent disks. Due to the mapping scheme of SCSI disks and their
partitions to major and minor numbers, each major number allows for only 16 SCSI disk
devices. Therefore we need more than one major number for the SCSI disk device type.
Table A-1 shows the assignment of special device files to major numbers.
Table A-1 Major numbers and special device files
Major number First special device file Last special device file
8 /dev/sda /dev/sdp
65 /dev/sdq /dev/sdaf
66 /dev/sdag /dev/sdav
...
71 /dev/sddi /dev/sddx
128 /dev/sddy /dev/sden
129 /dev/sdeo /dev/sdfd
...
135 /dev/sdig /dev/sdiv
Appendix A. Open systems operating systems specifics 359
Each SCSI device can have up to 15 partitions, which are represented by the special device
files /dev/sda1, /dev/sda2, and so on. The mapping of partitions to special device files and
major and minor numbers is shown in Table A-2.
Table A-2 Minor numbers, partitions and special device files
Missing device files
The Linux distributors do not always create all the possible special device files for SCSI disks.
If you attach more disks than there are special device files available, Linux will not be able to
address them. You can create missing device files with the mknod command. The mknod
command requires four parameters in a fixed order:
򐂰The name of the special device file to create
򐂰The type of the device, b stands for a block device, c for a character device
򐂰The major number of the device
򐂰The minor number of the device
Refer to the manpage of the mknod command for more details. Example A-10 shows the
creation of special device files for the 17th SCSI disks and its first three partitions.
Example: A-10 Create new special device files for SCSI disks
mknod /dev/sdq b 65 0
mknod /dev/sdq1 b 65 1
mknod /dev/sdq2 b 65 2
mknod /dev/sdq3 b 65 3
Major number Minor number Special device file Partition
8 0 /dev/sda all of 1st disk
8 1 /dev/sda1 1st partition of 1st disk
...
8 15 /dev/sda15 15th partition of 1st
disk
8 16 /dev/sdb all of 2nd disk
8 17 /dev/sdb1 1st partition of 2nd disk
...
8 31 /dev/sdb15 15th partition of 2nd
disk
8 32 /dev/sdc all of 3rd disk
...
8 255 /dev/sdp15 15th partition of 16th
disk
65 0 /dev/sdq all of 16th disk
65 1 /dev/sdq1 1st partition on 16th
disk
... ...
360 DS8000 Series: Concepts and Architecture
After creating the device files you may have to change their owner, group, and file permission
settings to be able to use them. Often, the easiest way to do this is by duplicating the settings
of existing device files, as shown in Example A-11. Be aware that after this sequence of
commands, all special device files for SCSI disks have the same permissions. If an
application requires different settings for certain disks, you have to correct them afterwards.
Example: A-11 Duplicating the permissions of special device files
knox:~ # ls -l /dev/sda /dev/sda1
rw-rw---- 1 root disk 8, 0 2003-03-14 14:07 /dev/sda
rw-rw---- 1 root disk 8, 1 2003-03-14 14:07 /dev/sda1
knox:~ # chmod 660 /dev/sd*
knox:~ # chown root:disk /dev/sda*
Managing multiple paths
If you assign a DS8000 volume to a Linux system through more than one path, it will see the
same volume more than once. It will also assign more than one special device file to it. To
utilize the path redundancy and increased I/O bandwidth, you need an additional layer in the
Linux disk subsystem to recombine the multiple disks seen by the system into one, to manage
the paths and to balance the load across them.
The IBM multipathing solution for DS8000 attachment to Linux on Intel IA-32 and IA-64
architectures, IBM pSeries and iSeries is the IBM Subsystem Device Driver (SDD) (see 15.2,
“Subsystem Device Driver” on page 324). SDD for Linux is available in the Linux RPM
package format for all supported distributions from the SDD download site. It is proprietary
and binary only. It only works with certain kernel versions with which it was tested. The
README file on the SDD for Linux download page contains a list of the supported kernels.
The version of the Linux Logical Volume Manager that comes with all current Linux
distributions does not support its physical volumes being placed on SDD vpath devices.
SDD is not available for Linux on zSeries. SUSE Linux Enterprise Server 8 for zSeries comes
with built-in multipathing provided by a patched Logical Volume Manager. Today there is no
multipathing support for Redhat Enterprise Linux for zSeries.
Limited number of SCSI devices
Due to the design of the Linux SCSI I/O subsystem in the Linux Kernel version 2.4, the
number of SCSI disk devices is limited to 256. Attaching devices through more than one path
reduces this number. If, for example, all disks were attached through 4 paths, only up to 64
disks could be used.
SCSI device assignment changes
Linux assigns special device files to SCSI disks in the order they are discovered by the
system. Adding or removing disks can change this assignment. This can cause serious
problems if the system configuration is based on special device names (for example, a file
system that is mounted using the /dev/sda1 device name). You can avoid some of them by
using:
򐂰Disk Labels instead of device names in /etc/fstab
򐂰LVM Logical Volumes instead of /dev/sd.. devices for file systems
Important: The latest update to the SUSE Linux Enterprise Server 8, Service Pack 3, uses
a more dynamic method of assigning major numbers and allows the attachment of up to
2304 SCSI devices.
Appendix A. Open systems operating systems specifics 361
򐂰SDD, which creates a persistent relationship between a DS8000 volume and a vpath
device regardless of the /dev/sd.. devices
RedHat Enterprise Linux (RH-EL) multiple LUN support
RH-EL by default is not configured for multiple LUN support. It will only discover SCSI disks
addressed as LUN 0. The DS8000 provides the volumes to the host with a fixed Fibre
Channel address and varying LUN. Therefore RH-EL 3 will see only one DS8000 volume
(LUN 0), even if more are assigned to it.
Multiple LUN support can be added with an option to the SCSI midlayer Kernel module
scsi_mod. To have multiple LUN support added permanently at boot time of the system, add
the following line to the file /etc/modules.conf:
options scsi_mod max_scsi_luns=128
After saving the file, rebuild the module dependencies by running:
depmod -a
Now you have to rebuild the InitialRAMDisk, using the command:
mkinitrd <initrd-image> <kernel-version>
Issue mkinitrd -h for more help information. A reboot is required to make the changes
effective.
Fibre Channel disks discovered before internal SCSI disks
In some cases, when the Fibre Channel HBAs are added to a RedHat Enterprise Linux
system, they will be automatically configured in a way that they are activated at boot time,
before the built-in parallel SCSI controller that drives the system disks. This will lead to shifted
special device file names of the system disk and can result in the system being unable to boot
properly.
To prevent the FC HBA driver from being loaded before the driver for the internal SCSI HBA
you have to change the /etc/modules.conf file:
򐂰Locate the lines containing scsi_hostadapterx entries where x is a number.
򐂰Reorder these lines: first come the lines containing the name of the internal HBA driver
module, then the ones with the FC HBA module entry.
򐂰Renumber the lines: no number for the first entry, 1 for the second, 2 for the 3rd, and so
on.
After saving the file, rebuild the module dependencies by running:
depmod -a
Now you have to rebuild the InitialRAMDisk, using the command:
mkinitrd <initrd-image> <kernel-version>
Issue mkinitrd -h for more help information. If you reboot now, the SCSI and FC HBA drivers
will be loaded in the correct order.
Example A-12 on page 362 shows how the /etc/modules.conf file should look like with two
Adaptec SCSI controllers and two QLogic 2340 FC HBAs installed. It also contains the line
that enables multiple LUN support. Note that the module names will be different with different
SCSI and Fibre Channel adapters.
362 DS8000 Series: Concepts and Architecture
Example: A-12 Sample /etc/modules.conf
scsi_hostadapter aic7xxx
scsi_hostadapter1 aic7xxx
scsi_hostadapter2 qla2300
scsi_hostadapter3 qla2300
options scsi_mod max_scsi_luns=128
Adding FC disks dynamically
The commonly used way to discover newly attached DS8000 volumes is to unload and reload
the Fibre Channel HBA driver. However, this action is disruptive to all applications that use
Fibre Channel attached disks on this particular host.
A Linux system can recognize newly attached LUNs without unloading the FC HBA driver.
The procedure slightly differs depending on the installed FC HBAs.
In case of QLogic HBAs issue the command:
echo "scsi-qlascan" > /proc/scsi/qla2300/<adapter-instance>
With Emulex HBAs, issue the command:
sh force_lpfc_scan.sh "lpfc<adapter-instance>"
This script is not part of the regular device driver package and must be downloaded
separately:
http://www.emulex.com/ts/downloads/linuxfc/rel/201g/force_lpfc_scan.sh
It requires the tool dfc to be installed under /usr/sbin/lpfc.
In both cases the command must be issued for each installed HBA, with the
<adapter-instance> being the SCSI instance number of the HBA.
After the FC HBAs re-scan the fabric, you can make the new devices available to the system
with the command:
echo "scsi add-single-device s c t l" > /proc/scsi/scsi
The quadruple s c t l is the physical address of the device:
򐂰s is the SCSI instance of the FC HBA
򐂰c is the channel (in our case always 0)
򐂰t is the target address (usually 0, except if a volume is seen by a HBA more than once)
򐂰l is the LUN
The new volumes are added after the already existing ones. The following examples illustrate
this. Example A-13 shows the original disk assignment as it existed since the last system
start.
Example: A-13 SCSi disks attached at system start time
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS8000 volume, seen by HBA 0
/dev/sdc - 2nd DS8000 volume, seen by HBA 0
/dev/sdd - 1st DS8000 volume, seen by HBA 1
/dev/sde - 2nd DS8000 volume, seen by HBA 1
Appendix A. Open systems operating systems specifics 363
Example A-14 shows the SCSI disk assignment after one more DS8000 volume is added.
Example: A-14 SCSi disks after dynamic addition of another DS8000 volume
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS8000 volume, seen by HBA 0
/dev/sdc - 2nd DS8000 volume, seen by HBA 0
/dev/sdd - 1st DS8000 volume, seen by HBA 1
/dev/sde - 2nd DS8000 volume, seen by HBA 1
/dev/sdf - new DS8000 volume, seen by HBA 0
/dev/sdg - new DS8000 volume, seen by HBA 1
The mapping of special device files is now different than it would have been if all three
DS8000 volumes had been already present when the HBA driver was loaded. In other words:
if the system is now restarted, the device ordering will change to what is shown in
Example A-15. See also “SCSI device assignment changes” on page 360.
Example: A-15 SCSi disks after dynamic addition of another DS8000 volume and reboot
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS8000 volume, seen by HBA 0
/dev/sdc - 2nd DS8000 volume, seen by HBA 0
/dev/sdd - new DS8000 volume, seen by HBA 0
/dev/sde - 1st DS8000 volume, seen by HBA 1
/dev/sdf - 2nd DS8000 volume, seen by HBA 1
/dev/sdg - new DS8000 volume, seen by HBA 1
Gaps in the LUN sequence
The Qlogic HBA driver cannot deal with gaps in the LUN sequence. When it tries to discover
the attached volumes, it probes for the different LUNs, starting at LUN 0 and continuing until it
reaches the first LUN without a device behind it.
When assigning volumes to a Linux host with QLogic FC HBAs, make sure LUNs start at 0
and are in consecutive order. Otherwise the LUNs after a gap will not be discovered by the
host. Gaps in the sequence can occur when you assign volumes to a Linux host that are
already assigned to another server.
The Emulex HBA driver behaves differently: it always scans all LUNs up to 127.
Linux on IBM iSeries
Since OS/400 V5R1, it has been possible to run Linux in an iSeries partition. On iSeries
models 270 and 8xx, the primary partition must run OS/400 V5R1 or higher and Linux is run
in a secondary partition. For later i5 systems (models i520, i550, i570 and i595), Linux can
run in any partition.
The DS8000 requires the following iSeries I/O adapters to attach directly to an iSeries or i5
Linux partition:
򐂰0612 Linux Direct Attach PCI
򐂰0626 Linux Direct Attach PCI-X
It is also possible for the Linux partition to have its storage virtualized, whereby a partition
running OS/400 hosts the Linux partition's storage requirements. In this case, if using the
DS8000, they would be attached to the OS/400 partition using either of the following I/O
adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
364 DS8000 Series: Concepts and Architecture
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
For more information on OS/400 support for DS8000, please see Appendix B, “Using DS8000
with iSeries” on page 373.
More information on running Linux in an iSeries partition can be found in the iSeries
Information Center at:
http://publib.boulder.ibm.com/iseries/v5r2/ic2924/index.htm
For running Linux in an i5 partition check, the i5 Information Center at:
http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/info/iphbi/iphbi.pdf
Troubleshooting and monitoring
The /proc pseudo file system
The /proc pseudo file system is maintained by the Linux kernel and provides dynamic
information about the system. The directory /proc/scsi contains information about the
installed and attached SCSI devices.
The file /proc/scsi/scsi contains a list of all attached SCSI devices, including disk, tapes,
processors, and so on. Example A-16 shows a sample /proc/scsi/scsi file.
Example: A-16 Sample /proc/scsi/scsi file
knox:~ # cat /proc/scsi/scsi
Attached devices:
Host: scsi0 Channel: 00 Id: 00 Lun: 00
Vendor: IBM-ESXS Model: DTN036C1UCDY10F Rev: S25J
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi0 Channel: 00 Id: 08 Lun: 00
Vendor: IBM Model: 32P0032a S320 1 Rev: 1
Type: Processor ANSI SCSI revision: 02
Host: scsi2 Channel: 00 Id: 00 Lun: 00
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 00 Lun: 01
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 00 Lun: 02
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 00
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 01
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 02
Vendor: IBM Model: 2107921 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
There also is an entry in /proc for each HBA, with driver and firmware levels, error counters,
and information about the attached devices. Example A-17 on page 365 shows the
condensed content of the entry for a QLogic Fibre Channel HBA.
Appendix A. Open systems operating systems specifics 365
Example: A-17 Sample /proc/scsi/qla2300/x
knox:~ # cat /proc/scsi/qla2300/2
QLogic PCI to Fibre Channel Host Adapter for ISP23xx:
Firmware version: 3.01.18, Driver version 6.05.00b9
Entry address = c1e00060
HBA: QLA2312 , Serial# H28468
Request Queue = 0x21f8000, Response Queue = 0x21e0000
Request Queue count= 128, Response Queue count= 512
.
.
Login retry count = 012
Commands retried with dropped frame(s) = 0
SCSI Device Information:
scsi-qla0-adapter-node=200000e08b0b941d;
scsi-qla0-adapter-port=210000e08b0b941d;
scsi-qla0-target-0=5005076300c39103;
SCSI LUN Information:
(Id:Lun)
( 0: 0): Total reqs 99545, Pending reqs 0, flags 0x0, 0:0:81,
( 0: 1): Total reqs 9673, Pending reqs 0, flags 0x0, 0:0:81,
( 0: 2): Total reqs 100914, Pending reqs 0, flags 0x0, 0:0:81,
Performance monitoring with iostat
The iostat command can be used to monitor the performance of all attached disks. It is
shipped with every major Linux distribution, but not necessarily installed by default. It reads
data provided by the kernel in /proc/stats and prints it in human readable format. See the
manpage of iostat for more details.
The generic SCSI tools
The SUSE Linux Enterprise Server comes with a set of tools that allow low-level access to
SCSI devices. They are called the sg tools. They talk to the SCSI devices through the generic
SCSI layer, which is represented by special device files /dev/sg0, /dev/sg0, and so on.
By default SLES 8 provides sg device files for up to 16 SCSI devices (/dev/sg0 through
/dev/sg15). Additional sg device files can be created using the command mknod. After creating
new sg devices you should change their group setting from root to disk. Example A-18 shows
the creation of /dev/sg16, which would be the first one to create.
Example: A-18 Creation of new device files for generic SCSI devices
mknod /dev/sg16 c 21 16
chgrp disk /dev/sg16
Useful sg tools are:
򐂰sg_inq /dev/sgx prints SCSI Inquiry data, such as the volume serial number.
򐂰sg_scan prints the /dev/sg → scsihost, channel, target, LUN mapping.
򐂰sg_map prints the /dev/sd → /dev/sg mapping.
򐂰sg_readcap prints the block size and capacity (in blocks) of the device.
򐂰sginfo prints SCSI inquiry and mode page data; it also allows manipulating the mode
pages.
366 DS8000 Series: Concepts and Architecture
Microsoft Windows 2000/2003
DS8000 supports FC attachment to Microsoft Windows 2000/2003 servers. For details
regarding operating system versions and HBA types see the DS8000 Interoperability Matrix,
available at:
http://www.ibm.com/servers/storage/disk/ds8000/interop.html
The support includes cluster service and acting as a boot device. Booting is supported
currently with host adapters QLA23xx (32 bit or 64 bit) and LP9xxx (32 bit only). For a
detailed discussion about SAN booting (advantages, disadvantages, potential difficulties, and
troubleshooting) we highly recommend the Microsoft document Boot from SAN in Windows
Server 2003 and Windows 2000 Server, available at:
http://www.microsoft.com/windowsserversystem/storage/technologies/bootfromsan/bootfromsanin
windows.mspx
HBA and operating system settings
Depending on the host bus adapter type, several HBA and driver settings may be required.
Refer to the DS8000 Host Systems Attachment Guide, SC26-7628, for the complete
description of these settings. Although the volumes can be accessed with other settings too,
the values recommended there have been tested for robustness.
To ensure optimum availability and recoverability when you attach a storage unit to a
Windows 2000/2003 host system, we recommend setting the TimeOutValue value
associated with the host adapters to 60 seconds. The operating system uses the
TimeOutValue parameter to bind its recovery actions and responses to the disk subsystem.
The value is stored in the Windows registry at:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Disk\TimeOutValue
The value has the data type REG-DWORD and should be set to 0x0000003c hexadecimal
(60 decimal).
SDD for Windows
An important task with a Windows host is the installation of the SDD multipath driver. Ensure
that SDD is installed before adding additional paths to a device. Otherwise, the operating
system could lose the ability to access existing data on that device. For details, refer to the
IBM TotalStorage Multipath Subsystem Device Driver User’s Guide, SC30-4096. Here we
highlight only some important items:
򐂰SDD does not support I/O load balancing with Windows 2000 server clustering (MSCS).
For Windows 2003, SDD 1.6.0.0 (or later) is required for load balancing with MSCS.
򐂰When booting from the FC storage systems, special restrictions apply:
– With Windows 2000, you should not use the same HBA as both the FC boot device
and the clustering adapter. The reason for this is the usage of SCSI bus resets by
MSCS to break up disk reservations during quorum arbitration. Because a bus reset
cancels all pending I/O operations to all FC disks visible to the host via that port, an
MSCS-initiated bus reset may cause operations on the C:\ drive to fail.
Note: Because Windows NT is no longer supported by Microsoft (and DS8000 support is
provided on RPQ only), we do not discuss Windows NT here.
Appendix A. Open systems operating systems specifics 367
– With Windows 2003, MSCS uses target resets. See the Microsoft technical article
Microsoft Windows Clustering: Storage Area Networks at:
http://www.microsoft.com/windowsserver2003/techinfo/overview/san.mspx
Windows Server 2003 will allow for boot disk and the cluster server disks hosted on the
same bus. However, you would need to use Storport miniport HBA drivers for this
functionality to work. This is not a supported configuration in combination with drivers
of other types (for example, SCSI port miniport or Full port drivers).
– If you reboot a system with adapters while the primary path is in a failed state, you
must manually disable the BIOS on the first adapter and manually enable the BIOS on
the second adapter. You cannot enable the BIOS for both adapters at the same time. If
the BIOS for both adapters is enabled at the same time and there is a path failure on
the primary adapter, the system will stop with an INACCESSIBLE_BOOT_DEVICE
error upon reboot.
Windows Server 2003 VDS support
With Windows Server 2003 Microsoft introduced the Virtual Disk Service (VDS). It unifies
storage management and provides a single interface for managing block storage
virtualization. This interface is vendor and technology neutral, and is independent of the layer
where virtualization is done, operating system software, RAID storage hardware, or other
storage virtualization engines.
VDS is a set of APIs which uses two sets of providers to manage storage devices. The built-in
VDS software providers enable you to manage disks and volumes at the operating system
level. VDS hardware providers supplied by the hardware vendor enable you to manage
hardware RAID arrays. Windows Server 2003 components that work with VDS include the
Disk Management MMC snap-in, the DiskPart command-line tool, and the DiskRAID
command-line tool, which is available in the Windows Server 2003 Deployment Kit.
Figure A-1 shows the VDS architecture.
Figure A-1 Microsoft VDS Architecture
Software Providers:
•Basic Disks
•Dynamic Disks
Disk Management
MMC Snap-in
Hardware Providers
Virtual Disk Service
Command-Line Tools:
•DiskPart
•DiskRAID
Storage Management
Applications
LUNs
Other
Disk
Subsystem
DS8000/DS6000
HDDs
Non-Microsoft Functionality
Hardware
Microsoft Functionality
Software Providers:
•Basic Disks
•Dynamic Disks
Disk Management
MMC Snap-in
Hardware Providers
Virtual Disk Service
Command-Line Tools:
•DiskPart
•DiskRAID
Storage Management
Applications
LUNs
Other
Disk
Subsystem
DS8000/DS6000
HDDs
Non-Microsoft Functionality
Hardware
Microsoft Functionality
368 DS8000 Series: Concepts and Architecture
For a detailed description of VDS, refer to the Microsoft Windows Server 2003 Virtual Disk
Service Technical Reference at:
http://www.microsoft.com/Resources/Documentation/windowsserv/2003/all/techref/en-us/W2K3TR_
vds_intro.asp
The DS8000 can act as a VDS hardware provider. The implementation is based on the DS
Common Information Model (CIM) agent, a middleware application that provides a
CIM-compliant interface. The Microsoft Virtual Disk Service uses the CIM technology to list
information and manage LUNs. See the IBM TotalStorage DS Open Application Programming
Interface Reference, GC35-0493, for information on how to install and configure VDS
support.
The following sections present examples of VDS integration with advanced functions of the
DS8000 storage systems that became possible with the implementation of the DS CIM agent.
Geographically Dispersed Sites
Geographically Dispersed Sites (GDS) for MSCS is designed to provide high availability and a
disaster recovery solution for clustered Microsoft Server environments. It integrates Microsoft
Cluster Service (MSCS) and the Metro Mirror (PPRC) feature of the DS8000. It is designed to
allow Microsoft Cluster installations to span geographically dispersed sites and help protect
clients from site disasters or storage system failures. This solution is offered through IBM
storage services.
For more details about GDS refer to:
http://www.ibm.com/servers/storage/solutions/business_continuity/pdf/IBM_TotalStorage_GDS_W
hitepaper.pdf
Volume Shadow Copy Service
The Volume Shadow Copy Service provides a mechanism for creating consistent
point-in-time copies of data, known as shadow copies. It integrates IBM TotalStorage
FlashCopy to produce consistent shadow copies, while also coordinating with business
applications, file-system services, backup applications and fast-recovery solutions.
For more information refer to:
http://www.microsoft.com/resources/documentation/WindowsServ/2003/all/techref/en-us/w2k3tr_
vss_how.asp
HP OpenVMS
DS8000 supports FC attachment of OpenVMS Alpha systems with operating system
Version 7.3 or newer. For details regarding operating system versions and HBA types, see
the DS8000 Interoperability Matrix, available at:
http://www.ibm.com/servers/storage/disk/ds8000/interop.html
The support includes clustering and multiple paths (exploiting the OpenVMS built-in
multipathing). Boot support is available via Request for Price Quotations (RPQ). The DS API
and the DS CLI are currently not available for OpenVMS.
FC port configuration
The OpenVMS FC driver has some limitations in handling FC error recovery. The operating
system may react to some situations with MountVerify conditions which are not recoverable.
Affected processes may hang and eventually stop.
Appendix A. Open systems operating systems specifics 369
Instead of writing a special OpenVMS driver, it has been decided to handle this in the
DS8000 host adapter microcode. As a result, DS8000 FC ports cannot be shared between
OpenVMS and non-OpenVMS hosts.
You must dedicate storage ports for only the OpenVMS host type. Multiple OpenVMS
systems can access the same port. Appropriate zoning must be enforced from the beginning.
Wrong access to storage ports used by OpenVMS hosts may clear the OpenVMS-specific
settings for these ports. This might remain undetected for a long time—until some failure
happens, and by then I/Os might be lost. It is worth mentioning that OpenVMS is the only
platform with such a restriction (usually, different open systems platforms can share the same
DS8000 FC adapters).
Volume configuration
OpenVMS Fibre Channel devices have device names according to the schema:
$1$DGA<n>
with the following elements:
򐂰The first portion $1$ of the device name is the allocation class (a decimal number in the
range 1–255). FC devices always have the allocation class 1.
򐂰The following two letters encode the drivers where the first letter denotes the device class
(D= disks, M= magnetic tapes) and the second letter the device type (K= SCSI, G= Fibre
Channel). So all Fibre Channel disk names contain the code DG.
򐂰The third letter denotes the adapter channel (from range A to Z). Fibre Channel devices
always have the channel identifier A.
򐂰The number <n> is the User-Defined ID (UDID), a number from the range 0–32767 which
is provided by the storage system in response to an OpenVMS-special SCSI inquiry
command (from the range of command codes reserved by the SCSI standard for vendor’s
private use).
OpenVMS does not identify a Fibre Channel disk by its path or SCSI target/LUN like other
operating systems. It relies on the UDID. Although OpenVMS uses the WWID to control all
FC paths to a disk, a Fibre Channel disk which does not provide this additional UDID cannot
be recognized by the operating system.
In the DS8000, the volume name acts as the UDID for OpenVMS hosts. If the character string
of the volume name evaluates to an integer in the range 0–32767, then this integer is replied
as the answer when an OpenVMS host asks for the UDID.
The DS management utilities do not enforce UDID rules. They accept incorrect values that
are not valid for OpenVMS. It is possible to assign the same UDID value to multiple DS8000
volumes. However, because the UDID is in fact the device ID seen by the operating system,
several consistency rules have to be fulfilled. These rules are described in detail in the
OpenVMS operating system documentation (see HP Guidelines for OpenVMS Cluster
Configurations):
Important: The DS8000 FC ports used by OpenVMS hosts must not be accessed by any
other operating system, not even accidentally. The OpenVMS hosts have to be defined for
access to these ports only, and it must be ensured that no foreign HBA (without definition
as an OpenVMS host) is seen by these ports. Conversely, an OpenVMS host must have
access only to DS8000 ports configured for OpenVMS compatibility.
370 DS8000 Series: Concepts and Architecture
򐂰Every FC volume must have a UDID that is unique throughout the OpenVMS cluster that
accesses the volume. The same UDID may be used in a different cluster or for different
stand-alone host.
򐂰If the volume is planned for MSCP serving, then the UDID range is limited to 0–9999 (by
operating system restrictions in the MSCP code).
OpenVMS system administrators tend to use elaborate schemes for assigning UDIDs, coding
several hints about physical configuration into this logical ID, for instance odd/even values or
reserved ranges to distinguish between multiple data centers, storage systems, or disk
groups. Thus they must be able to provide these numbers without additional restrictions
imposed by the storage system. In the DS8000 UDID is implemented with full flexibility, which
leaves the responsibility about restrictions to the customer.
Command Console LUN
HP StorageWorks FC controllers use LUN 0 as Command Console LUN (CCL) for
exchanging commands and information with in-band management tools. This concept is
similar to the Access LUN of IBM TotalStorage DS4000 (FAStT) controllers.
Because the OpenVMS FC driver has been written with StorageWorks controllers in mind,
OpenVMS always considers LUN 0 as CCL, never presenting this LUN as disk device. On HP
StorageWorks HSG and HSV controllers, you cannot assign LUN 0 to a volume.
The DS8000 assigns LUN numbers per host using the lowest available number. The first
volume that is assigned to a host becomes this host’s LUN 0, the next volume is LUN 1, and
so on.
Because OpenVMS considers LUN 0 as CCL, the first DS8000 volume assigned to the host
cannot be used even when a correct UDID has been defined. So we recommend creating the
first OpenVMS volume with a minimum size as a dummy volume for usage as the CCL.
Multiple OpenVMS hosts, even in different clusters, that access the same storage system,
can share the same volume as LUN 0, because there will be no other activity to this volume.
In large configurations with more than 256 volumes per OpenVMS host or cluster, it might be
necessary to introduce another dummy volume (when LUN numbering starts again with 0).
Defining a UDID for the CCL is not required by the OpenVMS operating system. OpenVMS
documentation suggests that you always define a unique UDID since this identifier causes the
creation of a CCL device visible for the OpenVMS command show device or other tools.
Although an OpenVMS host cannot use the LUN for any other purpose, you can display the
multiple paths to the storage device, and diagnose failed paths. Fibre Channel CCL devices
have the OpenVMS device type GG.
OpenVMS volume shadowing
OpenVMS disks can be combined in host-based mirror sets, called OpenVMS shadow sets.
This functionality is often used to build disaster-tolerant OpenVMS clusters.
The OpenVMS shadow driver has been designed for disks according to DEC’s Digital
Storage Architecture (DSA). This architecture, forward-looking in the 1980s, includes some
requirements which are handled by today’s SCSI/FC devices with other approaches. Two
such things are the forced error indicator and the atomic revector operation for bad-block
replacement.
When a DSA controller detects an unrecoverable media error, a spare block is revectored to
this logical block number, and the contents of the block are marked with a forced error. This
Appendix A. Open systems operating systems specifics 371
causes subsequent read operations to fail, which is the signal to the shadow driver to execute
a repair operation using data from another copy.
However, there is no forced error indicator in the SCSI architecture, and the revector
operation is nonatomic. As a substitute, the OpenVMS shadow driver exploits the SCSI
commands READ LONG (READL) and WRITE LONG (WRITEL), optionally supported by
some SCSI devices. These I/O functions allow data blocks to be read and written together
with their disk device error correction code (ECC). If the SCSI device supports
READL/WRITEL, OpenVMS shadowing emulates the DSA forced error with an intentionally
incorrect ECC. For details see Scott H. Davis, Design of VMS Volume Shadowing Phase II —
Host-based Shadowing, Digital Technical Journal Vol. 3 No. 3, Summer 1991, archived at:
http://research.compaq.com/wrl/DECarchives/DTJ/DTJ301/DTJ301SC.TXT
The DS8000 provides volumes as SCSI-3 devices and thus does not implement a forced
error indicator. It also does not support the READL and WRITEL command set for data
integrity reasons.
Usually the OpenVMS SCSI Port Driver recognizes if a device supports READL/WRITEL,
and the driver sets the NOFE (no forced error) bit in the Unit Control Block. You can verify this
setting with the SDA utility: After starting the utility with the analyze/system command, enter
the show device command at the SDA prompt. Then the NOFE flag should be shown in the
device’s characteristics.
The OpenVMS command for mounting shadow sets provides a qualifier
/override=no_forced_error to support non-DSA devices. To avoid possible problems
(performance loss, unexpected error counts, or even removal of members from the shadow
set), we recommend you apply this qualifier.
372 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 373
Appendix B. Using DS8000 with iSeries
In this appendix, the following topics are discussed:
򐂰Supported environment
򐂰Logical volume sizes
򐂰Protected versus unprotected volumes
򐂰Multipath
򐂰Adding units to OS/400 configuration
򐂰Sizing guidelines
򐂰Migration
򐂰Linux and AIX support
B
374 DS8000 Series: Concepts and Architecture
Supported environment
Not all hardware and software combinations for OS/400 support the DS8000. This section
describes the hardware and software pre-requisites for attaching the DS8000.
Hardware
The DS8000 is supported on all iSeries models which support Fibre Channel attachment for
external storage. Fibre Channel was supported on all model 8xx onwards. AS/400 models
7xx and prior only supported SCSI attachment for external storage, so they cannot support
the DS8000.
There are two Fibre Channel adapters for iSeries. Both support the DS8000:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
Each adapter requires its own dedicated I/O processor.
The iSeries Storage Web page provides information about current hardware requirements,
including support for switches. This can be found at:
http://www-1.ibm.com/servers/eserver/iseries/storage/storage_hw.html
Software
The iSeries must be running V5R2 or V5R3 (i5/OS) of OS/400. In addition, at the time of
writing, the following PTFs are required:
򐂰V5R2
– MF33327, MF33301, MF33469, MF33302, SI14711 and SI14754
򐂰V5R3
– MF33328, MF33845, MF33437, MF33303, SI14690, SI14755 and SI14550
Prior to attaching the DS8000 to iSeries, you should check for the latest PTFs, which may
have superseded those shown here.
Logical volume sizes
OS/400 is supported on DS8000 as Fixed Block storage. Unlike other Open Systems using
FB architecture, OS/400 only supports specific volume sizes and these may not be an exact
number of extents. In general, these relate to the volume sizes available with internal devices,
although some larger sizes are now supported for external storage only. OS/400 volumes are
defined in decimal Gigabytes (109bytes).
Table B-1 gives the number of extents required for different iSeries volume sizes.
Table B-1 OS/400 logical volume sizes
Model type OS/400
Device
size (GB)
Number
of LBAs
Extents Unusable
space
(GiB)
Usable
space%
Unprotected Protected
2107-A01 2107-A81 8.5 16,777,216 8 0.00 100.00
2107-A02 2107-A82 17.5 34,275,328 17 0.66 96.14
Appendix B. Using DS8000 with iSeries 375
When creating the logical volumes for use with OS/400, you will see that in almost every
case, the OS/400 device size doesn’t match a whole number of extents, and so some space
will be wasted. You should use the figures in Table B-1 on page 374 in conjunction with
Figure 9-8 on page 176 to see how much space will be wasted for your specific configuration.
You should also note that the #2766 and #2787 Fibre Channel Disk Adapters used by iSeries
can only address 32 LUNs, so creating more, smaller LUNs will require more IOAs and their
associated IOPs. For more sizing guidelines for OS/400, refer to “Sizing guidelines” on
page 396.
Protected versus unprotected volumes
When defining OS/400 logical volumes, you must decide whether these should be protected
or unprotected. This is simply a notification to OS/400 – it does not mean that the volume is
protected or unprotected. In reality, all DS8000 LUNs are protected, either RAID-5 or
RAID-10. Defining a volume as unprotected means that it is available for OS/400 to mirror that
volume to another of equal capacity — either internal or external. If you do not intend to use
OS/400 (host based) mirroring, you should define your logical volumes as protected.
Under some circumstances, you may wish to mirror the OS/400 Load Source Unit (LSU) to a
LUN in the DS8000. In this case, only one LUN should be defined as unprotected; otherwise,
when mirroring is started to mirror the LSU to the DS8000 LUN, OS/400 will attempt to mirror
all unprotected volumes.
Changing LUN protection
It is not possible to simply change a volume from protected to unprotected, or vice versa. If
you wish to do so, you must delete the logical volume. This will return the extents used for that
volume to the extent pool. You will then be able to create a new logical volume with the
correct protection. This is unlike ESS E20, F20, and 800, where the entire array containing
the logical volume had to be reformatted.
However, before deleting the logical volume on the DS8000, you must first remove it from the
OS/400 configuration (assuming it was still configured). This is an OS/400 task which is
disruptive if the disk is in the System ASP or User ASPs 2-32 because it requires an IPL of
OS/400 to completely remove the volume from the OS/400 configuration. This is no different
from removing an internal disk from an OS/400 configuration. Indeed, deleting a logical
volume on the DS8000 is similar to physically removing a disk drive from an iSeries. Disks
can be removed from an Independent ASP with the IASP varied off without IPLing the
system.
2107-A05 2107-A85 35.1 68,681,728 33 0.25 99.24
2107-A04 2107-A84 70.5 137,822,208 66 0.28 99.57
2107-A06 2107-A86 141.1 275,644,416 132 0.56 99.57
2107-A07 2107-A87 282.2 551,288,832 263 0.13 99.95
Note: In Table B-1, GiB represents “Binary Gigabytes” (230 bytes) and GB represents
“Decimal Gigabytes” (109 bytes)
Model type OS/400
Device
size (GB)
Number
of LBAs
Extents Unusable
space
(GiB)
Usable
space%
Unprotected Protected
376 DS8000 Series: Concepts and Architecture
Adding volumes to iSeries configuration
Once the logical volumes have been created and assigned to the host, they will appear as
non-configured units to OS/400. This may be some time after being created on the DS8000.
At this stage, they are used in exactly the same way as non-configured internal units. There is
nothing particular to external logical volumes as far as OS/400 is concerned. You should use
the same functions for adding the logical units to an Auxiliary Storage Pool (ASP) as you
would for internal disks.
Using 5250 interface
Adding disk units to the configuration can be done either using the green screen interface
with Dedicated Service Tools (DST) or System Service Tools (SST), or with the iSeries
Navigator GUI. The following example shows how to add a logical volume in the DS8000 to
the System ASP, using green screen SST.
1. Start System Service Tools STRSST and sign on.
2. Select option 3, Work with disk units as shown in Figure B-1.
Figure B-1 System Service Tools menu
3. Select Option 2, Work with disk configuration as shown in Figure B-2 on page 376.
Figure B-2 Work with Disk Units menu
System Service Tools (SST)
Select one of the following:
1. Start a service tool
2. Work with active service tools
3. Work with disk units
4. Work with diskette data recovery
5. Work with system partitions
6. Work with system capacity
7. Work with system security
8. Work with service tools user IDs
Selection
3
F3=Exit F10=Command entry F12=Cancel
Work with Disk Units
Select one of the following:
1. Display disk configuration
2. Work with disk configuration
3. Work with disk unit recovery
Selection
2
F3=Exit F12=Cancel
Appendix B. Using DS8000 with iSeries 377
4. When adding disk units to a configuration, you can add them as empty units by selecting
Option 2 or you can choose to allow OS/400 to balance the data across all the disk units.
Normally, we recommend balancing the data. Select Option 8, Add units to ASPs and
balance data as shown in Figure B-3.
Figure B-3 Work with Disk Configuration menu
5. Figure B-4 on page 377 shows the Specify ASPs to Add Units to panel. Specify the ASP
number next to the desired units. Here we have specified ASP1, the System ASP. Press
Enter.
Figure B-4 Specify ASPs to Add Units to
6. The Confirm Add Units panel will appear for review as shown in Figure B-5. If everything is
correct, press Enter to continue.
Work with Disk Configuration
Select one of the following:
1. Display disk configuration
2. Add units to ASPs
3. Work with ASP threshold
4. Include unit in device parity protection
5. Enable remote load source mirroring
6. Disable remote load source mirroring
7. Start compression on non-configured units
8. Add units to ASPs and balance data
9. Start device parity protection
Selection
8
F3=Exit F12=Cancel
Specify ASPs to Add Units to
Specify the ASP to add each unit to.
Specify Serial Resource
ASP Number Type Model Capacity Name
21-662C5 4326 050 35165 DD124
21-54782 4326 050 35165 DD136
1 75-1118707 2107 A85 35165 DD006
F3=Exit F5=Refresh F11=Display disk configuration capacity
F12=Cancel
378 DS8000 Series: Concepts and Architecture
Figure B-5 Confirm Add Units
7. Depending on the number of units you are adding, this step could take some time. When it
completes, display your disk configuration to verify the capacity and data protection.
Adding volumes to an Independent Auxiliary Storage Pool
Independent Auxiliary Storage Pools (IASPs) can be switchable or private. Disks are added to
an IASP using the iSeries navigator GUI. In this example, we are adding a logical volume to a
private (non-switchable) IASP.
1. Start iSeries Navigator. Figure B-6 on page 378 shows the initial panel.
Figure B-6 iSeries Navigator initial panel
Confirm Add Units
Add will take several minutes for each unit. The system will
have the displayed protection after the unit(s) are added.
Press Enter to confirm your choice for Add units.
Press F9=Capacity Information to display the resulting capacity.
Press F12=Cancel to return and change your choice.
Serial Resource
ASP Unit Number Type Model Name Protection
1 Unprotected
1 02-89058 6717 074 DD004 Device Parity
2 68-0CA4E32 6717 074 DD003 Device Parity
3 68-0C9F8CA 6717 074 DD002 Device Parity
4 68-0CA5D96 6717 074 DD001 Device Parity
5 75-1118707 2107 A85 DD006 Unprotected
F9=Resulting Capacity F12=Cancel
Appendix B. Using DS8000 with iSeries 379
2. Expand the iSeries to which you wish to add the logical volume and sign on to that server
as shown in Figure B-7.

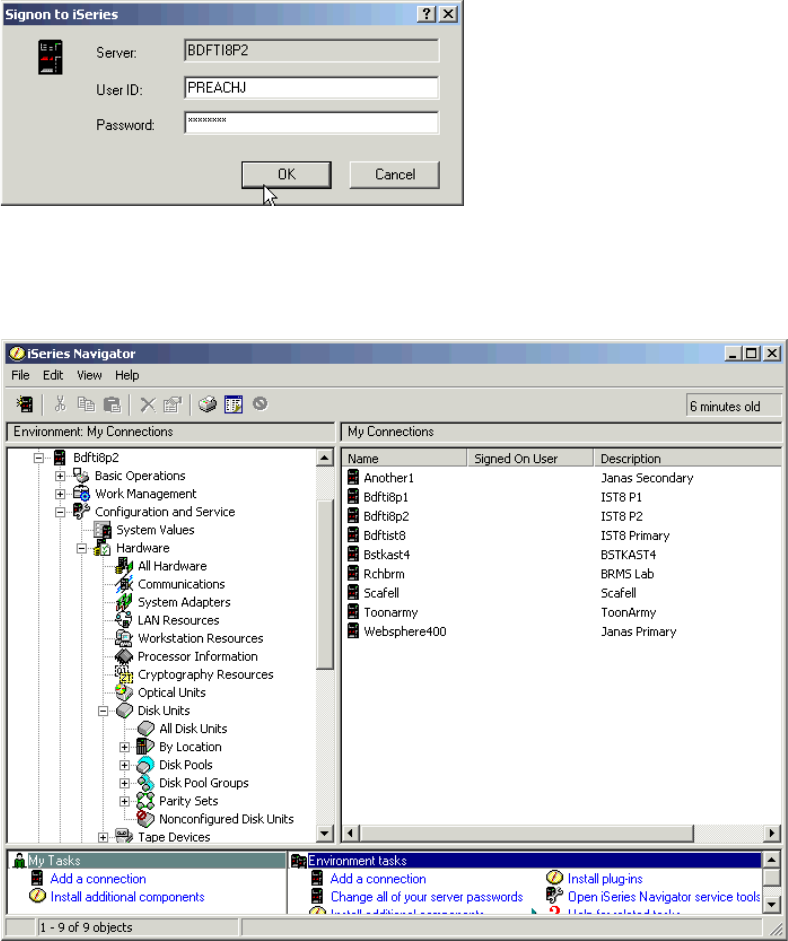

Figure B-7 iSeries Navigator Signon to iSeries window
3. Expand Configuration and Service, Hardware, and Disk Units as shown in Figure B-8
on page 379.
Figure B-8 iSeries Navigator Disk Units
4. You will be asked to sign on to SST as shown in Figure B-9. Enter your Service tools ID
and password and press OK.
380 DS8000 Series: Concepts and Architecture

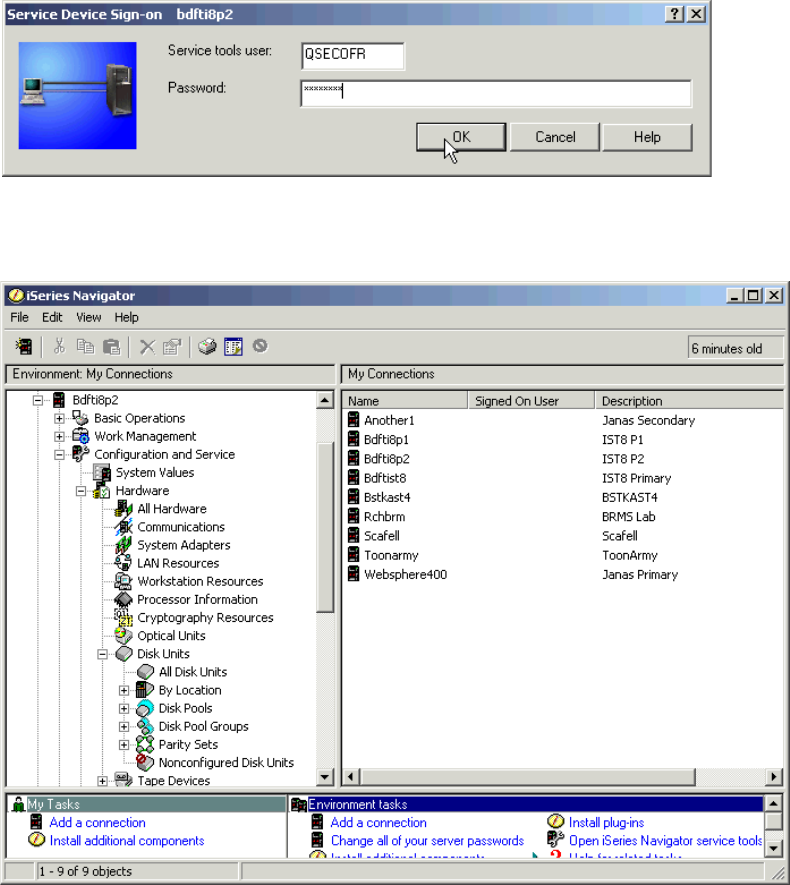

Figure B-9 SST Signon
5. Right-click Disk Pools and select New Disk Pool as shown in Figure B-10 on page 380.
Figure B-10 Create a new disk pool
6. The New Disk Pool wizard appears as shown in Figure B-11. Click Next.
Appendix B. Using DS8000 with iSeries 381

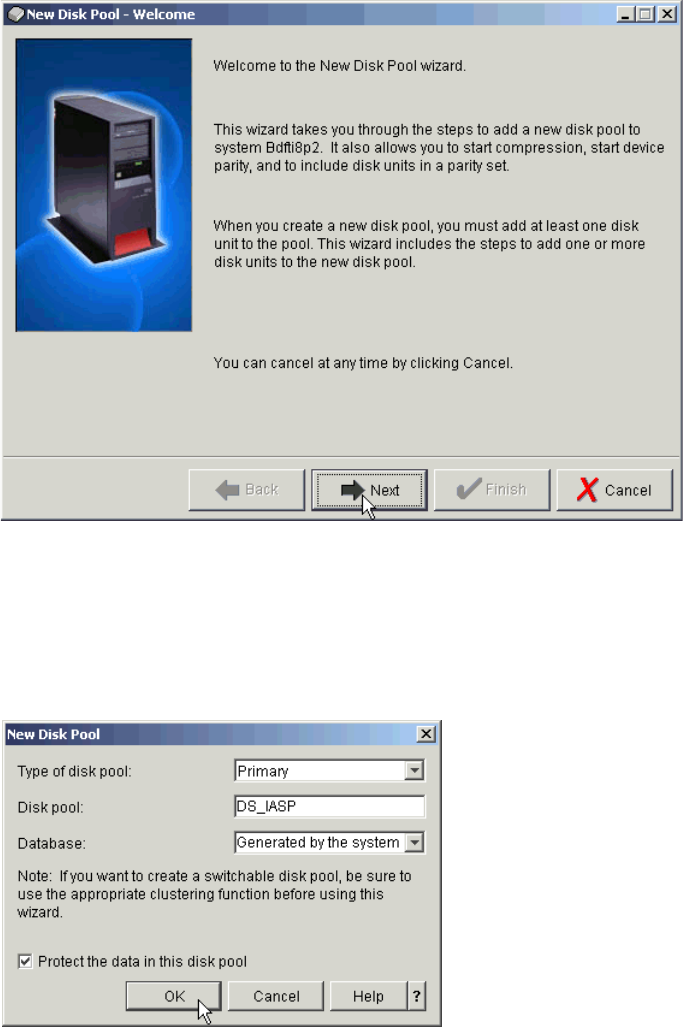

Figure B-11 New disk pool - welcome
7. On the New Disk Pool dialog shown in Figure B-12, select Primary from the pull-down for
the Type of disk pool, give the new disk pool a name and leave Database to default to
Generated by the system. Ensure the disk protection method matches the type of logical
volume you are adding. If you leave it unchecked, you will see all available disks. Select
OK to continue.
Figure B-12 Defining a new disk pool
8. A confirmation panel like that shown in Figure B-13 will appear to summarize the disk pool
configuration. Select Next to continue.
382 DS8000 Series: Concepts and Architecture
Figure B-13 Confirm disk pool configuration
9. Now you need to add disks to the new disk pool. On the Add to disk pool screen, click the
Add disks button as shown in Figure B-14 on page 382.

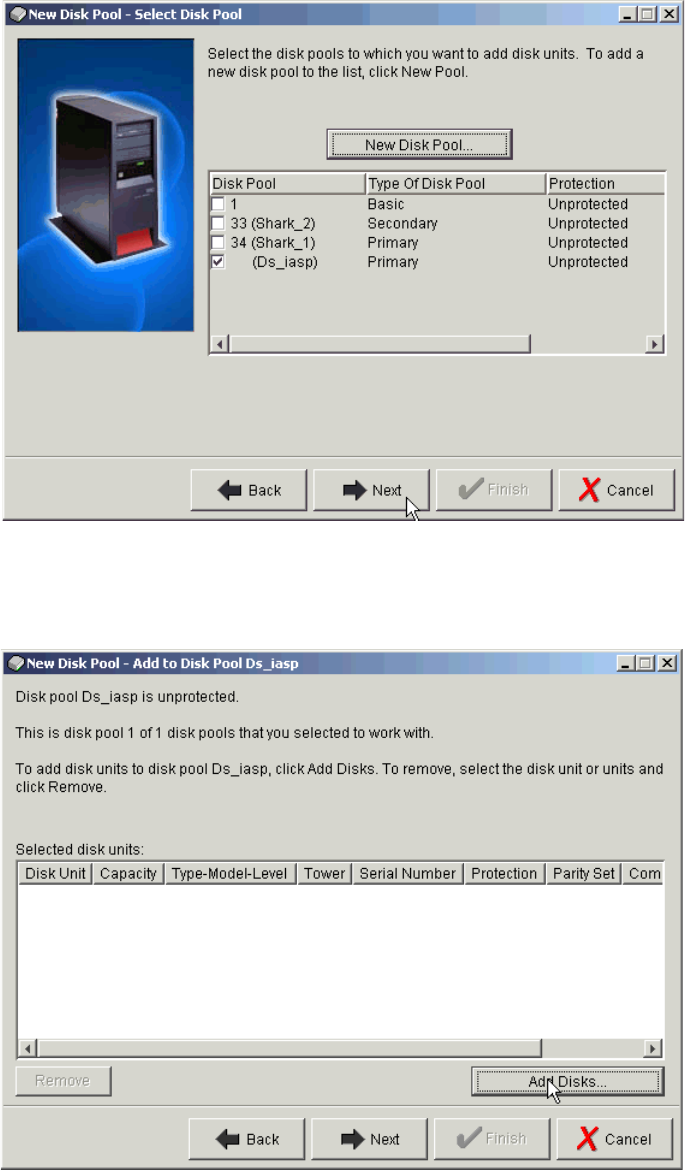

Figure B-14 Add disks to Disk Pool
10.A list of non-configured units similar to that shown in Figure B-15 will appear. Highlight the
disks you want to add to the disk pool and click Add.
Appendix B. Using DS8000 with iSeries 383

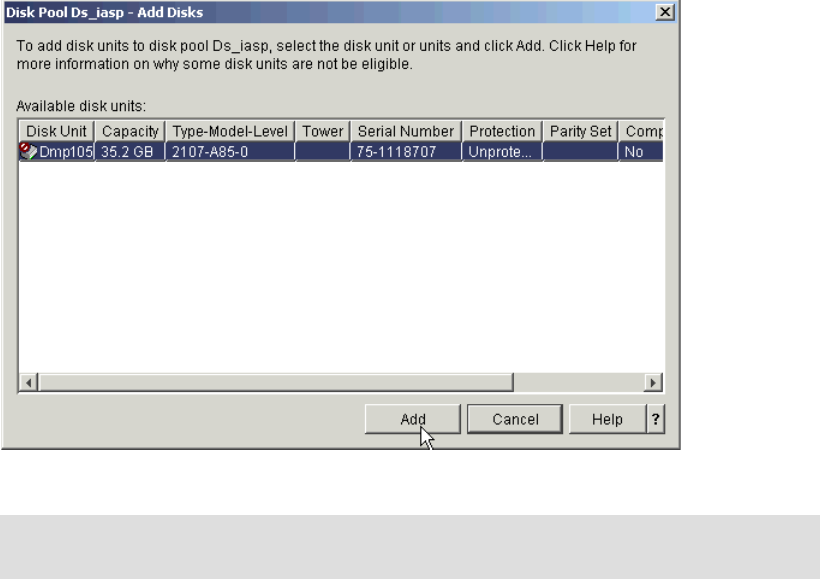

Figure B-15 Choose the disks to add to the Disk Pool
11.A confirmation screen appears as shown in Figure B-16 on page 383. Click Next to
continue.
Figure B-16 Confirm disks to be added to Disk Pool
12.A summary of the Disk Pool configuration similar to Figure B-17 appears. Click Finish to
add the disks to the Disk Pool.
384 DS8000 Series: Concepts and Architecture

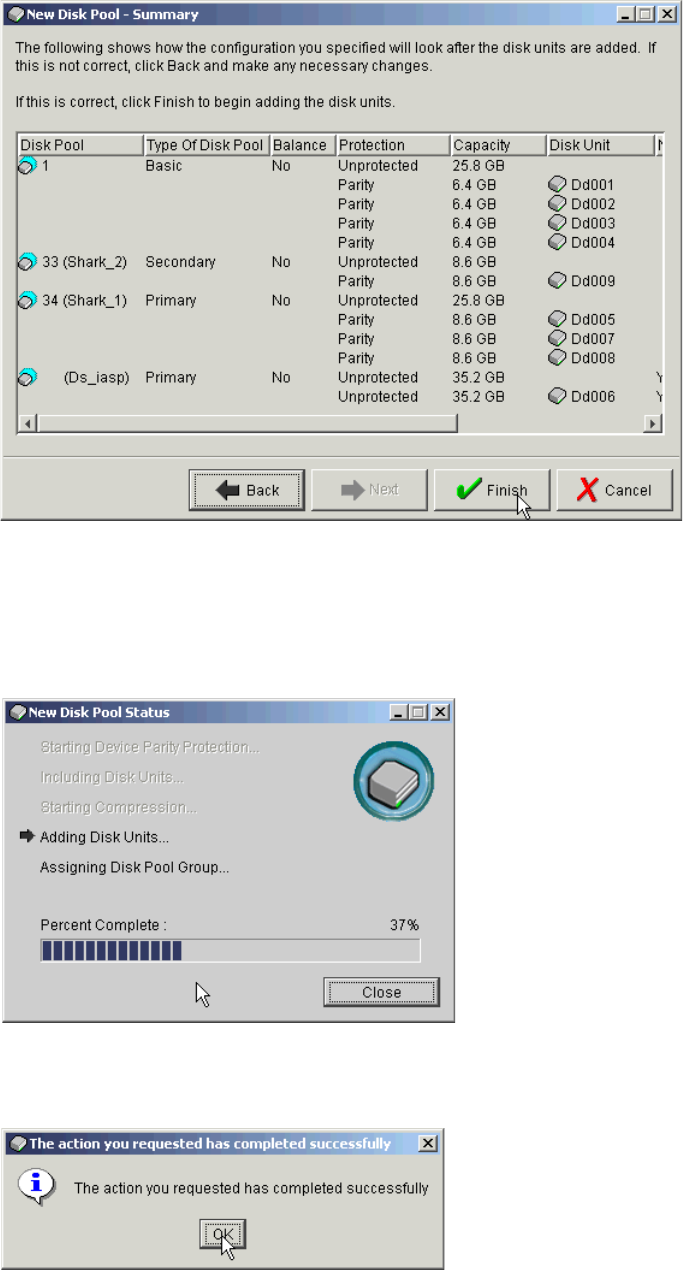

Figure B-17 New Disk Pool Summary
13.Take note of and respond to any message dialogs which appear. After taking action on any
messages, the New Disk Pool Status panel shown in Figure B-18 on page 384 will appear
showing progress. This step may take some time, depending on the number and size of
the logical units being added.
Figure B-18 New Disk Pool Status
14.When complete, click OK on the information panel shown in Figure B-19.
Figure B-19 Disks added successfully to Disk Pool
Appendix B. Using DS8000 with iSeries 385
15.The new Disk Pool can be seen on iSeries Navigator Disk Pools in Figure B-20.

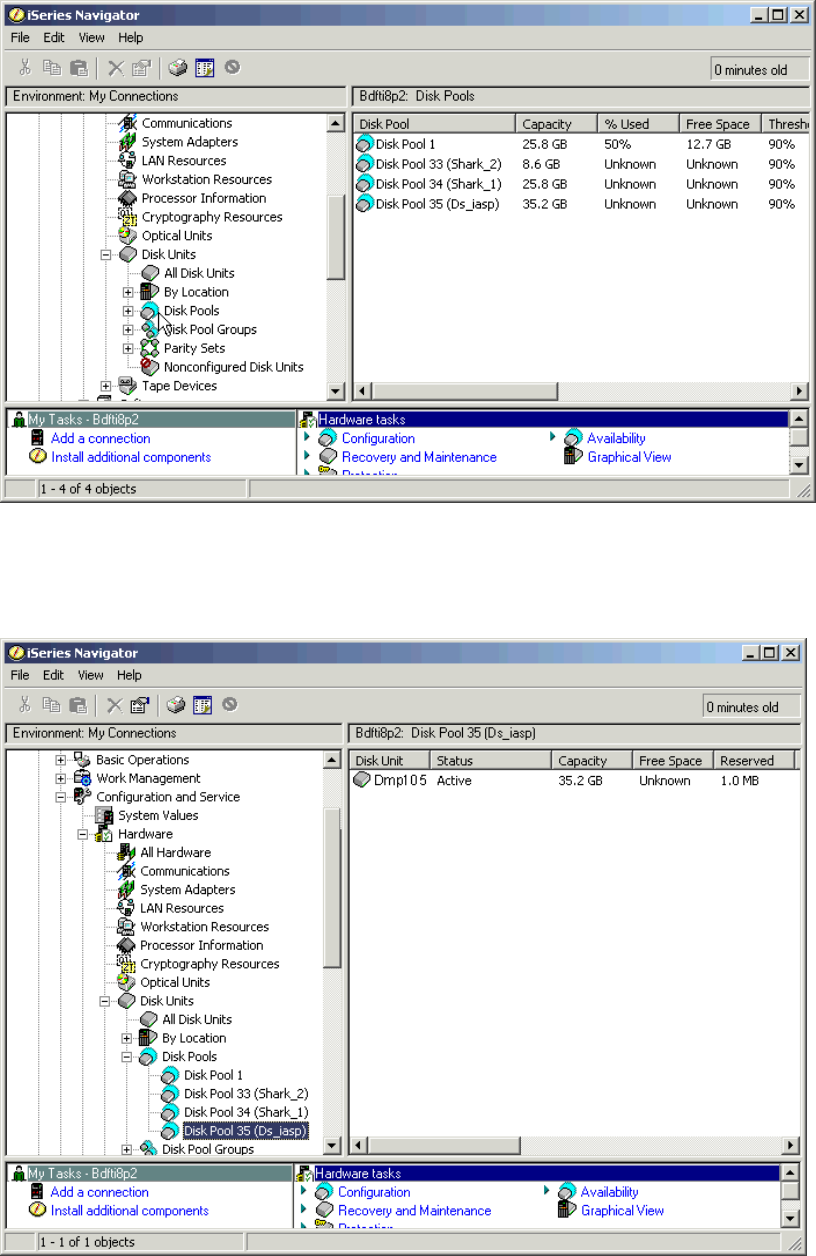

Figure B-20 New Disk Pool shown on iSeries Navigator
16.To see the logical volume, as shown in Figure B-21, expand Configuration and Service,
Hardware, Disk Pools and click the disk pool you just created.
Figure B-21 New logical volume shown on iSeries Navigator
386 DS8000 Series: Concepts and Architecture
Multipath
Multipath support was added for external disks in V5R3 of i5/OS (also known as OS/400
V5R3). Unlike other platforms which have a specific software component, such as Subsystem
Device Driver (SDD), multipath is part of the base operating system. At V5R3, up to eight
connections can be defined from multiple I/O adapters on an iSeries server to a single logical
volume in the DS8000. Each connection for a multipath disk unit functions independently.
Several connections provide availability by allowing disk storage to be utilized even if a single
path fails.
Multipath is important for iSeries because it provides greater resilience to SAN failures, which
can be critical to OS/400 due to the single level storage architecture. Multipath is not available
for iSeries internal disk units but the likelihood of path failure is much less with internal drives.
This is because there are fewer interference points where problems can occur, such as long
fiber cables and SAN switches, as well as the increased possibility of human error when
configuring switches and external storage, and the concurrent maintenance on the DS8000
which may make some paths temporarily unavailable.
Many iSeries customers still have their entire environment in the System ASP and loss of
access to any disk will cause the system to fail. Even with User ASPs, loss of a UASP disk will
eventually cause the system to stop. Independent ASPs provide isolation such that loss of
disks in the IASP will only affect users accessing that IASP while the rest of the system is
unaffected. However, with multipath, even loss of a path to disk in an IASP will not cause an
outage.
Prior to multipath being available, some customers used OS/400 mirroring to two sets of
disks, either in the same or different external disk subsystems. This provided implicit
dual-path as long as the mirrored copy was connected to a different IOP/IOA, BUS, or I/O
tower. However, this also required two copies of data. Since disk level protection is already
provided by RAID-5 or RAID-10 in the external disk subsystem, this was sometimes seen as
unnecessary.
With the combination of multipath and RAID-5 or RAID-10 protection in the DS8000, we can
provide full protection of the data paths and the data itself without the requirement for
additional disks.
Avoiding single points of failure
In Figure B-22, there are fifteen single points of failure, excluding the iSeries itself and the
DS8000 storage facility. Failure points 9-12 will not be present if you do not use an Inter
Switch Link (ISL) to extend your SAN. An outage to any one of these components (either
planned or unplanned) would cause the system to fail if IASPs are not used (or the
applications within an IASP if they are).
Appendix B. Using DS8000 with iSeries 387
Figure B-22 Single points of failure
When implementing multipath, you should provide as much redundancy as possible. As a
minimum, multipath requires two IOAs connecting the same logical volumes. Ideally, these
should be on different buses and in different I/O racks in the iSeries. If a SAN is included,
separate switches should also be used for each path. You should also use Host Adapters in
different I/O drawer pairs in the DS8000. Figure B-23 on page 387 shows this.
Figure B-23 Multipath removes single points of failure
Unlike other systems, which may only support two paths (dual-path), OS/400 V5R3 supports
up to eight paths to the same logical volumes. As a minimum, you should use two, although
some small performance benefits may be experienced with more. However, since OS/400
multipath spreads I/O across all available paths in a round-robin manner, there is no load
balancing, only load sharing.
Configuring multipath
iSeries has two I/O adapters that support DS8000:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
6. Port
7. Switch
8. Port
1. IO Frame
2. BUS
3. IOP
4. IOA
5. Cable
9. ISL
13. Cable
10. Port
11. Switch
12. Port
14. Host Adapter
15. IO Drawer
388 DS8000 Series: Concepts and Architecture
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
Both can be used for multipath and there is no requirement for all paths to use the same type
of adapter. Both adapters can address up to 32 logical volumes. This does not change with
multipath support. When deciding how many I/O adapters to use, your first priority should be
to consider performance throughput of the IOA since this limit may be reached before the
maximum number of logical units. See “Sizing guidelines” on page 396 for more information
on sizing and performance guidelines.
Figure B-24 Example of multipath with iSeries
Figure B-24 shows an example where 48 logical volumes are configured in the DS8000. The
first 24 of these are assigned via a host adapter in the top left I/O drawer in the DS8000 to a
Fibre Channel I/O adapter in the first iSeries I/O tower or rack. The next 24 logical volumes
are assigned via a host adapter in the lower left I/O drawer in the DS8000 to a Fibre Channel
I/O adapter on a different BUS in the first iSeries I/O tower or rack. This would be a valid
single path configuration.
To implement multipath, the first group of 24 logical volumes is also assigned to a Fibre
Channel I/O adapter in the second iSeries I/O tower or rack via a host adapter in the lower
right I/O drawer in the DS8000. The second group of 24 logical volumes is also assigned to a
Fibre Channel I/O adapter on a different BUS in the second iSeries I/O tower or rack via a
host adapter in the upper right I/O drawer.
Adding multipath volumes to iSeries using 5250 interface
If using the green screen 5250 interface, sign on to SST and perform the following steps as
described in “Using 5250 interface” on page 376.
1. Option 3, Work with disk units.
2. Option 2, Work with disk configuration.
Volumes 25-48
IO Drawer IO Drawer
IO Drawer IO Drawer
Host Adapter 2
Host Adapter 3
IO Drawers and
Host Adapters
Volumes 1-24
Host Adapter 1
Host Adapter 4
iSeries IO
Towers/Racks
BUS a
BUS b
BUS x
BUS y
FC IOA
FC IOA
FC IOA
FC IOA
Logical connection
Appendix B. Using DS8000 with iSeries 389
3. Option 8, Add units to ASPs and balance data.
You will then be presented with a panel similar to Figure B-25 on page 389. The values in the
Resource Name column show DDxxx for single path volumes and DMPxxx for those which
have more than one path. In this example, the 2107-A85 logical volume with serial number
75-1118707 is available through more than one path and reports in as DMP135.
4. Specify the ASP to which you wish to add the multipath volumes.
Figure B-25 Adding multipath volumes to an ASP
5. You will then be presented with a confirmation screen as shown in Figure B-26. Check the
configuration details and if correct, press Enter to accept.
Figure B-26 Confirm Add Units
Specify ASPs to Add Units to
Specify the ASP to add each unit to.
Specify Serial Resource
ASP Number Type Model Capacity Name
21-662C5 4326 050 35165 DD124
21-54782 4326 050 35165 DD136
1 75-1118707 2107 A85 35165 DMP135
F3=Exit F5=Refresh F11=Display disk configuration capacity
F12=Cancel
Note: For multipath volumes, only one path is shown. In order to see the additional
paths, see “Managing multipath volumes using iSeries Navigator” on page 392.
Confirm Add Units
Add will take several minutes for each unit. The system will
have the displayed protection after the unit(s) are added.
Press Enter to confirm your choice for Add units.
Press F9=Capacity Information to display the resulting capacity.
Press F12=Cancel to return and change your choice.
Serial Resource
ASP Unit Number Type Model Name Protection
1 Unprotected
1 02-89058 6717 074 DD004 Device Parity
2 68-0CA4E32 6717 074 DD003 Device Parity
3 68-0C9F8CA 6717 074 DD002 Device Parity
4 68-0CA5D96 6717 074 DD001 Device Parity
5 75-1118707 2107 A85 DMP135 Unprotected
F9=Resulting Capacity F12=Cancel
390 DS8000 Series: Concepts and Architecture
Adding volumes to iSeries using iSeries Navigator
The iSeries Navigator GUI can be used to add volumes to the System, User or Independent
ASPs. In this example, we are adding a multipath logical volume to a private (non-switchable)
IASP. The same principles apply when adding multipath volumes to the System or User
ASPs.
Follow the steps outlined in “Adding volumes to an Independent Auxiliary Storage Pool” on
page 378.
When you get to the point where you will select the volumes to be added, you will see a panel
similar to that shown in Figure B-27. Multipath volumes appear as DMPxxx. Highlight the
disks you want to add to the disk pool and click Add.
Figure B-27 Adding a multipath volume
The remaining steps are identical to those in “Adding volumes to an Independent Auxiliary
Storage Pool” on page 378.
When you have completed these steps, the new Disk Pool can be seen on iSeries Navigator
Disk Pools in Figure B-28 on page 391.
Note: For multipath volumes, only one path is shown. In order to see the additional paths,
see “Managing multipath volumes using iSeries Navigator” on page 392.
Appendix B. Using DS8000 with iSeries 391
Figure B-28 New Disk Pool shown on iSeries Navigator
To see the logical volume, as shown in Figure B-29, expand Configuration and Service,
Hardware, Disk Pools and click the disk pool you just created.
Figure B-29 New logical volume shown on iSeries Navigator
392 DS8000 Series: Concepts and Architecture
Managing multipath volumes using iSeries Navigator
All units are initially created with a prefix of DD. As soon as the system detects that there is
more than one path to a specific logical unit, it will automatically assign a unique resource
name with a prefix of DMP for both the initial path and any additional paths.
When using the standard disk panels in iSeries Navigator, only a single (the initial) path is
shown. The following steps show how to see the additional paths.
To see the number of paths available for a logical unit, open iSeries Navigator and expand
Configuration and Service, Hardware, and Disk Units as shown in Figure B-30 and click
All Disk Units. The number of paths for each unit is shown in column Number of Connections
visible on the right of the panel. In this example, there are 8 connections for each of the
multipath units.

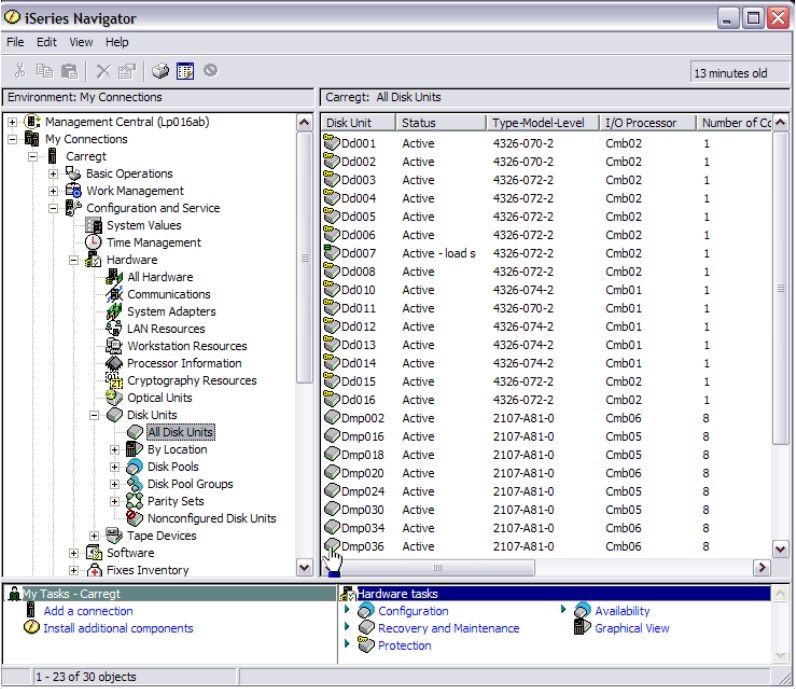

Figure B-30 Example of multipath logical units
To see the other connections to a logical unit, right click on the unit and select Properties, as
shown in Figure B-31 on page 393.
Appendix B. Using DS8000 with iSeries 393

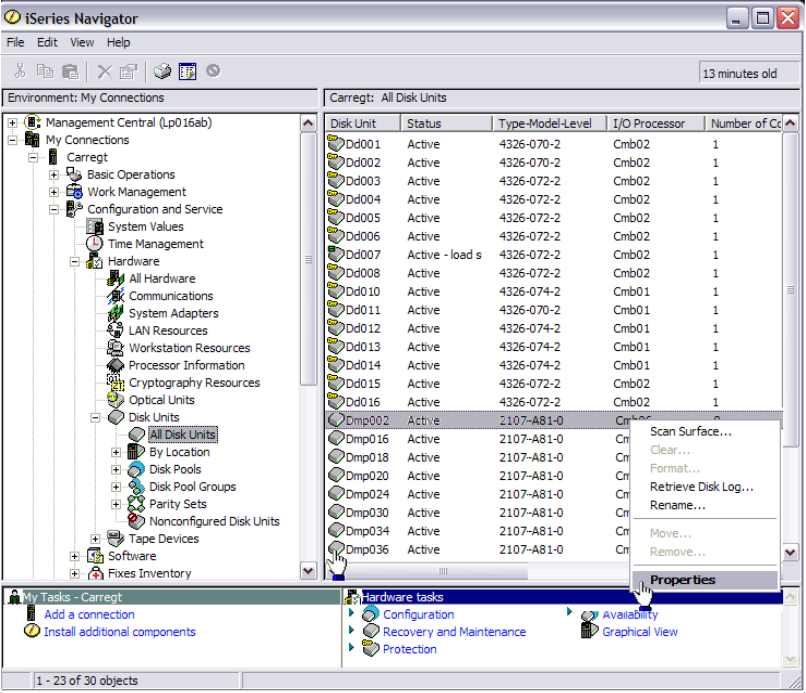

Figure B-31 Selecting properties for a multipath logical unit
You will then see the General Properties tab for the selected unit, as in Figure B-32 on
page 394. The first path is shown as Device 1 in the box labelled Storage.
394 DS8000 Series: Concepts and Architecture

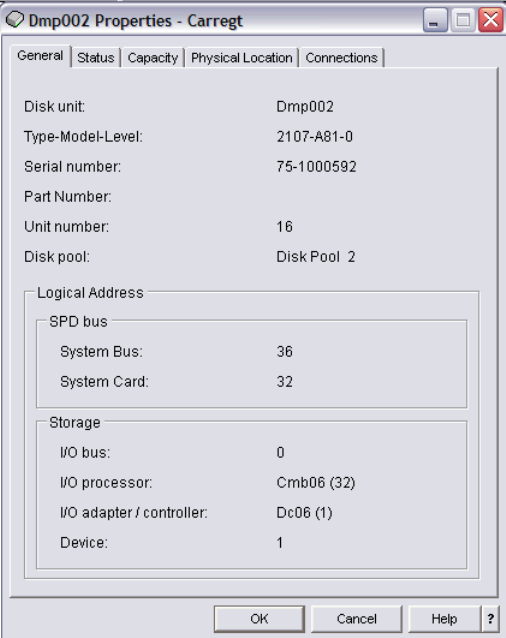

Figure B-32 Multipath logical unit properties
To see the other paths to this unit, click the Connections tab, as shown in Figure B-33 on
page 395, where you can see the other seven connections for this logical unit.
Appendix B. Using DS8000 with iSeries 395

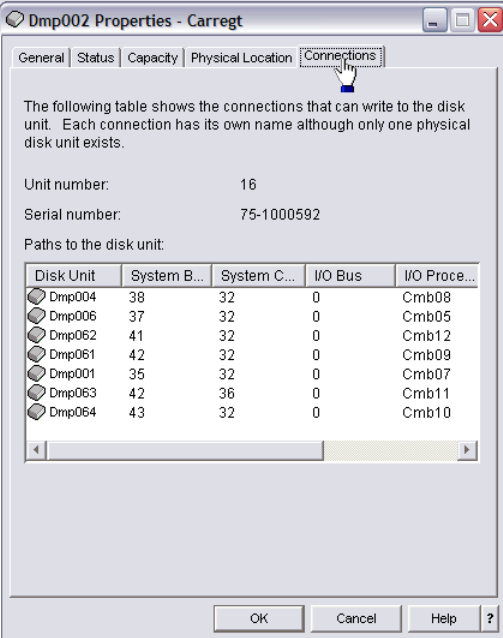

Figure B-33 Multipath connections
Multipath rules for multiple iSeries systems or partitions
When you use multipath disk units, you must consider the implications of moving IOPs and
multipath connections between nodes. You must not split multipath connections between
nodes, either by moving IOPs between logical partitions or by switching expansion units
between systems. If two different nodes both have connections to the same LUN in the
DS8000, both nodes might potentially overwrite data from the other node.
The system enforces the following rules when you use multipath disk units in a
multiple-system environment:
򐂰If you move an IOP with a multipath connection to a different logical partition, you must
also move all other IOPs with connections to the same disk unit to the same logical
partition.
򐂰When you make an expansion unit switchable, make sure that all multipath connections to
a disk unit will switch with the expansion unit.
򐂰When you configure a switchable independent disk pool, make sure that all of the required
IOPs for multipath disk units will switch with the independent disk pool.
If a multipath configuration rule is violated, the system issues warnings or errors to alert you
of the condition. It is important to pay attention when disk unit connections are reported
missing. You want to prevent a situation where a node might overwrite data on a LUN that
belongs to another node.
396 DS8000 Series: Concepts and Architecture
Disk unit connections might be missing for a variety of reasons, but especially if one of the
preceding rules has been violated. If a connection for a multipath disk unit in any disk pool is
found to be missing during an IPL or vary on, a message is sent to the QSYSOPR message
queue.
If a connection is missing, and you confirm that the connection has been removed, you can
update Hardware Service Manager (HSM) to remove that resource. Hardware service
manager is a tool for displaying and working with system hardware from both a logical and a
packaging viewpoint, an aid for debugging Input/Output (I/O) processors and devices, and for
fixing failing and missing hardware. You can access Hardware Service Manager in System
Service Tools (SST) and Dedicated Service Tools (DST) by selecting the option to start a
service tool.
Changing from single path to multipath
If you have a configuration where the logical units were only assigned to one I/O adapter, you
can easily change to multipath. Simply assign the logical units in the DS8000 to another I/O
adapter and the existing DDxxx drives will change to DMPxxx and new DMPxxx resources
will be created for the new path.
Sizing guidelines
In Figure B-34 on page 397, we show the process you can use to size external storage on
iSeries. Ideally, you should have OS/400 Performance Tools reports, which can be used to
model an existing workload. If these are not available, you can use workload characteristics
from a similar workload to understand the I/O rate per second and the average I/O size. For
example, the same application may be running at another site and its characteristics can be
adjusted to match the expected workload pattern on your system.
Using this base information, and the rules-of-thumb that follow, you can estimate an
approximate configuration which can then be used as input into Disk Magic (DM). This will
give an indication of the service and wait time per I/O. If these do not meet your requirements,
then you can adjust the hardware configuration in Disk Magic accordingly.
Once you have this base modelling completed, you should also consider the other influences
on the storage subsystem (such as any requirement for Copy Services and other workloads
from other systems), and re-assess the hardware configuration and adjust accordingly until
your requirements are met.
Note: Disk Magic is for IBM and IBM Business Partner use only. Customers should contact
their IBM or IBM Business Partner representative for assistance with Capacity Planning,
which may be a chargeable service.
Appendix B. Using DS8000 with iSeries 397
Figure B-34 Process for sizing external storage
Planning for arrays and DDMs
In general, although it is possible to use 146 GB and 300 GB 10K RPM DDMs, we
recommend that you use 73 GB 15K RPM DDMs for iSeries production workloads. The
larger, slower drives may be suitable for less I/O intensive work, or for those workloads which
do not require critical response times (for example, archived data or data which is high in
volume but low in use such as scanned images).
For workloads with critical response times, you may not want to use all the capacity in an
array. For 73 GB DDMs you may plan to use about 300 GB capacity per 8 drive array. The
remaining capacity could possibly be used for infrequently accessed data. For example, you
may have archive data, or some data such as images, which is not accessed regularly, or
perhaps FlashCopy target volumes which could use this capacity, but not impact on the
I/O /sec on those arrays.
For very high write environments, you may also consider using RAID-10, which offers a
higher I/O rate per GB than RAID-5 as shown in Figure B-3 on page 399. However, the
majority of iSeries workloads do not require this.
Cache
In general, iSeries workloads do not benefit from large cache, so in the initial planning for Disk
Magic, consider the minimum cache size available. Depending on the workload (as shown in
OS/400 Performance Tools System, Component and Resource Interval reports) you may see
Modeling with
Disk Magic
Rules of thumb
Proposed
configuration
Requirements and
expectations met ?
Finish
Other
requirements:
HA, DR etc.
SAN Fabric
Workload from
other servers
Yes
Adjust config
based on DM
modeling
No
Workload
description
Workload
characteristics
Performance
Tools Reports
Workload
statistics
398 DS8000 Series: Concepts and Architecture
some benefit in larger cache sizes. However, in general, with large iSeries main memory
sizes, OS/400 Expert Cache can reduce the benefit of external cache.
Number of iSeries Fibre Channel adapters
The most important factor to take into consideration when calculating the number of Fibre
Channel adapters in the iSeries is the throughput capacity of the adapter and IOP
combination.
Since this guideline is based only on iSeries adapters and Access Density (AD) of iSeries
workload, it doesn't change when using the DS8000. (The same guidelines are valid for ESS
800.)
Table B-2 shows the approximate capacity which can be supported with various IOA/IOP
combinations.
Table B-2 Capacity per I/O Adapter
For most iSeries workloads, Access Density is usually below 2, so if you do not know it, the
Rule of thumb column is a typical value to use.
Size and number of LUNs
As discussed in “Logical volume sizes” on page 374, OS/400 can only use fixed logical
volume sizes. As a general rule of thumb, we recommend that you should configure more
logical volumes than actual DDMs. As a minimum, we recommend 2:1. For example, with 73
GB DDMs, you should use a maximum size of 35.1 GB LUNs. The reason for this is that
OS/400 does not support command tag queuing. Using more, smaller LUNs can reduce I/O
queues and wait times by allowing OS/400 to support more parallel I/Os.
From the values in Table B-2, you can calculate the number of iSeries Fibre Channel adapters
for your required iSeries disk capacity. As each I/O adapter can support a maximum of 32
LUNs, divide the capacity per adapter by 32 to give the approximate average size of each
LUN.
For example, assume you require 2 TB capacity and are using 2787 I/O adapters with 2844
I/O processors. If you know the access density, calculate the capacity per I/O adapter, or use
the rule-of-thumb. Let’s assume the rule-of-thumb of 500 GB per adapter. In this case, we
would require four I/O adapters to support the workload. If we were able to have variable
LUNs sizes, we could support 32 15.6 GB LUNs per I/O adapter. However, since OS/400 only
supports fixed volume sizes, we could support 28 17. 5 GB volumes to give us approximately
492 GB per adapter.
Note: Access Density is the capacity of occupied disk space divided by the average I/O
/sec. These values can be obtained from the OS/400 System, Component and Resource
Interval performance reports.
I/O Adapter I/O Processor Capacity per IOA Rule of thumb
2787 2844 1022/AD 500GB
2766 2844 798/AD 400GB
2766 2843 644/AD 320GB
Appendix B. Using DS8000 with iSeries 399
Recommended number of ranks
As a general guideline, you may consider 1500 disk operations/sec for an average RAID rank.
When considering the number of ranks, take into account the maximum disk operations per
second per rank as shown in Table B-3. These are measured at 100% DDM Utilization with
no cache benefit and with the average I/O being 4KB. Larger transfer sizes will reduce the
number of operations per second.
Based on these values you can calculate how many host I/O per second each rank can
handle at the recommended utilization of 40%. This is shown for workload read-write ratios of
70% read and 50% read in Table B-3.
Table B-3 Disk operations per second per RAID rank
As can be seen in Table B-3, RAID-10 can support higher host I/O rates than RAID-5.
However, you must balance this against the reduced effective capacity of a RAID-10 rank
when compared to RAID-5.
Sharing ranks between iSeries and other servers
As a general guideline consider using separate extent pools for iSeries workload and other
workloads. This will isolate the I/O for each server.
However, you may consider sharing ranks when the other servers’ workloads have a
sustained low disk I/O rate compared to the iSeries I/O rate. Generally, iSeries has a relatively
high I/O rate while that of other servers may be lower – often below one I/O per GB per
second.
As an example, a Windows file server with a large data capacity may normally have a low I/O
rate with less peaks and could be shared with iSeries ranks. However, SQL, DB or other
application servers may show higher rates with peaks, and we recommend using separate
ranks for these servers.
Unlike its predecessor the ESS, capacity used for logical units on the DS8000 can be reused
without reformatting the entire array. Now, the decision to mix platforms on an array is only
one of performance, since the disruption previously experienced on ESS to reformat the array
no longer exists.
RAID rank type Disk ops/sec Host I/O /sec
(70% read)
Host I/O /sec
(50% read)
RAID-5 15K RPM (7 + P) 1700 358 272
RAID-5 10K RPM (7 + P) 1100 232 176
RAID-5 15K RPM (6 + P + S) 1458 313 238
RAID-5 10K RPM (6 + P + S) 943 199 151
RAID-10 15K RPM (3 + 3 + 2S) 1275 392 340
RAID-10 10K RPM (3 + 3 + 2S) 825 254 220
RAID-10 15K RPM (4 + 4) 1700 523 453
RAID-10 15K RPM (4 + 4 1100 338 293
400 DS8000 Series: Concepts and Architecture
Connecting via SAN switches
When connecting DS8000 systems to iSeries via switches, you should plan that I/O traffic
from multiple iSeries adapters can go through one port on a DS8000 and zone the switches
accordingly. DS8000 host adapters can be shared between iSeries and other platforms.
Based on available measurements and experiences with the ESS 800 we recommend you
should plan no more than four iSeries I/O adapters to one host port in the DS8000.
For a current list of switches supported under OS/400, refer to the iSeries Storage Web site
at:
http://www-1.ibm.com/servers/eserver/iseries/storage/storage_hw.html
Migration
For many iSeries customers, migrating to the DS8000 will be best achieved using traditional
Save/Restore techniques. However, there are some alternatives you may wish to consider.
OS/400 mirroring
Although it is possible to use OS/400 to mirror the current disks (either internal or external) to
a DS8000 and then remove the older disks from the iSeries configuration, this is not
recommended because both the source and target disks must initially be unprotected. If
moving from internal drives, these would normally be protected by RAID-5 and this protection
would need to be removed before being able to mirror the internal drives to DS8000 logical
volumes.
Once an external logical volume has been created, it will always keep its model type and be
either protected or unprotected. See Table B-1 on page 374 for DS8000 logical volume
models and types. Therefore, once a logical volume has been defined as unprotected to allow
it to be the mirror target, it cannot be converted back to a protected model, and therefore will
be a candidate for all future OS/400 mirroring, whether you want this or not.
Metro Mirror and Global Copy
Depending on the existing configuration, it may be possible to use Metro Mirror or Global
Copy to migrate from an ESS to a DS8000 (or indeed, any combination of external storage
units which support Metro Mirror and Global Copy). For further discussion on Metro Mirror
and Global Copy, please see 16.2.2, “Subsystem-based data migration” on page 339.
Consider the example shown in Figure B-35 on page 401.
Here, the iSeries has its internal Load Source Unit (LSU) and possibly some other internal
drives. The ESS provides additional storage capacity. Using Metro Mirror or Global Copy, it is
possible to create copies of the ESS logical volumes in the DS8000.
When ready to migrate from the ESS to the DS8000, you should do a complete shutdown of
the iSeries, unassign the ESS LUNs and assign the DS8000 LUNs to the iSeries. After IPLing
the iSeries, the new DS8000 LUNs will be recognized by OS/400, even though they are
different models and have different serial numbers.
Appendix B. Using DS8000 with iSeries 401
Figure B-35 Using Metro Mirror to migrate from ESS to DS8000
The same setup can also be used if the ESS LUNs are in an IASP, although the iSeries would
not require a complete shutdown since varying off the IASP in the ESS, unassigning the ESS
LUNs, assigning the DS8000 LUNs and varying on the IASP would have the same effect.
Clearly, you must also take into account the licensing implications for Metro Mirror and Global
Copy.
OS/400 data migration
It is also possible to use native OS/400 functions to migrate data from existing disks to the
DS8000, whether the existing disks are internal or external. When you assign the new
DS8000 logical volumes to the iSeries, initially they are non-configured (see “Adding volumes
to iSeries configuration” on page 376 for more details). If you add the new units and choose to
spread data, OS/400 will automatically migrate data from the existing disks onto the new
logical units.
You can then use the OS/400 command STRASPBAL TYPE(*ENDALC) to mark the units to
be removed from the configuration as shown in Figure B-36 on page 402. This can reduce the
Note: It is important to ensure that both the Metro Mirror or Global Copy source and target
copies are not assigned to the iSeries at the same time as this is an invalid configuration.
Careful planning and implementation is required to ensure this does not happen, otherwise
unpredictable results may occur.
Note: This is a special case of using Metro Mirror or Global Copy and will only work if the
same iSeries is used, along with the LSU to attach to both the original ESS and the new
DS8000. It is not possible to use this technique to a different iSeries.
Metro Mirror
402 DS8000 Series: Concepts and Architecture
down time associated with removing a disk unit. This will keep new allocations away from the
marked units.
Figure B-36 Ending allocation for existing disk units
When you subsequently run the OS/400 command STRASPBAL TYPE(*MOVDTA) all data
will be moved from the marked units to other units in the same ASP, as shown in Figure B-37.
Clearly you must have sufficient new capacity to allow the data to be migrated.
Figure B-37 Moving data from units marked *ENDALC
You can specify a time limit that the function is to run for each ASP being balanced or the
balance can be set to run to completion. If the balance function needs to be ended prior to
this, use the End ASP Balance (ENDASPBAL) command. A message will be sent to the
system history (QHST) log when the balancing function is started for each ASP. A message
will also be sent to the QHST log when the balancing function completes or is ended.
If the balance function is run for a few hours and then stopped, it will continue from where it
left off when the balance function restarts. This allows the balancing to be run during off hours
over several days.
In order to finally remove the old units from the configuration, you will need to use Dedicated
Service Tools (DST) and re-IPL the system (or partition).
Using this method allows you to remove the existing storage units over a period of time.
However, it does require that both the old and new units are attached to the system at the
same time so it may require additional IOPs and IOAs if migrating from an ESS to a DS8000.
It may be possible in your environment to re-allocate logical volumes to other IOAs, but
careful planning and implementation will be required.
Start ASP Balance (STRASPBAL)
Type choices, press Enter.
Balance type . . . . . . . . . . > *ENDALC *CAPACITY, *USAGE, *HSM...
Storage unit . . . . . . . . . . 1-4094
+ for more values
Bottom
F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this display
F24=More keys
Start ASP Balance (STRASPBAL)
Type choices, press Enter.
Balance type . . . . . . . . . . > *MOVDTA *CAPACITY, *USAGE, *HSM...
Time limit . . . . . . . . . . . 1-9999 minutes, *NOMAX
Bottom
F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this display
F24=More keys
Appendix B. Using DS8000 with iSeries 403
Copy Services for iSeries
Due to OS/400 having a single level storage, it is not possible to copy some disk units without
copying them all, unless specific steps are taken.
FlashCopy
When FlashCopy was first available for use with OS/400, it was necessary to copy the entire
storage space, including the Load Source Unit (LSU). However, since the LSU must reside
on an internal disk, this first had to be mirrored to a LUN in the external storage subsystem.
Because it is not possible to IPL from external storage, it was then necessary to D-Mode IPL
the target system/partition from CD, then Recover Remote LSU. This is sometimes known as
basic FlashCopy.
In order to ensure the entire single level storage is copied, memory needs to be flushed -
preferably with a PWRDWNSYS or perhaps more acceptable, taking the system into a Restricted
State using ENDSBS *ALL.
For most customers, this is not a practical solution.
To avoid this and to make FlashCopy more appropriate to iSeries customers, IBM has
developed a service offering to allow Independent Auxiliary Storage Pools (IASPs) to be used
with FlashCopy independently from the LSU and other disks which make up *SYSBAS
(ASP1-32). This has three major benefits:
1. Less data is copied.
2. Recover Remote LSU recovery is not necessary.
3. Communication configuration details are not affected.
The target system can be a live system (or partition) used for other functions such as test,
development and Lotus® Notes®. When backups are to be done, the FlashCopy target can
be attached to the partition without affecting the rest of the users. Or perhaps more likely, the
target will be a partition on the same system as production but may have no CPU or memory
allocated to it until the backups are taken, when these resources are then reallocated from the
production environment (or other) and moved to the backup partition.
Again, like the basic FlashCopy, it is necessary to flush memory for those objects to be saved
so that all objects reside in the ESS (where FlashCopy runs). However, unlike basic
FlashCopy, this is achieved by varying off the IASP rather than powering off the system or
taking it to restricted state. The rest of the system is unaffected.
Remote Mirror and Copy
Although the same considerations apply to the Load Source Unit as for FlashCopy, unlike
FlashCopy, which would likely be done on a daily/nightly basis, Remote Mirror is generally
used for DR. The additional steps required to make the target volumes usable (D-IPL, recover
remote LSU, abnormal IPL) are more likely to be acceptable due to the infrequent nature of
invoking the DR copy. Recovery time may be affected but the recovery point will be to the
point of failure. This is sometimes known as basic Remote Mirroring.
Using the advantages previously discussed when using IASPs with FlashCopy, we are able to
use this technology with Remote Mirror as well. Instead of the entire system (single level
Attention: You should not assume that Copy Services with iSeries works the same as with
other open systems.
404 DS8000 Series: Concepts and Architecture
storage) being copied, only the application resides in an IASP and in the event of a disaster,
the target copy is attached to the DR server.
Additional considerations must be taken into account such as maintaining user profiles on
both systems, but this is no different from using other availability functions such as switched
disk between two local iSeries Servers on a High Speed Link (HSL) and Cross Site Mirroring
(XSM) to a remote iSeries. However, with Remote Mirror, the distance can be much greater
using the synchronous Metro Mirror than the 250 meter limit of HSL, and with the
asynchronous Global Mirror, there is little performance impact on the production server.
Whereas with FlashCopy where you would likely only have data in an IASP, for DR with
Remote Mirror, you also need the application on the DR system. This can either reside in
*SYSBAS or in an IASP. If it is in an IASP, then the entire application would be copied. If it is in
*SYSBAS, you will need to ensure good change management facilities to ensure both
systems have the same level of the application. Also, you must ensure that system objects in
*SYSBAS, such as User Profiles, are synchronized.
Again, the DR server could be a dedicated system, or perhaps more likely, a shared system
with development, testing, or other function in other partitions or IASPs.
iSeries toolkit for Copy Services
Although it is possible to use FlashCopy and Remote Mirror functions with iSeries, for
practical reasons, many customers will choose not to use basic FlashCopy and Remote
Mirror functions due to the LSU restrictions discussed previously. Instead, IBM recommends
that Copy Services should only be used with the iSeries toolkit for Copy Services, which uses
OS/400 IASPs and provides control of the clustering environment necessary to use IASPs
with Copy Services. More information about the Copy Services toolkit can be found at:
http://www-1.ibm.com/servers/eserver/iseries/service/itc/pdf/Copy-Services-ESS.pdf
Contact your IBM representative if you wish to implement the iSeries toolkit for Copy
Services, or contact the iSeries Technology Center directly at:
mailto:rchclst@us.ibm.com
AIX on IBM iSeries
With the announcement of the IBM iSeries i5, it is now possible to run AIX in a partition on the
i5. This can be either AIX 5L V5.2 or V5.3. All supported functions of these operating system
levels are supported on i5, including HACMP for high availability and external boot from Fibre
Channel devices.
The DS6000 requires the following i5 I/O adapters to attach directly to an i5 AIX partition:
򐂰0611 Direct Attach 2 Gigabit Fibre Channel PCI
򐂰0625 Direct Attach 2 Gigabit Fibre Channel PCI-X
It is also possible for the AIX partition to have its storage virtualized, whereby a partition
running OS/400 hosts the AIX partition's storage requirements. In this case, if using DS8000,
they would be attached to the OS/400 partition using either of the following I/O adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
Appendix B. Using DS8000 with iSeries 405
For more information on running AIX in an i5 partition, refer to the i5 Information Center at:
򐂰http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/index.htm?info/iphat
/iphatlparkickoff.htm
Linux on IBM iSeries
Since OS/400 V5R1, it has been possible to run Linux in an iSeries partition. On iSeries
models 270 and 8xx, the primary partition must run OS/400 V5R1 or higher and Linux is run
in a secondary partition. For later i5 systems (models i520, i550, i570 and i595), Linux can
run in any partition.
On both hardware platforms, the supported versions of Linux are:
򐂰SUSE Linux Enterprise Server 9 for POWER
(New 2.6 Kernel based distribution also supports earlier iSeries servers)
򐂰RedHat Enterprise Linux AS for POWER Version 3
(Existing 2.4 Kernel based update 3 distribution also supports earlier iSeries servers)
The DS8000 requires the following iSeries I/O adapters to attach directly to an iSeries or i5
Linux partition.
򐂰0612 Linux Direct Attach PCI
򐂰0626 Linux Direct Attach PCI-X
It is also possible for the Linux partition to have its storage virtualized, whereby a partition
running OS/400 hosts the Linux partition's storage requirements. In this case, if using
DS8000, they would be attached to the OS/400 partition using either of the following I/O
adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
More information on running Linux in an iSeries partition can be found in the iSeries
Information Center at:
򐂰http://publib.boulder.ibm.com/iseries/v5r2/ic2924/index.htm
More information on running Linux in an i5 partition can be found in the i5 Information Center
at:
򐂰http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/info/iphbi/iphbi.pdf
Note: AIX will not run in a partition on earlier 8xx and prior iSeries systems.
406 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 407
Appendix C. Service and support offerings
This appendix provides information about the service offerings which are currently available
for the new DS6000 and DS8000 series. It includes a brief description of each offering and
where you can find more information on the Web:
򐂰IBM Implementation Services for TotalStorage disk systems
򐂰IBM Implementation Services for TotalStorage Copy Functions
򐂰IBM Implementation Services for TotalStorage Command-Line Interface
򐂰IBM Migration Services for eServer zSeries data
򐂰IBM Migration Services for open systems attached to TotalStorage disk systems
򐂰IBM Geographically Dispersed Parallel Sysplex™ (GDPS®)
򐂰Enterprise Remote Copy Management Facility (eRCMF)
򐂰Geographically Dispersed Sites for Microsoft Cluster Services
򐂰IBM eServer iSeries Copy Services
򐂰IBM Operational Support Services - Support Line
C
408 DS8000 Series: Concepts and Architecture
IBM Web sites for service offerings
IBM Global Services (IGS) and the IBM Systems Group can offer comprehensive assistance,
including planning and design as well as implementation and migration support services. For
more information on all of the following service offerings, contact your IBM representative or
visit the following Web sites.
The IBM Global Service Web site can be found at:
http://www.ibm.com/services/us/index.wss/home
The IBM System Group Web site can be found at:
http://www.ibm.com/servers/storage/services/
IBM service offerings
This section describes the service offerings available from IBM Global Services and IBM
Systems Group.
IBM Implementation Services for TotalStorage disk systems
This service includes planning for a new IBM TotalStorage disk system followed by
implementation, configuration, and basic skills transfer instruction. For more information visit
the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005008
IBM Implementation Services for TotalStorage Copy Functions
This service is designed to assist in the planning, implementation, and testing of the IBM
TotalStorage advanced copy functions, point-in-time copy and remote mirroring solutions. For
more information visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005009
IBM Implementation Services for TotalStorage Command-Line Interface
IBM provides a service through Global Services to help you with using the Command-Line
Interface (CLI) in your system environment. It is designed to provide you with the ability to
create and apply configurations online. For more information visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005334
IBM Migration Services for eServer zSeries data
IBM provides a technical specialist at your site to help plan and assist in the implementation
of non-disruptive DASD migration to a new or existing IBM TotalStorage disk system. The
migration is accomplished using the following software and hardware that allows DASD
volumes to be copied to the new storage devices without interruption to service.
򐂰Innovation Fast Dump Restore Plug and Swap (FDRPAS)
򐂰Peer-to-Peer Remote Copy Extended Distance (PPRC-XD)
򐂰Softek Replicator (TDMF)
򐂰IBM Piper hardware assisted migration
Appendix C. Service and support offerings 409
The IBM Piper hardware assisted migration in the zSeries environment is described in this
redbook in “Data migration with Piper for z/OS” on page 299. Additional information about this
offering is on the following Web site:
http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
For more information about IBM Migration Services for eServer zSeries data visit the
following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005010
IBM Migration Services for open systems attached to disk systems
IBM Migration Services for open systems attached to TotalStorage disk systems include
planning for and implementation of data migration from an existing UNIX or Windows server
to new or existing larger capacity IBM storage with minimal disruption. This service uses the
following hardware and software tools:
򐂰Peer-to-Peer Remote Copy Extended Distance (PPRC-XD)
򐂰Softek Replicator (TDMF) for Open
򐂰Native operating system mirroring
򐂰IBM Piper hardware assisted migration
The IBM hardware-assisted data migration services (IBM Piper), which we already mentioned
in regard to the zSeries environment, can also be used in an Open System environment. You
can find information about the use of this service in an Open System environment in 16.2.3,
“IBM Piper migration” on page 341. For the latest information about this service, please visit
the following Web site:
򐂰http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
For more information about IBM Migration Services for open systems attached to
TotalStorage disk systems visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005012
IBM Geographically Dispersed Parallel Sysplex (GDPS)
A Geographically Dispersed Parallel Sysplex (GDPS) is the ultimate disaster recovery and
continuous availability solution for a zSeries multi-site enterprise. This solution automatically
mirrors critical data and efficiently balances workload between the sites. The GDPS solution
also uses automation and Parallel Sysplex technology to help manage multi-site databases,
processors, network resources and storage subsystem mirroring. For the latest information
on this service, please visit the following Web site:
http://www.ibm.com/services/us/index.wss/rs/its/a1005497
Enterprise Remote Copy Management Facility (eRCMF)
IBM Implementation Services for enterprise Remote Copy Management Facility (eRCMF) is
intended as a multisite Disaster Recovery solution for Open Systems and provides
automation for repairing inconsistent PPRC pairs. This is the software that communicates
with the ESS Copy Services server.
It is a scalable, flexible Open Systems solution that protects the business (data) and can be
used for both:
򐂰Planned outages (hardware and software upgrades)
410 DS8000 Series: Concepts and Architecture
򐂰Unplanned outages (disaster recovery, testing a disaster)
It simplifies the disaster recovery implementation and concept. Once eRCMF is configured in
the customer environment, it will monitor the PPRC states of all specified LUNs/volumes. Visit
the following Web site for the latest information:
http://www.ibm.com/services/us/index.wss/so/its/a1000110
Geographically Dispersed Sites for Microsoft Cluster Services
IBM TotalStorage Support for Geographically Dispersed Sites for Microsoft Cluster Service
(MSCS) is designed to allow Microsoft Cluster installations to span geographically dispersed
sites. It helps to protect clients from site disasters or storage subsystem failures. This service
is designed to enable a tier 7 disaster recovery solution. It also provides high availability for
applications and data running in Windows clustered server environments, by extending the
distance that cluster nodes and storage can be separated, mirroring data between two IBM
TotalStorage disk subsystems, and providing improved failure detection. You can find the
latest information on this service on the following Web site:
http://www.ibm.com/servers/storage/services/featured/microsoft_application_environ
ment.html#GDSSolution
IBM eServer iSeries Copy Services
For the iSeries environment IBM offers a special toolkit, which allows you to use the advanced
Copy Services functions with the iSeries. For more information on this, see , “iSeries toolkit
for Copy Services” on page 404.
IBM Operational Support Services - Support Line
IBM offers telephone or electronic access to highly-trained technical support specialists, who
can serve as your one source for remote software support services.
Highlights of the offering are the following:
򐂰High-quality technical support for IBM and select multivendor software including the Linux
operating system and Linux clusters
򐂰A supplement to your internal staff with IBM's skilled services specialists
򐂰Fast, accurate problem resolution to help keep your IT staff productive
򐂰Options for enhanced coverage and a single interface for remote support
򐂰Support for your international environment
For more information on the IBM Support Line visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1000030
In Figure 16-9 on page 411 you can see an example for the Support Product List (SPL) of the
IBM Support Line with the DS6800 support and the DS8100 support highlighted. You get the
complete SPL on the following Web site:
http://www.ibm.com/services/sl/products/java3.html
Appendix C. Service and support offerings 411

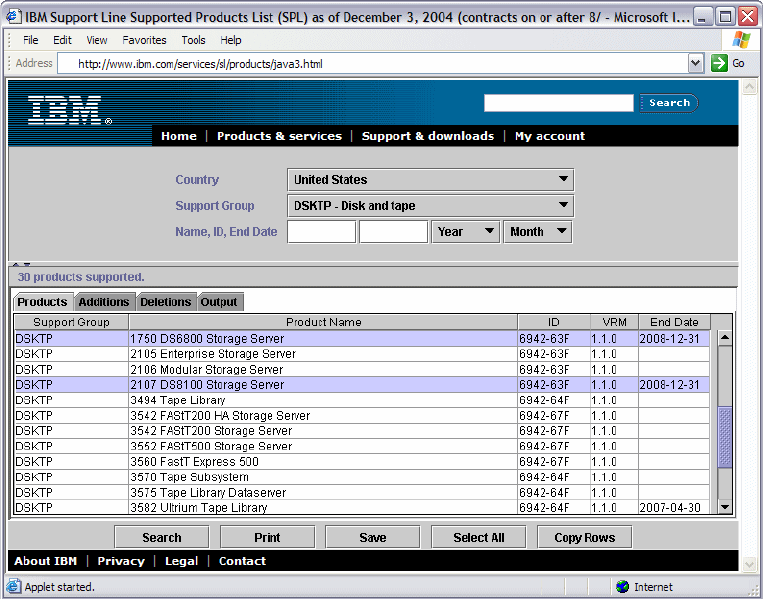

Figure 16-9 Example of the Supported Product List (SPL) from the IBM Support Line
412 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 413
Related publications
The publications listed in this section are considered particularly suitable for a more detailed
discussion of the topics covered in this redbook.
IBM Redbooks
For information on ordering these publications, see “How to get IBM Redbooks” on page 415.
Note that some of the documents referenced here may be available in softcopy only.
򐂰IBM TotalStorage Multiple Device Manager Usage Guide, SG24-7097
򐂰IBM TotalStorage Solutions for Disaster Recovery, SG24-6547
򐂰The IBM TotalStorage Solutions Handbook, SG24-5250
򐂰IBM TotalStorage DS6000 Series: Concepts and Architecture, SG24-6471
򐂰IBM TotalStorage Enterprise Storage Server: Implementing ESS Copy Services in Open
Environments, SG24-5757
򐂰IBM TotalStorage Enterprise Storage Server: Implementing ESS Copy Services with IBM
eServer zSeries, SG24-5680
򐂰DFSMShsm ABARS and Mainstar Solutions, SG24-5089
򐂰Practical Guide for SAN with pSeries, SG24-6050
򐂰Fault Tolerant Storage - Multipathing and Clustering Solutions for Open Systems for the
IBM ESS, SG24-6295
򐂰Implementing Linux with IBM Disk Storage, SG24-6261
򐂰Linux with zSeries and ESS: Essentials, SG24-7025
Other publications
These publications are also relevant as further information sources. Note that some of the
documents referenced here may be available in softcopy only.
򐂰IBM TotalStorage DS8000 Command-Line Interface User’s Guide, SC26-7625
򐂰IBM TotalStorage DS8000: Host Systems Attachment Guide, SC26-7628
򐂰IBM TotalStorage DS8000: Introduction and Planning Guide, GC35-0495
򐂰IBM TotalStorage Multipath Subsystem Device Driver User’s Guide, SC30-4096
򐂰IBM TotalStorage DS8000: User’s Guide, SC26-7623
򐂰IBM TotalStorage DS Open Application Programming Interface Reference, GC35-0493
򐂰IBM TotalStorage DS8000 Messages Reference, GC26-7659
򐂰z/OS DFSMS Advanced Copy Services, SC35-0248
򐂰Device Support Facilities: User’s Guide and Reference, GC35-0033
򐂰z/OS Advanced Copy Services, SC35-0248
414 DS8000 Series: Concepts and Architecture
Online resources
These Web sites and URLs are also relevant as further information sources:
򐂰IBM Disk Storage Feature Activation (DSFA) Web site at
http://www.ibm.com/storage/dsfa
򐂰The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
򐂰Documentation for the DS8000:
http://www.ibm.com/servers/storage/support/disk/2107.html
򐂰Supported servers for the DS8000:
http://www.storage.ibm.com/hardsoft/products/DS8000/supserver.htm
򐂰The interoperability matrix:
http://www.ibm.com/servers/storage/disk/DS8000/interop.html
򐂰Fibre Channel host bus adapter firmware and driver level matrix:
http://knowledge.storage.ibm.com/HBA/HBASearchTool
򐂰AT TO :
http://www.attotech.com/
򐂰Emulex:
http://www.emulex.com/ts/dds.html
򐂰JNI:
http://www.jni.com/OEM/oem.cfm?ID=4
򐂰QLogic:
http://www.qlogic.com/support/oem_detail_all.asp?oemid=22
򐂰IBM:
http://www.ibm.com/storage/ibmsan/products/sanfabric.html
򐂰CNT (INRANGE):
http://www.cnt.com/ibm/
򐂰McDATA:
http://www.mcdata.com/ibm/
򐂰Cisco:
http://www.cisco.com/go/ibm/storage
򐂰CIENA:
http://www.ciena.com/products/transport/shorthaul/cn2000/index.asp
򐂰CNT:
http://www.cnt.com/ibm/
򐂰Nortel:
http://www.nortelnetworks.com/
򐂰ADVA:
http://www.advaoptical.com/
Related publications 415
How to get IBM Redbooks
You can search for, view, or download Redbooks, Redpapers, Hints and Tips, draft
publications and Additional materials, as well as order hardcopy Redbooks or CD-ROMs, at
this Web site:
ibm.com/redbooks
Help from IBM
IBM Support and downloads
ibm.com/support
IBM Global Services
ibm.com/services
416 DS8000 Series: Concepts and Architecture
© Copyright IBM Corp. 2005. All rights reserved. 417
Index
Symbols
151, 298, 335, 368
A
AAL 36–37, 256
benefits 37
address groups 96, 196
Advanced Copy Services 162
AIX
boot support 353
I/O access methods 352
LVM configuration 352
managing multiple paths 349
monitoring I/O performance
filemon 354
iostat 354
on iSeries 404
other publications 348
SDD 349
WWPN 348
architecture 22
array sites 86, 192, 200
arrays 35, 87, 192, 200
arrays across loops see AAL
Asynchronous Cascading PPRC see Metro/Global Copy
Asynchronous PPRC see Global Mirror
B
base frame 20
battery backup assemblies 40
battery backup unit see BBU
BBU 79
Business Continuity 4
business continuity
Resiliency Family 8
C
cache management 24
call home 164
capacity
well-balanced configuration 181
capacity planning 174
CIM server 162
CKD volumes 91
allocation and deletion 93
components 19
configuration planning 158
Consistency Group 133
commands 9
data consistency 132
what is it? 132
Consistency Group FlashCopy 121
Control Unit Initiated Reconfiguration see CUIR
cooling 79
disk enclosure 40
rack cooling fans 79
Copy Services 115
interfaces 136
interoperability with ESS 139
CUIR 74
D
DA 30
Fibre Channel 260
data consistency 132–133
Consistency Group 132
data migration
basic commands 184
migration appliances 185
open systems
backup and restore 338
basic copy commands 336
copy raw devices 336
Global Copy 339
host operating system based 335
IBM Migration Services 342
Metro Mirror 339
other migration applications 342
Piper 341
rsync 337
using volume management software 337
operating system mirroring 184
planning 183
remote copy 184
software packages 184
VSE/ESA 315
z/OS 185, 293
bridge from ESCON to FICON 302
combine physical and logical data migration 308,
314
consolidate logical volumes 295
consolidate storage 294
DFSMSdss 307
DFSMShsm 308
Global Copy 303
logical migration 307
Metro Mirror 303
physical migration 298
physical migration with DFSMSdss 298
Piper 299
system-managed storage 308
z/OS Global Mirror 301
z/VM 315
data placement 99
Data Set FlashCopy 9, 119
DDMs 37, 192
418 DS8000 Series: Concepts and Architecture
hot plugable 78
layer 200
device adapter see DA
DFSMSdss 298, 307
DFSMShsm 308
disk drive set 7
disk enclosure 31
power and cooling 40
Disk Magic 186–187
disk storage feature activation (DSFA) 173
disk subsystem 30
disk virtualization 85
DS CLI 12, 138, 231, 325
changes from ESS CLI 138
co-existence with ESS CLI 237
command flow 234–235
command modes 239
interactive mode 240
script mode 240
single command mode 239
DS6000 command flow 236
DS8000 split network 236
functionality 232
installation methods 233
introduction 232
migration 244
example 245
tasks 245
mixed device environments 244
return codes 242
supported environments 233
syntax conventions 241
usage examples 243
user assistance 241
user security 239
DS Open API 13, 138
DS Open application programming interface see DS
Open API
DS Storage Manager 12, 137
introduction 203
logical configuration 189
navigating the GUI 208
Welcome panel 203
DS6000
compared to DS8000 12
DS8000
AAL
architecture 22
arrays 35
base frame 20
battery backup assemblies 40
Business Continuity 4
cache management 24
capacity planning 174, 344
common set of functions 11
compared to DS6000 12
compared to ESS 11
components 19
configuration planning 158
connecting to 202
Copy Services 115
DA
data migration
basic commands 184
migration appliances 185
operating system mirroring 184
planning 183
remote copy 184
software packages 184
z/OS 185
data placement 265
DDMs 37
delivery requirements 144
differences in operability to DS6000 323
disk drive set 7
disk enclosure 31
Disk Magic 186–187
disk storage feature activation 173
disk subsystem 30
DS CLI 231
DS8100 13
DS8100 Model 921 105
DS8300 13
DS8300 Model 922 106
DS8300 Model 9A2 106
environmental requirements 149
EPO 21, 80
ESCON attached 151
expansion enclosure 35
expansion frame 21
Fibre Channel disk drives 6
FICON 14, 151
FlashCopy 9, 116
frames 20
Global Mirror
HA
hardware overview 6
host adapter 6
host attachment 150
I/O enclosure 29
I/O priority queuing 15
Information Center 207
Information Lifecycle Management 4
Infrastructure Simplification 4
installation planning 144
interoperability 10
Interoperability Matrix 321
iSeries 373
licensed functions 167
logical configuration 174, 189
Metro Mirror
Metro/Global Copy 10
model comparison 108
model conversion 53
model naming conventions 104
model overview 103
model upgrades 113
modular expansion 20
multiple allegiance 15
network requirements 153
Index 419
OEL
open systems 150, 320
ordering licensed functions 170
p5 570 21, 27
PAV
performance 14, 186, 253
placement of data 99
planning 344
positioning 11
power and cooling 39
power control 80
power requirements 147
POWER5 6, 26, 261
PPS 40
processor complex 26
processor memory 28
rack operator panel 21
RAS
remote power control 154
remote support 154
Resiliency Family 8
RIO-G 29
RPC
SAN requirements 153–154
SARC 24
scalability 13, 103, 109
benefits 110, 112
for capacity 109
for performance 110
SDD
series overview 4
server-based 24
service 10
service offerings 407
service processor 28
setup 10
S-HMC 40, 153
site preparation 145
SMP 24
spares 35
SPCN
split network 236
Standby CoD 180
storage capacity 7
stripe size 267
support offerings 407
supported environment 8
switched FC-AL 34
z/OS enhancements 282
z/OS Global Mirror
z/OS Metro/Global Mirror 10
zSeries performance 14
DS8000 Global Mirror Utility see GMU
DS8100 13
Model 921 105
processor memory 28
DS8300 13
Copy Services 55
disk subsystem 30
FlashCopy 56
LPAR 48
LPAR benefits 56
LPAR implementation 49
LPAR security 54
Model 922 106
Model 9A2 106
Model 9A2 configuration options 52
processor memory 28
Remote Mirror and Copy 56
storage system LPAR 8
E
Enterprise Remote Copy Management Facility see eRC-
MF
EPO 21, 80
eRCMF 331, 409
ESCON 73, 139, 256
architecture 38
distances 38
Remote Mirror and Copy 38
supported servers 38
ESS
compared to DS8000 11
ESS CLI 138, 237
storage management 238
ESS CS CLI
command flow 234
Ethernet
switches 41, 82
expansion frame 21
Extended Remote Copy see z/OS Global Mirror
extent pools 89, 192, 201
F
FC-AL
non-switched 32
overcoming shortcomings 257
shortcomings 257
switched 6
Fibre Channel
distances 39
host adapters 38
FICON 14, 73, 256
host adapters 38
filemon 354
fixed block LUNs 91
FlashCopy 9, 56, 116, 168
benefits 118
Consistency Group 121
data set 119
establish on existing RMC primary 121–122
inband commands 9, 123
Incremental 118
Multiple Relationship 120
no background copy 118
on iSeries 403
options 118
persistent 123
Refresh Target Volume 118
420 DS8000 Series: Concepts and Architecture
FlashCopy to a Remote Mirror primary 9
frames 20
base 20
expansion 21
ftp offload option 166
G
GDPS 409
GDS for MSCS 410
Geographically Dispersed Sites for Microsoft Cluster Ser-
vices see GDS for MSCS
Global Copy 9, 116, 124, 131, 168, 303, 339–340, 400
Global Mirror 10, 116, 125, 131, 168
how works 126
GMU 330
H
HA 6, 37
HBA vendor resources 321
host adapter
four port 260
host adapter see HA
host adapters
Fibre Channel 38
FICON 38
host attachment 97, 190
host connection
zSeries 74
hot spot avoidance 188
HP OpenVMS 368
command console LUN 370
FC port configuration 368
volume configuration 369
volume shadowing 370
Hypervisor 66
I
I/O enclosure 29, 40
I/O priority queuing 15, 187
IASP 378
IBM Geographically Dispersed Parallel Sysplex see
GDPS
IBM Migration Services 342, 408–409
IBM Service Offerings 408
IBM TotalStorage DS Command-Line Interface see DS
CLI
IBM TotalStorage DS Storage Manager see DS Storage
Manager
IBM TotalStorage Multipath Subsystem Device Driver see
SDD
IBM TotalStorage Multiple Device Manager 327
IBM TotalStorage Productivity Center see TPC
IBM Virtualization Engine
LPAR 44
inband commands 123
Incremental FlashCopy 9, 118
Independent Auxiliary Storage Pools see IASP
Information Center 207
Information Lifecycle Management 4
Infrastructure Simplification 4
installation planning 144
delivery requirements 144
environmental requirements 149
floor and space requirements 145
host attachment 150
ESCON 151
FICON 151
open systems 150
updated info 152
network requirements 153
remote power control 154
remote support 154
S-HMC 153
power requirements 147
SAN requirements 153–154
site preparation 145
iostat 345, 354, 365
iSeries
adding multipath volumes using 5250 interface 388
adding volumes 376
adding volumes to an IASP
adding volumes using iSeries Navigator 390
AIX 353
AIX on 404
avoiding single points of failure 386
cache 397
changing from single path to multipath 396
changing LUN protection 375
configuring multipath 387
connecting via SAN switches 400
Copy Services 403
FlashCopy 403
Global Copy 400
hardware 374
Linux 363, 405
logical volume sizes 374
LUNs 93
managing multipath volumes using iSeries Navigator
392
Metro Mirror 400
migration to DS8000 400
multipath 386
multipath rules for multiple iSeries systems or parti-
tions 395
number of fibre channel adapters 398
OS/400 data migration 401
OS/400 mirroring 400
planning for arrays and DDMs 397
protected versus unprotected volumes 375
recommended number of ranks 399
Remote Mirror and Copy 403
sharing ranks with other servers 399
size and number of LUNs 398
sizing guidelines 396
software 374
toolkit for Copy Services 404
using 5250 interface 376
Index 421
L
LCU 196
licensed functions 167
ordering 170
scenarios 174
Linux 356
/proc pseudo file system 364
issues 358
managing multiple paths 360
missing device files 359
on iSeries 363, 405
performance monitoring with iostat 365
reference material 357
RH-EL
SCSI basics 358
SCSI device assignment changes 360
support issues 356
logical configuration 174
assigning LUNs to hosts 226
creating arrays 219
creating CKD LCUs 227
creating CKD volumes 227
creating FB volumes 222
deleting LUNs 226
displaying WWNN 228
extent pools 221
flow 201
host systems 216
planning 199
process 211
steps 199
storage complex 211
storage unit 212
terminology 190
volume groups 224
logical migration 307
logical partition see LPAR
logical subsystem see LSS
logical volumes 91, 194, 201
LPAR 44–45, 62
application isolation 47
benefits 56
consolidation of multiple versions 47
Copy Services 55
DS8300 48
DS8300 implementation 49
Hypervisor 66
increased flexibility 48
increased hardware utilization 47
production and test environments 47
security through Power Hypervisor 54
server consolidation 47
storage facility image 48
why? 47
LSS 94, 196
LUNs
allocation and deletion 93
fixed block 91
iSeries 93
LVM
configuration 352
mirroring 352
striping 266, 352
M
Metro Mirror 9, 116, 123, 130, 168, 303, 339–340, 400
Metro/Global Copy 10, 302
microcode updates
installation process 81
Microsoft Windows 2000/2003 366
HBA 366
SDD 366
mirroring 352
modular expansion 20
multipathing
other solutions 325
multiple allegiance 15
Multiple Relationship FlashCopy 9, 120
N
non-volatile storage see NVS
NVS 70
NVS recovery
O
OEL 167
open systems
cache size 265
data migration 333
DS CLI 325
eRCMF
IBM Migration Services 409
operating system specifics 343
performance 264
SDD 324
sizing 264
support 320
boot support 323
differences from ESS 2105 322
RPQ 323
supported systems 320
operating environment license see OEL
OS/400 data migration 401
OS/400 mirroring 400
P
p5 570 21, 27
panel
rack operator 21
Parallel Access Volumes see PAV
partitioning
concepts 44
PAV 14, 168, 170, 187
peformance
open systems 264
performance
AAL 256
challenge 254
422 DS8000 Series: Concepts and Architecture
data placement 265
Disk Magic 186–187
ESCON 256
FICON 256
hot spot avoidance 188
I/O priority queuing 187
LVM striping 266
monitoring 187
monitoring tools
UNIX 345
vmstat 347
number of host ports/channels 187
open systems
determing the connections 267
determining the number of paths to a LUN 268
PAV 187
planning 186
PPRC over FCP links 256
remote copy 187
size of cache 187
where to attach the host 268
workload characteristics 265
z/OS 269
appropriate DS8000 size 271
channel consolidation 272
configuration recommendations 274
connect to zSeries hosts 269
disk array sizing 273
potential 270
processor memory size 271
Persistent FlashCopy 123
PFA 78
physical partitioning 45
Piper 299, 341
placement of data 99
Point-in-time Copy see PTC
positioning 11
power 40
BBU
building power lost 80
disk enclosure 40
fluctuation protection 80
I/O enclosure 40
PPS
processor enclosure 40
RPC 79
power and cooling 39, 79
BBU
PPS
rack cooling fans 79
RPC 79
Power Hypervisor 54
POWER5 6, 26, 261
PPRC Extended Distance see Global Copy
PPRC over FCP links 256
PPRC-XD see Global Copy
PPS 79
Predictive Failure Analysis see PFA
primary power supply see PPS
processor complex 26, 63
processor enclosure
power 40
PTC 116, 118, 168
R
rack operator panel 21
rack power control cards see RPC
RAID-10
AAL 77
drive failure 77
implementation 77
theory 77
RAID-5
drive failure 76
implementation 76
theory 76
ranks 88, 192, 201
RAS 61
CUIR
disk scrubbing 79
disk subsystem 75
disk path redundancy 75
EPO 80
fault avoidance 64
first failure data capture 64
host connection availability 71
Hypervisor 66
I/O enclosure 67
metadata 67
microcode updates 81
installation process 81
naming 62
NVS recovery
permanent monitoring 64
PFA
power and cooling 79
processor complex 63
RAID-10 77
RAID-5 76
RIO-G 67
server 67
server failover and failback 68
S-HMC 82
spare creation 77
Real-time configuration 204
Copy Services 204–205
Recovery Point Objective see RPO
Redbooks Web site 415
Contact us xix
RedHat Enterprise Linux see RH-EL
reliability, availability, serviceability see RAS
remote access 164
Remote Mirror and Copy 56, 116
ESCON 38
on iSeries 403
Remote Mirror and Copy see RMC
Remote mirror for z/OS see RMZ
remote power control 154
remote support 154
RH-EL 361
Index 423
RIO-G 29
RMC 123, 169
comparison of functions 130
Global Copy 124
Global Mirror 125
Metro Mirror 123
RMF 289
RMZ 169
RPC 39
RPO 131
rsync 337
S
SAN 73
SAR 346
SARC 14, 24
scalability 13
DS8000
scalability 264
SDD 14, 268, 324, 349
for Windows 366
security 165
Sequential Prefetching in Adaptive Replacement Cache
see SARC
server
RAS 67
server consolidation 47
server-based SMP 24
service offerings
Web sites 408
service processor 28
S-HMC 7, 40, 82, 136, 158
Advanced Copy Services 162
call home 164
dial up connection 163
DS Storage Manager 160
external 159
ftp offload option 166
network topology 162
remote access 164
remote services 160
secure high speed connection 163
security considerations 165
service 162
software components 160
system and partition managment 162
user management 166
simulated configuration 205
sizing
open systems 264
z/OS 269
SMI-S 162
spares 35, 77
floating 78
sparing
examples 177
rules 176
SPCN 28
SSA 256
Standby Capacity on Demand see Standby CoD
Standby CoD 7, 180
storage capacity 7
storage complex 62, 190
storage facility image 48, 62
addressing capabilities 58
hardware components 50
I/O resources 51
processor and memory allocations 51
RIO-G interconnect separation 51–52
Storage Hardware Management Console see S-HMC
storage image 190
storage system logical partitions see storage system
LPAR
storage system LPAR 7
DS8300 8
future directions 13
storage unit 62, 190
stripe
size 267
switched FC-AL 6
advantages 33
DS8000 implementation 34
Synchronous PPRC see Metro Mirror
System Activity Report see SAR
system power control network see SPCN
T
TPC 326
for disk 329
for replication 330
TPF 291
U
UNIX
iostat 345
SAR
vmstat 347
V
VDS 367
Virtual Disk Service see VDS
virtualization
abstraction layers for disk 85
address groups 96
array sites 86
arrays 87
benefits 100
concepts 83
definition 84
extent pools 89
hierarchy 98
host attachment 97
logical volumes 91
ranks 88
storage system 84
volume group 97
vmstat 347
volume groups 97, 194
424 DS8000 Series: Concepts and Architecture
volumes
CKD 91
VSE
ESA 315
W
Windows Server 2003
VDS support
WWNN 228
WWPN 348
X
XRC see z/OS Global Mirror
Z
z/OS
coexistence considerations 290
DASD Unit Information Module 284
device recognition 284
IBM Migration Services 408
IOS scalability 282
IPL enhancements 284
large volume support 283
migration considerations 289–290
new performance statistics 285
read availability mask support 283
read control unit 284
RMF 289
z/OS Global Mirror 10, 116, 128, 132, 168, 301
z/OS Metro/Global Mirror 10, 129
z/VM 290, 315
Z/VSE 290
zSeries
host connection 74
performance 14
(0.5” spine)
0.475”<->0.873”
250 <-> 459 pages
The IBM TotalStorage DS8000 Series: Concepts and Architecture
DS8000 Series: Concepts and
Architecture
DS8000 Series: Concepts and
Architecture
DS8000 Series: Concepts and Architecture
DS8000 Series: Concepts and
Architecture
DS8000 Series: Concepts and
Architecture
®
SG24-6452-00 ISBN 0738492205
INTERNATIONAL
TECHNICAL
SUPPORT
ORGANIZATION
BUILDING TECHNICAL
INFORMATION BASED ON
PRACTICAL EXPERIENCE
IBM Redbooks are developed
by the IBM International
Technical Support
Organization. Experts from
IBM, Customers and Partners
from around the world create
timely technical information
based on realistic scenarios.
Specific recommendations
are provided to help you
implement IT solutions more
effectively in your
environment.
For more information:
ibm.com/redbooks
The IBM TotalStorage
DS8000 Series: Concepts
and Architecture
Advanced features
and performance
breakthrough with
POWER5 technology
Configuration
flexibility with LPAR
and virtualization
Highly scalable
solutions for on
demand storage
This IBM Redbook describes the IBM TotalStorage DS8000 series
of storage servers, its architecture, logical design, hardware
design and components, advanced functions, performance
features, and specific characteristics. The information contained
in this redbook is useful for those who need a general
understanding of this powerful new series of disk enterprise
storage servers, as well as for those looking for a more detailed
understanding of how the DS8000 series is designed and
operates.
The DS8000 series is a follow-on product of the IBM TotalStorage
Enterprise Storage Server with new functions related to storage
virtualization and flexibility. This book describes the virtualization
hierarchy that now includes virtualization of a whole storage
subsystem. This is made possible by utilizing IBM’s pSeries
POWER5-based server technology and its Virtualization Engine
LPAR technology. This LPAR technology offers totally new options
to configure and manage storage.
In addition to the logical and physical description of the DS8000
series, the fundamentals of the configuration process are also
described in this redbook. This is useful information for proper
planning and configuration when installing the DS8000 series, as
well as for the efficient management of this powerful storage
subsystem.
