ibm.com/redbooks
Front cover
The IBM TotalStorage
DS6000 Series: Concepts
and Architecture
Cathy Warrick
Olivier Alluis
Werner Bauer
Heinz Blaschek
Andre Fourie
Juan Antonio Garay
Torsten Knobloch
Donald C Laing
Christine O’Sullivan
Stu S Preacher
Torsten Rothenwaldt
Tetsuroh Sano
Jing Nan Tang
Anthony Vandewerdt
Alexander Warmuth
Roland Wolf
Enterprise-class storage functions in a
compact and modular design
On demand scalability and
multi-platform connectivity
Enhanced configuration
flexibility with virtualization
International Technical Support Organization
The IBM TotalStorage DS6000 Series:
Concepts and Architecture
March 2005
SG24-6471-00
© Copyright International Business Machines Corporation 2004. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by GSA ADP Schedule
Contract with IBM Corp.
First Edition (March 2005)
This edition applies to the DS6000 series per the October 12, 2004 announcement. Please note that an early
version of DS6000 microcode was used for the screen captures and command output, so some details may
vary from the currently available microcode.
Note: Before using this information and the product it supports, read the information in “Notices” on
page xiii.
Note: This book contains detailed information about the architecture of IBM's DS6000 product family. We
recommend that you consult the product documentation and the Implementation Redbooks for more
detailed information on how to implement the DS6000 in your environment.
iii
iv DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. v
Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Summary of changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xv
March 2005, First Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xv
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
The team that wrote this redbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii
Become a published author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi
Comments welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi
Part 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 1. Introducing the IBM TotalStorage DS6000 series . . . . . . . . . . . . . . . . . . . . . 3
1.1 The DS6000 series, a member of the TotalStorage DS Family . . . . . . . . . . . . . . . . . . . 4
1.1.1 Infrastructure simplification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2 Business continuity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.3 Information lifecycle management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 IBM TotalStorage DS6000 series unique benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2.1 Hardware overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2.2 Storage capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.3 DS management console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.4 Supported environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2.5 Business continuance functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.2.6 Resiliency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.7 Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.8 Service and setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.9 Configuration flexibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.3 Positioning the IBM TotalStorage DS6000 series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.1 Common set of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.3.2 Common management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.3.3 DS6000 series compared to other members of the TotalStorage DS Family . . . . 16
1.3.4 Use with other virtualization products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.4 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.4.1 Tagged Command Queuing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.4.2 Self-learning cache algorithms - SARC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.4.3 IBM multipathing software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.4.4 Performance for zSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Part 2. Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter 2. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.1 Server enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.2 Expansion enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.3 Controller architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.3.1 Server-based design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.3.2 Cache management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.4 Disk subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.5 Server enclosure RAID controller card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
vi DS6000 Series: Concepts and Architecture
2.5.1 Technical details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.5.2 Device adapter ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.5.3 Host adapter ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.5.4 SFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.6 Expansion enclosure SBOD controller card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.7 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.8 Rear panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.9 Power subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.9.1 Battery backup units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2.10 System service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.11 Storage Manager console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.12 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.13 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Chapter 3. RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.1 Controller RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.1.1 Failover and failback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.1.2 NVS recovery after complete power loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.1.3 Metadata checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.2 Host connection availability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.2.1 Open systems host connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.2.2 zSeries host connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.3 Disk subsystem RAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.3.1 RAID-5 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.3.2 RAID-10 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.3.3 Spare creation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.3.4 Predictive Failure Analysis (PFA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.3.5 Disk scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.3.6 Disk path redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.4 Power subsystem RAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.5 System service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.5.1 Example 1: Using light path indicators to replace a DDM. . . . . . . . . . . . . . . . . . . 57
3.5.2 Example 2: Using the GUI to replace a power supply. . . . . . . . . . . . . . . . . . . . . . 57
3.5.3 System indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.5.4 Parts installation and repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.6 Microcode updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.7 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Chapter 4. Virtualization concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4.1 Virtualization definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.2 The abstraction layers for disk virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.2.1 Array sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.2.2 Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4.2.3 Ranks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
4.2.4 Extent pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.2.5 Logical volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4.2.6 Logical subsystems (LSS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
4.2.7 Address groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
4.2.8 Volume access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
4.2.9 Summary of the virtualization hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4.2.10 Placement of data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.3 Benefits of virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Chapter 5. IBM TotalStorage DS6000 model overview . . . . . . . . . . . . . . . . . . . . . . . . . 83
Contents vii
5.1 DS6000 highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.1.1 DS6800 Model 1750-511 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.1.2 DS6000 Model 1750-EX1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.2 Designed to scale for capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Chapter 6. Copy Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
6.1 Introduction to Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
6.2 Copy Services functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
6.2.1 Point-in-Time Copy (FlashCopy). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
6.2.2 FlashCopy options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
6.2.3 Remote Mirror and Copy (Peer-to-Peer Remote Copy) . . . . . . . . . . . . . . . . . . . . 97
6.2.4 Comparison of the Remote Mirror and Copy functions. . . . . . . . . . . . . . . . . . . . 103
6.2.5 What is Consistency Group?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6.3 Interfaces for Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
6.3.1 DS Management Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
6.3.2 DS Storage Manager Web-based interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.3.3 DS Command-Line Interface (CLI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.3.4 DS open application programming interface (API) . . . . . . . . . . . . . . . . . . . . . . . 110
6.4 Interoperability with ESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
6.5 Future Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Part 3. Planning and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Chapter 7. Installation planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
7.1 General considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2 Installation site preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2.1 Floor and space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.2.2 Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
7.2.3 Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
7.2.4 Preparing the rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
7.3 System management interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
7.3.1 IBM TotalStorage DS Storage Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
7.3.2 DS Open application programming interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
7.3.3 DS Command-Line Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
7.4 Network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
7.5 SAN requirements and considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
7.5.1 Attaching to an Open System host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
7.5.2 FICON-attached zSeries Host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
7.6 Software requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
7.6.1 Licensed features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Chapter 8. Configuration planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
8.1 Configuration planning considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
8.2 DS6000 Management Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
8.2.1 Configuration management of DS6000 system . . . . . . . . . . . . . . . . . . . . . . . . . 127
8.2.2 DS Management Console connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
8.2.3 Local maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
8.2.4 Copy Services management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
8.2.5 Remote service support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
8.2.6 Call home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
8.2.7 Simple Network Management Protocol (SNMP). . . . . . . . . . . . . . . . . . . . . . . . . 131
8.3 DS6000 licensed functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
8.3.1 Operating Environment License (OEL) - required feature. . . . . . . . . . . . . . . . . . 132
8.3.2 Point-in-Time Copy function (PTC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
viii DS6000 Series: Concepts and Architecture
8.3.3 Remote Mirror and Copy functions (RMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
8.3.4 Parallel Access Volumes (PAV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
8.3.5 Server attachment license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
8.3.6 Ordering license functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
8.3.7 Disk storage feature activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
8.4 Capacity planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
8.4.1 Physical configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
8.4.2 Logical configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
8.4.3 Sparing rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
8.5 Data migration planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
8.5.1 Operating system mirroring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
8.5.2 Basic commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
8.5.3 Software packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
8.5.4 Remote copy technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
8.5.5 Migration appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
8.5.6 z/OS data migration methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
8.6 Planning for performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
8.6.1 Disk Magic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
8.6.2 Number of host ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.6.3 Remote copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.6.4 Parallel Access Volumes (z/OS only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.6.5 I/O priority queuing (z/OS only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.6.6 Monitoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
8.6.7 Hot spot avoidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
8.6.8 Preferred paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Chapter 9. The DS Storage Manager: Logical configuration . . . . . . . . . . . . . . . . . . . 151
9.1 Configuration hierarchy, terminology, and concepts . . . . . . . . . . . . . . . . . . . . . . . . . . 152
9.1.1 Storage configuration terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
9.1.2 Summary of the DS Storage Manager logical configuration steps . . . . . . . . . . . 161
9.2 Introducing the GUI and logical configuration panels . . . . . . . . . . . . . . . . . . . . . . . . . 163
9.2.1 Connecting to your DS6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
9.2.2 Introduction and Welcome panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
9.2.3 Navigating the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
9.3 The logical configuration process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
9.3.1 Configuring a storage complex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
9.3.2 Configuring the storage unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
9.3.3 Configuring the logical host systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
9.3.4 Creating arrays from array sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
9.3.5 Creating extent pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.3.6 Creating FB volumes from extents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
9.3.7 Creating volume groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
9.3.8 Assigning LUNs to the hosts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
9.3.9 Deleting LUNs and recovering space in the extent pool . . . . . . . . . . . . . . . . . . . 189
9.3.10 Creating CKD LCUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
9.3.11 Creating CKD volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
9.3.12 Using the Express Configuration Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
9.3.13 Displaying the storage units WWNN in the DS Storage Manager GUI. . . . . . . 192
9.4 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Chapter 10. DS CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
10.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
10.2 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Contents ix
10.3 Supported environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
10.4 Installation methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
10.5 Command flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
10.6 User security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
10.7 Usage concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
10.7.1 Command modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
10.7.2 Syntax conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
10.7.3 User assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
10.7.4 Return codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
10.8 Usage examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
10.9 Mixed device environments and migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
10.9.1 Migration tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
10.10 DS CLI migration example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
10.10.1 Determining the saved tasks to be migrated. . . . . . . . . . . . . . . . . . . . . . . . . . 209
10.10.2 Collecting the task details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
10.10.3 Converting the saved task to a DS CLI command . . . . . . . . . . . . . . . . . . . . . 211
10.10.4 Using DS CLI commands via a single command or script . . . . . . . . . . . . . . . 213
10.11 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Part 4. Implementation and management in the z/OS environment. . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Chapter 11. Performance considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
11.1 What is the challenge? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
11.1.1 Speed gap between server and disk storage . . . . . . . . . . . . . . . . . . . . . . . . . . 220
11.1.2 New and enhanced functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
11.2 Where do we start? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
11.2.1 SSA backend interconnection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
11.2.2 Arrays across loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
11.2.3 Switch from ESCON to FICON ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
11.2.4 PPRC over Fibre Channel links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
11.2.5 Fixed LSS to RAID rank affinity and increasing DDM size . . . . . . . . . . . . . . . . 222
11.3 How does the DS6000 address the challenge? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
11.3.1 Fibre Channel switched disk interconnection at the back end . . . . . . . . . . . . . 223
11.3.2 Fibre Channel device adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
11.3.3 New four-port host adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
11.3.4 Enterprise-class dual cluster design for the DS6800 . . . . . . . . . . . . . . . . . . . . 227
11.3.5 Vertical growth and scalability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
11.4 Performance and sizing considerations for open systems . . . . . . . . . . . . . . . . . . . . 230
11.4.1 Workload characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
11.4.2 Data placement in the DS6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
11.4.3 LVM striping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
11.4.4 Determining the number of connections between the host and DS6000 . . . . . 232
11.4.5 Determining the number of paths to a LUN. . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11.4.6 Determining where to attach the host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11.5 Performance and sizing considerations for z/OS . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
11.5.1 Connect to zSeries hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
11.5.2 Performance potential in z/OS environments . . . . . . . . . . . . . . . . . . . . . . . . . . 234
11.5.3 An appropriate DS6000 size in z/OS environments . . . . . . . . . . . . . . . . . . . . . 235
11.5.4 Configuration recommendations for z/OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
11.6 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Chapter 12. zSeries software enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
12.1 Software enhancements for the DS6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
12.2 z/OS enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
x DS6000 Series: Concepts and Architecture
12.2.1 Scalability support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
12.2.2 Large Volume Support (LVS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
12.2.3 Read availability mask support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
12.2.4 Initial Program Load (IPL) enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
12.2.5 DS6000 definition to host software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
12.2.6 Read Control Unit and Device Recognition for DS6000 . . . . . . . . . . . . . . . . . . 246
12.2.7 New performance statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
12.2.8 Resource Measurement Facility (RMF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
12.2.9 Preferred pathing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
12.2.10 Migration considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
12.2.11 Coexistence considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
12.3 z/VM enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
12.4 z/VSE enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
12.5 TPF enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Chapter 13. Data Migration in zSeries environments. . . . . . . . . . . . . . . . . . . . . . . . . . 251
13.1 Define migration objectives in z/OS environments . . . . . . . . . . . . . . . . . . . . . . . . . . 252
13.1.1 Consolidate storage subsystems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
13.1.2 Consolidate logical volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
13.1.3 Keep source and target volume at the current size. . . . . . . . . . . . . . . . . . . . . . 253
13.1.4 Summary of data migration objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
13.2 Data migration based on physical migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
13.2.1 Physical migration with DFSMSdss and other storage software. . . . . . . . . . . . 254
13.2.2 Software- and hardware-based data migration. . . . . . . . . . . . . . . . . . . . . . . . . 255
13.2.3 Hardware- and microcode-based migration . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
13.3 Data migration based on logical migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
13.3.1 Data Set Services Utility (DFSMSdss) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
13.3.2 Data migration within the system-managed storage environment . . . . . . . . . . 265
13.3.3 Summary of logical data migration based on software utilities . . . . . . . . . . . . . 270
13.4 Combine physical and logical data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
13.5 z/VM and VSE/ESA data migration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
13.6 Summary of data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Part 5. Implementation and management in the open systems environment. . . . . . . . . . . . . . . . . . . 273
Chapter 14. Open systems support and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
14.1 Open systems support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
14.1.1 Supported operating systems and servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
14.1.2 Where to look for updated and detailed information . . . . . . . . . . . . . . . . . . . . . 277
14.1.3 Differences to ESS 2105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
14.1.4 Boot support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
14.1.5 Additional supported configurations (RPQ). . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
14.1.6 Differences in interoperability between DS6000 and DS8000 . . . . . . . . . . . . . 279
14.2 Subsystem Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
14.3 Other multipathing solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
14.4 DS CLI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
14.5 IBM TotalStorage Productivity Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
14.5.1 Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
14.5.2 TCP for Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
14.5.3 TPC for Replication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
14.6 Global Mirror Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
14.7 Enterprise Remote Copy Management Facility (eRCMF). . . . . . . . . . . . . . . . . . . . . 288
14.8 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Contents xi
Chapter 15. Data migration in the open systems environment. . . . . . . . . . . . . . . . . . 289
15.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
15.2 Comparison of migration methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
15.2.1 Host operating system-based migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
15.2.2 Subsystem-based data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
15.2.3 IBM Piper migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
15.2.4 Other migration applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
15.3 IBM migration services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
15.4 Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Appendix A. Operating systems specifics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
General considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
The DS6000 Host Systems Attachment Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
UNIX performance monitoring tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
IOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
System Activity Report (SAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
VMSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
IBM AIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
The AIX host attachment scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Finding the World Wide Port Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Managing multiple paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
LVM configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
AIX access methods for I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Boot device support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
AIX on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Monitoring I/O performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Support issues that distinguish Linux from other operating systems . . . . . . . . . . . . . . 312
Existing reference material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Important Linux issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Linux on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Troubleshooting and monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Microsoft Windows 2000/2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
HBA and operating system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
SDD for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Windows Server 2003 VDS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
HP OpenVMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
FC port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Volume configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Command Console LUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
OpenVMS volume shadowing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Appendix B. Using the DS6000 with iSeries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Supported environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Logical volume sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Protected versus unprotected volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Changing LUN protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Adding volumes to iSeries configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Using 5250 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Adding volumes to an Independent Auxiliary Storage Pool . . . . . . . . . . . . . . . . . . . . . 334
xii DS6000 Series: Concepts and Architecture
Multipath. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Avoiding single points of failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Configuring multipath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Adding multipath volumes to iSeries using 5250 interface . . . . . . . . . . . . . . . . . . . . . . 345
Adding volumes to iSeries using iSeries Navigator. . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Managing multipath volumes using iSeries Navigator . . . . . . . . . . . . . . . . . . . . . . . . . 349
Multipath rules for multiple iSeries systems or partitions . . . . . . . . . . . . . . . . . . . . . . . 352
Changing from single path to multipath. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Preferred path for DS6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Sizing guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Planning for arrays and DDMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Number of iSeries Fibre Channel adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Size and number of LUNs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Recommended number of ranks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Sharing ranks between iSeries and other servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Connecting via SAN switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
OS/400 mirroring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Metro Mirror and Global Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
OS/400 data migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Copy Services for iSeries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
FlashCopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Remote Mirror and Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
iSeries toolkit for Copy Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
AIX on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Linux on IBM iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Appendix C. Service and support offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
IBM Web sites for service offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
IBM service offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
IBM Operational Support Services - Support Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Other publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Online resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
How to get IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Help from IBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
© Copyright IBM Corp. 2004. All rights reserved. xiii
Notices
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult
your local IBM representative for information on the products and services currently available in your area. Any
reference to an IBM product, program, or service is not intended to state or imply that only that IBM product,
program, or service may be used. Any functionally equivalent product, program, or service that does not
infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to
evaluate and verify the operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document. The
furnishing of this document does not give you any license to these patents. You can send license inquiries, in
writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive Armonk, NY 10504-1785 U.S.A.
The following paragraph does not apply to the United Kingdom or any other country where such provisions are
inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in new editions of the publication. IBM may make
improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time
without notice.
Any references in this information to non-IBM Web sites are provided for convenience only and do not in any
manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the
materials for this IBM product and use of those Web sites is at your own risk.
IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring
any obligation to you.
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products and cannot confirm the
accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the
capabilities of non-IBM products should be addressed to the suppliers of those products.
This information contains examples of data and reports used in daily business operations. To illustrate them
as completely as possible, the examples include the names of individuals, companies, brands, and products.
All of these names are fictitious and any similarity to the names and addresses used by an actual business
enterprise is entirely coincidental.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrates programming
techniques on various operating platforms. You may copy, modify, and distribute these sample programs in
any form without payment to IBM, for the purposes of developing, using, marketing or distributing application
programs conforming to the application programming interface for the operating platform for which the sample
programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore,
cannot guarantee or imply reliability, serviceability, or function of these programs. You may copy, modify, and
distribute these sample programs in any form without payment to IBM for the purposes of developing, using,
marketing, or distributing application programs conforming to IBM's application programming interfaces.
xiv DS6000 Series: Concepts and Architecture
Trademarks
The following terms are trademarks of the International Business Machines Corporation in the United States,
other countries, or both:
iSeries™
i5/OS™
pSeries®
xSeries®
z/OS®
z/VM®
z/VSE™
zSeries®
AIX 5L™
AIX®
AS/400®
BladeCenter®
CICS®
DB2®
DFSMS/MVS®
DFSMS/VM®
DFSMSdss™
DFSMShsm™
DFSORT™
Enterprise Storage Server®
ESCON®
FlashCopy®
FICON®
Geographically Dispersed Parallel
Sysplex™
GDPS®
HACMP™
IBM®
IMS™
Lotus Notes®
Lotus®
Multiprise®
MVS™
Netfinity®
Notes®
OS/390®
OS/400®
Parallel Sysplex®
Power PC®
PowerPC®
Predictive Failure Analysis®
POWER™
Redbooks™
RMF™
RS/6000®
S/390®
Seascape®
System/38™
Tivoli®
TotalStorage Proven™
TotalStorage®
VSE/ESA™
The following terms are trademarks of other companies:
Solaris, Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States, other countries, or both.
Microsoft, Visual Basic, Windows, Windows NT, and the Windows logo are trademarks of Microsoft
Corporation in the United States, other countries, or both.
Intel, Intel Inside (logos), Itanium, and Pentium are trademarks of Intel Corporation in the United States, other
countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a trademark of Linus Torvalds in the United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
© Copyright IBM Corp. 2004. All rights reserved. xv
Summary of changes
This section describes the technical changes made in this edition of the book and in previous
editions. This edition may also include minor corrections and editorial changes that are not
identified.
Summary of Changes
for SG24-6471-00
for DS6000 Series: Concepts and Architecture
as created or updated on December 13, 2005.
March 2005, First Edition
This revision reflects the addition, deletion, or modification of new and changed information
described below.
Changed information (see change bars)
򐂰Fixed errors in table on p. 330-331
򐂰SAN boot is available for the IBM® eServer BladeCenter®
򐂰Updated with August 2005 announcement information
򐂰Updated code load information
򐂰Updated DS CLI user management information
򐂰Updated DS CLI command examples with corrected syntax
򐂰Removed references to pre and post GA restrictions that no longer apply
򐂰Updated bibliography
xvi DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. xvii
Preface
This IBM Redbook describes the IBM TotalStorage® DS6000 storage server series, its
architecture, its logical design, hardware design and components, advanced functions,
performance features, and specific characteristics. The information contained in this redbook
is useful for those who need a general understanding of this powerful new disk subsystem, as
well as for those looking for a more detailed understanding of how the DS6000 series is
designed and operates.
The DS6000 series is a follow-on product to the IBM TotalStorage Enterprise Storage
Server® with new functions related to storage virtualization and flexibility.
The DS6000 series is a storage product targeted for the midrange market, but it has all the
functions and availability features that normally can be found only in high end storage
systems. In a very small enclosure, which fits in a standard 19-inch rack, the DS6000 series
offers capacity, reliability functions, and performance similar to those of an ESS 800 or
comparable high-end storage systems.
For example, zSeries® customers now also have the option to buy a midrange priced storage
subsystem for their environment without giving up the functionality of an ESS.
In addition to the logical and physical description of the DS6000 series, the fundamentals of
the configuration process are also described in this redbook. This is useful information for
proper planning and configuration for installing the DS6000 series, as well as for the efficient
management of this powerful storage subsystem.
Characteristics of the DS6000 series described in this redbook also include the DS6000 copy
functions: FlashCopy®, Metro Mirror, Global Copy, and Global Mirror. The performance
features, particularly the switched FC-AL implementation of the DS6000 series, are also
explained, so that the user can better optimize the storage resources of the computing center.
The team that wrote this redbook
This redbook was produced by a team of specialists from around the world working at the
Washington Systems Center in Gaithersburg, MD.
Cathy Warrick is a project leader and Certified IT Specialist in the IBM International
Technical Support Organization. She has over 25 years of experience in IBM with large
systems, open systems, and storage, including education on products internally and for the
field. Prior to joining the ITSO two years ago, she developed the Technical Leadership
education program for the IBM and IBM Business Partner’s technical field force and was the
program manager for the Storage Top Gun classes.
Olivier Alluis has worked in the IT field for nearly 7 years. After starting his career in the
French Atomic Research Industry (CEA - Commissariat à l'Energie Atomique), he joined IBM
in 1998. He has been a Product Engineer for the IBM High End Systems, specializing in the
development of the IBM DWDM solution. Four years ago, he joined the SAN pre-sales
support team in the Product and Solution Support Center in Montpellier working in the
Advanced Technical Support organization for EMEA. He is now responsible for the Early
Shipment Programs for the Storage Disk systems in EMEA. Olivier’s areas of expertise
include: high-end storage solutions (IBM ESS), virtualization (SAN Volume Controller), SAN
and interconnected product solutions (CISCO, McDATA, CNT, Brocade, ADVA, NORTEL,
xviii DS6000 Series: Concepts and Architecture
DWDM technology, CWDM technology). His areas of interest include storage remote copy on
long-distance connectivity for business continuance and disaster recovery solutions.
Werner Bauer is a certified IT specialist in Germany. He has 25 years of experience in
storage software and hardware, as well as S/390®. He holds a degree in Economics from the
University of Heidelberg. His areas of expertise include disaster recovery solutions in
enterprises utilizing the unique capabilities and features of IBMs Enterprise Storage Server,
the ESS. He has written extensively in various redbooks, including Technical Updates on
DFSMS/MVS® 1.3, 1.4, 1.5. and Transactional VSAM.
Heinz Blaschek is an IT DASD Support Specialist in Germany. He has 11 years of
experience in S/390 customer environments as a HW-CE. Starting in 1997 he was a member
of the DASD EMEA Support Group in Mainz Germany. In 1999, he became a member of the
DASD Backoffice Mainz Germany (support center EMEA for ESS) with the current focus of
supporting the remote copy functions for the ESS. Since 2004 he has been a member of the
VET (Virtual EMEA Team), which is responsible for the EMEA support of DASD systems. His
areas of expertise include all large and medium-system DASD products, particularly the IBM
TotalStorage Enterprise Storage Server.
Andre Fourie is a Senior IT Specialist at IBM Global Services, South Africa. He holds a BSc
(Computer Science) degree from the University of South Africa (UNISA) and has more than
14 years of experience in the IT industry. Before joining IBM he worked as an Application
Programmer and later as a Systems Programmer, where his responsibilities included MVS,
OS/390®, z/OS®, and storage implementation and support services. His areas of expertise
include IBM S/390 Advanced Copy Services, as well as high-end disk and tape solutions. He
has co-authored one previous zSeries Copy Services redbook.
Juan Antonio Garay is a Storage Systems Field Technical Sales Specialist in Germany. He
has five years of experience in supporting and implementing z/OS and Open Systems
storage solutions and providing technical support in IBM. His areas of expertise include the
IBM TotalStorage Enterprise Storage Server, when attached to various server platforms, and
the design and support of Storage Area Networks. He is currently engaged in providing
support for open systems storage across multiple platforms and a wide customer base.
Torsten Knobloch has worked at IBM for six years. Currently he is an IT Specialist on the
Customer Solutions Team at the Mainz TotalStorage Interoperability Center (TIC) in
Germany. There he performs Proof of Concept and System Integration Tests in the Disk
Storage area. Before joining the TIC he worked in Disk Manufacturing in Mainz as a Process
Engineer.
Donald (Chuck) Laing is a Senior Systems Management Integration Professional,
specializing in open systems UNIX® disk administration in the IBM South Delivery Center
(SDC). He has co-authored four previous IBM Redbooks™ on the IBM TotalStorage
Enterprise Storage Server. He holds a degree in Computer Science. Chuck’s responsibilities
include planning and implementation of midrange storage products. His responsibilities also
include department-wide education and cross training on various storage products such as
the ESS and FAStT. He has worked at IBM for six and a half years. Before joining IBM, Chuck
was a hardware CE on UNIX systems for 10 years and taught basic UNIX at Midland College
for six and a half years in Midland, Texas.
Christine O’Sullivan is an IT Storage Specialist in the ATS PSSC storage benchmark center
at Montpellier, France. She joined IBM in 1988 and was a System Engineer during her 6 first
years. She has 7 years of experience in the pSeries® systems and storage. Her areas of
expertise and main responsibilities are ESS, storage performance, disaster recovery
solutions, AIX® and Oracle databases. She is involved in proof of concept and benchmarks
Preface xix
for tuning and optimizing storage environments. She has written several papers about ESS
Copy Services and disaster recovery solutions in an Oracle/pSeries environment.
Stu Preacher has worked for IBM for over 30 years, starting as a Computer Operator before
becoming a Systems Engineer. Much of his time has been spent in the midrange area,
working on System/34, System/38™, AS/400® and iSeries™. Most recently, he has focused
on iSeries Storage, and at the beginning of 2004, he transfered into the IBM TotalStorage
Division. Over the years, Stu has been a co-author for many Redbooks, including “iSeries in
Storage Area Networks” and “Moving Applications to Independent ASPs.” His work in these
areas has formed a natural base for working with the new IBM TotalStorage DS6000 and
DS8000.
Torsten Rothenwaldt is a Storage Architect in Germany. He holds a degree in mathematics
from Friedrich Schiller University at Jena, Germany. His areas of interest are high availability
solutions and databases, primarily for the Windows® operating systems. Before joining IBM in
1996, he worked in industrial research in electron optics, and as a Software Developer and
System Manager in OpenVMS environments.
Tetsuroh Sano has worked in AP Advanced Technical Support in Japan for the last five
years. His focus areas are open system storage subsystems (especially the IBM
TotalStorage Enterprise Storage Server) and SAN hardware. His responsibilities include
product introduction, skill transfer, technical support for sales opportunities, solution
assurance, and critical situation support.
Jing Nan Tang is an Advisory IT Specialist working in ATS for the TotalStorage team of IBM
China. He has nine years of experience in the IT field. His main job responsiblity is providing
technical support and IBM storage solutions to IBM professionals, Business Partners, and
customers. His areas of expertise include solution design and implementation for IBM
TotalStorage Disk products (Enterprise Storage Server, FAStT, Copy Services, Performance
Tuning), SAN Volume Controller, and Storage Area Networks across open systems.
Anthony Vandewerdt is an Accredited IT Specialist who has worked for IBM Australia for 15
years. He has worked on a wide variety of IBM products and for the last four years has
specialized in storage systems problem determination. He has extensive experience on the
IBM ESS, SAN, 3494 VTS and wave division multiplexors. He is a founding member of the
Australian Storage Central team, responsible for screening and managing all storage-related
service calls for Australia/New Zealand.
Alexander Warmuth is an IT Specialist who joined IBM in 1993. Since 2001 he has worked
in Technical Sales Support for IBM TotalStorage. He holds a degree in Electrical Engineering
from the University of Erlangen, Germany. His areas of expertise include Linux® and IBM
storage as well as business continuity solutions for Linux and other open system
environments.
Roland Wolf has been with IBM for 18 years. He started his work in IBM Germany in second
level support for VM. After five years he shifted to S/390 hardware support for three years.
For the past ten years he has worked as a Systems Engineer in Field Technical Support for
Storage, focusing on the disk products. His areas of expertise include mainly high-end disk
storage systems with PPRC, FlashCopy, XRC, but he is also experienced in SAN and
midrange storage systems in the Open Storage environment. He holds a Ph.D. in Theoretical
Physics and is an IBM Certified IT Specialist.
xx DS6000 Series: Concepts and Architecture
Figure 0-1 Front row - Cathy, Torsten R, Torsten K, Andre, Toni, Werner, Tetsuroh. Back row - Roland, Olivier, Anthony,
Tang, Christine, Alex, Stu, Heinz, Chuck.
We want to thank all the members of John Amann’s team at the Washington Systems Center
in Gaithersburg, MD for hosting us. Craig Gordon and Rosemary McCutchen were especially
helpful in getting us access to beta code and hardware.
Thanks to the following people for their contributions to this project:
Susan Barrett
IBM Austin
James Cammarata
IBM Chicago
Dave Heggen
IBM Dallas
John Amann, Craig Gordon, Rosemary McCutchen
IBM Gaithersburg
Hartmut Bohnacker, Michael Eggloff, Matthias Gubitz, Ulrich Rendels, Jens Wissenbach,
Dietmar Zeller
IBM Germany
Brian Sherman
IBM Markham
Ray Koehler
IBM Minneapolis
John Staubi
IBM Poughkeepsie
Steve Grillo, Duikaruna Soepangkat, David Vaughn
IBM Raleigh
Amit Dave, Selwyn Dickey, Chuck Grimm, Nick Harris, Andy Kulich, Jim Tuckwell, Joe Writz
IBM Rochester
Charlie Burger, Gene Cullum, Michael Factor, Brian Kraemer, Ling Pong, Jeff Steffan, Pete
Urbisci, Steve Van Gundy, Diane Williams
IBM San Jose
Jana Jamsek
IBM Slovenia
Preface xxi
Dari Durnas
IBM Tampa
Linda Benhase, Jerry Boyle, Helen Burton, John Elliott, Kenneth Hallam, Lloyd Johnson, Carl
Jones, Arik Kol, Rob Kubo, Lee La Frese, Charles Lynn, Dave Mora, Bonnie Pulver, Nicki
Rich, Rick Ripberger, Gail Spear, Jim Springer, Teresa Swingler, Tony Vecchiarelli, John
Walkovich, Steve West, Glenn Wightwick, Allen Wright, Bryan Wright
IBM Tucson
Nick Clayton
IBM United Kingdom
Steve Chase
IBM Waltham
Rob Jackard
IBM Wayne
Many thanks to the graphics editor, Emma Jacobs, and the editor, Alison Chandler.
Become a published author
Join us for a two- to six-week residency program! Help write an IBM Redbook dealing with
specific products or solutions, while getting hands-on experience with leading-edge
technologies. You'll team with IBM technical professionals, Business Partners and/or
customers.
Your efforts will help increase product acceptance and customer satisfaction. As a bonus,
you'll develop a network of contacts in IBM development labs, and increase your productivity
and marketability.
Find out more about the residency program, browse the residency index, and apply online at:
ibm.com/redbooks/residencies.html
Comments welcome
Your comments are important to us!
We want our Redbooks to be as helpful as possible. Send us your comments about this or
other Redbooks in one of the following ways:
򐂰Use the online Contact us review redbook form found at:
ibm.com/redbooks
򐂰Send your comments in an email to:
redbook@us.ibm.com
򐂰Mail your comments to:
IBM Corporation, International Technical Support Organization
Dept. QXXE Building 80-E2
650 Harry Road
San Jose, California 95120-6099
xxii DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 1
Part 1 Introduction
In this part we introduce the IBM TotalStorage DS6000 series and its key features. The topics
covered include:
򐂰Product overview
򐂰Positioning
򐂰Performance
Part 1
2 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 3
Chapter 1. Introducing the IBM TotalStorage
DS6000 series
This chapter provides an overview of the features, functions, and benefits of the IBM
TotalStorage DS6000 series of storage servers. The topics covered include:
򐂰Overview of the DS6000 series and its benefits
򐂰Positioning the DS6000 series within the whole family of IBM Disk Storage products
򐂰Performance of the DS6000 series
1
4 DS6000 Series: Concepts and Architecture
1.1 The DS6000 series, a member of the TotalStorage DS Family
IBM has a wide range of product offerings that are based on open standards and share a
common set of tools, interfaces, and innovative features. The IBM TotalStorage DS Family
and its new member, the DS6000 series (see Figure 1-1), gives you the freedom to choose
the right combination of solutions for your current needs and the flexibility to help your
infrastructure evolve as your needs change. The TotalStorage DS Family is designed to offer
high availability, multiplatform support, and simplified management tools, all to help you cost
effectively adjust to an on demand world.
Figure 1-1 DS6000 series
1.1.1 Infrastructure simplification
Consolidation begins with compatibility. The IBM TotalStorage DS Family and the DS6000
support a broad array of IBM and non-IBM server platforms, including IBM z/OS, z/VM®,
OS/400®, i5/OS™, and AIX 5L™ operating systems, as well as Linux, HP-UX, Sun Solaris,
Novell NetWare, UNIX, and Microsoft® Windows environments. Consequently, you have the
freedom to choose preferred vendors and run the applications you require to meet your
enterprise’s needs while extending your previous IT investments.
Storage asset consolidation can be greatly assisted by virtualization. Virtualization software
solutions are designed to logically combine separate physical storage systems into a single,
virtual storage pool, thereby offering dramatic opportunities to help reduce the total cost of
ownership (TCO), particularly when used in combination with the DS6000 series.
1.1.2 Business continuity
The IBM TotalStorage DS Family and the DS6000 series as a member of this family, supports
enterprise-class data backup and disaster recovery capabilities. As part of the IBM
TotalStorage Resiliency Family of software, IBM TotalStorage FlashCopy point-in-time copy
capabilities back up data in the background, while allowing users nearly instant access to
information on both the source and target volumes. Metro and Global Mirror and Global Copy
capabilities allow the creation of duplicate copies of application data at remote sites.
1.1.3 Information lifecycle management
By retaining frequently accessed or high-value data in one storage server and archiving less
valuable information in a less costly one, systems like the DS6000 series can help improve
the management of information according to its business value—from the moment of its
creation to the moment of its disposal. The policy-based management capabilities built into
the IBM TotalStorage Open Software Family, IBM DB2® Content Manager and IBM Tivoli®
Chapter 1. Introducing the IBM TotalStorage DS6000 series 5
Storage Manager for Data Retention, are designed to help you automatically preserve critical
data, while preventing deletion of that data before its scheduled expiration.
1.2 IBM TotalStorage DS6000 series unique benefits
The IBM TotalStorage DS6000 series is a Fibre Channel based storage system that supports
a wide range of IBM and non-IBM server platforms and operating environments. This includes
open systems, zSeries, and iSeries servers.
In a small 3U footprint, the new storage subsystem provides performance and functions for
business continuity, disaster recovery and resiliency, previously only available in expensive
high-end storage subsystems. The DS6000 series is compatible regarding Copy Services
with the previous Enterprise Storage Server (ESS) Models 800 and 750, as well as with the
new DS8000 series.
The DS6000 series offers an entirely new era in price, performance, and scalability. Now for
the first time zSeries and iSeries customers have the option for a midrange priced storage
subsystem with all the features and functions of an enterprise storage subsystem.
Some clients do not like to put large amounts of storage behind one storage controller. In
particular, the controller part of a high-end storage system makes it expensive. Now you have
the option of choice: you can build very cost efficient storage systems by adding expansion
enclosures to the DS6800 controller, but since the DS6800 controller is not really expensive,
you can also grow horizontally by adding other DS6800 controllers. You also have the option
to easily grow into the DS8000 series by adding DS8000 systems to your environment or by
replacing DS6000 systems (see Figure 1-2).
Figure 1-2 Scaling options of the DS6000 and DS8000 series
DS6000
DS8000
DS6000
DS8000
Scale
up
Scale
out
6 DS6000 Series: Concepts and Architecture
1.2.1 Hardware overview
The DS6000 series consists of the DS6800, Model 1750-511, which has dual Fibre Channel
RAID controllers with up to 16 disk drives in the enclosure (see Figure 1-1 on page 4).
Capacity can be increased by adding up to 7 DS6000 expansion enclosures, Model
1750-EX1, each with up to 16 disk drives, as shown Figure 1-3.
Figure 1-3 DS6800 with five DS6000 expansion enclosures in a rack
DS6800 controller enclosure (Model 1750-511)
IBM TotalStorage systems are based on a server architecture. At the core of the DS6800
controller unit are two active/active RAID controllers based on IBM’s industry leading
PowerPC® architecture. By employing a server architecture with standard hardware
components, IBM’s storage division can always take advantage of the best of breed
components developed by other IBM divisions. The customer gets the benefit of a very cost
efficient and high performing storage system.
The processors
The DS6800 utilizes two 64-bit PowerPC 750GX 1 GHz processors for the storage server and
the host adapters, respectively, and another PowerPC 750FX 500 MHz processor for the
device adapter on each controller card. The DS6800 is equipped with 2 GB memory in each
controller card, adding up to 4 GB. Some part of the memory is used for the operating system
and another part in each controller card acts as nonvolatile storage (NVS), but most of the
memory is used as cache. This design to use processor memory makes cache accesses very
fast.
When data is written to the DS6800, it is placed in cache and a copy of the write data is also
copied to the NVS of the other controller card, so there are always two copies of write data
until the updates have been destaged to the disks. On zSeries, this mirroring of write data can
be disabled by application programs, for example, when writing temporary data (Cache Fast
Write). The NVS is battery backed up and the battery can keep the data for at least 72 hours
if power is lost.
The DS6000 series controller’s Licensed Internal Code (LIC) is based on the DS8000 series
software, a greatly enhanced extension of the ESS software. Since 97% of the functional
code of the DS6000 is identical to the DS8000 series, the DS6000 has a very good base to
be a stable system.
Chapter 1. Introducing the IBM TotalStorage DS6000 series 7
The disk drives
The DS6800 controller unit can be equipped with up to 16 internal FC-AL disk drive modules,
offering up to 4.8 TB of physical storage capacity in only 3U (5.25”) of standard 19” rack
space.
Dense packaging
Calibrated Vectored Cooling technology used in xSeries® and BladeCenter to achieve dense
space saving packaging is also used in the DS6800. The DS6800 weighs only 49.6 kg
(109 lbs.) with 16 drives. It connects to normal power outlets with its two power supplies in
each DS6800 or DS6000 expansion enclosure. All this provides savings in space, cooling,
and power consumption.
Host adapters
The DS6800 has eight 2 Gbps Fibre Channel ports that can be equipped with two or up to
eight shortwave or longwave Small Formfactor Plugables (SFP). You order SFPs in pairs. The
2 Gbps Fibre Channel host ports (when equipped with SFPs) can also auto-negotiate to
1 Gbps for legacy SAN components that support only 1 Gbps. Each port can be configured
individually to operate in Fibre Channel or FICON® mode, but you should always have pairs.
Host servers should have paths to each of the two RAID controllers of the DS6800.
Switched FC-AL subsystem
The disk drives in the DS6800 or DS6000 expansion enclosure have a dual ported FC-AL
interface. Instead of forming an FC-AL loop, each disk drive is connected to two Fibre
Channel switches within each enclosure. With this switching technology there is a
point-to-point connection to each disk drive. This allows maximum bandwidth for data
movement, eliminates the bottlenecks of loop designs, and allows for specific disk drive fault
indication.
There are four paths from the DS6800 controllers to each disk drive to provide greater data
availability in the event of multiple failures along the data path. The DS6000 series systems
provide preferred path I/O steering and can automatically switch the data path used to
improve overall performance.
Here is a summary of the DS6800 major features:
򐂰Two RAID controller cards.
򐂰Two PowerPC 750GX 1 GHz processors and one PowerPC 750FX processor on each
RAID controller card.
򐂰4 GB of cache.
򐂰Two battery backup units (one for each controller card).
򐂰Two AC/DC power supplies with imbedded enclosure cooling units.
򐂰Eight 2 Gbps device ports - for additional DS6000 expansion enclosures connectivity.
򐂰Two Fibre Channel switches for disk drive connectivity in each DS6000 series enclosure.
򐂰Eight Fibre Channel host ports that can be configured as pairs of FCP or FICON host
ports. The host ports auto-negotiate to either 2 Gbps or 1 Gbps link speeds.
򐂰Attachment to up to seven (7) DS6000 expansion enclosures.
򐂰Very small size, weight, and power consumption. All DS6000 series enclosures are 3U in
height and mountable in a standard 19-inch rack.
8 DS6000 Series: Concepts and Architecture
DS6000 expansion enclosure (Model 1750-EX1)
The size and the front look of the DS6000 expansion enclosure (1750-EX1) is the same as
the DS6800 controller enclosure. In the front you can have up to 16 disk drives.
Aside from the drives, the DS6000 expansion enclosure contains two Fibre Channel switches
to connect to the drives and two power supplies with integrated fans.
Up to 7 DS6000 expansion enclosures can be added to a DS6800 controller enclosure. The
DS6800 supports two dual redundant switched loops. The first loop is for the DS6800 and up
to three (3) DS6000 expansion enclosures. The second switched loop is for up to four (4)
expansion enclosures. For connections to the previous and next enclosure, four inbound and
four outbound 2 Gbps Fibre Channel ports are available.
1.2.2 Storage capacity
The DS6000 series offers outstanding scalability with physical capacities ranging from
584 GB up to 38.4 TB, while maintaining excellent performance. Physical capacity for the
DS6800 and DS6000 expansion enclosure is purchased via disk drive sets. A disk drive set
contains four identical disk drives (same capacity and revolutions per minute (RPM)).
Currently, a minimum of eight drives (two disk drive sets) are required for the DS6800. You
can increase the capacity of your DS6000 by adding one or more disk drive sets to the
DS6800 or DS6000 expansion enclosure. Within the controller model DS6800, you can install
up to four disk drive sets (16 disk drive modules (DDMs)). Up to 7 DS6000 expansion
enclosures can be added non-disruptively, on demand, as your storage needs grow.
According to your performance needs you can select from four different disk drive types: fast
73 GB and 146 GB drives rotating at 15,000 RPM, good performing and cost efficient 146 GB
drives operating at 10,000 RPM, and high capacity 300 GB drives running at 10,000 RPM.
The minimum storage capability with eight 73 GB DDMs is 584 GB. The maximum storage
capability with 16 300 GB DDMs for the DS6800 controller enclosure is 4.8 TB. If you want to
connect more than 16 disks, you can use the optional DS6000 expansion enclosures that
allow a maximum of 128 DDMs per storage system and provide a maximum storage
capability of 38.4 TB.
Every four or eight drives form a RAID array and you can choose between RAID-5 and
RAID-10. The configuration process enforces that at least two spare drives are defined on
each loop. In case of a disk drive failure or even when the DS6000’s predictive failure analysis
comes to the conclusion that a disk drive might fail soon, the data of the failing disk is
reconstructed on the spare disk. More spare drives might be assigned if you have drives of
mixed capacity and speed. The mix of different capacities and speeds will not be available at
general availability, but at a later time.
1.2.3 DS management console
The DS management console consists of the DS Storage Manager software, shipped with
every DS6000 series system, and a computer system on which the software can run. The
DS6000 management console running the DS Storage Manager software is used to
configure and manage DS6000 series systems. The software runs on a Windows or Linux
system that the client can provide.
IBM TotalStorage DS Storage Manager
The DS Storage Manager is a Web-based graphical user interface (GUI) that is used to
perform logical configurations and Copy Services management functions. It can be accessed
Chapter 1. Introducing the IBM TotalStorage DS6000 series 9
from any location that has network access to the DS management console using a Web
browser. You have the following options to use the DS Storage Manager:
򐂰Simulated (offline) configuration
This application allows the user to create or modify logical configurations when
disconnected from the network. After creating the configuration, you can save it and then
apply it to a new or un-configured storage unit at a later time.
򐂰Real-time (online) configuration
This provides real-time management support for logical configuration and Copy Services
functions to a network attached storage unit.
The DS6000 series’ Express Configuration Wizards guide you through the configuration
process and help get the system operational in minimal time. The DS Storage Manager’s GUI
is intuitive and very easy to understand.
IBM TotalStorage DS Command-Line Interface
The DS Command-Line Interface (CLI) is a single CLI that has the ability to perform a full set
of commands for logical configuration, Copy Services activities, or both. The DS CLI can also
issue Copy Services commands to an ESS Model 750, ESS Model 800 (at LIC level 2.4.3 and
above), or DS8000 series system. It is possible to combine the DS CLI commands into a
script. This can help enhance your productivity since it eliminates the previous (on ESS)
requirement for you to create and save a task using the GUI.
The following list highlights a few of the specific types of functions that you can perform with
the DS CLI:
򐂰Check and verify your storage unit configuration
򐂰Check the current Copy Services configuration that is used by the storage unit
򐂰Create new logical storage and Copy Services configuration settings
򐂰Modify or delete logical storage and Copy Services configuration settings
DS Open application programming interface
The DS Open application programming interface (API) is a non-proprietary storage
management client application that supports routine LUN management activities, such as
LUN creation, mapping, and masking; and the creation or deletion of RAID-5 and RAID-10
volume spaces. The DS Open API also enables Copy Services functions such as FlashCopy
and Remote Mirror and Copy.
1.2.4 Supported environment
The DS6000 system can be connected across a broad range of server environments,
including IBM eServer, zSeries, iSeries, xSeries, BladeCenter, and pSeries servers, as well
as servers from Sun Microsystems, Hewlett-Packard, and other providers. You can easily split
up the DS6000 system storage capacity among the attached environments. This makes it an
ideal system for storage consolidation in a dynamic and changing on demand environment.
Particularly for zSeries and iSeries customers, the DS6000 series will be an exciting product,
since for the first time it gives them the choice to buy a midrange priced storage system for
their environment with a performance that is similar to or exceeds that of an IBM ESS.
10 DS6000 Series: Concepts and Architecture
1.2.5 Business continuance functions
As data and storage capacity are growing faster year by year most customers can no longer
afford to stop their systems to back up terabytes of data, it just takes too long. Therefore, IBM
has developed fast replication techniques that can provide a point-in-time copy of the
customer’s data in a few seconds or even less. This function is called FlashCopy on the
DS6000 series, as well as on the ESS models and DS8000 series.
As data becomes more and more important for an enterprise, losing data or access to data,
even only for a few days, might be fatal for the enterprise. Therefore, many customers,
particularly those with high end systems like the ESS and the DS8000 series, have
implemented Remote Mirroring and Copy techniques previously called Peer-to-Peer Remote
Copy (PPRC) and now called Metro Mirror, Global Mirror, or Global Copy. These functions are
also available on the DS6800 and are fully interoperable with ESS 800 and 750 models and
the DS8000 series.
Point-in-time Copy feature
The Point-in-time Copy feature consists of the FlashCopy function. The primary objective of
FlashCopy is to create very quickly a point-in-time copy of a source volume on the target
volume. When you initiate a FlashCopy operation, a FlashCopy relationship is created
between the source volume and target volume. A FlashCopy relationship is a mapping of a
FlashCopy source volume and a FlashCopy target volume. The FlashCopy relationship exists
between the volume pair from the time that you initiate a FlashCopy operation until the
storage unit copies all data from the source volume to the target volume, or until you delete
the FlashCopy relationship if it is a persistent FlashCopy. The benefits of FlashCopy are that
the point-in-time copy is immediately available for use for backups and the source volume is
immediately released so that applications can be restarted, with minimal application
downtime. The target volume is available for read and write processing so it can be used for
testing or backup purposes. You can choose to leave the copy as a logical copy or choose to
physically copy the data. If you choose to physically copy the data, a background process
copies tracks from the source volume to the target volume.
FlashCopy is an additional charged feature. You have to order the Point-in-time Copy feature,
which includes FlashCopy. Then you have to follow a procedure to get the key from the
internet and install it on your DS6800.
To make a FlashCopy of a LUN or a z/OS CKD volume you need a target LUN or z/OS CKD
volume of the same size as the source within the same DS6000 system (some operating
systems also support a copy to a larger volume). z/OS customers can even do FlashCopy on
a data set level basis when using DFSMSdss™. Of course the DS6000 also supports
Concurrent Copy.
The DS Storage Manager’s GUI provides an easy way to set up FlashCopy or Remote Mirror
and Copy functions. Not all functions are available via the GUI; instead, we recommend that
you use the new DS Command-Line Interface (DS CLI), which is much more flexible.
Data Set FlashCopy
In a z/OS environment when DFSMSdss is used to copy a data set, by default FlashCopy is
used to do the copy. In this environment FlashCopy can operate at a data set level.
Multiple Relationship FlashCopy
Multiple Relationship FlashCopy allows a source to have FlashCopy relationships with
multiple targets simultaneously. This flexibility allows you to initiate up to 12 FlashCopy
relationships on a given logical unit number (LUN), volume, or data set, without needing to
first wait for or cause previous relationships to end.
Chapter 1. Introducing the IBM TotalStorage DS6000 series 11
Incremental FlashCopy
Incremental FlashCopy provides the capability to refresh a LUN or volume involved in a
FlashCopy relationship. When a subsequent FlashCopy is initiated, only the data required to
bring the target current to the source's newly established point-in-time is copied. This
unburdens the backend and the disk drives are not so busy and can do more production I/Os.
The direction of the refresh can also be reversed, in which case the LUN or volume previously
defined as the target becomes the source for the LUN or volume previously defined as the
source (and now the target).
FlashCopy to a remote mirror primary
When we mention remote mirror primary, we mean any primary volume of a Metro Mirror or
Global Copy pair. FlashCopy to a remote mirror primary lets you establish a FlashCopy
relationship where the target is a remote mirror primary volume. This enables you to create
full or incremental point-in-time copies at a local site and let remote mirroring operations copy
the data to the remote site. Many clients that utilize a remote copy function use it for all their
volumes. The DS6800 allows a FlashCopy onto a remote mirror primary volume.
Previous ESS clients faced the issue that they could not use FlashCopy since a FlashCopy
onto a volume that was mirrored was not possible. This restriction particularly affected z/OS
clients using data set level FlashCopy for copy operations within a mirrored pool of production
volumes.
Consistency Group commands
The Consistency Group function of FlashCopy allows the DS6800 to hold off I/O activity to a
LUN or volume until all LUNs/volumes within the group have established a FlashCopy
relationship to their targets and the FlashCopy Consistency Group Created command is
issued or a timer expires. Consistency Groups can be used to help create a consistent
point-in-time copy across multiple LUNs or volumes, and even across multiple DS6800
systems, as well as across DS8000 series, ESS 800, and ESS 750 systems.
Inband commands over remote mirror link
In a remote mirror environment where you want to do a FlashCopy of the remote volumes,
instead of sending FlashCopy commands across an Ethernet connection to the remote
DS6800, Inband FlashCopy allows commands to be issued from the local or intermediate
site, and transmitted over the remote mirror Fibre Channel links for execution on the remote
DS6800. This eliminates the need for a network connection to the remote site solely for the
management of FlashCopy.
Remote Mirror and Copy feature
Remote Mirror and Copy is another separately orderable priced feature; it includes Metro
Mirror, Global Copy, and Global Mirror. The local and remote storage systems must have a
Fibre Channel connection between them. Remote Mirror and Copy functions can also be
established between DS6800 and ESS 800/750 systems, but not between a DS6800 and
older ESS models like the F20, because these models do not support remote mirror or copy
across Fibre Channel (they only support ESCON®) and the DS6800 does not support
ESCON.
Metro Mirror
Metro Mirror was previously called Synchronous Peer-to-Peer Remote Copy (PPRC) on the
ESS. It provides a synchronous copy of LUNs or zSeries CKD volumes. A write I/O to the
source volume is not complete until it is acknowledged by the remote system. Metro Mirror
supports distances of up to 300km.
12 DS6000 Series: Concepts and Architecture
Global Copy
This is a non-synchronous long distance copy option for data migration and backup.
Global Copy was previously called PPRC-XD on the ESS. It is an asynchronous copy of
LUNs or zSeries CKD volumes. An I/O is signaled complete to the server as soon as the data
is in cache and mirrored to the other controller cache. The data is then sent to the remote
storage system. Global Copy allows for copying data to far away remote sites. However, if you
have more than one volume, there is no mechanism that guarantees that the data of different
volumes at the remote site is consistent in time.
Global Mirror
Global Mirror is similar to Global Copy but it provides data consistency.
Global Mirror is a long distance remote copy solution across two sites using asynchronous
technology. It is designed to provide the following:
򐂰Support for virtually unlimited distances between the local and remote sites, with the
distance typically limited only by the capabilities of the network and channel extension
technology being used. This can better enable you to choose your remote site location
based on business needs and enables site separation to add protection from localized
disasters.
򐂰A consistent and restartable copy of the data at the remote site, created with little impact
to applications at the local site.
򐂰Data currency, where for many environments the remote site lags behind the local site an
average of three to five seconds, helps to minimize the amount of data exposure in the
event of an unplanned outage. The actual lag in data currency experienced will depend
upon a number of factors, including specific workload characteristics and bandwidth
between the local and remote sites.
򐂰Efficient synchronization of the local and remote sites, with support for failover and
failback modes, which helps to reduce the time required to switch back to the local site
after a planned or unplanned outage.
Three sites solution
A combination of Global Mirror and Global Copy, called Metro/Global Copy, is available on
the ESS 750 and ESS 800. It is a three site approach and it was previously called
Asynchronous Cascading PPRC. You first copy your data synchronously to an intermediate
site and from there you go asynchronously to a more distant site. Metro/Global Copy is not
available on the DS6800, but the following General Statement of Direction from IBM was
included in the October 12, 2004 Hardware Announcement:
IBM intends to offer a long-distance business continuance solution across three sites allowing
for recovery from the secondary or tertiary site with full data consistency. The solution may
include any mix of DS6000 series, ESS 750, ESS 800, or the DS8000 series.
Remote Mirror connections
All of the remote mirroring solutions described here use Fibre Channel as the
communications link between the primary and secondary systems. The Fibre Channel ports
used for Remote Mirror and Copy can be configured either as dedicated remote mirror links
or as shared ports between remote mirroring and Fibre Channel Protocol (FCP) data traffic.
z/OS Global Mirror
z/OS Global Mirror (previously called XRC) offers a specific set of very high scalability and
high performance asynchronous mirroring capabilities designed to match very demanding,
Chapter 1. Introducing the IBM TotalStorage DS6000 series 13
large zSeries resiliency requirements. The DS6000 series systems can only be used as a
target system in z/OS Global Mirror operations.
1.2.6 Resiliency
The DS6000 series has built in resiliency features that are not generally found in small
storage devices. The DS6000 series is designed and implemented with component
redundancy to help reduce and avoid many potential single points of failure.
Within a DS6000 series controller unit, there are redundant RAID controller cards, power
supplies, fans, Fibre Channel switches, and Battery Backup Units (BBUs).
There are four paths to each disk drive. Using Predictive Failure Analysis®, the DS6000 can
identify a failing drive and replace it with a spare drive without customer interaction.
Four path switched drive subsystem
Most vendors feature Fibre Channel Arbitrated Loops, which can make it difficult to identify
failing disks and is more susceptible to losing access to storage. The IBM DS6000 series
provides dual active/active design architecture, including dual Fibre Channel switched disk
drive subsystems which provide four paths to each disk drive. This ensures high data
availability even in the event of multiple failures along the data path. Fibre Channel switches
are used for each 16 disk drive enclosure unit, so that if a connection to one drive is lost, the
remaining drives can continue to function, unlike disk drives configured in a loop design.
Spare drives
The configuration process when forming RAID-5 or RAID-10 arrays will require that two global
spares are defined in the DS6800 controller enclosure. If you have expansion enclosures, the
first enclosure will have another two global spares. More spares could be assigned when
drive groups with larger capacity drives are added.
Predictive Failure Analysis
The DS6800 uses the well known (xSeries and ESS) Predictive Failure Analysis (PFA) to
monitor the operations of its drives. PFA takes pre-emptive and automatic actions before
critical drive failures occur. This functionality is based on a policy-based disk responsiveness
threshold and takes the disk drive offline. The content of the failing drive is reconstructed from
data and parity information of the other RAID array drives on the global spare disk drive. At
the same time, service alerts are invoked, the failed disk is identified with Light Path
indicators, and an alert Message Popup occurs on the management server.
1.2.7 Interoperability
The DS6800 features unsurpassed enterprise interoperability for a modular storage
subsystem because it uses the same software as the DS8000 series, which is an extension of
the proven IBM ESS code. This allows for cross-DS6000/8000 management and common
software function interoperability, for example, Metro Mirror between a DS6000 and an ESS
Model 800, while maintaining a Global Mirror between the same DS6000 and a DS8000 for
some other volumes.
1.2.8 Service and setup
DS6000 series systems are designed to be easy to install and maintain; they are customer
setup products. The DS Storage Manager’s intuitive Web-based GUI makes the configuration
process easy. For most common configuration tasks, Express Configuration Wizards are
available to guide you through the installation process.
14 DS6000 Series: Concepts and Architecture
Light Path Diagnostics and controls are available for easy failure determination, component
identification, and repair if a failure does occur. The DS6000 series can also be remotely
configured and maintained when it is installed in a remote location.
The DS6800 consists of only five types of customer replaceable units (CRU). Light Path
indicators will tell you when you can replace a failing unit without having to shut down your
whole environment. If a concurrent maintenance is not possible, which might be the case for
some double failures, the DS Storage Manager’s GUI will guide you on what to do.
Of course a customer can also sign a service contract with IBM or an IBM Business Partner
for extended service.
The DS6800 can be configured for a call home in the event of a failure and it can do event
notification messaging. In this case an Ethernet connection to the external network is
necessary. The DS6800 can use this link to place a call to IBM or to another service provider
when it requires service. With access to the machine, service personnel can perform service
tasks, such as viewing error and problem logs or initiating trace and dump retrievals.
At regular intervals the DS6000 sends out a heartbeat. The service provider uses this report
to monitor the health of the call home process.
Configuration changes like adding disk drives or expansion enclosures are a non-disruptive
process. Most maintenance actions are non-disruptive, including downloading and activating
new Licensed Internal Code.
The DS6000 comes with a four year warranty. This is outstanding in the industry and shows
IBM’s confidence in this product. Once again, this makes the DS6800 a product with a low
total cost of ownership (TCO).
1.2.9 Configuration flexibility
The DS6000 series uses virtualization techniques to separate the logical view of hosts onto
LUNs from the underlying physical layer. This provides high configuration flexibility (see
Chapter 4, “Virtualization concepts” on page 65).
Dynamic LUN/volume creation and deletion
The DS6800 gives you a high degree of flexibility in managing your storage. LUNs can be
created and also deleted without having to reformat a whole array.
LUN and volume creation and deletion is non-disruptive. When you delete a LUN or volume,
the capacity can be reused, for example, to form a LUN of a different size.
Large LUN and large CKD volume support
You can configure LUNs and volumes to span arrays, which allows for large LUN sizes.
LUNs can be as large as 2 TB.
The maximum volume size has also been increased for CKD volumes. Volumes with up to
65520 cylinders can now be defined, which corresponds to about 55.6 GB. This can greatly
reduce the number of volumes that have to be managed.
Flexible LUN to LSS association
A Logical Subsystem (LSS) is constructed to address up to 256 devices.
Chapter 1. Introducing the IBM TotalStorage DS6000 series 15
On an ESS there was a predefined association of arrays to Logical Subsystems. This caused
some inconveniences, particularly for zSeries customers. Since in zSeries one works with
relatively small volume sizes, the available address range for an LSS often was not sufficient
to address the whole capacity available in the arrays associated with the LSS. On the other
hand, in large capacity configurations where large CKD volumes were used, clients had to
define several address ranges, even when there were only a few addresses used in an LSS.
Several customers were confronted with a zSeries addressing limit of 64K addresses.
There is no predefined association of arrays to LSSs on the DS6000 series. Clients are free
to put LUNs or CKD volumes into LSSs and make best use of the 256 address range of an
LSS.
Simplified LUN masking
The access to LUNs by host systems is controlled via volume groups. Hosts or disks in the
same volume group share access to data. This is a new form of LUN masking. Instead of
doing LUN masking for individual World Wide Port Names (WWPN), as implemented on the
ESS, you can now do LUN masking at the host level by grouping all or some WWPNs of a
host into a so-called Host Attachment and associating the Host Attachment to a Volume
Group.
This new LUN masking process simplifies storage management because you no longer have
to deal with individual Host Bus Adapters (HBAs) and volumes, but instead with groups.
Summary
In summary, the DS6000 series allows for:
򐂰Up to 32 logical subsystems
򐂰Up to 8192 logical volumes
򐂰Up to 1040 volume groups
򐂰Up to 2 TB LUNs
򐂰Large z/OS volumes with up to 65520 Cylinders
1.3 Positioning the IBM TotalStorage DS6000 series
The IBM TotalStorage DS6000 series is designed to provide exceptional performance,
scalability, and flexibility while supporting 24 x 7 business operations to help provide the
access and protection demanded by today's business environments. It is also designed to
deliver the flexibility and centralized management needed to lower long-term costs. It is part
of a complete set of disk storage products that are all part of the IBM TotalStorage DS Family
and it is the disk product of choice for environments that require the highest levels of
reliability, scalability, and performance available from IBM for mission-critical workloads.
Clients who currently have IBM TotalStorage ESS models in their enterprise should also
consider the IBM TotalStorage DS6000 series when they plan to replace or buy additional
storage.
The IBM TotalStorage DS6000 series is designed for the cost, performance, and high
capacity requirements of today's on demand business environments.
The DS6000 series is ideally suited for storage consolidation because it offers extensive
connectivity options. A broad range of server environments, including IBM eServer zSeries,
iSeries, xSeries, BladeCenter, and pSeries servers, as well as servers from Sun, HP, and
other server providers are supported. This rich support of heterogeneous environments and
16 DS6000 Series: Concepts and Architecture
attachments, along with the flexibility to easily partition the DS6000 series storage capacity
among the attached environments, makes the DS6000 series system a very attractive
product in dynamic, changing environments.
In the midrange market it competes with many other products. The DS6000 series overlaps in
price and performance with the DS4500 of the IBM DS4000 series of storage products. But
the DS6000 series offers enterprise capabilities not found in other midrange offerings. A
zSeries or iSeries customer might ponder whether to buy a DS6000 series or a DS8000
series class storage subsystem or a competitive subsystem. When comparing the DS6000
series with the DS4000 series and DS8000 series of storage products it is important to have a
closer look at advanced functions and the management interfaces.
1.3.1 Common set of functions
The DS6000 series, the DS8000 series, and even the ESS storage subsystems share a
common set of advanced functions, including FlashCopy, Metro Mirror, Global Copy, and
Global Mirror.
There is also a set of common functions for storage management, including the IBM
TotalStorage DS Command-Line Interface (DS CLI) and the IBM TotalStorage DS open
application programming interface (API).
It is unique in the industry that IBM can offer, with the DS6000 series and the DS8000 series
of products, storage systems with common management and copy functions for the whole DS
family. This allows customers to easily expand their storage server farm to high end or
midrange systems without the need for the storage administrators to learn about a new
product. This will reduce your management costs and the total cost of ownership.
1.3.2 Common management functions
Within the DS6000 series and DS8000 series of storage systems, the provisioning tools like
the DS Storage Manager’s configuration GUI or CLI are very similar. Scripts written for one
series member of storage servers will also work for the other series. Given this, it is easy for a
storage administrator to work with either of the products. This reduces management costs
since no training on a new product is required when adding a product of another series.
1.3.3 DS6000 series compared to other members of the TotalStorage DS
Family
Here we compare the DS6000 series to other members of the IBM TotalStorage DS Family.
DS6000 series compared to ESS
The ESS clients will find it very easy to replace their old systems with a DS6800. All functions
(with the exception of cascading Metro/Global Copy and z/OS Global Mirror), are the same as
on the ESS and are also available on a DS6800.
If you want to keep your ESS and if it is a model 800 or 750 with Fibre Channel adapters, you
can use your old ESS, for example, as a secondary for remote copy. With the ESS at the
appropriate LIC level, scripts or CLI commands written for Copy Services will work for both
the ESS and the DS6800.
For most environments the DS6800 performs much better than an ESS. You might even
replace two ESS 800s with one DS6800. The sequential performance of the DS6800 is
excellent. However, when you plan to replace an ESS with a large cache (let’s say more than
16 GB) with a DS6800 (which comes with 4 GB cache) and you currently get the benefit of a
Chapter 1. Introducing the IBM TotalStorage DS6000 series 17
high cache hit rate, your cache hit rate on the DS6800 will drop down. This is because of the
smaller cache. z/OS benefits from large cache, so for transaction-oriented workloads with
high read cache hits, careful planning is required.
DS6000 series compared to DS8000 series
You can think of the DS6000 series as the small brother or sister of the DS8000 series. All
Copy Services (with the exception of z/OS Global Mirror) are available on both systems. You
can do Metro Mirror, Global Mirror, and Global Copy between the two series. The CLI
commands and the DS Storage Manager GUI look the same for both systems.
Obviously the DS8000 series can deliver a higher throughput and scales higher than the
DS6000 series, but not all customers need this high throughput and capacity. You can choose
the system that fits your needs since both systems support the same SAN infrastructure and
the same host systems.
It is very easy to have a mixed environment, with DS8000 series systems where you need
them and DS6000 series systems where you need a very cost efficient solution.
Logical partitioning with some DS8000 models is not available on the DS6000. For more
information about the DS8000 refer to The IBM TotalStorage DS8000 Series: Concepts and
Architecture, SG24-6452.
DS6000 series compared to DS4000 series
Previous DS4000 series (formerly called FAStT) clients will find more of a difference between
the DS4000 series and DS6000 series of products.
Both product families have about the same size and capacity, but their functions differ. With
respect to performance, the DS4000 series range is below the DS6000 series. You have the
option to choose from different DS4000 models, among them very low cost entry models.
DS4000 series storage systems can also be equipped with cost efficient, high capacity Serial
ATA dr ives.
The DS4000 series products allow you to grow with a granularity of a single disk drive, while
with the DS6000 series you have to order at least four drives. Currently the DS4000 series
also is more flexible with respect to changing RAID arrays on the fly and changing LUN sizes.
The implementation of FlashCopy on the DS4000 series is different as compared to the
DS6000 series. While on a DS4000 series you need space only for the changed data, you will
need the full LUN size for the copy LUN on a DS6000 series. However, while the target LUN
on a DS4000 series cannot be used for production, it can on the DS6000 series. If a real copy
of a LUN is needed on a DS4000 series, there is the option to do a volume copy. However,
this is a two step process and it can take a long time until the copy is available for use. On a
DS6000 series the copy is available for production after a few seconds.
Some of the differences in functions will disappear in the future. For the DS6000 series there
is a General Statement of Direction from IBM (from the October 12, 2004 Hardware
Announcement):
Extension of IBM's dynamic provisioning technology within the DS6000 series is planned to
provide LUN/volume dynamic expansion, online data relocation, virtual capacity over
provisioning, and space-efficient FlashCopy requiring minimal reserved target capacity.
While the DS4000 series also offers remote copy solutions, these functions are not
compatible with the DS6000 series.
18 DS6000 Series: Concepts and Architecture
1.3.4 Use with other virtualization products
IBM TotalStorage SAN Volume Controller is designed to increase the flexibility of your storage
infrastructure by introducing a new layer between the hosts and the storage systems. The
SAN Volume Controller can enable a tiered storage environment to increased flexibility in
storage management. The SAN Volume Controller combines the capacity from multiple disk
storage systems into a single storage pool, which can be managed from a central point. This
is simpler to manage and helps increase utilization. It also allows you to apply advanced Copy
Services across storage systems from many different vendors to help further simplify
operations.
Currently, the DS4000 series product family (FAStT) is a popular choice for many customers
who buy the SAN Volume Controller. With the DS6000 series, they now have an attractive
alternative. Since the SAN Volume Controller already has a rich set of advanced copy
functions, clients were looking for a cost efficient but reliable storage system. The DS6000
series fits perfectly into this environment since it offers good performance for the price while
still delivering all the reliability functions needed to protect your data.
The SAN File System provides a common file system for UNIX, Windows, and Linux servers,
with a single global namespace to help provide data sharing across servers. It is designed as
a highly scalable solution supporting both very large files and very large numbers of files,
without the limitations normally associated with Network File System (NFS) or Common
Internet File System (CIFS) implementations.
To be able to share data in a heterogeneous environment the storage system must support
the sharing of LUNs. The DS6000 series can do this and thus is an ideal candidate for your
SAN File System data.
1.4 Performance
At the time this redbook was written, no officially published performance benchmarks were
available.
With its fast six processors on the controller cards and the switched FC-AL disk subsystem,
the DS6000 series is a high-performance modular storage system.
Some other performance relevant features are discussed in the following sections.
1.4.1 Tagged Command Queuing
Tagged Command Queuing allows Multiple AIX/UNIX I/O commands to be queued to the
DS6800, which improves performance through autonomic storage management versus the
server queuing one I/O request at a time. The DS6800 can reorder the queue to optimize disk
I/O.
1.4.2 Self-learning cache algorithms - SARC
Cache algorithms determine what data is stored in cache and what data is removed. Read
ahead caching will not store recently used data in cache, but will pre-fetch data and load it
into cache. This is based on the idea that the application will want the next chunks of data in
addition to the data it just received.
Most vendors use a cache algorithm based on what is commonly known as Last Recently
Used (LRU), which places data to cache based on server access patterns. IBM's patent
Chapter 1. Introducing the IBM TotalStorage DS6000 series 19
pending Sequential prefetching in Adaptive Replacement Cache (SARC) places data in cache
based not only on server access patterns, but also on frequency of data utilization.
1.4.3 IBM multipathing software
IBM Multi-path Subsystem Device Driver (SDD) provides load balancing and enhanced data
availability capability in configurations with more than one I/O path between the host server
and the DS6800. The data path from the host to the RAID controller is pre-determined by the
LUN. Below the RAID controller, load balancing algorithms are designed to direct the data to
the path that will have the best throughput.
Most vendors’ priced multipathing software selects the preferred path at the time of initial
request. IBM's free of charge preferred path multipathing software offers performance beyond
this, by dynamically selecting the most efficient and optimum path to use at each data
interchange during read and write operations.
1.4.4 Performance for zSeries
In this section we discuss some z/OS relevant performance features available on the DS6000
series.
Parallel Access Volumes (PAV)
PAV is an optional feature for zSeries environments which enables a single zSeries server to
simultaneously process multiple I/O operations to the same logical volume, which can help to
significantly improve throughput. This is achieved by defining multiple addresses per volume.
With Dynamic PAV, the assignment of addresses to volumes can be automatically managed
to help the workload meet its performance objectives and reduce overall queuing. To utilize
dynamic PAV, the Workload Manager must be used in Goal Mode.
Multiple Allegiance
Multiple Allegiance is a standard DS6800 feature which expands simultaneous logical volume
access capability across multiple zSeries servers. This function, along with the software
function PAV, enables the DS6800 to process more I/Os in parallel, helping to dramatically
improve performance and enabling greater use of large volumes.
Priority I/O Queuing
Priority I/O Queuing improves performance in z/OS environments with several z/OS images.
You can, for example, favor I/O from production systems compared to I/O from test systems.
Storage administrator productivity can also be improved and Service Level Agreements better
managed due to this capability.
20 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 21
Part 2 Architecture
In this part we describe various aspects of the DS6000 series architecture. These include:
򐂰Hardware components
򐂰RAS - reliability, availability, and serviceability
򐂰Virtualization concepts
򐂰Overview of the models
򐂰Copy Services
Part 2
22 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 23
Chapter 2. Components
This chapter details the hardware components of the DS6000. Here you can read about the
DS6000 hardware platform and its components:
򐂰Server enclosure
򐂰Expansion enclosure
򐂰Controller architecture
򐂰Disk subsystem
򐂰Server enclosure RAID controller card
򐂰Expansion enclosure SBOD controller card
򐂰Front panel
򐂰Rear panel
򐂰Power subsystem
򐂰System service card
򐂰Storage Manager console
򐂰Cables
2
24 DS6000 Series: Concepts and Architecture
2.1 Server enclosure
The entire DS6800 including disks, controllers, and power supplies, is contained in a single
3U chassis which is called a server enclosure. If additional capacity is needed, it can be
added by using a DS6000 expansion enclosure.
Figure 2-1 DS6800 front view
The front view of the DS6800 server enclosure is shown in Figure 2-1. On the left is the front
display panel that provides status indicators. You can also see the disk drive modules or
DDMs. Each enclosure can hold up to 16 DDMs.
Figure 2-2 DS6800 rear view
The rear view of the DS6800 server enclosure is shown in Figure 2-2. You can see the left
and right power supplies, the rear display panel, the upper and lower RAID controllers and the
battery backup units. Each of these components is described separately later in this chapter.
Front display panel
Disk drive modules
Power supply Power supply
Upper RAID controller Rear display panel
Lower RAID controller Battery backup units
Chapter 2. Components 25
2.2 Expansion enclosure
The DS6000 expansion enclosure is used to add capacity to an existing DS6800 server
enclosure. From the front view, it is effectively identical to the server enclosure (so it is not
pictured). The rear view is shown in Figure 2-3. You can see the left and right power supplies,
the rear display panel, and the upper and lower SBOD (Switched Bunch Of Disks) controllers.
The power supplies and rear display panel used in the expansion enclosure are identical to
the server enclosure.
The rear view shows two small but important differences. First, the RAID controller cards are
replaced with SBOD controller cards. Second, there are no batteries (since there is no
persistent memory in the expansion enclosure). Instead the expansion enclosure has
blockouts where the battery backup units were, to ensure correct airflow within the enclosure.
Figure 2-3 DS6000 expansion enclosure rear view
2.3 Controller architecture
Having described the enclosures themselves, the rest of the chapter explores the technical
details of each of the components. The architecture that connects these components is
pictured in Figure 2-4 on page 26.
Effectively the DS6800 consists of two controller cards. Each controller card contains an
integrated four port host adapter to connect Fibre Channel and FICON hosts. For the disk
subsystem, each controller card has an integrated four port FC-AL (Fibre Channel Arbitrated
Loop) device adapter that connects the controller card to two separate Fibre Channel loops.
Each switched loop attaches disk enclosures that each contain up to 16 disks. Each
enclosure contains two 22 port Fibre Channel switches. Of these 22 ports, 16 are used to
attach to the 16 disks in the enclosure and four are used to interconnect with other
enclosures. The remaining two are reserved for internal use. Each disk is attached to both
switches. Whenever the device adapter connects to a disk, it uses a switched connection to
transfer data. This means that all data travels via the shortest possible path.
The attached hosts interact with microcode running on a Power PC® chipset to access data
on logical volumes. The microcode manages all read and write requests to the logical
volumes on the disk arrays. For write I/O operations, the controllers use fast-write, whereby
Power supply Power supply
Upper SBOD controller Rear display panel
Lower SBOD controller
26 DS6000 Series: Concepts and Architecture
the data is written to volatile memory on one controller and persistent memory on the other
controller. The DS6800 then reports to the host that the write is complete before it has
actually been written to disk. This provides much faster write performance. Persistent memory
is also called NVS or non-volatile storage.
Figure 2-4 DS6000 architecture
When a host performs a read I/O, the controllers fetch the data from the disk arrays via the
high performance switched disk architecture. The data is then cached in volatile memory in
case it is required again. The controllers attempt to anticipate future reads by an algorithm
known as SARC (sequential prefetching in adaptive replacement cache). Data is held in
cache as long as possible using this smart algorithm. If a cache hit occurs where requested
data is already in cache, then the host does not have to wait for it to be read from the disks.
Controller
card 0
SAN fabric
Controller
card 1
Power PC
chipset
Power PC
chipset
Persistent memory
Volatile
memory
Persistent memory
Volatile
memory
host adapter
chipset host adapter
chipset
20 port fibre channel switch
20 port fibre channel switch
20 port fibre channel switch
20 port fibre channel switch
device adapter
chipset device adapter
chipset
Server
enclosure
First expansion
enclosure (if present)
Chapter 2. Components 27
If you can view Figure 2-4 on page 26 in color, you can use the colors as indicators of how the
DS6000 hardware is shared between the controllers (in black and white, the dark color is
green and the light color is yellow). On the left side is the green controller. The green
controller records its write data and caches its read data in its volatile memory area (in
green). For fast-write data it has a persistent memory area on the right controller. It uses its
device adapter chipset to access the disk arrays under its management. The yellow controller
on the right operates in an identical fashion.
2.3.1 Server-based design
The DS6800 benefits from a fully assembled, leading edge processor and memory system.
Using the PowerPC architecture as the primary processing engine sets the DS6800 apart
from other disk storage systems on the market.
The design decision to use processor memory as I/O cache is a key element of the IBM
storage architecture. Although a separate I/O cache could provide fast access, it cannot
match the access speed of main memory. The decision to use main memory as the cache
proved itself in three generations of the IBM Enterprise Storage Server (ESS 2105). The
performance roughly doubled with each generation. This performance improvement can be
traced to the capabilities of the processor speeds, the L1/L2 cache sizes and speeds, the
memory bandwidth and response time, and the PCI bus performance.
With the DS6800, the cache access has been accelerated further by making the non-volatile
storage (NVS) a part of the main memory.
2.3.2 Cache management
Most if not all high-end disk systems have internal cache integrated into the system design,
and some amount of system cache is required for operation. Over time, cache sizes have
dramatically increased, but the ratio of cache size to system disk capacity has remained
nearly the same.
The DS6800 and DS8000 use the patent-pending Sequential Prefetching in Adaptive
Replacement Cache (SARC) algorithm, developed by IBM Storage Development in
partnership with IBM Research. It is a self-tuning, self-optimizing solution for a wide range of
workloads with a varying mix of sequential and random I/O streams. SARC is inspired by the
Adaptive Replacement Cache (ARC) algorithm and inherits many features from it. For a
detailed description of ARC see N. Megiddo and D. S. Modha, “Outperforming LRU with an
adaptive replacement cache algorithm,” IEEE Computer, vol. 37, no. 4, pp. 58–65, 2004.
SARC basically attempts to determine four things:
򐂰When data is copied into the cache.
򐂰Which data is copied into the cache.
򐂰Which data is evicted when the cache becomes full.
򐂰How does the algorithm dynamically adapt to different workloads.
The decision to copy some amount of data into the DS6000/DS8000 cache can be triggered
from two policies: demand paging and prefetching. Demand paging means that disk blocks
are brought in only on a cache miss. Demand paging is always active for all volumes and
ensures that I/O patterns with some locality find at least some recently used data in the
cache.
Prefetching means that data is copied into the cache speculatively even before it is
requested. To prefetch, a prediction of likely future data accesses is needed. Because
effective, sophisticated prediction schemes need extensive history of page accesses (which
28 DS6000 Series: Concepts and Architecture
is not feasible in real-life systems), SARC uses prefetching for sequential workloads.
Sequential access patterns naturally arise in video-on-demand, database scans, copy,
backup, and recovery. The goal of sequential prefetching is to detect sequential access and
effectively pre-load the cache with data so as to minimize cache misses.
For prefetching, the cache management uses tracks. To detect a sequential access pattern,
counters are maintained with every track, to record if a track has been accessed together with
its predecessor. Sequential prefetching becomes active only when these counters suggest a
sequential access pattern. In this manner, the DS6000/DS8000 monitors application read-I/O
patterns and dynamically determines whether it is optimal to stage into cache one of the
following:
򐂰Just the page requested.
򐂰That page requested plus remaining data on the disk track.
򐂰An entire disk track (or a set of disk tracks) which has (have) not yet been requested.
The decision of when and what to prefetch is essentially made on a per-application basis
(rather than a system-wide basis) to be sensitive to the different data reference patterns of
different applications that can be running concurrently.
To decide which pages are evicted when the cache is full, sequential and random
(non-sequential) data is separated into different lists (see Figure 2-5). A page which has been
brought into the cache by simple demand paging is added to the MRU (Most Recently Used)
head of the RANDOM list. Without further I/O access, it goes down to the LRU (Least
Recently Used) bottom. A page which has been brought into the cache by a sequential
access or by sequential prefetching is added to the MRU head of the SEQ list and then goes
in that list. Additional rules control the migration of pages between the lists to not keep the
same pages twice in memory.
Figure 2-5 Cache lists of the SARC algorithm for random and sequential data
To follow workload changes, the algorithm trades cache space between the RANDOM and
SEQ lists dynamically and adaptively. This makes SARC scan-resistant, so that one-time
sequential requests do not pollute the whole cache. SARC maintains a desired size
parameter for the sequential list. The desired size is continually adapted in response to the
workload. Specifically, if the bottom portion of the SEQ list is found to be more valuable than
the bottom portion of the RANDOM list, then the desired size is increased; otherwise, the
desired size is decreased. The constant adaptation strives to make the optimal use of limited
RANDOM
LRU
MRU
RANDOM bottom
SEQ
LRU
MRU
SEQ bottom
Desired size
Chapter 2. Components 29
cache space and delivers greater throughput and faster response times for a given cache
size.
Additionally, the algorithm modifies dynamically not only the sizes of the two lists, but also the
rate at which the sizes are adapted. In a steady state, pages are evicted from the cache at the
rate of cache misses. A larger (respectively, a smaller) rate of misses effects a faster
(respectively, a slower) rate of adaptation.
Other implementation details take into account the relation of read and write (NVS) cache,
efficient destaging, and the cooperation with Copy Services. In this manner, the DS6800 and
DS8000 cache management goes far beyond the usual variants of the LRU/LFU (Least
Recently Used / Least Frequently Used) approaches.
2.4 Disk subsystem
Each DS6000 storage or expansion enclosure can contain 16 DDMs or dummy carriers. A
dummy carrier looks very similar to a DDM in appearance but contains no electronics. As
discussed earlier, from the front, the server enclosure and the expansion enclosure appear
almost identical. When identifying the DDMs, they are numbered 1 to 16 from front top left to
front bottom right as depicted in Figure 2-6.
Figure 2-6 DS6000 DDMs
Each DDM is an industry standard FC-AL disk. Each disk plugs into the DS6000 midplane.
The midplane is the electronic and physical backbone of the DS6000.
Non-switched FC-AL drawbacks
In a standard FC-AL disk enclosure all of the disks are arranged in a loop as depicted in
Figure 2-7 on page 30. This loop-based architecture means that data flows through all disks
before arriving at either end of the RAID controller (shown here as Storage Server).
Note: If a DDM is not present then its slot must be occupied by a dummy carrier. This is
because without a drive or a dummy carrier, cooling air does not circulate correctly.
30 DS6000 Series: Concepts and Architecture
Figure 2-7 Industry standard FC-AL disk enclosure
The main problems with standard FC-AL access to DDMs are:
򐂰The full loop is required to participate in data transfer. Full discovery of the loop via LIP
(loop initialization protocol) is required before any data transfer. Loop stability can be
affected by DDM failures.
򐂰In the event of a disk failure, it can be difficult to identify the cause of a loop breakage,
leading to complex problem determination.
򐂰There is a performance drop off when the number of devices in the loop increases.
򐂰To expand the loop it is normally necessary to partially open it. If mistakes are made, a
complete loop outage can result.
These problems are solved with the switched FC-AL implementation on the DS6000.
Switched FC-AL advantages
The DS6000 uses switched FC-AL technology to link the device adapter (DA) pairs and the
DDMs. Switched FC-AL uses the standard FC-AL protocol, but the physical implementation is
different. The key features of switched FC-AL technology are:
򐂰Standard FC-AL communication protocol from DA to DDMs
򐂰Direct point-to-point links are established between DA and DDM
򐂰Isolation capabilities in case of DDM failures, which provides easy problem determination
򐂰Predictive failure statistics
򐂰Simplified expansion: no cable rerouting required when adding another disk enclosure
The DS6000 architecture employs dual redundant switched FC-AL access to each of the disk
enclosures. The key benefits of doing this are:
򐂰Two independent switched networks to access the disk enclosures
򐂰Four access paths to each DDM
򐂰Each device adapter port operates independently
򐂰Double the bandwidth over traditional FC-AL loop implementations
In the DS6000, the switch chipset is completely integrated into the controllers. Each controller
contains one switch. Note, however, that the switch chipset itself is completely separate from
the controller chipset. In Figure 2-8 on page 31 each DDM is depicted as being attached to
two separate Fibre Channel switches. This means that with two RAID controllers, we have
four effective data paths to each disk, each path operating at 2Gb/sec.
Chapter 2. Components 31
Figure 2-8 Disk enclosure
When a connection is made between the device adapter and a disk, the connection is a
switched connection that uses arbitrated loop protocol. This means that a mini-loop is created
between the device adapter and the disk. Figure 2-9 depicts four simultaneous and
independent connections, one from each device adapter port.
Figure 2-9 Disk enclosure switched connections
DS6000 switched FC-AL implementation
For a more detailed look at how the switched disk architecture expands in the DS6000, refer
to Figure 2-10 on page 32. It depicts how the DS6000 is divided into two disk loops. The
server enclosure (which contains the first 16 DDMs) is on loop 0. The first expansion
enclosure is placed on loop 1. This allows for the best performance since we are now using
all four ports on the device adapter chipset. Expansion is achieved by adding expansion
enclosures onto each loop, until each loop has four enclosures (for a total of 128 DDMs). The
server enclosure is the first enclosure on loop 0, which is why we can only add a total of
seven expansion enclosures.
Controller 0
device
adapter
Fibre channel switch
Controller 1
device
adapter
Fibre channel switch
Controller 0
device
adapter
Fibre channel switch Controller 1
device
adapter
Switched connections
Fibre channel switch
32 DS6000 Series: Concepts and Architecture
Figure 2-10 Switched disk expansion
DDMs
Each DDM is hot plugable and has two indicators. The green indicator shows disk activity
while the amber indicator is used with light path diagnostics to allow the customer to identify
and replace a failed DDM.
At present, the DS6000 allows the choice of four different DDM types:
򐂰73 GB, 15K RPM drive
򐂰146 GB, 10K RPM drive
򐂰146 GB, 15K RPM drive
򐂰300 GB, 10K RPM drive
All DDMs exist in what are called array sites. Array sites containing four DDMs are created as
DDMs are installed. During configuration discussed in Chapter 10, “DS CLI” on page 195, you
have the choice of creating a RAID-5 or RAID-10 array by choosing one or two array sites.
The first and the third array sites created on each loop each contribute one DDM to be a
1
16
FC switch
FC switch
16
1
FC switch
FC switch
Controller 0
16
1
FC switch
FC switch
1
16
FC switch
FC switch
Controller 1
First
expansion
enclosure
Up to 16 DDMs
per enclosure
Third
expansion
enclosure
OUT ports to next enclosure
OUT ports to next enclosure
Cables between
enclosures
Fibre channel
switches
Server
enclosure
Second
expansion
enclosure
Loop 1
Four enclosures
maximum per loop
Loop 0
Four enclosures
maximum per loop
Internal
connections
through
midplane
Raid controller
DISK CONTRL
ports
Raid controller
DISK EXP ports
Chapter 2. Components 33
spare. So at least two spares are created per loop, which will serve up to four enclosures,
depending on the disk intermix.
2.5 Server enclosure RAID controller card
The RAID controller cards are the heart and soul of the system. Each card is the equivalent of
a cluster node in an ESS. IBM has leveraged its extensive development of the ESS host
adapter and device adapter function to create a total repackaging. It actually uses DS8000
host adapter and device adapter logic, which allows almost complete commonality of function
and code between the two series (DS6000 and DS8000).
2.5.1 Technical details
From a technical point of view the controller card is powered by an IBM PowerPC 750GX
1GHz processor. The controllers do not have an internal hard drive, but instead contain a
compact flash memory card to act as a boot device and to store microcode and log data.
Each controller contains 2 GB of server memory, giving the DS6800 a total of 4 GB. A certain
portion of that memory is reserved as persistent memory or non-volatile storage (NVS). The
NVS memory is not located on a separate battery protected card like you would find in an
ESS 800. It instead shares the same memory DIMMs with all the other functions. To protect
the NVS memory area, a battery backup unit preserves the entire cache memory in the event
of an unexpected power failure. If the DS6800 were to power off with un-destaged writes in
NVS, then after reboot, the controller would read this reserved area and destage the writes.
For more details on the batteries themselves and controller failover see Chapter 3, “RAS” on
page 45.
Figure 2-11 DS6800 controller card
2.5.2 Device adapter ports
The DS6800 controller card is pictured in Figure 2-11. On the left-hand side, surrounded by
light and dark blue boxes (for readers seeing this in black and white, they appear to be light
and dark grey), are the disk expansion and disk control ports respectively. These ports are
used to attach up to a total of seven expansion enclosures to the server enclosure.
The device adapter ports provided in each controller are effectively the chipset from one
DS8000 device adapter. This provides remarkable performance thanks to a new high
function/high performance ASIC. To ensure maximum data integrity it supports metadata
creation and checking. Each controller provides four 2 Gb/sec device adapter ports, giving
the machine a total of 8 device adapter ports. These ports must be short wave and use
multimode cables with LC connectors.
The disks in the server enclosure are on the first disk loop (loop 0). When you attach the first
expansion enclosure you attach it to the DISK CONTRL ports to start the second disk loop
(loop 1). The DISK EXP ports are used to attach the second expansion enclosure. It joins the
same switched loop as the disks in the server enclosure (loop 0). The two loops are depicted
34 DS6000 Series: Concepts and Architecture
in Figure 2-10 on page 32 (with loop 0 going upwards and loop 1 going in the downwards
direction).
You add one expansion enclosure to each loop until both loops are populated with four
enclosures each (remembering the server enclosure represents the first enclosure on the first
loop). Note that while we use the term disk loops, and the disks themselves are FC-AL disks,
each disk is actually attached to two separate Fibre Channel switches.
Device adapter port indicators
For each device adapter port, there are two indicators. The top left-hand indicator is green
and is used to indicate port status. The top right-hand indicator is amber and is used to show
port activity.
2.5.3 Host adapter ports
From a host connectivity point of view, each DS6800 controller comes with four Fibre
Channel/FICON host ports, giving the machine a total of eight host ports. You can see these
on the right-hand side of Figure 2-11 on page 33. These host ports auto-negotiate to either 2
Gbps or 1 Gbps link speeds. These ports can be either short wave or long wave, which use
multimode or single mode cables respectively, all with LC connectors.
The ports in each controller are effectively on a PCI-X 64 Bit 133 MHz card, the same card
used in the DS8000. The chipset is driven by a new high function/high performance ASIC. To
ensure maximum data integrity it supports metadata creation and checking.
Each port can be either FICON or Fibre Channel Protocol (FCP).The personality of the port is
changeable via the DS Storage Manager GUI. A port cannot be both FICON and FCP
simultaneously, but it can be changed as required.
It is important to understand that an attached host must have connectivity to both controllers.
This is better detailed in Chapter 3, “RAS” on page 45.
Host adapter port indicators
For each host attachment port, there are three indicators. The top left-hand indicator is green
and is used to indicate port status. The top right-hand indicator is amber and is used to show
a faulty port. The bottom left-hand indicator is green and is used to indicate activity.
2.5.4 SFPs
The disk expansion and host attachment ports both use SFPs (which stands for small form
factor plugable). These SFPs are 2 Gbps. The RAID controller card pictured in Figure 2-11 on
page 33 does not have these SFPs inserted (which is why you can’t see them). These SFPs
are hot plugable and are supplied as a priced feature of the DS6000.
Chapter 2. Components 35
Figure 2-12 SFP hot-plugable fibre port with LC connector fiber cable
Ethernet and serial ports
Each controller card has a 10/100 copper Ethernet port to attach to a customer-supplied LAN.
Both controllers must be attached to the same LAN and have connectivity to the
customer-supplied PC that has the DS Storage Manager software installed on it. This port
has both a status and an activity light. In addition, there is a serial port provided for each
controller. This is not a modem port and is not intended to have a modem attached to it. Its
main purpose is for maintenance by an IBM System Service Representative (SSR), and
possibly for some initial setup tasks.
Health indicators
Contained in an orange box, each controller card has two status indicators located below a
chip symbol. The upper indicator is green and indicates that the controller card is powered
on. The lower indicator is amber and indicates that this controller requires service.
2.6 Expansion enclosure SBOD controller card
The DS6000 SBOD controller card is only found in the expansion enclosure. Each SBOD
controller card contains an independent 22 port Fibre Channel switch. Of these 22 ports, 16
are used to attach to the 16 disks in the expansion enclosure. Four more are used to
interconnect with other enclosures, with the remaining two ports reserved for internal use.
Figure 2-13 on page 36 shows the connectors on the SBOD controller card. The two in ports
on the left are the switch ports that connect either to the server enclosure (to either the disk
exp loop or the disk contrl loop) or to the out ports of a previous expansion enclosure. The
two out ports on the right (in light blue boxes) are the switch ports that attach to the in ports of
the next expansion enclosure. If there are no extra expansion enclosures then they are not
used.
36 DS6000 Series: Concepts and Architecture
Figure 2-13 DS6000 expansion enclosure SBOD controller card
Indicators
On the right-hand side, contained in an orange box, each SBOD controller card has two
status indicators located below a chip symbol. The upper indicator is green and indicates that
the SBOD controller card is powered on. The lower indicator is amber and indicates that this
SBOD controller requires service.
Cabling
Examples of how the expansion enclosures are cabled are shown in Figure 2-14 and
Figure 2-15 on page 37.
In Figure 2-14, the server enclosure has two expansion enclosures attached to the disk exp
loop (loop 0). The server enclosure itself is the first enclosure on loop 0. The upper controller
in the server enclosure is cabled to the upper SBOD card in the expansion enclosure. The
lower controller is cabled to the lower SBOD card. In each case cables run from the disk exp
ports to the in ports of the SBOD card. A second expansion enclosure has been added by
running cables from the out ports on the first expansion enclosure to the in ports on the
second expansion enclosure. At the bottom of the diagram, dotted lines indicate the potential
cabling to add more expansion enclosures to that loop.
Figure 2-14 Expansion enclosure cabling (Disk Exp ports on loop 0)
In Figure 2-15, the server enclosure has two expansion enclosures attached to the disk contrl
loop (loop 1). The first expansion enclosure plugged into the disk contrl ports is the first
enclosure on loop 1. The cabling from the server enclosure to the first expansion enclosure
on this loop is slightly different. Each controller attaches to both SBOD cards, which is why
Cables from disk exp
ports on Server
enclosure to extend
loop 0
First expansion
enclosure on loop 0
(second enclosure
on loop 0)
Second expansion
enclosure on loop 0
(third enclosure
on loop 0)
Chapter 2. Components 37
these cables are pictured in orange and green (which appear darker if viewed in black and
white). In each case cables run from the disk contrl ports to the in ports of the SBOD card. A
second expansion enclosure has been added by running cables from the out ports on the first
expansion enclosure to the in ports on the second expansion enclosure. At the bottom of the
diagram, dotted lines indicate the potential cabling to add more expansion enclosures to that
loop
Figure 2-15 Expansion enclosure cabling (Disk Contrl ports on loop 1)
2.7 Front panel
The DS6000 front operator panel allows you to perform a health check with a single glance.
There are 7 indicators present on the panel; they are depicted in Figure 2-16.
Figure 2-16 DS6000 front panel
Cables attach to
server enclosure
disk contrl ports
First expansion
enclosure on loop 1
(first enclosure
on loop)
Second expansion
enclosure on loop 1
(second enclosure
on loop)
System information
System alert
Data in cache on battery
System power
System identify
CRU fault on rear
Fault in expansion enclosure
38 DS6000 Series: Concepts and Architecture
Table 2-1 summarizes the purpose of each indicator.
Table 2-1 DS6000 front panel indicators
2.8 Rear panel
All of the indicators on the DS6000 front panel are mirrored to the rear panel. The rear panel
is pictured in Figure 2-17 on page 39. The same colors and symbols are used for both the
front and rear displays. The rear panel also has several push buttons which are detailed in
Table 2-2 on page 39.
Indicator Symbol Purpose
System Power
(green)
Lightning bolt If this indicator is on solid then DC power is present and
the system is powered on. If it is blinking then AC Power
is present but the DS6000 is not powered on. If this
indicator is off then AC power is not present.
System Identify
(blue)
Lighthouse This indicator is normally off. It can be made to blink by
pressing the lightpath identify button. It is used to identify
all enclosures that are grouped together in one system.
System
Information
(amber)
Circled letter iThis indicator is normally off. If it is on solid, then an error
has occurred that cannot be fixed by light path
diagnostics. To turn this light off you need to use the GUI
to correct the error condition. This may be as little as to
just view the error log.
System Alert
(amber)
Exclamation mark This indicator is normally off. This indicator turns on solid
when a fault has been detected and will remain on until
the fault condition has been corrected.
Data Cache On
Battery (green)
Battery This indicator is normally off. If it is blinking then the
battery is charging. If it is on solid then AC power has
been lost and the DS6000 has data in cache being
protected by battery.
CRU Fault on Rear
(amber)
Box with arrow
pointing to rear
This indicator is normally off. If it is on solid then a fault
has occurred within a CRU in the rear of the enclosure
and can be repaired using the light path indicators.
Fault in External
Enclosure (amber)
Two boxes with
arrow pointing to
lower box.
This indicator is normally off. If it is on solid then a fault
has occurred within an attached expansion enclosure.
Chapter 2. Components 39
Figure 2-17 DS6000 rear panel
Table 2-2 DS6000 rear panel push buttons
Enclosure ID indicator
The rear display also has an enclosure identifier indicator. This uses two seven-segment
LEDs to display the enclosure identifier number. The left-hand digit displays the device
adapter switched loop the enclosure resides on. This will be 0 or 1 depending on whether the
expansion enclosure is attached to the disk exp ports or the disk contrl ports respectively. On
the server enclosure it will always be 0. The right-hand digit displays the enclosure base
address. It will range from 0 to 3. This address will be set automatically after the enclosure is
powered on and joins the loop.
Rack identify connector
On the far right-hand end of the rear panel is a connector known as the rack identify
connector. The intention is to allow a user to attach the enclosure to eServer rack identifier
hardware. This allows you to identify in which rack a particular DS6000 storage or expansion
enclosure is located.
Power
control
switch
Data
cache on
battery
System
identify
System
alert
Fault in
external
enclosure
Rack
identify
connector
System
power
System
information
Lightpath
Remind
and
Identify
switches
Fault on
front
CRU
Enclosure
identifier
Button Purpose
Power Control
Switch (white)
This button can be seen on the left-hand side of the rear panel. You press it
once to begin the power on or power off sequence. While the button is present
on the expansion enclosure, only the power button on the server enclosure
can power off the entire complex.
Lightpath REMIND
Switch (blue)
The upper of the two blue buttons, you push this button to re-activate the light
path remind. This will allow you to identify a failed component that requires
replacement.
Lightpath IDENTIFY
Switch (blue)
The lower of the two blue buttons, you push this button to activate the system
identify indicator
40 DS6000 Series: Concepts and Architecture
2.9 Power subsystem
The power subsystem of the DS6800 consists of two redundant power supplies and two
battery backup units (BBUs). DS6000 expansion enclosures contain power supplies but not
BBUs. The power supplies convert input AC power to 3.3V, 5V, and 12V DC power. The
battery units provide DC power, but only to the controller card memory cache in the event of a
total loss of all AC power input. The DS6000 power supplies are hot swapable and a single
power supply is able to support the power requirements of an entire enclosure. The second
power supply is supplied by default, meaning you do not need to request redundant power as
a feature.
Each power supply has two integrated fans for cooling the entire enclosure. If a power supply
fails it should not be removed from the enclosure until a replacement one is available. Both
power supplies must be physically present to ensure that cooling air flows correctly through
the enclosure, even if one has failed. If during replacement of the failed supply, you take more
than five minutes to install the new supply, the DS6000 may power off. Replacement,
however, can be accomplished in less than 30 seconds.
Figure 2-18 DS6000 power supplies
The DS6000 power supply has three indicators; they are defined in Table 2-3.
Table 2-3 DS6000 power supply indicators
Indicator Symbol Purpose
AC Power (green) AC This indicator shows that main AC power is present. If it
is off then no AC power is being supplied to the power
supply, or the power supply is faulty.
AC
power
Fault
detected
DC
power
Chapter 2. Components 41
2.9.1 Battery backup units
Each DS6800 RAID controller has a battery backup unit (BBU) to provide DC power to that
controller in the event of a complete loss of power. There are thus two BBUs present in the
DS6800 server enclosure. If you compare their function to that of the different batteries in the
ESS, they are the NVS batteries. They allow un-destaged cache writes in the NVS area of
controller memory to be protected in the event of a sudden loss of AC power to both power
supplies. The BBUs will protect the contents of NVS for at least 72 hours.
From the rear of the unit, the left-hand BBU supports the upper controller, while the right-hand
BBU supports the lower controller.
Figure 2-19 DS6000 battery backup unit indicators
The DS6000 battery units have three indicators, detailed in Table 2-4.
Table 2-4 DS6800 battery backup unit indicators
DC Power (green) DC If this indicator is on solid then the power supply is
producing correct DC power. If it is blinking then the
DS6000 is not powered on. If it is off then either the
enclosure is powered off or the power supply is faulty.
Fault detected
(yellow)
Exclamation mark If this indicator is on solid then the DS6000 has
identified this power supply as being faulty and it
requires replacement.
Indicator Symbol Purpose
Indicator Symbol Purpose
DC present
(green)
Lightning bolt If this indicator is on solid then DC power is present. If
this indicator is off then DC power is not available from
this battery.
Battery
charging
Fault
detected
DC
present
42 DS6000 Series: Concepts and Architecture
2.10 System service card
The system service card which ships with the DS6800 can be placed in a cavity below the
lower RAID controller card. It is a plastic card that contains important information on how to
maintain your DS6800.
2.11 Storage Manager console
The DS6800 requires a separate PC to act as the DS Storage Manager console. This PC is
not a feature of the DS6800 and must be ordered separately. The hardware and software
requirements for this PC can be found in Chapter 8, “Configuration planning” on page 125.
2.12 Cables
The DS6800 ships with three different sorts of cables:
򐂰Power cords
Each DS6000 enclosure ships with six power cords. These should allow attachment to
both rack power outlets and standard power outlets. The rack power outlet cords come in
two lengths. The standard power cords are specified by feature code at time of purchase
(based on the outlet used in your country). Only two of the six cords are used.
򐂰Ethernet cables
Each DS6800 server enclosure ships with one Ethernet cross-over cable. This cable is
used during initial configuration of the controllers to set IP addresses. After this, it is not
used. You do not use it to connect the two controllers together for normal operation or
during initial power on (this connectivity is supplied by an Ethernet switch).
Each DS6800 server enclosure ships with two standard Ethernet cables. These should be
used in conjunction with an Ethernet hub or switch (that will need to be supplied or
ordered separately) so that the controllers are able to communicate with each other and
the DS Storage Management Console. This connectivity is for configuration and regular
maintenance.
򐂰Service cable
Each DS6800 server enclosure ships with a special service cable and DB9 converter. This
cable looks very similar to a telephone cable. These components should be kept aside for
use by an IBM System Service Representative and will normally be used only for problem
debug.
Battery charging
(green)
Battery symbol If this indicator is on solid then the battery backup unit is
fully charged. If this indicator is blinking then the battery
is charging. As the battery approaches full charge the
blink speed will slow. If the indicator is off then the
battery is not operational.
Fault detected
(yellow)
Exclamation mark If this indicator is on solid then a fault has been detected
and this battery requires service.
Indicator Symbol Purpose
Chapter 2. Components 43
2.13 Summary
This chapter has described the various components that make up a DS6000. For additional
information, there is documentation available on the Web at:
http://www-1.ibm.com/servers/storage/support/disk/index.html
44 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 45
Chapter 3. RAS
This chapter describes the RAS (reliability, availability and serviceability) characteristics of the
DS6000 series. Specific topics covered are:
򐂰Controller RAS
򐂰Host connection availability
򐂰Disk subsystem RAS
򐂰Power subsystem RAS
򐂰Light path guidance strategy
򐂰Microcode updates
3
46 DS6000 Series: Concepts and Architecture
3.1 Controller RAS
The DS6800 design is built upon IBM’s highly redundant storage architecture. It has the
benefit of more than five years of ESS 2105 development. The DS6800, therefore, employs
similar methodology to the ESS to provide data integrity when performing fast write
operations and controller failover.
3.1.1 Failover and failback
To understand the process of controller failover and failback, we have to understand the
logical construction of the DS6800. To better understand the contents of this section you may
want to refer to Chapter 10, “DS CLI” on page 195. In short, to create logical volumes on the
DS6000, we start with DDMs that are installed into pre-defined array sites. These array sites
are used to form RAID-5 or RAID-10 arrays. These RAID arrays then become members of a
rank. Each rank then becomes a member of an extent pool. Each extent pool has an affinity to
either controller 0 or controller 1.
Within each extent pool we create logical volumes (which for open systems are called LUNs
and for zSeries, 3390s). These logical volumes belong to a logical subsystem (LSS). For
open systems the LSS membership is not that important (unless you are using Copy
Services), but for zSeries, the LSS is the logical control unit (LCU) which equates to a 3990 (a
z/Series disk control unit which the DS6800 emulates). What is important, is that LSSs that
have an even identifying number have an affinity with controller 0, while LSSs that have an
odd identifying number have an affinity with controller 1.
When a host operating system issues a write to a logical volume, it is preferable that it is
issued to the controller that owns the LSS of which that logical volume is a member.
Understanding this controller affinity is important for achieving the best performance and it is
also very important when we look at host pathing. More details are in 3.2, “Host connection
availability” on page 49.
Data flow
When a write is issued to a volume, the write normally gets issued to the controller that owns
this volume. The data flow is that the write is placed into the cache memory of the preferred
controller. The write data is also placed into the NVS memory of the alternate controller.
Chapter 3. RAS 47
Figure 3-1 DS6800 normal data flow
Figure 3-1 illustrates how the cache memory of controller 0 is used for all logical volumes that
are members of the even LSSs. Likewise, the cache memory of controller 1 supports all
logical volumes that are members of odd LSSs. But for every write that gets placed into
cache, another copy gets placed into the NVS memory located in the opposite controller. So
the normal flow of data for a write is:
1. Data is written to cache memory in the owning controller.
2. Data is written to NVS memory of the alternate controller.
3. The write is reported to the attached host as having been completed.
4. The write is destaged from the cache memory to disk.
5. The write is then discarded from the NVS memory of the alternate controller.
Under normal operation, both DS6800 controllers are actively processing I/O requests. This
section describes the failover and failback procedures that occur between the DS6800
controllers when an abnormal condition has affected one of them.
Failover
In the example depicted in Figure 3-2 on page 48, controller 0 in the DS6800 has failed. The
remaining controller has to take over all of its functions. The host adapters located in
controller 0 are now no longer available. All the RAID arrays in the DS6800 will be accessed
from the device adapter in controller 1. First, controller 1 has to process the data it is holding
in NVS. It then starts operating the entire machine in single controller mode. The steps it
takes are:
1. It de-stages the contents of its NVS to disk.
2. The NVS and cache of controller 1 are divided in two, half for the odd LSSs and half for the
even LSSs.
3. Controller 1 now begins processing the writes (and reads) for all the LSSs.
Cache
memory
for even
LSSs
NVS
for odd
LSSs
NVS
for even
LSSs
Cache
memory
for odd
LSSs
Controller 0 Controller 1
48 DS6000 Series: Concepts and Architecture
Figure 3-2 Controller failover
This entire process is known as a failover. After failover, controller 1 now owns all the LSSs,
which means all reads and writes will be serviced by controller 1. The NVS inside controller 1
is now used for both odd and even LSSs. The entire failover process should be invisible to the
attached hosts, apart from the possibility of some temporary disk errors.
Failback
When the failed controller has been repaired and restarted, the failback process is activated.
Controller 1 starts using the NVS in controller 0 again, and the ownership of the even LSSs is
transferred back to controller 0. Normal operations with both controllers active then resumes.
Just like the failover process, the failback process is invisible to the attached hosts.
In general, recovery actions on the DS6000 do not impact I/O operation latency by more than
15 seconds. With certain limitations on configurations and advanced functions, this impact to
latency can be limited to 8 seconds. On logical volumes that are not configured with RAID-10
storage, certain RAID-related recoveries may cause latency impacts in excess of 15 seconds.
If you have real-time response requirements in this area, contact IBM to determine the latest
information on how to manage your storage to meet your requirements.
3.1.2 NVS recovery after complete power loss
During normal operation, the DS6800 preserves un-destaged write data using the NVS copy
in the alternate controller. To ensure that these writes are not lost, each controller has a
dedicated battery backup unit (BBU). If this BBU were to fail, the controller would lose this
protection and consequently that controller would remove itself from service. If power is lost to
a single power supply, this does not affect the ability of the other power supply to keep both
BBUs charged, so both controllers would remain online. In other words, there is an affinity
between controllers and BBUs, but not between power supplies and BBUs.
The single purpose of the BBUs is to preserve the NVS area of controller memory in the event
of a complete loss of input power to the DS6800. If both power supplies were to stop receiving
Cache
memory
for even
LSSs
NVS
for odd
LSSs
Failover
NVS
for
even
LSSs
Cache
for
odd
LSSs
Cache
for
even
LSSs
NVS
for
odd
LSSs
Controller 0 Controller 1
Chapter 3. RAS 49
input power, the DS6800 controller cards would detect that they were now running on
batteries and immediately shut down. The BBUs are not sufficient to keep the disks spinning
so there is nowhere to put the modified data. All that the BBUs will do is preserve all data in
memory while input power is not available. When power becomes available again, the
DS6800 controllers begin the bootup process, but leave the NVS portion of controller memory
untouched. During the initialization process, the NVS data area is examined and if any
un-destaged write data is found, it is destaged to disk prior to the controllers coming online.
The BBUs are capable of preserving the contents of controller memory for at least 72 hours,
and possibly much longer. If the DS6800 unexpectedly powers off while processing host I/Os,
and is then left without power for more than 72 hours, then any un-destaged writes in NVS
may be permanently lost. Since we do not know which tracks were in NVS at the time of the
power failure, all data on the DS6000 would have to be considered as suspect, and data
integrity checking at the least—and data recovery at worst—may be necessary.
The DS6800 BBUs are designed to be replaced every four years.
From the rear of the server enclosure, the left-hand BBU supports the upper controller, while
the right hand BBU supports the lower controller.
3.1.3 Metadata checks
When application data enters the DS6000, special codes or metadata, also known as
redundancy checks, are appended to that data. This metadata remains associated with the
application data as it is transferred throughout the DS6800. The metadata is checked by
various internal components to validate the integrity of the data as it moves throughout the
disk system. It is also checked by the DS6800 before the data is sent to the host in response
to a read I/O request. Further, the metadata also contains information used as an additional
level of verification to confirm that the data being returned to the host is coming from the
desired location on the disk.
3.2 Host connection availability
Each DS6800 controller card contains four Fibre Channel ports, for connection either directly
to a host or to a Fibre Channel SAN switch. This gives the DS6800 a total of eight ports for
host connections.
Single and preferred path
Unlike the DS8000 or the ESS 800, the DS6800 uses the concept of preferred path, since the
host adapters are integrated into the controller hardware rather than in separate I/O bays.
What this means is that the attached host systems must be aware that it is preferential to
direct I/O to a particular controller. If an I/O request for a particular LUN is delivered to a host
adapter located in the non-owning controller, that controller will use an internal data bus to
route the request to the owning controller. This re-route of the I/O request has a performance
cost but does not affect the reliability or availability of the DS6800.
If a host were to only have a single path to a DS6800, as depicted in Figure 3-3 on page 50,
then it would still be able to access volumes belonging to all LSSs, but I/O for odd LSS
volumes would use the internal data path between the controllers. However, if controller 0
were to have a hardware failure, then all connectivity would be lost. Within the figure itself, an
HP is a host port (a fibre port located in the DS6800 controller card), a DA is two device
adapter ports (also located on the DS6800 controller card) and an HBA is a host bus adapter
(a Fibre Channel card located in the attached host).
50 DS6000 Series: Concepts and Architecture
Figure 3-3 A host with a single path to the DS6800
For best reliability and performance, it is recommended that each attached host has two
connections, one to each controller as depicted in Figure 3-4. This allows it to maintain
connection to the DS6800 through both controller failure and HBA or HA (host adapter)
failure.
Figure 3-4 A host with two paths to the DS6800
SAN/FICON switches
Because a large number of hosts may be connected to the DS6800, each using multiple
paths, the eight host adapter ports that are available in the DS6800 may not be sufficient to
accommodate all the connections. The solution to this problem is the use of SAN switches or
directors to switch logical connections from multiple hosts. In a zSeries environment you will
need to select a SAN switch or director that also supports FICON.
Inter-controller data path
HBA
Single pathed host
Controller 0
HP HP HP HP
DA
Even LSS
Logical
Volumes
Odd LSS
Logical
Volumes
Controller 1
HP HP HP HP
DA
Inter-controller data path
Controller 0
HP HP HP HP
DA
Even LSS
Logical
Volumes
Odd LSS
Logical
Volumes
Controller 1
HP HP HP HP
DA
HBA
Dual pathed host
HBA
Chapter 3. RAS 51
A logic or power failure in a SAN switch can interrupt communication between hosts and the
DS6800. We recommend that more than one SAN switch be provided to ensure continued
availability. For example, four of the eight fibre ports in a DS6800 could be configured to go
through each of two directors. The complete failure of either director leaves half of the paths
still operating.
Multipathing software
For each attached host we now require a mechanism to allow the attached operating system
to manage multiple paths to the same device, and to also show a preference in this routing so
that I/O requests for each LUN go to the preferred controller. Also, when a controller failover
occurs, attached hosts that were routing all I/O for a particular group of LUNs (LUNs on either
even or odd LSSs) to a particular controller (because it was the preferred controller) must
have a mechanism to allow them to detect that the preferred path is gone. It should then be
able to re-route all I/O for those LUNs to the alternate, previously non-preferred controller.
Finally, it should be able to detect when a controller comes back online so that I/O can now
be directed back to the preferred controller on a LUN by LUN basis (determined by which
LSS a LUN is a member of). The mechanism that will be used varies by the attached host
operating system, as detailed in the next two sections.
3.2.1 Open systems host connection
In the majority of open systems environments, IBM recommends the use of the Subsystem
Device Driver (SDD) to manage both path failover and preferred path determination. SDD is
supplied free of charge to all IBM customers who use ESS 2105, SAN Volume Controller
(SVC), DS6800, or DS8000. A new version of SDD (Version 1.6) will also allow SDD to
manage pathing to the DS6800 and DS8000.
SDD provides availability through automatic I/O path failover. If a failure occurs in the data
path between the host and the DS6800, SDD automatically switches the I/O to another path.
SDD will also set the failed path back online after a repair is made. SDD also improves
performance by sharing I/O operations to a common disk over multiple active paths to
distribute and balance the I/O workload. SDD also supports the concept of preferred path.
SDD is not available for all supported operating systems, so attention should be directed to
the IBM TotalStorage DS6000 Host Systems Attachment Guide, GC26-7680, and the
interoperability Web site for direction as to which multi-pathing software will be required.
Some devices, such as the IBM SAN Volume Controller (SVC), do not require any
multi-pathing software because the internal software in the device already supports multi-
pathing and preferred path. The interoperability Web site is located at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
3.2.2 zSeries host connection
In the zSeries environment, the normal practice is to provide multiple paths from each host to
a disk subsystem. Typically, four paths are installed. The channels in each host that can
access each Logical Control Unit (LCU) in the DS6800 are defined in the HCD (or IOCDS) for
that host. Dynamic Path Selection (DPS) allows the channel subsystem to select any
available (non-busy) path to initiate an operation to the disk subsystem. Dynamic Path
Reconnect (DPR) allows the DS6800 to select any available path to a host to reconnect and
resume a disconnected operation, for example, to transfer data after disconnection due to a
cache miss.
These functions are part of the zSeries architecture and are managed by the channel
subsystem in the host and the DS6800.
52 DS6000 Series: Concepts and Architecture
A physical FICON path is established when the DS6800 port sees light on the FICON fiber
(for example, a cable is plugged in to a DS6800 host adapter, or a processor, or the DS6800
is powered on, or a path is configured online by OS/390). At this time, logical paths are
established through the FICON port between the host and some or all of the LCUs in the
DS6800, controlled by the HCD definition for that host. This happens for each physical path
between a zSeries CPU and the DS6800. There may be multiple system images in a CPU.
Logical paths are established for each system image. The DS6800 then knows which FICON
paths can be used to communicate between each LCU and each host.
Provided you have the correct maintenance level, all major zSeries operating systems should
support preferred path (z/OS, z/VM, VSE/ESA™, TPF).
CUIR
Control Unit Initiated Reconfiguration (CUIR) prevents loss of access to volumes in zSeries
environments due to wrong path handling. This function automates channel path
management in zSeries environments in support of selected DS6800 service actions.
Control Unit Initiated Reconfiguration is available for the DS6800 when operating in the z/OS
and z/VM environments. The CUIR function automates channel path vary on and vary off
actions to minimize manual operator intervention during selected DS6800 service actions.
CUIR allows the DS6800 to request that all attached system images set all paths required for
a particular service action, to the offline state. System images with the appropriate level of
software support will respond to such requests by varying off the affected paths, and either
notifying the DS6800 subsystem that the paths are offline, or that it cannot take the paths
offline. CUIR reduces manual operator intervention and the possibility of human error during
maintenance actions, at the same time reducing the time required for the maintenance. This
is particularly useful in environments where there are many systems attached to a DS6800.
3.3 Disk subsystem RAS
The DS6000 currently supports only RAID-5 and RAID-10. It does not support non-RAID
configurations of disks (JBOD - just a bunch of disks).
3.3.1 RAID-5 overview
RAID-5 is one of the most commonly used forms of RAID protection.
RAID-5 theory
The DS6000 series supports RAID-5 arrays. RAID-5 is a method of spreading volume data
plus parity data across multiple disk drives. RAID-5 provides faster performance by striping
data across a defined set of DDMs. Data protection is provided by the generation of parity
information for every stripe of data. If an array member fails, then its contents can be
regenerated by using the parity data.
RAID-5 implementation in the DS6000
In a DS6000, a RAID-5 array built on one array site will contain either three disks or four disks,
depending on whether the array site chosen had a pre-allocated spare. A three disk array
effectively uses 1 disk for parity, so it is referred to as a 2+P array (where the P stands for
parity). The reason only three disks are available to a 2+P array is that the fourth disk in the
array site used to build the array, was used as a spare. This can be referred to as a 2+P+S
Note: CUIR support will be included in a future release of microcode.
Chapter 3. RAS 53
array site (where the S stands for spare). A four disk array also effectively uses 1 disk for
parity, so it is referred to as a 3+P array.
In a DS6000, a RAID-5 array built on two array sites will contain either seven disks or eight
disks, again depending on whether the array sites chosen had pre-allocated spares. A seven
disk array effectively uses one disk for parity, so it is referred to as a 6+P array. The reason
only 7 disks are available to a 6+P array is that the eighth disk in the two array sites used to
build an array, was already a spare. This is referred to as a 6+P+S array site. An 8 disk array
also effectively uses 1 disk for parity, so it is referred to as a 7+P array.
Drive failure
When a disk drive module (DDM) fails in a RAID-5 array, the device adapter starts an
operation to reconstruct the data that was on the failed drive onto one of the spare drives. The
spare that is used is chosen based on a smart algorithm that looks at the location of the
spares and the size and location of the failed DDM. The rebuild is performed by reading the
corresponding data and parity in each stripe from the remaining drives in the array,
performing an exclusive-OR operation to recreate the data, then writing this data to the spare
drive.
While this data reconstruction is going on, the device adapter can still service read and write
requests to the array from the hosts. There may be some degradation in performance while
the sparing operation is in progress, because some controller and switched network
resources are being used to do the reconstruction. Due to the switched architecture, this
effect will be minimal. Additionally, any read requests for data on the failed drive require data
to be read from the other drives in the array to reconstruct the data. The remaining requests
are satisfied by reading the drive containing the data in the normal way.
Performance of the RAID-5 array returns to normal when the data reconstruction onto the
spare device completes. The time taken for sparing can vary, depending on the size of the
failed DDM and on the workload on the array and the controller.
3.3.2 RAID-10 overview
RAID-10 is not as commonly used as RAID-5, mainly because more raw disk capacity is
needed for every GB of effective capacity.
RAID-10 theory
RAID-10 provides high availability by combining features of RAID-0 and RAID-1. RAID-0
optimizes performance by striping volume data across multiple disk drives at a time. RAID-1
provides disk mirroring, which duplicates data between two disk drives. By combining the
features of RAID-0 and RAID-1, RAID-10 provides a second optimization for fault tolerance.
Data is striped across half of the disk drives in the RAID-10 array. The same data is also
striped across the other half of the array, creating a mirror. Access to data is usually
preserved, even if multiple disks fail. RAID-10 offers faster data reads and writes than RAID-5
because it does not need to manage parity. However, with half of the DDMs in the group used
for data and the other half to mirror that data, RAID-10 disk groups have less capacity than
RAID-5 disk groups.
RAID-10 implementation in the DS6000
In the DS6000 the RAID-10 implementation is achieved by using one or two array sites (either
four or eight DDMs). If a single array site array is created and that site includes one spare,
then only two DDMs will be available for this array. This makes the array a 1+1 array that is
effectively just RAID-1. The other two DDMs will both be spares. If an array site with no
spares is selected then the array will be 2+2.
54 DS6000 Series: Concepts and Architecture
If two array sites are used to make a RAID-10 array and the array sites contain spares, then
six DDMs are used to make two RAID-0 arrays which are mirrored. If spares do not exist on
the array sites then eight DDMs are used to make two RAID-0 arrays which are mirrored.
Drive failure
When a disk drive module (DDM) fails in a RAID-10 array, the controller starts an operation to
reconstruct the data from the failed drive onto one of the spare drives. The spare that is used
is chosen based on a smart algorithm that looks at the location of the spares and the size and
location of the failed DDM. Remember, a RAID-10 array is effectively a RAID-0 array that is
mirrored. Thus when a drive fails in one of the RAID-0 arrays we can rebuild the failed drive
by reading the data from the equivalent drive in the other RAID-0 array.
While this data reconstruction is going on, the controller can still service read and write
requests to the array from the hosts. There may be some degradation in performance while
the sparing operation is in progress because some controller and switched network resources
are being used to do the reconstruction. Due to the switched architecture of the DS6000, this
effect will be minimal. Read requests for data on the failed drive should not be affected
because they can all be directed to the good RAID-0 array.
Write operations will not be affected. Performance of the RAID-10 array returns to normal
when the data reconstruction onto the spare device completes. The time taken for sparing
can vary, depending on the size of the failed DDM and on the workload on the array and the
controller.
3.3.3 Spare creation
There are four array sites in each enclosure of the DS6000. The first and third array sites
created on each loop are used to supply spares. This normally means that two spares will be
created in the server enclosure and two spares in the first expansion enclosure. Spares are
created as the array sites are created, which occurs when the DDMs are installed. After four
spares have been created for the entire storage unit, no more spares are normally needed.
On the ESS 800 the spare creation policy was to have four DDMs on each SSA (Serial
Storage Architecture) loop for each DDM type. This meant that on a specific SSA loop, it was
possible to have 12 spare DDMs, if you chose to populate a loop with three different DDM
types. With the DS6000 the intention is to not do this. Where DDMs with different sizes, but
the same RPM, exist in the complex, the spares will be taken from the array sites with the
larger sized DDMs. This means in most cases the DS6000 will continue to have only four
spares for the entire complex regardless of DDM size intermix.
Floating spares
The DS6000 implements a smart floating technique for spare DDMs. When a spare floats,
this means that when a DDM fails and the data it contained is rebuilt onto a spare, then the
disk is replaced, the replacement disk becomes the spare. The data is not copied back to the
original position which the failed DDM occupied. The DS6000 microcode may choose to allow
the hot spare to remain where it has been moved, but it may instead choose to move the
spare to a more optimum position. This will be done to better balance the spares across the
DA pairs and enclosures. It may be preferable that a DDM that is currently in use as an array
member, be converted to a spare. In this case the data on that DDM will be migrated in the
background onto an existing spare. This process does not fail the disk that is being migrated,
though it does reduce the number of available spares in the DS6000 until the migration
process is complete.
A smart process may be used to ensure that the larger or higher RPM DDMs act as spares.
This is preferable because if we were to rebuild the contents of a 73 GB DDM onto a 146 GB
Chapter 3. RAS 55
DDM, then approximately half of the 146 GB DDM would be wasted since that space is not
needed. The problem here is that the failed 73 GB DDM will be replaced with a new 73 GB
DDM. So the DS6000 microcode will most likely migrate the data on the 146 GB DDM onto
the recently replaced 73 GB DDM. When this process completes, the 73 GB DDM will rejoin
the array and the 146 GB will become the spare again. Another example would be if we fail a
10k RPM DDM onto a 15k RPM DDM. While this means that the data has now moved to a
faster DDM, the replacement DDM will be the same as the failed DDM. This means the spare
will now be a 10k RPM DDM. This could result in a 15k RPM DDM being spared onto a 10k
RPM DDM. This is not desirable. Again a smart failback of the spare will be performed once a
suitable replacement DDM has been made available.
Hot plugable DDMs
Replacement of a failed drive does not affect the operation of the DS6000 because the drives
are fully hot plugable. Due to the fact that each disk plugs into a switch, there is no loop break
associated with the removal or replacement of a disk. In addition, there is no potentially
disruptive loop initialization process.
3.3.4 Predictive Failure Analysis (PFA)
The drives used in the DS6000 incorporate Predictive Failure Analysis (PFA) and can
anticipate certain forms of failures by keeping internal statistics of read and write errors. If the
error rates exceed predetermined threshold values, the drive will be nominated for
replacement. Because the drive has not yet failed, data can be copied directly to a spare
drive. This avoids using RAID-5 or RAID-10 recovery to reconstruct all of the data onto the
spare drive. The DS6000 will alert the user and can also use call home e-mail notification.
3.3.5 Disk scrubbing
The DS6000 will periodically read all sectors on a disk. This is designed to occur without any
interference to application performance. If ECC-correctable bad bits are identified, the bits are
corrected immediately by the DS6000. This reduces the possibility of multiple bad bits
accumulating in a sector beyond the ability of ECC to correct them. If a sector contains data
that is beyond ECC's ability to correct, then RAID is used to regenerate the data and write a
new copy onto a spare sector on the disk. The scrubbing process applies to both array
members and spare DDMs.
3.3.6 Disk path redundancy
Each DDM in the DS6000 is attached to two 22 port SAN switches. These switches are built
into the RAID or SBOD controller cards. Figure 3-5 on page 56 depicts the redundancy
features of the DS6000 switched disk architecture. Each disk has two separate connections
to the midplane. This allows it to be simultaneously attached to both switches. If either a RAID
or SBOD controller card is removed from an enclosure, the switch that is included in that
controller is also removed. However, the remaining controller retains the ability to
communicate with all the disks via the remaining switch.
Figure 3-5 also shows the connection paths to the expansion enclosures. To the left and right
you can see paths from the switches and Fibre Channel chipset that travel to the device
adapter ports at top left and top right. These ports are depicted in Figure 2-2 on page 24.
From each controller we have two paths to each expansion enclosure. This means that we
can easily survive the loss of a single path (which would mean the loss of one out of four
paths) due to the failure of, for instance, a cable or an optical port. We can also survive the
loss of an entire RAID controller or SBOD controller (which would remove two out of four
56 DS6000 Series: Concepts and Architecture
paths) since two paths to the expansion controller would be available for the remaining
controller.
Figure 3-5 DS6000 switched disk connections
3.4 Power subsystem RAS
As discussed in Chapter 2, “Components” on page 23, the DS6000 is equipped with two
BBUs and two power supplies. This provides redundancy in case of either an external power
failure or an internal power subsystem failure. The DS6000 is able to control the state of the
power supplies in the expansion enclosures via in-band commands sent through the device
adapter Fibre Channel connections.
In the event of a BBU failure, the RAID controller that relies on that BBU for data protection
will remove itself from service and go offline until its BBU is fully charged. If both BBUs were
to fail, then the entire system would have to go offline until the problem is corrected. This
possibility is highly unlikely.
All power components are hot plugable and can usually be replaced without employing the
DS Storage Manager GUI. If more information is needed, however, the GUI could be
employed, as described in “Example 2: Using the GUI to replace a power supply” on page 57.
disk
exp
disk
contrl
disk
contrl
disk
exp
Midplane
RAID controller 0 RAID controller 1
device adapter
chipset
device adapter
chipset
loop 1
engine loop 1
engine
loop 0
engine
loop 0
engine
Fibre channel switch
Enclosure midplane
Fibre channel switch
Chapter 3. RAS 57
Redundant cooling
The DS6000 gets its cooling from the two fan assemblies in each power supply. Provided one
power supply is working and the other power supply is physically inserted, sufficient cooling
will be available for that DS6000 enclosure. The DS6000 microcode can modify the speed of
each fan in response to environmental conditions or the failure of a single power supply.
3.5 System service
The DS6000 uses a light path guidance strategy that allows the user in many cases to both
detect and repair a failure without using a GUI. However, if desired, guided maintenance in
the form of a GUI with animation is also available. This is done by using the DS Storage
Manager GUI. Most parts can be replaced without this GUI, though this may not always be
the case depending on what parts have failed and the failure mode of those parts.
3.5.1 Example 1: Using light path indicators to replace a DDM
An example of the use of the light path guided repair is a disk failure. The user sees that the
System Alert Indicator is on, and that a DDM fault indicator is also lit. They refer to the Service
Card shipped with the DS6000 and using the simple replacement instructions detailed there,
they remove and replace the failed DDM with a new one. After replacing the DDM the System
Alert Indicator will be turned off automatically.
3.5.2 Example 2: Using the GUI to replace a power supply
As an alternative to using light path guidance, the user also has the alternative of using the
GUI. After either receiving an alert or determining a fault exists via the system alert indicator,
the user could start the DS Storage Manager and switch to the component view to confirm
system status.
Important: If you install the DS6000 so that both power supplies are attached to the same
power strip, or where two power strips are used but they connect to the same circuit
breaker or the same switch-board, then the DS6000 will not be well protected from external
power failures. This is a very common cause of unplanned outages.
Important: If any component fails, it should not be removed from the enclosure until a
replacement part is available. Power supplies in particular must be physically present to
ensure that cooling air flows correctly through the enclosure. Replacement of a failed
supply can be accomplished in less than 30 seconds. If you remove the failed power supply
and do not insert a replacement within five minutes, the DS6000 may overheat and power
off.
58 DS6000 Series: Concepts and Architecture
Figure 3-6 Failed power supply
If a power supply failure is indicated, the user could then follow this procedure:
1. Review the online component removal instructions. Figure 3-7 on page 59 shows an
example of the screen the user may see. On this screen, users are given the ability to do
things like:
a. View an animation of the removal and replacement procedures.
b. View an informational screen to determine what affect this repair procedure will have
upon the DS6000.
c. Order a replacement part from IBM via an internet connection.
Chapter 3. RAS 59
Figure 3-7 Power supply replacement via the GUI
2. Upon arrival of the replacement supply, the user physically removes the faulty power
supply and then installs the replacement power supply.
3. Finally, the user checks the component view to review system health after the repair. An
example of this is shown in Figure 3-8. In this example we can see that all the components
displayed are normal.
Figure 3-8 Power supply replaced
All parts are very easy to remove and replace. There is comprehensive online documentation
and help.
c
a
b
60 DS6000 Series: Concepts and Architecture
3.5.3 System indicators
The DS6000 uses several simple indicators to allow a user to quickly determine the health of
the DS6000. These indicators were previewed in Chapter 2, “Components” on page 23.
System Identify Indicator (blue light)
In addition to the light path diagnostics discussed here, the DS6000 implements a method for
the person servicing the system to identify all of the enclosures associated with a given
system. This is a blue LED visible on the front and rear of an enclosure. The blue light can be
turned on or off by using the system identify button on the storage or any expansion
enclosure.
This indicator will begin blinking when the Light Path Identify push button is pressed. At this
time a request is generated to all other enclosures in the subsystem to turn their System
Identify indicators on. When all enclosures have their indicators on solid, the indicator in this
enclosure changes from blinking to solid on.
When the Light Path Identify button of the enclosure with its System Identify Indicator active
(solid) is pressed, this indicator is changed to blinking. In turn, a request is generated to all
enclosures in the subsystem to turn off their System Identify Indicators. When all other
Identify indicators are turned off, the Identify indicator in this enclosure will change from
blinking to solid off.
System Alert Indicator (amber light)
This indicator is similar in function to the xSeries Fault Light. It is present on both the storage
and expansion enclosures and is used in problem determination. This indicator will be turned
on solid when a fault is detected in the system. The indicator will remain on solid until the fault
condition is corrected or the Light Path Remind button is pressed and activated. If the Light
Path Remind button is pressed, the Alert indicator will go from solid to a 2 second blip (short
blip on for 250 msec every 2 seconds). The System Alert Indicator and the System
Information Indicator can be on at the same time, if you have two independent error
conditions, one minor, one major. When the last fault is corrected, the indicator will be turned
off.
System Information Indicator (amber light)
This indicator is similar in function to the xSeries Information indicator. It is present on both
the server and expansion enclosures and is used in problem determination. This indicator will
be on solid when a minor error condition exists in the system. For example, a log entry has
been written that the user needs to look at. It will remain on solid until the fault condition is
corrected (for example, by the user viewing the log). The System Alert Indicator and the
System Information Indicator can be on at the same time if you have two independent error
conditions, one minor, one major.
CRU Endpoint Indicator (amber light)
A CRU is a customer replaceable unit. A CRU is a part of the machine that can be replaced
safely and easily by an end user. This indicator is present on both the controller and
expansion enclosures and is used in problem determination. Each CRU has an amber
indicator that, when lit, indicates to the user that a fault exists and that the CRU should be
replaced. If a fault indicator is on, it is not necessary to prepare that part for replacement. This
means it is not necessary to quiesce a resource prior to replacement, as is the case on an
ESS 2105. Any time a CRU fault light is turned on, the System Alert Indicator will also be
turned on. If there are multiple CRU failures then the CRUs can be replaced in any order. The
DS6000 can light more than one CRU indicator. For example, if a power supply and a disk
drive both fail, both CRU lights will be turned on and either CRU can be replaced in any order.
The CRU Endpoint Indicator will be blocked from being illuminated in any case where
Chapter 3. RAS 61
additional guidance on the CRU replacement procedure is required. This includes a situation
in which it is unclear which CRU has failed. This will prevent an incorrect maintenance
procedure from taking place. After the defective CRU has been replaced, the CRU fault
indicator will turn off. Pressing the Remind button will have no effect on the state of the CRU
Endpoint Indicator.
3.5.4 Parts installation and repairs
The DS6000 has been designed for ease of maintenance. This allows the user to perform the
vast majority of service tasks.
Parts replacement
With the DS6000, an IBM Systems Service Representative (SSR) is not needed to perform
the majority of service tasks required during normal operations. Using light path diagnostics it
is possible for the user to perform problem determination, parts ordering, and parts
replacement.
CRU parts versus FRU parts
Within all IBM machines, spare parts are divided into two categories: CRU parts (customer
replaceable units) and FRU parts (field replaceable units). If a part is designated a CRU, this
implies that it can be safely and easily replaced by an end user with few or no tools. If a part
is designated a FRU, then this implies that the spare part needs to be replaced by an IBM
Service Representative. Within CRU parts, there are currently two tiers: Tier 1 CRUs are
relatively easy to replace, while Tier 2 CRUs are generally more expensive parts or parts that
require more skill to replace.
Tier 1 CRU parts:
򐂰Battery backup units
򐂰Cables - Ethernet, serial, fibre optic, and power
򐂰Disk drive modules
򐂰Operator panels - front and rear display
򐂰Power supplies
򐂰RAID controller and SBOD controller cards
򐂰SFPs (2Gbps small form factor plugable fibre optic units)
Currently the only Tier 2 CRU is the entire chassis for either the storage or expansion
enclosures. There are currently no FRU parts for the DS6000.
While the DS6000 is under warranty, IBM will ship a replacement CRU to the machine
location free of charge, provided the machine is located in a metro area that is serviced by
IBM. You should check with your IBM sales representative or IBM Business Partner for
details. Installation of Tier 1 CRUs is the customer’s responsibility. If an IBM SSR installs a
Tier 1 CRU at the customer’s request, there will be a charge for the installation. However, for
machines with an on-site same-day response service agreement, IBM will replace a Tier 1
CRU at the customer’s request, at no additional charge. The customer may choose to install a
Tier 2 CRU themselves, or request IBM to install it, at no additional charge. When the
customer calls in for service and the problem can be fixed by a Tier 2 part, the customer is
given the choice to decide at that point if they have the skills on hand to replace the part.
62 DS6000 Series: Concepts and Architecture
3.6 Microcode updates
The DS6000 contains several discrete redundant components. Most of these components
have firmware that can be updated. This includes the controllers, device adapters, host
adapters, and network adapters. Each DS6800 controller also has microcode that can be
updated. All of these code releases come as a single package installed all at once. As IBM
continues to develop and improve the DS6800, new releases of firmware and microcode will
become available which offer improvements in both function and reliability.
The architecture of the DS6800 allows for concurrent code updates. This is achieved by using
the redundant design of the DS6800. In general, redundancy is lost for a short period as each
component in a redundant pair is updated. This also depends on the attached hosts having a
separate path to each controller.
Each DS6800 controller card maintains a copy of the previous code version and the active
code version. When a code update is performed, the new code version is written to the
controller and then activated.
Maintaining code
It is the responsibility of the user to ensure that their DS6800 is running on the currently
available version of microcode. They can do this by monitoring the code level currently
available at:
http://www-1.ibm.com/servers/storage/support/disk/index.html
The currently available version of code can also be downloaded from this Web site.
Users can also register for support e-mails at:
https://www-1.ibm.com/support/mysupport/us/en/
Installation process
The concurrent installation process proceeds as follows:
1. Copy the new DS6800 code version onto the DS Management Console and from there to
the internal storage of each controller.
2. The user selects to active the code and from then the process is automated. First,
controller 1 is quiesced.
3. The active microcode version in controller 1 is updated to the new level. This may include
firmware updates to the controller card, host adapter, device adapter, and network
adapter.
4. Controller 1 is rebooted and then resumes operation.
5. Controller 0 is quiesced.
6. The active microcode version in controller 0 is updated to the new level. This may include
firmware updates to the controller card, host adapter, device adapter and network
adapter.
7. Controller 0 is rebooted and then resumes operation.
8. Now the user must manually update the DS Management Console to the matching level of
DS System Manager GUI. You also need to update the version of DS CLI being used to
match the SM GUI version.
As noted, after step two, the installation process described above should not require any user
intervention. The user should be able to simply start the process and then monitor its
Chapter 3. RAS 63
progress using the DS Management Console GUI. Clearly a multipathing driver (such as
SDD) is required for this process to be concurrent.
There is also the alternative to load code non-concurrently. This means that both controllers
are unavailable for a short period of time. This method can be performed in a smaller window
of time.
3.7 Summary
This chapter has described the RAS characteristics of the DS6000. These characteristics
combine to make the DS6000 a world leader in reliability, availability, and serviceability.
64 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 65
Chapter 4. Virtualization concepts
This chapter describes the virtualization concepts for the DS6000 and the abstraction layers
for disk virtualization. The topics covered are:
򐂰Array sites
򐂰Arrays
򐂰Ranks
򐂰Extent pools
򐂰Logical volumes
򐂰Logical storage subsystems
򐂰Address groups
򐂰Volume groups
򐂰Host attachments
4
66 DS6000 Series: Concepts and Architecture
4.1 Virtualization definition
In our fast changing world, where you have to react quickly to changing business conditions,
your infrastructure must allow for on-demand changes. Virtualization is key to an on-demand
infrastructure. However, when talking about virtualization many vendors are talking about
different things.
Our definition of virtualization is the abstraction process going from the physical disk drives
to a logical volume that the hosts and servers see as if it were a physical disk.
4.2 The abstraction layers for disk virtualization
In this chapter, when we talk about virtualization, we are talking about the process of
preparing a bunch of physical disk drives (DDMs) to be something that can be used from an
operating system, which means we are talking about the creation of LUNs.
The DS6000 is populated with switched FC-AL disk drives that are mounted in storage
enclosures. You order disk drives in disk drive sets. A disk drive set is a group of 4 drives of
the same capacity and RPM. The disk drives can be accessed by a pair of device adapters.
Each device adapter has four paths to the disk drives. The four paths provide two FC-AL
device interfaces, each with two paths such that either path can be used to communicate with
any disk drive on that device interface (in other words, the paths are redundant). One device
interface from each device adapter is connected to a set of FC-AL devices such that either
device adapter has access to any disk drive through two independent switched fabrics (in
other words, the device adapters and switches are redundant). In normal operation, however,
disk drives are typically accessed by one device adapter and one server. Each path on each
device adapter can be active concurrently, but the set of eight paths on the two device
adapters can all be concurrently accessing independent disk drives. This avoids any
contention between the two device adapters for access to the same disk, such that all eight
ports on the two device adapters can be concurrently communicating with independent disk
drives.
Figure 4-1 on page 67 shows the physical layer on which virtualization is based.
Chapter 4. Virtualization concepts 67
Figure 4-1 Physical layer as the base for virtualization
When you compare this with the ESS design, where there was a real loop and having an
8-pack close to a device adapter was an advantage, this is no longer relevant for the DS6000.
Because of the switching design, each drive is in close reach of the device adapter, apart
from a few more hops through the Fibre Channel switches for some drives. So, it is not really
a loop, but a switched FC-AL loop with the FC-AL addressing schema: Arbitrated Loop
Physical Addressing (AL-PA).
4.2.1 Array sites
An array site is a group of four DDMs. What DDMs make up an array site is pre-determined by
the DS6000, but note, that there is no pre-determined server affinity for array sites. The
DDMs selected for an array site are chosen from the same disk enclosure string (see
Figure 4-2 on page 68). All DDMs in an array site are of the same type (capacity and RPM).
Device Adapter
Server0
Server1
Storage enclosure pair
Switched loop 1
Switches
Device Adapter
Switched loop 2
Inter-server communication
68 DS6000 Series: Concepts and Architecture
Figure 4-2 Array sites
Array sites are the building blocks used to define arrays.
4.2.2 Arrays
Arrays are created from one or two array sites. Forming an array means defining it for a
specific RAID type.The supported RAID types are RAID-5 and RAID-10 (see 3.3.1, “RAID-5
overview” on page 52 and 3.3.2, “RAID-10 overview” on page 53). For each array site or for a
group of two array sites you can select a RAID type. The process of selecting the RAID type
for an array is also called defining an array.
According to the DS6000 sparing algorithm, up to two spares may be taken from the array
sites used to construct the array on each device interface (loop). See Chapter 5, “IBM
TotalStorage DS6000 model overview” on page 83 for more details.
Figure 4-3 on page 69 shows the creation of a RAID-5 array with one spare, also called a
6+P+S array (capacity of 6 DDMs for data, capacity of one DDM for parity, and a spare drive)
from two array sites. According to the RAID-5 rules, parity is distributed across all seven
drives in this example.
Also referring to Figure 4-3, on the right side the terms D1, D2, D3, and so on stand for the
set of data contained on one disk within a stripe on the array. If, for example, 1 GB of data is
written, it is distributed across all the disks of the array.
Array
Site 1
Array
Site 2
Switches
Loop 1 Loop 2
Chapter 4. Virtualization concepts 69
Figure 4-3 Creation of an array
So, an array is formed using one or two array sites, and while the array could be accessed by
each adapter of the device adapter pair, it is managed by one device adapter. Which adapter
and which server manages this array is defined later in the configuration path.
4.2.3 Ranks
In the DS6000 virtualization hierarchy there is another logical construct, a rank.
When you define a new rank, its name is chosen by the DS Storage Manager, for example:
R1, R2, or R3, and so on. You have to add an array to a rank.
The available space on each rank is divided into extents. The extents are the building blocks
of the logical volumes. An extent is striped across all disks of an array as shown in Figure 4-4
on page 70 and indicated by the small squares in Figure 4-5 on page 71.
The process of forming a rank does two things:
򐂰The array is defined for either fixed block (open systems) or CKD (zSeries) data. This
determines the size of the set of data contained on one disk within a stripe on the array.
򐂰The capacity of the array is subdivided into equal sized partitions, called extents. The
extent size depends on the extent type, FB or CKD.
An FB rank has an extent size of 1 GB (where 1 GB equals 230 bytes).
People who work in the zSeries environment do not deal with gigabytes but think of storage in
metrics of the old 3390 volume sizes. A 3390 Model 3 is three times the size of a Model 1,
Array Site 1
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
Creation of
an array
D1 D7 D13 ...
D2 D8 D14 ...
D3 D9 D15 ...
D4 D10 D16 ...
D5 D11 P...
D6 PD17 ...
PD12 D18 ...
Array Site 2
Spare
Note: In the current DS6000 implementation, a rank is built using just one array.
70 DS6000 Series: Concepts and Architecture
and a Model 1 has 1113 cylinders, which is about 0.94 GB. The extent size of a CKD rank
therefore was chosen to be one 3390 Model 1, or 1113 cylinders.
One extent is the minimum physical allocation unit when a LUN or CKD volume is created, as
we discuss later. It is still possible to define a CKD volume with a capacity that is an integral
multiple of one cylinder or a fixed block LUN with a capacity that is an integral multiple of 128
logical blocks (64K bytes). However, if the defined capacity is not an integral multiple of the
capacity of one extent, the unused capacity in the last extent is wasted. For instance, you
could define a 1 cylinder CKD volume, but 1113 cylinders (1 extent) is allocated and 1112
cylinders would be wasted.
Figure 4-4 shows an example of an array that is formatted for FB data with 1 GB extents (the
squares in the rank just indicate that the extent is composed of several blocks from different
DDMs).
Figure 4-4 Forming an FB rank with 1 GB extents
4.2.4 Extent pools
An extent pool is a logical construct to aggregate the extents from a set of ranks to form a
domain for extent allocation to a logical volume. Typically the set of ranks in the extent pool
would have the same RAID type and the same disk RPM characteristics, so that the extents
in the extent pool have homogeneous characteristics. There is no predefined affinity of ranks
or arrays to a storage server. The affinity of the rank (and it's associated array) to a given
server is determined at the point it is assigned to an extent pool.
One or more ranks with the same extent type can be assigned to an extent pool. One rank can
be assigned to only one extent pool. There can be as many extent pools as there are ranks.
FB Rank
of 1GB
extents
Creation of
a Rank
D1 D7 D13 ...
D2 D8 D14 ...
D3 D9 D15 ...
D4 D10 D16 ...
D5 D11 P...
D6 PD17 ...
PD12 D18 ...
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
1GB 1GB 1GB 1GB
Chapter 4. Virtualization concepts 71
The DS Storage Manager GUI guides the user to use the same RAID types in an extent pool.
As such, when an extent pool is defined, it must be assigned with the following attributes:
– Server affinity
–Extent type
–RAID type
The minimum number of extent pools is one; however, you would normally want at least two,
one assigned to server 0 and the other one assigned to server 1 so that both servers are
active. In an environment where FB and CKD are to go onto the DS6000 storage server, you
might want to define four extent pools, one FB pool for each server, and one CKD pool for
each server, to balance the capacity between the two servers. Of course you could also
define just one FB extent pool and assign it to one server, and define a CKD extent pool and
assign it to the other server. Additional extent pools may be desirable to segregate ranks with
different DDM types.
Ranks are organized in two rank groups:
– Rank group 0 is controlled by server 0.
– Rank group 1 is controlled by server 1.
Figure 4-5 is an example of a mixed environment with CKD and FB extent pools.
Figure 4-5 Extent pools
You can expand extent pools by adding more ranks to an extent pool.
Important: You should balance your capacity between the two servers for optimal
performance.
1GB
FB
1GB
FB
1GB
FB
1GB
FB
Server0
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
Server1
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1113
Cyl.
CKD
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
1GB
FB
Extent Pool CKD0 Extent Pool CKD1
Extent Pool FBtest
Extent Pool FBprod
72 DS6000 Series: Concepts and Architecture
4.2.5 Logical volumes
A logical volume is composed of a set of extents from one extent pool.
On a DS6000 up to 8192 (8K) volumes can be created (8K CKD, or 8K FB volumes, or a mix
of both types (4K CKD plus 4K FB).
Fixed block LUNs
A logical volume composed of fixed block extents is called a LUN. A fixed block LUN is
composed of one or more 1 GB (230) extents from one FB extent pool. A LUN cannot span
multiple extent pools, but a LUN can have extents from different ranks within the same extent
pool. You can construct LUNs up to a size of 2 TB (240) in any integral multiple of 64K bytes.
The capacity allocated to a LUN is always a multiple of the 1 GB extent, so any LUN size that
is not a multiple of 1 GB wastes some space in the last extent allocated to the LUN. LUNs can
be allocated in binary GB (230 bytes), decimal GB (109 bytes), or 512 or 520 byte blocks.
However, when you define a LUN that is not a multiple of 1 GB, the capacity up to the next
multiple of 1 GB is unusable.
CKD volumes
A zSeries CKD volume is composed of one or more extents from one CKD extent pool. CKD
extents are of the size of 3390 Model 1, which has 1113 cylinders. However, when you define
a zSeries CKD volume, you do not specify the number of 3390 Model 1 extents but the
number of cylinders you want for the volume.
You can define CKD volumes with up to 65520 cylinders, which is about 55.6 GB.
If the number of cylinders specified is not an integral multiple of 1113 cylinders, then some
space in the last allocated extent is wasted. For example, if you define 1114 or 3340
cylinders, 1112 cylinders are wasted. For maximum storage efficiency, your should consider
allocating volumes that are exact multiples of 1113 cylinders. In fact, integral multiples of 3339
cylinders should be consider for future compatibility.
If you want to use the maximum number of cylinders (65520), you should consider that this is
not a multiple of 1113. You could go with 65520 cylinders and waste 147 cylinders for each
volume (the difference to the next multiple of 1113) or you might be better off with a volume
size of 64554 cylinders, which is a multiple of 1113 (factor of 58).
A CKD volume cannot span multiple extent pools, but a volume can have extents from
different ranks in the same extent pool.
Chapter 4. Virtualization concepts 73
Figure 4-6 Allocation of a CKD logical volume
Figure 4-6 shows how a logical volume is allocated with a CKD volume as an example. The
allocation process for FB volumes is very similar and is shown in Figure 4-7 on page 74.
1113 1113 1113 1113
free
Extent Pool CKD0
Rank-x
Rank-y
3390 Mod. 3
1113
free
1113
free
used used Allocate 3226 cylinder
volume
1113 1113 1113 1113
used
Extent Pool CKD0
Rank-x
Rank-y
3390 Mod. 3
1000
used
1113
used
used used
Logical
3390 Mod. 3
113 cylinders unused
Volume with
3226 cylinders
74 DS6000 Series: Concepts and Architecture
Figure 4-7 Creation of an FB LUN
iSeries LUNs
iSeries LUNs are also composed of fixed block 1 GB extents. There are, however, some
special aspects with iSeries LUNs. LUNs created on a DS6000 are always RAID protected.
LUNs are based on RAID-5 or RAID-10 arrays. However, you might want to deceive OS/400
and tell it that the LUN is not RAID protected. This causes OS/400 to do its own mirroring.
iSeries LUNs can have the attribute unprotected, in which case the DS6000 will lie to an
iSeries host and tell it that the LUN is not RAID protected.
OS/400 only supports certain fixed volume sizes, for example, model sizes of 8.5 GB,
17.5 GB, and 35.1 GB. These sizes are not multiples of 1 GB and hence, depending on the
model chosen, some space is wasted. iSeries LUNs expose a 520 byte block to the host. The
operating system uses 8 of these bytes, so the usable space is still 512 bytes like other SCSI
LUNs. The capacities quoted for the iSeries LUNs are in terms of the 512 byte block capacity
and are expressed in GB (109). These capacities should be converted to GB (230) when
considering effective utilization of extents which are 1 GB (230). For more information on this
topic see Appendix B, “Using the DS6000 with iSeries” on page 329.
Allocation and deletion of LUNs/CKD volumes
All extents of the ranks assigned to an extent pool are independently available for allocation to
logical volumes. The extents for a LUN/volume are logically ordered, but they do not have to
come from one rank and the extents do not have to be contiguous on a rank. The current
extent allocation algorithm of the DS6000 will not distribute the extents across ranks. The
algorithm will use available extents within one rank, unless there are not enough free extents
available in that rank, but free extents in another rank of the same extent pool. While this
1 GB 1 GB 1 GB 1 GB
free
Extent Pool FBprod
Rank-a
Rank-b
3 GB LUN
1 GB
free
1 GB
free
used used Allocate a 3 GB LUN
1 GB 1 GB 1 GB 1 GB
used
Extent Pool FBprod
Rank-a
Rank-b
3 GB LUN
1 GB
used
1 GB
used
used used
Logical
3 GB LUN
2.9 GB LUN
created
100 MB unused
Chapter 4. Virtualization concepts 75
algorithm exists, the user may want to consider putting one rank per extent pool to control the
allocation of logical volumes across ranks to improve performance.
This construction method of using fixed extents to form a logical volume in the DS6000 allows
flexibility in the management of the logical volumes. We can now delete LUNs and reuse the
extents of that LUN to create another LUN, maybe of a different size. One logical volume can
be removed without affecting the other logical volumes defined on the same extent pool.
Compared to the ESS, where it was not possible to delete a LUN unless the whole array was
reformatted, this DS6000 implementation gives you much more flexibility and allows for on
demand changes according to your needs.
Since the extents are cleaned after you have deleted a LUN or CKD volume, it may take some
time until these extents are available for reallocation. The reformatting of the extents is a
background process.
IBM plans to further increase the flexibility of LUN/volume management. We cite from the
DS6000 announcement letter the following Statement of General Direction:
Extension of IBM's dynamic provisioning technology within the DS6000 series is planned to
provide LUN/volume: dynamic expansion, online data relocation, virtual capacity over
provisioning, and space efficient FlashCopy requiring minimal reserved target capacity.
4.2.6 Logical subsystems (LSS)
A logical subsystem (LSS) is another logical construct. It groups logical volumes, LUNs, in
groups of up to 256 logical volumes.
On an ESS there was a fixed association between logical subsystems (and their associated
logical volumes) and device adapters (and associated ranks). The association of an 8-pack to
a device adapter determined what LSS numbers could be chosen for a volume. On an ESS
up to 16 LSSs could be defined depending on the physical configuration of device adapters
and arrays.
On the DS6000, there is no fixed binding between any rank and any logical subsystem. The
capacity of one or more ranks can be aggregated into an extent pool and logical volumes
configured in that extent pool are not bound to any specific rank. Different logical volumes on
the same logical subsystem can be configured in different extent pools. As such, the available
capacity of the storage facility can be flexibly allocated across the set of defined logical
subsystems and logical volumes.
This predetermined association between array and LSS is gone on the DS6000. Also, the
number of LSSs has changed. You can now define up to 32 LSSs for the DS6000. You can
even have more LSSs than arrays.
For each LUN or CKD volume you can now choose an LSS. You can put up to 256 volumes
into one LSS. There is, however, one restriction. We already have seen that volumes are
formed from a bunch of extents from an extent pool. Extent pools, however, belong to one
server, server 0 or server 1, respectively. LSSs also have an affinity to the servers. All even
numbered LSSs (X’00’, X’02’, X’04’, up to X’1E’) belong to server 0 and all odd numbered
LSSs (X’01’, X’03’, X’05’, up to X’1F’) belong to server 1.
zSeries users are familiar with a logical control unit (LCU). zSeries operating systems
configure LCUs to create device addresses. There is a one to one relationship between an
LCU and a CKD LSS (LSS X'ab' maps to LCU X'ab'). Logical volumes have a logical volume
number X'abcd' where X'ab' identifies the LSS and X'cd' is one of the 256 logical volumes on
the LSS. This logical volume number is assigned to a logical volume when a logical volume is
76 DS6000 Series: Concepts and Architecture
created and determines the LSS that it is associated with. The 256 possible logical volumes
associated with an LSS are mapped to the 256 possible device addresses on an LCU (logical
volume X'abcd' maps to device address X'cd' on LCU X'ab'). When creating CKD logical
volumes and assigning their logical volume numbers, users should consider whether parallel
access volumes are required on the LCU and reserve some of the addresses on the LCU for
alias addresses. For more information on PAV see Chapter 10, “DS CLI” on page 195.
For open systems, LSSs do not play an important role except in determining which server the
LUN is managed by (and which extent pools it must be allocated in) and in certain aspects
related to Metro Mirror, Global Mirror, or any of the other remote copy implementations.
Some management actions in Metro Mirror, Global Mirror, or Global Copy operate at the LSS
level. For example, the freezing of pairs to preserve data consistency across all pairs, in case
you have a problem with one of the pairs, is done at the LSS level. With the option now to put
all or most of the volumes of a certain application in just one LSS, this makes the
management of remote copy operations easier (see Figure 4-8). Of course you could have
put all volumes for one application in one LSS on an ESS, too, but then all volumes of that
application would also be in one or a few arrays; from a performance standpoint this was not
desirable. Now on the DS6000 you can group your volumes in one or a few LSSs, but still
have the volumes in many arrays or ranks.
Figure 4-8 Grouping of volumes in LSSs
Fixed block LSSs are created automatically when the first fixed block logical volume on the
LSS is created and deleted automatically when the last fixed block logical volume on the LSS
is deleted. CKD LSSs require user parameters to be specified, must be created before the
first CKD logical volume can be created on the LSS, and must be deleted manually after the
last CKD logical volume on the LSS is deleted.
LSS X'17'
DB2
LSS X'18'
DB2-test
Physical Drives Logical Volumes
Chapter 4. Virtualization concepts 77
4.2.7 Address groups
Address groups are created automatically when the first LSS associated with the address
group is created and deleted automatically when the last LSS in the address group is deleted.
LSSs are either CKD LSSs or FB LSSs. All devices in an LSS must be either CKD or FB. This
restriction goes even further. LSSs are grouped into address groups of 16 LSSs. LSSs are
numbered X'ab', where a is the address group and b denotes an LSS within the address
group. So, for example, X'10' to X'1F' are LSSs in address group 1.
All LSSs within one address group have to be of the same type, CKD or FB. The first LSS
defined in an address group fixes the type of that address group.
Figure 4-9 illustrates the concept of LSSs and address groups.
Figure 4-9 Logical subsystems
The LUN identifications X'gabb' are composed of the address group X'g', and the LSS
number within the address group X'a', and the position of the LUN within the LSS X'bb'. For
example LUN X'1101' denotes the second (X'01') LUN in LSS X'11' of address group 1.
4.2.8 Volume access
A DS6000 provides mechanisms to control host access to LUNs. In most cases a server has
two or more HBAs and the server needs access to a group of LUNs. For easy management of
server access to logical volumes, the DS6000 introduced the concept of host attachments
and volume groups.
Address group X'1x': FB
Address group X'0x' CKD
Extent Pool FB-2
LSS X'00'
LSS X'02'
LSS X'04'
LSS X'06'
LSS X'08'
LSS X'0A'
LSS X'0C'
LSS X'0E'
LSS X'10'
LSS X'12'
LSS X'14'
LSS X'16'
LSS X'18'
LSS X'1A'
LSS X'1C'
LSS X'1E'
LSS X'01'
LSS X'03'
LSS X'05'
LSS X'07'
LSS X'09'
LSS X'0B'
LSS X'0D'
LSS X'11'
LSS X'0F'
LSS X'13'
LSS X'15'
LSS X'17'
LSS X'19'
LSS X'1B'
Server0
Extent Pool CKD-1
Rank-a
Rank-b
Extent Pool FB-1
Rank-c
Rank-d
LSS X'1D'
Server1
Extent Pool CKD-2
Rank-w
Rank-x
Extent Pool FB-2
Rank-y
Rank-z
X'0E00'
X'0E01'
X'1800'
X'0500'
X'0D00'
X'1100'
Volume ID
X'1101'
LSS X'1F'
78 DS6000 Series: Concepts and Architecture
Host attachment
HBAs are identified to the DS6000 in a host attachment construct that specifies the HBA's
World Wide Port Names (WWPNs). A set of host ports can be associated through a port
group attribute that allows a set of HBAs to be managed collectively. This port group is
referred to as host attachment within the GUI. A given host attachment can be associated
with only one volume group. Each host attachment can be associated with a volume group to
define which LUNs that HBA is allowed to access. Multiple host attachments can share the
same volume group. The host attachment may also specify a port mask that controls which
DS6000 I/O ports that the HBA is allowed to log in to. Whichever ports the HBA logs in on, it
sees the same volume group that is defined in the host attachment associated with this HBA.
The maximum number of host attachments on a DS6000 is 1024.
Volume group
A volume group is a named construct that defines a set of logical volumes. When used in
conjunction with CKD hosts, there is a default volume group that contains all CKD volumes
and any CKD host that logs into a FICON I/O port has access to the volumes in this volume
group. CKD logical volumes are automatically added to this volume group when they are
created and automatically removed from this volume group when they are deleted.
When used in conjunction with Open Systems hosts, a host attachment object that identifies
the HBA is linked to a specific volume group. The user must define the volume group by
indicating which fixed block logical volumes are to be placed in the volume group. Logical
volumes may be added to or removed from any volume group dynamically.
There are two types of volume groups used with Open Systems hosts and the type
determines how the logical volume number is converted to a host addressable LUN_ID on the
Fibre Channel SCSI interface. A map volume group type is used in conjunction with FC SCSI
host types that poll for LUNs by walking the address range on the SCSI interface. This type of
volume group can map any FB logical volume numbers to 256 LUN_IDs that have zeroes in
the last six bytes and the first two bytes in the range of X'0000' to X'00FF'.
A mask volume group type is used in conjunction with FC SCSI host types that use the Report
LUNs command to determine the LUN_IDs that are accessible. This type of volume group
can allow any and all FB logical volume numbers to be accessed by the host where the mask
is a bit map that specifies which LUNs are accessible. For this volume group type, the logical
volume number X'abcd' is mapped to LUN_ID X'40ab40cd00000'. The volume group type
also controls whether 512 byte block LUNs or 520 byte block LUNs can be configured in the
volume group.
When associating a host attachment with a volume group, the host attachment contains
attributes that define the logical block size and the Address Discovery Method (LUN Polling or
Report LUNs) that is used by the host HBA. These attributes must be consistent with the
volume group type of the volume group that is assigned to the Host Attachment so that HBAs
that share a volume group have a consistent interpretation of the volume group definition and
have access to a consistent set of logical volume types. The GUI typically sets these values
appropriately for the HBA based on the user specification of a host type. The user must
consider what volume group type to create when setting up a volume group for a particular
HBA.
FB logical volumes may be defined in one or more volume groups. This allows a LUN to be
shared by host HBAs configured to different volume groups. An FB logical volume is
automatically removed from all volume groups when it is deleted. The maximum number of
volume groups on a DS6000 is 1040.
Chapter 4. Virtualization concepts 79
Figure 4-10 Host attachments and volume groups
Figure 4-10 shows the relationships between host attachments and volume groups. Host
AIXprod1 has two HBAs, that are grouped together in one host attachment and both are
granted access to volume group DB2-1. Most of the volumes in volume group DB2-1 are also
in volume group DB2-2, accessed by server AIXprod2. In our example there is, however, one
volume in each group that is not shared. The server in the lower left has four HBAs and they
are divided into two distinct host attachments. One can access some volumes shared with
AIXprod1 and AIXprod2, the other HBAs have access to a volume group called docs.
4.2.9 Summary of the virtualization hierarchy
Going through the virtualization hierarchy we started with just a bunch of disks that were
grouped in array sites. An array site was transformed into an array, eventually with spare
disks. The array was further transformed into a rank with extents formatted for FB or CKD
data. Next, the extents were added to an extent pool which determined which storage server
would serve the ranks and aggregated the extents of all ranks in the extent pool for
subsequent allocation to one or more logical volumes.
Next we created logical volumes within the extent pools, assigning them a logical volume
number that determined which logical subsystem they would be associated with and which
server would manage them. Then the LUNs could be assigned to one or more volume
groups. Finally, the host HBAs were configured into a host attachment that is associated with
a given volume group.
This new virtualization concept provides for much more flexibility. Logical volumes can
dynamically be created and deleted. They can be grouped logically to simplify storage
management. Large LUNs and CKD volumes reduce the total number of volumes and this
also contributes to a reduction of the management efforts.
Figure 4-11 on page 80 summarizes the virtualization hierarchy.
WWPN-1 WWPN-2
Host attachment: AIXprod1
Volume group: DB2-1
WWPN-3 WWPN-4
Host attachment: AIXprod2
Volume group: docs
WWPN-5 WWPN-6
WWPN-7
WWPN-8
Host att: Test
Host att: Prog
Volume group: DB2-2
Volume group: DB2-test
80 DS6000 Series: Concepts and Architecture
Figure 4-11 Virtualization hierarchy
4.2.10 Placement of data
As explained in the previous chapters, there are several options on how to create logical
volumes. You can select an extent pool that is owned by one server. There could be just one
extent pool per server or you could have several. The ranks of extent pools could come from
arrays on different loops or from the same loop. Figure 4-12 on page 81 shows an optimal
distribution of four logical volumes within a DS6000. Of course you could have more extent
pools and ranks, but when you want to distribute your data for optimal performance, you
should make sure that you spread it across the two servers and across the two loops and
across several ranks.
If you use some kind of a logical volume manager (like LVM on AIX) on your host, you can
create a host logical volume from several DS6000 logical volumes (LUNs). You can select
LUNs from different DS6000 servers and loops as shown in Figure 4-12. By striping your host
logical volume across the LUNs, you will get the best performance for this LVM volume.
Server0
Array
Sites
RAID
Array
Spare
Data
Data
Data
Data
Data
Data
Parity
Rank
Type FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
1 GB FB
Extent
Pool
Logical
Volume
LSS
FB
Address
Group
X'0x' FB
4096
addresses
LSS X'07'
X'1x' CKD
4096
addresses
Volume
Group
Host
Attachment
Chapter 4. Virtualization concepts 81
Figure 4-12 Optimal distribution of data
4.3 Benefits of virtualization
The DS6000 physical and logical architecture defines new standards for enterprise storage
virtualization. The main benefits of the virtualization layers are:
򐂰Flexible LSS definition allows maximization/optimization of the number of devices per
LSS.
򐂰No strict relationship between RAID ranks and LSSs.
򐂰No connection of LSS performance to underlying storage.
򐂰Number of LSSs can be defined based upon device number requirements:
– With larger devices significantly fewer LSSs might be used.
– Volumes for a particular application can be kept in a single LSS.
– Smaller LSSs can be defined if required (for systems/applications requiring less
storage).
– Test systems can have their own LSSs with fewer volumes than the production
systems.
򐂰Increased number of logical volumes:
– Up to 8192 (CKD)
– Up to 8192 (FB)
– Up to 4096 CKD and up to 4096 FB
򐂰Increased logical volume size:
– CKD: 55.6 GB (65520 cylinders), architected for 219 TB
– FB: 2 TB, architected for 1 PB
򐂰Flexible logical volume configuration:
– Multiple RAID types (RAID-5, RAID-10)
– Storage types (CKD and FB) aggregated into extent pools
– Volumes allocated from extents of extent pool
Server0
Server1
Extent Pool FB-1a
Extent Pool FB-0a
DA pair
DA pair
Host LVM volume
Extent Pool FB-1bExtent Pool FB-0b
Loop 1
Loop 2
Loop 2
Loop 1
LSS 00 LSS 01
82 DS6000 Series: Concepts and Architecture
– Dynamically add/remove volumes
򐂰Virtualization reduces storage management requirements.
© Copyright IBM Corp. 2004. All rights reserved. 83
Chapter 5. IBM TotalStorage DS6000 model
overview
This chapter provides an overview of the IBM TotalStorage DS6000 storage server which is
from here on referred to as the DS6000. While the DS6000 is physically small, it is a highly
scalable and powerfully performing storage server. Topics covered in this chapter are:
򐂰DS6000 highlights
򐂰DS6800 Model 1750-511
򐂰DS6000 Model 1750-EX1
򐂰Design to scale for capacity
5
84 DS6000 Series: Concepts and Architecture
5.1 DS6000 highlights
The DS6000 is a member of the DS product family that offers high reliability and enterprise
class performance for mid-range storage solutions with the DS6800 model 1750-511.
It is built upon 2 Gbps fibre technology and offers:
򐂰RAID protected storage
򐂰Advanced functionality
򐂰Extensive scalability
򐂰Increased addressing capabilities
򐂰The ability to connect to all relevant host server platforms
5.1.1 DS6800 Model 1750-511
The 1750-511 model contains control unit functions as well as a rich set of advanced
functions, and holds up to 16 disk drive modules (DDMs). It provides a minimum capacity of
584 GB with 8 DDMs and 73 GB per DDM.
As of this writing, the maximum storage capacity with 300 GB DDMs is 4.8 TB with 16 DDMs
in a 1750-511 model.
It measures 5.25 inches high and is available in a 19 inch rack-mountable package.
Figure 5-1 DS6800 Model 1750-511 and Model 1750-EX1 front view
The 1750-511 model offers the following features:
򐂰Two Fibre Channel control cards.
򐂰PowerPC 750GX 1 GHz processors.
򐂰Dual active controllers to provide continuous operations and back up the other controller in
case of controller maintenance or an unplanned outage of a controller.
򐂰4 GB of cache.
򐂰Battery backed mirrored cache.
򐂰Two battery backup units - one per controller card.
򐂰Two AC/DC power supplies with imbedded enclosure cooling units.
򐂰Disk subsystem connectivity with eight 2 Gbps device ports.
򐂰Selection of 2 Gbps Fibre Channel disk drives including 73 GB, 146 GB, and 300 GB DDM
size with speeds currently of 10K RPM or 15K RPM.
Chapter 5. IBM TotalStorage DS6000 model overview 85
򐂰Front-end connectivity with two to eight Fibre Channel host ports which auto negotiate to
either 2 Gbps or 1 Gbps link speeds. Each port, long-wave or short-wave, can be either
configured for:
– FCP to connect to open system hosts or PPRC FCP links, or both
– FICON host connectivity
The DS6800 storage system can connect to a broad range of servers through its intermix of
FCP and FICON front-end I/O adapters. This includes the following servers:
򐂰IBM eServer zSeries
򐂰IBM eServer iSeries
򐂰IBM eServer pSeries
򐂰IBM eServer xSeries
򐂰Servers from Sun Microsystems
򐂰Servers from Hewlett-Packard
򐂰Servers from other Intel®-based platforms
For an up-to-date and complete interoperability matrix refer to:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
Figure 5-2 DS6800 Model 1750-511 rear view
5.1.2 DS6000 Model 1750-EX1
To configure more than 4.8 TB, the DS6800 can expand with the expansion enclosure model
1750-EX1 to connect a maximum of 128 DDMs per storage system. This brings the maximum
storage capacity to a total of 38.4 TB with 300 GB per DDM, when you expand the DS6800
Model 1750-511 by up to 7 DS6000 Models 1750-EX1.
Each expansion enclosure contains the following features:
򐂰Two expansion controller cards. Each controller card provides the following:
– Two 2 Gbps inbound ports
– Two 2 Gbps outbound ports
– One Fibre Channel switch
򐂰Disk enclosure which holds up to 16 Fibre Channel DDMs.
򐂰Two AC/DC power supplies with imbedded enclosure cooling units.
򐂰Support for attachment to DS6800 Model 1750-511.
86 DS6000 Series: Concepts and Architecture
The DS6800 Model 1750-EX1 is also a 3 Electrical Industries Association (EIA)
self-contained unit, as is the 1750-511, and it can also be mounted in a standard 19 inch rack.
Figure 5-3 DS6800 Model 1750-EX1 rear view
Controller model 1750-511 and expansion model 1750-EX1 have the same front appearance.
Figure 5-3 displays the rear view of the expansion enclosure, which is a bit different compared
to the rear view of the 1750-511 model.
Figure 5-4 shows a 1750-511 model with two expansion 1750-EX1 models.
Figure 5-4 DS6000 with 2 expansion drawer 1750-EX1 models attached to 1750-511 controller
Up to 7 expansion drawers build up to the maximum configuration of 128 DDMs, which is
comprised of 8 drawers x 16 DDMs.
5.2 Designed to scale for capacity
The DS6800 has outstanding scalability for capacity ranging from 584 GB up to 38.4TB
without disruptive maintenance.
Chapter 5. IBM TotalStorage DS6000 model overview 87
The DS6800 server enclosure can have from 8 up to 16 DDMs and can connect 7 expansion
enclosures. Each expansion enclosure also can have 16 DDMs. Therefore, in total a DS6800
storage unit can have 16 + 16 x 7 = 128 DDMs.
You can select from four types of DDMs:
򐂰73 GB 15k RPM
򐂰146 GB 10k RPM
򐂰146 GB 15k RPM
򐂰300 GB 10k RPM
Therefore, a DS6800 can have from 584 GB (73 GB x 4 DDMs) up to 38.4TB (300 GB x 128
DDMs).
Table 5-1 describes the capacity of the DS6800 with expansion enclosures.
Table 5-1 DS6800 physical capacity examples
In addition, the DS6800 and expansion enclosures can have different types of DDMs in each
enclosure (an intermix configuration).
The DS6800 capacity upgrade
The DS6800 has two enclosure groups for attaching expansion enclosures. One group can
have a server enclosure and up to three expansion enclosures (we call this group Loop 0)
and the other group can have up to four expansion enclosures (we call this group Loop 1).
You can attach additional expansion enclosures to the two groups for well-balanced capacity.
Figure 5-5 on page 88 illustrates the connectivity of the server and expansion enclosures.
Each DS6800 controller has four FC-AL ports and two of them connect to the dual redundant
loops of the first group (Loop 0), and the others to the second group (Loop 1). The FC-AL port
in Loop 0 is called the disk exp port, and the port in the Loop 1 is called the disk control port.
These groups are independent and there is no restriction on the connection sequence of
expansion enclosures. Figure 5-5 is an example of how to connect an expansion enclosure to
each group alternately.
Model with 73 GB DDMs with 146 GB DDMs with 300 GB DDMs
1750-511
(16 DDMs)
1.17 TB 2.34 TB 4.80 TB
1750-511 + 6 Exp
(112 DDMs)
8.18 TB 16.35 TB 33.60 TB
88 DS6000 Series: Concepts and Architecture
Figure 5-5 DS6800 switched disk expansion
When you add new DDMs into an enclosure or attach additional enclosures, you don’t need
disruptive maintenance. To add new DDMs into an existing enclosure, you have only to pull
out the dummy carriers and replace them with the new DDMs. To attach additional
enclosures, you only have to attach the new enclosures to the existing enclosures with Fibre
Channel cables.
1
16
FC switch
FC switch
1
16
FC switch
FC switch
16
1
FC switch
FC switch
16
1
FC switch
FC switch
Controller 0
16
1
FC switch
FC switch
1
16
FC switch
FC switch
Controller 1
Loop 1Loop 0
First
expansion
enclosure
Server
enclosure
Raid controller
disk contrl ports
Raid controller
disk exp ports
Cables between
enclosures
Up to 16 DDMs
per enclosure
Third
expansion
enclosure
Fifth
expansion
enclosure
Second
expansion
enclosure
Fourth
expansion
enclosure
You can configure an
intermix configration
in a DS6800
73GB, 15k rpm
DDMs
145GB, 10k rpm
DDMs
300GB, 10k rpm
DDMs
EXP 1
EXP 5
EXP 3
© Copyright IBM Corp. 2004. All rights reserved. 89
Chapter 6. Copy Services
In this chapter, we describe the architecture and functions of Copy Services for the DS6000.
Copy Services is a collection of functions that provide disaster recovery, data migration, and
data duplication functions. Copy Services run on the DS6000 server enclosure and they
support open systems and zSeries environments.
Copy Services has four interfaces; a Web-based interface (DS Storage Manager), a
command-line interface (DS CLI), an application programming interface (DS API), and host
I/O commands from zSeries servers.
This chapter discusses the following topics:
򐂰Introduction to Copy Services
򐂰Copy Services functions
򐂰Interfaces for Copy Services
򐂰Interoperability with IBM TotalStorage Enterprise Storage Server
򐂰Future plans
6
90 DS6000 Series: Concepts and Architecture
6.1 Introduction to Copy Services
Copy Services is a collection of functions that provides disaster recovery, data migration, and
data duplication functions. With the copy services functions, for example, you can create
backup data with little or no disruption to your application, and you can back up your
application data to a remote site for disaster recovery.
Copy Services run on the DS6000 server enclosure and support open systems and zSeries
environments. These functions are supported also on the previous generation of storage
systems called the IBM TotalStorage Enterprise Storage Server (ESS).
Many design characteristics of the DS6000 and data copying and mirroring capabilities of the
Copy Services features contribute to the protection of your data, 24 hours a day and seven
days a week. The licensed features included in Copy Services are the following:
򐂰FlashCopy, which is a Point-in-Time Copy function
򐂰Remote Mirror and Copy functions, previously known as Peer-to-Peer Remote Copy or
PPRC, which include:
– IBM TotalStorage Metro Mirror, previously known as Synchronous PPRC
– IBM TotalStorage Global Copy, previously known as PPRC Extended Distance
– IBM TotalStorage Global Mirror, previously known as Asynchronous PPRC
We explain these functions in detail in the next section.
You can manage the Copy Services functions through a command-line interface (DS CLI)
and a new Web-based interface (DS Storage Manager). You also can manage the Copy
Services functions through the open application programming interface (DS Open API).
When you manage Copy Services through these interfaces, these interfaces invoke Copy
Services functions via the Ethernet network. In zSeries environments, you can invoke the
Copy Service functions by TSO commands, ICKDSF, the DFSMSdss utility, and so on.
We explain these interfaces in 6.3, “Interfaces for Copy Services” on page 108.
6.2 Copy Services functions
We describe each function and the architecture of the Copy Services in this section.
6.2.1 Point-in-Time Copy (FlashCopy)
The Point-in-Time Copy feature, which includes FlashCopy, enables you to create full volume
copies of data. When you set up a FlashCopy operation, a relationship is established between
the source and target volumes, and a bitmap of the source volume is created. Once this
relationship and bitmap are created, the target volume can be accessed as though all the
data had been physically copied. While a relationship between the source and target volume
exists, optionally, a background process copies the tracks from the source to the target
volume.
See Figure 6-1 on page 91 for an illustration of FlashCopy concepts.
Note: In this section, track means a piece of data in the DS6000; the DS6000 uses the
logical tracks to manage the Copy Services functions.
Chapter 6. Copy Services 91
Figure 6-1 FlashCopy concepts
When a FlashCopy operation is invoked, the process of establishing the FlashCopy pair and
creating the necessary control bitmaps takes only a few seconds to complete. Thereafter, you
have access to a point-in-time copy of the source volume. As soon as the pair has been
established, you can read and write to both the source and the target volumes.
After creating the bitmaps, a background process begins to copy the real-data from the
source to the target volumes. If you access the source or the target volumes during the
background copy, FlashCopy manages these I/O requests as follows:
򐂰Read from the source volume
When you read some data from the source volume, it is simply read from the source
volume.
򐂰Read from the target volume
When you read some data from the target volume, FlashCopy checks the bitmaps and:
– If the backup data is already copied to the target volume, it is read from the target
volume.
– If the backup data is not copied yet, it is read from the source volume.
򐂰Write to the source volume
When you write some data to the source volume, at first the updated data is written to the
data cache and persistent memory (write cache). And when the updated data is destaged
to the source volume, FlashCopy checks the bitmaps and:
– If the backup data is already copied, it is simply updated on the source volume.
– If the backup data is not copied yet, first the backup data is copied to the target volume,
and then it is updated on the source volume.
򐂰Write to the target volume
When you write some data to the target volume, it is written to the data cache and
persistent memory, and FlashCopy manages the bitmaps to not overwrite the latest data.
FlashCopy does not overwrite the latest data by the physical copy.
FlashCopy provides a point-in-time copy
FlashCopy command issued
Time
Copy immediately available
Read and write to both source
and copy possible
Write Read
When copy is complete,
relationship between
source and tar
g
et ends
Source Target
Read
Write
T0
92 DS6000 Series: Concepts and Architecture
The background copy may have a slight impact on your application because the real-copy
needs some storage resources, but the impact is minimal because the host I/O is prior to the
background copy. And if you want, you can issue FlashCopy with the no background copy
option.
No background copy option
If you invoke FlashCopy with the no background copy option, the FlashCopy relationship is
established without initiating a background copy. Therefore, you can minimize the impact of
the background copy. When the ESS receives an update to a source track in a FlashCopy
relationship, a copy of the point-in-time data is copied to the target volume so that it is
available when the data from the target volume is accessed. This option is useful for
customers who don’t need to issue FlashCopy in the opposite direction.
Benefits of FlashCopy
The point-in-time copy created by FlashCopy is typically used where you need a copy of the
production data to be produced with little or no application downtime (depending on the
application). It can be used for online backup, testing of new applications, or for creating a
database for data-mining purposes. The copy looks exactly like the original source volume
and is an instantly available, binary copy.
Point-in-Time Copy function authorization
FlashCopy is an optional function. To use it, you must purchase the Point-in-Time Copy 2244
function authorization model, which is 2244 Model PTC.
6.2.2 FlashCopy options
FlashCopy has many options and expanded functions to help provide data duplication. We
explain these options and functions in this section.
Refresh target volume (also known as Incremental FlashCopy)
Refresh target volume provides the ability to refresh a LUN or volume involved in a FlashCopy
relationship. When a subsequent FlashCopy operation is initiated, only the tracks changed on
both the source and target need to be copied from the source to the target. The direction of
the refresh can also be reversed.
In many cases, at most 10 to 20 percent of your entire data is changed in a day. In such a
situation, if you use this function for daily backup, you can save the time for the physical copy
of FlashCopy.
Figure 6-2 on page 93 explains the architecture for Incremental FlashCopy.
Chapter 6. Copy Services 93
Figure 6-2 Incremental FlashCopy
In the Incremental FlashCopy operations:
1. At first, you issue full FlashCopy with the change recording option. This option is for
creating change recording bitmaps in the server enclosure. The change recording bitmaps
are used for recording the tracks which are changed on the source and target volumes
after the last FlashCopy.
2. After creating the change recording bitmaps, Copy Services records the information for
the updated tracks to the bitmaps. The FlashCopy relationship persists even if all of the
tracks have been copied from the source to the target.
3. The next time you issue Incremental FlashCopy, Copy Services checks the change
recording bitmaps and copies only the changed tracks to the target volumes. If some
tracks on the target volumes are updated, these tracks are overwritten by the
corresponding tracks from the source volume.
If you want, you can also issue Incremental FlashCopy from the target volume to the source
volumes with the reverse restore option. The reverse restore operation cannot be done unless
the background copy in the original direction has finished.
Data Set FlashCopy
Data Set FlashCopy allows a FlashCopy of a data set in a zSeries environment.
Source Target Write
Read
Write
Read
Incremental FlashCopy
Initial FlashCopy
relationship established
with change recording and
persistent copy options
Control bitmap for each
volume created
Tracks changed on the
target are overwritten by
the corresponding tracks
from the source
Possible reverse operation,
the target updates the
source
Incremental FlashCopy
started
Tracks changed on the
source are copied to the
target
94 DS6000 Series: Concepts and Architecture
Figure 6-3 Data Set FlashCopy
Multiple Relationship FlashCopy
Multiple Relationship FlashCopy allows a source to have FlashCopy relationships with
multiple targets simultaneously. A source volume or extent can be FlashCopied to up to 12
target volumes or target extents, as illustrated in Figure 6-4.
Figure 6-4 Multiple Relationship FlashCopy
Note: If a FlashCopy source volume has more than one target, that source volume can be
involved only in a single incremental FlashCopy relationship.
Dataset
Dataset
Volume level FlashCopy Dataset level FlashCopy
Source
Volume
Target
Volume
1
1’
2’
12’
Maximum 12 Target volumes
from 1 Source volume
Chapter 6. Copy Services 95
Consistency Group FlashCopy
Consistency Group FlashCopy allows you to freeze (temporarily queue) I/O activity to a LUN
or volume. Consistency Group FlashCopy helps you to create a consistent point-in-time copy
across multiple LUNs or volumes, and even across multiple storage units.
What is Consistency Group FlashCopy?
If a consistent point-in-time copy across many logical volumes is required, and the user does
not wish to quiesce host I/O or database operations, then the user can use Consistency
Group FlashCopy to create a consistent copy across multiple logical volumes in multiple
storage units.
In order to create this consistent copy, the user issues a set of Establish FlashCopy
commands with a freeze option, which will hold off host I/O to the source volumes. In other
words, Consistency Group FlashCopy provides the capability to temporarily queue (at the
host I/O level, not the application level) subsequent write operations to the source volumes
that are part of the Consistency Group. During the temporary queueing, Establish FlashCopy
is completed. The temporary queueing continues until this condition is reset by the
Consistency Group Created command or the time-out value expires (the default is two
minutes).
Once all of the Establish FlashCopy requests have completed, a set of Consistency Group
Created commands must be issued via the same set of DS network interface servers. The
Consistency Group Created commands are directed to each logical subsystem (LSS)
involved in the consistency group. The Consistency Group Created command allows the
write operations to resume to the source volumes.
This operation is illustrated in Figure 6-5.
Figure 6-5 Consistency Group FlashCopy
Server1
Server2 write requests
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
LSS11
LSS12
Wait
Wait
FlashCopy
FlashCopy
Consistency Group
Waiting write operation
until Consistency Group Created
command is invoked.
DS6000 #1, #2, #3, …
96 DS6000 Series: Concepts and Architecture
A more detailed discussion of the concept of data consistency and how to manage the
Consistency Group operation is in 6.2.5, “What is Consistency Group?” on page 105.
Establish FlashCopy on existing Remote Mirror and Copy primary
This option allows you to establish a FlashCopy relationship where the target is also a remote
mirror primary volume. This enables you to create full or incremental point-in-time copies at a
local site and then use remote mirroring commands to copy the data to the remote site. We
explain the functions of Remote Mirror and Copy in 6.2.3, “Remote Mirror and Copy
(Peer-to-Peer Remote Copy)” on page 97.
Figure 6-6 Establish FlashCopy on existing Remote Mirror and Copy primary
Important: Consistency Group FlashCopy can create host-based consistent copies; they
are not application-based consistent copies. The copies have power-fail or crash level
consistency. This means that if you suddenly power off your server without stopping your
applications and without destaging the data in the file cache, the data in the file cache may
be lost and you may need recovery procedures to restart your applications. To start your
system with Consistency Group FlashCopy target volumes, you may need the same
operations as the crash recovery.
For example, If the Consistency Group source volumes are used with a journaled file
system (like AIX JFS) and the source LUNs are not unmounted before running FlashCopy,
it is likely that fsck will have to be run on the target volumes.
Note: Consistency Group FlashCopy is only available through the use of CLI commands
and not the DS Storage Manager GUI at the current time.
Note: You cannot FlashCopy from a source to a target, where the target is also a Global
Mirror primary volume.
PPRC
Primary Volume
PPRC
Secondary Volume
PPRC relation
FlashCopy to
PPRC Primary
Volume
FlashCopy
Source Volume
FlashCopy
Target Volume
Chapter 6. Copy Services 97
Persistent FlashCopy
Persistent FlashCopy allows the FlashCopy relationship to remain even after the copy
operation completes. You must explicitly delete the relationship.
Inband commands over remote mirror link
In a remote mirror environment, commands to manage FlashCopy at the remote site can be
issued from the local or intermediate site and transmitted over the remote mirror Fibre
Channel links. This eliminates the need for a network connection to the remote site solely for
the management of FlashCopy.
6.2.3 Remote Mirror and Copy (Peer-to-Peer Remote Copy)
The Remote Mirror and Copy feature (formally called Peer-to-Peer Remote Copy, or PPRC)
is a flexible data mirroring technology that allows replication between volumes on two or more
disk storage systems. You can also use this feature for data backup and disaster recovery.
Remote Mirror and Copy is an optional function. To use it, you must purchase the Remote
Mirror and Copy 2244 function authorization model, which is 2244 Model RMC.
DS6000 server enclosures can participate in Remote Mirror and Copy solutions with the ESS
Model 750, ESS Model 800, and DS6000 and DS8000 server enclosures. To establish a
PPRC relationship between the DS6000 and ESS, the ESS needs to have licensed internal
code (LIC) version 2.4.2 or later.
The Remote Mirror and Copy feature can operate in the following modes:
Metro Mirror (Synchronous PPRC)
Metro Mirror provides real-time mirroring of logical volumes between two DS6000s that can
be located up to 300 km from each other. It is a synchronous copy solution where write
operations are completed on both copies (local and remote site) before they are considered
to be complete.
Note: This function is only available through the use of CLI commands and not the DS
Storage Manager GUI at the current time.
98 DS6000 Series: Concepts and Architecture
Figure 6-7 Metro Mirror
Global Copy (PPRC-XD)
Global Copy copies data non-synchronously and over longer distances than is possible with
Metro Mirror. When operating in Global Copy mode, the source volume sends a periodic,
incremental copy of updated tracks to the target volume, instead of sending a constant
stream of updates. This causes less impact to application writes for source volumes and less
demand for bandwidth resources, while allowing a more flexible use of the available
bandwidth.
Global Copy does not keep the sequence of write operations. Therefore, the copy is normally
fuzzy, but you can make a consistent copy through synchronization (called a go-to-sync
operation). After the synchronization, you can issue FlashCopy at the secondary site to make
the backup copy with data consistency. After you establish the FlashCopy, you can change
the PPRC mode back to the non-synchronous mode.
If you want to make a consistent copy with FlashCopy, you must purchase a Point-in-Time
Copy function authorization (2244 Model PTC) for the secondary storage unit.
Note: When you change PPRC mode from synchronous to non-synchronous mode, you
change the PPRC mode from synchronous to suspend mode at first, and then you change
PPRC mode from suspend to non-synchronous mode.
2
3
1
4
Server write Write to secondary
Write acknowledge
Write hit
to secondary
Chapter 6. Copy Services 99
Figure 6-8 Global Copy
Global Mirror (Asynchronous PPRC)
Global Mirror provides a long-distance remote copy feature across two sites using
asynchronous technology. This solution is based on the existing Global Copy and FlashCopy.
With Global Mirror, the data that the host writes to the server enclosure at the local site is
asynchronously shadowed to the server enclosure at the remote site. A consistent copy of the
data is then automatically maintained on the server enclosure at the remote site.
Global Mirror operations provide the following benefits:
򐂰Support for virtually unlimited distances between the local and remote sites, with the
distance typically limited only by the capabilities of the network and the channel extension
technology. This unlimited distance enables you to choose your remote site location
based on business needs and enables site separation to add protection from localized
disasters.
򐂰A consistent and restartable copy of the data at the remote site, created with minimal
impact to applications at the local site.
򐂰Data currency where, for many environments, the remote site lags behind the local site
typically 3 to 5 seconds, minimizing the amount of data exposure in the event of an
unplanned outage. The actual lag in data currency that you experience can depend upon
a number of factors, including specific workload characteristics and bandwidth between
the local and remote sites.
򐂰Dynamic selection of the desired recovery point objective, based upon business
requirements and optimization of available bandwidth.
򐂰Session support whereby data consistency at the remote site is internally managed across
up to eight storage units that are located across the local and remote sites.
2
1
Server write
Write to secondary
(non-synchronously)
Write acknowledge
100 DS6000 Series: Concepts and Architecture
򐂰Efficient synchronization of the local and remote sites with support for failover and failback
modes, helping to reduce the time that is required to switch back to the local site after a
planned or unplanned outage.
Figure 6-9 Global Mirror
How Global Mirror works
We explain how Global Mirror works in Figure 6-10 on page 101.
2
1
Server write
Write to secondary
(non-synchronously)
Write acknowledge
AB
C
FlashCopy
(automatically)
Automatic cycle in active session
Chapter 6. Copy Services 101
Figure 6-10 How Global Mirror works
The A volumes at the local site are the production volumes; they are used as Global Copy
primary volumes. The data from the A volumes is replicated to the B volumes, which are
Global Copy secondary volumes. At a certain point in time, a Consistency Group is created
using all of the A volumes, even if they are located in different Storage Units. This has no
application impact because the creation of the Consistency Group is very quick (on the order
of milliseconds).
Once the Consistency Group is created, the application writes can continue updating the A
volumes. The increment of the consistent data is sent to the B volumes using the existing
Global Copy relationship. Once the data reaches the B volumes, it is FlashCopied to the C
volumes.
The C volumes now contain the consistent copy of data. Because the B volumes usually
contain a fuzzy copy of the data from the local site (not when doing the FlashCopy), the C
volumes are used to hold the last point-in-time consistent data while the B volumes are being
updated by the Global Copy relationship.
Note: The copy created with Consistency Group is a power-fail consistent copy, not an
application-based consistent copy. When you recover with this copy, you may need
recovery operations, such as the fsck command in an AIX filesystem.
1. Create Consistency Group of volumes at local site
2. Send increment of consistent data to remote site
3. FlashCopy at the remote site
4. Resume Global Copy (copy out-of-sync data only)
5. Repeat all the steps according to the defined time period
Global Mirror - How it works
Global Copy
Local Site Remote Site
PPRC Primary PPRC Secondary
FlashCopy Source
C
B
A
FlashCopy Target
FlashCopy
Automatic Cycle in an active Global Mirror Session
102 DS6000 Series: Concepts and Architecture
The data at the remote site is current within 3 to 5 seconds, but this recovery point (RPO)
depends on the workload and bandwidth available to the remote site.
In contrast to the previously mentioned Global Copy solution, Global Mirror overcomes its
disadvantages and automates all of the steps that have to be done manually when using
Global Copy.
If you use Global Mirror, you must adhere to the following additional rules:
򐂰You must purchase a Point-in-Time Copy function authorization (2244 Model PTC) for the
secondary storage unit.
򐂰If Global Mirror will be used during failback on the secondary storage unit, you must also
purchase a Point-in-Time Copy function authorization for the primary system.
z/OS Global Mirror (XRC)
z/OS Global Mirror is an asynchronous copy function for the z/Series environment. This
function has a different architecture than Global Mirror. The DS6000 can only be used as a
secondary system for z/OS Global Mirror (it cannot be used as primary system).
Note: When you implement Global Mirror, you setup the FlashCopy between the B and C
volumes with No Background copy and Start Change Recording options. It means that
before the latest data is updated to the B volumes, the last consistent data in the B volume
is moved to the C volumes. Therefore, at some time, a part of consistent data is in the B
volume, and the other part of consistent data is in the C volume.
If a disaster occurs during the FlashCopy of the data, special procedures are needed to
finalize the FlashCopy.
In the recovery phase, the consistent copy is created in the B volumes. You need some
operations to check and create the consistent copy.
You need to check the status of the B volumes for the recovery operations. Generally, these
check and recovery operations are complicated and difficult with the GUI or CLI in a
disaster situation. Therefore, you may want to use some management tools (for example,
Global Mirror Utility), or management software (for example, Multiple Device Manager
Replication Manager), for Global Mirror to automate this recovery procedure.
Note: PPRC can do failover and failback operations. A failover operation is the process of
temporarily switching production to a backup facility (normally your recovery site) following
a planned outage, such as a scheduled maintenance period, or an unplanned outage,
such as a disaster. A failback operation is the process of returning production to its original
location. These operations use Remote Mirror and Copy functions to help reduce the time
that is required to synchronize volumes after the sites are switched during a planned or
unplanned outage.
Chapter 6. Copy Services 103
Figure 6-11 z/OS Global Mirror (DS6000 is used as secondary system)
6.2.4 Comparison of the Remote Mirror and Copy functions
In this section we summarize the use of and considerations for Remote Mirror and Copy
functions.
Metro Mirror (Synchronous PPRC)
򐂰Description
Metro Mirror is a function for synchronous data copy at a distance.
򐂰Advantages
There is no data loss and it allows for rapid recovery for distances up to 300 km.
򐂰Considerations
There may be slight performance impact for write operations.
2
1
Server write
Write acknowledge Write
ashynchronously
Primary server
System
Data
Mover
Secondary server
System Data Mover is
managing data consistency
DS8000 or ESS
DS6000
104 DS6000 Series: Concepts and Architecture
Global Copy (PPRC-XD)
򐂰Description
Global Copy is a function for continuous copy without data consistency.
򐂰Advantages
It can copy your data at nearly an unlimited distance, even if you are limited by the
network and channel extender capabilities. It is suitable for data migration and daily
backup to the remote site.
򐂰Considerations
The copy is normally fuzzy but can be made consistent through synchronization.
Global Mirror (Asynchronous PPRC)
򐂰Description
Global Mirror is an asynchronous copy; you can create a consistent copy in the secondary
site with an adaptable Recovery Point Objective (RPO).
򐂰Advantages
Global Mirror can copy over nearly an unlimited distance. It is scalable across the server
enclosures. It can realize low RPO with enough link bandwidth. Global Mirror causes little
or no impact to your application system.
Note: If you want to use PPRC for mirroring, you need to compare its function with OS
mirroring.
Generally speaking, you will have some disruption to recover your system with PPRC
secondary volumes in an open systems environment because PPRC secondary volumes
are not online to the application servers during the PPRC relationship.
You may need some operations before assigning PPRC secondary volumes. For example,
in an AIX environment, AIX assigns specific IDs to each volume (PVID). PPRC secondary
volumes have the same PVID as PPRC primary volumes. AIX cannot manage the volumes
with the same PVID as different volumes. Therefore, before using the PPRC secondary
volumes, you need to clear the definition of the PPRC primary volumes or reassign PVIDs
to the PPRC secondary volumes.
Some operating systems (OS) or file systems (for example, AIX LVM) have a function for
disk mirroring. OS mirroring needs some server resources, but usually can keep operating
with the failure of one volume of the pair and recover from the failure non-disruptively. If
you use PPRC for the mirroring in the local site only, you need to consider which solution
(PPRC or OS mirroring) is better for your system.
Note: When you operate to create a consistent copy for Global Copy, you need the
go-to-sync (synchronize the secondary volumes to the primary volumes) operation. During
the go-to-sync operation, PPRC changes from a non-synchronous copy to a synchronous
copy. Therefore, the go-to-sync operation may cause performance impact to your
application system. If the data is heavily updated and the network bandwidth for PPRC is
limited, the time for the go-to-sync operation becomes longer.
Note: Recovery Point Objective (RPO) specifies how much data you can afford to
recreate should the system need to be recovered.
Chapter 6. Copy Services 105
򐂰Considerations
When the link bandwidth capability is exceeded with a heavy workload, the RPO might
grow.
6.2.5 What is Consistency Group?
With Copy Services, you can create Consistency Groups for FlashCopy and PPRC.
Consistency Group is a function to keep data consistency in the backup copy. Data
consistency means that the order of dependent writes is kept in the copy.
In this section we define data consistency and dependent writes, and then we explain how
Consistency Group operations keep data consistency.
What is data consistency?
Many applications, such as databases, process a repository of data that has been generated
over a period of time. Many of these applications require that the repository is in a consistent
state in order to begin or continue processing. In general, consistency implies that the order
of dependent writes is preserved in the data copy. For example, the following sequence might
occur for a database operation involving a log volume and a data volume:
1. Write to log volume: Data Record #2 is being updated.
2. Update Data Record #2 on data volume.
3. Write to log volume: Data Record #2 update complete.
If the copy of the data contains any of these combinations then the data is consistent:
򐂰Operation 1, 2, and 3
򐂰Operation 1 and 2
򐂰Operation 1
If the copy of the data contains any of these combinations, then the data is inconsistent (the
order of dependent writes was not preserved):
򐂰Operation 2 and 3
򐂰Operation 1 and 3
򐂰Operation 2
򐂰Operation 3
In the Consistency Group operations, data consistency means this sequence is always kept in
the backup data.
And, the order of non-dependent writes does not necessarily need to be preserved. For
example, consider the following two sequences:
1. Deposit paycheck in checking account A
2. Withdraw cash from checking account A
3. Deposit paycheck in checking account B
4. Withdraw cash from checking account B
Note: To manage Global Mirror, you need many complicated operations. Therefore, we
recommend management utilities (for example, Global Mirror Utilities) or management
software (for example, IBM Multiple Device Manager) for Global Mirror.
106 DS6000 Series: Concepts and Architecture
In order for the data to be consistent, the deposit of the paycheck must be applied before the
withdrawal of cash for each of the checking accounts. However, it does not matter whether
the deposit to checking account A or checking account B occurred first, as long as the
associated withdrawals are in the correct order. So for example, the data copy would be
consistent if the following sequence occurred at the copy. In other words, the order of updates
is not the same as it was for the source data, but the order of dependent writes is still
preserved.
1. Deposit paycheck in checking account B
2. Deposit paycheck in checking account A
3. Withdraw cash from checking account B
4. WIthdraw cash from checking account A
How does Consistency Group keep data consistency?
Consistency Group operations cause the storage units to hold I/O activity to a volume for a
time period by putting the source volume into an extended long busy state. This operation can
be done across multiple LUNs or volumes, and even across multiple storage units.
In the storage subsystem itself, each command is managed with each logical subsystem
(LSS). This means that there are slight time lags until each volume in the different LSS is
changed to an extended long busy state. Some people are concerned that the time lag causes
you to lose data consistency, but, it is not true. We explain how to keep data consistency in
the Consistency Group environments in the following section.
See Figure 6-12. In this case, three write operations (1st, 2nd, and 3rd) are dependent writes.
This means that these operations must be completed sequentially.
.
Figure 6-12 Consistency Group: Example 1
1st
2nd
3rd
dependency
for each write
operation
Servers
Wait
Wait
Wait
LSS11
LSS12
LSS13
These write operations
are not completed
because 1st write
operation is not
completed.
This write operation is
not completed because
of extended long busy
condition.
Chapter 6. Copy Services 107
Because of the time lag for Consistency Group operations, some volumes in some LSSs are
in an extended long busy state and other volumes in the other LSSs are not.
In Figure 6-12, the volumes in LSS11 are in an extended long busy state, and the volumes in
LSS12 and 13 are not. The 1st operation is not completed because of this extended long
busy state, and the 2nd and 3rd operations are not completed, because the 1st operation has
not been completed. In this case, 1st, 2nd, and 3rd updates are not included in the backup
copy. Therefore, this case is consistent.
See Figure 6-13. In this case, the volumes in LSS12 are in an extended long busy state and
the other volumes in LSS11 and 13 are not. The 1st write operation is completed because the
volumes in LSS11 are not in an extended long busy state. The 2nd write operation is not
completed because of an extended long busy state. The 3rd write operation is also not
completed because the 2nd operation is not completed. In this case, the 1st update is
included in the backup copy, and the 2nd and 3rd updates are not included. Therefore, this
case is consistent.
Figure 6-13 Consistency Group: Example 2
In all cases, if each write operation is dependent, Consistency Group operations can keep
data consistent in the backup copy.
If each write operation is not dependent, the I/O sequence is not kept in the copy that is
created by the Consistency Group operations. See Figure 6-14 on page 108. In this case, the
three write operations are independent. If the volumes in LSS12 are in an extended long busy
state and the other volumes in LSS11 and 13 are not, the 1st and 3rd operations are
completed and the 2nd operation is not completed.
1st
2nd
3rd
dependency
for each write
operation
Servers
Completed
Wait
Wait
LSS11
LSS12
LSS13
This write operation is
not completed
because 2nd write
operation is not
completed.
This write operation is
completed because
LSS11 is not in an
extended long busy
condition.
This write operation is
not completed
because LSS12 is in
an extended long
busy condition.
108 DS6000 Series: Concepts and Architecture
Figure 6-14 Consistency Group: Example 3
In this case, the copy created by Consistency Group operation reflects only the 1st and 3rd
write operation, not including the 2nd operation.
If you accept this result, you can use Consistency Group operation with your applications.
But, if you cannot accept it, you should consider other procedures without Consistency Group
operations. For example, you could stop your applications for a slight interval for the backup
operations.
6.3 Interfaces for Copy Services
There are multiple interfaces for invoking Copy Services. We describe them in this section.
6.3.1 DS Management Console
Copy Service functions can be initiated over the following interfaces:
򐂰zSeries Host I/O Interface
򐂰DS Storage Manager Web-based Interface
򐂰DS Command-Line Interface (DS CLI)
򐂰DS open application programming interface (DS Open API)
DS Storage Manager, DS CLI, and DS Open API commands are issued via the Ethernet
network, and these commands are invoked by the DS Management Console (MC). When the
MC has the command requests, including those for Copy Services, from these interfaces, the
1st
2nd
3rd
independent
for each write
operation
Servers
Completed
Wait
LSS11
LSS12
LSS13
This write operation is
completed because
LSS11 is not in an
extended long busy
condition.
This write operation is
not completed
because LSS12 is in
an extended long
busy condition.
Completed
This write operation is
completed because LSS13
is not in an extended long
busy condition.
(I/O sequence is not kept.)
Chapter 6. Copy Services 109
MC communicates with each server in the storage units via the Ethernet network. Therefore,
the MC is a key component to configure and manage the DS6000.
The client must provide a computer to use as the MC. If they want, they can order a computer
from IBM as the MC. An additional MC can be provided for redundancy.
For further information about the Management Console, see Chapter 8, “Configuration
planning” on page 125.
6.3.2 DS Storage Manager Web-based interface
DS Storage Manager is a Web-based management interface. It is used for managing the
logical configurations and invoking the Copy Services functions. The DS Storage Manager
has an online mode and an offline mode; only the online mode is supported for Copy
Services.
The client will install the DS Storage Manager on the Management Console. You can also
install it in other computers that you prepare. When you manage Copy Services with DS
Storage Manager in your computers, DS Storage Manager issues its commands to the
Management Console via the Ethernet network.
The DS Storage Manager can be used for almost all functions for Copy Services. The
following functions cannot be issued from the DS Storage Manager in the current
implementation:
򐂰Consistency Group operation (FlashCopy and PPRC)
򐂰Inband commands over Remote Mirror link
6.3.3 DS Command-Line Interface (CLI)
The IBM TotalStorage DS Command-Line Interface (CLI) helps enable open systems hosts
to invoke and manage FlashCopy and Metro and Global Mirror functions through batch
processes and scripts. The CLI provides a full-function command set that allows you to check
your storage configuration and perform specific application functions when necessary. The
following list highlights a few of the specific types of functions that you can perform with the
DS CLI:
򐂰Check and verify your storage configuration.
򐂰Check the current Copy Services configuration that is used by the server enclosure.
򐂰Create new logical volumes and Copy Services configuration settings.
򐂰Modify or delete logical volumes and Copy Services configuration settings.
110 DS6000 Series: Concepts and Architecture
6.3.4 DS open application programming interface (API)
The DS open application programming interface (API) is a non-proprietary storage
management client application that supports routine LUN management activities, such as
LUN creation, mapping and masking, and the creation or deletion of RAID-5 and RAID-10
volume spaces. The DS Open API also enables Copy Services functions such as FlashCopy
and Remote Mirror and Copy. It supports these activities through the use of the Storage
Management Initiative Specification (SMIS), as defined by the Storage Networking Industry
Association (SNIA).
The DS Open API helps integrate DS configuration management support into storage
resource management (SRM) applications, which allow customers to benefit from existing
SRM applications and infrastructures. The DS Open API also enables the automation of
configuration management through customer-written applications. Either way, the DS Open
API presents another option for managing the DS6000 by complementing the use of the IBM
TotalStorage DS Storage Manager Web-based interface and the DS Command-Line
Interface.
You must implement the DS Open API through the IBM TotalStorage Common Information
Model (CIM) agent, a middleware application that provides a CIM-compliant interface. The
DS Open API uses the CIM technology to manage proprietary devices such as open system
devices through storage management applications. The DS Open API allows these storage
management applications to communicate with a DS6000.
IBM will support IBM TotalStorage Multiple Device Manager (MDM) for the DS6000 under the
IBM TotalStorage Productivity Center in the future. MDM consists of software components
that enable storage administrators to monitor, configure, and manage storage devices and
subsystems within a SAN environment. MDM also has a function to manage the Copy
Services functions, called the MDM Replication Manager.
For further information about MDM, see 14.5, “IBM TotalStorage Productivity Center” on
page 282.
Tip: What is changed from the ESS CLI?
There are differences between the ESS CLI and DS CLI.
The ESS CLI needs two steps to issue Copy Service functions:
1. Register Copy Services task from the Web user interface.
2. Issue the registered task from CLI.
The DS CLI has no need to register a Copy Services task before you issue the CLI. You
can easily implement and dynamically change your Copy Services operation without the
GUI.
For further information about the DS CLI, see Chapter 10, “DS CLI” on page 195.
Chapter 6. Copy Services 111
6.4 Interoperability with ESS
Copy Services also supports the IBM Enterprise Storage Server Model 800 (ESS 800) and
the ESS 750. To manage the ESS 800 from the Copy Services for DS6000, you need to
install licensed internal code version 2.4.2 or later on the ESS 800.
The DS CLI supports the DS6000, DS8000, and ESS 800 at the same time. The DS Storage
Manager does not support the ESS 800.
6.5 Future Plan
According to the announcement letter, IBM has issued a Statement of General Direction:
IBM intends to offer a long-distance business continuance solution across three sites allowing
for recovery from the secondary or tertiary site with full data consistency.
Note: The DS6000 does not support PPRC via an ESCON link. If you want to configure a
PPRC relationship between a DS6000 and ESS 800, you have to use an FCP link.
112 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 113
Part 3 Planning and
configuration
In this part we present an overview of the planning and configuration necessary before
installing your DS6000. The topics include:
򐂰Installation planning
򐂰Configuration planning
򐂰Logical configuration
򐂰Command-Line Interface
򐂰Performance
Part 3
114 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 115
Chapter 7. Installation planning
This chapter discusses planning for the physical installation of a new DS6000 in your
environment. Refer to the latest version of the IBM TotalStorage DS6000 Introduction and
Planning Guide, GC26-7679, for further details.
In this chapter we cover the following topics:
򐂰General considerations
򐂰Installation site preparation
򐂰Management interfaces
򐂰Network settings
򐂰SAN requirements and considerations
򐂰Software requirements
7
116 DS6000 Series: Concepts and Architecture
7.1 General considerations
The successful installation of a DS6000 requires careful planning. The main considerations
when planning for the physical installation of a new DS6000 are the following:
򐂰Floor loading
򐂰Floor space
򐂰Electrical power
򐂰Operating environment
򐂰Cooling
򐂰Management console
򐂰Host attachment and cabling
򐂰Network and SAN considerations
Always refer to the most recent information for physical planning in the IBM TotalStorage
DS6000 Introduction and Planning Guide, GC26-7679.
7.2 Installation site preparation
Before you begin to install a new DS6000, you must ensure that the location where you plan
to install your DS6000 storage units meets all requirements.
You can install the DS6000 series in a 2101-200 system rack or in any other 19” rack that is
compliant with the Electronic Industries Association (EIA) 310-D Type A standard.
You have to use these feature codes when you order a system rack from IBM for your DS6000
series:
򐂰The feature code 0800 is used to indicate that the DS6000 series ordered will be
assembled into an IBM TotalStorage 2101-200 System Rack by IBM manufacturing.
򐂰The feature code 0801 is used to indicate that the DS6000 series ordered will be shipped
as an assembled enclosure for field integration into a supported rack enclosure.
Supported rack enclosures include the IBM 7014 RS/6000® Rack and the IBM 9308
Netfinity® Enterprise Rack. Field integration of the DS6000 series is customer setup,
unless the DS6000 Installation Services are utilized.
The next topics in this section discuss how you prepare the installation site to meet all of
these requirements.
7.2.1 Floor and space requirements
When you are planning the location of your storage units, you need to perform the following
steps to ensure that your planned installation location meets space and floor load
requirements:
1. Determine the number of server enclosures and expansion enclosures that are included in
your order.
2. Decide whether the storage units will come within a 2101-200 rack or will be installed in an
existing rack.
a. If the storage units come in a rack, plan where the floor tiles must be cut to
accommodate the cables.
b. If the storage units will be installed in an existing rack, ensure that there is enough
space for cable exits and routing.
Chapter 7. Installation planning 117
3. Ensure that the floor area provides enough stability to support the weight of the fully
configured DS6000 series and associated components.
4. Ensure that you have adequate rack space for your hardware. Calculate the amount of
space that the storage units will use. Don’t forget to leave enough space for future
upgrades.
5. Ensure that your racks have space for the clearances that the DS6000 series requires for
service and the requirements for floor loading strength.
Floor load requirements
It is very important that your location meets the floor load requirements. This section provides
information you need to ensure that your physical site meets the installation requirements for
the DS6000 series.
Table 7-1 gives the dimensions and weight of the DS6800. The DS6000 expansion enclosure
is of the same size.
Table 7-1 DS6800 dimensions and weight
Table 7-2 describes the DS6800 dimensions and weight within a 2101-200 rack.
Table 7-2 DS6800 dimensions and weight within a 2101-200 rack
1. Find out the floor load rating of the location where you plan to install the storage units.
2. Determine whether the floor load rating of the location meets the following requirements:
– The minimum floor load rating used by IBM is 342 kg per sq m (70 lb per sq ft).
Service clearance requirements
This section describes the clearances that the DS6000 series requires for service. We include
the clearances that are required on the front and to the rear of the rack.
Table 7-3 shows the clearances for the DS6000 series.
Table 7-3 DS6800 or the DS6000 expansion enclosure clearance
Height Width Depth Maximum weight (fully
configured)
5.25 inches
(0.134 meters)
18.80 inches
(0.478 meters)
24.00 inches
(0.610 meters)
109 lbs.
(49.6 kg)
Height Width Depth Maximum weight (fully
configured)
71.00 inches
(1.804 meters)
25.40 inches
(0.644 meters)
43.30 inches
(1.908 meters) 2034 lbs.
(904 kg))
Important: If you do not know or are not certain about the floor load rating of the
installation site, be sure to check with the building engineer or another appropriate
person.
Front Rear
12.00 inches
0.305 m
18.00 inches
0.457 m
118 DS6000 Series: Concepts and Architecture
Use the following steps to calculate the required space for your storage units:
1. Determine the dimensions of each model configuration in your storage units.
2. Determine the total space that is needed for the storage units by planning where you will
place each storage unit in the rack.
3. Verify that the planned space and layout also meets the service clearance requirements
for each unit.
7.2.2 Power requirements
We describe here the input voltage requirements for the DS6000 series.
Input voltage requirements
The DS6000 series has built-in redundant, auto-sensing, auto-ranging power supplies. The
power supplies are designed for operation in a voltage range of 90-257 V AC, 50-60 Hz.
Table 7-4 lists the input voltages and frequencies that the DS6000 series power line cords
support. The values apply to both of the primary line cords to any storage or expansion
enclosure in a DS6000 series. The DS6000 series power inputs are single phase.
Table 7-4 DS6000 series input voltage requirements
Two independent power outlets for the two DS6000 power line cords are needed by each
base model and expansion model.
7.2.3 Environmental requirements
To properly maintain your DS6000 storage unit, you must install your storage unit in a location
that meets the operating environment requirements.
Table 7-5 describes the environment operating requirements for the DS6000 series.
Table 7-5 Operating environment
Characteristic Value
Nominal input voltages 100-127 RMS V AC
200-240 RMS V AC
Minimum input voltage 90 RMS V AC
Maximum input voltage 264 RMS V AC
Input frequencies 50 ± 3.0 Hz
60 ± 3.0 Hz
Important: To eliminate a single point of failure, the outlets must be independent. This
means that each outlet must use a separate power source and each power source must
have its own wall circuit breaker.
Powered on temperature limit 10 - 40° C (50 - 104° F)
Powered off temperature limit 10 - 52° C (50 - 126° F)
Chapter 7. Installation planning 119
The DS6000 should be maintained within an operating temperature range of 20 to 25 degrees
Celsius (68 to 77 degrees Fahrenheit). The recommended operating temperature with the
power on is 22 degrees Celsius (72 degrees Fahrenheit).
7.2.4 Preparing the rack
The DS6000 series requires an Electronic Industries Association (EIA) 310-D Type A 19-inch
rack cabinet. The distance between EIA rails, from the front to the rear of the rack, is 60.96
centimeters (24 inches) minimum and 81.28 centimeters (32 inches) maximum. This rack
conforms to the EIA standard. Where you place the support rails in the rack depends on
where you intend to position the server or storage enclosure.
Before you install the DS6000 series in a rack, keep in mind the following considerations:
򐂰Review the documentation that comes with your rack enclosure for safety and cabling
considerations.
򐂰Install the DS6000 series in a recommended 22° C (72° F) environment.
򐂰To ensure rack stability, load the rack starting at the bottom.
򐂰If you install multiple components in the rack, do not overload the power outlets.
򐂰Always connect the storage server to a properly grounded outlet.
򐂰Always connect the rack power to at least two different power circuits or sources. This
reduces the chance of a simultaneous loss of both AC power sources.
7.3 System management interfaces
The DS6000 series provides the following management interfaces:
򐂰IBM TotalStorage DS Storage Manager
򐂰DS Open application programming interface
򐂰DS Command-Line Interface (CLI)
You have to decide where you want to install this software.
7.3.1 IBM TotalStorage DS Storage Manager
The IBM TotalStorage DS Storage Manager is an interface that is used to perform logical
configurations, service, copy services management, and firmware upgrades.
The DS Storage Manager software must be installed on a user-provided computer. We refer
to this computer as the DS Management Console. For more information on the supported
operating systems and the minimum hardware requirements see Chapter 8, “Configuration
planning” on page 125.
Maximum wet bulb temperature 27° C (80° F) Note: The upper limit of wet bulb
temperature must be lowered 1.0° degree C for every
274 meters of elevation above 305 meters.
Relative humidity 8 - 80 percent
Typical heat load 550 watts or 1880 Btu/hr
Noise level 5.9 bels
120 DS6000 Series: Concepts and Architecture
The DS Storage Manager can be accessed from any location that has network access to the
DS management console using a Web browser.
Since the DS Storage Manager is required to manage the DS6000, to perform Copy Services
operations, or to call home to a service provider, the DS management console should always
be on.
For more information about the DS Storage Manager refer to the DS6000 Installation,
Troubleshooting, and Recovery Guide, GC26-7678.
7.3.2 DS Open application programming interface
The DS Open application programming interface (API) is a non-proprietary storage
management client application that supports routine LUN management activities, such as
LUN creation, mapping and masking, and the creation or deletion of RAID 5 and RAID 10
arrays. The DS Open API also enables Copy Services functions such as FlashCopy and
Remote Mirror and Copy (formally known as Peer-to-Peer Remote Copy).
The DS Open API helps integrate DS configuration management support into storage
resource management (SRM) applications, which allow our customers to benefit from existing
SRM applications and infrastructures. The DS Open API also enables the automation of
configuration management through customer-written applications. Either way, the DS Open
API presents another option for managing storage units by complementing the use of the IBM
TotalStorage DS Storage Manager Web-based interface and the DS Command-Line
Interface.
If you have an application that needs the DS Open API, you have to install the API and you
have to decide where you want to install it.
For more information on the DS Open API refer to DS Open Application Programming
Interface Reference, GC35-0493.
7.3.3 DS Command-Line Interface
The IBM TotalStorage DS Command-Line Interface (DS CLI) provides a full-function
command set that allows you to check your storage unit configuration, configure the storage
unit, manage (create and delete) logical volumes, and perform other specific application
functions when necessary.
The DS CLI can be used to manage FlashCopy, Metro Mirror, Global Copy, and Global Mirror
functions through batch processes and scripts.
Part of the installation planning is to decide where to install the DS Command-Line Interface.
The DS CLI is supported on several operating systems. For more information on the DS CLI
and the supported environments see Chapter 10, “DS CLI” on page 195.
For detailed information refer to the TotalStorage DS6000 Command-Line Interface User’s
Guide, GC26-7681
Note: The management console hardware is not part of the DS6000, it has to be ordered
separately.
Chapter 7. Installation planning 121
7.4 Network settings
To install a DS6000 in your environment you have to plan for the Ethernet infrastructure that
the DS6000 has to be connected to. You have to provide some TCP/IP addresses and you
need an Ethernet switch or some free ports on a existing switch (see Figure 7-1).
This following settings are required connect the DS6000 series to a network:
򐂰Controller card IP address
You must provide a dotted decimal address that you will assign to each storage server
controller card in the DS6800. Since there are two controllers, you need two TCP/IP
addresses.
򐂰DS Storage Manager IP address
You need another TCP/IP address for the computer where you run the DS Storage
Manager.
򐂰Gateway
Provide the dotted decimal or symbolic name address of the gateway (for example,
9.123.123.123 or sanjosegate).
򐂰Subnet mask
Provide the dotted decimal address of the subnet (network) mask.
򐂰Primary domain name server (DNS)
Provide the Host name and IP address if you are using a domain name server.
򐂰Alternate domain name server (DNS)
You can optionally provide an alternate DNS.
򐂰Simple Network Management Protocol (SNMP) destination
Provide the host names or the dotted decimal addresses of the destinations that are to
receive SNMP traps (for example, host.com or 9.123.123.123).
Figure 7-1 Network requirements for a DS6000 implementation
DS6800
User provided
Ethernet switch
IntranetInternet
call home
DS Storage Manager software
on user provided
DS management console
IP-1
(server0)
IP-2
(server1)
IP-3
Administrator accessing
DS Storage Manager
122 DS6000 Series: Concepts and Architecture
7.5 SAN requirements and considerations
The DS6000 series provides a variety of host attachments so that you can consolidate
storage capacity and workloads for open systems hosts and eServer zSeries hosts. The Fibre
Channel adapters of the storage system can be configured to support the Fibre Channel
Protocol (FCP) and fibre connection (FICON) protocol.
You should also keep the following consideration in mind: Fibre Channel SANs can provide
the capability to interconnect open systems and storage in the same network as S/390 and
zSeries host systems and storage.
Single Fibre Channel host adapters can have physical access to multiple Fibre Channel ports
on the storage unit.
Part of the installation planning process is the planning for your SAN. You may already have a
SAN infrastructure with enough unused ports to connect a DS6000, or you might need
additional Fibre Channel switches. If you have switches that operate at 1 Gbps, you might
consider replacing them with 2 Gbps switches. For high availability, you should connect the
DS6000 at least to two different switches (see Figure 7-2).
The same considerations mentioned also apply to HBAs on the host. You might want to
replace 1 Gbps HBAs by 2 Gbps HBAs. For fault tolerance, each server should be equipped
with two HBAs connected to different Fibre Channel switches.
Figure 7-2 SAN environment
For Fibre Channel attachments, you can establish zones to limit the access of host adapters
to storage system adapters. By establishing zones, you reduce the possibility of interactions
between system adapters in switched configurations.
Part of the installation planning is to decide what SAN zones are needed or have to be
modified.
DS6800
Fibre Channel
SAN switches
HBA-1 HBA-2
FC Switch 1 FC Switch 1
server0 server1
Chapter 7. Installation planning 123
7.5.1 Attaching to an Open System host
Fibre Channel technology supports increased performance, scalability, availability, and
distance for attaching storage subsystems to servers as compared to SCSI attachments.
Fibre Channel technology supports sharing of large amounts of disk storage between many
servers.
Fibre Channel ports on the DS6000 can be shared between different Host Bus Adapters
(HBAs) and operating systems. For more information about supported host systems,
operating system levels, host bus adapters, and fabric support, see the Interoperability Matrix
at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
7.5.2 FICON-attached zSeries Host
The DS6000 series supports FICON-attached zSeries hosts.
The storage unit attaches to S/390 and zSeries host systems with FICON channels. Each of
the four Fibre Channel ports on each controller can be configured to operate in FICON mode.
When configured for FICON, the Fibre Channel port supports connections to a maximum of
128 FICON hosts. When you configure a FICON port on one of the two controller cards, you
should also configure a FICON port on the second controller card to allow failover from one
server to the other to work. A FICON port on the DS6000 can be connected directly to a
zSeries host or to a SAN switch supporting FICON connections. With Fibre Channel adapters
configured for FICON, the storage unit supports the following:
򐂰Either fabric or point-to-point topologies
򐂰A maximum of 128 host connections per Fibre Channel port
򐂰A maximum of 32 logical subsystems
򐂰A maximum of 8192 logical volumes
򐂰A maximum of 1024 logical paths per FICON port
The storage unit supports the following operating systems for zSeries hosts:
򐂰Transaction Processing Facility (TPF)
򐂰Virtual Storage Extended/Enterprise Storage Architecture (VSE/ESA)
򐂰z/OS
򐂰z/VM
Note, that Linux on zSeries currently supports only FCP-attached disks and not
FICON-attached disks.
FICON is an optional feature on the DS6800 system, and is available with the FICON
Attachment feature number 5915.
For details about models, versions of operating systems, and releases that the storage unit
supports for these host systems, see the Interoperability Matrix at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
Attention: SCSI adapters are not available on the DS6000.
Attention: The DS6000 series does not support ESCON attachment.
124 DS6000 Series: Concepts and Architecture
7.6 Software requirements
To see current information on servers, operating systems, host adapters, and connectivity
products supported by the DS6000 series, review the Interoperability Matrix at the following
DS6000 series Web site:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
7.6.1 Licensed features
Before you can configure your DS6000 series you must activate your licensed features to
enable the functions purchased on your machine.
The DS6000 series is licensed at the following levels:
򐂰Machine licensing uses licensed machine code (LMC) to activate base functions on your
machine. When you receive a DS6800 or DS6000 expansion enclosure, or both, you
receive an LMC agreement. The use of the machine constitutes acceptance of the license
terms outlined in the LMC agreement. Some DS6000 series features and functions may
not be available or supported in all environments. Current information on supported
environments, prerequisites, and minimum operating systems levels is available at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
򐂰Operating environment licensing (OEL) manages the machine operating environment
and is required on every DS6800 system. The extent of IBM authorization acquired
through the DS6800 feature numbers (for example: feature code 5001 = OEL 5 TB unit)
must cover the physical capacity of the DS6800 system, where system is defined as the
base enclosure and all attached expansion enclosures.
As additional disk drives are installed, the extent of IBM authorization must be increased
by acquiring additional DS6800 feature numbers. Otherwise, the additional disk drives
cannot be logically configured for use.
򐂰Feature licensing controls the licenses of features of each DS6800. Each DS6800
licensed function feature number enables the use of, and establishes the extent of, IBM
authorization for licensed functions acquired for a DS6800 system.
Each licensed function feature number is applicable only for the specific DS6800 (by serial
number) for which it was acquired and is not transferable to another serial numbered
DS6800.
For feature code information, refer to the IBM TotalStorage DS6000 Introduction and
Planning Guide, GC26-7679.
To activate the feature licenses for your DS6000 series, you must access the Disk Storage
Feature Activation (DSFA) application from the IBM Web site:
http://www.ibm.com/storage/dsfa
Note: If the operating environment license has not been acquired and activated on the
machine, disk drives installed within the DS6800 system cannot be logically configured
for use. Upon activation, disk drives can be logically configured up to the extent of
authorization.
© Copyright IBM Corp. 2004. All rights reserved. 125
Chapter 8. Configuration planning
This chapter discusses configuration planning considerations when implementing the
DS6000 series in your environment. The topics covered are:
򐂰Configuration planning
򐂰DS6000 Management Console
򐂰DS6000 license functions
򐂰Data migration planning
򐂰Planning for performance
8
126 DS6000 Series: Concepts and Architecture
8.1 Configuration planning considerations
When installing a DS6000 disk system, various physical requirements need to be addressed
to successfully integrate the DS6000 into your existing environment. These requirements
include:
򐂰The DS6800 requires Licensed Machine Code (LMC) level 5.0.0.0 or later.
򐂰Appropriate operating environment characteristics such as temperature, humidity,
electrical power, and noise levels.
򐂰A PC, the DS Management Console, to host the DS Management Console (MC). This will
be the focal point for configuration, Copy Services management, and maintenance for the
DS6000 series.
򐂰Input voltages and frequencies that the DS6000 series power line cords support.
򐂰An Electronic Industries Association (EIA) 310-D Type A 19-inch rack cabinet.
򐂰Processor memory refers to the amount of memory you want for the processors on your
model. The DS6800 has 4 GB processor memory.
򐂰Licensed functions include both required and optional features such as the operating
environment, Point-in-Time Copy, Remote Mirror and Copy and Parallel Access Volumes.
See 8.3, “DS6000 licensed functions” on page 131, for a in-depth discussion of the
licensed functions.
򐂰Delivery requirements to receive delivery of the DS6000 at your location.
򐂰Adequate floor space, power, environmentals, network, and communication.
For a complete discussion of these requirements, see the IBM TotalStorage DS6000
Introduction and Planning Guide, GC26-7679, or visit:
http://www-1.ibm.com/servers/storage/disk/ds6000/index.html
8.2 DS6000 Management Console
A management console is the configuration, service, and management portal for the DS6000
series. A management console is a requirement for a DS6800. The user must provide a
computer to use as the management console or the user can optionally order a computer
from IBM. This computer must meet the following minimum set of hardware and operating
system compatibility requirements:
򐂰1.4 GHz Pentium® 4
򐂰256 KB cache
򐂰256 MB Memory
򐂰1 GB disk space for the system management software
򐂰1 GB work space per managed Integrated RAID Controller (IRC)
򐂰IP Network connectivity to each RAID controller card
You may also want to have:
򐂰IP network connectivity to an external network to enable call home and remote support
򐂰Serial connectivity to the DS6000
Chapter 8. Configuration planning 127
The Management Console is supported on the following operating systems:
򐂰Microsoft Windows 2000
򐂰Microsoft Windows 2000 Server
򐂰Microsoft Windows XP Professional
򐂰Microsoft Windows 2003 Server
򐂰Linux (Red Hat AS 2.1)
The DS Storage Manager software is provided with the DS6000 series at no additional
charge. The DS Management Console gives the user the capability to perform the following
tasks:
򐂰Configuration management of the DS6000 series
򐂰DS Management Console connectivity
򐂰Local maintenance
򐂰Copy Services management
򐂰Remote service support and call home
򐂰Event notification messaging
8.2.1 Configuration management of DS6000 system
The DS Storage Manager is a single integrated Web-based (HTML) graphical user interface
(GUI) that offers:
򐂰Offline configuration, which provides the user with the capability to create and save logical
configurations while not connected to a DS6000. These logical configurations can then be
applied to a DS6000 when the user connects to the appropriate DS6000 series.
򐂰Online configuration, which provides real-time configuration management support.
򐂰The ability to execute Copy Services functions.
򐂰The capability for configuration, problem reporting, and maintenance.
򐂰The ability to support multiple DS6000s.
򐂰The capability to perform maintenance tasks such as downloading of code to the DS
Management Console and activating licensed functions and features.
The DS6000 series can be configured by:
򐂰Offline configuration
򐂰Online configuration
򐂰Express configuration
Offline configuration
Offline configuration allows the user to manipulate an existing configuration or start
configuring a new configuration without being connected to the DS6000 series. In this way,
the user can complete the configuration in disconnected mode and when ready, connect to a
Note: If the user wants to order the management console, consider the IBM 8141
ThinkCentre M51 Model 23U (8141-23U) Desktop system with a 3.0 GHz/800 MHz Intel
Pentium 4 Processor. If a monitor is also required, IBM suggests the IBM 6737 ThinkVison
C170 (6737-66x or 6737-K6x) 17-inch full flat shadow mask CRT color monitor with a flat
screen (16-inch viewable image size).
128 DS6000 Series: Concepts and Architecture
new or un-configured DS6000 and apply the configuration. The following tasks may be
performed when operating in offline configuration mode:
򐂰Create or import a new simulated instance of a physical storage unit.
򐂰Apply logical configurations to a new or fully deconfigured storage unit.
򐂰View and change communication settings for the DS6000.
򐂰From a single interface, work with new and view existing multiple DS6000s.
򐂰Create, save, and open configuration documents for later reference and retention
purposes.
򐂰Print configuration reports.
򐂰Export configuration data in a spreadsheet ready format.
Online configuration
In online configuration mode, the user updates or views configurations in real time. In this
mode, the user is connected to a DS6000 by way of direct or switched Ethernet connections.
The following tasks may be performed when operating in online mode:
򐂰Manage physical and logical configuration from one or more existing DS6000s across the
network.
򐂰Construct and apply valid logical configuration actions on new or fully deconfigured
DS6000s at the time each action is initiated.
򐂰Complete and apply valid logical configuration actions on existing storage plexes and
storage units at the time each action is initiated.
򐂰View and change communication settings for DS6000s.
Express configuration
Express configuration provides the simplest and fastest method to configure a DS6000. The
configuration methods other than Express configuration require more time to configure. This
is due to the complex functions available to the user when configuring the DS6000. The user
is required to make several decisions during the configuration process. Express configuration
is ideal for:
򐂰A novice user with little knowledge of storage concepts who wants to quickly and easily set
up and begin using the storage.
򐂰An expert user who wants to quickly configure a storage plex, allowing the storage server
to make decisions for the best storage allocation.
The Express configuration allows you to:
򐂰Configure fixed block and CKD volumes
򐂰Create a volume group
򐂰Create a host
򐂰Map a volume group to a host attachment
The online configuration and Copy Services are available by way of a Web browser interface
installed on the DS Management Console. All storage configuration operations are
accomplished either through the DS6000 Storage Manager, through the DS6000
Command-Line Interface (CLI), or through any SMI-S compliant storage management agent,
such as IBM's TotalStorage Productivity Center (TPC).
Chapter 8. Configuration planning 129
8.2.2 DS Management Console connectivity
Connectivity to the DS6000 series from the DS Management Console is needed to perform
configuration updates to the DS6000 series. Connectivity to both DS6800 controllers is
required to activate updates.
Figure 8-1 illustrates the DS Management console, optionally connected to to the DS6000 by
redundant Ethernet switches, but redundant switches are not a requirement. The switches
must be part of the same subnet so that the controllers in the DS6000 can communicate with
each other through the Ethernet.
Figure 8-1 Network configuration for DS Management Console
8.2.3 Local maintenance
The DS6000 series is a customer maintained system. No IBM SSR (Service Support
Representative) is involved, unless you have a service contract with IBM. The customer does
problem determination, replacement parts ordering, and the actual replacement of the
component. Most components are customer replaceable units (CRUs).
In the event of a failure, the following sequence of events takes place:
򐂰A fault conditions occurs, for example, a power supply failure.
򐂰The user is alerted about the failure.
򐂰The user hyperlinks to the component view and identifies the failing component. In this
case, it is a power supply.
򐂰The user reviews component removal instructions.
򐂰The user reviews the component installation instructions for the new power supply.
򐂰Before removing a faulty component, ensure that you have a replacement component
available on site.
򐂰Remove the faulty power supply from the DS6000 as per the instructions.
򐂰Install the new power supply.
DS6000 series
DS Management Console
Switch Connection
Alternate DS Management Console
standard
Ethernet
cables
Client's Ethernet switch
inter-switch link
Redundant Ethernet switch
130 DS6000 Series: Concepts and Architecture
򐂰The DS6000 Storage Manager indicates the condition of the system after service.
Should the user require additional maintenance services, excluding standard maintenance
services, IBM and IBM Business Partners have fee-based service offerings to fulfill such
maintenance requirements.
8.2.4 Copy Services management
The DS6000 series may be part of a Remote Mirror and Copy configuration. In Metro Mirror
and Global Mirror configurations the DS6000 series may be either primary or secondary. The
DS6000 series cannot be a primary in a z/OS Global Mirror, but may be a secondary. The DS
Management Console must be connected to both the primary and secondary to be able to
perform Copy Services operations.
Figure 8-2 DS Management Console in Copy Services environment
The DS CLI will communicate with the DS Management Console when performing copy
services commands, so the network connecting the management console to the DS6000
should be redundant.
8.2.5 Remote service support
In order to use remote service support, the user must allow a VPN connection. For example,
Figure 8-3 on page 131 depicts an error condition occurring on the DS6000. The user’s
support services receives the alert over their local area network. If the user decides to ask
IBM for help, and IBM needs to access the DS6000 remotely, then the user must provide
connectivity from the DS Management Console to an IBM service support center. The DS
Management Console must be connected to the DS6000 to enable IBM to access the
DS6000 over this network to analyze the error condition.
Primary DS6000 series DS Management Console
Secondary DS6000 series
Ethernet switch
Alternate DS Management Console
Alternate Ethernet switch
inter-switch link
Chapter 8. Configuration planning 131
Figure 8-3 DS6000 series configured for remote support
8.2.6 Call home
The DS6000 has the capability to enable a call home facility. The call home facility is only
available by way of e-mail. The DS Management Console must be connected to your local
area network to be able to receive e-mail notification. On error identification, the user may
decide to ask IBM for assistance.
8.2.7 Simple Network Management Protocol (SNMP)
The storage unit generates SNMP traps and supports a read-only management information
base (MIB) to allow monitoring by your network. You have to decide which server is going to
receive the SNMP traps.
8.3 DS6000 licensed functions
Licensed functions include the storage unit’s operating system and functions. These include
both required features and optional features.
LAN
Firewall
LAN
Firewall
Internet
Error
(1)
Customer
ask IBM
for help (2)
IBM assists
by phone or
remote
connection
DS6000
Customer
Management
GUI
IBM Service
Center
IBM support server
VPN
tunnel
132 DS6000 Series: Concepts and Architecture
8.3.1 Operating Environment License (OEL) - required feature
The user must order an operating environment license (OEL) feature, the IBM TotalStorage
DS Operating Environment, for every DS6000 series. The operating environment model and
features establish the extent of IBM authorization for the use of the IBM TotalStorage DS
Operating Environment. The OEL licenses the operating environment and is based on the
total physical capacity of the storage unit (DS6800 plus any DS6000 expansion enclosures).
It authorizes you to use the model configuration at a given capacity level.
Once the OEL has been activated for the storage unit, you can configure the storage unit.
Activating the OEL means that you have obtained the feature activation key from the IBM disk
storage feature activation (DSFA) Web site and entered it into the DS Storage Manager. The
feature activation process is discussed in more detail in 8.3.7, “Disk storage feature
activation” on page 137.
Table 8-1 provides the feature codes for the operating environment licenses for the DS6000
series.
Table 8-1 Operating environment license feature codes
Licensed functions are activated and enforced within a defined license scope. License scope
refers to the following types of storage, and types of servers with which the function can be
used:
򐂰Fixed block (FB) - The function can only be used with data from Fibre Channel-attached
servers.
򐂰Count key data (CKD) - The function can only be used with data from FICON-attached
servers.
򐂰Both FB and CKD (ALL) - The function can be used with data from all attached servers.
Some licensed functions have multiple license scope options, while other functions have only
a single license scope.
Table 8-2 provides the license scope options for each licensed function.
Table 8-2 License scope for each DS6000 licensed function
Feature code Description
5000 OEL-1TB
5001 OEL-5TB
5002 OEL-10TB
5003 OEL-25TB
5004 OEL-50TB
Licensed function License scope options
Operating environment ALL
Point-in-Time Copy (PTC) FB, CKD, or ALL
Remote Mirror and Copy (RMC) FB, CKD, or ALL
PAV CKD
FICON attachment CKD
Chapter 8. Configuration planning 133
The deactivation of an activated licensed function, or a lateral change or reduction in the
licensed scope, is a disruptive activity and requires an initial microcode load (IML). A lateral
change occurs when the user changes license scope from CKD to FB or FB to CKD. A
reduction in license scope also occurs when the user decides to change from a license scope
of ALL to CKD or FB.
Optional features
The following optional features are available for the DS6000:
򐂰Point-in-Time Copy, which includes IBM TotalStorage FlashCopy
򐂰Remote Mirror and Copy, which includes IBM TotalStorage Metro Mirror, IBM TotalStorage
Global Mirror, and IBM TotalStorage Global Copy
򐂰Parallel Access Volumes
򐂰FICON attachment
8.3.2 Point-in-Time Copy function (PTC)
The Point-in-Time Copy licensed function model and features establish the extent of IBM
authorization for the use of IBM TotalStorage FlashCopy. When you order Point-in-Time
Copy functions, you specify the feature code that represents the physical capacity to
authorize for the function.
Table 8-3 provides the feature codes for the Point-in-Time Copy function.
Table 8-3 Point-in-Time Copy (PTC) feature codes
You can combine feature codes to order the exact capacity that you need. For example, if you
determine that you need 23 TB of point-in-time capacity, you can order two 5202 features (this
will give you 20TB) and three 5200 features (this will give you 3TB), giving you a total of 23TB.
8.3.3 Remote Mirror and Copy functions (RMC)
The Remote Mirror and Copy licensed function model and features establish the extent of
IBM authorization for the use of the Metro Mirror (Synchronous PPRC), Global Mirror
(Asynchronous PPRC) and Global Copy (PPRC Extended Distance).
Table 8-4 provides the feature codes for the Remote Mirror and Copy functions.
Table 8-4 Remote Mirror and Copy (RMC) feature codes
Feature code Description
5200 PTC-1TB unit
5201 PTC-5TB unit
5202 PTC-10TB unit
5203 PTC-25TB unit
5204 PTC-50TB unit
Feature code Description
5300 RMC-1TB unit
5301 RMC-5TB unit
134 DS6000 Series: Concepts and Architecture
8.3.4 Parallel Access Volumes (PAV)
The Parallel Access Volumes model and features establish the extent of IBM authorization for
the use of the Parallel Access Volumes licensed function.
Table 8-5 provides the feature codes for the PAV function.
Table 8-5 Parallel Access Volume (PAV) feature codes
PAV requires the purchase of the FICON attachment feature number 5915.
8.3.5 Server attachment license
If you order the PAV function, you must also order a server attachment license for your FICON
attachment.
Table 8-6 provides the feature code for a FICON server attachment license.
Table 8-6 Server attachment license (FICON)
8.3.6 Ordering license functions
An OEL is required for every DS6000 series. This license is for the total physical capacity of
the entire DS6000 series, including the DS6800 and DS6000 expansion units. For example, if
the total capacity of the DS6000 series is 30 TB, then you will purchase an OEL feature for
30 TB.
Should you increase your capacity in the future, for example, from 30 TB to 40 TB, by adding
additional disk drives, you then must purchase an additional 10 TB of OEL features, to be
able to use the additional capacity. This activation will be non-disruptive.
The other optional features, such as PTC, RMC and PAV, can use any combination of the
features to cover the required capacity for the DS6000. For example, if the DS6000 has a
capacity of 20 TB of data and only 5 TB of the data will be used for CKD storage, and only the
5302 RMC-10TB unit
5303 RMC-25TB unit
5304 RMC-50TB unit
Feature code Description
Feature code Description
5100 PAV-1TB unit
5101 PAV-5TB unit
5102 PAV-10TB unit
5103 PAV-25TB unit
5104 PAV-50TB unit
Feature code Description
5915 FICON attachment
Chapter 8. Configuration planning 135
CKD volumes will be FlashCopied, then you only need to purchase a license for 5 TB PTC
and not the full 20 TB. The 5 TB of PTC would be set to CKD only.
Figure 8-4, shows an example of a FlashCopy feature code authorization. In this case, the
user is authorized up to 25 TB of CKD data. The user cannot FlashCopy any FB data.
Figure 8-4 User authorized to FlashCopy 25 TB of CKD data
In Figure 8-5 on page 136, the user decides to change the license scope from CKD to ALL
and FlashCopy the FB data as well. This increase of licensed scope from CKD to ALL is
non-disruptive. Changing the license scope from FB to CKD or CKD to FB (lateral change) or
reduction in license scope from ALL to FB or CKD will be disruptive and will require an IML. In
this example, the user decides to FlashCopy 10 TB of FB and 12 TB of CKD data. The user
has disk capacity of 20 TB of FB and 25 TB of CKD. In order to implement the changes, the
user now has to purchase a Point-in-Time Copy function authorization of 45 TB. The user has
to purchase authorization for the total FB and CKD capacity. In this case the total is the sum
of 20 TB of FB and 25 TB of CKD, which equals 45 TB.
20 TB
FB
DS6000 with 45 TB disk capacity in total,
25 TB of CKD FlashCopy authorization with
license scope of CKD,
45 TB of OEL Licensed function
25 TB
CKD
User cannot FlashCopy
any FB
User authorize to
FlashCopy
up to 25 TB
20 TB (FB) +
25 TB (CKD) +
--------
45 TB total capacity
--------
136 DS6000 Series: Concepts and Architecture
Figure 8-5 User authorized to FlashCopy 45 TB of data with a license scope of ALL
For PTC and RMC, you may have FB data for open systems only, or you may have CKD for
zSeries only, or you may have both FB and CKD data.
For RMC, you will need the licensed feature for both the primary storage unit and the
secondary storage unit.
Figure 8-6 on page 137 shows an example of a Metro Mirror configuration. In this case, the
user has to purchase Remote Mirror and Copy function authorization for 45 TB with Metro
Mirror feature for both the primary DS6000 and secondary DS6000.
user data
plus FC
data upto
20 TB FB
DS6000 with 45 TB disk capacity in total, 45 TB FlashCopy
authorization, 45 TB of OEL Licensed function and license scope
of ALL
user data
plus FC
data upto
25 TB CKD
User FlashCopies
up to 25 TB of CKD
20 TB (FB) +
25 TB (CKD) +
--------
45 TB total capacity
--------
I want to
FlashCopy 10 TB
of FB and 12 TB
of CKD.
Important - If user changes license scope
from ALL to FB or CKD an IML is required
User FlashCopies
up to 20 TB of FB
User has 20 TB of FB data and has 25 TB of CKD data
allocated. The user has to purchse a Point-in-Time
function equal to the total of both the FB and CKD
capacity, that is 20 TB (FB) + 25 TB (CKD) equals
45 TB.
solution
FC - FlashCopy
Chapter 8. Configuration planning 137
Figure 8-6 Remote Mirror and Copy
Global Mirror requires both RMC and PTC functions. Both primary and secondary storage
units require RMC functions and the secondary requires PTC functions as well. If Global
Mirror will be used during failback on the secondary storage unit, a Point-in-Time Copy
function authorization must also be purchased on the primary system.
PAV is only applicable to zSeries, so you will only have CKD data.
The initial enablement of any optional DS6000 licensed function is a concurrent activity
(assuming the appropriate level of microcode is installed on the machine for the given
function). The removal of a DS6000 licensed function to deactivate the function is a disruptive
activity and requires an IML.
8.3.7 Disk storage feature activation
Managing and activating licensed functions is the client’s responsibility. The client can
manage and activate functions through the IBM Disk Storage Feature Activation (DSFA) Web
site at:
http://www.ibm.com/storage/dsfa
Management refers to the use of the IBM Disk Storage Feature Activation (DSFA) Web site to
select a license scope and to assign a license value. The client performs these activities and
then activates the function.
Activation refers to the retrieval and installation of the feature activation code into the DS6000
system. The feature activation code is obtained using the DSFA Web site and is based on the
license scope and license value.
Primary DS6000 with 45 TB disk capacity in total, Secondary
DS6000 with 45 TB disk capacity, 45 TB Remote Mirror Copy
authorization for primary DS6000 and 45 TB Remote Mirror Copy
for secondary DS6000, 45 TB of OEL Licensed function for primary
DS6000 and 45 TB of OEL Licensed function for secondary
DS6000. The license scope may be FB and CKD or ALL
20 TB FB
user data
25 TB CKD
user data
20 TB FB
user data
25 TB CKD
user data
Metro Mirror
Primary DS6000 Secondary DS6000
138 DS6000 Series: Concepts and Architecture
The high-level steps for storage feature activation are:
򐂰Have machine-related information available; that is, model, serial number, and machine
signature. This information is obtained from the DS Storage Manager.
򐂰Log on to the DSFA Web site.
򐂰Obtain feature activation keys by completing the machine-related information. The feature
activation keys can either be directly retrieved, saved onto a diskette, or they can be
written down.
򐂰Complete feature key activation by logging on to your DS Storage Manager application
and applying them to the storage unit.
8.4 Capacity planning
The DS6000 can have several kinds of disk drive modules (DDMs), from 8 up to 124 DDMs,
and can use different types of RAID protection. The effective capacity depends on these
factors. In this section, we explain how to estimate the effective capacity.
8.4.1 Physical configurations
The DS6000 series offers high scalability while maintaining excellent performance. With the
DS6800 (Model 1750-511), you can install up to 16 DDMs in the server enclosure. The
minimum storage capability with 8 DDMs is 584 GB (73 GB x 8 DDMs). The maximum
storage capability with 16 DDMs for the DS6800 model is 4.8 TB (300 GB x16 DDMs).
If you want to connect more than 16 DDMs, you can use the optional DS6000 expansion
enclosures (Model 1750-EX1). Each expansion enclosure can have up to 16 DDMs and a
DS6800 can have up to 7 expansion enclosures. Therefore, the DS6800 allows a maximum
of 124 DDMs per storage system and provides a maximum storage capability of 38.4 TB
(300 GB x 128DDMs).
How to connect the expansion enclosures to the server enclosure
The DS6800 has two loops for connecting disk enclosures, one loop (accessed via the disk
exp ports) can be connected with the server enclosure and three expansion enclosures, and
the other loop (accessed via the disk control ports) can be connected with four expansion
enclosures. You would normally add one expansion enclosure to each loop until both loops
are populated with four enclosures each (realizing the server enclosure represents the first
enclosure on the first loop).
Figure 8-7 on page 139 is an example for connecting several expansion enclosures.
Chapter 8. Configuration planning 139
Figure 8-7 Example of connecting several expansion enclosures
8.4.2 Logical configurations
The capacity of the physical disk drives is not equal to the capacity you can use in the
DS6000 series. Among the reasons for this are that the user will configure either RAID-5 or
RAID-10, and the DS6000 series exploits virtualization concepts, which use some of the
available physical capacity. See Chapter 4, “Virtualization concepts” on page 65 for more
details.
The logical capacity depends on not only the capacity of the DDMs but also the RAID type
and the number of spare disks in a rank. We describe the capacity in the following figures.
1
16
1
16
1
16
Expansion
enclosure 1
Device adapter
chipset inside
controller 1
Expansion
enclosure 3
Additional
enclosures to a
maximum of four
per loop
1
16
1
16
1
16
Additional
enclosures to a
maximum of four
per loop
Expansion
enclosure 2
Server Enclosure
FC switch
16 DDMs per
enclosure
4 FC-AL Ports
Loop 0
(accessed via the
disk exp ports)
Loop 1
(accessed via
the disk
contrl ports)
2Gb FC-AL link
Device adapter
chipset inside
controller 2
Attention:
򐂰The figures used in this chapter are still subject to change. Specifically, the exact
number of extents per rank may be slightly different.
򐂰You might ensure there is at least 5% of additional capacity, if you are providing an
exact number of devices.
– There will also potentially be unusable space for devices which are not an integer
number of extents in size and for the last extent in an extent pool.
– To prepare for unexpected situations, a certain amount of margin is required for
important systems.
140 DS6000 Series: Concepts and Architecture
The following figures are for an 8 DDMs array. The user can also select a 4 DDMs array
configuration.
Figure 8-8 CKD RAID rank capacity (8 DDMs array)
Note: IBM plans to offer Capacity Magic for DS6000 in the future. Capacity Magic
calculates the physical and effective storage capacity of a DS6000. IBM sales
representatives and IBM Business Partners can download this tool from the IBM Web site.
The values presented here are intended to be used only until Capacity Magic is available.
CKD RAID rank capacity
Notes
There may be space left over when defining the devices shown in the table.
Devices that are not a multiple of 1113 cylinders will use additional space on the disk
subsystem as the allocation unit is an extent of this size.
RAID type
RAID
type
DDM
capacity
A
rray
Format Extents
Binary
GB
Decimal
GB
3390-3
devices
3390-9
devices
32760 cyl
devices
65520 cyl
devices
RAID10 73GB RAID10 73GB 3+3+2S 213 187.66 201.50 71 23 7 3
RAID10 73GB RAID10 73GB 4+4 284 250.21 268.67 94 31 9 4
RAID10 146GB RAID10 146GB 3+3+2S 432 380.61 408.67 144 48 14 7
RAID10 146GB RAID10 146GB 4+4 577 508.36 545.85 192 64 19 9
RAID10 300GB RAID10 300GB 3+3+2S 880 775.31 832.48 293 97 29 14
RAID10 300GB RAID10 300GB 4+4 1,174 1,034.34 1,110.61 391 130 39 19
RAID5 73GB RAID5 73GB 6+P+S 428 377.08 404.89 142 47 14 7
RAID5 73GB RAID5 73GB 7+P 500 440.52 473.00 166 55 16 8
RAID5 146GB RAID5 146GB 6+P+S 773 681.04 731.26 257 85 25 13
RAID5 146GB RAID5 146GB 7+P 1,011 890.73 956.41 337 112 33 17
RAID5 300GB RAID5 300GB 6+P+S 1,765 1,555.03 1,669.70 588 196 58 29
RAID5 300GB RAID5 300GB 7+P 2,059 1,814.05 1,947.83 686 228 68 34
Chapter 8. Configuration planning 141
Figure 8-9 FB RAID rank capacity (8 DDMs array)
For example, if you configure a RAID-5 8 DDM rank with 146 GB DDMs with a spare disk in
open system environments, the capacity of the rank totals 779 extents (779 GB).
8.4.3 Sparing rules
To estimate your usable storage capacity, it is helpful to understand the rule of sparing disks.
We explain the sparing rules for the DS6000 as follows:
򐂰On a DS6000, you will have up to two spares on each loop (switched FC-AL).
򐂰In the base frame we will have one or two spares: one spare in 8 DDMs configuration and
two spares otherwise. There may be three spares if you configure RAID-5 on 8 drives and
then RAID-10 on 8 drives in the first enclosure for the loop.
򐂰In the first expansion frame we will have one or two spares. The first expansion frame is
on the second loop.
Configuration with the same type of DDMs
For example, if you configure a DS6000 with all the same type of 32 DDMs (a server
enclosure with an expansion enclosure) attached to two switched FC-AL loops, you can
configure four RAID arrays of 8 drives and the DS6000 will automatically assign four spare
disks (two spare disks for each loop). After that, if you add more expansion enclosures, you
can configure RAID arrays and the DS6000 will not assign spare disks.
Note: In the DS6000 series, the extent size is expressed in binary, not decimal. For
example, 1 GB in binary is calculated as 1024 x 1024 x 1024, and 1 GB in decimal is
calculated as 1000 x 1000 x 1000. Operating systems adopt binary format for their storage.
FB RAID rank capacity
Notes
Device sizes that are not a multiple of 1 binary GB will use additional space on the
disk subsystem as the allocation unit is an extent of this size
Rank
RAID
type
DDM
capacity
A
rray
format Extents
Binary
GB
Decimal
GB
RAID10 73GB RAID10 73GB 3+3+2S 190 190 204.01
RAID10 73GB RAID10 73GB 4+4 254 254 272.73
RAID10 146GB RAID10 146GB 3+3+2S 386 386 414.46
RAID10 146GB RAID10 146GB 4+4 515 515 552.98
RAID10 300GB RAID10 300GB 3+3+2S 787 787 845.03
RAID10 300GB RAID10 300GB 4+4 1,050 1,050 1,127.43
RAID5 73GB RAID5 73GB 6+P+S 382 382 410.17
RAID5 73GB RAID5 73GB 7+P 445 445 477.82
RAID5 146GB RAID5 146GB 6+P+S 773 773 830.00
RAID5 146GB RAID5 146GB 7+P 902 902 968.52
RAID5 300GB RAID5 300GB 6+P+S 1,576 1,576 1,692.22
RAID5 300GB RAID5 300GB 7+P 1,837 1,837 1,972.46
142 DS6000 Series: Concepts and Architecture
See Figure 8-10 and Figure 8-11 on page 143. These figures are simple examples for 64
DDM configurations with RAID 5 or RAID 10 arrays.
RAID arrays are configured with spare disks in the server enclosure and the first expansion
enclosure (each enclosure has two spare disks). Expansion enclosures 2 and 3 don’t have
spare disks.
Figure 8-10 Sparing example 1 (RAID-5)
Sparing Example 1 – RAID 5:
All same capacity, same rpm
•Assumes all devices same capacity & same rpm
•On a DS6800 will have up to two spares on each loop
– Additional RAID arrays will have no spares (RAID 5: 7+P, RAID 10: 4
x 2)
•All spares available to all arrays on the fabric
DA
1
6 + P 7 + P
2
6 + P 7 + P
…
Server Enclosure
DA
1
6 + P 7 + P
2
6 + P 7 + P
…
Exp Enclosure 1 Exp Enclosure 3
Exp Enclosure 2
Chapter 8. Configuration planning 143
Figure 8-11 Sparing example 2 (RAID-10)
Configuration with different types of DDMs
If you attach other types of DDMs in the loop, the DS6000 series has the following sparing
rules:
򐂰Minimum of two spares per the largest capacity array site on the loop.
򐂰Minimum two spares of capacity and RPM greater than or equal to the fastest array site of
any given capacity on the DA pair.
See Figure 8-12 on page 144. This is an example of adding larger capacity DDMs. At first, 32
DDMs of 146 GB are installed in the server enclosure and expansion enclosure 1, and after
that 32 DDMs of 300 GB are installed in expansion enclosures 2 and 3.
In this case, in the first installation of disks, you configure four spare disks in the server
enclosure and expansion enclosure 1. And, in the next installation, you also configure four
spare disks in expansion enclosures 2 and 3. A 300 GB DDM cannot be spared onto a
146 GB DDM; therefore, 300 GB arrays need 300 GB spare disks for RAID configuration.
If you want to add additional arrays with 146 GB or 300 GB DDMs in this DA pair, you don’t
need spare disk in the array.
If the installation sequence is reversed (300 GB DDMs are installed into the first two
enclosures, and 146 GB DDMs are installed into the next two expansion enclosures), you
don’t need spare disks in expansion enclosures 2 and 3 because 146 GB DDM can be
spared onto existing 300 GB spare disks.
Sparing Example 2 – RAID 10:
All same capacity, same rpm
•Assumes all devices same capacity & same rpm
•On a DS6800 will have up to 2 spares on each loop
– Additional RAID arrays will have no spares (RAID 5: 7+P, RAID 10: 4 x 2)
•All spares available to all arrays on the loop
DA DA
1
3 x 2 4 x 2
2
4 x 2 4 x 2
…
Server Enclosure
1
3 x 2 4 x 2
2
4 x 2 4 x 2
…
Exp Enclosure 1 Exp Enclosure 3
Exp Enclosure 2
144 DS6000 Series: Concepts and Architecture
Figure 8-12 Sparing example 3 (add larger capacity DDMs)
See Figure 8-13 on page 145. This is an example of adding faster DDMs. At first, 32 DDMs of
146 GB and 10,000 RPM are installed in the server enclosure and expansion enclosure 1,
and after that, 32 DDMs of 73 GB and 15,000 RPM are installed in expansion enclosures 2
and 3.
In this case, in the first installation, you configure four spare disks in the server enclosure and
expansion enclosure 1. And, in the next installation, you also configure four spare disks in
expansion enclosures 2 and 3.
If you want to add additional arrays with 73 GB or 146 GB DDMs in this DA pair, you don’t
need spare disks in the array.
And even if the installation sequence is reversed (146 GB DDMs are installed into the first two
enclosures, and 73 GB DDMs are installed into the next two expansion enclosures), you need
spare disks in the expansion enclosures 2 and 3, because 146 GB DDMs cannot be spared
onto existing 73 GB spare disks.
Sparing Example 3 – RAID 5:
1st 2 arrays 146GB & next 2 arrays 300GB (same rpm)
•Assumes all devices same rpm
•Minimum 2 spares of the largest capacity Array Site on each loop
– First two enclosures (server and Exp 1) needs two spare disks each
– And next two enclosures (Exp2 and Exp3) also needs two spare disks each
(because of larger capacity)
– If installation sequence is reversed, next two enclosures do not need spare
disks
DA DA
1
6 + P 6 + P
2
6 + P 6 + P
…
Server Enclosure (146 GB)
1
6 + P 6 + P
2
6 + P 6 + P
…
Exp Enclosure 1 (146GB) Exp Enclosure 3 (300 GB)
Exp Enclosure 2 (300 GB)
1
1
2
2
Chapter 8. Configuration planning 145
Figure 8-13 Sparing example 4 (add faster DDMs)
8.5 Data migration planning
When migrating data, the migration objectives should be clearly defined. The following are
some key questions to use to define your generic migration environment:
򐂰Why is the data migrating?
򐂰What operating systems are involved?
򐂰How much data is migrating?
򐂰How quickly must the migration be performed?
򐂰What duration of service outage can be tolerated?
򐂰Is the data migration to or from the same type storage, for example, from an ESS Model
800 to a DS6000?
򐂰What resources are available for the migration?
Having answered these questions, you will be in a position to choose the appropriate tools
and utilities—such as standard operating system mirroring, basic commands, software
packages, remote copy technologies, and migration appliances—depending on your
environment and your data migration objectives.
Sparing Example 4 – RAID 5:
1st 2 arrays 145 GB (10k rpm) & next 2 arrays 73 GB (15k rpm)
•Minimum 2 spares of the largest capacity Array Site on each loop
– First two enclosures (server and Exp 1) needs two spare disks each
– And next two enclosures (Exp2 and Exp3) also need two spare disks each
(because of faster rpm)
– Even if installation sequence is reversed, next two enclosures need spare
disks (because of larger capacity)
DA DA
1
6 + P 6 + P
2
6 + P 6 + P
…
Server Enclosure (146 GB)
1
6 + P 6 + P
2
6 + P 6 + P
…
Exp Enclosure 1 (146GB) Exp Enclosure 3 (73 GB)
Exp Enclosure 2 (73 GB)
1
1
2
2
146 DS6000 Series: Concepts and Architecture
8.5.1 Operating system mirroring
Logical volume mirroring (LVM) and Veritas Volume Manager have little or no application
service disruption and the original copy will stay intact while the second copy is being made.
The disadvantages of this approach include:
򐂰Host cycles are utilized.
򐂰It is labor intensive to set up and test.
򐂰Application delays are possible due to dual writes occurring.
򐂰This method does not allow for point-in-time copy or easy backout once the first copy is
removed.
8.5.2 Basic commands
Basic commands such as cpio (in a UNIX environment) or copy (in a Windows environment)
are common and easy to use. The disadvantages of basic commands are:
򐂰Length of service disruption varies by commands used.
򐂰They are tedious to handle large amount of LUNs.
򐂰Command scripting is prone to human error.
򐂰Security file level access issues can arise, depending on which commands used.
8.5.3 Software packages
The user can have data migration, backup or restore packages, and database tools to
migrate data. An example of a data migration package is BRMS (Backup Recovery and
Media Services). Tivoli Storage Manager (TSM) can also be used in a backup and restore
fashion to achieve data migrations. DB2 utilities and tools such as unload, load and copy may
also be used to migrate data. Other third-party data migration, backup and restore, and
database packages are available. Contact the respective vendor for further assistance.
The advantages of using software packages are:
򐂰Small application impact when using data migration package.
򐂰Little disruption for non-database files.
򐂰Backup or restore cycles offloaded to another server.
򐂰Standard database utilities.
The disadvantages of using a software package are:
򐂰Cost of data migration package.
򐂰Bigger impact and or disruption with large databases due to lack of checkpoint-restart
abilities.
򐂰Possibly lengthy application outage to backup and or restore environment.
򐂰Application service interruption.
8.5.4 Remote copy technologies
Remote copy technologies include synchronous and asynchronous mirroring. They include
Metro Mirror, Global Mirror and Global Copy.
Chapter 8. Configuration planning 147
The advantages of remote copy technologies are:
򐂰Other than z/OS Global Mirror, they are operating system independent.
򐂰Minimal host application outages.
The disadvantages of remote copy technologies include:
򐂰Same storage device types are required. For example, in a Metro Mirror configuration you
need ESS 800 mirroring to a DS6000 (or an IBM approved configuration), but cannot have
non-IBM disk systems mirroring to a DS6000.
򐂰Physical volume ID (PVID) and device name are not maintained, if not under LVM.
8.5.5 Migration appliances
The following IBM migration appliances are available:
򐂰IBM Piper Services Offering
򐂰IBM SAN Volume Controller. This offering cannot be decommissioned after the data
migration is completed at this stage. Therefore, the user should be aware of the
implication of opting for this offering.
These data migration appliances provide smooth, risk-averse data migration to your DS6000.
The advantages of these migration appliances are:
򐂰Facilitated by custom migration tools
򐂰Minimal customer involvement by IT staff, except planning
򐂰Minimal disruption or outages to IT operations
򐂰On-line migrations can occur while continuing IT operations
򐂰Tunable migration rate to eliminate impact to applications
򐂰Transparent to application servers
򐂰High throughput tool minimizes migration duration
򐂰Delivered by team experienced with many migrations
򐂰Maintains data integrity during migration
򐂰May fall back to the original data and storage device
򐂰Large number of operating systems and storage devices supported
The disadvantages of migration appliances are:
򐂰Cost of migration appliance or service
򐂰Application disruption to install and remove the appliance
See Appendix C, “Service and support offerings” on page 363 for storage services offerings.
8.5.6 z/OS data migration methods
Figure 8-14 on page 148 lists a number of data migration methods available to migrate data
from existing disk systems to the DS6000 in a zSeries environment.
148 DS6000 Series: Concepts and Architecture
Figure 8-14 Different data migration methods
See Chapter 13, “Data Migration in zSeries environments” on page 251 for a complete
discussion of the different methods available for data migration from any other disk system to
the DS6000 series.
8.6 Planning for performance
The IBM TotalStorage DS6000 is a cost effective, high performance, high capacity series of
disk storage that is designed to support continuous operations and allows your workload to
be easily consolidated into a single storage subsystem. To have a well-balanced disk system
the following components that affect performance need to be considered:
򐂰Disk Magic
򐂰Number of ports
򐂰Remote Copy
򐂰Parallel Access Volumes (z/OS only)
򐂰I/O priority queuing (z/OS only)
򐂰Monitoring performance
򐂰Hot spot avoidance
򐂰Preferred paths
8.6.1 Disk Magic
An IBM representative or an IBM Business Partner may model your workload using Disk
Magic before migrating to the DS6000. Modelling should be based on performance data
Data migration methods
Environment Data migration method
S/390 IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
zSeries IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
Linux environment IBM TotalStorage Global Mirror, Remote Mirror and Copy (when available)
z/OS operating system DFSMSdss (simplest method)
DFSMShsm
IDCAMS Export/Import (VSAM)
IDCAMS Repro (VSAM, SAM, BDAM)
IEBCOPY
ICEGENER, IEBGENER (SAM)
Specialized database utilities for CICS, DB2 or IMS
Softek Replicator (previously known as TDMF)
INNOVATION FDR Plug and Swap (FDRPAS)
VM operating system DASD Dump Restore
CMDISK
COPYFILE
PTAPE
VSE operating system VSE fastcopy
VSE ditto
VSE power
VSE REPRO or EXPORT/IMPORT
Chapter 8. Configuration planning 149
covering several time intervals, and should include peak I/O rate, peak R/T, and peak (read
and write) MB/sec throughput. Disk Magic will be enhanced to support the DS6000. Disk
Magic provides insight when you are considering deploying remote technologies such as
Metro Mirror. Confer with your sales representative for any assistance with Disk Magic.
8.6.2 Number of host ports
Plan to have an adequate number of host ports and channels to provide the required
bandwidth to support your workload. The ports must also be balanced across the entire
DS6000.
8.6.3 Remote copy
If the DS6000 is a primary disk system in a remote copy configuration, it will consume more
resources, such as fibre channels ports, compared to a standalone disk system. Plan for the
number of fibre ports.
8.6.4 Parallel Access Volumes (z/OS only)
Configuring the DS6000 with PAV will minimize or eliminate IOSQ delays and improve disk
performance. PAV can either be static or dynamic. Dynamic PAV should be implemented
when possible, since this provides more flexibility. z/OS Workload Manager (WLM) will
manage the PAV devices as a group, instead of having a static relationship with the base
device. In a static relationship the base device cannot borrow a PAV device from another
base device that is not in use. In a dynamic environment, idle PAV devices are assigned to
base devices that need more PAV devices to manage the workload. WLM manages the PAV
devices on an LSS group level. Plan for the number of alias devices that your configuration
will need.
8.6.5 I/O priority queuing (z/OS only)
I/O priority queuing allows the DS6000 series to use I/O priority information provided by the
z/OS Workload Manager to manage the processing sequence of I/O operations. This enables
the DS6000 to prioritize I/O workload if, for whatever reason, I/Os are queued in the DS6000.
8.6.6 Monitoring performance
A number of monitoring tools are available to measure the performance of your DS6000 once
it is installed into your configuration.
For example, in the zSeries environment, the RMF™ RAID rank report can be used to
investigate RAID rank saturation when the DS6000 is already installed in your environment.
New counters will be reported by RMF to provide statistics on a volume level for channel and
disk analysis.
In an open system environment the iostat command is useful to determine whether a
system’s I/O load is balanced or whether a single volume is becoming a performance
bottleneck. The tool reports I/O statistics for TTY devices, disks, and CD-ROMs. It monitors
I/O device throughput and utilization by observing the time the disks are active in relation to
their average transfer rates. The vmstat utility can also be used to take a quick snapshot or
overview of the system performance.
Note: Disk Magic is available to IBM sales representatives and IBM Business Partners
only.
150 DS6000 Series: Concepts and Architecture
8.6.7 Hot spot avoidance
Workload activity concentrated on a limited number of RAID ranks will saturate the RAID
ranks. This may result in poor response times, so balancing I/O activity across any disk
system is important. Spreading your I/O activity evenly across the available DS6000s will
enable you to optimally exploit the DS6000 resources, thus providing better performance. I/O
activity attributes to consider are to spread I/O activity across:
򐂰The two servers of the DS6000
򐂰The two loops of the DS6000
򐂰All available RAID ranks
򐂰Multiple DS6000s
8.6.8 Preferred paths
In the DS6000, host ports have a fixed assignment to a server (or controller card). In other
words, preferred paths to a server avoid having to cross the PCI-X connection. Therefore,
there is a performance penalty if data from a logical volume managed by one server is
accessed from a port that is located on the other server. The request for the logical volume
and the data would have to be transferred across the bridge interface that connects both
servers. These transfers add some latency to the response time. Furthermore, this interface
is also used to mirror the persistent memory and for other inter-server communication. It
could become a bottleneck if too many normal I/O requests ran across it, although it is a high
bandwidth, low latency, PCI-X connection.
When assigning host ports, always consider preferred pathing because the use of
non-preferred paths will have a performance impact on your DS6000.
© Copyright IBM Corp. 2004. All rights reserved. 151
Chapter 9. The DS Storage Manager:
Logical configuration
In this chapter, the following topics are discussed:
򐂰Configuration hierarchy, terminology, and concepts
򐂰Summary of the DS Storage Manager logical configuration steps
򐂰Introducing the GUI and logical configuration panels
򐂰The logical configuration process
9
152 DS6000 Series: Concepts and Architecture
9.1 Configuration hierarchy, terminology, and concepts
The DS Storage Manager provides a powerful, flexible, and easy to use application for the
logical configuration of the DS6000. It is the client’s responsibility to configure the storage
server to fit their specific needs. It is not in the scope of this redbook to show detailed steps
and scenarios for every possible setup. For further assistance, help and guidance can be
obtained from an IBM FTSS or an IBM Business Partner.
9.1.1 Storage configuration terminology
An understanding of the following concepts and terminology can help you to use and
configure the DS Storage Manager configurator.
Storage complex
A storage complex consists of one or more physical storage units that can be managed from
a central management point. DS6000 units can be placed together to form a complex.
Multiple DS6000s can be supported by a single Management Console.
Storage unit
A storage unit, also known as a storage facility, is a single physical storage subsystem
(DS6000).
Host attachment
A host attachment is one or more host ports that are grouped together. Volumes can be
assigned to volume groups, and volume groups can then be assigned to host attachments, for
presentation to the host operating systems.
Traditionally we think of hosts with one or more Fibre Channel adapters (HBAs), with each
adapter having one or more Fibre Channel ports. Each port has a unique Fibre Channel
address called World Wide Port Name (WWPN). The WWPN is the address to which we
assign volumes. A host attachment is a grouping of ports and their World Wide Port Names.
Definitions are made about hosts and attachments in the GUI. The concepts and limitations
are explained in the following list:
򐂰Multiple Fibre Channel ports’ WWPNs on the same host system can be specified in one or
more host attachments, in one host definition called host system in the GUI. A host
attachment does not always mean a single port. For example, refer to Figure 9-1 on
page 153.
Chapter 9. The DS Storage Manager: Logical configuration 153
Figure 9-1 Diagram of hosts and host attachment groups
򐂰In Figure 9-1 we show three pSeries hosts with four host ports each. The first host,
pSeries1, has no specific attachment groupings, so each port could be defined as an
attachment. Server ports can be grouped in attachments for convenience. For example,
pSeries2 shows two host attachments, with two ports in each attachment. Server pSeries3
shows one host attachment with four ports grouped in the one attachment.
򐂰A host attachment can be configured to access specific disk subsystem I/O ports or all
valid disk subsystem I/O ports.
򐂰Host attachments can be configured to access specific volume groups.
򐂰A specific host attachment (one port or set of grouped ports) can access only one volume
group.
򐂰However, multiple host attachments, even different open system host types, with the
same blocksize and addressing mode, can access the same volume group. The safest
approach to this concept is to configure one host per volume group. If shared access to
the LUN is required, for example, for dual pathing or clustering, then the shared LUNs may
be placed in multiple volume groups as shown in Figure 9-3 on page 157.
򐂰For FICON attachment, access is controlled by zSeries HCD/IOGEN definitions. Some
FICON attachment considerations:
– One storage subsystem FICON host definition will be required as the trigger to set the
I/O adapter that will be accessed by the FICON protocol.
– Default volume groups are automatically created, allowing anonymous access for
FICON.
򐂰One set of host definitions may be used for multiple storage, storage units, and storage
complexes.
pSeries1
pSeries2
pSeries3
NO Host Attachment Group defined
for host pSeries1. By default,
the 4 ports are placed in 4 host
attachments
Two host attachment groups defined
for host pSeries2
One host attachment group defined
for host pSeries3
Fiber Channel
Port
WWPN1
WWPN2
WWPN3
WWPN4
WWPN5
WWPN6
WWPN7
WWPN8
WWPN9
WWPN10
WWPN11
WWPN12
154 DS6000 Series: Concepts and Architecture
DDM
A Disk Drive Module (DDM) is a customer-replaceable unit that consists of a single disk drive
and its associated packaging.
Array sites
An array site is a predetermined grouping of four individual DDMs of the same speed and
capacity.
Arrays
Arrays consist of DDMs from one to two array sites, used to construct one RAID array. An
array is given either a RAID-5 or RAID-10 format.
Ranks
One array forms one CKD or Fixed Block (FB) rank. When the rank is configured, either CKD
or FB characteristics are taken on at this point. Presently only one array can reside in a rank,
but in the future one or more arrays will be able to reside in one rank.
Extent pools
An extent pool consists of one or several ranks. Ranks in the same extent pool must be of the
same data format (CKD or FB). Each extent pool is associated with server 0 or server 1.
Although it is possible to create extent pools with ranks of different drive capacities, speeds,
and RAID types, we recommend creating them to consist of the same RAID type, speed, and
capacity. Also, we recommend that only half of the total of number of ranks be configured to
reside in one pool (server 0) and the other half in the other pool (server 1).
Extent pools contain one or more ranks divided into fixed-size extents as follows:
򐂰CKD extents are equal to a 3390 Mod1
򐂰FB extents are 1 GB
The storage in an extent pool (the extents from each rank in the extent pool) is used to create
logical volumes. We recommend creating one extent pool out of only one rank to start with,
unless the size required for a Fixed Block logical volume (LUN) is larger than the combined
free extents residing in one single rank.
Note: The ranks have no pre-determined relation to an LSS.
Chapter 9. The DS Storage Manager: Logical configuration 155
Figure 9-2 Diagram of an extent pool containing 3 volumes
In Figure 9-2, there is an example of one extent pool composed of ranks formatted for FB
data. Three logical volumes are defined (volumes 1310, 0501, 0701). Two logical volumes
(1310 and 0501) are made up of 6 extents at 1 GB each; this makes each volume 6 GBs.
Logical Volume 0701 is built with 11 extents making an 11 GB Volume. The numbering
sequence of a LUN (for example, 1310 as shown in the diagram as the top volume),
translates into an address. The volume identification number is built using the following rules:
xyzz, x= the LSS address group, xy=LSS number itself, and zz=the volume id(volid). For
example, LUN 1310 has an address group number of 1, is located in LSS 13 and has a volid
of 10.
Different volumes on a single extent pool can be assigned to the same or different LSSs.
Extent pools are assigned to server 0 and server 1 during configuration and receive their
server affinity at this time. If you are using the custom configuration, we recommend, for user
manageability reasons, that the client associate the rank even numbers to server 0 and the
rank odd numbers to server 1 when defining the extent pools during the configuration
process.
When creating extent pools, certain rules apply as follows:
򐂰A minimum of two extent pools must be configured to utilize server 0 and server 1.
򐂰More than one rank can reside in an extent pool, but two extent pools can not be made out
of only one rank. We recommend that one extent pool be created out of one rank, unless
the LUN capacity is greater than the capacity of one rank in the extent pool.
Some general considerations are:
򐂰One rank per pool will not constrain addresses.
򐂰Ranks can be added to an extent pool at any time.
򐂰The logical volumes defined in one extent pool can be in different LSSs.
򐂰The logical volumes in different pools can be in the same LSS, limited only by the odd and
even server affinity.
򐂰Ranks can be removed from an extent pool if no extents on the rank are currently
assigned to the logical volumes.
1
3
1
0
0
5
0
1
Extent Pool
1GB Extents
Ranks formated for FB data
0
7
0
1
156 DS6000 Series: Concepts and Architecture
򐂰Any extent can be used to make a logical volume.
򐂰There are thresholds that warn you when you are nearing the end of space utilization on
the extent pool.
򐂰There is a Reserve space option that will prevent the logical volume from being created in
reserved space until the space is explicitly released.
Logical volumes
Logical volumes, also known as LUNs when configured for open systems or CKD Volumes
when configured for zSeries, can only be made from one or more extents residing in the same
extent pool. This means that a logical volume cannot span multiple extent pools. Ranks must
be added to extent pools to make larger LUNs. We use the term volume and LUN
interchangeably throughout the rest of this chapter when referring to logical volumes.
Some limitations are as follows:
򐂰A specific volume is in one LSS.
򐂰Multiple volumes in one extent pool or one rank can be in the same or different LSSs, as
shown in Figure 9-6 on page 160.
򐂰Multiple volumes in different extent pools and on different ranks can be in the same LSS,
as shown in Figure 9-6.
򐂰The minimum volume/LUN size is one extent.
– For CKD the minimum size is a 3390 Mod1.
– For FB the minimum size is 1 GB.
򐂰The maximum volume or LUN size is equal to the size of the extent pool with the following
limitation: 56 GB for CKD, with the appropriate zSeries software support, and 2 TB for FB.
For example, if only one rank was residing in the extent pool, then the maximum LUN size
would be equal to the capacity of that one rank.
򐂰The maximum number of logical volumes at GA for the DS6000 is 8K (8192). It could be
either 8192 FB Volumes (LUNs), or 8192 CKD Volumes, or a mix of 4096 LUNs and 4096
CKD Volumes.
򐂰Logical volumes can be deleted and the extents reused without having to format the ranks
or arrays they reside in.
Volume groups
A volume group is a collection of logical volumes. Volume groups are created to provide FB
LUN masking by assigning logical volumes and host attachments to the same volume group.
For CKD volumes, one volume group for ESCON and FICON attachment with an anonymous
host attachment is automatically created.
Note: A user can't control or specify which ranks in an extent pool are used when
allocating extents to a volume.
Note: The user is allowed to specify volume sizes in binary, decimal, or block sizes. In
binary form, for example, 1 GB is equal to 1073741924 bytes (1GB=1073741924),
instead of the decimal size, as in the ESS, as (1GB=1000000000 bytes).
Chapter 9. The DS Storage Manager: Logical configuration 157
Volume groups can be thought of as LUN groups. Do not confuse the term volume group
here with that of volume groups on pSeries. The DS6000 Storage Manager volume groups
have the following properties:
򐂰Volume groups enable FB LUN masking.
򐂰They contain one or more host attachments from different hosts and one or more LUNs.
This allows sharing of the volumes/LUNs in the group with other host port attachments or
other hosts that might be, for example, configured in clustering.
򐂰A specific host attachment can be in only one volume group. Several host attachments can
be associated with one volume group. For example, a port with a WWPN number of
10000000C92EF123, can only reside in one volume group, not two or more.
򐂰Assigning host attachments from multiple hosts systems, even running different operating
system types, is allowed in the same volume group.
Figure 9-3 Diagram of the relationship of a host attachment to a volume group
In Figure 9-3, we show two volume groups, Volume Group 1 and Volume Group 2. A
pSeries server with 1 host attachment (four ports grouped in that attachment) resides in
Volume Group1. The xSeries2 server has 1 host attachment (2 ports grouped into the
attachment). The ports are grouped together in one attachment definition, for example, the
server, xSeries2, is dual pathed to the LUNs through one attachment group definition.
򐂰In order to share LUNs across multiple host attachments, LUNs can be in more than one
volume group as shown in the example in Figure 9-4 on page 158.
Note: We recommend configuring one host per volume group.
xSeries2
pSeries1
Volume Group 2
Volume Group 1 Host
Host Attachment
158 DS6000 Series: Concepts and Architecture
Figure 9-4 Example of Volume Group, LUNs and host attachment definition
In Figure 9-4 we show three hosts (Host A, Host B, and Host C). The three hosts are
defined in the logical configuration as three different host systems. The user will group the
WWPN of each host system in groups called host attachments. As shown in the diagram,
each host attachment is assigned to one volume group. Volumes can belong to several
volume groups. For example, volumes 5 and 6 are in Volume Group 2 and Volume Group
3, so they will be shared by Host A, Host B and Host C. Several host attachments can be
associated to the same volume group. For example, Hosts B and C will share volumes 5,
6, 7 and 8 because their host attachments are assigned to Volume Group 3. However, for
management simplification, we recommend that only one host attachment is assigned to
each volume group.
򐂰The maximum number of volume groups for the DS6000 is 1040.
Address groups
An address group is a group of FB or CKD LSSs. An address group has up to 16 LSSs. The
DS6000 supports two address groups: address group 0 and address group 1.
LSS/LCU
A Logical Subsystem (LSS) is a topological construct that consists of a group of up to 256
logical volumes. A DS6000 can have up to 32 LSSs. The DS6000 supports a mix of
CKD-formatted logical subsystems and FB logical subsystems. There is a one-to-one
mapping between a CKD logical subsystem and a zSeries control unit.
For zSeries hosts, a logical subsystem represents a logical control unit (LCU). Each control
unit is associated with only one logical subsystem.
Host System A
2
Host Attachment
WWPN WWPN
Host Attachment
WWPN WWPN
Host System B
1
3
5
4
68
7
Volume Group 1 Volume Group 2 Volume Group 3
Host Attachment
WWPN WWPN
Host System C
Host Attachment
WWPN WWPN
It is possible to have
several Host Attachments
associated to one Volume
Group.
But we do recommend,
for management
to associate only one Host
attachment to each Volume
Group
Chapter 9. The DS Storage Manager: Logical configuration 159
Figure 9-5 shows an example of the relationship between LSSs, extent pools, and volume
groups: Extent Pool 4, consisting of two LUNs, LUNs 0210 and 1401, and Extent Pool 5,
consisting of three LUNs, LUNs 0313, 0512, and 1515.
Here are some considerations regarding the relationship between LSSs, extent pools, and
volume groups:
򐂰Volumes from different LSSs and different extent pools can be in one volume group as
shown in Figure 9-5. Volume Group 1 consists of Extent Pool 4, LUN 0210 and Extent
Pool 5 LUN 0512.
򐂰Volumes from the same LSS or the same extent pool can be in different volume groups.
For example, in Figure 9-5, LUN 0512 in Extent Pool 5 and LUN 0313 in Extent Pool 5
both reside in the same extent pool, but LUN 0512 is in Volume Group 1 and LUN 0313 is
in Volume Group 2.
Figure 9-5 Example of relationship between LSS, extent pools and Volume Group
The LSS and LCU provide the logical grouping of volumes/LUNs for Copy Services and
various other purposes. Some of these purposes are explained here along with general
considerations about LSSs in the DS6000, as follows:
򐂰The LSS or LCU determines the addressing, address groups, and PAVs.
– Each logical volume has a 4 digit Hexadecimal 'xyzz' identification number built using
the following rules: x= the address group, xy=LSS number itself, and zz=the volume ID
(volid). For example, LUN 1401 has an address group number of 1, is located in LSS
14 and has a volid of 01.
– There are up to 16 LSSs in an address group. For example, 00 to 0F for address group
0, 10-1F for address group 1.
– Any given PAV can only be used within one LCU.
򐂰LSSs are used for Copy Services, PPRC paths, and consistency group
properties/time-outs.
򐂰The DS6000 supports a maximum of 32 LSSs and supports intermix of CKD LSSs and FB
LSSs.
򐂰The LSSs have a pre-determined association with server0 or server1.
– The even LSSs are associated with server0.
– The odd LSSs are associated with server1.
򐂰The LSSs are configured to be either CKD or FB.
0
2
1
0
1
4
0
1
Extent Pool 4 Extent Pool 5
Volume Group 1
Volume Group 2
0
3
1
3
0
5
1
2
1
5
1
5
160 DS6000 Series: Concepts and Architecture
– CKD LSSs definitions are configured during the LCU creation.
– FB LSSs definitions are configured during the volume creation.
򐂰LSSs have no predetermined relation to physical ranks or extent pools other than their
server affinity to either server0 or server1.
– One LSS can contain volumes/LUNs from different extent pools.
– One extent pool can contain volumes/LUNs that are in different LSSs, as shown in
Figure 9-6.
– One LCU can contain CKD volumes/LUNs of different types. For example type 3390
Model 3 and Model 9s.
– LSSs can have a many to many Copy Services relationship as shown by the arrows in
Figure 9-6,
Figure 9-6 Example of Copy Services relationship between LSSs in the same storage unit
– An entire address group will be either FB or CKD. For example, all 16 LSSs in that
group would be either FB or CKD type LSSs.
– Initially there will only be 2 address groups for the DS6000 at GA; however, more will
be available at a later time.
– One address group has 4096 addresses (16 LSS x 256 logical volumes = 4096 logical
volumes or addresses). This means that if you had two address groups defined in the
DS6000, you would have 8192 (2 X 4096 = 8192) addresses or logical volumes.
As an example: When creating a logical volume from an extent pool built with FB ranks, the
GUI will prompt in which LSS this FB volume will be placed and will propose a list of LSSs. If
the user chooses LSS 14 and if it is the first LUN to be placed in this LSS, then the attributes
of address group 1 will be Fixed Block, reserving LSS 10 to 1F for Fixed Block volumes.
Attention: The address groups and LSSs are predefined in the DS6000. Initially, they do
not have any data format attributes (FB or CKD). Their data format attributes are set when
a first logical volume is added to a first LSS in an address group.
When creating a logical volume, the user is prompted to add the volume to an LSS. Adding
the volume to an unused LSS will set its data format characteristics (FB or CKD) and also
will set the address group data format characteristics. It also sets the data format of the
remaining 15 LSSs in that address group.
0
3
1
0
0
5
0
1
Extent Pool 3
Rank1
0
3
1
3
1
5
1
2
Extent Pool 5
Rank3
1
1
1
1
0
5
0
2
Copy services Relationships
Chapter 9. The DS Storage Manager: Logical configuration 161
9.1.2 Summary of the DS Storage Manager logical configuration steps
It is our recommendation that the client consider the following concepts before performing the
logical configuration. These recommendations are discussed in this chapter.
Planning
When configuring available space to be presented to the host, we suggest that the client
approach the configuration from the host and work up to the DDM (raw physical disk) level.
This is just the opposite way that the client would configure the raw DDMs into host volumes.
Refer to Figure 9-7 to understand the hierarchy in the virtualization layers in the DS6000.
1. Determine the number of hosts and type of hosts (zSeries or Open System) in the
environment that will use external capacity.
2. Determine the amount of capacity needed for each host and for each data format type.
3. Determine the number and the size of logical volumes needed to fulfill the capacity
requirements for zSeries and Open System hosts.
4. Determine the number of rank types (FB or CKD) and the number of ranks per extent
pools to be able to build the specific logical volumes. The recommendation is to have one
rank per extent pool unless the LUN size requires you to spread the LUN on several ranks
in an extent pool.
Determine the number of address groups that will be assigned for CKD LSSs and the number
of address groups that will be assigned for FB LSSs.
Figure 9-7 View of the raw DDM to LUN relationship
In Figure 9-7, you can see that several layers make up the final result, that being the LUN that
is presented to the host as usable disk space capacity.
6
Array Site X
DDM four-pack Y
Rank1
Volumes/LUNs
Host
Array 1
(Extent Pool A)
Each extent = 1
GB
CKD or FB
Array 2
RAID5 or RAID10
RAID5 or RAID10
Rank2
DDM four-pack X
Array Site w
DDM four-pack z
DDM four-pack w
Ar
array layer
Extent Pool layer
Volume layer
array Site
rank layer
Raw DDMs
162 DS6000 Series: Concepts and Architecture
Raw or physical DDM layer
At the very top, you can see the raw DDMs. There are four DDMs in a group called a
four-pack. They are placed into the DS6000 in pairs of two, making eight DDMs. DDM X
represents one four-pack and DDM Y represents a pair from another four-pack. Upon placing
the four or eight-packs into the DS6000 each four or eight-pack is grouped into array sites,
shown as Layer 2. The DS6000 does support 4 DDM arrays; this is not described here.
Array site layer
At the array site level, predetermined groups of four DDMs of the same speed and capacity
are arranged. All DDMs reside in the same Disk Enclosure (Array On Loop configuration).
Array layer
This level is where the format is placed on the array. Sparing rules are enforced depending on
which RAID format is chosen. If you choose RAID-5, then one spare is created and a RAID-5
format is striped across the remaining 7 drives. You must calculate the equivalent of one disk
that is used for parity out of the array. Although parity is not placed on one physical disk, but
striped across all the remaining disks, that parity equals one disk’s worth of capacity. See
Figure 9-8. In this figure the RAID format is a 6 + P + S. If you add up the parity chunks it
equals one disk’s worth of capacity. If you choose RAID-10 then you would have two spares
with no parity and a 3 X 3 + 2(spares) configuration. This would continue for each RAID array
until the sparing rules are met.
Figure 9-8 Diagram of how parity is striped across physical disks
Rank layer
At this level the ranks are formed. Presently only one array can make up a rank, as shown in
Figure 9-7 on page 161.
Extent pool layer
At this level the extent pools are formed. In Figure 9-7 on page 161 we show that extent pool
A is made up of 2 ranks, rank 1 and rank 2. The extents in the pool are 1 GB.
Logical volume layer
Layer 6 is the final level of the LUN formation. We show in Figure 9-7 on page 161 that two
LUNs were created out of extent pool A. The top LUN is made up of 12 extents, making it a
12GB LUN. The bottom LUN is made up of 24 extents, making it a 24GB LUN.
Logical Configuration flow
Figure 9-9 on page 163 shows the recommended flow for performing logical configuration
using the GUI.
Spare
Chunk1
Chunk2
Chunk3
Chunk4
Chunk5
Chunk6
Parity
Chunk1
Chunk2
Chunk3
Chunk4
Chunk5
Parity
Chunk7
Chunk1
Chunk2
Chunk3
Chunk4
Parity
Chunk6
Chunk7
Chunk1
Chunk2
Chunk3
Parity
Chunk5
Chunk6
Chunk7
Chunk1
Chunk2
Parity
Chunk4
Chunk5
Chunk6
Chunk7
Chunk1
Paity
Chunk3
Chunk4
Chunk5
Chunk6
Chunk7
Parity
Chunk2
Chunk3
Chunk4
Chunk5
Chunk6
Chunk7
Chapter 9. The DS Storage Manager: Logical configuration 163
Figure 9-9 Recommended Logical Configuration steps
9.2 Introducing the GUI and logical configuration panels
The IBM TotalStorage DS Storage Manager is a program interface that is used to perform
logical configurations and copy services management functions. The DS Storage Manager
program is installed via a GUI (graphical mode) using the install shield. It can be accessed
from any location that has network access using a Web browser. This section describes the
DS Storage Manager GUI and logical configuration concepts and steps that allow the user a
simple and flexible way to successfully configure FB and CKD storage.
9.2.1 Connecting to your DS6000
To connect to the DS6000 through the browser, enter the URL of a PC or the MC you may
have purchased. The URL consists of the TCP/IP address as shown in Figure 9-10 on
page 164, or a fully qualified name that the DNS server can resolve as shown in Figure 9-11
on page 164.
Create Storage Complex
Create Storage Units
Define Host Systems and associated Host
Attachments.
Create Arrays by selecting Array Sites. Array Sites are
already automatically pre-defined.
Create Extent Pools, add ranks to Extent Pools and
define the server 0 or server 1 affinity.
Create Logical Volumes and add the Logical
Volumes to LSSs (LSSs and Address Groups Data
Types (FB or CKD are set when a LUN is added to
one LSS in an unused Address Group or when one
LCU is created in an unused Address Group ).
Create Volume groups: Assign Host Attachments and
Logical volumes to the volume Group you create.
Create Ranks and add Arrays in the ranks.
164 DS6000 Series: Concepts and Architecture
Figure 9-10 Entering the URL using the TCP/IP address for the SMC
In Figure 9-10, we show the TCP/IP address and the port number 8452 afterwards.
Figure 9-11 Entering the URL using the fully qualified name of your MC
In Figure 9-11, we show the fully qualified name and the port number 8452 separated by a
colon.
For ease of identification, you could add a suffix such as 0 or 1 to the selected fully qualified
name, for example, MC_0 for the default MC as shown in Figure 9-11. Then bookmark it for
ease of use. When assigning the number, we recommend that you make the last field of the
optional MC only one digit higher than the default MC.
9.2.2 Introduction and Welcome panel
The IBM TotalStorage DS6000 Storage Manager (DS Storage Manager) is a software
application that runs on an MC. It is the interface provided for the user to define and maintain
the configuration of the DS6000. The DS Storage Manager can be accessed using a Web
browser running on a remote machine connected into the user’s network.
Chapter 9. The DS Storage Manager: Logical configuration 165
Once the GUI is started and the user has successfully logged on, the Welcome panel will
display as shown in Figure 9-12.
Figure 9-12 View of the Welcome panel
Figure 9-12 shows the Welcome panel’s two menu choices. By clicking on the triangles, the
menu expands to show the menu options needed to configure the storage.
The DS6000 Storage Manager configurator can be used either in Real-time (online), or
Simulated (offline), with an Express Configuration Wizard available in both modes. Either
mode is used to manipulate the storage configuration process for a DS6000, defining CKD
and fixed block (FB) storage.
It is important to know that the Simulated manager is limited in its function and is used to
pre-configure new configurations or modify existing configurations, to be executed at a later
time. For example, the Simulated Manager could be used to execute or modify changes at an
off peak hour.
򐂰Real-time manager configuration
You can use the Real-time mode selections of the DS Storage Manager if you chose
Real-time during the installation of the DS Storage Manager. Part of the Real-time
configuration process requires you to enter the OLE license activation key. You can obtain
the OLE license activation key and all the license activation keys from the Disk Storage
Feature Activation (DSFA) Web site at:
http://www.ibm.com/storage/dsfa.
This application provides logical configuration and Copy Services functions for a storage
unit attached to the network. This feature provides you with real-time (online) configuration
support. A view of the fully expanded Real-time manager menu choices is shown in
Figure 9-13 on page 166.
The triangle expands the menu
166 DS6000 Series: Concepts and Architecture
Figure 9-13 View of the fully expanded Real-time Manager menu choices
–Copy Services
You can use the Copy Services selections of the DS Storage Manager if you choose
Real-time during the installation of the DS Storage Manager and you purchased these
optional features. A further requirement for using the Copy Services features is the
activation of license activation keys. You need to obtain the Copy Services license
activation keys (including the one for the use of PAVs) from the DSFA Web site.
򐂰Simulated manager configuration
You can begin using the simulated mode immediately after logging on to the DS
Storage Manager. However, if you want to make your configurations usable you need to
obtain the license activation keys from the DSFA Web site.
Input these activation keys and save them as part of your configuration input. This
application provides the ability to create or modify logical configurations when
disconnected from the network. After creating the configuration, you can save it and
then apply it to a storage unit attached to the network at a later time. A view of the fully
expanded Simulated Manager menu choices is shown in Figure 9-14 on page 167.
Chapter 9. The DS Storage Manager: Logical configuration 167
Figure 9-14 View of the fully expanded Simulated Manager menu choices
򐂰Express configuration
Express configuration provides the simplest and fastest method to configure a storage
complex.
Some configuration methods require extensive time. Because there are many complex
functions available to you, you are required to make several decisions during the
configuration process. However, with Express configuration, the storage server makes
several of those decisions for you. This reduces the time that configuration takes, and
simplifies the task for you.
The Express Configuration Wizard is ideal for the following users:
– Novice users with little knowledge of storage concepts who want to quickly and easily
set up and begin using storage.
– Expert users who want to quickly configure a storage complex by allowing the storage
server to make decisions for the best storage appropriation.
Using Express configuration, you can perform the following tasks:
– Configure open systems, iSeries, and zSeries volumes
– Create a volume group
– Create a host
– Map a volume group to a host attachment
The following items should be considered as first steps in the use of either configuration
mode.
򐂰Log in
Logging in to the DS Storage Manager requires that you provide your user name and
password. This function is generally administered through your system administrator and
by your company policies.
The preconfigured user ID and password are as follows:
userid=admin
password=admin
168 DS6000 Series: Concepts and Architecture
򐂰Create and define the users and passwords
Select User administration → Add user and click Go, as shown in Figure 9-15. The
screen that is returned is shown in Figure 9-16. On this screen you can add users and set
passwords, subject to the following guidelines:
– The user name can be up to 16 characters.
– Passwords must contain at least 5 alphabetic characters, and at least one special
character, with an alphabetic character in the first and last positions. Passwords are
limited to a total of 16 characters. The user name can not be part of the password. This
entry will appear as asterisks.
You can grant user access privileges from this screen as well.
Figure 9-15 View of the User administration panel
Figure 9-16 View of the Add User panel
Using the help panels (Software information center)
The information center displays product or application information. The system provides a
graphical user interface for browsing and searching online documentation.
The broad range of topics covered includes accessibility, copy services, device storage, host
system attachments, concurrent code loads, input/output configuration programs, and volume
storage.
Chapter 9. The DS Storage Manager: Logical configuration 169
To use the information center, click the question mark (?) icon shown in Figure 9-17.
Figure 9-17 View of the information center
9.2.3 Navigating the GUI
Knowing what icons, radio buttons, and check boxes to click in the GUI, will help you
efficiently navigate your way through the configurator and successfully configure your
storage.
Figure 9-18 The DS Storage Manager Welcome panel
On the DS Storage Manager Welcome panel, several buttons appear that need some
explanation.
1234
5
170 DS6000 Series: Concepts and Architecture
With reference to the numbers shown in Figure 9-18, the icons shown have the following
meanings:
1. Click icon 1 to hide the My Work menu area. This increases the space for displaying main
work area of the panel.
2. Icon 2 hides the black banner across the top of the screen, again to increase the space to
display the panel you're working on.
3. Icon 3 allows you to properly Log out and exit the DS Storage Manager GUI.
4. Use icon 4 to access the Info Center. You get a help menu screen that prompts you for
input on help topics.
5. Click icon 5 to close the panels that open when you click the configuration menus in the
My Work area.
Figure 9-19 shows that by clicking the expand work area buttons, both the banner and the My
Work area can be reduced to allow an expanded view of the work area.
Figure 9-19 View of the storage complexes in the work area
If you want to reduce the work area and work from the Real-time or Simulated Manager menu
selection again, simply click the button shown on the upper left of Figure 9-19.
This is the work area
Expand or reduce the work are by clicking
Chapter 9. The DS Storage Manager: Logical configuration 171
Figure 9-20 View of the Storage Complexes section
The buttons displayed on the Storage complexes screen, shown in Figure 9-19 and called out
in detail in Figure 9-20, have the following meanings.
򐂰Boxes 1 through 6 are for selecting and filtering:
–1 - Select all
–2 - Deselect all
– 3 - Show filter row
– 4 - Clear all filters
–5 - Edit sort
– 6 - Clear all sorts
򐂰The caret called out as item 7 is a simple ascending/descending sort on a single column.
򐂰Clicking the pull-down menu identified as item 8 results in display of the actions list shown
in Figure 9-21, which are the identical actions as represented by boxes 1 through 6 in
Figure 9-20.
Figure 9-21 Storage unit view of the drop down box
Radio buttons and check boxes
Figure 9-22 shows the difference between radio buttons and check boxes.
7812 34 5 6
8
172 DS6000 Series: Concepts and Architecture
Figure 9-22 View of radio buttons and check boxes in the host attachment panel
In the example shown in Figure 9-22, the radio button is checked to allow specific host
attachments for selected storage unit I/O ports only. The check box has also been selected to
show the recommended location view for the attachment. Only one radio button can be
selected in the group, but multiple check boxes can be selected.
9.3 The logical configuration process
We recommend that you configure your storage environment in the following order. This does
not mean that you have to follow this guide exactly. You can get the same results by following
a different order, so long as you define your storage complex, storage unit first.
9.3.1 Configuring a storage complex
To create the storage complex in simulated mode, expand the Manage Hardware (1)
section, click Storage complexes (2), click Create from the Select Action (3) pull-down and
click Go (4), as shown in Figure 9-23. Follow the panel directions with each advancing
window.
Figure 9-23 View of the Select Action pull-down menu with Create, selected
Under the Define Properties panel, assign the Storage complex Nickname.
Radio buttons
Check boxes
4
321
Chapter 9. The DS Storage Manager: Logical configuration 173
Figure 9-24 View of the Define properties panel, with the Nickname defined
Do not click Create new storage unit at the bottom of the screen shown in Figure 9-24. Click
Next and Finish in the verification step.
9.3.2 Configuring the storage unit
To create the storage unit, expand the Manage Hardware section, click Storage units (2),
click Create from the Select action pull-down and click Go. Follow the panel directions with
each advancing window.
After clicking Go, you will see the General storage information panel as shown in Figure 9-25
on page 174.
174 DS6000 Series: Concepts and Architecture
Figure 9-25 View of the General storage unit information panel
As illustrated in Figure 9-25, fill in the required fields as follows:
1. Click the Machine Type-Model from the pull-down list.
2. Fill in the Nickname.
3. Type in the Description.
4. Click the Select Storage Complex from the pull-down, and choose the storage complex
on which you wish to create the storage unit.
Clicking Next will advance you to the Specify DDM packs panel, as shown in Figure 9-26. Fill
in the proper information for your specific environment.
1
2
3
4
Chapter 9. The DS Storage Manager: Logical configuration 175
Figure 9-26 View of Specify DDM packs panel, with the Quantity and DDM type added
Click Next to advance to the Define licensed function panel, under the Create storage unit
path, as shown in Figure 9-27.
Figure 9-27 View of the Defined licensed function panel
Fill in the fields shown in Figure 9-27 as follows:
򐂰The number of licensed TB for the Operation environment.
򐂰The quantity of storage covered by a FlashCopy License, in TB.
򐂰The amount of disk for Remote Mirror and Copy in TB.
򐂰The amount of TB for Parallel Access Volumes (PAV).
򐂰The amount in TB for Remote Mirror for z/OS.
Configuration advancements steps
176 DS6000 Series: Concepts and Architecture
Follow the steps specified on the panel shown in Figure 9-27. The next panel, shown in
Figure 9-28, requires you to enter the storage type details.
Figure 9-28 Specify the I/O adapter configuration panel
Enter the appropriate information and click OK.
9.3.3 Configuring the logical host systems
To create a logical host for the storage unit that you just created, click Host Systems, as
shown in Figure 9-29. You may want to expand the work area.
Figure 9-29 View of create Host systems
You can expand the view by clicking on the left arrow in the My Work area as shown in
Figure 9-29; the expanded view is shown in Figure 9-30.
Host Systems
Expand the Work area
Chapter 9. The DS Storage Manager: Logical configuration 177
Figure 9-30 View of Host Systems panel, with the Go button selected
Click the Select Storage Complex action pull-down, and highlight the storage complex on
which you wish to configure, click Create and Go. The screen will advance to the General
host information panel shown in Figure 9-31.
Figure 9-31 View of the General host information panel
Click Next to advance the screen to the Define Host System panel shown in Figure 9-32 on
page 178.
178 DS6000 Series: Concepts and Architecture
Figure 9-32 View of Define Host Systems panel
Enter the appropriate information in the Define host ports panel, as shown in Figure 9-32.
Click Add, and the Define host ports panel will update the new information as shown in
Figure 9-33.
Figure 9-33 View of Define host ports panel with updated host information
Note: Selecting Group ports to share a common set of volumes will group the host
ports together into one attachment. Each host port will require a WWPN to be entered now,
if you are using the Real-time Manager, or later if you are using the Simulated Manager.
Chapter 9. The DS Storage Manager: Logical configuration 179
Click Next, and the screen will advance to the Select storage units panel shown in
Figure 9-34.
Figure 9-34 View of the Select storage unit panel
Highlight the Available storage units that you wish, click Add and Next.
The screen will advance to the Specify storage units parameters shown in Figure 9-35 on
page 180.
180 DS6000 Series: Concepts and Architecture
Figure 9-35 View of the Specify storage units parameters panel
Under the Specify storage units parameters, do the following:
1. Click the Select volume group for host attachment pull-down, and highlight Select
volume group later.
2. Click any valid storage unit I/O ports under the This host attachment can login to field.
3. Click Apply assignment and OK.
4. Verify and click Finish.
9.3.4 Creating arrays from array sites
Under Configure Storage, click Arrays. The screen will advance to the Create Arrays:
Simulated panel (not shown here).
Click the Storage complex pull-down, and highlight the storage complex on which you wish
to configure, click Create and Go. The screen will advance to the Definition method panel
shown in Figure 9-36.
Chapter 9. The DS Storage Manager: Logical configuration 181
Figure 9-36 View of the Definition method panel
From the Definition method panel, if you choose Create arrays automatically, the system
will automatically take all the space from an array site and place it into an array. You will also
notice that by clicking the check box next to Create an 8 disk array, that two 4 disk array
sites will be placed together to form an eight disk array. Physical disks from any array site
could be placed, through a predetermined algorithm, into the array. It is at this point that you
create the RAID-5 or RAID-10 format and striping in the array being created.
If you choose to create arrays automatically, the screen will advance to the Array
configuration (Auto) panel, as shown in Figure 9-37.
Figure 9-37 View of the Array configuration (Auto) panel
Clicking the check box will
make an eight disk array
182 DS6000 Series: Concepts and Architecture
Enter the appropriate information for the quantity of the arrays and the RAID type.
Click Next to advance to the Add arrays to ranks panel shown in Figure 9-38.
If you click the check box next to the Add these arrays to ranks, then you will not have to
configure the ranks separately at a later time. The ranks take on either storage type FB or
CKD, as shown in Figure 9-38.
Figure 9-38 View of the Add arrays to ranks panel, with FB selected
Click Next to bring up the Verification panel, then click Finish to configure the arrays and
ranks in one step.
If you choose to create custom arrays you will be directed to choose the four disk array sites
from which to create your eight disk arrays as shown in Figure 9-39.
Note: If you choose to create eight disk arrays, then you will only have half as many arrays
and ranks as if you would have chosen to create four disk arrays.
Chapter 9. The DS Storage Manager: Logical configuration 183
Figure 9-39 View of creating custom arrays from four disk array sites.
At this point you can select from the list of four disk array sites to put together to make an
eight disk array. If you click Next the second array-site selection panel is displayed, as shown
in Figure 9-40 on page 184.
184 DS6000 Series: Concepts and Architecture
Figure 9-40 View of the second array-site selection panel
From this panel you can select the array sites from the pull-down list to make an eight disk
array.
9.3.5 Creating extent pools
To create extent pools, expand the Configure Storage section, click Extent pools, click
Create from the Select Action pull-down and click Go. Follow the panel directions with each
advancing window.
You can select either the Custom extent pool or the Create extent pool automatically
based on storage requirements radio button as shown in Figure 9-41.
Figure 9-41 View of the Definition method panel
Chapter 9. The DS Storage Manager: Logical configuration 185
The extent pools will take on either a server 0 or server 1 affinity at this point, as shown in
Figure 9-42.
Figure 9-42 View of Define properties panel
Click Next and Finish.
9.3.6 Creating FB volumes from extents
Under Simulated Manager, expand the Open systems section and click Volumes.
Click Create from the Select Action pull-down and click Go. Follow the panel directions with
each advancing window.
Choose the extent pool from which you wish to configure the volumes, as shown in
Figure 9-43 on page 186.
186 DS6000 Series: Concepts and Architecture
Figure 9-43 View of the Select extent pool panel
To determine the quantity and size of the volumes, use the calculators to determine the max
size versus quantity as shown in Figure 9-44.
Figure 9-44 The Define volume properties panel
It is here that the volume will take on the LSS numbering affinity.
radio button
Even numbered LSSs
Chapter 9. The DS Storage Manager: Logical configuration 187
You can give the volume a unique name and number that may help you manage the volumes,
as shown in Figure 9-45.
Figure 9-45 View of the Create volume nicknames panel
Click Finish to end the process of creating the volumes.
9.3.7 Creating volume groups
Under Simulated Manager → Open Systems, perform the following steps to configure the
volume groups:
1. Click Volume Groups.
2. Click Create.
3. Click Go.
Fill in the appropriate information as directed in the panel menu. You will have to specify the
host type as shown in Figure 9-46 on page 188.
Note: Since server 0 was selected for the extent pool, only even LSS numbers are
selectable, as shown in Figure 9-44.
188 DS6000 Series: Concepts and Architecture

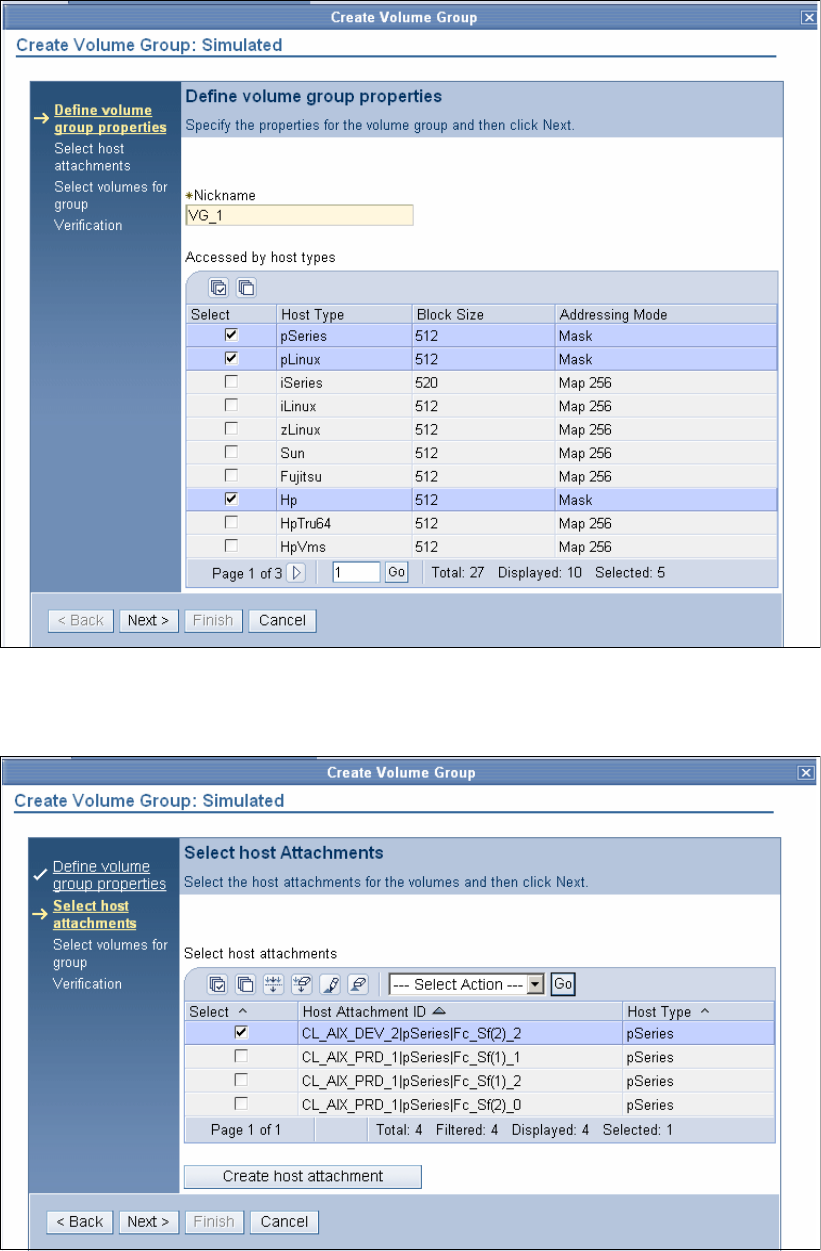

Figure 9-46 The Define volume group properties filled out
Select the host attachment you wish to associate the volume group with. See Figure 9-47.
Figure 9-47 The Select host Attachments panel, with an attachment selected
Chapter 9. The DS Storage Manager: Logical configuration 189
Select the volumes for the group panel, as shown in Figure 9-48.
Figure 9-48 The Select volumes for group panel
Click Finish.
9.3.8 Assigning LUNs to the hosts
Under Simulated Manager, perform the following steps to configure the volumes:
1. Click Volumes.
2. Select the check box next to the volume that you want to assign.
3. Click the Select Action pull-down, and highlight Add To Volume Group.
4. Click Go.
5. Click the check box next to the desired volume group and click the Apply button.
6. Click OK.
You can verify that the volume is now assigned to the desired host’s volume group by
performing the following steps:
1. Click Host Systems.
2. Click the check box next to the Host nickname.
3. Click the Select Action pull-down, and highlight Properties.
4. Click Go.
The properties box will be displayed.
9.3.9 Deleting LUNs and recovering space in the extent pool
Under Simulated Manager, perform the following steps to configure the volumes:
1. Click Volumes.
2. Click the check box next to the targeted volume you want to delete.
3. Click the Select Action pull-down, and highlight Delete.
190 DS6000 Series: Concepts and Architecture
4. Click Go.
5. Click OK.
9.3.10 Creating CKD LCUs
Under Simulated Manager, zSeries, perform the following steps:
1. Click LCUs.
2. Click the Select Action pull-down, and highlight Create.
3. Click Go.
4. Click the check box next to the LCU ID you wish to create.
5. Click Next.
6. In this panel do the following:
a. Enter the desired SSID.
b. Select the LCU type.
c. Accept the defaults on the other input boxes, unless you are using Copy Services.
7. Click Next.
8. Click Finish.
9.3.11 Creating CKD volumes
Under Simulated Manager, zSeries, perform the following steps:
1. Click Volumes → zSeries.
2. Click the Select Action pull-down, and highlight Create.
3. Click Go.
4. In the Select Extent pool panel, click the radio button next to the targeted extent pool you
want to configure the volume from.
5. Click Next.
6. Click the Volume type pull-down, and select the Volume type desired.
7. Highlight the LCU number or work with all available LCUs.
8. Click Next.
9. In the Define base properties panel do the following:
a. Select the radio button next to the Addressing policy.
b. Enter the quantity of base volumes.
c. Enter the base start address.
d. Click Next.
10.In the next panel, do the following:
a. Enter the volume Nickname.
b. Enter the volume prefix.
c. Enter the volume suffix.
11.Click Next.
Chapter 9. The DS Storage Manager: Logical configuration 191
12.Under the Define alias assignments panel, do the following:
a. Click the check box next to the LCU number.
b. Enter the starting address.
c. Select the order of Ascending or Descending.
d. Select the aliases per volumes. For example, 1 alias to every 4 base volumes, or 2
aliases to every 1 base volume.
e. Click Next.
13.Under the Verification panel, click Finish.
9.3.12 Using the Express Configuration Wizard
After you have created and defined the storage complex, unit, arrays, ranks, and extent
pools, you can use the Express Configuration Wizard to create FB or CKD volumes. Under
Configure Storage do the following:
1. Click Express Configuration Wizard.
2. Select the storage unit and volume type and click Next.
3. Fill out the appropriate information as shown in Figure 9-49.
Figure 9-49 View of the Open System Express volume creation
4. Continue to follow the menu prompts.
192 DS6000 Series: Concepts and Architecture
9.3.13 Displaying the storage units WWNN in the DS Storage Manager GUI
Under Simulated manager, perform the following steps to display the WWNN of the storage
unit:
1. Click Simulated manager as shown in Figure 9-50.
Figure 9-50 View of the Real-time Manager panel
2. Click Storage units.
3. Select the check box beside the storage unit name, as shown in Figure 9-51.
Figure 9-51 View of the storage unit with the radio button and the Properties selected
4. Select Properties from the pull-down as shown in Figure 9-51.
5. Click Go. The panel will advance to the General panel shown in Figure 9-52.
Chapter 9. The DS Storage Manager: Logical configuration 193
Figure 9-52 View of the WWNN in the General panel
The WWNN number is displayed as shown in Figure 9-52.
9.4 Summary
In this chapter we have discussed the configuration hierarchy, terminology and concepts. We
have recommended an order and methodology for configuring the DS6000 storage server.
We have included some logical configuration steps and examples and explained how to
navigate the GUI.
194 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 195
Chapter 10. DS CLI
This chapter provides an introduction to the DS Command-Line Interface (DS CLI), which can
be used to configure and maintain the DS6000 and DS8000 series. It also describes how it
can be used to manage Copy Services relationships.
In this chapter we describe:
򐂰Functionality
򐂰Supported environments
򐂰Installation methods
򐂰Command flow
򐂰User security
򐂰Usage concepts
򐂰Usage examples
򐂰Mixed device environments and migration
򐂰DS CLI migration example
10
196 DS6000 Series: Concepts and Architecture
10.1 Introduction
The IBM TotalStorage DS Command-Line Interface (the DS CLI) is a software package that
allows open systems hosts to invoke and manage Copy Services functions as well as to
configure and manage all storage units in a storage complex. The DS CLI is a full-function
command set. In addition to the DS6000 and DS8000, the DS CLI can also be used to
manage Copy Services on the ESS 750s and 800s, provided they are on ESS code versions
2.4.2.x and above. All references in this chapter to the ESS 800 also apply to the ESS 750.
Equally, references to the ESS F20 also apply to the ESS E20.
Examples of what you can perform include:
򐂰Display and change your storage configuration, for example, create and assign volumes.
򐂰Display existing Copy Services relationships and settings, for example, confirm that
remote copy relationships are active and in sync.
򐂰Create new Copy Services relationships and settings, for example, create a new
FlashCopy relationship.
For users of the ESS 800, the DS CLI provides the following new capabilities:
򐂰The ability to create a remote copy relationship between the ESS 800 and the DS8000 or
DS6000.
򐂰The ability to establish dynamic FlashCopy and remote copy relationships on ESS 800
storage servers without using saved tasks.
Prior to the DS CLI, the ESS Copy Services CLI generally did not allow a script to directly
invoke a FlashCopy or Remote Mirror and Copy relationship. Instead, a task had to be
created and saved first, using the Web Copy Services GUI. A script could then invoke this
saved task. Now with the DS CLI, commands can be saved as scripts, which significantly
reduces the time to create, edit and verify their content.
The DS CLI uses a syntax that is consistent with other IBM TotalStorage products. All new
products will also use this same syntax.
Important reference manuals for users of the DS CLI are the IBM TotalStorage DS8000
Command-Line Interface User’s Guide, SC26-7625, and IBM TotalStorage DS6000
Command-Line Interface User’s Guide, SC26-7681. These can be downloaded by going to
the relevant section of the following Web site:
http://www-1.ibm.com/servers/storage/support/disk/index.html
10.2 Functionality
The DS CLI can be used to invoke the following storage configuration tasks:
򐂰Create userids that can be used with the GUI and the DS CLI
򐂰Manage userid passwords
򐂰Install activation keys for licensed features
򐂰Manage storage complexes and units
򐂰Configure and manage storage facility images
򐂰Create and delete RAID arrays, ranks, and extent pools
򐂰Create and delete logical volumes
Chapter 10. DS CLI 197
򐂰Manage host access to volumes
򐂰Configure host adapter ports
The DS CLI can be used to invoke the following Copy Services functions:
򐂰FlashCopy - Point-in-time Copy
򐂰IBM TotalStorage Metro Mirror - Synchronous Peer-to-Peer Remote Copy (PPRC)
򐂰IBM TotalStorage Global Copy - PPRC-XD
򐂰IBM TotalStorage Global Mirror - Asynchronous PPRC
10.3 Supported environments
The DS CLI will be supported on a very wide variety of open systems operating systems. At
present the supported systems are:
򐂰AIX 5.1, 5.2, 5.3
򐂰HP-UX 11i v1, v2
򐂰HP Tru64 version 5.1, 5.1A
򐂰Linux RedHat 3.0 Advanced Server (AS) and Enterprise Server (ES)
򐂰SUSE Linux SLES 8, SLES 9
򐂰Novell Netware 6.5
򐂰Open VMS 7.3-1, 7.3-2
򐂰Sun Solaris 7, 8, and 9
򐂰Windows 2000, Windows Datacenter, Windows XP and Windows 2003
This list should not be considered final. For the latest list, consult the interoperability Web site
located at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.htm
or:
http://www.ibm.com/servers/storage/disk/ds8000/interop.htm
10.4 Installation methods
The DS CLI is supplied and installed via a CD that ships with the machine. The installation
does not require a reboot of the open systems host. The DS CLI requires Java™ 1.4.1 or
higher. Java 1.4.2 for Windows, AIX, and Linux is supplied on the CD. Many hosts may
already have a suitable level of Java installed.
The installation process can be performed via a shell, such as the bash or korn shell, or the
Windows command prompt, or via a GUI interface. If performed via a shell, it can be
performed silently using a profile file. The installation process also installs software that
allows the DS CLI to be completely de-installed should it no longer be required.
The exact install process doesn’t really vary by operating system. It consists of:
1. The DS CLI CD is placed in the CD-ROM drive (and mounted if necessary).
2. If using a command line, the user changes to the root directory of the CD. There is a setup
command for each supported operating system. The user issues the relevant command
198 DS6000 Series: Concepts and Architecture
and then follows the prompts. If using a GUI, the user navigates to the CD root directory
and clicks on the relevant setup executable.
3. The DS CLI is then installed. The default install directory will be:
– /opt/ibm/dscli - for all forms of UNIX
– C:\Program Files\IBM\dscli - for all forms of Windows
– SYS:\dscli - for Novell Netware
10.5 Command flow
To understand migration or co-existence considerations, it is important to understand the flow
of commands in both the ESS CLI and the DS CLI.
ESS Copy Services command flow using ESS Copy Services CLI
When using the ESS Copy Services CLI with an ESS 800, all commands are issued to a
Copy Services Server, present on one cluster of the ESS. Interaction with this server is via
either a Web Copy Services GUI interface, or via a CLI interface. To use the CLI, the open
systems host needs to have ESS Copy Services CLI software installed. An ESS CLI script will
issue commands to the CLI software, which then sends them to the primary Copy Services
Server (known as Server A). For backup, a second server can also be defined (known as
Server B).
Figure 10-1 on page 199 shows the flow of commands from host to server. When the Copy
Services (CS) server receives a command, it determines whether the volumes involved are
owned by cluster 1 or cluster 2. This is based on LSS membership (even numbered LSSs
belong to cluster 1, odd numbered LSSs belong to cluster 2). The CS server issues the
command to the client software on the correct cluster and then reports success or failure back
to the CLI software on the open systems host.
Chapter 10. DS CLI 199
Figure 10-1 Command flow for ESS 800 Copy Services commands
A CS server is now able to manage up to eight F20s and ESS 800s. This means that up to
sixteen clusters can be clients of the CS server. All FlashCopy and remote copy commands
are sent to the CS server which then sends them to the relevant client on the relevant ESS.
DS CLI command flow
Scripts that invoke DS CLI commands issue those commands to the installed DS CLI
software on the open systems host. If the command is intended for an ESS 800 volume, then
the DS CLI software sends it to the CS server on the ESS 800. If, however, the command is
intended for a DS8000, the command is issued to the CLI interpreter of the Storage Hardware
Management Console (S-HMC). The S-HMC then interprets the command and issues it to
the relevant server in the relevant DS8000 using the redundant internal network that connects
the S-HMCs to the DS8000.
Secure sockets
All DS CLI traffic is encrypted using SSL (secure sockets layer). This means that all traffic
between the host server that is running the DS CLI client and the DS CLI server (for example,
the S-HMC or the ESS 800 cluster) is secure, including passwords and userids.
TCP/IP ports
DS CLI servers (such as an S-HMC) use a fixed number of TCP/IP ports to listen on. These
ports are listed in Chapter 8, “Configuration planning” on page 125. This is important for
planning considerations, where a firewall may exist between the client and the server.
Open systems
host
Cluster 1
CS Client
Cluster 2
ESS 800
CS Client
CS Server B
CS Server A
Network interface
ESS CLI software
ESS CS CLI software
CLI script
200 DS6000 Series: Concepts and Architecture
Figure 10-2 DS CLI Copy Services command flow
DS8000 split network
One thing that you may notice about Figure 10-2 is that the S-HMC has different network
interfaces. The external network interface is an Ethernet port that must be accessible from the
open systems host network interface. The dual, internal network interfaces use the two
internal Ethernet switches within the DS8000 base frame to deliver the commands to the
relevant storage server. This means that the DS8000 itself is not on the same network as the
open systems host. The S-HMC therefore acts as a bridge between the external server
network and the internal DS8000 network.
Clearly a major benefit of this setup is that the internal network within the DS8000 has no
single points of failure. By using a second S-HMC it is possible to create a completely
redundant communications network for the DS CLI traffic between a host server and the
DS8000 servers.
DS6000 command flow
If a DS6000 is used, commands are instead issued to the DS Storage Manager PC, that has
to be supplied and set up when a DS6000 is installed. The DS Storage Manager PC then
issues the commands to the relevant DS6000 controller. This command flow is depicted in
Figure 10-3 on page 201.
Open systems
host
Cluster 1
CS Client
Cluster 2
ESS 800
CS Client
CS Server B
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
CS Server A
Network interface
ESS CLI software
DS CLI software
CLI script
Dual
internal
network
interfaces
CLI
interpreter
External
network
interface
Chapter 10. DS CLI 201
Figure 10-3 Command flow for the DS6000
For the DS6000, it is possible to install a second network interface card within the DS Storage
Manager PC. This would allow you to connect it to two separate switches for improved
redundancy.
ESS CLI co-existence
If co-existence with the ESS CS CLI is required, then both the DS CLI and the ESS CLI will
have to be installed on the same open systems host, as shown in Figure 10-4 on page 202.
Each CLI installs into a separate directory. Depending on how the scripts are written, ESS CLI
and DS CLI commands could be issued in the same script.
Open systems
host
Controller 1 Controller 2
DS6000
CLI interface
CLI interface
DS Storage
Management PC
CLI
interpreter
Network interface
Network interface
ESS CLI software
DS CLI software
CLI script
202 DS6000 Series: Concepts and Architecture
Figure 10-4 CLI co-existence
Storage management
ESS CLI commands that are used to perform storage management on the ESS 800, are
issued to a process known as the infoserver. An infoserver runs on each cluster, and either
infoserver can be used to perform ESS 800 storage management. Storage management on
the ESS 800 will continue to use ESS CLI commands. Storage management on the
DS6000/8000 will use DS CLI commands. This difference in command flow is shown in
Figure 10-5.
Figure 10-5 Storage management command flow
Open systems
host
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
Network interface
ESS CLI software
ESS CLI software DS CLI software
DS8000 tasks
ESS 800 tasks CLI
interpreter
Dual
internal
network
interfaces
External
network
interface
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Cluster 1
Infoserver
Cluster 2
ESS 800
Infoserver
Server 0 Server 1
DS8000
CLI interface
CLI interface
Storage HMC
CLI
interpreter
Open systems
host
Open systems
host
External
network
interface
Dual
internal
network
interfaces
Network interfaceNetwork interface
ESS CLI software DS CLI software
DS8000 tasks
ESS 800 tasks
Chapter 10. DS CLI 203
10.6 User security
The DS CLI software must authenticate with the DS MC or CS Server before commands can
be issued. An initial setup task will be to define at least one userid and password whose
authentication details are saved in an encrypted file. A profile file can then be used to identify
the name of the encrypted password file. Scripts that execute DS CLI commands can then
use the profile file to get the password needed to authenticate the commands.
User security employs the concept of groups to control which functions a particular userid is
allowed to perform. A userid can be a member of more than one group. The groups are:
򐂰admin - can perform all tasks - this is the only group that can create and change userids
򐂰op_storage - can perform any configuration task
򐂰op_volume - can configure logical volumes and volume groups
򐂰op_copy_services - can perform Copy Services commands
򐂰service - can perform service commands
򐂰monitor - has read-only access to commands
򐂰no_access - cannot perform any tasks
The functions of these groups are fairly self describing and are fully detailed both in the IBM
TotalStorage DS8000 Command-Line Interface User’s Guide, SC26-7625 and IBM
TotalStorage DS6000 Command-Line Interface User’s Guide, SC26-7681, and the help
screens. If a userid is not a member of any group, then it is automatically placed into the
no_access group to prevent it from performing any functions.
The default userid supplied with an S-HMC or DS Storage Manager is admin (whose default
password is also admin). During setup it is advisable that a new userid be created in the
admin group (for use if the password for the admin userid is lost). Note that userid
management can be performed by using either the DS CLI or by using the DS Storage
Manager GUI. Userids created by either interface will be usable via either interface.
For an example of how a userid and profile are created, refer to “Procedure to create an
encrypted password file” on page 213.
10.7 Usage concepts
It is important to understand the various concepts that frame DS CLI usage.
10.7.1 Command modes
The DS CLI can be operated in three modes. In the examples that follow, the lsuser
command is used. The lsuser command is used to display which users have been created
and to which groups they are a member.
Single command mode
At a shell prompt, the user specifies a single DS CLI command which is immediately
executed, and a return code is presented. To avoid having to enter authentication details, a
profile or a password file would have to be created first. This is shown in Example 10-1.
Example 10-1 Using DS CLI via a single command
C:\Program Files\IBM\dscli>dscli lsuser
Name Group
=========================
admin admin
csadmin op_copy_services
204 DS6000 Series: Concepts and Architecture
exit status of dscli = 0
C:\Program Files\IBM\dscli>
It is also possible to include single commands in a script, though this is different from the
script mode described later. This is because every command that uses the DS CLI would
invoke the DS CLI and then exit it. A simple Windows script is shown in Example 10-2.
Example 10-2 A script to list all users and place their names in a file
@ECHO OFF
rem This script is used to list all DS CLI users
rem The lsuser command is executed and the output is sent to file called userlist.txt
dscli lsuser > userlist.txt
echo The user list has been created and placed in userlist.txt
If you are familiar with UNIX, then a simple example of creating a script is shown in
Example 10-3.
Example 10-3 Creating a DS CLI script
/opt/ibm/dscli >echo “dscli lsuser > userlist.txt” > listusers.sh
/opt/ibm/dscli >chmod +x listusers.sh
/opt/ibm/dscli >./listusers.sh
/opt/ibm/dscli >cat userlist.txt
Name Group
=========================
admin admin
/opt/ibm/dscli>
Interactive mode
In the interactive mode, the user starts the DS CLI program within a shell, and then issues DS
CLI commands until the DS CLI is no longer needed. At this point the user exits the DS CLI
program. To avoid having to enter authentication details, a profile or a password file would
have to be created first. The use of the interactive mode is shown in Example 10-4.
Example 10-4 Using DS CLI in interactive mode
C:\Program Files\IBM\dscli>dscli
dscli> lsuser
Name Group
=========================
admin admin
csadmin op_copy_services
dscli> exit
exit status of dscli = 0
C:\Program Files\IBM\dscli>
Script mode
The script mode allows a user to create a DS CLI script that contains multiple DS CLI
commands. These commands are performed one after the other. When the DS CLI executes
the last command, it ends and presents a return code. DS CLI scripts in this mode must
contain only DS CLI commands. This is because all commands in the script are executed by
Chapter 10. DS CLI 205
a single instance of the DS CLI interpreter. Comments can be placed in the script if they are
prefixed by a hash (#). A simple example of a script mode script is shown in Example 10-5.
Example 10-5 DS CLI script mode example
# This script issues the 'lsuser' command
lsuser
# end of script
In this example, the script was placed in a file called listAllUsers.cli, located in the scripts
folder within the DS CLI folder. It is then executed by using the dscli -script command, as
shown in Example 10-6.
Example 10-6 Executing DS CLI in script mode
C:\Program Files\IBM\dscli> dscli -script scripts\listAllUsers.cli
Name Group
===============
admin admin
C:\Program Files\IBM\dscli>
It is possible to create shell or Visual Basic scripts that combine both script mode and single
commands.
10.7.2 Syntax conventions
The DS CLI uses symbols and conventions that are standard in command-line interfaces.
These include the ability to input variables from a file and send output to a file. The DS CLI
commands are also designed to be case insensitive. This means commands can be entered
in either upper, lower, or mixed case, and still work.
10.7.3 User assistance
The DS CLI is designed to include several forms of user assistance. The main form of user
assistance is via the help command. Examples of usage include:
help Lists all available DS CLI commands.
help -s Lists all available DS CLI commands with brief descriptions of each.
help -l Lists all DS CLI commands with syntax information.
If the user is interested in more details about a specific DS CLI command, they can use -l
(long) or -s (short) against a specific command. In Example 10-7, the -s parameter is used to
get a short description of the mkflash command’s purpose.
Example 10-7 Use of the help -s command
dscli> help -s mkflash
mkflash The mkflash command initiates a point-in-time copy from source volumes to
target volumes.
In Example 10-8, the -l parameter is used to get a list of all the parameters that can be used
with the mkflash command.
206 DS6000 Series: Concepts and Architecture
Example 10-8 Use of the help -l command
dscli> help -l mkflash
mkflash [ { -help|-h|-? } ] [-fullid] [-dev storage_image_ID] [-tgtpprc] [-tgtoffline]
[-tgtinhibit] [-freeze] [-record] [-persist] [-nocp] [-wait] [-seqnum Flash_Sequence_Num]
SourceVolumeID:TargetVolumeID
Man pages
A man page is available for every DS CLI command. Man pages are most commonly seen in
UNIX-based operating systems to give information about command capabilities. This
information can be displayed by issuing the relevant command followed by -h, -help, or -?, for
example:
dscli> mkflash -help
or
dscli> help mkflash
10.7.4 Return codes
When the DS CLI is exited, an exit status code is provided. This is effectively a return code. If
DS CLI commands are issued as separate commands (rather than using script mode) then a
return code will be presented for every command. If a DS CLI command fails (for instance,
due to a syntax error or the use of an incorrect password), then a failure reason and a return
code will be presented. Standard techniques to collect and analyze return codes can be used.
The return codes used by the DS CLI are shown in Table 10-1.
Table 10-1 DS CLI return codes
In Example 10-9 a simple Windows batch file is used to query whether a FlashCopy
relationship exists between volumes 1004 and 1005. The batch file then queries the operating
system for the return code and provides a verbose response.
Example 10-9 Sample Windows bat file to test return codes
@ECHO OFF
dscli lsflash -dev IBM.2105-23953 1004:1005
if errorlevel 6 goto level6
if errorlevel 5 goto level5
if errorlevel 4 goto level4
if errorlevel 3 goto level3
if errorlevel 2 goto level2
if errorlevel 0 goto level0
:level6
Return code Category Description
0 Success The command was successful.
2 Syntax error There is a syntax error in the command.
3 Connection error There was a connection problem to the server.
4 Server error The DS CLI server had an error.
5 Authentication error Password or userid details are incorrect.
6 Application error The DS CLI application had an error.
Chapter 10. DS CLI 207
echo A DS CLI application error occurred.
goto end
:level5
echo An authentication error occurred. Check the userid and password.
goto end
:level4
echo A DS CLI Server error occurred.
goto end
:level3
echo A connection error occurred. Try pinging 10.0.0.1
echo If this fails call network support on 555-1001
goto end
:level2
echo A syntax error. Check the syntax of the command using online help.
goto end
:level0
echo No errors were encountered.
:end
Using this sample script, Example 10-10 shows what happens if there is a network problem
between the DS CLI client and server (in this example a 2105-800). The DS CLI provides the
error code (in this case CMUN00018E) which can be looked up in the DS CLI Users Guide.
The DS CLI also provides the exit status (in this example, exit status = 3). Finally, the batch
file interprets the return code and provides the user with some additional tips to resolve the
problem.
Example 10-10 Return code examples
C:\Program Files\IBM\dscli> checkflash.bat
CMUN00018E lsflash: Unable to connect to the management console server
exit status of dscli = 3
A connection error occurred. Try pinging 10.0.0.1
If this fails call network support on 555-1001
C:\Program Files\IBM\dscli>
10.8 Usage examples
It is not the intent of this section to list every DS CLI command and its syntax. If you need to
see a list of all the available commands, or require assistance using DS CLI commands, you
are better served by reading the IBM TotalStorage DS8000 Command-Line Interface User’s
Guide, SC26-7625, and IBM TotalStorage DS6000 Command-Line Interface User’s Guide,
GC26-7681. Or you can use the online help. Example 10-11 gives a sample configuration
script showing most of the storage management commands that are used on a DS6000 or
DS8000.
Example 10-11 Example of a configuration script
# The following command creates a CKD extent pool (CKD extent pool P0 will be created)
mkextpool -dev IBM.2107-9999999 -rankgrp 0 -stgtype ckd ckd_ext_pool0
# The following command creates an array (array A0 will be created)
mkarray -dev IBM.2107-9999999 -raidtype 5 -arsite S1
# The following command creates a rank (CKD rank R0 will be created)
mkrank -dev IBM.2107-9999999 -array A0 -stgtype ckd
208 DS6000 Series: Concepts and Architecture
# The following command checks the status of the ranks
lsrank -dev IBM.2107-9999999
# The following command assigns rank0 (R0) to extent pool 0 (P0)
chrank -extpool P0 -dev IBM.2107-9999999 R0
# The following command creates an LCU (LCU 02 will be created)
mklcu -dev IBM.2107-9999999 -ss FF02 -qty 1 -id 02
# The following command creates another LCU (LCU 04 will be created)
mklcu -dev IBM.2107-9999999 -ss FF04 -qty 1 -id 04
# The following command creates 32 CKD volumes (0200-021F will be created)
# These ckd volumes are on LCU 02
mkckdvol -dev IBM.2107-9999999 -extpool P0 -cap 3339 -name ckd_vol_#h 0200-021F
# The following command creates 32 CKD volumes (0400-041F will be created)
# These ckd volumes are on LCU 04
mkckdvol -dev IBM.2107-9999999 -extpool P0 -cap 3339 -name ckd_vol_#h 0400-041F
#The following command lists I/O ports to configure.
lsioport -dev IBM.2107-9999999
# The following commands set two I/O ports to FICON
setioport -topology ficon -dev IBM.2107-9999999 I0010
setioport -topology ficon -dev IBM.2107-9999999 I0011
10.9 Mixed device environments and migration
The Copy Services commands within the DS CLI are designed to interface with both the
DS6000 and DS8000 series and the ESS 800. They will not work with the ESS F20. The
storage management commands within the DS CLI also will not work with ESS 800. This
means that customers who currently have a mix of 800s and F20s will have to continue to use
the current ESS CLI, but could consider deploying the DS CLI for certain Copy Services
functions.
To explain in more detail for the ESS 800, there are two families of CLI commands. ESS
storage management CLI commands are used for storage management and configuration.
The ESS Copy Services CLI commands are used to manage and monitor Copy Services
relationships (FlashCopy and Remote Mirror and Copy). Currently both kinds of CLI are
installed by the same setup file. The DS CLI combines both these functions into one library of
commands. Table 10-2 shows which CLI should be used based on which hardware is
installed in a particular environment.
Table 10-2 Which CLI to use based on what hardware you have installed
ESS F20 ESS 800 DS6000 and 8000 CLI to use
Installed Not installed Not installed Use ESS CLI only.
Installed Installed Not installed Use ESS CLI for most functions. Consider use
of DS CLI for copy functions on the ESS 800.
Not installed Installed Installed Use DS CLI for all Copy Services. Use a
combination of ESS CLI and DS CLI for
storage management.
Not installed Not installed Installed Use DS CLI only.
Installed Installed Installed Use a combination of ESS CLI and DS CLI.
Chapter 10. DS CLI 209
Migration considerations
If your environment is currently using the ESS CS CLI to manage Copy Services on your
model 800s, you could consider migrating your environment to the DS CLI. Your model 800s
will need to be upgraded to a microcode level of 2.4.2 or above.
If your environment is a mix of ESS F20s and ESS 800s, it may be more convenient to keep
using only the ESS CLI. This is because the DS CLI cannot manage the ESS F20 at all, and
cannot manage storage on an ESS 800. If, however, a DS6000/8000 were to be added to
your environment, then you would use the DS CLI to manage remote copy relationships
between the DS6000/8000s and the ESS 800s. You could still use the ESS CLI to manage
the storage on the F20 and 800, FlashCopy on the F20 and any remote copy relationships
between the F20 and the 800.
10.9.1 Migration tasks
There are two phases to migrate existing FlashCopy or Remote Mirror and Copy scripts and
tasks from the ESS CLI to the DS CLI.
Phase one: Review
1. Review saved tasks in the ESS 800 Web Copy Services GUI and note the details of every
saved task that you wish to migrate. You can also use the ESS CLI to display the contents
of each saved task and write them to a file.
2. Review server scripts that perform task set up and execute saved ESS tasks.
Phase two: Perform
Having performed the review, the scripts need to be changed and created:
1. Translate the contents of the saved ESS 800 tasks into DS CLI commands. A mini DS CLI
script could be created for every saved task.
2. Translate server scripts that perform task set up and execute saved ESS 800 tasks. This
may involve the use of DS CLI commands to perform task setup and the execution of the
newly created mini scripts to achieve the same results as the saved tasks.
10.10 DS CLI migration example
As detailed previously, existing users of the ESS CS CLI with an ESS 800 can consider
migrating saved tasks to the DS CLI.
10.10.1 Determining the saved tasks to be migrated
Step one is to gather information regarding all saved tasks. This can be done via the GUI or
the command line. In this example there are many saved tasks (but only five are shown).
Figure 10-6 and Example 10-12 show two ways to get a list of saved tasks on the ESS CS
Server. In Figure 10-6 the Tasks button has been selected in the ESS 800 Web Copy
Services GUI.
Note: You might consider requesting assistance from IBM in the migration phase.
Depending on your geography, IBM can offer CLI migration services to help you ensure the
success of your project.
210 DS6000 Series: Concepts and Architecture
Figure 10-6 A portion of the tasks listed by using the GUI
In Example 10-12, the list task command is used. This is an ESS CLI command.
Example 10-12 Using the list task command to list all saved tasks (only the last five are shown)
arielle@aixserv:/opt/ibm/ESScli > esscli list task -s 10.0.0.1 -u csadmin -p passw0rd
Wed Nov 24 10:29:31 EST 2004 IBM ESSCLI 2.4.0
Task Name Type Status
------------------------------------------------------------------------
H_Epath_test16 PPRCEstablishPaths NotRunning
H_Epath_test17 PPRCEstablishPaths NotRunning
Brocade_pr_lss10 PPRCEstablishPair NotRunning
Brocade_pr_lss11 PPRCEstablishPair NotRunning
Flash10041005 FCEstablish NotRunning
10.10.2 Collecting the task details
Having collected the names of the saved tasks, the user needs to collect the contents of each
task. If viewing tasks via the GUI, you can highlight each task and click the Information
button to bring up the information panel for each task. An example is shown in Figure 10-7 on
page 211.
Chapter 10. DS CLI 211
Figure 10-7 Using the GUI to get the contents of a FlashCopy task
It makes more sense, however, to use the ESS CLI show task command to list the contents of
the tasks, as depicted in Example 10-13.
Example 10-13 Using the command line to get the contents of a FlashCopy task
mitchell@aixserv:/opt/ibm/ESScli > esscli show task -s 10.0.0.1 -u csadmin -p passw0rd -d
"name=Flash10041005"
Wed Nov 24 10:37:17 EST 2004 IBM ESSCLI 2.4.0
Taskname=Flash10041005
Tasktype=FCEstablish
Options=NoBackgroundCopy
SourceServer=2105.23953
TargetServer=2105.23953
SourceVol TargetVol
------------------------------------------------------------------------
1004 1005
10.10.3 Converting the saved task to a DS CLI command
Having collected the contents of a saved task, it can now be converted into a DS CLI task.
Using the data from Example 10-13, each parameter is translated to the correct value for a
DS CLI command in Table 10-3.
212 DS6000 Series: Concepts and Architecture
Table 10-3 Converting a FlashCopy task to DS CLI
So to create the DS CLI command, simply read down the third column:
mkflash -nocp -dev IBM.2105-23953 1004:1005
In Example 10-14 the user uses the DS CLI interactive mode. They issue the mkflash
command and then use lsflash to check the success of the command.
Example 10-14 Using interactive dscli mode without profiles
sharon@aixsrv:/opt/ibm/dscli > dscli
dscli> mkflash -nocp -dev IBM.2105-23953 1004:1005
CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
dscli> lsflash -dev IBM.2105-23953 1004:1005
ID SrcLSS SequenceNum Timeout ActiveCopy Recoding Persistent Revertible
===============================================================================
1004:1005 10 0 120 Disabled Disabled Disabled Disabled
dscli>
ESS CS CLI
parameter
Saved task
parameter
DS CLI coversion Explanation
Tasktype FCEstablish mkflash An FCEstablish becomes a
mkflash.
Options NoBackgroundCopy -nocp To do a FlashCopy no-copy
we use the -nocp parameter.
SourceServer 2105.23953 -dev IBM.2105-23953 The format of the serial
number changes. you must
use the exact syntax.
TargetServer 2105.23953 N/A We only need to use the
-dev once, so this is
redundant.
Source and Target vols 1004 1005 1004:1005 The volume numbers don’t
change. We simply separate
them with a full colon.
Important: On the ESS 800, open systems volume IDs are given in an 8 digit format,
xxx-sssss where xxx is the LUN ID and sssss is the serial number of the ESS 800. In the
example used in this appendix the volumes shown are 004-23953 to 005-23953. These
volumes are open systems, or fixed block volumes. When referring to them in the DS CLI,
you must add 1000 to the volume ID, so volume 004-23953 is volume ID 1004 and volume
005-23953 is volume ID 1005. This is very important because on the ESS 800, the
following address ranges are actually used:
0000 to 0FFF CKD z/Series volumes (4096 possible addresses)
1000 to 1FFF Open systems fixed block LUNs (4096 possible addresses)
If we intend to use FlashCopy to copy ESS LUN 004-23953 onto 005-23953 using DS CLI,
we must specify 1004 and 1005. If instead we specify 0004 and 0005, we will actually run
the FlashCopy against CKD volumes. This may result in an unplanned outage on the
zSeries system that was using CKD volume 0005.
The ESS CLI command, show task, will show the correct value for the volume ID
Chapter 10. DS CLI 213
You can also confirm the status of the FlashCopy by using the Web Copy Services GUI, as
shown in Figure 10-8.
Figure 10-8 FlashCopy status via the ESS 800 Web Copy Services GUI
10.10.4 Using DS CLI commands via a single command or script
Having translated a saved task into a DS CLI command, you may now want to use a script to
execute this task upon request. Since all tasks must be authenticated you will need to create
a userid.
Creating a user ID for use only with ESS 800
When using the DS CLI with an ESS 800, authentication is performed by using a userid and
password created with the ESS Specialist. If you have an ESS 800, but not a DS8000 or
DS6000 offline configurator, or an S-HMC, then you will not be able to create an encrypted
password file. Instead you will need to specify the password and userid in the script file itself.
This is no different than with the current ESS CLI, except that userids created using the ESS
800 Web Copy Service Server are not used (the userid used is an ESS Specialist userid).
If you have DS CLI access to a DS offline configuration tool, S-HMC or DS Storage
Management console, then you can create an encrypted password file. This will allow you to
avoid specifying the password or userid in plain text, in any script or profile.
Procedure to create an encrypted password file
User management with the DS CLI is via the mkuser command to create userids, and the
chuser command to change passwords. These commands must be issued by a userid in the
admin group. There is also rmuser to remove a userid. An example is:
mkuser -group op_copy_services -pw tempw0rd csadmin
In this example, a userid called csadmin has been created which can be used either for CLI
authentication or to log on to the DS Storage Manager GUI. The password is tempw0rd and
the user is a member of the op_copy_services group. This means the user cannot configure
storage or create other users, but can manage Copy Services relationships. When the userid
is first used, the password has to be changed. In this example, the user changes the
password to passw0rd:
chuser -pw passw0rd csasdmin
Now if a password file is needed, it will need to be created with the managepwfile command.
An example is:
managepwfile -action add -name csadmin -pw passw0rd
214 DS6000 Series: Concepts and Architecture
Having added the userid called csadmin, the password has been saved in an encrypted file
called security.dat. By default, the file is placed in:
򐂰c:\Documents and settings\<Windows user name>\DSCLI\security.dat
or
򐂰$HOME/dscli/security.dat
You can however use the -pwfile parameter to place this file anywhere.
Setting up a profile
Having created a userid, you will need to edit the profile used by the DS CLI to store the
S-HMC IP address (or fully qualified name) and other common parameters. By default profile
is located at C:\Program Files\IBM\dscli\profile\dscli.profile or /opt/ibm/dscli/dscli.profile. An
example of a secure profile is shown in Example 10-15.
Example 10-15 Example of a dscli.profile file
#DS CLI Profile
#
# Management Console/Node IP Address(es) are specified using the hmc parameter
# hmc1 and hmc2 are equivalent to -hmc1 and -hmc2 command line options.
# hmc1 is cluster 1 of 2105 800 23953
hmc1:10.0.0.1
#hmc2:127.0.0.1
# Username must be specified if a password file is used
username: csadmin
# Password filename is the name of an encrypted password file
# This file is located at C:\Program Files\IBM\dscli
pwfile: security.dat
# Default target Storage Image ID
# If the -dev parameter is needed in a command then it will default to the value here
# "devid" is equivalent to "-dev storage_image_ID"
# the default server that DS CLI commands will be run on is 2105 800 23953
devid: IBM.2105-23953
If you don’t want to create an encrypted password file, or do not have access to a simulator or
real DS MC, then you can specify the password in plain text. This is done either at the
command line or in a script or in the profile. This is not recommended since the password
itself is now not as secure. An example of a profile that contains plain text authentication
details is shown in Example 10-16.
Example 10-16 Example of a DS CLI profile that specifies the username and password
#DS CLI Profile
# hmc1 is cluster 1 of 2105 800 23953
hmc1:10.0.0.1
#The username to log onto the ESS
username: csadmin
# The password for csadmin:
password: passw0rd
Chapter 10. DS CLI 215
# Default target Storage Image ID
devid: IBM.2105-23953
An example of a command where the password is entered in plain text is shown in
Example 10-17. In this example the lsuser command is issued directly to a DS MC. Note that
the password will still be sent using SSL so a network sniffer would not be able to view it
easily. Note also that the syntax between the command and the profile is slightly different.
Example 10-17 Example of a DS CLI command that specifies the username and password
C:\Program Files\IBM\dscli>dscli -hmc1 10.0.0.1 -user admin -passwd passw0rd lsuser
Name Group
=============
admin admin
csadmin op_copy_services
exit status of dscli = 0
C:\Program Files\IBM\dscli>
Issuing a DS CLI command and scripting it
Having created a userid and preferably a password file, and then having edited the default
profile, it is now possible to issue DS CLI commands without logging onto the DS CLI
interpreter. An example is shown in Example 10-18.
Example 10-18 Establishing a FlashCopy with a single command
anthony@aixsrv:/opt/ibm/dscli > dscli mkflash -nocp 1004:1005
CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
exit status of dscli = 0
anthony@aixsrv:/opt/ibm/dscli >
The command can also be placed into a file and that file made executable. An example is
shown in Example 10-19.
Example 10-19 Creating an executable file
anthony@aixsrv:/home >echo “/opt/ibm/dscli/dscli mkflash -nocp 1004:1005” > flash1005
anthony@aixsrv:/home >chmod +x flash1005
anthony@aixsrv:/home >./flash1005
anthony@aixsrv:/home >CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully created.
anthony@aixsrv:/home >
Finally, the command could be issued using script mode. An example of creating and using
script mode is shown in Example 10-20.
Example 10-20 Using script mode
arielle@aixsrv:/opt/ibm/dscli >echo “mkflash -nocp 1004:1005” > scripts/flash1005
arielle@aixsrv:/opt/ibm/dscli >dscli -script scripts/flash1005
arielle@aixsrv:/opt/ibm/dscli >CMUC00137I mkflash: FlashCopy pair 1004:1005 successfully
created.
arielle@aixsrv:/opt/ibm/dscli >
216 DS6000 Series: Concepts and Architecture
10.11 Summary
This chapter has provided some important information about the DS CLI. This new CLI allows
considerable flexibility in how DS6000 and DS8000 series storage servers are configured and
managed. It also detailed how an existing ESS 800 customer can benefit from the new
flexibility provided by the DS CLI.
© Copyright IBM Corp. 2004. All rights reserved. 217
Part 4 Implementation
and management
in the z/OS
environment
In this part we discuss considerations for the DS6000 series when used in the z/OS
environment. The topics include:
򐂰z/OS software
򐂰Data migration in the z/OS environment
Part 4
218 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 219
Chapter 11. Performance considerations
This chapter discusses early performance considerations regarding the DS6000 series.
Disk Magic modelling for DS6000 is going to be available in early 2005. Contact your IBM
sales representative for more information about this tool and the benchmark testing that was
done by the Tucson performance measurement lab.
Note that Disk Magic is an IBM internal modelling tool.
We discuss the following topics in this chapter:
򐂰The challenge with today’s disk storage servers
򐂰How the DS6000 addresses this challenge
򐂰Specific considerations for open systems and z/OS
11
220 DS6000 Series: Concepts and Architecture
11.1 What is the challenge?
In recent years we have seen an increasing speed in developing new storage servers which
can compete with the speed at which processor development introduces new processors. On
the other side, investment protection as a goal to contain Total Cost of Ownership (TCO),
dictates inventing smarter architectures that allow for growth at a component level. IBM
understood this early on, introduced its Seascape® architecture, and brought the ESS into
the marketplace in 1999 based on this architecture.
11.1.1 Speed gap between server and disk storage
Disk storage evolved over time from simple structures to a string of disk drives attached to a
disk string controller without caching capabilities. The actual disk drive—with its mechanical
movement to seek the data, rotational delays and actual transfer rates from the read/write
heads to disk buffers—created a speed gap compared to the internal speed of a server with
no mechanical speed brakes at all. Development went on to narrow this increasing speed gap
between processor memory and disk storage server with more complex structures and data
caching capabilities in the disk storage controllers. With cache hits in disk storage controller
memory, data could be read and written at channel or interface speeds between processor
memory and storage controller memory. These enhanced storage controllers, furthermore,
allowed some sharing capabilities between homogenous server platforms like S/390-based
servers. Eventually disk storage servers advanced to utilize a fully integrated architecture
based on standard building blocks as introduced by IBM with the Seascape architecture.
Over time, all components became not only bigger in capacity and faster in speed, but also
more sophisticated; for instance, using an improved caching algorithm or enhanced host
adapters to handle many processes in parallel.
11.1.2 New and enhanced functions
Parallel to this development, new functions were developed and added to the next generation
of disk storage subsystems. Some examples of new functions added over time are dual copy,
concurrent copy, and eventually various flavors of remote copy and FlashCopy. These
functions are all related to managing the data in the disk subsystems, storing the data as
quickly as possible, and retrieving the data as fast as possible. Other aspects became
increasingly important, like disaster recovery capabilities. Applications demand increasing I/O
rates and higher data rates on one hand but shorter response times on the other hand. These
conflicting goals must be solved and are the driving force to develop storage servers such as
the new DS6000 series.
With the advent of the DS6000 and its server-based structure and virtualization possibilities,
another dimension of potential functions within the storage servers is created.
These storage servers grew with respect to functionality, speed, and capacity. Parallel to their
increasing capabilities, the complexity grew as well. The art is to create systems which are
well balanced from top to bottom, and these storage servers scale very well. Figure 11-1 on
page 221 shows an abstract and simplified comparison of the basic components of a host
server and a storage server. All components at each level need to be well-balanced between
each other to provide optimum performance at a minimum cost.
Chapter 11. Performance considerations 221
Figure 11-1 Host server and storage server comparison: Balanced throughput challenge
The challenge is obvious: Develop a storage server—from the top with its host adapters down
to its disk drives—that creates a balanced system with respect to each component within this
storage server and with respect to their interconnectivity with each other. All this must be
done while taking into consideration other requirements as well, like investment protection
and being competitive not only in performance but also with respect to price and reliability.
A further requirement is to keep the life cycle of the product as long as possible due to the
substantial development costs for an all new product. Furthermore, provide a storage family
approach with a single management interface and the potential to adopt new technology as it
develops on a component level. The simple picture suggests that this a more difficult task for
a storage server than for a host server. Perhaps it became this way with the evolving
complexity of storage servers.
11.2 Where do we start?
The IBM Enterprise Storage Server 2105 (ESS) already combined everything mentioned in
the previous paragraph when it appeared in the marketplace in 1999. Over time the ESS
evolved in many respects to enhance performance and to improve throughput. Despite the
powerful design, the technology and implementation used eventually reached its life cycle
end.
Looking more closely at the components in the ESS and their enhancements from the E20 to
the F20 to the 800 and 800 Turbo II models, some components reached their architectural
limits at various levels. This section briefly reviews the most obvious limitations that were
encountered over time as the other components were enhanced. It has to be noted that the
ESS 800 is still a very competitive disk storage server which outperforms other storage
servers in many respects.
Processor
Adapter
Adapter
Memory
Memory Processor
Processor
Adapter
Adapter
Memory
Memory Processor
Adapter
Adapter
To host servers
To storage servers
Host server
Storage server
222 DS6000 Series: Concepts and Architecture
11.2.1 SSA backend interconnection
The Storage Serial Architecture (SSA) connectivity with the SSA loops in the lower level of
the storage server or backend imposed RAID rank saturation and reached their limit of 40
MB/sec for a single stream file I/O. IBM decided not to pursue SSA connectivity, despite its
ability to communicate and transfer data within an SSA loop without arbitration.
11.2.2 Arrays across loops
Advancing from the F20 to the 800 model, the internal structures and buses increased two
fold and so did the backend with striping logical volumes across loops (AAL). This increased
the sequential throughput on an SSA loop from 40 MB/sec to 80 MB/sec for a single file
operation, distributing the backend I/O across two loops. Because of the increasing
requirements to serve more data and at the same time reduce the application I/O response
time, the SSA loop throughput was not sufficient and surfaced more often with RAID rank
saturation.
11.2.3 Switch from ESCON to FICON ports
The front end got faster when it moved from ESCON at 200 Mbps to FICON at 2 Gbps with an
aggregated bandwidth from 32 ESCON ports x 200 Mbps at 6.4 Gbps to 16 FICON ports with
2 Gbps each yielding 32 Gbps. Note that the pure technology, like 2 Gbps, is not enough to
provide good performance. The 2 Gbps FICON implementation in the ESS HA proved to
provide industry leading throughput in MB/sec as well as I/Os per second. An ESS FICON
port, even today, has the potential to exceed the throughput capabilities of other vendor’s
FICON ports.
When not properly configured (for example, with four FICON ports in the same HA), these
powerful FICON ports have the potential to saturate the respective host bay. Spreading
FICON ports evenly across all host bays puts increased pressure on the internals of the ESS
below the HA ports.
11.2.4 PPRC over Fibre Channel links
With PPRC over ESCON links there was some potential bottleneck when the HA changed
from ESCON to FICON. Despite a smart overlap and utilizing multiple PPRC ESCON links for
PPRC, the speed difference between FICON/FCP and ESCON channels introduced some
imbalance in the ESS. The ESS 800 finally introduced PPRC over FCP links with 2 Gbps.
Again this enhancement proves that the move to 2 Gbps technology is only half of the story.
With a smart implementation in the FCP port connection for PPRC, the performance of an
ESS FCP PPRC port is still not matched today by other implementation efforts.
These performance enhancements into and out of the ESS shifted potential bottlenecks back
into the internals of the ESS for very high write I/O rates with 15,000 write I/Os and more per
second.
11.2.5 Fixed LSS to RAID rank affinity and increasing DDM size
Another growing concern was the fixed affinity of logical subsystems (LSS) to RAID ranks and
the respective volume placement. Volumes had to reside within a single SSA loop and even
within the same RAID array; later in the A-loop and B-loop, but still bound to a single device
adapter (DA) pair.
Even more serious was the addressing issue with the 256 device limit within an LSS and the
fixed association to a RAID rank. With the growing disk drive module (DDM) size and
Chapter 11. Performance considerations 223
relatively small logical volumes, we ran out of device numbers to address an entire LSS. This
happens even earlier when configuring not only real devices (3390B) within an LSS, but also
alias devices (3390A) within an LSS in z/OS environments. By the way, an LSS is congruent
to an logical control unit (LCU) in this context. An LCU is only relevant in z/OS and the term is
not used for open systems operating systems.
11.3 How does the DS6000 address the challenge?
The DS6000 overcomes the architectural limits and bottlenecks which developed over time in
the ESS due to the increasing number of I/Os and MB/sec from application servers.
In this section we go through the different layers and discuss how they have changed to
address performance in terms of throughput and I/O rates.
11.3.1 Fibre Channel switched disk interconnection at the back end
Because SSA connectivity has not been further enhanced to increase the connectivity speed
beyond 40MB/sec, Fibre Channel connected disks were chosen for the DS6000 back end.
This technology is commonly used to connect a group of disks in a daisy-chained fashion in a
Fibre Channel Arbitrated Loop (FC-AL).
FC-AL shortcomings
There are some shortcomings with plain FC-AL. The most obvious ones are:
򐂰As the term arbitration implies, each individual disk within an FC-AL loop competes with
the other disks to get on the loop because the loop supports only one operation at a time.
򐂰Another challenge which is not adequately solved is the handling of failures within the
FC-AL loop, particularly with intermittently failing components on the loops and disks.
򐂰A third issue with conventional FC-AL is the increasing time it takes to complete a loop
operation as the number of devices increases in the loop.
For highly parallel operations, concurrent reads and writes with various transfer sizes, this
impacts the total effective bandwidth of an FC-AL structure.
How DS6000 series overcomes FC-AL shortcomings
The DS6000 uses the same Fibre Channel drives as used in conventional FC-AL-based
storage systems. To overcome the arbitration issue within FC-AL, the architecture is
enhanced by adding a switch-based approach and creating FC-AL switched loops, as shown
in Figure 11-2 on page 224. Actually it is called a Fibre Channel switched disk subsystem.
These switches use FC-AL protocol and attach FC-AL drives through a point-to-point
connection. The arbitration message of a drive is captured in the switch, processed and
propagated back to the drive, without routing it through all the other drives in the loop.
224 DS6000 Series: Concepts and Architecture
Figure 11-2 Switched FC-AL disk subsystem
Performance is enhanced as both DAs connect to the switched Fibre Channel disk subsystem
backend as displayed in Figure 11-3 on page 225. Note that each DA port can concurrently
send and receive data.
Processor
Adapter
Adapter
Memory Processor
Adapter
Adapter
To host servers
Storage server
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
Processor
Adapter
Adapter
Memory Processor
To storage servers
Host server
Chapter 11. Performance considerations 225
Figure 11-3 High availability and increased bandwidth connecting both DA to two logical loops
These two switched point-to-point loops to each drive, plus connecting both DAs to each
switch, accounts for the following:
򐂰There is no arbitration competition and interference between one drive and all the other
drives because there is no hardware in common for all the drives in the FC-AL loop. This
leads to an increased bandwidth utilizing the full speed of a Fibre Channel for each
individual drive. Note that the external transfer rate of a Fibre Channel DDM is 200
MB/sec.
򐂰Doubles the bandwidth over conventional FC-AL implementations due to two
simultaneous operations from each DA to allow for two concurrent read operations and
two concurrent write operations at the same time.
򐂰Despite the superior performance, don’t forget the improved RAS over conventional
FC-AL. The failure of a drive is detected and reported by the switch. The switch ports
distinguish between intermittent failures and permanent failures. The ports understand
intermittent failures which are recoverable and collect data for predictive failure statistics.
If one of the switches itself fails, a disk enclosure service processor detects the failing
switch and reports the failure using the other loop. All drives can still connect through the
remaining switch.
Processor
Adapter
Adapter
Memory
Memory Processor
Adapter
Adapter
To host servers
Storage server
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
To next
switch
226 DS6000 Series: Concepts and Architecture
This just outlines the physical structure. A virtualization approach built on top of the high
performance architecture contributes even further to enhanced performance. For details see
Chapter 4, “Virtualization concepts” on page 65.
11.3.2 Fibre Channel device adapter
The DS6000 still relies on eight DDMs to form a RAID-5 or a RAID-10 array. With the
virtualization approach and the concept of extents, the DAs are mapping the virtualization
level over the disk subsystem back end. For more details on the disk subsystem virtualization
refer to Chapter 4, “Virtualization concepts” on page 65.
Figure 11-4 Fibre Channel device adapter with 2 Gbps ports
The new RAID device adapter chipset connects to four 2 Gbps Fibre Channel ports and high
function, high performance ASICs. Each port provides up to five times the throughput of a
previous SSA-based DA port.
Note that each DA chipset performs the RAID logic and frees up the processors from this
task. The actual throughput and performance of a DA is not only determined by the 2 Gbps
ports and used hardware, but also by the firmware efficiency.
11.3.3 New four-port host adapters
Before looking into the server complex we briefly review the new host adapters and their
enhancements to address performance. Figure 11-5 on page 227 depicts the new host
adapters. These adapters are designed to hold four Fibre Channel ports, which can be
configured to support either FCP or FICON.
Each port continues the tradition of providing industry-leading throughput and I/O rates for
FICON and FCP.
Note that a FICON channel can address up to 16,384 devices through a FICON port. The
DS6000 series can hold up to 8,192 devices. So all devices within a DS6000 series can be
reached through a FICON port. Whether this is desirable is a different question and is
discussed further in “Configuration recommendations for z/OS” on page 237.
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
Storage server
Memory Processor
chipset
Power PC
chipset
Host adapter
memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
chipset
Device adapter
Card 1
Controller
Chapter 11. Performance considerations 227
With two sets of HA chip sets the DS6000 series can configure up to eight FICON or FCP
ports.
Figure 11-5 Host adapter with 4 Fibre Channel ports
With eight 2 Gbps ports the DS6000 series provides a theoretical aggregated host I/O
bandwidth of 8 times 2 Gbps. Note that besides the adapter used and port technology,
throughput depends also on the firmware efficiency and how the channel protocol is
implemented.
11.3.4 Enterprise-class dual cluster design for the DS6800
The DS6000 series provides a dual cluster or rather a dual server design, which is also found
in the ESS and DS8000 series. This offers an enterprise-class level of availability and
functionality in a space efficient, modular design at a low price.
The DS6000 series incorporates the latest PowerPC processor technology. A simplified view
is in Figure 11-6 on page 228. The dual-processor complex approach allows for concurrent
microcode loads, transparent I/O failover and failback support, and redundant, hot-swapable
components.
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
Storage server
Memory
2 Gbps Fibre Channel ports
Processor
chipset
Power PC memory
Processor
Persistent
Volatile
chipset
Host adapter
2 Gbps Fibre Channel ports
chipset
Device adapter
Card 1
Controller
228 DS6000 Series: Concepts and Architecture
Figure 11-6 Standard PowerPC processor complexes for DS6800-511
The next figure, Figure 11-7, provides a less abstract view. It outlines some details on the
dual processor complex of the DS6800 enclosure and its gates to host servers through HAs,
and its connections to the disk storage backend through the DAs.
Figure 11-7 DS6800 server enclosure with its Fibre Channel switched disk subsystem
The DS6800 controls, through its two processor complexes, not only one I/O enclosure as
Figure 11-7 displays, but can connect to up to 7 expansion enclosures. Figure 11-8 on
page 229 shows a DS6800 with one DS6000 expansion enclosure.
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
Storage server
2 Gbps Fibre Channel ports
Card 1
Controller
chipset
Host adapter
chipset
Power PC memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
chipset
Device adapter
Processor
Card 0
Controller
chipset
Host adapter
chipset
Power PC
memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
Processor
Adapter
Adapter
Adapter
Adapter
To host servers
2 Gbps Fibre Channel ports
Card 1
Controller
chipset
Host adapter
chipset
Power PC
memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
2 Gbps Fibre Channel ports
Processor
chipset
Device adapter
chipset
Device adapter
Chapter 11. Performance considerations 229
Figure 11-8 DS6800 with one DS6000 expansion enclosure
Note that each Fibre Channel switch in the disk subsystems from here on connects to the
next pair of Fibre Channel switches through its two remaining ports. This is similar to
inter-switch links between Fibre Channel switches.
Through the affinity of extent pools to servers, the DA in a server is used to drive the I/O to the
disk drives in the host extent pools owned by its server.
When creating volumes in extent pools, these volumes get an affinity to a certain server
through the extent pool affinity to a server (see Chapter 4, “Virtualization concepts” on
page 65). This suggests even distribution of volumes across all ranks in the disk subsystems
and all loops to balance the workload. Although each HA port can reach any volume in the
disk subsystem, Figure 11-8 indicates also a server affinity to its local HA and its Fibre
Channel ports. This introduces the concept of a preferred path. When a volume has an
affinity, for example, to server 0, and is accessed through a port in the HA of server 0, then
the I/O is locally processed. When this volume is accessed through the HA of the other
server, in this example from server 1, then the I/O is routed to the server which owns the
extent pool, which here is server 0.
11.3.5 Vertical growth and scalability
Figure 11-9 on page 230 shows a simplified view of the basic DS6000 structure and how it
accounts for scalability.
2 Gbps Fibre Channel ports
Card 1
Controller
chipset
Host adapter
chipset
Power PC
memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
chipset
Device adapter
Card 0
Controller
chipset
Host adapter
chipset
Power PC
memory
Processor
Persistent
Volatile
2 Gbps Fibre Channel ports
chipset
Device adapter
2 Gbps Fibre Channel ports
ooo
Fibre Channel switch
Fibre Channel switch
ooo
Fibre Channel switch
Fibre Channel switch
Server enclosure
Expansion enclosure
16 DDM
16 DDM
To next
switch
Server 1Server 0
Interconnect
230 DS6000 Series: Concepts and Architecture
Figure 11-9 DS6000 interconnects to expansion enclosures and scales very well
Figure 11-9 outlines how expansion enclosures connect through inter-switch links to the
server enclosure. Note the two Fibre Channel loops which are evenly populated as the
number of expansion enclosures grow.
11.4 Performance and sizing considerations for open systems
To determine the most optimal DS6000 layout, the I/O performance requirements of the
different servers and applications should be defined up front since they will play a large part in
dictating both the physical and logical configuration of the disk subsystem. Prior to designing
the disk subsystem, the disk space requirements of the application should be well
understood.
11.4.1 Workload characteristics
The answers to questions like how many host connections do I need?, how much cache do I
need? and the like always depend on the workload requirements (such as, how many I/Os per
second per server, I/Os per second per gigabyte of storage, and so forth).
The information you need, ideally, to conduct detailed modeling includes:
򐂰Number of I/Os per second
򐂰I/O density
򐂰Megabytes per second
򐂰Relative percentage of reads and writes
򐂰Random or sequential access characteristics
򐂰Cache hit ratio
Server enclosure
Expansion enclosure
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
Server 0 Server 1
Expansion enclosure
Expansion enclosure
Chapter 11. Performance considerations 231
11.4.2 Data placement in the DS6000
Once you have determined the disk subsystem throughput, the disk space and number of
disks required by your different hosts and applications, you have to make a decision regarding
the data placement.
As is common for data placement and to optimize the DS6000 resources utilization, you
should:
򐂰Equally spread the LUNs across the DS6000 servers.
Spreading the LUNs equally on rank group 0 and 1 will balance the load across the
DS6000 servers.
򐂰Use as many disks as possible.
򐂰Distribute across DA pairs and loops.
򐂰Stripe your logical volume across several ranks.
򐂰Consider placing specific database objects (such as logs) on different ranks.
All disks in the storage subsystem should have roughly the equivalent utilization. Any disk that
is used more than the other disks will become a bottleneck to performance. A practical
method is to make extensive use of volume level striping across disk drives.
11.4.3 LVM striping
Striping is a technique for spreading the data in a logical volume across several disk drives in
such a way that the I/O capacity of the disk drives can be used in parallel to access data on
the logical volume. The primary objective of striping is very high performance reading and
writing of large sequential files, but there are also benefits for random access.
DS6000 logical volumes are composed of extents. An extent pool is a logical construct to
manage a set of extents. One or more ranks with the same attributes can be assigned to an
extent pool. One rank can be assigned to only one extent pool. To create the logical volume,
extents from one extent pool are concatenated. If an extent pool is made up of several ranks,
a LUN can potentially have extents on different ranks and so be spread over those ranks.
However, to be able to create very large logical volumes, you must consider having extent
pools that span more than one rank. In this case, you will not control the position of the LUNs
and this may lead to an unbalanced implementation as shown in Figure 11-10 on page 232.
Combining extent pools made up of one rank and then LVM striping over LUNs created on
each extent pool, will offer a balanced method to evenly spread data across the DS6000 as
shown in Figure 11-10.
Note: Database logging usually consists of sequences of synchronous sequential writes.
Log archiving functions (copying an active log to an archived space) also tend to consist of
simple sequential read and write sequences. You should consider isolating log files on
separate arrays.
Note: We recommend assigning one rank per extent pool to control the placement of the
data. When creating a logical volume in an extent pool made up of several ranks, the
extents for this logical volume are taken from the same rank if possible.
232 DS6000 Series: Concepts and Architecture
Figure 11-10 Spreading data across ranks
The stripe size
Each striped logical volume that is created by the host’s logical volume manager has a stripe
size that specifies the fixed amount of data stored on each DS6000 logical volume (LUN) at
one time.
11.4.4 Determining the number of connections between the host and DS6000
When you have determined your workload requirements in terms of throughput, you have to
choose the appropriate number of connections to put between your open systems and the
DS6000 to sustain this throughput.
A Fibre Channel host port can sustain a maximum of 206 MB/s data transfer. As a general
recommendation, you should at least have two FC connections between your hosts and your
DS6000.
Note: The recommendation is to use host striping wherever possible to distribute the read
and write I/O access patterns across the physical resources of the DS6000.
Note: The stripe size has to be large enough to keep sequential data relatively close
together, but not too large so as to keep the data located on a single array.
The recommended stripe sizes that should be defined using your host’s logical volume
manager are in the range of 4MB to 64MB.
You should choose a stripe size close to 4 MB if you have a large number of applications
sharing the arrays and a larger size when you have very few servers or applications
sharing the arrays.
Extent Pool
Rank 5
Rank 6
Rank 7
Rank 8
8GB LUN
Extent
1GB
Rank 1 Extent pool 1
Rank 3
Rank 4
2 GB LUN 1
Extent
1GB
Extent Pool 5
Rank 2
Non-balanced implementation: LUNs across ranks
More than 1 rank per extent pool
2GB LUN 2
2GB LUN 3
2GB LUN 4
Extent pool 2Extent pool 2
Extent pool 3
Extent pool 4
Balanced implementation: LVM striping
1 rank per extent pool
LV stripped across 4 LUNs
Chapter 11. Performance considerations 233
11.4.5 Determining the number of paths to a LUN
When configuring the IBM DS6000 for an open systems host, a decision must be made
regarding the number of paths to a particular LUN, because the multipath software allows
(and manages) multiple paths to a LUN. There are two opposing factors to consider when
deciding on the number of paths to a LUN:
򐂰Increasing the number of paths increases availability of the data, protecting against
outages.
򐂰Increasing the number of paths increases the amount of CPU used because the multipath
software must choose among all available paths each time an I/O is issued.
A good compromise is between 2 and 4 paths per LUN.
Subsystem Device Driver (SDD): Dynamic I/O load balancing
The Subsystem Device Driver is a pseudo device driver designed to support the multipath
configuration environments in the IBM TotalStorage DS6000. It resides in a host system with
the native disk device driver as described in Chapter 14, “Open systems support and
software” on page 275.
The dynamic I/O load-balancing option (default) of SDD is recommended to ensure better
performance because:
򐂰SDD automatically adjusts data routing for optimum performance. Multipath load
balancing of data flow prevents a single path from becoming overloaded, causing
input/output congestion that occurs when many I/O operations are directed to common
devices along the same input/output path.
򐂰The path to use for an I/O operation is chosen by estimating the load on each adapter to
which each path is attached. The load is a function of the number of I/O operations
currently in process. If multiple paths have the same load, a path is chosen at random
from those paths.
11.4.6 Determining where to attach the host
When determining where to attach multiple paths from a single host system to I/O ports on
the DS6000, the following considerations apply:
򐂰Enure that the host has at least two connections to the DS6000, using one host I/O port
on DS6000 controller 0 and one host I/O port on controller 1.
򐂰If you need more than two paths from a host to the DS6000, spread the attached I/O ports
evenly between the two DS6000 controllers.
The DS6000 host adapters, device adapters and ranks all have affinity to one DS6000
controller card or the other.
11.5 Performance and sizing considerations for z/OS
Here we discuss some z/OS-specific topics regarding the performance potential of the
DS6000. We also address what to consider when you configure and size a DS6000 to replace
older storage hardware in z/OS environments.
234 DS6000 Series: Concepts and Architecture
11.5.1 Connect to zSeries hosts
Figure 11-11 displays a configuration fragment on how to connect a DS6800 to a FICON
host.
Figure 11-11 DS6800 front end connectivity example - partial view
The physical connectivity does not reveal what is important to consider when creating logical
volumes and assigning these volumes to LCUs. Before considering different configuration
approaches, we provide some general discussion on the potential of the DS6000 series in the
following sections.
11.5.2 Performance potential in z/OS environments
FICON channels started in the IBM 9672 G5 and G6 servers with 1 Gbps. Eventually these
channels were enhanced to FICON Express channels in IBM 2064 and 2066 servers, with
double the speed, so they now operate at 2 Gbps.
The DS6000 series provides only 2 Gbps FCP ports, which can be configured either as
FICON to connect to zSeries servers or as FCP ports to connect to Fibre Channel-attached
open systems hosts. The example in Figure 11-11 shows only two FICON Express channels.
But just two FICON Express channels have the potential to provide roughly a bandwidth of 2 x
175 MB/sec, which equals 350 MB/sec. This is a very conservative number. Some
measurements show up to 206 MB/sec per 2 Gbps FICON Express channel and 406 MB/sec
aggregated for this particular example with just two FICON Express channels.
I/O rates with 4 KB blocks are in the range of 6,800 I/Os per second or more per FICON
Express channel, again a conservative number. A single FICON Express channel can
actually perform up to about 9,000 read hit I/Os per second on the DS8000. This particular
example in Figure 11-11 with only two FICON Express channels has the potential of over
Server enclosure
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
ooo
Fibre Channel switch
Fibre Channel switch
16 DDM
Server 0 Server 1
Expansion enclosure
blue red
red I/O
blue I/Ored I/O
blue I/O
preferred pathpreferred path
Chapter 11. Performance considerations 235
13,600 I/Os per second with the conservative numbers. These numbers vary depending on
the server type used.
The ESS 800 has an aggregated bandwidth of about 500 MB/sec for highly sequential reads
and about 350 MB/sec for sequential writes. The DS6800 can achieve higher data rates than
an ESS 800.
In a z/OS environment a typical transaction workload might perform on an ESS 800 Turbo II
with a large cache configuration slightly better than with a DS6800. This is the only example
where the ESS 800 outperforms the DS6800. In all open systems environments, the DS6800
performs better than the ESS 800. This is also true for sequential throughput in z/OS
environments.
11.5.3 An appropriate DS6000 size in z/OS environments
The potential of the architecture, its implementation and utilized technology allow for some
projections at this point (though without having the hard figures at hand). Rules of thumb have
the potential to be proven wrong. Therefore you see here some recommendations on sizing
which are rather conservative.
A fully configured ESS 800 Turbo with CKD volumes only and 16 FICON channels is good for
the following:
򐂰Over 30,000 I/Os per second
򐂰More than 500 MB/sec aggregated sequential read throughput
򐂰About 350 MB/sec sequential write throughput in mirrored cache
Without discrete DS6000 benchmark figures, a sizing approach to follow could be to propose
how many ESS 800s might be consolidated into a DS6000 model. From that you can derive
the number of ESS 750s, ESS F20s, and ESS E20s which can collapse into a DS6000. The
older ESS models have a known relationship to the ESS 800.
Further considerations are, for example, the connection technology used, like FICON or
FICON Express channels, and the number of channels.
Generally speaking, a properly configured DS6000 has the potential to provide the same or
better numbers than an ESS 800, except for transaction workloads with a large cache in the
ESS. Since the ESS 800 has the performance capabilities of two ESS F20s, a properly
configured DS6000 can replace two ESS F20s.
Processor memory size considerations for z/OS environments
Processor memory or cache in the DS6000 contributes to very high I/O rates and helps to
minimize I/O response time.
It is not just the pure cache size which accounts for good performance figures. Economical
use of cache and smart, adaptive caching algorithms are just as important to guarantee
outstanding performance. This is implemented in the DS6000 series, except for the cache
segment size, which is currently 68 KB.
Processor memory is subdivided into a data in cache portion, which holds data in volatile
memory, and a persistent part of the memory, which functions as NVS to hold DASD fast
write (DFW) data until staged to disk.
The IBM Tucson performance evaluation lab suggests a certain ratio between cache size to
backstore capacity. In general, the recommendation is:
򐂰0.5% cache to backstore ratio for z/OS high performance
236 DS6000 Series: Concepts and Architecture
򐂰0.2% cache to backstore ratio for high performance open systems
򐂰0.2% for z/OS for standard performance
򐂰A ratio of 0.1% between cache size and backstore capacity for open system environments
for standard performance
S/390 or zSeries channel consolidation
The number of channels plays a role as well when sizing DS6000 configurations and when
we know from where we are coming. The total number of channels that were used where you
are coming from has to be considered in the following way:
򐂰ESCON channels are not supported for the DS6000. When coming from an ESCON
environment and switching to FICON channels, a four to one ratio is very conservative.
Consider, for example, replacing 16 ESCON channels with four FICON Express channels.
Plan for four FICON channels as a minimum.
򐂰When the connected host uses FICON channels with 1 Gbps technology and it will stay at
this speed as determined by the host or switch ports, then keep the same number of
FICON ports. So an ESS 800 with eight FICON channels each connected to IBM 9672 G5
or G6 servers, might end up in a single DS6000 also with eight FICON channels.
򐂰When migrating not only to the DS6000 models but also from 1 Gbps FICON to FICON
Express channels at 2 Gbps, you can consider consolidating the number of channels to
about 2/3 of the original number of channels. Use at least four FICON channels per
DS6000. (By the way, when we write about FICON channels we mean FICON ports in the
disk storage servers.)
򐂰Coming from FICON Express channels, you should then keep a minimum of four FICON
ports. You might consider using 25% fewer FICON ports in the DS6000 than the
aggregated number of FICON 2 Gbps ports from the source environment. For example,
when you consolidate an ESS 800 with 10 FICON 2 Gbps ports to a DS6000, plan for all
eight possible FICON ports on the DS6000.
Disk array sizing considerations for z/OS environments
You can determine the number of ranks required not only based on the needed capacity, but
also depending on the workload characteristics in terms of access density, read to write ratio,
and hit rates.
You can approach this from the disk side and look at some basic disk figures. Fibre Channel
disks, for example, at 10k RPM, provide an average seek time of approximately 5 ms and an
average latency of 3 ms. For transferring only a small block, the transfer time can be
neglected. This is an average 8 ms per random disk I/O operation or 125 I/Os per second. A
15k RPM disk provides about 200 random I/Os per second for small block I/Os. A combined
number of 8 disks is then good for 1,600 I/Os per second when they spin at 15k per minute.
Reduce the number by 12.5% when you assume a spare drive in the 8 pack. Assume further
a RAID-5 logic over the 8 packs.
Back at the host side, consider an example with 4,000 I/Os per second and a read to write
ratio of 3 to 1 and 50% read cache hits. This leads to the following I/O numbers:
򐂰3,000 read I/Os per second.
򐂰1,500 read I/Os must read from disk.
򐂰1,000 writes with RAID-5, and assuming the worst case, results in 4,000 disk I/Os.
򐂰This totals 4,500 disk I/Os.
Chapter 11. Performance considerations 237
With 15K RPM DDMs you need the equivalent of three 8 packs to satisfy the I/O load from the
host for this example. Note the DS6000 can also be configured with a RAID array comprised
of four DDMs.
Depending on the required capacity, you then decide the disk capacity, provided each
desired disk capacity has 15k RPM. When the access density is less and you need more
capacity, follow the example with higher capacity disks, which usually spin at a slower speed
like 10k RPM.
In “Fibre Channel device adapter” on page 226 we stated that the disk storage subsystem DA
port in a DS6000 has about five times more sequential throughput capability than an ESS 800
DA port provides. Based on the 2 Gbps Fibre Channel connectivity to a DS6000 disk array,
this is approximately 200 MB/sec compared to the SSA port of an ESS disk array with 40
MB/sec. A Fibre Channel RAID array provides an external transfer rate of over 200 MB/sec.
The sustained transfer rate varies. For a single disk drive various disk vendors provide the
following numbers:
򐂰146 GB DDM with 10K RPM delivers a sustained transfer rate between 38 and 68 MB/sec,
or 53 MB/sec on average.
򐂰73 GB DDM with 15K RPM transfers between 50 and 75 MB/sec, or 62.5 MB/sec on
average.
The 73 GB DDMs have about 18% more sequential capability than the 146 GB DDM, but
60% more random I/O potential. The I/O characteristic is another aspect to consider when
deciding the disk and disk array size. Note that this discussion takes a theoretical approach,
but it is sufficient to get a first impression.
At GA the IBM internal tool, Disk Magic, helps to model configurations based on customer
workload data. An IBM representative can contact support personnel who will use Disk Magic
to configure a DS6000 accordingly.
Use Capacity Magic to find out about usable disk capacity. This tool is also available at an
IBM internal intranet sales site.
11.5.4 Configuration recommendations for z/OS
We discuss briefly how to group ranks into extent pools and what the implications are with
different grouping approaches. Note the independence of LSSs from ranks. Because an LSS
is congruent with a z/OS LCU, we need to understand the implications. It is now possible to
have volumes within the very same LCU, which is the very same LSS, but these volumes
might reside in different ranks and the ranks might be on different loops.
A horizontal pooling approach assumes that volumes within a logical volume pool, like all DB2
volumes, are evenly spread across all ranks and loops. This is independent of how these
volumes are represented in LCUs. The following sections assume horizontal volume pooling
across ranks, which might be congruent with LCUs when mapping ranks accordingly to LSSs.
Configure one extent pool for each single rank
Figure 11-11 on page 234 displays some aspects regarding the disk subsystem within a
DS6000:
򐂰Chapter 4, “Virtualization concepts” on page 65, introduced the construct of an extent
pool. When defining an extent pool an affinity is created between this specific extent pool
and a server. Due to the virtualization of the Fibre Channel switched disk subsystem you
might consider creating as many extent pools as there are RAID ranks in the DS6000.
This would then work similar to what is currently in the ESS. With this approach you can
238 DS6000 Series: Concepts and Architecture
control the placement of each single volume and where it ends up in the disk subsystem.
For the DS6000 this would have the advantage that you can plan for proper volume
placement with respect to preferred paths.
򐂰In the example in Figure 11-12 each rank is in its own extent pool. The evenly numbered
extent pools have an affinity to the left server, server 0. The odd number extent pools have
an affinity to the right server, server 1. When a rank is subdivided into extents it gets
assigned to its own extent pool.
򐂰Now all volumes which are comprised of extents out of an extent pool have also a
respective server affinity when scheduling I/Os to these volumes.
򐂰This allows you to place certain volumes in specific ranks to avoid potential clustering of
many high activity volumes within the same rank. You can create SMS storage groups
which are congruent to these extent pools to ease the management effort of such a
configuration. But you can still assign multiple storage groups when you are not
concerned about the placement of less active volumes.
Figure 11-12 Extent pool affinity to processor complex with one extent pool for each rank
Figure 11-12 indicates that there is an affinity between FICON ports and certain extent pools
and, therefore, an affinity between FICON ports and certain volumes within these extent
pools.
In this example either one of the two HAs can address any volume in any of the ranks. which
range here from rank number 1 to 12. But the HA and DA affinity to a server prefers one path
over the other. Now z/OS is able to notice the preferred path and then schedule an I/O over
the preferred path as long as the path is not saturated.
Server 0 Server 1
red I/O
blue I/Ored I/O
blue I/O
preferred pathpreferred path
blue red
Extent pool11
Rank
Extent pool9Extent pool7
Extent pool5Extent pool3
Extent pool1
11
9
7
53
1
812
10
264
Extent pool10Extent pool8Extent pool6
Extent pool4
Extent pool2Extent pool0
blue extent pools red extent pools
Chapter 11. Performance considerations 239
Minimize the number of extent pools
The other extreme is to create just two extent pools when the DS6000 is configured as CKD
storage only. You would then subdivide the disk subsystem evenly between both processor
complexes or servers as Figure 11-13 shows.
Figure 11-13 Extent pool affinity to processor complex with pooled ranks in two extent pools
Again what is obvious here is the affinity between all volumes residing in extent pool 0 to the
left processor complex, server 0, including its HA, and the same for the volumes residing in
extent pool 1 and their affinity to the right processor complex or server 1.
When creating volumes there is no straightforward approach to place certain volumes into
certain ranks. For example, when you create the first 20 DB2 logging volumes, they would be
allocated in a consecutive fashion in the first rank. The concerned RAID site would then host
all these 20 logging volumes. You may have the desire to control the placement of the most
critical performance volumes and also configure for preferred paths. This might lead to a
compromise between both approaches, as Figure 11-14 on page 240 suggests.
Plan for a reasonable number of extent pools
Figure 11-14 presents a grouping of ranks into extent pools which follows a similar pattern
and discussion as for grouping volumes or volume pools into SMS storage groups.
Server 0 Server 1
red I/O
blue I/Ored I/O
blue I/O
preferred pathpreferred path
blue red
8
6
12
10
4
2
Extent pool1
7
5
11
9
31
Extent pool0
Rank
240 DS6000 Series: Concepts and Architecture
Figure 11-14 Mix of extent pools
Create two general extent pools for all the average workload and the majority of the volumes
and subdivide these pools evenly between both processor complexes or servers. These
pools contain the majority of the installed ranks in the DS6000. Then you might consider two
or four smaller extent pools with dedicated ranks for high performance workloads and their
volumes. You may consider defining storage groups accordingly which are congruent to the
smaller extent pools.
Consider grouping the two larger extent pools into a single SMS storage group. SMS will
eventually spread the workload evenly across both extent pools. This allows a
system-managed approach to place data sets automatically in the right extent pools. With
more than one DS6000 you might consider configuring each DS6000 in a uniform fashion.
We recommend grouping all volumes from all the large extent pools into one large SMS
storage group. Cover the smaller, high performance extent pools through discrete SMS
storage groups for each DS6000. For example, in a dual logging database environment allow
assignment of extent pool0 to the first logging volume and extent pool1 for the second logging
volume. Consider a respective channel path configuration which takes preferred paths into
account.
11.6 Summary
The DS6000 high performance processor complex configuration is the base for a maximum
of host I/O operations per second. The DS6000 can handle I/O rates of about what an ESS
800 can deliver at maximum speed. With the introduction of the smart, switch-based Fibre
Channel disk back end, which overcomes the FC-AL arbitration overhead and operates at 2
Gbps speed, the DS6000 provides a better sequential throughput than an ESS 800.
The DS6000 series is designed to deliver enterprise-class storage capabilities in a space
efficient, modular design at a low price. It provides a wide capacity range from 16 DDMs up to
Server 0 Server 1
red I/O
blue I/Ored I/O
blue I/O
preferred pathpreferred path
blue red
blue extent pools red extent pools
Rank
Extent pool5
Extent pool1
Extent pool3
Extent pool4
Extent pool2
Extent pool0
1
3
5
7
9
11
135
79
11
Chapter 11. Performance considerations 241
128DDMs. Depending on the DDM size this reaches a total of up to 67.2 TB. Just the base
enclosure provides up to 4.8 TB of physical storage capacity with 16 DDMs and 300 GB per
DDM.
The small and fast DS6000 with its rich functionality and compatibility with the ESS 750,
ESS 800, and DS8000, in all functional respects makes this a very attractive choice.
242 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 243
Chapter 12. zSeries software enhancements
This chapter discusses z/OS, z/VM, z/VSE™, and Transaction Processing Facility (TPF)
software enhancements that support the DS6000 series. The enhancements include:
򐂰Scalability support
򐂰Large volume support
򐂰Hardware configuration definition (HCD) to recognize the DS6000 series
򐂰Performance statistics
򐂰Resource Measurement Facility (RMF)
򐂰Preferred pathing
12
244 DS6000 Series: Concepts and Architecture
12.1 Software enhancements for the DS6000
A number of enhancements have been introduced into the z/OS, z/VM, z/VSE,VSE/ESA and
TPF operating systems to support the DS6000. The enhancements are not just to support the
DS6000, but also to provide additional benefits that are not specific to the DS6000.
12.2 z/OS enhancements
The DS6000 series simplifies system deployment by supporting major server platforms. The
DS6000 will be supported on the following releases of the z/OS operating system and
functional products:
򐂰z/OS 1.4 and higher
򐂰Device support facility (ICKDSF) Release 17
򐂰Environmental Record Editing and Printing (EREP) 3.5
򐂰DFSORT™
To exploit the DS6000 in exploitation mode, the Data Facilities Storage Management
Subsystem (DFSMS) product of z/Series software is enhanced by way of a Small
Programming Enhancement (SPE).
Hosts with operating system software levels prior to z/OS 1.4 are not supported. zLinux will
only recognize the DS6000 as a 2105 device.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
Basic device support has been enhanced in the following areas:
򐂰Scalability support
򐂰Large Volume Support (LVS)
򐂰Read availability mask support
򐂰Initial Program Load (IPL) enhancements
򐂰DS6000 definition to host software
򐂰Read Control Unit and Device Recognition for DS6000
򐂰New performance statistics
򐂰Resource Measurement Facility (RMF)
򐂰Preferred pathing
򐂰Migration considerations
򐂰Coexistence considerations
12.2.1 Scalability support
The Input/Output subsystem (IOS) recovery is designed to support a small number of devices
per control unit. Today, a unit check is presented on all devices at failover. This does not scale
Important: Always review the latest Preventative Service Planning (PSP) 1750DEVICE
bucket for software updates.
Chapter 12. zSeries software enhancements 245
well with a DS6000 that has the capability to scale up to 8192 devices. With the current
support, we may have CPU or spin lock contention, or exhaust storage below the 16M line at
device failover.
Now with z/OS 1.4 and higher with the DS6000 software support, the IOS recovery has been
improved by consolidating unit checks at an LSS level instead of each disconnected device.
This consolidation will shorten the recovery time as a result of I/O errors. This enhancement
is particularly important as the DS6000 has a much higher number of devices compared to
the IBM 2105. In the IBM 2105, we have 4096 devices and in the DS6000 we have up to 8192
devices in a storage facility. With the enhanced scalability support, the following is achieved:
򐂰Common storage (CSA) usage (above and below the 16M line) is reduced.
򐂰IOS large block pool for error recovery processing and attention and state change
interrupt processing is located above the 16M line, thus reducing storage demand below
the 16M line.
򐂰Unit control blocks (UCB) are pinned and event notification facility (ENF) signalling is done
during channel path recovery.
Benefits of the scalability enhancements
These scalability enhancements provide additional performance improvements by:
򐂰Bypassing dynamic pathing validation in channel recovery for reduced recovery I/Os.
򐂰Reducing elapsed time, by reducing the wait time in channel path recovery.
12.2.2 Large Volume Support (LVS)
As we approach the limit of 64K UCBs, we need to find a way to stay within this limit. Today,
with the IBM 2105 volumes, 32,760 cylinders are supported. This gives us the capability to
remain within the 64K limit. But as today’s storage facilities tend to expand to even larger
capacities, we are approaching the 64K limit at a very fast rate. This leaves us no choice but
to plan for even larger volumes sizes. Support has been enhanced to expand volumes to
65,520 cylinders, using existing 16 bit cylinder addressing. This is often referred to as 64K
cylinder volumes. Components and products such as DADSM/CVAF, DFSMSdss, ICKDSF,
and DFSORT, previously shipped with 32,760 cylinders, now also support 65,520 cylinders.
Check point restart processing now supports a checkpoint data set that resides partially or
wholly above the 32,760 cylinder boundary.
With the new LVS volumes, the VTOC has the potential to grow very large. Callers such as
DFSMSdss will have to read the entire VTOC to find the last allocated DSCB. In cases where
the VTOC is very large, performance degradation will be experienced. A new interface is
implemented to return the high allocated DSCB on volumes initialized with an INDEX VTOC.
DFSMSdss uses this interface to limit VTOC searches and improve performance. The VTOC
has to be within the first 64K-1 tracks, while the INDEX can be anywhere on the volume.
12.2.3 Read availability mask support
Dynamic CHPID Management (DCM) allows the customer to define a pool of channels that
are managed by the system. The channels are added and deleted from control units based
on workload importance and availability needs. DCM attempts to avoid single points of failure
when adding or deleting a managed channel by not selecting an interface on the control unit
on the same I/O card.
246 DS6000 Series: Concepts and Architecture
Today control unit single point of failure information is specified in a table and must be
updated for each new control unit. Instead, we can use the Read Availability Mask command
to retrieve the information from the control unit. By doing this, there is no need to maintain a
table for this information.
12.2.4 Initial Program Load (IPL) enhancements
During the IPL sequence the channel subsystem selects a channel path to read from the
SYSRES device. Certain types of I/O errors on a channel path will cause the IPL to fail even
though there are alternate channel paths which may work (or example, there is a bad switch
link on the first path but good links on the other paths). In this case, you cannot IPL since the
same faulty path is always chosen.
The channel subsystem and z/OS is enhanced to retry I/O over an alternate channel path.
This will circumvent IPL failures, due to the selection of the same faulty path to read from the
SYSRES device.
12.2.5 DS6000 definition to host software
The DASD Unit Information Module (UIM) is changed to define the new control unit type of
1750. The attachable device list will include 3380 and 3390 device types that include base
and alias Parallel Access Volumes (PAV). HCD users have the option to select 1750 as a
control unit type with 3380, 3380A, 3380B, 3390, 3390A, 3390B device types that can be
defined to this control unit.
The definition of the 1750 control unit type will allow this storage facility to be uniquely
reflected in the Hardware Configuration Manager (HCM). The definition of the 1750 control
unit type in the HCD is not required to define an IBM 1750 storage facility to z/Series hosts.
Existing IBM 2105 definitions could be used, but the number of LSSs will be limited to the
same number as today in the IBM 2105.
The number of LSSs is increased from 16 to 32 for the DS6000. The number of devices per
LSS is still limited to 256. The number of CKD logical volumes is increased from 4096 to 8192
devices per DS6000.
12.2.6 Read Control Unit and Device Recognition for DS6000
The host system will inform the attached DS6000 of its capabilities, such that it emulates a
DS8000. This does not limit any DS6000 functions. The DS6000 will then only return
information that is supported by the attached host system using the self-description data,
such as read data characteristics (RDC), sense ID, and read configuration data (RCD).
The following messages and command output display DS6000 information:
򐂰EREP messages
򐂰DEVSERV QDASD and PATHS command responses
The output from the IDCAMS LISTDATA COUNTS, DSTATUS, STATUS and IDCAMS will
display emulated DS8000s. The following DFSMS components and products are updated to
recognize real control unit and real device identifiers:
򐂰Device support - system initialization
򐂰DFSMSdss
򐂰System Data Mover (SDM)
򐂰Interactive Storage Management Facility (ISMF)
Chapter 12. zSeries software enhancements 247
򐂰ICKDSF
򐂰DFSORT
򐂰EREP
12.2.7 New performance statistics
There are two new sets of performance statistics that will be reported by the DS6000. Since a
logical volume is no longer allocated on a single RAID rank with a single RAID type or single
device adapter pair, the performance data will be provided with a new set of rank
performance statistics and extent pool statistics. The RAID RANK reports will no longer be
reported by RMF and IDCAMS LISTDATA batch reports. RMF and IDCAMS LISTDATA is
enhanced to report the new logical volume statistics that will be provided on the DS6000.
These reports will consist of back-end counters that capture the activity between the cache
and the ranks in the DS6000 for each individual logical volume. The new rank and extent pool
statistics will be disk system wide instead of volume wide only.
SETCACHE
The DASD fast write attributes cannot be changed to OFF status on the DS6000. Figure 12-1
displays the messages you will receive when the IDCAMS SETCACHE parameters of
DEVICE, DFW, SUBSYSTEM, or NVS with OFF are specified.
Figure 12-1 SETCACHE options
All other parameters should be accepted as they are today on the IBM 2105. For example,
setting device caching ON is accepted, but has no affect on the subsystem.
12.2.8 Resource Measurement Facility (RMF)
RMF support for the DS6000 is added via an SPE (APAR number OA06476, PTFs UA90079
and UA90080). RMF is enhanced to provide Monitor I and III support for the IBM
TotalStorage DS family. The ESS Disk Systems Postprocessor report now contains two new
Note: Rank and extent pool statistics will not be reported by IDCAMS LISTDATA batch
reports.
SETCACHE DEVICE OFF FILE(FILEX)
IDC31562I THE DEVICE PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE DFW OFF FILE(FILEX)
IDC31562I THE DASDFASTWRITE PARAMETER IS NOT AVAILABLE FOR THE
IDC31562I SPECIFIED SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE SUBSYSTEM OFF FILE(FILEX)
IDC31562I THE SUBSYSTEM PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
SETCACHE NVS OFF FILE(FILEX)
IDC31562I THE NVS PARAMETER IS NOT AVAILABLE FOR THE SPECIFIED
IDC31562I SUBSYSTEM OR DEVICE
IDC3003I FUNCTION TERMINATED. CONDITION CODE IS 12
248 DS6000 Series: Concepts and Architecture
sections: Extent Pool Statistics and Rank Statistics. These statistics are generated from SMF
record 74 subtype 8:
򐂰The ESS Extent Pool Statistics section provides capacity and performance information
about allocated disk space. For each extent pool, it shows the real capacity and the
number of real extents.
򐂰The ESS Rank Statistics section provides measurements about read and write operations
in each rank of an extent pool. It also shows the number of arrays and the array width of all
ranks. These values show the current configuration. The wider the rank, the more
performance capability it has. By changing these values in your configuration, you can
influence the throughput of your work.
Also, new response and transfer statistics are available with the Postprocessor Cache Activity
report generated from SMF record 74 subtype 5. These statistics are provided at the
subsystem level in the Cache Subsystem Activity report and at the volume level in the Cache
Device Activity report. In detail, RMF provides the average response time and byte transfer
rate per read and write requests. These statistics are shown for the I/O activity (called host
adapter activity) and transfer activity from hard disk to cache and vice-versa (called disk
activity).
12.2.9 Preferred pathing
In the DS6000, host ports have a fixed assignment to a server (or controller card). The
DS6000 will notify the host operating system, in this case DFSMS (device support), if a path
is preferred or not. Device support will then identify preferred paths to the IOS. I/Os will be
directed to preferred paths to avoid crossing the PCI-X connection. The only time this will not
be honored is when there are no preferred paths available. The software will then switch over
to use non-preferred paths. There will be a slight performance penalty if the I/O is not
executed over the preferred path. The I/O request and the data would have to be transferred
across the bridge interface that connects both servers. These transfers add some latency to
the response time. Furthermore, the bridge interface is also used to mirror the persistent
memory and for other inter-server communication. It could become a bottleneck if too many
normal I/O requests ran across it, although it is a high bandwidth, low latency, PCI-X
connection. If the IOS support for preferred pathing is not implemented, sequential reads may
drop by up to 50%. The response time in low stress environments may also increase by up to
10% to 20%.
New messages will inform the user when all preferred or the last preferred path is varied
offline. Figure 12-2 shows the output from the DEVSERV PATHS command. Now, this output
displays preferred paths information.
Figure 12-2 DEVSERV PATHS command showing preferred pathing
Figure 12-3, shows the output from the DISPLAY DEV command. The output has been
enhanced to display the path attributes as preferred path (PF) or non-preferred path (NP).
DS P,9E02
IEE459I 09.14.03 DEVSERV PATHS 943
UNIT DTYPE M CNT VOLSER CHPID=PATH STATUS
RTYPE SSID CFW TC DFW PIN DC-STATE CCA DDC ALT CU-TYPE
9E02,33909 ,O,000,339R53,38=+ 42=+
PATH ATTRIBUTES PF NP
1750 9900 Y YY. YY. N SIMPLEX 02 02 2107
************************ SYMBOL DEFINITIONS ************************
O = ONLINE + = PATH AVAILABLE
PF = PREFERRED NP = NON-PREFERRED
Chapter 12. zSeries software enhancements 249
Figure 12-3 D M=DEV command output
12.2.10 Migration considerations
A DS6000 will be supported as an IBM 2105 for z/OS systems without the DFSMS and z/OS
SPE installed. This will allow customers to roll the SPE to each system in a sysplex without
having to take a sysplex-wide outage. An IPL will have to be taken to activate the DFSMS and
z/OS portions of this support.
12.2.11 Coexistence considerations
Support for the DS6000 running in 2105 mode on systems without this SPE installed will be
provided. It will consist of the recognition of the DS6000 real control unit type and device
codes when it runs in 2105 emulation on these down-level systems. Input/Output definition
files (IODF) created by HCD may be shared on systems that do not have this SPE installed.
12.3 z/VM enhancements
z/VM is an IBM operating system that supplies a virtual machine to each logged-on user. The
DS6000 will be supported on z/VM 4.4 and higher.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
12.4 z/VSE enhancements
z/VSE is a system that consists of a basic operating system (VSE/Advanced Functions) and
any IBM-supplied and user-written programs required to meet the data processing needs of a
user. VSE and the hardware that it controls form a complete computing system. The DS6000
will be supported on:
򐂰z/VSE 3.1 and higher.
D M=DEV(9E02)
IEE174I 09.14.23 DISPLAY M 945
DEVICE 9E02 STATUS=ONLINE
CHP 38 42
DEST LINK ADDRESS 2F 2F
ENTRY LINK ADDRESS 27 27
PATH ONLINE Y Y
CHP PHYSICALLY ONLINE Y Y
PATH OPERATIONAL Y Y
PATH ATTRIBUTES PF NP
MANAGED N N
MAXIMUM MANAGED CHPID(S) ALLOWED: 0
DESTINATION CU LOGICAL ADDRESS = 00
CU ND = 001750.000.IBM.13.000000048156
DEVICE NED = 001750.000.IBM.13.000000048156
PAV BASE AND ALIASES 7
Important: Always review the latest Preventative Service Planning (PSP) 1750DEVICE
bucket for software updates.
250 DS6000 Series: Concepts and Architecture
򐂰VSE/ESA 2.7 and higher.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
VSE/ESA does not support 64K LVs for the DS6000.
12.5 TPF enhancements
TPF is an IBM platform for high volume, online transaction processing. It is used by industries
demanding large transaction volumes, such as airlines and banks. The DS6000 will be
supported on TPF 4.1 and higher.
The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
Important: Always review the latest Preventative Service Planning (PSP) 1750DEVICE
bucket for software updates.
Important: Always review the latest Preventative Service Planning (PSP) 1750DEVICE
bucket for software updates.
© Copyright IBM Corp. 2004. All rights reserved. 251
Chapter 13. Data Migration in zSeries
environments
This chapter describes several methods for migrating data from existing disk storage servers
onto the DS6000 disk storage server. This includes migrating data from the ESS 2105 as well
as from other disk storage servers to the new DS6000 disk storage server. The focus is on
z/OS environments. The following topics are covered from a planning standpoint:
򐂰Data migration objectives in z/OS environments
򐂰Data migration based on physical migration
򐂰Data migration based on logical migration
򐂰Combination of physical and logical data migration
򐂰Large volume support
򐂰z/VM and VSE/ESA data migration
This chapter does not provide a detailed step-by-step migration process description, which
would fill another book. There is a more detailed outline for a system-managed storage
environment.
13
252 DS6000 Series: Concepts and Architecture
13.1 Define migration objectives in z/OS environments
Data migration is an important activity that needs to be planned well to ensure the success of
DS6000 implementation. Because today’s business environment does not allow you to
interrupt data processing services, it is crucial to make the data migration onto the new
storage servers as smooth as possible. The configuration changes and the actual data
migration ought to be transparent to the users and applications, with no or only minimal
impact on data availability. This requires you to plan for non-disruptive migration methods and
to guarantee data integrity at any time.
13.1.1 Consolidate storage subsystems
In the course of a data migration you might consider consolidating the volume environment
from which you are coming.
Figure 13-1 Consolidation opportunities when migrating to DS6000
A DS6800 can contain up to 32 logical control units (LCUs) at GA. This allows the DS6800 to
simulate up to 32 times an IBM 3390-6 control unit image with 256 devices within each single
control unit image. The number of supported volumes within a DS6800 is 32 x 256 devices
which equals 8,192 logical volumes. This is twice as much as what an ESS 2105 can
configure for a z/OS-based configuration. This suggests consolidation of multiple control units
into a single DS6800 disk storage server. This requires careful planning, and depending on
the configuration complexity, it might take weeks or months to complete the planning and
perform the actual migration.
13.1.2 Consolidate logical volumes
Another aspect of consolidation within a data migration effort might be to plan for larger
volume sizes and consolidate or fold more than one source volume to a new and bigger
target volume. Up to now most customers have relied on a standard sized volume, that being
an IBM 3390-3 with 3,339 cylinders. With the affinity of volumes to RAID arrays and the
underlying 8-packs, the increasing DDM size in the ESS 2105 made it impossible to utilize the
full RAID array capacity of a RAID rank with 146 GB and even larger DDMs, when choosing
3390-3 volumes. The full RAID array capacity could only be utilized when changing to bigger
volume sizes to reduce the number of volumes per RAID array or LSS. This is not necessary
any more with the DS6800 model due to its flexibility to configure its backend storage
independently from DDM sizes. There is no affinity any longer between an LSS and physical
Not drawn to scale
ESCON
ESCON
FICON
DS 6000
ESS E20
Consolidate
ESS F20
Chapter 13. Data Migration in zSeries environments 253
8-packs. The allocation of a volume happens in extents or increments of the size of an IBM
3390-1 volume, or 1,113 cylinders. So a 3390-3 consists of exactly three extents from an
extent pool. A 3390-9 with 10,017 cylinders comprises 9 extents out of an extent pool. There
is no affinity any longer to an 8-pack for a logical volume like a 3390-3 or any other sized
3390 volume. Despite the fact that it is not required any longer to move from a 3390-3 volume
type to some bigger volume type with the DS6800, you might consider planning such a move
in the course of a data migration effort to reduce the number of volumes.
Although with the newly announced DS6800 storage servers we now support logical 3390
volumes of up to 65,520 cylinders, you might still plan for a standard sized logical volume,
which is smaller than volumes as big as the new maximum volume size allows. Consider that
full volume operations will take longer to copy or dump when increasing the volume size. This
also applies to the first full initial volume replication for Metro Mirror when creating the pairs,
as well as for XRC. A compromise has to be planned for, which might be different from
configuration to configuration.
In a pure system-managed storage environment with no full volume operations any more,
except for migration perhaps, a volume size of 30,051 cylinders might be fine for most of the
data. This is the space of nine 3390-3 volumes or 27 extents out of an extent pool. This would
guarantee that all space is fully utilized when staying with increments of the standard extent
size, which is 1,113 cylinders or the equivalent of a 3390-1 model.
Utilizing big volumes will require the use of dynamic parallel access volumes (PAV) to allow
many concurrent accesses to the very same volume. On such a big volume we see about 9
times as many concurrent I/Os than what we might see on a single 3390-3. Or to put it
differently, we see on a single volume as many concurrent I/Os as we see on nine 3390-3
volumes. Despite the PAV support it still might be necessary to balance disk storage activities
across disk storage server images.
With installations still performing full volume operations to a significant extent you might plan
for smaller volumes. For example, to fully dump nine 3390-3 volumes in parallel will most
likely have a shorter elapsed time than dumping a single volume with the capacity of nine
3390-3 volumes. In such an environment a classical 3390-9 volume might still be appropriate.
Although a 3390-9 volume has three times the capacity of a 3390-3, when changing from
ESCON to FICON, the throughput increases roughly by a factor of 10 and shortens the
elapsed time, especially for highly sequential I/O.
13.1.3 Keep source and target volume at the current size
When the number of volumes does not reach the current z/Series limit of 64K volumes or is
significantly below this limit, you might stay with 3390-3 as a standard and avoid the additional
migration effort at this time. Volume consolidation is still a bit painful because it requires
logical data set movement to properly maintain catalog entries for most of the data. Only the
first volume can be copied through a full volume operation to a larger target volume. After that
full copy operation, the VTOC on the target volume needs to be adjusted to hold many more
entries than the first source volume. Another consideration for the first full volume operation is
that the volume names must be maintained on the new volume, because full physical volume
operations do not maintain catalog entries. Otherwise you would not be able to locate the
data sets any more in a system-managed environment, which always goes through the
catalog to locate data sets and orients data set location solely on volume serial numbers.
13.1.4 Summary of data migration objectives
To summarize the objective of data migration, it might be feasible to not just migrate the data
from existing storage subsystems to the new storage server images, but also to consolidate
254 DS6000 Series: Concepts and Architecture
source storage subsystems to one or fewer target storage servers. A second migration layer
might be to consolidate multiple source volumes to larger target volumes, which is also called
volume folding. The latter is in general more difficult to do and requires data migration on a
data set level. It usually needs a few but brief service interruptions, when moving the
remaining data sets which are usually open and active 24 hours every day.
13.2 Data migration based on physical migration
Physical migration here refers to physical full volume operations, which in turn require the
same device geometry on the source and target volume. The device geometry is defined by
the track capacity and the number of tracks per cylinder. The same device geometry means
that the source and target device have the same track capacity and the same number of
tracks per cylinder. Usually this is not an issue because over time the device geometry of the
IBM 3390 volume has become a quasi standard and most installations have used this
standard. For organizations still using other device geometry (for example, 3380), it might be
worthwhile to consider a device geometry conversion, if possible. This requires moving the
data on a logical level, which is on a data set level and allows a reblocking during the
migration from 3380 to 3390.
Utilizing physical full volume operations is possible through the following software-,
microcode-, and hardware-based functions:
򐂰Software-based
–DFSMSdss
–TDMF
– FDRPAS
򐂰Software- and hardware-based:
– zSeries Piper - uses currently a zSeries Multiprise® server with ESCON attachment
only
– z/OS Global Mirror (XRC)
򐂰Hardware- and microcode-based:
– Global Mirror
– Global Copy
– FlashCopy in combination with either Global Mirror or Global Copy, or both
– Metro/Global Copy
The following section discusses DFSMSdss and the Remote Copy-based approaches in
some more detail.
13.2.1 Physical migration with DFSMSdss and other storage software
Full volume copy through the DFSMSdss COPY command copies all data between like
devices from a source volume to a target volume. The target volume might be bigger than the
source but cannot be smaller than the source volume. You have to keep the same volume
name and the same volume serial number (VOLSER) on the target volume; otherwise, the
data set cannot be located any more via catalog locates. This is achieved through the
COPYVOLID parameter. When the target volume is larger than the source volume, it is
usually necessary to adjust the VTOC size on the target volume with the ICKDSF
REFORMAT REFVTOC command to make the entire volume size accessible to the system.
DFSMSdss also provides full DUMP and full RESTORE commands. With the DUMP
command an entire volume is copied to tape cartridges and can then be restored from tape
via the RESTORE command to the new source volume. During that time all data sets on that
Chapter 13. Data Migration in zSeries environments 255
volume are not available to the application in order to keep data consistency between when
the DUMP is run and when the RESTORE command completes. The advantage of this
method is that it creates a copy which offers fail-back capabilities. When source and target
disk servers are not available at the same time for migration, this might be a feasible
approach to migrate the data over to the new hardware.
DFSMSdss is optimized to read and write data sequentially as fast as possible. Besides
optimized channel programs, which always use the latest enhancements the hardware and
microcode provides, DFSMSdss also allows a highly parallel I/O pattern which is achieved
either through the PARALLEL keyword within a single job/step or you can submit more than
one DFSMSdss job and run several DFSMSdss jobs in parallel.
TDMF and FDRPAS provide concurrent full volume migration capabilities which are best
described as remote copy functions for migration based on software that allows a controlled
switch-over to the new target volume. As a general rule, these might be considered when the
number of volumes to be migrated is in the hundreds rather than in the range of thousands of
volumes to be migrated. With large migration tasks, the number of volumes has to be broken
down to smaller volume sets so that the migration can happen in a controlled fashion. This
lengthens the migration period, so if possible, other approaches might be considered.
Both software products are usually associated with fees or service-based fees except when
the products are owned by the installation. When the number of volumes is in the range of up
to a few hundreds, then standard-based software like DFSMSdss is an option, although
DFSMSdss-based migration does not automatically switch over to the target volumes and
usually requires some weekend efforts to complete. DFSMSdss is standard software and part
of z/OS and so does not require extra costs for software.
To summarize: The choice of which software approach to take depends on the business
requirements and service levels which the data center has to follow. The least disruptive
approach is to provide software packages that switch in a controlled and transparent way
over to the target device, like TDMF and FDRPAS do. When brief service interruptions can be
tolerated the standard software is still a popular solution.
13.2.2 Software- and hardware-based data migration
Piper z/OS (an IBM IGS service) and z/OS Global Mirror are tools for data migration that are
based on software which in turn relies on specific hardware or microcode support. This
section outlines these two popular approaches to migrate data.
Data migration with Piper for z/OS
IBM offers a migration service using the Piper tool, which is a combination of FDRPAS as the
software used in a migration server which is part of the service, and connects to the customer
configuration during the migration.
256 DS6000 Series: Concepts and Architecture
Figure 13-2 Piper for z/OS environment configuration
Currently this server is a Mulitprise 3000, which can connect through ESCON channels only.
This will exclude this approach to migrate data to the DS6800, which provides pure FICON
and Fibre Channel connectivity only. It can be used, though, for the DS8000, which still allows
you to connect to the ESCON infrastructure through supported ESCON host adapters. IBM
plans to enhance the Piper server with FICON channel capable hardware to allow migration
to FICON-only environments. Currently the IBM Piper migration service offering includes the
following, which IBM provides:
򐂰S/390 Multiprise 3000
򐂰Preloaded with OS/390 2.10
򐂰An ESCON director with 16 ports to connect to the customer z/Series-based fabric
򐂰Preloaded FDRPAS migration software
򐂰19 inch rack enclosure
򐂰Agent tasks which need to be installed in the customer systems
An FDRPAS master task runs on the Piper CPU, which coordinates all activities. Monitor
tasks are required on the customer’s systems to monitor and coordinate with the swap and
tasks in the Piper CPU.
The advantages of this Piper-based migration offering are:
򐂰Simple installation without the need for IPLs on the customer side.
򐂰Transparent data migration without interruption to connected application hosts and no
application down time.
򐂰Parameter-controlled activity which can be dynamically modified at any time to pace the
migration.
򐂰Suspend/resume of migration at any time without exposing data integrity.
򐂰Migration during usual business hours for convenient management of the migration
process.
򐂰Independent of hardware vendor and suited for all S/390 or zSeries attached disk storage.
򐂰Supports Parallel Access Volume handling.
Customer
Systems
Piper hardware
Swap
Task
Monitor
Task
Monitor
Task
Online
Source
Volume
Offline
Target
Volume
Agent
Integrated tool
Agent
ESCON
ESCON / FICON
Chapter 13. Data Migration in zSeries environments 257
Most of these benefits also apply to migration efforts controlled by the customer when utilizing
TDMF or FDRPAS in customer-managed systems.
To summarize: Piper for z/OS is an IGS service offering which relieves the customer of the
actual migration process and requires customer involvement only in the planning and
preparation phase. The actual migration is transparent to the customer’s application hosts
and Piper even manages a concurrent switch-over to the target volumes. Piper is neutral to
the disk storage vendors and works for all devices supported under z/OS or OS/390. Piper
will soon provide a FICON-only configuration since the DS6800 only supports FCP FICON
and not ESCON.
Data migration with z/OS Global Mirror
Another alternative is z/OS Global Mirror (XRC). XRC is an asynchronous solution that has a
mode for disaster recovery solutions as well as a particular migration mode of
SESSIONTYPE(MIGRATE). This mode does not require the customer to plan for a
JOURNALs configuration at the secondary site, which is mandatory for D/R solutions based
on XRC.
Figure 13-3 Data Migration with z/OS Global Mirror (XRC)
When coming from ESCON connectivity, it might be a good time to switch to FICON during
the data migration, even though this makes the migration a bit more complex. XRC is the right
vehicle to perform the migration transparently, and for an online data migration approach it is
almost non-disruptive. The application only needs to shut down for the actual switch to the
Production systems
OS/390
zOS
zLINUX
zVM
VSE/ESA
no minidisks
Director
ANTAS002
SDM LPAR
SDM1
SDM2
XRECOVER
XRECOVER
Primary
Volume
Secondary
Volume
Source
Disk
subsystems
Target
Disk
Servers
ANTAS001
ESCON FICON
ESCON
FICON
258 DS6000 Series: Concepts and Architecture
target volumes in the new disk storage server. It can restart immediately to connect to the
new disk storage server after the XRC secondary volumes have been relabeled by a single
XRC command per XRC session, XRECOVER.
In addition to transparent data replication, the advantage for XRC is extreme scalability.
Figure 13-3 shows that XRC can run either in existing system images or in a dedicated LPAR.
Each image can host up to five System Data Movers (SDM). An SDM is an address space
(ANTAS00x) that is started by a respective XSTART command. A reasonable number of XRC
volume pairs which a single SDM can manage is in the range of 1,500 to 2,000 volume pairs.
With up to five SDMs within a system image, this totals approximately 10,000 volume pairs.
This requires an adequate bandwidth for the connectivity between the disk storage servers to
the system image which hosts the SDMs. Because XRC in migration mode stores the data
through, it mainly requires channel bandwidth and SDM tends to monopolize its channels.
Therefore, the approach with dedicated channel resources is an advantage over a shared
channel configuration and would almost not impact the application I/Os. In a medium sized
configuration, one or two SDMs is most likely sufficient.
Assume the migration consolidates two medium sized ESS F20s with a total of about 5 TB to
a DS6800 disk server. This would suggest connecting the SDM LPAR to each ESS F20 with
two dedicated ESCON channels. Configure for each F20 an SDM within the SDM LPAR. The
DS6800 FICON channels might be shared between the SDMs because there is no potential
bottleneck when coming from ESCON. This would take about one day to replicate all data
from the two F20s to the DS6800, provided there is not too much application write I/O during
the initial full copy. Otherwise it takes just a few more hours, depending on the amount of
application write I/O during the first full volume copy, and the entire migration can be
completed over a weekend.
XRC requires disk storage subsystems which support XRC primary volumes through the
microcode. Currently only IBM- or HDS-based controllers support XRC as a primary or
source disk subsystem. As an exception, this does not apply to the IBM RVA storage
controller, which does not support XRC as a primary XRC device. Also, EMC does not
provide XRC support at the XRC primary site.
13.2.3 Hardware- and microcode-based migration
Hardware- and microcode-based migration through remote copy is usually only possible
between like hardware, so using remote copy through microcode is not possible with different
disks from vendor A at the source site and disks from vendor B at the target site. Therefore,
we discuss only what is possible for IBM disk storage servers using remote copy or
Peer-to-Peer remote copy (PPRC) and its variations.
Remote copy approaches with Global Mirror, Metro Mirror, Metro/Global Copy, and Global
Copy allow the primary and secondary site to be any combination of ESS 750s, ESS 800s
and DS6000s or DS8000s.
Bridge from ESCON to FICON with Metro/Global Copy
The ESS Model E20 and Model F20 do not support PPRC over Fibre Channel links, but only
PPRC based on PPRC ESCON links. In contrast, the newly announced disk storage server
supports only PPRC over Fibre Channel links and does not support PPRC ESCON links. The
ESS Model 800 actually supports both PPRC link technologies.
Chapter 13. Data Migration in zSeries environments 259
Figure 13-4 Intermediate ESS 800 used to migrate data with PPRC over ESCON
To utilize the advantage of PPRC with concurrent data migration, on a physical volume level
though, from older ESS models like the ESS F20, an ESS 800 (or in less active
configurations an ESS 750) might be used during the migration period to bridge from a PPRC
ESCON link storage server to the new disk storage server which supports only PPRC over
FCP links. The approach is Metro/Global Copy with the ESS 800 in between hosting the
cascaded volumes, which are PPRC secondary volumes for Metro Mirror and at the same
time also PPRC primary volumes for the Global Copy configuration. It is recommended that
you connect the intermediate ESS to a host whether it is over ESCON channels or FICON
channels. This allows the ESS 800 to off-load messages to the host as well as to manage the
PPRC volumes within the intermediate ESS during the migration period.
The actual setup and management might be performed through the ESS GUI with its Copy
Services application. Another possibility is to manage such a cascaded configuration with
host-based software like ICKDSF or TSO commands, when the TSO command support for
cascaded volumes is available. Otherwise use a combination of TSO commands and ICKDSF
for just defining the cascaded bit when setting up Metro Mirror between the intermediate ESS
800 and the target DS6800 disk server.
Dynamic Address Switch (P/DAS) for a non-disruptive application I/O switch from the old
hardware to the volumes in the new hardware is not possible in this configuration because
P/DAS requires the PPRC secondary volumes to be in a DUPLEX state. PPRC-XD stays per
definition always in PENDING state. Theoretically it is possible to switch from PPRC-XD to
Synchronous PPRC and replicate the data twice over Synchronous PPRC, which may
impose significant impact to write I/O to the old hardware. It is usually quicker and less
difficult, when a brief application down time is accepted, to switch from the old hardware to
the volumes in the new hardware.
Again this approach is only possible from IBM ESS to IBM DS6000 or IBM DS8000 disk
storage servers and it requires the same size or larger PPRC secondary volumes with the
same device geometry.
Data migration with Metro Mirror or Global Copy
A variation to the approach discussed above is to use straightforward Metro Mirror or Global
Copy from ESS 750 or ESS 800 to the DS6800.
FICON
DS 6000
Intermediate ESS 800
PPRC
Links
FCP
PPRC
Links
ESCON
ESS E20s ESCON
Global Copy
Metro Mirror
Cascading
Metro/Global Copy
260 DS6000 Series: Concepts and Architecture
Figure 13-5 Metro Mirror or Global Copy from ESS 750 or ESS 800 to DS6800
Metro Mirror (Synchronous PPRC) provides data consistency at any time once the volumes
are in full DUPLEX state, although through its synchronous approach it imposes a slight
impact to the application write I/Os to the source storage subsystems from where we migrate
the data. This assumes a local data migration and that the distance is within the supported
Metro Mirror distance for PPRC over FCP links. You can switch the application I/Os any time
from the old to the new disk configuration. This requires you to quiesce or shut down the
application server and restart the application servers after terminating the PPRC
configuration. The restart uses a modified I/O definition file but the volume serial number will
stay the same and all data will be located correctly through catalog locate processing.
Global Copy (PPRC-XD) on the other side does not impact the application write I/Os due to
its asynchronous data replication, but the drawback here is that it does not guarantee data
consistency at the receiving site. Before switching from the source equipment to the new
target equipment, make sure all data is replicated to the receiving site. This can be forced by
dynamically switching from Global Copy to Global Mirror. When all primary volumes are in full
DUPLEX state the source and target disk servers contain the same data at any time. At this
point prepare and execute the switchover to the new disk storage server.
Instead of switching from Global Copy to Global Mirror, you might stop the applications and
shut down the application servers. Then check that all data is replicated to the target disk
server. This might be a bit labor-intensive in a large environment without the help of
automation scripts. Basically you would check each individual primary volume (=source
volume) that all data is copied over. Through the current Copy Servers application on an ESS
800 this would look like Figure 13-6 on page 261.
PPRC
Links
FCP
Metro Mirror
ESS 750
Global Copy
ESS 800
OR
FICON
DS 6000
Chapter 13. Data Migration in zSeries environments 261
Figure 13-6 Check with Global Copy whether all data was replicated to the new volume
This approach is not really practical though. ICKDSF also allows you to query the status of a
Global Copy primary volume and displays the amount of data which is not yet replicated, as
shown in Example 13-1.
Example 13-1 Check through ICKDSF query commands that all data is replicated
PPRCOPY DDNAME(DD02) QUERY
ICK00700I DEVICE INFORMATION FOR 6102 IS CURRENTLY AS FOLLOWS:
PHYSICAL DEVICE = 3390
STORAGE CONTROLLER = 2105
STORAGE CONTROL DESCRIPTOR = E8
DEVICE DESCRIPTOR = 0A
ADDITIONAL DEVICE INFORMATION = 4A000035
ICK04030I DEVICE IS A PEER TO PEER REMOTE COPY VOLUME
QUERY REMOTE COPY - VOLUME
(PRIMARY) (SECONDARY)
SSID CCA SSID CCA
DEVICE LEVEL STATE PATH STATUS SER # LSS SER # LSS
------ --------- -------------- ----------- ----------- -----------
6102 PRIMARY PENDING XD ACTIVE 6100 02 8100 02
22665 01 22673 01
PATHS SAID/DEST STATUS DESCRIPTION
----- --------- ------ ----------------
1 00A4 0020 13 ESTABLISHED FIBRE CHANNEL PATH
IF PENDING/SUSPEND: COUNT OF TRACKS REMAINING TO BE COPIED = 2147
ICK02206I PPRCOPY QUERY FUNCTION COMPLETED SUCCESSFULLY
ICK00001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
00:33:54 11/19/04
After all applications are stopped or shut down Global Copy eventually replicates all data
across and the respective count is zero, as shown in Example 13-2 on page 262.
262 DS6000 Series: Concepts and Architecture
Example 13-2 All data is replicated
PPRCOPY DDNAME(DD02) QUERY
ICK00700I DEVICE INFORMATION FOR 6102 IS CURRENTLY AS FOLLOWS:
PHYSICAL DEVICE = 3390
STORAGE CONTROLLER = 2105
STORAGE CONTROL DESCRIPTOR = E8
DEVICE DESCRIPTOR = 0A
ADDITIONAL DEVICE INFORMATION = 4A000035
ICK04030I DEVICE IS A PEER TO PEER REMOTE COPY VOLUME
QUERY REMOTE COPY - VOLUME
(PRIMARY) (SECONDARY)
SSID CCA SSID CCA
DEVICE LEVEL STATE PATH STATUS SER # LSS SER # LSS
------ --------- -------------- ----------- ----------- -----------
6102 PRIMARY PENDING XD ACTIVE 6100 02 8100 02
22665 01 22673 01
PATHS SAID/DEST STATUS DESCRIPTION
----- --------- ------ ----------------
1 00A4 0020 13 ESTABLISHED FIBRE CHANNEL PATH
IF PENDING/SUSPEND: COUNT OF TRACKS REMAINING TO BE COPIED = 0
ICK02206I PPRCOPY QUERY FUNCTION COMPLETED SUCCESSFULLY
ICK00001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
00:34:10 11/19/04
As these examples demonstrate, it is a bit hard to read and to find in the ICKDSF line output.
Probably some REXX-based procedure might have to scan through the ICKDSF SYSPRINT
output, which is directed to a data set. ICKDSF asks for a JCL DD statement for each single
volume to query when the volume is ONLINE to the system. This is not very handy. So, we
are back to the TSO CQUERY command which does not need any additional JCL statements
and does not care whether the volume is ONLINE or OFFLINE to the system. TSO provides a
nicely formatted output as the following examples display, which still might be directed to an
output data set, so some REXX procedure catches the concerned numbers.
Example 13-3 TSO CQUERY to identify data replication status on primary volume
************** PPRC REMOTE COPY CQUERY - VOLUME ********************
* (PRIMARY) (SECONDARY) *
* SSID CCA LSS SSID CCA LSS*
*DEVICE LEVEL STATE PATH STATUS SERIAL# SERIAL# *
*------ --------- ---------- ----------- --------- --------- *
* 6102 PRIMARY.. PENDING.XD ACTIVE.. 6100 02 01 8100 02 01 *
* CRIT(NO)....... CGRPLB(NO). 000000022665 000000022673*
* PATHS PFCA SFCA STATUS: DESCRIPTION *
* ----- --------- ------ ------------------- *
* 1 00A4 0020 13 PATH ESTABLISHED... *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* IF STATE = PENDING/SUSPEND: TRACKS OUT OF SYNC = 491 *
* TRACKS ON VOLUME = 50085 *
* PERCENT OF COPY COMPLETE = 99% *
* SUBSYSTEM WWNN LIC LEVEL *
* ----------- ---------------- ----------- *
Chapter 13. Data Migration in zSeries environments 263
* PRIMARY.... 5005076300C09621 2.4.01.0062 *
* SECONDARY.1 5005076300C09629 *
********************************************************************
ANTP0001I CQUERY COMMAND COMPLETED FOR DEVICE 6102. COMPLETION CODE: 00
A quick way is to open the data set which received the SYSTSPRT output from TSO in batch
and exclude all data. Then an F COMPLETE ALL would only display a single line per volume
and you could quickly spot when a volume is not 100% complete. This manual approach
might be acceptable for a one-time effort when migrating data in small or medium sized
configurations.
Example 13-4 All data is replicated
************** PPRC REMOTE COPY CQUERY - VOLUME ********************
* (PRIMARY) (SECONDARY) *
* SSID CCA LSS SSID CCA LSS*
*DEVICE LEVEL STATE PATH STATUS SERIAL# SERIAL# *
*------ --------- ---------- ----------- --------- --------- *
* 6102 PRIMARY.. PENDING.XD ACTIVE.. 6100 02 01 8100 02 01 *
* CRIT(NO)....... CGRPLB(NO). 000000022665 000000022673*
* PATHS PFCA SFCA STATUS: DESCRIPTION *
* ----- --------- ------ ------------------- *
* 1 00A4 0020 13 PATH ESTABLISHED... *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* ---- ---- 00 NO PATH............ *
* PERCENT OF COPY COMPLETE = 100% *
* SUBSYSTEM WWNN LIC LEVEL *
* ----------- ---------------- ----------- *
* PRIMARY.... 5005076300C09621 2.4.01.0062 *
* SECONDARY.1 5005076300C09629 *
********************************************************************
ANTP0001I CQUERY COMMAND COMPLETED FOR DEVICE 6102. COMPLETION CODE: 00
Again all these approaches to utilize microcode-based mirroring capabilities require the right
hardware as source and target disk servers.
For completeness it is pointed out that Global Mirror is also an option to migrate data from an
ESS 750 or ESS 800 to a DS6000. This might apply to certain cases at the receiving site
which require consistent data at any time, although Global Copy is used for the actual data
movement. Please note that the consistent copy in the new disk server is not concurrent with
the primary copy except if the application is stopped and all data is replicated.
Another approach to migrate data beyond the scope of volumes is to use software which
migrates data on a logical or data set level and locates the data sets through their respective
catalog entries. This approach is outlined in the following section.
13.3 Data migration based on logical migration
Data migration based on logical migration is a data set by data set migration which maintains
catalog entries according to the data movement between volumes and, therefore, is not a
volume-based migration. This is the cleanest way to migrate data and also allows device
conversion from, for example, 3380 to 3390. It also supports transparently multivolume data
sets. Logical data migration is a software-only approach and does not rely on certain volume
characteristics nor on device geometries.
264 DS6000 Series: Concepts and Architecture
The following software products and components support logical data migration:
򐂰DFSMS allocation management
򐂰Allocation management by CA-ALLOC
򐂰DFSMSdss
򐂰DFSMShsm™
򐂰FDR
򐂰System utilities like:
– IDCAMS with REPRO, EXPORT / IMPORT commands
– IEBCOPY to migrate Partitioned Data Sets (PDS) or Partitioned Data Sets Extended
(PDSE)
– ICEGENER as part of DFSORT which can handle sequential data but not VSAM data
sets, which also applies to IEBGENER
򐂰CA-Favor
򐂰CA-DISK or ASM2
򐂰Database utilities for data which is managed by certain database managers like DB2 or
IMS™. CICS® as a transaction manager usually uses VSAM data sets.
13.3.1 Data Set Services Utility (DFSMSdss)
A common utility is DFSMSdss. In this case it is not used for full physical full volume
operations, but for data set level operations. Pointing to certain input volumes, DFSMSdss
can also move data sets in a logical fashion off of certain source volumes.
Example 13-5 DFSMSdss for logical data migration from certain input volumes
//MIGRATE EXEC PGM=ADRDSSU
//SYSPRINT DD SYSOUT=*
//* -------- FROM VOLUMES --------------------------------------- ***
//IN001 DD UNIT=3390,VOL=SER=AAAAAA,DISP=SHR
//IN002 DD UNIT=3390,VOL=SER=BBBBBB,DISP=SHR
//IN003 DD UNIT=3390,VOL=SER=CCCCCC,DISP=SHR
//SYSIN DD *
COPY DS(INC(**) EXCLUDE(SYS1.VTOCIX.*,SYS1.VVDS.*)) -
LIDD(IN001,IN002,IN003) -
DELETE CATALOG -
ALLDATA(*) ALLX WAIT(0,0) ADMIN OPT(3) CANCELERROR
/*
//
Example 13-5 depicts how to migrate all data sets from certain volumes. The keyword is
LOGINDDNAME or LIDD, which identifies the volumes from where the data is to be picked.
There is no output volume specified, although it is also possible to distribute all data sets from
the input or source volumes to a larger output volume or to more than one output volume.
Example 13-5 assumes a system-managed environment. Here the system would
automatically place the output data sets according to what the Automatic Class Selection
Routine (ACS) suggests. The next paragraph is more specific on how this approach works.
If the number of volumes is rather small and the source volume’s data sets are all managed
by DFSMS/MVS, which implies that the data set is managed through Management Classes,
you might consider utilizing DFSMShsm to migrate all data sets off the source volumes.
During recall the data set would then be allocated onto the new volumes provided that the
source volumes are disabled for new allocations in a system-managed environment. This
approach is not practical for large data migration scenarios.
Another variation of DFSMShsm to migrate data on a logical data set level is to utilize
Aggregate Backup and Recovery (ABARS). ABARS allows you, through powerful data
Chapter 13. Data Migration in zSeries environments 265
selection filters, to copy all data sets onto cartridges (ABACKUP) and then restore the
aggregate. This is nothing but the group of data sets which have been selected through
filtering, put back onto the new DS8000 storage servers. For more information, see the
redbook DFSMShsm ABARS and Mainstar Solutions, SG24-5089.
System utilities don’t play an import role any longer since DFSMSdss incorporated the
capability to manage all data set types for copy and move operations in a very efficient way.
In a VSE/ESA environment, VSE/VSAM functions are still used like REPRO or
EXPORT/IMPORT to copy and move data sets. There are also other software vendor utilities
to manage data migration. An elegant migration approach that can be used when disks are
system-managed is outlined in the following section. This approach assumes that the old and
new disk servers can be configured concurrently to the concerned host servers.
13.3.2 Data migration within the system-managed storage environment
System-managed storage or SMS manages volumes and storage groups (SG) and allocates
data sets based on a policy or rules to certain storage groups (SG). Certain volumes within an
SG or within more than one SG are eligible for new data set allocations. These SMS volumes
and SMS SGs also maintain a status which decides whether this volume or that SG is eligible
to receive new data set allocations.
Figure 13-7 SMS Storage Groups - migration source environment
To explain this approach, Figure 13-7 contains two SGs, SG1 and SG2, which are distributed
over three storage controllers. Assume these three storage controllers are going to be
consolidated into a new DS6800 storage server, and that the number of volumes will be
consolidated from 6 down to two, with the respective capacity as displayed in Figure 13-8.
ESS E20
ACB
SG1 SG2
EF
D
ESS E20
ESCONESCON
266 DS6000 Series: Concepts and Architecture
Figure 13-8 Utilize SMS SG and Volume status to direct all new allocation to new volumes
When both the old hardware and the new hardware can be installed and connected to the
host servers, the new volumes are integrated into the existing SGs, SG1 and SG2. Then
change the SMS volume’s status to disable volumes A to F for new allocations. This is
possible through an SMS system command and is propagated to all systems within this
SMS-plex. DISABLE,NEW or D,N implies that all new allocations which are directed to SG1
can no longer happen on volumes A through F but must go to volumes DS1 or DS2. This
allows you to gradually migrate the data from the old devices A to F onto the new and larger
devices DS1 and DS2. This SMS system command has a drawback: It holds only until the
next IPL. Then SMS will read again what the volume and SG status is from the respective
SCDS and reload the ACDS accordingly. To make this change permanent you have to
change the SCDS through the ISMF panels.
We go briefly through the ISMF panel sequence to make the SMS volume status complete
and permanent.
Example 13-6 is the first ISMF Storage Group Application panel where you choose the actual
Source Control Data Set (SCDS), the storage group, XC, and select option 4 to alter the SMS
volume status.
Example 13-6 Select SMS storage group in SCDS
STORAGE GROUP APPLICATION SELECTION
Command ===>
To perform Storage Group Operations, Specify:
CDS Name . . . . . . 'SYS1.DFSMS.SCDS'
(1 to 44 character data set name or 'Active' )
Storage Group Name XC (For Storage Group List, fully or
partially specified or * for all)
Storage Group Type (VIO, POOL, DUMMY, COPY POOL BACKUP,
OBJECT, OBJECT BACKUP, or TAPE)
Select one of the following options :
4 1. List - Generate a list of Storage Groups
2. Define - Define a Storage Group
ESS E20
ACB
SG1 SG2
FICON
RO *ALL,V SMS,VOL(DDDDDD),D,N
RO *ALL,V SMS,VOL(DDDDDD),D,N
V SMS,VOL(KKKKKK),D,N
V SMS,VOL(KKKKKK),D,N
IGD010I VOLUME (KKKKKK,MCECEBC ) STATUS IS NOW DISABLED,NEW
IGD010I VOLUME (KKKKKK,MCECEBC ) STATUS IS NOW DISABLED,NEW
Not drawn to scale
EF
D
ESS E20
RO *ALL,V SMS,VOL(AAAAAA),D,N
RO *ALL,V SMS,VOL(AAAAAA),D,N
V SMS,VOL(AAAAAA),D,N
V SMS,VOL(AAAAAA),D,N
IGD010I VOLUME (AAAAAA,MCECEBC ) STATUS IS NOW DISABLED,NEW
IGD010I VOLUME (AAAAAA,MCECEBC ) STATUS I S NOW DISABLED,NEW
DS1 DS2
DS 6000
ESCON
ESCON
Chapter 13. Data Migration in zSeries environments 267
3. Alter - Alter a Storage Group
4. Volume - Display, Define, Alter or Delete Volume Information
If List Option is chosen,
Enter "/" to select option Respecify View Criteria
Respecify Sort Criteria
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
The next panel which appears is in Example 13-7. Option 3 allows you to alter the SMS
volume status. Here you select the volumes which ought to receive the change.
Example 13-7 Select respective volume range(s) from Storage Group
STORAGE GROUP VOLUME SELECTION
Command ===>
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> XC 6510 6514 X
===>
===>
===>
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
The panel in Example 13-7 provides a list in the lower third of the screen where you can
specify ranges of VOLSERs, which will then be changed all at once. This is, therefore, more
powerful than the SMS system commands, which are on a single volume level only.
The following panel in this sequence, shown in Example 13-8, is a confirmation panel that
displays the current SMS volume status which we plan to alter. It also shows the system
names which belong to the SMS-plex. A SMS-plex is usually congruent with the underlying
Parallel Sysplex®.
Example 13-8 Display current SMS volume status before altering
SMS VOLUME STATUS ALTER Page 1 of 2
Command ===>
SCDS Name . . . . . . : SYS1.DFSMS.SCDS
Storage Group Name . : XC
Volume Serial Numbers : XC6510 - XC6514
To ALTER SMS Volume Status, Specify:
System/Sys SMS Vol System/Sys SMS Vol ( Possible SMS Vol
Group Name Status Group Name Status Status for each:
---------- ------- ---------- ------- NOTCON, ENABLE,
268 DS6000 Series: Concepts and Architecture
MCECEBC ===> ENABLE MZBCVS2 ===> ENABLE DISALL, DISNEW,
===> ===> QUIALL, QUINEW )
===> ===>
===> ===> * SYS GROUP = sysplex
===> ===> minus systems in the
===> ===> sysplex explicitly
===> ===> defined in the SCDS
===> ===>
In this panel we overtype the SMS volume status with the desired status change. This shows
in the following panel, shown in Example 13-9.
Example 13-9 Indicate SMS volume status change for all connected system images
SMS VOLUME STATUS ALTER Page 1 of 2
Command ===>
SCDS Name . . . . . . : SYS1.DFSMS.SCDS
Storage Group Name . : XC
Volume Serial Numbers : XC6510 - XC6514
To ALTER SMS Volume Status, Specify:
System/Sys SMS Vol System/Sys SMS Vol ( Possible SMS Vol
Group Name Status Group Name Status Status for each:
---------- ------- ---------- ------- NOTCON, ENABLE,
MCECEBC ===> disnew MZBCVS2 ===> disnew DISALL, DISNEW,
===> ===> QUIALL, QUINEW )
===> ===>
===> ===> * SYS GROUP = sysplex
===> ===> minus systems in the
===> ===> sysplex explicitly
===> ===> defined in the SCDS
===> ===>
After pressing Enter and PF3 to validate and perform the SMS volume status change, a
validation panel confirms that the requested change did happen. This is displayed in
Example 13-10.
Example 13-10 Confirmation about SMS volume status change
STORAGE GROUP VOLUME SELECTION ALL VOLUMES ALTERED
Command ===>
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> XC 6510 6514 X
===>
===>
Chapter 13. Data Migration in zSeries environments 269
===>
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
In this example all volumes that were selected through the filtering in the previous panel no
longer allow any new allocation on these volumes. But this happens only after the updated
SCDS is activated and copied into the Active Control Data Set (ACDS). A way to activate a
new SMS configuration is through the ISMF Primary Menu panel with option 8. Under the
CDS APPLICATION SELECTION choose option 4 and then 5 to finally perform the change.
To show how powerful, meaningful naming conventions for VOLSERs might be combined with
the selection capabilities in ISMF, Example 13-11 shows an example of how to change the
status of 920 volumes at once. This example assumes a contiguous number range for the
volume serial numbers.
Example 13-11 Indicate SMS volume status change for 920 volumes
STORAGE GROUP VOLUME SELECTION
Command ===>
CDS Name . . . . . : SYS1.DFSMS.SCDS
Storage Group Name : XC
Storage Group Type : POOL
Select One of the following Options:
3 1. Display - Display SMS Volume Statuses (Pool & Copy Pool Backup only)
2. Define - Add Volumes to Volume Serial Number List
3. Alter - Alter Volume Statuses (Pool & Copy Pool Backup only)
4. Delete - Delete Volumes from Volume Serial Number List
Specify a Single Volume (in Prefix), or Range of Volumes:
Prefix From To Suffix Type
______ ______ ______ _____ _
===> DB2 001 300 X
===> IMS 001 350 x
===> LRG 001 150 X
===> TMP 001 120 x
Use ENTER to Perform Selection;
Use HELP Command for Help; Use END Command to Exit.
Through this approach in utilizing the SMS volume status, the data gradually moves over to
the new environment. This is not the fastest approach, but it is the approach with the least
effort required. To speed up the process you run DFSMSdss full volume logical copy
operations on all source volumes as suggested by the storage administrator, but do not
specify target volumes. An example is given in Example 13-5 on page 264. Then allocation
runs through the standard SMS allocation, automatically selects the correct target volume,
and moves the data sets which are not allocated at the time the job executes. Another option
is to run DFSMSdss migration not on a volume level, which allows more control, but plan for
DFSMSdss migration jobs on the entire SG level, perhaps over the weekend. Example 13-12
illustrates this. You might specify for STORGRP a list of storage group names to address
multiple storage groups at the same time.
Example 13-12 DFSMSdss moves all data sets out of a storage group
//* COMMAND 'V SMS,VOL(AAAAAA,*),D,N'
// COMMAND 'D SMS,SG(SG1),LISTVOL'
//* -------------------------------------------------------------- ***
//MOVEDATA EXEC PGM=ADRDSSU
//SYSPRINT DD SYSOUT=*
270 DS6000 Series: Concepts and Architecture
//SYSIN DD *
COPY STORGRP(SG1) -
DS(INC(**) -
EXCLUDE(SYS1.VTOCIX.*,SYS1.VVDS.*)) -
DELETE CATALOG SELECTMULTI(ANY) SPHERE-
ALLDATA(*) ALLX WAIT(00,00) ADMIN OPT(3) CANCELERROR
/*
//* ------------------------------------------------------------- ***
//AGAIN EXEC PGM=IEBGENER
//SYSPRINT DD DUMMY
//SYSUT1 DD DSN=WB.MIGRATE.CNTL(DSS#SG1),DISP=SHR
//SYSUT2 DD SYSOUT=(A,INTRDR)
//SYSIN DD DUMMY
//* ------------------------- JOB END ---------------------------- ***
//
You might keep the job repeatedly executing through the second step AGAIN, where the
same job is read into the system again through the internal MVS reader.
Eventually there remain a few data sets on the source volumes which are always open. These
data sets require you to stop the concerned application, close and unallocate these data sets,
and then run the job in Figure 13-12 once more.
Verify at the end of this logical data set migration that all data has been removed from the
source disk server with the IEHLIST utility’s LISTVTOC command.
Again this approach requires you to have the old and new equipment connected at the same
time and most likely over an extended period, except if you push the migration through jobs
like in Example 13-12, in which you can run more than one instance concurrently.
13.3.3 Summary of logical data migration based on software utilities
Problems encountered when not using an allocation manager like system-managed storage
are less flexibility when using esoteric unit names, or complex and time-consuming tasks in
maintaining hard-coded JCL volume names, which need to be changed when creating new
volumes on new disk storage servers. It is recommended that you use system-managed
volumes to overcome the limitations with esoteric unit names and hard-coded volume names
in JCL.
Logical data migration is difficult and can be time-consuming, and it usually requires system
down time. System-managed storage allows for a less difficult data migration, when it is on a
logical level, in order to consolidate not just disk storage servers but also volumes moving to
larger target volumes.
13.4 Combine physical and logical data migration
The following approach combines physical and logical data migration:
򐂰Physical full volume copy to larger capacity volume when both volumes have the same
device geometry (same track size and same number of tracks per cylinder).
򐂰Use COPYVOLID to keep the original volume label and to not confuse catalog
management. You can still locate the data on the target volume through standard catalog
search.
򐂰Adjust the VTOC of the target volume to make the larger volume size visible to the system
with the ICKDSF REFORMAT command to refresh, REFVTOC, or expand the VTOC,
Chapter 13. Data Migration in zSeries environments 271
EXTVTOC, which requires you to delete and rebuild the VTOC index using EXTINDEX in
the REFORMAT command.
򐂰Then perform the logical data set copy operation to the larger volumes. This allows you to
use either DFSMSdss logical copy operations or the system-managed data approach.
When a level is reached where no data moves any more because the remaining data sets are
in use all the time, some down time has to be scheduled to perform the movement of the
remaining data. This might require you to run DFSMSdss jobs from a system which has no
active allocations on the volumes which need to be emptied.
13.5 z/VM and VSE/ESA data migration
DFSMS/VM® provides a set of software utility and command functions which are suited for
data migration.
򐂰DASD Dump Restore (DDR) provides a physical copy and is suited to copy data between
devices with the same device geometry. DDR cannot be utilized for a device migration like
from 3390 to 3390.
򐂰DIRMAINT CMDISK moves data between minidisks in VM from any device type to any
device type which is supported by VM.
򐂰CMS COPYFILE offers a logical copy on a file level from any minidisk device to any
minidisk device which VM supports and is, therefore, suited to migrate to a different device
type.
򐂰Another logical migration approach is possible through the CP PTAPE command. PTAPE
dumps spool files to tape and then re-loads these files back onto the new disk storage.
Last, but not least, PPRC might be considered when moving the data from any ESS model to
the new storage server DS6800. Because PPRC is a host server independent approach,
similar considerations apply as outlined under “Hardware- and microcode-based migration”
on page 258.
z/OS Global Mirror under a z/OS image also allows you to move z/VM full mini disks between
different storage servers and would allow you to connect to the source disk server through
ESCON and to the target disk storage server with FICON.
In VSE/ESA data migration you might consider the following approaches:
򐂰Physical volume copy from all ESS models to the new DS6800 disk storage server
through PPRC as outlined under “Hardware- and microcode-based migration” on
page 258.
򐂰Logical copy operations under VSE/ESA which allow data movement from source storage
servers to new DS6800 disk storage servers are the following:
– VSE FASTCOPY to move data between volumes with the same device geometry.
– VSE DITTO to copy individual files which allow a device migration.
– VSE IDCAMS commands REPRO or EXPORT/IMPORT to move VSAM files between
any device types.
There are other software vendor products as well which provide the capability to migrate data
onto new storage servers, for example, CA Favor.
272 DS6000 Series: Concepts and Architecture
13.6 Summary of data migration
The route which an installation takes to migrate data to one or more DS6800 storage servers
depends on requirements for service levels, whether application down time is acceptable,
available tools and cost estimates with certain budget limits.
When coming from an ESS 750 or ESS 800, Metro Mirror seems to be the natural choice, and
allows for concurrent data migration with almost no application impact or no impact when the
actual switch utilizes P/DAS, although it is quicker and easier to allow for a brief service
interruption and quickly switch to the new disk storage server. Because Metro Mirror provides
data consistency at any time, the switch-over to the new disk server is simple and does not
require further efforts to ensure data consistency at the receiving site. It is feasible to use the
GUI -based approach because migration is usually a one time effort. Command-line
interfaces such as TSO commands are an alternative and can be automated to some extent
with REXX procedures.
When the source disk servers are not compatible with the DS6800 and the migration is based
on a full volume, physical level, then there are options which depend on various
circumstances which are different for each installation. When TDMF or FDRPAS is available
and the customer is used to managing volume migration using these software tools, then it is
a likely approach to use these tools for a larger scale migration as well. In other
circumstances it might be feasible to include the migration as part of a total package when
installing and implementing DS6800 disk storage servers. This is possible through IGS
services which rely on FDRPAS, TDMF or Piper for z/OS. There is always DFSMSdss, which
is still popular, but this approach usually requires an outage of the specific application
systems.
Finally, the migration might be used as an opportunity to consolidate volumes at the same
time. After a decision has been made about the new volume size, which is preferably a
multiple of a 3390-1 or 1,113 cylinders, it is required to logically move the data sets. One
option is to rely on SMS-based allocation in a system-managed environment, combined with
DFSMSdss and logical data set copies targeted from individual source volume sets or entire
SMS storage groups. A variation here might be a combination of full volume physical copy for
the very first volume copied to a larger target volume, followed by further logical-based copy
operations with DFSMSdss after adjusting the VTOC and VTOC index information.
After the migration and storage consolidation you will be using a disk storage server
technology which will serve you with promising performance and excellent scalability
combined with rich functionality and high availability.
© Copyright IBM Corp. 2004. All rights reserved. 273
Part 5 Implementation
and management
in the open
systems
environment
In this part we discuss considerations for the DS6000 series when used in an open systems
environment. The topics include:
򐂰Open systems support and software
򐂰Data migration in open systems
Part 5
274 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 275
Chapter 14. Open systems support and
software
In this chapter we describe how the DS6000 fits into your open systems environment. In
particular, we discuss:
򐂰The extent of the open systems support
򐂰Where to find detailed and accurate information
򐂰Major changes from the ESS 2105
򐂰Software provided by IBM with the DS6000
򐂰IBM solutions and services that integrate DS6000 functionality
14
276 DS6000 Series: Concepts and Architecture
14.1 Open systems support
The scope of open systems support of the new DS6000 model is based on that of the ESS
2105, with some exceptions:
򐂰No parallel SCSI attachment support.
򐂰Some new operating systems were added.
򐂰Some legacy operating systems and the corresponding servers were removed.
򐂰Some legacy HBAs were removed.
New versions of operating systems, servers, file systems, host bus adapters, clustering
products, SAN components, and application software are constantly announced in the
market. Every modification to any of these components that can affect the interoperability with
the storage system must be tested. The integrity of the customer data always has the highest
priority. A new version or product can be added to the list of supported environments only
after it is proven that all components work with each other flawlessly.
Information about the supported environments changes frequently. Therefore you are strongly
advised always to refer to the online resources listed in 14.1.2, “Where to look for updated
and detailed information” on page 277.
14.1.1 Supported operating systems and servers
Table 14-1 provides an overview of the open system platforms, operating systems, and high
availability clustering applications that are generally supported for attachment to the DS6000.
However, support is given for specific models and operating system versions only. Details
about the allowed combinations can be found in the resources listed in 14.1.2, “Where to look
for updated and detailed information” on page 277.
Table 14-1 Platforms, operating systems and applications supported with DS6000
The DS6000 and DS8000 have the same open systems support matrix. There are only a few
exceptions, with respect to the timing.
Server platforms Operating systems Clustering applications
IBM pSeries, RS/6000, IBM
BladeCenter JS20 AIX, Linux IBM HACMP™ (AIX only)
IBM iSeries OS/400, i5/OS, Linux, AIX IBM HACMP (AIX only)
HP PARisc, Itanium II HP UX HP MC/Serviceguard
HP Alpha OpenVMS, Tru64 UNIX HP TruCluster
Intel IA-32, IA-64, IBM BladeCenter
HS20 and HS40 Microsoft Windows, VMware,
Novell Netware, Linux
Microsoft Cluster Service, Novell
Netware Cluster Services
SUN Solaris Sun Cluster
Apple Macintosh OS X
Fujitsu PrimePower Solaris
SGI IRIX
Chapter 14. Open systems support and software 277
14.1.2 Where to look for updated and detailed information
This section provides a list of online resources where detailed and up-to-date information
about supported configurations, recommended settings, device driver versions, and so on,
can be found. Due to the high innovation rate in the IT industry, the support information is
updated frequently. Therefore it is advisable to visit these resources regularly and check for
updates.
The DS6000 Interoperability Matrix
The DS6000 Interoperability Matrix always provides the latest information about supported
platforms, operating systems, HBAs and SAN infrastructure solutions. It contains detailed
specifications about models and versions. It also lists special support items, such as boot
support, and exceptions. It can be found at:
http://www.ibm.com/servers/storage/disk/ds6000/pdf/ds6000-matrix.pdf
The IBM HBA Search Tool
For information about supported Fibre Channel HBAs and the recommended or required
firmware and device driver levels for all IBM storage systems, you can visit the IBM HBA
Search Tool site, sometimes also referred to as the Fibre Channel host bus adapter firmware
and driver level matrix:
http://knowledge.storage.ibm.com/HBA/HBASearchTool
For each query, select one storage system and one operating system only, otherwise the
output of the tool will be ambiguous. You will be shown a list of all supported HBAs together
with the required firmware and device driver levels for your combination. Furthermore, you
can select a detailed view for each combination with more information, quick links to the HBA
vendors’ Web pages and their IBM supported drivers, and a guide to the recommended HBA
settings.
The DS6000 Host Systems Attachment Guide
The DS6000 Host Systems Attachment Guide, SC26-7680, guides you in detail through all
the steps that are required to attach an open system host to your DS6000 storage system. It
is available at:
http://www.ibm.com/servers/storage/disk/ds6000
The TotalStorage Proven program
IBM has introduced the TotalStorage Proven™ program to help clients identify storage
solutions and configurations that have been pre-tested for interoperability. It builds on IBM's
already extensive interoperability efforts to develop and deliver products and solutions that
work together with third party products.
The TotalStorage Proven Web site provides more detail on the program, as well as the list of
pre-tested configurations:
http://www.ibm.com/servers/storage/proven/index.html
HBA vendor resources
All of the Fibre Channel HBA vendors have Web sites that provide information about their
products, facts and features, as well as support information. These sites will be useful when
the IBM resources are not sufficient, for example, when troubleshooting an HBA driver.
Please be aware that IBM cannot be held responsible for the content of these sites.
278 DS6000 Series: Concepts and Architecture
QLogic Corporation
The Qlogic web site can be found at:
http://www.qlogic.com
QLogic maintains a page that lists all the HBAs, drivers, and firmware versions that are
supported for attachment to IBM storage systems:
http://www.qlogic.com/support/oem_detail_all.asp?oemid=22
Emulex Corporation
The Emulex home page is:
http://www.emulex.com
They also have a page with content specific to IBM storage systems:
http://www.emulex.com/ts/docoem/framibm.htm
JNI / AMCC
AMCC took over the former JNI, but still markets FC HBAs under the JNI brand name. JNI
HBAs are supported for DS6000 attachment to Sun systems. The home page is:
http://www.amcc.com
Their IBM storage specific support page is:
http://www.jni.com/OEM/oem.cfm?ID=4
Atto
Atto supplies HBAs which IBM supports for Apple Macintosh attachment to the DS6000. Their
home page is:
http://www.attotech.com
They have no IBM storage specific page. Their support page is:
http://www.attotech.com/support.html
Downloading drivers and utilities for their HBAs requires registration.
Platform and operating system vendors’ pages
The platform and operating system vendors also provide lots of support information to their
customers. Go there for general guidance about connecting their systems to SAN-attached
storage. However, be aware that in some cases you will not find information that is intended to
help you with third party (from their point of view) storage systems, especially when they also
have storage systems in their product portfolio. You may even get misleading information
about interoperability and support from IBM. It is beyond the scope of this book to list all the
vendors’ Web sites.
14.1.3 Differences to ESS 2105
For DS6000 the support matrix went through a cleanup process. The changes are described
in this section. For details see the resources listed in the previous section.
򐂰There are no parallel SCSI adapters for the DS6000. Therefore all parallel SCSI support
had to be dropped. No host system can be connected to the DS6000 via parallel SCSI.
򐂰Older HBA models, especially all 1 Gbit/s models were also removed from the support
matrix. Some new models were added.
򐂰Legacy SAN infrastructure solutions, like hubs and gateways, are not supported.
Chapter 14. Open systems support and software 279
򐂰There is no support for IBM TotalStorage SAN Volume Controller Storage Software for
Cisco MDS9000 (SVC4MDS) at initial GA.
򐂰Some legacy operating systems and operating system versions were dropped from the
support matrix. These are either versions which were withdrawn from marketing or
support that are not marketed or supported by their vendors or are not seen as significant
enough anymore to justify the testing effort necessary to support them. Major examples
include:
– IBM AIX 4.x, OS/400 V5R1, Dynix/ptx
– Microsoft Windows NT®
– SUN Solaris 2.6, 7
– HP UX 10, 11, Tru64 4.x, OpenVMS 5.x
– Novell Netware 4.x
– All professional Linux distributions, SUSE SLES7
򐂰Some new operating systems and versions were added, including:
– Apple Macintosh OS X
– IBM AIX 5.3
– IBM i5 OS V5R3
– VMware 2.5.0 (first quarter of 2005)
– Redhat Enterprise Linux 3 IA-64
– SUSE Linux Enterprise Server 9 (first quarter of 2005)
14.1.4 Boot support
For most of the supported platforms and operating systems you can use the DS6000 as a
boot device. The DS6000 Interoperability Matrix provides detailed information about boot
support. Refer to “The DS6000 Interoperability Matrix” on page 277.
The DS6000 Host Systems Attachment Guide, SC26-7680, helps you with the procedures
necessary to set up your host in order to boot from the DS6000. See “The DS6000 Host
Systems Attachment Guide” on page 277.
The SDD User’s Guide, SC26-7637, also helps with identifying the optimal configuration and
lists the steps required to boot from multipathing devices. For more information refer to 14.2,
“Subsystem Device Driver” on page 280.
14.1.5 Additional supported configurations (RPQ)
There is a process for cases where a desired configuration is not represented in the support
matrix. This process is called Request for Price Quotation (RPQ). Clients should contact their
IBM storage sales specialist or IBM Business Partner for submission of an RPQ. Initiating the
process does not guarantee the desired configuration will be supported. This depends on the
technical feasibility and the required test effort. A configuration that equals or is similar to one
of the already approved ones is more likely to get approved than a completely different one.
14.1.6 Differences in interoperability between DS6000 and DS8000
The DS6000 and DS8000 have the same open systems support matrix. There are only a few
exceptions, with respect to the timing.
280 DS6000 Series: Concepts and Architecture
14.2 Subsystem Device Driver
To ensure maximum availability most customers choose to connect their open systems hosts
through more than one Fibre Channel path to their storage systems. With an intelligent SAN
layout this protects you from failures of FC HBAs, SAN components, and host ports in the
storage subsystem.
Most operating systems, however, can’t deal natively with multiple paths to a single disk - they
see the same disk multiple times. This puts the data integrity at risk, because multiple write
requests can be issued to the same data and nothing takes care of the correct order of writes.
To utilize the redundancy and increased I/O bandwidth you get with multiple paths, you need
an additional layer in the operating system’s disk subsystem to recombine the multiple disks
seen by the HBAs into one logical disk. This layer manages path failover, should a path
become unusable, and balancing of I/O requests across the available paths.
For most operating systems that are supported for DS6000 attachment, IBM makes the IBM
Subsystem Device Driver (SDD) available to provide the following functionality:
򐂰Enhanced data availability through automatic path failover and failback
򐂰Increased performance through dynamic I/O load-balancing across multiple paths
򐂰Ability for concurrent download of licensed internal code
򐂰User configurable path-selection policies for the host system
In the DS6000, host ports have a fixed assignment to a server (or controller card). Therefore
there is a slight performance penalty if data from a logical volume managed by one server is
accessed from a port that is located on the other server. The request for the logical volume
and the data would have to be transferred across the bridge interface that connects both
servers. These transfers add some latency to the response time. Furthermore, this interface
is also used to mirror the persistent memory and for other inter-server communication. It
could become a bottleneck if too many normal I/O requests ran across it, although it is a high
bandwidth, low latency, PCI-X connection.
Therefore it is advisable to access a volume primarily through the four host ports that are
located on the server it is associated with. DS6000 supports a range of SCSI-3 commands
that allow you to identify the optimum and backup paths to each logical volume. In SCSI
standard terms this is called Asymmetrical Logical Unit Access.
SDD uses these commands to discover the preferred paths to a volume. It will exclusively use
these, as long as at least one of them is available. Only if none of the preferred paths can be
used will it switch to the alternate paths. Automatic failback to the preferred path is performed
as soon as at least one becomes available after a failure.
Of course, SDD performs dynamic load balancing across all available preferred paths to
ensure full utilization of the SAN and HBA resources.
SDD can be downloaded from:
http://www.ibm.com/servers/storage/support/software/sdd/downloading.html
Important: Although this implementation may look similar to that of the DS4000 (formerly
known as the FAStT) series, it is fundamentally different. You can access any volume
through any path at any time without the volume being reassigned to the alternate server.
As long as a server is available, it will keep its volumes, to avoid switchover times, which
would have far more impact on performance.
Chapter 14. Open systems support and software 281
When you click the Subsystem Device Driver downloads link, you will be presented a list of
all operating systems for which SDD is available. Selecting one leads you to the download
packages, the SDD User’s Guide, SC30-4096, and additional support information. The user’s
guide contains all the information that is needed to install, configure, and use SDD for all
supported operating systems.
For some operating systems additional information about SDD can be found in Appendix A,
“Operating systems specifics” on page 299.
IBM AIX alternatively offers MPIO, a native multipathing solution. It allows the use of Path
Control Modules (PCMs) for optimal storage system integration. IBM provides SDDPCM, a
PCM with the SDD full functionality. See “IBM AIX” on page 303 for more detail.
IBM OS/400 V5R3 doesn't use SDD. It provides native multipath support since V5R3. For
details refer to Appendix B, “Using the DS6000 with iSeries” on page 329.
14.3 Other multipathing solutions
Some operating systems come with native multipathing software, for example:
򐂰SUN StorEdge Traffic Manager for SUN Solaris
򐂰HP PVLinks for HP UX
򐂰IBM AIX native multipathing (MPIO) (see“IBM AIX” on page 303)
򐂰IBM OS/400 V5R3 multipath support (see Appendix B, “Using the DS6000 with iSeries” on
page 329)
In addition there are third party multipathing solutions, such as Veritas DMP, which is part of
Veritas Volume Manager.
Most of these solutions are also supported for DS6000 attachment, although the scope may
vary. There may be limitations for certain host bus adapters or operating system versions.
Always consult the DS6000 Interoperability Matrix for the latest information.
14.4 DS CLI
The DS Command-Line Interface (DS CLI) provides a command set to perform almost all
monitoring and configuration tasks on the DS6000. This includes the ability to:
򐂰Verify and change the storage unit configuration, with some limitations
򐂰Check the current logical storage and Copy Services configuration
򐂰Create new logical storage and Copy Services configuration settings
򐂰Modify or delete logical storage and Copy Services configuration settings
Note: SDD and RDAC, the multipathing solution for the IBM TotalStorage DS4000 series,
can coexist on most operating systems, as long as they manage separate HBA pairs. Refer
to the documentation of your DS4000 series storage system for detailed information.
Limitation: Some basic configuration tasks cannot be performed using the DS CLI, such
as creating a storage complex or adding a storage unit to a storage complex.
282 DS6000 Series: Concepts and Architecture
The DS CLI allows you to invoke and manage logical storage configuration tasks and Copy
Services functions from an open systems host through batch processes and scripts.
It is part of the DS6000 Licensed Internal Code and is delivered with the Customer Software
Packet. It is closely tied to the installed version of code and is therefore not available for
download. The CLI code must be obtained from the same software bundle as the current
microcode update. When DS6000 code updates occur, the DS CLI must also be updated.
The DS CLI is available for most of the supported operating systems. The DS6000
Interoperability Matrix contains a complete list.
There are some pre-requisites for the host system that the DS CLI is running on, specifically:
򐂰Java 1.4.1 or later must be installed
򐂰ksh (Korn shell) or bash (Bourne again shell) must be available. Install shield does not
support the sh shell.
The DS6000 Command-Line Interface User’s Guide, SC26-7681 contains detailed installation
instructions for all supported host operating systems.
The DS CLI can be used in two modes:
򐂰Single command mode: You invoke the DS CLI program in an operating system shell or
command prompt and pass the command it is to execute directly as a parameter. The
command will be passed directly to the DS MC for immediate execution. The return code
of the DS CLI program corresponds to the return code of the command it executed. This
mode can be used for scripting.
򐂰Interactive mode: You start the DS CLI program on your host. It provides you with a shell
environment that allows you to enter commands and send them to the DS-MC for
immediate execution.
There also is a section in this book describing the usage of the DS CLI, including some
examples (Chapter 10, “DS CLI” on page 195).
The DS6000 Command-Line Interface User’s Guide, SC26-7681 contains a complete
command reference.
14.5 IBM TotalStorage Productivity Center
The IBM TotalStorage Productivity Center (TPC) is an open storage management solution
that helps to reduce the effort of managing complex storage infrastructures, to increase
storage capacity utilization, and to improve administrative efficiency. It is designed to enable
an agile storage infrastructure that can respond to on-demand storage needs.
Chapter 14. Open systems support and software 283
Figure 14-1 IBM TotalStorage Productivity Center
TPC is the integration point for storage and fabric management, and replication, as depicted
in Figure 14-1. It provides a launchpad for the following IBM TotalStorage Open Software
Family and Tivoli products:
򐂰IBM Tivoli Storage Resource Manager
򐂰IBM Tivoli SAN Manager
򐂰IBM Tivoli Storage Manager
򐂰IBM TotalStorage Multiple Device Manager
These products allow for the management of data through its lifecycle, device configuration,
performance, replication, storage network fabric, data backup, data availability, and data
recovery, as well as enterprise policies for managing host, application, database, and
filesystem data.
As a component of the IBM TotalStorage Productivity Center, Multiple Device Manager is
designed to reduce the complexity of managing SAN storage devices by allowing
administrators to configure, manage, and monitor storage from a single console.
The devices managed are not restricted to IBM brand products. In fact, any device compliant
with the Storage Network Industry Association (SNIA) Storage Management Initiative
Specification (SMI-S) can be managed with the IBM TotalStorage Multiple Device Manager.
The protocol utilized to enable the central management is called the Common Information
Model (CIM). This open standards based protocol uses XML to define CIM objects and to
manage storage devices over HTTP transactions. Figure 14-2 on page 284 shows the MDM
main panel.
284 DS6000 Series: Concepts and Architecture
Figure 14-2 MDM main panel
For more information about the IBM TotalStorage Multiple Device Manager refer to the
redbook IBM TotalStorage Multiple Device Manager Usage Guide, SG24-7097.
Updated support summaries, including specific software, hardware, and firmware levels
supported, are maintained at:
http://www.ibm.com/storage/support/mdm
The IBM TotalStorage Multiple Device Manager is composed of three subcomponents:
򐂰Device Manager
򐂰TPC for Disk
򐂰TPC for Replication
They are described in the following sections.
14.5.1 Device Manager
The Device Manager (DM) builds on the IBM Director technology. It uses the Service Level
Protocol (SLP) to discover supported storage systems on the SAN. The SLP enables the
discovery and selection of generic services accessible through an IP network. The DM then
uses managed objects to manage these devices.
DM also provides a subset of configuration functions for the managed devices, primarily LUN
allocation and assignment. Its functionality includes aggregation and grouping of devices and
provides policy based actions across multiple storage devices. These services communicate
with the CIM Agents that are associated with the particular devices to perform the required
Chapter 14. Open systems support and software 285
configuration. Devices that are not SMI-S compliant are not supported. The DM also interacts
and provides SAN management functionality when the IBM Tivoli SAN Manager is installed.
The DM health monitoring keeps you aware of hardware status changes in the discovered
storage devices. You can drill down to the status of the hardware device, if applicable. This
enables you to understand which components of a device are malfunctioning and causing an
error status for the device. Figure 14-3 shows an example of a DM view.
Figure 14-3 Sample Device Manager view
In summary, the Device Manager is responsible for:
򐂰Discovery of supported devices (SMI-S compliant)
򐂰Data collection (asset, availability, configuration)
򐂰Providing a topographical view of storage
14.5.2 TCP for Disk
TPC for Disk, formerly known as MDM Performance Manager, provides the following
functions:
򐂰Collect performance data from devices.
򐂰Configure performance thresholds.
򐂰Monitor performance metrics across storage subsystems from a single console.
򐂰Receive timely alerts to enable event action based on customer policies.
򐂰View performance data from the performance manager database.
򐂰Storage optimization through identification of the best performing volumes.
286 DS6000 Series: Concepts and Architecture
TPC for Disk collects data from IBM or non-IBM networked storage devices that implement
SMI-S. A performance collection task collects performance data from one or more storage
groups of one device type. It has individual start and stop times, and a sampling frequency.
The sampled data is stored in DB2 database tables.
You can use TPC for Disk to set performance thresholds for each device type. Setting
thresholds for certain criteria enables TPC for Disk to notify you when a certain threshold has
been exceeded, so that you can take action before a critical event occurs. You can also
specify actions to be taken automatically. These may be just to log the occurrence or to trigger
an event. The settings can vary by individual device.
You can view performance data from the performance manager database in both graphical
and tabular forms. This is shown in Figure 14-4.
Figure 14-4 Example screenshot of TPC for Disk
The Volume Performance Advisor is an automated tool to help the storage administrator pick
the best possible placement of a new LUN to be allocated from a performance perspective. It
uses the historical performance statistics collected from the managed devices and locates
unused storage capacity on the SAN that exhibits the best estimated performance
characteristics. Allocation optimization involves several variables that are user controlled,
such as the required performance level and the time of day/week/month of prevalent access.
This function is fully integrated with the DM function.
For detailed information about the installation and use of the Performance Manager refer to
the redbook IBM TotalStorage Multiple Device Manager Usage Guide, SG24-7097.
Chapter 14. Open systems support and software 287
14.5.3 TPC for Replication
TPC for Replication, formerly known as MDM Replication Manager, provides a single point
of control for all replication activities. Given a set of source volumes to be replicated, it will find
the appropriate targets, perform all the configuration actions required, and ensure the source
and target volume relationships are set up.
TPC for Replication administers and configures the copy services functions of the managed
storage systems and monitors the replication actions. It can manage two types of copy
services: the Continuous Copy, also known as Peer-to-Peer Remote Copy (PPRC) and the
Point-in-time Copy, also known as FlashCopy.
It supports replication sessions, which ensure that data on multiple related heterogeneous
volumes is kept consistent, provided that the underlying hardware supports the necessary
primitive operations. Multiple pairs are handled as a consistent unit, Freeze-and-Go functions
can be performed when mirroring errors occur. It is designed to control and monitor the data
replication operations in large-scale customer environments.
TPC for Replication provides a user interface for creating, maintaining, and using volume
groups and for scheduling copy tasks. It populates the lists of volumes using the DM interface.
An administrator can also perform all tasks with the TPC for Replication command-line
interface.
14.6 Global Mirror Utility
The DS6000 Global Mirror Utility (GMU) is a standalone tool to provide a management layer
for IBM TotalStorage Global Mirror failover and failback (FO/FB). It provides clients with a set
of twelve basic commands that utilize the DS Open-API to accomplish either a planned or
unplanned FO/FB sequence.
The purpose of the GMU is to automate the complex sequence of steps necessary to set up
and manage Global Mirror relationships for a large number of LUNs. There is no limitation to
the number of volumes managed by GMU.
In the event of a planned or unplanned FO/FB, the system administrator issues a few GMU
commands to recover consistent data on the remote site before he starts host I/O activities.
The GMU commands can be incorporated in user scripts or utilities to further automate
datacenter operations. However, IBM does not support such scripts or utilities without specific
service arrangement.
The GMU is distributed on a separate CD with the DS6000 Licensed Internal Code (LIC). It
includes installation instructions and a user guide. It consists of two components, a server
and a client. The server receives requests from the client and communicates over TCP/IP to
the DS6000 Storage Management Console for the execution of the commands. The
commands allow you to:
򐂰Create, modify, start, stop, and resume a Global Mirror session
򐂰Manage failover and failback operations including managing consistency
򐂰Perform planned outages
To monitor the DS6000 volume status and the Global Mirror session status, you can either
use the DS6000 Storage Manager or CLI.
288 DS6000 Series: Concepts and Architecture
14.7 Enterprise Remote Copy Management Facility (eRCMF)
eRCMF is a multi-site disaster recovery solution, managing IBM Total Storage Remote Mirror
and Copy as well as FlashCopy functions, while ensuring data consistency across multiple
machines. It is a scalable, flexible solution for the DS6000 with the following functions:
򐂰When a site failure occurs or may be occurring, eRCMF splits the two sites in a manner
that allows the backup site to be used to restart the applications. This needs to be fast
enough that when the split occurs, operations on the production site are not impacted.
򐂰It manages the states of the Metro Mirror and FlashCopy relationships, so that the
customer knows when the data is consistent and can control on which site the applications
run.
򐂰It offers easy commands to place the data in the state it needs to be in. For example, if the
data is out of sync, the command resync will cause eRCMF to scan the specified volumes
and issue commands to bring the volumes back into sync.
򐂰It offers a tool to execute eRCMF configuration checks. This check is intended to verify
that the eRCMF configuration matches the physical DS6000 setup in the customer
environment. This is required to discover configuration changes that affect the eRCMF
configuration as well. Regular checks support customers in keeping the eRCMF
configuration up-to-date with their actual environment; otherwise, full eRCMF
management functionality is not given.
eRCMF is a IBM Global Services offering. More information about eRCMF can be found at:
http://www-1.ibm.com/services/us/index.wss/so/its/a1000110
14.8 Summary
The new DS6000 enterprise disk subsystem offers broad support and superior functionality
for all major open system host platforms. In addition, IBM provides software packages for
many platforms that are needed to exploit all of the functionality. IBM also integrated DS6000
functionality into its family of storage management software products that help to reduce the
effort of managing complex storage infrastructures, to increase storage capacity utilization
and to improve administrative efficiency.
© Copyright IBM Corp. 2004. All rights reserved. 289
Chapter 15. Data migration in the open
systems environment
In this chapter we discuss important concepts for the migration of data to the new DS6000:
򐂰Data migration considerations
򐂰Data migration and consolidation
򐂰Comparison of the different methods
15
290 DS6000 Series: Concepts and Architecture
15.1 Introduction
The term data migration has a very diverse scope. We use it here solely to describe the
process of moving data from one type of storage to another, or to be exact, from one type of
storage to a DS6000. In many cases, this process is not only comprised of the mere copying
of the data, but also includes some kind of consolidation.
With our focus on storage, we distinguish three kinds of consolidation, also illustrated in
Figure 15-1:
򐂰The consolidation of distributed, direct-attached storage to shared, SAN-attached disk
storage
򐂰The consolidation of many small volumes into a few larger ones
򐂰The consolidation of several small storage systems into a few larger ones
Figure 15-1 Different ways of consolidation
Very often, the goal of a consolidation effort is a combination of more than one of these types.
There are many different methods for data migration. To decide on what is best in your case,
gather information about the following items:
򐂰The source and target storage make and type
򐂰The amount of data to be migrated
򐂰The amount of time available for the migration
򐂰The ability to connect both source and target storage at the same time
򐂰The availability of spare disk or tape capacity for temporary storage
򐂰The format of the data itself
򐂰The consolidation goals
򐂰Can the migration be disruptive, and for how long?
򐂰The distance between source and target
We describe the most common methods in the next section. Be aware that, in a
heterogeneous IT environment, you will most likely have to choose more than one method.
Few storage subsystems
Few larger volumes
Collection of small volumes
Several storage subsystems
Host
Direct attached storage
Shared Storage
Chapter 15. Data migration in the open systems environment 291
Once it is decided which method (or methods) to use, the migration process starts with a very
careful planning phase. Items to be taken into account during migration planning include:
򐂰Availability of all the required hardware and software.
򐂰Installation of the new and removal of the old storage.
򐂰Installation of drivers required for the new storage.
򐂰A test of the new environment.
򐂰The storage configuration before, during, and after the migration.
򐂰The time schedule of the whole process, including the scheduling of outages.
򐂰Does everyone involved have the necessary skills to perform their tasks?
Additional information about data migration to the DS6000 can be found in the DS6000
Introduction and Planning Guide, GC26-7679 at:
http://www-1.ibm.com/servers/storage/disk/ds6000/pdf/DS6000_planning_guide.pdf
Exceptional care must be exercised in data sharing (clustered) environments. If data is
shared between more than one host, all of them have to be made aware of the changes in the
configuration, even if the migration is only performed by one of them. Refer to the
documentation of your clustering solution for ways to propagate configuration changes
throughout the cluster.
15.2 Comparison of migration methods
There are numerous methods that can be used to migrate data from one storage system to
another. We briefly describe the most common ones and list their advantages and
disadvantages in the following sections.
15.2.1 Host operating system-based migration
Data migration using tools that come with the host operating system has these advantages:
򐂰No additional cost for software or hardware.
򐂰System administrators are used to using the tools.
Reasons against using these methods could include:
򐂰Different methods are necessary for different data types and operating systems.
Note: When discussing disruptiveness, we don't consider any interruptions that may be
caused by adding the new DS6000 LUNs to the host and later by removing the old storage.
They vary too much from operating system to operating system, even from version to
version. However, they have to be taken into account, too.
Note: IBM Global Services can assist you in all phases of the migration process with
professional skill and methods.
Note: The IBM iSeries platform with the OS/400 and i5/OS operating systems has a
different approach to data management than the other open systems. Therefore different
strategies for data migration apply. Refer to Appendix B, “Using the DS6000 with iSeries”
on page 329.
292 DS6000 Series: Concepts and Architecture
򐂰Strong involvement of the system administrator is necessary.
Today the majority of data migration tasks is performed with one of the methods discussed in
the following sections.
Basic copy commands
Using copy commands is the simplest way to move data from one storage system to another,
for example:
򐂰copy, xcopy, drag and drop for Windows
򐂰cp, cpio for UNIX
These commands are available on every system supported for DS6000 attachment, but work
only with data organized in file systems. Data can be copied between file systems of different
sizes. Therefore this method can be used for the consolidation of small volumes into larger
ones. Figure 15-2 outlines the process.
Figure 15-2 Migration with copy commands
The most significant disadvantage of this method is the disruptiveness. To preserve data
consistency, the applications writing to the data which is migrated have to be interrupted for
the duration of the copy process. Furthermore, some copy commands cannot preserve
advanced metadata, such as access control lists or permissions.
Copy raw devices
For raw data there are tools that allow you to read and write disk devices directly, such as dd
for UNIX. They copy the data and its organizational structure (metadata) without having any
intelligence about it. Therefore they cannot be used for consolidation of small volumes into
larger ones. Special care has to be taken when data and its metadata are kept in separate
places. They both have to be copied and realigned on the target system. By themselves, they
are useless.
This method also requires the disruption of applications writing to the data for the complete
process.
Attention: If your storage systems are attached through multiple paths, make sure that the
multipath drivers for the old and the new storage system can coexist on one host. If not,
you have to revert the host to a single path configuration before you attach the new storage
system. You can change back to a multipath configuration after the migration is complete.
This is valid for all migration methods where source and target are attached to the host at
the same time.
Host Copy all data
Stop applications
Host Restart
using new copy
Chapter 15. Data migration in the open systems environment 293
Online copy and synchronization with rsync
rsync is an open source tool that is available for all major open system platforms, including
Windows and Novell Netware.
Its original purpose is the remote mirroring of file systems with as few network requirements
as possible. Once the initial copy is done, it keeps the mirror up to date by only copying
changes. Additionally, the incremental copies are compressed.
rsync can also be used for local mirroring and therefore for data migration. It allows you to
copy the data while applications are writing to it and thus minimizes the disruption. As for the
normal copy commands, rsync works on file systems only. It also allows consolidation.
Figure 15-3 shows the steps required.
Figure 15-3 Data migration with rsync
You set up the initial copy during normal operation, allowing enough time for the copy to
complete before the planned switch to the new storage (cut over time). Once the initial copy is
complete, you keep it up to date with incremental rsync runs, for instance once a day, during
off-peak hours. At the cut over time, you stop the applications using the data, let rsnyc do a
final synchronization, and restart the applications using the migrated data. The duration of the
disruption depends only on the amount of data that has changed since the last
re-synchronization.
More information about rsync can be found on the rsync project home page:
http://samba.org/rsync/
Migration using volume management software
Logical Volume Managers (LVMs) are available for all open systems (for Windows it is called
Disk Manager). The LVM creates a layer of storage virtualization within the operating system.
The most basic functionality every LVM provides is to:
򐂰Extend logical volumes across several physical disks
򐂰Stripe data across several physical disks to enhance performance
򐂰Mirror data for higher availability and migration
The LUNs provided by the DS6000 appear to the LVM as physical SCSI disks.
Initial Copy
Host
Host
Host
Final synchronization
Incremental updates
Stop applications
Restart
using new copy
294 DS6000 Series: Concepts and Architecture
Usually the process is to set up a mirror of the data on the old disks to the new LUNs, wait
until it is synchronized and split it at the cut over time. Some LVMs provide commands that
automate this process.
The biggest advantage of using the LVM for data migration is that the process can be totally
non-disruptive, as long as the operating system allows you to add and remove LUNs
dynamically. Due to the virtualization nature of LVM, it also allows for all kinds of
consolidation. Figure 15-4 shows the process.
Figure 15-4 Migration using LVM mirroring
The major disadvantage is that the LVM mirroring method requires a lot of system
administrator intervention and attention. Production data is manipulated while production is
running. Carelessness can lead to the outage that one wanted to avoid by selecting this
method.
Backup and Restore
Every serious IT operation will have ways to back up and restore data. They can be used for
data migration. We list this method here because it shares the common advantages and
disadvantages with the methods discussed previously, although the tools will not always be
provided natively by the operating system.
All open system platforms and many applications provide native backup and restore
capabilities. They may not be very sophisticated sometimes, but they are often suitable in
smaller environments. In larger data centers it is customary to have a common backup
solution across all systems. Either can be used for data migration.
The backup and restore option allows for consolidation because the tools are usually aware
of the data structures they handle.
One significant difference to most of the other methods discussed here, is that it does not
require the source and target storage systems to be connected to the hosts at the same time.
Figure 15-5 on page 295 illustrates this method.
Initial Copy
Host Update continuously
Host Split mirror
Continue with new copy
Chapter 15. Data migration in the open systems environment 295
Figure 15-5 Migration using backup and restore
The major disadvantage is again the disruptiveness. The applications that write to the data to
be migrated must be stopped for the whole migration process. Backup and restore to and
from tape usually takes longer than direct copy from disk to disk. The duration of the
disruption can be reduced somewhat by using incremental backups.
15.2.2 Subsystem-based data migration
The DS6000 provides remote copy functionality, which also can be used to migrate data:
򐂰IBM TotalStorage Metro Mirror, formerly known as PPRC, for distances up to 300km
򐂰IBM TotalStorage Global Copy, formerly known as PPRC Extended Distance, for longer
distances
򐂰A combination of Metro Mirror and Global Copy with an intermediate device in certain
cases
These methods are host system agnostic and can therefore be used with only minimum
system administrator attention. They also do not add any additional CPU load to the host
systems, and they don't require the host system to be connected to both storage systems at
the same time.
The necessary disruption is minimal. The initial copy is started during normal operation. Once
it is complete, the target is kept up-to-date by only copying changes made to the source. At
the cut over time, the applications are stopped and the mirror is allowed to reach
synchronization. Then the target system is connected to the host instead of the source
system and the applications can be restarted with the new copy.
However, the copy functions do not allow for the consolidation of smaller volumes into larger
ones, since they are not aware of the structure of the data.
Host
Backup all data
Stop applications
Backup
System
Host
Restore data
Backup
System
Host Restart
using new copy
Intermediate device
Important: The source storage system must be removed from the host completely, not
only physically, but also logically, including all configuration data.
296 DS6000 Series: Concepts and Architecture
Metro Mirror and Global Copy
From a local data migration point of view both methods are on par with each other, with
Global Copy having a smaller impact on the subsystem performance and Metro Mirror
requiring almost no time for the final synchronization phase. It is advisable to use Global Copy
instead of Metro Mirror, if the source system is already at its performance limit even without
remote mirroring. Figure 15-6 outlines the migration steps.
Figure 15-6 Migration with Metro Mirror or Global Copy
The remote copy functionality can be used to migrate data in either direction between the
Enterprise Storage Server (ESS) 750 or 800 and the new DS8000 and DS6000 storage
systems. The ESS E20 and F20 lack support for remote copy over Fibre Channel and can
therefore not be mirrored directly to a DS6000.
Combination of Metro Mirror and Global Copy
A cascading Metro Mirror and Global Copy solution is useful in two cases:
򐂰The source system is already mirrored for disaster tolerance and mirroring is mandatory
for production. Then a Global Copy relationship can be used to migrate the data from the
secondary volumes of the Metro Mirror pair to the new machine.
򐂰Data must be migrated from an older ESS E20 or F20. Here a Metro Mirror using ESCON
connectivity is used to mirror the data to an intermediate ESS 800, which in turn will copy
the data to the DS8000 with Global Copy.
Figure 15-7 shows the setup and steps to take for this method.
Figure 15-7 Migration with Metro Mirror, Global Copy and an intermediate device
Initial Copy
Host
Continuous updates
Host Final synchronization
Stop applications
Host Restart
Using new copy
Host Restart
Using new copy
Host Final synchronization
Stop applications
Initial Copy
Host
Continuous updates
Intermediate Device
Metro Mirror Global Copy
Chapter 15. Data migration in the open systems environment 297
15.2.3 IBM Piper migration
Piper is a hardware and software solution to move data between disk systems while
production is ongoing. It is used in conjunction with IBM migration services. Piper is available
for mainframe and open systems environments. Here we discuss the open systems version
only. For mainframe environments see Chapter 13, “Data Migration in zSeries environments”
on page 251.
The Piper hardware consists of a portable rack enclosure containing Fibre Channel routers, a
SAN Switch, and non disruptive power supplies.
Piper migration can be performed independently of the host operating system and the source
disk system. It doesn’t generate extra host workload. However, it does not support the
consolidation of small volumes into larger ones, because it is not aware of the data structure.
Since Piper has to be in the data path, between the host and the source storage system, it
can only be used to migrate Fibre Channel attached storage. It also requires two short
interruptions of data access, one to bring it into the data path, another one to take it out, after
the data has been moved. Figure 15-8 illustrates how Piper works.
Figure 15-8 Piper migration
For open systems migration, no additional software has to be installed on the host. IBM
migration services use some scripts to determine the exact storage configuration that has to
duplicated on the target system.
For more information about the Piper offerings refer to:
http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
Host Restart
Remove old copy
Host Continue with Piper
Piper
Remove Piper
Host
Host Stop applications
Add Piper
Initial Copy
Host
Continuous updates
Piper Restart applications
298 DS6000 Series: Concepts and Architecture
15.2.4 Other migration applications
There are a number of applications available from other vendors that can assist in data
migration. We don’t discuss them here in detail. Some examples include:
򐂰Softek Data Replicator for Open
򐂰NSI Double-Take
򐂰XoSoft WANSync
There also are storage virtualization products which can be used for data migration in a
similar manner to the Piper tool. They are installed on a server which forms a virtualization
engine that resides in the data path. Examples are:
򐂰IBM SAN Volume Controller
򐂰Falconstore IPStore
򐂰Datacore SANSymphony
An important question to ask, before deciding among these methods, is whether the
virtualization engine can be removed from the data path after the migration has completed.
15.3 IBM migration services
This is the easiest way to migrate data, because IBM will assist you throughout the complete
migration process. In several countries IBM offers a migration service. Check with your IBM
sales representative about migration services for your specific environment and needs.
Businesses today require efficient and accurate data migration. IBM provides technical
specialists at your location to plan and migrate your data to your DS6000 disk system.
This migration is accomplished using either native operating system mirroring, remote
mirroring, or the Piper migration tool to replicate your data to the DS6000 disk system with
minimum interruption to service. In addition, IBM will provide a Migration Control Book which
specifies the activities performed during these services.
The benefits of IBM migration services include:
򐂰Minimized downtime and no data loss.
򐂰Superior data protection that preserves data updates throughout the migration, allowing
the process to be interrupted if needed.
򐂰A Migration Control Book that details the work performed, so your staff can use it for post
migration management.
15.4 Summary
This chapter shows that there are many ways to accomplish data migration. Thorough
analysis of the current environment, evaluation of the requirements and planning are
necessary. Once you decide on one or more migration methods, refer to the documentation
of the tools you want to use to define the exact sequence of steps to take.
Special care must be exercised when data is shared between more than one host.
IBM Global Services can assist you in all stages to ensure a successful and smooth
migration.
© Copyright IBM Corp. 2004. All rights reserved. 299
Appendix A. Operating systems specifics
In this appendix, we describe the particular issues of some operating systems with respect to
the attachment to a DS6000. The following subjects are covered:
򐂰Planning considerations
򐂰Common tools
򐂰IBM AIX
򐂰Linux on various platforms
򐂰Microsoft Windows
򐂰HP OpenVMS
A
300 DS6000 Series: Concepts and Architecture
General considerations
In this section we cover some topics that are not specific to a single operating system. This
includes available documentation, some planning considerations, and common tools.
The DS6000 Host Systems Attachment Guide
The DS6000 Host Systems Attachment Guide, SC26-7680, provides instructions to prepare a
host system for DS6000 attachment. For all supported platforms and operating systems it
covers:
򐂰Installation and configuration of the FC HBA
򐂰Peculiarities of the operating system with regard to storage attachment
򐂰How to prepare a system that boots from the DS6000 (when supported)
It varies in detail for the different platforms. Download it from:
http://www.ibm.com/servers/storage/disk/ds6000
Many more publications are available from IBM and other vendors. Refer to Chapter 14,
“Open systems support and software” on page 275 and to the operating system-specific
sections in this chapter.
Planning
Thorough planning is necessary to ensure that your new DS6000 will perform efficiently in
your data center. In this section we raise the questions you will have to ask and the things you
have to consider before you start. We don’t cover all the items in detail because this is not an
implementation book.
For a more detailed discussion of these considerations related to performance refer to
Chapter 11, “Performance considerations” on page 219.
Capacity planning considerations
For proper sizing of your DS6000 storage subsystem more than the total required capacity
has to be known. Consider the following questions:
򐂰What is the capacity for each host system or even each application? What are this
system’s performance requirements (I/Os, throughput)?
򐂰How much capacity is needed for fixed block (open systems) and how much for CKD
(mainframe) data?
򐂰Do you need advanced copy functions?
򐂰What is the number of disk drives needed, their size and speed?
򐂰With the usable capacity known, what is the raw capacity to order?
򐂰What is the number of Fibre Channel attachment needed?
򐂰Do you have to plan for future expansion?
Data placement considerations
A DS6000 logical volume is composed of extents. These extents are striped across all disks in
an array (or rank, which is equivalent). To create the logical volume, extents from one extent
pool are concatenated. Within a given extent pool there is no control over the placement of
Appendix A. Operating systems specifics 301
the data, even if this pool spans several ranks. If possible, the extents for one logical volume
are taken from the same rank.
To get higher throughput values than a single array can deliver, it is necessary to stripe the
data across several arrays. This can only be achieved through striping on the host level.
To achieve maximum granularity and control for data placement, you will have to create an
extent pool for every single rank.
However, some operating systems support only a limited number of attached disks, or make it
difficult for the administrator to combine several physical disks into one big volume. In the
DS6000 logical volumes cannot span several extent pools. To be able to create very large
logical volumes, you must consider having extent pools that include more than one rank.
UNIX performance monitoring tools
Some tools are worth discussing because they are available for almost all UNIX variants and
system administrators are accustomed to using them. You may have to administer a server
and these are the only tools you have available to use. These tools offer a quick way to tell
whether a system is I/O bound:
򐂰iostat
򐂰sar (System Activity Report)
򐂰vmstat (Virtual Memory Statistics)
IOSTAT
The base tool for evaluating I/O performance of disk devices for UNIX operating systems is
iostat. Although available on most UNIX platforms, iostat varies in its implementation from
system to system.
The iostat command is useful to determine whether a system’s I/O load is balanced or
whether a single volume is becoming a performance bottleneck. The tool reports I/O statistics
for TTY devices, disks, and CD-ROMs. It monitors I/O device throughput and utilization by
observing the time the disks are active in relation to their average transfer rates.
Example A-1 shows a sample iostat output, taken on an AIX host. It shows disk device
statistics since the last reboot.
Example: A-1 AIX iostat output
#iostat
Disks: % tm_act Kbps tps Kb_read Kb_wrtn
hdisk0 0.0 0.3 0.0 29753 48076
hdisk1 0.1 0.1 0.0 11971 26460
hdisk2 0.2 0.8 0.1 91200 108355
cd0 0.0 0.0 0.0 0 0
Tip: I/O activity monitors, such as iostat, have no way of knowing whether the disk they
are seeing is a single physical disk or a logical disk striped upon multiple physical disks in
a RAID array. Therefore, some performance figures reported for a device, for example,
%busy, could appear high.
302 DS6000 Series: Concepts and Architecture
The output reports the following:
򐂰The %tm_act column indicates the percentage of the measured interval time that the
device was busy.
򐂰The Kbps column shows the average data rate, read and write data combined, of this
device.
򐂰The tps column shows the transactions per second. Note that an I/O transaction can have
a variable transfer size. This field may also appear higher than would normally be
expected for a single physical disk device.
򐂰The Kb_read and Kb_wrtn columns show the total amount of data read and written.
iostat can also be issued for continuous monitoring with a given number of iterations and a
monitoring period. It will then print a report like that in Example A-1 on page 301 for every
period, with the values calculated for exactly this period. In most cases this mode is more
useful, because bottlenecks mostly appear only during peak times and are not reflected in an
overall average. Be aware that the first in the series of reports represents the average since
boot and should be discarded.
Example A-2 shows an iostat report from SUN Solaris. You see an example of a device that
appears to be very busy (sd1). The r/s column shows 124.3 reads per second; the %b column
shows 90 percent busy. The svc_t column, however, shows a service time of 15.7 ms, still
quite reasonable for 124 I/Os per second. Depending on the application layout, this report
could lead to the conclusion that the I/O load of this system is unbalanced. Some disks get a
lot more I/O request than others. A consequence of this could be to move certain parts of a
database from the busiest disks to less used ones.
Example: A-2 SUN Solaris iostat output
#iostat -x
extended disk statistics
disk r/s w/s Kr/s Kw/s wait actv svc_t %w %b
fd0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0 0
sd1 124.3 14.5 3390.9 399.7 0.0 2.0 15.7 0 90
sd2 0.7 0.4 13.9 4.0 0.0 0.0 7.8 0 1
sd3 0.4 0.5 2.5 3.8 0.0 0.1 8.1 0 1
sd6 0.0 0.0 0.0 0.0 0.0 0.0 5.8 0 0
sd8 0.3 0.2 9.4 9.6 0.0 0.0 8.6 0 1
sd9 0.7 1.3 12.4 21.3 0.0 0.0 5.2 0 3
The implementation of the iostat command is different for every UNIX variant. It also offers
many different options and parameters. Refer to your system documentation and the iostat
man page for more information.
System Activity Report (SAR)
The System Activity Report (SAR) provides a quick way to tell if a system is I/O bound. SAR
has numerous options, providing paging, TTY, CPU busy, and many other statistics.
One way you can run sar is by specifying a sampling interval and the number of times you
want it to run.
This is shown in Example A-3 on page 303. It displays CPU usage information, sampled five
times with a two second interval. To check whether a system is I/O bound, the important
column to look at is %wio. The %wio indicates the time spent waiting on I/O from all disks,
both internal and external. Here, too, the first line represents the average since boot time and
should be discarded.
Appendix A. Operating systems specifics 303
Example: A-3 SAR Sample Output
# sar -u 2 5
AIX aixtest 3 4 001750154C00 2/5/03
17:58:15 %usr %sys %wio %idle
17:58:17 43 9 1 46
17:58:19 35 17 3 45
17:58:21 36 22 20 23
17:58:23 21 17 0 63
17:58:25 85 12 3 0
Average 44 15 5 35
As a general rule of thumb, a server with over 40 percent waiting on I/O is spending too much
time waiting for I/O. However, you also have to take the type of workload into account. If you
are running a video file server, serving I/O will be the primary activity of the machine and you
will expect high %wio values.
A system with very busy CPUs can mask I/O wait. The definition of %wio is: Idle with some
processes waiting for I/O (only block I/O, raw I/O, or VM pageins/swapins indicated). If the
system is CPU busy and also is waiting for I/O, the accounting will increment the CPU busy
values, but not the %wio column.
The other column headings in the example indicate:
򐂰%usr: Time system spent executing application code
򐂰%sys: Time system spent executing operating system calls
򐂰%idle: Time the system was idle with no outstanding I/O requests
The implementation of the sar command is different for the various UNIX variants. However,
the output of sar -u is the same for all.
There are other modes to use sar, which we will not discuss further:
򐂰Ongoing system activity accounting via cron
򐂰Display previously captured data
sar offers many different options and parameters. Refer to your system documentation and
the sar man page for more information.
VMSTAT
The vmstat utility is a useful tool for taking a quick snapshot or overview of the system
performance. It is easy to see what is happening with regard to the CPUs, paging, swapping,
interrupts, I/O wait, and much more. There are several reports that vmstat can provide. They
vary slightly between the different versions of UNIX. Refer to your system documentation and
the vmstat man page for more information.
IBM AIX
This section covers items specific to the IBM AIX operating system. It is not intended to
repeat the information that is contained in other publications. We focus on topics that are not
covered in the well known literature or are important enough to be repeated here.
304 DS6000 Series: Concepts and Architecture
Other publications
Apart from the DS6000 Host Systems Attachment Guide, GC26-7680, there are two
redbooks that cover pSeries storage attachment:
򐂰Practical Guide for SAN with pSeries, SG24-6050, covers all aspects of connecting an AIX
host to SAN-attached storage. However, it is not quite up-to-date; the last release was in
2002.
򐂰Fault Tolerant Storage - Multipathing and Clustering Solutions for Open Systems for the
IBM ESS, SG24-6295, focuses mainly on high availability and covers SDD and HACMP
topics. It also is from 2002.
Much of the technical information for pSeries or AIX also covers external storage, since SAN
attachment became standard procedure in almost all data centers of size with a claim to
availability.
The AIX host attachment scripts
AIX needs some file sets installed to support DS6000 disks. They prepare the Object Data
Manager (ODM) with information about the subsystem. That way the DS6000 volumes are
identified properly and all performance parameters optimized.
For the ESS under AIX there was a set of Host Attachment scripts which could be
downloaded from the Web. For the DS6000 using AIX SDD 1.6.0.0, these scripts have been
consolidated into one called FCP Host Attachment Script. The most up-to-date version for the
DS6000 can be downloaded from:
http://www-1.ibm.com/support/dlsearch.wss?rs=540&q=host+scripts&tc=ST52G7&dc=D417
Finding the World Wide Port Names
In order to allocate DS6000 disks to a pSeries server, the World Wide Port Name (WWPN) of
each of the pSeries Fibre Channel adapters has to be registered in the DS6000. You can use
the lscfg command to find out these names, as shown in Example A-4.
Example: A-4 Finding Fibre Channel adapter WWN
lscfg -vl fcs0
fcs0 U1.13-P1-I1/Q1 FC Adapter
Part Number.................00P4494
EC Level....................A
Serial Number...............1A31005059
Manufacturer................001A
Feature Code/Marketing ID...2765
FRU Number.................. 00P4495
Network Address.............10000000C93318D6
ROS Level and ID............02C03951
Device Specific.(Z0)........2002606D
Device Specific.(Z1)........00000000
Device Specific.(Z2)........00000000
Device Specific.(Z3)........03000909
Device Specific.(Z4)........FF401210
Device Specific.(Z5)........02C03951
Device Specific.(Z6)........06433951
Device Specific.(Z7)........07433951
Device Specific.(Z8)........20000000C93318D6
Device Specific.(Z9)........CS3.91A1
Device Specific.(ZA)........C1D3.91A1
Appendix A. Operating systems specifics 305
Device Specific.(ZB)........C2D3.91A1
Device Specific.(YL)........U1.13-P1-I1/Q1
You can also print the WWPN of an HBA directly by running:
lscfg -vl <fcs#> | grep Network
The # stands for the instance of each FC HBA you want to query.
Managing multiple paths
It is a common and recommended practice to assign a DS6000 volume to the host system
through more than one path, to ensure availability in case of a SAN component failure and to
achieve higher I/O bandwidth. AIX will discover a separate hdisk for each path to a DS6000
logical volume.
To utilize the path redundancy and increased I/O bandwidth, you need an additional software
layer in the AIX disk subsystem to recombine the multiple hdisks into one device.
Subsystem device driver (SDD)
The IBM Subsystem Device Driver (SDD) software is a host-resident pseudo device driver
designed to support the multipath configuration environments in IBM products. SDD resides
in the host system with the native disk device driver and manages redundant connections
between the host server and the DS6000. SDD is available for AIX 5.1, 5.2, and 5.3.
Refer to 14.2, “Subsystem Device Driver” on page 280 for download information and
installation and usage documentation.
Determine the installed SDD level
To determine whether SDD is installed, and at which level, you can use the lslpp -l
command, as shown in Example A-5.
Example: A-5 lslpp -l “*sdd*”
Fileset Level State Description
----------------------------------------------------------------------------
Path: /usr/lib/objrepos
devices.sdd.52.rte 1.5.1.2 COMMITTED IBM Subsystem Device Driver
for AIX V52
Path: /etc/objrepos
devices.sdd.52.rte 1.5.1.2 COMMITTED IBM Subsystem Device Driver
for AIX V52
Useful SDD commands
The datapath query device command displays information about all vpath devices. It is
useful to determine the number of paths to each SDD vpath device and their status. See
Example A-6.
Example: A-6 datapath query device command
{yli4642:root}/home/redbook -> datapath query device
Total Devices : 2
DEV#: 0 DEVICE NAME: vpath3 TYPE: 1750 POLICY: Optimized
SERIAL: 10522873
306 DS6000 Series: Concepts and Architecture
==========================================================================
Path# Adapter/Hard Disk State Mode Select Errors
0 fscsi2/hdisk17 OPEN NORMAL 0 0
1 fscsi2/hdisk19 OPEN NORMAL 27134 0
2 fscsi3/hdisk21 OPEN NORMAL 0 0
3 fscsi3/hdisk23 OPEN NORMAL 27352 0
DEV#: 1 DEVICE NAME: vpath4 TYPE: 1750 POLICY: Optimized
SERIAL: 20522873
==========================================================================
Path# Adapter/Hard Disk State Mode Select Errors
0 fscsi2/hdisk18 CLOSE NORMAL 25734 0
1 fscsi2/hdisk20 CLOSE NORMAL 0 0
2 fscsi3/hdisk22 CLOSE NORMAL 25500 0
3 fscsi3/hdisk24 CLOSE NORMAL 0 0
This lsvpcfg command helps verify the vpath configuration state. See Example A-7.
Example: A-7 lsvpcfg command
vpath0 (Available pv) 018FA067 = hdisk1 (Available) hdisk3 (Available) hdisk5 (Available)
vpath1 (Available ) 019FA067 = hdisk2 (Available) hdisk4 (Available) hdisk6 (Available)
The hd2vp command converts a volume group made of hdisk devices to an SDD vpath device
volume group. Run hd2vp <volumegroup name> for each volume group to convert.
Multipath I/O (MPIO)
AIX MPIO is an enhancement to the base OS environment that provides native support for
multi-path Fibre Channel storage attachment. MPIO automatically discovers, configures, and
makes available every storage device path. The storage device paths are managed to
provide high availability and load balancing of storage I/O. MPIO is part of the base kernel
and is available for AIX 5.2 and AIX 5.3.
The base functionality of MPIO is limited. It provides an interface for vendor-specific Path
Control Modules (PCMs) which allow for implementation of advanced algorithms.
IBM provides a PCM for DS6000 that enhances MPIO with all the features of the original
SDD. It is called SDDPCM and is available from the SDD download site (refer to 14.2,
“Subsystem Device Driver” on page 280).
There are some reasons to prefer MPIO (with SDDPCM) to traditional SDD:
򐂰Performance improvements due to direct integration with AIX
򐂰Better integration if different storage systems are attached
򐂰Easier administration through native AIX commands
For basic information about MPIO see the “Multiple Path I/O” section in the AIX 5L System
Management Concepts: Operating System and Devices guide:
http://publib16.boulder.ibm.com/pseries/en_US/aixbman/admnconc/hotplug_mgmt.htm#mpioconcepts
Important: If you choose to use MPIO with SDDPCM instead of SDD, you have to remove
the regular DS6000 Host Attachment Script and install the MPIO version of it. This script
identifies the DS6000 volumes to the operating system as MPIO manageable. Of course,
you can’t have SDD and MPIO with SDDPCM on a given server at the same time.
Appendix A. Operating systems specifics 307
The management of MPIO devices is described in the “Managing MPIO-Capable Devices”
section of the System Management Guide: Operating System and Devices for AIX 5L:
http://publib16.boulder.ibm.com/pseries/en_US/aixbman/baseadmn/manage_mpio.htm
Determine the installed SDDPCM level
You use the same command as for SDD, lslpp -l "*sdd*", to determine the installed level
of SDDPCM. It will also tell you whether you have SDD or SDDPCM installed.
SDDPCM software provides useful commands such as:
򐂰pcmpath query device to check the configuration status of the devices
򐂰pcmpath query adapter to display information about adapters
򐂰pcmpath query essmap to display each device, path, location, and attributes
Useful MPIO commands
The lspath command displays the operational status for the paths to the devices, as shown in
Example A-8. It can also be used to read the attributes of a given path to an MPIO-capable
device.
Example: A-8 lspath command result
{part1:root}/ -> lspath |pg
Enabled hdisk0 scsi0
Enabled hdisk1 scsi0
Enabled hdisk2 scsi0
Enabled hdisk3 scsi7
Enabled hdisk4 scsi7
...
Missing hdisk9 fscsi0
Missing hdisk10 fscsi0
Missing hdisk11 fscsi0
Missing hdisk12 fscsi0
Missing hdisk13 fscsi0
...
Enabled hdisk96 fscsi2
Enabled hdisk97 fscsi6
Enabled hdisk98 fscsi6
Enabled hdisk99 fscsi6
Enabled hdisk100 fscsi6
The chpath command is used to perform change operations on a specific path. It can either
change the operational status or tunable attributes associated with a path. It cannot perform
both types of operations in a single invocation.
The rmpath command unconfigures or undefines, or both, one or more paths to a target
device. It is not possible to unconfigure (undefine) the last path to a target device using the
rmpath command. The only way to do this is to unconfigure the device itself (for example, use
the rmdev command).
Refer to the man pages of the MPIO commands for more information.
Restriction: A point worth considering when deciding between SDD and MPIO is, that the
IBM TotalStorage SAN Volume Controller does not support MPIO at this time. For updated
information refer to:
http://www-03.ibm.com/servers/storage/support/software/sanvc/installing.html
308 DS6000 Series: Concepts and Architecture
LVM configuration
In AIX all storage is managed by the AIX Logical Volume Manager (LVM). It virtualizes
physical disks to be able to dynamically create, delete, resize, and move logical volumes for
application use. To AIX our DS6000 logical volumes appear as physical SCSI disks. There
are some considerations to take into account when configuring LVM.
LVM striping
Striping is a technique for spreading the data in a logical volume across several physical disks
in such a way that all disks are used in parallel to access data on one logical volume. The
primary objective of striping is to increase the performance of a logical volume beyond that of
a single physical disk.
In the case of a DS6000, LVM striping can be used to distribute data across more than one
array (rank).
Refer to Chapter 11, “Performance considerations” on page 219 for a more detailed
discussion of methods to optimize performance.
LVM Mirroring
LVM has the capability to mirror logical volumes across several physical disks. This improves
availability, because in case a disk fails, there will be another disk with the same data. When
creating mirrored copies of logical volumes, make sure that the copies are indeed distributed
across separate disks.
With the introduction of SAN technology, LVM mirroring can even provide protection against a
site failure. Using long wave Fibre Channel connections, a mirror can be stretched up to a 10
km distance.
Another application for LVM mirroring is online (non-disruptive) data migration. See
Chapter 15, “Data migration in the open systems environment” on page 289.
AIX access methods for I/O
AIX provides several modes to access data in a file system. It may be important for
performance to choose the right access method.
Synchronous I/O
Synchronous I/O occurs while you wait. An application’s processing cannot continue until the
I/O operation is complete. This is a very secure and traditional way to handle data. It ensures
consistency at all times, but can be a major performance inhibitor. It also doesn’t allow the
operating system to take full advantage of functions of modern storage devices, such as
queueing, command reordering, and so on.
Asynchronous I/O
Asynchronous I/O operations run in the background and do not block user applications. This
improves performance, because I/O and application processing run simultaneously. Many
applications, such as databases and file servers, take advantage of the ability to overlap
processing and I/O. They have to take measures to ensure data consistency, though. You can
configure, remove, and change asynchronous I/O for each device using the chdev command
or SMIT.
Appendix A. Operating systems specifics 309
Direct I/O
An alternative I/O technique called Direct I/O bypasses the Virtual Memory Manager (VMM)
altogether and transfers data directly from the user’s buffer to the disk and vice versa. The
concept behind this is similar to raw I/O in the sense that they both bypass caching at the file
system level. This reduces CPU overhead and makes more memory available to the
database instance, which can make more efficient use of it for its own purposes.
Direct I/O is provided as a file system option in JFS2. It can be used either by mounting the
corresponding file system with the mount –o dio option, or by opening a file with the
O_DIRECT flag specified in the open() system call. When a file system is mounted with the –o
dio option, all files in the file system use Direct I/O by default.
Direct I/O benefits applications that have their own caching algorithms by eliminating the
overhead of copying data twice, first between the disk and the OS buffer cache, and then from
the buffer cache to the application’s memory.
For applications that benefit from the operating system cache, Direct I/O should not be used,
because all I/O operations would be synchronous. Direct I/O also bypasses the JFS2
read-ahead. Read-ahead can provide a significant performance boost for sequentially
accessed files.
Concurrent I/O
In 2003, IBM introduced a new file system feature called Concurrent I/O (CIO) for JFS2. It
includes all the advantages of Direct I/O and also relieves the serialization of write accesses.
It improves performance for many environments, particularly commercial relational
databases. In many cases, the database performance achieved using Concurrent I/O with
JFS2 is comparable to that obtained by using raw logical volumes.
A method for enabling the concurrent I/O mode is to use the mount -o cio option when
mounting a file system.
Boot device support
The DS6000 is supported as a boot device on RS/6000 and pSeries that support Fibre
Channel boot capability. This support is also available for the IBM eServer BladeCenter. Refer
to DS6000 Host Systems Attachment Guide, SC26-7680, for additional information.
AIX on IBM iSeries
With the announcement of the IBM iSeries i5, it is now possible to run AIX in a partition on the
i5. This can be either AIX 5L V5.2 or V5.3. All supported functions of these operating system
levels are supported on i5, including HACMP for high availability and external boot from Fibre
Channel devices.
The DS6000 requires the following i5 I/O adapters to attach directly to an i5 AIX partition:
Tip: If the number of async I/O (AIO) requests is high, then the recommendation is to
increase maxservers to approximately the number of simultaneous I/Os there might be. In
most cases, it is better to leave the minservers parameter to the default value since the AIO
kernel extension will generate additional servers if needed. By looking at the CPU
utilization of the AIO servers, if the utilization is even across all of them, that means that
they’re all being used; you may want to try increasing their number in this case. Running
pstat -a will allow you to see the AIO servers by name, and running ps -k will show them
to you as the name kproc.
310 DS6000 Series: Concepts and Architecture
򐂰0611 Direct Attach 2 Gigabit Fibre Channel PCI
򐂰0625 Direct Attach 2 Gigabit Fibre Channel PCI-X
It is also possible for the AIX partition to have its storage virtualized, whereby a partition
running OS/400 hosts the AIX partition's storage requirements. In this case, if using DS6000,
it would be attached to the OS/400 partition using either of the following I/O adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
For more information on OS/400 support for DS6000, see Appendix B, “Using the DS6000
with iSeries” on page 329.
For more information on running AIX in an i5 partition, refer to the i5 Information Center at:
http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/index.htm?info/iphat/iphatlpar
kickoff.htm
Monitoring I/O performance
iostat
The iostat command is used to monitor system input/output device loading by observing the
time the physical disks are active in relation to their average transfer rates. It also reports on
CPU use. It provides data on the activity of physical volumes, not for file systems or logical
volumes. Refer to “UNIX performance monitoring tools” on page 301 for more information.
filemon
The filemon command monitors the performance of the file system, and reports the I/O
activity with regard to files, virtual memory segments, logical volumes, and physical volumes.
Normally, filemon runs in the background while one or more applications are being executed
and monitored. It automatically starts and monitors a trace of the program's file system and
I/O events in real time. By default, the trace is started immediately, but it can be deferred until
the user issues a trcon command. Tracing can be turned on and off with tron and troff as
desired, while filemon is running. After stopping with trcstop, filemon generates an I/O
activity report and exits. It writes its report to standard output or to a specified file. The report
begins with a summary of the I/O activity for each of the levels being monitored and ends with
detailed I/O activity statistics for each of the levels being monitored.
Example A-9 shows the output file of the following command:
filemon -v -o fmon.out -O al; sleep 30; trcstop
This monitors the activity at all file system levels for 30 seconds and writes a verbose report
to the file fmon.out.
Example: A-9 Filemon output file
Wed Nov 17 16:59:43 2004
System: AIX part1 Node: 5 Machine: 00CFC02D4C00
Cpu utilization: 50.5%
Most Active Files
------------------------------------------------------------------------
Note: AIX will not run in a partition on earlier 8xx and prior iSeries systems.
Appendix A. Operating systems specifics 311
#MBs #opns #rds #wrs file volume:inode
------------------------------------------------------------------------
0.3 1 70 0 unix <major=0,minor=5>:34096
0.0 1 2 0 ksh.cat <major=0,minor=5>:46237
0.0 1 2 0 cmdtrace.cat <major=0,minor=5>:45847
0.0 1 2 0 hosts <major=0,minor=4>:516
0.0 7 2 0 SWservAt <major=0,minor=4>:594
0.0 7 2 0 SWservAt.vc <major=0,minor=4>:595
Most Active Segments
------------------------------------------------------------------------
#MBs #rpgs #wpgs segid segtype volume:inode
------------------------------------------------------------------------
0.0 1 0 26fecd ???
0.0 1 0 23fec7 ???
Most Active Logical Volumes
------------------------------------------------------------------------
util #rblk #wblk KB/s volume description
------------------------------------------------------------------------
0.39 7776 11808 1164.0 /dev/u02lv /u02
0.01 0 16896 1004.3 /dev/u04lv /u04
0.00 0 3968 235.9 /dev/u03lv /u03
0.00 16 0 1.0 /dev/hd2 /usr
Most Active Physical Volumes
------------------------------------------------------------------------
util #rblk #wblk KB/s volume description
------------------------------------------------------------------------
0.87 568 808 81.8 /dev/hdisk65 IBM MPIO FC 1750
0.87 496 800 77.0 /dev/hdisk79 IBM MPIO FC 1750
0.87 672 776 86.1 /dev/hdisk81 IBM MPIO FC 1750
0.86 392 960 80.4 /dev/hdisk63 IBM MPIO FC 1750
0.86 328 776 65.6 /dev/hdisk83 IBM MPIO FC 1750
0.86 528 624 68.5 /dev/hdisk69 IBM MPIO FC 1750
0.86 480 656 67.5 /dev/hdisk55 IBM MPIO FC 1750
0.86 408 536 56.1 /dev/hdisk73 IBM MPIO FC 1750
0.86 456 720 69.9 /dev/hdisk77 IBM MPIO FC 1750
0.86 440 720 68.9 /dev/hdisk59 IBM MPIO FC 1750
...
------------------------------------------------------------------------
Detailed Physical Volume Stats (512 byte blocks)
------------------------------------------------------------------------
VOLUME: /dev/hdisk65 description: IBM MPIO FC 1750
reads: 37 (0 errs)
read sizes (blks): avg 15.4 min 8 max 16 sdev 2.2
read times (msec): avg 6.440 min 0.342 max 10.826 sdev 3.301
read sequences: 37
read seq. lengths: avg 15.4 min 8 max 16 sdev 2.2
writes: 52 (0 errs)
write sizes (blks): avg 15.5 min 8 max 16 sdev 1.9
write times (msec): avg 0.809 min 0.004 max 2.963 sdev 0.906
write sequences: 52
write seq. lengths: avg 15.5 min 8 max 16 sdev 1.9
seeks: 89 (100.0%)
seek dist (blks): init 10875128,
avg 5457737.4 min 16 max 22478224 sdev 4601825.0
312 DS6000 Series: Concepts and Architecture
seek dist (%tot blks):init 27.84031,
avg 13.97180 min 0.00004 max 57.54421 sdev 11.78066
time to next req(msec): avg 89.470 min 0.003 max 949.025 sdev 174.947
throughput: 81.8 KB/sec
utilization: 0.87
...
Linux
Linux is an open source UNIX-like kernel, originally created by Linus Torvalds. The term
“Linux” is often used to mean the whole operating system, GNU/Linux. The Linux kernel,
along with the tools and software needed to run an operating system, are maintained by a
loosely organized community of thousands of, mostly, volunteer programmers.
There are several organizations (distributors) that bundle the Linux kernel, tools, and
applications to form a “distribution,” a package that can be downloaded or purchased and
installed on a computer. Some of these distributions are commercial, others are not.
Support issues that distinguish Linux from other operating systems
Linux is different from the other, proprietary, operating systems in many ways:
򐂰There is no one person or organization that can be held responsible or called for support.
򐂰Depending on the target group, the distributions differ largely in the kind of support that is
available.
򐂰Linux is available for almost all computer architectures.
򐂰Linux is rapidly changing.
All these factors make it difficult to promise and provide generic support for Linux. As a
consequence, IBM has decided on a support strategy that limits the uncertainty and the
amount of testing.
IBM only supports the major Linux distributions that are targeted at enterprise customers:
򐂰RedHat Enterprise Linux
򐂰SUSE Linux Enterprise Server
򐂰RedFlag Linux
These distributions have release cycles of about one year, are maintained for five years and
require the user to sign a support contract with the distributor. They also have a schedule for
regular updates. These factors mitigate the issues listed previously. The limited number of
supported distributions also allows IBM to work closely with the vendors to ensure
interoperability and support. Details about the supported Linux distributions can be found in
the DS6000 Interoperability Matrix:
http://www.ibm.com/servers/storage/disk/ds6000/pdf/ds6000-matrix.pdf
See also “The DS6000 Interoperability Matrix” on page 277.
There are exceptions to this strategy when the market demand justifies the test and support
effort.
Appendix A. Operating systems specifics 313
Existing reference material
There is a lot of information available that helps you set up your Linux server to attach it to a
DS6000 storage subsystem.
The DS6000 Host Systems Attachment Guide
The DS6000 Host Systems Attachment Guide, GC26-7680 provides instructions to prepare
an Intel IA-32-based machine for DS6000 attachment, including:
򐂰How to install and configure the FC HBA
򐂰Peculiarities of the Linux SCSI subsystem
򐂰How to prepare a system that boots from the DS6000
It is not very detailed with respect to the configuration and installation of the FC HBA drivers.
Implementing Linux with IBM Disk Storage
The redbook, Implementing Linux with IBM Disk Storage, SG24-6261, covers several
hardware platforms and storage systems. It is not yet updated with information about the
DS6000. The details provided for the attachment to the IBM Enterprise Storage Server (ESS
2105) are mostly valid for DS6000, too. Read it for information regarding storage attachment:
򐂰Via FCP to an IBM eServer zSeries running Linux
򐂰To an IBM eServer pSeries running Linux
򐂰To an IBM eServer BladeCenter running Linux
It can be downloaded from:
http://publib-b.boulder.ibm.com/abstracts/sg246261.html
Linux with zSeries and ESS: Essentials
The redbook, Linux with zSeries and ESS: Essentials, SG24-7025, provides a lot of
information about Linux on IBM eServer zSeries and the ESS. It also describes in detail how
the Fibre Channel (FCP) attachment of a storage system to zLinux works. It does not,
however, describe the actual implementation. This information is at:
http://www.redbooks.ibm.com/redbooks/pdfs/sg247025.pdf
Getting Started with zSeries Fibre Channel Protocol
The redpaper Getting Started with zSeries Fibre Channel Protocol is an older publication (last
updated in 2003) which provides an overview of Fibre Channel (FC) topologies and
terminology, and instructions to attach open systems (fixed block) storage devices via FCP to
an IBM eServer zSeries running Linux. It can be found at:
http://www.redbooks.ibm.com/redpapers/pdfs/redp0205.pdf
Other sources of information
Numerous hints and tips, especially for Linux on zSeries, are available on the IBM Redbooks
technotes page:
http://www.redbooks.ibm.com/redbooks.nsf/tips/
IBM eServer zSeries dedicates its own Web page to storage attachment via FCP:
http://www.ibm.com/servers/eserver/zseries/connectivity/ficon_resources.html
314 DS6000 Series: Concepts and Architecture
The zSeries connectivity support page lists all supported storage devices and SAN
components that can be attached to a zSeries server. There is an extra section for FCP
attachment:
http://www.ibm.com/servers/eserver/zseries/connectivity/#fcp
The whitepaper ESS Attachment to United Linux 1 (IA-32) is available at:
http://www.ibm.com/support/docview.wss?uid=tss1td101235
It is intended to help users to attach a server running an enterprise-level Linux distribution
based on United Linux 1 (IA-32) to the IBM 2105 Enterprise Storage Server. It provides very
detailed step by step instructions and a lot of background information about Linux and SAN
storage attachment.
Another whitepaper, Linux on IBM eServer pSeries SAN - Overview for Customers describes
in detail how to attach SAN storage (ESS 2105 and FAStT) to a pSeries server running Linux:
http://www.ibm.com/servers/eserver/pseries/linux/whitepapers/linux_san.pdf
Most of the information provided in these publications is valid for DS6000 attachment,
although much of it was originally written for the ESS 2105.
Important Linux issues
Linux treats SAN-attached storage devices like conventional SCSI disks. The Linux SCSI I/O
subsystem has some peculiarities that are important enough to be described here, even if
they show up in some of the publications listed in the previous section.
Some Linux SCSI basics
Within the Linux kernel, device types are defined by major numbers. The instances of a given
device type are distinguished by their minor number. They are accessed through special
device files. For SCSI disks, the device files /dev/sdx are used, with x being a letter from a
through z for the first 26 SCSI disks discovered by the system and continuing with aa, ab, ac,
and so on, for subsequent disks. Due to the mapping scheme of SCSI disks and their
partitions to major and minor numbers, each major number allows for only 16 SCSI disk
devices. Therefore we need more than one major number for the SCSI disk device type.
Table A-1 shows the assignment of special device files to major numbers.
Table A-1 Major numbers and special device files
Each SCSI device can have up to 15 partitions, which are represented by the special device
files /dev/sda1, /dev/sda2, and so on. The mapping of partitions to special device files and
major and minor numbers is shown in Table A-2.
Major number First special device file Last special device file
8 /dev/sda /dev/sdp
65 /dev/sdq /dev/sdaf
66 /dev/sdag /dev/sdav
71 /dev/sddi /dev/sddx
128 /dev/sddy /dev/sden
129 /dev/sdeo /dev/sdfd
135 /dev/sdig /dev/sdiv
Appendix A. Operating systems specifics 315
Table A-2 Minor numbers, partitions and special device files
Missing device files
The Linux distributors do not always create all the possible special device files for SCSI disks.
If you attach more disks than there are special device files available, Linux will not be able to
address them. You can create missing device files with the mknod command. The mknod
command requires four parameters in a fixed order:
򐂰The name of the special device file to create
򐂰The type of the device: b stands for a block device, c for a character device
򐂰The major number of the device
򐂰The minor number of the device
Refer to the man page of the mknod command for more details. Example A-10 shows the
creation of special device files for the 17th SCSI disk and its first three partitions.
Example: A-10 Create new special device files for SCSI disks
mknod /dev/sdq b 65 0
mknod /dev/sdq1 b 65 1
mknod /dev/sdq2 b 65 2
mknod /dev/sdq3 b 65 3
After creating the device files you may have to change their owner, group, and file permission
settings to be able to use them. Often, the easiest way to do this is by duplicating the settings
of existing device files, as shown in Example A-11. Be aware that after this sequence of
Major number Minor number Special device file Partition
8 0 /dev/sda all of 1st disk
8 1 /dev/sda1 1st partition of 1st disk
...
8 15 /dev/sda15 15th partition of 1st
disk
8 16 /dev/sdb all of 2nd disk
8 17 /dev/sdb1 1st partition of 2nd disk
...
8 31 /dev/sdb15 15th partition of 2nd
disk
8 32 /dev/sdc all of 3rd disk
...
8 255 /dev/sdp15 15th partition of 16th
disk
65 0 /dev/sdq all of 16th disk
65 1 /dev/sdq1 1st partition on 16th
disk
... ...
316 DS6000 Series: Concepts and Architecture
commands, all special device files for SCSI disks have the same permissions. If an
application requires different settings for certain disks, you have to correct them afterwards.
Example: A-11 Duplicating the permissions of special device files
knox:~ # ls -l /dev/sda /dev/sda1
rw-rw---- 1 root disk 8, 0 2003-03-14 14:07 /dev/sda
rw-rw---- 1 root disk 8, 1 2003-03-14 14:07 /dev/sda1
knox:~ # chmod 660 /dev/sd*
knox:~ # chown root:disk /dev/sda*
Managing multiple paths
If you assign a DS6000 volume to a Linux system through more than one path, it will see the
same volume more than once. It will also assign more than one special device file to it. To
utilize the path redundancy and increased I/O bandwidth, you need an additional layer in the
Linux disk subsystem to recombine the multiple disks seen by the system into one, to manage
the paths and to balance the load across them.
The IBM multipathing solution for DS6000 attachment to Linux on Intel IA-32 and IA-64
architectures, IBM pSeries and iSeries is the IBM Subsystem Device Driver (SDD) (see 14.2,
“Subsystem Device Driver” on page 280). SDD for Linux is available in the Linux RPM
package format for all supported distributions from the SDD download site. It is proprietary
and binary only. It only works with certain kernel versions with which it was tested. The
README file on the SDD for Linux download page contains a list of the supported kernels.
The version of the Linux Logical Volume Manager that comes with all current Linux
distributions does not support its physical volumes being placed on SDD vpath devices.
SDD is not available for Linux on zSeries. SUSE Linux Enterprise Server 8 for zSeries comes
with built-in multipathing provided by a patched Logical Volume Manager. Today there is no
multipathing support for Redhat Enterprise Linux for zSeries.
Limited number of SCSI devices
Due to the design of the Linux SCSI I/O subsystem in the Linux Kernel version 2.4, the
number of SCSI disk devices is limited to 256. Attaching devices through more than one path
reduces this number. If, for example, all disks were attached through 4 paths, only up to 64
disks could be used.
SCSI device assignment changes
Linux assigns special device files to SCSI disks in the order they are discovered by the
system. Adding or removing disks can change this assignment. This can cause serious
problems if the system configuration is based on special device names (for example, a file
system that is mounted using the /dev/sda1 device name). You can avoid some of them by
using:
򐂰Disk Labels instead of device names in /etc/fstab
򐂰LVM Logical Volumes instead of /dev/sd.. devices for file systems
򐂰SDD, which creates a persistent relationship between a DS6000 volume and a vpath
device regardless of the /dev/sd.. devices
Important: The latest update to the SUSE Linux Enterprise Server 8, Service Pack 3 uses
a more dynamic method of assigning major numbers and allows the attachment of up to
2304 SCSI devices.
Appendix A. Operating systems specifics 317
RedHat Enterprise Linux (RH-EL) multiple LUN support
RH-EL by default is not configured for multiple LUN support. It will only discover SCSI disks
addressed as LUN 0. The DS6000 provides the volumes to the host with a fixed Fibre
Channel address and varying LUN. Therefore RH-EL 3 will see only one DS6000 volume
(LUN 0), even if more are assigned to it.
Multiple LUN support can be added with an option to the SCSI midlayer Kernel module
scsi_mod. To have multiple LUN support added permanently at boot time of the system, add
the following line to the file /etc/modules.conf:
options scsi_mod max_scsi_luns=128
After saving the file, rebuild the module dependencies by running:
depmod -a
Now you have to rebuild the InitialRAMDisk, using the command:
mkinitrd <initrd-image> <kernel-version>
Issue mkinitrd -h for more help information. A reboot is required to make the changes
effective.
Fibre Channel disks discovered before internal SCSI disks
In some cases, when the Fibre Channel HBAs are added to a RedHat Enterprise Linux
system, they will be automatically configured in a way that they are activated at boot time,
before the built-in parallel SCSI controller that drives the system disks. This will lead to shifted
special device file names of the system disk and can result in the system being unable to boot
properly.
To prevent the FC HBA driver from being loaded before the driver for the internal SCSI HBA
you have to change the /etc/modules.conf file:
򐂰Locate the lines containing scsi_hostadapterx entries where x is a number.
򐂰Reorder these lines: first come the lines containing the name of the internal HBA driver
module, then the ones with the FC HBA module entry.
򐂰Renumber the lines: no number for the first entry, 1 for the second, 2 for the 3rd, and so
on.
After saving the file, rebuild the module dependencies by running:
depmod -a
Now you have to rebuild the InitialRAMDisk, using the command:
mkinitrd <initrd-image> <kernel-version>
Issue mkinitrd -h for more help information. If you reboot now, the SCSI and FC HBA drivers
will be loaded in the correct order.
Example A-12 shows how the /etc/modules.conf file should look with two Adaptec SCSI
controllers and two QLogic 2340 FC HBAs installed. It also contains the line that enables
multiple LUN support. Note that the module names will be different with different SCSI and
Fibre Channel adapters.
Example: A-12 Sample /etc/modules.conf
scsi_hostadapter aic7xxx
scsi_hostadapter1 aic7xxx
scsi_hostadapter2 qla2300
318 DS6000 Series: Concepts and Architecture
scsi_hostadapter3 qla2300
options scsi_mod max_scsi_luns=128
Adding FC disks dynamically
The commonly used way to discover newly attached DS6000 volumes is to unload and reload
the Fibre Channel HBA driver. However, this action is disruptive to all applications that use
Fibre Channel attached disks on this particular host.
A Linux system can recognize newly attached LUNs without unloading the FC HBA driver.
The procedure slightly differs depending on the installed FC HBAs.
In case of QLogic HBAs issue the command:
echo "scsi-qlascan" > /proc/scsi/qla2300/<adapter-instance>
With Emulex HBAs, issue the command:
sh force_lpfc_scan.sh "lpfc<adapter-instance>"
This script is not part of the regular device driver package and must be downloaded
separately:
http://www.emulex.com/ts/downloads/linuxfc/rel/201g/force_lpfc_scan.sh
It requires the tool dfc to be installed under /usr/sbin/lpfc.
In both cases the command must be issued for each installed HBA, with the
<adapter-instance> being the SCSI instance number of the HBA.
After the FC HBAs rescan the fabric, you can make the new devices available to the system
with the command:
echo "scsi add-single-device s c t l" > /proc/scsi/scsi
The quadruple s c t l is the physical address of the device:
򐂰s is the SCSI instance of the FC HBA
򐂰c is the channel (in our case always 0)
򐂰t is the target address (usually 0, except if a volume is seen by a HBA more than once)
򐂰l is the LUN
The new volumes are added after the already existing ones. The following examples illustrate
this. Example A-13 shows the original disk assignment as it existed since the last system
start.
Example: A-13 SCSi disks attached at system start time
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS6000 volume, seen by HBA 0
/dev/sdc - 2nd DS6000 volume, seen by HBA 0
/dev/sdd - 1st DS6000 volume, seen by HBA 1
/dev/sde - 2nd DS6000 volume, seen by HBA 1
Example A-14 shows the SCSI disk assignment after one more DS6000 volume is added.
Example: A-14 SCSi disks after dynamic addition of another DS6000 volume
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS6000 volume, seen by HBA 0
Appendix A. Operating systems specifics 319
/dev/sdc - 2nd DS6000 volume, seen by HBA 0
/dev/sdd - 1st DS6000 volume, seen by HBA 1
/dev/sde - 2nd DS6000 volume, seen by HBA 1
/dev/sdf - new DS6000 volume, seen by HBA 0
/dev/sdg - new DS6000 volume, seen by HBA 1
The mapping of special device files is now different than it would have been if all three
DS6000 volumes had been already present when the HBA driver was loaded. In other words:
if the system is now restarted, the device ordering will change to what is shown in
Example A-15. See also “SCSI device assignment changes” on page 316.
Example: A-15 SCSi disks after dynamic addition of another DS6000 volume and reboot
/dev/sda - internal SCSI disk
/dev/sdb - 1st DS6000 volume, seen by HBA 0
/dev/sdc - 2nd DS6000 volume, seen by HBA 0
/dev/sdd - new DS6000 volume, seen by HBA 0
/dev/sde - 1st DS6000 volume, seen by HBA 1
/dev/sdf - 2nd DS6000 volume, seen by HBA 1
/dev/sdg - new DS6000 volume, seen by HBA 1
Gaps in the LUN sequence
The Qlogic HBA driver cannot deal with gaps in the LUN sequence. When it tries to discover
the attached volumes, it probes for the different LUNs, starting at LUN 0 and continuing until it
reaches the first LUN without a device behind it.
When assigning volumes to a Linux host with QLogic FC HBAs, make sure LUNs start at 0
and are in consecutive order. Otherwise the LUNs after a gap will not be discovered by the
host. Gaps in the sequence can occur when you assign volumes to a Linux host that are
already assigned to another server.
The Emulex HBA driver behaves differently: it always scans all LUNs up to 127.
Linux on IBM iSeries
Since OS/400 V5R1, it has been possible to run Linux in an iSeries partition. On iSeries
models 270 and 8xx, the primary partition must run OS/400 V5R1 or higher and Linux is run
in a secondary partition. For later i5 systems (models i520, i550, i570 and i595), Linux can
run in any partition.
The DS6000 requires the following iSeries I/O adapters to attach directly to an iSeries or i5
Linux partition:
򐂰0612 Linux Direct Attach PCI
򐂰0626 Linux Direct Attach PCI-X
It is also possible for the Linux partition to have its storage virtualized, whereby a partition
running OS/400 hosts the Linux partition's storage requirements. In this case, if using the
DS6000, they would be attached to the OS/400 partition using either of the following I/O
adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
For more information on OS/400 support for DS6000, see Appendix B, “Using the DS6000
with iSeries” on page 329.
320 DS6000 Series: Concepts and Architecture
More information on running Linux in an iSeries partition can be found in the iSeries
Information Center at:
http://publib.boulder.ibm.com/iseries/v5r2/ic2924/index.htm
For running Linux in an i5 partition check, the i5 Information Center at:
http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/info/iphbi/iphbi.pdf
Troubleshooting and monitoring
The /proc pseudo file system
The /proc pseudo file system is maintained by the Linux kernel and provides dynamic
information about the system. The directory /proc/scsi contains information about the installed
and attached SCSI devices.
The file /proc/scsi/scsi contains a list of all attached SCSI devices, including disk, tapes,
processors, and so on. Example A-16 shows a sample /proc/scsi/scsi file.
Example: A-16 Sample /proc/scsi/scsi file
knox:~ # cat /proc/scsi/scsi
Attached devices:
Host: scsi0 Channel: 00 Id: 00 Lun: 00
Vendor: IBM-ESXS Model: DTN036C1UCDY10F Rev: S25J
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi0 Channel: 00 Id: 08 Lun: 00
Vendor: IBM Model: 32P0032a S320 1 Rev: 1
Type: Processor ANSI SCSI revision: 02
Host: scsi2 Channel: 00 Id: 00 Lun: 00
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 00 Lun: 01
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 00 Lun: 02
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 00
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 01
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi3 Channel: 00 Id: 00 Lun: 02
Vendor: IBM Model: 1750511 Rev: .545
Type: Direct-Access ANSI SCSI revision: 03
There also is an entry in /proc for each HBA, with driver and firmware levels, error counters,
and information about the attached devices. Example A-17 shows the condensed content of
the entry for a QLogic Fibre Channel HBA.
Example: A-17 Sample /proc/scsi/qla2300/x
knox:~ # cat /proc/scsi/qla2300/2
QLogic PCI to Fibre Channel Host Adapter for ISP23xx:
Firmware version: 3.01.18, Driver version 6.05.00b9
Entry address = c1e00060
HBA: QLA2312 , Serial# H28468
Request Queue = 0x21f8000, Response Queue = 0x21e0000
Appendix A. Operating systems specifics 321
Request Queue count= 128, Response Queue count= 512
.
.
Login retry count = 012
Commands retried with dropped frame(s) = 0
SCSI Device Information:
scsi-qla0-adapter-node=200000e08b0b941d;
scsi-qla0-adapter-port=210000e08b0b941d;
scsi-qla0-target-0=5005076300c39103;
SCSI LUN Information:
(Id:Lun)
( 0: 0): Total reqs 99545, Pending reqs 0, flags 0x0, 0:0:81,
( 0: 1): Total reqs 9673, Pending reqs 0, flags 0x0, 0:0:81,
( 0: 2): Total reqs 100914, Pending reqs 0, flags 0x0, 0:0:81,
Performance monitoring with iostat
The iostat command can be used to monitor the performance of all attached disks. It is
shipped with every major Linux distribution, but not necessarily installed by default. It reads
data provided by the kernel in /proc/stats and prints it in human readable format. See the man
page of iostat for more details.
The generic SCSI tools
The SUSE Linux Enterprise Server comes with a set of tools that allow low-level access to
SCSI devices. They are called the sg tools. They talk to the SCSI devices through the generic
SCSI layer, which is represented by special device files /dev/sg0, /dev/sg0, and so on.
By default SLES 8 provides sg device files for up to 16 SCSI devices (/dev/sg0 through
/dev/sg15). Additional sg device files can be created using the command mknod. After creating
new sg devices you should change their group setting from root to disk. Example A-18 shows
the creation of /dev/sg16, which would be the first one to create.
Example: A-18 Creation of new device files for generic SCSI devices
mknod /dev/sg16 c 21 16
chgrp disk /dev/sg16
Useful sg tools are:
򐂰sg_inq /dev/sgx prints SCSI Inquiry data, such as the volume serial number.
򐂰sg_scan prints the /dev/sg → scsihost, channel, target, LUN mapping.
򐂰sg_map prints the /dev/sd → /dev/sg mapping.
򐂰sg_readcap prints the block size and capacity (in blocks) of the device.
򐂰sginfo prints SCSI inquiry and mode page data; it also allows manipulating the mode
pages.
Microsoft Windows 2000/2003
Note: Because Windows NT is no longer supported by Microsoft (and DS6000 support is
provided on RPQ only), we do not discuss Windows NT here.
322 DS6000 Series: Concepts and Architecture
DS6000 supports FC attachment to Microsoft Windows 2000/2003 servers. For details
regarding operating system versions and HBA types see the DS6000 Interoperability Matrix,
available at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
The support includes cluster service and acting as a boot device. Booting is supported
currently with host adapters QLA23xx (32 bit or 64 bit) and LP9xxx (32 bit only). For a
detailed discussion about SAN booting (advantages, disadvantages, potential difficulties, and
troubleshooting) we highly recommend the Microsoft document Boot from SAN in Windows
Server 2003 and Windows 2000 Server, available at:
http://www.microsoft.com/windowsserversystem/storage/technologies/bootfromsan/bootfromsanin
windows.mspx
HBA and operating system settings
Depending on the host bus adapter type, several HBA and driver settings may be required.
Refer to the DS6000 Host Systems Attachment Guide, SC26-7628, for the complete
description of these settings. Although the volumes can be accessed with other settings too,
the values recommended there have been tested for robustness.
To ensure optimum availability and recoverability when you attach a storage unit to a
Windows 2000/2003 host system, we recommend setting the TimeOutValue value
associated with the host adapters to 60 seconds. The operating system uses the
TimeOutValue parameter to bind its recovery actions and responses to the disk subsystem.
The value is stored in the Windows registry at:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Disk\TimeOutValue
The value has the data type REG-DWORD and should be set to 0x0000003c hexadecimal
(60 decimal).
SDD for Windows
An important task with a Windows host is the installation of the SDD multipath driver. Ensure
that SDD is installed before adding additional paths to a device. Otherwise, the operating
system could lose the ability to access existing data on that device. For details, refer to the
IBM TotalStorage Multipath Subsystem Device Driver User’s Guide, SC30-4096. Here we
highlight only some important items:
򐂰SDD does not support I/O load balancing with Windows 2000 server clustering (MSCS).
For Windows 2003, SDD 1.6.0.0 (or later) is required for load balancing with MSCS.
򐂰When booting from the FC storage systems, special restrictions apply:
– With Windows 2000, you should not use the same HBA as both the FC boot device
and the clustering adapter. The reason for this is the usage of SCSI bus resets by
MSCS to break up disk reservations during quorum arbitration. Because a bus reset
cancels all pending I/O operations to all FC disks visible to the host via that port, an
MSCS-initiated bus reset may cause operations on the C:\ drive to fail.
– With Windows 2003, MSCS uses target resets. See the Microsoft technical article
Microsoft Windows Clustering: Storage Area Networks at:
http://www.microsoft.com/windowsserver2003/techinfo/overview/san.mspx
Windows Server 2003 will allow for boot disk and the cluster server disks hosted on the
same bus. However, you would need to use Storport miniport HBA drivers for this
functionality to work. This is not a supported configuration in combination with drivers
of other types (for example, SCSI port miniport or Full port drivers).
Appendix A. Operating systems specifics 323
– If you reboot a system with adapters while the primary path is in a failed state, you
must manually disable the BIOS on the first adapter and manually enable the BIOS on
the second adapter. You cannot enable the BIOS for both adapters at the same time. If
the BIOS for both adapters is enabled at the same time and there is a path failure on
the primary adapter, the system will stop with an INACCESSIBLE_BOOT_DEVICE
error upon reboot.
Windows Server 2003 VDS support
With Windows Server 2003 Microsoft introduced the Virtual Disk Service (VDS). It unifies
storage management and provides a single interface for managing block storage
virtualization. This interface is vendor and technology neutral, and is independent of the layer
where virtualization is done, operating system software, RAID storage hardware, or other
storage virtualization engines.
VDS is a set of APIs which uses two sets of providers to manage storage devices. The built-in
VDS software providers enable you to manage disks and volumes at the operating system
level. VDS hardware providers supplied by the hardware vendor enable you to manage
hardware RAID arrays. Windows Server 2003 components that work with VDS include the
Disk Management MMC snap-in, the DiskPart command-line tool, and the DiskRAID
command-line tool, which is available in the Windows Server 2003 Deployment Kit.
Figure A-1 shows the VDS architecture.
Figure A-1 Microsoft VDS Architecture
For a detailed description of VDS, refer to the Microsoft Windows Server 2003 Virtual Disk
Service Technical Reference at:
http://www.microsoft.com/Resources/Documentation/windowsserv/2003/all/techref/en-us/W2K3TR_
vds_intro.asp
The DS6000 can act as a VDS hardware provider. The implementation is based on the DS
Common Information Model (CIM) agent, a middleware application that provides a
CIM-compliant interface. The Microsoft Virtual Disk Service uses the CIM technology to list
Software Providers:
•Basic Disks
•Dynamic Disks
Disk Management
MMC Snap-in
Hardware Providers
Virtual Disk Service
Command-Line Tools:
•DiskPart
•DiskRAID
Storage Management
Applications
LUNs
Other
Disk
Subsystem
DS8000/DS6000
HDDs
Non-Microsoft Functionality
Hardware
Microsoft Functionality
Software Providers:
•Basic Disks
•Dynamic Disks
Disk Management
MMC Snap-in
Hardware Providers
Virtual Disk Service
Command-Line Tools:
•DiskPart
•DiskRAID
Storage Management
Applications
LUNs
Other
Disk
Subsystem
DS8000/DS6000
HDDs
Non-Microsoft Functionality
Hardware
Microsoft Functionality
324 DS6000 Series: Concepts and Architecture
information and manage LUNs. See the IBM TotalStorage DS Open Application Programming
Interface Reference, GC35-0493, for information on how to install and configure VDS
support.
The following sections present examples of VDS integration with advanced functions of the
DS6000 storage systems that became possible with the implementation of the DS CIM agent.
Geographically Dispersed Sites
Geographically Dispersed Sites (GDS) for MSCS is designed to provide high availability and a
disaster recovery solution for clustered Microsoft Server environments. It integrates Microsoft
Cluster Service (MSCS) and the Metro Mirror (PPRC) feature of the DS6000. It is designed to
allow Microsoft Cluster installations to span geographically dispersed sites and help protect
clients from site disasters or storage system failures. This solution is offered through IBM
storage services.
For more details about GDS refer to:
http://www.ibm.com/servers/storage/solutions/business_continuity/pdf/IBM_TotalStorage_GDS_W
hitepaper.pdf
Volume Shadow Copy Service
The Volume Shadow Copy Service provides a mechanism for creating consistent
point-in-time copies of data, known as shadow copies. It integrates IBM TotalStorage
FlashCopy to produce consistent shadow copies, while also coordinating with business
applications, file-system services, backup applications and fast-recovery solutions.
For more information refer to:
http://www.microsoft.com/resources/documentation/WindowsServ/2003/all/techref/en-us/w2k3tr_
vss_how.asp
HP OpenVMS
DS6000 supports FC attachment of OpenVMS Alpha systems with operating system
Version 7.3 or newer. For details regarding operating system versions and HBA types, see
the DS6000 Interoperability Matrix, available at:
http://www.ibm.com/servers/storage/disk/ds6000/interop.html
The support includes clustering and multiple paths (exploiting the OpenVMS built-in
multipathing). Boot support is available via Request for Price Quotations (RPQ). The DS API
and the DS CLI are currently not available for OpenVMS.
FC port configuration
The OpenVMS FC driver has some limitations in handling FC error recovery. The operating
system may react to some situations with MountVerify conditions which are not recoverable.
Affected processes may hang and eventually stop.
Instead of writing a special OpenVMS driver, it has been decided to handle this in the
DS6000 host adapter microcode. As a result, DS6000 FC ports cannot be shared between
OpenVMS and non-OpenVMS hosts.
Appendix A. Operating systems specifics 325
You must dedicate storage ports for only the OpenVMS host type. Multiple OpenVMS
systems can access the same port. Appropriate zoning must be enforced from the beginning.
Wrong access to storage ports used by OpenVMS hosts may clear the OpenVMS-specific
settings for these ports. This might remain undetected for a long time—until some failure
happens, and by then I/Os might be lost. It is worth mentioning that OpenVMS is the only
platform with such a restriction (usually, different open systems platforms can share the same
DS6000 FC adapters).
Volume configuration
OpenVMS Fibre Channel devices have device names according to the schema:
$1$DGA<n>
with the following elements:
򐂰The first portion $1$ of the device name is the allocation class (a decimal number in the
range 1–255). FC devices always have the allocation class 1.
򐂰The following two letters encode the drivers where the first letter denotes the device class
(D= disks, M= magnetic tapes) and the second letter the device type (K= SCSI, G= Fibre
Channel). So all Fibre Channel disk names contain the code DG.
򐂰The third letter denotes the adapter channel (from range A to Z). Fibre Channel devices
always have the channel identifier A.
򐂰The number <n> is the User-Defined ID (UDID), a number from the range 0–32767 which
is provided by the storage system in response to an OpenVMS-special SCSI inquiry
command (from the range of command codes reserved by the SCSI standard for vendor’s
private use).
OpenVMS does not identify a Fibre Channel disk by its path or SCSI target/LUN like other
operating systems. It relies on the UDID. Although OpenVMS uses the WWID to control all
FC paths to a disk, a Fibre Channel disk which does not provide this additional UDID cannot
be recognized by the operating system.
In the DS6000, the volume name acts as the UDID for OpenVMS hosts. If the character string
of the volume name evaluates to an integer in the range 0–32767, then this integer is replied
as the answer when an OpenVMS host asks for the UDID.
The DS management utilities do not enforce UDID rules. They accept incorrect values that
are not valid for OpenVMS. It is possible to assign the same UDID value to multiple DS6000
volumes. However, because the UDID is in fact the device ID seen by the operating system,
several consistency rules have to be fulfilled. These rules are described in detail in the
OpenVMS operating system documentation (see HP Guidelines for OpenVMS Cluster
Configurations):
򐂰Every FC volume must have a UDID that is unique throughout the OpenVMS cluster that
accesses the volume. The same UDID may be used in a different cluster or for different
stand-alone host.
Important: The DS6000 FC ports used by OpenVMS hosts must not be accessed by any
other operating system, not even accidentally. The OpenVMS hosts have to be defined for
access to these ports only, and it must be ensured that no foreign HBA (without definition
as an OpenVMS host) is seen by these ports. Conversely, an OpenVMS host must have
access only to the DS6000 ports configured for OpenVMS compatibility.
326 DS6000 Series: Concepts and Architecture
򐂰If the volume is planned for MSCP serving, then the UDID range is limited to 0–9999 (by
operating system restrictions in the MSCP code).
OpenVMS system administrators tend to use elaborate schemes for assigning UDIDs, coding
several hints about physical configuration into this logical ID, for instance odd/even values or
reserved ranges to distinguish between multiple data centers, storage systems, or disk
groups. Thus they must be able to provide these numbers without additional restrictions
imposed by the storage system. In the DS6000, UDID is implemented with full flexibility,
which leaves the responsibility about restrictions to the customer.
Command Console LUN
HP StorageWorks FC controllers use LUN 0 as Command Console LUN (CCL) for
exchanging commands and information with in-band management tools. This concept is
similar to the Access LUN of IBM TotalStorage DS4000 (FAStT) controllers.
Because the OpenVMS FC driver has been written with StorageWorks controllers in mind,
OpenVMS always considers LUN 0 as CCL, never presenting this LUN as disk device. On HP
StorageWorks HSG and HSV controllers, you cannot assign LUN 0 to a volume.
The DS6000 assigns LUN numbers per host using the lowest available number. The first
volume that is assigned to a host becomes this host’s LUN 0, the next volume is LUN 1, and
so on.
Because OpenVMS considers LUN 0 as CCL, the first DS6000 volume assigned to the host
cannot be used even when a correct UDID has been defined. So we recommend creating the
first OpenVMS volume with a minimum size as a dummy volume for usage as the CCL.
Multiple OpenVMS hosts, even in different clusters, that access the same storage system,
can share the same volume as LUN 0, because there will be no other activity to this volume.
In large configurations with more than 256 volumes per OpenVMS host or cluster, it might be
necessary to introduce another dummy volume (when LUN numbering starts again with 0).
Defining a UDID for the CCL is not required by the OpenVMS operating system. OpenVMS
documentation suggests that you always define a unique UDID since this identifier causes the
creation of a CCL device visible for the OpenVMS command show device or other tools.
Although an OpenVMS host cannot use the LUN for any other purpose, you can display the
multiple paths to the storage device, and diagnose failed paths. Fibre Channel CCL devices
have the OpenVMS device type GG.
OpenVMS volume shadowing
OpenVMS disks can be combined in host-based mirror sets, called OpenVMS shadow sets.
This functionality is often used to build disaster-tolerant OpenVMS clusters.
The OpenVMS shadow driver has been designed for disks according to DEC’s Digital
Storage Architecture (DSA). This architecture, forward-looking in the 1980s, includes some
requirements which are handled by today’s SCSI/FC devices with other approaches. Two
such things are the forced error indicator and the atomic revector operation for bad-block
replacement.
When a DSA controller detects an unrecoverable media error, a spare block is revectored to
this logical block number, and the contents of the block are marked with a forced error. This
causes subsequent read operations to fail, which is the signal to the shadow driver to execute
a repair operation using data from another copy.
Appendix A. Operating systems specifics 327
However, there is no forced error indicator in the SCSI architecture, and the revector
operation is nonatomic. As a substitute, the OpenVMS shadow driver exploits the SCSI
commands READ LONG (READL) and WRITE LONG (WRITEL), optionally supported by
some SCSI devices. These I/O functions allow data blocks to be read and written together
with their disk device error correction code (ECC). If the SCSI device supports
READL/WRITEL, OpenVMS shadowing emulates the DSA forced error with an intentionally
incorrect ECC. For details see Scott H. Davis, Design of VMS Volume Shadowing Phase II —
Host-based Shadowing, Digital Technical Journal Vol. 3 No. 3, Summer 1991, archived at:
http://research.compaq.com/wrl/DECarchives/DTJ/DTJ301/DTJ301SC.TXT
The DS6000 provides volumes as SCSI-3 devices and thus does not implement a forced
error indicator. It also does not support the READL and WRITEL command set for data
integrity reasons.
Usually the OpenVMS SCSI Port Driver recognizes if a device supports READL/WRITEL,
and the driver sets the NOFE (no forced error) bit in the Unit Control Block. You can verify this
setting with the SDA utility: After starting the utility with the analyze/system command, enter
the show device command at the SDA prompt. Then the NOFE flag should be shown in the
device’s characteristics.
The OpenVMS command for mounting shadow sets provides a qualifier
/override=no_forced_error to support non-DSA devices. To avoid possible problems
(performance loss, unexpected error counts, or even removal of members from the shadow
set), we recommend you apply this qualifier.
328 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 329
Appendix B. Using the DS6000 with iSeries
In this appendix, the following topics are discussed:
򐂰Supported environment
򐂰Logical volume sizes
򐂰Protected versus unprotected volumes
򐂰Multipath
򐂰Adding units to OS/400 configuration
򐂰Sizing guidelines
򐂰Migration
򐂰Linux and AIX support
B
330 DS6000 Series: Concepts and Architecture
Supported environment
Not all hardware and software combinations for OS/400 support the DS6000. This section
describes the hardware and software pre-requisites for attaching the DS6000.
Hardware
The DS6000 is supported on all iSeries models which support Fibre Channel attachment for
external storage. Fibre Channel was supported on all model 8xx onwards. AS/400 models
7xx and prior only supported SCSI attachment for external storage, so they cannot support
the DS6000.
There are two Fibre Channel adapters for iSeries. Both support the DS6000:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
Each adapter requires its own dedicated I/O processor.
The iSeries Storage Web page provides information about current hardware requirements,
including support for switches. This can be found at:
http://www-1.ibm.com/servers/eserver/iseries/storage/storage_hw.html
Software
The iSeries must be running V5R2 or V5R3 (i5/OS) of OS/400. In addition, at the time of
writing, the following PTFs are required:
򐂰V5R2
– MF33327, MF33301, MF33469, MF33302, SI14711 and SI14754
򐂰V5R3
– MF33328, MF33845, MF33437, MF33303, SI14690, SI14755 and SI14550
Prior to attaching the DS6000 to iSeries, you should check for the latest PTFs, which may
have superseded those shown here.
Logical volume sizes
OS/400 is supported on DS6000 as Fixed Block storage. Unlike other Open Systems using
FB architecture, OS/400 only supports specific volume sizes and these may not be an exact
number of extents. In general, these relate to the volume sizes available with internal devices,
although some larger sizes are now supported for external storage only. OS/400 volumes are
defined in decimal Gigabytes (109bytes).
Table B-1 gives the number of extents required for different iSeries volume sizes.
Table B-1 OS/400 logical volume sizes
Model Type OS/400
Device
size (GB)
Number
of LBAs
Extents Unusable
space
(GiB)
Usable
space%
Unprotected Protected
1750-A81 1750-A01 8.5 16,777,216 8 0.00 100.00
1750-A82 1750-A02 17.5 34,275,328 17 0.66 96.14
Appendix B. Using the DS6000 with iSeries 331
When creating the logical volumes for use with OS/400, you will see that in almost every
case, the OS/400 device size doesn’t match a whole number of extents, and so some space
will be wasted. You should use the figures in Table B-1 on page 330 in conjunction with
Figure 8-9 on page 141 to see how much space will be wasted for your specific configuration.
You should also note that the #2766 and #2787 Fibre Channel Disk Adapters used by iSeries
can only address 32 LUNs, so creating more, smaller LUNs will require more IOAs and their
associated IOPs. For more sizing guidelines for OS/400, refer to “Sizing guidelines” on
page 353.
Protected versus unprotected volumes
When defining OS/400 logical volumes, you must decide whether these should be protected
or unprotected. This is simply a notification to OS/400 – it does not mean that the volume is
protected or unprotected. In reality, all DS6000 LUNs are protected, either RAID-5 or
RAID-10. Defining a volume as unprotected means that it is available for OS/400 to mirror
that volume to another of equal capacity – either internal or external. If you do not intend to
use OS/400 (host based) mirroring, you should define your logical volumes as protected.
Under some circumstances, you may wish to mirror the OS/400 Load Source Unit (LSU) to a
LUN in the DS6000. In this case, only one LUN should be defined as unprotected; otherwise,
when mirroring is started to mirror the LSU to the DS6000 LUN, OS/400 will attempt to mirror
all unprotected volumes.
Changing LUN protection
It is not possible to simply change a volume from protected to unprotected, or vice versa. If
you wish to do so, you must delete the logical volume. This will return the extents used for
that volume to the extent pool. You will then be able to create a new logical volume with the
correct protection. This is unlike ESS E20, F20, and 800, where the entire array containing
the logical volume had to be reformatted.
However, before deleting the logical volume on the DS6000, you must first remove it from the
OS/400 configuration (assuming it was still configured). This is an OS/400 task which is
disruptive if the disk is in the System ASP or User ASPs 2-32 because it requires an IPL of
OS/400 to completely remove the volume from the OS/400 configuration. This is no different
than removing an internal disk from an OS/400 configuration. Indeed, deleting a logical
volume on the DS6000 is similar to physically removing a disk drive from an iSeries. Disks
can be removed from an Independent ASP with the IASP varied off without IPLing the
system.
1750-A85 1750-A05 35.1 68,681,728 33 0.25 99.24
1750-A84 1750-A04 70.5 137,822,208 66 0.28 99.57
1750-A86 1750-A06 141.1 275,644,416 132 0.56 99.57
1750-A87 1750-A07 282.2 551,288,832 263 0.13 99.95
Note: In Table B-1, GiB represents “Binary Gigabytes” (230 bytes) and GB represents
“Decimal Gigabytes” (109 bytes)
Model Type OS/400
Device
size (GB)
Number
of LBAs
Extents Unusable
space
(GiB)
Usable
space%
Unprotected Protected
332 DS6000 Series: Concepts and Architecture
Adding volumes to iSeries configuration
Once the logical volumes have been created and assigned to the host, they will appear as
non-configured units to OS/400. This may be some time after being created on the DS6000.
At this stage, they are used in exactly the same way as non-configured internal units. There is
nothing particular to external logical volumes as far as OS/400 is concerned. You should use
the same functions for adding the logical units to an Auxiliary Storage Pool (ASP) as you
would for internal disks.
Using 5250 interface
Adding disk units to the configuration can be done either using the green screen interface
with Dedicated Service Tools (DST) or System Service Tools (SST), or with the iSeries
Navigator GUI. The following example shows how to add a logical volume in the DS6000 to
the System ASP, using green screen SST.
1. Start System Service Tools STRSST and sign on.
2. Select Option 3, Work with disk units as shown in Figure B-1.
Figure B-1 System Service Tools menu
3. Select Option 2, Work with disk configuration as shown in Figure B-2 on page 333.
System Service Tools (SST)
Select one of the following:
1. Start a service tool
2. Work with active service tools
3. Work with disk units
4. Work with diskette data recovery
5. Work with system partitions
6. Work with system capacity
7. Work with system security
8. Work with service tools user IDs
Selection
3
F3=Exit F10=Command entry F12=Cancel
Appendix B. Using the DS6000 with iSeries 333
Figure B-2 Work with Disk Units menu
4. When adding disk units to a configuration, you can add them as empty units by selecting
Option 2 or you can choose to allow OS/400 to balance the data across all the disk units.
Normally, we recommend balancing the data. Select Option 8, Add units to ASPs and
balance data as shown in Figure B-3.
Figure B-3 Work with Disk Configuration menu
5. Figure B-4 on page 334 shows the Specify ASPs to Add Units to panel. Specify the ASP
number next to the desired units. Here we have specified ASP1, the System ASP. Press
Enter.
Work with Disk Units
Select one of the following:
1. Display disk configuration
2. Work with disk configuration
3. Work with disk unit recovery
Selection
2
F3=Exit F12=Cancel
Work with Disk Configuration
Select one of the following:
1. Display disk configuration
2. Add units to ASPs
3. Work with ASP threshold
4. Include unit in device parity protection
5. Enable remote load source mirroring
6. Disable remote load source mirroring
7. Start compression on non-configured units
8. Add units to ASPs and balance data
9. Start device parity protection
Selection
8
F3=Exit F12=Cancel
334 DS6000 Series: Concepts and Architecture
Figure B-4 Specify ASPs to Add Units to
6. The Confirm Add Units panel will appear for review as shown in Figure B-5. If everything is
correct, press Enter to continue.
Figure B-5 Confirm Add Units
7. Depending on the number of units you are adding, this step could take some time. When it
completes, display your disk configuration to verify the capacity and data protection.
Adding volumes to an Independent Auxiliary Storage Pool
Independent Auxiliary Storage Pools (IASPs) can be switchable or private. Disks are added
to an IASP using the iSeries navigator GUI. In this example, we are adding a logical volume
to a private (non-switchable) IASP.
1. Start iSeries Navigator. Figure B-6 on page 335 shows the initial panel.
Specify ASPs to Add Units to
Specify the ASP to add each unit to.
Specify Serial Resource
ASP Number Type Model Capacity Name
21-662C5 4326 050 35165 DD124
21-54782 4326 050 35165 DD136
1 75-1118707 1750 A85 35165 DD006
F3=Exit F5=Refresh F11=Display disk configuration capacity
F12=Cancel
Confirm Add Units
Add will take several minutes for each unit. The system will
have the displayed protection after the unit(s) are added.
Press Enter to confirm your choice for Add units.
Press F9=Capacity Information to display the resulting capacity.
Press F12=Cancel to return and change your choice.
Serial Resource
ASP Unit Number Type Model Name Protection
1 Unprotected
1 02-89058 6717 074 DD004 Device Parity
2 68-0CA4E32 6717 074 DD003 Device Parity
3 68-0C9F8CA 6717 074 DD002 Device Parity
4 68-0CA5D96 6717 074 DD001 Device Parity
5 75-1118707 1750 A85 DD006 Unprotected
F9=Resulting Capacity F12=Cancel
Appendix B. Using the DS6000 with iSeries 335
Figure B-6 iSeries Navigator initial panel
2. Expand the iSeries to which you wish to add the logical volume and sign on to that server
as shown in Figure B-7.
Figure B-7 iSeries Navigator Signon to iSeries panel
3. Expand Configuration and Service, Hardware, and Disk Units as shown in Figure B-8
on page 336.
336 DS6000 Series: Concepts and Architecture
Figure B-8 iSeries Navigator Disk Units
4. You will be asked to sign on to SST as shown in Figure B-9. Enter your Service tools ID
and password and press OK.
Figure B-9 SST Signon
5. Right-click Disk Pools and select New Disk Pool as shown in Figure B-10 on page 337.
Appendix B. Using the DS6000 with iSeries 337
Figure B-10 Create a new disk pool
6. The New Disk Pool wizard appears as shown in Figure B-11. Click Next.

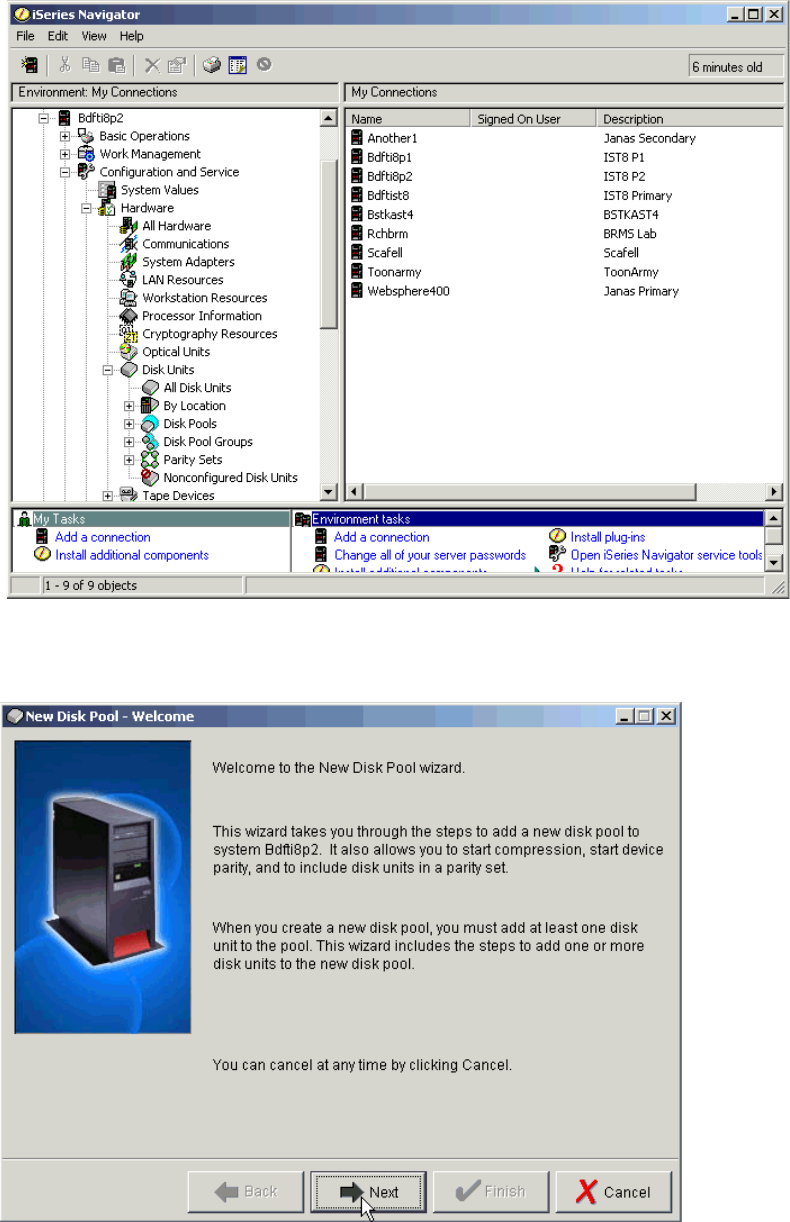

Figure B-11 New disk pool - welcome
338 DS6000 Series: Concepts and Architecture
7. On the New Disk Pool dialog shown in Figure B-12, select Primary from the pull-down for
the Type of disk pool, give the new disk pool a name and leave Database to default to
Generated by the system. Ensure the disk protection method matches the type of logical
volume you are adding. If you leave it unchecked, you will see all available disks. Select
OK to continue.
Figure B-12 Defining a new disk pool
8. A confirmation panel like that shown in Figure B-13 will appear to summarize the disk pool
configuration. Select Next to continue.
Figure B-13 Confirm disk pool configuration
9. Now you need to add disks to the new disk pool. On the Add to disk pool screen, click the
Add disks button as shown in Figure B-14 on page 339.
Appendix B. Using the DS6000 with iSeries 339
Figure B-14 Add disks to Disk Pool
10.A list of non-configured units similar to that shown in Figure B-15 will appear. Highlight the
disks you want to add to the disk pool and click Add.
Figure B-15 Choose the disks to add to the Disk Pool
11.A confirmation screen appears as shown in Figure B-16 on page 340. Click Next to
continue.
340 DS6000 Series: Concepts and Architecture
Figure B-16 Confirm disks to be added to Disk Pool
12.A summary of the Disk Pool configuration similar to Figure B-17 appears. Click Finish to
add the disks to the Disk Pool.
Figure B-17 New Disk Pool Summary
13.Take note of and respond to any message dialogs which appear. After taking action on
any messages, the New Disk Pool Status panel shown in Figure B-18 on page 341 will
appear showing progress. This step may take some time, depending on the number and
size of the logical units being added.
Appendix B. Using the DS6000 with iSeries 341
Figure B-18 New Disk Pool Status
14.When complete, click OK on the information panel shown in Figure B-19.
Figure B-19 Disks added successfully to Disk Pool
15.The new Disk Pool can be seen on iSeries Navigator Disk Pools in Figure B-20.
Figure B-20 New Disk Pool shown on iSeries Navigator
16.To see the logical volume, as shown in Figure B-21, expand Configuration and Service,
Hardware, Disk Pools and click the disk pool you just created.
342 DS6000 Series: Concepts and Architecture
Figure B-21 New logical volume shown on iSeries Navigator
Multipath
Multipath support was added for external disks in V5R3 of i5/OS (also known as OS/400
V5R3). Unlike other platforms which have a specific software component, such as Subsystem
Device Driver (SDD), multipath is part of the base operating system. At V5R3, up to eight
connections can be defined from multiple I/O adapters on an iSeries server to a single logical
volume in the DS6000. Each connection for a multipath disk unit functions independently.
Several connections provide availability by allowing disk storage to be utilized even if a single
path fails.
Multipath is important for iSeries because it provides greater resilience to SAN failures, which
can be critical to OS/400 due to the single level storage architecture. Multipath is not available
for iSeries internal disk units but the likelihood of path failure is much less with internal drives.
This is because there are fewer interference points where problems can occur, such as long
fiber cables and SAN switches, as well as the increased possibility of human error when
configuring switches and external storage, and the concurrent maintenance on the DS6000
which may make some paths temporarily unavailable.
Many iSeries customers still have their entire environment in the System ASP and loss of
access to any disk will cause the system to fail. Even with User ASPs, loss of a UASP disk
will eventually cause the system to stop. Independent ASPs provide isolation such that loss of
disks in the IASP will only affect users accessing that IASP while the rest of the system is
unaffected. However, with multipath, even loss of a path to disk in an IASP will not cause an
outage.
Appendix B. Using the DS6000 with iSeries 343
Prior to multipath being available, some customers used OS/400 mirroring to two sets of
disks, either in the same or different external disk subsystems. This provided implicit
dual-path as long as the mirrored copy was connected to a different IOP/IOA, BUS, or I/O
tower. However, this also required two copies of data. Since disk level protection is already
provided by RAID-5 or RAID-10 in the external disk subsystem, this was sometimes seen as
unnecessary.
With the combination of multipath and RAID-5 or RAID-10 protection in the DS6000, we can
provide full protection of the data paths and the data itself without the requirement for
additional disks.
Avoiding single points of failure
In Figure B-22, there are fifteen single points of failure, excluding the iSeries itself and the
DS6000 storage facility. Failure points 9-12 will not be present if you do not use an Inter
Switch Link (ISL) to extend your SAN. An outage to any one of these components (either
planned or unplanned) would cause the system to fail if IASPs are not used (or the
applications within an IASP if they are).
Figure B-22 Single points of failure
When implementing multipath, you should provide as much redundancy as possible. As a
minimum, multipath requires two IOAs connecting the same logical volumes. Ideally, these
should be on different buses and in different I/O racks in the iSeries. If a SAN is included,
separate switches should also be used for each path. You should also use Host Adapters in
different I/O drawer pairs in the DS6000. Figure B-23 on page 344 shows this.
6. Port
7. Switch
8. Port
1. IO Frame
2. BUS
3. IOP
4. IOA
5. Cable
9. ISL
13. Cable
10. Port
11. Switch
12. Port
14. Host Adapter
344 DS6000 Series: Concepts and Architecture
Figure B-23 Multipath removes single points of failure
Unlike other systems, which may only support two paths (dual-path), OS/400 V5R3 supports
up to eight paths to the same logical volumes. As a minimum, you should use two, although
some small performance benefits may be experienced with more. However, since OS/400
multipath spreads I/O across all available paths in a round-robin manner, there is no load
balancing, only load sharing.
Configuring multipath
iSeries has two I/O adapters that support DS6000:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
Both can be used for multipath and there is no requirement for all paths to use the same type
of adapter. Both adapters can address up to 32 logical volumes. This does not change with
multipath support. When deciding how many I/O adapters to use, your first priority should be
to consider performance throughput of the IOA since this limit may be reached before the
maximum number of logical units. See “Sizing guidelines” on page 353 for more information
on sizing and performance guidelines.
Appendix B. Using the DS6000 with iSeries 345
Figure B-24 Example of multipath with iSeries
Figure B-24 shows an example where 48 logical volumes are configured in the DS6000. The
first 24 of these are assigned via a host adapter in the top controller card in the DS6000 to a
Fibre Channel I/O adapter in the first iSeries I/O tower or rack. The next 24 logical volumes
are assigned via a host adapter in the lower controller card in the DS6000 to a Fibre Channel
I/O adapter on a different BUS in the first iSeries I/O tower or rack. This would be a valid
single path configuration.
To implement multipath, the first group of 24 logical volumes is also assigned to a Fibre
Channel I/O adapter in the second iSeries I/O tower or rack via a host adapter in the lower
controller card in the DS6000. The second group of 24 logical volumes is also assigned to a
Fibre Channel I/O adapter on a different BUS in the second iSeries I/O tower or rack via a
host adapter in the upper controller card.
Adding multipath volumes to iSeries using 5250 interface
If using the green screen 5250 interface, sign on to SST and perform the following steps as
described in “Using 5250 interface” on page 332.
1. Option 3, Work with disk units.
2. Option 2, Work with disk configuration.
3. Option 8, Add units to ASPs and balance data.
You will then be presented with a panel similar to Figure B-25 on page 346. The values in
the Resource Name column show DDxxx for single path volumes and DMPxxx for those
which have more than one path. In this example, the 1750-A85 logical volume with serial
number 75-1118707 is available through more than one path and reports in as DMP135.
4. Specify the ASP to which you wish to add the multipath volumes.
Volumes 25-48
Controllers and
Host Adapters
Volumes 1-24
iSeries IO
Towers/Racks
BUS a
BUS b
BUS x
BUS y
FC IOA
FC IOA
FC IOA
FC IOA
Logical connection
346 DS6000 Series: Concepts and Architecture
Figure B-25 Adding multipath volumes to an ASP
5. You will then be presented with a confirmation screen as shown in Figure B-26. Check the
configuration details and if correct, press Enter to accept.
Figure B-26 Confirm Add Units
Adding volumes to iSeries using iSeries Navigator
The iSeries Navigator GUI can be used to add volumes to the System, User or Independent
ASPs. In this example, we are adding a multipath logical volume to a private (non-switchable)
IASP. The same principles apply when adding multipath volumes to the System or User
ASPs.
Follow the steps outlined in “Adding volumes to an Independent Auxiliary Storage Pool” on
page 334.
Specify ASPs to Add Units to
Specify the ASP to add each unit to.
Specify Serial Resource
ASP Number Type Model Capacity Name
21-662C5 4326 050 35165 DD124
21-54782 4326 050 35165 DD136
1 75-1118707 1750 A85 35165 DMP135
F3=Exit F5=Refresh F11=Display disk configuration capacity
F12=Cancel
Note: For multipath volumes, only one path is shown. In order to see the additional
paths, see “Managing multipath volumes using iSeries Navigator” on page 349.
Confirm Add Units
Add will take several minutes for each unit. The system will
have the displayed protection after the unit(s) are added.
Press Enter to confirm your choice for Add units.
Press F9=Capacity Information to display the resulting capacity.
Press F12=Cancel to return and change your choice.
Serial Resource
ASP Unit Number Type Model Name Protection
1 Unprotected
1 02-89058 6717 074 DD004 Device Parity
2 68-0CA4E32 6717 074 DD003 Device Parity
3 68-0C9F8CA 6717 074 DD002 Device Parity
4 68-0CA5D96 6717 074 DD001 Device Parity
5 75-1118707 1750 A85 DMP135 Unprotected
F9=Resulting Capacity F12=Cancel
Appendix B. Using the DS6000 with iSeries 347
When you get to the point where you will select the volumes to be added, you will see a panel
similar to that shown in Figure B-27. Multipath volumes appear as DMPxxx. Highlight the
disks you want to add to the disk pool and click Add.
Figure B-27 Adding a multipath volume
The remaining steps are identical to those in “Adding volumes to an Independent Auxiliary
Storage Pool” on page 334.
Note: For multipath volumes, only one path is shown. In order to see the additional paths,
see “Managing multipath volumes using iSeries Navigator” on page 349.
348 DS6000 Series: Concepts and Architecture
When you have completed these steps, the new Disk Pool can be seen on iSeries Navigator
Disk Pools in Figure B-28.
Figure B-28 New Disk Pool shown on iSeries Navigator
To see the logical volume, as shown in Figure B-29, expand Configuration and Service,
Hardware, Disk Pools and click the disk pool you just created.
Figure B-29 New logical volume shown on iSeries Navigator
Appendix B. Using the DS6000 with iSeries 349
Managing multipath volumes using iSeries Navigator
All units are initially created with a prefix of DD. As soon as the system detects that there is
more than one path to a specific logical unit, it will automatically assign a unique resource
name with a prefix of DMP for both the initial path and any additional paths.
When using the standard disk panels in iSeries Navigator, only a single (the initial) path is
shown. The following steps show how to see the additional paths.
To see the number of paths available for a logical unit, open iSeries Navigator and expand
Configuration and Service, Hardware, and Disk Units as shown in Figure B-30 and click
All Disk Units. The number of paths for each unit is shown in column Number of Connections
visible on the right of the panel. In this example, there are 8 connections for each of the
multipath units.
Figure B-30 Example of multipath logical units
350 DS6000 Series: Concepts and Architecture
To see the other connections to a logical unit, right click the unit and select Properties, as
shown in Figure B-31 on page 350.

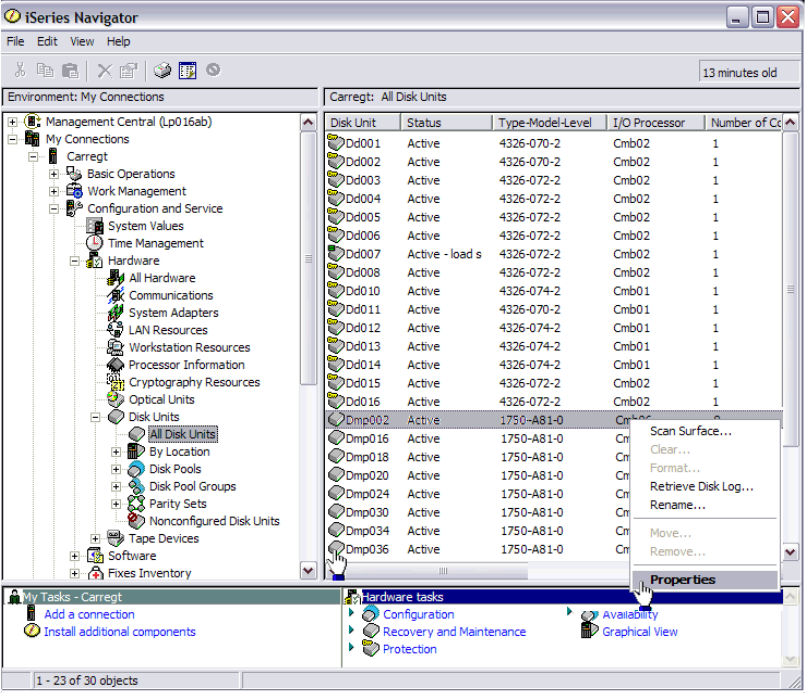

Figure B-31 Selecting properties for a multipath logical unit
Appendix B. Using the DS6000 with iSeries 351
You will then see the General Properties tab for the selected unit, as in Figure B-32. The first
path is shown as Device 1 in the box labelled Storage.

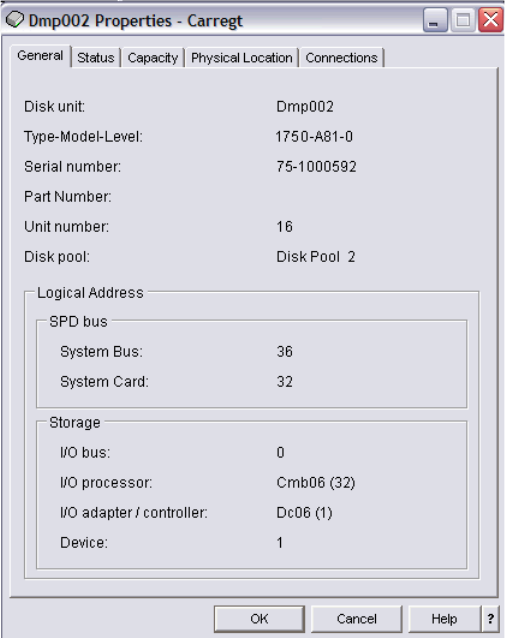

Figure B-32 Multipath logical unit properties
352 DS6000 Series: Concepts and Architecture
To see the other paths to this unit, click the Connections tab, as shown in Figure B-33, where
you can see the other seven connections for this logical unit.
Figure B-33 Multipath connections
Multipath rules for multiple iSeries systems or partitions
When you use multipath disk units, you must consider the implications of moving IOPs and
multipath connections between nodes. You must not split multipath connections between
nodes, either by moving IOPs between logical partitions or by switching expansion units
between systems. If two different nodes both have connections to the same LUN in the
DS6000, both nodes might potentially overwrite data from the other node.
The system enforces the following rules when you use multipath disk units in a
multiple-system environment:
򐂰If you move an IOP with a multipath connection to a different logical partition, you must
also move all other IOPs with connections to the same disk unit to the same logical
partition.
򐂰When you make an expansion unit switchable, make sure that all multipath connections to
a disk unit will switch with the expansion unit.
򐂰When you configure a switchable independent disk pool, make sure that all of the required
IOPs for multipath disk units will switch with the independent disk pool.
If a multipath configuration rule is violated, the system issues warnings or errors to alert you
of the condition. It is important to pay attention when disk unit connections are reported
missing. You want to prevent a situation where a node might overwrite data on a LUN that
belongs to another node.
Appendix B. Using the DS6000 with iSeries 353
Disk unit connections might be missing for a variety of reasons, but especially if one of the
preceding rules has been violated. If a connection for a multipath disk unit in any disk pool is
found to be missing during an IPL or vary on, a message is sent to the QSYSOPR message
queue.
If a connection is missing, and you confirm that the connection has been removed, you can
update Hardware Service Manager (HSM) to remove that resource. Hardware Service
Manager is a tool for displaying and working with system hardware from both a logical and a
packaging viewpoint, an aid for debugging Input/Output (I/O) processors and devices, and for
fixing failing and missing hardware. You can access Hardware Service Manager in System
Service Tools (SST) and Dedicated Service Tools (DST) by selecting the option to start a
service tool.
Changing from single path to multipath
If you have a configuration where the logical units were only assigned to one I/O adapter, you
can easily change to multipath. Simply assign the logical units in the DS6000 to another I/O
adapter and the existing DDxxx drives will change to DMPxxx and new DMPxxx resources
will be created for the new path.
Preferred path for DS6000
As discussed previously in “Avoiding single points of failure” on page 343, iSeries multipath
can be implemented to allow a logical volume to be accessed via multiple connections.
However, the Preferred Path facility for DS6000 discussed in Chapter 3, “RAS” on page 45, is
currently not implemented in OS/400 and this may lead to some small performance
degradation for large workloads. This is because a longer path will be used when accessing
logical volumes across the midplane in the DS6000. Preferred path would access these
volumes over the shortest path. However, as OS/400 does not support this, it uses a
round-robin algorithm to spread I/O to a logical volume over all available paths.
Sizing guidelines
In Figure B-34 on page 354, we show the process you can use to size external storage on
iSeries. Ideally, you should have OS/400 Performance Tools reports, which can be used to
model an existing workload. If these are not available, you can use workload characteristics
from a similar workload to understand the I/O rate per second and the average I/O size. For
example, the same application may be running at another site and its characteristics can be
adjusted to match the expected workload pattern on your system.
Using this base information, and the rules-of-thumb that follow, you can estimate an
approximate configuration which can then be used as input into Disk Magic (DM). This will
give an indication of the service and wait time per I/O. If these do not meet your requirements,
then you can adjust the hardware configuration in Disk Magic accordingly.
Once you have this base modelling completed, you should also consider the other influences
on the storage subsystem (such as any requirement for Copy Services and other workloads
from other systems) and re-assess the hardware configuration and adjust accordingly until
your requirements are met.
Note: Disk Magic is for IBM and IBM Business Partner use only. Customers should contact
their IBM or IBM Business Partner representative for assistance with Capacity Planning,
which may be a chargeable service.
354 DS6000 Series: Concepts and Architecture
Figure B-34 Process for sizing external storage
Planning for arrays and DDMs
In general, although it is possible to use 146 GB and 300 GB 10K RPM DDMs, we
recommend that you use 73 GB 15K RPM DDMs for iSeries production workloads. The
larger, slower drives may be suitable for less I/O intensive work, or for those workloads which
do not require critical response times (for example, archived data or data which is high in
volume but low in use such as scanned images).
For workloads with critical response times, you may not want to use all the capacity in an
array. For 73 GB DDMs you may plan to use about 300 GB capacity per 8 drive array. The
remaining capacity could possibly be used for infrequently accessed data. For example, you
may have archive data, or some data such as images, which is not accessed regularly, or
perhaps FlashCopy target volumes which could use this capacity, but not impact on the I/O
per sec on those arrays.
For very high write environments, you may also consider using RAID-10, which offers a
higher I/O rate per GB than RAID-5 as shown in Figure B-3 on page 356. However, the
majority of iSeries workloads do not require this.
Cache
In general, iSeries workloads do not benefit from large cache. Since there is no choice for
cache size on DS6000, you should ensure that your workload is not excessively
cache-friendly. This can be seen in OS/400 Performance Tools System, Component and
Resource Interval reports. However, in general, with large iSeries main memory sizes,
OS/400 Expert Cache can reduce the benefit of external cache.
Modeling with
Disk Magic
Rules of thumb
Proposed
configuration
Requirements and
expectations met ?
Finish
Other
requirements:
HA, DR etc.
SAN Fabric
Workload from
other servers
Yes
Adjust config
based on DM
modeling
No
Workload
description
Workload
characteristics
Performance
Tools Reports
Workload
statistics
Appendix B. Using the DS6000 with iSeries 355
Number of iSeries Fibre Channel adapters
The most important factor to take into consideration when calculating the number of Fibre
Channel adapters in the iSeries is the throughput capacity of the adapter and IOP
combination.
Since this guideline is based only on iSeries adapters and Access Density (AD) of iSeries
workload, it doesn't change when using the DS6000. (The same guidelines are valid for ESS
800).
Table B-2 shows the approximate capacity which can be supported with various IOA/IOP
combinations.
Table B-2 Capacity per I/O Adapter
For most iSeries workloads, Access Density is usually below 2, so if you do not know it, the
Rule of thumb column is a typical value to use.
Size and number of LUNs
As discussed in “Logical volume sizes” on page 330, OS/400 can only use fixed logical
volume sizes. As a general rule of thumb, we recommend that you should configure more
logical volumes than actual DDMs. As a minimum, we recommend 2:1. For example, with 73
GB DDMs, you should use a maximum size of 35.1GB LUNs. The reason for this is that
OS/400 does not support command tag queuing. Using more, smaller LUNs can reduce I/O
queues and wait times by allowing OS/400 to support more parallel I/Os.
From the values in Table B-2, you can calculate the number of iSeries Fibre Channel adapters
for your required iSeries disk capacity. As each I/O adapter can support a maximum of 32
LUNs, divide the capacity per adapter by 32 to give the approximate average size of each
LUN.
For example, assume you require 2TB capacity and are using 2787 I/O adapters with 2844
I/O processors. If you know the access density, calculate the capacity per I/O adapter, or use
the rule-of-thumb. Let’s assume the rule-of-thumb of 500GB per adapter. In this case, we
would require four I/O adapters to support the workload. If we were able to have variable
LUNs sizes, we could support 32 15.6GB LUNs per I/O adapter. However, since OS/400 only
supports fixed volume sizes, we could support 28 17.5GB volumes to give us approximately
492GB per adapter.
Recommended number of ranks
As a general guideline, you may consider 1500 disk operations/second for an average RAID
rank.
Note: Access Density is the capacity of occupied disk space divided by the average I/O
per sec. These values can be obtained from the OS/400 System, Component and
Resource Interval performance reports.
I/O Adapter I/O Processor Capacity per IOA Rule of thumb
2787 2844 1022/AD 500GB
2766 2844 798/AD 400GB
2766 2843 644/AD 320GB
356 DS6000 Series: Concepts and Architecture
When considering the number of ranks, take into account the maximum disk operations per
second per rank as shown in Table B-3. These are measured at 100% DDM Utilization with
no cache benefit and with the average I/O being 4KB. Larger transfer sizes will reduce the
number of operations per second.
Based on these values you can calculate how many host I/O per second each rank can
handle at the recommended utilization of 40%. This is shown for workload read-write ratios of
70% read and 50% read in Table B-3.
Table B-3 Disk operations per second per RAID rank
As can be seen in Table B-3, RAID-10 can support higher host I/O rates than RAID-5.
However, you must balance this against the reduced effective capacity of a RAID-10 rank
when compared to RAID-5.
Sharing ranks between iSeries and other servers
As a general guideline consider using separate extent pools for iSeries workload and other
workloads. This will isolate the I/O for each server.
However, you may consider sharing ranks when the other servers’ workloads have a
sustained low disk I/O rate compared to the iSeries I/O rate. Generally, iSeries has a
relatively high I/O rate while that of other servers may be lower – often below one I/O per GB
per second.
As an example, a Windows file server with a large data capacity may normally have a low I/O
rate with less peaks and could be shared with iSeries ranks. However, SQL, DB or other
application servers may show higher rates with peaks, and we recommend using separate
ranks for these servers.
Unlike its predecessor the ESS, capacity used for logical units on the DS6000 can be reused
without reformatting the entire array. Now, the decision to mix platforms on an array is only
one of performance, since the disruption previously experienced on ESS to reformat the array
no longer exists.
Connecting via SAN switches
When connecting DS6000 systems to iSeries via switches, you should plan that I/O traffic
from multiple iSeries adapters can go through one port on a DS6000 and zone the switches
accordingly. DS6000 host adapters can be shared between iSeries and other platforms.
RAID rank type Disk ops/sec Host I/O/sec
(70% read)
Host I/O/sec
(50% read)
RAID-5 15K RPM (7 + P) 1700 358 272
RAID-5 10K RPM (7 + P) 1100 232 176
RAID-5 15K RPM (6 + P + S) 1458 313 238
RAID-5 10K RPM (6 + P + S) 943 199 151
RAID-10 15K RPM (3 + 3 + 2S) 1275 392 340
RAID-10 10K RPM (3 + 3 + 2S) 825 254 220
RAID-10 15K RPM (4 + 4) 1700 523 453
RAID-10 15K RPM (4 + 4 1100 338 293
Appendix B. Using the DS6000 with iSeries 357
Based on available measurements and experiences with the ESS 800 we recommend you
should plan no more than four iSeries I/O adapters to one host port in the DS6000.
For a current list of switches supported under OS/400, refer to the iSeries Storage Web site
at:
http://www-1.ibm.com/servers/eserver/iseries/storage/storage_hw.html
Migration
For many iSeries customers, migrating to the DS6000 will be best achieved using traditional
Save/Restore techniques. However, there are some alternatives you may wish to consider.
OS/400 mirroring
Although it is possible to use OS/400 to mirror the current disks (either internal or external) to
a DS6000 and then remove the older disks from the iSeries configuration, this is not
recommended because both the source and target disks must initially be unprotected. If
moving from internal drives, these would normally be protected by RAID-5 and this protection
would need to be removed before being able to mirror the internal drives to the DS6000
logical volumes.
Once an external logical volume has been created, it will always keep its model type and be
either protected or unprotected. Therefore, once a logical volume has been defined as
unprotected to allow it to be the mirror target, it cannot be converted back to a protected
model and therefore will be a candidate for all future OS/400 mirroring, whether you want this
or not. See Table B-1 on page 330 for DS6000 logical volume models and types.
Metro Mirror and Global Copy
Depending on the existing configuration, it may be possible to use Metro Mirror or Global
Copy to migrate from an ESS to a DS6000 (or indeed, any combination of external storage
units which support Metro Mirror and Global Copy). For further discussion on Metro Mirror
and Global Copy, see 15.2.2, “Subsystem-based data migration” on page 295. Consider the
example shown in Figure B-35 on page 358.
Here, the iSeries has its internal Load Source Unit (LSU) and possibly some other internal
drives. The ESS provides additional storage capacity. Using Metro Mirror or Global Copy, it is
possible to create copies of the ESS logical volumes in the DS6000.
When ready to migrate from the ESS to the DS6000, you should do a complete shutdown of
the iSeries, unassign the ESS LUNs and assign the DS6000 LUNs to the iSeries. After IPLing
the iSeries, the new DS6000 LUNs will be recognized by OS/400, even though they are
different models and have different serial numbers.
Note: It is important to ensure that both the Metro Mirror or Global Copy source and target
copies are not assigned to the iSeries at the same time because this is an invalid
configuration. Careful planning and implementation is required to ensure this does not
happen, otherwise unpredictable results may occur.
358 DS6000 Series: Concepts and Architecture
Figure B-35 Using Metro Mirror to migrate from ESS to the DS6000
The same setup can also be used if the ESS LUNs are in an IASP, although the iSeries would
not require a complete shutdown since varying off the IASP in the ESS, unassigning the ESS
LUNs, assigning the DS6000 LUNs and varying on the IASP would have the same effect.
Clearly, you must also take into account the licensing implications for Metro Mirror and Global
Copy.
OS/400 data migration
It is also possible to use native OS/400 functions to migrate data from existing disks to the
DS6000, whether the existing disks are internal or external. When you assign the new
DS6000 logical volumes to the iSeries, initially they are non-configured (see “Adding volumes
to iSeries configuration” on page 332 for more details). If you add the new units and choose to
spread data, OS/400 will automatically migrate data from the existing disks onto the new
logical units.
Note: This is a special case of using Metro Mirror or Global Copy and will only work if the
same iSeries is used, along with the LSU to attach to both the original ESS and the new
DS6000. It is not possible to use this technique to a different iSeries.
Metro Mirror
Appendix B. Using the DS6000 with iSeries 359
You can then use the OS/400 command STRASPBAL TYPE(*ENDALC) to mark the units to
be removed from the configuration as shown in Figure B-36. This can reduce the down time
associated with removing a disk unit. This will keep new allocations away from the marked
units.
Figure B-36 Ending allocation for existing disk units
When you subsequently run the OS/400 command STRASPBAL TYPE(*MOVDTA) all data
will be moved from the marked units to other units in the same ASP, as shown in Figure B-37.
Clearly you must have sufficient new capacity to allow the data to be migrated.
Figure B-37 Moving data from units marked *ENDALC
You can specify a time limit that the function is to run for each ASP being balanced or the
balance can be set to run to completion. If the balance function needs to be ended prior to
this, use the End ASP Balance (ENDASPBAL) command. A message will be sent to the
system history (QHST) log when the balancing function is started for each ASP. A message
will also be sent to the QHST log when the balancing function completes or is ended.
If the balance function is run for a few hours and then stopped, it will continue from where it
left off when the balance function restarts. This allows the balancing to be run during off hours
over several days.
In order to finally remove the old units from the configuration, you will need to use Dedicated
Service Tools (DST) and re-IPL the system (or partition).
Using this method allows you to remove the existing storage units over a period of time.
However, it does require that both the old and new units are attached to the system at the
same time so it may require additional IOPs and IOAs if migrating from an ESS to a DS6000.
It may be possible in your environment to re-allocate logical volumes to other IOAs, but
careful planning and implementation will be required.
Start ASP Balance (STRASPBAL)
Type choices, press Enter.
Balance type . . . . . . . . . . > *ENDALC *CAPACITY, *USAGE, *HSM...
Storage unit . . . . . . . . . . 1-4094
+ for more values
Bottom
F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this display
F24=More keys
Start ASP Balance (STRASPBAL)
Type choices, press Enter.
Balance type . . . . . . . . . . > *MOVDTA *CAPACITY, *USAGE, *HSM...
Time limit . . . . . . . . . . . 1-9999 minutes, *NOMAX
Bottom
F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this display
F24=More keys
360 DS6000 Series: Concepts and Architecture
Copy Services for iSeries
Due to OS/400 having a single level storage, it is not possible to copy some disk units without
copying them all, unless specific steps are taken.
FlashCopy
When FlashCopy was first available for use with OS/400, it was necessary to copy the entire
storage space, including the Load Source Unit (LSU). However, since the LSU must reside
on an internal disk, this first had to be mirrored to a LUN in the external storage subsystem.
Because it is not possible to IPL from external storage, it was then necessary to D-Mode IPL
the target system/partition from CD, then Recover Remote LSU. This is sometimes known as
basic FlashCopy.
In order to ensure the entire single level storage is copied, memory needs to be flushed –
preferably with a PWRDWNSYS or perhaps more acceptable, taking the system into a Restricted
State using ENDSBS *ALL.
For most customers, this is not a practical solution.
To avoid this and to make FlashCopy more appropriate to iSeries customers, IBM has
developed a service offering to allow Independent Auxiliary Storage Pools (IASPs) to be used
with FlashCopy independently from the LSU and other disks which make up *SYSBAS
(ASP1-32). This has three major benefits:
1. Less data is copied.
2. Recover Remote LSU recovery is not necessary.
3. Communication configuration details are not affected.
The target system can be a live system (or partition) used for other functions such as test,
development and Lotus® Notes®. When backups are to be done, the FlashCopy target can
be attached to the partition without affecting the rest of the users. Or perhaps more likely, the
target will be a partition on the same system as production but may have no CPU or memory
allocated to it until the backups are taken, when these resources are then reallocated from
the production environment (or other) and moved to the backup partition.
Again, like the basic FlashCopy, it is necessary to flush memory for those objects to be saved
so that all objects reside in the ESS (where FlashCopy runs). However, unlike basic
FlashCopy, this is achieved by varying off the IASP rather than powering off the system or
taking it to restricted state. The rest of the system is unaffected.
Remote Mirror and Copy
Although the same considerations apply to the Load Source Unit as for FlashCopy, unlike
FlashCopy which would likely be done on a daily/nightly basis, Remote Mirror is generally
used for DR. The additional steps required to make the target volumes usable (D-IPL, recover
remote LSU, abnormal IPL) are more likely to be acceptable due to the infrequent nature of
invoking the DR copy. Recovery time may be affected but the recovery point will be to the
point of failure. This is sometimes known as basic Remote Mirroring.
Using the advantages previously discussed when using IASPs with FlashCopy, we are able
to use this technology with Remote Mirror as well. Instead of the entire system (single level
Attention: You should not assume that Copy Services with iSeries works the same as with
other open systems.
Appendix B. Using the DS6000 with iSeries 361
storage) being copied, only the application resides in an IASP and in the event of a disaster,
the target copy is attached to the DR server.
Additional considerations must be taken into account such as maintaining user profiles on
both systems, but this is no different from using other availability functions such as switched
disk between two local iSeries Servers on a High Speed Link (HSL) and Cross Site Mirroring
(XSM) to a remote iSeries. However, with Remote Mirror, the distance can be much greater
using the synchronous Metro Mirror than the 250 meter limit of HSL, and with the
asynchronous Global Mirror, there is little performance impact on the production server.
Whereas with FlashCopy where you would likely only have data in an IASP, for DR with
Remote Mirror, you also need the application on the DR system. This can either reside in
*SYSBAS or in an IASP. If it is in an IASP, then the entire application would be copied. If it is
in *SYSBAS, you will need to ensure good change management facilities to ensure both
systems have the same level of the application. Also, you must ensure that system objects in
*SYSBAS, such as User Profiles, are synchronized.
Again, the DR server could be a dedicated system, or perhaps more likely, a shared system
with development, testing, or other function in other partitions or IASPs.
iSeries toolkit for Copy Services
Although it is possible to use FlashCopy and Remote Mirror functions with iSeries, for
practical reasons, many customers will choose not to use basic FlashCopy and Remote
Mirror functions due to the LSU restrictions discussed previously. Instead, IBM recommends
that Copy Services should only be used with the iSeries toolkit for Copy Services, which uses
OS/400 IASPs and provides control of the clustering environment necessary to use IASPs
with Copy Services. More information about the Copy Services toolkit can be found at:
http://www-1.ibm.com/servers/eserver/iseries/service/itc/pdf/Copy-Services-ESS.pdf
Contact your IBM representative if you wish to implement the iSeries toolkit for Copy
Services, or contact the iSeries Technology Center directly at:
mailto:rchclst@us.ibm.com
AIX on IBM iSeries
With the announcement of the IBM iSeries i5, it is now possible to run AIX in a partition on the
i5. This can be either AIX 5L V5.2 or V5.3. All supported functions of these operating system
levels are supported on i5, including HACMP for high availability and external boot from Fibre
Channel devices.
The DS6000 requires the following i5 I/O adapters to attach directly to an i5 AIX partition:
򐂰0611 Direct Attach 2 Gigabit Fibre Channel PCI
򐂰0625 Direct Attach 2 Gigabit Fibre Channel PCI-X
It is also possible for the AIX partition to have its storage virtualized, whereby a partition
running OS/400 hosts the AIX partition's storage requirements. In this case, if using DS6000,
they would be attached to the OS/400 partition using either of the following I/O adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
362 DS6000 Series: Concepts and Architecture
For more information on running AIX in an i5 partition, refer to the i5 Information Center at:
򐂰http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/index.htm?info/iphat
/iphatlparkickoff.htm
Linux on IBM iSeries
Since OS/400 V5R1, it has been possible to run Linux in an iSeries partition. On iSeries
models 270 and 8xx, the primary partition must run OS/400 V5R1 or higher and Linux is run
in a secondary partition. For later i5 systems (models i520, i550, i570 and i595), Linux can
run in any partition.
On both hardware platforms, the supported versions of Linux are:
򐂰SUSE Linux Enterprise Server 9 for POWER™
(New 2.6 Kernel based distribution also supports earlier iSeries servers)
򐂰RedHat Enterprise Linux AS for POWER Version 3
(Existing 2.4 Kernel based update 3 distribution also supports earlier iSeries servers)
The DS6000 requires the following iSeries I/O adapters to attach directly to an iSeries or i5
Linux partition.
򐂰0612 Linux Direct Attach PCI
򐂰0626 Linux Direct Attach PCI-X
It is also possible for the Linux partition to have its storage virtualized, whereby a partition
running OS/400 hosts the Linux partition's storage requirements. In this case, if using the
DS6000, they would be attached to the OS/400 partition using either of the following I/O
adapters:
򐂰2766 2 Gigabit Fibre Channel Disk Controller PCI
򐂰2787 2 Gigabit Fibre Channel Disk Controller PCI-X
More information on running Linux in an iSeries partition can be found in the iSeries
Information Center at:
򐂰http://publib.boulder.ibm.com/iseries/v5r2/ic2924/index.htm
More information on running Linux in an i5 partition can be found in the i5 Information Center
at:
򐂰http://publib.boulder.ibm.com/infocenter/iseries/v1r2s/en_US/info/iphbi/iphbi.pdf
Note: AIX will not run in a partition on earlier 8xx and prior iSeries systems.
© Copyright IBM Corp. 2004. All rights reserved. 363
Appendix C. Service and support offerings
This appendix provides information about the service offerings which are currently available
for the new DS6000 and DS8000 series. It includes a brief description of each offering and
where you can find more information on the Web.
򐂰IBM Implementation Services for TotalStorage disk systems
򐂰IBM Implementation Services for TotalStorage Copy Functions
򐂰IBM Implementation Services for TotalStorage Command-Line Interface
򐂰IBM Migration Services for eServer zSeries data
򐂰IBM Migration Services for open systems attached to TotalStorage disk systems
򐂰IBM Geographically Dispersed Parallel Sysplex™ (GDPS®)
򐂰Enterprise Remote Copy Management Facility (eRCMF)
򐂰Geographically Dispersed Sites for Microsoft Cluster Services
򐂰IBM eServer iSeries Copy Services
򐂰IBM Operational Support Services - Support Line
C
364 DS6000 Series: Concepts and Architecture
IBM Web sites for service offerings
IBM Global Services (IGS) and the IBM Systems Group can offer comprehensive assistance,
including planning and design as well as implementation and migration support services. For
more information on all of the following service offerings, contact your IBM representative or
visit the following Web sites.
The IBM Global Services Web site can be found at:
http://www.ibm.com/services/us/index.wss/home
The IBM System Group Web site can be found at:
http://www.ibm.com/servers/storage/services/
IBM service offerings
This section describes the service offerings available from IBM Global Services and IBM
Systems Group.
IBM Implementation Services for TotalStorage disk systems
This service includes planning for a new IBM TotalStorage disk system followed by
implementation, configuration, and basic skills transfer instruction. For more information visit
the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005008
IBM Implementation Services for TotalStorage Copy Functions
This service is designed to assist in the planning, implementation, and testing of the IBM
TotalStorage advanced copy functions, Point-in-Time Copy, and remote mirroring solutions.
For more information visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005009
IBM Implementation Services for TotalStorage Command-Line Interface
IBM provides a service through Global Services to help you with using the Command-Line
Interface (CLI) in your system environment. It is designed to provide you with the ability to
create and apply configurations online. For more information visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005334
IBM Migration Services for eServer zSeries data
IBM provides a technical specialist at your site to help plan and assist in the implementation
of non disruptive DASD migration to a new or existing IBM TotalStorage disk system. The
migration is accomplished using the following software and hardware that allows DASD
volumes to be copied to the new storage devices without interruption to service.
򐂰Innovation Fast Dump Restore Plug and Swap (FDRPAS)
򐂰Peer-to-Peer Remote Copy Extended Distance (PPRC-XD)
򐂰Softek Replicator (TDMF)
򐂰IBM Piper hardware assisted migration
Appendix C. Service and support offerings 365
The IBM Piper hardware assisted migration in the zSeries environment is described in this
redbook in “Data migration with Piper for z/OS” on page 255. Additional information about this
offering is on the following Web site:
http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
For more information about IBM Migration Services for eServer zSeries data visit the
following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005010
IBM Migration Services for open systems attached to disk systems
IBM Migration Services for open systems attached to TotalStorage disk systems include
planning for and implementation of data migration from an existing UNIX or Windows server
to new or existing larger capacity IBM storage with minimal disruption. This service uses the
following hardware and software tools:
򐂰Peer-to-Peer Remote Copy Extended Distance (PPRC-XD)
򐂰Softek Replicator (TDMF) for Open
򐂰Native operating system mirroring
򐂰IBM Piper hardware assisted migration
The IBM hardware-assisted data migration services (IBM Piper), which we already mentioned
in regard to the zSeries environment, can also be used in an Open System environment. You
can find information about the use of this service in an Open System environment in 15.2.3,
“IBM Piper migration” on page 297. For the latest information about this service, visit the
following Web site:
http://www.ibm.com/servers/storage/services/featured/hardware_assist.html
For more information about IBM Migration Services for open systems attached to
TotalStorage disk systems visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1005012
IBM Geographically Dispersed Parallel Sysplex (GDPS)
A Geographically Dispersed Parallel Sysplex (GDPS) is the ultimate disaster recovery and
continuous availability solution for a zSeries multi-site enterprise. This solution automatically
mirrors critical data and efficiently balances workload between the sites. The GDPS solution
also uses automation and Parallel Sysplex technology to help manage multi-site databases,
processors, network resources and storage subsystem mirroring. For the latest information
on this service, please visit the following Web site:
http://www-1.ibm.com/services/us/index.wss/offering/its/a1000189
Enterprise Remote Copy Management Facility (eRCMF)
IBM Implementation Services for enterprise Remote Copy Management Facility (eRCMF) is
intended as a multisite Disaster Recovery solution for Open Systems and provides
automation for repairing inconsistent PPRC pairs. This is the software that communicates
with the ESS Copy Services server.
It is a scalable, flexible Open Systems solution that protects the business (data) and can be
used for both:
򐂰Planned outages (hardware and software upgrades)
򐂰Unplanned outages (disaster recovery, testing a disaster)
366 DS6000 Series: Concepts and Architecture
It simplifies the disaster recovery implementation and concept. Once eRCMF is configured in
the customer environment, it will monitor the PPRC states of all specified LUNs/volumes. Visit
the following Web site for the latest information:
http://www.ibm.com/services/us/index.wss/so/its/a1000110
Geographically Dispersed Sites for Microsoft Cluster Services
IBM TotalStorage Support for Geographically Dispersed Sites for Microsoft Cluster Service
(MSCS) is designed to allow Microsoft Cluster installations to span geographically dispersed
sites. It helps to protect clients from site disasters or storage subsystem failures. This service
is designed to enable a tier 7 disaster recovery solution. It also provides high availability for
applications and data running in Windows clustered server environments, by extending the
distance that cluster nodes and storage can be separated, mirroring data between two IBM
TotalStorage disk subsystems, and providing improved failure detection. You can find the
latest information on this service on the following Web site:
http://www.ibm.com/servers/storage/services/featured/microsoft_application_environment.html
#GDSSolution
IBM eServer iSeries Copy Services
For the iSeries environment IBM offers a special toolkit, which allows you to use the advanced
Copy Services functions with the iSeries. For more information on this, see “iSeries toolkit for
Copy Services” on page 361.
IBM Operational Support Services - Support Line
IBM offers telephone or electronic access to highly-trained technical support specialists, who
can serve as your one source for remote software support services.
Highlights of the offering are the following:
򐂰High-quality technical support for IBM and select multivendor software including the Linux
operating system and Linux clusters
򐂰A supplement to your internal staff with IBM's skilled services specialists
򐂰Fast, accurate problem resolution to help keep your IT staff productive
򐂰Options for enhanced coverage and a single interface for remote support
򐂰Support for your international environment
For more information on the IBM Support Line visit the following Web site:
http://www.ibm.com/services/us/index.wss/so/its/a1000030
In Figure 15-9 on page 367 you can see an example for the Support Product List (SPL) of the
IBM Support Line with the DS6800 and the DS8100 support highlighted. You get the
complete SPL on the following Web site:
http://www.ibm.com/services/sl/products/java3.html
Appendix C. Service and support offerings 367
Figure 15-9 Example of the Supported Product List (SPL) from the IBM Support Line
368 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 369
Related publications
The publications listed in this section are considered particularly suitable for a more detailed
discussion of the topics covered in this redbook.
IBM Redbooks
For information on ordering these publications, see “How to get IBM Redbooks” on page 371.
Note that some of the documents referenced here may be available in softcopy only.
򐂰The IBM TotalStorage DS6000 Series: Implementation, SG24-6781
򐂰The IBM TotalStorage DS6000 Series: Copy Services with IBM ^ zSeries,
SG24-6782
򐂰The IBM TotalStorage DS6000 Series: Copy Services in Open Environments, SG24-6783
򐂰The IBM TotalStorage DS6000 Series: Performance Monitoring and Tuning, SG24-7145
򐂰IBM TotalStorage: Integration of the SAN Volume Controller, SAN Integration Server, and
SAN File System, SG24-6097
򐂰IBM TotalStorage: Introducing the SAN File System, SG24-7057
򐂰The IBM TotalStorage Solutions Handbook, SG24-5250
򐂰IBM TotalStorage Business Continuity Solutions Guide, SG24-6547
򐂰iSeries and IBM TotalStorage: A Guide to Implementing External Disk on eServer i5,
SG24-7120
򐂰IBM TotalStorage Productivity Center V2.3: Getting Started, SG24-6490
򐂰Managing Disk Subsystems using IBM TotalStorage Productivity Center for Disk,
SG24-7097
򐂰IBM TotalStorage Enterprise Storage Server: Implementing ESS Copy Services in Open
Environments, SG24-5757
򐂰IBM TotalStorage Enterprise Storage Server: Implementing ESS Copy Services with IBM
eServer zSeries, SG24-5680
Other publications
These publications are also relevant as further information sources. Note that some of the
documents referenced here may be available in softcopy only.
򐂰IBM TotalStorage DS6000 Command-Line Interface User’s Guide, SC26-7625
򐂰IBM TotalStorage DS6000: Host Systems Attachment Guide, SC26-7628
򐂰IBM TotalStorage DS6000: Introduction and Planning Guide, GC35-0495
򐂰IBM TotalStorage Multipath Subsystem Device Driver User’s Guide, SC30-4096
򐂰IBM TotalStorage DS6000: User’s Guide, SC26-7623
򐂰IBM TotalStorage DS Open Application Programming Interface Reference, GC35-0493
򐂰IBM TotalStorage DS6000 Messages Reference, GC26-7659
򐂰z/OS DFSMS Advanced Copy Services, SC35-0248
370 DS6000 Series: Concepts and Architecture
򐂰Device Support Facilities: User’s Guide and Reference, GC35-0033
򐂰z/OS Advanced Copy Services, SC35-0248
Online resources
These Web sites and URLs are also relevant as further information sources:
򐂰Documentation for DS6800:
http://www.ibm.com/servers/storage/support/disk/ds6800/
򐂰SDD and Host Attachment scripts
http://www.ibm.com/support/
򐂰IBM Disk Storage Feature Activation (DSFA) Web site at
http://www.ibm.com/storage/dsfa
򐂰The PSP information can be found at:
http://www-1.ibm.com/servers/resourcelink/svc03100.nsf?OpenDatabase
򐂰Documentation for the DS6000:
http://www.ibm.com/servers/storage/support/disk/1750.html
򐂰Supported servers for the DS6000:
http://www.storage.ibm.com/hardsoft/products/DS6000/supserver.htm
򐂰The interoperability matrix:
http://www.ibm.com/servers/storage/disk/DS6000/interop.html
򐂰Fibre Channel host bus adapter firmware and driver level matrix:
http://knowledge.storage.ibm.com/HBA/HBASearchTool
򐂰ATTO:
http://www.attotech.com/
򐂰Emulex:
http://www.emulex.com/ts/dds.html
򐂰JNI:
http://www.jni.com/OEM/oem.cfm?ID=4
򐂰QLogic:
http://www.qlogic.com/support/oem_detail_all.asp?oemid=22
򐂰IBM:
http://www.ibm.com/storage/ibmsan/products/sanfabric.html
򐂰CNT (INRANGE):
http://www.cnt.com/ibm/
򐂰McDATA:
http://www.mcdata.com/ibm/
򐂰Cisco:
http://www.cisco.com/go/ibm/storage
򐂰CIENA:
http://www.ciena.com/products/transport/shorthaul/cn2000/index.asp
Related publications 371
򐂰CNT:
http://www.cnt.com/ibm/
򐂰Nortel:
http://www.nortelnetworks.com/
򐂰ADVA:
http://www.advaoptical.com/
How to get IBM Redbooks
You can search for, view, or download Redbooks, Redpapers, Hints and Tips, draft
publications and Additional materials, as well as order hardcopy Redbooks or CD-ROMs, at
this Web site:
ibm.com/redbooks
Help from IBM
IBM Support and downloads
ibm.com/support
IBM Global Services
ibm.com/services
372 DS6000 Series: Concepts and Architecture
© Copyright IBM Corp. 2004. All rights reserved. 373
Index
Symbols
39, 52, 66, 146, 196, 230, 232, 271, 330, 357
A
address groups 77, 158
AIX
access methods 308
boot device support 309
filemon 310
iostat 310
LVM 308
managing multiple paths 305
monitoring performance 310
MPIO 306
on iSeries 309, 361
architecture 21
array sites 67, 154, 162
arrays 68, 154, 162
creating 180
Asynchronous Cascading PPRC see Metro/Global Copy
Asynchronous PPRC see Global Mirror
B
battery backup unit see BBU
BBU 41
benefits of virtualization 81
boot device support 309
business continuity 4, 10
C
cable
service 42
cabling 36
cache management 27
Capacity Magic 140
capacity planning 138
CKD LCUs
creating 190
CKD volumes 72, 74
creating 190
configuration planning 125
connector
rack identify 39
Consistency Group 105
Consistency Group FlashCopy 95
Control Unit Initiated Reconfiguration see CUIR
controller
architecture 25
failover and failback 46
Copy Services 89
definitions 90
interfaces 108
iSeries 360
iSeries toolkit 361
management 130
CRU 61
CRU endpoint indicator 60
CUIR 52
D
DA 33
ports
indicators 34
data consistency 105
data migration
basic commands 146
migration appliances 147
open systems 289
Global Copy 296
host operating system based 291
Metro Mirror 296
Piper 297
subsystem based 295
operating system mirroring 146
planning 145
remote copy technologies 146
software packages 146
VSE/ESA 265, 271
z/OS
Global Copy 259
logical migration 263
methods 147
Metro Mirror 259
Piper 255
system-managed storage 265
z/OS Global Mirror 257
z/VM 265, 271
zSeries 251
consolidate logical volumes 252
consolidate storage 252
migration objectives 252
physical migration 254
Data Set FlashCopy 10, 93
DDM 30, 32, 154, 162
hot plugable 55
determining number of paths 233
device adapter see DA
Device Manager 284
DFSMSdss 264
Disk Magic 148
disk scrubbing 55
disk storage feature activation 137
DS CLI 9, 109, 120, 195, 281
command flow 198
command modes 203
functionality 196
374 DS6000 Series: Concepts and Architecture
installation methods 197
migration 208
migration example 209
mixed device environments 208
return codes 206
supported environments 197
usage examples 207
user assistance 205
user security 203
DS management console see DS MC
DS MC 8, 108, 126
connectivity 129
DS Open API 9, 110, 120
DS Open application programming interface see DS
Open API
DS Storage Manager 8, 109, 119
logical configuration 151
real-time (online) configuration 9
simulated (offline) configuration 9
DS6000
allocation and deletion of LUNs/CKD volumes 74
architecture 21
attaching to open systems 123
attaching to zSeries host 123
business continuity 4, 10
call home 131
capacity planning 138
common set of functions 16
compared to DS4000 series 17
compared to DS8000 17
comparison with other DS family members 16
configuration flexibility 14
configuration planning 125
Copy Services 89–90
CRU versus FRU 61
data migration 145
data placement 80
DDM 30, 32
disk path redundancy 55
disk scrubbing 55
DS CLI 109
DS MC 108
DS Open API 110
DS Storage Manager 109
dynamic LUN/volume creation and deletion 14
expansion enclosure 8, 25, 35
FlashCopy 90
options 92
floating spares 54
front panel 37
Global Copy 90
Global Mirror 90
hardware components 23
hardware overview 6
health indicators 35
host attachment 78
Host Systems Attachment Guide 300
information lifecycle management 4
infrastructure simplification 4
installation planning 115
interoperability with ESS 111
iSeries 329
iSeries preferred path 353
large LUN and CKD volume support 14
licensed features 124, 131
logical configuration 139
machine licensing 124
maintenance 129
Metro Mirror 90
microcode
updates 62
Model 1750-EX1 85
model overview 83
network settings 120–121
parts
installation and repairs 61
replacement 61
performance considerations 219
planning for performance 148
positioning 15
power cords 42
power subsystem 40
PPRC 97
PTC 90
rack 119
RAID-10
implementation 53
RAID-5 implementation 52
rear panel 38
redundant cooling 57
remote service support 130
resiliency 13
RMC 97
SAN requirements 122
SBOD controller card 35
scalability 86, 229
series 4
service and setup 13
service clearance 117
service offerings 363
simplified LUN masking 15
spare creation 54
sparing 141
storage capacity 8
support offerings 363
supported environment 9
switched FC-AL 7
switched FC-AL implementation 31
system indicators 60
system service 57
unique benefits 5
vertical growth 229
virtualization
concepts 65
z/OS Global Mirror
DS6800
cables 42
capacity upgrade 87
connecting expansion enclosures 138
controller architecture 25
Index 375
controller enclosure 6
controller RAS 46
Ethernet cables 42
FICON 50
host connection 49
interoperability 13
major features 7
microcode
installation process 62
maintaining 62
Model 1750-511 84
NVS recovery 48
open systems host connection 51
preferred path 49
SAN 50
server based design 27
server enclosure 24
service cable 42
system service card 42
tagged command queuing 18
zSeries host connection 51
dynamic LUN/volume creation and deletion 14
E
enclosure ID
indicator 39
Enterprise Remote Copy Management Facility see eRC-
MF
environmental requirements 118
eRCMF 288, 365
ESS
interoperability with DS6000 111
ESS CLI 110
Ethernet
cables 42
port 35
expansion enclosure 8, 25
cabling 36
express configuration 128, 167
using 191
wizard 165
extent pools 70, 154, 162
creating 184
F
FC-AL
non-switched 29
FCP 122
Fibre Channel Protocol see FCP
FICON 50, 122–123
filemon 310
fixed block LUNs 72
fixed block volumes 185
FlashCopy 90, 360
benefits 92
Consistency Group 95, 105
data sets 10
inband commands 11, 97
incremental 11
multiple relationship 10
options 92
persistent 97
floating spares 54
floor and space requirements 116
front panel 37
FRU 61
G
GDPS 365
GDS for MSCS 324, 366
Geographically Dispersed Sites for MSCS see GDS for
MSCS
Global Copy 12, 90, 98, 104, 259, 296, 357
Global Mirror 12, 90, 99, 104
Global Mirror Utility see GMU
GMU 287
H
HA 34
port
indicators 34
hardware components 23
hardware overview 6
host adapter see HA
host attachment 78, 152
volume groups 78
host connection
open systems 51
zSeries 51
host systems 176
HP OpenVMS 324
command console LUN
326
FC port configuration 324
volume configuration 325
volume shadowing 326
I
I/O priority queuing 149
IASP 334
IBM Implementation Services
CLI 364
Copy Functions 364
disk systems 364
IBM Migration Services 298
zSeries 364
IBM Migration services
open systems 365
IBM Multi-path Subsystem Device Drive see SDD
IBM TotalStorage DS Command-line Interface see DS
CLI
IBM TotalStorage DS Storage Manager see DS Storage
Manager
IBM TotalStorage Multiple Device Manager 283
IBM TotalStorage Productivity Center see TPC
IBM TotalStorage SAN Volume Controller see SVC
inband commands 11, 97
376 DS6000 Series: Concepts and Architecture
Incremental FlashCopy 11, 92
Independent Auxiliary Storage Pool see IASP
indicators
CRU endpoint 60
DA ports 34
enclosure ID 39
HA port 34
health 35
SBOD controller card 36
system 60
system alert 60
system identify 60
system informaton 60
information lifecycle management 4
infrastructure simplification 4
installation planning 115
environmental requirements 118
floor and space 116
network settings 120–121
power requirements 118
rack 119
SAN requirements 122
site preparation 116
interfaces for Copy Services 108
interoperability with ESS 111
IOS scalability 244
iostat 301, 310
iSeries 329
adding multipath volumes using 5250 interface 345
adding volumes 332
adding volumes to IASP
adding volumes using iSeries Navigator 346
AIX 309, 361
avoiding single points of failure 343
cache 354
changing from single path to multipath 353
configuring multipath 344
Copy Services 360
FlashCopy 360
Global Copy 357
Linux 319, 362
logical volume sizes 330
LUNs 74
managing multipath volumes using iSeries Navigator
349
Metro Mirror 357
migration 357
multipath 342
multipath rules for multiple iSeries systems or parti-
tions 352
number of fibre channel adapters 355
OS/400 data migration 358
OS/400 mirroring 357
preferred path for DS6000 353
protected versus unprotected volumes 330
recommended number of ranks 355
Remote Mirror and Copy 360
sharing ranks 356
size and number of LUNs 355
sizing guidelines 353
toolkit for Copy Services 361
L
large LUN and CKD volume support 14
large volume support see LVS
LCU 158
licensed features 124, 131
disk storage feature activation 137
ordering 134
licenses
server attachment 134
Linux 312
limited number of SCSI devices 316
managing multiple paths 316
missing device files 315
on iSeries 319, 362
reference material 313
RH-EL
SCSI basics 314
SCSI device assignment changes 316
support issues 312
troubleshooting and monitoring 320
logical configuration 151
assigning LUNs to hosts 189
creating arrays 180
creating CKD LCUs 190
creating CKD volumes 190
deleting LUNs 189
extent pools 184
FB volumes 185
host systems 176
navigating the GUI 169
panels 163
planning 161
steps 161
storage complex 172
storage unit 173
terminology 152
volume groups 187
Welcome panel 164
logical subsystems 75
logical volumes 72, 156, 162
CKD volumes 72
fixed block LUNs 72
LSS 158
LUNs 74
iSeries 74
masking 15
LVM 308
LVS 245
M
machine licensing 124
maintenance 129
MDM Performance Manager see TPC
MDM Replication Manager see TPC
metadata 49
Metro Mirror 11, 90, 97, 103, 259, 296, 357
Metro/Global Copy 258
Index 377
microcode
maintaining 62
updates 62
Microsoft Windows 2000/2003 321
HBA and operating system settings 322
SDD 322
MPIO 306
multipathing
other solutions 281
software 51
multiple allegiance 19
Multiple Relationship FlashCopy 10, 94
N
network settings 120–121
non-volatile storage see NVS
NVS 48
O
OEL 124, 132
offline configuration 127, 165
online configuration 128, 165
open systems
data migration 289
software 275
resource list 277
support 275–276
boot support 279
differences to ESS 2105 278
resource list 277
RPQ 279
operating environment license see OEL
ordering licensed functions 134
OS/400 data migration 358
P
Parallel Access Volumes see PAV
parts installation and repairs 61
PAV 19, 133–134, 149
performance 219
hot spot avoidance 150
monitoring 149
number of host ports 149
open systems 230, 233
data placement 231
LVM striping 231
number of host connections 232
workload characteristics 230
planning 148
preferred paths 150
UNIX tools 301
z/OS 233
DS6000 size 235
potential 234
statistics 247
Persistent FlashCopy 97
PFA 13, 55
physical migration
zSeries 254
DFSMSdss 254
Piper 255, 297
Point-in-time Copy see PTC
port
Ethernet 35
serial 35
power cords 42
power requirements 118
power subsystem 40
RAS 56
PPRC 97
Consistency Group 105
PPRC-XD see Global Copy
predictive failure analysis see PFA
preferred pathing 49, 248
priority I/O queuing 19
PTC 10, 90, 133
R
rack identify
connector 39
RAID controller card 33
RAID-10 53
implementation 53
theory 53
RAID-5 52
implementation 52
theory 52
ranks 69, 154, 162
RAS 45
controller 46
controller failover and failback 46
disk subsystem 52
power subsystem 56
real-time manager 165
rear panel 38
Redbooks Web site 371
Contact us xxi
RedHat Enterprise Linux see RH-EL
reliability, availability, and serviceability see RAS
Remote Mirror and Copy function see RMC
remote service support 130
Resource Management Facility see RMF
RH-EL 317
RMC 11, 97, 133
comparison of functions 103
RMF 247
S
SAN 50
requirements 122
SAR 302
SARC 15, 18, 27
SBOD controller card 35
indicators 36
scalability 229
SDD 19, 280, 305
for Windows 322
378 DS6000 Series: Concepts and Architecture
Sequential prefetching in Adaptive Replacement Cache
see SARC
serial port 35
server attachment license 134
server enclosure 24
RAID controller card 33
service offerings 363
SFP 34
Simple Network Management Protocol see SNMP
simplified LUN masking 15
simulated manager 165–166
site preparation 116
small form factor plugable see SFP
SNMP 131
sparing
rules 141
spare creation 54
storage capacity 8
storage complex 152
configuring 172
storage unit 152, 192
configuring 173
support offerings 363
SVC 18
switched FC-AL 7
advantages 30
Synchronous PPRC see Metro Mirror
System Activity Report see SAR
system alert indicator 60
system identify indicator 60
system information indicator 60
system service 57
card 42
T
TPC 282
for disk 285
for replication 287
TPF 250
U
UNIX
iostat 301
performance monitoring tools 301
SAR
vmstat 303
V
VDS 323
Virtual Disk Service see VDS
virtualization
benefits 81
concepts 65
abstraction layers 66
virtualization concepts
address groups 77
array sites 67
arrays 68
extent pools 70
logical subsystems 75
logical volumes 72
ranks 69
vmstat 303
volume groups 78, 156
creating 187
VSE/ESA 265, 271
W
Windows Server 2003 VDS support
WWNN 192
X
XRC see z/OS Global Mirror
Z
z/OS
configuration recommendations 237
device recognition 246
IOS scalability 244
IPL enhancements 246
large volume support 245
new performance statistics 247
preferred pathing 248
read availability mask support 245
read control unit 246
RMF support 247
software enhancements 243
z/OS Global Mirror 12, 102
data migration 257
z/VM 249, 265, 271
z/VSE 249
zSeries
data migration 251
(0.5” spine)
0.475”<->0.873”
250 <-> 459 pages
DS6000 Series: Concepts and Architecture
DS6000 Series: Concepts and
Architecture
DS6000 Series: Concepts and
Architecture
DS6000 Series: Concepts and Architecture
DS6000 Series: Concepts and
Architecture
DS6000 Series: Concepts and
Architecture
®
SG24-6471-00 ISBN
INTERNATIONAL
TECHNICAL
SUPPORT
ORGANIZATION
BUILDING TECHNICAL
INFORMATION BASED ON
PRACTICAL EXPERIENCE
IBM Redbooks are developed
by the IBM International
Technical Support
Organization. Experts from
IBM, Customers and Partners
from around the world create
timely technical information
based on realistic scenarios.
Specific recommendations
are provided to help you
implement IT solutions more
effectively in your
environment.
For more information:
ibm.com/redbooks
The IBM TotalStorage
DS6000 Series: Concepts
and Architecture
Enterprise-class
storage functions in a
compact and modular
design
On demand scalability
and multi-platform
connectivity
Enhanced
configuration
flexibility with
virtualization
This IBM Redbook describes the IBM TotalStorage
DS6000 storage server series, its architecture, its logical
design, hardware design and components, advanced
functions, performance features, and specific
characteristics. The information contained in this book is
useful for those who need a general understanding of this
powerful new disk subsystem, as well as for those looking
for a more detailed understanding of how the DS6000
series is designed and operates.
The DS6000 series is a follow-on product of the IBM
TotalStorage Enterprise Storage Server with new functions
related to storage virtualization and flexibility.
The DS6000 series is a storage product targeted for the
midrange market, but it has all the functions and availability
features that normally can be found only in high end
storage systems. In a very small enclosure, which fits in a
standard 19-inch rack, the DS6000 series offers capacity,
reliability functions, and performance similar to those of an
ESS 800 or comparable high-end storage systems.
Back cover
