SERVICE PARTS MANUAL
ICE UNDERCOUNTER SERIES CUBERS
MODEL-ICEU070A
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081374-02 Date 2/08
This is the list of service parts for the ICEU070A
undercounter ice machine.
When ordering a part, be sure to confirm that the
part is for the correct model.
ICEU070A Service Parts
Page 1
Table of Contents
Cabinet ·············································· Page 2
Refrigeration System ······································· Page 3
Water System ··········································· Page 4
Control System ·········································· Page 5
Wiring Diagram ·········································· Page 6

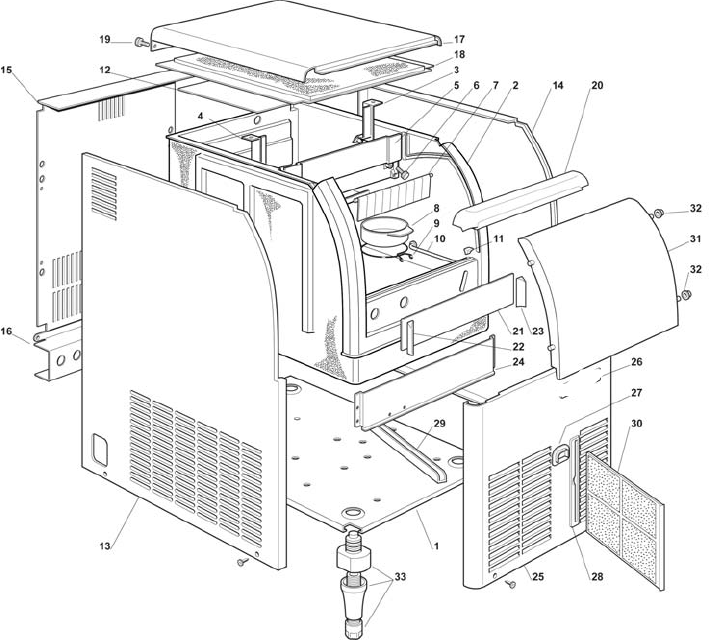

Cabinet
ICEU070A Service Parts
Page 2
Item Part
Number Number Description
1 1011411-01 Unit Base
2 1011411-02 Insulated Storage Bin
3 1011411-03 Curtain Bracket Right
4 1011411-04 Curtain Bracket Left
5 1011411-05 Curtain Bracket Upper
6 1011411-06 Thumb Screw
7 1011411-07 Curtain assy
8 1011411-08 Plastic Plug
9 1011411-09 Spring
10 1011337-17 Bulb Holder
11 1011411-10 Shock Absorber
12 1011337-03 Evaporator Cover
13 1011411-11 Panel, Left Side
14 1011411-12 Panel, Right Side
15 1011411-13 Panel, Rear
16 1011411-14 Bracket
17 1011411-15 Insulated Top Panel
19 1011411-16 Thumb Screw
20 1011411-17 Front Liner
21 1011411-18 Front Plate
22 1011411-19 Corner Protection Left
23 1011411-20 Corner Protection Right
24 1011411-21 Bracket, Front
25 1011411-22 Panel, Front
26 1011411-23 Logo, Ice-O-matic
27 1011411-24 Front Switch Plastic
Protection
28 1011411-25 Air Filter Seat
29 1011411-26 Slide, Air Filter
30 1011411-27 Air Filter
31 1011411-28 Bin Door
32 1011337-07 Bushing
33 1011411-29 Legs Kit
Refrigeration System
ICEU070A Service Parts
Page 3
Item Part
Number Number Description
1 1011411-30 Compressor
2 1011411-31 Start Capacitor
3 1011411-32 Protector
4 1011411-33 Relay
5 1011411-34 Valve Body
6 1011411-35 Valve Core
7 1011411-36 Cap
8 1011411-37 Fan Motor
8a 1011411-38 Fan Blade
9 1011337-48 Condenser
11 1011337-49 Filter
12 1011337-58 Mechanical Filter
13 1011337-56 Hot Gas Valve Body
13a 1011337-57 Coil
14 1011411-39 Evaporator assy
15 1011411-40 Suction Line assy
22 1011337-46 Metal Clip
23 1011411-41 Bulb Holder
Water System
ICEU070A Service Parts
Page 4
Item Part
Number Number Description
1 1011337-28 Water Inlet Valve
1a 1011411-42 Flow Control
2 1011411-43 Tube, per meter
3 1011411-44 Water Inlet Elbow assy
4 1011411-45 O Ring
5 1011411-46 Metal Bracket
6 1011337-31 Water Pump
7 1011411-47 Tube
8 1011411-48 Spray System Assy
9 1011411-49 Plastic Plug
10 1011411-50 Plastic Plug
11 1011411-51 Spray Cover Kit
12 1011337-38 Tee Tube
13 1011337-42 Plastic Nut
14 1011337-39 Tube
15 1011411-52 Tube
16 1011411-53 Bin Drain
17 1011337-34 O Ring
18 1011337-32 Drain Filter
19 1011411-54 Spray System Seat
20 1011411-55 O Ring
Not Shown
21 1011411-64 Water Inlet Adapter
22 1011411-65 Water Inlet Adapter
O Ring
Control System
ICEU070A Service Parts
Page 5
Item Part
Number Number Description
1 1011411-56 Warning Light - Reset Button
2 1011411-57 Master Lighted Switch
3 1011411-58 Switch
4 1011337-64 Terminal Board
5 1011411-59 Bin Thermostat
6 1011337-68 Evap. Thermostat
7 1011411-60 Cover
8 1011411-61 Metal Control box
9 1011411-62 PC Board - Cleaning Remind
10 1011411-63 Condenser Sensor
