SERVICE

MANUAL

VHF FM TRANSCEIVERS

S-14303HZ-C1

July 2006

This service manual describes the latest service information

for the IC-F3021T/S, IC-F3022T/S and IC-F3023T/S VHF

FM TRANSCEIVERS at the time of publication.

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit Icom parts numbers

2. Component name and informations

3. Equipment model name and unit name

4. Quantity required

5030002760 LCD L3-0200HAY-3 IC-F3021T Main unit 5 pieces

8810009561 Screw PH BT M2 × 6 NI-ZK3 IC-F3021T Chassis 10 pieces

Addresses are provided on the inside back cover for your

convenience.

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than 8 V. This will ruin the

transceiver.

DO NOT expose the transceiver to rain, snow or any liquids.

DO NOT reverse the polarities of the power supply when

connecting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW)

to the antenna connector. This could damage the trans-

ceiver's front end.

To upgrade quality, any electrical or mechanical parts

and internal circuits are subject to change without

notice or obligation.

INTRODUCTION

CAUTION

ORDERING PARTS

MODEL Key Pad VERSION SYMBOL Channel

Spacing

IC-F3021T 10-key U.S.A [USA-02] 15.0 kHz /

30.0 kHz

IC-F3021S 4-key

IC-F3022T 10-key Europe [EUR-02]

12.5 kHz /

20.0 kHz /

25.0 kHz

IC-F3022S 4-key

IC-F3023T 10-key General [GEN-02] 12.5 kHz /

25.0 kHz

IC-F3023S 4-key

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated turning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the transceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 40 dB to 50 dB attenuator between the transceiver and a deviation meter or spectrum analyzer when

using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United

Kingdom, Germany, France, Spain, Russia and/or other countries.

REPAIR NOTES

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTIONS

SECTION 4 OPTIONAL UNIT INSTALLATION

SECTION 5 CIRCUIT DESCRIPITON

5-1 RECEIVER CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5-3 PLL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

5-4 DIGITAL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5-5 POWER SUPPLY CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5-6 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

SECTION 6 ADJUSTMENT PROCEDURES

6-1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6-2 FREQUENCY ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

6-3 TRANSMIT ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

6-4 RECEIVE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

SECTION 7 PARTS LIST

SECTION 8 MECHANICAL PARTS AND DISASSEMBLY

SECTION 9 SEMICONDUCTOR INFORMATION

SECTION 10 BOARD LAYOUTS

SECTION 11 BLOCK DIAGRAM

SECTION 12 VOLTAGE DIAGRAM

SECTION 13 BC-160

1 - 1

SECTION 1 SPECIFICATIONS

[USA], [GEN] [EUR]

GENERAL

• Frequency coverage 136–174 MHz

• Type of emission Wide 16K0F3E (25.0 kHz)

Middle – 14K0F3E (20.0 kHz)

Narrow 11K0F3E (12.5 kHz) 8K50F3E (12.5 kHz)

• Number of programable channels 128 channels (8 zones)

• Antenna impedance 50 Ω (nominal)

• Operating temperature range −22˚F to +140˚F –25˚C to +55˚C

• Power supply requirement Specified Icom’s battery packs only (Operatable voltage; 7.2 V DC negative ground)

• Current drain

(approx.) RX Stand-by 75 mA

Max.audio 250 mA

TX at 5 W 1.5 A

at 1 W 0.7 A

• Dimensions (projections not included) 2 3/32 (W) × 4 23/32 (H) × 1 9/32 (D) in 53.0 (W) × 120.0 (H) × 32.5 (D) mm

• Weight (with BP-231, approx.) 9.2 oz 260 g

TRANSMITTER

• Transmit output power 5 W (High), 2 W (Low2), 1 W (Low1)

• Modulation Variable reactance frequency modulation

• Max. permissible deviation Wide ±5.0 kHz

Middle – ±4.0 kHz

Narrow ±2.5 kHz

• Frequency error ±2.5 ppm ±1.5 kHz

• Spurious emission 80 dB typ. 0.25 µW (≤1 GHz), 1.0 µW (>1 GHz)

• Adjacent channel power Wide More than 70 dB (80 dB typ.)

Middle – More than 70 dB (80 dB typ.)

Narrow More than 60 dB (70 dB typ.)

• Audio harmonic distortion 3% typ. (with 1 kHz AF 40% deviation)

• FM hum and noise

(without CCITT filter)

Wide More than 40 dB (46 dB typ.) –

Narrow More than 34 dB (40 dB typ.) –

• Residual modulation

(with CCITT filter)

Wide – More than 45 dB (53 dB typ.)

Middle – More than 43 dB (51 dB typ.)

Narrow – More than 40 dB (48 dB typ.)

• Limiting charact of modulation 60–100% of max. deviation

• Microphone impedance 2.2 kΩ

RECEIVER

• Receive system Double-conversion superheterodyne

• Intermediate frequencies 1st IF; 46.35 MHz, 2nd IF; 450 kHz

• Sensitivity 0.25 µV typ. at 12 dB SINAD −4 dBµV (EMF) typ. at 20 dB SINAD

• Squelch sensitivity (at threshold) 0.25 µV typ. −4 dBµV (EMF) typ.

• Adjacent channel

selectivity

Wide More than 70 dB (75 dB typ.)

Middle − More than 70 dB (75 dB typ.)

Narrow More than 60 dB (65 dB typ.)

• Spurious response More than 70 dB

• Intermodulation More than 70 dB (75 dB typ.) More than 65 dB (67 dB typ.)

• Audio output power 0.5 W typ. at 5% distortion with an 8 Ω load

• Audio output impedance 8 Ω

All stated specifications are subject to change without notice or obligation.

Measurements made in accordance with EIA-152-C/204D, TIA-603 ([USA], [GEN]) or EN 300 086 ([EUR]).

SECTION 2 INSIDE VIEWS

2 - 1

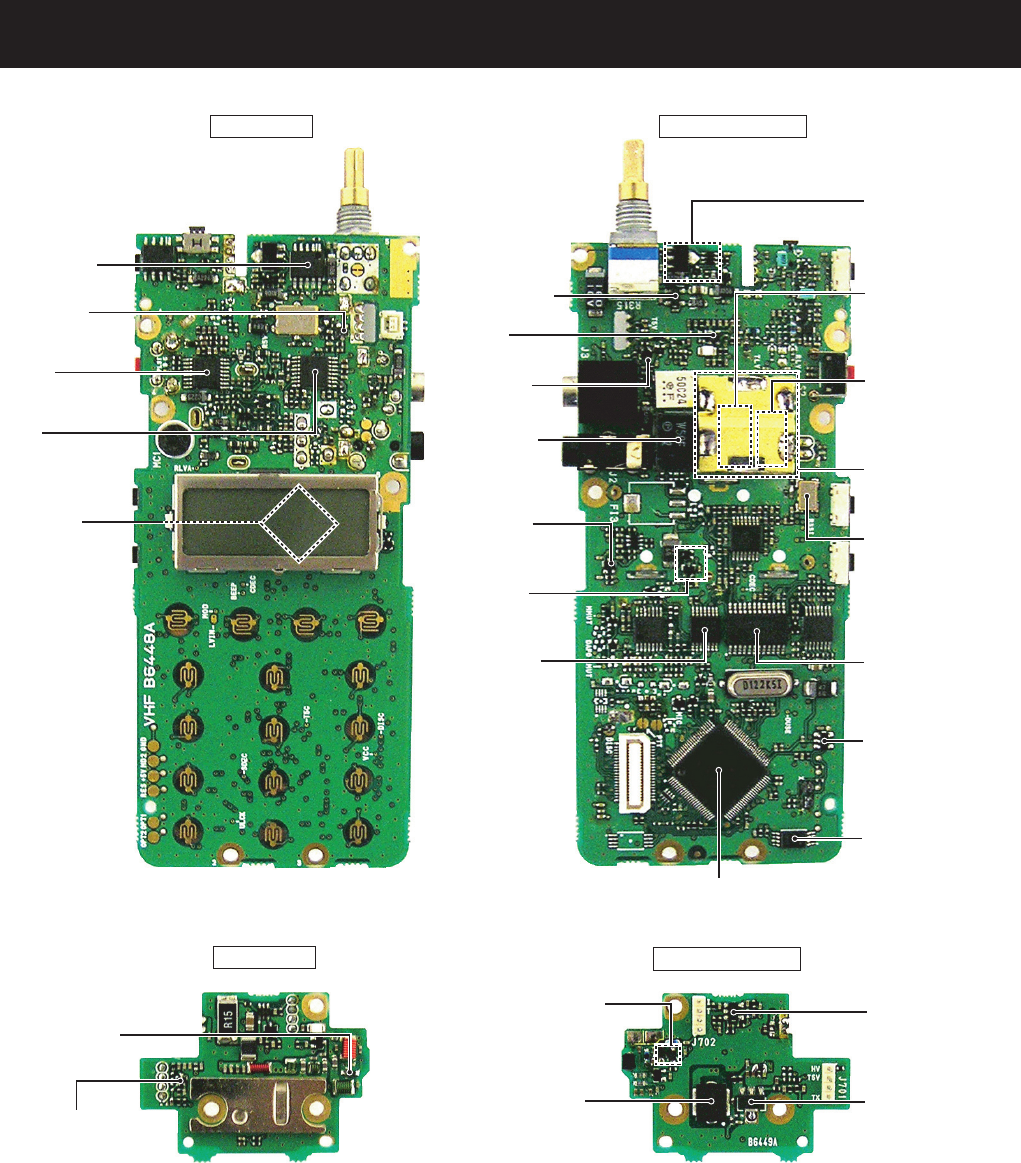

APC amplifier

(IC701: TA75S01F)

Power amplifier

(Q701: RD07MVS1)

Drive amplifier

(Q702: RD01MUS1)

Antenna switch

(D701: 1SV307)

LCD driver

(IC20: LC75834W)

+5 regulator

Q26: 2SB1132

Q27: XP6501

Q28: UNR9213J

CPU

(IC22: HD64F2238BTF13V)

EEPROM

(IC10: HN58X2464TI)

Reset IC

(IC8: BD5242G)

Analog switch

IC3:

CD4066BPWR

D/A converter

(IC12: M62364FP)

Crystal oscillator

15.3 MHz

(X2: CR-783)

VCO circuits

RX VCO

Q17: 2SC5006

D9, D11, D33:

HVC375B

TX VCO

Q16: 2SC5006

D10, D13, D34:

HVC375B

R5 regulator

(Q25: 2SA1577)

S5 regulator

(Q23: 2SA1577)

T5 regulator

Q24: 2SA1577

Q49: UNR9213J

Ceramic filter

450 KHz

(FI2: CFWM450F)

CPU5 regulator

(IC17: NJM2870)

PLL IC

(

IC2: MB15A02PFV1

)

AF amplifier

(IC15: TA7368FG)

IF amplifier

(Q7: 2SC5107)

IF IC

(IC9: TA31136FNG)

Pre-drive amplifier

(Q704: 2SC5006)

TOP VIEW

PA UNIT

MAIN UNIT

BOTTOM VIEW

TOP VIEW BOTTOM VIEW

()

Antenna switches

D704: 1SV307

D706: 1SV307

()

1st mixer

(Q6: 3SK324)

()

SECTION 3 DISASSEMBLY INSTRUCTIONS

3 - 1

2 REMOVING THE MAIN UNIT

q Remove the main seal F.

w Unscrew VR nut G, and remove the top plate H.

3 REMOVING THE PA UNIT

q Unscrew 3 screws M.

w Unsolder 4 points N, and take off the PA UNIT in the

direction of the arrow.

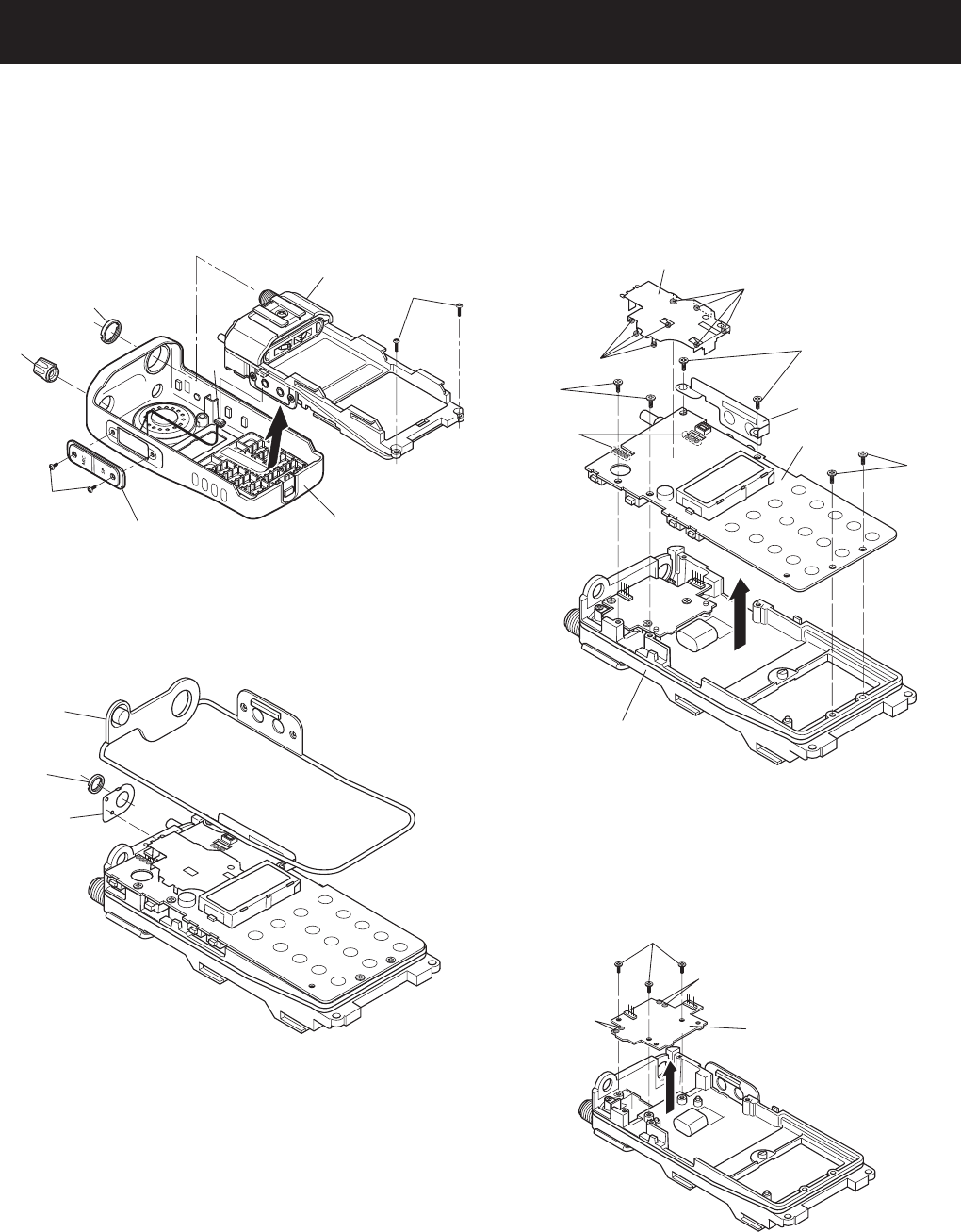

1 REMOVING THE CHASSIS UNIT

q Unscrew ANT nut A, and remove knob B.

w Unscrew 2 screws C, and remove the jack panel.

e Unscrew 2 screws D, and unplug the connector E from

the chassis unit.

r Take off the chassis unit in the direction of the arrow from

the front panel.

e Unscrew 6 screws J.

r Remove the side plate I.

t Unsolder 8 points K, and remove the shield cover.

y Unsolder 8 points L, and take off the MAIN UNIT in the

direction of the arrow.

(Continued to right above)

CHASSIS UNIT

Jack panel Front panel

Shied cover

MAIN UNIT

L × 8

CHASSIS UNIT

PA UNIT

4 - 1

SECTION 4 OPTIONAL UNIT INSTALLATION

CAUTION! Optional unit installation should be done at authorized Icom servise center only.

Install the optional unit as follows.

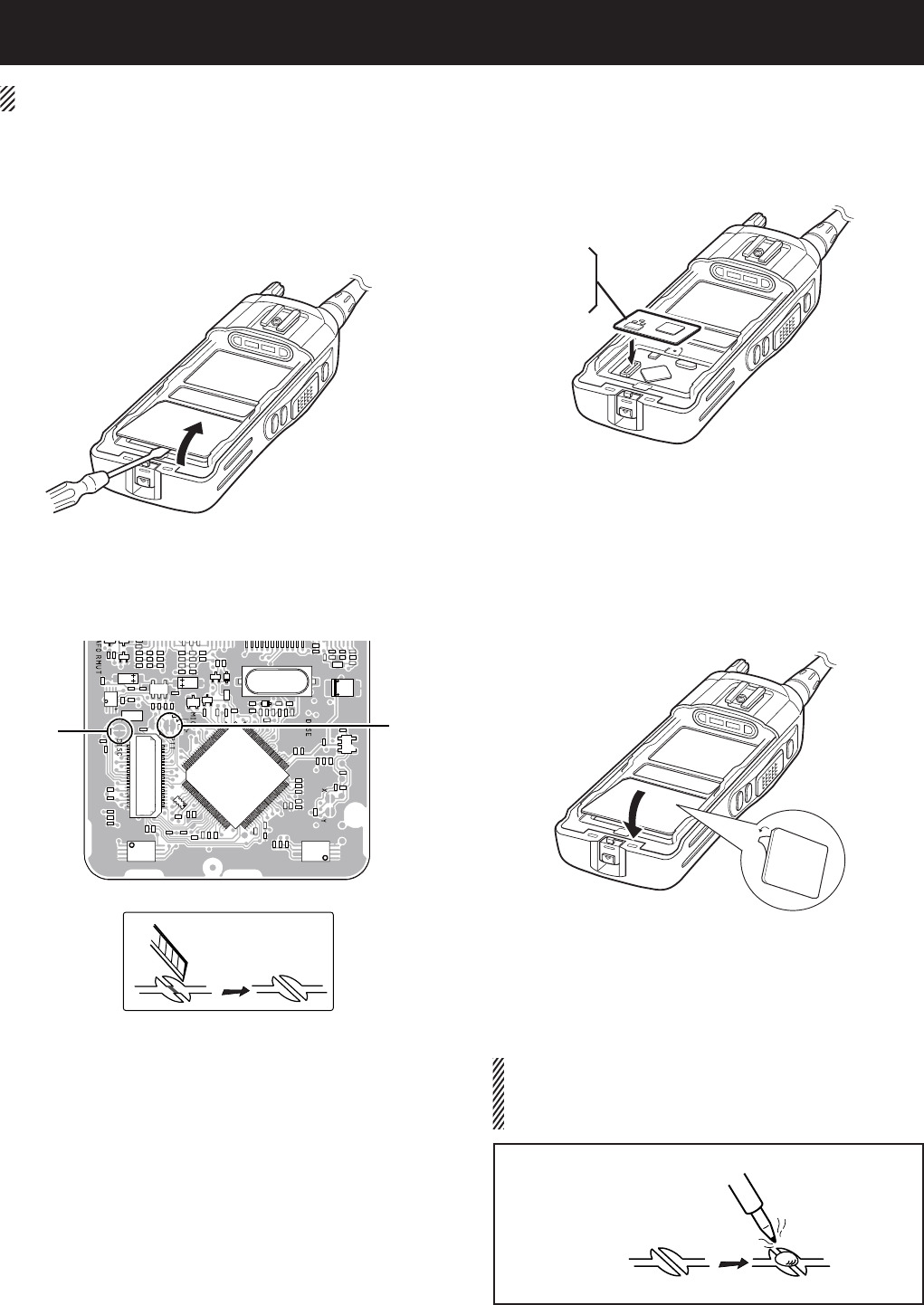

q Rotate [VOL] to turn the power OFF, and remove the

battery pack.

w Remove the unit cover as below. (The removed unit

cover can not be used again.)

UT-108R

UT-109R

UT-110R

NOTE: When uninstalling the unit

Be sure to re-solder the cut points as below when you

remove the unit. Otherwise, no transmit modulation or

receive AF output is available.

“DISC” “MIC”

e Cut the pattern on the PC board at “MIC” and “DISC”

as below. (This modification is not necessary for

UT-108R installation.)

r Install the unit as below.

Re-solder

t Remove the paper backing of the supplied unit cover,

and attach the unit cover and the battery pack, then

rotate [VOL] to turn the power ON.

y Set or modify the scrambler or decoder settings using

optional CS-F3020.

SECTION 5 CIRCUIT DESCRIPTION

5 - 1

5-1 RECEIVER CIRCUITS

5-1-1 ANTENNA SWITCHING CIRCUIT (PA UNIT)

The antenna switching circuit toggles the receive (RX) line and

transmit (TX) line.

The received signals from the antenna are passed through the

low-pass filter (ANT UNIT; L801, L802, C802, C803, C807)

and antenna switch (D701, D704, D706).

While transmitting, the voltage on the T5V line is applied to

D701, D704 and D706, and these are ON. Thus the TX line

is connected to the antenna. Simultaneously, the RX line is

connected to the ground (GND) to prevent transmit signal

entering.

While receiving, no voltage is applied to the D701, D704 and

D706, and these are OFF. Thus the TX line and the antenna

are disconnected to prevent received signals entering.

Simultaneously, the RX line is disconnected from the GND and

the received signals are passed through the low-pass filter

(L712, L714, C750, C751). The ﬁ ltered signals are applied to

the RF circuits.

5-1-2 RF CIRCUITS (MAIN UNIT)

RF circuits filter and amplify the received signals within the

frequency coverage.

The received signals from the antenna switching circuit are

passed though the two-staged bandpass filter (BPF; D19,

D24, L7, L8, C22, C25, C27–C29, C369) to ﬁ lter-out unwanted

signals, and the ﬁ ltered signals are applied to the RF ampliﬁ er

(Q5). The ampliﬁ ed received signals are then applied to the 1st

mixer (Q6) via another BPF (L47–L49, C19, C40, C437–C439,

C443).

5-1-3 1st IF CIRCUITS (MAIN UNIT)

The received signals are converted into the 1st IF signal,

ﬁ ltered and ampliﬁ ed at the 1st IF circuits.

The received signals from the BPF (L47–L49, C19, C40, C437

–C439, C443) are applied to the 1st mixer (Q6) and converted

into the 46.35 MHz 1st IF signal by being mixed with the local

oscillator (LO) signal from the RX VCO (Q17, D9, D11, D33).

The converted 1st IF signal is passed through the 1st IF ﬁ lter

(FI1) to filter-out adjacent signals, then applied to the 1st IF

ampliﬁ er (Q7). The ampliﬁ ed 1st IF signal is then applied to the

FM IF IC (IC9, pin 16).

5-1-4 2nd IF AND DEMODULATOR CIRCUITS

(MAIN UNIT)

The 1st IF signal is converted into the 2nd IF signal, and

demodulated.

The 1st IF signal from the 1st IF ampliﬁ er is applied to the 2nd

mixer in the FM IF IC (IC9, pin 16), and converted into the

450 kHz 2nd IF signal by being mixed with the 45.9 MHz 2nd

LO signal from the reference frequency oscillator (X2) via the

tripler (Q22) and BPF (L33, C163, C164, C166). The converted

2nd IF signal is output from pin 3, and passed through the 2nd

IF ﬁ lters to remove sideband noise.

The 2nd IF signal is passed through the 2nd IF ﬁ lter (FI2) and

applied to the FM IF IC (IC9, pin 5) again. The ﬁ ltered 2nd IF

signal is ampliﬁ ed at the limiter ampliﬁ er, and FM-demodulated

by the quadrature detector (IC9, pins 10, 11, X1). The

demodulated AF signals are output from pin 9, then applied to

the AF ampliﬁ er circuits.

5-1-5 AF AMPLIFIER CIRCUITS (MAIN UNIT)

The demodulated AF signals from the FM IF IC are ampliﬁ ed

and ﬁ ltered at AF circuits.

The demodulated AF signals from the FM IF IC (IC9, pin 9) are

passed through high-pass ﬁ lter (HPF; IC5, pins 2, 1) to remove

tone signals. The filtered AF signals are passed through the

de-emphasis circuit (R142, C249) to obtain the 6 dB/oct of

frequency characteristic. The de-emphasized AF signals are

passed through the RX mute switch (Q32, Q33), AF switch

(Q36, Q37), HPF (IC5, pins 13, 14), analog switch (IC3, pins 1,

2), AF mixer (IC5, pins 6, 7) and analog switch (IC3, pins 10,

11) in sequence.

D/A converter

(IC12)

Mixer

RSSI

Quadrature

detector

1st IF signal from the 1st IF amplifier (Q7)

Noise

detector

R5V

11 10

FM IF IC (IC9)

Filter

amp.

Noise

amp.

Limiter

amp.

Demodulated signals

to the AF circuits

“NOIS” signal to the CPU (IC22: pin 75)

“RSSI” signal to the CPU (IC22: pin 50)

13 12

Q22

15.3 MHz

45.9 MHz BPF

8 7 3 5

FI2

TCXO

• 2nd IF AND DEMODULATOR CIRCUITS

5 - 2

The AF signals from the analog switch (IC3, pin 11) are

applied to the volume buffer ampliﬁ er (IC6, pin 9). The buffer-

amplified AF signals are adjusted its level (= audio level)

by volume control pot (R315), then applied to the AF power

amplifier (IC15, pin 4) and amplified to the 0.5 W of audio

output power (max., at 8 Ω load).

The power-ampliﬁ ed AF signals are output from pin 10, then

applied to the internal speaker (CHASSIS; SP1) or an external

speaker via [SP] jack (J2).

5-1-6 SQUELCH CIRCUITS (MAIN UNIT)

5-1-6-1 NOISE SQUELCH

The squelch mutes the AF output signals when no RF signal

is received. By detecting noise components (around 30 kHz

signals) in the demodulated AF signals, the squelch circuit

toggles the mute switch and AF power ampliﬁ er ON and OFF.

A portion of the demodulated AF signals from the FM IF IC

(IC9, pin 9) is applied to the D/A converter (IC12, pin 24) for

level (= squelch threshold) adjustment. The level-adjusted AF

signals are output from pin 23 and passed through the noise

filter (IC9, pins 8, 7, R42, R44–R46, C69, C70, C413). The

ﬁ ltered noise signals are ampliﬁ ed the noise components only

at the noise ampliﬁ er.

The ampliﬁ ed noise components are converted into the pulse-

type signal at the noise detector section, and output from pin

13 as the “NOIS” signal. The converted signal is applied to the

CPU (IC22, pin 75). Then the “RMUTE” signal from the CPU

(IC22, pin 96) to the RX mute switch (Q32) and analog switch

(IC3, pins 12, 13) becomes “Low” according to the “NOIS”

signal level to cut off the AF line.

At the same time, the “AFON” signal from the CPU (IC22,

pin 70) to the AF amplifier controller (Q41, Q42, D21, D23)

becomes “Low” and the controller turns the AF power ampliﬁ er

(IC15) OFF.

5-1-6-2 TONE SQUELCH

• CTCSS/DTCS

The tone squelch circuit detects tone signals and opens the

squelch only when receiving a signal containing a matched

sub audible tone. When the tone squelch is in use, and a

signal with a mismatched or no sub audible tone is received,

the tone squelch circuit mutes the AF signals even when the

noise squelch is open.

A portion of the demodulated AF signals is passed through the

active LPF (Q39) to filters CTCSS/DTCS signal. The filtered

signal is applied to the CPU (IC22, pin 46). The CPU compares

the applied signal and the set CTCSS/DTCS, then the CPU

controls the status (“Low” or “High”) of “RMUTE” and “AFON”

signals as same as “NOISE SQUELCH”.

• DTMF

DTMF signals in the demodulated AF signals are passed

through the LPF (IC6, pins 5, 7) to remove unwanted

components (voice signals), then applied to the CPU (IC22,

pin 45) and decoded.

5-2 TRANSMITTER CIRCUITS

5-2-1 MICROPHONE AMPLIFIER CIRCUITS

(MAIN UNIT)

The AF signals from the microphone (MIC signals) are ﬁ ltered

and level-adjusted at microphone ampliﬁ er circuits.

• MIC SIGNALS

MIC signals from the microphone are applied to or bypassed

the ALC (Automatic Level Control) circuit (IC24, pins 3, 5)

and the A/D switch (IC25, pins 7, 1), then applied to the D/A

converter (IC12, pin 1).

The level-adjusted MIC signals are output from pin 2, and

passed through the MIC mute switch (Q31), HPF (IC5, pins

13, 14) and gain switch (Q34) which controls the gain of MIC

amplifier (IC5) according to the Analog/Digital mode, then

applied to the MIC amplifier (IC5, pin 9). The amplified MIC

signals are output from pin 8, and passed through the analog

switch (IC3, pins 4, 3), AF mixer (IC5, pins 6, 7) where the MIC

signals and tone signals are mixed with.

• TONE SIGNALS

The CTCSS/DTCS signals are generated by the CPU (IC22)

and output from pins 19–21. The output signals are passed

through the 3 resistors (R222–R224) to change its waveform.

The waveform changed CTCSS/DTCS signals are passed

through the LPF (IC7, pins 10, 8), tone ﬁ lter switch (Q40) and

D/A converter (IC12, pins 12, 11) for level adjustment. The

level adjusted CTCSS/DTCS signals are then applied to the

AF mixer (IC5, pin 6).

DTMF signals are generated by the CPU (IC22) and output

from pin 43. The output DTMF signals are passed through two

LPFs (IC6, pins 3, 1 and pins 12, 14), then applied to the AF

mixer (IC5, pin 6).

The mixed AF signals are output from pin 7 of the AF mixer

(IC5) and passed through the analog switch (IC3, pins 9, 8),

then applied to the AF ampliﬁ er (IC7, pin 6). The ampliﬁ ed AF

signals are output from pin 7, and applied to the D/A converter

(IC12, pin 9) to be adjusted its level (= deviation). The level-

adjusted MIC signals are then applied to the modulation

circuits as the modulation signals.

5-2-2 MODULATION CIRCUITS (MAIN UNIT)

The modulation circuits modulate the VCO oscillating signal

using the modulation signals.

The modulation signals from the D/A converter (IC12, pin 10)

are applied to the D12 at the TX VCO (Q16, D10, D13, D34) to

modulate the VCO oscillating signal by changing the reactance

of D12.

The modulation signals are also applied to the reference

frequency oscillator (X2) via D/A converter (IC12, pins 16, 15)

and the buffer (IC7, pins 12, 14), to ensure the modulation of

lower frequency components of the modulation signals.

The modulated VCO output is buffer-amplified by Q15 and

Q29, then applied to the transmit amplifiers as the transmit

signal via TX/RX switches (D16 is ON, D17 is OFF).

5 - 3

5-2-3 TRANSMIT AMPLIFIERS (PA UNIT)

The transmit signal from the VCO is ampliﬁ ed to the transmit

output level by the transmit ampliﬁ ers.

The transmit signal from the TX/RX switches (MAIN UNIT;

D16 is ON, D17 is OFF) is ampliﬁ ed by the pre-drive ampliﬁ er

(Q704), drive ampliﬁ er (Q702) and power ampliﬁ er (Q701) in

sequence to obtain 5 W (approx.) of transmit output power.

The power-amplified transmit signal is passed through the

antenna switch (D701), then applied to the antenna via the

LPF (ANT UNIT; L801, L802, C802, C803, C807).

5-2-4 APC CIRCUIT (PA UNIT)

The APC (Automatic Power Control) circuit prevents the

transition of the transmit output power level which is caused by

load mismatching or heat effect, etc.

A portion of transmit signal is detected by the transmit power

detectors (D702, D703) to produce DC voltage corresponding

to the transmit output power level. The detected voltage is

applied to the APC ampliﬁ er (IC701, pin 3). The transmit power

setting voltage “APC (T1)” from the D/A converter (MAIN UNIT;

IC23, pin 1) is applied to another input terminal (pin 1) as the

reference voltage.

The APC amplifier compares the detected voltage and

reference voltage, and the difference of the voltage “APCV” is

output from pin 4. The voltage “APCV” controls the bias of the

pre-drive (Q704), drive (Q702) and power (Q701) ampliﬁ ers to

reduce/increase the gain of these ampliﬁ ers for stable transmit

output power.

The transmit power muting is carried out by the TX mute switch

(MAIN UNIT; Q46), using the “TMUT” signal from the CPU

(MAIN UNIT; IC22, pin 35).

5-2-5 OVER CURRENT DETECTION CIRCUIT

(PA UNIT)

The driving current of the drive (Q702) and power (Q701)

amplifiers is detected at the current detector (Q705, Q706)

by detecting the difference of voltage between both terminals

of R714. The detected voltage “ISENS” is applied to the CPU

(MAIN UNIT; IC22, pin 47).

In case of the over current is detected, the CPU outputs “TMUT”

signal from pin 35 to TX mute switch (MAIN UNIT; Q46) to stop

the transmitting to protect the transmit ampliﬁ ers (Q701, Q702,

Q704).

Power

amp.

APC

amp.

Drive

amp.

–

VCC

MAIN UNIT PA UNIT

to the antenna

TMUT

Transmit signal from the

TX/RX switches

(D16, D17)

T5V

Q702

Q704

APCV

APC

P_DET

IC701

Q701

to the receiver circuits

LPF LPF

ANT

D703

D702

D701

TX power

detectors

Q46

Pre-drive

amp.

ANT UNIT

Q705, Q706

Current

detector

ISENS

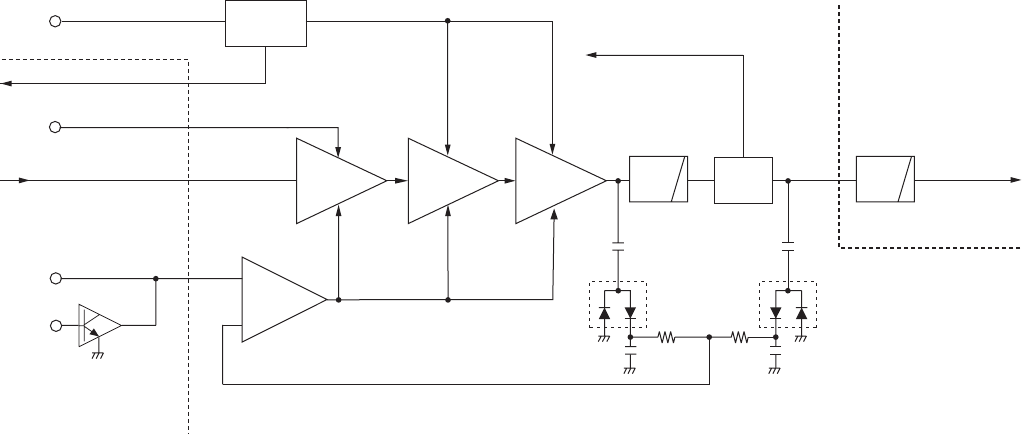

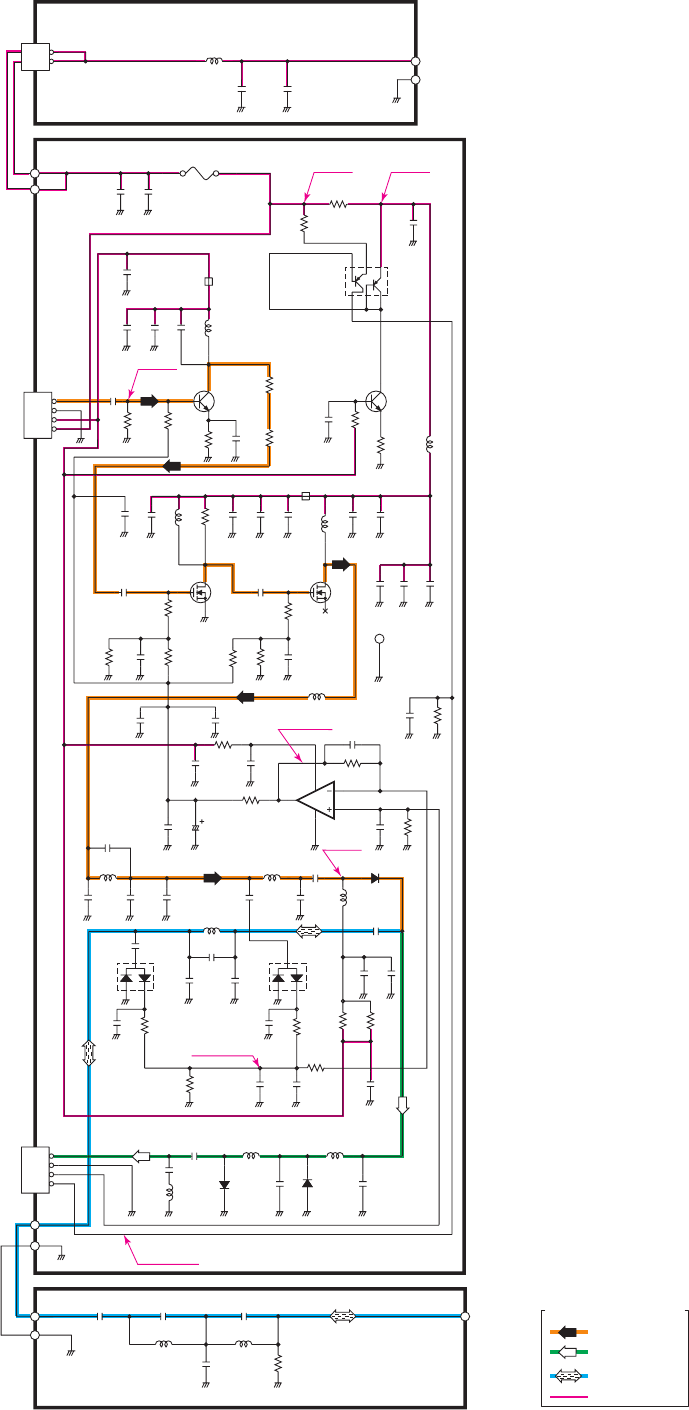

• APC CIRCUIT

5 - 4

5-3 PLL CIRCUITS

5-3-1 VOLTAGE CONTROLLED OSCILLATORS

(VCOs; MAIN UNIT)

VCO is an oscillator whose oscillating frequency is controlled

by adding voltage (lock voltage).

This transceiver has 2 VCOs RX VCO (Q17, D9, D11, D33)

and TX VCO (Q16, D10, D13, D34). The RX VCO oscillates

the 1st LO signals, and the TX VCO oscillates the transmit

signal.

• RX VCO

The output signals are ampliﬁ ed by the buffer ampliﬁ ers (Q15,

Q29), and applied to the 1st mixer (Q6) via TX/RX switches

(D16 is OFF, D17 is ON) and LPF (L46, C396, C397), to be

mixed with the received signals to produce the 46.35 MHz 1st

IF signal.

• TX VCO

The output signal is applied to the transmit ampliﬁ ers via the

buffer ampliﬁ ers (Q15, Q29) and TX/RX switches (D16 is ON,

D17 is OFF).

A portion of each VCO output is applied to the PLL IC (IC2,

pin 8) via the buffer ampliﬁ er (Q15), doubler (Q14), BPF (D31,

D32, L32, C196, C197, C199, C200, C205) and LPF (L34,

L36, C202–C204).

5-3-2 PLL IC (MAIN UNIT)

The PLL circuit provides stable oscillation of the transmit

frequency and receive 1st LO frequency. The PLL output

frequency is controlled by the divided ratio (N-data) from the

CPU.

The VCO output signal from the LPF (L34, L36, C202–C204) is

applied to the PLL IC (IC2, pin 8). The applied signal is divided

at the prescaler and programmable counter according to the

“SSO” signal from the CPU (IC22, pin 99). The divided signal

is phase-compared with the reference frequency signal from

the reference frequency oscillator (X2), at the phase detector.

The phase difference is output from pin 5 as a pulse type

signal after being passed through the internal charge pump.

The output signal is converted into the DC voltage (lock

voltage) by passing through the loop filter (R94–R96, C16,

C17, C146). The lock voltage is applied to the varactors (D9

and D33 of RX VCO, D10 and D34 of TX VCO) and locked to

keep the VCO frequency constant.

If the oscillated signal drifts, its phase changes from that of

the reference frequency, causing a lock voltage change to

compensate for the drift in the VCO oscillating frequency.

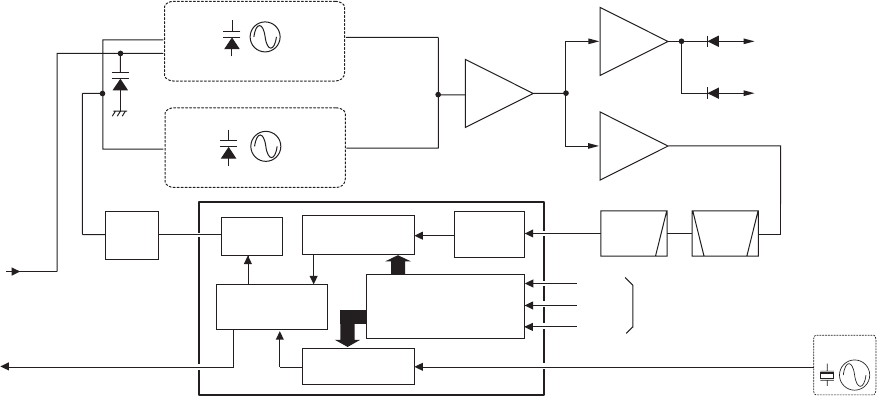

• PLL CIRCUITS

Loop

filter

Modulation signals

from the D/A converter

(IC12, pin10)

RX VCO

Q16, D10, D13, D34

D12

Q17, D9, D11, D33

TX VCO

PLL control signals from the CPU (IC22)

PLL unlock signal

to the CPU (IC22, pin 34)

15.3 MHz

reference frequency signal

Buffer

×2

to the transmit amplifiers

to the1st IF circuits

D17

D16

BPF

PLST

SSO

SCK

PLL IC (IC2)

Shift register

Prescaler

Phase

detector

Charge

pump

Programmable

divider

Reference

counter

Q15

Q29

Q14

TCXO



LPF

5 - 5

CPU5V

regurator

+5V

regurator

S5V

regurator

T5V

regurator

R5V

regurator

Power switch

R315

F701

(PA unit )

Q26–Q28

IC17

Q23

Q24, Q49

Q25

VCC

CPU5

CPU

+5V

S5V

“S5C”

“PWON”

Voltage line

Control signal

“T5C”

“R5C”

T5V

LED backlight driver (Q45),

LCD driver (IC20),

D/A converter (IC12), etc.

CPU (IC22),

EEPROM (IC10),

Reset IC (IC8), etc.

Drive amplifier (Q702),

Power amplifier (Q701), etc.

PLL IC (IC2),

VCO’s, etc.

Transmit circuits

Receive circuits R5V

(IC22)

Battery pack

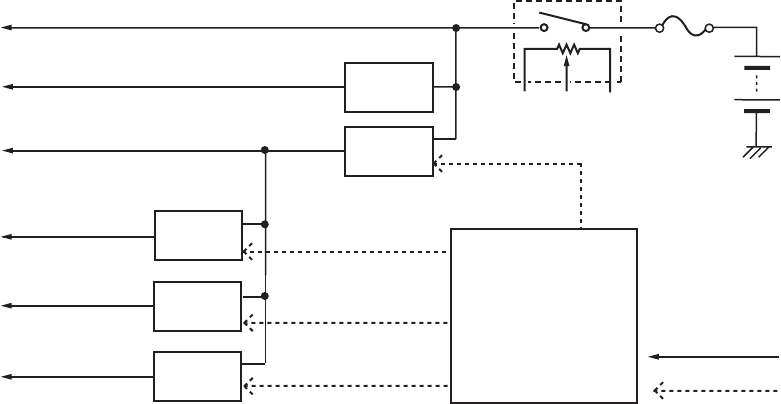

5-4 POWER SUPPLY CIRCUITS

Voltage from the attached battery pack is routed to whole of the circuit in the transceiver via a switch and regulators.

5 - 6

5-5-1 CPU (IC22)

No.

Port

Name Description

1−3 KR1−

KR3 Input ports for dealer-programmable keys.

4−8 KS0−

KS4 Output ports for dealer-programmable keys.

9 BUSY Outputs “BUSY” signal to the DSP UNIT.

10 CCS Outputs chip-select signal to the DSP UNIT.

11 SCK Outputs serial clock signal to the PLL IC (IC2, pin 9)

and D/A converter (IC12, pin 7/IC23, pin 7).

19−

CENC0−

CENC2 Output ports for CTCSS/DTCS signal.

22 S5C

Outputs S5V line control signal to the S5V

regurator (Q23).

“Low”=While power save mode.

26 T5C

Outputs T5V line control signal to the T5V line

regurator (Q24, Q49).

“Low”=While transmitting.

27 R5C

Outputs R5V line control signal to the R5V line

regurator (Q25).

“Low”=While receiving.

31 PLST Outputs PLL strobe signal to the PLL IC (IC2, pin 11).

34 ULCK

Input port for PLL unlock detect signal from the

PLL IC (IC2, pin 7).

“Low”=While the PLL circuit is unlocked.

35 TMUT

Outputs transmit mute signal to the transmit mute

switch (Q46).

“High”=Transmitting is muted.

36 MONI Input port for [SIDE1] key (S5).

“Low”=While the key is pushed.

37 EMER Input port for top switch (S1).

“Low”=While the switch is pushed.

39 DSDA Outputs serial data to the D/A converter (IC23, pin 6).

43 SENC Outputs DTMF signals to the LPF (IC6, pin 3).

44 BEEP Outputs beep sounds to the D/A converter (IC12,

pin 21).

45 SDEC Input port for DTMF signals.

46 CDEC Input port for CTCSS/DTCS signals.

48 BATV Input port for remaining battery power.

49 LVIN Input port for VCO lock voltage.

50 RSSI Input port for receive signal strength level signal

from the FM IF IC (IC9, pin 12).

59 RES

Input port for CPU reset signal from the reset IC

(IC8, pin 1).

“Low”=When the CPU is reset.

69 CSFT Outputs CPU clock shift signal to the clock shift

switch (D6).

70 AFON

Outputs AF power ampliﬁ er (IC15) control signal to

the AF power ampliﬁ er controller (Q41, Q42, D21,

D23).

“High”=The AF power ampliﬁ er is ON.

71 DAST Outputs strobe signal to the D/A converter (IC12,

pin 6).

72 DUSE

Outputs CTCSS/DTCS select signal to the tone

ﬁ lter switch (Q40).

“High”=While DTCS is in use.

75 NOIS Input port for noise signal from the FM IF IC (IC9,

pin 13).

82 ESDA Outputs serial data to the EEPROM (IC10, pin 5).

85 ESCL Outputs clock signal to the EEPROM (IC10, pin 6).

No.

Port

Name Description

89 DIGI

Outputs Analog/Digital select signal to the A/D

switch (D2, D3).

“High”=Digital mode is selected.

91 LSO Outputs serial data to the LCD driver (IC20, pin 48).

92 LSCK Outputs clock signal to the LCD driver (IC20, pin 47).

93 LCS Outputs chip-enable signal to the LCD driver (IC20,

pin 46).

94 LINH Outputs display inhibit signal to the LCD driver

(IC20, pin 45).

95 LIGT

Outputs LCD backlight control signal to the

backlight LED’s (DS1, DS2) driver (Q45).

“Low”=While the backlight is ON.

96 RMUTE

Outputs AF mute signal to the analog switch (IC3,

pins 12, 13).

“Low”=While the squelch is close or transmitting.

97 MMUTE

Outputs MIC signals mute signal to the analog

switch (IC3, pin 5) and MIC mute switch (Q31).

“Low”=While receiving.

99 SSO Outputs serial data to the PLL IC (IC2, 10) and D/A

converter (IC12, pin 8).

100 KR0 Input ports for dealer-programmable keys.

5-5-2 D/A CONVERTER (IC12)

No.

Port

Name Description

2MCGO

Outputs level-adjusted MIC signals to the MIC mute

switch (Q31).

10,

16 MOD Outputs modulation signal to the modulation circuits

(D2).

14 REF Outputs reference frequency control voltage to the

reference frequency oscillator buffer (IC7, pin 13).

15 BAL Outputs modulation balance control signal to the

reference frequency oscillator buffer (IC7, pin 12).

22 BEEPO Outputs beep sounds to the AF volume buffer (IC6,

pin 9).

23 SQLC Outputs level-adjusted AF signals to the noise filter

(IC9, pins 7, 8, R42, R44−R46, C69, C70, C413).

5-5-3 D/A CONVERTER (IC23)

No.

Port

Name Description

1T1

• While receiving

Outputs BPF tuning voltage to the tunable BPF

(D19, D25, L7, L8, C21−C23, C25, C27−C29).

• While transmitting (as “APC” signal)

Outputs transmit mute signal to the transmit mute

switch (Q46).

2T2

Outputs BPF tuning voltage to the tunable BPF

(D14, D15, L9, L11, C19, C36, C39−C41,

C44, C45).

3TXLVA

Outputs oscillating frequency adjust voltage to the

TX VCO (Q16, D10, D13).

4RXLVA

Outputs oscillating frequency adjust voltage to the

RX VCO (Q17, D9, D11).

5-5 PORT ALLOCATIONS

SECTION 6 ADJUSTMENT PROCEDURES

6-1 PREPARATION

When adjusting IC-F3020 series, CS-F3020 CLONING SOFTWARE, CS-F3020 ADJ ADJUSTMENT SOFTWARE (Rev. 1.0 or later),

OPC-478/U JIG CABLE (modiﬁ ed OPC-478/U CLONING CABLE; see the page 6-2) and the following test equipments are required.

EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE

DC power supply Output voltage

Current capacity

: 7.2 V DC

: More than 1.5 A External speaker Input impedance

Capacity

: 8 Ω

: 1 W or more

FM deviation meter Frequency range

Measuring range

: DC–300 MHz

: 0 to ±10 kHz Attenuator Power attenuation

Capacity

: 20 or 30 dB

: 7.5 W

Frequency counter

Frequency range

Frequency accuracy

Sensitivity

: 0.1–300 MHz

: ±1 ppm or better

: 100 mV or better

Standard signal

generator (SSG)

Frequency range

Output level

: 0.1–300 MHz

: 0.1 µV to 32 mV

(–127 to –17 dBm)

RF power meter

Measuring range

Frequency range

Impedance

SWR

: 0.1–7.5 W

: 100–300 MHz

: 50 Ω

: Better than 1.2 : 1

Oscilloscope Frequency rang

Measuring range

: DC–20 MHz

: 0.01–20 V

6 - 1

▄ SYSTEM REQUIREMENTS (for the ADJUSTMENT SOFTWARE)

• Microsoft® Windows® 98/98SE/Me/2000/XP • RS-232C serial port (D-sub 9 pin) or USB port

▄ STARTING SOFTWARE ADJUSTMENT

q Connect the transceiver and PC with OPC-478/U JIG

CABLE.

w Turn the transceiver power ON.

e Boot up Windows, and click the program group ‘CS-F3020

ADJ’ in the ‘Programs’ folder of the [Start] menu, then

CS-F3020 ADJ’s window appears.

r Click ‘Connect’ on the CS-F3020 ADJ’s window, then the

window shows transceiver’s condition and adjustment

items as below.

t Set or modify adjustment data as speciﬁ ed.

▄ BEFORE STARTING SOFTWARE ADJUSTMENT

Clone the adjustment frequencies and settings into the

transceiver, and set the conﬁ guration using the CS-F3020

CLONING SOFTWARE before starting the software adjustment.

Otherwise, the software adjustment can not be started.

CAUTION!: BACK UP the originally programmed memory

data in the transceiver before programming the

adjustment frequencies. When program the ad-

justment frequencies into the transceiver, the

transceiver’s memory data will be overwritten

and lose original memory data at the same time.

Microsoft and Windows are registered trademarks of Micro-

soft Corporation in the U.S.A. and other countries.

▄ ADJUSTMENT SOFTWARE INSTALLATION

q Quit all applications when Windows is running.

w Insert the CD into the appropriate CD drive.

e Double-click the “Setup.exe” contained in the ‘CS-F3020

ADJ’ folder in the CD drive.

r The “Welcome to the InstallShield Wizard for CS-F3020

ADJ” will appear. Click [Next>].

t The “Choose Destination Location” will appear. Then click

[Next>] to install the software to the destination folder. (e.g.

C:\Program Files\Icom\CS-F3020 ADJ)

After the installation is completed, the “InstallShield Wiz-

ard Complete” will appear. Then click [Finish].

u Eject the CD.

i Program group ‘CS-F3020 ADJ’ appears in the ‘Programs’

folder of the start menu, and ‘CS-F3020 ADJ’ icon ap-

pears on the desk top screen.

• ADJUSTMENT FREQUENCY LIST

CH FREQUENCY ADJUSTMENT ITEM

1 174.000 MHz TX power

Mode

: Low1

: Narrow

2 136.000 MHz TX power

Mode

: Low1

: Wide

3 155.000 MHz TX power

Mode

: High

: Wide

4 155.000 MHz TX power

Mode

: Low2

: Wide

5 155.000 MHz TX power

Mode

: Low1

: Narrow

6 155.000 MHz

TX power

Mode

DTCS

: Low1

: Narrow

: 007

7* 155.000 MHz TX power

Mode

: Low1

: Middle

8 155.000 MHz

TX power

Mode

CTCSS

: Low1

: Wide

: 151.4 Hz

9 155.000 MHz TX power

Mode

: Low1

: Wide

*; [EUR] only

6 - 2

IC-F3020 series

deviation meter Osciiloscope

to the antenna connector

Attenuator

10 dB or 20 dB

RF power meter

0.1–10 W/50

Frequency

counter

Standard signal generator

0.1 µV to 32 mV

(–127 dBm to –17 dBm)

CAUTION!

DO NOT transmit while

the SSG is connected to

the antenna connector

SINAD meter

Speaker (8 )

To [SP] jack JIG cable 2

JIG cable 1

to USB port

to RS-232C port

OPC-478 (RS-232C type)

OPC-478U (USB type)

Audio

generator

millivoltmeter

To [MIC] jack

To MIC/GND

To SP /

–

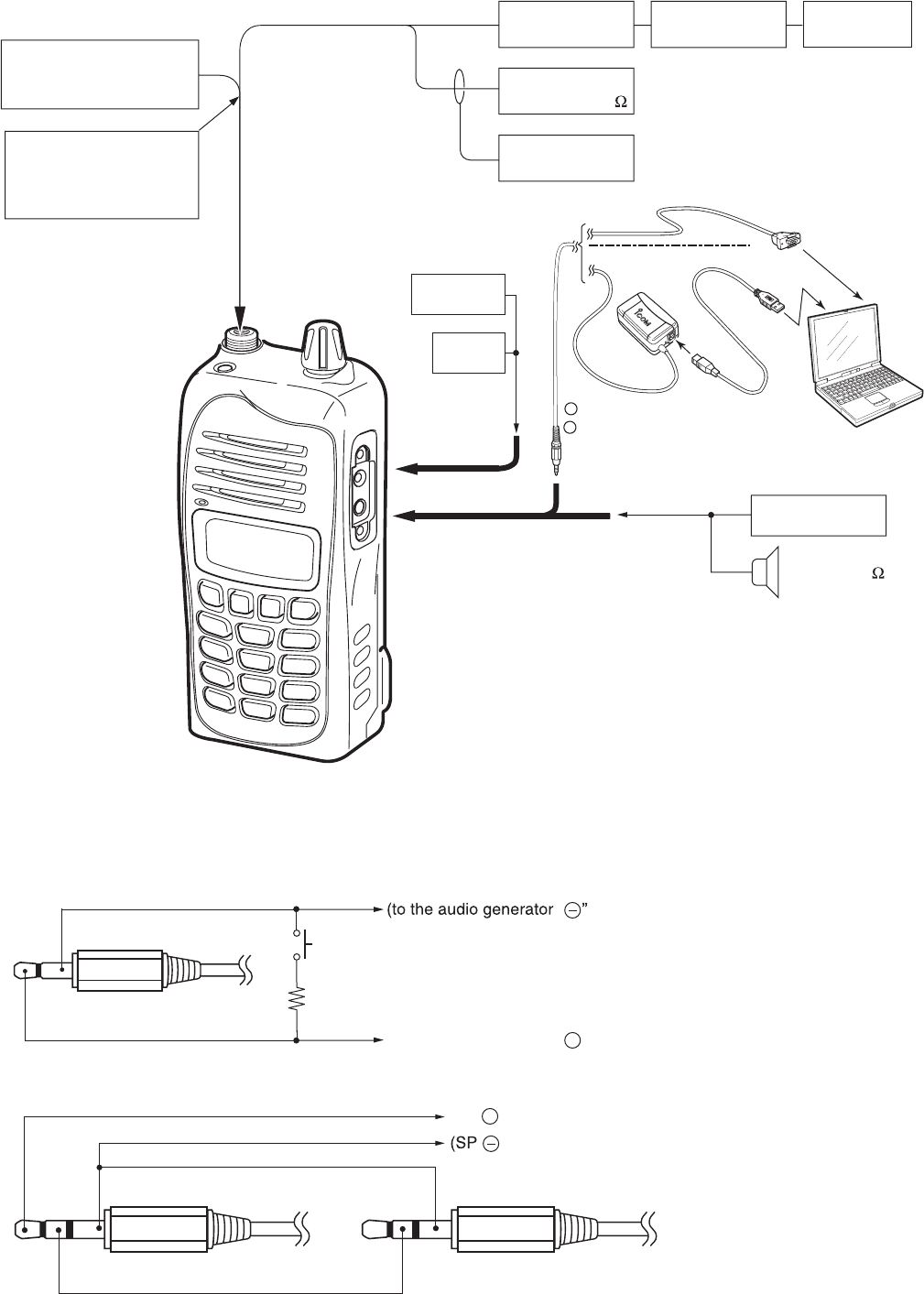

• CONNECTION

• JIG CABLES

3-conductor 3.5(d) mm plug

(SP + )

(CLONE) OPC-478/U

(GND)

(SP) )

[JIG cable 2]

JIG cable

2-conductor 2.5 (d) mm plug

(MIC)

(GND)

33 kΩ

(to the audio generator “ + ”

)

[JIG cable 1]

)

PTT

“

6 - 3

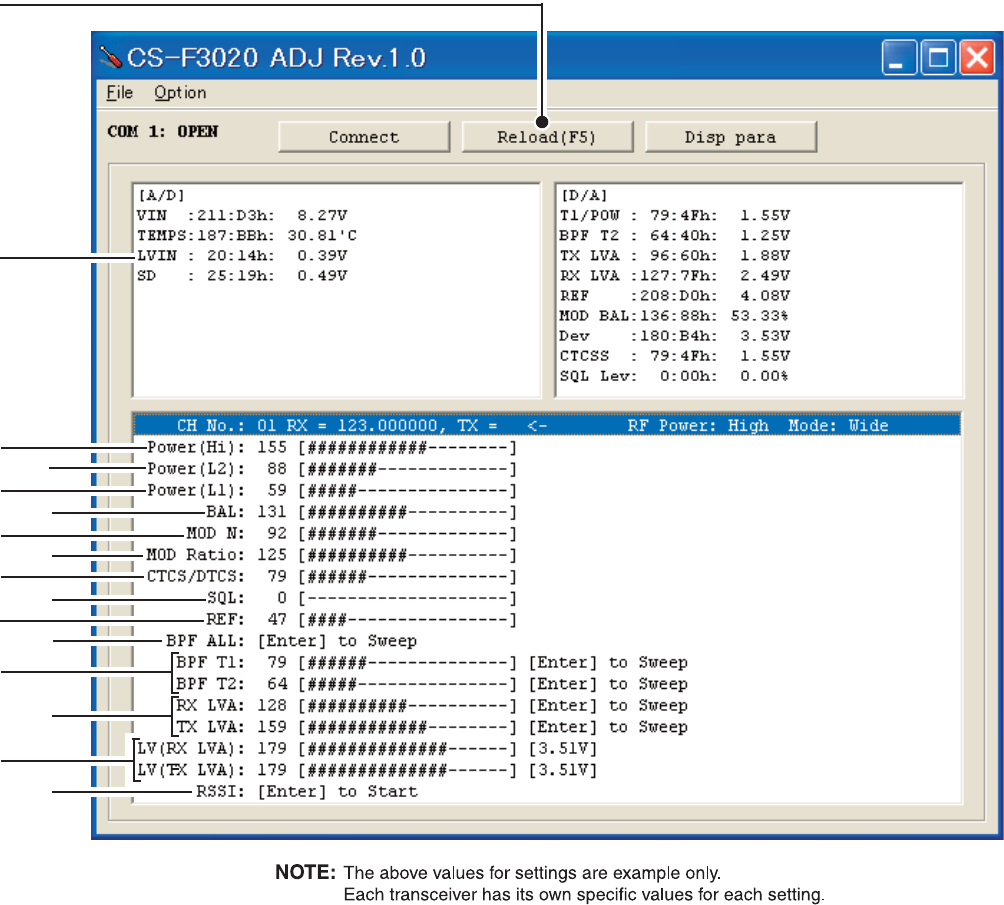

• PC SCREEN EXSAMPLE

Reference frequency

Receive sensitivity (Manually)

PLL lock voltage preset

S-meter

Reload data

PLL lock voltage (verify)

Squelch

*; [EUR] only

CTCSS/DTCS deviation

FM deviation (Narrow)

FM deviation (Middle*/Wide)

Modulation balance

Transmit output power (Hi)

Transmit output power (L2)

Transmit output power (L1)

PLL lock voltage

Receive sensitivity (Automatically)

6 - 4

6-2 FREQUENCY ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

UNIT OPERATION

PLL LOCK

VOLTAGE

[RX LVA]

1 • Channel

• Receiving

: CH 1 PC

screen

Click [Reload (F5)] button, then

check the “LVIN” item on the

CS-F3020 ADJ’s screen as below.

3.5 V

[TX LVA] 2 • Channel

• Transmitting

: CH 1

CONVENIENT: The “PLL LOCK VOLTAGE” can be adjusted automatically.

1: Set the Lock voltage preset ([RX LVA] and [TX LVA]) to “179 (3.15 V).”

2: Push the [ENTER] key on the connected PC’s keyboard.

3 • Channel

• Receiving

: CH 2 PC

screen

Click [Reload (F5)] button, then

check the “LVIN” item on the

CS-F3020 ADJ’s screen.

0.9–1.5 V

(Verify)

4 • Channel

• Transmitting

: CH 2 1.0–1.6 V

(Verify)

REFERENCE

FREQUENCY

[REF]

1 • Channel : CH 1 Top

panel

Loosely couple a frequency

counter to the antenna connector.

174.000000 MHz

• Connect an RF power meter to the

antenna connector.

• Transmitting

6 - 5

6-3 TRANSMIT ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

UNIT OPERATION

OUTPUT

POWER

[Power (Hi)]

1 • Channel

• Transmitting

: CH 3 Top

panel

Connect an RF power meter to

the antenna connector.

5.0 W

[Power (L2)] 2 • Channel

• Transmitting

: CH 4 2.0 W

[Power (L1)] 3 • Channel

• Transmitting

: CH 5 1.0 W

MODULATION

BALANCE

[BAL]

1 • Channel : CH 6 Top

panel

Connect the FM deviation me-

ter to the antenna connector

through an attenuator.

Set to square wave form

• No audio applied to the JIG cable.

• Set an FM deviation meter same as;

HPF

LPF

De-emphasis

Detector

: OFF

: 20 kHz

: OFF

: (P–P)/2

• Transmitting

DEVIATION

(NARROW)

[MOD N]

1• Channel : CH 5 Top

panel

Connect the FM deviation me-

ter to the antenna connector

through an attenuator.

±2.05 to ±2.15 kHz

• Connect an audio generator to the JIG

cable and set as;

Frequency : 1.0 kHz

Level : 150 mV rms

• Set the FM deviation meter to same condi-

tion as “MODULATION BALANCE.”

• Transmitting

(WIDE)

[MOD ratio]

2• Channel

• Transmitting

: CH 9 ±4.05 to ±4.15 kHz

(MIDDLE)*

[MOD ratio]

3• Channel

• Transmitting

: CH 7 ±3.15 to ±3.25 kHz

CTCSS/DTCS

DEVIATION

[CTCS/DTCS]

1• Channel : CH 8 Top

panel

Connect an FM deviation meter to

the antenna connector through

an attenuator.

±0.68 to ±0.72 kHz

• No audio applied to the JIG cable.

• Set the FM deviation meter to same condi-

tion as “MODULATION BALANCE.”

• Transmitting

*; [EUR] only.

6 - 6

6-4 RECEIVE ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

UNIT LOCATION

RECEIVE

SENSITIVITY

[BPF (T1)]

[BPF (T2)]

NOTE: “RECEIVE SENSITIVITY” must be adjusted before “S-METER.” Otherwise, “S-METER” will not be

adjusted properly.

1• Channel : CH 2 [MIC/SP]

jack

Connect the SINAD meter

with an 8 Ω load to the JIG

cable.

Minimum distortion

level

• Connect the SSG to the antenna connec-

tor and set as;

Frequency

Level

Modulation

Deviation

• Receiving

: 136.000 MHz

: +20 dBµ† (–87 dBm)

: 1 kHz

: ±3.5 kHz

CONVENIENT:

The “RECEIVE SENSITIVITY” can be adjusted automatically.

1: Put the cursor on “BPF ALL” and push [ENTER] key.

2: The connected PC tunes BPF’s to peak levels automaticaly.

S-METER

[RSSI]

1• Channel : CH 2 Push the [ENTER] key on the connected PC’s keyboard to set

“S3” level.

• Connect the SSG to the antenna connec-

tor and set as;

Frequency

Level

Modulation

Deviation

• Receiving

: 136.000 MHz

: +23 dBµ† (–84 dBm)

: 1 kHz

: ±3.5 kHz

2• Set the SSG as;

Level

• Receiving

: –7 dBµ† (–114 dBm)

Push the [ENTER] key on the connected PC’s keyboard to set

“S1” level.

SQUELCH

[SQL]

1 • Channel : CH 9 External

speaker

Connect an 8 Ω speaker to

the JIG cable.

Set the [SQL] to the

value that the audio

signals just appears.

• Close the squelch by adjusting the value of

[SQL] item on the CS-F3020 ADJ’s screen.

• Connect the SSG to the antenna connec-

tor and set as;

Frequency

Level

Modulation

Deviation

• Receiving

: 155.000 MHz

: –15 dBµ† (–122 dBm)

: 1 kHz

: ±3.5 kHz

†; The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.

7 - 1

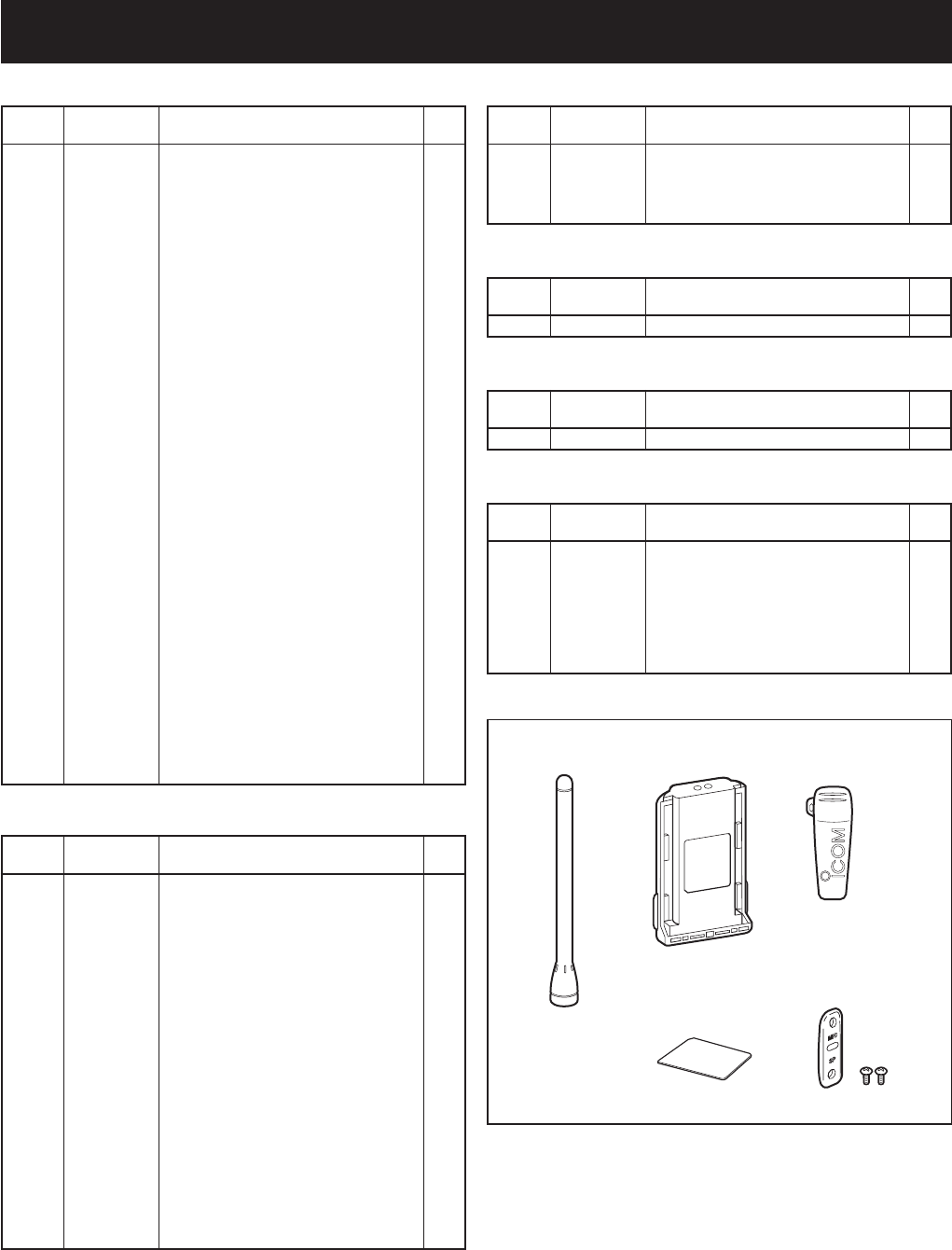

SECTION 7 PARTS LIST

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC2 1140005991 S.IC MB15A02PFV1-G-BND-ERE1 T 81.2/34.5

IC3 1130011770 S.IC CD4066BPWR B 40.4/22

IC5 1110005320 S.IC NJM13403V-TE1 B 40.4/12.8

IC6 1110006350 S.IC LM2902PWR B 55.4/28.7

IC7 1110005340 S.IC NJM12902V-TE1 B 40.4/40.8

IC8 1110006260 S.IC BD5242G-TR B 21.3/42

IC9 1110003201 S.IC TA31136FNG (EL) T 81.6/17

IC10 1140008650 S.IC HN58X2464TI B 4.4/37.1

IC12 1190001350 S.IC M62364FP 600D B 40.4/30.6

IC15 1110001811 S.IC TA7368FG (5 ER) T 98.9/18.3

IC17 1110005350 S.IC NJM2870F05-TE1 B 95.2/17

IC20 1130009090 S.IC LC75834W-TLM-E T 57.3/20.3

IC22 1140011511 S.IC HD64F2238BTF13V B 16.4/24.4

IC23 1190001340 S.IC M62334FP 600C T 99.9/42.5

Q5 1580000731 S.FET 3SK293 (TE85L F) B 92.4/38.2

Q6 1580000800 S.FET 3SK324UG-TL-E B 88.6/23.4

Q7 1530003311 S.TR 2SC5107-O (TE85R F) T 88.2/12.5

Q14 1530003980 S.TR 2SC5700WB-TR-E B 79.9/31.3

Q15 1530003260 S.TR 2SC5006-T1 B 76.2/30

Q16 1530003260 S.TR 2SC5006-T1 B 75.5/25.7

Q17 1530003260 S.TR 2SC5006-T1 B 74.1/32.1

Q18 1590001400 S.TR XP1214 (TX) T 74.3/28.3

Q19 1590003290 S.TR UNR9213J-(TX) T 71.8/28.5

Q20 1530002851 S.TR 2SC4116-BL (TE85R F) B 98.6/25.2

Q21 1560000541 S.FET 2SK880-Y (T5RICOM F) T 76.8/25.4

Q22 1530003260 S.TR 2SC5006-T1 T 80.7/24.1

Q23 1510001110 S.TR 2SA1577T106R B 51/6.3

Q24 1510001110 S.TR 2SA1577T106R B 50.4/19.3

Q25 1510001110 S.TR 2SA1577T106R B 85.7/12.3

Q26 1520000460 S.TR 2SB1132 T100 R B 101.6/17.9

Q27 1590001190 S.TR XP6501-(TX) .AB B 101.7/22.7

Q28 1590003290 S.TR UNR9213J-(TX) B 99.4/20.6

Q29 1530003260 S.TR 2SC5006-T1 B 78.3/23.9

Q31 1560001360 S.FET 2SK3019 TL B 41.9/6.8

Q32 1560001360 S.FET 2SK3019 TL B 37.7/6.8

Q34 1560001360 S.FET 2SK3019 TL B 46.6/12.8

Q39 1590001650 S.TR XP4601 (TX) B 55.2/10.4

Q40 1590003290 S.TR UNR9213J-(TX) B 40.6/37

Q41 1590001190 S.TR XP6501-(TX) .AB T 96.4/24.6

Q42 1520000460 S.TR 2SB1132 T100 R T 100.4/24.4

Q43 1590003380 S.TR UNR9111J-(TX) T 78.4/7.2

Q44 1590003270 S.TR UNR9210J-(TX) B 28.3/20

Q45 1590003230 S.TR UNR9113J-(TX) T 53.8/4.8

Q46 1590003290 S.TR UNR9213J-(TX) T 98.8/32.9

Q47 1590003290 S.TR UNR9213J-(TX) B 86.4/14.6

Q49 1590003290 S.TR UNR9213J-(TX) B 52.8/19.1

D4 1790001250 S.DIO MA2S111-(TX) T 84/28.9

D6 1790001260 S.DIO MA2S077-(TX) B 27.7/29.2

D8 1790001250 S.DIO MA2S111-(TX) B 98.6/23.3

D9 1750000771 S.VCP HVC376BTRF-E B 69.6/30.9

D10 1750000771 S.VCP HVC376BTRF-E B 69.6/26.2

D11 1750000721 S.VCP HVC375BTRF-E B 74.9/34

D12 1720000471 S.VCP 1SV239 (TPH3 F) B 76.1/22.8

D13 1750000721 S.VCP HVC375BTRF-E B 72/28.4

D16 1750000581 S.DIO 1SV307 (TPH3 F) B 88.6/14.3

D17 1790001260 S.DIO MA2S077-(TX) B 87.8/17.5

D19 1750000721 S.VCP HVC375BTRF-E B 97.6/37.3

D20 1790001240 S.DIO MA2S728-(TX) B 99/32.8

D21 1750000520 S.DIO DAN222TL B 31.9/21.3

D23 1790001250 S.DIO MA2S111-(TX) B 31.8/23

D24 1750000721 S.VCP HVC375BTRF-E B 100.4/38.2

D28 1790001670 S.DIO RB706F-40T106 B 28/17.7

D31 1790001260 S.DIO MA2S077-(TX) B 77.5/34.5

D32 1790001260 S.DIO MA2S077-(TX) T 86.1/37

D33 1750000771 S.VCP HVC376BTRF-E B 68.3/30.9

D34 1750000771 S.VCP HVC376BTRF-E B 68.3/26.2

FI1 2030000150 S.MLH FL-335 (46.350 MHz) T 89.9/19.9

FI2 2020001530 CER CFWLB450KFFA-B0

X1 6070000190 S.DCR CDBCB450KCAY24-R0 B 80/16.9

X2 6050011940 S.XTL CR-783 (15.3 MHz)

X6 6050011830 S.XTL CR-774 (12.288 MHz) B 31.2/31

L7 6200009930 S.COL C2012C-68NG-A B 101.5/34.6

L8 6200009930 S.COL C2012C-68NG-A B 95.8/38.6

L9 6200010090 S.COL ELJND R82JF B 90/38.6

L12 6200008090 S.COL LQW2BHN68NJ03L B 86.3/22.3

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L13 6200007850 S.COL ELJNC R82K-F T 88.7/26.1

L21 6200011031 S.COL ELJRF R10JFB B 80.2/23

L22 6200011031 S.COL ELJRF R10JFB B 77.8/28.2

L24 6200003640 S.COL MLF1608E 100K-T B 70.9/26.2

L25 6200007770 S.COL LQW2BHNR10J03L B 71.2/22.9

L27 6200003550 S.COL MLF1608A 4R7K-T T 69.8/27.2

L28 6200003550 S.COL MLF1608A 4R7K-T T 69.8/29.8

L32 6200007911 S.COL ELJRF 18NJFB T 88.2/35.8

L33 6200004480 S.COL MLF1608D R82K-T T 80.6/22.4

L34 6200007901 S.COL ELJRF 22NJFB T 87/33.3

L35 6200003540 S.COL MLF1608D R22K-T T 84.6/25.4

L36 6200007901 S.COL ELJRF 22NJFB T 86.1/33.3

L37 6200007720 S.COL LQW2BHN33NJ03L B 68.6/33.8

L38 6200007760 S.COL LQW2BHN82NJ03L B 71.2/34.2

L39 6200008090 S.COL LQW2BHN68NJ03L B 68.6/23.3

L40 6200003640 S.COL MLF1608E 100K-T B 70.9/30.9

L41 6200007911 S.COL ELJRF 18NJFB B 80.5/29.5

L42 6200003550 S.COL MLF1608A 4R7K-T T 72.2/34.5

L43 6200003550 S.COL MLF1608A 4R7K-T T 72.4/25

L46 6200005681 S.COL ELJRE 15NGFA B 89.3/20.3

L47 6200011670 S.COL LQW18AN82NG00D B 90.1/36.4

L48 6200011650 S.COL LQW18AN68NG00D B 89.5/29.7

L49 6200009101 S.COL ELJRE R18GFA B 86/28.9

L50 6200003960 S.COL MLF1608A 1R0K-T T 91/14.6

R6 7030005070 S.RES ERJ2GEJ 683 X (68 k) T 99.5/34.8

R12 7030005530 S.RES ERJ2GEJ 100 X (10) B 92.6/35.2

R13 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 99/39.2

R15 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 94.2/36.4

R16 7030008280 S.RES ERJ2GEJ 271 X (270) B 93.3/40.4

R17 7030004970 S.RES ERJ2GEJ 470 X (47) B 88.5/40.4

R18 7030007280 S.RES ERJ2GEJ 331 X (330) B 88.5/38.8

R19 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 94.2/38.2

R24 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 85.3/16.7

R25 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 88.1/26.4

R26 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 88.5/25.4

R27 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 86.3/24.4

R28 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 84.5/24.4

R29 7030005590 S.RES ERJ2GEJ 680 X (68) B 90.9/21.4

R31 7030004980 S.RES ERJ2GEJ 101 X (100) B 86.3/25.4

R32 7030010040 S.RES ERJ2GEJ-JPW T 90.5/25.3

R33 7030010040 S.RES ERJ2GEJ-JPW T 89.2/14.6

R34 7030008300 S.RES ERJ2GEJ 184 X (180 k) T 87.2/14.6

R35 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 85.2/14.6

R36 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 81.4/12.6

R38 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 81.7/12.2

R39 7030004970 S.RES ERJ2GEJ 470 X (47) B 81.4/11.6

R40 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 82.2/21.3

R42 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 76.3/19.8

R43 7030005000 S.RES ERJ2GEJ 471 X (470) T 78/14.6

R44 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 78/20.7

R45 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 76.3/20.7

R46 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 76.3/21.6

R48 7030005010 S.RES ERJ2GEJ 681 X (680) T 86.2/12.9

R50 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 85.3/18.4

56 7030010040 S.RES ERJ2GEJ-JPW T 72.3/15.2

R60 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 83.4/13.2

R67 7030004980 S.RES ERJ2GEJ 101 X (100) B 88.7/10.9

R68 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 90.5/10.9

R69 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 86.3/16.7

R70 7030005530 S.RES ERJ2GEJ 100 X (10) B 80.2/25.8

R71 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 79.2/26.7

R72 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 49/26.4

R75 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 78.7/29.5

R76 7030005530 S.RES ERJ2GEJ 100 X (10) B 79.6/27.9

R77 7030004980 S.RES ERJ2GEJ 101 X (100) B 80.5/27.9

R78 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 76/28.2

R79 7030008340 S.RES RR0510P-182-D (1.8 k) B 72.3/31.8

R80 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 76.6/29.7

R82 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 73.5/25.1

R83 7030008340 S.RES RR0510P-182-D (1.8 k) B 73.5/27.8

R84 7030011000 S.RES RR0510P-392-D (3.9 k) B 73.7/24.2

R85 7030011000 S.RES RR0510P-392-D (3.9 k) B 76.5/32.5

R86 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 74.5/23.6

R87 7030005000 S.RES ERJ2GEJ 471 X (470) T 75.7/30.3

R88 7030008370 S.RES ERJ2GEJ 561 X (560) T 74.5/26.5

R89 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 77.6/29.7

R91 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 72.7/20.7

R92 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 74.5/25.4

R94 7030004990 S.RES ERJ2GEJ 221 X (220) T 77/32.8

R95 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 75.7/32

R96 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) T 77/31.9

R97 7030007340 S.RES ERJ2GEJ 153 X (15 k) T 84.8/34.9

R98 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 99/22.2

[A]=USA-02 (F3021T) [B]=EUR-02 (F3022T) [C]=GEN-02 (F3023T)

[D]=USA-02 (F3021S) [E]=EUR-02 (F3022S) [F]=GEN-02 (F3023S)

7 - 2

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R99 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 79.6/34.7

R100 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 74.4/21.6

R101 7030004990 S.RES ERJ2GEJ 221 X (220) T 77.6/28

R103 7030005230 S.RES ERJ2GEJ 334 X (330 k) B 46.2/38.1

R104 7030005700 S.RES ERJ2GEJ 274 X (270 k) B 47.2/38.1

R105 7030005230 S.RES ERJ2GEJ 334 X (330 k) B 46.2/39.7

R106 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 47.2/39.7

R108 7030010040 S.RES ERJ2GEJ-JPW B 65.2/37.6

R109 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 63.1/35.3

R110 7030005080 S.RES ERJ2GEJ 823 X (82 k) T 69.3/20.7

R111 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 66.5/34.8

R115 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 83.4/25.9

R116 7030007060 S.RES ERJ2GEJ 684X (680 k) T 80.7/25.6

R121 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 68.8/41.3

R122 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 98.3/39.1

R123 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 99.8/42.1

R124 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 73.8/24.5

R126 7030004980 S.RES ERJ2GEJ 101 X (100) B 23.2/4.5

R127 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 33.7/10.9

R128 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) B 33.7/9.2

R129 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 35.7/9.2

R133 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 35.4/5.3

R134 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 43.9/8.5

R135 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 43.9/9.5

R136 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 40.7/9.5

R137 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 45/12.7

R138 7030005000 S.RES ERJ2GEJ 471 X (470) B 45/14.3

R139 7030008310 S.RES ERJ2GEJ 564 X (560 k) B 43.6/16.6

R140 7030005700 S.RES ERJ2GEJ 274 X (270 k) B 41.9/17.5

R141 7030010040 S.RES ERJ2GEJ-JPW B 37.4/18.6

R142 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 36.7/9.2

R143 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 33.7/16

R144 7030005700 S.RES ERJ2GEJ 274 X (270 k) B 37.4/17.5

R145 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 34.7/17.7

R146 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 34.7/16

R147 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 35.7/17.7

R148 7030005000 S.RES ERJ2GEJ 471 X (470) B 37.4/16.3

R149 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 33.7/17.7

R150 7030008310 S.RES ERJ2GEJ 564 X (560 k) B 43.6/17.5

R151 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 35/38.5

R153 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 35.9/42.9

R154 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 35.9/41.3

R155 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 35.9/37.1

R156 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 48.1/16.4

R158 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 37.9/37.1

R159 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 35.9/39.7

R160 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 35/39.7

R161 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 48/19.7

R162 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 48/18.8

R163 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 87.6/12.1

R164 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 85.7/10.5

R165 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 102.6/14.7

R166 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 101.2/24.6

R167 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 48.2/6.3

R168 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 49.1/6.3

R169 7030004980 S.RES ERJ2GEJ 101 X (100) B 101.2/25.6

R172 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 92.1/33.7

R181 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 57/6.3

R182 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 57/8

R183 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 55.2/8

R184 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 53.4/10

R185 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 52.5/10

R186 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 57/10

R187 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 55.2/12.8

R188 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 53.4/8

R190 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) B 54.3/12.8

R194 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 57.9/22.2

R195 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 60.2/23.5

R196 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 60.2/24.4

R197 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 60.2/26.7

R198 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 57/24.4

R199 7030006610 S.RES ERJ2GEJ 394 X (390 k) B 58.6/24.4

R200 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) B 58.6/25.4

R201 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 96.6/39.1

R202 7030005000 S.RES ERJ2GEJ 471 X (470) T 96.6/38.1

R209 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 47.2/41.3

R210 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 46.2/42.9

R211 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 46.2/41.3

R213 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 42.2/37

R214 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 44.2/37

R215 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 55/32

R216 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 56.7/32

R217 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 60.2/30

R218 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 60.2/32

R219 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 58.4/33

R220 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 60.2/34

R221 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 48.2/39.7

R222 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 7/19.3

R223 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 7/20.3

R224 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 7/21.3

R225 7030007260 S.RES ERJ2GEJ 330 X (33) T 94.4/20.7

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R226 7030005300 S.RES ERJ2GEJ 150 X (15) T 94.5/16

R227 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) T 97.4/22.5

R228 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 95.5/22.5

R229 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 95.4/26.7

R230 7030005230 S.RES ERJ2GEJ 334 X (330 k) B 34.1/22.6

R231 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 34.1/21.6

R233 7030004980 S.RES ERJ2GEJ 101 X (100) T 98.7/12.1

R234 7030005530 S.RES ERJ2GEJ 100 X (10) T 103.3/16.8

R235 7030005000 S.RES ERJ2GEJ 471 X (470) T 80.5/8

R236 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 77.2/8.5

R237 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 78.8/5.5

R238 7030005000 S.RES ERJ2GEJ 471 X (470) B 85.7/5.4

R239 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 26.3/19.5

R240 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 50.6/24.4

R241 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 50.6/28.5

R242 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 50.6/27.4

R243 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 52.2/24.4

R244 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 53.8/24.4

R245 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 50.6/25.4

R246 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 45.8/32.1

R247 7030005000 S.RES ERJ2GEJ 471 X (470) B 45.8/35.1

R248 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 43.9/5.3

R249 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 45.2/20.6

R254 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 58.4/34

R255 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 56.7/33

R256 7510001730 S.TMR ERTJOEP 473J B 18.7/39.4

R257 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 18.7/37.4

R258 7030005530 S.RES ERJ2GEJ 100 X (10) B 26.3/31.4

R259 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 26.3/32.4

R260 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 27.7/31.3

R261 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 26.3/29.4

R262 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 26.3/28.4

R263 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 16.8/41.4

R264 7030005820 S.RES RR0510P-103-D (10 k) B 10.7/4.7

R265 7030005820 S.RES RR0510P-103-D (10 k) B 8.8/4.7

R272 7030004980 S.RES ERJ2GEJ 101 X (100) T 55.4/4.8

R273 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 8/10.5

R274 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 8/11.5

R275 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 7.4/14

R276 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 7.4/16.2

R277 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 10.6/37

R278 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 14.5/40.2

R279 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 12.8/4.7

R280 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 14.2/4.7

R281 7030009270 S.RES ERJ2GEJ 821 X (820) B 20.5/4

R288 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 6.6/18

R291 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 9.9/15.4

R292 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 5.5/31.5

R293 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 5.5/32.5

R295 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 62.1/14.1

R300 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 61.7/16.4

R302 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 99/38.3

R303 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 99/37.4

R307 7030005580 S.RES ERJ2GEJ 560 X (56) T 86.1/31.7

R308 7030007340 S.RES ERJ2GEJ 153 X (15 k) T 69.3/21.6

R309 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 48.2/41.3

R315 7210003061 VAR TP76N00N-15F-A103-2251A

R321 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 14.5/41.4

R345 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 82/39.3

R346 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 82.9/39.3

R347 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 83.8/39.3

R348 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 84/30.1

R349 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 26.3/23

R350 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 8.5/29.1

R351 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 26.3/21.6

R352 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 7.6/27.6

R353 7410001130 S.ARY EXB28V102JX B 12.1/15.7

R354 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 12.3/34.4

R361 7030005000 S.RES ERJ2GEJ 471 X (470) B 90.9/27.4

R363 7030005100 S.RES ERJ2GEJ 154 X (150 k) T 84/27.7

R367 7030004980 S.RES ERJ2GEJ 101 X (100) B 23.7/9.9

R368 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 42.2/5.3

R369 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 35.4/4.4

R370 7030010040 S.RES ERJ2GEJ-JPW [G], [H], [I] only B 10.2/17

R371 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) B 27.3/11.4

R372 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 27.3/14.4

R375 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 35.7/12.6

R376 7030010040 S.RES ERJ2GEJ-JPW B 34.7/19.3

R377 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 46.7/25.4

R379 7030004980 S.RES ERJ2GEJ 101 X (100) T 69.4/7.4

R380 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 71/21.6

R381 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 49/28.5

C16 4550006910 S.TAN TEESVP 1C 334M8R T 73.3/32.3

C17 4550002980 S.TAN TEESVA 1C 225M8R T 77.3/36.1

C19 4030017420 S.CER ECJ0EC1H470J B 88.1/37.5

C22 4030017550 S.CER ECJ0EC1H1R5B B 99/36.5

C24 4030017460 S.CER ECJ0EB1E102K B 102.5/41.6

C25 4030017580 S.CER ECJ0EC1H060C B 99/34.8

C26 4030017460 S.CER ECJ0EB1E102K B 50.6/26.4

[A]=USA-02 (F3021T) [B]=EUR-02 (F3022T) [C]=GEN-02 (F3023T)

[D]=USA-02 (F3021S) [E]=EUR-02 (F3022S) [F]=GEN-02 (F3023S)

7 - 3

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C27 4030017430 S.CER ECJ0EC1H101J B 100.4/40.4

C28 4030017360 S.CER ECJ0EC1H030B B 97.4/39.5

C29 4030017580 S.CER ECJ0EC1H060C B 95.8/36.5

C30 4030017460 S.CER ECJ0EB1E102K T 90/34.5

C32 4030017460 S.CER ECJ0EB1E102K B 92.4/40.4

C33 4030017420 S.CER ECJ0EC1H470J B 91.5/40.4

C36 4030017460 S.CER ECJ0EB1E102K B 87.6/40.4

C40 4030017670 S.CER ECJ0EC1H390J B 88.1/34.2

C42 4030017460 S.CER ECJ0EB1E102K B 92.6/33.2

C46 4030017420 S.CER ECJ0EC1H470J B 84.5/22.4

C47 4030017460 S.CER ECJ0EB1E102K B 84.5/23.4

C48 4030016790 S.CER ECJ0EB1C103K B 90.9/23.4

C49 4030017600 S.CER ECJ0EC1H080C B 88/21.4

C50 4030017460 S.CER ECJ0EB1E102K B 90.9/22.4

C51 4030017460 S.CER ECJ0EB1E102K T 90.5/26.9

C52 4030017620 S.CER ECJ0EC1H100C B 90.9/26.4

C53 4030016790 S.CER ECJ0EB1C103K B 90.9/24.4

C54 4030017460 S.CER ECJ0EB1E102K B 90.9/25.4

C55 4030017570 S.CER ECJ0EC1H040B T 91.4/25.3

C56 4030017400 S.CER ECJ0EC1H220J T 86.1/18.3

C57 4030017460 S.CER ECJ0EB1E102K B 84.5/25.4

C58 4030017460 S.CER ECJ0EB1E102K T 88.2/14.6

C59 4030017460 S.CER ECJ0EB1E102K T 85.2/16.3

C60 4030016790 S.CER ECJ0EB1C103K T 86.2/14.6

C61 4030017430 S.CER ECJ0EC1H101J T 85.2/12.9

C62 4030017510 S.CER ECJ0EC1H680J T 79.6/12.6

C63 4030017420 S.CER ECJ0EC1H470J T 83.5/12.2

C65 4030016930 S.CER ECJ0EB1A104K B 15.6/34.4

C66 4030017460 S.CER ECJ0EB1E102K T 78/13.6

C67 4030017460 S.CER ECJ0EB1E102K B 79.3/12.7

C69 4030017700 S.CER ECJ0EC1H151J T 78/21.6

C70 4030017700 S.CER ECJ0EC1H151J T 78/19.8

C71 4030016930 S.CER ECJ0EB1A104K T 80.6/21.3

C72 4030017420 S.CER ECJ0EC1H470J B 97.3/34.8

C73 4030018110 S.CER ECJ0EB1H272K T 82.6/12.2

C74 4030016930 S.CER ECJ0EB1A104K T 80.8/12.2

C75 4550006250 S.TAN TEESVA 1A 106M8R B 75.6/12.2

C76 4030016790 S.CER ECJ0EB1C103K B 84.3/14.1

C79 4030016930 S.CER ECJ0EB1A104K T 95.3/38.7

C80 4550007090 S.TAN TEESVA 1A 226M8R T 96.6/35.1

C81 4030017420 S.CER ECJ0EC1H470J T 98.3/38.1

C82 4030017420 S.CER ECJ0EC1H470J B 102.7/32.1

C99 4030017460 S.CER ECJ0EB1E102K B 89.7/12.1

C100 4030017620 S.CER ECJ0EC1H100C B 86.3/18.4

C101 4030017460 S.CER ECJ0EB1E102K B 79.6/32.9

C102 4030017590 S.CER ECJ0EC1H070C B 78.7/27.9

C103 4030017380 S.CER ECJ0EC1H050B B 77.8/29.8

C104 4030017460 S.CER ECJ0EB1E102K B 76.9/28.2

C105 4030017460 S.CER ECJ0EB1E102K B 79.6/29.5

C107 4030017460 S.CER ECJ0EB1E102K B 80.2/23.9

C108 4030017460 S.CER ECJ0EB1E102K B 91.3/12.1

C109 4030017460 S.CER ECJ0EB1E102K B 80.2/24.8

C110 4030017420 S.CER ECJ0EC1H470J T 80.4/28

C111 4030017420 S.CER ECJ0EC1H470J T 72.9/30.1

C113 4030017540 S.CER ECJ0EC1HR75B B 74.7/29.3

C114 4030017660 S.CER ECJ0EC1H330J B 75.6/32.5

C115 4030017660 S.CER ECJ0EC1H330J B 74.1/30.5

C116 4030016790 S.CER ECJ0EB1C103K B 73.5/29.6

C117 4030017730 S.CER ECJ0EB1E471K B 73.5/28.7

C118 4030017530 S.CER ECJ0EC1H0R5B B 74.7/27.5

C119 4030017460 S.CER ECJ0EB1E102K B 77.4/27

C120 4030017730 S.CER ECJ0EB1E471K B 77.1/25.8

C121 4030017390 S.CER ECJ0EC1H180J B 73.5/26

C122 4030017660 S.CER ECJ0EC1H330J B 76.1/24.2

C123 4030017510 S.CER ECJ0EC1H680J B 72/24.4

C126 4030017660 S.CER ECJ0EC1H330J B 72.3/32.7

C129 4030017340 S.CER ECJ0EC1H010B B 73.7/23.3

C133 4030017390 S.CER ECJ0EC1H180J B 72.3/25.6

C134 4030017390 S.CER ECJ0EC1H180J B 73.2/34.2

C135 4030017460 S.CER ECJ0EB1E102K T 74.5/30.1

C137 4030016790 S.CER ECJ0EB1C103K T 98.1/26.7

C138 4030017460 S.CER ECJ0EB1E102K T 68.6/29.3

C139 4030016930 S.CER ECJ0EB1A104K T 71.2/26.9

C141 4030017460 S.CER ECJ0EB1E102K T 74.4/20.7

C143 4030017460 S.CER ECJ0EB1E102K T 77.5/23.1

C144 4030017420 S.CER ECJ0EC1H470J T 68.6/27.6

C145 4030017420 S.CER ECJ0EC1H470J T 72.7/21.6

C146 4550006910 S.TAN TEESVP 1C 334M8R T 71.5/32.3

C148 4550006250 S.TAN TEESVA 1A 106M8R B 96.1/25.1

C149 4030017460 S.CER ECJ0EB1E102K B 65.8/12.1

C150 4030018860 S.CER ECJ0EB0J105K T 72.7/22.5

C151 4030017460 S.CER ECJ0EB1E102K B 6.9/29.1

C152 4030017420 S.CER ECJ0EC1H470J B 83.6/39.2

C153 4030017420 S.CER ECJ0EC1H470J B 82.6/39.2

C154 4030017420 S.CER ECJ0EC1H470J B 81.6/39.2

C155 4030017420 S.CER ECJ0EC1H470J T 85.7/27.7

C156 4030017460 S.CER ECJ0EB1E102K B 66.2/37.6

C157 4030017620 S.CER ECJ0EC1H100C B 63.1/36.3

C158 4030016930 S.CER ECJ0EB1A104K B 60.2/36.3

C159 4030017460 S.CER ECJ0EB1E102K B 58.4/35.3

C160 4030017460 S.CER ECJ0EB1E102K T 72.3/13.7

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C161 4030017620 S.CER ECJ0EC1H100C T 78.6/28

C162 4030017500 S.CER ECJ0EC1H560J T 82.4/23.3

C163 4030017570 S.CER ECJ0EC1H040B T 84.4/23.3

C164 4030017590 S.CER ECJ0EC1H070C T 83.4/23.3

C165 4030016790 S.CER ECJ0EB1C103K T 82.4/25.2

C166 4030017360 S.CER ECJ0EC1H030B T 83.4/21.7

C167 4030016930 S.CER ECJ0EB1A104K B 82.7/12

C168 4030017460 S.CER ECJ0EB1E102K T 80.5/5.5

C169 4030017420 S.CER ECJ0EC1H470J T 69.4/6.5

C170 4030018910 S.CER C1608 JB 0J 475K-T B 33.9/40.5

C171 4030017460 S.CER ECJ0EB1E102K B 69.7/41.3

C172 4030017460 S.CER ECJ0EB1E102K B 67.9/41.3

C174 4030017710 S.CER ECJ0EC1H181J B 35/42.9

C175 4030017420 S.CER ECJ0EC1H470J B 70.6/41.3

C176 4030016930 S.CER ECJ0EB1A104K T 99.6/38.7

C177 4030016930 S.CER ECJ0EB1A104K B 96.9/42.1

C182 4030017460 S.CER ECJ0EB1E102K B 84.3/18.4

C183 4030017620 S.CER ECJ0EC1H100C B 87.8/19.3

C184 4030017460 S.CER ECJ0EB1E102K B 94.2/40.4

C185 4030017460 S.CER ECJ0EB1E102K T 90.5/40.3

C186 4030016930 S.CER ECJ0EB1A104K T 93/33.7

C190 4030017590 S.CER ECJ0EC1H070C B 72.3/30.9

C191 4030017650 S.CER ECJ0EC1H270J B 70.4/32.7

C192 4030017440 S.CER ECJ0EC1H221J B 70.4/24.4

C193 4030017580 S.CER ECJ0EC1H060C B 70.3/28.3

C194 4030017360 S.CER ECJ0EC1H030B B 69.3/28.3

C195 4030017360 S.CER ECJ0EC1H030B B 68.3/28.3

C196 4030017360 S.CER ECJ0EC1H030B B 78/33.4

C197 4030017590 S.CER ECJ0EC1H070C B 79.6/33.8

C198 4030017460 S.CER ECJ0EB1E102K T 84.8/33.1

C199 4030017360 S.CER ECJ0EC1H030B T 88.2/34.9

C200 4030017590 S.CER ECJ0EC1H070C T 86.1/34.9

C201 4030017600 S.CER ECJ0EC1H080C T 87/34.9

C202 4030017600 S.CER ECJ0EC1H080C T 88.2/34

C203 4030017640 S.CER ECJ0EC1H150J T 88.2/33.1

C204 4030017600 S.CER ECJ0EC1H080C T 87/31.7

C205 4030017570 S.CER ECJ0EC1H040B T 84.8/34

C206 4030017460 S.CER ECJ0EB1E102K T 84.8/35.8

C211 4030016970 S.CER ECJ0EB1C223K B 58.6/23.5

C212 4030017740 S.CER ECJ0EB1E821K B 60.2/25.4

C213 4030017740 S.CER ECJ0EB1E821K B 60.2/27.7

C214 4030016930 S.CER ECJ0EB1A104K B 55.4/25.4

C215 4030016950 S.CER ECJ0EB1A473K B 57/25.4

C221 4030016940 S.CER ECJ0EB1A393K B 56.1/6.3

C222 4030016790 S.CER ECJ0EB1C103K B 54.3/8

C223 4030016930 S.CER ECJ0EB1A104K B 56.1/8

C224 4030016970 S.CER ECJ0EB1C223K B 52.5/8

C230 4030016790 S.CER ECJ0EB1C103K B 48.7/5.1

C231 4030016790 S.CER ECJ0EB1C103K B 48/20.6

C232 4030016790 S.CER ECJ0EB1C103K B 85.5/9.2

C233 4550007090 S.TAN TEESVA 1A 226M8R B 98/16.8

C234 4030016790 S.CER ECJ0EB1C103K B 102.4/25.5

C235 4030016790 S.CER ECJ0EB1C103K B 97.8/21.2

C236 4030018560 S.CER C2012 JB 1A 475K-T B 96.3/20.8

C237 4030016790 S.CER ECJ0EB1C103K B 94.7/14.7

C238 4550007070 S.TAN TEESVP 1A 475M8R B 94.2/20.8

C239 4030016930 S.CER ECJ0EB1A104K B 93/17.1

C240 4030017460 S.CER ECJ0EB1E102K B 49.2/39.7

C241 4030017460 S.CER ECJ0EB1E102K B 50.5/21.1

C242 4030017460 S.CER ECJ0EB1E102K B 83.6/12

C246 4030017460 S.CER ECJ0EB1E102K B 31.3/3.5

C247 4030018860 S.CER ECJ0EB0J105K B 34.7/12.6

C248 4030016930 S.CER ECJ0EB1A104K B 48.1/14.6

C249 4030016930 S.CER ECJ0EB1A104K B 37.7/9.2

C250 4030016930 S.CER ECJ0EB1A104K B 43.9/6.8

C251 4030016950 S.CER ECJ0EB1A473K B 34.7/10.9

C252 4030016950 S.CER ECJ0EB1A473K B 34.7/9.2

C253 4030016950 S.CER ECJ0EB1A473K B 35.7/10.9

C254 4030016950 S.CER ECJ0EB1A473K B 42.3/8.5

C255 4030016950 S.CER ECJ0EB1A473K B 40.7/8.5

C256 4030016970 S.CER ECJ0EB1C223K B 42.3/9.5

C257 4030016930 S.CER ECJ0EB1A104K B 33.7/12.6

C258 4030017710 S.CER ECJ0EC1H181J B 41.9/16.6

C259 4030016930 S.CER ECJ0EB1A104K B 35/41.3

C260 4030016930 S.CER ECJ0EB1A104K B 45/11.1

C262 4030016930 S.CER ECJ0EB1A104K B 39.3/17.5

C263 4030016930 S.CER ECJ0EB1A104K B 32.7/16

C265 4030017770 S.CER ECJ0EB1E332K B 32.7/17.7

C266 4030017710 S.CER ECJ0EC1H181J B 35.7/16

C267 4030016930 S.CER ECJ0EB1A104K B 39.3/16.3

C268 4030016930 S.CER ECJ0EB1A104K B 36.9/37.1

C269 4030016930 S.CER ECJ0EB1A104K B 45.2/19.7

C271 4030017420 S.CER ECJ0EC1H470J B 45.8/31.2

C272 4030016930 S.CER ECJ0EB1A104K B 35.7/19.3

C297 4030017510 S.CER ECJ0EC1H680J B 45.2/38.1

C298 4030017420 S.CER ECJ0EC1H470J B 45.2/39.7

C301 4030016930 S.CER ECJ0EB1A104K T 85.2/31.7

C302 4030017420 S.CER ECJ0EC1H470J T 80/29.2

C303 4030018860 S.CER ECJ0EB0J105K T 80/30.2

C312 4030017900 S.CER ECJ0EB1C123K B 47.2/42.9

C314 4030017740 S.CER ECJ0EB1E821K B 45.2/41.3

[A]=USA-02 (F3021T) [B]=EUR-02 (F3022T) [C]=GEN-02 (F3023T)

[D]=USA-02 (F3021S) [E]=EUR-02 (F3022S) [F]=GEN-02 (F3023S)

7 - 4

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C315 4030016930 S.CER ECJ0EB1A104K B 43.2/37

C316 4030017420 S.CER ECJ0EC1H470J B 53.3/32

C317 4030016790 S.CER ECJ0EB1C103K B 55/33

C318 4030018140 S.CER ECJ0EB1H391K B 60.2/31

C319 4030017760 S.CER ECJ0EB1H222K B 58.4/32

C320 4030017460 S.CER ECJ0EB1E102K B 60.2/33

C321 4030017460 S.CER ECJ0EB1E102K T 85.8/4.6

C322 4030017420 S.CER ECJ0EC1H470J T 94.4/19.1

C323 4030016950 S.CER ECJ0EB1A473K T 94.5/14.3

C324 4550007110 S.TAN SY6-1A107M-RC B 96/4.1

C325 4550006250 S.TAN TEESVA 1A 106M8R T 93.9/24.1

C326 4550007080 S.TAN TEESVA 1C 106M8R T 98.5/14.3

C327 4030016930 S.CER ECJ0EB1A104K T 102.2/14.8

C328 4030017460 S.CER ECJ0EB1E102K T 102.2/13.8

C329 4030017460 S.CER ECJ0EB1E102K T 96.4/22.5

C330 4030016930 S.CER ECJ0EB1A104K T 96.3/26.7

C331 4030017460 S.CER ECJ0EB1E102K T 103.3/19.3

C332 4030017460 S.CER ECJ0EB1E102K T 80.5/4.6

C333 4550006250 S.TAN TEESVA 1A 106M8R T 83.1/3.4

C334 4030016930 S.CER ECJ0EB1A104K T 76.3/8.5

C335 4030018860 S.CER ECJ0EB0J105K B 55.4/24.4

C338 4030016930 S.CER ECJ0EB1A104K B 45.8/34.1

C339 4030016790 S.CER ECJ0EB1C103K B 45.8/30.2

C340 4030016930 S.CER ECJ0EB1A104K B 10.2/17.9

C345 4030016930 S.CER ECJ0EB1A104K B 18.7/38.4

C346 4030017600 S.CER ECJ0EC1H080C B 27.7/32.9

C347 4030017640 S.CER ECJ0EC1H150J B 26.3/33.4

C348 4030017400 S.CER ECJ0EC1H220J B 26.3/30.4

C349 4030016930 S.CER ECJ0EB1A104K B 25.1/29.4

C350 4030016930 S.CER ECJ0EB1A104K B 27.7/27.1

C351 4030016930 S.CER ECJ0EB1A104K B 26.6/27.1

C352 4030017030 S.CER ECJ0EB1A273K B 23.5/41.4

C353 4030016930 S.CER ECJ0EB1A104K B 9.7/4.7

C354 4030016790 S.CER ECJ0EB1C103K B 5.5/30.5

C355 4030017460 S.CER ECJ0EB1E102K B 52.8/5.1

C357 4030018910 S.CER C1608 JB 0J 475K-T B 29.1/23

C359 4030016930 S.CER ECJ0EB1A104K B 21.7/38.4

C360 4030017420 S.CER ECJ0EC1H470J B 20.2/34.9

C361 4030016930 S.CER ECJ0EB1A104K B 20.2/33.9

C366 4030017460 S.CER ECJ0EB1E102K B 99.4/40.4

C367 4030017730 S.CER ECJ0EB1E471K B 53.8/25.4

C368 4030016930 S.CER ECJ0EB1A104K B 49/27.4

C369 4030017430 S.CER ECJ0EC1H101J B 98.4/40.4

C370 4030016930 S.CER ECJ0EB1A104K B 49/25.4

C371 4030016930 S.CER ECJ0EB1A104K B 50.6/29.5

C372 4030018860 S.CER ECJ0EB0J105K B 49/24.4

C373 4030018860 S.CER ECJ0EB0J105K B 47.4/32.1

C375 4030017460 S.CER ECJ0EB1E102K B 100/14.7

C376 4030017420 S.CER ECJ0EC1H470J T 95.5/14.3

C377 4030017460 S.CER ECJ0EB1E102K B 26.6/24.2

C379 4030017460 S.CER ECJ0EB1E102K B 87.3/5.4

C384 4030018100 S.CER ECJ0EB1H681K T 61.7/15.5

C386 4030016930 S.CER ECJ0EB1A104K T 58.6/13.3

C387 4030016930 S.CER ECJ0EB1A104K T 60.9/14.6

C388 4030016930 S.CER ECJ0EB1A104K T 60.9/13.7

C390 4030016930 S.CER ECJ0EB1A104K T 78/18.8

C393 4030016930 S.CER ECJ0EB1A104K T 78/15.6

C394 4030016930 S.CER ECJ0EB1A104K T 70.6/15.2

C395 4030016930 S.CER ECJ0EB1A104K B 92.6/34.2

C396 4030017630 S.CER ECJ0EC1H120J B 90.9/19.3

C397 4030017630 S.CER ECJ0EC1H120J B 90.9/20.4

C398 4030017460 S.CER ECJ0EB1E102K T 70.3/34.8

C399 4550007120 S.TAN F92 1D 224MPA T 67.9/33.9

C400 4030017460 S.CER ECJ0EB1E102K T 71/24.5

C401 4030018860 S.CER ECJ0EB0J105K T 71/23.6

C402 4030017460 S.CER ECJ0EB1E102K T 97.2/26.7

C406 4030016930 S.CER ECJ0EB1A104K B 45.2/42.9

C409 4030016930 S.CER ECJ0EB1A104K B 14.7/34.4

C410 4030016930 S.CER ECJ0EB1A104K B 11.4/34.4

C412 4030017420 S.CER ECJ0EC1H470J T 80.5/6.4

C413 4030018110 S.CER ECJ0EB1H272K T 76.3/18.8

C420 4030017350 S.CER ECJ0EC1H020B T 86.1/20.7

C421 4550006780 S.TAN TEESVB2 0J 476M8R B 30.2/41.3

C422 4550006780 S.TAN TEESVB2 0J 476M8R B 53.5/16.4

C423 4030017730 S.CER ECJ0EB1E471K B 94.5/25.3

C424 4030016790 S.CER ECJ0EB1C103K B 60.2/22.5

C430 4030016930 S.CER ECJ0EB1A104K B 28.3/8

C432 4030016930 S.CER ECJ0EB1A104K B 60.2/28.7

C433 4030016930 S.CER ECJ0EB1A104K B 27.3/12.4

C435 4030017910 S.CER ECJ0EB1H152K T 71/20.7

C436 4030017910 S.CER ECJ0EB1H152K T 71/22.5

C437 4030017640 S.CER ECJ0EC1H150J B 87.6/38.8

C438 4030017660 S.CER ECJ0EC1H330J B 88.1/27.4

C439 4030017460 S.CER ECJ0EB1E102K B 89.4/27.4

C440 4030017460 S.CER ECJ0EB1E102K T 67.2/5.4

C441 4030017460 S.CER ECJ0EB1E102K B 83.5/31.9

C442 4030017460 S.CER ECJ0EB1E102K B 83.5/35.5

C443 4030017510 S.CER ECJ0EC1H680J B 88.1/28.9

C444 4030017460 S.CER ECJ0EB1E102K B 78.6/25.8

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

J2 6450002250 CNR HSJ1456-010320

J3 6450000131 CNR HSJ1102-018540

J5 6510025220 S.CNR AXK540145J B 16.3/10.3

DS1 5010000160 S.LED LNJ310M6URA T 57.3/5.9

DS2 5010000160 S.LED LNJ310M6URA T 57.3/40.3

DS3 5030002760 LCD L3-0200HAY-3 (-4)

MC1 7700002480 MIC SKB-2746 LPC

S1 2230001060 S.SW EVQ-PUL 02K T 102.2/36.1

S2 2260002840 SW SKHLLFA010

S3 2260002800 S.SW SW-167 (SKQTLAE010) B 61.1/44.2

S4 2260002800 S.SW SW-167 (SKQTLAE010) B 51.6/44.2

S5 2260002800 S.SW SW-167 (SKQTLAE010) B 99.6/44.2

EP1 6910015370 S.BEA ACZ1005Y-102-T B 73.5/26.9

EP3 6910015370 S.BEA ACZ1005Y-102-T B 58.4/36.3

EP6 6910015370 S.BEA ACZ1005Y-102-T T 79.5/28

EP7 8930063020 LCT SRCN-2721-SP-N-W

EP11 6910015370 S.BEA ACZ1005Y-102-T T 75.7/3.1

[PA UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC701 1110002751 S.IC TA75S01F (TE85R F) B 18.9/22.9

Q701 1560001231 S.FET RD07MVS1-T112 B 22.6/8.3

Q702 1560001241 S.FET RD01MUS1-T113 B 16/8.3

Q704 1530003260 S.TR 2SC5006-T1 T 6.7/11.9

Q705 1590002160 S.TR XP6401-(TX) T 19.9/22.7

Q706 1530002060 S.TR 2SC4081 T106 R T 21/19.8

D701 1750000581 S.DIO 1SV307 (TPH3 F) T 33.9/12.8

D702 1790001670 S.DIO RB706F-40T106 T 28.8/17.8

D703 1790001670 S.DIO RB706F-40T106 B 31.2/12.7

D704 1750000581 S.DIO 1SV307 (TPH3 F) B 28.8/15.8

D706 1750000581 S.DIO 1SV307 (TPH3 F) B 30.6/16.3

L701 6200002861 S.COL NLV25T-4R7J B 35.9/14.9

L702 6200007891 S.COL ELJRF 27NJFB B 18.8/12

L703 6200008490 S.COL 0.30-0.9-3TR 7.5N T 28/13.7

L704 6200008510 S.COL 0.30-0.9-4TR 10.5N T 24.2/14

L705 6200009760 S.COL 0.30-0.9-9TR T 19.2/13.7

L706 6200003590 S.COL EXCCL3225U1 T 17.4/17

L707 6200010991 S.COL ELJRF 47NJFB T 5.4/14

L708 6200008280 S.COL 0.30-1.7-7TL 50N T 32.8/10.5

L709 6200008170 S.COL 0.35-1.6-8TL 54N T 33.5/16.8

L712 6200009290 S.COL LQW18AN47NG00D B 33.1/15.8

L713 6200007760 S.COL LQW2BHN82NJ03L T 28.4/20.1

L714 6200009280 S.COL LQW18AN27NG00D B 28.7/18

R701 7030003380 S.RES ERJ3GEYJ 331 V (330) B 34.1/11.4

R702 7030003380 S.RES ERJ3GEYJ 331 V (330) B 34.1/12.7

R703 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 25.3/17.5

R704 7030007250 S.RES ERJ2GEJ 220 X (22) B 19.3/5.2

R705 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 18.7/2.5

R706 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 18.7/1.6

R708 7030005590 S.RES ERJ2GEJ 680 X (68) B 12/11.1

R709 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 9.8/10.9

R710 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 8.7/10.9

R711 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 22.4/17.5

R712 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 20.4/17.5

R713 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 17.4/23.9

R714 7030007330 S.RES ERJ1WRSJR15U (0.15) T 14/21.4

R715 7030005000 S.RES ERJ2GEJ 471 X (470) T 6.2/8.3

R716 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 22.7/22.7

R726 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 28.8/13.7

R730 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 7.2/8.3

R732 7030004980 S.RES ERJ2GEJ 101 X (100) T 6.2/9.9

R734 7030010040 S.RES ERJ2GEJ-JPW B 8.7/12.1

R735 7030010040 S.RES ERJ2GEJ-JPW B 10.3/12.1

R738 7030004980 S.RES ERJ2GEJ 101 X (100) B 17.8/12

R741 7030005530 S.RES ERJ2GEJ 100 X (10) B 15.7/24.2

R742 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) B 22.2/21.5

R743 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 21.2/21.5

R744 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 22.2/23.7

R745 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 19.5/19.7

R746 7030004990 S.RES ERJ2GEJ 221 X (220) B 17.8/20.7

[A]=USA-02 (F3021T) [B]=EUR-02 (F3022T) [C]=GEN-02 (F3023T)

[D]=USA-02 (F3021S) [E]=EUR-02 (F3022S) [F]=GEN-02 (F3023S)

7 - 5

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

[PA UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C701 4030017460 S.CER ECJ0EB1E102K T 35/11

C702 4030017430 S.CER ECJ0EC1H101J B 33.8/10

C703 4030017420 S.CER ECJ0EC1H470J B 34.8/10

C704 4030017390 S.CER ECJ0EC1H180J B 32.3/10

C705 4030007040 S.CER C1608 CH 1H 180J-T T 31.3/14.5

C706 4030007050 S.CER C1608 CH 1H 220J-T T 29.7/14

C707 4030017460 S.CER ECJ0EB1E102K T 26.8/17.5

C708 4030017510 S.CER ECJ0EC1H680J T 27.9/15.2

C709 4030017460 S.CER ECJ0EB1E102K T 21.4/17.5

C710 4030017460 S.CER ECJ0EB1E102K T 21.7/22.7

C711 4030007100 S.CER C1608 CH 1H 560J-T T 26.2/14

C713 4030017460 S.CER ECJ0EB1E102K B 31.3/10.3

C715 4030017420 S.CER ECJ0EC1H470J T 15.7/13.5

C716 4030016790 S.CER ECJ0EB1C103K T 14.7/13.5

C718 4030017460 S.CER ECJ0EB1E102K B 18/5.1

C719 4030017460 S.CER ECJ0EB1E102K T 13.7/13.5

C720 4030017680 S.CER ECJ0EC1H820J B 19/8.4

C722 4030017460 S.CER ECJ0EB1E102K B 14/12.9

C723 4030017460 S.CER ECJ0EB1E102K B 10.8/10.9

C724 4030017460 S.CER ECJ0EB1E102K T 19.4/18.1

C725 4030017460 S.CER ECJ0EB1E102K T 7.2/14

C727 4030017460 S.CER ECJ0EB1E102K T 9.9/14

C728 4030017380 S.CER ECJ0EC1H050B T 6.3/14

C729 4030017640 S.CER ECJ0EC1H150J B 12/12.1

C731 4030017380 S.CER ECJ0EC1H050B T 5.2/8.3

C732 4030017460 S.CER ECJ0EB1E102K T 11.2/18.7

C733 4030017420 S.CER ECJ0EC1H470J B 13.9/20.2

C734 4030017460 S.CER ECJ0EB1E102K T 16.3/2.5

C742 4030017460 S.CER ECJ0EB1E102K T 34.1/14.2

C744 4030017640 S.CER ECJ0EC1H150J T 31.6/16.9

C745 4030017550 S.CER ECJ0EC1H1R5B T 35.5/16.5

C746 4030017410 S.CER ECJ0EC1H240J T 31.3/18.4

C748 4030018860 S.CER ECJ0EB0J105K B 14.9/12.9

C750 4030018120 S.CER ECJ0EC1H110J B 32/15

C751 4030017630 S.CER ECJ0EC1H120J B 32/16.7

C752 4030017460 S.CER ECJ0EB1E102K B 26.6/17.9

C753 4030017460 S.CER ECJ0EB1E102K B 26.8/16.4

C754 4030017460 S.CER ECJ0EB1E102K B 29.2/12.5

C755 4030017420 S.CER ECJ0EC1H470J B 16.7/12.9

C756 4030017420 S.CER ECJ0EC1H470J B 15.8/12.9

C757 4030017460 S.CER ECJ0EB1E102K T 16.7/13.5

C758 4030017420 S.CER ECJ0EC1H470J T 16.3/1.6

C759 4030017460 S.CER ECJ0EB1E102K B 7.6/10.9

C760 4030017460 S.CER ECJ0EB1E102K B 21.2/19.9

C761 4030017460 S.CER ECJ0EB1E102K T 7.2/9.9

C763 4030016790 S.CER ECJ0EB1C103K T 8.1/14

C767 4030017460 S.CER ECJ0EB1E102K B 16.7/14.5

C768 4030017520 S.CER ECJ0EC1H0R3B T 29.4/15.8

C769 4030017520 S.CER ECJ0EC1H0R3B B 34.2/16.8

C780 4030017460 S.CER ECJ0EB1E102K B 15.7/22.6

C781 4030016930 S.CER ECJ0EB1A104K B 16.7/24.2

C782 4030017460 S.CER ECJ0EB1E102K B 14.7/23.7

C784 4030017420 S.CER ECJ0EC1H470J B 19.5/20.7

C785 4030016790 S.CER ECJ0EB1C103K B 21.2/23.7

C786 4550007600 S.TAN F920J106MPABMA T 17.7/21.1

C787 4030017580 S.CER ECJ0EC1H060C T 26.2/20.1

J701 6910017680 CNR IMSA-9230B-1-04Z140-PT1

J702 6910017680 CNR IMSA-9230B-1-04Z140-PT1

F701 5210000901 S.FUS 0467003.NR (0434003) B 12.7/20.2

EP711 6910015370 S.BEA ACZ1005Y-102-T T 9/14

EP712 6910012350 S.BEA MMZ1608Y 102BT B 14.6/14.4

[ANT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L801 6200008580 S.COL 0.30-1.4-6TL 32N T 4.2/12.3

L802 6200008280 S.COL 0.30-1.7-7TL 50N T 3.6/8.6

R801 7030005080 S.RES ERJ2GEJ 823 X (82 k) T 9/13.5

C801 4030017460 S.CER ECJ0EB1E102K T 9.6/7.4

C802 4030017380 S.CER ECJ0EC1H050B T 5.5/8.6

C803 4030017410 S.CER ECJ0EC1H240J T 1.8/14.1

C807 4030017620 S.CER ECJ0EC1H100C T 3.4/14.1

[CONNECT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L901 6200006190 S.COL BLM21PG300SN1D T 8.7/6

C901 4030017460 S.CER ECJ0EB1E102K T 5.6/6

C902 4030017420 S.CER ECJ0EC1H470J T 5.6/7

J901 6910015881 CNR 9230B-1-02Z141-PT1

[A]=USA-02 (F3021T) [B]=EUR-02 (F3022T) [C]=GEN-02 (F3023T)

[D]=USA-02 (F3021S) [E]=EUR-02 (F3022S) [F]=GEN-02 (F3023S)

7 - 6

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC1 1110006480 S.IC NJM2801U1-0543-TE1 B 10.2/62.3

IC2 1110003071 S.IC µPC494GS-E1-A B 13/36.7

IC3 1140012301 S.IC µPD789112AMC-534-5A4-A B 19.1/19.6

IC4 1110002700 S.IC NJM2904M-TE1 B 35.1/13.8

Q1 1530002060 S.TR 2SC4081 T106 R B 37.3/63.9

Q2 1550000090 S.FET RSQ035P03TR B 37.3/60.9

Q3 1530002060 S.TR 2SC4081 T106 R B 35.8/19.3

Q4 1530002060 S.TR 2SC4081 T106 R B 41.6/18.3

Q5 1590000430 S.TR DTC144EUA T106 B 23.7/26.6

Q6 1530002060 S.TR 2SC4081 T106 R B 22.5/58.2

D1 1730002350 S.ZEN MA8110-M (TX) B 17.6/60.5

D2 1750000550 S.DIO 1SS355 TE-17 B 34.8/64.4

D3 1750001110 S.DIO SM240A-T B 44.4/56

D4 1160000070 S.DIO DAN202K T146 B 26.9/20.6

D5 1750000550 S.DIO 1SS355 TE-17 B 27.2/15

X1 6060000790 S.CER CSTCR4M91G B 10.3/17.7

L1 6190001640 S.COL SLF12555T-101M1R1 B 35.3/52.7

L2 6200002611 S.COL NLV25T-R47J B 20.8/28.2

R2 7030000460 S.RES MCR10EZHJ 4.7 k B 20.3/58.6

R3 7030003410 S.RES ERJ3GEYJ 561 V (560) B 37.3/65.8

R4 7030003200 S.RES ERJ3GEYJ 100 V (10) B 34.6/61.1

R5 7030009580 S.RES ERJ8RSJ R12V B 31.8/73

R6 7030000540 S.RES MCR10EZHJ 22 k B 30.1/26.8

R7 7030000380 S.RES MCR10EZHJ 1 k B 30.1/29.6

R8 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 39.5/18.4

R9 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 13.8/30.5

R10 7030000740 S.RES MCR10EZHJ 1 M B 25.8/34.9

R11 7030000540 S.RES MCR10EZHJ 22 k B 24.8/37.8

R12 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 10.8/30.5

R13 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 19.3/34.5

R14 7030003770 S.RES ERJ3GEYJ 564 V (560 k) B 21/34.5

R15 7030003650 S.RES ERJ3GEYJ 563 V (56 k) B 21/40.3

R16 7030003770 S.RES ERJ3GEYJ 564 V (560 k) B 19.3/40.3

R17 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 22.7/40.3

R18 7030003410 S.RES ERJ3GEYJ 561 V (560) B 8.6/43.5

R19 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 16.7/42.1

R20 7030000560 S.RES MCR10EZHJ 33 k B 28.1/40.4

R21 7030000380 S.RES MCR10EZHJ 1 k B 26.3/28.6

R22 7030000440 S.RES MCR10EZHJ 3.3 k B 24/11.4

R23 7030000460 S.RES MCR10EZHJ 4.7 k B 24/8.8

R24 7030000260 S.RES MCR10EZHJ 100 (101) B 20.3/11.4

R25 7030000260 S.RES MCR10EZHJ 100 (101) B 20.3/8.8

R26 7030000500 S.RES MCR10EZHJ 10 k B 30.5/22

R27 7030007220 S.RES ERA3YED 202V (2 k) B 30.2/19.6

R28 7030011200 S.RES ERA3YEB 303V (30 k) B 30/18.1

R29 7030011190 S.RES ERA3YEB 103V (10 k) B 26.9/16.6

R30 7030005871 S.RES ERA3YKD 104V (100 k) B 40.4/15.1

R31 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 29.8/15.9

R32 7030005341 S.RES ERA3YED 332V (3.3 k) B 43.4/11.1

R33 7030000500 S.RES MCR10EZHJ 10 k B 31.7/9.8

R34 7030000740 S.RES MCR10EZHJ 1 M B 42.1/14.4

R35 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 40.4/12.2

R36 7030000460 S.RES MCR10EZHJ 4.7 k B 34.7/23.8

R37 7030005501 S.RES ERA3YKD 124V (120 k) B 33.6/21.3

R38 7030005671 S.RES ERA3YKD 393V (39 k) B 30.1/25.1

R39 7030000010 S.RES MCR10EZHJ JPW B 28.1/42.2

R40 7030000010 S.RES MCR10EZHJ JPW B 27.7/8.4

R41 7030000010 S.RES MCR10EZHJ JPW B 34.6/9.2

R42 7030008240 S.RES ERJ12YJ0R00U B 38.9/7.4

R43 7030000010 S.RES MCR10EZHJ JPW B 30.1/33.3

R44 7030000010 S.RES MCR10EZHJ JPW B 28.1/33.3

R45 7030000010 S.RES MCR10EZHJ JPW B 29.1/38

R46 7030000010 S.RES MCR10EZHJ JPW B 29.1/36.1

R47 7030000010 S.RES MCR10EZHJ JPW B 43.9/18.3

R48 7030008240 S.RES ERJ12YJ0R00U B 43/28.9

R49 7030000010 S.RES MCR10EZHJ JPW B 23.5/5.7

R50 7030008240 S.RES ERJ12YJ0R00U B 34.1/38.2

R51 7030000010 S.RES MCR10EZHJ JPW B 23.9/34.9

R52 7030000010 S.RES MCR10EZHJ JPW B 24.7/32

R53 7030008240 S.RES ERJ12YJ0R00U B 38.6/33.1

R54 7030000010 S.RES MCR10EZHJ JPW B 34.4/33

R55 7030000010 S.RES MCR10EZHJ JPW B 32/60.1

R56 7030000010 S.RES MCR10EZHJ JPW B 42.1/41.5

R57 7030000010 S.RES MCR10EZHJ JPW B 37.2/41.5

R58 7030000010 S.RES MCR10EZHJ JPW B 24.9/57

R59 7030000010 S.RES MCR10EZHJ JPW B 27.6/49.3

R60 7030000010 S.RES MCR10EZHJ JPW B 16.3/58.3

R61 7030000010 S.RES MCR10EZHJ JPW B 4.9/31.7

R62 7030000010 S.RES MCR10EZHJ JPW B 39.1/41.5

R63 7030000010 S.RES MCR10EZHJ JPW B 31.4/43.6

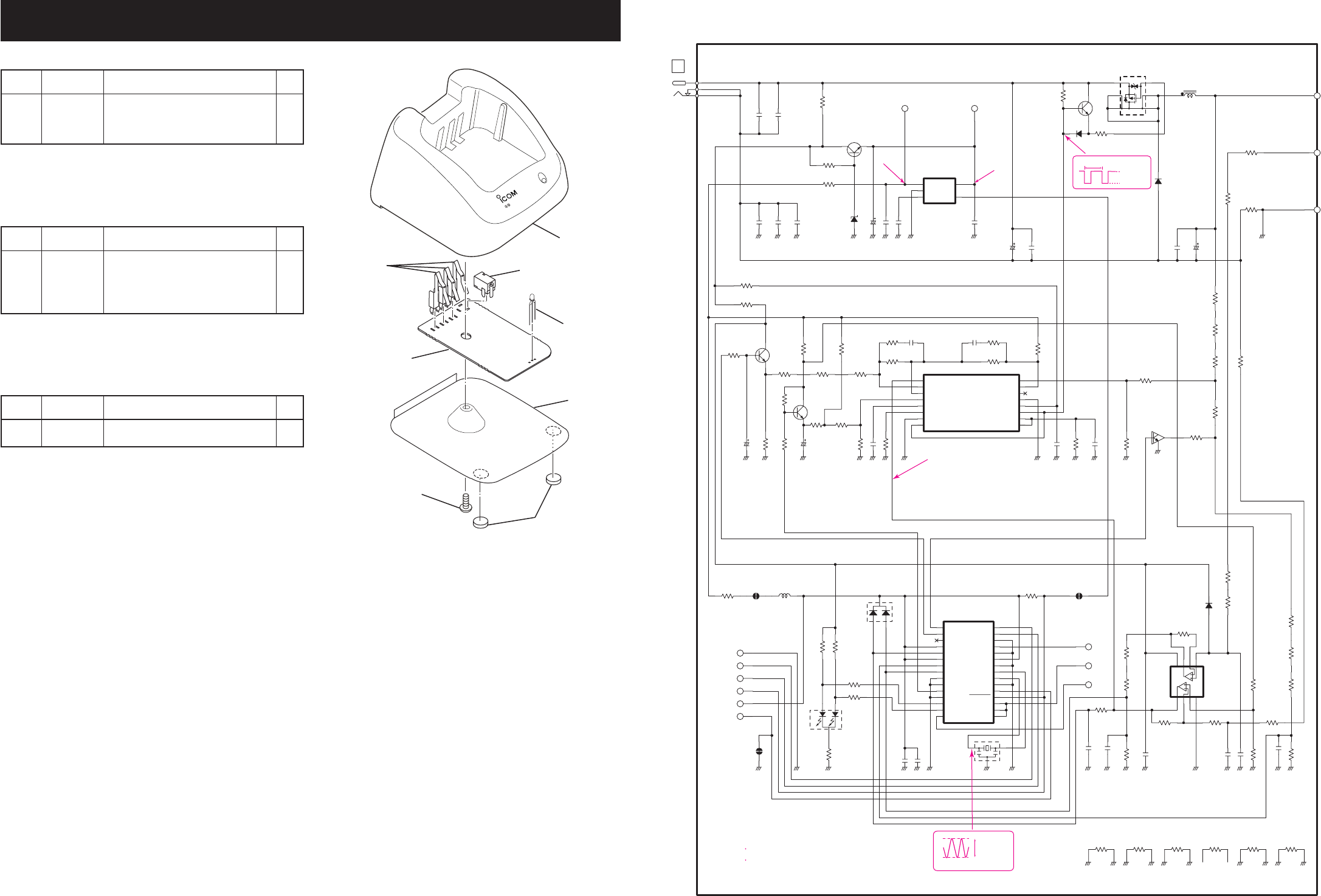

• BC-160 (Optional product) [MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R64 7030000010 S.RES MCR10EZHJ JPW B 40.1/38.7

R65 7030000010 S.RES MCR10EZHJ JPW B 4.9/49.5

R66 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 8.2/13.6

R67 7030000100 S.RES MCR10EZHJ 4R7 (4.7) B 10.2/45.1

C1 4030006900 S.CER C1608 JB 1H 103K-T B 44.5/70.7

C2 4030006900 S.CER C1608 JB 1H 103K-T B 48.2/73.5

C3 4030006860 S.CER C1608 JB 1H 102K-T B 44.5/67.8

C4 4030006900 S.CER C1608 JB 1H 103K-T B 32.9/69.7

C5 4030006900 S.CER C1608 JB 1H 103K-T B 32.9/71.1

C6 4510008540 S.ELE EEE1CA100SR B 17.5/63.8

C7 4030011600 S.CER C1608 JB 1E 104K-T B 13.4/60.8

C8 4030006900 S.CER C1608 JB 1H 103K-T B 9.2/58.7

C9 4030011600 S.CER C1608 JB 1E 104K-T B 13.4/63.8

C10 4510009150 S.ELE EEE1EA470WP B 43.6/62.8

C11 4030006900 S.CER C1608 JB 1H 103K-T B 35.8/67.9

C12 4030006900 S.CER C1608 JB 1H 103K-T B 32.4/67.9

C13 4510009150 S.ELE EEE1EA470WP B 26.5/62.8

C14 4510008660 S.ELE EEE0JA220SR B 34.3/28

C15 4510008660 S.ELE EEE0JA220SR B 40.8/23.8

C16 4030006860 S.CER C1608 JB 1H 102K-T B 12.3/30.5

C17 4030011600 S.CER C1608 JB 1E 104K-T B 19.3/37.4

C18 4030006900 S.CER C1608 JB 1H 103K-T B 21/37.4

C19 4030006900 S.CER C1608 JB 1H 103K-T B 13.1/42.2

C20 4030009980 S.CER C1608 JB 1H 152K-T B 8.6/42.1

C21 4030011600 S.CER C1608 JB 1E 104K-T B 9.5/21.9

C22 4030006900 S.CER C1608 JB 1H 103K-T B 19/25.5

C23 4030006900 S.CER C1608 JB 1H 103K-T B 26.9/23.2

C24 4030006900 S.CER C1608 JB 1H 103K-T B 26.9/18

C25 4030004760 S.CER C2012 JF 1H 104Z-T B 33.2/17.5

C26 4030006900 S.CER C1608 JB 1H 103K-T B 41.9/11.1

C27 4030006900 S.CER C1608 JB 1H 103K-T B 29.5/12.6

C28 4030006900 S.CER C1608 JB 1H 103K-T B 30.1/23.7

J1 6510024940 CNR HEC2305-016250

DS1 5040002740 LED RT3-03HRYG

SECTION 8 MECHANICAL PARTS AND DISASSEMBLY

8 - 1

Screw abbreviations

BT: Self-tapping PH: Pan head

ZK, ZK3: Black FH: Flat head

NI: Nickel SUS: Stainless

EP1 EP2 MP1

MP2

MP3

MP4

J1 6910015910 Connector ANT connector-104 1

J2 6910015860 Connector IMSA-6277S-02A-G 1

SP1 2510001060 Speaker K036NA500-47 1

W1 8900009640 Cable OPC-963 1

MP1 8010020410 2927 chassis 1

MP2 8210022970 2927 T-front panel assembly [10-key] 1

8210022980 2927 S-front panel assembly [4-key] 1

MP8 8210020550 2721 rear panel 1

MP9 8310066450 2927 window plate 1

MP10 8930069510 2927 window sheet 1

MP12 8930069490 2927 keyboard [10-key] 1

8930069700 2927 4-key [4-key] 1

MP13 8930069500 2927 main seal 1

MP14 8930063060 2721 T-rubber 1

MP16 8930069460 2927 side plate 1

MP17 8930069470 2927 top plate 1

MP20 8930061880 2721 MIC sponge 1

MP21 8930059360 2600 release button 1

MP22 8930070360 2775 release plate (A) 1

MP24 8610012970 Knob N350 1

MP25 8830002900 2927 ANT nut 1

MP26 8810009561 Screw PH BT M2 × 6 NI-ZK3 2

MP27 8810009221

Screw PH BT M2

8 NI-ZK3

MP28 8810008641

Screw FH BT M2

4 NI-ZC3

MP31 8810010430 Screw trass M3 × 5 SUS SSBC 1

MP32 8310066810 2927 option plate 1

MP33 8930046020 1123 sheet (A)-1 1

MP34 8930056540 Push spring (AH) 2

MP35 8830001700 VR nut (Q) 1

MP36 8930048870 2056 A-sponge 1

MP37 8930070010 2893 VOL rubber 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[CHASSIS PARTS]

J2 6450002250 Connector HSJ1456-010320 1

J3 6450000131 Connector HSJ1102-018540 1

R315 7210003061

Variable resistor TP76N00N-15F-A103-2251A

DS3 5030002760 LCD L3-0200HAY-3 1

MC1 7700002480 Microphone SKB-2746 LPC 1

S2 2260002840 Switch SKHLLFA010 1

EP7 8930063020 LCD contact SRCN-2721-SP-N-W 2

MP1 8510016130 2721 VCO case 1

MP2 8510016120 2721 VCO cover 1

MP3 8930069480 2927 LCD holder 1

MP4 8210020570 2721 reflector 1

MP5 8930070080 White sheet (V) 1

MP6 8510017720 2927 main shield 1

MP9 8930070700 Insulation sheet (LQ) 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[MAIN UNIT]

J701 6910017680 Connector IMSA-9230B-1-04Z140-PT1 1

J702 6910017680 Connector IMSA-9230B-1-04Z140-PT1 1

MP701* 8410002530 2681 PA heatsink 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[PA UNIT]

MP801 8510017640 2927 ANT plate 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[ANT UNIT]

J901 6910015881 Connector 9230B-1-02Z141-PT1 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[CONNECT UNIT]

EP1

Optional product

Antenna FA-SC55V-1 1

EP2

Optional product

Battery pack BP-231 1

MP1

Optional product

Belt clip MB-94 1

MP2 8310066810 2927 option plate 1

MP3 8210022780 2927 jack panel 1

MP4 8810004861 Screw PH M2 × 6 ZK3 2

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[ACCESSORIES]

*: Refer to SECTION 10 BOARD LAYOUTS.

8 - 2

MP2* (C)

MP33 (C)

MP20 (C)

SP1 (C)

MP12* (C)

MAIN Unit

MP28 (C)

MP6 (M) MP1 (M)

MP5 (M)

MP4 (M)

EP7 (M)

DS3 (M)

MP3 (M)

MP28 (C)

R315 (M)

MP2 (M)

MP28 (C)

J701 (P)

J901 (CN)

PA Unit

CONNECT Unit

MP28 (C)

ANT Unit MP1 (C)

MP801 (A)

MP17 (C)

MP35 (C)

J1 (C)

MP8 (C)

MP31 (C)

MP13 (C)

MP14 (C)

MP26 (C)

MP27 (C)

MP9 (C)

MP10 (C)

J2 (C)

J2 (M)

J3 (M)

MC1 (M)

S2 (M)

W1 (C)

MP32 (C)

UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT, (P): PA UNIT, (CN): CONNECT UNIT, (A): ANT UNIT

MP37 (C)

MP21 (C)

MP22 (C)

MP34 (C)

MP36 (C)

MP16 (C)

MP24 (C)

MP25 (C)

J702 (P)

MP9 (M)

120 (4 23/32)

3.7 (9/64)

15.4 (39/64)

53 (2 3/32)

17.8 (45/64)

32.5 (1 9/32)

38.9 (1 17/32)

1.7 (1/16)

5.2 (13/64)

1.7 (1/16)

2.4 (3/32)

167 (6 37/64)

Unit: mm (inch) * MP2 (C), MP12 (C): The shape is depending on the version.

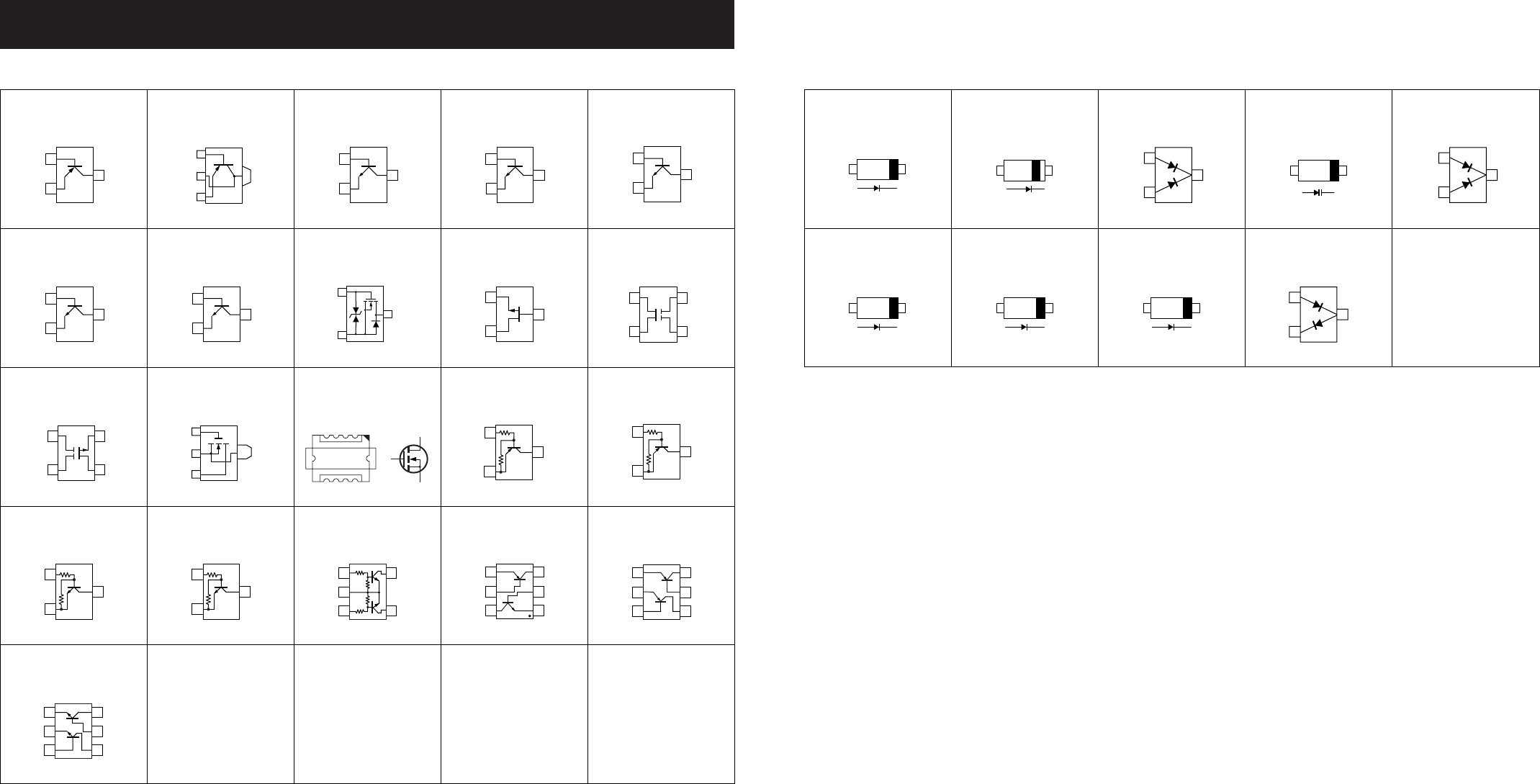

SECTION 9 SEMICONDUCTOR INFORMATION

• TRANSISTORS AND FET's • DIODES

9 - 1

2SA1577 T106 R 2SB1132 T100 R 2SC4081 T106 R 2SC4116 BL 2SC5006 T1

2SC5107 O 2SC5700 2SK3019 2SK880 Y 3SK293

3SK324UG-TL-E RD01MUS1 RD07MVS1 UNR9111J UNR9113J

UNR9210J UNR9213J XP1214 XP4601 XP6401

XP6501 AB

(Symbol: HR) (Symbol: BAR) (Symbol: BR) (Symbol: LL) (Symbol: 24)

(Symbol: MFO) (Symbol: WB-) (Symbol: KN) (Symbol: XY) (Symbol: UF)

(Symbol: UG-) (Symbol: K2) (Symbol: RD07MVS1) (Symbol: 6A) (Symbol: 6C)

(Symbol: 8L) (Symbol: 8C) (Symbol: 9H) (Symbol: 5C) (Symbol: 5O)

(Symbol: 5N)

AC AC AC

ACC

AC C

1SV239 1SV307 DAN222TL HVC375B HVC376B

MA2S077 MA2S111 MA2S728 RB706F-40 T106

(Symbol: TC) (Symbol: TX) (Symbol: N) (Symbol: B8) (Symbol: B9)

(Symbol: S) (Symbol: A) (Symbol: B) (Symbol: 3J)

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105H0

V10

V15

V25

V30

V35

V20

V45

V40

to SPEAKER

“SP1” (CHASSIS)

GND

TOP

SWITCH

MIC

741

0852

#963

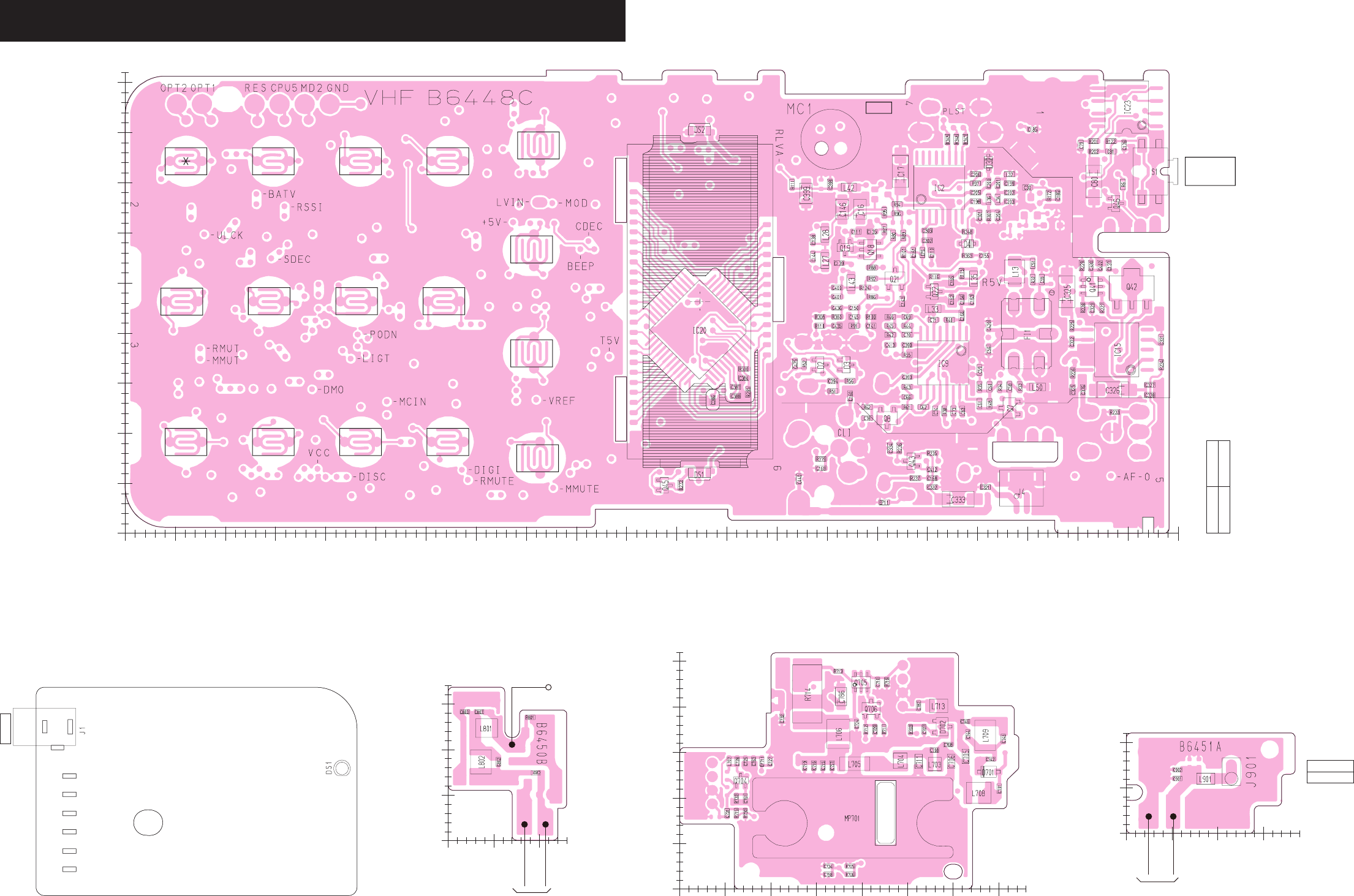

SECTION 10 BOARD LAYOUTS

10 - 1

• BC-160 (TOP VIEW)

• ANT UNIT (TOP VIEW)

• CONNECT UNIT (TOP VIEW)

• PA UNIT (TOP VIEW)

H5 H10 H15 H20 H25 H30 H35H0

V10

V15

V25

V20

H5 H10 H15H0

V10

J901

VCC

to PA unit

GND

VCC

to Battery Connector

“J2” (CHASSIS)

H5 H10H0

V10

V15

GND

ANT J1

(CHASSIS)

to PA unit

DC IN

(No patterns)

• MAIN UNIT (TOP VIEW)

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105 H0

V10

V15

V25

V30

V35

V20

V45

V40

201

2140

OPV1

OPV2

OPV3

GND

OPT3

OPT2

OPT1

SIGO

BUSY

BREF

DMI

MCIN

DMO

MCOT

PTTO

PTTI

GND

D_IF

GND

CCK

CSI

CSO

CIRQ

CSS

REM

DAFO

AFOUT

DISC

RMUT

BEPO

AFON

MMUT

VCC

+5V

GND

D_IF

SIDE1

PTT SIDE2

EXT

MIC

VR &

POWER

SWITCH

EXT

SPEAKER

SIDE3

ISENS

APC

GND

PA unit

“J702”

VCC

T5V

GND

to PA unit

“J701”

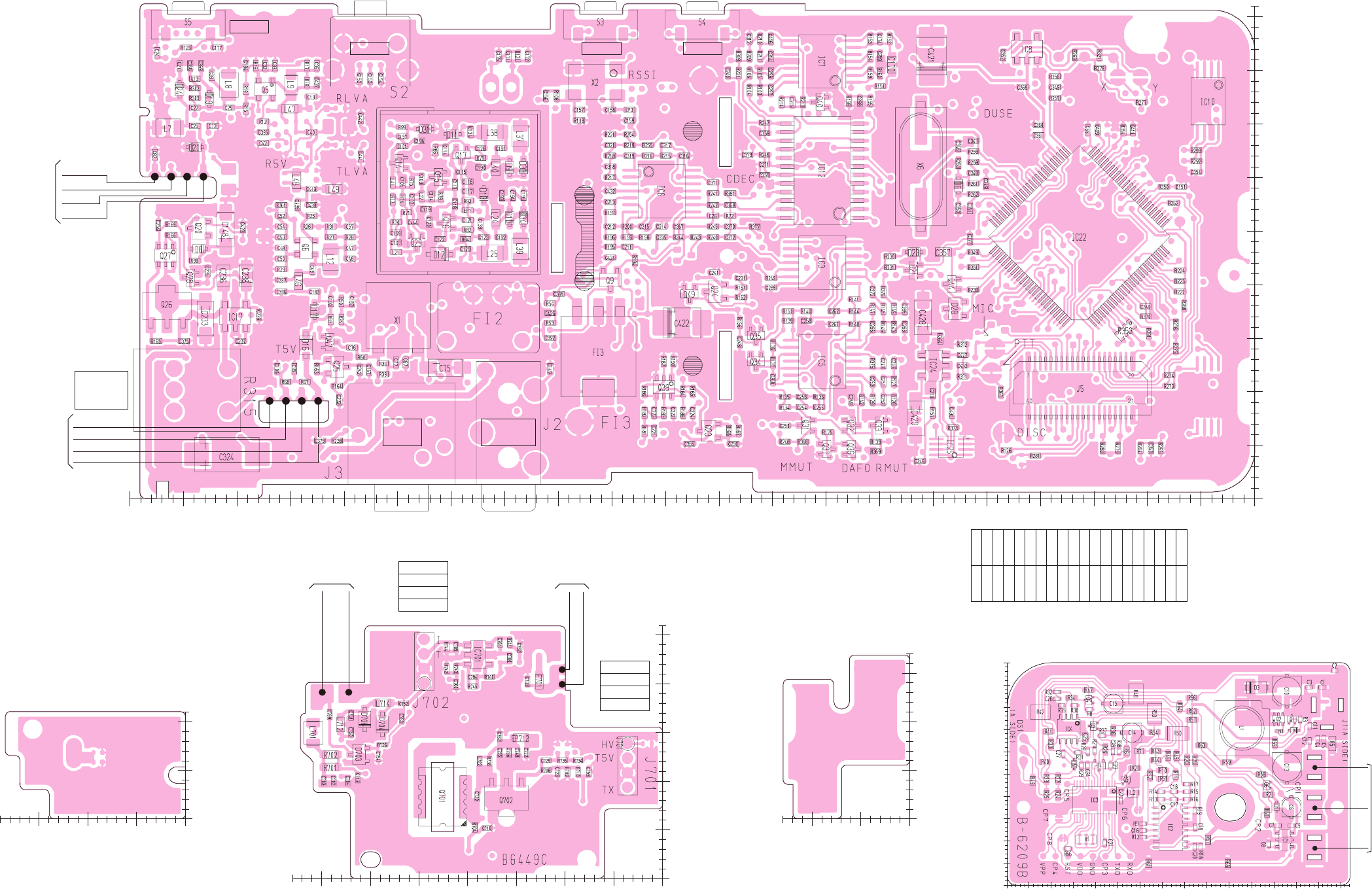

10 - 2

H5H10H15H20H25H30H35 H0

V10

V15

V25

V20

J701

GND

T5V

VCC

to MAIN unit

J702

GND

APC

ISENS

to MAIN unit

GND

VCC

to ANT unit

CONNECT unit

“J901”

• PA UNIT (BOTTOM VIEW)

H5H10H15 H0

V10

H5H10 H0

V10

V15

• CONNECT UNIT

(BOTTOM VIEW)

• ANT UNIT

(BOTTOM VIEW) • BC-160 (BOTTOM VIEW)

H5H10H15H20H25H30H35H40H45H50 H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

CHARGE

to Battery

VSENS

GND

• MAIN UNIT (BOTTOM VIEW)

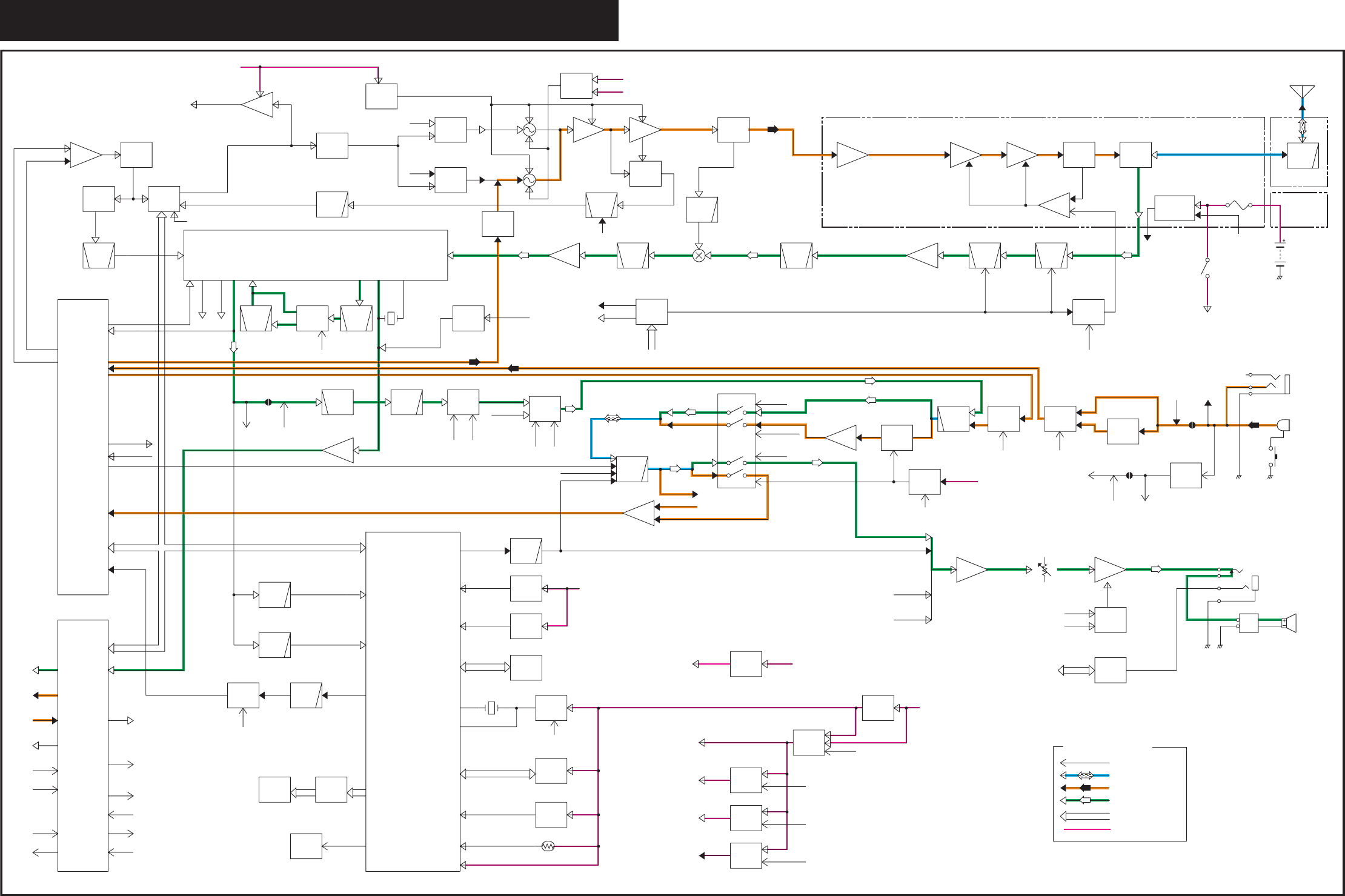

SECTION 11 BLOCK DIAGRAM

11 - 1

Explanatory notes

+B LINE



LPF

IC6

LM2902PWR

LPF

DTMF ENCODE

IC6

LM2902PWR

LPF

IC7

NJM12902V

RESET

IC8

BD5242G

SHIFT

MA2S077

ANT

CURRENT

DET

D701: 1SV307

D704: 1SV307

D706: 1SV307

PWR

AMP

Q701

RD07MVS1

TX/RX

D16:1SV307

D17: MA2S077

RX VCO

Q17

2SC5006

TX VCO

Q16

2SC5006

RIPPLE

FIL

Q20

2SC4116

FIL

LOOP

PLL

S5V

IC2

MB15A02PFV1

PLST

SCK

SSO

ULCK

Q22

2SC5006

CDBCB450KCAY24

Q47

UNR9213J

CR-774

12.288MHz

AMP

IC5

NJM13403V

MOD

D12

1SV239

3SK324

BPF BPF

D19

HVC375B

BPF RF

AMP

3SK293

APC

AMP

IC701

TA75S01F

XTAL

BPF

FI1

FL-335

AMP

2SC5107

CERAMIC

BPF

FI2

CFWLB450K

450KHz

AMP

IC15

TA7368FG

SP1

BUFF

Q29

2SC5006

BUFF

Q15

2SC5006

BUFF

Q21

2SK880

FIL

Q40

UNR9213J

DRIVE

AMP

Q702

RD01MUS1

MC1

SKB-2746

PTT SW

PTT

DET

Q43: UNR9111J

AF VOL

R315

TP76N00N

TCXO

PWR

CTRL

Q41: XP6501

Q42: 2SB1132

D21: DAN222

D23: MA2S111

TLV

ADJ

D10: HVC376B

D13: HVC375B

D34: HVC376B

RLV

ADJ

D9 : HVC376B

D11: HVC375B

D33: HVC376B

HPF

IC5

NJM13403V

LPF

IC5

NJM13403V

R256

ERTJ0EP473J

HSJ1456-010320

HSJ1102-018540

Q44: UNR9210J

D28: RB706F

CLONE

BUFF

BM02B-ASRS-TF

LPF

HPF

IC5

NJM13403V

RXMUTE

Q32: 2SK3019

Q33: UNR9213J

TMUTE

Q46

UNR9213J

PWR

DET

D702: RB706F

D703: RB706F

Q705: XP6401

Q706: 2SC4081

PRE

DRIVE

Q704

2SC5006

BATTERY_1

BT3

F701

0467003.NR

1 2

BUFF

IC7

NJM12902V

CERAMIC

BPF

FI3

SFPKA450K

LCD

DRIVER

IC20

LC75834W

LSO

LSCK

LCS

LINH

LCD

DS3

KEY

MATRIX

BUFF

2SC4215

BUFF

IC6

LM2902PWR

Q35

UNR9213J

ALC

IC24

AN6123MS

MIC

MUTE

Q31: 2SK3019

A/D

IC25

TC7W53FK

AMP

IC7

NJM12902V

EEPROM

IC10

HN58X2464TI

IC23

M62334FP

D/A

DAFO

Q36: 2SK3019

Q37: UNR9213J

VCO

Q18: XP1214

Q19: UNR9213J

Q14

2SC5700

D31: MA2S077

D32: MA2S077

GAIN

Q34: 2SK3019

A/D

W/N

Q9: DTA114EU

D2: DAN235

D3: DAN235

LPF

LIGT

Q45: UNR9113J

DS1: LNJ310M6URA

DS2: LNJ310M6URA

MONI

SW-167

EMER

EVQ-PUL

BPF

LPF

BPF

D24

HVC375B

REG

Q23

2SA1577

CPU5

REG

IC17

NJM2870

REG

Q24: 2SA1577

Q49: UNR9213J

REG

Q25

2SA1577

REG

Q26: 2SB1132

Q27: XP6501

Q28: UNR9213J

BIAS

IC7

NJM12902V

SDEC

CDEC

RES

CENC0-2

REM

SENC

D/A

IF IC

IC9: TA31136FNG

LVIN

S5V

R5V

CTCSS/DTCS

DUSE

CONTROL LINE

COMMON LINE

TX LINE

RX LINE

DATA LINE

APC

PDET

TMUT

NOIS

CPU

IC22

IC12

M62364FP

REF

BAL

15.3 MHz

CR-783

45.9 MHz

SQLC

46.35 MHz

T5V

TONE

CTCSS/DTCS

DECODE

Q39

XP4601

MAIN UNIT

CSFT

MIX

MOD

BEPO

CTCSS/DTCS

MODI

IC3

CD4066BPWR

ANALOG

TEMP

OPTION CONNECTOR

AFONO

BUSY

DISC AFOUT

PTTI PTTO

MCIN MCOT

SIGO J5

AXK540145J

OPTION

CONNECTOR

AFON

AFONO

PTTO

CLO

CLI

BEEPO

PTTI

AFOUT

PTTO

DISC

MCIN

MCOT

T5V

ISENS

ANT UNIT

PA UNIT

RSSI

DMO

DMI

OPTION

CONNECTOR

DMO

DMI

DAFO

VCC

DAFO

OPTION

CONNECTOR

T5V

MMUTE

DIGI

RMUT

EXT SPEAKER

MMUTE DIGI

RLVA

TLVA

NWC RLVA

CONNECT

UNIT

DTMF/DEC

DIGI

RMUT

DSDA

SCK

MCGO EXT MIC

MIC

AFOUT

CLONE

MMUTE

SIGO

BEEP

DAST

SCK

SSO

BEEPO

D_IF

S5V

BEPO

VREF

APCV

LIGT

DIGI

TONE

+5V MONI

EMER

182.35MHz

220.35MHz

136

174MHz

S5C

+5V

CPU5

T5C

PODN

CPU5

S5V

R5C

R5V

+5V

VCC

T5V

+5V

VCC

+5V

ESDA

ESCL

CPU5

KRO-4

KRO-3 +5V VREF



LPF

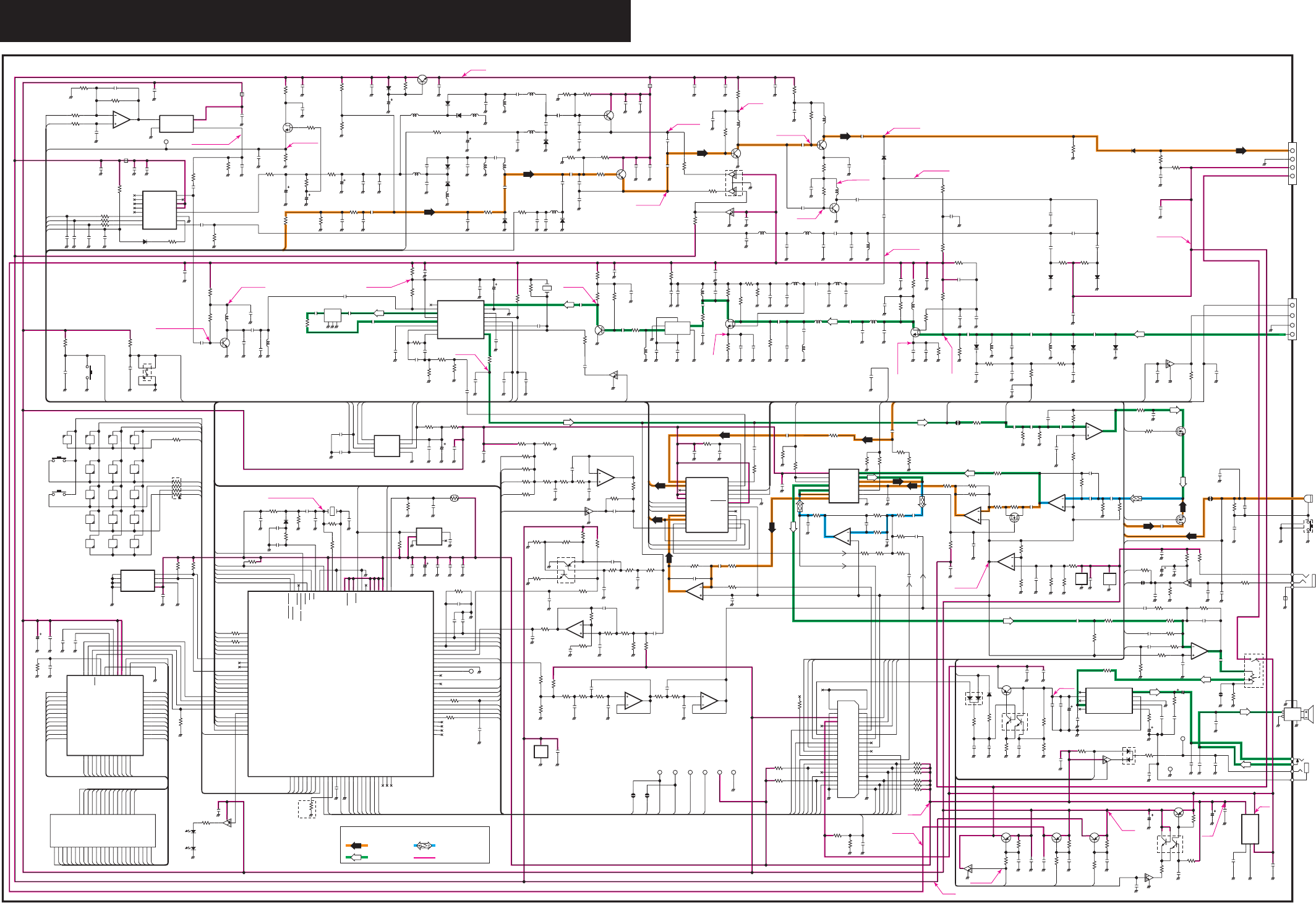

SECTION 12 VOLTAGE DIAGRAMS

12 - 1

%XPLANATORYNOTES

6/,4!'%,).%

48,).%

28,).%

#/--/.,).%

#



#



#

P

#

P

#



#



$

36

#



,

M(

#



#



#

P

#



,

M(

#



#

P

#

 #

P

#

P

#



#

P

#

P

#

P

2

K

2

K

#

P

#



#



#

P

#

P

#

P

8

#$"##8

#



#

P

#

P

#



#

P

#



#



#

P

#



#



#



#

P

#



#



#



#

P

#

P

#

P

#



#



#



#

P

#



#



#



#



$

-!3

$

-!3

#42,

'.$

." 

6/54



6).

#



#



#



#



#



#



#









#



#



#



#



$

-!3

-#

3+"

#



#

P













#

P

#



#

P

#



#



#



#



#

P

#



#

P

#



#



# 

#



#



$

2"&

#



#



#

P

# P

#

P

$

-!3

#



#



#



#



#



#



03

03

03

03

03

03

03

03

3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3

 3



3



3



3



3



3



3



3



3



3



3



#/-



#/-



#/-



#/-



6$$



6,#$



6,#$



6,#$



633



/3#



).(







#

P

#



#



#

P

#



#

P

#



#

-!3

$











*



















*











3

%6105,

2

%24*%0*

'.$



#

#

!#:9

%0

%0

!#:9







2

40..

#

P

&8

$3



3%' 

3%' 

3%' 

3%' 

3%' 

3%' 

3%' 

3%' 

3%' 

3%' 

#/- 

#/- 

#/- 

#/-

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

 3%'

#0

#0

3

37

3

37

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

+%9

3

#0

#0

$3

,.*-52!

$3

,.*-52!

#0



#

2



2

K

2

K

2

 2

M

2

K

2

K

2

K

2

K

2



2

K

2

K

2

K

2

K

$

(6#"

$

(6#"

$

(6#"

$

(6#"

$

(6#"

#

0

#



#



#

P

#

P

#

P

#

0

#

P

,

M(

,

M(

,

M(

,

M(

,

M(

,

N(

,

N(

,

M(

,

N(

2

K

2

K

2

K

2

K

2



2



2

K

2



2

M

2

M

2



2



2

K

2

K

2

K

2

K

2

K

2



2

K

2

K

2

K

2

K

2

K

2

K

2

K

2

K

2

K

2

K

2

K

2



2



2

K

2



2

K

2



2

-

2 K

2

K

2

K

2 K

2

K

2

K

2

K

2 K

2

K

2



2

K

2



2



2

K

2

K

2

K

2

K

2

K

2

K

K

2

K

2

2

K

K

2

K2

K2

K2

2

K

2

K

2

K

2

8

#2

2



#

P

2

K

46

!0#

#0

#0

2

K

#

P

#

P

P

#

#

P

#

P

2





#

6).

6/54

6/54

6).

6$$

,$

#,+

$)

6).

 6/54

 6/54

 6). 

6).



6/54



6/54



6).





6$!2%&



2%3%4



'.$



6).



6/54



6/54



6).

2

K

2

K

2

K

2

K



#

2

K

2



%0

!#:9

%0

!#:9

#



K

2

2

K

2

K

2



2

K

,

M(

K

2

2

K

2

K

2

*07

#

P

,

M(



#



#

P

#

#

P

2



2



2

K 2

K

#

P

$

-!3

#



2

K

#

P

#



2

K

2

K

2

K

#

P

#

P











2

K

2

K

#



2

K

2

K

2

K

2

K

2

K

#



#

























#



1

3+

#0 2



2

K

#



#



#



#



2





)/ 

/) 

/) 

)/ 

#/.4 

#/.4 

633

)/

/)

 /)

 )/

 #/.4

 #/.4

 6$$

2

K

2

K

2

*07 2

K

2

K

2

K

2

K

2



#



#



#



#

P

#

P

#



K

2

2

K

2*07

K

2

K

2

K

2

K

2

K

2

K

2

K

2

#



P

#

P

#



#



#

2

K

#



#



#



#



2

*07

#



2

K

#



#



#



#

#



#

#



#



#



#



#



#



#



#

#



#



#



#



#



#



#



#



#



#



#



#



#

#



-

2

-

2

-

2

-2

-2

-

2

K

2

K

2

6



'.$



#





/54 

'.$

'.$





2

K

K

2

K

2

#



6##

'.$

#



$

$!.



#



#

P

#

-!3

$

)3%.3

2

K

!/

!/

!/

!/ 

'.$



3$!



3#,



6##

2

K

2



#



2

K

6



'.$



#



#



#



#



#

P

!

!

!

633 

3$!



3#,





6##

#



2

K

$

(6#"

$

36

$

(6#"

$

(6#"

$

-!3

/3#).

/3#/54

-)8/54

6##

)&).

$%#

&),/54

&),). 

!&/54



15!$



)&/54



233)



.$%4



.2%#



'.$



-)8).

.#

6##

.#

6).

2)00,% 



0(!3%



02%'.$



07'.$



0/54

0%$

0%$

0%$

0$$

0$$

0$$

0$$

0$$

0$$

 0$$

 0$$

 #6##

 0#!

 633

 0#!

 0#!

 0#!

 0#!

 0#!

 0#!

 0#!

 0"!4)/#!

 0"!4)/#"

 0"!4)/##

 0"!4)/#$



0"!4)/#!



0"!4)/#"



0"!4)/#!



0"!4)/#"



0!!



0!!48$



0!!28$



0!!3#+



04)/#!!



04)/#"!



04)/##4#,+



04)/#$4#,+



04)/#!)21



04)/#"4#,+



04)/#!)21



04)/#"4#,+



!633



0$!



0$!



0!.



0!.



0!.



0!.



0!.



0!.



0!.



0!.



62%&



!6##



-$



-$



/3#



/3#



2%3



.-)



34"9



6##



84!,



633



%84!,



&7%



-$



0&



0&!3



0&2$



0&(72



0&,72!$42'



0&7!)4



0&"!#+"5::



0&"2%1)21

 048$

 028$

 03#+3$!

 03#+3#,

 028$3$!

 03#+3#,

 0

 048$

 028$

 04-/3#+

 04-/-2%3

 04-/#3

 04-/#3

 04-2)

 04-2)

 0')21

 0'#3)21

 0'#3

 0'#3

 0'#3

 0%$

 0%$

 0%$

 0%$

 0%$

#0

#0

#0

#0

#0

#0

!8+*

/04)/.

#/..%#4/2

*















































































K

2

P

#

#



#

P #

P

#



2



P

#

#



K

2

2

K

K

2



#

#03

#0

,

M(

,

N(

2

K

#

P

*07

2

2

K

#

P

#

P

2

-



#

#



#



#

#



#



#

P

2

K

2

K

2

K

#





#

2

K

2

K

2

K

2



2

K

2

K

2

K

#



#



2



2

K

#



#



#

P

#

P

#

P

#



2

K

P

#

P

#



#

K

2



#

#

P

#

P

#

P

#

P

#

P

,

U(

#



/54

6$$

633 



2

K

2





/3#). 

/3#/54 

60 

6## 

$/ 

'.$ 

,$ 

&).

#,/#K

 $!4!

 ,%

 &#

 .#

 &/54

 0

 "

2

K

&)

#&7-&

2

K

K

2

2

K

*07

2

























2

K #



6



'.$



K

2

6#/.

'.$ 

/54



6##

2

K

2

*07



#

P

#

2

K

#



2

K

2



2

K

#



2

K

#



#



2

K

2

K

2

K

2

K

#



#



#





2



#



#

K

2

2K

2K

#



#



2

K

,

N(

,

N(

#



P

#

#

P

2

K

2



2

K

,

N( #



#



#

P

P

#

2

K

M(

,

2

K

#

P

#

P

,

P(

#

P

,

N(

2

K

2

#

P



2

2

K

#

P

#



#

P

#

P

#

P

#

P

P

#

2



2

*07

#



2

K

2



,

##

,

##

2

K



#

K

2

K

2

#

P

#

P

#



2

K

2

K

2

K

2

K

2

K

2



#



2

-

2

K

#



2

K 2

K

,

M(

,

M(

,

N(

,

N(

#

P

#

P

P

#

P

#

#



*

2

K

2

K

4

#,/

2#

4#

+3

+3

+3

+3

+3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

#/-

#/-

#/-

#/-

#,)

+3

33/

,)'4

+2

/04

/04

#,)

+2

+2

+2

+3

+3

+3

+3

"539

##3

0/$.

4#

2#

#,)

#,/

#)21

##+

#3/

#%.#

#%.#

#%.#

%3$!

%3#,

,#3

,3#+

,3/

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

/06

/06

3#+

0,34

+2

-/$

233)

"!,

+2

+2

+2

2%&

!&/.

4

5,#+

,).(

4-54

2,6!

4,6!

233)

.7#

044/

,6).

2-54%

/04

/04

/04

##+

#3/

##3

-$

2%3

044)

044/

-#/4

-#).

"539

$53%

2%-

"%%0

3$%#

"!46

$)3#

!&/54

$-/

2-54

--54

"%0/

3

3

3

3

#/-

#/-

#/-

3

3

3

3

3

3

#/-

#3)

$)')

6## 6##

6##6##

6##

/04

/04

/04

/06

/06

/06

#3)

#)21

3%.#

4

4

4,6!

2,6!

3#+

$3$!

./)3

044/

!&/.

-$

%-%2

-/.)

33/

3#+

$!34

-#'/

2%3

4%-0

62)

044)

4

-/.)

%-%2

33/

3#+

2-54%

--54%

2-54%

5,#+

.7#

4-54

#%.#

#%.#

#%.#

2-54

--54

/06

/06

/06

$!34

3$%#

2626 2626 26

$53%

,6).

)3%.3

-#'/

-/$)

"%%0

2%&

"!,

"%%0/

-/$

-#/4

#$%#

-#/4

./)3

--54%

3)'/

$)3#

46 46

--54%

)3%.3

!&/54

3#

0/$.

-#).

"%%0/

62%&

"%0/

6

6 6

6

36

36363636

36

#05#05

#05

6

66

666

6

#05

#05 #05

2&!-0

286#/

-5,4)

36

26

36

!&/54

#,/.%

'.$

#4#33$4#3

$%#/$%

6

#3&4

,#$

6

36 36

6

$4-&%.#/$%

31,#31,#

04437

2%-/

0 0 0 0











36

$/7.

-/.) %-%2





;



+EY=

$-)

6##

&,

&) 4/

5.)4

*

4/

5.)4

*

-!).5.)4

-)#

%84-)#

3

3+(,,&!

%84

30%!+%2

30

46

6##

46

6##

#0

1

3#

1

3#

1

3#

)#

.*-

)#

,-072

)#

,-072

)#

,-072

)#

,#7

80

1

80

1

,-072

)#

5.2*

1

5.2*

1

1

5.2*

)#

-&0

1

5.2*

1

5.2*

1

5.2*

1

80

)#

.*-6

)#

.*-6

)#

.*-6

)#

.*-6

1

3+

1

3+

)#

#$"072

)#

.*-6

1

3+

)#

-&0

1

3#

)#

,-072

(.84)

)#

)#

4!&.'

)#

4!&'

($&"4&6

)#

1

3+

1

3+

"$')#

1

3#

1

3#

1

3#

)#

-"!0&6

)#

.*-6

)#

.*-6

)#

.*-6

)#

.*-6

)#

.*-6

1

3"

1 3"

1

3#

5.2*

1

5.2*

1

1 3!

1

3! 3!

1

8

#2

-(:

5.2*

1

-)8

)&!-0

)&)#

80

1

2%&

486#/

#,/#+-(Z

!-06PP

486

286

6

486

286

6

486

286

486

286

486

286

486

286

486

286

486

286

486

286

48D"M

28D"M

6

486

286

486

286

486

286

#,/#+-(Z

!-06PP

486

286

486

286

486

286

6

6

6

6

486

286

486

286

6

12 - 2

Explanatory notes

VOLTAGE LINE

TX LINE

RX LINE

COMMON LINE

C707

0.001

C703

47p

C702

100p

R714

0.15

L901

BLM21P300S

L703

7.5nH

C734

0.001

D702

RB706F-40

R706

4.7k

C723

0.001

C759

0.001

C718

0.001

R703

4.7k

C754

0.001

D703

RB706F-40

R726

4.7k

R710

4.7k

R709

22k

C701

0.001

C742

0.001

R704

Q704

2SC5006

L705

0.30-09-9TR

L702

27nH

C748

C767

0.001 C763

0.01

C725

0.001

C755

47p C761

0.001

C709

0.001

R712

R711

33k

R738

100

L708

50nH

L709

54nH

L704

10.5nH

C722

0.001

C757

0.001

C715

47p

C716

0.01

C719

0.001

C731

C728

R730

2.2k

R732

100

R715

470

R713

EP711

ACZ1005Y-102

EP712

MMZ1608Y102BT

R734

JPW

R735

JPW

R708

C758

47p

C785

0.01

C781

0.1

C786

C784

47p

R743

15k

C780

0.001

R746

220

C782

0.001

R705

100k

MP701

PA heat sink

C713

0.001

C753

0.001

R741

C727

0.001

Q706

2SC4081

Q705

XP6401

D701

1SV307

IC701

TA75S01F

J701

R702

330

R701

330

C729

15p

C756

47p

R744

120k C710

0.001

R716

10k

R742

1.2k

C760

0.001

L707

47nH

L706

EXCCL3225U

R745

220k APC

0467003.NR

F701

L701

4.7µH

Q702

RD01MUS1 C720

82p

C706

22p

C769

0.3p

C746

24p

C744

15p

C708

68p

C704

18p

C768

0.3p

C745

1.5p

C711

56p

C705

18p

Q701

RD07MVS1

APCV

GND

VCC

T5V

P_DET

T5V

D706

1SV307

C752

0.001

L712

47nH

D704

1SV307

J702

C802

C801

0.001

C807

10p

L802

50nH

L801

32nH

L714

27nH

C750

11p

L713

82nH

C787

C751

12p

C803

24p

R801

82k

GND

APC

ISENS

C732

0.001

C733

47p

C724

0.001

PA UNIT

ANT UNIT

TO MAIN

UNIT

MAIN UNIT

TO CONNECT

UNIT J901

VCC

TX J1

(CHASSIS)

GND

J901

C901

0.001

C902

47p

VCC BATTERY

CONNECTOR

VCC

GND

CONNECT UNIT

TX: 6.92V

RX: 7.23V

TX: 1.60V

RX: 0V

TX H: 3.00V

TX Low: 2.41V

RX: 0V

TX: 7.20V

RX: 7.23V

TX: 2.25V

RX: 0V

TX Hi: 3.01V

TX Low: 2.40V

RX: 0V

TX Hi: 1.86V

TX Low: 0.88V

RX: 0V

LPF

SECTION 13 BC-160

13 - 1

2SC4081

R18

560

0.12

R35

R31

10k

R37

120k

R28

R38

R29

1SS355

C6 10

C11

0.01

C12

0.01

C8 0.01

C25

C26

C21

C22

0.1

0.01

C28

C23

C24

10k

0.1

0.01

C27

39k

0.01

0.001

0.01

DAN202K

C19

C16

R17

10k

R16

560k

R15

C18

56k

0.01

R14

560k

R13

22k

C17

0.1

C15

4.7k

2SC4081

C14

2SC4081

0.01

DTC144EU

R21

IC4

NJM2904M

5678

4321

MA8110

100µ

CSTCR4M91G

R12

0.001

22k

10k

C10

C13

0.1

C7 0.1

DS1

RT3-03HRYG

µPD789112AMC-534-5A4-A

IC3

1P23

2P24

3P25

4AVDD

5ANI0

6ANI1

7ANI2

8ANI3

9AVSS

10 IC0

11 P50

12 P51

13 P52

14 P53

15 P00 16

P01

P02

P03

RESET

IC0

VSS

VDD

P10

P11

P20

TXD

RXD

CP8

CP7

R26

10k

R34

R36

4.7k

22k

R25

R24

100

100 R27

30k

ERJ12-JPW

R11

22k

R10

IC2

µPC494GS-A

1NO-INVIN

2INVIN

3FB

4DTC

5CT

6RT

7GND

8C1 9

VCC

REFOUT

INVIN

NO-INVIN

ERJ12-JPW

IC1

NJM2801U1-0543-TE1

1VO

2GND

3CD 4

VOR

VIN

R50

ERJ12-JPW

0.47µ

ERJ12-JPW

CP2 CP1

C20

560

0.01

0.0015

RSQ035P03TR

R47

MCR10-JPW

R39

MCR10-JPW

R40

R51

MCR10-JPW

R41

MCR10-JPW

R43

MCR10-JPW

R55

MCR10-JPW

R52

MCR10-JPW

R44

MCR10-JPW

R45

MCR10-JPW

R49

MCR10-JPW

R46

MCR10-JPW

R54

MCR10-JPW

R56

MCR10-JPW

R57

R20

33k

R58

MCR10-JPW

R59

MCR10-JPW

R60

R62

MCR10-JPW

R63

MCR10-JPW MCR10-JPW

MCR10-JPW

R64

MCR10-JPW

MCR10-JPWMCR10-JPW

CP3

CP4

CP5

SM240A-T

10k

R66

4.7k

2SC4081

R19

33k

4.7

R42 R48 R53 R65R61 R67

R33

10k

R22

3.3k

R23

4.7k

R30

100k

R32

3.3k

CP6

RXD

TXD

GND

VSENS to

battery

VPP

VDD

CHARGE

RESET

5.00V

3.54V

4Vp-p

10.05V

Measurement condition

input DC.16V

rapid charging to BP-230 4.945MHz

16.0V

8.4V

9.6uS

MP1 (M) J1 (M)

DS1 (M)

MAIN UNIT

MP1 (C)

MP2 (C)

MP3 (C)

MP4 (C)

[ACCESSORIES]

EP1 0800006050 Charger BC-145A [USA] 1

0800006060 Charger BC-145E [EUR] 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[CHASSIS PARTS]

MP1 8010019750 2830 case 1

MP2 8110008220 2830 cover 1

MP3 8930039620 Leg cushion (A) 2

MP4 8810008630 Screw PH BT M3 × 6 NI-ZU 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[MAIN UNIT]

J1 6510023070 Connector HEC2305-01-250 1

DS1 5040002740 LED RT3-03HRYG 1

MP1 8930064410 2830 TERMINAL 3

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail : sales@asia-icom.com

Zac de la Plaine, 1, Rue Brindejonc des Moulinais

BP 5804, 31505 Toulouse Cedex, France

Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00

URL : http://www.icom-france.com

E-mail : icom@icom-france.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.

Phone : +44 (01227) 741741 Fax : +44 (01227) 741742

URL : http://www.icomuk.co.uk

E-mail : info@icomuk.co.uk

Ctra. Rubi, 88, 08190, Sant Cugat del Valles, Barcelona, SPAIN

Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail : icom@icomspain.com

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.

Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509

URL : http://www.icomamerica.com

E-mail : sales@icomamerica.com

Phone : +1 (425) 454-7619

Glenwood Centre #150-6165

Highway 17 Delta, B.C., V4K 5B8, Canada

Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090

URL : http://www.icomcanada.com

E-mail : info@icomcanada.com

Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia

Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505

URL : http://www.icom.net.au

E-mail : sales@icom.net.au

146A Harris Road, East Tamaki,

Auckland, New Zealand

Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708

URL : http://www.icom.co.nz

E-mail : inquiries@icom.co.nz

Room C01, 10th Floor, Long Silver Mansion, No. 88,

Yong Ding Road, Haidian District, Beijing, 100039, China

Phone : +86 (010) 5889 4250 Fax : +86 (010) 5889 4250

URL : http://www.bjicom.com

E-mail : bjicom@bjicom.com Sopot, 3 Maja 54 Poland

Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484

E-mail : icompolska@icompolska.com.pl

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone : +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

URL : http://www.icom.co.jp/world/index.html

Communication Equipment

Himmelgeister Str. 100, D-40225 Dusseldorf, Germany

Phone : +49 (0211) 346047 Fax : +49 (0211) 333639

URL : http://www.icomeurope.com

E-mail : info@icomeurope.com

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan S-14303HZ-C1

Icom Ic F3021S Users Manual F3020 Series SERVICE

Navigation menu

Versions of this User Manual:

Views

Navigation
