Iconnect 9331 802.11n Long-Range outdoor AP/CPE User Manual

Iconnect 802.11n Long-Range outdoor AP/CPE Users Manual

Users Manual

1
2.4GHz 802.11n Outdoor AP/CPE
User Guide
2
TABLEOFCONTENTS
INTRODUCTION...............................................................................................................3
HARDWARE DESCRIPTION.................................................................................….3
HARDWARE INSTALLATION.....................................................................................4
INITIAL CONFIGURATION.................................................................................................6
CONNECTING TO THE LOGIN PAGE.........................................................................6
STATUS PAGE................................................................................................................7
EASY SETUP...................................................................................................................7
OPERATION MODE AP ROUTER.........................................................................8
SETTINGS – PPPoE(ADSL).........................................................................8
SETTINGS STATIC (FIXED IP).....................................................................9
SETTINGS CABLE/DYNAMIC IP (DHCP)..................................................11
SETTINGS PPTP.......................................................................................12
SETTINGS L2TP........................................................................................13
OPERATION MODE AP BRIDGE........................................................................14
OPERATION MODE CLIENT ROUTER................................................................15
OPERATION MODE CLIENT BRIDGE..................................................................17
ADVANCED SETUP.......................................................................................................18

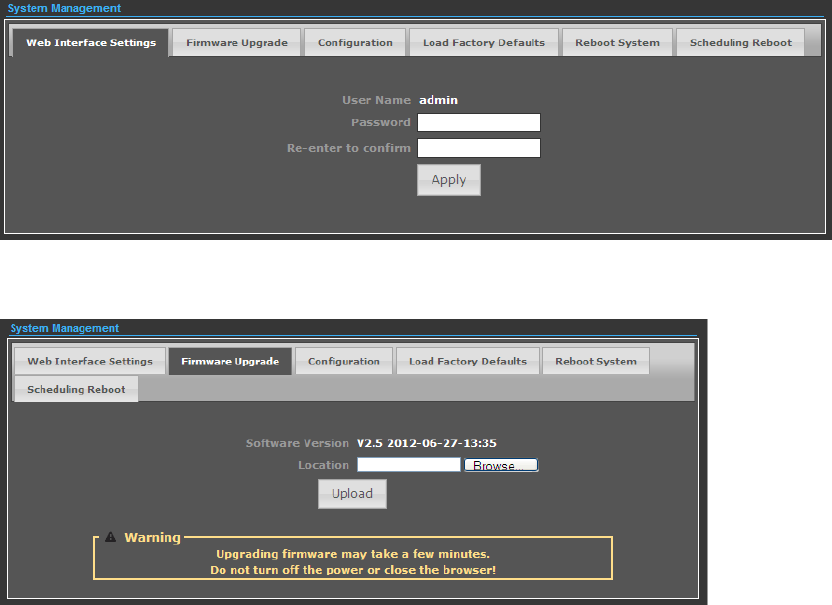

MANAGEMENT..............................................................................................19
ADVANCED SETTINGS..................................................................................21
OPERATION MODE.......................................................................................23
FIREWALL CONFIGURATION.................................................................................23

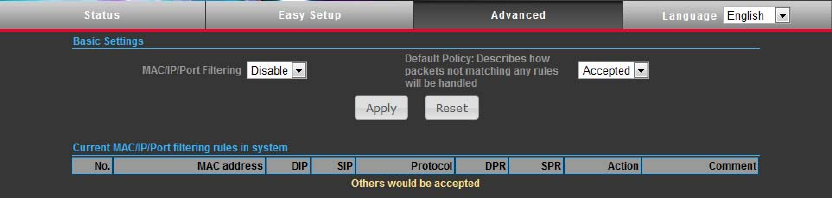

MAC/IP/PORT FILTERING...........................................................................23
VIRTUAL SERVER SETTINGS........................................................................25
DMZ.............................................................................................................26
FIREWALL.....................................................................................................26

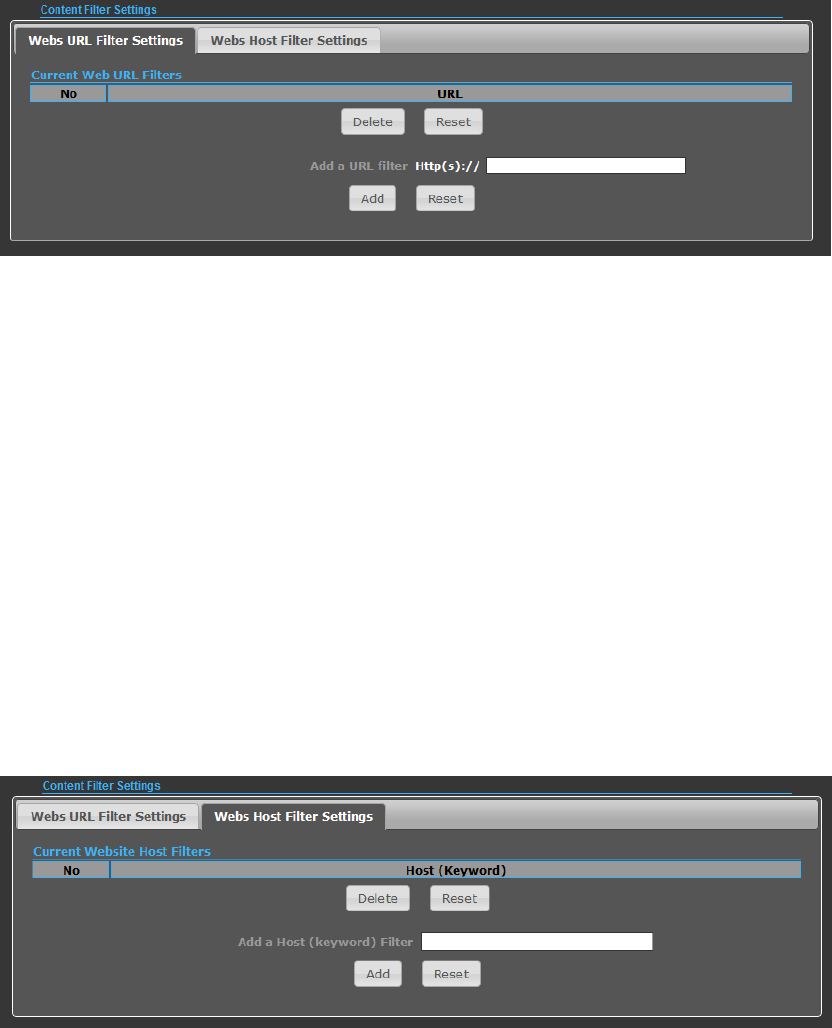

CONTENT FILTERING....................................................................................27
NETWORK SETTINGS...........................................................................................29
WAN............................................................................................................29
LAN..............................................................................................................32

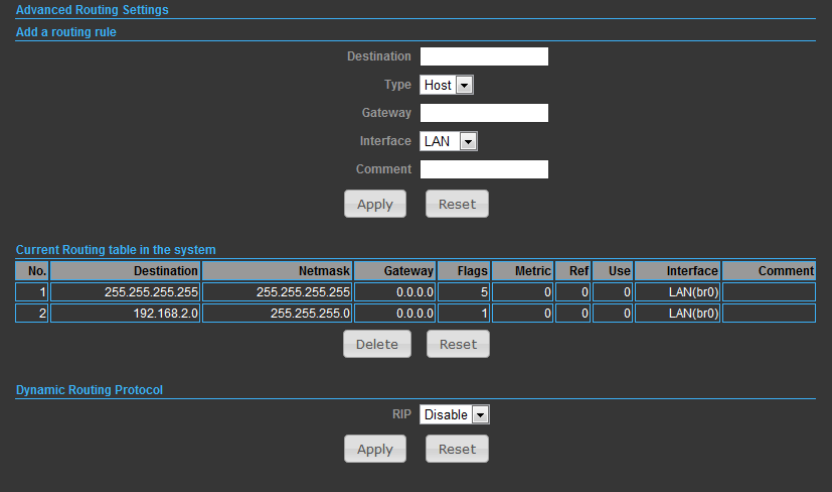

ADVANCED ROUTING...................................................................................33
WIRELESS SETTINGS...........................................................................................34

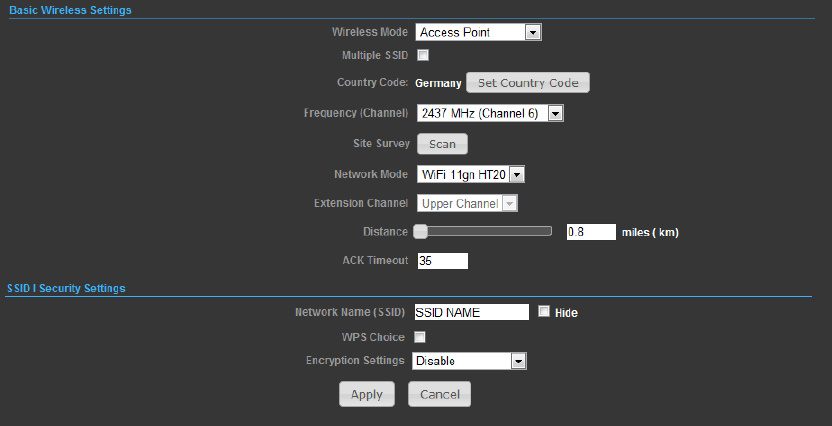

BASIC...........................................................................................................34
SECURITY.....................................................................................................35
3
INTRODUCTION
SISO wireless outdoor AP/CPE which support data rates up to 150Mbps. It is rain
and splash proof when install in upright position. 2.4GHz 802.11b/g/n outdoor
AP/CPE also supports N type connector and passive PoE for simplify installation.
The Device shall install by the Professional

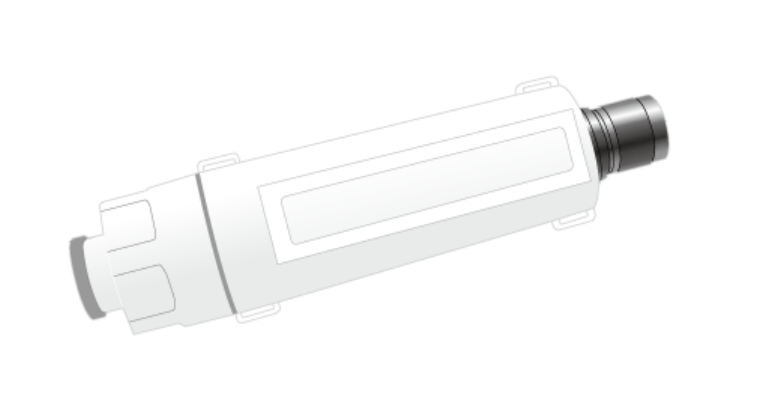

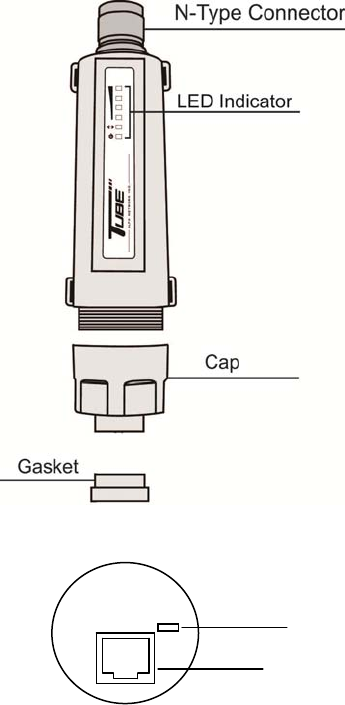

HARDWARE DESCRIPTION
Reset
RJ45
4
HARDWARE INSTALLATION
 How to assembly the unit
 How to tie the strap on the pole
5
FCCSTATEMENT
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.

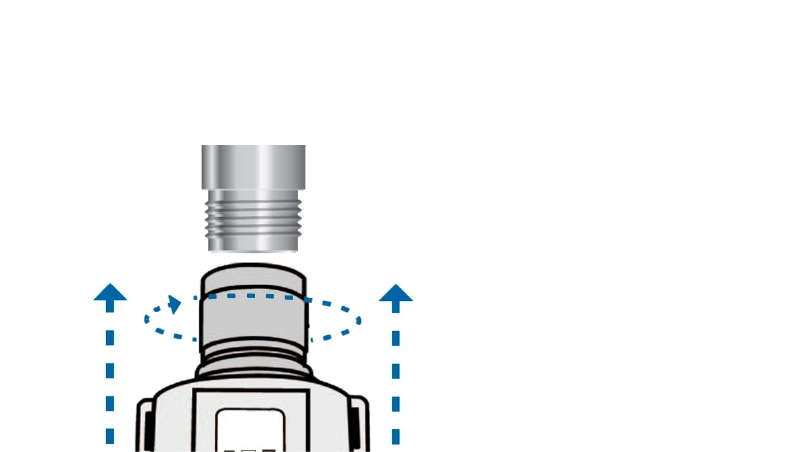

 How to install the antenna
Connect the Tube2H to the N-Type connector of the antenna
6
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
INITIAL CONFIGURATION
This outdoor 2.4GHz AP/CPE offers a user-friendly web-based management
interface for the configuration of all the unit’s features. Any
PC directly attached to the unit can access the management interface using a web
browser, such as Internet Explorer (version 6.0 or above).
CONNECTING TO THE LOGIN PAGE
It is recommended to make initial configuration changes by connecting a PC directly
to the 2.4GHz 802.11b/g/n Outdoor AP/CPE’s Ethernet port. The 2.4GHz
802.11b/g/n Outdoor AP/CPE’ has a default IP address of 192.168.2.1 and a subnet
mask of 255.255.255.0. You must set your PC IP address to be on the same subnet
as the 2.4GHz 802.11b/g/n Outdoor AP/CPE (that is, the PC and 2.4GHz
802.11b/g/n Outdoor AP/CPE’ addresses must both start 192.168.2.x). To access
the 2.4GHz 802.11b/g/n Outdoor AP/CPE’s management GUI interface, follow these
steps:

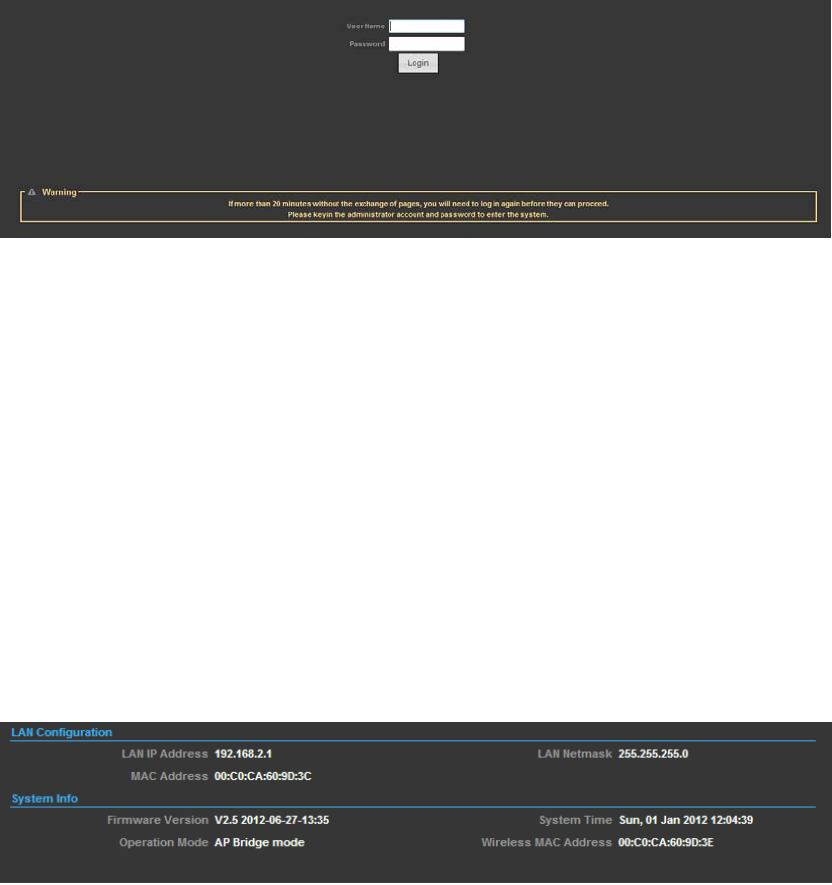

1. Use your web browser to connect to the management interface using the default
IP address of 192.168.2.1.
2. Log into the interface by entering the default username “admin” and password
“admin,” then click OK.
7
STATUS PAGE
After logging in to the web interface, the Status page displays. The Home page
top-menu-bar shows the Status, Easy Setup, Advanced and Language.
EASY SETUP
The Easy Setup is designed to help you to configure the basic settings required to
get the 2.4GHz 802.11b/g/n Outdoor AP/CPE up and running. There are only a few
basic steps you need to set up the 2.4GHz 802.11b/g/n Outdoor AP/CPE to get the
connection.
Click on Easy Setup to bring up the wizard
8

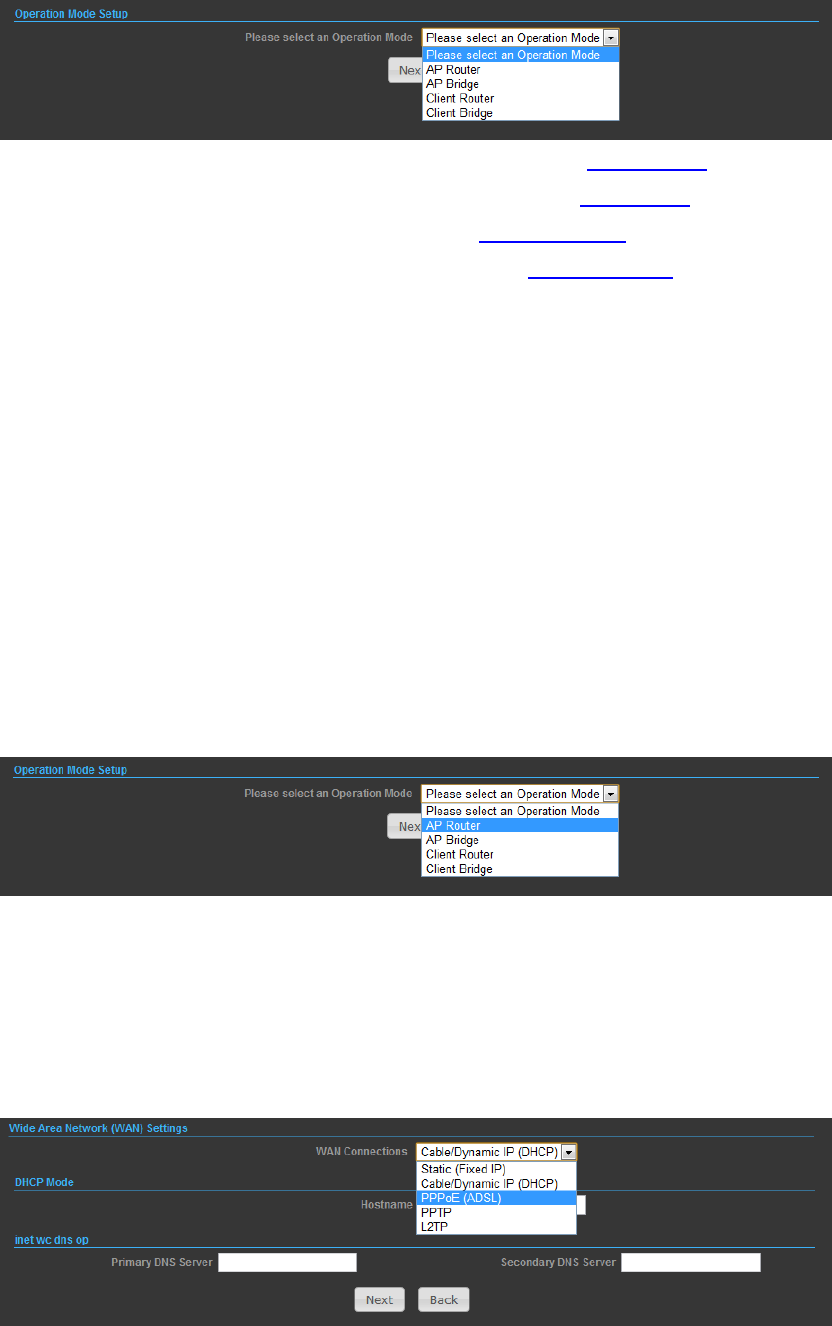

If you want to configure a router connection, please select AP Router
If you want to configure to an access point, please select AP Bridge
If you want to configure to WISP, please select Client Router
If you want to configure to WiFi client, please select Client Bridge
OPERATION MODE AP ROUTER
Choose menu “Easy Setup and select AP Router if you want to configure a router
connection.
NOTE: The Ethernet port will convert into WAN port requiring you to configure your
CPE via WLAN.
SETTINGS – PPPoE(ADSL)
1) Select PPPoE to be assigned automatically from an Internet service provider (ISP)
through a DSL modem using Point-to-Point Protocol over Ethernet (PPPoE).
9
2)
 User Name — Sets the PPPoE user name for the WAN port.
 Password — Sets a PPPoE password for the WAN port.
 Verify Password — Prompts you to re-enter your chosen password.
 Operation Mode — Enables and configures the keep alive time and configures the
on-demand idle time.
3)
Security Setup

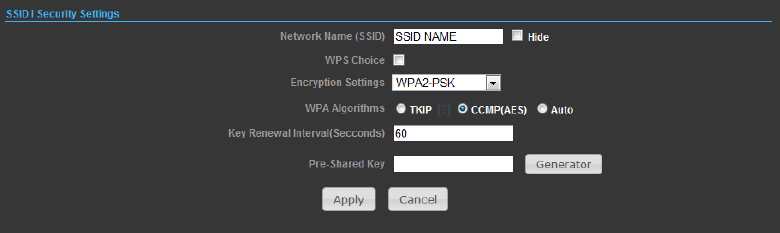

Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.

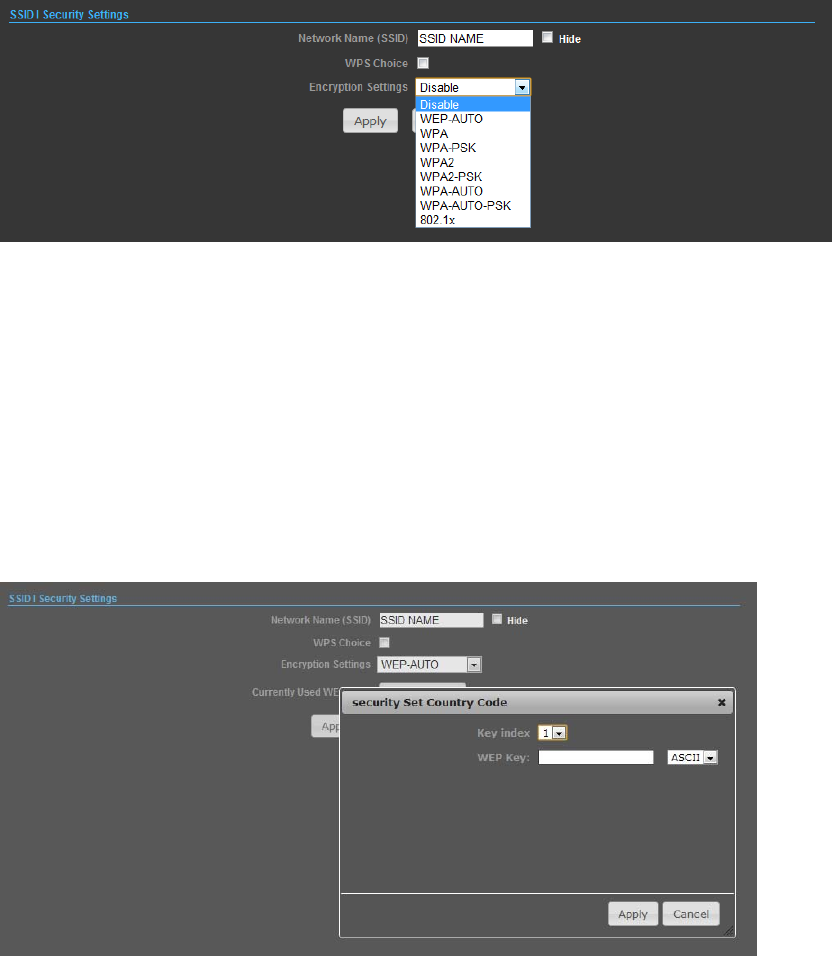

Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK,
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled)

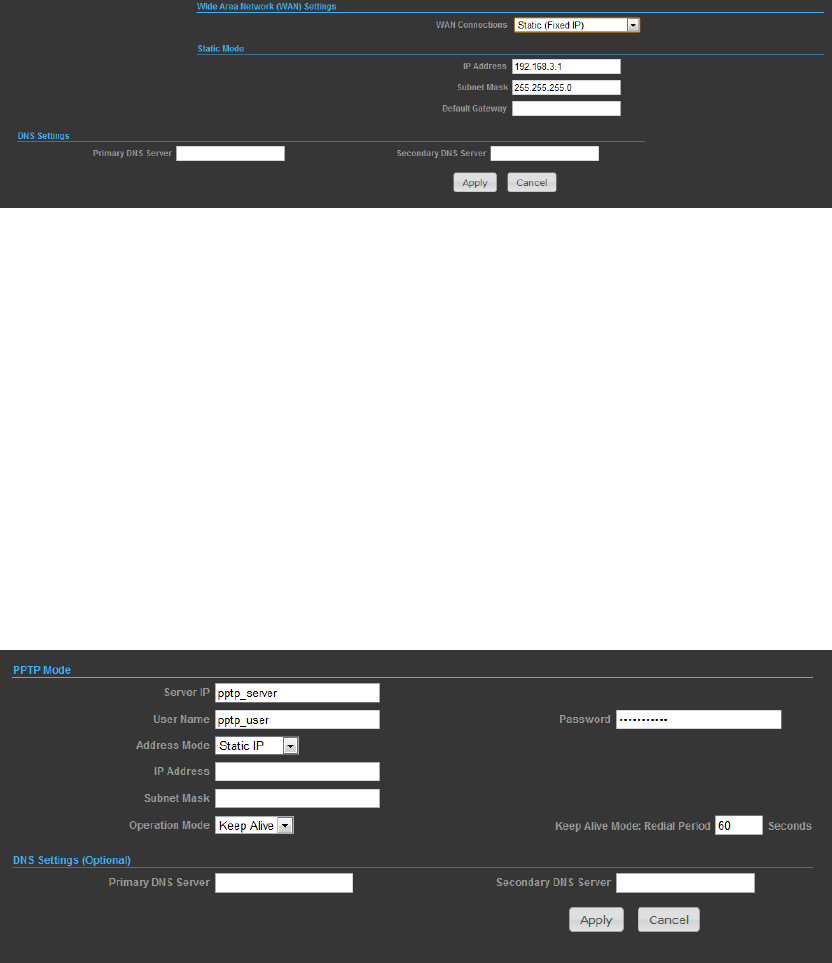

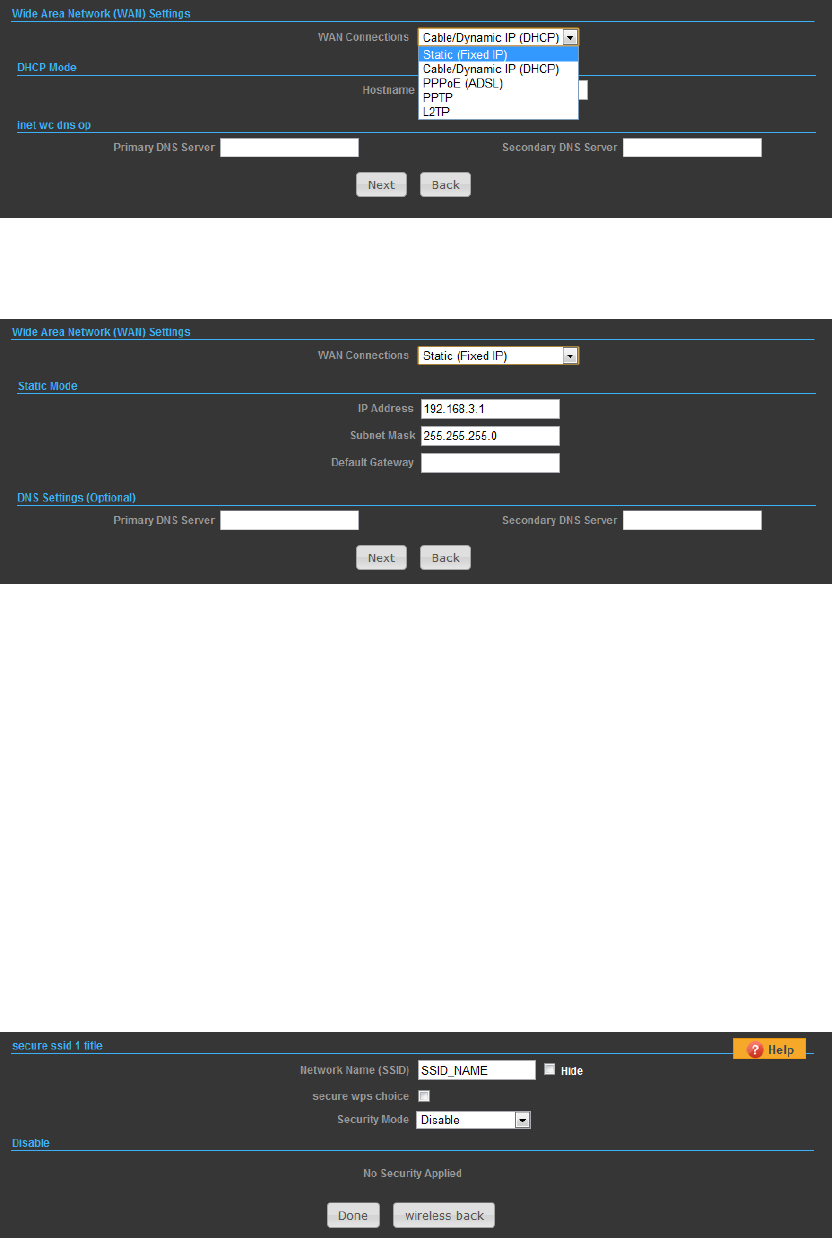

SETTINGS STATIC (FIXED IP)
1) Select Static(Fixed IP), if your Internet service provider (ISP) to be permanent
address on the Internet. A Static IP address is a number (in the form of a dotted
quad)
10
2)
 IP Address — Sets the static IP address.
 Subnet Mask — Sets the static IP subnet mask. (Default: 255.255.255.0)
 Default Gateway — The IP address of a router that is used when the requested
destination IP address is not on the local subnet.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain Name Server.
3)

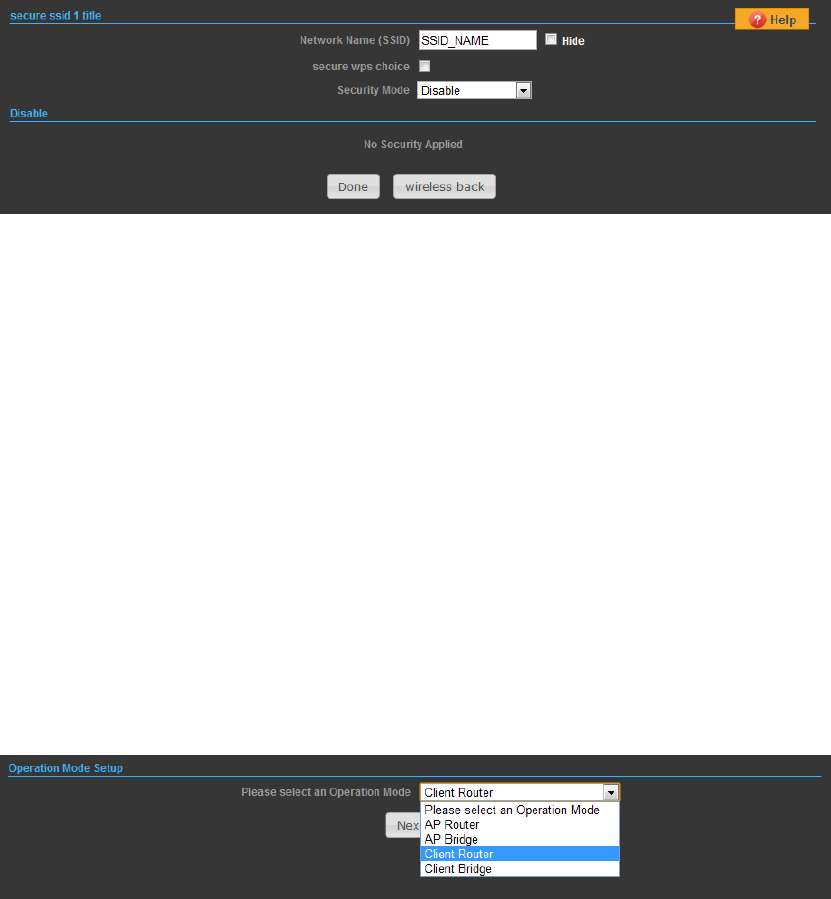

Security Setup
Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.
11
Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK,
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled)

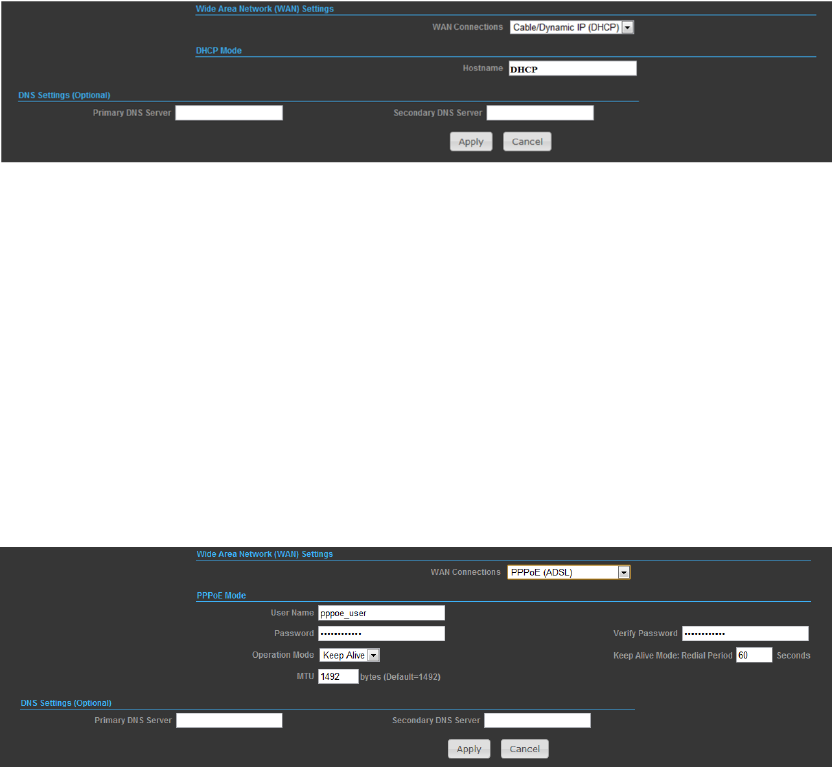

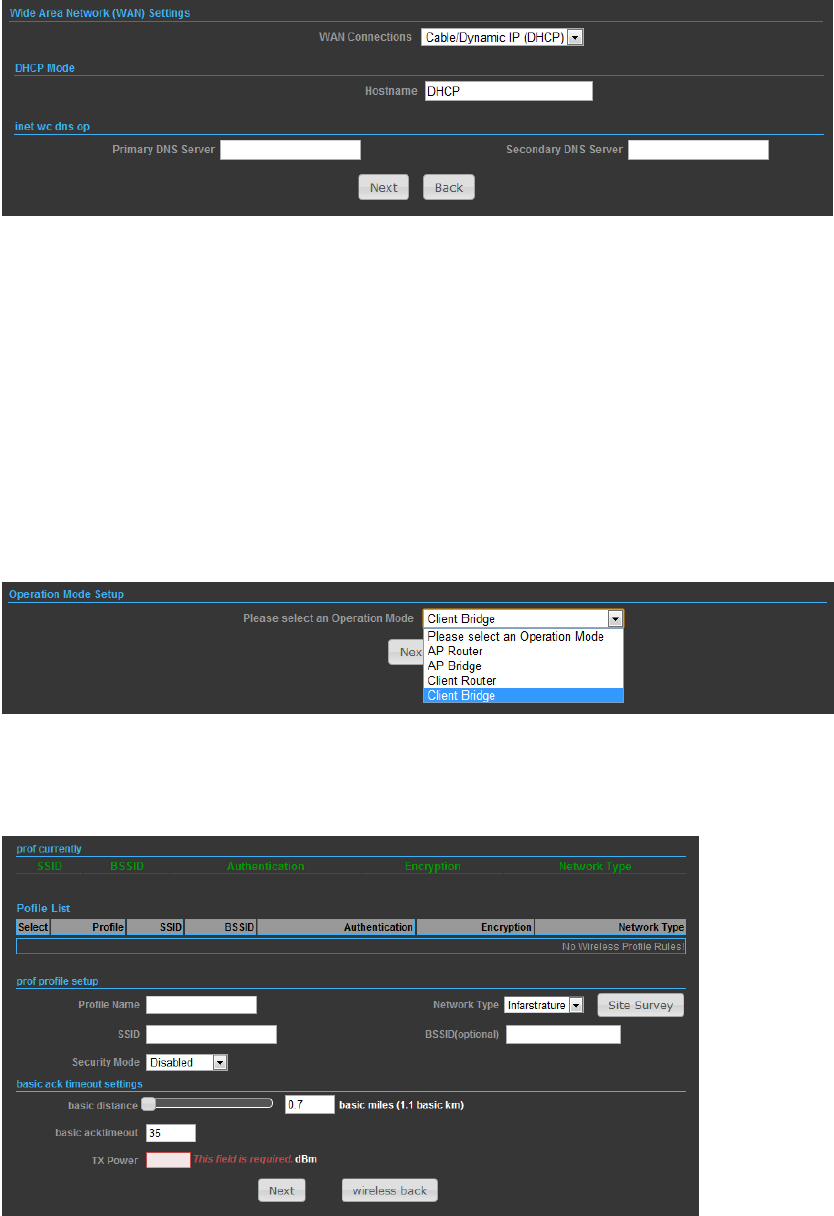

SETTINGS CABLE/DYNAMIC IP (DHCP)
1) Select Cable/Dynamic IP (DHCP), if your Internet service provider (ISP) use a
DHCP service to assign your Router an IP address when connecting to the
Internet.
2)
The host name that you selected from the DHCP service provider.
3)
Security Setup
Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.
Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK,
12
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled)

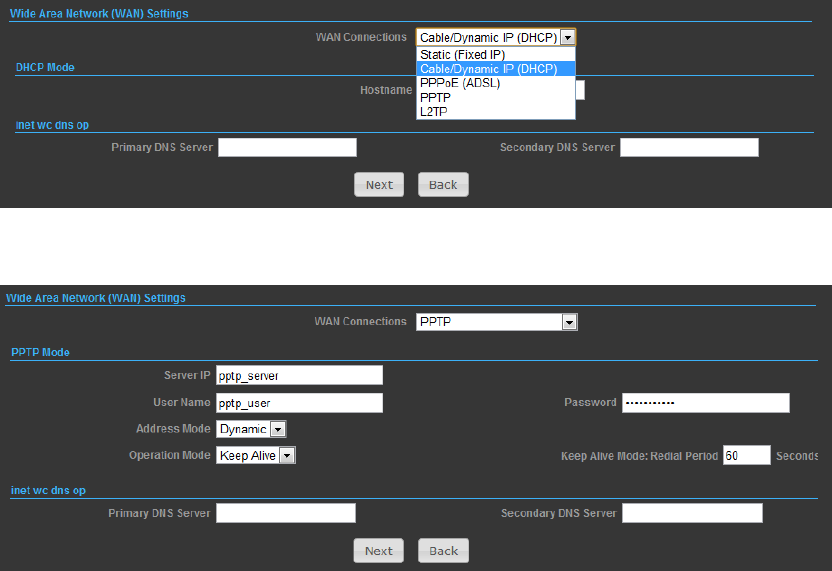

SETTINGS PPTP
1) Select PPTP, if you are using PPTP service to gain connection to the Internet.
2)
 Server IP — Sets the PPTP server IP Address. (Default: pptp_server)
 User Name — Sets the PPTP user name for the WAN port.
 Password — Sets a PPTP password for the WAN port.
 Address Mode — Sets a PPTP network mode. (Default: Dynamic IP)
 Operation Mode — Enables and configures the keep alive time.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
3)
13
Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.
Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK,
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled)

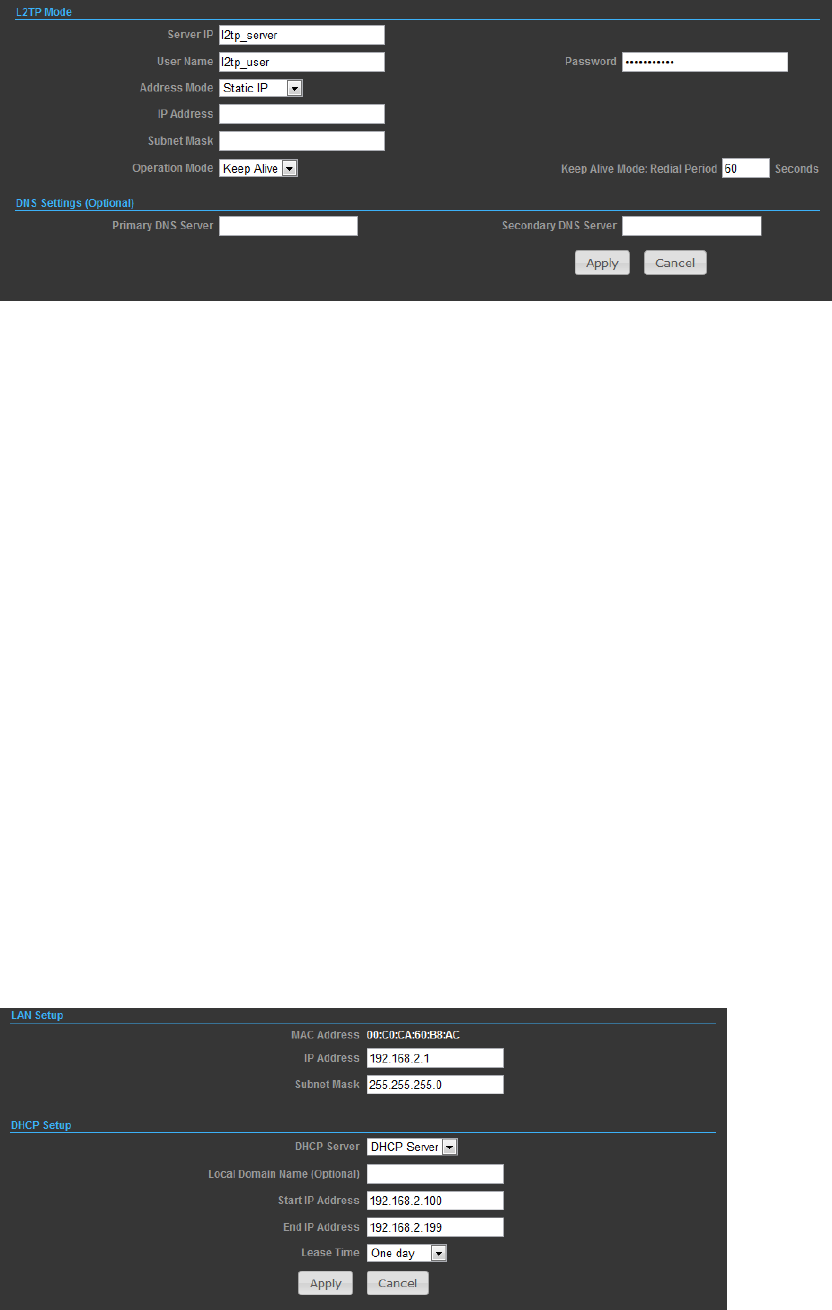

SETTINGS L2TP
1) Select L2TP, if you are using PPTP service to gain connection to the Internet.
2)
 Server IP — Sets the L2TP server IP Address. (Default: l2tp_server)
 User Name — Sets the L2TP user name for the WAN port.
 Password — Sets a L2TP password for the WAN port.
 Address Mode — Sets a L2TP network mode. (Default: Dynamic IP)
14
 Operation Mode — Enables and configures the keep alive time.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain Name Server.
3)
Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.
Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, WEP-AUTO, WPA-PSK, WPA2-PSK, WPA-Auto-PSK,
WPA, WPA2, WPA-Auto, 802.1X; Default: Disabled)
OPERATION MODE AP BRIDGE

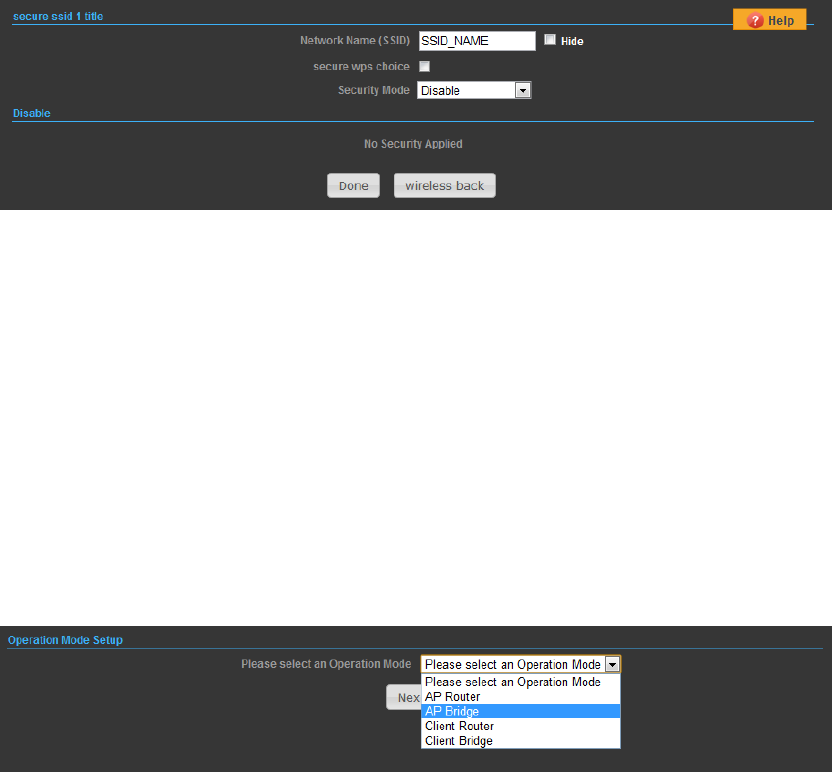

Choose menu “Easy Setup and select AP Bridge if you want to configure to an
access point.
2)
15
Network Name (SSID) SSID(ServiceSetIdentification)mustbeassignedtoall
wirelessdevicesinyournetwork.Consideringyourwirelessnetworksecurity.

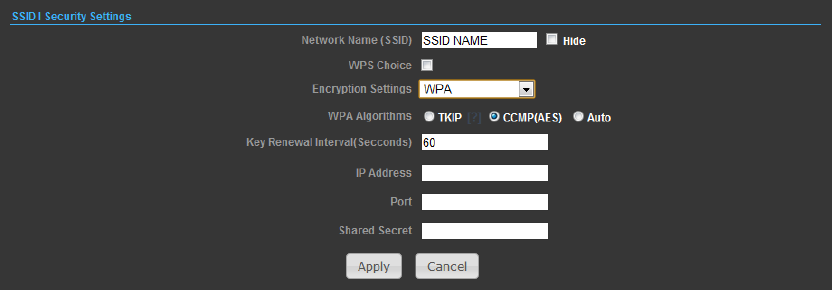

Security Mode — Select the security method and then configure the required
parameters. (Options: Disabled, Open, Shared, WEP-AUTO, WPA-PSK, WPA2-PSK,
WPA-PSK_WPA2-PSK, WPA, WPA2, WPA1_WPA2, 802.1X;
OPERATION MODE CLIENT ROUTER
IntheClientRoutermodeisalsoknownasWISP.The2.4GHz 802.11b/g/n Outdoor
AP/CPE wirelesssideisconnectedtotheremoteAP(BaseStation)asinClient
Infrastructuremode.BetweenthewirelessandLANistheIPsharingrouter
function.ThisisusedtoshareClientRouterconnection.TheWANisonthe
wirelessside.

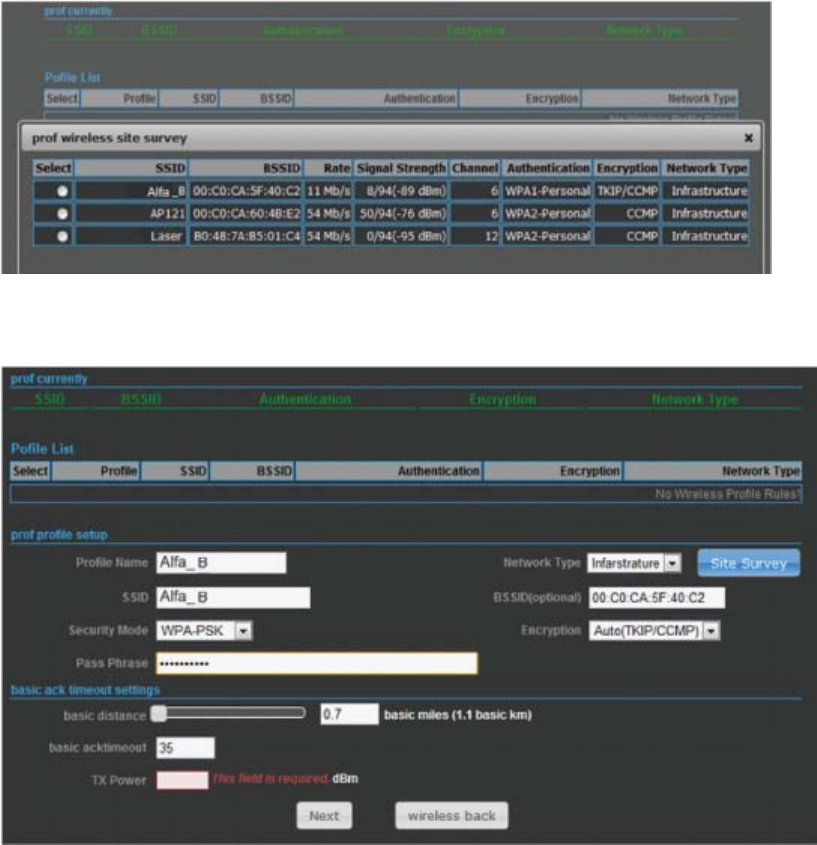

2) PressSiteSurveybuttonandlookforavailablewirelessnetworkthenclickonthe
SSIDthatyouattempttoconnecttoit;Alfa_BistheSSIDthatwearegoingto
connectinthisexample.PressNextbuttonwhenfinished.
16
Now,
itshowstheProfileName,SSID,BSSID,andencryptiontypereceivedfromyour
targetnetworkandpressNextbuttontocontinue.

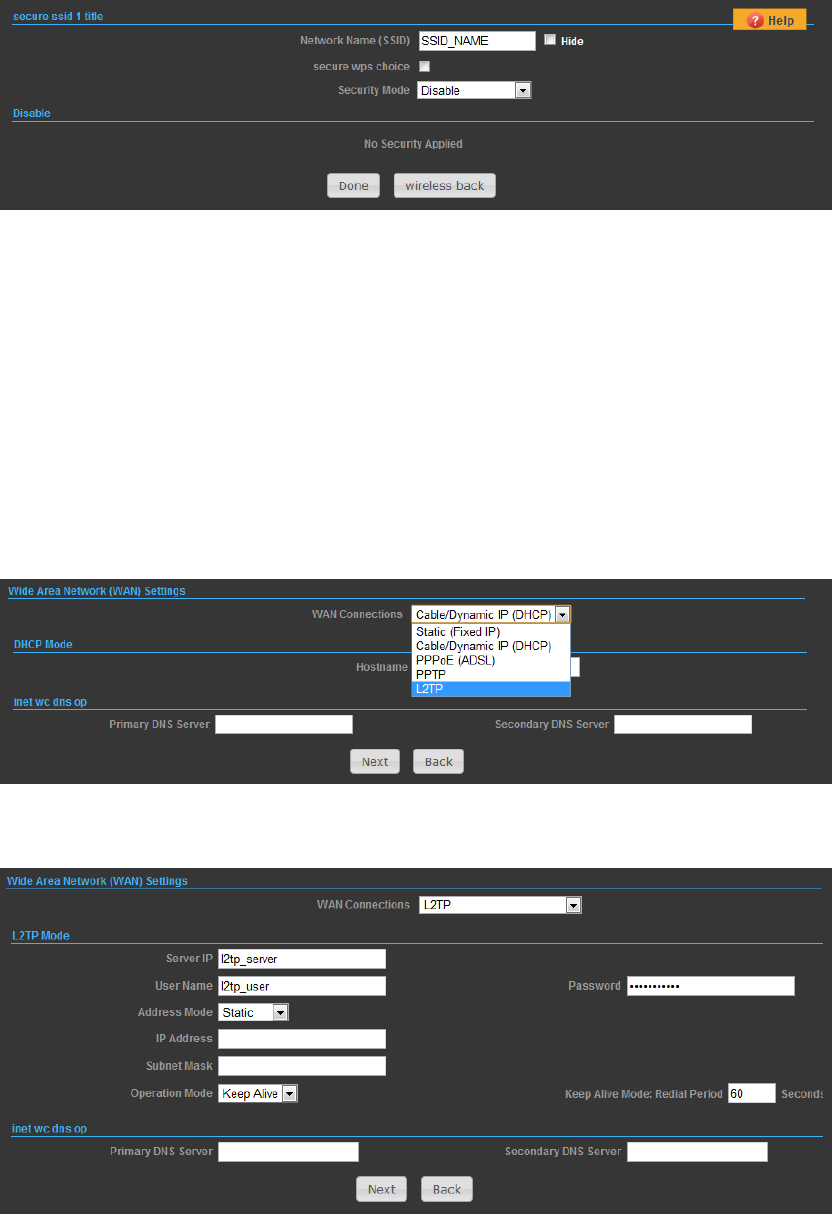

3) Finally,youneedtotellthesystemaboutIPaddressreceivedfromWAN,DHCP
17
Hostname,andDNSServerthenpressNextbuttontofinishthewizard.
OPERATION MODE CLIENT BRIDGE
IntheClientBridgemodeyour 2.4GHz 802.11b/g/n Outdoor AP/CPE will behave
just the same as Wireless adapter. With Client Bridges, the WLAN and the LAN are
on the same subnet. Consequently, NAT is no longer used and services that are
running on the original network.
2) PressSiteSurveybuttonandlookforavailablewirelessnetworkthenclickonthe
SSIDthatyouattempttoconnecttoit;Alfa_BistheSSIDthatwearegoingto
connectinthisexample.PressNextbuttonwhenfinished.
18
3) Now,itshowstheProfileName,SSID,BSSID,andencryptiontypereceivedfrom
yourtargetnetworkandpressNextbuttontofinishthewizard.
ADVANCED SETUP
In the Advanced Manual Bar, it includes all the settings such as firmware upgrade,
LAN, WAN and wireless settings that change the RF behaviors. It is important to
read through this section before attempting to make changes.
19
MANAGEMENT
The Management section is provided for configuration of administrative needs such
as language type, user name / Password, firmware upgrade, export and import
settings, load factory defaults and reboots system.
20
 Password — The new password must not exceed 32 characters in length and
must not include any spaces. Enter the new password a second time to confirm it.
 Software Version - This displays the current firmware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a more recent firmware upgrade file from our website.
2. Type the path and file name of the update file into the File field. Or click the Browse
button to locate the update file.
3. Click the Upgrade button.
Note:
1. New firmware versions are posted at our website and can be downloaded for free.
There is no need to upgrade the firmware unless the new firmware has a new feature
you want to use. However, when experiencing problems caused by the Router rather
than the configuration, you can try to upgrade the firmware.
2. When you upgrade the Router's firmware, you may lose its current configurations, so
before upgrading the firmware please write down some of your customized settings to
avoid losing important settings.
3. Do not turn off the Router or press the Reset button while the firmware is being
upgraded, otherwise, the Router may be damaged.
4. The Router will reboot after the upgrading has been finished.
21

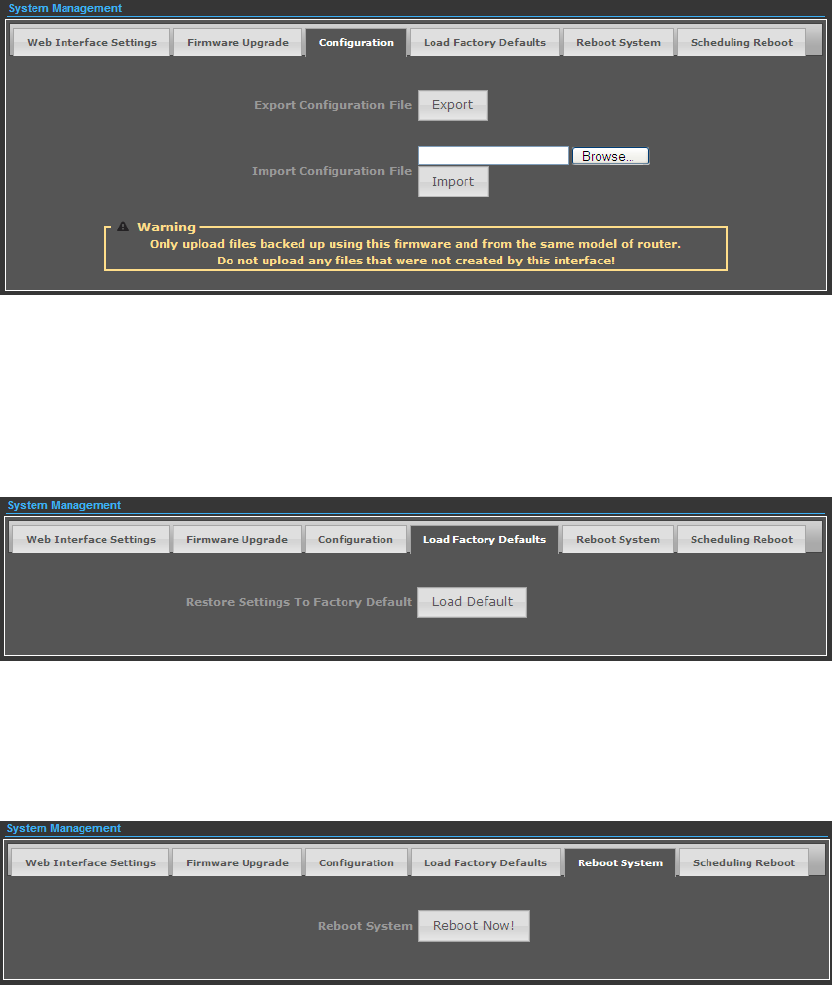

 Export Settings — Click the Export Button to download current router
configuration to your PC.
 Import Settings — Click the Import Button to browse for the configuration file
that is currently saved on your PC. Click Import to overwrite all current
configurations with the one in the configuration file.
 Load Factory Defaults — If you have problems with 2.4GHz 802.11b/g/n
Outdoor AP/CPE, which might be a result from changing some settings, but you are
unsure what settings exactly, you can restore the factory defaults by click the Load
Default Button.
 Reboot System — If you want to reboot the 2.4GHz 802.11b/g/n Outdoor
AP/CPE, click the Reboot Now Button.
ADVANCED SETTINGS

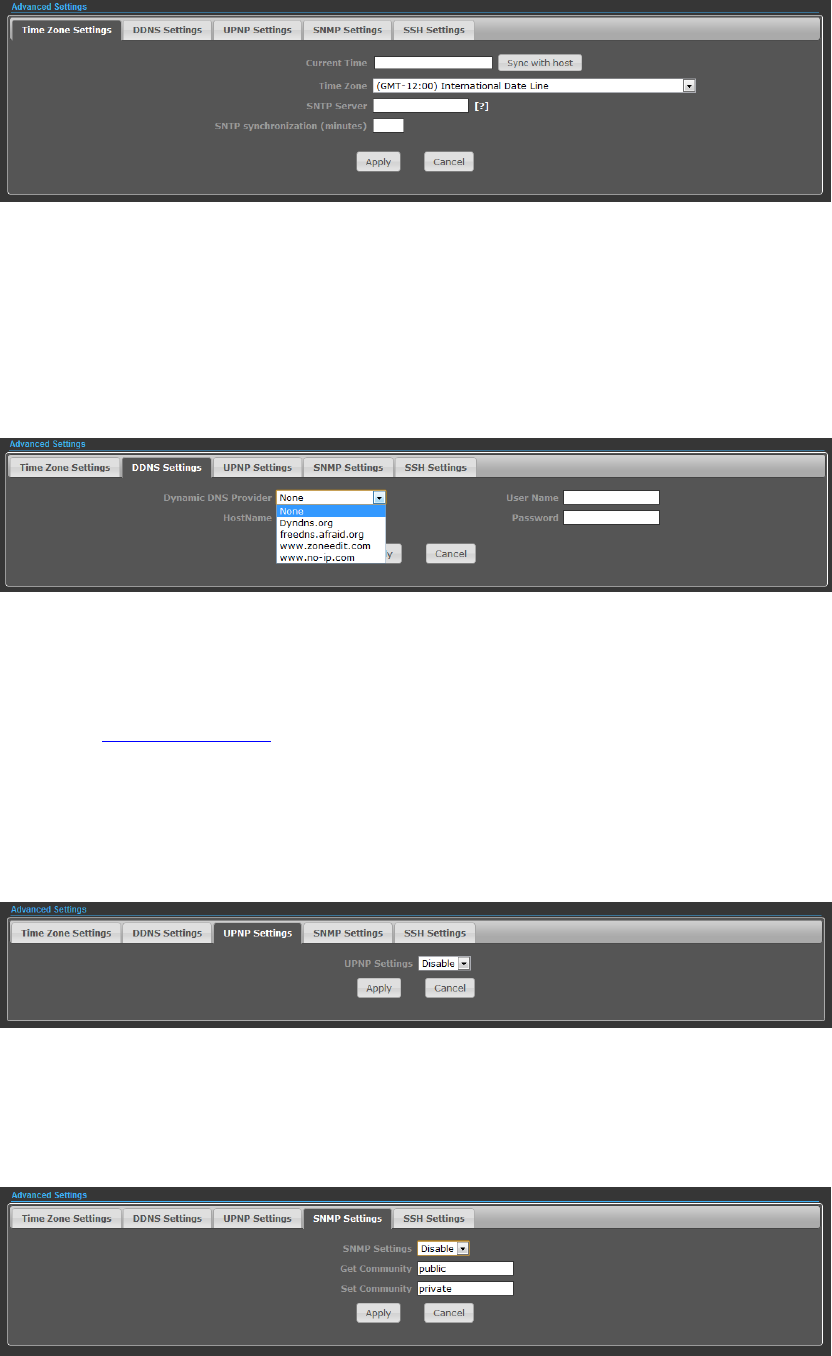

The Advanced Settings section is provided for configuration of Time Zone, DDNS,
UPnP, SNMP, and SSH.
22
 Time Zone Settings — The Time Zone Settings allows you to configure, update
and maintain the correct time on the 2.4GHz 802.11b/g/n Outdoor AP/CPE’s
internal system clock.
 SNTP Server — Enter the address of an SNTP server to receive time updates.
 SNTP synchronization (minutes) — Specify the interval between SNTP server
updates.
DDNS Settings — DDNS lets you assign a fixed host and domain name to dynamic
Internet IP address. It is useful when you are hosting your own website, FTP server,
or other server behind it. Before using this feature, you need to sign up for DDNS
service at www.dyndns.org , a DDNS service provider.
 User Name — Sets the DDNS user name for the connection.
 Password — Sets a DDNS password for the connection.
 HostName — The host name that you selected from the DDNS service provider.
UPNP Settings – UPnP permits network devices to discover other network device(s)
preference and establish functional network services for data sharing,
communication, and entrainment. Default setting is Disabled.
23
SNMP Settings – Managing devices on IP networks. Default setting is Disabled.

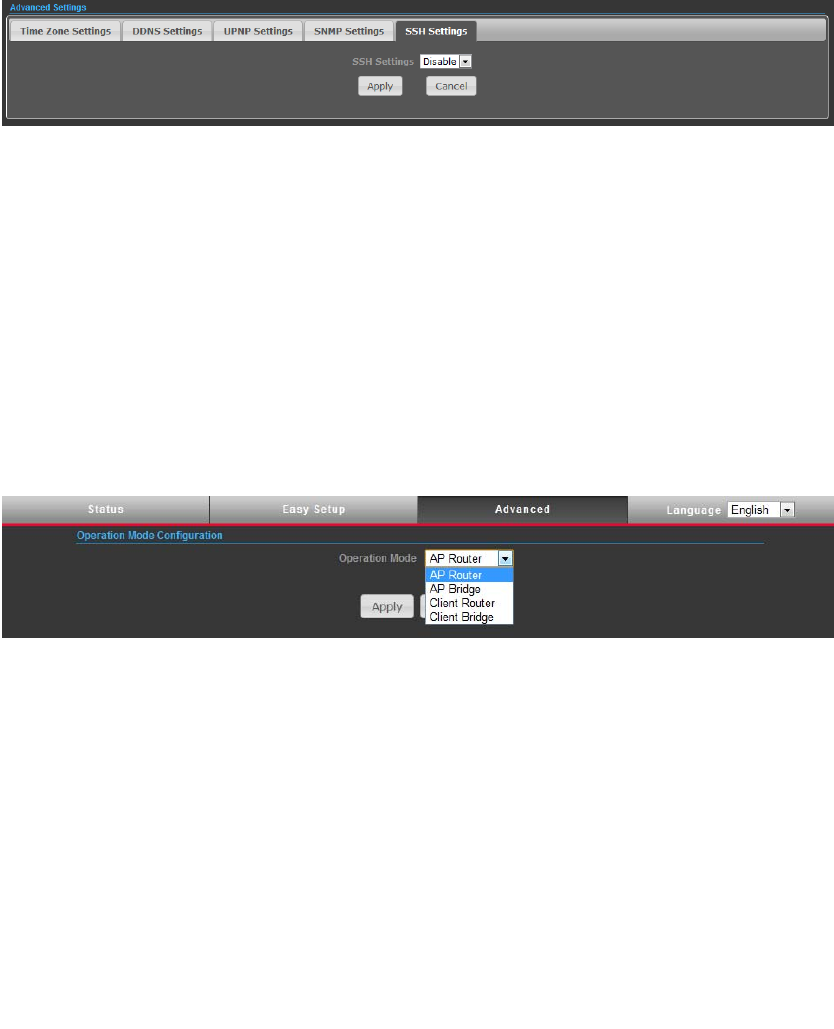

SSH Settings – Secure Shell. Enable your 2.4GHz 802.11b/g/n Outdoor AP/CPE
unit to access secure shell (SSH) based network device. Default setting is Disabled.
OPERATION MODE
The Operation Mode content four modes: AP Bridge, AP Router, Client Router and
Client Bridge.
 AP Bridge — The wired Ethernet and wireless are bridged together. Once the
mode is selected, all WAN related functions will be disabled.
 AP Router — The Ethernet port will convert into WAN port requiring you to
configure your CPE via WLAN.
 Client Router — This unit will behave just the same as the client mode for
wireless function. However, router functions are added between the wireless WAN
side and the Ethernet LAN side. Therefore, the WSIP subscriber can share the WISP
connection without the extra router.
 Client Bridge — This unit will behave just the same as Wireless adapter. With
Client Bridges, the WLAN and the LAN are on the same subnet. Consequently, NAT
is no longer used and services that are running on the original network.
FIREWALL CONFIGURATION
MAC/IP/PORT FILTERING
MAC/IP/Port filtering restricts connection parameters to limit the risk of intrusion
24
and defends against a wide array of common hacker attacks. MAC/IP/Port filtering
allows the unit to permit, deny or proxy traffic through its MAC addresses, IP
addresses and ports. The 2.4GHz 802.11b/g/n Outdoor AP/CPE allows you define a
sequential list of permit or deny filtering rules. This device tests ingress packets
against the filter rules one by one. A packet will be accepted as soon as it matches
a permit rule, or dropped as soon as it matches a deny rule. If no rules match, the
packet is either accepted or dropped depending on the default policy setting.
 MAC/IP/Port Filtering — Enables or disables MAC/IP/Port Filtering.
(Default: Disable)
 Default Policy — When MAC/IP/Port Filtering is enabled, the default policy will be
enabled. If you set the default policy to “Dropped”, all incoming packets that don’t
match the rules will be dropped. If the policy is set to "Accepted," all incoming
packets that don't match the rules are accepted. (Default: Dropped)
 MAC Address — Specifies the MAC address to block or allow traffic from.
 DIP — Specifies the destination IP address to block or allow traffic from.
 SIP — Specifies the source IP address to block or allow traffic from.
 Protocol — Specifies the destination port type, TCP, UDP or ICMP.
 Destination Port Range — Specifies the range of destination port to block traffic
from the specified LAN IP address from reaching.
 Source Port Range — Specifies the range of source port to block traffic from the
specified LAN IP address from reaching.
 Action — Specifies if traffic should be accepted or dropped. (Default: Accept)
 Comment — Enter a useful comment to help identify the filtering rules.
 Current Filtering rules — The Current Filter Table displays the configured IP
addresses and ports that are permitted or denied access to and from.
No. — The table entry number.
MAC Address — Displays a MAC address to filter.
Destination IP Address (DIP) — Displays the destination IP address.
Source IP Address (SIP) — Displays the source IP address.
Protocol — Displays the protocol type.
Destination Port Range (DPR) — Displays the destination port range.
Source Port Range (SPR) — Displays the source port range.
25
Action — Displays if the specified traffic is accepted or dropped.
Comment — Displays a useful comment to identify the filter rules.

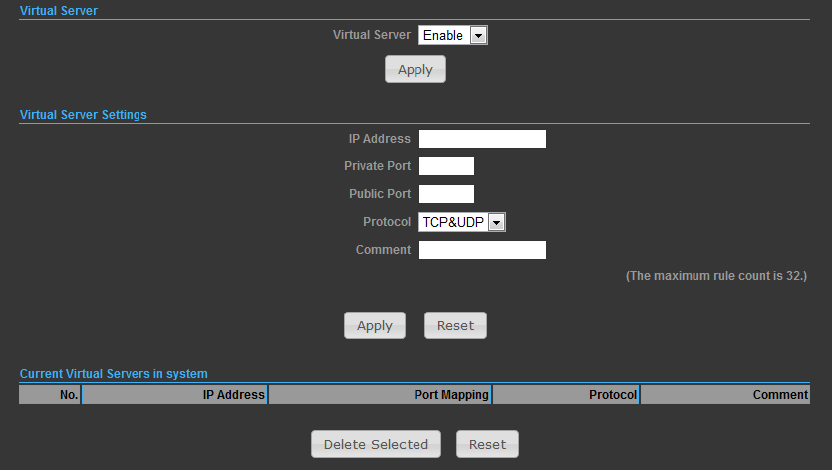

VIRTUAL SERVER SETTINGS
Virtual Server (sometimes referred to as Port Forwarding) is the act of forwarding
traffic from one network node to another based on received protocol port number.
This technique can allow an external user to reach a port on a private IP address
(inside a LAN) from the outside through a NAT enabled router.
 Virtual Server — Selects between enabling or disabling port forwarding the
virtual server. (Default: Disable)
 IP Address — Specifies the IP address of a server on the local network to allow
external access.
 Private Port — The protocol port number on the local server.
 Public Port — The protocol port number on the router’s WAN interface.
 Protocol — Specifies the protocol to forward, either TCP, UDP, or TCP&UDP.
 Comment — Enter a useful comment to help identify the port forwarding service
on the network.
 Current Virtual Servers in System — The Current Port Forwarding Table displays
the entries that are allowed to forward packets through the 2.4GHz 802.11b/g/n
Outdoor AP/CPE’s firewall.
No. — The table entry number.
IP Address — The IP address of a server on the local network to allow
26
external access.
Port Mapping — displays the port mapping for the server.
Protocol — Displays the protocol used for forwarding this port.
Comment — Displays a useful comment to identify the nature of the port to
be forwarded.

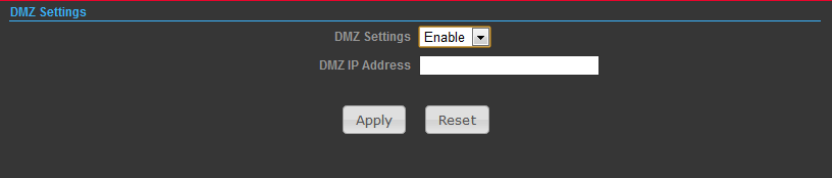

DMZ
DMZ is to specified host PC on the local network to access the Internet without any
firewall protection. Some Internet applications, such as interactive games or video
conferencing, may not function properly behind the firewall. By specifying a
Demilitarized Zone (DMZ) host, the PC's TCP ports are completely exposed to the
Internet, allowing open two-way communication. The host PC should be assigned a
static IP address (which is mapped to its MAC address) and this must be configured
as the DMZ IP address.
 DMZ Settings — Sets the DMZ status. (Default: Disable)
 DMZ IP Address — Specifies an IP address on the local network allowed
unblocked access to the WAN.
FIREWALL
Firewall functions which will help to protect your network and computer. You can
utilized firmware functions to protect your network from hackers and malicious
intruders.
27

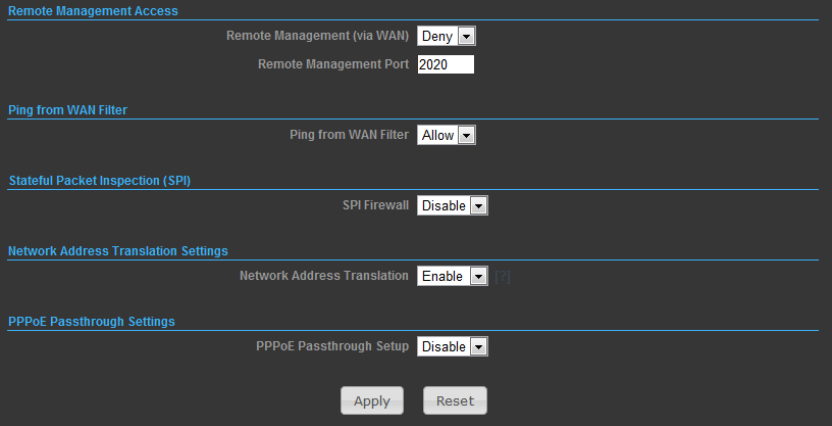

 Remote Management (via WAN) — allow or deny to manage the router from
anywhere on the Internet.
 Remote Management Port — The port that you will use to address the
management from the Internet. For example, if you specify port 2020, then to
access the 2.4GHz 802.11b/g/n Outdoor AP/CPE from Internet, you would use a
URL of the form: http://xxx.xxx.xxx.xxx:2020/
 Ping from WAN Filter — When Allow, this outdoor AP/CPE does not respond to
ping packets received on the WAN port.
 SPI Firewall — SIP firewall help to keep track of the state of network connections
(such as TCP streams, UDP communication) traveling across it. It is programmed to
distinguish legitimate packets for different types of connections. Only packets
matching a known active connection will be allowed by the firewall; others will be
rejected.
 Network Address Translation NAT is the process of modifying IP address
information in IP packet headers while in transit across a traffic routing device.
CONTENT FILTERING
The 2.4GHz 802.11b/g/n Outdoor AP/CPE provides a variety of options for blocking
Internet access based on content, URL and host name.
28
 Web URL Filter Settings — By filtering inbound Uniform Resource Locators (URLs)
the risk of compromising the network can be reduced. URLs are commonly used to
point to websites. By specifying a URL or a keyword contained in a URL traffic from
that site may be blocked.
 Current URL Filters — Displays current URL filter.
 Add a URL Filter — Adds a URL filter to the settings.
 Delete a URL Filter — Deletes a URL filter entry from the list.
 Web Host Filter Settings — Allows Internet content access to be restricted based
on web address keywords and web domains. A domain name is the name of a
particular web site. For example, for the address www.HOST.com, the domain name
is HOST.com. Enter the Keyword then click “Add.”
 Current Host Filters — Displays current Host filter.
 Add a Host Filter — Enters the keyword for a host filtering.
 Delete a Host Filter — Deletes a Host filter entry from the list.
29
NETWORK SETTINGS
WAN
In this section, there are several connection types to choose from; Static IP, DHCP,
PPPoE, PPTP and L2TP. If you are unsure of your connection method, please contact
your Internet Service Provider.
CABLE/DYNAMIC IP (DHCP)
 Hostname — Specifies the host name of the DHCP client.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain
Name Server.
PPPoE (ADSL)
 User Name — Sets the PPPoE user name for the WAN port.
 Password — Sets a PPPoE password for the WAN port.
 Verify Password — Prompts you to re-enter your chosen password.
 Operation Mode — Enables and configures the keep alive time and configures the
on-demand idle time.
30
STATIC IP (FIXED IP)
 IP Address — Sets the static IP address.
 Subnet Mask — Sets the static IP subnet mask. (Default: 255.255.255.0)
 Default Gateway — The IP address of a router that is used when the requested
destination IP address is not on the local subnet.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain Name Server.
PPTP
 Server IP — Sets the PPTP server IP Address. (Default: pptp_server)
 User Name — Sets the PPTP user name for the WAN port.
 Password — Sets a PPTP password for the WAN port.
 Address Mode — Sets a PPTP network mode. (Default: Dynamic IP)
 Operation Mode — Enables and configures the keep alive time.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
31
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain
Name Server.

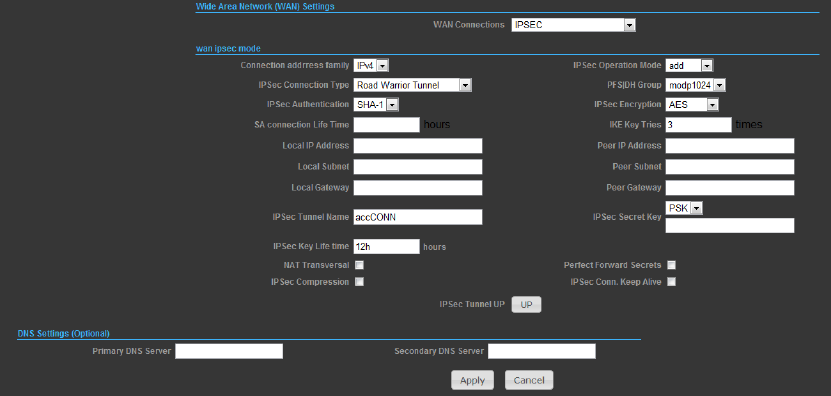

IPSec
Verifythedesiresettingsandusescrolldownformoreoptions.
 IPSecConnectionTypeUsedropdownmenutoselectfromRoadWarrior
Tunnel,HosttoHostTunnel,SubnettoSubnetTunnel,HosttoHostTransport,
Passtrough,Drop,orReject.DefaultsettingisRoadWarriorTunnel
 IPSecAuthenticationUsedropdownmenutoselectfromSHA1,orMD5.
DefaultsettingisSHA1.
 SAConnectionLifeTimeSpecifyhowofteneachSAshouldberekeyed,
measuredinhour.
 LocalIPaddress/Subnet/GatewayLocalendpointIPaddress,Subnet,and
GatewayIPaddress.
 IPSecOperationModeUsedropdownmenutoselectfromAdd,RouteStart,
Manual,orIgnore.DefaultsettingisAdd.
 IKEKeyRetry–SpecifymaximumretrylimitsfornegotiatekeytoInternetKey
Exchange.
 PeerIPaddress/Subnet/GatewayRemoteendpointIPaddress,Subnet,and
GatewayIPaddress.
32
L2TP
 Server IP — Sets the L2TP server IP Address. (Default: l2tp_server)
 User Name — Sets the L2TP user name for the WAN port.
 Password — Sets a L2TP password for the WAN port.
 Address Mode — Sets a L2TP network mode. (Default: Dynamic IP)
 Operation Mode — Enables and configures the keep alive time.
 Primary DNS Server — The IP address of the Primary Domain Name Server. A
DNS maps numerical IP addresses to domain names and can be used to identify
network hosts by familiar names instead of the IP addresses. To specify a DNS
server, type the IP addresses in the text field provided. Otherwise, leave the text
field blank.
 Secondary DNS Server — The IP address of the Secondary Domain Name Server.
LAN
In this section, the LAN settings are configured based on the IP Address and Subnet
Mask. The IP address is also used to access this Web-based management interface.
It is recommended to use the default settings if you do not have an existing
network.
33
 IP Address — The IP address of 2.4GHz 802.11b/g/n Outdoor AP/CPE on the
local area network. ( Default: 192.168.2.1 )
 Subnet Mask — The subnet mask of 2.4GHz 802.11b/g/n Outdoor AP/CPE on the
local area network
 DHCP Server — The DHCP Server is to assign private IP address to the 2.4GHz
802.11b/g/n Outdoor AP/CPE in your local area network(LAN). The default LAN IP
address is 192.168.2.1, changing IP address will also change the DHCP server’s IP
subnet.
ADVANCED ROUTING
In this section, allow to configure routing feature in the 2.4GHz 802.11b/g/n
Outdoor AP/CPE.
 Destination — The IP address of packets that can be routed.
 Type — Defines the type of destination. ( Host: Signal IP address / Net: Portion
of Network )
 Netmask — Displays the subnetwork associated with the destination.
 Gateway — Defines the packets destination next hop
 Interface — Select interface to which a static routing subnet is to be applied
 Comment — Help identify the routing
 RIP — Enable or disable the RIP(Routing Information Protocol) for the WAN or
LAN interface.
34
WIRELESS SETTINGS
BASIC
 Wireless On/Off — Enables or Disable the radio. (Default: Turn On)
 Wireless Mode — There are 4 wireless mode, those are Access Point, WDS
Access Point, WDS Repeater and WDS Client
Note.
If WEP authentication is selected for WDS communication, you will then only have
one set of encryption for the entire channel.
 Network Name (SSID) — The name of the wireless network service provided by
the 2.4GHz 802.11b/g/n Outdoor AP/CPE. Clients that want to connect to the
network must set their SSID to the same as that of 2.4GHz 802.11b/g/n Outdoor
AP/CPE.
 Multiple SSID — One additional VAP interface supported on the device.
 Frequency (Channel) — The radio channel that the 2.4GHz 802.11b/g/n Outdoor
AP/CPE uses to communicate with wireless clients.
 Network Mode — Defines the radio operating mode.
35
SECURITY
WIRED EQUIVALENT PRIVACY (WEP)
WEP provides a basic level of security, preventing unauthorized access to the
network, and encrypting data transmitted between wireless clients and an access
point. WEP uses static shared keys (fixed-length hexadecimal or alphanumeric
strings) that are manually distributed to all clients that want to use the network.
When you select to use WEP, be sure to define at least one static WEP key for user
authentication or data encryption. Also, be sure that the WEP shared keys are the
same for each client in the wireless network.
 WEP-AUTO — Allows wireless clients to connect to the network using
Open-WEP (uses WEP for encryption only) or Shared-WEP (uses WEP for
authentication and encryption).
 Encrypt Type — Selects WEP for data encryption (OPEN mode only).
 Security Key Index — Selects the WEP key number to use for authentication or
data encryption. If wireless clients have all four WEP keys configured to the same
values, you can change the encryption key to any of the settings without having to
update the client keys.
36
 WEP Keys — Sets WEP key values. The user must first select ASCII or
hexadecimal keys. Each WEP key has an index number. Enter key values that match
the key type and length settings. Enter 5 alphanumeric characters or 10
hexadecimal digits for 64-bit keys, or enter 13 alphanumeric characters or 26
hexadecimal digits for 128-bit keys. (Default: Hex, no preset value)
Note.
If WEP authentication is selected for WDS communication, you will then only have
one set of encryption for the entire channel.
WPA & WPA2
Wi-Fi Protected Access (WPA) was introduced as an interim solution for the
vulnerability of WEP pending the adoption of a more robust wireless security
standard. WPA2 includes the complete wireless security standard, but also offers
backward compatibility with WPA.
 WPA — Clients using WPA for authentication.
 WPA2 — Clients using WPA2 for authentication.
 WPA-Auto — Clients using WPA or WPA2 for authentication.
 WPA Algorithms Selects the data encryption type to use. (Default is
determined by the Security Mode selected.)
 TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for encryption. WPA
specifies TKIP as the data encryption method to replace WEP. TKIP avoids the
problems of WEP static keys by dynamically changing data encryption keys.
 AES — Uses Advanced Encryption Standard (AES) keys for encryption. WPA2 uses
AES Counter-Mode encryption with Cipher Block Chaining Message Authentication
Code (CBC-MAC) for message integrity. The AES Counter-Mode/CBCMAC Protocol
(AESCCMP) provides extremely robust data confidentiality using a 128- bit key. Use
of AES-CCMP encryption is specified as a standard requirement for WPA2. Before
implementing WPA2 in the network, be sure client devices are upgraded to
37
WPA2-compliant hardware.
 Auto — Uses either TKIP or AES keys for encryption. WPA and
WPA2 mixed modes allow both WPA and WPA2 clients to associate to a common
SSID. In mixed mode, the unicast encryption type (TKIP or AES) is negotiated for
each client.
 Key Renewal Interval — Sets the time period for automatically changing data
encryption keys and redistributing them to all connected clients.
RADIUS Server — Configures RADIUS server settings.
 IP Address — Specifies the IP address of the RADIUS server.
 Port — The User Datagram Protocol (UDP) port number used by the
RADIUS server for authentication messages. (Range: 1024-65535; Default: 1812)
 Shared Secret — A shared text string used to encrypt messages between the
access point and the RADIUS server. Be sure that the same text string is specified
on the RADIUS server. Do not use blank spaces in the string. (Maximum length: 20
characters)
WPA-PSK & WPA2-PSK
Wi-Fi Protected Access (WPA) was introduced as an interim solution for the
vulnerability of WEP pending the adoption of a more robust wireless security
standard. WPA2 includes the complete wireless security standard, but also offers
backward compatibility with WPA. For small home or office networks, WPA and
WPA2 provide a simple “personal” operating mode that uses just a pre-shared key
for network access. The WPA Pre-Shared Key (WPA-PSK) mode uses a common
password phrase for user authentication that is manually entered on the access
point and all wireless clients. Data encryption keys are automatically generated by
the access point and distributed to all clients connected to the network.
 WPA-PSK Clients using WPA with a Pre-shared Key are accepted for
authentication.
 WPA2-PSK — Clients using WPA2 with a Pre-shared Key are accepted for
authentication.
 WPA- Auto-PSK — Clients using WPA or WPA2 with a Preshared
38
Key are accepted for authentication. The default data encryption type is TKIP/AES.
 WPA Algorithms Selects the data encryption type to use. (Default is
determined by the Security Mode selected.)
 TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for encryption. WPA
specifies TKIP as the data encryption method to replace WEP. TKIP avoids the
problems of WEP static keys by dynamically changing data encryption keys.
 AES — Uses Advanced Encryption Standard (AES) keys for encryption. WPA2 uses
AES Counter-Mode encryption with Cipher Block Chaining Message Authentication
Code (CBC-MAC) for message integrity. The AES Counter-Mode/CBCMAC Protocol
(AESCCMP) provides extremely robust data confidentiality using a 128- bit key. Use
of AES-CCMP encryption is specified as a standard requirement for WPA2. Before
implementing WPA2 in the network, be sure client devices are upgraded to
WPA2-compliant hardware.
 Auto — Uses either TKIP or AES keys for encryption. WPA and
WPA2 mixed modes allow both WPA and WPA2 clients to associate to a common
SSID. In mixed mode, the unicast encryption type (TKIP or AES) is negotiated for
each client.
 Pass Phrase — The WPA Preshared Key can be input as an ASCII string (an
easy-to-remember form of letters and numbers that can include spaces) or
Hexadecimal format. (Range: 8~63 ASCII characters, or exactly 64 Hexadecimal
digits)
 Key Renewal Interval — Sets the time period for automatically changing data
encryption keys and redistributing them to all connected clients.
IEEE 802.1X AND RADIUS
IEEE 802.1X is a standard framework for network access control that uses a central
RADIUS server for user authentication. This control feature prevents unauthorized
access to the network by requiring an 802.1X client application to submit user
credentials for authentication. The 802.1X standard uses the Extensible
Authentication Protocol (EAP) to pass user credentials (either digital certificates,
user names and passwords, or other) from the client to the RADIUS server. Client
authentication is then verified on the RADIUS server before the client can access the
network. Remote Authentication Dial-in User Service (RADIUS) is an authentication
protocol that uses software running on a central server to control access to
RADIUS-aware devices on the network. An authentication server contains a
database of user credentials for each user that requires network access.
The WPA and WPA2 enterprise security modes use 802.1X as the method of user
authentication. IEEE 802.1X can also be enabled on its own as a security mode for
39
user authentication. When 802.1X is used, a RADIUS server must be configured and
be available on the connected wired network.
RADIUS Server — Configures RADIUS server settings.
 IP Address — Specifies the IP address of the RADIUS server.
 Port — The User Datagram Protocol (UDP) port number used by the
RADIUS server for authentication messages. (Range: 1024-65535; Default: 1812)
 Shared Secret — A shared text string used to encrypt messages between the
access point and the RADIUS server. Be sure that the same text string is specified
on the RADIUS server. Do not use blank spaces in the string. (Maximum length: 20
characters)
WI-FI PROTECTED SETUP (WPS)
Wi-Fi Protected Setup (WPS) is designed to ease installation and activation of
security features in wireless networks. WPS has two basic modes of operation,
Push-button Configuration (PBC) and Personal Identification Number (PIN). The
WPS PIN setup is optional to the PBC setup and provides more security. The WPS
button on the Wireless Router can be pressed at any time to allow a single device to
easily join the network. The WPS Settings page includes configuration options for
setting WPS device PIN codes and activating the virtual WPS button.
 WPS SSID — The service set identifier for the unit.
 AP PIN — Displays the PIN Code for the Wireless Router.
 Device Name — WPS name for connecting to the device.
40
 Encryption Settings — Selects between methods of broadcasting the WPS
beacon to network clients wanting to join the network:
WPA Algorithms — Select the data encryption type to use. (Default is determined by
the Security Mode selected.)
 TKIP — Uses Temporal Key Integrity Protocol (TKIP) keys for encryption. WPA
specifies TKIP as the data encryption method to replace WEP. TKIP avoids the
problems of WEP static keys by dynamically changing data encryption keys.
 AES — Uses Advanced Encryption Standard (AES) keys for encryption. WPA2
uses AES Counter-Mode encryption with Cipher Block Chaining Message
Authentication Code (CBC-MAC) for message integrity. The AES
Counter-Mode/CBCMAC Protocol (AESCCMP) provides extremely robust data
confidentiality using a 128- bit key. Use of AES-CCMP encryption is specified as a
standard requirement for WPA2. Before implementing WPA2 in the network, be sure
client devices are upgraded to WPA2-compliant hardware.
 Auto — Uses either TKIP or AES keys for encryption. WPA and
WPA2 mixed modes allow both WPA and WPA2 clients to associate to a common
SSID. In mixed mode, the unicast encryption type (TKIP or AES) is negotiated for
each client.
 Key Renewal Interval — Sets the time period for automatically changing data
encryption keys and redistributing them to all connected clients.
 Pass Phrase — The WPA Preshared Key can be input as an ASCII string (an
easy-to-remember form of letters and numbers that can include spaces) or
Hexadecimal format. (Range: 8~63 ASCII characters, or exactly 64 Hexadecimal
digits)

Navigation menu
