Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 1
www.idealindustries.com

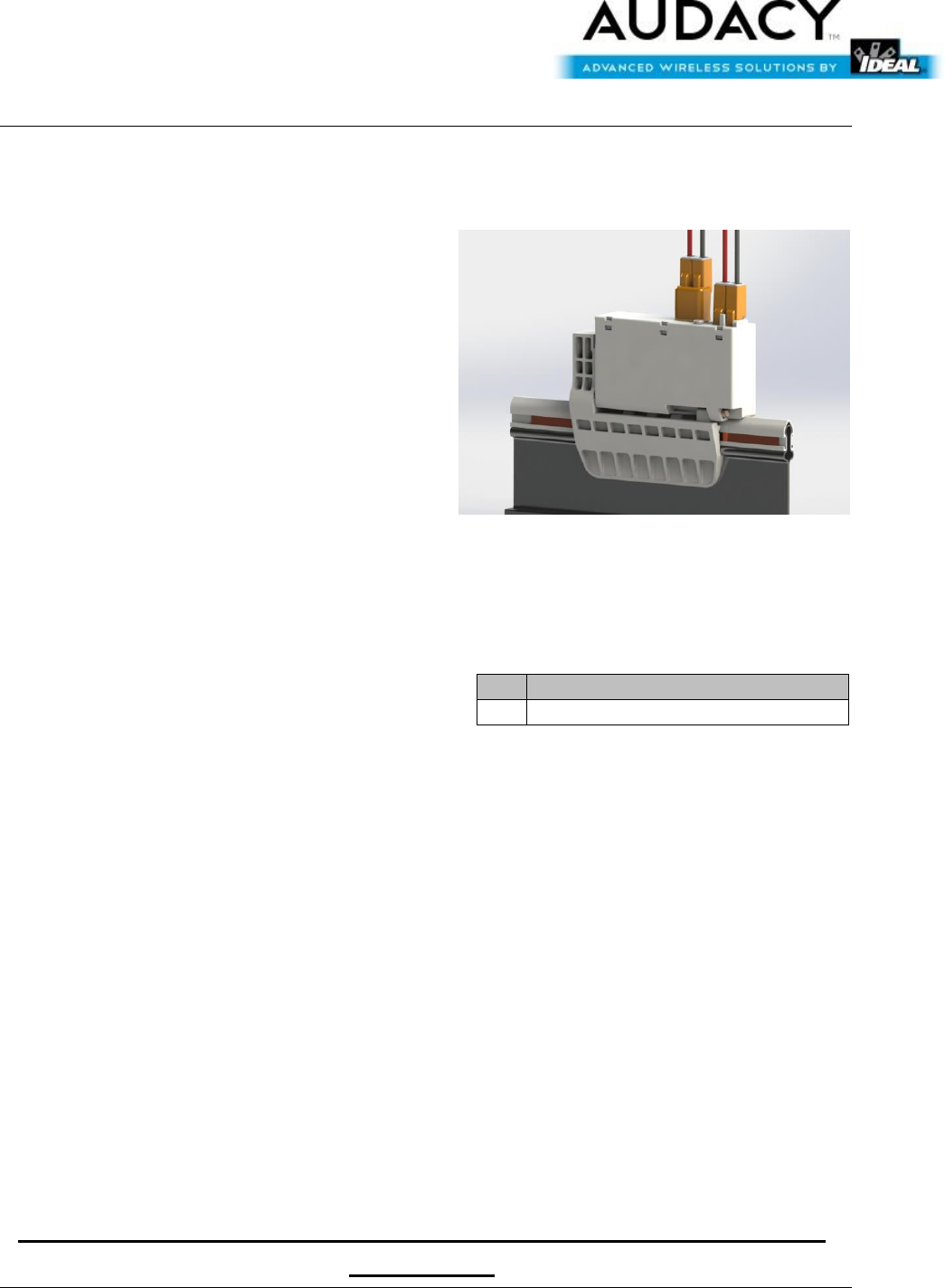

PRODUCT DESCRIPTION
The LVDC Grid Luminaire Controller is a
wireless device which provides electrical
connectivity between the light fixture (load)
and 24V DC power and provides on/off
power control and 0-10V based dimming to
the load. The information that tells the
controller to power on/off/dim the fixture is
acquired via wireless signals that originate
from a building automation system or room
controls, based on environmental conditions
and/or predetermined programs.
KEY FEATURES
FCC and IC approved
Small form factor
Integrated Wire Antenna
RoHS compliant
PRODUCT CONTENTS
The following items are included inside the
package:
Qty
Description
1
ESCGRID1001 Smart Connector
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
IDEAL Model ESCGRID1001 LVDC Luminaire Controller Installation
Instructions
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 2
www.idealindustries.com
WARNING: This is a current rated device. Use in applications involving
Amperage beyond its rating can be dangerous and cause electrical fires.
Wiring must comply with all applicable electrical codes.
TERMINOLOGY
24V Input: Incoming power feed from 24V source (DC Flex-Zone)
LOAD: Power output from Luminaire Controller to 24V DC LED Fixture input
DIM: 0-10 VDC dimming control output from Smart Connector to ballast
dimming input
Power and Load Connections
Power
The 24V Input power is applied to the device once clipped onto the DC Flexzone grid.
Place the device in the desired location on an energized rail.
LOAD Connector
The LOAD Connector accepts 18 AWG copper conductors, solid or stranded (16 strands
or less).
Use only one conductor per port and ensure that no copper is exposed on any of the
wires after installation.

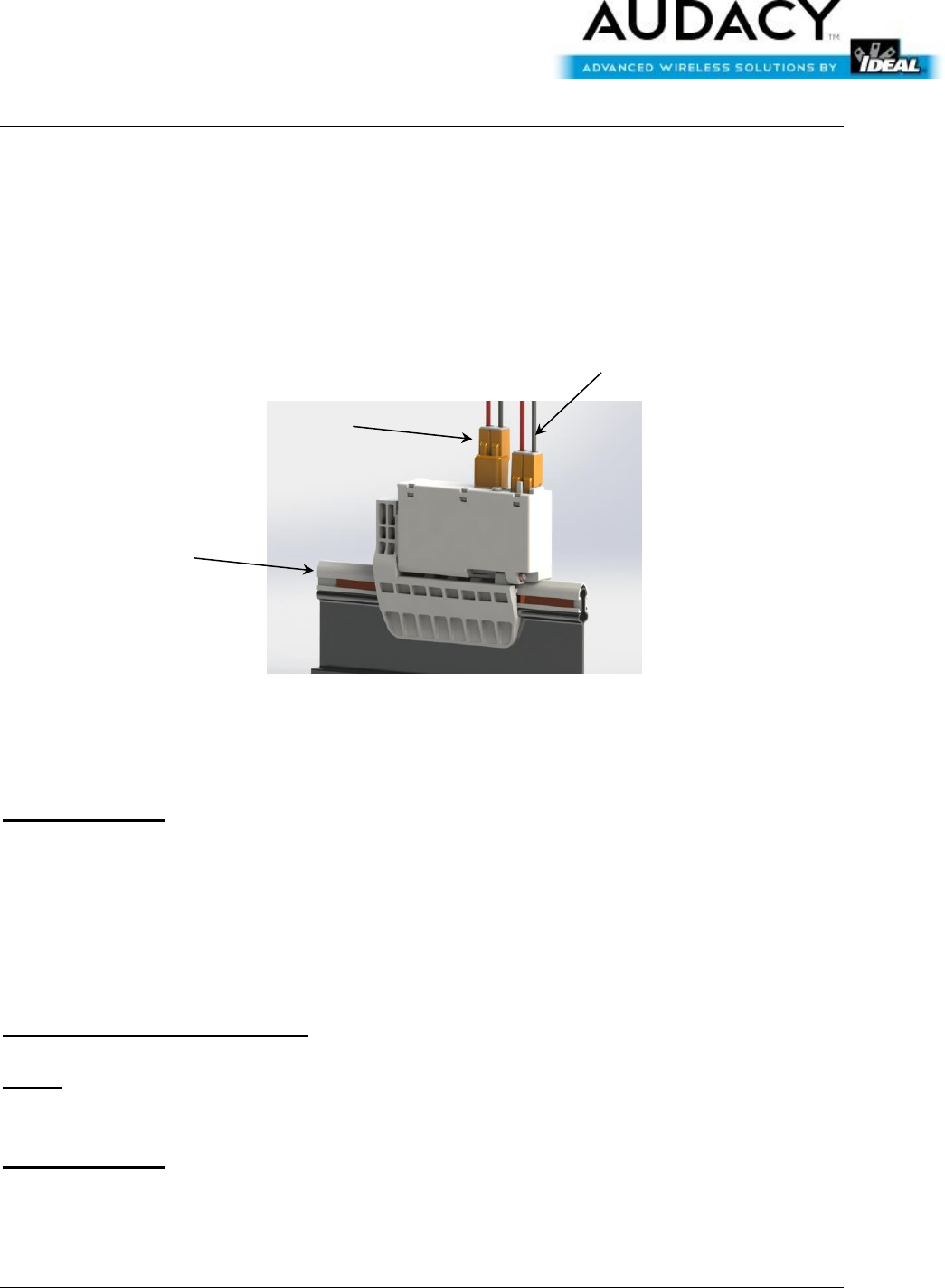

24V DC Bus
LOAD
Connection
CC Connector
Fig. 1
0-10V Dimming
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 3
www.idealindustries.com
1. Strip the wires to 3/8”.
2. Grip the LOAD +24V wire and firmly push conductor into the port marked with the black
stripe. See Fig. 2.
3. Grip the LOAD -24V wire and firmly push conductor into the unmarked port. See Fig. 2.
4. After LOAD wire installation, the load can safely be disconnected and re-connected without
re-installing the wires. To disconnect the load, firmly grip the LOAD connector and pull to
separate it from the main body of the Smart Connector. To re-connect, simply push the
LOAD connector into the corresponding port on the Smart Connector.
DIM Connector
The DIM Connector accepts 18 AWG copper conductors, solid or stranded (16 strands or less).
Use only one conductor per port and ensure that no copper is exposed on any of the wires after
installation.
1. Strip wires to 3/8”.
2. Grip positive/(+)/purple DIM conductor and firmly push into the port marked “1”. See Fig. 3.
3. Grip negative/(-)/gray DIM conductor and firmly push into the port marked “2”. See Fig. 3.
4. After DIM wire installation, the DIM connector can safely be disconnected and re-connected without
re-installing the wires. To disconnect the DIM connector, firmly grip the DIM connector and pull to
separate it from the main body of the Smart Connector. To re-connect, simply push the DIM
connector into the corresponding port on the Smart Connector.
PROGRAMMING
Refer to the Audacy™ system configuration manual to associate smart connectors to other
devices and to set up operating parameters for the Audacy™ lighting control system
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 4
www.idealindustries.com

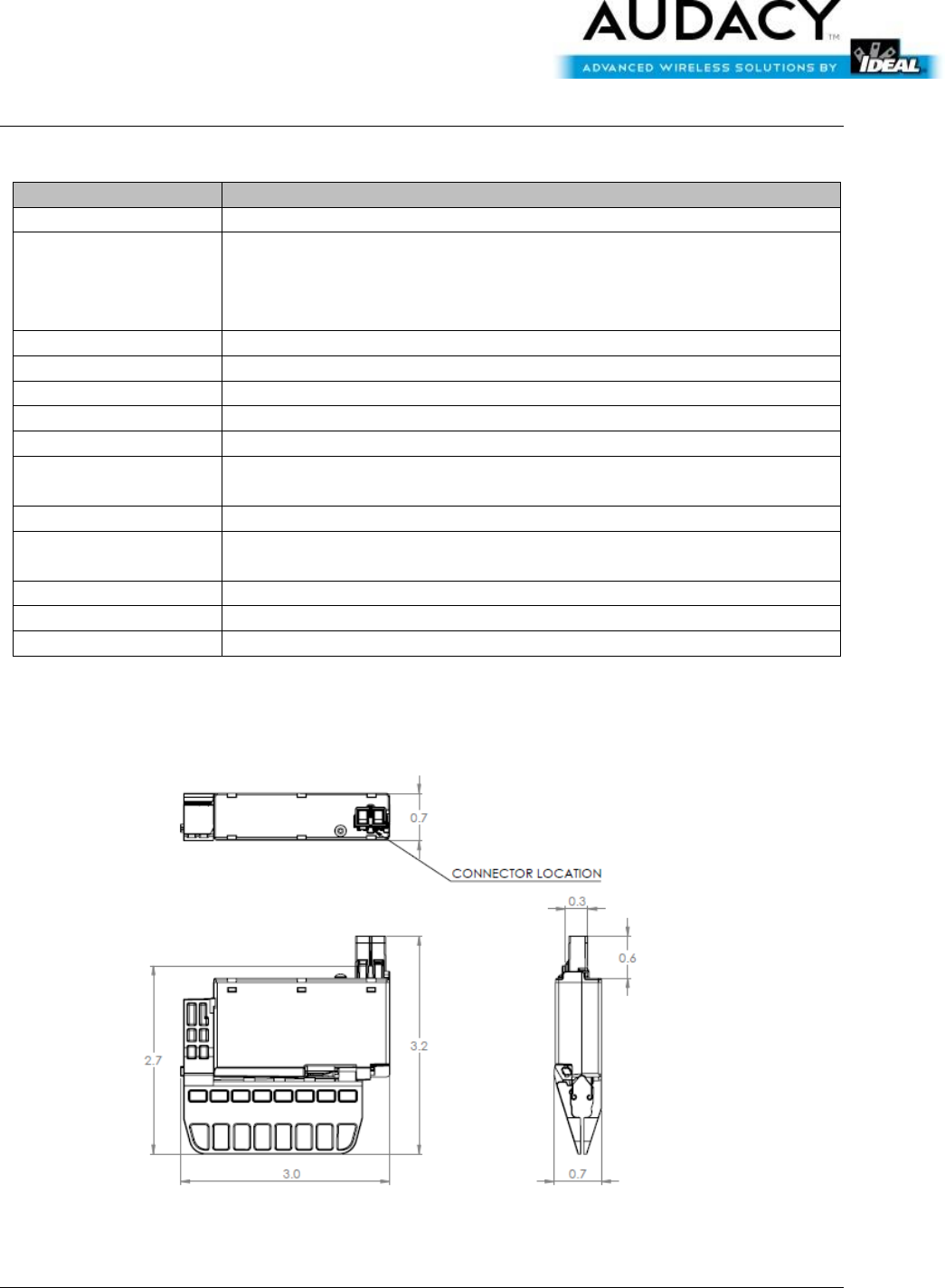

SPECIFICATIONS
Item
Description
Radio
915 MHz External Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada
FCC ID: 2AAMXESCGRID1001
IC: 11250A-ESCGRID1001
UL916
Transmit Range
300 ft. indoors line of sight to an Audacy Gateway or Smart Connector
Load Dimming
PWM
Load Amperage
4.1 Amps
Switching Cycles
50,000
Power
24 VDC
Operating
Temperature
0°C to 70°C
Storage Temperature
-20°C to 90°C
Installation
Environment
Indoor use only
Dimensions
3.00”x3.2”x0.70”
Weight
3.3 oz
Warranty
1 yr
MECHANICAL DIMENSIONS
*Dimensions in inches
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 5
www.idealindustries.com
SUPPORT
Technical support for IDEAL INDUSTRIES products can be initiated through the following
methods:
Website: http://www.idealindustries.com/support/
Telephone: +1 800-435-0705
Email: contactus@idealindustries.com
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 6
www.idealindustries.com
COMPLIANCE STATEMENTS
This device is intended for commercial and industrial applications.
Changes or modifications not expressly approved by IDEAL INDUSTRIES could void the user’s
authority to operate the equipment. Use and maintain device only as specified in this manual.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
WARNING!
FCC and IC Radiation Exposure Statement:
This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment under the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance
of 20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all
times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 7
www.idealindustries.com
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Product Manual
ESCGRID1001 – LVDC Grid Luminaire Controller
ND xxxx-x 04/2017 Users Manual – ESCGRID1001 LVDC Grid Luminaire Controller Page 8
www.idealindustries.com
IMPORTANT NOTICE
Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No
license, express or implied, to any intellectual property rights is granted by this document. No
responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of
patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC.
assumes no liability for misuse of this product. Specifications are subject to change without
notice.
