Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 1
www.idealindustries.com

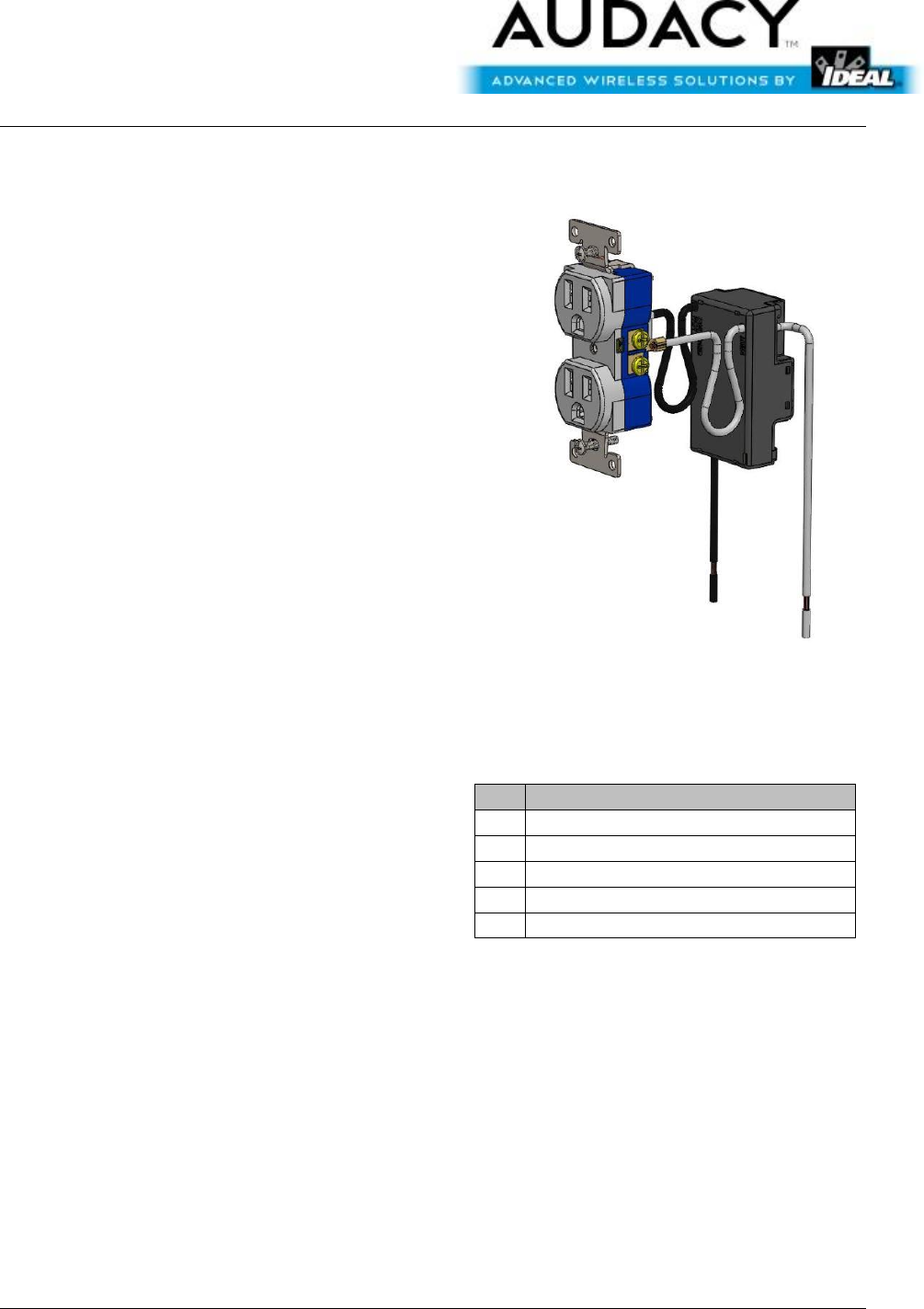

PRODUCT DESCRIPTION
The Audacy RS1800 Plug Load Controller is
a wireless device which provides electrical
connectivity between the outlet (load) and
120VAC line power as well as provide on/off
power control. The information that tells
the controller to power on/off the outet is
acquired via wireless signals that originate
from a building automation system or from
room controls, based on environmental
conditions and/or predetermined
programs.
S
KEY FEATURES
FCC and IC approved
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
PRODUCT CONTENTS
The following items are included inside the
package:
Qty
Description
1
Plug Load Control RS1800
1
Instruction card
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 2
www.idealindustries.com
IDEAL Model RS1800 Plug Load Controller Installation Instructions
WARNING: This is a current rated device. Use in applications involving
amperage beyond its rating can be dangerous and cause electrical fires.
Wiring must comply with all applicable electrical codes.
Turn off power before removing or installing connector.
TERMINOLOGY
LINE(Black): Controller power feed to be connected to premise wiring
LOAD(Red): Power output Controller to AC outlet
Neutral(White): Incoming Neutral from premise wiring and outgoing AC outlet
CONNECTING THE WIRES
Input Power
The smart connector LINE(Black) and NEUTRAL(White) wires are 12 AWG stranded
copper conductors.
1. Strip wires to 1/2”.
2. Connect Controller Line Input to premise line power feed with appropriate sized wirenut or
push-in connector.
3. Connect Smart Connector Neutral Input to premise neutral feed with appropriately sized
wirenut or push-in connector..
4. For feed-through (i.e., “daisy-chain”) installations, connect the LINE hot feed-through
conductor into the wirenut in step 2. Also, connect the NEUTRAL feet-through conductor
connected without re-installing the wires. into the wirenut in step 3.
LOAD
The LOAD(red) and Neutral(White) wire are 18 AWG solid copper conductors.
1. Strip wires to 1/2”.
2. Connect Controller LOAD wire to the AC outlet with appropriate sized wirenut or push-in
connector if necessary.
3. Connect Controller NEUTRAL Output to the AC outlet with appropriately sized wirenut or
push-in connector if necessary.
4. For feed-through (i.e., “daisy-chain”) installations, connect the LOAD hot feed-through
conductor into the wirenut in step 2. Also, connect the NEUTRAL Output feed-through
conductor into the wirenut in step 3.
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 3
www.idealindustries.com
SPECIFICATIONS
Item
Description
Radio
915 MHz Internal Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada
Contains FCC ID: 2AAMXRS1800
Contains IC: 11250A-RS1800
Transmit Range
100 ft. indoors to an Audacy Gateway or Smart Connector in a typical
commercial office building
Power
25+ year Li battery, non-replaceable
Operating Temperature
10°C to 32°C
Storage Temperature
-20°C to 50°C
Installation
Environment
Indoor use only
Color
White
Dimensions
2.84” x 1.65” x 1.03” (72.13 x 41.91 x 26.12 mm)
Weight
3.7 oz (106 grams)
Warranty
1 year

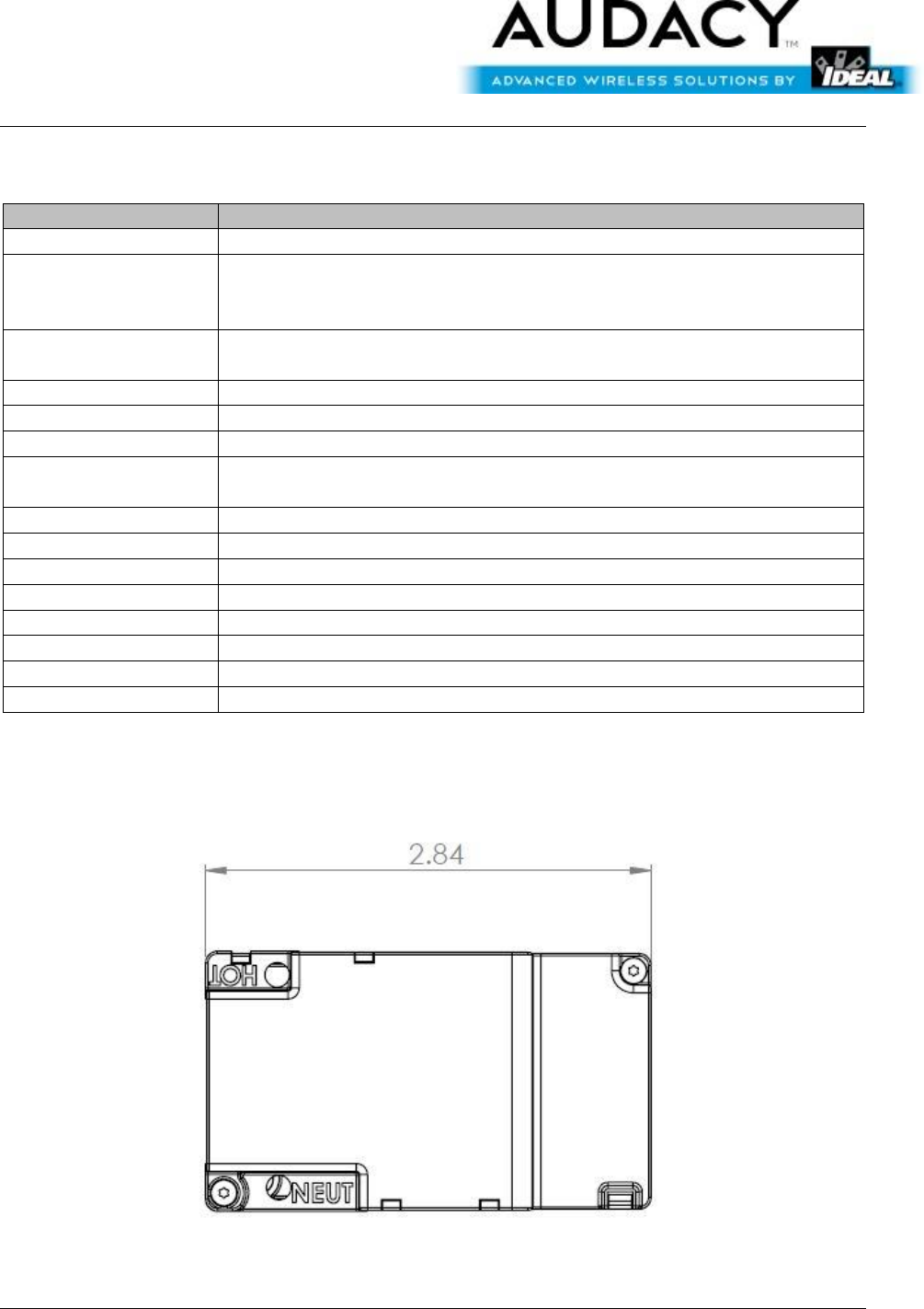

MECHANICAL (TOP VIEW)
*Dimensions in inches
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 4
www.idealindustries.com

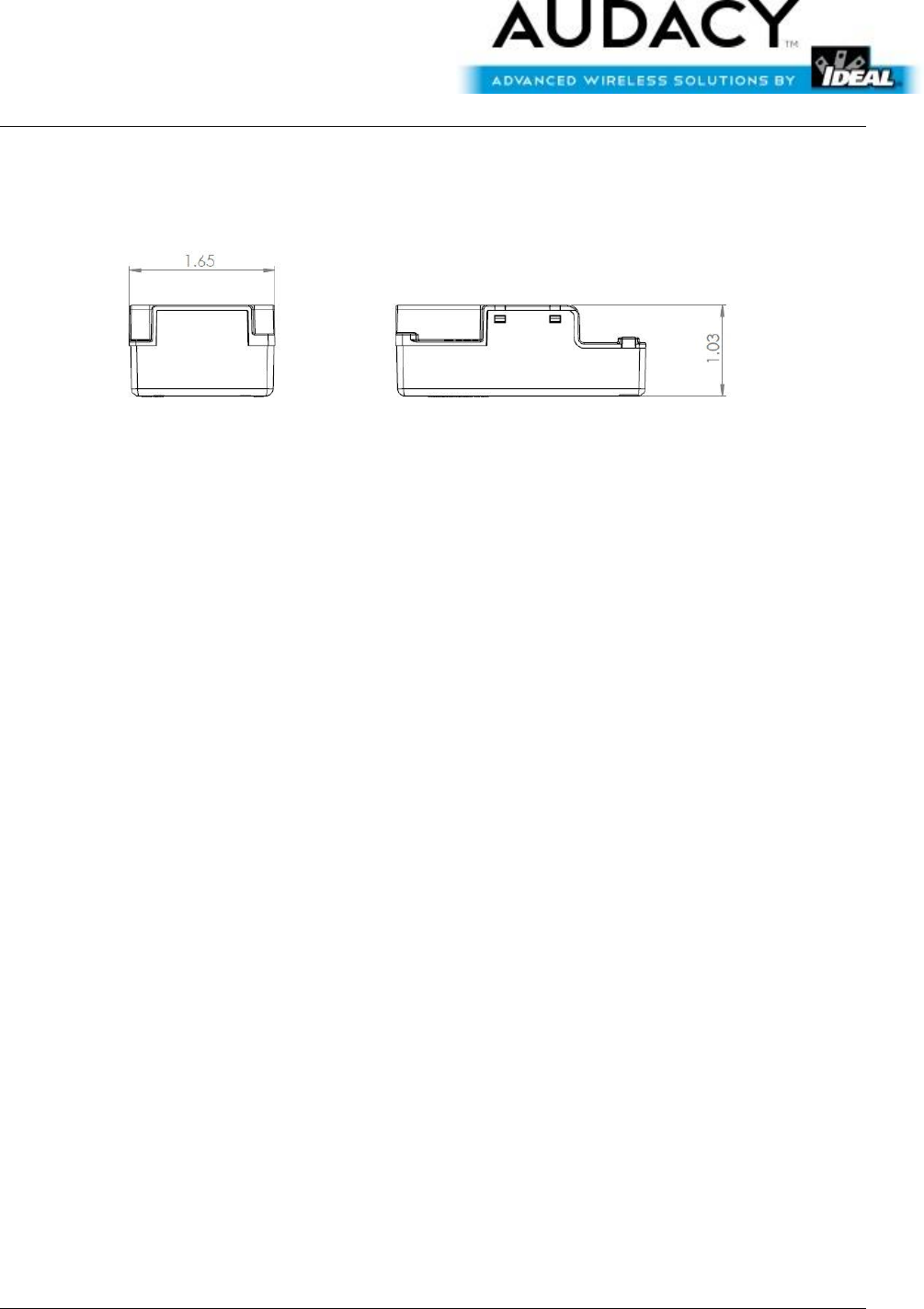

MECHANICAL (SIDE VIEWS)
*Dimensions in inches
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 5
www.idealindustries.com
SUPPORT
Technical support for IDEAL INDUSTRIES products can be initiated through the following
methods:
Website: http://www.idealindustries.com/support/
Telephone: +1 800-435-0705
Email: contactus@idealindustries.com
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 6
www.idealindustries.com
COMPLIANCE STATEMENTS
This device is intended for commercial and industrial applications.
Changes or modifications not expressly approved by IDEAL INDUSTRIES could void the user’s
authority to operate the equipment. Use and maintain device only as specified in this manual.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
WARNING!
FCC and IC Radiation Exposure Statement:
This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment under the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance of
20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 7
www.idealindustries.com
IMPORTANT NOTICE
Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No
license, express or implied, to any intellectual property rights is granted by this document. No
responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of
patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC.
assumes no liability for misuse of this product. Specifications are subject to change without
notice.
No license is granted by implication or otherwise under any patent or patent rights of IDEAL
INDUSTRIES, INC. Trademarks and registered trademarks are the property of their respective
owners.
IDEAL INDUSTRIES, INC. PRODUCTS (INCLUDING HARDWARE AND/OR SOFTWARE) ARE NOT
DESIGNED OR INTENDED TO BE FAIL-SAFE, FAULT TOLERANT OR FOR USE IN ANY APPLICATION
THAT COULD LEAD TO DEATH, PERSONAL INJURY OR SEVERE PROPERTY OR ENVIRONMENTAL
DAMAGE (INDIVIDUALLY AND COLLECTIVELY, “CRITICAL APPLICATIONS”), SUCH AS LIFE-
SUPPORT OR SAFETY DEVICES OR SYSTEMS, CLASS III MEDICAL DEVICES, NUCLEAR FACILITIES,
APPLICATIONS THAT AFFECT CONTROL OF A VEHICLE OR AIRCRAFT, APPLICATIONS RELATED TO
THE DEPLOYMENT OF AIRBAGS, OR ANY OTHER CRITICAL APPLICATIONS. CUSTOMER AGREES,
PRIOR TO USING OR DISTRIBUTING ANY SYSTEMS THAT INCORPORATE IDEAL INDUSTRIES, INC.
PRODUCTS, TO THOROUGHLY TEST THE SAME FOR SAFETY PURPOSES. CUSTOMER ASSUMES
THE SOLE RISK AND LIABILITY OF ANY USE OF IDEAL INDUSTRIES, INC. PRODUCTS IN CRITICAL
APPLICATIONS, SUBJECT ONLY TO APPLICABLE LAWS AND REGULATIONS GOVERNING
LIMITATIONS ON PRODUCT LIABILITY.
Product Manual
RS1800 – Plug Load Control
ND8079-1 01/2015 Users Manual – RS1800- - Plug Load Control Page 8
www.idealindustries.com
WARRANTY
THIS LIMITED WARRANTY applies solely to standard transmitters manufactured by or on behalf
of IDEAL INDUSTRIES, INC.. Subject to the limitations herein, IDEAL INDUSTRIES warrants that
transmitters, when delivered by IDEAL INDUSTRIES or its authorized distributor, for one (1) year
following the delivery date, will be free from defects in material and workmanship and will
substantially conform to IDEAL INDUSTRIES publicly available specifications for such products in
effect at the time of delivery. This limited warranty excludes: (i) engineering samples (which are
provided “AS-IS” without warranty); (ii) bare circuit boards (iii) development products (such as
boards and cables); (iv) design defects or errors known as “errata”; (v) transmitters procured
through unauthorized third parties; and (vi) transmitters that have been subject to misuse,
mishandling, accident, alteration, neglect, unauthorized repair or installation. Furthermore, this
limited warranty shall not apply to the use of covered products in an application or
environment that is not within IDEAL INDUSTRIES specifications or in the event of any act, error,
neglect or default of Customer. If such IDEAL INDUSTRIES products fail to conform to the
warranty above, the exclusive remedy of Customer and the sole liability of IDEAL INDUSTRIES
shall be, at the option of IDEAL INDUSTRIES, to replace or repair the affected products, or to
refund to Customer the price of the affected products. The availability of replacement products
is subject to product discontinuance policies at IDEAL INDUSTRIES. Customer may not return
products without first obtaining a customer return material authorization (RMA) number from
IDEAL INDUSTRIES. THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR
IMPLIED. IDEAL INDUSTRIES DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED
OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT, AND ANY WARRANTY THAT
MAY ARISE FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IF
IDEAL INDUSTRIES CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED
PRODUCT WARRANTY, ALL SUCH IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE WARRANTY PERIOD (AS DEFINED ABOVE). YOUR SOLE REMEDY WITH RESPECT TO ANY
BREACH OF THE LIMITED PRODUCT WARRANTY SHALL BE THE REPAIR OR REPLACEMENT OF
THE DEVICE AS SPECIFIED IN THE LIMITED PRODUCT WARRANTY. IDEAL INDUSTRIES IS NOT
RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM ANY BREACH OF WARRANTY OR UNDER ANY OTHER LEGAL THEORY INCLUDING, BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
EQUIPMENT AND PROPERTY, AND ANY COSTS OF RECOVERING, REPROGRAMMING, OR
REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH A SYSTEM CONTAINING
IDEAL INDUSTRIES TRANSMITTERS. Some states do not allow the exclusion or limitation of
incidental or consequential damages or exclusions or limitations on the duration of implied
warranties or conditions, so the above limitations or exclusions may not apply to you. This
limited product warranty gives you specific legal rights, and you may also have other legal rights
which vary from state to state.
