Ideal VDT1300 Occupancy/Vacancy Sensor User Manual
Ideal Industries, Inc. Occupancy/Vacancy Sensor
Ideal >
User Manual.pdf
Product Manual

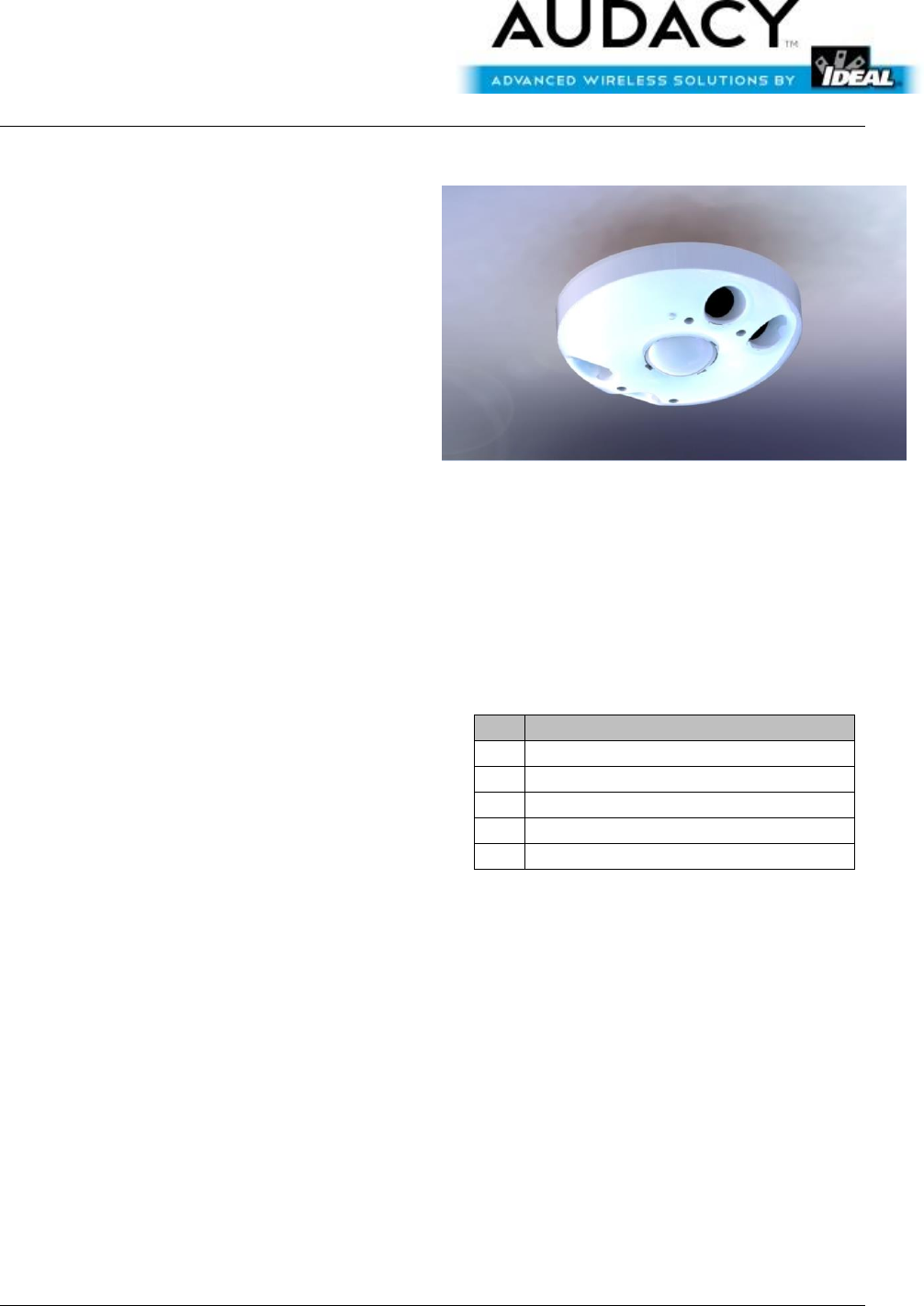

VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 1
www.idealindustries.com
PRODUCT DESCRIPTION
The Audacy VDT1300 Occupancy/Vacancy
Sensor is a line powered device specially
designed to detect the presence or absence
of occupants and wirelessly transmit this
information to the Audacy Gateway. The
information provided by the sensor is used
to determine whether lights should remain
on or turned off to reduce energy
consumption. The product makes use of
both passive infrared and ultrasonic sensing
to achieve detection of minor motion.
KEY FEATURES
FCC and IC approved
Flexible ceiling mounting options
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
PRODUCT CONTENTS
The following items are included inside the
package:
Qty
Description
1
Occ/Vac Sensor VDT1300
1
Sensor Cradle
2
Mounting Screw
1
Locking Screw
1
Instruction card
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 2
www.idealindustries.com
SET-UP AND OPERATION
1. Ceiling-mount the VDT1300 cradle in the desired location with the optional mounting
screws(2). Cradle can be mounted directly to drywall or ceiling tiles.
2. Connect to AC mains power to sensor. BLACK:line, WHITE:neutral
3. Mount sensor to cradle.
4. Adjust to desired sensitivity and range on ultrasonic sensors via the potentiometer
screws available through the holes in the housing cover.
5. An optional screw can be used to lock the Smart Switch in the cradle.
SPECIFICATIONS
Item
Description
Radio
915 MHz Internal Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada
FCC ID: 2AAMXVDT1300
IC: 11250A-VDT1300
Transmit Range
200 ft. indoors to an Audacy Gateway or Smart Connector in a typical
commercial office building
Power
120VAC/277VAC
Operating Temperature
10°C to 32°C
Storage Temperature
-20°C to 50°C
Installation
Environment
Indoor use only
Mounting
2 bracket mounting holes (See mechanical drawing for dimensions)
Color
White
Dimensions
4.56” x 2.29” x 1.5” (115.82 x 58.17 x 38.1 mm)
Weight
2.9 oz
Warranty
1 year
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 3
www.idealindustries.com

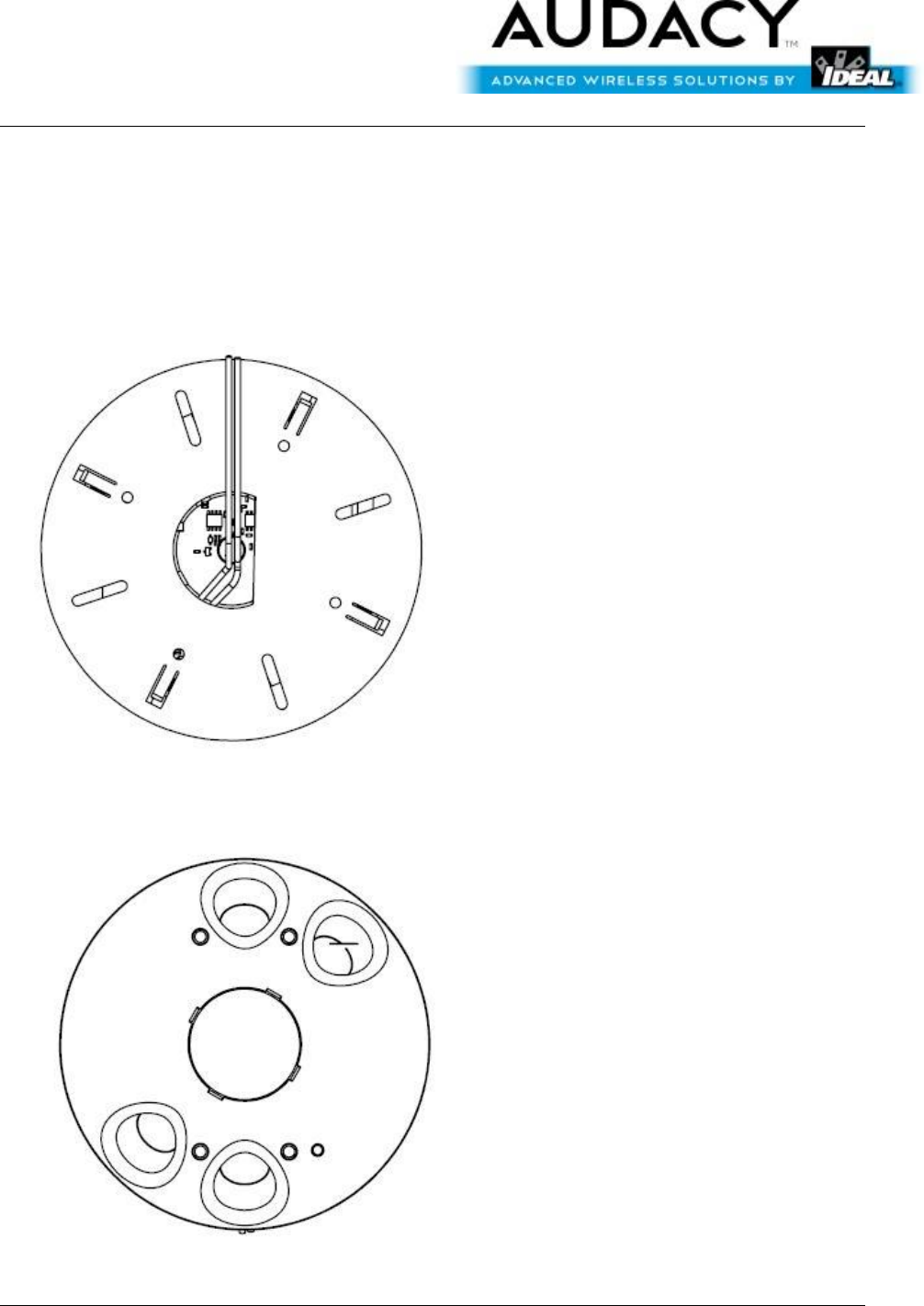

MECHANICAL (REAR VIEW)
MECHANICAL (TOP VIEW)
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 4
www.idealindustries.com
SUPPORT
Technical support for IDEAL INDUSTRIES products can be initiated through the following
methods:
Website: http://www.idealindustries.com/support/
Telephone: +1 800-435-0705
Email: contactus@idealindustries.com
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 5
www.idealindustries.com
COMPLIANCE STATEMENTS
This device is intended for commercial and industrial applications.
Changes or modifications not expressly approved by IDEAL could void the user’s authority to
operate the equipment. Use and maintain device only as specified in this manual.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
WARNING!
FCC and IC Radiation Exposure Statement:
This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment under the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance of
20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This device complied with Industry Canada licence-exempt RSS standard(s) and part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Ce dispositif conformé à Industrie Canada exempts de licence standard RSS (s) et la partie 15 des règles de la FCC.
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer
d'interférences, et (2) ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent
entraîner un mauvais fonctionnement de l'appareil.
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 6
www.idealindustries.com
IMPORTANT NOTICE
Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No
license, express or implied, to any intellectual property rights is granted by this document. No
responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of
patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC.
assumes no liability for misuse of this product. Specifications are subject to change without
notice.
No license is granted by implication or otherwise under any patent or patent rights of IDEAL
INDUSTRIES, INC. Trademarks and registered trademarks are the property of their respective
owners.
IDEAL INDUSTRIES, INC. PRODUCTS (INCLUDING HARDWARE AND/OR SOFTWARE) ARE NOT
DESIGNED OR INTENDED TO BE FAIL-SAFE, FAULT TOLERANT OR FOR USE IN ANY APPLICATION
THAT COULD LEAD TO DEATH, PERSONAL INJURY OR SEVERE PROPERTY OR ENVIRONMENTAL
DAMAGE (INDIVIDUALLY AND COLLECTIVELY, “CRITICAL APPLICATIONS”), SUCH AS LIFE-
SUPPORT OR SAFETY DEVICES OR SYSTEMS, CLASS III MEDICAL DEVICES, NUCLEAR FACILITIES,
APPLICATIONS THAT AFFECT CONTROL OF A VEHICLE OR AIRCRAFT, APPLICATIONS RELATED TO
THE DEPLOYMENT OF AIRBAGS, OR ANY OTHER CRITICAL APPLICATIONS. CUSTOMER AGREES,
PRIOR TO USING OR DISTRIBUTING ANY SYSTEMS THAT INCORPORATE IDEAL INDUSTRIES, INC.
PRODUCTS, TO THOROUGHLY TEST THE SAME FOR SAFETY PURPOSES. CUSTOMER ASSUMES
THE SOLE RISK AND LIABILITY OF ANY USE OF IDEAL INDUSTRIES, INC. PRODUCTS IN CRITICAL
APPLICATIONS, SUBJECT ONLY TO APPLICABLE LAWS AND REGULATIONS GOVERNING
LIMITATIONS ON PRODUCT LIABILITY.
Product Manual
VDT1300 Ceiling Mount Dual Technology Occupancy/Vacancy Sensor
NDxxxx-x 01/2016 Users Manual – VDT1300 Dual Technology Occupancy/Vacancy Sensor Page 7
www.idealindustries.com
WARRANTY
THIS LIMITED WARRANTY applies solely to standard transmitters manufactured by or on behalf
of IDEAL. Subject to the limitations herein, IDEAL warrants that transmitters, when delivered by
IDEAL or its authorized distributor, for one (1) year following the delivery date, will be free from
defects in material and workmanship and will substantially conform to IDEAL publicly available
specifications for such products in effect at the time of delivery. This limited warranty excludes:
(i) engineering samples (which are provided “AS-IS” without warranty); (ii) bare circuit boards
(iii) development products (such as boards and cables); (iv) design defects or errors known as
“errata”; (v) transmitters procured through unauthorized third parties; and (vi) transmitters
that have been subject to misuse, mishandling, accident, alteration, neglect, unauthorized
repair or installation. Furthermore, this limited warranty shall not apply to the use of covered
products in an application or environment that is not within IDEAL specifications or in the event
of any act, error, neglect or default of Customer. If such IDEAL products fail to conform to the
warranty above, the exclusive remedy of Customer and the sole liability of IDEAL shall be, at the
option of IDEAL, to replace or repair the affected products, or to refund to Customer the price
of the affected products. The availability of replacement products is subject to product
discontinuance policies at IDEAL. Customer may not return products without first obtaining a
customer return material authorization (RMA) number from IDEAL. THE WARRANTIES SET
FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND
CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. IDEAL DISCLAIMS ALL OTHER
WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR
NON-INFRINGEMENT, AND ANY WARRANTY THAT MAY ARISE FROM COURSE OF DEALING,
COURSE OF PERFORMANCE, OR USAGE OF TRADE. IF IDEAL CANNOT LAWFULLY DISCLAIM
IMPLIED WARRANTIES UNDER THIS LIMITED PRODUCT WARRANTY, ALL SUCH IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD (AS DEFINED
ABOVE). YOUR SOLE REMEDY WITH RESPECT TO ANY BREACH OF THE LIMITED PRODUCT
WARRANTY SHALL BE THE REPAIR OR REPLACEMENT OF THE DEVICE AS SPECIFIED IN THE
LIMITED PRODUCT WARRANTY. IDEAL IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR UNDER ANY
OTHER LEGAL THEORY INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY, AND ANY COSTS
OF RECOVERING, REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN
OR USED WITH A SYSTEM CONTAINING IDEAL TRANSMITTERS. Some states do not allow the
exclusion or limitation of incidental or consequential damages or exclusions or limitations on
the duration of implied warranties or conditions, so the above limitations or exclusions may not
apply to you. This limited product warranty gives you specific legal rights, and you may also
have other legal rights which vary from state to state.
