Identec Solutions ILR-IB2L Active Transponder Tag User Manual i B2L 07 06 14

Identec Solutions AG Active Transponder Tag i B2L 07 06 14

User Manual

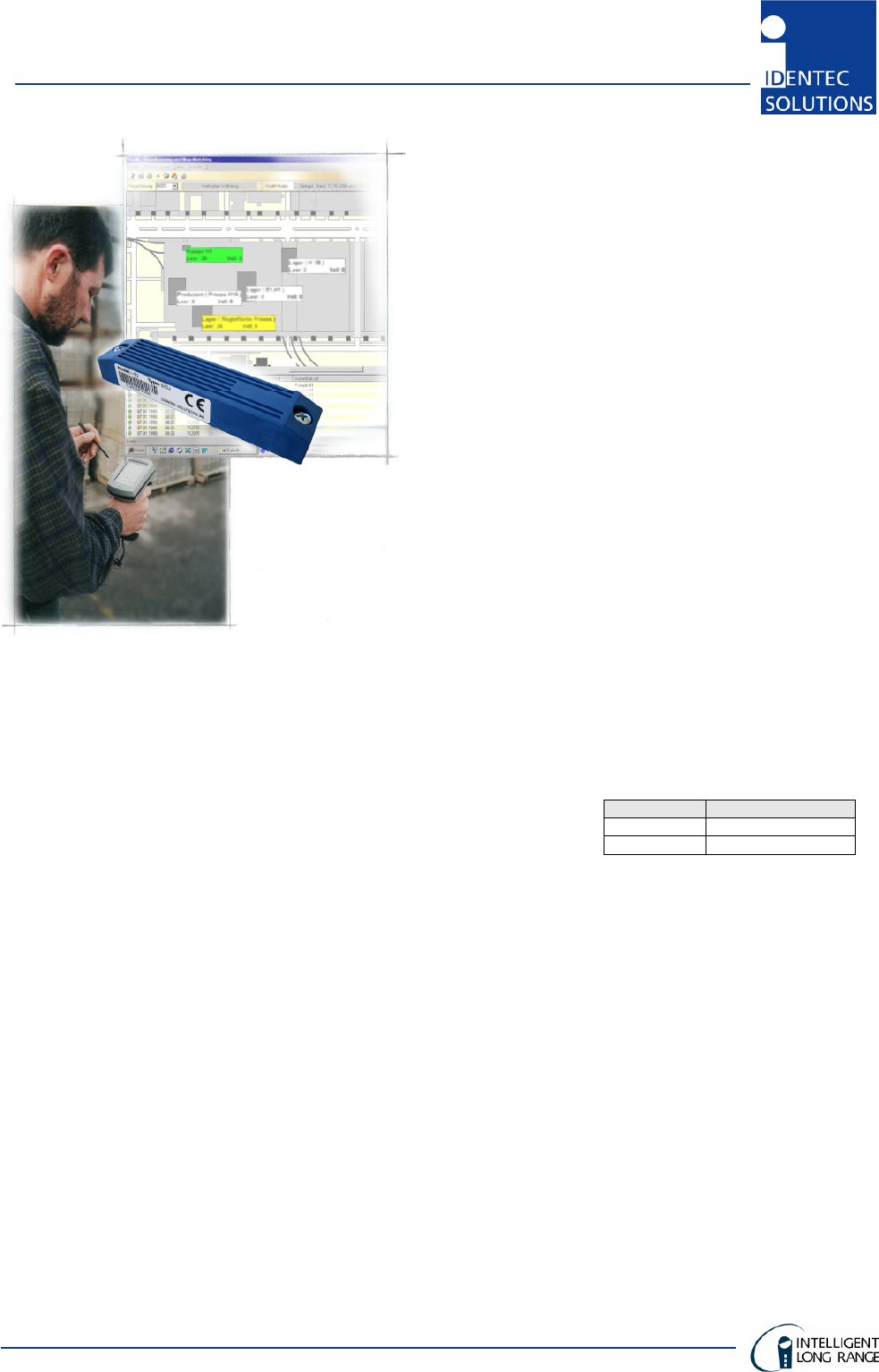

Active UHF Beacon Tag
i-B2L – Marker Version - Preliminary
B
eyond RFID.
The i-B series is the beacon generation of IDENTEC SOLUTIONS’
Intelligent Long Range
(ILR
) active RFID tags. Built on IDENTEC
SOLUTIONS’ patented high-performance technology, the i-B2L tag
provides impressive long-range capabilities for wireless applications
that require the benefits provided by beacon tags. Static data is written
on an i-BL tag and is continuously sent at a programmable interval
(ping rate) without being requested by a reader.
The i-B2L series offers an attractive price for continuous tag
collection in specific scenarios such as:
• Access control
• Tracking of Vehicles and Containers
• Online inventory
• Localization of assets or personnel at specific areas
(i.e. gates, dock doors)
Using advanced UHF radio frequency technology, i-B2L tags send
data at distances of up to 100 meters (300 feet) to either a mobile
(handheld) or fixed reader (interrogator).
Due to the ultra-low power consumption and configurable ping rate
(one second to four minutes), the i-B2L tag can effectively operate
maintenance-free for many years.
The i-B2L tag is the most economical choice for basic long-range
technology and is ideal for tracking mobile assets in more stable,
predictable environments.
Features Benefits
• 100-meter read range Allows the longest read-range for identification and tracking using beacon technology.
• Long battery lifetime Delivers long time maintenance-free
operation, without battery replacement.
The battery lifetime depends on the ping
rate, which is configurable.
• UHF operating frequencies Tags are available for both standard North American and European ISM band
frequencies.
• Non-line-of-sight data transmission Allows tags to be identified without the need of visual contact.
• Automatic transmission Tags do not have to be “woken” — they transmit automatically.
• Industrial housing Durable in demanding environments.
• Customizable ping rate Ensures that the frequency band is not busy.
• Low cost Economical choice for tracking assets with active RFID technology.
• Marker Technology Precise position location of the Tag via its 125KHz inductive loop coils in 3 axis.
Ping-Rate Durability (Years)
1s 2
2s 4
i
-
B2
–
Preliminary
www.identecsolu
tions.com
Europe:
Austria: IDENTEC SOLUTIONS AG, Millennium Park 2, 6890 Lustenau / AUSTRIA Tel: +43 (0)5577 87387-0 Fax: +43 (0)5577 87387-15
Germany: IDENTEC SOLUTIONS Deutschland GmbH, Hertzstr. 10, 69469 Weinheim / GERMANY Tel.: +49 (0)6201 9957-0 Fax: +49 (0)6201 9957-99
North America:
USA: IDENTEC SOLUTIONS INC., Liberty Plaza II, 5057 Keller Springs Rd. Suite 375, Addison, Texas 75001 Tel: +1(972) 535 4144 Fax: +1(469) 424 0404
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
IDENTEC SOLUTIONS
IDENTEC SOLUTIONS is a leading global
supplier of innovative RFID systems (Radio
Frequency Identification) with communi-
cation ranges of up to 100 metres.
With its unique Intelligent Long Range
(ILR
) technology, IDENTEC SOLUTIONS
offers innovative and economical solutions
for automated data gathering, identification,
tracking, and localization of objects.
ILR technology makes it possible to ensure
that
• the right goods,
• in the right amounts,
• in the right condition,
• with the right information
• are located at the right place
• at the right time,
leading to increased efficiency and quality
improvements in Production, Logistics and
Supply Chain Management.
To learn more about how ILR
technology
can increase the efficiency of your business,
contact IDENTEC SOLUTIONS or visit our
website at www.identecsolutions.com.
In Europe:
+43 5577 87387-0, or
sales@identecsolutions.at
In North America:
1-866-402-4211 (toll free), or
sales@identecsolutions.com
Information in this document is subject to change without
notice and becomes contractual only after written
confirmation by IDENTEC SOLUTIONS.
“IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR”,
“i-LINKS”, “i-B”, “i-D”, “i-Q”, “i-CARD”, “i-PORT”,
“Solutions. It’s in our name.”, “Smarten up your assets.“
and the stylized “i” are trademarks or registered
trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC
SOLUTIONS AG.
Copyright © 2004 by IDENTEC SOLUTIONS.
All rights reserved.
Version 1.21 05/07
Tec
hnical Specifications
Performance
Read range to i-PORT R2 Up to 100 m (300 ft) (free air)
Read range to i-CARD R2 Up to 100 m (300 ft) (free air)
Operating frequency 868 MHz (EC) or 915 MHz (NA) ISM band
Triggering frequency band 125 kHz
Operation Transmits in regular intervals a pre-programmed data
string
Repetition rate (ping rate) 0.5 – 60 seconds in 0.5 second steps
Antennas: 1 Omnidirectional PCB Antenna,
3 inductive coil antenna for 3 dimensions x,y,z
Transmit power <1 mW
Certification CE (EN 300 220-1, -3; ETSI EN 301 489-1, -3),
FCC Part 15
Electrical
Power source Lithium battery (not replaceable)
Expected battery life 2 Years @ 4 second intervals
Data
Programmability One time
Programming and activation Wireless by proximity device over a distance of
maximum 5 cm
Reprogrammable No
Deactivation No
Memory capacity 13 characters or 17 bytes
Environmental
Operating temperature –40°C to +85°C (–40ºF to +158ºF)
Shock 50 G, 3 times DIN IEC 68-2-27
Multiple drops to concrete from 1 m (3 ft)
Vibration 3 G, 20 sine wave cycles, 5 Hz to 150 Hz,
DIN IEC 68-2-6
5 G, noise 5 Hz to 1000 Hz, 30 minutes
DIN IEC 68-2-64
Physical
Type i-B2L potted version
Dimensions 131 mm x 28 mm x 21 mm
(5.2 in. x 1.1 in. x 0.85 in.)
Case Material Plastic (Luran
®
S)
Mass 100 grams
Enclosure rating IP 65 — Protected against dust and low-pressure
jets of water
Colour dark blue or grey
FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
