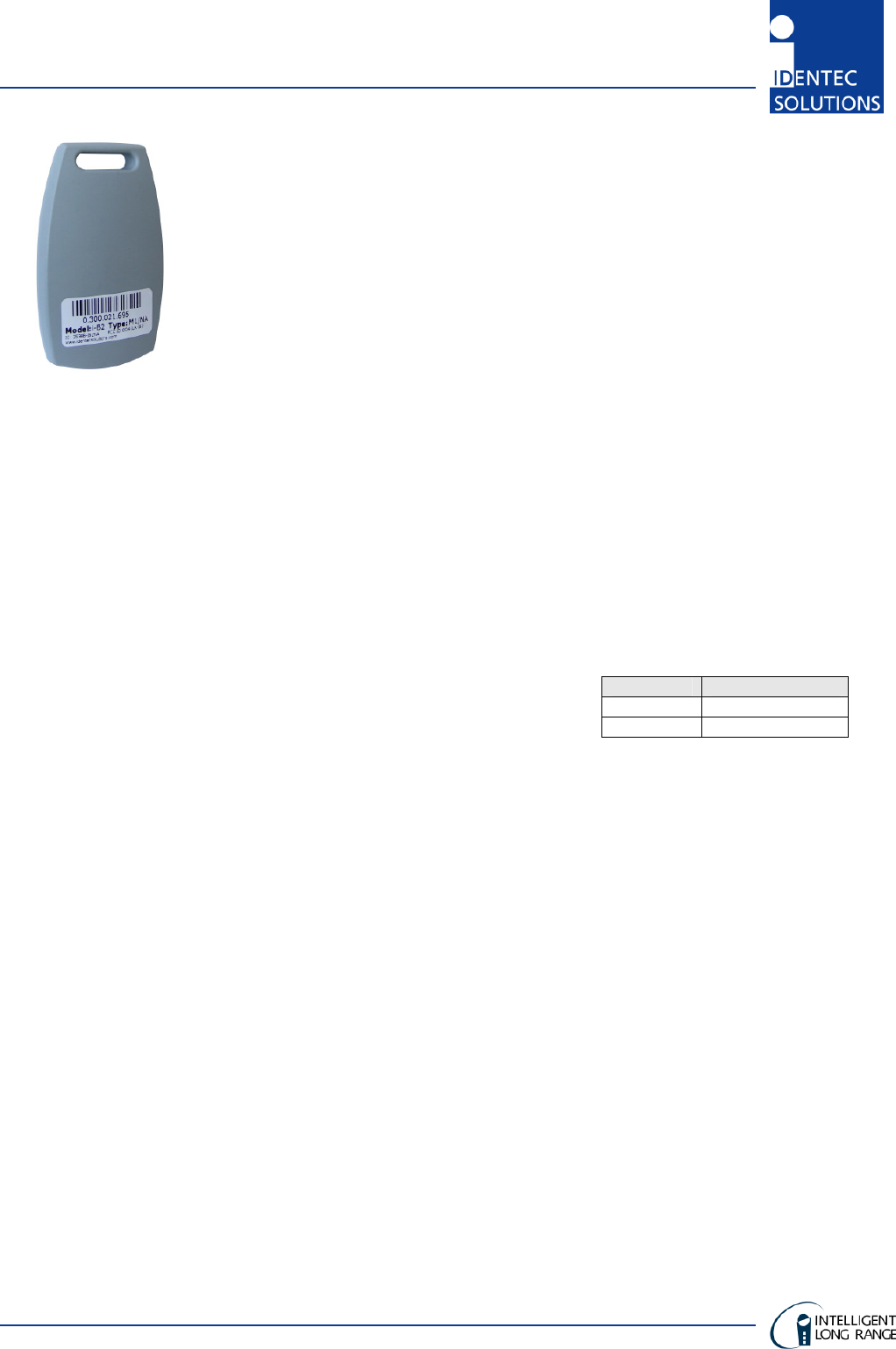

Active UHF Beacon Tag i-B2M
Microtag
Beyo
nd RFID.
The Microtag is part of the beacon generation (i-B) of IDENTEC SOLUTIONS’ Intelligent Long Range
(ILR
) active RFID tags. Built on IDENTEC SOLUTIONS’ patented high-performance technology, the
Microtag provides impressive long-range capabilities for wireless applications that require the benefits
provided by beacon tags. Static data is written on an Microtag and is continuously sent at a programmable
interval (ping rate) without being requested by a reader.
The i-B series offers an attractive price for continuous tag collection in specific scenarios such as:
Access control
Tracking of Vehicles and Containers
Online inventory
Localization of assets or personnel at specific areas
(i.e. gates, dock doors)
Using advanced UHF radio frequency technology, Microtags send data at distances of up to 70 meters (230 feet). There are mobile
(handhelds) or fixed solutions (interrogators) available.
Due to the ultra-low power consumption and configurable ping rate (one second to four minutes), the Microtag can effectively operate
maintenance-free for many years.
The Microtag is the most economical choice for basic long-range technology and is ideal for tracking mobile assets in more stable, predictable
environments.
Features Benefits
Up to 70 meter read range Allows the longest read-range for identification and tracking using beacon technology.
Long battery lifetime Delivers long time maintenance-free
operation, without battery replacement. The
battery lifetime depends on the ping rate,
which is configurable.
UHF operating frequencies Tags are available for both standard North American and European ISM band frequencies.
Non-line-of-sight data transmission Allows tags to be identified without the need of visual contact.
Automatic transmission Tags do not have to be “woken” — they transmit automatically.
Industrial housing Durable in demanding environments.
Customizable ping rate Ensures that the frequency band is not busy.
Low cost Economical choice for tracking assets with active RFID technology.
Ping-Rate Durability (Years)
1s 2
2s 4
Microtag
Europe:
Austria: IDENTEC SOLUTIONS AG, Millennium Park 2, 6890 Lustenau / AUSTRIA Tel: +43 (0)5577 87387-0 Fax: +43 (0)5577 87387-15
Germany: IDENTEC SOLUTIONS Deutschland GmbH, Hertzstr. 10, 69469 Weinheim / GERMANY Tel.: +49 (0)6201 9957-0 Fax: +49 (0)6201 9957-99
North America:
USA: IDENTEC SOLUTIONS INC., Liberty Plaza II, 5057 Keller Springs Rd. Suite 375, Addison, Texas 75001 Tel: +1(972) 535 4144 Fax: +1(469) 424 0404
IDENTEC SOLUTIONS
IDENTEC SOLUTIONS is a leading global
supplier of innovative RFID systems
(Radio Frequency Identification) with
communication ranges of up to 100 m.
With its unique Intelligent Long Range
(ILR
) technology, IDENTEC SOLUTIONS
offers innovative and economical
solutions for automated data gathering,
identification, tracking and localization of
objects.
ILR
technology makes it possible to
ensure that
the right goods,
in the right amounts,
in the right condition,
with the right information
are located at the right place
at the right time,
leading to increased efficiency and
quality improvements in Production,
Logistics and Supply Chain Management.
To learn more about how ILR
technology can increase efficiency of
your business, contact IDENTEC
SOLUTIONS or visit our website at
www.identecsolutions.com.
In Europe:
+43 5577 87387-0, or
sales@identecsolutions.at
In North America:
1-866-402-4211 (toll free), or
sales@identecsolutions.com
Information in this document is subject to change
without notice and becomes contractual only after
written confirmation by IDENTEC SOLUTIONS.
“IDENTEC SOLUTIONS”, “Intelligent Long Range”,
“ILR”, “i-LINKS”, “i-Q”, “i-D”, i”-B”, “i-CARD”, “i-PORT”,
“Solutions. It’s in our name.”, “Smarten up your
assets.“ and the stylized “i” are trademarks or
registered trademarks of IDENTEC SOLUTIONS, Inc.
and/or IDENTEC SOLUTIONS AG.
Copyright © 2007 by IDENTEC SOLUTIONS.
All rights reserved.
Version 1.0 03/07
Contents subject to change without notice.
Caution:
Changes or modifications not expressly
approved by the pary responsible for
compliance could void the user’s authority to
operate the equipment.
Tec
hnical Specifications
Performance
Read range to i-PORT R2/MB Up to 70 m (230 ft) (free air)
Read range to i-CARD R2/CF Up to 20 m (66 ft) (free air)
Operating frequency 916,5 MHz (US)
Operation Transmits in regular intervals a pre-programmed data
string
Repetition rate (ping rate) 0.5 – 60 seconds in 0.5 second steps
Transmit power
<1 mW
Certification FCC Part 15
Electrical
Power source Lithium battery (not replaceable)
Expected battery life 4 Years @ 2 second intervals
Data
Programmability One time
Programming and activation Wireless by proximity device over a distance of maximum
5 cm
Reprogrammable No
Deactivation No
Data size 9 bytes (user definable)
Identification code 32 bit fixed ID
Environmental
Operating temperature –30°C to +70°C (–22ºF to +158ºF)
Shock 50 G, 3 times DIN IEC 68-2-27
Multiple drops to concrete from 1 m (3 ft)
Vibration 3 G, 20 sine wave cycles, 5 Hz to 150 Hz,
DIN IEC 68-2-6
5 G, noise 5 Hz to 1000 Hz, 30 minutes
DIN IEC 68-2-64
Physical
Dimensions 56 mm x 30 mm x 12 mm
(2.20 in. x 1.18 in. x 0.47 in.)
Case Material Plastic (ASA Luran
®
S)
Mass 19 grams (0,67 ounces)
Enclosure rating IP 65 — Protected against dust and low-pressure
jets of water
Colour light-grey
