user manual
ILR 350 Series

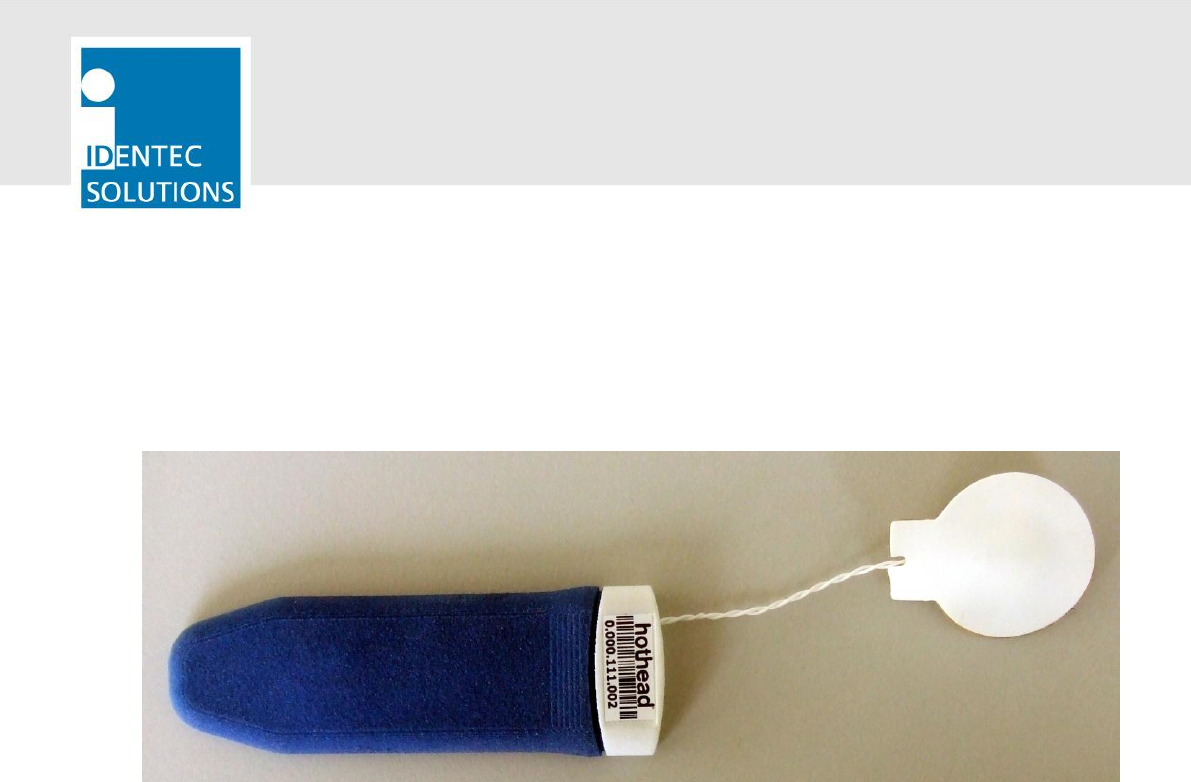

i-Q350 HHX, Hothead Tag
Operation Manual
PRELIMINARY
VISIBILITY DELIVERED. PAGE 2 OF 13
Proprietary Notice
This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or
disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS.
Disclaimer and Limitation of Liability
IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents do not make
any express or implied warranties or representations with respect to such information including, without
limitation, warranties as to non-infringement, reliability, suitability for a particular purpose and accuracy.
IDENTEC SOLUTIONS shall not under any circumstances be liable to any person for any special, incidental,
indirect or consequential damages, including without limitation, damages resulting from use of or reliance on
information presented herein, or loss of profits or revenues or costs of replacement goods, even if informed in
advance of the possibility of such damages.
Trademarks
―IDENTEC SOLUTIONS‖, ―Intelligent Long Range‖, ―ILR‖ and the stylized ―i‖ are registered trademarks and
―i-Q‖, ―i-D‖, ―i-B‖, ―i-CARD‖, ―i-PORT‖, ―i-LINKS‖, ―Visibility Delivered‖ are trademarks of IDENTEC SOLUTIONS,
Inc. and/or IDENTEC SOLUTIONS AG.
Copyright Notice
Copyright © 2011 IDENTEC SOLUTIONS. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means, photographic,
electronic, mechanical or otherwise, or used in any information storage and retrieval system, without the prior
written permission of IDENTEC SOLUTIONS.
Issue 1 / September 2011
– 29. September 2011 –
IDENTEC SOLUTIONS AG,
Millennium Park 2, 6890 Lustenau, Austria
Phone: +43 5577 87387- 0, Fax: +43 5577 87387-15
E-Mail: info@identecsolutions.at
www.identecsolutions.com
Subject to alteration without prior notice.
VISIBILITY DELIVERED. PAGE 3 OF 13
© Copyright IDENTEC SOLUTIONS 2010
IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices:
MODELS:
i-Q350 HHX
Region/Country
Organization
Marking
EUROPE:
EC
CE
USA
FCC
FFC ID 004-ILR-IQ350HHX
Canada
Industry Canada
IC: 3538A-IQ350HHX
European Notification according R&TTE Directive
This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the
following standards: ETSI EN 300 220, ETSI EN 301 489, EN 60950
USA Notification
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by
IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC
SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for compliance
could void the users’ authority to operate the equipment.
The device has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Printed in Austria
VISIBILITY DELIVERED. PAGE 4 OF 13
Contents
1 INTRODUCTION ............................................................................................................ 5
1.1 PREPARATIONS ............................................................................................................... 5
1.2 RECOMMENDED PROCEDURE .............................................................................................. 5
1.3 SCOPE OF THIS DOCUMENT ................................................................................................ 5
1.4 RESPONSIBILITY ............................................................................................................. 5
1.5 ASSOCIATED DOCUMENTS ................................................................................................. 5
1.6 SCOPE OF DELIVERY—VISUAL INSPECTION ............................................................................ 5
2 SAFETY PRECAUTIONS ................................................................................................. 6
3 GENERAL ....................................................................................................................... 8
3.1 OPTICAL IDENTIFICATION OF THE TAG ................................................................................. 8
4 CONFIGURATION OF THE TAG ...................................................................................... 9
4.1 PING RATE .................................................................................................................. 10
5 MAINTENANCE ............................................................................................................ 11
5.1 GENERAL .................................................................................................................... 11
5.2 REGULAR CLEANING OF THE SURFACE ................................................................................ 11
5.3 PRECAUTIONARY MAINTENANCE ........................................................................................ 11
5.4 RETURNS .................................................................................................................... 11
6 TECHNICAL DATA ....................................................................................................... 12
VISIBILITY DELIVERED. PAGE 5 OF 13
1 Introduction
1.1 Preparations
This installation manual must be read carefully prior to starting the installation. The described installation
works assume that installation materials like cable, antenna, tag holder, etc. are available.
1.2 Recommended Procedure
1. Check the Scope of Delivery according to the Bill of Delivery
2. Read this manual completely
3. Do the initial operation for every single tag
4. Mount the tags
5. An additional performance check of the tags and a system test can now be done
1.3 Scope of this Document
This document is the users’ manual of the model i-Q350L W.
This document is intended only for mechanical installation rsp. everyday use.
1.4 Responsibility
IDENTEC SOLUTIONS is not responsible for any errors occurring in this document.
1.5 Associated Documents
i-B350L W — ILR350 Wristband Tag Datasheet
1.6 Scope of Delivery—Visual Inspection
Check delivery whether it is complete and for any damages. If the delivery is not complete or damaged
immediately inform the carrier. The dispatch and service organization of IDENTEC SOLUTIONS should also be
informed to facilitate the repair or exchange of the system.
VISIBILITY DELIVERED. PAGE 6 OF 13
2 Safety Precautions
Important Safety Note
The devices described in this manual are for exclusive operation by trained employees. Only qualified
personnel that know the potential dangers involved should perform the installation, settings, maintenance and
repair of the units used.
Operational Safety
The correct and safe use of these systems assumes that operating and service personnel follow the safety
measures described in the manual alongside the generally acceptable safety procedures.
If there is a possibility where a safe operation cannot be guaranteed, the system must be switched off and
secured against accidental use. Then, the service unit responsible must be informed.
Do not open the housing
There is no need to open the housing. There are no user serviceable parts inside. Set-up and configuration
during initial operation is done wireless with the built-in air interface.
Handling Safety
In the event of high operating temperature of 70 °C (+158 °F), the tags are heated and must be handled with
care. To prevent burns, wait until the tags have cooled down or use appropriate gloves. At temperatures
below 0 °C (+32 °F) tags can be frozen. In this case, wait a while until tags are warmed up or use appropriate
gloves.
Battery Inside
All tags contain a battery. That is the reason for the following instructions:
Warning
Fire, explosion and burn hazard
Risk of explosion if battery is replaced by an incorrect type
Do not recharge, short circuit, crush, disassemble, heat above 70 °C (158 °F)
Do not incinerate, or expose contents to water
Electrostatic Discharge
This product contains components that are sensitive to electrostatic discharges. Please observe
the special instructions for their protection. Incorrect handling can damage the unit and cause the
invalidation of the warranty.
Safety Documents
This ILR system was designed, tested and supplied in perfect condition according to the test report document
EN60950.
Condensation/Change of Temperature
Moving the systems from a cold to a warm environment could lead to dangerous situations due to
condensation. Therefore it must be ensured that the system can adjust itself to the warmer temperature.
VISIBILITY DELIVERED. PAGE 7 OF 13
Spare Parts
We recommend that only original products, spare and replacement parts authorized by IDENTEC SOLUTIONS
be used for installation, service and repair. Otherwise IDENTEC SOLUTIONS does not accept any responsibility
for materials used, work carried out or possible consequences.
VISIBILITY DELIVERED. PAGE 8 OF 13
3 General
3.1 Optical Identification of the Tag
The labels are on the front and back side of the tag.
Front label Rear label
VISIBILITY DELIVERED. PAGE 9 OF 13
4 Configuration of the tag
Important Note
Do not open the housing! Configuration is done using the built-in air interface of the i-Q350 HHX.
The Response mode of the i-Q350 HHX offers the following features for configuration:
Broadcast mode can be configured for simultaneous operation. In this case the tag responds to
commands from a reader as well as broadcasts configurable data in a regular interval.
Tools Needed
PC running on MS Windows with the ILR Tag Configuration for ILR 350 series tags
Connection to an i-PORT M 350 or i-CARD CF 350 to communicate with the tags
The ILR Tag Configuration software tool is described in detail in this manual:
ILR 350 Tag Configuration Plug-In Manual
Overview on the Configuration Software
Select Ping Rate and Ping
Message Content in the block
―Broadcast‖
VISIBILITY DELIVERED. PAGE 10 OF 13
4.1 Ping Rate
Note: These settings can be found in the ILR Tag Configuration software tool in the section ―Broadcast‖
Active: Activates or de-activates the broadcast function that regularly sends out messages.
Broadcast Interval: 0 = no broadcast messages are sent, value > 0 = Broadcast interval in seconds. This
can be set in steps of 0.5 sec, from 0.5 sec up to 300 sec.
Broadcast Message Options: The options in this field depend on the capabilities of the tag. The
subchapter ―Limitations of the User Data Field‖ lists the possible options of this tag type.
User Data Length: Configure the number of Bytes from the ―User Data‖ that is sent with a broadcast
message. The number starts from Byte 0 (zero). The limits of the User Data length are described at the
end of this chapter.
VISIBILITY DELIVERED. PAGE 11 OF 13
5 Maintenance
5.1 General
When installed correctly the ILR System will operate virtually maintenance free for many years. However, in
the event maintenance is required only trained and authorized personnel are permitted to perform the
updates, changes and maintenance necessary.
5.2 Regular Cleaning of The Surface
Remove dust with a brush or compressed air. If there are fatty or oily substances use a soft cloth moistened
with a mild rinsing agent.
Warning
Do not clean the tag in a dishwasher. Do not sandblast the tag. Do not use high pressure water jet or steam
cleaner. Do not use cleaning products containing chemical additives.
5.3 Precautionary Maintenance
A regular check of the system is recommended. Unstable connections could lead to damage and malfunctions
of the system and should therefore be repaired as soon as possible.
A Brief Checklist
Are all housings intact?
Are all cables intact?
Are all connectors intact?
Are all connectors securely fastened?
Are all screws still tight?
Is there a malfunction at a specific unit?
5.4 Returns
Parts or main components returned for repair or exchange must be handled with great care. PC cards must be
returned in the appropriate ESD-protecting packaging material. All returns should include an error description
and a short application overview and be sent to the local distributor or to:
IDENTEC SOLUTIONS AG
Service Department
Millenium Park 2
6890 Lustenau
AUSTRIA
VISIBILITY DELIVERED. PAGE 12 OF 13
6 Technical Data
Operating Data
Operating frequency ILR-RFID 868 MHz (EU) or 920 MHz (NA
Maximum transmission power 0.75mW (EU / NA)
Compatibility i-PORT M 350, i-CARD CF-350
Standards/Certification FCC Part 15 (US), ETSI EN 300 220 (EU)
Communication Data Long-Range RFID (ILR, Response Technology)
Multiple tag handling Up to 2,000 tags in the read zone
Read/write range response mode Up to 60 m (200 feet), free air*
Data rate response 19.2 to 115.2 kbits/s
Communication Data Long-Range RFID (ILR, Beacon Technology)
Read range broadcast Up to 150 m (500 feet) free air*
Operation mode Transmits marker information in at regular intervals
Repetition rate (ping rate) 0,5 – 300 seconds, adjustable in steps of 0,5 seconds
Data rate broadcast 115.2 kbits/s
* The communication range depends on the antenna type, the antenna
cable runs and the environmental conditions.
Electrical
Power source Lithium battery (not replaceable)
Battery monitoring Yes
Temperature measuring
Metering range +3°C to +50°C (37.4°F to 122°F)
Resolution 0.01 °C (0.018 °F)
Shock Detection
Detection 50G
Accuracy ±25%
Data
Data retention > 10 years without power
Write cycles 100,000 writes to a tag
Memory size 10,000 Bytes user definable
Identification code 48 bit fixed ID
Environmental Conditions
Operating temperature -10° C to +60° C (+14°F to +140°F)
Humidity 10 % to 90 % relative humidity @ 30 °C
Shock 50 G, 3 times DIN IEC 68-2-27
Multiple drops to concrete from 1 m (3 ft)
Vibration 3 G, 20 sine wave cycles, 5 Hz to 150 Hz, DIN IEC 68-2-6
5 G, noise 5 Hz to 1000 Hz, 30 minutes, DIN IEC 68-2-64
Physical
Dimensions 100x32x8mm
Enclosure TPE 50-70 shore A / PC ABS
Weight TBD
Enclosure rating IP 67
VISIBILITY DELIVERED. PAGE 13 OF 13
US Patent Technology
United States Patent No. 6,563,417
United States Patent No. 7,053,777
