The i-Q350 series of tags is IDENTEC SOLUTIONS’ newest generation of
Intelligent Long Range
(ILR
) active RFID tags.
ILR provides highly accurate, real-time data collection without human
intervention in wireless applications such as:
identification
tracking and tracing
localization and
measurements monitoring.
Using advanced UHF radio frequency technology, i-Q350 WAM tags
transmit and receive data at distances of up to 30 meters (100 feet) from
a handheld device or up to 500 meters (1,640 feet) from a fixed
interrogator.

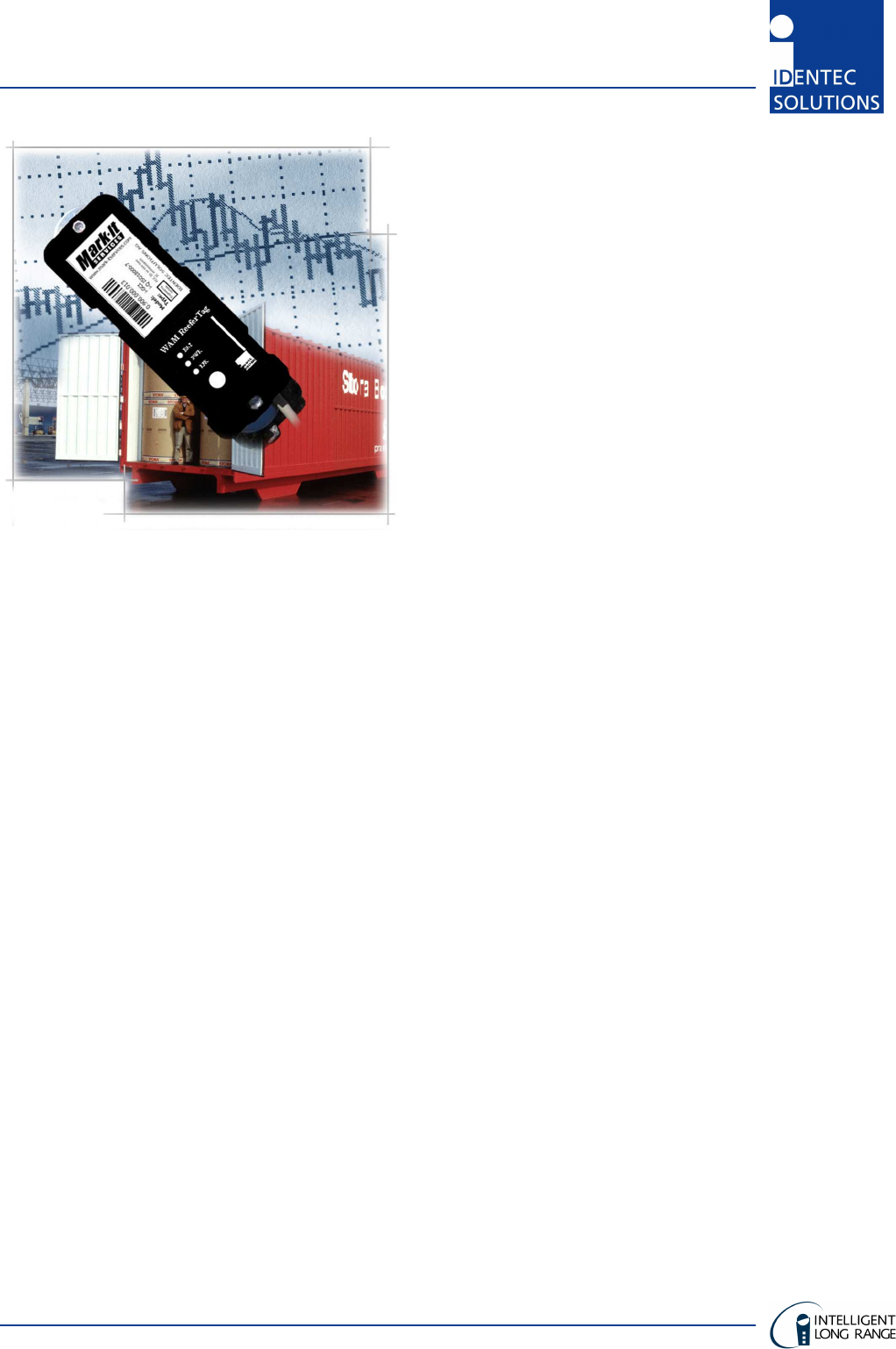

The new tag includes a serial interface which communicates to container refrigeration units. The tag auto detects the type of the controller
and monitors the status information.
Also, LEDs support visual signalization during search, locate and alarms. The i-Q350 Reefer tag operates in the 850 – 928 MHz UHF band.
Features Benefits
500 meters (1,650 ft) read/write range Allows automated identification, tracking and tracing of assets and people without human
intervention.
32 kBytes memory Stores user and process information.
RS232 Interface Allows communication through a RS 232 interface.
UHF operating frequencies Allows low-power, long communication range and high data transmission rates with minimal
interference due to local conditions.
Up to 4 bi-color LEDs Provides visual identification of an addressed tag (“pick by light”) and informs about tag’s
status.
3 years typical battery lifetime Delivers long-time maintenance-free operation, without battery replacement.
Push Button Allows a status checking of the tag via LEDs.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Beacon capability Tags do not have to be “woken”—they transmit automatically the controller and status
information at a configurable ping rate.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
Low reader infrastructure cost Economical choice for tracking assets with active RFID technology.
i
-
Q3
Series
www.identecsolutions.com
Eur
ope:
Austria: IDENTEC SOLUTIONS AG, Millennium Park 2, 6890 Lustenau / AUSTRIA Tel: +43 (0)5577 87387-0 Fax: +43 (0)5577 87387-15
Germany: IDENTEC SOLUTIONS Deutschland GmbH, Hertzstr. 10, 69469 Weinheim / GERMANY Tel.: +49 (0)6201 9957-0 Fax: +49 (0)6201 9957-99
North America:
USA: IDENTEC SOLUTIONS INC., Liberty Plaza II, 5057 Keller Springs Rd. Suite 375, Addison, Texas 75001 Tel: +1(972) 535 4144 Fax: +1(469) 424 0404
IDENTEC SOLUTIONS
IDENTEC SOLUTIONS is a leading global
supplier of innovative RFID systems
(Radio Frequency Identification) with
communication ranges of up to 500 m.
With its unique Intelligent Long Range
(ILR
) technology, IDENTEC SOLUTIONS
offers innovative and economical
solutions for automated data gathering,
identification, tracking and localization of
objects.
The product series OIS offers automatic
ID-Systems of different technologies
suitable for the demanding environment
in industry and logistics. OIS tags have
up to 32 kBytes of memory and are heat-
resistant up to 235 °C.
To learn more about how ILR
technology can increase efficiency of
your business, contact IDENTEC
SOLUTIONS or visit our website at
www.identecsolutions.com.
In Austria:
+43 5577 87387-0, or
sales@identecsolutions.at
In Germany:
+49 6201 9957-0, or
info@identecsolutions.de
In North America:
1-866-402-4211 (toll free), or
sales@identecsolutions.com
Information in this document is subject to change
without notice and becomes contractual only after
written confirmation by IDENTEC SOLUTIONS.
“IDENTEC SOLUTIONS”, “Intelligent Long Range”,
“ILR”, “i-LINKS”, “i-Q”, “i-D”, i”-B”, “i-CARD”, “i-PORT”,
“Solutions. It’s in our name.”, “Smarten up your
assets.“ and the stylized “i” are trademarks or
registered trademarks of IDENTEC SOLUTIONS, Inc.
and/or IDENTEC SOLUTIONS AG.
Copyright © 2005 by IDENTEC SOLUTIONS.
All rights reserved.
Version 1.0 05/07
This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Technical Specifications
Performance
Read rate Up to 100 tags/s (Collect Tag Identification Code only)
Communication
Read/write range to i-PORT M350 Up to 500 m (1,650 feet) @ free air
Operating frequency 850 – 928 MHz
Data rate 19,200 – 500,000 kbits/s
Sensitivity -105 dBm, depending on data rate
Maximum transmission power 10 mW, depending on national regulations
Electrical
Power source 1 × AA Lithium batteries (replaceable)
Expected battery life Typical 3 years
Battery monitoring Yes
Data
Data retention > 10 years without power
Write cycles 100,000 writes to a tag
Memory size 32 kBytes
Identification code 48 bits fixed ID (32 bits user ID+ 8 bits tag type + 8 bits
manufacturer ID)
Environmental
Operating temperature –40 to +85 °C (–40 to +185 ºF)
Humidity 10 to 90 % relative humidity at 30 °C (+86 ºF)
Shock 50 G, 3 times DIN IEC 68-2-27
Multiple drops to concrete from 1 m (3 ft)
Vibration
5 G, 20 sine wave cycles, 5 to 150 Hz,
DIN IEC 68-2-6
5 G, noise 5 to 1000 Hz, 30 minutes
DIN IEC 68-2-64
Physical
Dimensions 135 × 50 × 26 mm (5.3 × 1.9 × 1.0 in.)
Enclosure Plastic (ASA/Luran
®
S)
Weight 110 g (3.88 ounces)
Enclosure rating IP 65
WARNING: Changes or modifications not expressly approved by manufacturer could void the user’s authority
to operate the equipment
Contents subject to change without notice.
