Identec Solutions ILR-ISAT300 RFID Reader User Manual i PORT M 350 RTLS Manual
Identec Solutions AG RFID Reader i PORT M 350 RTLS Manual
User Manual
ILR 350 Series
i-PORT M 350,
i-SAT 300 RTLS, i-PORT M 350 RTLS
Installation and Operation Manual
RTLS Hardware and Installation Manual
Page 2 of 30
Proprietary Notice
This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be
used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC
SOLUTIONS.
Disclaimer and Limitation of Liability
IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents
provide the information contained in this Manual on an “as-is” basis and do not make any express or
implied warranties or representations with respect to such information including, without limitation,
warranties as to non-infringement, reliability, fitness for a particular purpose, usefulness,
completeness, accuracy or up-to-dateness. IDENTEC SOLUTIONS shall not in any circumstances be
liable to any person for any special, incidental, indirect or consequential damages, including without
limitation, damages resulting from use of or reliance on information presented herein, or loss of
profits or revenues or costs of replacement goods, even if informed in advance of the possibility of
such damages.
Trademarks
“IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered
trademarks and “i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”,
“Smarten up your assets” are trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS
AG.
Copyright Notice
Copyright © 2007 IDENTEC SOLUTIONS. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means, photographic,
electronic, mechanical or otherwise, or used in any information storage and retrieval system, without
the prior written permission of IDENTEC SOLUTIONS.
Issue 0 / March 2010
– 17. March 2010 –
IDENTEC SOLUTIONS AG,
Millennium Park 2, 6890 Lustenau, Austria
Phone +43 5577 87387-0, Fax +43 5577 87387-15
info@identecsolutions.at
www.identecsolutions.com
Subject to alteration without prior notice.
© Copyright IDENTEC SOLUTIONS 2008
Printed in Germany
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 3 of 30
Radio Frequency Compliance Statement
IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices:
MODEL: i-PORT M 350
Region/Country Organization Marking
EUROPE: EC CE
USA: FCC FCC ID OO4-ILR-IPM350N
Canada: Industry Canada IC:3538A-IPM350N
MODEL: i-SAT 300 RTLS
Region/Country Organization Marking
EUROPE: EC CE
USA: FCC FCC ID OO4-ILR-ISAT300
Canada: Industry Canada IC:3538A-ISAT300
MODEL: i-PORT M 350 RTLS
Region/Country Organization Marking
EUROPE: EC CE
USA: FCC FCC ID OO4-ILR-IPM350RT
Canada: Industry Canada IC:3538A-IPM350RT
The user(s) of these products are cautioned to only use accessories and peripherals approved, in
advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by
IDENTEC SOLUTIONS, or any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Warning: This product requires professional installation. Any frequency and RF-power setting not
expressly authorized by Identec Solutions is prohibited and will void the users authority to operate the
equipment.
RTLS Hardware and Installation Manual
Page 4 of 30
European Notification according R&TTE Directive
This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the
following standards: ETSI EN 300 220, ETSI EN 300 440, ETSI EN 301 489, EN 60950.
USA Notification
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The user(s) of these products are cautioned to only use accessories and peripherals approved, in
advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by
IDENTEC SOLUTIONS, or any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
The device has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Canada Certification
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
2.4 GHz:
This device has been designed to operate with the antennas listed below, and having a maximum gain of
6.0 dBi. Antennas not included in this list or having a gain greater than 6.0 dBi are strictly prohibited for use
with this device. The required antenna impedance is 50 ohms.
916 MHz:
This device has been designed to operate with the antennas listed below, and having a maximum gain of
2.0 dBi. Antennas not included in this list or having a gain greater than 2.0 dBi are strictly prohibited for use
with this device. The required antenna impedance is 50 ohms.
List of antennas:
2.4 GHz: Huber & Suhner 90A-2400/360/6/0/V: 6.0 dBi, 50 ohms
916 MHz: Kathrein K751161: 2.0 dBi, 50 ohms
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 5 of 30
This product contains components that are sensitive to electrostatic discharges. Please observe the
special instructions for their protection. Incorrect handling can damage the unit and cause the
invalidation of the warranty.
Minimum safety precautions against electrostatic discharge:
• Establish earth contact bef ore you touch the unit. For example, touch the earthing scr ew on the
unit. Ev en bet ter: Use an antistatic ribbon and earth yourself permanently for the time you
handle the unit.
• Avoid unnecessary contact with the unit connectors and assemblies inside the unit.
• Only open the unit if the operational settings (as described in the manual) expressly require this.
• Use antistatic tools f or the set ting of the unit. (Warning: Do not touch lif e-threatening voltages
with these tools).
• Do not store unit and components without protective packaging.
• Only remove unit and components from the packaging immediately prior to installation.
These notes are not sufficient to guarantee complete protection from electrostatic
discharges! We recommend the use of suitable protective equipment.
RTLS Hardware and Installation Manual
Page 6 of 30
Contents
1 INTRODUCTION ...........................................................................................................7
1.1 FEATURES .................................................................................................................. 7
1.2 DOCUMENTS OVERVIEW ................................................................................................. 8
2 MECHANICAL INSTALLATION ......................................................................................9
2.1 HINTS ....................................................................................................................... 9
2.2 DIMENSIONAL DRAWINGS ............................................................................................. 10
3 ELECTRICAL INSTALLATION ......................................................................................12
3.1 SAFETY INSTRUCTIONS ................................................................................................ 12
3.2 POSITION OF PORTS.................................................................................................... 12
3.3 OVERVIEW ............................................................................................................... 13
3.4 POWER SUPPLY.......................................................................................................... 13
3.5 MAXIMUM OVERALL CABLE RUNS OF I-BUS ....................................................................... 13
3.6 THE I-BUS CONNECTOR............................................................................................... 14

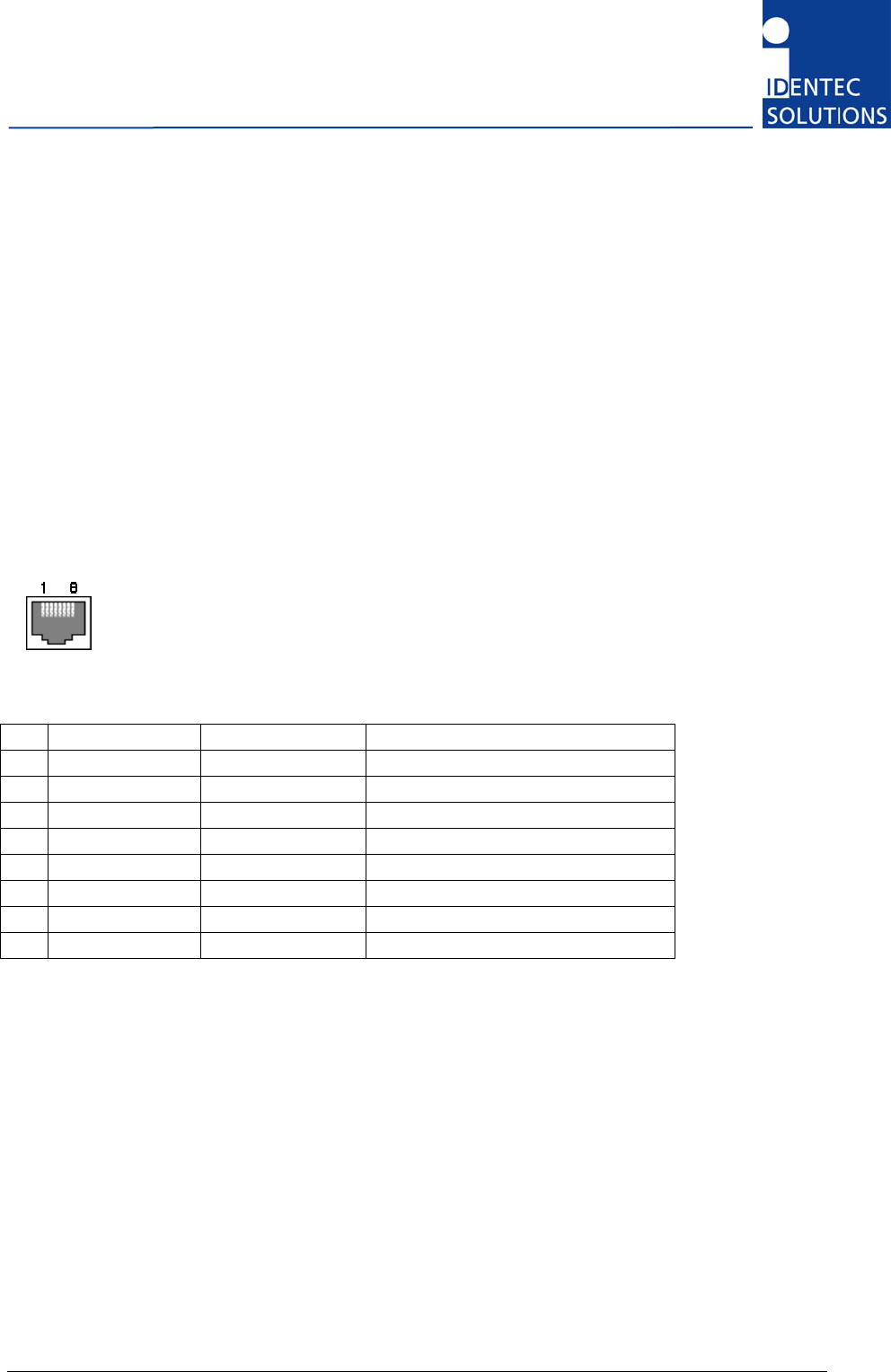

3.7 ETHERNET CONNECTOR................................................................................................ 15
4 INITIAL OPERATION..................................................................................................16
4.1 CHECKING THE INSTALLATION ........................................................................................ 16
4.2 CONFIGURATION ........................................................................................................ 16
4.2.1 Tools Needed ......................................................................................................... 16
4.3 STATUS DISPLAY (LEDS) ............................................................................................. 26
5 MAINTENANCE ...........................................................................................................27
5.1 GENERAL ................................................................................................................. 27
5.2 PRECAUTIONARY MAINTENANCE...................................................................................... 27
5.3 SPARE PARTS ............................................................................................................ 28
5.3.1 Recommended spare parts stock.............................................................................. 28
5.3.2 Preparing the spare parts ........................................................................................ 28
5.3.3 Examination and repair of exchanged parts............................................................... 28
5.4 RETURNS ................................................................................................................. 28
6 TECHNICAL DATA .......................................................................................................29
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 7 of 30
1 Introduction
The RTLS system is the newest development in IDENTEC SOLUTIONS’ Intelligent Long Range® (ILR®)
interrogators. ILR provides highly accurate, real-time data collection with minimal human intervention.
The very long communication range of up to 500 m (1500 ft) allows automated identification, tracking
and tracing of assets and people in areas as large as a steel construction workshop without human
intervention.
The new RTLS system allows localization of tags down to several meters. This new series of ILR
products is the next step forward in wireless applications such as:
• Identification
• Tracking and tracing and
• Localization of assets or personnel.
1.1 Features
Easy Installation Only few components need to be configured. Only the i-PORTs
needs a host connection. The i-SAT only needs power supply.
Cable-free Installation With the solar installation kit even the power supply is an easy job.
Light Infrastructure Automatic gathering of information from several i-PORTs.
Preprocessing of multiple position information from the RTLS in
position sever.
LED on Tag (option) Provides visual identification of an addressed tag ("pick by light").
32 kByte read/write memory
on tag
Allows storage of complete process information on every tag.
Handheld units Manual finding an object.
Up to 500 m (1500 ft)
read/write range
Allows automated identification, tracking and tracing of assets and
people without human intervention.
500 Tag simultaneous
Identification
Large numbers of tags can be identified virtually simultaneously.
RTLS only used when needed This saves battery lifetime and installation costs.
RTLS Hardware and Installation Manual
Page 8 of 30
1.2 Documents Overview
Manuals
IM.0710.DE RTLS System Description, German
IM.0710.EN ditto, English
IM.0711.DE Description of PC software „Position-Server“, German
IM.0711.EN ditto, English
IM.0712.DE Manual, especially for demo and test installations, German
IM.0712.EN ditto, English
IM.0713.DE Position node i-SAT 300 hardware and installation manual, German
IM.0713.DE ditto, English
IM.0714.DE ILR reader i-PORT M350, i-SAT 300 RTLS, i-PORT M 350 RTLS hardware and
installation manual, German
IM.0714.DE ditto, English (this document)
IM.0732.DE Marker System Description and Installation manual for i-MARK 2 & i-MARK 3,
German
IM.0732.EN ditto, English
Data Sheets
ID.0640.DE RTLS-System Description, German
ID.0640.EN ditto, English
ID.0643.DE Position Server Software, German
ID.0643.EN ditto, English
ID.0626.DE data tag i-Q350 RTLS, German
ID.0626.EN ditto, English
ID.0627.DE ILR reader i-PORT M 350 RTLS, German
ID.0627.EN ditto, English
ID.0628.DE position node i-SAT 300, German
ID.0628.EN ditto, English
ID.0665.DE position markers i-MARK 2 & 3, German
ID.0665.EN ditto, English
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 9 of 30
2 Mechanical Installation
2.1 Hints

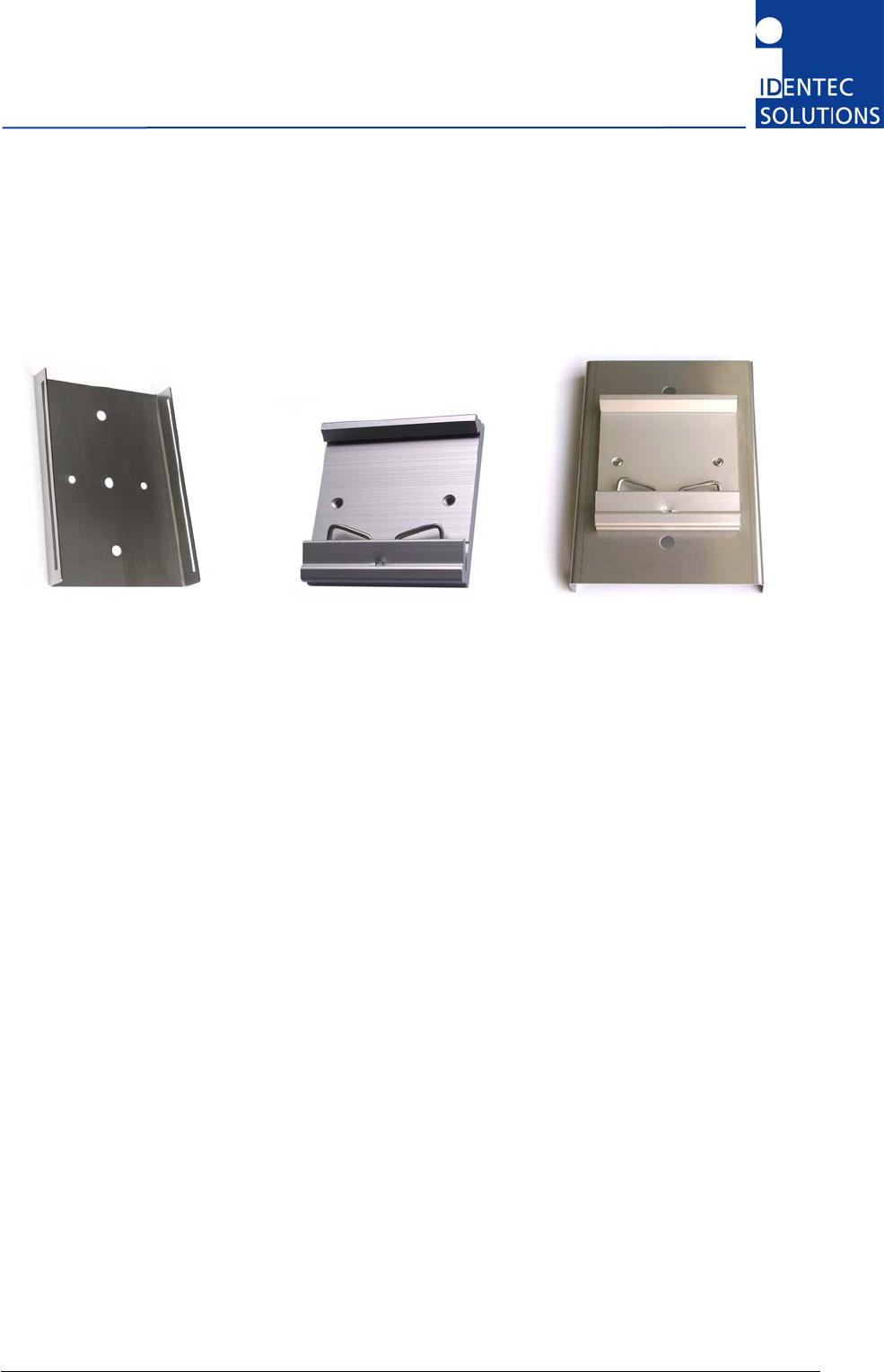

Mounting Kit
DIN Rail Clamp
Mounting Kit with DIN Rail Clamp
The i-PORT M 350 RTLS is plugged into the mounting kit. Between the mounting kit and the reader
module there is 5 mm space left for the screws.
It is intended to always use the mounting kit. If mounting on a DIN rail is desired, the additional
clamp is mounted on the rear side of the mounting kit.
Use the two mounting holes (diameter 4,5 mm) to attach the mounting kit to a suitable mounting
surface. Once the mounting kit is fixed, plug in the i-PORT M 350 RTLS reader.
Enclosure rating is IP40 without the end cap and IP64 with. If greater enclosure rating is required, the
i-PORT M 350 RTLS must be placed in an additional protective housing, in this situation the end cap
could be removed.
RTLS Hardware and Installation Manual
Page 10 of 30
2.2 Dimensional Drawings
R1
a
0,5
11
a
36
(3x)
4,5
(2x)
3,2
60
±0,20
89
66
15
67
44,5
1°
62,9
795
1,96,9
R1 (4x)
Dimensions of mounting kit
67,3
91
36,5
Dimensions without end cap (cable inlet protection), but without mounting kit
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 11 of 30
36,567,3
144
Dimensions with end cap (cable inlet protection), but without mounting kit
RTLS Hardware and Installation Manual
Page 12 of 30
3 Electrical Installation
3.1 Safety Instructions
• The power supply circuit must comply with the requirements of the SELV circuits (see EN 60950).
• The signal circuits must comply with the requirements of the SELV circuits (see EN 60950).
• In the i-BUS connectors ther e ar e RS422 lev els on its RX and TX Pins, although Ethernet
jack/plugs mechanically fit, the device is not Ethernet compatible!
• Industry standard Cat 5 straight patch cables can be used to daisy chain the devices.
• If devices are power ed ov er the i-BUS the RJ 45 cabling must be done with wir es of at least
AWG24 (0.25 mm²).
Glossary
SELV Safety Extra Low Voltage – Protective measure against dangerous body currents.
Protective first voltage, circuit not floating.
EMC E lectromagnetic Compatibility
RxD Rec eive Data
TxD Trans mit Data
3.2 Position of Ports
with standard i-BUS connectors with Ethernet
To Master RJ 45 connector to the host computer or the slave port of the previous i-MARK or
i-PORT in the daisy chain.
To Slave RJ 45 connector to the master port of the next i-MARK or i-PORT in the daisy chain.
Leave this connector open at the last device in the chain.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 13 of 30

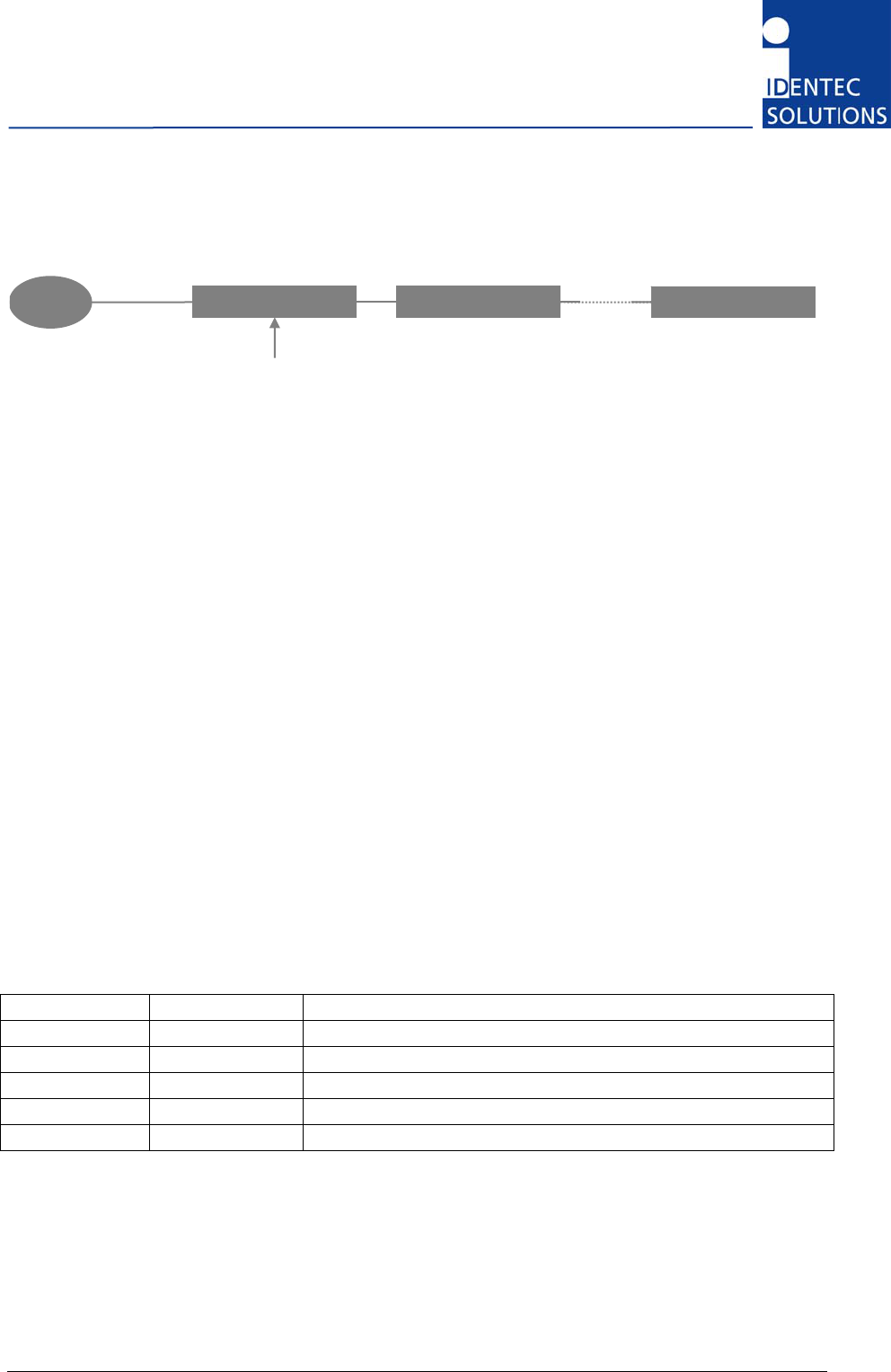

3.3 Overview
Position
Server
Ethernet
or RS422 (i-BUS)
i-PORT M 350 RTLS i-PORT M 350 RTLS
i-BUS i-BUS
Central Power Supply
i-PORT M 350 RTLS
3.4 Power Supply
The i-PORT M 350 RTLS is powered by the i-BUS.
Total Power Consumption—i-PORT M 350 RTLS with 4 i-SAT 300 RTLS
1 × i-PORT M 350 RTLS, app. 2 W
4 × i-SAT 300 RTLS, app. each 2 W
This gives a maximum sum of 7 W of power consumption.
3.5 Maximum Overall Cable Runs of i-BUS
There are 2 general limitations on the length of the i-BUS cabling:
• The overall length of the i-BUS over all units on the BUS must not exceed 1000 m (3000 ft)
• The distance from one unit to the next on the i-BUS must not exceed 300 m (1000 ft)
This tables is valid for Cat 5 cabling with gauge diameters of AWG24 (0.25 mm²).
# of i-PORTs Length (m/ft) Remark
1 300/1000 Central supply with 24 VDC via the i-BUS
2 600/2000 Central supply with 24 VDC via the i-BUS
3 400/1300 Central supply with 24 VDC via the i-BUS
4 250/820 Central supply with 24 VDC via the i-BUS
4 1000/3000 GND potential free power supplies at every i-PORT M
RTLS Hardware and Installation Manual
Page 14 of 30
3.6 The i-BUS Connector
Please Note
• The i-BUS uses RS422 lev els on its RX and TX Pins, although Ethernet jack/plugs mechanically
fit, the device is not Ethernet compatible.
• As the TxD/RxD cr ossing is done by the pinout of the connectors, simple str aight cabling can be
used.
• If devices are powered by the RJ45 cabling of th e i-BUS, wire gauge must be at least A WG24
(0.25 mm²)
View into the connector = crimp/solder side of plug
Pin To Master To Slave T568B color Description
1 RxD+ TxD+ White/orange
2 RxD– TxD– Orange
3 TxD+ RxD+ White/Green
4 V+ (10 … 30V) V+ (10 … 30V) Blue Power supply over i-BUS
5 V+ (10 … 30V) V+ (10 … 30V) White/Blue Power supply over i-BUS
6 TxD– RxD– Green
7 GND GND White/Brown Power supply over i-BUS
8 GND GND Brown Power supply over i-BUS
Connection Parameters
Signal levels: RS422
Baud rate: 115200 bits per second
Data bits: 8
Stop bits: 1
Parity: none
Mode: half duplex
Flow Control: none
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 15 of 30
3.7 Ethernet Connector
The Ethernet interface is an option for an i-PORT M 350 RTLS.
Warning
Do not connect any device to your network before it has been configured. Before connecting to your
network, check that the desired IP address has been set. A not-configured device may have any IP
address. A device with the wrong settings may impede the functioning of your network.
Ethernet interface with 10 or 100Mbit/s. Connect the central unit to your network with a wired 1:1
network cable. The host connection is a RJ45 socket. Use a regular Ethernet cable here.
The allocation corresponds to that of simple network adapters in PCs (10/100-Base T). Therefore, to
connect to the network or the hub, a simple 1:1 network cable is required.
If you want to connect directly to a computer you must use a so-called crossed cable.
View into the connector = crimp/solder side of plug
Pin To Slave T568B color Description
1 TxD+ White/orange
2 TxD– Orange
3 RxD+ White/Green
4 Blue
5 White/Blue
6 RxD– Green
7 White/Brown
8 GND Brown
RTLS Hardware and Installation Manual
Page 16 of 30
4 Initial Operation
4.1 Checking the Installation
After completing the installation the operation must be systematically checked.
The installation check can be divided into three sections:
• Visual test
• Basic operational check
• Detailed operational check
If the basic check of the operational behavior is to be carried out using a (portable) PC a final check
via the intended user control system should also be carried out.
4.2 Configuration
4.2.1 Tools Needed
• Standard-PC running Microsoft Windows
• RS422 Interface (USB to RS422 converter, order code 292 771)
• 9 pin D type to RJ45 adaptor with power supply plug (order code 348 369)
• Power Supply Plug (24 VDC, 30 W, order code 367 976)
• 1:1 fully wired RJ45 Patch-Cable, length: 2 m (order code 696 627)
• Configuration Tool “ILR Config” with RTLS plug-in
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 17 of 30
4.3 Configuration of the Ethernet Interface
Tools needed
• PC with working Ethernet NIC running MS Windows for configuration software
• Software “Device Discovery Utility”
• Crossover Ethernet cable
• Power supply (24 VDC) for the i-PORT
• Network settings from your network administrator
Prepare the PC
• Disconnect the PC from the network
• Set the Ethernet connection of the PC to DHCP (described below)
• Switch off the proxy settings of the standard web browser
After finishing the configuration of all i-PORTs restore the previous settings of the PC.

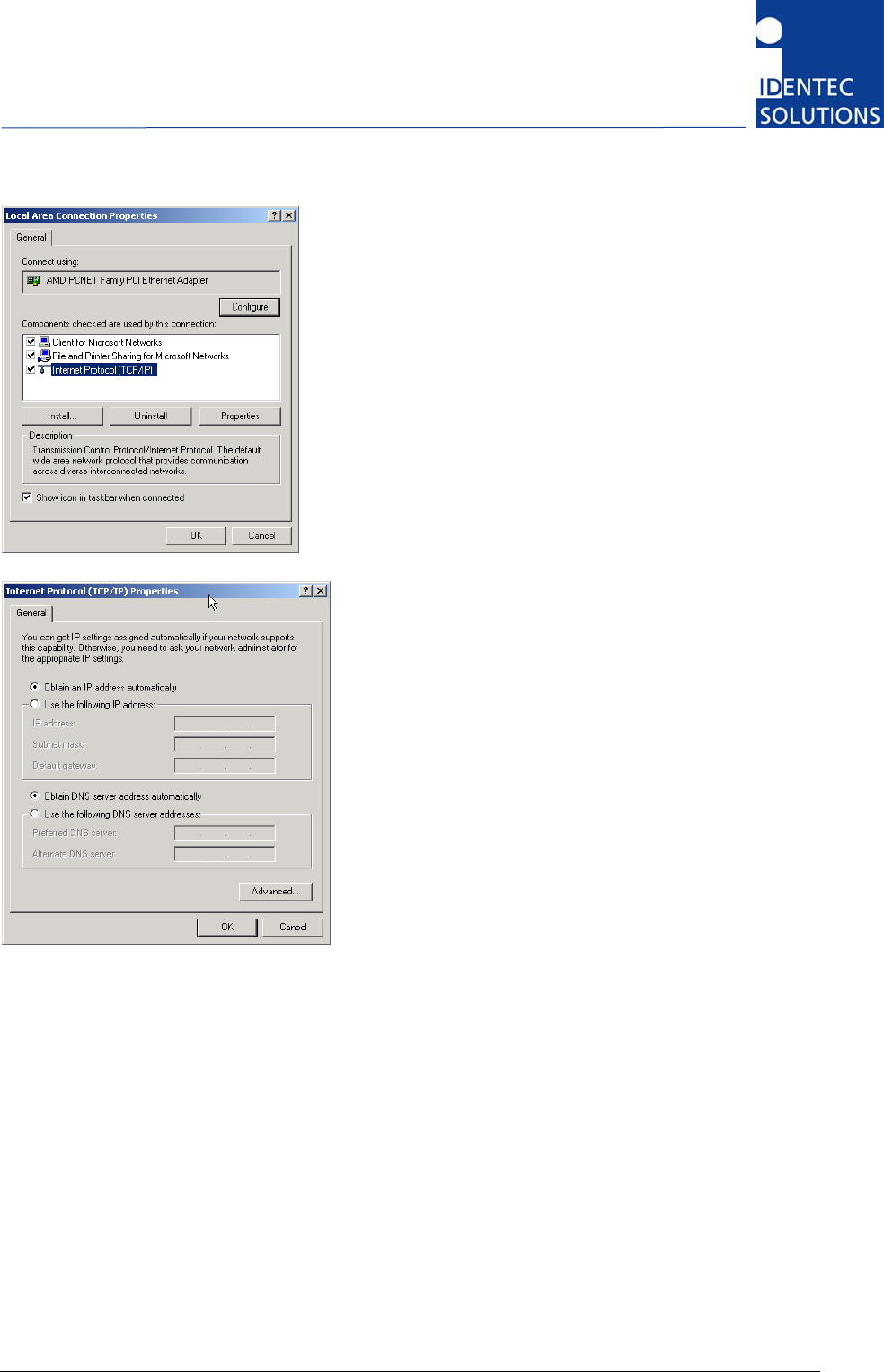

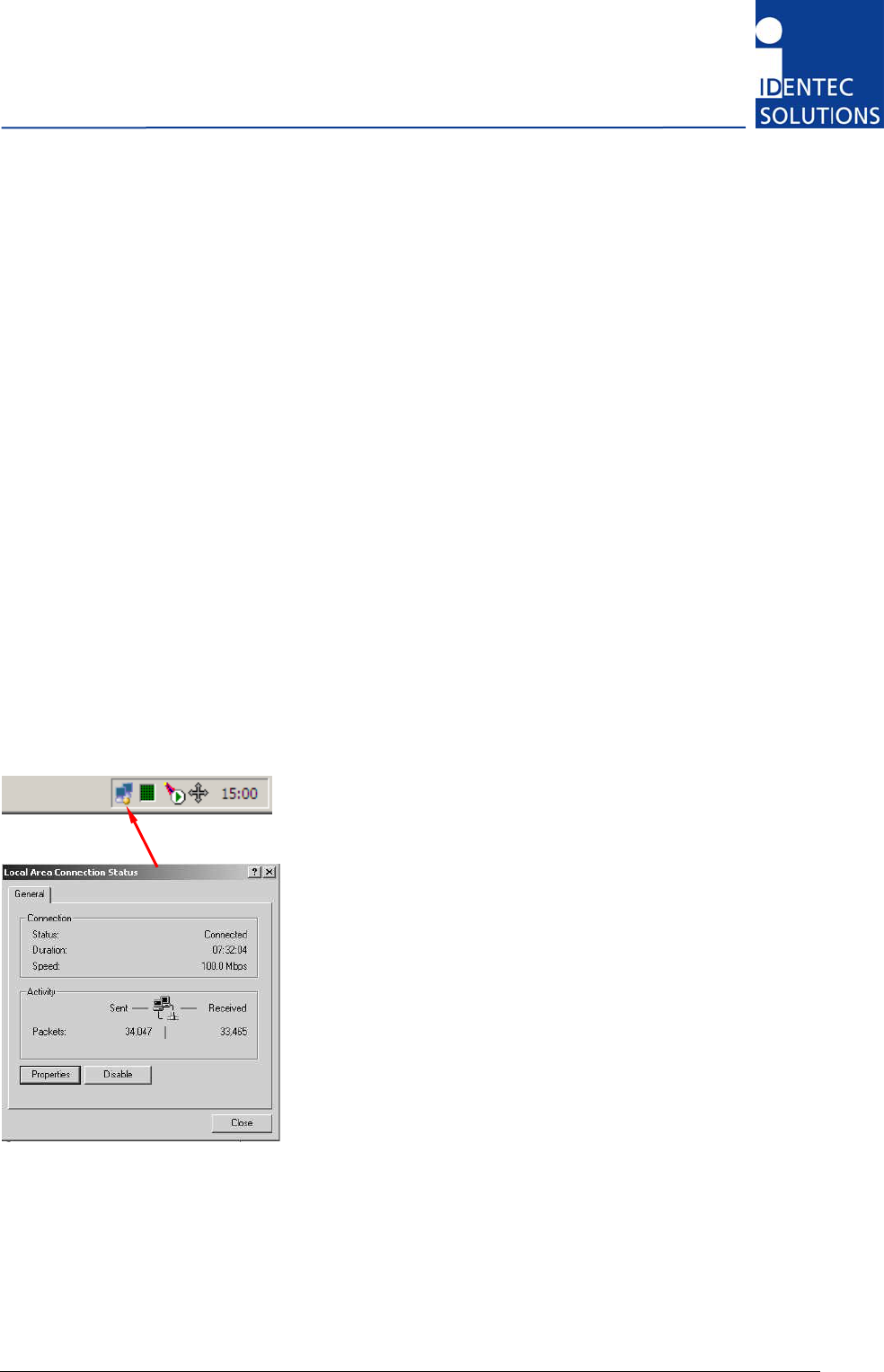

In order to gain access to the network settings of the PC, double click on the network icon in the
systray. The icon appears as two computer symbols.
Now click on “Properties”.
RTLS Hardware and Installation Manual
Page 18 of 30
Select “Network Protocol (TCP/IP) and click on “Properties”.
Check if both checkboxes “Obtain … automatically” are checked. Confirm with “OK”.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 19 of 30
Discover the i-PORT’s Ethernet Interface
• Connect the PC with the i-PORT.
• Start the software “Device Discovery Utility”. This software will automatically detect the Ethernet
device of the i-PORT.
• Select the device listed, then chose “Device Tasks” => “Open Web Interface”.
Now the standard web browser on the PC should start, opening the IP address of the Ethernet device.
In the following login display use this default access codes:
• Default login name: root
• Default login password: dbps
Note
The web interface automatically logs out after a very short time.
RTLS Hardware and Installation Manual
Page 20 of 30
Configuration of the Internal Communication

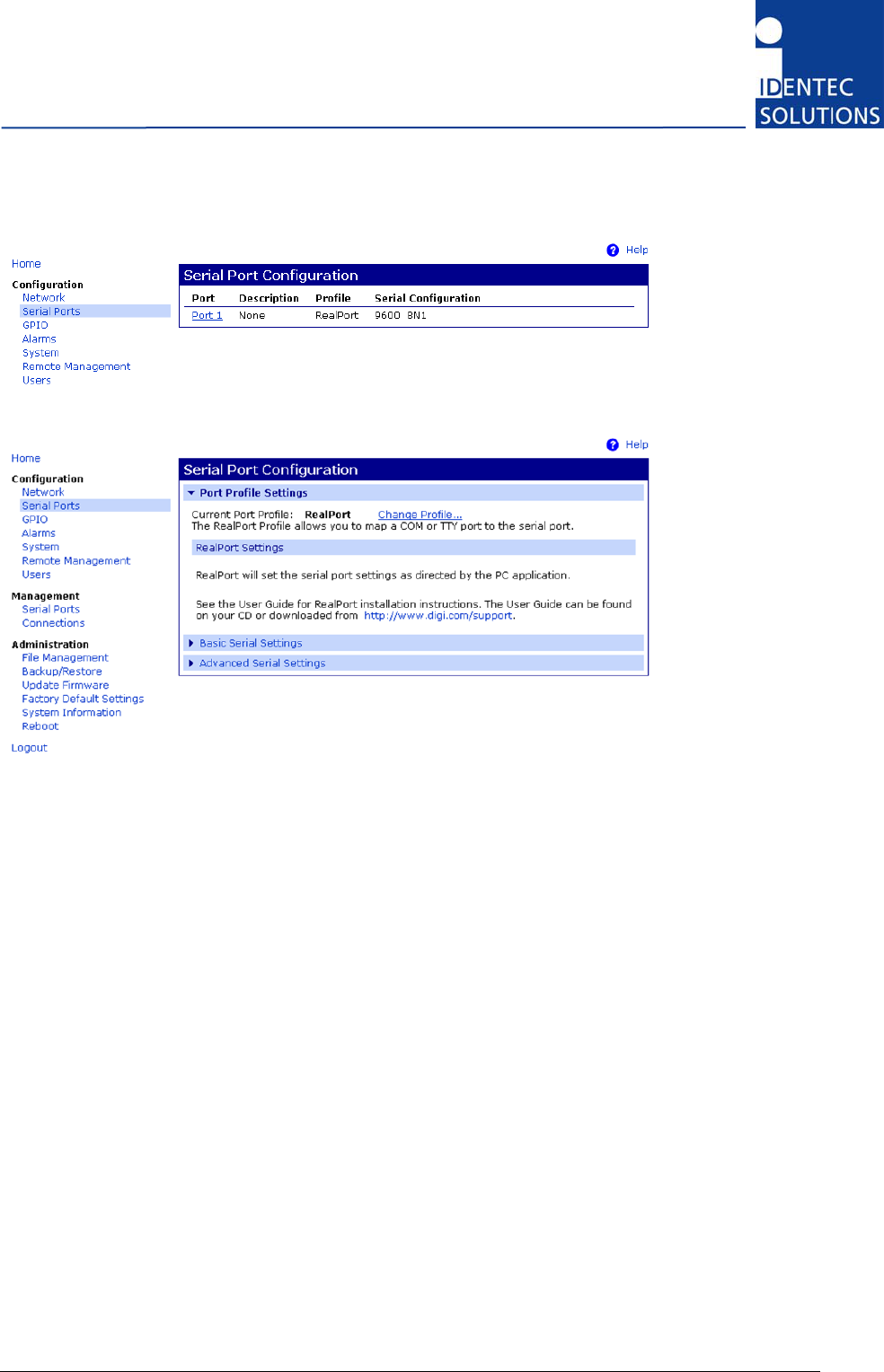

In the category “Configuration” select “Serial Ports”.
Click on “Change Profile”.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 21 of 30

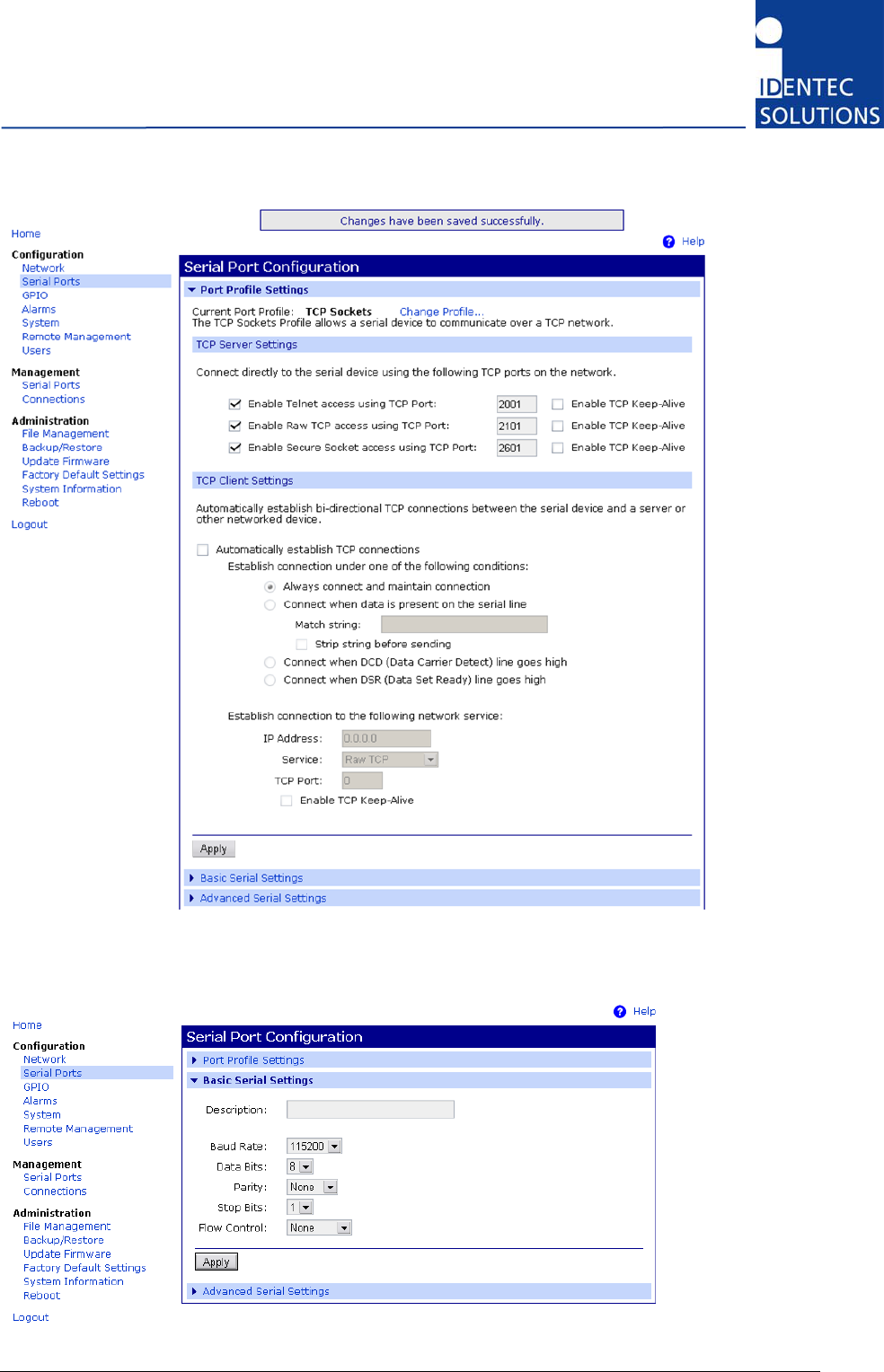

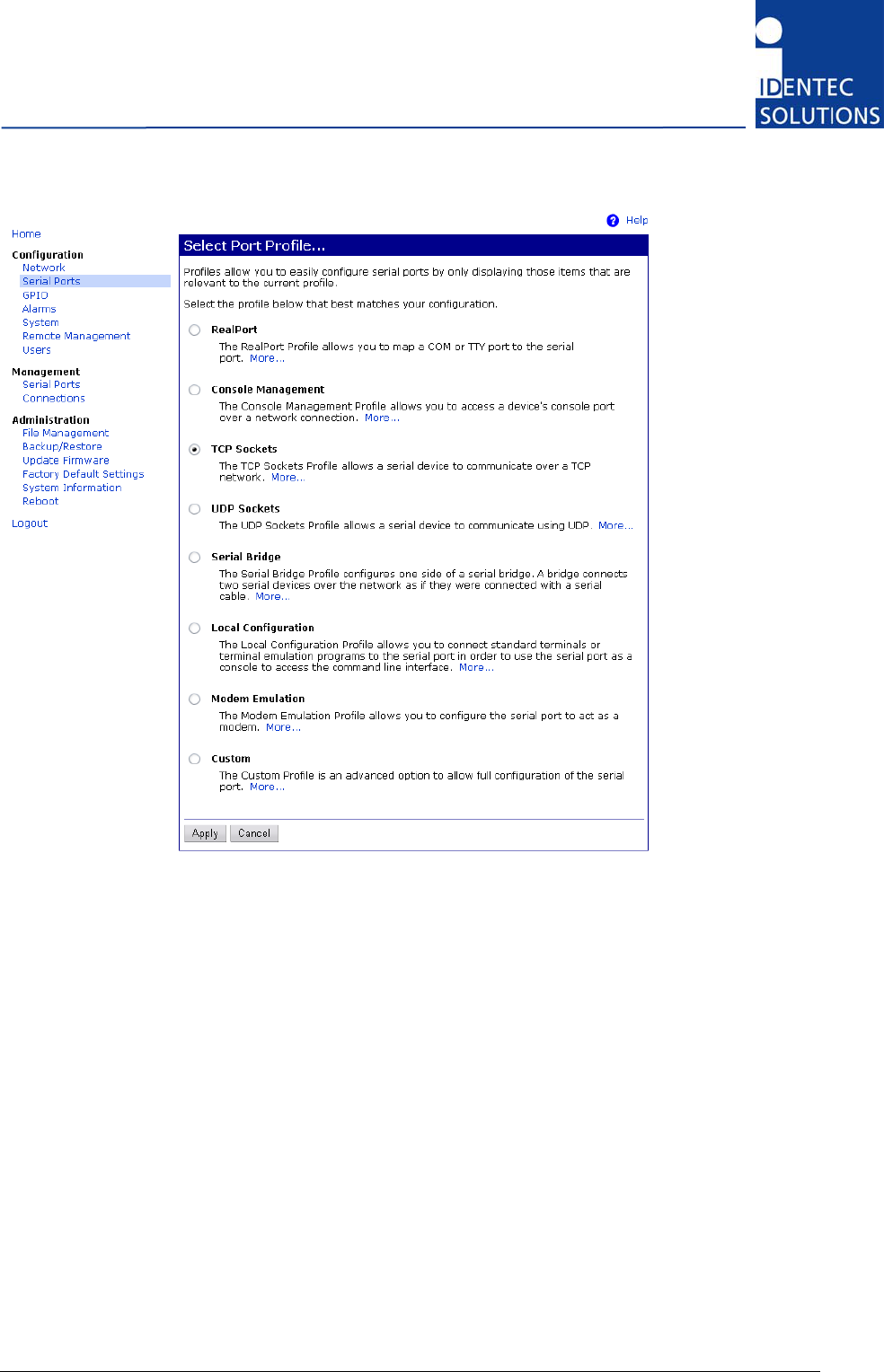

In this list chose “TCP Sockets” and confirm with “Apply”. Now this page appears:
RTLS Hardware and Installation Manual
Page 22 of 30
Check the port settings and correct if necessary.
Now go on with the “Basic Serial Settings”. Adjust them to this parameters and confirm.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 23 of 30

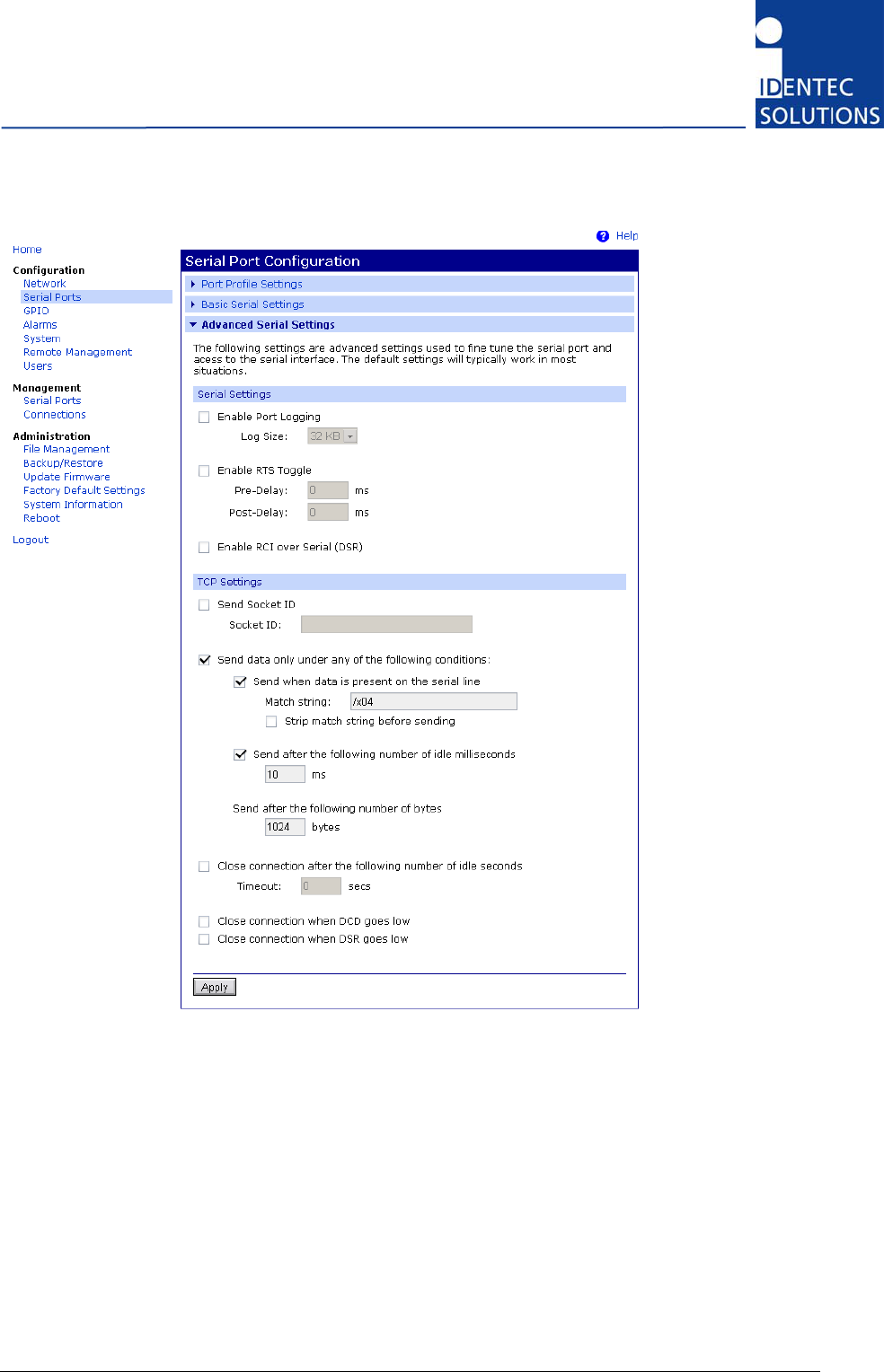

This is the last step of the port configuration.
Set the TCP Settings to the values shown. Then confirm with “Apply”.
RTLS Hardware and Installation Manual
Page 24 of 30

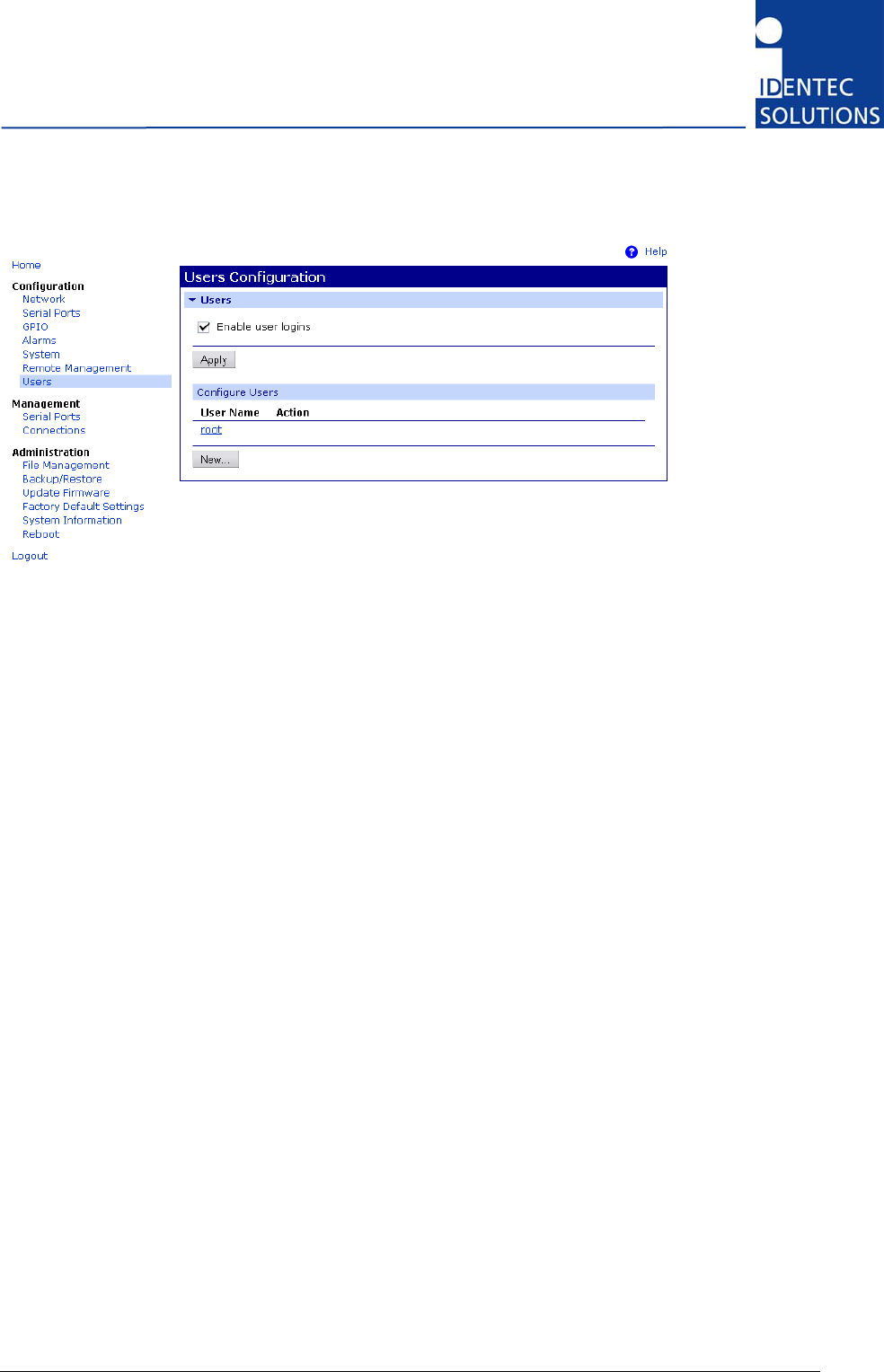

Users Configuration
In order to change the password for the user “root” click on the user name and fill in the fields with
the old and new password. The new password needs to be typed twice to prevent typos.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 25 of 30
Network Configuration
Important Note
As the connection to the Ethernet device will probably be lost, after the network configuration it is
recommended to do this as the last step of configuration.

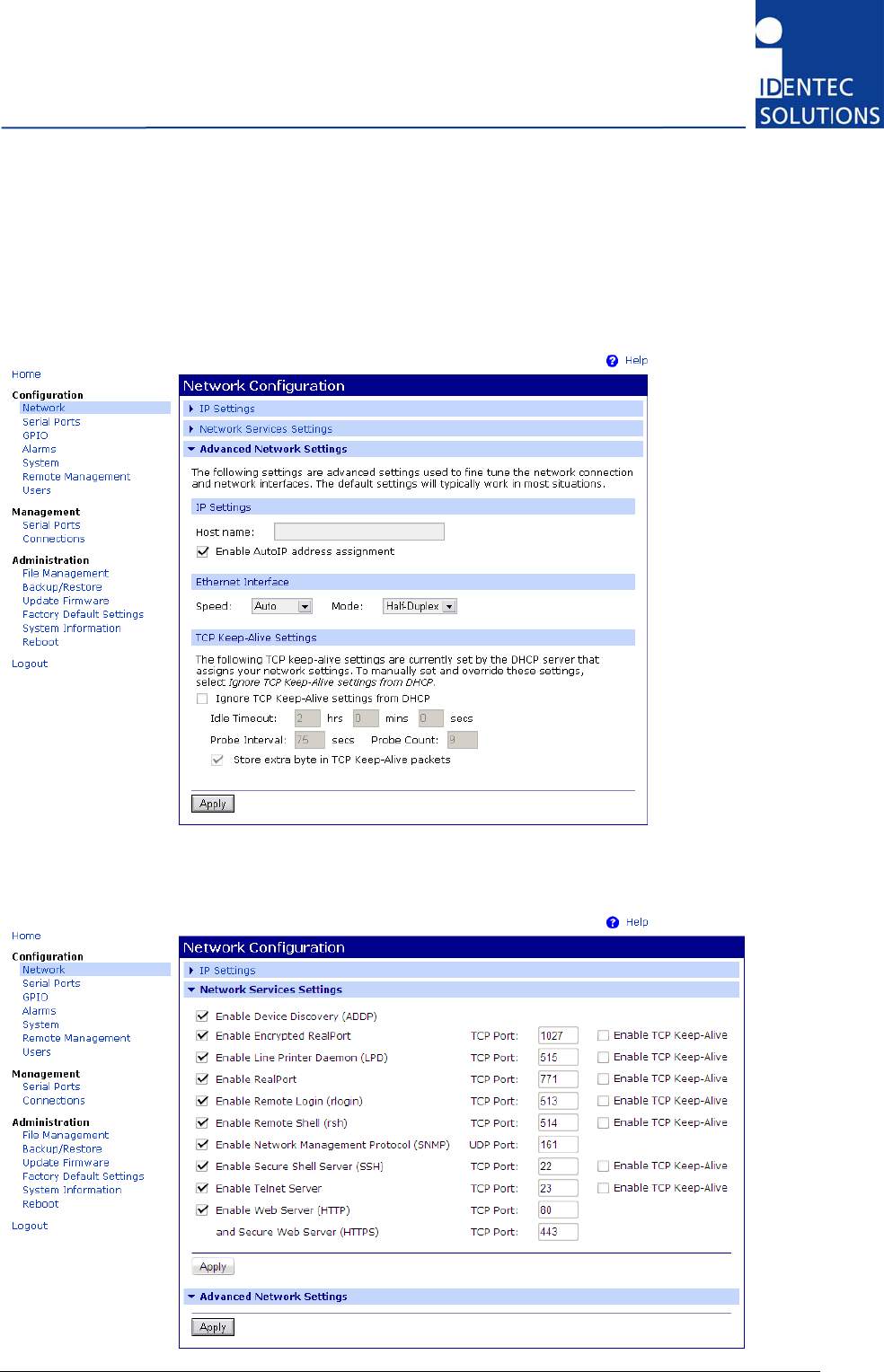

In the category “Configuration” chose “Network” and change to the “Advanced Network Settings”.
Here you can give the i-PORT a useful name for identification in the network. Confirm with “Apply”.
RTLS Hardware and Installation Manual
Page 26 of 30

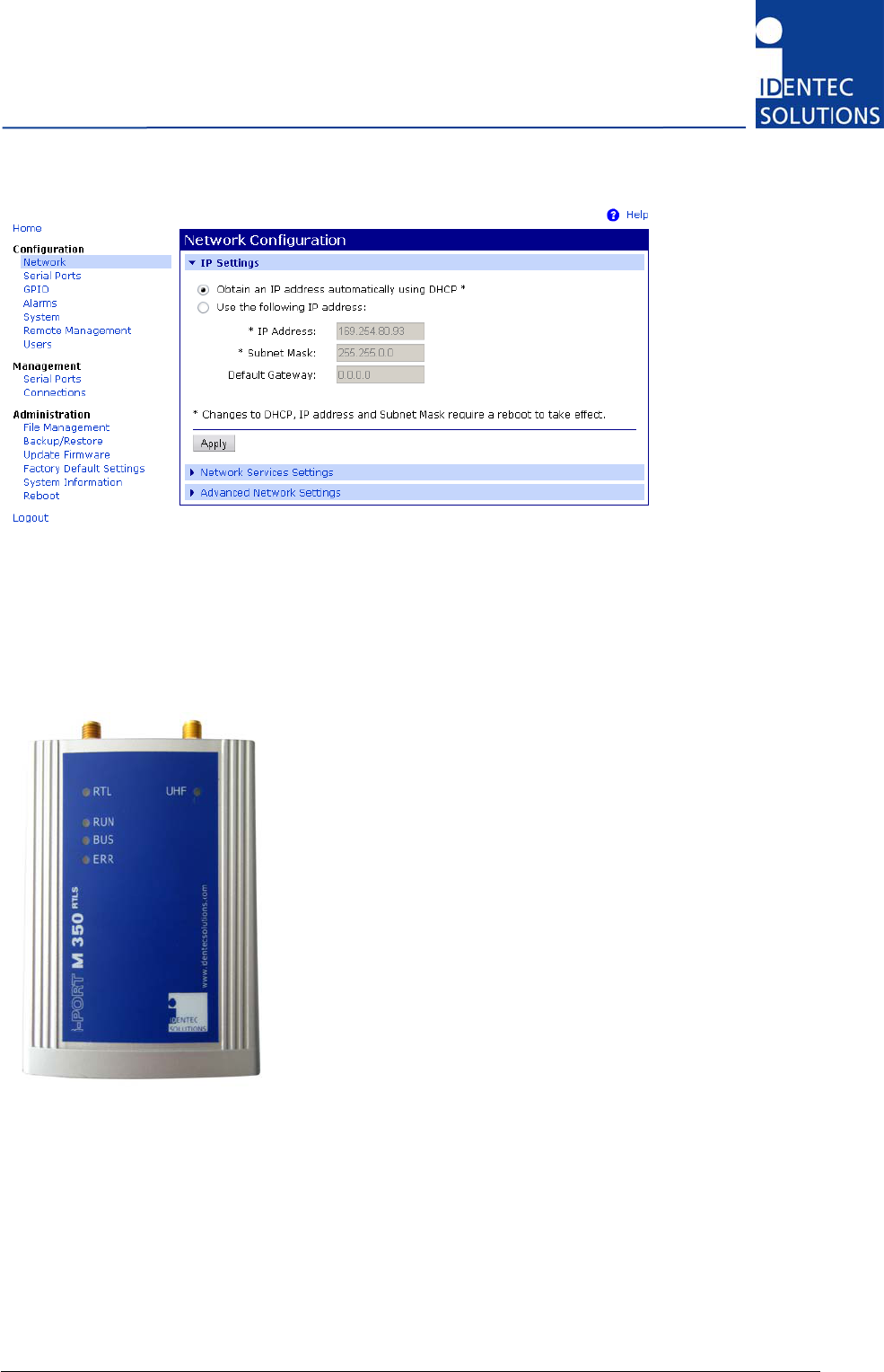

In the category “Configuration” chose “Network”. Now adjust the network settings as required. Then
finish by click on “Apply”. Finally, in the category “Administration” choose “Reboot”.
4.4 Status Display (LEDs)
ANT 1: This is the antenna of the 2.45 GHz RTLS part. LED blinks
green when a valid packet has been received. It blinks RED when
a ranging of type 1 has been successfully done.
ANT 2: This is the antenna of the UHF part.
Sending a command: As long as wake up is sent, the ANT2 Led is
green. If a packet is received as a valid answer, goes red. (Give
orange effect).
Beacon receiving: beacon message is detected -> ANT2 goes
green. If this tag is a new tag in the reader’s list, it goes orange.
If it is already in the list it stays green.
RUN: Device is running properly (LED blinks at approx 1 Hz).
BUS: Blinks GREEN when data is received on the i-BUS. Blinks
RED when sending data to the i-BUS.
ERR: Blinks RED when an error occurs.
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 27 of 30
5 Maintenance
5.1 General
In principle, the ILR system is maintenance-free. When correctly installed it operates for many years
without any problems.
5.2 Precautionary Maintenance
Regular checking of all ports and cables belonging to the system is recommended. Unstable
connections could lead to damage and malfunctions of the system and therefore should be repaired
as soon as possible.
A Brief Checklist
• Are all casing intact?
• Are all cables intact?
• Are all connectors intact?
• Are all connectors securely fastened?
• Are all screws still tight?
• Is there suddenly a malfunction at a specific unit?
RTLS Hardware and Installation Manual
Page 28 of 30
5.3 Spare Parts
5.3.1 Recommended spare parts stock
In order to keep the down time of the system during malfunctions as short as possible it is
recommended to have certain spare parts in stock. At least one central unit, one antenna and one
antenna cable should be available. With larger systems with more than approx. 15 i-PORTs the
doubling of the recommended stock quantity should be considered.
Furthermore, it is recommended to have several spare tags in stock,
corresponding to approx. 0.5 – 1 % of the total number of tags.
5.3.2 Preparing the spare parts
In general all spare parts can be used immediately after delivery from IDENTEC SOLUTIONS.
However, for the compact communicator there are various settings of the communication parameters.
In order to keep the down times short it is recommended to set these parameters before the
component is entered into the spare part stock system. In most cases all units within an identification
system are used in the same way so that only one setting is required.
5.3.3 Examination and repair of exchanged parts
The data tags and compact communicators are complex electronic power units on which the customer
can carry out only very limited repairs. Normally the repairs are carried out at IDENTEC SOLUTIONS
or possibly at a distributor. Before a part is sent in for repair a short examination should be carried
out.
5.4 Returns
Parts or main components returned for repair or exchange must be handled with great care. PC cards
must be returned in the appropriate ESD-protecting packaging material.
All returns should include a completed returns form (see appendix) and be sent to the local distributor
or to:
IDENTEC SOLUTIONS AG
Service Department
Millenium Park 2
6890 Lustenau
AUSTRIA / AUTRICHE
i-PORT M 350, i-SAT 300 RTLS, i-PORT M 350 RTLS
Page 29 of 30
6 Technical Data
Operating Data Long-Range RFID (ILR, 2400 – 2485 MHz ISM Band)
Read/write/localization range Up to 180 m (590 ft) in free air with line of sight
Channels 3 Non-Overlapping channels (for EU and US) or 7 Overlapping
channels
Data rate 250 kbits/s and 1 Mbits/s
Maximum transmission power 100 mW EIRP or local regulation
Standards/Certification ISO 24730 part 5 (upcoming standard),
FCC part 15, EN 300 328 (EU)
Compatibility i-Q350 RTLS series tags
Operating Data Long-Range RFID (ILR, UHF Band)
Read/write range Up to 300 m (900 ft) in free air with line of sight
Frequency 868 MHz band (EU) and 902 - 928 MHz (NA)
Data rate (read and write) 19.2 up to 115.2 kbits/s
Maximum transmission power 0.75 mW ERP
Standards/Certification FCC Part 15 (US), Industry Canada, EN 300 220 (EU)
Compatibility i-Q350 and i-Q350 RTLS series tags
Performance
Identification code 48 bits fixed ID
Read rate Up to 100 tags/s (identification code only)
Localization rate Up to 400 tags per min per zone
Multiple tags handling Up to 500 tags in the read zone
Antennas
RFID 1 SMA connector for external antenna at 868 (EU) or 915 MHz (US)
Localization 1 SMA connector for external antenna at 2.4 GHz
Electrical
Power source 10 – 30 VDC
Power consumption < 2 W
Host interface RS422, 115.2 kbit/s or Ethernet 10/100 Mbit/s
Environmental
Operating temperature –30 °C to +70 °C (–22 ºF to +158 ºF)
Shock 50 G, 3 times DIN IEC 68-2-27 Multiple drops to concrete from 1 m
(3 ft)
Vibration 3 G, 20 sine wave cycles, 5 Hz to 150 Hz, DIN IEC 68-2-6
5 G, noise 5 Hz to 1000 Hz, 30 minutes, DIN IEC 68-2-64
Humidity 90 %, non-condensing
RTLS Hardware and Installation Manual
Page 30 of 30
Physical
Dimensions 97 × 67 × 97 mm (3.8 × 2.6 × 3.8 in.)
153 × 67 × 97 mm (6.0 × 2.6 × 3.8 in.) incl. cover
Case Material Plastic
Mass 150 grams (5.29 ounces)
Enclosure rating IP 64 with cover
