Identec Solutions IPH310 i-Port H310 User Manual
Identec Solutions AG i-Port H310 Users Manual
Users Manual
i-PORT H310
Hardware and
Installation Manual
Hardware and Installation Manual
Page 2 of 8
Proprietary Notice
This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be
used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC
SOLUTIONS.
Disclaimer and Limitation of Liability
IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents
provide the information contained in this Manual on an “as-is” basis and do not make any express or
implied warranties or representations with respect to such information including, without limitation,
warranties as to non-infringement, reliability, fitness for a particular purpose, usefulness,
completeness, accuracy or up-to-dateness. IDENTEC SOLUTIONS shall not in any circumstances be
liable to any person for any special, incidental, indirect or consequential damages, including without
limitation, damages resulting from use of or reliance on information presented herein, or loss of profits
or revenues or costs of replacement goods, even if informed in advance of the possibility of such
damages.
Trademarks
“IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered trademarks
and “i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”, “Smarten up your
assets” are trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG.
Copyright Notice
Copyright © 2007 IDENTEC SOLUTIONS. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means, photographic,
electronic, mechanical or otherwise, or used in any information storage and retrieval system, without
the prior written permission of IDENTEC SOLUTIONS.
Reg.-No. IM.0781.EN
Order code:
Issue 0 / February 2009
– 28. July 2009 –
IDENTEC SOLUTIONS AG,
Millennium Park 2, 6890 Lustenau, Austria
Phone +43 5577 87387-0, Fax +43 5577 87387-15
info@identecsolutions.at
www.identecsolutions.com
Subject to alteration without prior notice.
© Copyright IDENTEC SOLUTIONS 2009
Printed in Germany
i-PORT H310
Page 3 of 8
Radio Frequency Compliance Statement
IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices:
MODEL: i-PORT H310
EUROPE: CE
USA
Canada FCC ID OO4-IPH310
IC:3538A-IPH310
The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance,
by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC
SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and
(2) these devices must accept any interference, including interference that may cause undesired operation
of the device.
European Notification according R&TTE Directive
This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the
following standards: ETSI EN 300 220, EN 300 , ETSI EN 301 489, EN 60950
USA Notification
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The device has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Hardware and Installation Manual
Page 4 of 8
FCC Registration Required for Operation under Rule 15.240
Radio transmissions from the i-Port F310 are governed in the US by FCC Part 15 rules, and in Canada
by corresponding Industry Canada regulation RSS-210 . Still other regulations apply in Europe and
other countries.
The i-Port F310 is shipped with the default mode of operation corresponding to FCC 15.231. All other
Identec Solutions equipment complies with 15.231. Equipment operating under this rule does not
require FCC Registration.
FCC Rule 15.240 offers some advantages in thru-put and flexibility for applications involving
containerized cargo. I-Port F310 can be configured for operation under this rule only by a qualified
technician downloading factory-supplied configuration files.

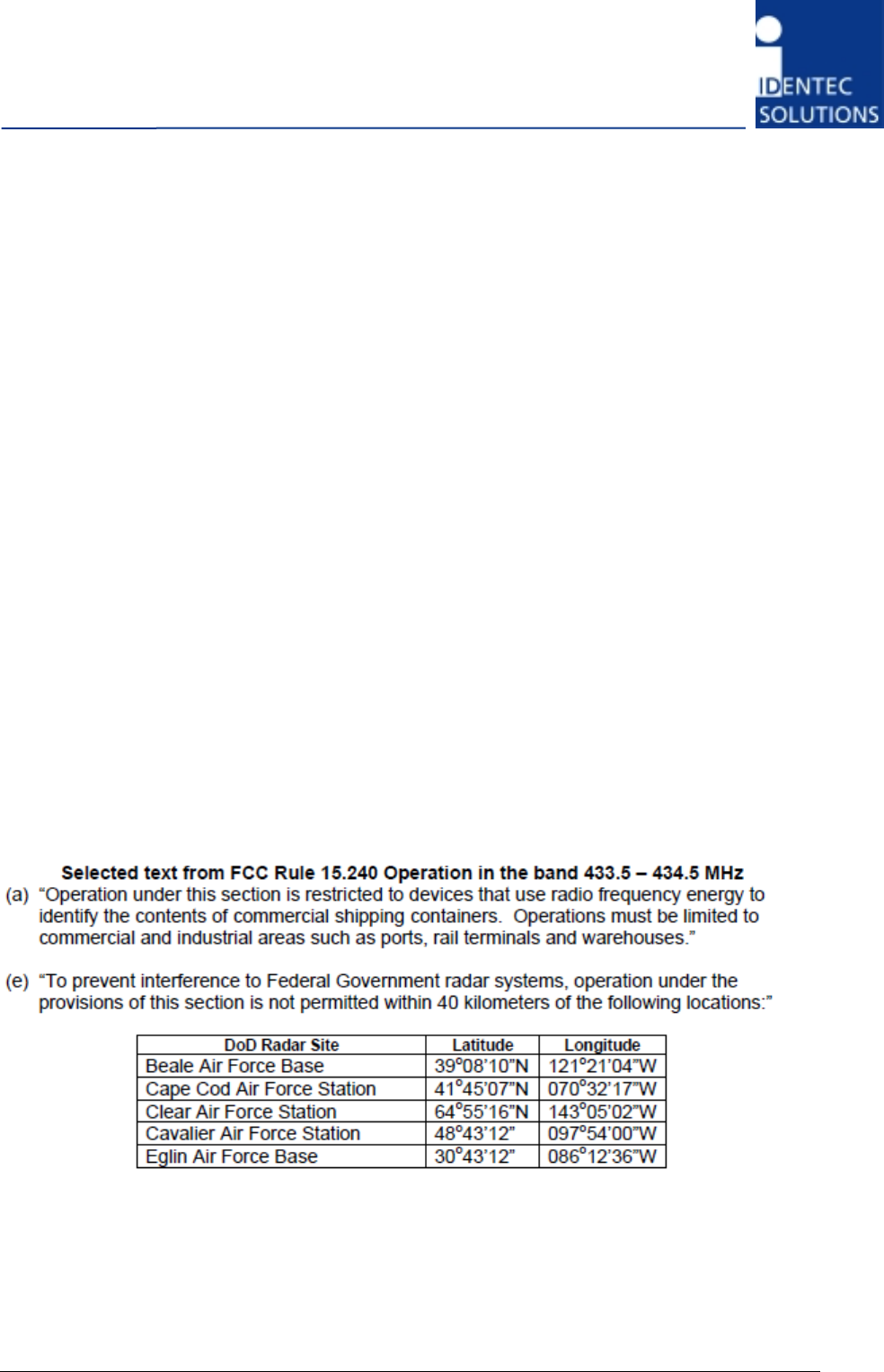

There are restrictions in the geographical locations where such equipment may be deployed so as to
maintain a 40 km separation from five long-range radar sites in the US and Alaska. The FCC

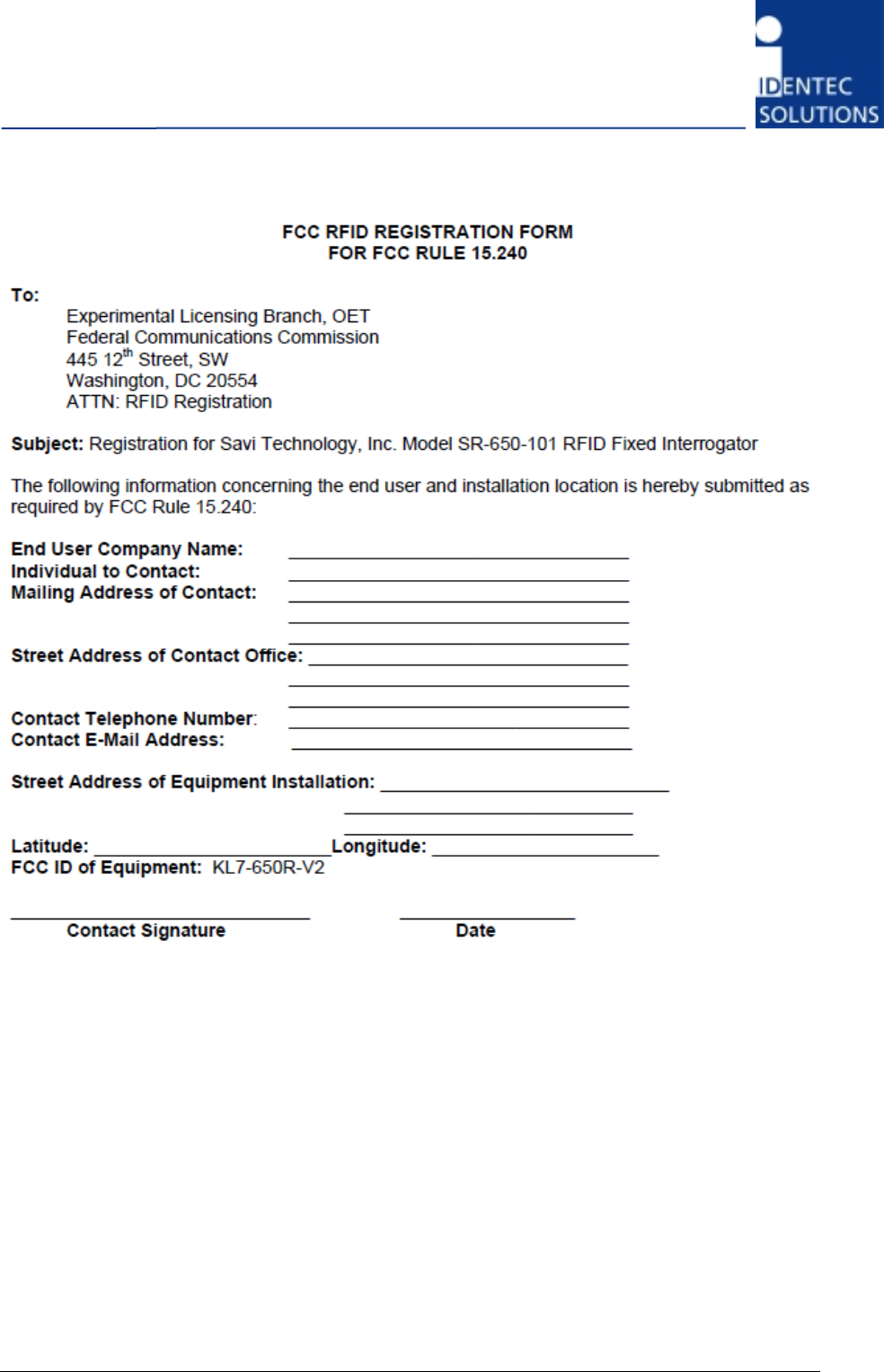

requires notification of the locations where 15.240 operating equipment is to be installed. Identec
Solutions notifies the FCC of the initial shipping destination. However, it is the responsibility of
the end user to mail a notification of installation to the FCC as described in the form provided below
upon initial installation. It is also required that the user mail a new notification in the event the
equipment is re-located.
The form is to be mailed to:
Experimental Licensing Branch
Office of Engineering & Technology
Federal Communications Commission
445 12th Street, SW
Washington, DC 20554
ATTN: RFID Registration
i-PORT H310
Page 5 of 8
Hardware and Installation Manual
Page 6 of 8
This product contains components that are sensitive to electrostatic discharges. Please observe the
special instructions for their protection. Incorrect handling can damage the unit and cause the
invalidation of the warranty.
Minimum safety precautions against electrostatic discharge:
• Establish earth contact before you touch the unit. For example, touch the earthing screw on the
unit. Even better: Use an antistatic ribbon and earth yourself permanently for the time you
handle the unit.
• Avoid unnecessary contact with the unit connectors and assemblies inside the unit.
• Only open the unit if the operational settings (as described in the manual) expressly require this.
• Use antistatic tools for the setting of the unit. (Warning: Do not touch life-threatening voltages
with these tools).
• Do not store unit and components without protective packaging.
• Only remove unit and components from the packaging immediately prior to installation.
These notes are not sufficient to guarantee complete protection from electrostatic
discharges! We recommend the use of suitable protective equipment.
i-PORT H310
Page 7 of 8
ISO 18000-7 HandHeld Interrogator provides highly accurate data collection for increased
productivity, streamlined business operations and provides real-time connectivity to
critical applications. The handheld form factor provides the flexibility of a mobile device
and a full functionality of an RFID reader and a computer, all in one rugged ergonomic
package.
As one of the most rugged handheld devices on the market, this handheld passes
industry’s most stringent drop and tumble tests and provides IP64 sealing rating as well
as integrated internal antennas for flexibility to use in nearly any environment.
This handheld provides long battery life for a full shift through superior power
management. It is powered by a single replaceable, rechargeable battery and provides
rechargeable spare battery with a charging cradle.
Modular keypads, a rugged touch panel and a display that is easy to view inside and
outside in direct sunlight provide users with maximum readability, ease-of-use and
comfort. The handheld provides options for user-programmable functions featuring a full
alphanumeric data entry system as well as special characters.
Using advanced UHF radio frequency technology, ISO 18000-7 HandHeld Interrogator
transmits and receives data at distances of more than 50 meters (150 feet) and communicates with all ISO 18000-7
transponders including Data Rich, Sensor, and Container Security Active Transponders.
The standardized anti-collision multi-tag-handling algorithm allows communication to tags even when
thousands of tags are within the interrogator's read zone.
The handheld features Wireless LAN capability with built in 802.11 (b/g) WiFi, USB connectivity to the host using a cradle and
powerful OS Microsoft Windows Mobile 5.0.
Features Benefits
Over 50-meters (150 ft) read/write range Allows automated identification, tracking and tracing of assets over long
distances.
Weighs approximately 2.2 pounds (1 kg) Low weight allows for prolonged use without user fatigue and wrist injuries.
300 × 240 color touch-screen display Display supports color GUI, and provides high resolution as well as easy
readability inside and outside even in a direct sunlight and backlit. The display is
a touch-screen enabled and fits more than 80 characters without scrolling.
Power management Battery usage is optimized for long lasting performance. Battery is easily
replaceable and rechargeable.
WiFi 802.11 b/g and USB Provides wireless communication capability and in addition also a USB
connection to the host through a cradle.
ISO/IEC 18000-7 compatible Manufacturer independent interoperation. US DoD and NATO ITV compatible.
Extremely rugged Withstands multiple drops to concrete from 6 ft and over 2,000 one-meter
tumbles.
IP64 sealing Provides sealing against environmental elements for use in various conditions.
Windows Mobile 5.0 Reliable and powerful operating system for mobile devices features robust
application support.
Holster and belt clip Options for easy portability and freeing the hands of users between usage.
Hardware and Installation Manual
Page 8 of 8
IDENTEC SOLUTIONS
IDENTEC SOLUTIONS is the global leader
in active wireless tracking solutions. A
commitment to developing ground-
breaking, industry-specific tracking
solutions featuring proprietary patented
technology has placed IDENTEC
SOLUTIONS in the international forefront
as a technology provider for innovation
and as a complete solution provider in
the automotive, oil, gas and mining
industries.
Utilized by the world's leading
organizations and system integrators,
IDENTEC SOLUTIONS' award-winning
technology portfolio offers robust, highly
effective tracking solutions that manage
critical process and optimize supply chain
flow. Privately held since 1999, IDENTEC
SOLUTIONS has provided asset
management solutions and support to a
variety of organizations, including an
impressive roster of Fortune 500 clients
such as Volkswagen, Audi, Deutsche Post
and General Electric. Headquartered in
Lustenau, Austria, the company's North
American headquarters are located in
Dallas, Texas, with customer service
centers in Hong Kong, Germany,
Australia and Norway. For more
information, please visit:
www.identecsolutions.com
“IDENTEC SOLUTIONS”, “Intelligent Long Range”,
“ILR”, “i-LINKS”, “i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”,
“Solutions. It’s in our name.”, “Smarten up your
assets.“ and the stylized “i” are trademarks or
registered trademarks of IDENTEC SOLUTIONS, Inc.
and/or IDENTEC SOLUTIONS AG.
Copyright © 2005 by IDENTEC SOLUTIONS.
All rights reserved.
Technical Specifications
Performance
Read rate Up to 100 tags/s (Collect Tag Identification Code
only)
Max. response time < 150 ms (single tag)
Communication
Read range Up to 50 m (150 feet) @ free air
Write range Up to 50 m (150 feet) @ free air
Operating frequency 433.92 MHz
Data rate (download to tag) 27.778 kbits/s
Data rate (upload to reader) 27.778 kbits/s
Frequency 433.92 MHz international ISM band
Modulation FSK ±50 kHz at 27.778 kHz data rate
Standards/Certification ISO/IEC 18000-7
Host Communication
Wireless 802.11 b/g
Wired USB 2.0 (through the cradle)
Power Source
Battery Removable, rechargeable 7.2 volt Lithium Ion
2200 mAh battery pack, 15.8 watt hours
Memory
Memory size 64 MB RAM and 128 MB ROM
Identification code 32 bit fixed ID
Operating System
Type Windows Mobile 5.0 (optionally higher)
Environmental
Operating temperature –10 °C to +50 °C
Storage temperature –40 °C to +60 °C
Humidity 5 % to 95 % relative humidity (non-condensing)
Drops Multiple drops to concrete: 6 ft./1.8 m
across the operating temperature range
Tumble 2,000 one-meter tumbles at room temperature
(4,000 hits)
Physical
Dimensions 10.75 in. L × 4.7 in. W × 7.7 in. H
27.3 cm L × 11.9 cm W × 19.5 cm H
Weight 35.4 oz./1 kg (includes battery, scanner and
radio)
Enclosure rating IP 64
Accessories
Holster, Belt Clip
AC Power Adapter (geographically specified)
Rechargeable Battery, and Battery Charger
Charging/docking cradle with USB connection
