Identec Solutions IQ310 Remote Control Device User Manual
Identec Solutions AG Remote Control Device Users Manual
Users Manual
I
I
I-
-
-Q
Q
Q3
3
31
1
10
0
0
S
S
SE
E
ER
R
RI
I
IE
E
ES
S
S
U
U
US
S
SE
E
ER
R
R
M
M
MA
A
AN
N
NU
U
UA
A
AL
L
L
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4
Proprietary Notice
This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used
or disclosed to other parties in whole or in part without prior written authorization from IDENTEC
SOLUTIONS.
Disclaimer and Limitation of Liability
IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents provide
the information contained in this Manual on an “as-is” basis and do not make any express or implied
warranties or representations with respect to such information including, without limitation, warranties as to
non-infringement, reliability, fitness for a particular purpose, usefulness, completeness, accuracy or up-to-
dateness. IDENTEC SOLUTIONS shall not in any circumstances be liable to any person for any special,
incidental, indirect or consequential damages, including without limitation, damages resulting from use of or
reliance on information presented herein, or loss of profits or revenues or costs of replacement goods, even
if informed in advance of the possibility of such damages.
Trademarks
“IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered trademarks and
“i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”, “Smarten up your assets” are
trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG.
Copyright Notice
Copyright © 2007 IDENTEC SOLUTIONS. All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means, photographic,
electronic, mechanical or otherwise, or used in any information storage and retrieval system, without the
prior written permission of IDENTEC SOLUTIONS.
Reg.-No. IM.0780.EN
Order code:
Issue 0 / February 2009
– 29. June 2009 –
IDENTEC SOLUTIONS AG,
Millennium Park 2, 6890 Lustenau, Austria
Phone +43 5577 87387-0, Fax +43 5577 87387-15
info@identecsolutions.at
www.identecsolutions.com
Subject to alteration without prior notice.
© Copyright IDENTEC SOLUTIONS 2009
Printed in Germany
IDENTEC SOLUTIONS AG – Millennium Park 2 – A-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU485354
Radio Frequency Compliance Statement
IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices:
MODEL: i-Q310 SET, i-Q310 ATR, i-Q310 DTR,i-Q310 LPT
EUROPE: CE
USA FCC ID OO4-IQ310
Canada IC:3538A-IQ310
The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by
IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC
SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and (2)
these devices must accept any interference, including interference that may cause undesired operation of the
device.
European Notification according R&TTE Directive
This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the
following standards: EN 300 220, EN301489, EN60950
USA Notification
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4
This product contains components that are sensitive to electrostatic discharges. Please observe the special
instructions for their protection. Incorrect handling can damage the unit and cause the invalidation of the
warranty.
Minimum safety precautions against electrostatic discharge:
• Establish earth contact before you touch the unit. For example, touch the earthing screw on the unit.
Even better: Use an antistatic ribbon and earth yourself permanently for the time you handle the unit.
• Avoid unnecessary contact with the unit connectors and assemblies inside the unit.
• Only open the unit if the operational settings (as described in the manual) expressly require this.
• Use antistatic tools for the setting of the unit. (Warning: Do not touch life-threatening voltages with
these tools).
• Do not store unit and components without protective packaging.
• Only remove unit and components from the packaging immediately prior to installation.
These notes are not sufficient to guarantee complete protection from electrostatic discharges!
We recommend the use of suitable protective equipment.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4

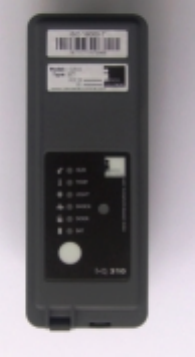

Sensor Tag i-Q310 SET
The i-Q310 series of tags is IDENTEC SOLUTIONS’ well-established generation of Intelligent Long Range (ILR) active RFID tags
based on the ISO 18000-7 standard.
ILR provides highly accurate, real-time data collection without human intervention in wireless applications such as:
identification
tracking and tracing
sensor logging.
Using advanced UHF radio frequency technology, i-Q310 SET tags transmit and receive data at distances of up to 100 meters (300
feet).
These tags include also hardwire interface for fast and secure data upload and a database based memory of up to 128 kBytes, as well
as 32 kBytes of memory for sensor logging.
The Sensor Tag offers sensors for door breach, light intrusion, temperature, humidity and shock. The thresholds for the breach
condition can be specified by the user.
The standardized anti-collision multi-tag-handling algorithm allows communication to tags even when thousands of tags are within the
interrogator's read zone.
Because of its very low power consumption, the tag can operate effectively for over 3 years. Integrated speaker supports acoustic
signalization during search, locate and alarms.
The i-Q310 tag line can withstand the abuse expected from work processes; the tags come in various form factors and with various
features and memory sizes and are ideal fit for high volume tracking of assets.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4
F
F
FE
E
EA
A
AT
T
TU
U
UR
R
RE
E
ES
S
S
B
B
BE
E
EN
N
NE
E
EF
F
FI
IIT
T
TS
S
S
100-meters (300 ft) read/write range Allows automated identification, tracking and tracing of assets without human
intervention.
128 kBytes user memory Stores up to 128 kBytes of user data.
32 kBytes memory for sensors Additional 32 kBytes of memory is available for sensor logging.
433 MHz operating frequency Allows low-power, long communication range and high data transmission rates with
minimal interference due to local conditions.
ISO/IEC 18000-7 compatible Manufacturer independent interoperation. US DoD and NATO ITV compatible.
USB 2.0 Hardwire Interface Fast and secure data transfer with USB connection with mini-B connector.
Speaker Acoustic signalization during search, locate, alarms.
3-year battery lifetime and more Delivers long-time maintenance-free operation, without battery replacement.
Replaceable battery Battery is replaceable to extend the tag’s lifetime, tag provides battery status to the
reader.
Easy attachment to assets Using easy on/off mounting bracket, the tag is easily and securely attached to any
asset.
Security sensors The tag utilizes a door breach sensor as well as light, temperature, humidity and shock
sensors.
Sensor indication and labeling Features “sensor on/off” indication and also provides the type of sensor(s) selected
indicator labeling.
User access to tag functions The tag provides user selectable method to access the sensor activation, alarm status,
and low battery state of the tag without the need for an interrogator.
Status reporting The tag sends sensor activation state and alarm status to the reader during collections.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4

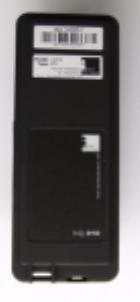

Asset Tag i-Q310 ATR
T
Th
he
e
i
i-
-Q
Q3
31
10
0
s
se
er
ri
ie
es
s
o
of
f
t
ta
ag
gs
s
i
is
s
I
ID
DE
EN
NT
TE
EC
C
S
SO
OL
LU
UT
TI
IO
ON
NS
S’
’
w
we
el
ll
l-
-e
es
st
ta
ab
bl
li
is
sh
he
ed
d
g
ge
en
ne
er
ra
at
ti
io
on
n
o
of
f
I
In
nt
te
el
ll
li
ig
ge
en
nt
t
L
Lo
on
ng
g
R
Ra
an
ng
ge
e
(
(I
IL
LR
R
)
)
a
ac
ct
ti
iv
ve
e
R
RF
FI
ID
D
t
ta
ag
gs
s
b
ba
as
se
ed
d
o
on
n
t
th
he
e
I
IS
SO
O
1
18
80
00
00
0-
-7
7
s
st
ta
an
nd
da
ar
rd
d.
.
ILR provides highly accurate, real-time data collection without human intervention in wireless applications such as:
identification
tracking and tracing.
U
Us
si
in
ng
g
a
ad
dv
va
an
nc
ce
ed
d
U
UH
HF
F
r
ra
ad
di
io
o
f
fr
re
eq
qu
ue
en
nc
cy
y
t
te
ec
ch
hn
no
ol
lo
og
gy
y,
,
i
i-
-Q
Q3
31
10
0
A
AT
TR
R
t
ta
ag
gs
s
t
tr
ra
an
ns
sm
mi
it
t
a
an
nd
d
r
re
ec
ce
ei
iv
ve
e
d
da
at
ta
a
a
at
t
d
di
is
st
ta
an
nc
ce
es
s
o
of
f
u
up
p
t
to
o
1
10
00
0
m
me
et
te
er
rs
s
(
(3
30
00
0
f
fe
ee
et
t)
).
.
The standardized anti-collision multi-tag-handling algorithm allows communication to tags even when
thousands of tags are within the interrogator's read zone.
Because of its very low power consumption, the tag can operate effectively for over 3 years.
Integrated speaker supports acoustic signalization during search, locate and alarms.
The i-Q310 tag line can withstand the abuse expected from work processes; the tags are very economical
and an ideal fit for high volume tracking of assets.
F
F
FE
E
EA
A
AT
T
TU
U
UR
R
RE
E
ES
S
S
B
B
BE
E
EN
N
NE
E
EF
F
FI
IIT
T
TS
S
S
100-meters (300 ft) read/write range Allows automated identification, tracking and tracing of assets without human
intervention.
2 kBytes memory Stores 2 kBytes of user data.
433 MHz operating frequency Allows low-power, long communication range and high data transmission rates with
minimal interference due to local conditions.
ISO/IEC 18000-7 compatible Manufacturer independent interoperation. US DoD and NATO ITV compatible.
Speaker Acoustic signalization during search, locate, alarms.
3-year battery lifetime and more Delivers long-time maintenance-free operation, without battery replacement.
Replaceable battery Battery is replaceable to extend the tag’s lifetime.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
Low cost Economical tracking of large quantities of assets using high-performance active
technology.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4

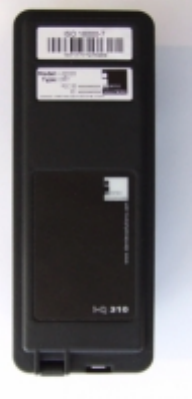

Data Rich Tag i-Q310 DRT
The i-Q310 series of tags is IDENTEC SOLUTIONS’ well-established generation of Intelligent Long Range (ILR) active RFID tags
based on the ISO 18000-7 standard.
ILR provides highly accurate, real-time data collection without human intervention in wireless applications such as:
identification
tracking and tracing.
Using advanced UHF radio frequency technology, i-Q310 DRT tags transmit and receive data at distances of
up to 100 meters (300 feet).
These tags include also hardwire interface for fast and secure data upload and download with memory of up
to 128 kBytes.
The standardized anti-collision multi-tag-handling algorithm allows communication to tags even when
thousands of tags are within the interrogator's read zone.
Because of its very low power consumption, the tag can operate effectively for over 3 years.
Integrated speaker supports acoustic signalization during search, locate and alarms.
The i-Q310 tag line can withstand the abuse expected from work processes; the tags come in various form
factors and with various features and memory sizes and are ideal fit for high volume tracking of assets.
F
F
FE
E
EA
A
AT
T
TU
U
UR
R
RE
E
ES
S
S
B
B
BE
E
EN
N
NE
E
EF
F
FI
IIT
T
TS
S
S
100-meters (300 ft) read/write range Allows automated identification, tracking and tracing of assets without human
intervention.
128 kBytes memory Stores up to 128 kBytes of user data.
433 MHz operating frequency Allows low-power, long communication range and high data transmission rates with
minimal interference due to local conditions.
ISO/IEC 18000-7 compatible Manufacturer independent interoperation. US DoD and NATO ITV compatible.
Speaker Acoustic signalization during search, locate, alarms.
USB 2.0 Hardwire Interface Fast and secure data transfer with USB connection with mini-B connector.
3-year battery lifetime and more Delivers long-time maintenance-free operation, without battery replacement.
Replaceable battery Battery is replaceable to extend the tag’s lifetime.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
IDENTEC SOLUTIONS
A
G
–
Millennium Park 2
–
A
-6890 Lustenau
FN:181501p DVR-NR:10171
VHG Feldkirch UID-NR: ATU48535
4
License Plate Tag i-Q310 LPT
The i-Q310 series of tags is IDENTEC SOLUTIONS’ well-established generation of Intelligent Long Range (ILR) active RFID tags
based on the ISO 18000-7 standard.
ILR provides highly accurate, real-time data collection without human intervention in wireless applications such as:
identification
tracking and tracing.
Using advanced UHF radio frequency technology, i-Q310 LPT tags transmit and receive data at distances of up to 100 meters (300
feet).
The standardized anti-collision multi-tag-handling algorithm allows communication to tags even when thousands of tags are within the
interrogator's read zone.
Because of its very low power consumption, the tag can operate effectively for over 3 years.
Integrated speaker supports acoustic signalization during search, locate and alarms.
The i-Q310 tag line can withstand the abuse expected from work processes; the tags are very economical and an ideal fit for high
volume tracking of assets.
F
F
FE
E
EA
A
AT
T
TU
U
UR
R
RE
E
ES
S
S
B
B
BE
E
EN
N
NE
E
EF
F
FI
IIT
T
TS
S
S
100-meters (300 ft) read/write range Allows automated identification, tracking and tracing of assets without human
intervention.
Memory for user routing code Stores user definable routing code information and read-only tag ID.
433 MHz operating frequency Allows low-power, long communication range and high data transmission rates with
minimal interference due to local conditions.
ISO / IEC 18000-7 compatible Manufacturer independent interoperation. US DoD and NATO ITV compatible.
Speaker Acoustic signalization during search, locate, alarms.
3-year battery lifetime and more Delivers long-time maintenance-free operation, without battery replacement.
Replaceable battery Battery is replaceable to extend the tag’s lifetime.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
Low cost Economical tracking of large quantities of assets using high-performance active
technology.
