1.0 Product Specification
1.1 Overview
The term PACT is the acronym for Physical Access Control Terminal. The PAT1241 has three user
interfaces, the Contact, the contactless Smart Card and the Pin-pad and is intended for indoor use.
Apart from this there is the Access granted/denied indication LED and Buzzer. The PAT1241 is based
on the PACT STCII-B ASIC and is designed for indoor operation. The contact less interface is
managed by the Mifare controller. This product has two communication channels, the RS 485 channel
and Weigand/Magnetic stripe channel for communication with the Control Panel. For security
purposes, a SAM is embedded as a crypto processor and key storage device.
1.2 Product Features
User Interfaces
1. Contact Smart Card
2. Contact less Smart Card
3. Pin-pad
4. Activity LED’s one for contact, one for contact less and one for pin-pad
5. Access granted/denied indicator
6. Buzzer.
Power
The device is powered by the control panel, 12V DC with a range from 9 to 16V.
RS485 communication channel
1. Install options for 2 wire / 4 wire mode
2. DIP Switch configurable address selection and termination.
Wiegand interface
Magstripe Interface
OEM Manual – PACT-STC II Page 3 of 10
SCM Microsystems (India)
2.0 Hardware Specification
2.1 Power Supply
+12V DC is taken from the input to the control panel and regulated to +5V DC and +3.3V DC on the
PAT13X1 PCBs.
Connect the Shield pin of the reader to the base-plate and the shield of the cable to the base-plate.
Current Consumption is 110 -250 mA@12V for Device full operation.
2.2 Clock Frequency
• STC-II chip internally running @22.117 MHz for RS485 operation, derived from an external 12
MHz crystal
• ICC clock @4-12MHz
• Contactless reader's Transmitter antenna and receiver circuit works @13.56MHz using MIFARE
RC531 chip
2.3 Contact interface details
• ISO7816-1/3
• Protocol: T=0, T=1
• 5V card (ISO7816 Class A and AB)
• Communication speed: up to 344,086 bps
• Frequency 4MHz as a minimum (up to 12MHz)
• Class A or AB cards ONLY; No support for B only cards.
2.4 Contactless Reader
• ISO14443 A and B (13.56MHz)
• ISO14443 part 1 thru 4
• Protocol: T=CL
• Communication speed: 106Kbps as a minimum (maximum 424Kpbs)
• Operating distance: min 2 cms for CAC card
2.5 User Interface
2.5.1 Keypad
• 3 x 4: 0-9, Clear, Enter – standard telephone layout
• Audible feedback with different sounds for 0-9, Enter and Clear
• Use for PIN entry (Contactless)
2.5.2 LEDs
• 1 Red – Access denied (can be managed thru Wiegand)
• 1 Green – Access granted (can be managed thru Wiegand)
• 1 LED per type of interface
o 1 for Contactless
o 1 for Contact
o 1 for PIN
The application will manage these LEDs. SCM will only supply APIs to manage them (on, off,
blinking with frequency)
OEM Manual – PACT-STC II Page 4 of 10
SCM Microsystems (India)
2.5.3 Buzzer
• User feedback (beep) with different sounds.
2.5.4 Installation
Fix the base-plate on the wall and then mount the reader with a switch for tamper evidence in
between . Wires required for connection to the alarm needs to be connected to the switch, prior to
mounting the reader.

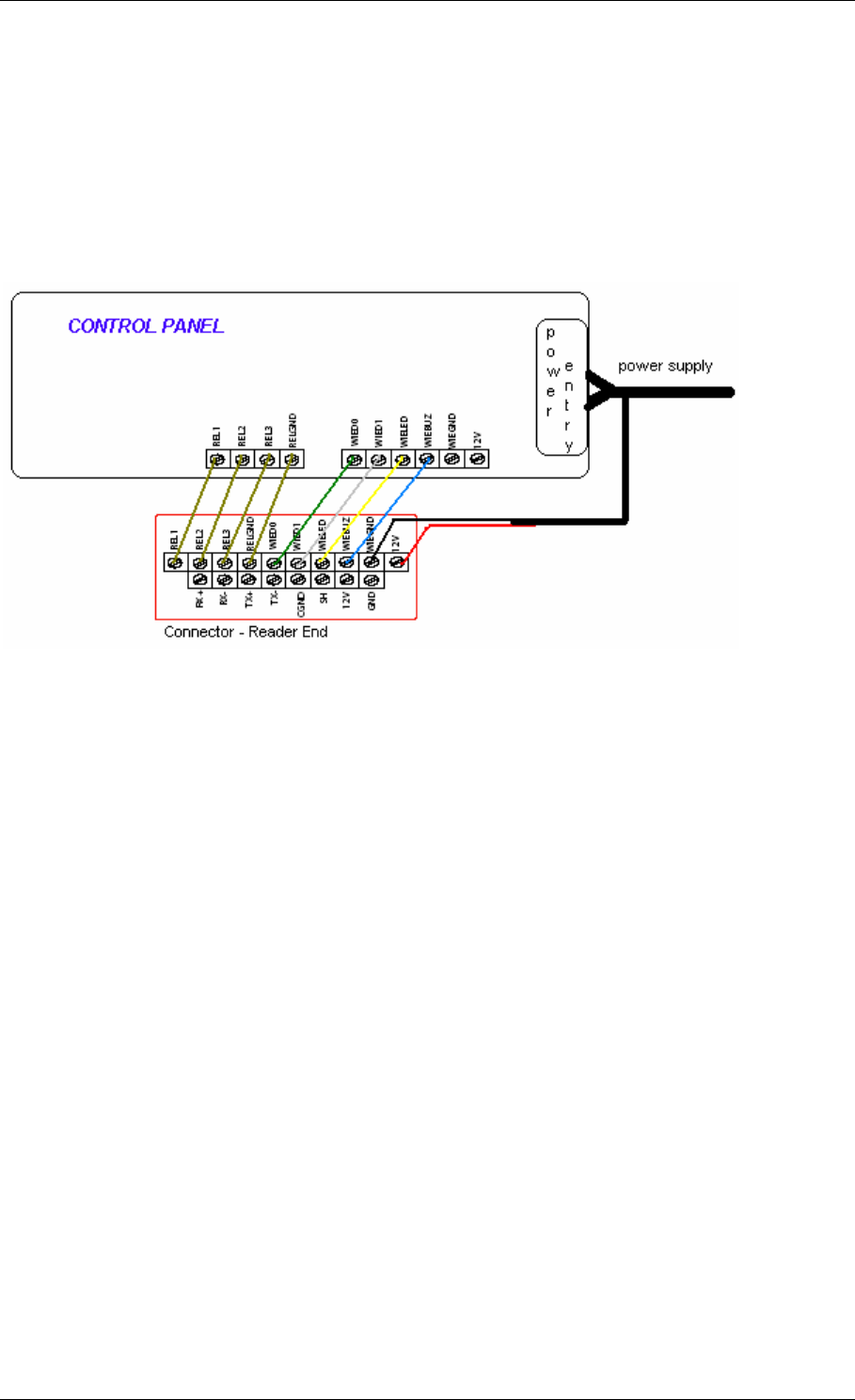

Connect the D0, D1, LED, BUZZER, RELAY lines from the reader to the control panel.

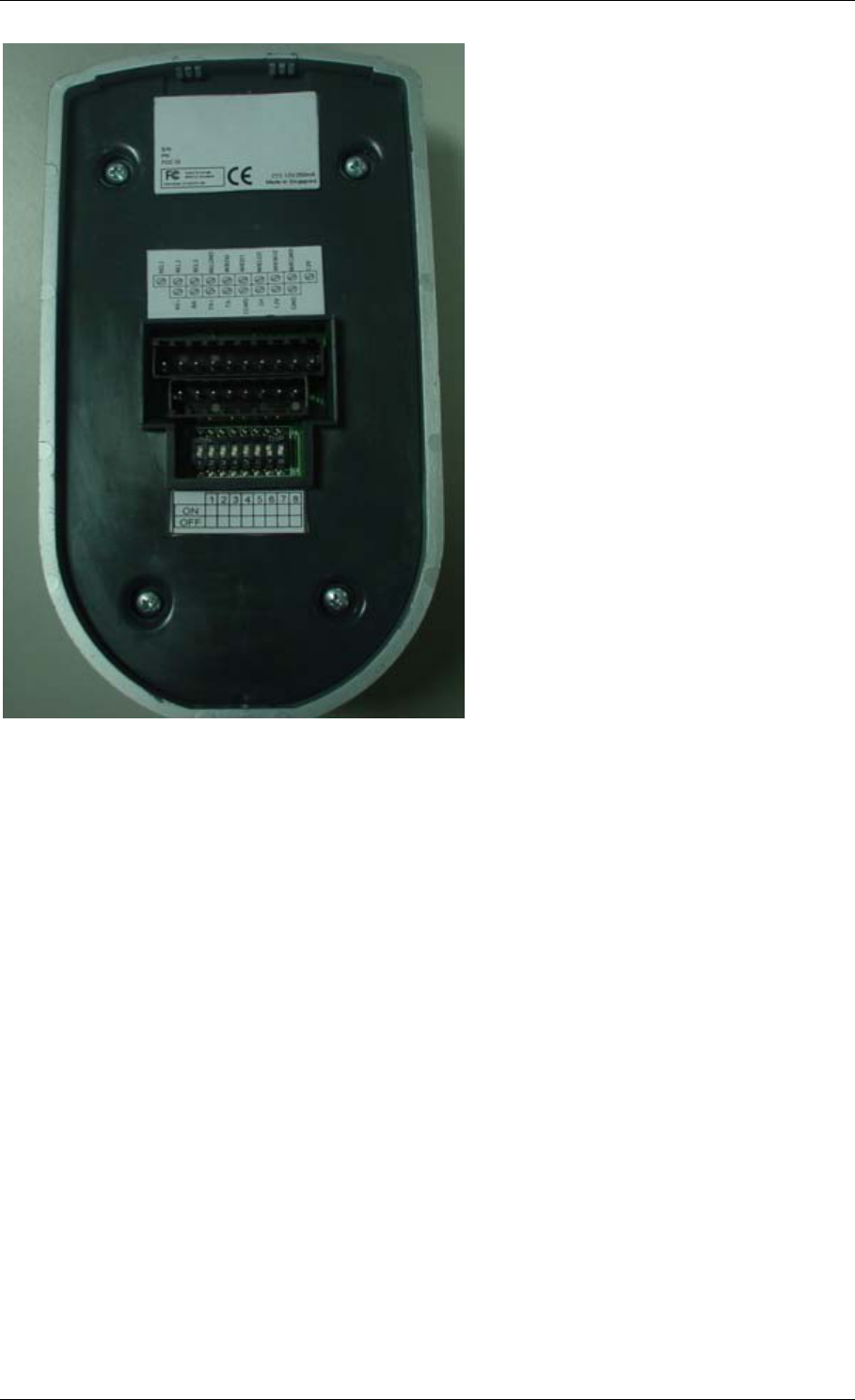

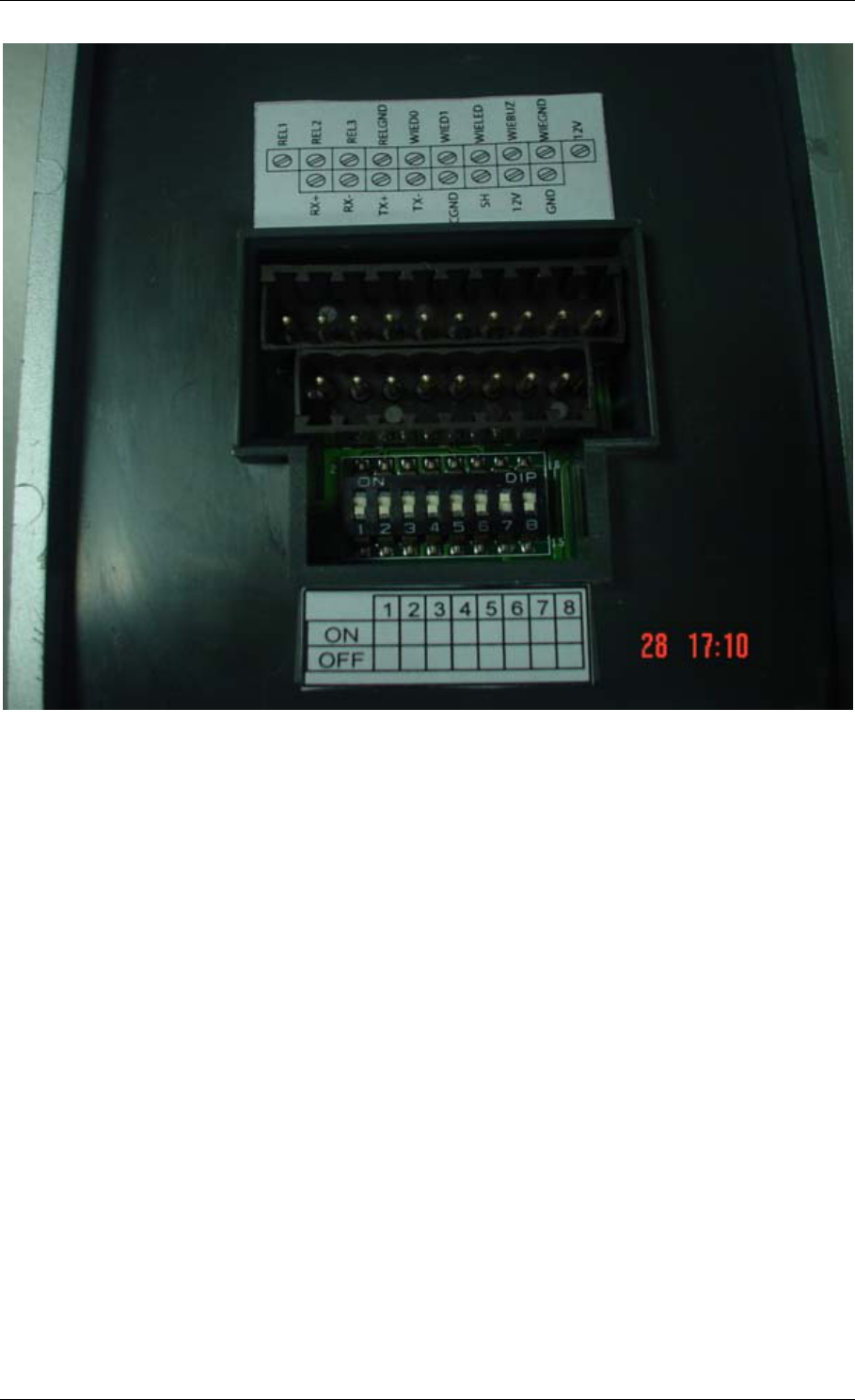

Shown below is the bottom portion of the reader.
OEM Manual – PACT-STC II Page 5 of 10
SCM Microsystems (India)
OEM Manual – PACT-STC II Page 6 of 10
SCM Microsystems (India)
2.5.5 Cable Specifications
Cable to be used between the Reader and the Control Panel should be 22 (7/30) AWG
OEM Manual – PACT-STC II Page 7 of 10
SCM Microsystems (India)
3.0 Software Specifications
3.1 Contact Card Parameters
Some important smart card parameters, supported smart card types, maximum operable smart card
frequencies, operating voltages etc., are detailed in the tables below.
ICC Parameters Value/Description
Class A Smart Cards Supported
Class AB Smart Cards Supported
ISO-7816 compliant Yes
Smart card operating frequency 4MHz
Maximum supported card baud-rate 344,086 bauds
3.2 PICC Parameters
Some important PICC parameters, supported contact-less card types, maximum operable PICC
frequencies, operating voltages etc., are detailed in the tables below.
ICC Parameters Value/Description
Type A T=CL PICC Supported
Type B T=CL PICC Supported
ISO-14443 compliant Yes
PICC operating frequency 13.56MHz
Maximum supported card baud-rate 424Kbps
3.3 DFU Utility
DFU utilities/drivers for dynamic Device Firmware Upgrade (DFU) are shipped with the device for
RS232 interface. DFU utilities/drivers are capable of performing a DFU under the following operating
systems.
Operating System Support
WIN98 Yes
WINME Yes
WIN2000 Yes
WINXP Yes
OEM Manual – PACT-STC II Page 8 of 10
SCM Microsystems (India)
4.0 Regulatory Compliance
This section describes the product's compliance with U.S. and international safety and
electromagnetic compatibility (EMC) regulations.
4.1 Safety Regulations
Below Table mention the safety regulations the product complies with when correctly installed in a
compatible host system.
Regulation Title
UL 60950 US Safety of Information Technology Equipment
EN 60950:2000 The Standard for Safety of Information Technology
Equipment including Electrical Business Equipment.
(European Union)
4.2 EMC Regulations
Regulation Title
FCC (Class B) Title 47 of the Code of Federal Regulations, Parts 2
and 15, Subpart C,Radio Frequency Devices. (USA)
5.2.1 FCC Compliance Statement (USA)
Product Type: Contact / contactless smart card reader.
Product Name: PACT-STC II
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 Sub part C of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to a different electrical branch circuit from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to the equipment not expressly approved by SCM could void the user’s
authority to operate the equipment.
5.3 Product Ecology Statements
OEM Manual – PACT-STC II Page 9 of 10
SCM Microsystems (India)
The following information is provided to address worldwide product ecology concerns and regulations.
5.3.1 Disposal Considerations
This product contains the following materials that may be regulated upon disposal: lead solder on the
printed wiring board assembly.
5.3.2 Recycling Considerations
SCM encourages its customers to recycle its products and their components (e.g., batteries, circuit
boards, plastic enclosures, etc.) whenever possible. In the U.S., a list of recyclers in your area can be
found at: http://www.eiae.org/
In the absence of a viable recycling option, products and their components must be disposed of in
accordance with all applicable local environmental regulations.
5.4 Product Certification Markings
Below Table lists the product certification markings.
Description Marking
UL file number for PACT-STC II
XXXXXXXXX
FCC ID for intentional radiator Class B
equipment. FCC ID MBP PAT 1300 - 1241
OEM Manual – PACT-STC II Page 10 of 10
