Identiv TSCTYWM-02 Multi-protocol RFID physical access control device User Manual
Identiv, Inc Multi-protocol RFID physical access control device
Identiv >
Users Manual
TouchSecure® Connectivity User Manual
Ver2.0
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 2 of 11
Printed copies of this document are uncontrolled
Internal Use Only
Version History
Date
Version
Description of Changes
Author
22-May-13
1.0
Initial version
Sixtus
17-Jul-13
2.0
1. ICES-003 Statement removed.
2. French translation added for RSS-GEN
3. Added FCC statement
Sixtus
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 3 of 11
Printed copies of this document are uncontrolled
Internal Use Only
Contents
1.0 Introduction ................................................................................................................................ 4
2.0 Reader ......................................................................................................................................... 4
2.1 Functionality .............................................................................................................................. 4
2.2 TouchSecure® reader with Casing .......................................................................................... 4
2.3 Back Plate ................................................................................................................................. 5
3.0 Product details ........................................................................................................................... 5
4.0 Specifications ............................................................................................................................. 5
5.0 Installation details ...................................................................................................................... 6
5.1 Parts List ................................................................................................................................... 6
5.2 Recommended Infrastructure ................................................................................................... 6
5.3 Wiring Information ..................................................................................................................... 6
5.3.1 Cable Color codes for Pig Tail Reader .............................................................................. 6
5.3.2 Pin out for Phoenix Connector Reader ............................................................................. 7
5.4 Mounting the Reader ................................................................................................................ 8
5.4.1 Location of mounting holes on wall ................................................................................... 8
5.4.2 Reader Installation Steps .................................................................................................. 8
5.5 Power up and Testing ............................................................................................................. 10
6.0 Certifications ............................................................................................................................ 10
6.1 FCC ........................................................................................................................................ 10
6.2 IC ............................................................................................................................................ 10
6.3 CE ........................................................................................................................................... 11
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 4 of 11
Printed copies of this document are uncontrolled
Internal Use Only
1.0 Introduction
This document details the Physical Access Control Reader TouchSecure® and its basic operational
and installation procedures. It covers the details of the Wallmount form-factor reader
Model: Connectivity WM
The reader comes in two variants for interfacing with the control panel
• Pigtail
• Phoenix connectors
2.0 Reader
2.1 Functionality
TouchSecure® is a physical access reader that can read HF and LF contactless credentials .The
reader can interface with an access control system equipped with a Wiegand or RS485 serial
interface Control Panel. It can also be interfaced with a Host Sever / Control Panel that supports
Ethernet interface. User interfaces include RGB LED’s and Buzzer.
The reader consists of the following main parts.

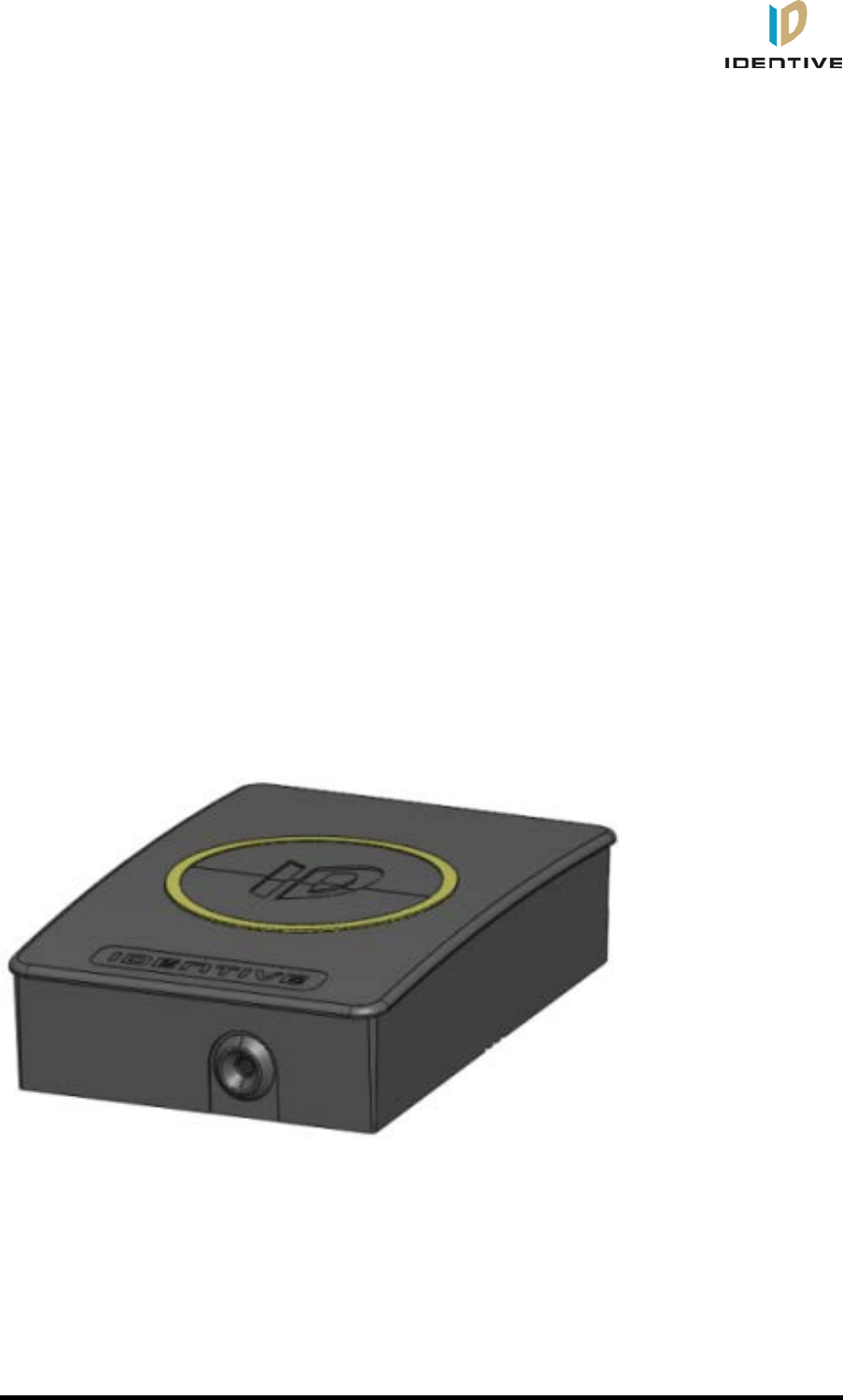

2.2 TouchSecure® reader with Casing
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 5 of 11
Printed copies of this document are uncontrolled
Internal Use Only

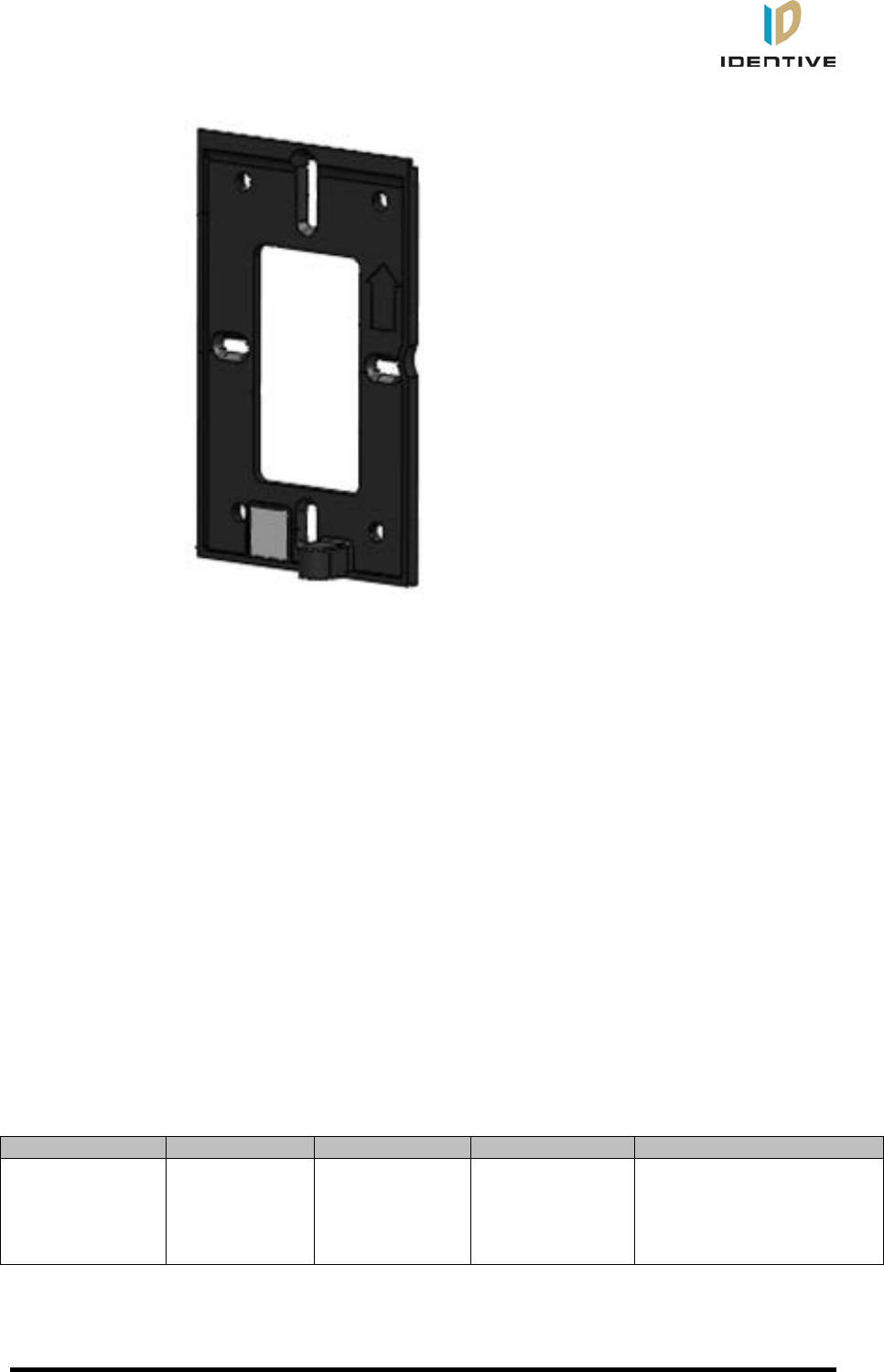

2.3 Back Plate
3.0 Product details
Model Name : Connectivity WM
Device Type : RFID reader, 13.56MHz (HF) / 125 KHz (LF)
Physical Access control Reader (accessory equipment)
Type of equipment : Potted reader. Suitable for Indoor / Controlled Outdoor use
Interface Type : Pigtail Cable (11 Core + Drain) or Phoenix connectors and RJ45
Voltage Rating : 5-16V DC or 48VDC on RJ45 Connector
Current Rating @12V : Pk Current – 180mA , Average Current 120mA
Communication protocol : Wiegand, RS485 (2wire - Half Duplex) , 10BaseT ETH
4.0 Specifications
Model
Op Voltage
Current @ 12V
Op temp
Cable Length
Connectivity WM
5-16 VDC or
POE@ 48VDC
Av -120mA
Pk -180mA
-35 to +65 Deg C
RS485 - 4000ft (24AWG)
Wiegand -500ft (22AWG)/
300ft (24AWG)
Table 1
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 6 of 11
Printed copies of this document are uncontrolled
Internal Use Only
5.0 Installation details
5.1 Parts List
• TouchSecure® reader -1
• Screws (A #6-18X1.5" SS ) - 4Nos – Back Plate mounting screws for Wall
• Snake Eye Screw (SMF #6-32X5/16" SS) – 1 No- Top casing mounting security screw
• Screws (SMF #6-32x3/8" SS) - 3 No’s - 1 casing to back plate mounting screw and 2 Junction
Box mounting screws
• Nylon anchor plug -4 Nos
• 6 pin phoenix plug (Phoenix connector version only) – 2 Nos
• Back Plate
5.2 Recommended Infrastructure
• Cable Wiegand - 22AWG for 500Ft / 24AWG for 300Ft with Foil Shield
• Cable RS485 - RS485 for 1000m** (4000ft) 24AWG STP
• Cable RJ45 - Cat5e / Cat6
• Linear DC PS - 5-16 V, 1A min.
• POE Adaptor Kit - TL-POE200A
** Tested in lab conditions upto 115Kbaud
5.3 Wiring Information
5.3.1 Cable Color codes for Pig Tail Reader
Red &
+ VDC 12V (nominal)
Black & White
Ground
Green
Wiegand Data 0
White
Wiegand Data 1
Orange
LED Green
Yellow
Buzzer
Blue
Hold
Brown
LED Red
Grey
RS485 -
Pink
RS 485 +
Violet
Tamper Output
Black / Drain
Shield Ground
Table 2
& - Do not connect when reader is powered by Power over Ethernet
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 7 of 11
Printed copies of this document are uncontrolled
Internal Use Only

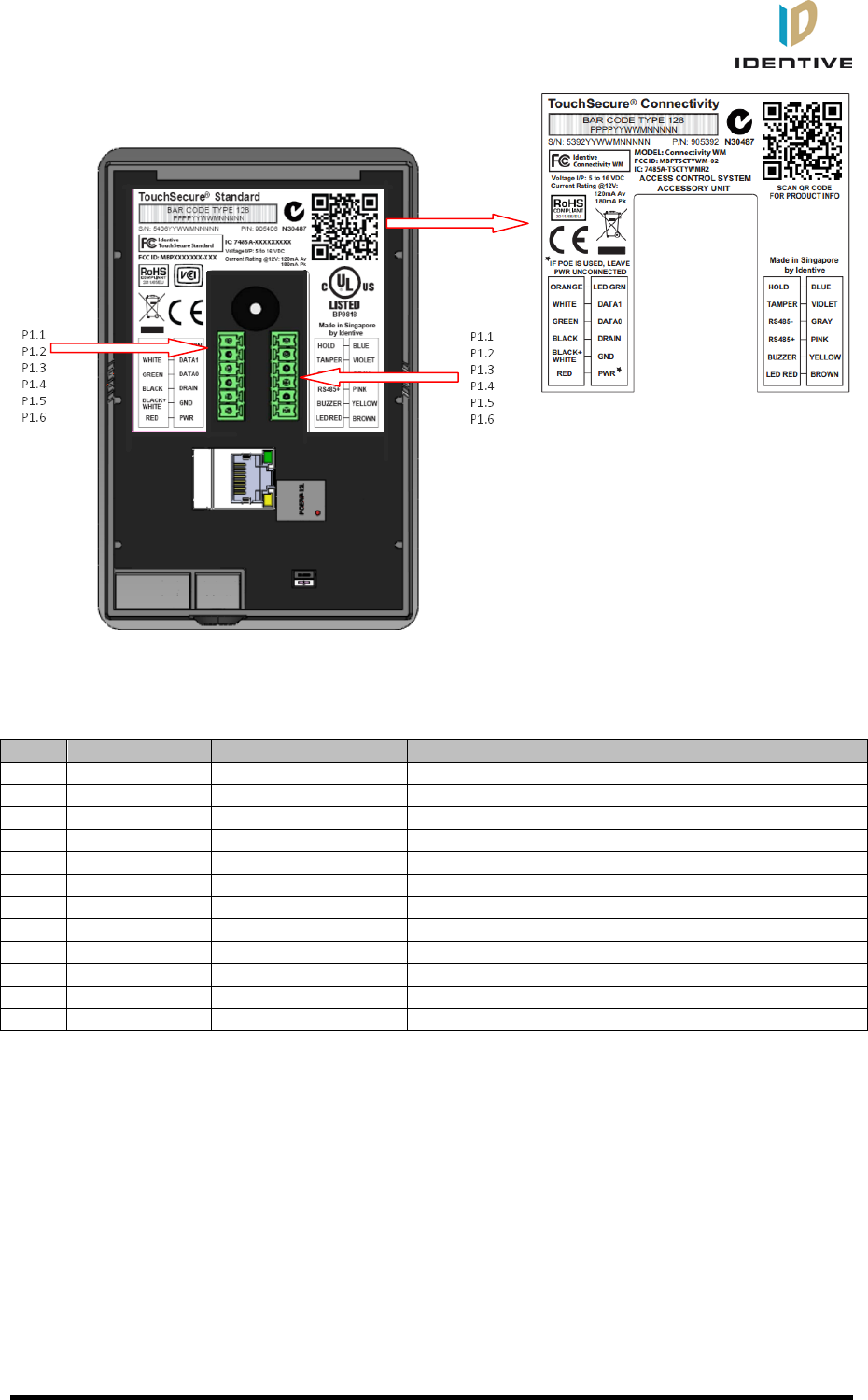

5.3.2 Pin out for Phoenix Connector Reader
Pin
Cable colour
Description
Comment
P1.1
Orange
LED Green
P1.2
White
Data 1
P1.3
Green
Data 0
P1.4
Black
Drain
P1.5
Black + White
Gnd
P1.6
Red
Power
Do not connect when reader is powered by PoE
P2.1
Blue
Hold
P2.2
Violet
Tamper
P2.3
Gray
RS485-
P2.4
Pink
RS485+
P2.5
Yellow
Buzzer
P2.6
Brown
LED Red
Table 3
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 8 of 11
Printed copies of this document are uncontrolled
Internal Use Only
5.4 Mounting the Reader

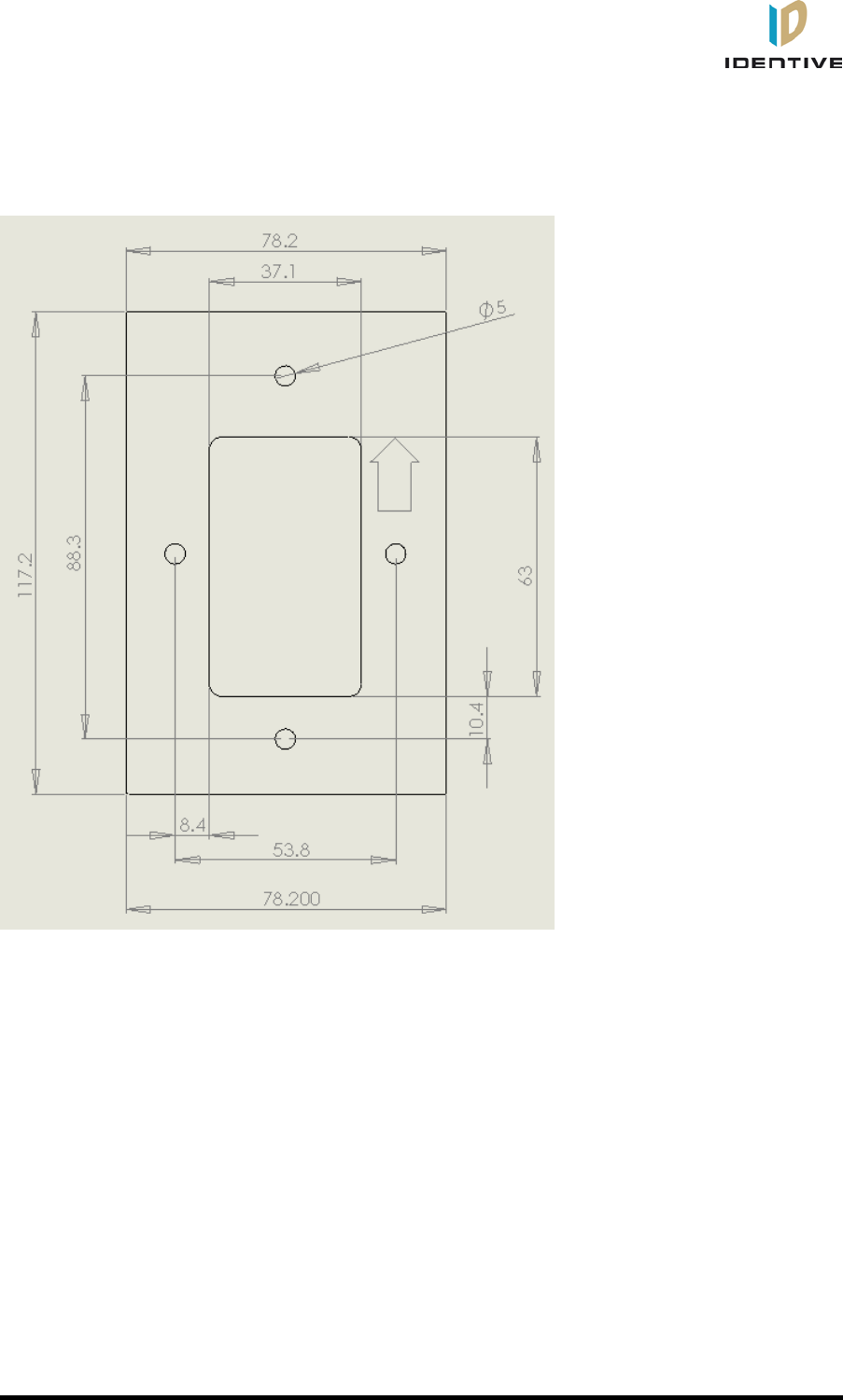

5.4.1 Location of mounting holes on wall
Phoenix connector Reader – 4 Holes and 1 Slot
5.4.2 Reader Installation Steps
a. Make holes on the wall as per the image above.
b. Insert the nylon screw plugs into the wall.
c. Connect the wires as per the Table 2 or Table 3.
d. TouchSecure® reader with Bottom Casing is to be now secured onto the wall using the
Screws (A #6-18X1.5" SS )
e. The top casing can be inserted onto the bottom casing
f. Secure the Top and bottom casing by the Snake Eye Screw (SMF #6-32X5/16" SS)
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 9 of 11
Printed copies of this document are uncontrolled
Internal Use Only

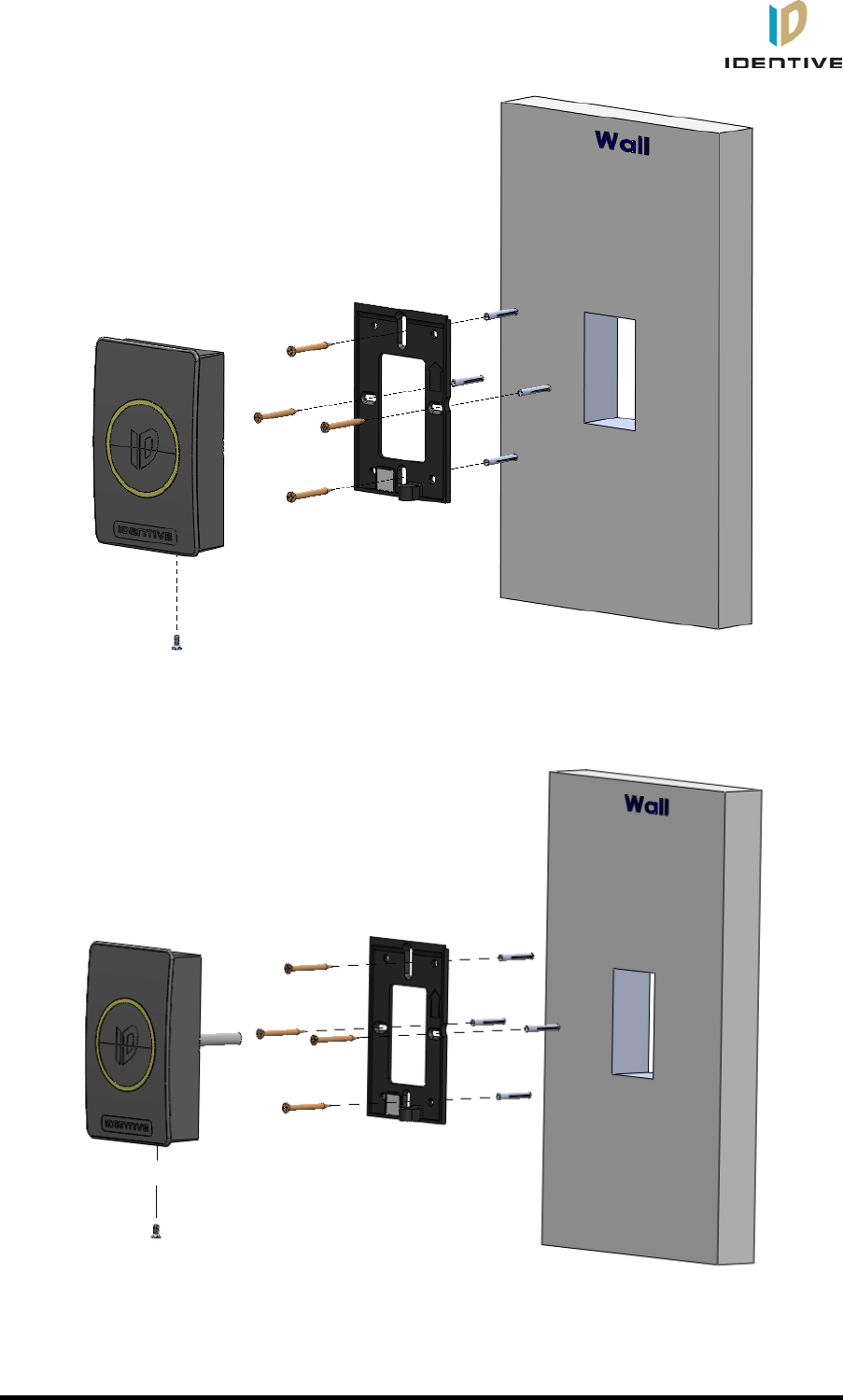

Reader Installation Steps - Phoenix Connector Version
Reader Installation Steps - Pig Tail Version
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 10 of 11
Printed copies of this document are uncontrolled
Internal Use Only
5.5 Power up and Testing
1 Turn power on
The LED blinks 3 times green with a long beep, then turns red
2 Present a card
The LED blinks green, and a short Beep is emitted
This is the default reader behavior.

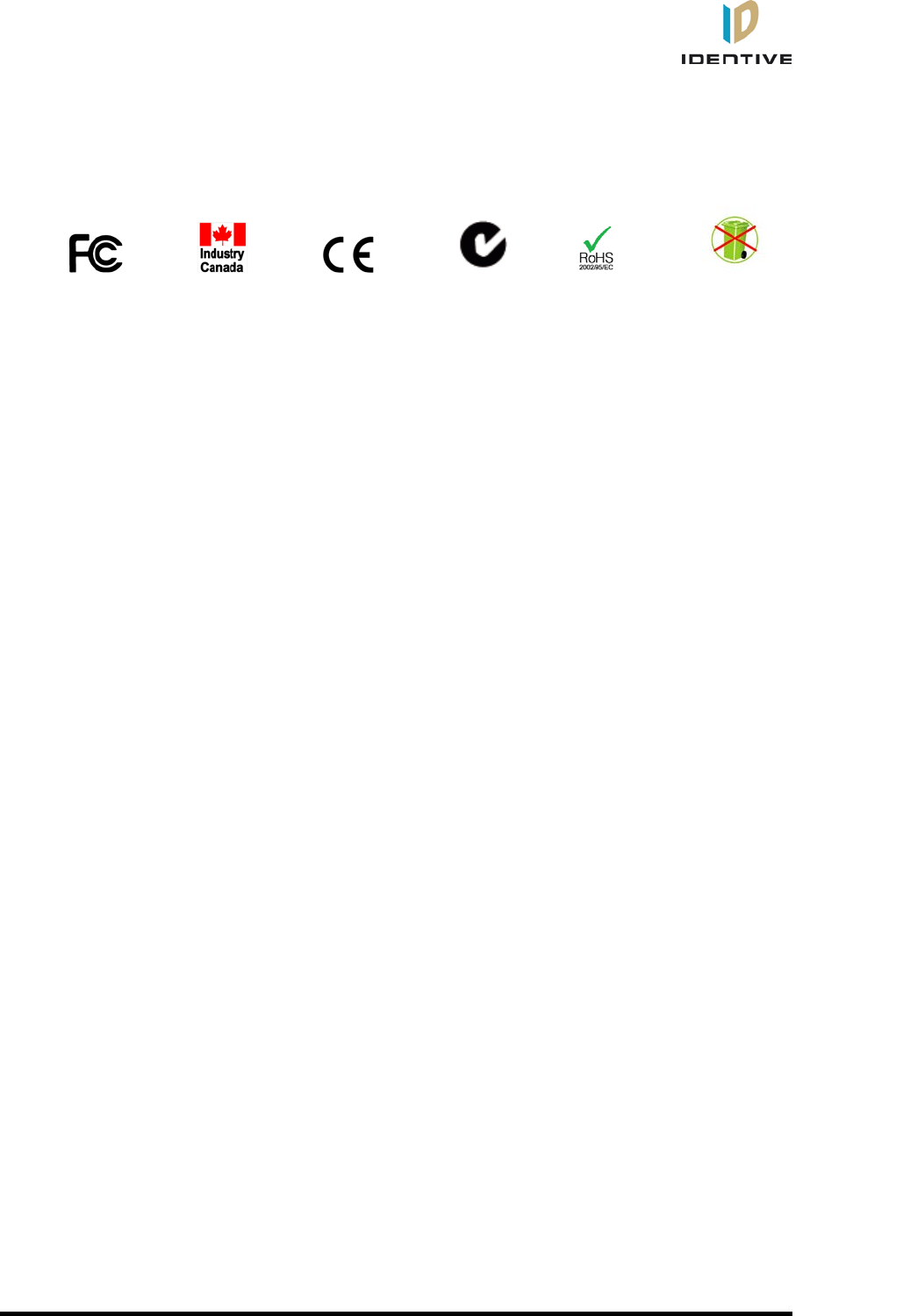

6.0 Certifications
6.1 FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Information to user
Changes or modifications not expressly approved by Identive could void the user's authority to
operate the equipment.
6.2 IC
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
TouchSecure® Connectivity User Manual
IDT.QM.P2.T1.DT
Ver1.0
Page 11 of 11
Printed copies of this document are uncontrolled
Internal Use Only
6.3 CE
Identive hereby declares that the TouchSecure® Model: Connectivity WM device mentioned herein is
in compliance with the essential requirements and other relevant portions of the Directive R&TTE
1999/5/EC.
