Identiv TSKP-02 uTrust TS Network Keypad Reader User Manual
Identiv, Inc uTrust TS Network Keypad Reader Users Manual
Identiv >
Users Manual
User manual
For
uTrust TS KEYPAD
Version 1.0
Confidential
Author
Suresh Kumar T
Version
1.0
Date
08-May-2015
Document History
Version
Date
Description of Change
Author
1.0
08-May-15
Initial version
Suresh Kumar T
uTrust TS KEYPAD User Manual
Page 3 of 12
Contents
1.0 Introduction ................................................................................................................................ 4
2.0 Reader .........................................................................................................................................4
2.1 Functionality.............................................................................................................................. 4
2.2 Front/Top Casing......................................................................................................................4
2.3 Back View/plate ........................................................................................................................ 5
3.0 Product details ...........................................................................................................................6
4.0 Specifications ............................................................................................................................. 6
5.0 Label ............................................................................................................................................6
6.0 Installation details......................................................................................................................7
6.1 Parts List................................................................................................................................... 7
6.2 Recommended Infrastructure ................................................................................................... 7
6.3 Connector Information .............................................................................................................. 7
6.3.1 Pinout diagram .................................................................................................................. 7
6.4 Mounting the Reader ................................................................................................................ 9
6.4.1 Location of mounting holes on wall ................................................................................... 9
6.4.2 Reader Installation Steps ..................................................................................................9
7.0 Power up and Testing..............................................................................................................11
8.0 Certifications ............................................................................................................................12
8.1 FCC.........................................................................................................................................12
8.2 IC ............................................................................................................................................12
uTrust TS KEYPAD User Manual
Page 4 of 12
1.0 Introduction
This document details the Physical Access Control Reader uTrust TS KEYPAD and its basic user
instruction and installation procedures.
2.0 Reader
2.1 Functionality
TS KEYPAD reader is a physical access control smart card reader that can read HF and LF
contactless credentials, conforming to the following standards: ISO 14443 A & B, ISO15693 with a
keypad pin entry for additional security. The reader can interface with an access control system
equipped with a Wiegand or RS485 serial interface. It can also be interfaced with a Host Sever /
Control Panel that supports Ethernet interface. User interfaces include RGB LED’s and Buzzer.

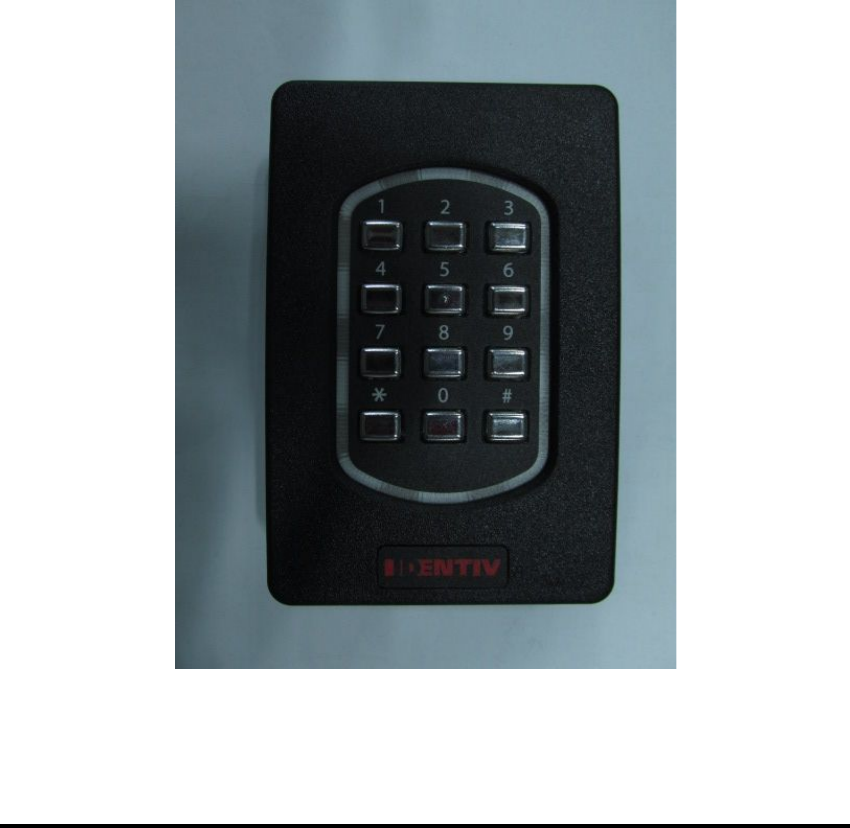

2.2 Front/Top Casing
uTrust TS KEYPAD User Manual
Page 5 of 12

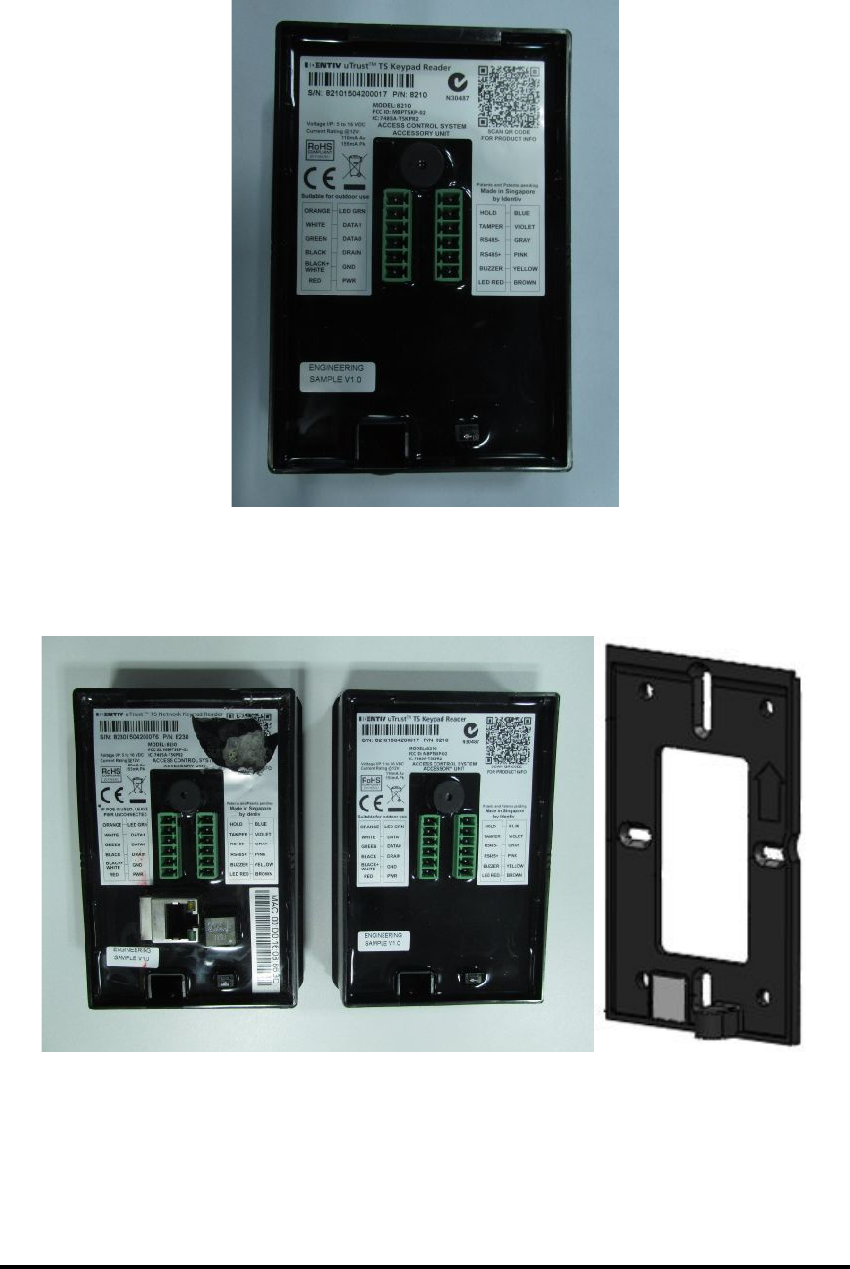

2.3 Back View/plate
Standard version
Connectivity & Standard version Back plate
uTrust TS KEYPAD User Manual
Page 6 of 12
3.0 Product details
Model Name : uTrust TS keypad
Device Type : RFID reader, 13.56MHz (HF) / 125 KHz (LF), keypad
Physical Access control Reader (accessory equipment)
Type of equipment : Potted Reader, Suitable for Indoor / Controlled Outdoor use
Interface Type : Phoenix connectors and RJ45
Voltage Rating : 5-16V DC (or) 48V DC on RJ45 Connector
Current Rating @12V : Peak Current – 255 mA, Average Current 180 mA
Communication protocol : Wiegand, RS485 (2wire - Half Duplex), 10BaseT ETH
4.0 Specifications
Model
Op Voltage
Current @ 12V
Op temp
Cable Length
8230
uTrust TS
KEYPAD
5-16 VDC or
POE@ 48VDC
Av -180 mA
Pk -255 mA
(-35 to 65 Deg C)
RS485 - 4000ft
Wiegand -500ft (22AWG)
300ft (24AWG)

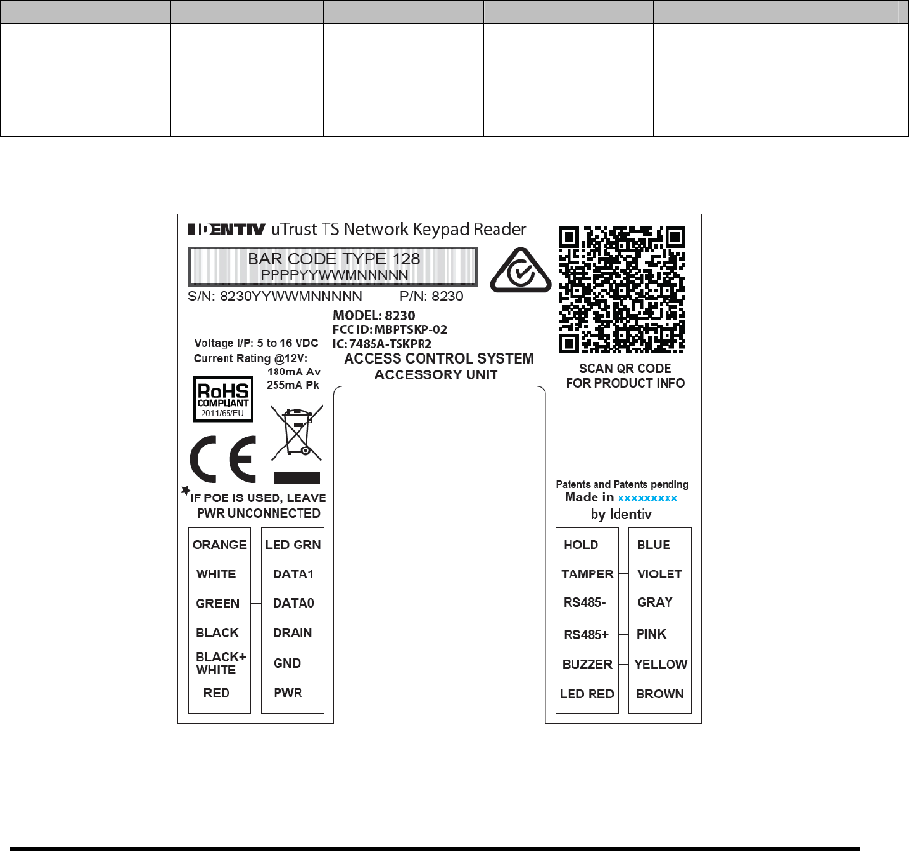

5.0 Label
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
uTrust TS KEYPAD User Manual
Page 7 of 12
6.0 Installation details
6.1 Parts List
•TS Keypad reader -1
•Screws (A #6-18X1.5" SS ) - 4Nos – Back Plate mounting screws for Wall
•Snake Eye Screw (SMF #6-32X5/16" SS) – 1 No- Top casing mounting security screw
•Screws (SMF #6-32x3/8" SS) - 3 No’s - 1 casing to back plate mounting screw and 2 Junction
Box mounting screws
•Nylon anchor plug -4 Nos
•6 pin phoenix plug (Phoenix connector version only) – 2 Nos
•Back Plate
6.2 Recommended Infrastructure
•Cable Wiegand - 22AWG for 500Ft / 24AWG for 300Ft with Foil Shield
•Cable RS485 - RS485 for 1000m** (4000ft) 24AWG STP
•Cable RJ45 - Cat5e / Cat6
•Linear DC PS - 5-16 V, 1A min.
•POE Adaptor Kit - TL-POE200A
** Tested in lab conditions upto 115Kbaud

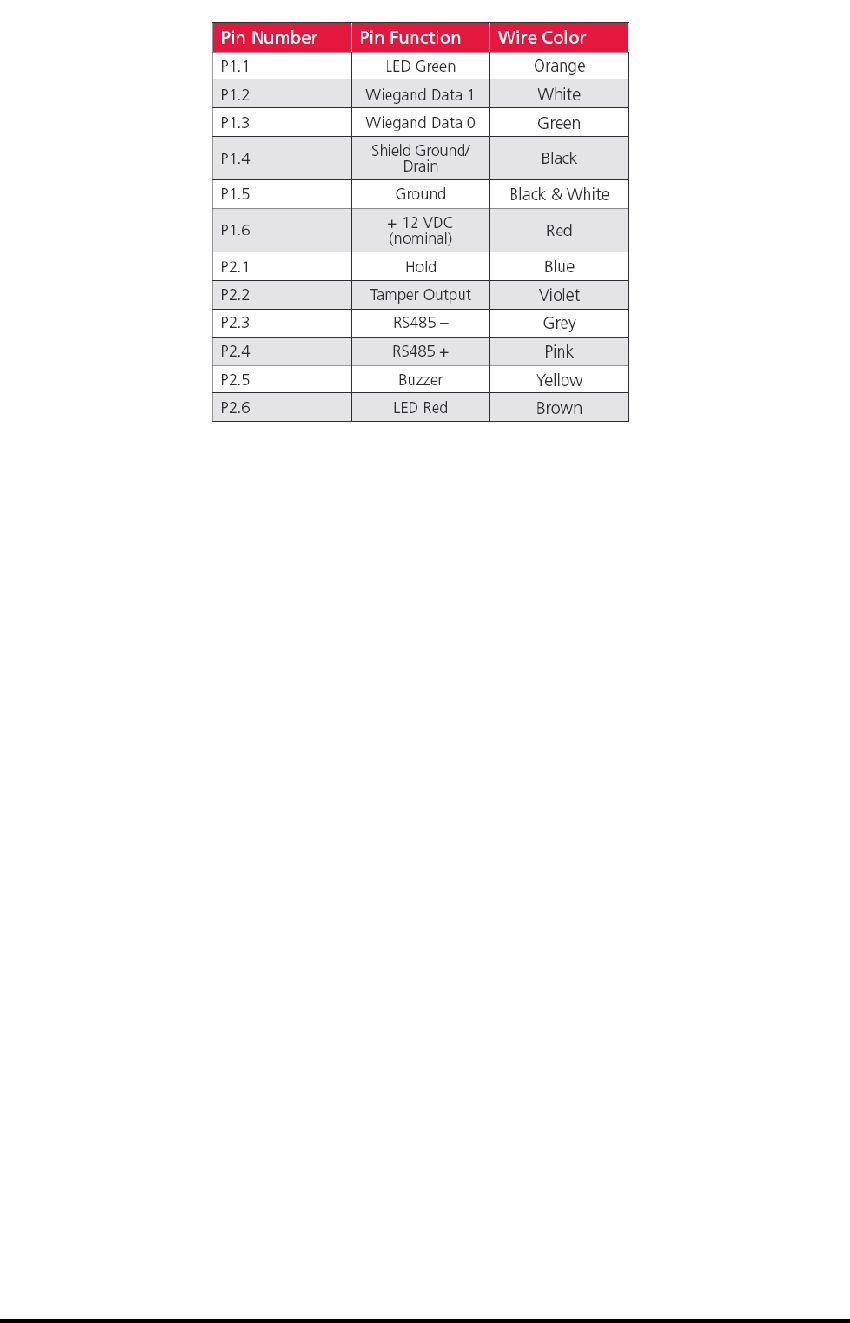

6.3 Connector Information

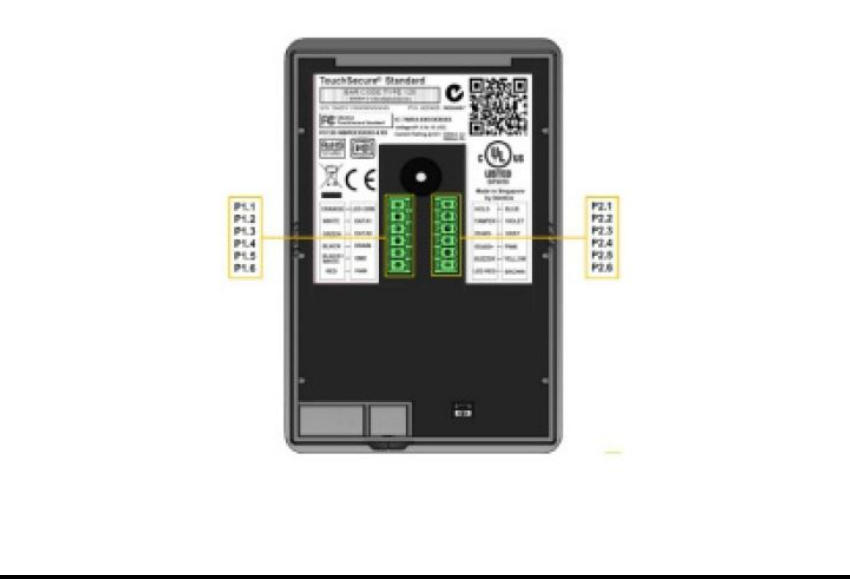

6.3.1 Pinout diagram
uTrust TS KEYPAD User Manual
Page 8 of 12
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
uTrust TS KEYPAD User Manual
Page 9 of 12
6.4 Mounting the Reader

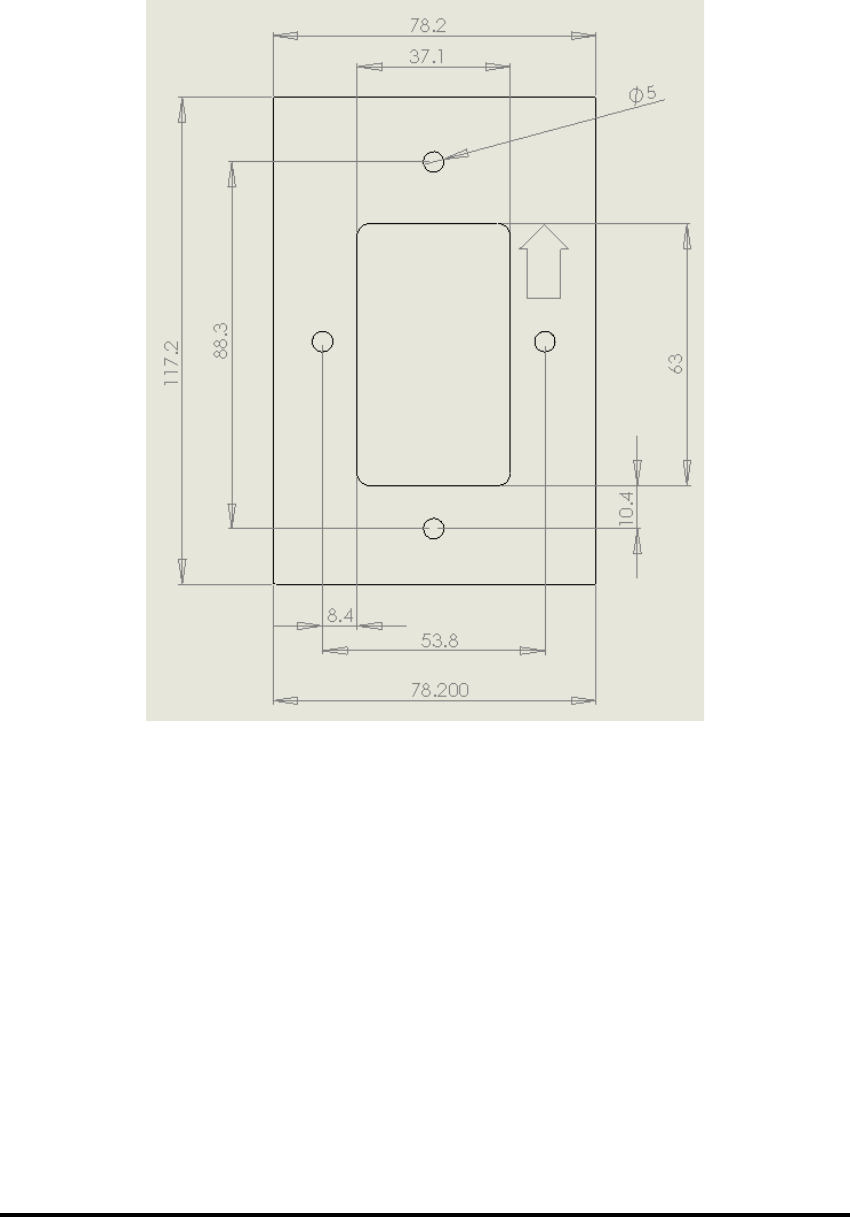

6.4.1 Location of mounting holes on wall
Phoenix connector Reader – 4 Holes and 1 Slot

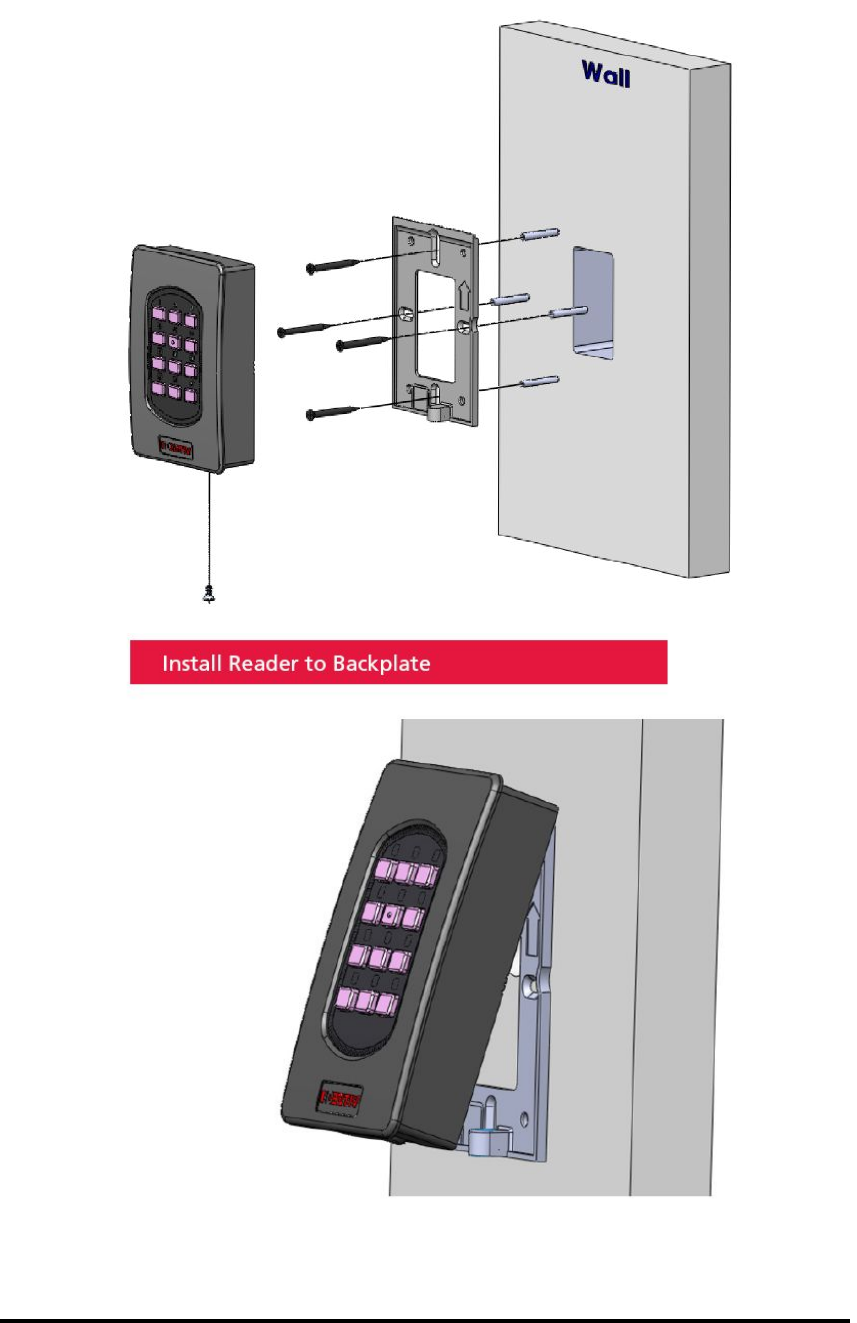

6.4.2 Reader Installation Steps
a. Make holes on the wall as per the image above.
b. Insert the nylon screw plugs into the wall.
c. Connect the wires as per the Table 2 or Table 3.
d. TouchSecure® reader with Bottom Casing is to be now secured onto the wall using the
Screws (A #6-18X1.5" SS )
e. The top casing can be inserted onto the bottom casing
f. Secure the Top and bottom casing by the Snake Eye Screw (SMF #6-32X5/16" SS)
uTrust TS KEYPAD User Manual
Page 10 of 12
uTrust TS KEYPAD User Manual
Page 11 of 12

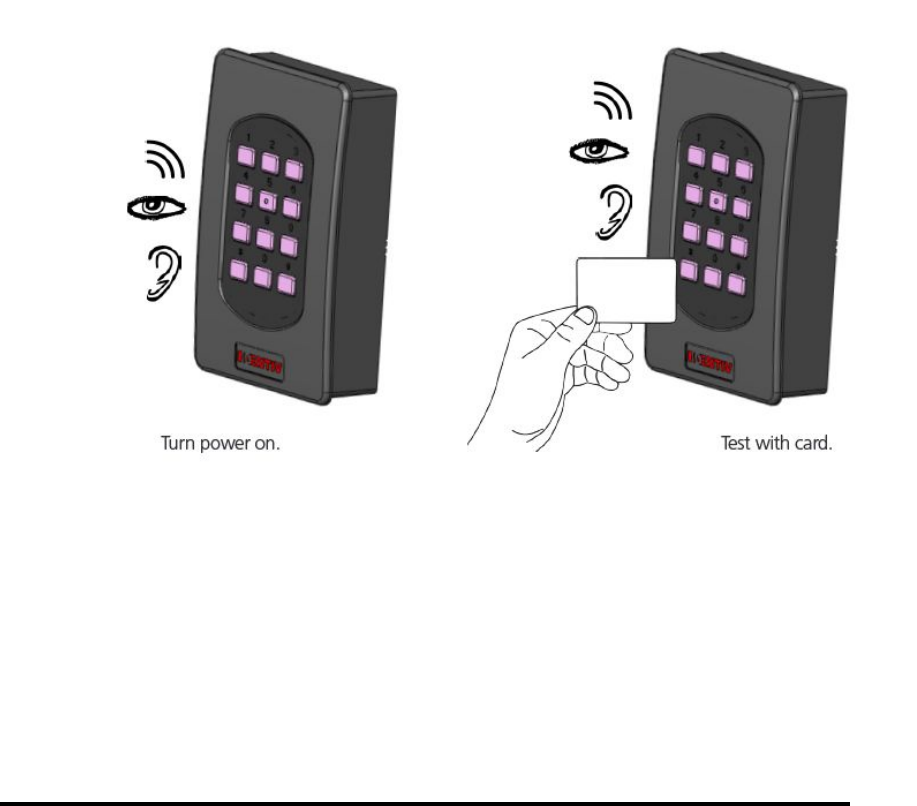

7.0 Power up and Testing
1Turn power on
The LED blinks 3 times green with a long beep, then turns red
2Present a card
The LED blinks green, and a short Beep is emitted
3Press Key
Buzzer tone & backlight LED blinks
4RJ45 Ethernet cable
Reader can be powered from POE. Communication happens through Ethernet also.
5Wiegand / RS485
Communication to the Panel is done through Wiegand / RS485 / OSDP.
This is the default reader behavior.
uTrust TS KEYPAD User Manual
Page 12 of 12
8.0 Certifications
8.1 FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Information to user
Changes or modifications not expressly approved by Identiv could void the user's authority to operate
the equipment.
8.2 IC
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
