Identiv TSSP-02 uTrust TS Scramblepad User Manual
Identiv, Inc uTrust TS Scramblepad Users Manual
Identiv >
Users Manual
User manual
For
uTrust TS SCRAMBLEPAD
Version 1.0
Confidential
Author
Suresh Kumar T
Version
1.0
Date
20-February-2015
Document History
Version
Date
Description of Change
Author
1.0
20-February-15
Initial version
Suresh Kumar T
uTrust TS Scramblepad User Manual
Page 3 of 9
Contents
1.0 Introduction ................................................................................................................................ 4
2.0 Reader .........................................................................................................................................4
2.1 Functionality.............................................................................................................................. 4
2.2 Front/Top Casing ...................................................................................................................... 4
2.3 Back plate/View ........................................................................................................................ 5
3.0 Product details ........................................................................................................................... 5
4.0 Specifications ............................................................................................................................. 6
5.0 Label ............................................................................................................................................ 6
6.0 Power up and Testing ................................................................................................................7
7.0 Installation ..................................................................................................................................8
8.0 Certifications .............................................................................................................................. 9
8.1 FCC........................................................................................................................................... 9
8.2 IC ..............................................................................................................................................9
uTrust TS Scramblepad User Manual
Page 4 of 9
1.0 Introduction
This document details the Physical Access Control Reader uTrust TS Scramblepad and its basic
user instruction and installation procedures.
2.0 Reader
2.1 Functionality
TS Scramblepad reader is a physical access control smart card reader that can read HF and LF
contactless credentials, conforming to the following standards: ISO 14443 A & B, ISO15693 with a
Randomly displayed keypad pin entry for additional security. The reader can interface with an access
control system equipped with a Wiegand or RS485 serial interface

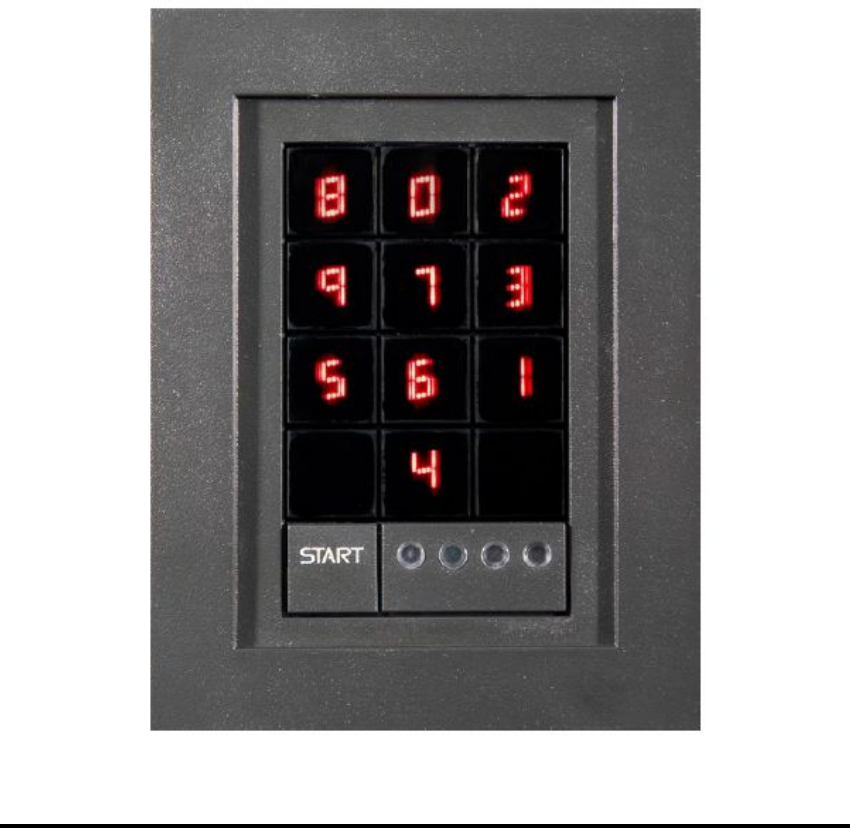

2.2 Front/Top Casing
uTrust TS Scramblepad User Manual
Page 5 of 9

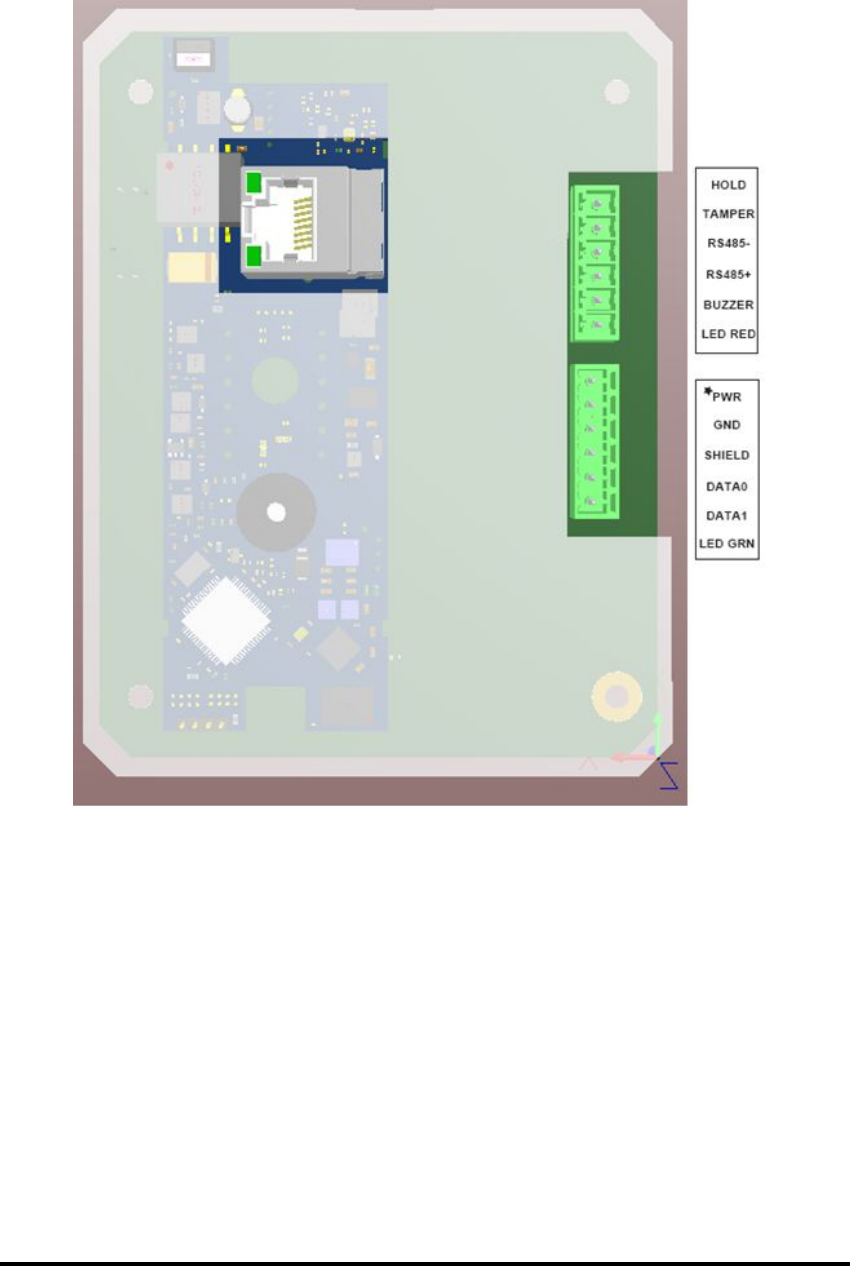

2.3 Back plate/View
3.0 Product details
Model Name : uTrust TS Scramblepad
Device Type : RFID reader, 13.56MHz (HF) / 125 KHz (LF), keypad
Physical Access control Reader (accessory equipment)
Type of equipment : Suitable for Indoor / Controlled Outdoor use
Interface Type : Phoenix connectors and RJ45
Voltage Rating : 7-16V DC (or) 48V DC on RJ45 Connector
Current Rating @12V : Peak Current – 425 mA, Average Current 355 mA
Communication protocol : Wiegand, RS485 (2wire - Half Duplex), 10BaseT ETH
uTrust TS Scramblepad User Manual
Page 6 of 9
4.0 Specifications
Model
Op Voltage
Current @ 12V
Op temp
Cable Length
8235
uTrust TS
SCRAMBLEPAD
7-16 VDC or
POE@ 48VDC
Av -355 mA
Pk -425 mA
(-20 to 60 Deg C)
RS485 - 4000ft
Wiegand -500ft (22AWG)
300ft (24AWG)

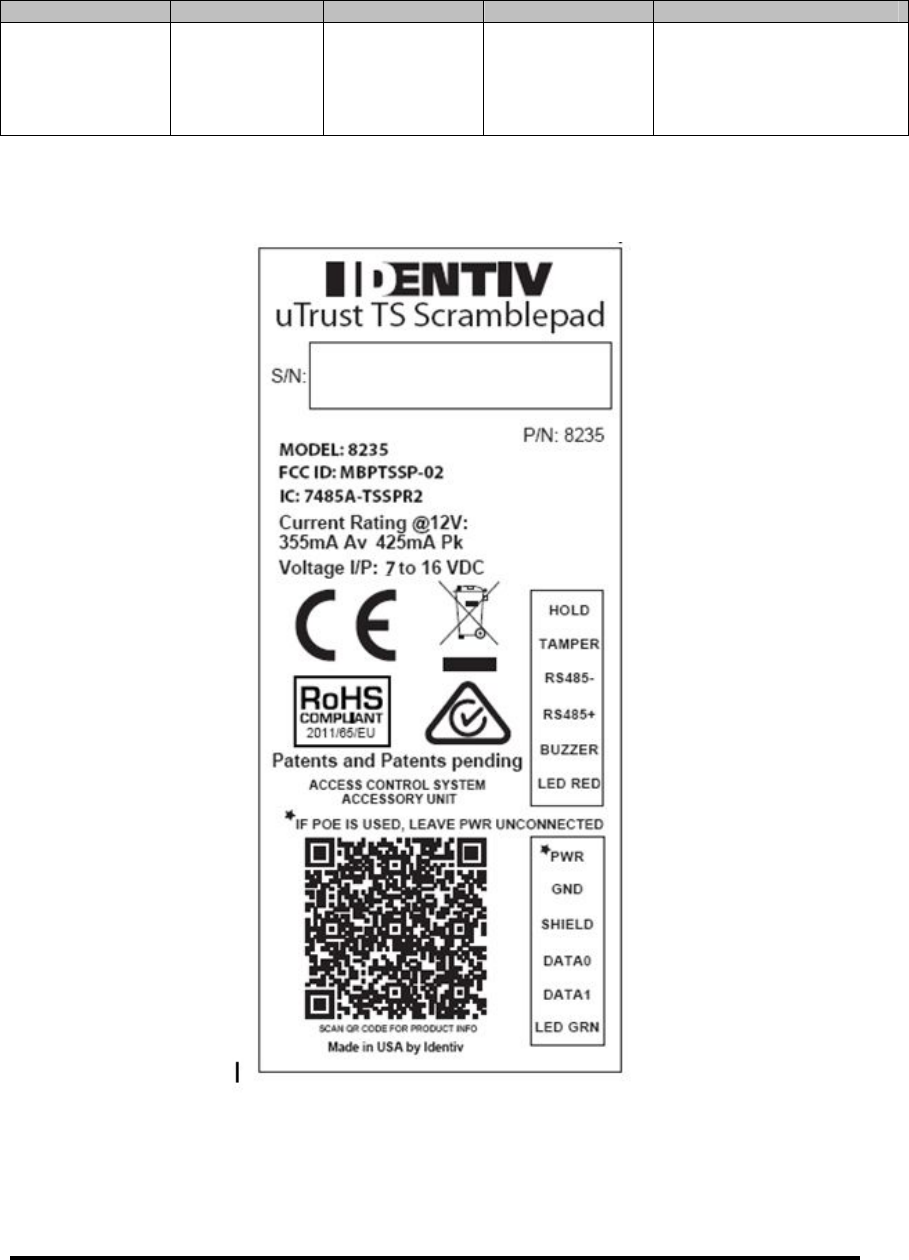

5.0 Label
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
uTrust TS Scramblepad User Manual
Page 7 of 9
6.0 Power up and Testing
1Turn power on
The LED blinks 3 times green with a long beep, then turns red
2Present a card
The LED blinks green, and a short Beep is emitted
3Press Start Key
Scrambling display with buzzer tone & displays scrambled key
4RJ45 Ethernet cable
Reader can be powered from POE. Communication happens through Ethernet also.
5Wiegand / RS485
Communication to the Panel is done through Wiegand / RS485 / OSDP.
This is the default reader behavior.
uTrust TS Scramblepad User Manual
Page 8 of 9

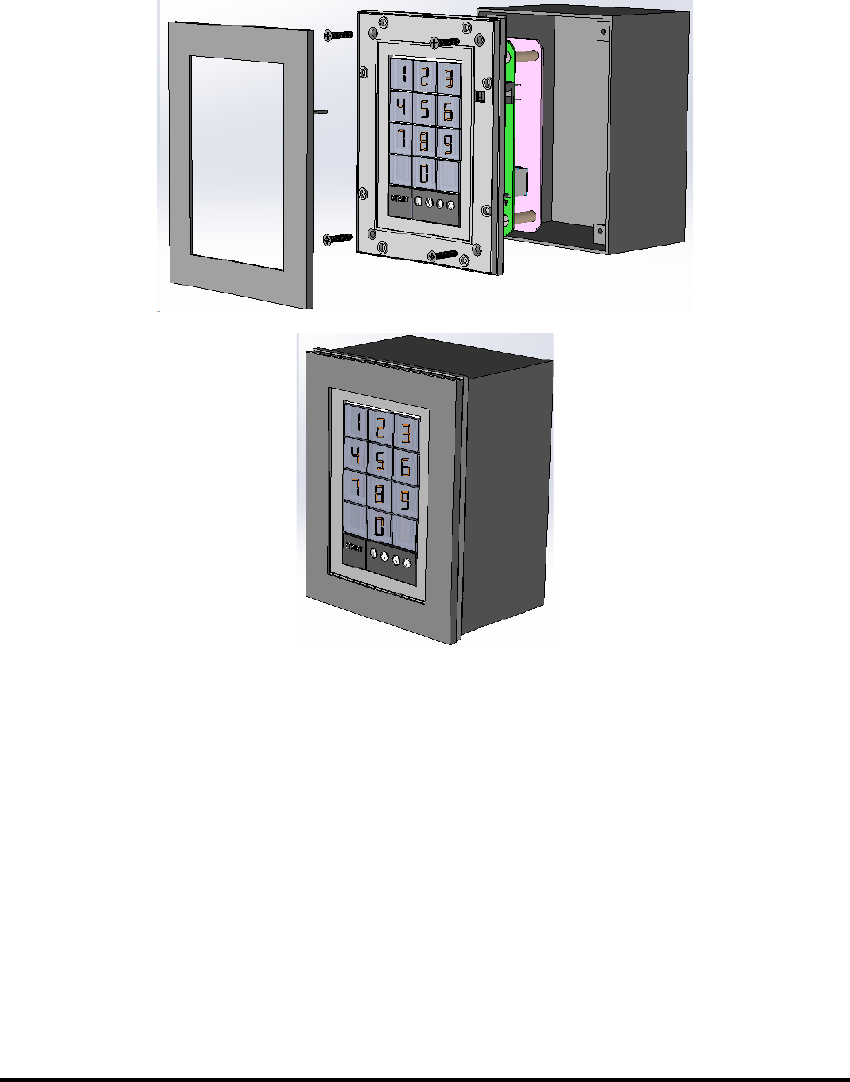

7.0 Installation
•Install the respective mounting box in to the wall
•Take the cable from the backside of the reader as per the pin outs in the label drawing
•Fix the four screws at the corner into the mounting box
•Fix the bezel on the top of the casing
uTrust TS Scramblepad User Manual
Page 9 of 9
8.0 Certifications
8.1 FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Information to user
Changes or modifications not expressly approved by Identiv could void the user's authority to operate
the equipment.
8.2 IC
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
