Model iH30
the portable system
for your iPod
®
TM
iH30
1
2
Table of Contents
IMPORTAT....................................................................................................................................................................1
A Consumer Guide to Product Safety....................................................................................................................3-4
FCC Information.........................................................................................................................................................5
Getting Started...........................................................................................................................................................6
Install iPod Insert
Install Power..............................................................................................................................................................7-8
Install AC Adaptor
Install/Replace Battery
Batteries information
Install/Replace the Remote Control Battery
Maintenance...............................................................................................................................................................8
Controls and Indicators............................................................................................................................................9
Charging your iPod/iPod Shuffle............................................................................................................................10
Listening to iPod/iPod Shuffle................................................................................................................................11
Listening to non-docking iPod or other portable audio devices......................................................................12
Listening to FM Radio..............................................................................................................................................12
Presetting Your Favorite FM Station.....................................................................................................................13
Presetting a Station
Tuning into a Preset Station
Operating the Remote On/Off Switch...................................................................................................................13
Headphone Jack Operation....................................................................................................................................13
Trouble Shooting.................................................................................................................................................14-17
Warranty Information...............................................................................................................................................18
A Consumer Guide to Product Safety
When used in the directed manner, this unit has been designed and manufactured to assure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and
operating instructions carefully before installation and use. Keep these instructions handy for future reference.
Take special note, and adhere to all warnings on the unit and in the instruction and service manual.
1. Water and Moisture - The unit should not be used near water. For example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
2. Ventilation - The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation, such as bookcase or cabinet that may impede the
flow of air through the ventilation openings.
3. Heat - The unit should be situated away from heat source such as radiators, heat register, stoves, or other
appliances (including amplifiers) that produce heat.
4. Power Sources - The unit should be connected to a power supply only of the type described in the operat-
ing instructions or as marked on the appliance.
5. Power Cord Protection – Power supply cord should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them. It is always best to have a clear area from where the cord
exits the unit to where it is plugged into an AC outlet.
6. Cleaning - The unit should be cleaned only as recommended by the manufacturer.
7. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into
the enclosure through openings.
3
A Consumer Guide to Product Safety
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall outlet and disconnect the antenna
or cable system during a lightning storm or when it is left unattended and unused for long periods of time.
This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.
11. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or plug has been damaged.
B. Objects have fallen into or liquid has been spilled into the enclosure.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged.
E. The unit exhibits a marked change in performance or does not operate normally.
12. Antenna – Do not connect an external antenna to the unit (other than that provided).
13. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or
longer, the power cord should be unplugged and take out batteries from the unit to prevent damage or corro-
sion.
14. Servicing - The user should not attempt to service the unit beyond that described in the user’s operating
instructions. All other servicing should be referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
For any other questions: 1-800-288-2792 Toll Free
4
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that
this device does not cause harmful interference.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These
limits provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate
interference you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate
the system’s warranty and void your FCC authorization to operate it.
5
Getting Started
Thank you for purchasing the iHome iH30 portable Stereo System for your iPod. Designed specifically to work
with your iPod, this system provides high quality audio and radio performance that invites your music to come
out and play.
Please read this instruction carefully before the appliance is operated and keep it for future reference.
Protective Dock Cover
Your iH30 comes with a removable clear protective cover at the front of the iPod dock. This should be removed
before placing inserts/docking your iPod and to access manual control of your iPod. To remove protective cover,
slide upwards when docking door is open.

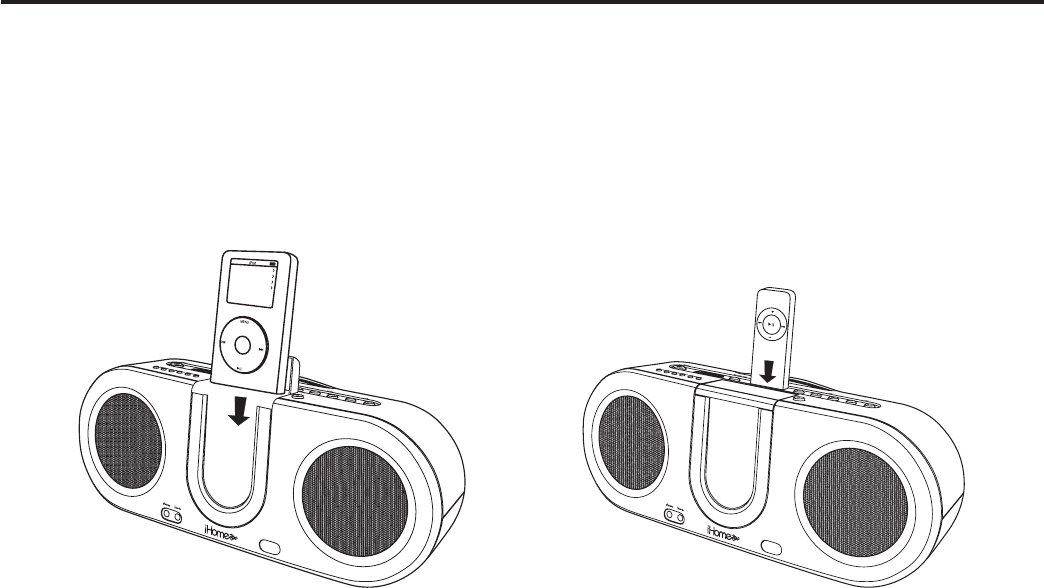

Install iPod Insert

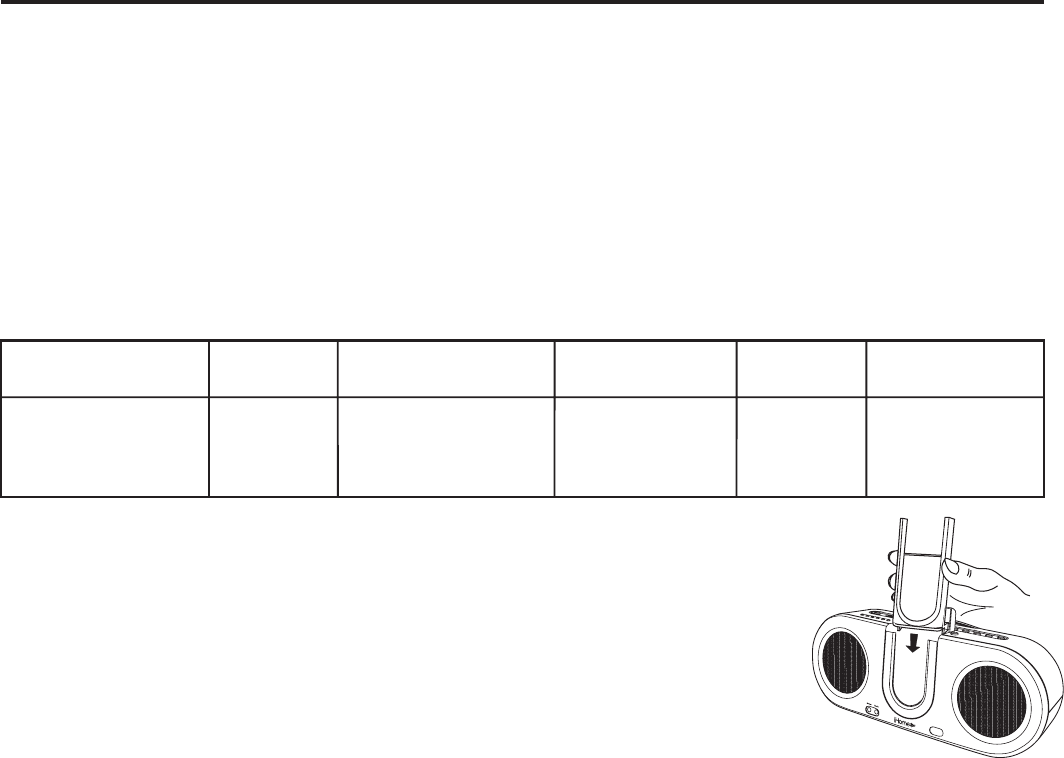

Your iH30 comes with 3 removable inserts and a rubber pad to ensure your iPod fits properly in the iPod drawer.
Please see below table to insert/replace rubber pad to fit your iPod.
To place an insert:
1. Select the insert for your iPod (see chart above).
Using the correct insert/rubber pad ensures the
proper fit to your iPod.
2. Press Docking Door Open Button and put the insert gently into docking bay.
3. Please note that iPod must not be in a case or “skin”.
Use with
iPod Mini
iPod 3G 10/15/20GB
iPod 4G 20 GB
iPod Photo 20/30 GB
Shuffle Mini Insert Thin iPod Insert Thick iPod
(no Insert needed) Nano Insert 5G iPod
iPod with video
iPod 3G 30/40GB
iPod 4G 40 GB
iPod Photo 60 GB
iPod Nano
2/4GB
Replace rubber pad
per instruction on the
5G rubber pad card
Dock into the Shuffle
connector located in the
top of the unit
6
Install Power
Connect AC Adaptor
Connect the AC adaptor cable plug into the jack on the back of the system, then plug the AC adaptor into the
wall outlet. When connected to the AC adaptor, the iH30 charges your iPod/iPod Shuffle and allows you to play
it and the radio.
Note: The iPod/iPod Shuffle does NOT charge when the iH30 is operating on batteries. This AC adaptor is for
use with the iH30 only. To avoid damage, do not use another kind of adaptor with the iH30.

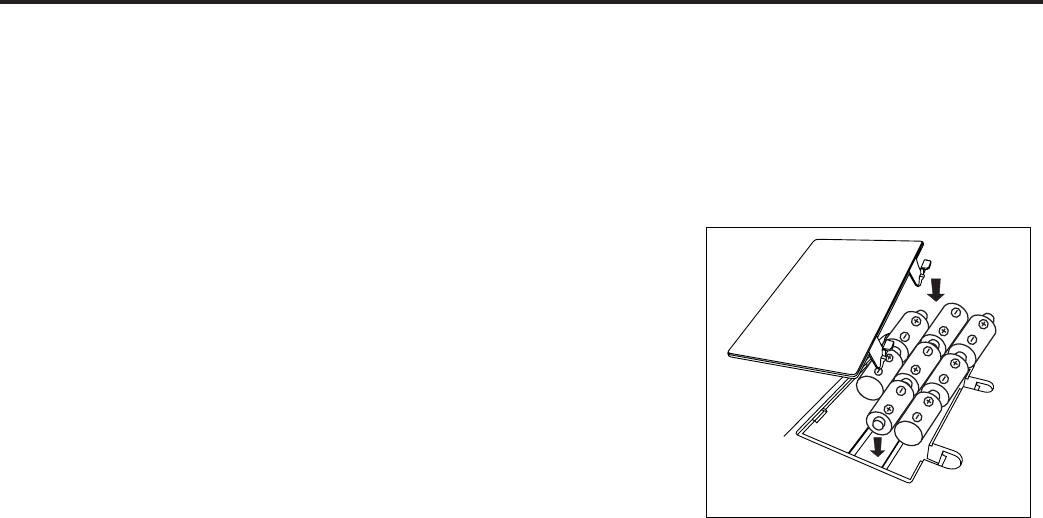

Install/Replace Batteries
1. Open the battery compartment cover located on the bottom of the
unit.
2. Insert 8 “C” batteries, checking that the + and – ends of the batteries
match the drawing inside the battery compartment. We recommend
the use of alkaline batteries for longer life. Different types of batteries
or new and used batteries are not to be mixed.
3. Close the compartment cover.
Batteries information:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
• Make sure you dispose of batteries properly (see your local regulations).
7
Install Unit Battery
Install Power

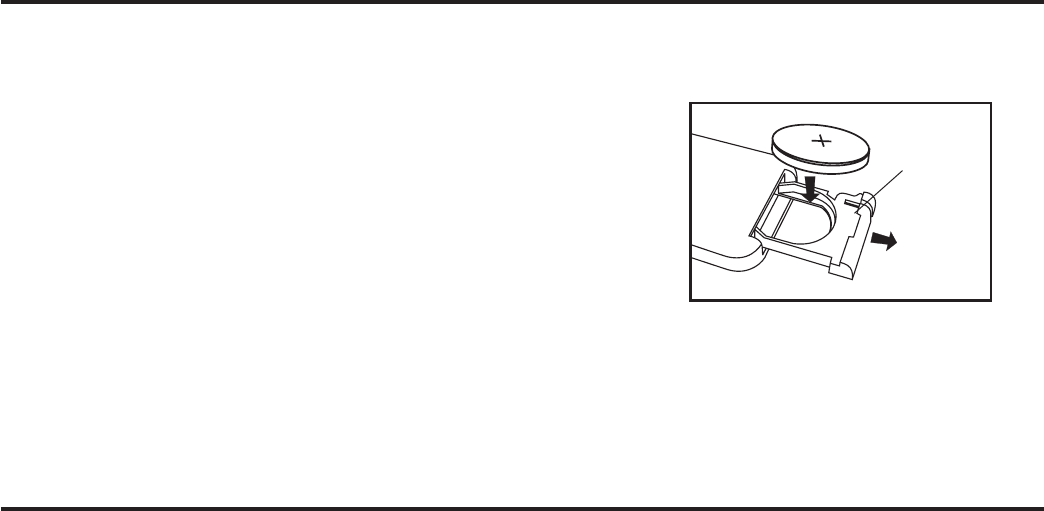

Install/Replace the Remote Control Battery (Remote Control included with iH31 only)
The remote control battery is installed at the factory. When the remote control stops operating or its range
seems reduced, it is time to replace the battery with a new one.
1. Open the battery compartment cover located on the bottom of the
remote control unit.
2. Insert a CR2032 battery, checking the + and – ends of the battery
matches the drawing inside the battery compartment.
3. Close the compartment cover.
To check for iPod compatibility
iH30 is an advanced system and supports most updated iPod features. To make sure your iPod works prop-
erly with the iH30, please update your iPod firmware with the latest one. Please check the Apple website for
the same (http://www.apple.com/ipod/download).
Maintenance
• Place the unit away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such
as Benzine, paint thinner or similar materials can mar the surface of the case.
8
Battery
door
latch

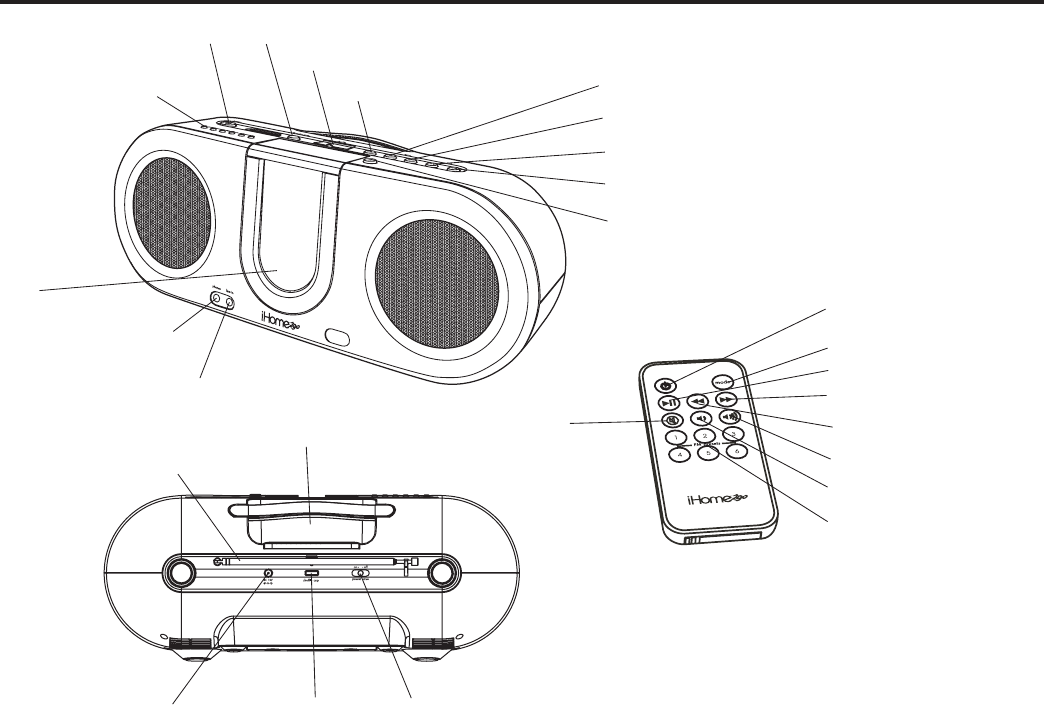

Controls and Indicators
9
FM Preset Button
Power On/Off Button
Power On/Off Button
Remote On/Off Switch
Remote Control
Storage Compartment
Docking Door Open Button
6 FM Preset Buttons
Mute Button
Tune Down Button
Tune Down Button
Tune Up Button
Tune Up Button
Volume + Button
Volume + Button
Volume _ Button
Volume _ Button
AC Adaptor Jack
FM Antenna
iPod Shuffle Dock
iPod Dock
iPod/ FM/ AUX Mode Select Button
Shuffle Cap
iPod Play/Pause Button
Play/Pause Button
Mode Button
Headphone Jack
Line-in Jack
Remote Control
Model iH30: not included
Model iH31: included
Charging your iPod/iPod Shuffle
Note: Please make sure you are using the correct insert for your iPod (see Install iPod Insert on page 6) and that
it is properly docked into the iH30. Failure to do so may damage your iPod.
1. Your iPod/iPod Shuffle recharges (until fully charged) while it is docked in the system and the iH30 is
connected to an outlet with the included AC power adaptor. Your iPod/iPod Shuffle will NOT charge
when the unit is running on battery power.
Music
Photos
Extras
Settings
ShuffleSongs
Backlight
Install iPod Install iPod Shuffle
10
Listening to iPod/iPod Shuffle
1. Dock the already playing iPod. The iH30 will automatically turn on and you will hear the music playing from
your iPod.
Note: If the song/music loudness playing on the iPod itself is too low, iH30 may not detect the iPod is in play
mode. Press the iPod Play/Pause Button on the iH30 or the remote control twice to play it.
2. When the iPod is docked and in standby mode, press the iPod Play/Pause Button on the iH30 or the
remote control to play it. The iPod Icon will appear at the right lower corner of the display.
3. Press the iPod Play/Pause Button again to pause play; press again to resume it.
4. Press the Volume+ and Volume– Button on the iH30 or the remote control to adjust the system
volume. Press Mute Button to mute the output; press the button again to release it.
5. Press the Tune Up or Tune Down Button on the iH30 or the remote control to go to the previous or
next track. Press and hold while a track is playing for high speed forward or reverse music search of the
current track.
6. To turn off the unit, press the Power On/Off Button on the iH30 or the remote control to turn it off. Your
iPod will continue charging while in the dock (when using the AC adaptor).
Note: The iH30 cannot control Shuffle functions. For iPod Shuffle operation, you need to switch iPod Shuffle on
or off, and play or pause it, etc., manually.
Note: If you are using an iPod Shuffle, for best audio performance, adjust Shuffle volume to eliminate sound
distortion.
11
Listening to non-docking iPod or other portable audio devices
If you are using an iPod without a docking port or other MP3 player or other portable audio device, you can
still play it through the iH30 via the Line-in Jack.
1. Plug one end of the audio patch cord (included) into the headphone or line-out jack on your device and the
other end of the patch cord into the iH30 Line-in Jack, located on the front of the unit.
2. Press Power On/Off Button on main unit or remote to turn iH30 on.
3. Press the Mode Button until you can see “AU” showing on the display, indicating AUX playing mode.
4. Press the Volume+ and Volume– Button on main unit or remote control to adjust the system
volume. You may need to adjust your device volume too.
5. To turn off the unit, press the Power On/Off Button on main unit or remote control to turn it off. Please
remember to turn off your device, too.
Listening to FM Radio
Note: Extend FM rod antenna fully for best reception. In some areas, it may be difficult to get stereo sound
without interference. If this proves a problem, set the Mono/Stereo FM switch on the back of the unit to
Mono.
1. Press the Power On/Off Button on the iH30 or remote to turn unit on.
2. Press the Mode Button on the iH30 or remote control until you can see a radio frequency showing on
the display.
3. Use Tune Up or Tune Down Button to tune in to the desired station.
4. Press and hold the Tune Up or Tune Down Button for appox. 2 seconds, it will start to auto seek
available stations and will stop when a clear one is found.
5. Press the Volume+ and Volume– Button on the iH30 or remote control to adjust the iH30 volume.
Press the Mute Button to mute the output; press the button again to release it.
6. To turn off the unit, press the Power On/Off Button on the iH30 or the remote control to turn it off.
12
Presetting Your Favorite FM Station
You can preset 6 FM stations (the unit does not receive AM radio).
Presetting a Station
1. Following step 1 to 5 in Listening to Radio and manually tune into the station you wish to preset.
2. Hold down one of the six Preset Buttons you wish to preset for approx. 2 seconds. You will hear 2
beep tones to confirm the station is stored.
3. To preset another station, repeat above steps. To change the preset station, tune into the desired station
and hold down the Preset Button. The new station will replace the previous station.
Tuning into a Preset Station
1. Turn on the unit and press the Mode Button on the iH30 or the remote control to turn on the radio.
2. Press the desired Preset Button. The corresponding station will show on the display.
3. Press the Volume+ and Volume– Button on the iH30 or the remote control to adjust the system
volume.
4. To turn off the unit, press the Power On/Off Button on main unit or remote control to turn it off.
Operating the Remote On/Off Switch
To save battery power, switch off the Remote On/Off Switch for longer battery life. The switch will not
function while using the AC adaptor.
Headphone Jack Operation
Connect a headphone (not included) to the Headphone Jack in the front of the unit for private listening.
The built-in speakers are shut off when the headphone is connected.
13
Trouble Shooting
Symptom Possible Problem Solution
Unit doesn’t respond
(no power)
AC adaptor isn’t plugged to a wall outlet or the
connector is not plugged into the power supply
jack on the back of the unit
Using 1st or 2nd generation iPod, iPod Shuffle or
other device
Plug the AC adaptor into a wall outlet and plug the
connector into the power supply jack on the unit
Plug another device into the same outlet to
confirm the outlet is working
Remove your iPod from the dock and check for any
obstruction on the connectors in the dock and on
your iPod. Then reseat it in the dock.
Remove your iPod from the dock and check for any
obstruction on the connectors in the dock and on
your iPod. Then reseat it in the dock.
Upgrade software on your iPod. For details, visit
http://www.apple.com/ipod/download
Please make sure your iPod is working properly before
docking it to the unit. Please refer to your iPod manual
for details on iPod operation.
Wall outlet is not functioning
Using no or wrong iPod insert Make sure the dock insert is the proper fit for your iPod
iPod is not installed properly
iPod is not installed properly
Your iPod software is too old
iPod is locked up
iH30 cannot control those iPods or other devices.
14
iPod cannot dock
properly
iPod does not
respond to the
unit
Trouble Shooting
Symptom Possible Problem Solution
iPod is not installed properly Remove your iPod from the dock and check for
obstruction on the connectors in the dock and
on your iPod. Then reseat it in the dock.
Please make sure your iPod is working properly
before docking it in the unit. Please refer to your
iPod manual for detail.
If iPod original sound source is poor quality, distortion
and noise are easily noticed with high-power speak-
ers.
Try a different audio source such as a music CD.
If you are using an iPod Shuffle or external sound
source like older generation iPod, try reducing the
output volume on the device itself. Also, try turning
bass boost OFF.
Point the Remote Control toward the IR sensor, within
10 feet of the unit.
Move Remote switch to ON position
Replace with new battery
iPod is locked up/frozen
iPod battery has problem
Sound is distorted Volume level is set too high Decrease the unit and/or iPod Shuffle volume
Sound source is distorted
Battery weak
Remote Control is not pointed toward the
IR sensor
Remote On/Off Switch is activated
15
iPod didn’t
charge up
Remote Control
didn’t work
Solucionando problemas
Síntoma Causa Solución
La unidad no
funciona (no circula
corriente eléctrica)
El adaptador de AC no está conectado al
tomacorriente o el conector no está conectado
a la ficha en la parte posterior de la unidad
Usted tiene un iPod de primera o segunda
generación, un Shuffle u otro tipo de aparato
Conecte el adaptador de AC al tomacorriente y
también conecte el conector a la ficha en la parte
posterior de la unidad
Coloque otro aparato en ese mismo tomacorriente para
confirmar si el que no funciona es el tomacorriente
Quite el iPod del encastre y retire la posible obstruc-
ción del encastre o de su iPod. Vuelva a colocar el
iPod dentro del encastre.
Quite el iPod del encastre y verifique posibles
obstrucciones del encastre o de su iPod. Vuelva a
colocar el iPod dentro del encastre.
Renueve su software. Para mayor información, diríjase
a http://www.apple.com/ipod/download
Verifique que su iPod funcione correctamente antes
de conectarlo a la unidad. Refiérase al manual de su
iPod para más detalles.
El tomacorriente no funciona
No ha colocado el encastre del iPod, o está
utilizando el encastre incorrecto.
Verifique que el encastre sea el apropiado para su iPod
El iPod no encastra correctamente
El iPod no está instalado correctamente
Su software es obsoleto
El iPod no responde
El iH30 no puede controlar estos otros aparatos
1
El iPod no encastra
correctamente
El iPod no se
comunica con la
unidad
Solucionando problemas
Síntoma Causa Solución
El iPod no está instalado correctamente Quite el iPod del encastre y retire la posible
obstrucción del encastre o de su iPod. Vuelva a
colocar el iPod dentro del encastre.
Por favor asegúrese de que su iPod funcione correcta-
mente antes de colocarlo en el encastre. Refiérase al
manual de su iPod para mayor información.
Si el sonido original de su iPod era de pobre calidad, las
distorsiones y ruidos se harán más notables con los
parlantes de alta potencia. Pruebe utilizar otra fuente de
audio como un CD.
Si está utilizando un iPod de primeras generaciones o
un Shuffle, intente bajar el volumen de su aparato.
También intente apagar el amplificador de bajos
Apunte el control remoto hacia el iH30 y manténgase
a una distancia máxima de 10 pies de la unidad.
Reemplace las baterías por nuevas
El iPod está trabado/no responde
La batería del iPod podría tener algún inconveniente
El sonido sale
distorsionado
El volumen se encuentra muy alto Baje el volumen
El sonido sale distorsionado de la unidad
Las baterías están gastadas
No está apuntando el control remoto
hacia el iH30
Mueva el selector remoto a la posición ON
El selector On/Off remoto está activado
17
El iPod no carga
El control remoto
no funciona
