ENGLISH

USER MANUAL

Thank you very much for choosing the

iiyama LCD monitor.

We recommend that you take a few

minutes to read carefully through this

brief but comprehensive manual before

installing and switching on the monitor.

Please keep this manual in a safe

place for your future reference.

ENGLISH

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC

Directive” , 2006/95/EC “Low Voltage Directive” and 2009/125/EC “ErP Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in

residential areas, business and light industrial premises and small-scale enterprises, inside as

well as outside of the buildings. All places of operation are characterised by their connection to

the public low voltage power supply system.

IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands

 We reserve the right to change specifi cations without notice.

 All trademarks used in this user manual are the property of their respective owners.

 As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines

for energy effi ciency.

We recommend recycling of used product. Please contact your dealer or iiyama

service center. Recycle information is obtained via the Internet, using the address:

http://www.iiyama.com

You can access the Web page of different countries from there.

ENGLISH

TABLE OF CONTENTS

FOR YOUR SAFETY ..........................................................................1

SAFETY PRECAUTIONS ..............................................................1

SPECIAL NOTES ON LCD MONITORS .......................................3

CUSTOMER SERVICE .................................................................3

CLEANING ....................................................................................3

BEFORE YOU OPERATE THE MONITOR ........................................4

FEATURES ....................................................................................4

CHECKING THE CONTENTS OF THE PACKAGE ......................4

FITTING AND REMOVAL OF BASE .............................................5

CONTROLS AND CONNECTORS ................................................6

CONNECTING YOUR MONITOR ................................................7

COMPUTER SETTING .................................................................8

ADJUSTING THE VIEWING ANGLE ............................................8

OPERATING THE MONITOR .............................................................9

ADJUSTMENT MENU CONTENTS ............................................10

SCREEN ADJUSTMENTS ..........................................................17

POWER MANAGEMENT FEATURE ...........................................20

TROUBLE SHOOTING ....................................................................21

RECYCLING INFORMATION ...........................................................22

APPENDIX ......................................................................................23

SPECIFICATIONS ....................................................................... 23

DIMENSIONS .............................................................................. 24

COMPLIANT TIMING ..................................................................24

ENGLISH

FOR YOUR SAFETY 1

FOR YOUR SAFETY

WARNING

STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor

and contact your dealer or iiyama service center immediately. Further use may be dangerous and can

cause fi re or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fi re

or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug

your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any

object inside may cause fi re, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric

shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will

cause malfunction and may cause fi re or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy

objects on the cables. If damaged, the cables may cause fi re or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in

power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may

cause electric shock.

SAFETY PRECAUTIONS

ENGLISH

2 FOR YOUR SAFETY

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky

areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun

shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not

place any heavy objects on the monitor, and that all cables are routed such that children may not pull

the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fi re.

To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.

Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet

will be blocked and the monitor may overheat if the stand is removed. This may cause fi re or damage.

Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also

cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable

is disconnected. If you do not disconnect them, it may cause fi re or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid

accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself

as this may cause fi re or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage

your computer.

DO NOT USE THE MONITOR FOR 24-HOURS CONTINUOUSLY

The monitor is not designed to work for 24-hours continuously, do not use the monitor for 24-hours

continuously.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.

For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)

away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is

recommended as looking at the screen continuously can cause eye strain.

ENGLISH

FOR YOUR SAFETY 3

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE 

When you fi rst turn on the LCD monitor, the picture may not fi t in the display area because

of the type of computer that is used. In this case, adjust the picture position to the correct

position.



Due to the nature of the backlight, the screen may fl icker during initial use. Turn off the

Power Switch and then turn it on again to make sure the fl icker disappears.



You may fi nd slightly uneven brightness on the screen depending on the desktop pattern

you use.



Due to the nature of the LCD screen, an afterimage of the previous screen may remain

after switching the image, when the same image is displayed for hours. In this case, the

screen can be recovered slowly by changing the image or turning off the Power Switch for

some hours.



Contact your dealer or iiyama service center for the backlight replacement when the

screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

SPECIAL NOTES ON LCD MONITORS



If you have to return your unit for service and the original packaging has been discarded,

please contact your dealer or iiyama service center for advice or replacement packaging.

WARNING 

If you drop any materials or liquids such as water into the monitor when cleaning,

unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION 

For safety reasons, turn off the power switch and unplug the monitor before you clean

it.



To protect the LCD panel, do not scratch or rub the screen with a hard object.



Never use any of the following strong solvents. These will damage the cabinet and

the LCD screen.



Touching the cabinet with any product made from rubber or plastic for a long time

may cause degeneration or loss of paint on the cabinet.

Thinner

Benzine

Abrasive cleaner

Spray-type cleaner

Wax

Acid or Alkaline solvent

CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then

wipe the cabinet with a soft dry cloth.

LCD

SCREEN

Periodic cleaning with a soft dry cloth is recommended.

Don't use tissue paper etc. because these will damage the LCD screen.

CUSTOMER SERVICE

CLEANING

NOTE

NOTE

ENGLISH

4 BEFORE YOU OPERATE THE MONITOR

The following accessories are included in your package. Check to see if they are enclosed with the

monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama

offi ce.

BEFORE YOU OPERATE THE MONITOR

CHECKING THE CONTENTS OF THE PACKAGE

FEATURES

 Supports Resolutions up to 1920 × 1080

 High Contrast 1000:1 (Typical), ACR Function Available / Brightness 300cd/m2

(Typical), Quick Response Time 5ms (Typical)

 X-Res Technology

 Digital Character Smoothing

 Automatic Set-up

 Stereo Speakers

2 × 2W Stereo Speakers



Plug & Play VESA DDC2B Compliant

Windows® XP/Vista/7/8 Compliant

 Power Management (ENERGY STAR® VESA DPMS Compliant)

 VESA Mounting Standard (100mm×100mm) Compliant

 Keyhole for Security Lock

* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using

a power supply higher than this rating, then a power cable with a rating of 10A/250V

must be used. However, all guarantees and warranties are void for any

problems or damage caused by a power cable not supplied by iiyama.



Power Cable*

D-Sub Signal Cable 

DVI-D Signal Cable



Audio Cable 

Stand-Base 

Cable Holder 



Safety Guide 

Quick Start Guide

CAUTION

ENGLISH

BEFORE YOU OPERATE THE MONITOR 5



Put the monitor on a stable surface. The monitor may cause injury or damage if it falls

or is dropped.



Do not give a strong impact to the monitor. It may cause damage.



Unplug the monitor before removal or installation to avoid electric shock or damage.

CAUTION

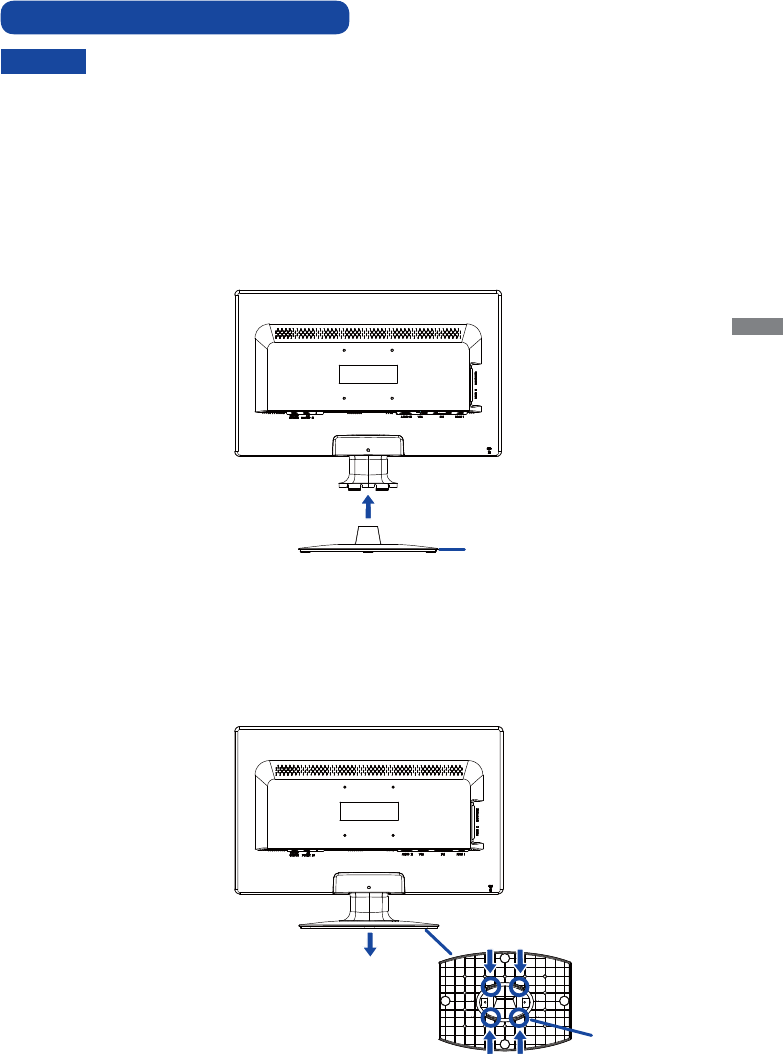

<Installation>

A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.

Lay the monitor fl at on a table with front face down.

B

Hold the monitor and push the Stand-Base until it clicks and is secure.

<Removal>

A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.

Lay the monitor fl at on a table with front face down.

B

Press and hold the hooks inside, and pull the Stand-Base.

FITTING AND REMOVAL OF BASE

Stand-Base

Hook

s

ENGLISH

6 BEFORE YOU OPERATE THE MONITOR

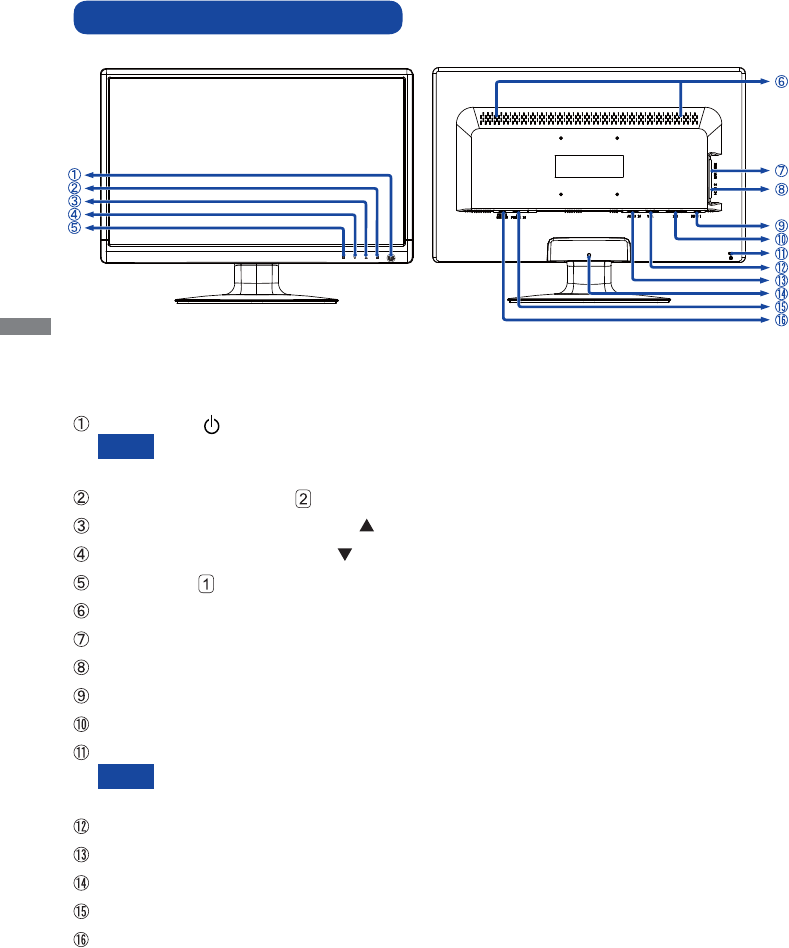

CONTROLS AND CONNECTORS

Power Switch ( ) / Power Indicator

Blue: Normal operation

Orange: Power Management

Select / Input select Button ( )

Scroll up / X-Res Technology Button ( )

Scroll down / i-Style Color Button ( )

Menu Button ( )

Speakers

Headphone Connector (EARPHONE)

HDMI Connector (HDMI2)

HDMI Connector (HDMI1)

DVI-D 24pin Connector (DVI)

Keyhole for Security Lock

You can fasten a security lock and cable to prevent the monitor from being removed

without your permission.

D-SUB mini 15pin Connector (VGA)

Audio Connector (AUDIO IN)

Installation hole of Cable Holder

AC Connector (AC POWER IN)

Main Power Switch (POWER SWITCH)

<Front> <Back>

NOTE

NOTE

ENGLISH

BEFORE YOU OPERATE THE MONITOR 7

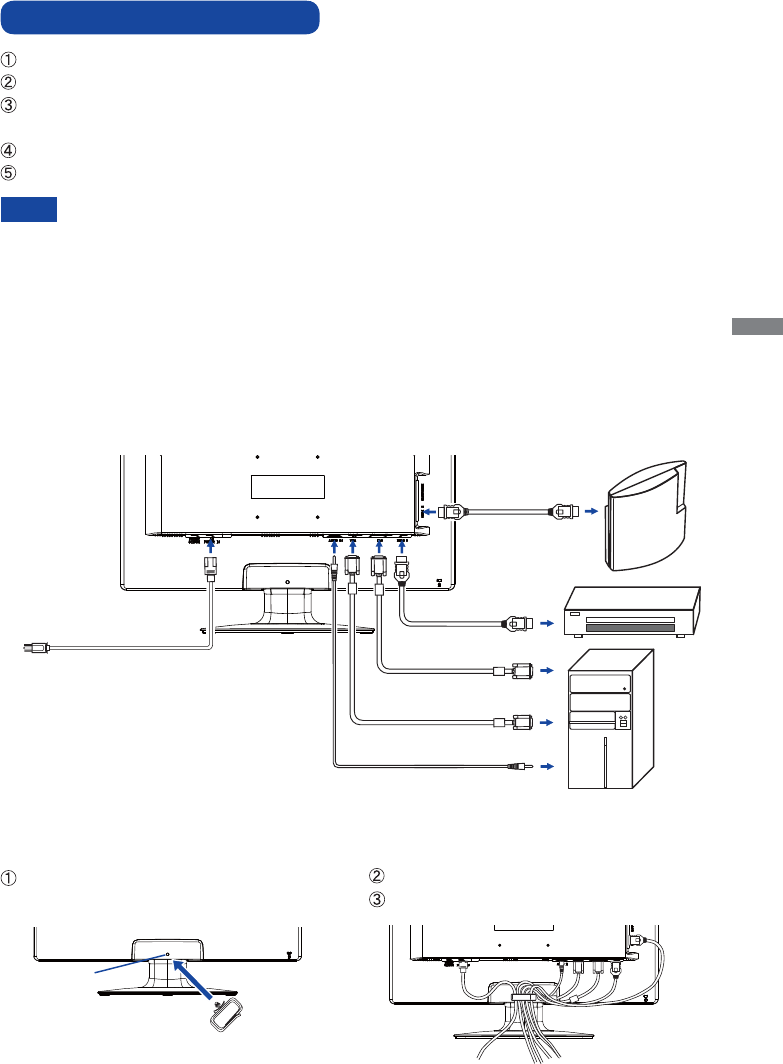

CONNECTING YOUR MONITOR

Ensure that both the computer and the monitor are switched off.

Connect the computer to the monitor with the signal cable.

Connect the monitor to the audio equipment with the Audio Cable for computer when using the

audio features.

Connect the Power Cable to the monitor fi rst and then to the power supply.

Turn on your monitor (Main Power Switch and Power Switch) and computer.

[Example of Connection]

<Back>

HDMI Cable

(Not included)

Power Cable

(Accessory)

Audio Cable (Accessory)

Computer

D-Sub Signal Cable

(Accessory)

DVI-D Signal Cable

(Accessory)

AV Equipment etc.

GAME

Equipment

etc.

HDMI Cable

(Not included)

NOTE  The signal cables used for connecting the computer and monitor may vary with the type of

computer used. An incorrect connection may cause serious damage to both the monitor and

the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.

If a special cable is required please contact your local iiyama dealer or regional iiyama

offi ce.

 For connection to Macintosh computers, contact your local iiyama dealer or regional

iiyama offi ce for a suitable adaptor.

 Make sure you tighten the fi nger screws at each end of the signal cable.

[ Collect Cables ]

Insert the Cable-Holder into Hole.

Put the cables through the cable holder.

Collect cables at the back of the stand.

Cable Holder

Installation hole

ENGLISH

8 BEFORE YOU OPERATE THE MONITOR

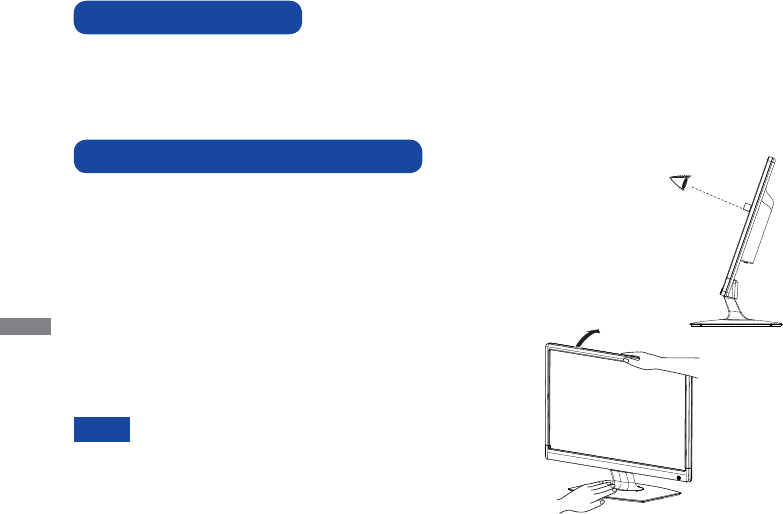

 For optimal viewing it is recommended to look at the full face of

the monitor.

 Hold the stand so that the monitor does not topple when you

change the monitor’s angle.

 You are able to adjust the monitor’s angle up to 20° upward.

 In order to ensure a healthy and relaxed body position

when using the monitor at visual display workstations, it is

recommended that the adjusted tilt angle should not exceed 10

degrees. Adjust the monitor’s angle to your own preference.

NOTE

 Signal Timing

Change to the desired signal timing listed on page 24: COMPLIANT TIMING.

COMPUTER SETTING

 Do not touch the LCD screen when you change

the angle. It may cause damage or break the LCD

screen.

 Careful attention is required not to catch your fi ngers

or hands when you change the angle.

ADJUSTING THE VIEWING ANGLE

20°

ENGLISH

OPERATING THE MONITOR 9

OPERATING THE MONITOR

To create the best picture, your iiyama LCD monitor has been preset at the factory

with the COMPLIANT

TIMING shown on page 24. You are also able to adjust the picture by following the button operation

shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.

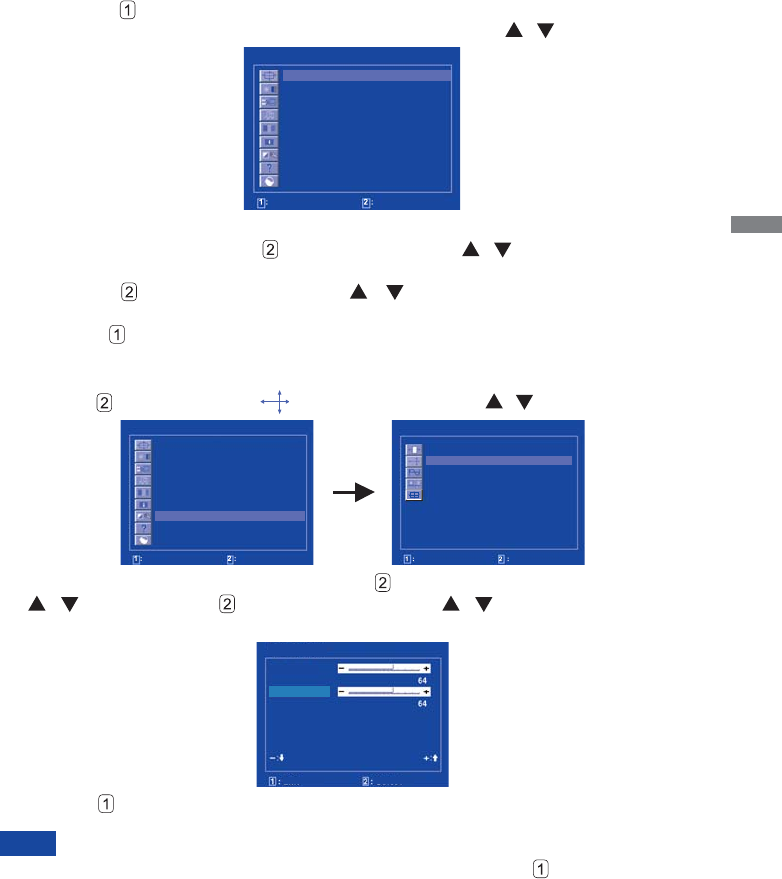

 Press the Button to start the On Screen Display (OSD) feature. There are

additional Menu items which can be switched by using the / Buttons.

B Select the Menu item which contains the adjustment icon relating to the adjustment

you want to make. Press the Button. Then, use the / Buttons to highlight the

desired adjustment icon.

C Press the Button again. Use the / Buttons to make the appropriate

adjustment or setting.

D Press the Button to leave the menu, and the settings you just made would be

automatically saved.



When button operations are aborted during adjustment, On-Screen Display disappears

when the time set for the OSD Time Out has passed. Also, the button can be used to

return previous menu and turn off the On-Screen Display.



Any changes are automatically saved in the memory when the On Screen Display

disappears. Turning off the power should be avoided while using the Menu.



Adjustments for H./V. Position, Clock and Phase are saved for each signal timing. Except for

these adjustments, all other adjustments have only one setting which applies to all signal timings.

For example, to correct for vertical position, select Menu item of Manual Image Adjust and then

press the Button. Then, select (H./V.Position) by using the / Buttons.

An adjustment page appears after you press the Button. Then, select V. Position by using the

/ Buttons. Press the Button again. Then, use the / Buttons to change the vertical

position settings. The vertical position of the overall display should be changing accordingly while

you are doing this.

Press the Button lastly, it ends, all changes are saved in the memory.

NOTE

H./V. Position

Exit Select

H. Position

V. Po siti on

Main Menu

Auto Image Adjust

Picture Adjust

Input Select

Audio Adjust

Color Adjust

Information

Manual Image Adjust

Setup Menu

Memory Recall

Exit Select

Main Menu

Auto Image Adjust

Picture Adjust

Input Select

Audio Adjust

Color Adjust

Information

Manual Image Adjust

Setup Menu

Memory Recall

Exit Select Exit Select

Manual Image Adjust

Clock

H./V. Position

Phase

Sharpness

Video Mode Adjust

ENGLISH

10 OPERATING THE MONITOR

ADJUSTMENT MENU CONTENTS

Adjustment Item Problem / Option Button to Press

Auto Image Adjust Auto Image Adjust

Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically.

* For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 17

for SCREEN ADJUSTMENTS.

Only Analog Input

You can skip the Menu items and display an adjustment scale directly by using the following button

operations.

-

Auto Image Adjust: Pressing and holding of the Button for about 2 seconds when the Menu is

not displayed.

Direct

Direct

ENGLISH

OPERATING THE MONITOR 11

Too dark

Too bright

Brightness *1,2,3

Too dull

Too intense

*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too

bright. Can not select when Adv. Contrast is On.

*2 Brightness and Adv. Contrast can not enable the same time when ECO Mode is on.

*3 Contrast, Brightness, Adv. Contrast and ECO Mode adjustments are disabled when i-Style Color is

activated.

Brightness of back-light is reduced.

Off Normal

ECO Mode *3

Adv. Contrast *2,3

Increased Contrast RatioOn

Off Typical Contrast Ratio

Adjustment Item Problem / Option Button to Press

Picture Adjust Picture Adjust

Contrast *3

1

Brightness of back-light is reduced more than 1.2

Brightness of back-light is reduced more than 2.3

Over Drive

Off / -2 / -1 / 0 / +1 / +2

It will improve the gray level response time of the

LCD panel.

A higher level results in a faster response time.

Enhance the picture edge.

Off Normal

Soft

Enhance the picture edge more than the Soft option.Hard

X-Res Technology

You can skip the Menu items and display an adjustment scale directly by using the following button

operations.

-

X-Res Technology: Press the Button when the Menu is not displayed.

Direct

Direct

ENGLISH

12 OPERATING THE MONITOR

Adjustment Item Problem / Option Button to Press

Input Select Input Select

Input Select

You can skip the Menu items and display an adjustment scale directly by using the following button

operations.

-

Input Select: Press the Button when the Menu is not displayed.

Direct

Direct

Input source is fi xed, not selected automatically when VGA, DVI, HDMI1 and HDMI2 which

are selected.

Select the VGA input.

Select the DVI input.

VGA

DVI

Auto

Search for an available input source and select

automatically.

Select the HDMI1 input. HDMI1

NOTE

Select the HDMI2 input. HDMI2

Volume Too soft

Too loud

Adjustment Item Problem / Option Button to Press

Audio Adjust Audio Adjust

Mute

You can skip the Menu items and display an adjustment scale directly by using the following button

operations.

-

Audio Adjust: Pressing and holding of the Button for about 2 seconds when the Menu is not

displayed.

Direct

Direct

Return the sound volume to the previous level.

Turn off the sound temporarily.

Select the Line-In input. Line-In

Select the HDMI input. HDMI

HDMI Audio *

* Suitable for HDMI input only.

ENGLISH

OPERATING THE MONITOR 13

Too weak

Too strong

Adjustment Item Problem / Option Button to Press

Color Adjust Color Adjust

User Color

You can skip the Menu items and display an adjustment scale directly by using the following button

operations.

-

i-Style Color: Press the Button when the Menu is not displayed.

Direct

Direct

Bluish white

Red

Green

Blue

Cool

Reddish white Normal

Greenish white Warm

i-Style Color

Standard For general windows environment and monitor

default setting.

Text For text editing and viewing in a word processing

environment.

Game For PC game environment.

Cinema For movie and video environment.

Scenery For displaying outdoor scenery images

Information Information

Information

H.Frequency:

V.Frequency:

Resolution:

Pixel Clock:

Model Number:

67.56KHz

60.0Hz

1920 x 1080

148.5MHz

E2473HS

Exit

See your graphic card user guide for more information

about changing the resolution and refresh.

Displays information regarding the current input signal coming

from the graphic card in your computer.

NOTE

Off Return to a state set by color adjustment except

i-Style Color.

ENGLISH

14 OPERATING THE MONITOR

Too left

Too right

Too low

Too high

Too narrow

Too wide

To correct fl ickering text or lines

*1 Only Analog Input.

*2 See page 17 for SCREEN ADJUSTMENTS.

*3 It can display in the center of the screen with a 4:3, 5:4 or 16:10 aspect ratio when input video

resolution is 4:3, 5:4 or 16:10.

*4 Sharpness is disabled when X-Res Technology is activated.

Full Screen

Expansion display of Aspect

Adjustment Item Problem / Option Button to Press

Manual Image Adjust Manual Image Adjust

Clock *1

H./V. Position *1,2

H. Position

V. Position

Phase *1

Adjust the picture quality at resolutions of less

1920 x 1080.

You can change the picture quality (3 steps).

Sharpness *4

Aspect Ratio *3

Video Mode Adjust Full screen display

ENGLISH

OPERATING THE MONITOR 15

Memory Recall Factory-preset data is restored.

English

Deutsch

English

German

Français French Japanese

Russian

Polski Polish

Traditional Chinese

Simplifi ed Chinese

Nederlands Dutch

Русский

H.Position OSD is too left

OSD is too right

OSD is too low

OSD is too high

You can set the OSD display duration time.

5 / 15 / 30 / 60 seconds

V.Position

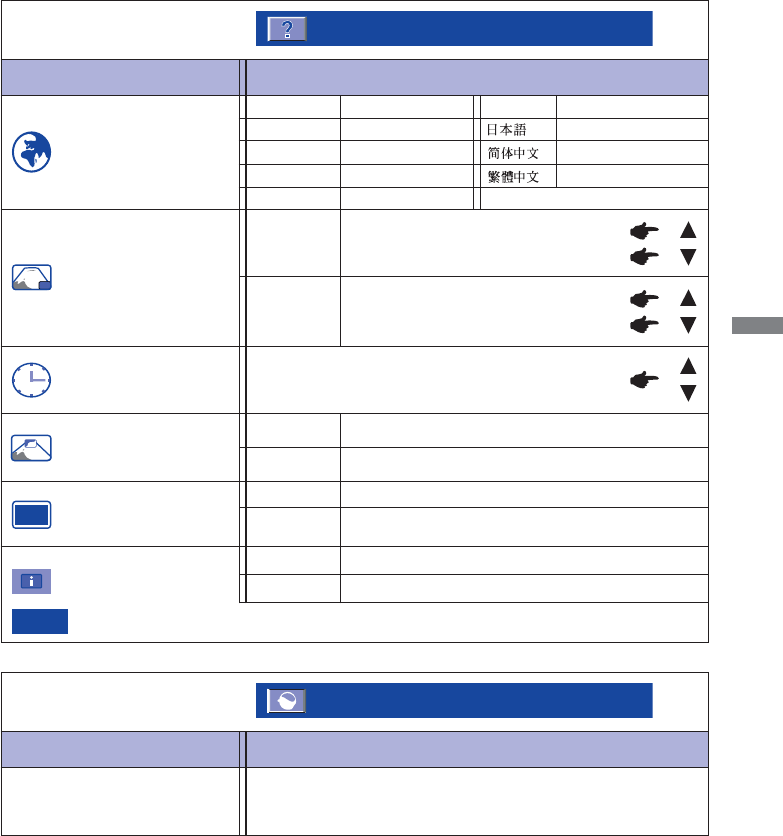

Adjustment Item Problem / Option Button to Press

Setup Menu Setup Menu

Language Select

OSD Position

OSD Time Out

OSD Background

LED

The background of OSD is mode transparent.

Off Retune the background of OSD.

On

The Power Indicator is turned On.

Off The Power Indicator is turned Off.

On

Turn Off the Power Indicator when you are bothered by the light.

NOTE

Adjustment Item Problem / Option Button to Press

Memory Recall Memory Recall

iiyama Logo displayed when the monitor is turned on.

On

Off iiyama Logo does not display when the monitor is

turned on.

Opening Logo

I II I II

II I IIII

ENGLISH

16 OPERATING THE MONITOR

● Lock Mode

<OSD Menu>

1. The OSD lock will be activated by pressing the front buttons and for about 10 seconds. If you

try to access the OSD by pressing any of the buttons , , and , message "OSD Locked" will

appear on the screen.

2. The OSD lock will be deactivated by pressing the front buttons and again for 10 seconds.

<Power Switch>

1. The power switch lock will be activated by pressing the front buttons and for 10 seconds.

Locking the power switch means that won't be able to turn off the Monitor while the power switch is

locked. If presses the power switch massage "Power Button Locked" will appear on the screen.

2. The power switch lock will be deactivated by pressing the front buttons and again for about 10

seconds.

ENGLISH

OPERATING THE MONITOR 17

SCREEN ADJUSTMENTS

 The screen adjustments described in this manual are designed to set image position and minimize

fl icker or blur for the particular computer in use.

 The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can not

provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched

to fi t the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.

 Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to

the screen enlargement process.

 It is preferable to adjust the image position and frequency with the monitor controls, rather than the

computer software or utilities.

 Perform adjustments after a warm-up period of at least thirty minutes.

 Additional adjustments may be required after the Auto Image Adjust depending on the resolution or

signal timing.

 The Auto Image Adjust may not work correctly when displaying the picture other than the screen

adjustment pattern. In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and

Phase. The other way is performing each adjustment manually.

Perform the Auto Image Adjust fi rst when the monitor is connected to a new computer, or resolution

is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after

performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be

made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.

iiyama.com).

Adjust the image by following the procedure below to get the desired picture.

This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista/7.

A Display the picture at the optimum resolution.

B Enter the Test.bmp (screen adjustment pattern) to wallpaper. OTE

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

NOTE

Zebra pattern

Color bar

Picture frame

[Adjustment pattern]

 Consult the appropriate documentation for doing this.

 Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the

wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting of

“Stretch desktop wallpaper to fi t the screen”.

ENGLISH

18 OPERATING THE MONITOR

F 1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of

the display area.

 When the left side of the picture frame moves apart from the left edge of the display

area during the Clock adjustment, adjust steps 1) and 2).

 Another way to make the Clock adjustment is to correct the vertical wavy lines in the

zebra pattern.

 The picture may fl icker during the Clock, H.Position and V.Position adjustment.

 In case the picture frame is bigger or smaller than the data display area after the

Clock adjustment, repeat steps from C.

2) Stretch the right side of the picture frame to the right edge of the display area by

adjusting the Clock.

C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust)

D Adjust the image manually by following procedure below when the screen has a fl icker or

blur, or the picture does not fi t in the display area after performing the Auto Image Adjust.

E Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display

area.

NOTE

ENGLISH

OPERATING THE MONITOR 19

 In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and

G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain,

set the refresh rate of computer to low (60Hz) and repeat steps from C again.

 Adjust the H.Position after the Phase adjustment if the horizontal position moves

during the adjustment.

G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.

NOTE

H Adjust the Brightness and Color to get the desired picture after you complete the Clock and

Phase adjustments.

Put back your favorite wallpaper.

ENGLISH

20 OPERATING THE MONITOR



Even when using the power management mode, the monitor consumes electricity. Turn off

the Power Switch whenever the monitor is not in use, during the night and weekends, to

avoid unnecessary power consumption.



It is possible that the video signal from the computer may be on while the H or V sync

signal is missing. In this instance, the POWER MANAGEMENT feature may not work

properly.

POWER MANAGEMENT FEATURE



Power Management Mode

When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor

enters into Power Management Mode which reduces the power consumption to less than 0.5W. The

screen becomes dark, and the power indicator turns to orange. From Power Management Mode,

the image reappears in several seconds when either the keyboard or the mouse are touched again.

The power management feature of this product complies with power saving requirement of ENERGY

STAR® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of

the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There

is a power management step the monitor takes as described below. The power management function,

including any timer settings is configured by the operating system. Check your operating system

manual for information on how this can be confi gured.

0 0.5W 100%

POWER

CONSUMPTION

Blue

Orange

Power Indicator

NORMAL MODE

POWER MANAGEMENT MODE

NOTE

ENGLISH

TROUBLE SHOOTING 21

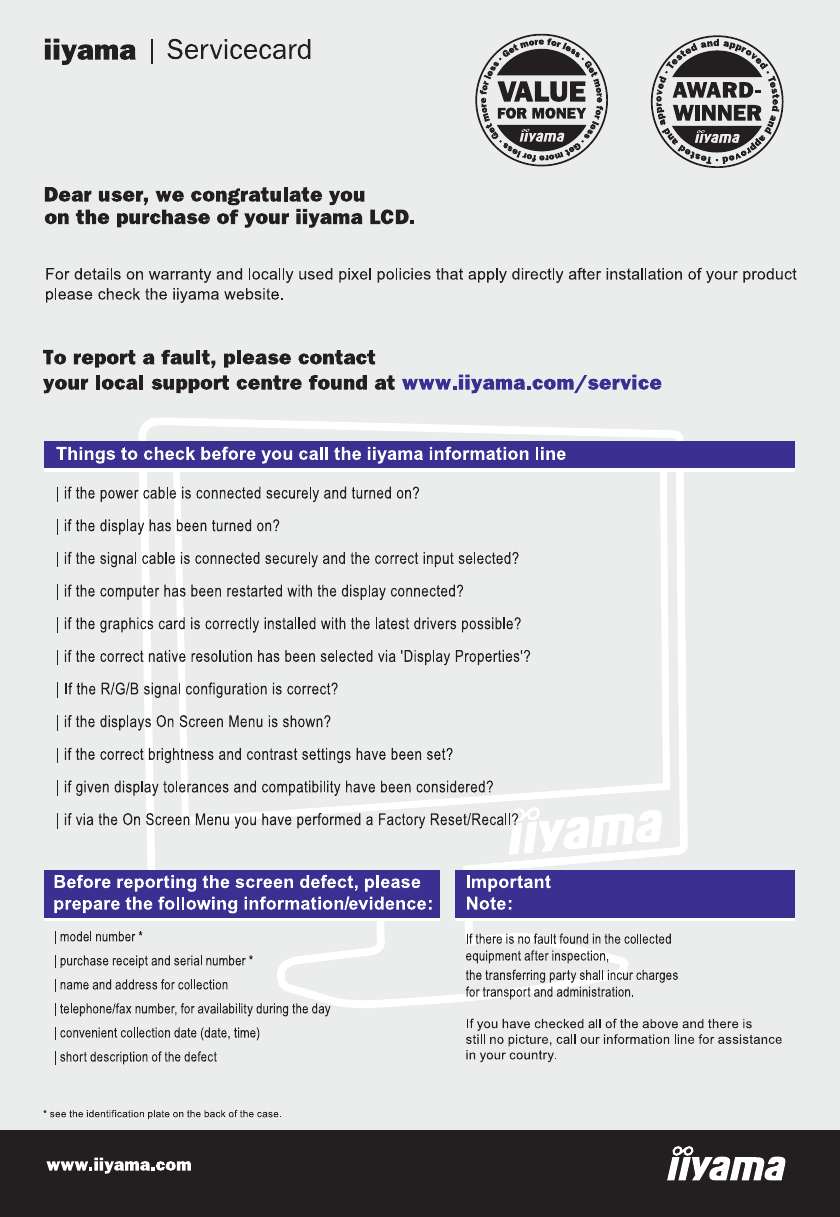

TROUBLE SHOOTING

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you

have. If the monitor does not get a picture, skip to 2.

2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE

MONITOR or if the problem persists.

3. If you are experiencing a problem which is not described below or you cannot correct the problem,

discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

(Power indicator

is orange.)

The screen is not

synchronized.

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

(Power indicator

is blue.)

The picture does

not appear.

(Power indicator

does not light up.)



The Power Cable is fi rmly seated in the socket.



The Power Switch is turned ON.



The Main Power Switch is turned ON.



The AC socket is live. Please check with another piece of equipment.



If the blank screen saver is in active mode, touch the keyboard or the mouse.



Increase the Contrast and/or Brightness.



The computer is ON.



The Signal Cable is properly connected.



The signal timing of the computer is within the specifi cation of the monitor.



If the monitor is in power management mode, touch the keyboard or the mouse.



The computer is ON.



The Signal Cable is properly connected.



The signal timing of the computer is within the specifi cation of the monitor.



The Signal Cable is properly connected.



The signal timing of the computer is within the specifi cation of the monitor.



The video output level of the computer is within the specifi cation of the monitor.



The signal timing of the computer is within the specifi cation of the monitor.



The video output level of the computer is within the specification of the

monitor.



The power voltage is within the specifi cation of the monitor.



The signal timing of the computer is within the specifi cation of the monitor.

The screen

position is not in

the center.

The screen is too

bright or too dark.

The screen is

shaking.

ENGLISH

22 TROUBLE SHOOTING / RECYCLING INFORMATION

No sound. 

The audio equipment (computer etc.) is ON.



The Audio Cable is properly connected.



The Volume is turned up.



The Mute is OFF.



The audio output level of the audio equipment is within the specifi cation

of the monitor.



The audio output level of the audio equipment is within the specifi cation

of the monitor.



The Audio Cable is properly connected.

The sound is too

loud or too quiet.

A strange noise is

heard.

For better environment protection please don't dispose your monitor.

Please visit our web site: www.iiyama.com/recycle for monitor recycling.

RECYCLING INFORMATION

Problem Check

ENGLISH

APPENDIX 23

SPECIFICATIONS

APPENDIX

Design and specifi cations are subject to change without prior notice.

* Audio equipment is not connected.

LCD Panel Panel technology TN

0.2715mm H × 0.2715mm V

Response time

Pixel pitch

5ms (Black, White, Black), 2ms (Gray to Gray)

Display Colors Approx.16.7M

Sync Frequency Analog: Horizontal: 24.0-82.0kHz, Vertical: 55-76Hz

Digital: Horizontal: 30.0-82.0kHz, Vertical: 55-76Hz

Maximum Resolution 1920 × 1080, 2.1 MegaPixels

Input Connector D-Sub mini 15 pin, DVI-D 24 pin,HDMI

Input Sync Signal Separate sync: TTL, Positive or Negative

Plug & Play VESA DDC2BTM

22W typical, Power management mode: 0.5W maximumPower Consumption*

Dimensions / Net Weight 556.0 × 418.0 × 218.5mm / 21.9 × 16.5 × 8.6" (W×H×D)

4.3kg / 9.5lbs

Upward: 20 degrees

Viewable angle Right / Left : 85 degrees each, Up / Down: 80 degrees each (Typical)

Maximum Screen Size 521.3mm W × 293.2mm H / 20.51" W × 11.54" H

Power Source 100-240VAC, 50/60Hz, 1.8A

Environmental

Considerations

Approvals CE, TÜV-Bauart, VCCI-B, PSE, CU, ENERGY STAR®

Tilt Angle

Brightness

Contrast ratio

300cd/m2 (Typical)

1000 : 1 (Typical), ACR Function Available

Analog: 0.7Vp-p (Standard), 75Positive

Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance

Digital: HDMI

Input Video Signal

Input Audio Signal 1.0Vrms maximum

Speakers 2W × 2 (Stereo speakers)

Input Audio Connector ø 3.5mm mini jack (Stereo)

Operating:

Storage:

5 to 35°C / 41 to 95°F

10 to 80% (No condensation)

-20 to 60°C / -4 to 140°F

5 to 85% (No condensation)

Temperature

Humidity

Temperature

Humidity

Size Category 24"

Diagonal: 23.6" (60cm)Size

Headphone Connector ø 3.5mm mini jack (Stereo)

NOTE

ENGLISH

24 APPENDIX

DIMENSIONS

347.0mm/13.7”

295.0mm/11.6”

523.0mm/20.6”

556.0mm/21.9”

290.5mm/11.4”

418.0mm/16.5”

218.5mm/8.6”

48.5mm/1.9”

M069A22

COMPLIANT TIMING

Dot Clock

25.175MHz

31.500MHz

31.500MHz

36.000MHz

40.000MHz

49.500MHz

65.000MHz

75.000MHz

78.750MHz

108.000MHz

135.000MHz

106.500MHz

136.750MHz

146.250MHz

138.500MHz

21.053MHz

Vertical

Frequency

59.940Hz

75.000Hz

72.809Hz

56.250Hz

60.317Hz

75.000Hz

60.004Hz

70.069Hz

75.029Hz

60.020Hz

75.025Hz

59.887Hz

74.984Hz

60.000Hz

59.930Hz

56.424Hz

VESA

SVGA

VGA

XGA 1024 × 768

640 × 480

800 × 600

Horizontal

Frequency

31.469kHz

37.500kHz

37.861kHz

35.156kHz

37.879kHz

46.875kHz

48.363kHz

56.476kHz

60.023kHz

63.981kHz

79.976kHz

55.935kHz

70.635kHz

65.290kHz

66.590kHz

24.827kHz

Video Mode

SXGA 1280 × 1024

* Digital input is not compliant.

*

PC9801 640 × 400

WXGA+ 1440 × 900

WSXGA+ 1680 × 1050

Full HD 1920 × 1080

NOTE
