30" (76.2 CM) WALL-MOUNT
CANOPY RANGE HOOD
Installation Instructions and Use & Care Guide
For questions about features, operation/performance, parts, accessories or service, call: 1-866-644-2449.
In Canada, for assistance, installation and service, call: 1-866-664-2449.
CAMPANA DE COCINA CON ESCUDETE DE
MONTAJE EN LA PARED, DE 30" (76,2 CM)
Instrucciones de instalación y Manual de uso y cuidado
Pour des questions à propos des caractéristiques, du fonctionnement/rendement, des pièces, des accessoires
ou du service, composez le :1-866-644-2449.
Au Canada, pour assistance, installation ou service, composez le : 1-866-664-2449.
HOTTE DE CUISINIÈRE À MONTAGE
MURAL DE 30" (76,2 CM)
Instructions d’installation et Guide d’utilisation et d’entretien
Si tiene preguntas respecto a las características, funcionamiento, rendimiento, partes, accesorios
o servicio técnico, llame al: 1-866-644-2449.
En Canadá, para obtener asistencia, instalación y servicio, llame al: 1-866-664-2449.
Table of Contents/Índice/Table des matières ...........................2
LIB0119766A/W10836384B
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONL
Y.
IMPOR
TANTE: LEA Y GUARDE ESTAS INSTRUCCIONES.
SÓLO P
ARA USO RESIDENCIAL.
IMPOR
TANT : LIRE ET CONSERVER CES INSTRUCTIONS.
POUR UTILISA
TION RÉSIDENTIELLE UNIQUEMENT
.
For warranty concerns, do not take the appliance back to the store. Please contact us in U.S.A. or Canada at 1-866-664-2449.
This product features a Limited Warranty - See the “Warranty” section for complete details. IKEA® appliances carry a 5-year warranty
(excludes LAGAN family - see warranty for coverage details).
NOTE: Proof of Purchase is required to obtain warranty service.
Si tiene dudas acerca de la garantía, no devuelva el aparato a la tienda. Póngase en contacto con nosotros en los EE.UU.
o en Canadá al 1-866-664-2449.
Este producto tiene una garantía limitada - Consulte la sección “Garantía” para obtener todos los detalles. Los aparatos IKEA® tienen
una garantía de 5 años (excluyendo los de la familia LAGAN - consulte la garantía para ver los detalles acerca de la cobertura).
NOTA: Se requiere la prueba de compra para obtener servicio bajo la garantía.
Pour toute question concernant l’application de la garantie, ne pas rapporter l’appareil au magasin. Veuillez nous contacter
aux É.-U. ou au Canada au 1-866-664-2449.
Ce produit est couvert par une garantie limitée – Voir la section “Garantie” pour des détails complets. Les appareils IKEA®
sont couverts par une garantie de 5 ans (hormis les appareils de la série LAGAN - voir la garantie pour des détails concernant
les modalités de garantie).
REMARQUE : Une preuve d’achat est obligatoire pour obtenir l’application de la garantie.
2
TABLE OF CONTENTS
ÍNDICE
TABLE DES MATIÈRES
RANGE HOOD SAFETY .................................................................3
INSTALLATION REQUIREMENTS .................................................5
Tools and Parts ............................................................................. 5
Location Requirements ................................................................5
Venting Requirements ..................................................................6
Electrical Requirements ...............................................................7
INSTALLATION INSTRUCTIONS ...................................................8
Prepare Location ..........................................................................8
Install Range Hood ....................................................................... 9
Connect Vent System ..................................................................9
Make Electrical Connection .......................................................10
Install Vent Covers ......................................................................11
Complete Installation .................................................................11
RANGE HOOD USE ......................................................................11
Range Hood Controls ................................................................11
RANGE HOOD CARE ...................................................................12
Cleaning .....................................................................................12

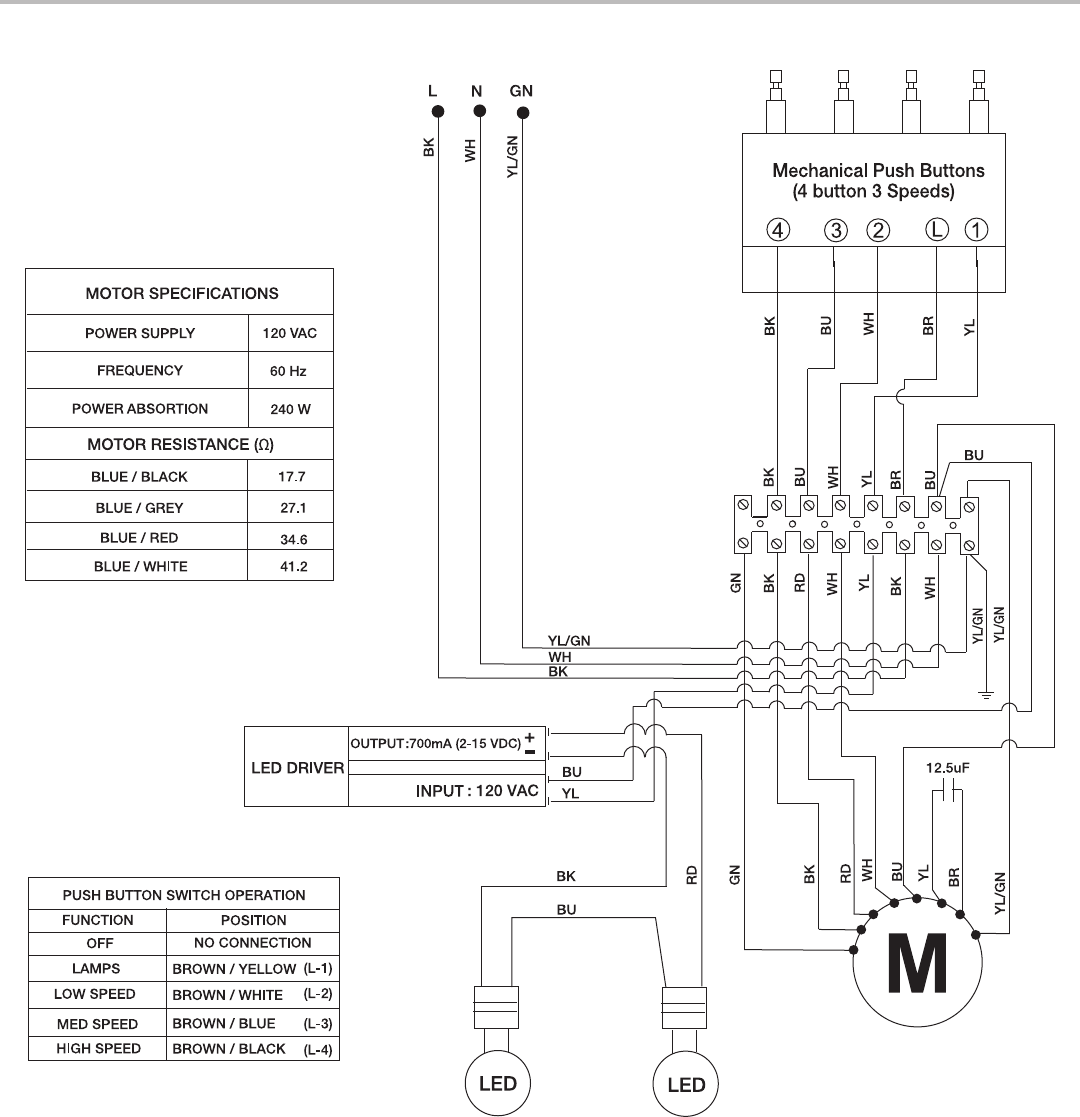

WIRING DIAGRAM .......................................................................13
ASSISTANCE OR SERVICE .........................................................14
In the U.S.A. ...............................................................................14
In Canada ...................................................................................14
Accessories ................................................................................14
WARRANTY ..................................................................................15
SEGURIDAD DE LA CAMPANA PARA COCINA ........................ 17
REQUISITOS DE INSTALACIÓN .................................................19
Herramientas y piezas ................................................................19
Requisitos de ubicación .............................................................19
Requisitos de ventilación ...........................................................20
Requisitos eléctricos ..................................................................22
INSTRUCCIONES DE INSTALACIÓN .........................................23
Prepare la ubicación ..................................................................23
Instalación de la campana para cocina .....................................24
Conexión del suministro eléctrico ..............................................25
Instalación de las cubiertas del ducto de escape .....................26
Completar la instalación ............................................................26
USO DE LA CAMPANA DE COCINA ..........................................27
Controles de la campana para cocina .......................................27
CUIDADO DE LA CAMPANA DE COCINA .................................28
Limpieza ....................................................................................28
DIAGRAMA DE CABLEADO ........................................................29
AYUDA O SERVICIO TÉCNICO ...................................................30
En los EE.UU. .............................................................................30
En Canadá ..................................................................................30
Accesorios ..................................................................................30
GARANTÍA.....................................................................................31
UTILISATION DE LA HOTTE .......................................................42
Commandes de la hotte de cuisinière .......................................42
ENTRETIEN DE LA HOTTE .........................................................43
Nettoyage ...................................................................................43
SCHÉMA DE CÂBLAGE ...............................................................44
ASSISTANCE OU SERVICE .........................................................45
Aux É.-U. ....................................................................................45
Au Canada ..................................................................................45
Accessoires ................................................................................45
GARANTIE .....................................................................................46
SÉCURITÉ DE LA HOTTE DE CUISINIÈRE ...............................33
EXIGENCES D’INSTALLATION ...................................................35
Outils et pièces ...........................................................................35
Exigences d’emplacement .........................................................35
Exigences concernant l’évacuation ...........................................36
Spécifications électriques ..........................................................37
INSTRUCTIONS D’INSTALLATION .............................................38
Préparation de l’emplacement ...................................................38
Installation de la hotte ................................................................39
Raccordement du circuit d’évacuation ......................................40
Raccordement électrique ...........................................................41
Installation des cache-conduits .................................................41
Achever l’installation ..................................................................42
3
RANGE HOOD SAFETY

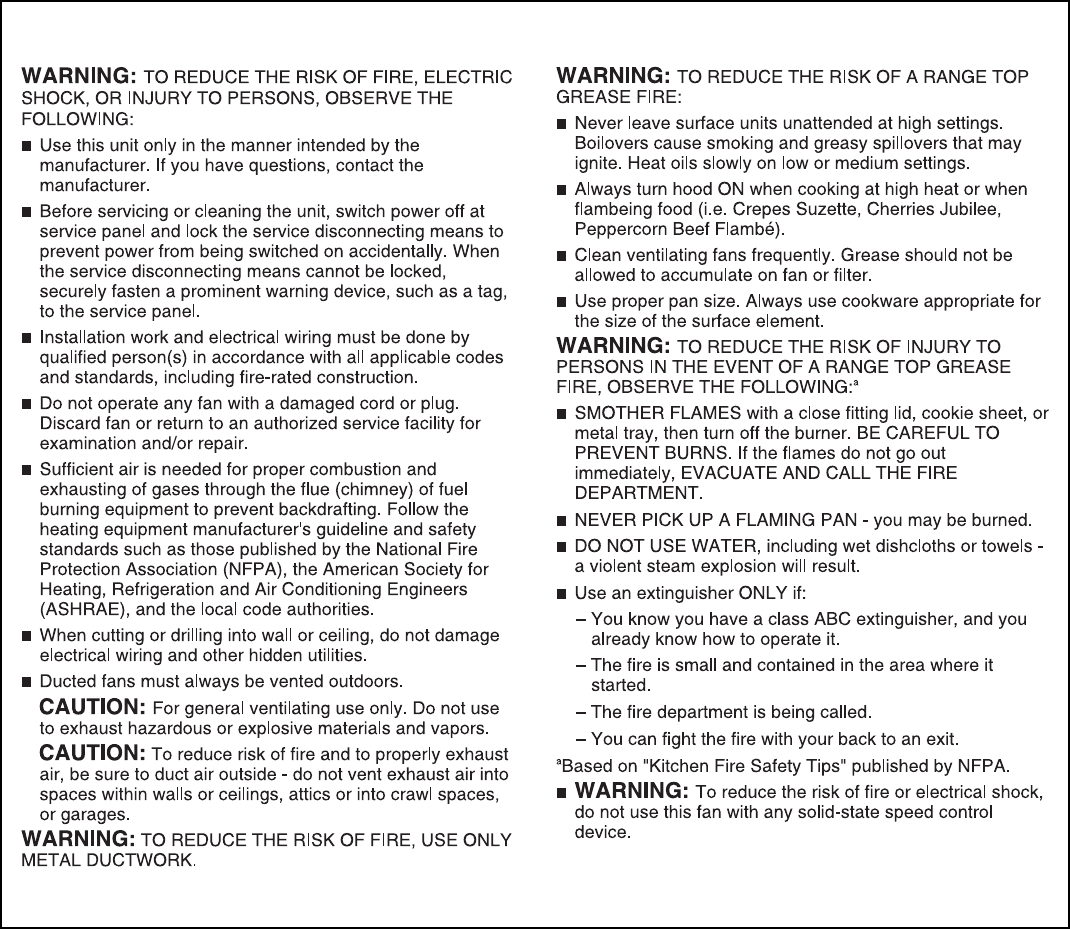

You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
4
IMPORTA NT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
5
INSTALLATION REQUIREMENTS

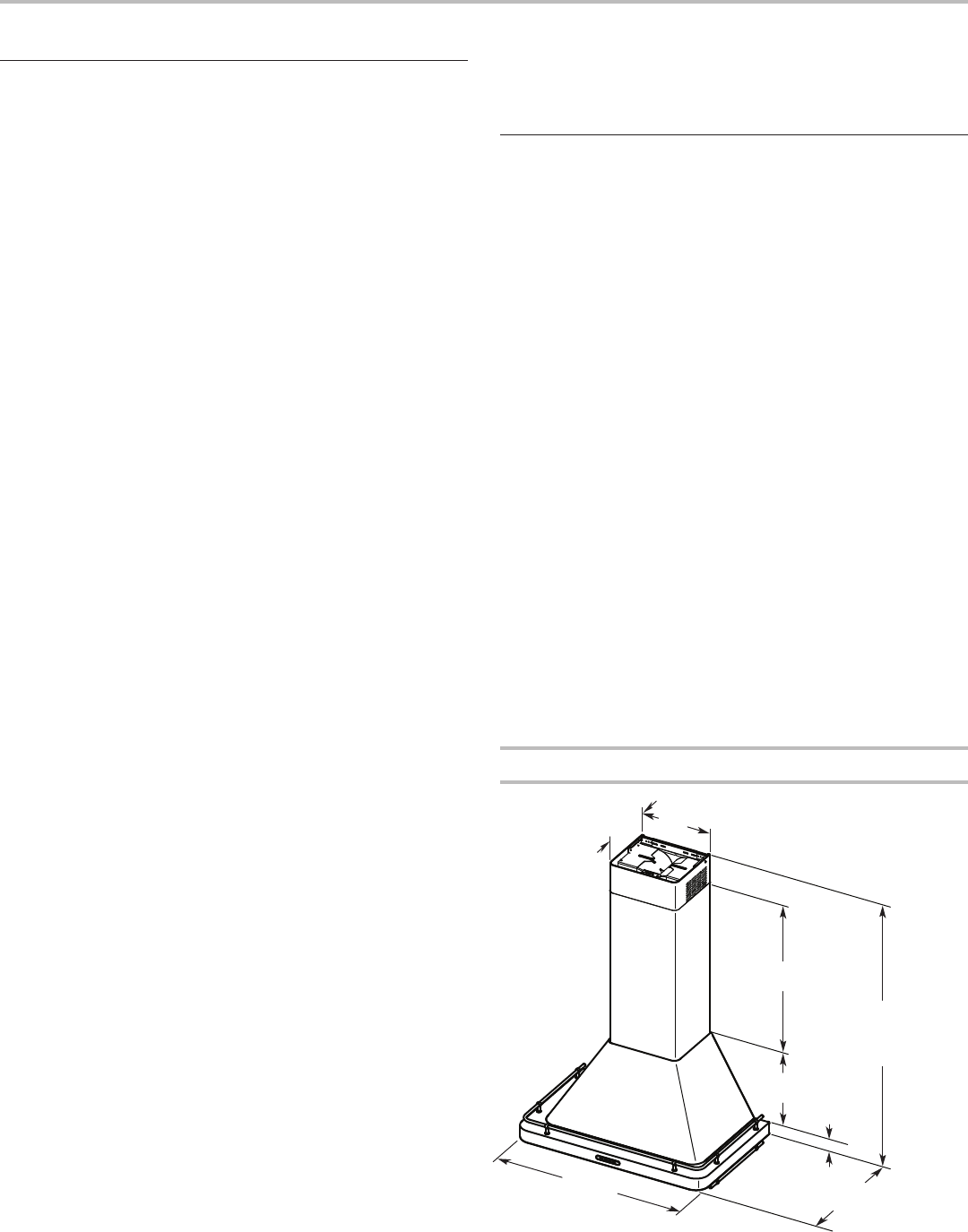

Tools and Parts
Gather the required tools and parts before starting
installation. Read and follow the instructions provided
with any tools listed here.
Tools Needed
Level
Drill with 11/4" (3.0 cm), 3/8" (9.5 mm), 1/8" (4.8 mm),
and 7/64" (2.75 mm) drill bits
Pencil
Wire stripper or utility knife
Tape measure or ruler
Pliers
Caulking gun and weatherproof caulking compound
Vent clamps
Jigsaw or keyhole saw
Flat-blade screwdriver
Metal snips
Phillips screwdriver
Metric hex key set
Parts Needed
Home power supply cable
1/2" (12.7 mm) UL listed or CSA approved strain relief
3 UL listed wire connectors
For Vented Installations, You Will Also Need:
1 wall or roof cap
Metal vent system
For Non-Vented (Recirculating) Installations,
You Will Also Need:
Charcoal Filter Kit Part Number W10412939 for non-vented
(recirculating) installations only. See the “Assistance or
Service” section to order.
6" (15.2 cm) diameter round metal vent duct—
length required is determined by ceiling height.
Parts Supplied
Remove parts from packages. Check that all parts are included.
Hood canopy assembly with ventilator and LED lights
installed
Vent transition with back draft dampers installed
Metal grease filter(s)
Vent cover support bracket
Mounting template
Air deflector with extensions (for non-vented installations)
2-piece vent cover
2 - 2.9 x 6.5 mm screws (T10 drive)
6 - 3.5 x 6.5 mm screws (T10 drive )
2 - 3.5 x 9.5 mm screws (Phillips)
4 - 4.2 x 8 mm screw (T20®† drive)
6 - 5 x 45 mm mounting screws (#2 Phillips drive)
6 - 8 x 40 mm wall anchors (masonry)
2 - Flat washers
T10 Torx®† adapter
T20® Torx® adapter

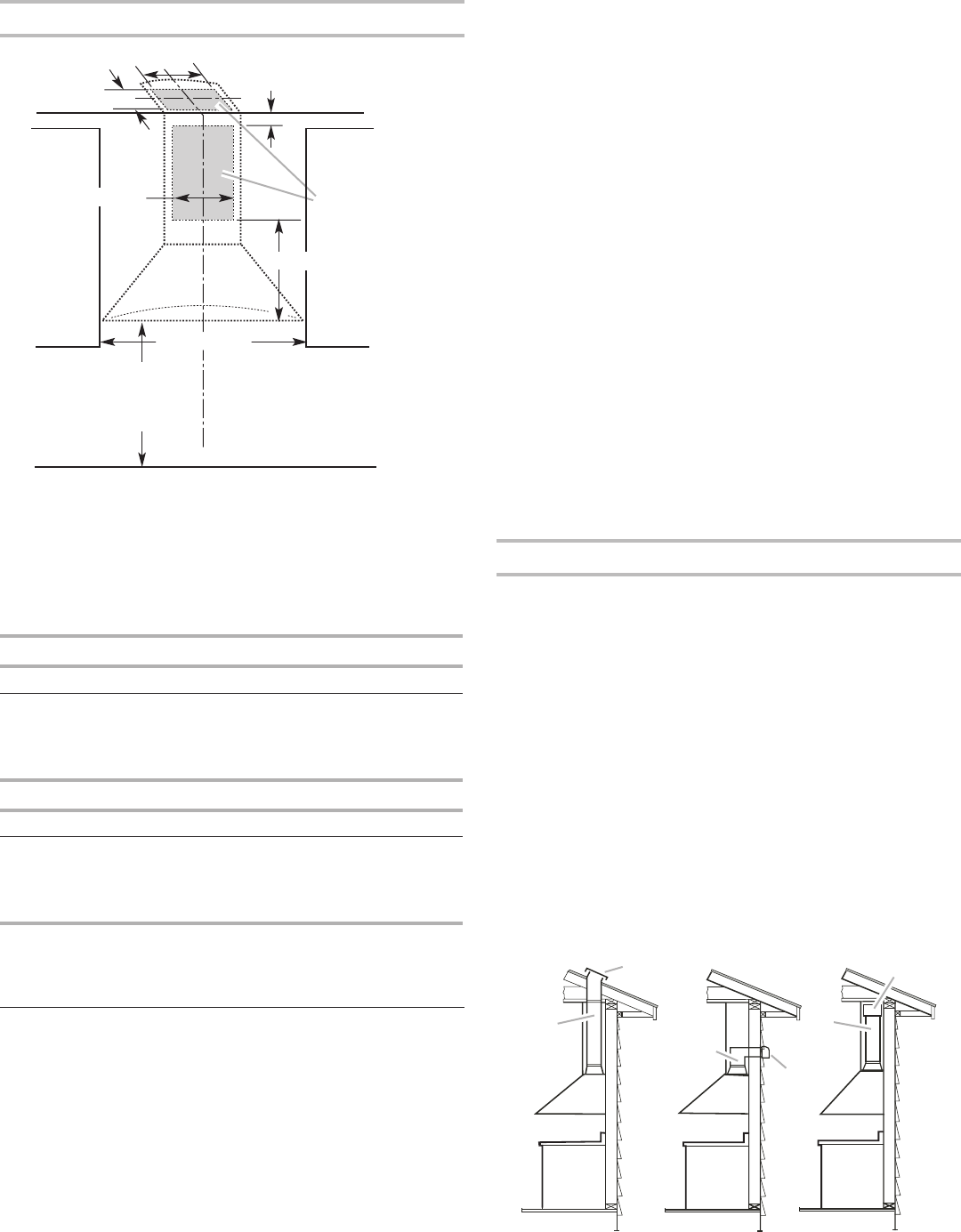

Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
Have a qualified technician install the range hood. It is the
installer’s responsibility to comply with installation clearances
specified on the model/serial/rating plate. The model/serial/
rating plate is located behind the left filter on the rear wall
of the vent hood.
Canopy hood location should be away from strong draft areas,
such as windows, doors, and strong heating vents.
Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance.
This range hood is recommended for use with cooktops
with a maximum total rating of 60,000 BTUs or less.
Grounded electrical outlet is required. See “Electrical
Requirements” section.
The canopy hood is factory set for venting through the roof or wall.
For non-vented (recirculating) Installation, see “For
Non-vented (recirculating) Installation Only” in “Connect Vent
System” section. Charcoal Filter Kit Part Number W10412939
is available from your dealer or an authorized parts distributor.
All openings in ceiling and wall where canopy hood will
be installed must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD, Part 280)
or when such standard is not applicable, the standard for
Manufactured Home Installation 1982 (Manufactured Home
Sites, Communities and Setups) ANSI A225.1/NFPA 501A
or latest edition, or with local codes.
Product Dimensions
93/8"
(238 mm)
187/8"
(480 mm)
113/4"
(298 mm)
*321/8" (816 mm) min.
**313/8" (797 mm) min.
*451/8" (1146 mm) max.
**41" (1041 mm) max.
2"
(51 mm)
4"
(356 mm)
30"
(762 mm)
107/8"
(276 mm)
* For non-vented (recirculating) installations only
** For vented installations only
®TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.
6
Cabinet Dimensions
* For non-vented (recirculating) installations
IMPORTANT:
Minimum distance “X”: 24" (61 cm) from electric cooking
surface, 27" (68.6 cm) from gas cooking surface
Suggested maximum distance “X”: 36" (91.4 cm)
The chimneys can be adjusted for different ceiling heights.
See the following chart.
Vented Installations
Min. ceiling height Max. ceiling height
Electric cooking
surface 7' 7" (2.31 m) 9' 5" (2.87 m)
Gas cooking
surface 7' 11" (2.41 m) 9' 5" (2.87 m)
Non-Vented (Recirculating) Installations
Min. ceiling height Max. ceiling height
Electric cooking
surface 7' 8" (2.34 m) 9' 8" (2.95 m)
Gas cooking
surface 7' 11" (2.41 m) 9' 8" (2.95 m)
NOTE: The range hood chimneys are adjustable and designed to
meet varying ceiling or soffit heights, depending on the distance
“X” between the bottom of the range hood and the cooking
surface.
Venting Requirements
Vent system must terminate to the outdoors except
for non-vented (recirculating) installations.
Do not terminate the vent system in an attic or other
enclosed area.
Do not use 4" (10.2 cm) laundry-type wall cap.
Use metal vent only. Rigid metal vent is recommended.
Plastic or metal foil vent is not recommended.
The length of vent system and number of elbows should
be kept to a minimum to provide efficient performance.
For the Most Efficient and Quiet Operation:
Use no more than three 90° elbows.
Make sure there is a minimum of 24" (61 cm) of straight
vent between the elbows if more than 1 elbow is used.
Do not install 2 elbows together.
Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall
cap has a damper, do not use the damper supplied with the
range hood.
Use caulking to seal exterior wall or roof opening
around the cap.
The size of the vent should be uniform.
Cold Weather Installations
An additional backdraft damper should be installed to minimize
backward cold air flow and a thermal break should be installed
to minimize conduction of outside temperatures as part of the
vent system. The damper should be on the cold air side of the
thermal break.
The break should be as close as possible to where the vent
system enters the heated portion of the house.
Makeup Air
Local building codes may require the use of makeup air systems
when using ventilation systems greater than specified CFM of
air movement. The specified CFM varies from locale to locale.
Consult your HVAC professional for specific requirements in
your area.
Venting Methods
This canopy hood is factory set for venting through the roof
or wall.
A 6" (15.2 cm) round vent system is needed for installation
(not included). The hood exhaust opening is 6" (15.2 cm) round.
NOTE: Flexible vent is not recommended. Flexible vent
creates back pressure and air turbulence that greatly
reduce performance.
Vent system can terminate either through the roof or wall.
To vent through a wall, a 90° elbow is needed.
Rear discharge
A 90° elbow may be installed immediately above the hood.
For Non-Vented (Recirculating) Installations
If it is not possible to vent cooking fumes and vapors to the
outside, the hood can be used in the non-vented (recirculating)
version, fitting a charcoal filter and the deflector. Fumes and
vapors are recycled through the top grille. To order, see the
“Assistance or Service” section.
Centerline
Side
cabinet Side
cabinet
Vent and power
supply cable
entry location
Cooking surface
“X”
bottom of
canopy
to cooking
surface
65/8" (168 mm)
71/4" (184 mm)
73/8" (187 mm)
15" (381 mm)
30" (762 mm)30" (762 mm)
2" (51 mm) min.
6" (152 mm) min.*
Non-Vented
(Recirculating)
Roof Venting
A

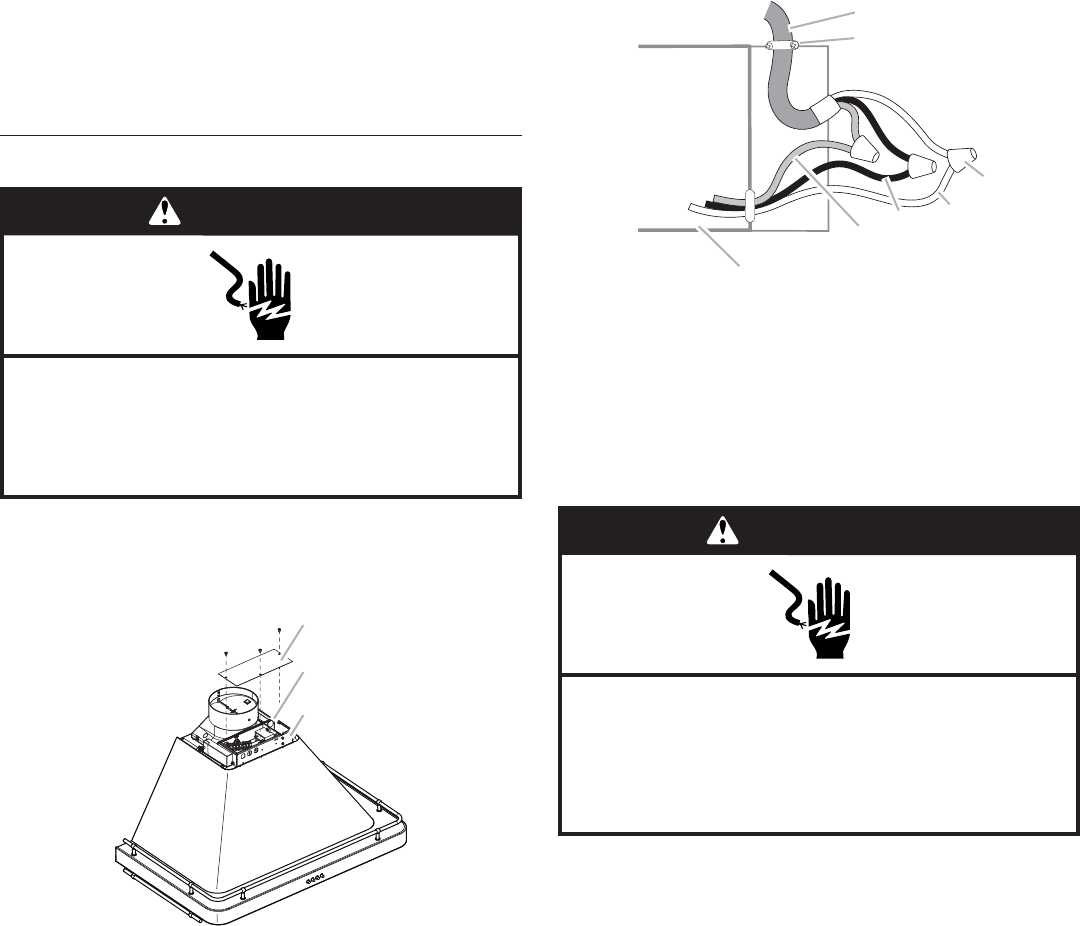

A
B
B
B
A
A. Roof cap
B. 6" (15.2 cm)
round vent
A. Wall cap
B. 6" (15.2 cm)
round vent
Wall Venting

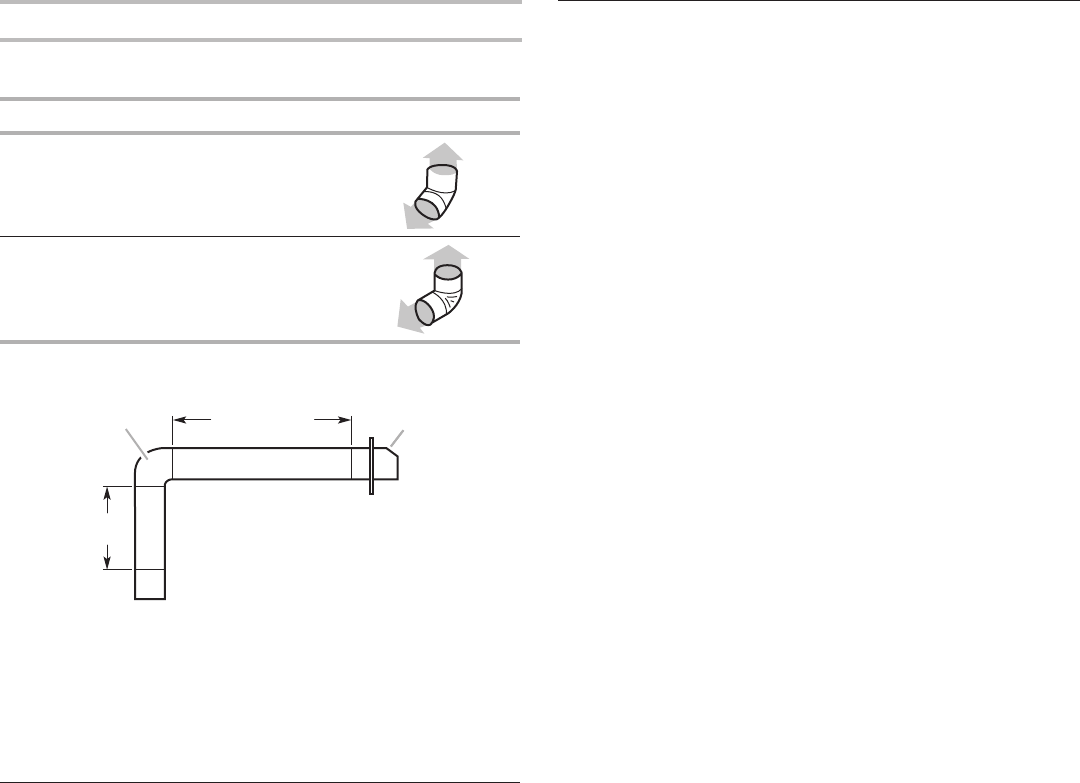

Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the system.
Vent Piece 6" (15.2 cm) Round
45° elbow 2.5 ft (0.8 m)
90° elbow 5 ft (1.5 m)
Maximum equivalent vent length is 35 ft (10.7 m).
Example Vent System
The following example falls within the maximum
recommended vent length of 35 ft (10.7 m).
1 - 90° elbow = 5 ft (1.5 m)
1 - wall cap = 0 ft (0 m)
8 ft (2.4 m) straight = 8 ft (2.4 m)
Length of system = 13 ft (3.9 m)
A. Deflector
B. 6" (15.2 cm)
round vent
6 ft (1.8 m)
2 ft
(0.6 m)
90° elbow Wall cap
7
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the system.
Vent Piece 6" (15.2 cm) Round
45° elbow 2.5 ft (0.8 m)
90° elbow 5 ft (1.5 m)
Maximum equivalent vent length is 35 ft (10.7 m).
Example Vent System
The following example falls within the maximum
recommended vent length of 35 ft (10.7 m).
1 - 90° elbow = 5 ft (1.5 m)
1 - wall cap = 0 ft (0 m)
8 ft (2.4 m) straight = 8 ft (2.4 m)
Length of system = 13 ft (3.9 m)
Electrical Requirements
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 (latest edition), or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition)
and all local codes and ordinances.
If codes permit and a separate ground wire is used,
it is recommended that a qualified electrician determine
that the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
A 120-volt, 60 Hz, AC-only, 15-amp, fused electrical
circuit is required.
If the house has aluminum wiring, follow the
procedure below:
1. Connect a section of solid copper wire to the
pigtail leads.
2. Connect the aluminum wiring to the added section
of copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended
procedure. Aluminum/copper connection must conform with
local codes and industry-accepted wiring practices.
Wire sizes and connections must conform with the rating of
the appliance as specified on the model/serial/rating plate.
The model/serial/rating plate is located behind the left filter
on the rear wall of the range hood.
Wire sizes must conform to the requirements of the National
Electrical Code, ANSI/NFPA 70 (latest edition) or CSA
Standards C22. 1-94, Canadian Electrical Code, Part 1
and C22.2 No. 0-M91 (latest edition) and all local codes
and ordinances.
A. Deflector
B. 6" (15.2 cm)
round vent
6 ft (1.8 m)
2 ft
(0.6 m)
90° elbow Wall cap
8
INSTALLATION INSTRUCTIONS
Prepare Location
It is recommended that the vent system be installed
before the range hood is installed.
Before making cutouts, make sure there is proper
clearance within the ceiling for exhaust vent.
Check your ceiling height and the range hood height
maximum before you install your hood.
1. Disconnect power.
2. Determine which venting method to use: roof, wall,
or non-vented.
3. Select a flat surface for assembling the range hood.
Place covering over that surface. Place two 3" (7.6 cm)
high spacers (not included) onto the covered surface.
4. Using 2 or more people, lift range hood
onto covered surface.
5. Remove wood base from range hood and dispose
of properly.
Range Hood Mounting Screws Installation

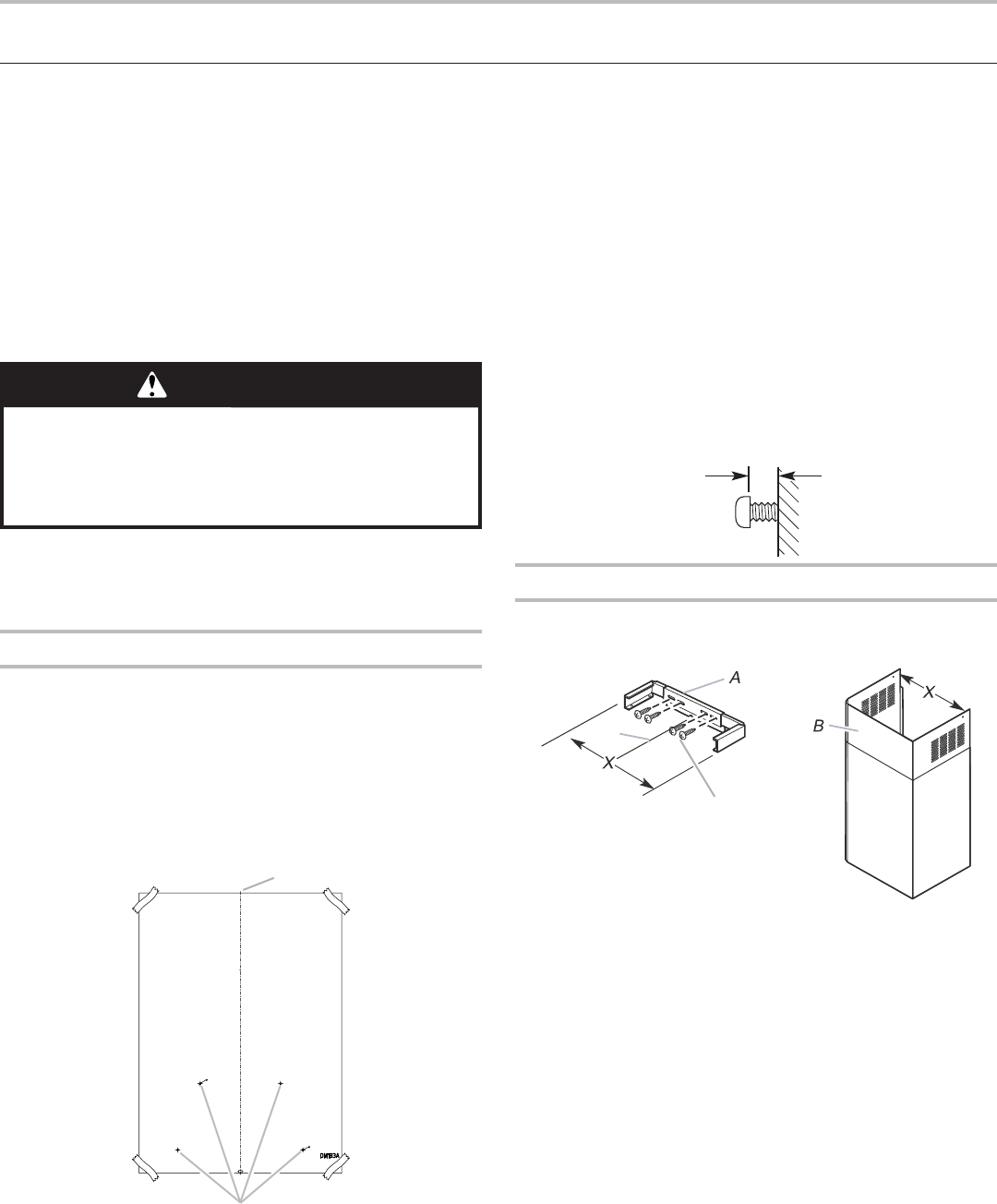

6. Determine and mark the centerline on the wall where the
canopy hood will be installed.
7. Select a mounting height between a minimum of 24"
(61.0 cm) for an electric cooking surface, a minimum of
27" (68.6 cm) for a gas cooking surface, and a suggested
maximum of 36" (91.4 cm) above the range to the bottom
of the hood. Mark a reference line on the wall.
8. Tape template in place, aligning the template centerline and
bottom of template with hood bottom line and with the
centerline marked on the wall.
9. Mark centers of the fastener locations through the template
to the wall.
IMPORTANT: All canopy mounting screws must be installed
into wood where possible. If there is no wood to screw into,
additional wood framing supports may be required, or use 4
- 8 x40 wall anchors and 5 x 45 mm screws.
Remove the template.
10. For wood, drill 3/16" (4.8 mm) pilot holes at all locations where
screws are being installed into wood.
For wall anchors, drill 3/8" (9.5 mm) holes at all locations
where wall anchors are being used.
11. For wood, install 2 - 5 x 45 mm mounting screws and leave a
1/4" gap between the wall and the back of the screw head to
slide range hood into place.
For wall anchors, install the 8 x 40 mm wall anchors and
install the 5 x 45 mm screws into the wall anchors. Tighten
until the wall anchors are secure. Back the screws out 1/4"
(6.4 mm).
Range Hood Mounting Screws Installation

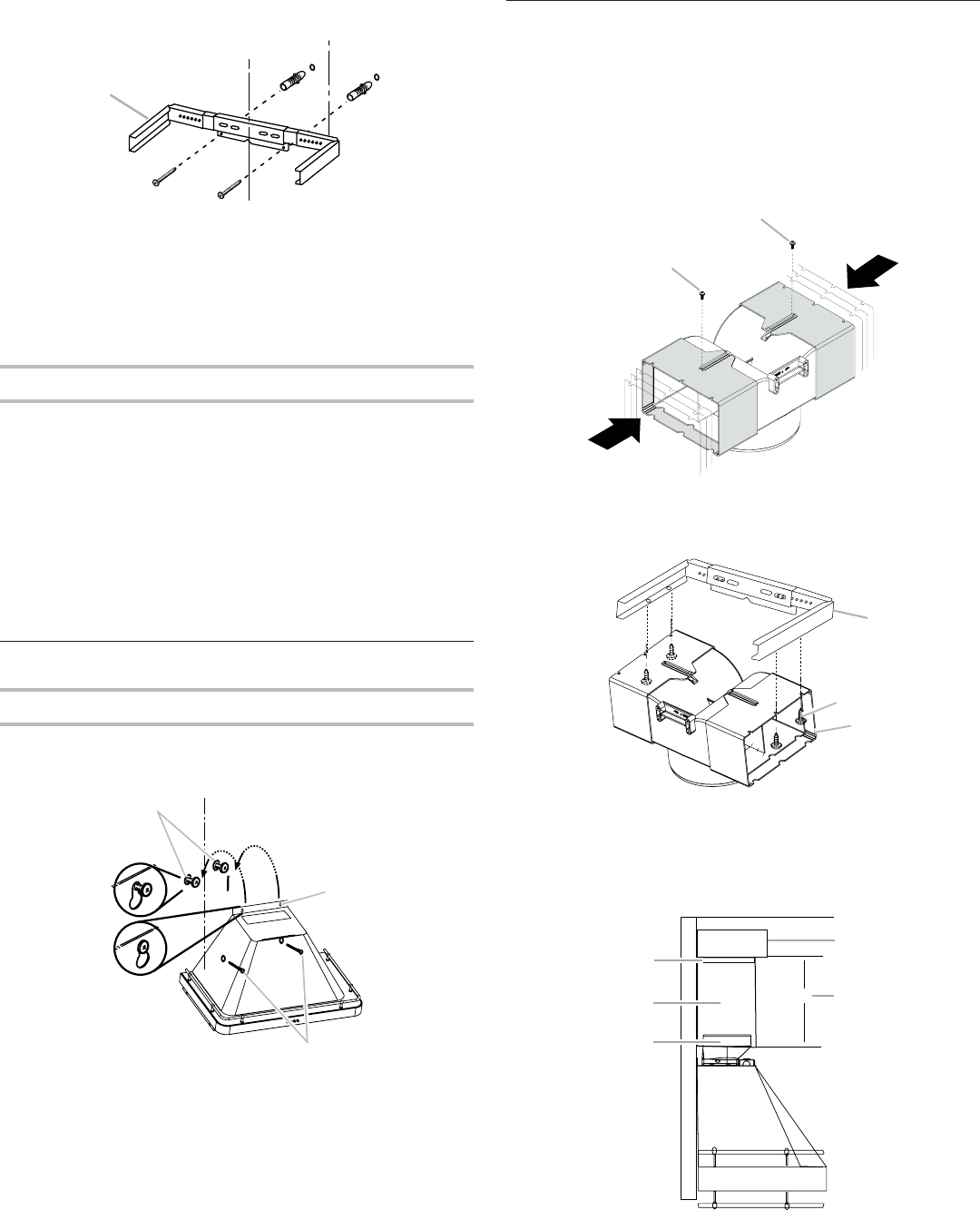

1. Assemble the 3 pieces of the vent cover bracket using
4 - 4.2 x 8 mm screws provided. The assembled bracket
should be sized to fit inside the upper vent cover.
2. Position vent cover bracket on wall about 1/8" (3.0 mm) away
from the ceiling.
3. Mark the hole locations.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
range hood.
Failure to do so can result in back or other injury.
A
B
A. Centerline
B. Fastener locations
¹⁄₄"
(6.4 mm)
C
D
A. Vent cover bracket assembly
B. Upper vent cover
C. 4.2 x 8 mm screws
D. Centerline
9
4. Drill 3/8" (9.5 mm) holes for wall anchors and insert anchors
flush with the wall.
5. Attach vent cover support bracket to wall.
Complete Preparation
1. Determine and make all necessary cuts in the wall for the
vent system. Install the vent system before installing the
hood. See the “Venting Requirements” section.
2. Determine the required height for the home power supply
cable and drill a 1¼" (3.2 cm) hole at this location.
3. Run the home power supply cable according to the National
Electrical Code or CSA Standards and local codes and
ordinances. There must be enough ½" conduit and wires
from the fused disconnect (or circuit breaker) box to make
the connection in the hood’s electrical terminal box.
NOTE: Do not reconnect power until installation is complete.
4. Use caulk to seal all openings.
Install Range Hood
Non-Vented (recirculating) Installation

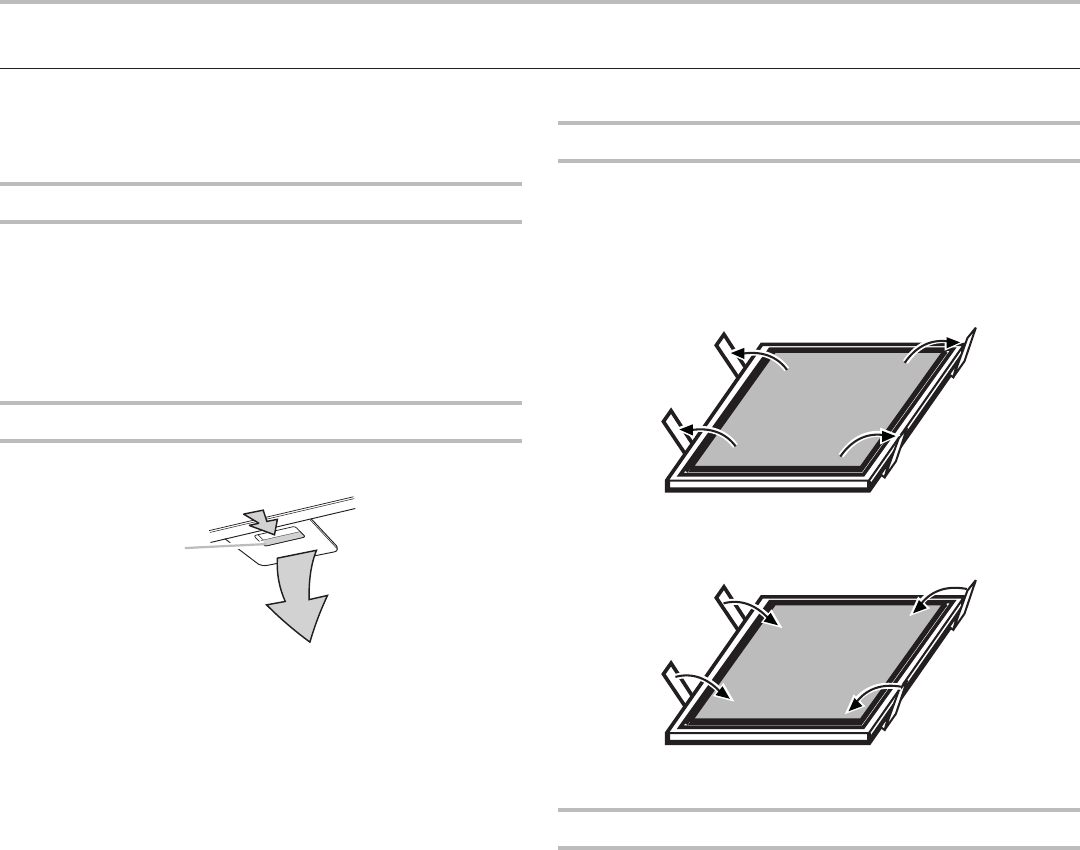

NOTE: Remove protective film from range hood and metal filters.
1. Using 2 or more people, hang range hood on 2 mounting
screws through the mounting slots on back of hood.
2. Remove the grease filter. See the “Range Hood Care”
section.
3. Level the range hood and tighten upper mounting screws.
4. Install 2 - 5 x 45 mm lower mounting screws with flat
washers and tighten.
Connect Vent System
For vented installations only:
1. Fit vent system over transition piece.
2. Seal connection with clamps.
3. Check that backdraft dampers work properly.
For non-vented (recirculating) installation only:
1. Assemble the air deflector with the 2 extensions with
2 - 3.5 x 6.5 mm screws provided.
2. Assemble the air deflector with the duct cover bracket with
4 - 3.5 x 6.5 mm screws provided.
3. Measure from the bottom of the air deflector to the bottom
of the hood outlet.
A
B
C
D
E
A. 8 x 40 mm drywall anchors
B. Centerline on wall
C. Vent cover support bracket
D. 5 x 45 mm screws
E. Centerline of bracket
A
B
C
A. Mounting screws
B. Mounting slots
C. Lower mounting screws with flat washers
A
A
A. 3.5 x 6.5 mm screws
A. Vent cover bracket
B. 3.5 x 6.5 mm screws
C. Air deflector
B
C
A
C
X
D
B
E

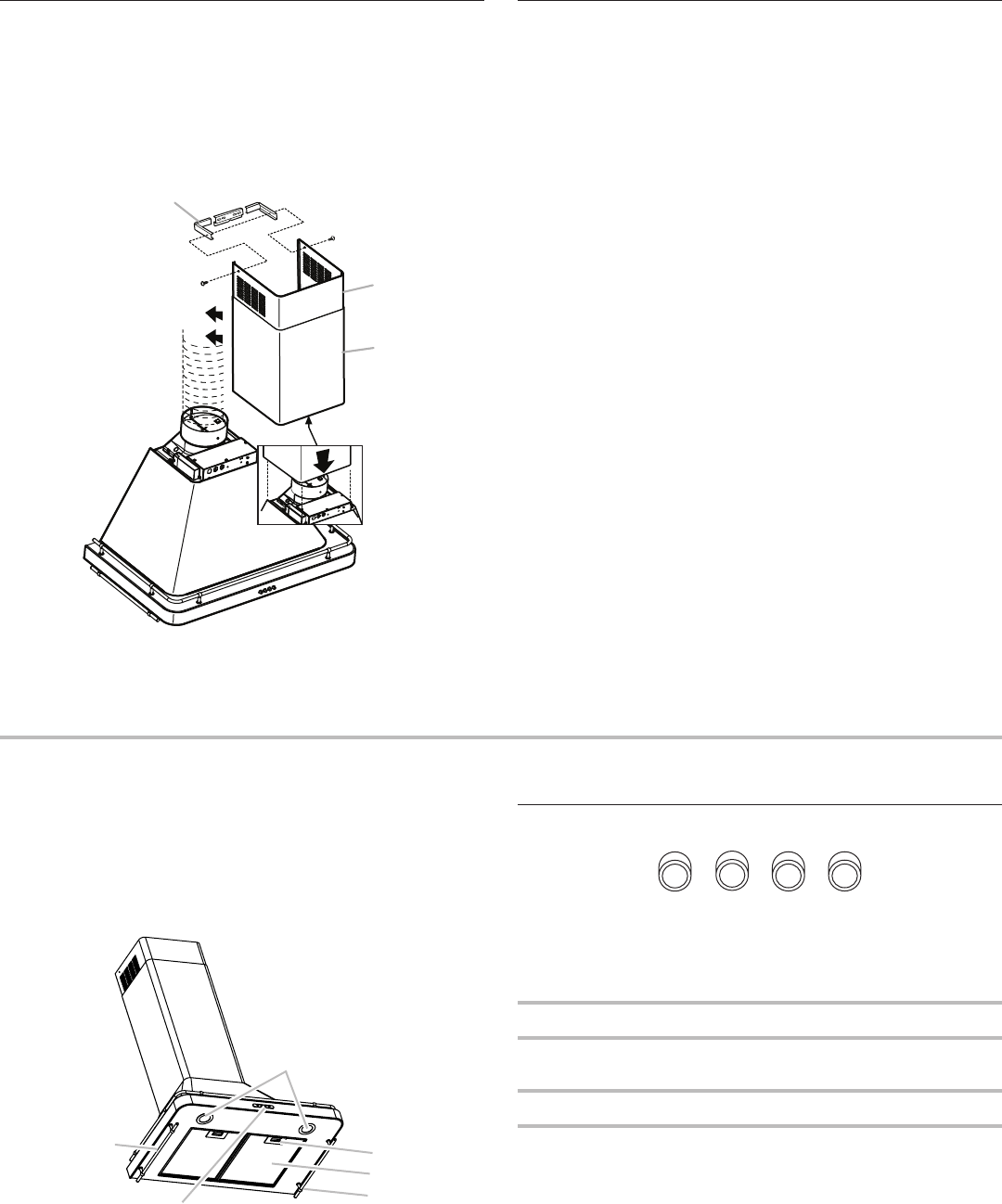

A. Air deflector
B. Vent clamp
C. X = length to cut vent duct
D. Vent duct
E. Exhaust outlet
10
4. Cut the duct to the measured size (X).
5. Remove the air deflector.
6. Slide the duct onto the bottom of the air deflector.
7. Place the assembled air deflector and duct over the exhaust
outlet from the hood.
8. Reassemble the air deflector to the duct cover bracket with
2 assembly screws.
9. Seal connections with vent clamps.
Make Electrical Connection
1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box and install
a UL listed or CSA approved 1/2" strain relief.
4. Run home power supply wiring through 1/2" strain relief into
terminal box.
5. Use UL listed wire connectors and connect white wires
(D) together.
6. Use UL listed wire connectors and connect black wires
(E) together.
7. Connect green (or bare) ground wire from home power
supply to the 2 yellow-green ground wires (F) in terminal box
using UL listed wire connectors.
8. Tighten strain relief screw.
9. Install terminal box cover.
10. Reconnect power.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
A
B
C
A. Terminal box
B. Knockout
C. Terminal box cover
A
B
C
D
E
F
G
A. Home power supply
B. UL listed or CSA
approved strain relief
C. UL listed wire connectors
D. White wires
E. Black wires
F. Green (or bare) and
yellow-green wires
G. Terminal box
WARNING
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal box.
Failure to do so can result in death or electrical shock.
11
Install Vent Covers
NOTE: Remove protective film from the vent covers.
1. When using both upper and lower vent covers, push lower
cover down onto hood and lift upper cover to ceiling and
install with 2 - 2.9 x 6.5 mm screws.
NOTE: For vented installations, the upper vent cover may
be reversed to hide slots.
Complete Installation
1. For non-vented (recirculating) installations only, install
charcoal filters over metal grease filter. See the “Range
Hood Care” section.
2. Install metal filters. See the “Range Hood Care” section.
3. Check the operation of the range hood blower and light.
See the “Range Hood Use” section.
NOTE: To get the most efficient use from your new range hood,
read the “Range Hood Use” section.
RANGE HOOD USE
The range hood is designed to remove smoke, cooking
vapors, and odors from the cooktop area. For best results,
start the hood before cooking and allow it to operate several
minutes after the cooking is complete to clear all smoke and
odors from the kitchen.
The hood controls are located on the front panel of the
range hood.
Range Hood Controls
Operating the light
The On/Off light button controls both lights. Press once
for On and again for Off.
Operating the blower
The Blower Speed buttons turn the blower on and control the
blower speed and sound level for quiet operation. The speed
can be changed anytime during fan operation by pressing the
desired Blower Speed button.
The Blower Off button turns the blower off.
C
C
D
A
B
A. Upper vent cover
B. Lower vent cover
C. 2.9 x 6.5 mm screws
D. Bracket
A
B
C
D
D
E
A. LED lights
B. Grease filter handle
C. Grease filter
D. Utensil hanging rails
E. Blower and light controls
A
B
CD
A. On/Off light button
B. Blower off and speed minimum button
C. Blower speed medium button
D. Blower speed maximum button
12
RANGE HOOD CARE
Cleaning
IMPORTANT: Clean the hood and grease filters frequently
according to the following instructions. Replace grease
filters before operating hood.
Exterior Surfaces
To avoid damage to the exterior surface, do not use steel wool
or soap-filled scouring pads.
Always wipe dry to avoid water marks.
Cleaning Method:
Liquid detergent soap and water or all-purpose cleanser
Wipe with damp soft cloth or nonabrasive sponge,
and then rinse with clean water and wipe dry.
Metal Grease Filter
1. Remove each filter by pulling the spring-release handle and
then pulling down the filter.
2. Wash metal filter as needed in dishwasher or hot
detergent solution.
3. Reinstall the filter by making sure the spring-release handles
are toward the front. Insert aluminum filter into upper track.
4. Push in spring-release handle.
5. Push up on metal filter and release handle to latch into place.
6. Repeat steps 1-5 for the other filter.
Non-Vented (recirculating) Installation Filters
The charcoal filter is not washable. It should last up to 6 months
with normal use. Replace with Charcoal Filter Kit. See the
“Assistance or Service” section for information on ordering.
To replace charcoal filter:
1. Remove metal grease filter from range hood.
See “Metal Grease Filter” in this section.
2. Bend spring clips away from metal grease filter.
3. Place charcoal filter into top side of metal filter.
4. Bend spring clips back into place to secure the
charcoal filter to the metal filter.
5. Replace metal grease filter. See “Metal Grease Filter”
in this section.
Replacing an LED Lamp
The LED lights are replaceable by a service technician only.
See the “Warranty” section for service contact information.
A
A. Spring-release handle
13
WIRING DIAGRAM
14
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check to see
whether a circuit breaker has tripped or a household fuse
has blown. It may save you the cost of a service call. If you
still need help, follow the instructions below.
When calling, please know the purchase date and the
complete model and serial number of your appliance. This
information will help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that
you use only factory specified parts. Factory specified parts
will fit right and work right because they are made with the
same precision used to build every new IKEA® appliance.
To locate factory specified parts in your area, call us
or your nearest designated service center.
In the U.S.A.
Call the Whirlpool Customer eXperience Center toll-free:
1-866-664-2449.
Our consultants provide assistance with:
Features and specifications on our full line of appliances.
Installation information.
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking,
hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors,
and service companies. Whirlpool designated service
technicians are trained to fulfill the product warranty
and provide after-warranty service anywhere in the
United States.
For further assistance:
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
IKEA Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
In Canada
Call the Whirlpool Canada Customer eXperience Centre toll-free:
1-866-664-2449.
Our consultants provide assistance with:
Features and specifications on our full line of appliances.
Use and maintenance procedures.
Accessory and repair parts sales.
Referrals to local dealers, repair parts distributors,
and service companies. Whirlpool Canada LP designated
service technicians are trained to fulfill the product warranty
and provide after-warranty service anywhere in Canada.
For further assistance:
If you need further assistance, you can write to Whirlpool
Canada with any questions or concerns at:
Customer eXperience Centre
Whirlpool Canada LP
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Accessories
Charcoal Filter Kit
(for non-vented installations only)
Order Part Number W10412939
15
IKEA MAJOR APPLIANCE WARRANTY
How long is the IKEA limited warranty valid?
This limited warranty is valid for five years from the date of purchase, when this major appliance is operated and maintained according
to instructions attached to or furnished with the product, unless the appliance is named LAGAN in which case this limited warranty is
valid for one year from the date of purchase. This limited warranty is valid only in the United States or Canada and applies only when
the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service
under this limited warranty.
Which appliances are not covered by the IKEA five (5) year limited warranty?
For major appliances named “LAGAN,” this limited warranty is valid for one year from the date of purchase.
Who will execute the service?
This limited warranty is provided by Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”). Service must be provided
by a Whirlpool designated service company.
What does this limited warranty cover?
The limited warranty will pay for factory specified parts and repair labor to correct defects in materials or workmanship that existed
when the major appliance was purchased. The exceptions are specified under the headline “What is not covered under this limited
warranty?”.
What will be done to correct the problem?
The designated service company will examine the product and decide, at its sole discretion, if it is covered under this limited warranty.
If considered covered, the designated service company will then repair the defect. Your sole and exclusive remedy under this limited
warranty shall be product repair as provided herein.
What is not covered under this limited warranty?
Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or
repair house fuses, or to correct house wiring or plumbing.
Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is
used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved for use.
Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage
results from defects in materials or workmanship and is reported within 30 days from the date of purchase.
Any food loss or medicine loss due to refrigerator or freezer product failures.
Pick up and delivery. This major appliance is intended to be repaired in your home.
Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized servicer is not available.
The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance
with published installation instructions.
Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or
cannot be easily determined.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
Disclaimer of Implied Warranties
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS (ONE YEAR FOR MAJOR APPLIANCES NAMED “LAGAN”) OR THE
SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of
merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have
other rights that vary from state to state or province to province.
Limitation of Remedies; Exclusion of Incidental and Consequential Damages
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
How to reach us if you need our service
If outside the 50 United States and Canada, contact your authorized IKEA retailer to determine if another warranty applies.
If you need service, please read the Installation Instructions and/or the “Troubleshooting” section of the Use & Care Guide before
contacting us. If you need additional help, do not hesitate to contact us in the U.S.A. and Canada at 1-866-664-2449.
2/09
16
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need
it. You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name ______________________________________________
Address __________________________________________________
Phone number ____________________________________________
Model number_____________________________________________
Serial number _____________________________________________
Purchase date _____________________________________________
® IKEA is a registered trademark of Inter-Ikea Systems B.V.
® IKEA es una marca registrada de Inter-Ikea Systems B.V.
® IKEA est une marque déposée de Inter-Ikea Systems B.V.
W10836384B
© 2016.
All rights reserved.
Todos los derechos reservados.
Tous droits réservés. 3/16

Navigation menu
