Instruction Manual

Internet Radio with Dual Alarm Clock

English

INTRODUCTION

Congratulations on your purchase of the iLuv iNT170. Bringing thousands of worldwide Internet radio

stations right into your home, the iNT170 also provides advanced audio and radio performance that

brings out the best in your music. Remember to keep this manual for future reference.

Internet Radio with Dual Alarm Clock

· Access worldwide internet radio stations powered by vTuner technology

· Powerful built-in speakers allow you to hear your music with depth and clarity

· Large display for easy read

· Dual alarm clock

· 40 preset stations for Internet radio & FM radio (20 Internet radio / 20 FM radio)

· Auxiliary line input for any audio devices with 3.5mm jack

· 3.5mm stereo headphone jack

· LCD dimmer level control (3 steps)

Digital Dual Alarm Clock

· Digital clock display with dual alarm clock

· Auto time update through internet or FM radio

· Wake to Internet radio, FM radio, or buzzer

· Sleep to Internet radio or FM radio

FM Radio

· FM stereo

· PLL digital tuning technology

What’s Included?

· Main unit

· AC adapter

· Remote control (battery included)

· Quick start guide

· Warranty card

iLuv | 1

INTRODUCTION

GETTING STARTED

Location of Controls on the Main Unit

Location of Controls on the Remote Control

Understanding the Controls

Screen Displays

OPERATIONAL INSTRUCTIONS

General Setup

Setting the Language

Setting the Time and Date

Alarm and Sleep Functions

Connecting to a Network

Internet Radio Mode

Registering an Account

Conguring “My Preferences”

Conguring “My Account”

Checking “My Favourites”

Checking “My Added Stations”

FM Radio Mode

AUX In Mode

System Resetting

MAINTENANCE & TROUBLESHOOTING GUIDE

IMPORTANT SAFETY INSTRUCTIONS

SPECIFICATIONS

TABLE OF CONTENTS

1

3

4

5

7

9

9

9

10

11

13

16

18

19

20

21

21

22

22

23

24

31

GETTING STARTED

iLuv | 3iNT170 | V10M10_IM_EN_101320082 | iLuv

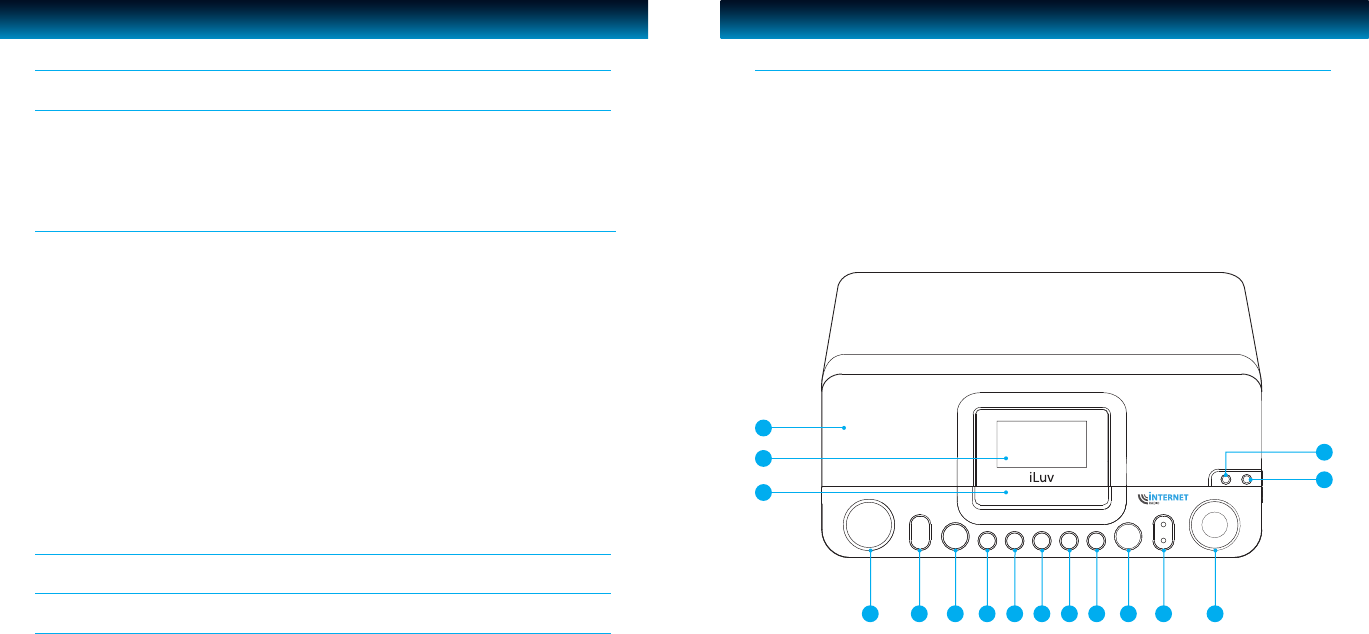

1. SPEAKERS

2. NEGATIVE LCD screen

3. SNOOZE / DIMMER bar

4. VOLUME control

5. POWER button

6. MODE button

7. MUTE button

8. AL 1 button

Location of Controls on the Main Unit

9. AL 2 button

10. SLEEP button

11. PRESET button

12. MENU button

13. BACK / INFO control

14. SELECT / TUNING control

15. HEADPHONE jack

16. AUX IN jack

15

16

3

2

4 5 6 7 8 9 10 11 12 13 14

1

Location of Controls on the Main Unit - continued

GETTING STARTED

POWER jack

RJ-45 (network cable) jack

1. SNOOZE/DIMMER button

2. POWER/AL OFF button

3. INTERNET RADIO button

4. UP, DOWN buttons

5. BACK button

6. SELECT button

7. VOLUME –/+ buttons

8. INFO Button

9. AL 2 button

10. AL 1 button

11. MUTE button

12. FM button

13. AUX button

14. MENU button

15. PRESET button

16. SLEEP button

Location of Controls on the Remote Control

SNOOZE

DIMMER

INTERNET

RADIO FM

AL. OFF

AL 2AL 1 SLEEP

PRESETINFO.

SELECT

BACK MENU

AUX

MUTE

VOLVOL

1

2

3

5

7

6

8

10

9

4

11

13

14

7

4

15

16

12

GETTING STARTED

Main Unit

· POWER Press to enter the standby mode. The radio will display the date and time

when in standby mode. Press a second time to return to the previous

selection. When alarm is sounding, press to stop alarm.

· MODE Mode selection: Internet Radio, FM, AUX

· MUTE Mute and release speakers

· ALARM 1 Alarm 1 setting

· ALARM 2 Alarm 2 setting

· SLEEP Press to enter Sleep menu.

· VOL+ Press to increase the volume

· VOL– Press to decrease the volume

· PRESET Hold for a few seconds to store a station into the preset. Short press to select

the preset for playback

· MENU Press to enter the context menu for selected mode. Press a second time to

return to the previous selection

· BACK Press to return to the previously selected menu entry. Repeatedly pressing

the BACK button returns you to the Context menu for the particular mode.

· INFO Press to see information about the service currently playing.

· SCROLL UP Press to scroll up a menu. In FM mode, the SCROLL UP button is also used to

manually tune the radio to the next FM frequency.

· SCROLL DOWN Press to scroll down a menu. In FM mode, the SCROLL DOWN button is also

used to manually tune the radio to the previous FM frequency.

· SELECT Press to select the current menu entry. In FM mode, press to auto scan and

nd the stations.

· SNOOZE/DIMMER Press to start the Snooze mode if the alarm sounds otherwise press to adjust

the LCD dimmer.

Understanding the Controls

iLuv | 5iNT170 | V10M10_IM_EN_101320084 | iLuv

GETTING STARTED

Remote Control

· POWER Press to enter the standby mode. The radio will display the date and time

when in standby mode. Press a second time to return to the previous

selection. When alarm is sounding, press to stop alarm.

· MUTE Mute and release speakers

· INTERNET RADIO Press to entry Internet Radio mode.

· FM Press to entry FM radio mode.

· AUX Press to entry Aux in mode.

· ALARM 1 Alarm 1 setting

· ALARM 2 Alarm 2 setting

· SLEEP Press to enter Sleep menu.

· VOL+ Press to increase the volume

· VOL– Press to decrease the volume

· PRESET Press to select the preset for playback

· MENU Press to enter the context menu for selected mode. Press a second time to

return to the previous selection

· BACK Press to return to the previously selected menu entry. Repeatedly pressing

the BACK button returns you to the Context menu for the particular mode.

· INFO Press to see information about the service currently playing.

· SCROLL UP Press to scroll up a menu. In FM mode, the SCROLL UP button is also used to

manually tune the radio to the next FM frequency.

· SCROLL DOWN Press to scroll down a menu. In FM mode, the SCROLL DOWN button is also

used to manually tune the radio to the previous FM frequency.

· SELECT Press to select the current menu entry. In FM mode, press to auto scan and

nd the stations.

· SNOOZE/DIMMER Press to start the Snooze mode if the alarm sounds, otherwise press to adjust

the LCD dimmer.

Understanding the Controls - continued

GETTING STARTED

The LCD screen displays various menus, dialogues and displays. When the text is too long to t on

the screen, it is rst shown truncated and after a few seconds, it scrolls slowly so that all text can

be read.

Menus: The iNT170 has three basic menus (FM, Internet and AUX In). Use the SELECT button to

proceed through and select options. A scroll bar on the right of the screen shows if there are

further options above or below those visible.

Screen Displays

· Each mode has a Mode menu, with options specic to that mode.

- For example, the FM mode menu has just two options:

Scan setting and Audio setting.

- In addition, each mode menu has two nal options:

System settings > and Main menu >. The ‘>’ indicates options

leading to further menus.

· The System settings menu allows access to system settings and

information such as network, time, language and software update.

- Menus with more options than will t on one screen have a

scroll bar to the right.

· The Main menu allows access to all modes plus sleep and

timer functions.

* Some menus, for example the System settings menu, have several submenus.

FM

Scan setting

Audio setting

System settings

Main menu

System settings

Network

Time/Date

Languages

Factory Reset

Software update

iLuv | 7iNT170 | V10M10_IM_EN_101320086 | iLuv

GETTING STARTED

Screen Displays - continued

Dialogue screens: Dialogue screens are shown to allow the user to change settings. They vary in

complexity from simple Yes/No options up to the scrollable network password input screen.

· As with menus, the selected item is shown with a

white background.

· Dialogue screens mark the current setting with an asterisk (*).

· The Standby screen shows the time, date and any active

alarm times.

· As you cycle through the play modes using the MODE button,

the LCD screen will show a splash screen for each mode. After

one second, the unit enters the selected mode plays the last

station that was playing in that mode. If this is not possible,

the iNT170 will attempt to connect to the selected source by

scanning for stations, networks, or prompting for user input

as appropriate.

Daylight savings

Daylight savings

OK OFF

*

04/07/2009

07:00AM 08:30AM

04:32PM

Internet

Radio

OPERATIONAL INSTRUCTIONS

1. Place iNT170 on a suitable shelf or table and plug it in to a power outlet.

2. Once plugged in, the unit will automatically turn on. You should see a welcome message ‘iLuv

Starting’ and a moving progress bar.

3. The rst time the unit is switched on, it shows the main menu. Press the SELECT button until FM

is highlighted on the menu.

4. Press the SELECT button again to conrm.

5. The FM Now playing screen displays, showing the lowest frequency (87.5 MHz). Press the

SELECT button. The frequency display will increase incrementally as the radio scans up. Once a

station is found, it will play, with the station name shown in the Now playing display.

General Setup

Manual Updating: Select “Set Time/Date”, the date and time are

displayed as MM-DD-YYYY and hh:mm AM/PM with the rst value,

MM active (ashing).

· Adjust each value (month, day, year, hour, minute) with the

, and SELECT buttons. As each value is adjusted, the next value

becomes active and ashes.

· When you select the nal value (minutes or AM/PM, depending on

whether the clock is set to 12 or 24 hour mode), the display

reverts to the now playing screen and shows the newly

updated time.

01 • 01 • 2009

00:00

Set Time/Date

The default language is English. To change this, press the MENU button > System settings >

Languages > then select your language.

· A list of supported languages will appear on the LCD screen. Scroll up or down to choose from

the list.

Setting the Language

The time and date can be updated manually or automatically. Setting manually is simpler, but the

time and date will be lost when power is o. Setting automatically is a little more complicated at

rst, but the time and date will be automatically synchronized with external clocks, so it should

only need to be done once. As a result, automatic update is generally more accurate.

To enter the Time settings menu, press the MENU button > System settings > Time/date >

Setting the Time and Date

iLuv | 9iNT170 | V10M10_IM_EN_101320088 | iLuv

OPERATIONAL INSTRUCTIONS

Setting the Time and Date - continued

Automatic Updating: Automatic update works with data sent over FM or by the network. The

clock is only updated when in a corresponding mode, so it is best to select a mode you use

regularly. FM uses time signals broadcast with radio transmissions. Network uses a time signal sent

from the Internet radio portal when in Internet radio mode.

1. Press the MENU button > System Settings > Time/Date > Auto update > then select Update

from, Update from FM or Update from Network.

2. To set the time zone press the MENU button > System Settings > Time/Date > Set timezone >.

3. If your country uses daylight savings, the automatically updated time may be wrong by one

hour. When daylight savings is in eect (during the summer), turn on the Daylight savings

option through Daylight savings > ON

* The iNT170 will auto-update from the selected source when time information is available.

04/07/2009

07:00AM 08:30AM

04:32PM

Alarms

Enable: On

Time: 06:30 AM

Mode: FM

Preset: 2

Frequency: Daily

As well as a clock/calendar, there are two versatile wake-up alarms

with Snooze function, and a sleep function to turn the system o

after a set period.

Setting the Alarm: To set or change an alarm, either press AL1 /

AL2 buttons or press the MENU button > Main menu > Alarms.

Select the alarm number (1 or 2) then set the following:

· Enable: on/o

· Time

· Mode: Buzzer, Internet radio or FM

· Preset: Last listened, 1-20

· Frequency: Daily, Once, Weekends or Weekdays

· Volume: 0 – 20.

Alarm and Sleep Functions

OPERATIONAL INSTRUCTIONS

Once the alarm is set, select Save to activate. The screen shows active alarms with an icon at the

bottom left.

· At the set time, the alarm will sound. To temporarily silence it, press the SNOOZE/DIMMER

button. You can change the snooze period (5min, 10min, 15min and 30min) by pressing the

SNOOZE/DIMMER button. The radio returns to standby for the set period, with the silenced

alarm icon ashing.

Sleep Function: To set the sleep timer, press the MENU button > Main menu > Sleep then choose

from Sleep OFF, 15 Min., 30 Min., 45 Min. or 60 Min. by pressing the SELECT UP and DOWN

buttons. Once you select a sleep period, the system returns to the main menu. Press the MENU

button to return to the “Now playing” screen. The other option is to press the SLEEP button to

achieve sleep function and sleep time.

Alarm and Sleep Functions - continued

Key:

0123456789., ab

cdefghijklmnopq

rstuvwxyzABCDEF

GHIJKLMNOPQRSTU

p@s5W

BKSP

OK

CANCEL

For Internet radio mode, you need a network connection. To connect the iNT170 to your network,

you need either a wired router and an ethernet (RJ45 network) cable, or a Wi-Fi wireless router,

together with password key if set.

The only requirement for using this Internet radio is a basic broadband Internet connection.

When you select Internet radio, the iNT170 attempts to connect to a network. If this is the rst

time it has tried to connect, or if the stored networks are not accessible, the Network wizard starts

automatically.

Connecting to a Network

· To run the Network wizard manually, press the MENU button >

System settings > Network > Internet wizard.

· Once the wizard starts, enter the following information:

- If not already established, set the WLAN region (select country/

region from list)

- Network name (select your network from the list)

- If connecting to an encrypted wireless network,

the key (password)

· To enter your key, use the SELECT UP and DOWN buttons to

move the cursor through the characters and select. As each

character is selected, the key is built up near the top of

the display.

iLuv | 11iNT170 | V10M10_IM_EN_1013200810 | iLuv

OPERATIONAL INSTRUCTIONS

Connecting to a Network - continued

Other options: There are also other options for viewing and manually altering network settings

by pressing the MENU button > System settings > Network. These options are not normally

necessary, but users experienced with networking may nd them useful for diagnosing and xing

network problems.

Note: The iNT170 cannot be used in hotels, airports or other public spaces whose Internet server operates via

HTML, JavaScript or ASP. However, when these locations feature an Ethernet connection, the iNT170 can

function by following these directions:

1. Use a laptop computer to log in to the secured internet service at the hotel, airport, or public space to

establish an Internet connection.

2. After logging on to the server, disconnect the Ethernet cable from the laptop and plug it in to the iNT170.

3. Use the iNT170 Internet Radio as normal.

· There are three options accessible by pressing the UP button

before the rst characters (0,1,2,3,…) – Backspace, OK

and Cancel.

· Once you have completed entering the key, select OK, and

the iNT170 will try to connect to the selected network.

· If connection fails, the iNT170 returns to the password

entry screen.

· If the network connection is lost, the iNT170 automatically

attempts to reconnect.

Network proles: The iNT170 remembers the last four wireless

networks it has connected to, and automatically attempts to

connect to whichever one of them it can nd.

· You can see the list of registered networks by pressing the MENU

button > System settings > Network > Network prole.

· From here you can delete unwanted networks by turning and

pressing the SELECT button then conrming delete: Yes.

Please wait

Connecting.

Network settings

Connected

Connected

OPERATIONAL INSTRUCTIONS

The iNT170 can play thousands of radio stations and podcasts from

around the world though a broadband Internet connection. When

you select Internet radio mode, the iNT170 connects to the Internet

radio portal and provides a list of stations, organized into dierent

categories such as Location, Genre, Popular stations, and New

stations. Once you select a station, the iNT170 connects directly to

Internet Radio Mode

Virgin Radio

Internet radio

Description:

Virgin Radio is the UK’s

only commercial rock and

11:49

that station.

The portal also enables multiple lists of favorite stations that you can personalize, for example

Andy’s stations, Joe’s favorites, Talkshows. To use the favorites feature, register your radio with the

portal website as described elsewhere in this manual (see the “Registering an Account” section).

If you have several iNT170 radios, you can register them all on the same account so that each radio

has access to your favorites lists. It is possible to add favorites either directly through the iNT170 or

through any computer with a web browser.

· To enter Internet Radio mode, either press the MODE button until the display shows Internet

Radio or press the MENU button > Main menu > Internet Radio. Another option is to press the

INTERNET RADIO button on remote control.

Note: The station list menu is provided from the Internet radio portal, so it is only accessible when the iNT170 is

connected to the Internet. Station lists and submenus may change from time to time.

There are several ways to select stations.

- Press the MENU button > Last listened.

- Press the PRESET button located on the main unit.

· From the portal pressing the MENU button > Station list > menu:

- My Favorites

- Sations (Browse by Location, Genre, Search stations, Popular stations, New stations)

- Podcasts

- My added stations

If you are already listening to an Internet radio station, you can press the BACK button instead of

the MENU button to return to the last visited menu page.

iLuv | 13iNT170 | V10M10_IM_EN_1013200812 | iLuv

OPERATIONAL INSTRUCTIONS

Internet Radio Mode - continued

Last listened: When Internet radio mode restarts, the last-listened station is selected. To select

another recenly used station, press the MENU button > Last listened then one of the stations

listed. Most recent stations appear at the top of the list.

Presets: Presets are stored in the radio and cannot be accessed from other radios.

· To store an Internet radio preset, press and hold the PRESET button until the display shows the

Save preset screen. Select one of the 20 presets to save the currently playing station.

· To select a preset, press the PRESET button briey, then select one of the listed preset stations.

When a preset station is playing, it shows Pn (P1, P2 etc) in the bottom of the screen.

Note: Operation of presets is identical for Internet radio and FM.

My favorites: Favorites are stored with the Internet radio portal, and are available through all

Internet radios registered on the same account. Before favorites can be used, the radio has to be

registered with the Internet radio portal.

· To store a playing station as a favorite from iNT170, simply press and hold the SELECT button.

The selected station appears in the default favorites list Stations.

· To select a favorite, press the MENU button > Station list > My favourites > [Favourites list]

> [Station].

Browse: To browse Internet broadcasts, press the MENU button > Station list > then either

Stations > or Podcasts >.

Browse through the menus to nd broadcasts.

Internet radio

Last listened

Station list

System settings

Main menu

Stations

Location

Genre

Search

Popular

New

Genre

Alternative

Ambient

Big Band

Bluegrass

Blues

OPERATIONAL INSTRUCTIONS

Search: You can also search through Internet broadcasts for stations or podcasts with particular

keywords in their title.

Internet Radio Mode - continued

· To search, press the MENU button > Station list > then either

Stations > or Podcasts > Search.

· Enter a keyword by selecting characters then OK. The search entry

screens are similar in operation to the Wi-Fi password entry screen.

For information anout key entry, see the “Connecting to a

Network” section elsewhere in this manual.

· Select a broadcast from the list.

· For podcasts, you may select from a particular episode.

Podcasts

Location

Genre

Search

Podcasts

WILDE

ABCDEFGHIJKLMNO

PQRSTUVWXYZ 012

3456789

BKSP

OK

CANCEL

Search podcasts

The WildeBeat

The WildeBeat

Starting With Fire

Stealth Gear

Bear Cans Revisited, p...

Bear Cans Revisited, p...

Modern Rain gear

Starting With Fire

Internet radio

Episodo name:

Starting with Fire

05:28PM

iLuv | 15iNT170 | V10M10_IM_EN_1013200814 | iLuv

OPERATIONAL INSTRUCTIONS

Internet Radio Mode - continued

“Now Playing” Information: While the stream is playing, the screen shows its name and

description. To view further information about the stream, press the INFO button.

· Each time you press the INFO button, another set of information is displayed, cycling through

description, format/location, reliability, bit rate/codec/sampling rate, playback buer and

today’s date.

Registering an Account

To maximize the Internet functions of the iNT170, it is suggested that you establish an account

following these instructions.

1. Open the website, http://www.wiradio-frontier.com from your Internet browser on your PC.

2. Click on the ‘Register here’ link and follow the on-screen instructions to register an account.

OPERATIONAL INSTRUCTIONS

3. To get your Access code, follow the steps below:

Registering an Account - continued

· Go into Internet radio mode by pressing the MODE buttons.

· Press the MENU button and highlight Station list > and press

the SELECT button.

· Highlight Help > and press the SELECT button.

· Highlight Get access code > and press the SELECT button.

· Your access code will be listed on the screen.

Internet

Radio

Internet radio

Last listened

Station list

System settings

Main menu

Internet radio

My Favourites

Stations

Podcasts

My Added Stations

Help

Help

Get access code

FAQ

Get access code

Access code

TBGBCRR

iLuv | 17iNT170 | V10M10_IM_EN_1013200816 | iLuv

OPERATIONAL INSTRUCTIONS

Registering an Account - continued

4. Type your e-mail address and create a password

5. Your Wi-Fi radio model is iNT170

6. The benets of registering are not limited to the ability to browse stations by location, by genre,

by language, New stations, and most popular. Additional, by using a PC, you can establish your

favorite stations online. Any changes in your account will be also changed in your player.

Conguring “My Preferences”

1. Once logged into your account, you can edit your account’s details from your

‘My Preferences’ section.

2. Click on the ‘My Preferences’ link to change your account information. This information will

include various details such as your password, email address, add another Wi-Fi radio, and

synchronize your favorite with your radio.

OPERATIONAL INSTRUCTIONS

Conguring “My Account”

· It is possible to save your favorite stations that you found in the website by clicking the icon.

You can create dierent folders for dierent category of radio stations. My Favorite information

will be automatically synchronized with your player.

iLuv | 19iNT170 | V10M10_IM_EN_1013200818 | iLuv

OPERATIONAL INSTRUCTIONS

Conguring “My Account” - continued

· You can add stations not listed on the website by clicking the icon as follows.

Checking “My Favourites”

· In Internet Radio Mode, press the MENU button and highlight

Station list > and press SELECT button. Highlight My Favourites

> and press the SELECT button. You will see your folders in My

Favorite’s as shown below.

My Favourites

Chris’s folder

Jazz

OPERATIONAL INSTRUCTIONS

Checking “My Added Stations”

· In Internet Radio mode, press the MENU button and highlight Station list > and press the

SELECT button. Highlight My Added Stations > and press the SELECT button.

FM Radio Mode

In FM radio mode, the screen displays the station name, frequency,

and information about the station.

· To enter FM mode, either press the MODE button until the display

shows FM Radio or press the MENU button > Main menu > FM.

Another option is to press the FM button on remote control.

Selecting Stations: To nd a station, press the SELECT button.

The frequency display starts to run as auto scans the FM band. Alternatively, you can scan up or

down by holding the UP or DOWN button or tune manually with quick presses.

· Once a station is tuned in, the Now playing screen shows the station name and other information.

If no information is available, only the frequency is displayed.

· Presets:

- To store an FM preset, press and hold the PRESET button until the display shows the Save

preset screen. Select one of the 20 presets to save the currently playing station.

- To select a preset, press the PRESET button briey, then select one of the listed preset stations.

When a preset station is playing, it shows Pn (P1, P2 etc) in the bottom right of the screen.

“Now Playing” Information: Stereo broadcasts are indicated with an icon at the top of the screen.

To view further information about the broadcast, press the INFO button.

· Each time you press the INFO button, another set of information is displayed.

Settings:

· Scan Settings: By default, FM scan stops at any available station. This may result in a poor

signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations

with good signal strength, press the MENU button > Scan setting > Strong stations only? > Yes.

· Audio Settings: By default, all stereo stations are reproduced in stereo. For weak stations, this

may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, press the MENU

button > Audio setting > FM weak reception: Listen in mono only? > Yes.

Alice 97.3

FM

Best Music in the World

11:49

iLuv | 21iNT170 | V10M10_IM_EN_1013200820 | iLuv

OPERATIONAL INSTRUCTIONS

AUX In Mode

AUX in mode plays audio from an external source like an MP3 player.

To play audio with AUX In mode:

1. Turn the volume low on both the iNT170 and, if adjustable, the

audio source device.

2. Connect the external audio source to the AUX In 3.5 mm

stereo socket.

3. Either press the MODE button until the display shows AUX in or

press the MENU button > Main menu > AUX in. Another option

is to press the AUX button on remote control.

4. Adjust the volume of the iNT170 (and, if necessary, the audio

source device) as required.

System Resetting

If you make a mistake, (ie. setting the incorrect language), you can reset unit by pressing and

holding the MODE button for approximately three (3) seconds with the power on.

Audio In

Auxiliary input

Today’s Date:

07/04/2009

13:54

MAINTENANCE AND TROUBLESHOOTING GUIDE

Maintenance

· Place the unit on a level surface away from sources of direct sunlight or excessive heat.

· Protect your furniture when placing your unit on a natural wood and lacquered nish. A cloth or

other protective material should be placed between it and the furniture.

· Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning

agents, such as Benzine, thinner or similar materials can damage the surface of the unit.

Troubleshooting

· The iNT170does not turn on

- The AC plug may not be connected properly. Check the connection.

- The wall outlet may not function. Try another outlet.

· FM Stations do not broadcast clearly

- Check the Scan Settings and Audio Settings.

- Rotate the unit until reception is clearer; signal may be weak. Relocate the FM radio antenna to

an open space.

· Cannot connect to Network

- Follow instructions for connecting to a network.

iLuv | 23iNT170 | V10M10_IM_EN_1013200822 | iLuv

USER SAFETY GUIDE

· TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

· THIS APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER AND THAT NO

OBJECT FILLED WITH LIQUIDS SUCH AS VASES SHALL BE PLACED ON APPARATUS.

WARNING

The lightning ash with the arrowhead symbol, within an equilateral triangle is

entended to alert the use to the presence of uninsulated “dengerous voltage”

within the product’s enclosure that may be of signicant magnitude to

constitute a risk of electric shock to people.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is entended to alert the

user to the presence of important operating and maintenance (serviving)

instructions in th eliterature accompanyinig the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions

2. Keep these instructions

3. Heed all warnings

4. Follow all instrtuctions

5. Do not use this apparatus near water

6. Clean only with dry cloth

7.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade or the third prong are provided for your safety. If the

24 | iLuv

USER SAFETY GUIDE

provided plug does not t into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart / apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. Grounding or Polarization – This product may be equipped with a polarized alternating-current

line plug (a plug having one blade wider than the other). This plug will t into the power outlet

only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to t, contact your electrician to replace your

obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings – This product is equipped with a three-wire grounding-type plug, a plug

having a third (grounding) pin. This plug will only t into a grounding-type power outlet. This

is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to

replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

16. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure

reliable operation of the product and to protect it from overheating, and these openings must

not be blocked or covered. The openings should never be blocked by placing the product on

a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

17. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

IMPORTANT SAFETY INSTRUCTIONS - continued

iLuv | 25iNT170 | V10M10_IM_EN_10132008

USER SAFETY GUIDE

IMPORTANT SAFETY INSTRUCTIONS - continued

CLEANING

Always disconnect unit from power supply before attempting to clean it. Use soft

clothmoistened with soapy water, and wipe gently. Do not use solvents or abrasive

materials.

LASER SAFETY

This unit uses laser technology. Only a qualied professional should remove the

cover or attempt to service this device, due to possible eye injury.

CAUTION – CLASS 1 LASER PRODUCT

Use of controls adjustments and/or performance of procedure other than specied

herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct

exposure to beam. CAUTION: HAZAROUS LASER RADIATION WHEN OPEN AND

INTERLOCK DEFEATED.

YOU CAN HELP TO PROTECT THE ENVIRONMENT!

Please remember to respect the local regulations: Hand in the non-working

electrical equipment to an appropriate waste disposal center.

FOR USED BATTERIES

Disposed of the used batteries properly. Please follow the local regulations for the

battery disposal.

26 | iLuv

USER SAFETY GUIDE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

· Consult the dealer or an experienced radio / TV technician for help.

FCC NOTICE TO A USER IN USA

FCC RULES

This device complies with Part 15 of the FCC Rules. Operation is subject to the

condition that this device does not cause harmful interference.

Note: Do not make changes or modify the device in any way. Changes or modications

not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

iLuv | 27iNT170 | V10M10_IM_EN_10132008

USER SAFETY GUIDE

FCC NOTICE TO A USER IN USA - continued

IMPORTANT NOTES ON HEARING

Your hearing is very important to you and to us, so please take care when operating

this equipment. We strongly recommend you to follow the guideline below in order to

prevent possible damage or loss of hearing.

If you continuously listen to the loud sounds, your hearing will adapt to continuous

loud sounds and will give you the impression that the volume has been reduced. What

seems normal to you may in fact be harmful. To guard against this BEFORE YOUR

HEARING ADAPTS, set the volume at a low level and slowly increase the volume level

until you can hear comfortably and clearly without distortion. Damage to your hearing

is accumulative and is irreversible. Any ringing or discomfort in the ears indicates that

the volume is too loud. Once you have established a comfortable listening level, DO

NOT INCREASE THE VOLUME LEVEL FURTHER.

In the use of headphones, please take more attention. Hearing experts say that

listening to a loud music can damage your hearing, especially when listening to music

with headphones.

28 | iLuv

USER SAFETY GUIDE

Since digital circuitry may cause interference to other radio or television tuners nearby, switch this

unit o when not in use or move it away from the aected radio/television tuner.

NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits

are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television operation

(which can be determined by turning the equipment o), the user is encouraged to try to correct

the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

· Consult the dealer or an experienced radio / TV technician for help.

IC NOTICE TO A USER IN CANADA

WARNING!

• The apparatus shall not be exposed to dripping or splashing and that no objects

lled with liquids, such as vases, shall be placed on apparatus.

• Mains plug is used as the disconnect device. It shall remain readily operable and

should not be obstructed during intended use. To be completely disconnected, the

apparatus from supply mains, the mains plug of the apparatus shall be disconnected

from the mains socket outlet completely.

iLuv | 29iNT170 | V10M10_IM_EN_10132008

USER SAFETY GUIDE

ADDITIONAL IMPORTANT INSTRUCTIONS

· Place the apparatus with some distances from the nearby objects or walls for sucient

ventilations. The ventilation should not be impeded by covering the ventilation openings with

items such as newspapers, table-cloths, curtains, etc.

· No naked ame sources such as lighted candles should be placed on the apparatus.

· Dispose of used batteries properly. Follow the local regulation for the battery disposal.

· Use this apparatus in the moderate climates. It is recommended not to use this apparatus such in

a lighting storm.

30 | iLuv

SPECIFICATIONS

· Radio frequency

- FM: 87.5MHz – 108MHz

· Audio output: 2.5WRMS(L) + 2.5WRMS(R) @ 1%THD

- Total: 5WRMS / 10WPEAK / 100WPMPO

· Connectivity

- 3.5mm stereo headphone jack

- 3.5mm AUX in jack

- FM antenna

- RJ-45

· Power requirement

- AC100V~240V 60/50Hz

· Power consumption: ≤18W

· Dimensions (W x H x D): 11” x 4.4” x 7” (280mm x 112mm x 178mm)

· Unit weight: 2.8lbs (1.27kg)

iLuv | 31iNT170 | V10M10_IM_EN_10132008

MEMO

THANK YOU FOR YOUR PURCHASE

Visit our website at www.i-Luv.com

©2008 www.i-Luv.com

iLuv is a trademark of jWIN Electronics Corp. Features and specications are subject to change without prior notication. vTuner is a trademark of NEMS. Ltd.

© 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape or graphics, may

be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including

photocopying, recording or use of an information storage and retrieval system. Any unauthorized distribution or reproduction of this printed material or

product, or any portion thereof, will be prosecuted to the fullest possible extent of the law.

Printed in China
