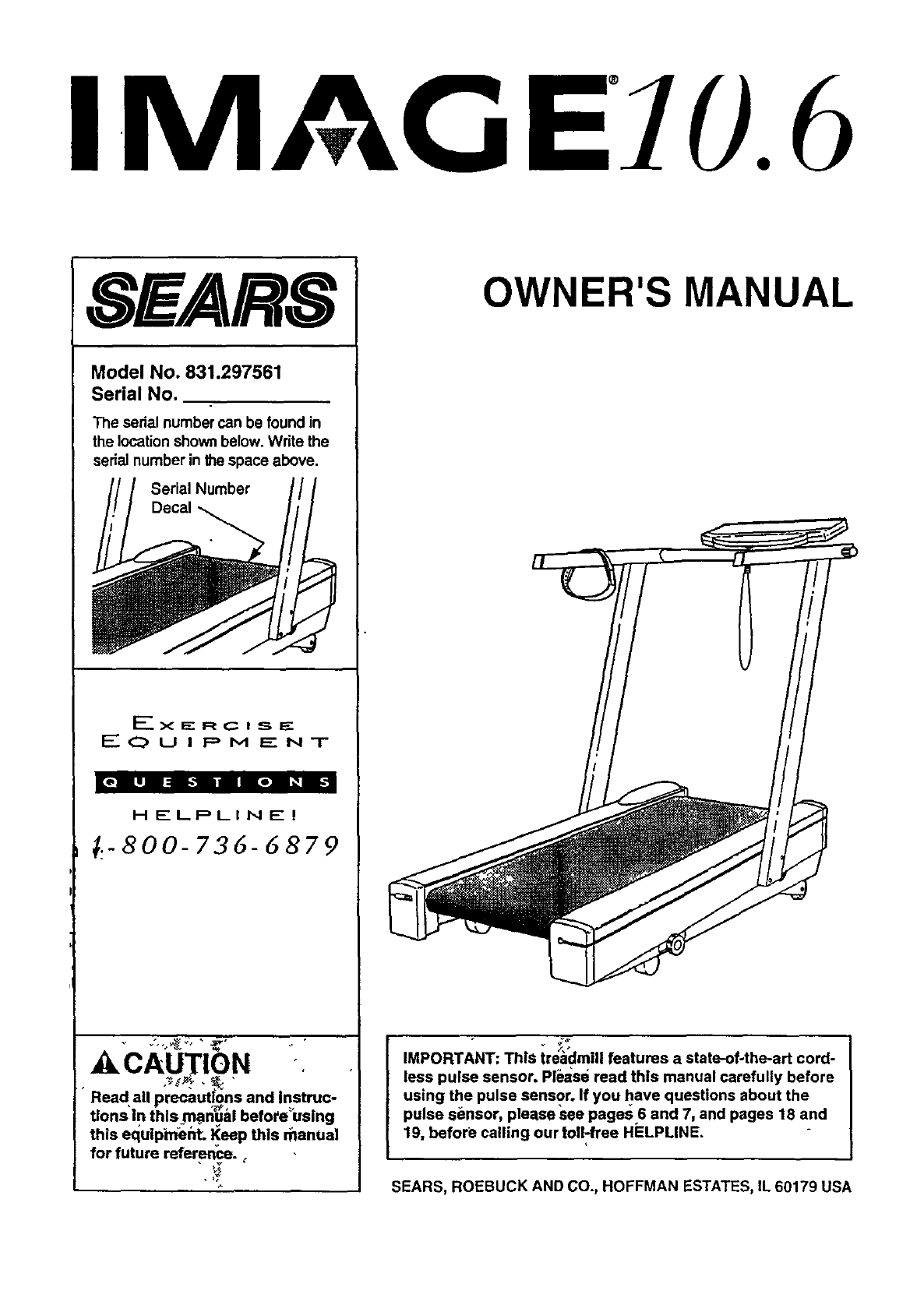

I.MAG E'I0.6

SE /ARS

Model No. 831.297561

Serial No.

The serial number can be found in

the location shown below. Write the

serial number in the space above.

Serial Number

Decal

F" x E: R C_ i S _-

EC:> uiF'M F=" NT

HELPLINE!

_:- 800- 736- 6879

CA lbN -,

Read all precautions and instruc-

tions in th s manual before using

this equipment. Keep this ,lanua]

for future referen_ce...

OWNER'S MANUAL

IMPORTANT: ThiS trea.dmlU features a state-of-the-art cord-

less pulse sensor. Pl_ase read this manual carefully before

using the pulse sensor. If you have questions about the

pulse sensor, please see pageso6 and 7, and pages 18 and

19, before calling our toll-free HELPLINE.

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 USA

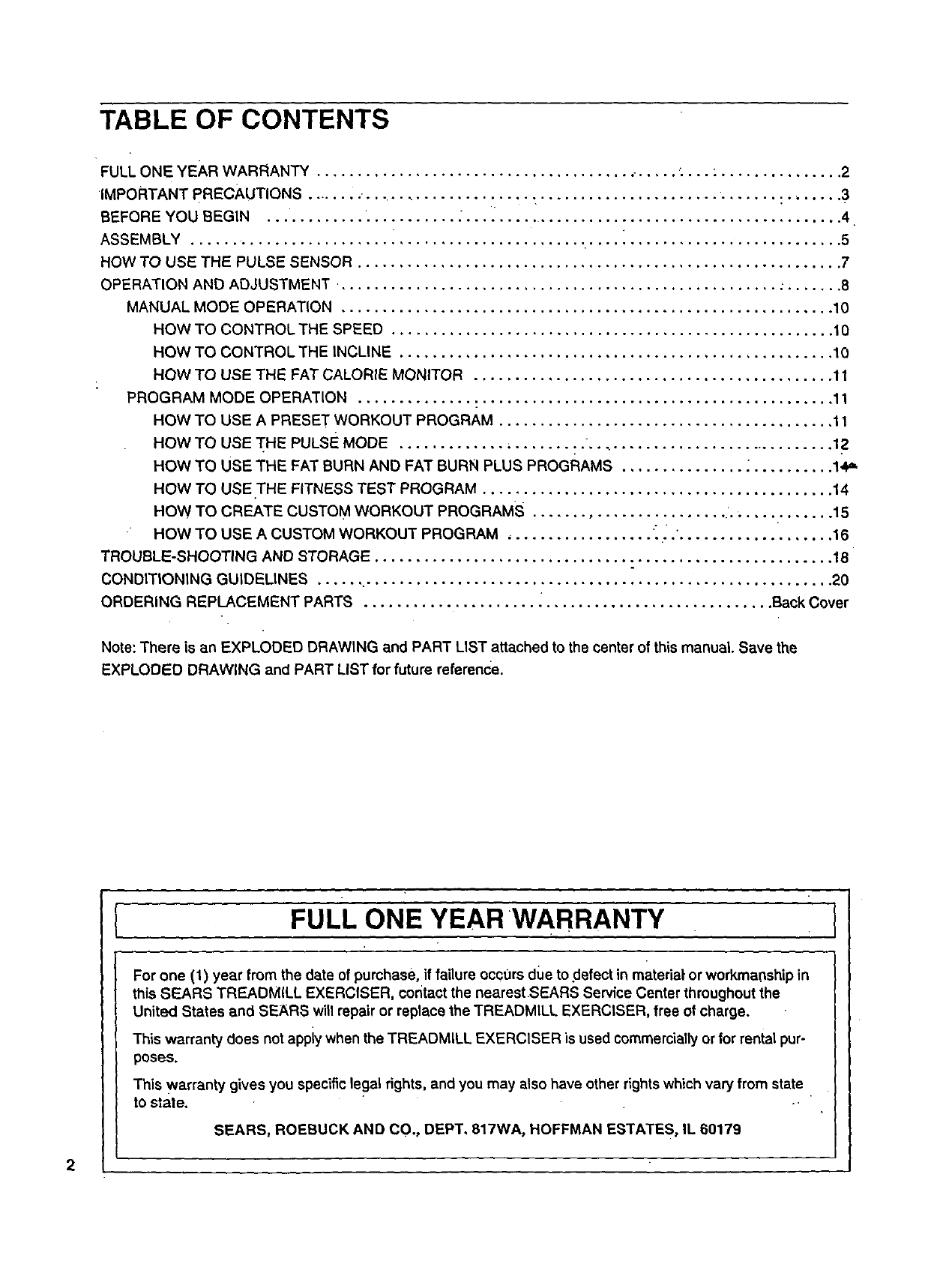

TABLE OF CONTENTS

FULL ONE YEAR WARRANTY ............................................. _... :............... 2

IMPORTANT PRECAUTIONS ........ ............................................ ............... 3

BEFORE YOU BEGIN ............ ........... .,. • _........................................... 4

ASSEMBLY ...... ......................................................................... 5

HOW TO USE THE PULSE SENSOR ........................................................... 7

OPERATION AND ADJUSTMENT ..................................................... _....... 8

MANUAL MODE OPERATION ............................................................ 10

HOW TO CONTROL THE SPEED ...................................................... 10

HOW TO CONTROL THE INCLINE ..................................................... 10

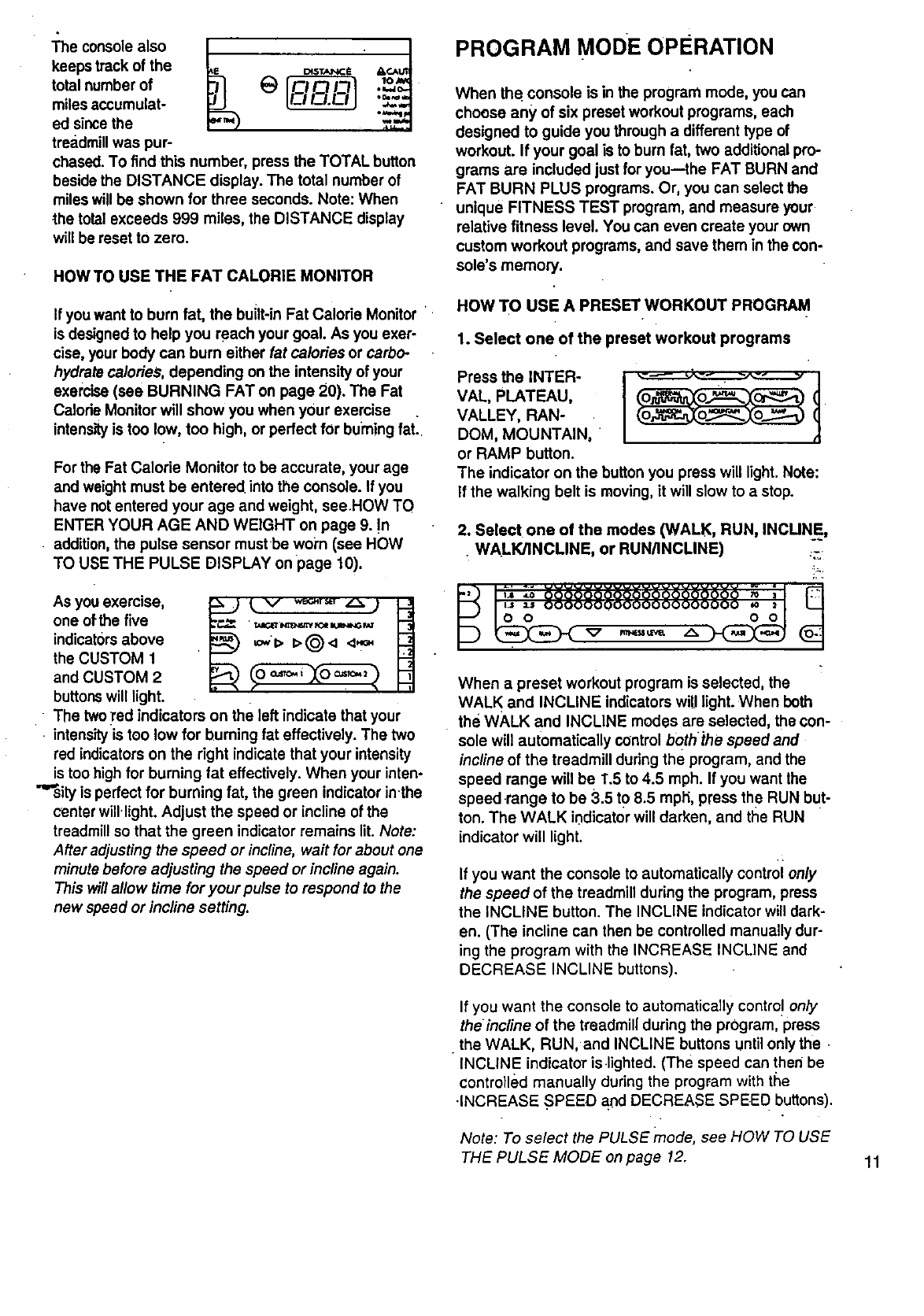

HOW TO USE THE FAT CALORIE MONITOR ............................................ 11

PROGRAM MODE OPERATION .......................................................... 11

HOW TO USE A PRESET WORKOUT PROGRAM ......................................... 11

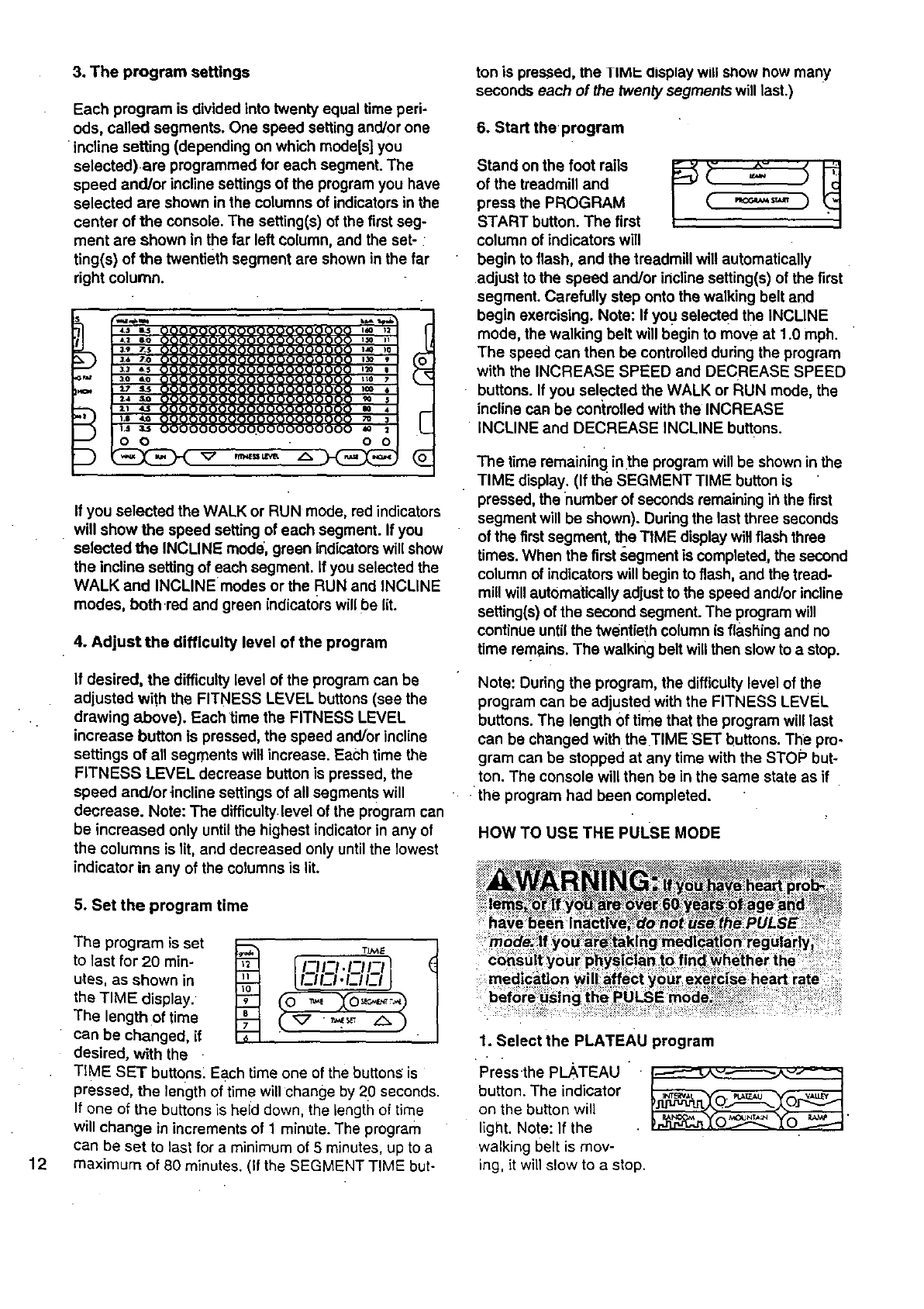

HOW TO USE THE PULSE MODE ....................... ............................... 12

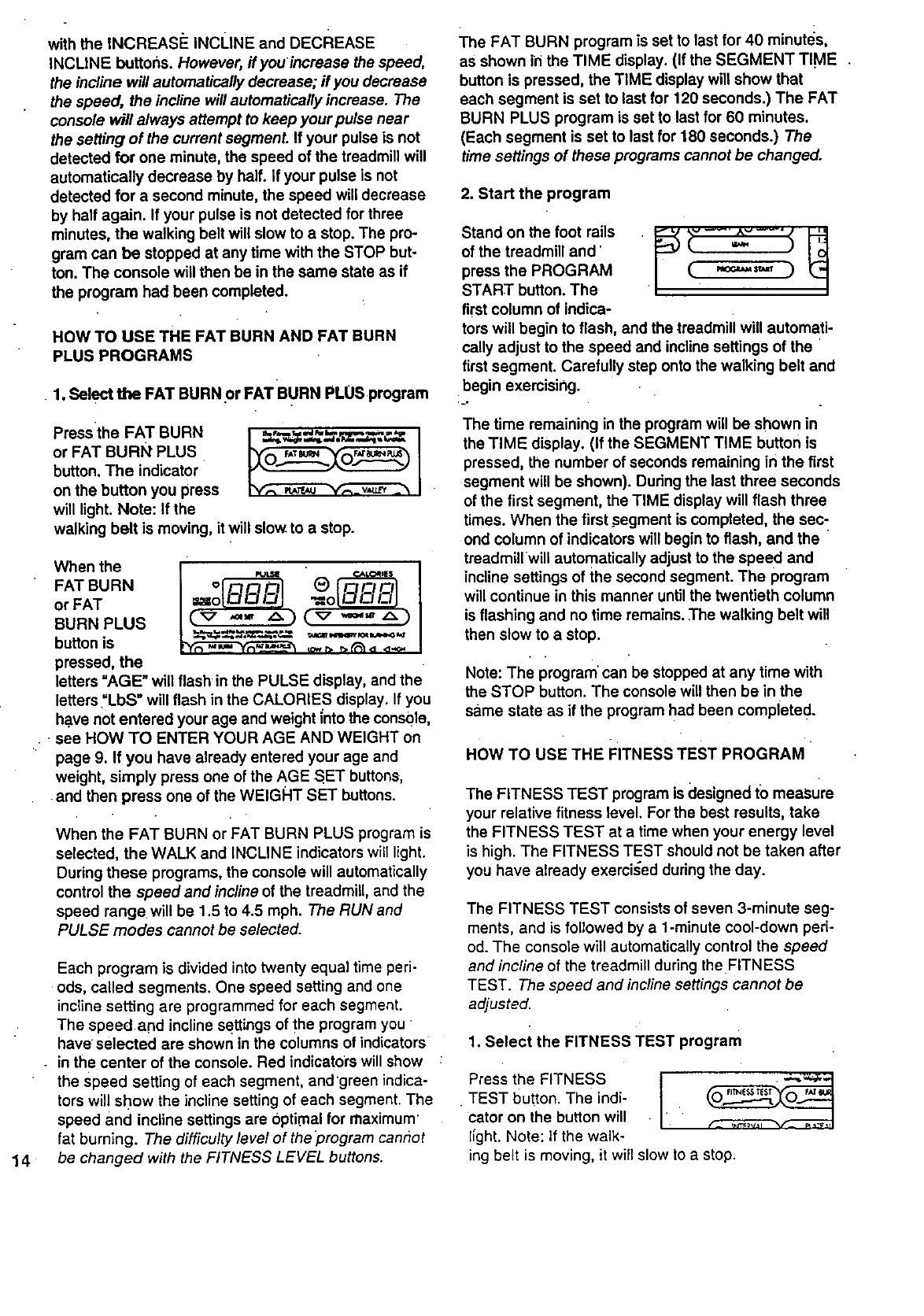

HOW TO USE THE FAT BURN AND FAT BURN PLUS PROGRAMS ............... ; .......... 14'=

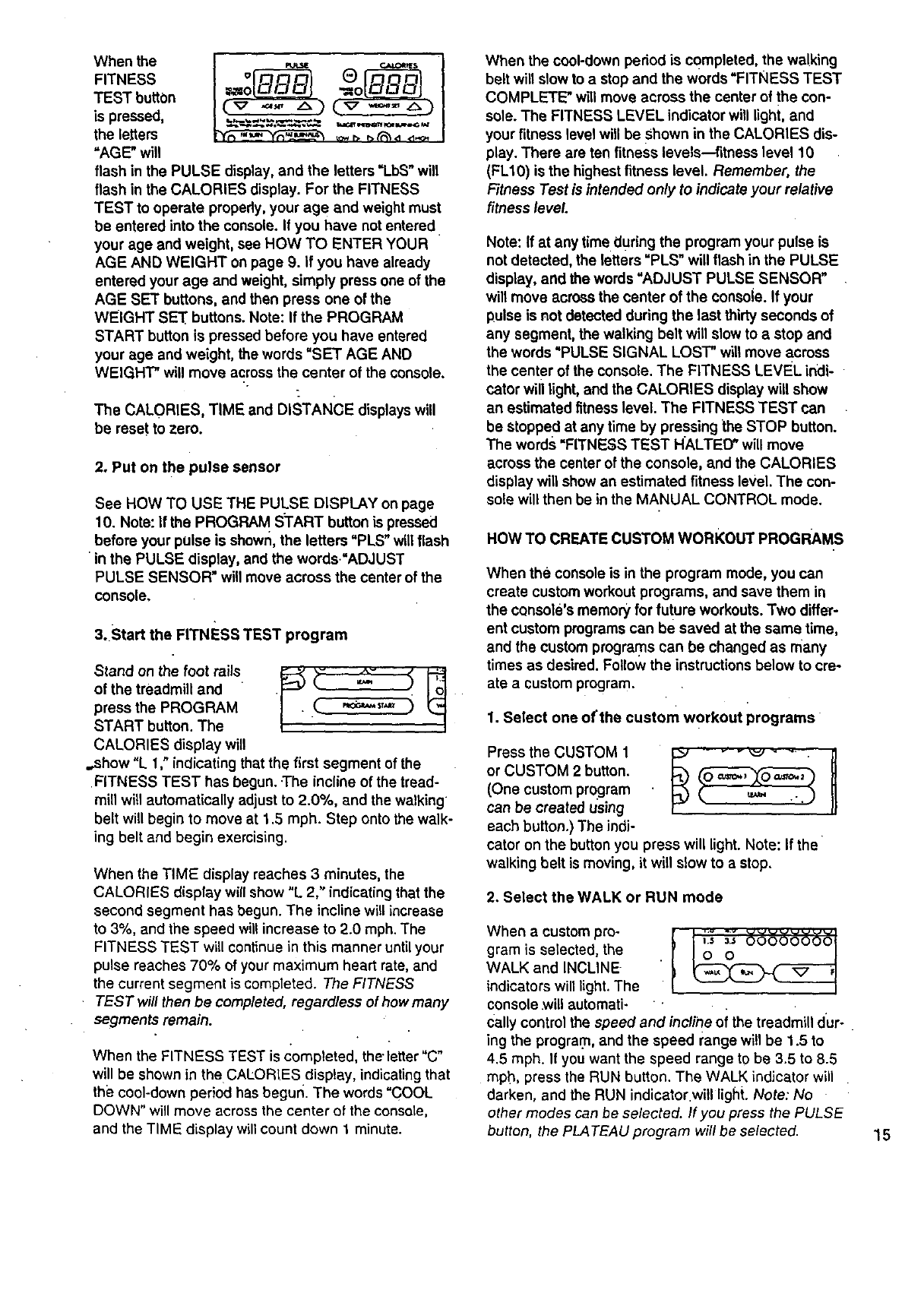

HOW TO USE THE FITNESS TEST PROGRAM ........................................... 14

HOW TO CREATE CUSTOM WORKOUT PROGRAMS ......................... ............. 15

HOW TO USE A CUSTOM WORKOUT PROGRAM .................. "_.,"................... 16

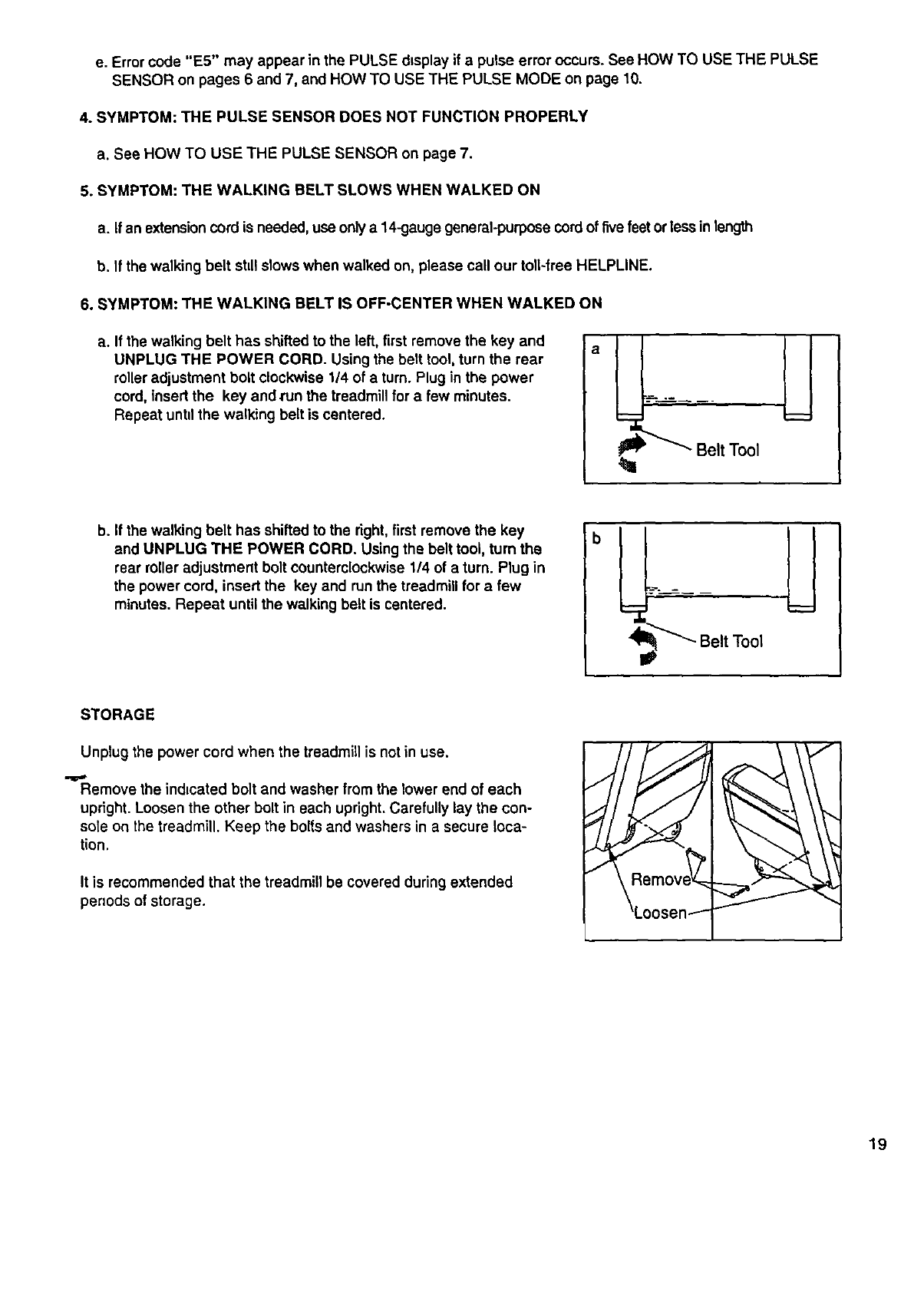

TROUBLE-SHOOTING AND STORAGE ........................................................ 18

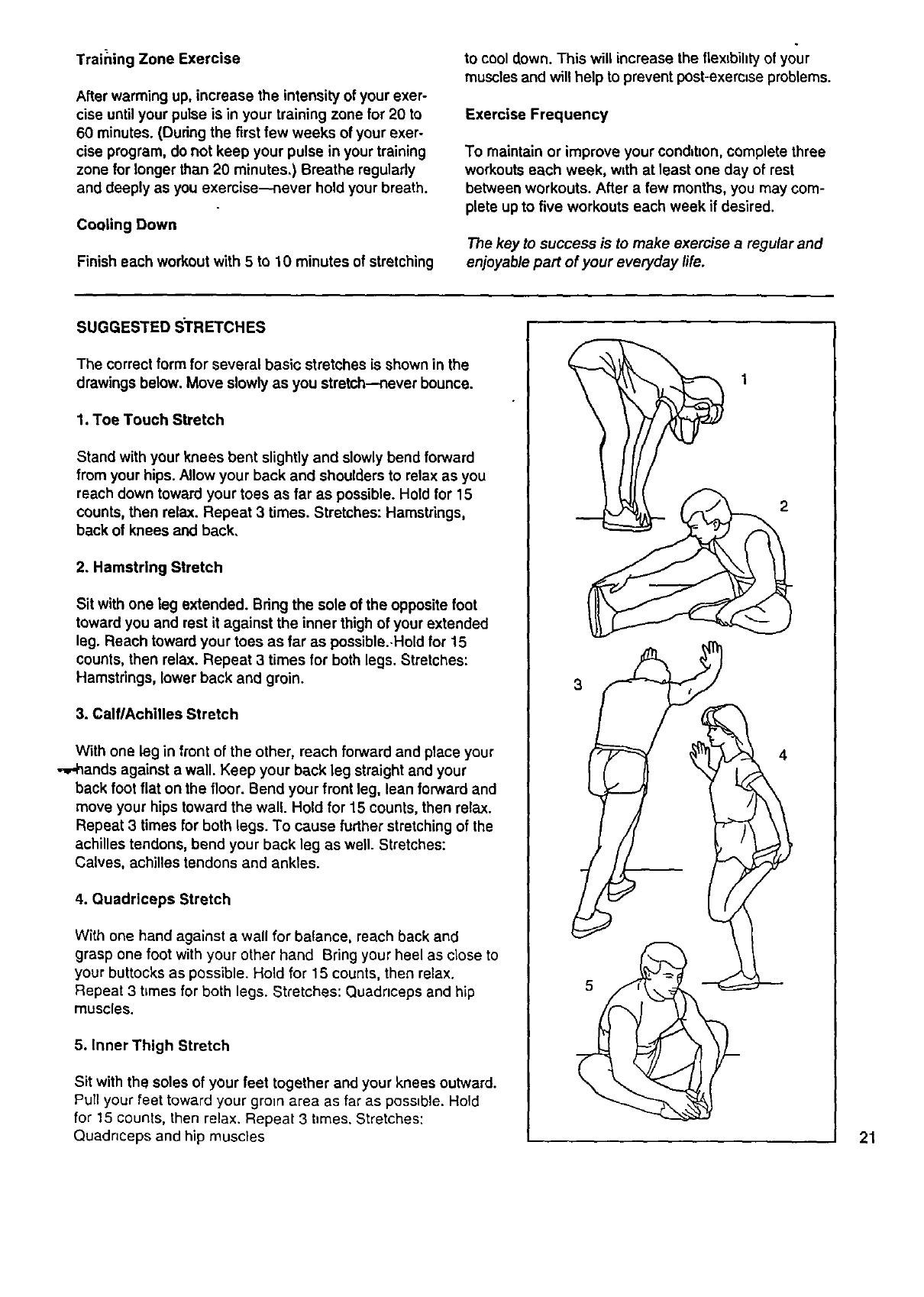

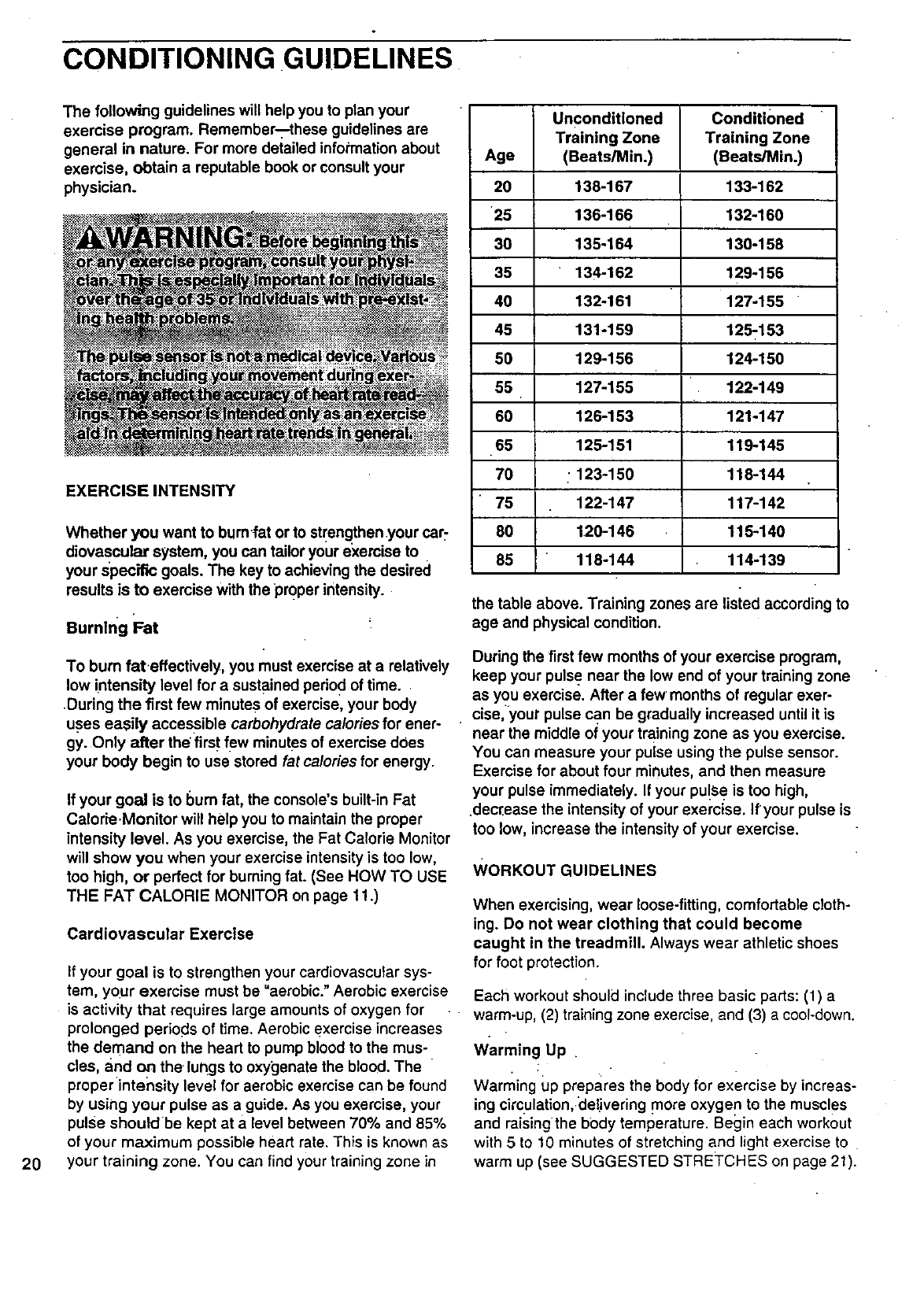

CONDITIONING GUIDELINES ....... . ........................................................ 20

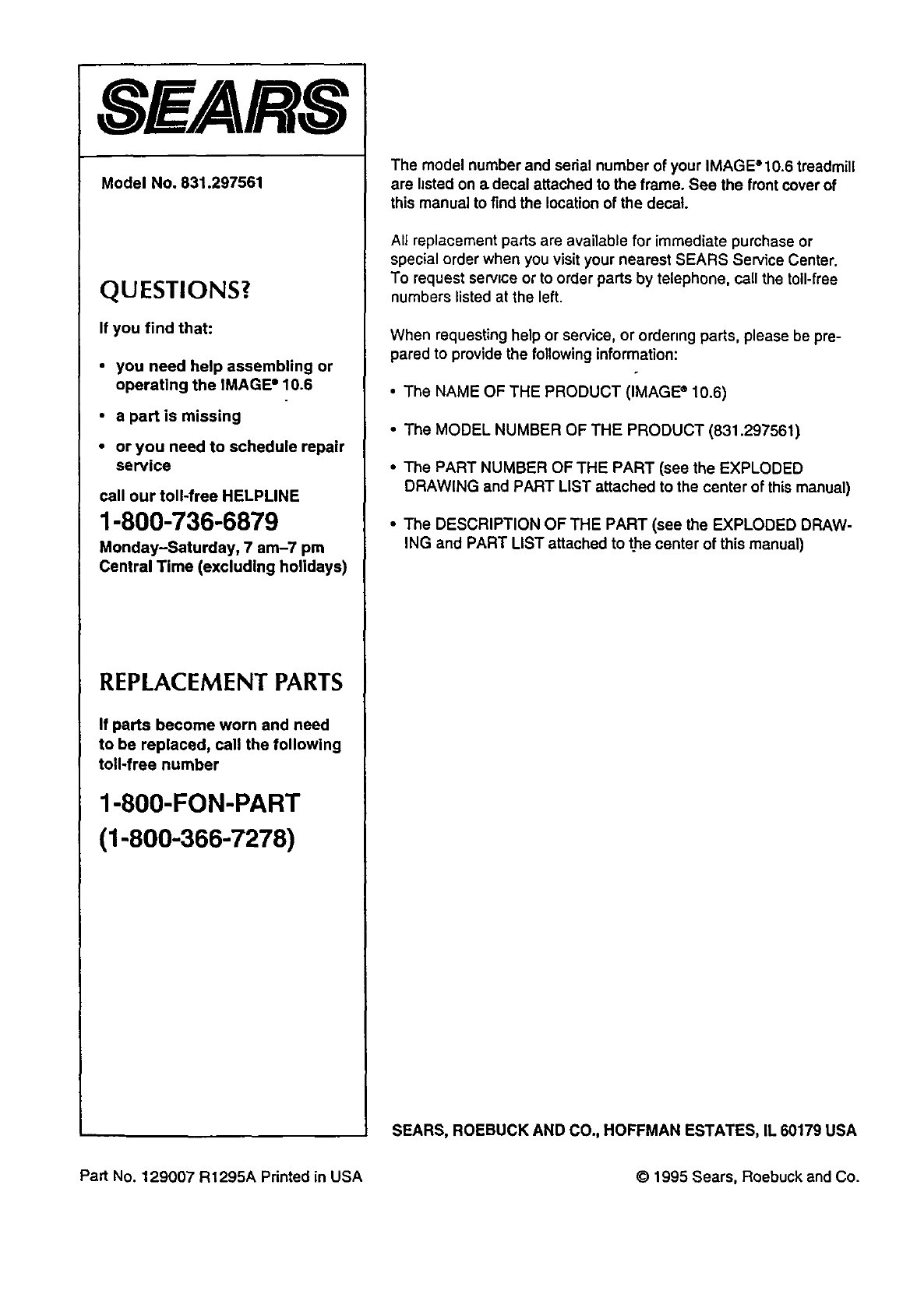

ORDERING REPLACEMENT PARTS .................................................. Back Cover

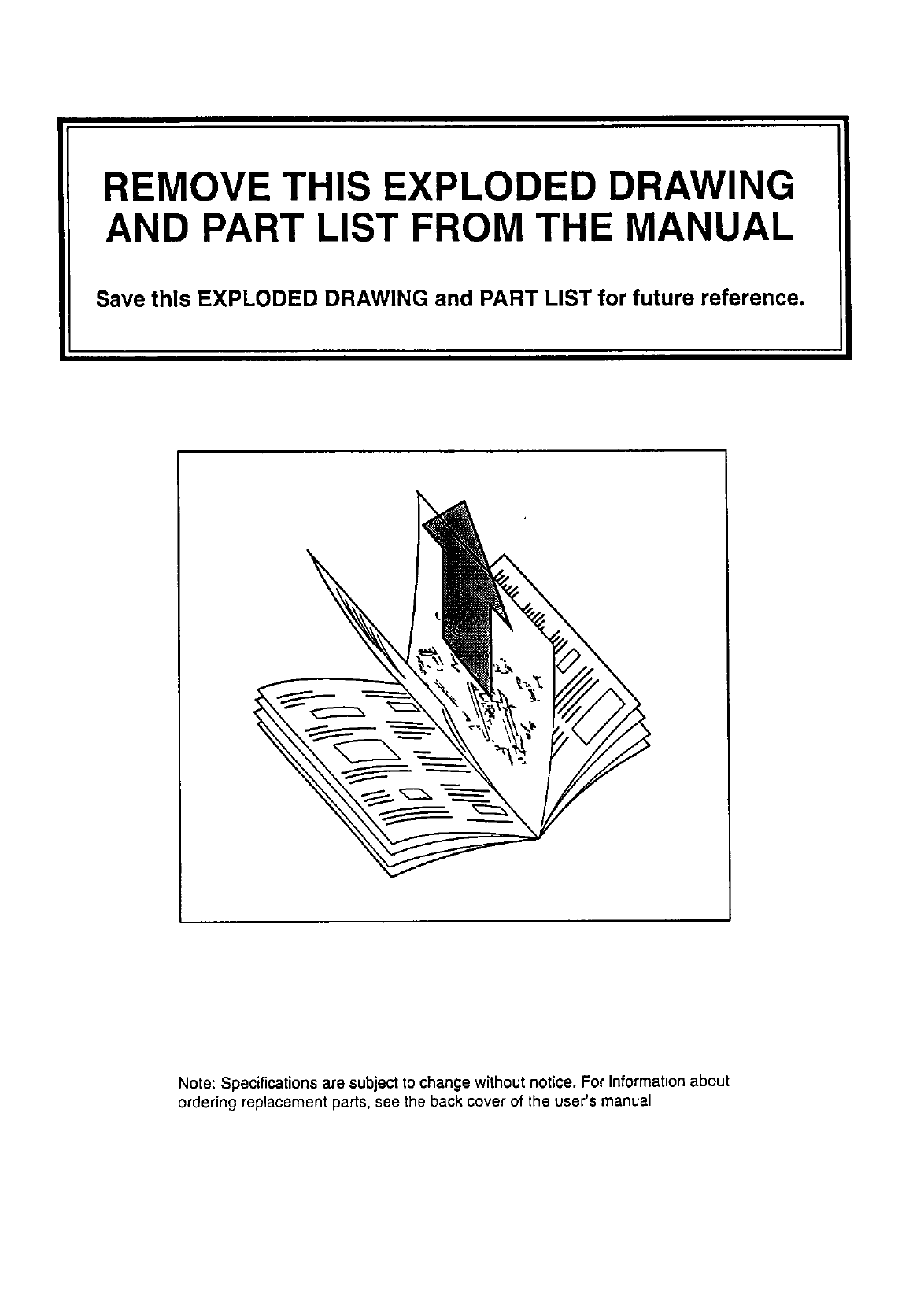

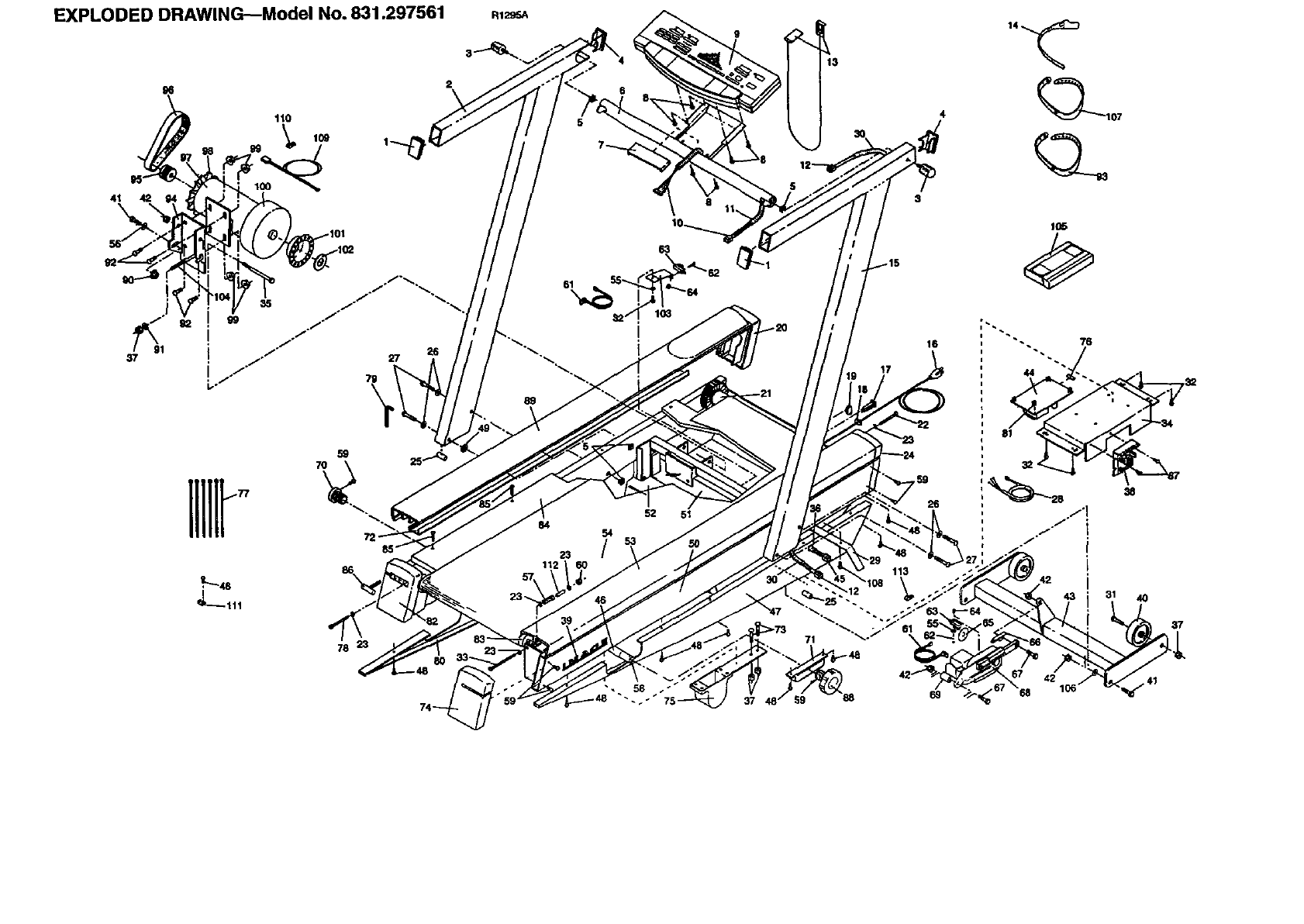

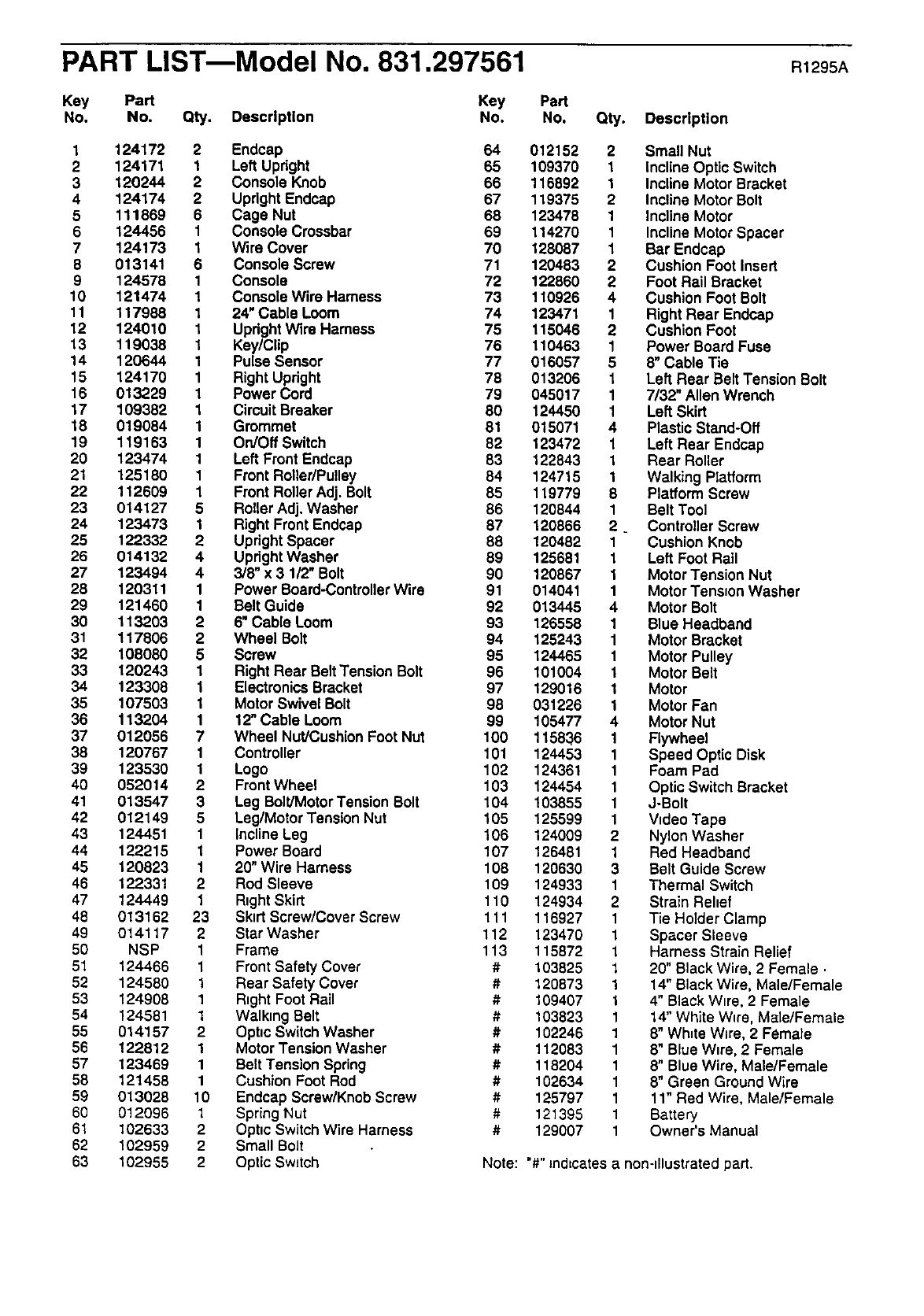

Note: There is an EXPLODED DRAWING and PART LIST attached to the center of this manual. Save the

EXPLODED DRAWING and PART LIST for future reference.

IFULL ONE YEAR WARRANTY I

For one (1) year from the date of purchase, if failure occurs due to defect in material or workma_3shipin

this SEARS TREADMILL EXERCISER, cor_tactthe nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not appiy when the TREADMILL EXERCISER is used commercially or for rental pur-

poses.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state,

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

_i ;_less in lehg.th_w

ustment :.._

BEFORE yOU BEGIN:on page 4 ifthe tread. ;_.i:.:_.;::Servicing in this i i:.:

mill ish0t Wor_<ing_rQperly, )!;::i;:: manual sh0u d be performed by an autho-

::" riz_d Servlce:_;ep_'esentative only.

damag,= _orthrough the use,of this product.

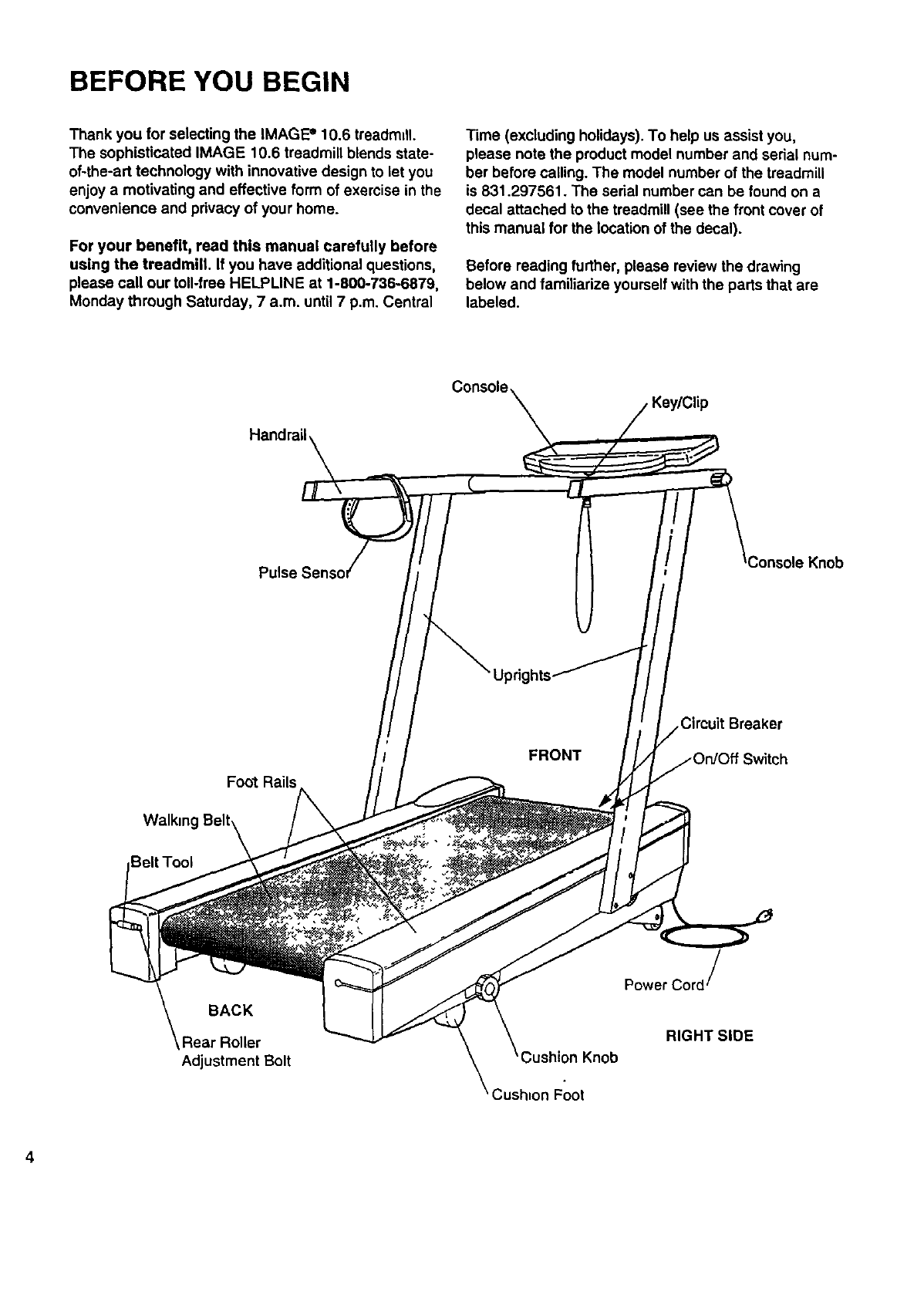

BEFORE YOU BEGIN

Thank you for selecting the IMAGE •10.6 treadmLII.

The sophisticated IMAGE 10.6 treadmill blends state-

of-the-art technology with innovative design to let you

enjoy a motivating and effective form of exercise in the

convenience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-600-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and sedal num-

ber before calling. The model number of the treadmill

is 831.297561. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location of the decal).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Pulse Sen

Foot Rails

FRONT

Breaker

_witch

Walking Belt

Belt Tool

BACK

Rear Roller

Adjustment Bolt Knob

inon Foot

RIGHT SIDE

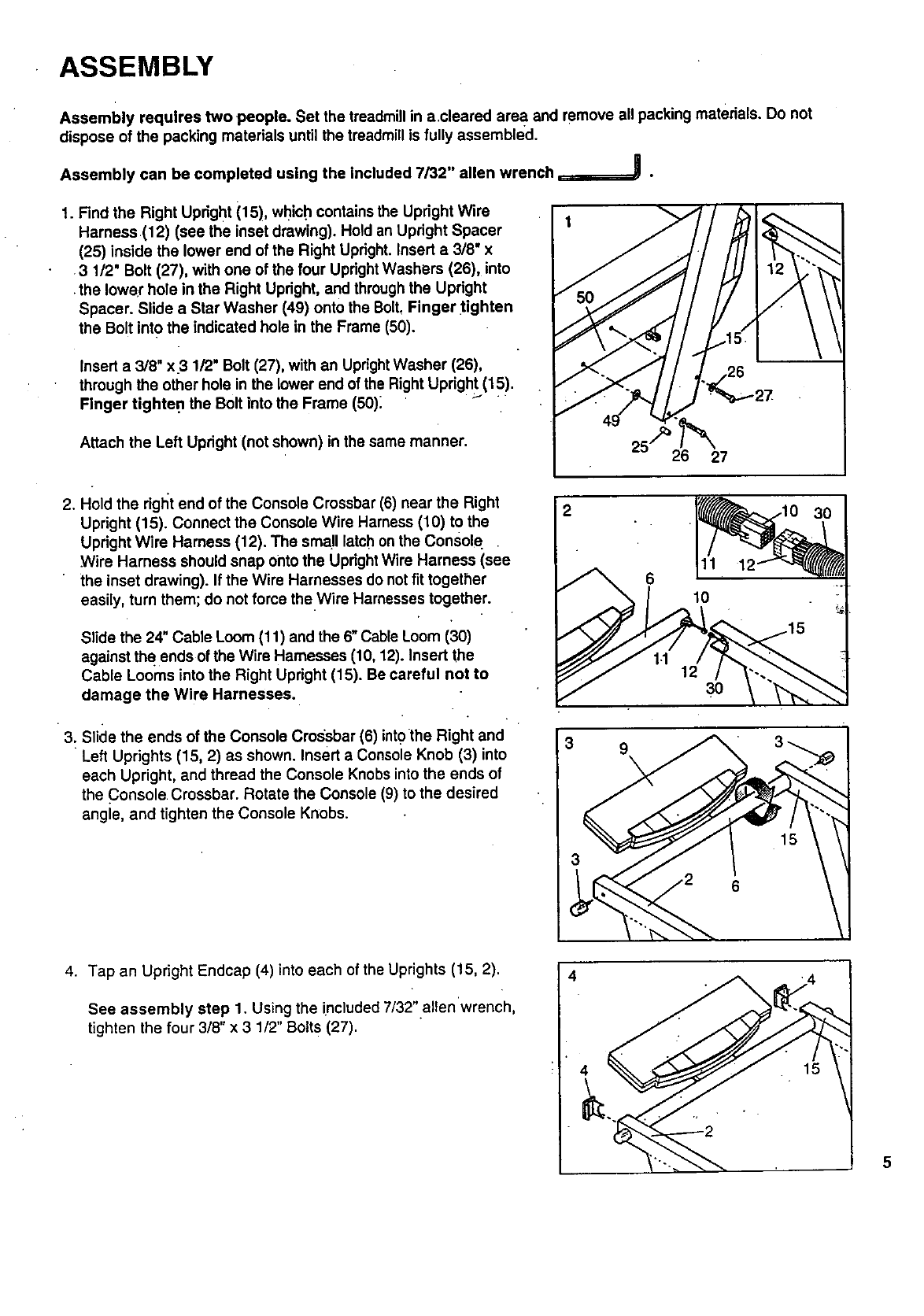

ASSEMBLY

Assembly requires two people. Set the treadmillin a cleared area and remove all packing materials. Do not

dispose of the packing materials until the treadmillis fully assembled.

Assembly can be completed using the included 7/32" allen wrench J_ .

1. Find the Right Upright (15), which contains the Upright Wire

Harness (12) (see the inset drawing). Hold an Upright Spacer

(25) inside the lower end of the Right Upright. Insert a 3/8" x

3 1/2" Bolt (27), with one of the four Upright Washers (26), into

•the lower hole in the Right Updght, and throughthe Upright

Spacer. Slide a Star Washer (49) onto the Bolt, Finger tighten

the Bolt into the indicated hole in the Frame (50).

Insert a 3/8" x.3 1/2" Bolt (27), with an UpdghtWasher (26),

through the other hole in the lower end of the Right Upright(15).

Finger Ughte.n the Bolt into the Frame (50)_

Attach the Left Upright (not shown) in the same manner.

;- •

26 27

2. Hold the right end of the Console Crossbar (6) near the Right

Upright (15). Connect the Console Wire Harness (10) to the

Updght Wire Harness (12). The small latchon the Console

Wire Harness should snap onto the UprightWire Harness (see

the inset drawing). If the Wire Harnesses do notfit together

easily, turn them; do not force the Wire Harnesses together.

Slide the 24" Cable Loom (11) and the 6" Cable Loom (30)

against the ends of the Wire Hamesses (10, 12). Insert the

Cable Looms into the Right Upright (15). Be careful not to

damage the Wire Harnesses.

3: Slide the ends of the Console Crossbar (6) int0the Right and

Left Uprights (15, 2) as shown. Insert a Console Knob (3) into

each Upright, and thread the Console Knobs into the ends of

the Console Crossbar. Rotate the Console (9) to the desired

angle, and tighten the Console Knobs.

3 9

12 3o

4. Tap an Upright Endcap (4) into each of the Uprights (15, 2).

See assembly step 1. Using the included 7/32"•allenwrench

tighten the four 3/8" x 3 1/2" Bolts (27).

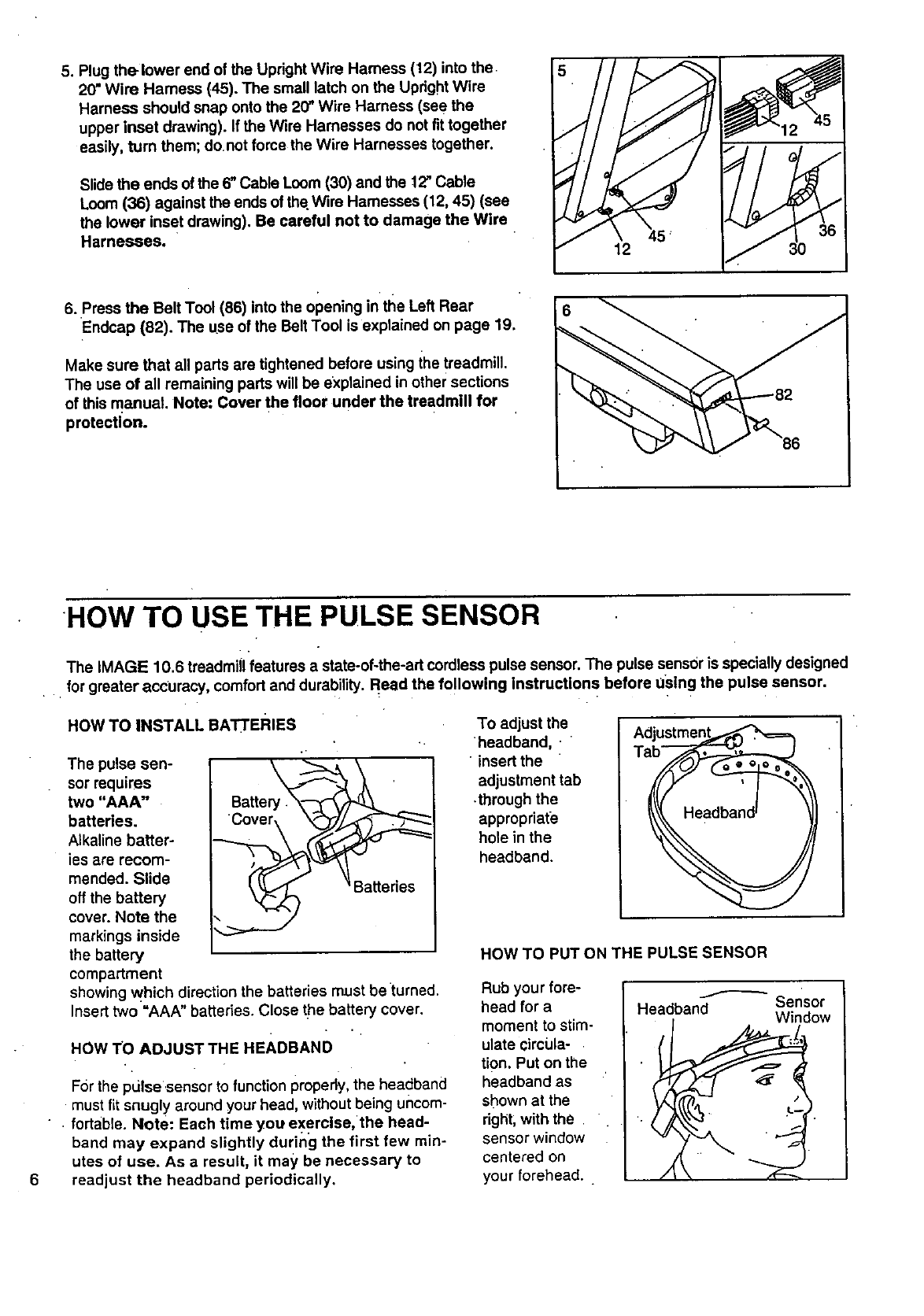

5. Plug the-lower end of the Upright Wire Hamess (12) into the

20" Wire Hamess (45). The small latch on the UprightWire

Harness should snap onto the 20" Wire Harness (see the

upper inset drawing). If the Wire Harnesses do not fit together

easily, turn them; donot force the Wire Harnesses together.

Slide the ends of the 6" Cable Loom (30) and the 12" Cable

Loom (36) against the ends of the.Wire Hamesses (12, 45) (see

the lower inset drawing). Be careful not to damage the Wire

Harnesses. +12

6. •Pressthe Belt Tool (86) into the opening inthe Left Rear

Endcap (82). The use of the Belt Tool is explained on page 19.

Make sure that all parts are tightened before using ihe treadmill.

The use of all remaining parts will be explained in other sections

of this manual. Note: Cover the floor under the treadmill for

protection.

HOW TO USE THE PULSE SENSOR

The IMAGE 10.6 treadmiil features a state-of-the-art cordless pulse sensor. The pulse sensor is specially designed

for greater accuracy, comfort and durability. Read the fo!lowlng Instruction s before U_ing the pulse sensor.

HOW TO INSTALL BATTERIES

The pulse sen-

sor requires

two "AAA"

batteries.

Alkaline batter-

ies are recom-

mended. Slide

off the battery

cover. Note the

markings inside

the battery

compartment

Batte_.__ ' _

-- "k_Batteries

showing which direction the batteries must be turned.

Insert two "AAA" batteries. Close the battery cover.

HOW TO ADJUST THE HEADBAND

For the pulse.sensor to function properly, the headband

must fit snugly around your head, withoutbeing uncom-

fortabfe. Note: Each time you exercise, the head-

band may expand slightly during the first few min-

utes of use. As a result, it may be necessary to

readjust the headband periodically.

To adjust the

headband,.

• insert the

adjustment tab

•through the

appropriate

hole in the

headband.

HOW TO PUT ON THE PULSE SENSOR

Rub your fore-

head for a

moment to stim-

ulate circula-

tion. Put on the

headband as

shown at the

right,with the

sensor window

centered on

your forehead.

-'"---- Sensor

Headband Window

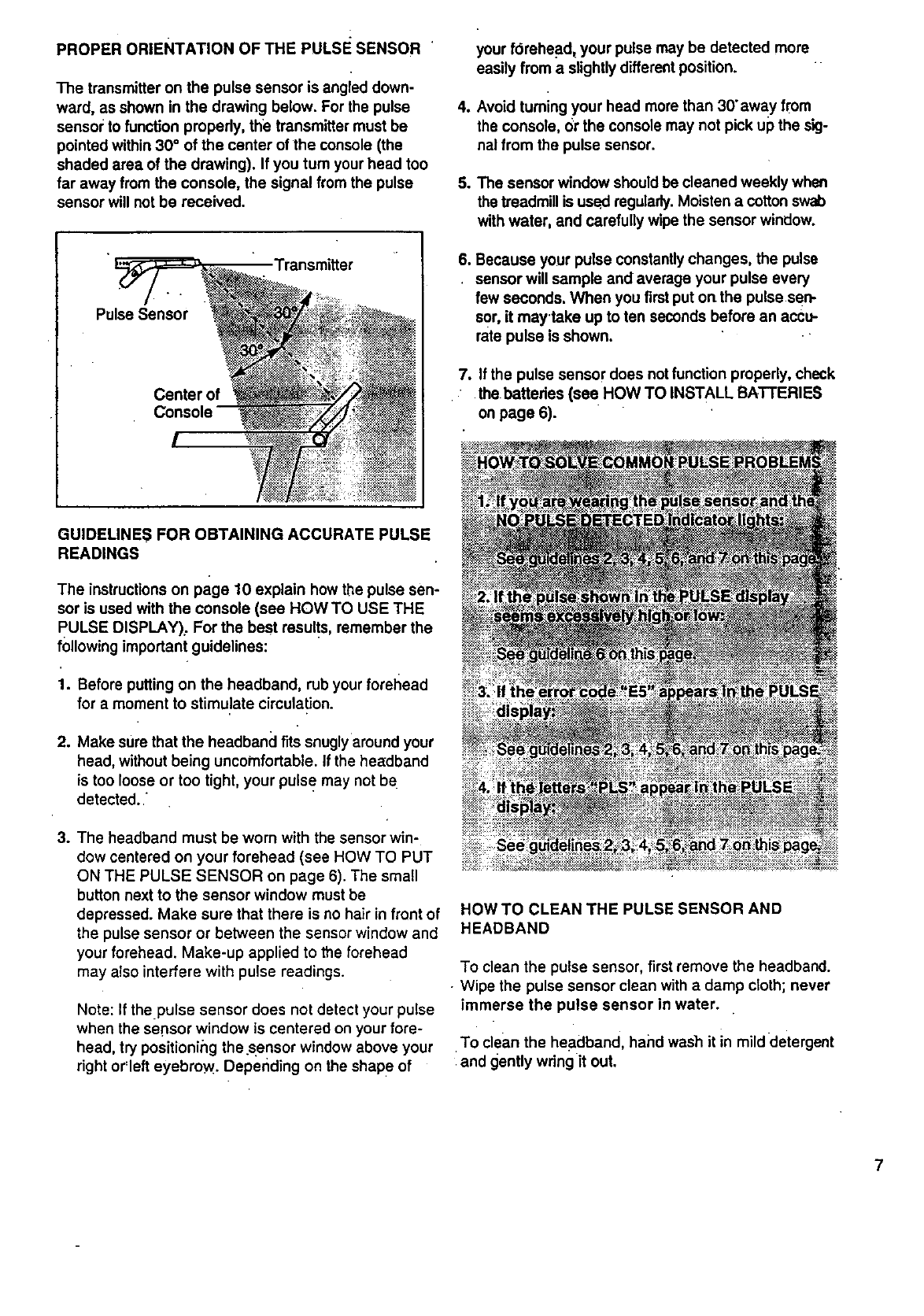

PROPER ORIENTATION OF THE PULSE SENSOR "

The transmitter on the pulse sensor is angled down-

ward, as shown in the drawing below. For the pulse

sensor to function propedy, the transmitter must be

pointed within 30 °of the center of the console (the

shaded area of the drawing). If you turn your head too

far away from the console, the signal from the pulse

sensor will not be received.

Transmitter

Pulse Sensor

Center of

your fdrehead_your pulse may be detected more

easily from a slightly differentpositiOn. "

Avoid turningyour head more than 30"awaY from

the console, Or the console may not pick up the sig-

nal from the pulse sensor.

5. The sensor window should be cleaned weekly when

the treadmill is used regularly.Moisten a cotton swab

with water, and carefully wipe the sensor window.

6. Because your pulse constantlychanges, the pulse

• sensor will sample andaverage your pulse every

few seconds. When you firstput on the pulse sen-

sor, it maytake up to ten seconds before an accu-

rate pulse is shown.

7. If the pulse sensor does notfunction properly, check

•the battedes (see HOW TO INSTALL BATTERIES

on page 6).

GUIDELINES FOR OBTAINING ACCURATE PULSE

READINGS

The instructionson page lO explain how the pulse sen-

sor is used with the console (see HOWTO USE THE

PULSE DISPLAY), For the best rasul!s, remember the

following important guidelines:

1. Before putting on the headband, rub your forehead

for a moment to stimulate circulation.

2. Make sure that the headbancl fits snuglyaround your

head, without being uncomfortable. If the headband

is too loose or too tight, your pulse may not be

detected..

3. The headband must be worn with the sensor win-

dow centered on your forehead (see HOW TO PUT

ON THE PULSE SENSOR on page 6). The small

button next to the sensor window must be

depressed. Make sure that there is no hair in front of

the pulse sensor or between the sensor window and

your forehead. Make-up applied to the forehead

may also interfere with pulse readings.

Note: If the.pulse sensor does not detect your pulse

when the se0sor window is centered on your fore-

head, try positioning the .sensor window above your

dght or=left eyebrow. Depending on the shap eof

HOW TO CLEAN THE PULSE SENSOR AND

HEADBAND

To clean the pulse sensor, first remove the headband.

•Wipe the pulse sensor clean with adamp cloth; never

immerse the pulse sensor in water.

To clean the headband, hand wash it in mild detergent

•and gently wdng it out.

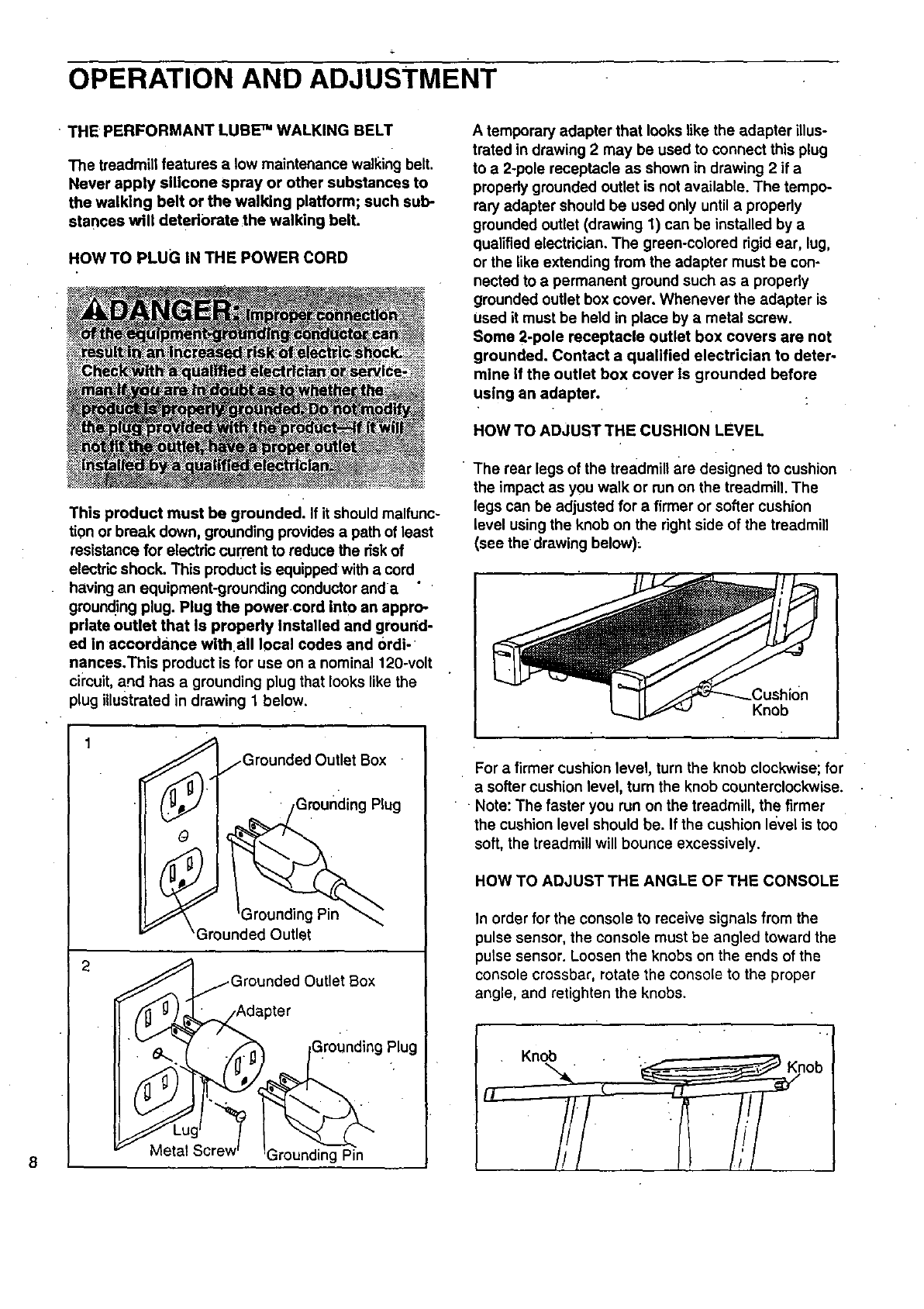

OPERATION AND ADJUSTMENT

"THE PERFORMANT LUBE TM WALKING BELT

The treadmill features a low maintenance walking belt.

Never apply silicone spray or other substances to

the walking belt or the walking platform; such sub-

stances will deteriorate the walking bell

HOW TO PLUG IN THE POWER CORD

This product must be groundedl If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electdc current to reduce the riskof

electric shock. This product is equipped with acord

havingan equipment-grounding conductorand a"

grounding plug. Plug the power.cord into an appro-

priate outlet that Is properly Installed and ground-

ed In accordance withall local codes and 0rdi-

nances.This product is for use on a nominal 120-volt

cii'cuit,and has a grounding plug that looks like the

plug illustrated in drawing 1 below.

.Grounded Outlet Box •

Plug

Grounding Pin

Grounded Outlet

jGrounded Outlet Box

_,_apter

.n_._IGrounding P'ug

A temporary adapter that looks like the adapter illus-

trated in drawing 2 may be used to connect this plug

to a2-pole receptacle as shown in drawing 2 if a

propedy grounded outlet is not available. The tempo-

rary adapter should be used only until a propedy

grounded outlet (drawing 1) can be installed by a

qualified electrician. The green-colored rigid ear, lug,

or the like extending from the adapter must be con-

nected to a permanent ground such as a propedy

grounded outlet box cover. Whenever the adapter is

Used it must be held in place by a metal screw.

Some 2-pole receptacle outlet box covers are not

grounded. Contact a qualified electrician to deter-

mine If the outlet box cover Is grounded before

using an adapter.

HOW TO ADJUST THE CUSHION LEVEL

• The rear legs of the treadmill are designed to cushion

the impact as you walk or run on the treadmill. The

legs can be adjusted for a firmer or softer cushion

level usingthe knob on the right side of the treadmill

(see the drawing below);

For afirmer cushion level, turn the knob clockwise; for

a softer cushion level, turn the knob counterclockwise.

• - Note: The faster you run on the treadmill, the firmer

the cushion level should be. If the cushion level is too

soft, the treadmill will bounce excessively.

HOW TO ADJUST THE ANGLE OF THE CONSOLE

In order for the console to receive signals from the

pulse sensor, the console must be angled toward the

purse sensor. Loosen the knobs on the ends of the

console crossbar, rotate the console to the proper

angle, and retighten the knobs.

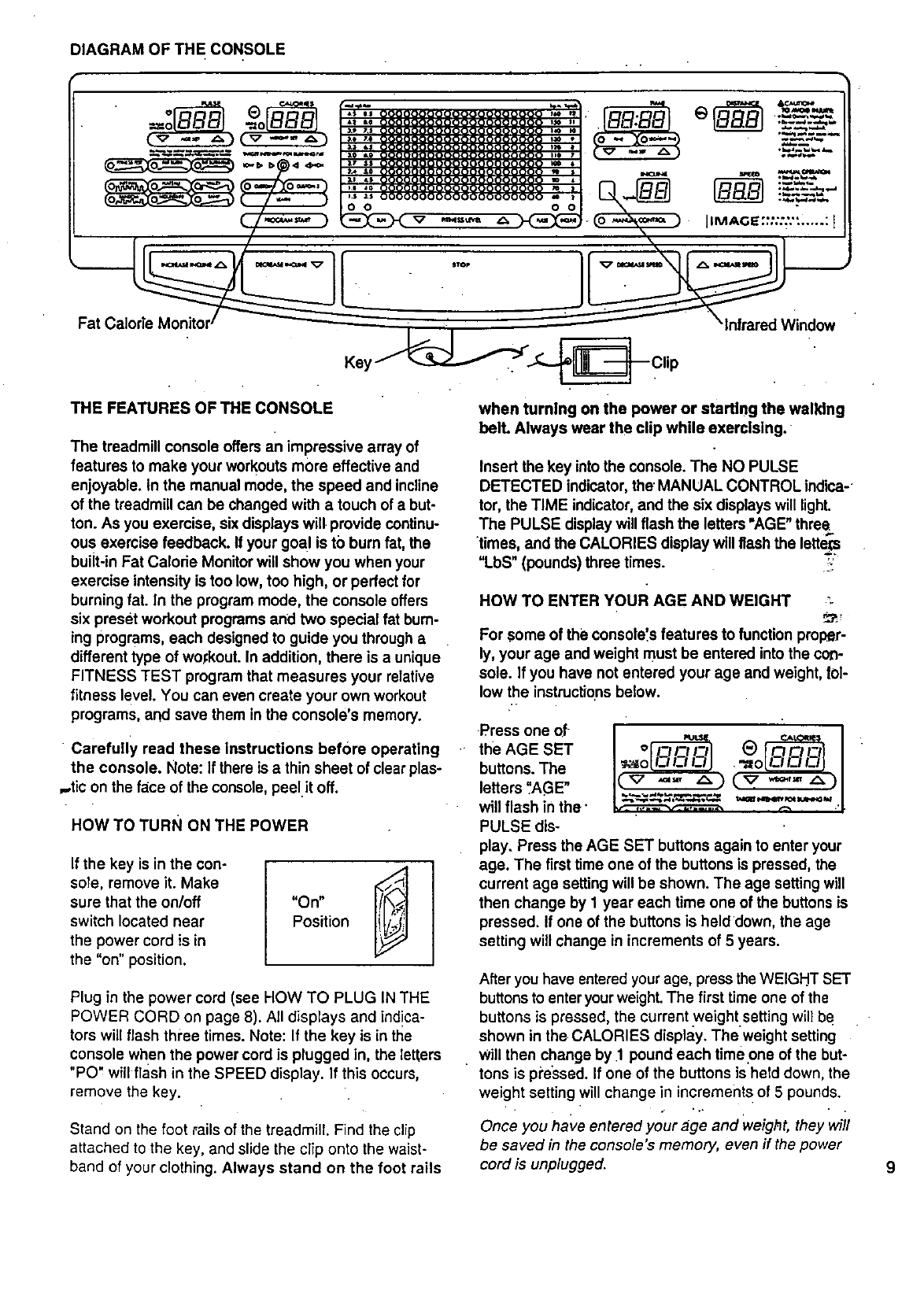

DIAGRAM OF THE CONSOLE

Fat (

Key

THEFEATURESOFTHECONSOLE

The treadmill console offers an impressive array of

features to make your workouts more effective and

enjoyable, in the manual mode, the speed and incline

of the treadmill can be changed with a touch of a but-

ton. As you exercise, six displays will provide continu-

ous exercise feedback. If your goal is to burn fat, the

buiit-in Fat Calode Monitor will show you when your

exercise intensity is too low, too high, or perfect for

burning fat. In the program mode, the console offers

six preset workout programs and two special fat bum-

ing programs, each designed to guide you througha

different type of workout. In addition, there is a unique

FITNESS TEST program that measures your relative

fitness level. You can even create your own workout

programs, and save them in the console's memory.

• Carefully read these Instructions before operating

the console. Note: If there is a thin sheet of clear plas-

,,.tic on the face of the console, peel it off.

HOW TO TuRN ON THE POWER

If the key is in the con-

sole, remove it. Make

sure that the on/off

switch located near

the power cord is in

the "on" position,

"On"

Position

Plug in the power cord (see HOW TO PLUG IN THE

POWER CORD on page 8). All displays and indica-

tors will flash thi'ee times. Note: If the key is in the

console when the power cord is plugged in, the letters

"PO _will flash in the SPEED display. If this occurs,

remove the key.

Stand on the foot rails of the treadmill. Find the clip

attached to the key, and slide the clip onto the waist-

band of your clothing. Always stand on the foot rails

Infrared Window

when turning on the power or starting the walking

belt. Always wear the clip while exercising.

Insert the key intothe console. The NO PULSE

DETECTED indicator,the MANUAL CONTROL indica-

tor, the TIME indicator, and the six displayswill light.

The PULSE displaywill flash the letters"AGE" three

•times, and the CALORIES display will flash the lettP,_.

"LbS" (pounds) three times. __:i

HOW TO ENTER YOUR AGE AND WEIGHT ".

For some of the console'•sfeatures to function proper-

ly, your age and weight must be entered into the con-

sole. If you have not entered your age and weight, fol-

low the instructionsbelow.

Press one of-I__l

the AGE SET o

buttons. The

letters ".AGE"

will flash in the'

PULSE dis-

play. Press the AGE SET buttons again to enter your

age. The firsttime one of the buttons is pressed, the

current age setting will be shown. The age setting will

then change by 1 year each time one of the buttons is

pressed. If one of the buttons is held down, the age

setting will change in increments of 5 years.

After you have entered yourage, press theWEIGHT SET

buttons to enter your weight. The first time one of the

buttons is pressed, the current weight.setting will be

shown in the CALORIES displ._y. The weight setting

Will then change by 1 pound each time one of the but-

tons is pi'essed. If one of the buttons is held down, the

weight setting will change in increments of 5 pounds.

Once you have entered your age and Weight, they will

be saved in the console's memory, even if the power

cord is unplugged. 9

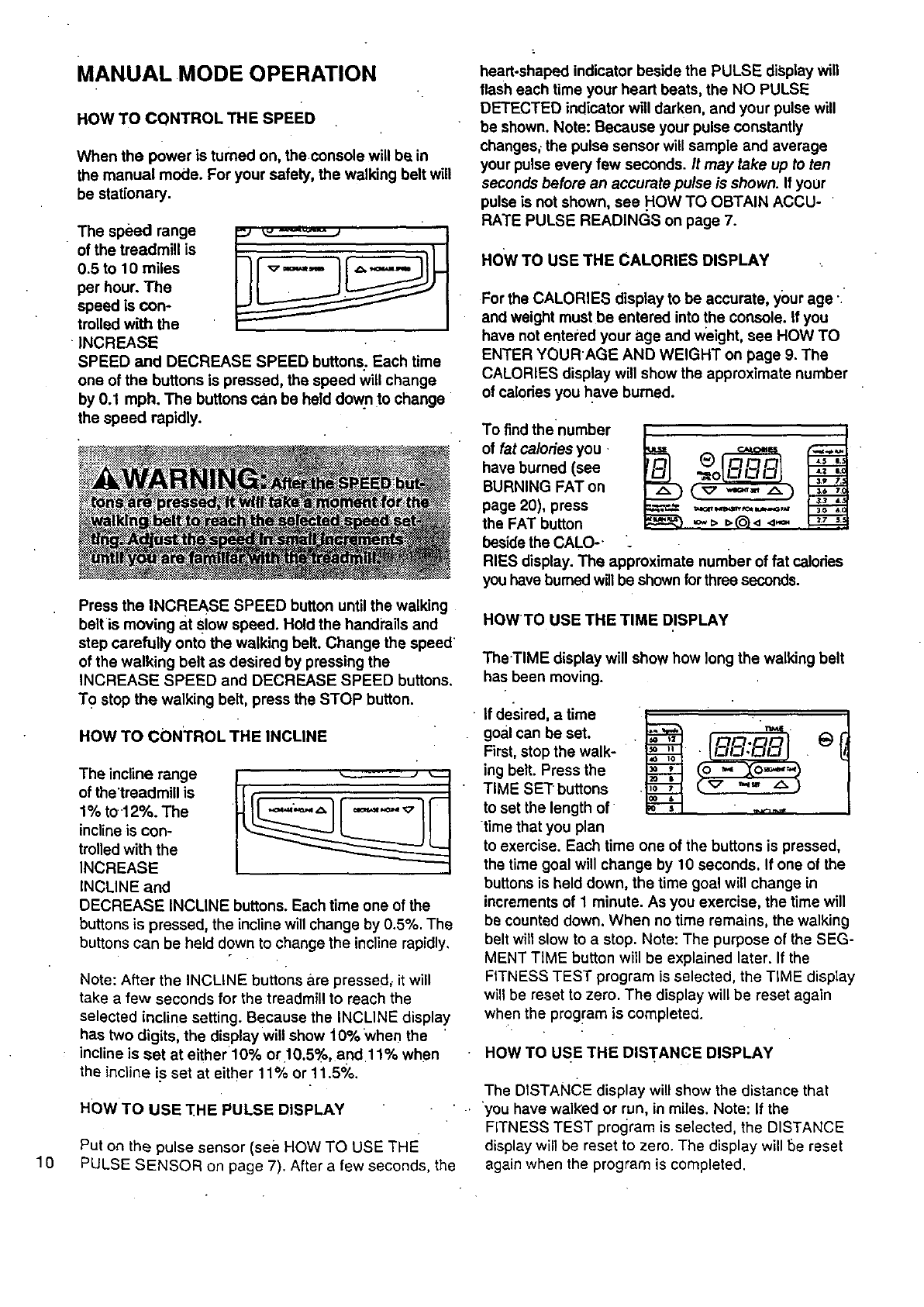

MANUAL MODE OPERATION

HOW TO CONTROL THE SPEED

When the power is turned on, the console will be in

the manual mode. For your safety, the walking belt will

be stationary.

The speed range

of the treadmill is

0.5 to 10 miles

per hour. The

speed is con-

trolled with the

INCREASE

SPEED and DECREASE SPEED buttons..Each time

one of the buttons is pressed, the speed will change

by 0.1 mph. The buttons can be held down to change

the speed rapidly.

Press the INCREASE SPEED button until the walking

belt is moving at slow speed. Hold the handrails and

step carefully onto the walking belt. Change the speed •

of the walking belt as desired by pressing the

INCREASE SPEED and DECREASE SPEED buttons,

To stop the walking belt, press the STOP button.

HOW TO coNTROL THE INCLINE

The incline range

of thetreadmill is

1% to12%. The

incline is con-

trolled with the

INCREASE

INCLINE and

DECREASE INCLINE buttons. Each time one of the

buttons is pressed, the incline will change by 0.5%. The

buttons can be held down to change the incline rapidly,

Note: After the INCLINE buttons are pressed, it will

take a few seconds for the treadmill to reach the

selected incline setting. Because the INCLINE display

has two digits, the display will show 10% When the

incline is set at either 10% or 10.5%, and 11% when

the incline i.sset at either 11% or 11.5%.

HOW TO USE THE PULSE D SPLAY

Put on the pulse sensor (see HOW TO USE THE

PULSE SENSOR on page 7). After a few seconds, the

heart-shaped indicator beside the PULSE display will

flash each time your heart beats, the NO PULSE

DETECTED indicator will darken, and your pulse will

be shown. Note: Because your pulse constantly

changes, the pulse sensor will sample and average

your pulse every few seconds. It may take up to ten

seconds before an accurate pulse is shown. If your

pulse is not shown, see HOW TO OBTAIN ACCU-

RATE PULSE READINGS on page 7.

How TO USE THE CALORIES DISPLAY

For the CALORIES display to be accurate, your age .

and weight must be entered into the console. If you

have not entered your age and weight, see HOW TO

ENTER YOURAGE AND WEIGHT on page 9. The

CALORIES display will show the approximate number

of calories you have burned.

To find the•number

of fat calories you •

have burned (see

BURNING FAT on

page 20), press

the FAT button

besidethe CALO-.

RIES display. The approximate number of fat calodes

you have burnedwill be shown for three seconds.

HOW'TO USE THE TIME DISPLAY

TheTIME display will show how long the walking belt

has been moving.

• If desired, a time

goal can be set.

First,stop the walk-

ing belt. Press the

TIME SET buttons

to set the length of

time that you plan

to exercise. Each time one of the buttons is pressed,

the time goal will change by 10 seconds. If one of the

buttons is held down, the time goal will change in

increments of 1 minute. As you exercise, the time will

be counted down. When no time remains, the walking

belt will slow to astop. Note: The purpose of the SEG-

MENT TIME button will be explained later. If the

FtTNESS TEST program is selected, the TtME display

will be reset to zero. The display will be reset again

when the prog_'am is completed.

HOW TO USE THE DISTANCE DISPLAY

The DISTANCE display will show the distance that

you have walked or run, in miles. Note: If the

FITNESS TEST program is selected, the DISTANCE

display will be reset to zero. The display will TSereset

again when the program is completed.

ec--e"k I

keeps track of the C.ST*,,,CE &

total numberof _FI 0I-I

milesaccumulat- L..,/O. ".%_

ed sincethe

tre_.dmillwas pur-

chased. To find this number, press the TOTAL button

beside the DISTANCE display. The total number of

miles will be shown for throe seconds. Note: When

the total exceeds 999 miles, the DISTANCE display

will be reset to zero.

HOWTO USE THE FAT CALORIE MONITOR

If you want to burn fat, the built-in Fat Calorie Monitor

is designed to help you reach your goal. As you exer-

cise, your body can bum either fat calories or carbo-

hydrate calories, depending on the intensity of your

exeL;cise(see BURNING FAT on page 20). The Fat

Calorie Monitor will show you when your exercise

intensityis too low, too high, or perfect for burning fatl

For the Fat Calorie Monitor to be accurate, your age

and weight must be entered into the console. If you

have not entered your age and weight, seeHOW TQ

ENTER YOUR AGE AND WEIGHT on page 9. !n

addition,the pulse sensor mustbe worn (see HOW

TO USE THE PULSE DISPLAY on page 10).

As you exercise,

one ofthe five

indicatorsabove

the CUSTOM 1

and CUSTOM 2

buttons will light.

The two _redindicators on the left indicate that your

intensityis too low for burning fat effectively. The two

red indicators on the right indicate that your intensity

is too high for burning fat effectively. When your inten-

""sity is perfect for burning fat, the green indicator in.the

center will.light.Adjust the speed or incline of the

treadmill so that the green indicator remains lit. Note:

After adjusting the speed or incline, wait for about one

minute before adjusting the speed or incline again.

This will allow time for your pulse to respond to the

new speed or incline setting.

PROGRAM MODE OPERATION

When the console is in the program mode, you can

choose any of six preset workout programs, each

designed to guide you through a different type of

workout. If your goal is to burn fat, two additional pro-

grams are included just for you--the FAT BURN and

FAT BURN PLUS programs. Or, you can select the

unique FITNESS TEST program, and measure your

relative fitness level. You can even create your own

custom workout programs, and save them in the con-

sows memory.

HOW TO USE A PRESET WORKOUT PROGRAM

1. Select one of the preset workout programs

Press the INTER-

VAL, PLATEAU,

VALLEY, RAN-

DOM, MOUNTAIN,

or RAMP button. I.......!

The indicator on the button you press will light. Note:

If the walking belt is moving, it will slow to a stop.

2. Select one of the modes (WALK, RUN, INCUNE,

.WALK/INCLINE, or RUN_NCLINE) :_

_ _ _w*_ __l's is OOOOOOOOOOOOOOOOOOOO _ 2

When a preset workout program is selected, the

WALK and INCLINE indicatorswill light. When both

the wALK and INCLINE modes are selected, the con-

sole will automatically control boththe speed and

inc/ine of the treadmill during the program, and the

speed range will be T.5 to 4.5 mph. If you want the

speed.range to be 3.5 to 8.5 mpH, press the RUN but-

ton. The WALK indicatorwill darken, and the RUN

indicator will light.

If you want the console to automatically control only

the speed of the treadmill during the program, press

the INCLINE button. The INCLINE indicator will dark-

en. (The incline can then be controlled manually dur-

ing the program with the INCREASE INCLINE and

DECREASE INCLINE buttons).

If you want the console to automatically contro!only

theincline of the treadmill during the program, press

the WALK, RUN, and INCLINE buttons until only the

INCLINE indicatol" is.lighted. (The speed can theri be

controlled manually during the program with the

•INCREASE ,._PEED and DECREASE SPEEI3 buttons).

Note: To select the PULSE mode, see HOW TO USE

THE PULSE MODE on page 12. 11

3. The program settings

Each program is divided into twenty equal time peri-

ods, called segments. One speed setting and/or one

incline setting (depending on which models] you

selected)are programmed for each segment. The

speed and/or incline settings of the program you have

selected are shown in the columns of indicatorsin the

center of the console. The setting(s) of the firstseg-

ment are shown in the far left column, and the set- :

ting(s) of the twentieth segment are shown in the far

right column.

i'-I

If you selected the WALK or RUN mode, red indicators

will show the speed setting of each segment. If you

selected the INCLINE mode, green indicatorswill show

the incline setting of each segment. If you selected the

WALK and INCLINEmodes or the RUN and INCLINE

modes, both red and green indicators will be lit.

4. Adjust the difficulty level of the program

If desired, the difficulty level of the program can be

adjusted with the FITNESS LEVEL buttons (see the

drawing above). Each time the FITNESS LEVEL

increase button is pressed, the speed and/or incline

settings of all segments will increase. Each time the

FITNESS LEVEL decrease button is pressed, the

speed and/or incline settings of all segments will

decrease. Note: The difficulty.level of the program can

be increased only until the highest indicator in any of

the columns is lit, and decreased only untilthe lowest

indicator in any of the columns is lit.

5. Set the program time

The program is set

to last for 20 min-

utes, as shown in

the TIME display.

The length of time

can be changed, if

desired, with the

m TfME

h-,-l.l-l,-ll

tI-H-I.I-Jri /

TIME SET buttons_ Each time one of the buttons is

pressed, the length of time will change by 20 seconds•

If one of the buttons is heid down, the length of time

will change in increments of 1 minute. The program

can be set to last for a minimum of 5 minutes, up to a

maximum of 80 minutes. (If the SEGMENT TIME but-

ton is preSsed,the TIMI= Oisplaywill sllow Ilow many

seconds each of the _venty segments will last.)

6, Start theprogram

Stand on the foot rails _ (- "_- ) I-_

of the treadmill and

press the PROGRAM (,,_o,_,=,_ )

START button. The first

column of indicators will

begin to flash, and the treadmill will automatically

adjust to the speed and/or incline setting(s) of the first

segment. Carefully step onto the walking belt and

begin exercising. Note: If you selected the INCLINE

mode, the walking belt will begin to move at 1.0 mph.

The speed can then be controlled during the program

with the INCREASE SPEED and DECREASE SPEED

buttons. If you selected the WALK or RUN mode, the

incline can be con'trolledwith the INCREASE

INCLINE and DECREASE INCLINE buttons.

The time remaining in the program will be shown in the

TIME display. (If the SEGMENT TIME button is

pressed, the number of seconds remaining ir_the first

segment will be shown). During the last three seconds

of the first segment, tl)e TIME display wiXflash three

times. When the firstsegment is completed, the second

column of indicatorswill begin to flash, and the tread-

mill will automatically adjust to the speed and/or incline

setting(s) of the second segment. The program will

continue until the twentieth column is flashing and no

time remains. The walking belt will then slow to a stop.

Note: During the program, the difficulty level of the

program can be adjusted with the FITNESS LEVEL

buttons. The length Oftime that the program will last

can be changed with the TIME SET buttons. The pro-

gram can be stopped at any time with the STOP but-

ton. The console will then be in the same state as if

the program had been completed.

HOW TO USE THE PULSE MODE

mediCbt]on V

1. Select the PLATEAU program

Press-the PLATEAU ----.---_ _'_ '-_._'_

button. The indicator

on the button will

light. Note: If the

walking belt is mov-

ing, it will slow to a stop.

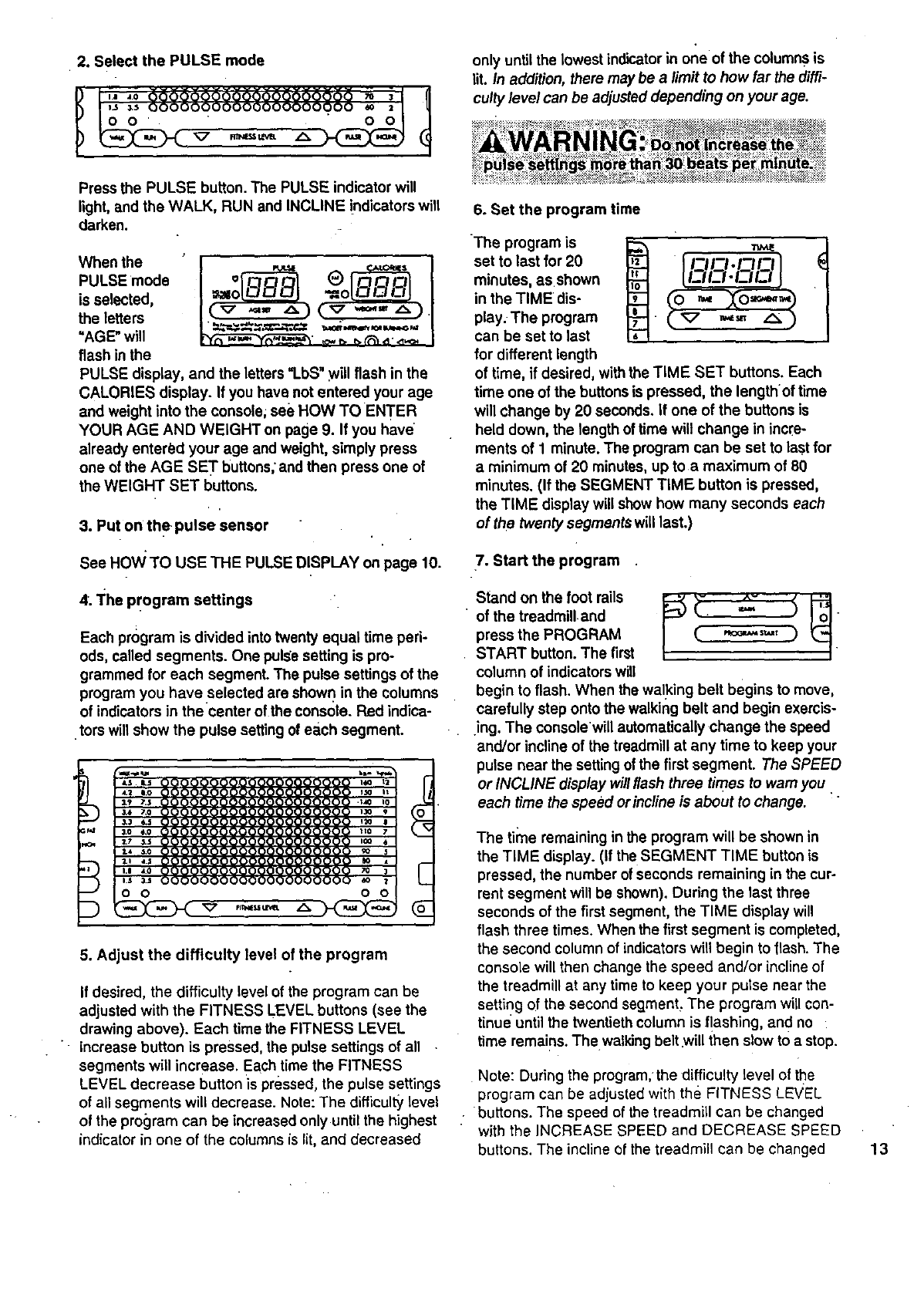

2. Select the PULSE mode

Ioo •°°°°0°°°°°°°°°°°°°°o o

Press the PULSE button. The PULSE indicatorwill

light, and the WALK, RUN and INCLINE indicators will

darken.

When the

PULSE mode

is selected,

the letters

"AGE" will

flash in the

l(V-= (Z

PULSE display, and the letters"LbS" will flash in the

CALORIES display. If you hav e not entere d your age

and weight into the console; see HOW TO ENTER

YOUR AGE AND WEIGHT on page 9. If you have

already enterbd your age and weight, simply press

one of the AGE SET buttons,and then press one of

the WEIGHT SET buttons.

3. Put on the.pulse sensor

See How TO USE THE PULSE DISPLAY on page 10.

only untilthe lowest indicatorin one of the columns is

lit. In addition, there may be a limit to how far the diffi-

culty level can be adjusteddepending on your age.

6. Set the program time

The pmgmm is

set to last for 20

minutes, as shown

in the TIME dis-

play.•The program

can be set to last

for different length

of time, if desired, withthe TIME SET buttons. Each

time one of the buttons is pressed, the lengthof time

will change by 20 seconds. If one of the buttons is

held down, the length of time wilt change in incre-

ments of I minute. The program can be set to last for

a minimum of 20 minutes, up to a maximum of 80

minutes. (If the SEGMENT TIME button is pressed,

the TIME display will show how many seconds each

of the twenty segments will last.)

7. Start the program

4. 1:he program settings

Each program is divided into twenty equal time peri-

ods, called segments. One pulse setting is pro-

grammed for each segment. The pulse settings of the

program you have selected are shown in the columns

of indicators in the center of the console. Red indica-

tors will show the pulse setting of each segment.

;=1 ]

0(6=

5. Adjust the difficulty level of the program

If desired, the difficulty level of the program can be

adjusted with the FITNESS LEVEL buttons (see the

drawing above). Each time the FITNESS LEVEL

increase button is pressed, the pulse settings of all •

segments will increase. Each time the FITNESS

LEVEL decrease button is pressed, the pulse settings

of all segments will decrease. Note: The difficulty level

of the program can be increased only until the highest

indicator in one of the columns is lit, and decreased

( .=

of the treadmilland

press the PROGRAM _ "="_=_, )

START button. The first

column of indicators will

begin to flash. When the walking belt begins to move,

carefully step onto the walking belt and begin exercis-

ing. The consolewUl automatically change the speed

and/or incline of the treadmill at any time to keep your

pulse near the setting of the first segment. The SPEED

or INCLINE display willflash three times to warnyou

each time the speed or incline is about to change.

The time remaining in the program will be shown in

the TIME display. (If the SEGMENT TIME button is

pressed, the number of seconds remaining in the cur-

rent segment will be shown). During the last three

seconds of the first segment, the TIME display will

flash three times. When the first segment is completed,

the second column of indicatorswill begin to flash. The

console will then change the speed and/or incline of

the treadmill at any time to keep your pulse near the

setting of the second segment, The program will con-

tinue until the twentieth column is flashing, and no

time remains. Thewalking belt.will then slow to astop.

Note: During the program, the difficulty level of the

program can be adjusted with the FITNESS LEVEL

buttons. The speed of the treadmill can be changed

with the INCREASE SPEED and DECREASE SPEED

buttons. The incline of the treadmill can be changed 13

with the INCREASE INCLINE and DECREASE

INCLINE Ioutto_s. However, if you increase the speed,

the incline will automatically decrease; ff you decrease

the speed, the incline will automatically increase. The

console will always attempt to keep your pulse near

the setting of the current segment. If your pulse is not

detected for one minute, the speed of the treadmill will

automatically decrease by half. If your pulse is not

detected for a second minute, the speed will decrease

by half again. If your pulse is not detected for three

minutes, the walking belt will slow to a stop. The pro-

gram can be stopped at any time with the STOP but-

ton. The console will then be in the same state as if

the program had been completed.

HOW TO USE THE FAT BURN AND FAT BURN

PLUS PROGRAMS

.1. Select the FAT BURN or FATBURN PLUS program

Press the FAT BURN _ I

or FAT BuRN PLUS

button. The indicator

on the button you press

will light. Note: If the

walking belt is moving, it will slow to a stop.

When the

FAT BURN

or FAT

BURN PLUS

button is

pressed, the

letters "AGE" will flash in the PULSE display, and the

letters =LbS" will flash in the CALORIES display. If you

have not entered your age and weight into the console,

see HOW TO ENTER YOUR AGE AND WEIGHT on

page 9. If you have already entered your age and

weight, simply press one of the AGE SET buttons,

and then press one of the WEIGHT SET buttons.

When the FAT BURN or FAT BURN PLUS program is

selected, the WALK and INCLINE indicators will light.

During these programs, the console will automatically

control the speed and incline of the treadmill, and the

speed range will be 1.5 to 4.5 mph. The RUN and

PULSE modes cannot be selected.

Each program is divided into twenty equal time peri-

ods, called segments. One speed setting and one

incline setting are programmed for each segment.

The speedand incline sattiogs of the program you

have selected are shown in the columns of indicators

in th ecenter of the console. Red indicators will show

the speed setting of each segment, and green indica-

tors will show the incline setting of each segment. The

speed and incline settings are Optimal for maximum •

fat burning. The difficulty level of the program canrfot

be changed with the FITNESS LEVEL buttons.

The FAT BURN program is set to last for 40 minutes,

as shown in the TIME display. (If the SEGMENT TIME •

button is pressed, the TIME display will show that

each segment is set to last for 120 seconds.) The FAT

BURN PLUS program is set to last for 60 minutes.

(Each segment is set to last for 180 seconds.) The

time settings of these programs cannot be changed.

2. Start the program

Stand on the foot rails _ ,...... A...... J

of the treadmill and _3) (, "" ,]

press the PROGRAM ( ,'_,.,==,,.. )

START button. The

first column of indica-

tors will begin to flash, and the treadmill will automati-

cally adjust to the speed and incline settings of the

first segment. Carefully step onto the walking belt and

begin exercising.

The time remaining in the program will be shown in

the TIME display. (If the SEGMENT TIME button is

pressed, the number of seconds remaining in the first

segment will be shown). During the last three seconds

of the first segment, the TIME display will flash three

times. When the first_segment is completed, the sec-_

ond column of indicators will begin to flash, and the

treadmillwill automatically adjust to the speed and

incline settings of the second segment. The program

will continue in this manner untilthe twentieth column

is flashing and no time remains. The walking belt will

then slow to a stop.

Note: The program'can be stopped at any time with

the STOP button. The console will then be in the

same state as if the program had been compieted.

HOW TO USE THE FITNESS TEST PROGRAM

The FITNESS TEST program is designed to measure

your relative fitness level. For the best results, take

the FITNESS TEST at a time when your energy level

is high. The FITNESS TEST should not be taken after

you have already exercised during the day.

The FITNESS TEST consists of seven 3-minute seg-

ments, and is followed by a 1-minute cool-down peri-

od. The console will automatically control the speed

and incline of the treadmill during the FITNESS

TEST. The speed and incline settings cannot be

adjusted•

1. Select the FITNESS TEST program

Press the FITNESS I

TEST button. The indi-

cator on the button will

I_ght.Note: If the walk-

ing belt is moving, it will slow to a stop.

Whenthe

FITNESS

TEST button

is pressed,

the letters

"AGE" will

O PULSE _) S

tqm_ bC_,d ,c1_o_

flash in the PULSE display, and the letters =LbS" will

flash in the CALORIES display. For the FITNESS

TEST to operate properly, your age and weight must

be entered into the console. If you have not entered

your age and weight, see HOW TO ENTER YOUR

AGE AND WEIGHT on page 9. If you have already

entered your age and weight, simply press one of the

AGE SET buttons, and then press one of the

WEIGHT SE-[ buttons. Note: If the PROGRAM

START button is pressed before you have entered

your age and weight, the words "SET AGE AND

WEIGHT" will move across the center of the console.

The CALORIES, TIME and DISTANCE displayswill

be reset to zero.

2. Put on the pulse sensor

See HOW TO USE THE PULSE DISPLAY on page

10. Note: If the PROGRA M START button is pressed

before your pulse is shown,the letters "PLS" will flash

in the PULSE display, and the words"ADJUST

PULSE SENSOR" will move across the center of the

console,

3. Start the FITNESS TEST program

Stand°nthef°°traiis _ _v _ _ _

of the treadmill and

press the PROGRAM (_ _

START button. The

CALORIES display will

,,show "L 1," indicating that the first segment of the

FITNESS TEST has begun..The incline of the tread-

mill will automatically adjust to 2.0%, and the walking

belt will begin to move at 1.5 mph. Step onto the walk-

ing belt and begin exercising.

When the TIME display reaches 3minutes, the

CALORIES display will show "L 2," indicating that the

second segment has begun. The incline will increase

to 3%, and the speed will increase to 2.0 mph. The

FITNESS TEST will continue in this manner until your

pulse reaches 70% of your maximum heart rate, and

the current segment is completed. The FITNESS

TEST will then be completed, regardless of how many

segments remain.

When the FITNESS TEST is completed, the'letter "C"

will be shown in the CAEORIES display, indicating that

the cool-down period has begur_. The words "COOL

DOWN" will move across the center of the console,

and the TIME display will count down 1 minute.

When the cool-down period is completed, the walking

belt will slow to a stop and the words =FITNESS TEST

COMPLETE" will move across the center of the con-

sole. The FITNESS LEVEL indicator will light, and

your fitness level will be Shown in the CALORIES dis-

play. There are ten fitness levels--fitness level 10

(FL10) is the highestfitness level. Remember, the

Fitness Test is intended only to indicate your relative

fitness level.

Note: If at any time during the program your pulse is

not detected, the letters "PLS" will flash in the PULSE

display, and the words "ADJUST PULSE SENSOR"

will move across the center of the consoie. If your

pulse is not detected during the last thirty seconds of

any segment, the walking belt will slowto a stop and

the words "PULSE SIGNAL LOST" will move across

the center of the console. The FITNESS LEVEL indi-

cator will light, and the CALORIES display will show

an estimated fitness level. The FITNESS TEST can

be stopped at any time by pressing the STOP button.

The words "FITNESS TEST HALTED" will move

across the center of the console, and the CALORIES

display will show an estimated fitness level. The con-

sole will then be in the MANUAL CONTROL mode.

HOW TO CREATE CUSTOM WORKOUT PROGRAMS

When the console is in the program mode, you can

create custom workout programs, and save them in

the console's memory for future workouts. Two differ-

ent custom programs can be saved at the same time,

and the custom programs can be changed as many

times as desired. Follow the instructionsbelow to cre*

ate a custom program.

1. Select one of the custom workout programs

Press the CUSTOM1 _ - " "_ .... n

or CUSTOM 2button. _

(One custom program

can be created using

each button.) The indi-

cator on the button you press will light. Note: If the

walking belt is moving, it will slow to a stop,

2. Select the WALK or RUN mode

When a custom pro- !

gram is selected, the '

WALK and INCLINE

indicatorswill light. The

console .will automati- •

cally control the speed and incline of the treadmill dur-

ing the program, and the speed range wi!l be 1.5 to

4.5 mph. If you want the speed range to be 3.5 to 8.5

mph, press the RUN button. The WALK indicator will

darken, and the RUN indicator.will light. Note: No

other modes can be selected. If you press the PULSE

button, the PLATEAU program will be selected• 15

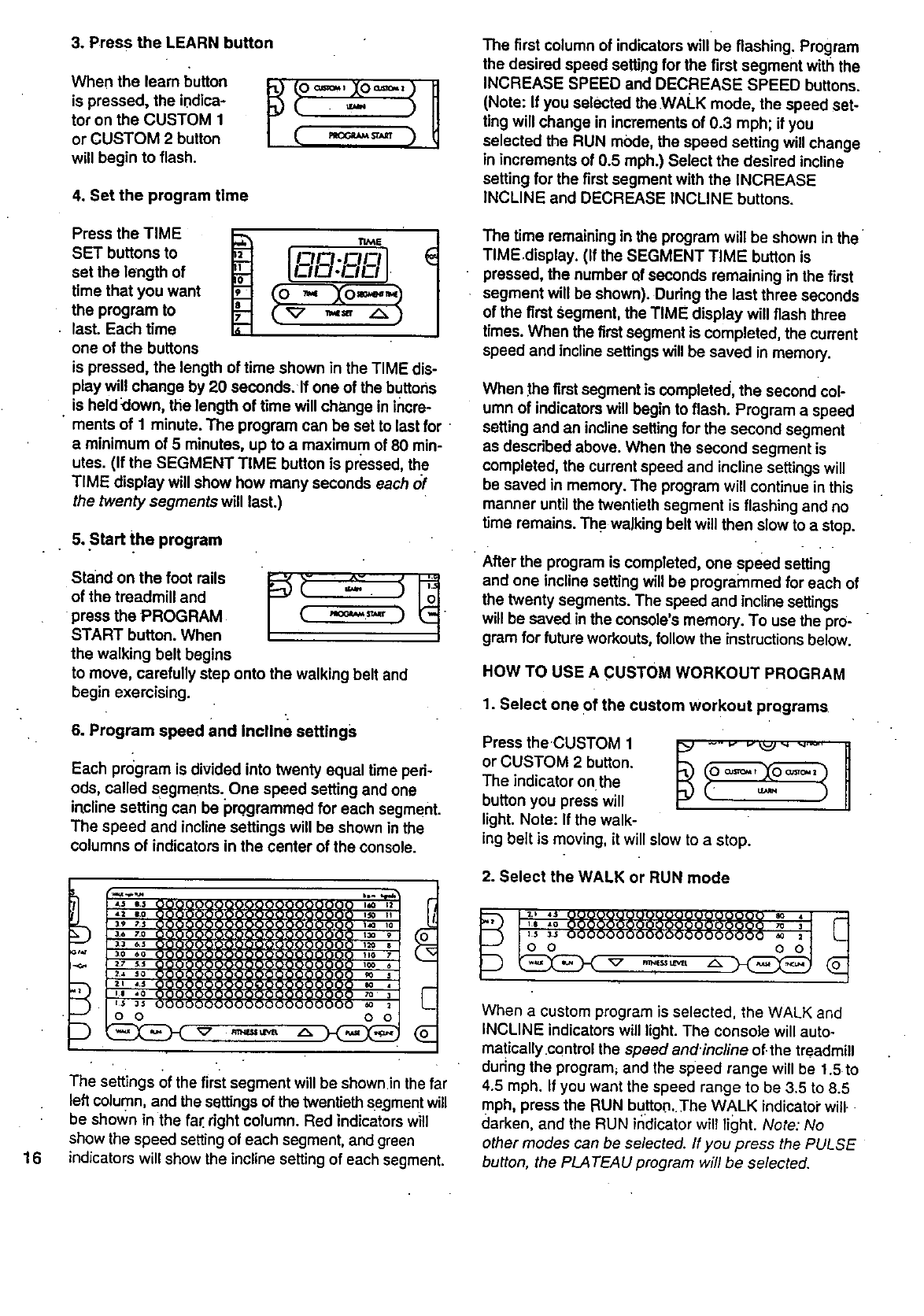

3. Press the LEARN button

When the learn button

is pressed, the indica-

tor on the CUSTOM 1

or CUSTOM 2 button

will begin to flash.

4. Set the program time

The first column of indicatorswill be flashing. Program

the desired speed setting for the first segment with the

INCREASE SPEED and DECREASE SPEED buttons.

(Note: If you selected the WALK mode, the speed set-

ling will change in increments of 0.3 mph; if you

selected the RUN mode, the speed setting will change

in increments of 0.5 mph.) Select the desired incline

setting for the first segment with the INCREASE

INCLINE and DECREASE INCLINE buttons.

Press the TIME

SET buttons to

set the length of

time that you want

the program to

last. Each time

one of the buttons

Irtcl.e r'_l

lm .cJci

(o -, Xo,-,-,-,)

is pressed, the length of time shown in the TIME dis-

play will change by 20 seconds. If one of the buttorts

is held _lown, the length of time will change in incre-

ments of I minute. The program can be set to last for

aminimum of 5 minutes, up to amaximum of 80 min-

utes. (If the SEGMENT TIME button is pressed, the

TIME display will show how many seconds each of

the twenty segments will last.)

5. Start the program

Stand on the foot rails _(- "_-. i

of the treadmill and

press the •PROGRAM /(,,=,,,,st,,_)

START button. When

the walking belt begins

to move, carefully step onto the walking belt and

begin exercising.

6. Program speed and incline settings

Each program is divided into twenty equal time peri-

ods, called segments.•One speed setting and one

incline setting can be programmed for each segment.

The speed and incline settings will be shown inthe

columns of indicators in the center of the console.

.._<- [

ooC

The settings of the first segment will be shown in the far

left column, and the settings of the twentieth segmentwill

be shown inthe fa_ right column. Red indicators will

show the speed setting of each segment, and green

indicators will show the incline setting of each segment.

The time remaining in the program will be shown in the

TIME.display. (If the SEGMENT TIME button is

pressed, the number of seconds remaining in the first

segment will be shown). During the last three seconds

of the first Segment, the TIME display will flash three

times. When the first segment is completed, the current

speed and incline settings will be saved in memory.

When _hefirstsegment is completed, the second col-

umn of indicators will begin to flash. Program a speed

setting and an incline setting for the second segment

as described above. When the second segment is

completed, the current speed and incline settings will

be saved in memory. The program will continue in this

manner untilthe twentieth segment is flashing and no

time remains. The walking belt will then slow to a stop.

After the program is completed, one speed setting

and one incline setting will be programmed for each of

the twenty segments. The speed and inclinesettings

will be saved in the console's memory. To use the pro-

gram for future workouts, follow the instructionsbelow.

HOW TO USE A cuSToM WORKOUT PROGRAM

1. Select one of the custom workout programs

Press theCUSTOM 1 t - " _"_ .....

or CUSTOM 2 button. [_ ,.,_._,.,,..__..

The indicator on the

button you press will

light. Note: If the walk-

ing belt is moving, it will slow to astop.

2. Select the WALK or RUN mode

O_lS_s 00000000000000000000 0_ 2

When a custom program is selected, the WALK and

INCLINE indicators will light. The console will auto-

matically.control the speed and'incline of.the treadmill

dudng the progrem_ and the speed range will be 1.5to

4.5 mph. If you want the speed range to be 3.5 to 8.5

mPh, press the RUN buttom.The WALK indicstoi" will.

darken, and the RUN indicator will light. Note: No

other modes can be selected. If you press the PULSE

button, the PLA TEAU program will be selected.

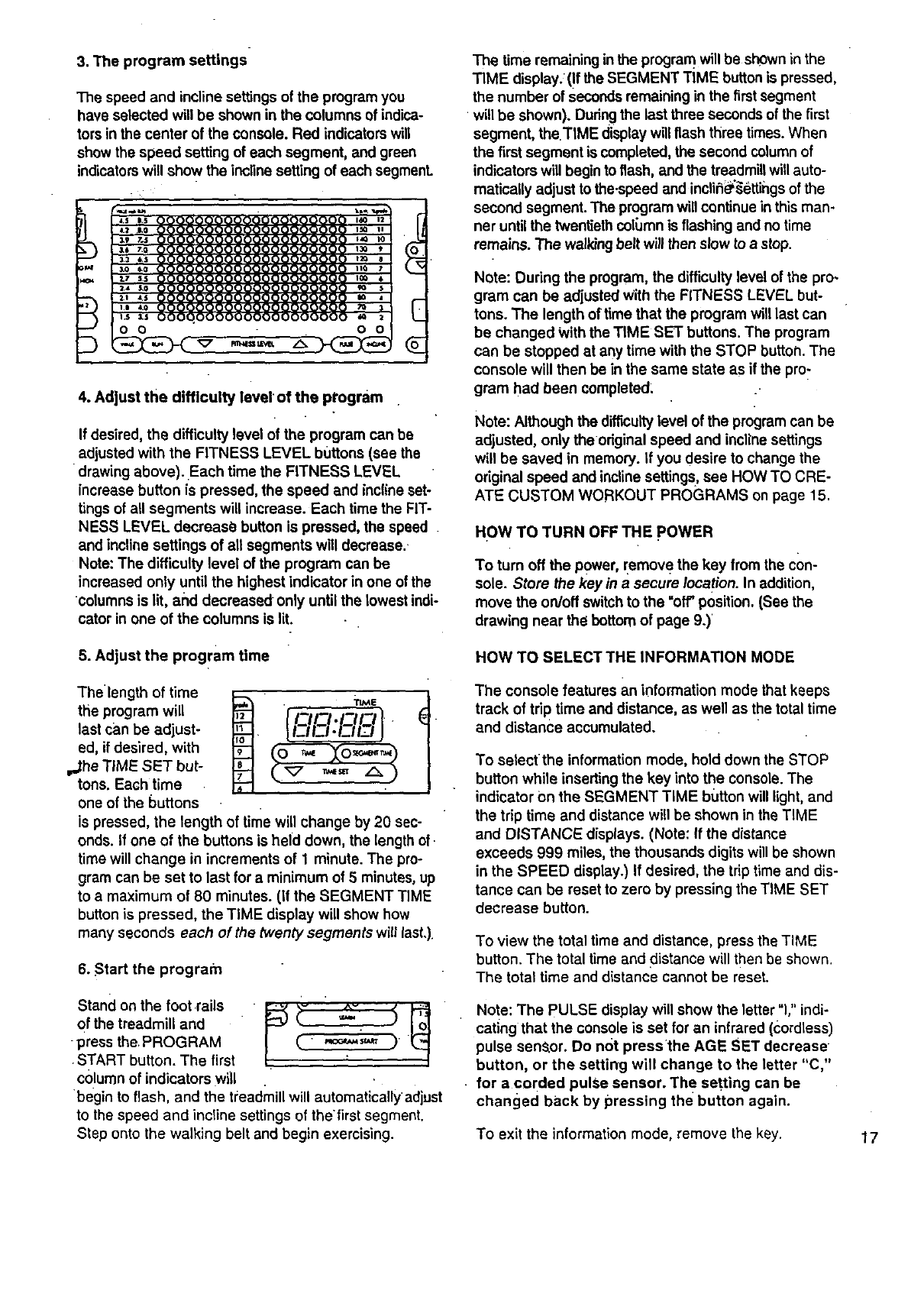

3. The program settings

The speed and incline settings of the program you

have selected will be shown in the columns of indica-

tors inthe center of the console. Red indicators will

show the speed setting of each segment, and green

indicatorswill show the inclinesetting of each segmenL

O O O

4. Adjust the difficulty level •of the program

If desired, the difficulty level of the program can be

adjusted with the FITNESS LEVEL buttons (see the

drawing above). Each time the FITNESS LEVEL

increase button is pressed, the speed and inclineset-

tings of a_lsegments will increase. Each time the FIT-

NESS LEVEL decrease button is pressed, the speed

and incline settings of all segments will decrease..

Note: The difficulty level of the program can be

increased only until the highest indicator in one of the

columns is lit, and decreased only untilthe lowest indi-

cator in one of the columns is lit.

The time remaininginthe program will be shown in the

TIME display.:(!fthe SEGMENT TIME button is pressed,

the number of seconds remaining in the first segment

will be shown). Dudng the last three seconds of the first

segment, the.TIME display will flash three times. When

the first segment is completed,the second columnof

indicators will begin to flash, and the treadmill will auto-

matically adjust to the.speed and inclir3e"._ettihgsof the

second segment. The program will continue in this man-

ner until the twentieth column is flashing and no time

remains. The walPJngbelt will thenslow to a stop.

Note: Dudng the program, the difficulty level of the pro-

gram can be adjusted With the FITNESS LEVEL but-

tons. The length of time that the program will last can

be changed Withthe TIME SET buttons. The program

can be stopped at any time with the STOP button. The

console will then be in the same state as if the pro-

gram had been completed:

Note: Although the difficultylevel of the programcan be

adjusted, only the odginal speed and incline settings

will be saved in memory. If you desire to change the

original speed and inclinesettings_see HOW TO CRE-

ATE CUSTOM WORKOUT PROGRAMS on page 15.

HOW TO TURN OFF THE pOWER

To turn off the Power, removethe key from the con-

sole. Store the key in a secure location. In addition,

move the on/off switchto the =off" position. (See the

drawing near the bottomof page 9,)

5. Adjust the program time

The length of time

the program will

last can be adjust-

ed, if desired, with

,,,,theTIME SET but-

tons. Each time

one of the buttons

" "tw,E

ct/-i. _-TSfd

is pressed, the length of time will change by 20 sec-

onds. If one of the buttons is held down, the lengthof.

time will change in increments of 1 minute. The pro-

gram can be set to last for a minimum of 5 minutes,up

to a maximum of 80 minutes. (If the SEGMENT TIME

button is pressed, the TiME display will show how

many seconds each of the twenty segments will last,)•

6. Start the program

Stand on the foot •rails . _ ,L. .,v

Qfthe treadmill and [::3) (- =" _ Io1

-press thePROGRAM LC _ _ )

•START button. The first

column of indicators will

•begin to flash, and the treadmill will automaticallyadjust

to the speed and incline settings of thefirst segment.

Step onto the walking belt and begin exercising.

HOW TO SELECT THE INFORMATION MODE

The console features an information mode that keeps

track of trip time and distance, as well as the total time

and distance accumulated.

To selectthe information mode, hold down the STOP

button while inserting the key into the console. The

indicator On the SEGMENT TIME button will light, and

the trip time and distance will be shown in the TIME

and DISTANCE displays. (Note: If the distance

exceeds 999 miles, the thousands digits will be shown

in the SPEED display.) If desired, the trip time and dis-

tance can be reset to zero by pressing the TIME SET

decrease button.

To view the total time and distance, press the TIME

button. The total time and distance will then be shown.

The total time and distance cannot be reset.

Note: The PULSE display will show the letter "l," indi-

cating that the console is set for an infrared (cordless)

pulse sensor. Do n<_tpress the AGE SET decrease

button, or the setting will change to the letter "C,"

•for a corded pulse sensor. The setting can be

changed back by pressing the button again.

To exit the information mode, remove the key. 17

TROUBLE-SHOOTING AND STORAGE

Most treadmill problems can be solved by following the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assistance is needed, call our toll-free HELPLINE at 1-800-

736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).

1. SYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord is plugged into a properlygrounded outlet. (See HOW TO PLUG IN THE

POWER CORD on page 8.) If an extension cord is needed, use only a 14-gauge general-purpose cord of

five feet or less in length.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. Various

indicators on the console should light. (See HOW TO TURN ON THE POWER onpage 9.)

c. Check the circuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuitbreak-

er has tripped. To reset the circuit breaker, wait for five min-

utes and then press the switch back in.

d. Check the on/off switch located at the front of the treadmill

near the power cord. The switch must be in the "on" position. "On"

Position

2. SYMPTOM: THE POWER TURNS OFF DURING USE

a. Check the circuit breaker located on the treadmill near thepower cord. If the circuit breaker has tripped (see

the drawing above), wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. Various indicators on the console

should light.

d. Check to make sure the on/off switch is in the "on" position. (See 1. d. above.)

e. If the treadmill still will not run, please call our toll-free HELPLINE.

3. SYMPTOM: AN ERRORCODE ("El," "E2," "E3," "E4," OR "ES") APPEARS ON THE CONSOLE

a. If error code "El" appears in the INCLINE display, a malfunction may have occurred in the incline system.

Remove the key, wait for ten seconds, and then reinsertthe key. If the error code appears again, call our toll-

free HELPLINE. Do not operate the treadmill untilthe problem is corrected.

b. Error code "E2" may appear in the SPEED display if the INCREASE SPEED or PROGRAM START button is

pressed and no movement of the walking belt is detected within seven seconds. Remove the key, wait for ten

seconds, and then reinsert the key. Make sure that you stand on the side rails of the treadmill each time you

start walking belt. If the error code appears again, call our toll-free HELPLINE. Do not operate the treadmill until

the problem is corrected.

c. Error code "E3" may appear inthe SPEED display if the speedof the walking belt surges above the selected

speed setting. Remove the key, wait for ten seconds, and then reinsertthe key. If the error code appears again,

'callour toll-free HELPLINE. Do not operate the treadmilluntil the problem is.corrected.

d. Error code "E4" may appear in the SPEED disp!ay if the walk!rig belt is moving at.a slow speed, and there is

excessive stress on"the motor. Remove the key, wait for ten seconds, and then reinsertthe key. If you weigh

over 200 I_ounds,it may be helpfu!to increase the incline of the treadmill. If the errorcode appears again, call

our toll-free HELPLINE. Do not operate the treadmill until the problem is corrected.

e.Errorcode"E5" may appear in the PULSE display if a pulse error occurs. See HOW TO USE THE PULSE

SENSOR on pages 6 and 7, and HOW TO USE THE PULSE MODE on page 10.

4. SYMPTOM: THE PULSE SENSOR DOES NOT FUNCTION PROPERLY

a. See HOW TO USE THE PULSE SENSOR on page 7.

5. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON

a. If an extensioncord is needed, use onlya 14-gauge general-purpose cord of fivefeet or less in length

b. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

6. SYMPTOM" THE WALKING BELT IS OFF-CENTER WHEN WALKED ON

a. If the walking belt has shifted to the left, first remove the key and

UNPLUG THE POWER CORD. Using the belt tool,turn the rear

roller adjustment bolt clockwise 1/4 of a turn. Plug in the power

cord, insert the key and nJn the treadmill for afew minutes.

Repeat untdthe walking belt is centered.

b. If the walking belt has shifted to the right, first remove the key

and UNPLUG THE POWER CORD. Using the belt tool, turn the

rear roller adjustment bolt countemlockwise 1/4 of a turn. Plug in

the power cord, insert the key and run the treadmill for afew

minutes. Repeat until the walking belt is centered.

STORAGE

Unplug the power cord when the treadmill is not in use,

Remove the ind=cated bolt and washer from the lower end of each

upright. Loosen the other bolt in each upright. Carefully lay the con-

sole on the treadmill. Keep the bol_sand washers in asecure loca-

tion.

It is recommended that the treadmill be covered during extended

periods of storage.

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remembers-these guidelines are

general in nature. For more detailed information about

exercise, obtain a reputable book or consult your

physician.

EXERCISE INTENSITY

Whether you want to burnfat or to strengthen•your car-

diovascular system, you can tailoryour exercise to

your specilic goals. The key to achieving the desired

results is to exercise with the proper intensity.

Burning Fat

To burn fateffectively, you must exercise at a relatively

low intensity level for a sustained period of time.

.During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for ener-

gy. Only after th_ first few minutes of exercise does

your body begin to use stored fat calories for energy.

If your goal is to r0umfat, the console's built-in Fat

Calorie.Monitor will help you to maintain the proper

intensity level. As you exercise, the Fat Calorie Monitor

will show you when your exercise intensity is too low,

too high, or perfect for burning fat. (See HOW TO USE

THE FAT CALORIE MONITOR on page 11.)

Cardiovascular Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. Aerobic exercise increases

the demand on the heart to pump blood to the mus-

cles, and o_nthe lungs to oxy_]enatethe blood. The

proper 'intensity level for aerobic exercise can be found

by using your pulse as a guide. As yOu exercise, your

pulse should be kept at alevel between 70% and 85%

of your maximum possible heart rate. This is known as

your training zone. You can find your training zone in

Unconditioned

Training Zone

Age (Beats/Min.)

20 138-167

"25 136-166

30 135-164

35 134-162

40 132-161

45 131-159

50 129-156

55 127-155

60 126-153

65 125-151

70 :123-150

75 122-147

80 120-146

85 118-144

Conditioned

Training Zone

(Beats/Min.)

133-162

132-160

130-158

129-156

127-155

125-153

124-150

122-149

121-147

119-145

118-144

117-142

115-140

114-139

the table above. Training zones are listed according to

age and physical condition.

During the first few months of your exercise program,

keep your pulse near the low end of your training zone

as you exercise. After a few months of regular exer-

cise, your pulse can be gradually increased until it is

near the middle of your training zone as you exercise.

You can measure your pulse using the pulse sensor.

Exercise for about four minutes, and then measure

your pulse immediately. If your pu!Seis too high,

.decrease the intensity of your exercise. If your pulse is

too low, increase the intensity of your exercise.

WORKOUT GUIDELINES

When exercising, wear loose-fitting, comfortable cloth-

ing. Do not wear clothing that could become

caught in the treadmill. Always wear athletic shoes

for foot protection.

Each workout should include three basic parts: (1) a

warm-up, (2) training zone exercise, and (3) a cool-down.

Warming Up .

Warming up prepares the body for exercise by increas-

ing circulation, delivering more oxygen to the muscles

and raising the body temperature. Begin each workout

with 5 to 10 minutes of stretching and light exercise to

warm up (see SUGGESTED STRETCHES on page 21)•

Training Zone Exercise

After warming up, increase the intensity of your exer-

cise untilyour pulse is in your training zone for 20 to

60 minutes. (During the firstfew weeks of your exer-

cise program, do not keep your pulse in your training

zone for longer than 20 minutes.) Breathe regularly

and deeply as you exercise-never hold your breath.

Cooling Down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flex_bihty of your

muscles and will help to prevent post-exerc=se problems.

Exercise Frequency

To maintain or improve your cond=tton,complete three

workoutseach week, wtth at least one day of rest

between workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise aregular and

enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the

drawings below. Move slowly as you stretch-never bounce.

1. Toe Touch S_etch

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings,

back of knees and back,

2, Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible..Hold for 15

counts, then relax. Repeat 3times for both legs. Stretches:

Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

,,,..,handsagainst a wall. Keep your back leg straight and your

back foot flat on the floor. Bend your front leg, lean forward and

move your hips toward the wall. Hold for 15 counts, then relax.

Repeat 3 times for both legs. To cause further stretching of the

achilles tendons, bend your back leg as well. Stretches:

Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and

grasp one foot with your other hand Bring your heel as close to

your buttocks as possible. Hold for 1S counts, then relax.

Repeat 3 t=mes for both legs. Stretches: Quadrtceps and hip

muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possuble.Hold

for 15 counts, then relax. Repeat 3 t=mes. Stretches:

Quadnceps and hip muscles

NOTES

REMOVE THIS EXPLODED DRAWING

AND PART LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For informat=onabout

ordering replacement parts, see the back cover of the user's manual

EXPLODED DRAWING_Model No. 831.297561

,t_-48

I_L--.- 111

R12SSA

%..

_,_ ,_I"_

52 51

84 54

23 /

112

rS9

_107

". 58 69 58

PART LISTmModel NO. 831.297561 R129SA

Key Part Key Part

No. No. Qty. Description No. No,

1 124172 2 Endcap 64 012152

2 124171 1 Left Upright 65 109370

3 120244 2 Console Knob 66 118892

4 124174 2 Upright Endcap 67 119375

5 111869 6 Cage Nut 68 123478

6 124456 1 Console Crossbar 69 114270

7 124173 1 Wire Cover 70 128087

8 013141 6 Console Screw 71 120483

9 124578 1 Console 72 122860

10 121474 1 Console Wire Hamess 73 110926

11 117988 1 24" Cable Loom 74 123471

12 124010 1 UprightWire Harness 75 115046

13 119038 1 Key/Clip 76 110463

14 120644 1 Pulse Sensor 77 016057

15 124170 1 Right Upright 78 013206

16 013229 1 Power Cord 79 045017

17 109382 1 Circuit Breaker 80 124450

18 019084 1 Grommet 81 015071

19 119163 1 On/Off Switch 82 123472

20 123474 1 Left Front Endcap 83 122843

21 125180 1 FrontRoller/Pulley 84 124715

22 112609 1 FrontRoller Adj. Bolt 85 119779

23 014127 5 Roller Adj. Washer 86 120844

24 123473 1 RightFront Endcap 87 120866

25 122332 2 UprightSpacer 88 120482

26 014132 4 UprightWasher 89 125681

27 123494 4 3/8" x 3 1/2" Bolt 90 120867

28 120311 1 Power Board-ControllerWire 91 014041

29 121460 1 Belt Guide 92 013445

30 113203 2 6" Cable Loom 93 126558

31 117806 2 Wheel Bolt 94 125243

32 108080 5 Screw 95 124465

33 120243 1 Right Rear BeltTension Bolt 96 101004

34 123308 1 Electronics Bracket 97 129016

35 107503 1 Motor Swivel Bolt 98 031226

36 113204 1 12" Cable Loom 99 105477

37 012056 7 Wheel Nut/Cushion Foot Nut 100 115836

38 120767 1 Controller 101 124453

39 123530 1 Logo 102 124361

40 052014 2Front Wheel 103 124454

41 013547 3 Leg Bolt/MotorTension Bolt 104 103855

42 012149 5 Leg/Motor Tension Nut 105 125599

43 124451 1incline Leg 106 124009

44 122215 1 Power Board 107 126481

45 120823 1 20" Wire Harness 108 120630

46 122331 2 Rod Sleeve 109 124933

47 124449 1RtghtSkirt 110 124934

48 013162 23 Sktrt Screw/Cover Screw 111 116927

49 014117 2 Star Washer 112 123470

50 NSP 1 Frame 113 115872

51 124466 1 FrontSafety Cover # 103825

52 124580 1 Rear Safety Cover # 120873

53 124908 1 Rtght Foot Rail # 109407

54 124581 1 Walkmg Belt # 103823

55 014157 2 OpttcSwitch Washer # 102246

56 122812 1 MotorTension Washer # 112083

57 123469 1BeltTension Spring #118204

58 121458 1 Cushion Foot Rod # 102634

59 013028 10 Endcap Screw/KnobScrew # 125797

60 012096 1 Spring Nut # 121395

61 102633 2 Opttc Switch Wire Harness # 129007

62 102959 2 Small Bolt

63 102955 2 Optic Switch

Qty. Description

2 Small Nut

1incline Optic Switch

1 Incline Motor Bracket

2 incline Motor Bolt

1 Incline Motor

1 Incline Motor Spacer

1 Bar Endcap

2 Cushion Foot Insert

2 Foot Rail Bracket

4 Cushion Foot Bolt

1 Right Rear Endcap

2 Cushion Foot

1 Power Board Fuse

5 8" Cable Tie

1 Left Rear Belt Tension Bolt

17/32" Allen Wrench

1 Left Skirt

4 Plastic Stand-Off

1 Left Rear Endcap

1 Rear Roller

1 Walking Platform

8 Platform Screw

1 Belt Tool

2. Controller Screw

1 Cushion Knob

1 Left Foot Rail

1 Motor Tension Nut

1 MotorTension Washer

4 Motor Bolt

1 Blue Headband

1 Motor Bracket

1 Motor Pulley

1 Motor Belt

1 Motor

1 Motor Fan

4 Motor Nut

1 Flywheel

1 Speed Optic Disk

1 Foam Pad

1 Optic Switch Bracket

1 J-Bolt

1 V=deoTape

2 Nylon Washer

1 Red Headband

3 Belt Guide Screw

1 Thermal Switch

2 Strain Rehef

1 Tie Holder Clamp

1 Spacer Sleeve

1 Harness Strain Relief

1 20" Black Wire, 2 Female.

1 14" Black Wire, Male/Female

1 4" Black Wtre, 2 Female

1 14" White Wire, Mate/Female

1 8" White Wire, 2 Female

1 8" Blue Wtre, 2 Female

1 8" Blue Wire, Male/Female

1 8" Green Ground Wire

1 11" Red Wire, Male/Female

1 Battery

1 Owner's Manual

Note: "#"lndkcatesa non-tllustrated pad.

SEARS

Model No. 831.297561

QUESTIONS?

If you find that:

• you need help assembling or

operating the iMAGE" 10.6

•a part is missing

•or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday-Saturday, 7 am-7 pm

Central Time (excluding holidays)

REPLACEMENT PARTS

If parts become worn and need

to be replaced, call the following

toll-free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your IMAGE" 10.6 treadmill

are hsted on adecal attached to the frame. See the front cover of

this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordenng parts, please be pre-

pared to provide the following information:

•The NAME OF THE PRODUCT (IMAGE ® 10.6)

• The MODEL NUMBER OF THE PRODUCT (831.297561)

• The PART NUMBER OFTHE PART (see the EXPLODED

DRAWING and PART LIST attached to the center of this manual)

• The DESCRIPTION OF THE PART (see the EXPLODED DRAW-

ING and PART LIST attached to the center of this manual)

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 USA

Image 831297561 User Manual 10.6 TREADMILL Manuals And Guides 99020120

IMAGE Treadmill Manual 99020120 IMAGE Treadmill Owner's Manual, IMAGE Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
