Imation MT233 BLUETOOTH SPEAKER User Manual

Imation Corp. BLUETOOTH SPEAKER

User Manual

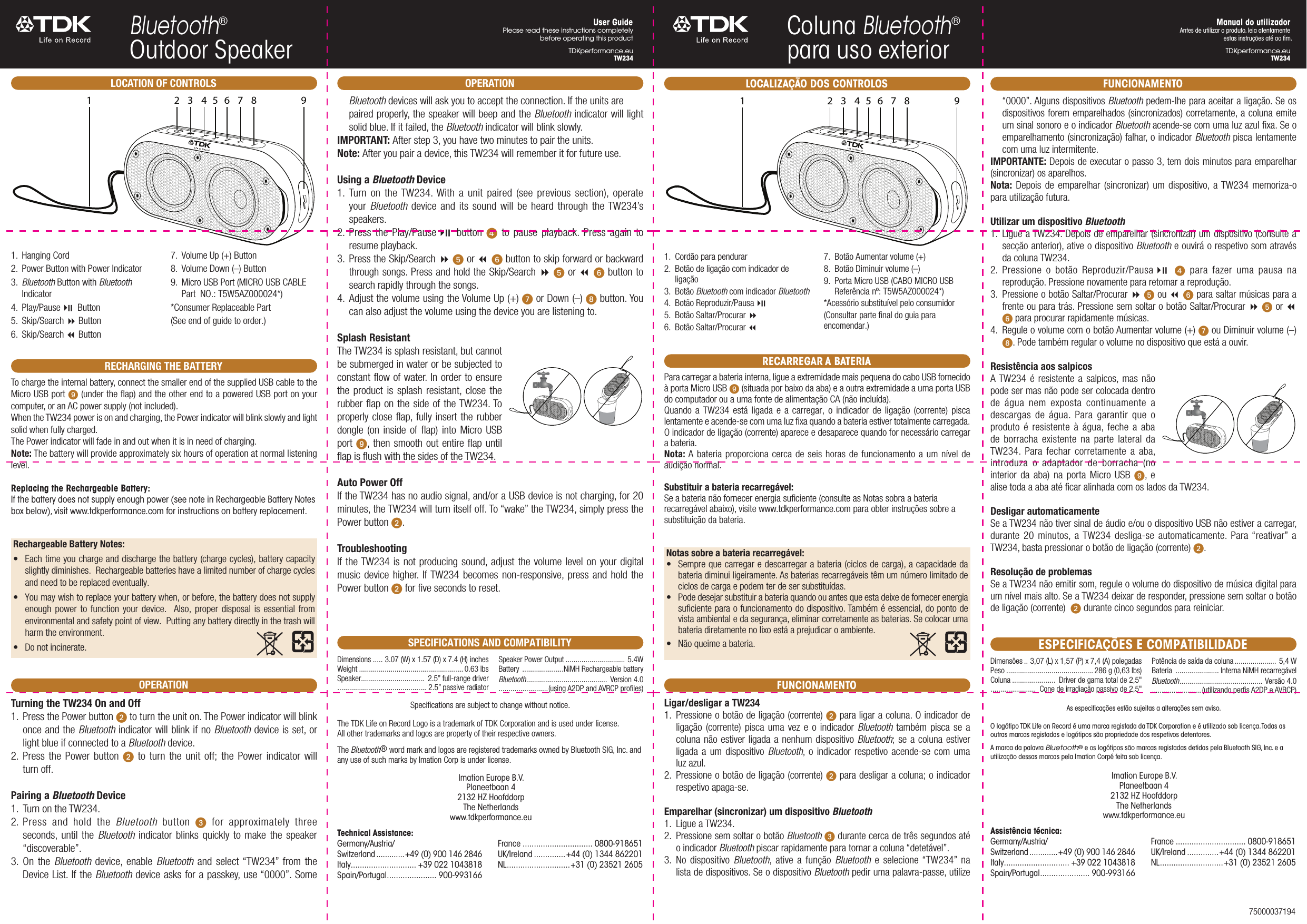

OPERATIONLOCATION OF CONTROLS1.  Hanging Cord2.  Power Button with Power Indicator3.  Bluetooth Button with Bluetooth Indicator4.  Play/Pause4;  Button5. Skip/Search 8 Button6. Skip/Search 7 Button7.  Volume Up (+) Button8.  Volume Down (–) Button9.  Micro USB Port (MICRO USB CABLE Part  NO.: T5W5AZ000024*)*Consumer Replaceable Part (See end of guide to order.)Dimensions ..... 3.07 (W) x 1.57 (D) x 7.4 (H) inchesWeight .....................................................0.63 lbsSpeaker................................  2.5” full-range driver ............................................. 2.5” passive radiatorSpeaker Power Output .............................. 5.4WBattery  .....................NiMH Rechargeable batteryBluetooth .........................................  Version 4.0.........................(using A2DP and AVRCP profiles)SPECIFICATIONS AND COMPATIBILITYSpecifications are subject to change without notice.1 2 3 4 5 6 7 8 9 Bluetooth devices will ask you to accept the connection. If the units are  paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly.IMPORTANT: After step 3, you have two minutes to pair the units.Note: After you pair a device, this TW234 will remember it for future use.Using a Bluetooth Device1. Turn on the TW234. With a unit paired (see previous section), operate your  Bluetooth device and its sound will be heard through the TW234’s speakers.2. Press the Play/Pause4; button  x  to pause playback. Press again to resume playback.3.  Press the Skip/Search 8 y or 7 U button to skip forward or backward through songs. Press and hold the Skip/Search 8 y or 7 U button to search rapidly through the songs.4.  Adjust the volume using the Volume Up (+) V or Down (–) W button. You can also adjust the volume using the device you are listening to. Splash ResistantThe TW234 is splash resistant, but cannot be submerged in water or be subjected to constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the side of the TW234. To properly close flap, fully insert the rubber dongle (on inside of flap) into Micro USB port X, then smooth out entire flap until flap is flush with the sides of the TW234.Auto Power OffIf the TW234 has no audio signal, and/or a USB device is not charging, for 20 minutes, the TW234 will turn itself off. To “wake” the TW234, simply press the Power button v.TroubleshootingIf the TW234 is not producing sound, adjust the volume level on your digital music device higher. If TW234 becomes non-responsive, press and hold the Power button v for five seconds to reset.RECHARGING THE BATTERYTo charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB port X (under the flap) and the other end to a powered USB port on your computer, or an AC power supply (not included).When the TW234 power is on and charging, the Power indicator will blink slowly and light solid when fully charged.The Power indicator will fade in and out when it is in need of charging.Note: The battery will provide approximately six hours of operation at normal listening level.Replacing the Rechargeable Battery: If the battery does not supply enough power (see note in Rechargeable Battery Notes box below), visit www.tdkperformance.com for instructions on battery replacement.Rechargeable Battery Notes: • Eachtimeyouchargeanddischargethebattery(chargecycles),batterycapacityslightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually.• Youmaywishtoreplaceyourbatterywhen,orbefore,thebatterydoesnotsupplyenough power to function your device. Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment.• Donotincinerate.75000037194Bluetooth® Outdoor SpeakerUser Guide Please read these instructions  completely  before operating this productTDKperformance.euTW234 TDKperformance.euTW234Coluna Bluetooth® para uso exteriorManual do utilizador Antes de utilizar o produto, leia atentamente  estas instruções até ao fim.Technical Assistance:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euThe TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license.FUNCIONAMENTOLOCALIZAÇÃO DOS CONTROLOS1.  Cordão para pendurar2.  Botão de ligação com indicador de ligação3. Botão Bluetooth com indicador Bluetooth4.  Botão Reproduzir/Pausa4;  5.  Botão Saltar/Procurar 86.  Botão Saltar/Procurar 7 7.  Botão Aumentar volume (+)8.  Botão Diminuir volume (–)9.  Porta Micro USB (CABO MICRO USB Referência nº: T5W5AZ000024*)*Acessório substituível pelo consumidor (Consultar parte final do guia para encomendar.)Dimensões .. 3,07 (L) x 1,57 (P) x 7,4 (A) polegadasPeso ............................................ 286 g (0,63 lbs)Coluna ......................  Driver de gama total de 2,5" .......................  Cone de irradiação passivo de 2,5"Potência de saída da coluna .....................  5,4 WBateria  ...................... Interna NiMH recarregávelBluetooth ..........................................  Versão 4.0......................... (utilizando perfis A2DP e AVRCP)ESPECIFICAÇÕES E COMPATIBILIDADE1 2 3 4 5 6 7 8 9  “0000”. Alguns dispositivos Bluetooth pedem-lhe para aceitar a ligação. Se os dispositivos forem emparelhados (sincronizados) corretamente, a coluna emite um sinal sonoro e o indicador Bluetooth acende-se com uma luz azul fixa. Se o emparelhamento (sincronização) falhar, o indicador Bluetooth pisca lentamente com uma luz intermitente.IMPORTANTE: Depois de executar o passo 3, tem dois minutos para emparelhar (sincronizar) os aparelhos.Nota:  Depois de emparelhar (sincronizar) um dispositivo, a TW234 memoriza-o para utilização futura.Utilizar um dispositivo Bluetooth1.  Ligue a TW234. Depois de emparelhar (sincronizar) um dispositivo (consulte a secção anterior), ative o dispositivo Bluetooth e ouvirá o respetivo som através da coluna TW234.2. Pressione o botão Reproduzir/Pausa4; x para fazer uma pausa na reprodução. Pressione novamente para retomar a reprodução.3.  Pressione o botão Saltar/Procurar 8 y ou 7 U para saltar músicas para a frente ou para trás. Pressione sem soltar o botão Saltar/Procurar 8 y or 7 U para procurar rapidamente músicas.4.  Regule o volume com o botão Aumentar volume (+) V ou Diminuir volume (–) W. Pode também regular o volume no dispositivo que está a ouvir. Resistência aos salpicosA TW234 é resistente a salpicos, mas não pode ser mas não pode ser colocada dentro de água nem exposta continuamente a descargas de água. Para garantir que o produto é resistente à água, feche a aba de borracha existente na parte lateral da TW234. Para fechar corretamente a aba, introduza o adaptador de borracha (no interior da aba) na porta Micro USB X, e alise toda a aba até ficar alinhada com os lados da TW234.Desligar automaticamenteSe a TW234 não tiver sinal de áudio e/ou o dispositivo USB não estiver a carregar, durante 20 minutos, a TW234 desliga-se automaticamente. Para “reativar” a TW234, basta pressionar o botão de ligação (corrente) v.Resolução de problemasSe a TW234 não emitir som, regule o volume do dispositivo de música digital para um nível mais alto. Se a TW234 deixar de responder, pressione sem soltar o botão de ligação (corrente)  v durante cinco segundos para reiniciar.RECARREGAR A BATERIAPara carregar a bateria interna, ligue a extremidade mais pequena do cabo USB fornecido à porta Micro USB X (situada por baixo da aba) e a outra extremidade a uma porta USB do computador ou a uma fonte de alimentação CA (não incluída).Quando a TW234 está ligada e a carregar, o indicador de ligação (corrente) pisca lentamente e acende-se com uma luz fixa quando a bateria estiver totalmente carregada.O indicador de ligação (corrente) aparece e desaparece quando for necessário carregar a bateria.Nota: A bateria proporciona cerca de seis horas de funcionamento a um nível de audição normal.Substituir a bateria recarregável: Se a bateria não fornecer energia suficiente (consulte as Notas sobra a bateria recarregável abaixo), visite www.tdkperformance.com para obter instruções sobre a substituição da bateria.Notas sobre a bateria recarregável: • Semprequecarregaredescarregarabateria(ciclosdecarga),acapacidadedabateria diminui ligeiramente. As baterias recarregáveis têm um número limitado de ciclos de carga e podem ter de ser substituídas.• Podedesejarsubstituirabateriaquandoouantesqueestadeixedefornecerenergiasuficiente para o funcionamento do dispositivo. Também é essencial, do ponto de vista ambiental e da segurança, eliminar corretamente as baterias. Se colocar uma bateria diretamente no lixo está a prejudicar o ambiente.• Nãoqueimeabateria.FUNCIONAMENTOLigar/desligar a TW2341.  Pressione o botão de ligação (corrente) v para ligar a coluna. O indicador de ligação (corrente) pisca uma vez e o indicador Bluetooth também pisca se a coluna não estiver ligada a nenhum dispositivo Bluetooth; se a coluna estiver ligada a um dispositivo Bluetooth, o indicador respetivo acende-se com uma  luz azul.2.  Pressione o botão de ligação (corrente) v para desligar a coluna; o indicador respetivo apaga-se.Emparelhar (sincronizar) um dispositivo Bluetooth1.  Ligue a TW234.2.  Pressione sem soltar o botão Bluetooth w durante cerca de três segundos até o indicador Bluetooth piscar rapidamente para tornar a coluna “detetável”.3. No dispositivo Bluetooth, ative a função Bluetooth e selecione “TW234” na lista de dispositivos. Se o dispositivo Bluetooth pedir uma palavra-passe, utilizeAssistência técnica:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euAs especificações estão sujeitas a alterações sem aviso.O logótipo TDK Life on Record é uma marca registada da TDK Corporation e é utilizado sob licença. Todas as outras marcas registadas e logótipos são propriedade dos respetivos detentores.A marca da palavra Bluetooth® e os logótipos são marcas registadas detidas pela Bluetooth SIG, Inc. e a utilização dessas marcas pela Imation Corpé feita sob licença.OPERATIONTurning the TW234 On and Off1.  Press the Power button v to turn the unit on. The Power indicator will blink once and the Bluetooth indicator will blink if no Bluetooth device is set, or light blue if connected to a Bluetooth device.2. Press the Power button v to turn the unit off; the Power indicator will  turn off.Pairing a Bluetooth Device1.  Turn on the TW234.2. Press and hold the Bluetooth button w for approximately three seconds, until the Bluetooth indicator blinks quickly to make the speaker “discoverable”.3. On the Bluetooth device, enable Bluetooth and select “TW234” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some

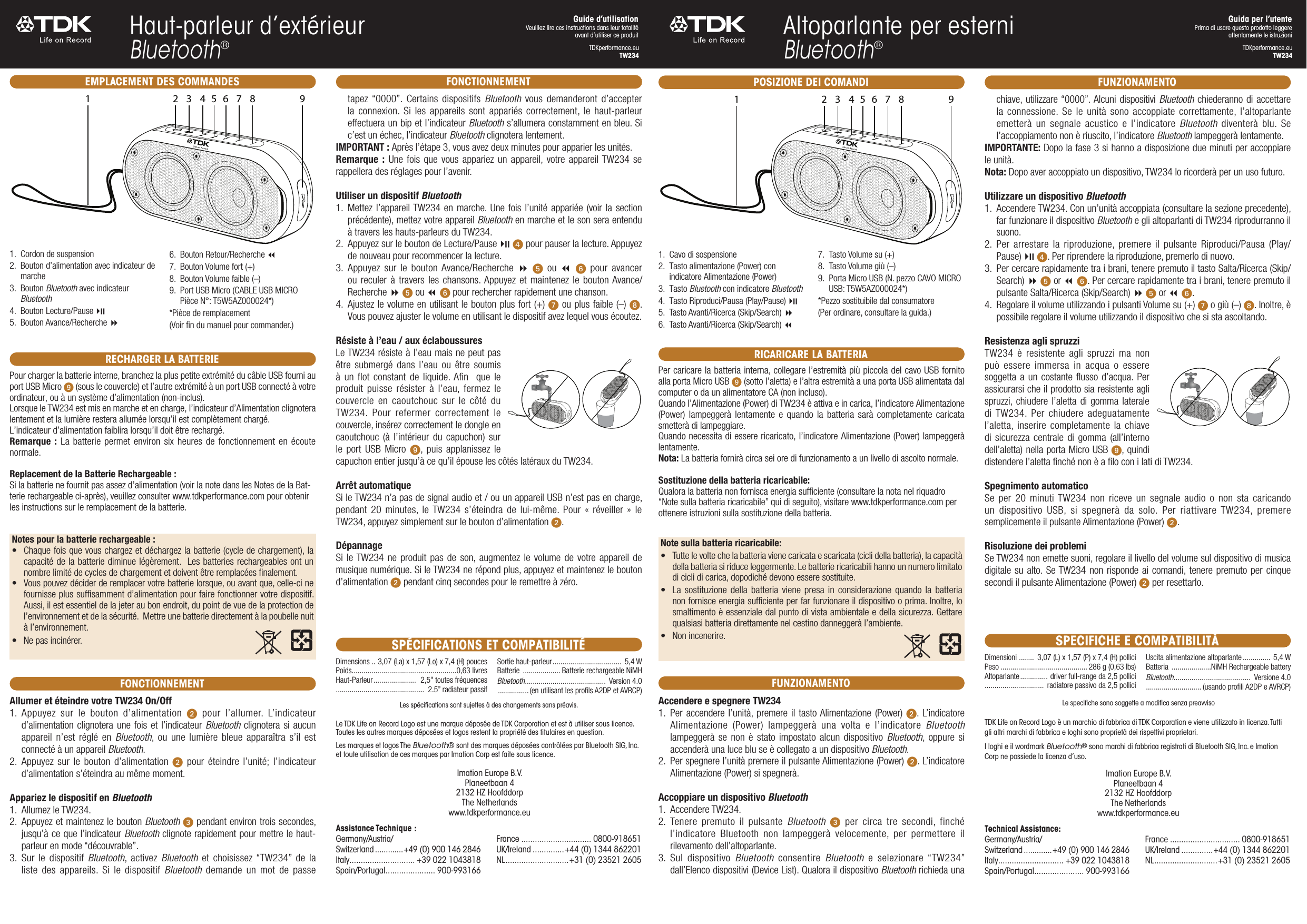

Haut-parleur d’extérieur  Bluetooth®TDKperformance.euTW234Guide d’utilisation Veuillez lire ces instructions dans leur totalité  avant d’utiliser ce produitAltoparlante per esterni  Bluetooth® TDKperformance.euTW234Guida per l’utentePrima di usare questo prodotto leggere attentamente le istruzioniFONCTIONNEMENT EMPLACEMENT DES COMMANDES1.  Cordon de suspension2.  Bouton d’alimentation avec indicateur de marche3. Bouton Bluetooth avec indicateur Bluetooth4.  Bouton Lecture/Pause4;  5.  Bouton Avance/Recherche 86.  Bouton Retour/Recherche 77.  Bouton Volume fort (+)8.  Bouton Volume faible (–)9.  Port USB Micro (CABLE USB MICRO Pièce N°: T5W5AZ000024*)*Pièce de remplacement  (Voir fin du manuel pour commander.)Dimensions .. 3,07 (La) x 1,57 (Lo) x 7,4 (H) poucesPoids.....................................................0,63 livresHaut-Parleur ......................  2,5" toutes fréquences .............................................  2.5” radiateur passifSortie haut-parleur ................................... 5,4 WBatterie  ................... Batterie rechargeable NiMHBluetooth .........................................  Version 4.0................(en utilisant les profils A2DP et AVRCP)SPÉCIFICATIONS ET COMPATIBILITÉ1 2 3 4 5 6 7 8 9 tapez “0000”. Certains dispositifs Bluetooth vous demanderont d’accepter la connexion. Si les appareils sont appariés correctement, le haut-parleur effectuera un bip et l’indicateur Bluetooth s’allumera constamment en bleu. Si c’est un échec, l’indicateur Bluetooth clignotera lentement.IMPORTANT : Après l’étape 3, vous avez deux minutes pour apparier les unités.Remarque : Une fois que vous appariez un appareil, votre appareil TW234 se rappellera des réglages pour l’avenir.Utiliser un dispositif Bluetooth1.  Mettez l’appareil TW234 en marche. Une fois l’unité appariée (voir la section précédente), mettez votre appareil Bluetooth en marche et le son sera entendu à travers les hauts-parleurs du TW234.2.  Appuyez sur le bouton de Lecture/Pause4; x pour pauser la lecture. Appuyez de nouveau pour recommencer la lecture.3. Appuyez sur le bouton Avance/Recherche 8 y  ou  7 U pour avancer ou reculer à travers les chansons. Appuyez et maintenez le bouton Avance/Recherche 8 y ou 7 U pour rechercher rapidement une chanson.4.  Ajustez le volume en utilisant le bouton plus fort (+) V ou plus faible (–) W. Vous pouvez ajuster le volume en utilisant le dispositif avez lequel vous écoutez. Résiste à l’eau / aux éclaboussuresLe TW234 résiste à l’eau mais ne peut pas être submergé dans l’eau ou être soumis à un flot constant de liquide. Afin  que le produit puisse résister à l’eau, fermez le couvercle en caoutchouc sur le côté du TW234. Pour refermer correctement le couvercle, insérez correctement le dongle en caoutchouc (à l’intérieur du capuchon) sur le port USB Micro X, puis applanissez le capuchon entier jusqu’à ce qu’il épouse les côtés latéraux du TW234.Arrêt automatiqueSi le TW234 n’a pas de signal audio et / ou un appareil USB n’est pas en charge, pendant 20 minutes, le TW234 s’éteindra de lui-même. Pour « réveiller » le TW234, appuyez simplement sur le bouton d’alimentation v.DépannageSi le TW234 ne produit pas de son, augmentez le volume de votre appareil de musique numérique. Si le TW234 ne répond plus, appuyez et maintenez le bouton d’alimentation v pendant cinq secondes pour le remettre à zéro.RECHARGER LA BATTERIEPour charger la batterie interne, branchez la plus petite extrémité du câble USB fourni au port USB Micro X (sous le couvercle) et l’autre extrémité à un port USB connecté à votre ordinateur, ou à un système d’alimentation (non-inclus).Lorsque le TW234 est mis en marche et en charge, l’indicateur d’Alimentation clignotera lentement et la lumière restera allumée lorsqu’il est complètement chargé.L’indicateur d’alimentation faiblira lorsqu’il doit être rechargé.Remarque : La batterie permet environ six heures de fonctionnement en écoute normale.Replacement de la Batterie Rechargeable : Si la batterie ne fournit pas assez d’alimentation (voir la note dans les Notes de la Bat-terie rechargeable ci-après), veuillez consulter www.tdkperformance.com pour obtenir les instructions sur le remplacement de la batterie.Notes pour la batterie rechargeable : • Chaquefoisquevouschargezetdéchargezlabatterie(cycledechargement),lacapacité de la batterie diminue légèrement.  Les batteries rechargeables ont un nombre limité de cycles de chargement et doivent être remplacées finalement.• Vouspouvezdéciderderemplacervotrebatterielorsque,ouavantque,celle-cinefournisse plus suffisamment d’alimentation pour faire fonctionner votre dispositif.  Aussi, il est essentiel de la jeter au bon endroit, du point de vue de la protection de l’environnement et de la sécurité.  Mettre une batterie directement à la poubelle nuit à l’environnement.• Nepasincinérer.FONCTIONNEMENTAllumer et éteindre votre TW234 On/Off1. Appuyez sur le bouton d’alimentation v pour l’allumer. L’indicateur d’alimentation clignotera une fois et l’indicateur Bluetooth clignotera si aucun appareil n’est réglé en Bluetooth, ou une lumière bleue apparaîtra s’il est connecté à un appareil Bluetooth.2. Appuyez sur le bouton d’alimentation v pour éteindre l’unité; l’indicateur d’alimentation s’éteindra au même moment.Appariez le dispositif en Bluetooth1.  Allumez le TW234.2.  Appuyez et maintenez le bouton Bluetooth w pendant environ trois secondes, jusqu’à ce que l’indicateur Bluetooth clignote rapidement pour mettre le haut-parleur en mode “découvrable”.3. Sur le dispositif Bluetooth, activez Bluetooth et choisissez “TW234” de la liste des appareils. Si le dispositif Bluetooth demande un mot de passeAssistance Technique  :Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euLes spécifications sont sujettes à des changements sans préavis.Le TDK Life on Record Logo est une marque déposée de TDK Corporation et est à utiliser sous licence.  Toutes les autres marques déposées et logos restent la propriété des titulaires en question.Les marques et logos The Bluetooth® sont des marques déposées contrôlées par Bluetooth SIG, Inc. et toute utilisation de ces marques par Imation Corp est faite sous licence.FUNZIONAMENTOPOSIZIONE DEI COMANDI1.  Cavo di sospensione2.  Tasto alimentazione (Power) con indicatore Alimentazione (Power)3. Tasto Bluetooth con indicatore Bluetooth4.  Tasto Riproduci/Pausa (Play/Pause)4;5.  Tasto Avanti/Ricerca (Skip/Search) 86.  Tasto Avanti/Ricerca (Skip/Search) 77.  Tasto Volume su (+)8.  Tasto Volume giù (–)9.  Porta Micro USB (N. pezzo CAVO MICRO USB: T5W5AZ000024*)*Pezzo sostituibile dal consumatore (Per ordinare, consultare la guida.)Dimensioni ........  3,07 (L) x 1,57 (P) x 7,4 (H) polliciPeso ............................................ 286 g (0,63 lbs)Altoparlante .............. driver full-range da 2,5 pollici ..............................  radiatore passivo da 2,5 polliciUscita alimentazione altoparlante ..............  5,4 WBatteria  ....................NiMH Rechargeable batteryBluetooth .......................................  Versione 4.0............................ (usando profili A2DP e AVRCP)SPECIFICHE E COMPATIBILITÀ1 2 3 4 5 6 7 8 9 chiave, utilizzare “0000”. Alcuni dispositivi Bluetooth chiederanno di accettare la connessione. Se le unità sono accoppiate correttamente, l’altoparlante emetterà un segnale acustico e l’indicatore Bluetooth diventerà blu. Se l’accoppiamento non è riuscito, l’indicatore Bluetooth lampeggerà lentamente.IMPORTANTE: Dopo la fase 3 si hanno a disposizione due minuti per accoppiare le unità.Nota: Dopo aver accoppiato un dispositivo, TW234 lo ricorderà per un uso futuro.Utilizzare un dispositivo Bluetooth1.  Accendere TW234. Con un’unità accoppiata (consultare la sezione precedente), far funzionare il dispositivo Bluetooth e gli altoparlanti di TW234 riprodurranno il suono.2. Per arrestare la riproduzione, premere il pulsante Riproduci/Pausa (Play/Pause)4; x. Per riprendere la riproduzione, premerlo di nuovo.3.  Per cercare rapidamente tra i brani, tenere premuto il tasto Salta/Ricerca (Skip/Search) 8 y or 7 U. Per cercare rapidamente tra i brani, tenere premuto il pulsante Salta/Ricerca (Skip/Search) 8 y or 7 U.4.  Regolare il volume utilizzando i pulsanti Volume su (+) V o giù (–) W. Inoltre, è possibile regolare il volume utilizzando il dispositivo che si sta ascoltando. Resistenza agli spruzziTW234 è resistente agli spruzzi ma non può essere immersa in acqua o essere soggetta a un costante flusso d’acqua. Per assicurarsi che il prodotto sia resistente agli spruzzi, chiudere l’aletta di gomma laterale di TW234. Per chiudere adeguatamente l’aletta, inserire completamente la chiave di sicurezza centrale di gomma (all’interno dell’aletta) nella porta Micro USB X, quindi distendere l’aletta finché non è a filo con i lati di TW234.Spegnimento automaticoSe per 20 minuti TW234 non riceve un segnale audio o non sta caricando un dispositivo USB, si spegnerà da solo. Per riattivare TW234, premere semplicemente il pulsante Alimentazione (Power) v.Risoluzione dei problemiSe TW234 non emette suoni, regolare il livello del volume sul dispositivo di musica digitale su alto. Se TW234 non risponde ai comandi, tenere premuto per cinque secondi il pulsante Alimentazione (Power) v per resettarlo.RICARICARE LA BATTERIAPer caricare la batteria interna, collegare l’estremità più piccola del cavo USB fornito alla porta Micro USB X (sotto l’aletta) e l’altra estremità a una porta USB alimentata dal computer o da un alimentatore CA (non incluso).Quando l’Alimentazione (Power) di TW234 è attiva e in carica, l’indicatore Alimentazione (Power) lampeggerà lentamente e quando la batteria sarà completamente caricata smetterà di lampeggiare.Quando necessita di essere ricaricato, l’indicatore Alimentazione (Power) lampeggerà lentamente.Nota: La batteria fornirà circa sei ore di funzionamento a un livello di ascolto normale.Sostituzione della batteria ricaricabile: Qualora la batteria non fornisca energia sufficiente (consultare la nota nel riquadro “Note sulla batteria ricaricabile” qui di seguito), visitare www.tdkperformance.com per ottenere istruzioni sulla sostituzione della batteria.Note sulla batteria ricaricabile: • Tuttelevoltechelabatteriavienecaricataescaricata(ciclidellabatteria),lacapacitàdella batteria si riduce leggermente. Le batterie ricaricabili hanno un numero limitato di cicli di carica, dopodiché devono essere sostituite.• La sostituzione della batteria viene presa in considerazione quando la batterianon fornisce energia sufficiente per far funzionare il dispositivo o prima. Inoltre, lo smaltimento è essenziale dal punto di vista ambientale e della sicurezza. Gettare qualsiasi batteria direttamente nel cestino danneggerà l’ambiente.• Nonincenerire.FUNZIONAMENTOAccendere e spegnere TW2341.  Per accendere l’unità, premere il tasto Alimentazione (Power) v. L’indicatore Alimentazione (Power) lampeggerà una volta e l’indicatore Bluetooth lampeggerà se non è stato impostato alcun dispositivo Bluetooth, oppure si accenderà una luce blu se è collegato a un dispositivo Bluetooth.2.  Per spegnere l’unità premere il pulsante Alimentazione (Power) v. L’indicatore Alimentazione (Power) si spegnerà.Accoppiare un dispositivo Bluetooth1.  Accendere TW234.2. Tenere premuto il pulsante Bluetooth w per circa tre secondi, finché l’indicatore Bluetooth non lampeggerà velocemente, per permettere il rilevamento dell’altoparlante.3. Sul dispositivo Bluetooth consentire Bluetooth e selezionare “TW234” dall’Elenco dispositivi (Device List). Qualora il dispositivo Bluetooth richieda unaTechnical Assistance:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.eu Le specifiche sono soggette a modifica senza preavvisoTDK Life on Record Logo è un marchio di fabbrica di TDK Corporation e viene utilizzato in licenza. Tutti gli altri marchi di fabbrica e loghi sono proprietà dei rispettivi proprietari.I loghi e il wordmark Bluetooth® sono marchi di fabbrica registrati di Bluetooth SIG, Inc. e Imation Corp ne possiede la licenza d’uso.
Bluetooth® Outdoor-Lautsprecher TDKperformance.euTW234BenutzerhandbuchBitte lesen Sie diese Anleitung vor Inbetriebnahme  des Produkts sorgfältig durch.Altavoz para exteriores  con Bluetooth® TDKperformance.euTW234Guía de usuarioLea las siguientes instrucciones antes de utilizar este productoBETRIEBÜBERSICHT DER STEUERELEMENTE1. Aufhängeband2.  Betriebstaste und -anzeige3.  Bluetooth-Taste und -Anzeige4.  Taste „Wiedergabe/Pause“4;  5.  Taste „Weiter/Vorlauf“ 86.  Taste „Zurück/Rücklauf“77.  Taste „Lautstärke erhöhen“ (+)8.  Taste „Lautstärke verringern“ (–)9.  Micro-USB-Anschluss (MICRO-USB-KABEL Teilenummer: T5W5AZ000024*)*Zubehörteil nicht im Lieferumfang enthalten (Informationen zur Bestellung finden Sie am Ende dieser Anleitung.)Abmessungen ............. 7,9 (B) x 4 (H) x 18,8 (D) cmGewicht ....................................................... 285 gLautsprecher ........... 2,5 Zoll Breitbandlautsprecher ........................................... 2,5 Zoll PassivstrahlerAusgangsleistung der Lautsprecher........... 5,4 WAkku  ............................. Aufladbarer NiMH-AkkuBluetooth .........................................  Version 4.0................................... (Profile A2DP und AVRCP)TECHNISCHE DATEN UND KOMPATIBILITÄT1 2 3 4 5 6 7 8 9 Sie anschließend dazu auf, die Verbindung zu akzeptieren. Wenn die Geräte ordnungsgemäß verbunden sind, ertönt aus dem Lautsprecher ein Signalton und die Bluetooth-Anzeige leuchtet dauerhaft blau. Wenn die Verbindung fehlgeschlagen ist, blinkt die Bluetooth-Anzeige langsam.WICHTIG:  Nach Schritt 3 haben Sie 2 Minuten Zeit, um die Geräte miteinander zu verbinden.Hinweis:  Nachdem Sie ein Gerät verbunden haben, werden die entsprechenden Informationen vom TW234 zur zukünftigen Verwendung gespeichert.Verwendung eines Bluetooth-Geräts1.  Schalten Sie den TW234 ein. Wenn bereits zuvor eine Verbindung mit diesem Gerät hergestellt wurde (siehe voriger Abschnitt), bedienen Sie Ihr Bluetooth-Gerät und die abgespielten Inhalte ertönen aus den Lautsprechern des TW234.2.  Drücken Sie die Taste „Wiedergabe/Pause“4; x um die Wiedergabe anzuhalten. Drücken Sie die Taste erneut, um die Wiedergabe fortzusetzen.3.  Drücken Sie die Tasten „Weiter/Vorlauf“ 8 y oder „Zurück/Rücklauf“ 7 U, um den nächsten oder vorhergehenden Titel aufzurufen. Drücken und halten Sie die Tasten „Weiter/Vorlauf“ 8 y oder „Zurück/Rücklauf“ 7 U, um innerhalb eines Titels schnell vor- oder zurückzuspulen.4.  Die Lautstärke regeln Sie anhand der Tasten „Lautstärke erhöhen“ (+) V oder „Lautstärke verringern“ (–) W. Alternativ können Sie die Lautstärke über das jeweils verwendete Wiedergabegerät anpassen.  SpritzwasserfestDer TW234 ist spritzwasserfest, kann jedoch nicht in Wasser getaucht oder einem konstanten Wasserfluss ausgesetzt werden. Um sicherzustellen, dass das Produkt spritzwassergeschützt ist, schließen Sie die Gummiklappe an der Seite des TW234. Um die Klappe richtig zu schließen, stecken Sie die Gumminoppe (an der Innenseite der Klappe) vollständig in den Micro-USB-Anschluss X, und glätten Sie anschließend die gesamte Klappe, bis sie bündig mit dem Rand des TW234 geschlossen ist.AbschaltautomatikWenn der TW234 über einen Zeitraum von 20 Minuten kein Audiosignal empfängt und kein USB-Gerät aufgeladen wird, schaltet sich der TW234 automatisch ab. Um den TW234 wieder einzuschalten, drücken Sie einfach die Betriebstaste v.ProblembehebungWenn der TW234 keinen Ton wiedergibt, erhöhen Sie die Lautstärke Ihres digitalen Wiedergabegeräts. Wenn der TW234 auf Bedienung nicht reagiert, drücken und halten Sie die Betriebstaste v zwei Sekunden lang, um ihn neu zu starten.AUFLADEN DES AKKUSUm den integrierten Akku aufzuladen, schließen Sie das kleinere Ende des mitgelieferten USB-Kabels an den Micro-USB-Anschluss X (unter der Klappe) und das andere Ende an einen USB-Anschluss an Ihrem Computer oder an ein AC-Netzteil (nicht im Lieferumfang enthalten) an.Wenn der TW234 eingeschaltet und der Ladevorgang aktiv ist, blinkt die Betriebsanzeige langsam. Wenn der Ladevorgang abgeschlossen ist, leuchtet die Anzeige dauerhaft.Die Betriebsanzeige leuchtet langsam auf und erlischt langsam, wenn der Akku aufgeladen werden muss.Hinweis: Der Akku bietet bei normaler Zimmerlautstärke eine Betriebsdauer von etwa sechs Stunden.Austausch des Akkus: Wenn die Leistung des Akkus zu schwach ist (siehe „Hinweise zum Akku“ weiter unten), lesen Sie die Anweisungen zum Austausch des Akkus unter www.tdkperformance.com.Hinweise zum Akku  • BeijedemLadenundEntladendesAkkus(Ladezyklen),wirddieAkkukapazitätleichtverringert. Wiederaufladbare Akkus haben eine begrenzte Anzahl von Ladezyklen und müssen irgendwann ersetzt werden.• DerAkkusollteausgetauschtwerden,wennodernochbevorderAkkunichtmehrgenügend Strom für den Betrieb Ihres Geräts liefert. Achten Sie dabei aus wichtigen Umwelt- und Sicherheitsgründen auf eine ordnungsgemäße Entsorgung. Eine Entsorgung des Akkus im Hausmüll hat schädliche Folgen für die Umwelt.• Nichtverbrennen.BETRIEBEin- und Ausschalten des TW2341.  Drücken Sie die Betriebstaste v um das Gerät einzuschalten. Die Betriebsanzeige leuchtet einmal auf und die Bluetooth-Anzeige blinkt, wenn kein Bluetooth-Gerät verbunden ist. Sie leuchtet hellblau, wenn ein Bluetooth-Gerät verbunden ist.2.  Drücken Sie die Betriebstaste v um das Gerät auszuschalten. Die Betriebsanzeige erlischt.Verbindung mit einem Bluetooth-Gerät1.  Schalten Sie den TW234 ein.2.  Drücken und halten Sie die Bluetooth-Taste w etwa drei Sekunden lang, bis die Bluetooth-Anzeige schnell blinkt, um den Lautsprecher für andere Geräte „sichtbar“ zu machen.3.  Aktivieren Sie Bluetooth auf dem Bluetooth-Gerät, und wählen Sie aus der Liste der Geräte „TW234“. Wenn Sie auf dem Bluetooth-Gerät aufgefordert werden, ein Kennwort einzugeben, verwenden Sie „0000“. Einige Bluetooth-Geräte fordernImation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euDie technischen Daten können sich ohne vorherige Ankündigung ändern.Das Logo „TDK Life on Record“ ist ein Warenzeichen der TDK Corporation und kann mit einer Lizenz verwendet werden. Alle anderen Warenzeichen und Logos sind Eigentum ihrer jeweiligen Inhaber.Die Bluetooth®-Wortmarke und -Logos sind eingetragene Warenzeichen von Bluetooth SIG, Inc. und jegliche Verwendung dieser Warenzeichen durch Imation Corp erfolgt unter Lizenz..FUNCIONAMIENTOUBICACIÓN DE LOS CONTROLES1.  Cable para colgar2.  Botón Encendido/Apagado (Power) con el indicador de Encendido/Apagado3.  Botón Bluetooth con el indicador Bluetooth4.  Botón Reproducir/Pausar (Play/Pause)4;  5.  Botón Salto/Búsqueda (Skip/Search) 86.  Botón Salto/Búsqueda (Skip/Search) 77.  Botón Subir volumen (+) (Volume Up)8.  Botón Bajar volumen (-) (Volume Down)9.  Puerto Micro USB (CABLE MICRO USB Pieza Nº.: T5W5AZ000024*)*Pieza reemplazable por el consumidor (Consulte al pie de la pág. 4 para solicitarla.)Dimensiones ..... 3,07 (An) x 1,57 (P) x 7,4 (Al) pulg.Peso .................................................... 0,63 librasAltavoz ....... Controlador de gama completa de 2,5" ......................................... radiador pasivo de 2,5"Potencia de salida de altavoces ................ 5,4 WPilas  .......................... Pilas recargables de NiMHBluetooth .........................................  Versión 4.0.......................(utilizando perfiles A2DP y AVRCP)ESPECIFICACIONES Y COMPATIBILIDAD1 2 3 4 5 6 7 8 9 utilice “0000”. Algunos dispositivos Bluetooth le indicarán que acepte la conexión. Si las unidades están configuradas correctamente, el altavoz emitirá un pitido y el indicador Bluetooth se iluminará en azul. Si falló, el indicador Bluetooth parpadeará lentamente.IMPORTANTE: Luego del paso 3, tiene dos minutos para configurar las unidades.Nota:  Luego de que configure su dispositivo, el TW234 lo recordará para usos futuros.Utilizar un dispositivo Bluetooth1.  Encienda el TW234. Con la unidad configurada (ver la sección anterior), haga funcionar su dispositivo Bluetooth y el sonido se escuchará a través de los altavoces TW234.2. Pulse el botón Reproducir/Pausar (Play/Pause)4; x para pausar la reproducción. Pulse nuevamente para reanudar la reproducción.3.  Pulse el botón Salto/Búsqueda (Skip/Search) 8 y o 7 U para saltar hacia delante o hacia atrás dentro de las canciones. Mantenga pulsado el botón Salto/Búsqueda (Skip/Search) 8 y o 7 U para buscar rápidamente dentro de las canciones.4.  Ajuste el volumen con el botón de Subir volumen (Volume Up) (+) V o Bajar volumen (Volume Down) W. También puede ajustar el volumen usando el dispositivo que está escuchando. Resistente a salpicadurasEl TW234 es resistente a salpicaduras, pero no se puede sumergir en el agua o estar en contacto con flujo de agua constante. Para asegurarse de que este producto sea resistente a salpicaduras, cierre la solapa de goma al costado del TW234. Para cerrar correctamente la tapa, inserte completamente el dispositivo de goma (dentro de la tapa) en el puerto Micro USB X, luego tire de la tapa completamente, con cuidado hasta que esté alineada con las partes laterales del TW234.Apagado automático (Auto Power Off)Si el TW234 no tiene señal, y/o el dispositivo USB no se está cargando, durante 20 minutos, el TW234 se apagará sólo. Para “despertar” al TW234, simplemente pulse el botón Encendido/Apagado (Power) v.Resolución de problemasSi el TW234 no produce sonido, suba el nivel de volumen en su dispositivo de música digital. Si el TW234 no responde, mantenga pulsado el botón Encendido/Apagado (Power) v durante cinco segundos para restablecerlo.CÓMO RECARGAR LAS PILASPara cargar las pilas internas, conecte el extremo más chico del cable USB provisto al puerto Micro USB X (debajo de la pestaña) y el otro extremo a un puerto USB conectado a su ordenador o a un alimentador de corriente de CA (no incluido).Cuando el MW233 está encendido y se está cargando, el indicador de Encendido/Apagado (Power) parpadeará lentamente y se iluminará cuando esté cargado completamente.El indicador de Encendido/Apagado (Power) aparecerá y desaparecerá cuando necesite carga.Nota: Las pilas brindarán aproximadamente seis horas de funcionamiento en un nivel normal de audición.Sustitución de las pilas recargables: Si las pilas no proporcionan suficiente energía (véase el recuadro de Notas para pilas recargables a continuación), visite www.tdkperformance.com para obtener instruccio-nes sobre el recambio de las pilas.Nota para pilas recargables: • Cadavezquecargaydescargalaspilas(ciclodecarga),lacapacidaddelaspilasdisminuye un poco. Las pilas recargables tienen un número de ciclos de carga límite y finalmente deberán sustituirse.• Deberá sustituir las pilas cuando no proporcionen la energía suficiente parahacer funcionar su dispositivo, o antes de que ello ocurra. Asimismo, desecharlas adecuadamente es fundamental desde el punto de vista ambiental y de seguridad. Tirar las pilas directamente a la basura daña el medio ambiente.• Noincinerar.FUNCIONAMIENTOEncender y apagar el TW2341.  Pulse el botón de Encendido/Apagado (Power) v para encender la unidad. El indicador de Encendido/Apagado (Power) parpadeará una vez y el indicador de Bluetooth parpadeará si no está configurado, o se iluminará en azul si está conectado a un dispositivo Bluetooth.2. Pulse el botón de Encendido/Apagado (Power) v para apagar la unidad; el indicador también se apagará.Emparejar un dispositivo Bluetooth1.  Encienda el TW234.2. Mantenga presionado el botón Bluetooth w durante aproximadamente tres segundos, hasta que parpadee rápidamente el indicador Bluetooth para “descubrir” el altavoz.3.  En el dispositivo Bluetooth, habilite Bluetooth y seleccione “TW234” de la lista de dispositivos. Si el dispositivo Bluetooth le pide una contraseña de acceso, Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euLas especificaciones están sujetas a cambios sin previo aviso.El logo “TDK Life on Record” es marca comercial de TDK Corporation  y se utiliza bajo licencia, Todas las demas marcas comerciales y logos son propiedad de sus respectivos dueños.La marca denominativa y logos de Bluetooth® son marcas comerciales registradas y propiedad de Bluetooth SIG, Inc.y cualquier uso de las mismas que haga Imation Corp se encuentra bajo licencia.Technischer Support:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Asistencia técnica:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605

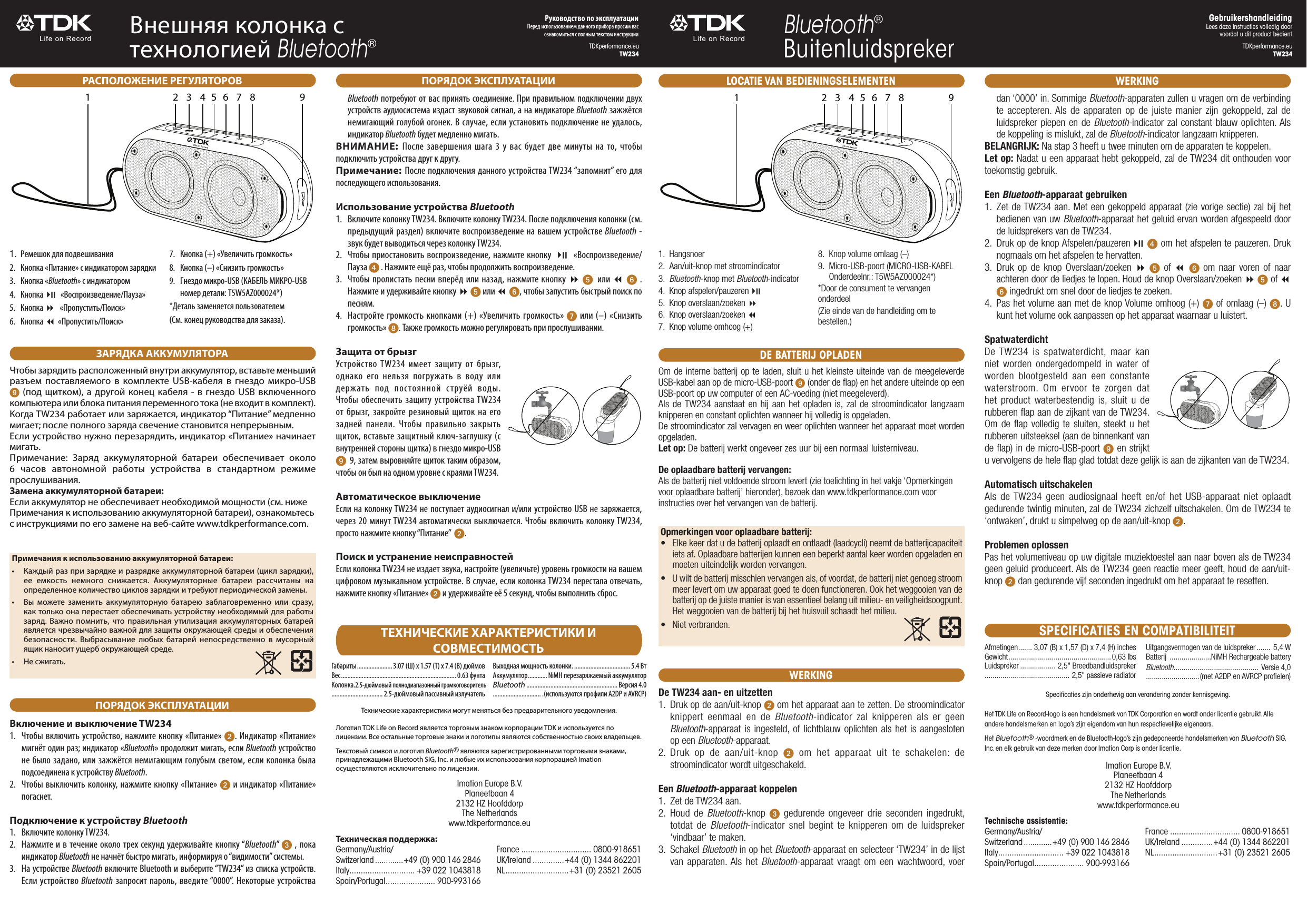

Внешняя колонка с технологией Bluetooth®TDKperformance.euTW234Руководство по эксплуатации Перед использованием данного прибора просим вас  ознакомиться с полным текстом инструкцииBluetooth® Buitenluidspreker TDKperformance.euTW234GebruikershandleidingLees deze instructies volledig door voordat u dit product bedientПОРЯДОК ЭКСПЛУАТАЦИИРАСПОЛОЖЕНИЕ РЕГУЛЯТОРОВГабариты ...................... 3.07 (Ш) x 1.57 (Т) x 7.4 (В) дюймовВес ........................................................................ 0.63 фунтаКолонка. 2.5-дюймовый полнодиапазонный громкоговоритель................................ 2.5-дюймовый пассивный излучательВыходная мощность колонки. ................................... 5.4 ВтАккумулятор ............ NiMH перезаряжаемый аккумуляторBluetooth ......................................................... Версия 4.0.............................. .(используются профили A2DP и AVRCP)ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ И СОВМЕСТИМОСТЬ1 2 3 4 5 6 7 8 9  Bluetooth потребуют от вас принять соединение. При правильном подключении двух устройств аудиосистема издаст звуковой сигнал, а на индикаторе Bluetooth зажжётся немигающий голубой огонек. В случае, если установить подключение не удалось, индикатор Bluetooth будет медленно мигать.ВНИМАНИЕ:  После завершения шага 3 у вас будет две минуты на то, чтобы подключить устройства друг к другу.Примечание: После подключения данного устройства TW234 “запомнит” его для последующего использования.Использование устройства Bluetooth1.  Включите колонку TW234. Включите колонку TW234. После подключения колонки (см. предыдущий раздел) включите воспроизведение на вашем устройстве Bluetooth - звук будет выводиться через колонку TW234.2.  Чтобы приостановить воспроизведение, нажмите кнопку 4; «Воспроизведение/Пауза x . Нажмите ещё раз, чтобы продолжить воспроизведение.3.   Чтобы пролистать песни вперёд или назад, нажмите кнопку 8 y  или 7 U . Нажмите и удерживайте кнопку 8 y или 7 U, чтобы запустить быстрый поиск по песням.4.   Настройте громкость кнопками (+) «Увеличить громкость» V или (–) «Снизить громкость» W. Также громкость можно регулировать при прослушивании. Защита от брызгУстройство TW234 имеет защиту от брызг, однако его нельзя погружать в воду или держать под постоянной струёй воды. Чтобы обеспечить защиту устройства TW234 от брызг, закройте резиновый щиток на его задней панели. Чтобы правильно закрыть щиток, вставьте защитный ключ-заглушку (с внутренней стороны щитка) в гнездо микро-USB X 9, затем выровняйте щиток таким образом, чтобы он был на одном уровне с краями TW234. Автоматическое выключениеЕсли на колонку TW234 не поступает аудиосигнал и/или устройство USB не заряжается, через 20 минут TW234 автоматически выключается. Чтобы включить колонку TW234, просто нажмите кнопку “Питание”  v.Поиск и устранение неисправностейЕсли колонка TW234 не издает звука, настройте (увеличьте) уровень громкости на вашем цифровом музыкальном устройстве. В случае, если колонка TW234 перестала отвечать, нажмите кнопку «Питание» v и удерживайте её 5 секунд, чтобы выполнить сброс.ЗАРЯДКА АККУМУЛЯТОРАЧтобы зарядить расположенный внутри аккумулятор, вставьте меньший разъем поставляемого в комплекте USB-кабеля в гнездо микро-USB X (под щитком), а другой конец кабеля - в гнездо USB включенного компьютера или блока питания переменного тока (не входит в комплект).Когда TW234 работает или заряжается, индикатор “Питание” медленно мигает; после полного заряда свечение становится непрерывным.Если устройство нужно перезарядить, индикатор «Питание» начинает мигать.Примечание: Заряд аккумуляторной батареи обеспечивает около 6 часов автономной работы устройства в стандартном режиме прослушивания.Замена аккумуляторной батареи: Если аккумулятор не обеспечивает необходимой мощности (см. ниже Примечания к использованию аккумуляторной батареи), ознакомьтесь с инструкциями по его замене на веб-сайте www.tdkperformance.com.Примечания к использованию аккумуляторной батареи: • Каждыйразпризарядкеиразрядкеаккумуляторнойбатареи(циклзарядки),ее емкость немного снижается. Аккумуляторные батареи рассчитаны на определенное количество циклов зарядки и требуют периодической замены.• Вы можете заменить аккумуляторную батарею заблаговременно или сразу,как только она перестает обеспечивать устройству необходимый для работы заряд. Важно помнить, что правильная утилизация аккумуляторных батарей является чрезвычайно важной для защиты окружающей среды и обеспечения безопасности. Выбрасывание любых батарей непосредственно в мусорный ящик наносит ущерб окружающей среде.• Несжигать.ПОРЯДОК ЭКСПЛУАТАЦИИВключение и выключение TW2341.  Чтобы включить устройство, нажмите кнопку «Питание» v. Индикатор «Питание» мигнёт один раз; индикатор «Bluetooth» продолжит мигать, если Bluetooth устройство не было задано, или зажжётся немигающим голубым светом, если колонка была подсоединена к устройству Bluetooth.2.   Чтобы выключить колонку, нажмите кнопку «Питание» v и индикатор «Питание» погаснет.Подключение к устройству Bluetooth1.  Включите колонку TW234.2.   Нажмите и в течение около трех секунд удерживайте кнопку “Bluetooth” w , пока индикатор Bluetooth не начнёт быстро мигать, информируя о “видимости” системы.3.   На устройстве Bluetooth включите Bluetooth и выберите “TW234” из списка устройств. Если устройство Bluetooth запросит пароль, введите “0000”. Некоторые устройстваТехническая поддержка:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euТехнические характеристики могут меняться без предварительного уведомления.Логотип TDK Life on Record является торговым знаком корпорации TDK и используется по лицензии. Все остальные торговые знаки и логотипы являются собственностью своих владельцев.Текстовый символ и логотип Bluetooth® являются зарегистрированными торговыми знаками, принадлежащими Bluetooth SIG, Inc. и любые их использования корпорацией Imation осуществляются исключительно по лицензии.WERKINGLOCATIE VAN BEDIENINGSELEMENTEN1. Hangsnoer2.  Aan/uit-knop met stroomindicator3.  Bluetooth-knop met Bluetooth-indicator4.  Knop afspelen/pauzeren4;  5.  Knop overslaan/zoeken 86.  Knop overslaan/zoeken 77.  Knop volume omhoog (+) 8.  Knop volume omlaag (–) 9.  Micro-USB-poort (MICRO-USB-KABEL Onderdeelnr.: T5W5AZ000024*)*Door de consument te vervangen onderdeel (Zie einde van de handleiding om te bestellen.)Afmetingen ....... 3,07 (B) x 1,57 (D) x 7,4 (H) inchesGewicht ....................................................0,63 lbsLuidspreker .................. 2,5" Breedbandluidspreker ........................................... 2,5" passieve radiatorUitgangsvermogen van de luidspreker .......  5,4 WBatterij  .....................NiMH Rechargeable batteryBluetooth ...........................................  Versie 4,0...........................(met A2DP en AVRCP profielen)SPECIFICATIES EN COMPATIBILITEIT1 2 3 4 5 6 7 8 9 dan ‘0000’ in. Sommige Bluetooth-apparaten zullen u vragen om de verbinding te accepteren. Als de apparaten op de juiste manier zijn gekoppeld, zal de luidspreker piepen en de Bluetooth-indicator zal constant blauw oplichten. Als de koppeling is mislukt, zal de Bluetooth-indicator langzaam knipperen.BELANGRIJK: Na stap 3 heeft u twee minuten om de apparaten te koppelen.Let op: Nadat u een apparaat hebt gekoppeld, zal de TW234 dit onthouden voor toekomstig gebruik.Een Bluetooth-apparaat gebruiken1.  Zet de TW234 aan. Met een gekoppeld apparaat (zie vorige sectie) zal bij het bedienen van uw Bluetooth-apparaat het geluid ervan worden afgespeeld door de luidsprekers van de TW234.2.  Druk op de knop Afspelen/pauzeren4; x om het afspelen te pauzeren. Druk nogmaals om het afspelen te hervatten.3. Druk op de knop Overslaan/zoeken 8 y  of 7 U om naar voren of naar achteren door de liedjes te lopen. Houd de knop Overslaan/zoeken 8 y of 7 U ingedrukt om snel door de liedjes te zoeken.4.  Pas het volume aan met de knop Volume omhoog (+) V of omlaag (–) W. U kunt het volume ook aanpassen op het apparaat waarnaar u luistert. SpatwaterdichtDe TW234 is spatwaterdicht, maar kan niet worden ondergedompeld in water of worden blootgesteld aan een constante waterstroom. Om ervoor te zorgen dat het product waterbestendig is, sluit u de rubberen flap aan de zijkant van de TW234. Om de flap volledig te sluiten, steekt u het rubberen uitsteeksel (aan de binnenkant van de flap) in de micro-USB-poort X en strijkt u vervolgens de hele flap glad totdat deze gelijk is aan de zijkanten van de TW234.Automatisch uitschakelenAls de TW234 geen audiosignaal heeft en/of het USB-apparaat niet oplaadt gedurende twintig minuten, zal de TW234 zichzelf uitschakelen. Om de TW234 te ‘ontwaken’, drukt u simpelweg op de aan/uit-knop v.Problemen oplossenPas het volumeniveau op uw digitale muziektoestel aan naar boven als de TW234 geen geluid produceert. Als de TW234 geen reactie meer geeft, houd de aan/uit-knop v dan gedurende vijf seconden ingedrukt om het apparaat te resetten.DE BATTERIJ OPLADENOm de interne batterij op te laden, sluit u het kleinste uiteinde van de meegeleverde USB-kabel aan op de micro-USB-poort X (onder de flap) en het andere uiteinde op een USB-poort op uw computer of een AC-voeding (niet meegeleverd).Als de TW234 aanstaat en hij aan het opladen is, zal de stroomindicator langzaam knipperen en constant oplichten wanneer hij volledig is opgeladen.De stroomindicator zal vervagen en weer oplichten wanneer het apparaat moet worden opgeladen.Let op: De batterij werkt ongeveer zes uur bij een normaal luisterniveau.De oplaadbare batterij vervangen: Als de batterij niet voldoende stroom levert (zie toelichting in het vakje ‘Opmerkingen voor oplaadbare batterij’ hieronder), bezoek dan www.tdkperformance.com voor instructies over het vervangen van de batterij.Opmerkingen voor oplaadbare batterij: • Elkekeerdatudebatterijoplaadtenontlaadt(laadcycli)neemtdebatterijcapaciteitiets af. Oplaadbare batterijen kunnen een beperkt aantal keer worden opgeladen en moeten uiteindelijk worden vervangen.• Uwiltdebatterijmisschienvervangenals,ofvoordat,debatterijnietgenoegstroommeer levert om uw apparaat goed te doen functioneren. Ook het weggooien van de batterij op de juiste manier is van essentieel belang uit milieu- en veiligheidsoogpunt. Het weggooien van de batterij bij het huisvuil schaadt het milieu.• Nietverbranden.WERKINGDe TW234 aan- en uitzetten1.  Druk op de aan/uit-knop v om het apparaat aan te zetten. De stroomindicator knippert eenmaal en de Bluetooth-indicator zal knipperen als er geen Bluetooth-apparaat is ingesteld, of lichtblauw oplichten als het is aangesloten op een Bluetooth-apparaat.2. Druk op de aan/uit-knop v om het apparaat uit te schakelen: de stroomindicator wordt uitgeschakeld.Een Bluetooth-apparaat koppelen1.  Zet de TW234 aan.2. Houd de Bluetooth-knop  w gedurende ongeveer drie seconden ingedrukt, totdat de Bluetooth-indicator snel begint te knipperen om de luidspreker ‘vindbaar’ te maken.3. Schakel Bluetooth in op het Bluetooth-apparaat en selecteer ‘TW234’ in de lijst van apparaten. Als het Bluetooth-apparaat vraagt om een wachtwoord, voerTechnische assistentie:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euSpecificaties zijn onderhevig aan verandering zonder kennisgeving.Het TDK Life on Record-logo is een handelsmerk van TDK Corporation en wordt onder licentie gebruikt. Alle andere handelsmerken en logo’s zijn eigendom van hun respectievelijke eigenaars. Het Bluetooth® -woordmerk en de Bluetooth-logo’s zijn gedeponeerde handelsmerken van Bluetooth SIG, Inc. en elk gebruik van deze merken door Imation Corp is onder licentie.1.  Ремешок для подвешивания2.   Кнопка «Питание» с индикатором зарядки3.   Кнопка «Bluetooth» с индикатором4.   Кнопка4;  «Воспроизведение/Пауза»5.   Кнопка 8 «Пропустить/Поиск»6.   Кнопка 7 «Пропустить/Поиск»7.   Кнопка (+) «Увеличить громкость»8.   Кнопка (–) «Снизить громкость»9.   Гнездо микро-USB (КАБЕЛЬ МИКРО-USB номер детали: T5W5AZ000024*)*Деталь заменяется пользователем (См. конец руководства для заказа).
Głośnik outdoorowy Bluetooth®TDKperformance.euTW234Instrukcja obsługiPrzed rozpoczeciem uzywania tego produktu prosimyprzeczytac cała niniejsza instrukcjeBluetooth® Venkovní reproduktor TDKperformance.euTW234Guide d’utilisation Veuillez lire l’ensemble des instructions ci-dessous avant d’utiliser ce produit.OBSŁUGAPOŁOŻENIE ELEMENTÓW STERUJĄCYCH1.  Przewód wiszący2.   Przycisk zasilania z kontrolką zasilania3.   Przycisk Bluetooth z kontrolką Bluetooth4.   Przycisk odtwarzania/wstrzymania 4;   5.   Przycisk pomijania/wyszukiwania 8 6.   Przycisk pomijania/wyszukiwania 77.   Przycisk zwiększania głośności (+)8.   Przycisk zmniejszania głośności (–)9.   Port Micro USB (nr kat. KABLA MICRO USB: T5W5AZ000024*)*Część wymieniana przez użytkownika (jak zamawiać – patrz na końcu instrukcji).Wymiary .............. 3,07 (szer.) x 1,57 (dł.) x 7,4 (wys.) calaWaga ......................................................... 0,63 lb (0,3 kg)Głośnik ................. głośnik pełnozakresowy o średnicy 2,5”..................................promiennik pasywny o średnicy 2,5”Moc głośnika ............................................................ 5,4 WAkumulator ...........................................akumulator NiMHBluetooth...........................................................wersja 4.0..........................(z wykorzystaniem profilu A2DP i AVRCP)DANE TECHNICZNE1 2 3 4 5 6 7 8 9 Niektóre urządzenia Bluetooth poproszą o zaakceptowanie połączenia. Po prawidłowym sparowaniu urządzeń głośnik wyda dźwięk, a kontrolka Bluetooth zacznie świecić w kolorze niebieskim. Jeśli parowanie się nie powiedzie, kontrolka Bluetooth będzie powoli migać.WAŻNE: Po wykonaniu kroku 3 masz dwie minuty na sparowanie urządzeń.Uwaga: Głośnik TW234 zapamięta sparowane urządzenie na przyszłość.Korzystanie z urządzenia Bluetooth1.  Włącz urządzenie TW234. Po sparowaniu głośnika (patrz poprzednia sekcja) możesz używać urządzenia Bluetooth, a jego dźwięk będzie odtwarzany przez głośnik TW234.2.  Naciśnięcie przycisku odtwarzania/wstrzymania4; x powoduje wstrzymanie odtwarzania. Ponowne naciśnięcie wznawia odtwarzanie.3.  Naciśnięcie przycisku pomijania/wyszukiwania 8 y  lub  7 U pozwala na przeskakiwanie utworów do przodu lub do tyłu. Naciśnięcie i przytrzymanie przycisku pomijania/wyszukiwania  8 y lub 7 U pozwala na szybkie wyszukiwanie utworów.4.   Głośność można dostosować za pomocą przycisku zwiększania (+) V lub zmniejszania (–) W  głośności. Można także dostosowywać głośność, korzystając z urządzenia, z którego dźwięk jest odtwarzany.Odporność na rozpryskiGłośnik TW234 jest odporny na rozpryski, ale nie można go zanurzać w wodzie, ani wystawiać na działanie strumienia wody. Aby głośnik TW234 był odporny na rozpryski, należy zamknąć gumową klapkę z boku urządzenia. Aby prawidłowo zamknąć klapkę, wciśnij do końca gumowy trzpień (po wewnętrznej stronie klapki) w port Micro USB X, a następnie wyrównaj klapkę tak, aby była ułożona równo z bokami urządzenia TW234. Automatyczne wyłączenieGłośnik TW234 sam się wyłączy, jeśli przez 20 minut nie będzie odbierał sygnału audio, a urządzenie USB nie będzie ładowane. Aby go wybudzić, wystarczy nacisnąć przycisk zasilania  v.Usuwanie problemówJeśli głośnik TW234 nie generuje dźwięku, zwiększ poziom głośności na cyfrowym urządzeniu audio. Jeśli głośnik TW234 nie reaguje, naciśnij przycisk zasilania v i przytrzymaj go przez pięć sekund, aby zresetować urządzenie.ŁADOWANIE AKUMULATORAAby naładować akumulator wewnętrzny, podłącz mniejszą końcówkę dostarczonego w komplecie kabla USB do portu Micro USB X (pod klapką), a drugą końcówkę - do zasilanego portu USB na komputerze lub zasilacza sieciowego (do zakupienia osobno).Gdy urządzenie TW234 jest włączone i ładuje, kontrolka zasilania miga powoli. Po pełnym naładowaniu kontrolka świeci światłem ciągłym.Gdy konieczne jest ładowanie, kontrolka zasilania rozświetla się i przygasa.Uwaga: Akumulator zapewnia około sześć godzin odtwarzania przy normalnym poziomie głośności.Wymiana akumulatora: Gdy akumulator nie zapewnia wystarczająco dużo energii (patrz pole Uwagi dotyczące akumulatora poniżej), należy odwiedzić stronę www.tdkperformance.com, aby uzyskać instrukcje dotyczące jego wymiany.Uwagi dotyczące akumulatora: • Z każdym cyklem ładowania i rozładowania akumulatora nieznacznie zmniejsza się jegopojemność. Akumulatory charakteryzują się ograniczoną liczbą cykli ładowania, dlatego po jakimś czasie konieczna jest ich wymiana.• Akumulatormożnawymienić,gdyniezapewniailościenergiiwystarczającejdofunkcjonowaniaurządzenia. Ze względu na dobro środowiska i bezpieczeństwo kluczowe znaczenie ma odpowiednie pozbycie się akumulatora. Wyrzucenie akumulatora do śmietnika jest groźne dla środowiska.• Niespalać.OBSŁUGAWłączanie i wyłączanie urządzenia TW2341.  Naciśnij przycisk zasilania v 2, aby włączyć urządzenie. Kontrolka zasilania mignie jednokrotnie, a kontrolka Bluetooth będzie migać, jeśli nie będzie ustawione żadne urządzenie Bluetooth, lub będzie świecić na niebiesko, gdy urządzenie Bluetooth będzie podłączone.2.  Naciśnij przycisk zasilania v, aby wyłączyć urządzenie. Kontrolka zasilania zostanie wyłączona.Parowanie urządzenia Bluetooth1.  Włącz urządzenie TW234.2.  Aby głośnik był możliwy do wykrycia, naciśnij przycisk Bluetooth w i przytrzymaj go przez około trzy sekundy, aż kontrolka Bluetooth zacznie szybko migać.3.   Na urządzeniu Bluetooth włącz komunikację Bluetooth i wybierz z listy urządzeń „TW234”. Jeśli urządzenie Bluetooth poprosi o podanie klucza dostępu, wpisz „0000”. Imation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euDane techniczne moga ulec zmianie bez uprzedniego powiadomienia.Logo TDK Life on Record jest znakiem towarowym TDK Corporation. Logo to zostało uzyte na podstawie licencji. Wszystkie inne znaki towarowe i logo stanowia własnosc odpowiednich firm.Znak słowny i logo Bluetooth® jest zastrzezonym znakiem towarowym własnosci Bluetooth SIG, Inc. i znaki te sa uzywane przez Imation Corp na licencji.PROVOZUMÍSTĚNÍ OVLÁDACÍCH TLAČÍTEK1.  Závěsná šňůra2.   Zapínací tlačítko s kontrolkou napájení3.   Tlačítko Bluetooth  s kontrolkou Bluetooth 4.   Tlačítko přehrávat/zastavit4;   5.   Tlačítko přeskočit/hledat 86.   Tlačítko přeskočit/hledat 77.   Tlačítko zesílení hlasitosti (+)8.   Tlačítko zeslabení hlasitosti (–) 9.   Micro USB Port (MICRO USB KABEL součástka č.: T5W5AZ000024*)*Součásti, které může vyměnit spotřebitel (Pokud si jej chcete objednat, podívejte se na konec průvodce.)Rozměry ............... 78 mm (š) x 40,4 mm (h) x 188 mm (v)  ...................................... (3,07 (š) x 1,57 (h) x 7,4 (v) palcůVáha ...............................................285 gramů (0,63 libry)Reproduktor ........................................2.5” širokopásmový.............................................................2,5” pasivní vysílačPříkon reproduktoru. ................................................. 5,4WBaterie ............................................ dobíjecí baterie NiMH Bluetooth. ........................................................... Verze 4.0........................................ .(používá profily A2DP a AVRCP)POŽADAVKY A KOMPATIBILITA1 2 3 4 5 6 7 8 9  přijetí o spojení. Pokud jsou jednotky řádně spárovány, reproduktor pípne a kontrolka Bluetooth bude svítit modře. V opačném případě bude kontrolka Bluetooth pomalu blikat.DŮLEŽITÉ: Po kroku 3 máte dvě minuty na spárování jednotek.Poznámka: Jakmile zařízení spárujete, TW234 si to zapamatuje a použije v budoucnu.Použití zařízení Bluetooth1.  Zapněte zařízení TW234. Jakmile je jednotka spárována (viz předchozí oddíl), pracujte se zařízením Bluetooth; zvuk bude slyšet prostřednictvím reproduktorů zařízení TW234.2.   Chcete-li pozastavit přehrávání, stiskněte tlačítko přehrávat/zastavit 4; x. Chcete-li dále přehrávat, stiskněte znovu.3.  Chcete-li přeskakovat mezi písničkami dopředu nebo zpět, stiskněte tlačítko přeskočit/hledat 8 y  nebo 7 U. Chcete-li rychle vyhledávat mezi písničkami, stiskněte a podržte tlačítka přeskočit/vyhledat 8 y nebo 7 U .4.   Nastavte hlasitost pomocí tlačítek zvýšení hlasitosti (+) V nebo snížení hlasitosti (–) W . Hlasitost můžete také nastavit pomocí zařízení, které posloucháte. Odolnost proti postříkáníZařízení TW234 je odolné proti postříkání, ale nesmí se ponořit do vody ani na něj nesmí soustavně téct voda. Pro zajištění odolnosti proti postříkání produktu zavřete kryt na straně zařízení.TW234 Úplně zastrčte pryžový dongle (na vnitřní straně krytu) do Micro USB portu X, potom urovnejte kryt tak, aby byl v jedné rovině s bočními stranami zařízení TW234. Tím se kryt řádně uzavře. Automatické vypnutíPokud zařízení TW234 nemá audio signál, a/nebo se nenabíjí USB zařízení po dobu 20 minut, zařízení TW234 se samo vypne. Pokud chcete zařízení TW234 “probudit”, jednoduše stiskněte zapínací tlačítko v.Řešení problémůJestliže TW234 nevydává zvuk, zvyšte hlasitost na digitálním hudebním zařízení. Pokud TW234 nereaguje, restartujte ho tím, že stisknete a podržíte zapínací tlačítko v po dobu dvou sekund.DOBÍJECÍ BATERIEChcete-li nabíjet vnitřní baterii, zapojte kratší konec přiloženého USB kabelu do portu Micro USB X (pod krytem) a druhý konec do napájeného USB portu na počítači nebo do zdroje střídavého proudu (není součástí balení). Jakmile je TW234 zapojený a nabíjí se, kontrolka nabíjení bude pomalu blikat a jakmile bude zcela nabitý, bude kontrolka svítit.Jakmile bude potřebovat nabít, bude kontrolka nabíjení blikat. Poznámka: Při běžné hlasitosti poslechu bude baterie pracovat přibližně šest hodin.Výměna dobíjecí baterie: Jestliže baterie nedodává dostatek elektrické energie (viz poznámka k níže uvedeným Poznámkám k dobíjecím bateriím), jděte na www stránky www.tdkperformance.com , kde naleznete pokyny k výměně baterie.Poznámka k nabíjecím bateriím: • Vždy,kdyžsebaterienabijeavybije,(nabíjecícyklus)snížíseoněcokapacitabaterie.Dobíjecíbaterie mají omezený počet nabíjecích cyklů a je třeba je po čase vyměnit.• Bateriimůžetevyměnit,jestliženedodávádostatekelektrickéenergie,abyzařízenípracovalo,nebo dříve, než k tomu dojde.  Řádná likvidace je také mimořádně důležitá z hlediska bezpečnosti a životního prostředí. Odložení baterie přímo do odpadu poškozuje životní prostředí.• Nelikvidujtespalováním. PROVOZZapnutí a vypnutí zařízení TW2341.  Stisknutím zapínacího tlačítko v jednotku zapněte. Kontrolka napájení jednou blikne, jestliže není nastaveno zařízení Bluetooth, nebo bude svítit modře, jestliže je spojeno se zařízením Bluetooth.2.  Chcete-li jednotku vypnout, stiskněte zapínací tlačítko v ; kontrolka napájení se vypne.Spárování zařízení Bluetooth1.  Zapnutí zařízení TW234.2.  Stiskněte a podržte tlačítko Bluetooth w po dobu asi tří sekund, dokud nezačne kontrolka Bluetooth rychle blikat, aby byl reproduktor detekovatelný.3.   Na zařízení Bluetooth povolte Bluetooth a ze seznamu zařízení zvolte “TW234”. Pokud zařízení Bluetooth vyžaduje heslo, zadejte “0000”. Některá zařízení Bluetooth vyžadujíImation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euSpecifikace je možno změnit bez upozornění.TDK Life na logu Record je obchodní značka společnosti TDK a její používání podléhá licenci. Veškeré další obchodní známky a loga jsou vlastnictvím příslušných vlastníků. Logotyp Bluetooth®  a loga jsou registrované obchodní známky, jejichž vlastníkem je Bluetooth SIG, Inc. a veškeré užívání těchto známek společností Imation Corp podléhá licenci.Pomoc techniczna:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605 Technická  podpora:Germany/Austria/ Switzerland .............+49 (0) 900 146 2846Italy............................. +39 022 1043818Spain/Portugal ...................... 900-993166France ............................... 0800-918651UK/Ireland ..............+44 (0) 1344 862201NL ............................+31 (0) 23521 2605

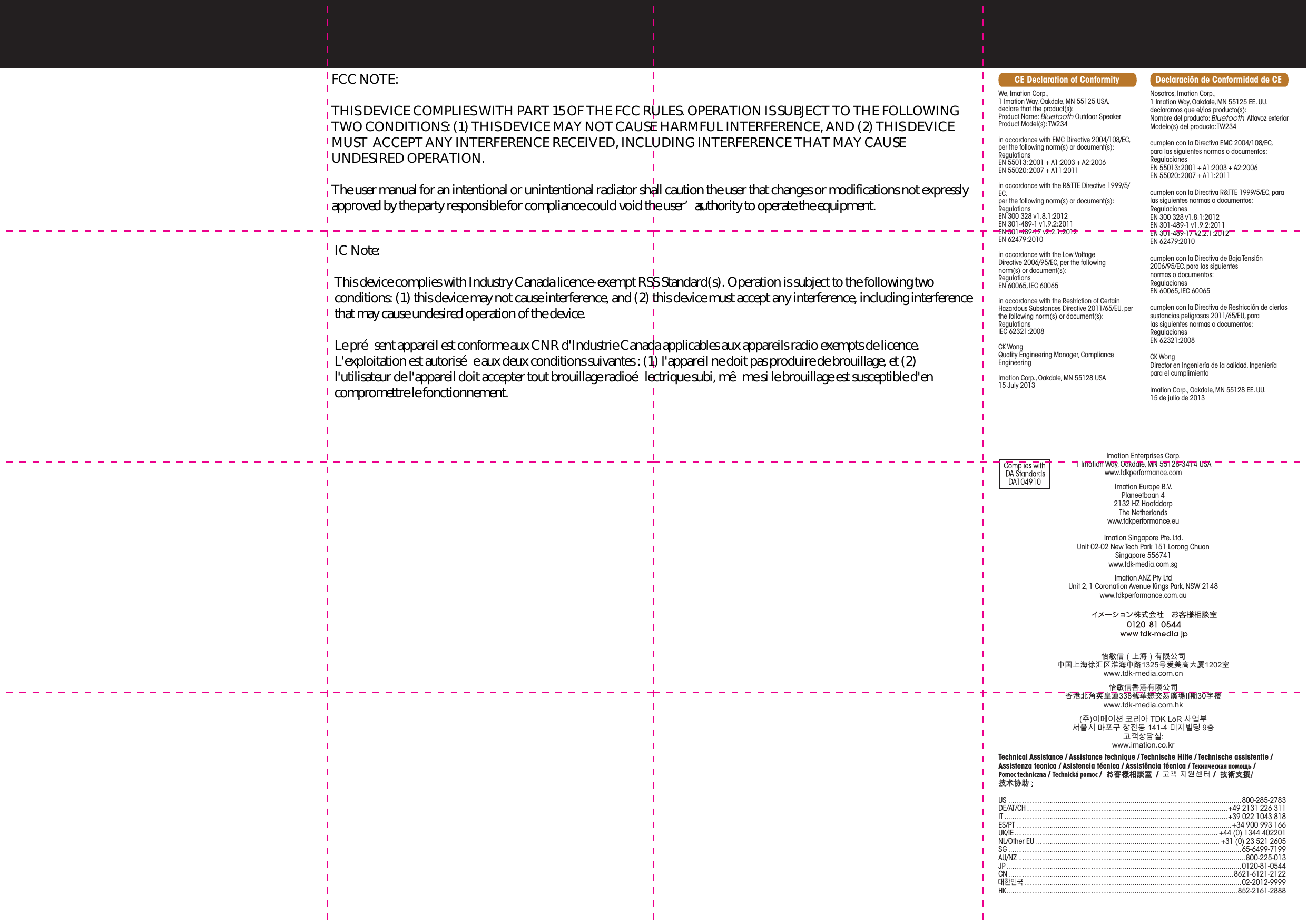

Technical Assistance / Assistance technique / Technische Hilfe / Technische assistentie /Assistenza tecnica / Asistencia técnica / Assistência técnica / Техническая помощь / Pomoc techniczna / Technická pomoc /  お客様相談室  /     /  技術支援/技术协助:US ......................................................................................................................800-285-2783 DE/AT/CH ......................................................................................................+49 2131 226 311IT .................................................................................................................+39 022 1043 818ES/PT .............................................................................................................+34 900 993 166UK/IE ....................................................................................................... +44 (0) 1344 402201NL/Other EU ............................................................................................. +31 (0) 23 521 2605SG ......................................................................................................................65-6499-7199AU/NZ ...................................................................................................................800-225-013JP ....................................................................................................................... 0120-81-0544CN ..................................................................................................................8621-6121-2122 ..............................................................................................................02-2012-9999HK .....................................................................................................................852-2161-2888We, Imation Corp.,1 Imation Way, Oakdale, MN 55125 USA,declare that the product(s):Product Name: Bluetooth Outdoor Speaker Product Model(s): TW234in accordance with EMC Directive 2004/108/EC,per the following norm(s) or document(s):RegulationsEN 55013: 2001 + A1:2003 + A2:2006EN 55020: 2007 + A11:2011in accordance with the R&TTE Directive 1999/5/EC, per the following norm(s) or document(s):RegulationsEN 300 328 v1.8.1:2012EN 301-489-1 v1.9.2:2011EN 301-489-17 v2.2.1:2012EN 62479:2010in accordance with the Low VoltageDirective 2006/95/EC, per the following  norm(s) or document(s):RegulationsEN 60065, IEC 60065in accordance with the Restriction of CertainHazardous Substances Directive 2011/65/EU, perthe following norm(s) or document(s):RegulationsIEC 62321:2008CK WongQuality Engineering Manager, Compliance EngineeringImation Corp., Oakdale, MN 55128 USA15 July 2013Nosotros, Imation Corp., 1 Imation Way, Oakdale, MN 55125 EE. UU.declaramos que el/los producto(s):Nombre del producto: Bluetooth  Altavoz exteriorModelo(s) del producto: TW234cumplen con la Directiva EMC 2004/108/EC,para las siguientes normas o documentos:RegulacionesEN 55013: 2001 + A1:2003 + A2:2006EN 55020: 2007 + A11:2011 cumplen con la Directiva R&TTE 1999/5/EC, para las siguientes normas o documentos:RegulacionesEN 300 328 v1.8.1:2012EN 301-489-1 v1.9.2:2011EN 301-489-17 v2.2.1:2012EN 62479:2010 cumplen con la Directiva de Baja Tensión2006/95/EC, para las siguientesnormas o documentos:RegulacionesEN 60065, IEC 60065 cumplen con la Directiva de Restricción de ciertassustancias peligrosas 2011/65/EU, paralas siguientes normas o documentos:RegulacionesEN 62321:2008 CK WongDirector en Ingeniería de la calidad, Ingeniería para el cumplimientoImation Corp., Oakdale, MN 55128 EE. UU.15 de julio de 2013CE Declaration of Conformity Declaración de Conformidad de CEImation Enterprises Corp.1 Imation Way, Oakdale, MN 55128-3414 USA www.tdkperformance.comImation Europe B.V.Planeetbaan 42132 HZ HoofddorpThe Netherlandswww.tdkperformance.euImation Singapore Pte. Ltd.Unit 02-02 New Tech Park 151 Lorong ChuanSingapore 556741www.tdk-media.com.sgImation ANZ Pty LtdUnit 2, 1 Coronation Avenue Kings Park, NSW 2148www.tdkperformance.com.au怡敏信(上海)有限公司中国上海徐汇区淮海中路1325号爱美高大厦1202室www.tdk-media.com.cn怡敏信香港有限公司香港北角英皇道338號華懋交易廣場II期30字樓www.tdk-media.com.hk(주)이메이션 코리아 TDK LoR 사업부서울시 마포구 창전동 141-4 미지빌딩 9층고객상담실: www.imation.co.krFCC NOTE:THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWINGTWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICEMUST  ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION.The user manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expresslyapproved by the party responsible for compliance could void the user’s authority to operate the equipment.IC Note:This device complies with Industry Canada licence-exempt RSS Standard(s). Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interferencethat may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement.
