Imation TDKQ35 WIRELESS CHARGING SPEAKER User Manual

Imation Corp. WIRELESS CHARGING SPEAKER

User Manual

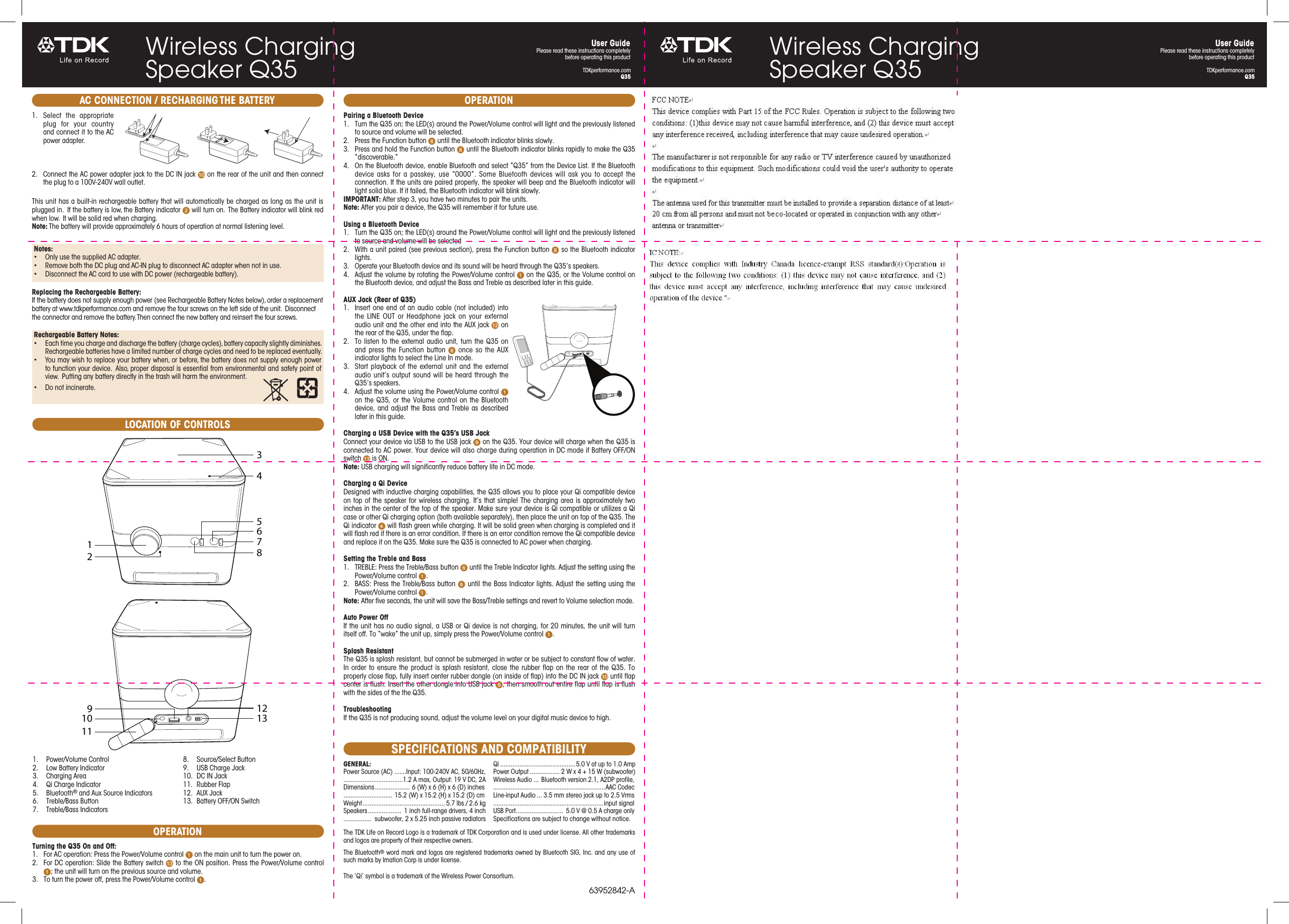

Wireless Charging Speaker Q35OPERATION63952842-AGENERAL:Power Source (AC) .......Input: 100-240V AC, 50/60Hz, ..................................1.2 A max, Output: 19 V DC, 2ADimensions ....................  6 (W) x 6 (H) x 6 (D) inches ............................ 15.2 (W) x 15.2 (H) x 15.2 (D) cmWeight ............................................... 5.7 lbs / 2.6 kgSpeakers ...................  1 inch full-range drivers, 4 inch................  subwoofer, 2 x 5.25 inch passive radiatorsThe TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license.The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.Qi ...........................................5.0 V at up to 1.0 AmpPower Output ................. 2 W x 4 + 15 W (subwoofer)Wireless Audio ...  Bluetooth version 2.1, A2DP profile, ................................................................AAC CodecLine-input Audio ... 3.5 mm stereo jack up to 2.5 Vrms...............................................................input signalUSB Port. ..........................  5.0 V @ 0.5 A charge onlySpecifications are subject to change without notice.SPECIFICATIONS AND COMPATIBILITYTDKperformance.comQ35User Guide Please read these instructions completely  before operating this productPairing a Bluetooth Device1.  Turn the Q35 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected.2.  Press the Function button W until the Bluetooth indicator blinks slowly.3.  Press and hold the Function button W until the Bluetooth indicator blinks rapidly to make the Q35 “discoverable.”4.  On the Bluetooth device, enable Bluetooth and select “Q35” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly.IMPORTANT: After step 3, you have two minutes to pair the units.Note: After you pair a device, the Q35 will remember it for future use.Using a Bluetooth Device1.  Turn the Q35 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected2.  With a unit paired (see previous section), press the Function button W so the Bluetooth indicator lights.3.  Operate your Bluetooth device and its sound will be heard through the Q35’s speakers.4.  Adjust the volume by rotating the Power/Volume control u on the Q35, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide.AUX Jack (Rear of Q35)1.  Insert one end of an audio cable (not included) into the LINE OUT or Headphone jack on your external audio unit and the other end into the AUX jack al on the rear of the Q35, under the flap.2.  To listen to the external audio unit, turn the Q35 on and press the Function button W once so the AUX indicator lights to select the Line In mode.  3.  Start playback of the external unit and the external audio unit’s output sound will be heard through the Q35’s speakers.4.  Adjust the volume using the Power/Volume control u on the Q35, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide.Charging a USB Device with the Q35’s USB JackConnect your device via USB to the USB jack X on the Q35. Your device will charge when the Q35 is connected to AC power. Your device will also charge during operation in DC mode if Battery OFF/ON switch am is ON.Note: USB charging will significantly reduce battery life in DC mode.Charging a Qi DeviceDesigned with inductive charging capabilities, the Q35 allows you to place your Qi compatible device on top of the speaker for wireless charging. It’s that simple! The charging area is approximately two inches in the center of the top of the speaker. Make sure your device is Qi compatible or utilizes a Qi case or other Qi charging option (both available separately), then place the unit on top of the Q35. The Qi indicator x will flash green while charging. It will be solid green when charging is completed and it will flash red if there is an error condition. If there is an error condition remove the Qi compatible device and replace it on the Q35. Make sure the Q35 is connected to AC power when charging.Setting the Treble and Bass1.  TREBLE: Press the Treble/Bass button U until the Treble Indicator lights. Adjust the setting using the Power/Volume control u.2.  BASS: Press the Treble/Bass button U until the Bass Indicator lights. Adjust the setting using the Power/Volume control u.Note: After five seconds, the unit will save the Bass/Treble settings and revert to Volume selection mode.Auto Power OffIf the unit has no audio signal, a USB or Qi device is not charging, for 20 minutes, the unit will turn itself off. To “wake” the unit up, simply press the Power/Volume control u.Splash ResistantThe Q35 is splash resistant, but cannot be submerged in water or be subject to constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the rear of the Q35. To properly close flap, fully insert center rubber dongle (on inside of flap) into the DC IN jack at until flap center is flush. Insert the other dongle into USB jack X, then smooth out entire flap until flap is flush with the sides of the the Q35.TroubleshootingIf the Q35 is not producing sound, adjust the volume level on your digital music device to high.AC CONNECTION / RECHARGING THE BATTERYLOCATION OF CONTROLS1.  Power/Volume Control2.  Low Battery Indicator3.  Charging Area4.  Qi Charge Indicator5. Bluetooth® and Aux Source Indicators6.  Treble/Bass Button7.  Treble/Bass Indicators8.  Source/Select Button9.  USB Charge Jack10.  DC IN Jack11.  Rubber Flap12.  AUX Jack13.  Battery OFF/ON SwitchWireless Charging Speaker Q35 TDKperformance.comQ35User Guide Please read these instructions completely  before operating this productNotes: • OnlyusethesuppliedACadapter.• RemoveboththeDCplugandAC-INplugtodisconnectACadapterwhennotinuse.• DisconnecttheACcordtousewithDCpower(rechargeablebattery).1.  Select the appropriate plug for your country and connect it to the AC power adapter.2.  Connect the AC power adapter jack to the DC IN jack at on the rear of the unit and then connect the plug to a 100V-240V wall outlet.This unit has a built-in rechargeable battery that will automatically be charged as long as the unit is plugged in.  If the battery is low, the Battery indicator v will turn on.  The Battery indicator will blink red when low.  It will be solid red when charging.Note: The battery will provide approximately 6 hours of operation at normal listening level.Rechargeable Battery Notes: • Eachtimeyouchargeanddischargethebattery(chargecycles),batterycapacityslightlydiminishes.Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually.• Youmaywishtoreplaceyourbatterywhen,orbefore,thebatterydoesnotsupplyenoughpowerto function your device.  Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment.• Donotincinerate.Replacing the Rechargeable Battery:If the battery does not supply enough power (see Rechargeable Battery Notes below), order a replacement battery at www.tdkperformance.com and remove the four screws on the left side of the unit.  Disconnect the connector and remove the battery. Then connect the new battery and reinsert the four screws.12131094312857611OPERATIONTurning the Q35 On and Off:1.  For AC operation: Press the Power/Volume control u on the main unit to turn the power on.2.  For DC operation: Slide the Battery switch am to the ON position. Press the Power/Volume control u; the unit will turn on the previous source and volume.3.  To turn the power off, press the Power/Volume control u.

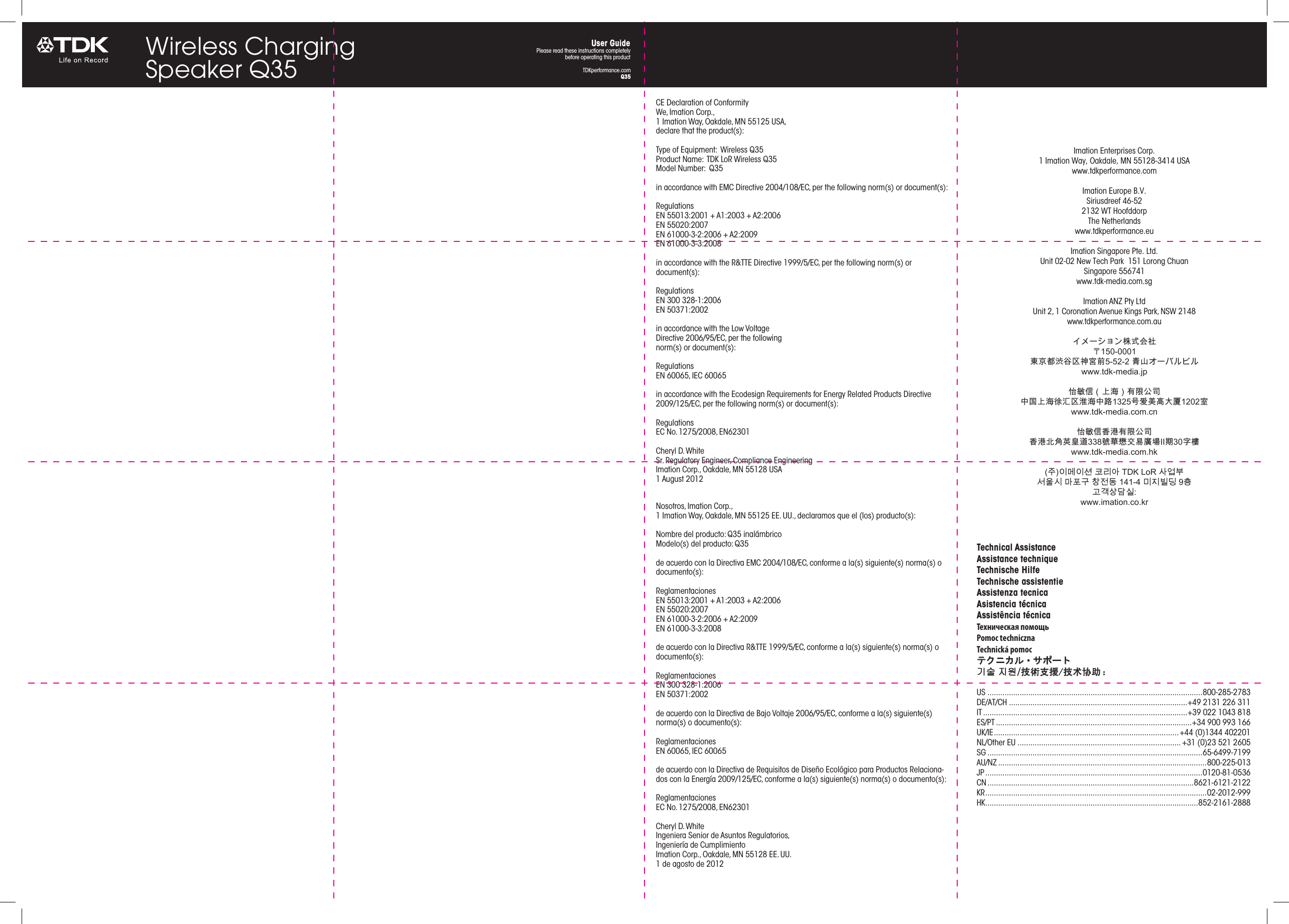

Technical AssistanceAssistance techniqueTechnische HilfeTechnische assistentieAssistenza tecnicaAsistencia técnicaAssistência técnicaТехническая помощьPomoc technicznaTechnická pomocテクニカル・サポート기술 지원/技術支援/技术协助:US ....................................................................................................800-285-2783 DE/AT/CH ...................................................................................+49 2131 226 311IT ...............................................................................................+39 022 1043 818ES/PT ...........................................................................................+34 900 993 166UK/IE ...................................................................................... +44 (0)1344 402201NL/Other EU ............................................................................ +31 (0)23 521 2605SG ....................................................................................................65-6499-7199AU/NZ .................................................................................................800-225-013JP .....................................................................................................0120-81-0536CN ................................................................................................8621-6121-2122KR ....................................................................................................... 02-2012-999HK ...................................................................................................852-2161-2888Imation Enterprises Corp.1 Imation Way, Oakdale, MN 55128-3414 USA www.tdkperformance.comImation Europe B.V.Siriusdreef 46-522132 WT HoofddorpThe Netherlandswww.tdkperformance.euImation Singapore Pte. Ltd.Unit 02-02 New Tech Park  151 Lorong ChuanSingapore 556741www.tdk-media.com.sgImation ANZ Pty LtdUnit 2, 1 Coronation Avenue Kings Park, NSW 2148www.tdkperformance.com.au イメーション株式会社 〒150-0001東京都渋谷区神宮前5-52-2 青山オーバルビルwww.tdk-media.jp怡敏信(上海)有限公司中国上海徐汇区淮海中路1325号爱美高大厦1202室www.tdk-media.com.cn怡敏信香港有限公司香港北角英皇道338號華懋交易廣場II期30字樓www.tdk-media.com.hk(주)이메이션 코리아 TDK LoR 사업부서울시 마포구 창전동 141-4 미지빌딩 9층고객상담실: www.imation.co.krCE Declaration of ConformityWe, Imation Corp.,1 Imation Way, Oakdale, MN 55125 USA,declare that the product(s):Type of Equipment:  Wireless Q35Product Name:  TDK LoR Wireless Q35Model Number:  Q35in accordance with EMC Directive 2004/108/EC, per the following norm(s) or document(s):RegulationsEN 55013:2001 + A1:2003 + A2:2006EN 55020:2007EN 61000-3-2:2006 + A2:2009EN 61000-3-3:2008in accordance with the R&TTE Directive 1999/5/EC, per the following norm(s) or document(s):RegulationsEN 300 328-1:2006EN 50371:2002in accordance with the Low Voltage Directive 2006/95/EC, per the following norm(s) or document(s):RegulationsEN 60065, IEC 60065in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC, per the following norm(s) or document(s):RegulationsEC No. 1275/2008, EN62301Cheryl D. WhiteSr. Regulatory Engineer, Compliance EngineeringImation Corp., Oakdale, MN 55128 USA1 August 2012Nosotros, Imation Corp., 1 Imation Way, Oakdale, MN 55125 EE. UU., declaramos que el (los) producto(s):Nombre del producto: Q35 inalámbricoModelo(s) del producto: Q35de acuerdo con la Directiva EMC 2004/108/EC, conforme a la(s) siguiente(s) norma(s) o documento(s):ReglamentacionesEN 55013:2001 + A1:2003 + A2:2006EN 55020:2007EN 61000-3-2:2006 + A2:2009EN 61000-3-3:2008de acuerdo con la Directiva R&TTE 1999/5/EC, conforme a la(s) siguiente(s) norma(s) o documento(s):ReglamentacionesEN 300 328-1:2006EN 50371:2002de acuerdo con la Directiva de Bajo Voltaje 2006/95/EC, conforme a la(s) siguiente(s) norma(s) o documento(s):ReglamentacionesEN 60065, IEC 60065de acuerdo con la Directiva de Requisitos de Diseño Ecológico para Productos Relaciona-dos con la Energía 2009/125/EC, conforme a la(s) siguiente(s) norma(s) o documento(s):ReglamentacionesEC No. 1275/2008, EN62301Cheryl D. WhiteIngeniera Senior de Asuntos Regulatorios, Ingeniería de CumplimientoImation Corp., Oakdale, MN 55128 EE. UU.1 de agosto de 2012Wireless Charging Speaker Q35 TDKperformance.comQ35User Guide Please read these instructions completely  before operating this product
