Imobiile Technology KOOL GSM Mobile Phone User Manual Users manual

Imobiile Technology, L.L.C GSM Mobile Phone Users manual

Contents

Users manual

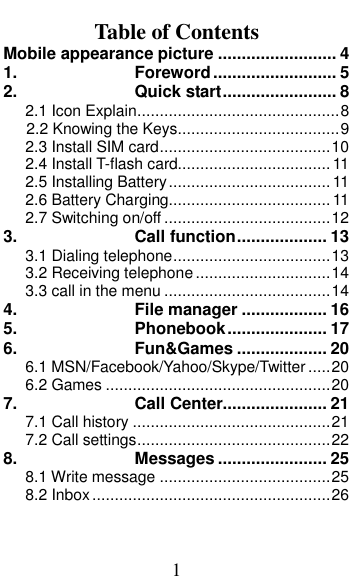

 1 Table of Contents Mobile appearance picture ......................... 4 1. Foreword .......................... 5 2. Quick start ........................ 8 2.1 Icon Explain ............................................. 8 2.2 Knowing the Keys.................................... 9 2.3 Install SIM card ...................................... 10 2.4 Install T-flash card.................................. 11 2.5 Installing Battery .................................... 11 2.6 Battery Charging.................................... 11 2.7 Switching on/off ..................................... 12 3. Call function ................... 13 3.1 Dialing telephone ................................... 13 3.2 Receiving telephone .............................. 14 3.3 call in the menu ..................................... 14 4. File manager .................. 16 5. Phonebook ..................... 17 6. Fun&Games ................... 20 6.1 MSN/Facebook/Yahoo/Skype/Twitter ..... 20 6.2 Games .................................................. 20 7. Call Center...................... 21 7.1 Call history ............................................ 21 7.2 Call settings ........................................... 22 8. Messages ....................... 25 8.1 Write message ...................................... 25 8.2 Inbox ..................................................... 26

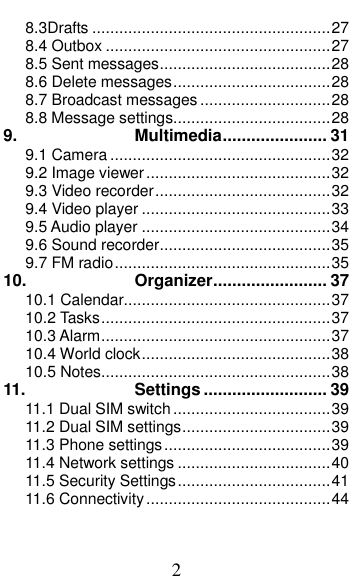

 2 8.3Drafts ..................................................... 27 8.4 Outbox .................................................. 27 8.5 Sent messages ...................................... 28 8.6 Delete messages ................................... 28 8.7 Broadcast messages ............................. 28 8.8 Message settings................................... 28 9. Multimedia ...................... 31 9.1 Camera ................................................. 32 9.2 Image viewer ......................................... 32 9.3 Video recorder ....................................... 32 9.4 Video player .......................................... 33 9.5 Audio player .......................................... 34 9.6 Sound recorder ...................................... 35 9.7 FM radio ................................................ 35 10. Organizer ........................ 37 10.1 Calendar.............................................. 37 10.2 Tasks ................................................... 37 10.3 Alarm ................................................... 37 10.4 World clock .......................................... 38 10.5 Notes ................................................... 38 11. Settings .......................... 39 11.1 Dual SIM switch ................................... 39 11.2 Dual SIM settings ................................. 39 11.3 Phone settings ..................................... 39 11.4 Network settings .................................. 40 11.5 Security Settings .................................. 41 11.6 Connectivity ......................................... 44

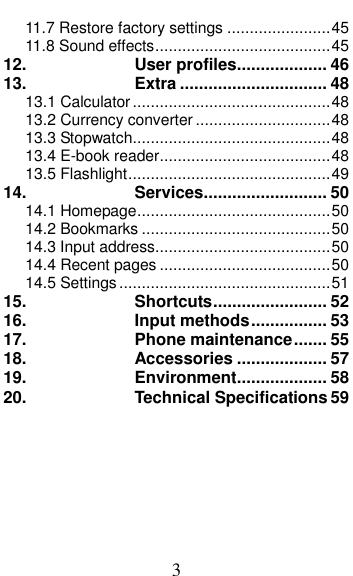

 3 11.7 Restore factory settings ....................... 45 11.8 Sound effects ....................................... 45 12. User profiles ................... 46 13. Extra ............................... 48 13.1 Calculator ............................................ 48 13.2 Currency converter .............................. 48 13.3 Stopwatch ............................................ 48 13.4 E-book reader ...................................... 48 13.5 Flashlight ............................................. 49 14. Services .......................... 50 14.1 Homepage ........................................... 50 14.2 Bookmarks .......................................... 50 14.3 Input address ....................................... 50 14.4 Recent pages ...................................... 50 14.5 Settings ............................................... 51 15. Shortcuts ........................ 52 16. Input methods ................ 53 17. Phone maintenance ....... 55 18. Accessories ................... 57 19. Environment ................... 58 20. Technical Specifications 59

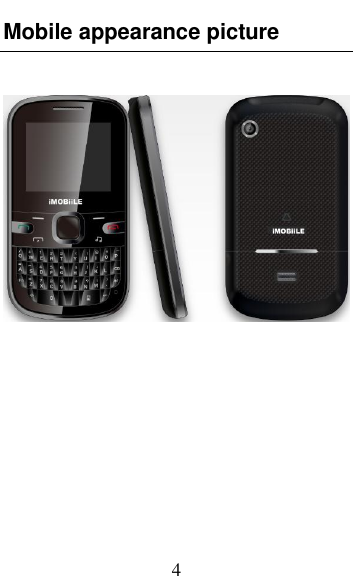

 4 Mobile appearance picture
 5 1.  Foreword Honorific mobile phones user, thank you for choosing our mobile phone! Our cellular phones is according with the communication industry  standards of  PRC, and  also according  with  the standards of European and American, and are approved for GSM networks. Your  phone  may  be  used  internationally  with  various networks depending on your roaming arrangements with your service provider. To use this phone you must subscribe to a GSM service from a provider. We have included many features in this device  but  their  function  depends  on  the  features available  with  your  subscribed  wireless  network. Please contact your service provider for more information. We  strongly  recommend  you  carefully  read  and understand this manual before using your phone in order to keep it  under best conditions for your effective  usage and utmost satisfaction. Safety Never attempt to disassemble your phone. You alone are responsible  for  how  you  use  your  phone  and  any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do  not  use  your  phone  in  damp  areas  (bathroom, swimming  pool…).  Protect  it  from  liquids  and  other moisture. Do not expose your phone to extreme temperatures lower

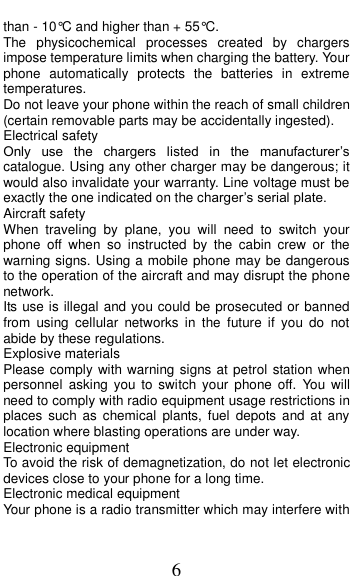

 6 than - 10°C and higher than + 55°C. The  physicochemical  processes  created  by  chargers impose temperature limits when charging the battery. Your phone  automatically  protects  the  batteries  in  extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety Only  use  the  chargers  listed  in  the  manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety When  traveling  by  plane,  you  will  need  to  switch  your phone  off  when  so  instructed  by  the  cabin  crew  or  the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from  using  cellular  networks  in  the  future  if  you  do  not abide by these regulations. Explosive materials Please comply with warning signs at petrol station when personnel  asking you  to  switch your phone off.  You  will need to comply with radio equipment usage restrictions in places  such  as  chemical  plants,  fuel  depots  and  at  any location where blasting operations are under way. Electronic equipment To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment Your phone is a radio transmitter which may interfere with

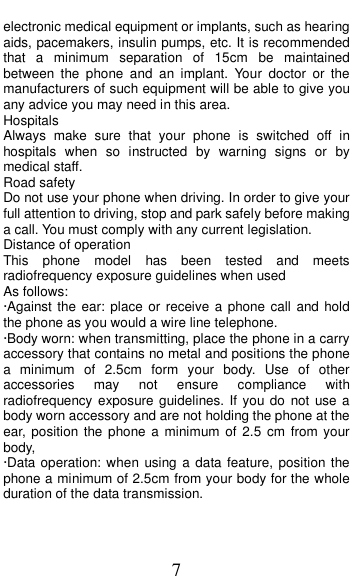

 7 electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that  a  minimum  separation  of  15cm  be  maintained between  the  phone  and  an  implant.  Your  doctor  or  the manufacturers of such equipment will be able to give you any advice you may need in this area.   Hospitals Always  make  sure  that  your  phone  is  switched  off  in hospitals  when so  instructed  by  warning  signs  or  by medical staff.   Road safety Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation This  phone  model  has  been  tested  and  meets radiofrequency exposure guidelines when used   As follows: ·Against the ear: place  or receive a phone call and hold the phone as you would a wire line telephone. ·Body worn: when transmitting, place the phone in a carry accessory that contains no metal and positions the phone a  minimum  of  2.5cm  form  your  body.  Use  of  other accessories  may  not  ensure  compliance  with radiofrequency exposure guidelines. If you do  not use a body worn accessory and are not holding the phone at the ear, position the phone a minimum  of  2.5  cm  from your body, ·Data operation: when using a data feature, position the phone a minimum of 2.5cm from your body for the whole duration of the data transmission.

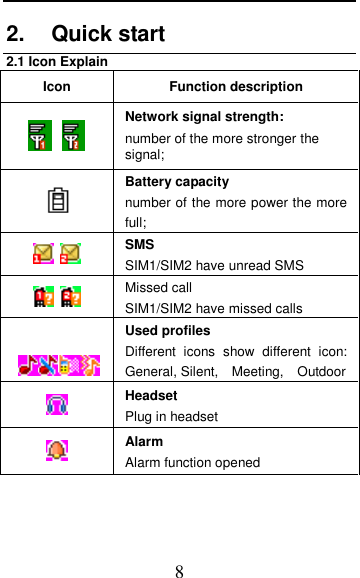

 8 2.  Quick start 2.1 Icon Explain Icon Function description   Network signal strength: number of the more stronger the signal;  Battery capacity number of the more power the more full;    SMS SIM1/SIM2 have unread SMS    Missed call SIM1/SIM2 have missed calls   Used profiles Different  icons  show  different  icon: General, Silent,    Meeting,    Outdoor    Headset   Plug in headset    Alarm Alarm function opened

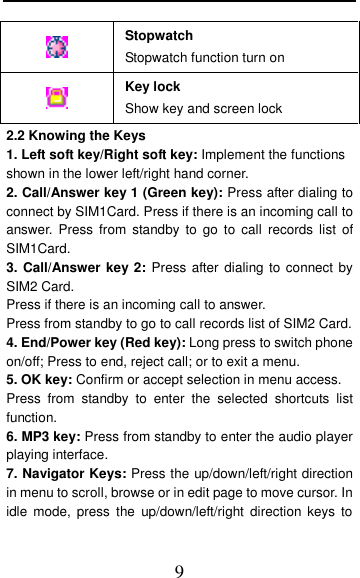

 9  Stopwatch Stopwatch function turn on  Key lock Show key and screen lock 2.2 Knowing the Keys 1. Left soft key/Right soft key: Implement the functions shown in the lower left/right hand corner. 2. Call/Answer key 1 (Green key): Press after dialing to connect by SIM1Card. Press if there is an incoming call to answer. Press  from  standby  to  go  to  call  records list  of SIM1Card. 3. Call/Answer key 2: Press  after dialing to  connect by SIM2 Card. Press if there is an incoming call to answer. Press from standby to go to call records list of SIM2 Card. 4. End/Power key (Red key): Long press to switch phone on/off; Press to end, reject call; or to exit a menu. 5. OK key: Confirm or accept selection in menu access. Press  from  standby  to  enter  the  selected  shortcuts  list function. 6. MP3 key: Press from standby to enter the audio player playing interface.   7. Navigator Keys: Press the up/down/left/right direction in menu to scroll, browse or in edit page to move cursor. In idle  mode,  press  the  up/down/left/right  direction  keys  to

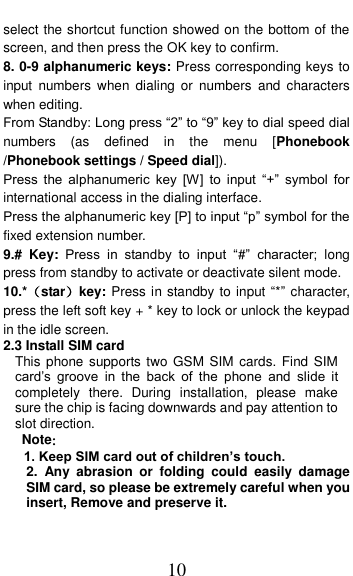

 10 select the shortcut function showed on the bottom of the screen, and then press the OK key to confirm. 8. 0-9 alphanumeric keys: Press corresponding keys to input  numbers  when  dialing  or  numbers  and  characters when editing. From Standby: Long press “2” to “9” key to dial speed dial numbers  (as  defined  in  the  menu  [Phonebook /Phonebook settings / Speed dial]). Press  the  alphanumeric  key  [W]  to  input  “+”  symbol  for international access in the dialing interface.   Press the alphanumeric key [P] to input “p” symbol for the fixed extension number. 9.#  Key:  Press  in  standby  to  input  “#”  character;  long press from standby to activate or deactivate silent mode. 10.*(star)key: Press in standby to input “*” character, press the left soft key + * key to lock or unlock the keypad in the idle screen. 2.3 Install SIM card   This phone supports two GSM  SIM cards. Find  SIM card’s  groove  in  the  back  of  the  phone  and  slide  it completely  there.  During  installation,  please  make sure the chip is facing downwards and pay attention to slot direction. Note:   1. Keep SIM card out of children’s touch. 2.  Any  abrasion  or  folding  could  easily  damage SIM card, so please be extremely careful when you insert, Remove and preserve it.

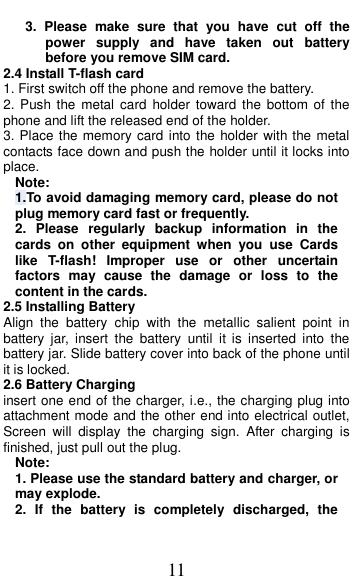

 11 3.  Please  make  sure  that  you  have  cut  off  the power  supply  and  have  taken  out  battery before you remove SIM card. 2.4 Install T-flash card 1. First switch off the phone and remove the battery. 2. Push the  metal card  holder  toward  the  bottom  of the phone and lift the released end of the holder. 3. Place the memory card into the holder with the metal contacts face down and push the holder until it locks into place. Note: 1.To avoid damaging memory card, please do not plug memory card fast or frequently. 2.  Please  regularly  backup  information  in  the cards  on  other  equipment  when  you  use  Cards like  T-flash!  Improper  use  or  other  uncertain factors  may  cause  the  damage  or  loss  to  the content in the cards. 2.5 Installing Battery Align  the  battery  chip  with  the  metallic  salient  point  in battery  jar,  insert  the  battery  until  it  is  inserted  into  the battery jar. Slide battery cover into back of the phone until it is locked. 2.6 Battery Charging insert one end of the charger, i.e., the charging plug into attachment mode and the other end into electrical outlet, Screen  will  display  the  charging  sign.  After  charging  is finished, just pull out the plug. Note: 1. Please use the standard battery and charger, or may explode. 2.  If  the  battery  is  completely  discharged,  the

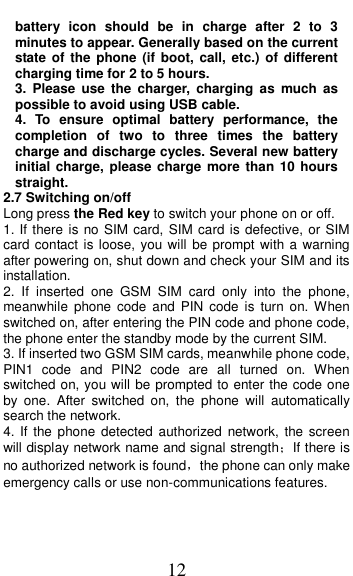

 12 battery  icon  should  be  in  charge  after  2  to  3 minutes to appear. Generally based on the current state of  the  phone (if  boot, call,  etc.)  of  different charging time for 2 to 5 hours. 3.  Please  use the  charger,  charging  as  much  as possible to avoid using USB cable. 4.  To  ensure  optimal  battery  performance,  the completion  of  two  to  three  times  the  battery charge and discharge cycles. Several new battery initial charge, please  charge  more than 10  hours straight. 2.7 Switching on/off Long press the Red key to switch your phone on or off. 1. If there is no SIM card, SIM card is defective, or SIM card contact is loose, you will be prompt with a warning after powering on, shut down and check your SIM and its installation.   2.  If  inserted  one  GSM  SIM  card  only  into  the  phone, meanwhile  phone  code  and  PIN  code  is  turn  on. When switched on, after entering the PIN code and phone code, the phone enter the standby mode by the current SIM. 3. If inserted two GSM SIM cards, meanwhile phone code, PIN1  code  and  PIN2  code  are  all  turned  on.  When switched on, you will be prompted to enter the code one by  one.  After  switched  on,  the  phone  will  automatically search the network. 4. If  the phone  detected  authorized  network, the  screen will display network name and signal strength;If there is no authorized network is found,the phone can only make emergency calls or use non-communications features.

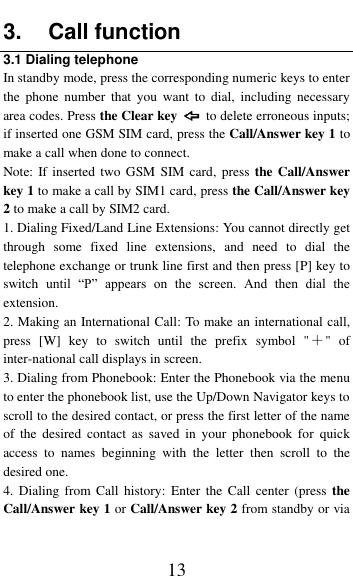

 13 3.  Call function 3.1 Dialing telephone In standby mode, press the corresponding numeric keys to enter the  phone  number  that  you  want to  dial,  including  necessary area codes. Press the Clear key    to delete erroneous inputs; if inserted one GSM SIM card, press the Call/Answer key 1 to make a call when done to connect. Note: If inserted  two  GSM  SIM card, press  the Call/Answer key 1 to make a call by SIM1 card, press the Call/Answer key 2 to make a call by SIM2 card. 1. Dialing Fixed/Land Line Extensions: You cannot directly get through  some  fixed  line  extensions,  and  need  to  dial  the telephone exchange or trunk line first and then press [P] key to switch  until  “P”  appears  on  the  screen.  And  then  dial  the extension.   2. Making an International Call: To make an international call, press  [W]  key  to  switch  until  the  prefix  symbol  "+"  of inter-national call displays in screen. 3. Dialing from Phonebook: Enter the Phonebook via the menu to enter the phonebook list, use the Up/Down Navigator keys to scroll to the desired contact, or press the first letter of the name of  the  desired  contact  as saved  in  your  phonebook  for  quick access  to  names  beginning  with  the  letter  then  scroll  to  the desired one. 4.  Dialing from  Call  history:  Enter  the  Call  center  (press  the Call/Answer key 1 or Call/Answer key 2 from standby or via

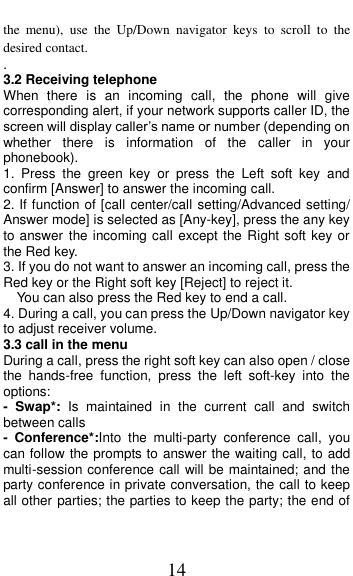

 14 the  menu),  use  the  Up/Down  navigator  keys  to  scroll  to  the desired contact. . 3.2 Receiving telephone When  there  is  an  incoming  call,  the  phone  will  give corresponding alert, if your network supports caller ID, the screen will display caller’s name or number (depending on whether  there  is  information  of  the  caller  in  your phonebook). 1.  Press  the  green  key  or  press  the  Left  soft  key  and confirm [Answer] to answer the incoming call. 2. If function of [call center/call setting/Advanced setting/ Answer mode] is selected as [Any-key], press the any key to answer the incoming call except the Right soft key or the Red key. 3. If you do not want to answer an incoming call, press the Red key or the Right soft key [Reject] to reject it. You can also press the Red key to end a call.   4. During a call, you can press the Up/Down navigator key to adjust receiver volume. 3.3 call in the menu During a call, press the right soft key can also open / close the  hands-free  function,  press  the  left  soft-key  into  the options: -  Swap*:  Is  maintained  in  the  current  call  and  switch between calls -  Conference*:Into  the  multi-party  conference  call,  you can follow the prompts to answer the waiting call, to add multi-session conference call will be maintained; and the party conference in private conversation, the call to keep all other parties; the parties to keep the party; the end of
 15 the current Calls and all calls remain. - Hold/Retrieve single call*: The current call on hold or resume the call - End single call*: end off the current call.   - End all calls*:end off the current call and the hold call   - Transfer*: the function need network support. - New call: enter the dial-up interfaces. - Phonebook: enter the phonebook list of interfaces. - Messages: access to the message menu. - Call history: access to call history list. - Sound recorder: record the current call. Note: Recording  of  the  call,  in  some  countries  is  illegal. Therefore, when  you talk to  Recording,  should  seek prior approval from the other party's consent. - Mute: mute on or off, open the case in the quiet do not send local voice. -DTMF:  The  dual  tone  multi-frequency  switching operation ( a call, you press the keys on the keyboard, the audio  signal  will  be  sent  to  each  other,  for  telephone banking, automatic answering machine, etc.) Note:   Denotes  menu  items  only  appear  in  specific circumstances.   Such as: [Swap] exist only in the state of the phone and call the phone only appears to be suspended. At the same time for the conferencing, you need to the appropriate service provider to subscribe.

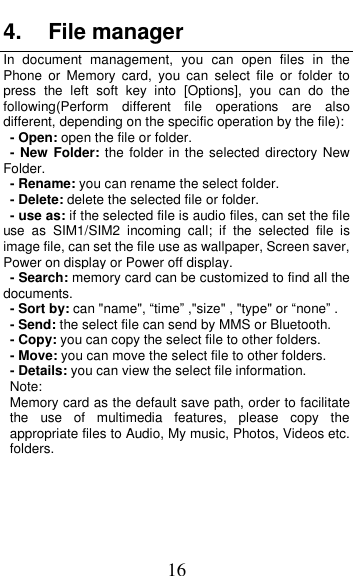

 16 4.  File manager In  document  management,  you  can  open  files  in  the  Phone  or  Memory  card,  you  can  select  file  or  folder  to press  the  left  soft  key  into  [Options],  you  can  do  the following(Perform  different  file  operations  are  also different, depending on the specific operation by the file):     - Open: open the file or folder. - New Folder: the folder in the selected  directory New Folder. - Rename: you can rename the select folder. - Delete: delete the selected file or folder.   - use as: if the selected file is audio files, can set the file use  as  SIM1/SIM2  incoming  call;  if  the  selected  file  is image file, can set the file use as wallpaper, Screen saver, Power on display or Power off display.     - Search: memory card can be customized to find all the documents.   - Sort by: can "name", “time” ,"size" , "type" or “none” . - Send: the select file can send by MMS or Bluetooth. - Copy: you can copy the select file to other folders. - Move: you can move the select file to other folders. - Details: you can view the select file information. Note:   Memory card as the default save path, order to facilitate the  use  of  multimedia  features,  please  copy  the appropriate files to Audio, My music, Photos, Videos etc. folders.

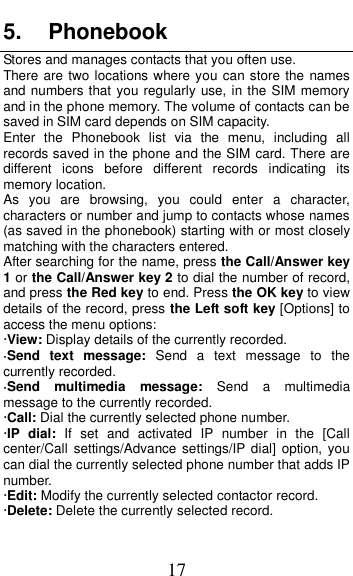

 17 5.  Phonebook Stores and manages contacts that you often use. There are two locations where you can store the names and numbers that you regularly use, in the SIM memory and in the phone memory. The volume of contacts can be saved in SIM card depends on SIM capacity.   Enter  the  Phonebook  list  via  the  menu,  including  all records saved in the phone and the SIM card. There are different  icons  before  different  records  indicating  its memory location. As  you  are  browsing,  you  could  enter  a  character, characters or number and jump to contacts whose names (as saved in the phonebook) starting with or most closely matching with the characters entered. After searching for the name, press the Call/Answer key 1 or the Call/Answer key 2 to dial the number of record, and press the Red key to end. Press the OK key to view details of the record, press the Left soft key [Options] to access the menu options:   ·View: Display details of the currently recorded. ·Send  text  message:  Send  a  text  message  to  the currently recorded. ·Send  multimedia  message:  Send  a  multimedia message to the currently recorded. ·Call: Dial the currently selected phone number. ·IP  dial:  If  set  and  activated  IP  number  in  the  [Call center/Call  settings/Advance settings/IP dial]  option, you can dial the currently selected phone number that adds IP number. ·Edit: Modify the currently selected contactor record. ·Delete: Delete the currently selected record.

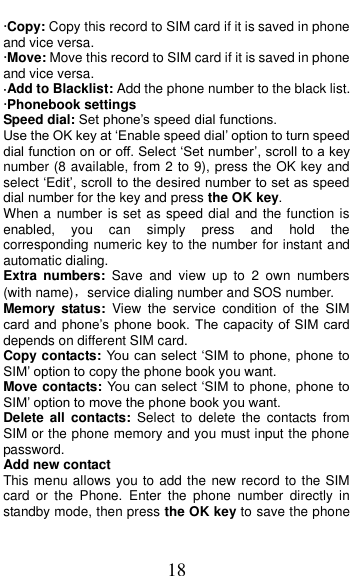

 18 ·Copy: Copy this record to SIM card if it is saved in phone and vice versa. ·Move: Move this record to SIM card if it is saved in phone and vice versa. ·Add to Blacklist: Add the phone number to the black list.   ·Phonebook settings Speed dial: Set phone’s speed dial functions. Use the OK key at ‘Enable speed dial’ option to turn speed dial function on or off. Select ‘Set number’, scroll to a key number (8 available, from 2 to 9), press the OK key and select ‘Edit’, scroll to the desired number to set as speed dial number for the key and press the OK key.   When a number is set as speed dial and the function is enabled,  you  can  simply  press  and  hold  the corresponding numeric key to the number for instant and automatic dialing. Extra  numbers:  Save  and  view  up  to  2  own  numbers (with name),service dialing number and SOS number. Memory  status:  View  the  service  condition  of  the  SIM card and phone’s phone book.  The capacity of  SIM card depends on different SIM card. Copy contacts: You can select ‘SIM to phone, phone to SIM’ option to copy the phone book you want. Move contacts: You can select ‘SIM to phone, phone to SIM’ option to move the phone book you want.   Delete  all  contacts:  Select  to  delete  the  contacts  from SIM or the phone memory and you must input the phone password. Add new contact This menu allows you to add the new record to the SIM card  or  the  Phone.  Enter  the  phone  number  directly  in standby mode, then press the OK key to save the phone

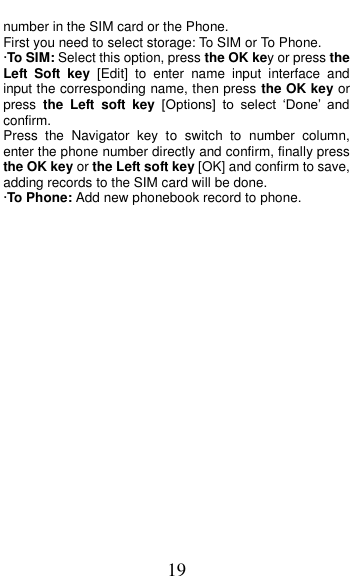

 19 number in the SIM card or the Phone.   First you need to select storage: To SIM or To Phone. ·To SIM: Select this option, press the OK key or press the Left  Soft  key  [Edit]  to  enter  name  input  interface  and input the corresponding name, then press the OK key or press  the  Left  soft  key [Options]  to  select  ‘Done’  and confirm. Press  the  Navigator  key  to  switch  to  number  column, enter the phone number directly and confirm, finally press the OK key or the Left soft key [OK] and confirm to save, adding records to the SIM card will be done. ·To Phone: Add new phonebook record to phone.

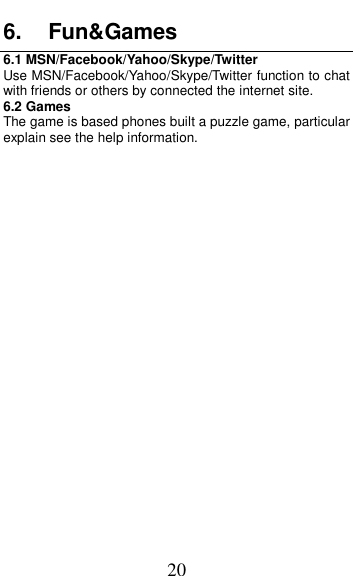

 20 6.  Fun&Games 6.1 MSN/Facebook/Yahoo/Skype/Twitter Use MSN/Facebook/Yahoo/Skype/Twitter function to chat with friends or others by connected the internet site. 6.2 Games The game is based phones built a puzzle game, particular explain see the help information.

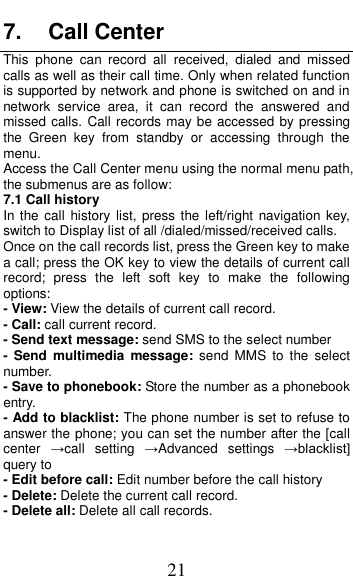

 21 7.  Call Center This  phone  can  record  all  received,  dialed  and  missed calls as well as their call time. Only when related function is supported by network and phone is switched on and in network  service  area,  it  can  record  the  answered  and missed calls. Call records may be accessed by pressing the  Green  key  from  standby  or  accessing  through  the menu.   Access the Call Center menu using the normal menu path, the submenus are as follow: 7.1 Call history In the call history  list,  press the left/right navigation  key, switch to Display list of all /dialed/missed/received calls. Once on the call records list, press the Green key to make a call; press the OK key to view the details of current call record;  press  the  left  soft  key  to  make  the  following options: - View: View the details of current call record. - Call: call current record. - Send text message: send SMS to the select number -  Send  multimedia  message: send  MMS  to  the  select number. - Save to phonebook: Store the number as a phonebook entry. - Add to blacklist: The phone number is set to refuse to answer the phone; you can set the number after the [call center  →call  setting  →Advanced  settings  →blacklist] query to - Edit before call: Edit number before the call history   - Delete: Delete the current call record. - Delete all: Delete all call records.

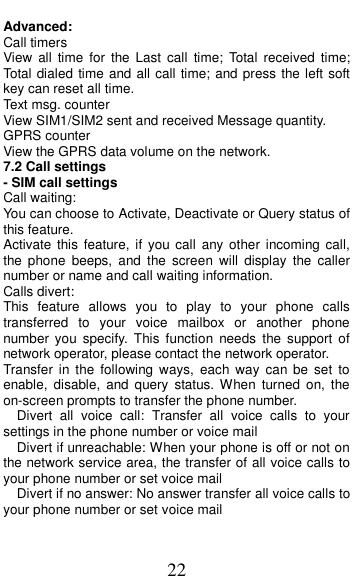

 22 Advanced: Call timers View  all  time  for  the Last  call  time;  Total  received  time; Total dialed time and all call time; and press the left soft key can reset all time. Text msg. counter View SIM1/SIM2 sent and received Message quantity. GPRS counter View the GPRS data volume on the network.   7.2 Call settings - SIM call settings Call waiting: You can choose to Activate, Deactivate or Query status of this feature.   Activate  this feature,  if  you call  any  other  incoming call, the  phone  beeps,  and  the  screen  will  display  the  caller number or name and call waiting information. Calls divert: This  feature  allows  you  to  play  to  your  phone  calls transferred  to  your  voice  mailbox  or  another  phone number  you  specify.  This  function  needs  the  support  of network operator, please contact the network operator.   Transfer  in  the  following  ways,  each  way  can  be  set  to enable,  disable,  and  query  status.  When  turned  on,  the on-screen prompts to transfer the phone number.   Divert  all  voice  call:  Transfer  all  voice  calls  to  your settings in the phone number or voice mail   Divert if unreachable: When your phone is off or not on the network service area, the transfer of all voice calls to your phone number or set voice mail   Divert if no answer: No answer transfer all voice calls to your phone number or set voice mail

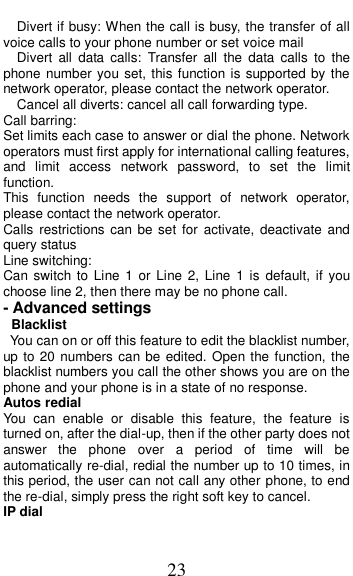

 23   Divert if busy: When the call is busy, the transfer of all voice calls to your phone number or set voice mail   Divert  all  data  calls:  Transfer  all  the  data  calls  to  the phone number you set, this function is supported by the network operator, please contact the network operator.   Cancel all diverts: cancel all call forwarding type. Call barring: Set limits each case to answer or dial the phone. Network operators must first apply for international calling features, and  limit  access  network  password,  to  set  the  limit function.   This  function  needs  the  support  of  network  operator, please contact the network operator.   Calls  restrictions can  be  set  for  activate,  deactivate  and query status Line switching: Can switch to  Line  1 or  Line 2,  Line  1 is  default,  if  you choose line 2, then there may be no phone call. - Advanced settings  Blacklist   You can on or off this feature to edit the blacklist number, up to 20 numbers can be edited. Open the function, the blacklist numbers you call the other shows you are on the phone and your phone is in a state of no response. Autos redial You  can  enable  or  disable  this  feature,  the  feature  is turned on, after the dial-up, then if the other party does not answer  the  phone  over  a  period  of  time  will  be automatically re-dial, redial the number up to 10 times, in this period, the user can not call any other phone, to end the re-dial, simply press the right soft key to cancel. IP dial

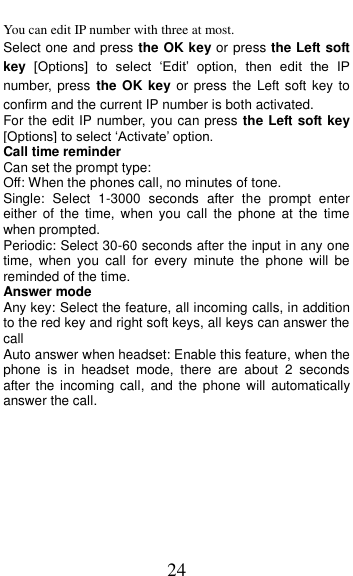

 24 You can edit IP number with three at most. Select one and press the OK key or press the Left soft key [Options]  to  select  ‘Edit’  option,  then  edit  the  IP number, press the  OK key or press  the Left soft key to confirm and the current IP number is both activated.   For the edit IP number, you can press the Left soft key [Options] to select ‘Activate’ option. Call time reminder Can set the prompt type:   Off: When the phones call, no minutes of tone.   Single:  Select  1-3000  seconds  after  the  prompt  enter either  of  the  time,  when  you  call  the  phone  at  the  time when prompted.   Periodic: Select 30-60 seconds after the input in any one time,  when  you  call  for  every  minute  the  phone  will  be reminded of the time. Answer mode Any key: Select the feature, all incoming calls, in addition to the red key and right soft keys, all keys can answer the call Auto answer when headset: Enable this feature, when the phone  is  in  headset  mode,  there  are  about  2  seconds after the incoming  call,  and  the  phone will automatically answer the call.

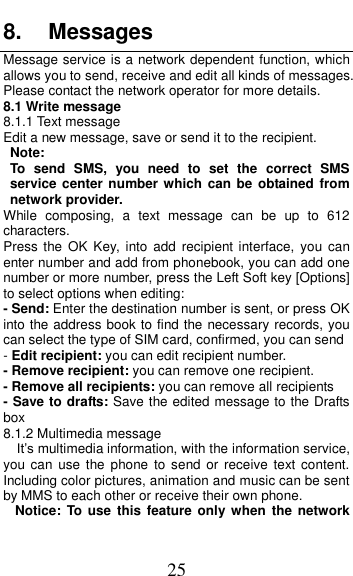

 25 8.  Messages Message service is a network dependent function, which allows you to send, receive and edit all kinds of messages. Please contact the network operator for more details. 8.1 Write message 8.1.1 Text message Edit a new message, save or send it to the recipient. Note:   To  send  SMS,  you  need  to  set  the  correct  SMS service center  number which can be obtained from network provider. While  composing,  a  text  message  can  be  up  to  612 characters. Press the OK  Key, into  add  recipient  interface,  you  can enter number and add from phonebook, you can add one number or more number, press the Left Soft key [Options] to select options when editing: - Send: Enter the destination number is sent, or press OK into the address book to find the necessary records, you can select the type of SIM card, confirmed, you can send - Edit recipient: you can edit recipient number. - Remove recipient: you can remove one recipient. - Remove all recipients: you can remove all recipients - Save to drafts: Save the edited message to the Drafts box 8.1.2 Multimedia message  It’s multimedia information, with the information service, you can use  the  phone  to send or  receive  text content. Including color pictures, animation and music can be sent by MMS to each other or receive their own phone. Notice:  To use this  feature  only  when  the  network

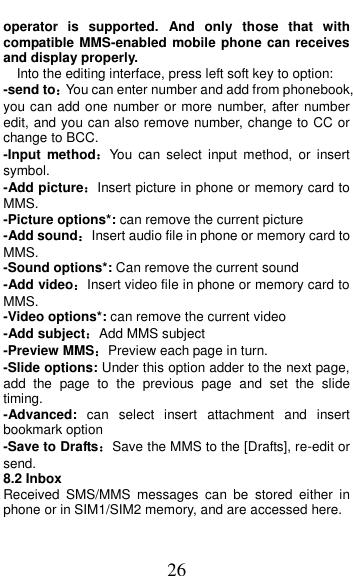

 26 operator  is  supported.  And  only  those  that  with compatible MMS-enabled mobile phone can receives and display properly. Into the editing interface, press left soft key to option: -send to:You can enter number and add from phonebook, you can add one number or more number, after number edit, and you can also remove number, change to CC or change to BCC. -Input  method:You  can  select  input  method,  or  insert symbol. -Add picture:Insert picture in phone or memory card to MMS. -Picture options*: can remove the current picture -Add sound:Insert audio file in phone or memory card to MMS. -Sound options*: Can remove the current sound -Add video:Insert video file in phone or memory card to MMS. -Video options*: can remove the current video -Add subject:Add MMS subject   -Preview MMS:Preview each page in turn. -Slide options: Under this option adder to the next page, add  the  page  to  the  previous  page  and  set  the  slide timing. -Advanced:  can  select  insert  attachment  and  insert bookmark option -Save to Drafts:Save the MMS to the [Drafts], re-edit or send. 8.2 Inbox Received  SMS/MMS  messages  can  be  stored  either  in phone or in SIM1/SIM2 memory, and are accessed here.

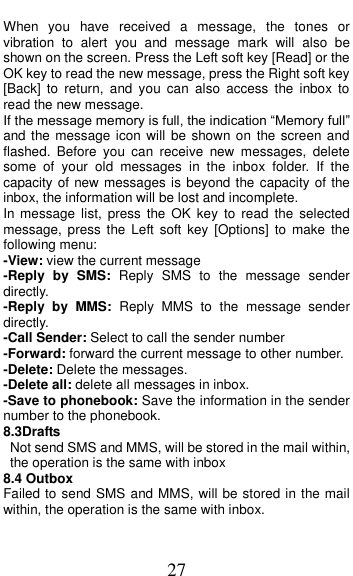

 27 When  you  have  received  a  message,  the  tones  or vibration  to  alert  you  and  message  mark  will  also  be shown on the screen. Press the Left soft key [Read] or the OK key to read the new message, press the Right soft key [Back]  to  return,  and  you  can  also  access  the  inbox  to read the new message. If the message memory is full, the indication “Memory full” and the message  icon will be shown on  the screen and flashed.  Before  you  can  receive  new  messages,  delete some  of  your  old  messages  in  the  inbox  folder.  If  the capacity of new messages is beyond the capacity of the inbox, the information will be lost and incomplete. In message  list,  press  the OK  key  to  read  the  selected message,  press  the  Left  soft key  [Options]  to  make  the following menu:   -View: view the current message -Reply  by  SMS:  Reply  SMS  to  the  message  sender directly.   -Reply  by  MMS:  Reply  MMS  to  the  message  sender directly. -Call Sender: Select to call the sender number -Forward: forward the current message to other number. -Delete: Delete the messages.   -Delete all: delete all messages in inbox. -Save to phonebook: Save the information in the sender number to the phonebook. 8.3Drafts                                        Not send SMS and MMS, will be stored in the mail within, the operation is the same with inbox 8.4 Outbox Failed to send SMS and MMS, will be stored in the mail within, the operation is the same with inbox.

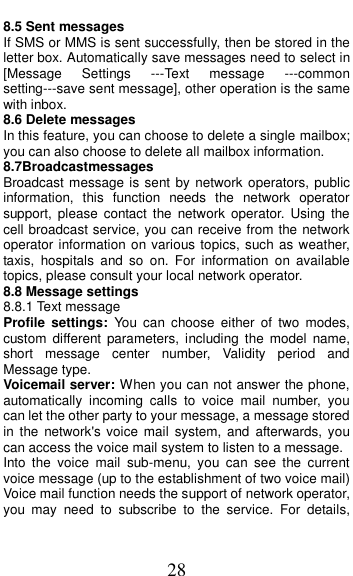

 28 8.5 Sent messages If SMS or MMS is sent successfully, then be stored in the letter box. Automatically save messages need to select in [Message  Settings  ---Text  message  ---common       setting---save sent message], other operation is the same with inbox. 8.6 Delete messages In this feature, you can choose to delete a single mailbox; you can also choose to delete all mailbox information. 8.7Broadcastmessages                                           Broadcast message is sent by network  operators, public information,  this  function  needs  the  network  operator support,  please  contact the  network  operator. Using  the cell broadcast service, you can receive from the network operator information on various topics, such as weather, taxis,  hospitals  and  so  on.  For  information  on  available topics, please consult your local network operator. 8.8 Message settings 8.8.1 Text message Profile  settings: You  can  choose  either  of  two  modes, custom  different parameters,  including  the  model  name, short  message  center  number,  Validity  period  and Message type. Voicemail server: When you can not answer the phone, automatically  incoming  calls  to  voice  mail  number,  you can let the other party to your message, a message stored in the  network's voice  mail  system,  and  afterwards, you can access the voice mail system to listen to a message.   Into  the  voice  mail  sub-menu,  you  can  see  the  current voice message (up to the establishment of two voice mail)   Voice mail function needs the support of network operator, you  may  need  to  subscribe  to  the  service.  For  details,

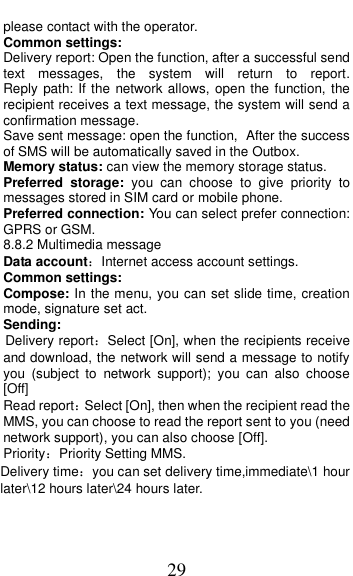

 29 please contact with the operator. Common settings: Delivery report: Open the function, after a successful send text  messages,  the  system  will  return  to  report.                 Reply path: If the  network allows, open the function, the recipient receives a text message, the system will send a confirmation message. Save sent message: open the function, After the success of SMS will be automatically saved in the Outbox. Memory status: can view the memory storage status. Preferred  storage:  you  can  choose  to  give  priority  to messages stored in SIM card or mobile phone. Preferred connection: You can select prefer connection: GPRS or GSM. 8.8.2 Multimedia message Data account:Internet access account settings. Common settings: Compose: In the menu, you can set slide time, creation mode, signature set act. Sending: Delivery report:Select [On], when the recipients receive and download, the network will send a message to notify you  (subject  to  network  support);  you  can  also  choose [Off] Read report:Select [On], then when the recipient read the MMS, you can choose to read the report sent to you (need network support), you can also choose [Off]. Priority:Priority Setting MMS. Delivery time:you can set delivery time,immediate\1 hour later\12 hours later\24 hours later.

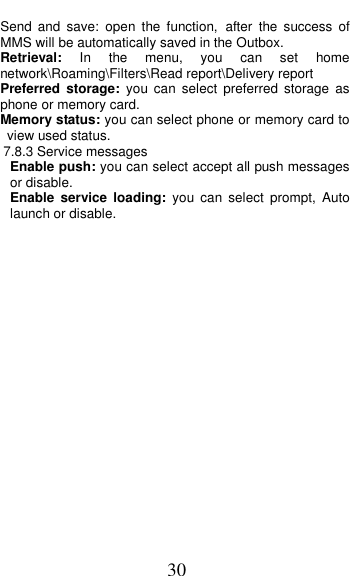

 30 Send  and  save:  open  the  function, after  the  success  of MMS will be automatically saved in the Outbox. Retrieval:  In  the  menu,  you  can  set  home network\Roaming\Filters\Read report\Delivery report Preferred  storage:  you  can  select  preferred  storage  as phone or memory card. Memory status: you can select phone or memory card to view used status. 7.8.3 Service messages Enable push: you can select accept all push messages or disable.   Enable  service  loading:  you can  select  prompt,  Auto launch or disable.

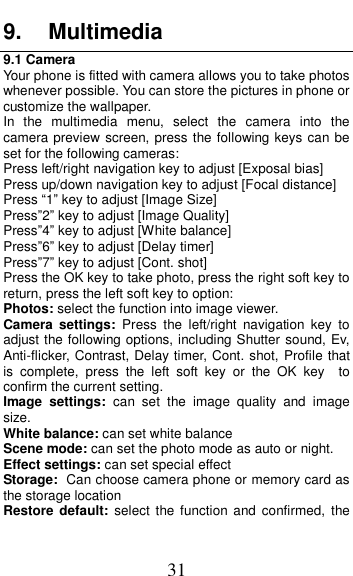

 31 9.  Multimedia 9.1 Camera Your phone is fitted with camera allows you to take photos whenever possible. You can store the pictures in phone or customize the wallpaper. In  the  multimedia  menu,  select  the  camera  into  the camera preview screen, press the following keys can be set for the following cameras: Press left/right navigation key to adjust [Exposal bias] Press up/down navigation key to adjust [Focal distance] Press “1” key to adjust [Image Size] Press”2” key to adjust [Image Quality] Press”4” key to adjust [White balance] Press”6” key to adjust [Delay timer] Press”7” key to adjust [Cont. shot] Press the OK key to take photo, press the right soft key to return, press the left soft key to option: Photos: select the function into image viewer. Camera  settings:  Press  the  left/right  navigation  key  to adjust the following options, including Shutter sound, Ev, Anti-flicker, Contrast, Delay timer, Cont. shot, Profile that is  complete,  press  the  left  soft  key  or  the  OK  key    to confirm the current setting.   Image  settings:  can  set  the  image  quality  and  image size. White balance: can set white balance Scene mode: can set the photo mode as auto or night. Effect settings: can set special effect Storage: Can choose camera phone or memory card as the storage location Restore  default:  select  the function  and  confirmed,  the

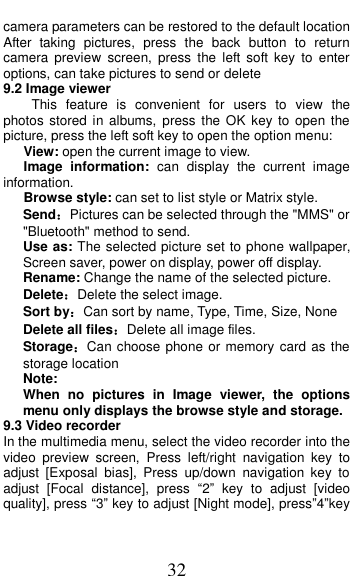

 32 camera parameters can be restored to the default location After  taking  pictures,  press  the  back  button  to  return camera  preview  screen,  press  the  left  soft  key  to enter options, can take pictures to send or delete 9.2 Image viewer This  feature  is  convenient  for  users  to  view  the photos stored  in albums,  press  the OK key  to  open  the picture, press the left soft key to open the option menu:    View: open the current image to view.    Image  information:  can  display  the  current  image information.    Browse style: can set to list style or Matrix style. Send:Pictures can be selected through the "MMS" or "Bluetooth" method to send. Use as: The selected picture set to phone wallpaper, Screen saver, power on display, power off display. Rename: Change the name of the selected picture. Delete:Delete the select image. Sort by:Can sort by name, Type, Time, Size, None Delete all files:Delete all image files. Storage:Can choose phone or memory card as the storage location Note:   When  no  pictures  in  Image  viewer,  the  options menu only displays the browse style and storage. 9.3 Video recorder In the multimedia menu, select the video recorder into the video  preview  screen,  Press  left/right  navigation  key  to adjust  [Exposal  bias],  Press  up/down  navigation  key  to adjust  [Focal  distance],  press  “2”  key  to  adjust  [video quality], press “3” key to adjust [Night mode], press”4”key

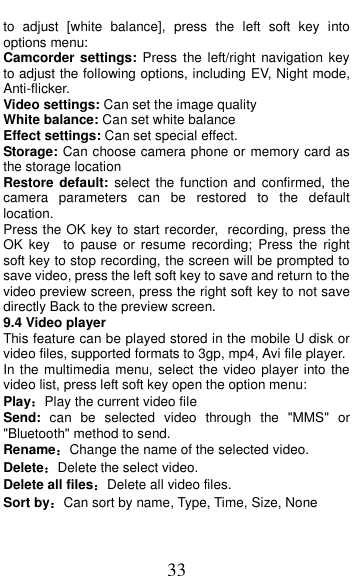

 33 to  adjust  [white  balance],  press  the  left  soft  key  into options menu: Camcorder settings:  Press  the left/right navigation  key to adjust the following options, including EV, Night mode, Anti-flicker. Video settings: Can set the image quality White balance: Can set white balance Effect settings: Can set special effect. Storage: Can choose camera phone or memory card as the storage location Restore  default:  select  the function  and  confirmed,  the camera  parameters  can  be  restored  to  the  default location. Press the OK key to start recorder, recording, press the OK  key    to pause  or  resume  recording;  Press  the  right soft key to stop recording, the screen will be prompted to save video, press the left soft key to save and return to the video preview screen, press the right soft key to not save directly Back to the preview screen. 9.4 Video player This feature can be played stored in the mobile U disk or video files, supported formats to 3gp, mp4, Avi file player. In the multimedia menu, select  the  video player  into the video list, press left soft key open the option menu:   Play:Play the current video file Send:  can  be  selected  video  through  the  "MMS"  or "Bluetooth" method to send. Rename:Change the name of the selected video. Delete:Delete the select video. Delete all files:Delete all video files. Sort by:Can sort by name, Type, Time, Size, None

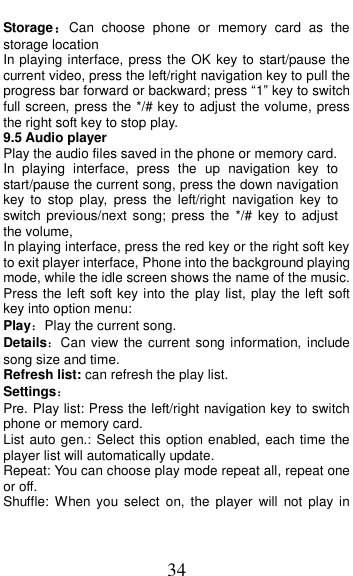

 34 Storage:Can  choose  phone  or  memory  card  as  the storage location In playing interface, press the OK key to start/pause the current video, press the left/right navigation key to pull the progress bar forward or backward; press “1” key to switch full screen, press the */# key to adjust the volume, press the right soft key to stop play.   9.5 Audio player Play the audio files saved in the phone or memory card. In  playing  interface,  press  the  up  navigation  key  to start/pause the current song, press the down navigation key  to  stop play,  press  the  left/right  navigation  key  to switch previous/next song; press the  */#  key  to adjust the volume, In playing interface, press the red key or the right soft key to exit player interface, Phone into the background playing mode, while the idle screen shows the name of the music. Press the left soft key into the play list, play the left soft key into option menu: Play:Play the current song. Details:Can  view the current song information,  include song size and time. Refresh list: can refresh the play list. Settings: Pre. Play list: Press the left/right navigation key to switch phone or memory card. List auto gen.: Select this option enabled, each time the player list will automatically update. Repeat: You can choose play mode repeat all, repeat one or off. Shuffle: When you  select  on, the  player  will  not  play  in

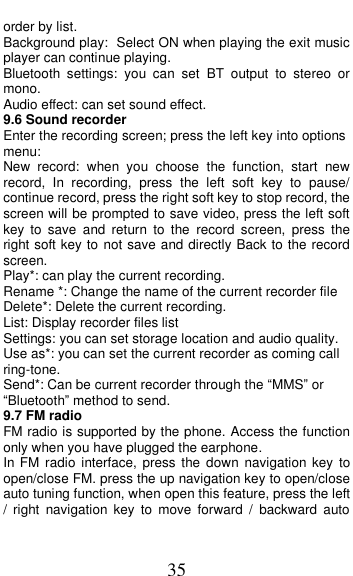

 35 order by list. Background play: Select ON when playing the exit music player can continue playing. Bluetooth  settings:  you  can  set  BT  output  to  stereo  or mono. Audio effect: can set sound effect. 9.6 Sound recorder Enter the recording screen; press the left key into options menu: New  record:  when  you  choose  the  function,  start  new record,  In  recording,  press  the  left  soft  key  to  pause/ continue record, press the right soft key to stop record, the screen will be prompted to save video, press the left soft key  to  save  and  return  to  the  record  screen,  press  the right soft key to not save and directly Back to the record screen. Play*: can play the current recording. Rename *: Change the name of the current recorder file Delete*: Delete the current recording. List: Display recorder files list Settings: you can set storage location and audio quality. Use as*: you can set the current recorder as coming call ring-tone. Send*: Can be current recorder through the “MMS” or “Bluetooth” method to send. 9.7 FM radio FM radio is supported by the phone. Access the function only when you have plugged the earphone. In FM radio  interface,  press  the  down  navigation key  to open/close FM. press the up navigation key to open/close auto tuning function, when open this feature, press the left /  right  navigation  key  to  move  forward  /  backward  auto

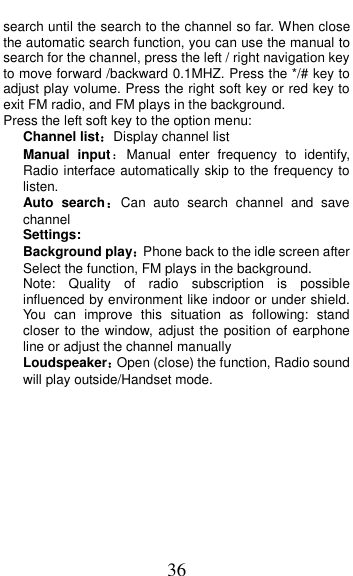

 36 search until the search to the channel so far. When close the automatic search function, you can use the manual to search for the channel, press the left / right navigation key to move forward /backward 0.1MHZ. Press the */# key to adjust play volume. Press the right soft key or red key to exit FM radio, and FM plays in the background. Press the left soft key to the option menu: Channel list:Display channel list Manual  input:Manual  enter  frequency  to  identify, Radio interface automatically skip to the frequency to listen. Auto  search:Can  auto  search  channel  and  save channel Settings: Background play:Phone back to the idle screen after Select the function, FM plays in the background. Note:  Quality  of  radio  subscription  is  possible influenced by environment like indoor or under shield. You  can  improve  this  situation  as  following:  stand closer to the window, adjust the position of earphone line or adjust the channel manually Loudspeaker:Open (close) the function, Radio sound will play outside/Handset mode.

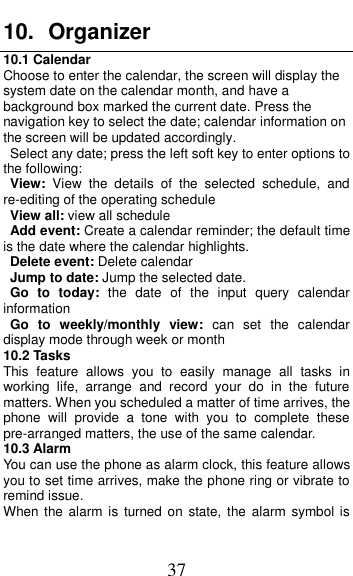

 37 10.  Organizer 10.1 Calendar Choose to enter the calendar, the screen will display the system date on the calendar month, and have a background box marked the current date. Press the navigation key to select the date; calendar information on the screen will be updated accordingly.   Select any date; press the left soft key to enter options to the following: View:  View  the  details  of  the  selected  schedule,  and re-editing of the operating schedule View all: view all schedule Add event: Create a calendar reminder; the default time is the date where the calendar highlights. Delete event: Delete calendar Jump to date: Jump the selected date. Go  to  today:  the  date  of  the  input  query  calendar information Go  to  weekly/monthly  view:  can  set  the  calendar display mode through week or month 10.2 Tasks This  feature  allows  you  to  easily  manage  all  tasks  in working  life,  arrange  and  record  your  do  in  the  future matters. When you scheduled a matter of time arrives, the phone  will  provide  a  tone  with  you  to  complete  these pre-arranged matters, the use of the same calendar. 10.3 Alarm You can use the phone as alarm clock, this feature allows you to set time arrives, make the phone ring or vibrate to remind issue. When the alarm  is  turned on  state, the  alarm  symbol is

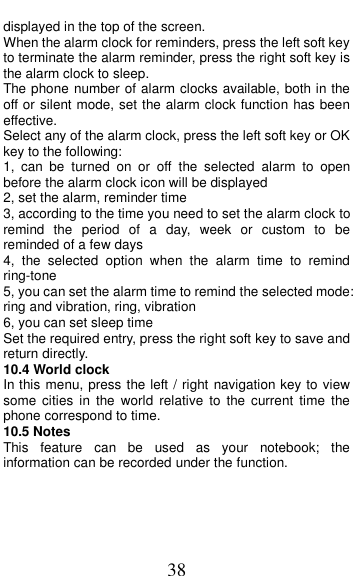

 38 displayed in the top of the screen.   When the alarm clock for reminders, press the left soft key to terminate the alarm reminder, press the right soft key is the alarm clock to sleep. The phone number of alarm clocks available, both in the off or silent mode, set the alarm clock function has been effective. Select any of the alarm clock, press the left soft key or OK key to the following: 1,  can  be  turned  on  or  off  the  selected  alarm  to  open before the alarm clock icon will be displayed 2, set the alarm, reminder time 3, according to the time you need to set the alarm clock to remind  the  period  of  a  day,  week  or  custom  to be reminded of a few days 4,  the  selected  option  when  the  alarm  time  to  remind ring-tone 5, you can set the alarm time to remind the selected mode: ring and vibration, ring, vibration 6, you can set sleep time Set the required entry, press the right soft key to save and return directly. 10.4 World clock In this menu, press the left / right navigation key to view some  cities  in  the  world  relative  to  the  current  time  the phone correspond to time. 10.5 Notes This  feature  can  be  used  as  your  notebook;  the information can be recorded under the function.

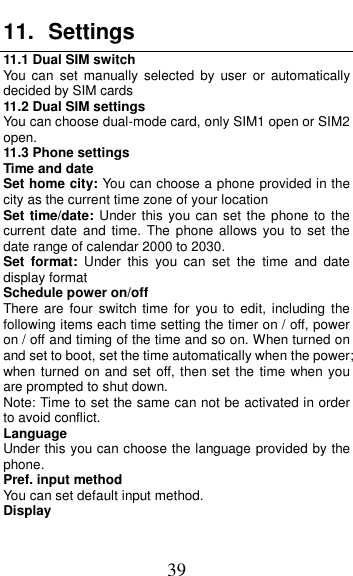

 39 11.  Settings 11.1 Dual SIM switch You  can  set  manually  selected  by  user  or  automatically decided by SIM cards 11.2 Dual SIM settings You can choose dual-mode card, only SIM1 open or SIM2 open. 11.3 Phone settings Time and date Set home city: You can choose a phone provided in the city as the current time zone of your location Set time/date:  Under this you can set  the phone to the current date  and  time.  The  phone allows  you  to  set  the date range of calendar 2000 to 2030. Set  format:  Under  this  you  can  set  the  time  and  date display format Schedule power on/off There are four switch  time  for  you to edit,  including  the following items each time setting the timer on / off, power on / off and timing of the time and so on. When turned on and set to boot, set the time automatically when the power; when turned on and set off, then set the time when you are prompted to shut down. Note: Time to set the same can not be activated in order to avoid conflict. Language   Under this you can choose the language provided by the phone. Pref. input method You can set default input method. Display
 40 Wallpaper: The  standby  interface  is  used  to  set  the background wallpaper. You  can  choose  from  the  built-in wallpaper can  also  be selected from File Manager image file. Screen saver: Status: The following can be turned on or off the screen saver function Wait time: This screen saver can be set to start the waiting time for 5S, 15S, 30S, 1minute Select Screen Saver: This screen saver  can choose the system  default  can  also  choose  from  other  document management as a screen saver picture Power on display: The animation can be set to boot; you can choose preset animation for mobile phones, but also into the File Manager, select the desired animation. Power off display: The animation can be set to shutdown, set with the power on display Show  date and  time:  You  can  set the idle screen  time display on or off. Flight mode This optional mode in which the phone is normal mode or flight mode, flight mode if you choose, the phone can only use some of the functions of non-communications Misc. settings Under this function can be left / right navigation key on the backlight to adjust the time 11.4 Network settings Can be set automatically or manually select the network, select Automatic, the phone will be SIM card based on the network where the first selection, select Manual, you need to  select  the  SIM  card  registered  with  the  network operator can use the same network

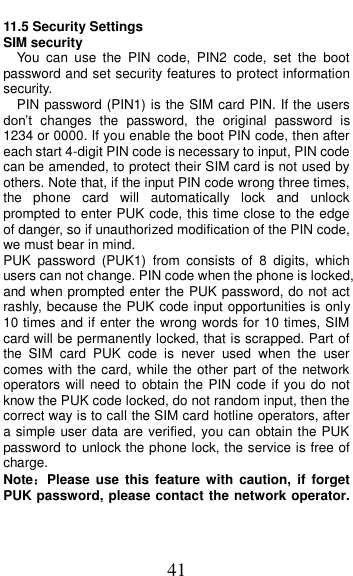

 41 11.5 Security Settings SIM security You  can  use  the  PIN  code,  PIN2  code,  set  the  boot password and set security features to protect information security. PIN password (PIN1) is the SIM card PIN. If the users don’t  changes  the  password,  the  original  password  is 1234 or 0000. If you enable the boot PIN code, then after each start 4-digit PIN code is necessary to input, PIN code can be amended, to protect their SIM card is not used by others. Note that, if the input PIN code wrong three times, the  phone  card  will  automatically  lock  and  unlock prompted to enter PUK code, this time close to the edge of danger, so if unauthorized modification of the PIN code, we must bear in mind.   PUK  password  (PUK1)  from  consists  of  8  digits,  which users can not change. PIN code when the phone is locked, and when prompted enter the PUK password, do not act rashly, because the PUK code input opportunities is only 10 times and if enter the wrong words for 10 times, SIM card will be permanently locked, that is scrapped. Part of the  SIM  card  PUK  code  is  never  used  when  the  user comes with the card, while the other part of the network operators will  need to  obtain the PIN code  if you do not know the PUK code locked, do not random input, then the correct way is to call the SIM card hotline operators, after a simple user data are verified, you can obtain the PUK password to unlock the phone lock, the service is free of charge. Note:Please  use  this  feature  with  caution,  if  forget PUK password, please contact the network operator.

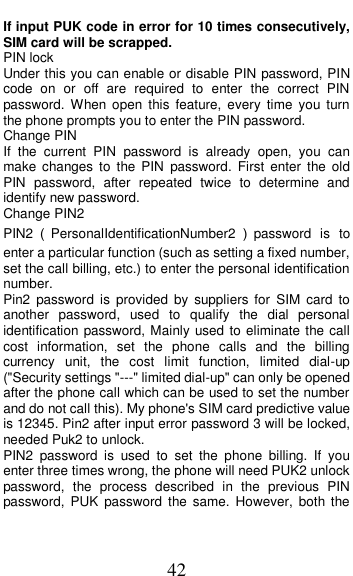

 42 If input PUK code in error for 10 times consecutively, SIM card will be scrapped. PIN lock Under this you can enable or disable PIN password, PIN code  on  or  off  are  required  to  enter  the  correct  PIN password. When open  this  feature, every  time  you  turn the phone prompts you to enter the PIN password. Change PIN If  the  current  PIN  password  is  already  open,  you  can make  changes  to  the  PIN  password.  First  enter  the  old PIN  password,  after  repeated  twice  to  determine  and identify new password. Change PIN2 PIN2(PersonalIdentificationNumber2 )password  is to enter a particular function (such as setting a fixed number, set the call billing, etc.) to enter the personal identification number. Pin2  password  is  provided  by  suppliers  for  SIM card  to another  password,  used  to  qualify  the  dial  personal identification password, Mainly used to eliminate the call cost  information,  set  the  phone  calls  and  the  billing currency  unit,  the  cost  limit  function,  limited  dial-up ("Security settings "---" limited dial-up" can only be opened after the phone call which can be used to set the number and do not call this). My phone's SIM card predictive value is 12345. Pin2 after input error password 3 will be locked, needed Puk2 to unlock. PIN2  password  is  used  to  set  the  phone  billing.  If  you enter three times wrong, the phone will need PUK2 unlock password,  the  process  described  in  the  previous  PIN password, PUK  password  the  same.  However,  both  the

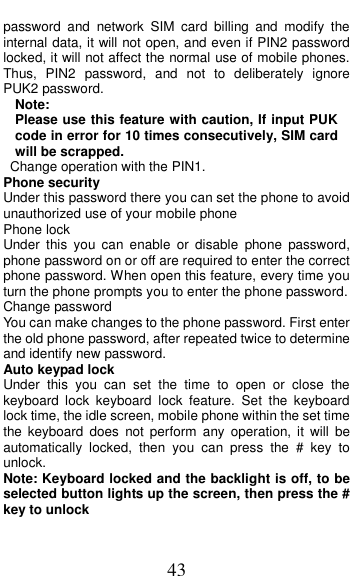

 43 password  and  network  SIM  card  billing  and  modify  the internal data, it will not open, and even if PIN2 password locked, it will not affect the normal use of mobile phones. Thus,  PIN2  password,  and  not  to  deliberately  ignore PUK2 password. Note:   Please use this feature with caution, If input PUK code in error for 10 times consecutively, SIM card will be scrapped.   Change operation with the PIN1. Phone security Under this password there you can set the phone to avoid unauthorized use of your mobile phone Phone lock Under  this  you  can  enable  or  disable  phone  password, phone password on or off are required to enter the correct phone password. When open this feature, every time you turn the phone prompts you to enter the phone password. Change password You can make changes to the phone password. First enter the old phone password, after repeated twice to determine and identify new password. Auto keypad lock Under  this  you  can  set  the  time  to  open  or  close  the keyboard  lock  keyboard  lock  feature.  Set  the  keyboard lock time, the idle screen, mobile phone within the set time the  keyboard  does  not  perform  any operation,  it  will  be automatically  locked,  then  you  can  press  the  #  key  to unlock. Note: Keyboard locked and the backlight is off, to be selected button lights up the screen, then press the # key to unlock

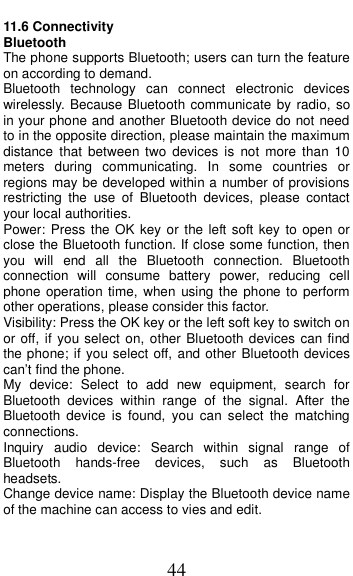

 44 11.6 Connectivity Bluetooth The phone supports Bluetooth; users can turn the feature on according to demand.   Bluetooth  technology  can  connect  electronic  devices wirelessly. Because Bluetooth communicate by radio, so in your phone and another Bluetooth device do not need to in the opposite direction, please maintain the maximum distance that  between two  devices  is  not  more  than  10 meters  during  communicating.  In  some  countries  or regions may be developed within a number of provisions restricting  the  use  of  Bluetooth  devices,  please  contact your local authorities.   Power: Press the OK  key or the left soft key  to open or close the Bluetooth function. If close some function, then you  will  end  all  the  Bluetooth  connection.  Bluetooth connection  will  consume  battery  power,  reducing  cell phone operation time, when  using the phone to perform other operations, please consider this factor. Visibility: Press the OK key or the left soft key to switch on or off, if you select on, other Bluetooth devices can find the phone; if you select off, and other Bluetooth devices can’t find the phone. My  device:  Select  to  add  new  equipment,  search  for Bluetooth  devices  within  range  of  the  signal.  After  the Bluetooth  device  is  found,  you  can  select  the  matching connections. Inquiry  audio  device:  Search  within  signal  range  of Bluetooth  hands-free  devices,  such  as  Bluetooth headsets. Change device name: Display the Bluetooth device name of the machine can access to vies and edit.

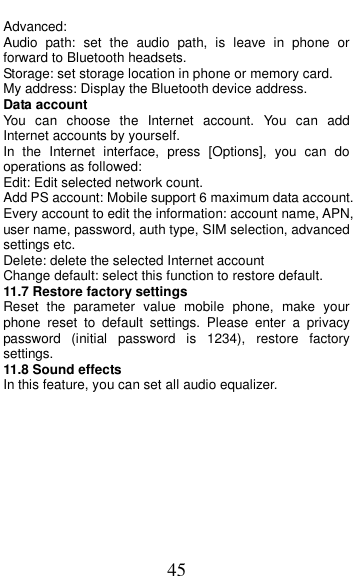

 45 Advanced: Audio  path:  set  the  audio  path,  is  leave  in  phone  or forward to Bluetooth headsets. Storage: set storage location in phone or memory card. My address: Display the Bluetooth device address. Data account You  can  choose  the  Internet  account.  You  can  add Internet accounts by yourself.   In  the  Internet  interface,  press  [Options],  you  can  do operations as followed:   Edit: Edit selected network count. Add PS account: Mobile support 6 maximum data account. Every account to edit the information: account name, APN, user name, password, auth type, SIM selection, advanced settings etc. Delete: delete the selected Internet account Change default: select this function to restore default.   11.7 Restore factory settings Reset  the  parameter  value  mobile  phone,  make  your phone  reset  to  default  settings.  Please  enter  a  privacy password  (initial  password  is  1234),  restore  factory settings. 11.8 Sound effects In this feature, you can set all audio equalizer.

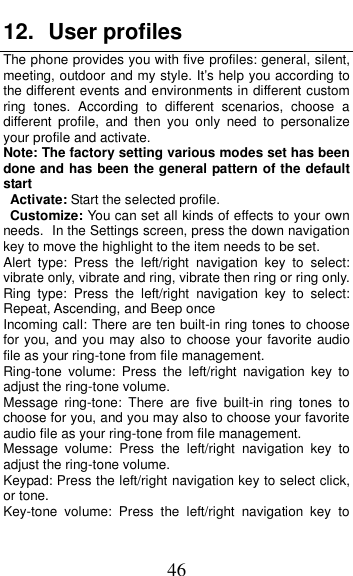

 46 12.  User profiles The phone provides you with five profiles: general, silent, meeting, outdoor and my style. It’s help you according to the different events and environments in different custom ring  tones.  According  to  different  scenarios,  choose  a different  profile,  and  then  you  only  need  to  personalize your profile and activate. Note: The factory setting various modes set has been done and has been the general pattern of the default start                                                                                                                                           Activate: Start the selected profile. Customize: You can set all kinds of effects to your own needs. In the Settings screen, press the down navigation key to move the highlight to the item needs to be set. Alert  type:  Press  the  left/right  navigation  key  to  select: vibrate only, vibrate and ring, vibrate then ring or ring only. Ring  type:  Press  the  left/right  navigation  key  to  select: Repeat, Ascending, and Beep once Incoming call: There are ten built-in ring tones to choose for you, and you may also to choose your favorite audio file as your ring-tone from file management. Ring-tone  volume:  Press  the  left/right  navigation  key  to adjust the ring-tone volume. Message  ring-tone:  There  are  five  built-in  ring  tones  to choose for you, and you may also to choose your favorite audio file as your ring-tone from file management. Message  volume:  Press  the  left/right  navigation  key  to adjust the ring-tone volume. Keypad: Press the left/right navigation key to select click, or tone.   Key-tone  volume:  Press  the  left/right  navigation  key  to

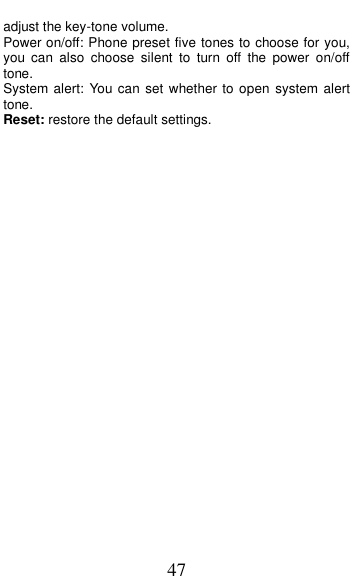

 47 adjust the key-tone volume. Power on/off: Phone preset five tones to choose for you, you  can  also  choose  silent  to  turn  off  the  power  on/off tone. System alert:  You can set  whether to open  system alert tone. Reset: restore the default settings.

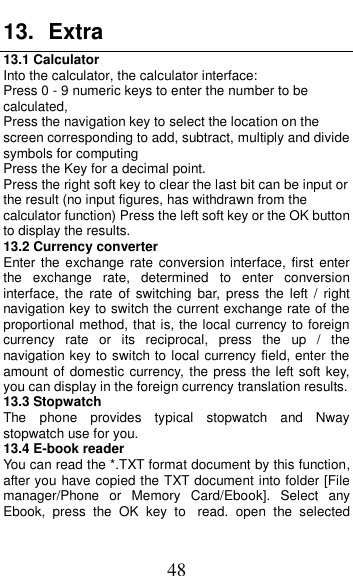

 48 13.  Extra 13.1 Calculator Into the calculator, the calculator interface: Press 0 - 9 numeric keys to enter the number to be calculated, Press the navigation key to select the location on the screen corresponding to add, subtract, multiply and divide symbols for computing Press the Key for a decimal point. Press the right soft key to clear the last bit can be input or the result (no input figures, has withdrawn from the calculator function) Press the left soft key or the OK button to display the results. 13.2 Currency converter Enter the exchange rate  conversion interface,  first  enter the  exchange  rate,  determined  to  enter  conversion interface,  the  rate  of  switching  bar, press  the  left  /  right navigation key to switch the current exchange rate of the proportional method, that is, the local currency to foreign currency  rate  or  its  reciprocal,  press  the  up  /  the navigation key to switch to local currency field, enter the amount of domestic currency, the press the left soft key, you can display in the foreign currency translation results. 13.3 Stopwatch The  phone  provides  typical  stopwatch  and  Nway stopwatch use for you. 13.4 E-book reader You can read the *.TXT format document by this function, after you have copied the TXT document into folder [File manager/Phone  or  Memory  Card/Ebook].  Select  any Ebook,  press  the  OK  key  to read.  open  the  selected

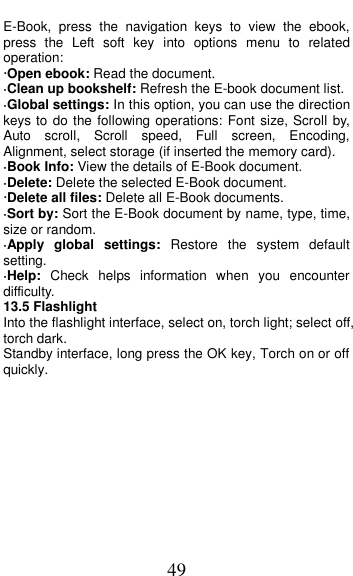

 49 E-Book,  press  the  navigation  keys  to  view  the  ebook, press  the  Left  soft  key  into  options  menu  to  related operation: ·Open ebook: Read the document. ·Clean up bookshelf: Refresh the E-book document list. ·Global settings: In this option, you can use the direction keys to  do the following operations: Font size, Scroll by, Auto  scroll,  Scroll  speed,  Full  screen,  Encoding, Alignment, select storage (if inserted the memory card). ·Book Info: View the details of E-Book document. ·Delete: Delete the selected E-Book document. ·Delete all files: Delete all E-Book documents. ·Sort by: Sort the E-Book document by name, type, time, size or random. ·Apply  global  settings:  Restore  the  system  default setting. ·Help:  Check  helps  information  when  you  encounter difficulty. 13.5 Flashlight Into the flashlight interface, select on, torch light; select off, torch dark. Standby interface, long press the OK key, Torch on or off quickly.

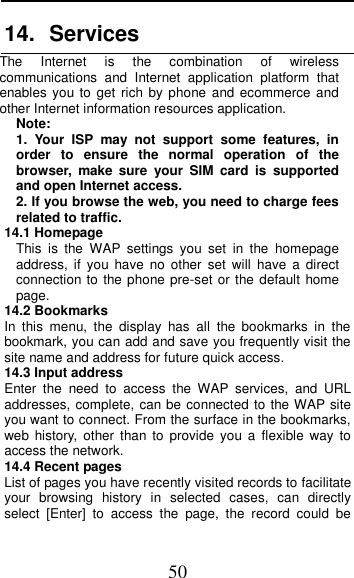

 50 14.  Services   The  Internet  is  the  combination  of  wireless communications  and  Internet  application  platform  that enables you to get  rich by phone and ecommerce  and other Internet information resources application. Note: 1.  Your  ISP  may  not  support  some  features,  in order  to  ensure  the  normal  operation  of  the browser,  make  sure  your  SIM  card  is  supported and open Internet access. 2. If you browse the web, you need to charge fees related to traffic. 14.1 Homepage This  is  the  WAP  settings  you  set  in  the  homepage address,  if  you  have  no  other  set  will  have  a  direct connection to the phone pre-set or the default  home page. 14.2 Bookmarks In  this  menu,  the  display  has  all  the  bookmarks  in  the bookmark, you can add and save you frequently visit the site name and address for future quick access. 14.3 Input address Enter  the  need  to  access  the  WAP  services,  and  URL addresses, complete, can be connected to the WAP site you want to connect. From the surface in the bookmarks, web  history,  other than to  provide  you  a  flexible  way  to access the network.    14.4 Recent pages List of pages you have recently visited records to facilitate your  browsing  history  in  selected  cases,  can  directly select  [Enter]  to  access  the  page,  the  record  could  be

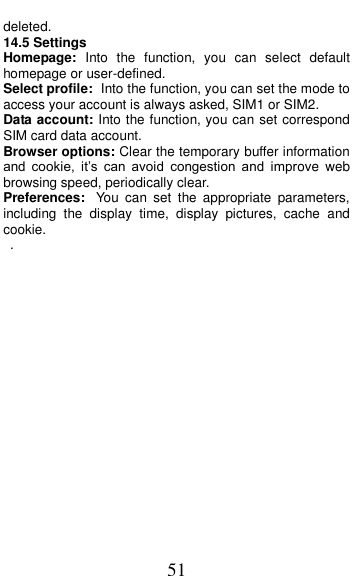

 51 deleted. 14.5 Settings Homepage:  Into  the  function,  you  can  select  default homepage or user-defined. Select profile: Into the function, you can set the mode to access your account is always asked, SIM1 or SIM2. Data account: Into the function, you can set correspond SIM card data account. Browser options: Clear the temporary buffer information and  cookie,  it’s  can  avoid  congestion  and  improve  web browsing speed, periodically clear. Preferences: You  can  set  the  appropriate  parameters, including  the  display  time,  display  pictures,  cache  and cookie. .

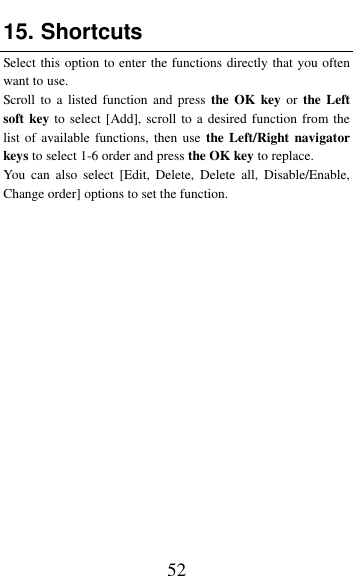

 52 15. Shortcuts Select this option to enter the functions directly that you often want to use. Scroll to  a  listed function  and press  the OK key  or  the Left soft key to select [Add], scroll to a desired function from the list of  available  functions, then  use  the Left/Right navigator keys to select 1-6 order and press the OK key to replace. You  can  also  select [Edit,  Delete,  Delete  all,  Disable/Enable, Change order] options to set the function.

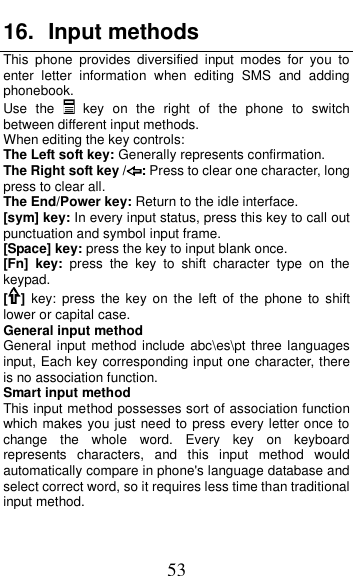

 53 16.  Input methods This  phone  provides  diversified  input  modes  for  you  to enter  letter  information  when  editing  SMS  and  adding phonebook.   Use  the   key  on  the  right  of  the  phone  to  switch between different input methods. When editing the key controls: The Left soft key: Generally represents confirmation. The Right soft key / : Press to clear one character, long press to clear all. The End/Power key: Return to the idle interface. [sym] key: In every input status, press this key to call out punctuation and symbol input frame. [Space] key: press the key to input blank once. [Fn]  key:  press  the  key  to  shift  character  type  on  the keypad. []  key:  press  the  key  on  the  left  of  the  phone  to  shift lower or capital case. General input method General input method  include abc\es\pt  three languages input, Each key corresponding input one character, there is no association function.   Smart input method This input method possesses sort of association function which makes you just need to press every letter once to change  the  whole  word.  Every  key  on  keyboard represents  characters,  and  this  input  method  would automatically compare in phone's language database and select correct word, so it requires less time than traditional input method.

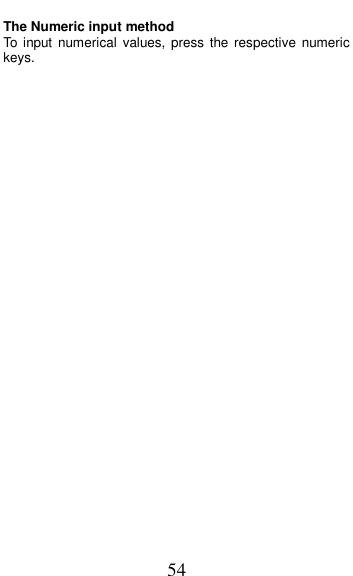

 54 The Numeric input method To  input  numerical  values, press  the respective numeric keys.

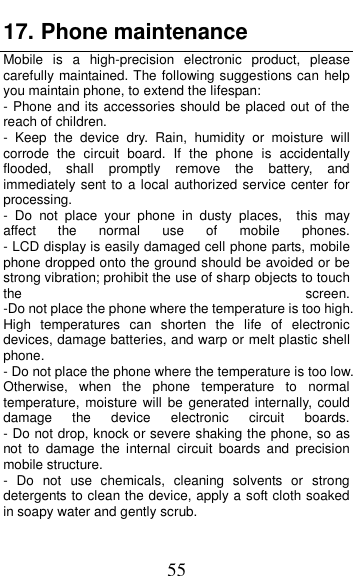

 55 17. Phone maintenance                           Mobile  is  a  high-precision  electronic  product,  please carefully maintained. The following suggestions can help you maintain phone, to extend the lifespan: - Phone and its accessories should be placed out of the reach of children.               -  Keep  the  device  dry.  Rain,  humidity  or  moisture  will corrode  the  circuit  board.  If  the  phone  is  accidentally flooded,  shall  promptly  remove  the  battery,  and immediately sent to a local authorized service center for processing.        -  Do  not  place  your  phone  in  dusty  places,    this  may affect  the  normal  use  of  mobile  phones.                                                       - LCD display is easily damaged cell phone parts, mobile phone dropped onto the ground should be avoided or be strong vibration; prohibit the use of sharp objects to touch the  screen.                                          -Do not place the phone where the temperature is too high. High  temperatures  can  shorten  the  life  of  electronic devices, damage batteries, and warp or melt plastic shell phone.                                                     - Do not place the phone where the temperature is too low. Otherwise,  when  the  phone  temperature  to  normal temperature, moisture will  be  generated internally, could damage  the  device  electronic  circuit  boards.                               - Do not drop, knock or severe shaking the phone, so as not  to  damage  the  internal  circuit  boards  and  precision mobile structure.                     -  Do  not  use  chemicals,  cleaning  solvents  or  strong detergents to clean the device, apply a soft cloth soaked in soapy water and gently scrub.

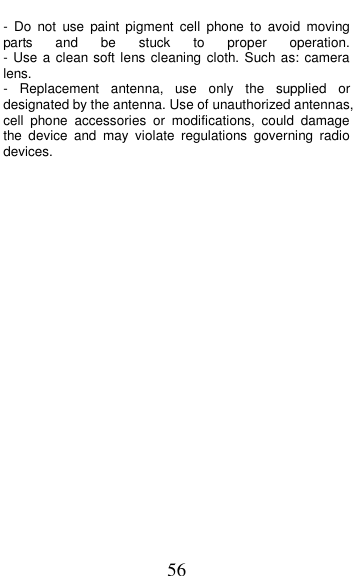

 56 -  Do  not  use  paint  pigment  cell  phone  to  avoid  moving parts  and  be  stuck  to  proper  operation.                                                      - Use a clean soft lens cleaning cloth. Such as: camera lens.     -  Replacement  antenna,  use  only  the  supplied  or designated by the antenna. Use of unauthorized antennas, cell  phone  accessories  or  modifications,  could  damage the  device  and  may  violate  regulations  governing  radio devices.

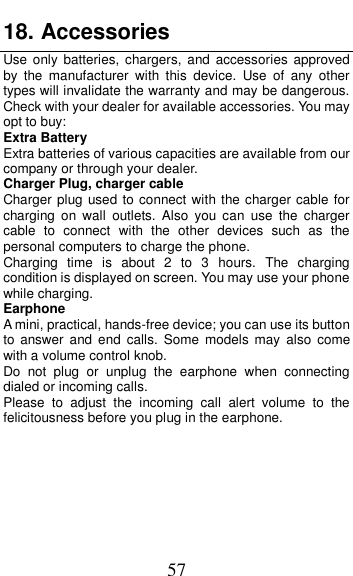

 57 18. Accessories Use only batteries, chargers,  and  accessories  approved by  the  manufacturer  with  this  device.  Use  of  any  other types will invalidate the warranty and may be dangerous. Check with your dealer for available accessories. You may opt to buy: Extra Battery Extra batteries of various capacities are available from our company or through your dealer. Charger Plug, charger cable Charger plug used to connect with the charger cable for charging  on  wall  outlets.  Also  you can  use the  charger cable  to  connect  with  the  other  devices  such  as  the personal computers to charge the phone.     Charging  time  is  about  2  to  3  hours.  The  charging condition is displayed on screen. You may use your phone while charging. Earphone A mini, practical, hands-free device; you can use its button to  answer and end  calls.  Some  models  may  also  come with a volume control knob.   Do  not  plug  or  unplug  the  earphone  when  connecting dialed or incoming calls. Please  to  adjust  the  incoming  call  alert  volume  to  the felicitousness before you plug in the earphone.

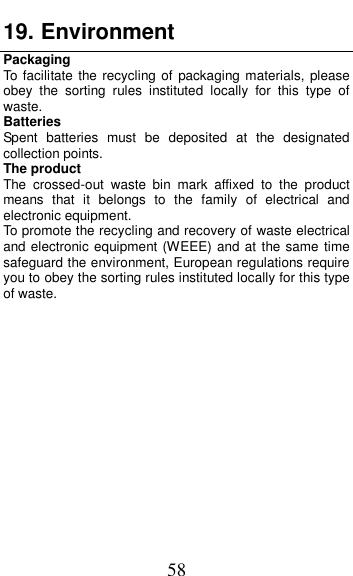

 58 19. Environment Packaging To  facilitate the  recycling of packaging materials, please obey  the  sorting  rules  instituted  locally  for  this  type  of waste. Batteries Spent  batteries  must  be  deposited  at  the  designated collection points. The product The  crossed-out  waste  bin  mark  affixed  to  the  product means  that  it  belongs  to  the  family  of  electrical  and electronic equipment. To promote the recycling and recovery of waste electrical and electronic equipment (WEEE) and at the same time safeguard the environment, European regulations require you to obey the sorting rules instituted locally for this type of waste.

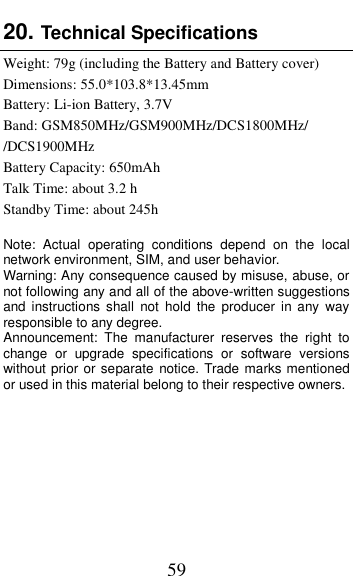

 59 20. Technical Specifications   Weight: 79g (including the Battery and Battery cover) Dimensions: 55.0*103.8*13.45mm Battery: Li-ion Battery, 3.7V Band: GSM850MHz/GSM900MHz/DCS1800MHz/ /DCS1900MHz Battery Capacity: 650mAh Talk Time: about 3.2 h Standby Time: about 245h  Note:  Actual  operating  conditions  depend  on  the  local network environment, SIM, and user behavior.   Warning: Any consequence caused by misuse, abuse, or not following any and all of the above-written suggestions and  instructions  shall  not  hold  the  producer  in  any  way responsible to any degree.     Announcement:  The  manufacturer  reserves  the  right  to change  or  upgrade  specifications  or  software  versions without prior or separate notice. Trade marks mentioned or used in this material belong to their respective owners.

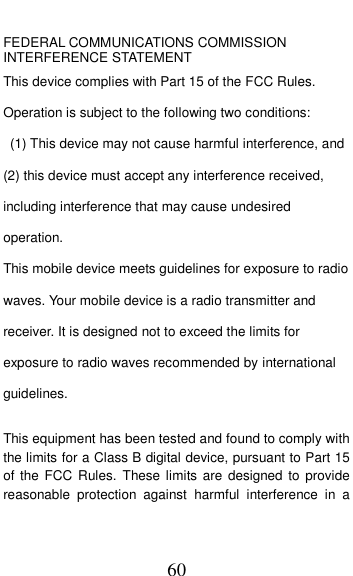

 60  FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:   (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile device meets guidelines for exposure to radio waves. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines.  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the  FCC Rules.  These limits are  designed to  provide reasonable  protection  against  harmful  interference  in  a

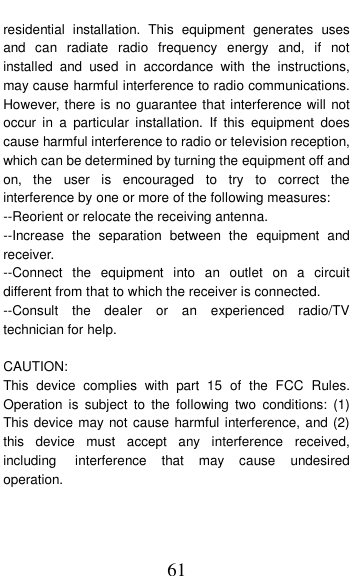

 61 residential  installation.  This  equipment  generates  uses and  can  radiate  radio  frequency  energy  and,  if  not installed  and  used  in  accordance  with  the  instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur  in  a  particular  installation.  If  this  equipment  does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,  the  user  is  encouraged  to  try  to  correct  the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase  the  separation  between  the  equipment  and receiver. --Connect  the  equipment  into  an  outlet  on  a  circuit different from that to which the receiver is connected. --Consult  the  dealer  or  an  experienced  radio/TV technician for help.  CAUTION: This  device  complies  with  part  15  of  the  FCC  Rules. Operation  is  subject  to  the  following  two  conditions:  (1) This device may not cause harmful interference, and (2) this  device  must  accept  any  interference  received, including   interference  that  may  cause  undesired operation.

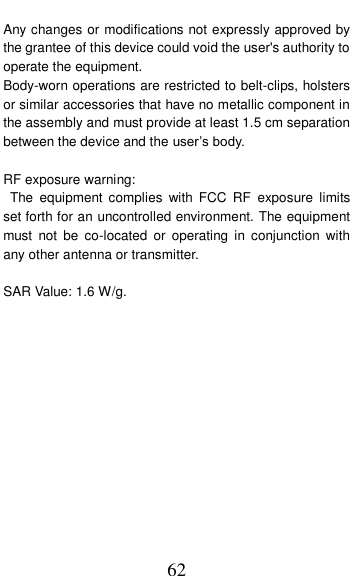

 62 Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device and the user’s body.  RF exposure warning:   The  equipment  complies  with FCC  RF  exposure  limits set forth for an uncontrolled environment. The equipment must  not  be  co-located  or  operating  in  conjunction  with any other antenna or transmitter.  SAR Value: 1.6 W/g.
